HP ProLiant ML370 Generation 6

HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs

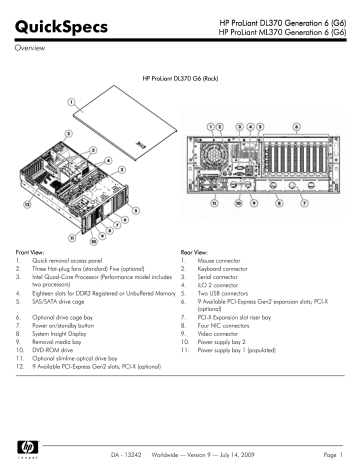

Overview
HP ProLiant DL370 G6 (Rack)
Front View:
1.
Quick removal access panel
2.
Three Hot-plug fans (standard) Five (optional)
3.
Intel Quad-Core Processor (Performance model includes
two processors)
4.
Eighteen slots for DDR3 Registered or Unbuffered Memory
5.
SAS/SATA drive cage
6.
7.
8.
9.
10.
11.
12.
Optional drive cage bay
Power on/standby button
System Insight Display
Removal media bay
DVD-ROM drive
Optional slimline optical drive bay
9 Available PCI-Express Gen2 slots; PCI-X (optional)
DA - 13242
Rear View:
1.
Mouse connector
2.
Keyboard connector
3.
Serial connector
4.
iLO 2 connector
5.
Two USB connectors
6.
9 Available PCI-Express Gen2 expansion slots; PCI-X
(optional)
7.
PCI-X Expansion slot riser bay
8.
Four NIC connectors
9.
Video connector
10. Power supply bay 2
11. Power supply bay 1 (populated)
Worldwide — Version 9 — July 14, 2009
Page 1
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Overview
HP ProLiant ML370 G6 (Tower)
Front View:
1.
Three Hot-plug fans (standard) Five (optional)
2.
Quick removal access panel
3.
Intel Quad-Core Processor (Performance model includes
two processors)
4.
Eighteen slots for DDR3 Registered or Unbuffered Memory
5.
SAS/SATA drive cage
6.
Optional drive cage bay
7.
Power on/standby button
8.
System Insight Display
9.
Removal media bay
10. DVD-ROM drive
11. Optional slimline optical drive bay
12. 9 Available PCI-Express Gen2 slots; PCI-X (optional)
Rear View:
1.
PCI-X Expansion slot riser bay
2.
Four NIC connectors
3.
Serial connector
4.
Power supply bay 2
5.
Power supply bay 1 (populated)
6.
Mouse connector
7.
Keyboard connector
8.
Video connector
9.
Two USB connectors
10. iLO 2 connector
11. 9 Available PCI-Express Gen2 expansion slots; PCI-X
(optional)
What's New
Announcing support for: *HP ProLiant DL370 G6 WW BTO Performance sku bundled with HP Insight Control Environment (ICE)
suite software *PCI-X expansion slots, via the optional HP ML and DL370 G6 PCI-X Riser Kit
Up to two (2) Intel® Xeon® 5500 series processors series with Intel Turbo Boost technology which now allows customized
adaptability for optimizing both power consumption and performance based on your respective requirements
Up to 144GB of DDR3 Registered (RDIMM) or Up to 24GB DDR3 Unbuffered (UDIMM) memory with Advanced ECC and
mirroring functionality
Nine (9) available PCI-Express Gen2 expansion slots to provide you with the latest I/O performance
At A Glance
The next generation of the HP ProLiant ML370 (expandable tower chassis) and the new HP ProLiant DL370 (4U rack optimized
chassis) deliver Industry-leading management tools, leading performance, expandability, flexibility and the latest energy efficient
technologies. These servers are well-suited for deployment in growing businesses, remote office sites, or datacenters and have been
designed to bring you (our customer) the utmost confidence to run your business.
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 2
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Overview
Features included in both the HP ProLiant ML370 G6 and the HP ProLiant DL370 G6:
Processors:
Processors
Up to two Intel® Xeon® 5500 Series processors
Intel® 5520 chipset
Memory:
Memory
18 DIMM slots
Up to 144GB, using PC3-10600R or PC3-8500R DDR3 Registered (RDIMM) memory, operating at 800MHz when fully
populated at 3 DIMMs per Channel in 18 slots.
Up to 24GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1066MHz when fully populated at
2 DIMMs per Channel in 12 slots.
Storage Controller:
Controller
Entry Models: HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: Entry Models available for ML370 G6 models only.
Base Models: HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)
Performance Models: HP Smart Array P410i/512 MB BBWC Controller (RAID 0/1/1+0/5/5+0
Available upgrades: 256MB, 512MB with BBWC, Battery kit upgrade (for BBWC), and Smart Array Advanced Pack
(SAAP)
Internal Drive Support:
Support
Up to 24 small form factor (SFF) or 14 large form factor (LFF) hot-plug drive bays to support Serial-attached SCSI (SAS)
and Serial ATA (SATA) drives
Standard half-height DVD-ROM (all models)
Two open half-height media bays available for tape drives, optical media, optional SAS HDD cage
Network Controller:
Controller
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Expansion Slots:
Slots
Nine PCIe2 slots available (see "Standard Features -Expansion Slots" section below for more details); PCI-X (optional)
Graphic Cards:
Cards
Supports up to 3 x 300W Graphic Cards via Graphic Card Power Adapter kit
NOTE: 2 PCIe Gen2 x16 (mechanical/electrical); 1 PCIe Gen2 x16 (mechanical) x8 (electrical)
Ports:
Ports
USB 2.0 support
5 total ports: (2) ports up front; (2) ports in back; (1) port internal
1 internal Secure Digital (SD) slot
Redundancy:
Redundancy
Multiple layers of fault tolerance through critical component redundancy (power supply and fan redundancy), mirrored
memory, embedded RAID capability, and full-featured remote Lights-Out management
Power Sources:
Sources
Dual Common Slot Bay for Right Sized, Hot plug and Redundant Power options
HP 1200W CS HE Silver Power Supply (optional)
HP 750W CS HE Gold Power Supply (standard on some models)
HP 460W CS HE Gold Power Supply (standard on some models)
Infrastructure Management:
Convenient slide-out Systems Insight Display for quick and easy front view server diagnostics, along with status LEDs,
Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU)
HP ProLiant Onboard Administrator (powered by the HP Integrated Lights-Out 2 management processor) for simplified
server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration.
HP Insight Control (ICE) suites, as product options, deliver essential infrastructure management that can help save time
and money by making it easy to deploy, monitor, control and optimize your IT infrastructure through a single, simple
management console. ICE suites support both Windows and Linux-based servers and management consoles
HP Insight Dynamics - VSE suite for ProLiant servers, a product option, is an integrated command center that enables
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 3
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Overview
you to continuously analyze and optimize your adaptive infrastructure. This advanced infrastructure management
software lets you reduce the cost of common data center tasks by as much as 40 percent while keeping pace with your
changing business.
Form Factor:
Factor
4U Tower Chassis and 4U Rack Optimized Chassis
Redesigned 4U Tower Chassis and the new 4U Rack Optimized Chassis to better meet our customer's density
requirements
Operating Systems and Virtualization Software Support for ProLiant Servers:
Supports Windows, RHEL, SLES, OEL, Solaris, VMware, and Citrix Essentials for XenServer
Deployment/Serviceability:
Deployment/Serviceability
Quick Deploy Rail System includes sliding universal rails, an ambidextrous cable management arm and quick release
levers for fast and easy serviceability
Tool-less access to all system components for easy in rack serviceability
Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow for
greater flexibility in performing defective parts replacement
Warranty:
Warranty
This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP
Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of
purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to
warranty services are available through HP Care Pack services or customized service agreements. SATA hard drives
have a one-year warranty. SAS Enterprise drives have a three-year warranty.
NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two
categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when
customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but
may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional
information regarding worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 4
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
Processor
Quad-Core Processors
One of the following
Intel® Xeon® Processor W5580 (3.20 GHz, 8MB L3 Cache, 130W, DDR3-1333, HT, Turbo 1/1/1/2)
depending on Model
Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT, Turbo 1/1/2/2)
Dual-Core Processors
Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W, DDR3-800)
NOTE: Up to 2 processors supported. Performance configurations include two processors. Mixing
different processor models is not supported.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost
Technology, with 4, 3, 2, and 1 cores active.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may
depend on the quantity and type of DIMMs installed.
NOTE: For the Intel 5500 Series, the letter preceding the model number indicates the
performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise
Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.
Cache Memory
One of the following
depending on Model
8MB (1 x 8MB) Level 3 cache
NOTE: All processor models except for those identified below.
4MB (1 x 4MB) Level 3 cache
NOTE: For processors E5506/E5504/E5502.
Upgradeability
Upgradeable to two processors
Chipset
Intel® 5520 chipset
NOTE: For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.
Memory Protection
Advanced ECC
Mirroring mode
Lock-step mode
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 5
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Memory
One of the following
depending on Model
Network Controller
Type
DDR3 Registered (RDIMM) or Unbuffered (UDIMM)
Standard (Performance
12 GB (6 x 2 GB) RDIMM
Models)
Standard (Base Models)
6 GB (3 x 2 GB) RDIMM
Standard (Entry Model)
4 GB (2 x 2 GB) UDIMM
Maximum (RDIMM)
144 GB (18 x 8 GB) for Registered Memory configurations
Maximum (UDIMM)
24 GB (12 x 2 GB) for Unbuffered Memory configurations
NOTE: Depending on the memory configuration and processor model, the memory speed may run at
1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at:
www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient
Features, see: www.hp.com/go/proliant-energy-efficient.
DDR3 memory options part number decoder
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 6
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Expansion Slots
Expansion Slots
#
1
Technology
Bus Width
PCIe
x4
Connector
Width
x8
2
PCIe2
x4
x8
3
PCIe2
x16
x16
4
PCIe2
x4
x8
5
PCIe2
x4
x8
6
PCIe2
x8
x16
Form Factor
Notes
Half length, full
height
Full Length/Full
Height
Full Length/Full
Height
Full Length/Full
Height
Full Length/Full
Height
Full Length/Full
Height
7
PCIe2
x4
x8
Full Length/Full
Height
8
PCIe2
x16
x16
Full Length/Full
Height
9
PCIe2
x4
x8
Full Length/Full
Height
10
PCIe2
X8
X8
Half length, full Utilized by NIC
height
controller "Use
the correct
model number
for the NIC"
11
PCI-X
Full Length/Full (optional) *Up to
Height
133Mhz speed
when only one
device install in
slot 11 and 12
*up to 100Mhz
speed when
both slot 11 and
12 are utilized.
12
PCI-X
Full Length/Full
(optional)
Height
*Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
Storage Controller
One of the following
depending on Model
Entry Models
HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)
Base Models
HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)
Performance Models
HP Smart Array P410i/512 MB BBWC Controller (RAID 0/1/1+0/5/5+0/6)
Available upgrades: 256MB, 512MB with BBWC, Battery kit upgrade (for BBWC), and Smart Array
Advanced Pack (SAAP).
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 7
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Storage
Diskette Drive
Optical Drive
Hard Drives
None Standard
SATA DVD ROM (standard in all models)
None Standard
Maximum Internal
Storage Type
Hot Plug SFF SAS
Hot Plug LFF SAS
7.20TB
14 TB
Interfaces
Serial
Pointing Device (Mouse)
VGA
1 (rear)
1
1 (+1 front VGA on rack models)
Keyboard
Network RJ-45 (Ethernet)
ILO 2.0 remote
management port
SD slot
USB 2.0 Ports
1
4 (rear)
1
Dedicated USB 2.0 Port
Graphics
24 x 300GB
14 x 1TB
1
5 (2 on the rear, 2 on the front, 1 internal)
NOTE: Please see the following URL for additional information regarding
USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html
1 (available for DAT USB tape connectivity)
NOTE: Internal USB ports are optimal for the attachment of HP DAT USB
Internal Tape Drives
Integrated ATI RN50, 64 MB video standard
16 bit color: maximum resolution of 1600 x 1200
32 bit color: maximum resolution of 1280 x 1024
NOTE: Maximum resolution available via iLO 2 remote console is 1280 x 1024.
Form Factor
4U Rack and Tower form factor (7 in, 17.8 cm)
Core Infrastructure Mgmt HP Insight Foundation
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex
Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecyle. This provides the customer with higher levels of operational efficiency
and highly reliable systems: www.hp.com/go/foundation.
The foundation pack includes:
HP SmartStart
HP Management
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 8
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
HP ProLiant Firmware Maintenance
SmartStart version supported (minimum): SmartStart 8.20
http://www.hp.com/servers/smartstart
ProLiant Onboard
HP ProLiant Onboard Administrator (powered by the HP Integrated LightsAdministrator
Out 2 management processor) simplifies server setup, health monitoring,
power and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP ProLiant Onboard Administrator functions
without additional software, and can be accessed from any location via a
web browser. It works hand-in-hand with HP Systems Insight Manager,
Insight Control suites, and the Insight Dynamics-VSE suite helping customers
unlock the value of the ProLiant platform and deliver the highest possible
quality of IT service to the business. See
www.hp.com/go/onboardadministrator
HP Insight Control (ICE)
HP Insight Control (ICE) suites, as product options, deliver essential
suites
infrastructure management that can help save time and money by making it
easy to deploy, monitor, remote control, and optimize your IT infrastructure
through a single, simple management console. ICE suites install and license
software modules that are integrated into HP System Insight Manager.
Two Insight Control suites are available, to serve environments requiring
either Linux-based or Windows-based management consoles: HP Insight
Control suite for Linux (ICE-LX), and HP Insight Control suite (ICE). See
www.hp.com/go/insightcontrol
HP Insight Control suites include one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff and
proactive delivery of software updates. For more information about this
service, please visit: http://www.hp.com/services/insight.
HP Insight Dynamics – VSE The HP Insight Dynamics - VSE suite for ProLiant, a product option, is an
suite
integrated command center that enables you to continuously analyze and
optimize your adaptive infrastructure. This advanced infrastructure
management software that allows you to analyze and optimize your adaptive
infrastructure to manage physical and virtual resources in the same way. HP
Insight Dynamics - VSE gives you a powerful toolkit to accelerate complex
technology projects and simplify daily operations. It enables you to plan
capacity and power continuously, balance across physical and virtual
resources, ensure cost-effective high availability, and provision infrastructure
consistently.
HP Insight Orchestration, an optional extension to Insight Dynamics - VSE,
enables IT organizations to provision infrastructure consistently and
automatically from pools of shared resources using a self-service portal.
Resources provisioned can range from a single virtual machine to complex
multi-tier environments and their associated physical and virtual resource
requirements.
HP Insight Recovery, also an optional extension for Insight Dynamics - VSE,
enables cost-effective disaster recovery for physical and virtual environments.
Application environments can be reactivated in minutes with the touch of a
button to a remote location.
NOTE: For more information, visit: http://www.hp.com/go/insightdynamics,
http://www.hp.com/go/insightorchestration,
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 9
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
http://www.hp.com/go/insightrecovery
Industry Standard
Compliance
ACPI V2.0 Compliant
PCI-Express Gen2
PXE Support
WOL Support
Microsoft® Logo certifications
USB 2.0 Support
SMBIOS 2.6.1
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Security Trusted Platform The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to
Module
authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.
Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows
Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module
(TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server
running Windows Server 2008 has not been tampered with while the system was offline.
For more information about TPM, including a white paper, go to www.hp.com/go/TPM
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing
the key could result in data loss.
Server Power Cords
High voltage power cord ships standard with all part numbers. Localized cables included with
geographic specific models in other world regions.
NOTE: ProLiant DL servers no longer ship standard with NEMA power cords (187335-001) that allow
connection to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to
PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a
user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the above NEMA power
cord must be ordered separately.
UPS Power Cord Matrix
Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under
Power Cords, click on the “HP Power Cord Matrix” link. That link will list cable descriptions,
requirements, and specifications for UPS and PDU units. Please see the following link:
www.hp.com/products/powercords.
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 10
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Power Supply
One of the following
depending on Model
HP has a new design for ProLiant power- the new Common Slot Power Supply bay. This design provides
the customer with commonality in power supplies across multiple platforms to save on the cost of spares
and allows HP to offer multiple power solutions to fit the customers' needs. Many HP ProLiant Servers
come with Common Slot, High Efficiency and Right-Size Power Supplies. The new HP Common Slot
power supplies are designed for the highest power efficiency without degrading performance of the
ProLiant server. Power Supplies have efficiency ratings up to 92%. There are three Right Size power
options available depending on the configuration of your server. To make sure you select the correct
power supply to meet your configuration, please use the HP Power Advisor at www.hp.com/go/proliantenergy-efficient" or www.hp.com/go/hppoweradvisor. All HP Common Slot power sources are UL, CE
Mark Compliant, Hot Plug and Redundant.
Common Slot ProLiant
It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for
your needs. HP offers three Power Supply Options:
460Watts, Common Slot, 92% Efficiency
750Watts, Common Slot, 92% Efficiency
1200Watts, Common Slot, 90% Efficiency
The HP ProLiant Common Slot Power supplies meet multiple Energy Efficiency Initiatives: Climate Savers
Computing Initiative GOLD and ECOS Consulting 80PLUS GOLD for the 460w and 750w Power
Supplies and Climate Savers Computing Initiative Silver, ECOS Consulting 80PLUS Silver for 1200w
Power Supply. HP has also been working with the EPA on developing an ENERGY STAR Computer
Server specification and plans on offering models that meet the requirements when they are published.
Please visit the ENERGY STAR website at www.energystar.gov for updates on the specification
development process and approved platforms.
Redundant Power: Optional (1+ 1 or n+n redundant) power supplies can be purchased through power
supply option kits (see Redundant Options for part numbers).
System Fans
(3) Hot Plug fans ship standard
NOTE: For full redundancy you can purchase the HP ML and DL 370G6 Redundant Fan Kit; PN:
508107-B21.
Required Cabling
For external storage cabling information, refer to the Web site at: www.hp.com/servers/dl370 or
www.hp.com/servers/ml370.
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 11
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Operating Systems and
Virtualization Software
Support for ProLiant
Servers
Microsoft Windows Server
Microsoft Windows Server 2008 Hyper-V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Enterprise Linux (OEL)
Solaris 10 for x86/x64 based Systems
VMware
HP Citrix Essentials for XenServer
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, please visit our Support Matrix at:
http://www.hp.com/go/ossupport and our driver download page
http://www.hp.com/support/ML370G6.
Rack Airflow
Requirements
Rack 10000 G2 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum
cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and rear doors, you must
allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit
adequate airflow (equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component and the side panels of the rack must be
a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This
arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling
that can lead to thermal damage.
Rack Kit
Quick deploy rail system provides tool-free support for racks with square or round mounting holes
(including Compaq/HP 7000, 9000, 10000 G2 and HP series), with an adjustment range of 24" - 36".
The ambidextrous cable management arm can be mounted on either the left or right side for improved
cable management.
Telco Rack Support
Support for all 2-post Telco racks requires the use of the standard rack kit and an additional option kit
from Rack Solutions at: http://www.racksolutions.com/hp/
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 12
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services for your specific server model please contact your sales
representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise
Configurator
The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware
portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our
valued customers. If you require "custom" rack configuration, please contact HP's Customer Business
Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
Service and Support
HP Care Pack services provide total care and support expertise with committed response designed to
meet your IT and business needs.
HP Care Pack services include coverage for the HP branded hardware options qualified for the server
and purchased at the same time or afterward that are internal to the enclosure. This also includes the
22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the
same service level and for the same coverage period as the server. Coverage of UPS Battery is not
included, and standard warranty terms & conditions apply. For servers or storage systems installed within
a rack, service also covers all HP qualified rack options installed within the same rack.
To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly
understands your server technology and systems environment. HP Services, an industry leader in
provision of multi vender support solutions, provides a range of support services designed to meet the
varying needs of your business. Whether an SMB, or large global corporation, HP has a ProLiant server
support offer to help you speedily deploy and maximize system uptime.
Recommended Service - simplify ProLiant solution implementation, maintenance, and management.
Support - 3-Year 4-Hour response 24x7 Same Business Day Coverage only
Service - Installation and Start up only
Enhanced Service - optimize service level to increase IT performance and availability.
Support - 3-Year Support Plus 24 only
Refer to the information on "Installation & Start-Up" for service on ProLiant server and Microsoft or Linux
O/S per the Customer Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm,
M-F, excluding HP holidays.
NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 13
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
http://www.hp.com/go/proliant/carepack
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 14
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
HPC Interconnects
NOTE: High Performance Computing (HPC) interconnect technologies are available for this server under the Cluster Platform
product portfolio. These high-speed interconnects are fully supported by HP when they are part of these configure to order clusters.
Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPC
Clusters with InfiniBand, Gigabit Ethernet or Myrinet Interconnects: http://www.hp.com/techservers/clusters/ucp/index.html.
HPC Interconnect
InfiniBand
Gigabit Ethernet
Myrinet XP
DA - 13242
PCI-X and PCI-Express adapters
Use embedded ports
PCI-X Rev D and Rev E adapters
Worldwide — Version 9 — July 14, 2009
Page 15
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Models
Base Models
HP ProLiant DL370 G6
E5530 2.40GHz Quad
Core SFF Base Rack
Server
487794-xx1
Processor
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
PCI-Express Slots
Power Supply
Fans
Form Factor
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 cache, 80W, DDR31066, HT, Turbo 1/1/2/2)
8MB (1 x 8MB) L3 cache
6GB (3 x 2GB) PC3-10600 (DDR3-1333) Registered DIMMs
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/256MB Controller
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
10 slots - (9) available PCI-e Gen2 slots (NOTE:
NOTE: 10 slots available, one is
taken by the NIC riser card)
(1) 750W Hot Plug Power Supply
(3) Hot Plug Fans
4U Rack
Performance Models
HP ProLiant DL370 G6
Processor
X5550 2.66GHz Quad
Core SFF High
Cache Memory
Performance Rack Server
Memory
487790-xx1
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
PCI-Express Slots
Power Supply
Fans
Form Factor
DA - 13242
Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 cache, 95W, DDR31333, HT, Turbo 2/2/3/3)
8MB (1 x 8MB) L3 cache
12GB (6 x 2GB) PC3-10600 (DDR3-1333) Registered DIMMs
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/512MB with BBWC
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
10 slots - (9) available PCI-e Gen2 slots (NOTE:
NOTE: 10 slots available, one is
taken by the NIC riser card)
(2) 750W Redundant Hot Plug Power Supplies
(5) Fully Redundant Hot Plug Fans
4U Rack
Worldwide — Version 9 — July 14, 2009
Page 16
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Models
HP ProLiant DL370 G6
X5550 2.66GHz Quad
Core SFF Performance
ICE Rack Server
576411-xx1
Processor
Cache Memory
Memory
Network Controller
Storage Controller
Manageability
Hard Drive
Internal Storage
Optical Drive
PCI-Express Slots
Power Supply
Fans
Form Factor
Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 cache, 95W, DDR31333, HT, Turbo 2/2/3/3)
8MB (1 x 8MB) L3 cache
12GB (6 x 2GB) PC3-10600 (DDR3-1333) Registered DIMMs
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/512MB with BBWC
HP Insight Control Environment No Media single server license, including 1
year of 24x7 Technical Support and Updates
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
10 slots - (9) available PCI-e Gen2 slots (NOTE:
NOTE: 10 slots available, one is
taken by the NIC riser card)
(2) 750W Redundant Hot Plug Power Supplies
(5) Fully Redundant Hot Plug Fans
4U Rack
Base Tower Models: Quad-Core
HP ProLiant ML370 G6
E5540 2.53GHz Quad
Core SFF Base Tower
Server
487791-xx1
Processor
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
PCI-Express Slots
Power Supply
Fans
Form Factor
DA - 13242
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 cache, 80W, DDR31066, HT, Turbo 1/1/2/2)
8MB (1 x 8MB) L3 cache
6GB (3 x 2GB) PC3-10600 (DDR3-1333) Registered DIMMs
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/256MB Controller
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
10 slots - (9) available PCI-e Gen2 slots (NOTE:
NOTE: 10 slots available, one is
taken by the NIC riser card)
(1) 750W Hot Plug Power Supply
(3) Hot Plug Fans
4U Tower
Worldwide — Version 9 — July 14, 2009
Page 17
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Models
Entry Tower Models: Quad-Core
HP ProLiant ML370 G6
E5520 2.26GHz Quad
Core SFF Entry Tower
Server
487795-xx1
Processor
Power Supply
Fans
Form Factor
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 cache, 80W, DDR31066, HT, Turbo 1/1/2/2)
8MB (1 x 8MB) L3 cache
4 GB (2 x 2 GB) PC3-10600 (DDR3-1333) Registered DIMMs
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/256MB Controller
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
10 slots - (9) available PCI-e Gen2 slots (NOTE:
NOTE: 10 slots available, one is
taken by the NIC riser card)
(1) 460W Hot Plug Power Supply
(3) Hot Plug Fans
4U Tower
XX=00
XX=01
XX=03
XX=04
XX=05
XX=20
XX=29
XX=37
XX=42
XX=AA
Tower Code Key
U.S.
Australia
UK
Germany
France
Brazil
Japan
A/P
Europe
PRC
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
PCI-Express Slots
Country Code Key
DA - 13242
Rack Code Key
U.S.
N/A
N/A
N/A
N/A
Brazil
Japan
A/P
Europe
PRC
Worldwide — Version 9 — July 14, 2009
Page 18
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are
ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO
product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start
with a CTO Chassis.
NOTE: FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration (choose one of the following configurable models)
Models
HP ProLiant ML370 G6 Tower Models
HP ProLiant ML370 G6 SFF CTO Chassis
NOTE: Supports Small Form Factor (SFF) - 2.5" Drives
Factory Integrated Model ships with:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Integrated Lights-Out embedded
HP Smart Array P410i/Zero Memory Controller
(8) Hot-Plug (SFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
Tower Form Factor
HP ProLiant ML370 G6 Tower CTO Chassis
HP ProLiant ML370 G6 LFF CTO Chassis
NOTE: Supports Large Form Factor (LFF) - 3.5" Drives
Factory Integrated Model ships with:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Integrated Lights-Out embedded
HP Smart Array P410i/Zero Memory Controller
(6) Hot-Plug (LFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
Tower Form Factor
HP ProLiant DL370 G6 Rack Models
HP ProLiant DL370 G6 SFF CTO Chassis
NOTE: Supports Small Form Factor (SFF) - 2.5" Drives
Factory Integrated Model ships with:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Integrated Lights-Out embedded
HP Smart Array P410i/Zero Memory Controller
(8) Hot-Plug (SFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
4U Rack Form Factor
HP ProLiant DL370 G6 LFF CTO Chassis
NOTE: Supports Large Form Factor (LFF) - 3.5" Drives
Factory Integrated Model ships with:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
DA - 13242
Worldwide — Version 9 — July 14, 2009
483880-B21
483879-B21
483874-B21
483873-B21
Page 19
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Configuration Information - Factory Integrated Models
Integrated Lights-Out embedded
HP Smart Array P410i/Zero Memory Controller
(6) Hot-Plug (LFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
4U Rack Form Factor
Step 2: Choose Required Options (only one of the following from each list)
Processors
Base Memory
NOTE: If High Performance Model features are desired, 2nd processor is included in
the Performance Pack part numbers in Step 3 below.
Quad-Core Processors
Intel® Xeon® Processor W5580 (3.20 GHz, 8MB L3 Cache, 130W, DDR3-1333,
HT, Turbo 1/1/1/2)
Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,
Turbo 2/2/3/3), FIO
Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,
Turbo 2/2/3/3), FIO
Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,
Turbo 2/2/3/3), FIO
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,
Turbo 1/1/2/2), FIO
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,
Turbo 1/1/2/2), FIO
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,
Turbo 1/1/2/2), FIO
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800), FIO
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800), FIO
Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT,
Turbo 1/1/2/2), FIO
Dual-Core Processors
Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W, DDR3-800), FIO
Registered DIMMs (RDIMMs)
HP 2GB 2Rx8 PC3-10600R-9 Kit
HP 4GB 2Rx4 PC3-10600R-9 Kit
HP 4GB 4Rx8 PC3-8500R-7 LP Kit
HP 8GB 2Rx4 PC3-10600R-9 Kit
HP 8GB 2Rx4 PC3-8500R-7 Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB 1Rx8 PC3-10600E-9 Kit
HP 2GB 2Rx8 PC3-10600E-9 Kit
DA - 13242
Worldwide — Version 9 — July 14, 2009
495928-L21
495930-L21
495932-L21
495934-L21
495936-L21
495938-L21
495940-L21
495942-L21
495944-L21
505511-L21
495946-L21
500656-B21
500658-B21
500660-B21
500662-B21
516423-B21
500668-B21
500670-B21
Page 20
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Configuration Information - Factory Integrated Models
Power Supply
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
NOTE: Refer to HP Power Advisor when selecting a power supply for your
configuration, www.hp.co/go/hppoweradvisor. Many HP ProLiant Servers now offer
new power options, including Common Slot Power Supplies. These power supplies
come in multiple power ratings and higher efficiency levels to offer the Right Size
solution to fit your configuration. This provides improved power delivery and the
advantage of reclaiming lost power. Prior to making a power supply selection it is
"highly recommended" that the "HP Power Advisor" is run to determine the right size
power supply for your server configuration. The HP Power Advisor is located at
"www.hp.com/go/proliant-energy-efficient" or www.hp.com/go/hppoweradvisor
HP 460W CS HE Power Supply Kit
HP 750W CS HE Power Supply Kit
HP 1200W CS HE Power Supply Kit
NOTE: Option Kits contain optional power supply, an IEC power cable and PDU IEC
cables.
503296-B21
512327-B21
500172-B21
Step 3: Choose Additional Factory Integratable Options
Controllers
Performance Packs
NOTE: If Additional Memory Cache Module or Controller is Required please pick one
of the following:
HP 256 MB P-series cache module FIO
NOTE: Available for P410i only.
512MB BBWC
HP Smart Array P212/256 MB w/ Battery FIO
HP Smart Array P410/256 MB w/ Battery FIO
HP Smart Array P411/256 MB w/ Battery FIO
Performance Packs are necessary to configure a HP ProLiant DL370 G6 or a HP
ProLiant ML370 G6 to a High Performance Model which includes the latest
performance technologies and enterprise class availability features pre-installed for
convenience and value. The Performance Pack includes a 2nd processor, redundant
fans, power supply, and memory expansion board.
NOTE: Must also select 447326-B21 to achieve parity to DL370 G6 or ML370 G6
High Performance Models.
HP DL370 G6 and ML370 G6 X5550 HPM FIO Perf Kit
534108-B21
462967-B21
491191-B21
491195-B21
491193-B21
516727-B21
Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below.
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 21
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Core Options
NOTE: Some options may not be available for factory integration. Please contact an HP sales representative for additional
information.
HP ML350/370 G6 8 Small Form Factor (SFF) 2nd Drive Cage Kit
507803-B21
Unique Options
HP ML/DL370 G6 6 Large Form Factor Backplane Kit
507810-B21
HP ML350/ML/DL370 G6 2 Large Form Factor Drive Kit
487936-B21
HP ML370 G6 Tower to Rack Conversion Kit
515031-B21
HP ML/DL370 G6 Redundant Fan Kit
508107-B21
HP ML and DL 370 G6 Graphic Card Adapter Kit
537721-B21
NOTE: An option kit will be required per Graphic Card)
NOTE: 2 PCIe Gen2 x16 (mechanical/electrical); 1 PCIe Gen2 x16 (mechanical) x8
(electrical)
HP ML and DL 370 G6 Smart-mini DIMM Module
519808-B21
NOTE: By plugging the Smart-mini DIMM Module to the NIC, TOE will be enabled.
HP ML and DL 370 G6 PCI-X Riser Kit
516434-B21
NOTE: Customers purchasing the PCI-X Riser Kit, must also purchase the Redundant
Fan kit (508107-B21)
Processors
Quad-Core Processors
Intel® Xeon® W5580 3.20GHz Quad Core 130 Watts ML/DL370 G6 Processor
Option Kit
Intel® Xeon® X5570 2.93GHz Quad Core 95 Watts ML/DL370 G6 Processor
Option Kit
Intel® Xeon® X5560 2.80GHz Quad Core 95 Watts ML/DL370 G6 Processor
Option Kit
Intel® Xeon® X5550 2.66GHz Quad Core 95 Watts ML/DL370 G6 Processor
Option Kit
Intel® Xeon® E5540 2.53GHz Quad Core 80 Watts ML/DL370 G6 Processor
Option Kit
Intel® Xeon® E5530 2.40GHz Quad Core 80 Watts ML/DL370 G6 Processor
Option Kit
Intel® Xeon® E5520 2.26GHz Quad Core 80 Watts ML/DL370 G6 Processor
Option Kit
Intel® Xeon® E5506 2.13GHz Quad Core 80 Watts ML/DL370 G6 Processor
Option Kit
Intel® Xeon® E5504 2.0GHz Quad Core 80 Watts ML/DL370 G6 Processor Option
Kit
Intel® Xeon® L5520 2.26GHz Quad Core 60 Watts ML/DL370 G6 Processor
Option Kit
Dual-Core Processors
Intel® Xeon® E5502 1.86GHz Dual Core 80 Watts ML/DL370 G6 Processor Option
Kit
DA - 13242
Worldwide — Version 9 — July 14, 2009
495928-B21
495930-B21
495932-B21
495934-B21
495936-B21
495938-B21
495940-B21
495942-B21
495944-B21
505511-B21
495946-B21
Page 22
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Core Options
Memory
Registered RDIMMs
HP 2GB 1x2GB PC3-10600 Registered CAS 9 Dual Rank x4 DRAM Memory Kit
HP 4GB 1x4GB PC3-10600 Registered CAS 9 Dual Rank x4 DRAM Memory Kit
HP 4GB 1x4GB PC3-8500 Registered CAS 7 Quad Rank x8 Low Power DRAM
Memory Kit
HP 8GB 2x4GB PC3-10600 Registered CAS 9 Dual Rank DRAM Memory Kit
HP 8GB 1x8GB PC3-8500 Registered CAS 7 Dual Rank x4 DRAM Memory Kit
Unregistered with ECC UDIMMs
HP 1GB 1x1GB PC3-10600 ECC Unbuffered CAS 9 Single Rank x8 DRAM Memory
Kit
HP 2GB 1x2GB PC3-10600 ECC Unbuffered CAS 9 Dual Rank x8 DRAM Memory
Kit
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
Optical Drives
HP Half-Height SATA DVD-ROM Optical Drive
HP Half-Height SATA DVD-RW Optical Drive
HP Slim SATA DVD-ROM Optical Drive
HP Slim SATA DVD-RW Optical Drive
Hard Drives
SAS Hot Plug SFF Enterprise (ENT) Drives
HP 300GB 6G SAS 10K rpm 2.5-inch Dual Port Enterprise Hard Disk Drive
HP 300GB 10K rpm Hot Plug SAS 2.5 Dual Port Hard Drive
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive
HP 146GB 3G SAS 15K rpm 2.5-inch Dual Port Enterprise Hard Disk Drive
HP 146GB 6G SAS 10K rpm 2.5-inch Dual Port Enterprise Hard Disk Drive
HP 146GB 10K rpm Hot Plug SAS 2.5 Dual Port Hard Drive
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive
HP 72GB 15K rpm Hot Plug SAS 2.5 Dual Port Hard Drive
HP 72GB 10K rpm Hot Plug SAS 2.5 Dual Port Hard Drive
HP 36GB 15K rpm Hot Plug SAS 2.5 Dual Port Hard Drive
HP 160GB 7.2K rpm Hot Plug SATA Entry 1yr Warranty Hard Drive
NOTE: SAS Enterprise drives have a 3 year warranty. Please see the QuickSpecs for
Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html
(Worldwide)
SAS Hot Plug 3.5" Enterprise (ENT) Drives
HP 450GB 15K rpm Hot Plug SAS 3.5 Dual Port Enterprise Hard Drive
HP 400GB 10K rpm Hot Plug SAS 3.5 Dual Port Enterprise Hard Drive
HP 146GB 15K rpm Hot Plug SAS 3.5 Dual Port Hard Drive
DA - 13242
Worldwide — Version 9 — July 14, 2009
500656-B21
500658-B21
500660-B21
500662-B21
516423-B21
500668-B21
500670-B21
447326-B21
447328-B21
481041-B21
481043-B21
507127-B21
492620-B21
512547-B21
504062-B21
507125-B21
418367-B21
512545-B21
418371-B21
384842-B21
418369-B21
458945-B21
454232-B21
459508-B21
384854-B21
Page 23
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Core Options
HP 72GB 15K rpm Hot Plug SAS 3.5 Dual Port Hard Drive
HP 300GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise Hard Drive
SAS Hot Plug 3.5" Midline (MDL) Drives
NOTE: Please note that LFF 3.5" (large form factor) drives can only be installed on
tower or rack models with LFF chassis (models).
HP 1TB 7.2K rpm Hot Plug SAS Dual Port Midline 1yr Warranty Hard Drive
HP 750GB 7.2K rpm Hot Plug SAS Dual Port Midline 1yr Warranty Hard Drive
SAS Hot Plug SFF Midline (MDL) Drives
HP 500GB 6G SAS 7.2K rpm SFF(2.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
SATA Hot Plug SFF Midline (MDL) Drives
384852-B21
416127-B21
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
SATA Hot Plug SFF Entry (ETY) Drives
NOTE: Please note that SFF 2.5" (small form factor) drives can only be installed on
tower or rack models with SFF chassis (models).
HP 250GB 5.4K rpm Hot Plug SATA Entry 1yr Warranty Hard Drive
HP 120GB 5.4K rpm Hot Plug SATA 2.5 Entry 1yr Warranty Hard Drive
SATA Hot Plug 3.5" Midline (MDL) Drives
HP 1TB 7.2K rpm Hot Plug SATA Midline 1yr Warranty Hard Drive
HP 750GB 7.2K rpm Hot Plug SATA Midline 1yr Warranty Hard Drive
HP 500GB 7.2K rpm Hot Plug SATA Midline 1yr Warranty Hard Drive
HP 250GB 7.2K rpm Hot Plug SATA Midline 1yr Warranty Hard Drive
NOTE: SATA hard drives have a 1-year warranty. Please see the QuickSpecs for
Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html
(Worldwide)
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller,
firmware, and the server backplane) should operate at the same data transfer rate or
the system bandwidth will be negotiated down to an acceptable level for all
components.
507750-B21
530888-B21
DA - 13242
Worldwide — Version 9 — July 14, 2009
461137-B21
461135-B21
507610-B21
460355-B21
458924-B21
454146-B21
458930-B21
458928-B21
458926-B21
Page 24
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Core Options
Communications
Riser Cage Options
Gigabit Ethernet adapters
HP NC112T PCI Express Gigabit Server Adapter
HP NC360T PCI-E Dual Port Gigabit Server Adapter
HP NC364T PCI-E Quad Port Gigabit Server Adapter
NOTE: There is a maximum of five NC364T PCI Express Quad Port Gigabit Server
Adapters allowed in this server.
HP NC373F PCI-E Multifunction 1000SX Gigabit Svr Adapter
HP NC373T PCI-E Multifunction Gigabit Server Adapter
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter
10 Gigabit Ethernet adapters
HP NC522SFP Dual Port 10GbE Gigabit Server Adapter
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each
NC522SFP adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and
cables for fiber-optic environments must be purchased separately.
HP NC524SFP Dual Port 10GbE Module
NOTE: One NC524SFP allowed per system; a minimum of two gigabytes (2 GB) of
server memory is required for the NC524SFP module..
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and
cables for fiber-optic environments must be purchased separately.
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information: www.hp.com/go/ProLiantNICs.
Smart-mini DIMM Module
HP 512MB DDR2 244P Mini DIMM Module Kit
NOTE: By using the Smart-mini DIMM Module, TCP/IP Offload Engine (TOE) for
Windows is supported.
HP ML/DL370 G6 2 Slot PCI-X Riser Kit
NOTE: Customers purchasing the PCI-X Riser Kit, must also purchase the Redundant
Fan kit (508107-B21)
DA - 13242
Worldwide — Version 9 — July 14, 2009
503746-B21
412648-B21
435508-B21
394793-B21
394791-B21
458492-B21
468332-B21
489892-B21
519808-B21
516434-B21
Page 25
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Core Options
Redundant Options
CAUTION: Many HP ProLiant Servers now offer new power options, including
Common Slot Power Supplies. These power supplies come in multiple power ratings
and higher efficiency levels to offer the Right Size solution to fit your configuration.
This provides improved power delivery and the advantage of reclaiming lost power.
Prior to making a power supply selection it is "highly recommended" that the "HP
Power Advisor" is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at www.hp.com/go/proliant-energyefficient" or www.hp.com/go/hppoweradvisor. In ProLiant Servers that have more than
one power slot (bay), only same size power supplies are recommended. If nonmatched power supplies are inserted you will get errors and operation will fail.
HP 460W HE 12V Hot Plug AC Power Supply Kit
HP 750W Common Slot High Efficiency Power Supply Kit
HP 1200W 12V Hot Plug AC Power Supply
HP ML/DL370G6 Redundant Fan Kit
NOTE: Option Kits contain optional power supply, an IEC power cable and PDU IEC
cables.
DA - 13242
Worldwide — Version 9 — July 14, 2009
503296-B21
512327-B21
500172-B21
508107-B21
Page 26
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
HP Insight Control
Environment Suite
HP Insight Control suite for Linux
HP Insight Control suite for Linux 1 Server 1yr Support/Updates Software License
NOTE: This part number can be used to purchase one (1) license with a single
activation key. Customer will receive a printed license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online or via
fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service.
NOTE: One certificate is shipped for each license.
HP Insight Control suite for Linux Media Kit
NOTE: This optional Media pack DVD contains the ISO image for HP Insight Control
suite for Linux, HP System Insight Manager, HP Insight Power Manager, HP Insight
Virtual Machine Manager, and an integrated installer. Servers must be acquired
separately.
NOTE: This Media pack is optional because the latest ISO image and latest updates
may be downloaded at no cost from: http://www.hp.com/go/ice-linux (click on
Download button).
NOTE: For additional License Kits, including electronic licensing options, please see
the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
HP Insight Control suite
HP Insight Control Environment No Media 1 Server including 1 year 24x7 Supp Lic
NOTE: This part number can be purchased as a single license or as multiple licenses
with a single activation key. Customer will receive a license entitlement certificate via
e-mail. The license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP Software
Technical Support and Update Service. Only available directly from HP and select
resellers in the Americas region.
HP Insight Control Environment Software Media Kit
NOTE: Insight Software DVD media without licenses. Contains HP Systems Insight
Manager and Insight software products and components licensed by the Insight
Control suite. Uses an integrated installer to perform quick and accurate software
installation and updates.
NOTE: For additional License Kits, including electronic licensing options, please see
the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
464423-B22
464422-B22
452148-B22
436222-B21
Drive Cage Options
HP ML350/370 G6 8 Small Form Factor (SFF) 2nd Drive Cage Kit
HP ML/DL370G6 6 Large Form Factor Backplane Kit
HP ML350/ML/DL370G6 2 Large Form Factor Drive Kit
507803-B21
507810-B21
487936-B21
Graphic Cards
HP 350/370G6 Graphic Card Cable Kit
NOTE: An option kit will be required per Graphic Card
NOTE: 2 PCIe Gen2 x16 (mechanical/electrical); 1 PCIe Gen2 x16 (mechanical) x8
(electrical)
537721-B21
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 27
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
Secure Digital (SD)
Memory Cards
HP Photosmart 2 GB SD Card
HP Photosmart 4GB Hi-Speed SDHC Card
L1877A
L1878A#707
Security
HP Trusted Platform Module Option
488069-B21
Storage Controllers
SAS Controllers
HP Smart Array P800 Controller
HP Smart Array P800 Controller
HP Smart Array P212 Controller
HP Smart Array P212/Zero Memory Controller
381513-B21
HP Smart Array P212/256 Controller
HP 256MB P-series Cache Upgrade
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html
HP Smart Array P410 Controller
HP Smart Array P410/256 Controller
HP Smart Array P410/512 BBWC Controller
HP 512MB P-series Battery Backed Write Cache Upgrade
NOTE: When used with the embedded HP Smart Array P410i controller, this module
also requires a 24 inch SFP Battery Cable (496029-B21)
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html
HP Smart Array P411 Controller
HP Smart Array P411/256 Controller
HP Smart Array P411/512 BBWC Controller
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html
SAS Controller Options
HP 24 Bay 3Gb SAS Expander Card
NOTE: For use with the additional 8 SFF drive cage (507803-B21).
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/13232_div/13232_div.html
(SAS Expander Card)
SAS HBA
HP SC08Ge Host Bus Adapter
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/13082_div/13082_div.html
(SC08Ge HBA)
DA - 13242
Worldwide — Version 9 — July 14, 2009
462828-B21
462834-B21
462968-B21
462862-B21
462864-B21
462967-B21
462830-B21
462832-B21
468406-B21
488765-B21
Page 28
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
Power Cords
Tape Storage
NOTE: HP ProLiant servers ships with an IEC-IEC power cord used for rack mounting
with Power Distribution Units (PDUs).
HP 1.83m 10A C13 Power Cord
HP 1.83m 10A C13 Power Cord
HP 1.83m 10A C13 Power Cord
HP 1.83m 10A C13 Power Cord
HP 1.83m 10A C13 Power Cord
HP 1.83m 10A C13 Power Cord
HP 1.83m 10A C13 Power Cord
AF556A
AF568A
AF570A
AF566A
AF565A
AF571A
AF567A
NOTE: For the complete listing of Tape Drive offerings, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
For recommended tape drive offerings for this ProLiant server see the following:
Tape Drives
USB Rack-Mount Tape Solutions
HP StorageWorks DAT 160 USB Internal Tape Drive
SAS Rack-Mount Tape Solutions
HP StorageWorks Ultrium 448 SAS Internal Drive
HP StorageWorks Ultrium 920 SAS Internal Tape Drive
HP StorageWorks LTO-4 Ultrium 1760 SAS Internal WW Tape Drive
NOTE: For the ML370 G6, HP recommends purchasing the HP Smart Array P212
Controller (462828-B21) for a dedicated SAS HBA for tape.
NOTE: Please refer to the "Tape Drives, Tape Autoloaders & Tape Libraries" table in
the Storage section of this document for a list of SAS controllers with tape support.
HP StorageWorks 1/8 G2 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
HP StorageWorks 1/8 G2 Ultrium 920 SAS Autoloader
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack;
includes rails and rackmount instructions.
NOTE: Please reference the Tape Autoloader QuickSpecs at:
http://www.hp.com/go/automation for additional information needed to create a
complete solution; reference current compatibility information at:
http://www.hp.com/go/ebs
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Tape Library
HP StorageWorks MSL2024 Ultrium 920 SAS Tape Library
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Tape Library
HP StorageWorks MSL4048 Ultrium 920 SAS Tape Library
DA - 13242
Worldwide — Version 9 — July 14, 2009
Q1580A
DW085A
EH847A
EH919A
AK377A
AH558A
AH166A
AK378A
AH559A
AK380A
AH560A
Page 29
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
NOTE: Please reference the MSL Tape Library QuickSpecs at:
http://www.hp.com/go/automation for additional information needed to create a
complete solution; reference current compatibility information at:
http://www.hp.com/go/ebs.
Disk-Based Backup
RDX Removable Disk Backup
HP StorageWorks RDX500 Internal Removable Disk Backup System
NOTE: 500GB of Disk Storage.
D2D Backup
HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit
NOTE: 2TB of Disk Storage
HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive
NOTE: 3TB of Disk Storage.
HP StorageWorks D2D2503i Backup System
NOTE: 3TB of Disk Storage.
HP StorageWorks D2D4004i Backup System
NOTE: 4.5TB of Disk Storage.
NOTE: Please see the HP D2D Backup Systems QuickSpecs for additional
information: http://www.hp.com/go/d2d
StorageWorks Options
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and
Linux. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
StorageWorks Fibre Channel HBA
HP StorageWorks 81E 8Gb Single Port PCIe Fibre Channel Host Bus Adapter
HP StorageWorks 82E 8Gb Dual Port PCIe Fibre Channel Host Bus Adapter
HP StorageWorks 81Q PCIe Fibre Channel Host Bus Adapter
HP StorageWorks 82Q 8Gb Dual Port PCIe Fibre Channel Host Bus Adapter
HP StorageWorks FC1142SR 4Gb PCIe Host Bus Adapter
HP StorageWorks FC1242SR 4Gb PCIe DC Host Bus Adapter
HP StorageWorks FC2142SR 4Gb PCIe Host Bus Adapter
HP StorageWorks FC2242SR 4Gb PCIe DC Host Bus Adapter
HP StorageWorks FC1143 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1243 4Gb PCI-X 2.0 Dual Channel HBA
HP StorageWorks FC2143 4 Gb PCI-X 2.0 HBA
HP StorageWorks FC2243 4 Gb PCI-X 2.0 DC HBA
DA - 13242
Worldwide — Version 9 — July 14, 2009
AJ934A
EH924A
EH952A
EH945A
EH938A
AJ762A
AJ763A
AK344A
AJ764A
AE311A
AE312A
A8002A
A8003A
AB429A
AE369A
AD167A
AD168A
Page 30
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
HP StorageWorks
Modular Smart Array
MSA SAN Storage Arrays
HP StorageWorks Modular Smart Array 50 Enclosure
NOTE: Please see the Modular Smart Array 50 QuickSpecs for additional information
including configuration steps and additional options needed for a complete solution
at: http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html
(Worldwide)
HP StorageWorks MSA60 Array
NOTE: Please see the Modular Smart Array 60 QuickSpecs for additional information
including configuration steps and additional options needed for a complete solution
at: http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html
HP StorageWorks MSA70 Array
364430-B21
418408-B21
418800-B21
NOTE: Please see the Modular Smart Array 70 QuickSpecs for additional information
including configuration steps and additional options needed for a complete solution
at: http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html
(Worldwide)
Uninterruptible Power
Systems
HP Tower UPS
HP T1500 G3 UPS Models
HP T1500 G3 North America (NA) Uninterruptible Power System
HP T1500 G3 International (INTL) Uninterruptible Power System
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13160_div/13160_div.html
(Worldwide)
HP Rack-mountable UPS
HP R1500 G2 UPS
HP R1.5 VA 1U Uninterruptible Power System
HP R1.5 VA 1U Uninterruptible Power System
HP R1.5 VA 1U Uninterruptible Power System
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12507_div/12507_div.html
(Worldwide)
HP R3000 VA 2UDTC Uninterruptible Power System
HP R3000 VA 2U L5-30 Uninterruptible Power System
HP R3000 VA 2U L6-20 Uninterruptible Power System
HP R3000 VA 2U L6-20 Uninterruptible Power System
HP R3000 VA 2U L5-30 Uninterruptible Power System
HP R5500 VA Uninterruptible Power System
HP R5500 VA Uninterruptible Power System
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/11871_div/11871_div.html
(Worldwide)
NOTE: For additional information on HP Uninterruptable Power Systems please go to:
www.hp.com/servers/rackups.
DA - 13242
Worldwide — Version 9 — July 14, 2009
AF443A
AF450A
AF451A
AF419A
AF418A
AF421A
AF414A
AF422A
AF423A
AF424A
AF425A
AF416A
AF426A
Page 31
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
Power Distribution Units
Monitored PDUs
HP Monitored Power Distribution Unit: Full Rack Version
HP Dual Input 3 Phase 24A Monitored Power Distribution Unit
HP Single Input 3 Phase 24A Monitored Power Distribution Unit
HP Dual Input 1 Phase 40A Monitored Power Distribution Unit
HP Single Input 1 Phase 40A Monitored Power Distribution Unit
HP Dual Input 3 Phase 16A Monitored Power Distribution Unit
HP Single Input 3 Phase 16A Monitored Power Distribution Unit
HP Dual Input 1 Phase 32A Monitored Power Distribution Unit
HP Single Input 1 Phase 32A Monitored Power Distribution Unit
HP Monitored Power Distribution Unit: Half Rack Version
HP Single Input 1 Phase 24A Monitored Power Distribution Unit
HP Single Input 1 Phase 32A Monitored Power Distribution Unit
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html
(Worldwide)
Modular PDUs
HP Fixed Cord Extension Bars
NOTE: Two extension bar sticks; each with (7) C13 plugs.
HP 16A High Voltage Modular Power Distribution Unit
HP 24A Low Voltage Modular Power Distribution Unit
HP 24A High Voltage Modular Power Distribution Unit
HP 32A High Voltage Modular Power Distribution Unit
HP 40A High Voltage Modular Power Distribution Unit
HP 40A High Voltage Modular Power Distribution Unit
HP 40A High Voltage Modular Power Distribution Unit
NOTE: For additional information on HP Power Distribution Units including
accessories please go to: www.hp.com/go/pdu (Worldwide)
HP Rack and Rack
Options
Rack 5000 series
HP 5642 Rack
HP 5642 Rack Unassembled
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.html
(Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following
URL: http://www.hp.com/go/rackandpower.
Rack 10000 G2 series
HP 10642 G2 200mm Extension Shock Rack
HP 10642 G2 200mm Extension Pallet Rack
DA - 13242
Worldwide — Version 9 — July 14, 2009
AF503A
AF504A
AF505A
AF506A
AF507A
AF508A
AF509A
AF510A
AF914A
AF915A
351655-B21
252663-B24
252663-D71
252663-D72
252663-B31
252663-B21
252663-D73
252663-B32
358254-B21
AF034A
AF038A
Page 32
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
HP 10647 G2 200mm Extension Shock Rack
NOTE: Due to handling and shipping requirements, AF044A is only orderable
through HP Factory Express. It is not for direct sales. Customer site surveys are
required before an order is approved. CTO orders may require additional lead time.
HP 10647 G2 200mm Extension Pallet Rack
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment
installed.
NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by
custom systems, VARs and Channels).
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html
(Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following
URL: http://www.hp.com/go/rackandpower.
Rack Options
Monitors and keyboards
HP TFT7600 Rackmount Keyboard 17in US Monitor
HP TFT7600 Rackmount Keyboard 17in UK Monitor
HP TFT7600 Rackmount Keyboard 17in DE Monitor
HP TFT7600 Rackmount Keyboard 17in FR Monitor
HP TFT7600 Rackmount Keyboard 17in IT Monitor
HP TFT7600 Rackmount Keyboard 17in ES Monitor
HP TFT7600 Rackmount Keyboard 17in DK Monitor
HP TFT7600 Rackmount Keyboard 17in NO Monitor
HP TFT7600 Rackmount Keyboard 17in SE/FI Monitor
HP TFT7600 Rackmount Keyboard 17in CH Monitor
HP TFT7600 Rackmount Keyboard 17in PT Monitor
HP TFT7600 Rackmount Keyboard 17in BE Monitor
HP TFT7600 Rackmount Keyboard 17in JP Monitor
HP TFT7600 Rackmount Keyboard 17in RU Monitor
HP TFT7600 Rackmount Keyboard 17in Intl Monitor
HP 1U US Rackmount Keyboard with USB
HP 1U UK Rackmount Keyboard with USB
HP 1U DE Rackmount Keyboard with USB
HP 1U FR Rackmount Keyboard with USB
HP 1U Rackmount Keyboard with USB
HP 1U Rackmount Keyboard with USB
HP 1U Rackmount Keyboard with USB
HP 1U Rackmount Keyboard with USB
HP 1U Rackmount Keyboard with USB
HP 1U Rackmount Keyboard with USB
HP 1U Rackmount Keyboard with USB
HP 1U Rackmount Keyboard with USB
DA - 13242
Worldwide — Version 9 — July 14, 2009
AF044A
AF045A
AG052A
AG053A
AG054A
AG055A
AG056A
AG057A
AG058A
AG059A
AG060A
AG061A
AG062A
AG063A
AG064A
AG065A
AG066A
AG072A
AG073A
AG074A
AG075A
AG076A
AG077A
AG078A
AG079A
AG080A
AG081A
AG082A
AG083A
Page 33
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
USB Options
HP 1U Rackmount Keyboard with USB
HP 1U Rackmount Keyboard with USB
HP 1U Rackmount Keyboard with USB
NOTE: For additional information regarding Rack Cabinets, please see the following
URL: http://www.hp.com/go/rackandpower.
Console switches (KVM)
HP 2x1x16 IP Console Switch with Virtual Media
HP 4x1x16 IP Console Switch with Virtual Media
HP 0x2x16 Server Console Switch with Virtual Media
HP 1-pack PS/2 Virtual Media Interface Adapter
NOTE: Requires PS/2 and one USB port on server.
AG084A
AG085A
AG086A
HP KVM CAT5 1-pack PS/2 Interface Adapter
HP KVM CAT5 8-pack PS/2 Interface Adapter
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches.
Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm
HP 1x4 USB/PS2 KVM Console Switch
HP 1x4 KVM Console 6ft PS2 Cable
HP 1x4 KVM Console 6ft USB Cable
NOTE: For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following URL:
http://www.hp.com/go/kvm.
Cable Management
HP 16 Port Serial Console Server
HP 48 Port Serial Console Server
HP RJ45-DB9 DCE Female 1 Pack Serial Adapter
HP RJ45-DB9 DCE Female 8 Pack Serial Adapter
Rack Kits
HP ML370G6 Tower to Rack Conversion Kit
262588-B21
262587-B21
HP 1.44MB USB External Floppy Drive
HP USB 2-Button Optical Scroll Mouse
HP Standard USB Keyboard US
DA - 13242
Worldwide — Version 9 — July 14, 2009
AF601A
AF602A
AF600A
AF604A
AF611A
AF612A
AF613A
AF101A
AF102a
AF103A
AF110A
515031-B21
DC141B
DC172B
DT528A#ABA
Page 34
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
Service and Support
Offerings
(HP Care Pack Services)
Hardware Services On-site Service
HP 3y 4h 13x5 ProLiant ML370 HW Support
HP 3y 4h 24x7 ProLiant ML370 HW Support
Hardware Services 6-Hour Call to Repair On-site Service
HP 3y 6h 24x7 CTR ProLiant ML370 HW Supp
Installation & Start-up Services
HP Install ProLiant ML370 Service
HP Startup ProLiant ML370 Service
Support Plus
HP 3y SupportPlus MS ProLiant ML370 SVC
Support Plus 24
HP 3y SupportPlus24 MS ProLiantML370 SVC
HP 3ySupportPlus24 SuSEProLiantML370 SVC
HP 3y SupportPlus24 RedHat ES ML370 SVC
NOTE: For more information, customer/resellers can contact:
http://www.hp.com/services/carepack.
DA - 13242
Worldwide — Version 9 — July 14, 2009
U4528E
U4529E
U4530E
U4538E
U4539E
U4540E
U4541E
U6311E
U8333E
Page 35
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant DL370 G6 Models
HP ProLiant ML370 G6 Models
DDR3 memory population guidelines
For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator
Some DIMM installation guidelines are summarized below:
For servers with eighteen (18) memory slots:
There are three (3) channels per processor; six (6) channels per server
There are three (3) DIMM slots for each memory channel; eighteen (18) total slots
Memory channel 1 consists of the three (3) DIMMs that are closest to the processor
Memory channel 3 consists of the three (3) DIMMs that are furthest from the processor
DIMM slots that are white should be populated first
Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
Do not install DIMMs if the corresponding processor is not installed
If only one processor is installed in a 2CPU system, only half of the DIMM slots are available
To maximize performance, balance the total memory capacity between all installed processors
It is not required, but it is recommended to load the channels similarly if possible
You can only have up to eight (8) ranks installed per channel
You can only install two quad-rank DIMMs per channel
You can only install two UDIMMs per channel; if available, the third slot in the channel must remain empty
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel
Heaviest load (DIMM with most ranks) within a channel goes furthest from the chipset
For memory mirroring mode, channel 3 must be unpopulated. Channels 1 and 2 are populated identically
For lock-step mode, channel 3 must be unpopulated. DIMMs in channels 1 and 2 will be installed in pairs. The paired slots
will be 1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
No mixing DIMM voltage; all DIMMs must be the same voltage
DIMM Type ->
Registered Dimms (RDIMMs)
Unbuffered with ECC DIMMs
(UDIMMs)
Single Rank
Dual Rank
(1R)
(2R)
1GB
2GB
2GB
Dual Rank (2R)
4GB
8GB
8GB
Quad Rank
(4R)
4GB
1333
1333
1066
1333
1066
1333
1333
SLOTS THAT CAN BE POPULATED
18 slot servers
18
18
18
18
12
12
12
MAXIMUM CAPACITY (GB)
18 slot servers
36
72
144
144
48
12
24
1333
1333
1066
1066
1333
1333
1066
800
1066
800
1066
800
DIMM Rank ->
DIMM Capacity ->
DIMM Native Speed
(MHz) ->
POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel
2 DIMM Per Channel
3 DIMM Per Channel
DA - 13242
1333
1333*
800
800
1066
1066
not supported not supported not supported
Worldwide — Version 9 — July 14, 2009
Page 36
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
* Supported with ROM update via ROM Based Setup Utility (RBSU).
NOTES:
Mixing DIMM speeds is allowed, but the system processor speed rules always override the DIMM capabilities
If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the
slower DIMM is on the other processor
If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, you still run at 1066MHz
If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other
channels, you run at 1066MHz
If you install 3DPC in one channel (if applicable) and 1DPC in all other channels, you run at 800MHz
95 Watt CPU's are required for 1333MHz DIMM speeds.
References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.
DIMM slot and configuration diagrams
Basic memory slot & population diagram
Population order; start with "A" first, "B" second, "C" third, etc.
18 DIMM SLOTS (9 per CPU node)
Chnl 1
slot #
1
2
3
CPU1
population order
G
D
A
slot #
1
2
3
CPU2
population order
G
D
A
Chnl 1
Chnl 2
4
5
6
H
E
B
4
5
6
H
E
B
Chnl 2
Chnl 3
7
8
9
I
F
C
7
8
9
I
F
C
Chnl 3
Standard memory configuration (1 CPU model)
6GB, consisting of three (3) 2GB dual-rank PC3-10600 RDIMMs
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 37
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
Chnl 1
slot #
1
2
3
CPU1
population order
G; empty
D; empty
A; 2GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; empty
A; empty
Chnl 1
Chnl 2
4
5
6
H; empty
E; empty
B; 2GB DIMM
4
5
6
H; empty
E; empty
B; empty
Chnl 2
Chnl 3
7
8
9
I; empty
F; empty
C; 2GB DIMM
7
8
9
I; empty
F; empty
C; empty
Chnl 3
Standard memory plus optional memory (1 CPU model)
54GB, consisting of three (3) 2GB RDIMMs plus six (6) 8GB RDIMMs
3x 2GB dual-rank PC3-10600 RDIMMs
6x 8GB dual-rank PC3-10600 or PC3-8500 RDIMMs
Chnl 1
slot #
1
2
3
CPU1
population order
G; 8GB DIMM
D; 8GB DIMM
A; 2GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; empty
A; empty
Chnl 1
Chnl 2
4
5
6
H; 8GB DIMM
E; 8GB DIMM
B; 2GB DIMM
4
5
6
H; empty
E; empty
B; empty
Chnl 2
Chnl 3
7
8
9
I; 8GB DIMM
F; 8GB DIMM
C; 2GB DIMM
7
8
9
I; empty
F; empty
C; empty
Chnl 3
Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration
72GB, consisting of nine (9) 8GB dual-rank PC3-10600 or PC3-8500 RDIMMs
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 38
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
Chnl 1
slot #
1
2
3
CPU1
population order
G; 8GB DIMM
D; 8GB DIMM
A; 8GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; empty
A; empty
Chnl 1
Chnl 2
4
5
6
H; 8GB DIMM
E; 8GB DIMM
B; 8GB DIMM
4
5
6
H; empty
E; empty
B; empty
Chnl 2
Chnl 3
7
8
I; 8GB DIMM
F; 8GB DIMM
7
8
I; empty
F; empty
Chnl 3
UDIMM maximum configuration (1 CPU model)
12GB, consisting of six (6) 2GB dual-rank PC3-10600 UDIMMs
Chnl 1
slot #
1
2
3
CPU1
population order
G; empty
D; 2GB DIMM
A; 2GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; empty
A; empty
Chnl 1
Chnl 2
4
5
6
H; empty
E; 2GB DIMM
B; 2GB DIMM
4
5
6
H; empty
E; empty
B; empty
Chnl 2
Chnl 3
7
8
9
I; empty
F; 2GB DIMM
C; 2GB DIMM
7
8
9
I; empty
F; empty
C; empty
Chnl 3
Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration
144GB, consisting of eighteen (18) 8GB PC3-10600 or PC3-8500 RDIMMs
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 39
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
Chnl 1
slot #
1
2
3
CPU1
population order
G; 8GB DIMM
D; 8GB DIMM
A; 8GB DIMM
slot #
1
2
3
CPU2
population order
G; 8GB DIMM
D; 8GB DIMM
A; 8GB DIMM
Chnl 1
Chnl 2
4
5
6
H; 8GB DIMM
E; 8GB DIMM
B; 8GB DIMM
4
5
6
H; 8GB DIMM
E; 8GB DIMM
B; 8GB DIMM
Chnl 2
Chnl 3
7
8
9
I; 8GB DIMM
F; 8GB DIMM
C; 8GB DIMM
7
8
9
I; 8GB DIMM
F; 8GB DIMM
C; 8GB DIMM
Chnl 3
UDIMM maximum configuration (2 CPU model)
24GB, consisting of twelve (12) 2GB dual-rank PC3-10600 UDIMMs
Chnl 1
slot #
1
2
3
CPU1
population order
G; empty
D; 2GB DIMM
A; 2GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; 2GB DIMM
A; 2GB DIMM
Chnl 1
Chnl 2
4
5
6
H; empty
E; 2GB DIMM
B; 2GB DIMM
4
5
6
H; empty
E; 2GB DIMM
B; 2GB DIMM
Chnl 2
Chnl 3
7
8
9
I; empty
F; 2GB DIMM
C; 2GB DIMM
7
8
9
I; empty
F; 2GB DIMM
C; 2GB DIMM
Chnl 3
NOTE: Capacity references are rounded to the common Gigabyte values.
1GB = 1024MB
2GB = 2048MB
4GB = 4096MB
8GB = 8192MB
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 40
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
Following are memory options available from HP:
Registered DIMMs (RDIMMs)
Memory
HP 2GB 2Rx8 PC3-10600R-9 Kit
HP 4GB 2Rx4 PC3-10600R-9 Kit
HP 4GB 4Rx8 PC3-8500R-7 LP Kit
HP 8GB 2Rx4 PC3-10600R-9 Kit
HP 8GB 2Rx4 PC3-8500R-7 Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB 1Rx8 PC3-10600E-9 Kit
HP 2GB 2Rx8 PC3-10600E-9 Kit
500656-B21
500658-B21
500660-B21
500662-B21
516423-B21
500668-B21
500670-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 41
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
A
Removable media bay
B
(B) SATA DVD-ROM Drive (Standard in all BTO
Models)
C
Optical Drive (blank)
1-8
Eight SFF SAS/SATA HD Bays (Standard in all BTO
Models)
A
Removable media bay
B
SATA DVD-ROM Drive (Standard in all BTO Models)
C
Optical Drive (blank)
1-8
Eight SFF SAS/SATA HD Bays (Standard in all BTO
Models)
1-24 Twenty-four small form factor (SFF) hot-plug drive bays
to support Serial-attached SCSI (SAS) and Serial ATA
(SATA) drives with optional drive cages (up to three 8
SFF drive cage can be installed)
1-14 Fourteen large form factor (LFF) hot-plug drive bays to
support Serial-attached SCSI (SAS) and Serial ATA
(SATA) drives with optional drive cages
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 42
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
Drive Support
Removable Media
Half-Height SATA DVDROM Optical Drive
Half-Height SATA DVD
RW Optical Drive
HP Slim SATA DVD-ROM
Optical Drive
HP Slim SATA DVD RW
Optical Drive
Quantity
Supported
Position
Supported
Up to 2
A, B
Integrated IDE
Up to 2
A, B
Integrated IDE
Up to 2
NOTE: Also
please use if the
3 drive cage is
populated
Up to 2
NOTE: Also
please use if the
3 drive cage is
populated
C
Integrated IDE
C
Integrated IDE
Controller
Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should
operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
SAS Hot Plug SFF Enterprise (ENT) Drives
Quantity
Position
Supported
Supported
Controller
300GB 6G SAS 10K DP
Up to 24
1-8
HP Smart Array P800/512 BBWC Controller
300GB 3G SAS 10K DP
1-24
HP Smart Array P212/Zero Memory Controller
146GB 6G SAS 15K DP
HP Smart Array P212/256 MB Controller
146GB 3G SAS 15K DP
HP Smart Array P410/256 MB Controller
146GB 6G SAS 10K DP
HP Smart Array P410/512 MB BBWC Controller
146GB 3G SAS 10K DP
HP Smart Array P411/256 MB Controller
72GB 6G SAS 15K DP
HP Smart Array P411/512 MB BBWC Controller
72GB 3G SAS 15K DP
72GB 3G SAS 10K DP
36GB 3G SAS 15K DP
SAS Hot Plug 3.5" Enterprise (ENT) Drives
Quantity
Supported
450GB 3G SAS 15K DP
Up to 14
400GB 3G SAS 10K DP
146GB 3G SAS 15K DP
72GB 3G SAS 15K DP
Position
Supported
1-14
DA - 13242
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
Worldwide — Version 9 — July 14, 2009
Page 43
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
SAS Hot Plug 3.5" Midline (MDL) Drives
Quantity
Supported
1TB 3G SAS 7.2K DP
Up to 14
750GB 3G SAS 7.2K DP
Position
Supported
1-14
SAS Hot Plug SFF Midline (MDL) Drives
Quantity
Supported
500GB 6G SAS 7.2K DP
Up to 14
Position
Supported
1-14
SATA Hot Plug SFF Entry (ETY) Drives
Quantity
Supported
250GB 3G SATA 5.4K
Up to 24
120GB 1.5G SATA 5.4K
Position
Supported
1-8
1-24
SATA Hot Plug SFF Midline (MDL) Drives
Quantity
Supported
500GB 3G SATA 7.2K
Up to 24
160GB 3G SATA 7.2K
Position
Supported
1-8
1-24
DA - 13242
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Worldwide — Version 9 — July 14, 2009
Page 44
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
SATA Hot Plug 3.5" Midline (MDL) Drives
Quantity
Supported
1TB 3G SATA 7.2K
Up to 14
750GB 3G SATA 7.2K
500GB 3G SATA 7.2K
250GB 3G SATA 7.2K
SATA Hot Plug 3.5" Entry (ETY) Drives
Quantity
Supported
160GB 3G SATA 7.2K
Up to 14
Position
Supported
1-14
Position
Supported
1-14
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
External Storage
50 Modular Smart Array
60 Modular Smart Array
Quantity
Supported
Up to 4
Up to 4
Position
Supported
External
External
Up to 8
70 Modular Smart Array
Up to 2
External
Up to 4
Host Controller or Adapter
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Tape and Disk-Based Backup
NOTE: For a complete listing of compatible tape and disk-based backup offerings, please visit: www.hp.com/go/connect.
Position
Supported
Controller
DA - 13242
Worldwide — Version 9 — July 14, 2009
Part Number
Page 45
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
Internal USB Tape Drives
DAT 40 USB
DAT 72 USB
DAT 160 USB
A
USB 2.0 Port
N/A
USB Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U Rack-Mount Kit
External
USB 2.0 Port
N/A
SAS Tape Drives, Internal
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1760 SAS
A
HP Smart Array P212/Zero Memory Controller
462828-B21
SAS Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1760 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount
3U Rack-Mount
External
HP Smart Array P212/Zero Memory Controller
462828-B21
SAS Tape Automation,
External
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP Smart Array P212/Zero Memory Controller
462828-B21
Fibre Tape Automation,
External
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity matrix at:
http://www.hp.com/go/ebs for detailed connectivity information.
N/A
HP StorageWorks RDX
Removable Disk Backup
System, Internal
RDX160
RDX320
RDX500
A
USB 2.0 Port
N/A
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 46
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
HP StorageWorks RDX
Removable Disk Backup
System, External
RDX160
RDX320
RDX500
External
USB 2.0 Port
N/A
HP StorageWorks D2D
Backup Systems
D2D120
D2D130
D2D2500i
D2D4000i
External
Embedded Network Controller
N/A
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 47
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Power Specifications
HP 460W Power Supply
Part Number - AC 460W PSU
503296-B21
Input Voltage Range (Vrms)
100 to 240
Frequency Range (Nominal) (Hz) 50/60
Nominal Input Voltage (Vrms)
100
Maximum Rated Output Wattage
460
Nominal Input Current (A rms)
5.5
Max Rated Input Wattage Rating
526
(Watts)
Max. Rated VA (Volt-Amp)
548
Efficiency (%) at Max. Rated Output
87.5
Wattage
Power Factor
0.97
Leakage Current (mA)
0.42
Max. Inrush Current (A peak)
30
Max. Inrush Current duration (mS)
20
Maximum British Thermal Unit
1794
Rating (BTU-Hr)
HP 750W Power Supply
Part Number - AC 750W PSU
512327-B21
Input Voltage Range (Vrms)
100 to 240
Frequency Range (Nominal) (Hz) 50/60
Nominal Input Voltage (Vrms)
100
Maximum Rated Output Wattage
750
Nominal Input Current (A rms)
8.9
Max Rated Input Wattage Rating
857
(Watts)
Max. Rated VA (Volt-Amp)
894
Efficiency (%) at Max. Rated Output
87.5
Wattage
Power Factor
0.97
Leakage Current (mA)
0.42
Max. Inrush Current (A peak)
30
Max. Inrush Current duration (mS)
20
Maximum British Thermal Unit
2925
Rating (BTU-Hr)
DA - 13242
120
460
4.5
520
208
460
2.6
505
200
460
2.5
505
220
460
2.4
503
230
460
2.3
503
240
460
2.2
503
542
88.5
527
91
527
91
524
91.5
524
91.5
524
91.5
0.97
0.50
30
20
1773
0.97
0.83
30
20
1725
0.97
0.87
30
20
1725
0.97
0.92
30
20
1715
0.97
0.96
30
20
1715
0.97
1.00
30
20
1715
120
750
7.4
847
208
750
4.3
824
200
750
4.1
825
220
750
3.9
820
230
750
3.7
820
240
750
3.6
820
884
88.5
859
91
859
91
854
91.5
854
91.5
854
91.5
0.97
0.50
30
20
2892
0.97
0.83
30
20
2812
0.97
0.87
30
20
2812
0.97
0.92
30
20
2797
0.97
0.96
30
20
2797
0.97
1.00
30
20
2797
Worldwide — Version 9 — July 14, 2009
Page 48
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Power Specifications
HP 1200W Power Supply
Part Number - AC
500172-B21
Operational Input Voltage Range 100 to 240
(Vrms)
Frequency Range (Nominal) (Hz) 50/60
Nominal Input Voltage (Vrms)
100
Maximum Rated Output Wattage
800
Nominal Input Current (A rms)
9.7
Max Rated Input Wattage Rating
930
(Watts)
Max. Rated VA (Volt-Amp)
970
Efficiency (%) at Max. Rated Output
86
Wattage
Power Factor
0.97
Leakage Current (mA)
0.42
Max. Inrush Current (A peak)
30
Max. Inrush Current duration (mS)
20
Maximum British Thermal Unit
3174
Rating (BTU-Hr)
120
900
9.0
1034
208
1200
7.0
1348
200
1200
6.8
1348
220
1200
6.4
1348
230
1200
9.1
1348
240
1200
5.9
1348
1079
87
1406
89
1406
89
1406
89
1406
89
1406
89
0.97
0.50
30
20
3530
0.97
0.83
30
20
4600
0.97
0.87
30
20
4600
0.97
0.92
30
20
4600
0.97
0.96
30
20
4600
0.97
1.00
30
20
4600
To review typical system power ratings use the Active Answers HP Power Advisor which is available via the online tool located at
URL: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor
To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL370 G6 or ML370 G6
- Click on: "Power Calculator" link. (You may need to scroll down to see it)
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 49
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Technical Specifications
System Unit
Tower Dimensions
(H x W x D) (with bezel)
Rack Dimensions
(H x W x D) (with bezel)
Tower Weight
(approximate)
Rack Weight
(approximate)
Input Requirements
(per power supply)
BTU Rating
Power Specifications
18.52 x 9.75 x 29.12 in (47.04 x 24.77 x 73..96 cm)
6.88 x 19.03 x 27.53 in (17.48 x 48.34 x 69.93 cm)
Maximum
(two hard drives, power
supply, and processor
installed)
Minimum
(one hard drive, power
supply, and processor
installed)
Maximum
(two hard drives, power
supply, and processor
installed)
Minimum
(one hard drive, power
supply, and processor
installed)
Rated Line Voltage
103.06 lbs (46.75 kg)
66,14 lbs (30.00 kg)
103.06 lbs (46,75 kg)
55.12 lbs (25.00 kg)
90 - 132 VAC,
180 - 264 VAC
Rated Input Current
7.5A (at 100 VAC),
3.8A (at 200 VAC)
Rated Input Frequency
47 to 63 Hz
Rated Input Power
980W (at 100 VAC)
1035W (at 120 VAC)
1170W (at 240 VAC)
Maximum
460W - 1773 BTU / hr (at 120 VAC), 1715 (at
240 VAC)
750W - 2892 BTU / hr (at 120 VAC), 2797 (at
240 VAC)
1200W - 3530 BTU / hr (at 120 VAC), 4600 (at
240 VAC)
To review typical system power ratings use the HP Power Advisor which is
available via the online tool located at URL: www.hp.com/go/proliantenergy-efficient
- Click on the system of interest. Example: DL370 G6 or ML370 G6
- Follow the instructions of the next screens.
Power Supply Output
Rated Steady-State Power 460 W (at 100 VAC)
(per power supply)
Maximum Peak Power
460 W (at 200 VAC)
460 W (at 100 VAC)
460 W (at 200 VAC)
NOTE: See Power Supply Specifications tables
for complete details on 460W PSU and optional
750W and 1200W Power Supply Options.
System Inlet Temperature Operating
10° to 35°C (50° to 95°F) at sea level with an
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 50
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Technical Specifications
Relative Humidity
(non-condensing)
Altitude
Acoustic Noise
Emissions Classification
(EMC)
DA - 13242
altitude derating of 1.0°C per every 305 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3050 m (10,000 ft), no direct
sustained sunlight. Maximum rate of change is
10°C/hr (18°F/hr). The upper limit may be
limited by the type and number of options
installed.
System performance may be reduced if operating
with a fan fault or above 30°C (86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Operating
10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, noncondensing.
Non-operating
5 to 95% relative humidity (Rh), 38.7°C
(101.7°F) maximum wet bulb temperature, noncondensing.
Operating
3048 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500 ft/min).
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions
were measured in accordance with ISO 7779 (ECMA 74) and declared in
accordance with ISO 9296 (ECMA 109).
Idle
L WAd
5.6 B for 1P Non-Redundant; 5.5 B for 2P
Redundant
L pAm
39 dB for 1P Non-Redundant; 39 dB for 2P
Redundant
Operating
L WAd
5.6 B for 1P Non-Redundant; 5.5 B for 2P
Redundant
L pAm
39 dB for 1P Non-Redundant; 39 dB for 2P
Redundant
NOTE: The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
FCC Rating
Class B
Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47,
Pt 15; ICES-003; CNS13438; GB9254;
K22;K24; EN 61000-3-2; EN 61000-3-3; EN
60950-1; IEC 60950-1
Worldwide — Version 9 — July 14, 2009
Page 51
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Technical Specifications
NOTE: Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and
statements.
Smart Array P410i
Controller
Dimensions
(not including bracket)
Disk Drive and Enclosure
Interface - Transfer rate
Low Profile PCIe Form Factor
7.5 in x 9.5 in x 2.25 in (19.05 cm x 24.13 cm x 5.72 cm)
3G SAS (Serial Attached SCSI)/6G SAS Capable
1.5G SATA (Serial ATA)/3G SATA Capable
SAS Connectors
2 internal (Mini-SAS) x8 wide port connectors
Cache Memory Speed
DDR2-800MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s
maximum bandwidth.
Server Interface
x8 5G PCIe 2.0 provides 4GB/s maximum bandwidth
SAS Speed
x8 3G SAS provides 2.4GB/s maximum bandwidth
Cache Memory
40-bit 256MB ECC protected cache (72-bit 512MB BBWC module
upgrades available); transportable with battery-backed upgrade
Logical Drives Supported Up to 12 logical drives
Maximum Logical Drive Greater than 2TB
Capacity
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
RAID 6, 6+0 (Advanced Data Guarding)
RAID Support
NOTE: The minimum of 256 MB cache, battery kit, and Smart Array
Advanced Pack License Key upgrade is required to enable RAID 6, 6+0
RAID 5, 5+0 (Distributed Data Guarding)
NOTE: The 256MB upgrade is required to enable RAID 5 support on the
Smart Array P410i.
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Upgradeable Firmware with recovery ROM feature
Upgradeable Firmware
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 52
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Technical Specifications
NC375i Integrated Quad Network Interface
Port Multifunction Gigabit Compatibility
Server Adapter
Data Transfer Method
Network Transfer Rate
Connector
Cable Support
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
10Base-T/100Base-TX/1000Base-TX
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ad 1000Base-TX
IEEE 802.1p 100Base-TX
IEEE 802.1q 100Base-TX
PCI Express, four lanes (x4)
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex)
1000Base-TX (Half and
Full-Duplex)
RJ-45
10Base-T
100Base-TX
1000Base-TX
200 Mb/s
2000 Mb/s
Categories 3, 4 or 5 UTP up to 328 ft (100 m)
Category 5 or higher UTP; up to 328 ft (100 m)
Category 5 or higher UTP; up to 328 ft (100 m)
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13242
Worldwide — Version 9 — July 14, 2009
Page 53
Download PDF
Similar pages
