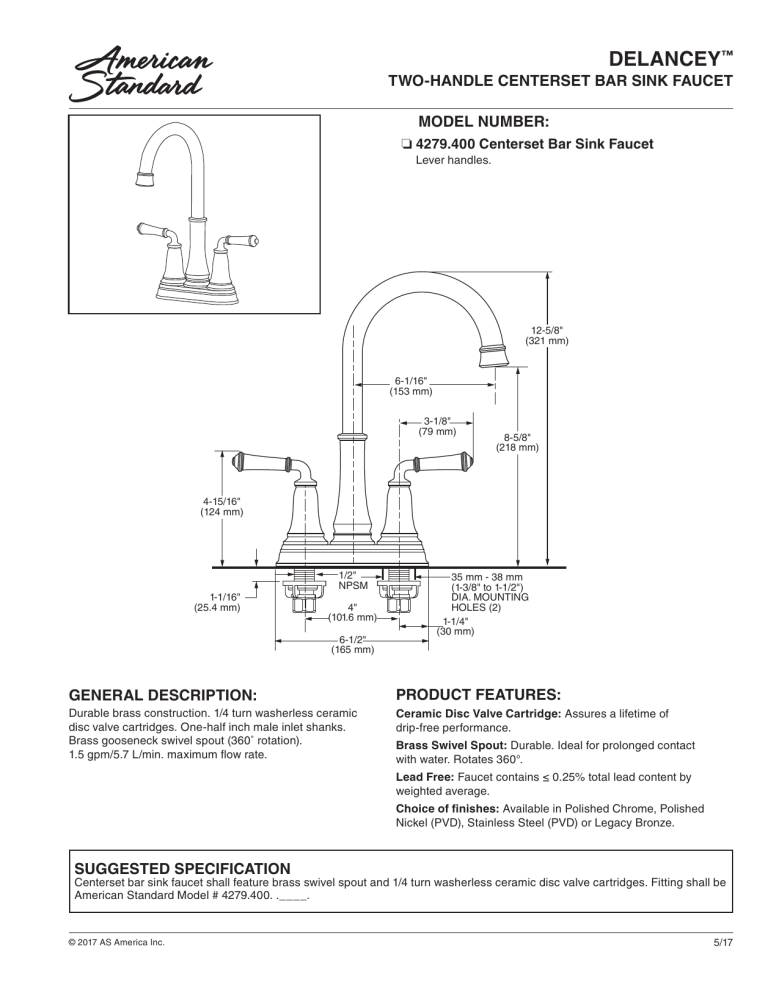

DELANCEY™
TWO-HANDLE CENTERSET BAR SINK FAUCET
MODEL NUMBER:
❏ 4279.400 Centerset Bar Sink Faucet
Lever handles.
12-5/8"
(321 mm)
6-1/16"
(153 mm)
3-1/8"
(79 mm)
8-5/8"
(218 mm)
4-15/16"
(124 mm)
1/2"
NPSM
1-1/16"
(25.4 mm)
4"
(101.6 mm)
6-1/2"
(165 mm)
35 mm - 38 mm
(1-3/8" to 1-1/2")
DIA. MOUNTING
HOLES (2)
1-1/4"
(30 mm)
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Durable brass construction. 1/4 turn washerless ceramic
disc valve cartridges. One-half inch male inlet shanks.
Brass gooseneck swivel spout (360˚ rotation).
1.5 gpm/5.7 L/min. maximum flow rate.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Brass Swivel Spout: Durable. Ideal for prolonged contact
with water. Rotates 360°.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Choice of finishes: Available in Polished Chrome, Polished
Nickel (PVD), Stainless Steel (PVD) or Legacy Bronze.
SUGGESTED SPECIFICATION
Centerset bar sink faucet shall feature brass swivel spout and 1/4 turn washerless ceramic disc valve cartridges. Fitting shall be
American Standard Model # 4279.400. .____.
© 2017 AS America Inc.
5/17
GALL
1.0
0.5
0.0
20
40
60
80
100
DELANCEY™
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
TWO-HANDLE
CENTERSET BAR SINK FAUCET
2.2 gpm/8.3 L/min. FLOW RATE
FLOW RATE*
CODES AND STANDARDS
2.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B125.1
NSF 61/Section 9
NSF 372
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
1.5 gpm/5.7 L/min. FLOW RATE
Finish Options
Product
Number
Description
4279.400
Bar Sink faucet. Lever handles.
Polished
Chrome
PVD
Polished
Nickel
PVD
Stainless
Steel
Legacy
Bronze
002
013
075
278
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
© 2017 AS America Inc.
5/17
