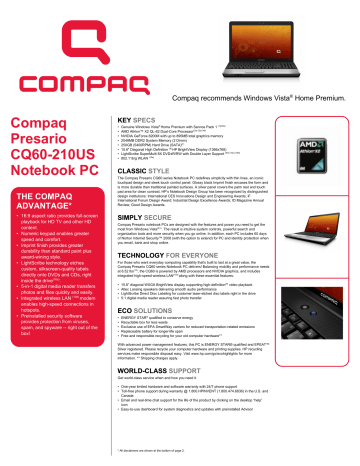

Compaq Presario Data Sheet

Compaq recommends Windows Vista® Home Premium.
Compaq
Presario
CQ60-210US
Notebook PC
THE COMPAQ
ADVANTAGE*
• 16:9 aspect ratio provides full-screen
playback for HD TV and other HD
content.
• Numeric keypad enables greater
speed and comfort.
• Imprint finish provides greater
durability than standard paint plus
award-wining style.
• LightScribe technology etches
custom, silkscreen-quality labels
directly onto DVDs and CDs, right
inside the drive(16a).
• 5-in-1 digital media reader transfers
photos and files quickly and easily.
• Integrated wireless LAN (10d) modem
enables high-speed connections in
hotspots.
• Preinstalled security software
provides protection from viruses,
spam, and spyware -- right out of the
box!
KEY SPECS
•
•
•
•
•
•
•
•
Genuine Windows Vista® Home Premium with Service Pack 1 (1)(20a)
AMD Athlon™ X2 QL-62 Dual-Core Processor(2a) (3a) (4b)
NVIDIA GeForce 8200M with up to 895MB total graphics memory
2048MB DDR2 System Memory (2 Dimm)
250GB (5400RPM) Hard Drive (SATA)(7)
15.6" Diagonal High Definition (8) HP BrightView Display (1366x768)
LightScribe SuperMulti 8X DVD±R/RW with Double Layer Support (6d) (16a) (16d)
802.11b/g WLAN (10a)
CLASSIC STYLE
The Compaq Presario CQ60 series Notebook PC redefines simplicity with thin lines, an iconic
touchpad design and sleek touch control panel. Glossy black Imprint finish encases the form and
is more durable than traditional painted surfaces. A silver panel covers the palm rest and touch
pad area for clean contrast. HP’s Notebook Design Group has been recognized by distinguished
design institutions: International CES Innovations Design and Engineering Awards; iF
International Forum Design Award; Industrial Design Excellence Awards; ID Magazine Annual
Review; Good Design Awards.
SIMPLY SECURE
Compaq Presario notebook PCs are designed with the features and power you need to get the
most from Windows Vista®(1). The result is intuitive system controls, powerful search and
organization tools and more security when you go online. In addition, each PC includes 60 days
of Norton Internet Security™ 2008 (with the option to extend) for PC and identity protection when
you email, bank and shop online.
TECHNOLOGY FOR EVERYONE
For those who want everyday computing capability that's built to last at a great value, the
Compaq Presario CQ60 series Notebook PC delivers! Balancing mobility and performance needs
at 6.52 lbs(12), the CQ60 is powered by AMD processors and NVIDIA graphics, and includes
integrated high-speed wireless LAN(10d) along with these essential features:
•
•
•
•
15.6” diagonal WXGA BrightView display supporting high-definition(8) video playback
Altec Lansing speakers delivering smooth audio performance
LightScribe Direct Disc Labeling for customer laser-etched disc labels right in the drive
5:1 digital media reader assuring fast photo transfer
ECO SOLUTIONS
•
•
•
•
•
ENERGY STAR® qualified to conserve energy
Recyclable box for less waste
Exclusive use of EPA SmartWay carriers for reduced transportation-related emissions
Replaceable battery for longer-life span
Free and responsible recycling for your old computer hardware**
With advanced power management features, this PC is ENERGY STAR® qualified and EPEAT™
Silver registered. Please recycle your computer hardware and printing supplies. HP recycling
services make responsible disposal easy. Visit www.hp.com/go/ecohighlights for more
information. ** Shipping charges apply.
WORLD-CLASS SUPPORT
Get world-class service when and how you need it.
• One-year limited hardware and software warranty with 24/7 phone support
• Toll-free phone support during warranty @ 1.800.HPINVENT (1.800.474.6836) in the U.S. and
Canada
• Email and real-time chat support for the life of the product by clicking on the desktop “help”
icon
• Easy-to-use dashboard for system diagnostics and updates with preinstalled Advisor
* All disclaimers are shown at the bottom of page 2.
Compaq Presario CQ60-210US Notebook PC
Datasheet
Specifications
Operating System
• Genuine Windows Vista® Home Premium with Service Pack 1 (1)(20a)
Processor
• AMD Athlon™ X2 QL-62 Dual-Core Processor(2a) (3a) (4b)
Processor Speed
• 2.00 GHz(4)
Bus Speed
• 1MB L2 Cache
Processor Cache
• Up to 3600 MT/s system bus running at AC/DC mode 35 watt
Memory
• 2048MB DDR2 System Memory (2 Dimm)
• Max supported =4096MB
Accessible Memory Slots
• 2
Video Graphics
• NVIDIA GeForce 8200M with up to 895MB total graphics memory
Hard Drive
• 250GB (5400RPM) Hard Drive (SATA)(7)
Finish and Features
• HP Imprint finish & integrated microphone
Service and Support
Multimedia Drive
• LightScribe SuperMulti 8X DVD±R/RW with Double Layer Support
Warranty and Support
Display
• 15.6" Diagonal High Definition (8) HP BrightView Display
(1366x768)
Network Card
• Integrated 10/100BASE-T Ethernet LAN (RJ-45 connector) (9)
Wireless Option
• 802.11b/g WLAN (10a)
Digital Media
• 5-in-1 integrated Digital Media Reader* for Secure Digital cards,
MultiMedia cards, Memory Stick, Memory Stick Pro, or xD Picture
cards(17a)
(6d) (16a) (16d)
Audio
• Altec Lansing
Fax/Modem
• High speed 56k modem (11)
Keyboard
• 101-key compatible full size keyboard with integrated numeric
keypad
Pointing Device
• Touch Pad with On/Off button and dedicated vertical scroll
Up/Down pad
External Notebook Ports
•
•
•
•
•
•
Dimensions
• Unpackaged: 14.88" (L) x 9.9" (D) x 13.8" (min H) -1.72" (max H)
• Packaged: 20.5"(W) x 4.2"(D) x13.6"(H)
Weight
• Unpackaged: 6.52Ibs (12)
• Packaged: 8.9 lbs
Security
• Kensington® MicroSaver lock slot
• Power-on password
• Accepts 3rd party security lock devices
Power
• 65W AC Adapter
• 6-Cell Lithium-Ion battery
3 Universal Serial Bus (USB) 2.0
1 Headphone out
1 microphone-in
1 VGA (15-pin)
1 RJ-11 (modem)
1 RJ -45 (LAN)
Productivity and Finance
• Microsoft ® Works
• Microsoft® Office 2007 Home and Student Edition: 60 Day Trial
Version(19)
Internet Solutions
• HP Total Care Set Up (13)
• Microsoft® Internet Explorer
Optional Accessories
Sold Separately
• HP 90W AC Adapter- KG298AA#ABA
• HP 12-Cell Multi-Charge Extended Battery - KS526AA
• HP 6-Cell Battery - KS524AA
• 1-Year Limited Hardware Warranty Toll Free Support (NA)
• 1-Year Free Hardware Technical Support
• 30-Days Free Limited Software Support (1 Year* Free Limited
Software Support with Product Registration) *from date of
purchase
Additional Information
Product Number
• NB275UA#ABA
Ad Embargo Date
• 1/4/2009
UPC Code
• 884420631279
Country of Origin
• CHINA
Tariff Number
• 8471300000
Pallet Information
•
•
•
•
Dimensions: 47.2"(L) x 39.4"(W) x 46"(H/D) approx.
Total weight: 541.3 LBS
Layers: 3
Products per layer: 19
Compaq recommends Windows
Vista® Home Premium.
Software
Security and Support
• Symantec® Norton Internet Security 2009 (including 60 days
complimentary live update) (15)
• HP Help & Support Center
• HP Recovery Manager
• HP Home Network Center
• HP Total Care Advisor
Multimedia
•
•
•
•
(1)
HP DVD Play (14)Muvee Reveal
Cyberlink DVD Suite
Adobe® Acrobat Reader
HP Games Powered by Wild Tangent
Certain Windows Vista product features require advanced or additional hardware. See
www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade Advisor can help you
determine which features of Windows Vista will run on your computer. To download the tool, visit
www.windowsvista.com/upgradeadvisor.
(2a)
This system requires a separately purchased 64-bit operating system and 64-bit software products to take advantage of
the 64-bit processing capabilities of AMD technology. Dual-core processing available with AMD technology is designed to
improve performance of this system. Given the wide range of software applications available, performance of a system
including a 64-bit operating system and a dual-core processor will vary.(3a) AMD's numbering is not a measurement of higher
performance. AMD’s numbering is not a measurement of clock speed.(4) GHz refers to internal clock speed of the processor.
Other factors besides clock speed may impact system and application performance.(4b) Dual Core is designed to improve
performance of certain software products.Not all customers or software applications will necessarily benefit from use of this
technology.(6d) Note that DVD-RAM cannot read or write to 2.6GB Single Sided/5.2 GB Double Sided – Version 1.0 media(7) 1
GB = 1 billion bytes. Actual formatted capacity is less. Up to 12GB of system disk is reserved for system recovery software.
(8)
High-Definition content is required to view high-definition images. (9) Actual speeds may vary. (10a) The specifications for the
802.11n WLAN are draft specifications and are not final. This may affect the ability of the PC to communicate with other
802.11n WLAN devices(11) Maximum achievable download speeds are currently unknown, may not reach 56Kbps and will
vary with line conditions. Upload speeds are less and also will vary.(12) Weight will vary by configuration.(13) Internet access
requires payment of additional fees or subscription for use. Special Offers do not include local telephone company charges, if
any, or applicable taxes. Any long distance charges incurred will be the responsibility of the customer. (14) HD DVD movies
will only play through QuickPlay software.
(15)
Internet access required and sold separately.(16a) Actual speeds may vary. Don’t copy copyright-protected materials.
Double Layer is a new technology. Double Layer media compatibility will widely vary with some home DVD players and
DVD-ROM drives. LightScribe creastes a monochrome image. LightScribe media required and sold separately.(16d)
LightScribe creastes a monochrome image. LightScribe media required and sold separately.(17a) Digital Media Slot supports
MS, MSP, MMC, SD, XD formats. To avoid damaging the card or computer do not insert any type of adapter, or mini format
memory card, into the Digital Media Slot. Mini/Reduced flash memory cards require separately purchased adapter.(19) The
Microsoft® Office Student and Teacher Edition 2008 is a trial version; functionality is reduced after 60 days. The full version
is sold separately. (20a) Up to 12GB of the hard drive is reserved for the system recovery software.
Actual product may vary from image shown on datasheet.
©
2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing shall be construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein. 11 17 2008 r1 rk Product Number: NB275UA#ABA
