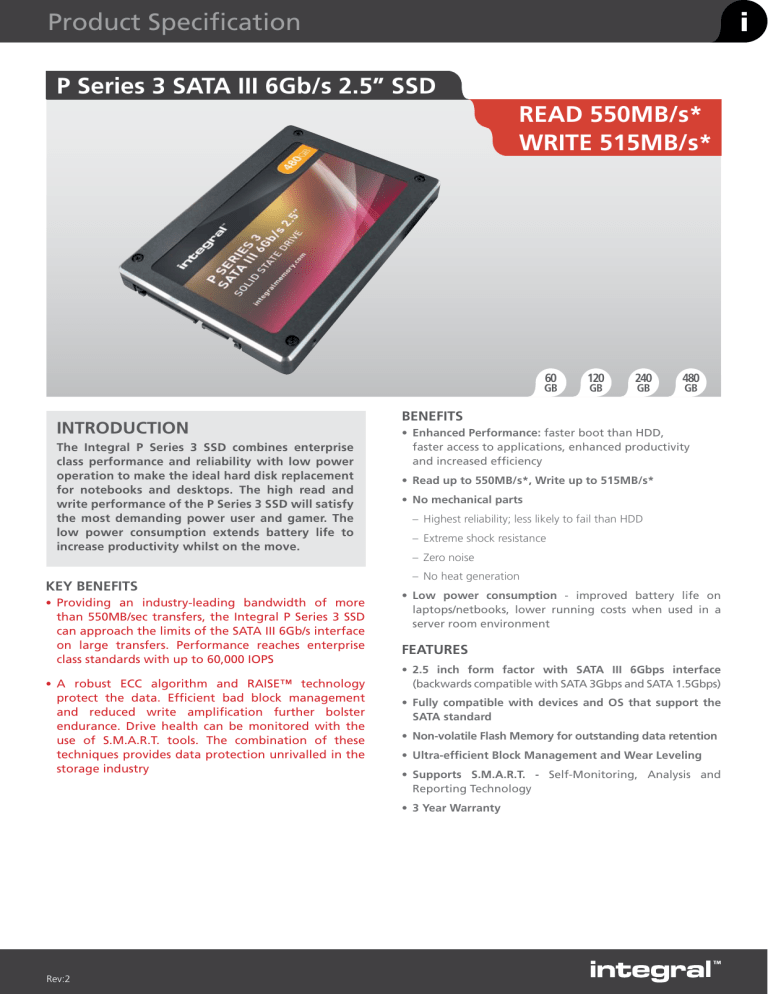

Product Specification
i
i
P Series 3 SATA III 6Gb/s 2.5” SSD
READ 550MB/s*
WRITE 515MB/s*
60
GB
INTRODUCTION
The Integral P Series 3 SSD combines enterprise
class performance and reliability with low power
operation to make the ideal hard disk replacement
for notebooks and desktops. The high read and
write performance of the P Series 3 SSD will satisfy
the most demanding power user and gamer. The
low power consumption extends battery life to
increase productivity whilst on the move.
KEY BENEFITS
• Providing an industry-leading bandwidth of more
than 550MB/sec transfers, the Integral P Series 3 SSD
can approach the limits of the SATA III 6Gb/s interface
on large transfers. Performance reaches enterprise
class standards with up to 60,000 IOPS
• A robust ECC algorithm and RAISE™ technology
protect the data. Efficient bad block management
and reduced write amplification further bolster
endurance. Drive health can be monitored with the
use of S.M.A.R.T. tools. The combination of these
techniques provides data protection unrivalled in the
storage industry
GB
240
GB
480
GB
BENEFITS
• Enhanced Performance: faster boot than HDD, faster access to applications, enhanced productivity and increased efficiency
• Read up to 550MB/s*, Write up to 515MB/s*
• No mechanical parts
–– Highest reliability; less likely to fail than HDD
–– Extreme shock resistance
–– Zero noise
–– No heat generation
• Low power consumption - improved battery life on
laptops/netbooks, lower running costs when used in a
server room environment
FEATURES
• 2.5 inch form factor with SATA III 6Gbps interface
(backwards compatible with SATA 3Gbps and SATA 1.5Gbps)
• Fully compatible with devices and OS that support the
SATA standard
• Non-volatile Flash Memory for outstanding data retention
• Ultra-efficient Block Management and Wear Leveling
• Supports S.M.A.R.T. - Self-Monitoring, Analysis and
Reporting Technology
• 3 Year Warranty
Rev:2
120
Product Specification
i
Technical Features
i
CAPACITY
• MLC-NAND Flash Technology
• Controller Technology - SandForce-2281
• SATA III 2.5”
• TRIM (OS support required)
PART CODE
BARCODE (EAN)
60GB
INSSD60GS625MXP3
5055288419032
120GB
INSSD120GS625MXP3
5055288417922
240GB
INSSD240GS625MXP3
5055288417939
480GB
INSSD480GS625MXP3
5055288419049
1GB = 1,000,000,000 bytes. Formatted capacity is less.
This device should not be used as your sole backup.
• S.M.A.R.T. option
Product design and specification subject to change or modification without notice. E&OE.
• CE and FCC certified and RoHs compliant
All trademarks acknowledged.
For warranty information please visit www.integralmemory.com/warranty
• Compatible with Windows XP, Vista and 7, Linux, Mac OSX+
Performance & Interface
Read
550MB/s (max)*
Write
515MB/s (max)*
Interface
SATA III 6Gbps
Also Compatible with SATA II
3Gbps
Also compatible with SATA
1.5Gbps
*Based on internal testing
RELIABILITY
MTTF
2,000,000 hours
ECC algorithm
24 9-bit Symbols Correction per
512 9-bit Symbol
POWER CONSUMPTION
Power requirement
5V
Typical
<5W
Sleep
<200Mw
ENVIRONMENTAL
Operating Temp
0° - +70°C
Non - Operating Temp
-40° - +85°C
Physical
Length
100mm
Width
69.9mm
Height
9.5mm
Weight
>80g
Length (Packed)
116mm
Width (Packed)
116mm
Height (Packed)
42mm
Weight (Packed)
114.4g
Warranty
3 years
RAISE™, DuraWRITE™, and DuraCLASS™ are trademarks of SandForce Inc.
Rev:2
