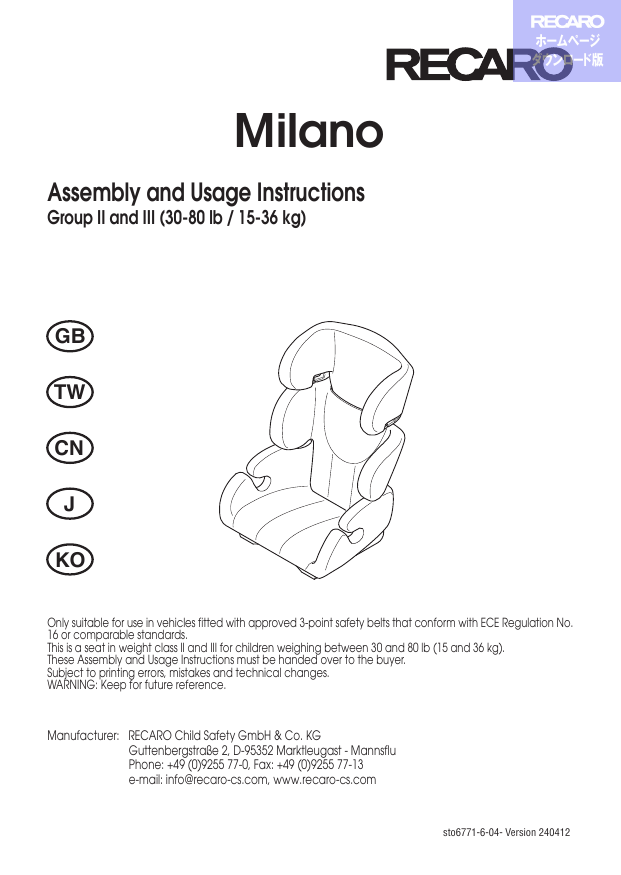

Milano

Assembly and Usage Instructions

Group II and III (30-80 lb / 15-36 kg)

GB

TW

CN

J

KO

Only suitable for use in vehicles fitted with approved 3-point safety belts that conform with ECE Regulation No.

16 or comparable standards.

This is a seat in weight class II and III for children weighing between 30 and 80 lb (15 and 36 kg).

These Assembly and Usage Instructions must be handed over to the buyer.

Subject to printing errors, mistakes and technical changes.

WARNING: Keep for future reference.

Manufacturer: RECARO Child Safety GmbH & Co. KG

Guttenbergstraße 2, D-95352 Marktleugast - Mannsflu

Phone: +49 (0)9255 77-0, Fax: +49 (0)9255 77-13 e-mail: [email protected], www.recaro-cs.com

sto6771-6-04- Version 240412

1

GB

6772-6-00

6418-4-00/1

Dear Parents, Congratulations!

In line with our motto “Because your child is worth it" you have chosen a high-grade quality product from

RECARO. For us, outstanding safety, best ergonomics, state-of-the-art design, comfort and highest quality are obligatory. For example, at RECARO, all child seats are treated like car seats and are tested in accordance with the strict requirements of the automotive industry.

The RECARO Child Safety Competence Centre wishes you a safe journey at all times!

Child Restraint System Milano of Groups II + III; for children aged between 3 and 12 and weighing 33 to 80 lb (15 - 36 kg). Tested according to ECE 44/04;

Permit Number 0430 1238.

Important:

This child seat must only be used with mounted back rest!

6527-4-00/1

For adjustment to the car seat, the backrest has three positions. To adjust the back, lift the back slightly (1) and swivel to the required position (2).

1

2

2

6419-4-00/1 sto6772-6-02 disk Recaro Milano, Bild 1-2 Montageanleitung GB, Bilder auf 22,5% verkleinert erst. 11.03.10 ps / geänd. am

GB

6773-6-00

The headrest has six positions. Depress the locking button and adjust the headrest to the required height.

The top edge of the headrest should always be level with the top of the child's head.

3

6427-4-00/1

Insert the lap belt of the three-point belt in the belt guide and close the lock. Ensure that there is an audible click when it engages.

The lap belt must be placed as low as possible above the groin of the child.

4

Klick

6425-4-00/1

Insert the diagonal belt in the belt guides on the lower edge of the headrest side supports.

5

6426-4-00/1 sto6773-6-00 disk Storchenmühle Milano GB, Bild 3-5 Montageanleitung, Bilder auf 22,5% verkleinert erst. 11.03.10 ps / geänd. am

6a

GB

6774-6-00

The seatbelt buckle position (when fastened) must be below the belt-guide of the seat as shown in figure 6a. If the seatbelt buckle position (when fastened) is above the belt-guide of the seat, as shown in figure 6b the seat should not be used.

Belts must not be twisted or clamped in and must be tightened.

6b

A

6422-4-00/1

Removing the headrest cover:

Open the Velcro fastener at the back of the headrest

(A). Subsequently open the narrow Velcro fasteners on the sides and remove the cover. Detach the elastic straps from the belt hooks (B) and remove the elastic loop from the connecting hook.

7

B

6421-4-00/1

Removing the backrest cover:

Lift the back slightly and move it all the way back.

Separate the seat from the back.

8

6420-4-00/1 sto6774-6-00 disk Storchenmühle Milano GB, Bild 6-8 Montageanleitung, Bilder auf 22,5% verkleinert erst. 11.03.10 ps / geänd. am

GB

6775-6-00

Open both Velcro fasteners at the back and remove the cushion.

9

6424-4-00/1

Removing the seat cover:

Detach seat cover and remove.

Fit covers in reverse order.

10

9

12

6

01

3 PE

11

6x

6423-4-00/1

Disposal information:

Remove the padding from the seat. Drill out the six rivets. Dispose of plastic and metal parts at a recycling facility. All plastic parts are stamped with the material and date, see Fig. The padding cannot be recycled.

The instructions can be recycled.

6428-4-00/1 sto6775-6-00 disk Storchenmühle Milano, Bild 09-11 Montageanleitung, Bilder auf 22,5% verkleinert erst. 11.03.10 ps / geänd. am

Safety instructions:

• Weight category II + III (33 to 80 lb / 15 to

36 kg).

• The child car seat is only suitable for use in approved cars fitted with three-point static or retractor safety belts approved to UN-ECE Regulation No. 16 or other comparable standards.

• Secure the infant carrier in the car in such a manner that it is not wedged in by the front seats or the vehicle doors.

• Belts must not be twisted or clamped in and must be tightened.

• The child car seat has been tested in a front collision at 50 km/h according to

ECE 44/04. Following an accident, the child car seat must be replaced and tested at the factory.

• Always fasten the child seat in the car in accordance with the installation instructions, even when it is not being used! An unfastened seat can injure the other occupants in the event of emergency braking.

• We point out that the use of child seats may cause damage to the vehicle seats.

Safety directive ECE R44 requires firm fitment. Please take suitable precautions

(e.g. RECARO Car Seat Protector) for the seats of your vehicle. RECARO GmbH &

Co. KG and its dealers are not liable for possible damage to the car seats.

GB

6776-6-00 sto6776-6-00 disk Storchenmühle Milano GB, Hinweis1 Montageanleitung, Bilder auf 22,5% verkleinert erst. 11.03.10 ps / geänd. am

• The child seat must not be modified and the assembly and operating instructions must be carefully observed, otherwise it is not possible to protect the child from danger whilst travelling.

• Ensure that items of luggage or other objects are properly secured, especially on the parcel shelf, since these can cause injuries in the event of a crash. Set a good example and strap yourself in. An adult that is not strapped in can be a danger to the child.

• Always ensure that your child is restrained while it is in the seat.

Never leave your child without supervision.

• Bulky clothing must be removed before you strap your child in.

• Protect the child seat from direct sunlight; otherwise your child could suffer burns from coming into contact with the seat.

• The seat and belts can be cleaned with lukewarm water and soap. The removed cover can be washed in accordance with the washing instructions on the care label.

• The child seat must not be used without the cover. Never replace the cover with a cover that is not recommended by the manufacturer, since this cover is an integral part of the safety effect of the system.

GB

6777-6-00 sto6777-6-00 disk Recaro Milano GB, Hinweis2 Montageanleitung, Bilder auf 22,5% verkleinert erst. 11.03.10 ps / geänd. am

•Warranty 2 years from date of purchase.

Claims can only be submitted together with verification of the date of purchase.

•The warranty does not cover natural wear and damage due to excess strain or damage due to unsuitable or improper use.

•If you have any questions call us or send us an email.

Telephone: +49 (0)9255 77-66 email: [email protected]

GB

6778-6-02

TW

CN

Milano

Manufacturer: RECARO Child Safety GmbH & Co. KG

Guttenbergstraße 2, D-95352 Marktleugast - Mannsflu

Phone: +49 (0)9255 77-0, Fax: +49 (0)9255 77-13 e-mail: [email protected], www.recaro-cs.com

sto6779-6-02

TW CN

6780-6-00

1

6418-4-00/1

6527-4-00/1

2

1

2

6419-4-00/1 sto6780-6-02 disk Recaro Milano TWCN, Bild 1-2 Montageanleitung GB, Bilder auf 22,5% verkleinert erst. 11.03.10 ps / geänd. am

TW CN

6781-6-00

3

6427-4-00/1

4

Klick

6425-4-00/1

5

6426-4-00/1 sto6781-6-00 disk Storchenmühle Milano TWCN, Bild 3-5 Montageanleitung, Bilder auf 22,5% verkleinert erst. 11.03.10 ps / geänd. am

6a

6b

A

6422-4-00/1

7

B

6421-4-00/1

TW CN

6782-6-00

8

6420-4-00/1 sto6782-6-00 disk Storchenmühle Milano TWCN, Bild 6-8 Montageanleitung, Bilder auf 22,5% verkleinert erst. 11.03.10 ps / geänd. am

TW CN

6783-6-00

9

6424-4-00/1

10

9

12

6

01

3 PE

6423-4-00/1

11

6x

6428-4-00/1 sto6783-6-00 disk Storchenmühle Milano TWCN, Bild 09-11 Montageanleitung, Bilder auf 22,5% verkleinert erst. 11.03.10 ps / geänd. am

TW CN

6784-6-00 sto6784-6-00 disk Storchenmühle Milano TWCN, Hinweis1 Montageanleitung, Bilder auf 22,5% verkleinert erst. 11.03.10 ps / geänd. am

TW CN

6785-6-00 sto6785-6-00 disk Recaro Milano TWCN, Hinweis2 Montageanleitung, Bilder auf 22,5% verkleinert erst. 11.03.10 ps / geänd. am

TW CN

6786-6-02

電話:+49 (0)9255 77-66 email: [email protected]

电话:+49 (0)9255 77-66 email: [email protected]

Milano

J

KO

本チャイルドシートは、ECE規定16条またはその類の規定によって承認された

3点固定式シートベルトの装着された自動車座席にのみ使用できます。

使用可能な幼児の体重範囲は、15kg∼36kg(体重グループII、III)です。

本取扱説明書は必ず購買者にお渡し下さい。

製品の外観および仕様は、改良のため予告なしに変更する場合があります。

ご注意: 必要なときに読めるよう、本書を大切に保管して下さい。

Manufacturer: RECARO Child Safety GmbH & Co. KG

Guttenbergstraße 2, D-95352 Marktleugast - Mannsflu

Phone: +49 (0)9255 77-0, Fax: +49 (0)9255 77-13 e-mail: [email protected], www.recaro-cs.com

sto6787-6-03

1

6418-4-00/1

J KO

6788-6-01

このたびは、確かな品質を誇るRECARO社の製品をご購入

頂きまして、まことにありがとうございます。弊社では「お子

様を第一に」をモットーに、製品を製造しています。高い安

全性と最適な人間工学、最新のデザイン、快適性そして最

高の品質を提供することが弊社の義務であると自負して

おります。例えば、RECARO社で製造される全てのチャイル

ドシートは自動車の座席同様に、自動車業界の厳格な基準

にもとづいて 検査されています。

RECARO Child Safety事業部門は、皆さまの快適で安全な

ドライブを常に願っております。

2

6527-4-00/1

(ECEグループII, III、年齢約3∼

12歳、体重15∼36kgのお子様向け)、最高身長150cm。

ECE 44/04に準拠して検査済み、認証番号: 04301238

1

車の座席との隙間がなくなるように調整するために、背も

たれは3つのポジションを選ぶことができます。背もたれを

調整するには、軽く持ち上げ(1)、そしてお好みのポジショ

(2)。

2

6419-4-00/1

J KO

6789-6-01

ヘッドレストは6段階で調整することができます。ロッ

クボタンを押し、ヘッドレストを適切な高さにして下

さい。ヘッドレストの上端とお子様の頭頂部が常に

同じ高さになるように調整して下さい。

3

6427-4-00/1

3点式シートベルトの腰ベルトは下のベルトガイドを

通し、カチッと音がするようにバックルを閉めます。

腰ベルトはお子様の骨盤の上にくるようにします。

4

Klick

6425-4-00/1

5

6426-4-00/1

6a

J KO

6790-6-02

図6aのように、バックルはベルトガイドの下側に収ま

るようにしなければなりません。図6bのようにバック

ルがベルトガイドの上側になる場合はお使いいただ

けません。ベルトはねじれたり、あるいは折れ曲がら

ないようにし、ピンと張るようにして下さい。

6b

A

6422-4-00/1

まず最初にヘッドレストの後ろにあるマジックテープ

を開いて下さい(A)。 そして横側にある細いマジックテ

ープを開き、カバーを前方に引いて下さい。ベルトフッ

クからゴムストラップを外し(B)、接続フックからゴムル

ープを外して下さい。

7

B

6421-4-00/1

8

6420-4-00/1

9

6424-4-00/1

J KO

6791-6-01

背もたれの後ろにあるマジックテープを開き、クッショ

ンを前に引いて下さい。

10

6423-4-00/1

注意: 本製品は、図10のように背もたれを外した状態

での使用はできません。

一般的な注意事項:

本製品はUN/ECE規則No.16または、それに

同等の基準で許可された3点式シートベル

トを装備している車両にのみ使用すること

ができます。

J KO

6792-6-01

チャイルドシートはECE-R44/04にもとづき

50km/hでの前面衝突試験に合格。

事故や落下などによって大きな衝撃を受け

たチャイルドシートは外観に損傷がなくて

も使用しないで下さい。

本製品の使用によって自動車座席が損傷

を受ける可能性があります。ECE-R44安全

規定では、チャイルドシートをしっかりと

固定することと明示しています。座席(シー

トカバー等)が破損されないよう注意して

下さい。

RECARO Child Safety GmbH & Co.KGと

その営業所は自動車座席に生じた損傷に

対する責任を負いません。

チャイルドシートは改造したり、カバー類

やウレタンなどは取り外して使用しない

で下さい。本取付け説明書の操作と指示

内容通りにご使用下さい。以上のことをお

守り頂けなかった場合、お子様の生命に

危機または重大な損害につながるおそれ

があります。

車内の荷物などは事故の時のケガの原因

となり得るためしっかりと固定して下さい。

常にシートベルトを使用し、お子様に模範

を示しましょう。大人がシートベルトをして

いないとお子様に危険がおよぶことがあり

ます。

お子様を車内にひとりで放置することは

おやめ下さい。

シートベルト着用前に、上着や防寒具な

どは脱がせて下さい。

J KO

6793-6-01

チャイルドシートには必ずシートカバー

を取り付けてご使用下さい。シートカバー

は安全機能の構成部品を成していますの

で、メーカーが推奨していない他のカバー

とは交換しないで下さい。

J KO

6794-6-04

保証は購買日付から2年間有効です。保

証を受ける場合は購入日が証明できる

ものが必要になります。

ご不明な点がございましたら、お電話また

はE-mailで当社までお問合わせ下さい。

電話: レカロスタートコール

0800-919-1906(フリーコール)

E-mail: [email protected]

전화

: +49 (0)9255 77-66 email: [email protected]
