Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Contacte con SAMSUNG WORLDWIDE
Si tiene alguna pregunta o comentario referente a nuestros productos, por favor contacte con nuestro Servicio de Atención al
Cliente.
Country Customer Care Center Web Site
CANADA
U.S.A
1-800-SAMSUNG(726-7864)
1-800-SAMSUNG(726-7864) www.samsung.com/ca www.samsung.com
Address
Samsung Electronics Canada Inc., Customer
Service 55 Standish Court Mississauga,
Ontario L5R 4B2 Canada
Samsung Electronique Canada Inc.,
Service à la Clientèle 55 Standish Court
Mississauga, Ontario L5R 4B2 Canada
Samsung Electronics America, Inc.
105 Challenger Road
Ridgefield Park, NJ 07660-0511
BN68-01669A-00

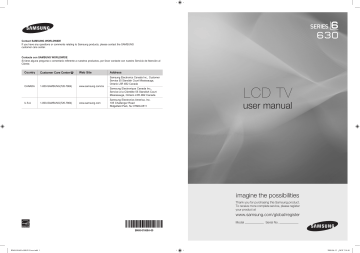

LCD TV user manual imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register your product at
www.samsung.com/global/register
Model Serial No.
2008-06-13 ¿ÀÈÄ 7:14:56 BN68-01669A-00L02-Cover.indd 1
Important Warranty Information Regarding Television Format Viewing
Wide screen format LCD Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark sidebars on nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of LCD Displays that leave subtle, but permanent burned-in ghost images in the LCD picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars.
On LCD models that offer picture sizing features, use these controls to view different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven LCD aging as a result of format selection and use, as well as burned-in images, are not covered by your Samsung limited warranty.
SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics
(SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide
Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only.
The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the
Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser.
Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the product.
Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or replacements, accessories, options, upgrades, or consumables.
For the location of a SAMSUNG Authorized Service Center, please call toll-free:
In the United States : 1-800-SAMSUNG (1-800-726-7864) In Canada : 1-800-SAMSUNG
➣
See the warranty card for more information on warranty terms.
Precautions When Displaying a Still Image
•
•
•
A still image may cause permanent damage to the TV screen
Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen.
Playing a DVD or a game console may cause a similar effect to the screen.
Damages caused by the above effect are not covered by the Warranty.
Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.
© 2008 Samsung Electronics Co., Ltd. All rights reserved.
BN68-01669A-00Eng.indb 1 2008-06-13 ¿ÀÈÄ 7:12:35
Contents
■
■
■
■
■
■
General Information
List of Features ..................................................................2
Accessories .......................................................................2
Viewing the Control Panel .................................................3
Viewing the Connection Panel ...........................................4
Remote Control .................................................................5
Installing Batteries in the Remote Control .........................6
■
■
■
■
■
Connections
■
■
■
■
■
Connecting VHF and UHF Antennas .................................6
Connecting Cable TV ........................................................7
Connecting a DVD Player or Cable Box/Satellite receiver
(Set-Top Box) via HDMI .....................................................8
Connecting a DVD Player or Cable Box/Satellite receiver
(Set-Top Box) via DVI ........................................................8
Connecting a DVD Player or Cable Box/Satellite receiver
(Set-Top Box) via Component cables ................................9
Connecting a Camcorder ...................................................9
Connecting a VCR ...........................................................10
Connecting a Digital Audio System .................................11
Connecting an Amplifier/DVD Home Theater ..................11
Connecting a PC .............................................................11
■
■
■
■
■
■
■
■
■
■
Operation
Turning the TV On and Off ..............................................12
Plug & Play Feature .........................................................12
Changing Channels .........................................................13
Adjusting the Volume .......................................................14
Viewing the Display .........................................................14
Viewing the Menus ..........................................................14
Using the TOOLS Button .................................................15
Memorizing the Channels ................................................15
To Select the Source .......................................................17
To Edit the Input Source Name ........................................17
■
■
■
■
■
■
Picture Control
Changing the Picture Standard .......................................18
Customizing the Picture Settings .....................................18
Adjusting the Detailed Settings ........................................19
Resetting the Picture Settings to the Factory Defaults ....22
Configuring Picture Options .............................................23
Viewing Picture-in-Picture ...............................................27
■
■
■
■
■
■
■
■
■
■
Sound Control
Changing the Sound Standard ........................................29
Customizing the Sound ...................................................29
Setting the TruSurround XT .............................................30
Choosing Preferred Language ........................................31
Choosing a Multi-Channel Sound (MTS) track ................31
Automatic Volume Control ...............................................32
Selecting the Speaker .....................................................32
Listening to the Sound of the Sub (PIP) Picture ..............33
Resetting the Sound Settings to the Factory Defaults .....33
Connecting Headphones (Sold separately) .....................33
■
■
■
■
Channel Control
Managing Channels .........................................................34
Clearing Scrambled Channels - Digital ............................41
Fine Tuning Analog Channels ..........................................41
Checking the Digital-Signal Strength ...............................42
■
■
■
PC Display
Using Your TV as a Computer (PC) Display ....................43
Display Modes .................................................................43
Setting up the TV with your PC .......................................44
Time Setting
■ Setting the Clock .............................................................46
■
■
■
■
■
Function Description
■
■
■
■
Selecting a Menu Language ............................................50
Using the V-Chip ..............................................................50
Viewing Closed Captions (On-Screen Text Messages)
- Analog ...........................................................................57
Viewing Closed Captions (On-Screen Text Messages)
- Digital ............................................................................58
Adjusting the TV On/Off Melody Sound ...........................59
Setting the Entertainment mode ......................................59
Using the Energy Saving Feature ....................................60
Upgrading the Software ...................................................60
Self diagnosis .................................................................61
■
■
■
■
■
■
■
■
WISELINK
Using the WISELINK Function ........................................62
Using the Photo List ........................................................63
Sorting Photo List ............................................................65
Viewing a Photo or Slide Show ......................................69
Using the Music List ........................................................73
Sorting Music List ............................................................74
Playing a Music File .........................................................78
Using the Setup Menu .....................................................80
■
■
■
■
■
■
■
About Anynet+
What is Anynet+?.............................................................81
Connecting Anynet+ Devices...........................................81
Setting Up Anynet+ .........................................................82
Scanning and Switching between Anynet+ Devices ........83
Recording ........................................................................84
Listening through a Receiver (Home theater) ..................84
Troubleshooting for Anynet+ ...........................................85
■
■
■
■
■
■
■
■
■
Appendix
Troubleshooting ...............................................................86
Installing the Stand ..........................................................88
Disconnecting the Stand ..................................................88
Auto Wall-Mount Adjustment (Sold separately) ..............89
Wall Mount Kit Specifications (VESA) .............................90
Using the Anti-Theft Kensington Lock .............................91
Securing the TV to the Wall .............................................92
Specifications ..................................................................93
Dimensions ......................................................................94
Symbol
Press Note One-Touch Button
English - 1
BN68-01669A-00Eng.indb 1 2008-06-13 ¿ÀÈÄ 7:12:36
General Information
•
•
•
•
•
•
•
•
List of Features
Adjustable picture settings that can be stored in the TV’s memory.
Automatic timer to turn the TV on and off.
A special sleep timer.
Excellent Digital Interface & Networking :
With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver
(Set-Top Box) needed.
You can listen to music files and view pictures on USB Mass Storage Class (MSC) devices.
HDMI/DVI connection of your PC to this TV.
Excellent Picture Quality
- DNIe technology provides life-like clear images.
SRS TruSurround XT
- SRS TruSurround XT provides a virtual surround system.
Accessories
Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.
Remote Control & Batteries (AAA x 2)
(BN59-00673A)
Power Cord
(3903-000144)
Warranty Card /
Registration Card /
Safety Guide Manual
(Not available in all locations)
Cover-Bottom
(LN40A630M1F: BN63-04783A)
(LN46A630M1F: BN63-04784A)
(LN52A630M1F: BN63-04854A)
Cleaning Cloth
(BN63-01798B)
Owner’s Instructions
English - 2
BN68-01669A-00Eng.indb 2 2008-06-13 ¿ÀÈÄ 7:12:36
Viewing the Control Panel
Buttons on the Lower-Right Part of the Panel
The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
1 2 1
➣
The product color and shape may vary depending on the model.
3 4 5 6 7 8
1
SPEAKERS
2
REMOTE CONTROL SENSOR
Aim the remote control towards this spot on the TV.
3
SOURCE
Toggles between all the available input sources
(TV, AV1, AV2, S-Video, Component1, Component2,
PC, HDMI1, HDMI2/DVI, HDMI3, USB). In the onscreen menu, use this button as you would use the
ENTER
button on the remote control.
4
MENU
Press to see an on-screen menu of your TV’s features.
5
– VOL +
Press to increase or decrease the volume.
In the on-screen menu, use the
– VOL +
buttons as you would use the ◄ and ► buttons on the remote control.
6
CH
Press to change channels.
In the on-screen menu, use the
CH
buttons as you would use the ▲ and ▼ buttons on the remote control.
7
POWER INDICATOR
Blinks and turns off when the power is on and lights up in stand-by mode.
8
(Power)
Press to turn the TV on and off.
English -
BN68-01669A-00Eng.indb 3 2008-06-13 ¿ÀÈÄ 7:12:37
8
8
8 7 6
4
5
1
2
3
1
2
3
4
5
6
7 8
7 8 7 6 5 4 3 2 1
7 8 7 6 5 4 3 2 1
Viewing the Connection Panel
Use the connection panel jacks to connect A/V components that will be connected continuously, such as DVD players or a
VCR. For more information on connecting equipment, see pages 6~11.
[TV Rear Panel] [TV Side Panel]
➣
The product color and shape may vary depending on the model.
1
AUDIO OUT
Connects to the audio input jacks on your Amplifier/
Home theater.
8
(HEADPHONE)
Connects a set of external headphones for private listening.
2
DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component.
9
POWER INPUT
Connects the supplied power cord.
3
PC IN [PC] / [AUDIO]
Connects to the video and audio output jacks on your PC.
4
HDMI IN 1, 2, / DVI IN(HDMI2)[R-AUDIO-L]
Connects to the HDMI jack of a device with an HDMI output.
- No sound connection is needed for an HDMI to HDMI connection.
Use the HDMI IN 2 jack for DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI adapter (DVI to HDMI) for video connection and the
DVI IN (HDMI2) [R-AUDIO-L] jacks for audio.
- When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
0
COMPONENT IN 1, 2 / AV IN 1
Connects Component video/audio.
The COMPONENT IN 1 jack is also used as the
AV IN 1 jack.
- Connect the video cable to the COMPONENT IN 1
[Y/VIDEO] jack and the audio cable to the
COMPONENT IN 1 [R-AUDIO-L] jacks.
!
EX-LINK
Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control.
5
6
ANT IN
Connects to an antenna or cable TV system.
WISELINK
Connect a USB mass storage device to view photo files and play audio files.
@
KENSINGTON LOCK
The Kensington Lock (optional) is a device used to physically fix the system when used in a public place.
If you want to use a locking device, contact the dealer where you purchased the TV.
➣
The location of the Kensington Lock may be different depending on its model.
7
AV IN 2
Video and audio inputs for external devices, such as a camcorder or VCR.
S-VIDEO
Connects an S-Video signal from a camcorder or VCR.
English - 4
BN68-01669A-00Eng.indb 4 2008-06-13 ¿ÀÈÄ 7:12:37
Remote Control
You can use the remote control up to a distance of about 23 feet from the TV.
1
POWER
Turns the TV on and off.
2
TV
Selects the TV mode directly.
3
NUMERIC BUTTONS
Press to change the channel.
4
Press to select additional channels (digital and analog) being broadcast by the same station. For example, to select channel “54-3”, press “54”, then press “ ” and “3”.
5
(MUTE)
Press to temporarily cut off the sound.
0
!
@
COLOR BUTTONS
Use these buttons in the
Channel list, WISELINK, etc.
CC
Controls the caption decoder.
E.MODE
Press to select the preset display and sound modes for sports, cinema and games.
%
^
&
*
PRE-CH
Tunes to the previous channel.
CH / CH
Press to change channels.
SOURCE
Press to display and select the available video sources.
W.LINK (WISELINK)
This function enables you to view and play photo and music files from an external device.
(Refer to pages 63 (Photo) and
73 (Music))
6
VOL – / VOL +
Press to increase or decrease the volume.
7
CH LIST
Used to display Channel Lists on the screen.
8
TOOLS
Use to quickly select frequently used functions.
9
INFO
Press to display information on the TV screen.
(
MENU
Displays the main on-screen menu.
)
RETURN
Returns to the previous menu.
a
UP▲ / DOWN▼ / LEFT◄ /
RIGHT► / ENTER
Use to select on-screen menu items and change menu values.
b
EXIT
Press to exit the menu.
c
DMA (Digital Media Adapter)
Use this when connecting a SAMSUNG DMA device through an HDMI interface and switching to DMA mode.
For more information on the operating procedures, refer to the user manual of the DMA.
This button is available when
“Anynet+(HDMI-CEC)” is “On”.
(see page 82) d
MTS
Press to choose stereo, mono or Separate Audio Program
(SAP broadcast).
#
Use these buttons in the
DMA, WISELINK and Anynet+ modes.
( : This remote can be used to control recording on
Samsung recorders with the
Anynet+ feature)
$
ON/OFF
Press to backlight the buttons on the remote. This function is convenient for using at night or when the room is dark. (Using the remote control with the
ON/OFF
light button set to On will reduce the battery usage time.) e f
FAV.CH
Press to switch to your favorite channels.
P.SIZE
Picture size selection.
➣
The performance of the remote control may be affected by bright light.
English -
BN68-01669A-00Eng.indb 5 2008-06-13 ¿ÀÈÄ 7:12:38
Installing Batteries in the Remote Control
1.
Lift the cover at the back of the remote control upward as shown in the figure.
2.
Install two AAA size batteries.
➣
Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment.
3.
Replace the cover.
➣
Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time.
The remote control can be used up to about 23 feet from the TV.
(Assuming typical TV usage, the batteries should last for about one year.)
➣
Using the remote control with the
ON/OFF
light button set to On will reduce the battery usage time.
➣
If the remote control doesn’t work, check the following:
1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?
Connections
Connecting VHF and UHF Antennas
If your antenna has a set of leads that look like the diagram to the right, see “Antennas with 300 Ω Flat Twin Leads” below.
If your antenna has one lead that looks like the diagram to the right, see “Antennas with
75 Ω Round Leads”.
If you have two antennas, see “Separate VHF and UHF Antennas”.
Antennas with 300 Ω Flat Twin Leads
If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300
Ω twin flat leads, follow the directions below.
1.
Place the wires from the twin leads under the screws on a 300-75 Ω adapter (not supplied). Use a screwdriver to tighten the screws.
2.
Plug the adaptor into the ANT IN terminal on the back of the TV.
ANT IN
Antennas with 75 Ω Round Leads
1.
Plug the antenna lead into the ANT IN terminal on the back of the TV.
ANT IN
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).
1.
Connect both antenna leads to the combiner.
UHF
VHF
2.
Plug the combiner into the ANT IN terminal on the bottom of the rear panel.
ANT IN
UHF
VHF
English - 6
BN68-01669A-00Eng.indb 6 2008-06-13 ¿ÀÈÄ 7:12:38
Connecting Cable TV
To connect to a cable TV system, follow the instructions below.
Cable without a Cable Box
1.
Plug the incoming cable into the ANT IN terminal on the back of the TV.
➣
Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels.
ANT IN
Connecting to a Cable Box that Descrambles All Channels
1.
Find the cable that is connected to the ANT OUT terminal on your cable box.
➣
This terminal might be labeled “ANT OUT”, “VHF OUT” or simply, “OUT”.
2.
Connect the other end of this cable to the ANT IN terminal on the back of the TV.
ANT IN
ANT OUT
ANT IN
Connecting to a Cable Box that Descrambles Some Channels
If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch and four lengths of RF cable. (These items are available at most electronics stores.)
1.
Find and disconnect the cable that is connected to the ANT IN terminal on your cable box.
ANT IN
➣
This terminal might be labeled
“ANT IN”, “VHF IN” or simply, “IN”.
2.
Connect this cable to a two-way splitter.
Incoming cable
Splitter
3.
Connect an RF cable between the
OUTPUT terminal on the splitter and the IN terminal on the cable box.
Incoming cable
Splitter
Cable Box
4.
Connect an RF cable between the
ANT OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch.
Incoming cable
Splitter
Cable Box
RF (A/B)
Switch
5.
Connect another cable between the other OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch.
Incoming cable
Splitter
Cable Box
RF (A/B)
Switch
6.
Connect the last RF cable between the OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the TV.
Incoming cable
ANT IN
TV Rear
Splitter
Cable Box
RF (A/B)
Switch
After you have made this connection, set the A/B switch to the “A” position for normal viewing. Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B switch to “B”, you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.)
English - 7
BN68-01669A-00Eng.indb 7 2008-06-13 ¿ÀÈÄ 7:12:39
Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI
This connection can only be made if there is an HDMI Output connector on the external device.
1.
Connect an HDMI Cable between the HDMI IN
(1, 2 or 3) jack on the
TV and the HDMI jack on the DVD Player or
Cable Box/Satellite receiver (Set-Top Box).
DVD Player or Cable Box/Satellite receiver
(Set-Top Box) Rear Panel
TV Rear Panel
TV Side Panel
HDMI Cable (Not supplied) or
➣
What is HDMI?
• HDMI(High-Definition Multimedia Interface), is an interface that enables the transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed. DVI also requires a separate audio connection (see below).
➣
Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.
➣
➣
The TV may not output sound and pictures may be displayed with abnormal color when
DVD players/Cable Boxes/Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2)
[R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite receiver to confirm the HDMI version, then request an upgrade.
HDMI cables that are not 1.3 may cause annoying flicker or no screen display.
Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI
This connection can only be made if there is a DVI Output connector on the external device.
1.
Connect a DVI to HDMI
Cable or DVI-HDMI
Adapter between the
HDMI IN 2 jack on the
TV and the DVI jack on the DVD Player or
Cable Box/Satellite receiver (Set-Top Box).
DVD Player or Cable Box/
Satellite receiver (Set-Top Box)
TV Rear Panel
2.
Connect Audio Cables between the DVI IN
(HDMI 2) [R-AUDIO-L] jack on the TV and the
DVD Player or Cable
Box/Satellite receiver
(Set-Top Box).
2
Audio Cable (Not supplied)
1
DVI to HDMI Cable (Not supplied)
➣
➣
➣
Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.
When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
English - 8
BN68-01669A-00Eng.indb 8 2008-06-13 ¿ÀÈÄ 7:12:40
Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via Component cables
The rear panel jacks on your TV make it easy to connect a DVD Player or Cable Box/Satellite receiver (Set-Top Box) to your TV.
1.
Connect a Component
Cable between the
COMPONENT IN
(1 or 2) [Y, P
B
, P
R
] jacks on the TV and the
COMPONENT
[Y, P
B
, P
R
] jacks on the
DVD Player or Cable
Box/Satellite receiver
(Set-Top Box).
2.
Connect Audio
Cables between the
COMPONENT IN(1 or
2) [R-AUDIO-L] jacks on the TV and the AUDIO
OUT jacks on the
DVD Player or Cable
Box/Satellite receiver
(Set-Top Box).
➣
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
1
2
Audio Cable
(Not supplied)
Component Cable (Not supplied)
TV Rear Panel
➣
➣
Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and
Pr (Red) for enhanced video quality.
Be sure to match the component video and audio connections.
For example, if connecting a Component video cable to COMPONENT IN 1, connect the audio cable to COMPONENT IN 1 also.
Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.
When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.
Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV.
They allow you to view the camcorder tapes without using a VCR.
1.
Connect a Video Cable
(or S-Video Cable) between the AV IN 2
[VIDEO] (or S-VIDEO) jack on the TV and the
VIDEO OUT jack on the camcorder.
2.
Connect Audio Cables between the AV IN 2
[R-AUDIO-L] jacks on the TV and the AUDIO
OUT jacks on the camcorder.
Camcorder or
1
1
2
S-Video Cable (Not supplied)
Video Cable (Not supplied)
Audio Cable
(Not supplied)
TV Side Panel
➣
➣
Each Camcorder has a different back panel configuration.
When connecting a Camcorder, match the color of the connection terminal to the cable.
English -
BN68-01669A-00Eng.indb 9 2008-06-13 ¿ÀÈÄ 7:12:40
Connecting a VCR
Video Connection
These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 6~7). Skip step 1 if you have not yet connected to an antenna or a cable system.
1.
Unplug the cable or antenna from the back of the TV.
2.
Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3.
Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.
4.
Connect a Video Cable between the VIDEO
OUT jack on the
VCR and the AV IN 1
[Y/VIDEO] or AV IN 2
[VIDEO] jack on the TV.
5.
Connect Audio Cables between the AUDIO
OUT jacks on the VCR and the AV IN 1 (or AV
IN 2) [R-AUDIO-L] jacks on the TV.
➣
If you have a “mono”
(non-stereo) VCR, use a Y-connector
(not supplied) to connect to the right and left audio input jacks of the
TV. Alternatively, connect the cable to the “R” jack. If your
VCR is stereo, you must connect two cables.
VCR Rear Panel
4
Audio Cable (Not supplied)
Video Cable (Not supplied)
RF Cable (Not supplied)
ANT IN
TV Rear Panel
TV Side Panel
Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.
➣
➣
➣
Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.
When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow).
S-Video Connection
Your Samsung TV can be connected to an S-Video jack on a VCR. (This connection delivers a better picture as compared to a standard VCR.)
1.
To begin, follow steps
1–3 in the previous section to connect the antenna or cable to your
VCR and your TV.
2.
Connect an S-Video
Cable between the
S-VIDEO OUT jack on the VCR and the
AV IN 2 [S-VIDEO] jack on the TV.
3.
Connect Audio Cables between the AUDIO
OUT jacks on the VCR and the AV IN 2
[R-AUDIO-L] jacks on the TV.
VCR Rear Panel
1
2
TV Rear Panel
RF Cable (Not supplied)
S-Video Cable (Not supplied)
Audio Cable (Not supplied)
TV Side Panel
An S-Video cable may be included with a VCR. (If not, check your local electronics store.)
➣
➣
Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.
English - 10
BN68-01669A-00Eng.indb 10 2008-06-13 ¿ÀÈÄ 7:12:41
Connecting a Digital Audio System
The rear panel jacks on your TV make it easy to connect a Digital Audio System (Home theater/Receiver) to your TV.
1.
Connect an Optical Cable between the “DIGITAL AUDIO
OUT (OPTICAL)” jacks on the TV and the Digital Audio
Input jacks on the Digital Audio
System.
When a Digital Audio System is connected to the “DIGITAL
AUDIO OUT (OPTICAL)” jack:
Decrease the volume of the
TV and adjust the volume level with the system’s volume control.
➣
➣
➣
Digital Audio System
Optical Cable (Not supplied)
TV Rear Panel
5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH.
Each Digital Audio System has a different back panel configuration.
When the receiver (home theater) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or
Cable/Satellite Box directly to an Amplifier or Home Theater, not the TV.
Connecting an Amplifier/DVD Home Theater
1.
Connect Audio Cables between the AUDIO OUT
[R-AUDIO-L] jacks on the TV and AUDIO IN [R-AUDIO-L] jacks on the Amplifier/DVD
Home Theater.
When an audio amplifier is connected to the “AUDIO OUT
[R-AUDIO-L]” jacks: Decrease the volume of the TV and adjust the volume level with the Amplifier’s volume control.
Amplifier/DVD Home Theater
Audio Cable (Not supplied)
TV Rear Panel
➣
➣
Each Amplifier/DVD Home Theater has a different back panel configuration.
When connecting an Amplifier/DVD Home Theater, match the color of the connection terminal to the cable.
Connecting a PC
Using the D-Sub Cable
1.
Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer.
2.
Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio
Out jack of the sound card on your computer.
Using the HDMI/DVI Cable
1.
Connect an HDMI/DVI cable between the HDMI IN 2 jack on the TV and the PC output jack on your computer.
2.
Connect a 3.5 mm Stereo miniplug/2RCA Cable between the
DVI IN(HDMI2) [R-AUDIO-L] jack on the TV and the Audio
Out jack of the sound card on your computer.
➣
➣
➣
Using the D-Sub Cable
2
1
2
1
PC
PC Audio Cable (Not supplied)
D-Sub Cable (Not supplied)
Using the HDMI/DVI Cable
PC
TV Rear Panel
TV Rear Panel
. mm Stereo mini-plug/2RCA Cable (Not supplied)
HDMI/DVI Cable (Not supplied)
Each PC has a different back panel configuration.
When connecting a PC, match the color of the connection terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 terminal.
English - 11
BN68-01669A-00Eng.indb 11 2008-06-13 ¿ÀÈÄ 7:12:42
Operation
Turning the TV On and Off
Press the
POWER
button on the remote control.
You can also use the
POWER
button on the TV.
Plug & Play Feature
When the TV is initially powered on, basic settings proceed automatically and subsequently.
1.
Press the
POWER
button on the remote control.
The message “Menu Language, Store Demo, Channels, and Time will be set.” is displayed.
Press the
ENTER
button, then “Select Language of the OSD.” menu is automatically displayed. Press the
ENTER
button.
2.
Press the ▲ or ▼ button to select language, then press the
ENTER
button. The message “Select ‘Home Use’ when installing this TV in your home.” is displayed.
3.
Press the ◄ or ► button to select “Store Demo” or “Home Use”, then press the
ENTER
button. The message “Select the Antenna source to memorize.” is displayed.
➣
We recommend setting the TV to “Home Use” mode for the best picture in your home environment.
➣
➣
“Store Demo” mode is only intended for use in retail environments.
If the unit is accidentally set to “Store Demo” mode and you want to return to “Home Use” (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the
MENU
button on the TV for
5 seconds.
4.
Press the ▲ or ▼ button to memorize the channels of the selected connection. Press the
ENTER
button to select “Start”.
➣
Air: “Air” antenna signal.
Cable: “Cable” antenna signal.
Auto: “Air” and “Cable” antenna signals.
➣
In Cable mode, you can select the correct signal source among STD,
HRC, and IRC by pressing the ▲, ▼, ◄ or ► button, then press the
ENTER
button. If you have Digital cable, select the cable system signal source for both Analog and Digital. Contact your local cable company to identify the type of cable system that exists in your particular area.
5.
The TV will begin memorizing all of the available channels.
➣
To stop the search before it has finished, press the
ENTER
button with
“Stop” selected.
After all the available channels are stored, it starts to remove scrambled channels (see page 41). And then, the Auto program menu reappears.
Press the
ENTER
button when channel memorization is complete.
The message “Set the Clock Mode.” is displayed.
Plug & Play
Menu Language, Store Demo, Channels, and Time will be set.
OK
Enter
Plug & Play
Select Language of the OSD.
English
Menu Language
Français
Move Enter
Plug & Play
Select ‘Home Use’ when installing this TV in your home.
Store Demo Home Use
Move
Plug & Play
Select the Antenna source to memorize.
Air
Cable
Auto
Enter
Enter
Start
Start
Start
Skip Move
Plug & Play
Selects the cable system.
Analog
Digital
STD
STD
HRC
HRC
IRC
IRC
Start
Move
Plug & Play
Auto Program in Progress.
DTV Air : 02
DTV
Air : 11
Cable
: 23
Cable
: 21
Enter Skip
Cable 38
50%
Stop
Enter Skip
Plug & Play
Removing scrambled channel.
DTV Air : 05
DTV
Air : 12
Cable
: 25
Cable
: 32
DTV Cable 41
77%
English - 12
Stop
Plug & Play
Auto Program is completed.
119 channels are memorized.
DTV Air : 05 Air : 24
DTV Cable : 10 Cable : 80
OK
Enter
Enter
Skip
Skip
BN68-01669A-00Eng.indb 12 2008-06-13 ¿ÀÈÄ 7:12:43
6.
Press the
ENTER
button.
Press the ▲ or ▼ button to select “Auto”, then Press the
ENTER
button.
The message “Set to daylight saving time.” is displayed.
If you select “Manual”, “Set current date and time” is displayed.
(See page 46)
7.
Press the ▲ or ▼ button to select “Off” or “On”, then press the
ENTER
button. The message “Select the time zone in which you live.” is displayed.
8.
9.
Press the ▲ or ▼ button to highlight the time zone for your local area.
Press the
ENTER
button. If you have received a digital signal, the time will be set automatically. If not, see page 46 to set the clock.
The message “Enjoy your watching.” is displayed.
When you have finished, press the
ENTER
button.
Set the Clock Mode.
Plug & Play
Clock Mode
Manual
Move
Plug & Play
Set to daylight saving time.
DST
On
Move
Enter
Enter
Plug & Play
Select the time zone in which you live.
Newfoundland
Atlantic
Eastern
Central
Mountain
Pacific
Move
Plug & Play
Enter
Enjoy your watching.
OK
Skip
Skip
Skip
If you want to reset this feature...
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the
ENTER
button again to select “Plug & Play”.
For further details on setting up options, refer to the pages 12~13.
➣
The “Plug & Play” feature is only available in the TV mode.
Plug & Play
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
: English
: Off
: Off
►
Changing Channels
Using the Channel Buttons
1.
Press the
CH
or
CH
button to change channels.
➣
When you press the
CH
or
CH
button, the TV changes channels in sequence.
You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels). You will not see channels that were either erased or not memorized. See page 15 to memorize channels.
Using the Number Buttons
1.
Press the number buttons to go directly to a channel. For example, to select channel 27, press
2
, then
7
.
➣
For quick channel change, press the number buttons, then press the
ENTER
button.
English - 1
BN68-01669A-00Eng.indb 13 2008-06-13 ¿ÀÈÄ 7:12:43
Using the Button
The button is used to select stations that broadcast a digital signal.
1.
For example, for Channel 7-1, press
7
, then , then
1
.
➣
HD indicates the TV is receiving a Digital High Definition signal.
SD indicates the TV is receiving a Standard Definition signal.
➣
For quick channel change, press the number buttons, then press the
ENTER
button.
Using the PRE-CH Button to select the Previous Channel
1.
Press the
PRE-CH
button. The TV will switch to the last channel viewed.
➣
To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel.
Then use the
PRE-CH
button to quickly alternate between them.
Adjusting the Volume
Using the Volume Button
1.
Press the
VOL –
or
VOL +
button to increase or decrease the volume.
Using the MUTE button
At any time, you can cut off the sound using the
MUTE
button.
1.
Press
MUTE
button and the sound cuts off.
“ ” is displayed on the screen.
2.
To turn mute off, press the
MUTE
button again or simply press the
VOL –
or
VOL +
button.
Viewing the Display
The display identifies the current channel and the status of certain audio-video settings.
1.
Press the
INFO
button on the remote control.
The TV will display the channel, the type of sound, and the status of certain picture and sound settings.
➣
Press the
INFO
button once more or wait approximately 10 seconds and the display disappears automatically.
TV #8
DTV Air
Dolby Digital
4-2
♥
Sun, Sep 1:4 pm
Life On Venus Avenue
1080i | 16:9 | English
9:59 am - 10:59 am
No Detaild Information
Viewing the Menus
1.
With the power on, press the
MENU
button.
The main menu appears on the screen.
The menu’s left side has icons: Picture, Sound, Channel, Setup, Input,
Application.
2.
Press the ▲ or ▼ button to select one of the icons.
Then press the
ENTER
button to access the icon’s sub-menu.
3.
Press the
EXIT
button to exit.
➣
The on-screen menus disappear from the screen after about one minute.
Mode
Backlight
Contrast
Brightness
Sharpness
Color
Tint (G/R)
Detailed Settings
: Standard
: 7
: 95
: 45
: 50
: 50
: G50/R50
English - 14
BN68-01669A-00Eng.indb 14 2008-06-13 ¿ÀÈÄ 7:12:44
Using the TOOLS Button
You can use the
TOOLS
button to select your frequently used functions quickly and easily. The “Tools” menu changes depending on which external input mode you are viewing.
1.
Press the
TOOLS
button.
The “Tools” menu will appear.
2.
Press the ▲ or ▼ button to select a menu.
3.
Press the ▲/▼/◄/►/
ENTER
buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.
•
•
•
•
•
•
•
• Device List: see page 83
Picture Mode: see page 18
Sound Mode: see page 29
Sleep Timer: see page 48
Add to Favorite: see page 36
Switch to Cable (or Switch to Air): see page 15
PIP: see pages 27~28
Auto adjustment: see page 44
Device List
Picture Mode
Sound Mode
Sleep Timer
Add to Favorite
Switch to Cable
Move
Tools
: Standard
:
:
Custom
Off
Enter e Exit
Memorizing the Channels
Your TV can memorize and store all of the available channels for both “off-air” (Air) and “Cable” channels. After the available channels are memorized, use the
CH
or
CH
button to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels (automatic) and adding or deleting channels (Channel Lists).
Selecting the Video Signal-source
Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
Antenna : Air
Auto Program
Clear Scrambled Channel
Channel List
Fine Tune
Signal Strength
2.
Press the
ENTER
button to select “Antenna”.
Press the ▲ or ▼ button to select “Air” or “Cable”, then press the
ENTER
button.
Press the
EXIT
button to exit.
Antenna : Air
Auto Program
Clear Scrambled Channel
Channel List
Fine Tune
Signal Strength
Cable
►
Easy Setting
1.
Press the
TOOLS
button on the remote control.
2.
Press the ▲ or ▼ button to select “Switch to Cable (or Switch to Air)”.
3.
Press the
ENTER
button to switch “Cable” (or “Air”).
Device List
Picture Mode
Sound Mode
Sleep Timer
Add to Favorite
Switch to Cable
Tools
: Standard
: Custom
: Off
Move Enter e Exit
English - 1
BN68-01669A-00Eng.indb 15 2008-06-13 ¿ÀÈÄ 7:12:44
Storing Channels in Memory (Automatic Method)
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Auto Program”, then press the
ENTER
button.
Antenna
Auto Program
Clear Scrambled Channel
Channel List
Fine Tune
Signal Strength
: Air
►
3.
Press the ▲ or ▼ button to select the antenna connection, then press the
4.
When selecting the Cable TV system:
Press the
ENTER
button to start the auto program.
Press the ▲,▼, ◄ or ► to select the correct analog signal cable system source among “STD”, “HRC”, and “IRC”. Press the ▲ or ▼ button to select
“Start”, then press the
ENTER
button. If you have Digital cable TV, select the cable system signal source for both Analog and Digital.
➣
STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point the signal source has been selected.
5.
ENTER
button.
➣
Air: “Air” antenna signal.
Cable: “Cable” antenna signal.
Auto: “Air” and “Cable” antenna signals.
The TV begins memorizing all available stations.
➣
➣
After all the available channels are stored, it starts to remove scrambled channels (see page 41). The Auto program menu then reappears.
If you want to stop Auto Programming, press the
ENTER
button.
The “Stop Auto Program?” message will be displayed. Select “Yes” by pressing the ◄ or ► button, then press the
ENTER
button.
Press the
EXIT
button to exit.
Auto Program
Select the Antenna source to memorize.
Air
Cable
Auto
Start
Start
Start
Return Move Enter
Auto Program
Selects the cable system.
Analog
Digital
STD
STD
HRC
HRC
IRC
IRC
Move
Start
Enter
Auto Program
Auto Program in Progress.
DTV Cable : 12 Cable : 32
Return
Cable 38
50%
Stop
Enter
Return
Auto Program
Removing scrambled channel.
DTV Cable : 16 Cable : 45
DTV Cable 41
77%
Stop
Auto Program
Stop Auto Program?
Enter
DTV Cable : 16 Cable : 45
Return
77%
Yes
Move
Auto Program
Auto Program is completed.
3 channels are memorized.
DTV Cable : 1 Cable : 2
Enter
No
Return
OK
Enter Return
English - 16
BN68-01669A-00Eng.indb 16 2008-06-13 ¿ÀÈÄ 7:12:45
To Select the Source
Use to select TV or other external input sources such as DVD players or Cable
Box/Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Input”, then press the
ENTER
button.
2.
Press the
ENTER
button to select “Source List”.
Press the ▲ or ▼ button to select signal source, then press the
ENTER
button.
➣
➣
➣
Available signal sources: TV, AV1, AV2, S-Video, Component1,
Component2, PC, HDMI1, HDMI2/DVI, HDMI3, USB.
You can choose only those external devices that are connected to the TV.
In the “Source List”, connected inputs will be highlighted and sorted to the top. Inputs that are not connected will be sorted to the bottom.
Using the Color buttons on the remote with the Source list
•
•
Red (Refresh)
: Refreshes the connecting external devices.
TOOLS (Option)
: Displays the “Edit Name” and “Information” menus.
Source List
Edit Name
Source List
TV
AV1
AV2
S-Video
Component1
Component2
Refresh Option
----
----
----
----
----
O Press the
SOURCE
button on the remote control to view an external signal source.
To Edit the Input Source Name
Name the device connected to the input jacks to make your input source selection easier.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Input”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Edit Name”, then press the
ENTER
button.
Source List
Edit Name ►
2.
Press the ▲ or ▼ button to select “AV1”, “AV2”, “S-Video”, “Component1”,
“Component2”, “PC”, “HDMI1”, “HDMI2/DVI”, “HDMI3” input jack, then press the
ENTER
button.
AV1
AV2
S-Video
Component1
Component2
PC
HDMI1
3.
Press the ▲ or ▼ button to select “VCR”, “DVD”, “Cable STB”,
“Satellite STB”, “PVR STB”, “AV Receiver”, “Game”, “Camcorder”, “PC”,
“TV”, “IPTV”, “Blu-Ray”, “HD DVD”, “DMA” input source, then press the
ENTER
button.
Press the
EXIT
button to exit.
➣
When a PC with a resolution of 1920 x 1080@60Hz is connected to the
HDMI IN 2 port, you should set the “HDMI2/DVI” mode to “PC” in the “Edit
Name” of the “Input” mode.
AV1
AV2
S-Video
Component1
Component2
PC
HDMI1
Edit Name
Move
: ----
: ----
: ----
: ----
: ----
: ----
: ----
▼
Edit Name
Enter
►
Return
Move Enter Return
English - 17
BN68-01669A-00Eng.indb 17 2008-06-13 ¿ÀÈÄ 7:12:46
Picture Control
Changing the Picture Standard
You can select the type of picture which best corresponds to your viewing requirements.
1.
Press the
MENU
button to display the menu.
Press the
ENTER
button to select “Picture”.
Mode
Backlight
Contrast
Brightness
Sharpness
Color
Tint (G/R)
Detailed Settings
: Standard
: 7
: 95
: 45
: 50
: 50
: G50/R50
2.
Press the
ENTER
button to select “Mode”. Press the ▲ or ▼ button to select “Dynamic”, “Standard” or “Movie”. Press the
ENTER
button.
•
•
•
Dynamic
: Selects the picture for high-definition in a bright room.
Standard
: Selects the picture for the optimum display in a normal environment.
Movie
: Selects the picture for viewing movies in a dark room.
3.
Press the
EXIT
button to exit.
Easy Setting
1.
Press the
TOOLS
button on the remote control.
2.
Press the ▲ or ▼ button to select “Picture Mode”.
3.
Press the ◄ or ► button to select the required option.
4.
Press the
EXIT
or
TOOLS
button to exit.
Mode
Backlight
Contrast
Brightness
Sharpness
Color
Tint (G/R)
Detailed Settings
Device List
Picture Mode
Sound Mode
Sleep Timer
Add to Favorite
Switch to Cable
Tools
◄ Standard ►
: Custom
: Off
Move Adjust e Exit
: Dynamic ►
: 7
Standard
Movie
: 45
: 50
: 50
: G50/R50
Customizing the Picture Settings
Your television has several setting options that allow you to control the picture quality.
1.
To select the desired picture mode, follow the “Changing the Picture
Standard” instructions numbers 1 and 2.
2.
Press the ▲ or ▼ button to select “Backlight”, “Contrast”, “Brightness”,
“Sharpness”, “Color” or “Tint(G/R)”, then press the
ENTER
button.
3.
Press the ◄ or ► button to decrease or increase the value of a particular item. Press the
ENTER
button.
Press the
➣
EXIT
button to exit.
When you make changes to “Backlight”, “Contrast”, “Brightness”,
“Sharpness”, “Color” or “Tint(G/R)”, the OSD will be adjusted accordingly.
➣
➣
➣
In PC mode, you can only make changes to “Backlight”, “Contrast” and
“Brightness”.
Settings can be adjusted and stored for each external device you have connected to an input of the TV.
The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and that this will reduce the overall running cost.
•
•
•
•
•
•
Backlight
: Adjusts the brightness of LCD back light.
Contrast
: Adjusts the contrast level of the picture.
Brightness
: Adjusts the brightness level of the picture.
Sharpness
: Adjusts the edge definition of the picture.
Color
: Adjusts color saturation of the picture.
Tint(G/R)
: Adjusts the color tint of the picture.
Backlight
Move
Mode
Backlight
Contrast
Brightness
Sharpness
Color
Tint (G/R)
Detailed Settings
Picture Options
Adjust
English - 18
Enter
: Standard
: 7
: 95
: 45
: 50
: 50
: G50/R50
►
7
Return
BN68-01669A-00Eng.indb 18 2008-06-13 ¿ÀÈÄ 7:12:46
Adjusting the Detailed Settings
Samsung’s new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed picture settings.
Activating Detailed Settings
1.
Press the
MENU
button to display the menu.
Press the
ENTER
button to select “Picture”.
2.
Press the
ENTER
button to select “Mode”.
Press the ▲ or ▼ button to select “Standard” or “Movie”, then press the
ENTER
button.
➣
“Detailed Settings” is available in “Standard” or “Movie” mode.
Mode
Backlight
Contrast
Brightness
Sharpness
Color
Tint (G/R)
Detailed Settings
: Movie
: 5
: 95
: 50
: 20
: 50
: G50/R50
►
3.
Press the ▲ or ▼ button to select “Detailed Settings”, then press the
ENTER
button.
➣
In PC mode, you can only make changes to “Dynamic Contrast”,
“Gamma” and “White Balance” from among the “Detailed Settings” items.
Color
Tint (G/R)
Detailed Settings
: 50
: G50/R50
Picture Options
Picture Reset
►
Setting the Black adjust
You can select the black level on the screen to adjust the screen depth.
4.
Press the ▲ or ▼ button to select “Black adjust”, then press the
ENTER
button.
5.
Press the ▲ or ▼ button to select “Off”, “Low”, “Medium” or “High”.
Press the
ENTER
button.
•
•
•
•
Off
: Turns off the black adjustment function.
Low
: Sets the black color depth to low.
Medium
: Sets the black color depth to medium.
High
: Sets the black color depth to high.
Black Adjust
Dynamic Contrast
Gamma
Color Space
White Balance
Flesh Tone
Edge Enhancement
Detailed Settings
: Off
: Off
: 0
: Auto
: 0
: Off
Move Enter
Black Adjust
Move
:
Off
Low
Medium
High
Enter
Setting the Dynamic Contrast
You can adjust the screen contrast so that the optimal contrast is provided.
6.
Press the ▲ or ▼ button to select “Dynamic Contrast”, then press the
ENTER
button.
7.
Press the ▲ or ▼ button to select “Off”, “Low”, “Medium” or “High”.
Press the
ENTER
button.
•
•
•
•
Off
: Turns off the dynamic contrast adjustment function.
Low
: Sets the dynamic contrast to low.
Medium
: Sets the dynamic contrast to medium.
High
: Sets the dynamic contrast to high.
Black Adjust
Dynamic Contrast
Gamma
Color Space
White Balance
Flesh Tone
Edge Enhancement
Detailed Settings
: Off
: Off
: 0
: Auto
: 0
: Off
Move Enter
Dynamic Contrast
Move
:
Off
Low
Medium
High
Enter
Return
Return
Return
Return
►
►
English - 1
BN68-01669A-00Eng.indb 19 2008-06-13 ¿ÀÈÄ 7:12:46
Adjusting the Gamma
You can adjust the Primary Color (Red, Green, Blue) Intensity. (-3 ~ +3)
8.
Press the ▲ or ▼ button to select “Gamma”, then press the
ENTER
9.
button.
Press the ◄ or ► button to decrease or increase the value.
Press the
ENTER
button.
Setting the Color Space
Color space is a color matrix composed of red, green and blue colors.
Select your favorite color space to experience the most natural color.
10.
Press the ▲ or ▼ button to select “Color Space”, then press the
ENTER
button.
11.
Press the
ENTER
button again to select “Color Space”.
12.
Press the ▲ or ▼ button to select “Auto”, “Native” or “Custom”.
Press the
ENTER
button.
•
•
•
Auto
: Auto Color Space automatically adjusts to the most natural color tone based on program sources.
Native
: Native Color Space offers deep and rich color tone.
Custom
: Adjusts the color range to suit your preference.
(see “Customizing the Color Space”)
Black Adjust
Dynamic Contrast
Gamma
Color Space
White Balance
Flesh Tone
Edge Enhancement
Detailed Settings
: Off
: Off
: 0
: Auto
: 0
: Off
Move
Gamma
Enter Return
►
Adjust Enter
Black Adjust
Dynamic Contrast
Gamma
Color Space
White Balance
Flesh Tone
Edge Enhancement
Detailed Settings
: Off
: Off
: 0
: Auto
: 0
: Off
Color Space
Color
Red
Green
Blue
Reset
Move
Color Space
: Auto
: Red
Enter
Return
0
Return
►
►
50
0
0
Customizing the Color Space
13.
Press the ▲ or ▼ button to select “Color”, then press the
ENTER
button.
➣
“Color” is available when “Color Space” is set to “Custom”.
14.
Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or
“Magenta”. Press the
ENTER
button.
15.
Press the ▲ or ▼ button to select “Red”, “Green”, or “Blue” to change it.
Press the
ENTER
button.
16.
Press the ◄ or ► button to decrease or increase the value of a particular item. Press the
ENTER
button.
➣
➣
In “Color”, you can adjust the RGB values for the selected color.
To reset the adjusted RGB value, select “Reset”.
•
•
•
•
Red
: Adjusts the red saturation level of the selected color.
Green
: Adjusts the green saturation level of the selected color.
Blue
: Adjusts the blue saturation level of the selected color.
Reset
: Resets the color space to the default values.
➣
➣
Changing the adjustment value will refresh the adjusted screen.
Settings can be adjusted and stored for each external device you have connected to an input of the TV. For example, if you have a DVD player connected to HDMI 1 and it is currently selected, settings and adjustments will be saved for the DVD player.
Color Space
Color Space
Color
Red
Green
Blue
Reset
Color
Red
Move
Move
Enter
:
Auto
Native
Custom
Enter
Color Space
: Custom
: Red
Move Enter
Move
:
Red
Green
Blue
Yellow
Cyan
Magenta
Enter
Color Space
Adjust Enter
English - 20
Return
Return
50
Return
0
0
►
50
Return
Return
BN68-01669A-00Eng.indb 20 2008-06-13 ¿ÀÈÄ 7:12:47
Adjusting the White Balance
You can adjust the color temperature for more natural picture colors.
17.
Press the ▲ or ▼ button to select “White Balance”, then press the
ENTER
button.
18.
Select the required option by pressing the ▲ or ▼ button, then press the
ENTER
button.
19.
Press the ◄ or ► button to decrease or increase the value of a particular item. Press the
ENTER
button.
•
•
•
•
•
•
•
➣
R-Offset
: Adjusts the red color darkness.
G-Offset
: Adjusts the green color darkness.
B-Offset
: Adjusts the blue color darkness.
R-Gain
: Adjusts the red color brightness.
G-Gain
: Adjusts the green color brightness.
B-Gain
: Adjusts the blue color brightness.
Reset
: The previously adjusted white balance will be reset to the factory defaults.
Changing the adjustment value will refresh the adjusted screen.
Detailed Settings
Black Adjust
Dynamic Contrast
Gamma
Color Space
White Balance
Flesh Tone
Edge Enhancement
: Off
: Off
: 0
: Auto
: 0
: Off
Move Enter
White Balance
R-Offset
G-Offset
B-Offset
R-Gain
G-Gain
B-Gain
Reset
Move Enter
White Balance
R-Offset
Move Adjust Enter
Return
Return
25
Return
►
25
25
25
25
25
25
Adjusting the Flesh Tone
You can emphasize the pink ‘flesh tone’ in the picture.
20.
Press the ▲ or ▼ button to select “Flesh Tone”, then press the
ENTER
button.
21.
Press the ◄ or ► button to decrease or increase the value.
Press the
ENTER
button.
➣
Changing the adjustment value will refresh the adjusted screen.
Detailed Settings
Black Adjust
Dynamic Contrast
Gamma
Color Space
White Balance
Flesh Tone
Edge Enhancement
: Off
: Off
: 0
: Auto
: 0
: Off
Move
Flesh Tone
Enter
Adjust
Return
Enter
Return
0
►
Setting the Edge Enhancement
You can emphasize object boundaries in the picture.
22.
Press the ▲ or ▼ button to select “Edge Enhancement”, then press the
ENTER
button.
23.
Press the ▲ or ▼ button to select “Off” or “On”. Press the
ENTER
button.
Detailed Settings
▲
Dynamic Contrast
Gamma
Color Space
White Balance
Flesh Tone
Edge Enhancement xvYCC
: Off
: 0
: Auto
: 0
: Off
: Off
Move Enter
Edge Enhancement
Move
:
Off
On
Enter
Return
►
Return
English - 21
BN68-01669A-00Eng.indb 21 2008-06-13 ¿ÀÈÄ 7:12:47
Setting the xvYCC
Setting the xvYCC mode to “On” increases detail and color space when watching movies from an external device (ie. DVD player) connected to the HDMI or
Component IN jacks.
24.
Press the ▲ or ▼ button to select “xvYCC”, then press the
ENTER
button.
25.
Press the ▲ or ▼ button to select “Off” or “On”.
Press the
ENTER
button.
➣
“xvYCC” is available when the picture mode is set to “Movie”, and the external input is set to “HDMI” or “Component” mode.
Detailed Settings
▲
Dynamic Contrast
Gamma
Color Space
White Balance
Flesh Tone
Edge Enhancement xvYCC
: Off
: 0
: Auto
: 0
: Off
: Off
Move Enter xvYCC
Move
:
Off
On
Enter
Return
►
Return
Resetting the Picture Settings to the Factory Defaults
1.
To select the desired picture mode, follow the “Changing the Picture
Standard” instructions numbers 1 and 2. (see page 18)
Detailed Settings
Picture Options
Picture Reset ►
2.
Press the ▲ or ▼ button to select “Picture Reset”, then press the
ENTER
button.
3.
Press the ◄ or ► button to select “Reset Picture Mode” or “Cancel”, then press the
ENTER
button.
Press the
➣
EXIT
button to exit.
Each mode can be reset.
Picture Reset
Does not perform a screen reset.
Reset Picture Mode
Move
Cancel
Enter Return
BN68-01669A-00Eng.indb 22
English - 22
2008-06-13 ¿ÀÈÄ 7:12:47
Configuring Picture Options
Activating Picture Options
1.
Press the
MENU
button to display the menu.
Press the
ENTER
button to select “Picture”.
2.
Press the ▲ or ▼ button to select “Picture Options”, then press the
ENTER
button.
➣
Press the ▲ or ▼ button to select a particular item. Press the
ENTER
button.
➣
➣
When you are satisfied with your setting, press the
ENTER
button.
In PC mode, you can only make changes to the “Color Tone” and “Size” from among the items in “Picture Options”.
Tint (G/R)
Detailed Settings
Picture Options
Picture Reset
: G50/R50
►
Setting the Color Tone
1.
Follow the “Activating Picture Options” instructions numbers 1 and 2.
2.
Press the ▲ or ▼ button to select “Color Tone”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Cool2”, “Cool1”, “Normal”, “Warm1” or
“Warm2”. Press the
ENTER
button.
➣
➣
“Warm1” or “Warm2” is only activated when the picture mode is “Movie”.
Settings can be adjusted and stored for each external device you have connected to an input of the TV.
Color Tone
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
Picture Options
Move
: Normal
: 16:9
: Auto
: Off
: Normal
: Off
: Off
▼
Enter
Color Tone
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
Picture Options
: Auto
: Off
Warm2
: Off
: Off
Move Enter
Return
Return
►
Setting the Screen Size
Occasionally, you may want to change the size of the image on your screen. Your
TV comes with six screen size options, each designed to work best with specific types of video input. Your cable box or satellite receiver may have its own set of screen sizes as well. In general, though, you should view the TV in 16:9 mode as much as possible.
1.
Follow the “Activating Picture Options” instructions numbers 1 and 2.
2.
Press the ▲ or ▼ button to select “Size”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select the screen format you want.
Press the
ENTER
button.
Press the
EXIT
button to exit.
•
•
•
•
•
•
16:
: Sets the picture to 16:9 wide mode.
Zoom1
: Magnifies the size of the picture on the screen.
Zoom2
: Magnifies the size of the picture more than “Zoom1”.
Wide Fit
: Enlarges the aspect ratio of the picture to fit the entire screen.
4:
: Sets the picture to 4:3 normal mode.
Just Scan
: Use the function to see the full image without any cutoff when HDMI (720p/1080i/1080p), Component (1080i/1080p) or DTV
(1080i) signals are input.
Color Tone
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
Picture Options
Move
: Normal
: 16:9
: Auto
: Off
: Normal
: Off
: Off
▼
Enter
Size
16:9
Zoom1
Zoom2
Wide Fit
4:3
Just Scan
Move Enter
Return
Return
►
English - 2
BN68-01669A-00Eng.indb 23 2008-06-13 ¿ÀÈÄ 7:12:47
➣
➣
➣
When Double ( , ) mode has been set in PIP, the Picture Size cannot be set.
Temporary image retention may occur when viewing a static image on the set for more than two hours.
After selecting “Zoom1”, “Zoom2” or “Wide Fit”
:
Press the ◄ or ► button to select “Position”, then press the
ENTER
button. Press the ▲ or ▼ button to move the picture up and down.
Reset
: Press the ◄ or ► button to select “Reset”, then press the
ENTER
button. You can initialize the setting.
16:9
Zoom1
Zoom2
Size
Position
Wide Fit
4:3
Just Scan
Reset
Adjust Enter Return
➣
After selecting “Just Scan” in HDMI (1080i/1080p) or Component
(1080i/1080p) mode:
Press the ◄ or ► button to select “Position”, then press the button. Press the ▲, ▼, ◄ or ► button to move the picture.
Reset
ENTER
button. You can initialize the setting.
ENTER
: Press the ◄ or ► button to select “Reset”, then press the
16:9
Zoom1
Zoom2
Wide Fit
4:3
Just Scan
Size
➣
HD (High Definition)
16:9 - 1080i/1080p (1920x1080), 720p (1280x720)
Position
Adjust Enter
➣
Settings can be adjusted and stored for each external device you have connected to an input of the TV.
Input Source
ATV, Video, S-Video, Component (480i, 480p)
DTV(1080i), Component (1080i, 1080p), HDMI (720p, 1080i, 1080P)
PC
Reset
Return
Picture Size
16:9, Zoom1, Zoom2, 4:3
16:9, 4:3, Wide Fit, Just Scan
16:9, 4:3
O
Alternately, you can press the
P.SIZE
button on the remote control repeatedly to change the picture size.
16: Zoom1
U
Move Zoom2
U
Move
16:
Sets the picture to 16:9 wide mode.
Zoom1
Magnifies the size of the picture on the screen.
Zoom2
Magnifies the size of the picture more than “Zoom1”.
Wide Fit
U
Move 4: Just Scan
Wide Fit
Enlarges the aspect ratio of the picture to fit the entire screen.
4:
Sets the picture to 4:3 normal mode.
Just Scan
Use the function to see the full image without any cutoff when HDMI
(720p/1080i/1080p), Component
(1080i/1080p) or DTV (1080i) signals are input.
English - 24
BN68-01669A-00Eng.indb 24 2008-06-13 ¿ÀÈÄ 7:12:48
Setting the Digital Noise Reduction
If the broadcast signal received by your TV is weak, you can activate the Digital
Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.
1.
Follow the “Activating Picture Options” instructions numbers 1 and 2.
(Refer to page 23)
2.
Press the ▲ or ▼ button to select “Digital NR”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Off”, “Low”, “Medium”, “High” or “Auto”.
Press the
ENTER
button.
•
•
•
•
•
Off
: Turns the screen noise reduction function off.
Low
: Reduces screen noise at a low level.
Medium
: Reduces screen noise at a medium level.
High
: Reduces screen noise at a high level.
Auto
: Automatically recognizes and reduces screen noise.
Press the
EXIT
button to exit.
Setting the DNIe (Digital Natural Image engine)
This TV includes the DNIe function to provide high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated.
1.
Follow the “Activating Picture Options” instructions numbers 1 and 2.
(Refer to page 23)
2.
Press the ▲ or ▼ button to select “DNIe”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Off” or “On”, then press the
ENTER
button.
•
•
Press the
EXIT
button to exit.
➣
DNIe™ (Digital Natural Image engine)
This feature brings you a more detailed image with 3D noise reduction and detail, contrast and white enhancement.
➣
Off
: Switches off the DNIe mode.
On
: Switches on the DNIe mode.
“DNIe” is only available in “Dynamic” mode.
Setting the HDMI Black Level
You can select the black level on the screen to adjust the screen depth.
1.
Follow the “Activating Picture Options” instructions numbers 1 and 2.
(Refer to page 23)
2.
Press the ▲ or ▼ button to select “HDMI Black Level”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Normal” or “Low”, then press the
ENTER
button.
•
•
Normal
: The screen gets brighter.
Low
: The screen gets darker.
➣
This function is active only when an external device is connected to the
TV via HDMI (RGB signals). “HDMI Black Level” function may not be compatible with all external devices.
Press the
EXIT
button to exit.
Color Tone
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
Picture Options
Move
: Normal
: 16:9
: Auto
: Off
: Normal
: Off
: Off
▼
Enter
Color Tone
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
Picture Options
: Normal
: Off
Move Enter
Color Tone
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
Picture Options
Move
: Cool1
: 16:9
: Auto
: On
: Normal
: Off
: Off
▼
Enter
Color Tone
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
Picture Options
: Cool1
: 16:9
: Auto
: On
: Off
: Off
Move Enter
Return
Return
Return
Return
►
►
Color Tone
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
Picture Options
: Normal
: 16:9
: Auto
: Off
: Normal
: Off
: Off
▼
Move Enter
Color Tone
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
Picture Options
: Normal
: 16:9
: Auto
: Off
: Off
Move Enter
Return
Return
►
English - 2
BN68-01669A-00Eng.indb 25 2008-06-13 ¿ÀÈÄ 7:12:48
Setting the Film Mode
The TV can be set to automatically sense and process film signals from all sources and adjust the picture for optimum quality.
1.
Follow the “Activating Picture Options” instructions numbers 1 and 2.
(Refer to page 23)
2.
Press the ▲ or ▼ button to select “Film Mode”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Off” or “Auto”, then press the
ENTER
button.
Press the
EXIT
button to exit.
➣
“Film mode” is supported in TV, AV, S-Video, Component (480i / 1080i) and HDMI (480i / 1080i).
Color Tone
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
Picture Options
Move
: Normal
: 16:9
: Auto
: Off
: Normal
: Off
: Off
▼
Enter
Color Tone
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
Picture Options
: Normal
: 16:9
: Auto
: Off
: Off
Move Enter
Setting the Blue Only Mode
This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Color and Tint of video equipment such as DVD players, Home Theaters, etc.
Using this function, you can adjust the Color and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/
Cyan/Magenta/Yellow Color Bar Patterns, without using an additional Blue Filter.
1.
Follow the “Activating Picture Options” instructions numbers 1 and 2.
(Refer to page 23)
2.
Press the ▲ or ▼ button to select “Blue Only Mode”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Off” or “On”, then press the
ENTER
button.
Press the
EXIT
button to exit.
➣
“Blue Only Mode” is available when the picture mode is set to “Movie” or
“Standard”.
Picture Options
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
▲
: 16:9
: Auto
: Off
: Normal
: Off
: Off
Auto Motion Plus 120Hz : Medium
Move Enter
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
Picture Options
: 16:9
: Auto
: Off
: Normal
: Off
Return
Return
Return
►
►
Setting the Auto Motion Plus 120Hz
Removes drag from fast scenes with a lot of movement to provide a clearer picture.
1.
Follow the “Activating Picture Options” instructions numbers 1 and 2.
(Refer to page 23)
2.
Press the ▲ or ▼ button to select “Auto Motion Plus 120Hz”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Off”, “Low”, “Medium”, “High” or “Demo”, then press the
ENTER
button.
•
•
•
•
•
Off
: Switches Auto Motion Plus 120Hz off.
Low
: Sets Auto Motion Plus 120Hz to minimum.
Medium
: Sets Auto Motion Plus 120Hz to medium.
High
: Sets Auto Motion Plus 120Hz to maximum.
Demo
: Displays the difference between Auto Motion Plus 120Hz on and off modes. The screen after applying “Auto Motion Plus 120Hz” appears on the left.
Press the
EXIT
button to exit.
➣
If you enable “Auto Motion Plus 120Hz”, noise may appear on the screen. If this occurs, set “Auto Motion Plus 120Hz” to “Off”.
Move Enter
Picture Options
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
▲
: 16:9
: Auto
: Off
: Normal
: Off
: Off
Auto Motion Plus 120Hz : Medium
Move Enter
Picture Options
Size
Digital NR
DNle
HDMI Black Level
Film Mode
Blue Only Mode
: 16:9
: Auto
Move
Enter
English - 26
Return
Return
►
Return
BN68-01669A-00Eng.indb 26 2008-06-13 ¿ÀÈÄ 7:12:49
Viewing Picture-in-Picture
You can use the PIP feature to simultaneously watch the TV tuner (analog broadcasts only) and one external video source.
(See page 33 to select the PIP picture sound.) This product has one built-in tuner, which does not allow PIP to function in the same mode. Please see ‘PIP Settings’ below for details.
➣
While V-Chip (See page 50) is in operation, the PIP function cannot be used.
Activating Picture-in-Picture
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “PIP”, then press the
ENTER
button.
Entertainment
Energy Saving
PIP
Software Upgrade
: Off
: Off
►
2.
Press the
ENTER
button again.
Press the ▲ or ▼ button to select “On”, then press the
ENTER
button.
➣
If you turn the TV off while watching in PIP mode and turn it on again, the
PIP window will disappear.
➣
➣
➣
You can view Analog TV broadcasts on the PIP screen (sub-picture) when the main picture is from an external device connected to HDMI 1,
HDMI/DVI 2, HDMI 3, Component1, 2 or PC.
When the resolution is set to 1920 x1080@60Hz and the current input port is either PC or HDMI, and PIP is turned on, the main picture may not be displayed clearly.
PIP Settings
Sub picture Main picture
Component 1, 2
HDMI 1, HDMI/DVI 2, HDMI 3
PC
Analog TV broadcasts only
PIP
Size
Position
Air/Cable
Channel
PIP
:
:
On
:
Air
:
Air 11
Move Enter Return
Changing the Size of the PIP Window
3.
Press the ▲ or ▼ button to select “Size”, then press the
ENTER
button.
Press the ▲ or ▼ button to select the required option, then press the
ENTER
button.
➣
You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.
PIP
Size
Position
Air/Cable
Channel
PIP
: On
:
:
:
Air
:
Air 11
Move Enter Return
Changing the Position of the PIP Window
4.
Press the ▲ or ▼ button to select “Position”, then press the
ENTER
button.
Press the ▲ or ▼ button to select the required option, then press the
ENTER
button.
➣
In Double Window ( ) and Double Wide ( ) modes, “Position” cannot be selected.
PIP
Size
Position
Air/Cable
Channel
PIP
: On
:
:
:
Air
:
Air 11
Move Enter Return
English - 27
BN68-01669A-00Eng.indb 27 2008-06-13 ¿ÀÈÄ 7:12:49
Changing the PIP Channel
5.
Press the ▲ or ▼ button to select “Air/Cable”, then press the
ENTER
button.
6.
Press the ▲ or ▼ button to select “Air” or “Cable”, then press the
ENTER
button.
PIP
Size
Position
Air/Cable
Channel
PIP
: On
:
:
:
Air
:
Air 11
7.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
8.
Press the ▲ or ▼ button to select the desired channel in the PIP window.
Press the
ENTER
button.
➣
You can select only analog TV broadcasts on the PIP screen
(sub-picture).
Press the
EXIT
button to exit.
PIP
Size
Position
Air/Cable
Channel
Move
PIP
: On
:
:
: Air
: Air 11
Enter
▲
▼
Return
Move Enter Return
Easy Setting
1.
Press the
TOOLS
button on the remote control.
2.
Press the ▲ or ▼ button to select “PIP”, then press the
ENTER
button.
3.
Press the ◄ or ► button to select “On”.
4.
Press the ▲ or ▼ button to select a particular item.
5.
Press the ◄ or ► button to select the required option.
6.
Press the
EXIT
or
TOOLS
button to exit.
Device List
Picture Mode
Sound Mode
Sleep Timer
PIP
Move
Tools
: Standard
: Custom
: Off
Enter e Exit
PIP
Size
Posion
Air/Cable
Channel
Sound Select
PIP
:
:
:
◄ Off ►
:
:
Air
Air 11
Main
Adjust Return
BN68-01669A-00Eng.indb 28
English - 28
2008-06-13 ¿ÀÈÄ 7:12:49
Sound Control
Changing the Sound Standard
You can select the sound mode to best suit the programming you’re watching.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Sound”, then press the
ENTER
button.
Mode : Custom
Equalizer
SRS TruSurround XT : Off
Preferred Language : English
Multi-Track Sound
Auto Volume
Select Speaker
Sound Select
: Stereo
: Off
: TV Speaker
: Main
►
2.
Press the
ENTER
button to select “Mode”. Press the ▲ or ▼ button to select “Standard”, “Music”, “Movie”, “Speech”, or “Custom” sound setting, then press the
ENTER
button.
Press the
EXIT
button to exit.
•
•
•
•
•
Standard
: Selects the normal sound mode.
Music
: Emphasizes music over voices.
Movie
: Provides the best sound for movies
Speech
: Emphasizes voice over other sounds.
Custom
: Recalls your customized sound settings.
(see “Customizing the Sound”)
Easy Setting
1.
Press the
TOOLS
button on the remote control.
2.
Press the ▲ or ▼ button to select “Sound Mode”.
3.
Press the ◄ or ► button to select the required option.
4.
Press the
EXIT
or
TOOLS
button to exit.
Mode
Equalizer
Music
Preferred Language : English
Multi-Track Sound : Stereo
Auto Volume
Select Speaker
Sound Select
: Off
: TV Speaker
: Main
►
Device List
Picture Mode
Sound Mode
Sleep Timer
Add to Favorite
Switch to Cable
Tools
: Standard
◄ Custom ►
: Off
Move Adjust e Exit
Customizing the Sound
The sound settings can be adjusted to suit your personal preference.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Sound”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Equalizer”, then press the
ENTER
button.
3.
Press the
ENTER
button to select “Mode”.
Press the ▲ or ▼ button to select “Standard”, “Music”, “Movie”, “Speech”, or
“Custom” sound setting, then press the
ENTER
button.
Mode
Balance
100Hz
300Hz
1kHz
3kHz
10kHz
-
-
L
-
-
-
Mode
Equalizer
: Custom
SRS TruSurround XT : Off
Preferred Language : English
Multi-Track Sound : Stereo
Auto Volume
Select Speaker
Sound Select
Sound Reset
: Off
: TV Speaker
: Main
►
Equalizer
Music
Movie
Speech
Custom
Move Enter
+
+
R
+
+
+
Return
English - 2
BN68-01669A-00Eng.indb 29 2008-06-13 ¿ÀÈÄ 7:12:50
4.
Press the ▲ or ▼ button to select a particular frequency to adjust.
Press the ◄ or ► button to increase or decrease the level of the particular frequency.
•
•
•
Mode
: Selects the sound mode among the predefined settings.
Balance L/R
: Adjusts the balance between the right and left speaker.
Bandwidth Adjustment (100Hz, 00Hz, 1kHz, 2kHz, kHz, 10kHz):
To adjust the level of different bandwidth frequencies.
Resetting the Equalizer Settings to the Factory Defaults
5.
Press the ▲ or ▼ button to select “Reset”, then press the
ENTER
button.
➣
The equalizer resets to the factory defaults.
Press the
EXIT
button to exit.
Mode
Balance
100Hz
300Hz
1kHz
3kHz
10kHz
-
-
L
-
-
-
Move
Equalizer
: Custom
Adjust
▼
Equalizer
▲
Enter
Balance
100Hz
300Hz
1kHz
3kHz
10kHz
Reset
-
-
-
-
L
-
Move Enter
+
+
+
+
R
+
Return
►
+
+
R
+
+
+
Return
Setting the TruSurround XT
TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Sound”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “SRS TruSurround XT”, then press the
ENTER
button.
Mode
Equalizer
: Custom
SRS TruSurround XT : Off
Preferred Language : English
►
Multi-Track Sound
Auto Volume
Select Speaker
Sound Select
Sound Reset
: Stereo
: Off
: TV Speaker
: Main
3.
Press the ▲ or ▼ button to select “Off” or “On”, then press the
ENTER
button.
Press the
EXIT
button to exit.
Mode
Equalizer
: Custom
SRS TruSurround XT : Off
Multi-Track Sound
Auto Volume
Select Speaker
Sound Select
Sound Reset
: Stereo
: Off
: TV Speaker
: Main
►
TruSurround XT
, SRS and Symbol are trademarks of SRS Labs, Inc.
TruSurround XT
technology is incorporated under license from SRS Labs, Inc.
English - 0
BN68-01669A-00Eng.indb 30 2008-06-13 ¿ÀÈÄ 7:12:50
Choosing Preferred Language
The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages).
Select the language you would like to hear the audio track in.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Sound”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Preferred Language”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to choose the language (English, Spanish or
French) you want, then press the
ENTER
button.
Press the
EXIT
button to exit.
➣
➣
“Preferred Language” is available only in Digital TV mode.
You can only select the language from among the actual languages being broadcast.
O You can listen in a language other than the “Preferred Language” by pressing the
MTS
button on the remote control.
Choosing a Multi-Channel Sound (MTS) track
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Sound”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Multi-Track Sound”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select a setting you want, then press the
ENTER
button. Press the
EXIT
button to exit.
•
•
•
Mono
: Choose for channels that are broadcasting in mono or if you are having difficulty receiving a stereo signal.
Stereo
: Choose for channels that are broadcasting in stereo.
SAP
: Choose to listen to the Separate Audio Program, which is usually a foreign-language translation.
➣
➣
“Multi-Track Sound” is available only in Analog TV mode.
Depending on the particular program being broadcast, you can listen to
“Mono”, “Stereo” or “SAP”.
Equalizer
SRS TruSurround XT : Off
Preferred Language : English
Multi-Track Sound
Auto Volume
Select Speaker
Sound Select
Sound Reset
: Stereo
: Off
: TV Speaker
: Main
►
Equalizer
SRS TruSurround XT : Off
Multi-Track Sound
Auto Volume
Select Speaker
Sound Select
Sound Reset
: Stereo
: Off
: TV Speaker
: Main
►
SRS TruSurround XT : Off
Preferred Language : English
Multi-Track Sound : Stereo
Auto Volume
Select Speaker
Sound Select
Sound Reset
: Off
: TV Speaker
: Main
►
SRS TruSurround XT : Off
Preferred Language : English
Auto Volume
Select Speaker
Sound Select
Sound Reset
: Off
: TV Speaker
: Main
►
O
Press the
MTS
button on the remote control repeatedly to select “Mono”,
“Stereo” or “SAP”.
English - 1
BN68-01669A-00Eng.indb 31 2008-06-13 ¿ÀÈÄ 7:12:51
Automatic Volume Control
Reduces the differences in volume level among broadcasters.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Sound”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Auto Volume”, then press the
ENTER
button.
Preferred Language : English
Multi-Track Sound : Stereo
Auto Volume : Off
Select Speaker
Sound Select
Sound Reset
: TV Speaker
: Main
►
3.
Press the ▲ or ▼ button to set “Auto Volume”, “Off” or “On” then press the
ENTER
button.
Press the
EXIT
button to exit.
Preferred Language : English
Multi-Track Sound : Stereo
Auto Volume
Select Speaker
Sound Select
Sound Reset
: Main
►
Selecting the Speaker
Select the speaker to output sound.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Sound”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “ Select Speaker”, then press the
ENTER
button.
Multi-Track Sound
Auto Volume
Select Speaker
Sound Select
Sound Reset
: Stereo
: Off
: TV Speaker ►
: Main
3.
Press the ▲ or ▼ button to select “TV Speaker” or “External Speaker”, then press the
ENTER
button.
Press the
EXIT
button to exit.
•
•
TV Speaker
: Used to listen to the sound of the TV Speaker.
External Speaker
: Used to listen to the sound of the External Speaker.
➣
➣
When “Select Speaker” is set to “External Speaker”, you can operate only
“Preferred Language” (in digital TV mode), “Multi-Track Sound” (in analog
TV mode), “Sound Select” (in PIP mode) and “Sound Reset” in Sound menu.
The
VOL –
,
VOL +
and
MUTE
buttons do not operate when the “Select
Speaker” is set to “External Speaker”.
Multi-Track Sound
Auto Volume
Select Speaker
Sound Select
Sound Reset
: Stereo
: Off
TV Speaker
External Speaker
Video No Signal
RF
TV's Internal Speakers
AV, S-Video
Speaker Output Speaker Output
Component, PC, HDMI
Speaker Output
Mute
Mute
Mute
Mute
Mute
Mute
Audio Out (Optical, L/R Out) to Sound System
RF AV, S-Video Component, PC, HDMI
Sound Output Sound Output Sound Output
Sound Output
Mute
Sound Output
Mute
Sound Output
Mute
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
English - 2
BN68-01669A-00Eng.indb 32 2008-06-13 ¿ÀÈÄ 7:12:51
Listening to the Sound of the Sub (PIP) Picture
When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Sound”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Sound Select”, then press the
ENTER
button.
Auto Volume
Select Speaker
Sound Select
Sound Reset
: Off
: TV Speaker
: Main ►
3.
Press the ▲ or ▼ button to select “Main” or “Sub”, then press the
ENTER
button.
Press the
EXIT
button to exit.
•
•
Main
: Used to listen to the sound of the main picture.
Sub
: Used to listen to the sound of the sub picture.
➣
You can select this option when “PIP” is set to “On”. (See page 27)
Auto Volume
Select Speaker
Sound Select
Sound Reset
: Off
: TV Speaker
►
Sub
Resetting the Sound Settings to the Factory Defaults
You can restore the Sound settings to the factory defaults.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Sound”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Sound Reset”, then press the
ENTER
button.
Press the
EXIT
button to exit.
3.
Press the ◄ or ► button to select “Reset All”, “Reset Sound Mode” or
“Cancel” then press the
ENTER
button.
Press the
EXIT
button to exit.
•
•
•
Reset All
: All the sound values return to default settings.
Reset Sound Mode
: Current sound values return to defalt settings.
Cancel
: Select the sound reset options.
Select Speaker
Sound Select
Sound Reset
Sound Reset
Select the sound reset options.
: TV Speaker
: Main
►
Reset All Reset Sound Mode
Move Enter
Cancel
Return
Connecting Headphones (Sold separately)
You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the room.
➣
➣
➣
➣
When you insert the headphone’s plug into the headphone jack, you can operate only “Preferred Language” (in digital TV mode), “Multi-Track Sound”
(in analog TV mode), “Auto Volume”, “Sound Select” (in PIP mode) and “Sound
Reset” in Sound menu.
Prolonged use of headphones at a high volume may damage your hearing.
You will not hear sound from the speakers when you connect headphones to the TV.
The headphone volume and TV volume are adjusted separately.
TV Side Panel
15
English -
BN68-01669A-00Eng.indb 33 2008-06-13 ¿ÀÈÄ 7:12:52
Channel Control
Managing Channels
Using this menu, you can Add/Delete or set Favorite channels and use the program guide for digital broadcasts.
Viewing All Channels
Show all currently available channels.
To use the Channel List function, first run “Auto Program” (see page 16).
1.
Press the
MENU
button.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Channel List”, then press the
ENTER
button.
Auto Program
Clear Scrambled Channel
Channel List
Fine Tune
Signal Strength
2.
Press the ◄ button to select “Added Channels”.
3.
Press the ▲ or ▼ button to select “All Channels”.
➣
Shows all currently available channels.
Press the
ENTER
button.
4.
Press the ▲ or ▼ button to select a channel to view, then press the
ENTER
button. You can watch the selected channel.
O Press the
CH LIST
button on the remote control to bring up the channel lists.
2
4
Air
Air
4-2 ♥ TV #8
8
13
Air
Air
13-1 ♥ TV #3 Alice’s Adventures in Wonderland
Air
Antenna
Zoom
Select
Option
2
4
Air
Air
4-2 ♥ TV #8
8
13
Air
Air
13-1 ♥ TV #3 Alice’s Adventures in Wonderland
Air
Antenna
Zoom
Select
Option
Using the Color buttons on the Remote with the Channel List
•
•
•
•
Red (Antenna)
: Switches to Air or Cable.
Green (Zoom)
: Enlarges or shrinks a channel number.
Yellow (Select)
: Selects multiple channel lists.
TOOLS (Option)
: Displays the “Add” (or “Delete”), “Add to Favorite”(or
“Delete from Favorite”), “Timer Viewing”, “Channel Name Edit”, “Select All”,
“Deselect All” and “Auto Program” menus.
➣
➣
A gray-colored channel indicates the channel has been deleted.
The “Add” menu only appears for deleted channels.
A channel marked with the “♥” mark means the channel has been set as a Favorite.
The “Delete from Favorite” menu only appears for channels with the “♥” mark.
English - 4
BN68-01669A-00Eng.indb 34 2008-06-13 ¿ÀÈÄ 7:12:52
Erasing and Adding Channels
You can delete or add a channel to display the channels you want.
1.
Press the
MENU
button.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Channel List”, then press the
ENTER
button.
Auto Program
Clear Scrambled Channel
Channel List
Fine Tune
Signal Strength
2.
Press the ◄ button to select “Added Channels”.
3.
Press the ▲ or ▼ button to select “All Channels”.
➣
Shows all currently available channels.
Press the
ENTER
button.
4.
Press the ▲ or ▼ button to select a channel to delete, then press the
TOOLS
button.
5.
Press the
ENTER
button to select “Delete”.
➣
All deleted channels will be shown on “All Channels” menu.
6.
Press the
EXIT
button to exit.
➣
You can also delete a channel to the “Added Channels” menu in the same manner.
➣
➣
A channel must be deleted before it can be added back to the “Added
Channels” list.
To Add (Restore) a channel back to the All Channel List, follow steps
1-3 above, press the ▲ or ▼ button to select a channel to add, the press the
TOOLS
button. Press the
ENTER
button to select Add.
O
Press the
CH LIST
button on the remote control to bring up the channel lists.
2
4
Air
Air
4-2 ♥ TV #8
8
13
Air
Air
13-1 ♥ TV #3 Alice’s Adventures in Wonderland
Air
Antenna
Zoom
Select
Option
2
4
Air
Air
4-2 ♥ TV #8
8
13
Air
Air
13-1 ♥ TV #3 Alice’s Adventures in Wonderland
Air
Antenna
Zoom
Select
Option
2 Air
4 Air
Delete
4-2 ♥ TV #8
Add to Favorite
8
13
Air
Air
13-1 ♥ TV #3
Timer Viewing
Channel Name Edit
Select All
Auto Program
Air
Antenna
Zoom
Select
Option
English -
BN68-01669A-00Eng.indb 35 2008-06-13 ¿ÀÈÄ 7:12:53
Setting Your Favorite Channels
You can set channels you watch frequently as favorites.
1.
Press the
MENU
button.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Channel List”, then press the
ENTER
button.
Auto Program
Clear Scrambled Channel
Channel List
Fine Tune
Signal Strength
2.
Press the ◄ button to select “Added Channels”.
3.
Press the ▲ or ▼ button to select “All Channels”.
➣
Shows all currently available channels.
Press the
ENTER
button.
4.
Press the ▲ or ▼ button to select a channel as a favorite channel.
➣
Adding multiple channels to Favorites
Press the ▲ or ▼ button to select the desired channel in the channel list. Then press the yellow button. Repeat the above operation to select multiple channels. The mark appears to the left of the selected channels.
5.
Press the
TOOLS
button.
6.
Press the ▲ or ▼ button to select “Add to Favorite”, then press the
ENTER
button. The “♥” symbol will be displayed and the channel will be set as a favorite.
7.
To cancel your favorite channel selection, press the
TOOLS
button when a favorite channel is selected.
➣
➣
Press the ▲ or ▼ button to select “Delete from Favorite”, then press the
ENTER
button.
The channel is deleted from “Favorites” and the “♥” mark also disappears.
Press the
EXIT
button to exit.
You can also Add or Delete a channel from Favorites in the “Added
Channels” menu in the same manner.
All favorite channels will be shown on “Favorite” menu.
2
4
Air
Air
4-2 ♥ TV #8
8
13
Air
Air
13-1 ♥ TV #3 Alice’s Adventures in Wonderland
Air
Antenna
Zoom
Select
Option
2
4
Air
Air
4-2 ♥ TV #8
8
13
Air
Air
13-1 ♥ TV #3 Alice’s Adventures in Wonderland
Air
Antenna
Zoom
Select
Option
2 Air
4 Air
Delete
4-2 ♥ TV #8
8
13
Air
Air
13-1 ♥ TV #3
Add to Favorite
Timer Viewing
Channel Name Edit
Select All
Auto Program
Air
Antenna
Zoom
Select
Option
O Press the
CH LIST
button on the remote control to bring up the channel lists.
O
To select the favorite channels you have set up, press the
FAV.CH
button on the remote control.
Easy Setting
1.
Press the
TOOLS
button on the remote control.
2.
Press the ▲ or ▼ button to select “Add to Favorite” (or “Delete from
Favorite”), then press the
ENTER
button.
➣
The current channel is added to (or deleted from) Favorites.
Device List
Picture Mode
Sound Mode
Sleep Timer
Add to Favorite
Switch to Cable
Tools
: Standard
:
:
Custom
Off
Move Enter e Exit
English - 6
BN68-01669A-00Eng.indb 36 2008-06-13 ¿ÀÈÄ 7:12:53
Reserving a Program (Timer Viewing)
If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel
List; even when you are watching another channel.
To reserve a program, set the current time first. See pages 46~47. Reserved channels can only be set if they are in the
“Channel List” (See page 34).
1.
Press the
MENU
button.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Channel List”, then press the
ENTER
button.
Auto Program
Clear Scrambled Channel
Channel List
Fine Tune
Signal Strength
2.
Press the ▲ or ▼ button to select a channel, then press the
TOOLS
button.
2 Air
4 Air
Delete
4-2 ♥ TV #8
8
13
Air
Air
13-1 ♥ TV #3
Add to Favorite
Timer Viewing
Channel Name Edit
Select All
Auto Program 3.
Press the ▲ or ▼ button to select “Timer Viewing”, then press the
ENTER
button. The Reserve a Program (Timer Viewing) screen appears.
4.
Press the ▲/▼/◄/► buttons to reserve a program and then press the
ENTER
button. Reserving a program has been completed.
Press the
EXIT
button to exit.
➣
You can also reserve a program in the “All Channels” or “Favorite” menus using the same procedures.
➣
➣
For information on how to confirm a viewing reservation, refer to page 38.
Only memorized channels can be reserved.
You can set the channel, month, day, year, hour and minute directly by pressing the number buttons on the remote control.
Air
Antenna
Zoom
Select
Option
Antenna
Air
Timer Viewing
Channel
4
Date
01 - 01 - 2008
Move Adjust
Repeat
Once
Start Time
10:0 am
Enter Return
O
Press the
CH LIST
button on the remote control to bring up the channel lists.
Digital Program Guide and Viewing Reservation
When a digital channel is selected, and you press the ► button, the Program
Guide for the channel appears. You can reserve a program according to the procedures described above.
: A program currently being broadcast.
: A reserved program
2
4
Air
Air
4-2 ♥ TV #8
1/1/2008
12:59 pm M.Spillane’s mike Ha...
8
13
Air
Air
13-1 ♥ TV #3
1:59 pm Quincy, M.E
3:21 pm The Equalizer
Air
Zoom
Option
Watch
English - 7
BN68-01669A-00Eng.indb 37 2008-06-13 ¿ÀÈÄ 7:12:54
Confirming a Viewing Reservation
You can view, modify or delete a reservation.
1.
Press the
MENU
button.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Channel List”, then press the
ENTER
button.
Auto Program
Clear Scrambled Channel
Channel List
Fine Tune
Signal Strength
2.
Press the ◄ button to select “Added Channels”.
3.
Press the ▲ or ▼ button to select “Programmed”.
➣
Shows all current reserved programs.
Press the
ENTER
button.
2
4
Air
Air
4-2 ♥ TV #8
8 Air
13 Air
13-1 ♥ TV #3 Alice’s Adventures in Wonderland
Air
Antenna
Zoom
Select
Option
1/1/2008
1:59 pm 13-1 TV #3 Quincy, M.E
2:59 pm 13-1 TV #3 The Equalizer
3:59 pm 13-1 TV #3 McMillan & Wife
5:59 pm 13-1 TV #3 M.Spillane’s mike Hammer
Modifying a viewing reservation
4.
To select a reservation item to be modified, press the ▲ or ▼ button and then press the
TOOLS
button.
5.
Press the
ENTER
button to select “Change Info”.
6.
Press the ▲/▼/◄/► buttons to change a reservation setting and then press the
ENTER
button. The reservation modification is applied.
Canceling a reservation
4.
To select a reservation item to be canceled, press the ▲ or ▼ button, and then press the
TOOLS
button.
5.
Press the ▲ or ▼ button to select “Cancel schedules”, then press the
ENTER
button.
6.
Press the ◄ or ► button to select “OK”, then press the
ENTER
button.
The viewing reservation has been canceled.
Press the
EXIT
button to exit.
Programmed Option
•
•
•
•
Change Info
: Select to change a viewing reservation.
Cancel schedules
: Select to cancel a viewing reservation.
Information
: Select to view a viewing reservation.
Selet All
: Select all reserved programs.
O Press the
CH LIST
button on the remote control to bring up the channel lists.
Air
Antenna
Zoom
Select Option Information
1/1/2008
1:59 pm 13-1 TV #3 Quincy, M.E
2:59 pm 13-1 TV #3
Cancel schedules
3:59 pm 13-1 TV #3
Information
Select All
5:59 pm 13-1 TV #3 M.Spillane’s mike Hammer
Air
Antenna
Zoom
Select
Option Information
English - 8
BN68-01669A-00Eng.indb 38 2008-06-13 ¿ÀÈÄ 7:12:54
Labeling Channels - Analog
Channels can labeled so that their call letters appear whenever the channel is selected.
1.
Press the
MENU
button.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Channel List”, then press the
ENTER
button.
Auto Program
Clear Scrambled Channel
Channel List
Fine Tune
Signal Strength
2.
Press the ▲ or ▼ button to select the channel to be assigned a new name, then press the
TOOLS
button.
2
4
Air
Air
4-2 ♥ TV #8
8
13
Air
Air
13-1 ♥ TV #3 Alice’s Adventures in Wonderland
Air
Antenna
Zoom
Select
Option
3.
Press the ▲ or ▼ button to select “Channel Name Edit”, then press the
ENTER
button.
4.
Press the ▲/▼/◄/► button to select a letter, then press the
ENTER
button.
•
•
•
•
•
Numeric buttons
: You can enter numbers.
Red button
: You can switch between English and Characters.
Green button
: You can delete an already entered character.
Yellow button
: You can enter a blank space.
Blue button
: Press this button to finish renaming a channel.
5.
When you have finished, press the blue button to assign the new name.
Press the
➣
EXIT
button to exit.
The names of digital broadcasting channels are automatically assigned and cannot be labelled.
2 Air
4 Air
Delete
4-2 ♥ TV #8
Add to Favorite
8
13
Air
Air
13-1 ♥ TV #3
Timer Viewing
Channel Name Edit
Select All
Auto Program
6
A
H
O
V
Air
Antenna
Zoom
Select
Channel Name Edit
Option
B
I
P
W
_
C
J
Q
X
D
K
R
Y
E
L
S
Z
Move
F
M
T
G
N
U
Enter
0~9
Number
Character
Delete
Blank
Done
Return
English -
BN68-01669A-00Eng.indb 39 2008-06-13 ¿ÀÈÄ 7:12:54
Selecting and Deselecting All Channels
1.
Press the
MENU
button.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Channel List”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select the channel, then press the
TOOLS
button.
3.
Press the ▲ or ▼ button to select “Select All” or “Deselect All”, then press the
ENTER
button.
➣
You can select(or Deselect) all channel in the channel list.
➣
The mark appears to the left of the selected channels.
2 Air
4 Air
Delete
4-2 ♥ TV #8
Add to Favorite
8 Air
Delete from Favorite
13 Air
13-1 ♥ TV #3
Deselect All
Select All
Auto Program
Air
Antenna
Zoom
Select
Option
Storing Channels in Memory (Auto Program)
1.
Press the
MENU
button.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Channel List”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select the channel to be assigned a new name, then press the
TOOLS
button.
3.
Press the ▲ or ▼ button to select “Auto Program”, then press the
ENTER
button.
➣
For further details on setting up options, refer to page 16.
2 Air
4 Air
Delete
4-2 ♥ TV #8
Add to Favorite
8
13
Air
Air
13-1 ♥ TV #3
Timer Viewing
Channel Name Edit
Select All
Auto Program
Air
Antenna
Zoom
Select
Option
BN68-01669A-00Eng.indb 40
English - 40
2008-06-13 ¿ÀÈÄ 7:12:55
Clearing Scrambled Channels - Digital
The “Clear Scrambled Channel” function is used to filter out scrambled channels after “Auto Program” is completed.
This process may take up to 20~30 minutes.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
Antenna
Auto Program
: Cable
Clear Scrambled Channel
2.
Press the ▲ or ▼ button to select “Clear Scrambled Channel”, then press the
ENTER
button. It searches scrambled channels, which are to be removed from the list.
➣
To stop searching scrambled channels;
Press the
ENTER
button to select “Stop”.
Press the ◄ button to select “Yes”, then press the
ENTER
button.
Channel List
Fine Tune
Signal Strength
►
3.
When the scrambled channel searching is completed, press the
ENTER
button.
Press the
➣
EXIT
button to exit.
This function is only available in “Cable” mode.
Clear Scrambled Channel
Removing scrambled channel.
DTV Cable 10
3%
Stop
Enter Return
Fine Tuning Analog Channels
Use fine tuning to manually adjust a particular channel for optimal reception.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Fine Tune”, then press the
ENTER
button.
Clear Scrambled Channel
Channel List
Fine Tune
Signal Strength
►
3.
Press the ◄ or ► button to adjust the fine tuning.
To store the fine tuning setting in the TV’s memory, press the
ENTER
button.
➣
If you do not store the fine-tuned channel in memory, adjustments are not saved.
4.
To reset the fine tuning setting, press the ▼ button to select “Reset”, then press the
ENTER
button.
Press the
➣
EXIT
button to exit.
"*” will appear next to the name of fine-tuned channels.
➣
Only analog TV channels can be fine tuned.
Air 6
Air 6*
Move
Move
Air 6
Fine Tune
0
Reset
Adjust Save Return
Fine Tune
Fine Tuned
+3
Reset
Adjust Save Return
Fine Tune
Reset
Move Enter Return
0
English - 41
BN68-01669A-00Eng.indb 41 2008-06-13 ¿ÀÈÄ 7:12:55
Checking the Digital-Signal Strength
Unlike analog channels, which can vary in reception quality from “snowy” to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels.
1.
Press the
MENU
button to display the menu. Press the ▲ or ▼ button to select “Channel”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Signal Strength”, then press the
ENTER
button.
If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength.
Continue to adjust the antenna until you find the best position with the strongest signal.
Press the
EXIT
button to exit.
Channel List
Fine Tune
Signal Strength ►
Signal Strength
OK
Enter Return
BN68-01669A-00Eng.indb 42
English - 42
2008-06-13 ¿ÀÈÄ 7:12:55
PC Display
Using Your TV as a Computer (PC) Display
Setting Up Your PC Software (Based on Windows XP)
The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)
1.
First, click on “Control Panel” on the Windows start menu.
2.
When the control panel window appears, click on “Appearance and Themes” and a display dialog-box will appear.
3.
When the control panel window appears, click on “Display” and a display dialogbox will appear.
4.
Navigate to the “Settings” tab on the display dialog-box.
The correct size setting (resolution)
Optimum: 1920 X 1080 pixels
If a vertical-frequency option exists on your display settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.
Display Modes
If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn’t equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no video. For the display modes listed below, the screen image has been optimized during manufacturing.
D-Sub Input
Mode
IBM
VESA
CVT
HDMI/DVI Input
Resolution
640 x 350
720 x 400
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1280 x 1024
1280 x 1024
1360 x 768
1600 x 1200
1920 x 1080RB
Horizontal
Frequency (kHz)
31.469
31.469
31.469
37.861
37.500
37.879
48.077
46.875
48.363
56.476
60.023
63.981
79.976
47.712
75.000
66.587
Vertical
Frequency (Hz)
70.086
70.087
59.940
72.809
75.000
60.317
72.188
75.000
60.004
70.069
75.029
60.020
75.025
60.015
60.000
59.934
Pixel Clock
Frequency (MHz)
25.175
28.322
25.175
31.500
31.500
40.000
50.000
49.500
65.000
75.000
78.750
108.000
135.000
85.500
162.000
138.500
Sync Polarity
(H/V)
+ / -
- / +
- / -
- / -
- / -
+ / +
+ / +
+ / +
- / -
- / -
+ / +
+ / +
+ / +
+ / +
+ / +
+ / -
Mode
VESA
CEA
Resolution
640 x 480
800 x 600
1024 x 768
1280 x 1024
1360 x 768
1600 x 1200
1920 x 1080p
Horizontal
Frequency (kHz)
31.469
37.879
48.363
63.981
47.712
75.000
67.500
Vertical
Frequency (Hz)
59.940
60.317
60.004
60.020
60.015
60.000
60.000
Pixel Clock
Frequency (MHz)
25.175
40.000
65.000
108.000
85.500
162.000
148.500
Sync Polarity
(H/V)
- / -
+ / +
- / -
+ / +
+ / +
+ / +
+ / +
English - 4
BN68-01669A-00Eng.indb 43 2008-06-13 ¿ÀÈÄ 7:12:56
Setting up the TV with your PC
How to Auto Adjust
Use the Auto “Adjust function” to have the TV set automatically adjust the video signals it receives. The function also automatically fine-tunes the settings and adjusts the frequency values and positions.
➣
➣
This function does not work in DVI-Digital mode.
Preset: Press the
SOURCE
button to select PC mode.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Picture”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Auto Adjustment”, then press the
ENTER
button.
Press the
EXIT
button to exit.
Source List
TV
PC ----
AV1
AV2
S-Video
Component1
Component2
Refresh
Option
----
----
----
----
----
Brightness
Sharpness
Auto Adjustment
: 45
: 50
Screen
Detailed Settings
Picture Options
Picture Reset
►
Easy Setting
1.
Press the
TOOLS
button on the remote control.
2.
Press the ▲ or ▼ button to select “Auto Adjustment”, then press the
ENTER
button.
Auto Adjustment in progress. Please Wait.
Device List
Picture Mode
Sound Mode
Sleep Timer
PIP
Auto Adjustment
Tools
: Standard
:
:
Custom
Off
Move Enter e Exit
Adjusting the Screen Quality
The purpose of the picture quality adjustment is to remove or reduce picture noise.
If the noise is not removed by fine tuning alone, then make the vertical frequency adjustments on your PC and fine tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of the screen.
➣
Preset: Press the
SOURCE
button to select PC mode.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Picture”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Screen”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Coarse” or “Fine”, then press the
ENTER
button. Press the ◄ or ► button to adjust the screen quality.
➣
Vertical stripes may appear or the picture may be blurry.
Press the
ENTER
button.
Press the
EXIT
button to exit.
Coarse
Fine
PC Position
Image Reset
Sharpness
Auto Adjustment
Screen
Detailed Settings
Picture Options
Picture Reset
Screen
: 50
50
0
►
Move
Coarse
Move Adjust
Enter Return
Enter
50
Return
English - 44
BN68-01669A-00Eng.indb 44 2008-06-13 ¿ÀÈÄ 7:12:56
Changing the Screen Position
Adjust the PC’s screen positioning if it does not fit the TV screen.
➣
Preset: Press the
SOURCE
button to select PC mode.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Picture”, then press the
ENTER
button.
Sharpness
Auto Adjustment
Screen
Detailed Settings
Picture Options
Picture Reset
: 50
►
2.
Press the ▲ or ▼ button to select “Screen”, then press the button.
ENTER
3.
Press the ▲ or ▼ button to select “PC Position”, then press the
ENTER
button.
4.
Press the ▲ or ▼ button to adjust the V-Position.
Press the ◄ or ► button to adjust the H-Position.
Press the
ENTER
button.
Press the
EXIT
button to exit.
Coarse
Fine
PC Position
Image Reset
Screen
50
0
►
Move
PC Position
Enter Return
Initializing the Screen Position, Coarse and Fine
You can replace all image settings with the factory default values.
➣
Preset: Press the
SOURCE
button to select PC mode.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Picture”, then press the button.
ENTER
Adjust Enter Return
Sharpness
Auto Adjustment
Screen
Detailed Settings
Picture Options
Picture Reset
: 50
►
Screen
2.
Press the ▲ or ▼ button to select “Screen”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Image Reset”, then press the
ENTER
button.
Press the
EXIT
button to exit.
Coarse
Fine
PC Position
Image Reset
50
0
►
Move Enter
Image Reset is completed.
Return
English - 4
BN68-01669A-00Eng.indb 45 2008-06-13 ¿ÀÈÄ 7:12:56
Time Setting
Setting the Clock
Setting the clock is necessary in order to use the various timer features of the TV.
Also, you can check the time while watching the TV. (Just press the
INFO
button.)
Option 1: Setting the Clock Manually
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Time”, then press the
ENTER
button.
2.
Press the
ENTER
button to select “Clock”.
Clock
Sleep Timer
Timer 1
Timer 2
Timer 3
Plug & Play
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: English
: Off
: Off
Time
: -- : -- --
: Off
: Inactivated
: Inactivated
: Inactivated
►
►
3.
4.
Press the button.
button.
ENTER
button to select “Clock Mode”.
Press the ▲ or ▼ button to select “Manual”, then press the
ENTER
Press the ▲ or ▼ button to select “Clock Set”, then press the
ENTER
5.
Press the ◄ or ► button to move to “Month”, “Day”, “Year”, “Hour”, “Minute”, or “am/pm”. Set the date and time you want by pressing the ▲ or ▼ button, then press the
ENTER
button.
Press the
EXIT
button to exit.
➣
➣
The current time will appear every time you press the
INFO
button.
You can set the month, day, year, hour and minute directly by pressing the number buttons on the remote control.
Move
Clock
Enter Return
Clock Mode
Clock Set
Time Zone
DST
Month
--
Hour
--
Move
Month
01
Hour
12
Move
Move
Manual
: Off
Enter Return
Clock Set
Day
--
Minute
--
Adjust
Year
----
Enter am/pm
--
Return
Clock Set
Day
01
Minute
00
Adjust
Year
2008
Enter am/pm am
Return
English - 46
BN68-01669A-00Eng.indb 46 2008-06-13 ¿ÀÈÄ 7:12:57
Option 2: Setting the Clock Automatically
The Clock can be set automatically if you are receiving a digital signal.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Time”, then press the
ENTER
button.
2.
Press the
ENTER
button to select “Clock”.
Clock
Sleep Timer
Timer 1
Timer 2
Timer 3
Plug & Play
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: English
: Off
: Off
Time
: -- : -- --
: Off
: Inactivated
: Inactivated
: Inactivated
►
►
3.
4.
5.
Press the
ENTER
button to select “Clock Mode”.
Press the ▲ or ▼ button to select “Auto”, then press the
Press the ▲ or ▼ button to highlight the time zone for your local area, then press the
ENTER
button.
ENTER
Press the ▲ or ▼ button to select “Time Zone”, then press the button.
button.
ENTER
Clock Mode
Clock Set
Time Zone
DST
Move
Clock
: Auto
Enter
Move
: Off
Enter
Time Zone
Newfoundland
Atlantic
Eastern
Central
Mountain
Pacific
Move
Return
Return
Enter Return
►
6.
Press the ▲ or ▼ button to select “DST” (Daylight Saving Time), then press the
ENTER
button. Press the ▲ or ▼ button to select “Off” or “On”, then press the
ENTER
button.
Press the
➣
EXIT
button to exit.
Depending on the broadcast station and signal, the auto time may not be set correctly. If this occurs, set the time manually.
➣
The Antenna or cable must be connected in order to set the time automatically.
Clock Mode
Clock Set
Time Zone
DST
Move
Clock
: Auto
Off
Enter Return
English - 47
BN68-01669A-00Eng.indb 47 2008-06-13 ¿ÀÈÄ 7:12:57
Setting the Sleep Timer
The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes).
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Time”, then press the
ENTER
button.
Plug & Play
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
2.
Press the ▲ or ▼ button to select “Sleep Timer”, then press the button.
ENTER
Time
3.
Press the ▲ or ▼ button to select the minute, then press the
ENTER
button.
To cancel the set sleep timer:
Press the ▲ or ▼ button to select “Off”, then press the
ENTER
button.
Clock
Sleep Timer
Timer 1
Timer 2
Timer 3
: English
: Off
: Off
150 min.
▼
4.
Press the
EXIT
button to exit.
Move Enter Return
►
Easy Setting
1.
Press the
TOOLS
button on the remote control.
2.
Press the ▲ or ▼ button to select “Sleep Timer”.
3.
Press the ◄ or ► button to select the minute.
4.
Press the
EXIT
or
TOOLS
button to exit.
Device List
Picture Mode
Sound Mode
Sleep Timer
Add to Favorite
Switch to Cable
Tools
: Standard
: Custom
◄ Off ►
Move Adjust e Exit
BN68-01669A-00Eng.indb 48
English - 48
2008-06-13 ¿ÀÈÄ 7:12:57
Setting the On/Off Timer
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Time”, then press the
ENTER
button.
2.
Three different On/Off Timer Settings can be made. Press the ▲ or ▼ button to select “Timer 1”, “Timer 2” or “Timer 3”, then press the
ENTER
button.
Clock
Sleep Timer
Timer 1
Timer 2
Timer 3
Plug & Play
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: English
: Off
: Off
Time
: 12 : 00 am
: Off
: Inactivated
: Inactivated
: Inactivated
►
►
3.
Press the ◄ or ► button to select the desired item below.
Press the ▲ or ▼ button to adjust the setting.
•
•
•
•
•
–
–
–
–
On Time
: Set the Hour, Minute, am/pm, and Activate/Inactivate.
(To activate timer with the setting you’ve chosen, set to “Activate”.)
Off Time
: Set the Hour, Minute, am/pm, and Activate/Inactivate.
(To activate timer with the setting you’ve chosen, set to “Activate”.)
Volume
: Set the required volume level.
Contents
: When the “On Time” is active, you can turn on a specific channel or play back contents such as photo or audio files.
– TV/USB: Select TV or USB. (Make sure that an USB device is connected to your TV.)
Antenna: Select “Air” or “Cable”.
Channel: Select the desired channel.
Music: Select the folder containing MP3 files on the USB device.
Photo: Select the folder containing JPEG files on the USB device.
Repeat
: Select “Once”, “Everyday”, “Mon~Fri”, “Mon~Sat”, “Sat~Sun”, or “Manual”.
➣
When “Manual” is selected, press the ► button to select the desired day of the week. Press the
ENTER
button over the desired day and the mark will appear.
Press the
EXIT
button to exit.
➣
You can set the hour, minute and channel by pressing the number buttons on the remote control.
➣
Auto Power Off
When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by the timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.
Move
Timer 1
Enter Return
On Time
12
Off Time
12
Volume
10
Repeat
Once
Move
00
00 am
Contents
TV Cable 3
Adjust
Contents am
Enter
Inactivate
Inactivate
Sun Mon Tue Wed Thu Fri Sat
Return
TV/USB
TV
Move
Antenna
Cable
Music
None
None
Adjust Enter
Channel am
Return
English - 4
BN68-01669A-00Eng.indb 49 2008-06-13 ¿ÀÈÄ 7:12:57
Function Description
Selecting a Menu Language
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Language”, then press the
ENTER
button.
Plug & Play
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
: English
: Off
: Off
►
2.
Press the ▲ or ▼ button to select “English”, “Español” or “Français”.
Press the
ENTER
button.
Press the
EXIT
button to exit.
Plug & Play
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
:
English
Español
Français
: Off
: Off
Using the V-Chip
The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN
(personal ID number) before any of the V-Chip restrictions are set up or changed.
➣
“V-Chip” function is not available in HDMI, Component or PC mode.
Setting Up Your Personal ID Number (PIN)
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “V-Chip”, then press the
ENTER
button.
The message “Enter PIN” will appear. Enter your 4 digit PIN number.
➣
The default PIN number of a new TV set is “0-0-0-0”.
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: English
: Off
: Off
►
V-Chip
Enter PIN
* * *
0~9 Enter PIN Return
English - 0
BN68-01669A-00Eng.indb 50 2008-06-13 ¿ÀÈÄ 7:12:58
3.
The “V-Chip” screen will appear.
Press the ▲ or ▼ button to select “Change PIN”, then press the
ENTER
button. The Change PIN screen will appear. Choose any 4 digits for your
PIN and enter them. As soon as the 4 digits are entered, the “Confirm New
PIN.” screen appears. Re-enter the same 4 digits. When the Confirm screen disappears, your PIN has been memorized.
Press the
EXIT
button to exit.
➣
If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to 0-0-0-0 : Power Off → Mute → 8 → 2
→ 4 → Power On.
V-Chip
V-Chip Lock
TV Parental Guidelines
: Off
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
Change PIN
Move Enter
Change PIN
Enter New PIN.
Return
►
Confirm New PIN.
0~9 Enter PIN Return
How to Enable/Disable the V-Chip
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “V-Chip”, then press the
ENTER
button. The message “Enter PIN” will appear. Enter your 4 digit PIN number.
Enter PIN
*
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: English
: Off
: Off
V-Chip
►
* *
3.
The “V-Chip” screen will appear.
To enable the V-Chip feature, press the
ENTER
button so that the “V-Chip
Lock” field is “On”. (Pressing the ▲ or ▼ button will alternate between “On” and “Off”.)
Press the
ENTER
button.
Press the
EXIT
button to exit.
0~9 Enter PIN
V-Chip
V-Chip Lock
TV Parental Guidelines
MPAA Rating
Canadian English
: Off
Canadian French
Downloadable U.S. Rating
Change PIN
Move
V-Chip
V-Chip Lock
TV Parental Guidelines
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
On
Change PIN
Enter
Move Enter
English - 1
Return
►
Return
Return
BN68-01669A-00Eng.indb 51 2008-06-13 ¿ÀÈÄ 7:12:58
How to Set up Restrictions Using the TV Parental Guidelines
First, set up a personal identification number (PIN) and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “V-Chip”, then press the
ENTER
button. The message “Enter PIN” will appear. Enter your 4 digit PIN number.
3.
The “V-Chip” screen will appear. Press the ▲ or ▼ button to select “TV
Parental Guidelines”, then press the
ENTER
button.
4.
The “TV Parental Guidelines” screen will appear.
Press the ▲ or ▼ button to select one of the six aged based categories:
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
: English
: Off
: Off
Software Upgrade
•
•
•
TV-Y
: Young children
TV-Y7
: Children 7 and over
TV-G
: General audience
•
•
•
TV-PG
: Parental guidance
TV-14
: Viewers 14 and over
TV-MA
: Mature audience
V-Chip
5.
At this point, one of the TV-Ratings is selected.
Press the
ENTER
button. Depending on your existing setup, the “ ” symbol will be selected. (Blank = Unblocked, = Blocked)
While “ ” is selected, press the
ENTER
button to block or unblock the category. To select a different TV-Rating, press the ▲ or ▼ button and then repeat the process.
➣
➣
Allow all: Press to unlock all TV ratings.
Block all: Press to lock all TV ratings.
The TV-Y, TV-Y7, TV-G, TV-PG, TV-14 and TV-MA have additional options. See the next step to change any of the following sub-ratings:
ALL / FV / V / S / L / D
➣
The V-Chip will automatically block certain categories that are “more restrictive”. For example, if you block “TV-Y” category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the “young adult” group will be blocked (TV-G,
TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work together similarly. (See next section.)
6.
How to set the FV, D, L, S and V sub-ratings.
First, select one of these TV-Ratings: TV-Y, TV-Y7, TV-G, TV-PG, TV-14 or
TV-MA (See Step 4) and press the ► button.
The “ ” symbol will be displayed for each sub-rating. While “ ” is selected, press the
ENTER
button to go to a sub rating. Press
ENTER
to block the sub rating. To select a different TV-Rating, press the ▲ or ▼ button and then repeat the process.
•
•
•
ALL
: Lock all TV ratings.
FV
: Fantasy violence
V
: Violence
•
•
•
S
: Sexual situation
L
: Adult Language
D
: Sexually Suggestive Dialog
Enter PIN
* *
ALL FV V
0~9 Enter PIN
V-Chip
V-Chip Lock
TV Parental Guidelines
: On
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
Change PIN
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Move
S L
*
Enter
TV Parental Guidelines
D
Return
Return
Allow All
Block All
►
➣
The V-chip will automatically block certain categories that are “More restrictive”. For example, if you block “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 and TV-MA will automatically be blocked.
7.
Press the
EXIT
button to clear all the screens. (Or proceed to the next section, and set up additional restrictions based on the MPAA codes.)
➣
These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7) and TV-G through TV-MA (everybody else).
The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be set up separately for each age group. (See next step.)
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Move Enter
TV Parental Guidelines
ALL FV V S L D
Return
Allow All
Block All
Move Enter Return
English - 2
BN68-01669A-00Eng.indb 52 2008-06-13 ¿ÀÈÄ 7:12:59
How to Set up Restrictions Using the MPAA Ratings: G, PG, PG-1, R, NC-17, X, NR
The MPAA rating system uses the Motion Picture Association of America (MPAA) system and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings
(either MPAA or TV-Ratings).
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “V-Chip”, then press the
ENTER
button. The message “Enter PIN” will appear. Enter your 4 digit PIN number.
Language
Time
V-Chip
Caption
: English
►
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: Off
: Off
3.
The “V-Chip” screen will appear. Press the ▲ or ▼ button to select “MPAA
Rating”, then press the
ENTER
button.
V-Chip
Enter PIN
* * *
4.
The “MPAA Rating” screen will appear. Repeatedly press the ▲ or ▼ button to select a particular MPAA category. Pressing the ▲ or ▼ button will cycle through the MPAA categories:
•
•
•
•
•
•
•
G
: General audience (no restrictions).
PG
: Parental guidance suggested.
PG-1
: Parents strongly cautioned.
R
: Restricted. Children under 17 should be accompanied by an adult.
NC-17
: No children under age 17.
X
: Adults only.
NR
: Not rated.
➣
➣
Allow all: Press to unlock all TV ratings.
Block all: Press to lock all TV ratings.
While a particular category is selected, press the
ENTER
button to activate it. The “ ” symbol will be displayed. Press the
ENTER
button to block or unblock the category.
➣
The V-Chip will automatically block any category that is “More restrictive”.
For example, if you block the “PG-13” category, then “R”, “NC-17” and “X” will automatically be blocked also.
Press the
EXIT
button to exit.
G
PG
PG-1
R
NC-17
X
NR
G
PG
PG-1
R
NC-17
X
NR
0~9 Enter PIN
V-Chip
V-Chip Lock
TV Parental Guidelines
: On
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
Change PIN
Move
MPAA Rating
Enter
Move
MPAA Rating
Enter
Move Enter
Return
Return
Allow All
Block All
Return
Allow All
Block All
Return
►
English -
BN68-01669A-00Eng.indb 53 2008-06-13 ¿ÀÈÄ 7:12:59
How to Set up Restrictions Using the Canadian English
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “V-Chip”, then press the
ENTER
button. The message “Enter PIN” will appear. Enter your 4 digit PIN number.
3.
The “V-Chip” screen will appear. Press the ▲ or ▼ button to select
“Canadian English”, then press the
ENTER
button.
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: English
: Off
: Off
►
V-Chip
Enter PIN
* * *
4.
Press the ▲ or ▼ button to select a appropriate restriction. Press the
ENTER
button to activate the restriction selected. The “ ” symbol is indicated.
Press the
➣
EXIT
button to exit.
Allow all: Press to unlock all TV ratings.
Block all: Press to lock all TV ratings.
•
•
•
•
•
•
C
: Programming intended for children under age 8.
C8+
: Programming generally considered acceptable for children 8 years and over to watch on their own.
G
: General programming, suitable for all audiences.
PG
: Parental Guidance.
14+
: Programming contains themes or content which may not be suitable for viewers under the age of 14.
18+
: Adult programming.
➣
The V-Chip will automatically block any category that is “More restrictive”.
For example, if you block G category, then PG, 14+ and 18+ will automatically be blocked also.
C
C8+
G
PG
14+
18+
0~9 Enter PIN
V-Chip
V-Chip Lock
TV Parental Guidelines
: On
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
Change PIN
Move Enter
Canadian English
Return
Return
Allow All
Block All
►
C
C8+
G
PG
14+
18+
Move Enter
Canadian English
Return
Allow All
Block All
Move Enter Return
English - 4
BN68-01669A-00Eng.indb 54 2008-06-13 ¿ÀÈÄ 7:13:00
How to Set up Restrictions Using the Canadian French
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “V-Chip”, then press the
ENTER
button. The message “Enter PIN” will appear. Enter your 4 digit PIN number.
3.
The “V-Chip” screen will appear. Press the ▲ or ▼ button to select
“Canadian French”, then press the
ENTER
button.
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: English
: Off
: Off
►
V-Chip
Enter PIN
* * *
4.
Press the ▲ or ▼ button to select an appropriate restriction. Press the
ENTER
button to activate the restriction selected. The “ ” symbol is indicated.
Press the
➣
EXIT
button to exit.
Allow all: Press to unlock all TV ratings.
Block all: Press to lock all TV ratings.
•
•
•
•
•
G
: General
8 ans+
: Programming generally considered acceptable for children 8 years and over to watch on their own.
1 ans+
: Programming may not be suitable for children under the age of 13.
16 ans+
: Programming is not suitable for children under the age of 16.
18 ans+
: Programming restricted to adults.
➣
The V-Chip will automatically block any category that is “More restrictive”.
For example, if you block 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also.
0~9 Enter PIN
V-Chip
V-Chip Lock
TV Parental Guidelines
: On
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
Change PIN
Move Enter
Canadian French
G
8 ans+
1 ans+
16 ans+
18 ans+
Return
Return
Allow All
Block All
►
G
8 ans+
1 ans+
16 ans+
18 ans+
Move Enter
Canadian French
Return
Allow All
Block All
Move Enter Return
English -
BN68-01669A-00Eng.indb 55 2008-06-13 ¿ÀÈÄ 7:13:00
Using the V-Chip for Digital channels
Parental restriction information can be used while watching DTV channels.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “V-Chip”, then press the
ENTER
button. The message “Enter PIN” will appear. Enter your 4 digit PIN number.
Language
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: English
: Off
: Off
►
3.
The “V-Chip” screen will appear. Press the ▲ or ▼ button to select
“Downloadable U.S. Rating”, then press the
ENTER
button.
➣
If information is not downloaded from the broadcasting station, the
Downloadable U.S. rating menu is deactivated.
➣
Parental restriction information is automatically downloaded while watching DTV channels. It may take several seconds.
➣
The Downloadable U.S. rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use.
Enter PIN
* *
V-Chip
*
4.
Press the ▲ or ▼ button to select a appropriate restriction. Press the
ENTER
button to activate the restriction selected. The “ ” symbol is indicated.
Press the
➣
EXIT
button to exit.
Allow all: Press to unlock all TV ratings.
Block all: Press to lock all TV ratings.
➣
➣
Parental restriction levels differ depending on the broadcasting station.
The default menu name and Downloadable US rating changes depending on the downloaded information.
➣
➣
➣
Even if you set the On-screen display to your desired language, the
“Downloadable U.S. Rating” menu will appear in English only.
The rating will automatically block certain categories that are more restrictive.
The rating titles (For example: Humor Level..etc) and TV ratings (For example: DH, MH, H..etc) may differ depending on the broadcasting station.
0~9 Enter PIN
V-Chip
V-Chip Lock
TV Parental Guidelines
: On
MPAA Rating
Canadian English
Canadian French
Downloadable U.S. Rating
Change PIN
Return
►
Move Enter Return
Rating title
The number of current rating information
The number of all rating information
DH
MH
H
VH
EH
Downloadable U.S. Rating
Humor Level
►
1/2
Allow All
Block All
Move Enter Return
How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”)
If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear:
1.
Enter your PIN.
To resume normal viewing, tune to a different channel using
CH
or
CH
button. Under certain conditions (depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case, use the
V-Chip function for an “emergency escape”.
➣
If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to 0-0-0-0 :
Power Off. → MUTE → 8 → 2 → 4 → Power On.
Received Rating : TV-G/MPAA X/Canadian English : C8+
Use the NUMBER buttons to enter your pin number to unlock all channels.
Press EXIT to clear PIN.
Press MENU for main menu.
English - 6
BN68-01669A-00Eng.indb 56 2008-06-13 ¿ÀÈÄ 7:13:01
Viewing Closed Captions (On-Screen Text Messages) - Analog
The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device to TV. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.)
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Caption”, then press the
ENTER
button.
Time
V-Chip
Caption
External Settings
3.
Press the
ENTER
button to select “Caption”. Press the ▲ or ▼ button to select “On”, then press the
ENTER
button.
Entertainment
Energy Saving
PIP
Software Upgrade
: Off
: Off
►
4.
Press the ▲ or ▼ button to select “Caption Mode”, then press the
ENTER
button. Press the ▲ or ▼ button to select submenu (Default, CC1~CC4 or
Text1~Text4) you want, the press the
ENTER
button.
Press the
EXIT
button to exit.
•
•
•
•
•
•
•
•
The default is “CC1”.
CC1
: The Primary Synchronous Caption Service. These are captions in the primary language that must be in sync with the sound, preferably matched to a specific frame.
CC2
: The Special Non-Synchronous Use Captions. This channel carries data that is intended to augment information carried in the program.
CC
: Secondary Synchronous Caption Service. Alternate programrelated caption data, typically second language captions.
CC4
: Special Non-Synchronous Use Captions. Similar to CC2.
Text1
: First Text Service. This may be various non-program related data.
Text2
: Second Text Service. Additional data, usually not program related.
Text/Text4
: Third and Fourth Text Services. These data channels should be used only if Text1 and Text2 are not sufficient.
➣
➣
The Caption feature doesn’t work in Component, HDMI or PC modes.
The availability of captions depends on the program being broadcast.
Caption
Caption Mode
Digital Caption Options
Caption
: Off
: Default
Caption
Caption
Caption Mode
Digital Caption Options
Move
Caption
Caption
Caption Mode
Digital Caption Options
CC2
Move
Enter
Enter
Enter
Return
Return
Return
►
O Press the
CC
button on the remote control to turn the Caption “On” or “Off”.
BN68-01669A-00Eng.indb 57
English - 7
2008-06-13 ¿ÀÈÄ 7:13:01
Viewing Closed Captions (On-Screen Text Messages) - Digital
The Digital Captions function operates on digital channels.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Caption”, then press the
ENTER
button.
3.
Press the
ENTER
button to select “Caption”.
Press the ▲ or ▼ button to select “On”, then press the
ENTER
button.
Time
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
4.
Press the ▲ or ▼ button to select “Caption Mode”, then press the
ENTER
button. Press the ▲ or ▼ button to select submenu (Default,
Service1~Service6, CC1~CC4 or Text1~Text4) you want, then press the
ENTER
button.
Caption
Caption
Caption Mode
Digital Caption Options
: Off
: Default
: Off
: Off
5.
Press the ▲ or ▼ button to select “Digital Caption Options”, then press the
ENTER
button.
➣
“Digital Caption Options” are available only when “Default” and
“Service1~Service6” can be selected in “Caption Mode”.
➣
Service1~6 in digital caption mode may not be available depending on the broadcast.
6.
Press the ▲ or ▼ button to select “Size”, then press the
ENTER
button.
Press the ▲ or ▼ button to select the desired Caption option, then press the
ENTER
button. Press the ▲ or ▼ button to select the desired sub-menu options (see options below), then press
ENTER
.
Press the
➣
EXIT
button to exit.
The availability of captions depends on the program being broadcast.
➣
“Default” means to follow the standard set by the broadcaster.
➣
➣
Foreground and Background cannot be set to have the same color.
“Foreground Opacity” and “Background Opacity” cannot be both set to
Transparent.
Caption
Caption
Caption Mode
Digital Caption Options
Move
Caption
Caption
Caption Mode
Digital Caption Options
Service 2
Move
Enter
Enter
Enter
•
•
•
•
•
•
•
Size
: This option consists of “Default”, “Small”, “Standard” and “Large”.
The default is “Standard”.
Font Style
: This option consists of “Default”, “Style0 ~ Style 7”. You can change the font you want. The default is “Style 0”.
Foreground Color
: This option consists of “Default”, “White”, “Black”,
“Red”, “Green”, “Blue”, “Yellow”, “Magenta” and “Cyan”. You can change the color of the letter. The default is “White”.
Background Color
: This option consists of “Default”, “White”, “Black”,
“Red”, “Green”, “Blue”, “Yellow”, “Magenta” and “Cyan”. You can change the background color of the caption. The default is “Black”.
Foreground Opacity
: This option consists of “Default”, “Transparent”,
“Translucent”, “Solid” and “Flashing”. You can change the opacity of the letter.
Background Opacity
: This option consists of “Default”, “Transparent”,
“Translucent”, “Solid” and “Flashing”. You can change the background opacity of the caption.
Return to Default
: This option sets each of “Size”, “Font Style”,
“Foreground Color”, “Background color”, “Foreground Opacity” and
“Background Opacity” to its default.
Digital Caption Options
Size
Font Style
Foreground Color
Background Color
Foreground Opacity : Default
Background Opacity : Default
Return to Default
Move Enter
Return
Return
Return
Return
►
►
O Press the
CC
button on the remote control to turn the Caption “On” or “Off”.
English - 8
BN68-01669A-00Eng.indb 58 2008-06-13 ¿ÀÈÄ 7:13:01
Adjusting the TV On/Off Melody Sound
A melody sound can be set to come on when the TV is powered On or Off.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “External Settings”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Melody”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Off”, “Low”, “Medium” or “High”, then press the
ENTER
button.
➣
•
•
•
•
Off
: Turns off the melody function.
Low
: Sets the melody volume to low.
Medium
: Sets the melody volume to medium.
High
: Sets the melody volume to high.
Press the
EXIT
button to exit.
The Melody does not play
- When no sound is output from the TV because the
MUTE
button has been pressed.
- When no sound is output from the TV because the volume has been reduced to minimum with the
VOL –
button.
- When the TV is turned off by Sleep timer function.
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: Off
: Off
External Settings
Melody
Wall-Mount Adjustment
Low
Medium
High
Move Enter Return
►
Setting the Entertainment mode
The “Entertainment” mode enables you to select the optimal display and sound for sports, cinema and games.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Entertainment”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Off”, “Sports”, “Cinema” or “Game”, then press the
ENTER
button.
Caption
External Settings
Entertainment
Energy Saving
PIP
:
Off
: Off
Software Upgrade
•
•
•
•
Off
: Switches the “Entertainment” function off.
Sports
: Provides the optimal picture and sound quality for sports.
Cinema
: Provides the optimal picture and sound quality for movie watching. You can experience a richer picture and enhanced sound.
Game
: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.
Caption
External Settings
Entertainment :
Off
➣
Press the
EXIT
button to exit.
If you set any of the three “Entertainment” modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the “Entertainment” mode must be turned off.
Energy Saving
PIP
Software Upgrade
Game
➣
➣
➣
If you set any of the three “Entertainment” modes to On, “SRS TruSurround XT” and “Equalizer” function is not available.
The “Entertainment” settings are saved for each input source.
In PC mode, This function is not available.
O You can press the
E.MODE
button on the remote control repeatedly to change the “Entertainment” setting.
►
►
English -
BN68-01669A-00Eng.indb 59 2008-06-13 ¿ÀÈÄ 7:13:02
Using the Energy Saving Feature
This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the "Energy Saving “ mode option to
“High” to reduce eye fatigue as well as power consumption.
1.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Energy Saving”, then press the
ENTER
button. Select the required option (Off, Low, Medium, High, Auto) by pressing the ▲ or ▼ button.
Press the
ENTER
button.
•
•
•
•
•
Off
: Turns off the energy saving function.
Low
: Sets the TV to low energy saving mode.
Medium
: Sets the TV to medium energy saving mode.
High
: Sets the TV to high energy saving mode.
Auto
: Automatically adjusts the brightness of the TV screen in accordance with the scenes.
Press the
EXIT
button to exit.
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: Off
: Off ►
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: Off
:
Off
Low
Medium
High
Auto
►
Upgrading the Software
Samsung may offer upgrades for TV's firmware in the future. Please contact the Samsung call center at 1-800-SAMSUNG
(726-7864) to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on your TV.
1.
Insert a USB drive containing the firmware upgrade into the WISELINK port on the side of the TV.
TV Side Panel
USB Drive
2.
Press the
MENU
button to display the menu.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Software Upgrade”, then press the
ENTER
button.
Energy Saving
PIP
Software Upgrade
: Off
►
4.
Press the
ENTER
button.
The message “Scanning for USB... It may take up to 30 seconds.” is displayed.
5.
The message “Upgrade version XXXX to version XXXX? The system will be reset after upgrade.” is displayed.
Press the ◄ or ► to select the “OK”, then press the
ENTER
button.
Software Upgrade
Scanning for USB.....
It may take up to 30 seconds.
Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The TV will turn off and turn on automatically after completing the firmware upgrade. Please check the firmware version after the upgrades are complete. When software is upgraded, video and audio settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade.
Software Upgrade
Upgrade version XXXX to version XXXX? The system will be reset after upgrade.
OK Cancel
English - 60
BN68-01669A-00Eng.indb 60 2008-06-13 ¿ÀÈÄ 7:13:02
Self diagnosis
Picture Test
Please perform the picture test if there is a problem on the screen. Check the color pattern on the screen, and analyze whether the TV is defective.
1.
Please press the ‘-’ button for more than 5 seconds.
➣
The “Self Diagnostic Test” message is displayed.
2.
Press the ▲ or ▼ button to select “Picture Test”, then press the
ENTER
button.
➣
The “Does the problem still exist with this test pattern?” message will appear.
3.
Press the ◄ or ► button to select “Yes” or “No”.
Picture Test
Self Diagnostic Test
•
Sound Test
•
Yes
: It’s regarded as TV set defect, and the contact information of
Samsung Call center is shown.
No
: It’s not regarded as TV set defect. If the self diagnosis picture is
OK, picture distortion may caused by your external device. Please check connection. If the problem still persists, refer to the external device’s user manual.
Model No. XXXXXXXX
Move
Enter Exit
Does the problem still exist with this test pattern?
Yes
No
Sound Test
If you believe that there is a problem with the sound, please perform the sound test. You can check if the TV is defective by playing a melody through the TV.
1.
Please press the ‘-’ button for more than 5 seconds.
➣
The “Self Diagnostic Test” message is displayed.
2.
Press the ▲ or ▼ button to select “Sound Test”, then press the
ENTER
button.
➣
The “Does the problem still exist with this sound test?” message is displayed.
3.
Press the ◄ or ► button to select “Yes” or “No”.
Picture Test
Self Diagnostic Test
•
Sound Test
•
Yes
: It’s regarded as TV set defect, and the contact information of
Samsung Call center is shown.
No
: It’s not regarded as TV set defect. If the self diagnosis sound is OK, sound distortion may caused by your external device. Please check connection. If the problem still persists, refer to the external device’s user manual.
Model No. XXXXXXXX
Move Enter Exit
Does the problem still exist with this sound test?
➣
➣
The melody will be heard during the test even if the “Select Speaker” is set to “External Speaker” or the sound is muted by pressing the MUTE button.
If headphones are connected, the test melody will play through the headphones.
Yes No
English - 61
BN68-01669A-00Eng.indb 61 2008-06-13 ¿ÀÈÄ 7:13:03
WISELINK
Using the WISELINK Function
Connecting a USB Device
This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device.
1.
Press the
POWER
button on the remote control or front panel.
➣
The TV is powered on.
2.
Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV.
TV Side Panel
USB Drive
➣
➣
➣
➣
➣
➣
➣
➣
➣
➣
➣
➣
➣
➣
➣
If you enter the WISELINK mode with no USB device connected the message “No external storage device found.
Check the connection status.” will appear. In this case, insert the USB device, exit the screen by pressing the
W.LINK
button on the remote control and enter the WISELINK screen again.
MTP (Media Transfer Protocol) is not supported.
The file system only supports FAT16/32 (The NTFS file system is not supported).
Certain types of USB Digital camera and audio devices may not be compatible with this TV.
Wiselink only supports USB Mass Storage Class devices (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported).
Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB
Compatibility problem.
Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.
SAMSUNG is not responsible for any data file damage or data loss.
Do not disconnect the USB device while it is loading.
MSC supports MP3 and JPEG files, while a PTP device supports JPEG files only.
The sequential jpeg format is supported.
Photo and audio files must be named in English, French or Spanish. If not, the files can not be played. Change the file names to English, French or Spanish if necessary.
The higher the resolution of the image, the longer it takes to display on the screen.
The maximum supported JPEG resolution is 15360x8640 pixels.
For unsupported or corrupted files, the “Not Supported File Format” message is displayed.
MP3 files with DRM that have been downloaded from a non-free site cannot be played.
Digital Rights Management (DRM) is a technology that supports the creation of content, the distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.
Using the Remote Control Button in WISELINK Menu
Button
(▲/▼/◄/►)
ENTER
/
RETURN
TOOLS
/
INFO
W.LINK
CH
/
PRE.CH / FAV.CH
EXIT
Operations
Move the cursor and select an item.
Select the currently selected item.
During a Slide Show or Music Play:
- Pressing the
ENTER
button during play pauses the play.
- Pressing the
ENTER
button during pause resumes the play.
Play or pause the Slide Show or Music file.
Return to the previous menu.
Run various functions from the Photo and Music menus.
Stop the current slide show or Music file.
Jump to previous group / Jump to next group.
Show file information.
Exit WISELINK mode.
Stop WISELINK mode and Returns to TV mode.
Stop the current function and return to the WISELINK main menu.
English - 62
BN68-01669A-00Eng.indb 62 2008-06-13 ¿ÀÈÄ 7:13:03
Using the WISELINK Menu
1.
Press the
MENU
button. Press the ▲ or ▼ button to select “Application”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “WISELINK”, then press the
ENTER
button.
➣
The “WISELINK” menu is displayed.
WISELINK
SUM
851.98MB/995.00MB Free
SUM
Photo Music Setup
Device e Exit
O
Press the
W.LINK
button on the remote control to display the “WISELINK” menu.
O Press the
SOURCE
button on the remote control repeatedly to select
“USB”, then press the
ENTER
button.
3.
Press the Red button, then press the ▲ or ▼ button to select the corresponding USB Memory Device (i.e. if connected through a hub). Press the
ENTER
button.
➣
This function differs depending on the USB Memory Device connected to TV.
➣
The selected USB device name appears at the bottom left of the screen.
4.
Press the ◄ or ► button to select an icon (Photo, Music, Setup), then press the
ENTER
button.
➣
To exit “WISELINK” mode, press the
W.LINK
button on the remote control.
Using the Photo List
This menu shows Photo files saved on an USB memory device.
Photo List
1.
Press the
W.LINK
button on the remote control to display the “WISELINK” menu.
2.
Press the ◄ or ► button to select “Photo”, then press the
ENTER
button.
➣
Photo files are displayed.
➣
➣
➣
➣
➣
➣
This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed.
Press the (Play) /
ENTER
button to start the Slide Show.
To move to the previous / next group, press the
(FF) button.
(REW) or
When moving to a photo, loading may take a few seconds. At this point, the loading icon will appear at the screen.
It may take some time to load photo files as Thumbnail images.
Photos without EXIF information may not be displayed as thumbnail images in the Photo List depending on the picture quality and resolution.
WISELINK
SUM
Preference
Monthly
SUM
Timeline
Music
SUM image_1.jpg
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
851.98MB/995.00MB Free
Setup
Device e Exit
▲
Jan
Device
Favorites Setting
Select
Nov
Jump Option
English - 6
BN68-01669A-00Eng.indb 63 2008-06-13 ¿ÀÈÄ 7:13:04
Screen Display
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
1
2
1File(s) Selected
6
Preference
Monthly
Timeline
3
SUM
5 7
▲
Jan Nov
4
Device
Favorites Setting
Select Jump Option
1
Currently selected photo
Shows the currently selected photo.
2
Photo Information Window
Shows information about the currently selected photo. You can change the “Color”, “Composition”, and “Favorite”.
3
Current Sort Standard
Press the ▲ or ▼ button to change the standard for sorting photos. (“Monthly”, “Timeline”, “Color”, “Composition”,
“Folder”, “Preference”)
The item that is selected as the sorting standing is highlighted in the Photo Information Window.
4
View Groups
Shows the sorting groups. The sorting group including the currently selected photo is highlighted.
5
Current Device
Shows the currently selected device name. Press the Red button to select a device.
6
Item Selection Information
Shows the number of photos that are selected by pressing the Yellow button.
7
Help Items
•
•
•
•
•
Red(Device) button
: Selects a connected device.
Green(Favorites Setting) button
: Changes the favorites setting for the selected photo. Press this button repeatedly until the desired value appears. (Refer to page 67)
Yellow(Select) button
: Selects photos from the photo list. Selected photos are marked with a symbol on the left.
(Jump) button
: Jumps to the previous sorting group / Jumps to the next sorting group.
TOOLS(Option) button
: Displays the “Slide Show”, “Play Current Group”, “Delete”, “Change Group Info” (in “Color” or “Composition” group),“Information” or “Safe Remove” menus.
English - 64
BN68-01669A-00Eng.indb 64 2008-06-13 ¿ÀÈÄ 7:13:05
Sorting Photo List
You can sort photos in the Photo List by a particular standard.
1.
Press the
W.LINK
button on the remote control to display the
“WISELINK” menu.
2.
Press the ◄ or ► button to select “Photo”, then press the
ENTER
button.
➣
Photo files are displayed.
3.
Press the ▲ or ▼ button to select a sorting standard.
(“Monthly”, “Timeline”, “Color”, “Composition”, “Folder”, “Preference”)
➣
The photos are sorted according to the newly selected sorting standard.
4.
Press the
ENTER
button to start the Slide Show in the order selected by the user.
➣
➣
➣
➣
➣
Wiselink identifies the color and composition of images and groups them accordingly by analyzing the images on the USB device.
The “Composition” and “Color” information extracted from a photo file may be different from what you selected.
Photo information is automatically set. You can change the “Color”,
“Composition”, and “Favorite”.
Photos for which information cannot be displayed are set as
“Unclassified”.
PTP does not support folder sort mode.
WISELINK
SUM
851.98MB/995.00MB Free
SUM
Photo Music image_1.jpg
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
Setup
Device e Exit
Preference
Monthly
SUM
Timeline
▲
Jan
Device
Favorites Setting
Select
Nov
Jump Option
Monthly
Sorts photos by month.
➣
It sorts and shows photos in the file by month. It sorts only by month
(from January to December) regardless of year.
1.
Select “Monthly” as the sorting standard in the Photo List.
2.
Press the ◄ or ► button to select from the sublist of files grouped by
Month.
➣
To move to the previous / next group, press the
(FF) button.
(REW) or
3.
Press the
TOOLS
button. Press the ▲ or ▼ button to select “Play
Current Group”.
4.
Press
ENTER
to play the selected group of photo files from the sublist.
Timeline
Sorts photos by time.
➣
It sorts and shows photos by date. It sorts by year and month from the earliest photo.
1.
Select “Timeline” as the sorting standard in the Photo List.
2.
Press the ◄ or ► button to select from the sublist of files grouped by
Timeline.
➣
To move to the previous / next group, press the
(FF) button.
(REW) or
3.
Press the
TOOLS
button. Press the ▲ or ▼ button to select “Play
Current Group”.
4.
Press
ENTER
to play the selected group of photo files from the sublist.
Month
Date
Folder
Favorite
: Jan
: Jan.01.2008
Color : Gray
Composition :
: P-other
:
★ ★ ★
Slide Show
Play Current Group
Delete
Information
▼
Preference
Monthly
SUM
Timeline
▲
Jan
Device
Favorites Setting
Select
Nov
Jump Option image_1.jpg
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
Slide Show
Play Current Group
Delete
Information
▼
Monthly
Timeline
Color
SUM
2008
▲
Jan
Device
Favorites Setting
Select
2008
Nov
Jump Option
English - 6
BN68-01669A-00Eng.indb 65 2008-06-13 ¿ÀÈÄ 7:13:06
Color
Sorts photos by color.
➣
You can change the photo color information.
1.
Select “Color” as the sorting standard in the Photo List.
2.
Press the ◄ or ► button to select from the sublist of files grouped by color.
➣
To move to the previous / next group, press the
(FF) button.
(REW) or
3.
Press the
TOOLS
button. Press the ▲ or ▼ button to select “Play
Current Group”.
4.
Press
ENTER
to play the selected group of photo files from the sublist.
Changing the color information
1.
Select “Color” as the sorting standard in the Photo List and press the
◄ or ► button to select a photo.
➣
Changing the information of multiple files
Press the ◄ or ► button to select the desired photo in the Photo list.
Then press the yellow button.
Repeat the above operation to select multiple photos.
The mark appears to the left of the selected photo.
2.
Press the
TOOLS
button.
3.
Press the ▲ or ▼ button to select “Change Group Info”.
Press the
ENTER
button.
4.
Press the ◄ or ► button to select the desired option, then press the
ENTER
button.
➣
The group information of the current file is updated and the file is moved to the new group.
➣
“Color” options: Red, Yellow, Green, Blue, Magenta, Black, Gray,
Unclassified.
Composition
Sorts photos by composition.
➣
You can change the compositional information of photos.
1.
Select “Composition” as the sorting standard in the Photo List.
2.
Press the ◄ or ► button to select from the sublist of files grouped by compositon.
➣
To move to the previous / next group, press the
(FF) button.
(REW) or
3.
Press the
TOOLS
button. Press the ▲ or ▼ button to select “Play
Current Group”.
4.
Press
ENTER
to play the selected group of photo files from the sublist.
Changing the composition information
1.
Select “Composition” as the sorting standard in the Photo List and press the ◄ or ► button to select a photo.
➣
Changing the information of multiple files
Press the ◄ or ► button to select the desired photo in the Photo list.
Then press the yellow button.
Repeat the above operation to select multiple photos.
The mark appears to the left of the selected photo.
2.
Press the
TOOLS
button.
3.
Press the ▲ or ▼ button to select “Change Group Info”.
Press the
ENTER
button.
4.
Press the ◄ or ► button to select the desired option, then press the
ENTER
button.
➣
➣
The group information of the current file is updated and the file is moved to the new group.
“Composition” options: (horizontal), (vertical), (object),
(perspective), (pattern), Unclassified
Timeline
Color
Composition
SUM
Timeline
Color
Composition
SUM
Timeline
Color
Composition
SUM
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
Silde Show
Play Current Group
Delete
Change Group Info
▼
▲
Device
Favorites Setting
Select Jump Option image_1.jpg
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
Delete
▲
Play Current Group
Change Group Info
Information
▼
▲
Device
Favorites Setting
Select Jump Option image_1.jpg
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
▲
Device
Favorites Setting
Select Jump Option image_1.jpg
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
Slide Show
Play Current Group
Delete
Change Group Info
▼
Color
Composition
Folder
SUM
Unclassified
▲
Device
Favorites Setting
Select Jump Option
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
Delete
▲
Play Current Group
Change Group Info
Information
▼
Color
Composition
Folder
SUM
Unclassified
▲
Device
Favorites Setting
Select Jump Option
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
Color
Composition
Folder
SUM
Unclassified
Unclassified
▲
Device
Favorites Setting
Select Jump Option
English - 66
BN68-01669A-00Eng.indb 66 2008-06-13 ¿ÀÈÄ 7:13:08
Folder
Sorts photos by folder.
➣
If there are many folders in USB, the photos files are shown in order in each folder. The photo file in the Root folder is shown first and the others are shown in alphabetical order by name.
1.
Select “Folder” as the sorting standard in the Photo List.
2.
Press the ◄ or ► button to select from the sublist of files grouped by folder.
➣
To move to the previous / next group, press the
(FF) button.
(REW) or
3.
Press the
TOOLS
button. Press the ▲ or ▼ button to select “Play
Current Group”.
4.
Press
ENTER
to play the selected group of photo files from the sublist.
Month
Date
Folder
Favorite
: Jan
: Jan.01.2008
Color : Gray
Composition :
: P-other
:
★ ★ ★
Slide Show
Play Current Group
Delete
Information
▼
Composition
Folder
SUM
Preference
▲
P-other
Device
Favorites Setting
Select
Photo-1
Jump Option
Preference
Sorts photos by preference. (Favorite)
➣
You can change the photo preferences.
1.
Select “Preference” as the sorting standard in the Photo List.
2.
Press the ◄ or ► button to select from the sublist of files grouped by preference.
➣
To move to the previous / next group, press the
(FF) button.
(REW) or
3.
Press the
TOOLS
button. Press the ▲ or ▼ button to select “Play
Current Group”.
4.
Press
ENTER
to play the selected group of photo files from the sublist.
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
Slide Show
Play Current Group
Delete
Information
▼
Folder
Preference
Monthly
SUM
★ ★ ★
▲
★ ★ ★ ★ ★ ★
Device
Favorites Setting
Select
★ ★ ★
Jump Option
Changing the Favorites setting
1.
Press the ◄ or ► button to select the desired photo in the Photo list.
➣
Changing the information of multiple files
Press the ◄ or ► button to select the desired photo in the Photo list.
Then press the yellow button.
Repeat the above operation to select multiple photos.
The mark appears to the left of the selected photo.
2.
Press the Green button repeatedly until the desired setting appears.
➣
➣
➣
Favorites settings change completed.
“Favorite” options:
★ ★ ★
,
★ ★ ★
,
★ ★ ★
,
★ ★ ★
Users can select the number of stars (up to 3) according to their preference.
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
Folder
Preference
Monthly
SUM
★ ★ ★
▲
★ ★ ★ ★ ★ ★
Device
Favorites Setting
Select
★ ★ ★
Jump Option
English - 67
BN68-01669A-00Eng.indb 67 2008-06-13 ¿ÀÈÄ 7:13:09
Deleting the Photo file
1.
Press the ◄ or ► button to select the desired photo in the Photo list.
2.
Press the
TOOLS
button.
3.
Press the ▲ or ▼ button to select “Delete”, then press the
ENTER
button.
➣
The “Delete this file?” message appear.
4.
Press the ◄ or ►button to select “OK”, then press the
ENTER
button.
➣
The photo is deleted.
➣
When a read-only file is deleted, the “Read-only file(s). Delete the file(s)?” message appear.
➣
If you select “Cancel”, the deletion is cancelled.
5.
To exit “WISELINK” mode, press the
W.LINK
button on the remote control.
➣
➣
➣
You cannot remove the PTP-connected digital camera picture files.
While removing files, don’t remove the USB memory device.
You cannot recover a deleted photo file.
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
Slide Show
Play Current Group
Delete
Information
▼
Preference
Monthly
SUM
Timeline
▲
Jan
Device
Favorites Setting
Select
Nov
Jump Option
Delete
Selected File(s) : image... 1 File(s)
Delete this file?
OK Cancel
Deleting Multiple Photos
1.
Press the ◄ or ► button to select the desired photo in the Photo list.
Then press the yellow button.
➣
Repeat the above operation to select multiple photos.
➣
The mark appears to the left of the selected photo.
2.
Press the
TOOLS
button.
3.
Press the ▲ or ▼ button to select “Delete selected File”, then press the
ENTER
button.
➣
The “Delete the selected file(s)?” message appear.
4.
Press the ◄ or ► button to select “OK”, then press the
ENTER
button.
➣
The selected photos are deleted.
➣
If you select “Cancel”, the deletion is cancelled.
5.
To exit “WISELINK” mode, press the
W.LINK
button on the remote control.
➣
➣
You cannot remove the read-only files from the selected ones.
You cannot recover a deleted photo file.
2File(s) Selected
Month
Date
Color : Gray
Composition :
Folder
Favorite
: Jan
: Jan.01.2008
: P-other
:
★ ★ ★
Slide Show
Delete selected File
Deselect All
Safe Remove
Preference
Monthly
SUM
Timeline
▲
Jan
Device
Favorites Setting
Select
Nov
Jump Option
Delete
Selected File(s) : image... 2 File(s)
Delete the selected file(s)?
OK Cancel
Viewing the Photo Information
The photo file information including the order of the file in the current directory, the name, the size, the resolution, the date modified and the path is displayed.
1.
Press the ◄ or ► button to select the desired photo in the Photo list.
2.
Press the
TOOLS
button.
3.
P ress the ▲ or ▼ button to select “Information”, then press the
ENTER
button.
➣
The information on the selected photo appears.
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
Play Current Group
Delete
Information
▲
Safe Remove
Preference
Monthly
SUM
Timeline
▲
Jan
Device
Favorites Setting
Select
Photo Info
Name
Size
: image_1.jpg
: 2.0MB
Resolution : 440x440
Date : Jan.1.2008
Path : /Photo/
OK
Nov
Jump Option
O
Press the
INFO
button to viewing the information.
English - 68
BN68-01669A-00Eng.indb 68 2008-06-13 ¿ÀÈÄ 7:13:11
Viewing a Photo or Slide Show
Viewing a Slide Show
1.
Press the
W.LINK
button on the remote control to display the “WISELINK” menu.
2.
Press the ◄ or ► button to move to “Photo”, then press the
ENTER
button.
➣
Photo files are displayed.
3.
Press the ◄ or ► button to select the desired photo in the Photo list.
4.
Press the
TOOLS
button.
5.
Press the ▲ or ▼ button to select “Slide Show”, then press the
ENTER
button.
➣
All files in the photo list will be used for the Slide Show.
Preference
Monthly
SUM
Timeline image_1.jpg
Month
Date
: Jan
: Jan.01.2008
Color : Gray
Composition :
Folder
Favorite
: P-other
:
★ ★ ★
Slide Show
Play Current Group
Delete
Information
▼
▲
Jan
Device
Favorites Setting
Select
Nov
Jump Option
►
20/22 image_1.jpg 440x440 2.0KB 2008/1/1
➣
➣
➣
During the slide show, files are displayed in order from the currently shown file.
The Slide Show progresses in the order sorted in the Photo list.
Music files can be automatically played during the Slide Show if the
“Background Music” is set to “On”.
(Refer to page 71).
SUM
E
Pause Previous Next Option
Return
O
While a photo list is displayed, press the (Play) /
ENTER
button on the remote control to start slide show.
To perform a SlideShow with only the selected files
1.
Press the ◄ or ► button to select the desired photo in the Photo list.
Then press the yellow button. Repeat the above operation to select multiple photos.
➣
The mark appears to the left of the selected photo.
➣
If you select one file, the SlideShow will not be performed.
2.
Press the (Play)
/ ENTER
button.
➣
The selected files will be used for the Slide Show.
➣
If you have selected files, only the selected files will be used for the Slide Show.
Playing current group
1.
Press the ▲ or ▼ button to select a sorting standard.
(“Monthly”, “Timeline”, “Color”, “Composition”, “Folder”, “Preference”)
2.
Press the ◄ or ► button to select the desired photo in the Photo list.
➣
To move to the previous / next group, press the
(FF) button.
3.
Press the
TOOLS
button.
(REW) or
4.
Press the ▲ or ▼ button to select “Play Current Group”, then press the
ENTER
button. Only the photos in the sorting group including the selected files will be used for the Slide Show.
5.
To exit “WISELINK” mode, press the
W.LINK
button on the remote control.
Preference
Monthly
SUM
Timeline image_1.jpg
Month
Date
Folder
Favorite
: Jan
: Jan.01.2008
Color : Gray
Composition :
: P-other
:
★ ★ ★
Slide Show
Play Current Group
Delete
Information
▼
▲
Jan
Device
Favorites Setting
Select
Nov
Jump Option
Slide show function information icon (Displayed at the top left of the screen)
Icon
►
❙❙
Current OSD
(Photo) SlideShow
Photo Pause
Function
Photo Slide Show is in progress.
You can pause a Slide Show by pressing the on the remote control during a Slide Show.
To resume the Slide Show, press the remote control again.
(Pause)/
ENTER
button
(Play)/
ENTER
button on the
English - 6
BN68-01669A-00Eng.indb 69 2008-06-13 ¿ÀÈÄ 7:13:12
Viewing a photo
1.
Press the
W.LINK
button on the remote control to display the “WISELINK” menu.
2.
Press the ◄ or ► button to move to “Photo”, then press the
ENTER
button.
➣
Photo files are displayed.
3.
Press the ◄ or ► button to select the desired photo in the Photo list.
Then Press the Yellow button to select only one file.
4.
Press the
ENTER
button over a photo icon.
➣
The currently selected photo is displayed in full screen.
SUM
20/22 image_1.jpg 440x440 2.0KB 2008/1/1
E
Slide Show Previous Next Option
Return
Using the option menu during a slide show (or Viewing a Photo)
1.
During a slide show(or viewing a photo), Press the
TOOLS
button to set the option.
2.
Press the ▲ or ▼ button to select the desired option. Then press the
ENTER
button.
Start Slide Show (or Stop Slide Show)
You can start or stop a Slide Show.
Press the ▲ or ▼ button to select “Start Slide Show” (or “Stop Slide Show”), then press the
ENTER
button.
Tools
Stop Slide Show
Rotate
Zoom
Slide Show Speed : Normal
Background Music :
Background Music Setting
Off
Picture Mode
Sound Mode
Information
: Standard
: Custom
Move Enter Exit
Rotate
You can rotate images in full screen mode.
Press the ▲ or ▼ button to select “Rotate”, then press the
ENTER
button.
Press the ◄ or ► button repeatedly to rotate the photo by the desired amount.
➣
Whenever you press the ◄ button, it rotates by 270˚, 180˚, 90˚, and 0˚.
➣
➣
Whenever you press the ► button, it rotates by 90˚, 180˚, 270˚, and 0˚.
If you have select “Zoom”, the “Rotate” deactivated.
➣
➣
The rotated file is not saved.
The Rotating function information icon is displayed at the top right of the screen
Icon
0˚
Current OSD
Rotating (0°)
Function
This rotates a photo to its original position
90˚
Rotating (90°) This rotates a photo by 90 degrees
180˚
Rotating (180°) This rotates a photo by 180 degrees
270˚
Rotating (270°) This rotates a photo by 270 degrees
90˚
English - 70
BN68-01669A-00Eng.indb 70 2008-06-13 ¿ÀÈÄ 7:13:12
Zoom
You can zoom into images in full screen mode.
Press the ▲ or ▼ button to select “Zoom”, then press the
ENTER
button.
Press the ◄ or ► button repeatedly to increase or decrease the Zoom effect.
(x1 → x2 → x4)
To move the enlarged photo image, press the
ENTER
button, then press the ▲/▼/◄/► buttons.
➣
Note that when the enlarged picture is smaller than the original screen size, the location change function doesn’t work.
➣
➣
➣
The enlarged file is not saved.
If you have select “Rotate”, the “Zoom” deactivated.
Zoom function information icon is displayed at the top right of the screen.
Icon Current OSD
x2
Zoom (x 2) x4 x1
Zoom (x 4)
Zoom (x 1)
Pan Down
Pan Up
Pan Right
Pan Left
Function
Zoom-into a photo at 2x.
Zoom-into a photo at 4x.
Restore a photo to its original size.
Pan down to view the lower part of a zoomed-in photo.
Pan up to view the upper part of a zoomed-in photo.
Pan right to view the right side of a zoomed-in photo.
Pan left to view the left side of a zoomed-in photo.
Slide Show Speed
You can select the slide show speed.
Press the ▲ or ▼ button to select “Slide Show Speed”.
Press the ◄ or ► button to select the desired option. (Fast → Slow → Normal)
➣
➣
You can select the SlideShow speed only during a slide show.
You can also change the speed of the Slide Show by pressing the
(REW) or (FF) key during the Slide Show.
Background Music
If you set ”Background Music” to On, the background music will be played when viewing photos one by one or in a Slide Show.
Press the ▲ or ▼ button to select “Background Music”.
Press the ◄ or ► button to select “On” or “Off”.
➣
If you set ”Background Music” to On, a screen appears immediately where you can set the Background Music.
•
•
On
: When the background music is available, if you select On, the music is played back. To use this feature, there must be music and photo files stored on the USB device.
Off
: Background music is not played.
X2 n Move Enter Return
X2
Tools
Stop Slide Show
Rotate
Zoom
Slide Show Speed ◄ Normal ►
Background Music :
Background Music Setting
Off
Picture Mode
Sound Mode
Information
: Standard
: Custom
Move Adjust Exit
Tools
Stop Slide Show
Rotate
Zoom
Slide Show Speed : Normal
Background Music ◄ Off ►
Background Music Setting
Picture Mode
Sound Mode
Information
: Standard
: Custom
Move Adjust Exit
English - 71
BN68-01669A-00Eng.indb 71 2008-06-13 ¿ÀÈÄ 7:13:13
Background Music Setting
You can set the background music.
Press the ▲ or ▼ button to select “Background Music Setting”, then press the
ENTER
button.
➣
If you turn off the “Background Music”, even if the “Background Music
Settings” have been set up, the background music will not be played.
➣
➣
Loading music files is needed to change BGM mode. Play music files in music category to load.
“Background Music setting” menu is displayed.
Press the ◄ or ► button to select the desired BGM (Background music) mode. (Shuffle, Selected file, Mood)
•
•
•
Shuffle
: Plays music files in random order.
Selected file
: Plays a selected music file.
Mood
: Plays music files of a particular mood only.
Tools
Stop Slide Show
Rotate
Zoom
Slide Show Speed : Normal
Background Music :
Background Music Setting
Off
Picture Mode
Sound Mode
Information
: Standard
: Custom
Move Enter Exit
BGM Mode
BGM Mood
Background Music setting
◄ Shuffle
: Calm
Select Music File
►
Move Adjust Enter Return
➣
Selectig the background music file
Press the ◄ or ► button to set “BGM Mode” to “Selected file”.
Press the ▲ or ▼ button to select “Select Music File”, then press the
ENTER
button.
Press the ▲ or ▼ button to select a music file, then press the yellow button.
The mark appears to the left of the selected music.
Repeat the above operation to select multiple music files.
Press the
ENTER
button.
BGM Mode
BGM Mood
Background Music setting
◄ Selected file ►
: Calm
Select Music File
➣
Selecting the background music file mood
Press the ◄ or ► button to set “BGM Mode” to Mood”.
Press the ▲ or ▼ button to select “BGM Mood”. Then press ◄ or ► button to select the desired BGM mood. Press the
ENTER
button.
BGM mode option: Energetic, Rhythmical, Sad, Exciting, Calm
➣
WISELINK identifies the mood of the music files and groups them accordingly by analyzing the music files on the USB device.
Move Enter Return
../Music/
Background Music setting
2 File(s) Selected
Music
Thanks
I Love You
Better than yesterday
▼
Select
Move Enter Return
BGM Mode
BGM Mood
Background Music setting
:
◄
Mood
Calm
Select Music File
►
Move Adjust Enter Return
Picture Mode
You can set the Picture mode. (Refer to page 18)
Sound Mode
You can set the Sound mode. (Refer to page 29)
Information
The photo file information including the order of the file in the current directory, the name, the size, the resolution, the date modified and the path is displayed. (Refer to page 68)
Safe Remove
You can remove the device safely from the TV.
Press the ▲ or ▼ button to select “Safe Remove”, then press the
ENTER
button.
The “Safely removing USB device.” message appears and then the “USB device can now be safely removed from TV.” appears.
Remove the USB device from the TV.
English - 72
BN68-01669A-00Eng.indb 72 2008-06-13 ¿ÀÈÄ 7:13:13
Using the Music List
This menu shows MP3 files from among the files saved on a USB memory device.
1.
Press the
W.LINK
button on the remote control to display the “WISELINK” menu.
WISELINK
MUSIC
SUM
851.98MB/995.00MB Free
2.
Press the ◄ or ► button to select “Music”, then press the
ENTER
button.
➣
➣
➣
Music files are displayed.
Press the the music.
(Play) /
ENTER
button over a music icon to play
To move to the previous / next group, press the
(FF) button.
(REW) or
SUM
Photo Music Setup
Device e Exit
Music
Thanks
Energetic
Jee
2005
Pop
★ ★ ★
Sad
I Love You
Darby
2005
Pop
★ ★ ★
Better than yesterday
Calm
Catherine
2005
Pop
★ ★ ★
SUM
Preference
Title
Artist
F G H I
▲
J L P
Device
Favorites Setting
Select
S T V
Jump Option
Screen Display
Music
Thanks
Energetic
Jee
Album 1
2005
Blues
★ ★ ★
1File(s) Selected
5
Sad
I Love You
Darby
Album 2
2005
Pop
★ ★ ★
1
Better than yesterday
Calm
Catherine
Album 3
2005
Pop
★ ★ ★
Preference
Title
Artist
SUM
4 6
2
G H I
▲
J L P S T
Device
Favorites Setting
Select Jump Option
1
Currently selected music
Shows the currently selected music.
2
Current Sort Standard
Press the ▲ or ▼ button to change the standard for sorting music files. (“Title”, “Artist”, “Mood”, “Genre”, “Folder”,
“Preference”)
3
View Groups
Shows the sorting groups. The sorting group including the currently selected music file is highlighted.
4
Current Device
Shows the currently selected device name. Press the Red button to select a device.
English - 7
BN68-01669A-00Eng.indb 73 2008-06-13 ¿ÀÈÄ 7:13:14
5
Item Selection Information
Shows the number of music files that are selected by pressing the Yellow button.
6
Help Items
•
•
•
•
•
Red(Device) button
: Selects a connected device.
Green(Favorites Setting) button
: Changes the favorites setting for the selected music. Press this button repeatedly until the desired value appears. (Refer to page 76)
Yellow(Select) button
: Selects music files from the music list. Selected music files are marked with a symbol on the left.
(Jump) button
: Jumps to the previous sorting group / Jumps to the next sorting group.
TOOLS(Option) button
: Displays the “Play Current Group”, “Delete”, “Change Group Info” (in “Mood” group),
“Information” or “Safe Remove” menus.
Sorting Music List
You can sort music files in the Music List by a particular standard.
1.
Press the
W.LINK
button on the remote control to display the WISELINK menu.
2.
Press the ◄ or ► button to select “Music”, then press the
ENTER
button.
➣
Music files are displayed.
3.
Press the ▲ or ▼ button to select a sorting standard.
(“Title”, “Artist”, “Mood”, “Genre”, “Folder”, “Preference”)
➣
Music files are sorted according to the newly selected sorting standard.
4.
Press the
ENTER
button to start playing music in the order selected by the user.
➣
Music information is set automatically and you can change the
Favorite information.
➣
➣
➣
Music files for which information cannot be displayed are set to
“Unclassified”.
If there is no title information for a music file, the filename is displayed.
If no information is available for the Genre, Artist, Album, or Year, the corresponding item is displayed as blank.
WISELINK
SUM
Music
SUM
Preference
Title
Artist
Thanks
Energetic
Jee
2005
Pop
★ ★ ★
MUSIC
Music
SUM
Sad
I Love You
Darby
2005
Pop
★ ★ ★
851.98MB/995.00MB Free
Setup
Device e Exit
Better than yesterday
Calm
Catherine
2005
Pop
★ ★ ★
F G H I
▲
J L P
Device
Favorites Setting
Select
S T V
Jump Option
Title
Sorts music files by the title.
➣
It sorts the Music titles in alphabetical order, and shows the music file.
1.
Select “Title” as the sorting standard in the Music List.
2.
Press the ◄ or ► button to select from the sublist of files grouped in alphabetical order.
➣
To move to the previous / next group, press the
(FF) button.
3.
Press the
TOOLS
button.
4.
Press the ▲ or ▼ button to select “Play Current Group”.
(REW) or
5.
Press
ENTER
to play the selected group of music files from the sublist.
Music
Thanks
Energetic
Jee
2005
Pop
★ ★ ★
Sad
I Love You
Darby
2005
Pop
Play Current Group
Delete
Better than yesterday
Information
Safe Remove Catherine
2005
Pop
★ ★ ★
Calm
★ ★ ★
SUM
Preference
Title
Artist
F G H I
▲
J L P
Device
Favorites Setting
Select
S T V
Jump Option
English - 74
BN68-01669A-00Eng.indb 74 2008-06-13 ¿ÀÈÄ 7:13:14
Artist
Sorts music files by the artist.
➣
It sorts the music file by artist in alphabetical order.
1.
Select “Artist” as the sorting standard in the Music List.
2.
Press the ◄ or ► button to select from the sublist of files grouped in alphabetical order.
➣
To move to the previous / next group, press the
(FF) button.
3.
Press the
TOOLS
button.
4.
Press the ▲ or ▼ button to select “Play Current Group”.
(REW) or
5.
Press
ENTER
to play the selected group of music files from the sublist.
Music
Sad
Thanks
Jee
Album 1
Pop
★ ★ ★
Sad
I Love You
Darby
Album 2
Pop
Play Current Group
Delete
Better than yesterday
Information
Safe Remove Catherine
Album 3
Pop
★ ★ ★
Exciting
★ ★ ★
SUM
Title
Artist
Mood
Catherine
▲
Darby Darby Darby Darby
Device
Favorites Setting
Select
Jee Jee
Jump Option
Mood
Sorts music files by the mood.
➣
You can change the music mood information.
1.
Select “Mood” as the sorting standard in the Music List.
2.
Press the ◄ or ► button to select from the sublist of files grouped by mood.
➣
To move to the previous / next group, press the
(FF) button.
(REW) or
3.
Press the
TOOLS
button.
4.
Press the ▲ or ▼ button to select “Play Current Group”.
5.
Press
ENTER
to play the selected group of music files from the sublist.
Changing the Mood information
1.
Select “Mood” as the sorting standard in the Music List and press the
◄ or ► button to select a music file.
2.
Press the
TOOLS
button.
3.
Press the ▲ or ▼ button to select “Change Group Info”. Press the
ENTER
button.
➣
Wiselink identifies the mood of the music files and groups them accordingly by analyzing the music files on the USB device.
➣
“Mood” information extracted from a music file may not always match the Mood option. For example, a file you think is “Energetic” may be extracted to the “Exciting” mood option.
4.
Press the ◄ or ► button to select the desired option, then press the
ENTER
button.
➣
The group information of the current file is updated and the file is moved to the new group.
➣
“Mood” options: Energetic, Rhythmical, Sad, Exciting, Calm,
Unclassified
Music
Sad
Thanks
Jee
2005
Pop
★ ★ ★
Sad
I Love You
Darby
2005
Pop
Play Current Group
Delete
Better than yesterday
Change Group Info
Information
▼
Catherine
2005
Pop
★ ★ ★
Exciting
★ ★ ★
SUM
Artist
Mood
Genre
Rhythmical Sad
▲
Exciting
Device
Favorites Setting
Select
Calm
Jump Option
...
Music
Thanks I Love You Better than yesterday
Sad
SUM
Artist
Mood
Genre
Jee
2005
Pop
★ ★ ★
Energetic Rhythmical
Sad
Sad
Darby Catherine
2005
Pop
★ ★ ★
Exciting
2005
Pop
Exciting
Calm Unclassified
★ ★ ★
Rhythmical Sad
▲
Exciting
Device
Favorites Setting
Select
Calm
Jump Option
...
English - 7
BN68-01669A-00Eng.indb 75 2008-06-13 ¿ÀÈÄ 7:13:14
Genre
Sorts music files by the genre.
1.
Select “Genre” as the sorting standard in the Music List.
2.
Press the ◄ or ► button to select from the sublist of files grouped by
Genre.
➣
To move to the previous / next group, press the
(FF) button.
3.
Press the
TOOLS
button.
4.
Press the ▲ or ▼ button to select “Play Current Group”.
(REW) or
5.
Press
ENTER
to play the selected group of music files from the sublist.
Music
Sad
Thanks
Jee
Album 1
Pop
★ ★ ★
Sad
I Love You
Darby
Album 2
Pop
Play Current Group
Delete
Better than yesterday
Information
Safe Remove Catherine
Album 3
Pop
★ ★ ★
Exciting
★ ★ ★
SUM
Mood
Genre
Folder
Other
▲
Pop R&B Soundtr... Top 40
Device
Favorites Setting
Select
Acid Jazz Ball..
Jump Option
Folder
Sorts music files by the folder.
➣
If there are many folders in USB, the files are shown in order in each folder. The music file in the Root folder is shown first and the others are shown in alphabetical order by name.
1.
Select “Folder” as the sorting standard in the Music List.
2.
Press the ◄ or ► button to select from the sublist of files grouped by
Folder.
➣
To move to the previous / next group, press the
(FF) button.
(REW) or
3.
Press the
TOOLS
button.
4.
Press the ▲ or ▼ button to select “Play Current Group”.
5.
Press
ENTER
to play the selected group of music files from the sublist.
Music
Sad
Thanks
Jee
2005
Pop
★ ★ ★
Sad
I Love You
Darby
2005
Pop
Play Current Group
Delete
Better than yesterday
Information
Safe Remove Catherine
2005
Pop
★ ★ ★
Exciting
★ ★ ★
Genre
Folder
SUM
Preference
Other Music
▲
Device
Favorites Setting
Select
Other2
Jump Option
Preference
Sorts music files by preference. (Favorite)
➣
You can change the music files preferences.
1.
Select “Preference” as the sorting standard in the Music List.
2.
Press the ◄ or ► button to select from the sublist of files grouped by
Preference.
➣
To move to the previous / next group, press the
(FF) button.
3.
Press the
TOOLS
button.
4.
Press the ▲ or ▼ button to select “Play Current Group”.
(REW) or
5.
Press
ENTER
to play the selected group of music files from the sublist.
Changing the Favorites setting
1.
Press the ◄ or ► button to select the desired music in the music list.
➣
Changing the information of multiple files
Press the ◄ or ► button to select the desired music in the music list.
Then press the yellow button.
Repeat the above operation to select multiple musics.
The mark appears to the left of the selected music.
2.
Press the Green button repeatedly until the desired setting appears.
➣
➣
Favorites settings change completed.
“Favorite” options:
★ ★ ★
,
★ ★ ★
,
★ ★ ★
,
★ ★ ★
➣
Users can select the number of stars (up to 3) according to their preference.
3.
Press the
ENTER
button to start playing music.
Music
Sad
Thanks
Jee
Album 1
Pop
★ ★ ★
Sad
I Love You
Darby
Album 2
Pop
★ ★ ★
Better than yesterday
Exciting
Catherine
Album 3
Pop
★ ★ ★
Folder
Preference
Title
SUM
★ ★ ★
▲
★ ★ ★ ★ ★ ★
Device
Favorites Setting
Select
★ ★ ★
Jump Option
English - 76
BN68-01669A-00Eng.indb 76 2008-06-13 ¿ÀÈÄ 7:13:15
Deleting the Music file
1.
Press the ◄ or ► button to select the desired music file in the music list.
2.
Press the
TOOLS
button.
3.
Press the ▲ or ▼ button to select “Delete”, then press the
ENTER
button.
➣
The “Delete this file?” message appear.
4.
Press the ◄ or ► button to select “OK”, then press the
ENTER
button.
➣
The music is deleted.
➣
When a read-only file is deleted, the “Read-only file(s). Delete the file(s)?” message appear.
➣
If you select “Cancel”, the deletion is cancelled.
5.
To exit “WISELINK” mode, press the
W.LINK
button on the remote control.
➣
➣
While removing files, don’t remove the USB memory device.
You cannot recover deleted music files.
Music
Thanks
Energetic
Jee
Album 1
Pop
★ ★ ★
Sad
I Love You
Darby
Album 2
Pop
Delete
Information
Catherine
Safe Remove
Album 3
Pop
★ ★ ★
Calm
★ ★ ★
SUM
Preference
Title
Artist
F G H I
▲
J L P
Device
Favorites Setting
Select
S T V
Jump Option
Delete
Selected File(s) :I Love Y... 1 File(s)
Delete this file?
OK Cancel
Deleting Multiple Music files
1.
Press the ◄ or ► button to select the desired music in the music list.
Then press the yellow button.
➣
Repeat the above operation to select multiple music files.
➣
The mark appears to the left of the selected music files.
2.
Press the
TOOLS
button.
3.
Press the ▲ or ▼ button to select “Delete selected File”, then press the
ENTER
button.
➣
The “Delete the selected file(s)?” message appear.
4.
Press the ◄ or ► button to select “OK”, then press the
ENTER
button.
➣
The selected music files are deleted.
➣
If you select “Cancel”, the deletion is cancelled.
5.
To exit “WISELINK” mode, press the
W.LINK
button on the remote control.
➣
➣
You cannot remove the read-only files from the selected ones.
You cannot restore the deleted music files.
Music
Thanks
Energetic
Jee
Album 1
Pop
★ ★ ★
Sad
1File(s) Selected
I Love You
Darby
Album 2
Pop
Delete selected File
Deselect All
Safe Remove
Catherine
Album 3
Pop
★ ★ ★
Calm
★ ★ ★
SUM
Preference
Title
Artist
F G H I
▲
J L P
Device
Favorites Setting
Select
S T V
Jump Option
Delete
Selected File(s) :I Love Y... 2 File(s)
Delete the selected file(s)?
OK Cancel
Viewing the Information
The music file information including the order of the file in the current directory, the name, the size, the date modified and the path is displayed.
1.
Press the ◄ or ► button to select the desired music in the music list.
2.
Press the
TOOLS
button.
3.
Press the ▲ or ▼ button to select “Information”, then press the
ENTER
button.
➣
The information on the selected file appears.
O Press the
INFO
button to viewing the information.
Music
Thanks
Energetic
Jee
2005
Pop
★ ★ ★
Sad
I Love You
Darby
2005
Pop
Play Current Group
Delete
Information
Catherine
Safe Remove
2005
Pop
★ ★ ★
Calm
★ ★ ★
SUM
Preference
Title
Artist
F G H I
▲
J L P
Device
Favorites Setting
Select
S T V
Jump Option
Music Info
Name : I Love You.mp3
Size : 5.2MB
Date : Jan.1.2008
Path : /Music/
OK
English - 77
BN68-01669A-00Eng.indb 77 2008-06-13 ¿ÀÈÄ 7:13:16
Playing a Music File
Playing a music file
1.
Press the
W.LINK
button on the remote control to display the WISELINK menu.
2.
Press the ◄ or ► button to select “Music”, then press the
ENTER
button.
➣
Music files are displayed.
3.
Pressing the ◄ or ► button to select a music file to be played, then press the
ENTER
button.
➣
This menu only shows files with the MP3 file extension. Files with other file extensions are not displayed, even if they are saved on the same USB device.
➣
➣
➣
➣
➣
Press the the music.
(REW) or
(Play) /
ENTER
button over a music icon to play
(FF) buttons do not function during play.
Press the (Pause) /
ENTER
button while playing a music file to pause the file. Press the (Stop) button to exit Play mode.
The selected file is displayed at the top with its playing time.
To adjust the music volume, press the
VOL –
or
VOL +
button on the remote control. To mute the sound, press the
MUTE
button on the remote control.
➣
The playing duration of a music file may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the file.
4.
To exit “WISELINK” mode, press the
W.LINK
button on the remote control.
Music
Thanks
Energetic
Jee
2005
Pop
★ ★ ★
Sad
I Love You
Darby
2005
Pop
★ ★ ★
Better than yesterday
Calm
Catherine
2005
Pop
★ ★ ★
SUM
Preference
Title
Artist
SUM
7/14
I Love You
F G H I
▲
J L P
Device
Favorites Setting
Select
S T V
Jump Option
00:01:15 00:05:41
Pause Previous Next Option
Return
Playing the music group
1.
Press the
W.LINK
button on the remote control to display the WISELINK menu.
2.
Press the ◄ or ► button to select “Music”, then press the
ENTER
button.
➣
To move to the previous / next group, press the
(FF) button.
3.
Press the ◄ or ► button to select the desired music file.
(REW) or
4.
Press the
TOOLS
button.
5.
Press the ▲ or ▼ button to select “Play Current Group”, then press the
ENTER
button.
➣
The music files in the sorting group including the selected file are played.
6.
To exit “WISELINK” mode, press the
W.LINK
button on the remote control.
Music
Thanks
Energetic
Jee
2005
Pop
SUM
Preference
Title
Artist
★ ★ ★
F
Sad
I Love You
Darby
2005
Pop
Delete
Information
Catherine
Safe Remove
2005
Pop
★ ★ ★
Calm
★ ★ ★
G H I
▲
J L P
Device
Favorites Setting
Select
S T V
Jump Option
English - 78
BN68-01669A-00Eng.indb 78 2008-06-13 ¿ÀÈÄ 7:13:16
Playing the selected music files
1.
Press the
W.LINK
button on the remote control to display the WISELINK menu.
2.
Press the ◄ or ► button to select “Music”, then press the
ENTER
button.
3.
Press the ◄ or ► button to select the desired music file, then press the yellow button. Repeat the above operation to select multiple music files.
➣
The mark appears to the left of the selected music file.
Music
Thanks
Energetic
Jee
Album 1
Pop
★ ★ ★
4.
Press the
➣
(Play) /
ENTER
button.
Only the selected file is played.
➣
Press the (Stop) button while playing to stop the current item and to return to the music list.
5.
To exit “WISELINK” mode, press the
W.LINK
button on the remote control.
SUM
Preference
Title
Artist
Sad
I Love You
Darby
Album 2
Pop
★ ★ ★
Better than yesterday
Calm
Catherine
Album 3
Pop
★ ★ ★
F G H I
▲
J L P
Device
Favorites Setting
Select
S T V
Jump Option
7/14
I Love You
00:01:15
2File(s) Selected
00:05:41
SUM Pause Previous Next Option
Return
Music function information icon (Displayed at the top left of the screen)
Icon
► /
❙❙
Current OSD
(Music) Repeat
(Music) Once
(Music) Play/Pause
Function
When all music files in the folder(or the selected file) are repeated.
“Repeat Mode” is “On”.
When all music files in the folder(or the selected file) are played once.
“Repeat Mode” is “Off”.
When pressing the (Play)/ remote control while music is playing.
(Pause)/
ENTER
button on the
Repeating Music Play
1.
While a Music file is playing, press the
TOOLS
button.
2.
Press the ▲ or ▼ button to select “Repeat Mode”.
3.
Press the ◄ or ► button to select “On” or “Off”.
•
•
On
: Plays back all music files in the folder(or the selected file) repeatedly.
Off
: Doesn’t play back repeatedly.
4.
To exit “WISELINK” mode, press the
W.LINK
button on the remote control.
Repeat Mode
Picture Mode
Sound Mode
Information
Safe Remove
Tools
◄ On ►
: Standard
: Custom
Move Adjust Exit
English - 7
BN68-01669A-00Eng.indb 79 2008-06-13 ¿ÀÈÄ 7:13:16
Using the Setup Menu
Setup displays the user settings of the WISELINK menu.
1.
Press the
W.LINK
button on the remote control to display the WISELINK menu.
2.
Press the ◄ or ► button to select “Setup”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select the desired option.
(Slide Show Speed, Music Repeat Mode, Screen Saver Run Time,
Information, Safe Remove)
4.
Press the ◄ or ► button to select the option, then press the
ENTER
button.
WISELINK
SUM
Slide Show Speed
Select to control the slide show speed.
Press the ▲ or ▼ button to select “Slide Show Speed”.
Press the ◄ or ► button to select “Fast”, “Normal” or “Slow”.
SETUP
Music
SUM
851.98MB/995.00MB Free
Setup
Device e Exit
Setup
Slide Show Speed
Music Repeat Mode
Screen Saver Run Time
Information
◄ Normal ►
On
5 min
Safe Remove
Music Repeat Mode
Select to repeatedly play music files.
Press the ▲ or ▼ button to select “Music Repeat Mode”.
Press the ◄ or ► button to select “On” or “Off”.
Screen Saver Run Time
Select to set the waiting time before the screen saver appears.
Press the ▲ or ▼ button to select “Screen Saver Run Time”.
Press the ◄ or ► button to select “1 min”, “3 min” or “5 min”.
Information
Select to viewing the information of the connected device.
Press the ▲ or ▼ button to select “Information”, then press the
ENTER
button.
SUM
Setup
Device Move Adjust Return
Slide Show Speed
Music Repeat Mode
Screen Saver Run Time
Information
Normal
◄ On ►
5 min
Safe Remove
SUM
Setup
Device Move Adjust Return
Slide Show Speed
Music Repeat Mode
Screen Saver Run Time ◄ 5 min ►
Information
Safe Remove
Normal
On
SUM
Device Move Adjust Return
Information
Device Type : USB
Device : SUM
Available Memory : 852.90MB
Total Memory : 995.00MB
OK
Safe Remove
You can remove the device safely from the TV. (Refer to page 72)
To exit WISELINK mode, press the
W.LINK
button on the remote control.
English - 80
BN68-01669A-00Eng.indb 80 2008-06-13 ¿ÀÈÄ 7:13:16
About Anynet+
What is Anynet+?
Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung
TV’s remote.
Connecting Anynet+ Devices
The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.
To connect to a TV
TV
Anynet+ Device 1 Anynet+ Device 2 Anynet+ Device
Connect the [HDMI 1],
[HDMI 2] or [HDMI 3] jack on the TV and the
HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.
HDMI 1. Cable
HDMI 1. Cable
HDMI 1. Cable
To connect to Home Theater
Optical Cable
TV
HDMI 1. Cable
Anynet+ Device 1
HDMI 1. Cable
Home Theater
Anynet+ Device 2
HDMI 1. Cable
Anynet+ Device
HDMI 1. Cable
1.
Connect the
[HDMI 1], [HDMI
2] or [HDMI 3] jack on the TV and the HDMI
OUT jack of the corresponding
Anynet+ device using an HDMI cable.
2.
Connect the
HDMI IN jack of the home theater and the HDMI
OUT jack of the corresponding
Anynet+ device using an HDMI cable.
➣
➣
➣
➣
➣
➣
Connect the Optical cable between the Digital Audio Out (Optical) jack on your TV and the Digital Audio Input on the
Home Theater.
When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the
Home Theater’s Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the
DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box (ie Anynet Device 1 or 2) directly to the Amplifi er or Home Theater, not the TV.
Connect only one Home Theater.
You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions.
Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.
Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.
English - 81
BN68-01669A-00Eng.indb 81 2008-06-13 ¿ÀÈÄ 7:13:17
Setting Up Anynet+
The following settings help set the Anynet+ functions.
To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On
1.
Press the
MENU
button. Press the ▲ or ▼ button to select “Application”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Anynet
+ (HDMI-CEC)”, then press the
ENTER
button.
3.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER
button.
4.
Press the ▲ or ▼ button to select “Anynet
+ (HDMI-CEC)”, then press the
ENTER
button.
5.
Press the ▲ or ▼ button to select “On”, then press the
ENTER
button.
➣
The “Anynet+ (HDMI-CEC)” function is enabled.
➣
➣
If you select Off, “Anynet+ (HDMI-CEC)” is disabled.
When the “Anynet+ (HDMI-CEC)” function is disabled, all the Anynet+ related operations are deactivated.
WISELINK
Anynet+ (HDMI-CEC)
Device List
Setup
►
Move Enter Return
Anynet+ (HDMI-CEC)
Auto Turn Off
Setup
: ON
: Yes
On
Move Enter Return
Setting an Anynet+ Device to turn Off Automatically when the TV is Turned Off
1.
Press the ▲ or ▼ button to select “Auto Turn Off”, then press the
ENTER
button.
2.
Press the ▲ or ▼ button to select “Yes”, then press the
ENTER
button.
➣
The “Auto Turn Off” function is enabled.
➣
If you select “No”, the “Auto Turn Off” function is canceled.
➣
➣
Press the
EXIT
button to exit.
The active source on the TV remote must be set to TV to use the Anynet+ function.
If you set “Auto Turn Off” to “Yes”, connected external devices are also turned off when the TV is turned off. If an external device is still recording, it may or may not turn off.
Anynet+ (HDMI-CEC)
Auto Turn Off
Setup
: ON
: Yes
Yes
Move Enter Return
Easy Setting
1.
Press the
TOOLS
button on the remote control.
2.
Press the
ENTER
button to select “Anynet+ (HDMI-CEC)”.
➣
The Anynet+ (HDMI-CEC) menus appear on the screen.
Tools
Anynet+ (HDMI-CEC)
Picture Mode
Sound Mode
: Standard
: Custom
: Off Sleep Timer
Add to Favorite
Switch to Air
Move Enter e Exit
English - 82
BN68-01669A-00Eng.indb 82 2008-06-13 ¿ÀÈÄ 7:13:18
Scanning and Switching between Anynet+ Devices
1.
Press the
TOOLS
button.
Press the
ENTER
button to select “Anynet+ (HDMI-CEC)”.
2.
Press the ▲ or ▼ button to select “Device List”, then press the
ENTER
button.
View TV
Device List
➣
Anynet+ devices connected to the TV are listed.
If you cannot find a device you want, press the red button to scan for devices.
Recording: DVDR
DVDR Operation
➣
Only when you set “Anynet+ (HDMI-CEC)” to On in the “Setup” menu, the
“Device List” menu appears.
3.
Press the ▲ or ▼ button to select to a particular device and press the
ENTER
button. It is switched to the selected device.
➣
➣
Receiver
Setup
:
Move
On
Enter Return
Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation.
The time required to scan for devices is determined by the number of connected devices.
➣
➣
➣
When the device scan is complete, the number of devices found are not displayed.
Although the TV automatically searches the device list when the TV is turned on via the power button, devices connected to the TV when the TV is on or under some conditions are not automatically displayed in the device list.
Press the red button to search for the connected device.
If you have selected external input mode by pressing the
SOURCE
button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the “Device List”
Anynet+ Menu
The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.
Anynet
+
Menu
View TV
Device List
(device_name) Menu
(device_name) Operation
Record: (*recorder)
(*recorder) Reserve Recording
Description
Anynet+ mode changes to TV broadcast mode.
Shows the Anynet+ device list.
Shows the connected device menus.
E.g. If a DVD recorder is connected, the disc menu of the DVD recorder will appear.
Shows the play menu of the connected device.
E.g. If a DVD recorder is connected, the play menu of the DVD recorder will appear.
Starts recording immediately using the recorder. (This is only available for devices that support the recording function.)
Enables reserving a recording for the recorder. (This is only available for devices that support the recording reservation function.)
Stop Recording: (*recorder)
Receiver
➣
Stops recording.
Sound is played through the receiver.
If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is connected, it will be represented as (*device_name).
TV Remote Control Buttons Available in Anynet+ Mode
Device Type Operating Status
After switching to the device, when the menu of the corresponding device is displayed on the screen.
Available Buttons
Numeric buttons
▲/▼/◄/►/
ENTER
buttons
Color buttons /
EXIT
button
Anynet+ Device
After switching to the device, while playing a file
(Backward search) /
(Stop) / (Play) /
(Forward search)
(Pause)
Device with built-in Tuner
Audio Device
➣
➣
➣
➣
➣
➣
After switching to the device, when you are watching a TV program
When Receiver is activated
CH
/
CH
button
VOL –
/
VOL +
/
MUTE
button
The Anynet+ function only works when the active source on the TV remote control is set to TV.
The button works only while in the recordable state.
You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV remote control.
The TV remote control may not work under certain conditions. In this case, reselect the Anynet+ device.
The Anynet+ functions do not operate with other manufacturers’ products.
The , operations may differ depending on the device.
English - 8
BN68-01669A-00Eng.indb 83 2008-06-13 ¿ÀÈÄ 7:13:18
Recording
You can make a recording of a TV program using a Samsung recorder.
1.
Press the
TOOLS
button.
Press the
ENTER
button to select “Anynet+ (HDMI-CEC)”.
2.
Press the ▲ or ▼ button to select “Recording: (device_name)”, then press the
ENTER
button. Recording begins.
➣
➣
➣
When there is more than one recording device
When multiple recording devices are connected, the recording devices are listed. Press the ▲ or ▼ button to select a recording device and press the
ENTER
button. Recording begins.
When the recording device is not displayed
Select “Device List” and press the red button to search devices.
View TV
Device List
Recording: DVDR
DVDR Operation
Receiver
Setup
:
Move
On
Enter Return
Press the
EXIT
button to exit.
You can record the source streams by selecting “Recording: (device_name)”.
Pressing the button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded.
Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device’s users manual.
Listening through a Receiver (Home theater)
You can listen to sound through a receiver instead of the TV speaker.
1.
Press the
TOOLS
button.
Press the
ENTER
button to select “Anynet+ (HDMI-CEC)”.
2.
Press the ▲ or ▼ button to select “Receiver”.
Press the ◄ or ► button to select “On” or “Off”.
View TV
Device List
Recording: DVDR
3.
Press the
EXIT
button to exit.
➣
If your receiver supports audio only, it may not appear in the device list.
➣
➣
DVDR Operation
Receiver ◄ On ►
The receiver will work when you have properly connected the Optical IN jack of the receiver to the Optical Out jack of the TV.
Setup
Move Adjust Return
When the receiver (home theater) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV(air) signal, the
TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a
DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver.
➣
➣
➣
When using the WISELINK Pro feature, sound may not output properly through the receiver.
When listening through the receiver, there are restrictions for using the PIP and audio-related (MTS, Preferred language) menus.
If there is a power interruption to the TV when the “Receiver” is set to “On” (by disconnecting the power cord or a power failure), the “Select Speaker” may be set to “External Speaker” when you turn the TV on again. (see page 32)
English - 84
BN68-01669A-00Eng.indb 84 2008-06-13 ¿ÀÈÄ 7:13:18
Troubleshooting for Anynet+
Symptom
Anynet+ does not work.
I want to start Anynet+.
I want to exit Anynet+.
The message Connecting to
Anynet+ device... appears on the screen.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Solution
Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.
Connect only one receiver (home theater).
Check if the Anynet+ device power cord is properly connected.
Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections.
Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.
Check whether the TV remote control is in TV mode.
Check whether it is Anynet+ exclusive remote control.
Anynet+ doesn’t work in certain situations. (Searching channels, Operating
WISELINK, Plug & Play, etc.)
When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or turn your TV off and on again.
Check if the Anynet+ Function of Anynet+ device is set on.
Check if the Anynet+ device is properly connected to the TV and check if the
Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu.
Press the TV button on the TV remote control to switch to TV. Then press the
TOOLS
button to show the Anynet+ menu and select a menu you want.
Select View TV in the Anynet+ menu.
Press the
SOURCE
button on the
TV
remote control and select a device other than Anynet+ devices.
Press
CH
,
CH LIST
,
PRE-CH
, and
FAV.CH
to change the TV mode.
(Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.)
You cannot use the remote control when you are configuring Anynet+ or switching to a view mode.
Use the remote control when the Anynet+ setting or switching to view mode is complete.
The Anynet+ device does not play.
You cannot use the play function when Plug & Play is in progress.
The connected device is not displayed.
•
•
•
•
•
•
Check whether or not the device supports Anynet+ functions.
Check whether or not the HDMI 1.3 cable is properly connected.
Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.
Search Anynet+ devices again.
You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions.
If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a power failure, please repeat the device scan.
The TV program cannot be recorded.
The TV sound is not output through the receiver.
Check whether the antenna jack on the recording device is properly connected.
Connect the optical cable between TV and the receiver.
BN68-01669A-00Eng.indb 85
English - 8
2008-06-13 ¿ÀÈÄ 7:13:18
Appendix
Troubleshooting
If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call Samsung customer service at 1-800-SAMSUNG.
Problem
Poor picture.
Poor sound quality.
No picture or sound.
No sound or sound is too low at maximum volume.
Picture rolls vertically.
The picture quality is defective.
The sound is defective.
The TV operates erratically.
The TV won’t turn on.
Remote control malfunctions.
‘Check signal cable’ message.
‘Not Supported Mode’ message.
Digital broadcasting screen problem.
The image is too light or too dark.
Black bars on the screen.
Picture has a Red/Green or Pink tint.
Closed Captioning not working.
Snowy picture.
Ghosting on picture.
Horizontal bars appear to flicker, jitter or shimmer on the image.
Vertical bars appear to flicker, jitter or shimmer on the image.
Possible Solution
Try another channel.
Adjust the antenna.
Check all wire connections.
Try another channel.
Adjust the antenna.
Try another channel.
Press the
SOURCE
button.
Make sure the TV is plugged in.
Check the antenna connections.
First, check the volume of units connected to your TV (digital broadcasting receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume accordingly.
Check all wire connections.
Please perform the Picture test in the Self-Diagnostics.
Perform the Sound test of the Self-Diagnostics.
Unplug the TV for 30 seconds, then try operating it again.
Make sure the wall outlet is working.
Replace the remote control batteries.
Clean the upper edge of the remote control (transmission window).
Check the battery terminals.
Ensure that the signal cable is firmly connected to the PC source.
Check the maximum resolution and connected device’s Video frequency.
Compare these values with the data in the Display Modes.
Please check the digital signal strength and input antenna.
Adjust the Brightness and Contrast.
Adjust the Fine tuning.
Make sure the broadcast you’re receiving is High Definition (HD).
HD channels sometimes broadcast Standard Definition (SD) programming, which can cause black bars.
Set your cable/satellite box to stretch or widescreen mode to eliminate the bars.
Make sure the Component cables are connected to the correct jacks.
If you are using a Cable/Satellite box, you must set Closed Captioning on the box, not your TV.
Your cable box may need a firmware upgrade. Please contact your Cable company.
This is sometimes caused by compatibility issues with your cable box.
Try connecting Component cables instead.
Adjust the Coarse tuning and then adjust the Fine tuning.
Adjust the Coarse tuning and then adjust the Fine tuning.
English - 86
3_BN68-01669A-Eng (81~).indd 86 2008-06-13 ¿ÀÈÄ 7:42:34
Problem
Screen is black and power indicator light blinks steadily.
Image is not stable and may appear to vibrate when you have a computer connected to the PC input.
Possible Solution
On your computer check: Power, Signal Cable.
The TV is using its power management system.
Move the computer's mouse or press any key on the keyboard.
If the setting is not correct, use your computer utility program to change the display settings.
➣
Your TV supports multiscan display functions within the following frequency domain:
Horizontal frequency (kHz) 30~60
Vertical frequency (Hz) 60~75
PC Maximum refresh rate (at 60 Hz) 1920 x 1080
Image is not centered on the screen.
Adjust the horizontal and vertical position.
The screen position must be adjusted on the output source (i.e. STB) with a digital signal.
The picture appears distorted in the corner of the screen.
The ‘Resets all settings to the default values.’ message appears.
If “Just Scan” is selected with some external devices, the picture may appear distorted in the corner of the screen. This symptom is caused by the external devices, not TV.
This appears when you press and hold the settings are reset to the factory defaults.
EXIT
button for a while. The product
This TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce.
However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
3_BN68-01669A-Eng (81~).indd 87
English - 87
2008-06-13 ¿ÀÈÄ 7:42:34
Installing the Stand
1.
Attach your LCD TV to the stand.
➣
Two or more people should carry the TV.
➣
➣
Make sure to distinguish between the front and back of the stand when attaching it.
To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the upper left of right sides of the TV.
2.
Fasten two screws at position
1
and then fasten two screws at position
2
.
➣
Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side.
Disconnecting the Stand
1.
Remove four screws from the back of the TV.
2.
Separate the stand from the TV.
➣
Two or more people should carry the TV.
3.
Cover the bottom hole with the cover.
English - 88
BN68-01669A-00Eng.indb 88 2008-06-13 ¿ÀÈÄ 7:13:20
Auto Wall-Mount Adjustment (Sold separately)
Once the auto wall mount is installed, your TV’s position can be easily adjusted.
TV Rear Panel
Auto Wall-Mount
V-Chip
Caption
External Settings
Entertainment
Energy Saving
PIP
Software Upgrade
: Off
: Off
►
EX-LINK Cable
(Not supplied)
Entering the menu
•
•
•
1.
Press the ▲, ▼, ◄ or ► button on your remote control.
➣
The Wall Mount Adjustment screen is displayed.
➣
If the Wall Mount Adjustment screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.
Press the
MENU
button to display the menu. Press the ▲ or ▼ button to select
“Setup”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “External Settings”, then press the
ENTER
button.
Press the ▲ or ▼ button to select “Wall-Mount Adjustment”, then press the
ENTER
button.
Remembering the Position
Melody
External Settings
: Medium
Wall-Mount Adjustment
Move Enter
Wall-Mount Adjusment
Return
2.
Adjust to the desired position using the ▲,▼,◄,► buttons.
➣
➣
If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears.
Press the
INFO
button to reset. Press the ◄ or ► button to select “Yes”, then press the
ENTER
button. The position is initialized to the default setting.
3.
Press the Blue button.
Press the ▲ and ▼ buttons to select a save mode from either Position 1,
Position 2 or Position 3 in order to save the current position.
➣
➣
To not save the current position, press the
RETURN
button.
When selecting a save mode, you cannot use the Color buttons.
4.
Press the
ENTER
button to save.
➣
When Position1 is selected, the message “Current position saved as
Position1” is displayed.
5.
Press the
ENTER
button.
➣
The saved Position appears on the left side of the OSD.
Position
Adjust
Save
Select a mode to Save.
Position1
Position2
Position
Move
1
Save
Enter
2
Return
Wall-Mount Adjusment
Center
Position1
Moving to the remembered position
1.
Complete Step 1 of “Entering the menu”.
2.
Pressing a Color (Red, Green, Yellow) button moves the auto wall mount to the saved position.
➣
Position
Adjust
1
Save
2
Center
You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons.
➣
If you adjust the position after moving to a pre-set position, the position display will disappear.
➣
➣
➣
➣
➣
For installation, refer to the Installation Manual provided with the wall mount.
For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company.
This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer.
The auto wall mount will not work when Anynet+ or WISELINK is operating.
LN40A630M1F and LN46A630M1F models are not compatible with the older wall mount model (WMN5090A).
English - 8
BN68-01669A-00Eng.indb 89 2008-06-13 ¿ÀÈÄ 7:13:22
Wall Mount Kit Specifications (VESA)
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.
➣
➣
➣
➣
➣
➣
➣
➣
Product Family
LCD-TV
PDP-TV inches
23~ 26
32 ~ 40
46 ~ 52
57
57 ~ 70
80 ~
42 ~ 50
55 ~ 70
63
80 ~
VESA Spec. (A * B)
200 * 100
200 * 200
600 * 400
700 * 400
(No VESA)
800 * 400
1400 * 800
600 * 400
800 * 400
No VESA
1400 * 800
Standard Screw
M4
M6
M8
M8
Quantity
4
4
6
4
Standard dimensions for wall mount kits are shown in the table above.
When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications.
Do not use screws that do not comply with the VESA standard screw specifications.
Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
Our 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model.
Do not exceed 15 degrees tilt when mounting this TV.
Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.
English - 0
BN68-01669A-00Eng.indb 90 2008-06-13 ¿ÀÈÄ 7:13:22
Using the Anti-Theft Kensington Lock
The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the
Kensington Lock for proper use. The locking device has to be purchased separately.
Cable
Figure 2
<Optional>
Figure 1
➣
The location of the Kensington Lock may be different depending on its model.
1.
Insert the locking device into the Kensington slot on the LCD TV (Figure 1) and turn it in the locking direction
(Figure 2).
2.
Connect the Kensington Lock cable.
3.
Fix the Kensington Lock to a desk or a heavy stationary object.
BN68-01669A-00Eng.indb 91
English - 1
2008-06-13 ¿ÀÈÄ 7:13:22
경고
경고
주의
Securing the TV to the Wall
주의
Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows.
To avoid the TV from falling:
1.
Put the screws into the clamps and firmly fasten them onto the wall.
Confirm that the screws have been firmly installed onto the wall.
➣
You may need additional material such as an anchor depending on the type of wall.
➣
Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.
Wall
2.
Remove the screws from the center back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.
➣
Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.
Screw Specifications
- For a 17 ~ 29 Inch LCD TV: M4 X 15
- For a 32 ~ 40 Inch LCD TV: M6 X 15
3.
Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong string and then tie the string tightly.
➣
➣
➣
Install the TV near to the wall so that it does not fall backwards.
It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.
Untie the string before moving the TV.
4.
Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections,contact a professional installer.
Wall
English - 2
BN68-01669A-00Eng.indb 92 2008-06-13 ¿ÀÈÄ 7:13:22
Specifications
Model Name
Screen Size
(Diagonal)
LN40A60M1F
40 inches (39.9 inches measured diagonally)
1920 x 1080 @ 60 Hz
LN46A60M1F
46 inches (45.9 inches measured diagonally)
1920 x 1080 @ 60 Hz
LN2A60M1F
52 inches (52 inches measured diagonally)
1920 x 1080 @ 60 Hz
PC Resolution
Sound
Output
Dimensions (WxDxH)
Body
10W x 2
10W x 2
With stand
38.9 x 3.3 x 24.0 inches
(987.8 x 83.1 x 610.3 mm)
38.9 x 9.4 x 26.4 inches
(987.8 x 240.0 x 669.5 mm)
44.0 x 3.7x 27.0 inches
(1118.7 x 93.8 x 686.2 mm)
44.0 x 10.2 x 29.3 inches
(1118.6 x 260.0 x 743.7 mm)
➣
➣
➣
Weight
With Stand
Without Stand
Environmental
Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Stand Swivel
(Left / Right)
42.1 lbs (19.1 kg)
35.7 lbs (16.2 kg)
58.4 lbs (26.5 kg)
49.4 lbs (22.4 kg)
50°F to 104°F (10°C to 40°C)
10% to 80%, non-condensing
-4°F to 113°F (-20°C to 45°C)
5% to 95%, non-condensing
-20˚ ~ 20˚
Design and specifications are subject to change without prior notice.
This device is a Class B digital apparatus.
For the power supply and Power Consumption, refer to the label attached to the product.
10W x 2
50.0 x 4.1 x 30.7 inches
(1269.6 x 106.2 x 779.2 mm)
50.0 x 11.5 x 33.0 inches
(1269.6 x 291.2 x 838.7 mm)
69.4 lbs (31.5 kg)
60.0 lbs (27.2 kg)
BN68-01669A-00Eng.indb 93
English -
2008-06-13 ¿ÀÈÄ 7:13:22
Dimensions
LN40A60M1F
BN68-01669A-00Eng.indb 94
TOP VIEW
JACK PANEL DETAIL .7"H X .1"W
38.9
34.9
19.6
24.0
26.4
3.3
22.8
FRONT VIEW / SIDE VIEW
7.9 (200 mm)
7.9 (200 mm)
9.4
REAR VIEW
NOTE: All drawings are not necessarily to scale.
Some dimensions are subject to change without prior notice.
Refer to the dimensions prior to performing installation of your TV.
Not responsible for typographical or printed errors.
© 2008 Samsung Electronics America, Inc.
English - 4
2008-06-13 ¿ÀÈÄ 7:13:23
Dimensions
LN46A60M1F
BN68-01669A-00Eng.indb 95
TOP VIEW
JACK PANEL DETAIL .7"H X .1"W
44.0
40.1
22.6
27.0
29.3
3.7
24.4
FRONT VIEW / SIDE VIEW
23.6 (600 mm)
15.7 (400 mm)
10.2
REAR VIEW
NOTE: All drawings are not necessarily to scale.
Some dimensions are subject to change without prior notice.
Refer to the dimensions prior to performing installation of your TV.
Not responsible for typographical or printed errors.
© 2008 Samsung Electronics America, Inc.
English -
2008-06-13 ¿ÀÈÄ 7:13:23
Dimensions
LN2A60M1F
BN68-01669A-00Eng.indb 96
TOP VIEW
JACK PANEL DETAIL .7"H X .1"W
50.0
45.5
25.7
30.7
33.0
4.1
24.4
FRONT VIEW / SIDE VIEW
23.6 (600 mm)
15.7 (400 mm)
11.5
REAR VIEW
NOTE: All drawings are not necessarily to scale.
Some dimensions are subject to change without prior notice.
Refer to the dimensions prior to performing installation of your TV.
Not responsible for typographical or printed errors.
© 2008 Samsung Electronics America, Inc.
English - 6
2008-06-13 ¿ÀÈÄ 7:13:23
The GNU General Public License (GPL)
Version 2, June 11
Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU
General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the
GNU Library General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and th at you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language.
(Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the
Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the
Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)
BN68-01669A-00Eng.indb 97 2008-06-13 ¿ÀÈÄ 7:13:23
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the
Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this
License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the
Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this
License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
BN68-01669A-00Eng.indb 98 2008-06-13 ¿ÀÈÄ 7:13:23
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free
Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM,
TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND
PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT
HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT
NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR
THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH
HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found.
One line to give the program’s name and a brief idea of what it does.
Copyright (C) <year> <name of author>
This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public
License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if not, write to the Free
Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w’. This is free software, and you are welcome to redistribute it under certain conditions; type
`show c’ for details.
The hypothetical commands `show w’ and `show c’ should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w’ and `show c’; they could even be mouseclicks or menu items--whatever suits your program.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the program, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision’ (which makes passes at compilers) written by James Hacker.
signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Library General Public License instead of this License.
BN68-01669A-00Eng.indb 99 2008-06-13 ¿ÀÈÄ 7:13:23
GNU Lesser General Public License (LGPL)
Version 2.1, February 1
Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU
General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.
This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries-
-of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author’s reputation will not be affected by problems that might be introduced by others.
Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the
GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General
Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.
When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.
We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries.
However, the Lesser license provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.
The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run.
BN68-01669A-00Eng.indb 100 2008-06-13 ¿ÀÈÄ 7:13:23
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as “you”.
A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.
The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language.
(Hereinafter, translation is included without limitation in the term “modification”.)
“Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the
Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.
In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the
Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the
Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General
Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public
License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machinereadable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.
BN68-01669A-00Eng.indb 101 2008-06-13 ¿ÀÈÄ 7:13:24
5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the
Library, and therefore falls outside the scope of this License.
However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library
(because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.
When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of
Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the
Library itself.
6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modifications.
You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this
License. Also, you must do one of these things:
a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the
Library will not necessarily be able to recompile the application to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.
For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.
It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:
a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License.
Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License.
Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this
License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.
BN68-01669A-00Eng.indb 102 2008-06-13 ¿ÀÈÄ 7:13:24
10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY,
TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND
PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE
COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT
HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT
NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR
THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH
HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
BN68-01669A-00Eng.indb 103 2008-06-13 ¿ÀÈÄ 7:13:24
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found.
<one line to give the library’s name and an idea of what it does.> Copyright (C) <year> <name of author>
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public
License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public
License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the
Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob’ (a library for tweaking knobs) written by
James Random Hacker.
signature of Ty Coon, 1 April 1990
Ty Coon, President of Vice
That’s all there is to it!
BN68-01669A-00Eng.indb 104 2008-06-13 ¿ÀÈÄ 7:13:24
This page is intentionally left blank.
3_BN68-01669A-Eng (81~).indd 105 2008-06-13 ¿ÀÈÄ 7:20:11
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- 132.1 cm (52") LCD
- Full HD 1920 x 1080 pixels 16:9
- 500 cd/m² 4 ms
- NTSC
- 280 W
Related manuals
advertisement
Table of contents
- 1 Cover
- 3 Eng
- 4 General Information
- 4 List of Features
- 4 Accessories
- 5 Viewing the Control Panel
- 6 Viewing the Connection Panel
- 7 Remote Control
- 8 Installing Batteries in the Remote Control
- 8 Connections
- 8 Connecting VHF and UHF Antennas
- 9 Connecting Cable TV
- 10 Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI
- 10 Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI
- 11 Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via Component cables
- 11 Connecting a Camcorder
- 12 Connecting a VCR
- 13 Connecting a Digital Audio System
- 13 Connecting an Amplifier/DVD Home Theater
- 13 Connecting a PC
- 14 Operation
- 14 Turning the TV On and Off
- 14 Plug & Play Feature
- 15 Changing Channels
- 16 Adjusting the Volume
- 16 Viewing the Display
- 16 Viewing the Menus
- 17 Using the TOOLS Button
- 17 Memorizing the Channels
- 19 To Select the Source
- 19 To Edit the Input Source Name
- 20 Picture Control
- 20 Changing the Picture Standard
- 20 Customizing the Picture Settings
- 21 Adjusting the Detailed Settings
- 24 Resetting the Picture Settings to the Factory Defaults
- 25 Configuring Picture Options
- 29 Viewing Picture-in-Picture
- 31 Sound Control
- 31 Changing the Sound Standard
- 31 Customizing the Sound
- 32 Setting the TruSurround XT
- 33 Choosing Preferred Language
- 33 Choosing a Multi-Channel Sound (MTS) track
- 34 Automatic Volume Control
- 34 Selecting the Speaker
- 35 Listening to the Sound of the Sub (PIP) Picture
- 35 Resetting the Sound Settings to the Factory Defaults
- 35 Connecting Headphones (Sold separately)
- 36 Channel Control
- 36 Managing Channels
- 43 Clearing Scrambled Channels - Digital
- 43 Fine Tuning Analog Channels
- 44 Checking the Digital-Signal Strength
- 45 PC Display
- 45 Using Your TV as a Computer (PC) Display
- 45 Display Modes
- 46 Setting up the TV with your PC
- 48 Time Setting
- 48 Setting the Clock
- 52 Function Description
- 52 Selecting a Menu Language
- 52 Using the V-Chip
- 59 Viewing Closed Captions (On-Screen Text Messages) - Analog
- 60 Viewing Closed Captions (On-Screen Text Messages) - Digital
- 61 Adjusting the TV On/Off Melody Sound
- 61 Setting the Entertainment mode
- 62 Using the Energy Saving Feature
- 62 Upgrading the Software
- 63 Self diagnosis
- 64 WISELINK
- 64 Using the WISELINK Function
- 65 Using the Photo List
- 67 Sorting Photo List
- 71 Viewing a Photo or Slide Show
- 75 Using the Music List
- 76 Sorting Music List
- 80 Playing a Music File
- 82 Using the Setup Menu
- 83 About Anynet+
- 83 What is Anynet+?
- 83 Connecting Anynet+ Devices
- 84 Setting Up Anynet+
- 85 Scanning and Switching between Anynet+ Devices
- 86 Recording
- 86 Listening through a Receiver (Home theater)
- 87 Troubleshooting for Anynet+
- 88 Appendix
- 88 Troubleshooting
- 90 Installing the Stand
- 90 Disconnecting the Stand
- 91 Auto Wall-Mount Adjustment (Sold separately)
- 92 Wall Mount Kit Specifications (VESA)
- 93 Using the Anti-Theft Kensington Lock
- 94 Securing the TV to the Wall
- 95 Specifications
- 96 Dimensions
- 99 The GNU General Public License (GPL)
