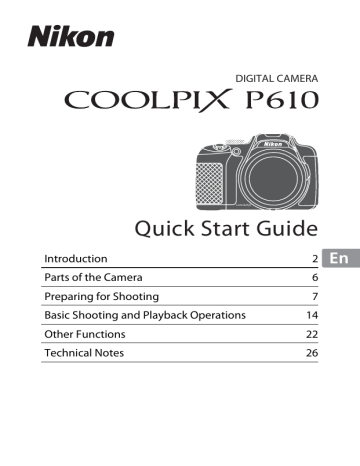

Nikon COOLPIX P610 Quick Start Guide

DIGITAL CAMERA
Quick Start Guide
Introduction
2
Parts of the Camera
6
Preparing for Shooting
7
Basic Shooting and Playback Operations
14
Other Functions
22
Technical Notes
26
En
COOLPIX P610
Model Name: N1409
Introduction
Read This First
To get the most from this Nikon product, be sure to read “For Your Safety”
(A39-41), “<Important> Notes About Location Data Functions (GPS/
GLONASS)” (A44) and “Wi-Fi (Wireless LAN Network)” (A45), and all other
instructions thoroughly and keep them where they will be read by all who use
the camera.
• If you want to start using the camera right away, see “Preparing for
Shooting” (A7) and “Basic Shooting and Playback Operations” (A14).
Downloading the “Reference Manual”
The Reference Manual (PDF format) provides more details in various languages
on how to use this camera. Download the Reference Manual from the Nikon
website and refer to it along with this manual.
http://nikonimglib.com/manual/
• The Reference Manual can be viewed using Adobe Reader, available for free
download from the Adobe website.
Downloading ViewNX 2
ViewNX 2 is free software that enables you to transfer images and movies to
your computer so that you can view, edit, or share them. To install ViewNX 2,
download the ViewNX 2 installer from the Nikon website and follow the onscreen installation instructions.
http://nikonimglib.com/nvnx/
Nikon User Support
If you need any technical assistance with the operation of your Nikon product(s),
please contact one of the Nikon representatives. For information on the Nikon
representatives in your area, please visit http://www.nikon-asia.com/support.
2
Introduction
Confirming the Package Contents
In the event that any items are missing, please contact the store where you
purchased the camera.
COOLPIX P610
Digital Camera
Camera Strap
Lens Cap LC-CP29
(with cord)
Rechargeable Li-ion
Battery EN-EL23
Charging AC Adapter
EH-71P*
USB Cable UC-E21
Quick Start Guide (this manual)
Warranty
* A plug adapter is included if the camera was purchased in a country or region that
requires a plug adapter. The shape of the plug adapter varies with the country or
region of purchase (A9).
NOTE: A memory card is not included with the camera. SD, SDHC, and SDXC
memory cards are referred to as “memory cards” in this manual.
Information and Precautions
Life-Long Learning
As part of Nikon’s “Life-Long Learning” commitment to ongoing product support
and education, continually updated information is available online at the following
websites:
• For users in the U.S.A.: http://www.nikonusa.com/
• For users in Europe: http://www.europe-nikon.com/support/
• For users in Asia, Oceania, the Middle East, and Africa: http://www.nikon-asia.com/
Visit these websites to keep up-to-date with the latest product information, tips,
answers to frequently asked questions (FAQs), and general advice on digital imaging
and photography. Additional information may be available from the Nikon
representative in your area. Visit the website below for contact information.
http://imaging.nikon.com/
Introduction
3
Use Only Nikon Brand Electronic Accessories
Nikon COOLPIX cameras are designed to the highest standards and include complex
electronic circuitry. Only Nikon brand electronic accessories (including battery
chargers, batteries, AC adapters and, USB cables) certified by Nikon specifically for
use with this Nikon digital camera are engineered and proven to operate within the
operational and safety requirements of this electronic circuitry.
THE USE OF NON-NIKON ELECTRONIC ACCESSORIES COULD DAMAGE THE CAMERA
AND MAY VOID YOUR NIKON WARRANTY.
The use of third-party rechargeable Li-ion batteries not bearing the Nikon
holographic seal could interfere with normal operation of the camera or result in the
batteries overheating, igniting, rupturing, or leaking.
Holographic seal: Identifies this
device as an authentic Nikon product.
For more information about Nikon brand accessories, contact a local authorized
Nikon dealer.
Before Taking Important Pictures
Before taking pictures on important occasions (such as at weddings or before taking
the camera on a trip), take a test shot to ensure that the camera is functioning
normally. Nikon will not be held liable for damages or lost profits that may result from
product malfunction.
About the Manuals
• No part of the manuals included with this product may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form, by any means, without Nikon’s prior written permission.
• Illustrations and monitor content shown in this manual may differ from the actual
product.
• Nikon reserves the right to change the specifications of the hardware and software
described in these manuals at any time and without prior notice.
• Nikon will not be held liable for any damages resulting from the use of this
product.
• While every effort was made to ensure that the information in these manuals is
accurate and complete, we would appreciate it were you to bring any errors or
omissions to the attention of the Nikon representative in your area (address
provided separately).
Notice Concerning Prohibition of Copying or Reproduction
Note that simply being in possession of material that was digitally copied or
reproduced by means of a scanner, digital camera or other device may be
punishable by law.
4
Introduction
• Items prohibited by law from being copied or reproduced
Do not copy or reproduce paper money, coins, securities, government bonds or local
government bonds, even if such copies or reproductions are stamped “Sample.” The
copying or reproduction of paper money, coins, or securities which are circulated in a
foreign country is prohibited. Unless the prior permission of the government was
obtained, the copying or reproduction of unused postage stamps or post cards
issued by the government is prohibited.
The copying or reproduction of stamps issued by the government and of certified
documents stipulated by law is prohibited.
• Cautions on certain copies and reproductions
The government has issued cautions on copies or reproductions of securities issued
by private companies (shares, bills, checks, gift certificates, etc.), commuter passes, or
coupon tickets, except when a minimum of necessary copies are to be provided for
business use by a company. Also, do not copy or reproduce passports issued by the
government, licenses issued by public agencies and private groups, ID cards and
tickets, such as passes and meal coupons.
• Comply with copyright notices
The copying or reproduction of copyrighted creative works such as books, music,
paintings, woodcut prints, maps, drawings, movies, and photographs is governed by
national and international copyright laws. Do not use this product for the purpose of
making illegal copies or to infringe copyright laws.
Disposing of Data Storage Devices
Please note that deleting images or formatting data storage devices such as memory
cards does not completely erase the original image data. Deleted files can
sometimes be recovered from discarded storage devices using commercially
available software, potentially resulting in the malicious use of personal image data.
Ensuring the privacy of such data is the user’s responsibility.
Before discarding a data storage device or transferring ownership to another person,
erase all data using commercial deletion software, or format the device, set Record
location data to Off in Location data options, and then completely refill it with
images containing no private information (for example, images of empty sky). Care
should be taken to avoid injury or damage to property when physically destroying
data storage devices.
For the COOLPIX P610, the log data saved on the memory card is handled in the
same way as other data. To erase the log data that is obtained but not stored on the
memory card, select Create log ➝ End log ➝ Erase log.
To delete the Wi-Fi settings, select Restore default settings in the Wi-Fi options
menu (A22).
Introduction
5
Parts of the Camera
The Camera Body
1 2 3
4
8 9
10 11
12 13 14 15 16 17
5
6
19 20 21 22 23 24
1
Power switch/power-on lamp
(charge lamp)
12 Electronic viewfinder
2
w (function) button
14 x (monitor) button
3
Mode dial
15 s (display) button
4
Flash
16 b (e movie-record) button
5
N-Mark (NFC antenna)
17 Command dial
6
Shutter-release button
18 Monitor
19 q (Wi-Fi) button
7
Zoom control
f : wide-angle
g : telephoto
h : thumbnail playback
i : playback zoom
8
p (snap-back zoom) button
23 k (apply selection) button
9
Side zoom control
10 m (flash pop-up) button
11 Diopter adjustment control
6
18
7
Parts of the Camera
13 Eye sensor
20 c (playback) button
21 d (menu) button
22 l (delete) button
24
Rotary multi selector
(multi selector)
Preparing for Shooting
How to Attach the Camera Strap and Lens
Cap
Attach the Lens Cap LC-CP29 to the strap, and then attach the strap to the
camera.
Attach the strap at two places.
B
Lens Cap
• At times when you are not shooting images, attach the lens cap to the lens to
protect it.
• Do not attach anything other than the lens cap to the lens.
Preparing for Shooting
7
Insert the Battery and Memory Card
Battery latch
Memory card slot
• With the battery’s positive and negative terminals oriented correctly, move
the orange battery latch (3), and fully insert the battery (4).
• Slide the memory card in until it clicks into place (5).
• Be careful not to insert the battery or memory card upside-down or
backward, as this could cause a malfunction.
B Formatting a Memory Card
The first time you insert a memory card that has been used in another device
into this camera, make sure to format it with this camera. Insert the memory
card into the camera, press the d button, and select Format card in the
setup menu (A22).
Removing the Battery or Memory Card
Turn the camera off and make sure that the power-on lamp and monitor have
turned off, and then open the battery-chamber/memory card slot cover.
• Move the battery latch to eject the battery.
• Gently push the memory card into the camera to partially eject the memory
card.
• Be careful when handling the camera, battery, and memory card
immediately after using the camera, as they may become hot.
8
Preparing for Shooting
Charge the Battery
1
With the battery installed, connect the camera to an
electrical outlet.
Charging AC Adapter
Electrical outlet
Power-on lamp (charge lamp)
USB cable (included)
If a plug adapter* is included with your camera, securely connect it to the
Charging AC Adapter. Once the two are connected, attempting to forcibly
remove the plug adapter could damage the product.
* The shape of the plug adapter varies according to the country or region in
which the camera was purchased.
This step can be omitted if the plug adapter comes permanently bonded to
the charging AC adapter.
• The power-on lamp (charge lamp) slowly flashes green to indicate that the
battery is charging.
• When charging is complete, the power-on lamp turns off. It takes about 3
hours to charge a fully exhausted battery.
• The battery cannot be charged when the power-on lamp quickly flashes
green, possibly due to one of the reasons described below.
- The ambient temperature is not suited to charging.
- The USB cable or Charging AC Adapter is not properly connected.
- The battery is damaged.
2
Disconnect the charging AC adapter from the electrical
outlet and then disconnect the USB cable.
Preparing for Shooting
9
B
Notes About the USB Cable
• Do not use a USB cable other than the UC-E21. Using a USB cable other than the
UC-E21 could result in overheating, fire or electric shock.
• Make sure that the plugs are properly oriented. Do not insert or remove the plugs
at an angle when connecting or disconnecting them.
B
Notes About Charging the Battery
Do not, under any circumstances, use another make or model of AC adapter other
than Charging AC Adapter EH-71P, and do not use a commercially available USB-AC
adapter or a battery charger for a mobile phone. Failure to observe this precaution
could result in overheating or in damage to the camera.
C
Charging Using a Computer or Battery Charger
• You can also charge the battery by connecting the camera to a computer.
• You can use the Battery Charger MH-67P (available separately) to charge the
battery without using the camera.
10
Preparing for Shooting
Opening and Adjusting the Angle of the
Monitor
Changing the orientation of the monitor is useful when shooting with the
camera in a high or a low position, or when taking selfies.
For normal shooting, fold the monitor against the camera body with the screen
facing out (3).
When you are not using or carrying the
camera, fold the monitor against the
camera body with the screen facing inward
to prevent scratches or contamination.
B
Notes About the Monitor
When moving the monitor, do not apply excessive force and turn slowly within the
monitor’s adjustable range so that the connection will not be damaged.
Preparing for Shooting
11
Turn the Camera On and Set the Display
Language, Date, and Time
When the camera is turned on for the first time, the language-selection screen
and the date and time setting screen for the camera clock are displayed.
1
Press the power switch to
turn on the camera.
• The monitor turns on.
• To turn the camera off, press the
power switch again.
2
Use the multi selector
HI to select the
desired language and
press the k button.
Language
Български
Čeština
Dansk
Deutsch
English
Español
Cancel
3
Select Yes and press the k button.
4
Select your home time
zone and press the k
button.
• Press H to display W
above the map and enable
daylight saving time. Press
I to disable it.
5
12
London, Casablanca
Back
Use HI to select the date format and press the k button.
Preparing for Shooting
6
Set the date and time, and press
the k button.
• Use J K to select a field and then use HI
to set the date and time.
• Select the minute field and press the k
button to confirm the setting.
Date and time
D
M
Y
h
m
15
11
2015
15
10
Edit
7
When the confirmation dialog is displayed, use HI to
select Yes and press the k button.
• When settings are finished, the lens extends.
C
Changing the Language or the Date and Time Setting
• You can change these settings using the Language and Time zone and date
settings in the z setup menu (A22).
• You can enable or disable daylight saving time in the z setup menu by selecting
Time zone and date followed by Time zone. Enabling day light saving time
moves the clock forward one hour, and disabling it moves the clock back one hour.
C
The Clock Battery
• The camera’s clock is powered by a built-in backup battery.
The backup battery charges when the main battery is inserted into the camera or
when the camera is connected to an optional AC adapter, and it can run the clock
for several days after about 10 hours of charging.
• If the camera’s backup battery becomes exhausted, the date and time setting
screen is displayed when the camera is turned on. Set the date and time again
(A12).
Preparing for Shooting
13
Basic Shooting and Playback
Operations
Shooting with A (Auto) Mode
1
Rotate the mode dial to A.
• The camera is set to A (auto) mode and
general shooting can be performed.
• Press the s (display) button to switch
the information displayed in the monitor
during shooting and play back.
• Battery level indicator
b: The battery level is high.
B: The battery level is low.
1/250
Battery level
indicator
2
F5.6
25m 0s
840
Number of
exposures
remaining
Hold the camera steady.
• Keep fingers and other objects away from the lens, flash, AF-assist illuminator,
microphone, and speaker.
14
Basic Shooting and Playback Operations
3
Frame the picture.
• Move the zoom control or the side zoom control to change the zoom lens
position.
• When the subject is lost at the telephoto zoom position, press the p (snapback zoom) button to temporarily widen the angle of view so that you can
frame the subject more easily.
Zoom out
p button
Zoom in
Zoom in
Zoom out
4
Press the shutter-release
button halfway.
• When the subject is in focus, the
focus area or focus indicator is
displayed in green.
• When you are using digital zoom,
the camera focuses in the center
of the frame and the focus area is
not displayed.
• If the focus area or focus indicator
flashes, the camera is unable to
focus. Modify the composition
and try pressing the shutterrelease button halfway again.
1/250
F5.6
Focus area
5
Without lifting your finger, press
the shutter-release button the rest
of the way down.
Basic Shooting and Playback Operations
15
B
Notes About Saving Images or Movies
The indicator showing the number of exposures remaining or the indicator showing
the remaining recording time flashes while images or movies are being saved. Do
not open the battery-chamber/memory card slot cover or remove the
battery or memory card while an indicator is flashing. Doing this could result in
loss of data, or in damage to the camera or the memory card.
C
The Auto Off Function
• When no operations are performed for about one minute, the monitor turns off,
the camera enters standby mode, and then the power-on lamp flashes. The
camera turns off after remaining in standby mode for about three minutes.
• To turn the monitor back on while the camera is in standby mode, perform an
operation such as pressing the power switch or shutter-release button.
C
When Using a Tripod
• We recommend using a tripod to stabilize the camera in the following situations:
- When shooting in dim lighting with the flash mode set to W (off)
- When the zoom is at a telephoto position
• When using a tripod to stabilize the camera during shooting, set Vibration
reduction to Off in the setup menu (A22) to prevent potential errors caused by
this function.
Using the Flash
In situations where a flash is needed, such as in
dark locations or when the subject is backlit,
press the m (flash pop-up) button to raise the
flash.
• When not using the flash, gently push to
lower the flash until it clicks shut.
B
The Ready Light
While the flash is charging, q flashes. The camera
cannot shoot images.
If charging is complete, q is displayed steadily when
you press the shutter-release button halfway.
1/250
F5.6
25m 0s
840
Ready light
16
Basic Shooting and Playback Operations
Switching Between the Monitor and Viewfinder
You can use the viewfinder when bright
light under the open sky makes it difficult to
see the monitor.
• When you bring your face close to the
viewfinder, the eye sensor responds to it
and the viewfinder turns on while the
monitor turns off (default setting).
• You can also press the x button to
switch the display between the monitor
and viewfinder.
Viewfinder
x button
Diopter Adjustment of the Viewfinder
When the image in the viewfinder is difficult
to see, adjust by rotating the diopter
adjustment control while looking through
the viewfinder.
• Take care not to scratch your eye with
your fingertips or nails.
Diopter adjustment control
B
Notes About Checking and Adjusting Image Colors
Use the monitor on the back of the camera because the monitor has higher color
reproducibility than the viewfinder.
Recording Movies
Display the shooting screen and press the b (e
movie-record) button to start recording a movie.
Press the b (e) button again to end recording.
Basic Shooting and Playback Operations
17
Play Back Images
1
Press the c (playback)
button to enter playback
mode.
• If you press and hold down the
c button while the camera is
turned off, the camera turns on
in playback mode.
2
Use the multi selector to select
an image to display.
• Press and hold down HIJK to scroll
through the images quickly.
• Images can also be selected by rotating
the multi selector.
• Press the s button to switch between
showing and hiding the photo
information or shooting information that
is displayed in the monitor.
• To play back a recorded movie, press the
k button.
• To return to shooting mode, press the c
button or shutter-release button.
Display the previous image
Display the next image
4/132
0112. JPG
15/11/2015 15:30
• Move the zoom control toward
g (i) in full-frame playback
mode to zoom in on an image.
• In full-frame playback mode,
move the zoom control toward
f (h) to switch to thumbnail
playback mode and display
multiple images on the screen.
18
Basic Shooting and Playback Operations
1/132
Delete Images
1
Press the l (delete)
button to delete the
image currently displayed
in the monitor.
2
Use the multi selector HI to
select the desired deletion
method and press the k button.
• To exit without deleting, press the d
button.
3
Delete
Current image
Erase selected images
All images
Select Yes and press the k
button.
• Deleted images cannot be recovered.
Erase 1 image?
Yes
No
B
Deleting Images Captured Continuously (Sequence)
• Images captured continuously are saved as a
sequence, and only the first image of the sequence
(the key picture) is displayed in playback mode
(default setting).
• If you press the l button while a key picture is
displayed for a sequence of images, all images in
0004. JPG
the sequence are deleted.
15/11/2015
• To delete individual images in a sequence, press the
k button to display them one at a time and press the l button.
C
4/132
15:30
Deleting the Image Captured While in Shooting Mode
When using shooting mode, press the l button to delete the last image that was
saved.
Basic Shooting and Playback Operations
19
Changing the Shooting Mode
You can change to the following shooting modes by rotating the mode dial.
• A (Auto) mode
Used for general shooting.
• y, X, s, c (Scene) modes
Camera settings are optimized according to the scene that you select.
- y: Press the d button and select a scene. When using Scene
auto selector, the camera automatically recognizes the shooting scene
when you frame a picture, making it easier to take pictures in accordance
with the scene.
When using time-lapse movie, the camera automatically captures still
images at a specified interval to create time-lapse movies that are
approximately 10 seconds long.
- X (night landscape): Use this mode to shoot night landscapes.
- s (night portrait): Use this mode to shoot evening and night portraits that
include background scenery.
- c (landscape): Use this mode to shoot landscapes.
• u (Special effects) mode
Effects can be applied to images during shooting. Press the d button and
select an effect.
• j, k, l, m modes
Select these modes for greater control over shutter speed and aperture
value.
• M (User settings) mode
Setting combinations that are frequently used for shooting can be saved.
The saved settings can be immediately retrieved for shooting simply by
rotating the mode dial to M.
20
Basic Shooting and Playback Operations
Functions That Can Be Set Using the Multi
Selector (for Shooting)
When the shooting screen is displayed, you can press the multi selector H (m)
J (n) I (p) K (o) to set the functions described below.
• m Flash mode
When the flash is raised, the flash mode can be set according to shooting
conditions.
• n Self-timer/Smile timer
The self-timer can be selected from 10 seconds or 2 seconds.
When smile timer is selected, the camera detects a smiling face and
automatically releases the shutter.
• p Focus mode
According to the distance to the subject, A (autofocus), D (macro closeup) or B (infinity) can be set. When the shooting mode is j, k, l, m or M,
u, or Sports, Fireworks show, Bird-watching or Time-lapse
movie (night sky, star trails) scene mode, E (manual focus) can be set.
• o Exposure compensation
You can adjust overall image brightness.
The functions that can be set vary depending on the shooting mode.
Basic Shooting and Playback Operations
21
Other Functions
Functions That Can Be Set with the Fn
(Function) Button
The settings such as image quality can be also set by pressing the w
(function) button instead of displaying the corresponding menu by pressing
the d (menu) button.
• This function can be used when the shooting mode is j, k, l, m or M.
Functions That Can Be Set with the d
(Menu) Button
You can set the menus listed below by pressing the d (menu) button.
• A, y, X, s, c, u, j, k, l, m, M Shooting menu
Available by pressing the d button when the shooting screen is
displayed.
Allows you to change the settings for shooting such as the combination of
the image size and image quality.
Menu icons and options that can be set differ depending on the shooting
mode.
• c Playback menu
Available by pressing the d button when viewing images in full-frame
playback mode or thumbnail playback mode.
Allows you to edit images, play slide shows, etc.
• e Movie menu
Available by pressing the d button when the shooting screen is
displayed.
Allows you to change movie recording settings.
• q Wi-Fi options menu
Allows you to configure Wi-Fi settings for connecting the camera and a
smart device.
• z Location data options menu
Allows you to configure settings for the location data functions.
When Record location data in Location data options is set to On, the
camera starts receiving signals from the positioning satellites.
• z Setup menu
Allows you to adjust basic camera functions such as date and time, display
language, etc.
22
Other Functions
1
Press the d (menu)
button.
• The menu is displayed.
1/250
2
F5.6
25m 0s
840
Press the multi selector
J.
Shooting menu
Image quality
Image size
• The current menu icon is
displayed in yellow.
Picture Control
Custom Picture Control
White balance
Metering
Menu icons
3
Select a menu icon and
press the k button.
Set up
Time zone and date
Slot empty release lock
• The menu options become
selectable.
Monitor settings
EVF auto toggle
Date stamp
Vibration reduction
4
Select a menu option
and press the k button.
• Certain menu options cannot
be set depending on the
current shooting mode or the
state of the camera.
• Items can also be selected by
rotating the multi selector.
5
Time zone and date
Slot empty release lock
Monitor settings
EVF auto toggle
Date stamp
Vibration reduction
Select a setting and press
the k button.
• The setting you selected is
applied.
• When you are finished using the
menu, press the d button.
• When a menu is displayed, you
can switch to shooting mode by
pressing the shutter-release button or b (e) button.
Date stamp
Date
Date and time
Off
Other Functions
23
Using Location Data Functions
When Record location data in Location data options of the z (location
data options) menu (A22) is set to On, the camera starts receiving signals
from the positioning satellites.
Location data reception can be checked
on the shooting screen.
• n or o: Signals are being received
from four or more satellites, or from
three satellites, and positioning is
being performed.
• z: Signals are being received, but
positioning is not possible.
• y: Signals are not received.
1/250
F5.6
25m 0 s
840
Recording the Shooting Location Data on the Image
• When shooting while positioning is being performed, the obtained location
data (latitude and longitude) are recorded on the images to be shot.
• The recorded location data can be checked on a map with ViewNX 2 after
transferring the image to a computer.
Recording the Log
• When selecting Start log in Create log in the location data options menu,
while positioning is being performed, the location data of places you visit
with the camera is recorded at the certain interval.
• After the recorded log is saved to a memory card by using Save log in the
location data options menu, view the log with software that can display log
data.
• Log data is NMEA format-compliant. However, display in all NMEA formatcompliant software or on all NMEA format-compliant cameras is not
guaranteed.
Displaying POI Information
• When Embed POI in Points of interest (POI) of the location data options
menu is set to On, the nearest location name information for the current
position is also recorded on the images to be shot.
• When Display POI of the location data
options menu is set to On, the nearest
location name information for the current
position is displayed on the shooting screen,
and the location name information recorded
on the image is displayed on the playback
25m 0 s
screen.
1/250
24
Other Functions
F5.6
840
Using the Wi-Fi (Wireless LAN) Function
You can perform the following functions if you install the dedicated software
“Wireless Mobile Utility” on your smart device that runs on Android OS or iOS,
and connect it to the camera.
Take Photos
You can save images to a smart device by pressing the shutter-release button
of the camera or remotely releasing the camera shutter from the smart device.
• Operations cannot be performed on the camera during remote control
operation. The shooting mode is set to A (auto) mode and the focus area is
set to the center of the frame, regardless of the camera’s settings.
View Photos
Images that are saved in the camera’s memory card can be transferred and
viewed on your smart device. You can also preselect the images in the camera
that you want to transfer to your smart device.
B
Notes About Security Settings
No security settings such as password are configured for the camera at the time of
purchase. We strongly recommend performing the required security settings before
using the Wi-Fi function. Use Options in the Wi-Fi options menu (A22) to perform
the security settings.
Installing the Software on the Smart Device
1
Use your smart device to connect to the Google Play Store,
App Store or other online apps marketplace and search for
“Wireless Mobile Utility.”
• Check the user’s manual provided with your smart device for further details.
2
C
Check the description and other information and install the
software.
User’s Manual for Wireless Mobile Utility
Download the user’s manual from the website below.
• Android OS: http://nikonimglib.com/ManDL/WMAU/
• iOS: http://nikonimglib.com/ManDL/WMAU-ios/
To establish a connection with the camera, press the q (Wi-Fi) button on
the camera, and turn on the Wi-Fi function of the smart device, and then start
the “Wireless Mobile Utility” while Negotiating... Please wait. is displayed
on the camera.
Other Functions
25
Technical Notes
Caring for the Product
Observe the precautions described below in addition to the warnings in “For
Your Safety” (A39-41) when using or storing the device.
The Camera
Do Not Apply Strong Impact to the Camera
The product may malfunction if subjected to strong shock or vibration. In addition,
do not touch or apply force to the lens or lens cover.
Keep Dry
The device will be damaged if immersed in water or subjected to high humidity.
Avoid Sudden Changes in Temperature
Sudden changes in temperature, such as when entering or leaving a heated building
on a cold day, can cause condensation to form inside the device. To prevent
condensation, place the device in a carrying case or a plastic bag before exposing it
to sudden changes in temperature.
Keep Away from Strong Magnetic Fields
Do not use or store this device in the vicinity of equipment that generates strong
electromagnetic radiation or magnetic fields. Doing so could result in loss of data or
camera malfunction.
Do Not Point the Lens at Strong Light Sources for Extended
Periods
Avoid pointing the lens at the sun or other strong light sources for extended periods
when using or storing the camera. Intense light may cause the image sensor to
deteriorate or produce a white blur effect in photographs.
Turn the Product Off Before Removing or Disconnecting
the Power Source or Memory Card
Do not remove the battery while the product is on, or while images are being saved
or deleted. Forcibly cutting power in these circumstances could result in loss of data
or in damage to product memory or internal circuitry.
26
Technical Notes
Notes About the Monitor
• Monitors and electronic viewfinders are constructed with extremely high precision;
at least 99.99% of pixels are effective, with no more than 0.01% being missing or
defective. Hence while these displays may contain pixels that are always lit (white,
red, blue, or green) or always off (black), this is not a malfunction and has no effect
on images recorded with the device.
• Images in the monitor may be difficult to see under bright lighting.
• Do not apply pressure to the monitor, as this could cause damage or malfunction.
Should the monitor break, care should be taken to avoid injury caused by broken
glass and to prevent the liquid crystal from the display touching the skin or
entering the eyes or mouth.
The Battery
Precautions for Use
• Note that the battery may become hot after use.
• Do not use the battery at ambient temperatures below 0°C (32°F) or above 40°C
(104°F) as this could cause damage or malfunction.
• If you notice any abnormalities such as excessive heat, smoke, or an unusual smell
coming from the battery, immediately discontinue use and consult your retailer or
Nikon-authorized service representative.
• After removing the battery from the camera or optional battery charger, put the
battery in a plastic bag, etc. in order to insulate it.
Charging the Battery
Check the battery level before using the camera and replace or charge the battery if
necessary.
• Charge the battery indoors with an ambient temperature of 5°C to 35°C (41°F to
95°F) before use.
• A high battery temperature may prevent the battery from charging properly or
completely, and may reduce battery performance. Note that the battery may
become hot after use; wait for the battery to cool before charging.
When charging the battery inserted into this camera using the Charging AC
Adapter or a computer, the battery is not charged at battery temperatures below
0°C (32°F) or above 50°C (122°F).
• Do not continue charging once the battery is fully charged as this will result in
reduced battery performance.
• The battery temperature may increase during charging. However, this is not a
malfunction.
Carrying Spare Batteries
Whenever possible, carry fully charged spare batteries when taking pictures on
important occasions.
Technical Notes
27
Using the Battery When Cold
On cold days, the capacity of batteries tends to decrease. If an exhausted battery is used
at a low temperature, the camera may not turn on. Keep spare batteries in a warm place
and exchange as necessary. Once warmed, a cold battery may recover some of its charge.
Battery Terminals
Dirt on the battery terminals may prevent the camera from functioning. Should the
battery terminals become dirty, wipe them off with a clean, dry cloth before use.
Charging an Exhausted Battery
Turning the camera on or off while an exhausted battery is inserted in the camera
may result in reduced battery life. Charge the exhausted battery before use.
Storing the Battery
• Always remove the battery from the camera or optional battery charger when it is
not being used. Minute amounts of current are drawn from the battery while it is in
the camera, even when not in use. This may result in excessive battery drain and
complete loss of function.
• Recharge the battery at least once every six months and completely exhaust it
before returning it to storage.
• Put the battery in a plastic bag, etc. in order to insulate it and store it in a cool place.
The battery should be stored in a dry location with an ambient temperature of 15°C
to 25°C (59°F to 77°F). Do not store the battery in hot or extremely cold locations.
Battery Life
A marked drop in the time a fully charged battery retains its charge, when used at room
temperature, indicates that the battery needs to be replaced. Purchase a new battery.
Recycling Used Batteries
Replace the battery when it no longer holds a charge. Used batteries are a valuable
resource. Please recycle used batteries in accordance with local regulations.
The Charging AC Adapter
• The Charging AC Adapter EH-71P is for use only with compatible devices. Do not
use with another make or model of device.
• Do not use any USB cable other than the UC-E21. Using a USB cable other than the
UC-E21 could result in overheating, fire or electric shock.
• Do not, under any circumstances, use another make or model of AC adapter other
than Charging AC Adapter EH-71P, and do not use a commercially available USBAC adapter or a battery charger for a mobile phone. Failure to observe this
precaution could result in overheating or in damage to the camera.
• The EH-71P is compatible with AC 100–240 V, 50/60 Hz electrical outlets. When
using in other countries, use a plug adapter (commercially available) as necessary.
For more information about plug adapters, consult your travel agency.
28
Technical Notes
Cleaning and Storage
Cleaning
Do not use alcohol, thinner, or other volatile chemicals.
Lens/
viewfinder
Avoid touching glass parts with your fingers. Remove dust or lint with
a blower (typically a small device with a rubber bulb attached to one
end that is pumped to produce a stream of air out the other end). To
remove fingerprints or other stains that cannot be removed with a
blower, wipe the lens with a soft cloth, using a spiral motion that
starts at the center of the lens and working toward the edges. If this
fails, clean the lens using a cloth lightly dampened with commercial
lens cleaner.
Monitor
Remove dust or lint with a blower. To remove fingerprints and other
stains, clean the monitor with a soft, dry cloth, being careful not to
apply pressure.
Body
Use a blower to remove dust, dirt, or sand, then wipe gently with a
soft, dry cloth. After using the camera at the beach or other sandy or
dusty environment, wipe off any sand, dust, or salt with a dry cloth
lightly dampened with fresh water and dry thoroughly. Note that
foreign matter inside the camera could cause damage not
covered by the warranty.
Storage
Remove the battery if the camera will not be used for an extended period. To
prevent mold or mildew, take the camera out of storage at least once a month.
Turn the camera on and release the shutter a few times before putting the
camera away again. Do not store the camera in any of the following locations:
• Places that are poorly ventilated or subject to humidity of over 60%
• Exposed to temperatures above 50°C (122°F) or below –10°C (14°F)
• Next to equipment that produces strong electromagnetic fields, such as
televisions or radios
For storing the battery, follow the precautions in “The Battery” (A27) in
“Caring for the Product” (A26).
Technical Notes
29
Troubleshooting
If the camera fails to function as expected, check the list of common problems
below before consulting your retailer or Nikon-authorized service
representative.
Also, refer to the Reference Manual (PDF format) for further details on how to
use this camera (A2).
Problem
Cause/Solution
• Wait for recording to end.
• If the problem persists, turn the camera off.
If the camera does not turn off, remove and reinsert
The camera is on
the battery or batteries or, if you are using an AC
adapter, disconnect and reconnect the AC adapter.
but does not
Note that although any data currently being
respond.
recorded will be lost, data that have already been
recorded will not be affected by removing or
disconnecting the power source.
The camera
cannot be
turned on.
The battery is exhausted.
A
–
8, 9, 27
16
• The camera automatically turns off to save power
(auto off function).
The camera
27
• The camera and battery may not work properly at
low temperatures.
turns off without
warning.
–
• The inside of the camera has become hot. Leave the
camera off until the inside of the camera has cooled,
and then try turning it on again.
30
The monitor or
viewfinder is
blank.
12
• The camera is off.
• The battery is exhausted.
14
16
• The camera automatically turns off to save power
(auto off function).
–
• You cannot turn on both the monitor and viewfinder
at the same time. It may take a while to switch
between the monitor and viewfinder.
• The camera is connected to a TV or computer.
–
–
• Interval timer shooting or time-lapse movie shooting
is in progress.
• The camera and smart device are connected using
–
Wi-Fi connection and the camera is operated by
remote control.
The camera
becomes hot.
The camera may become hot when used for an
extended period of time such as to shoot movies or
when used in a hot environment; this is not a
malfunction.
Technical Notes
–
Approved Memory Cards
The following Secure Digital (SD) memory cards have been tested and
approved for use in this camera.
• Memory cards with an SD Speed Class rating of 6 or faster are
recommended for recording movies. When using a memory card with a
lower Speed Class rating, movie recording may stop unexpectedly.
SD memory card
SanDisk
TOSHIBA
Panasonic
Lexar
SDHC memory card
SDXC memory card
-
4 GB, 8 GB, 16 GB, 32 GB 64 GB, 128 GB
-
4 GB, 8 GB, 16 GB, 32 GB 64 GB
2 GB
4 GB, 8 GB, 16 GB, 32 GB 64 GB
-
8 GB, 16 GB, 32 GB
64 GB, 128 GB
• Contact the manufacturer for details on the above cards. We cannot
guarantee camera performance when using memory cards made by other
manufacturers.
• If you use a card reader, make sure that it is compatible with your memory
card.
Trademark Information
• Windows is either a registered trademark or trademark of Microsoft
Corporation in the United States and/or other countries.
• Adobe, the Adobe logo, and Reader are either trademarks or registered
trademarks of Adobe Systems Incorporated in the United States and/or
other countries.
• SDXC, SDHC, and SD Logos are trademarks of SD-3C, LLC.
• PictBridge is a trademark.
• HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC.
• Wi-Fi and the Wi-Fi logo are trademarks or registered trademarks of the Wi-Fi
Alliance.
• Android and Google Play are trademarks or registered trademarks of Google,
Inc.
• The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the
United States and in other countries.
• All other trade names mentioned in this manual or the other
documentation provided with your Nikon product are trademarks or
registered trademarks of their respective holders.
Technical Notes
31
AVC Patent Portfolio License
This product is licensed under the AVC Patent Portfolio License for the personal
and non-commercial use of a consumer to (i) encode video in compliance with
the AVC standard (“AVC video”) and/or (ii) decode AVC video that was encoded
by a consumer engaged in a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC video. No license is
granted or shall be implied for any other use. Additional information may be
obtained from MPEG LA, L.L.C.
See http://www.mpegla.com.
FreeType License (FreeType2)
Portions of this software are copyright © 2012 The FreeType Project
(http://www.freetype.org). All rights reserved.
MIT License (HarfBuzz)
Portions of this software are copyright © 2015 The HarfBuzz Project
(http://www.freedesktop.org/wiki/Software/HarfBuzz). All rights reserved.
32
Technical Notes
USER LICENSE AGREEMENT FOR LOCATION
NAME DATA
The location name data that is stored in this digital camera (“Data”) is provided for
your personal, internal use only and not for resale. It is protected by copyright, and is
subject to the following terms and conditions which are agreed to by you, on the
one hand, and Nikon Corporation (“Nikon”) and its licensors (including their licensors
and suppliers) on the other hand.
Terms and Conditions
Personal Use Only. You agree to use this Data together with this digital camera and
the image data taken by the digital camera for the solely personal, non-commercial
purposes for which you were licensed, and not for service bureau, time-sharing or
other similar purposes.
Accordingly, but subject to the restrictions set forth in the following paragraphs, you
agree not to otherwise reproduce, copy, modify, decompile, disassemble or reverse
engineer any portion of this Data, and may not transfer or distribute it in any form, for
any purpose, except to the extent permitted by mandatory laws.
Restrictions. Except where you have been specifically licensed to do so by Nikon, and
without limiting the preceding paragraph, you may not (a) use this Data with any
products, systems, or applications installed or otherwise connected to or in
communication with vehicles, capable of vehicle navigation, positioning, dispatch,
real time route guidance, fleet management or similar applications; or (b) with or in
communication with any positioning devices or any mobile or wireless-connected
electronic or computer devices, including without limitation cellular phones,
palmtop and handheld computers, pagers, and personal digital assistants or PDAs.
Warning. The Data may contain inaccurate or incomplete information due to the
passage of time, changing circumstances, sources used and the nature of collecting
comprehensive geographic data, any of which may lead to incorrect results.
No Warranty. This Data is provided to you “as is,” and you agree to use it at your own
risk. Nikon and its licensors (and their licensors and suppliers) make no guarantees,
representations or warranties of any kind, express or implied, arising by law or
otherwise, including but not limited to, content, quality, accuracy, completeness,
effectiveness, reliability, fitness for a particular purpose, usefulness, use or results to
be obtained from this Data, or that the Data or server will be uninterrupted or errorfree.
Disclaimer of Warranty: NIKON AND ITS LICENSORS (INCLUDING THEIR LICENSORS
AND SUPPLIERS) DISCLAIM ANY WARRANTIES, EXPRESS OR IMPLIED, OF QUALITY,
PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT. Some States, Territories and Countries do not allow certain warranty
exclusions, so to that extent the above exclusion may not apply to you.
Technical Notes
33
Disclaimer of Liability: NIKON AND ITS LICENSORS (INCLUDING THEIR LICENSORS
AND SUPPLIERS) SHALL NOT BE LIABLE TO YOU: IN RESPECT OF ANY CLAIM, DEMAND
OR ACTION, IRRESPECTIVE OF THE NATURE OF THE CAUSE OF THE CLAIM, DEMAND
OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, WHICH
MAY RESULT FROM THE USE OR POSSESSION OF THE INFORMATION; OR FOR ANY
LOSS OF PROFIT, REVENUE, CONTRACTS OR SAVINGS, OR ANY OTHER DIRECT,
INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF
YOUR USE OF OR INABILITY TO USE THIS INFORMATION, ANY DEFECT IN THE
INFORMATION, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN
ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF NIKON OR ITS
LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some
States, Territories and Countries do not allow certain liability exclusions or damages
limitations, so to that extent the above may not apply to you.
Export Control. You agree not to export from anywhere any part of the Data or any
direct product thereof except in compliance with, and with all licenses and approvals
required under, applicable export laws, rules and regulations, including but not
limited to the laws, rules and regulations administered by the Office of Foreign Assets
Control of the U.S. Department of Commerce and the Bureau of Industry and Security
of the U.S. Department of Commerce. To the extent that any such export laws, rules
or regulations prohibit Nikon and its licensors from complying with any of its
obligations hereunder to deliver or distribute Data, such failure shall be excused and
shall not constitute a breach of this Agreement.
Entire Agreement. These terms and conditions constitute the entire agreement
between Nikon (and its licensors, including their licensors and suppliers) and you
pertaining to the subject matter hereof, and supersedes in their entirety any and all
written or oral agreements previously existing between us with respect to such
subject matter.
Governing Law. The above terms and conditions shall be governed by the laws of
the Japan, without giving effect to (i) its conflict of laws provisions, or (ii) the United
Nations Convention for Contracts for the International Sale of Goods, which is
explicitly excluded; provided that in the event that the laws of the Japan is not
deemed applicable to this Agreement for any reason in the country where you
obtained the Data, this Agreement shall be governed with the laws of the country
where you obtained the Data. You agree to submit to the jurisdiction of Japan for
any and all disputes, claims and actions arising from or in connection with the Data
provided to you hereunder.
34
Technical Notes
Government End Users. If the Data supplied by HERE is being acquired by or on
behalf of the United States government or any other entity seeking or applying rights
similar to those customarily claimed by the United States government, the Data is a
“commercial item” as that term is defined at 48 C.F.R. (“FAR”) 2.101, is licensed in
accordance with the End-User Terms under which this Data was provided, and each
copy of the Data delivered or otherwise furnished shall be marked and embedded as
appropriate with the following “Notice of Use,” and shall be treated in accordance
with such Notice:
NOTICE OF USE
CONTRACTOR (MANUFACTURER/ SUPPLIER) NAME:
HERE
CONTRACTOR (MANUFACTURER/ SUPPLIER) ADDRESS:
425 West Randolph Street, Chicago, Illinois 60606
This Data is a commercial item as defined in
FAR 2.101 and is subject to the End-User
Terms under which this Data was provided.
© 2014 HERE - All rights reserved.
If the Contracting Officer, federal government agency, or any federal official refuses
to use the legend provided herein, the Contracting Officer, federal government
agency, or any federal official must notify HERE prior to seeking additional or
alternative rights in the Data.
Technical Notes
35
Notices related to licensed software copyright holders.
• Location name data for Japan
© 2013 ZENRIN CO., LTD. All rights reserved.
This service uses POI data of ZENRIN CO., LTD.
“ZENRIN” is a registered trademark of ZENRIN CO., LTD.
• Location name data except for Japan
© 1987-2014 HERE
All rights reserved.
Austria:  Bundesamt für Eich- und Vermessungswesen
Belgium:  - Distribution & Copyright CIRB
Croatia/Cyprus/Estonia/Latvia/Lithuania/Moldova/Poland/Slovenia/Ukraine: 
EuroGeographics
Denmark: Contains data that is made available by the Danish Geodata Agency (FOT) Retrieved by
HERE 01/2014
Finland: Contains data from the National Land Survey of Finland Topographic Database 06/2012.
(Terms of Use available at (http://www.maanmittauslaitos.fi/en/
NLS_open_data_licence_version1_20120501)).
Contains data that is made available by Itella in accordance with the terms available at (http://
www.itella.fi/liitteet/palvelutjatuotteet/yhteystietopalvelut/
uusi_postal_code_services_service_description_and_terms_of_use.pdf). Retrieved by HERE 09/
2013
France: source:  IGN 2009 – BD TOPO 
Germany: Die Grundlagendaten wurden mit Genehmigung der zuständigen Behörden
entnommen
Contains content of „ BayrischeVermessungsverwaltung – (www.geodaten.bayern.de) “, licensed in
accordance with (http://creativecommons.org/licenses/by/3.0/legalcode)
Contains content of “LGL, (www.lgl-bw.de) “, licensed in accordance with (http://
creativecommons,.org/licenses/by/3.0/legalcode)
Contains content of “Stadt Köln – offenedaten-koeln.de”, licensed in accordance with (http://
creativecommons.org/licenses/by/3.0/legalcode)
Contains Content of “Geoportal Berlin / ATKIS Basis-DLM”, licensed in accordance with (http://
www.stadtentwicklung.berlin.de/geoinformation/download/nutzIII.pdf)
Contains Content of “Geoportal Berlin / Karte von Berlin 1:5000 (K5-Farbausgabe)”, licensed in
accordance with (http://www.stadtentwicklung.berlin.de/geoinformation/download/nutzIII.pdf)
Great Britain: Contains Ordnance Survey data  Crown copyright and database right 2010
Contains Royal Mail data  Royal Mail copyright and database right 2010
Greece: Copyright Geomatics Ltd.
36
Technical Notes
Italy: La Banca Dati Italiana è stata prodotta usando quale riferimento anche cartografia numerica
ed al tratto prodotta e fornita dalla Regione Toscana.
Contains data from Trasporto Passeggeri Emilia-Romagna- S.p.A.
Includes content of Comune di Bologna licensed under (http://creativecommons.org/licenses/by/
3.0/legalcode) and updated by licensee July 1, 2013.
Includes content of Comune di Cesena licensed under (http://creativecommons.org/licenses/by/
3.0/legalcode) and updated by licensee July 1, 2013.
Includes contents of Ministero della Salute, and Regione Sicilia, licensed under (http://
www.formez.it/iodl/) and updated by licensee September 1, 2013.
Includes contents of Provincia di Enna, Comune di Torino, Comune di Pisa, Comune di Trapani,
Comune di Vicenza, Regione Lombardia, Regione Umbria, licensed under (http://www.dati.gov.it/
iodl/2.0/) and updated by licensee September 1, 2013.
Includes content of GeoforUs, licensed in accordance with (http://creativecommons.org/licenses/
by/3.0/legalcode).
Includes content of Comune di Milano, licensed under (http://creativecommons.org/licenses/by/
2.5/it/legalcode) and updated by licensee November 1, 2013.
Includes content of the “Comunità Montana della Carnia”, licensed under (http://www.dati.gov.it/
iodl/2.0/) and updated by licensee December 1, 2013.
Includes content of “Agenzia per la mobilità” licensed under (http://creativecommons.org/licenses/
by/3.0/legalcode) and updated by licensee January 1, 2014.
Includes content of Regione Sardegna, licensed under (http://www.dati.gov.it/iodl/2.0/) and
updated by licensee May 1, 2014.
Includes content of CISIS, licensed under (http://creativecommons.org/licenses/by/2.5/legalcode).
Norway: Copyright  2000; Norwegian Mapping Authority
Includes data under the Norwegian licence for Open Government data (NLOD), available at (http://
data.norge.no/nlod/en/1.0)
Contains information copyrighted by  Kartverket, made available in accordance with (http://
creativecommons.org/licenses/by/3.0/no/).
Contains data under the Norwegian licence for Open Government data (NLOD) distributed by
Norwegian Public Roads Administration (NPRA)
Portugal: Source: IgeoE – Portugal
Spain: Información geográfica propiedad del CNIG
Contains data that is made available by the Generalitat de Catalunya Government in accordance
with the terms available at (http://www.gencat.cat/web/eng/avis_legal.htm). Retrieved by HERE
05/2013.
Contains content of Centro Municipal de Informatica – Malaga, licensed in accordance with (http://
creativecommons.org/licenses/by /3.0/legalcode).
Contains content of Administración General de la Comunidad Autónoma de Euskadi, licensed in
accordance with (http://creativecommons.org/licenses/by/3.0/legalcode)
Contains data made available by the Ayuntamiento de Santander, licensed in accordance with
(http://creativecommons.org/licenses/by/3.0/es/legalcode.es)
Contains data of Ajuntament de Sabadell, licensed per (http://creativecommons.org/licences/by/
3.0/legalcode), updated 4/2013
Sweden: Based upon electronic data  National Land Survey Sweden.
Contains public data, licensed under Go Open v1.0, available at (http://data.goteborg.se/goopen/
Avtal%20GoOpen%201.0.0.pdf)
Switzerland: Topografische Grundlage:  Bundesamt für Landestopographie
United Kingdom: Contains public sector information licensed under the Open Government
Licence v1.0 (see for the license (http://www.nationalarchives.gov.uk/doc/open-governmentlicence/))
Adapted from data from the office for National Statistics licensed under the Open Government
Licence v.1.0
Technical Notes
37
Canada: This data includes information taken with permission from Canadian authorities,
including © Her Majesty,  Queen's Printer for Ontario,  Canada Post, GeoBase,  Department
of Natural Resources Canada. All rights reserved.
Mexico: Fuente: INEGI (Instituto Nacional de Estadística y Geografía.)
United States: ©United States Postal Service 2013. Prices are not established, controlled or
approved by the United States Postal Service. The following trademarks and registrations are
owned by the USPS: United States Postal Service, USPS, and ZIP+4.
Includes data available from the U.S. Geological Survey.
Australia: Copyright. Based on data provided under license from PSMA Australia Limited
(www.psma.com.au).
Product incorporates data which is  2013 Telstra Corporation Limited, Intelematics Australia Pty
Ltd and HERE International LLC.
Nepal: Copyright  Survey Department, Government of Nepal.
Sri Lanka: This product incorporates original source digital data obtained from the Survey
Department of Sri Lanka
 2009 Survey Department of Sri Lanka
The data has been used with the permission of the Survey Department of Sri Lanka
Israel:  Survey of Israel data source
Jordan:  Royal Jordanian Geographic Centre.
Mozambique: Certain Data for Mozambique provided by Cenacarta  2013 by Cenacarta
Nicaragua: The Pacific Ocean and Caribbean Sea maritime borders have not been entirely
defined.
Northern land border defined by the natural course of the Coco River (also known as Segovia River
or Wangki River) corresponds to the source of information available at the moment of its
representation.
Réunion: source:  IGN 2009 - BD TOPO 
Ecuador: INSTITUTO GEOGRAFICO MILITAR DEL ECUADRO
AUTORIZACION N° IGM-2011-01- PCO-01 DEL 25 DE ENERO DE 2011
Guadeloupe: source:  IGN 2009 - BD TOPO 
Guatemala: Aprobado por el INSTITUTO GEOGRAFICO NACIONAL – Resolución del IGN No 1862011
French Guiana: source:  IGN 2009 - BD TOPO 
Martinique: source:  IGN 2009 - BD TOPO 
38
Technical Notes
For Your Safety
To prevent damage to your Nikon product or injury to yourself or to others,
read the following safety precautions in their entirety before using this
equipment. Keep these safety instructions where all those who use the product
will read them.
The consequences that could result from failure to observe the precautions
listed in this section are indicated by the following symbol:
This icon marks warnings, information that should be read before using
this Nikon product, to prevent possible injury.
WARNINGS
Turn off in the event of malfunction
Should you notice smoke or an unusual smell coming from the camera or
Charging AC Adapter, unplug the Charging AC Adapter and remove the
battery immediately, taking care to avoid burns. Continued operation could
result in injury. After removing or disconnecting the power source, take the
equipment to a Nikon-authorized service representative for inspection.
Do not disassemble
Touching the internal parts of the camera or Charging AC Adapter could result
in injury. Repairs should be performed only by qualified technicians. Should the
camera or Charging AC Adapter break open as the result of a fall or other
accident, take the product to a Nikon-authorized service representative for
inspection, after unplugging the product and/or removing the battery.
Do not use the camera or Charging AC Adapter in the presence of
flammable gas
Do not use electronic equipment in the presence of flammable gas, as this
could result in explosion or fire.
Handle the camera strap with care
Never place the strap around the neck of an infant or child.
Keep out of reach of children
Particular care should be taken to prevent infants from putting the battery or
other small parts into their mouths.
Do not remain in contact with the camera, Charging AC Adapter,
or AC adapter for extended periods while the devices are on or in
use
Parts of the devices become hot. Leaving the devices in direct contact with the
skin for extended periods may result in low-temperature burns.
Technical Notes
39
Do not leave the product where it will be exposed to extremely
high temperatures, such as in an enclosed automobile or in direct
sunlight
Failure to observe this precaution could cause damage or fire.
Observe caution when handling the battery
The battery may leak, overheat, or explode if improperly handled. Observe the
following precautions when handling the battery for use in this product:
• Before replacing the battery, turn the product off. If you are using the
Charging AC Adapter/AC adapter, be sure it is unplugged.
• Use only a Rechargeable Li-ion Battery EN-EL23 (included). Charge the
battery by using a camera that supports battery charging. To perform this
operation, use the Charging AC Adapter EH-71P (included) and USB Cable
UC-E21 (included). The Battery Charger MH-67P (available separately) is also
available to charge the battery without using a camera.
• When inserting the battery, do not attempt to insert it upside down or
backwards.
• Do not short or disassemble the battery or attempt to remove or break the
battery insulation or casing.
• Do not expose the battery to flame or to excessive heat.
• Do not immerse in or expose to water.
• Put the battery in a plastic bag, etc. in order to insulate it before transporting.
Do not transport or store with metal objects such as necklaces or hairpins.
• The battery is prone to leakage when fully discharged. To avoid damage to
the product, be sure to remove the battery when no charge remains.
• Discontinue use immediately should you notice any change in the battery,
such as discoloration or deformation.
• If liquid from the damaged battery comes in contact with clothing or skin,
rinse immediately with plenty of water.
•
•
•
•
40
Observe the following precautions when handling the Charging
AC Adapter
Keep dry. Failure to observe this precaution could result in fire or electric
shock.
Dust on or near the metal parts of the plug should be removed with a dry
cloth. Continued use could result in fire.
Do not handle the plug or go near the Charging AC Adapter during
lightning storms. Failure to observe this precaution could result in electric
shock.
Do not damage, modify, forcibly tug or bend the USB cable, place it under
heavy objects, or expose it to heat or flames. Should the insulation be
damaged and the wires become exposed, take it to a Nikon-authorized
service representative for inspection. Failure to observe these precautions
could result in fire or electric shock.
Technical Notes
• Do not handle the plug or Charging AC Adapter with wet hands. Failure to
observe this precaution could result in electric shock.
• Do not use with travel converters or adapters designed to convert from one
voltage to another or with DC-to-AC inverters. Failure to observe this
precaution could damage the product or cause overheating or fire.
Use the appropriate power supply (battery, Charging AC Adapter,
AC adapter, USB cable)
Using a power supply other than those provided or sold by Nikon could result
in damage or malfunction.
Use appropriate cables
When connecting cables to the input and output jacks, use only the cables
provided or sold by Nikon for the purpose, to maintain compliance with
product regulations.
Do not touch the moving parts of the lens
Failure to observe this precaution could result in injury.
Handle moving parts with care
Be careful that your fingers or other objects are not pinched by the lens cover
or other moving parts.
Using the flash close to your subject’s eyes could cause temporary
visual impairment
The flash should be no less than 1 meter (3 ft 4 in.) from the subject.
Particular care should be observed when photographing infants.
Do not operate the flash with the flash window touching a person
or object
Failure to observe this precaution could result in burns or fire.
Avoid contact with liquid crystal
Should the monitor break, care should be taken to avoid injury caused by
broken glass and to prevent liquid crystal from the monitor touching the skin
or entering the eyes or mouth.
Follow the instructions of airline and hospital personnel
Technical Notes
41
Notices
Notices for Customers in the U.S.A.
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS.
DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS
For connection to a supply not in the U.S.A., use an attachment plug adapter of
the proper configuration for the power outlet if needed.
The power supply unit is intended to be correctly orientated in a vertical or
floor mount position.
Federal Communications Commission (FCC) Radio Frequency
Interference Statement
This equipment has been tested
and found to comply with the
limits for a Class B digital device,
pursuant to Part 15 of the FCC
rules. These limits are designed
to provide reasonable
protection against harmful
interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
CAUTIONS
Modifications
The FCC requires the user to be notified that any changes or modifications
made to this device that are not expressly approved by Nikon Corporation may
void the user’s authority to operate the equipment.
Interface Cables
Use the interface cables sold or provided by Nikon for your equipment. Using
other interface cables may exceed the limits of Class B Part 15 of the FCC rules.
42
Technical Notes
Notice for Customers in the State of California
WARNING
Handling the cord on this product will expose you to lead, a chemical known to
the State of California to cause birth defects or other reproductive harm.
Wash hands after handling.
Nikon Inc.,
1300 Walt Whitman Road, Melville, New York 11747-3064, U.S.A.
Tel: 631-547-4200
Notice for Customers in Canada
CAN ICES-3 B / NMB-3 B
Notices for Customers in Europe
CAUTIONS
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
This symbol indicates that electrical and electronic equipment is to
be collected separately.
The following apply only to users in European countries:
• This product is designated for separate collection at an
appropriate collection point. Do not dispose of as household
waste.
• Separate collection and recycling helps conserve natural resources and
prevent negative consequences for human health and the environment
that might result from incorrect disposal.
• For more information, contact the retailer or the local authorities in charge
of waste management.
This symbol on the battery indicates that the battery is to be
collected separately.
The following apply only to users in European countries:
• All batteries, whether marked with this symbol or not, are
designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.
• For more information, contact the retailer or the local authorities in charge
of waste management.
Technical Notes
43
<Important> Notes About Location Data
Functions (GPS/GLONASS)
bLocation name data of this camera
Before using the location data functions, make sure to read “USER LICENSE
AGREEMENT FOR LOCATION NAME DATA” (A33) and agree to the terms.
• The location name information (Points of Interest: POI) are as of April 2014.
The location name information will not be updated.
• Use the location name information only as a guide.
• The location name information (Points of Interest: POI) of the People’s
Republic of China (“China”) and the Republic of Korea are not provided for
the COOLPIX P610.
bNotes about record location data functions and log recording
• Use information measured by the camera as a guideline only.
This information cannot be used for navigation of an airplane, car, and
person or land survey applications.
• When Record location data in Location data options of the location
data options menu is set to On or during log recording, record location data
functions and log recording function will continue to operate even after the
camera is turned off.
• An individual may be identified from still images or movies that have been
recorded with location data. Observe caution when you transfer still images
or movies recorded with location data, or log files to a third party or upload
them to a network such as the Internet where the public can view them.
Make sure to read “Disposing of Data Storage Devices” (A5).
bUsing the camera overseas
• Before taking the camera with location data functions overseas for travel,
consult your travel agency or embassy of the country you are visiting to
confirm whether there is any restriction on use.
For example, you cannot record location data logs without permission from
the government in China.
Set Record location data to Off.
• The location data may not function properly in China and on the borders
between China and neighboring countries (as of December 2014).
44
Technical Notes
Wi-Fi (Wireless LAN Network)
This product is controlled by the United States Export Administration
Regulations, and you are required to obtain permission from the United States
government if you export or re-export this product to any country to which the
United States embargoes goods. The following countries were subject to
embargo: Cuba, Iran, North Korea, Sudan, and Syria. Since the target countries
are subject to change, please contact the United States Department of
Commerce for the latest information.
Restrictions on Wireless Devices
The wireless transceiver included in this product conforms to wireless
regulations in the country of sale and is not for use in other countries (products
purchased in the EU or EFTA can be used anywhere within the EU and EFTA).
Nikon does not accept liability for use in other countries. Users who are unsure
as to the original country of sale should consult with their local Nikon service
center or Nikon-authorized service representative. This restriction applies to
wireless operation only and not to any other use of the product.
Notice for Customers in the U.S.A. and Canada
Federal Communications Commission (FCC) and Industry of Canada (IC)
Declaration of Conformity
This device complies with Part 15 of FCC Rules and Industry Canada licenceexempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of this
device.
FCC/IC RF Exposure Statement
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
The available scientific evidence does not show that any health problems are
associated with using low power wireless devices. There is no proof, however,
that these low power wireless devices are absolutely safe. Low power wireless
devices emit low levels of radio frequency energy (RF) in the microwave range
while being used. Whereas high levels of RF can produce health effects (by
heating tissue), exposure of low-level RF that does not produce heating effects
causes no known adverse health effects. Many studies of low-level RF
exposures have not found any biological effects. Some studies have suggested
that some biological effects might occur, but such findings have not been
confirmed by additional research.
Technical Notes
45
COOLPIX P610, which is equipped with a DW092 (FCC ID:EW4DW092/IC
ID:4634A-3149EC) Wireless LAN Module, has been tested and found to comply
with FCC/IC radiation exposure limits set forth for an uncontrolled environment
and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C
to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. Please refer
to the SAR test report that was uploaded to FCC website.
Declaration of Conformity (Europe)
Hereby, Nikon Corporation, declares that COOLPIX P610 is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/
EC. The declaration of conformity may be consulted at
http://imaging.nikon.com/support/pdf/DoC_P610.pdf.
Notice for customers in Singapore
This device complies with radio-frequency regulations.
Model Name: N1409
Complies with
IDA Standards
DA103423
Notice for Customers in Republic of Zambia
This device complies with radio-frequency regulations.
ZMB/ZICTA/TA/2015/2/21
Notice for Customers in Federal Republic of Nigeria
This device complies with radio-frequency regulations.
Precautions when Using Radio Transmissions
Always keep in mind that radio transmission or reception of data is subject to
interception by third parties. Note that Nikon is not responsible for data or
information leaks that may occur during data transfer.
Personal Information Management and Disclaimer
• User information registered and configured on the product, including
wireless LAN connection settings and other personal information, is
susceptible to alteration and loss resulting from operational error, static
electricity, accident, malfunction, repair or other handling. Always keep
separate copies of important information. Nikon is not responsible for any
direct or indirect damages or lost profits resulting from alteration or loss of
content that is not attributable to Nikon.
• Before discarding this product or transferring it to another owner, perform
Reset all in the setup menu (A22) to delete all user information registered
and configured with the product, including wireless LAN connection
settings and other personal information.
46
Technical Notes
47
No reproduction in any form of this manual, in whole or in part
(except for brief quotation in critical articles or reviews), may be
made without written authorization from NIKON CORPORATION.
FX5G06(11)
© 2015 Nikon Corporation
6MN50611-06
