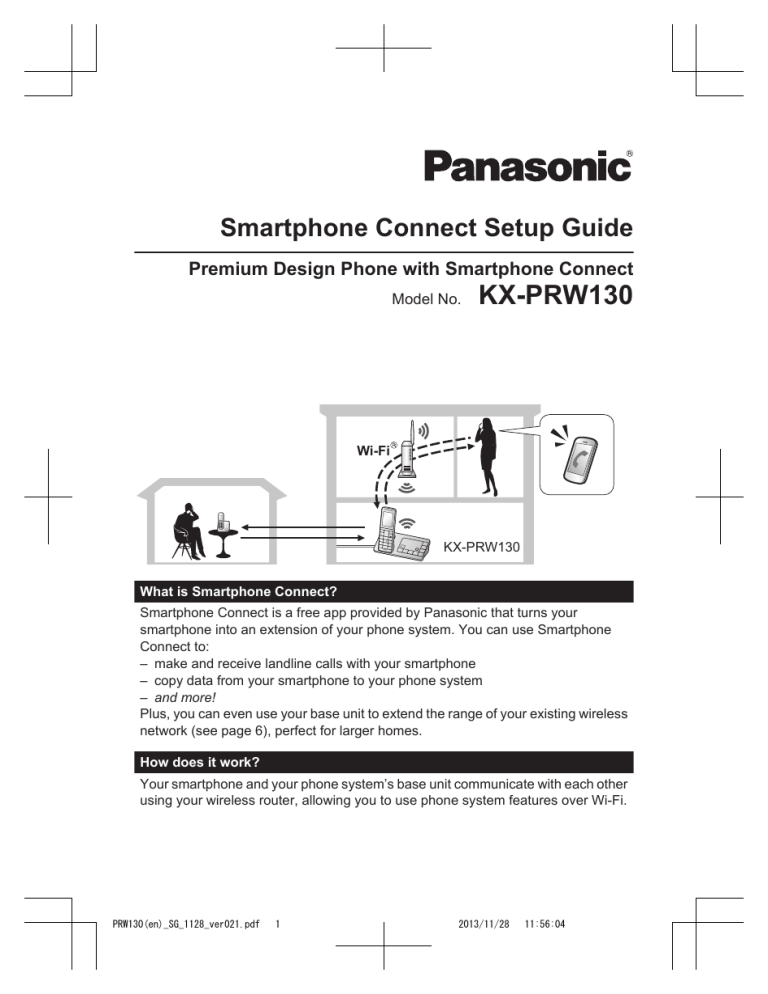

Smartphone Connect Setup Guide Premium Design Phone with Smartphone Connect Model No. KX-PRW130 Wi-Fi KX-PRW130 What is Smartphone Connect? Smartphone Connect is a free app provided by Panasonic that turns your smartphone into an extension of your phone system. You can use Smartphone Connect to: – make and receive landline calls with your smartphone – copy data from your smartphone to your phone system – and more! Plus, you can even use your base unit to extend the range of your existing wireless network (see page 6), perfect for larger homes. How does it work? Your smartphone and your phone system’s base unit communicate with each other using your wireless router, allowing you to use phone system features over Wi-Fi. PRW130(en)_SG_1128_ver021.pdf 1 2013/11/28 11:56:04 Smartphone Connect Setup Guide Smartphone Connect Setup Overview Everything you need to know to get started with Smartphone Connect is explained in this guide. 1 2 3 Configuring your base unit (page 2) Downloading the Smartphone Connect app (page 4) Starting the app for the first time (page 5) 1 Configuring your base unit In this step you will use one of the handsets supplied with your phone system to configure the base unit to connect to your wireless router. In most situations you should follow the instructions explained in “Typical configuration (DHCP)”. Note: R Before beginning, make sure your base unit and your wireless router are turned on and functioning. R Recommended wireless router standard: IEEE 802.11g or IEEE 802.11n Typical configuration (DHCP) 1. Using one of the handsets supplied with your phone system, press MMenuN (right soft key) and then press #523. 2. Press MDN or MCN to select “Search for networks” and then press MSelectN. R A list of available wireless networks is displayed, including the SSID (wireless network name), security setting, and wireless signal strength. 3. Select your wireless router’s SSID and then press MSelectN. 4. Confirm the SSID and then press MOKN. Connect Search for networks WPS (Easy setting) Wi-Fi networks Network name 2 PRW130(en)_SG_1128_ver021.pdf 2 2013/11/28 11:56:04 Smartphone Connect Setup Guide 5. Enter the password required to access the wireless network and then press MOKN. 6. Wait for the base unit to connect to your wireless router. When “Connected to” and your wireless router’s SSID are displayed, press MOFFN to finish. Password Wi-Fi settings Connected to Simplified configuration (WPS, DHCP) This procedure requires a wireless router that supports WPS. If your wireless router supports WPS, make sure the feature is turned on, and locate its WPS button before beginning this procedure. The WPS button is typically labeled “WPS” or has two curved arrows on it. Program this setting using either the base unit or one of the handsets. (Fewer operations are needed when using the base unit.) Base unit 1. Press the WPS button on your wireless router. 2. Press and hold MWi-Fi SETUPN button on the base unit for about 5 seconds and then wait for a long beep to sound. {Wi-Fi SETUP} Handset 1. Using one of the handsets supplied with your phone system, press MMenuN (right soft key) and then press #523. 2. Press MDN or MCN to select “WPS (Easy setting)” and then press MSelectN. Connect Search for networks WPS (Easy setting) 3. Press the WPS button on your wireless router and then press MOKN on the handset. Wi-Fi settings Press [WPS] button on your router 3 PRW130(en)_SG_1128_ver021.pdf 3 2013/11/28 11:56:04 Smartphone Connect Setup Guide 4. Wait for the base unit to connect to your wireless router. When “Connected to” and your wireless router’s SSID (wireless network name) are displayed, press MOFFN to finish. Wi-Fi settings Connected to 2 Downloading the Smartphone Connect app After you have configured the base unit’s Wi-Fi and network settings, you are ready to download the Smartphone Connect app. You can download the app directly from your smartphone platform’s app download service by searching for “Panasonic Smartphone Connect”. You can also find download information at the web page listed below. Support page for this product on the Panasonic Global web site www.panasonic.net/pcc/support/tel/air For information about using the app, refer to the Smartphone Connect App Guide, which is available for download from the support page. Supported devices R iPhone 4, iPhone 4S, iPhone 5, iPhone 5S, iPhone 5C, iPad, and iPad mini (iOS 5.0 or later) R Devices running Android™ 4.0 or later Functionality information R The app may not function properly depending on system environment, such as your smartphone model, peripherals connected to your smartphone, and the apps installed on your smartphone. 4 PRW130(en)_SG_1128_ver021.pdf 4 2013/11/28 11:56:04 Smartphone Connect Setup Guide 3 Starting the app for the first time After you have installed the Smartphone Connect app on your smartphone, you are ready to start the app and register your smartphone to the base unit. Use your smartphone to perform this step. 1. Make sure that your smartphone’s Wi-Fi feature is enabled and that your smartphone is connected to the same wireless network as your base unit. 2. Start the Smartphone Connect app by tapping its icon (shown here on the right). 3. When prompted to register your smartphone to the base unit, tap [Start]. R Illustrations shown here depict the Android version of the app. Confirm To begin registering this cellular phone to the base unit, tap "Start". Cancel 4. Start Wait for the registration process to be end. R The app’s [Keypad] screen will be displayed. R You can confirm that your smartphone is connected to the base unit. iPhone/iPad Check the information in the Notifications Center. Android Check that is displayed in the status bar and notifications panel. Note: R In order to use most of the app’s features, your smartphone needs an active Wi-Fi connection. If your smartphone’s Wi-Fi feature is disabled, or if it is configured to suspend (sleep) its Wi-Fi connection to save power, you will not be able to make or answer calls. 5 PRW130(en)_SG_1128_ver021.pdf 5 2013/11/28 11:56:04 Smartphone Connect Setup Guide Configuring your base unit as a Wi-Fi range extender (Wi-Fi repeater mode) If you use your phone system in a large home, you can use the base unit’s built-in Wi-Fi repeater mode feature to extend the range of your existing wireless network. This is useful if the wireless signal of your wireless router does not cover all areas of your house. Should I use Wi-Fi repeater mode? Wi-Fi repeater mode is recommended for larger buildings, such as those shown below. For smaller buildings, we recommend you do not use Wi-Fi repeater mode. Wide, single-storey buildings Three-storey buildings Note: R Do not place the base unit and wireless router too close to each other. If they are too close, using Wi-Fi repeater mode can cause the sound to cut out briefly during landline calls. – For a single-storey building, place the base unit and your wireless router in different rooms, at least one room-width away from each other. – For a three-storey building, place the base unit and wireless router on different floors. R Do not use Wi-Fi repeater mode if you already have a Wi-Fi range extender. If you already have a Wi-Fi range extender, using Wi-Fi repeater mode can cause network problems such as not being able to access the Internet, and the sound may cut out briefly during landline calls. 6 PRW130(en)_SG_1128_ver021.pdf 6 2013/11/28 11:56:05 Smartphone Connect Setup Guide Turning Wi-Fi repeater mode on 1. Using one of the handsets supplied with your phone system, press MMenuN (right soft key) and then press #538. 2. Press MDN or MCN to select “On” and then press MSaveN. Repeater On Off Important information R A router is required to use Wi-Fi repeater mode. If the router function of your wireless router is not enabled and if there is no other routing device connected to your network, Wi-Fi repeater mode will not function. R The base unit does not have a router feature. Wi-Fi repeater mode allows the base unit to function as a wireless access point. It does not replace the functionality of a wireless router, and it does not have a router feature. Open source software notice R Parts of this product use open source software supplied based on the relevant conditions of the Free Software Foundation’s GPL and/or LGPL and other conditions. Please read all licence information and copyright notices related to the open source software used by this product. This information is available at the following web page: www.panasonic.net/pcc/support/tel/air At least three (3) years from delivery of this product, Panasonic System Networks Co., Ltd. will give to any third party who contacts us at the contact information provided below, for a charge of no more than the cost of physically distributing source code, a complete machine-readable copy of the corresponding source code and the copyright notices covered under the GPL and the LGPL. Please note that software licensed under the GPL and the LGPL is not under warranty. www.panasonic.net/pcc/support/tel/air Software information R The End User License Agreement (EULA) for the Smartphone Connect app is available at the following web page: www.panasonic.net/pcc/support/tel/air 7 PRW130(en)_SG_1128_ver021.pdf 7 2013/11/28 11:56:05 Troubleshooting information R If you experience any trouble when performing the procedures found in this document, refer to the network connection troubleshooting section of the Operating Instructions supplied with your phone system. R If you experience any trouble when using the Smartphone Connect app, refer to the troubleshooting section of the Smartphone Connect App Guide, which is available for download from our web site. Trademarks R Android is a trademark of Google Inc. R iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. R Wi-Fi is a registered trademark of the Wi-Fi Alliance. R All other trademarks identified herein are the property of their respective owners. Other information R Design and specifications are subject to change without notice. R The illustrations in this document may vary slightly from the actual product. R The suffix is omitted from model numbers listed in this document. R Please refer to the base unit’s operating instructions for sales department and customer support information. For U.S.A. users For assistance, visit our Web site: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. For Canada users For assistance, please visit our support page on: www.panasonic.ca Printed in China *PNQX6458ZA* *PNQX6458ZA* PNQX6458ZA PRW130(en)_SG_1128_ver021.pdf 8 2013/11/28 PP1113KT0 (E) 11:56:05
