Posiflex PD-260XUE/2800UE is a customer display device that is both functional and versatile. It features a two-line VFD (Vacuum Fluorescent Display) with dark blue characters on a yellow-green backlight so that your customers can see clearly. Furthermore, the display frame can be rotated horizontally 270° freely, allowing you to adjust it to the optimal viewing angle for your customers. Additionally, the PD-260XUE/2800UE comes with a variety of command emulation modes that you can select using the DIP switch, making it compatible with a wide range of systems. USB connectivity and support for UPOS 1.8 make it easy to integrate with your existing infrastructure.
advertisement
▼
Scroll to page 2
of
17

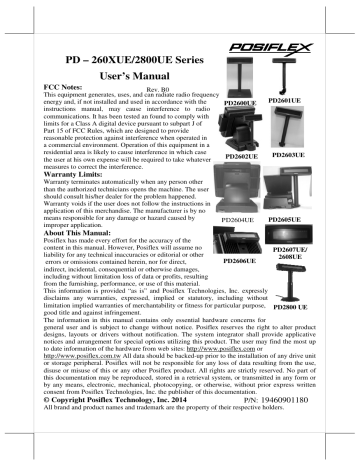

PD – 260XUE/2800UE Series User’s Manual FCC Notes: Rev. B0 This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the PD2600UE instructions manual, may cause interference to radio communications. It has been tested an found to comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case PD2602UE the user at his own expense will be required to take whatever measures to correct the interference. PD2601UE PD2603UE Warranty Limits: Warranty terminates automatically when any person other than the authorized technicians opens the machine. The user should consult his/her dealer for the problem happened. Warranty voids if the user does not follow the instructions in application of this merchandise. The manufacturer is by no means responsible for any damage or hazard caused by improper application. PD2604UE PD2605UE About This Manual: Posiflex has made every effort for the accuracy of the content in this manual. However, Posiflex will assume no PD2607UE/ liability for any technical inaccuracies or editorial or other 2608UE PD2606UE errors or omissions contained herein, nor for direct, indirect, incidental, consequential or otherwise damages, including without limitation loss of data or profits, resulting from the furnishing, performance, or use of this material. This information is provided “as is” and Posiflex Technologies, Inc. expressly disclaims any warranties, expressed, implied or statutory, including without limitation implied warranties of merchantability or fitness for particular purpose, PD2800 UE good title and against infringement. The information in this manual contains only essential hardware concerns for general user and is subject to change without notice. Posiflex reserves the right to alter product designs, layouts or drivers without notification. The system integrator shall provide applicative notices and arrangement for special options utilizing this product. The user may find the most up to date information of the hardware from web sites: http://www.posiflex.com or http://www.posiflex.com.tw All data should be backed-up prior to the installation of any drive unit or storage peripheral. Posiflex will not be responsible for any loss of data resulting from the use, disuse or misuse of this or any other Posiflex product. All rights are strictly reserved. No part of this documentation may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without prior express written consent from Posiflex Technologies, Inc. the publisher of this documentation. © Copyright Posiflex Technology, Inc. 2014 P/N: 19460901180 All brand and product names and trademark are the property of their respective holders. Power Setup Notice √ This device is particularly designed for use with a Posiflex system. In such application, it can utilize power support from the Posiflex system. PRODUCT MODEL NUMBER FEATURES • VFD (Vacuum Fluorescent Display) with dark blue character and yellow green back-light • Rear mount Pole Display for Posiflex HT series hybrid terminals or PB series discrete systems or KS or FT series fan free touch POS terminals or TP series touch POS terminals • Two-line display with 20 characters per line • Various command emulation modes selectable by DIP switch • Support 18 Code Pages of 128 characters each • Support 12 international character sets of 12 characters each • Display frame can rotate horizontally 270° freely (PD2600UE/2601UE/2602UE/2603UE/2605UE) • Easy viewing characters (9.03 mm by 5.25 mm) • Long life and trouble free operation • Simple installation • 3 typical USB interface modes (USB-HID Class, USB-Vendor Class, Virtual COM Port) selectable by DIP switch • Supports UPOS1.8 • Euro and Rupee dollar signs supported Page 2 INSTALLATION GUIDES PD-2800UE This adjustment has to be done by a qualified electronic technician to follow the guide from relevant technical manual. The power of PD-2800 UE supported through USB connection. For PD-2800 UE customer display, there are two USB connecter needed to link to the host system. Please confirm that both of these two USB connecters connect to terminal in order to support the power and data transmission. PD-260XUE The USB interface model of all PD-2600UE series should be connected directly to an USB port and must not be through any non-self-powered USB HUB to get power through the USB port itself and there is no need for other special arrangement. Except for PD-2600UE which is noted for stand-alone power adaptor supply, the I/O plate area of rear bottom side is as follows below: B-Type USB Port To Display Head 12V DC Jack The RJ45 type modular connector is for VFD display purpose and also already occupied. Connect the “B” type plug of the interface cable to the base USB connector and the “A” type end to USB port of the host. Insert the DC plug of 12V DC power adaptor to the “12V DC IN” jack in the pole base. You may now place the base on a horizontal surface and prepare to power on and adjust the direction of the display head for best viewing effect in application. MECHANICAL INSTALLATION Page 3 For this type mechanical design of standalone customer pole display, it can operate straight away and no needs to assemble with any other host system. Nevertheless, it also can fix on the counter or any place when it needs to be fixed. Following pictures A to D will describe such as how to adjust the height of the pole and how to fasten the PD-2800 UE in a flat surface. C A B b a D PD-2800 UE for HT / PB / KS / TP / FT / XP series Picture A is going to describe how to adjust the height of customer displays: a). Please hold the compression lock by using thumb and index finger and pull out the lock. b). Please use another hand to hold the tube and extend to higher or lower of display’s height. After adjusting to a satisfactory height, please push back the compression lock to fix the tube. Page 4 Note: Please align the compress lock and the grooves in order to fix the height of customer display. Picture B is going to show how to screw PD-2800 UE in a flat surface. In the base stand of PD-2800 UE, there are two screws holes for user to fix the customer display. Please choose a flat surface to fix the customer display in order to keep the PD-2800 UE stable. (The screws are come with PD-2800 UE and in the carton) Picture C, the display head of PD-2800 UE can move as horizontal direction to right or left, as well as front-rear adjustable degree from 15° or 23° Picture D, there are two plates in the bottom of customer display which can use for Velcro and provides more stable without screws fixed. (The Velcros are come with PD-2800 UE and in the carton) To fix the rear mount upgrade kit like PD-2607UE or PD-2608UE on the back of HS/XT series, please apply carefully the 2 small fixation shoulder screws that come along with PD-2607UE or PD-2608UE. PD-2607UE for HS series A B C A: Hold the PD unit item then turn the screen facing toward you. B: Please find the 4 holes on the rear panel of HS system. C: Please aim the 4 PD bracket holes to the 4 screws holes on the back cover of HS main unit and fasten them to fix PD on the HS. Please take out the main item with bracket from the package, and fix these items as the following steps: PD-2608UE for XT series A B C Page 5 A: Hold the PD unit item then turn the screen facing toward you. B: Please find the upper 2 of 4 holes on the rear panel of XT system. C: Please aim the 2 PD bracket holes to the 2 screws holes on the back cover of HS main unit and fasten them to fix PD on the XT. To fix the rear mount upgrade kit of PD-2608UE on the back of XP2000/3000 series, please apply carefully the 5 small fixation shoulder screws that come along with PD-2606UE. Before fixing the upgrade kits, there is one more step required. Please release the cable exit cover as the following steps: PD-2606UE for XP series A: Please find the back of cable cover just near the I/O plate. B: Please use the Fingertip to release compression lock located inside of back cover. C: after the cable cover released, please cut the circle part which show in the picture C. A C B After finish this step, the cable cover can be use when the rear mount upgrade kits fixed. In addition, please take out the bracket, screws and the main item of display from the package, and fix these items as following steps: A B C D A: Please take the bracket and find the side of two screws holes which with mistake-proofing holes and aim to the PD main unit. B: Fix the bracket and PD unit item then turn the screen face to you. C: Please route the PD’s cable into the cannelure which is between fins and near the screw hole. D: Please aim the three screws holes to the back cover of XP-2000/3000 series main unit and fasten them to fix PD on the XP-2000/3000 series. Page 6 After fixing the customer pole display, it may use the cable cover to manage the cable. PD-2605UE The PD-2605 can be attached to Base for KS series Bottom of DT series the corner in bottom plate of the KS series, with slim base, DT series and Gen.6 & 5 base of KS series. It takes examples of this LCD customer display to fix in the KS series, and DT series. Refer to the pictures in Pix. 1 Pix.1 at right. Use the 3 attached screws to fix the metal base plate of the PD to bottom of mini slim base or DT series at the circled positions. For mini slim base Connect the interface cable to go into the base through cable exit arrowed in Pix.2 at right to the main unit. For DT series arrange the interface cable to go through under bottom to connector area arrowed in Pix.1 at above right. CAUTION: There is a self-tapping screw for PD-2605 when available in Gen. 5 base stand and please aim to the holes which marked “DT” as shown in the upper Pix. 2 picture Pix.1. Other Bing Head Screws are available when fixed in KS series, DT series and Gen.6 base stand of KS series. PD-2604UE for KS series To mount the rear top mount upgrade kit like PD2604UE on the back of KS series, please apply carefully the 2 small fixation shoulder screws that come along with PD-2604UE to the back of KS series at the screw hole triangle marked in the 2 upper right pictures. However please do not screw them to the bottom but at a position that is about 1 turn loose from the bottom. Similarly please loosen the screws by 1 turn for some KS models with these 2 screws preinstalled. Arrange the interface cable Page 7 of the rear top mount upgrade kit to go into the first groove to the right of the left shoulder screw on back of main unit as in the lower picture at right. For host models with Gen 6 super slim base, please stick the 2 attached cable clips at arrowed positions of Gen 6 base in the picture for cable routing when later joining the main unit to Gen 6 base. Hook the rear bracket of the upgrade kit onto the shoulder screws. Slide down the upgrade kit and gently tighten the shoulder screws. Do not overdo the tightening or unrecoverable thread damage will occur. PD-2603UE for FT series Open back cover on system Pix. 3 First push in the circled knobs on both sides as in Pix. 3 to remove the back cover. Remove pole cover Remove the pole cover on rear edge of the base top cover of FT system by first removing the 2 arrowed screws in Pix. 4 and then pushing the wedge shaped pole cover up. Pix. 4 Install PD and connect interface cable Insert the base of PD-2603UE from top of system base with the flat side of the pole base facing the back cover direction and screw back the 2 screws as in Pix. 5. Connect the interface cable to appropriate port. Pix. 5 PD-2602UE for TP or KS series Opening the rear connect cover on system To install PD-2602UE to the base of KS or TP systems, the rear connect cover on its base has to be removed as described in the user’s manual. The plastic hook plate to remove the Pix. 7 rear connect cover in slim Pix. 6 base is indicated in Pix. 6 and that for universal base is indicated in Pix. 7. Page 8 Fixing pole display base to system To fix the PD-2602UE to base of KS or TP systems, please connect the interface cable of PD-2602 through the cable exit in base as in Pix. 8 a peeping view of pole display joint base bottom to the appropriate port in main unit passing the inside of system base as indicated in the top-view picture Pix. 9. Match the pole base (joint mechanism) to the system rear connect area Fit 2 screws through washers at arrowed points to hold the joint tight. PD-2601UE for HT or PB series Opening the back cover on system Pix. 8 Pix. 9 Pix. 10 For ease of PD-2601UE installation operation, the HT main unit or PB system has to be opened with sufficient precautions. First push in the circled knobs on both sides as in Pix. 10 to remove the back cover. Take out the arrow pointed pole cover from it. Opening the top cover of system Prepare a piece of clean soft clothe of appropriate size in front of the HT system to prevent damage. Turn the display panel to straight up position. For both HT and PB system, push in the rectangular marked spring button in Pix. 10 on both sides of chassis and raise the rear edge of the top cover. Find joining points on system Refer to Pix. 2 that is a picture of the HT or PB chassis near the right bottom corner (as you are facing the HT or PB system from its back) with several portions enlarged around, please find 2 rectangular PD installation holes A on the bottom chassis; 2 circular locating holes B on I/O plate; and 2 circular screw holes C on metal sidewall. B B A C A C Pix. 11 Page 9 Find joining points on pole display base B’ B’ C’ C’ A’ A’ Pix. 12 Take PD-2601UE out of its box and refer to Pix.12 that is a picture of the pole display base unit (lowest part of the PD) with 2 enlarged portions to the right and a slightly enlarged side view picture to the left to find 2 bottom locking lugs A’; 2 short cylindrical locating bosses B’ to fit into I/O plate; and 2 plastic screw bosses C’ on side. Please note that the PD cable comes out of the bottom end of the base tube yet in the illustration pictures the cable is eliminated for sake of minimum visual confusion. Insert bottom locking lugs A Pix. 13 A’ Turn the pole display base unit opposite to have the bottom locking lugs A’ in Pix. 13 facing left and now insert the 2 bottom locking lugs A’ on base unit into the 2 rectangular installation holes A on bottom of HT or PB chassis from the right corner with the pole display slightly inclined to the left as in Pix. 13. Please note that both bottom locking lugs A’ should be completely inserted and come out of the bottom plate of HT or PB system as emphasized by an arrow in the enlarged portion. Fit in locating bosses Please always keep a gentle pressure at the bottom end of pole base (bottom locking lugs A’) to the left (away from the sidewall of system chassis) when moving the upper part of pole toward sidewall and matching the 2 short Page 10 cylindrical locating bosses B’ into 2 round holes B in the I/O plate. Please refer to Pix. 14 to see the 2 locating bosses B’ from inside of HT or PB system. Please note the importance of keeping the leftward pressure on bottom end of pole display during the process of turning the pole upright and inserting the locating bosses B’ or even when you want to release the locating bosses B’ away from I/O plate B and turn the upper end of pole display to left to remove the locking lugs A’ from bottom chassis A. Ignorance of this point may damage or even break off the locking lugs A’ due to improper torque applied. B+B’ B+B’ A’ Pix. 14 Apply sidewall screw The screw bosses of PD-2601UE base should now align with the screw holes on sidewall of system chassis. Only 1 screw needs to be applied. Use the selftapping screw that comes with PD-2601UE to fix from external side of sidewall as demonstrated in Pix. 15. PD-2601U Base C+C’ Outside of sidewall Connect interface cable Pix. 15 Carefully close back the top cover of HT or PB system and connect the interface cable of PD-2601U to appropriate port in system connector area. Then close the back cover of the system. PD-2600UE Stand Alone Model: Page 11 This instruction is for stand alone model only. Please unpack the inner box of pole display and it easy to find the base, display unit with tube and adaptor separately. Please remove the PE form and bring out the components carefully. Firstly, place the display head and tube on a flat surface and find the cable which in the end of tube. Let this cable pass through the short tube which on the base stand and it shows in the picture at right. Next, please assemble the display head with tube to the base stand which shows in the right picture. Please pay more attention during the process since there is a hole and a compression lock which are in the two side of tube and marked arrow signs. Aim these two arrow signs nearby compression lock to the holes and push the tube to the end. After hear the “click” sound, the assembly is complete. Once combine the display head with tube and base stand, please place the pole display as a horizontal position which can easily to check the bottom plate. Please plug the cable to the connector which showing “To Display” and route the cable as arrowed in the right picture. COMMAND EMULATION MODE SETUP Now please check the back of PD-2600UE/2800UE display series head as in the picture below. There is a small piece of plastic cover for the “DIP switch window”. Slide the cover downward but don’t pull it off otherwise you may have to practice for inserting it back. You can find 6 positions of DIP switches in this window. Adjust for the appropriate interface used by the DIP switches according to below table. Switch position counts from left to right and “ON” means pushed up as indicated in the right part picture below. Page 12 DIP switch window DIP SWITCH 1. Transmission Protocol Switch Position 1 2 ON ON ON OFF OFF ON OFF OFF Interface USB Vendor Class USB HID Class Reserved Virtual COM Port 2. Emulation Mode Switch Position 3 4 5 6 Mode ON ON ON OFF UTC ON ON OFF OFF Aedex ON OFF ON OFF Noritake ON OFF OFF OFF Epson OFF ON ON OFF Futaba OFF ON OFF OFF ADM Note: Switch Position 6 is used for ISP download. The factory default command mode is set to Noritake mode for normal delivery. Please change it to Epson mode if OPOS or UPOS driver is used for the application program. COMMAND MODE SELECTION GUIDE The below table provides some comparison for selection on command mode to be used in the application program if it is not yet determined. Mode ADM Aedex Cursor N.A. N.A. Default mode N.A. N.A. User defined font N.A. N.A. Epson Futaba Noritake UTC Blinking Blinking Blinking Invisible Block Block Block (DP) Over/W V. scroll Over/W PT 2 chars 2 chars N.A. 2 chars (PT) Page 13 Brightness control Leading code change Code page select Auto scroll message Timer clock NO NO NO NO NO NO YES NO NO NO YES NO YES NO YES YES YES YES YES NO YES YES YES YES NO YES (DP) YES (PT) YES YES (PT) YES (PT) DRIVER INSTALLATION Copy the driver and library from Posiflex Product Information CD under Peripheral Drivers & Utilities > PD Series > PD VCOM Driver > USB_VCOM_v510e to your system. Follow instructions given in the file USB Display VCOM Drivers Installing Guide.PDF to send commands (listed later in this manual) and data to the customer display under the programming language. FOR OPOS APPLICATION: Find the subfolder UPOS Drivers > OPOS Driver of the Posiflex Product Information CD or download it from web site http://www.posiflex.com/english/03_support/ 03_download.php?prod=ajc=&cate=ajY= and execute the file“SETUP.EXE” to install the OPOS Control Manager. To add the customer display under OPOS control please set in OPOS Control Manager device name PD3x-Line Display” in the top row. SPECIFICATION OPTICAL Number of digits Dot matrix Digit height Digit width Display color 20 digits/row, 2 rows 5 X 7 dots 9.03 mm 5.25 mm Yellow Green Blue or Green (PD-2800 UE) MECHANICAL Total Height(PD-2800 UE) Total Width (PD-2800 UE) Total Depth (PD-2800 UE) Total Height (PD-2600) 395~265 mm 200 mm 116 mm 410 mm Page 14 Total Width (PD-2600) Total Depth (PD-2600) Total Height (PD-2601) Total Height (PD-2602) Total Height (PD-2603) Display Head Height Display Head Width Display Head Depth Display Head Height(PD-2800 UE) Display Head Width(PD-2800 UE) Display Head Depth(PD-2800 UE) 220 mm 110 mm 392 mm 325 mm 375 mm 58 mm 197 mm 39.5 mm 58.5 mm 200 mm 56.5 mm Case color Black ELECTRICAL Power from interface port of PD-2600UE/2800UE series : + 5VDC 800 mA ENVIRONMENTAL Operating temperature 0° to + 40°C Storage temperature -10° to + 60°C Operating humidity 20% to 85%, non-condensing Storage humidity 5% to 90%, non-condensing WARNING: If the user opens the pole display housing to make any modification, all the product warranty will be voided. NOTE: Please refer to Posiflex Product Information CD or visit our web http://www/posiflex.com.tw for further information when needed. APPENDIX: COMMAND CODES SUMMARY Command Function Command Function ADM mode 0C Clear Display 10 Write Decimal Point 0D Carriage Return 1E Write Field 1 0E Write Line 1 1F Write Field 2 0F Write Line 2 Attention code + Function code + data + CR AEDEX mode 1 Display top 7 Stop trapping 2 Display bottom 8 Change attention code 4 On going scroll 9 Display whole area 6 One time scroll EPSON mode Move cursor left US ; Mark semicolon BS Page 15 Move cursor right Move cursor down Move cursor home Clear display screen Move cursor leftmost US < US E US T US X CAN Clear cursor line ESC & US MD1 Overwrite mode ESC ? US MD2 Vertical scroll mode Horizontal scroll mode Move cursor up Move cursor rightmost Move cursor specified US @ HT LF HOM CLR CR US MD3 US LF US CR US $ US , Mark comma US . Mark period FUTABA mode 1F Reset 04 bb Brightness control 1E pp Change code page International 1C 0i character set 05 · · · 0D Moving sign 06 x1 x2 Change leading code 01 Set pass through flag Clear pass through x1 x2 02 flag NORIRAKE mode 1B 49 Reset 0E Clear 1B 4C bb Brightness control 1E pp Change code page International 1C 0i character set ESC t Clear mark Set/cancel blinking Set and display counter Brightness adjustment Set/cancel user-defined char. Define user-defined char. Delete user-defined char. Show firmware version Select peripheral device Select code page table US B Move cursor to bottom ESC @ Initialize display ESC % ESC = US U International character set Display counter 10 pp 13 14 Digit select Cursor on Cursor off 08 Back space 11 09 12 09 11 0A Horizontal tab Vertical scroll up Cursor up/down 12 0A Line feed 0D Carriage return 1B 54 nn 15 16 08 Cursor blinking Rate Cursor on Cursor off Back space 11 09 Horizontal tab ESC R Page 16 12 09 Vertical scroll up 05 · · · 0D Moving sign 06 x1 x2 Change leading code 11 0A Cursor up/down 01 Set pass through flag 12 0A Line feed Clear pass through x1 x2 02 0C Form feed flag 1B 48 pp Digit select 0D Carriage return 1B 43 ad x1 User defined fonts ~ x5 UTC Pass through mode Command [+data] [+CR] ESC uA Top line message ESC uH Redefine graphic ESC uA CR Clear top line ESC uIx Display fonts ESC uB CR Clear bottom line ESC uE Set/Display time ESC uB Bottom line message ESC utcEx Change d mode ESC uD Continuous scrolling ESC utcFx Change RS mode ESC uF Top line scroll once ESC RS * Direct to pole mode UTC Direct to pole mode Brightness Cursor off EOT x DC4 Back spacing Clear to end of line BS CAN Horizontal tab Clear to end of display HT EM Line feed Display fonts LF SUB x Carriage return ESC d * Pass thru mode CR Display position Flashing text start DLE FS Normal display mode GS Flashing text end DC1 Vertical scroll mode RS Clear display DC2 Cursor on Reset display DC3 US After selecting code page table 19, the Euro Dollar Sign is designated at code <D5>h. After selecting code page table 96, the Rupee Dollar Sign is designated at code <60>h. INTERNATIONAL CHARACTER SETS Hex code 0 1 2 3 4 5 Country USA France Germany United Kingdom Denmark I Sweden Hex code 6 7 8 9 A B Country Italy Spain Japan Norway Denmark II Ex-Jugoslavia Page 17
advertisement
Key Features
- Vacuum Fluorescent Display (VFD) with dark blue characters on yellow-green backlight
- Two-line display with 20 characters per line
- Display frame can rotate horizontally 270° freely
- Various command emulation modes selectable by DIP switch
- Support for 18 Code Pages of 128 characters each
- Support for 12 international character sets of 12 characters each
- 3 typical USB interface modes selectable by DIP switch
- Supports UPOS1.8
- Euro and Rupee dollar signs supported
