Simplicity 030207-0 Wiring Diagram

 Wiring Diagram &
Schematic

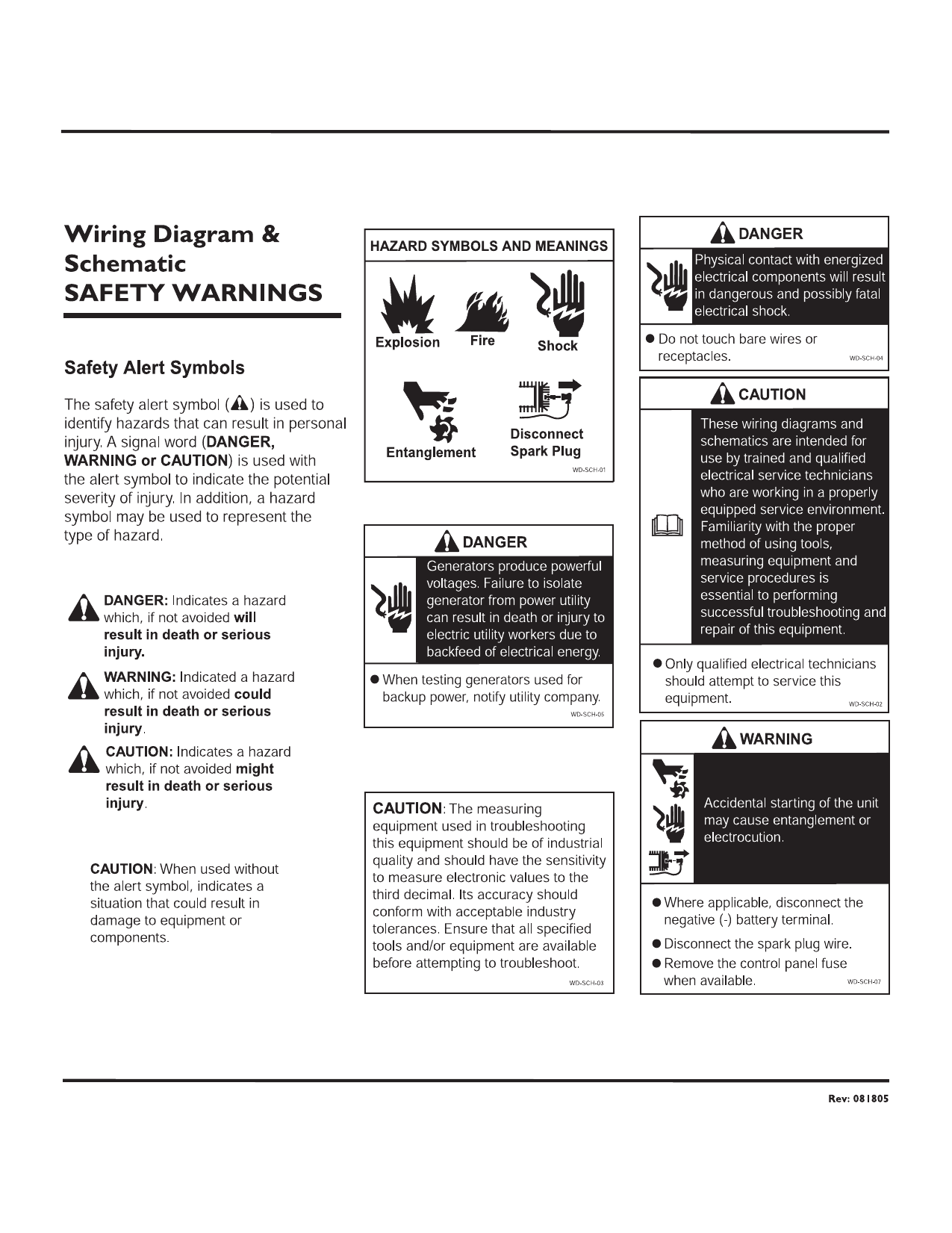

SAFETY WARNINGS
Safety Alert Symbols
The safety alert symbol (44) is used to
identify hazards that can result in personal
injury. A signal word (DANGER,
WARNING or CAUTION) is used with
the alert symbol to indicate the potential
severity of injury. In addition, a hazard
symbol may be used to represent the
type of hazard.
DANGER: Indicates a hazard
which, if not avoided will
result in death or serious
injury.
WARNING: Indicated a hazard
which, if not avoided could
result in death or serious
injury.
CAUTION: Indicates a hazard
which, if not avoided might
result in death or serious
injury.
CAUTION: When used without
the alert symbol, indicates a
situation that could result in
damage to equipment or
components.
HAZARD SYMBOLS AND MEANINGS
“ Ч
Explosion Fire Shock
ле
E сети
Entanglement Spark Plug
WD-SCH-01
ÁN DANGER
Physical contact with energized
electrical components will result
in dangerous and possibly fatal
electrical shock.
e Do not touch bare wires or
receptacies.
WD-SCH-04
ÁN DANGER
Generators produce powerful
voltages. Failure to isolate
generator from power utility
can result in death or injury to
electric utility workers due to
backfeed of electrical energy.
e When testing generators used for
backup power, notify utility company.
WD-SCH-05
ÁN CAUTION
These wiring diagrams and
schematics are intended for
use by trained and qualified
electrical service technicians
who are working in a properly
equipped service environment.
Familiarity with the proper
method of using tools,
measuring equipment and
service procedures is
essential to performing
successful troubleshooting and
repair of this equipment.
e Only qualified electrical technicians
should attempt to service this
equipment.
WD-SCH-02
CAUTION: The measuring
equipment used in troubleshooting
this equipment should be of industrial
quality and should have the sensitivity
to measure electronic values to the
third decimal. Its accuracy should
conform with acceptable industry
tolerances. Ensure that all specified
tools and/or equipment are available
before attempting to troubleshoot.
WD-SCH-03
Æà WARNING
Accidental starting of the unit
may cause entanglement or
electrocution.
@ Where applicable, disconnect the
negative (-) battery terminal.
® Disconnect the spark plug wire.
® Remove the control panel fuse
when available.
WD-SCH-07
Rev: 081805
SCHEMATIC
10000 Watt Portable Generator
11 o 11
hie 55 22 a
A= 1 022 yp TAGE
REGULATIR
BLACK 2 6 WHITE
13 se 16 & 0 5 ?
2 DPE 6
SW
13 ~~ 1988 о | 4 FIELD 4
«q
tA | © 22
START RUN
1A POWER POWER 44
600V
a A 0 P-2 P-3 P-1 P-4
21
TB-2 TB-1 Q TB-1
33
ss 11 | 44
pa >
TB-3
BATTERY CHARGE 21
5 155 |e A 155
(= 156 ET A 156 В ст
.
BC св!
12vDC SMICB 1 ( ) 40A “\ A
13A све 15 104 55 55 THROTTLE 2p
fe Y y =| АЕ
о
1Р Сын и
све
13A | 30A
2P J
44B
120/240ÿ
30A
118 y ERY 44B
11A
44A
SPARK
PLUG
#1
SPARK
PLUG
#2
ENG.
IGNITION
18A
ENG.
IGNITION
B-BRASS SCREW
S-SILVER SCREW
GR-GREEN SCREW
NE
RUN/STOP
10000 Watt Portable Generator
WIRING DIAGRAM
THROTTLE
CONTROL
OTOR
SPARK
PLUG #1
SPARK
PLUG #2
VOLTAGE
REGULATOR
BOARD
POS
BATTERY
12vDC
BATTERY
CHARGE
RECTIFIER
NOTE: POSITIVE BRUSH IS CLOSEST TO BEARING
