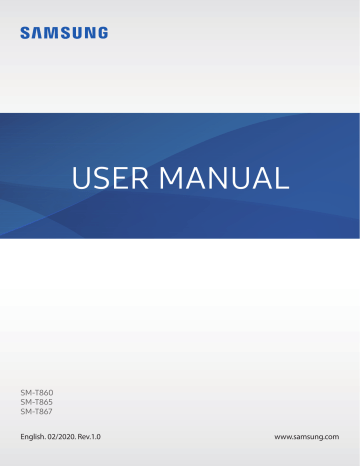

USER MANUAL
SM-T860
SM-T865
SM-T867
English. 02/2020. Rev.1.0
www.samsung.com
Table of Contents
Basics
6 Device overheating situations and solutions
18 SIM or USIM card (nano-SIM card)
22 Turning the device on and off
25 Transferring data from your previous device (Smart Switch)
40 Screen capture and screen record
Apps and features
45 Installing or uninstalling apps
2
Table of Contents
Settings
159 Data saver (SM-T865, SM-T867)
160 Mobile data only apps (SM-T865,
160 Mobile Hotspot and Tethering
164 Dolby Atmos (surround sound)
167 Changing the screen mode or adjusting the display colour
192 Digital Wellbeing and parental controls
Appendix
3
Basics
Read me first
Please read this manual before using the device to ensure safe and proper use.
• Descriptions are based on the device’s default settings.
• Some content may differ from your device depending on the region, service provider, model specifications, or device’s software.
• Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in.
• Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung.
• Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly.
• Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media.
• You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. (SM-T865, SM-T867)
• Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers.
• Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty.
4
Basics
• Depending on the region or service provider, a screen protector is attached for protection during production and distribution. Damage to the attached screen protector is not covered by the warranty.
• You can see the touchscreen clearly even in strong outdoor sunlight by automatically adjusting the contrast range based on the surrounding environment. Due to the nature of the product, displaying fixed graphics for extended periods may result in afterimages
(screen burn-in) or ghosting.
– It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods and turn off the touchscreen when not using the device.
– You can set the touchscreen to turn off automatically when you are not using it.
Launch the Settings app, tap Display → Screen timeout , and then select the length of time you want the device to wait before turning off the touchscreen.
– To set the touchscreen to automatically adjust its brightness based on the surrounding environment, launch the Settings app, tap Display , and then tap the
Adaptive brightness switch to activate it.
• Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC).
If your device is approved by the FCC, you can view the FCC ID of the device. To view the
FCC ID, launch the Settings app and tap About tablet → Status . If your device does not have an FCC ID, it means that the device has not been authorised for sale in the U.S. or its territories and may only be brought to the U.S. for the owner’s personal use.
• Depending on the region, you can view the regulatory information on the device. To view the information, launch the Settings app and tap About tablet → Regulatory information .
Instructional icons
Warning : situations that could cause injury to yourself or others
Caution : situations that could cause damage to your device or other equipment
Notice : notes, usage tips, or additional information
5
Basics
Device overheating situations and solutions
When the device heats up while charging the battery
While charging, the device and the charger may become hot. During wireless charging or fast charging, the device may feel hotter to the touch. This does not affect the device’s lifespan or performance and is in the device’s normal range of operation. If the battery becomes too hot, the charger may stop charging.
Do the following when the device heats up:
• Disconnect the charger from the device and close any running apps. Wait for the device to cool down and then begin charging the device again.
• If the lower part of the device overheats, it could be because the connected USB cable is damaged. Replace the damaged USB cable with a new Samsung-approved one.
• When using a wireless charger, do not place foreign materials, such as metal objects, magnets, and magnetic stripe cards, between the device and the wireless charger.
The wireless charging or fast charging feature is only available on supported models.
When the device heats up during use
When you use features or apps that require more power or use them for extended periods, your device may temporarily heat up due to increased battery consumption. Close any running apps and do not use the device for a while.
The following are examples of situations in which the device may overheat. Depending on the functions and apps you use, these examples may not apply to your model.
• During the initial setup after purchase or when restoring data
• When downloading large files
6
Basics
• When using apps that require more power or using apps for extended periods
– When playing high-quality games for extended periods
– When recording videos for extended periods
– When streaming videos while using the maximum brightness setting
– When connecting to a TV
• While multitasking (or, when running many apps in the background)
– When using Multi window
– When updating or installing apps while recording videos
– When downloading large files during a video call
– When recording videos while using a navigation app
• When using large amount of data for syncing with the cloud, email, or other accounts
• When using a navigation app in a car while the device is placed in direct sunlight
• When using the mobile hotspot and tethering feature
• When using the device in areas with weak signals or no reception
• When charging the battery with a damaged USB cable
• When the device’s multipurpose jack is damaged or exposed to foreign materials, such as liquid, dust, metal powder, and pencil lead
• When you are roaming
Do the following when the device heats up:
• Keep the device updated with the latest software.
• Conflicts between running apps may cause the device to heat up. Restart the device.
• Deactivate the Wi-Fi, GPS, and Bluetooth features when not using them.
• Close apps that increase battery consumption or that run in the background when not in use.
• Delete unnecessary files or unused apps.
• Decrease the screen brightness.
• If the device overheats or feels hot for a prolonged period, do not use it for a while. If the device continues to overheat, contact a Samsung Service Centre.
7
Basics
Precautions for device overheating
If you begin to feel uncomfortable due to the device overheating, stop using the device.
When the device heats up, the features and performance may be limited or the device may turn off to cool down. The feature is only available on supported models.
• If the device overheats and reaches a certain temperature, a warning message will appear to prevent device failure, skin irritations and damages, and battery leakage. To lower the device’s temperature, the screen brightness and the performance speed will be limited and battery charging will stop. Running apps will be closed and all calling and other features will be limited, except for emergency calls, until the device cools down.
• If the second message appears due to a further increase of the device’s temperature, the device will turn off. Do not use the device until the device’s temperature drops below the specified level. If the second warning message appears during an emergency call, the call will not be disconnected by a forced shut down.
Precautions for operating environment
Your device may heat up due to the environment in the following conditions. Use caution to avoid shortening the battery’s lifespan, damaging the device, or causing a fire.
• Do not store your device in very cold or very hot temperatures.
• Do not expose your device to direct sunlight for extended periods.
• Do not use or store your device for extended periods in very hot areas, such as inside a car in the summertime.
• Do not place the device in any areas that may overheat, such as on an electric heating mat.
• Do not store your device near or in heaters, microwaves, hot cooking equipment, or high pressure containers.
• Do not use a cable whose covering is peeled off or damaged, and do not use any charger or battery that is damaged or malfunctioning.
8
Basics
Device layout and functions
Package contents
Refer to the quick start guide for package contents.
• The items supplied with the device and any available accessories may vary depending on the region or service provider.
• The supplied items are designed only for this device and may not be compatible with other devices.
• Appearances and specifications are subject to change without prior notice.
• You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.
• Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.
• Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.
• The earphones (USB Type-C) that support digital output can be used with the device. However, the device may not be compatible with earphones that use a different audio output method or were made by a different manufacturer.
9
Basics
Device layout
Front camera
Microphone
Speaker
Touchscreen
Keyboard dock port
Fingerprint recognition sensor
Earphone jack /
Multipurpose jack (USB
Type-C)
Main antenna
(SM-T865, SM-T867)
Rear camera (Dual)
S Pen's charging groove
Speaker
Light sensor
Speaker
Side key (Power/Bixby)
Volume key
Microphone
SM-T865, SM-T867:
SIM card / Memory card tray
SM-T860: Memory card tray
GPS antenna
Speaker
10
Basics
• Your device contains magnets, which may affect medical devices, such as pacemakers or implantable cardioverter defibrillators. If you are using any of these medical devices, keep your device a safe distance from them and consult with your physician before you use the device.
• Keep a safe distance between your device and objects that are affected by magnets. Objects such as credit cards, passbooks, access cards, boarding passes, or parking passes may be damaged or disabled by the magnets in the device.
• When using the speakers, such as when playing media files, do not place the device close to your ears.
• Be careful not to expose the camera lens to a strong light source, such as direct sunlight. If the camera lens is exposed to a strong light source, such as direct sunlight, the camera image sensor may be damaged. A damaged image sensor is irreparable and will cause dots or spots in pictures.
• If you use the device with its glass or acrylic body broken, there may be a risk of injury. Use the device only after it has been repaired at a Samsung Service Centre.
• Connectivity problems and battery drain may occur in the following situations:
– If you attach metallic stickers on the antenna area of the device
– If you attach a device cover made with metallic material to the device
– If you cover the device’s antenna area with your hands or other objects while using certain features, such as calls or the mobile data connection (SM-T865,
SM-T867)
• Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction.
• Do not cover the light sensor area with screen accessories, such as a screen protector or stickers. Doing so may cause the sensor to malfunction.
• Do not allow water to contact the touchscreen. The touchscreen may malfunction in humid conditions or when exposed to water.
11
Basics
Hard keys
Side key (Power/Bixby)
Volume key
Key
Volume key
Side key
Side key +
Volume Down key
Function
• Press to adjust the device volume.
• When the device is off, press and hold to turn it on.
• Press to turn on or lock the screen.
•
Press and hold to start a conversation with Bixby. Refer to Using
• Press twice to launch the app or feature you set.
• Press simultaneously to capture a screenshot.
• Press and hold simultaneously to turn off the device.
Setting the Side key
Select an app or feature to launch by pressing the Side key twice or pressing and holding the
Side key.
Launch the Settings app, tap Advanced features → Side key , and then select an option you want.
Soft buttons
Recents button
Home button
Back button
When you turn on the screen, the soft buttons will appear at the bottom of the screen. The soft buttons are set to the Recents button, Home button, and Back button by default. Refer to
for more information.
12
Basics
S Pen
S Pen button
S Pen nib
Charging contact
Name
S Pen nib
S Pen button
Functions
• Use the S Pen to write, draw, or perform touch actions on the screen.
• Hover the S Pen over items on the screen to access additional
S Pen features, such as the Air view feature.
• Press and hold the S Pen button to launch the preset app. If you press the button once or twice while using apps, the device will perform certain features. Refer to
for more information.
• Hover the S Pen over the screen and press the S Pen button to display the Air command features.
• While pressing and holding the S Pen button, drag the S Pen over items to select them.
13
Basics
Charging the S Pen
The S Pen must be charged before you can control apps remotely by using the S Pen button.
When the S Pen and the S Pen’s charging groove are properly aligned, charging will begin.
• Even if the S Pen has been fully discharged, you can use other S Pen features, such as tapping the touchscreen or the Air command features.
• If the device and the S Pen are not attached like in the image, the S Pen may not be charged. Attach the S Pen like it is in the image.
• If you use the device on the floor with the S Pen attached to the S Pen’s charging groove, it may scratch the S Pen.
Replacing the S Pen nib
If the nib is dull, replace it with a new one.
1
Firmly hold the nib with the tweezers and remove it.
2
Insert a new nib into the S Pen.
1 2
14
Basics
Be careful not to pinch your fingers with the tweezers.
• Do not reuse old nibs. Doing so may cause the S Pen to malfunction.
• Do not press the nib excessively when inserting the nib into the S Pen.
• Do not insert the round end of the nib into the S Pen. Doing so may cause damage to the S Pen or your device.
• Do not bend or apply excessive pressure with the S Pen while using it. The S Pen may be damaged or the nib may be deformed.
• Do not hard press on the screen with the S Pen. The pen nib may be deformed.
• If you use the S Pen at sharp angles on the screen, the device may not recognise the S Pen actions.
• If the S Pen is not working properly, take it to a Samsung Service Centre.
Battery
Charging the battery
Charge the battery before using it for the first time or when it has been unused for extended periods.
Use only Samsung-approved battery, charger, and cable specifically designed for your device. Incompatible battery, charger, and cable can cause serious injuries or damage to your device.
• Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.
• Use only USB Type-C cable supplied with the device. The device may be damaged if you use Micro USB cable.
To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.
15
Basics
1
Connect the USB cable to the USB power adaptor.
2
Plug the USB cable into the device’s multipurpose jack.
3
Plug the USB power adaptor into an electric socket.
4
After fully charging, disconnect the charger from the device. Then, unplug the charger from the electric socket.
Reducing the battery consumption
Your device provides various options that help you conserve battery power.
• Optimise the device using the device care feature.
• When you are not using the device, turn off the screen by pressing the Side key.
• Activate power saving mode.
• Close unnecessary apps.
• Deactivate the Bluetooth feature when not in use.
• Deactivate auto-syncing of apps that need to be synced.
• Decrease the backlight time.
• Decrease the screen brightness.
16
Basics
Battery charging tips and precautions
• When the battery power is low, the battery icon appears empty.
• If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.
• If you use multiple apps at once, network apps, or apps that need a connection to another device, the battery will drain quickly. To avoid losing power during a data transfer, always use these apps after fully charging the battery.
• Using a power source other than the charger, such as a computer, may result in a slower charging speed due to a lower electric current.
• The device can be used while it is charging, but it may take longer to fully charge the battery.
• If the device receives an unstable power supply while charging, the touchscreen may not function. If this happens, unplug the charger from the device.
• While charging, the device and the charger may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging. If this occurs during wireless charging, disconnect the device from the charger to let it cool down, then charge the device again later.
• If you charge the device while the multipurpose jack is wet, the device may be damaged.
Thoroughly dry the multipurpose jack before charging the device.
• If the device is not charging properly, take the device and the charger to a Samsung
Service Centre.
17
Basics
Fast charging
The device has a built-in fast charging feature. You can charge the battery more quickly while the device or its screen is turned off.
Increasing the charging speed
To increase the charging speed, turn the device or its screen off when you charge the battery.
If the fast charging feature is not activated, launch the Settings app, tap Device care →
Battery → Charging , and then tap the Fast charging switch to activate it.
• While charging, you cannot activate or deactivate this feature.
• You cannot use the built-in fast charging feature when you charge the battery using a standard battery charger.
• If the device heats up or the ambient air temperature rises, the charging speed may decrease automatically. This is a normal operating condition to prevent damage to the device.
SIM or USIM card (nano-SIM card) (SM-T865,
SM-T867)
Installing the SIM or USIM card
Insert the SIM or USIM card provided by the mobile telephone service provider.
• Use only a nano-SIM card.
• Use caution not to lose or let others use the SIM or USIM card. Samsung is not responsible for any damages or inconveniences caused by lost or stolen cards.
Some services that require a network connection may not be available depending on the service provider.
18
Basics
1 2 3
4 5
1
Insert the ejection pin into the hole on the tray to loosen the tray.
Ensure that the ejection pin is perpendicular to the hole. Otherwise, the device may be damaged.
2
Pull out the tray gently from the tray slot.
3
Place the SIM or USIM card on the tray with the gold-coloured contacts facing upwards.
4
Gently press the SIM or USIM card into the tray to secure it.
If the card is not fixed firmly into the tray, the SIM card may leave or fall out of the tray.
5
Insert the tray back into the tray slot.
• If you insert the tray into your device while the tray is wet, your device may be damaged. Always make sure the tray is dry.
• Fully insert the tray into the tray slot to prevent liquid from entering your device.
19
Basics
Memory card (microSD card)
Installing a memory card
Your device’s memory card capacity may vary from other models and some memory cards may not be compatible with your device depending on the memory card manufacturer and type. To view your device’s maximum memory card capacity, refer to the Samsung website.
• Some memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it.
• Use caution to insert the memory card right-side up.
• The device supports the FAT and the exFAT file systems for memory cards. When inserting a card formatted in a different file system, the device will ask to reformat the card or will not recognise the card. To use the memory card, you must format it.
If your device cannot format or recognise the memory card, contact the memory card manufacturer or a Samsung Service Centre.
• Frequent writing and erasing of data shortens the lifespan of memory cards.
• When inserting a memory card into the device, the memory card’s file directory appears in the My Files → SD card folder.
1 2 3
4 5
20
Basics
1
Insert the ejection pin into the hole on the tray to loosen the tray.
Ensure that the ejection pin is perpendicular to the hole. Otherwise, the device may be damaged.
2
Pull out the tray gently from the tray slot.
When you remove the tray from the device, the mobile data connection will be disabled. (SM-T865, SM-T867)
3
Place a memory card on the tray with the gold-coloured contacts facing downwards.
4
Gently press the memory card into the tray to secure it.
If the card is not fixed firmly into the tray, the memory card may leave or fall out of the tray.
5
Insert the tray back into the tray slot.
• If you insert the tray into your device while the tray is wet, your device may be damaged. Always make sure the tray is dry.
• Fully insert the tray into the tray slot to prevent liquid from entering your device.
Removing the memory card
Before removing the memory card, first unmount it for safe removal.
Launch the Settings app and tap Device care → Storage → Advanced → SD card →
Unmount .
Do not remove external storage, such as a memory card or USB storage, while the device is transferring or accessing information, or right after transferring data. Doing so can cause data to be corrupted or lost or cause damage to the external storage or device. Samsung is not responsible for losses, including loss of data, resulting from the misuse of external storage devices.
21
Basics
Formatting the memory card
A memory card formatted on a computer may not be compatible with the device. Format the memory card on the device.
Launch the Settings app and tap Device care → Storage → Advanced → SD card →
Format .
Before formatting the memory card, remember to make backup copies of all important data stored in the memory card. The manufacturer’s warranty does not cover loss of data resulting from user actions.
Turning the device on and off
Follow all posted warnings and directions from authorised personnel in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals.
Turning the device on
Press and hold the Side key for a few seconds to turn on the device.
When you turn on your device for the first time or after performing a data reset, follow the on-screen instructions to set up your device.
Turning the device off
1
To turn off the device, press and hold the Side key and the Volume Down key simultaneously. Alternatively, open the notification panel and tap .
Side key
Volume Down key
22
Basics
2
Tap Power off .
To restart the device, tap Restart .
You can set the device to turn off when you press and hold the Side key. Launch the
Settings app, tap Advanced features → Side key , and then tap Power off menu under Press and hold .
Forcing restart
If your device is frozen and unresponsive, press and hold the Side key and the Volume Down key simultaneously for more than 7 seconds to restart it.
Initial setup
When you turn on your device for the first time or after performing a data reset, follow the on-screen instructions to set up your device.
1
Press and hold the Side key for a few seconds to turn on the device.
2
Select your preferred device language and select .
Select a language.
3
Follow the on-screen instructions to complete the setup.
The Home screen will appear.
If you do not connect to a Wi-Fi network, you may not be able to set up some device features during the initial setup.
23
Basics
Samsung account
Your Samsung account is an integrated account service that allows you to use a variety of
Samsung services provided by mobile devices, TVs, and the Samsung website.
To check the list of services that can be used with your Samsung account, visit account.samsung.com
. For more information on Samsung accounts, launch the Settings app and tap Accounts and backup → Accounts → Samsung account → → Help .
Creating a Samsung account
If you do not have a Samsung account, you should create one. You can create a Samsung account using your email address.
1
Launch the Settings app and tap Accounts and backup → Accounts → Add account →
Samsung account .
Alternatively, launch the Settings app and tap .
2
Tap Create account .
3
Follow the on-screen instructions to complete creating your account.
Signing in to your Samsung account
If you already have a Samsung account, sign in to your Samsung account.
1
Launch the Settings app and tap Accounts and backup → Accounts → Add account →
Samsung account .
Alternatively, launch the Settings app and tap .
2
Enter your Samsung account ID and password and tap Sign in .
3
Follow the on-screen instructions to complete signing in to your Samsung account.
24
Basics
Finding your ID and resetting your password
If you forget your Samsung account ID or password, tap Find ID or Reset password on the
Samsung account sign-in screen. You can find your ID or reset your password after you enter the required information.
Removing your Samsung account
When you remove your Samsung account from the device, your data, such as contacts or events, will also be removed.
1
Launch the Settings app and tap Accounts and backup → Accounts .
2
Tap Samsung account → Personal info → → Remove account .
3
Tap Remove , enter your Samsung account password, and then tap OK .
Transferring data from your previous device
(Smart Switch)
You can use Smart Switch to transfer data from your previous device to your new device.
Launch the Settings app and tap Accounts and backup → Smart Switch .
• This feature may not be supported on some devices or computers.
• Limitations apply. Visit www.samsung.com/smartswitch for details. Samsung takes copyright seriously. Only transfer content that you own or have the right to transfer.
Transferring data wirelessly
Transfer data from your previous device to your device wirelessly via Wi-Fi Direct.
1
On the previous device, launch Smart Switch .
If you do not have the app, download it from Galaxy Store or Play Store .
2
On your device, launch the Settings app and tap Accounts and backup → Smart
Switch .
25
Basics
3
Place the devices near each other.
4
On the previous device, tap Send data → Wireless .
5
On your device, select an item to bring and tap Transfer .
6
Follow the on-screen instructions to transfer data from your previous device.
After the data is done transferring, you can view a list of the transferred data on your device.
Backing up and restoring data using external storage
Transfer data using external storage, such as a microSD card.
1
Back up data from your previous device to external storage.
2
Insert or connect the external storage device to your device.
3
On your device, launch the Settings app and tap Accounts and backup → Smart Switch
→ → Restore .
4
Follow the on-screen instructions to transfer data from external storage.
Transferring backup data from a computer
Transfer data between your device and a computer. You must download the Smart Switch computer version app from www.samsung.com/smartswitch . Back up data from your previous device to a computer and import the data to your device.
1
On the computer, visit www.samsung.com/smartswitch to download Smart Switch.
2
On the computer, launch Smart Switch.
If your previous device is not a Samsung device, back up data to a computer using a program provided by the device’s manufacturer. Then, skip to the fifth step.
26
Basics
3
Connect your previous device to the computer using the device’s USB cable.
4
On the computer, follow the on-screen instructions to back up data from the device.
Then, disconnect your previous device from the computer.
5
Connect your device to the computer using the USB cable.
6
On the computer, follow the on-screen instructions to transfer data to your device.
Understanding the screen
Controlling the touchscreen
• Do not allow the touchscreen to come into contact with other electrical devices.
Electrostatic discharges can cause the touchscreen to malfunction.
• To avoid damaging the touchscreen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips.
• It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods. Doing so may result in afterimages (screen burn-in) or ghosting.
• The device may not recognise touch inputs close to the edges of the screen, which are outside of the touch input area.
• It is recommended to use fingers or the S Pen when you use the touchscreen.
27
Basics
Tapping
Tap the screen.
Tapping and holding
Tap and hold the screen for approximately 2 seconds.
Dragging
Tap and hold an item and drag it to the target position.
28
Basics
Double-tapping
Double-tap the screen.
Swiping
Swipe upwards, downwards, to the left, or to the right.
Spreading and pinching
Spread two fingers apart or pinch on the screen.
29
Basics
Navigation bar (soft buttons)
When you turn on the screen, the soft buttons will appear on the navigation bar at the bottom of the screen. The soft buttons are set to the Recents button, Home button, and Back button by default. The functions of the buttons can change according to the app currently being used or usage environment.
Button
Recents
Home
Back
Function
• Tap to open the list of recent apps.
• Tap to return to the Home screen.
• Tap and hold to launch the Google Assistant app.
• Tap to return to the previous screen.
Hiding the navigation bar
View files or use apps on a wider screen by hiding the navigation bar.
Launch the Settings app, tap Display → Navigation bar , and then tap Full screen gestures under Navigation type . The navigation bar will be hidden and the gesture hints will appear.
Tap More options and select an option you want.
• Swipe from bottom : The gesture hints will appear where the soft buttons are located. To use the soft buttons, drag the gesture hint of the desired button upwards.
• Swipe from sides and bottom :
– Swipe up from the bottom of the screen to move to the Home screen.
– Swipe up and hold to view the list of recent apps.
– Swipe inward from either side of the screen to return to the previous screen.
– Swipe inward from one of the bottom corners to launch the Google Assistant app.
30
Basics
Swipe from bottom Swipe from sides and bottom
If you want to hide the gesture hints at the bottom of the screen, tap the Gesture hints switch to deactivate it.
Home screen and Apps screen
The Home screen is the starting point for accessing all of the device’s features. It displays widgets, shortcuts to apps, and more.
The Apps screen displays icons for all apps, including newly installed apps.
The screen may appear differently depending on the region or service provider.
A widget
Favourite apps
Navigation bar (soft buttons)
31
Screen indicator
Basics
Switching between Home and Apps screens
On the Home screen, swipe upwards or downwards to open the Apps screen.
To return to the Home screen, swipe upwards or downwards on the Apps screen.
Alternatively, tap the Home button or the Back button.
Home screen Apps screen
If you add the Apps button on the Home screen, you can open the Apps screen by tapping the button. On the Home screen, tap and hold an empty area, tap Home screen settings , and then tap the Apps button switch to activate it. The Apps button will be added at the bottom of the Home screen.
Apps button
32
Basics
Displaying the screen in landscape mode
Rotate the device until it is horizontal to view the screen in landscape mode.
Moving items
Tap and hold an item, and then drag it to a new location. To move the item to another panel, drag it to the side of the screen.
To add a shortcut to an app on the Home screen, tap and hold an item on the Apps screen, and then tap Add to Home . A shortcut to the app will be added on the Home screen.
You can also move frequently used apps to the shortcuts area at the bottom of the Home screen.
33
Basics
Creating folders
Create folders and gather similar apps to quickly access and launch apps.
On the Home screen or the Apps screen, tap and hold an app, and then drag it over another app.
A new folder containing the selected apps will be created. Tap Folder name and enter a folder name.
• Adding more apps
Tap on the folder. Tick the apps to add and tap Done . You can also add an app by dragging it to the folder.
• Moving apps from a folder
Tap and hold an app to drag it to a new location.
• Deleting a folder
Tap and hold a folder, and then tap Delete folder . Only the folder will be deleted. The folder’s apps will be relocated to the Apps screen.
34
Basics
Editing the Home screen
On the Home screen, tap and hold an empty area, or pinch your fingers together to access the editing options. You can set the wallpaper, add widgets, and more. You can also add, delete, or rearrange Home screen panels.
• Adding panels: Swipe to the left, and then tap .
• Moving panels: Tap and hold a panel preview, and then drag it to a new location.
• Deleting panels: Tap on the panel.
• Wallpapers : Change the wallpaper settings for the Home screen and the locked screen.
• Widgets : Widgets are small apps that launch specific app functions to provide information and convenient access on your Home screen. Tap and hold a widget, and then drag it to the Home screen. The widget will be added on the Home screen.
• Home screen settings : Configure settings for the Home screen, such as the screen grid or layout.
Displaying all apps on the Home screen
Without using a separate Apps screen, you can set the device to display all apps on the
Home screen. On the Home screen, tap and hold an empty area, and then tap Home screen settings → Home screen layout → Home screen only → Apply .
You can now access all your apps by swiping to the left on the Home screen.
35
Basics
Indicator icons
Indicator icons appear on the status bar at the top of the screen. The icons listed in the table below are most common.
• The status bar may not appear at the top of the screen in some apps. To display the status bar, drag down from the top of the screen.
• Some indicator icons appear only when you open the notification panel.
• The indicator icons may appear differently depending on the service provider or model.
Icon
/
Meaning
No signal
Signal strength
Roaming (outside of normal service area)
GPRS network connected
EDGE network connected
UMTS network connected
HSDPA network connected
HSPA+ network connected
LTE network connected
Wi-Fi connected
Bluetooth feature activated
S Pen connected
S Pen disconnected
S Pen battery power level
Location services being used
Call in progress
Missed call
New text or multimedia message
Alarm activated
36
Basics
Icon Meaning
Mute mode activated
Vibration mode activated
Flight mode activated
Error occurred or caution required
Battery charging
Battery power level
Lock screen
Pressing the Side key turns off the screen and locks it. Also, the screen turns off and automatically locks if the device is not used for a specified period.
To unlock the screen, swipe in any direction when the screen turns on.
If the screen is off, press the Side key to turn on the screen. Alternatively, double-tap the screen.
Locked screen
37
Basics
Changing the screen lock method
To change the screen lock method, launch the Settings app, tap Lock screen → Screen lock type , and then select a method.
When you set a pattern, PIN, password, or your biometric data for the screen lock method, you can protect your personal information by preventing others from accessing your device.
After setting the screen lock method, the device will require an unlock code whenever unlocking it.
• Swipe : Swipe in any direction on the screen to unlock it.
• Pattern : Draw a pattern with four or more dots to unlock the screen.
• PIN : Enter a PIN with at least four numbers to unlock the screen.
• Password : Enter a password with at least four characters, numbers, or symbols to unlock the screen.
• None : Do not set a screen lock method.
• Face
: Register your face to unlock the screen. Refer to Face recognition for more
information.
• Fingerprints
: Register your fingerprints to unlock the screen. Refer to Fingerprint recognition
for more information.
You can set your device to perform a factory data reset if you enter the unlock code incorrectly several times in a row and reach the attempt limit. Launch the Settings app, tap Lock screen → Secure lock settings , unlock the screen using the preset screen lock method, and then tap the Auto factory reset switch to activate it.
Notification panel
When you receive new notifications, indicator icons appear on the status bar. To see more information about the icons, open the notification panel and view the details.
To open the notification panel, drag the status bar downwards. To close the notification panel, swipe upwards on the screen.
38
Basics
You can use the following functions on the notification panel.
Quick setting buttons
View the notification details and perform various actions.
Control media on your device and connected nearby devices.
Access the notification settings.
Access the power options.
Launch Settings .
Control the nearby devices connected to your device, and
SmartThings devices and scenes.
Clear all notifications.
Using quick setting buttons
Tap quick setting buttons to activate certain features. Swipe downwards on the notification panel to view more buttons.
To change feature settings, tap the text under each button. To view more detailed settings, tap and hold a button.
To rearrange buttons, tap → Button order , tap and hold a button, and then drag it to another location.
39
Basics
Controlling media playback
Take control of music or video playback easily using the Media feature without launching related apps. You can also continue the playback on another device.
1
Open the notification panel and tap Media .
2
Tap the icons on the controller to control the playback.
To continue the playback on another device, tap and select a device you want.
Screen capture and screen record
Screen capture
Capture a screenshot while using the device and write on, draw on, crop, or share the captured screen. You can capture the current screen and scrollable area.
Use the following methods to capture a screenshot. Captured screenshots will be saved in
Gallery .
• Key capture: Press the Side key and the Volume Down key simultaneously.
• Swipe capture: Swipe your hand to the left or right across the screen.
• Air command capture: Hover the S Pen over the screen and press the S Pen button to open the Air command panel, and then, tap Screen write
. Refer to Screen write for more
information.
• It is not possible to capture a screenshot while using some apps and features.
• If capturing a screenshot by swiping is not activated, launch the Settings app, tap
Advanced features → Motions and gestures , and then tap the Palm swipe to capture switch to activate it.
40
Basics
After capturing a screenshot, use the following options on the toolbar at the bottom of the screen:
• : Capture the current content and the hidden content on an elongated page, such as a webpage. When you tap , the screen will automatically scroll down and more content will be captured.
• : Write or draw on the screenshot or crop a portion from the screenshot. The cropped area will be saved in Gallery .
• : Add tags to the screenshot. To search for screenshots by tag, tap Search at the top of the Apps screen.
• : Share the screenshot with others.
If the options are not visible on the captured screen, launch the Settings app, tap Advanced features → Screenshots and screen recorder , and then tap the
Screenshot toolbar switch to activate it.
Screen record
Record the screen while using your device.
Open the notification panel, swipe downwards, and then tap ( Screen recorder ) to activate it. After a countdown, recording will start.
• To write or draw on the screen, tap .
• To record the screen with a video overlay of yourself, tap .
When you are finished recording the video, tap . The video will be saved in Gallery .
To change the screen recorder settings, launch the Settings app and tap Advanced features → Screenshots and screen recorder → Screen recorder settings .
41
Basics
Entering text
Keyboard layout
A keyboard appears automatically when you enter text to send emails, create notes, and more.
Text entry is not supported in some languages. To enter text, you must change the input language to one of the supported languages.
Additional keyboard functions
View more keyboard functions.
Delete a preceding character.
Break to the next line.
Enter uppercase. For all caps, tap it twice.
Enter symbols.
Move the cursor.
Enter a space.
Changing the input language
Tap → Languages and types → Manage input languages and select the languages to use. When you select two or more languages, you can switch between the input languages by swiping to the left or right on the space key.
Changing the keyboard
On the navigation bar, tap to change the keyboard.
42
Basics
To change the keyboard type, tap → Languages and types , select a language, and then select the keyboard type you want.
If the keyboard button does not appear on the navigation bar, launch the
Settings app, tap General management → Language and input → On-screen keyboard , and then tap the Show Keyboard button switch to activate it.
Additional keyboard functions
Some features may not be available depending on the region or service provider.
• : Enter emoticons.
•
: Enter stickers. You can also enter My Emoji stickers that look like you. Refer to Using
My Emoji stickers in chats for more information.
• : Attach animated GIFs.
• : Switch to handwriting mode.
Switch to the standard keyboard.
• : Change the keyboard mode.
• : Enter text by voice.
• : Change the keyboard settings.
• → : Search for content on the device quickly and enter it.
• → : Translate text and enter it.
• → : Enter your personal information registered to Samsung Pass.
• → : Add an item from the clipboard.
• → : Open the text editing panel.
• → : Change the keyboard size.
• → / / : Enter stickers.
43
Basics
Copying and pasting
1
Tap and hold over text.
2
Drag or to select the desired text, or tap Select all to select all text.
3
Tap Copy or Cut .
The selected text is copied to the clipboard.
4
Tap and hold where the text is to be inserted and tap Paste .
To paste text that you have previously copied, tap Clipboard and select the text.
Dictionary
Look up definitions for words while using certain features, such as when browsing webpages.
1
Tap and hold over a word that you want to look up.
2
Tap Dictionary on the options list.
If a dictionary is not preinstalled on the device, tap Move to Manage dictionaries , tap next to a dictionary, and then tap Install to download it.
3
View the definition in the dictionary pop-up window.
To switch to the full screen view, tap . Tap the definition on the screen to view more definitions. In the detailed view, tap to add the word to your favourite words list or tap
Search Web to use the word as a search term.
44
Apps and features
Installing or uninstalling apps
Galaxy Store
Purchase and download apps. You can download apps that are specialised for Samsung
Galaxy devices.
Launch the Galaxy Store app.
This app may not be available depending on the region or service provider.
Installing apps
Browse apps by category or tap to search for a keyword.
Select an app to view information about it. To download free apps, tap Install . To purchase and download apps where charges apply, tap the price and follow the on-screen instructions.
To change the auto update settings, tap → → Auto update apps , and then select an option.
Play Store
Purchase and download apps.
Launch the Play Store app.
Installing apps
Browse apps by category or search for apps by keyword.
Select an app to view information about it. To download free apps, tap Install . To purchase and download apps where charges apply, tap the price and follow the on-screen instructions.
To change the auto update settings, tap → Settings → Auto-update apps , and then select an option.
45
Apps and features
Managing apps
Uninstalling or disabling apps
Tap and hold an app and select an option.
• Uninstall : Uninstall downloaded apps.
• Disable : Disable selected default apps that cannot be uninstalled from the device.
Some apps may not support this feature.
Enabling apps
Launch the Settings app, tap Apps → → Disabled , select an app, and then tap Enable .
Setting app permissions
For some apps to operate properly, they may need permission to access or use information on your device.
To view your app permission settings, launch the Settings app and tap Apps . Select an app and tap Permissions . You can view the app’s permissions list and change its permissions.
To view or change app permission settings by permission category, launch the Settings app and tap Apps → → Permission manager . Select an item and select an app.
If you do not grant permissions to apps, the basic features of the apps may not function properly.
46
Apps and features
S Pen features
Air actions
Control apps remotely by using the S Pen connected to your device via Bluetooth Low Energy
(BLE).
For example, you can quickly launch apps, such as the camera app, by pressing and holding the S Pen button. Also, while using the camera app, you can take a photo by pressing the button once. While playing music, you can turn the volume up if you lift the S Pen up while pressing and holding the S Pen button and turn the volume down if you lower it.
Launch the Settings app, tap Advanced features → S Pen → Air actions , and then tap the switch to activate the feature.
• The S Pen must be charged before you can use the Air action feature. Refer to
for more information.
• When you detach the S Pen from the S Pen’s charging groove, the icon will appear on the status bar. If the S Pen is discharged or far from the device, or if there are obstacles or there is external interference between the S Pen and the device, the S Pen will be disconnected from the device and the icon will turn grey ( ). To use the Air action feature again, connect the S Pen with the device by reattaching the S Pen to the S Pen’s charging groove.
Taking photos with the S Pen
Even though you take photos with your device placing for a distance, you can easily take photos by pressing the S Pen button without setting a timer.
1
Launch the Camera app.
2
Press the S Pen button once to take a photo.
• To change the shooting mode, move the S Pen to the left or right while pressing and holding the S Pen button.
• To switch between cameras, press the S Pen button twice.
47
Apps and features
Changing apps or features to use
Change the app, feature, or actions you want to use with the S Pen feature.
To change the app to launch, open the Air actions setting screen, tap Hold down Pen button to , and then select an app or feature.
To change actions for each app, open the Air actions setting screen and select an app under
App actions . You can change actions by tapping items.
S Pen battery power level
Set an app or feature to launch.
Set actions for each app.
Set actions for all camera and media apps.
Connecting another S Pen
Before using S Pen features with another S Pen, such as Air action, you must connect the
S Pen to your device.
1
Attach the S Pen to the S Pen’s charging groove.
48
Apps and features
2
Open the notification panel, tap ( S Pen air actions ), and then tap again to reactivate it.
3
Tap Connect new S Pen .
S Pen will be connected. You may experience a brief delay before it finishes connecting.
• You can only connect Samsung-approved S Pens that support Bluetooth Low
Energy (BLE).
• Do not detach the S Pen from the device when it is being connected. Doing so will interrupt the process.
• If it fails to connect or you want to use the previous S Pen, reconnect it with the method shown above.
Resetting your S Pen
If the S Pen has connection problems or the S Pen disconnects often, reset the S Pen and connect it again.
Attach the S Pen to the S Pen’s charging groove. Then, open the Air action setting screen and tap → Reset S Pen .
49
Apps and features
Air command
Air command is a menu that provides S Pen features and quick access to frequently used apps.
To open the Air command panel, hover the S Pen over the screen and press the S Pen button.
You can also tap the Air command icon with the S Pen.
Drag upwards or downwards on the Air command panel and select a function or app you want.
When the screen is off or locked with a screen lock method, removing the S Pen will not open the Air command panel.
S Pen battery power level
S Pen settings
Create note
View all notes
Smart select
Screen write
Live messages
AR Doodle
Translate
Adding shortcuts to the Air command panel
Add shortcuts to frequently used apps or functions to the Air command panel.
On the Air command panel, tap Add shortcuts and select apps or functions to open from the panel.
Alternatively, open the Air command panel and tap → Shortcuts .
50
Apps and features
S Pen features
Activate various S Pen features from the Air command panel. The shortcuts that do not appear on the panel by default can be added by using the Add shortcuts feature.
• Create note : Create notes easily in a pop-up window without launching the Samsung
Notes
for more information.
• View all notes : View all notes in the Samsung Notes app.
• Smart select : Use the S Pen to select an area and perform actions, such as sharing or
for more information.
• Screen write : Capture screenshots to write or draw on them or crop an area from the captured image. You can also capture the current content and the hidden content on an
elongated page, such as a webpage. Refer to Screen write
for more information.
• Live messages : Instead of text message, create and send a unique message by recording your actions while handwriting or drawing a live message and saving it as an animated
for more information.
• AR Doodle
: Record fun videos with virtual handwriting or drawings on faces. Refer to AR
for more information.
• Translate
: Hover the S Pen over a word to translate it. Refer to Translate for more
information.
• PENUP : Post your artwork, view others’ artwork, and get useful drawing tips. Refer to
for more information.
• Bixby Vision : Use the Bixby Vision features to search for similar images, detect and
translate text, and more. Refer to Bixby Vision for more information.
• Magnify
: Hover the S Pen over an area of the screen to enlarge it. Refer to Magnify for
more information.
• Glance : Reduce an app to a thumbnail and hover the S Pen over the thumbnail to open
the app in full screen view. Refer to Glance
for more information.
• Colouring : Add colours to images provided by PENUP using the S Pen.
• Write on calendar : Launch the Calendar app and write or draw on the screen. Refer to
for more information.
• Add shortcuts : Add shortcuts to frequently used apps to the Air command panel.
51
Apps and features
Air command icon
When the Air command panel is closed, the Air command icon will remain on the screen. You can open the Air command panel by tapping the icon with the S Pen.
To move the icon, drag to a new location.
To remove the icon, drag to Remove at the top of the screen.
If the Air command icon does not appear on the screen, launch the Settings app, tap
Advanced features → S Pen , and then tap the Show floating icon switch to activate it.
While using apps that support the Air action feature, you can view actions available with each app by hovering the S Pen over the Air command icon.
Create note
Create notes easily in a pop-up window without launching the Samsung Notes app.
1
Open the Air command panel and tap Create note . Alternatively, double-tap the screen while pressing and holding the S Pen button.
The note screen will appear as a pop-up window.
2
Create a note using the S Pen.
Eraser
Pen
Undo
Redo
Adjust the transparency level.
3
When you are finished composing the note, tap Save .
The note will be saved in Samsung Notes .
52
Apps and features
Smart select
Use the S Pen to select an area and perform actions, such as sharing or saving. You can also select an area from a video and capture it as a GIF animation.
1
When there is content you want to capture, such as a part of an image, open the Air command panel and tap Smart select .
2
Select a desired shape icon on the toolbar and drag the S Pen across the content you want to select.
To pin the selected area at the top of the screen, tap , select the area and then tap Pin to screen .
3
Select an option to use with the selected area.
• Extract text : Extract text from the selected area.
• Pin to screen : Pin the selected area to the screen.
• : Automatically changes the appearance of the selected area.
• : Write or draw on the selected area.
• : Share the selected area with others.
• : Save the selected area in Gallery .
53
Apps and features
Capturing an area from a video
While playing a video, select an area and capture it as a GIF animation.
1
When there is content you want to capture during video playback, open the Air command panel and tap Smart select .
2
On the toolbar, tap .
3
Adjust the position and size of the capturing area.
Adjust the position.
Drag a corner of the frame to resize.
Select a quality.
4
Tap Record to start capturing.
• Before capturing a video, make sure that the video is playing.
• The maximum duration you can capture an area of the video for will be displayed on the screen.
• When capturing an area from a video, its sound will not be recorded.
5
Tap Stop to stop capturing.
6
Select an option to use with the selected area.
• : Write or draw on the selected area. Tap to view the result before saving the file.
• : Share the selected area with others.
• : Save the selected area in Gallery .
54
Apps and features
Screen write
Capture screenshots to write or draw on them or crop an area from the captured image.
It is not possible to capture a screenshot while using some apps.
1
When there is content you want to capture, open the Air command panel and tap Screen write .
The current screen is automatically captured and the editing toolbar appears.
2
If you capture the content on an elongated page, such as a webpage, tap Scroll capture to capture the hidden content. Tap Scroll capture repeatedly until screen capture is complete, and then tap Done .
3
Write a memo on the screenshot.
Undo
Redo
Pen type
Pen colour
Pen radius
4
Select an option to use with the screenshot.
• Share : Share the screenshot with others.
• Save : Save the screenshot in Gallery .
55
Apps and features
Live messages
Instead of a text message, create and send a unique message by recording your actions while handwriting or drawing a live message and saving it as an animated file.
1
When you want to send an animated message while composing a message, open the Air command panel and tap Live messages .
The live message window will appear.
2
Customise background image and tap Done or Start drawing .
• Gallery : Set a photo or a video saved in Gallery as a background image.
• Camera : Take a photo or record a video and set it as a background image.
• Colour : Select a background colour.
3
Write or draw on the live message screen.
Change the file format.
Change the writing effect.
Change the pen colour.
Change the pen radius.
4
Tap Done .
The live message will be saved in Gallery as an animated GIF file or a video.
5
Tap Share and select a method.
Message input limit
Preview.
Start over.
Undo
56
Apps and features
Translate
Hover the S Pen over the text you want to translate. The units included in the text will also be converted.
• To use this feature, your device must be connected to a Wi-Fi or mobile network.
• This feature does not support some languages.
• This feature is available only when detectable text is on the screen.
1
When there is text you want to translate, open the Air command panel and tap Translate .
2
Select the languages on the translator panel at the top of the screen.
You can change the text between words and sentences by tapping or .
3
Hover the S Pen over the text you want to translate or the unit you want to convert.
The translated text will appear. To listen to the pronunciation of the original text, tap .
The icon may not appear depending on the language you select.
Select languages.
Text selecting granularity (word or sentence)
Translation result
4
To close the translator, tap on the translator panel.
57
Apps and features
Bixby Vision
When you hover the S Pen over the content, the content is recognised and available search icons will appear. Use the features to search for similar images, detect and translate text, and
for more information.
1
When there is an image you want to search for relevant information or extract text from, open the Air command panel and tap Bixby Vision .
2
Hover the S Pen over the content you want.
When the content is recognised, the available search icons will appear.
3
Select an icon you want.
4
To close Bixby Vision, tap on the Bixby Vision panel.
58
Apps and features
Magnify
Hover the S Pen over an area of the screen to enlarge it.
Open the Air command panel, tap Magnify , and hover the S Pen over the area you want to enlarge.
Change the size of the magnifier.
Close the magnifier.
Change the magnification ratio.
Glance
Reduce an app to a thumbnail and hover the S Pen over the thumbnail to open the app in full screen view.
For example, launch a map app, open the Air command panel, and then tap Glance . The app will be reduced to a thumbnail at the bottom of the screen. While browsing webpages, hover the S Pen over the thumbnail to open the map app on the full screen and quickly search for places.
Thumbnail
59
Apps and features
Hover the S Pen away from the screen to reduce the app to a thumbnail again.
To close the minimised app, tap and hold the thumbnail and drag it to Remove at the top of the screen.
Write on calendar
Mark your schedules easily and quickly by writing or drawing on the calendar screen. You can view and manage your schedules on the calendar screen.
Open the Air command panel, tap Write on calendar , and then mark your schedules on the calendar. When you are finished, tap Save . To edit it, tap .
Eraser
Pen settings
Undo
Redo
You can use this feature only on the calendar of monthly view.
60
Apps and features
Air view
Hover the S Pen over an item on the screen to preview content or view information in a popup window.
In some apps, Action buttons will be displayed on the preview window.
Action buttons
If this feature is not activated, launch the Settings app, tap Advanced features → S
Pen , and then tap the Air view switch to activate it.
Pen Select
While pressing and holding the S Pen button, drag the S Pen over text or item lists to select multiple items or text. You can also copy and paste the selected items or text into another app or share them with others.
61
Apps and features
Screen off memo
You can quickly create memos by writing on the screen without turning on it.
If this feature is not activated, launch the Settings app, tap Advanced features → S
Pen , and then tap the Screen off memo switch to activate it.
Creating a screen off memo
1
When the screen is off, hover the S Pen over the screen and press the S Pen button.
2
Write or draw a memo.
To extend the page, tap .
To save the memo, tap Save or reattach the S Pen to the S Pen’s charging groove. The memo will be saved to Samsung Notes → → Screen off memo .
62
Apps and features
Unlocking the screen using the S Pen
If the screen is locked while the S Pen is connected, you can unlock the screen by pressing the
S Pen button.
• The Unlock with S Pen remote feature is available only when the screen lock method is set.
• To use this feature, the S Pen must be connected to your device.
1
Launch the Settings app and tap Advanced features → S Pen → S Pen unlock .
2
Tap Unlock with S Pen remote → OK .
3
Unlock the screen using the preset screen lock method.
Now you can unlock the screen by pressing the S Pen button.
Bixby
Introduction
Bixby is a user interface that helps you use your device more conveniently.
You can talk to Bixby or type text. Bixby will launch a function you request or show the information you want. It also learns your usage patterns and environments. The more it learns about you, the more precisely it will understand you.
• To use Bixby, your device must be connected to a Wi-Fi or mobile network.
• To use Bixby, you must sign in to your Samsung account.
• Bixby is only available in some languages, and certain features may not be available depending on your region.
63
Apps and features
Starting Bixby
When you launch Bixby for the first time, the Bixby intro page will appear. You must select the language to use with Bixby, sign in to your Samsung account according to the on-screen instructions, and then agree to the terms and conditions.
1
Press and hold the Side key. Alternatively, launch the Bixby app.
Side key
Select a language.
Sign in to your
Samsung account.
2
Select the language to use with Bixby.
3
Tap Sign in to Samsung account and follow the on-screen instructions to sign in to your
Samsung account.
If you are already signed in, your account information will appear on the screen.
4
Follow the on-screen instructions to complete the setup.
The Bixby screen will appear.
64
Apps and features
Using Bixby
When you say what you want to Bixby, Bixby will launch corresponding functions or show the information you requested.
While pressing and holding the Side key, say what you want to Bixby, and release your finger from the key when you are finished speaking. Alternatively, say “Hi, Bixby”, and when the device emits a sound, say what you want.
For example, while pressing and holding the Side key, say “How’s the weather today?” The weather information will appear on the screen.
If you want to know the weather tomorrow, while pressing and holding the Side key, just say
“Tomorrow?” Because Bixby understands the context of the conversation, it will show you tomorrow’s weather.
"How's the weather today?"
Listening Corresponding function launched
65
Apps and features
If Bixby asks you a question during a conversation, while pressing and holding the Side key, answer Bixby. Or, tap and answer Bixby.
If you are using headphones or Bluetooth audio, or start a conversation by saying “Hi, Bixby”, you can continue the conversation without tapping the icon. Launch the Bixby app and tap
→ → Automatic listening → Hands-free only .
Waking up Bixby using your voice
You can start a conversation with Bixby by saying “Hi, Bixby”. Register your voice so that Bixby will respond to your voice when you say “Hi, Bixby”.
1
Launch the Bixby app and tap → → Voice wake-up .
2
Tap the Wake with “Hi, Bixby” switch to activate it.
3
Follow the on-screen instructions to complete the setup.
Now you can say “Hi, Bixby”, and when the device emits a sound, start a conversation.
Communicating by typing text
If your voice is not recognised due to noisy environments or if you are in a situation where speaking is difficult, you can communicate with Bixby via text.
Launch the Bixby app, tap , and then type what you want.
During the communication, Bixby also will answer you through text instead of voice feedback.
66
Apps and features
Bixby Vision
Introduction
Bixby Vision is a service that provides various features based on image recognition.
You can use Bixby Vision to quickly search for information by recognising objects or your current location.
Use a variety of useful Bixby Vision features.
Extract or translate text.
Search for locations.
• To use this feature, the device must be connected to a Wi-Fi or mobile network.
• The available features and search results may vary depending on the region or service provider.
• This feature may not be available or you may not get correct search results depending on the image size, format, or resolution.
• Samsung is not responsible for the product information provided by Bixby Vision.
67
Apps and features
Launching Bixby Vision
Launch Bixby Vision using one of these methods.
• In the Camera app, tap MORE on the shooting modes list and tap BIXBY VISION .
• In the Gallery app, select an image and tap .
• In the Internet app, tap and hold an image and tap Bixby Vision .
• If you added the Bixby Vision app icon to the Apps screen, launch the Bixby Vision app.
Searching for similar images
Search for images similar to the recognised object online. You can view various images with properties similar to the object, such as colour or shape.
For example, if you want to know the title of a photo or image, use the Bixby Vision features. The device will search for and show you related information or images with similar characteristics.
1
Launch the Camera app, tap MORE on the shooting modes list, and then tap BIXBY
VISION .
2
Keep the object within the screen to recognise it.
3
Select a search result with Images on it.
The similar images will appear.
Translating or extracting text
Recognise and show the translated text on the screen. You can also extract text from a document or an image file.
For example, if you want to know what a sign says while travelling abroad, use the Bixby
Vision features. The device will translate the sign’s text into the language you select.
1
Launch the Camera app, tap MORE on the shooting modes list, and then tap BIXBY
VISION .
68
Apps and features
2
Tap and keep the text within the screen to recognise it.
The translated text will appear on the screen.
• To extract text, tap . You can share or save the extracted text.
• To save the screen with the translated text as an image, tap . The screen will be saved in Gallery .
• To change the source or target language, tap the language settings panel at the top of the screen.
Searching for places
Search for information about nearby places by recognising your current location.
1
Launch the Camera app, tap MORE on the shooting modes list, and then tap BIXBY
VISION .
2
Tap and point the camera towards the direction you want to search for places.
You can view basic information about nearby places.
• If you want to search for places in another direction, point the camera towards the direction.
• You can view your current location and weather information. To view your current location on the map, point the camera towards the ground. To view the current weather information, point the camera towards the sky.
3
Select a search result on the screen.
The device will show the information of nearby places.
69
Apps and features
Bixby Routines
Bixby Routines is a service that runs the features you want to use as routines when their conditions are detected.
For example, if you want to set the device to turn on the auto rotate feature whenever you play a video, add the video app you want as a condition and set the auto rotate feature as an action.
Adding routines
Add routines to use your device more conveniently. When you add a routine, you can set its running condition to auto or manual.
Adding recommended routines
When the conditions of routines on the recommended list of the Bixby Routines main screen are detected, Bixby Routines will suggest that you add one of them as a routine.
When the recommendation notification appears, tap View all and add it as your own routine.
Adding routines from the recommendation list
View the list of useful features and add them as your own routines.
1
Launch the Settings app and tap Advanced features → Bixby Routines .
70
Apps and features
2
On the Discover list, select a routine you want and tap Save .
• To set the routine’s conditions and actions, tap Edit . Alternatively, tap the condition or action you want to edit.
• If you want to set the routine’s running condition to manual, tap Start button tapped .
This option will appear only when there are no running conditions set.
For manual routines, you can add them to the Home screen as widgets and access them quickly. When a pop-up window appears, tap Add .
Adding your own routines
Add features you want to use as routines.
1
Launch the Settings app and tap Advanced features → Bixby Routines → .
2
Tap , set conditions, and then tap Next .
If you want to set the routine’s running condition to manual, tap Start button tapped .
3
Tap , set actions, and then tap Done .
4
Enter a routine name and tap Done .
For manual routines, you can add them to the Home screen as widgets and access them quickly. When a pop-up windows appears, tap Add .
Using routines
Running auto routines
Auto routines will run automatically when their conditions are detected.
Running manual routines
For manual routines which you set the running condition as Start button tapped , you can run them manually by tapping the button whenever you want.
Launch the Settings app, tap Advanced features → Bixby Routines → My routines , and then tap next to the routine you want to run. Alternatively, tap the routine’s widget on the
Home screen.
71
Apps and features
Viewing running routines
Currently running routines will appear on the notification panel. To view a routine’s details, tap the notification.
Stopping running routines
You can quickly stop running routines. On the notification panel, select a routine and tap
Stop .
Managing routines
Launch the Settings app and tap Advanced features → Bixby Routines → My routines .
Your routines will appear.
To deactivate a routine, tap the routine’s switch or .
To edit a routine, select a routine and tap Edit . Alternatively, tap the condition or action you want to edit.
To delete routines, tap → Delete , tick routines to delete, and then tap Delete .
Phone (SM-T860, SM-T865)
Introduction
Make or answer voice and video calls.
• To make a call and send a text message, launch the Settings app, tap Advanced features , and then tap the Call & text on other devices switch to activate it. You must register and sign in to the same Samsung account on your device and the other device. Some calling and messaging features may not be available.
• You can select the call and text method. Select a SIM card or your connected device using the same Samsung account.
Making calls
1
Launch the Phone app and tap Keypad .
2
Enter a phone number.
72
Apps and features
3
Tap to make a voice call, or tap to make a video call.
Add the number to the contacts list.
Access additional options.
Search for a contact.
Preview the phone number.
Delete a preceding character.
Making calls from call logs or contacts list
Launch the Phone app, tap Recents or Contacts , and then swipe to the right on a contact or a phone number to make a call.
If this feature is deactivated, launch the Settings app, tap Advanced features → Motions and gestures , and then tap the Swipe to call or send messages switch to activate it.
Using speed dial
Set speed dial numbers to quickly make calls.
To set a number to speed dial, launch the Phone app, tap Keypad or Contacts → → Speed dial numbers , select a speed dial number, and then add a phone number.
To make a call, tap and hold a speed dial number on the keypad. For speed dial numbers 10 and up, tap the first digit(s) of the number, and then tap and hold the last digit.
For example, if you set the number 123 as a speed dial number, tap 1 , tap 2 , and then tap and hold 3 .
Making calls from the locked screen
On the locked screen, drag outside the circle.
73
Apps and features
Making calls by searching for nearby places
You can easily make calls to places near your current location by searching for their information. You can search for nearby places by category, such as restaurants or stores, or by selecting recommended hot places.
Launch the Phone app, tap Places , and then select a category or tap and enter a business name in the search field. Or, select one from the recommended hot places. The business’s information, such as its phone number or address, will appear.
This feature may not be available depending the model and its specifications.
Making an international call
1
Launch the Phone app and tap Keypad .
2
Tap and hold 0 until the + sign appears.
3
Enter the country code, area code, and phone number, and then tap .
Receiving calls
Answering a call
When a call comes in, drag outside the large circle.
Rejecting a call
When a call comes in, drag outside the large circle.
To send a message when rejecting an incoming call, drag the Send message bar upwards and select a message to send.
To create various rejection messages, launch the Phone app, tap → Settings → Quick decline messages , enter a message, and then tap .
Missed calls
If a call is missed, the icon appears on the status bar. Open the notification panel to view the list of missed calls. Alternatively, launch the Phone app and tap Recents to view missed calls.
74
Apps and features
Blocking phone numbers
Block calls from specific numbers added to your block list.
1
Launch the Phone app and tap → Settings → Block numbers .
2
Tap Recents or Contacts , select contacts or phone numbers, and then tap Done .
To manually enter a number, tap Add phone number , enter a phone number, and then tap .
When blocked numbers try to contact you, you will not receive notifications. The calls will be logged in the call log.
You can also block incoming calls from people that do not show their caller ID. Tap the
Block unknown callers switch to activate the feature.
Options during calls
The available options may vary depending on the region or service provider.
During a voice call
The following actions are available:
• : Access additional options.
• Add call : Dial a second call. The first call will be put on hold. When you end the second call, the first call will be resumed.
• Message : Send a message to the caller.
• Bluetooth : Switch to a Bluetooth headset if it is connected to the device.
• Hold call : Hold a call. Tap Resume call to retrieve the held call.
• Mute : Turn off the microphone so that the other party cannot hear you.
• Keypad / Hide : Open or close the keypad.
• : End the current call.
75
Apps and features
During a video call
Tap the screen to use the following options:
• : Access additional options.
• Camera : Turn off the camera so that the other party cannot see you.
• Switch : Switch between the front and rear cameras.
• : End the current call.
• Mute : Turn off the microphone so that the other party cannot hear you.
• Bluetooth : Switch to a Bluetooth headset if it is connected to the device.
Adding a phone number to Contacts
Adding a phone number to Contacts from the keypad
1
Launch the Phone app and tap Keypad .
2
Enter the number.
3
Tap Add to Contacts .
4
Tap Create new contact to create a new contact, or tap Update existing contact to add the number to an existing contact.
Adding a phone number to Contacts from the calls list
1
Launch the Phone app and tap Recents .
2
Tap a phone number and tap Add .
3
Tap Create new contact to create a new contact, or tap Update existing contact to add the number to an existing contact.
76
Apps and features
Adding a tag to a phone number
You can add tags to numbers without saving them to Contacts. This allows you to view the caller’s information when they call without having them listed in Contacts.
1
Launch the Phone app and tap Recents .
2
Tap a phone number.
3
Tap Add note , enter a tag, and then tap Add .
When a call comes from that number, the tag will show under the number.
Contacts
Introduction
Create new contacts or manage contacts on the device.
Adding contacts
Creating a new contact
1
Launch the Contacts app and tap .
2
Select a storage location.
77
Apps and features
3
Enter contact information.
Add an image.
Select a storage location.
Enter contact information.
Open more information fields.
Depending on the selected storage location, the types of information you can save may vary.
4
Tap Save .
Importing contacts
Add contacts by importing them from other storages to your device.
1
Launch the Contacts app and tap → Manage contacts → Import or export contacts
→ Import .
2
Select a storage location to import contacts from.
3
Tick VCF files or contacts to import and tap Done .
4
Select a storage location to save contacts to and tap Import .
78
Apps and features
Syncing contacts with your web accounts
Sync your device contacts with online contacts saved in your web accounts, such as your
Samsung account.
1
Launch the Settings app, tap Accounts and backup → Accounts , and then select the account to sync with.
2
Tap Sync account and tap the Contacts switch to activate it.
For the Samsung account, tap → Sync settings and tap the Contacts switch to activate it.
Searching for contacts
Launch the Contacts app.
Use one of the following search methods:
• Scroll up or down the contacts list.
• Drag a finger along the index at the right side of the contacts list to scroll through it quickly.
• Tap at the top of the contacts list and enter search criteria.
Tap the contact. Then take one of the following actions:
• : Add to favourite contacts.
• / : Make a voice or video call. (SM-T865, SM-T860)
• : Compose a message.
• : Compose an email.
Sharing contacts
You can share contacts with others by using various sharing options.
1
Launch the Contacts app, tap at the top of the contacts list, and then tap Share .
2
Select contacts and tap Share .
3
Select a sharing method.
79
Apps and features
Saving and sharing profile (SM-T865)
Save and share your profile information, such as your photo and status message, with others using the profile sharing feature.
• To use this feature, you must sign in to your Samsung account.
• The profile sharing feature may not be available depending on the region or service provider.
• The profile sharing feature is only available for contacts who have activated the profile sharing feature on their device.
1
Launch the Contacts app and select your profile.
2
Tap Tap here to share your profile and tap the switch to activate it.
• To use the profile sharing feature, your phone number must be verified. You can view your contacts’ updated profile information in Contacts .
• To change the scope of contacts to share your profile with, tap Select what’s shared , select an item to share, and then select an option.
Creating groups
You can add groups, such as family or friends, and manage contacts by group.
1
Launch the Contacts app and tap → Groups → Create group .
2
Enter a group name.
To set a group ringtone, tap Group ringtone and select a ringtone. (SM-T865, SM-T860)
3
Tap Add member , select contacts to add to the group, and then tap Done .
4
Tap Save .
Sending a group message
You can send a group message to a group’s members at the same time.
Launch the Contacts app, tap → Groups , and then select a group. Tap at the top of the contacts list and tap Send message .
80
Apps and features
Merging duplicate contacts
When you import contacts from other storages, or sync contacts with other accounts, your contacts list may include duplicate contacts. Merge duplicate contacts into one to streamline your contacts list.
1
Launch the Contacts app and tap → Manage contacts → Merge contacts .
2
Tick contacts and tap Merge .
Deleting contacts
1
Launch the Contacts app, tap at the top of the contacts list, and then tap Delete .
2
Select contacts and tap Delete .
To delete contacts one by one, tap a contact. Then tap → Delete .
Messages
Introduction
Send and view messages by conversation.
• To make a call and send a text message, launch the Settings app, tap Advanced features , and then tap the Call & text on other devices switch to activate it. You must register and sign in to the same Samsung account on your device and the other device. Some calling and messaging features may not be available.
• You can select the call and text method. Select a SIM card or your connected device using the same Samsung account.
Sending messages
You may incur additional charges for sending messages when you are roaming.
1
Launch the Messages app and tap .
81
Apps and features
2
Add recipients and enter a message.
To record and send a voice message, tap and hold , say your message, and then release your finger. The recording icon appears only while the message input field is empty.
Recipient Enter recipients.
Enter a message.
Attach files.
Enter stickers.
Send the message.
3
Tap to send the message.
Viewing messages
Messages are grouped into message threads by contact.
You may incur additional charges for receiving messages when you are roaming.
1
Launch the Messages app.
2
On the messages list, select a contact or a phone number.
• To reply to the message, tap input field, enter a message, and then tap .
• To adjust the font size, spread two fingers apart or pinch on the screen.
82
Apps and features
Blocking unwanted messages
Block messages from specific numbers added to your block list.
1
Launch the Messages app, tap at the top of the messages list, and then tap Settings →
Block numbers and messages → Block numbers .
2
Tap Conversations and select a contact or a phone number. Or, tap Contacts , select contacts, and then tap Done .
To manually enter a number, enter a phone number under Enter phone number and tap
.
Setting the message notification
You can change notification sound, display options, and more.
1
Launch the Messages app, tap at the top of the messages list, tap Settings →
Notifications , and then tap the switch to activate it.
2
Change the notification settings.
Setting a message reminder
You can set an alert at an interval to let you know that you have unchecked notifications. If this feature is not activated, launch the Settings app, tap Accessibility → Advanced settings
→ Notification reminders , and then tap the switch to activate it.
Deleting messages
1
Launch the Messages app.
2
On the messages list, select a contact or a phone number.
3
Tap and hold a message, then tap Delete .
To delete multiple messages, tick messages you want to delete.
4
Tap Delete .
83
Apps and features
Internet
Introduction
Browse the Internet to search for information and bookmark your favourite webpages to access them conveniently.
Browsing webpages
1
Launch the Internet app.
2
Tap the address field.
3
Enter the web address or a keyword, and then tap Go .
To view the toolbars, drag your finger downwards slightly on the screen.
Bookmark the current webpage.
Move between pages.
Refresh the current webpage.
Close the tab.
Open a new tab.
Access additional options.
Open the browser's tab manager.
View your bookmarks.
Open the homepage.
84
Apps and features
Using secret mode
In secret mode, you can separately manage open tabs, bookmarks, and saved pages. You can lock secret mode using a password and your biometric data.
Activating secret mode
Tap → Turn on Secret mode . If you are using this feature for the first time, set whether to use a password for secret mode.
In secret mode, the device will change the colour of the toolbars.
In secret mode, you cannot use some features, such as screen capture.
Changing security settings
You can change your password.
Tap → Settings → Privacy and security → Secret mode settings → Change password .
To use your registered biometric data as a lock method along with the password, tap an option switch under Biometrics to activate it.
Deactivating secret mode
Tap → Turn off Secret mode .
85
Apps and features
Camera
Introduction
Take photos and record videos using various modes and settings.
Launch the Camera app.
Camera etiquette
• Do not take photos or record videos of other people without their permission.
• Do not take photos or record videos where legally prohibited.
• Do not take photos or record videos in places where you may violate other people’s privacy.
• Some camera features are not available when you launch the Camera app from the locked screen while the screen lock method is set.
• If photos you take appear blurry, clean the camera lens and try again.
Taking photos
1
Tap the image on the preview screen where the camera should focus.
• Spread two fingers apart on the screen to zoom in, and pinch to zoom out.
Alternatively, drag the lens selection icon to the left or right. Zooming features are available only when using the rear camera.
• To adjust the brightness of photos, tap the screen. When the adjustment bar appears, drag the adjustment bar towards or .
86
Apps and features
2
Tap to take a photo.
Camera settings Options for current shooting mode
Switch between the front and rear cameras.
Take a photo.
Preview thumbnail
Select a lens.
Scene optimiser button
Shooting modes
Current mode
• The preview screen may vary depending on the shooting mode and which camera is being used.
• The camera automatically shuts off when unused.
• Make sure that the lens is not damaged or contaminated. Otherwise, the device may not work properly in some modes that require high resolutions.
• Your device’s camera features a wide-angle lens. Minor distortion may occur in wide-angle photos or videos and does not indicate device performance problems.
Locking the focus (AF) and exposure (AE)
You can lock the focus or exposure on a selected area to prevent the camera from automatically adjusting based on changes to the subjects or light sources.
Tap and hold the area to focus, the AF/AE frame will appear on the area and the focus and exposure setting will be locked. The setting remains locked even after you take a photo.
87
Apps and features
Selecting a lens for shooting
On the preview screen, select the lens you want and take a photo or record a video.
• : The Ultra wide lens lets you take wide-angle photos or record wide-angle videos which look just like the actual view. Use this feature to take landscape photos.
To correct the distortion in photos taken with the Ultra wide lens, tap on the preview screen, tap Save options , and then tap the Ultra wide lens correction switch to activate it.
• : The wide-angle lens lets you take basic photos or record normal videos.
Ultra wide shooting Basic shooting
88
Apps and features
Photo mode (Intelligent camera)
The camera adjusts the shooting options automatically depending on the surroundings to capture photos easily. The intelligent camera feature automatically recognises the subject and optimises the colour and any effects.
On the shooting modes list, tap PHOTO and tap to take a photo.
Scene optimiser
The camera adjusts the colour settings and applies the optimised effect automatically by recognising the subject.
On the shooting modes list, tap PHOTO . When the camera recognises the subject, the scene optimiser button will change and the optimised colour and effect will be applied.
• If this feature is not activated, tap on the preview screen and tap the Scene optimiser switch to activate it.
• If you do not want to use this feature, tap the Scene optimiser button on the preview screen.
89
Apps and features
Shot suggestions
The camera suggests the ideal composition for the photo by recognising the position and angle of your subject.
On the preview screen, tap and tap the Shot suggestions switch to activate it.
1
On the shooting modes list, tap PHOTO .
A guide will appear on the preview screen.
2
Point the subject with the guide on the preview screen.
The camera recognises the composition, and the recommended composition appears on the preview screen.
3
Adjust the position and angle of the camera to fit the composition.
When the ideal composition is achieved, the guide will change to yellow.
4
Tap to take a photo.
Ideal composition
Guide
90
Apps and features
Taking selfies
You can take self-portraits with the front camera.
1
On the shooting modes list, tap PHOTO .
2
On the preview screen, swipe upwards or downwards, or tap to switch to the front camera for self-portraits.
3
Face the front camera lens.
To take self-portraits with a wide-angle shot of the landscape or people, tap .
4
Tap to take a photo.
Applying filter and beauty effects
You can select a filter effect and modify facial features, such as your skin tone or face shape, before taking a photo.
1
On the preview screen, tap .
2
Select a filter effect or beauty effects and take a photo.
Video mode
The camera adjusts the shooting options automatically depending on the surroundings to record videos easily.
1
On the shooting modes list, tap VIDEO .
2
Tap to record a video.
• To capture an image from the video while recording, tap .
• To change the focus while recording a video, tap where you want to focus. To use auto focus mode, tap AF to cancel the manually set focus.
3
Tap to stop recording the video.
91
Apps and features
Changing the screen ratio for a video
On the preview screen, tap and select a screen ratio.
Live focus mode
The camera allows you to take photos where the background is blurred and the subject stands out clearly. You can also apply a background effect and edit it after taking a photo.
Background blur Big circle Spin
Zoom Colour point
• Use this feature in a place that has sufficient light.
• The background blur may not be applied properly in the following conditions:
– The device or the subject is moving.
– The subject is thin or transparent.
– The subject has a similar colour to the background.
– The subject or background is plain.
92
Apps and features
Taking portraits that stand out using the Live focus feature
1
On the shooting modes list, tap LIVE FOCUS .
2
Tap and select a background effect you want.
To adjust the intensity of the background effect, drag the adjustment bar to the left or right.
3
When Ready appears on the preview screen, tap to take a photo.
Background effects
Background effect intensity adjustment bar
Editing the background of the Live focus photos
You can also edit the background effect and the intensity of the background effect for a photo taken with the Live focus feature.
1
Select a photo taken with the Live focus feature and tap Change background effect .
2
Select a background effect you want.
To adjust the intensity of the background effect, drag the adjustment bar to the left or right.
Adjust the intensity of the background effect.
Change the background effect.
3
Tap Apply to save the photo.
93
Apps and features
Using shooting modes
To change the shooting mode, drag the shooting modes list to the left or right, or swipe to the left or right on the preview screen.
Select a shooting mode you want.
Shooting modes list
Pro mode
Capture photos while manually adjusting various shooting options, such as exposure value and ISO value.
On the shooting modes list, tap MORE → PRO . Select options and customise the settings, and then tap to take a photo.
Available options
• : Select an ISO value. This controls camera light sensitivity. Low values are for stationary or brightly lit objects. Higher values are for fast-moving or poorly lit objects.
However, higher ISO settings can result in noise in photos.
• : Select an appropriate white balance, so images have a true-to-life colour range. You can set the colour temperature.
• : Change the exposure value. This determines how much light the camera’s sensor receives. For low-light situations, use a higher exposure.
94
Apps and features
Food mode
Take photos of food with more vibrant colours.
1
On the shooting modes list, tap MORE → FOOD .
2
Tap the screen and drag the circular frame over the area to highlight.
The area outside the circular frame will be blurred.
To resize the circular frame, drag a corner of the frame.
3
Tap and drag the adjustment bar to adjust the colour tone.
4
Tap to take a photo.
Night mode
Take a photo in low-light conditions, without using the flash.
On the shooting modes list, tap MORE → NIGHT .
95
Apps and features
Panorama mode
Using panorama mode, take a series of photos and then stitch them together to create a wide scene.
To get the best shots using panorama mode, follow these tips:
• Move the camera slowly in one direction.
• Keep the image within the frame on the camera’s viewfinder. If the preview image is out of the guide frame or you do not move the device, the device will automatically stop taking photos.
• Avoid taking photos of indistinct backgrounds, such as an empty sky or a plain wall.
1
On the shooting modes list, tap MORE → PANORAMA .
2
Tap and move the device slowly in one direction.
3
Tap to stop taking photos.
Hyperlapse mode
Record scenes, such as passing people or cars, and view them as fast-motion videos.
1
On the shooting modes list, tap MORE → HYPERLAPSE .
2
Tap and select a frame rate option.
If you set the frame rate to Auto , the device will automatically adjust the frame rate according to the changing rate of the scene.
3
Tap to start recording.
4
Tap to finish recording.
5
On the preview screen, tap the preview thumbnail and tap Play hyperlapse to view the video.
96
Apps and features
Customising camera settings
Options for current shooting mode
On the preview screen, use the following options.
The available options may vary depending on the shooting mode.
• : Activate or deactivate the flash.
• : Select the length of the delay before the camera automatically takes a photo.
• : Select an aspect ratio for photos.
• : Set the device to take a video clip for a few seconds before tapping .
• : Apply a filter effect or beauty effects.
• : Select a frame rate.
• : Select an aspect ratio for videos.
• : Record fun videos with virtual handwriting or drawings on faces or anywhere else.
Refer to AR Doodle for more information.
• : Select a metering method. This determines how light values are calculated.
Centre-weighted uses the light in the centre portion of the shot to calculate the exposure of the shot. Spot uses the light in a concentrated centre area of the shot to calculate the exposure of the shot. Matrix averages the entire scene.
• : In FOOD mode, focus on a subject inside the circular frame and blur the image outside the frame.
• : In FOOD mode, adjust the colour tone.
Camera settings
On the preview screen, tap . Some options may not be available depending on the shooting mode.
Intelligent features
• Scene optimiser : Set the device to adjust the colour settings and apply the optimised effect automatically depending on the subject or scene.
• Shot suggestions : Set the device to suggest the ideal composition for the photo by recognising the position and angle of your subject.
• Scan QR codes : Enable or disable the QR code reader.
97
Apps and features
Pictures
• Hold Shutter button to : Select an action to perform when you tap and hold the camera button.
• Save options : Select how you want to save photos.
Videos
• Rear video size : Select a resolution for videos you want to take with the rear camera.
Using a higher resolution will result in higher quality videos, but they will take up more memory.
• Front video size : Select a resolution for videos you want to take with the front camera.
Using a higher resolution will result in higher quality videos, but they will take up more memory.
• High efficiency video : Record videos in the High Efficiency Video Codec (HEVC) format.
Your HEVC videos will be saved as compressed files to conserve the device’s memory.
• Video stabilisation : Activate anti-shake to reduce or eliminate blurry image resulting from camera shake while recording a video.
Useful features
• HDR (rich tone) : Take photos with rich colours and reproduce details even in bright and dark areas.
• Pictures as previewed : Set the device to save photos as they appear on the preview screen when taken with the front camera without flipping them.
• Grid lines : Display viewfinder guides to help composition when selecting subjects.
• Location tags : Attach a GPS location tag to the photo.
• GPS signal strength may decrease in locations where the signal is obstructed, such as between buildings or in low-lying areas, or in poor weather conditions.
• Your location may appear on your photos when you upload them to the
Internet. To avoid this, deactivate the location tag setting.
98
Apps and features
• Shooting methods : Select additional shooting methods for taking a photo or recording a video.
• Storage location : Select the memory location for storage. This feature will appear when you insert a memory card.
• Watermark : Add a watermark in the bottom left corner when taking pictures.
• Reset settings : Reset the camera settings.
• Contact us : Ask questions or view frequently asked questions.
• About Camera : View the Camera app version and legal information.
Gallery
Introduction
View images and videos stored in your device. You can also manage images and videos by album or create stories.
Viewing images
1
Launch the Gallery app and tap Pictures .
99
Apps and features
2
Select an image.
Access additional options.
Bixby Vision
Image and video thumbnail
Add the image to favourites.
Modify the image.
Delete the image.
Share the image with others.
You can create an animated GIF or collage from multiple images. On the list, tap or tap → Create GIF or Create collage , and then select images.
Searching for images
Launch the Gallery app and tap to view images sorted by category, such as types or locations.
To search for images by entering keywords, tap the search field.
100
Apps and features
Viewing videos
1
Launch the Gallery app and tap Pictures .
2
Select a video to play.
3
Tap Play video to play the video.
Capture the current screen.
Rewind or fast-forward by dragging the bar.
Switch to the pop-up video player.
Lock the playback screen.
Skip to the previous video.
Tap and hold to rewind.
Display your videos.
Access additional options.
Create an animated GIF.
Change the screen ratio.
Rotate the screen.
Skip to the next video. Tap and hold to fast-forward.
Pause and resume playback.
Drag your finger up or down on the left side of the playback screen to adjust the brightness, or drag your finger up or down on the right side of the playback screen to adjust the volume.
To rewind or fast-forward, swipe to the left or right on the playback screen.
101
Apps and features
Viewing albums
You can view your images and videos sorted by folders or albums.
Launch the Gallery app, tap Albums , and then select an album.
Hiding albums
You can hide albums.
You cannot hide albums created by default, such as the Camera and Screenshots albums.
1
Launch the Gallery app and tap Albums .
2
Tap → Hide or unhide albums .
3
Tap an album switch to hide.
Viewing stories
When you capture or save images and videos, the device will read their date and location tags, sort the images and videos, and then create stories. To create stories automatically, you must capture or save multiple images and videos.
Launch the Gallery app, tap Stories , and then select a story.
Creating stories
Create stories with various themes.
1
Launch the Gallery app and tap Stories .
2
Tap → Create story .
3
Enter a title for the story and tap Create .
4
Tick images or videos to include in the story and tap Done .
To add images or videos to a story, select a story and tap Story album → → Add .
To remove images or videos from a story, select a story, tap Story album → → Edit , tick images or videos to remove, and then tap Remove from story .
102
Apps and features
Deleting stories
1
Launch the Gallery app and tap Stories .
2
Tap and hold a story to delete, and tap Delete .
Syncing images and videos
When you sync your Gallery app with Samsung Cloud, photos and videos you take will also be saved in Samsung Cloud. You can view images and videos saved in Samsung Cloud in your
Gallery app and from other devices.
Launch the Gallery app, tap → Settings → Cloud sync , and then follow the on-screen instructions to complete the sync. The Gallery app and Samsung Cloud will be synced.
Deleting images or videos
1
Launch the Gallery app.
2
Select an image or a video to delete.
To delete multiple files, tap and hold a file to delete on the list and tick more files to delete.
3
Tap or Delete .
Using the recycle bin feature
You can keep the deleted images and videos in the recycle bin. The files will be deleted after a certain period.
Launch the Gallery app, tap → Settings , and then tap the Recycle bin switch to activate it.
To view files in the recycle bin, launch the Gallery app and tap → Recycle bin .
103
Apps and features
AR EMOJI
Introduction
Create a My Emoji that looks just like you, and take photos and record videos using My Emojis, character Emojis, or stickers.
You can customise My Emoji’s features, such as the face shape or hairstyle, and decorate My
Emoji with various accessories. You can also express yourself in fun ways using My Emoji stickers during a conversation.
My Emojis Character Emojis Stickers
Creating My Emoji
Make a My Emoji that looks like you. My Emoji stickers with various expressions will be automatically generated.
1
Launch the Camera app, tap MORE on the shooting modes list, and then tap AR EMOJI
→ Create My Emoji .
2
Align your face on the screen and tap to take a photo.
104
Apps and features
3
Select My Emoji’s gender and age range and tap Next .
4
Decorate a My Emoji and tap Next .
5
Tap Done .
The My Emoji and My Emoji stickers are now created. You can view My Emoji stickers in
the My Emoji Studio. Refer to My Emoji stickers
for more information.
Create My
Emoji.
You can use the AR EMOJI feature in both the front and rear cameras. If you are using the rear camera, it will automatically switch to the front camera. To switch between cameras, swipe upwards or downwards on the preview screen.
Deleting My Emoji
Launch the Camera app, tap MORE on the shooting modes list, and then tap AR EMOJI .
Tap and hold the My Emoji that you want to delete and tap . The My Emoji and My Emoji stickers will be deleted.
105
Apps and features
Customising My Emoji
Edit or decorate a My Emoji in the My Emoji Studio. You can also create your own My Emoji stickers.
Available options may vary depending on the region or service provider.
My Emoji Studio
Launch the Camera app, tap MORE on the shooting modes list, and then tap AR EMOJI →
Studio . My Emoji Studio will appear.
Select a My Emoji to edit.
Capture the current screen.
Change the My Emoji Studio's background.
Edit the My Emoji.
Create stickers.
106
Apps and features
My Emoji stickers
Create your own stickers with My Emoji expressions and actions. You can use My Emoji stickers when sending messages or on a social network.
Viewing My Emoji stickers
In the My Emoji Studio, tap Stickers . Then, you can view My Emoji stickers.
Create your own stickers.
Creating your own stickers
1
In the My Emoji Studio, tap Stickers → Make custom stickers .
2
Edit stickers how you want.
• : Add stickers.
• : Select the sticker’s background.
• : Select an expression.
• : Select an action.
• : Enter text.
• : Handwrite or draw on stickers.
3
Tap Save .
107
Apps and features
Using My Emoji stickers in chats
You can use My Emoji stickers during a conversation via messages or on a social network. The following actions are an example of using My Emoji stickers in the Messages app.
1
While composing a message in the Messages app, tap on the Samsung keyboard.
2
Tap the My Emoji icon.
3
Select one of the My Emoji stickers.
The My Emoji sticker will be inserted.
Deleting My Emoji stickers
On the Samsung keyboard, tap , tap at the bottom of the keyboard, and then tap
Manage sticker sets . Select the My Emoji stickers you want to delete and tap Delete .
Capturing photos or videos with My Emoji
Create fun photos or videos with My Emoji using various shooting modes.
Mask Basic Mini motion
1
Launch the Camera app, tap MORE on the shooting modes list, and then tap AR EMOJI .
108
Apps and features
2
Select a My Emoji you want to use.
My Emoji
3
Select the mode you want to use.
• ( Mask ): My Emoji’s face appears over your face so it looks like you are wearing a mask.
• ( Basic ): My Emoji mimics your expressions.
• ( Mini motion ): My Emoji mimics your body movements.
4
Tap to take a photo, or swipe to the left on the preview screen and tap to record a video.
You can view and share the photos and videos that you have captured in Gallery .
Capturing photos or videos with character Emojis or stickers
Character Emojis mimic your expressions. You can also apply sticker effects that follow your face.
1
Launch the Camera app, tap MORE on the shooting modes list, and then tap AR EMOJI .
2
Select a character Emoji, or tap Stickers and select a sticker you want to use.
Stickers
Character Emoji
3
Tap to take a photo, or swipe to the left on the preview screen and tap to record a video.
You can view and share the photos and videos that you have captured in Gallery .
109
Apps and features
AR Doodle
Record fun videos with virtual handwriting or drawings on faces or anywhere else. When the camera recognises a face or space, the doodles on the face will follow the face as it moves, and the doodles in the space will be fixed in the same placed even if the camera moves.
1
Launch the Camera app and tap VIDEO on the shooting modes list.
2
Tap and select a mode you want.
When the camera recognises the subject, the recognition area will appear on the screen.
• Face : Doodle on a face.
• Everywhere : Doodle anywhere else.
3
Write or draw in the recognition area.
If you tap and then begin to doodle, you can record yourself doodling.
Face recognition area
Undo
Redo
Change the pen type and colour.
4
Tap to record a video.
5
Tap to stop recording the video.
You can view and share the video in Gallery .
110
Apps and features
Multi window
Introduction
Multi window lets you run two apps at the same time in the split screen view. You can also run multiple apps at the same time in the pop-up view.
Some apps may not support this feature.
Split screen view Pop-up view
111
Apps and features
Split screen view
1
Tap the Recents button to open the list of recently used apps.
2
Swipe to the left or right, tap an app’s icon, and then tap Open in split screen view .
The selected app will launch in the upper window.
3
On the lower window, swipe left or right to select another app to launch.
To launch apps not on the list of recently used apps, tap the Home button or Back button and select an app.
Adjusting the window size
Drag the bar between the app windows up or down to adjust the size of the windows.
When you drag the bar between the app windows to the top or bottom edge of the screen, the window will be maximised.
112
Apps and features
Using the Multi window tray
You can quickly access the apps that you want to run in the split screen view.
1
Swipe to the left on the screen.
If the Multi window tray does not appear, launch the Settings app, tap Advanced features , and then tap the Multi window tray switch to activate it.
Multi window tray
View all apps.
2
Select an app.
The selected app will launch in the upper window.
3
Select another app to launch in the lower window.
If there is no app on the Multi window tray that you want to launch, tap to view all apps.
Editing the Multi window tray
If you want to add frequently used apps on the Multi window tray, tap → Edit tray and tap an app from the apps list.
The app will be added to the Multi window tray.
113
Apps and features
Pop-up view
1
Tap the Recents button to open the list of recently used apps.
2
Swipe to the left or right, tap an app’s icon, and then tap Open in pop-up view .
The app screen will appear in the pop-up view.
Minimise the window.
Maximise the window.
Close the app.
Adjust the transparency level.
Moving pop-up windows
To move a pop-up window, tap the window’s toolbar and drag it to a new location.
114
Apps and features
Samsung Daily
View the latest news and various content, such as videos and games.
• To use Samsung Daily, your device must be connected to a Wi-Fi or mobile network.
• To fully use this feature, you must sign in to your Samsung account.
Opening Samsung Daily
1
On the Home screen, swipe to the right.
The Samsung Daily screen will appear.
When launching this feature for the first time or after performing a data reset, follow the on-screen instructions to complete the setup.
Access additional options.
Contents
2
Swipe upwards or downwards to view content.
The content of the cards update automatically at a specified interval. You can update cards whenever you want by swiping downwards on the screen.
3
To close Samsung Daily, swipe to the left on the screen or tap the Back button.
115
Apps and features
Editing cards list
• To stop displaying a card on the list, tap at the top of the card and tap Don’t show again .
• To add or delete content to be shown as cards, tap → Cards and tap the switches next to items to turn them on or off.
• To change the order of the cards, tap → Cards → Reorder and drag to another location.
Samsung Members
Samsung Members offers support services to customers, such as device problem diagnosis, and lets users submit questions and error reports. You can also share information with others in the Galaxy users’ community or view the latest Galaxy news and tips. Samsung Members can help you solve any problems you might encounter while using your device.
To submit your feedback or post your comments, you must sign in to your Samsung
account. Refer to Samsung account
for more information.
Samsung Notes
Introduction
Create notes by entering text from the keyboard or by handwriting or drawing on the screen.
You can also insert images or voice recordings into your notes.
Creating notes
1
Launch the Samsung Notes app and tap .
116
Apps and features
2
Select an input method from the toolbar at the top of the screen and compose a note.
Write or draw with pens.
Enter text using the keyboard.
Insert files.
Paint with brushes.
3
When you are finished composing the note, tap Save .
Composing notes with handwriting
On the note composer screen, tap to write or draw with the S Pen.
You can enter your handwriting more easily if you magnify the screen by spreading two fingers on it.
Favourite pens
Pen
Eraser
Undo
Redo
Convert handwriting to text.
Select and edit.
Change styles.
Change the background colour.
Change drawings into shape.
117
Apps and features
Editing your favourite pens
Add various styles of pens to your favourites and then you can select and use them more quickly.
On the note composer screen, tap .
Add a favourite pen.
Delete pens.
Your favourite pens
Changing the pen settings
When writing or drawing on the screen, tap to change the pen type, line thickness, or pen colour.
Change the line thickness.
Change the pen type.
Change the pen colour.
Select a new colour using the colour picker.
Select colour sets to show.
118
Apps and features
Using the eraser
When you want to erase handwriting from a note, tap and select an area to erase.
Alternatively, select an area while pressing and holding the S Pen button.
To change the eraser type, tap once more.
• Erase by line : Erase the line you select.
• Erase by area : Erase only the area you select. You can adjust the size of the eraser by dragging the size adjustment bar.
• Erase all : Clear the note.
Even with a smaller eraser, you may still not be able to precisely erase the intended part.
Using the easy writing pad
Use the easy writing pad to enter your handwriting more easily.
When you write or draw on the easy writing pad, your handwriting will be automatically adjusted and entered between the lines of the input field.
1
On the Samsung Notes main screen, tap → → Add-ons and tap the Easy writing pad switch to activate it.
2
On the note composer screen, tap .
The input field will be magnified and appear as the easy writing pad.
119
Easy writing pad
Apps and features
Editing handwritten notes
Edit handwritten notes using various editing options, such as cutting, moving, resizing, or transforming.
1
When there is handwriting on the note, tap .
To change the shape of the selection, tap once more.
2
Tap or draw a line around the input to select.
To move the input to another location, select the input, and then drag it to a new location.
To change the size of the selection, tap the input and drag a corner of the frame that appears.
3
Edit the input using the available options.
• Cut : Cut out the input. To paste it to another location, tap and hold the location, and then tap Paste .
• Copy : Copy the input. To paste it to another location, tap and hold the location, and then tap Paste .
• Delete : Delete the input.
• Change style : Change styles. Select a colour or line thickness and tap Done .
• Extract text : Extract text from the selected area. To paste or copy the text to a note, tap Paste or Copy .
• To front : Send the input to the front.
• To back : Send the input to the back.
120
Apps and features
Changing styles
You can change the style of your handwriting and drawings.
1
After writing or drawing on the screen, tap twice.
2
Select a colour or line thickness you want.
3
Point the S Pen toward where you want to apply the style.
The icon will appear.
4
Tap where you want to change the style.
Changing drawings into shape
You can change your drawings into shapes. Tap and draw. Your drawings will now automatically change into the corresponding shape.
121
Apps and features
Converting handwriting to text
After writing on the screen, tap it with your finger. To select all of your handwriting, tap .
Options will appear in the preview window. To replace the handwriting with the text, tap
Convert .
Painting with brushes
On the note composer screen, tap to paint with various brushes.
When you are finished, tap Done to insert your painting into the note.
You can post your painting to PENUP to share it with others.
Change the brush type.
Select a new colour using the colour picker.
Select colour sets to show.
Change the brush colour.
Eraser
Post the painting to PENUP.
Undo
Redo
Insert the painting into the note.
122
Apps and features
Pinning a note to the Home screen
Pin a note to the Home screen to quickly view it or open and edit it.
1
Launch the Samsung Notes app.
2
Select a note and tap → Pin to home screen .
The note will be added to the Home screen.
Saving a note as a reminder
You can save a note as a reminder to view the note later.
1
Launch the Samsung Notes app.
2
Select a note and tap → Send to Reminder .
The note will be saved as a reminder.
Deleting notes
1
Launch the Samsung Notes app.
2
Tap and hold a note to delete.
To delete multiple notes, tick more notes to delete.
3
Tap Delete .
123
Apps and features
PENUP
Introduction
PENUP is a social network service for sharing artwork drawn with the S Pen. Post your artwork, view others’ artwork, and get useful drawing tips.
Your profile
Your activities
Post your artwork.
View artwork by category.
You can sign in to PENUP with your Samsung account or other SNS accounts.
Posting your artwork
Post your artwork created in Samsung Notes or other drawing apps to PENUP.
1
Launch the PENUP app and tap .
2
Select an option.
• Tap Drafts , finish artwork, and then tap Done .
• Tap From Gallery , select your artwork to post, and then tap Done .
• Tap Photo drawing . Select an option to take a photo or select a photo, draw on it, and then tap Done .
• Tap Drawing , draw artwork, and then tap Done .
124
Apps and features
3
Tap Save and post .
If you want to apply a filter to your artwork, tap Choose a filter , select a filter you want, and then tap Next .
This option will not appear when you select From Gallery .
4
Enter a title, description, and hashtag.
5
Tap Post .
Posting artwork from other apps
To post your artwork from Gallery or other drawing apps, select the artwork from an app and tap → PENUP .
Colouring images
Using the various colours, create your own artwork.
1
Launch the PENUP app, and then tap Colouring .
2
Select an image.
3
Tap Start colouring .
4
When you are finished, tap Done .
125
Apps and features
Live drawing
Draw along as you watch the live drawing video that shows the process of completing an image. You can easily draw a nice image.
1
Launch the PENUP app, and then tap Live drawing .
2
Select an image.
3
Tap Learn to draw .
4
To draw on the image, tap to pause the playback.
You can change the playback speed by tapping .
5
When you are finished, tap .
The original image will be hidden and you can see the image you drew.
126
Apps and features
Photo drawing
Draw images on your photos and keep them as your own works of art. Select a photo from
Gallery or take a photo and draw on the photo. After completing your drawing, you can see the image you drew by hiding the photo.
1
Launch the PENUP app.
2
Tap → Drawing → .
3
Tap Take picture , take a photo, and then tap OK .
Alternatively, tap Select from Gallery and select a photo.
4
Select the area to draw, adjust the transparency level, and then tap Done .
The selected area will be added as a background.
5
Draw on the photo.
6
When you are finished, tap .
The photo will be hidden and you can see the image you drew.
127
Apps and features
Calendar
Manage your schedule by entering upcoming events or reminders in your planner.
Creating events
1
Launch the Calendar app and tap or double-tap a date.
2
Enter event details.
Enter a title.
Select a sticker to display with the event.
Change the event's colour.
Set the duration.
Enter the location.
Select a calendar to save the event to.
Set an alarm.
3
Tap Save to save the event.
Creating reminders
You can create tasks as reminders and receive notifications at the preset time or location for each reminder. Launch the Calendar app and tap → Reminder . Refer to
more information.
128
Apps and features
Syncing events with your accounts
1
Launch the Settings app, tap Accounts and backup → Accounts , and then select the account to sync with.
2
Tap Sync account and tap the Calendar switch to activate it.
For the Samsung account, tap → Sync settings and tap the Calendar switch to activate it.
To add accounts to sync with, launch the Calendar app and tap → → Add new account . Then, select an account to sync with and sign in. When an account is added, a blue circle is displayed next to the account name.
Reminder
Create reminders to schedule to-do items or to view content later. You will receive notifications at the preset time or location for each reminder.
• To receive more accurate notifications, connect to a Wi-Fi or mobile network.
• To fully use this feature, you must sign in to your Samsung account.
• To use location reminders, the GPS feature must be activated.
Starting Reminder
Launch the Calendar app and tap → Reminder . The Reminder screen will appear and the
Reminder app icon ( ) will be added to the Apps screen.
Creating reminders
Create reminders with various methods. Reminder will alert you if you create a reminder with a specified time or location setting. You can also save various content, such as a single memo or webpage address, and view it later.
For example, create a reminder to alert you to ‘Water the flowers when I get home’.
1
Launch the Reminder app.
2
Tap Write a reminder or and enter ‘Water the flowers’.
129
Apps and features
3
Tap Place → Pick a place and set the location to home.
4
Tap When I arrive at → Done .
5
Tap Save to save the reminder.
When you arrive at home, the ‘Water the flowers’ notification will appear.
Completing reminders
Mark reminders that you do not need to be reminded of as complete.
On the reminders list, select a reminder and tap Complete .
Restoring reminders
Restore reminders that have been completed.
1
On the reminders list, tap → Completed → Edit .
2
Tick items to restore and tap Restore .
Reminders will be added to the reminders list and you will be reminded at the preset times.
Deleting reminders
To delete a reminder, select a reminder and tap Delete . To delete multiple reminders, tap and hold a reminder, tick reminders to delete, and then tap Delete .
130
Apps and features
Samsung Flow
Introduction
Samsung Flow allows you to easily connect your tablet to your smartphone and use them conveniently, such as checking notifications or sharing contents.
Samsung Flow must be installed on both devices that you want to connect. If Samsung Flow is not installed, download it from Galaxy Store or Play Store .
• This feature is only available on some Samsung Android devices.
• To use this feature, you must activate Bluetooth feature on your tablet and your smartphone.
Connecting your tablet and smartphone
1
On your smartphone, launch Samsung Flow.
2
On your tablet, launch the Samsung Flow app.
If you are using this feature for the first time, tap Start .
3
Select your smartphone from the detected devices list.
4
Accept the connection request on both devices.
5
Confirm the passkey on both devices.
The devices will be connected.
If your smartphone supports fingerprint recognition feature, set up Samsung Pass on your smartphone to connect the devices more easily and securely using your fingerprint.
131
Apps and features
Sharing mobile data connection (SM-T860)
Share your smartphone’s mobile data connection with your tablet using a mobile hotspot when the Internet connection is not available on your tablet.
1
On your tablet, launch the Samsung Flow app.
2
Tap .
You can access the Internet on your tablet using your smartphone’s mobile data connection.
• Your smartphone must support the mobile hotspot feature.
• You may incur additional charges on your smartphone when using this feature.
Checking notifications on your tablet
When you receive new notifications on your smartphone, check the notifications in pop-up window on your tablet.
Sharing contents
You can share your smartphone’s contents with your tablet.
My Files
Access and manage various files stored in the device or in other locations, such as cloud storage services.
Launch the My Files app.
View files that are stored in each storage.
To check for unnecessary data and free up the device’s storage, tap Analyse storage .
To search for files or folders, tap .
132
Apps and features
Clock
Introduction
Set alarms, check the current time in many cities around the world, time an event, or set a specific duration.
Alarm
Launch the Clock app and tap Alarm .
Setting alarms
Tap in the alarms list, set an alarm time, select the days on which the alarm will repeat, set other various alarm options, and then tap Save .
To open the keypad to enter an alarm time, tap the time input field.
To activate or deactivate alarms, tap the switch next to the alarm in the alarms list.
Stopping alarms
Tap Dismiss to stop an alarm. If you have previously enabled the snooze option, tap Snooze to repeat the alarm after a specified length of time.
Deleting alarms
Tap and hold an alarm, tick alarms to delete, and then tap Delete .
World Clock
Launch the Clock app and tap World Clock .
Creating clocks
Tap , enter a city name or select a city from the map, and then tap Add .
To use the time zone converter, tap → Time zone converter .
Deleting clocks
Tap and hold a clock, tick clocks to delete, and then tap Delete .
133
Apps and features
Stopwatch
1
Launch the Clock app and tap Stopwatch .
2
Tap Start to time an event.
To record lap times while timing an event, tap Lap .
3
Tap Stop to stop timing.
• To restart the timing, tap Resume .
• To clear lap times, tap Reset .
Timer
1
Launch the Clock app and tap Timer .
To add a frequently used timer, tap , set the duration and name, and then tap Add .
2
Set the duration and tap Start .
To open the keypad to enter the duration, tap the duration input field.
3
Tap Dismiss when the timer goes off.
Calculator
Perform simple or complex calculations.
Launch the Calculator app.
To clear the history, tap Clear history .
To use the unit conversion tool, tap . You can convert various values, such as area, length, or temperature, into other units.
134
Apps and features
Game Launcher
Introduction
Game Launcher gathers your games downloaded from Play Store and Galaxy Store into one place for easy access. You can set the device to game mode to play games more easily.
Open games with or without sound.
Access additional options.
Downloaded apps
View your gameplay information.
Library panel
Using Game Launcher
1
Launch the Game Launcher app.
If Game Launcher does not appear, launch the Settings app, tap Advanced features , and then tap the Game Launcher switch to activate it.
2
Drag the Library panel upwards and tap a game.
Games downloaded from Play Store and Galaxy Store will be automatically shown on the Game Launcher screen. If you cannot see your games, drag the Library panel upwards and tap → Add apps .
135
Apps and features
Removing a game from Game Launcher
Drag the Library panel upwards, tap and hold a game and tap Remove from Game
Launcher .
Changing the performance mode
You can change the game performance mode.
Launch the Game Launcher app, tap → Game performance → Game performance , and then select the mode you want.
• Focus on performance : This focuses on giving you the best possible performance while playing games.
• Balanced : This balances the performance and the battery usage time.
• Focus on power saving : This saves battery power while playing games.
Battery power efficiency may vary by game.
Game Booster
Introduction
Game Booster helps you play games in a better environment and you can use useful options on the Game Booster panel.
Using Game Booster
To open the Game Booster panel, tap on the navigation bar. If the navigation bar is hidden, drag upwards from the bottom of the screen to show it. If you have set the navigation bar to use Full screen gestures , open the notification panel and tap Tap to open Game
Booster.
Available options may vary depending on the game.
136
Apps and features
• : Configure settings for Game Booster.
• Monitoring temperature / Monitoring memory : Set the device automatically adjust settings to prevent device overheating and stop apps running in the background to manage the memory.
• Block during game : Lock some features during games.
• Navigation button lock : Hide the buttons on the navigation bar. To display the buttons, tap on the navigation bar.
• Screen touch lock : Lock the touchscreen while the game is being played. To unlock the touchscreen, drag the lock icon in any direction.
• Screenshot : Capture screenshots.
Launching apps in pop-up windows while playing games
You can launch apps in pop-up windows while playing a game.
Tap and select an app from the apps list.
To edit the apps list, tap .
137
Apps and features
Kids Home
Introduction
You can restrict children’s access to certain apps, set their usage times, and configure settings to provide a fun and safe environment for children when they use the device.
Using Kids Home
Open the notification panel, swipe downwards, and then tap ( Kids Home ) to activate it. The Kids Home screen will appear. When starting Kids Home for the first time or after performing a data reset, follow the on-screen instructions to complete the setup.
On the Kids Home screen, select the app you want to use.
Access additional options.
Available apps
Kids Phone Kids Art Studio
Kids Camera Kids Browser
Kids Gallery
Your preset screen lock method or your created PIN will be used when activating the
Parental control feature or closing Kids Home.
138
Apps and features
Using parental control features
You can configure the settings for Kids Home and view the usage history.
On the Kids Home screen, tap → Parental control and enter your unlock code.
• Kid’s name : Manage your child’s profile.
• Set daily playtime : Restrict the usage time for Kids Home.
• Daily usage : View the daily usage time of Kids Home.
• Activity : View the activity history of Kids Home.
• Frequently contacted : View the frequently used contacts in Kids Home.
• My kid’s creations : View the works created from the apps in Kids Home.
• Allowed content : Check the apps or content supported by Kids Home and add them.
• Show Content page : Set the device to show the Samsung partners’ content pages on the
Kids Home screen.
Closing Kids Home
To close Kids Home, tap the Back button or tap → Close Kids Home , and then enter your unlock code.
SmartThings
Introduction
Control and manage smart appliances and Internet of Things (IoT) products with your tablet.
• Connecting with nearby devices : Connect with nearby devices, such as Bluetooth headsets or wearable devices, easily and quickly.
• Registering and controlling home appliances, TVs, and IoT products : Register smart refrigerators, washers, air conditioners, air purifiers, TVs, and Internet of Things (IoT) products on your tablet, and view their status or control them from your tablet’s screen.
139
Apps and features
• Receiving notification : Receive notifications from connected devices on your tablet. For example, when the laundry is finished, you can receive a notification on your tablet.
• To use SmartThings, your tablet and other devices must be connected to a Wi-Fi or mobile network. To fully use SmartThings, you must sign in to your Samsung account.
• The devices you can connect may vary depending on the region or service provider. Available features may differ depending on the connected device.
• Connected devices’ own errors or defects are not covered by the Samsung warranty. When errors or defects occur on the connected devices, contact the device’s manufacturer.
Connecting to nearby devices
Connect to nearby devices, such as Bluetooth headsets, easily and quickly.
Connection methods may vary depending on the type of connected devices or the shared content.
1
Launch the SmartThings app.
2
Tap Add device or tap → Device .
3
Tap Scan .
4
Select a device from the list and connect to it by following the on-screen instructions.
Using home appliances, TVs, and IoT products
View the status of your smart appliances, TVs, and IoT products from your tablet’s screen. You can group devices by location and add rules to control the devices easily and conveniently.
Connecting devices
1
Launch the SmartThings app.
2
Tap Add device or tap → Device .
140
Apps and features
3
Select a device type.
Or, tap Scan or Search to search for devices.
4
Follow the on-screen instructions to connect devices.
Viewing and controlling connected devices
You can view and control the devices. For example, you can check the ingredients in your refrigerator or adjust the TV volume.
1
Launch the SmartThings app.
The list of connected devices will appear.
2
View the status of devices on the list.
To control the devices, select a device. When the device controller supplied with the selected device is downloaded, you can control the device.
Adding devices and scenes by locations
Add devices by locations, view the list of devices in a same location, and control them. You can also add a scene to a location to control multiple devices at the same time.
Adding locations
1
Launch the SmartThings app and tap → → Add location .
2
Enter the location name.
• To set a location, tap Geolocation to select a location on the map and tap Done .
• To add rooms to the location, tap Rooms , tick rooms you want to add, and then tap
Done .
3
Tap Done .
Your location will be added.
To add devices to the location, tap Add device or tap → Device and follow the on-screen instructions to register devices.
141
Apps and features
Adding scenes
Add a scene and register devices to it to control multiple devices at the same time.
1
Launch the SmartThings app.
2
Tap → and select a location.
3
Tap → Scenes → Add scene .
4
Enter the scene name.
5
Tap under Actions to add actions to perform.
6
Tap Save .
Adding automations
You can also set an automation to operate devices automatically depending on the preset time, the status of devices, and more.
For example, add an automation to turn on the audio automatically every day at 7:00 AM.
1
Launch the SmartThings app.
2
Tap → and select a location.
3
Tap → Automations → Add automation .
4
Tap under If , and set the activation conditions for the automation, and then tap Next .
5
Tap under Then and set actions to perform, and then tap Done .
6
Enter the automation name and tap OK .
Receiving notifications
You can receive notifications from connected devices on your tablet. For example, when the laundry is finished, you can receive a notification on your tablet.
To set devices to receive notifications, launch the SmartThings app, tap → →
Notifications , and then tap the switches next to the devices you want.
142
Apps and features
Sharing content
Share content by using various sharing options. The following actions are an example of sharing images.
You may incur additional charges when sharing files via the mobile network.
(SM-T865, SM-T867)
1
Launch the Gallery app and select an image.
2
Tap and select a sharing method, such as email.
When you have a communication or sharing history, the people you contacted will appear on the sharing options panel. To directly share content with them via the corresponding app, select a person’s icon. If the feature is not activated, launch the Settings app, tap Advanced features , and then tap the Direct share switch to activate it.
Using additional features
• Smart View : View your device’s displayed content on a large screen by connecting your device to a screen mirroring-enabled TV or monitor.
• Link Sharing : Share large files. Upload files to the Samsung storage server and share them with others via a Web link. To use this feature, you must sign in to your Samsung account.
143
Apps and features
Daily Board
Introduction
Daily Board lets you use your tablet as a picture frame or bulletin board when it is charging with a USB cable or charging dock. You can enjoy a slide show with your favourite images and view information, such as the time, weather, or your calendar. You can also create a note and control music while using it.
If you use a pogo charging dock (sold separately), Daily Board will launch automatically when you connect your tablet to it.
Launching Daily Board
1
Charge the device with a USB cable or charging dock.
To connect the device to a charging dock, slide the device into the charging dock to bring the device’s connectors and charging dock’s charging terminals into contact with each other.
2
Open the notification panel and tap Tap here to start Daily Board.
The Daily Board main screen will appear and you can see the clock, weather, or calendar.
144
Apps and features
Setting the information view mode of the Daily Board main screen
Change the view mode of the information, such as the clock, weather, or calendar displayed on the Daily Board main screen.
1
Launch the Settings app and tap Advanced features → Daily Board .
2
Tap Time, weather, and calendar and select a view mode.
• Show sequentially : Set the Daily Board main screen to display information sequentially by switching the screen.
• All on one page : Set the Daily Board main screen to display all information on one page.
Using Daily Board
Playing the slide show
You can use your device as a picture frame. Enjoy slide shows of your favourite images on
Daily Board.
On the Daily Board main screen, swipe to the right to play a slide show.
To add your favourite images to display to a slide show, launch the Settings app, tap
Advanced features → Daily Board → Slideshow → Select albums , and then select the album.
Making a note on Daily Board
You can use your device as a bulletin board to make a note on Daily Board.
1
Swipe to the left on the Daily board main screen and tap .
2
Select a pen and write or draw on the screen.
3
Tap Done .
The note you make will be pinned to Daily Board.
145
Apps and features
Controlling the music
You can control music playback easily on Daily Board.
Tap and tap the icons to control playback.
Configuring settings for Daily Board
Configure various settings for Daily Board and make Daily board more personalised.
• Slideshow : Select the images to add to the slide show and change the settings for slide show, such as the image order, transition speed, and style. You can also set the clock or weather information shown on the slide show.
• Time, weather, and calendar : Change the setting for Daily Board main screen. You can change the view mode of the information, such as clock, weather, or calendar that is displayed on the Daily Board main screen and the clock’s layout. You can also apply the night theme or set the day’s schedule to be shown on the Daily Board main screen.
• Memo : Turn the memo feature on Daily Board on or off.
• Music : Turn the music controller feature on Daily Board on or off.
• Auto start : Set the device to launch Daily Board automatically when connecting it to a charging dock.
• Turn off as scheduled : Set the schedule to close Daily Board. When activating this feature, tap Set time to set the time to close Daily Board.
Closing Daily Board
To close Daily Board, tap the Home button or the Back button.
146
Apps and features
Samsung DeX
Introduction
Samsung DeX is a service that allows you to use your tablet like a computer from tablet screen or an external display, such as a TV or monitor. While using Samsung DeX on external display, you can simultaneously use your tablet.
You can connect your tablet to the Keyboard Cover or external display using an HDMI adaptor
(USB Type-C to HDMI).
On tablet screen On external display
• All accessories are sold separately.
• Use only official Samsung DeX supported accessories that are provided by
Samsung. Performance problems and malfunctions caused by using accessories that are not officially supported are not covered by the warranty.
147
Apps and features
Connecting devices and starting Samsung DeX
Connecting to the Keyboard Cover
Use your tablet like a computer by connecting the Keyboard Cover.
Gently press the device until the device’s keyboard dock port connects with the connector of the Keyboard Cover.
Samsung DeX screen will appear.
• To set the device to switch to Samsung DeX automatically when connecting the
Keyboard Cover, launch the Settings app, tap Advanced features → Samsung
DeX , and then tap the Auto start when Book Cover Keyboard is connected switch to activate it.
• While using the Keyboard Cover, you can easily launch Samsung DeX with a simple key combination ( Fn + DeX ).
• You can also launch Samsung DeX from quick settings without Keyboard Cover.
Swipe downwards on the notification panel and tap Samsung DeX .
• To use the device upright, attach the backside of the Keyboard Cover to the back of the device.
148
Apps and features
Connecting to an external display
You can connect your tablet to an external display using an HDMI adaptor.
1
Connect an HDMI adaptor to your tablet.
2
Connect an HDMI cable to the HDMI adaptor and to a TV or monitor’s HDMI port.
3
On your tablet’s screen, tap Continue → Start .
Without changing your tablet’s screen, the Samsung DeX screen will appear on the connected TV or monitor.
HDMI cable
HDMI adaptor
(USB Type-C to
HDMI)
To switch to Samsung DeX directly when connecting the HDMI adaptor, launch the
Settings app, tap Advanced features → Samsung DeX , and then tap the Auto start when HDMI is connected switch to activate it.
149
Apps and features
Controlling the Samsung DeX screen
Controlling with Keyboard Cover’s touchpad and keyboard
When you use Samsung DeX with the Keyboard Cover, you can use Keyboard Cover’s touchpad and keyboard to control the Samsung DeX screen.
Controlling with an external keyboard and mouse
You can use a wireless keyboard/mouse. Refer to the respective device’s manual for more information.
• You can set the mouse pointer to flow from the external display to the tablet’s screen. Launch the Settings app, select Samsung DeX → Mouse/trackpad , and then select the Flow pointer to tablet screen switch to activate it.
• You can also use the external keyboard on the tablet’s screen.
150
Apps and features
Using your tablet as a touchpad
You can use your tablet as a touchpad and operate it with your fingers or the S Pen.
On your tablet, drag downwards from the top of the screen to open the notification panel and tap Use your tablet as a touchpad .
• You can use the touchpad only when using Samsung DeX on external display.
• If your tablet’s screen turns off, press the Side key or double-tap anywhere on the screen to turn on the screen.
Using the screen keyboard
When you enter text to send messages, create notes, or perform other tasks, a screen keyboard will appear automatically on your tablet’s screen without connecting an external keyboard.
If the keyboard does not appear, select on the quick access toolbar.
151
Apps and features
Using Samsung DeX
Use your tablet’s features in an interface environment similar to a computer. You can multitask by running multiple apps simultaneously. You can also check your tablet’s notifications and status.
Favourite apps
Samsung DeX home screen
Taskbar
Apps button
Samsung DeX panel
Quick access toolbar
Status bar
• When starting or ending Samsung DeX, running apps may be closed.
• Some apps or features may not be available when using Samsung DeX.
• To adjust the screen settings, use the connected TV or monitor’s display settings.
• To change the audio output, select on the status bar, select Media , and then select a device under Audio output .
• Favourite apps: Add frequently used apps to the Home screen and launch them quickly.
• Samsung DeX panel: You can use various useful features, such as locking the Samsung
DeX screen and viewing how to use Samsung DeX.
• Apps button: View and run your tablet’s apps.
• Taskbar: View the apps that are currently running.
• Status bar: View your tablet’s notifications and status. Status icons may appear differently depending on your tablet’s status. When you select , the quick setting buttons will appear. You can activate or deactivate certain tablet features using the quick setting buttons.
• Quick access toolbar: Use quick tools, such as screen keyboard, volume control, or search.
152
Apps and features
Using the external display and tablet simultaneously
While using Samsung DeX, you can use separate apps on the external display and your tablet simultaneously. For example, while watching a video on the connected TV or monitor, you can create a note on your tablet.
On the connected TV or monitor, launch an app to run on the Samsung DeX screen. Then, launch another app on your tablet.
Enjoying games vividly on a large screen
Play your tablet’s games on a large screen. On the connected TV or monitor, launch the Game
Launcher app.
Ending Samsung DeX
Use the following methods to end Samsung DeX.
• Press the key combination ( Fn + DeX ) when you use Samsung DeX with the Keyboard
Cover.
• On the status bar, tap → .
• Tap at the bottom of the left corner and tap Exit DeX .
• Disconnect your tablet from the HDMI adaptor.
Google apps
Google provides entertainment, social network, and business apps. You may require a Google account to access some apps.
To view more app information, access each app’s help menu.
Some apps may not be available or may be labelled differently depending on the region or service provider.
Chrome
Search for information and browse webpages.
Gmail
Send or receive emails via the Google Mail service.
153
Apps and features
Maps
Find your location on the map, search the world map, and view location information for various places around you.
Play Music
Discover, listen to, and share music on your device. You can upload music collections stored on your device to the cloud and access them later.
Play Movies & TV
Purchase or rent videos, such as movies and TV programmes, from Play Store .
Drive
Store your content on the cloud, access it from anywhere, and share it with others.
YouTube
Watch or create videos and share them with others.
Photos
Search for, manage, and edit all your photos and videos from various sources in one place.
Search quickly for items on the Internet or your device.
Duo
Make a simple video call.
154
Settings
Introduction
Customise device settings. You can make your device more personalised by configuring various setting options.
Launch the Settings app.
To search for settings by entering keywords, tap .
Connections
Options
Change settings for various connections, such as the Wi-Fi feature and Bluetooth.
On the Settings screen, tap Connections .
• Wi-Fi : Activate the Wi-Fi feature to connect to a Wi-Fi network and access the Internet or
other network devices. Refer to Wi-Fi
for more information.
• Bluetooth : Use Bluetooth to exchange data or media files with other Bluetooth-enabled devices. Refer to
for more information.
• Flight mode : Set the device to disable all wireless functions on your device. You can use only non-network services.
Follow the regulations provided by the airline and the instructions of aircraft personnel. In cases where it is allowed to use the device, always use it in flight mode.
• Mobile networks : Configure your mobile network settings. (SM-T865, SM-T867)
155
Settings
• Data usage
â–º SM-T865 , SM-T867 : Keep track of your data usage amount and customise the settings for the limitation. Set the device to automatically disable the mobile data connection when the amount of mobile data you have used reaches your specified limit.
You can also activate the data saver feature to prevent some apps running in the
background from sending or receiving data. Refer to Data saver (SM-T865, SM-T867) for
more information.
â–º SM-T860 : Keep track of your data usage amount.
• Mobile Hotspot and Tethering : Use the device as a mobile hotspot to share the device’s mobile data connection with other devices when the network connection is not
for more information. (SM-T865, SM-T867)
• More connection settings : Customise settings to control other features. Refer to
More connection settings for more information.
Wi-Fi
Activate the Wi-Fi feature to connect to a Wi-Fi network and access the Internet or other network devices.
Connecting to a Wi-Fi network
1
On the Settings screen, tap Connections → Wi-Fi and tap the switch to activate it.
2
Select a network from the Wi-Fi networks list.
Networks that require a password appear with a lock icon. Enter the password and tap
Connect .
• Once the device connects to a Wi-Fi network, the device will reconnect to that network each time it is available without requiring a password. To prevent the device from connecting to the network automatically, tap next to the network and tap the Auto reconnect switch to deactivate it.
• If you cannot connect to a Wi-Fi network properly, restart your device’s Wi-Fi feature or the wireless router.
156
Settings
Wi-Fi Direct
Wi-Fi Direct connects devices directly via a Wi-Fi network without requiring an access point.
1
On the Settings screen, tap Connections → Wi-Fi and tap the switch to activate it.
2
Tap → Wi-Fi Direct .
The detected devices are listed.
If the device you want to connect to is not in the list, request that the device turns on its
Wi-Fi Direct feature.
3
Select a device to connect to.
The devices will be connected when the other device accepts the Wi-Fi Direct connection request.
Sending and receiving data
You can share data, such as contacts or media files, with other devices. The following actions are an example of sending an image to another device.
1
Launch the Gallery app and select an image.
2
Tap → Wi-Fi Direct and select a device to transfer the image to.
3
Accept the Wi-Fi Direct connection request on the other device.
If the devices are already connected, the image will be sent to the other device without the connection request procedure.
Ending the device connection
1
On the Settings screen, tap Connections → Wi-Fi .
2
Tap → Wi-Fi Direct .
The device displays the connected devices in the list.
3
Tap the device name to disconnect the devices.
157
Settings
Bluetooth
Use Bluetooth to exchange data or media files with other Bluetooth-enabled devices.
• Samsung is not responsible for the loss, interception, or misuse of data sent or received via Bluetooth.
• Always ensure that you share and receive data with devices that are trusted and properly secured. If there are obstacles between the devices, the operating distance may be reduced.
• Some devices, especially those that are not tested or approved by the Bluetooth
SIG, may be incompatible with your device.
• Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files or illegally tapping communications for commercial purposes). Samsung is not responsible for the repercussion of illegal use of the Bluetooth feature.
Pairing with other Bluetooth devices
1
On the Settings screen, tap Connections → Bluetooth and tap the switch to activate it.
The detected devices will be listed.
2
Select a device to pair with.
If the device you want to pair with is not on the list, set the device to enter Bluetooth pairing mode. Refer to the other device’s user manuals.
Your device is visible to other devices while the Bluetooth settings screen is open.
3
Accept the Bluetooth connection request on your device to confirm.
The devices will be connected when the other device accepts the Bluetooth connection request.
158
Settings
Sending and receiving data
Many apps support data transfer via Bluetooth. You can share data, such as contacts or media files, with other Bluetooth devices. The following actions are an example of sending an image to another device.
1
Launch the Gallery app and select an image.
2
Tap → Bluetooth and select a device to transfer the image to.
If the device you want to pair with is not in the list, request that the device turns on its visibility option.
3
Accept the Bluetooth connection request on the other device.
Unpairing Bluetooth devices
1
On the Settings screen, tap Connections → Bluetooth .
The device displays the paired devices in the list.
2
Tap next to the device name to unpair.
3
Tap Unpair .
Data saver (SM-T865, SM-T867)
Reduce your data usage by preventing some apps running in the background from sending or receiving data.
On the Settings screen, tap Connections → Data usage → Data saver and tap the switch to activate it.
When the data saver feature is activated, the icon will appear on the status bar.
Data saver feature activated
To select apps to use data without restriction, tap Allow app while Data saver on and select apps.
159
Settings
Mobile data only apps (SM-T865, SM-T867)
Select apps to always use the mobile data even when your device is connected to a Wi-Fi network.
For example, you can set the device to use only mobile data for apps that you want to keep secure or streaming apps that can be disconnected. Even if you do not deactivate the Wi-Fi feature, the apps will launch using the mobile data.
On the Settings screen, tap Connections → Data usage → Mobile data only apps , tap the switch to activate it, and then tap the switches next to the apps you want.
You may incur additional charges when using this feature.
Mobile Hotspot and Tethering (SM-T865, SM-T867)
Use the device as a mobile hotspot to share the device’s mobile data connection with other devices when the network connection is not available. Connections can be made via Wi-Fi,
USB, or Bluetooth.
On the Settings screen, tap Connections → Mobile Hotspot and Tethering .
You may incur additional charges when using this feature.
• Mobile Hotspot : Use the mobile hotspot to share the device’s mobile data connection with computers or other devices.
• Bluetooth tethering : Use Bluetooth tethering to share the device’s mobile data connection with computers or other devices via Bluetooth.
• USB tethering : Use USB tethering to share the device’s mobile data connection with a computer via USB. When connected to a computer, the device is used as a wireless modem for the computer.
160
Settings
Using the mobile hotspot
Use your device as a mobile hotspot to share your device’s mobile data connection with other devices.
1
On the Settings screen, tap Connections → Mobile Hotspot and Tethering → Mobile
Hotspot .
2
Tap the switch to activate it.
The icon appears on the status bar. Other devices can find your device in the Wi-Fi networks list.
To set a password for the mobile hotspot, tap → Configure Mobile Hotspot and select the level of security. Then, enter a password and tap Save .
3
On the other device’s screen, search for and select your device from the Wi-Fi networks list.
To connect without entering the password, tap and scan the QR code with the other device.
If the mobile hotspot is not found, on your device, set Band to 2.4 GHz , tap →
Configure Mobile Hotspot , and then deselect Hide my device .
4
On the connected device, use the device’s mobile data connection to access the Internet.
Auto Hotspot
You can share your device’s mobile data connection with your other devices signed in to your
Samsung account without entering a password.
Tap Auto Hotspot and tap the switch to activate it.
161
Settings
More connection settings
Customise settings to control other connection features.
On the Settings screen, tap Connections → More connection settings .
• Nearby device scanning : Set the device to scan for nearby devices to connect to.
• Printing : Configure settings for printer plug-ins installed on the device. You can search for available printers or add one manually to print files. Refer to
for more information.
• VPN : Set up virtual private networks (VPNs) on your device to connect to a school or company’s private network.
• Private DNS : Set the device to use the security enhanced private DNS.
• Ethernet : When you connect an Ethernet adaptor, you can use a wired network and configure network settings.
Printing
Configure settings for printer plug-ins installed on the device. You can connect the device to a printer via Wi-Fi or Wi-Fi Direct, and print images or documents.
Some printers may not be compatible with the device.
Adding printer plug-ins
Add printer plug-ins for printers you want to connect the device to.
1
On the Settings screen, tap Connections → More connection settings → Printing →
Download plugin .
2
Search for a printer plug-in in Play Store .
3
Select a printer plug-in and install it.
4
Select the installed printer plug-in.
The device will automatically search for printers that are connected to the same Wi-Fi network as your device.
162
Settings
5
Select a printer to add.
To add printers manually, tap → Add printer .
Printing content
While viewing content, such as images or documents, access the options list, tap Print →
→ All printers...
, and then select a printer.
Printing methods may vary depending on the content type.
Sounds and vibration
Options
Change settings for various sounds on the device.
On the Settings screen, tap Sounds and vibration .
• Sound mode : Set the device to use sound mode, vibration mode, or silent mode.
Vibration mode may not be available on some models.
• Vibrate while ringing : Set the device to vibrate and play a ringtone for incoming calls.
(SM-T865, SM-T860)
• Temporary mute : Set the device to use silent mode for a certain period.
• Ringtone : Change the call ringtone. (SM-T865, SM-T860)
• Notification sound : Change the notification sound.
• Volume : Adjust the device’s volume level.
• Vibration pattern : Select a vibration pattern. (SM-T865, SM-T860)
• System sound : Set the device to sound for actions, such as controlling the touchscreen.
• Sound quality and effects
: Set the device’s sound quality and effects. Refer to Dolby
Atmos (surround sound) for more information.
• Separate app sound : Set the device to play media sound from a specific app separately
on the other audio device. Refer to Separate app sound
for more information.
163
Settings
Dolby Atmos (surround sound)
Select a surround sound mode optimised for various types of audio, such as movies, music, and voice. With Dolby Atmos, you can experience moving audio sounds that flows all around you.
On the Settings screen, tap Sounds and vibration → Sound quality and effects → Dolby
Atmos , tap the switch to activate it, and then select a mode.
Separate app sound
Set the device to play media sound from a specific app on the connected Bluetooth speaker or headset separate from the sound of other apps.
For example, you can listen to the Navigation app through your device’s speaker while listening to playback from the Music app through the vehicle’s Bluetooth speaker.
1
On the Settings screen, tap Sounds and vibration → Separate app sound and tap the switch to activate it.
2
Select an app to play media sounds separately and tap the Back button.
3
Select a device for playing the selected app’s media sound.
Notifications
Change the notification settings.
On the Settings screen, tap Notifications .
• Suggest actions and replies : Set the device to suggest actions and replies for notifications.
• Show snooze option : Set whether to show the snooze option.
• App icon badges : Change the settings for app icon badges.
• Status bar : Set the device to display only three recent notifications and whether to show the remaining battery level in percentage on the status bar.
• Do not disturb : Set the device to mute all sounds except for allowed exceptions.
• Recently sent : View the apps that received recent notifications and change the notification settings. To customise notification settings for more apps, tap See all →
→ All and select an app from the apps list.
164
Settings
Display
Options
Change the display and the Home screen settings.
On the Settings screen, tap Display .
• Light / Dark : Activate or deactivate dark mode.
• Dark mode settings : Reduce eye strain by applying the dark theme when using the device at night or in a dark place. Refer to
for more information.
• Brightness : Adjust the brightness of the display.
• Adaptive brightness : Set the device to keep track of your brightness adjustments and apply them automatically in similar lighting conditions.
• Blue light filter
: Activate the blue light filter and change the filter settings. Refer to Blue light filter
for more information.
• Screen mode : Change the screen mode to adjust the display’s colour and contrast. Refer
to Changing the screen mode or adjusting the display colour for more information.
• Font size and style : Change the font size and style.
• Screen zoom : Change the screen zoom setting.
• Screen timeout : Set the length of time the device waits before turning off the display’s backlight.
• Home screen : Configure settings for the Home screen, such as the screen grid or layout.
• Navigation bar : Change the navigation bar settings. Refer to
for more information.
• Show charging information : Set the device to display the remaining battery percentage and the estimated time until it is fully charged when the screen is off.
• Screensaver : Set the device to launch a screensaver when the device is charging. Refer to
for more information.
165
Settings
Dark mode settings
Reduce eye strain by applying the dark theme when using the device at night or in a dark place.
• The dark theme may not be applied in some apps.
• You can quickly activate or deactivate dark mode on the notification panel. Open the notification panel, swipe downwards, and then tap ( Dark mode ).
1
On the Settings screen, tap Display and tap Dark to activate it.
2
To set the schedule to apply dark mode to the screen, tap Dark mode settings , tap the
Turn on as scheduled switch to activate it, and then select an option.
• Sunset to sunrise : Set the device to turn on dark mode at night and turn it off in the morning based on your current location.
• Custom schedule : Set a specific time to turn on and off dark mode.
Blue light filter
Reduce eye strain by limiting the amount of blue light emitted by the screen.
1
On the Settings screen, tap Display → Blue light filter and tap the Turn on now switch to activate it.
2
Drag the adjustment bar to adjust the filter’s opacity.
3
To set the schedule to apply the blue light filter to the screen, tap the Turn on as scheduled switch to activate it and select an option.
• Sunset to sunrise : Set the device to apply the blue light filter at night and turn it off in the morning based on your current location.
• Custom schedule : Set a specific time to apply the blue light filter.
166
Settings
Changing the screen mode or adjusting the display colour
Change the screen mode or adjust the display colour to your preference.
Changing the screen mode
On the Settings screen, tap Display → Screen mode and select a mode you want.
• Vivid : This optimises the colour range, saturation, and sharpness of your display. You can also adjust the display colour balance by colour value.
• Natural : This adjusts the screen to a natural tone.
• You can adjust the display colour only in Vivid mode.
• Vivid mode may not be compatible with third-party apps.
• You cannot change the screen mode while applying the blue light filter.
Optimising the full screen colour balance
Optimise the display colour by adjusting the colour tones to your preference.
On the Settings screen, tap Display → Screen mode → Vivid and adjust the colour adjustment bar under White balance .
When you drag the colour adjustment bar towards Cool , the blue colour tone will increase.
When you drag the bar towards Warm , the red colour tone will increase.
Adjusting the screen tone by colour value
Increase or lower certain colour tones by adjusting the Red, Green, or Blue value individually.
1
On the Settings screen, tap Display → Screen mode → Vivid .
2
Tap Advanced settings .
3
Adjust the R (Red), G (Green), or B (Blue) colour bar to your preference.
The screen tone will be adjusted.
167
Settings
Screensaver
You can set to display images as a screensaver when the screen turns off automatically. The screensaver will be displayed when the device is charging.
1
On the Settings screen, tap Display → Screensaver .
2
Select an option.
If you select Photo Frame or Photos , a slideshow with selected images will start. If you select Photo Table , selected images will appear as small cards and overlap.
3
Tap to select albums for displaying images.
4
When you are finished, tap the Back button.
To preview the selected option, tap Preview .
When you tap the screen while your screensaver is displayed, the screen will turn on.
Wallpaper
Change the wallpaper settings for the Home screen and the locked screen.
On the Settings screen, tap Wallpaper .
168
Settings
Lock screen
Options
Change the settings for the locked screen.
On the Settings screen, tap Lock screen .
The available options may vary depending on the screen lock method selected.
• Screen lock type : Change the screen lock method.
• Smart Lock : Set the device to unlock itself when trusted locations or devices are
for more information.
• Secure lock settings : Change screen lock settings for the selected lock method.
• Clock style : Change the type and colour of the clock on the locked screen.
• Roaming clock : Change the clock to show both the local and home time zones on the locked screen when roaming. (SM-T865, SM-T867)
• FaceWidgets : Change the settings of the items displayed on the locked screen.
• Contact information : Set the device to show contact information, such as your email address, on the locked screen.
• Notifications : Set how to show notifications on the locked screen.
• Shortcuts : Select apps to display shortcuts to them on the locked screen.
• About Lock screen : View the Lock screen version and legal information.
Smart Lock
You can set the device to unlock itself and remain unlocked when trusted locations or devices are detected.
For example, if you have set your home as a trusted location, when you get home your device will detect the location and automatically unlock itself.
• This feature will be available to use after you set a screen lock method.
• If you do not use your device for four hours or when you turn on the device, you must unlock the screen using the pattern, PIN, or password you set.
169
Settings
1
On the Settings screen, tap Lock screen → Smart Lock .
2
Unlock the screen using the preset screen lock method.
3
Select an option and follow the on-screen instructions to complete the setup.
Biometrics and security
Options
Change the settings for securing the device.
On the Settings screen, tap Biometrics and security .
• Face recognition : Set the device to unlock the screen by recognising your face. Refer to
for more information.
• Fingerprints
: Register your fingerprints to unlock the screen. Refer to Fingerprint recognition
for more information.
• Biometrics preferences : Change the settings for biometric data.
• Biometrics security patch : View the version of the biometrics security patch and check for updates.
• Google Play Protect : Set the device to check for harmful apps and behaviour and warn about potential harm and remove them.
• Find My Mobile : Activate or deactivate the Find My Mobile feature. Access the Find My
Mobile website ( findmymobile.samsung.com
) to track and control your lost or stolen device.
• Security update : View the version of your device’s software and check for updates.
• Samsung Pass : Verify your identity easily and securely via your biometric data. Refer to
Samsung Pass for more information.
• Install unknown apps : Set the device to allow the installation of apps from unknown sources.
• Secure Folder : Create a secure folder to protect your private content and apps from others. Refer to
for more information.
170
Settings
• Secure Wi-Fi : Set the device to protect your data while using unsecured Wi-Fi networks.
This feature may not be available depending on the Wi-Fi network, region, or service provider.
• Encrypt or decrypt SD card : Set the device to encrypt files on a memory card.
If you reset your device to the factory defaults with this setting enabled, the device will not be able to read your encrypted files. Disable this setting before resetting the device.
• Other security settings : Configure additional security settings.
Face recognition
You can set the device to unlock the screen by recognising your face.
• If you use your face as a screen lock method, your face cannot be used to unlock the screen for the first time after turning on the device. To use the device, you must unlock the screen using the pattern, PIN, or password you set when registering the face. Be careful not to forget your pattern, PIN, or password.
• If you change the screen lock method to Swipe or None , which are not secure, all of your biometric data will be deleted. If you want to use your biometric data in apps or features, you must register your biometric data again.
Precautions for using face recognition
Before using the face recognition to unlock your device, keep the following precautions in mind.
• Your device could be unlocked by someone or something that looks like your image.
• Face recognition is less secure than Pattern, PIN, or Password.
For better face recognition
Consider the following when using face recognition:
• Consider the conditions when registering, such as wearing glasses, hats, masks, beards, or heavy makeup
• Ensure that you are in a well-lit area and that the camera lens is clean when registering
• Ensure your image is not blurry for better match results
171
Settings
Registering your face
For better face registration, register your face indoors and out of direct sunlight.
1
On the Settings screen, tap Biometrics and security → Face recognition .
2
Read the on-screen instructions and tap Continue .
3
Set a screen lock method.
4
Select whether you are wearing glasses or not and tap Continue .
5
Hold the device with the screen facing towards you and look at the screen.
6
Position your face inside the frame on the screen.
The camera will scan your face.
• If unlocking the screen with your face is not working properly, tap Remove face data to remove your registered face and register your face again.
• To enhance the face recognition, tap Add alternative look and add an alternate appearance.
Deleting the registered face data
You can delete face data that you have registered.
1
On the Settings screen, tap Biometrics and security → Face recognition .
2
Unlock the screen using the preset screen lock method.
3
Tap Remove face data → Remove .
Once the registered face is deleted, all the related features will also be deactivated.
172
Settings
Unlocking the screen with your face
You can unlock the screen with your face instead of using a pattern, PIN, or password.
1
On the Settings screen, tap Biometrics and security → Face recognition .
2
Unlock the screen using the preset screen lock method.
3
Tap the Face unlock switch to activate it.
• If you want to set the device to unlock the screen without swiping on the locked screen after recognising your face, tap the Stay on Lock screen switch to deactivate it.
• If you want to reduce the possibility of recognising faces in photos or videos, tap the Faster recognition switch to deactivate it. This may decrease the face recognition speed.
• If you want to increase the recognition rate in a dark place, tap the Brighten screen switch to activate it.
4
On the locked screen, look at the screen.
When your face is recognised, you can unlock the screen without using any additional screen lock method. If your face is not recognised, use the preset screen lock method.
173
Settings
Fingerprint recognition
In order for fingerprint recognition to function, your fingerprint information needs to be registered and stored in your device. After registering, you can set the device to use your fingerprint for the features below:
• Screen lock
• Secure Folder
• This feature may not be available depending on the region or service provider.
• Fingerprint recognition uses the unique characteristics of each fingerprint to enhance the security of your device. The likelihood of the fingerprint sensor confusing two different fingerprints is very low. However, in rare cases where separate fingerprints are very similar the sensor may recognise them as identical.
• If you use your fingerprint as a screen lock method, your fingerprint cannot be used to unlock the screen for the first time after turning on the device. To use the device, you must unlock the screen using the pattern, PIN, or password you set when registering the fingerprint. Be careful not to forget your pattern, PIN, or password.
• If your fingerprint is not recognised, unlock the device using the pattern, PIN, or password you set when registering the fingerprint, and then re-register your fingerprints. If your pattern, PIN, or password is forgotten, you will not be able to use the device if you do not reset it. Samsung is not responsible for any data loss or inconvenience caused by forgotten unlock codes.
• If you change the screen lock method to Swipe or None , which are not secure, all of your biometric data will be deleted. If you want to use your biometric data in apps or features, you must register your biometric data again.
For better fingerprint recognition
When you scan your fingerprints on the device, be aware of the following conditions that may affect the feature’s performance:
• The device may not recognise fingerprints that are affected by wrinkles or scars.
• The device may not recognise fingerprints from small or thin fingers.
• To improve recognition performance, register fingerprints of the hand used most often to perform tasks on the device.
174
Settings
• Your device has a built-in fingerprint recognition sensor at the bottom centre of the screen. Ensure that the screen protector or the touchscreen on the fingerprint recognition sensor area is not scratched or damaged by objects, such as coins, keys, pens, and necklaces.
• Ensure that the fingerprint recognition sensor area at the bottom centre of the screen and your fingers are clean and dry.
• If you bend your finger or use a fingertip, the device may not recognise your fingerprints.
Press the screen so that your fingertip spreads over the wide surface of the fingerprint recognition area.
• In dry environments, static electricity can build up in the device. Avoid using this feature in dry environments or before using the feature, discharge static electricity by touching a metal object.
Registering fingerprints
1
On the Settings screen, tap Biometrics and security → Fingerprints .
2
Read the on-screen instructions and tap Continue .
3
Set a screen lock method.
4
Place your finger on the fingerprint recognition sensor at the bottom of the screen. After the device detects your finger, lift it up and place it on the fingerprint recognition sensor again.
Repeat this action until the fingerprint is registered.
5
When you are finished registering your fingerprints, tap Done .
175
Settings
Checking registered fingerprints
You can check whether your fingerprint is registered by placing your finger on the fingerprint recognition sensor.
1
On the Settings screen, tap Biometrics and security → Fingerprints .
2
Unlock the screen using the preset screen lock method.
3
Tap Check added fingerprints .
4
Place your finger on the fingerprint recognition sensor.
The recognition result will be displayed.
Deleting registered fingerprints
You can delete registered fingerprints.
1
On the Settings screen, tap Biometrics and security → Fingerprints .
2
Unlock the screen using the preset screen lock method.
3
Select a fingerprint to delete and tap Remove .
Unlocking the screen with your fingerprints
You can unlock the screen with your fingerprint instead of using a pattern, PIN, or password.
1
On the Settings screen, tap Biometrics and security → Fingerprints .
2
Unlock the screen using the preset screen lock method.
3
Tap the Fingerprint unlock switch to activate it.
4
On the locked screen, place your finger on the fingerprint recognition sensor and scan your fingerprint.
176
Settings
Samsung Pass
Register your biometric data to Samsung Pass and easily verify your identity when using services which require your login or personal information.
• To use this feature, your device must be connected to a Wi-Fi or mobile network.
• To use this feature, you must sign in to your Samsung account. Refer to
for more information.
• The website sign-in feature is only available for websites that you access via the
Internet app. Some websites may not support this feature.
• Registered biometric data is only saved to your device and are not synced with other devices or servers.
Registering Samsung Pass
Before using Samsung Pass, register your biometric data to Samsung Pass.
On the Settings screen, tap Biometrics and security → Samsung Pass . Follow the on-screen instructions to complete the setup.
Verifying the Samsung account password
You can use your registered biometric data to verify your identity instead of entering your
Samsung account password when, for example, you purchase content from Galaxy Store .
On the Samsung Pass main screen, tap → Settings → Account and syncing , and then tap the Verify with Samsung Pass switch to activate it.
Using Samsung Pass to sign in to websites
You can use Samsung Pass to easily sign in to websites that support ID and password autofill.
1
Open a website that you want to sign in to.
2
Enter your ID and password, and then tap the website’s sign in button.
3
When a pop-up window asking whether you want to save the sign-in information appears, tick Sign in with Samsung Pass and tap Remember .
177
Settings
Using Samsung Pass to sign in to apps
You can use Samsung Pass to easily sign in to apps that support ID and password autofill.
1
Open an app that you want to sign in to.
2
Enter your ID and password, and then tap the app’s sign in button.
3
When a pop-up window asking whether you want to save the sign-in information appears, tap Save .
Managing sign-in information
View the list of websites and apps you have set to use Samsung Pass and manage your sign-in information.
1
On the Samsung Pass main screen, tap Sign-in and select a website or app from the list.
2
Tap Edit and modify your ID, password, and the website’s or app’s name.
To delete your sign-in information, tap Delete .
Using Samsung Pass with websites and apps
When using websites or apps that support Samsung Pass, you can easily sign in with
Samsung Pass.
To see the list of websites and apps that support Samsung Pass, on the Samsung Pass main screen, tap → Partners . If there are no websites or apps that support Samsung Pass,
Partners will not appear.
• Available websites and apps may vary depending on the region or service provider.
• Samsung is not responsible for any loss or inconvenience caused by signing in to websites or apps via Samsung Pass.
178
Settings
Entering your personal information automatically
You can use Samsung Pass to easily enter your address or payment card information on apps that support personal information autofill.
1
On the Samsung Pass main screen, tap Autofill forms and select Add address or Add card .
2
Enter the information and tap Save .
You can now use the biometric data you registered to Samsung Pass when entering the personal information automatically on supported apps.
Deleting your Samsung Pass data
You can delete your biometric data, sign-in information, and app data registered to Samsung
Pass.
• Your agreement to the terms and conditions and your Samsung account will remain active.
• The Samsung Pass data on other devices signed in to your Samsung account will not be deleted.
1
On the Samsung Pass main screen, tap → Settings → Delete data .
2
Enter your Samsung account password and tap OK .
Your Samsung Pass data will be deleted.
179
Settings
Secure Folder
Secure Folder protects your private content and apps, such as photos and contacts, from being accessed by others. You can keep your private content and apps secure even when the device is unlocked.
Secure Folder is a separate, secured storage area. The data in Secure Folder cannot be transferred to other devices via unapproved sharing methods, such as USB or Wi-Fi
Direct. Attempting to customise the operating system or modifying software will cause Secure Folder to be automatically locked and inaccessible. Before saving data in
Secure Folder, make sure to back up a copy of the data in another secure location.
To use Secure Folder, you must sign in to your Samsung account.
Setting up Secure Folder
1
Launch the Settings app and tap Biometrics and security → Secure Folder .
2
Agree to the terms and conditions of Secure Folder.
3
Enter your Samsung account ID and password and tap Sign in .
180
Settings
4
Select a lock method to use for Secure Folder and follow the on-screen instructions to complete the setup.
The Secure Folder screen will appear and the Secure Folder app icon( ) will be added to the Apps screen.
To change the name or icon colour of Secure Folder, tap → Customise .
• When you launch the Secure Folder app, you must unlock the app using your preset lock method.
• If you forget your Secure Folder unlock code, you can reset it using your Samsung account. Tap the button at the bottom of the locked screen, and enter your
Samsung account password.
Setting auto lock for Secure Folder
Set the device to automatically lock Secure Folder when it is not being used.
1
Launch the Secure Folder app and tap → Settings → Auto lock Secure Folder .
2
Select a lock option.
To manually lock your Secure Folder, tap → Lock and exit .
Moving content to Secure Folder
Move content, such as photos and videos, to Secure Folder. The following actions are an example of moving an image from the default storage to Secure Folder.
1
Launch the Secure Folder app and tap Add files .
2
Tap Images , tick images to move, and then tap Done .
3
Tap Move .
The selected items will be deleted from the original folder and moved to Secure Folder.
To copy items, tap Copy .
The method for moving content may vary depending on the content type.
181
Settings
Moving content from Secure Folder
Move content from Secure Folder to the corresponding app in the default storage. The following actions are an example of moving an image from Secure Folder to the default storage.
1
Launch the Secure Folder app and tap Gallery .
2
Select an image and tap → Move out of Secure Folder .
The selected items will be moved to Gallery in the default storage.
Adding apps
Add an app to use in Secure Folder.
1
Launch the Secure Folder app and tap Add apps .
2
Tick one or more apps installed on the device and tap Add .
To install apps from Play Store or Galaxy Store , tap Download from Play Store or
Download from Galaxy Store .
Removing apps from Secure Folder
Tap and hold an app to delete, and tap Uninstall .
Adding accounts
Add your Samsung and Google accounts, or other accounts, to sync with the apps in Secure
Folder.
1
Launch the Secure Folder app and tap → Settings → Accounts → Add account .
2
Select an account service.
3
Follow the on-screen instructions to complete the account setup.
182
Settings
Hiding Secure Folder
You can hide the Secure Folder shortcut from the Apps screen.
Launch the Secure Folder app, tap → Settings , and then tap the Show icon on Apps screen switch to deactivate it.
Alternatively, open the notification panel, swipe downwards, and then tap ( Secure
Folder ) to deactivate the feature.
Backing up and restoring Secure Folder
Back up content and apps in Secure Folder to Samsung Cloud using your Samsung account and restore them later.
Backing up data
1
Launch the Secure Folder app and tap → Settings → Backup and restore .
2
Tap Add account and follow the on-screen instructions to complete signing in to your
Samsung account.
3
Tap Back up Secure Folder data .
4
Tick items you want to back up and tap Back up .
Data will be backed up to Samsung Cloud.
Restoring data
1
Launch the Secure Folder app and tap → Settings → Backup and restore .
2
Tap Restore .
3
Tap to select a device to restore the data.
4
Select the data types you want to restore and tap Restore .
Backed up data will be restored to your device.
183
Settings
Uninstalling Secure Folder
You can uninstall Secure Folder, including the content and apps in it.
Launch the Secure Folder app and tap → Settings → More settings → Uninstall .
To back up content before uninstalling Secure Folder, tick Move media files out of Secure
Folder and tap Uninstall . To access data backed from Secure Folder, launch the My Files app and tap Internal storage → Secure Folder .
Notes saved in Samsung Notes will not be backed up.
Privacy
Change the settings for privacy.
On the Settings screen, tap Privacy .
• Permission manager : View the list of features and apps that have permission to use them. You can also edit the permission settings.
• Send diagnostic data : Set the device to automatically send the device’s diagnostic and usage information to Samsung.
• Samsung account privacy : Manage personal data related to your Samsung account and change the settings for Customisation Service.
• Advanced : Configure advanced settings for privacy.
184
Settings
Location
Change settings for location information permissions.
On the Settings screen, tap Location .
• App permissions : View the list of apps that have permission to access the device’s location and edit the permission settings.
• Improve accuracy : Set the device to use the Wi-Fi or Bluetooth feature to increase the accuracy of your location information, even when the features are deactivated.
• Recent location requests : View which apps request your current location information.
• Location services : View the location services your device is using.
Accounts and backup
Options
Sync, back up, or restore your device’s data using Samsung Cloud. You can also sign in to accounts, such as your Samsung account or Google account, or transfer data to or from other devices via Smart Switch.
On the Settings screen, tap Accounts and backup .
• Accounts : Add your Samsung and Google accounts, or other accounts, to sync with.
• Users : Set up additional user accounts for other users to use the device with personalised settings, such as email accounts, wallpaper preferences, and more. Refer to
more information.
This feature may not be available depending on the region or service provider.
• Backup and restore : Keep your personal information, app data, and settings safe on your device. You can back up your sensitive information and access it later. You must sign in to your Google or Samsung account to back up or restore data.
• Samsung Cloud : Manage the content that you want to store securely in Samsung Cloud.
Check the usage status of your Samsung Cloud storage, and sync, back up, and restore
your data. Refer to Samsung Cloud
for more information.
185
Settings
• Smart Switch : Launch Smart Switch and transfer data from your previous device. Refer to
Transferring data from your previous device (Smart Switch) for more information.
Regularly back up your data to a safe location, such as Samsung Cloud or a computer, so that you can restore it if the data is corrupted or lost due to an unintended factory data reset.
Users
Set up additional user accounts for other users to use the device with personalised settings, such as email accounts, wallpaper preferences, and more.
This feature may not be available depending on the region or service provider.
Following types of user accounts are available:
• Administrator : The administrator account is created only when setting up the device for the first time, and cannot be created more than one. This account has full control of the device including user account management. You can add or delete user accounts only when using this account.
• Guest : This account allows guests to access the device. Information and data used during a guest session is temporarily stored. Each time you use this account, you are asked whether to continue the previous guest session or reset it.
• New user : This account allows users to access their own apps and content, and customise the device settings that affect all accounts.
• New restricted account : A restricted account can only access the apps and content allowed by the administrator account, and cannot use the services that require logging in. (SM-T860, SM-T867)
Adding users
1
On the Settings screen, tap Accounts and backup → Users .
2
â–º SM-T865 : Tap Add user → OK → Set up now .
â–º SM-T860 , SM-T867 : Tap Add user or profile → User → OK → Set up now .
The device will switch to a new user account and the default locked screen will appear on the screen.
3
Unlock the device and follow the on-screen instructions to complete the account setup.
186
Settings
Adding restricted profiles (SM-T860, SM-T867)
1
On the Settings screen, tap Accounts and backup → Users .
2
Tap Add user or profile → User (restricted profile) → Set up screen lock .
If you are not using a secure screen lock method with the administrator account, follow the on-screen instructions to set one up.
3
Select the apps and content that restricted users are allowed to access.
Switching users
Tap the user account icon at the top of the locked screen and select an account to switch to.
Locked screen
187
Settings
Managing users
â–º SM-T865 :
When using the administrator account, you can delete accounts or change account settings.
On the Settings screen, tap Accounts and backup → Users .
To delete a user account, tap next to the account and tap Delete user .
To change an account’s settings, tap next to an account.
â–º SM-T860 , SM-T867 :
When using the administrator account, you can delete accounts or change the settings for restricted accounts.
On the Settings screen, tap Accounts and backup → Users .
To delete a user account, tap next to the account.
To change the settings for a restricted account, tap next to an account. You can delete the account by tapping .
Samsung Cloud
Sync the data saved in your device with Samsung Cloud and view the data you have saved on Samsung Cloud. You can also back up your device’s data to Samsung Cloud and restore it later.
To use Samsung Cloud, you must sign in to your Samsung account.
188
Settings
Syncing data
You can sync data saved in your device with Samsung Cloud and access it from other devices.
1
On the Settings screen, tap Accounts and backup → Samsung Cloud .
2
Tap → Settings → Sync and auto backup settings → Sync .
3
Tap the switches next to the items you want to sync with.
You can check the saved data or change the settings by tapping Gallery , Other synced data , or Samsung Cloud Drive .
Backing up data
You can back up your device’s data to Samsung Cloud.
1
On the Settings screen, tap Accounts and backup → Samsung Cloud → Back up this tablet .
2
Tick items you want to back up and tap Back up .
3
Tap Done .
• Some data will not be backed up. To check which data will be backed up, on the
Settings screen, tap Accounts and backup → Samsung Cloud → Back up this tablet .
• To view the backup data for other devices in your Samsung Cloud, on the Settings screen, tap Accounts and backup → Samsung Cloud → Restore data → , and then select a device you want.
Restoring data
You can restore your backup data from Samsung Cloud to your device.
1
On the Settings screen, tap Accounts and backup → Samsung Cloud .
2
Tap Restore data → and select a device you want.
3
Tick items you want to restore and tap Restore .
189
Settings
Configure settings for some features provided by Google.
On the Settings screen, tap Google .
Advanced features
Options
Activate advanced features and change the settings that control them.
On the Settings screen, tap Advanced features .
Excessive shaking or an impact to the device may cause an unintended input for some features using sensors.
• S Pen : Change the settings for using the S Pen. Refer to
for more information about Air actions , Air command , Air view , and Screen off memo .
• Side key
: Select an app or feature to launch using the Side key. Refer to Setting the Side key
for more information.
• Samsung DeX
: Set the device to use like a computer. Refer to Samsung DeX
for more information.
• Accessories : Change the accessory settings.
• Daily Board
: Set the device to show a slideshow with selected features. Refer to Daily
for more information.
• Bixby Routines : Add routines to automate settings that you use repeatedly. The device also suggests useful routines according to your frequent situations. Refer to
for more information.
• Call & text on other devices : Use your device’s calling and messaging features on other devices signed in to your Samsung account.
This feature may not be available depending on the region or service provider.
• Multi window tray : Open the Multi window tray to quickly access the apps that you want
to run in split screen view. Refer to Using the Multi window tray
for more information.
190
Settings
• Smart pop-up view : Select apps to view their notifications via pop-up windows. When using this feature, you can quickly view the contents via pop-up windows by tapping the icon on the screen.
This feature is only available in apps that support the Multi window feature.
• Screenshots and screen recorder : Change the settings for screenshots and screen recorder.
• Direct share : Set the device to display the people you contacted on the sharing options panel to allow you to share content directly.
• Reduce animations : Set the device to reduce the screen effects of certain actions, such as opening or closing apps.
• Motions and gestures : Activate the motion feature and configure settings. Refer to
Motions and gestures for more information.
• Game Launcher
: Activate the Game Launcher. Refer to Game Launcher for more
information.
Motions and gestures
Activate the motion feature and configure settings.
On the Settings screen, tap Advanced features → Motions and gestures .
• Double tap to wake : Set the device to turn on the screen by double-tapping anywhere on the screen while the screen is turned off.
• Smart stay : Set the device to prevent the display from turning off while you are looking at it.
• Easy mute : Set the device to mute alarms by using palm motions.
• Palm swipe to capture : Set the device to capture a screenshot when you swipe your hand to the left or right across the screen. You can view the captured images in Gallery .
It is not possible to capture a screenshot while using some apps and features.
• Swipe to call or send messages : Set the device to make a call or send a message when you swipe to the right or left on a contact or a phone number in the Phone or Contacts app. (SM-T865, SM-T860)
191
Settings
Digital Wellbeing and parental controls
Options
View the history of your device usage and use features to prevent your device from interfering with your life. You can also set up parental controls for your children and manage their digital use.
On the Settings screen, tap Digital Wellbeing and parental controls .
• Digital Wellbeing : View the daily usage history of your device. Refer to
for more information.
• Parental controls : Manage your children’s digital use.
Digital Wellbeing
View the daily usage history of your device. You can also limit usage time or change the notification settings for each app.
On the Settings screen, tap Digital Wellbeing and parental controls → Digital Wellbeing .
The time the screen was on
Number of unlocks Number of notifications
App timers
192
Settings
Setting timers for apps
You can limit the daily usage time for each app by setting a timer. When you reach the limit, the app will be deactivated and you cannot use it.
1
On the Settings screen, tap Digital Wellbeing and parental controls → App timers .
2
Tap No timer next the app you want and set the time.
Activating wind down mode
You can activate wind down mode to reduce eye strain before sleeping and prevent your sleep from being disturbed.
1
On the Settings screen, tap Digital Wellbeing and parental controls → Wind Down .
2
To set the schedule to activate wind down mode, tap Turn on as scheduled , tap the switch to activate it, and then set the days and time.
193
Settings
Device care
Introduction
The device care feature provides an overview of the status of your device’s battery, storage, memory, and system security. You can also automatically optimise the device with a tap of your finger.
Optimising your device
On the Settings screen, tap Device care → Optimise now .
The quick optimisation feature improves device performance through the following actions.
• Clearing some memory.
• Deleting unnecessary files and closing apps running in the background.
• Managing abnormal battery usage.
• Scanning for crashed apps and malware.
Using the auto optimisation feature
You can set the device to perform auto optimisation when your device is not in use. Tap →
Advanced → Auto optimisation and tap the switch to activate it. If you want to set the time to perform auto optimisation, tap Time .
Battery
Check the remaining battery power and time to use the device. For devices with low battery levels, conserve battery power by activating power saving features.
On the Settings screen, tap Device care → Battery .
• The usage time left shows the time remaining before the battery power runs out. Usage time left may vary depending on your device settings and operating conditions.
• You may not receive notifications from some apps that use power saving mode.
194
Settings
Power mode
Select a power mode that suits your device usage purposes.
Tap Power mode and select an option.
• Optimised : Optimised for a balance between the device’s performance and battery usage.
• Medium power saving : Activate power saving mode to extend the battery’s usage time.
• Maximum power saving : In maximum power saving mode, the device decreases battery consumption by activating dark mode and limiting the apps and features available.
Network connections, except for the mobile network, will be deactivated.
You can set the device to charge the battery more quickly. Tap Charging and tap the Fast charging switch to activate it.
Adaptive power saving
You can set the device to activate power saving mode automatically based on your usage patterns and the remaining battery power.
Tap Power mode and tap the Adaptive power saving switch to activate it. Your device will activate power saving mode based on the situation to extend the battery’s usage time.
Managing battery usage for each app
You can save battery power by preventing apps that are running in the background from using battery power when they are not being used. Tap Battery usage , select apps from the apps list, and then tap the Put app to sleep switch to activate the feature.
195
Settings
Storage
Check the status of the used and available memory.
On the Settings screen, tap Device care → Storage .
• The actual available capacity of the internal memory is less than the specified capacity because the operating system and default apps occupy part of the memory. The available capacity may change when you update the device.
• You can view the available capacity of the internal memory in the Specification section for your device on the Samsung website.
Managing the memory
To delete files or uninstall apps that you do not use any more, select a category. Then, tick items to select and tap Delete .
Memory
On the Settings screen, tap Device care → Memory .
To speed up your device by stopping apps running in the background, tick apps from the apps list, and tap Clean now .
Security
Check the device’s security status. This feature scans your device for malware.
On the Settings screen, tap Device care → Security → Scan tablet .
Apps
Manage the device’s apps and change their settings. You can view the apps’ usage information, change their notification or permission settings, or uninstall or disable unnecessary apps.
On the Settings screen, tap Apps .
196
Settings
General management
Customise your device’s system settings or reset the device.
On the Settings screen, tap General management .
• Language and input : Select device languages and change settings, such as keyboards and voice input types. Some options may not be available depending on the selected
language. Refer to Adding device languages
for more information.
• Date and time : Access and alter the settings to control how the device displays the time and date.
If the battery remains fully discharged, the time and date is reset.
• Contact us : Ask questions or view frequently asked questions.
• Reset : Reset your device’s settings or perform a factory data reset. You can reset all your settings, or only network settings, or accessibility settings. You can also set the device to restart at a preset time for device optimisation.
Adding device languages
You can add languages to use on your device.
1
On the Settings screen, tap General management → Language and input → Language
→ Add language .
To view all the languages that can be added, tap → All languages .
2
Select a language to add.
3
To set the selected language as the default language, tap Set as default . To keep the current language setting, tap Keep current .
The selected language will be added to your languages list. If you changed the default language, the selected language will be added to the top of the list.
To change the default language from your languages list, select a language. Then, tap Apply .
If an app does not support the default language, the next supported language in the list will be used.
197
Settings
Accessibility
Configure various settings to improve accessibility to the device.
On the Settings screen, tap Accessibility .
• Screen reader : Activate Voice Assistant, which provides voice feedback. To view help information to learn how to use this feature, tap Tutorial .
• Visibility enhancements : Customise the settings to improve accessibility for visually impaired users.
• Hearing enhancements : Customise the settings to improve accessibility for users with hearing impairment.
• Interaction and dexterity : Customise the settings to improve accessibility for users who have reduced dexterity.
• Advanced settings : Configure settings for Direct access and notification features.
• Installed services : View accessibility services installed on the device.
• About Accessibility : View the Accessibility information.
• Contact us : Ask questions or view frequently asked questions.
Software update
Update your device’s software via the firmware over-the-air (FOTA) service. You can also schedule software updates.
On the Settings screen, tap Software update .
If emergency software updates are released for your device’s security and to block new types of security threats, they will be installed automatically without your agreement.
• Download and install : Check for and install updates manually.
• Auto download over Wi-Fi : Set the device to download updates automatically when connected to a Wi-Fi network.
• Last update : View information about the last software update.
198
Settings
Security updates information
Security updates are provided to strengthen the security of your device and protect your personal information. For security updates for your model, visit security.samsungmobile.com
.
The website supports only some languages.
User manual
View help information to learn how to use the device and apps or configure important settings.
On the Settings screen, tap User manual .
About tablet
Access your device’s information.
On the Settings screen, tap About tablet .
To change your device’s name, tap Edit .
• Status : View various device information, such as the Wi-Fi MAC address and serial number.
• Legal information : View legal information related to the device, such as safety information and the open source licence.
• Software information : View the device’s software information, such as its operating system version and firmware version.
• Battery information : View the device’s battery status and information.
199
Appendix
Troubleshooting
Before contacting a Samsung Service Centre, please attempt the following solutions. Some situations may not apply to your device.
When you turn on your device or while you are using the device, it prompts you to enter one of the following codes:
• Password: When the device lock feature is enabled, you must enter the password you set for the device.
• PIN: When using the device for the first time or when the PIN requirement is enabled, you must enter the PIN supplied with the SIM or USIM card. You can disable this feature by using the Lock SIM card menu.
• PUK: Your SIM or USIM card is blocked, usually as a result of entering your PIN incorrectly several times. You must enter the PUK supplied by your service provider.
• PIN2: When you access a menu requiring the PIN2, you must enter the PIN2 supplied with the SIM or USIM card. For more information, contact your service provider.
Your device displays network or service error messages
• When you are in areas with weak signals or poor reception, you may lose reception. Move to another area and try again. While moving, error messages may appear repeatedly.
• You cannot access some options without a subscription. For more information, contact your service provider.
Your device does not turn on
When the battery is completely discharged, your device will not turn on. Fully charge the battery before turning on the device.
200
Appendix
The touchscreen responds slowly or improperly
• If you attach a screen protector or optional accessories to the touchscreen, the touchscreen may not function properly.
• If you are wearing gloves, if your hands are not clean while touching the touchscreen, or if you tap the screen with sharp objects or your fingertips, the touchscreen may malfunction.
• The touchscreen may malfunction in humid conditions or when exposed to water.
• Restart your device to clear any temporary software bugs.
• Ensure that your device software is updated to the latest version.
• If the touchscreen is scratched or damaged, visit a Samsung Service Centre.
Your device freezes or encounters a fatal error
Try the following solutions. If the problem is still not resolved, contact a Samsung Service
Centre.
Restarting the device
If your device freezes or hangs, you may need to close apps or turn off the device and turn it on again.
Forcing restart
If your device is frozen and unresponsive, press and hold the Side key and the Volume Down key simultaneously for more than 7 seconds to restart it.
Resetting the device
If the methods above do not solve your problem, perform a factory data reset.
Launch the Settings app and tap General management → Reset → Factory data reset →
Reset → Delete all . Before performing the factory data reset, remember to make backup copies of all important data stored in the device.
201
Appendix
Calls are not connected
• Ensure that you have accessed the right cellular network.
• Ensure that you have not set call barring for the phone number you are dialling.
• Ensure that you have not set call barring for the incoming phone number.
Others cannot hear you speaking on a call
• Ensure that you are not covering the built-in microphone.
• Ensure that the microphone is close to your mouth.
• If using an earphone, ensure that it is properly connected.
Sound echoes during a call
Adjust the volume by pressing the Volume key or move to another area.
A cellular network or the Internet is often disconnected or audio quality is poor
• Ensure that you are not blocking the device’s internal antenna.
• When you are in areas with weak signals or poor reception, you may lose reception. You may have connectivity problems due to issues with the service provider’s base station.
Move to another area and try again.
• When using the device while moving, wireless network services may be disabled due to issues with the service provider’s network.
202
Appendix
The battery does not charge properly (For Samsung-approved chargers)
• Ensure that the charger is connected properly.
• Visit a Samsung Service Centre and have the battery replaced.
The battery depletes faster than when first purchased
• When you expose the device or the battery to very cold or very hot temperatures, the useful charge may be reduced.
• Battery consumption will increase when you use certain features or apps, such as GPS, games, or the Internet.
• The battery is consumable and the useful charge will get shorter over time.
Error messages appear when launching the camera
Your device must have sufficient available memory and battery power to operate the camera app. If you receive error messages when launching the camera, try the following:
• Charge the battery.
• Free some memory by transferring files to a computer or deleting files from your device.
• Restart the device. If you are still having trouble with the camera app after trying these tips, contact a Samsung Service Centre.
Photo quality is poorer than the preview
• The quality of your photos may vary, depending on the surroundings and the photography techniques you use.
• If you take photos in dark areas, at night, or indoors, image noise may occur or images may be out of focus.
203
Appendix
Error messages appear when opening multimedia files
If you receive error messages or multimedia files do not play when you open them on your device, try the following:
• Free some memory by transferring files to a computer or deleting files from your device.
• Ensure that the music file is not Digital Rights Management (DRM)-protected. If the file is
DRM-protected, ensure that you have the appropriate licence or key to play the file.
• Ensure that the file formats are supported by the device. If a file format is not supported, such as DivX or AC3, install an app that supports it. To confirm the file formats that your device supports, visit www.samsung.com
.
• Your device supports photos and videos captured with the device. Photos and videos captured by other devices may not work properly.
• Your device supports multimedia files that are authorised by your network service provider or providers of additional services. Some content circulated on the Internet, such as ringtones, videos, or wallpapers, may not work properly.
Bluetooth is not working well
If another Bluetooth device is not located or there are connection problems or performance malfunctions, try the following:
• Ensure that the device you wish to connect with is ready to be scanned or connected to.
• Ensure that your device and the other Bluetooth device are within the maximum
Bluetooth range (10 m).
• On your device, launch the Settings app, tap Connections , and then tap the Bluetooth switch to re-activate it.
• On your device, launch the Settings app, tap General management → Reset → Reset network settings → Reset settings → Reset to reset network settings. You may lose registered information when performing the reset.
If the tips above do not solve the problem, contact a Samsung Service Centre.
204
Appendix
A connection is not established when you connect the device to a computer
• Ensure that the USB cable you are using is compatible with your device.
• Ensure that you have the proper driver installed and updated on your computer.
Your device cannot find your current location
GPS signals may be obstructed in some locations, such as indoors. Set the device to use Wi-Fi or a mobile network to find your current location in these situations.
Data stored in the device has been lost
Always make backup copies of all important data stored in the device. Otherwise, you cannot restore data if it is corrupted or lost. Samsung is not responsible for the loss of data stored in the device.
A small gap appears around the outside of the device case
• This gap is a necessary manufacturing feature and some minor rocking or vibration of parts may occur.
• Over time, friction between parts may cause this gap to expand slightly.
There is not enough space in the device’s storage
Delete unnecessary data, such as cache, using the device care feature or manually delete unused apps or files to free up storage space.
The Home button does not appear
The navigation bar containing the Home button may disappear while using certain apps or features. To view the navigation bar, drag upwards from the bottom of the screen.
205
Appendix
The screen brightness adjustment bar does not appear on the notification panel
Open the notification panel by dragging the status bar downwards, and then drag the notification panel downwards. Tap → Quick panel layout , and tap the Show brightness on top switch to activate it.
Removing the battery
• To remove the battery, contact an authorised service centre. To obtain battery removal instructions, please visit www.samsung.com/global/ecodesign_energy .
• For your safety, you must not attempt to remove the battery. If the battery is not properly removed, it may lead to damage to the battery and device, cause personal injury, and/or result in the device being unsafe.
• Samsung does not accept liability for any damage or loss (whether in contract or tort, including negligence) which may arise from failure to precisely follow these warnings and instructions, other than death or personal injury caused by Samsung’s negligence.
206
Copyright
Copyright © 2020 Samsung Electronics
This manual is protected under international copyright laws.
No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system.
Trademarks
• SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.
• Bluetooth
®
is a registered trademark of Bluetooth SIG, Inc. worldwide.
• Wi-Fi
®
, Wi-Fi Direct
™
, Wi-Fi CERTIFIED
™
, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories.
• All other trademarks and copyrights are the property of their respective owners.
advertisement
Related manuals
advertisement
