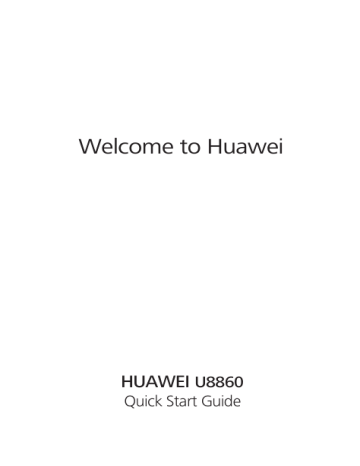

Welcome to Huawei
HUAWEI
U8860
Quick Start Guide
Personal Information and Data Security
The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others.
Several measures are recommended to help you protect personal and confidential information.
• Place your device in a safe area to prevent it from unauthorized use.
• Set your device screen to lock and create a password or unlock pattern to open it.
• Periodically back up personal information kept on your SIM/UIM card, memory card, or stored in your device memory. If you change to a different device, be sure to move or delete any personal information on your old device.
• If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them.
• If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal information.
• If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off.
• Install or upgrade device security software and regularly scan for viruses.
• Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses.
• Install security software or patches released by Huawei or third-party application providers.
• Some applications require and transmit location information. As a result, a thirdparty may be able to share your location information.
• Your device may provide detection and diagnostic information to third-party application providers. Third party vendors use this information to improve their products and services.
• If you have concerns about the security of your personal information and data, please contact [email protected].
What is in Your Box
• Mobile phone
• Charger
• USB cable
• Headset
• Quick Start Guide
• Battery
For more information about how to use your phone, please read the user guide. You can find the user guide by visiting the Web site:
http://www.huaweidevice.com/ worldwide .
Phone at a Glance
Front camera
Earpiece Headset jack
Power key
Flash
Camera Speaker
Volume keys
Charge/Data port
Key Functions at Your Fingertips
• Press and hold to power on your mobile phone.
• Press and hold to open the Phone options menu.
• Press to lock the screen when your mobile phone is active.
Touch to open the menu on an active screen.
• Touch to return to the Home screen.
• Touch and hold to open Task Manager .
• Touch to return to the previous screen.
• Touch to hide the keyboard.
• Touch to view thumbnails of the Home screen and its extensions.
Touch to open Google search for searching your mobile phone and the web.
Before getting started
1 Removing battery cover 2 Installing SIM card
3 Installing *micro SD card 4 Installing battery
*micro SD card is optional
5 Installing battery cover
Charging the Battery
If you charge your mobile phone while it is powered on, the battery icon on the notification bar indicates the charging status. When the battery icon changes to , your mobile phone is fully charged.
Status Indicator
Status Indicator
Green: Fully charged (when connected to charger).
Orange: Charging in progress (when connected to charger).
Red: Battery low.
Power On or Off Your Mobile Phone
Powering On Your Mobile Phone
Press . The first time you power on your phone, you will be asked to sign in to your account and set up your mobile phone.
Turning On Fast boot
1. Touch > Settings > Applications .
the check box.
Do not turn on Fast boot while on an airplane.
Powering Off Your Mobile Phone
1. Press and hold
2. Touch .
to open the Phone options menu.
If Fast boot is enabled, the phone will enter the deep sleep mode. If Fast boot is disabled, touch OK to shut down the phone.
Home Screen
10:23
Notifications bar:
Displays the reminders and status icons of your phone. Flick down to open the notifications panel.
Display area:
Shows the operation and display areas of your phone.
Indicates the current screen.
Shortcuts
Touch to view all your applications.
Touch and hold a shortcut until the mobile phone vibrates, you can then drag it to your desired location or move it to the trash. You can also drag an icon from another area of the screen to the shortcut position.
Viewing Other Parts of the Home Screen
10:23
Flick your finger left or right across the Home screen.
Service Shortcuts
1. Open the notification bar.
2. Touch at the top of the screen to switch data services on or off.
You can also touch or off.
, , or turn the corresponding services on
Adding a New Home Screen Item
1. Touch and hold a blank area on the Home screen until the Select action menu is displayed.
You can also touch action menu.
> Add on the Home screen to display the Select
2. Select an item to add it to the Home screen.
Changing the Wallpaper
1. On the Home screen, touch > Wallpaper .
2. Touch the following menu items to select a picture and set it as the wallpaper:
• Gallery
• Live wallpaper
• Wallpaper
Locking the Screen
• When your phone is on, press to lock the screen. When the screen is locked, you can still receive messages and calls.
• If your phone is idle for a while, the screen will lock automatically.
Unlocking the Screen
1. Press to wake up the screen.
2. Drag the lock icon from left to right to unlock the screen.
Importing Contacts from a SIM Card
1. In the contact list, touch
2. Touch .
> Manage contacts .
3. Wait for the SIM card contents to be loaded. Select the contacts you want to import or touch Select All to select all contacts.
4. Touch .
5. If you have more than one account on your phone, touch the account into which you want to import the contacts.
Making a Call with the Dialer Application
1. On the Home screen, touch > Dialer to display the dialer.
2. Touch the appropriate number keys to enter the phone number.
Your mobile phone supports the SmartDial function, that is, when you touch numbers on the dialer, the phone automatically searches among your contacts and lists the matching results ordered according to the accuracy of the match. If no contacts match the information entered, the phone will not display any result.
3. Touch to initiate the call.
Answering an Incoming Call
Drag to the right to answer the call.
Rejecting an Incoming Call
Drag to the left to reject the call.
You can also drag up the bar at the bottom of the screen to reject a call and send the caller a message.
Choosing an Input Method
1. Touch and hold a text field until the Edit text menu is displayed.
2. Touch .
3. Select the input method.
The keyboard panel will be displayed automatically.
Creating and Sending a Multimedia
Message
1. Touch > Messaging > New message .
2. Enter a phone number in the To field, or touch to select a contact from
Contacts or Groups .
3. Touch the composition text box to start entering your message.
4. Touch to display the options panel.Touch Add subject to add the message subject. Your mobile phone is now in multimedia message mode.
5. When the message is ready to be sent, touch .
On the message editing screen, you can also touch desired files to add.
, and then select your
You can direct select a multimedia file (audios, videos, or pictures) and send it via MMS: Touch File Manager , touch and hold the multimedia file to be sent, and then select Share > Messaging .
Getting Connected
Turning on the Data Service
1. Touch > Settings .
2. Touch > Mobile networks .
the check box to turn on the data connection.
Turning On Wi-Fi
1. Touch > Settings .
2. Touch , and then select the Wi-Fi check box to turn on Wi-
Fi.
Connecting to a Wireless Network
1. After turning on Wi-Fi, touch > Settings .
2. Touch > Wi-Fi settings . You will see a list of detected Wi-
Fi networks in the Wi-Fi networks section.
3. Touch a Wi-Fi network to connect to it.
Sharing Your Phone’s Data Connection as a Portable Wi-Fi
Hotspot
1. Touch > Settings .
2. Touch > Tethering & portable hotspot .
the check box to share your data connection.
DLNA
Digital Living Network Alliance (DLNA) enables the subscribers on the same Wi-Fi network to share multimedia files easily.
To use DLNA, touch > DLNA . Then you can share pictures, videos, and music with other DLNA device users, and view and download the multimedia files shared by other DLNA device users.
Opening Your Camera
• Touch > Camera to open the camera. The camera opens in landscape mode, ready to take a picture or record a video.
• Touch to close the camera.
Capture Screen
Thumbnail of last photo. Touch to
3 preview the photos or videos.
Slide up to record videos; slide down to take photos.
Touch to take a photo.
5
Touch to customize the camera settings.
Enjoying Music
You can download music files to your PC or insert a CD and copy the files to your microSD card so you can listen to music on your mobile phone.
Opening the Music Library
Touch > Music to open the music library.
Media player screen
Main screen
Albums
More
Songs
Folders
Playlists
Playing Music
1. From the music library, select a way to view your music.
2. Touch the music file you want to play.
Back Playlist screen
Progress bar
Music player controls
Using the microSD Card as a USB Mass
Storage
1. Connect your mobile phone to your PC with the USB cable provided. Your PC will detect the microSD card as a removable storage device.
2. Open the notification bar, and then touch USB connected .
3. Touch in the dialog box that opens to confirm that you want to transfer files.
You can now transfer files from your PC to your mobile phone’s microSD card.
Security Guard
Security Guard supports the following functions: Blocked logs , Blacklist and whitelist , Privacy center , and Settings . Using Security Guard will not incur any charges.
Touch > Security Guard to access the Security Guard screen.
Blacklist and whitelist : Touch to view or edit Blacklist and Whitelist . Based on your settings, your phone will block the calls and messages from the blacklist contacts or receive the calls and messages from only the whitelist contacts.
Privacy center : Touch to view the messages and calls to or from private contacts.
Blocked logs : Touch to view the blocked calls and messages.
Settings : Touch to turn Security Guard on or off.
FAQs
How Can I Use a microSD Card to Import Contacts to My Phone from a
Different Mobile Phone?
Your mobile phone only supports contact files in the .vcf
format.
1. Save the contacts you want to import to your mobile phone to a microSD card as a .vcf
file.
2. Insert the microSD card into your mobile phone and find the .vcf
file using File Manager .
3. Touch the .vcf
file. The phone displays a message asking whether you want to import the contacts.
4. Touch OK to import the contacts.
Compatibility problems may occur with .vcf
files created by different mobile phones and certain contact information may be lost after contacts are imported.
You can also use Bluetooth to share and import contacts.
How Do I Set a Song As a Phone Ringtone?
In Music , touch and hold the song to be set as a ringtone, and then touch Set as ringtone .
How Do I Prevent Automatic Change of Screen Orientation When Rotating My
Phone?
On the Home screen, touch disable the function.
> Settings > Display > Auto-rotate screen to
How Do I Set an Unlock Pattern?
On the Home screen, touch lock > Pattern .
> Settings > Location & security > Set up screen
How Can I Change the Input Method?
Touch and hold the area where you write text and then select the input method you prefer.
How Do I Stop the Song Playing in the Background?
Touch the notification bar, flick downwards to open the notifications panel, touch the music playing notification to go to the music playing screen, and then stop playing the song.
How Do I Return to the Call Screen?
While in a call, if you’re on another screen, you can touch the notification bar, and flick downwards to open the notifications panel. Then touch the current call notification to return to the call screen.
How Do I Create an Application Shortcut on the Home Screen?
Touch and hold an application icon on the application screen until the Home screen is displayed. Then drag the icon to where you want to place it and release your finger.
How Do I Hide the Keyboard?
Touch to hide the keyboard.
Warnings and Precautions
This section contains important information pertaining to the operating instructions of your device. It also contains information about how to use the device safely. Read this information carefully before using your device.
Electronic Device
Power off your device if using the device is prohibited. Do not use the device when using the device causes danger or interference with electronic devices.
Medical Device
• Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device when using the device is prohibited.
• Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If you are using a pacemaker, use the device on the opposite side of the pacemaker and do not carry the device in your front pocket.
Potentially Explosive Atmosphere
Power off your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not power on your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity.
Traffic Security
Observe local laws and regulations while using the device. In addition, if using the device while driving a vehicle, comply with the following guidelines:
• Concentrate on driving. Your first responsibility is to drive safely.
• Do not talk on the device while driving. Use hands-free accessories.
• When you have to make or answer a call, park the vehicle at the road side before using your device.
• RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.
• In a motor vehicle, do not place the device over the air bag or in the air bag deployment area. Otherwise, the device may hurt you owing to the strong force when the air bag inflates.
• Do not use your device while flying in an aircraft. Power off your device before boarding an aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft and disrupt the wireless telephone network. It may also be considered illegal.
Operating Environment
• Do not use or charge the device in dusty, damp, and dirty places or places with magnetic fields. Otherwise, it may result in a malfunction of the circuit.
• The device complies with the RF specifications when the device is used near your ear or at a distance of 1.5 cm from your body. Ensure that the device accessories such as a device case and a device holster are not composed of metal components. Keep your device 1.5 cm away from your body to meet the requirement earlier mentioned.
• On a stormy day with thunder, do not use your device when it is being charged, to prevent any danger caused by lightning.
• When you are on a call, do not touch the antenna. Touching the antenna affects the call quality and results in increase in power consumption. As a result, the talk time and the standby time are reduced.
• While using the device, observe the local laws and regulations, and respect others' privacy and legal rights.
• Keep the ambient temperature between -10°C and 45°C while the device is being charged. Keep the ambient temperature between -10°C to 45°C for using the device powered by a battery.
Prevention of Hearing Damage
Using a headset at high volume can damage your hearing. To reduce the risk of damage to hearing, lower the headset volume to a safe and comfortable level.
Safety of Children
Comply with all precautions with regard to children's safety. Letting the child play with your device or its accessories, which may include parts that can be detached from the device, may be dangerous, as it may present a choking hazard. Ensure that small children are kept away from the device and accessories.
Accessories
Choose only batteries, chargers, and accessories approved for use with this model by the device manufacturer. The use of any other type of battery, charger, or accessory may invalidate any warranty for the device, may be in violation of local rules or laws, and may be dangerous. Please contact your dealer for information about the availability of approved batteries, chargers, and accessories in your area.
Battery and Charger
• Unplug the charger from the electrical plug and the device when not in use.
• The battery can be charged and discharged hundreds of times before it eventually wears out. When the standby time and the talk time are shorter than the normal time, replace the battery.
• Use the AC power supply defined in the specifications of the charger. An improper power voltage may cause a fire or a malfunction of the charger.
• Do not connect two poles of the battery with conductors, such as metal materials, keys, or jewelries. Otherwise, the battery may be short-circuited and may cause injuries and burns on your body.
• If battery electrolyte leaks out, ensure that the electrolyte does not touch your skin and eyes. When the electrolyte touches your skin or splashes into your eyes, wash your eyes with clean water immediately and consult a doctor.
• If there is a case of battery deformation, color change, or abnormal heating while you charge or store the battery, remove the battery immediately and stop using it.
Otherwise, it may lead to battery leakage, overheating, explosion, or fire.
• If the power cable is damaged (for example, the cord is exposed or broken), or the plug loosens, stop using the cable at once. Otherwise, it may lead to an electric shock, a short circuit of the charger, or a fire.
• Do not dispose of batteries in fire as they may explode. Batteries may also explode if damaged.
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard.
• Avoid dropping the device or battery. If the device or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a qualified service center for inspection.
• Improper battery use may result in a fire, explosion or other hazard.
• Promptly dispose of used batteries in accordance with local regulations.
• The device should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.
Cleaning and Maintenance
• The device, battery, and charger are not water-resistant. Keep them dry. Protect the device, battery, and charger from water or vapor. Do not touch the device or the charger with a wet hand. Otherwise, it may lead to a short circuit, a malfunction of the device, and an electric shock to the user.
• Do not place your device, battery, and charger in places where they can get damaged because of collision. Otherwise, it may lead to battery leakage, device malfunction, overheating, fire, or explosion.
• Do not place magnetic storage media such as magnetic cards and floppy disks near the device. Radiation from the device may erase the information stored on them.
• Do not leave your device, battery, and charger in a place with an extreme high or low temperature. Otherwise, they may not function properly and may lead to a fire or an explosion. When the temperature is lower than 0°C, performance of the battery is affected.
• Do not place sharp metal objects such as pins near the earpiece. The earpiece may attract these objects and hurt you when you are using the device.
• Before you clean or maintain the device, power off the device and disconnect it from the charger.
• Do not use any chemical detergent, powder, or other chemical agents (such as alcohol and benzene) to clean the device and the charger. Otherwise, parts of the device may be damaged or a fire can be caused. You can clean the device and the charger with a piece of damp and soft antistatic cloth.
• Do not dismantle the device or accessories. Otherwise, the warranty on the device and accessories is invalid and the manufacturer is not liable to pay for the damage.
• If the device screen is broken by colliding with hard objects, do not touch or try to remove the broken part. In this case, stop using the device immediately, and then contact an authorized service center in time.
Emergency Call
You can use your device for emergency calls in the service area. The connection, however, cannot be guaranteed in all conditions. You should not rely solely on the device for essential communications.
Certification Information (SAR)
This device meets guidelines for exposure to radio waves.
Your device is a low-power radio transmitter and receiver. As recommended by international guidelines, the device is designed not to exceed the limits for exposure to radio waves. These guidelines were developed by the independent scientific organization International Commission on Non-Ionizing Radiation Protection
(ICNIRP) and include safety measures designed to ensure safety for all users, regardless of age and health.
The Specific Absorption Rate (SAR) is the unit of measurement for the amount of radio frequency energy absorbed by the body when using a device. The SAR value is determined at the highest certified power level in laboratory conditions, but the actual SAR level of the device when being operated can be well below the value. This is because the device is designed to use the minimum power required to reach the network.
The SAR limit adopted by USA and Canada is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The Highest SAR value reported to the FCC and IC for this device type when tested for use at the ear is 0.391 W/kg, when properly worn on body is 0.626 W/kg, and when using Wi-Fi hotspot function is 0.85 W/Kg.
The SAR limit also adopted by Europe is 2.0 W/kg averaged over 10 grams of tissue.
The highest SAR value for this device type when tested at the ear is 0.376 W/kg, and when properly worn on the body is 0.489 W/kg.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution
Changes or modifications made to this device not expressly approved by
Huawei Technologies Co., Ltd. may void the FCC authorization to operate this device.
Disposal and Recycling Information
This symbol on the device (and any included batteries) indicates that they should not be disposed of as normal household garbage. Do not dispose of your device or batteries as unsorted municipal waste. The device (and any batteries) should be handed over to a certified collection point for recycling or proper disposal at the end of their life.
For more detailed information about the recycling of the device or batteries, contact your local city office, the household waste disposal service, or the retail store where you purchased this device.
The disposal of this device is subject to the Waste from Electrical and Electronic
Equipment (WEEE) directive of the European Union. The reason for separating
WEEE and batteries from other waste is to minimize the potential environmental impacts on human health of any hazardous substances that may be present.
Reduction of Hazardous Substances
This device is compliant with the EU Registration, Evaluation, Authorisation and
Restriction of Chemicals (REACH) Regulation (Regulation No 1907/2006/EC of the
European Parliament and of the Council) and the EU Restriction of Hazardous
Substances (RoHS) Directive (Directive 2002/95/EC of the European Parliament and of the Council). For more information about the REACH compliance of the device, visit the Web site www.huaweidevice.com/certification . You are recommended to visit the Web site regularly for up-to-date information.
EU Regulatory Conformance
Hereby, Huawei Technologies Co., Ltd. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
For the declaration of conformity, visit the Web site www.huaweidevice.com/certification .
Observe the national local regulations in the location where the device is to be used. This device may be restricted for use in some or all member states of the
European Union (EU).
This device may be operated in all member states of the EU.
France : Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz.
Italy : For private use, a general authorisation is required if WAS/RLAN’s are used outside own premises. For public use, a general authorisation is required.
Luxembourg : General authorisation required for network and service supply.
Norway : This subsection does not apply for the geographical area within a radius of
20 km from the centre of Ny-Ålesund.
Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei
Technologies Co., Ltd. and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders.
Trademarks and Permissions
, , and
Technologies Co., Ltd.
are trademarks or registered trademarks of Huawei
WOW HD, SRS and the symbol are trademarks of SRS Labs, Inc. WOW HD technology is incorporated under license from SRS Labs, Inc.
WOW HD™ significantly improves the playback quality of audio, delivering a dynamic
3D entertainment experience with deep, rich bass and high frequency clarity for crisp detail.
Android is a trademark of Google Inc.
Other trademarks, product, service and company names mentioned are the property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers.
Thus the descriptions herein may not match exactly the product or its accessories you purchase.
Huawei Technologies Co., Ltd. reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability.
Third-Party Software Statement
Huawei Technologies Co., Ltd. does not own the intellectual property of the third-party software and applications that are delivered with this product. Therefore, Huawei
Technologies Co., Ltd. will not provide any warranty of any kind for these third-party software and applications. Neither will Huawei Technologies Co., Ltd. provide support to customers who use these third-party software and applications, nor be responsible or liable for the functions of these third-party software and applications.
Third-party software and applications services may be interrupted or terminated at any time. Huawei Technologies Co., Ltd. does not guarantee that any content or service would be maintained for any period during its availability. Third-party service providers provide content and services through network or transmission tools outside of the control of Huawei Technologies Co., Ltd. To the greatest extent permitted by applicable law, it is explicitly stated that Huawei Technologies Co., Ltd. shall not compensate or be liable for services provided by third-party service providers, or the interruption or termination of third-party contents or services.
Huawei Technologies Co., Ltd. shall not be responsible for the legality , quality, or any other aspects of any software installed on this product, or for any uploaded or downloaded third-party works, such as texts, images, videos, or software. Customers shall bear the risk for any and all effects, including incompatibility between the software and this product, which result from installing software or uploading or downloading the third-party works.
This product uses the open-source Android™ platform. Huawei Technologies Co.,
Ltd. has made necessary changes to the platform. Therefore, this product may not support all the functions that are supported by the standard Android platform or may be incompatible with third-party software. Huawei Technologies Co., Ltd. shall not be liable for any of such situation.
DISCLAIMER OF WARRANTIES
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS
REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
LIMITATIONS OF LIABILITY
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT
SHALL HUAWEI TECHNOLOGIES CO., LTD. BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST
PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED
SAVINGS.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY
FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS
SUCH A LIMITATION) OF HUAWEI TECHNOLOGIES CO., LTD. ARISING FROM
THE USE OF THE PRODUCT DESCRIBED IN THIS DOCUMENT SHALL BE
LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF
THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein.
THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND
DOES NOT CONSTITUTE ANY KIND OF WARRANTIES.
All the pictures in this guide are for your reference only. Your phone’s actual display features may be different to those described here, depending on its software version.
V100R001_02 31010HBU
advertisement
Key Features
- 9.4 cm (3.7") 480 x 800 pixels
- 1 GHz
- 0.5 GB microSDHC 32 GB
- Single SIM
- 802.11b, 802.11g, Wi-Fi 4 (802.11n) Bluetooth 2.1+EDR
- Single camera 5 MP
- Lithium-Ion (Li-Ion) 1400 mAh
- Android 2.3
Related manuals
advertisement
Table of contents
- 2 Personal Information and Data Security
- 3 What is in Your Box
- 3 Phone at a Glance
- 4 Key Functions at Your Fingertips
- 5 Before getting started
- 6 Charging the Battery
- 6 Status Indicator
- 7 Power On or Off Your Mobile Phone
- 7 Powering On Your Mobile Phone
- 7 Turning On Fast boot
- 7 Powering Off Your Mobile Phone
- 7 Home Screen
- 8 Viewing Other Parts of the Home Screen
- 8 Service Shortcuts
- 8 Adding a New Home Screen Item
- 9 Changing the Wallpaper
- 9 Locking the Screen
- 9 Unlocking the Screen
- 10 Importing Contacts from a SIM Card
- 10 Making a Call with the Dialer Application
- 11 Answering an Incoming Call
- 11 Rejecting an Incoming Call
- 12 Choosing an Input Method
- 12 Creating and Sending a Multimedia Message
- 13 Getting Connected
- 13 Turning on the Data Service
- 13 Turning On Wi-Fi
- 13 Connecting to a Wireless Network
- 13 Sharing Your Phone’s Data Connection as a Portable Wi-Fi Hotspot
- 13 DLNA
- 14 Opening Your Camera
- 14 Capture Screen
- 14 Enjoying Music
- 14 Opening the Music Library
- 15 Playing Music
- 16 Using the microSD Card as a USB Mass Storage
- 16 Security Guard
- 16 FAQs
- 16 How Can I Use a microSD Card to Import Contacts to My Phone from a Different Mobile Phone?
- 17 How Do I Set a Song As a Phone Ringtone?
- 17 How Do I Prevent Automatic Change of Screen Orientation When Rotating My Phone?
- 17 How Do I Set an Unlock Pattern?
- 17 How Can I Change the Input Method?
- 17 How Do I Stop the Song Playing in the Background?
- 17 How Do I Return to the Call Screen?
- 17 How Do I Create an Application Shortcut on the Home Screen?
- 17 How Do I Hide the Keyboard?
- 18 Warnings and Precautions
- 18 Electronic Device
- 18 Medical Device
- 18 Potentially Explosive Atmosphere
- 18 Traffic Security
- 19 Operating Environment
- 20 Prevention of Hearing Damage
- 20 Safety of Children
- 20 Accessories
- 20 Battery and Charger
- 21 Cleaning and Maintenance
- 22 Emergency Call
- 22 Certification Information (SAR)
- 23 FCC Statement
- 23 Disposal and Recycling Information
- 24 Reduction of Hazardous Substances
- 24 EU Regulatory Conformance
- 25 Legal Notice
- 25 Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved.
- 25 Trademarks and Permissions
- 25 Notice
- 26 Third-Party Software Statement
- 26 DISCLAIMER OF WARRANTIES
- 27 LIMITATIONS OF LIABILITY
- 27 Import and Export Regulations
