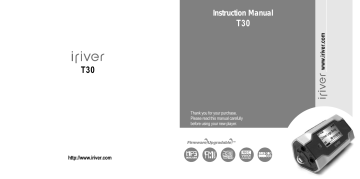

Instruction Manual
T30
T30
http://www.iriver.com
Thank you for your purchase.
Please read this manual carefully before using your new player.
01
Contents
Some features might not be available in every region.
Before using the product
Welcome .................................................................................................... 03
Homepage ................................................................................................. 03
Copyrights/Certification/Trademarks/Limited Liability ..................... 04
Safety Instructions ................................................................................... 05
Chapter 1 I Getting started
Components ............................................................................................. 09
Location of Controls ................................................................................ 10
Connection/Installation ........................................................................... 12
Chapter 2 I Quick start
Basic Usage .............................................................................................. 17
Chapter 3 I Basic operation
MUSIC ........................................................................................................ 21
BROWSER ................................................................................................ 31
*FM RADIO ................................................................................................ 32
RECORDING ............................................................................................. 37
* Only for models including FM Radio function
Chapter 4 I Useful features
Menu Configuration ................................................................................. 43
Menu Operation ........................................................................................ 44
Customizing the function settings ........................................................ 46
Chapter 5 I Customer Support
Firmware Upgrade ................................................................................... 65
Troubleshooting ....................................................................................... 66
Specification ............................................................................................. 67
Safety Information ................................................................................... 68
FCC Certification ...................................................................................... 69
02
Before using the product
Welcome
Thank you for your iriver purchase
Thank you for your iriver purchase.
The T30 comes complete with a long list of advanced features. It is important that you read the manual to ensure that you get the most out of your new player.
http://www.iriver.com
03
Obtain information about your player, look for updates, and find answers to questions at our web site.
iriver website address is www.iriver.com.
The site provides product information and customer support.
Use the firmware (system software) upgrade function of our products from the site to continuously improve the product performance.
Before using the product
Copyrights/Certification/Trademarks/Limited Liability
Copyrights
iriver Limited has all the rights of the patent, trademark, literary property and intellectual property related to this manual. You may not reproduce any part of this manual unless authorized by iriver Limited. You can be punished by using any part of this manual illegally.
The software, audio and video which have an intellectual property are protected by copyright and international laws. It is user’s responsibilities when he/she reproduce or distribute the contents created by this product.
The companies, institutions, products, people and events used in examples are not real data. We don’t have any intension to be related with any companies, institutions, products, people and events through this manual and should not draw inferences.
User’s are responsible for observing the copyrights and intellectual properties.
1999~2005 iriver Limited, All rights reserved
Certification
CE, FCC, MIC
Trademarks
Windows 2000, Windows XP and Windows Media Player are the registered trademarks of Microsoft Corp.
is a trademark of SRS Labs, Inc.
WOW technology is incorporated under license from SRS Labs, Inc.
Limited Liability
Neither the Manufacturer, importers nor dealers is responsible for any accidental damage including bodily injury or any damage resulting from misuse or unsuitable operation by you.
The information on this manual is prepared with the current player specifications.
The manufacturer, iriver Limited, is adding new features to the product and may persistently apply new technologies hereafter. All standards may be changed at any time without notice.
04
05
Before using the product
Safety Instructions
For your safety, please read before use.
Product
Keep away from harsh environments including humid, dusty, and smoky areas.
Do not drop or subject the device to impact.
Before using the product
Safety Instructions
For your safety, please read before use.
Product
Keep the player away from strong magnets.
Avoid contact with water and other liquids and dry immediately with a soft cloth should contact occur.
Do not disassemble or modify.
Keep out of direct sunlight and extreme heat and cold.
Do not use headphone / earphones at high volume. Hearing experts advise against listening to continuous, loud and extended play.
Do not use headphones/earphones while cycling, driving, or operating any motorized vehicle. It is dangerous and is illegal in some areas.
Do not use excessive force on the buttons or attempt to disassemble the device.
Do not clean using chemicals or detergents.
Doing so may damage the surface or paint.
Avoid impacting the player against other objects when it is in your pocket or backpack.
External impact, lightning, power shorts or other events may damage the data stored in the product. The user is solely responsible for data backup and the company will not be liable for loss of stored data under any circumstances.
06
07 www.iriver.com
Getting started
Chapter 1
Components ......................................... 09
Locating the controls ............................. 10
Product ................................................................. 10
LCD Screen display .......................................................... 11
Connection/Installation ......................... 12
Connecting to the PC .......................................... 12
Connecting the earphones .................................. 13
Replacing the battery .......................................... 13
WMP 10 installation ............................................. 14
08
09
Getting started
Components
Accessories subject to change without notice and may vary from image shown.
Earphone USB cable Installation CD
Getting started
Locating the controls
Your player may differ sightly from that shown in the illustrations.
Product
User Manual/ Warranty card/Quick Start Guide
Battery(AAA Type, 1EA) Neck strap for carrying
10
11
Getting started
Locating the controls
LCD Screen display
1. MUSIC Mode
Time
Play mode
Hold
Battery indicator
Title name
Playing time
Total playing time of selected song
Progress bar
Sampling rate
Volume level
Bit rate
File Type
EQ
2. * FM RADIO Mode * Only for models including FM Radio function
Stereo indicator
Preset indicator
Frequency
Frequency Bar
Channel Number
Getting started
Connection/Installation
Connecting to the PC
1. Connect the USB cable (provided) to the USB port on the player and to your PC.
USB port on the T30
USB port on the PC
USB cable
2. Turn on the player, “USB Connect” icon will appear on the LCD screen of the player.
3. Once installed, open Windows Explorer and an additional device should be listed called “iriver T30”.
12
Getting started
Connection/Installation
Connecting the earphones
1. Connect the earphones jack to the earphone socket on the player.
Getting started
Connection/Installation
WMP 10 installation
1. The program installation process will start automatically after inserting the
Installation CD to the PC's CD-ROM drive.
Click the [OK ] button and follow the on screen instructions which appear as each window.
Replacing the battery
1. Open the battery cover.
2. Insert the battery. (AAA 1.5V type x 1ea)
Be sure to match the + and - ends of the battery with the diagram inside the battery compartment.
3. Close the battery cover.
13
Note
To avoid corrosion, remove the battery if the player is not to be used for a long time.
When corrosion occurs, wipe the battery compartment immediately with a dry cloth and insert a new battery.
14
15 www.iriver.com
Quick start
Chapter 2
Basic Usage ....................................... 17
Turning on/off the player ................................. 17
Playing a music file .......................................... 17
Selecting a music file ....................................... 18
Adjusting the volume ....................................... 18
Selecting the function mode ........................... 19
16
17
Quick start
Basic Usage
Turning on/off the player
1 Turning on the player
Press the / button to turn on the player.
Previous function mode will be displayed.
Note
If the player does not power ON, please replace your battery.
2 Turning off the player
Press and hold the / button.
Turns off the player.
Playing a music file
1 When powered on, press and hold button to display the function mode screen.
2 Press , button to choose the [MUSIC] mode then press / button.
Previous music file will resume playback.
Quick start
Basic Usage
Selecting a music file
1 During the music file playback, press , button to choose the desired music file.
: to select previous music file
: to select next music file
Adjusting the volume
1 Adjusting the volume
During the music file playback, press , button to adjust volume level.
: Decrease volume level.
: Increase volume level.
18
19
Quick start
Basic Usage
Selecting the function mode
1 When powered on, press and hold button to display the function mode screen.
Press , button to choose the desired function mode.
Note
<Only for models including
FM Radio function>
2 Press / button to enter.
Press button to cancel.
Chapter 3
Basic operation
MUSIC .................................................. 21
Playing a music file .............................................. 21
Selecting a music file .......................................... 23
Changing playback mode ................................... 24
A-B Repeat ............................................................ 25
Changing the sound EQ ...................................... 26
Download Music & Playlists ............................... 27
Deleting a file on the player ................................ 29
BROWSER ............................................ 31
BROWSER ............................................................ 31
*FM RADIO ........................................... 32
Listening to FM radio ........................................... 32
Searching for a frequency - Manual Scan ......... 33
Searching for a frequency - Auto Scan .............. 33
Saving for a frequency - Manually ...................... 34
Saving for a frequency - Automatically ............. 35
Selecting preset memory .................................... 35
Deleting a channel ............................................... 36
RECORDING ......................................... 37
To record *FM station .......................................... 37
Recording voice ................................................... 38
Recording from line-in ......................................... 39
Note for recording ................................................ 40
To play a recorded file ......................................... 40
* Only for models including FM Radio function
20
21
Basic operation
MUSIC
Playing a music file
1 Release HOLD switch, then press
/ button to turn on the player.
Previous function mode will be displayed.
2 Press and hold button to display the function mode screen.
Press , button to select [MUSIC] mode, then press / button to enter.
Previous music file will resume playback.
3 Stop music playback
Press
/ button to stop music playback.
Press / button again to continue playing.
4 Adjusting the volume
During the music file playback, press , button to adjust volume level.
: Decrease volume level.
: Increase volume level.
Basic operation
MUSIC
5 Skipping to previous/next file
During the music file playback, press , button to skip to the previous/next file
: previous file : next file
6 Fast searching
Press and hold the , button for fastforward or fast-reverse playback.
: fast-rewind : fast-forward
Release the button for normal playback.
22
23
Basic operation
MUSIC
Selecting a music file
1 Press and hold button to display the function mode screen.
Press , button to select [BROWSER] mode, then press / button to enter.
The music file list screen will be displayed.
2 Use the , , / , buttons to, select a music file.
: to move up : to move down
: to enter the folder : to exit the folder /
To exit file list screen, press button.
3 Press / button to start playback.
Basic operation
MUSIC
Changing playback mode
Playback Mode can be changed in the [SETTINGS - Sound - Play
Mode Select]. (Refer to page 47)
1 Press and hold button to display the function mode screen.
Press , button to select [SETTINGS] mode, then press / button to enter.
The [SETTINGS] screen will be displayed.
2 Press , button to choose the [SOUND], then press / button.
The [SOUND] sub-menu screen will be displayed.
3 Press , button to choose the [Play Mode
Select], then press / button.
The [Play Mode Select] screen will be displayed.
4 Press , button to select desired playback mode, then press / button.
The playback mode is changed to the selected mode.
24
25
Basic operation
MUSIC
Note
The following the icons displayed to indicate playback mode.
Normal playback
Repeat playback
Shuffle playback
Shuffle playback repeatedly.
Play all files in the player, then stop.
Play all files in the current folder, then stop.
Play a single file repeatedly.
Play all files in the player repeatedly.
Play all files in the current folder repeatedly.
Randomly play all files in the player, then stop.
Randomly play all files in the current folder, then stop.
Randomly play all files in the player repeatedly.
Randomly play all files in the current folder repeatedly.
A-B Repeat
1 Press button while playing to select the beginning (A) point.
2 Press button again to select the end (B) point.
Play a selected interval repeatedly.
To cancel interval repeat, press the button.
Basic operation
MUSIC
Changing the sound EQ
The sound EQ can be changed in the [SETTINGS - Sound - EQ select].
(Refer to page 47)
1 Press and hold button to display the function mode screen.
Press , button to select [SETTINGS] mode, then press / button to enter.
The [SETTINGS] screen will be displayed.
2 Press , button to choose the [Sound], then press / button.
The [SOUND] sub-menu screen will be displayed.
3 Press , button to choose the [EQ
Select], then press / button.
The [EQ Select] screen will be displayed.
4 Press , button to select desired sound
EQ, then press / button.
The sound is changed to the selected EQ setting.
Note
You can select one of the following EQ types:
NORMAL, CLASSIC, LIVE, POP, ROCK, JAZZ, U BASS, METAL, DANCE, PARTY, SRS, USER EQ
26
Basic operation
MUSIC
Download Music & Playlists
Get the latest version of Windows Media Player
In order to copy music & playlists to your player, you must use Windows Media Player 10.
The installation CD-ROM should include the proper version of Windows Media Player.
Windows Media Player 10 can also be found online at : www.microsoft.com/windowsmedia/download/
Please note, purchased music can only be copied to this player using Windows XP and the latest version of Windows Media Player.
1. Connect the USB cable to the USB port on the player and to your PC.
USB port on the T30
27
USB port on the PC
USB cable
2. Open Windows Media Player.
a. Click Start -All Programs -Accessories -
Entertainment -Windows Media Player.
b. Click “Library ” from the menu button near the top of the screen..
Most of your music should be listed in this library.
If not, check Windows Media Player help for more information about the library.
Basic operation
MUSIC
3. Locate a Song or Playlist in the Library and Right-Click on it.
Select "Add to -Sync List".
A “Sync list ” will appear on the right side of windows Media Player listing all the
Songs & Playlists to be added to your player.
Repeat for all the songs or playlists you would like to add to your player.
4. Click the "Sync" menu button.
On the right side the Sync screen choose the T30 from the dropdown list.
5. Click Start Sync to transfer the songs or playlists on to the T30 player.
When complete, copied songs will appear in the "Synchronized to Device" list on the left side of Windows Media
Player and in the specified folder on the right side of the screen.
Disconnect the player from your computer and enjoy your music!
If you prefer to Auto Sync, please select "Auto Sync" in the menu of Set Up Sync.
You can Auto Sync music and playlists.
28
Basic operation
MUSIC
Deleting a file on the player
Th File can be deleted in the [SETTINGS - Advanced - Delete File].
(Refer to page 61)
1 Press and hold button to display the function mode screen.
Press , button to select [SETTINGS] mode, then press / button to enter.
The [SETTINGS] screen will be displayed.
2 Press , button to choose the
[Advanced], then press / button.
The [Advanced] sub-menu screen will be displayed.
Basic operation
MUSIC
4 Select a file to delete by using the , , /
, button, then press
/ button.
/
: to move up
: to enter the folder
: to move down
: to exit the folder
5 Press , button to choose the [Yes], then press / button.
File is deleted on the player.
3 Press , button to choose the [Delete File], then press
/ button.
The [DELETE file] list screen will be displayed.
29
Note
While in a music file playback, delete functions are not available.
Note
You can not delete a folder at all.
30
31
Basic operation
BROWSER
BROWSER
1 Press and hold button to display the function mode Screen.
Press , button to select [BROWSER] mode, then press / button to enter.
2 File list screen is displayed on the LCD screen.
Basic operation
* FM RADIO
* Only for models including FM Radio function
Listening to FM radio
1 Press and hold button to display the function mode Screen.
Press the , button to select [FM RADIO], then press the / button to confirm.
The previous station is displayed.
2 Press the , button to select your desired station.
3 To change STEREO/MONO
Press the button to display FM Radio function Slection screen.
Press the , button to select [STEREO
ON or STEREO OFF], then press the / button to confirm.
The station is changed to stereo or mono.
Note
In areas where the signal is weak, some channels may be unavailable, or reception may be poor.
32
Basic operation
* FM RADIO * Only for models including FM Radio function
Searching for a FM radio frequency - Manual Scan
1 If PRESET is displayed, first press the / button to exit PRESET mode.
Press the , button to select your desired station.
Searching for a FM radio frequency - Auto Scan
1 If PRESET is displayed, first press the / button to exit PRESET mode.
To automatically locate a station press and hold the , button.
The player will quickly scan through each frequency and stop at the next station that can tuned in.
33
Note
While in Preset mode, auto scan functions are not available.
Basic operation
* FM RADIO * Only for models including FM Radio function
Saving an FM Radio frequency - Manually
1 If PRESET is displayed, first press the / button to exit PRESET mode.
Press the , button to select your desired station.
2 Press the button to display FM Radio function Slection screen.
Press the , button to select [SAVE
CHANNEL], then press the
/ button.
The Save Channel screen is displayed.
3 Select channel number by using the , button, then press
/ button to save.
: Saved : not used
To exit the Save Channel screen, press the button.
Note
Up to 20 stations can be saved.
34
Basic operation
* FM RADIO * Only for models including FM Radio function
Saving an FM Radio frequency - Automatically
1 Press the button to display FM Radio function
Slection screen.
Press the , button to select [AUTO
SAVE].
Press the / button to to automatically select stations and save them in sequential order.
Selecting preset memory
1 If PRESET is not displayed, first press the / button to enter PRESET mode.
Press the , button to select your desired channel.
35
Note
When the player does not have any preset stations, EMPTY will be displayed at Preset mode, then fade out.
Basic operation
* FM RADIO * Only for models including FM Radio function
Deleting a channel
1 If PRESET is not displayed, first press the / button to enter PRESET mode.
Press the button to display FM Radio function Slection screen.
2 Press the , button to select [DELETE
CHANNEL], then press the / button.
The Delete Channel screen is displayed.
3 Select channel number by using the , button, then press
/ button to delete.
: Saved : not used
To exit the Delete Channel screen, press the button.
36
Basic operation
RECORDING
To record *FM station
* Only for models including FM Radio function
1 Press the button to display FM Radio function Slection screen.
Press the , button to select
[RECORDING], then press the / button.
The station will be recorded.
2 Pausing station recording
Press / button to pause the recording process.
Press / button again to restart recording.
3 Press the button again to stop recording.
The recorded file is saved.
37
Note
The recorded file is saved as TUNERMMDD_XXX.MP3 in the RECORD folder.
(MM : Month, DD : day, XXX : sequential number)
Volume can not be controlled while recording.
You can adjust recording quality at the SETTINGS-RECORDING-FM SETTING. (Refer to page 53)
Basic operation
RECORDING
Recording voice
1 Press and hold the button to display function mode screen.
Select the [RECORDING] by using the , button, then press / button.
The recording select screen is displayed.
2 Select the [VOICE] by using the , button, then press
/ button.
The recording standby screen is displayed.
3 Press the button to begin recording.
Press / button to pause the recording process.
Press / button again to restart recording.
3 Press the button to stop recording.
The recorded file is saved and then the recording standby screen is displayed.
Note
The recorded file is saved as VOICEMMDD_XXX.MP3 in the VOICE folder.
(MM : Month, DD : day, XXX : sequential number)
Volume can not be controlled while recording.
You can adjust recording quality at the SETTINGS-RECORDING-VOICE SETTING. (Refer to page 53)
38
39
Basic operation
RECORDING
Recording from Line-In
1 Press and hold the button to display function mode screen.
Select the [RECORDING] by using the , button, then press / button.
The recording select screen is displayed.
2 Select the [Line-In] by using the , button, then press
/ button.
The recording standby screen is displayed.
3 Press the button to begin recording.
Press / button to pause the recording process.
Press / button again to restart recording.
3 Press the button to stop recording.
The recorded file is saved and then the recording standby screen is displayed.
Note
The recorded file is saved as AUDIOMMDD_XXX.MP3 in the RECORD folder.
(MM : Month, DD : day, XXX : sequential number)
Volume can not be controlled while recording.
You can adjust recording quality at the SETTINGS-RECORDING-LINE-IN SETTING. (Refer to page 54)
Basic operation
Listening to music
Note for recording
The recording will be stop if
- the amount of recorded data exceeds the memory capacity of the player.
- the battery is low.
To play a recorded file
While Recording standby mode, press button to play recorded file.
/
Previous recorded file will begin playing back.
1 Press and hold the button to display function mode screen.
Select the [BROWSER] by using the , button, then press / button.
2 Select a recorded file in the [RECORD] or
[VOICE] folder by using the , , , / button, then press / button.
The selected file will begin playing back.
/
: to move up
: to enter the folder
: to move down
: to exit the folder
40
41 www.iriver.com
Useful features
Chapter 4
Menu configuration ............................ 43
Menu operation ................................. 44
Enter Settings Menu ......................................... 44
Enter Sub Menu ................................................ 44
Set the menu functions .................................... 45
Exit sub menu ................................................... 45
Customizing the function settings ....... 46
Sound ................................................................ 46
Display ............................................................... 49
Recording .......................................................... 53
Timer .................................................................. 56
Advanced .......................................................... 59
42
43
Useful features
Menu configuration
Functions are subject to change with different firmware versions.
Users can configure their own settings.
SRS Setting
User EQ
EQ Select
Play Mode Select
Rec. Play Mode
Backlight Timer
Scroll Speed
Tag Info.
Language
Battery Select
Name
LCD Contrast
*FM Setting
Voice Setting
Voice Detect
Line-In Setting
Line-In Volume
Track Separation
Power Off Timer
Sleep Timer
Date & Time
Alarm/*FM Rec.
Set Alarm
*FM Rec. Reserve
Resume
System Info.
Scan Speed
Playback Speed
Study Mode
Delete File
Load Default
Format
* Only for models including FM Radio function
Useful features
Menu operation
Enter Settings Menu
1 Press and hold the button to display the
Mode screen.
Press the , button to select [SETTINGS] mode.
2 Press the / button to display the Settings screen.
Press the , button to move the Settings menu.
Enter Sub Menu
1 Press the button to enter the sub menu screen.
44
45
Useful features
Menu operation
Set the menu functions
1 Select sub-menu using by , button, then press the / button to enter sub-menu setting screen.
3 You can set, cancel or change sub menu setting by pressing the , ,
/ button .
Exit sub menu
1 Press the button to exit sub menu.
Useful features
Customizing the function settings (Menu)
Sound
1. SRS Setting
Sets the 3D sound effect. SRS, FOCUS, TruBass, and
Boost are available.
SRS : Adjust the SRS value.
FOCUS : Adjust the sound resolution value.
TRUBASS : Adjust the TruBass value.
BOOST : Adjust the sound boost value.
Use proper boost value depends on t he earphones or headphone characteristics.
2. User EQ
You can adjust the sound to your preference.
There are 5 band frequency steps, set from <-15dB> ~ <+15dB> by 1dB increments.
46
47
Useful features
Listening to music
Sound
3. EQ Select
Select the EQ sound.
You can select one of the following EQ types:
NORMAL, CLASSIC, LIVE, POP, ROCK, JAZZ, U BASS,
METAL, DANCE, PARTY, SRS, USER EQ
4. Play Mode Select
Select the play mode.
Useful features
Listening to music
Sound
5. Rec. Play Mode
Select the play mode of recorded a file.
48
49
Useful features
Customizing the function settings (Menu)
Display
1. Backlight
You can adjust the time that the Backlight stays on.
The Backlight can be set to:
<ALWAYS ON>, <5 SEC>, <10 SEC>, <30 SEC>, <1 MIN>,
<5 MIN> or <10 MIN>.
2. Scroll Speed
Select scroll type and speed of the current title playback information.
The scroll type can be set to:
<VERTICAL> or <HORIZONTAL>.
The scroll speed can be set to:
<SLOW>, <NORMAL> or <FAST>.
Useful features
Customizing the function settings (Menu)
Display
3. Tag Info.
While playing, you can display the information of music file by using ID3 Tag.
You can set <ON> or <OFF> .
Off : Display track with file name
File name will be displayed by default for songs with no ID3 information
4. Language
Select the language to display the file name and ID3 tag information.
Support 40 languages.
50
Useful features
Customizing the function settings (Menu)
Display
5. Battery Select
Select the current battery.
You can set <RECHARGEABLE> or <ALKALINE>.
The player will manage the battery indicator icon to better match the usage level.
51
6. Name
You can input your name or custom text.
1 Select the character by using , button and press
/ button to input the character.
2 To move the cursor in the name window, use
, button.
Useful features
Customizing the function settings (Menu)
Display
3 To delete the character, press and hold button.
To scroll between English and your preferred language, press and hold button.
4 Press and hold button to save and exit.
7. LCD Contrast
Adjust the LCD screen contrast.
The LCD contrast can be adjusted from <-5> to <+5>.
52
53
Useful features
Customizing the function settings (Menu)
Recording
1. *FM Setting
You can set recording quality (<HIGH>, <MIDDLE> or
<LOW>) when recording FM.
* Only for models including FM Radio function
2. Voice Setting
You can set recording quality (<HIGH>, <MIDDLE> or
<LOW>) when recording voice.
Useful features
Customizing the function settings (Menu)
Recording
3. Voice Detect
The voice recording mode will automatically pause during silence. This is useful for recording over a long period of time to save memory.
LEVEL : Set the relative level of sound needed to activate the recorder. (<OFF>, <01>, <02>, <03>, <04> or <05>)
TIME(SEC) : Set the number of seconds of silence to record before pausing.(<OFF>, <01>, <02>, <03>, <05> or <10>)
4. Line-In Setting
You can set recording quality (<HIGH>, <MIDDLE> or
<LOW>) when recording from external device.
54
Useful features
Customizing the function settings (Menu)
Recording
5. Line-In Volume
You can control volume for recording from voice.
<0> to <31> levels are available.
55
6. Track Seperation
While recording from external device, you can adjust the track separation time to save each track as an individual file if there is no sound part between the tracks.
If you use the Track Separation function with connecting external devices such as CD or tape, each track will be save to an individual file.
Useful features
Listening to music
Timer
1. Power Off Timer
Automatically turns the power off at the stop mode.
Time range can be set from <1 MIN>, <2 MIN>, <3 MIN>,
<5 MIN>, <10 MIN>, <20 MIN>, <30 MIN> or <60 MIN>.
2. Sleep Timer
Automatically turns the power off after a fixed time.
Time range can be set from <OFF>, <5 MIN>, <10 MIN>,
<20 MIN>, <30 MIN>, <60MIN>, <120 MIN> or <180 MIN>.
OFF : Sleep timer function does not activate.
56
Useful features
Customizing the function settings (Menu)
Timer
3. Date & Time
Set the current date and time.
Press the , button to adjust the date/time.
Press the / button to accept the changes.
57
4. Alarm/*FM Rec.
OFF : The Alarm and FM Record functions are disabled and the player will not power on at either indicated time.
ALARM : At the time indicated in the "Set Alarm" setting the player will power on and begin music playback.
*FM RECORDING : At the time indicated in the "FM Rec.
Reserve" setting the player will power on and begin recording from the selected radio station.
* Only for models including FM Radio function
Useful features
Customizing the function settings (Menu)
Timer
5. Set Alarm
Set the alarm time.
Press the , button to adjust the alarm settings.
Press the / button to accept the changes.
6. *FM Rec. Reserve
Set the time and station to be recorded.
* Only for models including FM Radio function
58
59
Useful features
Customizing the function settings (Menu)
Advanced
1. Resume
ON : Playback will resume from the previous location in a song when the player is stopped or powered off.
OFF : Playback begins from the first track after the player is stopped or powered off.
2. System Info.
You can check the firmware version information, free space memory and total number of tracks.
Useful features
Customizing the function settings (Menu)
Advanced
3. Scan Speed
Adjust the speed of FF/RW(fast-forward/fast-rewind).
The Scan Speed can be set from <1X>, <2X>, <4X> or <6X>.
4. Playback Speed
Adjust the speed of playback.
The Playback Speed can be set from <-5 > to <+5>.
60
61
Useful features
Customizing the function settings (Menu)
Advanced
5. Study Mode
While playing, press and hold , button will skip the current track set time ahead.
Time range can be set from <OFF>, <3 SEC>, <10 SEC>, <20
SEC>, <30 SEC>, <60 SEC>, <120 SEC> or <180 SEC>.
OFF : Study Mode function does not activate.
6. Delete File
While playback is stopped, you can delete a file on the player. (Refer to 29 page)
When in Delete file screen, press the / button after slecting a file to delete it.
YES : Delete selected a file.
NO : Cancel the delete function.
Useful features
Customizing the function settings (Menu)
Advanced
7. Load Default
Reset menus to the original factory settings.
When the Load Default is done, the player will be rebooted automatically.
8. Format
Memory is formatted and all saved files are deleted.
Before formatting can begin, you must backup all data stored on the player.
Care must be taken as formatted files can not be recovered.
When the Format is done, the player will be rebooted automatically.
62
63 www.iriver.com
Customer Support
Chapter 5
Firmware Upgrade ............................... 65
Troubleshooting .................................... 66
Specification ......................................... 67
Safety Information ................................ 68
FCC Certification ................................... 69
64
65
Customer Support
Firmware Upgrade
Firmware Upgrade
1
Download the latest firmware upgrade file from www.iriver.com/ support.
2
3
Unzip the firmware file (T30_MTP.HEX) and copy the file to iriver
T30:\ data folder on the player.
Disconnect the USB cable .
After the player is disconnected from the computer, firmware upgrade will automatically begin.
Note
Before upgrading the firmware, check the condition of the battery. The firmware upgrade may fail due to battery power shortage.
Do not turn the player off until the upgrade is completed.
When the upgrade is completed, the firmware file(T30_MTP.HEX) will be deleted automatically.
Customer Support
Troubleshooting Should any problem persist after you have checked these symptoms, consult your iriver dealer or contact support at www.iriver.com.
Trouble
No Power.
No sound or distortion during playback.
Characters in LCD are corrupted.
Poor *FM Reception.
Failed download of
MP3 file
The title saved in T30 are not played.
Solution
Check whether the HOLD switch on the player is ON (Switch to
OFF position)
Check the condition of the battery. Insert a fresh battery.
Check whether VOLUME is set to "0".
Firmly connect the earphones.
Check whether the plug is dirty. Clean the plug with a dry and soft cloth.
Corrupted MP3 or WMA files may make a static noise and the sound may cut off. Listen to your files on the PC to see if they are corrupted.
Check out SETTINGS Display Language and confirm whether the right language has been selected.(Refer to page 50)
Adjust the position of the player and earphones.
Turn off the power of other electric devices near the player.
The Earphone cord functions as the antenna, they must be plugged in for best reception.
Check the condition of the battery.
Check the connection between your computer and the player to ensure that the cable is secure.
Check whether the player’s memory is full.
T30 supports up to 700 music files and 700 folders.
66
67
Customer Support
Specifications
Memory Capacity
Model No.
256 MB*
T30 256MB
512 MB*
T30 512MB
1 GB*
T30 1GB
Category
Audio
FM Tuner**
File Playback
Recording
General
Item
Frequency range
Headphone Output
S/N ratio
Number of Channel
FM Frequency range
S/N ratio
Antenna
File Type
Bit Rate
Tag Info
Max. Recording time
(@32kbps)
Dimension
Weight
LCD
Language
Battery
Operational Temperature
Max. Playtime
Specifications
20 Hz ~ 20 KHz
(L)15 mW + (R)15 mW (16 Ohm) max. Volume
90 dB(MP3)
Stereo (Left/Right)
87.5 MHz ~ 108 MHz
60 dB
Headphone/Earphone-Cord Antenna
MPEG 1/2/2.5 Layer 3, WMA, OGG, ASF
MP3/WMA : 8Kbps~320Kbps, OGG : Q1~Q10
ID3 VI, ID3 V2.2.0, ID3 V2.3.0, ID 3 V2.4.0
256 MB 512 MB 1 GB
Approx. 18 hours Approx. 36 hours Approx. 72 hours
60 (W) x 30.4 (D) x 22.1 (H) mm
27 g (Battery excluded)
Full Graphic 4 Line with Backlight
40 languages
AAA Type Alkaline battery 1EA
-5 ~ 40
Approx. 20 hours (128 kbps, MP3, Vol 20, Backlight off, EQ Normal, Alkaline AAA 1000mAh)
* 1 MB = 1,000,000 Bytes / 1 GB = 1,000 MB = 1,000,000,000 Bytes
Not all memory available for storage. Memory is not expandable.
** Only for models including FM Radio function
Customer Support
Safety Information
For Safety
Avoid dropping or impacting the player.
The player is designed to operate while walking or running, but dropping or excessively impacting the player may be cause damage.
Avoid contacting the player with water.
Damage to the internal parts of the player may occur if the player comes into contact with water. If your player gets wet, dry the outside with a soft cloth as soon as possible.
Do not leave the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust or sand, moisture, rain, mechanical shock, unleveled surface, or in a car with its windows closed.
Remove the battery if player is unused for long periods of time.
Battery left in the player for a long time can corrode and damage the device.
All data stored on this device may be erased by a excessive impact, a thunder or an electricity failure, etc. on the device.
The manufacturer does not warrant and will not be held responsible in any way for damages or loss of data, including loss of data stored on this device, resulting from a excessive impact, a thunder or an electricity failure, You will be responsible for safe-guarding all data stored on this device.
On headphones and earphones
Road Safety
Do not use headphones/earphones while driving, cycling, or operating any motorized vehicle.
It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play your headset at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.
Preventing hearing damage
Avoid using headphones/earphones at high volume. Hearing experts advise against continuously loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use.
Consideration for others
Keep the volume at a moderate level. This will allow you to hear outside sound and to be considerate of the people around you.
68
69
Customer Support
FCC Certification
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY
TO OPERATE THE EQUIPMENT.
Memo
70
Memo Memo
advertisement
Related manuals
advertisement
Table of contents
- 2 Welcome
- 2 Homepage
- 3 Copyrights/Certification/Trademarks/Limited Liability
- 4 Safety Instructions
- 8 Components
- 9 Location of Controls
- 11 Connection/Installation
- 16 Basic Usage
- 20 MUSIC
- 30 BROWSER
- 31 *FM RADIO
- 36 RECORDING
- 22 Menu Configuration
- 22 Menu Operation
- 22 Customizing the function settings
- 33 Firmware Upgrade
- 33 Troubleshooting
- 33 Specification
- 33 Safety Information
- 33 FCC Certification
