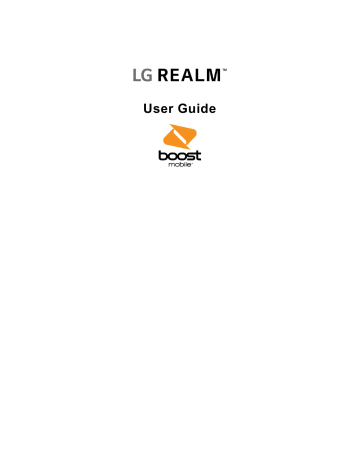

User Guide
Table of Contents
TOC i
TOC ii
TOC iii
TOC iv
TOC v
TOC vi
Transfer User Contents From an Android Phone to Your LG Realm ................................ 123
TOC vii
TOC viii
TOC ix
Get Started
The following topics give you all the information you need to set up your phone and service the first time.
Your Phone at a Glance
The following illustration outlines your phone ‘s primary external features and buttons.
Set Up Your Phone
You must first install and charge the battery to begin setting up your phone.
Install the Battery
Please follow the steps below to install the battery.
Get Started 1
1. Insert your fingernail into the Charger/Accessory Port and lift the cover up gently.
2. Insert the battery, contacts end first, and gently press the battery into place.
3. Replace the battery compartment cover, making sure all the tabs are secure and there are no gaps around the cover.
Get Started 2
Charge Your Battery
The following steps will help you charge your battery.
1. Plug the USB connector into the charger/accessory port at the bottom of your phone.
2. Plug the AC adapter into an electrical outlet. Fully charging a battery may take up to three and half hours.
Get Started 3
Note: Your phone ‘s battery should have enough charge for the phone to turn on and find a signal, run the setup application, set up voicemail, and make a call. You should fully charge the battery as soon as possible.
3. Press and hold the Power/Lock Button to turn the phone on.
If your phone is activated, it will turn on, search for service, and begin the setup process.
If your phone is not yet activated, see Activate Your Phone for more information.
Activation and Service
Before using your phone, you must set up your service with Boost Mobile. You will need your phone‘s serial number (MEID), printed on a sticker inside the battery compartment.
Create Your Account and Pick Your Plan
Set up your Boost Mobile account.
1. From your computer, visit boostmobile.com/activate .
2. Enter your phone‘s MEID and click start activation process .
Your phone‘s MEID (serial number) is printed on the sticker located on the back of your phone in the battery compartment. This number can also be found on the bottom panel of the phone‘s package.
3. Follow the remaining instructions to choose your plan and select a payment method.
4. Follow the activation instructions below and you‘ll be able to start using your phone.
Note: You can also activate by phone by calling 1-888-BOOST-4U (1-888-266-7848) from any other phone.
Activate Your Phone
After setting up your account on boostmobile.com
, simply turn your device on. Your device is designed to activate automatically. If you are swapping from another Boost Mobile device to a new one, be sure to turn off the old device before swapping the serial number (MEID). Once the
MEID swap is complete, turn on the new device and the programming information will be pushed to your device automatically.
You can also start the activation process manually.
■ Press > > Settings > Activate this device .
Manage Your Account
Access information about your account. You can:
Get Started 4
● Check your minutes.
● Re-Boost
®
(add money to your account).
● Change plans.
● And more.
From Your Phone
Access account information and other self-service tools from Boost Zone.
■ Press > > Boost Zone .
You can also dial directly for access to certain information:
● Dial
● Dial
(#BAL)
(#ADD) to check account balance. to make a payment.
● Dial to launch Boost Zone or call Boost Customer Care (depending on your Settings) to get answers to other questions.
From Your Computer
■ Log in with your wireless phone number and account PIN at boostmobile.com
.
From Any Other Phone
■ Boost Customer Care: 1-888-BOOST-4U (1-888-266-7848).
Re-Boost
Boost Mobile makes it easy to add money to your account. You decide exactly how and where you want to pay. Keep your account active by using your phone and adding money to your account.
Pay with Cash
Find an Authorized Re-Boost Retailer near you. Pick up a Re-Boost Card or recharge for as low as $10 at the register, where available.
Pay Anytime with a Credit/Debit Card
Dial #ADD ( ) to add money from your phone or visit My Account at boostmobile.com
to do it online. Securely register your credit/debit card with Boost for more convenient one-time payments or to set up easy Auto Re-Boost payments.
Get Started 5
Set Up Worry-Free Payments with Auto Re-Boost
SM
It‘s the easiest way to make sure your account stays on and active. Use a credit card, debit card or bank account —whatever‘s best for you.
Visit boostmobile.com/reboost to get the details on all your Re-Boost options.
Additional Information
For more information about your Boost Mobile account, as well as other Boost Mobile services, visit us at boostmobile.com
.
Complete the Setup Screens
The setup screens help you set up certain features and preferences on your phone. Once your phone has been turned on, you will see a Welcome message. You can then complete the setup process.
Note : You may be able to complete the setup screens before your phone has been activated on your account.
Note : During or after setup, you may see a Connections Optimizer notice. Read the notice and touch I Agree to allow your phone to connect automatically to the best available data network, including Wi-Fi. To turn Connections Optimizer off at any time, press > >
Settings > More...
> Mobile networks > Connections Optimizer and uncheck the box. See
Connections Optimizer for details.
1. Before activation, you can turn on the TalkBack voice navigation feature for the visually impaired. Double tap the center of the screen to activate this feature. To enable other features, tap Accessibility settings . To continue the activation process, tap Next .
2. Enter your phone name. This will be used as your phone name in Bluetooth, Wi-Fi Direct, etc. Then enter a phone number to call if the phone is lost. It will be displayed on the
Lock screen.
3. Your initial setup is complete. You can now enjoy your phone and personalize it to your liking.
Set Up Voicemail
You should set up your voicemail and personal greeting as soon as your phone is activated.
Always use a password to protect against unauthorized access. Your phone automatically transfers all unanswered calls to your voicemail, even if your phone is in use or turned off.
1. Press and tap > Voicemail .
2. Tap Personalize now .
Get Started 6
3. Follow the system prompts to:
Create your password.
Record your name announcement.
Record your greeting.
Important: Voicemail Password – It is strongly recommended that you create a password when setting up your voicemail to protect against unauthorized access. Without a password, anyone who has access to your phone is able to access your voicemail messages.
For more information about voicemail, see Voicemail
Get Started 7
Phone Basics
Your phone is packed with features that simplify your life and expand your ability to stay connected to the people and information that are important to you. The following topics will introduce the basic functions and features of your phone.
Your Phone ’s Layout
The illustrations and descriptions below outline your phone‘s basic layout.
Key Functions
● Earpiece lets you hear the caller and automated prompts.
● Back Key lets you return to the previous screen, or close a dialog box, options menu, the Notifications panel, or onscreen keyboard.
● Menu Key allows you to access the options available for the current app, feature, function, or screen. Tap and hold to open the recently-used applications window.
● Home Button
Now.
returns you to the Home screen. Press and hold to open Google
● Power/Lock Button lets you turn the phone on or off or turn the screen on or off, or switch your phone to silent mode, vibration mode, or airplane mode.
Phone Basics 8
● Proximity Sensor detects how close an object is to the surface of the screen. This is typically used to detect when your face is pressed up against the screen, such as during a phone call.
While talking on the phone, the sensor detects talk activity and locks the keypad to prevent accidental keypresses.
● Front-Facing Camera takes pictures and records videos while facing the screen, and allows you to video conference.
● Charger/Accessory Port allows you to connect the phone charger or the USB cable
(included).
● Microphone allows you to transmit your voice to the other caller and is used for voiceactivated functions.
● Speaker lets you hear the different ringtones and sounds. The speaker also lets you hear the caller ‘s voice in speakerphone mode.
● Volume Buttons allows you to adjust the ringtone or media volume or adjust the voice volume during a call.
● Flash helps illuminate subjects in low-light environments when the camera is focusing and capturing a picture or video.
● Back-Facing Camera lets you take pictures and videos.
● 3.5 mm Headset Jack allows you to plug in either a stereo headset or an optional headset for convenient, hands-free conversations.
CAUTION! Inserting an accessory into the incorrect jack may damage the phone.
Turn Your Phone On and Off
The instructions below explain how to turn your phone on and off.
Turn Your Phone On
■ Press and hold the Power/Lock Button .
Turn Your Phone Off
1. Press and hold the Power/Lock Button to open the phone options menu.
2. Touch Power off , then OK to turn the phone off.
Your screen remains blank while your phone is off (unless the battery is charging).
Phone Basics 9
Turn Your Screen On and Off
Your phone allows you to quickly turn the screen off when not in use and to turn it back on and unlock it when you need it.
Turn the Screen Off When Not in Use
■ To quickly turn the screen off, press the Power/Lock Button . Pressing the Power/Lock
Button again or receiving an incoming call will turn on your phone screen and show the lock screen.
To save battery power, the phone automatically turns off the screen after a certain period of time when you leave it idle. You will still be able to receive messages and calls while the phone ‘s screen is off.
Note:
For information on how to adjust the time before the screen turns off, see Screen Timeout .
Turn the Screen On and Unlock It
1. To turn the screen on, press the Power/Lock Button .
2. Swipe your finger across the screen to unlock it.
If you have set up a screen lock, you will be prompted to draw the pattern or enter
the password or PIN. See Select Screen Lock .
Unlock the Screen Using the KnockON Feature
The KnockON feature allows you to double-tap the screen to easily turn the screen on or off.
● Quickly double-tap the center of the screen to turn the screen on.
● Quickly double-tap the Status Bar, an empty area on the Home screen, or the Lock screen to turn the screen off.
Note : The KnockON feature can be turned on and off in the Gestures menu. From the Home screen, tap > System settings > Gestures > remove the checkmark from the Screen on/off checkbox.
Unlock the Screen Using the Knock Code Feature
The Knock Code feature allows you to create your own unlock code using a combination of knocks (or taps) on the screen.
■ While the screen is off, tap the same sequence you established anywhere on the screen.
The Home screen will be accessed directly.
Note : The Knock Code feature can be turned on and off in the Lock screen settings. From the
Home screen, tap > Lock screen settings > Select screen lock > Knock Code . Then
Phone Basics 10
follow the instructions to create your unlock sequence, as well as a Backup PIN in case you forget your unlock sequence. Please note that KnockON is disabled when Knock Code is in use.
Touchscreen Navigation
Your device is a touch-sensitive phone which allows you to select an on-screen option with a single touch and to easily scroll through long lists. Simply slide up and down through the display with your fingertip.
Touch
When you want to type using the onscreen keyboard, select items onscreen such as application and settings icons, or press onscreen buttons, simply touch them with your finger.
Touch and Hold
To open the available options for an item (for example, a contact or link in a Web page), touch and hold the item.
Phone Basics 11
Swipe or Slide
To swipe or slide means to quickly drag your finger vertically or horizontally across the screen.
Drag
To drag, press and hold your finger with some pressure before you start to move your finger.
While dragging, do not release your finger until you have reached the target position.
Phone Basics 12
Flick
Flicking the screen is similar to swiping, except that you need to swipe your finger in light, quick strokes. This finger gesture is always in a vertical direction, such as when flicking the contacts or message list.
Rotate
For most screens, you can automatically change the screen orientation from portrait to landscape by turning the phone sideways. When entering text, you can turn the phone sideways
Phone Basics 13
to bring up a bigger keyboard.
Note: The Auto-rotate check box needs to be selected for the screen orientation to automatically change. Press > > System settings > Display > Auto-rotate screen .
Tip: You can also access the screen rotation setting from the Notifications screen. Pull down the Notifications bar and touch Rotation to select or deselect the option.
Pinch and Spread
―Pinch‖ the screen using your thumb and forefinger to zoom out or ―spread‖ the screen to zoom in when viewing a picture or a Web page. (Move fingers inward to zoom out and outward to zoom in.)
Lock and Unlock Your Phone
You can prevent accidental screen touches from activating phone functions by locking your phone.
Phone Basics 14
Lock Your Phone
When your phone is locked, you can only receive incoming calls or make calls to 9-1-1.
■ Press the Power/Lock Button .
Unlock Your Phone
1. Press the Power/Lock Button to wake up the phone.
2. Swipe the screen to any direction to unlock it.
Note : The default Lock screen simply locks the screen to prevent unintentional actions. For more security to guard against unauthorized use, you can set an unlock requirement (such as a pattern, PIN, or password) that will need to be entered to unlock it.
Guest Mode
Use Guest mode when you let someone else use your phone. They will only be able to use the applications that you‗ve selected. Once you set it up, you can easily put your phone in Guest mode by drawing the guest pattern on the Lock screen that you set, which is different from your normal unlock pattern.
Note : Guests can also use applications that your selected applications link to.
Set Up Guest Mode
This section teaches you how to set up Guest Mode if another person uses your phone.
1. Press > > System settings > Guest mode .
2. Tap Set pattern , then set the pattern you want to use to put your device in Guest mode.
3. Tap Set apps to view which apps can be accessed in Guest mode. Tap the Add icon
in the upper right corner of the screen to change the Guest apps list.
Phone Basics 15
Checkmark the apps that can be accessed.
Remove checkmarks from the apps that you don't want to be accessed.
Tap OK after selecting all of the apps you want to make available for guests.
4. Tap at the top right corner to activate Guest Mode.
If your Lock screen is not set to Pattern, tap OK , then tap Pattern and enter your normal lock screen pattern as necessary.
Note : If your unlock sequence is set to a PIN or password, you will need to enter it to be able set the unlock pattern.
Use Guest Mode
After you‗ve set up and enabled Guest mode, lock the screen so that you can enter your Guest mode pattern. The Guest mode Home screen is displayed with only the apps you‗ve selected for guest access. To exit Guest mode, enter your normal unlock pattern on the Lock screen.
Note : Guest mode is automatically disabled if your lock sequence is changed from Pattern.
Otherwise, manually disable it if you no longer want to allow guest access.
Your Home Screen
The home screen is the starting point for your phone ‘s applications, functions, and menus. You can customize your home screen by adding application icons, shortcuts, folders, widgets, and more.
Phone Basics 16
Home Screen Overview
Your home screen extends beyond the initial screen. Swipe the screen left or right to display additional screens.
Note: The small rectangles above the primary shortcuts let you know your current screen position.
Tip: Press to return to the main home screen from any other screen.
Customize Your Home Screen
You can customize your Home screen when you do the following.
● Create Shortcuts
● Add Widgets
● Create Contact shortcuts
● Change the Background (Wallpaper)
● Customize Application Icons
Create Shortcuts
Shortcuts are different from the Home screen Widgets. Shortcuts can access a specific contact, activate a feature, action, or launch an application.
To add a shortcut from the Applications screen:
1. Press to access the Home screen.
Phone Basics 17
2. Select a location (canvas) for your new shortcut by scrolling across your available canvases until you reach the desired one.
3. Tap to reveal all your current applications. By default, the applications are listed in a grid view.
4. Scroll left or right through the list and locate your desired application.
5. Touch and hold the on-screen icon. This creates an immediate shortcut of the selected icon and closes the Applications screen. The new shortcut then appears to hover over the Home screen.
Note : The same shortcut can be added to any of the available canvases (Home or Extended).
The application you add to the canvas will still appear within the Applications screen.
6. While holding the on-screen icon, position it on the current canvas. Once complete, release the screen to lock the shortcut into its new position.
To add a shortcut via the Home screen:
1. Press to access the Home screen.
2. Touch and hold on an empty area of the screen.
3. Tap either Apps or Widgets .
4. Touch and hold a selection from the list and drag it to your Home screen.
To delete a shortcut:
1. Press to access the Home screen.
2. Touch and hold the desired shortcut. This unlocks it from its location on the current screen.
3. Drag the icon over Remove and release it.
Add and Remove Widgets on the Home Screen
Widgets are self-contained applications that can be accessed through your Applications screen or on the Home or Extended screens. Unlike a shortcut, this Widget appears as an on-screen application.
To add a Widget:
1. Press to access the Home screen.
2. Touch and hold on an empty area of the screen.
3. Tap the Widgets tab.
Phone Basics 18
4. Touch and hold an available Widget and drag it to your current screen.
To remove a Widget:
1. Go to the Home screen canvas on which the widget is located.
2. Touch and hold the widget. This unlocks it from its location on the current screen.
3. Drag the widget over Remove and release it.
This action does not delete the Widget. It just removes it from the current canvas.
To place a Widget onto a different screen:
1. Touch and hold the widget you want to move.
2. Drag the widget to the edge of the screen (the left side if moving to a screen located on the left, right side if moving to a screen located on the right).
3. After about one second, the current screen will change. Repeat until you get to the desired screen.
Change the Phone's Wallpaper
You can select and assign your phone's background wallpaper.
1. From the Home screen, tap
–
or –
> Home screen settings > Wallpaper .
Touch and hold an empty spot on the Home screen, then tap the Wallpapers tab.
2. Tap Gallery , ID wallpapers , Live Wallpapers , Photos , or Wallpaper gallery .
Gallery to use a picture saved on your phone as a wallpaper. You can crop the picture before setting it as a wallpaper.
ID wallpapers to open the available wallpapers that were included in your Boost
Mobile ID pack.
Live Wallpapers to open a list of animated wallpapers installed on your phone.
Live wallpapers can be animated or even interactive. More Live wallpapers are available in the Play Store.
Photos to view the available wallpapers in the wallpaper gallery.
Wallpaper gallery to view the available wallpapers in the wallpaper gallery.
Phone Basics 19
3. Depending on the type of wallpaper, tap Crop , Set wallpaper or Apply .
Customize Applications Icons on the Home Screen
You can customize each application icon on the Home screen.
1. Touch and hold an appl ication icon until it‗s unlocked from its current position. Then drop it on the screen. The editing icon will appear in the upper right corner of the application.
2. Tap the application icon again and select a preloaded icon sign from the Theme icon tab.
–
or –
Tap the Photo icon tab to create a new icon using images from the Gallery.
Tip : Tap 1x1 or 2x2 to change the icon size.
Phone Basics 20
Access Recently-Used Applications
Your phone keeps a running list of your most recently used applications.
1. Tap and hold to open the recently-used applications window.
2. Tap an icon to open the related application.
Tip : Swipe an application preview to the left or right to remove it from the recently-used applications list.
Home Screen Clean View
You can see the wallpaper without items on the Home screen by pinching out. Pinch in or tap
to see applications and widgets again.
Quick Access
To view the quick access items, touch anywhere in the front key area and drag up. The following options are available: Google Now and QuickMemo.
Phone Basics 21
Change the Screen Orientation
This phone is capable of changing the orientation of screen content when the orientation of the phone itself has changed. The phone‗s built-in accelerometer senses movement and changes its angle/orientation. Note that some of the screens, applications and widgets do not support orientation changes.
The automatic screen orientation feature can be manually enabled to change the orientation for all enabled screens when rotation is detected.
Note : An example of a screen that automatically re-orients by moving the phone is the
Messaging screen. This only requires you turn the phone to a horizontal position.
1. Press > > System settings > Display .
2. Tap Auto-rotate screen to enable (a blue checkmark displays) or disable the screen auto-rotation.
Status Bar
The Status Bar appears at the top of the screen. It displays icons indicating that you ‘ve received notifications (on the left) and icons indicating the phone ‘s status (on the right), along with the current time.
If you have more notifications than can fit in the Status Bar, the icon prompts you to open the Status Bar to view them all.
The following list identifies the symbols you
‘ll see on your phone's display screen:
Status Icons
Icon Status
Signal Strength – Shows your current signal strength (the more bars there are, the stronger the signal is).
No Service – Your phone cannot find a usable signal.
3G/1x Connected – Indicates that 3G/1x data service is available.
3G/1x In Use
– Indicates that 3G/1x data service is in use.
Wi-Fi Connected – Indicates that Wi-Fi is in use.
Bluetooth On – Indicates that Bluetooth is on.
Location On
– Indicates that GPS is on.
Communicating Location – Indicates that the phone is receiving location data from GPS.
Phone Basics 22
Icon Status
Airplane Mode – Indicates that the phone is in Airplane Mode.
Speakerphone On – Indicates that Speakerphone is on.
Vibrate Mode – Indicates that the ringer volume is set to vibrate and any sounds are silenced.
Ringer Silenced – Indicates that all sounds are turned off.
Very Low Battery – Indicates that battery is very low.
Low Battery – Indicates that battery is low.
Battery Drained (40%) – Indicates that battery is partially drained.
Battery Full – Shows your current battery charge level. (Icon shown is fully charged.)
Battery Charging – Indicates that battery is charging.
Alarm Clock – Indicates that an alarm is set.
Notification Icons
Icon Notification
New Gmail Message – Indicates a new Gmail message.
New Email – Indicates a new Email message.
New Text or Multimedia Message – Indicates you have received a new text or multimedia message.
High Priority Text or Multimedia Message - Indicates you have received a high priority text or multimedia message.
New Voicemail – Indicates you have received a new voicemail message.
Upcoming Event – Alerts you to an upcoming event.
Data Is Syncing – Application sync is active and synchronization is in progress for Gmail, Calendar, and Contacts.
Problem With Sign-In Or Sync – There has been an issue with your connection to the Google server, or you were not properly signed into your account. In order to use Google application or sync features, you must set up and sign into an active Google Account.
Full Internal Storage – Indicates that internal storage is full.
Phone Basics 23
Icon Notification
USB Connected – The phone has detected an active USB connection.
More Notifications Not Displayed – Indicates that there are more notifications which are not displayed in the Status Bar.
Call In Progress – Indicates that a call is in progress.
Call In Progress Using Bluetooth Headset – Indicates that a call is in progress using the Bluetooth headset.
Call Being Forwarded – Indicates that a call is being forwarded.
Call On Hold
– Indicates that a call is on hold.
Missed Call – Indicates that you have missed calls.
Uploading Data – Indicates that your phone is uploading data.
Downloading Data – Indicates that your phone is downloading data.
Download Finished – Indicates that a download is complete.
Connected To VPN – Indicates that the phone is connected to a Virtual Private
Network.
Disconnected From VPN – Indicates that the phone is disconnected from the
Virtual Private Network.
Song Is Playing
– Indicates that a song is playing.
Carrier data – Data use threshold approaching or exceeded.
TTY – Indicates that your phone is operating in TTY mode.
Hotspot Active - Indicates that Portable Wi-Fi hotspot is active.
New Hangouts Message - Indicates a new Hangouts message.
Enter Text With the On-screen Keyboard
The on-screen keyboard displays automatically when you tap a text entry field. To manually display the keyboard, simply tap a text field where you want to enter text.
By default, there are 2 types of touchscreen keyboards: QWERTY keyboard and Phone keyboard .
To change the keyboard between QWERTY keyboard and Phone keyboard .
1. Touch on the LG Keyboard.
Phone Basics 24
2. Tap Input language and type , then tap next to the desired input language.
3. Tap the desired keyboard type and tap repeatedly to go back to the entry screen.
QWERTY Keyboard
1. Tap a text field where you want to enter text.
2. Enter the desired text.
To enter numbers, symbols, and emojis, tap .
Phone Basics 25
To enter letters again, tap .
Note : If you do not want the screen to change orientations automatically, uncheck the Autorotate screen. Press screen .
> > System settings > Display and deselect Auto-rotate
3. When you have finished typing, tap to close the keyboard.
Phone Keyboard
To enter text, tap the key labeled with the desired letter until it appears on the screen. For example, tap once for "a", twice for "b", or three times for "c".
Phone Basics 26
Phone Basics 27
Phone Calls
With mobile service and your phone ‘s calling features, you can enjoy clear phone calls across the country.
Make Phone Calls
There are several convenient ways to place calls from your phone.
Call Using the Phone Dialer
The most ―traditional‖ way to place a call is by using the phone‘s dialer screen.
1. Press > to display the dial pad.
2. Touch the number keys on the dialpad to enter the phone number.
As you enter digits, Smart Dial searches for contacts that match. If you see the number you want to dial, touch it to place the call immediately without entering the rest of the number.
3. Touch to call the number.
4. To end the call, touch .
Call from Call Logs
The Call logs list lets you quickly place calls to recent incoming, outgoing, or missed numbers.
1. Press > to display the dial pad.
Phone Calls 28
2. Touch Call logs to display the Call logs list.
3. Touch an entry to display the call details.
4. Touch the phone icon to place a call.
For additional options, touch the name or number.
Call from Contacts
You can place phone calls directly from entries in your Contacts list.
1. Press > to display your contacts.
2. Touch a contact and then touch next to the number you want to call to place a call.
For additional information on Contacts, see Contacts .
Call Using a Speed Dial Number
Speed dial numbers let you dial numbers by touching and holding a single number on the
dialpad. See Set Up Speed Dialing for information on assigning speed dial numbers.
1. Press > to display the dial pad.
2. Touch and hold the speed dial key on the dialpad. The display confirms that you have dialed the number when it shows ―Dialing‖ on the upper right side of the screen.
Call a Number in a Text Message or Email Message
While viewing a text message or email message, you can place a call to a number that is in the body of the message.
1. Press > > Messaging or Email .
2. Touch the message with the phone number, and then touch the phone number.
3. Touch Call to place the call.
Call Emergency Numbers
You can place calls to 9-1-1 even if the phone ‘s screen is locked or your account is restricted.
To call the 9-1-1 emergency number when the phone ‘s screen is locked with a screen lock:
1. Unlock the screen. For more information, see Turn Your Screen On and Off .
2. Touch Emergency call on the screen.
3. Touch .
Phone Calls 29
To call the 9-1-1 emergency number normally or when your account is restricted:
1. Unlock the screen. For more information, see Turn Your Screen On and Off .
2. Press > .
3. Touch .
Enhanced 9-1-1 (E911) Information
This phone features an embedded Global Positioning System (GPS) chip necessary for utilizing
E911 emergency location services where available.
When you place an emergency 9-1-1 call, the GPS feature of your phone seeks information to calculate your approximate location. Depending on several variables, including availability and access to satellite signals, it may take up to 30 seconds or more to determine and report your approximate location.
Important: Always report your location to the 9-1-1 operator when placing an emergency call.
Some designated emergency call takers, known as Public Safety Answering Points (PSAPs), may not be equipped to receive GPS location information from your phone.
Receive Phone Calls
The following information lets you know how to answer incoming calls, mute the ringer on incoming calls, reject incoming calls, and more.
When you receive a phone call from a contact, the Incoming call screen appears and displays the caller ID icon, name, and phone number of the calling party. When you receive a phone call from someone who is not stored in Contacts, only the default caller ID icon and phone number appear on the Incoming call screen.
Note: If your phone is turned off, all calls automatically go to voicemail.
Answer an Incoming Call
■ Swipe the answer call icon in any direction to answer the call.
Mute the Ringing Sound
To mute the ringer without rejecting the call, you can do any of the following:
● Press the volume button down.
● Place the phone face down on a level surface. You must set the Silence incoming calls option in the Gestures menu.
Phone Calls 30
Reject an Incoming Call
■ Swipe the decline call icon in any direction to reject the call.
The call will be sent directly to voicemail.
Reject a Call and Send a Text Message
You can reject an incoming call and automatically send a text message to the caller.
■ Drag the Reject call with message icon up from the bottom of the screen. Touch Send next to one of the reject messages to send it to the caller.
You can edit the reject messages through the Call settings menu. From the dial pad, touch > Call settings > Call reject and edit or create the reject messages.
Voicemail
The following topics outline your phone‘s voicemail service.
Note: Your phone also supports the Visual Voicemail app. For information on setting up and
using Visual Voicemail, see Visual Voicemail .
Voicemail Setup
You should set up your voicemail and personal greeting as soon as your phone is activated.
The following steps guide you through the process of setting up your standard voicemail.
1. Press > .
2. Touch and hold to dial your voicemail number.
3. Follow the system prompts to:
Create your password.
Record your name announcement.
Record your greeting.
Important : Voicemail Password – It is strongly recommended that you create a password when setting up your voicemail to protect against unauthorized access. Without a password, anyone who has access to your phone is able to access your voicemail messages.
Tip:
For information on using the Visual Voicemail app, see Visual Voicemail .
Voicemail Notification
There are a couple of different ways your phone alerts you to a new voicemail message.
Phone Calls 31
● By sounding the assigned ringer type.
● By displaying within the Notifications area of the Status bar when a single new unheard voicemail message is received.
Note: When you are off network, you may not receive notification of new voicemail messages. It is recommended that you periodically check your voicemail by dialing 1 + area code + your wireless phone number. When your voicemail answers, touch and enter your password.
Note: Your phone accepts messages even when it is turned off. However, your phone notifies you of new messages only when it is turned on and you are in a network service area.
Retrieve Your Voicemail Messages
You can review your messages directly from your wireless phone (using either traditional voicemail or Visual Voicemail) or from any other touch-tone phone.
Use Traditional Voicemail to Access Your Messages
1. Press > .
2. Touch and hold . If prompted, enter your voicemail password.
3. Follow the voice prompts to listen to and manage your voicemail messages.
Use Visual Voicemail to Access Your Messages
1. Press > > Voicemail .
2. Touch an entry to listen to the message.
Use Another Phone to Access Messages
1. Dial your wireless phone number.
2. When your voicemail answers, press the asterisk key on the phone (*).
3. Enter your password.
Use Visual Voicemail to Delete Your Messages
1. Press > > Voicemail .
2. Open a message and touch .
Tip: You can restore messages you have sent to the trash folder. Touch Inbox (at the top right corner of the screen) > Trash , touch and hold the message you want to restore to the inbox, and then touch the restore icon.
Phone Calls 32
Visual Voicemail
Visual Voicemail gives you a quick and easy way to access your voicemail. Now you can find exactly the message you are looking for without having to listen to every voicemail message first.
This new feature periodically goes out to your voicemail, and gathers the caller information from all of the current voicemails. It then populates a list with the caller name and number, along with the length of time and priority level of the voicemail message.
Set Up Visual Voicemail
Setting up Visual Voicemail follows many of the same procedures as setting up traditional voicemail. You should set up your voicemail and personal greeting as soon as your phone is activated. Your phone automatically transfers all unanswered calls to your voicemail, even if your phone is in use or turned off.
Note:
To set up your traditional voicemail box, see Set Up Voicemail .
1. Press > > Voicemail . You‘ll see a Personali ㄴ ze your voicemail prompt.
2. Touch Personalize now and follow the system prompts to:
Create a password (part of standard voicemail).
Record your name announcement.
Record your greeting.
Important: Voicemail Password – It is strongly recommended that you create a password when setting up your voicemail to protect against unauthorized access. Without a password, anyone who has access to your phone is able to access your voicemail messages.
3. Touch the Welcome to Voicemail message on the screen to play a brief explanation of the voicemail services.
Review Visual Voicemail
Visual Voicemail lets you easily access and select which messages you want to review.
Phone Calls 33
1. Press > > Voicemail . You will see the voicemail inbox.
2. Touch a message to review it.
Tip: There are several icons at the bottom of the review screen for maintenance, storage, messaging, and other options. For an explanation of all your options, touch
Visual Voicemail Menu > Visual Voicemail Menu .
> Help >
Listen to Multiple Voicemail Messages
When you are done listening to a voicemail message you can easily access other voicemail messages without returning to the main voicemail screen.
1. Listen to the current voicemail message.
2. Swipe your finger left or right to display the next or previous message. (It will begin playing automatically.)
You can navigate through voicemail messages as frequently as you'd like. You can even move to the next or previous message before you're finished listening to the current one.
Visual Voicemail Options
Your visual voicemail options appear as icons at the bottom of the voicemail review screen.
1. Press > > Voicemail .
2. Touch a message to review it. The following options are available while reviewing a voicemail message:
Note: Not all options are available for all messages.
Phone Calls 34
Subscribe to subscribe to the premium Voice-to-Text transcription service.
(Requires an additional monthly charge.)
Delete to delete selected messages from your current list of available voicemail messages.
Call to call the number the message came from.
Share to send the message via.
Reply to reply to the message via text or voice message.
Configure Visual Voicemail Settings
The Visual Voicemail settings menu lets you access settings for notifications, pictures, greetings, and more.
1. Press > > Voicemail .
2. Touch > Settings . Select an option to change its settings.
Manage subscription to subscribe and unsubscribe from the visual voicemail premium monthly subscription service. This may take a minute.
Auto forward to email to send a copy of new messages to an email address of your choice.
Personalize voicemail to change your voicemail greeting for incoming calls and update password.
Notifications to determine how your are notified of new voicemails. Set the notification sound and vibrate option.
Transcription language allows you to choose the language you want to use to transcribe messages.
Delete messages to set Visual Voicemail to permanently delete messages from the
Trash folder after a specific number of days.
Display name to enter a name to identify yourself to people when replying or forwarding messages.
Speakerphone to automatically turn the speaker on or off.
Transcriptions displayed to transcribe Voicemails from voice to text.
Themes to choose the type of theme used for the application.
Phone Calls 35
View quick tips tutorial to view a visual tutorial about Visual Voicemail.
Help to see the visual voicemail help.
Send feedback to send some feedback to the Voicemail Feedback team.
Updates to search for an upgrade to your Visual message software.
About Voicemail to view build information about the current visual voicemail application.
Note: Voicemail settings can also be accessed by pressing
Call > Voicemail .
> > System settings >
Change Your Main Greeting via the Voicemail Menu
Your main greeting can be changed directly via the Visual Voicemail system. This direct access saves you from having to navigate within the voicemail menu.
1. Press > > Voicemail .
2. Touch > Settings > Personalize voicemail .
3. Touch OK to connect to the voicemail system. Follow the prompts to change your current greeting.
Edit the Display Name via the Voicemail Menu
From your Visual Voicemail menu, you can quickly change the name or number attached to your voice messages.
1. Press > > Voicemail .
2. Touch > Settings > Display name .
3. Touch the existing identification field and enter a new identifying name or number (used to identify you to recipients of your voice messages).
4. Touch OK to save your information.
Phone Call Options
Your phone application provides many useful features and options to help you make the most of your calling experience.
Phone Calls 36
In-call Options
While you‘re on a call, you will see a number of onscreen options. Touch an option to select it.
●
Add call: Touch to initiate a conference call (3-way call).
● Merge calls: Join two currently active calls (conference).
● End last call : Ends the last call you dialed during a conference call.
● Dialpad/Hide: Toggle the appearance of the onscreen keypad.
● End call: End the current call.
● Speaker: Route the phone‘s audio through the speaker (On) or through the earpiece
(Off).
Activate Speaker to route the pho ne‘s audio through the speaker.
Deactivate Speaker to use the phone‘s earpiece.
Warning: Because of higher volume levels, do not place the phone near your ear during speakerphone use.
●
Mute: Mute the microphone during an active call. Touch again to unmute the microphone.
Note: If Mute is activated, the speaker mode is deactivated.
● Bluetooth: Route the phone‘s audio through a connected Bluetooth headset (On) or through the speaker (Off).
When the call is routed to a Bluetooth and get out of the call screen, the current call area shows the Bluetooth call icon ( ).
Phone Calls 37
Note: The Headset button is activated to show the current call is routed to the connected
Bluetooth headset.
To route the current call back to the phone, touch Bluetooth to temporarily use the phone. Touch it again to route the call back to the connected Bluetooth headset.
When Bluetooth or the Bluetooth headset is turned off, the call is routed through either the earpiece or speaker.
● Dialpad: Use the onscreen dialpad to enter additional numbers, for example, an extension or access code.
For example: When you call your bank‘s 800 number, use your dialpad to enter your account number and PIN.
Touch during a call to display a list of additional in-call features. Touch an option to select it.
● Add call : Allows you to add another call.
● Contacts: Display your contacts list.
● Memo: Create a new memo while remaining on the call.
● Messaging : Access the Messaging app while remaining on the call.
Caller ID
Caller ID identifies a caller before you answer the phone by displaying the number of the incoming call. If you do not want your number displayed when you make a call, follow these steps.
1. Press > .
2. Touch .
3. Enter a phone number.
4. Touch .
To permanently block your number, call Boost customer care.
Call Waiting
When you‘re on a call, Call Waiting alerts you to incoming calls by sounding two beeps. Your phone ‘s screen informs you that another call is coming in and displays the caller‘s phone number (if it is available).
To respond to an incoming call while you‘re on a call:
Phone Calls 38
■ Swipe in any direction. (This puts the first caller on hold and answers the second call.)
To switch back to the first caller:
■ Touch Swap calls .
Note: For those calls where you don‘t want to be interrupted, you can temporarily disable Call
Waiting by pressing reactivated once you end the call.
before placing your call. Call Waiting is automatically
Conference Calling
With conference calling, also known as 3-way calling, you can talk to two people at the same time. When using this feature, the normal airtime rates will be charged for each of the two calls.
1. On the Phone screen, enter a number and touch
Contacts).
(or place a call from Log or
2. Once you have established the connection, touch Add call , and dial the second number
(or place the call from Logs or Contacts).
This puts the first caller on hold and dials the second number.
3. When you‘re connected to the second party, touch Merge calls . Your conference call is now in session.
Phone Calls 39
4. To end the three-way call, touch . To end only the last dialed call, touch
Note: If one of the people you called hangs up during your call, you and the remaining caller stay connected. If you initiated the call and are the first to hang up, all callers are disconnected.
Call Forwarding
Call Forwarding lets you forward all your incoming calls to another phone number – even when your phone is turned off. You can continue to make calls from your phone when you have activated Call Forwarding.
Note: You are charged a higher rate for calls you have forwarded.
To activate Call Forwarding:
1. Press > .
2. Touch .
3. Enter the area code and phone number to which you want your calls forwarded.
4. Touch . (You will hear a tone to confirm the activation of Call Forwarding.)
To deactivate Call Forwarding:
1. Press
2. Touch
3. Touch
> .
.
. (You will hear a tone to confirm the deactivation.)
Phone Calls 40
Set Up Speed Dialing
Your phone can store up to 99 phone numbers in speed dial locations.
To assign a speed dial number to a contact:
1. Press > .
2. Touch and hold the contact whose phone number you want to store speed dial locations.
3. Tap Edit contact .
4. Tap .
5. Tap a desired speed dial location number from 2 to 99.
6. Tap Save .
Note : If you assign a number to an already in-use speed dial location, you will be prompted to confirm that you want to replace the previous speed dial assignment.
Call Logs
The Logs tab of the Phone application lists all recent incoming, outgoing, and missed calls.
View Call Logs
1. Press > to display the dial pad.
2. Touch Call logs to display the call log list.
To filter the call logs, touch calls , and Missed calls .
> Filter and choose from Received calls , Dialed
Call Log Options
■ To make a call from the call log, see Call from Call Logs .
For additional options:
1. Press > to display the dial pad.
2. Touch Call logs to display the call log.
3. Touch and hold a listing to display the options list.
Add to Contacts (for entries not saved in Contacts) to save the number to Contacts.
View contact (for entries saved in Contacts) to view contact information.
Phone Calls 41
Edit number before call to edit a number before you redial.
Copy call number to copy the call number.
Reject call to add to the call reject list.
Delete call log to delete all the call logs.
Delete all logs of this number to delete all the logs of this number only.
Clear Call Logs
Use the menu option to clear your call log.
1. Press > to display the dial pad.
2. Touch Call logs to display the call log.
3. Touch > Delete .
4. Touch individual entries or the check box next to Select all .
5. Touch Delete and then touch Yes to clear the selected logs.
Tip : You can also delete all of the call logs at once by tapping > Delete all > Yes .
Call Settings
Your phone‘s Call Settings menu lets you configure your voicemail options and a number of other settings for the phone application.
Voicemail Settings
If you need to adjust your voicemail provider or access settings, use the Voicemail settings menu.
1. Press > .
2. Touch > Call settings > Voicemail .
3. Configure your options.
Call Reject
The Call rejection menu lets you set options to automatically reject calls from certain numbers.
1. Press
2. Touch
> .
> Call settings > Call reject .
Phone Calls 42
3. Configure your options.
TTY Mode
A TTY (teletypewriter, also known as a TDD or Text Telephone) is a telecommunications device that allows people who are deaf, hard of hearing, or who have speech or language disabilities, to communicate by telephone.
Your phone is compatible with select TTY devices. Please check with the manufacturer of your
TTY device to ensure that it supports digital wireless transmission. Your phone and TTY device will connect using a special cable that plugs into your phone‘s headset jack. If this cable was not provided with your TTY device, contact your TTY device manufacturer to purchase the connector cable.
To turn TTY Mode on or off:
1. Press > > System settings > Call > TTY mode .
2. Touch TTY Full , TTY HCO , or TTY VCO to turn TTY mode on.
– or –
Touch TTY Off to turn TTY mode off.
Note: When enabled, TTY mode may impair the audio quality of non-TTY devices connected to the headset jack.
Warning: 9-1-1 Emergency Calling
It is recommended that TTY users make emergency calls by other means, including
Telecommunications Relay Services (TRS), analog cellular, and landline communications.
Wireless TTY calls to 9-1-1 may be corrupted when received by public safety answering points
(PSAPs), rendering some communications unintelligible. The problem encountered appears related to TTY equipment or software used by PSAPs. This matter has been brought to the attention of the FCC, and the wireless industry and the PSAP community are currently working to resolve this.
Phone Calls 43
Contacts
The Contacts application lets you store and manage contacts from a variety of sources, including contacts you enter and save directly in your phone as well as contacts synchronized with your Google Account, your PC, compatible email programs (including Exchange Server), and your Facebook friends.
Get Started with Contacts
Before using Contacts, it‘s best to learn a few basics.
Before Getting Started
Before using Contacts, it‘s best to learn a few basics.
Your phone automatically sorts the Contacts entries alphabetically. You can create a Google contact, a phone contact, or a Corporate (Microsoft Exchange ActiveSync) contact.
● Google contacts are synchronized between your phone and a Google Account you set up on your phone.
● Microsoft Exchange ActiveSync contacts are synchronized between your phone and an Exchange Server or Microsoft
®
Outlook
®
account set up on your phone.
● Phone contacts are stored locally on the phone.
Note: If the phone is ever reset to its factory default parameters, locally stored contacts (phone contacts) can be lost.
Access Contacts
There are a few ways to display Contacts.
■ Press
– or –
> > Contacts tab.
Press
– or –
> > Contacts .
Touch (the Contacts shortcut) on the Home screen.
To add a shortcut to the Contacts app to the home screen, touch and hold an empty spot on one of the home screens, and touch the Apps tab. Touch and hold the
Contacts icon , drag the icon to the Home screen, and release the icon to place it.
Contacts 44
The Contacts List
Learn how to view and navigate through your phone‘s Contacts list.
■ Press > . You will see the Contacts list.
Contacts List: The Contacts list displays all contacts currently stored in your phone, including Google contacts, Exchange ActiveSync contacts, Phone contacts, and
Facebook contacts.
Create Contacts: Touch to add a contact.
Groups: Create groups of contacts, such as friends, family, or coworkers.
Scroll through the list to view all your contacts. To see a specific entry, scroll to it and touch it.
Tip: If you have a lot of contacts stored, you‘ll see a slider on the right when you‘re flicking up or down the list. To go directly to a letter, touch and hold the slider and drag it to a letter.
Contacts List Options
The Menu Key ( ) provides access to optional features in the Contacts list.
1. Press > .
2. Touch to display the main contacts list options.
Delete : Allows you to delete contacts.
Share : Allows you to share contacts.
Send message : Allows you to send a message to a contact.
Send email : Allows you to send an email to a contact.
Contacts 45
Speed dial : Allows you to add a speed dial to your contacts.
Join contacts : Allows you to join duplicate contacts.
Import/Export : Allows you to import or export contacts to your internal storage.
Edit tabs : Allows you to edit the tabs, including rearranging them.
Settings : Allows you to set various contact settings.
Add a Contact
You can add contacts by using the Phone application. Enter details such as name, phone numbers, email addresses, mailing addresses, and more.
1. Press > .
2. Touch to add a contact.
3. If you have multiple account types associated with your phone, select a contact type.
Select Google if you want to save contacts to your Google Account; these will be synced automatically with your Google Account online.
Select Phone as the sync account if you want your contacts on your phone only; they will not be synced with your Google Account.
4. Use the keyboard to enter as much information as you want.
: Touch the picture icon to assign a picture to the contact.
Add another field : Touch Add another field to include additional information such as IM, Notes, Nickname, Website, etc.
Note: To select a type (label) for a phone number, email address, or postal address (such as
Mobile, Home, Work, etc.), touch the type to the right of the field and select the appropriate type.
Note: To add more phone numbers, email addresses, etc., touch below the phone number field.
Contacts 46
5. When you have finished adding information, touch Save .
Save a Phone Number
You can save a phone number to Contacts directly from the phone dialpad.
1. Press > .
2. Enter a phone number.
3. To add the number to an existing contact, touch Update contact . To add a new contact, touch New contact .
For an existing contact, touch the contact name, select a number type for the new number, and then touch Save .
For a new contact, enter the name and any additional information, and then touch
Save
Edit a Contact Entry
You can change or add details saved in your contact entries, such as setting specific ringtones to specific contacts or setting calls from specific contacts to divert to your voicemail. Some contact entries contain information from multiple sources: information that you added manually, information joined from multiple accounts to consolidate duplicates, etc.
If you find duplicate entries in Contacts, you can join them into a single entry. If you find that unrelated contacts were joined in error, you can separate them.
Changes made to information from one source do not automatically change the information on the other sources. For example, if you have information about a contact from a Google Account and an Exchange account and both are configured to sync contacts, changes to the contact
Contacts 47
from the Google Account are synced to that account on the web, but the information from the
Exchange account will remain unchanged.
Edit a Contact
1. Press > > .
2. Touch and hold the contact whose details you want to edit.
3. Tap Edit contact .
4. Edit the desired contact information.
5. Tap Save .
Change a Contact's Default Phone Number
The default phone number is used when you initiate a call or send a text message using the context menu (by touching and holding a contact).
1. Press > > .
2. Tap the name of a contact to view its details.
3. Touch and hold the phone number you want to set as the contact's default phone number.
4. Tap Set as default number . (A checkmark will appear next to the default phone number.)
Select a Ringtone for a Contact
1. Press > > .
2. Tap the name of a contact to view its details.
3. Tap .
4. Tap the RINGTONE field and tap a ringtone to select it.
5. Tap Save .
Delete Contacts
1. Press > > .
2. Tap the name of a contact.
Contacts 48
3. Tap > Delete .
If the contact contains information from a read-only account, you will not be able to delete it; you will only be able to change the sync settings for that account or delete the account itself.
If the contact contains information joined from a read-only account, a dialog box will inform you that you must separate the contact entry into individual contacts to delete the contact.
4. Tap Yes to confirm that you want to delete the contact.
Add a Number to a Contact
1. Press > > .
2. Touch and hold the contact's entry.
3. Tap Edit contact in the menu that opens.
4. Tap under the Phone section.
5. Tap the label button to the right of the phone number field and select the relevant label.
To create your own label, tap CUSTOM .
6. Enter a phone number and tap Save .
Edit a Contact‘s Number
1. Press > > .
2. Touch and hold a contact's entry.
3. Tap Edit contact .
4. Tap a phone number to edit.
5. Re-enter or edit the number and tap Save .
Assign Direct Dialing Numbers
Besides speed dialing, you are also able to directly save a contact to your Home screen.
1. Press > > .
2. Touch and hold a contact's entry.
3. Tap Add to Home screen > Direct dial . The contact will be shown on the Home screen.
Contacts 49
Note : If there is no available space on a particular Home screen canvas, you must delete or remove an item before you can add another item. In this case, you have the option of switching to another Home screen canvas.
Use Direct Dial
To use Direct Dial, simply tap the contact on the Home screen.
Assign a Picture to an Entry
Assign a picture to display each time a certain contact calls you.
1. Press > > .
2. Touch and hold the contact's entry.
3. Tap Edit contact .
4. Tap .
5. Tap Take photo to take a new picture. The camera will launch.
–
or –
Tap Select from Gallery to select a picture from the Gallery.
6. After cropping the picture as you want, tap Save .
Find Contacts by Name
1. Press > > .
2. Tap the Search contacts field.
3. Start entering the name of the contact you‗re searching for. As you type, contacts with matching names will appear below the search box.
4. Tap a matching contact in the list to open its entry.
Communicate with Your Contacts
From the Contacts or Favorites tab, you can quickly call or send a text (SMS) or multimedia message (MMS) message to a contact's default phone number. You can also open a menu to access different methods of communicating with that contact.
The Contacts application shares your contacts with many other applications, such as Gmail™
) and messaging (see Text and Multimedia Messaging ).
Contacts 50
To connect by using Quick Contact for Android™:
1. Tap a contact's picture to open Quick Contact for Android.
2. Tap the icon corresponding to the type of communication you want to start.
Depending on the contact information saved, the available actions will be displayed above the name.
To communicate with a contact:
1. Press > > .
2. Tap the contact's entry.
3. In the contact's details screen, tap the method you wish to communicate with the contact.
Tap next to the number you want to call to directly.
Tap next to the number you want to message.
Note : Anytime you see the green Call Key next to a number, such as in your Favorites or
Call logs, just tap it to call that number.
To call a contact‘s default number:
1. Press > > .
2. Tap next to the contact entry.
3. If multiple numbers are stored, a pop-up window to select the number will open.
(For more information about placing phone calls, see Make Phone Calls .)
Contacts 51
For more information about sending text and multimedia messages, see Text and Multimedia
Import, Export, and Share Contacts
If you have contacts stored in vCard format on the phone's internal storage, you can import them into your Contacts application on your phone. You can also export contacts in vCard format onto the phone internal storage. Export your contacts to back them up to a computer or another phone.
Import Contacts From Your Internal Storage
You can import contacts from your internal storage directly to your phone.
Note
: See Transfer Via PC or Laptop for details about copying files to your phone from your
computer.
1. Copy the vCard files to your phone from your computer.
2. Press > > .
3. Tap > Import/Export > Import from internal storage .
4. If you have more than one account on your phone, tap the account into which you want to import the contacts.
5. Tap the files you wish to import and tap Import and Yes to confirm.
Export Contacts to Your Internal Storage
You can export all of the contacts on your phone, as vCard files. You can then copy this file to a computer or another phone that is compatible with this format, such as an address book
application. (See Transfer Via PC or Laptop .)
1. Press > > .
2. Tap > Import/Export .
3. Tap Export to internal storage .
4. Tap the contacts you want to export, then tap Export and Yes to confirm.
5. Enter a file name and tap OK .
Share a Contact
You can share a contact with someone by sending it to the person as a vCard file.
1. Press > > .
Contacts 52
2. Open the contact you want to share.
3. Tap > Share .
4. Choose the method for sending.
Join and Separate Contacts
When you have two or more entries for the same contact, you can join them into a single entry.
You can also separate contacts that were joined.
1. Press > > .
2. Tap > Join contacts .
3. Select a tab at the top of the screen.
Tap Join suggestion to select entries to merge.
Tap Joined contacts to select entries to separate.
4. Checkmark the entry (or entries) you want, then tap Join or Separate .
Contacts 53
Accounts and Messaging
With wireless service and your phone ‘s messaging capabilities, you have the opportunity to share information through many different channels and accounts, including Gmail (Google), personal and corporate email, text and multimedia messaging, social networking accounts, and
Google Hangouts
TM
.
Gmail / Google
You will need a Google Account to access several phone features such as Gmail, Google Maps,
Hangouts, and the Google Play applications. Before you are able to access Google applications, you must enter your account information. These applications sync between your phone and your online Google Account.
Create a Google Account
If you do not already have a Google Account, you can create one online or using your phone.
Note: Although you need a Gmail account to use certain features of your phone, such as
Google Play, you do not need to use Gmail as the default account for your phone.
Create a Google Account Online
1. From a computer, launch a Web browser and navigate to google.com
.
2. On the main page, click Sign-in > Create an account .
3. Follow the onscreen prompts to create your free account.
4. Look for an email from Google in the email box you provided, and respond to the email to confirm and activate your new account.
Create a Google Account Using Your Phone
1. Press > > System settings > Accounts & sync > Add account .
2. Touch Google and then touch New .
3. Enter your First name and Last name , and then touch .
4. Enter a desired Username , and then touch .
5. When prompted, enter and reenter a password.
6. Create a security question and answer, enter a secondary email address to help you recover your password if you ever lose it, and then touch .
Accounts and Messaging 54
Note: When setting up a new Google Account, either on your phone or online, you will be prompted to add a secondary email address. Enter a second Gmail address or any other email address from which you currently send and receive email. This address is used to authenticate your account should you ever encounter problems or forget your password. It is strongly encouraged for Android users so you can regain access to Google services and purchases on your phone.
7. On the Finish account screen, select your web history and additional Google Play options and then touch .
8. Enter the letters from the Authenticating screen and then touch .
9. Your phone connects with the Google servers and completes the setup.
Sign In to Your Google Account
If you have a Google Account but have not yet signed in with your phone, follow these instructions to sign in to your Google Account.
1. Press > > System settings > Accounts & sync > Add account .
2. Touch Google , and then touch Existing .
3. Enter your Gmail username and password, and then touch .
4. Your phone connects with the Google servers and completes the setup.
Access Gmail
Access your personal Gmail account directly on your phone.
1. Press > > Gmail .
2. Do any of the following:
View more email messages : If the inbox is full, swipe your finger up the screen to view more messages and conversations.
Read a new email message : Touch the unread message or the conversation with an unread message (just-arrived items display in bold).
Select messages and conversations : Touch the letter image or contact's picture to the left of the email or conversation.
View the inbox of your other Gmail account:
• Touch the account name at the top of the inbox, and then touch the account you want to view.
Accounts and Messaging 55
Refresh the inbox : Touch > Refresh .
Send a Gmail Message
Use your phone to send Gmail messages.
1. Press > > Gmail .
2. In the inbox, touch .
3. Enter the message recipient‘s email address in the To field. If you are sending the email message to several recipients, separate the email addresses with a comma. As you enter email addresses, any matching addresses from your contacts list are displayed.
Touch a match to enter that address directly.
4. If you want to send a carbon copy (Cc) or a blind carbon copy (Bcc) of the email to other recipients, touch > Add Cc/Bcc .
5. Enter the email subject, and then compose your email.
Note: If you want to attach a picture, touch and then touch Attach file . Locate and then touch the picture you want to attach.
6. After composing your message, touch Send .
Note: While composing the message, touch > Save draft or touch to save it as a draft.
To view your draft email messages, in the inbox, touch > Drafts .
Note: To view your sent messages, in the inbox, touch > Sent .
Read and Reply to Gmail Messages
Your phone allows you to access, read, and reply to all your Gmail messages.
1. Press > > Gmail .
2. Touch a message to display it.
Tip: You can also access new messages through the Notifications Panel. When a new Gmail message arrives, you‘ll see the icon in the Status Bar. Touch and hold the bar and slide it down access the Notifications Panel and display notifications. Touch a message to display it.
3. To reply to or forward a message, touch Reply to open a reply message. For reply to all or forward, touch Reply from the open message and then touch Reply to all , or
Forward .
For Reply or Reply to all , enter an additional message.
Accounts and Messaging 56
For Forward , enter or select recipients and then enter an additional message.
4. After composing your message, touch Send .
Use the Email application to send and receive emails from your webmail or other accounts, using POP3 or IMAP, or access your Exchange ActiveSync account for your corporate email needs.
Although there is a separate Gmail application, the Email application can manage both Internet based email services (Gmail™ and Yahoo!™) and Corporate Work Email (Outlook ®
). The phone can also be manually configured to connect to other email systems.
Note : If you have multiple email accounts, you must configure each account with its own settings.
If you want to send and receive email messages through an ISP (Internet Service Provider) account (such as Outlook), you will first need to set up an IMAP or POP account.
● Internet Message Access Protocol (IMAP) – This mail retrieval protocol is frequently used in large networks and commercial and institutional settings. IMAP4 is the current standard.
● Post Office Protocol (POP) - This protocol is supported by most ISPs and is currently more common among consumer applications. POP3 is the current standard.
Note
: For more information, review your email carrier‗s support documents or contact your IT administrator.
Email Icons/Shortcuts
- Email shortcut
- Gmail shortcut
Status Bar - Notifications
- New Email message received
- New Gmail message received
Add an Email Account (POP3 or IMAP)
The Email application only reveals all currently added email accounts. To view additional email accounts within the main Email screen, they must first be added.
Accounts and Messaging 57
1. Press > > Email .
2. Do one of the following:
If this is your first time to add an email account, tap Yahoo or Other on the Select email provider screen.
If you have already added an email account in Email, tap > Settings > Add account . If the Select email provider screen is displayed, tap Other .
3. Enter the Email address and Password for your email account and then tap Next .
Tap Manual setup to configure your connection settings manually (POP3 , IMAP, or
Exchange). Follow the on-screen prompts and enter the information specific to your carrier.
Important : If the account type you want to set up is not in the phone database, you will be asked to enter more details. You should get all pertinent information for the email account, such as incoming and outgoing server settings, before you proceed.
4. Enter the account name and your name and tap Done .
Corporate Email (Outlook)
The Email application also provides access to your Outlook Exchange server via your phone. If your company uses Microsoft Exchange Server 2003, 2007, 2010 and 2013 as the corporate email system, you can use this email application to wirelessly synchronize your email, Contacts and directly with your company‗s Exchange server.
Important : This Outlook application does not utilize Microsoft
®
ActiveSync to synchronize the phone to your remote Exchange Server. This synchronization is done wirelessly over the air
(OTA) and not via a direct connection.
Set Up a Corporate Email
1. Press > > Email .
2. Tap Microsoft Exchange (from the add new email account screen).
3. Enter your Email address and Password information, then tap Next . Consult your
Network Administrator for further details.
Email address : Your Outlook work email address.
Password : Typically your network access password (case-sensitive).
4. Enter a Server address , Domain and tap Next .
Accounts and Messaging 58
Server : Your exchange server remote email address. Typically starts with mail.XXX.com. Obtain this information from your company network administrator.
Domain : Enter your network domain\login username.
If your network requires SSL encryption, tap the Use secure connection (SSL) box to place a checkmark and activate this additional level of security.
If your exchange server requires this feature, leaving this field unchecked can prevent connection.
Note : Signal interruptions or incorrect username or password information can cause completion issues.
5. Read the on-screen activation disclaimer and, if prompted, tap Activate .
Note : Depending on the type of account, you might be required to enable security to sync the account.
6. Configure your Update schedule , Days to sync email (days to synchronize between your phone and server), and activate any other email settings, then tap Next .
7. Identify your new account with a unique name and provide the outgoing name, then tap
Done .
Important : You can synchronize over the air (not directly) with an Exchange Server running
Microsoft Exchange Server 2003 Service Pack 2 (SP2) or Microsoft Exchange Server 2010.
Note : You can have multiple Work Email (Microsoft Exchange) accounts active on your phone.
Open Email
Reading and replying to email on your phone is as simple as on your computer.
1. Press > > Email .
2. Tap a message to read, manage, or reply to.
From your Inbox screen, tap to select the following options: Search , Refresh ,
Folders , Sort by , Downloads, and Settings .
While in a message, the options described in the image below are available.
Accounts and Messaging 59
Create and Send Email
Create and send email using any account you have set up on your phone. Increase your productivity by attaching files such as pictures, videos, or documents to email messages.
1. From the Inbox, tap .
2. Enter the recipient‗s email address in the To field.
You can add as many message recipients as you want.
Note : To send an additional carbon copy (Cc) or a blind carbon copy (Bcc) of the current email to other recipients, enter the recipients in the Cc/Bcc field.
3. Tap the Subject field and enter the email subject.
4. Tap the Body field and compose your email.
To add an attachment (such as picture, video, contact, event, audio, etc), tap .
You can access the internal storage and navigate to the file you wish to attach.
Tap the file you wish to attach.
5. Tap to send the email.
Note : If you close the messaging window before sending it, it is stored in Drafts.
Reply to or Delete an Email Message
Replying to or deleting an email is also simple.
Reply to an Email
1. From the Inbox, tap an email message to view it.
2. With the email message displayed, tap and choose Reply or Reply all .
If you select Forward , you must specify the message‗s recipients.
3. Enter a new message and tap .
Accounts and Messaging 60
Delete an Email Message
■ Touch and hold an email (from your inbox list) and tap Delete from the pop-up context menu.
–
or
–
With the email message displayed, tap .
Configure and Sync Corporate Email Settings
You can sync and configure various settings for your corporate email and create a corporate email signature.
Sync Your Accounts
1. Press > > System settings > Accounts & sync .
2. Tap Microsoft Exchange , then select the Corporate account to reveal the account‗s synchronization settings screen.
> Sync now . 3. If you want to manually synchronize, tap
Configure Corporate Email
1. Press > > System settings > Accounts & sync .
2. Tap Microsoft Exchange , then select Email Settings and tap the desired account to reveal the account‗s synchronization settings screen.
3. The following settings are available.
Account name : Displays the name used by the phone to track the account.
Your name : Displays your name. Tap this to change it.
Use signature : To add a signature or other information to outgoing email.
• Signature : Displays a signature. Tap this to change it.
Update schedule : Choose the update schedule.
Folders to sync : Select the folders you want to synchronize.
Days to sync email : Choose how many days of email you want to sync.
Message format : Select the format you want to view email messages in.
Message size limit : Allows you to set the size limit for messages.
Accounts and Messaging 61
Download over Wi-Fi : Attachments will be queued until Wi-Fi is connected.
• File size to download over Wi-Fi : Choose the limit for files required to be downloaded over Wi-Fi.
Account & sync : Goes back to Accounts & sync screen.
Calendar events to sync : Choose how many weeks of calendar events you want to sync.
Auto resend times : Set the number of tries to resend a failed email message.
Always CC/Bcc me : Allows you to copy yourself to emails sent out.
Out of office settings : Allows you to set your out of office settings and message.
Security settings : Set digital signatures and encryption to secure email.
Corporate directory : Searches online directory for the recipient input.
Server policy : View the server policy currently applied.
Notifications : Allows you to decide whether to notify you of new email.
• Notification sound : Allows you to select the notification sound for new emails.
• Vibrate : Allows you to configure vibrate options for new emails.
• Vibrate Type : Allows you to select the vibration type for new emails.
Exchange server settings : Allows you to change the server settings for your account.
Remove account : Allows you to remove the account.
4. Tap to return to the previous screen.
For more detailed Corporate email information, see Corporate Email (Outlook) . For more
information on Corporate Calendar synchronizing.
Configure General Email Settings
1. Press > > System settings > Accounts & sync .
2. Tap Email to display the account‘s synchronization settings screen.
3. Tap Email Settings and select General settings to set the following settings.
Set default account : Allows you to set the default account.
Select download storage : Allows you to choose where to store your downloads.
Accounts and Messaging 62
Email preview : Allows you to set how much lines of email to display as a preview in the mailbox.
Conversation view : View email messages sent or received with the same subject in one thread.
Split view : Allows you to email list with email contents in landscape orientation.
Load linked images : Select when you want to load linked images.
Ask before deleting : Checkmark to set the phone to ask before deleting email.
Auto-advance : Select which screen to display after deleting an email.
Resize image : Set the default size for image attached while composing.
Trusted certificates : Trusted certificate information is available.
4. Tap to return to the previous screen.
Text and Multimedia Messaging
With Text Messaging (SMS), you can send and receive instant text messages between your wireless phone and another messaging-ready phone.
Multimedia messages, or MMS, can contain text and pictures, recorded voice, audio or video files, picture slideshows, contact cards (vCard), or appointments (vCalendar).
See your service plan for applicable charges for messaging.
Send a Text Message
Quickly compose and send text messages on your phone.
1. Press > > Messaging .
2. On the Messaging screen, touch Compose . The Compose screen opens.
3. Fill in one or more recipients. You can:
Enter phone numbers directly in the To field. If you‘re sending the message to several phone numbers, separate the phone numbers with a comma. As you enter information, any matching phone numbers from your contacts list are displayed.
Touch a match to enter that number or address directly.
Touch the icon, and then select the contacts to whom you want to send the message. You can also select contact groups as recipients. When you have selected all the message recipients, touch Done .
4. Touch the ―Enter message‖ box and then start composing your message.
Accounts and Messaging 63
Note: A counter appears in the text box to tell you how many characters you have entered and how many characters are left. Once you go over the 160-character limit, a new message is created but automatically joined into one when received.
5. When done, touch Send to send the text message.
Send a Multimedia Message (MMS)
When you need to add a little more to a text message, you can send a multimedia message
(MMS) with pictures, voice recordings, audio or video files, contact cards (vCard), or appointments (vCalendar).
1. Press > > Messaging .
2. On the Messaging screen, touch Compose . The Compose screen opens.
3. Fill in one or more recipients. You can:
Enter phone numbers directly in the To field. If you‘re sending the message to several phone numbers, separate the phone numbers with a comma. As you enter information, any matching phone numbers from your contacts list are displayed.
Touch a match to enter that number or address directly.
Touch the icon, and then select the contacts to whom you want to send the message. You can also select contact groups as recipients. When you have selected all the message recipients, touch Done .
Note: You can add a subject line by touching > Add subject .
4. Touch the ―Enter message‖ box, and then start composing your message.
Accounts and Messaging 64
5. Touch and select the type of attachment you want to add.
6. In the Attach window, select from the following file attachments:
7. Touch Send MMS to send the MMS message.
Create a Slideshow
In a multimedia message, you can add slides, each containing a picture, video, or audio.
1. In the multimedia message you‘re composing, touch > Slide to add space for a new slide.
2. Touch the space for the slide.
3. To compose your slideshow, do any of the following:
Add a picture : Touch > Image and select a picture.
Add a video : Touch > Video and select a video. (You cannot add both a picture and a video on the same slide.)
Add music or a voice recording : Touch > Audio and select a file.
Add a caption : Enter the text below the attachment.
View the next or previous slide : Touch the compose field and drag the screen up and down.
Preview your slideshow : Touch > Preview .
For more options, touch and select an option.
4. When you have finished composing the multimedia message, touch Send MMS .
Tip: To compose a slide show, you can also simply attach multiple items separately to the MMS message. Touch and select a file type, location, and file and then repeat it for additional slides. Your phone will automatically compile a slide show.
Save and Resume a Draft Message
While composing a text or multimedia message, touch to automatically save your message as a draft.
To resume composing the message:
1. Press > > Messaging .
Accounts and Messaging 65
2. Touch the message with the icon to resume editing it.
New Messages Notification
Depending on your notification settings, the phone will play a ringtone, vibrate, or display the message briefly in the Status Bar when you receive a new text or multimedia message. To
change the notification for new text and multimedia messages, see Text and Multimedia
A new message icon ( ) also appears in the notifications area of the Status Bar to notify you of a new text or multimedia message. The Messages application icon (if shown on the Home screen) also displays the number of new messages .
To open the message, touch and hold the Status Bar, and then slide the Status Bar down to open the Notifications Panel. Touch the new message to open and read it. For information on reading and replying to messages see ―Manage Message Conversations‖ below.
Manage Message Conversations
Text and multimedia messages that are sent to and received from a contact (or a number) are grouped into conversations or message threads in the Messaging screen. Threaded text or multimedia messages let you see exchanged messages (similar to a chat program) with a contact on the screen.
Read a Text Message
■ Do one of the following:
On the Messaging screen, touch the text message or message thread to open and read it.
If you have a new message notification, touch and hold the Status Bar, and then slide the Status Bar down to open the Notifications Panel. Touch the new message to open and read it.
To return to the Messaging screen from a text message thread, touch .
Note: To view the details of a particular message, in the message thread, touch and hold the message to open the options menu, and then touch View message details .
Note: If a message contains a link to a Web page, touch the message and then touch the link to open it in the Web browser.
Note: If a message contains a phone number, touch the message and then touch the phone number to dial the number or add it to your contacts.
Accounts and Messaging 66
View a Multimedia Message (MMS)
1. Press > > Messaging .
2. On the Messaging screen, touch a multimedia message or message thread to open it.
3. Touch the attachment to open it. If the attachment is a vCard contact, it is imported to your phone
‘s contacts list. For more information, see Contacts . If the attachment is a
vCalendar file, you can choose the calendar where you want to save the event. For
information on using Calendar, see Calendar .
4. To save the attachment to the storage card, touch and hold the attachment and touch
Save attachment .
Note: When Auto-retrieve in MMS settings is disabled, only the message header is downloaded.
To download the entire message, touch the Download button at the right side of the message.
For details, see Text and Multimedia Message Options .
Note: If you are concerned about the size of your data downloads, check the multimedia message size before you download it.
Reply to a Message
1. Press > > Messaging .
2. On the Messaging screen, touch a text or multimedia message thread to open it.
3. Touch the text box at the bottom of the screen, enter your reply message, and then touch Send .
Note: To reply to a text message with a multimedia message, open the text message, touch .
The text message is automatically converted into a multimedia message.
Protect (Lock) a Message
You can lock a message so that it will not be deleted even if you delete the other messages in the conversation.
1. Press > > Messaging .
2. On the Messaging screen, touch a message thread.
3. Touch and hold the message that you want to lock.
4. Touch Lock message on the options menu. A lock icon is displayed at the right hand side of the message.
Accounts and Messaging 67
Delete a Single Message
1. While viewing a message thread, touch and hold the message that you want to delete.
2. Touch Delete message on the options menu.
3. When prompted to confirm, touch Yes . If the message is locked, you will be prompted that the locked message will be deleted.
Delete Multiple Messages
1. Press > > Messaging .
2. On the Messaging screen, touch the message thread that you want to delete.
3. Touch > Delete .
4. Touch the messages you want to delete, then touch Delete .
5. When prompted to confirm, touch Yes . Any locked messages in the thread will not be deleted unless you select the Delete locked messages check box.
Delete Multiple Message Threads
1. Press > > Messaging .
2. On the Messaging screen, touch > Delete .
3. Select the message threads you want to delete.
4. Touch Delete and then touch Yes to confirm. Any locked messages will not be deleted, unless you select the Delete locked messages check box.
View Contact Information from a Message
When you have received a message from someone in your stored contacts, you can touch the contact‘s picture or icon in the message thread to open a menu of options. Depending on the stored contact information, you can view the contact details, phone or send an email message to the contact, and more.
Text and Multimedia Message Options
The messages settings menu lets you control options for your text and multimedia messages including message limits, size settings, and notifications.
1. Press
2. On the Messaging screen, touch following:
> > Messaging .
and then touch Settings . You can set the
Accounts and Messaging 68
● Set default message app : Enable this option to set Messaging as your default message app to turn on all features.
● Storage
Delete old messages : Enable this option to delete older text messages when the limit for maximum number of text messages is exceeded.
• Text message limit : Sets the maximum number of text messages that can be stored on the phone (per conversation).
• Multimedia message limit : Sets the maximum number of multimedia messages that can be stored on the phone (per conversation).
Attachment storage : Tap this to select the desired stroage for attachement.
Signature : Tap this to automatically add signature (blue checkmark displays).
Callback number : Check this to automatically add callback number (blue checkmark displays).
● Text message
Priority: Select Normal or High .
Message reassembly: Enable this option (blue checkmark displays) so that multisegment messages can be reassembled and shown as a single message. Each segment will still count toward your usage.
● Multimedia messsage
Group Messaging : Enable this option to send a single message as multimedia message when there are multiple recipients.
Auto-retrieve : Enable this option to automatically retrieve the entire content of your multimedia message. When checked, the multimedia message header, message body, and any attachments will automatically download to your phone.
• If you disable this option, only the multimedia message header will be retrieved and displayed.
Roaming auto-retrieve : Disable this option if you only desire the multimedia message headers to download while roaming. Enable this option to automatically download your complete multimedia messages even while roaming.
Priority : Select Low, Normal, or High .
● Conversation theme : Allows you to select the desired conversation theme for the conversation wallpaper and message bubbles.
Accounts and Messaging 69
● Notification
Notifications : Enable this option if you wish to receive a notification in the Status
Bar when a new text or multimedia message arrives.
• New message pop-up : Enable this option if you wish to see a new message as a pop-up.
• Preview : Enable this option if you wish to preview the contents of messages when new messages arrive.
• Notification sound : Allows you to select a ringer to sound when a new message is received. Tap this option, and then select a ringtone that is specific to new text and multimedia messages. A sample will briefly be played upon selection.
•
Vibrate : Enable this option if you want the phone to vibrate when a new text or multimedia message is received.
• Vibrate type : Choose what type of vibration you wish to apply to new messages.
● Quick message : Tap this to add or edit quick messages. Quick message is the specified text message to send out when you want to ignore an incoming call and respond to the caller with instead.
● Send message with Enter key : Enable this option if you want to send messages by tapping the Enter key on the keyboard.
● Emergency alerts
Presidential alerts : This setting allows presidential alert to be always presented.
This setting is greyed-out because it cannot be changed.
Extreme alerts : Enable this option to receive extreme alerts.
Severe alerts : Enable this option to receive severe alerts.
AMBER alerts : Enable this option to receive AMBER alerts on child abduction.
Social Networking Accounts
Stay in touch on the go with all your social networking accounts. Post updates on Facebook and
Twitter, review your LinkedIn contacts, see what everyone‘s talking about from YouTube, and more.
Post updates, read what your friends are up to, upload pictures and check-ins, and more with on-the-go Facebook access.
Accounts and Messaging 70
Install the Facebook App on Your Phone
Before you use Facebook on your phone, you must download and install the app from the
Google Play Store app.
1. Tap > > Play Store .
2. Touch the Search icon and search for "facebook".
3. Touch Facebook from the results list.
4. Touch INSTALL , and then touch ACCEPT .
5. When the download is complete, touch OPEN . To open the app from the Home screen, touch > Facebook .
Sign in to Your Facebook Account from Account Settings
1. Tap >
2. Touch Facebook .
> System settings > Accounts & sync > Add account .
3. Enter your Facebook username and password and touch Log In .
4. Choose to sync or not to sync your contacts, then touch Done .
Google Hangouts
The Google Hangouts application lets you have real-time text conversations with your friends.
Open the Hangouts Application
■ Tap > > Google > Hangouts .
Chat with Friends
1. Tap > > Google > Hangouts .
2. Tap to view your contacts list. It includes all of the Google Accounts you've added.
Tap the name of the person in your contacts list. If your friend is not yet on Hangouts, you can invite your friend via SMS. or
Tap the text field to enter a name, email or number.
3. Enter your message.
Accounts and Messaging 71
4. Tap .
Accounts and Messaging 72
Apps and Entertainment
All your phone ‘s features are accessible through the Apps list.
Note: Available applications and services are subject to change at any time.
Google Play Store
Google Play ™ is the place to go to find new Android apps, books, movies, and music for your phone. Choose from a wide variety of free and paid content ranging from productivity apps and games to bestselling books and blockbuster movies and music. When you find what you want, you can easily download and install it on your phone.
To access the Google Play store app, you must first connect to the Internet using your phone ‘s
Wi-Fi, or data connection and sign in to your Google Account. See Web and Data
Your Google Account for details.
Important: Third-party applications may access your personal information or require Boost to disclose your customer information to the third-party application provider. To find out how a third-party application will collect, access, use, or disclose your personal information, check the application provider‘s policies, which can usually be found on their website. If you aren‘t comfortable with the thirdparty application‘s policies, don‘t use the application.
Find and Install an App
When you install apps from Google Play app and use them on your phone, they may require access to your personal information (such as your location, contact data, and more) or access to certain functions or settings of your phone. Download and install only apps that you trust.
1. Press > > Play Store .
2. When you open the Google Play store app for the first time, the Terms of Service window will appear. Touch Accept to continue.
3. Browse through the categories ( Apps , Games , Movies & TV , Music , Books , and
Newsstand ), find an app you're interested in, and touch the name.
Browse through featured apps : Scroll through the list of featured apps when you open Google Play.
Search for an app : Touch on the Play Store home screen, enter the name or type of app you‘re looking for, and then touch on the keyboard.
4. Touch an app to read a description about the app and user reviews.
5. Touch INSTALL (for free applications) or the Price button (for paid applications).
Apps and Entertainment 73
Note:
You need a Google Wallet account to purchase items on Google Play. See Create a
Google Wallet Account to set up a Google Wallet account if you do not have one.
6. The subsequent screen notifies you whether the app will require access to your personal information or access to certain functions or settings of your phone. If you agree to the conditions, touch ACCEPT to begin downloading and installing the app.
If you selected a paid application, after touching ACCEPT , you‘re redirected to the
Google Wallet screen to pay for the application before it‘s downloaded to your phone.
Warning: Read the notification carefully!
Be especially cautious with applications that have access to many functions or a significant amount of your data. Once you touch ACCEPT on this screen, you are responsible for the results of using this item on your phone.
Create a Google Wallet Account
You must have a Google Wallet account associated with your Google Account to purchase items from the Google Play Store app.
Do one of the following:
■ On your computer, go to google.com/wallet to create a Google Wallet account.
– or –
■ The first time you use your phone to buy an item from Google Play, you‘re prompted to enter your billing information to set up a Google Wallet account.
Warning: When you‘ve used Google Wallet once to purchase an application from the Google
Play Store app, the phone remembers your password, so you don‘t need to enter it the next time. For this reason, you should secure your phone to prevent others from using it without your
permission. (For more information, see Select Screen Lock .)
Request a Refund for a Paid App
If you are not satisfied with an app, you can ask for a refund within 15 minutes of the purchase.
Your credit card is not charged and the app is uninstalled from your phone.
If you change your mind, you can install the app again, but you can‘t request a refund a second time.
1. Press > > Play Store .
2. Touch > My apps .
3. Touch the app to uninstall for a refund. The details screen for the app opens.
4. Touch Refund , and then touch Yes to confirm. Your app is uninstalled and the charge is cancelled.
Apps and Entertainment 74
Open an Installed App
There are options for opening an installed app.
■ Press
– or –
> , locate the app, and then touch its icon.
1. Press > > Play Store .
2. Touch > My Apps > INSTALLED tab.
3. Touch the app and then touch Open to open it.
Uninstall an App
You can uninstall any app that you have downloaded and installed from Google Play.
1. Press > > Play Store .
2. Touch > My apps .
3. On the Installed screen, touch the app you want to uninstall, and then touch
UNINSTALL .
4. When prompted, touch OK to remove the app from your phone.
Get Help with Google Play
The Google Play store app offers an online help option if you have questions or want to know more about the app.
■ Touch > HELP . The Web browser will take you to the Google Play Help Web page.
Navigation
Your phone offers a number of location-based navigation programs to help you figure out where you are and get you where you‘re going.
Google Maps
Use the Google Maps app to determine your location, find directions, browse local businesses and attractions, rate and review places, and more.
Enable Location Services on Your Phone
Before using any location-based services, you must enable your phone‘s GPS location feature.
1. Press > > System settings > Location .
Apps and Entertainment 75
2. Touch the switch to turn Location services ON.
Mode : Select High accuracy (GPS and networks), Battery saving (Networks only) , or Device sensors only (GPS only) .
Recent Location Requests : Displays apps that have recently requested your location information.
Location services
• Google Location Reporting : Allows you to configure your Google location settings.
Use Google Maps
■ Press > > Maps .
Music
Your phone lets you discover, download, and listen to your favorite music through a variety of applications.
Music App
Your phone‘s built-in music player app lets you listen to and organize music files you have loaded into your phone‘s memory or microSD card.
Listen to Music Using the Music Player
■ Press
> > Music .
Google Play Music App
The Google Play Music app lets you browse, shop, and play back songs purchased from
Google Play as well as songs you have loaded from your own music library. The music you choose is automatically stored in your Google Play Music library and instantly ready to play via streaming or download.
For more information about Google Play Music, visit play.google.com/about/music .
Note: For information about loading music onto your phone.
Play Music with Google Play
■ Press > > Play Music .
Apps and Entertainment 76
Web and Data
Your phone ‘s data capabilities let you wirelessly access the Internet or your corporate network through a variety of connections, including Wi-Fi, Data Services (3G Network), and Virtual
Private Networks (VPN).
The following topics address your phone ‘s data connections and the built-in Web browser.
Additional data-related features can be found in Accounts and Messaging ,
Connect Wi-Fi
Wi-Fi is a wireless networking technology that can provide Internet access at distances of up to
100 meters, depending on the Wi-Fi router and your surroundings.
To use Wi-Fi on your phone, you must connect to a wireless access point, or hotspot. Some access points are open and you can simply connect to them without entering any information.
Others are hidden or implement other security features, so you must configure your phone to connect to them.
Turn off Wi-Fi when you're not using it to extend the life of your battery.
When you connect to a Wi-Fi network, the phone obtains a network address and other information it needs from the network, using the DHCP protocol. To configure the phone with a static IP address and other advanced settings, tap settings menu.
> Advanced Wi-Fi from the Wi-Fi
Turn Wi-Fi On and Connect to a Network
Use the Wi-Fi menu to enable your phone's Wi-Fi radio and connect to an available Wi-Fi network.
1. Press > > System settings > Wi-Fi .
2. Tap the Wi-Fi switch to turn Wi-Fi on and scan for available Wi-Fi networks.
A list of available Wi-Fi networks will be displayed. Secured networks are indicated by a lock icon.
If the phone finds a network that you have connected to previously, it automatically connects to it.
3. Tap a network to connect to it.
If the network is secured, you will be prompted to enter a password. (Ask your network administrator for details.)
Web and Data 77
When you're connected to a network, you can tap the network name in the Wi-Fi settings screen for details about the speed, security, address, and related settings.
To receive notifications when open or secured networks are in range:
By default, when Wi-Fi is on, you receive notifications in the Status Bar when your phone detects an open Wi-Fi network.
4. Turn on Wi-Fi, if it's not already on.
5. From the Wi-Fi settings screen, tap > Advanced Wi-Fi , then tap the Network notification check box to activate the feature.
Add a Wi-Fi Network
You can add a Wi-Fi network manually if it does not broadcast its name (SSID) or if you want to add a Wi-Fi network when you are out of its range.
To add a secured network, you need to contact the network‗s administrator to obtain the password or other required security credentials.
1. Turn on Wi-Fi, if it's not already on.
2. From the Wi-Fi settings screen, tap > Add network .
3. Enter the Network SSID (name) of the network. If the network is secured, tap the
Security drop-down menu and tap the type of security used for the network.
4. Enter the required passwords and security credentials.
5. Tap Connect .
The phone will connect to the wireless network. Any credentials that you entered are saved, so you are connected automatically the next time you come within range of this network.
To forget a Wi-Fi network:
You can also make the phone forget about the details of a Wi-Fi network that you have added.
For example, if you don't want the phone to connect to it automatically or if it is a network that you no longer use.
1. Turn on Wi-Fi, if it's not already on.
2. In the Wi-Fi settings screen, touch and hold the name of the network.
3. Tap Forget network .
To Access Additional Wi-Fi Options
From the Wi-Fi menu, tap for the following options.
Web and Data 78
● WPS Push Button : Set up a connection to a WPS (Wi-Fi Protected Setup) router or other equipment.
● WPS Pin Entry : View the PIN used by your device to set up a PIN-secured connection to a Wi-Fi router or other equipment.
● Add network : Add additional networks by entering SSID and other settings.
● Wi-Fi Direct : Connect to other Wi-Fi Direct devices.
● Advanced Wi-Fi : Configure additional settings.
● Interactive tutorial : Learn about setting up and using Wi-Fi networks, and other settings.
Wi-Fi Direct
Wi-Fi Direct supports a direct connection between Wi-Fi enabled phones without an access point. Due to the high battery usage of Wi-Fi Direct, it is recommended that you plug your phone into a power outlet while using the Wi-Fi Direct feature.
To turn on Wi-Fi Direct:
1. Tap > > Settings > Wi-Fi > > Wi-Fi Direct .
2. Tap Search to search for available phones.
3. Tap the available phones.
Note : Tap > Help for more information.
Data Services General Information
The following topics will help you learn the basics of using your data services, including managing your user name, launching a data connection, and navigating the Web with your phone.
Important: Certain data services requests may require additional time to process. While your phone is loading the requested service, the touchscreen or QWERTY keyboard may appear unresponsive when in fact they are functioning properly. Allow the phone some time to process your data usage request.
Your Data Services User Name
When you buy your phone and sign up for service, you‘re automatically assigned a user name, which is typically based on your name and a number.
When you use data services, your user name is submitted to identify you to the network. Your user name is automatically programmed into your phone . You don‘t have to enter it.
Web and Data 79
Update Your User Name
If you choose to change your user name and select a new one online, or make any changes to your services, you must then update the profile on your phone.
■ Press > > System settings > System updates > Update profile .
Data Connection Status and Indicators
Your phone displays the current status of your data connection through indicators at the top of the screen. The following symbols are used:
Your phone is connected to the 3G Mobile Broadband Network (3G). When the signal bands are animated, your phone is transferring data (for example, when you are opening a Web page); when the signal bands are gray, your phone is connected to the network but is not currently transferring data (for example, when you are viewing a Web page that is completely open). In either state, you can receive incoming calls.
If you do not see an indicator, your phone does not have a current data connection.
Virtual Private Networks (VPN)
From your phone, you can add, set up, and manage virtual private networks (VPNs) that allow you to connect and access resources inside a secured local network, such as your corporate network.
Prepare Your Phone for VPN Connection
Depending on the type of VPN you are using at work, you may be required to enter your login credentials or install security certificates before you can connect to your company‘s local network. You can get this information from your network administrator.
Before you can initiate a VPN connection, your phone must first establish a Wi-Fi or data connection. For information about setting up and using these connections on your phone, see
Turn Wi-Fi On and Connect to a Network .
Set Up Secure Credential Storage
If your network administrator instructs you to download and install security certificates, you must first set up the phone ‘s secure credential storage.
1. Press > lock > Password .
> System settings > Lock screen , and then touch Select screen
2. Enter a new password (at least eight characters without any spaces).
3. Touch to return to the main settings menu, and then touch Security .
Web and Data 80
4. Touch Trusted credentials and then touch your preferred system and user credentials.
5. Touch and select Install from storage to install saved credentials.
You can then download and install the certificates needed to access your local network. Your network administrator can tell you how to do this.
Add a VPN Connection
Use the Wireless & networks settings menu to add a VPN connection to your phone.
1. Press > > System settings > More... > VPN .
2. Touch Add VPN network , and then enter the information for the VPN you want to add.
Information may include Name, Type, Server address, PPP encryption (MPPE), and
Show advanced options.
Set up all options according to the security details you have obtained from your network administrator.
3. Touch Save .
The VPN is then added to the VPNs section of the VPN settings screen.
Connect to or Disconnect from a VPN
Once you have set up a VPN connection, connecting and disconnecting from the VPN is easy.
Connect to a VPN
1. Press > > System settings > More... > VPN .
2. In the VPNs section, touch the VPN that you want to connect to.
3. When prompted, enter your login credentials, and then touch Connect . When you are connected, a VPN connected icon appears in the notification area.
4. Open the Web browser to access resources such as intranet sites on your corporate
network. (For more information about browsing the Web, see Learn to Navigate the
Disconnect from a VPN
1. Drag the title bar down to open the Notifications Panel.
2. Touch the VPN connection to return to the VPN settings screen, and then touch the VPN connection to disconnect from it.
When your phone has disconnected from the VPN, you will see a VPN disconnected icon in the notification area of the title bar.
Web and Data 81
Browser
Your phone ‘s Web browser gives you full access to both mobile and traditional websites on the go, using 3G, or Wi-Fi data connections.
Launch the Web Browser
Launching the browser is as easy as touching an icon.
■ From any home page, touch Browser .
Tip: If Browser isn‘t one of your phone‘s primary shortcuts, press launch the browser.
> > Browser
Tip: Your phone may support additional Web browsers, such as Google Chrome.
to
Learn to Navigate the Browser
Navigating through menus and websites during a data session is easy once you have learned a few basics.
Scrolling
As with other parts of your phone
‘s menu, you‘ll have to drag up and down to see everything on some websites.
To scroll through a website‘s page:
■ In a single motion, touch and drag across or up and down a page.
Selecting
To select onscreen items or links:
■ Drag across a page, and then touch an item or touch an onscreen link to select the link.
Links, which are displayed as underlined text, allow you to jump to Web pages, select special functions, or even place phone calls.
Pinching and Zooming
Zooming in and out on a Web page can be done now without the need of an onscreen zoom tool. Just use your fingers to pinch in or spread out on the screen.
To zoom in:
1. Place your thumb and index finger on the screen.
2. Expand them outward (spread) to zoom in.
To zoom out:
Web and Data 82
1. Place your thumb and index finger on the screen.
2. Bring them together (pinch) to zoom out.
Go Back
To go back one page:
■ Touch on your phone. Repeat this process to keep going back through your Web page history of recently visited pages.
Tip: You can use for deleting text (like a BACKSPACE key) when you are entering text.
Go to a Web Page
1. Touch the Address field (top of the browser window) and enter a new Web address.
As you enter the address, possible matches are displayed within an onscreen list.
Touch an entry to launch the desired website.
2. Touch Go on the keyboard to launch the new page.
Browser Menu
The browser menu offers additional options to expand your use of the Web on your phone.
Open the Browser Menu
The browser menu may be opened anytime you have an active data session, from any page you are viewing.
1. Press > > Browser .
2. From any open Web page, touch . You will see the browser menu.
Options available within the browser menu may include:
● Forward : Allows you to go one page backed.
● New tab : Allows you to add new browser tab.
● Bookmarks : Allows you to set up and use custom bookmarks.
● Add to bookmarks : Allows you to add the current page to your bookmarks.
● Homepage : Allows you to go to the homepage.
●
History : Allows you to show the history what you visited.
● Share page : Allows you to send a URL via Bluetooth, Email, Gmail, and Messaging.
Web and Data 83
● Find on page : Allows you to search the current Web page for a word.
● Desktop view : Allows you to view the current page in desktop view.
● Save for offline reading : Allows you to save the current page for reading offline.
● Capture plus : Allows you to capture current web page from top to bottom without cutting.
● Settings : Allows you to configure and manage your Browser settings.
● Exit : Allows you to completely exit the Browser.
Select Text on a Web Page
You can highlight text on a Web page and copy it, search for it, or share it.
1. Press > > Browser and navigate to a Web page.
2. Touch and hold to the area of the page containing the desired text.
3. Touch and drag across the screen and highlight the desired text. Any selected text will appear highlighted.
4. Select an option:
Select all to select all the text in the current Web page.
Copy to copy the selected text.
Share to share the selected message using your favorite services like Email,
Messaging, and others.
Find to search for all instances of the selected text in the current Web page.
Web search to search for the selected text on the web.
Go to a Specific Website
Follow the instructions to go to a particular website by entering a URL (website address).
1. Touch the URL field and enter a website address.
As you type the address, if your desired website appears within the suggested sites list, touch the entry to begin surfing.
2. Touch Go on the keyboard.
Note: Not all websites are viewable on your phone.
Web and Data 84
Adjust Browser Settings
You can control many of the settings for your browser through the browser settings menu, including general page settings, privacy and security, accessibility settings, advanced settings such as Javascript and plug-ins, and bandwidth management.
1. Press > > Browser .
2. From any open Web page, touch menu.
> Settings . You will see the browser settings
3. You can access the following settings menus:
General
• Set the homepage, Form auto-fill and Auto-fill text.
Privacy & Security
• Settings for managing personal data from web browsing and usage.
Accessibility
• Adjust the text size and rendering options.
Advanced
• Adjust JavaScript and other web content settings.
Bandwidth management
• Settings for Search result preloading and image loading.
Create Website Settings
You can create settings for individual websites.
1. Press > > Browser .
2. From any open Web page, touch > Settings > Advanced > Website settings .
3. Select the settings you want to configure for the current website.
Reset the Browser to Default
You always have the option to restore your browser to its default settings.
1. Press > > Browser .
2. From any open Web page, touch > Settings > Advanced > Reset to default .
Web and Data 85
3. Touch Yes to complete the process.
Set the Browser Home Page
Customize your Web experience by setting your browser‘s home page.
1. Press > > Browser .
2. From any open Web page, touch > Settings > General > Set homepage .
3. Select one of the available options and enter the necessary information.
Create Bookmarks
Make browsing easier by setting up and using custom bookmarks.
1. From any open web page, tap to open the option menu.
2. Tap Bookmarks . Three tabs are revealed:
Bookmarks : Displays a list of your current bookmarks.
History : Displays a record of your browsing history. These records are organized into folders such as: Today , Yesterday , 5 days ago , 1 month ago , and Most visited .
Saved pages : Displays the pages you've saved for offline reading.
3. In the Bookmarks tab, tap > Add bookmark .
4. Enter a descriptive name and URL for the new bookmark.
5. Tap OK to store the new entry to your Bookmarks list.
Create Bookmarks from Other Tabs
1. From any open web page, tap
2. Tap the History tab.
to open the option menu and tap Bookmarks .
3. Tap the star icon adjacent to a web page entry. Enter the desired information and tap
OK .
- or -
Touch and hold an entry from the list to display a context menu. Then, tap Add to bookmarks to add the selected entry to your current list of bookmarks.
Create a New Homepage
Select any previously visited Web page to display as your home page.
Web and Data 86
1. From any open web page, tap to open the option menu and tap Bookmarks .
2. Tap either the Bookmarks or History tab.
3. Touch and hold an entry from the list to display a context menu.
4. Tap Set as homepage to assign the selected entry as your new homepage.
Add Bookmarks to Your Home Screen
You can add Web bookmarks to your phone ‘s home screen for quick access.
1. From any open web page, tap to open the option menu and tap Bookmarks .
2. Touch and hold an existing entry from the list to display a context menu.
3. Tap Add shortcut to home to add the selected entry to your Home screen.
Connections Optimizer
The Connections Optimizer is a tool that automatically selects the best mobile network for your phone, including "remembered" Wi-Fi networks.
About Connections Optimizer
The Connections Optimizer helps you manage and enhance your data experience by finding and connecting to "remembered" Wi-Fi networks on your phone. Remembered Wi-Fi networks are networks with which you have previously chosen to connect. Active Wi-Fi connections may offer improved performance and generally improve battery life while allowing you to talk on the phone and use data at the same time.
The Connections Optimizer works by searching for available "remembered" Wi-Fi networks. If you do not leave your Wi-Fi antenna on all the time, you will only notice the Connections
Optimizer operating at certain times of the day in a small number of locations on the network.
Your Wi-Fi antenna will conserve battery by scanning for connections periodically (not continuously), and if no connection is achieved, the antennas will be turned off. You may also manually turn the antennas off during the scan period.
To facilitate quality assurance and enable feature enhancements, information is collected about your battery levels, Wi-Fi and network connections and usage. No personal information is collected.
Enable Connections Optimizer
1. Press > > System settings > More...
> Mobile networks > Connections
Optimizer . You will see a disclaimer.
2. Read the disclaimer and touch I Agree to turn Connections Optimizer on.
Web and Data 87
Disable Connections Optimizer
1. Press
Optimizer .
> > System settings > More...
> Mobile networks
2. Uncheck the box on the Connections Optimizer page.
> Connections
Web and Data 88
Camera and Video
You can use the camera or camcorder to take and share pictures and videos. Your phone comes with a 5 megapixel camera with an autofocus feature that lets you capture sharp pictures and videos.
Take Pictures
The following topics teach you how to take pictures with your phone ‘s camera.
Open or Close the Camera
You can open the camera through the applications list and close it from the camera menu. In addition to using the applications list to open the camera, you may be able to launch the camera from within other applications such as Contacts or Messaging.
Open the Camera
■ To open the camera in picture mode and take pictures, press
Close the Camera
■ On the camera screen, press or .
> > Camera .
Viewfinder Screen in Camera Mode
The Viewfinder screen lets you view your subject and access camera controls and options.
● Flash: Select a flash mode for the camera.
● Swap camera: Switch between the back-facing camera lens and the front-facing camera lens (for self portraits, video chatting, etc.).
● Shot mode to select the shot mode from the following options:
Normal : Captures a normal photo shot.
Camera and Video 89
Panorama : Creates a wide photo of a panoramic view. Hold the phone horizontally, press the shutter to start and slowly sweep the camera across the scene.
Continuous shot : Takes 6 shots in rapid sequence.
Sports : Captures fast-moving images without blur.
● Settings: Opens the camera settings menu and lets you change additional camera
settings. See Camera Settings .
Take a Picture
You can take highresolution pictures using your phone‘s camera.
1. Press > > Camera .
2. Before taking the picture, you can zoom in on your subject.
To zoom in, ―spread‖ the screen with your thumb and finger.
To zoom out, ―pinch‖ the screen.
3. On the Viewfinder screen, touch the flash icon to select a camera flash mode depending on your lighting conditions.
4. Frame your subject on the screen.
Tip: Hold the phone vertically when taking portrait shots or hold the phone horizontally when taking landscape shots.
5. You can either let the camera autofocus on the center of the screen, or you can touch another area on the screen that you want to focus on.
6. Touch to take the picture.
7. Choose what you want to do with the picture
you‘ve just taken. See Review Screen for
details.
Multi-point Auto Focus
When you take a picture, the Multi-point Auto Focus (AF) function will operate automatically and will allow you to see a clear image.
Camera and Video 90
Light Frame
You can use this function when using Front Camera in the dark lighting condition and will allow you to take a more brighter image.
1. Press > > Camera .
2. Tap to change the Front Camera mode.
3. On the Viewfinder screen, touch to select a Light Frame mode.
When touch , the Viewfinder screen area get downsized and white frame will be displayed surrounding this area. At this time, thse white frame functions as lighting and so you can get more brighter photos.
4. Touch to take the picture depending on your lighting conditions
Note : Light Frame is supported for Front Camera mode only.
The viewfinder screen area in Light Frame mode looks smaller than in normal Front Camera mode. However, the image size and resolution are the same as the normal Front Camera mode.
Camera and Video 91
Review Screen
After capturing a picture or video, touch the thumbnail image to see the item in the review screen. From there, you can access options such as save, view, send, or delete the picture or video.
●
●
Camera to return to the live camera screen.
Share via to share the picture or video.
●
Delete to delete the current picture or video. Touch Yes to confirm.
● While viewing the picture, tap for the following options: Set image as , Move , Copy ,
Copy to Clip Tray , Rename , Rotate left , Rotate right , Crop , Edit , Slideshow , Add location , and Details .
Record Videos
The following topics teach you how to record videos with your phone ‘s video camera.
Viewfinder Screen in Video mode
The Viewfinder screen lets you view your subject and access video controls and options
● Flash Taps to turn the flash On , Off or set it to Auto .
● Swap camera to swap between the back-facing camera lens and the front-facing camera lens.
● Recording mode to set the recording mode to any of the following options.
Normal : Records a normal video.
Live effect : Provides various visual effects when recording a video.
Record Videos
Record high-quality videos using your phone ‘s video camera.
Camera and Video 92
1. Press > > Camera .
2. Move the selection slider to video camera .
3. Select MMS video to record a short video for email or messaging or Long video .
4. Point the lens to frame the scene where you want to start.
5. Tap to start recording the video. The length of the recording is displayed at the top of the screen.
Note : Tap to take pictures while recording long video.
6. Tap to pause recording video. You can resume recording again tapping .
–
or –
Tap to stop recording. Your video will be automatically saved to the Gallery.
7.
Choose what you want to do with the video you‘ve just captured. See Review Screen for
details.
Camera Settings
You can adjust your camera‘s settings using the icons on the main camera screen and the full camera settings menu.
1. Press > > Camera .
2. Touch Settings to display the Settings menu and access all your camera settings.
You can change the following settings from the Settings menu:
Cheese shutter : Allows you to take pictures with voice commands. When on, you just say "Cheese", "Smile", "Whiskey", "Kimchi", or "LG" to take a picture.
Brightness : Adjusts the brightness setting compatible with the environment.
Focus : Set a focus mode. Choose from Auto , Manual or Face tracking .
Image size : Set the size of your picture. Choose from 5M 2560x1920 (4:3), W3M
2240x1344 (5:3) or 1M 1280x960 (4:3) .
ISO : Control the camera's sensitivity to light. Choose from Auto , 100 , 200 , 400 , or
800 .
Camera and Video 93
White balance : Select how the camera adjusts colors in different kinds of light in order to achieve the most natural-looking colors for your pictures. Choose from Auto ,
Incandescent , Sunny , Fluorescent , or Cloudy .
Color effect : Apply different color effects to your pictures. Choose from None , Mono ,
Sepia , or Negative .
Timer : Set your camera's timer. This is ideal if you want to be a part of the picture.
Auto review : Set whether to view the picture that was just taken. Choose from Off ,
On , 2 sec , or 5 sec .
Geotagging : Use your phone's location-based services. Take pictures wherever you are and tag them with the location. If you upload tagged pictures to a blog that supports geotagging, you can see the pictures displayed on a map.
Shutter sound : Adjust the sound the shutter makes when taking a picture.
Volume key : Allows you to set how to use the volume key. Choose from Capture or
Zoom .
Storage : Set the storage location for your pictures. Choose from Internal storage and SD card .
Help : Allows you to learn how a function works. This icon will provide you with a quick guide.
Reset : Restore all camera default settings.
Video Camera Settings
You can adjust your video camera settings using the icons on the main video camera screen and the full video camera settings menu.
1. Press > > Camera .
2. Move the selection slider to video camera .
3. Touch Settings to display the Settings menu and access all your video camera settings. You can change the following settings from the Settings menu:
Video size : Set the size of your video. Choose from WVGA 800x480, VGA 640x480 ,
QVGA 320x240 (MMS) or QCIF 176x144 (MMS) .
Brightness : Adjust the brightness setting compatible with the environment.
Camera and Video 94
White balance : Select how the camcorder adjusts colors in different kinds of light in order to achieve the most natural-looking colors for your videos. Choose from Auto ,
Incandescent , Sunny , Fluorescent , or Cloudy .
Color effect : Apply different color effects to your videos. Choose from None , Mono ,
Sepia , or Negative .
Auto review : Enable auto review of your video.
Geotagging : Use your phone's location-based services. Record videos wherever you are and tag them with the location. If you upload tagged videos to a blog that supports geotagging, you can see the videos displayed on a map.
Volume key : Allows you to set how to use the volume key. Choose from Record or
Zoom .
Storage : Set the storage location for your recordings. Choose from Internal storage and SD card .
Help : Allows you to learn how a function works. This icon will provide you with a quick guide.
Reset : Restore all video camera default settings.
View Pictures and Videos Using Gallery
Using the Gallery application, you can view picture s and watch videos that you‘ve taken with your phone ‘s camera, downloaded, or copied onto your storage card or phone memory.
For pictures that are on your storage card or phone memory, you can do basic editing such as rotating and cropping. You can also easily assign a picture as your contact picture or wallpaper and share pictures with your friends.
Open or Close Gallery
The Gallery app opens in the Albums tab where your pictures and videos are organized by albums for easy viewing.
Open the Gallery App
1. Press > > Gallery .
2. Touch a folder location (such as Camera), and then touch an image to view the picture.
If you stored your files in folders (directories) on the microSD card or phone memory, Gallery will display these folders as separate albums.
Camera and Video 95
Folders in your storage card or phone memory that contain pictures and videos will also be treated as albums. The actual folder names will be used as the album names. If you have downloaded any pictures and videos, these will be placed in the download album.
When viewing pictures in Gallery, you can press the gallery icon in the upper left corner to return to Album view. Touch an album to view the pictures or videos in that album.
Note: Depending on the number of pictures stored, it may take some time for Gallery to load all your pictures on the screen.
Close the Gallery App
■ To close the Gallery app and return to the Home screen, press .
View Pictures and Videos
You can access and view all your stored pictures and videos from your phone‘s Gallery.
1. Press > > Gallery .
2. Touch an album (such as Camera), and then touch an image to view the picture.
After selecting an album from the Albums tab, you can browse through the pictures and videos of that album. Touch a picture or video to view it in full screen. By default, the pictures and videos in an album are displayed in grid view.
Note: When viewing pictures, you can touch and hold on a picture or video to open a selection menu and choose what to do with the picture or video.
Note: If you want to select another album, touch to return to the Albums tab.
Zoom In or Out on a Picture
There are two ways you can zoom in or out of a picture.
■ Touch the screen twice quickly to zoom in, and then touch the screen twice quickly again to zoom out.
– or –
■ Use pinch and spread to zoom in or out. ―Spread‖ the screen using your thumb and forefinger to zoom in when viewing a picture. ―Pinch‖ the screen to zoom out. (Move fingers outward to zoom in and inward to zoom out.)
Watch a Video
The screen automatically switches to portrait mode when you play a video. Use the onscreen controls to play, pause, or stop the video.
1. Press > > Gallery .
Camera and Video 96
Scroll left or right to view more albums.
2. Tap an album to open it and view its contents. (The pictures and videos in the album are displayed in chronological order.)
3. Tap a video in an album to play.
Tap the video to view the playback controls.
Note : While a video is playing, slide the left side of the screen up or down to adjust the screen brightness. While a video is playing, slide the right side of the screen up or down to adjust the sound.
Note : While playing a video, tap the timeline point to jump to that part of the video.
Note : While playing a video, slide your finger from left to right (or vice versa) to fast-forward and rewind.
Video Gallery Options
The Gallery is where you can access the Gallery of stored videos. You can view them, share them with your friends, and delete and edit them.
1. Press > > Gallery to view the videos stored in the phone.
Scroll left or right to view more albums.
2. Tap an album to open it and view its contents. (The pictures and videos in the album are displayed in chronological order.)
3. Tap a video to view it. You can access the following options:
QSlide : Enables an overlay on your phone's display for easy multitasking.
Lock/Unlock : Locks the touch keys to prevent unintentional touches.
Screen ratio : Allows you to adjust the screen ratio. (Best fit, Full screen or
Original size)
Tap
Captures a screen shot while playing a video.
to access Subtitles , Share , Trim , Delete , Settings , Details , and Help .
Work with Pictures
Whether you‘re browsing pictures in filmstrip or grid view in the Gallery application, you can touch and hold on a picture to open a selection menu and choose to delete the picture, rotate or crop it, and more.
Camera and Video 97
Rotate and Save a Picture
1. Touch > > Gallery .
2. Touch an album.
3. Touch the picture you want to rotate.
4. Touch
Crop a Picture
and then select either Rotate left or Rotate right .
1. Press > > Gallery .
2. Touch an album.
3. Touch the picture you want to crop.
4. Touch > Crop . A crop box then appears on the picture.
5. To adjust the crop box size, touch and hold the edge of the box. When directional arrows appear, drag your finger inward to or outward to resize the crop box.
6. To move the crop box to the part of the picture that you want to crop, drag the crop box to the desired size and position.
7. Touch OK to apply the changes to the picture.
The cropped picture is saved in the album as a copy. The original picture remains unedited.
Share Pictures and Videos
The Gallery application lets you send pictures and videos using email or multimedia messages.
You can share pictures on your social networks (such as Facebook, Flickr, Picasa, and Twitter) and share videos on YouTube. You can also send them to another phone or your computer using Bluetooth.
Send Pictures or Videos by Email
You can send several pictures, videos, or both in an email or Gmail message. They are added
1. Press > > Gallery .
2. Touch the album that contains the pictures or videos you want to share.
3. Touch the pictures or videos you want to share.
Camera and Video 98
To select multiple items, touch while viewing an album and select all of the items you want to include.
4. Touch Share and then touch Email or Gmail .
5. Address and compose your message and then touch Send ( or ).
Note: If you selected Email and you have multiple email accounts, the default email account will be used.
For more information about using email and Gmail, see Create and Send Email
Send a Picture or Video by Multimedia Message
Multimedia Messaging (MMS) lets you send pictures and videos using your phone‘s messaging app. Although you can send several pictures or videos in a multimedia message, it may be better to just send one at a time, especially if the files are large in size.
1. Press > > Gallery .
2. Touch the album that contains the pictures or videos you want to share.
3. Touch the pictures or videos you want to share.
To select multiple items, touch while viewing an album and select all of the items you want to include.
4. Touch Share and then touch Messaging .
5. Compose your message and then touch Send MMS .
For more information about sending multimedia messages, see Send a Multimedia Message
Send Pictures or Videos Using Bluetooth
You can select several picture s, videos, or both and send them to someone‘s phone or your computer using Bluetooth.
1. Press > > Gallery .
2. Touch the album that contains the pictures or videos you want to share.
3. Touch the pictures or videos you want to share.
To select multiple items, touch while viewing an album and select all of the items you want to include.
Camera and Video 99
4. Touch Share and then touch Bluetooth .
5. In the next few screens , you‘ll be asked to turn on Bluetooth on your phone and connect to the receiving Bluetooth device so the files can be sent. For more information, see
Camera and Video 100
Tools and Calendar
Learn how to use many of your phone ‘s productivity-enhancing features.
QSlide
The QSlide function enables an overlay on your phone's display for easy multitasking.
1. While using an app that supports QSlide, tap to access QSlide.
–
or –
Open the Notifications Panel and touch an app from the QSlide apps section.
2. Use the slider to adjust the transparency of the overlay.
3. You can make a call, or choose other phone options.
Tap to exit the QSlide function.
Note : The QSlide function can support up to two windows at the same time.
QuickMemo
The QuickMemo feature allows you to create memos and capture screen shots. You can use
QuickMemo to easily and efficiently create memos during a call, with a saved picture or on the current phone screen.
1. Access QuickMemo from the Quick Access items.
–
or –
Tools and Calendar 101
While viewing the screen you want to capture and create a memo on, slide the Status
Bar down and tap .
2. Create a memo using the following options:
: Tap to enable an overlay on your phone's display for easy multi-tasking while keeping the memo in the background.
Note : Tap to exit the overlay mode and go back to the QuickMemo.
: Tap to select what type of background to use.
: Tap to undo the most recent action.
: Tap to redo the most recently deleted action.
: Tap to select the pen type and color or to crop the image.
: Tap to use the eraser to erase the memo that you created.
: Tap to share the memo with others via any of the available applications.
: Tap to save the memo you‘ve created.
Note : Please use a fingertip while using the QuickMemo feature. Do not use your fingernail.
3. Tap to save the current memo to the Gallery.
Discard QuickMemos:
■ Tap until you exit QuickMemo.
View the Saved QuickMemo
Your QuickMemos are saved in the Gallery application.
To view QuickMemos saved in your Gallery:
■ Press > > Gallery and select the QuickMemo album.
Tools and Calendar 102
Calendar
With the Calendar application you can view the events you have scheduled in the coming days, weeks, or months.
Open the Calendar
■ Press > > Calendar . If you have created or subscribed to more than one calendar through Google Calendar
TM
on the web, events from each calendar are displayed in a different color. (For information about which calendars are displayed on
your phone, see Display and Synchronize Calendars .)
Note : To go to any day in any Calendar view, tap
Change Calendar View
You can change the calendar view.
> Go to date .
■ Tap > Day , Week , Month , Year , Agenda . Each view displays the events in your calendar for the period of time that you specify.
Tools and Calendar 103
Day View
Week View
Tools and Calendar 104
Month View
Year View
Tools and Calendar 105
Agenda View
View Event Details
You can view more information about an event in a number of ways, depending on the current view.
■ In Agenda , Day , Week view , Year view , or Month view , tap an event to view its details.
Create an Event
You can use the Calendar tool on your phone to create events that appear on your phone and in your Google Calendar on the web.
1. Open the Calendar, and tap .
You can also touch and hold a spot in Day , Week , or Month view to open the new event screen with that day and time already entered.
Tools and Calendar 106
2. Add details about the event.
Enter a name, and other optional details about the event, just as you would on
Google Calendar (on the web). If you have more than one calendar, you can choose the calendar to which to add the event. Tap
to add more reminders.(See Set an
3. Invite guests to the event.
In the Guests field, enter the email addresses of everyone you want to invite to the event. Separate multiple addresses with commas ( , ). If the people to whom you send invitations use Google Calendar, they'll receive an invitation through their
Google Calendar and by email.
4. Scroll to the bottom of the screen and tap Save .
The event will be added to your Calendar. You can also access and configure the event from Google Calendar on the web.
Edit or Delete an Event
You can edit or delete an event that you created on the phone or on the web. You can also edit or delete events created by others, if they have given you permission.
Edit an Event
1. Open Calendar
and tap the event to open it. (See View Event Details .)
2. Tap
. (For information on how to create or change event information, see Create an
3. Make your changes to the event.
4. Tap Save .
Delete an Event
■ Tap an event to view the event details. Then, tap . Tap OK to confirm.
Set an Event Reminder
You can set one or more reminders for an event, whether or not you created the event or have permission to edit its other details.
1. Open Calendar
and tap the event to open it. (See View Event Details .)
2. Tap Add reminder to add a reminder.
3. Tap the reminder time to display a pop-up menu and choose your desired setting.
Tools and Calendar 107
At the designated time, you will receive a notification to remind you about the event
(See Respond to an Event Reminder .). You can also use Google Calendar (on the
web) to configure additional reminders.
Delete an Event Reminder
1. Open Calendar and tap the event to open it.
2. Tap to remove a reminder.
Respond to an Event Reminder
If you set a reminder for an event, the reminder notification appears in the Status Bar when the reminder time arrives.
1. If you receive notifications in the Status Bar, drag the Notifications Panel down to your notifications. Tap the event notification to open the list of Calendar notifications.
2. Tap an event in the Calendar Notifications list to view more information about that event.
3. Tap Snooze in the Calendar Notifications list to receive the reminder again 5 minutes later.
–
or –
Tap Dismiss in the Calendar Notifications list to delete all reminders in the list.
4. Tap when viewing the Calendar Notifications list to keep the reminders. The reminders will remain in the Status Bar.
Display and Synchronize Calendars
Initially, all calendars that you create or subscribe to through Google Calendar on the web are also displayed in the Calendar application on your phone. You can select which calendars to show or hide on the phone, and which to keep synchronized.
Only the calendars that you've created or subscribed to on the web are shown in the Calendar list.
To select calendars to display:
1. Tap > Calendars to display .
2. Checkmark the desired accounts to display those calendars.
Change Calendar Settings
You can change the settings for how the Calendar application displays events and how it notifies you of upcoming events.
Tools and Calendar 108
● Open the Calendar, and tap > Settings > Calendar settings .
Week starts on : Opens a dialog box to configure from when the week starts on.
Hide declined events : When checkmarked, declined events so that they are not displayed in your calendar views. Tap to remove the checkmark and display all events in your calendar views.
Weather : Enable to set to show weather info on Calendar.
Show events by : Select event display type Event brief or Timeline .
Show week number : Displays the week number out of the year.
Lock default time zone : Lock event times and dates to default time zone.
• Default time zone : Enable to set the default time zone.
Clear search history : Allows you to remove all the searches you have performed.
About calendar : Display calendar application version.
● Open the Calendar, and tap > Settings > Event notification settings .
Default reminder time : Allows you to select the default time set for event reminders.
Notifications : Checkmark to allow notifications of new events. When Notifications is set, you can select the notification type, notification sound, vibrate or vibrate type.
Quick responses : Edit default responses when emailing guests.
Folders
Folders allow you to organize other Home screen shortcuts and icons, or folders that contain all your contacts, contacts with phone numbers, or starred contacts. Your folder's contents are kept up to date automatically. Organizing in folders can create space to add more shortcuts, widgets, or applications on the Home screen.
Add a Folder
1. Drag and drop an app icon over another app icon.
2. A folder will be created with both app icons in it.
Rename a Folder
1. Tap the folder icon to open it.
2. Tap .
Tools and Calendar 109
3. Enter the new folder name and tap OK .
Note : You can also change the folder color.
Organize Items in a Folder
■ Just drag a shortcut, an icon, or a folder and drop in a folder.
Alarm/Clock
You can use Alarm/Clock application to monitor several types of information at once, in addition to the current date and time.
Open the Alarm
The Alarm/Clock application also allows you to set alarms.
1. Press > > Alarm/Clock .
2. Tap an existing alarm to change its time and other attributes or tap Add alarm to add a new one.
3. Set the time of the alarm. You can change the time by scrolling up/down the hour and minute and AM/PM field or tap the hour and minutes fields to enter the time with the keyboard.
4. Tap Repeat to set the days when you want the alarm to sound. (If you don't set a repeat, the alarm will only sound on the assigned day.)
Tools and Calendar 110
5. Tap Snooze duration to open a dialog box to set the amount of time to wait before sounding the alarm again if it is not dismissed. You can set the alarm to ring repeatedly from 5 minutes up to 1 hour.
6. Tap Vibration to have the phone vibrate, in addition to playing the ringtone.
7. Tap Alarm sound to select a ringtone for the alarm. The ringtone plays briefly when you select it.
8. Slide the button on the Alarm volume slider to the right to increase the alarm volume and to the left to decrease it.
9. Tap Auto app starter to set the application you want to automatically open when you stop the alarm.
10. Tap Puzzle lock to checkmark the setting, which requires you to wake up enough to solve a simple puzzle to dismiss the alarm.
11. Tap Memo to enter a name for the alarm.
12. When you're finished, tap Save .
Change Alarm/Clock Settings
1. Press > > Alarm/Clock .
2. Tap > Settings .
3. You can set the following options:
Alarm in silent mode : Tap to place a checkmark and allow your phone to play alarms even when it is in Silent mode.
Volume button behavior : Allows you to set the desired behavior of the volume buttons when pressed during an alarm.
Puzzle lock : Allows you to choose the puzzle type to use during the puzzle lock.
Vibrate type : Allows you to set the vibrate type.
Set a Timer
1. Press > > Alarm/Clock > Timer tab .
2. Tap the Hour / Minute / Second sections to set the timer.
3. Tap to set the following options:
Tools and Calendar 111
Vibration : Set the phone vibrate along with the alert sound. (A blue checkmark appears.)
Alert sound : Select the alert sound.
Alert volume : Set the alert volume.
4. Tap
Tap
.
to reset the timer and start over.
Tap
Tap
Set World Clock
to resume the timer after it's stopped.
to stop the timer.
1. Press > > Alarm/Clock > World clock tab .
2. Tap to add a city.
3. Enter the city name in the search field and tap Done on the keyboard.
As you enter letters, the cities which starts from the letters are displayed.
–
or
–
Scroll through the cities list and tap the city.
4. You can add cities as many as you want. Repeat steps 2 and 3.
Play Stopwatch
1. Press
2. Tap
3. Tap
> > Alarm/Clock > Stopwatch tab .
to start stopwatch time.
to stop the stopwatch.
Tip : While measuring time, tap to view lap times.
Tasks
You can add your tasks in Tasks application and synchronize with MS Exchange account.
Tools and Calendar 112
Synchronize MS Exchange
1. Press >
2. Tap Add account .
> System settings > Accounts & sync .
3. Tap Microsoft Exchange to enter your email address and password information.
4. For further information about adding a Microsoft Exchange account, see Set Up a
5. Make sure that you place a checkmark on Sync Tasks .
Add a Task
1. Press > > Tasks .
2. Tap to add a new task.
3. Tap Tasks and select an account to save the current task.
4. Enter the corresponding information on each field and tap Save .
Tasks Options
1. Press > > Tasks .
2. The following options are available.
: Tap to view all tasks or tasks from individual accounts.
: Tap to search for tasks.
Tools and Calendar 113
: Tap to create a new task.
–
or –
Tap to access the following options.
Sync now : Tap to sync your Microsoft Exchange account tasks.
Sort by : Allows you to sort tasks by Due date, Priority and Creation order.
Delete : Allows you to delete tasks.
View completed tasks : Allows you to view completed tasks.
Lists to display : Allows you to select task lists to be shown.
Settings : Allows you to set the following settings.
• Notifications : Allows you to enable or disable reminder notifications.
• Notification sound : Allows you to set the reminder notification sound.
•
Vibrate : Allows you to set the vibrate setting for reminder notifications.
• Pop-up notification : Checkmark to display a pop-up reminder notification.
• Add account : Allows you to add an MS Exchange account.
–
or –
The following options are available when you touch and hold a task in the tasks list.
Edit : Allows you to edit the task.
Move : Allows you to move the task to other lists.
Delete : Allows you to delete the task.
Share : Allows you to share the task with others.
Calculator
Your phone‘s convenient built-in calculator lets you perform basic mathematical equations.
1. Press > > Calculator .
2. Enter numbers and arithmetic operators on the screen.
Tap to use the QSlide for easy multitasking.
Tools and Calendar 114
Touch and hold the Calculator‗s display to open a menu where you can copy what you‗ve entered and access other tools.
Tap to delete the last number or operator you entered. Touch and hold to delete numbers repeatedly.
Tap to clear the screen.
Tap to view your calculation(s) history, change between the scientific and basic calculators, and access the calculator settings.
File Manager
Use the File Manager application to manage your applications and documents stored in your phone.
Open the File Manager Application
■ Press > > File Manager .
File Manager Options
File Manager makes it easy to view and manage your files. Simply tap a file type ( All files ,
Music, Image, Video, Document , or Dropbox ), then tap the necessary folders to find your files.
Open the File Manager application, tap All files , then tap the Internal storage folder to access to the following File Manager options (at the bottom of the screen):
● : Allows you to create a new folder.
●
●
: Allows you to move files and folders to another folder.
: Allows you to copy files and folders to another folder.
● : Allows you to delete files and folders.
Touch to access the following options:
● Sort by : Allows you to sort files and folders by Name, Size, Date, or Type.
●
View by : Allows you to display your files as a List or in a Grid.
● Share : Allows you to select files and folders to share with others.
● Upload : Allows you to upload files.
● Zip : Allows you to select files and folders to compress into a .zip file.
Tools and Calendar 115
● Show/Hide hidden files : Allows you to show hidden files or hide them.
● Exit : Exits the application.
Search in File Manager
Tap the Search icon (in the top right corner of the File Manager screen) to search for your files or information.
Using QSlide
While viewing All Files, tap the QSlide icon to open File Manager in a QSlide window.
Bluetooth
Bluetooth is a short-range communications technology that allows you to connect wirelessly to a number of Bluetooth devices, such as headsets and hands-free car kits, and Bluetooth-enabled handhelds, computers, printers, and wireless phones. The Bluetooth communication range is usually approximately 30 feet.
Turn Bluetooth On or Off
Use the settings menu to enable or disable your phone ‘s Bluetooth capabilities.
Note : Activating Bluetooth can drain your battery faster and reduce your available usage times.
To conserve your phone‗s battery, turn off Bluetooth when not in use. Always turn off your
Bluetooth when you are in locations that prohibit its use.
Turn Bluetooth On
1. Press > > System settings > Bluetooth .
2. Tap to activate the feature. When active, appears within the Status Bar.
Turn Bluetooth Off
1. Press > > System settings > Bluetooth .
2. Tap to deactivate Bluetooth.
Bluetooth Status Indicators
The following icons show your Bluetooth connection status at a glance:
–
Bluetooth is active
–
Bluetooth is connected
Tools and Calendar 116
Bluetooth Settings Menu
The Bluetooth settings menu allows you to set up many of the characteristics of your phone's
Bluetooth service.
Includes the following:
1. Entering or changing the name your phone uses for Bluetooth communication.
2. Setting your phone's visibility (or ―discoverability‖) for other Bluetooth phones.
To access the Bluetooth Settings menu:
1. Press > > System settings > Bluetooth .
2. Tap to activate the feature. When active, appears within the Status Bar.
3. The following options are available:
LS620 : Checkmark to allow other Bluetooth devices to see your phone for pairing and connection. This name changes if you change the name for the device.
Note : Your phone is visible for up to 2 minutes. This value appears as a countdown within this field. You can change the visibility timeout. From the Bluetooth settings screen, tap
Visibility timeout , then tap your preference.
>
AVAILABLE DEVICES
The list of all of the available in-range Bluetooth devices.
Touch Search for devices to search for other visible in-range Bluetooth devices.
Touch > Edit phone name to rename your phone for Bluetooth access.
Touch > Visibility timeout to set your visibility timeout for Bluetooth.
Touch > Show received files to view all files you have received via Bluetooth.
Touch > Help to view help information for the Bluetooth feature.
Change the Device Name
The device name identifies your phone to other devices.
1. Press
2. Touch
> > System settings > Bluetooth .
> Edit phone name .
Tools and Calendar 117
3. Enter the name for your phone in the dialog box, and then touch Save .
Pairing Bluetooth Devices
The Bluetooth pairing process allows you to establish trusted connections between your phone and another Bluetooth device. When you pair devices, they share a passkey, allowing for fast, secure connections while bypassing the discovery and authentication process.
Pair Your Phone
1. Verify your Bluetooth is active.
2. From the Bluetooth settings page, tap the check box next to your device name to make your phone visible. Your phone must be visible to successfully pair with an external device. If you want to search a new device, you also need to make that device visible.
(See the instruction manual from the manufacturer.)
3. Tap Search for devices . (Your phone will display a list of discovered in-range Bluetooth devices.)
4. Tap a device from the list to initiate pairing.
5. Depending on the device, you might have to tap Pair to accept the passkey (if they match), confirm matching passkeys, or enter the passkey or PIN Code.
6. Tap Done > OK if you entered a passkey or PIN code.
7. The external device will then have to accept the connection and enter your phone ‘s PIN code.
Note : Due to different specifications and features of other Bluetooth-compatible phones, display and operations may be different, and functions such as transfer or exchange may not be possible with all Bluetooth compatible phones.
Pairing between two Bluetooth phones is a one-time process. Once a pairing has been created, the phones will continue to recognize their partnership and exchange information without having to re-enter a passcode again.
Disconnect a Paired Phone
Disconnecting a paired device breaks the connection between the device and your phone, but retains the pairing. At a later point when you wish to reconnect the device, there is no need to setup the connection information again.
1. Verify your Bluetooth is active.
2. In the Bluetooth devices section, touch the device name to disconnect.
3. Touch OK .
Tools and Calendar 118
Note : Disconnections are manually done but often occur automatically if the paired device goes out of range of your phone or if it is powered off.
Send Items via Bluetooth
Depending on your paired phone's settings and capabilities, you may be able to send pictures, videos, Contacts information, or other items using a Bluetooth connection.
Note: Prior to using this feature, Bluetooth must first be enabled, and the recipient‘s phone must be visible. If no phones are detected, tap Search for devices to begin a new search.
Send Contact Information
1. Press > > Contacts .
2. Tap an entry to open its details page.
3. Tap > Share > Bluetooth .
4. Tap a paired phone.
The external Bluetooth phone must be visible and communicating for the pairing to be successful.
Send Pictures and/or Videos
1. Press > > Gallery .
2. Tap an album to open it and view its contents. (The pictures and videos in the album are displayed in chronological order.)
3. Tap , then checkmark pictures and/or videos to share.
4. Tap Share > Bluetooth .
5. Tap a paired phone.
The external Bluetooth phone must be visible and communicating for the pairing to be successful.
Disconnect Bluetooth Connection During an Active Call
You can manually disconnect or unpair from a Bluetooth phone through the Bluetooth settings menu.
■ During an active call, where the audio is being routed through a connected Bluetooth phone (headset or hands-free connection), tap Bluetooth to route the phone
‘s audio through the connected Bluetooth headset (On) or through the speaker (Off).
Tools and Calendar 119
When the call is routed to a Bluetooth headset, the Bluetooth button indicates it ‘s on, and the Bluetooth call icon is displayed in the Status Bar.
When Bluetooth is turned off, the call is routed through either the earpiece or speaker, the call area is surrounded by a green box, the Bluetooth button indicates it's off, and the Call icon is displayed in the Status Bar.
Note : Communication can be toggled between the Bluetooth headset and the phone earpiece or speaker by tapping the Bluetooth button On or Off.
microSD Card
A microSD ™ card (sold separately) is an optional accessory that allows you to store images, videos, music, documents, and voice data on your phone.
Insert a microSD Card
Remove the battery cover and battery to insert a compatible microSD card into your phone.
1. Insert your fingernail into the Charger/Accessory Port and lift the cover up gently.
Tools and Calendar 120
2. Carefully insert the microSD card into the slot. The label side should face up.
3. Re-install the back cover.
Remove a microSD Card
Before removing your phone ‘s microSD card, use the Storage settings menu to unmount the card.
1. Insert your fingernail into the Charger/Accessory Port and lift the cover up gently.
2. Gently pull the microSD card out from the slot.
3. Replace the back cover.
Note: You can easily damage the microSD card by improper operation. Please be careful when inserting, removing, or handling the microSD card.
Tools and Calendar 121
Note: Make sure your battery is fully charged before using the microSD card. Your data may become damaged or unusable if the battery runs out while using the microSD card.
View microSD Card Memory
The Storage settings menu gives you access to your microSD card memory information.
■ With the microSD card inserted, press > > System settings > Storage .
(The total and available memory space will be displayed.)
Format the microSD Card
Formatting a microSD card permanently removes all files stored on the card.
1. Press > > System settings > Storage .
2. Scroll down the screen, touch Erase SD card > Erase SD card .
3. Touch Erase everything to confirm the process.
Note: The formatting procedure erases all the data on the microSD card, after which the files
CANNOT be retrieved. To prevent the loss of important data, please check the contents before you format the card.
Unmount the microSD Card
When you need to remove the microSD card, you must unmount the microSD card first to prevent corrupting the data stored on it or damaging the microSD card. Since you will remove the battery first before you can remove the microSD card, close all running applications on your phone and save any data first.
1. Press > > System settings > Storage .
2. Touch Unmount SD card .
3. Remove the microSD card. See Remove a microSD Card .
Use the Phone ’s microSD Card as a USB Drive
To transfer music, pictures, and other files from your computer to your phone ‘s microSD card, you need to set the phone ‘s microSD card as a USB drive. For more details about transferring
content between your phone and a computer, see Transfer Via PC or Laptop .
1. Connect the phone to your computer using the supplied USB cable.
2. Select Media sync (MTP) on your phone.
3. On your computer, the connected phone is recognized as a removable disk. Navigate to this removable disk and open it.
4. Do one of the following:
Tools and Calendar 122
Copy files from the computer to the root folder on the phone ‘s storage card.
Copy files from the phone ‘s storage card to a folder on your computer or computer desktop.
5. After copying the files, unmount the removable disk (that is, the connected phone) as required by your computer‘s operating system to safely remove your phone, and do either of the following:
Disconnect the phone from the computer.
If you want to keep the phone connected to the computer but want the phone to be able to access and use the storage card, open the Notifications panel, touch USB connected > Charge phone .
Note: The phone will not recognize the microSD card when it is connected to a computer as a disk drive. You will not be able to use some of the phone ‘s applications such as the camera or
Music.
Transfer User Contents From an Android Phone to
Your LG Realm
If you want to transfer your user contents (i.e., pictures) from an Android phone to your LG
Realm, you can perform one of the following steps.
Transfer Via PC or Laptop
You can transfer user contents via a desktop or laptop using a USB cable.
1. Connect the Android phone to a computer using a USB cable. Then open the Android phone's Notifications Panel.
Tools and Calendar 123
2. Tap USB connected , then (depending on the phone) tap Charge phone , Media sync
(MTP) or Send images (PTP) .
3. On the computer, open My computer (or Windows Explorer ), click the removable drive associated with your phone, then transfer all of the files you want to the computer.
4. On the computer, safely stop/remove the USB Phone. For example, for Windows
®
XP, use the Safely Remove Hardware option.
5. On the Android phone, open the Notifications Panel, tap USB connected > Charge phone (or Turn off USB storage ) then disconnect the previous Android Phone from the computer.
6. Connect the LS620 to the computer using the supplied USB cable.
7. In the USB connection type menu on the LS620, tap Media sync (MTP) .
8. On the computer, organize the files in the folder, transfer the files into the LS620 folder, then safely stop/remove the USB Phone.
9. On the LS620, open the Notifications Panel, tap USB connected > Charge phone , then disconnect it from the computer.
Transfer Via Bluetooth Connection
You can transfer user contents between Bluetooth-enabled phones via Bluetooth connection.
For example, to transfer pictures and videos:
1. Press > > Gallery .
2. Tap , then Choose the file you want to send (or check Select all to send all files).
3. Tap Share and tap Bluetooth . The Bluetooth menu appears.
Tools and Calendar 124
4. Tap Search for devices at the bottom of the screen to find the phone you want to send the file to.
Then tap the phone and pair the devices to start the transfer.
- or -
If the phone that may receive your file was already paired, it would be on the list of
PAIRED DEVICES. Tap the phone to start the transfer.
Note : Any applications supporting Share , such as Music and ThinkFree Viewer , can send files via Bluetooth.
Update Your Phone
From time to time, updates may become available for your phone. You can download and apply updates through the System settings > System updates menu.
Update Your PRL
This option allows you to download and update the PRL (preferred roaming list) automatically.
1. Press > > System settings > System updates > Update PRL .
2. Follow the onscreen instructions.
Update Your Profile
This option allows you to automatically update your online user profile information. If you choose to change your user name and select a new one online, you must then update the user name on your phone.
1. Press > > System settings > System updates > Update profile .
2. Follow the onscreen instructions.
N ote : If your data services or account syncing ever seems to go out unexpectedly, use this feature to reconnect with the network.
Update Your Phone Firmware
You can update your phone's software using the Update Firmware option.
Before Updating Your Firmware
Updating your phone firmware will erase all user data from your phone. You must back up all critical information before updating your phone firmware.
Back Up All Data Prior to Update
To back up your data using LG Backup
Tools and Calendar 125
1. Press > > LG Backup > Backup .
2. Checkmark the items you want to back up and tap Next .
3. Select the location you want to save the backup file and tap Next .
Note : It is recommended that you save the backup file to an SD card. If you save it to the internal storage, a factory reset or software upgrade might delete the backup file from your device and you will lose all of your saved data.
4. Tap Start . All of your data will be backed up.
To restore a backup file:
1. Press > > LG Backup > File restore and management .
2. Tap the backup file you want to restore.
3. Checkmark the items you want to restore and tap Next .
4. Read the information on the screen and tap Start . Your device will restore the backed up data and reboot.
Warning : Boost is not responsible for the security or reliability of LG Backup for backing up your phone. Boost does not provide any guarantee for these services functionality or compatibility with future devices.
To back up your email accounts:
1. Press > > System settings > Accounts & sync .
2. Touch the Auto-sync data option to enable the feature (checkmark).
If the Auto-sync option is on, email, Calendar and Contacts automatically synchronize whenever a change is made.
If the Auto-sync option is off, touch the account to reveal the account‘s synchronization settings screen and then touch an account field to sync now.
To back up your Google apps:
Your Google app purchases are reloaded remotely and can be re-installed after the update is applied.
1. Press > > Play Store .
2. Touch > My apps > ALL tab.
Tools and Calendar 126
3. Scroll through the list of previously downloaded Google apps and choose those you wish to reinstall.
4. Follow the onscreen instructions.
Warning : Boost is not responsible for the security or reliability of the Google servers for backing up your phone. Boost does not provide any guarantee for these services functionality or compatibility with future devices.
As an added precaution, to preserve any data on your microSD card, please unmount it from your phone prior to starting the update process. Press
Storage > Unmount SD card .
> > System settings >
Update Your Phone Firmware
Once you have backed up all your data, use the Update Firmware option to update your phone firmware.
1. Press > > System settings > System updates .
2. Touch Update Firmware . (Your phone automatically downloads and installs any available updates. You may be required to power your phone off and back on to complete the software upgrade.)
Confirm Your Current Phone Firmware
1. Press > > System settings > About phone .
2. Touch Software information .
Update Your LG Software
This option allows you to update the Android Operating System (OS) on your phone via an overthe-air connection.
1. Press > > System settings > System updates > Update LG software .
2. Follow the onscreen instructions.
Tools and Calendar 127
Settings
The following topics provide an overview of items you can change using your phone‘s Settings menus.
Wireless Networks
This group of settings lets you control your phone's Wi-Fi settings, Bluetooth, Tethering, VPN,
Mobile networks, and more.
Airplane Mode
Airplane Mode (flight mode) allows you to use many of your phone‗s features, such as games, and music when you are in an airplane or in any other area where making or receiving calls or data is prohibited. When you set your phone to Airplane Mode, it cannot send or receive any calls or access online data.
Activate Airplane Mode
1. Press and hold the Power/Lock Button
2. Tap Turn on Airplane mode .
to display the phone options.
–
or –
1. Press > > System settings .
2. Tap the Airplane mode switch to turn the function on. While in Airplane Mode, your phone‗s Status Bar will display .
Deactivate Airplane Mode
1. Press and hold the Power/Lock Button
2. Tap Turn off Airplane mode .
–
or –
to reveal the phone options.
1. Press > > System settings .
2. Tap the Airplane mode switch to turn the function off.
Settings 128
Wi-Fi Settings
Your phone lets you take advantage of Wi-Fi hotspots for high-speed data access using available computer networks. For details on your phone‘s Wi-Fi features and settings, see
Bluetooth Settings
Your phone‗s Bluetooth capabilities let you use wireless headsets, send and receive pictures
and files, and more. For details on your phone‘s Bluetooth settings, see Bluetooth Settings
Mobile Data
You can check the current data usage, set to enable/disable mobile data, or set the mobile data limit.
Turn Mobile Data On or Off
1. Press > > System settings > Mobile data .
2. Tap the Mobile data switch to turn it on or off.
Call Settings
Your phone's Call settings menu lets you configure International call options and TTY mode.
Voicemail Settings
You can configure your voicemail settings. For details on Voicemail settings, see Configure
North American Dialing
Replace + code as needed for outgoing calls.
1. Press > > System settings > Call .
2. Tap the North American dialing checkbox to enable/disable the feature.
International Dialing
Set international dialing code for outgoing calls. The North American dialing option must be disabled.
1. Press > > System settings > Call > International dialing .
2. Enter the international dialing code and tap OK .
Incoming Voice Call Pop-up
Activate to display the incoming call pop-up when using an application.
Settings 129
1. Press > > System settings > Call .
2. Tap the Incoming voice call pop-up checkbox to enable/disable the feature.
Call Reject
You can set call rejection and manage the reject list.
1. Press > > System settings > Call > Call reject .
2. Tap Call reject mode and set an option.
3. Tap Reject calls from to set up the rejection list.
Decline with Message
You can send out a simple text message when you want to ignore an incoming call and respond to the caller with a text instead. You can add or edit quick messages.
1. Press > > System settings > Call > Decline with message .
2. Tap a quick message to edit it.
–
or –
Tap to add a new quick message.
3. Enter a message and tap Save .
Privacy Keeper
You can set whether the phone to display the caller's information or not when you receive a call.
1. Press > > System settings > Call > Privacy keeper .
2. Tap Hide all info , Show number only , or Show caller info .
Home Button Answers Call
Allows you to answer incoming calls by pressing the Home Button.
1. Press > > System settings > Call .
2. Tap the Home button answers call checkbox to enable/disable the feature.
Auto Answer
Activate to set auto answer with handsfree.
1. Press > > System settings > Call > Auto answer .
Settings 130
2. Tap Disable , 1 sec , 3 sec , or 5 sec .
TTY Mode
A TTY (also known as a TDD or Text Telephone) is a telecommunications phone that allows people who are deaf, hard of hearing, or who have speech or language disabilities, to communicate by telephone. Your phone is compatible with select TTY phones. Please check with the manufacturer of your TTY phone to ensure that it is compatible with digital cell phones.
Your phone and TTY phone will connect via a special cable that plugs into your phone's headset jack. If this cable was not provided with your TTY phone, contact your TTY phone manufacturer to purchase the connector cable.
Turn TTY Mode On or Off
1. Press > > System settings > Call > TTY mode .
2. Tap TTY Off to turn TTY mode off or tap TTY Full , TTY HCO or TTY VCO to set a TTY mode.
To access the state Telecommunications Relay Service (TRS) for assistance with TTY calls:
■ Dial to reach an operator.
Note : In TTY Mode, your phone will display the TTY access icon. When enabled, TTY mode may impair the audio quality of non-TTY phones connected to the headset jack.
WARNING : 9-1-1 Emergency Calling recommends that TTY users make emergency calls by other means, including Telecommunications Relay Services (TRS), analog cellular, and landline communications. Wireless TTY calls to 9-1-1 may be corrupted when received by public safety answering points (PSAPs), rendering some communications unintelligible. The problem encountered appears related to software used by PSAPs. This matter has been brought to the attention of the FCC, and the wireless industry and the PSAP community are currently working to resolve this.
Hearing Aids
Activate to turn on hearing aid compatibility.
1. Press > > System settings > Call .
2. Tap the Hearing aids checkbox to enable/disable the feature.
Proximity Sensor
You can access the proximity sensor through the Call Settings menu.
When receiving and making calls, this sensor automatically turns the backlight off and locks the touch keypad by sensing when the phone is near your ear. This extends battery life and prevents the touch keypad from activating unintentionally during calls.
Settings 131
To enable the Proximity Sensor:
1. Press > > System settings > Call .
2. Tap the Proximity Sensor checkbox to enable it. (A blue checkmark will appear.)
Voice Clarity
You can set the phone to enhance voice sound quality in noisy environments while using a hands-free call.
To set Voice clarity:
1. Press > > System settings > Call .
2. Tap the Voice clarity checkbox to turn it on. (A blue checkmark will appear.)
Save Unknown Numbers
You can set the phone to save the phone numbers not saved in Contacts yet.
To save unknown numbers:
1. Press > > System settings > Call .
2. Tap the Save unknown numbers checkbox to turn it on. (A blue checkmark will appear.)
Power Button Ends Call
You can set the phone to end calls with Power/Lock Button call screen.
To set to end calls with Power button:
, in addition to on the
1. Press > > System settings > Call .
2. Tap Power button ends call to enable it. (A blue checkmark will appear.)
More Settings
You can change more settings in the Wireless Networks category.
Wi-Fi Hotspot
You can share your phone's data connection with up to five devices at once, by turning your phone into a portable Wi-Fi hotspot. This service is available for a daily rate. Visit boostmobile.com
for more details.
To share your phone's data connection as a portable Wi-Fi hotspot:
1. Press > > System settings > More...
> Wi-Fi hotspot .
Settings 132
2. Tap the Wi-Fi hotspot switch to activate it. After a moment, the phone starts broadcasting its Wi-Fi network name (SSID), so you can connect it with up to eight (8) computers or other phones
3. To change the network name (SSID) or secure its Wi-Fi network, tap Set up Wi-Fi hotspot .
4. In the dialog box, configure the options.
Tap the Network SSID field and enter a new network SSID (name) that other computers see when scanning for Wi-Fi networks.
To secure the Wi-Fi network, tap the Security menu and select WPAP2 PSK (Wi-Fi
Protected Access 2 with a Preshared Key). When a password field is added to the dialog box, enter a password. You will need to enter this password when you connect the phone's hotspot with a computer or other phone.
Tap the SSID Visibility field to decide if you want your hotspot to be displayed to other devices.
To limit the number of phones to share your phone's data connection, tap Max users and select the number of the phones to limit.
5. Tap Save .
Bluetooth Tethering
This feature allows you to connect other devices to your phone via Bluetooth and share its internet connection.
Turn on Bluetooth Tethering
1. Press > > System settings > More...
.
2. Tap the Bluetooth tethering switch
Help
to activate.
Displays help information for Wi-Fi hotspot and Bluetooth tethering.
Mobile Networks Settings
You can set whether to enable or disable data access on your phone.
Data Enabled
1. Press > > System settings > More...
> Mobile networks .
2. Tap the Data enabled checkbox to enable/disable the feature.
Settings 133
Connections Optimizer
Your phone can be set to automatically connect you to WiFi networks on your device‗s remembered list and, if applicable, to the network.
1. Press > > System settings > More...
.
2. Tap Mobile networks > Connections Optimizer .
3. Read the message and tap I agree .
Default Message App
This menu allows you to choose which app you want to use as your default messaging app.
1. Press > > System settings > More...
.
2. Tap Default message app and select the app you would like to use.
VPN Settings
From your phone, you can add, set up, and manage virtual private networks (VPNs) that allow you to connect and access resources inside a secured local network, such as your corporate
network. For details on your phone's VPN settings, see Virtual Private Networks (VPN) .
Device Settings
This group of settings lets you configure your phone's sound, display, gestures, power saver, apps, and more.
Sound Settings
In the Sound settings menu, you can configure call and notification ringtones, audio volumes, as well as some related settings.
Sound Profile
1. Press > > System settings .
2. From the DEVICE section, tap Sound > Sound profile .
3. Tap one of the three options.
To switch to silent mode:
1. Press > > System settings .
2. From the DEVICE section, tap Sound > Sound profile .
3. Tap Silent .
Settings 134
–
or –
Press the Volume Down Button until you see on the screen.
Volumes
Adjust your phone's volume settings to suit your needs and your environment.
1. Press > > System settings .
2. From the DEVICE section, tap Sound > Volumes .
3. Adjust each volume level.
Ringtone : Changes the volume of your call ringtones (if applicable).
Notifications : Allows you to set this volume level. This is the volume of the ringtone when you receive a notification.
Touch feedback & system : Changes the volume for feedback taps and system notifications.
Music, video, games & other media : Changes the volume of your music, videos and other media.
4. Tap OK .
Tip : You can adjust the ringer volume on the Home screen or Applications screen, or almost any screen by using the Volume Buttons. In other applications such as Music, YouTube, spoken directions, and other audio, the Volume Buttons control the volume of the application.
Quiet Mode
You can set the days and times to automatically turn off all sounds except alarms and media.
1. Press > > System settings .
2. From the DEVICE section, tap Sound > Quiet mode .
3. Tap the Set quiet time switch to activate the feature.
4. Set the time, days, vibrate option, and incoming call settings.
5. Set any additional options as desired, then tap the Turn Quiet mode on now switch
.
Ringtone & Vibration Settings
You can select and assign ringtones and notifications for your incoming calls.
Settings 135
Phone Ringtone
The phone ringtones alert you of incoming calls.
To select a ringtone for voice calls:
1. Press > > System settings .
2. From the DEVICE section, tap Sound > Phone ringtone .
3. Tap a ringtone to select it and to hear it. If you want to set the ringtone, tap OK . If not, select another ringtone or tap Cancel .
To use a song as a ringtone:
You can use a song as your phone ringtone, in place of one of the ringtones that come with the phone.
1. Press > > System settings .
2. From the DEVICE section, tap Sound > Phone ringtone .
3. Tap and tap a song.
Ringtone with Vibration
To set the phone to vibrate accompanying the ringtone.
1. Press > > System settings .
2. From the DEVICE section, tap Sound .
3. Tap the Ringtone with vibration checkbox to turn on the feature. (A blue checkmark will appear.)
Vibrate Type
To set a vibrate type for incoming calls, messages receipt, Email receipt, alarm, and calendar event.
1. Press > > System settings .
2. From the DEVICE section, tap Sound > Vibrate type .
Note : Vibrate type can only be selected when Vibrate only is selected as the sound profile or
Ringtone with vibration option is checked in the Sound screen.
3. Tap each vibrate type to select it.
4. Tap OK .
Settings 136
Voice Notifications
To read out the incoming call and the message event automatically.
1. Press > > System settings > Sound .
2. From the DEVICE section, tap Sound > Voice notifications .
3. Tap to turn the feature on and set the desired options.
Notification Sound
When you receive a notification such as the arrival of new messages, calendar events, or alarms, the phone sounds a ringtone.
1. Press > > System settings > Sound .
2. From the DEVICE section, tap Sound > Notification sound .
3. Tap a sound to select it and to hear it. If you want to set the sound, tap OK . If not, select another sound or tap Cancel .
Touch Feedback & System
The Touch Feedback & System menu lets you select whether you hear tones when touching numbers on the dialpad, selecting on-screen options, and more.
To hear tones when you use the dialpad to dial a number:
1. Press > > System settings .
2. From the DEVICE section, tap Sound > Touch feedback & system .
3. Tap the Dial pad touch tones checkbox. (A blue checkmark will appear.)
To hear sound when you tap buttons, icons, and other on-screen items:
1. Press > > System settings .
2. From the DEVICE section, tap Sound > Touch feedback & system .
3. Tap the Touch sounds checkbox. (A blue checkmark will appear.)
To hear sound when the screen is locked or unlocked:
1. Press > > System settings .
2. From the DEVICE section, tap Sound > Touch feedback & system .
3. Tap the Screen lock sound checkbox. (A blue checkmark will appear.)
Settings 137
To set behavior when an emergency call is placed.
1. Press > > System settings .
2. From the DEVICE section, tap Sound > Touch feedback & system > Emergency tone .
3. Tap the desired option.
To set your phone to vibrate when touching buttons and keys:
1. Press > > System settings .
2. From the DEVICE section, tap Sound > Touch feedback & system .
3. Tap the Vibrate on touch checkbox. (A blue checkmark will appear.)
Display Settings
Adjusting your phone's display settings not only helps you see what you want, it can also help increase battery life.
Brightness
Adjust your screen‗s contrast (brightness) to suit your surroundings.
1. Press > > System settings .
2. From the DEVICE section, tap Display > Brightness .
3. Use the slider to set a brightness level.
Note : For the best battery performance, use the dimmer levels. You can also set Night brightness to adjust the brightness level to 0% automatically between 12:00 AM ~ 6:00 AM.
4. Tap OK .
Screen Timeout
Select how long the display screen remains backlit after you touch the screen or press a key before the screen darkens.
1. Press > > System settings .
2. From the DEVICE section, tap Display > Screen timeout .
3. Tap 15 sec , 30 sec, 1 min, 2 min, 5 min, 10 min, 15 min , or Keep screen turned on .
Note : Long backlight settings reduce the battery‗s talk and standby times. For the best battery performance, use the shortest convenient timeout.
Settings 138
Screen-off Effect
Select the screen-off effect when locking and turning off the screen.
1. Press > > System settings .
2. From the DEVICE section, tap Display > Screen-off effect .
3. Tap the desired option.
4. Tap OK .
Note : To preview the screen-off effect, tap Preview .
Auto-Rotate Screen
Choose whether the phone automatically switches the orientation of the screen as you turn it sideways or even upside down.
1. Press > > System settings .
2. From the DEVICE section, tap Display .
3. Tap the Auto-rotate screen checkbox to automatically rotate the screen (a blue checkmark will appear).
–
or –
To disable the auto-rotate feature, tap the Auto-rotate screen checkbox again so that the checkmark is removed.
Note : Some applications on your phone do not support the Auto-rotate feature.
Daydream
Screensaver will be on when the phone is sleeping while docked and/or charging.
1. Press > > System settings .
2. From the DEVICE section, tap Display > Daydream .
3. To activate daydream feature, tap the Daydream switch
4. Tap the items you want to set up.
Font Type
Choose the desired font type for device menus.
1. Press > > System settings .
.
Settings 139
2. From the DEVICE section, tap Display > Font type .
3. Tap a desired font type.
Font Size
Choose the desired font size for device menus.
1. Press > > System settings .
2. From the DEVICE section, tap Display > Font size .
3. Tap a desired font size.
Home Button LED
Configures the notification LED options.
1. Press > > System settings .
2. From the DEVICE section, tap Display > Home button LED .
3. To activate LED light for notification, tap the Home button LED switch
4. Tap each item to receive notification with LED light flash.
Home Screen
Configure your phone's home screen settings.
Select Home
Allows you to select the default Home screen launcher.
.
1. Press > > System settings .
2. From the DEVICE section, tap Home screen > Select Home .
3. Tap the desired option. The Home option is for those users that are familiar with Android.
EasyHome is for users that are less familiar with Android and prefer easier navigation.
Wallpaper
Choose the desired wallpaper.
1. Press > > System settings .
2. From the DEVICE section, tap Home screen > Wallpaper .
3. Choose a location and select the desired wallpaper.
Settings 140
4. Tap Set wallpaper or Apply to set it as the wallpaper.
Screen Swipe Effect
Choose the desired type of effect to display when you swipe from one Home screen canvas to the next.
1. Press > > System settings .
2. From the DEVICE section, tap Home screen > Screen swipe effect .
3. Tap the desired effect and then tap OK .
Allow Home Screen Looping
Displays the first screen after the last screen when scrolling.
1. Press > > System settings .
2. From the DEVICE section, tap Home screen .
3. Tap the Allow Home screen looping checkbox. (A blue checkmark will appear.)
Portrait View Only
Allows the wallpaper to scroll with the screen instead of having it as a static image.
1. Press > > System settings .
2. From the DEVICE section, tap Home screen .
3. Tap the Portrait view only checkbox. (A blue checkmark will appear.)
Home Backup & Restore
You can backup and restore app/widget configurations and the theme.
1. Press > > System settings .
2. From the DEVICE section, tap Home screen .
3. Tap Home backup & restore > Backup or Restore .
Help
Allows you to view help tips for the Home screen.
Lock Screen
Lock screen menu lets you configure screen lock options and when to be locked.
Settings 141
Select Screen Lock
You can increase your phone‘s security by using a Knock Code, face unlock, creating a screen unlock pattern, creating a PIN, or choosing a password. When these features are enabled, you must show your face, draw the correct unlock pattern, enter the PIN, or enter the password on the screen to unlock and regain access to the phone.
1. Press > > System settings .
2. From the DEVICE section, tap Lock screen > Select screen lock .
3. Select the desired screen lock option from the following options.
None : No lock screen.
Swipe : Swipe any part of the screen to unlock the screen.
Knock Code: You can unlock the screen when screen is off by tapping the correct area and sequence.
This opens a screen that will guide you through how to select the unlock sequence. You have to create a Backup PIN as a safety measure in case you forget your unlock sequence.
Tip : KnockON is disabled when Knock Code is in use.
Face Unlock : Unlocks the screen through facial recognition. Follow the prompts.
You are asked to set a Pattern and/or PIN as a backup.
Pattern : Opens a set of screens that guide you through drawing a screen unlock pattern. It's recommended that you enter backup PIN as well in case that you might lost the pattern. Then, you can set vibrate on touch or whether to make the pattern visible.
PIN : Enter a numeric PIN to unlock screen.
Password : Enter a password to unlock screen.
From then on, any time you wish to turn the phone on or unlock the screen, you must draw your unlock pattern or enter the PIN or password to unlock the screen.
If you have set up Unlock PIN or Unlock Password, enter the Unlock PIN or Unlock
Password. After entering it, tap OK . The last screen you were working on opens.
Note : You have five opportunities to enter your unlock Pattern, PIN or Password. If you've entered the wrong information five times, you must wait 30 seconds before you can attempt again.
If you‘ve set up a Google Account on the phone, tap the Forgot pattern?
button.
You will be able to unlock the phone with your Google Account username and password or entering you Backup PIN.
Settings 142
If you haven ‘t created a Google Account on the phone, you must perform a factory reset.
CAUTION!
If you perform a factory reset, all user applications and user data will be deleted.
Please remember to back up any important data before performing a factory reset.
When you can ‘t recall your unlock Pattern, PIN or Password:
1. Turn the phone off.
2. Press and hold the following keys at the same time: Volume Up Button
Power/Lock Key on the side of the phone.
+
3. Release the Power/Lock Key only when the LG logo is displayed, then immediately press and hold the Power/ Lock Key again.
4. Release all keys when the Factory hard reset screen is displayed.
5. Press the
Key
Volume Buttons
to continue.
to highlight Yes , then press the Power/Lock
6. Press the Volume Buttons
Power/Lock Key to confirm.
7. Your phone will perform a factory reset.
to highlight Yes once more, then press the
Screen Swipe Effect
Choose the desired screen effect when you swipe the screen to unlock the phone.
1. Press > > System settings .
2. From the DEVICE section, tap Lock screen > Screen swipe effect .
3. Select Dewdrop or White hole .
Wallpaper
Select the wallpaper to display for your lock screen.
1. Press > > System settings .
2. From the DEVICE section, tap Lock screen > Wallpaper .
3. Select Gallery or Wallpaper gallery .
4. Select the desired wallpaper and tap Yes or Set wallpaper .
Shortcuts
Customize clocks and shortcuts on the lock screen.
Settings 143
1. Press > > System settings .
2. From the DEVICE section, tap Lock screen > Shortcuts .
3. Tap each shortcut key to select the desired shortcut key.
4. After personalizing, tap Save .
Contact Info for Lost Phone
Select whether to display the owner information on the lock screen and customize the owner information.
1. Press > > System settings .
2. From the DEVICE section, tap Lock screen .
3. Tap the Contact info for lost phone checkbox to show owner information on the lock screen. (A blue checkmark will appear.)
4. Tap to enter the owner information and tap Save .
Lock Timer
Choose the amount of time before the screen automatically locks after the screen has timed-out.
1. Press > > System settings .
2. From the DEVICE section, tap Lock screen > Lock timer .
3. Tap the desired time.
Power Button Instantly Locks
Allows you to instantly lock the screen when you press the Power/Lock Button .
1. Press > > System settings .
2. From the DEVICE section, tap Lock screen .
3. Tap the Power button instantly locks checkbox to turn on the feature. (A blue checkmark will appear.)
Gestures
You can configure various gestures options.
Screen On/Off
You can set the phone to turn the screen on by quickly double-tapping the phone.
Settings 144
1. Press > > System settings .
2. From the DEVICE section, tap Gestures .
3. Tap the Screen on/off checkbox to set this feature on. (A blue checkmark will appear.)
Silence Incoming Calls
You can set the phone to silence incoming calls by just flipping the phone.
1. Press > > System settings .
2. From the DEVICE section, tap Gestures .
3. Tap the Silence incoming calls checkbox to set this feature on. (A blue checkmark will appear.)
Snooze or Stop Alarm
You can set the phone to snooze or stop the alarm by just flipping the phone.
1. Press > > System settings .
2. From the DEVICE section, tap Gestures .
3. Tap the Snooze or stop alarm checkbox to set this feature on. (A blue checkmark will appear.)
Pause Video
You can set the phone to pause the video by just flipping the phone.
1. Press > > System settings .
2. From the DEVICE section, tap Gestures .
3. Tap the Pause video checkbox to set this feature on. (A blue checkmark will appear.)
Settings 145
Help
Allows you to view help information for the available gestures.
Motion Sensor Calibration
Improves the accuracy of the tilt and speed of the sensor.
1. Press > > System settings .
2. From the DEVICE section, tap Gestures .
3. Tap Motion sensor calibration .
4. Place the phone on a flat surface and tap Calibrate sensor .
Storage
The Storage menu lets you monitor the used and available space on the system memory.
1. Press > > System settings .
2. From the DEVICE section, tap Storage .
Battery
The Battery menu lets you view any battery information and configure options.
1. Press > > System settings .
2. From the DEVICE section, tap Battery .
3. Tap Battery percentage on status bar to display the battery percentage indicator on the Status Bar.
4. Tap Battery saver to set the Battery saver feature on or off and select which functions are changed when the feature is activated.
5. Tap Help to view tips about the Battery saver feature.
Apps
This menu lets you view details about the applications installed on your phone, manage their data, force them to stop, and set whether you want to permit installation of applications that you obtain from websites and email.
To view details about the applications:
1. Press > > System settings > Apps .
2. Tap the DOWNLOADED , RUNNING , or ALL tab to view your apps.
Settings 146
3. Tap the desired app to view its information.
To force applications to stop:
1. Press > > System settings > Apps .
2. Tap the RUNNING tab.
3. Find the application to force stop and tap the application.
4. Tap Stop .
5. Read the disclaimer and tap OK .
To uninstall a downloaded application:
1. Press > > System settings > Apps .
2. Tap the DOWNLOADED tab.
3. Find the application you want to uninstall and tap it.
4. Tap Uninstall .
5. Read the disclaimer and tap OK .
Personal Settings
This group of settings lets you configure accounts & sync, guest mode, location, security, language & input and backup & reset settings.
Accounts & Sync
Use the Accounts & sync settings menu to add, remove, and manage your Google
TM
and other supported accounts. You also use these settings to control how and whether all applications send, receive, and sync data on their own schedules and whether all applications can synchronize user data automatically. Gmail
TM
, Calendar, and other applications may also have their own settings to control how they synchronize data; see the sections on those applications for details. Tap Add account to add new account.
1. Press > > System settings .
2. From the PERSONAL section, tap Accounts & sync .
3. Tap Add account to add an account for any of the available apps and services.
Note : Tap Auto-sync data to automatically sync your account data.
Settings 147
Guest Mode
Use Guest mode when showing your phone to others. Only pre-selected apps will appear on a separate Home screen. You can enter Guest mode by drawing the mode pattern on the Lock screen.
Note : To use Guest mode, set the Lock screen to pattern lock. Guest can also use apps not pre-selected but linked to pre-selected apps.
Use Guest Mode
1. Press > > System settings > Guest mode .
2. To activate Guest mode, tap the Guest mode switch
3. If not set, draw the pattern to use for Guest Mode.
Set the Guest Mode Pattern
.
1. Press > > System settings > Guest mode .
2. Tap Set pattern to set the drawing pattern to unlock for Guest mode.
Set the Apps Available for Guests
1. Press > > System settings > Guest mode .
2. Tap Set apps to select apps to be viewed in Guest mode.
Help
Displays help and use information for the Guest Mode feature.
Location
Use the Location menu to set your preferences for using and sharing your location when you search for information and use location-based applications, such as Maps.
Access to My Location
You can use information from Wi-Fi and mobile networks to determine your approximate location, used while searching in Google Maps and other applications. When you checkmark this option, you‗re asked whether you consent to sharing your location anonymously with
Google‗s location service.
■ Press > > System settings > Location .
Mode – Set the location mode from High accuracy (GPS and networks) , Battery saving (Networks only) , and Device sensors only (GPS only) .
Settings 148
Security
Use the Security settings to configure how to help secure your phone and its data.
Encrypt Phone
Opens a screen that encrypts data on the phone for security. You will be required to enter a PIN or password to decrypt your phone each time you power it on.
Encrypt SD Card Storage
Allows you to encrypt SD card storage and keep data unavailable for other devices.
Password Typing Visible
Checkmark to briefly show each character of passwords as you enter them so that you can see what you enter.
Phone Administrators
Add or remove phone administrators.
Unknown Sources
Allow installation of non-Play Store applications.
Verify Apps
Disallow or warn before installation of apps that may cause harm.
Storage Type
Allows you to see the storage type for credential storage.
Trusted Credentials
Checkmark to allow applications to access your phone‗s encrypted store of secure certificates and related passwords and other credentials. You use credential storage to establish some kinds of VPN and Wi-Fi connections. If you have not set a password for the secure credential storage, this setting is dimmed.
Install from Storage
Touch to install a secure certificate from storage.
Clear Credentials
Deletes all secure certificates and related credentials and erases the secure storage's own password, after prompting you to confirm that you want to do this.
Settings 149
Language & Input Settings
Your phone's Language & input settings let you select a language for the devices screens and menus, as well as manage a personal user dictionary. The keyboard settings let you select a preferred input method, control keyboard settings, and more.
Language
You can choose to display your device's on-screen menus in multiple languages.
1. Press > > System settings > Language & input > Language .
2. Select a language from the list.
Spelling Correction
Allows spelling correction when using the on-screen keyboard.
Personal Dictionary
Allows you to view, edit, and add words to your personal dictionary.
Keyboard & Input Methods
Shows the default keyboard type. Checkmark the keyboard you want to use from Google
Keyboard , Google voice typing , LG Keyboard or Swype . Tap to configure each keyboard‗s settings.
Voice Search
Tap to configure the Voice Search settings.
Text-to-Speech Output
Tap to set the preferred engine or general settings for text-to-speech output.
Pointer Speed
Adjust the pointer speed. (e.g., mouse, trackpad)
Backup & Reset
The privacy settings on your device allow you to back-up your data, automatically restore data, and erase all the data on your phone.
Back up My Data
You can back up app data, Wi-Fi passwords, and other settings to Google servers.
1. Press > > System settings > Backup & reset .
Settings 150
2. Check if the Backup account is correct.
3. Tap the Back up my data checkbox. (A blue checkmark will appear.)
4. To set to automatically restore the backups, tap the Automatic restore checkbox. (A blue checkmark will appear.)
Backup Account
Allows you to choose an account to use to back up data.
1. Press > > System settings > Backup & reset .
2. Set the Backup account .
Automatic Restore
When reinstalling an app, enabling this option restores backed up settings and data.
1. Press > > System settings > Backup & reset .
2. Tap the Automatic restore checkbox. (A blue checkmark will appear.)
LG Backup Service
Backs up all information on the device and restores it in the event of data loss or replacement.
Note : Tap > Help to learn more about the LG Backup service.
Factory Data Reset
Resetting the phone restores all the factory defaults, including personal data from internal phone storage, information about your Google Account, any other accounts, your system and application settings, and any downloaded applications. Resetting the phone does not erase any system software updates you‘ve downloaded or any files you have saved, such as music, pictures, or applications. After resetting the phone, the next time you turn on the phone, you‘re prompted to reenter the same kind of information as when you first started the phone. See
1. Press > > System settings > Backup & reset .
2. If you are certain that you would like to restore all factory settings, tap Factory data reset .
3. Tap Reset phone .
4. Enter your unlock sequence if you have configured one, then tap Erase everything and
OK to confirm.
Settings 151
System Settings
This group of settings lets you configure date & time, accessibility and PC connection. You can activate the phone, update the phone, or view the phone information.
Date & Time
Set your preferences for how the date and time is displayed.
■ Press > > System settings > Date & time .
Accessibility
Use the Accessibility settings to configure any accessibility plug-ins you have installed on your phone.
Note : Requires additional plug-ins to become selectable.
Vision
Allows you to configure the following visual options.
1. Press > > Systems settings > Accessibility .
2. Set the following options as you want.
TalkBack : TalkBack assists people with impaired vision by providing verbal feedback. Tap the TalkBack switch to turn it on.
Large text : Checkmark to increase the size of the text.
Touch zoom : Zoom in or out by triple tapping the screen.
Screen shades : Set to 0% brightness of device for saving power and low vision.
Text-to-speech output : Text-to-speech output provides audible readout of text, for example, the contents of text messages, and the Caller ID for incoming calls.
Hearing
Allows you to configure the following hearing options.
1. Press > > Systems settings > Accessibility .
2. Set the following options as you want.
Audio type : Allows you to change the sound to Stereo or Mono .
Sound balance : To manually adjust the sound direction.
Captions : Customize caption settings for those with hearing impairments.
Settings 152
Physical and Motor
Allows you to configure the following physical and motor options.
1. Press > > Systems settings > Accessibility .
2. Set the following options as you want.
Touch feedback time : Allows you to set the touch and hold delay (short, medium, or long).
Universal touch : Provide a touch board with easy use for general buttons or gestures to access in short. Tap the Universal touch icon to be able to tap its
Power button, Home key, Volume down button, Volume up button, and Pinch button. Draw a "C" on the board to automatically display the Dial tab. Draw an "M" on the board to automatically display the Messaging application. Draw a "W" on the board to automatically launch the browser application.
System
Allows you to configure the following system options.
1. Press > > Systems settings > Accessibility .
2. Set the following options as you want.
Persistent notification : Tap the Persistent notification switch sound repeatedly when there are unread notifications for certain apps.
to alert
Auto-rotate screen : Checkmark to allow the device to rotate the screen depending on the device orientation (portrait or landscape).
Read passwords : Checkmark so that the device reads out passwords as you enter them.
Power key ends call : Checkmark so that you can end voice calls by pressing the
Power/Lock Key When this option is enabled, pressing the Power/Lock
Button during a call does not lock the screen.
Accessibility settings shortcut : Sets quick, easy access to selected features when you triple-tap the Home Key . Choose Off , Show all , TalkBack , Universal touch , or Accessibility settings .
Services
Allows you to configure the service options.
Settings 153
PC Connection
Your phone's PC connection menu lets you configure your USB connection settings.
Select USB Connection Method
Opens a dialog box to choose the default connection mode when connecting your phone to a
PC via USB. Choose from Charge phone , Media sync (MTP) , or Send images (PTP) .
Note : For Windows
®
XP, the MTP driver is not installed by default. If Windows Media
Player(WMP) over version 10.x is installed on the PC, the MTP driver may be installed. For
Windows
®
7 except for N edition, the driver is installed.
Ask Upon Connecting
Checkmark to have the phone ask you to choose which USB connection mode it should connect with to a PC.
Help
Displays help information about the available USB connection methods.
Accessory
Keep in mind that turning on these accessory settings may result in irregular device behavior.
QuickWindow Case
Checkmark to activate the QuickWindow case to use functions available on the small view window.
Earphone Plug & Pop
Activate to display the app panel automatically when earphone is connected to the phone. Tap the checkbox next to the apps you want to make available and tap to activate the feature.
Activate This Device
Follow the onscreen instructions to activate your phone.
1. Press > > System settings > Activate this device .
2. Follow the on-screen instructions.
System Updates
From time to time, updates may become available for your phone. You can download and apply updates through the Settings menu.
Settings 154
Update PRL
This option allows you to download and update the PRL (Preferred Roaming List) automatically.
1. Press > > System settings > System updates > Update PRL .
2. Follow the on-screen instructions.
Update Profile
This option allows you to automatically update your online user profile information. If you choose to change your user name and select a new one online, you must then update the user name on your phone.
1. Press > > System settings > System updates > Update profile .
2. Follow the on-screen instructions.
Update Firmware
This option allows you to download and update the Firmware for your device.
1. Press > > System settings > System updates > Update Firmware .
2. Follow the on-screen instructions.
Update LG Software
This option allows you to download and update the LG software.
1. Press > > System settings > System updates > Update LG software .
2. Follow the on-screen instructions.
Printing
This menu allows you to manage your Google Cloud Print settings and print jobs.
About Phone
Display information about the network, phone identity, battery, hardware, software, legal, and regulations and safety.
1. Press > > System settings > About phone .
2. Tap the desired menu.
Settings 155
Copyright Information
© 2014 Boost Worldwide, Inc. Boost, the Logo, Re-Boost and Boost Mobile are trademarks of
Boost Worldwide, Inc. Other marks are property of their respective owners.
All materials in this guide including, without limitation, the design, the text, and any marks are the property of LG Electronics, Inc. Copyright © 2014 LG Electronics, Inc. ALL RIGHTS
RESERVED. LG and the LG logo are registered trademarks of LG Electronics, Inc. LG Realm is a trademark of LG Electronics, Inc. The Bluetooth
®
word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. microSD™ is a trademark of SanDisk. Other trademarks and trade names are those of their respective owners. Unless otherwise specified herein, all accessories referenced herein are sold separately. All features, functionality, and other product specifications are subject to change. Screen shots are simulated and subject to change.
Copyright Information 156
Access Recently-Used Applications, 21
Add an Email Account (POP3 or IMAP), 57
Add and Remove Widgets on the Home
Add Bookmarks to Your Home Screen, 87
Call a Number in a Text Message or Email
Index
Call Using a Speed Dial Number, 29
Call Using the Phone Dialer, 28
Change the Phone's Wallpaper, 19
Change the Screen Orientation, 22
Change Your Main Greeting via the
Communicate with Your Contacts, 50
Configure and Sync Corporate Email
Configure Visual Voicemail Settings, 35
Connect to or Disconnect from a VPN, 81
Create a Google Wallet Account, 74
Create Your Account and Pick Your Plan, 4
Customize Applications Icons on the Home
Customize Your Home Screen, 17
Index 157
Data Services General Information, 79
Disconnect Bluetooth Connection During an
Display and Synchronize Calendars, 108
Edit the Display Name via the Voicemail
Enter Text With the On-screen Keyboard,
Export Contacts to Your Internal Storage,
Import Contacts From Your Internal Storage,
Import, Export, and Share Contacts, 52
Join and Separate Contacts, 53
Language & Input Settings, 150
Learn to Navigate the Browser, 82
Listen to Multiple Voicemail Messages, 34
Lock and Unlock Your Phone, 14
Manage Message Conversations, 66
Pairing Bluetooth Devices, 118
Prepare Your Phone for VPN Connection,
Read and Reply to Gmail Messages, 56
Index 158
Reply to or Delete an Email Message, 60
Request a Refund for a Paid App, 74
Reset the Browser to Default, 85
Respond to an Event Reminder, 108
Retrieve Your Voicemail Messages, 32
Ringtone & Vibration Settings, 135
Save and Resume a Draft Message, 65
Send a Multimedia Message (MMS), 64
Send a Picture or Video by Multimedia
Send Pictures or Videos by Email, 98
Send Pictures or Videos Using Bluetooth,
Set Up Secure Credential Storage, 80
Sign In to Your Google Account, 55
Social Networking Accounts, 70
Index
Text and Multimedia Message Options, 68
Text and Multimedia Messaging, 63
To Access Additional Wi-Fi Options, 78
Transfer User Contents From an Android
Transfer Via Bluetooth Connection, 124
Transfer Via PC or Laptop, 123
Turn Wi-Fi On and Connect to a Network,
Turn Your Screen On and Off, 10
Update Your Phone Firmware, 125
Use the Phone‘s microSD Card as a USB
View Pictures and Videos Using Gallery, 95
Viewfinder Screen in Camera Mode, 89
Viewfinder Screen in Video mode, 92
Virtual Private Networks (VPN), 80
159
Your Data Services User Name, 79
Zoom In or Out on a Picture, 96
Index 160
advertisement
Related manuals
advertisement
