Acer Aspire 1640Z Series, Aspire 1650Z Series Service Manual

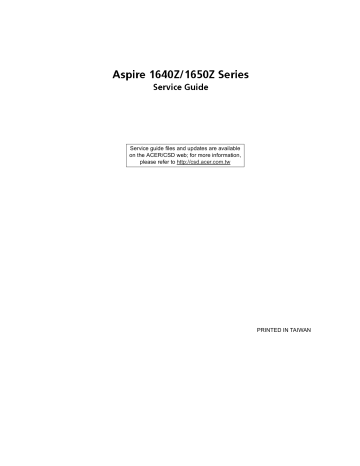

Aspire 1640Z/1650Z Series

Service Guide

Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw

PRINTED IN TAIWAN

Revision History

Please refer to the table below for the updates made on Aspire 1640Z/1650Z service guide.

Date

2006/05/29

Chapter

Chapter One Revise VGA chipset.

Updates

2

Copyright

Copyright © 2006 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

3

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES

NOTE

WARNING

CAUTION

IMPORTANT

Denotes actual messages that appear on screen.

Gives bits and pieces of additional information related to the current topic.

Alerts you to any damage that might result from doing or not doing specific actions.

Gives precautionary measures to avoid possible hardware or software problems.

Reminds you to do specific actions relevant to the accomplishment of procedures.

4

Preface

Before using this information and the product it supports, please read the following general information.

1.

This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

2.

Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

5

6

Chapter 1

System Introduction

Features

This computer was designed with the user in mind. Here are just a few of its many features:

Platform

K

K

K

K

Intel

®

Pentium

®

M 730/740/750/760/770/780 processor (2MB L2 cache, 1.60/1.73/1.86/2/2.13/

2.26 GHz, 400/533 MHz FSB)

Intel

®

Pentium

®

M 725 processor (2MB L2 Cache, 1.60 GHz, 400 MHz FSB)

Intel Celeron M processor 370/380/390 (1 MB L2 cache, 1.50/1.60/1.70 GHz, 400 MHz FSB)

Chipset: Intel

®

915GM/915PM

Memory

K 256 MB/512 MB of DDRII 533 memory, upgradeable to 2 GB with dual so DIMM modules

Data storage

K 40/60/80/100 GB ATA/100 hard disk

K

K

DVD-Dual double-layer drive

DVD/CD-RW combo drive

K DVD Super Multi double-layer

Display and graphics

K Color Thin-Film Transistor (TFT) LCD displaying at

-- 15” XGA (1024 X 768)

-- 15.4” WXGA (1280 X 800) supporting simultaneous multi-window viewing on dual displays via

Acer GridVista

K Intel

®

915GM integrated 3D graphics, featuring Intel Graphics Media Accelerator 900 and up to

128 MB of shared memory, supporting Microsoft

®

DirectX

®

9.0 and dual independent displays

K

K

K

Intel

®

915PM with ATI Mobility

TM

Radeon

®

X1300 with HyperMemory

TM

256/512MB, support ATI

PowerPlay

TM

5.0, MIcrosoft

®

DirectX

®

9.0 and DualView

TM

MPEG-2/DVD hardware-assisted capability

Simultaneous LCD and CRT display with LCD panel resolution at 70 Hz

Communication

K Modem: 56K ITU V.92 modem with PTT approval; Wake-on-Ring ready

K LAN: 10/100 Mbps Fast Ethernet; Wake-on-LAN ready

K

K

Wireless LAN (optional): integrated miniPCI Acer InviLink

TM

802.11b/g Wi-Fi CERTIFIED TM solution

Acer SignalUP wireless technology support

K Wireless PAN (optional): integrated Bluetooth

®

Chapter 1 1

Audio

K

K

K

Audio system with two built-in speakers

Sound Blaster Pro TM and MS-Sound compatible

Built-in microphone

Input devices

K 88-/89-key Acer FineTouch TM keyboard

K

K

Touchpad with 4-way integrated scroll button

Four easy-launch buttons

K Two front-panel buttons: wireless LED-button and Bluetooth

®

LED-button

I/O interface

K Three USB 2.0 ports

K

K

K

K

K

Ethernet (RJ-45) port

Modem (RJ-11) port

External display (VGA) port

Microphone

Line-in jack

K

K

K

Headphones/speaker/line-out port

One Type II PC Card slot

DC-in jack for AC adaptor

2 Aspire 1640

System Block Diagram

Chapter 1 3

Board Layout

Top View

4 Aspire 1640

Bottom View

9

11

13

15

5

7

1

3

17

19

Chapter 1

SW1

CN2

CN7

CN5

U17

CN9

CN13

CN14

CN17

U11

Lid Switch

Launch Board Connector

Keyboard Connector

Touchpad Board Connector

Clock Generator

MDC Connector

Power Jack

Battery Connector

RJ45 & RJ11 Connector

North Bridge

10

12

14

16

6

8

2

4

18

20

CN1

CN3

CN4

CN6

U4

CN11

CN12

CN15

CN26

U13

LCD Connector

Modem Connector

Bluetooth Module Connector

Internal Microphone Connector

PCMCIA Connector

Internal Speaker Connector

CRT Connector

Optical Disk Drive Connector

Wireless LAN Controller

CPU Socket

5

21

23

25

27

29

31

33

35

37

39

41

CN20

U19

USB Connector

BIOS ROM

CN22

U1

U18

CN25

CN28

CN30

SW2

LED1

U10

RTC Battery

LAN Chipset RTL8100CL

South Bridge

HDD Connector

Line-out/SPEDIF Jack

Line-in Jack

Bluetooth Button

Power LED

Fan Connector

22

24

32

34

36

38

40

26

28

30

CN21

U4

CN18

CN19

CN24

CN27

CN29

SW3

LED2

U22

USB Connector

EC PC97551 (Power and I/O

Connector)

Memory Socket 1

Memory Socket 2

PCMCIA Connector

USB Connector

Microphone Jack

WLAN Button

Charger LED

Audio Codec

6 Aspire 1640

Panel

This is a brief introduction to the I/O ports, the features and the indicators.

Front view

5

6

7

1

2

3

4

8

9

#

Display screen

Item

Microphone

Keyboard

Palmrest

Click buttons (Left and right)

Touchpad

Status indicators

Launch keys

Power button

Description

Also called LCD (Liquid Crystal Display), displays computer output.

Internal microphone for sound recording.

For entering data into you computer.

Comfortable support area for your hands when you use the computer.

The left and right buttons function like the left and right mouse buttons.

Touch-sensitive pointing device which functions like a computer mouse.

LEDs (Light Emitting Diodes) that turn on and off to show the status of the computer and its functions and components.

Buttons for launching frequently used programs.

Turns the computer on and off.

Chapter 1 7

Closed front view

#

6

#

7

Item

8

1

#

2

3

4

9

Icon Item/ Port

Speakers

Power indicator

Battery indicator

Description

Left and right speakers deliver stereo audio output.

Lights up when the computer is on.

Lights up when the battery is being charged.

Bluetooth communication button/ indicator (for selected models) indicator

Line-in jack

Press to enable/disable the Bluetooth function.

Indicates the status of Bluetooth communication

(optional).

Press to enable/disable the wireless function.

Indicates the status of wireless LAN communication (optional).

Accepts audio line-in devices (e.g., audio CD player, stereo walkman).

Accepts inputs from external microphones.

Mic-in jack

Description

Speaker/Line-Out/Headphone jack Connects to audio line-out devices (e.g., speakers, headphones).

USB 2.0 port Connects to Universal Serial Bus (USB) 2.0 devices (e.g., USB mouse, UsB camera).

Left view

8 Aspire 1640

1

2

3

4

#

Right view

Icon

Optical drive

Item/ Port

LED indicator

Emergency eject hole

Optical drive eject button

Description

Internal optical drive; accepts CDs or DVDs depending on the optical drive type.

Lights up when the optical drive is active.

Ejects the optical drive tray when the computer is turned off.

Ejects the optical drive tray from the drive.

1

2

#

3

4

5

6

Rear view

Icon Item/ Port Description

PC Card slot eject button Ejects the PC Card from the slot

PC card slot Accepts one Type II CardBus PC Card.

USB 2.0 port

Network jack

Modem jack

Ventilation slots

Connects to Universal Serial Bus (USB) 2.0 devices (e.g., USB mouse, USB camera).

Connects to an Ethernet 10/100 based network.

Connects to a phone line.

Enable the computer to stay cool, even after prolonged use.

Chapter 1 9

1

#

2

3

Icon Port

Power jack

Description

Connects to an AC adaptor.

External display port Connects to a display device (e.g., external monitor, LCD projector).

Security keylock Connects to a Kensington-compatible computer security lock.

Bottom view

10

1

4

5

2

3

6

# Item

Hard disc bay

Battery release latch

Battery bay

Battery lock

Cooling fan

Memory comparment

Description

Houses the computer’s hard disc (secured by a screw).

Unlatches the battery to remove the battery pack.

Houses the computer’s battery pack.

Locks the battery in place.

Helps keep the computer cool.

Note: Do not cover or obstruct the opening of the fan.

House the computer’s main memory.

Aspire 1640

Indicators

The computer has three easy-to-read status icons on the upper-right above the keyboard, and four on the front panel.

Icon Function Description

#

1

2

3

4

5

Icon Function

Caps Lock

Num Lock

(Fn-F11)

Media activity

Bluetooth

Wireless LAN

Power

Description

Lights when Caps Lock is activated.

Lights when Numeric Lock is activated.

Indicates when the hard disk or optical drive is active.

Indicates the status of Bluetooth communication.

Indicates the status of Bluetooth communication.

Lights when the computer is on.

Battery Lights when the battery is being charged.

NOTE: 1. Charging: the light shows amber when the battery is charging.

NOTE: 2. Fully charged: light shows green when in AC mode.

Chapter 1 11

Fn>

Fn>

Hot Key Icon Function Description

Hot Key Icon

Fn-F1

Function

Fn-F2

Fn-F3 eManager" on page 23 are mail, Web browser, Acer Empowering key “

"Acer

“, and one user-programmable button.

23

Fn-F4

Press “ “ to run the Acer eManager. The mail and Web buttons are pre-set ot email and internet programs, but can be reset by users. To set the Web browser, mail and programmable keys, run the Acer Launch

Manager.

"Acer eManager" on page

23

Fn>


Fn-F4

Hot Key Icon

Fn-F1

Function

Fn-F2

Fn-F3

Description

P

Launch key Default application

User-programmable

Acer eManager (user-programmable)

"Acer eManager" on page 23

Web browser

Mail


23

Internet browser (user-programmable)

Email application (user-programmable)

Fn-F4

12 Aspire 1640

Using the keyboard

The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys and twelve function keys.

Lock keys and embedded numeric keypad

The keyboard has three lock keys which you can toggle on and off.

Caps Lock @

[

Lock key

Num Lock (Fn-F11) ]

Scroll Lock (Fn-F12)

When

Description @ is on, all alphabetic characters typed are in uppercase.

When

]

is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators ), -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

When

[ or down arrow keys respectively.

[

does not work with some applications.

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired access

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Num lock on

Type numbers in a normal manner.

Hold <Shift> while using cursor-control keys.

Chapter 1

Num lock off

Hold <Fn> while using cursorcontrol keys.

13

Desired access

Main keyboard keys

Num lock on

Hold <Fn> while typing letters on embedded keypad.

Num lock off

Type the letters in a normal manner.

Windows keys

The keyboard has two keys that perform Windows-specific functions.

Windows logo key

Keys

Application key

Description

Start button. Combinations with this key perform shortcut functions. Below are a few examples:

+ <Tab> (Activates the next Taskbar button)

+ <E> (Opens the My Computer window)

+ <F1> (Opens Help and Support)

+ <F> (Opens the Find: All Files dialog box)

+ <R> (Opens the Run dialog box)

+ <M> (Minimizes all windows)

<shift> + +< M> (Undoes the minimize all windows)

This key has the same effect as clicking the right mouse button; it opens the application’s context menu.

Hot Keys

The computer employs hot keys or key combinations to access most of the computer’s controls like screen contrast and brightness, volume output and the BIOS Utility.

To activate hot keys, press and hold the <Fn> key before pressing the other key in the hot key combination.

14 Aspire 1640

Fny

Fnx

Fn-¨ z

Hot Key

Fnl

Fnm

Fnn

Fno

Fnp

Fnq

Fnr

Fns

Fnw

Icon Function

Hotkey help

Acer eSetting

Acer Power

Management

Sleep

Display toggle

Screen blank

Touchpad Toggle

Speaker on/off

Volume up

Description

Displays a list of the hotkeys and their functions.

Launches Acer eSetting in Acer eManager.

Launches Power Management options.

Puts the computer in Sleep mode.

Switches display output between the display screen, external monitor (if connected) and both the display screen and external monitor.

Turns the display screen backlight off to save power.

Press any key to return.

Turns the internal touchpad on and off.

Turns the speakers on and off; mutes the sound.

Increases the sound volume.

Volume down Decreases the sound volume.

Brightness up

Brightness down

Increases the screen brightness.

Decreases the screen brightness.

Special keys

You can locate the Euro symbol at the upper-center (for European keyboard) and/or bottom-right (Chinese keyboard) of your keyboard. To type:

Chapter 1 15

The Euro symbol

1.

Open a text editor or word processor.

2.

Either directly press the <Euro> key at the bottom-right of the keyboard (for Chinese keyboard), or hold

<Alt Gr> and then press the <5> key at the upper-center of the keyboard.symbol at the upper-center of the keyboard (for European keyboard, you can use both method).

NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/ typography/faq/faq12.htm for more information.

The US dollar sign

1.

Open a text editor or word processor.

2.

Either directly press the <Euro> key at the bottom-right of the keyboard (for Chinese keyboard), or hold

<Shift> and then press the <4> key at the upper-center of the keyboard.symbol at the upper-center of the keyboard (for European keyboard, you can use both method).

NOTE: This function varies according to the language settings.

16 Aspire 1640

Touchpad

The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your finger on the surface of the touchpad. The central location on the palmrest provides optimum comfort and suuport.

Touchpad basics

The following items teach you how to use the touchpad:

* Move your finger across the touchpad (2) to move the cursor.

* Press the left (1) and right (4) buttons located on the edge of the touchpad to do selection and execution functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the touchapd is the same as clicking the left button.

* Use the 4-wa scroll (3) button to scroll up or down and move left or right a page. This button mimics your cursor pressing on the right scroll bar of Windows applications.

Chapter 1 17

Function

Execute

Select

Drag

Access context menu

Scroll

Left button (1)

Click twice quickly.

Click once.

Click and hold, then use finger to drag the cursor on the touchpad.

Right button (4) Touchpad (2)

Tap twice (at the same speed as double-clicking a mouse button).

Tap once.

Tap twice (at the same speed as double-clicking a mouse button); hold finger to the touchpad on the second tap and drag the cursor.

Click once.

Center button (3)

Click and hold to move up/down/left/ right.

NOTE: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean. The touchpad is sensitive to finger movement, hence, the lighter the touch, the better the response. Taping harder will not increase the touchpad’s responsiveness.

18 Aspire 1640

Hardware Specifications and Configurations

System Board Major Chip

Item

System core logic

Memory controller

Audio controller

PCMCIA controller for socket

Video controller

Power and Keyboard controller

Wireless controller (mini PCI)

Controller

Intel

®

915GM+ICH6-M

Integrated in Intel

®

915GM

RealTek ALC260 HD audio interface

(Audio amplifer: Maxiam MAX9755)

TI PCI1510A built-in Intel

®

915GM

KBC NS97551

Intel (The controller is on the Wireless LAN card. Please look at the wireless LAN card for controller details).

Processor

CPU type

Item Specification

Intel

®

Pentium

®

M 730/740/750/760/770/780 processor (2MB L2 cache,

1.60/1.73/1.86/2/2.13/2.26 GHz, 533 MHz FSB)

Intel

®

Pentium

®

M 725 processor (2MB L2 Cache, 1.60 GHz, 400 MHz FSB)

Intel

®

Celeron

®

M processor 370/380/390 (1 MB L2 cache, 1.50/1.60/1.70

GHz, 400 MHz FSB)

Intel socketable 478 pins Micro-FCPGA

Low speed: 0.8V

High speed: 1.5V

1.2V

CPU package

CPU core voltage

CPU I/O voltage

BIOS

Item

BIOS vendor

BIOS Version

BIOS ROM type

BIOS ROM size

BIOS package

Supported protocols

Specification

Pheonix BIOS

Flash ROM, SST39VF040

512Kbyte

32 Pin PLCC-lead

ACPI 2.0 (if available, at least 1.0b), SMBIOS 2.3, PCI 2.2, Boot Block,

PXE 2.0, Mobile PC2001, Hard Disk Password, INT 13h Extensions, PCI

Bus Power Management interface Specification, EI Torito-Bootable CD-

ROM Format Specification V1.0, Simple Boot Flag 1.0

Second Level Cache

Cache controller

Cache size

Item

1st level cache control

2nd level cache control

Chapter 1

Specification

Built-in CPU

2MB for Intel

®

Pentium

®

M processor

1MB for Intel

®

Celeron

®

M processor

Always Enabled

Always Enabled

19

20

Second Level Cache

Item

Cache scheme control

System Memory

Item

Memory controller

Onboard memory size

DIMM socket number

Supports memory size per socket

Supports maximum memory size

Supports DIMM type

Supports DIMM Speed

Supports DIMM voltage

Supports DIMM package

Memory module combinations

Fixed-in write back

Specification

Specification built-in CPU

0MB

2 Sockets

256MB(min)/1024MB(max)

2GB with 2 SODIMM support

DDRII

533MHz

1.8 V/0.9V

200-pin so-DIMM

You can install memory modules in any combinations as long as they match the above specifications .

Memory Combinations

Slot 1

0MB

0MB

0MB

256MB

256MB

256MB

256MB

512MB

512MB

512MB

512MB

1024MB

1024MB

1024MB

1024MB

256MB

512MB

1024MB

0MB

256MB

512MB

1024MB

0MB

256MB

512MB

1024MB

0MB

256MB

512MB

1024MB

Slot 2 Total Memory

256MB

512MB

1024MB

256MB

512MB

768MB

1280MB

512MB

768MB

1024MB

1536MB

1024MB

1280MB

1536MB

2048MB (2G)

Above table lists some system memory configurations. You may combine DIMMs with various capacities to form other combinations.

LAN Interface

Chipset

Supports LAN protocol

LAN connector type

LAN connector location

Item

RealTek 8100CL

10/100

RJ45

Right side

Specification

Aspire 1640

Modem Interface

Item

Chipset

Fax modem data baud rate (bps)

Data modem data baud rate (bps)

Supports modem protocol

Modem connector type

Modem connector location

Specification

CS1037 Internal Agere Scorpio chipset (Scorpio+CSP1037B)

14.4K

56K

V.92MDC

RJ11

Right side

Wireless Module 802.11b/g (optional device)

Item

Chipset

Data throughput

Protocol

Interface

11M~54M bps

802.11 b+g

Mini-PCI type II

Specification

Floppy Disk Drive Interface

Item

Vendor & model name

Floppy Disk Specifications

Media recognition

Sectors/track

Tracks

Data transfer rate

(Kbit/s)

Rotational speed (RPM)

Read/write heads

Encoding method

Power Requirement

Input Voltage (V)

.

Hard Disk Drive Interface

Item

Vendor & Model

Name

Capacity (MB)

Bytes per sector

Logical heads

Logical sectors

Drive Format

Logical cylinders

HGST MORAGA

IC25N060ATMR04-0

08K0634

Seagate N2 ST960821A

TOSHIBA PLUTO

MK6025GAS

60000

512

16

63

16383

Specification

There is no FDD module for this product

2DD (720KB)

9

80

1 MB

300

2

MFM

+5V

80000

512

16

63

16383

2HD (1.2 MB, 3 mode)

15

80

1.6 MB

360

HGST MORAGA

IC25N080ATMR04-0 08K635

Seagate N2 ST9808210A

TOSHIBA PLUTO

MK6025GAS

2HD (1.44MB)

18

80

2 MB

300

TOSHIBA PLUTO

MK1031GAS

SEAGATE N2 ST9100822A

100000

512

16

63

16383

Chapter 1 21

22

Hard Disk Drive Interface

Item

Physical read/write heads

3/3/4

Disks 2/2/4

Spindle speed (RPM) 4200RPM

Performance Specifications

Buffer size

Interface

Data transfer, rate

(host~buffer, Mbytes/ s)

8MBytes (8192kbytes)

ATA-6

100 MB/Sec

DC Power Requirements

Voltage tolerance 5 +/- 5%

Combo Drive Interface

Item

Vendor & model name

General Specification

Interface

Disc Diameter

Loading Type

Drive Mounting

Read/Write

Mounting Orientation

Buffer Under Run

Power consumption

Interface

Media compatibility

4/3/2

2/2/4

4200RPM

8MBytes (8192kbytes)

ATA/ATAPI-6

100 MB/Sec

5 +/- 5%

4

2

4200RPM

8MBytes

ATA/ATAPI-6

100 MB/Sec

5 +/- 5%

Specification

DVD/CDRW TOSHIBA TS-L462A

Remark

Enhanced IDE (ATAPI)

8cm/12cm

Drawer Type

Horizontal/Vertical

Read Speed:

Max. 24X(3,600 KB/sec) for CD-ROM

Max. 24X(3,600 KB/sec) for CD-RW

Write Speed:

Max. 24X(3,600 KB/sec) for CD-R

Max. 10X(1,500 KB/sec) for CD-RW

Max. 24X(3,600 KB/sec) for US-RW

Horizontal/Vertical

2MB

DC +5v/1.2A

Enhanced IDE(ATAPI) compatible

CAV 24X

CAV 24X

P-CAV 24X/20X/16X ; CLV 10X/8X/4X

CLV 10X/4X

P-CAV 24X/16X

All angles

CD:

120mm CD-ROM (Read Only)

80mm CD

800/700/650/550MB CD-Recordable (Read & Write)

700/650MB CD-Rewritable (Read & Write)

700/650MB High Speed CD-Rewritable (Read & Write)

DVD:

5/9/10/18 DVD-Single/Dual (PTP, OTP)

3.9/4.7G DVD-R (Read Only)

4.7GDVD+R (Read Only)

DVD±RW (Read only)

80mm DVD

Aspire 1640

Combo Drive Interface

Item

Format compatibility

Loading mechanism

Power Requirement

Input Voltage

Specification Remark

CD

CD-DA (Red Book) - Standard Audio CD & CD-TEXT

CD-ROM (Yellow Book Mode1 & 2) - Standard Data

CD-ROM XA (Mode2 Form1 & 2) - Photo CD, Multi-Session

CD-I /FMV (Green Book, Mode2 Form1 & 2, Ready, Bridge)

CD-Extra/ CD-Plus (Blue Book) - Audio & Text/Video

Video-CD (White Book) - MPEG1 Video

DVD

DVD-ROM (Book 1.02),

DVD-Video (Book 1.1)

DVD-R (Book 1.0, 3.9G)

DVD-R (Book 2.0, 4.7G) - General & Authoring

DVD+R (Version 1.0)

DVD±RW

Play DVD-AUDIO except the case that required CPPM

(Content protection for prerecorded Media)

Write Method

Load: Manual

Release: (a) Electrical Release

(Release Button)

(b) Release by ATAPI command

(c) Emergency Release

DC +5V+/- 5% (operation)

DC +5V+/- 8% (start up)

DVD-RW Interface

Item

Vendor & model name

Performance Specification

Transfer rate (KB/sec)

(1) Read DVD-ROM

DVD-R

CD-ROM

(2) Write CD-R

CD-RW

HS-RW

US-RW

(3) ATAPI Interface

PIO mode

DMA mode

Ultra DMA mode

Buffer Memory

Interface

Applicable disc format

Specification

TOSHIBA TS-L532A

MAX 8X CAV (MAX 10800kB/s)



4X, 8X (CLV), MAX. 24X(ZCLV)

4X (CLV)

4X, 8X, 10X (CLV)

8X, 10X(CLV), MAX. 16X (ZCLV)

16.6MB/s: PIO mode4

16.6MB/s: Multi word mode2

33.3MB/s: Ultra DMA mode2

2MB

Enhanced IDE(ATAPI) compatible

Read: copy-protected DVD discs, CD-ROM, CD audio, DVD-ROM and DVD-RAM,

DVD-R/-RW, DVD+R/+RW and CD-R/-RW, DVD-ROM, DVD-R/+R, DVD-R/+R,

DVD-RW/+RW, 4.38GB DVD-RAM, CD-DA discs, CD-ROM discs, CD-R discs,

CD-RW discs

Write:

CD-R, CD-RW, high-speed CD-RW, Ultra-speed CD-RW, DVD-R, DVD-RW,

DVD+R, DVD+RW

Chapter 1 23

24

DVD-RW Interface

Item

Loading mechanism

Power Requirement

Input Voltage

Audio Interface

Item

Audio Controller

Audio onboard or optional

Mono or Stereo

Resolution

Compatibility

Sampling rate

Internal microphone

Internal speaker / Quantity

Supports PnP DMA channel

Supports PnP IRQ

Video Interface

Item

Vendor & Model Name

Video memory size

Chip voltage

Supports ZV (Zoomed Video) port

Graph interface

Video Resolutions Mode

Monitor Resolution

2D Display Mode

640x480

800x600

1024x768

1152X864

1280X1024

1600x1200

1920x1080*16:9

1920x1200

1920x1440

2048x1536

120

120

75

75

75

60

120

120

120

85

Specification

Load: Manual

Release: (a) Electrical Release (Release Button)

(b) Release by ATAPI command

(c) Emergency Release

5 V +/- 5 % (Operating)

Specification

Realtek ALC260 (Audio amplifier: Maxim MAX9755)

Built-in

Stereo

18 bit stereo full duplex

HD audio Interface; S/PDIF output for PCM or AC-3 content

1Hz resolution VSR (Variable Sampling Rate)

Yes

Yes

DMA channel 0

DMA channel 1

IRQ10, IRQ11

Specification built-in Intel

®

915GM (for UMA models)

ATI Radeon X1300 (for discrete models)

128MB of shared memory (for UMA models)

256/512MB with HyperMemory

TM technology

Core / 2.5V, 1.5V,

NO

4X AGP (Accelerated Graphic Port) Bus

Hz

Aspire 1640

Resolution, colors and maximum refersh rate (Hz) in 256, 65K or 16.7M colors.

NOTE: 16:9 aspect ratio monitors are supported on 1920x1080 and 848x480 on Windows(R)XP, Windows(R)

2000 and Windows(R)ME. The complete list of resolutions depends on the driver version and operating system. NOTE: resolutions are limited by the performance of the attached monitor.

USB Port

Item

USB Compliancy Level

OHCI

Number of USB port

Location

Serial port function control

PCMCIA Port

Item

PCMCIA controller

Supports card type

Number of slots

Access location

Supports ZV (Zoomed Video) port

Supports 32 bit CardBus

Keyboard

Specification

2.0

USB 2.0

3

Two on the right side; one on the front side

Enable/Disable by BIOS Setup

TI PCI1510A

Type II (No Tpye III)

One type II

Right side

NO

Yes (IRQ17)

Specification

Item

Keyboard controller

Keyboard vendor

Total number of keypads

Windows keys

Internal & external keyboard work simultaneously

Battery

Item

Vendor & model name

Battery Type

Pack capacity

Nominal voltage

Number of battery cell

Package configuration

Package voltage

KBC NS97551

Darfon

88-/89-key

Yes

Yes

Specification

Specification

SANYO

PANASONIC

PANASONIC (RoHS)

SANYO LI-ION 4UR18650F-2-QC141

SIMPPLO

SONY

Lithium-ION

4400mAH

14.8V

8

4S2P for Sanyo and Panasonic

4S1P for Sanyo QC141,SIMPPLO and SONY

41.8V / 9.6V

Chapter 1 25

26

LCD

Item

Vendor & model name

Screen Diagonal (mm)

Active Area (mm)

Display resolution (pixels)

Pixel Pitch

Pixel Arrangement

Display Mode

Surface Treatment

SAMSUNG LTN154X3-L01-G

GLARE

Specification

LG LP154W01-A3 GLARE

15.4inch

331.2(H)x207.0(V)

15.4inch

331.2(H)x207.0(V)

WXGA (1080x800)

0.25875(H)x0.25875(H)mm

RGB vertical stripe

Normally white

Haze 0 (Glare), Hardness 3H

200

WXGA (1080x800)

0.25875(H)x0.25875(H)mm

RGB vertical stripe

Normally white

Hard coating (2H) glare+ Anti reflective treatment of the front polarizer

185

Typical White Luminance (cd/m

2

) also called Brightness

Luminance Uniformity

Contrast Ratio

Response Time (Optical Rise Time/Fall

Time)msec

Nominal Input Voltage VDD

Typical Power Consumption (watt) not show

300

25(rise+falling) not show

3.7 (for backlight unit)

Weight

Physical Size(mm)

Support Color

Viewing Angle (degree)

Horizontal: Right/Left

Vertial: Upper/Lower not show

344(W)x222(H)x6.5(D)

Native 262K colours

45/45

15/35 not show

300

30(rise+falling) not show

Total 5.26 @LCM circuit 1.12, backlight input 4.14

590

344(W)x222(H)x6.5(D)

262K colours

60/60

40/50

Operating

Storage (shipping)

0 to 50

-20 to -60

0 to 50

-20 to -60

AC Adapter

Item

Vendor & model name

Input Requirements

Maximum input AC current

Inrush currenct

Nominal frequency (Hz)

Frequency variation range (Hz)

Input voltage range (Vrms)

Inrush current

Efficiency

LITE-ON PA-1650-02QR

LI SHIN SLS0335A19A57LF

DELTA SADP-65KB

Specification

3.42A

50A @ 115Vac

100A @ 230Vac

50-60

47-63

90V AC-264V AC

The maximum inrush current will be less than 50A and 100A when the adapter is connected to 115Vac and 230Vac respectively.

It should provide an efficiency of 83% minimum, when measured at maximum load under 115Vac.

Aspire 1640

AC Adapter

Item

Output Ratings (CV mode)

DC output voltage

Noise + Ripple

Specification

19V

300mVp-pmax (20 MHz bandwidth)

Output Ratings (CC mode)

DC output voltage

Constant current mode

Dynamic Output Characteristics

Turn-on delay time

Hold up time

Over Voltage Protection (OVP)

Short circuit protection

Electrostatic discharge (ESD)

Dielectric Withstand Voltage

Primary to secondary

Leakage current

Regulatory Requirements

19V +/-1.0V for CV mode

3.6 +/- 0.3A

3 sec (@ 115Vac)

5ms (@115Vac, Full load)

24V

3.9A max can be protected and output can be shorted without damage

15KV (at air discharge)

8KV (at contact discharge)

3000Vac

0.25 mA max. (@ 254Vac, 60Hz)

Safety Requirements:

1.The subject product rated 100-120V 60Hz must be listed under UL 1950 and certified with SCA Standard C22.2 No.950.

2.The subject product rated 200-240V 50Hz must comply with low voltage directive 73/23EEC.

EMI Requirements:

1.The subject product rated 100-120V 60Hz must meet the EMI requirements of FCC part 15, Subpart B for Class B Digital Device and get FCC Certification before marketing into USA and Canada.

2.The subject product rated 200-240V 50Hz must meet the EMC Directive 89/

336/EEC.

3.The subject product rated 100-120V must meet the VCCI-2 EMI requirements.

Power Management

Mech. Off (G3)

Soft Off (G2/S5)

ACPI Mode

Working (G0/S0)

S3 Sleeping State

S4 Sleeping State

Power Management

All devices in the system are turned off completely.

OS initiated shutdown. All devices int he sytem are turned off completely.

Individual devices such as the CPU and hard disk may be power managed in this state.

CPU set power down

VGA suspend

PCMCIA suspend

Audio Power Down

Hard Disk Power Down

CD-ROM Power Down

Super I/O Low Power mode

Also called Hibernate stats. System saves all system state and data onto disk prior to power off the whole system.

Chapter 1 27

28

Environmental Requirements

Item

Temperature

Operating

Non-operating

Package storage

Humidity

Operating

Non-operating

Non-operating

Vibration

Operating (unpacked)

Non-operating (unpacked)

Non-operating (packed)

+0~+35

-20~+65

-20~+65

° C

° C

° C

Specification

10% to 90% RH, non-condensing

10% to 90% RH, non-condensing (Unpacked)

10% to 90% RH, non-condensing (Storage package)

Operation vibration: 1.0G ,X,Y,Zaxis, 30 minutes/axis

5~27.1Hz: 0.6G

27.1~50Hz: 0.04mm (peak to peak)

50~500Hz: 2.0G

5~62.6Hz: 0.51mm (peak to peak)

62.6~500Hz: 4.0G

Mechanical Specification

Item

Dimensions

Weight

I/O Ports

Drive Bays

Indicators

Switch

Specification

364(W) x 279(D) x 33.9/38.9 (H)mm

14.3 3X 10.98x 1.33/1.53 inches

6.4 Ibs (2.91kg) for 15” XGA LCD model

6.5 lbs (2.94kg) for 15.4” WXGA LCD model

Three USB 2.0 ports

Ethernet (RJ-45) port

Modem (RJ-11) port

External display (VGA) port

Microphone-in jack

Line-in jack

Headphones/speaker/line-out jack

Type II PC Card slot

DC-in jack for AC adaptor

One

LED indicator for keyboard hot key: Caps Lock, Scroll Lock, NUmber lock

LED indicator for function indicator: System power-on, HDD/ODD, Wireless on/off,

Arcade LED mode, DC-in, Battery/Charging indicator

Power

Aspire 1640

Chapter 1 29

Chapter 2

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/

Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4

Troubleshooting when problem arises.

To activate the BIOS Utility, press m during POST (when “Press <F2> to enter Setup” message is prompted on the bottom of screen).

Press m to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.

Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.

Info.

PhoenixBIOS Setup Utility

Main Security Boot Exit

CPU Type :

CPU Speed :

HDD Model Name:

Intel (R) Pentium (R) processor 1.73GHz

1733MHz

TOSHIBA MK1031GAS

HDD Serial Number :

ATAPI Device :

System BIOS Version :

VGA BIOS Version :

751U0320S

2A02

HL-DT-ST DVD-RW GWA-4082N

Alviso 1219

KBC Version : 1A16

Serial Number : LXT123456705290116EF00

Asset Tag Number :

Produce Name

N/A

Aspire 1640

Manufacturer Name:

UUID :

Acer xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

F1 Help ↑ ↓ Select Item F5/F6 Change Values F9 Setup Defaults

Esc Exit → Select Menu Enter Select 4 Sub- Menu F10 Save and Exit

Chapter 2 32

Navigating the BIOS Utility

There are six menu options: Info., Main, System Devices, Security, Boot, and Exit.

Follow these instructions:

T

T

To choose a menu, use the cursor left/right keys ( zx ).

To choose a parameter, use the cursor up/down keys ( wy ).

T

T

T

T

To change the value of a parameter, press p or q .

A plus sign (+) indicates the item has sub-items. Press e to expand this item.

Press ^ while you are in any of the menu options to go to the Exit menu.

In any menu, you can load default settings by pressing t . You can also press u to save any changes made and exit the BIOS Setup Utility.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item

Specific Help part of the screen. Read this carefully when making changes to parameter values. Please note that system information vary in models.

33 Chapter 2

Information

Info.


Main Security Boot Exit

CPU Type : Intel (R) Pentium (R) processor 1.73GHz

CPU Speed :

HDD Model Name:

HDD Serial Number :

1733MHz

TOSHIBA MK1031GAS

ATAPI Device :

System BIOS Version :

VGA BIOS Version :

751U0320S

2A02

HL-DT-ST DVD-RW GWA-4082N

Alviso 1219

KBC Version :

Serial Number :

1A16

LXT123456705290116EF00

Asset Tag Number : N/A

Produce Name

Manufacturer Name:

UUID :

Aspire 1640

Acer xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx


Esc Exit → Select Menu Enter Select 4 Sub- Menu F10 Save and Exit

NOTE: The system information is subject to different models.

Parameter

HDD Model Name

HDD Serial Number

ATAPI Device

System BIOS Version

VGA BIOS Version

KBC Version

ATAPI Serial Number

Serial Number

Asset Tag Number

Description

This field shows the model name of HDD installed on primary IDE master.

This field displays the serial number of HDD installed on primary IDE master.

This field displays the mofel name of devices installed on secondary IDE master. The hard disk drive or optical drive model name is automatically detected by the system.

This field displays the BIOS version of the system.

This field displays the VGA BIOS version of this system.

This filed displays the KBC version of this system.

This field shows the serial number of devices installed on secondary IDE master.

This field displays the serial number of this unit.

An Asset Tag with 32 bytes will be stored in EEPROM. Default value is set as

“0000000000000000” (in binary code).

Chapter 2 34

Parameter

UUID Number

Description

This will be visible only when there is an internal LAN device present. UUID means

Universally Unique ID, a method for computing object identifiers (OIDs). It uses the serial number in the local Ethernet card combined with the date and time to generate a 128 bit

(16bytes) number. For Acer product, this field displays UUID number. A UUID string will be stored in the secured data area which is an alphanumeric string of maxium 16 bytes in length.

35 Chapter 2

Main

The Main screen displays a summary of your computer hardware information, and also includes basic setup parameters. It allows the user to specify standard IBM PC AT system parameters.


Information

Main

Security Boot Exit

System Time:

System Date:

System Memory:

Extended Memory:

Video Memory

Quiet Boot:

Power On Display:

Network Boot

F12 Boot Menu

D2D Recovery

Item Specific Help

[05:45:48]

[08/30/2005]

640 KB

<Tab>, <Shift-Tab>, or

<Enter> selects field.

Shows system base memory size

1040 MB

[128MB]

[Enabled]

Shows extended memory size

VGA memory size

[Both]

[Enabled]

[Disabled]

[Enabled]

F1

Help

↑ ↓

Select Item Change Values

F9

Setup Defaults

Esc

Exit

← → Enter

Select

4

Sub-Menu

F10

Save and Exit

NOTE: The screen above is for reference only. Actual values may differ.

Chapter 2 36

37

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

System Time

System Date

System Memory

Extended Memory

VGA Memory

Quiet Boot

Power on display

Network Boot

F12 Boot Menu

D2D Recovery

Description

Sets the system time. The hours are displayed with 24-hour format.

Sets the system date.

Format/Option

Format: HH:MM:SS

(hour:minute:second) System Time

Format MM/DD/YYYY (month/day/ year)

System Date

This field reports the memory size of the system.

Memory size is fixed to 640MB

This field reports the memory size of the extended memory in the system.

Extended Memory size=Total memory size-1MB

Shows the VGA memory size. VGA Memory size=64/128MB

Determines if Customer Logo will be displayed or not; shows Summary Screen is disabled or enabled.

Enabled: Customer Logo is displayed, and

Summary Screen is disabled.

Disabled: Customer Logo is not displayed, and

Summary Screen is enabled.

Auto: During power process, the system will detect if any display device is connected on external video port. If any external display device is connected, the power on display will be in CRT

(or projector) only mode. Otherwise it will be in

LCD only mode.

Both: Simultaneously enable both the integrated

LCD screen and the system’s external video port

(for an external CRT or projector).

Enables, disables the system boot from LAN

(remote server).

Enables, disables Boot Menu during POST.

Enables, disables D2D Recovery function. The function allows the user to create a hidden partition on hard disc drive to store operation system and restore the system to factory defaults.

Option: Enabled or Disabled

Option: Both or Auto


Option: Disabled or Enabled


NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is because the user is not allowed to control the settings in these cases.

Chapter 2

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.

Information


Security Boot

Supervisor Password Is :

User Password Is :

HDD Password Is :

HDD Master ID :

Set Supervisor Password

Set User Password

Set HDD Password

Password on Boot

Clear

Clear

Clear

15422442

[Enter]

[Enter]

[Enter]

[Disabled]

Exit

Item Specific Help

Supervisor Password controls accesses of the whole setup utility.

It can be used to boot up when Password on boot is enabled.


Esc Exit ← → 4 Sub -Menu F10 Save and Exit

Chapter 2 38

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

User Password Is

Supervisor Password Is

HDD Password Is

Set User Password

Set Supervisor Password

Set HDD Password

Primary Harddisk Security

Password on Boot

Description

Shows the setting of the user password.

Shows the setting of the Supervisor password.

Please note that Supervisor Password controls access to the entire Setup. The Supervisor

Password can be used to boot up when

Password on boot is set to enabled.

Shows the setting of the HDD password.

Press Enter to set the user password. When user password is set, this password protects the BIOS Setup Utility from unauthorized access. The user can enter Setup menu only and does not have right to change the value of parameters.

Press Enter to set the supervisor password.

When set, this password protects the BIOS

Setup Utility from unauthorized access. The user can not either enter the Setup menu nor change the value of parameters.

Press Enter to set the HDD password.

This feature is available to user when

Supervisor password is set. Password can be written on HDD only when Supervisor password or user password is set and password on HDD is set to enabled.

Supervisor Password is written to HDD only when Supervisor password is being set. User password is written to HDD when both passwords are set. When both Supervisor and user password are present, both passwords can unlock the HDD.

Defines whether a password is required or not while the events defined in this group happened. The following sub-options are all requires the Supervisor password for changes and should be grayed out if the user password was used to enter setup.

Clear

Option

Clear or Set

Clear or Set

or Set

Disabled

Disabled

or Enabled

or Enabled

NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.

NOTE: The User Password can chagne the following items in BIOS: System Date, System Time and Power on Display on Main menu, System Devices menu and Set User Password function on Security menu.

Meanwhile, the Supervisor Password can change ALL settings in BIOS.

Setting a Password

Follow these steps as you set the user or the supervisor password:

1.

Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Supervisor Password box appears:

39 Chapter 2

2.

Type a password in the “Enter New Password” field. The password length can not exceeds 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New

Password” field.

IMPORTANT: Be very careful when typing your password because the characters do not appear on the screen.

3.

Press e .

After setting the password, the computer sets the User Password parameter to “Set”.

4.

If desired, you can opt to enable the Password on boot parameter.

5.

When you are done, press u to save the changes and exit the BIOS Setup Utility.

Removing a Password

Follow these steps:

1.


Set Password box appears:

2.

Type the current password in the Enter Current Password field and press e .

3.

Press e twice without typing anything in the Enter New Password and Confirm New Password fields.

The computer then sets the Supervisor Password parameter to “Clear”.

4.

When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.

Changing a Password

1.


Set Password box appears:

2.

Type the current password in the Enter Current Password field and press e .

Chapter 2 40

41

3.

Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.

4.

Press e . After setting the password, the computer sets the User Password parameter to “Set”.

5.

If desired, you can enable the Password on boot parameter.

6.

When you are done, press u to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

The password setting is complete after the user presses u .

If the current password entered does not match the actual current password, the screen will show you the

Setup Warning.

If the new password and confirm new password strings do not match, the screen will display the following message.

Chapter 2

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the distette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.


Info.

Main Advanced Security Boot Exit

Item Specific Help

CD-ROM/DVD Drive

Floppy Devices

+Hard Drive

Network Boot

+ and - indicate device categories. Use <Enter> to expand/collapses.

Boot order is top-down using only the top device in each category.

Use <F6> and <F5> to move highlighted item up and down.


Esc Exit ← → Enter

4

Sub -Menu F10 Save and Exit

Chapter 2 42

Exit

The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.

Info.

Exit Saving Changes

Exit Dicarding Changes

Load Setup Defaults

Discard Changes

Save Changes


Main Advanced Security Boot Exit

Item Specific Help

Exit System Setup and save your changes to CMOS.


Esc Exit ← → Enter

4

Sub -Menu F10 Save and Exit

The table below describes the parameters in this screen.

Parameter

Exit Saving Changes

Exit Discarding Changes

Load Setup Default

Discard Changes

Save Changes

Description

Exit System Setup and save your changes to CMOS.

Exit utility without saving setup data to CMOS.

Load default values for all SETUP item.

Load previous values from CMOS for all SETUP items.

Save Setup Data to CMOS.

43 Chapter 2

BIOS Flash Utility

The BIOS flash memory update is required for the following conditions:

T

New versions of system programs

T

T

New features or options

Restore a BIOS when it becomes corrupted.

Use the Phlash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery

Diskette before you use the Phlash utility.

NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.

NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not completely loaded.

Create Crisis Recovery Diskette

1.

Rename BIOS file of this product to BIOS.wph

2.

Copy BIOS.wph file to crisis folder and overwrite the original BIOS.wph file.

3.

Insert a blank floppy diskette to floppy drive.

4.

Run cs.bat and follow its instructions to create crisis recovery diskette.

Recover BIOS from Crisis Recovery Diskette

1.

Insert the crisis recovery diskette to the floppy drive.

2.

Use AC adaptor power supply.

3.

Press Fn and ESC key together for more than two seconds when you power on the system.

4.

The system will read the files inside the floppy diskette without backlight.

5.

After one to three minutes, the system will automatically reboot. Please do not shut down the system or remove the power supply.

6.

After step 1 to 5, you sould be able to recover BIOS already. Then you can see the LCD screen with the backlight is on.

Chapter 2 44

45 Chapter 2

Chapter 3

Machine Disassembly and Replacement

This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.

To disassemble the computer, you need the following tools:

T

Wrist grounding strap and conductive mat for preventing electrostatic discharge

T

T

T

Flat-bladed screw driver

Phillips screw driver

Tweezers

T

Plastic Flat-bladed screw driver

T

Hexed Screw Driver

NOTE: The screws for the different components vary in size. During the disassembly process, group the screws with the corresponding components to avoid mismatch when putting back the components.

Chapter 3 46

General Information

.

Before You Begin

Before proceeding with the disassembly procedure, make sure that you do the following:

1.

Turn off the power to the system and all peripherals.

2.

Unplug the AC adapter and all power and signal cables from the system

NOTE: Aspire 9100 series product uses mylar or tape to fasten the FFC/FPC/connectors/cable, you may need to tear the tape or mylar before you disconnect different FFC/FPC/connectors.

47 Chapter 3

Disassembly Procedure Flowchart

The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the main board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.

Start

Battery

HDD

HDD Module

*2

HDD Holder

*2

Dimm Cover

Memory

*1

Modem Cover

*2

Modem Board

Hinge Caps

*2

Middle Cover

Keyboard

*6

LCD Module

*2

Launch Board

Lower Case

Assembly

*2

FDD Module

*3

*3

*11

*4

*4

Wireless LAN

Antenna

Upper Case

Assembly

RTC Battery

*3 Mini PCI Card

Plate

Disconnect

Wireless LAN

Antenna

*4

Thermal

Module

Touchpad

Cover

Wireless LAN

Card

CPU

*2

ODD Bracket

ODD Module

*4

HDD Bracket

*1

ODD Support

Bracket

*1

CPU Heatsink

Plate

*3

VGA Heatsink

Plate

Touchpad

Button Pad

ODD Touchpad

*2

DC Board

*2

Speaker Set

*4

Main Board

*4

PCMCIA Slot

Touchpad

Cable

Touchpad

Scroll Key

Upper Case

Chapter 3 48

49

LCD

LCD Coaxial

Cable

*4

LCD Brackets

F

G

D

E

A

B

C

Screw List

Item Description

SCREW F040 9 5.0X5.0 9.5X(IO) R00

SCREW M2.0X0.4P+3FP ZK(NL)

SCREW M2.5 K 5/2 X0.85 4 ZK(NL)

SCREW M2.5X0.45+10K NIL

SCREW M2.5X0.45+8K ZBL

SCREW M2.5X0.45P+3F NI

SCREW M3.0X0.8P+3K NL

LCD Module

4 LCD

Cushions

*4

LCD Bezel

*1

Inverter

*4

LCD Panel

Chapter 3

Removing the Battery

1.

Unlatch the battery latch then remove the battery.

Removing the Hard Disc Drive Module

1.

See “Removing the Battery” on page 50.

2.

Remove the screw securing the hard disk drive (HDD) cover.

3.

Then remove the HDD cover.

4.

Pull the HDD module backwards as shown.

5.

Remove the HDD module.

Disassembling the Hard Disc Drive Module

1.

Remove two screw securing the HDD bracket.

2.

Remove the other two screw on the other side.

3.

Take out the HDD from the HDD bracket.

Chapter 3 50

Removing the Optical Disc Drive Module

1.


2.

See “Removing the Hard Disc Drive Module” on page 50.

3.

Remove the screw securing the optical disc drove (ODD) module.

4.

Push the ODD module outwards with a flat headed screw driver.

5.

Then remove the ODD module.

Disassembling the Optical Disc Drive Module

1.

Remove two screws securing the ODD bracket.

2.

Then remove the ODD bracket.

Removing the Memory

1.


2.

Remove the two screws securing the DIMM cover then remove the DIMM cover.

3.

Pop out the memory.

4.

Then remove the memory from the DIMM socket.

51 Chapter 3

Chapter 3 52

Removing the LCD Module

Removing the Middle Cover

1.


2.

Open the notebook as image shows.

3.

Detach the middle cover carefully then remove it.

Removing the Keyboard

1.


2.

See “Removing the Middle Cover” on page 53.

3.

Remove the four screws securing the keyboard.

4.

Turn the keyboard over as shown.

5.

Disconnect the keyboard cable then remove the keyboard.

Removing the Fan, the CPU Thermal Module and the CPU

1.


2.


3.

See “Removing the Keyboard” on page 53.

4.

Remove the three screws securing the system fan.

5.

Disconnect the fan cable.

6.

Then detach the fan from the main unit.

53 Chapter 3

7.

Remove the four screws securing the CPU thermal module.

8.

Then remove the CPU thermal module.

NOTE: Please remove the screws in the order that the image indicates. Start from 4, 3, 2 then 1. When you reassemble the CPU thermal module, secure the screws as the order: 1, 2, 3 then 4. This can help you average the force to each screw, therefore the CPU module can be secured well.

9.

Release the CPU lock with a flat headed screw driver.

10.

Then detch the CPU from the socket carefully.

Removing the Wireless LAN Card

1.


2.


3.

Pop out the wireless LAN card.

4.

Disconnect the main and the auxiliary antennae.

5.

Then remove the wireless LAN card from the main unit.

Chapter 3 54

Removing the LCD Module

1.


2.


3.


4.

Disconnect the inverter cable with a flat headed screw driver.

5.

Take out the LVDS cable then disconnect the LVDS cable.

6.

Tear off the tape securing the wireless LAN antennae then release the antennae.

7.

Remove the two screws securing the LCD module on the rear side.

8.

Remove the two screws securing the LCD module on the bottom.

9.

Then detach the LCD module carefully.

55 Chapter 3

Disassembling the LCD Module

Removing the LCD Bezel

1.


2.


3.


4.

See “Removing the Fan, the CPU Thermal Module and the CPU” on page 53.

5.

See “Removing the Wireless LAN Card” on page 54.

6.

See “Removing the LCD Module” on page 55.

7.

Detach the two rubber pads and the two screw pads.

8.

Remove the four screws securing the LCD bezel.

9.

Detach the LCD bezel carefully.

10.

Remove the nine screws securing the LCD to the LCD panel.

11.

Take out the LCD assembly from the LCD panel.

12.

Disconnect the LCD inverter cable.

13.

Discnnect the LCD inverter board.

14.

Turn over the LCD.

15.

Disconnect the LCD cable.

16.

Remove the four screws securing the right LCD bracket, then remove the right bracket.

17.

Remove the four screws securing the left LCD bracket, then remove the left bracket.

Chapter 3 56

57 Chapter 3

Disassembling the Main Unit

Removing the Upper Case Assembly

1.

See “Removing the Battery” on page 50..

2.


3.

See “Removing the Optical Disc Drive Module” on page 51.

4.

See “Removing the Memory” on page 51.

5.


6.

Remove the fifteen screws securing the lower case assembly and the upper case assembly on the bottom.

7.

Remove the three screws securing the upper case assembly.

8.

Disconnect the touchpad cable.

9.

Disconnect the power board cable.

10.

Then detach the upper case assembly.

Removing the Power Board

1.


2.


3.

See “Removing the Optical Disc Drive Module” on page 51.

4.

See “Removing the Memory” on page 51.

5.


6.

Remove the two screws securing the power board.

7.

Tear off the tape holding the power board cable then remove the power board.

Chapter 3 58

Removing the Touchpad Bracket, the Touchpad Board and the Touchpad

1.


2.


3.


4.

See “Removing the Power Board” on page 58.

5.

See “Removing the Upper Case Assembly” on page 58.

6.

Pull back the tape covering the touchpad FFC.

7.

Disconnect the touchpad FFC the remove it.

8.

Remove the four screws securing the touchpad bracket.

9.

Slide the touchpad bracket back as shown.

10.

Then remove the touchpad bracket.

11.

Use a flat headed screw driver to detach the touchpad board.

12.

Then detach the touchpad carefully.

59 Chapter 3

Removing the Speaker Set

1.


2.


3.


4.


5.


6.

Disconnect the SW DJ board cable.

7.

Disconnect the CIR receiver cable.

8.

Then disconnect the audio board FFC cable.

9.

Disconnect the speaker set cable.

10.

Then detach the speaker set from the lower case.

Removing the SW DJ Board Assembly

1.


2.


3.


4.


5.


6.

See “Removing the Speaker Set” on page 60.

Chapter 3 60

7.

Remove the two screws securing the SW DJ board assembly.

8.

Remove the SW DJ board assembly from the lower case.

9.

Remove the two screws securing the SW DJ board and SW DJ board bracket.

10.

Then remove the SW DJ board.

Removing the Audio Board

1.


2.


3.


4.


5.


6.


7.

See “Removing the SW DJ Board Assembly” on page 60.

8.

Remove the screw securing the audio board.

9.

Detach the audio board FFC.

10.

Release the CIR receiver cable.

11.

Then detach the audio board.

Removing the VGA Thermal Module

1.


61 Chapter 3

2.


3.


4.


5.


6.

Remove the three screws securing the VGA thermal module.

7.

Then detach the VGA thermal module.

Removing the Modem Board

1.


2.


3.


4.


5.


6.

Remove the two screws securing the modem board.

7.

Disconnect the modem board connector.

8.

Disconnect the modem board cable then remove the board.

Removing the Main Board

1.


2.


3.


4.


5.


6.


7.


8.

See “Removing the Audio Board” on page 61.

9.

See “Removing the VGA Thermal Module” on page 61.

Chapter 3 62

10.

See “Removing the Modem Board” on page 62.

11.

Remove the two nut screws securing the main board.

12.

Press the PCMCIA card button.

13.

Remove the dummy card.

14.

Remove the two screws securing the main board to the lower case.

15.

Then detach the main board from the lower case carefully.

IMPORTANT: When assembling/disassembling the main board, whenever there is a mylar on the main board

(see the highlighted with red below; the mylar is sami-transparent, film-like stuff ), it should be transferred “if necessary” to the replacement main board. Because the main board mylar should be stuck to the main board to prevent the antenna cable and the main board components short circuit.

The short could cause the main board or the antenna cable burned.

Removing the Control Board

1.


2.


3.


63 Chapter 3

4.


5.


6.


7.


8.

See “Removing the Audio Board” on page 61.

9.

See “Removing the VGA Thermal Module” on page 61.

10.

See “Removing the Modem Board” on page 62.

11.

See “Removing the Main Board” on page 62.

12.

Turn over the main board as shown.

13.

Disconnect the control board antenna.

14.

Pop out the control board then remove it.

Chapter 3 64

65 Chapter 3

Chapter 4

Troubleshooting

Use the following procedure as a guide for computer problems.

NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses.

1.

Obtain the failing symptoms in as much detail as possible.

2.

Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation.

3.

Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified)

Power failure. (The power indicator does not go on or stay on.)

POST does not complete. No beep or error codes are indicated.

POST detects an error and displayed messages on screen.

Other symptoms (i.e. LCD display problems or others).

Symptoms cannot be re-created (intermittent problems).

Go To

“Power System Check” on page 68.

“Power-On Self-Test (POST) Error Message” on page 71

“Undetermined Problems” on page 83

“Error Message List” on page 72


Use the customer-reported symptoms and go to


“Intermittent Problems” on page 82

“Undetermined Problems” on page 83

Chapter 4 66

System Check Procedures

External Diskette Drive Check

Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is required.

NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause damage to the drive or cause the drive to fail.

Do the following to select the test device.

1.

Boot from the diagnostics diskette and start the diagnostics program.

2.

See if FDD Test is passed as the program runs to FDD Test.

3.

Follow the instructions in the message window.

If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.

If the error still remains:

1.

Reconnect the external diskette drive/DVD-ROM module.

2.

Replace the external diskette drive/CD-ROM module.

3.

Replace the main board.

External CD-ROM Drive Check

Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1.

Boot from the diagnostics diskette and start the diagnostics program.

2.

See if CD-ROM Test is passed when the program runs to CD-ROM Test.

3.


If an error occurs, reconnect the connector on the System board. If the error still remains:

1.

Reconnect the external diskette drive/CD-ROM module.

2.

Replace the external diskette drive/CD-ROM module.

3.


Keyboard or Auxiliary Input Device Check

Remove the external keyboard if the internal keyboard is to be tested.

If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable extending from the keyboard is correctly seated in the connector on the system board.

If the keyboard cable connection is correct, run the Keyboard Test.

If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a non-defective FRU:

1.

Reconnect the keyboard cables.

2.

Replace the keyboard.

3.


The following auxiliary input devices are supported by this computer:

T

Numeric keypad

T

External keyboard

67 Chapter 4

If any of these devices do not work, reconnect the cable connector and repeat the failing operation.

Memory check

Memory errors might stop system operations, show error messages on the screen, or hang the system.

1.

Boot from the diagnostics diskette and start the doagmpstotics program (please refer to main board.

2.

Go to the diagnostic memory in the test items.

3.

Press F2 in the test items.

4.


NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.

Power System Check

To verify the symptom of the problem, power on the computer using each of the following power sources:

1.

Remove the battery pack.

2.

Connect the power adapter and check that power is supplied.

3.

Disconnect the power adapter and install the charged battery pack; then check that power is supplied by the battery pack.

If you suspect a power problem, see the appropriate power supply check in the following list:

T

“Check the Power Adapter” on page 69

T

“Check the Battery Pack” on page 70

Chapter 4 68

Check the Power Adapter

Unplug the power adapter cable from the computer and measure the output voltage at the plug of the power adapter cable. See the following figure

Pin 1: +19 to +20.5V

Pin 2: 0V, Ground

1.

If the voltage is not correct, replace the power adapter.

2.

If the voltage is within the range, do the following:

T

T

Replace the System board.

If the problem is not corrected, see “Undetermined Problems” on page 83.

T

If the voltage is not correct, go to the next step.

NOTE: An audible noise from the power adapter does not always indicate a defect.

3.

If the power-on indicator does not light up, check the power cord of the power adapter for correct continuity and installation.

4.

If the operational charge does not work, see “Check the Battery Pack” on page 70.

69 Chapter 4

Check the Battery Pack

To check the battery pack, do the following:

From Software:

1.

Check out the Power Management in control Panel

2.

In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total

Battery Power Remaining are correct.

3.

Repeat the steps 1 and 2, for both battery and adapter.

4.

This helps you identify first the problem is on recharging or discharging.

From Hardware:

1.

Power off the computer.

2.

Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground).

3.

If the voltage is still less than 7.5 Vdc after recharging, replace the battery.

To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.

Re-install the battery pack.

If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light up, replace the DC/DC charger board.

Touchpad Check

If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU:

1.

Reconnect the touchpad cables.

2.

Replace the touchpad.

3.

Replace the system board.

After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.

Chapter 4 70

Power-On Self-Test (POST) Error Message

The POST error message index lists the error message and their possible causes. The most likely cause is listed first.

NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU replacement does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.

This index can also help you determine the next possible FRU to be replaced when servicing a computer.

If the symptom is not listed, see “Undetermined Problems” on page 83.

The following lists the error messages that the BIOS displays on the screen and the error symptoms classified by function.

NOTE: Most of the error messages occur during POST. Some of them display information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured.

NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter

Setup and install Setup defaults or correct the error.

71 Chapter 4

Index of Error Messages

Error Code List

006

010

070

071

072

110

<No error code>

<No error code>

Error Codes Error Messages

Equipment Configuration Error

Causes:

1. CPU BIOS Update Code Mismatch

2. IDE Primary Channel Master Drive Error

(THe causes will be shown before “Equipment Configuration

Error”)

Memory Error at xxxx:xxxx:xxxxh (R:xxxxh, W:xxxxh)

Real Time Clock Error

CMOS Battery Bad

CMOS Checksum Error

System disabled.

Incorrect password is specified.

Battery critical LOW

In this situation BIOS will issue 4 short beeps then shut down system, no message will show.

Thermal critical High

In this situation BIOS will shut down system, not show message.

Error Message List

Error Messages

Failure Fixed Disk

Stuck Key

Keyboard error

Keyboard Controller Failed

Keyboard locked - Unlock key switch

FRU/Action in Sequence

Reconnect hard disk drive connector.

“Load Default Settings” in BIOS Setup Utility.

Hard disk drive

System board see “Keyboard or Auxiliary Input Device Check” on page 67. see “Keyboard or Auxiliary Input Device Check” on page 67. see “Keyboard or Auxiliary Input Device Check” on page 67.

Unlock external keyboard

Monitor type does not match CMOS - Run Setup Run “Load Default Settings” in BIOS Setup Utility.

Shadow RAM Failed at offset: nnnn BIOS ROM

System board

System RAM Failed at offset: nnnn

Extended RAM Failed at offset: nnnn

DIMM

System board

DIMM

System board

System battery is dead - Replace and run Setup Replace RTC battery and Run BIOS Setup Utility to reconfigure system time, then reboot system.

System CMOS checksum bad - Default configuration used

RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

System timer error RTC battery


System board

Chapter 4 72

73


System cache error - Cache disabled

CPU ID:

DMA Test Failed

Error Messages

Real time clock error

Previous boot incomplete - Default configuration used

Memory size found by POST differed from

CMOS

Diskette drive A error

Incorrect Drive A type - run SETUP

Software NMI Failed

Fail-Safe Timer NMI Failed

Device Address Conflict

Allocation Error for device

Failing Bits: nnnn

Fixed Disk n

Invalid System Configuration Data

I/O device IRQ conflict

Operating system not found


RTC battery


System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board


DIMM

System board

Check the drive is defined with the proper diskette type in BIOS

Setup Utility

See “External Diskette Drive Check” on page 67.

Check the drive is defined with the proper diskette type in BIOS

Setup Utility

System board

System board

DIMM

System board

DIMM

System board

DIMM

System board


RTC battery

System board


RTC battery

System board

DIMM

BIOS ROM

System board

None

BIOS ROM

System board


RTC battery

System board

Enter Setup and see if fixed disk and drive A: are properly identified.

Diskette drive

Hard disk drive

System board

Chapter 4


No beep, power-on indicator turns off and LCD is blank.

No beep Error Messages

No beep, power-on indicator turns on and LCD is blank.

No beep, power-on indicator turns on and LCD is blank. But you can see POST on an external

CRT.


Power source (battery pack and power adapter). See “Power

System Check” on page 68.

Ensure every connector is connected tightly and correctly.

Reconnect the DIMM.

LED board.

System board.



Reconnect the LCD connector

Hard disk drive

LCD inverter ID

LCD cable

LCD Inverter

LCD

System board

Reconnect the LCD connectors.

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

No beep, power-on indicator turns on and a blinking cursor shown on LCD during POST.

Ensure every connector is connected tightly and correctly.

System board

No beep during POST but system runs correctly. Speaker

System board

Chapter 4 74

Phoenix BIOS Beep Codes

Code

28h

29h

2Ah

2Ch

20h

22h

24h

26h

17h

18h

1Ah

1Ch

12h

13h

14h

16h

2Eh

2Fh

30h

0Ch

0Eh

0Fh

10h

11h

08h

09h

0Ah

0Bh

02h

03h

04h

06h

32h

33h

36h

38h

3Ah

3Ch

3Dh

42h

45h

1-2-2-3

1-3-1-1

1-3-1-3

1-3-4-1

1-3-4-3

1-4-1-1

Beeps

75

POST Routine Description

Verify Real Mode

Disable Non-Maskable Interrupt (NMI)

Get CPU type

Initialize system hardware

Initialize chipset with initial POST values

Set IN POST flag

Initialize CPU registers

Enable CPU cache

Initialize caches to initial POST values

Initialize I/O component

Initialize the local bus IDE

Initialize Power Management

Load alternate registers with initial POST values

Restore CPU control word during warm boot

Initialize PCI Bus Mastering devices

Initialize keyboard controller

BIOS ROM checksum

Initialize cache before memory autosize

8254 timer initialization

8237 DMA controller initialization

Reset Programmable Interrupt Controller

Test DRAM refresh

Test 8742 Keyboard Controller

Set ES segment register to 4 GB

Enable A20 line

Autosize DRAM

Initialize POST Memory Manager

Clear 215 KB base RAM

RAM failure on address line xxxx

RAM failure on data bits xxxx of low byte of memory bus

Enable cache before system BIOS shadow

RAM failure on data bits xxxx of high byte of memory bus

Test CPU bus-clock frequency

Initialize Phoenix Dispatch Manager

Warm start shut down

Shadow system BIOS ROM

Autosize cache

Advanced configuration of chipset registers

Load alternate registers with CMOS values

Initialize interrupt vectors

POST device initialization

Chapter 4

7Eh

80h

81h

82h

70h

72h

76h

7Ch

83h

84h

85h

86h

87h

88h

89h

8Ah

8Bh

46h

5Ah

5Bh

5Ch

60h

52h

54h

58h

59h

4Ch

4Eh

50h

51h

48h

49h

4Ah

4Bh

62h

64h

66h

67h

68h

69h

6Ah

6Bh

6Ch

6Eh

Chapter 4

Code

2-1-2-3

Beeps

2-2-3-1


Check ROM copyright notice

Check video configuration against CMOS

Initialize PCI bus and devices

Initialize all video adapters in system

QuietBoot start (optional)

Shadow video BIOS ROM

Display BIOS copyright notice

Display CPU type and speed

Initialize EISA board

Test keyboard

Set key click if enabled

Test for unexpected interrupts

Initialize POST display service

Display prompt “Press F2 to enter SETUP”

Disable CPU cache

Test RAM between 512 and 640 KB

Test extended memory

Test extended memory address lines

Jump to User Patch1

Configure advanced cache registers

Initialize Multi Processor APIC

Enable external and CPU caches

Setup System Management Mode (SMM) area

Display external L2 cache size

Load custom defaults (optional)

Display shadow-area message

Display possible high address for UMB recovery

Display error messages

Check for configuration errors

Check for keyboard errors

Set up hardware interrupt vectors

Initialize coprocessor if present

Disable onboard Super I/O ports and IRQs

Late POST device initialization

Detect and install external RS232 ports

Configure non-MCD IDE controllers

Detect and install external parallel ports

Initialize PC-compatible PnP ISA devices

Re-initialize onboard I/O ports

Configure Motherboard Configurable Devices

(optional)

Initialize BIOS Area

Enable Non-Maskable Interrupts (NMIs)

Initialize Extended BIOS Data Area

Test and initialize PS/2 mouse

76

77

C3h

C4h

C5h

C6h

BFh

C0h

C1h

C2h

BBh

BCh

BDh

BEh

B5h

B6h

B9h

BAh

C7h

C8h

C9h

AEh

B0h

B2h

B4h

A4h

A8h

AAh

ACh

9Eh

9Fh

A0h

A2h

99h

9Ah

9Ch

9Dh

8Ch

93h

95h

96h

97h

98h

8Fh

90h

91h

92h

Code

1-2

1

Beeps POST Routine Description

Initialize floppy controller

Determine number of ATA drives (optional)

Initialize hard-disk controllers

Initialize local-bus hard-disk controllers

Jump to UserPatch2

Build MPTABLE for multi-processor boards

Install CD ROM for boot

Clear huge ES segment register

Fixup Multi Processor table

Search for option ROMs. One long, two short beeps on checksum failure.

Check for SMART drive (optional)

Shadow option ROMs

Set up Power Management

Initialize security engine (optional)

Enable hardware interrupts

Determine number of ATA and SCSI drives

Set time of day

Check key lock

Initialize Typematic rate

Erase F2 prompt

Scan for F2 key stroke

Enter SETUP

Clear Boot flag

Check for errors

POST done- prepare to boot operating system

One short beep before boot

Terminate QuietBoot (optional)

Check password (optional)

Prepare Boot

Initialize DMI parameters

Initialize PnP Option ROMs

Clear parity checkers

Display MultiBoot menu

Clear screen (optional)

Check virus and backup reminders

Try to boot with INT 19

Initialize POST Error Manager (PEM)

Initialize error logging

Initialize error display function

Initialize system error handler

PnPnd dual CMOS (optional)

Initialize notebook docking (optional)

Initialize notebook docking late

Force check (optional)

Extended checksum (optional)

Chapter 4

D2h

Code

ECh

EDh

EEh

EFh

E8h

E9h

EAh

EBh

E4h

E5h

E6h

E7h

E0h

E1h

E2h

E3h

F4h

F5h

F6h

F7h

F0h

F1h

F2h

F3h

Code

1

Beeps

Beeps


Unknown interrupt

Initialize the chipset

Initialize the bridge

Initialize the CPU

Initialize the system timer

Initialize system I/O

Check force recovery boot

Checksum BIOS ROM

Go to BIOS

Set Huge Segment

Initialize Multi Processor

Initialize OEM special code

Initialize PIC and DMA

Initialize Memory type

Initialize Memory size

Shadow Boot Block

System memory test

Initialize interrupt vectors

Initialize Run Time Clock

Initialize video

Initialize System Management Mode

Output one beep before boot

Boot to Mini DOS

Clear Huge Segment

Boot to Full DOS

Chapter 4 78

Index of Symptom-to-FRU Error Message

LCD-Related Symptoms

Symptom / Error

LCD backlight doesn't work

LCD is too dark

LCD brightness cannot be adjusted

LCD contrast cannot be adjusted

Unreadable LCD screen

Missing pels in characters

Abnormal screen

Wrong color displayed

LCD has extra horizontal or vertical lines displayed.

Action in Sequence

Enter BIOS Utility to execute “Load Setup Default Settings”, then reboot system.

Reconnect the LCD connectors.

Keyboard (if contrast and brightness function key doesn't work).

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

Reconnect the LCD connector

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

LCD inverter ID

LCD inverter

LCD cable

LCD

System board

Indicator-Related Symptoms

Symptom / Error

Indicator incorrectly remains off or on, but system runs correctly


Reconnect the inverter board

Inverter board

System board

Power-Related Symptoms

Symptom / Error

Power shuts down during operation

The system doesn’t power-on.

The system doesn’t power-off.




Battery pack

Power adapter

Hard drive & battery connection board

System board



Battery pack

Power adapter

Hard drive & battery connection board

System board



Hold and press the power switch for more than 4 seconds.

System board

79 Chapter 4

Power-Related Symptoms

Symptom / Error

Battery can’t be charged


See “Check the Battery Pack” on page 70.

Battery pack

System board

PCMCIA-Related Symptoms

Symptom / Error

System cannot detect the PC Card (PCMCIA) PCMCIA slot assembly

System board

PCMCIA slot assembly


PCMCIA slot pin is damaged.

Memory-Related Symptoms

Symptom / Error

Memory count (size) appears different from actual size.


Enter BIOS Setup Utility to execute “Load Default Settings, then reboot system.

DIMM

System board

Speaker-Related Symptoms

Symptom / Error

In Windows, multimedia programs, no sound comes from the computer.

Audio driver

Speaker

System board

Internal speakers make noise or emit no sound.

Speaker

System board


Power Management-Related Symptoms

Symptom / Error

The system will not enter hibernation

The system doesn't enter hibernation mode and four short beeps every minute.

The system doesn’t enter standby mode after closing the LCD

The system doesn't resume from hibernation mode.

The system doesn't resume from standby mode after opening the LCD.


Keyboard (if control is from the keyboard)

Hard disk drive

System board

See “S4 Sleeping State” on page 28.

Press Fn+ o and see if the computer enters hibernation mode.

Touchpad

Keyboard

Hard disk connection board

Hard disk drive

System board


LCD cover switch

System board



Hard disk drive

System board


LCD cover switch

System board

Chapter 4 80

81

Power Management-Related Symptoms

Symptom / Error

Battery fuel gauge in Windows doesn’t go higher than 90%.

System hangs intermittently.


Remove battery pack and let it cool for 2 hours.

Refresh battery (continue use battery until power off, then charge battery).

Battery pack

System board

Reconnect hard disk/CD-ROM drives.


System board

Peripheral-Related Symptoms

Symptom / Error

System configuration does not match the installed devices.

External display does not work correctly.

USB does not work correctly

Print problems.

Serial or parallel port device problems.


Enter BIOS Setup Utility to execute “Load Default Settings”, then reboot system.

Reconnect hard disk/CD-ROM/diskette drives.

Press Fn+F5, LCD/CRT/Both display switching

System board

System board

Ensure the “Parallel Port” in the “Onboard Devices Configuration” of

BIOS Setup Utility is set to Enabled.

Onboard Devices Configuration

Run printer self-test.

Printer driver

Printer cable

Printer

System Board

Ensure the “Serial Port” in the Devices Configuration” of BIOS Setup

Utility is set to Enabled.

Device driver

Device cable

Device

System board

Keyboard/Touchpad-Related Symptoms

Symptom / Error

Keyboard (one or more keys) does not work.

Touchpad does not work.


Reconnect the keyboard cable.

Keyboard

System board

Reconnect touchpad cable.

Touchpad board

System board

Modem-Related Symptoms

Symptom / Error

Internal modem does not work correctly.

Modem phone port modem combo board

System board


NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined

Problems” on page 83.

Chapter 4

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1.

Run the advanced diagnostic test for the system board in loop mode at least 10 times.

2.

If no error is detected, do not replace any FRU.

3.

If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.

Chapter 4 82

Undetermined Problems

The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative.

Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).

NOTE: Verify that all attached devices are supported by the computer.

NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power

System Check” on page 68):

1.

Power-off the computer.

2.

Visually check them for damage. If any problems are found, replace the FRU.

3.

Remove or disconnect all of the following devices:

T

Non-Acer devices

T

T

T

T

T

Printer, mouse, and other external devices

Battery pack

Hard disk drive

DIMM

CD-ROM/Diskette drive Module

T

PC Cards

4.

Power-on the computer.

5.

Determine if the problem has changed.

6.

If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.

7.

If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:

T

T

System board

LCD assembly

83 Chapter 4

Chapter 5

Jumper and Connector Locations

Top View

[17]

[18]

[21]

[22]

[23]

[28]

[31]

[13] [14]

[42]

[15]

13 (PJ1)

15 (CN14)

17 (U18)

19 (CN17)

21 (U21)

Power Jack

Battery Connector

302ELV LVDS Encoder

MINI PCI

CPU Socket

Chapter 5

[33]

[34] [35] [36] [41] [37] [38] [39][40]

14 (CN12)

16 (CN15)

18 (CN16)

20 (U20)

22 (CN18)

CRT Connector

ODD Connector

RJ45 & RJ11 Connector

Northbridge M760GX

USB Connector

84

[16]

[19]

[20]

[24]

[25]

[26]

[27]

[29]

[30]

[32]

23 (CN19)

25 (U23)

27 (CN20)

29 (CN21)

31 (CN22)

33 (CN24)

35 (CN25)

37 (SW2)

39 (LED2)

41 (U30)

USB Connector

EC PC97551

DDR SO-DIMM Socket1

DDR SO-DIMM Socket2

PCMCIA Connector

USB Connector

Microphone Jack

WLAN Button

Battery LED

Audio Codec ALC203

24 (U22)

26 (BT1)

28 (U25)

30 (U26)

32 (CN23)

34 (CN26)

36 (CN27)

38 (SW3)

40 (LED1)

42 (CN13)

BIOS ROM

RTC Battery

LAN PHY RTL8201CP

Southbridge 963L

HDD Connector

LineOut Jack

LineIn Jack

Bluetooth button

Power LED

FAN Connector

85 Chapter 5

Bottom View

[01]

[02]

[03]

[04]

[05]

[07]

[06]

[08]

1 (SW1)

3 (CN2)

5 (CN4)

7 (CN6)

9 (U12)

11 (CN9)

Lid Switch

LED Board Connector

Keyboard Connector

Touchpad Board Connector

Clock Generator

MDC Connector

2 (CN1)

4 (CN3)

6 (CN5)

8 (CN7)

10 (U13)

12 (CN11)

Panel Connector

Modem Connector

Bluetooth Module Connector

Internal Microphone Connector

PCMCIA Connector

Internal Speaker Connector

[09]

[10]

[11]

[12]

Chapter 5 86

87 Chapter 5

Chapter 6

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Aspire 1640/1650Z.

Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a

DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.

Chapter 6 88

Aspire 1640 Exploded Diagram

Aspire 1640 FRU List

Adapter

NS

NS

NS

ADP 19V 3.42A PA-1650-02QR

90~264V LF

ADP 19V 3.42A SLS0335A19A57LF

90~264V EU

ADP 19V 3.42A SADP-65KB DBHF

90~264V LF

AP.06503.010

AP.06506.002

AP.06501.009

Battery

89 Chapter 6


Board

BATTERY SANYO LI-ION 4S2P 4.4A

4UR18650F-2-QC140

BT.T5003.001

NS

BATTERY PANASONIC LI-ION 4S2P

4.4A CGR-B/8B5AE

BATTERY PANASONIC LI-ION 4S2P

4.4A ROHS

BATTERY SIMPPLO PACK LI-ION

4S1P 2.0A

BATTERY SANYO PACK LI-ION

4S1P 2.0A

BATTERY SONY PACK LI-ION 4S1P

1.96A

BT.T5005.001

BT.00805.003

BT.00407.001

BT.00403.004

BT.00404.004

MODEM 56K (MDC)T60M845.02 EU 54.TAKV7.001

NS BLUETOOTH MODULE W/ANTENNA 54.T48V7.001

NS W/L 802.11B/G(WM3B2200BGMW2) KI.CAX01.008

NS LAUNCH BOARD

NS TOUCH PAD BOARD

55.TAKV7.001

55.TAKV7.002

Cable

Chapter 6 90


NS FFC CABLE - TP/B TO MB 50.T50V7.001

NS MODEM CABLE 50.A510V7.001

Case/Cover/Bracket Assembly

5

NS POWER CORD US (3 PIN)

POWER CORD PRC (3 PIN)

POWER CORD KOERA ( Pin)

POWER CORD EU (3 PIN)

POWER CORD UK (3 PIN)

POWER CORD ITALIAN (3 PIN)

POWER CORD- SWISS

POWER CORD AU (3 PIN)

POWER CORD DANISH (3 PIN)

POWER CORD AF (3 PIN)

27.A03V7.001

27.A03V7.003

27.T23V7.006

27.A03V7.002

27.A03V7.004

27.A03V7.005

27.A03V7.007

27.A03V7.008

27.A03V7.006

27.T48V7.001

MIDDEL COVER ERGO W/BUTTON -

LIGHT GREEN SILVER

42.T50V7.101

6 UPPER CASE W/TOUCHPAD,

BRACKET, MIC,BLUETOOTH CABLE

UPPER CASE W/TOUCHPAD,

BRACKET, MIC W/O BLUETOOTH

CABLE

60.T91V7.001

60.T91V7.002

11 LOWER CASE W/SPEAKER 60.A51V7.002

13 DIMM/WIRELESS COVER 42.A50V7.001

91 Chapter 6


NS

15

HEATSINK COVER W/O DOCKING 42.A50V7.002

3 IN 1 DUMMY COVER

HDD COVER

42.T51V7.003

42.T63V7.004

14 HDD BRACKET 33.T50V7.001

Communication Module

NS WIRELESS LAN ANTENNA 50.T50V7.003

CPU/Processor

Optical Disk Drive Module

NS AMD MOBILE SEMPRON 2800+

25WD

AMD MOBILE SEMPRON 3000+

25WD

AMD MOBILE TURION 64 ML28





KC.S2802.25D

KC.S3002.25D

KC.TML02.280

KC.TML02.300

KC.TML02.320

KC.TML02.340

KC.TML02.370

Chapter 6 92

93


NS DVD/CDRW COMBO MODULE 24X

PHILIPS SCB5265 LF

6M.A65V7.004

NS DVD/CDRW COMBO DRIVE 24X

PHILIPS SCB5265 GB LF

KO.02403.007

NS OPTICAL DEVICE HOLDER-FIX 42.T51V7.003

NS DVD/CDRW BEZEL FOR G BASE 42.A65V7.003

DVD/CDRW COMBO MODULE KME

UJDA-770

DVD/CDRW COMBO DRIVE 24X

KME UJDA-770

OPTICAL DEVICE HOLDER-FIX

DVD/CDRW BEZEL FOR G BASE

6M.TAGV7.002

KO.02406.013

42.T51V7.003

42.A65V7.003

DVD/CDRW COMBO MODULE LITE-

ON SOSC-2483K LF

DVD/CDRW COMBO LITE-ON

SOSC-2483K LF GB


DVD/CDRW BEZEL FOR G BASE

6M.ATKV7.001

KO.02409.011

42.T51V7.003

42.A65V7.003

DVD/CDRW COMBO MODULE HLDS

GCC-4244N LF

DVD/CDRW COMBO HLDS GCC-

4244N GB LF


DVD DUAL BEZEL G BASE

6M.ATKV7.002

KO.0240A.004

42.T51V7.003

42.A65V7.003

DVD DUAL MODULE PANASONIC

UJ-840BAA2 G BASE

6M.A51V7.003

Chapter 6


HDD/Hard Disk Drive

DVD DUAL DRIVE PANASONIC UJ-

840BAA2 D. LAYER G BASE



DVD DUAL MODULE LITE-ON

SOSW-833 DL G BASE

DVD DUAL DRIVE LIET-ON SOSW-

833 DL G BASE



KU.00807.010

42.T51V7.003

42.A51V7.005

6M.T66V5.003

KU.00804.012

42.T51V7.003

42.A51V7.005

DVD DUAL MODULE PIONEER DVR-

K15RA F/W:1.05 G BASE

DVD DUAL DRIVEPIONEER DVR-

K15RA D. LAYER F/W:1.05 G BASE



6M.ATKV7.003

KU.00805.020

42.T51V7.003

42.A51V7.005

DVD DUAL MODULE HLDS GWA-

4082N G BASE

DVD DUAL DRIVE HLDS GWA-

4082N G BASE



6M.ATKV7.004

KU.0080D.016

42.T51V7.003

42.A51V7.005

NS 40G SEAGATE 2.5 IN. 4200RPM

N2.1ST9402113A (ROHS), F/W 3.01

KH.04001.016

40G TOSHIBA 2.5 IN. 4200RPM

PLUTO MK4025GAS (ROHS) F/W

KA100A

40G HGST 2.5 IN. 4200RPM

HAKONA-A F/W :A70G

40G WD 2.5 IN. 5400RPM ML40

WD400UE-22HCT0 (ROHS)

40G SAMSUNG 2.5 IN. 5400RPM

M40MP0402H (ROHS) F/W YQ200-

04

60G SEAGATE 2.5 IN. 4200RPM

N2.2ST960812A F/W:3.04



KA200


HAKONE-A F/W :A70G

KH.04004.005

KH.04007.013

KH.04008.025

KH.0400B.003

KH.06001.003

KH.06004.004

KH.06007.009

Chapter 6 94


Keyboard

NS

60G WD 2.5 IN. 5400RPM ML40


80G SEAGATE 2.5 IN. 4200RPM

N2.2ST980829A F/W:3.04



KA023


HAKONE-A F/W:A70G

80G WD 2.5 IN. 5400RPM ML40



ARES MK1031GAS (ROHS) F/W

AA204A


HAKONE-A F/W:A70G

AS1680/AS1410 KEYBOARD

DARFON US International

KH.06008.002

KH.08001.013

KH.08004.003

KH.08007.011

KH.08008.027

KH.10004.001

KH.10007.002

KB.A2707.001


DARFON Chinese


DARFON Spanish


DARFON Thai


DARFON Brazilian Protugese


DARFON Korea


DARFON UK


DARFON German


DARFON Italian


DARFON French


DARFON Swiss/G


DARFON Portuguese


DARFON Arabic


DARFON Belgium


DARFON Sweden


DARFON Czech

KB.A2707.002

KB.A2707.003

KB.A2707.004

KB.A2707.005

KB.A2707.006

KB.A2707.007

KB.A2707.008

KB.A2707.009

KB.A2707.010

KB.A2707.011

KB.A2707.012

KB.A2707.013

KB.A2707.014

KB.A2707.015

KB.A2707.016

95 Chapter 6


LCD Module

NS


DARFON Hungaian


DARFON Norway


DARFON Danish


DARFON Turkish


DARFON Canadian French


DARFON Japanese


DARFON Greek


DARFON Hebrew


DARFON Russian

LCD 15.0 IN. MODULE SAMSUNG

LTN150XB-L03-V LF

KB.A2707.017

KB.A2707.018

KB.A2707.019

KB.A2707.020

KB.A2707.021

KB.A2707.022

KB.A2707.023

KB.A2707.024

KB.A2707.025

6M.ATKV7.011

NS LCD 15.0 IN. XGA SAMSUNG

LTN150XB-L03-V LF

LK.15006.008

NS LCD INVERTER BOARD 19.TAKV7.001

NS LCD CABLE - 15 IN. XGA 50.T50V7.004

Chapter 6 96

97


NS LCD BRACKET W/HINGE 15 IN. - L 33.T50V7.002

NS LCD BRACKET W/HINGE 15 IN. - R 33.T50V7.003

NS LCD PANEL W/LOGO ANTENNA 14/

15 IN.

60.A27V7.002

NS LCD BEZEL W/RUBBER PAD 15 IN.

60.T50V7.004

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

LCD 15.0 IN. MODULE CMO N150X3-

L07 LF

LCD 15.0 IN. XGA CMO N150X3-L07

REV C4 LF

LCD INVERTER BOARD

LCD CABLE - 15 IN. XGA

LCD BRACKET W/HINGE 15 IN. - L

LCD BRACKET W/HINGE 15 IN. - R

LCD PANEL W/LOGO ANTENNA 14/

15 IN.

LCD BEZEL W/RUBBER PAD 15 IN.

6M.ATKV7.012

LK.1500D.012

19.TAKV7.001

50.T50V7.004

33.T50V7.002

33.T50V7.003

60.A27V7.002

60.T50V7.004

LCD 15.0 IN. MODULE LPL

LP150X07-TLA2 LF

LCD 15.0 IN. XGA LPL LP150X07-

TLA2 LF

LCD INVERTER BOARD




6M.ATKV7.013

LK.15008.019

19.TAKV7.001

50.T50V7.004

33.T50V7.002

33.T50V7.003

Chapter 6


NS

NS

NS

NS

2

3

NS

NS

4

1


15 IN.


60.A27V7.102

60.T50V7.004


LP150X07-TLA2 LF


TLA2 LF

LCD INVERTER BOARD





15 IN.


6M.ATKV7.013

LK.15008.019

19.TAKV7.001

50.T50V7.004

33.T50V7.002

33.T50V7.003

60.T50V7.102

60.T50V7.004

LCD MODULE 15.4 IN. WXGA CMO

N154I1-L09

LCD 15.4 IN. WXGA CMO N154I1-

L09

LCD INVERTER BOARD

LCD CABLE - 15.4 IN. XGA

LCD BRACKET W/HINGE 15.4 IN. - L

LCD BRACKET W/HINGE 15.4 IN. - R


15 IN.

LCD BEZEL W/RUBBER PAD 15.4 IN.

6M.A51V7.013

LK.1540D.002

19.TAKV7.001

50.T50V7.006

33.T50V7.004

33.T50V7.005

60.T50V7.102

60.T50V7.006

LCD 15.4 MODULE SAMSUNG

LTN154X3-L01-V104

LCD 15.4 WXGA SAMSUNG

LTN154X3-L01-V104

LCD INVERTER BOARD

LCD CABLE - 15.4 IN. WXGA



LCD PANEL W/LOGO ANTENNA

15.4 IN.


6M.ATKV7.014

LK.15406.009

19.TAKV7.001

50.T50V7.006

33.T50V7.004

33.T50V7.005

60.T50V7.103

60.T50V7.006

LCD 15.4 MODULE QDI QD15TL02-

03 LF NON-GLARE

LCD 15.4 WXGA QDI QD15TL02-03

LF NON-GLARE

LCD INVERTER BOARD




6M.ATKV7.015

LK.15409.004

19.TAKV7.014

50.T50V7.006

33.T50V7.004

33.T50V7.005

Chapter 6 98

99



15.4 IN.


60.T50V7.103

60.T50V7.006

LCD 15.4 IN. MODULE AU

B154EW01 V8 LF NON-G

LCD 15.4 IN. WXGA AU B154EW01

V8 LF NON-G

LCD INVERTER BOARD





15.4 IN.


6M.ATKV7.016

LK.15405.005

19.TAKV7.001

50.T50V7.006

33.T50V7.004

33.T50V7.005

60.T50V7.103

60.T50V7.006

LCD 15.0 IN. MODULE SAMSUNG

LTN150XB-L03-V W/O WIRELESS

LCD 15.0 IN. XGA SAMSUNG

LTN150XB-L03-V LF

LCD INVERTER BOARD




LCD PANEL W/LOGO W/O

ANTENNA 14/15 IN.


6M.ATKV7.021

LK.15006.008

19.TAKV7.001

50.T50V7.004

33.T50V7.002

33.T50V7.003

60.T56V7.102

60.T50V7.004

LCD 15.0 IN. MODULE CMO N150X3-

L07 LF W/O WIRELESS

LCD 15.0 IN. XGA CMO N150X3-L07

REV C4 LF

LCD INVERTER BOARD





ANTENNA 14/15 IN.


6M.ATKV7.022

LK.1500D.012

19.TAKV7.001

50.T50V7.004

33.T50V7.002

33.T50V7.003

60.A56V7.102

60.T50V7.004


LP150X07-TLA2 LF W/O WIRELESS


TLA2 LF

LCD INVERTER BOARD




6M.ATKV7.023

LK.15008.019

19.TAKV7.001

50.T50V7.004

33.T50V7.002

33.T50V7.003

Chapter 6


Main Board

NS


ANTENNA 14/15 IN.


60.A56V7.102

60.T50V7.004

LCD 15.4 MODULE QDI QD15TL02-

03 LF NON-GLARE W/O WIRELESS

LCD 15.4 WXGA QDI QD15TL02-03

LF NON-GLARE

LCD INVERTER BOARD





15.4 IN.


6M.ATKV7.025

LK.15409.004

19.TAKV7.001

50.T50V7.006

33.T50V7.004

33.T50V7.005

60.T56V7.103

60.T50V7.006

LCD 15.4 IN. MODULE AU

B154EW01 V8 LF NON-G W/O

WIRELESS

LCD 15.4 IN. WXGA AU B154EW01

V8 LF NON-G

LCD INVERTER BOARD





15.4 IN.


6M.ATKV7.026

LK.15405.005

19.TAKV7.001

50.T50V7.006

33.T50V7.004

33.T50V7.005

60.T56V7.103

60.T50V7.006

MAINBOARD 915GM UMA W/

PCMCIA W/O CPU MEMORY

LB.TAK02.001

Memory

Chapter 6 100


Speaker

NS

N/S

MEMORY DDR333 256MB INFINEON

HYS64D32020HDL-6-C (.11u)

MEMORY DDR333 256MB NANYA

NT256D64SH8C0GM-6K

MEMORY DDR333 256MB

SAMSUNG M470L3224FT0-CB3

MEMORY DDR333 256MB HYNIX

HYMD232M646D6-J

MEMORY DDR333 512MB INFINEON

HYS64D64020HBDL-6-C (.11u)

MEMORY DDR333 512MB

SAMSUNG M470L6524BT0-CB3

MEMORY DDR333 256MB HYNIX

HYMD564M646B6-J

KN.25602.012

KN.25603.019

KN.2560B.008

KN.2560G.001

KN.51202.025

KN.5120B.006

KN.5120G.006

SPEAKER SET 23.T50V7.001

Heatsink

10 THERMAL MODULE 60.A51V7.005

Miscellaneous

Screw

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NAME PLATE - AS1640

RUBBER FOOT

LCD SCREW RUBBER PAD

LCD BEZEL RUBBER PAD

SCREW M2.0X3.0-I-NI-NYLOK

SCREW I2.5*3M-BNIH(M2.5L3)

SCREW M2.5*4L-BZN-NYLOK

SCREW M2.0X5-I-NI-NYLOK

SCREW MM25060IL69

SCREW M2.0*5-I(NI)(NYLOK)

SCREW M2.0X2.5-I-NI-NYLOK

SCREW I2*3M-NIHY (M2L3)

SCREW M1.7*3.0-I (BK)

SCREW I3*3.5M-NIH(M3L3.5)

TBD

1HYXZZZ24D6

47.T50V7.003

47.T50V7.004

86.A03V7.012

86.T25V7.012

86.A03V7.006

86.T23V7.006

86.A08V7.004

86.T23V7.010

86.A03V7.007

86.T25V7.008

86.T50V7.001

86.A03V7.011

101 Chapter 6

Chapter 6 102

No results
