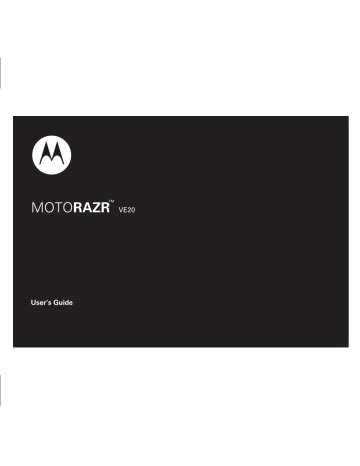

Motorola MOTORAZR VE20 User Manual

v545198.eps 5/27/2008 1:57:04 PM

MOTO RAZR

TM

VE20

User’s Guide

HELLOMOTO

Thanks for purchasing the MOTO RAZR™ VE20 CDMA wireless phone! It’s an affordable phone with a sleek design that’s sure to get attention.

Impressive Inside and Out — Sleek styling with all the right features, including rich imaging and multimedia. Take pictures and video in a snap with the 2 megapixel camera with 4x digital zoom. Listen to your favorite music with the digital music player, and watch your music come to life with stunning visual effects.

Features at Your Fingertips — Go to the recent calls list, activate the music player, or turn on Bluetooth® power, using external touch sensitive keys with vibrational response.

My Phone, My Way – It’s your phone—make it that way. Customize your home screen with personal pictures, change wallpapers, and use your favorite song as your ringtone.

1

Here’s a quick anatomy lesson.

Left Soft Key

Perfor m function in lower left display.

C a mer a /

C a m c order Key

Send Key

Make & answer calls.

R ig ht Soft Key

Perfor m function in lower right display.

B ac k Key

Power/End Key

Turn phone on/off, end calls, exit m enus.

4-W a y N a v iga t i on Key w i th Center Sele c t

Press center key to open m ain m enu.

infor infor

See inco m

Extern a l D i s p l a y m m ing call ation & status ation. Use touch sensitive buttons.

Sm a rt/S p e a ker-

Phone Key

M ic ro USB Port

Insert stereo headset, battery charger, & other accessories.

2

C a mer a

Lens

Vo ic e Key

He a d p hones

Port

Home S

c

reen

1X

Tue 05/06/08 1:56pm

Message MENU Contacts

M

ai

n Menu

1 Press and hold the Power

Key P for a few seconds, or until the display lights up, to turn on your phone.

2 Press the Menu Key

M to open the M ai n Menu .

1X

Ö

Messag i ng

L

Phonebook Ü

Mus i c Player

Û

BREW q

Recent Calls à

R i ngtones

E

Web Browser j

Mult i med i a G

Datebook m u Û

Tools Phone Info Sett i ngs

3 Press the Navigation Key u p , down, left, or r ig ht

( S ) to highlight a m enu feature.

4 Press the Center Key

( s ) to select it.

3

Motorola, Inc.

Consumer Advocacy Office

1307 East Algonquin Road

Schaumburg, IL 60196 www.hellomoto.com

Note: Do not ship your phone to the above address. If you need to return your phone for repairs, replacement, or warranty service, please contact the Motorola Customer Support Center at:

1-800-331-6456 (United States)

1-888-390-6456 (TTY/TDD United States for hearing impaired)

1-800-461-4575 (Canada)

Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider’s network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user’s guide, are based upon the latest available information and believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.

MOTOROLA and the Stylized M Logo are registered in the US

Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license.

Microsoft, Windows and Windows Me are registered trademarks

4 of Microsoft Corporation; and Windows XP is a trademark of

Microsoft Corporation. iTunes

TM

is a trademark of Apple Computer,

Inc. All other product or service names are the property of their respective owners.

© 2008 Motorola, Inc. All rights reserved.

Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment.

Software Copyright Notice

The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United

States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the

Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Manual Number: 68000xxxxxx-A

c

ontents

menu map . . . . . . . . . . . . . . . . 7

Use and Care . . . . . . . . . . . . . . 9 get started . . . . . . . . . . . . . . . 10 about this guide. . . . . . . . . . 10 battery . . . . . . . . . . . . . . . . . 11 basics . . . . . . . . . . . . . . . . . . . 15 status indicators . . . . . . . . . 15 external display . . . . . . . . . . 17 adjust volume . . . . . . . . . . . 18 handsfree . . . . . . . . . . . . . . 18 codes. . . . . . . . . . . . . . . . . . 19 lock & unlock phone . . . . . . 20 keypad lock . . . . . . . . . . . . . 21 if you forget a code . . . . . . . 21 lock side keys & touch sensitive buttons . . . . . . . . . . . . . . . . 22 lock application . . . . . . . . . . 22 manage memory . . . . . . . . . 23

TTY operation . . . . . . . . . . . 24 airplane mode . . . . . . . . . . . 25 tips & tricks. . . . . . . . . . . . . . . 27 personalize . . . . . . . . . . . . . . . 28 voice readout . . . . . . . . . . . . 28 key volumes. . . . . . . . . . . . . 28 alert reminders . . . . . . . . . . 28 ring & vibrate . . . . . . . . . . . . 28 answer options . . . . . . . . . . 29 backlight. . . . . . . . . . . . . . . . 29 brightness . . . . . . . . . . . . . . 29 banner . . . . . . . . . . . . . . . . . 29 menu language . . . . . . . . . . 30 dial fonts . . . . . . . . . . . . . . . 30 clock format . . . . . . . . . . . . . 30 restore phone . . . . . . . . . . . 30

AGPS & your location. . . . . 31

AGPS limitations & tips . . . 31 calls . . . . . . . . . . . . . . . . . . . . 33 redial a number . . . . . . . . . 33 automatic retry. . . . . . . . . . 33 turn off a call alert . . . . . . . 33 recent calls. . . . . . . . . . . . . 34 return a missed call . . . . . . 34 speed dial. . . . . . . . . . . . . . 35 one-touch dial. . . . . . . . . . . 35 emergency calls . . . . . . . . . 35

AGPS during an emergency call. . . . . . . . . . 36 attach number . . . . . . . . . . 37 insert special characters . . 37 international calls . . . . . . . . 37 voicemail . . . . . . . . . . . . . . 37 c ontents 5

hearing aid . . . . . . . . . . . . . 38 in-call options . . . . . . . . . . . 38 call times & data volumes. . 38 more calling features . . . . . 40 text entry . . . . . . . . . . . . . . . . 4 1 set entry modes . . . . . . . . . 42 tap mode. . . . . . . . . . . . . . . 43 iTAP mode . . . . . . . . . . . . . 44 numeric mode. . . . . . . . . . . 44 symbol mode . . . . . . . . . . . 45 text entry tips . . . . . . . . . . . 45 messages . . . . . . . . . . . . . . . . 4 6 send a multimedia message . . . . . . . . . . . . . . . 46 receive a multimedia message . . . . . . . . . . . . . . . 48 more messaging features . . 49 entertainment . . . . . . . . . . . . 52 launch browser . . . . . . . . . . 52 view pictures. . . . . . . . . . . . 52

6 c ontents play videos . . . . . . . . . . . . . 54 manage sounds. . . . . . . . . . 56 tools . . . . . . . . . . . . . . . . . . . . 57 voice recognition . . . . . . . . . 57 phonebook . . . . . . . . . . . . . 63 network . . . . . . . . . . . . . . . . 67 personal organizer . . . . . . . . 68 connections . . . . . . . . . . . . . . 70 cable connections . . . . . . . . 70

Bluetooth connections . . . . 71 service & repairs . . . . . . . . . . 77

SAR Data . . . . . . . . . . . . . . . . 78

Safety Information. . . . . . . . . 82

Industry Canada Notice . . . . 86

FCC Notice . . . . . . . . . . . . . . . 86

Warranty . . . . . . . . . . . . . . . . . 87

Hearing Aids. . . . . . . . . . . . . . 91

WHO Information. . . . . . . . . . 92

Registration . . . . . . . . . . . . . . 92

Export Law . . . . . . . . . . . . . . . 93

Recycling Information . . . . . . 93

Perchlorate Label . . . . . . . . . . 9 4

Privacy and Data Security . . . 9 4

Driving Safety. . . . . . . . . . . . . 95 index . . . . . . . . . . . . . . . . . . . . 97

m

a

in menu

Ö

Messaging

• Voicemail

• Create Message

• Inbox

• Outbox

• Drafts

Û

BREW

E

Web Browser

L

Phonebook q

Recent Calls

menu m

a

p

j

Multimedia

• Music & Sounds

• Camera

• Pictures

• Camcorder

• Videos

• Storage Device

Ü

Music Player

à

Ringtones m

Tools

• Voice Commands

• Datebook

• Alarm Clock

• World Clock

• Calculator

• Notepad u

Settings

• (see next page)

Û

Phone Info

This is the standard main menu layout.

Your phone’s menu may be different.

menu m a p 7

settings menu

Sounds

• Call Ringtone

• Message Ringtone

• Voicemail Ringtone

• Ring & Vibrate

• Alert Reminders

• Service Alerts

• Power On/Off

• Voice Readout

• Keypad Volume

• Volume Sidekeys

Display

• Banner

• Backlight

• Brightness

• Wallpaper

• Skins

• Dial Fonts

• Clock Format

Phone

• Airplane Mode

• Shortcuts

• Language

• Location

• Security

• Network Selection

• Active Line

• Text Learning

Call

• Answer Options

• Auto Retry

• TTY Setup

• One Touch Dial

• Int’l Dialing

• DTMF Tones

• Hearing Aid

Bluetooth

• Add New Device

USB

• Mass Storage

• Modem/COM

Storage Device

• Save Options*

• Phone Memory

• Memory Card*

Phone Info

Software Update

* available only when optional memory card installed

8 menu m a p

Use and Care

Use and Care

To care for your Motorola phone, please keep it away from: liquids of any kind

Don’t expose your phone to water, rain, extreme humidity, sweat, or other moisture. If it does get wet, don’t try to accelerate drying with the use of an oven or dryer, as this may damage the phone.

extreme heat or cold

Avoid temperatures below -10°C/14°F or above 45°C/113°F.

microwaves

Don’t try to dry your phone in a microwave oven.

dust and dirt

Don’t expose your phone to dust, dirt, sand, food, or other inappropriate materials.

cleaning solutions

To clean your phone, use only a dry soft cloth.

Don’t use alcohol or other cleaning solutions.

the ground

Don’t drop your phone.

Use a nd C a re 9

get st

a

rted

CAUTION: Be

f

ore using the phone

f

or the

f

irst time, re

a

d the

Import

a

nt S

af

ety

a

nd Leg

a

l

In

f

orm

a

tion in

c

luded in the gr

a

yedged p

a

ges

a

t the b

ac

k o

f

this guide.

a

bout this guide

This guide shows how to locate a menu feature as follows:

Find it: s

> q Recent Calls > Dialed Calls

This means that, from the home screen:

1 Press the center key s

to open the menu.

10 get st a rted

2 Press the navigation key

S

to scroll to q Recent Calls , and press the center key s

to select it.

3 Press the navigation key

S

to scroll to Dialed Calls , and press the center key s

to select it.

symbols

This means a feature is network/subscription dependent and may not be available in all areas. Contact your service provider for more information.

This means a feature requires an optional accessory.

b

a

ttery

inst

a

ll &

c

h

a

rge b

a

ttery

See your Quick Start Guide for instructions on installing and charging the battery.

c

onserve b

a

ttery

c

h

a

rge

Using certain features can quickly deplete your battery’s charge. These features can include downloading music, replaying video clips, and using Bluetooth® wireless connections.

You can conserve your battery’s charge by doing the following:

• Turn Bluetooth power off when not in use (see page 71).

• Turn off wallpaper (see your Quick Start

Guide ).

• Reduce backlight display time (see your Quick

Start Guide ).

b

a

ttery use & s

af

ety

IMPORTANT: HANDLE AND STORE BATTERIES

PROPERLY TO AVOID INJURY OR DAMAGE.

Most battery issues arise from improper handling of batteries, and particularly from the continued use of damaged batteries.

DON’Ts

• Don’t disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery.

• Don’t let the phone or battery come in contact with water.

Water can get into the phone’s circuits, leading to corrosion. If the phone and/or battery get wet, have them checked by your carrier or contact Motorola even if they appear to be working properly.

get st a rted 11

• Don’t allow the battery to touch metal objects.

If metal objects, such as jewelry, stay in prolonged contact with the battery contact points, the battery could become very hot.

• Don’t place your battery near a heat source.

Excessive heat can damage the phone or the battery. High temperatures can cause the battery to swell, leak, or malfunction. Therefore:

• Do not dry a wet or damp battery with an appliance or heat source, such as a hair dryer or microwave oven.

• Avoid leaving your phone in your car in high temperatures.

DOs

• Do avoid dropping the battery or phone.

Dropping these items, especially on a hard surface, can potentially cause damage.

• Do contact your service provider or

Motorola if your phone or battery has been damaged from dropping or high temperatures.

IMPORTANT: USE MOTOROLA ORIGINAL

PRODUCTS FOR QUALITY ASSURANCE AND

SAFEGUARDS.

To aid consumers in identifying authentic Motorola batteries from non-original or counterfeit batteries (that may not have adequate safety protection), Motorola provides holograms on its batteries. Consumers should confirm that any battery they purchase has a “Motorola Original” hologram.

Motorola recommends you always use

Motorola-branded batteries and chargers.

Motorola mobile devices are designed to work with Motorola batteries. If you see a message on your display such as Invalid Battery or Unable to Charge , take the following steps:

• Remove the battery and inspect it to confirm that it has a “Motorola Original” hologram;

12 get st a rted

• If there is no hologram, the battery is not a

Motorola battery;

• If there is a hologram, replace the battery and retry charging it;

• If the message remains, contact a Motorola

Authorized Service Center.

Important: Motorola’s warranty does not cover damage to the phone caused by non-Motorola batteries and/or chargers.

Warning: Use of a non-Motorola battery or charger may present a risk of fire, explosion, leakage, or other hazard.

PROPER AND SAFE BATTERY DISPOSAL AND

RECYCLING

Proper battery disposal is not only important for safety, it benefits the environment. Consumers may recycle their used batteries in many retail or service provider locations. Additional information on proper disposal and recycling may be found on the Web:

• www.motorola.com/recycling

• www.rbrc.org/call2recycle/ (in English only)

Disposal: Promptly dispose of used batteries in accordance with local regulations. Contact your local recycling center or national recycling organizations for more information on how to dispose of batteries.

Warning: Never dispose of batteries in a fire because they may explode.

store

a

phone number

To store a phone number in your Phonebook :

1 Enter a phone number in the home screen.

2 Press Save .

get st a rted 13

3 With Create New Contact highlighted, press the center key s

.

4 Set the number type ( Mobile 1 , Mobile 2 , Home , Work , or

Fax ) and press the center key s

.

5 Enter a name for the phone number, and enter other information as desired. (Press

S

up or down to highlight entry areas. To select a highlighted entry area, press the center key s

.)

6 Press Save to store the entry.

ca

ll

a

stored number

Find it: s

> L Phonebook

1 Scroll to the entry you want to call.

Shortcut: In your Phonebook , use the keypad to enter the first letters of an entry you want.

2 Press

N

to call the entry.

view your phone number

Find it: s

> u Settings > Phone Info > My Number

You can also view your number by pressing

Ò

, then

#

.

Tip: Want to see your phone number while you’re on a call? Press Options > Phone Info > My Tel. Number .

1 4 get st a rted

b

a

si

c

s st

a

tus indi

ca

tors

Indicators at the top of your phone’s display provide important status information, such as incoming calls, missed messages, and other conditions:

The following table lists the indicators that you may see on your phone’s display: indicator

8 Signal

Strength

Vertical bars show the strength of the network connection.

indicator

C

)

Digital

1X

EV EVDO

Coverage

ê

EVDO/

1x-RTT

Coverage

í

Airplane

Mode

Phone is in a CDMA digital coverage area.

Phone is in a 1x-RTT coverage area.

Phone is in an EVDO coverage area.

Phone is an area with both EVDO coverage and 1x-RTT coverage.

Phone’s features that require voice or data transmission are turned off (see page 25).

b a si c s 15

indicator

W

Roaming Phone is in a digital coverage area and is roaming off network.

5

SSL Indicates phone is using Secure

Sockets Layer (SSL) secure data transmission.

ë

Voice

Privacy

Phone is using a secure channel for a voice call.

ì

Data Call Shows during an active data call.

ã

Dormant ??????

9 No Service Phone is in area with no service coverage.

8

TTY Phone is in TTY mode (see page 24).

B Voice Call/

Incoming Call

Shows during an active voice call.

è

E911 Only Location is set to E911 Only .

16 b a si c s indicator

ó

Location

On

é

Phone

Locked

A Battery

Level

Location is set to Location On .

Phone is locked.

O

Bluetooth

Power On

I

Active

Bluetooth

Connection

à

All Sounds

Off

Shows battery charge level. The more bars, the greater the charge.

Phone’s Bluetooth power is turned on.

Phone is paired to another

Bluetooth device.

Master Volume is set to All Sounds Off

(see page 18).

indicator

á

Alarm Only Master Volume is set to Alarm Only (see page 18).

H Vibrate

Only i

Speakerphone

On

Master Volume is set to Vibrate Only (see page 18).

Speakerphone is on.

= Missed Call Phone received an unanswered call.

]

New Text

Message

Phone received a new text message.

â

New

Voicemail

Message h Alarm

Phone received a new voicemail message.

An alarm has been set.

extern

a

l displ

a

y

When you close your phone, the external display shows the time and date, status indicators, notifications for incoming calls and events, and touch sensitive buttons. For a list of status indicators, see the previous section. For information on touch sensitive buttons, see your Quick Start Guide .

11:10am

Mon 05/15/08 b a si c s 17

a

djust volume

With the flip open, press the volume keys up or down to:

• turn off an incoming call alert

• adjust the earpiece volume during calls

• change sound settings (see your Quick Start

Guide )

h

a

nds

f

ree

Note: The use of wireless phones while driving may cause distraction. Discontinue a call if you can’t concentrate on driving. Additionally, the use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products.

h

a

nds

f

ree spe

a

ker

You can use your phone’s handsfree speaker to make calls without holding the phone to your ear.

To activate the handsfree speaker during a call , press and hold the smart/speakerphone key.

S m art/Speakerphone Key

You will hear an audible alert, and your phone will show the speakerphone indicator i and SPEAKER PHONE ON on the main screen.

The handsfree speaker stays on until you press and hold the smart/speakerphone key again or turn off the phone.

18 b a si c s

To turn off the handsfree speaker , press and hold the smart/speakerphone key. Your phone will show

SPEAKER PHONE OFF on the main screen.

To end the call , press the power/end Key

O

. You will hear an audible alert.

Note: The handsfree speaker won’t work when your phone is connected to a handsfree car kit or headset.

acc

essory volume settings

(

ca

r kit or he

a

dset)

To adjust volume of headsets or car kit accessories that are enabled for Bluetooth wireless connections, press your phone’s volume keys up or down during an active call.

number . The six-digit security code is originally set to

000000 . Your service provider may reset these codes before you get your phone.

If your service provider didn’t change the unlock code, you should change it to prevent unauthorized use of your phone. The unlock code must contain four digits.

To change the unlock code :

Find it: s

> u Settings > Phone > Security

1 When prompted, enter the four-digit unlock code and press Done .

2 With Edit Lock Code highlighted, press the center key s

.

3 Enter the new code in both entry fields and press

Done .

c

odes

Your phone’s four-digit unlock code is originally set to

123 4 or to the last four digits of your phone b a si c s 19

lo

c

k & unlo

c

k phone

You can lock your phone manually or set it to lock automatically whenever you turn it off.

To lock or unlock your phone, you need the four-digit unlock code. A locked phone still rings or vibrates for incoming calls or messages, but you have to unlock it to answer .

You can make emergency calls on your phone even when it is locked (see page 35).

m

a

nu

a

l lo

c

k

Find it: s



2 Scroll to Lock Phone Now and press the center key s

.


To unlock your phone :

When you see Enter Unlock Code , enter your four-digit unlock code and press Done .

a

utom

a

ti

c

lo

c

k

To lock the phone whenever you turn it on:

Find it: s



2 Scroll to Phone Lock Setting and press the center key s

.


4 Scroll to On Power Up and press the center key s

.

20 b a si c s

The phone will be locked whenever it is turned on. To unlock the phone when you turn it on, enter the four-digit lock code in the Enter Lock Code entry area and press Done .

keyp

a

d lo

c

k

You can lock the phone’s keypad to prevent accidental key presses.

To lock the keypad manually :

With the flip open, press and hold

*

from the home screen. To unlock the keypad, press Unlock , then press the center key s

.

To lock the keypad after a timer expires :

Find it: s



2 Scroll to Keypad Lock Setting and press the center key s

.

3 Scroll to Timed and press the center key s

.

4 Scroll to 2 Seconds , 4 Seconds , or 8 Seconds , and press the center key s

.

The keypad will be locked whenever it is at the home screen and no keys are pressed for the period of time you selected. To unlock the phone, enter the four-digit lock code in the Enter Lock Code entry area and press Done .

i

f

you

f

orget

a c

ode

Your phone’s four-digit unlock code is set at the factory to 123 4 or to the last four digits of your phone number.

The six-digit security code is set to 000000 .

If you forget your security code, contact your service provider.

b a si c s 21

lo

c

k side keys & tou

c

h sensitive buttons

Note: When you lock the side keys, you can still use the volume keys to dismiss an incoming call.

When your phone’s flip is closed, you can lock the phone’s side keys (see page 2) and touch sensitive buttons (see your Quick Start Guide ). This prevents you from accidentally changing the Master Volume setting with the volume keys or activating the touch sensitive keys.

To lock the side keys and touch sensitive buttons, press and hold the smart/speakerphone key on the left side of the phone.

S m art/Speaker phone Key

If you press a locked side key when flip is closed, you see Press and Hold Smart Key to Unlock Keypad . If you open the flip, the side keys are temporarily unlocked and can be used as normal. When you close the flip again, the side keys are locked.

To unlock the side keys and touch sensitive buttons, press and hold the smart/speakerphone key .

lo

c

k

a

ppli

ca

tion

Find it: s



2 Scroll to Restrictions and press the center key s

.

3 Scroll to the desired application and press the center key s

: Calls , Messages , Location , Data Modem ,

Brew , Browser .

22 b a si c s

m

a

n

a

ge memory

Note: The micro-SD memory card is an optional accessory , available separately.

You can store multimedia content such as songs and photos on your phone’s internal memory or on a removable micro-SD memory card.

Note: If you download a copyrighted file to your phone and store it on your memory card, you can use the file only when your memory card is inserted in your phone. You cannot send, copy, or change copyrighted files.

See your Quick Start Guide for instructions on installing a memory card.

set memory

f

or multimedi

a c

ontent

You can download and store multimedia content in phone memory or on the memory card.

Find it: s

> u Settings > Storage Device

1 With Save Options highlighted, press the center key s

.

2 Scroll to Pictures , Videos , or Sounds , and press the center key s

.

3 Select Phone Memory or Card Memory and press the center key s

.

view memory in

f

orm

a

tion

Find it: s



.

2 If you selected Phone Memory in step 1, select Phone

Memory Usage , My Pictures , My Videos , or My Sounds , and press the center key s

.

If you selected Memory Card in step 1, select Memory

Card Usage , My Pictures , My Videos , My Sounds , or Format Card , and press the center key s

.

b a si c s 23

move

f

iles

f

rom phone to memory

ca

rd

You can move files (such as photos, videos, sound, and music files) to the memory card to free up phone memory.

Note: Moving a file to the memory card deletes it from phone memory.

Find it: s



.

2 Scroll to My Pictures , My Videos , or My Sounds , and press the center key s

.

3 Press Options , then scroll to Move and press the center key s

.

4 Scroll to each file you want to move and press the center key s

. Press Mark All if you want to move all files.

Note: Files that were preloaded on your phone can’t be moved.

5 When you have selected all files that you want to move, press Done .

6 When your phone asks if you want to move the file(s), select Yes and press the center key s

to confirm that you want to move the file.

TTY oper

a

tion

You can use an optional TTY device with your phone to send and receive calls. You must plug the

TTY device into the phone’s headset jack and set the phone to operate in one of three TTY modes.

2 4 b a si c s

Use a TSB-121 compliant cable (provided by the TTY device manufacturer) to connect the TTY device to the phone.

Set the phone volume to level 4 (middle setting) for proper operation. If you experience a high number of incorrect characters, adjust the volume as needed to minimize errors.

For optimal performance, your phone should be at least 12 inches (30 centimeters) from the TTY device.

Placing the phone too close to the device may cause high error rates.

set TTY mode

ù

When you set your phone to a TTY mode, it operates in that mode whenever the TTY device is connected.

Find it: s

> u Settings > Call

1 Scroll to TTY Setup and press the center key s

.

2 Scroll to one of the following TTY Setup options and press the center key s

.

option

Voice

TTY

VCO

HCO

Set to standard voice mode.

Transmit and receive TTY characters.

Receive TTY characters but transmit by speaking into phone microphone.

Transmit TTY characters but receive by listening to phone earpiece.

When your phone is in TTY mode, during an active call your phone displays the international TTY mode, the international TTY symbol, and the mode setting.

a

irpl

a

ne mode

Note: Consult airline staff about the use of Airplane Mode in flight. Turn off your phone whenever instructed to do so by airline staff.

b a si c s 25

Use airplane mode to turn off your phone’s calling features in locations where wireless phone use is prohibited. You cannot make or receive calls or use

Bluetooth wireless connections in airplane mode , but you can use your phone’s other non-calling features.

Find it: s

> u Settings > Phone > Airplane Mode

> On or Off

26 b a si c s

tips & tri

c

ks

From the home screen (see your Quick Start Guide ), you can use shortcuts:

To...

redial a number

Do this...

Press

N

, then scroll to the number you want to call and press

N

again.

Press

B

, then

*

.

lock/unlock keypad take photos Press b

.

turn handsfree speaker on and off

Press and hold the smart/speakerphone key (see page 18).

see your number Press

Ò

, then

#

.

tips & tri c ks 27

person

a

lize voi

c

e re

a

dout

You can set your phone to speak aloud when you press keys, receive a call with caller ID available, or scroll through the Phonebook or recent calls lists.

Find it: s

> u Settings > Sounds > Voice Readout

key volumes

To set the volume of the tones played when you press keypad keys :

Find it: s

> u Settings > Sounds > Keypad Volume

To set whether your phone plays tones when you press side keys :

Find it: s

> u Settings > Sounds > Volume Sidekeys

28 person a lize a

lert reminders

Set how many times your phone plays a message alert:

Find it: s

> u Settings > Sounds > Alert Reminders

Select Once , Every 2 Minutes , Every 15 Minutes , or Off .

ring & vibr

a

te

Set your phone to ring and vibrate when you receive an incoming call or message.

Note: Master Volume must be set to High , Medium High , Medium ,

Medium Low , or Low (see page 18).

Find it: s

> u Settings > Sounds > Ring & Vibrate

a

nswer options

You can use different methods to answer an incoming call.

Find it: s

> u Settings > Call > Answer Options options

Flip Open

Any-Key

Send Only

Auto Answer with

Handsfree

Answer by opening the flip.

Answer by pressing any key.

Answer only by pressing the send key

N

.

Automatically answer incoming calls when the phone is connected to a handsfree device such as a car kit or headset.

b

ac

klight

Set the amount of time that the display and keypad backlights stay on, or turn off backlights to extend battery life.

Find it: s

> u Settings > Display > Backlight

brightness

Find it: s

> u Settings > Display > Brightness

b

a

nner

Set a heading to display near the top of the home screen:

Find it: s

> u Settings > Display > Banner person a lize 29

menu l

a

ngu

a

ge

Find it: s

> u Settings > Phone > Language

di

a

l

f

onts

Set the phone to display numbers that you enter in large type:

Find it: s

> u Settings > Display > Dial Fonts c

lo

c

k

f

orm

a

t

Set how your phone shows the current time:

Find it: s

> u Settings > Display > Clock Format

1 Scroll to Inside Clock (main screen) or Outside Clock

(external display) and press the center key s

.

2 Select Digital 12 for a 12-hour clock, Digital 24 for a

24-hour clock, Analog for a dial clock, or Off for no clock, and press the center key s

.

30 person a lize

restore phone

Reset all options except unlock code, security code, and lifetime timer:

Find it: s


1 When prompted, enter the four-digit unlock code

(see page 19) and press Done .

2 Scroll to Restore Phone and press the center key s

.

3 Confirm that you want to reset the phone by scrolling to Yes and pressing the center key s

.

4 When prompted, enter the four-digit unlock code

(see page 19) and press Done .

The screen does not change while the phone resets all options. After a few seconds, the phone turns off and then turns back on.

AGPS & your lo

ca

tion

Your phone uses the Automatic Location Information

(ALI) feature, along with AGPS satellite signals, to tell the network where you are physically located.

When ALI is set to Location > On (Do Not Ask) or On (Always Ask) your phone shows the

O

(ALI on) indicator. Services may use your known location to provide useful information (for example, driving directions, or the location of the nearest bank). Your phone prompts you when the network or a service asks for your location.

You can refuse at this point.

When ALI is set to Location > Off (E911 Only) , your phone displays the

P

(ALI off) indicator, and the phone does not send location information unless you call the emergency phone number (such as 911).

Find it: s

> u Settings > Location

AGPS limit

a

tions & tips

Your phone uses Assisted Global Positioning

System (AGPS) satellite signals to estimate your location. If your phone cannot find strong satellite signals, your AGPS might be slower, less accurate, or it might not work at all. AGPS provides only an approximate location, often within 150 feet

(45 meters) but sometimes much farther from your actual location.

To improve AGPS accuracy:

• Go outside and away from underground locations, covered vehicles, structures with metal or concrete roofs, tall buildings, and foliage. Indoor performance might improve if you move closer to windows, but some window sun shielding films can block satellite signals.

person a lize 31

• Move away from radios, entertainment equipment, and other electronic devices that might interfere with or block AGPS satellite signals.

• If your phone has a retractable antenna, extend the antenna.

• Hold your phone away from your body, and point the phone antenna toward the sky. Do not cover the antenna area with your fingers.

AGPS uses satellites controlled by the U.S. government and subject to changes implemented in accordance with the Department of Defense AGPS user policy and the Federal Radio Navigation Plan.

These changes might affect AGPS performance.

32 person a lize

ca

lls

To make and answer calls, see your Quick Start Guide .

redi

a

l

a

number

1 Press the send key

N

to see the All Calls list.

2 Scroll to the entry you want to call.

3 Press the send key

N

to redial the number.

Note: The All Calls list includes numbers that were busy when you dialed.

a

utom

a

ti

c

retry

When you receive a busy signal , your phone displays Call Failed, Number Busy .

When you turn on automatic retry, your phone automatically redials a busy number for four minutes.

When the call connects, your phone rings or vibrates once, displays Redial Successful , and completes the call.

Find it: s

> u > Settings > Call > Auto Retry

When automatic retry is turned off, you can manually activate the feature to redial a phone number. When you hear a fast busy signal and see Call Failed , press

N or RETRY .

turn o

ff a ca

ll

a

lert

When you hear a call alert for an incoming call, you can press the volume keys to turn off the alert before answering the call.

ca lls 33

re

c

ent

ca

lls

Your phone keeps lists of the calls you recently received and dialed, even if the calls didn’t connect.

The lists are sorted from newest to oldest calls. The oldest calls are deleted as new calls are added.

Find it: s

> q Recent Calls

1 Scroll to Received Calls , Missed Calls , Dialed Calls , or All Calls , and press the center key s

.

2 Scroll to an entry.

3 Press

N

to call the number.

To see call details (like time and date), press the center key s

.

To send a message to the entry, press Send Msg .

To access a menu of options (see the table following these steps), press Options .

The Options menu can include: option

Save

Lock

Delete

Delete All

Create or update a Phonebook entry with the number in the No.

field.

Prevent the selected entry from being deleted.

Delete the selected entry (if the entry isn’t locked).

Delete all unlocked entries.

return

a

missed

ca

ll

Your phone keeps a record of your unanswered calls, and shows X Missed Calls , where X is the number of missed calls.

1 Press View to see the received calls list.

2 Scroll to the call you want to return and press

N

.

3 4 ca lls

speed di

a

l

Note: Speed dial number 1 is already assigned to your voicemail number.

To assign a speed dial number to an entry , see page 66.

To see an entry’s speed dial number :

Find it: s

> L Phonebook > Contact List

As you scroll through entries, speed dial numbers are identified by the speed dial indicator

>

.

To activate speed dialing , you must set One Touch Dial to

On :

Find it: s

> u Settings > Call > One Touch Dial

To speed dial a number , enter the speed dial number for the entry you want to call and press

N

.

one-tou

c

h di

a

l

To one-touch dial a speed dial number 1 through 9, press and hold the single-digit speed dial number (key

1

through

9

) for that entry for one second.

emergen

c

y

ca

lls

Your service provider programs one or more emergency phone numbers, such as 911, that you can call under any circumstances, even when your phone is locked.

Note: Emergency numbers vary by country. Your phone’s preprogrammed number(s) may not work in all locations, and sometimes an emergency call cannot be placed due to network, environmental, or interference issues.

1 Enter the emergency number.

2 Press

N

to call the emergency number.

ca lls 35

AGPS during

a

n emergen

c

y

ca

ll

When you make an emergency call, your phone can use Assisted Global Positioning

System (AGPS) satellite signals to tell the emergency response center your approximate location.

The AGPS feature has limitations, so always tell the emergency response center your best knowledge of your location. Remain on the phone for as long as the emergency response center instructs you.

AGPS might not work for emergency calls:

• Your phone’s AGPS feature must be turned on

(see page 31).

• Your local emergency response center might not process AGPS location information. For details, contact your local authorities.

For best results:

• Go outside and away from underground locations, covered vehicles, structures with metal or concrete roofs, tall buildings, and foliage. Indoor performance might improve if you move closer to windows, but some window sun shielding films can block satellite signals.

• Move away from radios, entertainment equipment, and other electronic devices that might interfere with or block AGPS satellite signals.

If your phone cannot find strong AGPS satellite signals, the location of the nearest cell tower in contact with your phone is automatically provided to the emergency response center.

36 ca lls

a

tt

ac

h number

While dialing (with digits visible on the display), press

Options , then scroll to and select Attach Number to attach a number from your Phonebook or a recent calls list.

insert spe

c

i

a

l

c

h

a

r

ac

ters

While entering a number, press Options and select one of these options:

• Insert Pause (p) —Your phone pauses for two seconds before it dials the next digit.

• Insert Wait (w) —Your phone waits until the call connects, then prompts you for confirmation before it dials the next digit(s).

intern

a

tion

a

l

ca

lls

If your phone service includes international dialing, you can set your phone to automatically insert your local international access code :

Find it: s

> u Settings > Call > Int’l Dialing > Automatic

When Int’l Dialing is set to Automatic , insert your local international access code (indicated by + ) by pressing and holding

0

.Then, use the keypad to dial the country code and phone number.

voi

c

em

a

il

Your network stores the voicemail messages you receive. To listen to your messages, call your voicemail number.

Note: Your service provider may give you additional information about using voicemail.

ca lls 37

When you receive a voicemail message, your phone shows the voicemail message indicator

t

and

New Voicemail . Press Call to listen to the message.

To check voicemail messages later:

Find it: s

> g Messages > Voicemail

Press

N

(send key) to call your voicemail number.

Your phone may prompt you to store your voicemail phone number. If you don’t know your voicemail number, contact your service provider.

he

a

ring

a

id

You can set your phone for hearing aid compatibility: s

> u > Settings > Call > Hearing Aid

Note: For more information about hearing aid compatibility, see “Hearing Aid Compatibility with

Mobile Phones” on page 91.

in-

ca

ll options

During an active call, press Options to access these options:

Contacts

Phone Info

Bluetooth Menu

Recent Calls

Message Center

BREW

Note: When you have a Bluetooth device connected during a call, you may also see Audio to Phone and Disconnect

Bluetooth options. When you have TTY Mode on, you may also see a TTY Setup option.

ca

ll times & d

a

t

a

volumes

Network connection time is the elapsed time from the moment you connect to your service provider’s network to the moment you end the call by

38 ca lls

pressing

O

. This time includes busy signals and ringing.

The amount of network connection time you track on your resettable timer may not equal the amount of time for which you are billed by your service provider. For billing information, please contact your service provider directly.

features minute beep

Set your phone to beep every minute during a call: s

> u Settings > Sounds > Service Alerts > Minute Beep view call times s q > Recent Calls > Timers

Scroll to and view the times for Last Call , All Calls , Received

Calls , Dialed Calls , Roaming Calls , or Lifetime Calls .

features view data volumes s q > Recent Calls > Data Volumes

Scroll to and view the volumes for Transmitted Data ,

Received Data , Total Data , or Lifetime Data .

reset call times or data volumes s

> q Recent Calls > Timers

To reset individual timers : Scroll to the timer you want to reset and press Reset . When prompted, select Yes to confirm that you want to reset the timer.

To reset all timers : Press Reset All . When prompted, select Yes to confirm that you want to reset all timers.

ca lls 39

more

ca

lling

f

e

a

tures

features

DTMF Tones

Your phone can send Dual Tone Multi Frequency

(DTMF) tones for calling card calls or other automated touch-tone calls.

Set up DTMF tones: s

> u > Settings > Call > DTMF Tones

Select Short or Long .

conference call

During a call, dial the next number and press

N

, then press

N

again.

4 0 ca lls

text entry

Some features require you to enter information. The following is a sample of a screen for entering information for a Phonebook entry:

Press Optio n s to v i ew Optio n s menu.

New Contact

F i rst Name:

John

Last Name:

Sm i th

Mob i le 1:

212-555-1212

Opt i ons Save

H i ghl i ghted entry area.

Press Save to save changes.

The following is a sample screen for composing a message:

H i ghl i ghted entry area.

To:

0/10 Msg 123

Press Optio n

Optio n s menu.

s to v i ew

Opt i ons Add Send

Press Add to select rec i p i ent from the

Pho n ebook or recent calls l i sts.

text entry 4 1

set entry modes

Multiple text entry modes make it easy for you to enter names, numbers, and messages. The default mode is Abc (tap mode, first character of a sentence in uppercase).

To select an entry mode from a text entry screen , press Abc (the left soft key), then select one of the following: entry modes iTAP English Let the phone predict each English word as you press keys (see page 44).

iTAP

Spanish

Abc

Let the phone predict each Spanish word as you press keys.

Enter letters and number, first character of a sentence in uppercase.

entry modes

ABC Enter letters and numbers, all characters in uppercase (not available when editing a contact).

123

Symbols

Enter numbers only.

Enter symbols.

Your phone may not contain all of the languages listed above.

When text mode is set to ABC or Abc , press

*

in any text entry screen to toggle through these capitalization options : abc

Abc

ABC no uppercase letters first letter of a sentence in uppercase all uppercase letters

4 2 text entry

When text mode is set to iTAP English or iTAP Spanish , press

*

in any text entry screen to toggle between these capitalization options : entry mode capitalization options iTAP English iTAPEn first letter of sentence in uppercase (English) iTAP

Spanish iTAPEN all uppercase letters (English) iTAPen all lowercase letters (English) iTAPEs first letter of sentence in uppercase (Spanish) iTAPES iTAPes all uppercase letters (Spanish) all lowercase letters (Spanish)

Press Options in any text entry screen, scroll to and select Entry Mode , then scroll to and select the desired entry mode.

t

a

p mode

This is the standard method for entering text on your phone.

Regular Tap method cycles through the letters and numbers of the key you press. The Tap Extended method cycles through letters, numbers, and symbols. If Tap or

Tap Extended is not available as the Primary or Secondary entry mode, see page 42.

1 Press a key once to insert the first letter on the key, twice for the second letter, and so on. If you pause briefly, your phone accepts the last letter displayed and waits for the next entry.

2 Enter the remaining characters in the same way.

Tip: Press

#

to enter a space.

text entry 4 3

iTAP® mode

iTAP software provides a predictive text entry method that combines your key presses into common words.

When you enter three or more characters in a row, your phone may guess the rest of the word. For example, if you enter prog , you might see:

13/960 Msg i TAPEn

To:

Steve M i ller

Th i s i s a prog ram^

Press S r i ght to accept p r og r am . Enter a space after prog to keep only p r og .

Opt i ons Insert Send

If you want a different word (such as progress ), continue pressing keys to enter the remaining letters.

If you enter a word your phone does not recognize, your phone stores the word to use as a future word option. When you run out of phone memory for unrecognized words, your phone deletes the oldest word to add new words.

Press

S

up or down to view other possible combinations, and select the one you want.

Press

S

right to enter the highlighted combination when it spells a word. A space is automatically inserted after the word.

Press

1

to enter punctuation or other characters.

numeri

c

mode

After selecting numeric mode, press the number keys to enter the numbers you want.

44 text entry

symbol mode

When you select symbol mode, your phone shows the Symbols screen. Scroll to the symbol you want and press the center key s

to select it To see more symbols, press Prev or Next .

text entry tips

To enter a space , press

#

.

To enter punctuation or other special character while entering text , press

1

repeatedly until you see the punctuation mark or character you want.

To delete the character to the left of the cursor , press

Ò

. To delete an entire word , press and hold

Ò

.

text entry 4 5

mess

a

ges send

a

multimedi

a

mess

a

ge

A multimedia message (MMS) contains embedded media objects such as photos, pictures, animations, sounds, and voice records. You can also insert a vcard for a contact or a calendar event. You can send a multimedia message to other wireless phones with multimedia messaging capabilities and to email addresses.

c

re

a

te & send mess

a

ge

Find it: s

> Ö Messaging > Create Message

1 Enter a phone number or email address. or

4 6 mess a ges

Press Add to open the Add Recipients screen, then select Contacts , Recent Calls , or Groups . Press the center key to mark each entry you want to include as a message recipient, and press Done when finished.

2 Scroll down to the text entry area and enter message text.


to select Insert .

4 To insert a prewritten message, scroll to Quick Text and press the center key s

. Then scroll to the quick text you want to insert and press the center key s

.

or

To insert a sound, scroll to Audio and press the center key s

. Then scroll to the desired sound and press the center key s

.

or

To insert a stored picture or video clip, scroll to

Pictures or Video and press the center key s

. Then scroll to the desired object and press Ok .

or

To insert a vcard for a contact in your Phonebook , scroll to Contact Info and press the center key s

.

Then scroll to the desired entry and press the center key s

.

or

To insert an event from your phone’s Calendar , scroll to Calendar Event and press the center key s

. Then scroll to the desired event and press the center key s

.

5 To insert a message subject, set message priority, or set delivery options, press Options (see page 48).

6 Press Send to send the message.

Press Options from the Msg message entry screen to open the messaging Options menu, which can include the following: options

Entry Mode

Save to Draft

Insert Subject

Insert Object

Add Recipients

Specify the entry mode to use

(see page 42).

Save the message, without sending it, in the Drafts folder.

Enter the message subject.

Insert quick text, picture, video, sound, vcard, or calendar event.

Enter message recipients from the Phonebook or recent calls lists.

mess a ges 4 7

options

Priority

Delivery

Cancel Message

Set to Normal or High .

Select Deferred Delivery to schedule the message to be sent at a later time. Select Delivery report if you want to receive a report on whether or not the message was sent successfully.

Cancel delivery of the message and exit with or without saving the message to the Drafts folder.

re

c

eive

a

multimedi

a

mess

a

ge

When you receive a multimedia message, your phone plays an alert and displays the

<

(message waiting) indicator and a New Message notification.

Open the flip and select View Now to read the message immediately, or select View Later to save it in your Inbox for viewing later.

To read messages in your Inbox :

Find it: s

> Ö Messaging > Inbox

1 Scroll to the message you want to read.


to open the message.

Your phone displays the media object, then the message.

3 Press Reply if you want to respond to the message.

or

Press Options to view and select from these options: Reply with Copy , Forward , Lock , Save To Contact ,

Message Details , Delete Message , Save Quick Text , or Create

Message .

or

Press

Ò

to return to the message Inbox .

4 8 mess a ges

Multimedia messages can contain different media objects:

• Photos, pictures, and animations are displayed when you read the message.

• A sound file begins playing when the message text is displayed. Use the volume keys to adjust the volume.

• If the message includes an attached file, select the file indicator or filename and press

VIEW (for an image file), PLAY (for a sound file), or OPEN (for an object such as a Phonebook or calendar entry or an unknown file type).

more mess

a

ging

f

e

a

tures

features send text message s

> Ö Messaging > Create Message

Press Options to perform other actions on the message.

create quick text

Enter and store Quick Text (prewritten) messages that you can select and send later.

s

> Ö Messaging

Press Options . then scroll to Quick Text and press the center key s

. Press Options , then select New .

mess a ges 4 9

features send quick text s

> Ö Messaging

Press Options . then scroll to Quick Text and press the center key s

. Scroll to the quick text message you want to send and press Send .

set up messaging s

> Ö Messaging

Press Options . Select Auto Cleanup to erase messages automatically. Select Voicemail # to enter the number to call for your voicemail messages. Select Callback # to insert a callback number automatically into messages that you send. Select Signature to create a signature line that is inserted automatically at the end of messages that you send. Select Auto Receive to

???.

features view sent message s

> Ö Messaging > Outbox

Scroll to the message you want to view and press the center key s

.

Press Options to access the following options: Read ,

Resend , Forward , Lock , Save to Contact , Message Details , Delete

Message , Delete Multiple , Delete All , Sort By , or Create Message .

delete messages

Delete all messages or only messages from the Outbox or Drafts folder: s

> Ö Messaging

Press Options , then scroll to and select Delete . Select

Inbox , Drafts , Sent , or All .

To delete Inbox or Outbox messages automatically, press Options , then select Auto Cleanup .

50 mess a ges

features drafts s

> Ö Messaging > Drafts

To complete and send a saved draft message, scroll to the message and press the center key s

.

or

To view and select other options , press Options to access the following: Send , Edit , Lock , Save to Contact , Delete , or Create Message .

store message objects

Go to a multimedia message slide, or highlight an object in a letter, then press Options .

Select Save Picture or Save Sound .

mess a ges 51

entert

a

inment l

a

un

c

h browser

s

> E Web Browser

view pi

c

tures

s

> j Multimedia > Pictures

1 Scroll left and right to view pictures.

Press Options to open the Options menu (see the table following these steps).

Press Edit to access editing tools that you can use to modify the selected picture.

If you see Slideshow at the bottom middle of the screen, press the center key s

to see a

“slideshow” presentation of all pictures, shown

52 entert a inment in sequence. Press the center key s

to pause the slideshow. Press Settings to modify slideshow settings. Press

Ò

to end the slideshow and return to the picture viewer screen.

If you see Ok at the bottom middle of the screen and the message Buy Wallpaper , press the center key s

to purchase and download pictures.

2 Press

Ò

to return to the Multimedia menu.

While viewing pictures, press Options from the playback screen to access these options: options

Send Send the selected picture in a multimedia message (see page 46).

options

To Axcess

MyPics

Set As

Send the picture to AxcessMyPics.com

.

Capture

Rename

Move

Lock/Unlock

Set the picture as a picture ID (see page 65).

Open the active camera viewfinder screen.

Change the name of the selected picture.

Move the selected picture to another device through a Bluetooth® connection, from phone memory to memory card, or from memory card to phone memory.

Lock the selected picture to prevent it from being deleted.

options

Print

Delete

Delete All

Mark

Mark All

File Info

Use a Bluetooth® connection with a printer to print the selected picture.

Delete the selected picture.

Delete all unlocked pictures.

Mark the selected picture. After you mark one or more pictures, press

Options to see these options: Unmark , Mark

All , Unmark All , Move Marked to Memory Card ,

Move Marked to Phone , Delete Marked , Lock Marked ,

Unlock Marked .

Mark all pictures. After you mark all clips, press Options to see these options: Unmark , Mark All , Unmark All , Move

Marked to Memory Card , Move Marked to Phone ,

Delete Marked , Lock Marked , Unlock Marked .

See detailed information about the selected video clip.

entert a inment 53

pl

a

y videos

To play video clips that you have recorded or received in multimedia messages:

Find it: s

> j Multimedia > Videos

Your phone shows the video clip playback screen:

0522081423a 1/3

Press left soft key to open

O p t i ons m enu.

Opt i ons Play Record

Press center key s to play selected video clip.

1 Scroll left or right to highlight a video clip.

Press Options to open the Options menu (see the table following these steps).


to play a highlighted video clip.

0522081423a 1/3

Press left soft key to freeze video clip at current fra m e & open

O p t i ons m enu.

00:07 01:34

Opt i ons Mute

Press right soft key to m ute/ un m ute video clip sound.

Use these keys to control video playback: video playback controls pause/play Press & release center key s

.

5 4 entert a inment

video playback controls fast forward Press & hold

S right (for at least two seconds).

skip to next video clip

Press & release

S right .

rewind Press & hold

S left (for at least two seconds).

skip back to previous video clip

Within first two seconds of video clip playback, press & release

S left .

return to song beginning

After first two seconds of song, press & release

S left .

Press

S

down.

toggle between portrait & landscape orientation

During video clip playback , press Options to view and select these options: Extract Current Frame , Videos ,

File Info .

3 When the video clip has finished playing, press

Ò

to return to the playback screen.

When a video clip is not playing, press Options from the playback screen to access these options: options

Send Send the selected clip in a multimedia message (see page 46).

Send the video clip to AxcessMyPics.com

.

To Axcess

MyPics

Set As

Rename

Set the video clip as a ring ID (see page 65).

Change the name of the selected video clip.

entert a inment 55

options

Lock/Unlock

Delete

Delete All

Trim

Mark

Mark All

File Info

Lock the selected video clip to prevent it from being deleted.

Delete the selected video clip.

Delete all unlocked video clips.

Edit the length of the video clip.

Mark the selected clip. After you mark one or more clips, press Options to see these options: Unmark , Mark All , Unmark All ,

Delete Marked , Lock Marked , Unlock Marked .

Mark all video clips. After you mark all clips, press Options to see these options: Unmark , Mark All , Unmark All , Delete

Marked , Lock Marked , Unlock Marked

See detailed information about the selected video clip.

Note: Your phone’s options may vary. Most options apply only to user-recorded videos, and are not available for pre-installed videos.

m

a

n

a

ge sounds

s

> j Multimedia > Music & Sounds > Sounds

To play a sound , scroll to the sound title and press the center key s

. Press Options to open a menu that can include these options: Send , Rename , Move , Delete , Delete

All , Mark , Mark All , File Info .

To record a voice note , select Record New and press the center key s

. Press the center key s

( Start ) to begin recording. Press the center key s

again to stop recording.

Tip: From the home screen and with the flip open, press and hold the voice key on the right side of the phone (see page 2) to go to the Record New screen. then record a voice note as instructed above.

56 entert a inment

tools voi

c

e re

c

ognition

Your phone’s voice recognition feature lets you make calls and complete other actions by speaking commands to your phone.

voi

c

e re

c

ognition tips

• When speaking the name of a Contacts entry, say the name exactly as it is listed. For example, to call the mobile number for an entry named Bill Smith, say “Call Bill Smith mobile.” (If the entry includes only one number for Bill Smith, say “Call Bill Smith.”)

• Speak numbers at a normal speed and volume, and pronounce each digit distinctly.

Avoid pausing between digits.

• You can set your phone to play voice command instructions through the speakerphone by pressing the voice key, which opens the Voice Commands menu. If you use the Call command to place a call, the audio plays through the phone’s earpiece when the call connects. You can turn this feature off (see page 62).

tools 57

voi

c

e

c

omm

a

nds

1 With the phone flip open , press and release the voice key on the right side of the phone.

Note: If you press and hold the voice key when the flip is open, voice recording is activated.

or

With the phone flip closed , press and hold the voice key on the right side of the phone.

Your phone says Please say a command and displays a list of voice commands.

2 Say one of the commands listed in the following table. Your phone performs the corresponding action.

feature

Call <Name or #>

Place a call to:

• a Contact List entry whose name you speak or

• a phone number you speak

For example, when prompted to say a command, say “Call Bill Smith mobile” or “Call 8475551212.”

58 tools

feature

Send Msg <Name or #>

Send a message to:

• a Contact List entry whose name you speak or

• a phone number you speak

For example, when prompted to say a command, say “Send message to Bill Smith mobile” or “Send message to 8475551212.” Your phone opens the

Msg entry screen, with the name or number you said in the To field. For instructions on sending a message, see pages 46.

feature

Go To <Shortcut>

Access the menu or perform the action you specify:

Contacts —Open the Contact List .

Recent Calls —Open the Recent Calls menu.

Messaging —Open the Messaging menu.

Settings —Open the Settings menu.

Camera —Open the active camera viewfinder.

Music Player —Open the Music Player menu.

Redial —Call the last number you dialed.

Note: If you don’t have any content (music, recent calls, and so on), the phone returns to the home screen.

tools 59

feature

Check <Item>

View the item on the screen that you say aloud:

Status —coverage, signal strength, and battery charge

Voicemail —new voicemail messages

Messages —newly received messages

Missed Calls —unanswered incoming calls

Time —time and date

Signal Strength —network connection strength

Battery —battery charge

Volume —ringer volume feature

Contact <Name>

Look up an entry from the Contact List by saying the contact’s name.

Play <Playlist>

Play a playlist with the music player by saying the name of one of your playlists.

Note: If you don’t have any music, the phone returns to the home screen.

Help

Access help information for the voice recognition feature.

60 tools

voi

c

e re

c

ognition settings

To modify voice recognition settings:

1 With the phone open, press and release the voice key on the right side of the phone.

Note: With the phone closed, press and hold the voice key.

2 Press Settings .

3 Scroll to the desired option and press the center key s

.

voice recognition settings

Digit Dial Readout

Set your phone to say numbers aloud as you press them on the keypad.


Confirmation

If your phone is not sure that it has correctly identified a name or number that you speak, it can display up to three choices and prompt you to confirm the correct one.

You can control when choice lists appear:

Automatic —Display a list of choices from multiple alternatives.

Always Confirm —Always display a list of choices when there are multiple alternatives.

Never Confirm —Never display a choice list. The phone chooses from the best alternatives.

tools 61


Sensitivity

You can fine tune your phone’s ability to recognize voice commands. Select Most Sensitive , Recommended , or

Least Sensitive .

If sensitivity is too strict , your phone often rejects voice commands and displays “Please repeat ...” or

“No match found.” Select Most Sensitive.

If sensitivity is too forgiving , you experience false activations (indicating that the phone detects a wrong match). Select Least Sensitive .

Adaptation

Follow the prompts on your screen to improve recognition of spoken words. Adaptation takes about sixty seconds and requires you to be in a quiet place (no background noise).


Prompts

Mode —Set whether your phone says Prompts , Readout (to read every word on the screen), or Tones Only .

Audio Playback—Set how you want to hear prompts: Automatic detection, Speakerphone, or through your Earpiece.

Call Alert

For an incoming call, set whether you hear a Ring Only ,

Caller ID + Ring , or Name Repeat (repeat the name until you answer or the call goes to voicemail).

To access in-device help for a setting you speak, press Info .

62 tools

phonebook

c

re

a

te entry

Find it: s

> L Phonebook > New

Enter contact information and press Save . You must complete at least one of the following entry areas:

Mobile1 , Home , Work , Email1 , Mobile2 , Fax , Email2 , or URL .

For more information on creating a new entry, see page 13.

view entry

Find it: s


To view details for an entry , scroll to the entry and press the center key s

.

To perform other actions on an entry , scroll to the entry and press Options .

ca

ll entry

s


Scroll to the entry you want to call and press

N

.

edit entry

To modify an entry :

Find it: s


Scroll to the entry and press Options , then scroll to Edit

Contact and press the center key s

.

To edit an entry before calling it :

Find it:

1 Scroll to the entry.

2 If the entry has more than one number, press

S left or right to scroll to the number you want to change.

tools 63

3 Press Options , then scroll to Edit Before Call and press the center key s

.

Your phone shows the number to be changed.

4 Change the number as desired, then press Save .

5 Select Create New Contact , then enter contact information and press Save .

or

Select Update Existing , then scroll to the entry to be updated and press the center key s

. Select the number to be updated and press the center key s

.

To delete an entry :

Find it: s


Scroll to the entry and press Options , then scroll to Delete

Contact and press the center key s

.

To delete all entries :

Find it: s


1 Press Options , then select Delete All .

2 When you see Delete All Contacts?

, scroll to Yes and press the center key s

.

3 Enter your four-digit security code (see page 19) and press Done .

To add more numbers or email addresses to an entry :

Find it: s


1 Scroll to the entry and press Options , then select Edit

Contact .

2 Scroll down to the appropriate entry area (see page 63) and enter the required information.

3 Press Save to save the modified entry.

6 4 tools

ringer IDs

When you assign a ringtone to an entry, your phone plays that ringtone when you receive a call from that entry.

Find it: s

> L Phonebook


Contact .

2 Scroll to Ringer ID and press the center key s

.

3 Scroll to the desired ringtone.

Note: As you scroll through settings, your phone plays a sample of each setting you highlight.


to select the highlighted ringtone.

pi

c

ture IDs

Assign a photo or picture to show when you receive a call from an entry:

Find it: s



Contact .

2 Scroll to Picture and press the center key s

.

3 Scroll left or right to the desired picture and press the center key s

.

Press Options and select Capture to take a new photo

(see your Quick Start Guide ) to use as a picture

ID.

set speed di

a

l number

Note: To use speed dial to call an entry, see page 35.

Find it: s

> L Phonebook > Speed Dial tools 65

1 Scroll to an unassigned speed dial location entry and press Set .

2 Scroll through the Contact List to the entry to be assigned the number and press the center key s

.

3 When prompted, select Yes to confirm your selection.

set de

fa

ult number

Set the primary number for an entry with multiple numbers. This will be the number your phone shows when listing Contact List entries.

Find it: s



Contact .

2 Scroll to the number to be set as the default number and press Options , then select Set as Default .

sort entries

Set whether Contact List entries are listed in alphabetical order by first or last name:

Find it: s


1 Press Options , then select Sort Name .

2 Scroll to First Name or Last Name and press the center key s

.

groups

To send a text message to many people at once, you can add Contact List entries to Groups . Then, when you enter a group’s name as a message recipient, the message is sent to all members of that group.

Your Phonebook comes with several groups already, and you can create your own additional groups.

To add entries to a group :

Find it: s

> L Phonebook > Groups

66 tools

1 Scroll to the group name and press Options , then select Add Contacts .

2 Scroll to each entry you want to add to the group and press the center key s

.

A check mark appears in the box beside an entry when you select it. To deselect an entry, scroll to the entry and press the center key s

to remove the check mark.

3 When you finish selecting entries, press Done to save your selections.

To create a new group :

Find it: s

> L Phonebook > Groups

1 Press New .

2 Enter the new group name and press Save .

network

features network settings

View network information and adjust network settings: s

> u Settings > Phone > Network Options

Scroll to the desired network setting and press the center key s

.

call connect tones

Set phone to play a tone when a call connects: s

> u Settings > Sounds > Service Alerts > Call Connect tools 67

features call drop tone

Set phone to play an alert tone whenever the network drops a call. (Because digital networks are so quiet, a call drop alert may be your only indication that a call was dropped.) s

> u Settings > Sounds > Service Alerts > Voice Call Drop

person

a

l org

a

nizer

features add datebook event s

>

É

Tools > Datebook

Scroll to the desired day and press Add , then enter event information and press Done .

features view datebook event

View or edit event details: s

>

É

Tools > Datebook

Scroll to the desired day and press the center key s

, then scroll to the event and press the center key s

.

To edit the event, press Edit .

event reminder

Press View to view an event reminder.

Press Exit to dismiss an event reminder.

set alarm s

>

É

Tools > Alarm Clock turn off alarm

To turn off an alarm, press Off or

O

.

68 tools

features calculator

Calculate numbers: s

>

É

Tools > Calculator view world clock

To view the current time in cities around the world: s

>

É

Tools > World Clock

Scroll left or right to see the time in a desired city.

Or, press Cities , then scroll to the city you want and press the center key s

. Press Set DST to set

Daylight Savings Time for a city. features notepad

Your phone stores the most recent digits you entered in the Notepad . These digits can be a number that you called ar a number that you entered and want to save for later. You can also create notes with information that you want to save for later.

s

>

É

Tools > Notepad

Your phone shows a list of notes. To view the contents of a note, scroll to the note and press the center key s

. To create a new note, press New . tools 69

c

onne

c

tions

ca

ble

c

onne

c

tions

Your phone has a micro USB port that allows you to connect it to a computer.

Note: Motorola Original

TM

data cables and supporting software are sold separately. Check your computer to determine the type of cable you need.

If you use a USB cable connection:

• Make sure both your phone and the computer are turned on.

• Make sure to connect the phone to a high-power USB port on your computer (not a low-power one such as the USB port on your keyboard or bus-powered USB hub). Typically,

USB high-power ports are located directly on your computer.

Note: If you connect your phone to a low-power USB port, the computer may not recognize your phone.

Specify the correct USB setting on your phone:

Find it: s

> u Settings > USB

Scroll to Modem/COM and press the center key s

.

70 c onne c tions

Bluetooth®

c

onne

c

tions

Your phone supports Bluetooth wireless connections.

You can connect your phone to a Bluetooth headset or car kit, or connect to another device to transfer files.

To view a list of Bluetooth profiles supported by your phone:

Find it: s

> u Settings > Bluetooth

1 Press Options , then scroll to Supported Profiles and press the center key s

.

2 To see more information about a profile, scroll to the profile name and press the center key s

.

For more Bluetooth wireless connections support information, go to www.motorola.com/Bluetoothsupport .

Note: All multimedia (video player, audio player, shutter tones) will play from the speakerphone when your phone is connected to another Bluetooth device.

For maximum Bluetooth security , always connect

Bluetooth devices in a safe, private environment, away from other devices with Bluetooth connection capabilities.

turn Bluetooth power on/o

ff

Set Bluetooth power to be on whenever your phone is on.

Find it: s


Press Bluetooth On .

Note: To extend battery life when you are not actively using a Bluetooth connection, turn Bluetooth power off by using this procedure and pressing Bluetooth Off . If you turn off Bluetooth power, your phone will not connect to other Bluetooth devices until you turn on

Bluetooth power and then reconnect.

c onne c tions 71

pl

ac

e phone in dis

c

overy mode

Allow an unknown Bluetooth device to discover your phone:

Find it: s


1 Press Options .

2 Scroll to Discovery Mode and press the center key s

.

3 Scroll to On and press the center key s

.

The following message appears: Discovery on: For one minute other devices can find you .

If the device requests permission to bond with your phone, press YES and enter the device PIN code to create a secure connection with the device. (The PIN code is typically set to 0000 .)

Note: See the instructions that came with your device for the device’s PIN code and other information about the device.

p

a

ir with he

a

dset, h

a

nds

f

ree devi

c

e, or

c

omputer

Note: If you want to use your Motorola Bluetooth headset with both an audio device and your phone, use your phone’s Bluetooth menus to connect the phone with the headset.

If you establish the connection by pressing a button on the headset, or if you allow the headset to connect automatically by turning it on, you may experience unexpected results.

Before you try to connect to another Bluetooth device , make sure your phone’s Bluetooth power is On and the device is in pairing or bonding mode (see the user guide for the device you are attempting to pair with). You can connect your phone with only one device at a time.

72 c onne c tions

Find it: s



to select Add New Device .

Note: If your Bluetooth power is not turned on, your phone will prompt you to turn it on.

2 When you see Place the device you are connecting to in discoverable mode , press the center key s

.

Your phone lists the devices it finds within its range. If your phone is already connected to a device, your phone lists that device and identifies it with a

%

(in-use indicator).

3 Scroll to a device in the list and press Pair to connect to the device.

4 If the device requests permission to bond with your phone, press YES and enter the device PIN code to create a secure connection with the device. (The PIN code is typically set to 0000 .)

Note: See the instructions that came with your device for the device’s PIN code and other information about the device.

When the connection is made, the

à

(Bluetooth) indicator or a Bluetooth message displays in the home screen.

c

onne

c

t to h

a

nds

f

ree devi

c

e during

a ca

ll

1 During a call, press Options , then select Connect

Bluetooth .

2 Scroll to Add New Device , or select the name of a device if you have paired with it previously, and press the center key s

.

3 If connecting to a new device, place the new device in discoverable mode and press the center key s

on your phone.


4 When your phone finds the device, press Pair .

5 If prompted, enter the default PIN code 0000 .

Note: You can’t switch to a headset or car kit if you are already connected to a Bluetooth device.

c

opy

f

iles to

a

nother devi

c

e

You can use a Bluetooth connection to transfer a contact or file to another Bluetooth device.

To transfer a contact :

Note: Make sure the device receiving the entry has

Bluetooth power on and is in discoverable mode.

Find it: s


1 Scroll to the entry you want to transfer and press

Options .

2 Scroll to Send Contact Info and press the center key s

.


to select via Bluetooth .

7 4 c onne c tions

4 To add more entries, scroll to each entry and press the center key s

.

5 Press Done , then press Send .

6 Scroll to Add New Device , or scroll to the device that you want, and press the center key s

.

Note: If your phone does not already have

Bluetooth power turned on, it prompts you to turn it on.


on your phone.

8 When the phone shows the list of devices, scroll to the device you want and press OK .


When the connection is made, the receiving device is prompted to accept the transfer. When the receiving device accepts, the your phone transfers the entry to the device.

To transfer a file to another device :

Note: Make sure the device receiving the file has

Bluetooth power on and is in discoverable mode. The receiving phone must be capable of receiving the file type.

1 On your phone, select the file (such as a picture, video, or sound) you want to transfer and press

Options .


to select Send .

3 Scroll to via Bluetooth and press the center key s

.

4 Scroll to Add New Device , or scroll to the device that you want, and press the center key s

.

Note: If your phone does not already have

Bluetooth power turned on, it prompts you to turn it on.


on your phone.

6 When the phone shows the list of devices, scroll to the device you want and press OK .


8 When your phone prompts you to confirm that you want to send the file, press Yes .

When the connection is made, the receiving device is prompted to accept the transfer. When the receiving device accepts, the your phone transfers the entry to the device.

re

c

eive

f

iles

f

rom

a

nother devi

c

e

Note: If you do not see the Bluetooth indicator

O

at the top of your phone’s display, turn on your phone’s

Bluetooth power (see page 71).


1 Pair your phone with the other device (see page 72).

2 Send the file from the other device. (If necessary, refer to the user’s manual for the device for instructions.)

3 When prompted to accept the sent object, scroll to Yes and press the center key s

.

Your phone notifies you when the transfer is complete. If necessary, press Save to save the file.

dis

c

onne

c

t

f

rom

a

devi

c

e

To disconnect from a device while the phone is idle :

Find it: s


1 Scroll to the name of the device from which you want to disconnect and press Options .

2 When your phone prompts Disconnect from devicename ?

, scroll to Yes and press the center key s

.

To disconnect from a device during an active call :

1 Press Options .

2 Scroll to Disconnect Bluetooth and press the center key s

.

76 c onne c tions

servi

c

e & rep

a

irs

If you have questions or need assistance, we're here to help.

Go to www.motorola.com/support , where you can select from a number of customer care options. You can also contact the Motorola Customer Support

Center at 1-800-331-6456 (United States),

1-888-390-6456 (TTY/TDD United States for hearing impaired), or 1-800-461-4575 (Canada).

servi c e & rep a irs 77

Specific Absorption Rate Data

SAR Data

This model wireless phone meets the government’s requirements for exposure to radio waves.

Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications

Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.

The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR.

The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg.

1

Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry

Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR

78 SAR D a t a level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.

Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry

Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada.

The highest SAR value for this model phone when tested for use at the ear is 1.34 W/kg, and when worn on the body, as described in this user guide, is 0.97 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and regulatory requirements).

2

While there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines.

Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association

(CTIA) Web site: http://www.phonefacts.net or the Canadian Wireless Telecommunications Association (CWTA)

Web site: http://www.cwta.ca

1.

In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.

The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

2.

The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product.

SAR D a t a 79

80 SAR D a t a

Import

a

nt S

af

ety

a

nd

Leg

a

l In

f

orm

a

tion

81

Safety and General Information

Safety Information This section contains important information on the safe and efficient operation of your mobile device. Read this information before using your mobile device.

Exposure to Radio Frequency (RF)

Energy

Your mobile device contains a transmitter and receiver. When it is

ON, it receives and transmits RF energy. When you communicate with your mobile device, the system handling your call controls the power level at which your mobile device transmits.

Your Motorola mobile device is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy.

Operational Precautions

For optimal mobile device performance, and to be sure that human exposure to RF energy does not exceed the guidelines set forth in the relevant standards, always follow these instructions and precautions.

Product Operation

When placing or receiving a phone call, hold your mobile device just like you would a landline phone.

If you wear the mobile device on your body, always place the mobile device in a Motorola-supplied or approved clip, holder, holster, case, or body harness. If you do not use a body-worn accessory supplied or approved by Motorola, keep the mobile device and its antenna at least 2.5 centimeters (1 inch) from your body when transmitting.

Using accessories not supplied or approved by Motorola may cause your mobile device to exceed RF energy exposure guidelines. For a list of Motorola-supplied or approved accessories, visit our Web site at: www.motorola.com

.

RF Energy Interference/Compatibility

Nearly every electronic device is subject to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your mobile device may cause interference with other devices.

82 S af ety In f orm a tion

Follow Instructions to Avoid Interference

Problems

Turn off your mobile device in any location where posted notices instruct you to do so.

In an aircraft, turn off your mobile device whenever instructed to do so by airline staff. If your mobile device offers an airplane mode or similar feature, consult airline staff about using it in flight.

Implantable Medical Devices

If you have an implantable medical device, such as a pacemaker or defibrillator, consult your physician before using this mobile device.

Persons with implantable medical devices should observe the following precautions:

• ALWAYS keep the mobile device more than

20 centimeters (8 inches) from the implantable medical device when the mobile device is turned ON.

• DO NOT carry the mobile device in the breast pocket.

• Use the ear opposite the implantable medical device to minimize the potential for interference.

• Turn OFF the mobile device immediately if you have any reason to suspect that interference is taking place.

Read and follow the directions from the manufacturer of your implantable medical device. If you have any questions about using your mobile device with your implantable medical device, consult your healthcare provider.

Driving Precautions

The use of wireless phones while driving may cause distraction.

Discontinue a call if you can’t concentrate on driving.

Additionally, the use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products.

Responsible driving practices can be found in the “Smart Practices

While Driving” section in this guide (or separate guide).

Operational Warnings

Obey all posted signs when using mobile devices in public areas.

Potentially Explosive Atmospheres

Areas with potentially explosive atmospheres are often, but not always, posted and can include fueling areas, such as below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air contains chemicals or particles, such as grain dust, or metal powders.

When you are in such an area, turn off your mobile device, and do not remove, install, or charge batteries. In such areas, sparks can occur and cause an explosion or fire.

S af ety In f orm a tion 83

Symbol Key

Your battery, charger, or mobile device may contain symbols, defined as follows:

Symbol

032374o

Definition

Important safety information follows.

032376o

032375o

Do not dispose of your battery or mobile device in a fire.

Your battery or mobile device may require recycling in accordance with local laws. Contact your local regulatory authorities for more information.

Do not throw your battery or mobile device in the trash.

Do not let your battery, charger, or mobile device get wet.

Listening at full volume to music or voice through a headset may damage your hearing.

Batteries & Chargers

Caution: Improper treatment or use of batteries may present

8 4 S af ety In f orm a tion a danger of fire, explosion, leakage, or other hazard. For more information, see the “battery use & safety” section in the user’s guide.

Keep Your Mobile Device and Its

Accessories Away From Small

Children

These products are not toys and may be hazardous to children. For example:

• A choking hazard may exist for small, detachable parts.

• Improper use could result in loud sounds, possibly causing hearing injury.

• Improperly handled batteries could overheat and cause a burn.

Glass Parts

Some parts of your mobile device may be made of glass. This glass could break if the product is dropped on a hard surface or receives a substantial impact. If glass breaks, do not touch or attempt to remove. Stop using your mobile device until the glass is replaced by a qualified service center.

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when playing video games. These may occur even if a person has never had a previous seizure or blackout.

If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult with your physician before playing video games or enabling a flashing-lights feature (if available) on your mobile device.

Discontinue use and consult a physician if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or disorientation. It is always a good idea to hold the screen away from your eyes, leave the lights on in the room, take a 15-minute break every hour, and stop use if you are tired.

Caution About High Volume Usage

Warning: Exposure to loud noise from any source for extended periods of time may affect your hearing.

The louder the volume sound level, the less time is required before your hearing could be affected. To protect your hearing:

• Limit the amount of time you use headsets or headphones at high volume.

• Avoid turning up the volume to block out noisy surroundings.

• Turn the volume down if you can’t hear people speaking near you.

If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked.

For more information about hearing, see our Web site at www.motorola.com/hearingsafety (in English only).

Repetitive Motion

When you repetitively perform actions such as pressing keys or entering finger-written characters, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. If you continue to have discomfort during or after such use, stop use and see a physician.

[Mar0108]

S af ety In f orm a tion 85

Industry Canada Notice to Users

Industry Canada Notice Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept

FCC Notice to Users

any interference, including interference that may cause undesired operation of the device. See RSS-GEN 7.1.5.

FCC Notice The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the product label.

Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

86 Industry C a n a d a Noti c e equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Motorola Limited Warranty for the United States and

Canada

Warranty

What Does this Warranty Cover?

Subject to the exclusions contained below, Motorola, Inc. warrants its telephones, pagers, messaging devices, and consumer and professional two-way radios (excluding commercial, government or industrial radios) that operate via Family Radio Service or

General Mobile Radio Service, Motorola-branded or certified accessories sold for use with these Products (“Accessories”) and

Motorola software contained on CD-ROMs or other tangible media and sold for use with these Products (“Software”) to be free from defects in materials and workmanship under normal consumer usage for the period(s) outlined below. This limited warranty is a consumer's exclusive remedy, and applies as follows to new

Motorola Products, Accessories and Software purchased by consumers in the United States or Canada, which are accompanied by this written warranty:

Products and Accessories

Products Covered

Products and

Accessories as defined above, unless otherwise provided for below.

Decorative

Accessories and

Cases. Decorative covers, bezels,

PhoneWrap™ covers and cases.

Length of Coverage

One (1) year from the date of purchase by the first consumer purchaser of the product unless otherwise provided for below.

Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product.

W a rr a nty 87


Monaural Headsets.

Ear buds and boom headsets that transmit mono sound through a wired connection.

Consumer and

Professional

Two-Way Radio

Accessories.

Products and

Accessories that are

Repaired or

Replaced.


Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product.

Ninety (90) days from the date of purchase by the first consumer purchaser of the product.

The balance of the original warranty or for ninety (90) days from the date returned to the consumer, whichever is longer.

Exclusions

Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due to normal wear and tear are excluded from coverage.

Batteries. Only batteries whose fully charged capacity falls below

80% of their rated capacity and batteries that leak are covered by this limited warranty.

Abuse & Misuse. Defects or damage that result from:

(a) improper operation, storage, misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with

88 W a rr a nty liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Products or

Accessories for commercial purposes or subjecting the Product or

Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola, are excluded from coverage.

Use of Non-Motorola Products and Accessories. Defects or damage that result from the use of non-Motorola branded or certified Products, Accessories, Software or other peripheral equipment are excluded from coverage.

Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than Motorola, or its authorized service centers, are excluded from coverage.

Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show evidence of tampering;

(c) mismatched board serial numbers; or (d) nonconforming or non-Motorola housings, or parts, are excluded from coverage.

Communication Services. Defects, damages, or the failure of

Products, Accessories or Software due to any communication service or signal you may subscribe to or use with the Products

Accessories or Software is excluded from coverage.

Software


Software. Applies only to physical defects in the media that embodies the copy of the software (e.g.

CD-ROM, or floppy disk).


Ninety (90) days from the date of purchase.

Exclusions

Software Embodied in Physical Media. No warranty is made that the software will meet your requirements or will work in combination with any hardware or software applications provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software products will be corrected.

Software NOT Embodied in Physical Media. Software that is not embodied in physical media (e.g. software that is downloaded from the internet), is provided “as is” and without warranty.

Who Is Covered?

This warranty extends only to the first consumer purchaser, and is not transferable.

What Will Motorola Do?

Motorola, at its option, will at no charge repair, replace or refund the purchase price of any Products, Accessories or Software that does not conform to this warranty. We may use functionally equivalent reconditioned/refurbished/pre-owned or new Products,

Accessories or parts. No data, software or applications added to your Product, Accessory or Software, including but not limited to personal contacts, games and ringer tones, will be reinstalled. To avoid losing such data, software and applications please create a back up prior to requesting service.

How to Obtain Warranty Service or

Other Information

USA Phones: 1-800-331-6456

Pagers: 1-800-548-9954

Two-Way Radios and Messaging

Devices: 1-800-353-2729

Canada

TTY

All Products: 1-800-461-4575

1-888-390-6456

For Accessories and Software , please call the telephone number designated above for the product with which they are used.

W a rr a nty 89

You will receive instructions on how to ship the Products,

Accessories or Software, at your expense, to a Motorola

Authorized Repair Center. To obtain service, you must include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name of your service provider, if applicable; (d) the name and location of the installation facility (if applicable) and, most importantly; (e) your address and telephone number.

What Other Limitations Are There?

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE

DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE

REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS

EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF

THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL

MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT

(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE

PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,

OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR

CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF

REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR

OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION

WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS,

90 W a rr a nty

ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE

DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or from one jurisdiction to another.

Laws in the United States and other countries preserve for

Motorola certain exclusive rights for copyrighted Motorola software such as the exclusive rights to reproduce and distribute copies of the Motorola software. Motorola software may only be copied into, used in, and redistributed with, the Products associated with such Motorola software. No other use, including without limitation disassembly of such Motorola software or exercise of the exclusive rights reserved for Motorola, is permitted.

Hearing Aid Compatibility with Mobile Phones

Hearing Aids Some Motorola phones are measured for compatibility with hearing aids. If the box for your particular model has “Rated for

Hearing Aids” printed on it, the following explanation applies.

When some mobile phones are used near some hearing devices

(hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.

The wireless telephone industry has developed ratings for some of their mobile phones, to assist hearing device users in finding phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label on the box.

The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.

M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.

T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing device’s telecoil (“T

Switch” or “Telephone Switch”) than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices have telecoils in them.)

Hearing devices may also be measured for immunity to this type of interference. Your hearing device manufacturer or hearing health professional may help you find results for your hearing device. The more immune your hearing aid is, the less likely you are to experience interference noise from mobile phones.

He a ring Aids 91

Information from the World Health Organization

WHO Information Present scientific information does not indicate the need for any special precautions for the use of mobile phones. If you are concerned, you may want to limit your own or your children’s RF exposure by limiting the length of calls or by using handsfree devices to keep mobile phones away from your head and body.

Source: WHO Fact Sheet 193

Further information: http://www.who.int./peh-emf

Product Registration

Registration Online Product Registration: www.motorola.com/us/productregistration

Product registration is an important step toward enjoying your new

Motorola product. Registering permits us to contact you for product or software updates and allows you to subscribe to updates on new products or special promotions. Registration is not required for warranty coverage.

Please retain your original dated sales receipt for your records. For warranty service of your Motorola Personal Communications

Product you will need to provide a copy of your dated sales receipt to confirm warranty status.

Thank you for choosing a Motorola product.

92 WHO In f orm a tion

Export Law Assurances

Export Law This product is controlled under the export regulations of the

United States of America and Canada. The Governments of the

United States of America and Canada may restrict the exportation or re-exportation of this product to certain destinations. For further information contact the U.S. Department of Commerce or the

Canadian Department of Foreign Affairs and International Trade.

Caring for the Environment by Recycling

Recycling Information This symbol on a Motorola product means the product should not be disposed of with household waste.

Disposal of your Mobile Device and

Accessories

Please do not dispose of mobile devices or electrical accessories

(such as chargers, headsets, or batteries) with your household waste. These items should be disposed of in accordance with the national collection and recycling schemes operated by your local or regional authority. Alternatively, you may return unwanted mobile devices and electrical accessories to any Motorola Approved

Service Center in your region. Details of Motorola approved national recycling schemes, and further information on Motorola recycling activities can be found at: www.motorola.com/recycling

Disposal of your Mobile Device

Packaging and User’s Guide

Product packaging and user’s guides should only be disposed of in accordance with national collection and recycling requirements.

Please contact your regional authorities for more details.

Export L a w 93

California Perchlorate Label

Perchlorate Label Some mobile phones use an internal, permanent backup battery on the printed circuit board that may contain very small amounts of perchlorate. In such cases, California law requires the following label:

Privacy and Data Security

“Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate .”

There is no special handling required by consumers.

Privacy and Data Security Motorola understands that privacy and data security are important to everyone. Because some features of your mobile device may affect your privacy or data security, please follow these recommendations to enhance protection of your information:

• Monitor access —Keep your mobile device with you and do not leave it where others may have unmonitored access. Lock your device’s keypad where this feature is available.

• Keep software up to date —If Motorola or a software/application vendor releases a patch or software fix for your mobile device that updates the device’s security, install it as soon as possible.

• Erase before recycling —Delete personal information or data from your mobile device prior to disposing of it or

9 4 Per c hlor a te L a bel turning it in for recycling. For step-by-step instructions on how to delete all personal information from your device, see the section entitled “master clear” or “delete data” in the user’s guide.

Note: For information on backing up your mobile device data before erasing it, go to www.motorola.com

and then navigate to the “downloads” section of the consumer Web page for “Motorola Backup” or “Motorola Phone Tools.”

• Understanding AGPS —To provide location information for emergency calls, certain Motorola mobile devices incorporate Assisted Global Positioning System (AGPS) technology. AGPS technology also can be used in non-emergency applications to track and monitor a user’s location—for example, to provide driving directions. Users

who prefer not to permit such tracking and monitoring should avoid using such applications.

If you have further questions regarding how the use of your mobile device may impact your privacy or data security, please contact

Motorola at [email protected]

, or contact your service provider.

Smart Practices While Driving

Driving Safety Drive Safe, Call Smart

Check the laws and regulations on the use of mobile devices and their accessories in the areas where you drive.

Always obey them. The use of these devices may be prohibited or restricted in certain areas -- for example, handsfree use only. Go to www.motorola.com/callsmart (in

English only) for more information.

Your mobile device lets you communicate by voice and data—almost anywhere, anytime, wherever wireless service is available and safe conditions allow. When driving a car, driving is your first responsibility. If you choose to use your mobile device while driving, remember the following tips:

• Get to know your Motorola mobile device and its features such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.

• When available, use a handsfree device. If possible, add an additional layer of convenience to your mobile device with one of the many Motorola Original handsfree accessories available today.

• Position your mobile device within easy reach. Be able to access your mobile device without removing your eyes from the road. If you receive an incoming call at an inconvenient time, if possible, let your voicemail answer it for you.

• Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice, and even heavy traffic can be hazardous.

• Do not take notes or look up phone numbers while driving. Jotting down a “to do” list or going through your address book takes attention away from your primary responsibility—driving safely.

Driving S af ety 95

• Dial sensibly and assess the traffic; if possible, place calls when your car is not moving or before pulling into traffic. If you must make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.

• Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that can divert your attention away from the road.

• Use your mobile device to call for help. Dial 911 or other local emergency number in the case of fire, traffic accident, or medical emergencies.*

• Use your mobile device to help others in emergencies. If you see an auto accident, crime in progress, or other serious emergency where lives are in danger, call 911 or other local emergency number, as you would want others to do for you.*

• Call roadside assistance or a special non-emergency wireless assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or other special non-emergency wireless number.*

96 Driving S af ety

* Wherever wireless phone service is available.

index

1X indicator 15

911 indicator 16

A accessories 10, 18 airplane mode indicator 15 alarm clock 68 alarm indicator 17 alert turn off 33 answer a call 29 attach a number 37

B backlight 29 banner 29 battery conserving 11 battery level indicator 16 battery life, extend 11

Bluetooth connections connect during call 73

Bluetooth indicator 16 brightness 29 browser 52

C cables 70 calculator 69 call answer 29 call times 39 minute beep 39 reset 39 car kit 18 center select key 2 clock 30 world 69 codes 19, 20 conference call 40 conserve battery 11 contacts 63 add entries to group 66 add number 64 call entry 63 create group 67 delete entry 64 edit entry 63 edit entry before call 63 picture ID 65 primary number 66 index 97

contacts (continued) ringer ID 65 set speed dial 65 sort entries 66 view entry 63

D data call volume meters 39 data call indicator 16 data volumes reset 39 dialed calls 34 digital indicator 15 display brightness 29 dormant indicator 16 drafts folder 51

DTMF tones 40

98 index

E emergency number 35 end key 2

EVDO indicator 15 export regulations 93

G group add entries 66 create 67

H handsfree speaker 18 headset 18 hearing aid 38 hearing aids 91 home screen banner 29

I indicators

1X 15

911 16 airplane mode 15 alarm 17 battery level 16

Bluetooth 16 data call 16 digital 15 dormant 16

EVDO 15 location on 16 message 17 no service 16 phone locked 16 roaming 16 signal strength 15 sounds off (silent) 16 sounds soft 17

speakerphone 17

SSL 16

TTY 16 uanswered call 17 vibrate on 17 voice call 16 voice privacy 16 international access code 37 iTAP text entry mode 44

K key volume 28

L location on indicator 16 lock phone 20

M menu language 30 message delete 50 drafts 51 quick text 49, 50 store message objects 50, 51 text message 49 view sent message 50 message indicator 17 messages alerts 28 minute beep 39 missed Calls message 34 music player controls, flip open 54

N navigation key 2, 10 network adjust settings 67 call connect tones 67 call drop tone 68 no service indicator 16 notepad 69 number. See phone number numeric entry mode 44

O optional accessory 10 optional feature 10

P perchlorate label 94 phone network call connect tones 67 call drop tone 68 network settings, adjust 67 talking phone 28 phone locked indicator 16 phone number 14 index 99

phonebook 37 add entries to group 66 add number 64 call entry 63 create group 67 delete entry 64 edit entry 63 picture ID 65 primary number 66 ringer ID 65 set speed dial 65 view entry 63 picture ID 65 power key 2

Q quick text 49, 50

R received calls 34 recent calls 34

100 index redial 27, 33 return a call 34 ringer ID 65 roaming indicator 16

S safety information 82 safety tips 95 security code 19 send key 2 signal strength indicator 15 sounds off (silent) indicator 16 sounds soft indicator 17 speakerphone 18 speakerphone indicator 17

SSL indicator 16 store your number 14 symbol entry mode 45

T tap text entry mode 43 telephone number. See phone number text entry 41

TTY indicator 16

U unanswered call indicator 17 unlock phone 20 unlock code 19, 20

USB cables 70

V vibrate on indicator 17 voice call indicator 16 voice note 56 play 56 record 56 voice privacy indicator 16 voice recognition 57 voicemail 37

voicemail message indicator 38 volume key 28

W warranty 87

WHO information 92 world clock 69

Y your phone number 14

U.S. patent Re. 34,976 index 101

102 index

v467108.A6.UG.Back.eps 9/11/2007 8:56:39 AM

Y

CM

MY

C

M

CY

CMY

K

www.motorola.com

No results
