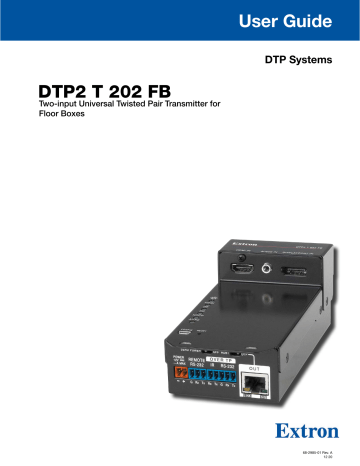

DTP2 T 202 FB
Two-input Universal Twisted Pair Transmitter for
Floor Boxes
User Guide
DTP Systems
68-2985-01 Rev. A
12 20
Safety Instructions
Safety Instructions • English
WARNING
:
This symbol, , when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.
ATTENTION:
This symbol, , when used on the product, is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and
Regulatory Compliance Guide, part number 68-290-01, on the Extron website,
www.extron.com
.
Sicherheitsanweisungen • Deutsch
WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer darauf aufmerksam machen, dass im Inneren des Gehäuses dieses
Produktes gefährliche Spannungen herrschen, die nicht isoliert sind und die einen elektrischen Schlag verursachen können.
VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige
Hinweise zur Bedienung und Wartung (Instandhaltung) geben.
Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung,
EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer
68-290-01) auf der Extron-Website,
www.extron.com
.
Instrucciones de seguridad • Español
ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto, avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del producto, lo que puede representar un riesgo de descarga eléctrica.
ATENCIÓN: Este símbolo, , cuando se utiliza en el producto, avisa al usuario de la presencia de importantes instrucciones de uso y mantenimiento recogidas en la documentación proporcionada con el equipo.
Para obtener información sobre directrices de seguridad, cumplimiento de normativas, compatibilidad electromagnética, accesibilidad y temas relacionados, consulte la Guía de cumplimiento de normativas y seguridad de Extron, referencia 68-290-01, en el sitio Web de Extron,
www.extron.com
.
Instructions de sécurité • Français
AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une tension électrique dangereuse susceptible de provoquer un choc électrique.
ATTENTION : Ce pictogramme, , lorsqu’il est utilisé sur le produit, signale à l’utilisateur des instructions d’utilisation ou de maintenance importantes qui se trouvent dans la documentation fournie avec le matériel.
Pour en savoir plus sur les règles de sécurité, la conformité à la réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets connexes, lisez les informations de sécurité et de conformité Extron, réf.
68-290-01, sur le site Extron,
www.extron.com
.
Istruzioni di sicurezza • Italiano
AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad avvertire l’utente della presenza di tensione non isolata pericolosa all’interno del contenitore del prodotto che può costituire un rischio di scosse elettriche.
ATTENTZIONE: Il simbolo, , se usato sul prodotto, serve ad avvertire l’utente della presenza di importanti istruzioni di funzionamento e manutenzione nella documentazione fornita con l’apparecchio.
Per informazioni su parametri di sicurezza, conformità alle normative, compatibilità EMI/EMF, accessibilità e argomenti simili, fare riferimento alla Guida alla conformità normativa e di sicurezza di Extron, cod. articolo
68-290-01, sul sito web di Extron,
www.extron.com
.
Instrukcje bezpieczeństwa • Polska
OSTRZEŻENIE :
Ten symbol, , gdy używany na produkt, ma na celu poinformoważ użytkownika o obecnożci izolowanego i niebezpiecznego napiżcia wewnżtrz obudowy produktu, który może stanowiż zagrożenie porażenia prżdem elektrycznym.
UWAGI:
Ten symbol, , gdy używany na produkt, jest przeznaczony do ostrzegania użytkownika ważne operacyjne oraz instrukcje konserwacji
(obsługi) w literaturze, wyposażone w sprzżt.
Informacji na temat wytycznych w sprawie bezpieczeżstwa, regulacji wzajemnej zgodnożci, zgodnożż EMI/EMF, dostżpnożci i Tematy pokrewne, zobacz Extron bezpieczeżstwa i regulacyjnego zgodnożci przewodnik, czżżż numer 68-290-01, na stronie internetowej Extron,
www.extron.com
.
Инструкция по технике безопасности
•
Русский
ПРЕДУПРЕЖДЕНИЕ:
Данный символ, , если указан на продукте, предупреждает пользователя о наличии неизолированного опасного напряжения внутри корпуса продукта, которое может привести к поражению электрическим током.
ВНИМАНИЕ:
Данный символ, , если указан на продукте, предупреждает пользователя о наличии важных инструкций по эксплуатации и обслуживанию в руководстве, прилагаемом к данному оборудованию.
Для получения информации о правилах техники безопасности, соблюдении нормативных требований, электромагнитной совместимости (ЭМП/ЭДС), возможности доступа и других вопросах см. руководство по безопасности и соблюдению нормативных требований Extron на сайте Extron:
,
www.extron.com
, номер по каталогу - 68-290-01.
安全说明
•
简体中文
警告 :
产品上的这个标志意在警告用户该产品机壳内有暴露的危险 电压,
有触电危险。
注 意
:
产 品 上 的 这个 标 志 意 在 提 示 用 户 设 备 随 附 的 用 户 手 册 中 有
重要的操作和维护(维修)说明。
关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍
使用的特性等相关内容,敬请访问
Extron
网站 ,
www.extron.com
,参见
Extron 安全规范指南,产品编号 68-290-01
。
安全記事 • 繁體中文
警 告
: 若產品上使 用此 符 號 ,是 為了提 醒 使 用者,產品 機 殼內存 在 著
可能會導致觸電之風險的未絕緣危險電壓。
注意
若產品上使用此符號,是為了提醒使用者,設備隨附的用戶手冊中有
重要的操作和維護(維修)説明
。
有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細資
訊,請瀏覽 Extron 網站:
www.extron.com
,然後參閱《Extron 安全性與法規
遵守手冊》,準則編號 68-290-01。
安全上のご注意
•
日本語
警告:
この記号 が製品上に表示されている場合は、筐体内に絶縁されて
いない高電圧が流れ、感電の危険があることを示しています。
注意:
この記号 が製品上に表示されている場合は、本機の取扱説明書に
記載されている重要な操作と保守(整備)の指示についてユーザーの注意
を喚起するものです。
安全上のご注意、法規厳守、EMI/EMF適合性、その他の関連項目に
ついては、エクストロンのウェブサイト
www.extron.com
より 『
Extron Safety and Regulatory Compliance Guide
』 (
P/N 68-290-01
) をご覧ください。
안전 지침 • 한국어
경고:
이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는
접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을
경고합니다.
주의:
이 기호 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와
있는 주요 운영 및 유지보수(정비) 지침을 경고합
니다.
안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련 항목에
대한 자세한 내용은 Extron 웹 사이트(
www.extron.com
)의 Extron 안전 및
규제 준수 안내서, 68-290-01 조항을 참조하십시오.
Copyright
© 2020 Extron Electronics. All rights reserved.
www.extron.com
Trademarks
All trademarks mentioned in this guide are the properties of their respective owners.
The following registered trademarks ( ® ), registered service marks (
SM
), and trademarks (
TM
) are the property of RGB Systems, Inc. or
Extron Electronics (see the current list of trademarks on the
Terms of Use
page at
www.extron.com
):
Registered Trademarks
(
®
)
Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, Flat Field, FlexOS, Glitch Free, Global
Configurator, Global Scripter, GlobalViewer, Hideaway, HyperLane, IP Intercom, IP Link, Key Minder, LinkLicense, LockIt, MediaLink,
MediaPort, NAV, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, ShareLink, Show Me, SoundField, SpeedMount,
SpeedSwitch, StudioStation, System
I
NTEGRATOR
, TeamWork, TouchLink, V-Lock, VideoLounge, VN-Matrix, VoiceLift, WallVault, WindoWall,
XPA, XTP, XTP Systems, and ZipClip
Registered Service Mark
(SM)
:
S3 Service Support Solutions
Trademarks
(
™
)
AAP, AFL (Accu-RATE Frame Lock), ADSP (Advanced Digital Sync Processing), Auto-Image, AVEdge, CableCover, CDRS (Class D
Ripple Suppression), Codec Connect, DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), Driver Configurator,
DSP Configurator, DSVP (Digital Sync Validation Processing), eLink, EQIP, Everlast, FastBite, Flex55, FOX, FOXBOX, IP Intercom HelpDesk,
MAAP, MicroDigital, Opti-Torque, PendantConnect, ProDSP, QS-FPC (QuickSwitch Front Panel Controller), Room Agent, Scope-Trigger, SIS,
Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, True4K, True8K, Vector™ 4K, WebShare, XTRA, and ZipCaddy
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.
ATTENTION:
• The Twisted Pair Extension technology works with unshielded twisted pair (UTP) or shielded twisted pair (STP) cables;
but to ensure FCC Class A and CE compliance, STP cables and STP Connectors are required
.
• La technologie extension paires torsadées fonctionne avec les câbles paires torsadées blindées (UTP) ou non blindées (STP). Afin de s’assurer de la compatibilité entre FCC Classe A et CE, les câbles STP et les connecteurs STP sont nécessaires.
NOTES:
•
This unit was tested with shielded I/O cables on the peripheral devices. Shielded cables must be used to ensure compliance with FCC emissions limits.
• For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and
Regulatory Compliance Guide
on the Extron website.
Conventions Used in this Guide
Notifications
The following notifications are used in this guide:
ATTENTION:
•
Risk of property damage.
•
Risque de dommages matériels.
NOTE: A note draws attention to important information.
Software Commands
Commands are written in the fonts shown here:
^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0
[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]
E X!
*
X1&
*
X2)
*
X2#
*
X2!
CE
}
NOTE: For commands and examples of computer or device responses used in this guide, the character “
0
” is the number zero and “O” is the capital letter “o.”
Computer responses and directory paths that do not have variables are written in the font shown here:
Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron
Variables are written in slanted form as shown here: ping
xxx.xxx.xxx.xxx
—t
SOH R
Data
STX
Command
ETB ETX
Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here:
From the
File
menu, select
New
.
Click the
OK
button.
Specifications Availability
Product specifications are available on the Extron website,
www.extron.com
.
Extron Glossary of Terms
A glossary of terms is available at
http://www.extron.com/technology/glossary.aspx
.
Contents
Introduction
................................................... 1
About this Guide ................................................. 1
About the Switching Transmitter ......................... 1
Control Communications ................................ 2
TP Cable Advantages ......................................... 2
Features ............................................................. 3
Installation and Operation
Installation Overview ........................................... 4
Adapter Plates .................................................... 5
Side Panel Features ............................................ 7
Connectors and Switches Below the
Adapter Plates ............................................... 7
Connectors Above the Adapter Plates .......... 10
Top Panel Features ........................................... 11
Mounting .......................................................... 11
Ackermann GB3 (OBO Bettermann)
Floor Box ..................................................... 12
MK Electric CableLink Plus - Single Pan
Floor Box ..................................................... 12
MK Electric CableLink Plus - Modular
Floor Box ..................................................... 13
Electraplan or PUK Floor Box ....................... 13
Connection and Wiring Details .......................... 14
Power Supply Wiring .................................... 14
Serial and IR Port Connectors ....................... 16
TP Cable Termination and Recommendations 16
Operation ......................................................... 18
Indications .................................................... 18
Switch Modes............................................... 19
EDID ............................................................. 19
Reset Mode .................................................. 19
Troubleshooting — If no Image Appears ........... 19
Remote Control
........................................... 20
Host Control Ports ............................................ 20
Simple Instruction Set Control .......................... 21
Host-to-Switcher Communications ............... 21
Switcher-Initiated Messages ......................... 21
Switcher Error Responses ............................ 21
Timeout ........................................................ 21
Using the Command and Response Table .... 21
Product Configuration Software Control ............ 28
Installing the Software ................................... 28
Starting the Program .................................... 31
DTP2 T 202 FB • Contents vii
DTP2 T 202 FB • Contents viii
Introduction
•
•
About the Switching Transmitter
•
•
About this Guide
This guide describes how to install, operate, and configure the DTP2 T 202 FB, a floor box-mounted, switching, twisted pair transmitter. The DTP2 T 202 FB outputs a signal to a compatible DTP2 receiver, with a range of up 330 feet (100 M).
NOTE: In this guide, the DTP2 T 202 FB is commonly referred to as a “switcher,”
“transmitter,” or “switching transmitter.”
About the Switching Transmitter
The DTP2 T 202 FB is a 2-input HDMI and DisplayPort switcher with a DTP2 transmitter output (see
, on the next page). The switcher is HDCP compliant, and supports
2560x1600 @ 60 Hz and 4k/UHD @ 60 Hz signals.
The switcher selects between a DisplayPort and HDMI (or DVI video with the appropriate adapter) inputs. The transmitter creates a proprietary digital signal consisting of one or more of the following inputs:
• The selected digital video input, including embedded digital audio
• An optional analog audio input
•
Bidirectional RS-232 and infrared (IR) control signals
The switcher and a compatible receiver extend the usable distance of video, audio, and control signals over a single Extron XTP DTP2 24 shielded twisted pair (STP) cable
(recommended) or Category (CAT) 5e, CAT 6, or CAT 6a STP cable.
The transmitter is compatible with all Extron DTP2 and DTP (legacy DTP) products. It has a range of up 330 feet (100 meters).
The switcher fits into floor boxes from OBO Bettermann, MK by Honeywell, Electraplan, and
PUK.
The included external 12 VDC power supply accepts 100 to 240 VAC, 50-60 Hz to provide worldwide power compatibility. A single power supply connected to either the transmitter or the compatible receiver can power both units through the STP cable.
ATTENTION:
•
Do
NOT
use the transmitter to remotely power a legacy DTP receiver. Circuit damage to the receiver
WILL
result.
• NE PAS
utiliser l’émetteur pour alimenter à distance un récepteur de la gamme existante DTP. Cette opération
FINIRA
par endommager le circuit menant à le récepteur.
DTP2 T 202 FB • Introduction 1
AV
LAN
MODEL 80
Handheld
Microphones
Extron
FF 220T
Plenum 2' x 2' Flat Field
Ceiling Speakers
Ethernet
FLAT PANEL
4K Display
PC
WiFi 1 2 3 4
HDMI
1
4K Media Player
PC
WiFi 1 2 3 4
AV
LAN
Extron
TLP Pro 1025T
Tabletop
Touchpanel
DisplayPort
1
2
3
HDMI
IN1808 IPCP MA 70
4
5
6
LOOP OUT
HDMI
7
SIG LINK
8
SIG LINK
IN IN
Ethernet
COM 1 COM 2 COM 3
Tx Rx G RTS CTS
IR/SERIAL
1 2
Tx Rx G Tx Rx G
1 2
RELAYS
C 3 4 C
S G S G
DIGITAL I/O AV LAN 2 AV LAN 3
1 2 3 4 G
+V +S eBUS
-S G
PWR OUT = 6W LAN AV LAN 1
1A 1B
SIG LINK
OVER TP
IR
HDMI/CEC
OUT
Tx Rx
OUTPUTS (DTP2/XTP/HDBT)
G
Audio
L
AUX
3
R
4
+48V
1
MIC/LINE
2
+48V
1
3
AUDIO INPUTS OUTPUTS
2
4
AMPLIFIED OUTPUT
70V - 100W
CLASS 2 WIRING
RS-232 RESET
Tx Rx G
REMOTE
Extron
IN1808 IPCP MA 70
Seamless
Presentation
Scaler
INPUTS (DTP2/XTP)
Extron
DTP T HWP
4K 331 D
Transmitter
AUDIO IN
HDMI IN
Extron
DTP2 T 202 FB
Transmitter
CO NFI
RESET
AUTO
HDCP SIG
DP
HDMI
OUT
HDMI IN
AUDIO
IN
DISP
LAY POR
DTP2 T
202
FB
T IN
CATx Cable up to 330' (100 m)
CATx Cable up to 330' (100 m)
SIG LINK
POWER
12V
--A MAX
OVER DTP2
RS-232 IR
Tx Rx G Tx Rx
DTP2 IN
RS-232
MODEL 80
OUTPUTS
AUDIO
L R
Extron
DTP2 R 211
Receiver
HDMI
CATx Cable up to 330' (100 m)
FLAT PANEL
4K Display
Figure 1. Typical Switching Transmitter Application
The switching transmitters are controlled by Simple Instruction Set (SIS) commands (see
Simple Instruction Set Control
on page 21) and the Extron Product Configuration
Software (see
Product Configuration Software
on page 28).
Control Communications
The RS-232 and IR communications are passive pass-through only. The receiver and transmitter do not generate or respond to the RS-232 and IR communication signals.
HDCP, EDID and CEC are negotiated from source to sink, with the receiver and transmitter transparent during the exchange.
TP Cable Advantages
Twisted pair cable is much smaller, lighter, more flexible, and less expensive than coaxial or HDMI cable. These receiver and transmitter twisted pair (TP) products make cable runs simpler and less cumbersome. Termination of the cable with RJ-45 connectors is simple, quick, and economical.
NOTE: Do use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the receiver and transmitter. DTP2 and legacy DTP receivers and transmitters do not work properly with these cables.
DTP2 T 202 FB • Introduction 2
Features
•
Transmits HDMI or DisplayPort video, control, and analog audio up to 330 feet (100 meters) over a single STP cable
— The unit provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
•
HDBaseT compatible
— The DTP2 output can be configured to send video and embedded audio, plus bidirectional RS-232 and IR signals to an HDBaseT-enabled display.
• Supports computer video to 2560x1600 @ 60 Hz or UHD (3840x2160) @ 60 Hz.
•
Analog stereo audio embedding
— Analog stereo audio signals can be selectively embedded onto the digital video output signal and transported over the TP cable. The
HDMI and DisplayPort inputs can be set to pass the embedded digital audio, embed the analog audio, or to automatically embed the analog audio when no digital audio is detected.
•
Accepts additional analog stereo audio signals
— The DTP2 transmitter supports a direct pass through connection for stereo analog audio signals for simultaneous transmission over the same single TP cable. Analog audio is embedded onto the digital video signal. A DTP2 or legacy DTP receiver can output balanced and unbalanced audio, allowing streamlined integration within an AV system.
•
Bidirectional RS-232 and IR insertion for AV device control
— Control and IR signals can be transmitted alongside the video signal over the TP cable, allowing the remote device to be controlled without the need for additional cabling. Bidirectional control insertion eliminates the need for control system wiring to remote devices.
•
Remote powering of transmitter or receiver
— For simplified installation, only one power supply is necessary to power both devices.
•
Digital conversion of analog input signals
— Analog signals are digitized, ensuring that a reliable, high quality digital video signal is sent to the output destination.
•
EDID Minder
— Automatically manages EDID communication between connected devices, ensuring that all sources power up properly and reliably output content for display.
•
Key Minder
— Authenticates and maintains continuous HDCP encryption between input and output devices, verifying HDCP compliance for quick, reliable switching in professional AV environments.
•
Compatible with all DTP2 and legacy DTP receivers
— The switching transmitters can be used with the Extron IN1608, DTP CrossPoint 84, and other DTP-enabled products to meet application requirements.
DTP2 T 202 FB • Introduction 3
Installation and
Operation
This section contains information for mounting, connecting, wiring, and operating the
DTP2 T 202 FB switching transmitter. Topics in this section include:
•
•
•
•
•
•
•
Troubleshooting — If No Image Appears
Installation Overview
The DTP2 T 202 FB is to be installed in an Ackermann GB3 (OBO Bettermann), MK Electric
CableLink Plus Modular, MK Electric CableLink Plus Single Pan, Electraplan, or PUK floor box.
CAUTION: Failure to check the items listed below may result in personal injury or property damage.
ATTENTION : La non-vérification des éléments listés ci-dessous peut provoquer des blessures ou dommages matériels.
1.
Check that the installation of the floor box meets government, building, electrical, and safety codes.
2.
Install the floor box according to the instructions of the manufacturer.
3.
Prepare and pull the cables through the floor box.
TIP: Secure cables with clamps or ties to provide strain relief.
4.
Trim back and insulate shields with heat shrink.
ATTENTION:
•
To prevent short circuits, the outer foil shield can be cut back to the point where the cable exits the cable clamp. Both braided and foil shields should be connected to an equipment ground at the other end of the cable.
•
Afin d’éviter les court circuits, le blindage en aluminium extérieur peut être réduit jusqu’à ce que le câble sorte de la cosse de câble. Le blindage tressé et le blindage en aluminium devraient être connectés à la masse d’un équipement
à l’autre bout du câble.
5.
Install the appropriate adapters to the desired position in the floor box (see
on page 5).
DTP2 T 202 FB • Installation and Operation 4
6.
Connect cables to the side panel connectors located below the adapter plates (see
Connectors and Switches Below the Adapter Plates
on page 7).
7.
Mount the DTP2 T 202 FB to the floor box (see
8.
Connect appropriate devices to the remaining side connectors (see
on page 10) and top panel connectors (see
9.
Configure the DTP2 T 202 FB with SIS commands (see
on page 21) or the Product Configuration Software (see
on page 28).
Adapter Plates
Each model of floor box requires a specific pair of provided adapter plates to secure the device to the box (see the table below for the appropriate adapter plates to use with specific floor boxes).
Floor Box
Ackermann GB3 (OBO Bettermann)
Adapter Plate
995241
Example
MK Electric CableLink Plus Single Pan
MK Electric CableLink Plus Modular
Electraplan
PUK
995242
995243
995244
995300
995300
NOTE: The 995242 adapter plate is only used for position 2 of the Ackermann GB3
(OBO Bettermann) floor box.
1.
Determine the position in the floor box to install the DTP2 T 202 FB. Each compatible
floor box contains three positions to install devices (see
on the next page).
NOTE:
For the MK Electric CableLink Plus Single Pan floor box, do not use position 2.
DTP2 T 202 FB • Installation and Operation 5
1
2
3
OBO Bettermann
GESR7 Floorbox Assembly
Figure 2. Example of Positions in a Floor Box
(Ackermann GB3 [OBO Bettermann] Shown)
2.
Insert the top flange of the adapter plate into a mounting slot that is no higher than the third slot from the top (see figure 3).
Figure 3. Installing an Adapter Plate (995241 Shown) into a Mounting Slot
NOTES:
•
Install adapter plates in mounting slots of the same position in the floor box.
•
The MK Electric
CableLink Plus Single Pan floor box does not have mounting slots. Use a mounting screw to secure the large mounting hole of the 995243 adapter plate to the mounting hole of the floor box position
(see figure 4).
995243
995243
MK Electric
CableLink Plus
Single Pan Floor Box
Figure 4. Installing 995243 Adapter Plates
DTP2 T 202 FB • Installation and Operation 6
3.
Rotate the adapter plate down so the bottom flange rests against the wall of the floor box (see figure 5).
Figure 5. Fixing the Adapter Plate (995241 Shown) in Place
4.
If the desired position is position 2 of the Ackermann GB3 (OBO Bettermann) floor box, use the provided screws to secure the 995242 adapter plate to a 995241 adapter plate
(see figure 6).
Figure 6. Installing the 995242 Adapter Plate to a 995241 Adapter Plate
Side Panel Features
Connectors and Switches Below the Adapter Plates
Side Panel
e
HDMI IN
DTP2 T 202 FB
YPOR
T IN
DISPLA
AUDIO IN
E
F
SEND POWER
POWER
12V
1.4A MAX
REMOTE
RS-232
OFF HDBT
OVER TP
IR RS-232
DTP
OUT
HDMI
DP
SIGNAL
HDCP
AUTO
CONFIG
RESET
OFF
HDBT
OVER TP
IR
RS-232
SEND POWER
POWER
12V
1.4A M
AX
G
Rx
Tx
Rx
Tx
G
Rx
Tx
DTP
OUT
LINK
SIG
A
B
C
D
G Rx Tx Rx Tx G Rx Tx
LINK SIG
D
Figure 7. Side Panel Connectors and Switches Below the Adapter Plates
(see page 8)
DTP2 T 202 FB • Installation and Operation 7
(see
on the previous page) — Plug the included
external 12 VDC power supply into this 2-pole connector (see
on page 14 to wire the connector).
— or —
Supply power to the receiver (see the appropriate user guide, available at
www.extron.com
) and leave the switches as described in the
NOTES
below.
POWER
12V
1.4A MAX
+
ATTENTION:
•
The DTP2 device is configured to output power to DTP2 models only.
If connected to a legacy DTP device, set the Send Power toggle switch
(
Off
position (right). Failure to turn the power off will damage the connected legacy DTP device.
•
L’appareil DTP2 est configuré pour fournir une alimentation aux modèles
DTP2 uniquement. S’il est connecté à un modèle DTP traditionnel, veuillez positionner l’interrupteur à bascule
Send Power
défaillance de l’appareil DTP connecté.
Off
» (droite).
Si l’interrupteur n’est pas positionné sur off, vous risquez d’entraîner la
NOTES:
• When the following switches are set as follows
, one power supply can power both units:
•
Send Power switch (
Send
position.
•
TP
) is in the
DTP2
position.
• When either switch is not as described
, the transmitter and receiver each require a local 12 VDC power supply.
on page 16 to wire the
•
9600 Baud
• No parity
• 8 data bits
• 1 stop bit
to wire the connector). RS-232 and IR
data can be transmitted simultaneously.
REMOTE
RS-232
G
Rx Tx G
Rx Tx
OVER TP
IR RS-232
Rx Tx
DTP2 T 202 FB • Installation and Operation 8
Input RJ-45 connector on a compatible receiver (see
termination and recommendations
on page 16 to properly wire the
RJ-45 connector and for detailed
NOTES
).
OUT
LINK SIG
Signal LED indicator
— Lights green when the transmitter outputs a video signal.
Link LED indicator
— Lights yellow when XTP devices are connected and communication is established.
ATTENTION:
•
Do
NOT
use the transmitter to remotely power a legacy DTP receiver. Circuit damage to the transmitter
WILL
result.
• NE PAS
utiliser le l’émetteur pour alimenter à distance un récepteur de la gamme existante DTP. Cette opération
FINIRA
par endommager le circuit menant à le récepteur .
•
Do not connect this connector to a computer data or telecommunications network.
•
Ne connectez pas ces port à des données informatiques ou à un réseau de télécommunications.
— In a system with a DTP2 receiver, set
SEND POWER OFF
the toggle switch to the
Send
Power
position (left) on the powered unit to enable sending power to the unpowered unit. Set the toggle switch to the
Off
position
(right) on the DTP2 unit that is to receive power.
—
HDBT DTP
ATTENTION :
•
Position this switch
BEFORE
connecting the appropriate device to the TP connector. Failure to comply can damage the endpoint.
•
Positionnez le sélecteur
AVANT
de connecter l’appareil approprié au connecteur TP. Ne pas respecter cette procédure pourrait endommager le point de connexion.
If the connected receiving device is in the Extron DTP2 series, set this switch to the
DTP
position (right). For an HDBaseT-enabled receiver type, set this switch to the
HDBT
position (left). This switch tailors the output signal as follows:
•
•
HDBT position
— The TP output consists of HDMI with embedded audio plus
RS-232 and IR.
DTP2 position
— The TP output consists of HDMI with embedded audio, analog audio, RS-232 and IR, and remote power.
NOTES:
• When the switch is in the HDBT position
, the transmitter and receiver each requires a local 12 VDC power supply.
• When the switch is in the DTP2 position
, one 12 VDC power supply, connected to either the transmitter or the receiver, can power both units so long as both are DTP2 and the Send Power switch on one of the units is in the
Send
Power
position and Send Power on the other unit is in the
Off
position.
DTP2 T 202 FB • Installation and Operation 9
Connectors Above the Adapter Plates
A
B
C
A
Input port 1 (HDMI)
B
Audio input port
C
SEND POWER
12V
1.4A MAX
OFF HDBT
OVER TP
IR RS-232
DTP
OUT
G Rx Tx Rx Tx G Rx Tx
LINK SIG
Figure 8. Side Panel Connectors Above the Adapter Plates
A
Input 1 (HDMI) port
— Plug a digital video input into this HDMI port. It accepts HDMI video or (DVI with an adapter). The transmitter also accepts embedded digital audio on this connector. See
on page 18 to use an Extron LockIt lacing bracket to secure the HDMI connector to the device.
NOTE:
The maximum HDMI cable length is 15 feet (4.5 m).
B
Audio In connector
— If desired, plug an analog audio source into the transmitter via this 3.5 mm tip-ring-sleeve (TRS) jack. Both video inputs can share this audio input.
NOTES:
•
See figure 9 to identify the connector tip, ring, and sleeve when you are making connections for the switching transmitter from existing audio cables. A mono audio connector consists of the tip and sleeve. A stereo audio connector consists of the tip, ring, and sleeve.
•
The analog audio can be assigned to a specific input or set to be always output
page 22).
Tip (+)
Ring (-)
Sleeve ( )
3.5 mm Stereo Plug Connector
(balanced)
Figure 9. TRS Connector
Wiring
By default, audio input is selected automatically. When the HDMI input is selected with automatic audio input selection, the transmitter prioritizes embedded digital audio. The following table shows the audio format that is sent over the DTP2 connection when a specific audio format is not specified.
Selected
Video Input
DisplayPort
DisplayPort
HDMI
HDMI
HDMI
HDMI
Embedded Audio
Present
N/A
N/A
Yes
Yes
No
No
Analog Audio
Present
Yes
No
No
Yes
Yes
No
Audio Sent Over
TP Cable
Analog audio
No audio
HDMI embedded audio
HDMI embedded audio
Analog audio
No audio
C
Input 2 (DisplayPort) port
— Plug a digital video input into this DisplayPort connector. The transmitter also accepts embedded digital audio on this connector.
DTP2 T 202 FB • Installation and Operation 10
Top Panel Features
A
Config(uration) port
— Connect a host
CONFIG
device to the top panel mini USB B configuration port. This port serves a similar communications function as the side panel
Remote RS-232 port, but it is easier to access than the side port after the switcher has been installed and cabled.
NOTE: A top panel Configuration port connection and a side panel Remote
RS-232 port connection can both be active at the same time. If commands are sent simultaneously to both, the command that reaches the processor first is handled first.
B
Reset button
— Initiates two levels of switcher reset. For the different reset levels, press and
hold
the button while the switcher is running or while you power up the switcher (see
details).
RESET
Mounting
A w
DTP2 T 202 FB
HDMI IN AUDIO IN DISPLAYPORT IN
HDMI
DP
SIGNAL
HDCP
AUTO
CONFIG RESET
B
Figure 10. Top Panel Features
Before mounting the floor box, consider the mounting location and prepare the surface as necessary.
1.
If not already completed, install the appropriate adapter plates in the desired position
2.
Align the screw holes on the DTP2 T 202 FB with the screw holes on the adapter plates.
3.
Using the provided self-threading screws and washers, secure the DTP2 T 202 FB to the adapter plates (see
beginning on page 12).
DTP2 T 202 FB • Installation and Operation 11
Ackermann GB3 (OBO Bettermann) Floor Box
995241
DTP
T FB
332
DTP
T 202
FB
12V
ER
- +
REM
OTE
232
G
Rx
Tx XTP
OUT
995242
Figure 11. Mounting the Unit into an Ackermann GB3 (OBO Bettermann) Floor Box
NOTE: Position 2 requires the installation of the 995242 adapter plate on top of one of the 995241 adapter plates.
MK Electric CableLink Plus - Single Pan Floor Box
DTP
T 202 FB
995243
995243
DTP
33
2
POW
A MA
ER
X
REM
RS-2
32
- +
G
Rx
Tx
XT
DTP
T FB
33
2
POW
ER
AX
REM
RS-2
32
Figure 12. Mounting the Unit into an MK Electric CableLink Plus - Single Pan
Floor Box
ATTENTION:
•
Do not install the DTP2 T 202 FB in position 2 (see
on page 6).
•
Ne pas installer le DTP2 T 202 FB en position 2 (voir
DTP2 T 202 FB • Installation and Operation 12
MK Electric CableLink Plus - Modular Floor Box
DT
P T 2
02 FB
DTP
2
995244
995244
12V
A M
AX
- +
G
Rx
Tx XTP OUT
Figure 13. Mounting the Unit into an MK Electric CableLink Plus - Modular Floor
Box
Electraplan or PUK Floor Box
DT
P T 202 F
B
995300
995300
POW
ER
TE
- +
G
Rx
Tx XTP O
UT
Figure 14. Mounting the Unit into an Electraplan or PUK Floor Box
XTP
T FB
202
DTP2 T 202 FB • Installation and Operation 13
Connection and Wiring Details
Power Supply Wiring
NOTE: The power supply included with the transmitter can normally power the transmitter and the connected receiver.
Figure 15 shows how to wire the connector. Use the supplied tie-wrap to strap the power cable to the extended tail of the connector.
POWER
12V
--A MAX
2-Pole Captive Screw
Connector
Smooth
A
Ridges
A
SECTION A–A
Tie Wrap
Power Supply
Output
Cord
3
5
Figure 15. Power Connector Wiring
CAUTION:
ATTENTION :
•
The wires must be kept separate while the power supply is plugged in. Remove power before wiring.
•
Les deux cordons d’alimentation doivent être tenus à l’écart l’un de l’autre quand l’alimentation est branchée.
•
The length of exposed wires is important. The ideal length is 3/16 inch (5 mm).
•
Any longer and the exposed wires may touch, causing a short circuit between them.
•
Any shorter and the wires can be easily pulled out even if tightly fastened by the captive screws.
•
La longueur des câbles exposés est importante. La longueur idéale est de 5 mm
(3/16 inches).
•
S’ils sont un peu plus longs, les câbles exposés pourraient se toucher et provoquer un court circuit.
•
S’ils sont un peu plus courts, ils pourraient sortir, même s’ils sont attachés par les vis captives.
•
Do not tin the power supply leads before installing them in the connector. Tinned wires are not as secure in the connector and could be pulled out.
•
Ne pas étamer les conducteurs avant de les insérer dans le connecteur. Les câbles
étamés ne sont pas aussi bien fixés dans le connecteur et pourraient être retirés.
DTP2 T 202 FB • Installation and Operation 14
ATTENTION:
•
This product is intended to be supplied by a UL Listed power source marked
“Class 2” or “LPS,” rated 12 VDC, 1.0 A minimum. Always use a power supply supplied by or specified by Extron. Use of an unauthorized power supply voids all regulatory compliance certification and may cause damage to the supply and the end product.
•
Ce produit est destiné à une utilisation avec une source d’alimentation listée UL avec l’appellation « Classe 2 » ou « LPS » et normée 12 Vcc, 1,0 A minimum.
Utilisez toujours une source d’alimentation fournie ou recommandée par Extron.
L’utilisation d’une source d’alimentation non autorisée annule toute conformité réglementaire et peut endommager la source d’alimentation ainsi que le produit final.
•
Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities.
•
Sauf mention contraire, les adaptateurs AC/DC ne sont pas appropriés pour une utilisation dans les espaces d’aération ou dans les cavités murales.
•
The installation must always be in accordance with the applicable provisions of
National Electrical Code ANSI/NFPA 70, article 725 and the Canadian Electrical
Code part 1, section 16. The power supply shall not be permanently fixed to a building structure or similar structure.
•
Cette installation doit toujours être en accord avec les mesures qui s’applique au National Electrical Code ANSI/NFPA 70, article 725, et au Canadian Electrical
Code, partie 1, section 16. La source d’alimentation ne devra pas être fixée de façon permanente à une structure de bâtiment ou à une structure similaire.
•
Power supply voltage polarity is critical. Incorrect voltage polarity can damage the
power supply and the unit. The ridges on the side of the cord (see
on page 14) identify the power cord negative lead.
•
La polarité de la source d’alimentation est primordiale. Une polarité incorrecte pourrait endommager la source d’alimentation et l’unité. Les stries sur le côté du
sur la page 14) permettent de repérer le pôle négatif
du cordon d’alimentation.
To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter.
DTP2 T 202 FB • Installation and Operation 15
Serial and IR Port Connectors
Figure 16 shows how to wire the Over TP RS-232 and IR and Remote connectors.
RS-232 Device
Gnd Rx Tx
RS-232 Device
Gnd Rx Tx
Gnd Tx Rx
IR Device
Figure 16. RS-232 and IR Connectors Wiring
NOTES:
•
The length of exposed wires is important. The ideal length is 3/16 inch
(5 millimeters).
•
If the stripped section of wire is longer than 3/16 inch, the exposed wires may touch, causing a short circuit.
•
If the stripped section of wire is shorter than 3/16 inch, wires can be easily pulled out even if tightly fastened by the captive screws.
•
Do not tin the power supply leads before installing them in the connector. Tinned wires are not as secure in the connector and could be pulled out.
TP Cable Termination and Recommendations
Figure 17 details the
TIA/EIA T 568 B
wiring standard. Use this standard to terminate the
DTP2 cable with RJ-45 connectors.
Side Pins:
12345678
Insert
Twisted
Pair Wires
6
7
8
4
5
Pin
1
2
3
TIA/EIA T
568B
Wire color
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
Figure 17. TP Cable Termination
NOTE
:
Do
not
use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the switching transmitter and receiver. The DTP2 T 202 FB does not work properly with these cables.
DTP2 T 202 FB • Installation and Operation 16
Supported cables
The DTP2 T 202 FB is compatible with shielded twisted pair (STP) and unshielded twisted pair (U/UTP) cable. However, Extron strongly recommends that you use STP cable to achieve best performance.
ATTENTION:
•
To ensure FCC Class A and CE compliance, STP cables and STP connectors are required.
•
Afin de s’assurer de la compatibilité entre FCC Classe A et CE, les câbles STP et les connecteurs STP sont nécessaires.
Cable recommendations
Extron recommends using the following practices to achieve full transmission distances up to 330 feet (100 meters) and reduce transmission errors.
• Use the following Extron XTP DTP2 24 STP cables and DTP2 24 connectors for the best performance:
XTP DTP2 24/1000
Non-Plenum 1000 feet (305 meters) spool 22-236-03
XTP DTP2 24P/1000
Plenum 1000 feet (305 meters) spool
XTP DTP2 24 Plug
Package of 10
22-235-03
101-005-02
• If not using XTP DTP2 24 cable, at a minimum, Extron recommends 24 AWG, solid conductor, STP cable with a minimum bandwidth of 400 MHz.
•
Terminate cables with shielded connectors to the TIA/EIA T 568 B standard.
• Use no more than two pass-through points, which may include patch points, punch down connectors, couplers, and power injectors. If these pass-through points are required, use CAT 6 or 6a shielded couplers and punch down connectors.
NOTE: When using STP cable in bundles or conduits, consider the following:
•
Do not exceed 40% fill capacity in conduits.
•
Do not comb the cable for the first 20 meters, where cables are straightened, aligned, and secured in tight bundles.
•
Loosely place cables and limit the use of tie wraps or hook and loop fasteners.
•
Separate twisted pair cables from AC power cables.
DTP2 T 202 FB • Installation and Operation 17
HDMI connector
Use the LockIt Lacing Bracket, supplied with the switcher, to securely fasten the HDMI cable to the switcher as follows (see figure 18).
3
Figure 18. Installing the LockIt Lacing Bracket
1.
Plug the HDMI cable into the panel connection (
1
).
2.
Loosen the HDMI connection mounting screw from the panel enough to allow the
LockIt lacing bracket to be placed over it (
2
). The screw does not have to be removed.
3.
Place the LockIt lacing bracket on the screw and against the HDMI connector, then tighten the screw to secure the bracket (
3
).
ATTENTION:
•
Do not overtighten the HDMI connector mounting screw. The shield to which it fastens is very thin and can easily be stripped.
•
Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel elle est attachée est très fin et peut facilement être dénudé.
4.
Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as shown (
4
).
5.
While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length (
5
).
Operation
The DTP2 T 202 FB can be controlled only by SIS commands (see
on page 21) or the Product Configuration Software (see
on page 28). This section contains basic information about operation details.
Indications
(Power) LED
— Lights when power is applied.
HDMI LED
— Lights when an HDMI input signal is detected.
DP LED
— Lights when a DisplayPort input signal is detected.
Signal LED
— Lights to indicate when a signal is detected on the selected input.
HDCP LED
— Lights when the HDMI input signal is encrypted.
Auto LED
— Lights when the device is in auto switch mode.
HDMI
DP
SIGNAL
HDCP
AUTO
DTP2 T 202 FB • Installation and Operation 18
Switch Modes
The switching transmitter has three switch modes:
•
Manual
— The input must be selected manually using an SIS command
•
Auto switch (DisplayPort)
— The switcher automatically selects the input with an active signal present and, if both are present, prioritizes the DisplayPort input. This is the factory default mode.
•
Auto switch (HDMI)
— The switcher automatically selects the input with an active signal present and, if both are present, prioritizes the HDMI input.
These modes can be selected through SIS commands (see
on page 22) or the Product Configuration Software (see the PCS Help file).
EDID
To manage EDID on the DTP2 T 202 FB, use the Product Configuration Software (see
Product Configuration Software Help file).
Reset Mode
Use the recessed
Reset
button on the top panel of the transmitter (see
page 11) to initiate two levels of reset as follows:
on
Reset to factory default condition
— Cycle unit power off and on while
holding
the
Reset
button. All top panel LEDs cycle. Release the button.
Reset to default settings
— Press and
hold
the reset button for approximately 6 seconds. All top panel LEDs cycle. Release the button. This reset is the equivalent of issuing
E
ZXXX
}
, see page 25).
Troubleshooting — If no Image Appears
1.
Ensure that all devices are plugged in and powered on. The switcher is receiving power if one of the input LEDs is lit.
2.
Ensure an active input is selected on the switcher or that the switcher is in auto-input switching mode.
3.
Ensure that the proper signal format is supplied.
4.
Check the cabling and make corrections as necessary.
5.
Call the Extron S3 Sales & Technical Support Hotline if necessary (see
www.extron.com
for the phone number in your region of the world).
DTP2 T 202 FB • Installation and Operation 19
Remote Control
This section contains information for remotely controlling the DTP2 T 202 FB switching transmitter. Topics in this section include:
•
•
Simple Instruction Set Control
•
Product Configuration Software Control
Host Control Ports
The transmitter is remotely controllable via its side panel Remote RS-232 port (“Serial Port” below) or top panel Configuration (USB) port (see “USB Port” below).
The Remote RS-232 port and Configuration port are independent of one another. A Remote
RS-232 port connection and a Configuration port connection can be active at the same time.
Serial port
The side panel Remote port is an RS-232 serial port on a 3-pin captive screw connector
(see
on page 8).
The serial port protocol of the side panel Remote RS-232 port is:
• 9600 baud
• No flow control
• No parity
• 1 stop bit
• 8 data bits
USB port
The top panel Configuration port (
on page 11) is a standard USB port. A USB
cable, terminated on one end with a USB mini-B male connector, is available at any local electronics store.
DTP2 T 202 FB • Remote Control 20
Simple Instruction Set Control
The Remote RS-232 port or the Configuration (USB) port (or both) can be connected to a host device such as a computer running the Extron DataViewer utility or a control system.
Host-to-Switcher Communications
SIS commands consist of one or more characters per field. No special characters are required to begin or end a command character sequence. When a command is valid, the switcher executes the command and sends a response to the host device. All responses from the switcher to the host end with a carriage return and a line feed (CR/LF =
] signals the end of the response character string. A string is one or more characters.
), which
Switcher-Initiated Messages
When a local event occurs, such as a front panel operation, loss or restoration of an input signal, or an error condition, the switcher responds by sending a message to the host. The switcher-initiated sign-on message is shown below:
©
Copyright 20
yy
,
Extron Electronics DTP R 202 FB
,
V
x
.
xx
,
60
-
nnnn
-
nn
]
The transmitting receiver issues the copyright message when it first powers on.
V
x
.
xx
is the firmware version number and
60
-
nnnn
-
nn
is the part number.
Switcher Error Responses
When the switcher receives a valid SIS command, it executes the command and sends a response to the host device. If the switcher is unable to execute the command because the command is invalid or it contains invalid parameters, the switcher returns an error response to the host. The error response codes are:
E01
— Invalid input channel number (out of range)
E06
— Invalid channel change
E10
— Invalid command
E13
— Invalid parameter
E14
— Not valid for this configuration
E17
— Invalid command for signal type
Timeout
Pauses of 10 seconds or longer between command ASCII characters result in a timeout.
The command operation is aborted with no other indication.
Using the Command and Response Table
X` s) are used throughout the table to represent variables in the command and response fields. Command and response examples are shown throughout the table. The ASCII to HEX conversion table on
is for use with the command and response table.
DTP2 T 202 FB • Remote Control 21
Space
ASCII to Hex Conversion Table
•
Common symbol definitions
]
= Carriage return/line feed • = space
}
= Carriage return (no line feed)
|
= Pipe (can be used interchangeably with the
E
= Escape key
}
character)
W
= Can be used interchangeably with the
E
character
Command and Response Table for SIS Commands
Command Function
SIS Command
(Host to Unit)
Response
(Unit to Host)
Additional description
Select and view input
NOTE: The switcher must be in manual switch mode (
E
0AUSW
}
, see below) to execute the Select commands. If it is in either auto switch mode, it returns E 06 . View ( !
) commands work regardless of switch mode.
Deselect both inputs
Select HDMI input
Select DisplayPort input
View input selection
0!
1!
2!
!
In0
•
All
]
In1
•
All
]
In2
•
All
]
X!]
Verbose 2/3
: In
X!
•
All
]
Deselect both inputs.
X!
is selected ( 0 = deselected).
Switch mode
Set manual switch mode
Set auto switch mode with
DisplayPort priority
Set auto switch mode with HDMI priority
0AUSW
2AUSW
}
}
}
Ausw0
Ausw1
Ausw2
]
]
]
View switch mode
E
AUSW
} X@]
Verbose 2/3:
Ausw
X@]
Assign analog audio input to specific video input or always output audio
Always output analog audio
E
0AFLW
}
Aflw0
]
Analog audio is output regardless of input selection.
Default
.
Assign (lock) analog audio to HDMI input
Assign (lock) analog audio to
DisplayPort input
View audio assignment
E
E
1AUSW
E
E
1AFLW
}
E
E
2AFLW
AFLW
}
}
Aflw1
]
Aflw2
]
X#]
Verbose 2/3:
Aflw
X#]
Set switch mode to normal.
Set switch mode to auto (DisplayPort).
Automatically selects the DisplayPort input if both inputs are present.
Default
.
Set switch mode to auto (HDMI). The switcher automatically selects the HDMI input if both inputs are present.
KEY:
X!
X@
= Input number
= Switch mode
0
0
= Deselect
= Manual
X#
= Input number (for audio configuration) 0 = Always output
1
1
1
= Input 1 (HDMI)
= Auto DisplayPort (
= HDMI input
default
)
2 = Input 2 (DisplayPort)
2 = Auto HDMI
2 = DisplayPort input
DTP2 T 202 FB • Remote Control 22
Command and Response Table for SIS Commands (continued)
Command Function
SIS Command
(Host to Unit)
Response
(Unit to Host)
Additional description
Input signal status
Request status of both inputs and the output
HDCP Status
View the HDCP status of the inputs
E
0LS
}
Sig
X$
HDMI
•
X$
DisplayPort
*
X$ output
] X$
HDMI
and
X$
DisplayPort
are the input signal status.
X$ output
is the output signal status.
View the output HDCP status
E
IHDCP
}
E
OHDCP
}
X%
HDMI
•
X%
DisplayPort
]
Verbose 2/3:
HdcpI
X%
•
X%]
X^]
Verbose 2/3:
HdcpO
X^]
HDCP Authorized Device
Set input to HDCP authorized
Set input to HDCP not authorized
View HDCP authorized status
E
E
X!
*1HDCP
}
E
E
X!
*0HDCP
}
E
EHDCP
}
HdcpE
X!
*1
]
HdcpE
X!
*0
]
X$
HDMI
*
X$
DisplayPort
]
Verbose 2/3:
HdcpE
X$
•
X$]
Default
.
Output HDCP mode
Set HDCP encryption to auto
Always encrypt HDCP
View HDCP encryption mode
E
S1HDCP
}
E
S2HDCP
}
E
SHDCP
}
HdcpS1
]
HdcpS2
]
X&]
Verbose 2/3:
HdcpS
X&]
HDCP notification
Disable HDCP notification
Enable HDCP notification
View HDCP notification mode
E
N0HDCP
}
E
N1HDCP
}
E
NHDCP
}
HdcpN0
]
HdcpN1
]
X$]
Verbose 2/3:
HdcpN
X$]
Show green screen.
TMDS output format
Set TMDS output format
View TMDS output format
EX!
*
X*
VTPO
}
E
VTPO
}
Vtpo
X!
*
X*]
X*]
Verbose 2/3:
Vtpo
X!
*
X*]
Output color bit depth mode
Set bit depth mode to auto
Force bit depth mode to 8-bit
Show bit depth mode
E
V1BITD
}
E
V2BITD
}
E
VBITD
}
BitdV1
]
BitdV2
]
X(]
Verbose 2/3:
BitdV
X(]
Bit depth based on sink EDID (
default
).
KEY:
X!
= Input number
X$
= Status
1
0
= Input 1 (HDMI)
= Disabled, not detected
X%
= Input HDCP status 0 = No source is detected
X^
= Output HDCP status 0 = No sink is detected
2
1
1
= Input 2 (DisplayPort)
= Enabled, detected
X&
= Output HDCP mode 1 = Auto, encrypt as required by input (
default
)
= Video detected without HDCP
1
2
3
= Sink detected without HDCP
= Sink detected with HDCP, output is not encrypted
= Sink detected with HDCP, output is encrypted
X*
= TMDS output format 1 = Auto (
default
)
2 = DVI RGB 444
X(
= Color bit depth mode 1 = Auto
3
4
2
= HDMI RGB full
= HDMI RGB limited
= 8-bit
2 = Video detected with HDCP
2
5
6
= Always encrypt
= HDMI YUV 444 limited
= HDMI YUV 422 limited
DTP2 T 202 FB • Remote Control 23
Command and Response Table for SIS Commands (continued)
Command Function
SIS Command
(Host to Unit)
Response
(Unit to Host)
Additional description
EDID
NOTE:
Full EDID Minder functionality is available through
Product Configuration Software
View raw EDID data
View EDID native resolution
E
R
X!
EDID
}
E
N
X!
EDID
}
X1)]
X1!]
Read hex data as text from the EDID assigned and used on input
X!
.
Read out native resolution and refresh rate from the EDID assigned to the specified input in plain text.
Example
:
1920x1200 @60.00Hz
Video mute
Mute video
Mute video and sync
Unmute video
Read video mute
1B
2B
0B
B
Vmt1
]
Vmt2
]
Vmt0
]
X1@]
Verbose 2/3:
Vmt
X1@]
Analog audio mute
Mute audio
Unmute audio
Read analog audio mute
Send power switch position
View switch position
1Z
0Z
Z
Audio routing selection
Set input audio format
View input audio format
E
I
X!
*
X1$
AFMT
}
AfmtI
X!
*
X1$]
E
I
X!
AFMT
} X1$]
Verbose 2/3:
AfmtI
X!
*
X1$]
Disable (mute) output embedded audio
Toggle embedded audio output mute
E
O
X1#
AFMT
}
View audio mute status E
OAFMT
}
AfmtO
X1#]
X1#]
Verbose 2/3:
Afmt
X1#]
TP function switch position
View switch position E
O1HDBT
} X1%]
Verbose 2/3:
HdbtO1*
X1%]
E
RPWR
}
Amt1
]
Amt0
]
X1#]
Verbose 2/3:
Amt
X1#]
Y!]
Verbose 2/3:
Rpwr
Y!]
Serial host control port mode
Over TP pass-through
Over TP serial device control
View host control port mode
E
1HSTM
}
E
2HSTM
}
E
HSTM
}
Hstm1
]
Hstm2
]
X1^]
Verbose 2/3:
Hstm
X1^]
Output no video signal.
Output no video or sync signal.
Output the selected video input.
Video mute status is
X1@
.
Mute analog audio (no audio output).
Unmute analog audio (output audio).
Analog audio mute status is
X1#
.
Enable embedded audio. (
Default
)
KEY:
X!
= Input number
X)
= Raw EDID data
X1%
= Switch position
Y!
= Switch position
X1^
= Over TP port mode
1 = Input 1 (HDMI)
128
2 = Input 2 (DisplayPort)
or 256 bytes of hexadecimal data
X1!
= Resolution and rate (plain text)
Example
: 1920x1200 • @60Hz
X1@
= Video mute status
X1#
= Audio mute status
0
0
= Mute off
= Mute off
X1$
= Analog routing (for HDMI input) 0 = Auto (
default
)
0
0
1
= DTP2
= No remote power
= Pass-through (
default
)
1
1
1
1
1
2
= Video and sync mute on
= Mute on
= HDBT
= Digital input
= Remote power
= Serial device control
2 = Sync mute on
2 = Analog input
DTP2 T 202 FB • Remote Control 24
Command and Response Table for SIS Commands (continued)
Command Function
SIS Command
(Host to Unit)
Response
(Unit to Host)
Additional description
5V output hot plug mode
Set 5V output mode to auto
Set 5V output mode to always on
View 5V output mode
E
M1HPLG
}
E
M2HPLG
}
E
MHPLG
}
HplgM1
]
HplgM2
]
X1&]
Verbose 2/3:
HplgM
X1&]
Device name
Set the unit name
Set unit name to factory default
View unit name
EX1*
CN
}
E •
CN
}
E
CN
}
Ipn
•
X1*]
Ipn
•
DTP2
-
T
-
202
-
FB
]
X1*]
Verbose 2/3:
Ipn
•
X1*]
Change the name to one of your choosing.
Set name to default.
Reset
Reset to factory setting
Information requests
Information request
Example:
Request part number
Request name
Request description
E
ZXXX
}
I
I
N
1I
2I
Zpx
] Reset to factory defaults.
In
X!
•
Aflw
X!
•
Ausw
X@
•
Vmt
X1@
•
Amt
X1#]
In1
•
Aflw2
•
Ausw1
•
Vmt1
•
Amt0
]
Input 1 is selected, analog audio is assigned to input 2, the switcher is in auto-input switching
(HDMI) mode, video is muted and analog audio is unmuted.
60-
nnnn
-
nn
] See
www.extron.com
for part numbers.
DTP2
•
T
•
202
•
FB
]
Verbose 2/3:
Inf01*DTP2
•
T
•
202
•
FB
]
DTP2
•
HDMI/DP
•
FB
•
Tx
•
SUPPORT
•
4K60
]
Verbose 2/3:
Inf02*DTP2
•
HDMI/DP
•
FB
•
Tx
•
SUPPORT
•
4K60
]
X1(]
X2)]
Query controller firmware version
Query firmware version with build
Verbose mode
Q
*Q
NOTE: If tagged responses are enabled (modes 2 and 3), all “view” commands return the prefix and the value, just as the “set” commands do. For example, the View front panel switch mode (
E
AUSW
}
) command returns “ Ausw
X@]
”.
Set verbose mode
Read verbose mode
EX2!
E
CV
CV
}
}
Vrb
X2!]
X2!]
KEY:
X!
= Input number
X1@
= Video mute status
X1#
= Audio mute status
X1&
= 5V hot plug mode
X1*
= Name
0
1
1
0
2
= Input 1 (HDMI)
= Mute off
= Mute off
= Always enabled (
default
)
2
1
1
= Input 2 (DisplayPort)
= Video and sync mute on
= Mute on
No blank or space characters are permitted as part of a name.
2 = Sync mute on
= Auto 5V is enabled on the DTP output when a video source is present
A text string of up to 24 alphanumeric characters and minus sign/hyphen (-).
X1(
= Firmware version number to second decimal place
(x
.
xx
)
X2)
= Firmware version with build number
X2!
= Verbose mode
The first character must be a letter, and the last character must not be a minus sign/hyphen
0
= Clear/none
1 = Verbose mode (default for RS-232 or USB) (
default
)
2
= Tagged responses for queries
3 = Verbose mode and tagged for queries
DTP2 T 202 FB • Remote Control 25
Command and Response Table for CEC Communications SIS Commands
Command Function
SIS Command
(Host to Unit)
Response
(Unit to Host)
Additional description
CEC enable and disable
NOTE: The CEC communications only pass through on the DTP2 output when the unit is connected to a DTP2 or DTP stand-alone receiver. Commands do not pass when connected to an Extron non-standalone DTP2 or DTP receiver.
Enable or disable CEC for one output
Enable or disable all output CECs
View CEC output status
E
E
E
O1*
O
X4%
X4%
CCEC
*CCEC
O1CCEC
}
}
}
Verbose mode 2/3:
CcecO1*
X4%]
CcecO
X4%]
X4^
*
X4&
CcecO1*
*
X4*]
X4^
*
X4&
*
X4*]
Send CEC commands
Default discovered target logical address —
No CEC received data messages (including answers to queries) desired:
NOTE: Attempting to send a CEC command to an input or output that is disabled returns an
E14
error.
Send CEC command or data to output
(downstream sink)
E
O1*
X4(
—
or
—
DCEC
}
E
O1*
X5!
DCEC
}
DceO1*
X5@X5!
*
X5)]
X4(
—
or
—
X5!
= command.
= data.
Broadcast to all devices —
Send CEC command or data to output
(downstream sink)
E
—
O1*15*
or
—
X4(
DCEC
}
E
O1*15*
X5!
DCEC
}
DceO1*
X5@X5!
*
X5)]
X4(
—
or
—
X5!
= command.
= data.
KEY:
X4%
= CEC mode
X4^
= CEC status
X4&
= Source logical address
X4*
= Destination logical address.
X4(
= CEC command
X5)
= Send result
6
7
4
5
1
2
3
0
= Disable CEC operation for this IO port
2
= Enable insertion and break CEC connection input to output (unidirectional)
4
= Enable insertion and publish received CEC messages (bidirectional)
0
= CEC mode
0
disabled
2
= CEC mode
2
enabled, but no device detected (unidirectional)
3
= CEC mode
2
enabled and device detected (unidirectional)
4
= CEC mode
4
enabled, but no device detected (bidirectional)
5
= CEC mode
4
enabled and device detected (bidirectional)
0
through
15
(-1 = not found or port not enabled)
0
through
15
(-1 = not found or port not enabled)
Address Device
0 TV
Address
8
Device
Playback device 2
Recording device 1
Recording device 2
Tuner 1
9
10
11
Recording device 3
Tuner 4
Playback device 3
Playback device 1
Audio system
Tuner 2
Tuner 3
12
13
14
15
Reserved
Reserved
Free use
Unregistered (as initiator)
Broadcast (as destination)
Predefined actions as strings, set aside in quotes, such as “
PwrOn
”, “
PwrOff
”, or “
ShowMe
”.
0
= Fail (NAK), device not detected
1
= Success (ACK), device detected
2
= Unable to send
DTP2 T 202 FB • Remote Control 26
Command Function
SIS Command
(Host to Unit)
Response
(Unit to Host)
Additional description
CEC usage examples
Unidirectional mode —
No CEC received data messages desired (including answers to queries)
Set mode
Send data
E
O1*2CCEC
}
E
O1*”PwrOn”DCEC
—
or
—
E
O1*%04DCEC
}
}
Cceco1*2
]
Dceco1*%E0%04*1 ]
Bidirectional mode —
CEC received data messages desired.
Set mode
Send data
Examples of possible unsolicited messages
Power on TV on output 1
E
O1*4CCEC
}
Cceco1*4
]
Switch TV to output 1 to our signal
(HDMI 2 on TV).
E
O1*”Showme”DCEC
—
or
—
E
}
O1*%04DCEC 82%20$00
}
Dceco1%*EF%82%20$00*1 ]
Ceco1*%0F%32%65%6E%67*1
]
TV broadcast command to set the meny language to English (“eng”).
Ceco0*0E*1
]
TV pings us to confirm we are still there.
NOTE: Asynchronous received data messages from the CEC in bidirectional mode (
X4^
=4) format: Ceci
X!
*
X5@X5!
*
X5)]
Ceco1*
X5@X5!
*
X5)]
Other CEC commands
Rediscover device on output E
O1QCEC
}
Report physical address of output port
Example
E
O1PCEC
}
Verbose mode 2/3
QcecO
Y!]
QcecO1*0*
X5)]
• • •
QcecO1*13*
X5)]
Y5!]
PcecO1*
%10%00
Y5!]
]
KEY:
X!
= Input number
X5)
X5!
= Send result
= CEC data
1 = Input 1 (HDMI)
0
= Fail (NAK), device not detected
1
= Success (ACK), device detected
2
= Unable to send
One or more user-selected elements (
0
to
15
) in the form of % followed by 2 hex digits
(
for example
:
%2A%07%FF
)
X5@
= CEC address byte In the form of % followed by 2 hex digits
2 = Input 2 (DisplayPort)
DTP2 T 202 FB • Remote Control 27
Product Configuration Software Control
This section introduces the Product Configuration Software (PCS), available on the Extron website. The Windows-based PCS communicates with the switcher via the following ports:
•
Configuration port
— A standard USB mini-B port (see
•
Remote RS-232 port
— A serial port on a 3.5 mm, 3-pole captive screw connector
(see
on page 6).
•
•
9600 Baud
No parity
•
•
8 data bits
1 stop bit
The program is compatible with Windows 7 and later.
Installing the Software
The PCS (minimum version 4.7.0 or newer is required for the transmitter) and Firmware
Loader are available on the Extron website. Download and install both programs as follows:
NOTE:
Steps 1 through 6, below, are also used to download a firmware update package.
1.
Go to
www.extron.com
and momentarily rest the cursor over the
Download
tab
(see figure 19,
1
).
OR
2
2
Figure 19. Selecting the Download Tab
2.
Click the
Firmware
or
Software
link (
(see
on page 29).
2
). The main download page opens
DTP2 T 202 FB • Remote Control 28
NOTE: The file name, part number, version, release date, and size shown are sample values only.
Figure 20. Downloading from the Main Download Page
3.
Click the desired filtering letter (see figure 20, downloads.
1
) to jump to the nearest page of
4.
Click
Download
for the desired software or firmware package to download (
Log in dialog box appears (see figure 21).
2
). The
Figure 21. Log in Dialog Box
5.
Enter the
address and
Password
associated with your Extron insider account
(see figure 21,
1
).
DTP2 T 202 FB • Remote Control 29
TIPS:
•
Click
Sign up
on page 29) to obtain website credentials.
•
Click
Keep me logged in
) to eliminate steps 5 and 6 in future downloads.
•
Enter your registered E-mail address (
you have forgotten your credentials.
) and click
Retrieve Password
) if
6.
Click
Log in
to copy the package to the computer (
7.
If your browser asks you to confirm that you want to continue, click
Run
or make a similar confirmation that you want to run the installation (see figure 22,
1
).
Figure 22. Download Warning and Confirmation
NOTE:
Figure 22 may look different or may not appear at all, depending on your web browser choice and its security settings.
8. For a firmware upgrade
, exit this procedure and update the transmitter firmware as described in the PCS Help file.
9.
Follow the on-screen instructions. The installation creates the necessary subfolders of
C:
\
Program Files
and the necessary groups. It places the appropriate icons into the correct group folders:
NOTE:
C:
\
Program Files(x86)\
... for 64-bit Windows OS.
Product Configuration Software
—
•
Folder
—
C:
\
Program Files
\
Extron
\
Extron PCS
•
Group folder
—
Extron Electronics
\
Extron Product Configuration Software
•
Check for Extron PCS Updates
•
Extron PCS Help
•
Extron Product Configuration Software
•
Uninstall Extron Product Configuration Software
Firmware Loader
—
•
Folder
—
C:\Program Files\Extron\FWLoader
•
Group folder
— Extron Electronics \ Firmware Loader
•
Check for Firmware Loader Updates
•
Firmware Loader Help
•
Firmware Loader
•
Uninstall Firmware Loader
DTP2 T 202 FB • Remote Control 30
Starting the Program
Start the Extron Product Configuration Software as follows:
1.
Click
Start > Programs > Extron Electronics > Extron Product Configuration
Software > Extron Product Configuration Software
.
The Product Configuration Software opens to the
Device Discovery
screen (see figure 23).
Figure 23. Device Discovery Screen
2.
Select (click) the desired DTP2 T FB unit (
1
) and click
Connect
(
2
). The Product
Configuration Software opens to the
Input
/
Output Configuration
page (see figure 24).
Operate the Product Configuration Software as described in the PCS Help (click >
Extron PCS Help
).
Figure 24. Product Configuration Software
DTP2 T 202 FB • Remote Control 31
Extron Warranty
Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:
USA, Canada, South America, and Central America:
Extron Electronics
1230 South Lewis Street
Anaheim, CA 92805
U.S.A.
Asia
:
Extron Asia Pte Ltd
135 Joo Seng Road, #04-01
PM Industrial Bldg.
Singapore 368363
Singapore
Japan:
Extron Electronics, Japan
Kyodo Building, 16 Ichibancho
Chiyoda-ku, Tokyo 102-0082
Japan
Europe:
Extron Europe
Hanzeboulevard 10
3825 PH Amersfoort
The Netherlands
China
:
Extron China
686 Ronghua Road
Songjiang District
Shanghai 201611
China
Middle East:
Extron Middle East
Dubai Airport Free Zone
F13, PO Box 293666
United Arab Emirates, Dubai
Africa:
Extron South Africa
3rd Floor, South Tower
160 Jan Smuts Avenue
Rosebank 2196, South Africa
This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not authorized by Extron.
NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return
Authorization) number. This will begin the repair process.
USA
: 714.491.1500 or 800.633.9876
Asia
: 65.6383.4400
Europe
: 31.33.453.4040 or 800.3987.6673
Africa
: 27.11.447.6162
Japan
: 81.3.3511.7655
Middle East
: 971.4.299.1800
Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.
E xtron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.
Worldwide Headquarters:
Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
advertisement
Related manuals
advertisement
Table of contents
- 1 DTP2 T 202 FB
- 2 Safety Instructions
- 4 FCC Class A Notice
- 7 Contents
- 9 Introduction
- 9 About this Guide
- 9 About the Switching Transmitter
- 10 Control Communications
- 10 TP Cable Advantages
- 11 Features
- 12 Installation and Operation
- 12 Installation Overview
- 13 Adapter Plates
- 15 Side Panel Features
- 15 Connectors and Switches Below the Adapter Plates
- 18 Connectors Above the Adapter Plates
- 19 Top Panel Features
- 19 Mounting
- 20 Ackermann GB3 (OBO Bettermann) Floor Box
- 20 MK Electric CableLink Plus - Single Pan Floor Box
- 21 MK Electric CableLink Plus - Modular Floor Box
- 21 Electraplan or PUK Floor Box
- 22 Connection and Wiring Details
- 22 Power Supply Wiring
- 24 Serial and IR Port Connectors
- 24 TP Cable Termination and Recommendations
- 26 Operation
- 26 Indications
- 27 Switch Modes
- 27 EDID
- 27 Reset Mode
- 27 Troubleshooting — If no Image Appears
- 28 Remote Control
- 28 Host Control Ports
- 29 Simple Instruction Set Control
- 29 Host-to-Switcher Communications
- 29 Switcher-Initiated Messages
- 29 Switcher Error Responses
- 29 Timeout
- 29 Using the Command and Response Table
- 36 Product Configuration Software Control
- 36 Installing the Software
- 39 Starting the Program
- 40 Warranty & Contact Info
