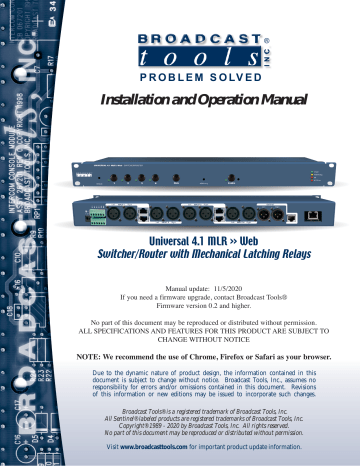

Installation and Operation Manual
Universal 4.1 MLR >> Web
Switcher/Router with Mechanical Latching Relays
Manual update: 11/5/2020
If you need a firmware upgrade, contact Broadcast Tools®
Firmware version 0.2 and higher.
No part of this document may be reproduced or distributed without permission.
ALL SPECIFICATIONS AND FEATURES FOR THIS PRODUCT ARE SUBJECT TO
CHANGE WITHOUT NOTICE
NOTE: We recommend the use of Chrome, Firefox or Safari as your browser.
Due to the dynamic nature of product design, the information contained in this document is subject to change without notice. Broadcast Tools, Inc., assumes no responsibility for errors and/or omissions contained in this document. Revisions of this information or new editions may be issued to incorporate such changes.
Broadcast Tools® is a registered trademark of Broadcast Tools, Inc.
All Sentinel® labeled products are registered trademarks of Broadcast Tools, Inc.
Copyright® 1989 - 2020 by Broadcast Tools, Inc. All rights reserved.
No part of this document may be reproduced or distributed without permission.
Visit www.broadcasttools.com for important product update information.
Universal 4.1 MLR»Web Installation and Operation Manual
Table of Contents
Section Title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page #
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Who to Contact for Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features/Benefits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Surge Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
UPS standby power system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation/Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Silence Sensor/AES Activity Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Defaults Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Audio Inputs and Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Control / PIP (trigger) Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Relay Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Web Setup/Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Ethernet “Quick Start” guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
“Login” Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
“Monitor/Control” Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
“User Setup” Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
“I/O Setup” Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
“Email/Network Setup” Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
“Show Alarms” Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
“About” Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
TCP Control Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Front and Rear Panel Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Appendix
Component Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Appendix
Fractional Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Appendix
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEBSITE:
Visit our web site for product updates and additional information.
CONTENTS
2
Universal 4.1 MLR»Web Installation and Operation Manual
INTRODUCTION
Thank you for your purchase of a BROADCAST TOOLS® UNIVERSAL 4.1 MLR
>> WEB transparent four input, single output switcher/router (referred to as the
UNIVERSAL 4.1 MLR >> WEB throughout this manual). We’re confident that this product will give you many years of dependable service. This manual is intended to give you all the information needed to install and operate the BROADCAST
TOOLS® UNIVERSAL 4.1 MLR >> WEB.
CAUTION!
Broadcast Tools®
Products, as with any electronic device, can fail without warning.
Do not use this product in applications where a life threatening condition could result due to failure.
SAFETY INFORMATION
Only qualified technical personnel should install the UNIVERSAL 4.1 MLR >>
WEB. Any attempt to install this device by a person who is not technically qualified could result in a hazardous condition to the installer or other personnel or damage to the UNIVERSAL 4.1 MLR >> WEB or other equipment. Please ensure that proper safety precautions have been taken before installing this device. If you are unfamiliar with this type of equipment, please contact a properly qualified engineer to handle the installation and setup of the UNIVERSAL 4.1 MLR >> WEB.
Broadcast Tools, Inc., is unable to support NON-Broadcast Tools software, hardware or NON-Broadcast Tools computer/hardware/software problems. If you experience these problems, please research your hardware/software instruction manuals or contact the manufacturers technical support department.
NOTE:
This manual should be read thoroughly before installation and operation.
WHO TO CONTACT FOR HELP
If you have any questions regarding your product or you need assistance, please contact your distributor from whom you purchased this equipment. If you would like more information about BROADCAST TOOLS® products, you may reach us at:
WEBSITE:
Visit our web site for product updates and additional information.
Broadcast Tools, Inc.
131 State Street
Sedro-Woolley, WA 98284-1503 USA
Voice: 360.854.9559
Fax: 866.783.1742
Internet Home Page: www.broadcasttools.com
E-mail:[email protected]
THANK YOU FOR CHOOSING
BROADCAST TOOLS® BRAND PRODUCTS!
Broadcast Tools is a Veteran Owned Business
Designed, Assembled and Supported in WA State, USA
e-mail:
voice:
360.854.9559
fax:
866.783.1742
INTRODUCTION
3
Universal 4.1 MLR»Web Installation and Operation Manual
Product Overview
The Universal 4.1 MLR >> Web is a web enabled transparent four input, single output switcher/router with mechanical latching relays designed to pass AES/EBU digital audio or stereo analog audio signals. The Universal 4.1 MLR >> Web is perfect for all types of passive signal switching via front panel controls, web browser control, contact closures or logic remote control. The inputs/output feature stereo XLR and StudioHub+ compatible RJ45’s connectors. Switching is accomplished via mechanical latching gold contact relays, which means that the unit can route a signal in either direction and will keep routing the signal even after losing power. Due to the passive nature of the switching, any input level and impedance can be used.
Inputs may be balanced or unbalanced, while output levels, impedance, distortion, noise and balancing will match that of the selected input.
Features/Benefits
• Front panel channel selection push buttons with active channel LED indicators.
• “MUTE” function allows the user to turn off all audio to the output.
• Front panel Enable switch with enabled LED indicator can be configured to provide a safety lock to the front panel selection push buttons.
• HTML based web interface for easy monitor/control.
• TCP control command interface for automated control.
• Email logging of system status, along with the site ID may be emailed in time spans from once an hour to once a day.
• Email alarm notification may be configured to alert up to EIGHT recipients.
• Signal switching via mechanical latching sealed relays utilizing 2-form-C bifurcated – crossbar silver alloy with gold overlay contacts.
• Remote control or PIP (trigger) via contact closures and 5-volt TTL/CMOS logic levels.
• Four normally open relay contact closure outputs for remote channel status.
• Stereo Neutrik XLR, and StudioHub+ RJ45’s connectors. The RJ45’s conforms to the StudioHub+ wiring standard and pass “DC-LINK” power.
• Removable euro-block screw terminal connectors are used for remote control connections. Necessary mating plugs are supplied.
• If power is lost, the last selected channel is passed to the output.
• Fully RFI proofed.
• Surge protected internal power supply, 9 VDC universal switching power supply with domestic connector supplied. International connectors optional.
• Small 1-RU rack chassis.
WEBSITE:
Visit our web site for product updates and additional information.
Applications
Source switching; Studio selection and routing; Audio processing selection; Exciter input selection; Remote broadcast input selection; STL source selection; PA switching; IFB selection; Satellite audio channel switching and console monitor input and output selection.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
OVERVIEW
4
Universal 4.1 MLR»Web Installation and Operation Manual
Inspection
Please examine your UNIVERSAL 4.1 MLR >> WEB carefully for any damage that may have been sustained during shipping. If any damage is present, please notify the shipper immediately and retain the packaging for inspection by the shipper. The package should contain the UNIVERSAL 4.1 MLR >> WEB, and a 9 VDC wall transformer. Manuals may be downloaded from our web site.
Installation
Surge Protection
The UNIVERSAL 4.1 MLR >> WEB has built-in resistance to voltage changes; we recommend that you use a power surge protector or line conditioner on the incoming AC line. Lightning strikes and/or other high voltage surges may damage your
UNIVERSAL 4.1 MLR >> WEB and connected equipment if it is not properly protected. For lightning protection devices, check out www.polyphaser.com and www.itwlinx.com.
UPS Standby Power System
We recommend that you connect your UNIVERSAL 4.1 MLR >> WEB to a UPS system. A UPS helps minimize the risk to the UNIVERSAL 4.1 MLR >> WEB and provides power during a power outage.
NOTE: If power is lost, the last selected channel is passed to the output.
Installation/Operation
Front Panel Controls
The first four front panel push buttons represent the four inputs that can be routed to the switcher’s output, additionally there are mute and enable push buttons. Each push button has an associated LED indicator. When an input channel is selected its
LED will light and the previously selected channel is deselected (interlock). Only one input can be routed to the output at a time. When the Mute button is pressed the switcher will deselect all inputs and stop routing audio, the Mute LED will light to indicate this state. The enable (safety) function can be turned on, which will require the user to hold down the enable push button while selecting any of the other front panel push buttons, the enable LED is illuminated when this function is enabled.
WEBSITE:
Visit our web site for product updates and additional information.
SW7 Enable Configuration Switch:
IN = Front panel enable switch defeated.
OUT = Front panel ENABLE push button active and the Enable LED is illuminated.
NOTE: The enable push button must be held closed to operate any of the other front panel push buttons and isn’t associated with any of the remote-control functions.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
INSTALLATION
5
Universal 4.1 MLR»Web Installation and Operation Manual
Silence Sensor/AES Activity Detector
The Universal 4.1 MLR >> Web has a selectable analog silence sensor circuit as well as an AES/EBU clock activity detection circuit. These circuits monitor the switcher’s output and can be configured to send alarm emails and trigger automatic switching.
The front panel switch labelled “AES/Analog” allows you to switch between monitoring modes. With the switch set to the IN position, the switcher is in analog mode and the silence sensor is enabled, with the switch set to the OUT position, the switcher is in AES/EBU mode and the AES clock activity detection circuit is enabled.
To disable output monitoring entirely: place the “AES/Analog” switch in the Analog
Silence Sensor position (IN). Remove power, cables and remove the cover. Locate
RP2 via the component layout (see Component Layout appendix), on the printed circuit board. Remove the socketed 1kohm DIP resistor network and stow it.
Reassemble the unit, reinstall cables and restore power.
LED indicators
• “Power” LED: Blinks to indicate power and microcontrollers normal operation. (Green)
• “AES/Analog” LED: Indicates monitoring mode, lit = Analog, unlit =
AES/EBU. (Yellow)
• “SS” LED: Lit = Analog silence detected. (Red)
• “AES Error” LED: Lit = AES/EBU clock not detected. (Red)
• “Enable” LED: Illuminates when the front panel enable push button option is enabled.
• “1” “2” “3” “4” Channel LED’s: illuminate when the input channel is selected. (Green)
Defaults Button
The defaults button is located behind a recessed opening on the far left of the front panel. To reset the unit to default settings, apply power and wait for the Power LED to begin flashing, then hold down the defaults button for 10 seconds. Releasing the defaults button will trigger a reset to defaults.
WEBSITE:
Visit our web site for product updates and additional information.
LAN / NET Jack
RJ45 Ethernet jack for 10/100baseT LAN/WAN connection.
MicroSD Card Slot
MicroSD memory card slot. Used for file storage and firmware updates.
Power
Connect the 2.1mm coaxial barrel type power connector into the unit and the 9 VDC universal switching power supply with domestic connector into a 120 Vac 50-60 Hz power source. Never use any type of power supply other than the specified/supplied power supply.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
INSTALLATION
6
Universal 4.1 MLR»Web Installation and Operation Manual
Audio Inputs and Outputs
The Universal 4.1 MLR >> Web’s inputs and output have StudioHub+ compatible
RJ45 jacks, and balanced stereo XLR jacks wired in parallel. This means any input connector can route to any output connector, providing an easy way to interface between devices with different connectors without the need for custom cables.
Switching is accomplished via mechanical latching gold contact relays, which means that the unit can route a signal in either direction and will keep routing that signal even after losing power. Due to the passive nature of the switching, any input level and impedance can be used. Inputs may be balanced or unbalanced, while output levels, impedance, distortion, noise and balancing will match that of the selected input
XLR Connector Pinout
The input and output XLR connector pinouts conform to 3-pin XLR wiring standards: Pin 1 = Ground. Pin 2 = Positive. Pin 3 = Negative.
RJ45 Pinout
The input and output RJ45 jacks conform to StudioHub+ wiring standards.
Please use shielded twisted pair Cat5e or Cat6 cables and connectors (STP).
StudioHub+ Pinout:
Function: Wire Pair: RJ45 Pins:
Left+/AES+ White/Orange 1
Left-/AESOrange/White 2
Right+ White/Green 3
Right n/c
GND*
Green/White
White/Blue
Blue/White 4
6
5
15V-*
15V+*
GND
White/Brown
Brown/White
Shield
7
8
Shield
* StudioHub+ “DC-LINK” allows +/-15 VDC and Ground to pass on pin 8, 7, and
4 (respectively) of the RJ45. These pins are connected in parallel across all RJ45s.
NOTE: For AES/EBU signals please use AES/EBU qualified cable.
WEBSITE:
Visit our web site for product updates and additional information.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
INSTALLATION
7
Universal 4.1 MLR»Web Installation and Operation Manual
Remote Control / PIP (trigger) Inputs
The Universal 4.1 MLR >> Web has five status inputs that can be used that may be configured for PIP (“triggers”) or remote-control operation. The inputs accept momentary contact closures (sustained, if break before make); open collector or
TTL/CMOS input logic levels.
For example, in the default Remote-Control mode, pulsing the “I2” input to ground would switch Input 2 to the output of the Universal 4.1 MLR >> Web and it would remain switched that way until a front panel source switch is pressed, a different remote-control input is activated.
PIP mode is enabled via the “PIP Mode Enable” setting on the Email & Network
Setup page
CAUTION!
Installation of the UNI-
VERSAL 4.1 MLR >>
WEB in high RF environments should be performed with care.
The station ground should be connected to the chassis using a 20 to 24-gauge wire.
PIP/Remote Control Inputs
(Top row, TB1)
See Below
(Bottom Row, TB1)
Relay Outputs
The Universal 4.1 MLR >> Web has four relay contact outputs that indicate switch positions. O1 indicates when Input 1 is selected, O2 indicates for Input 2, etc. The relay output for the selected channel will connect to the “Com” (common) terminal providing a return for an LED indicator, TTL/CMOS logic or relay.
See Above
(Top row, TB3)
WEBSITE:
Visit our web site for product updates and additional information.
Relay Outputs
(Bottom Row, TB3
Note: For wiring information, refer to the grids in this section of the manual, the silk-screen text on the rear panel of the product or the fractional schematic in the appendix.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
INSTALLATION
8
Universal 4.1 MLR»Web Installation and Operation Manual
Web Setup and Operation
CAUTION!
Ethernet “Quick Start” guide
CAUTION!
If you are not familiar with Ethernet enabled equipment, it may be useful to contact your IT department, network administrator or network consultant for assistance. Assigning an IP address already in use by another device may cause problems with your network!
Instructions for changing the IP address of the computer that will be used for the configuration of this product are given here. Note that these instructions are specifically for computers with the Windows XP operating system. For setup using other operating systems, refer to the appropriate OS user’s manual.
Step 1:
Open the control panel by clicking on the start menu, click on settings, then click on Control Panel. (Note that the control panel shown is in “Classic View”. If control panel is in “Category View” select the “Classic View” option before proceeding.)
NEVER DOWNLOAD
FIRMWARE UPDATES
OR CHANGES TO
THE BNET WEBSERV-
ER UNLESS
INSTRUCTED TO DO
SO BY BROADCAST
TOOLS®. DOING SO
DELETES ALL SOFT-
WARE AND VOIDS
ALL WARRANTIES
FROM BROADCAST
TOOLS®, INC.
NOTE:
We recommend the use of the latest version of
Firefox, Safari for
Windows or Chrome as your browser.
WEBSITE:
Visit our web site for product updates and additional information.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
9
Universal 4.1 MLR»Web Installation and Operation Manual
Ethernet “Quick Start” guide (cont).
Step 2:
Double click on the icon labeled Network Connections. The following menu will pop up
Step 3:
Right click on the icon labeled Local Area Connection. Another menu will appear. Select the option at the bottom of the menu labeled Properties. The Local
Area Connection Properties window will appear.
WEBSITE:
Visit our web site for product updates and additional information.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
10
Universal 4.1 MLR»Web Installation and Operation Manual
Ethernet “Quick Start” guide (cont).
Step 4:
On the Local Area Connection Properties page, double click on Internet
Protocol (TCP/IP) to display properties.
Step 5:
Before making any changes to the network settings, write down the current settings (or screen capture the page and print) so that they can be restored once the unit is configured. Next, select the radio button labeled “Use the following IP address” and type in the IP address 192.168.1.60. Type in the subnet mask of 255.255.255.0. Leave the default gateway field blank. Click OK to apply the new settings.
WEBSITE:
Visit our web site for product updates and additional information.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
11
Universal 4.1 MLR»Web Installation and Operation Manual
Opening the LOGIN Web Page
1. Connect the supplied GRAY colored Ethernet crossover cable (XOVER) between the PC’s Ethernet port and the product’s “LAN/NET” network RJ45 jack.
2. Connect the supplied power supply to the product’s power jack. Verify that the front panel green POWER LED is ON and the left “LINK” LED above the
“NET” Network RJ-45 connector is illuminated
Open the product’s login page by typing the following URL into the browser: http://192.168.1.55 a username and password is required to change any parameter and are case sensitive.
Factory “login” defaults: username: admin (lower case) password: 1234
3. Once you are logged in, follow this manual for setup and/or operational information.
WEBSITE:
Visit our web site for product updates and additional information.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
12
Universal 4.1 MLR»Web Installation and Operation Manual
“Login” Web Page
The Login screen displays the Username and Password entry points as well as the date, time, and site ID.
You may view the password as you type by checking the “Show Password” box.
After you have successfully logged in, the Monitor/Control page will be displayed.
WEBSITE:
Visit our web site for product updates and additional information.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
13
Universal 4.1 MLR»Web Installation and Operation Manual
“Monitor/Control” Web Page
The Monitor/Control page allows the monitor and/or control of the Universal 4.1
MLR >> Web. The following is an explanation of each item on this page:
Site ID: Identifies the unit and location.
Data/Time: Current date/time from the Universal 4.1 MLR.
Queued Logs: Displays the number of queued log entries scheduled to be emailed.
LT/RT meters: Analog audio output level bar graph.
AES Activity: Indicates the presence of AES activity on the selected input.
Green=AES activity detected, Red=NO AES activity.
WEBSITE:
Visit our web site for product updates and additional information.
Auto/Manual: LED indicates whether the device is in Auto or Manual switching mode. You can switch between the modes by clicking the “Auto” and
“Manual” buttons. The behavior of the device in Auto mode is defined on the I/O Setup page.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
14
Universal 4.1 MLR»Web Installation and Operation Manual
“User Setup” Web Page
Eight Usernames and Passwords may be configured for up to three access levels:
1. “Admin” allows complete access for configuration and control.
2. “Monitor/Control” allows access to these pages:
About, Monitor/Control, Show log, Help, and Logout.
3. “Monitor Only” allows access to these pages:
About, Monitor only, Help, and Logout.
Only users with “Admin” access can make changes to this page.
The Site ID is displayed and can be changed on the Email/Network Setup page.
NOTE:
After any item has been changed, you MUST press the “Save
Settings” button for your changes to be saved.
WEBSITE:
Visit our web site for product updates and additional information.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
15
“I/O” Setup Page
Universal 4.1 MLR»Web Installation and Operation Manual
NOTE:
Override Mode:
When Booting Switch To:
Channels dropdown:
Label:
Allows front panel and/or remote control input to override Auto mode and manually switch to an input. Checking the "Override Turns Off Auto
Mode" check box causes an override action to turn
Manual mode on and Auto mode off, otherwise
Auto mode remains on.
Sets the power up input channel either 1,2,3,4,
Mute, or Last Source Selected.
After any item has been changed, you MUST press the “Save
Settings” button for your changes to be saved.
Select the input channel to be configured.
Each input can be given a custom label for easy identification.
WEBSITE:
Visit our web site for product updates and additional information.
Email Addresses: Email messages can be sent when an input source becomes active as a result of auto mode or manual control. Each input can have up to eight email address assigned to using the checkboxes labeled 1-8.
User Defined Action Sequences: The behavior of the Universal 4.1 when in Auto mode (as indicated/controlled on the Monitor/
Control page) is defined by the conditional statement: If (Input) is active and is less than (audio threshold in dB), wait (time in seconds) then
(action.) By default the Universal 4.1 is configured to wait for 5 seconds after on the selected input and then switch to next input in ascending order.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
16
Universal 4.1 MLR»Web Installation and Operation Manual
“Email/Network Setup” Web Page
WEBSITE:
Visit our web site for product updates and additional information.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
17
Universal 4.1 MLR»Web Installation and Operation Manual
Email/Network Setup” Web Page – Device Network Settings
Device Address: Enter a static IP address here. Default: 192.168.1.55
Device Netmask:
Gateway Address:
Enter the Netmask here: Default: 255.255.255.0
Enter the Gateway IP here: Default: 192.168.1.1
DNS Server IP Address: Enter your DNS address here. Default: 8.8.8.8
HTTP Port: Normally Port 80 Default: 80
“Email/Network Setup” Web Page – SMTP Settings
SMTP Server Address: SMTP (Simple Mail Transfer Protocol) server address.
Used to send emails.
SMTP Port: Normally Port 25 or 587.
Default: 25
SMTP Return Address: Enter your return email address here. Emails from the
Universal 4.1 MLR will indicate they are from this address. If an email cannot be delivered, a message stating why will be sent to this address.
SMTP Host ID: Enter something here to identify the device. Can be left blank.
Secured SMTP: STARTTLS secure authentication is supported by most providers. This must be enabled for many SMTP servers, like
Gmail. Leave disabled for standard Base64 authentication.
SMTP Authentication: When checked SMTP authentication (username/password) is used. Most SMTP servers require authentication.
WEBSITE:
Visit our web site for product updates and additional information.
SMTP Username:
SMTP Password:
Enter SMTP server username here.
Enter SMTP server password here.
fully sent: SMTP Server Address, SMTP Port, SMTP Return Address, and SMTP
Host ID. SMTP username and SMTP password must be supplied and authentication turned on if the SMTP server requires authentication. An email address must be entered into Recipient Address field #1.
The user must press the “Save Settings” button after entering the SMTP information before attempting an email test. If authentication fails, the email is not sent, please ensure that the username and password are correct.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
18
Universal 4.1 MLR»Web Installation and Operation Manual
“Email/Network Setup” Web Page – Email Logging Settings
Logging Email Address: Email address for the “Logging” email recipient
(may be different from the 8 “Alarm” Recipient
Addresses. Logging emails and Daily emails are sent to this address only.
Logging Email Snapshot Interval: The period in hours that a snapshot is taken of the system. The logging email is not sent on this interval.
Logging Email Update Interval: The period in hours that snapshots are emailed.
This email may contain multiple snapshots if the
Snapshot Interval is less than the Update
Interval. Each snapshot will be identified by the date and time.
“Email/Network Setup” Web Page – Email Alarm Settings
Email Alarms:
Daily Alarm Email Time:
“Alarm” Recipient Address:
Choose Immediate and/or Daily. If Immediate is selected, then an email will be sent out as soon as an alarm is generated. If Daily is selected, then each alarm is queued and emailed as a digest every 24 hours. Both can be used at the same time.
The number of queued alarms is displayed on the
Monitor/Control page.
The time that queued alarms are sent. Queued alarms are sent to the Logging Email Address only.
WEBSITE:
Visit our web site for product updates and additional information.
Email addresses for up to 8 addresses. These addresses correlate to the 8 email addresses selectable on the I/O Setup page.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
19
Universal 4.1 MLR»Web Installation and Operation Manual
“Email/Network Setup” Web Page – SNMP Manager Settings
SNMP Enable Traps: When checked, SNMP trap messages will be sent.
When unchecked, no trap messages will be sent to the manager.
SNMP Manager IP Address: This is the IP address of the SNMP manager. The system only accepts SNMP requests from this IP address, and will send traps to this IP address only.
SNMP Manager Trap Port: This is the port number that SNMP trap messages will be sent to at the manager IP. Default port 161.
SNMP Read Community: This is the community name used for Read-Only access.
SNMP Write Community: This is the community name used for Read-Write access.
NOTE: A cold-start trap will be sent when the unit boots up if the SNMP
Enable Traps are enabled and trap messages will be sent when a device enters or exits an alarm condition, depending on whether or not alarms are enabled.
“Email/Network Setup” Web Page – NTP Settings
NTP Enabled: Enable for NTP network time sync. Default: Enabled
NTP (Time) Server Address: Enter the NTP address here.
Default: pool.ntp.org
NTP Port: Port used to connect to NTP server. Default: 123
NTP Update Interval (Min): Interval between time updates. Default: 60
“Email/Network Setup” Web Page – TCP Control Settings
See the TCP Control Commands section for more information.
WEBSITE:
Visit our web site for product updates and additional information.
TCP Enable:
PIP Mode Enable:
TCP Listen Port:
TCP Timeout (sec.):
Command Format:
Enables TCP control of the unit. Default: Disabled
Enables PIP/triggers over TCP. Default: Disabled
The port at which the unit will accept TCP control connections. Default: 56.
The time the unit will keep a TCP connection open after inactivity. Default: 10 seconds.
TCP string format, see control commands section.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
20
Universal 4.1 MLR»Web Installation and Operation Manual
“Email/Network Setup” Web Page – Other Settings
Site ID: This is the Site Identifier that is displayed on the web and in email.
Monitor Refresh Time (Sec): Interval at which the Monitor page refreshes. Shorter times may increase network traffic.
Time Zone Offset from UTC: Sets the time zone used for the internal clock.
Default: -8
Enable Daylight Savings: Adjusts the clock for daylight savings time.
Set Time: The hour, minute, second, month, day and year boxes can be used to set the time of the real-time clock. The time is only updated if you click “Save Time” and not when you “Save Settings”.
Enable Event Logging:
Login:
Email:
Reboot:
Alarms Cleared:
Event logging will generate an alarm, but it will not send an email. If the system is configured for Daily
Alarm emails, then that Daily Alarm email will contain the event logging alarms as well as the alarms configured on the I/O Setup page.
When someone logs into the unit, the username and date/time will be logged.
When an email is sent, the type of email and date/time will be logged.
When the device boots the date/time will be logged.
WEBSITE:
Visit our web site for product updates and additional information.
When the Daily Logs or Normal Alarms are cleared, the type of log cleared and date/time will be stored.
When Daily Logs are sent, the Daily Logs are also cleared; this will cause an event log as well.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
21
Universal 4.1 MLR»Web Installation and Operation Manual
Email/Network Setup” Web Page – Controls
Save Settings: After pressing the “Save Settings” button, the device will reboot (If you changed the IP address, you must navigate your web browser to the new IP address (if the HTTP port was changed from port 80, be sure to add the new port number after the IP: xxx.xxx.xxx.xxx:port #). If you didn’t change the
IP address, then you will be returned to the login screen after the device reboots.
Reboot Device: When you press the “Reboot Device” button, the internal web server restarts.
Send Test Email: Press this button to send a test email to recipient address 1.
NOTE: After you are done making changes to the Email/Network Setup page, you
MUST press the “Save Settings” button to save your changes.
Reload Defaults: When you press the “Reload Defaults” button, the device resets to factory default settings.
Clear Daily Logs: When you press the “Clear Daily Logs” button, the daily logs stored in memory will be cleared. Keep in mind that if the
Alarms Cleared Event is enabled, this event will post after the logs are cleared.
Send Daily Logs: When you press the “Send Daily Logs” button, the system will send the daily logs email and clear the log queue.
Import Settings: Browse to locate and import a saved .ncs settings file.
WEBSITE:
Visit our web site for product updates and additional information.
Export Settings: Clicking save will allow you to download a backup copy of the settings entered into the unit as .ncs file.
Firmware: Browse to locate and apply a firmware updated file saved on your computer.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
22
Universal 4.1 MLR»Web Installation and Operation Manual
“Show Alarms” Web Page
This page displays current alarms.
Device/Event : Labels the device or event.
Message:
Date:
Describes event/alarm condition.
Displays the date that the event/alarm was logged.
Time: Displays the time that the event/alarm was logged.
NOTE: With the “admin” access level, the user may control all functions.
With the “Monitor/Control” or “Monitor” only access level, the user may view the
“Show Log”, enable/disable PC speaker sound and silence alarms.
WEBSITE:
Visit our web site for product updates and additional information.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
23
Universal 4.1 MLR»Web Installation and Operation Manual
“About” Web Page
The “About” Web Page displays the product name, firmware version numbers, and
Broadcast Tools® Web site link.
WEBSITE:
Visit our web site for product updates and additional information.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
24
Universal 4.1 MLR»Web Installation and Operation Manual
TCP Control Commands
The Universal 4.1 MLR >> Web can be configured to accept ASCII control strings over TCP. The TCP port used, TCP timeout and TCP enable check box can be found on the Email/Network Setup page. TCP must be enabled for TCP control to work.
By default, when enabled, the Universal 4.1 uses TCP port 56 for control. A Telnet client such as PuTTY may be used to test the TCP control interface.
Audio Switch Control Commands: (Carriage return not required)
*uii - Select input “ii”.
Command example: *001
Where * (asterisk) is the beginning of string, “u” is unit ID, zero on these products and “ii” is the two digit input number: 01, 02, etc.
*uMA - Mute outputs.
Command example: *0MA
Where * (asterisk) is the beginning of string, “u” is unit ID, zero on these products and “MA” is the command.
*uCAx - Auto/Manual mode.
Command example: *0CAY
Where * (asterisk) is the beginning of string, “u” is unit ID, zero on these products and “CA” is the command and “x” is the modifier. Where x = y to turn Auto mode on, and x = n to turn auto mode off (manual mode).
When x =? the unit will return C0A,1<CR><LF> if Auto mode is On and
C0A,0<CR><LF> if auto mode is Off.
Information Retrieval Commands: (Carriage return not required)
*uSPA - Send PIP Input Status.
Command example: *0SPA
Where * (asterisk) is the beginning of string, “u” is unit ID, zero on these products, and “SPA” is the command.
Response example: “S0P,A,0,0,0,0,1<CR><LF> says that PIP input 5 is active.
The response will list all inputs, “1” if the input is active and zero “0” if inactive.
Note: Status is automatically sent each time a channel is changed.
WEBSITE:
Visit our web site for product updates and additional information.
*uSL - Send Audio Status.
Command example: *0SL
Where * (asterisk) is the beginning of string, “u” is unit ID, zero on these products, and “SL” is the command.
Response example: “S0L,0,0,0,1<CR><LF> says that input 4 is selected.
The response will list all inputs, “1” if the input is selected and zero “0” if not selected.
Note: Status is automatically sent each time a channel is changed.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
25
Universal 4.1 MLR»Web Installation and Operation Manual
TCP Control Commands (cont)
*uSS - Send status of Silence or AES activity detector.
Command example: *0SS
Where * (asterisk) is the beginning of string, “u” is unit ID, zero on these products, and “SS” is the command.
Response example: S0S,1<CR><LF>
0 = Audio/AES activity, 1 = No Audio/AES activity.
Note: Status is automatically sent each time an error is detected.
*uU - Send unit firmware version and Site ID.
Command example: *0u
Where * (asterisk) is the beginning of string, “u” is unit ID, zero on these products, and “U” is the command.
Response example: <Universal41MRLWeb_0.12, SITE_ID><cr><lf
Note: Unit information is automatically sent each time this information is requested.
WEBSITE:
Visit our web site for product updates and additional information.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
WEB SETUP
26
Universal 4.1 MLR»Web Installation and Operation Manual
SPECIFICATIONS
Inputs/Outputs:
Switching Method:
Any input level and impedance can be used. Inputs may be balanced or unbalanced. Output levels, impedance, distortion, noise and balancing will match that of the selected input.
Passive. Mechanical latching sealed relays utilizing 2form-C bifurcated-crossbar silver alloy with gold overlay contacts.
Operation Control: Front Panel - Momentary switches.
Remote - Momentary or sustained, compatible with 5 volts
CMOS/TTL logic, open collector or contact closures to ground.
Status: Front Panel - LED Indicators.
Remote – Four channel relay status output contacts. 30
VDC @ 1-amp maximum.
CAUTION! For safety, never connect 120 Vac circuits to the relays!
Interfacing: Audio I/O- balanced stereo XLR, and StudioHub+ RJ45 connectors.
Remote control - Rear panel pluggable screw terminals.
Mating connectors supplied.
Ethernet Interface:
Power Requirements:
Physical Dimensions:
Weight:
Shipping Weight:
RJ45, 10base-T or 100base-TX, auto sensing with link & activity LED indicators - Full/half duplex.
9 VDC @ >500 ma. Center positive. Universal switching power supply with domestic connector supplied.
International connectors optional.
19.00" x 4.00” x 1.75" (WDH), 1-RU rack mount painted aluminum chassis.
2.0 lb.
3.0 lb.
WEBSITE:
Visit our web site for product updates and additional information.
e-mail:
voice:
360.854.9559
fax:
866.783.1742
SPECIFICATIONS
27
Universal 4.1 MLR»Web Installation and Operation Manual
LIMITED WARRANTY
The term “Buyer” as used in this document refers to and includes both (but only) (a) any person or entity who acquires such an item for the purpose of resale to others (i.e., a dealer or distributor of an item), and (b) the first person or entity who acquires such an item for such person’s or entity’s own use.
Broadcast Tools warrants to each Buyer of any item manufactured by Broadcast Tools that the item will be free from defects in materials and workmanship at the time it is shipped by Broadcast Tools if the item is properly installed, used and maintained.
EXCLUSIVE REMEDIES
If Broadcast Tools is notified, in writing, of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited
Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned to Broadcast Tools in accordance with Broadcast Tools’ instructions for confirmation by inspection of the defect (which at Broadcast Tools’ election may include, without limitation, a requirement that the Buyer first obtain a Return Authorization number from Broadcast Tools, that the Buyer furnish proof of purchase in the form of an invoice and/or receipt, and that the Buyer prepay all freight charges associated with any return of the item to Broadcast Tools using such freight service as Broadcast Tools reasonably may specify), Broadcast Tools will repair or replace the defective item, or will refund the purchase price paid by the Buyer for the item. Broadcast Tools shall have the exclusive right to choose between these alternative remedies.
NO OTHER WARRANTIES OR REMEDIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, BROADCAST TOOLS AND ITS SUPPLIERS DISCLAIM ALL OTHER
WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABIL-
ITY OR FITNESS FOR A PARTICULAR PURPOSE; AND THE FOREGOING ALTERNATIVE REMEDIES SHALL BE EXCLUSIVE OF
ALL OTHER REMEDIES. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS,
WHICH VARY FROM STATE/JURISDICTION TO STATE/JURISDICTION.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, NEITHER BROADCAST TOOLS NOR ANY OF ITS SUPPLIERS
SHALL HAVE ANY LIABILITY FOR ANY SPECIAL, INCIDENTAL, INDIRECT, CONSEQUENTIAL OR PUNITIVE DAMAGES WHATSO-
EVER (INCLUDING, WITHOUT LIMITATION, ANY DAMAGES FOR LOST PROFITS, BUSINESS INTERRUPTION, LOSS OF DATA OR
INFORMATION, COST OF CAPITAL, CLAIMS OF CUSTOMERS, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE
OF OR THE INABILITY TO USE ANY ITEM SUPPLIED BY BROADCAST TOOLS, EVEN IF BROADCAST TOOLS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES HAVE ANY LIABILITY FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL,
EXEMPLARY OR PUNITIVE DAMAGES. THIS LIMITATION OF LIABILITY APPLIES WHETHER A CLAIM IS ONE ALLEGING
BREACH OF A CONTRACT OR WARRANTY, NEGLIGENCE OR OTHER TORT, FOR THE VIOLATION OF ANY STATUTORY DUTY,
THE FAILURE OF ANY LIMITED OR EXCLUSIVE REMEDY TO ACHIEVE ITS ESSENTIAL PURPOSE, OR ANY OTHER CLAIM OF
ANY NATURE. BECAUSE SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, THIS LIMITATION MAY NOT APPLY TO YOU.
Broadcast Tools, Inc.
131 State Street
Sedro-Woolley, WA 98284 • USA
360.854.9559 voice • 866.783.1742
fax
www.broadcasttools.com
website e-mail:
voice:
360.854.9559
fax:
866.783.1742
LIMITED WARRANTY
28
Product_Name Installation and Operation Manual
e-mail:
voice:
360.854.9559
fax:
866.783.1742
APPENDIX
29
Product_Name Installation and Operation Manual
e-mail:
voice:
360.854.9559
fax:
866.783.1742
APPENDIX
30
Product_Name Installation and Operation Manual
e-mail:
voice:
360.854.9559
fax:
866.783.1742
APPENDIX
31
advertisement
Related manuals
advertisement
Table of contents
- 3 Introduction
- 3 Safety Information
- 3 Who to Contact for Help
- 4 Product Overview
- 4 Features/Benefits
- 4 Applications
- 5 Inspection
- 5 Installation
- 5 Surge Protection
- 5 UPS standby power system
- 5 Installation/Operation
- 5 Front Panel Controls
- 6 Silence Sensor/AES Activity Detector
- 6 LED Indicators
- 6 Defaults Button
- 6 Ethernet
- 6 Power
- 7 Audio Inputs and Outputs
- 8 Remote Control / PIP (trigger) Inputs
- 8 Relay Outputs
- 9 Web Setup/Operation
- 9 Ethernet “Quick Start” guide
- 12 “Login” Web Page
- 14 “Monitor/Control” Web Page
- 15 “User Setup” Web Page
- 16 “I/O Setup” Web Page
- 17 “Email/Network Setup” Web Page
- 23 “Show Alarms” Web Page
- 24 “About” Web Page
- 25 TCP Control Commands
- 27 Specifications
- 28 Warranty
