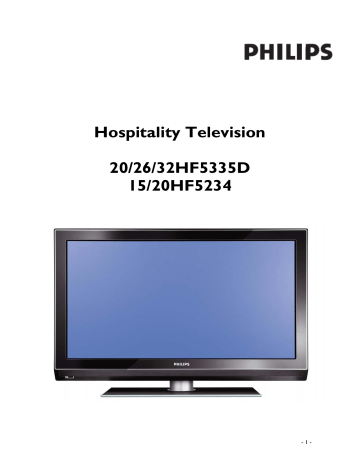

Hospitality Television
20/26/32HF5335D
15/20HF5234
- 1 -
Installation of your Philips Hotel TV
1. Introduction
This addendum has been designed to help you install programmes on this Digital TV and activating the hotel mode.
Use this addendum in conjunction with the User Manual of this television.
Please handle the TV with care and wipe with a soft cloth to ensure your TV keeps looking new.
2. The benefits of the Philips hotel TV
This TV is specially designed for hotels. The Philips hotel TV offers all kind of features to
Maximise the convenience for the hotel and meet the needs for the guest
Welcome message to give a friendly welcome to your guest when activating the tv
Remote control features like low battery detection and an anti-theft screw for preventing of theft for batteries
Access to the user menu can be blocked. This prevents users (e.g. guests) from deleting or changing program settings and/or modifying picture and sound settings. This ensures that TVs are always set up correctly.
A switch-on volume and programme can be selected. After switching on, the TV will always start on the specified program and volume level.
The maximum volume can be limited in order to prevent disturbance.
The television keys VOLUME +/- , PROGRAM +/- and MENU can be blocked.
Screen information can be suppressed.
Programmes can be blanked
3. Installing the channels
Installing Digital Programs (only applicable for 20/26/32HF5335D)
Ensure the TV is in Digital mode. If it is in Analogue mode, press the A/D (Analogue/Digital) key on the
Remote Control to enter the Digital mode. the (Menu Digital) key on the Remote Control
2. Press the Up/Down Arrow Key to scroll to the item called INSTALLATION and press the Right Arrow
Key
3. Press the Up/Down Arrow Key to scroll to the item called SERVICE SETUP and press the Right Arrow
Key
4. Press the Up/Down Arrow Key to scroll to the item called REINSTALL ALL SERVICES and press the Right
Arrow Key
5. Press the Up/Down Arrow Key to scroll to the item called SEARCH and press OK to start the scan. The
TV will now start to scan and install all available (Digital) TV channels and Radio stations automatically.
When the scan is completed, the TV menu will indicate the number of digital services found.
6. Press the OK key again to Store all the services that have been found.
- 2 -
Installing Analogue Programs
Ensure the TV is in Analogue mode. If it is in Digital mode, press the A/D (Analogue/Digital) key on the
Remote Control to enter the Analogue mode. the ( Menu TV) key on the Remote Control
2. Press the Up/Down Arrow Key to scroll to the item called INSTALL and press OK
3. Press the Up/Down Arrow Key to scroll to the item AUTO STORE and press OK
The TV will now start to scan and install all available (Analogue) TV channels automatically. This operation will take a few minutes. The TV display will show the progress of the scan and the number of programmes found.
Refer to the chapter on Automatic Tuning of Analogue Programmes in the User Manual for more details. You can also refer to the chapter on Manual Tuning of Analogue Programmes in the User Manual if a manual scan is preferred.
4. Activating the Hotel Mode Setup menu (BDS)
1. Switch on the television and select an analogue channel
2. On the Remote Control, press keys: [3, 1, 9, 7, 5, 3, MUTE]
3. The becomes visible
4. Use the cursor keys to select and change any of the following settings:
Function
BDS MODE
SWITCH ON SETTINGS
SWITCH ON VOLUME
MAXIMUM VOLUME
SWITCH ON CHANNEL
POWER ON
DISPLAY MESSAGE
Possible selections
ON /OFF
0-100, LAST STATUS
0-100
USER DEFINED, LAST STATUS
ON/STANDBY/LAST STATUS
ON/OFF
WELCOME MESSAGE
CONTROL SETTINGS
LOCAL KEYBOARD LOCK
REMOTE CONTROL LOCK
OSD DISPLAY
HIGH SECURITY MODE
AUTO SCART
MONITOR OUT
LINE 1/LINE 2/CLEAR
ON/OFF/ALL
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
BLANK CHANNEL ON/OFF
STORE >
5. Select STORE ” and press [CURSOR RIGHT] to save the settings and exit BDS Hotel Mode setup. Press [MENU] to exit without saving.
6. For BDS Hotel Mode settings to take effect, you must turn the TV set Off, then back On.
BDS Hotel Mode Functions
This paragraph describes the functionality of each item in the BDS Hotel Mode Setup menu.
BDS MODE
ON BDS Hotel Mode is ON:
The user menu is blocked.
All settings of the Hotel Mode Setup menu are in effect.
- 3 -
OFF BDS Hotel Mode is OFF:
The TV operates as a normal consumer TV
SWITCH ON VOL
When the user switches the TV ON, it will play at the specified volume level. There are 2 options:
LAST STATUS Upon start-up, the TV volume will be set to the level before the TV set was last turned off.
USER DEFINED As specified by installer
Remark: “SWITCH ON VOL” cannot exceed the MAXIMUM VOL level. This is the volume level with which the Hotel Mode Setup menu was entered.
MAXIMUM VOL
The TV Volume will not exceed the selected volume level.
SWITCH ON CHANNEL
When the user switches the TV ON, it will tune to the specified channel. There are 2 options:
LAST STATUS The TV will switch on to the last channel that was shown before the TV set was turned off
USER DEFINED Any analogue channel can be chosen to be the first channel to switch on
POWER ON
The Power On function allows the TV to enter a specific mode of operation (On or Standby) after the mains power is activated.
ON
STANDBY
When set, the TV will always turn ON after the mains power is enabled.
When set, the TV will always turn to STANDBY after mains power is enabled
LAST STATUS When set, the TV will always turn to the last power status before the mains power was disabled.
DISPLAY MESSAGE
ON Enables display of the Welcome Message for 30 seconds after the TV set is turned on
OFF Disables the display of the Welcome Message.
If OSD DISPLAY is set to OFF, then the Welcome Message is automatically disabled.
WELCOME MESSAGE
The Welcome Message function allows the TV to show a customized greeting to the hotel guest whenever the
TV is switched on. This helps to personalize the hotel experience for guests.
The Welcome Message can consist of 2 lines of text, with each line containing a maximum of 20 alphanumeric characters. Use the Remote Control arrow keys to create the Welcome Message.
To enable the display of the Welcome Message, the DISPLAY MESSAGE option must be ON
To clear the Welcome Message from the TV’s memory, select CLEAR
LOCAL KEYBOARD LOCK
ON The television keys VOLUME +/-, PROGRAM +/- and MENU are blocked.
OFF The television keys VOLUME +/-, PROGRAM +/- and MENU function normally
ALL The television keys VOLUME +/-, PROGRAM +/-, MENU and POWER are blocked.
REMOTE CONTROL LOCK
ON Standard Remote Control keys are disabled.
OFF All Remote Control keys will function normally.
OSD DISPLAY
ON Normal screen information is displayed (e.g. programme information)
OFF Screen information is suppressed.
- 4 -
HIGH SECURITY MODE
ON Allows access to the BDS Hotel Mode Setup Menu via the special BDS Setup Remote only.
(RC2573/01)
OFF Allows access to the BDS Hotel Mode Setup Menu via BDS Setup Remote or via normal Remote
Control (using special key code sequence).
AUTO SCART
The Auto Scart function enables auto-detection of AV devices that are connected to the TV’s Scart connector.
ON Enables Auto Scart switching in BDS Hotel Mode.
OFF Disables Auto Scart switching in BDS Hotel Mode.
MONITOR OUT
ON Allows audio & video output from TV via relevant AV connectors (if available).
OFF Disables both Audio & Video output from the TV (to prevent illegal copying).
BLANK CHANNEL
The Blank Channel function disables the display of video on the TV, but does not affect the audio output. This function can be used for audio applications (example: Off-air radio transmission, music channels, and so on), which do not necessarily require the display of video.
ON The current programme is blanked
OFF The current programme is not blanked (normal visible; DEFAULT value)
BLANK CHANNEL can be set for every channel. Use [P+ / P-] to go through all the programmes and set the desired status per channel. The programme number is visible in the top left corner.
Low Battery Check
This television set has a special feature which checks the battery power level of a TV Remote Control, and indicates if the battery is low and requires changing.
(Note: The Low Battery Check function works only with certain models of Remote Controls. Please check with the Philips sales representative if the Remote Control used with this TV supports this function)
To activate the Low Battery Check function, hold the TV Remote Control in front of the TV, and press and hold the OK button on the Remote Control for at least 5 seconds. A message will appear on the TV screen to indicate if the battery power level is OK, or if it is Low. If the message indicates that the battery level is low, it is recommended to change the batteries of the Remote Control immediately.
5. Cloning of settings
Cloning of analogue TV channels and TV settings as described in the chapter
Hotel Mode Set-up menu
For 15/20HF5234 o
Wireless cloning with the SmartLoader 22AV1120 or 22AV1135 o
Cloning off all adjustable TV settings + analogue channel table
For 20/26/32HF5335D o
Wired cloning with the SmartLoader 22AV1135 using the wire packed with the SmartLoader o
Cloning off all adjustable TV settings + analogue channel table (digital channel table via automatic installation)
Instruction for cloning of settings between TVs
Philips SmartLoader (22AV1135/00)
The Philips SmartLoader is an installation tool especially designed for easy and fast installation and copying of
TV settings on Philips Institutional TV’s.
- 5 -
The Philips SmartLoader works in 2 modes – Wireless and Wired:
Wireless mode ---- through infrared sensor (15/20HF5234)
Switch the SmartLoader to “Wireless” mode by sliding the side-switch to the icon on the SmartLoader device. Point the Wireless SmartLoader to the TV’s infrared receiver (optimal distance of 5-30cm) and proceed with the Installation procedure listed below.
Wired mode ---- using the by-packed accessory cable(s) (20/26/32HF5335D)
Switch the SmartLoader to “Wired” mode by sliding the side-switch to the icon on the SmartLoader device.
Examine the rear connectors of the TV set to determine if the 3-pin or 4-pin female connector wire (packed with the Wireless SmartLoader) should be used. Plug in the correct connector wire to the corresponding opening on the TV set (usually marked as SERV C), and then connect the RJ11 jack end of the accessory wire to the RJ11 socket on the SmartLoader.
The Installation Procedure consists of three simple steps:
1. Choosing a Master TV
The Master TV is the TV set whose installation and configuration settings are to be copied into other TV’s (of the same type only).
2. Programming the SmartLoader with the settings from the Master TV
Follow these steps to program the SmartLoader with the settings of the Master TV. a) Wireless
Set the SmartLoader to “Wireless” mode using the side switch.
Turn on the TV, and while holding the SmartLoader, point it in the direction of the
TV. Press the “MENU” Key on the SmartLoader. b) Wired
Connect the SmartLoader to the TV using the appropriate accessory cable.
Set the SmartLoader to “Wired” mode using the side switch.
Turn on the TV, and while holding the SmartLoader, point it in the direction of the
TV. Press the “MENU” Key on the SmartLoader.
The Master TV will show the following menu:
SMARTLOADER TO TV >
TV TO SMARTLOADER >
On the TV screen, highlight the menu option “TV TO SMARTLOADER”
Press the right arrow key on the SmartLoader to start the programming process
A number display (from 0~100) will be shown on screen, indicating the percentage of the programming progress from the TV to the SmartLoader. When the programming is completed, “##” will show “100” and the message “DONE” will appear.
TV TO SMARTLOADER ## (0-100)
The SmartLoader is programmed and can be used to install and configure other TVs.
Copying the settings of the Master TV to other TVs with the SmartLoader
Follow these steps to install and configure the settings of a Philips TV with the SmartLoader.
- 6 -
a) Wireless method
Set the SmartLoader to “Wireless” mode using the side switch.
Turn on the TV, and while holding the SmartLoader, point it in the direction of the
TV. Press the “MENU” Key on the SmartLoader. b) Wired method
Connect the SmartLoader to the TV using the appropriate accessory cable.
Set the SmartLoader to “Wired” mode using the side switch.
Turn on the TV, and while holding the SmartLoader, point it in the direction of the
TV. Press the “MENU” Key on the SmartLoader.
On the TV screen, highlight the menu option “SMARTLOADER TO TV”
Press the right arrow key on the SmartLoader to initiate the copying process
> A number display (from 0~100) will be shown on screen, indicating the percentage of the installation progress from the SmartLoader to the TV. When the data transfer is completed, “##” will show “100” and the message GOODBYE will appear.
SMARTLOADER TO TV ## (0-100)
> The TV will go to Standby mode. When the TV is next powered on, it will be configured with the settings from the Master TV, and ready for use.
Problems and Solutions:
1. The message “I2C ERROR” is displayed on the screen.
Bad connection of RJ11 wire or wrong data transmission has occurred. Try again.
2. The message “WRONG VERSION” is displayed on the screen.
The program contained in the SmartLoader has a software code incompatible with the actual TV.
Reprogram the Wireless SmartLoader from a Master TV whose software code is compatible with the actual TV.
3. TV doesn’t respond to the SmartLoader.
Check if the LED on the SmartLoader lights up in green when pressing any button.
If the LED is red, it means that the batteries are low and should be replaced.
Bring the SmartLoader closer to the TV infrared receiver and try again.
Notes:
Make sure that the 3 R6/AA sized batteries are placed correctly in the bottom compartment of the
SmartLoader. The LED on the SmartLoader should light up in green when pressing any button, indicating operational batteries. When the LED shows red, the batteries need to be replaced.
The SmartLoader can only copy the settings between 2 TVs of the same type. Once the
SmartLoader is programmed with the settings from a Master TV of a certain type or model, then these settings can be installed on another TV of the same model only.
The SmartLoader cannot be used to copy the (digital) channel table of a Digital TV set.
If the SmartLoader is used with a DVB (European Digital) TV set, then the TV set must first be switched to Analog mode.
- 7 -
Disposal of your old product.
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European
Directive 22002/96/EC. Please find out more about the separate collection system for electrical and electronic products in your local neighborhood.
Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.
The packaging of this product is intended to be recycled. Apply to the local authorities for correct disposal.
2007 © Koninklijke Philips Electronics N.V. all rights reserved
Specifications are subject to change without notice
Trademarks are property of Koninklijke Philips Electronics N.V. or their respective owners.
- 8 -
www.philips.com/support
Model
Serial
Country Number
Austria
Belgium
Chech Rep
Finland
France
Germany
Greece
0820 901114
070 222 303
800142840
09 2311 3415
08 9165 0005
0180 5 356 767
0 0800 3122 1280
Tariff
€ 0.20/min.
€ 0.17/min. free local local
€
€
0.23/min.
0.12/min. free
Hungary 0680018189
Ireland 01 601 1777
Italy
Luxembourg
199 404 041
40 6661 5644
Sweden
Switzerland
UK
08 5792 9100
0844 800 544
0906 1010 016 free local
€ 0.25/min. local
€ 0.20/min. local
Poland 0223491504 local
Portugal 2 1359 1442 local
Slovakia 0800004537
Spain 902 888 784 free
€ 0.15/min.
local local
£0.15/min.
This information is correct at the time of press.
For updated information, see www.support.philips.com
Recycling
The packaging of this product is intended to be recycled. Apply to the local authorities for correct disposal.
Product information
• The Model and Serial number can be
found at the rear and the left hand
underside of your television set and
on the packaging.
Disposal of your old product
Rear of TV
Disposal of batteries
The batteries supplied do not contain the heavy metals mercury and cadmium. Please check on how to dispose exhausted batteries according to local regulations.
Left hand underside of TV
Your product is designed and manufactured with highly quality material and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose your old products with your normal household waste.
The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.
• Standby Power Consumption for this set
is less than 1 W.
• Power Consumption of the set can found
on the type plate at the rear of the TV.
• For more speci fi cations of the product
see the product lea fl et on www.philips.
com/support.
Note
Specifications and information are
subject to change without notice.
• If you need further assistance, please call
the customer support service in your
country. The corresponding telephone
numbers and addresses are given in the
supplied Worldwide guarantee booklet.
Important
• AC3 (an audio format) is not supported
for this set. Use the key on the
remote control to select an alternative
audio.
• Some TV antennas require power from
the TV set. This set does not support such
a feature.
Table of contents
1 Introduction............................... 3
1.1 Important Information....................... 3
1.1.1 Stationary images on the TV screen
1.1.2 Electric, Magnetic and
Electromagnetic Fields (“EMF”)..... 3
1.2 What is digital TV?.............................. 4
1.3 Digital or Analogue channels?..........
4
2 Safety.......................................... 5
2.1 General.................................................. 5
2.2 Care of the screen.............................. 5
3 Overview of the television keys
3.1 Side or top controls........................... 6
3.2 Rear connectors.................................. 6
9.1 Rearrange services.............................. 15
9.2 View new TV channels or Listen to new Radio stations........................ 15
10.1 Add new services................................ 16
10.2 Reinstall all services............................ 16
10.3 Manual install services........................ 17
14 Setting up your favourites list....21
4 Getting started..........................7
4.1 Before you start................................... 7
4.2 Connect the antenna.......................... 7
4.3 Connecting and disconnecting the
mains.......................................................7
4.5 Using the remote control. ................7
16
17
19
Using the Options menu...........23
TV Guide ...................................24
Using the Conditional Access
20 Automatic tuning of analogue
6 Overview of Digital main menu
21 Manual tuning of analogue
7 Switching on the TV for the fi rst time.................................... 13
8 Understanding information on the banner............................ 14
8.1 Banner description.............................. 14
8.2 Symbols description............................ 14
23 Naming channel.....................30
1
25 Features
25.3 Child lock.............................................. 34
33 Troubleshooting........................49
34 Glossary..................................... 51
26 Picture and Sound settings...... 35
27 Smart Picture and Sound......... 36
28 Picture formats......................... 37
29 Teletext......................................38
30 Using the TV as PC monitor
30.1 Connecting the PC.............................. 40
30.2 Control TV settings while a PC is
31 Using the TV in HD (High
Defi nition) mode
31.1 Connecting the HD equipment........ 41
31.2 Control TV settings while in HD mode...................................................... 41
31.3 Mode Selection function in Features
31.4 Display (native 1080) in Features
menu.......................................................42
32.1 Connect VCR and DVD recorder...44
32.2 Connect Decoder and VCR..............44
32.3 Connect 2 VCRs or VCR and DVD....
recorder.................................................45
32.4 Connect a satellite receiver.............. 45
32.5 Connect a DVD player, Cable box or
32.6 Connect a DVD player, a Satellite receiver or Cable box ....................... 46
32.7 Connect a PC....................................... 47
32.8 Connect a Camera, Camcorder or
32.9 Connect a Headphone....................... 48
2
1 Introduction
Thank you for purchasing this television set.
This manual contains all information you will need to initially install and operate your new
TV.
If this instruction manual does not give an answer to your problem or if the troubleshooting page does not solve your TV problem, you can call your Local
Philips Customer or Service Centre. See the supplied Worldwide guarantee booklet for details. Please have the Model and Product number (which you can find at the back or the bottom of your television set or on the packaging) ready, before calling the Philips customer support service.
1.1 Important information
1
.
1.1 Stationary images on the TV
screen
A characteristic of LCD and Plasma Panels is that displaying the same image for a long time can cause a permanent after-image to remain on the screen. This is called phosphor burn in. Normal use of the TV should involve the showing of pictures that contain constantly moving and changing images that fill the screen.
Examples of stationary images (this is not an all inclusive list, you may encounter others in your viewing).
• TV and DVD menus: listings of DVD
• Black bars: when black bars appear at
the left and right side of the screen, it is
recommended to change to a picture
format so that the picture fills the entire
screen;
• TV channel logo: present a problem if
they are bright and stationary. Moving
or low-contrast graphics are less likely
to cause uneven aging of the screen;
• Stock market stickers: presented at the
bottom of the TV screen;
• Shopping channel logos and pricing
displays: bright and shown constantly or
repeatedly in the same location on the
• Examples of still pictures also include
logos, computer images, time display,
teletext and images displayed in 4:3
mode, static images or characters, etc.
Tip
:
Reduce contrast and brightness when
viewing.
1
.
1.2 Electric, Magnetic and
Electromagnetic Fields (“EMF”)
• Royal Philips manufactures and sells many
products targeted at consumers, which,
like any electronic apparatus, in general
have the ability to emit and receive
• One of Philips’ leading Business
Principles is to take all necessary health
and safety measures for our products, to
comply with all applicable legal
requirements and to stay well within the
EMF standards applicable at the time of
producing the products.
• Philips is committed to develop, produce
and market products that cause no
adverse health effects.
• Philips confirms that if its products are
handled properly for their intended use,
they are safe to use according to scientific
evidence available today.
• Philips plays an active role in the
development of international EMF and
safety standards, enabling Philips to
anticipate further developments in
standardisation for early integration in its
products.
3
4
1.2 What is digital TV?
Digital Television offers a far wider choice of TV viewing, free from the interference that you may experience on analogue
TV. It promises to transform television viewing into a new whole experience.
There is a greater selection of wide screen programmes. Many of your favourite programmes are in wide screen on the digital channels - something the analogue TV cannot do properly.
There is new whole experience of inter activity on digital TV. By using your remote control, you can access all kinds of information like the digital text which is much clearer than the old teletext system. It gives you the added enjoyment of related information running alongside the programme you are watching. You can also access an Electronic Programme Guide that provides you with a quick and easy way to view a complete list of digital programmes as you would in a newspaper or TV magazine.
Note
• Chapters 6 to 19 contain all the
information you need to operate your
TV in the Digital mode. Chapters 20
to 29 contain all the information and
instructions you need to operate your
TV in the Analogue mode.
1.3 Digital or Analogue channels?
When the television is powered on for the first time, it will always be in
Digital mode.
Use the key of the remote control to switch the TV between analogue and digital mode. Use the
P + / –
or to keys to select channels.
2 Safety
2.1 General
1
Two people are required to lift and
Carry a TV that weighs more than 25 kg.
Improper handling of the TV can cause
2 If you place the TV set on a surface,
Ensure the surface is level and that it can
The weight of the TV.
3 If you wish to hang your TV on a wall, do
Not hang the TV yourself. Your TV must
Be hung by qualified technician. Improper hanging can cause the TV to be unsafe.
4 Before you hang your TV on a wall, ensure the wall is suitable to carry the weight of the TV.
5 The connections do not have to be made before you hang the TV, but the cables must be inserted into the TV.
6 Wherever you place or hang the TV, ensure that air can circulate freely through the ventilation slots. Do not position the TV in a confined space.
7 Do not place naked flame sources such as lighted candles close to the TV set.
8
Do not place a vase filled with water near the TV. Spilling water into the TV can result in electric shock. Do not operate the TV if water is spilled into the set. Unplug the power cord from the mains immediately and have the set checked by a qualified technician.
9 Do not expose the TV or the batteries of the remote control to heat, direct sunlight, rain or water.
10
Do not touch any part of the TV, power lead, or aerial lead during
11 Do not leave the TV in standby mode for an extended period of time. Instead, disconnect the TV from the mains.
12 Pull the power lead by the plug - do not pull on the power lead. Do not use a poor fitting mains socket. Insert the plug fully into the mains. If it is loose, it may cause arcing and result in fire.
X
X
X
13 Do not connect too much equipment to the same mains socket. Excess equipment can cause overloading and result in fire or electric shock.
2.2 Care of the screen
1 Do not remove the protective sheet until you have completed the stand/ wall mounting and connections. Please handle with care.
Note
Use only the soft cloth provided to clean the glossy front of the TV.
2 Do not use a cloth that is dripping with water. Do not use acetone, toluene or alcohol to clean the TV. As a safety precaution, unplug the power cord from the mains when you clean
X
X
3 Do not touch, push, rub or strike the screen with anything hard as this may scratch or damage the screen
permanently.
5
6
3 Overview of television
keys and connectors
3.1 Side or top controls
Use the side or top keys to control power, menu, volume and programme number.
The following connectors are located on the rear of the TV.
5 EXT 1
(RGB)
6
EXT 2
(CVBS /S-VIDEO)
VOLUME
POWER PROGRAM MENU
1 2 3 4
1
POWER
: to switch the TV on and
off. For zero power, remove the mains cord from the mains socket.
2
PROGRAM + / – : to select programmes.
3
MENU
:
to display or close menus.
PROGRAM keys can be used to select a menu item and the VOLUME
+ / –
keys can be used to enter into the selected menu item and make
adjustments.
4
VOLUME + / –
: make the volume louder or quieter.
1
CI (Common Interface) slot
: to connect a CAM (Conditional Access
Module) and a smart card.
2
TV Aerial
socket : Insert the aerial plug into the 75
Ω : socket.
3
HDMI 1 / HDMI 2
: to connect to set-top box, DVD player/recorder, High
Definition equipment or Personal
Computer.
4
EXT4: to connect to equipment like
DVD, Decoder which have the same
sockets.
5
EXT 1
(RGB) and 6
EXT 2
(CVBS/
S-VIDEO): connect to equipment like DVD player/recorder, VCR, Decoder which have similar connections (so called ‘scart
connections’).
3.3 Side connectors
These connectors are located on the side of the
TV.
1
3.2 Rear connectors
The rear connectors are located on the rear of the TV and face downward.
1 2 3 4
EXT 3
2
1
Headphone
Connect the phono- jack to the headphone connector of the
TV.
2
Audio Video
: to connect to the camera
4 Getting started
4.1 Before you start
Warning: The connections do not have to be made before hanging but the cables must be inserted into connectors of the TV.
Verify that the mains supply voltage in your home corresponds to the voltage printed on the sticker at the rear of the TV.
Warning:
If the TV is mounted on a swivel base or swivel arm, ensure no strain is placed on the power cord when the TV is swivelled. Strain on the power cord can loosen connections. This may cause arcing and result in fire.
4.2 Connect the antenna
Insert the aerial plug fi rmly into the 75
Ω : aerial socket at the bottom of the TV and in the wall antenna socket.
Connectors at rear of TV
(facing downward)
4.4 Switching on the TV
• To switch on the TV, press the
POWER
key on the side or top controls. A blue/
green indicator comes on and after a few
seconds the screen lights up.
• If the TV set remains in standby mode
(red indicator), press the
PROGRAM + / –
key on the side or top controls or the
P + / -
key on the remote control.
4.3 Connecting and Disconnecting the
mains
(Plasma TV) - CAUTION : This a Class
1 apparatus. It must be connected to a MAINS socket out with a protective earthing connection.
The appliance coupler of the mains cord on the TV is used as the disconnect device
Ensure the power cord is fully inserted into the TV mains socket and the wall socket.
To disconnect from the mains, remove the mains cord from the mains socket at the back of the TV or remove the plug from the wall socket.
POWER PROGRAM MENU VOLUME
4.5 Using the Remote Control
Insert the 2 batteries supplied. Be sure the
(+) and (-) ends of the batteries line up correctly (inside of case is marked.)
7
8
5 Remote control
functions
3
4
5
1
2
6
9
10
7
8
1
Standby
To set the TV to standby mode. To switch the TV on again, press the key once more or press the
to ,
P + / –
or key.
Note: when the TV is switched on,
the last viewed mode is displayed.
2
Sound mode
Used to force programmes in
Stereo
and
bilingual
to
Mono
. For select å or
Dual » (as indicated on the screen during such broadcasts). The
Mono
indication shows up in red when in forced
position.
In digital mode, å » displays the list of audio languages.
3
Subtitles mode
In digital mode, this key activates or deactivates the subtitle mode.
4
MENU
To call up or exit the TV analogue menus.
5
Cursors Up/Down/Left/Right
( )
These 4 keys are used for selection and adjustment of menu items.
6
Analogue or Digital mode
To switch between the television analogue and digital mode.
7
Picture Format
(See page 37).
8
AV
To display Source List to select TV
(Analogue), Digital TV or connected peripheral equipment (EXT 1, EXT 2,
EXT 3, EXT 4, HDMI 1 or HDMI 2). Use
the Î ï keys to select source and the
Æ / key to confirm selection.
9
Options
(See page 23)
10
Cancel
In digital mode, this key functions as an exit key for MHEG teletext if there are no colour key links that are available to exit teletext mode.
13
14
15
16
17
18
19
11
12
20
21
22
23
11
Teletext
(See page 38-39).
12
Digital menu
To display / exit from the digital menu
(when TV is in digital mode).
13
OK
Confirms selection and accesses the program list in Digital mode.
14
Volume ( + VOL – )
To turn on sound louder or quieter.
15
Mute
Turn off or on sound.
16 / Numerical keys /
For direct access to programmes.
For a two digit programme number, the
2 nd digit must be entered shortly after the first digit before the dash
disappears.
17
Screen information
In digital
mode, display/exit the information banner (see page 14).
In analogue
mode, display/remove the programme number, the sound mode, the clock and the remaining time of the sleep timer.
18
Active Control
A utomatically adjusts the picture setting for optimal picture quality continuously under any signal conditions. ( See page
34).
19
Digital TV / Radio
In digital mode, this key is used to access digital radio stations. Press the key to access radio list.
Note
: To return to digital video mode, press the key again.
20
TV Guide
(see page 24)
21
Programme ( + P – )
Selects next or previous available channel/source (or page in digital menu).
22
Alternate channel / Edit or back
space
In Analogue/Digital mode, it allows you to alternate the previously viewed programme and the current programme.
It is also used as an edit or back space key when you are naming your favourite
channel.
23
Smart Picture /Sound
Accesses a series of predefined picture and sound settings (see page 36).
9
6 Overview of Digital main menu and
sub-menus
1 Use the key of the remote
control to select Digital mode.
2 From the digital mode, press the
key to display the setup menu.
3 Use the Î ï Í Æ keys to navigate,
select and adjust menu items.
Setup
Favourites
List 1
List 2
List 3
List 4
Name
Select TV channels.
Select Radio stations.
Add all services
Remove all services
Name
Select TV channels.
Select Radio stations.
Add all services
Remove all services
Name
Select TV channels.
Select Radio stations.
Add all services
Remove all services
Name
Select TV channels.
Select Radio stations.
Add all services
Remove all services
10
Setup
Preferences
Language
Audio
Subtitle/Teletext
Subtitling Mode
Subtitles for hearing impaired
System
Location
Country
Basque, Catalan, Croatian, Czech, Danish, Dutch,
English, Finnish, French, Gaelic, Gallegan, German,
Greek, Hungarian, Italian, Norwegian, Polish,
Portuguese, Russian, Serb, Slovak, Spanish,
Swedish, Turkish, Welsh
On, Off, Auto
Yes, No
Cesky, Dansk, Deutsch, English, Español,
Français, Italiano, Magyar, Nederlands,
Norsk, Polski, Português, Suomi, Svenska
Australia, Austria, Belgium, Czech, Denmark,
Finland, France, Germany, Greece, Hungary,
Italy, Netherlands, Norway, Poland, Portugal,
Spain, Sweden, Switzerland, United Kingdom
Information
System software
Current software version
Always accept new software
Access restrictions
Set pin code protection
TV channels
Change pin code
Yes, No
On, Off
11
Setup
Installation
Service lists
Service setup
Rearrange services
View new TV channels.
Listen to new Radio Stations.
Add new services
Search
TV channels found.
Radio stations found.
Other services found.
Store
Discard
Reinstall all services
Search
TV channels found.
Radio stations found.
Other services found.
Store
Discard
Manual install service
Frequency
Store
Discard
Signal quality
Signal strength
Frequency
Network name
12
7 Switching on the TV for the first time
When you switch on the TV set for the first time, a menu will appear on screen.
Setup 11:28
Language
Country
Time Zone
Service Scan
English
Español
Français
Italiano
Magyar
Select your preferred language
5 Press the ï key to select
Service
6 Press the key to start the
installation.
Note
If no digital channels are detected, press
key to switch to analogue mode.
1 Press the Æ key to enter into
Language
mode and press the Î ï keys to select your preferred language.
2 Press the key to confirm
selection.
3 Press the Î ï keys to select
Country
or and press the Æ key to into or
Time Zone
mode.
Caution
If you select a wrong country, the channel numbering will not be according to the standard for your country and you may not receive all services or nothing at all.
Note
The Language can be selected independently from the Country.
4 Press the Î ï keys to select your
preferred or
Time Zone and
the key to confirm your selection.
Note
If at some point of time you decide to reset to the factory default settings, press and hold down the
MENU
key on the side of the
TV set for 5 seconds. A menu will appear on the screen. Repeat steps 1 - 5 as if this was the first time you have turned on the TV.
This activity will reset both the Digital and
Analogue mode to factory default settings.
13
8 Understanding the
When you select a digital programme, an information banner is displayed for a few seconds at the top of the screen.
8.1 Banner description preset number programme start and end time symbols clock
2
BBC 2 Snooker
TXT
10:38
Minutes left : 22 channel name programme title remaining time of programme
The banner contains information on the preset number, channel name, programme duration, transmission clock, programme title and the time remaining of the current programme.
TXT
Indicates Analogue Teletext is available in Digital mode.
ù Other languages are available and can be selected in the options menu.
You can also select other languages by
pressing key. u The colour of the symbol (red, green, yellow or blue) indicates the selected
Note
A white symbol u will appear if the programme is stored in one or more of the favourites lists which are currently
8.2 Symbols description i
More information about this programme is available : press the key once to display and a second time to remove it.
Subtitling is available : if you want to display them, press the key or
the key to access the options menu and select subtitles.
14
9 Service lists
9.1 Rearrange services
This menu allows you to change the order of the stored digital channels and radio stations.
1 From the digital mode, press the key to display the setup menu.
2 Use the ï key to select
Installation and press Æ twice to select the
Service lists
menu.
11:28 Setup
Installation
Service lists
Service setup
Test reception
Rearrange services
View new TV channels
Listen to new Radio stations
7 Press key to confirm. The exchange is done.
8 Repeat the operations 4 to 7 until all the channels are in the required order.
9 To return to previous menu, press the
Í key.
10
Press the key to exit the menu.
Manage service lists
Close
3 Use the Î ï keys to select
Rearrange services
and press Æ key.
Setup
Installation
Rearrange services
View new TV channels
Listen to new Radio stations
Change preset location of services
1 _
2 _
3 _
4 _
5 _
6 _
7 _
8 _
9 _
Close
11:28
4 Use the Î ï keys to select the channel you want to exchange.
5 Press key to activate.
If you want to uninstall the selected channel, press the red
key.
6 Select the new channel number by using the Î ï .
9.2 View new TV channels or Listen to new Radio stations
This menu allows you to check the availability of new TV channels or new radio stations that have been launched by the broadcaster after the initial installation.
1 From the digital mode, press the key to display the setup menu.
2 Use the ï key to select
Installation and press Æ twice to select the
Service lists
menu.
3 Use the Î ï keys to select
View new
TV channels
or
Listen to new Radio stations
.
4 If new services are available, press Æ to enter into the list and use the Î ï keys to move through the list.
5 To return to previous menu, press the key.
Í
6 Press the key to exit the menu.
15
10 Service setup
This menu allows you to search for new TV channels or radio stations that have been launched by the broadcaster after the initial installation.
1 From the digital mode, press the key to display the setup menu.
2 Use the ï key to select installation and press Æ key.
3 Select key.
Service setup
( ï ) and press Æ
Setup
Installation
Service lists
Service setup
Test reception
Install and manage services
Add new services
Reinstall all services
Manual install services
11:28
Close
4 Press Æ to add new services and press
key to activate the installation.
Setup
Installation Service setup
Add new services
Reinstall all services
Manual Install services
11:28
Search
TV channels found
Radio stations found
Other services found
Store
Discard
Scan for new services
Close
The search begins and only new channels will be stored and added to the channel list menu. The percentage of the installation that has been completed and the number of channels found is displayed. When the search is completed, press the key to accept the new services.
5 To return to previous menu, press the
Í key.
6 Press the key to exit the menu.
10.2 Reinstall all services
This menu allows you to reinstall all the digital TV channels and radio stations.
1 From the digital mode, press the key to display the setup menu.
2 Use the ï key to select installation and press Æ key.
3 Select
Service setup
( ï ) and press Æ key.
4 Select
Reinstall all services press Æ key.
( ï ) and
Setup
Installation Service setup
Add new services
Reinstall all services
Manual Install services
11:28
Search
TV channels found
Radio stations found
Other services found
Store
Discard
Reinstall will remove all service settings
Close
16
5 Press the key to start the installation.
A search is then made for all digital services which are then stored automatically. When the search is completed, the menu will indicate the number of digital services found.
6 Press key to store the services.
7 To return to previous menu, press the
Í key.
8 Press the key to exit the menu.
5 Use the to key to input
frequency of your target channel and
press key to start the searching
of channels. When the search is
completed, the menu will indicate the
number of digital services found.
6 Press the key to store the services.
7 To return to previous menu, press the
Í key.
8 Press the key to exit the menu.
10.3 Manual install services
This menu allows you to manually scan services by keying in the frequency of your target channel.
1 From the digital mode, press the key to display the setup menu.
2 Use the ï key to select installation and press Æ key.
3 Select key.
Service setup
( ï ) and press Æ
4 Select
Manual install services
( ï ) and press Æ key.
Setup
Installation > Service setup
Add new services
Reinstall all services
Manual install services
Frequency
Network name
Signal quality
Signal strength
Services found
Store
Discard
11:28
Manual install services
Close
17
11 Test reception
This menu allows you to check the strength of the signal you are receiving through your aerial.
1 From the digital mode, press the key to display the setup menu.
2 Use the ï key to select
Installation and press the Æ key.
11:28 Setup
Installation
Service lists
Service setup
Test reception
Frequency
Network name
Signal quality
Signal strength
Test signal quality
Close
3 Use the ï key to select
Test reception
and press the Æ key. You obtain an indication of the actual programme frequency, the network name, the signal quality and strength.
4 Use the Æ key to enter the Frequency slot and use the to keys to enter the frequency of the digital channel you want to test. Use the Æ key to move to the next character space.
If the test reception indicates that the signal strength is indeed poor, you can try improving, renewing, adjusting or updating the aerial. It is however advisable to contact a specialised aerial installer in order to achieve best results.
5 After entering the frequency, use the
key to exit Frequency slot.
6 To return to previous menu, press the
Í key.
7 Press the key to exit the menu.
18
12 Preferences
This menu allows you to select your preferred language or to make changes to the location (country and time zone).
1 From the digital mode, press the key to display the setup menu.
2 Use the ï key to select
Preferences
Setup
Preferences
Language
Location
11:28
Audio
Subtitle / Teletext
Subtitling Mode
Subtitling for hearing impaired
System
Select your preferred language
Close
3 Select
Language
or
Location
( ï ) and press Æ key.
4 Use the Î ï keys to select a setting and press Æ key to enter into the submenu. Make your adjustment and press
key or Í key to exit.
5 To return to previous menu, press the
Í key.
6 Press the key to exit the menu.
Language default settings
•
Audio
: to select the audio sound
language.
•
Subtitle/Teletext
: to select the
•
Subtitling mode
: off, on or auto
(subtitle only displayed in case of original
•
Subtitles for hearing impaired
: to
activate or deactivate the specific subtitling
for hearing impaired (if made available by
•
System
: to select the menu language.
Note
If you have selected the wrong language
for one reason or another and do not
understand the selected language to operate
the set, do the following to bring you back
to your preferred language.
• Press the key to exit menu from
screen.
• Press the key again to display menu.
• Press the key to select the second
item
on the menu and the key to enter into the
next menu level.
• Press the key to again and use the key
to select the fifth menu item.
• Press the key to enter into the next menu
level.
• Press the Î ï keys to select correct
language.
• Press the key to confirm selection.
• Press the key to exit menu from
screen.
Location settings
•
Country
: to select the country where
you are located.
Caution
If you select a wrong country, the
channel numbering will not be according
to the standard for your country and
you may not receive all services or
nothing at all. Note that the Language
can be selected independently from the
Country.
•
Time zone
: to select the time zone
where you are located.
19
13 Access restrictions
This menu allows you to set up the access restrictions for the digital channels.
1 From the digital mode, press the key to display the setup menu.
2 Use the ï key to select
Access
restrictions
and press the Æ key.
3 Press the Æ key to enter into the
Set pin code protection
menu.
Access restrictions
Set pin code protection
Maturity rating
TV channels
Radio stations
Change pin code
Switch pin code protection ‘on’ or ‘off’
Close
4 Use the Í Æ
11:28
On Off
keys to set to access the other adjustments.
On
option
Warning
The moment you use any kind of access restriction, you need to fill in the pin code when you schedule a programme
•
TV channels
: select the TV channel you
want to lock and press key.
•
Radio stations
: select the radio stations
you want to lock and press key.
•
Change pin code
: press Æ key to
enter in the menu. Follow the on-screen
instruction to change your access code.
The default pin code is 1234. If you have
forgotten your personal code, you can
reset to the default pin code (1234) by
entering the universal code 0711.
Note
The TV is equipped with a Common
Interface (CI) slot (see page 26).
This CI module can be obtained when you
subscribe to service providers like Pay
TV or other service providers. The
CI module does not come with the TV
set.
The Access Restrictions menu will show
the CI Access Restrictions when a CI
module is installed. The CI module is
responsible for the messages and texts
on screen. In case of failure or strange
behaviour, you must call your CI service
provider.
5 To return to previous menu, press the
Í key.
6 Press the key to exit the menu.
•
Maturity rating
: select your preferred rating to lock the channel. Maturity rating will only block certain programmes if the broadcaster provides data with the
programme.
20
14 Setting up your list of
This menu enables you to create a favourite list with your preferred TV channels and radio stations. For example, each member of your family can create his/her own favourites list.
1 From the digital mode, press the key to display the setup menu.
Setup
Favourites
Preferences
Information
Access restrictions
Installation
List 1
List 2
List 3
List 4
11:28
Make changes to your lists of favourite services
Close
2 Press Æ to enter into the favourites list menu. You have the choice to create
4 different favourites lists.
3 Use the Î ï keys to select your
Favourites list :
List 1, List 2, List 3 or
List 4
and press Æ key.
4 Use the Î ï keys to select a setting and press Æ key to enter into the sub-menu.
•
Select TV channels
: use the Î ï keys
to select your favourite TV channels and
confirm Í key to exit.
•
Select radio stations
: use the Î ï
keys to select your favourite radio stations
and confirm with key. Press Í key to
exit.
•
Add all services
: press key if you
want to add all the services into your
•
Remove all services
: press key if
you want to remove all the services from
your favourites list.
5 To return to previous menu, press the Í key.
6 Press the key to exit the menu.
Your favourites list can be selected via the options menu (see next page).
•
Name
: use the Í Æ keys to move
around the name display area (16
characters) and the P + / – keys to select
the characters. To edit any character, use
the key. When the name has been
entered, press key to exit.
21
15 Information
This menu provides information about the software version and the installation of new software.
1 From the digital mode, press the key to display the setup menu.
2 Use the ï key to select information and
press key twice.
Setup
Favourites
Preferences
Information
Access restrictions
Installation
System software
11:28
Provide information on problem reports and installing new software
Close
The software version is displayed.
3 Use the Æ key to enter the selection
mode.
4 Use the Í Æ keys to select
Yes
or
No
mode. You can activate the menu to automatically accept any software update of your digital TV through off-air downloading. Normally the product will detect if an update is available while it is in standby mode. Next time the television is turned on a message will appear on the screen indicating new software is available. Selecting the key activates the software download.
The software download menu will give a description of the software together with the date and time of the download. This may update certain menus, functions or add new features, but the general way in which the TV operates will not change.
Once accepted the download will take place at the designated time and date.
Note
The TV must be put into standby when the download is due in order for it to take place.
Off Air Downloading of new software
Whenever a new software is available, it is advisable to always accept and download the software.
• In case new software is available, you
will see a message when you switch on the
TV. A message indicating the date and the
duration of download is indicated in the
menu. Press the key to proceed.
Important
: Leave your TV in standby
to allow upgrade to take place. Do not
power off your main switch.
• If a problem occurred during the download
of the new software, you will be informed
of the next scheduled software download.
• If download is successful, a congratulatory
message will appear. Press the key to
accept. New software and upgrade
instructions may also be obtained from the
web site : www.philips.com.
5 To return to previous menu, press the
Í key.
6 Press the key to exit the menu.
22
16 Using the Options menu
This menu gives you direct access to the: favourites list, the language selection and some other selections.
1 From the digital mode, press the white
key to display the options menu.
Options
Favourites
Subtitle language
Audio language
Mode
Se l ects the active favourite list
None
List 1
List 2
List 3
List 4
11:28
Exit
2 Use the Î ï keys to select a setting
•
Audio language
: to temporarily
change the audio sound language.
To permanently change the audio and
subtitle languages, use the Preferences
menu (see page 19).
•
Mode
: you can choose to only have
radio stations, TV channels or services
without audio or video.
Note
(for the UK only)
The TV list will contain both radio
stations and TV channels
•
Banner duration
: to select the
duration for which the banner is visible.
3 Press the white
menu.
key to exit the
•
Favourites
: use the Î ï keys to select
your favourites list and confirm with
key.
Note
The “none” option deactivates any
favourites list. To create your own
favourites list, see page 21.
•
Subtitle language
: use the Î ï keys
to temporarily change the language and
23
17 TV Guide
The TV guide is an Electronic Programme
Guide that provides you with a quick and easy way to view a complete list of digital programmes as you would in a newspaper or
TV magazine. You can navigate through the list of digital programmes and obtain detailed information on the programmes. You can also program the TV to provide a digital channel to be recorded.
1 From the digital mode, press the key to display the TV guide :
•
Top
(yellow key) : to go directly to the
top of the list.
•
Close
(blue key) : to exit from the TV
guide.
•
Options
(white key) : with this menu,
you can select your favourites list, mode or
themes. Themes are areas of interest, you
can for example, decide to display only :
drama, news, movie, ...
5 Press the key if you want to display more information about the selected programme (if available).
6 Press the key to exit the menu.
1
BBC
Now/Next Today
Preset/Servcie Now Next
1 . BBC
2. BBC TWO
3. ITC Channel 3
4. Channel 4
5. ITV 2
6. BBC CHOICE
See it saw
Snooker
-
Trisha
Gmtv2
Oakie Doke
17:28
Microsoap
Ice Skating
This morning
-
This afternoon
Bodger & Badger
Top Close Options
A list of all the digital programmes in the currently selected favourites list is displayed.
2 Use the ï key to enter into the
Preset/service
list or press Æ key to
access list.
3 Use the Í Æ keys to select a
programme.
4 The TV guide features are displayed at the bottom of the screen. Use the coloured keys red, green, yellow, blue or white to activate them.
24
18 Digital teletext (MHEG)
Available in U.K. only
Digital teletext services differ greatly from analogue teletext. When you switch to a
Digital teletext service, the images you see contain graphics and text which are laid out and controlled in a manner decided by the broadcaster. Some digital channels, which you select like any other channel, offer dedicated teletext services. Some digital channels also offer information on the programme being broadcast (a message or an instruction may appear on the screen).
Under certain circumstances, Digital text or interactive services may have priority over subtitles. This can result in the subtitles not automatically reappearing when leaving Digital text or interactive services on a channel which is broadcasting subtitles. In these cases, subtiltes can be intialised either by toggling the key on the remote control or by changing channels.
1
2
To use the digital teletext, follow the instructions on screen.
Depending on the service, you can be asked to use the Í Æ Î ï (cursor
keys), (colour keys),
(Teletext On/Off key) and
numerical
keys.
Note
If no colour key links are available in the Digital Teletext to allow you to exit teletext mode, use the
instead.
key
3 When you have finished watching teletext, select a different channel with
P + / – keys or follow the on screen instructions to return to picture.
When you switch to a digital channel with links to a teletext service, software is downloaded in the background to enable the teletext function. You will have to wait for a while before you press the key to allow the software download to complete. If you press the key before the download is complete, there will be a short delay before the teletext screen is displayed.
While navigating the digital teletext, there is a short delay while the page downloads. A prompt or message is often broadcast on the page to let you know the progress.
Analogue teletext in Digital mode
Note
Available in all countries
• If you see an icon TXT on a digital
channel without digital teletext services,
it indicates Analogue Teletext is available
in Digital mode.
• Press the
teletext.
key to access Analogue
Note
If
UK
country is selected during
installation, press and hold key for
at least 3 seconds.
• To use Analogue Teletext functions, see
page 38 and 39.
25
19 Using the Conditional
Access Module (CAM)
The
Conditional Access Module
(CAM) menu provides access to functions contained on the CAM. The module can be inserted into the Common Interface (CI) slot located at the backside (facing downwards) of the TV.
Note
This Common Interface (CI) module does not come with the TV set. It can only be obtained when you subscribe to service providers like Pay TV or other service providers.
IMPORTANT
Always switch the TV off before inserting or removing the module.
Inserting the CAM
1 Switch off the TV.
2 Some modules come with a viewing card. When using this type of module, first insert the viewing card into the module. Ensure that the arrow on the viewing card faces the arrow of the module before inserting into the
module
3 Insert the module into the Common
Interface (CI) slot on the TV.
4 Switch on the TV.
5 Press the key to display the
setup
6 Use the ï key to select
Access
restriction
and press the Æ key.
7 Press the Æ key to enter into the
Conditional Access Module
menu.
8 Press button as indicated on the screen to access the CAM’s functions.
Common
Interface slot
Module
Connectors at rear of TV (facing downward)
IMPORTANT
If no module is inserted, or the module is not inserted properly, the Conditional
Access Module menu will not be displayed.
(If you have inserted a module, check that it is fully inserted in the correct manner as mentioned in step 2 above).
The functions that now appear on screen are dependent on the contents of the selected Conditional Access Module in your country. Refer to the instruction supplied with the module or contact the vendor.
26
20 Automatic tuning of
This menu allows you to automatically search for all the analogue programmes available in your region.
Before you automatically search for all the analogue programmes, ensure the TV is in analogue mode. If it is in digital mode, press the (Analogue / Digital) key to enter the analogue mode.
1 Press the key.
Auto Store
Program 3
TV 196 MHz
Main
Sound
Features
Install
Main
Sound
Features
Install
Brightness
Colour
Contrast
Sharpness
Colour Temp
Contrast+
NR
2 Press the Î / ï key repeatedly to
select and the Æ / key to the menu.
Auto Store
Manual Store
Sort
Name
Fav. Program
3 Press the ï key to select
Auto Store the key to start automatic searching of the channels. All the available TV programmes will be stored.
This operation takes a few minutes. The display shows the progress of the search and the number of programmes found.
IMPORTANT
To exit or interrupt the search before it is completed, press the key. If you interrupt search during auto store, not all channels will be stored. For all channels to be stored, you need to do a complete auto store search again.
Note
ATS (Automatic Tuning System) feature
I f the transmitter or cable network sends the automatic sort signal, the programmes will be numbered correctly. In this case, the installation is complete. If this is not the case, you can use the
Sort
menu to number the programmes to your preference.
ACI (Automatic Channel Installation) feature
If a cable system or a TV channel which broadcasts ACI is detected, a programme list appears. Without ACI broadcast, the channels are numbered according to your language and country selection. You can use the Sort menu to renumber them.
Note
You cannot change the
Language
or
Country
in Analogue mode. If you want to change the
Language or
Country
, you have to exit Analogue mode and enter into Digital mode to do so (refer to
“
Preferences”
on page 19).
27
21 Manual tuning of
This menu is used to store the programmes one at a time.
1
2
Press the key.
Press the Î ï keys repeatedly to
select and the Æ / key to the menu.
3
Main
Sound
Features
Install
Press the
Manual Store
enter
ï key to select
Install
Auto Store
Manual Store
Sort
Name
Fav. Program
Manual store
System
Search
Program No.
Fine Tune
Store
Auto Store
Manual Store
Sort
Name
Fav. Program
and the Æ /
menu.
System
Search
Program No.
Fine Tune
Store
Europe
France
UK
West Europe
East Europe
key to
4 Press the Î ï keys to select the items the menu to adjust or
activate.
5
System: the keys to select
Europe
(automatic detection),
France
(LL’ standard),
UK
(I standard),
West
(BG standard) or
East Europe
(DK standard).
Press the Æ / key to confirm
selected system.
6
Search
:
Once a programme is found, the scanning stops and its name is displayed
(if available). Go to the next step. If you know the frequency of the required programme, this can be entered directly using the to
keys.
7
Program No.
:
Enter the required number with the
to or Î ï keys.
8
Fine Tune
:
If the reception is not satisfactory, adjust using the Î ï keys.
9
Store
:
To store the changes, press Æ / key. The programme is now stored.
10
Repeat steps 6 to 9 for each programme to be stored.
11
To return to previous menu, press the
Í key.
12
To exit the menu, press the key.
28
22 Programme Sort
Sort feature allows you to change the programme number for a particular stations.
1 Press the key.
2 Press the Î / ï key repeatedly to
select and the Æ / key to
enter
Install
menu.
Main
Sound
Features
Install
Auto Store
Manual Store
Sort
Name
Fav. Program
Install
Auto Store
Manual Store
Sort
Name
Fav. Program
001
002
003
004
005
006
007
008
100
5 Press the Î ï keys to select the new programme number and confirm with the right and sorting is completed).
3 Press the ï key to select
Sort and the
Æ / key to enter sort mode.
Install
Auto Store
Manual Store
Sort
Name
Fav. Program
001
002
003
004
005
006
007
008
100
Install
Auto Store
Manual Store
Sort
Name
Fav. Program
001
002
003
004
005
006
007
008
100
4 Select the programme number you want to move using the Î ï keys and
(The arrow cursor now points to the
left).
6 Repeat steps 4 and 5 for each
programme number you wish to re-
number.
7 To return to previous menu, press the
Í key.
8 To exit the menu, press the key.
29
23 Naming of Channel
If preferred, you can assign a name to the TV channel.
1 Press the key.
2 Press the Î / ï key repeatedly to
select and the Æ / key to the menu.
Main
Sound
Features
Install
Auto Store
Manual Store
Sort
Name
Fav. Program
3 Press the ï key repeatedly to select
Name
and the Æ / key to
enter mode.
Install
Auto Store
Manual Store
Sort
Name
Fav. Program
001
002
003
004
005
006
007
008 z
106
7 Press Æ / OK key until the name appears at the top left hand corner of the TV screen. The name is now stored.
8 To return to previous menu, press the
Í key.
9 To exit the menu, press the key.
Install
Auto Store
Manual Store
Sort
Name
Fav. Program
001
002
003
004
005
006
007
008
100
4 Press the Î ï keys to select the channel you want to name.
5 Press the Æ key to move to the first name display area.
6 Press the Î ï keys to select the characters (maximum of 5 characters) and press the Í Æ keys to move around the name display area.
30
24 Selecting your
This feature allows you to skip programmes that you do not watch often and only keep your favourite programmes.
Note:
Once a programme is skipped, you cannot access it by the P – / + key. You can only access the programme by the Digit 0 -9 keys.
1 Press the key.
2 Press the Î / ï key repeatedly to
select and the Æ / key to
enter
Install
menu.
5 Press the Æ / key to skip the menu will disappear indicating the programme is skipped.
Install
Auto Store
Manual Store
Sort
Name
Fav. Program
001
002
003
004
005
006
007
008
100
6
To return to previous menu, press Main
Sound
Features
Install
Auto Store
Manual Store
Sort
Name
Fav. Program
7
To exit the menu, press the key.
3 Press the ï key to select
Fav. Program
and the Æ / key enter list.
4 Press the Î / ï key repeatedly to select programme you want to skip.
Install
Auto Store
Manual Store
Sort
Name
Fav. Program
001
002
003
004
005
006
007
008
100
Tip
• To add back the skipped programmes to
your favourites list, repeat steps 1 to 3 .
• Press the / ï key repeatedly to
select the skipped programme you want
to add back to your favourite programme
list.
• Press the Æ / key to unskip a
The will appear indicating
the programme is now restored.
31
25 Features
25.1 Timer
The Timer feature allows you to set the TV to switch to another channel at a specified time while you are watching another channel. You can also use it as an alarm to switch on the TV at a specified time from standby mode. For the timer to function, the set must not be switched off. Once the set is switched off, the timer is disabled.
1 Press
2 Press Î ï
key.
keys repeatedly to select
Features and the Æ / key to enter
Features
menu.
Main
Sound
Features
Install
Timer
Child Lock
Parental Cont.
Active Control
Sleep
: to select a time period in which the set will switch to standby mode upon reaching the selected time period.
Select
Off
option to deactivate the feature.
Note
During the last minute of a Sleep time setting, an on-screen countdown will be displayed. Press any button on the remote control to cancel the Sleep shut down.
Time
: enter the current time.
Start Time
: enter the start time.
Stop Time
: enter the standby time.
Program No.
: enter the number of the channel for the wake-up alarm.
Activate
: the settings include:
–
Once
for a single alarm,
–
Daily
for each day,
–
Off
to cancel.
3 Press Æ / key to access
Timer
menu.
4 Press Î ï keys to select a
Timer
item.
Timer
Sleep
Time
Start Time
Stop Time
Program No.
Activate
- - : - -
6 Press key on the remote control to put the TV set in standby mode. The
TV will automatically come on at the programmed time. If you leave the TV set on, it will just change channel at the
Start Time
and will go to standby mode at the
Stop Time
.
5 To make adjustments to the timer
setting, use the Í , Æ , Î , ï or
Digit
0-9
keys.
32
25.2 Parental Cont.
The
Parental Cont. feature allows you to lock channels to prevent your children from watching certain programmes.
1 Press
2 Press Î ï
key.
keys repeatedly to select
Features and press the Æ / key to enter
Features
menu.
Parental Cont.
Lock Program
Change Code
Clear All
Lock All
001
002
003
004
005
006
007
008
106
In the
Parental Cont.
menu, use the Î , ï ,
Í , Æ ,
Digit 0-9 and keys to access and activate the Parental Cont. functions.
Main
Sound
Features
Install
Timer
Child Lock
Parental Cont.
Active Control
3 Press Î ï keys repeatedly to select
Parental Cont.
and press Æ / key to enter
Parental Cont.
mode.
Features
Timer
Child Lock
Parental Cont.
Active Control
* * * *
Access Code
4 Key in the access code
0711
by the
Digit 0-9
keys. A message
Incorrect will appear. Key in the access code
0711 again.
5 The TV will then prompt you to change code. Key in your own 4-digit code by the
Digit 0-9
keys and confirm the new code. Once the new code is confirmed, the
Parental Cont.
menu will appear.
Description of the settings:
Lock Program
Lock individual program. Press Æ key to enter
Lock Program
mode and the Î
ï keys to select the program to lock or unlock. Press the Í Æ keys to lock or unlock selected program. A key lock symbol
+ appears besides the locked channel number. To exit from
Lock Program
mode and return to
Parental Cont.
menu, press
key.
Change Code
Key in your new four-digit code using the
Digit 0-9
keys and confirm by keying in the new four-digit again.
Clear All
Press Æ key to unlock all locked channels.
Lock All
Press Æ key to lock all locked channels.
Note
If you switch on the TV set and select a program that has been locked, you need to key in the Access Code to enter the selected locked channel. To unlock the channel, go the
Lock Program
in the
Parental Cont.
menu and press the Í Æ keys (key lock symbol + disappears).
33
25.3 Child Lock
The side controls of the TV will be locked when you select the
On
option in the
Child
Lock menu. The TV can still be operated by using the remote control.
1 Press key.
A utomatically adjusts the picture setting for optimal picture quality continuously under any signal conditions.
1 Press key.
2 Press Î ï
Features
keys repeatedly until
is selected and press key to access
Features
3 Press ï key to select
menu.
Child Lock and press the Æ / key to access
Child
Lock
mode.
Æ /
2 Press Î ï keys repeatedly to select
Features and press the Æ / key to enter
Features
menu
3 Press Î ï keys repeatedly to select
Active Control and press the Æ / key to enter
Active Control mode.
Features
Timer
Child Lock
Parental Cont.
Active Control
Off
On
Features
Timer
Child Lock
Parental Cont.
Active Control
Off
On
4 Press Î ï keys to select
On
or
Off option.
5 Press Æ / key to activate/deactivate
On
or
Off
option.
6 To return to previous menu, press the
Í key.
7 To exit the menu, press the key.
4 Press Î ï keys to select
On
or
Off option.
5 Press Æ / key to activate/deactivate
On
or
Off
option.
6 To return to previous menu, press the
Í key.
7 To exit the menu, press the key.
34
26 Picture and Sound
settings
You can adjust the picture and sound settings in the
and
Sound
menu.
1 Press the key.
2 Press the Î ï keys to select
or
Sound
.
3 Press Æ / key to enter
or
Sound menu.
Brightness
Colour
Contrast
Sharpness
Colour Temp
Contrast+
NR
100
63
Contrast
: this changes the difference between the light and dark tones within the contrast range of the TV.
Sharpness
: this increases or decreases the sharpness level to improve details in the picture.
Colour Temp.
: this changes the colour setting: Cool (more blue), Normal (balanced) or Warm (more red).
Contrast+
: Increases the contrast range of the TV. Select
On
option to activate feature.
NR
: improves “noisy” picture (little dots on picture) due to weak signal transmission.
Select
On
option to activate feature.
0
Sound
Equalizer
Balance
AVL
Incr.Surround
120HZ
200HZ
500HZ
1200HZ
3KHZ
7500HZ
12KHZ
4 Press Î ï keys to select a
Picture or
Sound setting.
5 Press Æ / key to enter the
or
Sound setting.
6 Press Î ï keys to adjust the
or
Sound setting.
7 To return to previous menu, press the
Í key.
8 To exit the menu, press the key.
Description of the Sound settings
Equalizer
: to adjust the sound tone.
Balance
: this balances the sound on the left and right speakers.
AVL
: (
Automatic Volume Leveller
): this is used to limit sudden increases in sound, especially on programme change or advertising slots.
Incr. Surround
: select between
Incredible Surround and Stereo when in stereo transmission and between Mono and Spatial when in Mono transmission.
Description of the Picture settings
Brightness : this changes picture brilliance.
Colour
: this changes the intensity of the colour.
35
27 Smart Picture and
Sound
Smart Picture feature offers you a choice of 5 picture settings namely :
Rich, Natural,
Soft, Multimedia
and
Personal
.
Press the button repeatedly to cycle through the settings to select your desired mode.
Natural
Rich
Soft or
Multimedia
Personal
Note
: The
Personal
setting is the setting that you set up using the Picture menu in the main menu. This is the only setting in the Smart Picture setting that can be changed. All other settings are pre-set at the factory for your convenience.
Definition of Picture Settings
Rich
: Brilliant and sharp picture
settings suitable for bright environment.
Natural
: Reference mode for living
room conditions and
average signals.
Soft
: Intended for bad-quality
signals. Suitable for living
Multimedia
: Best for graphical applications.
Personal
: Pictures settings are set to
Smart Sound
Voice
, and
Personal
.
Press the button repeatedly to cycle through the settings to select your desired mode.
feature offers you a choice of 4 sound settings namely :
Movie
,
Music
, or
Music
Voice
Movie
Personal
Note
: The
Personal
setting is the setting that you set up using the Sound menu in the main menu. This is the only setting in the Smart Sound setting that can be changed.
All other settings are pre-set at the factory for your convenience.
Definition of Sound Settings
Movie
: Emphasize sensation to action.
Music
: Emphasize low tone.
Voice
: Emphasize high tone.
Personal
: Sound settings are set to
36
28 Picture Formats
Picture formats for 4:3 screens
Press the key to cycle through the different formats.
4:3
This format is recommended to display the 4:3 picture using the full surface of the screen.
Expand 4:3
When this format is selected, the picture is vertically expanded, thus reducing the horizontal black bars.
Compress 16:9
The format is recommended to compress full screen movie images into letter box format. When this format is selected, black horizontal bars can be seen at the top and bottom of the TV screen.
Picture formats for wide screens
Press the key to cycle through the different formats.
4:3
The picture is reproduced in 4:3 format and a black band is displayed on either side of the picture.
Movie Expand 14:9
The picture is enlarged to 14:9 format, a thin black band remains on both sides of the picture. Some of the top and bottom of the picture is clipped off.
Movie Expand 16:9
The picture is enlarged to 16:9 format. This mode is recommended when displaying pictures which have black bands at the top and bottom
(letter box format). In this mode, large parts of the top and the bottom of the picture are clipped off.
Subtitle Zoom
This mode is used to display 4:3 pictures using the full surface of the screen leaving the sub-titles visible. Part of the top of the picture is clipped off.
Super Wide
This mode is used to display 4:3 pictures using the full surface of the screen by enlarging the sides of the picture.
Widescreen
The picture is displayed in the original proportions of images transmitted in 16:9 format.
Note :
If you display a 4:3 picture in this mode, it will be stretched
horizontally.
37
29 Teletext
Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission audio language (cable networks, satellite channels, etc.).
1
3
4
5
2
2
1
Teletext On/Off
Press this key to switch on teletext
display. A contents page appears with a
list of items that can be accessed. Each
item has a corresponding 3 digit page
number. If the selected channel does not
broadcast teletext, the indication 100
will be displayed and the screen will
remain blank. Proceed to exit teletext
by pressing the
key again.
2
Selecting a page
Enter the number of the page required the
9
keys or
P –/+
keys.
Example: page 120, enter
120
. The
number is displayed at the top left
corner of the screen. When the page is
located, the counter stops searching and
the page is displayed. Repeat this
operation to view another page. If the
counter continues to search, this means
that the page is not transmitted. In that
case, select another number.
3
Direct access to the items
Colour areas are displayed at the
bottom of the screen. The 4 colour
keys are used to access the items or
corresponding pages. The colour areas fl ash when the item or the page is not
4
Contents
This returns you to the contents page
(usually page 100 or hit list menu).
5
Page hold
Certain pages contain sub-pages which
are automatically displayed successively.
This key is used to stop or resume
sub-page progression. The indication
appears top left. Use the Í Æ keys to
select previous or next sub-page.
38
9
9
9
9
9
6
8
7
7
6
Hidden information
To display or hide the concealed
information such as solutions to games
7
Enlarge a page
This allows you to display the top or
bottom part of the page. Pressing it
again will return the page to normal size.
8
Picture/Teletext
• Press the key.
• Press the key to show Teletext on
the right and the picture on the left of
the screen.
• Press the key to return to a full
teletext mode.
• Press the key to return to a full
screen picture.
9
Favourite pages
Note: only available in RF Analogue.
Instead of the standard colour areas
displayed at the bottom of the screen,
you can store 4 favourite pages on the fi rst 40 channels which can then be
accessed using the coloured keys (red,
green, yellow, blue). Once set, these
favourite pages will become the default
every time teletext is selected.
To store the favourite pages, proceed as
follows:
• Press the key to change to
favourite page mode.
• Use the keys to enter the
teletext page that you want to store as
a favourite page.
• Press and hold the colour key of your
choice for about 5 seconds. The page is
now stored.
• Repeat steps 2 to 3 with the other
colour keys.
• To exit favourite page mode, press the
key. To exit teletext mode,
press key.
Note
To clear favourite pages, press and hold
key for about 5 seconds.
39
30 Using the TV as a PC
Monitor
Your TV can be used as a computer monitor.
Note :
PC connection is only available via
HDMI
connector.
VGA
connection is not supported.
30.1 Connecting the PC equipment
Important
For the TV to function as a PC monitor, the following steps must be taken.
1 Connect the DVI output of your computer to the
HDMI 1 or HDMI 2 connector of the TV. Use a HDMI to
DVI cable if the DVI output is to be
connected.
2 Connect the audio cable to the PC’s
Audio jack and to the L / R Audio jacks
(
EXT3
) of the TV
.
3 Press the key to display Source
List and use the Î ï key to select
HDMI HDMI 2.
Source list
TV
EXT 1
EXT 2
EXT 3
EXT 4
HDMI 1
HDMI 2
Digital TV
4
Press the Æ / key to switch to the
3 Press the Î ï key to select the settings and the Í Æ key to select or setting.
4 To return to previous menu, press the
Í key.
5 To exit the menu, press the key.
Picture menu
• The Picture menu comprises
Brightness
,
Contrast
,
Sharpness,
Colour Temp., Contrast+ Horizontal
Shift
and
Vertical Shift features.
• Except for the
Horizontal
Shift and the
Vertical Shift features, all the other
features work exactly in the same way
as the features in the TV Picture menu
(see page 35).
•
Horizontal Shift
feature allows you to
adjust horizontal position of the image.
Vertical Shift
feature allows you to
adjust vertical position of the image.
Features menu
• The Features menu comprises
Mode
Selection
and
Format features.
• When you connect PC supporting of or
720p
, the
Mode
Selection
item will be available in the
Features
menu. This will allow you to
select between the
PC
and
HD
mode.
•
Format
feature works exactly in the same
way as the picture formats of the TV. (see
30.2 Control TV settings while a
PC is connected
1 Press the key to display the main
menu.
2 Press the Î ï keys to select
,
Sound or
Features
and the Æ / key to enter the selected item menu.
Note : When using HDMI to connect your TV to the PC, it is possible that they may not operate perfectly first time. Often this is resolved by changing the resolution or settings of the device connected to the TV. In some situations you may see a dialogue box on screen and need to press ”OK” to continue watching the TV. Please refer to the user manual of the connected device on how to make necessary changes.
40
31 Using the TV in HD
(High Definition) mode
The HD (High Definition) mode allows you to enjoy clearer and sharper pictures if you are using HD equipment that can produce high definition video signals.
31.1 Connecting the HD equipment
Important:
For the TV to function in the
HD mode, the following steps must be taken.
1 Connect the HDMI or DVI output of your HD equipment to the
HDMI 1 or
DVI to HDMI cable if DVI output is connected. You can also connect the
Component Video Outputs (Y, Pb, Pr) of the HD equipment (if any) to the
Component Video Inputs (Ext 4) of the
TV.
2 Connect the audio cable to the Audio jack of the HD equipment and to the
L / R Audio jacks (
EXT3
) of the TV
.
3 Press the key to display Source
List and use the Î ï key to select
HDMI HDMI 2 ( or EXT 4 if you
4
Source list
TV
EXT 1
EXT 2
EXT 3
EXT 4
HDMI 1
HDMI 2
Digital TV
Press the Æ / key to switch to the
31.2 Control TV settings while in
HD mode
1 Press the key to display the main
menu.
2 Press the Î ï keys to select
,
Sound or
Features
and the Æ / key to enter the selected item menu.
3 Press the Î ï key to select the settings and the Í Æ key to select or setting.
4 To return to previous menu, press the
Í key.
5 To exit the menu, press the key.
Picture menu
• The Picture menu comprises
Brightness
,
Colour,
,
Sharpness, Colour
Temp., Contrast+, Horizontal Shift
,
and .
• Except for the
Horizontal
Shift and the
Vertical Shift features, all the other
functions work exactly in the same way
as the features in the TV Picture menu
(see page 35).
•
Horizontal Shift
feature allows you to
adjust horizontal position of the image.
•
Vertical Shift
feature allows you to
adjust vertical position of the image.
Sound menu
• The Sound menu comprises
Equalizer
,
Balance
,
AVL and
Incredible
in the same way as the TV Sound menu
(see page 35).
41
Features menu
• The Features menu comprises
Timer
,
Child
,
Parental Cont.
,
Mode
Selection
and
Active Control features. for feature, all
the other features work exactly in the
same way as the TV Sound menu (see
4 Press the Æ key to access
Mode
5 Press the Î ï keys to select
PC
or
HD
mode.
6 To return to previous menu, press the
Í key.
7 To exit the menu, press the key.
31. 3 Mode Selection in Features
menu
When you connect HD (High Definition) equipment (HDMI only) supporting resolution of
480p
or
720p
, the
Mode
Selection
feature will be available in the
Features
menu. The
Mode Selection allows you to select between the
PC
and
HD
mode.
1 Press key.
2 Press Î ï keys repeatedly until
Features
is selected and press Æ / key to access
Features
menu.
3 Press ï key to select
Mode Selection.
31. 4 Display (native 1080) in
Note
This
Display (native 1080) feature is only applicable to 1080p models only.
When you connect HD (High Definition) equipment (HDMI or Y, Pb, Pr) supporting resolution of
1080i
, the
Display (native
1080)
feature will be available in the
Features
menu. This feature allows you to watch the original HD format (1080i only).
This is a true HD resolution from your input signals.
1 Press key.
Features
Timer
Child Lock
Parental Lock
Mode Selection
Active Control
PC
HD 2 Press Î ï
Features
keys repeatedly until
is selected and press key to access
Features
menu.
3 Press ï key to select
Display
.
Æ /
42
Features
Timer
Child Lock
Parental Lock
Active Control
Display native 1080
31. 5 Supported formats
Non 1080p models except 20”
HD format 480p, 576p, 720p, 1080i
SD format 480i, 576i,
4 Press the Æ key to access
Display mode.
5 Press the Æ key twice to access the
Off/On option in the native 1080.
Non 1080p 20” models
HD format 480p,
SD format 480i,
576p
576i
Display native 1080 Off
On
1080p models
HD 480p 576p 720p 1080p 1080i format
SD format
480i, 576i,
6 Press the Î ï keys to select
Off
/
On
option.
On
option to allow you to watch original HD format (1080i only).
7 To return to previous menu, press the
Í key.
8 To exit the menu, press the key.
Note
SD (Standard Definition) Formats are for YPbPr connection only.
Note
Your Philips TV is HDMI compliant. If you do not get a good picture, please change the video format on your device (DVD player, cable set-top box, etc.) to a standard format. For example, for DVD player, select 480p, 576p,
720p, 1080i or 1080p.
Please note that this is not a defect of the TV set.
43
32 Connecting other
equipment
32.1 Connect VCR or DVD recorder
With a Eurocable
1 Connect the aerial cables 1 and 2
2 Connect the Eurocable 3 as shown.
3 Press the key on the remote control display Source list.
4 Press the ï key repeatedly to select
EXT2 and press the Æ / key to
Cable
1
2
Recorder
Connectors at rear of TV (facing downward)
Cable
1
Connectors at rear of TV (facing downward)
Connectors at rear of TV (facing backward)
2 3
Recorder
With the aerial cable only
1 Connect the aerial cables 1 and 2
2 Tune in your recorder’s test signal and store the test signal under programme
(See “Manual tuning of analogue programmes”, page 28. See also the user manual of your recorder) .
44
32.2 Connect Decoder and VCR
Connect a Eurocable 4 to your decoder and to the special euroconnector of your recorder. See also the user manual of your recorder.
Warning
Do not place your recorder too close to the screen as some recorders may be susceptible for signals from the display.
Keep a minimum distance of 0,5 m from the screen.
Tip
You can also connect your decoder directly to
EXT1
or
EXT2
with a Eurocable.
Recorder
4
Decoder
32.3 Connect 2 VCRs or VCR and 32.4 Connect a satellite receiver
With Eurocables
1 Connect the aerial cables 1 , 2
and
2 Connect your VCRs or DVD-recorder
to and
EXT2
with the
3 Press the key on the remote control to display Source list.
4 Press the ï key to select
EXT1
or
EXT2
and press the Æ / key to
With a Eurocable
1 Connect the aerial cables 1 and 2 as
shown.
2 Connect your satellite receiver to
EXT1
or
EXT2
with a Eurocable 3 .
3 Press the key on the remote control to display Source list.
4 Press the ï key to select
EXT1
or
EXT2
and press the Æ / key to
With Component Video connectors
See “Connect a DVD player, a satellite receiver or a cable box” on page 46.
With the aerial cables only
1 Connect the aerial cables 1 , 2
2 Tune in your recorder’s test signal and store the test signal under programme
(See “Manual tuning of analogue programmes”, page 28. See also the user manual of your recorder) .
Connectors at rear of TV (facing backward)
Cable
Connectors at rear of TV (facing downward)
1
1
Connectors at rear of TV (facing downward)
Connectors at rear of TV (facing backward)
2
3
Satellite receiver / cable box
3
5
4
2
Recorder Recorder
45
32.5 Connect a DVD player, Cable box or game console
With a HDMI connector
HDMI is the leading new standard for Digital video and audio inter-connection.
1 Connect your equipment with the
2 Press the key on the remote control to display Source list.
3 Press the ï key to select
HDMI 1
or
HDMI 2
and press the Æ / key to
3 Press the key on the remote control to display Source list.
4 Press the ï key to select
EXT 4
and the key to confirm
selection.
5 In case of a cable box and/or a satellite receiver also connect the cable TV cable and/or the satellite antenna
cable
Connectors at rear of TV
(facing downward)
Connectors at rear of TV
(facing downward)
1
2
DVD
Connectors at rear of TV
(facing downward)
32.6 Connect a DVD player, a
Satellite receiver or Cable box
With Component Video Connectors
1 Connect the three separate component cables the DVD player and to the Y (yellow),
Pb (blue) and Pr (red) jacks of
EXT4
on TV.
2 Connect the audio cable to the DVD’s audio L and R jacks and to the L/R
AUDIO jack of
EXT4
2 .
46
4
2
3
Satellite receiver / cable box
1
Note
• Cables are often colour coded. Connect
red to red, white to white, etc.;
• The labels for the component video
sockets may differ depending on the DVD
player connected. Although the
abbreviations may vary, the letters B and
R stand for the blue and red component
signals, respectively, and Y indicates the
luminance signal. Refer to the DVD
player’s instructions for use for
definitions and connection details;
• To get an optimal viewing, it is advised to
switch your equipment to the highest
possible supported display modes.
Connectors at side of TV
Audio
L/R
Connectors at rear of
TV (facing downward)
PC
2
1
HDMI
DVI
Warning
If you notice scrolling images, wrong colours or no colour, no picture, or even combinations of these on your screen, verify if the connections are done in the correct way and if the resolution and the signal standard of the connected equipment are set in the right way. See the user manual for your equipment.
32.7 Connect a PC
Note
• Only digital output of the PC can be
connected via DVI to HDMI cable.
VGA connection is not supported.
• Before connecting your PC to the TV,
select your PC monitor settings to a
refresh frequency of 60 Hz.
PC equipped with a DVI connector
1 Use a DVI to HDMI cable to connect to one of the HDMI connectors of your
TV
2 Connect the audio cable to the PC’s
AUDIO jack and to the L/R AUDIO of
EXT3
2 .
3 Press the key on the remote control to display Source list.
4 Press the ï key to select
HDMI 1 or
HDMI Æ / key to confirm selection.
Supported PC resolutions
640 x 480, 60 Hz
640 x 480, 72 Hz
640 x 480, 75 Hz
640 x 480, 85 Hz
800 x 600, 60 Hz
800 x 600, 72 Hz
800 x 600, 75 Hz
800 x 600, 85 Hz
1024 x 768, 60 Hz
1024 x 768, 70 Hz
1024 x 768, 75 Hz
1024 x 768, 85 Hz
PC resolutions for LCD TV.
Not applicable to 20” LCD TV
1280 x 768, 60 Hz
1280 x 1024, 60 Hz
1360 x 768, 60 Hz
47
32.8 Connect a Camera, Camcorder, 32.9. Connect a Headphone
1 Connect your camera, camcorder or
2 For mono equipment, connect to
VIDEO
2 and
AUDIO L
3 (only).
For stereo equipment, connect both
AUDIO AUDIO R
3 .
S-VHS quality with an S-VHS camcorder is obtained by connecting the S-VHS cables with the S-VIDEO input 1 and
AUDIO L / R
inputs 3 .
Warning:
do not connect cables 1
and
1 Insert the plug into the headphone
socket as shown.
2 The headphone impedance must be between 8 and 4000 Ohm. The headphone socket has a 3.5 mm jack.
Tip
Press the key on the remote
control switch off the sound from internal loudspeakers of the TV.
To switch on sound, press the
3 Press the key on the remote control to display Source list.
4 Press the ï key to select
EXT 3
and the key to confirm
selection.
Connectors at side of TV
Connectors at side of TV
1
2
3
48
33 Troubleshooting
Below is a list of symptoms you may encounter with your TV. Before you call for service, make these simple checks.
Symptom Possible solutions
No display on screen
• Check whether power cord is properly connected into the
mains socket and to your TV. If there is still no power,
disconnect plug. Wait for 60 seconds and re-insert plug.
Switch on TV again.
• Press the key on the remote control.
Poor reception
(snowy noise)
No picture
• Check antenna connection to the TV and to the wall antenna
socket.
• Try manually adjusting your picture (see page 28).
• Have you chosen the right TV system? (see to page 28).
• Press the key to check the signal strength.
• Verify if the supplied cables are connected properly (The
aerial cable to the TV, the other aerial to your recorder, the
power cables,....).
• Verify if you have selected the correct source.
• Verify if the child lock has been switched off.
No sound on
certain channels
No sound
Sound interference
• Check whether the correct TV system is selected (see page 28).
• Verify if the volume is not at the minimum.
• Check that the mute ( ) mode is not on. If mute mode
is on, press the
the TV.
key to deactivate mute mode.
• Verify the connections between the optional equipment and
• Try switching off any electrical appliances to prevent
interference, for example, hair dryer, vacuum cleaner.
Unable to understand
• key to exit menu from screen.
the selected language on screen to operate
• the key again to display menu.
set in digital mode
• Press the key to select the second
item on the menu and
the key to enter into the next menu level.
• Press the key again and use the key to select the fifth
menu item.
• Press the key to enter into the next menu level.
• Press the Î ï keys to select correct language.
• Press the key to confirm selection.
• Press the key to exit menu.
TV not responding to remote control
• Move closer to the receiver at the front of the TV.
• Check the placement of the batteries.
• Try changing the batteries.
49
Symptom Possible solutions
No digital channels
• Contact your dealer about the Digital Video
Broadcasting Terrestrial signal availability in your country.
One or a few tiny spots on
• This symptom is not a problem. The liquid crystal
the screen that do not panel is built with very high precision technology change colour along with giving you the fine picture details. Occasionally, a the video picture
few non-active pixels may appear on the screen
as a fixed point of red, blue, green or black.
Note :
this does not affect the performance
of the set.
Intermittent or flickering
• Noise is displayed if the connected digital equipment such picture in HD mode as
DVD player or Set-Top box failed. Check user manual of the digital equipment you are connecting.
• Use a standard-compliant (high-quality) HDMI to DVI
cable.
No sound or picture but
front panel red light is on
• Press the key on the remote control.
PC modes do not
work
S-Video colour
becomes faint
• Check whether connections are correct. (see page 47).
• Check whether the source is correctly selected.
Press
correct source.
button to enter Source list and select the
• Check whether you have configured the computer to
a compatible display resolution (see page 47).
• Check graphic card setting of PC.
• Check whether SVHS cable is properly connected.
• Press the
P +
key on the remote control to do a
channel up and then press the
P –
key to do a
channel down.
Black bar on top and
bottom of screen in
PC mode
• Change PC refresh rate to 60 Hz.
AC3 not available
TV antenna cannot be powered by set
• AC3 is not supported for this set. Use the key
on the remote control to select an alternative audio.
• Some TV antennas need to be powered by the set.
This set does not support such a feature.
Changing from one channel to another
• Pay TV channels are encoded by the cable provider and
take a longer time to decode. This is normal behaviour
channel takes a long time and no action is required.
Cannot access digital
• Check whether TV is in analogue mode. If it is, press
menu
key to switch to digital mode.
50
34 Glossary
DVI
(Digital Visual Interface) : A digital interface standard created by the Digital Display Working
Group (DDWG) to convert analog signals into digital signals to accommodate both analog and digital monitors.
RGB signals
: These are the three video signals, Red Green Blue, which make up the picture. Using these signals improves picture quality.
S-VHS signals
: These are 2 separate
Y/C video signals from the S-VHS and Hi-8 recording standards. The luminance signals Y
(black and white) and chrominance signals C
(colour) are recorded separately on the tape.
This provides better picture quality than with standard video (VHS and 8 mm) where the Y/C signals are combined to provide only one video signal.
16:9
: Refers to the ratio between the length and height of the screen. Wide screen televisions have a ratio of 16/9, conventional screen TV sets have a ratio of 4/3.
MHEG
(Multimedia and Hypermedia information coding Expert Group) : provides standards for the coded representation of multimedia and hypermedia information objects that are interchanged among applications and services using a variety of media. The objects de fi ne the structure of a multimedia hypermedia presentation.
HDMI
(High-De fi nition Multimedia Interface)
: Provides an uncompressed, all digital audio/video interface between the TV and any HDMI-equipped audio/video component, such as set-top box, DVD player and A/V receiver. HDMI supports enhanced or high-de fi nition video plus two-channel digital audio.
System
: Television pictures are not broadcast in the same way in all countries. There are different standards: BG, DK, I, and LL’. The System setting
(page 28) is used to select these different standards.
This is not to be confused with PAL or SECAM colour coding. PAL is used in most countries in
Europe, SECAM in France, Russia and most African countries. The United States and Japan use a different system called NTSC.
MPEG
(Moving Picture Experts Group) is the nickname given to a family of International
Standards used for coding audio-visual information in a digital compressed format.
51
© 2007 Koninklijke Philips N.V.
All rights reserved
Document order number: 3139 125 38462
Hospitality Television
20/26/32HF5335D
15/20HF5234
- 1 -
Installation of your Philips Hotel TV
1. Introduction
This addendum has been designed to help you install programmes on this Digital TV and activating the hotel mode.
Use this addendum in conjunction with the User Manual of this television.
Please handle the TV with care and wipe with a soft cloth to ensure your TV keeps looking new.
2. The benefits of the Philips hotel TV
This TV is specially designed for hotels. The Philips hotel TV offers all kind of features to
Maximise the convenience for the hotel and meet the needs for the guest
Welcome message to give a friendly welcome to your guest when activating the tv
Remote control features like low battery detection and an anti-theft screw for preventing of theft for batteries
Access to the user menu can be blocked. This prevents users (e.g. guests) from deleting or changing program settings and/or modifying picture and sound settings. This ensures that TVs are always set up correctly.
A switch-on volume and programme can be selected. After switching on, the TV will always start on the specified program and volume level.
The maximum volume can be limited in order to prevent disturbance.
The television keys VOLUME +/- , PROGRAM +/- and MENU can be blocked.
Screen information can be suppressed.
Programmes can be blanked
3. Installing the channels
Installing Digital Programs (only applicable for 20/26/32HF5335D)
Ensure the TV is in Digital mode. If it is in Analogue mode, press the A/D (Analogue/Digital) key on the
Remote Control to enter the Digital mode. the (Menu Digital) key on the Remote Control
2. Press the Up/Down Arrow Key to scroll to the item called INSTALLATION and press the Right Arrow
Key
3. Press the Up/Down Arrow Key to scroll to the item called SERVICE SETUP and press the Right Arrow
Key
4. Press the Up/Down Arrow Key to scroll to the item called REINSTALL ALL SERVICES and press the Right
Arrow Key
5. Press the Up/Down Arrow Key to scroll to the item called SEARCH and press OK to start the scan. The
TV will now start to scan and install all available (Digital) TV channels and Radio stations automatically.
When the scan is completed, the TV menu will indicate the number of digital services found.
6. Press the OK key again to Store all the services that have been found.
- 2 -
Installing Analogue Programs
Ensure the TV is in Analogue mode. If it is in Digital mode, press the A/D (Analogue/Digital) key on the
Remote Control to enter the Analogue mode. the ( Menu TV) key on the Remote Control
2. Press the Up/Down Arrow Key to scroll to the item called INSTALL and press OK
3. Press the Up/Down Arrow Key to scroll to the item AUTO STORE and press OK
The TV will now start to scan and install all available (Analogue) TV channels automatically. This operation will take a few minutes. The TV display will show the progress of the scan and the number of programmes found.
Refer to the chapter on Automatic Tuning of Analogue Programmes in the User Manual for more details. You can also refer to the chapter on Manual Tuning of Analogue Programmes in the User Manual if a manual scan is preferred.
4. Activating the Hotel Mode Setup menu (BDS)
1. Switch on the television and select an analogue channel
2. On the Remote Control, press keys: [3, 1, 9, 7, 5, 3, MUTE]
3. The becomes visible
4. Use the cursor keys to select and change any of the following settings:
Function
BDS MODE
SWITCH ON SETTINGS
SWITCH ON VOLUME
MAXIMUM VOLUME
SWITCH ON CHANNEL
POWER ON
DISPLAY MESSAGE
Possible selections
ON /OFF
0-100, LAST STATUS
0-100
USER DEFINED, LAST STATUS
ON/STANDBY/LAST STATUS
ON/OFF
WELCOME MESSAGE
CONTROL SETTINGS
LOCAL KEYBOARD LOCK
REMOTE CONTROL LOCK
OSD DISPLAY
HIGH SECURITY MODE
AUTO SCART
MONITOR OUT
LINE 1/LINE 2/CLEAR
ON/OFF/ALL
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
BLANK CHANNEL ON/OFF
STORE >
5. Select STORE ” and press [CURSOR RIGHT] to save the settings and exit BDS Hotel Mode setup. Press [MENU] to exit without saving.
6. For BDS Hotel Mode settings to take effect, you must turn the TV set Off, then back On.
BDS Hotel Mode Functions
This paragraph describes the functionality of each item in the BDS Hotel Mode Setup menu.
BDS MODE
ON BDS Hotel Mode is ON:
The user menu is blocked.
All settings of the Hotel Mode Setup menu are in effect.
- 3 -
OFF BDS Hotel Mode is OFF:
The TV operates as a normal consumer TV
SWITCH ON VOL
When the user switches the TV ON, it will play at the specified volume level. There are 2 options:
LAST STATUS Upon start-up, the TV volume will be set to the level before the TV set was last turned off.
USER DEFINED As specified by installer
Remark: “SWITCH ON VOL” cannot exceed the MAXIMUM VOL level. This is the volume level with which the Hotel Mode Setup menu was entered.
MAXIMUM VOL
The TV Volume will not exceed the selected volume level.
SWITCH ON CHANNEL
When the user switches the TV ON, it will tune to the specified channel. There are 2 options:
LAST STATUS The TV will switch on to the last channel that was shown before the TV set was turned off
USER DEFINED Any analogue channel can be chosen to be the first channel to switch on
POWER ON
The Power On function allows the TV to enter a specific mode of operation (On or Standby) after the mains power is activated.
ON
STANDBY
When set, the TV will always turn ON after the mains power is enabled.
When set, the TV will always turn to STANDBY after mains power is enabled
LAST STATUS When set, the TV will always turn to the last power status before the mains power was disabled.
DISPLAY MESSAGE
ON Enables display of the Welcome Message for 30 seconds after the TV set is turned on
OFF Disables the display of the Welcome Message.
If OSD DISPLAY is set to OFF, then the Welcome Message is automatically disabled.
WELCOME MESSAGE
The Welcome Message function allows the TV to show a customized greeting to the hotel guest whenever the
TV is switched on. This helps to personalize the hotel experience for guests.
The Welcome Message can consist of 2 lines of text, with each line containing a maximum of 20 alphanumeric characters. Use the Remote Control arrow keys to create the Welcome Message.
To enable the display of the Welcome Message, the DISPLAY MESSAGE option must be ON
To clear the Welcome Message from the TV’s memory, select CLEAR
LOCAL KEYBOARD LOCK
ON The television keys VOLUME +/-, PROGRAM +/- and MENU are blocked.
OFF The television keys VOLUME +/-, PROGRAM +/- and MENU function normally
ALL The television keys VOLUME +/-, PROGRAM +/-, MENU and POWER are blocked.
REMOTE CONTROL LOCK
ON Standard Remote Control keys are disabled.
OFF All Remote Control keys will function normally.
OSD DISPLAY
ON Normal screen information is displayed (e.g. programme information)
OFF Screen information is suppressed.
- 4 -
HIGH SECURITY MODE
ON Allows access to the BDS Hotel Mode Setup Menu via the special BDS Setup Remote only.
(RC2573/01)
OFF Allows access to the BDS Hotel Mode Setup Menu via BDS Setup Remote or via normal Remote
Control (using special key code sequence).
AUTO SCART
The Auto Scart function enables auto-detection of AV devices that are connected to the TV’s Scart connector.
ON Enables Auto Scart switching in BDS Hotel Mode.
OFF Disables Auto Scart switching in BDS Hotel Mode.
MONITOR OUT
ON Allows audio & video output from TV via relevant AV connectors (if available).
OFF Disables both Audio & Video output from the TV (to prevent illegal copying).
BLANK CHANNEL
The Blank Channel function disables the display of video on the TV, but does not affect the audio output. This function can be used for audio applications (example: Off-air radio transmission, music channels, and so on), which do not necessarily require the display of video.
ON The current programme is blanked
OFF The current programme is not blanked (normal visible; DEFAULT value)
BLANK CHANNEL can be set for every channel. Use [P+ / P-] to go through all the programmes and set the desired status per channel. The programme number is visible in the top left corner.
Low Battery Check
This television set has a special feature which checks the battery power level of a TV Remote Control, and indicates if the battery is low and requires changing.
(Note: The Low Battery Check function works only with certain models of Remote Controls. Please check with the Philips sales representative if the Remote Control used with this TV supports this function)
To activate the Low Battery Check function, hold the TV Remote Control in front of the TV, and press and hold the OK button on the Remote Control for at least 5 seconds. A message will appear on the TV screen to indicate if the battery power level is OK, or if it is Low. If the message indicates that the battery level is low, it is recommended to change the batteries of the Remote Control immediately.
5. Cloning of settings
Cloning of analogue TV channels and TV settings as described in the chapter
Hotel Mode Set-up menu
For 15/20HF5234 o
Wireless cloning with the SmartLoader 22AV1120 or 22AV1135 o
Cloning off all adjustable TV settings + analogue channel table
For 20/26/32HF5335D o
Wired cloning with the SmartLoader 22AV1135 using the wire packed with the SmartLoader o
Cloning off all adjustable TV settings + analogue channel table (digital channel table via automatic installation)
Instruction for cloning of settings between TVs
Philips SmartLoader (22AV1135/00)
The Philips SmartLoader is an installation tool especially designed for easy and fast installation and copying of
TV settings on Philips Institutional TV’s.
- 5 -
The Philips SmartLoader works in 2 modes – Wireless and Wired:
Wireless mode ---- through infrared sensor (15/20HF5234)
Switch the SmartLoader to “Wireless” mode by sliding the side-switch to the icon on the SmartLoader device. Point the Wireless SmartLoader to the TV’s infrared receiver (optimal distance of 5-30cm) and proceed with the Installation procedure listed below.
Wired mode ---- using the by-packed accessory cable(s) (20/26/32HF5335D)
Switch the SmartLoader to “Wired” mode by sliding the side-switch to the icon on the SmartLoader device.
Examine the rear connectors of the TV set to determine if the 3-pin or 4-pin female connector wire (packed with the Wireless SmartLoader) should be used. Plug in the correct connector wire to the corresponding opening on the TV set (usually marked as SERV C), and then connect the RJ11 jack end of the accessory wire to the RJ11 socket on the SmartLoader.
The Installation Procedure consists of three simple steps:
1. Choosing a Master TV
The Master TV is the TV set whose installation and configuration settings are to be copied into other TV’s (of the same type only).
2. Programming the SmartLoader with the settings from the Master TV
Follow these steps to program the SmartLoader with the settings of the Master TV. a) Wireless
Set the SmartLoader to “Wireless” mode using the side switch.
Turn on the TV, and while holding the SmartLoader, point it in the direction of the
TV. Press the “MENU” Key on the SmartLoader. b) Wired
Connect the SmartLoader to the TV using the appropriate accessory cable.
Set the SmartLoader to “Wired” mode using the side switch.
Turn on the TV, and while holding the SmartLoader, point it in the direction of the
TV. Press the “MENU” Key on the SmartLoader.
The Master TV will show the following menu:
SMARTLOADER TO TV >
TV TO SMARTLOADER >
On the TV screen, highlight the menu option “TV TO SMARTLOADER”
Press the right arrow key on the SmartLoader to start the programming process
A number display (from 0~100) will be shown on screen, indicating the percentage of the programming progress from the TV to the SmartLoader. When the programming is completed, “##” will show “100” and the message “DONE” will appear.
TV TO SMARTLOADER ## (0-100)
The SmartLoader is programmed and can be used to install and configure other TVs.
Copying the settings of the Master TV to other TVs with the SmartLoader
Follow these steps to install and configure the settings of a Philips TV with the SmartLoader.
- 6 -
a) Wireless method
Set the SmartLoader to “Wireless” mode using the side switch.
Turn on the TV, and while holding the SmartLoader, point it in the direction of the
TV. Press the “MENU” Key on the SmartLoader. b) Wired method
Connect the SmartLoader to the TV using the appropriate accessory cable.
Set the SmartLoader to “Wired” mode using the side switch.
Turn on the TV, and while holding the SmartLoader, point it in the direction of the
TV. Press the “MENU” Key on the SmartLoader.
On the TV screen, highlight the menu option “SMARTLOADER TO TV”
Press the right arrow key on the SmartLoader to initiate the copying process
> A number display (from 0~100) will be shown on screen, indicating the percentage of the installation progress from the SmartLoader to the TV. When the data transfer is completed, “##” will show “100” and the message GOODBYE will appear.
SMARTLOADER TO TV ## (0-100)
> The TV will go to Standby mode. When the TV is next powered on, it will be configured with the settings from the Master TV, and ready for use.
Problems and Solutions:
1. The message “I2C ERROR” is displayed on the screen.
Bad connection of RJ11 wire or wrong data transmission has occurred. Try again.
2. The message “WRONG VERSION” is displayed on the screen.
The program contained in the SmartLoader has a software code incompatible with the actual TV.
Reprogram the Wireless SmartLoader from a Master TV whose software code is compatible with the actual TV.
3. TV doesn’t respond to the SmartLoader.
Check if the LED on the SmartLoader lights up in green when pressing any button.
If the LED is red, it means that the batteries are low and should be replaced.
Bring the SmartLoader closer to the TV infrared receiver and try again.
Notes:
Make sure that the 3 R6/AA sized batteries are placed correctly in the bottom compartment of the
SmartLoader. The LED on the SmartLoader should light up in green when pressing any button, indicating operational batteries. When the LED shows red, the batteries need to be replaced.
The SmartLoader can only copy the settings between 2 TVs of the same type. Once the
SmartLoader is programmed with the settings from a Master TV of a certain type or model, then these settings can be installed on another TV of the same model only.
The SmartLoader cannot be used to copy the (digital) channel table of a Digital TV set.
If the SmartLoader is used with a DVB (European Digital) TV set, then the TV set must first be switched to Analog mode.
- 7 -
Disposal of your old product.
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European
Directive 22002/96/EC. Please find out more about the separate collection system for electrical and electronic products in your local neighborhood.
Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.
The packaging of this product is intended to be recycled. Apply to the local authorities for correct disposal.
2007 © Koninklijke Philips Electronics N.V. all rights reserved
Specifications are subject to change without notice
Trademarks are property of Koninklijke Philips Electronics N.V. or their respective owners.
- 8 -
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
