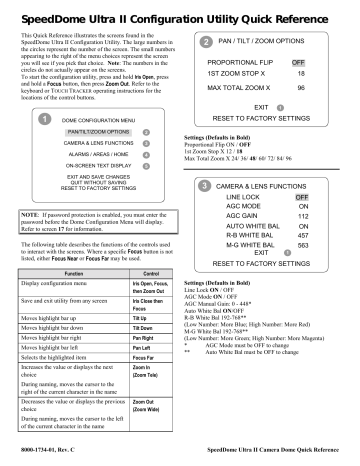

SpeedDome Ultra II Configuration Utility Quick Reference

This Quick Reference illustrates the screens found in the

SpeedDome Ultra II Configuration Utility. The large numbers in the circles represent the number of the screen. The small numbers appearing to the right of the menu choices represent the screen you will see if you pick that choice. Note : The numbers in the circles do not actually appear on the screens.

To start the configuration utility, press and hold

Iris Open

, press and hold a Focus button, then press Zoom Out . Refer to the keyboard or T OUCH T RACKER operating instructions for the locations of the control buttons.

2 PAN / TILT / ZOOM OPTIONS

PROPORTIONAL FLIP

1ST ZOOM STOP X

MAX TOTAL ZOOM X

OFF

18

96

1

EXIT

1

RESET TO FACTORY SETTINGS

DOME CONFIGURATION MENU

PAN/TILT/ZOOM OPTIONS

CAMERA & LENS FUNCTIONS

ALARMS / AREAS / HOME

ON-SCREEN TEXT DISPLAY

EXIT AND SAVE CHANGES

QUIT WITHOUT SAVING

RESET TO FACTORY SETTINGS

4

5

2

3

NOTE : If password protection is enabled, you must enter the password before the Dome Configuration Menu will display.

Refer to screen 17 for information.

The following table describes the functions of the controls used to interact with the screens. Where a specific

Focus

button is not listed, either Focus Near or Focus Far may be used.

Settings (Defaults in Bold)

Proportional Flip ON / OFF

1st Zoom Stop X 12 / 18

Max Total Zoom X 24/ 36/ 48 / 60/ 72/ 84/ 96

3

CAMERA & LENS FUNCTIONS

LINE LOCK

AGC MODE

AGC GAIN

AUTO WHITE BAL

R-B WHITE BAL

M-G WHITE BAL

EXIT 1

OFF

ON

112

ON

457

563

RESET TO FACTORY SETTINGS

Function

Display configuration menu

Save and exit utility from any screen

Moves highlight bar up

Moves highlight bar down

Moves highlight bar right

Moves highlight bar left

Selects the highlighted item

Increases the value or displays the next choice

During naming, moves the cursor to the right of the current character in the name

Decreases the value or displays the previous choice

During naming, moves the cursor to the left of the current character in the name

Control

Iris Open, Focus, then Zoom Out

Iris Close then

Focus

Tilt Up

Tilt Down

Pan Right

Pan Left

Focus Far

Zoom In

(Zoom Tele)

Zoom Out

(Zoom Wide)

Settings (Defaults in Bold)

Line Lock ON / OFF

AGC Mode ON / OFF

AGC Manual Gain: 0 - 448*

Auto White Bal ON /OFF

R-B White Bal 192-768**

(Low Number: More Blue; High Number: More Red)

M-G White Bal 192-768**

(Low Number: More Green; High Number: More Magenta)

*

**

AGC Mode must be OFF to change

Auto White Bal must be OFF to change

8000-1734-01, Rev. C SpeedDome Ultra II Camera Dome Quick Reference

4 ALARMS / AREAS / HOME

SET ALARM ACTIONS

CONFIGURE NORMAL STATES

CONFIGURE HOME POSITION

PROGRAM AREA BOUNDARIES

PROGRAM PRESETS

6

7

8

9

10

EXIT

1

Select an item, then press Focus Far to make the changes.

5 ON-SCREEN TEXT DISPLAY

STATUS DISPLAY OFF

DISABLE ALL NAMES?

NO

NAME CONFIGURATION MENU

TEXT ATTRIBUTE OPTIONS

SET PASSWORD

PASSWORD PROTECTION OFF

12

15

16

EXIT 1

Settings (Defaults in Bold)

Status Display ON / OFF

Disable All Names? YES / NO

Password Protection ON / OFF

6 SET ALARM ACTIONS

INTERNAL ALARMS

INPUT NO.

1

ACTION

NO ACTION

PRESET 4 2

3 PATTERN 3

4 NO ACTION

SEND INPUTS TO HOST YES

EXIT 4

Settings (Defaults in Bold)

Input 1 - 4 Actions NO ACTION / PRESET / PATTERN

Send Inputs to Host? YES / NO

Preset Number 1-4; Pattern Number 1-3

2

7 CONFIGURE NORMAL STATES

INPUT NO.

1

2

3

4

NORMAL STATE

OPEN

OPEN

CLOSED

OPEN

EXIT

4

Settings (Defaults in Bold)

Input 1 - 4 Normal State OPEN / CLOSED

8

CONFIGURE HOME POSITION

HOME POSITION

RETURN TIME (MINS)

PRESET 1

10

If Preset is selected and no preset exists, you will see

11

EXIT 4

Settings (Defaults in Bold)

Return to Home Position NO ACTION / PRESET / PATTERN

Return Time (Mins) 1 - 60 (Default is 10 minutes)

9

PROGRAM AREA BOUNDARIES

PAN to start of BOUND

PAN RIGHT ONLY

3

Press Focus

Far twice to return to

4

ZOOM to mark BOUNDARY

FOCUS saves and exits

•

Up to 16 areas can be programmed.

•

Press Zoom In or Zoom Out to set area boundary

•

Press Focus Far when finished setting areas

Quick Reference

10

EXIT

4

FOCUS FAR to program preset

•

Use Zoom In or Zoom Out choose the correct preset number.

•

Press Focus Far to perform preset programming.

11

SELECT PRESET TO PROGRAM

PRESET

NUMBER

1

PRESET NAME

PRESET 1

PROGRAM PRESET

PRESET 1

12

NAME CONFIGURATION MENU

CAMERA NAME

AREA NAME

PRESET NAME

PATTERN NAME

ALARM NAME

OFF

OFF

OFF

OFF

ON

EXIT 5

FOCUS FAR to program name

14

13

•

Use Zoom In or Zoom Out to change setting for highlighted item.

•

Press Focus Far to perform name programming for highlighted item. In this example, Camera Naming would be started.

Settings (Defaults in Bold)

Camera Name ON / OFF

Area Name ON / OFF

Preset Name ON / OFF

Pattern Name ON / OFF

Alarm Name ON / OFF

Position camera with PAN,

TILT, ZOOM, and IRIS

FOCUS FAR to save and exit

EXIT 10 or 4

This screen appears under two circumstances:

•

By selecting a preset number and pressing Focus Far on the

Select Preset To Program screen (see screen 10 ).

•

By selecting a preset that has not been programmed as the

Home Position (see screen 8 ).

Use Pan , Tilt , Zoom , and Iris controls to set the view for the preset. Press Focus Far when finished.

13

SELECT NAME TO PROGRAM

PATTERN

NUMBER

1

CURRENT NAME

PATTERN 1 14

EXIT 12

FOCUS FAR to program name

Example Select Name to Program Screen (for Patterns)

•

Use Zoom In or Zoom Out choose the correct area, preset, pattern or alarm number.

•

Dome moves to start of specified area, preset, or pattern (if programmed)

•

Press Focus Far to display Name Programming Screen

Available Settings:

Area Number 1-16

Preset Number 1-4

Pattern Number 1-3

Alarm Number: 1-4

8000-1734-01, Rev. C 3

EXIT 5

Settings (Defaults in Bold)

Character Outline ON / OFF

Dim Video Background ON / OFF

4

14

NAME PROGRAMMING

PATTERN 1

NAME: PATTERN 1. . . . . . . . . .

Blank Space

A B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

0 1 2 3 4 5 6 7 8 9 ' *

+ - . / : = ?

EXIT

12 or 13

UNDO CHANGES AND EXIT

12 or 13

PAN / TILT

↔

TABLE; ZOOM

↔

NAME

FOCUS FAR ACCEPTS CHARACTER

Example Name Programming Screen (for Patterns)

•

Names can have up to 19 characters

•

Use Zoom In to move cursor one space to right in Name

•

Use Zoom Out to move cursor one space to left in Name

•

Use Pan and Tilt to move highlight around character field

•

Press Focus Far to accept highlighted character

•

The SPACE character is located below the N

15 TEXT ATTRIBUTE OPTIONS

CHARACTER OUTLINE OFF

DIM VIDEO BACKGROUND OFF

16

SET PASSWORD

PASSWORD: * *

A B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

0 1 2 3 4 5 6 7 8 9 ' *

+ - . / : = ?

Blank

Space

CONTINUE

CANCEL

16 or 5

5

PAN / TILT

↔

TABLE; ZOOM

↔

NAME

FOCUS FAR ACCEPTS CHARACTER

•

Passwords can be from 1 to 8 characters.

•

Asterisks appear when characters are selected.

•

Use Zoom In to move cursor one space to right in Password

•

Use Zoom Out to move cursor one space to left in

Password

•

Use Pan and Tilt to move highlight around character field

•

Press Focus Far to accept highlighted character

•

The SPACE character is located below the N character

•

To accept password, move highlight to Continue , then press

Focus Far . Re-enter for Verification appears on screen.

•

To cancel password programming, move highlight to

Cancel , then press Focus Far .

•

To set or change password, the same password must be entered twice. After 2nd successful entry, screen 5 appears

•

Password Protection must be set to ON for password to be activated. See screen 5 .

17

ENTER PASSWORD

PASSWORD: * *

A B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

0 1 2 3 4 5 6 7 8 9 ' *

+ - . / : = ?

Blank

Space

CONTINUE

CANCEL

1 or 17

PAN / TILT

↔

TABLE; ZOOM

↔

NAME

FOCUS FAR ACCEPTS CHARACTER

•

Asterisks appear when characters are selected.

•

Use Zoom In to move cursor one space to right in Password

•

Use Zoom Out to move cursor one space to left in Password

•

Use Pan and Tilt to move highlight around character field

•

Press Focus Far to accept highlighted character

•

The SPACE character is located below the N character

•

To accept password, move highlight to Continue , then press Focus

Far . If password is correct, screen 1 appears. Otherwise, Enter

Password screen remains.

•

To cancel, move highlight to Cancel , then press Focus Far .
