Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

AUSTRALIA

NEW ZEALAND

CHINA

HONG KONG

Customer Care Centre

1300 362 603

0800 SAMSUNG (0800 726 786)

400-810-5858

010-6475 1880

(852) 3698-4698

Web Site www.samsung.com

www.samsung.com

www.samsung.com

INDIA www.samsung.com/hk www.samsung.com/hk_en/ www.samsung.com

INDONESIA

JAPAN

MALAYSIA

PHILIPPINES

SINGAPORE

THAILAND

TAIWAN

VIETNAM

3030 8282

1800 110011

1800 3000 8282

1800 266 8282

0800-112-8888

021-5699-7777

0120-327-527

1800-88-9999

1-800-10-SAMSUNG(726-7864)

1-800-3-SAMSUNG(726-7864)

1-800-8-SAMSUNG(726-7864)

02-5805777

1800-SAMSUNG(726-7864)

1800-29-3232

02-689-3232

0800-329-999

1 800 588 889 www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com

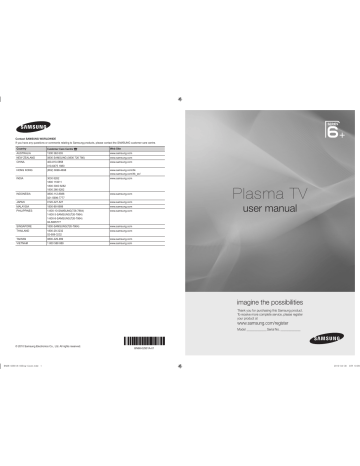

Plasma TV user manual

© 2010 Samsung Electronics Co., Ltd. All rights reserved.

BN68-02901A-00Eng-Cover.indd 1

BN68-02901A-01

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at www.samsung.com/register

Model _____________ Serial No. _____________

2010-04-30 오전 10:09:33

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and specifications may be changed without notice.

User Instructions

• Screen Image retention

Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

• Heat on the top of the Plasma TV

The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.

• The product is making a “cracking” noise.

A “cracking” noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.

• Cell Defects

The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

• Avoid operating the TV at temperatures below 41°F (5°C)

• A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen.

Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the “brightness” and “contrast” when displaying still images for a long time.

• Warranty

Warranty does not cover any damage caused by image retention.

Burn-in is not covered by the warranty.

Securing the Installation Space

Keep the required distance between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

✎ When using a stand or wall-mount, use parts provided by Samsung Electronics only.

x

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

✎ The appearance may differ depending on the product.

Installation with a stand.

Installation with a wall-mount.

10 cm 10 cm

10 cm 10 cm

10 cm 10 cm

10 cm

2

English

[PC6500]BN68-02901A-00Eng.indb 2 2010-04-30 오전 9:30:52

Contents

Getting Started

4

Connections

8

Basic Features

10

4 Accessories

5 Viewing the Control Panel

6 Viewing the Remote Control

7 Connecting to an Antenna

7 Plug & Play (Initial Setup)

8 Connecting to an AV Device

9 Connecting to an Audio Device

10 Changing the Input Source

Advanced Features

21

Other Information

45

10 How to Navigate Menu

11 Channel Menu

13 Picture Menu

16 Sound Menu

17 Setup Menu

19 Support Menu

21 Connecting to a PC

22 Network Connection

29 Media Play

36 Anynet+

39 Internet@TV

43 AllShare

45 Analogue Channel Teletext Feature

46 Installing the Wall Mount

47 Assembling the Cables

47 Securing the TV to the wall

48 Troubleshooting

50 Specifications

52 Index

TOOLS t

This function can be used by pressing the

TOOLS button on the remote control.

Check the Symbol!

Note

Indicates additional information.

One -Touch Button

Check here for instructions on how to open the relevant submenu within the OSD (on screen display).

English

3

[PC6500]BN68-02901A-00Eng.indb 3 2010-04-30 오전 9:30:53

Getting Started

Accessories

✎

Please make sure the following items are included with your PDP TV. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

y Remote Control & Batteries (AAA x 2) y Owner’s Instructions y Warranty Card / Safety Guide (Not available in some locations) y Cleaning Cloth

M4 x L10 y Blanking Bracket & Screw y Component Adapter y AV Adapter y Component Sound in Adapter y Holder-Wire (3EA) y Holder-Wire stand y Ferrite Core (1EA) y Ferrite Core (2EA)

(depending on the country) y Ferrite Core (2EA)

(depending on the country) y Cable Tie

✎

Ferrite Core: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

Distance between the ferrite core and one end of the cord put into the TV set.

y A : below 50 mm y B : below 20 mm

A

B

Component Cable (1EA) (depending on the country)

✎

For best cable connection to this product, be sure to use cables with a maximum thickness as below: y Maximum thickness - 0.55 inches (14mm)

4

English

[PC6500]BN68-02901A-00Eng.indb 4 2010-04-30 오전 9:30:54

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

Power Indicator

Speakers Remote control sensor

Remote control sensor

SOURCE E

MENU y z

Power Indicator

P (Power)

Aim the remote control towards this spot on the TV.

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER E button on the remote control.

Displays an on-screen menu, the OSD (on screen display) of your TV’s features.

Adjusts the volume. In the OSD, use the y buttons as you would use the ◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the z buttons as you would use the

▼ and ▲ buttons on the remote control.

Blinks and turns off when the power is on and lights up in standby mode.

Turns the TV on or off.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on holiday, for example). A small amount of electric power is still consumed even when switch is turned off. It is best to unplug the power cord.

[PC6500]BN68-02901A-00Eng.indb 5

English

5

2010-04-30 오전 9:30:55

Getting Started

Viewing the Remote Control

✎

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and

Volume buttons.

POWER ON/OFF

Turns the TV on and off.

Displays and selects the available video sources (p. 10).

SOURCE

Turns the remote control light on and off. When on, the buttons become illuminated for a moment when pressed.

(Using the remote control with this button set to ON will reduce the battery usage time.)

Have direct access to channels.

Alternately select Teletext ON, Double,

Mix or OFF.

Adjusts the volume.

Opens the OSD.

Displays the Content View , which includes Channel Manager , Internet@

TV , Media Play and AllShare .

Quickly select frequently used functions.

Selects the on-screen menu items and changes the values seen on the menu.

Returns to the previous menu.

These buttons are for the Channel

Manager , Internet@TV , Media Play menu, etc.

Use these buttons in Media Play and Anynet+ (HDMI-CEC) modes

(p. 29, 36).

( � : Controls recording for

Samsung recorders that have the

Anynet+ feature)

TTX/MIX PRE-CH

CONTENT

TOOLS

CH LIST

MENU @ TV

INTERNET

INFO

RETURN EXIT

A B C D

MEDIA.P

HDMI DUAL

P.MODE

P.SIZE

S.MODE

Returns to the previous channel.

To mute all TV output sound.

Changes channels.

Displays channel lists on the screen

(p. 12).

Links to various internet services (p. 39).

Displays information on the TV screen.

Exits the menu.

MEDIA.P

: Displays Media Play (p. 29).

HDMI : Selects the HDMI mode directly.

DUAL f g : Sound effect selection (p. 17).

P.MODE

: Press to select the picture mode (p. 13).

P.SIZE

: Selects the picture size (p. 14).

S.MODE

: Press to select the sound mode (p. 16).

Installing batteries (Battery size: AAA)

✎

NOTE x Use the remote control within 23 feet from the TV.

x Bright light may affect the performance of the remote control. Avoid using nearby special fluorescent light or neon signs.

x The colour and shape may vary depending on the model.

6

English

[PC6500]BN68-02901A-00Eng.indb 6 2010-04-30 오전 9:30:55

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the power cord and antenna.

VHF/UHF Antenna

Cable

ANT OUT or

Power Input

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the

POWER P button. Plug & Play is available only when the Input source is set to TV.

✎

To return to the previous step, press the Red button.

1 Selecting a language Press the ▲ or ▼ button, then press the ENTER E button.

Select the desired OSD (On Screen Display) language.

2 Selecting Store Demo or Home Use

Press the ◄ or ► button, then press the ENTER E button.

y Select the Home Use mode. Store Demo Mode is for retail environments.

POWER P y To return the unit’s settings from Store Demo to Home Use

(standard): Press the volume button on the TV. When you see the volume OSD, press and hold MENU for 5 sec.

3 Selecting an area Press the ENTER E button. Select the appropriate area by pressing the

Press the ENTER E button to confirm your choice.

▲ or ▼ button.

4 Selecting a channel The channel search will start and end automatically.

✎

Press the ENTER E button at any time to interrupt the memorisation process.

✎

After all the available channels are stored, the message Set current date and time is displayed.

5 Setting the Clock Press the ENTER E button.

Select the Day , Month , Year , Hour , or Minute by pressing the ◄ or ► button.

Set the Day , Month , Year , Hour , or Minute by pressing the ▲ or ▼ button.

✎

You can also set the Day , Month buttons on the remote control.

, Year , Hour and Minute by pressing the number

6 Viewing the HD

Connection Guide .

The connection method for the best HD screen quality is displayed.

7 Enjoy your TV.

Press the ENTER E button.

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to change the PIN number, use the Change PIN function.

English

7

[PC6500]BN68-02901A-00Eng.indb 7 2010-04-30 오전 9:30:56

Connections

Connecting to an AV Device

Using an HDMI or HDMI/DVI cable: HD connection (up to 1080p)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, STB satellite receiver

HDMI OUT

DVD / Blu-ray player

DVI OUT

R

Red

W

White

AUDIO OUT

R-AUDIO-L

DVD / Blu-ray player

✎

HDMI IN 1(DVI), 2, 3, 4, PC/DVI AUDIO IN x When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. For the DVI cable connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the PC/DVI

AUDIO IN jacks for audio. x If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound / annoying flicker / abnormal colour).

x If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and request an upgrade.

x It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a connection error may occur.

Using a Component (up to 1080p) or Audio/Video (480i only) Cable

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

DVD / Blu-ray player

COMPONENT OUT AUDIO OUT

P

B

Y

R-AUDIO-L

R B G R W

VCR

AUDIO OUT VIDEO OUT

R-AUDIO-L

R W

Y

R

Red

W

Y

White Yellow

R

Red

B

Blue

G

Green

R

Red

W

White

✎

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

8

English

[PC6500]BN68-02901A-00Eng.indb 8 2010-04-30 오전 9:30:58

Connecting to an Audio Device

Using an Optical (Digital) or Audio (Analogue) Cable Connection

Available devices: digital audio system, amplifier, DVD home theatre

OPTICAL digital audio system

✎

DIGITAL AUDIO OUT (OPTICAL) x When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system. x 5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

x When the receiver (amplifier or DVD home theatre) is set to on, you can hear sound output from the TV’s optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the amplifier or DVD home theatre. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB

(Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the amplifier or DVD home theatre. If you want to hear 5.1 CH audio, connect the digital audio out jack from your

DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

✎

Headphones H : You can connect your headphones to the headphones output on your set. While the headphones are connected, the sound from the built-in speakers will be disabled.

x Sound function may be restricted when connecting headphones to the TV.

x Headphone volume and TV volume are adjusted separately.

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA

[PC6500]BN68-02901A-00Eng.indb 9

English

9

2010-04-30 오전 9:31:00

Connections

Changing the Input Source

Source List

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box /

STB satellite receiver.

■ TV / PC / AV / Component / HDMI1/DVI /

HDMI2 / HDMI3 / HDMI4 / USB

✎

In the Source List will be highlighted.

, connected inputs

✎

PC always stay activated.

SOURCE

Edit Name

■ VCR / DVD / Cable STB / Satellite STB / PVR STB /

AV Receiver / Game / Camcorder / PC / DVI PC / DVI

Devices / TV / IPTV / Blu-ray / HD DVD / DMA : Name the device connected to the input jacks to make your input source selection easier.

✎

When a PC with a resolution of 1920 x 1080 @

60Hz is connected to the HDMI IN 1(DVI) port, you should set to DVI PC mode under Edit Name .

✎

When connecting an HDMI/DVI cable to the HDMI

IN 1(DVI) port, you should set to DVI PC or DVI

Devices mode under Edit Name .

PRE-CH

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

CONTENT

TOOLS

MENU @ TV

INTERNET

INFO

3

1

2

RETURN EXIT

4

A B C D

1 ENTER E

HDMI DUAL

2 select an item. Confirm the setting.

RETURN button: Returns to the previous menu.

3 MENU button: Displays the main on-screen menu.

4 EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

1

MENU m The main menu options appear on the screen:

Picture, Sound, Channel, Setup,

Input, Application, Support .

2 ▲ / ▼ Select an icon with the button.

▲ or ▼

3 ENTER E Press ENTER sub-menu.

E to access the

4 ▲ / ▼ Select the desired submenu with the ▲ or ▼ button.

5 ◄ / ► Adjust the value of an item with the

◄ or ► button. The adjustment in the OSD may differ depending on the selected menu.

6 ENTER E Press ENTER configuration.

E to complete the

7 EXIT e Press EXIT .

10

English

[PC6500]BN68-02901A-00Eng.indb 10 2010-04-30 오전 9:31:00

Channel Menu

¦

Using Favourite Channels

¦

Seeing Channels

Channel Manager

Delete or set favourite channels. Select a channel in the

Channels , My Channels or Scheduled screen.

1

2

C --

* C --

All

3 C --

4

5

6

7

8

9

Lock C --

Sort C --

C --

\ C --

▼

Zoom Select k Page T Tools

■

■

Channels : Shows the channel list according to channel type.

*

My Channels : Shows the group of the channel.

■ Scheduled : Shows all the currently reserved programmes.

✎

Using the colour buttons with the Channel Manager x Green ( Zoom ): Enlarges or shrinks a channel number.

x Yellow ( Select ): Selects multiple channel lists.

Select desired channels and press the Yellow button to set all the selected channels at the same time. The c mark appears to the left of the selected channels.

x k ( Page ): Move to next or previous page.

x T ( Tools ): Displays the Channel Manager option menu. (The options menus may differ depending on the situation.)

Channel Status Display Icons

Icons c

*

\

)

Operations

A channel selected.

A channel set as a Favourite.

A locked channel.

A reserved programme.

*

My Channels

(In Channel Manager )

Shows all favourite channels.

■ Edit My Channels : You can set the selected channels to desired my channels group.

✎

The “ * ” symbol will be displayed and the channel will be set as a My Channels .

1. Select a channel and press the TOOLS button.

2. Add or delete a channel in the my channel groups you want among 1, 2, 3 and 4.

x One or more groups can be selected.

3. After you have changed the settings, the channel list for each group can be viewed in My Channels .

Air or Cable channel mode

6

7

C --

* C --

My Channel 1

My Channel 2

My Channel 3

My Channel 4

8 * C --

9 C --

10 C --

12 C --

13 C --

B Zoom Select k Page T Tools

Programme mode

¦

Returning Channels

Area

You can change the area for channels.

Auto Store

Scans for a channel automatically and stores in the TV.

✎

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Child Lock function, the

PIN input window appears.

[PC6500]BN68-02901A-00Eng.indb 11

English

11

2010-04-30 오전 9:31:02

Basic Features

Manual Store

Scans for a channel manually and stores in the TV.

■ Programme, Colour System, Sound System,

Channel, Search : If there is abnormal sound or no sound, reselect the sound standard required.

✎

Channel mode x P (programme mode): When tuning is complete, the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode.

x C (aerial channel mode) / S (cable channel mode):

These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.

¦

Editing Channels

■ Timer Viewing : You can set a desired channel to be displayed automatically at the reserved time. Set the current time first to use this function.

■ Sort : This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

■ Delete : You can delete a channel to display the channels you want.

■ Select All / Deselect All : Select all the channels or deselect all the selected channels in the channel manager.

Channel Manager Option Menu

(in Channel Manager )

1. Select a channel and press the TOOLS button.

2. Edit the channel name using the Edit Channel Name menu.

■ Edit Channel Name : Assign your own channel name.

¦

Other Features

Scheduled

(in Channel Manager )

You can view, modify or delete a show you have reserved to watch.

■ Change Info : Change a show you have reserved to watch.

■ Cancel Schedules : Cancel a show you have reserved to watch.

■ Information : Display a show you have reserved to watch. (You can also change the reservation information.)

■ Select All / Deselect All : Select or deselect all reserved programmes.

Channel Manager

Channel Manager Option Menu

Set each channel using the Channels menu options ( Lock /

Unlock, Timer Viewing, Sort, Delete, Select All / Deselect

All ). Option menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

■ Lock / Unlock : Lock a channel so that the channel cannot be selected and viewed.

✎

NOTE x This function is available only when the Child Lock is set to On .

x The PIN input screen appears. Enter your 4-digit PIN, the default of which is “0-0-0-0.” Change the PIN using the Change PIN option.

Channel List

You can see all the channels searched.

CH LIST

Fine Tune

If the signal is weak or distorted, fine tune the channel manually.

✎

Fine tuned channels are marked with an asterisk “*.”

✎

To reset the fine-tuning, select Reset .

12

English

[PC6500]BN68-02901A-00Eng.indb 12 2010-04-30 오전 9:31:03

Picture Menu

¦

Changing the Preset Picture Mode

Mode

Select your preferred picture type.

■ Dynamic : Suitable for a bright room.

■ Standard : Suitable for a normal environment.

P.MODE

■ Relax : Suitable for reducing eye strain.

✎

Relax is not available in PC mode.

■ Movie : Suitable for watching movies in a dark room.

¦

Adjusting Picture Settings

Cell Light / Contrast / Brightness /

Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

✎

NOTE x In analogue TV, AV modes of the PAL system, the

Tint (G/R) function is not available. x In PC mode, you can only make changes to Cell

Light, Contrast and Brightness .

x Settings can be adjusted and stored for each external device connected to the TV.

¦

Economical Solutions

Min Cell Light : When Eco sensor is On , the minimum screen brightness can be adjusted manually.

✎

If Eco Sensor is On , the display brightness may change (become slightly darker or brighter) depending on the surrounding light intensity.

■ No-Signal Power Off (Off / 15 min / 30 min / 60 min) :

To avoid unnecessary energy consumption, set how long you want the TV to remain on if it’s not receiving a signal.

✎

Disabled when the PC is in power saving mode.

¦

Changing the Picture Options

Advanced Settings

(available in Standard / Movie mode)

You can adjust the detailed setting for the screen including colour and contrast.

✎

In PC mode, you can only make changes to Dynamic

Contrast , Gamma and White Balance .

Advanced Settings

Black Tone

Dynamic Contrast

Gamma

Expert Pattern

RGB Only Mode

Colour Space

White Balance

: Off

: Medium

: 0

: Off

: Off

: Native

▼

►

U Move E Enter R Return

Eco Solution

■ Energy Saving (Off / Low / Medium / High / Picture

Off) t : This adjust the brightness of the TV in order to reduce power consumption. If you select

Picture Off , the screen is turned off, but the sound remains on. Press any button except volume button to turn on the screen. Until the screen turns on again, a distorted picture will be displayed for about 4 seconds.

■ Eco Sensor (Off / On) : To enhance your power savings; the picture settings will automatically adapt to the light in the room.

✎

If you adjust the Cell Light , the Eco Sensor will be set to Off .

■ Black Tone (Off / Dark / Darker / Darkest) : Select the black level to adjust the screen depth.

■ Dynamic Contrast (Off / Low / Medium / High) : Adjust the screen contrast.

■ Gamma : Adjust the primary colour intensity.

■ Expert Pattern (Off / Pattern1 / Pattern2) : By running the Expert Pattern function, the picture can be calibrated without a generator or filter. If the OSD menu disappears or a menu other than the Picture menu is opened, the calibration is saved and the Expert Pattern window disappears.

✎

While the Expert Pattern is running, sound is not outputted.

[PC6500]BN68-02901A-00Eng.indb 13

English

13

2010-04-30 오전 9:31:04

Basic Features

■ RGB Only Mode (Off / Red / Green / Blue) : You can adjust Colour or Tint (G/R) of Red, Green or Blue for the picture from an external device (DVD player, home theatre, etc.).

■ Colour Space (Auto / Native / Custom) : Adjust the range of colours available to create the image. To adjust

Colour, Red, Green, Blue and Reset , set Colour

Space to Custom .

■ White Balance : Adjust the colour temperature for a more natural picture.

R-Offset / G-Offset / B-Offset : Adjust each colour’s

(red, green, blue) darkness.

R-Gain / G-Gain / B-Gain : Adjust each colour’s (red, green, blue) brightness.

Reset : Resets the White Balance to it’s default settings.

■ 10p White Balance (Off / On) : Controls the white balance in 10 point interval by adjusting the red, green, and blue brightness.

✎

Available when the picture mode is set to Movie and when the external input is set to all input.

✎

Some external devices may not support this function.

Interval : Select interval to adjust.

Red : Adjust the red level.

Green : Adjust the green level.

Blue : Adjust the blue level.

Reset : Resets the 10p White Balance to its default settings.

■ Flesh Tone : Emphasize pink “Flesh Tone.”

■ Edge Enhancement (Off / On) : Emphasize object boundaries.

■ xvYCC (Off / On) : Setting the xvYCC mode on increases detail and colour space when watching movies from an external device (e.g. DVD player) connected to the HDMI or Component IN jacks.

✎

Available when the picture mode is set to Movie and when the external input is set to HDMI or

Component.

✎

Some external devices may not support this function.

Picture Options

✎

In PC mode, you can only make changes to the

Tone, Size and Screen Burn Protection .

Colour

Colour Tone

Size

Digital Noise Filter

MPEG Noise Filter

HDMI Black Level

Film Mode

Screen Burn Protection

Picture Options

: Normal

: 16:9

: Auto

: Auto

: Normal

: Off

►

U Move E Enter R Return

■ Colour Tone (Cool / Normal / Warm1 / Warm2)

✎

Warm1 or Warm2 will be deactivated when the picture mode is Dynamic .

✎

Settings can be adjusted and stored for each external device connected to an input on the TV.

■ Size : Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

P.SIZE

16:9 : Adjusts the picture size to 16:9 for DVDs or wide broadcasting.

Wide Zoom : Magnifies the picture size more than 4:3.

✎

Adjusts the Position by using ▲ , ▼ buttons.

Zoom : Magnifies the 16:9 wide pictures vertically to fit the screen size.

✎

Adjusts the Position or Size by using ▲ , ▼ button.

4:3 : The default setting for a movie or normal broadcasting.

✎

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and centre of the screen may cause image retention(screen burn) which are not covered by the warranty.

Screen Fit : Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component

(1080i / 1080p) signals are inputted.

14

English

[PC6500]BN68-02901A-00Eng.indb 14 2010-04-30 오전 9:31:05

✎

NOTE x Depending on the input source, the picture size options may vary.

x The available items may differ depending on the selected mode. x In PC mode, only 16:9 and 4:3 modes can be adjusted.

x Settings can be adjusted and stored for each external device connected to an input on the TV.

x After selecting Screen Fit in HDMI (1080i / 1080p) or Component (1080i / 1080p) mode: Adjusts the

Position or Size by using ▲ , ▼ , ◄ , ► button. x If you use the Screen Fit function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

■ Digital Noise Filter (Off / Low / Medium / High / Auto

/ Auto Visualisation / Demo) : When the broadcast signal is weak, some static and ghosting may appear.

Select one of the options until the best picture is displayed.

Auto Visualisation : When changing analogue channels, displays the intensity of the current signal and defines the screen noise filter.

■ MPEG Noise Filter (Off / Low / Medium / High /

Auto) : Reduces MPEG noise to provide improved picture quality.

■ HDMI Black Level (Normal / Low) : Selects the black level on the screen to adjust the screen depth.

✎

Available only in HDMI mode (RGB signals).

■ Film Mode (Off / Auto1 / Auto2) : Sets the TV to automatically sense and process film signals from all sources and adjust the picture for optimum quality.

✎

Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

■ Screen Burn Protection : To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. The Time setting allows you to programme the time between movement of the picture in minutes.

Pixel Shift (Off / On) : Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen.

✎

Optimum condition for pixel shift

Horizontal

Vertical

Time (minute)

Item

0~4

0~4

1~4 min

TV/AV/Component/

HDMI/PC

4

4

4 min

✎

The Pixel Shift value may differ depending on the monitor size (inches) and mode.

✎

This function is not available in the Screen Fit mode.

Auto Protection Time (10 min / 20 min / 40 min /

1 hour / Off) : If the screen remains idle with a still image for a certain period of time defined by the user, the screen saver is activated to prevent the formation of ghost images on the screen.

Scrolling : This function removes after-images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after images or symbols on the screen, especially when you displayed a still image on the screen for a long time.

✎

The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after-images on the screen.

If the after-image is not removed after performing the function, repeat the function again.

✎

Press any key on the remote control to cancel this feature.

Side Grey (Light / Dark) : When you watch TV with the screen ratio set to 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides.

[PC6500]BN68-02901A-00Eng.indb 15

English

15

2010-04-30 오전 9:31:05

Basic Features

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

¦

Setting up the TV with Your PC

Set the input source to PC.

Auto Adjustment

t

Adjust frequency values/positions and fine tune the settings automatically.

✎

Not available when connecting with an HDMI/DVI cable.

Screen

■ Coarse / Fine : Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible ( Coarse ) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the centre of screen.

■ Position : Adjust the PC screen position with direction button ( ▲ / ▼ / ◄ / ► ).

■ Image Reset : Resets the image to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP)

Depending on the version of Windows and the video card, the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied.

(If not, contact your computer manufacturer or Samsung

Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

y The correct size setting (resolution) [Optimum: 1920 X

1080 pixels] y If a vertical-frequency option exists on your display settings dialog box, the correct value is “60” or “60 Hz”.

Otherwise, just click “OK” and exit the dialog box.

Sound Menu

¦

Changing the Preset Sound Mode

SRS TheaterSound

t

■ Standard : Selects the normal sound mode.

■ Music : Emphasizes music over voices.

■ Movie : Provides the best sound for movies.

■ Clear Voice : Emphasizes voices over other sounds.

S.MODE

■ Amplify : Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired.

¦

Adjusting Sound Settings

Equalizer

Adjusts the sound mode (standard sound mode only).

■ Balance L/R : Adjusts the balance between the right and left speaker.

■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth

Adjustment): Adjusts the level of specific bandwidth frequencies.

■ Reset : Resets the equalizer to its default settings.

¦

Sound Systems, Etc.

SRS TruSurround HD (Off / On)

t

(standard sound mode only)

This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF (Head

Related Transfer Function) technology.

SRS TruDialog (Off / On)

(standard sound mode only)

This function allows you to increase the intensity of a voice over background music or sound effects so that dialog can be heard more clearly.

16

English

[PC6500]BN68-02901A-00Eng.indb 16 2010-04-30 오전 9:31:06

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal .

■ Night : This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

¦

Selecting the Sound Mode

When you set to Dual f g , the current sound mode is displayed on the screen.

DUAL

Speaker Select (External Speaker / TV

Speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker .

✎

When Speaker Select is set to External Speaker , the volume and MUTE buttons will not operate and the sound settings will be limited.

✎

When Speaker Select is set to External Speaker .

✎ x TV Speaker : Off , External Speaker : On

When Speaker Select is set to TV Speaker .

✎ x TV Speaker : On , External Speaker : On

If there is no video signal, both speakers will be mute.

SPDIF Output

SPDIF (Sony Philips Digital InterFace) is used to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player.

■ Audio Format : During the reception of a digital TV broadcast, you can select the Digital Audio output

(SPDIF) format from the options PCM or Dolby Digital .

■ Audio Delay : Correct audio-video sync problems, when watching TV or video, and when listening to digital audio output using an external device such as an AV receiver

(0ms ~ 250ms).

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

A2

Stereo

NICAM

Stereo

Audio

Type

Mono

Stereo

Dual

Mono

Stereo

Dual

Dual f g

Mono

Stereo  Mono

Dual f  Dual g

Mono

Mono  Stereo

Mono  Dual f

 Dual g 

Default

Automatic change

Dual f

Automatic change

Dual f

✎

If the stereo signal is weak and an automatic switching occurs, then switch to the mono.

✎

Only activated in stereo sound signal.

✎

Only available when the Input source is set to TV .

Setup Menu

¦

Setting the Time

Time

■ Clock : Setting the clock is for using various timer features of the TV.

O

The current time will appear every time you press the INFO button.

✎

If you disconnect the power cord, you have to set the clock again.

✎

You can set the Day , Month , Year , Hour and

Minute directly by pressing the number buttons on the remote control.

¦

Using the Sleep Timer

■ Sleep Timer t

150 and 180 minutes).

: Automatically shuts down the

TV after a preset period of time. (Off, 30, 60, 90, 120,

✎

To cancel Sleep Timer , select Off .

[PC6500]BN68-02901A-00Eng.indb 17

English

17

2010-04-30 오전 9:31:07

Basic Features

¦

Setting the On / Off Timer

■ Timer 1 / Timer 2 / Timer 3 : Three different on / off timer settings can be made. You must set the clock first.

Timer 1

On Time

▲

Inactivate

Off Time

Inactivate

00

00

00

00

Volume

10

Repeat

Once

Source

TV

Sun Mon

Channel

1

Tue Wed Thu Fri Sat

L Move U Adjust E Enter R Return

On Time / Off Time : Set the hour, minute, and activate

/ inactivate. (To activate timer with the setting you’ve chosen, set to Activate .)

Volume : Set the desired volume level.

Source : Select TV or USB content to be played when the TV is turned on automatically. ( USB can be selected only when a USB device is connected to the TV)

Channel (when the Source is set to TV ): Select the desired channel.

Contents (when the Source is set to USB ): Select a folder in the USB device containing music or photo files to be played when the TV is turned on automatically.

✎

NOTE x If there is no music file on the USB device or the folder containing a music file is not selected, the

Timer function does not operate correctly.

x When there is only one photo file in the USB device, the Slide Show will not play.

x If a folder name is too long, the folder cannot be selected. x Each USB you use is assigned its own folder.

When using more than one of the same type of

USB, make sure the folders assigned to each

USB have different names.

✎

Repeat : Select Once , Everyday , Mon~Fri , Mon~Sat ,

Sat~Sun or Manual to set at you convenience. If you select Manual , you can set up the day you want to activate the timer.

✎

The c mark indicates the day is selected.

Auto Power Off (available only when the TV is turned on by Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

¦

Locking Programmes

Security

✎

The PIN input screen appears before the setup screen.

✎

Enter your 4-digit PIN, the default of which is “0-0-0-0.”

Change the PIN using the Change PIN option.

■ Child Lock (Off / On) : Lock channels in Channel

Manager , to prevent unauthorized users, such as children, from watching unsuitable programme.

✎

Available only when the Input source is set to TV .

■ Change PIN : Change your personal ID number required to set up the TV.

✎

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to “0-0-0-0”: POWER (off) →

MUTE → 8 → 2 → 4 → POWER (on).

¦

Other Features

Menu Language

Set the menu language.

Network (Network Type / Network Setup

/ Network Test / SWL(Samsung Wireless

Link) / Connect SWL)

For details on setting up options, refer to the “Network

Connection” instructions (p. 22).

General

■ Game Mode (Off / On) : When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

✎

NOTE x Precautions and limitations for game mode

– To disconnect the game console and connect another external device, set Game Mode to Off in the setup menu.

– If you display the TV menu in Game Mode , the screen shakes slightly.

18

English

[PC6500]BN68-02901A-00Eng.indb 18 2010-04-30 오전 9:31:07

x Game Mode is not available when the input source is set to TV or PC. x After connecting the game console, set Game Mode to On . Unfortunately, you may notice reduced picture quality.

x If Game Mode is On :

– Picture mode is set to Standard and Sound mode is set to Movie .

– Equalizer is not available.

■ BD Wise (Off / On) : Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support BD Wise . When BD Wise is turned On , the picture mode is automatically changed to the optimal resolution.

✎

Available when connecting Samsung products that support BD Wise through a HDMI cable.

■ Menu Transparency (Bright / Dark) : Set the

Transparency of the menu.

■ Melody (Off / Low / Medium / High) : Set so that a melody plays when the TV is turned on or off.

Wireless Remote Control

Turn wireless remote controls on or off or give permission to wireless remote controls.

¦

Picture In Picture (PIP)

PIP

t

You can watch the TV tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.

✎

NOTE x For PIP sound, refer to the Sound Select instructions.

x If you turn the TV off while watching in PIP mode, the

PIP window will disappear.

x You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

x While Internet@TV is in operation, the PIP function cannot be used. x PIP settings

Main picture

Component, HDMI1/DVI,

HDMI2, HDMI3, HDMI4,

PC

Sub picture

TV, AV

■ PIP (Off / On) : Activate or deactivate the PIP function.

■ Source (TV, AV) : You can select a source of the subpicture.

■ Channel : Select the channel for the sub-screen.

■ Size ( Õ / Ã ) : Select a size for the sub-picture.

■ Position ( à / – / — / œ ) : Select a position for the sub-picture.

■ Sound Select (Main / Sub) : You can choose the desired sound ( Main / Sub ) in PIP mode.

Support Menu

Self Diagnosis

✎

Self Diagnostic might take few seconds, this is part of the normal operation of the TV.

■ Picture Test (Yes / No) : Use to check for picture problems.

■ Sound Test (Yes / No) : Use the built-in melody sound to check for sound problems.

✎

If you hear no sound from the TV’s speakers, before performing the sound test, make sure

Speaker Select is set to TV Speaker in the

Sound menu.

✎

The melody will be heard during the test even if

Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

■ Troubleshooting : If the TV seems to have a problem, refer to this description.

✎

If none of these troubleshooting tips apply, contact the Samsung customer service centre.

[PC6500]BN68-02901A-00Eng.indb 19

English

19

2010-04-30 오전 9:31:08

Basic Features

Software Upgrade

Software Upgrade can be performed by network connection or downloading the latest firmware from “www.

samsung.com,” to a USB memory device.

Current Version the software already installed in the TV.

✎

Software is represented as “Year/Month/Day_Version.”

Current Version

Software Upgrade

2010/01/18_000001

By USB

By Online

Alternative Software ----/--/--_------

►

HD Connection Guide

Refer to this information when connecting external devices to the TV.

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centres, and how to download products and software.

U Move E Enter R Return

Installing the Latest Version

■ By USB : Insert a

USB drive containing the firmware upgrade file, downloaded from “www.samsung.

com,” into the TV.

Please be careful not to disconnect the power or remove

TV Rear Panel or

USB Drive the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the firmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to write down your settings so that you can easily reset them after the upgrade.

■ By Online : Upgrade the software using the Internet.

✎

First, configure your network. For detailed procedures on using the Network Setup, refer to the “Network Connection” instructions.

✎

If the internet connection doesn’t operate properly, the connection may be broken. Please retry downloading. If the problem persists, download by

USB and upgrade.

■ Alternative Software (backup): Displays the software version downloaded through By Online . During the software upgrading, When the Upgrade will discontinue from last step, this function be activated.

20

English

[PC6500]BN68-02901A-00Eng.indb 20 2010-04-30 오전 9:31:08

Advanced Features

Connecting to a PC

Using an HDMI/DVI Cable / a D-sub Cable

DVI OUT

AUDIO OUT

AUDIO OUT

PC OUT

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1920 X 1080 @ 60 Hz.

Mode Resolution

IBM

MAC

VESA CVT

VESA DMT

640 x 350

720 x 400

640 x 480

832 x 624

1152 x 870

720 x 576

1152 x 864

1280 x 720

1280 x 960

640 x 480

640 x 480

640 x 480

800 x 600

800 x 600

800 x 600

1024 x 768

1024 x 768

1024 x 768

1152 x 864

1280 x 1024

1280 x 1024

1280 x 720

1280 x 800

1280 x 800

1280 x 960

1360 x 768

1440 x 900

1440 x 900

1680 x 1050

VESA GTF

1280 x 720

1280 x 1024

VESA DMT / DTV CEA 1920 x 1080p

Horizontal Frequency

(KHz)

31.469

31.469

35.000

49.726

68.681

35.910

53.783

56.456

75.231

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

67.500

63.981

79.976

45.000

49.702

62.795

60.000

47.712

55.935

70.635

65.290

52.500

74.620

67.500

Vertical Frequency

(Hz)

70.086

70.087

66.667

74.551

75.062

59.950

59.959

74.777

74.857

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

75.000

60.020

75.025

60.000

59.810

74.934

60.000

60.015

59.887

74.984

59.954

70.000

70.000

60.000

Pixel Clock Frequency

(MHz)

25.175

28.322

30.240

57.284

100.000

32.750

81.750

95.750

130.000

25.175

31.500

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

108.000

135.000

74.250

83.500

106.500

108.000

85.500

106.500

136.750

146.250

89.040

128.943

148.500

✎

NOTE x For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. x The interlace mode is not supported. x The set might operate abnormally if a non-standard video format is selected. x Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

Sync Polarity

(H / V)

+/-

-/+

-/-

-/-

-/-

-/+

-/+

-/+

-/+

+/+

+/+

+/+

+/+

+/+

-/+

-/+

+/+

+/+

+/+

+/+

-/-

-/-

-/-

-/-

-/-

+/+

-/+

-/+

-/+

-/+

-/-

+/+

English

21

[PC6500]BN68-02901A-00Eng.indb 21 2010-04-30 오전 9:31:11

Advanced Features

Network Connection

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection.

¦

Connecting to a Wired Network

You can attach your TV to your LAN using cable in three ways: y You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat

5 cable. See the diagram below.

TV Rear Panel

The Modem Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

Modem Cable LAN Cable y You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected to an external modem. Use Cat 5 cable for the connection. See the diagram below.

TV Rear Panel

The Modem Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

IP Sharer

(having DHCP server)

Modem Cable LAN Cable LAN Cable y Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.

The LAN Port on the Wall

TV Rear Panel

LAN Cable

If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration

Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you don’t have to enter them manually. Most home networks are

Dynamic Networks.

Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your TV’s Cable Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP). If you have a Windows computer, you can also get these values through your computer.

✎

You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that support DHCP also let you use Static IP addresses.

22

English

[PC6500]BN68-02901A-00Eng.indb 22 2010-04-30 오전 9:31:14

Network Setup (Auto)

Use the Automatic Network Setup when connecting your

TV to a network that supports DHCP. To set up your TV’s cable network connection automatically, follow these steps:

How to set up automatically

1. Connect your TV to your LAN as described in the previous section.

2. Turn on your TV, press the MENU button on your remote, use the ▲ or ▼ button to select Setup , and then press the ENTER E button.

3. Use the ▲ or ▼ button to select Network in the Setup menu, and then press the ENTER E button. The

Network screen appears.

Network

Network Type

Network Setup

Network Test

SWL(Samsung Wireless Link)

SWL connect

: Wired

: Off

►

U Move E Enter R Return

4. On the Network screen, select Network Type .

5. Set Network Type to Wired .

6. Select Network Setup . The Network Setup screen appears.

Network Setup

Internet Protocol Setup

IP Address

Subnet Mask

Gateway

DNS

DNS Server

: Auto

:

:

:

►

: Auto

:

U Move E Enter R Return

7. Set Internet Protocol Setup to Auto .

8. Auto acquires and enters the needed Internet values automatically.

9. When done, press the RETURN button on your remote.

10. Select Network Test to check the Internet connectivity.

11. If the Network Function has not acquired the network connection values, go to the directions for Manual .

Network Setup (Manual)

Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address.

Getting the Network Connection Values

To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the screen.

2. In the pop-up menu that appears, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The

Network connection values are displayed.

How to set up manually

To set up your TV’s cable network connection manually, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up automatically” procedure.

2. Set Internet Protocol Setup to Manual .

3. Press the ▼ button on your remote to go to the first entry field.

4. Enter the IP Address , Subnet Mask , Gateway , and

DNS Server values. Use the number buttons on your remote to enter numbers and the arrow buttons to move from one entry field to another.

5. When done, press the RETURN button on your remote.

6. Select Network Test to check the Internet connectivity.

[PC6500]BN68-02901A-00Eng.indb 23

English

23

2010-04-30 오전 9:31:15

Advanced Features

¦

Connecting to a Wireless Network

To connect your TV to your network wirelessly, you need a wireless router or modem and a Samsung Wireless LAN Adapter

(WIS09ABGN, WIS09ABGN2, WIS10ABGN), which you connect to your TV’s back or side panel USB jack. See the illustration below.

✎ To use the SWL(Samsung Wireless Link) function, connect to the USB 1 (HDD) port.

TV Rear Panel

The LAN Port on the Wall

Wireless IP Sharer

(AP having DHCP Server) or

LAN Cable Samsung Wireless

LAN Adapter

Samsung’s Wireless LAN adapter is sold separately and is offered by selected retailers, E-commerce sites and Samsungparts.

com. Samsung’s Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung recommends using IEEE 802.11N. When you play the video over a IEEE 802.11B/G connection, the video may not play smoothly.

✎

NOTE x You must use the “Samsung Wireless LAN Adapter” (WIS09ABGN, WIS09ABGN2, WIS10ABGN) to use a wireless network. x Samsung’s Wireless LAN Adapter is sold separately. The Samsung Wireless LAN Adapter is offered by select retailers, Ecommerce sites and Samsungparts.com. x To use a wireless network, your TV must be connected to a wireless IP sharer. If the wireless IP sharer supports

DHCP, your TV can use a DHCP or static IP address to connect to the wireless network. x Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer is currently being used by another device nearby, this will result in interference and communication failure. x If you apply a security system other than the systems listed blow, it will not work with the TV. x If Pure High-throughput (Greenfield) 802.11N mode is selected and the Encryption type is set to WEP, TKIP or TKIP-

AES (WPS2Mixed) for your AP, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications. x If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button

Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode.

x If your router, modem, or device isn’t certified, it may not connect to the TV via the “Samsung Wireless LAN Adapter.” x Connection Methods : You can setup the wireless network connection six ways.

– Samsung Auto Configuration

– PBC (WPS)

– Auto Setup (Using the Auto Network Search function)

– Manual Setup

– SWL(Samsung Wireless Link)

– Ad-Hoc x The Samsung Wireless LAN Adapter may not be recognized or work properly when connecting via a USB hub or via a USB extension cable other than the one available from Samsung.

24

English

[PC6500]BN68-02901A-00Eng.indb 24 2010-04-30 오전 9:31:17

Notice

The picture may appear corrupted or have static for some channels when the TV is connected to the Samsung Wireless LAN

Adapter. In such a case, establish a connection using one of the following methods or connect the Samsung Wireless LAN

Adapter using a USB cable in a place that is not affected by radio interference.

Method 1

Connect using the USB right angle adapter

Method 2

Connect via an extension cable

✎

The Samsung Wireless LAN Adapter should be installed in an interference-free area in order to avoid interference between the adapter and tuner.

or

Network Setup (Samsung Auto

Configuration)

This function is available in APs (Access Points) that support

Samsung Auto Configuration. If your AP does not support

Auto Configuration, you can connect through PBC (WPS) , auto, or manually.

✎

This function is available when

Wireless Link) is set to Off .

SWL(Samsung

✎

You can check for equipment that supports Samsung

Auto Configuration on www.samsung.com.

How to set up using Samsung Auto Configuration

1. Place the AP and TV next to each other and turn them on.

✎

Because the booting time of applications differ, you may have to wait for approximately 2 minutes.

✎

If the LAN cable connected the WAN port of AP during Samsung Auto Configuration, you are able to complete until internet connection test. If you do not connect, Samsung Auto configuration will check only device connecting of AP (Not check internet).

2. After 2 minutes, connect the Samsung Wireless LAN

Adapter to the TV. When the Samsung Wireless LAN

Adapter is established, the pop-up window appears.

3. As soon as a connection is established, place the AP in parallel with the Samsung Wireless LAN Adapter giving a gap no larger than 25cm.

4. Wait until the connection is automatically established.

✎

If Samsung Auto Configuration does not connect your TV to your AP, a pop-up window appears on the screen notifying you of the failure. Reset the AP, and then try again. If the connection fails again, choose one of the other connection setup methods, PBC (WPS), auto, or manual.

5. After the connection is established, locate the sharer at the desired location.

✎

If the AP settings have been changed or it is the first time you use the new AP after purchase, you need to set up again beginning from Step 1.

[PC6500]BN68-02901A-00Eng.indb 25

English

25

2010-04-30 오전 9:31:18

Advanced Features

Network Setup (PBC (WPS))

How to set up using PBC (WPS)

If your router has a PBC (WPS) button, follow these steps:

1. Connect your TV to your LAN as described in the previous section.

2. Turn on your TV, press the MENU button on your remote, use the ▲ or ▼ button to select Setup , and then press the ENTER E button.

3. Use the ▲ or ▼ button to select Network in the Setup menu, and then press the ENTER E button.

4. On the Network screen, select Network Type .

5. Set Network Type to Wireless .

6. Select Network Setup . The Network Setup screen appears.

Network Setup

Select a Network

Internet Protocol Setup

IP Address

Subnet Mask

Gateway

DNS

DNS Server

: Not Selected ►

: Auto

:

:

:

: Auto

:

PBC(WPS) U Move E Enter R Return

7. Press the Red button on your remote.

8. Press the PBC (WPS) button on your router within 2 minutes. Your TV player automatically acquires all the network setting values it needs and connects to your network.

9. After the network connection is set up, press the

RETURN button to exit the Network Setup screen.

Network Setup (Auto)

Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security

Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process.

How to set up automatically

To set up the wireless connection automatically, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up using

PBC (WPS)” procedure.

2. Press the ▼ button to select Internet Protocol Setup , and then press the ENTER E button. Press the ▲ or

▼ button to select Auto , and then press the ENTER E button.

3. Press the ▲ button to go to Select a Network , and then press the ENTER E button. The Network function searches for available wireless networks. When done, it displays a list of the available networks.

4. In the list of networks, press the ▲ or ▼ button to select a network, and then press the ENTER E button.

✎

If the AP is set to Hidden (Invisible), you have to select Add Network and enter the correct

Network Name (SSID) and Security Key to establish the connection.

5. If the Security/PIN pop-up appears, go to Step 6. If the

Network Connecting Screen appears, go to Step 10.

6. Press the ▲ or ▼ button to select Security or PIN . For most home networks, you would select Security (for

Security Key ). The Security Screen appears.

Network Setup

Security Key

O

V

A

H

P

W

B

I

Q

X

C

J

R

Y

D

K

S

Z

E

L

F G

M N

T U

0 entered

0~9 Number

Lower case

Delete

Space n Move E Enter R Return

26

English

[PC6500]BN68-02901A-00Eng.indb 26 2010-04-30 오전 9:31:18

7. On the Security screen, enter your network’s Pass

Phrase.

✎

You should be able to find the Pass Phrase on one of the set up screens you used to set up your router or modem.

8. To enter the Pass Phrase, follow these general directions:

– Press the number buttons on your remote to enter numbers.

– Use the direction buttons on your remote to move from button to button on the Security Key screen.

– Press the Red button to change case or display symbols/characters.

– To a enter letter or symbol, move to the letter or symbol, and then press the ENTER E button.

– To delete the last letter or number you entered, press the Green button on your remote.

9. When done, press the Blue button on your remote. The

Network Connecting screen appears.

10. Wait until the connection confirmation message is displayed, and then press the ENTER E button. The

Network Setup screen re-appears.

11. To test the connection, press the RETURN button to select Network Test , and then press the ENTER E button.

Network Setup (Ad-Hoc)

You can connect to a mobile device without an access point through the “Samsung Wireless LAN Adapter” by using a peer to peer network.

✎

This function is available when

Wireless Link) is set to Off .

SWL(Samsung

How to connect to new Ad-hoc device

1. Follow Steps 1 through 6 in the “How to set up using

PBC (WPS)” (p. 26).

2. Choose Select a Network . A list of devices/networks appears.

3. While in the device list, press the Blue button on the remote.

✎

The message Ad-hoc is a direct Wi-Fi connection with cell phone or PC. The existing network system may have limited functionality.

Do you want to change the network connection?

is displayed.

4. Input the generated Network Name (SSID) and

Security Key into the device you want to connect.

How to connect an existing Ad-hoc device

1. Follow Steps 1 through 6 in the “How to set up using

PBC (WPS)” (p. 26).

2. Choose Select a Network . The Device/Network list appears.

3. Select the device you want in the Device list.

4. If security key is required, input the security key.

✎

If network doesn’t operate normally, check the Network Name (SSID) and Security Key again. An incorrect Security Key may cause a malfunction.

Network Setup (Manual)

If the other methods do not work, you need to enter the

Network setting values manually.

Getting the Network Connection Values

To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the screen.

2. In the pop-up menu, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support tab, click the Details button. The

Network settings are displayed.

[PC6500]BN68-02901A-00Eng.indb 27

English

27

2010-04-30 오전 9:31:19

Advanced Features

How to set up manually

To enter the Network connection values manually, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up using

PBC (WPS)” (p. 26).

2. Press the ▼ button to select Internet Protocol Setup , and then press the ENTER E button. Press the ▲ or ▼ button to select Manual , and then press the

ENTER E button.

3. Press the ▼ button to go to the first entry field (IP

Address).

4. Use the number buttons to enter numbers.

5. When done with each field, use the ► button to move successively to the next field. You can also use the other arrow buttons to move up, down, and back.

6. Enter the IP Address , Subnet Mask , and Gateway values.

7. Press the ▲ or ▼ button to go to DNS .

8. Press the ▼ button to go to the first DNS entry field.

9. When done, press the ▲ button to go to Select a

Network . Select your network, and then press the

ENTER E button.

10. Go to Step 4 in the “How to set up automatically” (p.

26), and follow the directions from that point on.

SWL(Samsung Wireless Link)

This function lets you connect a Samsung device that supports the PBC (WPS) to your TV. You can connect devices to the TV even if a sharer is not connected to the TV.

✎

To use the Internet@TV, the AP (access point) must be connected to the wireless network.

✎

If a Samsung Wireless LAN Adapter is connected to the

USB 2 port, the network may not operate normally. We recommend to connecting it to the USB 1 (HDD) port.

✎

Only sharers using the 2.4 Ghz band are supported.

Sharers using the 5 Ghz band are not supported.

SWL connect

You can directly connect a device that supports the PBC

(WPS) to the TV.

✎

This function is available when

Wireless Link) is set to On .

SWL(Samsung

How to connect Samsung Wireless Link

For the procedures to establish a connection, refer to the following:

1. Follow Steps 1 through 5 in the “How to set up using

PBC (WPS)” (p. 26).

2. Select SWL(Samsung Wireless Link) by using the ▼ button and press the ENTER E button to turn it On.

3. Select SWL connect by using the ▼ button and press the ENTER E button.

4. If the “ Press the PBC button on the PBC(WPS) supported device to connect within 120 seconds.

” message appears, press the PBC button on the device to connect.

✎

For more information, refer to the wireless network setup manual of the device to be connected.

5. If the device is connected properly to the TV after starting count on message box then message box will be disappeared automatically.

✎

If the connection fails, please retry after 2 minutes.

If Your TV Fails to Connect to the Internet

Your TV may not be able to connect to the Internet because your ISP has permanently registered the

MAC address (a unique identifying number) of your

PC or modem, which it then authenticates each time you connect to the Internet as a way of preventing unauthorized access. As your TV has a different MAC address, your ISP can not authenticate its MAC address, and your TV can not connect.

To resolve this problem, ask your ISP about the procedures required to connect devices other than a PC

(such as your TV) to the Internet.

If your Internet service provider requires an ID or password to connect to the Internet, your TV may not be able to connect to the Internet. If this is the case, you must enter your ID or password when connecting to the Internet.

The internet connection may fail because of a firewall problem. If this is the case, contact your Internet service provider.

If you cannot connect to the Internet even after you have followed the procedures of your Internet service provider, please contact Samsung Electronics at 1-800-SAMSUNG.

28

English

[PC6500]BN68-02901A-00Eng.indb 28 2010-04-30 오전 9:31:19

Media Play

MEDIA.P

Enjoy photos, music and/or movie files saved on a USB Mass Storage Class (MSC) device and/or your PC.

MediaPlay

Videos

SUM

Change Device

¦

Connecting a USB Device

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie files to the USB 1

(HDD) or USB 2 jack on the side of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select

Media Play .

TV Rear Panel

View Devices E Enter R Return or

USB Drive

¦

Connecting to the PC through network

You can play pictures, music and videos saved on your PC through a network connection in the Media Play mode.

✎

If you use Media Play through saved file on your PC, you should download “PC Share Manager” and users manual from

“www.samsung.com.”

PC TV Rear Panel

LAN or

External Modem

(ADSL/VDSL/Cable TV)

Samsung

Wireless

LAN Adapter

Wireless IP sharer

LAN Cable Modem Cable

LAN Cable LAN Cable LAN Cable

1. For more information on how to configure your network, refer to “Network Connection” (p. 22).

– You are recommended to locate both TV and PC in same subnet. The first 3 parts of the subnet address of the TV and the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g. IP Address:

123.456.789.**)

2. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager programme will be installed.

– You can connect the TV to the PC directly without connecting it through a Sharer (Router).

English

29

[PC6500]BN68-02901A-00Eng.indb 29 2010-04-30 오전 9:31:21

Advanced Features

✎

No supported functions when connecting to the PC through network: x The Background Music and Background Music Setting functions.

x Sorting files by preference in the Photos , Music , and Videos folders.

x The � (REW) or µ (FF) button while a movie is playing.

✎

The Divx DRM, Multi-audio, embedded caption does not supported.

✎

Samsung PC Share manager should be permitted by the firewall programme on your PC.

✎

When you use Media Play mode through a network connection, According to functions of the provided server: x The sorting method may vary.

x The scene search function may not be supported.

x The Play Continuously function, which resumes playing of a video, may not be supported.

– The Play Continuously function does not support multiple users. (It will have only memorised the point where the most recent user stopped playing.) x The ◄ or ► button may not work depending on the content information.

x You may experience file stuttering while playing a video in Media Play through a network connection.

✎

It might not work properly with unlicenced multimedia files.

✎

Need-to-Know List before using Media Play x MTP (Media Transfer Protocol) is not supported.

x The file system supports FAT16, FAT32 and NTFS.

x Certain types of USB Digital camera and audio devices may not be compatible with this TV.

x Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only

Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the TV’s USB port. x Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.

SAMSUNG is not responsible for any data file damage or data loss.

x Connect a USB HDD to the dedicated port, USB 1 (HDD) port.

x Do not disconnect the USB device while it is loading.

x The higher the resolution of the image, the longer it takes to display on the screen.

x The maximum supported JPEG resolution is 15360X8640 pixels.

x For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

x If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

x MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management

(DRM) is a technology that supports the creation of content, the distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.

x If more than 2 PTP devices are connected, you can only use one at a time.

x If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high power (more than 500mA or 5V) may not be supported.

x If an over-power warning message is displayed while you are connecting or using a USB device, the device may not be recognized or may malfunction.

x If the TV has been no input during time set in Auto Protection Time , the Screensaver will run.

x The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.

x If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

x If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is not played, connect the USB device to the PC, format the device and check the connection.

x If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC to permanently delete the file.

30

English

[PC6500]BN68-02901A-00Eng.indb 30 2010-04-30 오전 9:31:22

¦

Screen Display

Move to the file you desired using the up/down/right/left buttons and then press the ENTER E or � (Play) button. The file is played.

✎

Supports the View Devices and Home in Media Play homepage.

Information:

You can ascertain the selected file name and the number of files and page.

Videos

/Movie 01.avi

Movie 01.avi

Jan.10.2010

1/1 Page

Sort List Section:

Displays sorting standard.

✎ Sorting standard is different depending on the contents.

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

SUM Change Device

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Movie 02.avi

Jan.10.2010

Movie 04.avi

Jan.10.2010

Movie 06.avi

Jan.10.2010

Movie 08.avi

Jan.10.2010

Movie 10.avi

Jan.10.2010

Select Sorting T Tools

File List Section:

You can confirm the files and groups that is sorted by each category.

Operation Buttons

Red ( Change Device ): Selects a connected device.

Green ( Preference ): Sets the file preference. (not supported in Basic view)

Yellow ( Select ): Selects multiple files from file list. Selected files are marked with a symbol.

Blue ( Sorting ): Selects the sort list.

T Tools : Displays the option menu.

✎ Using the � (REW) or µ (FF) button, file list can move to next or previous page.

Videos

Playing Video

1. Press the ◄ or ► button to select Videos , then press the ENTER E button in the Media Play menu.

2. Press the ◄ / ► / ▲ / ▼ button to select the desired file in the file list.

3. Press the ENTER E button or � (Play) button.

– The selected file is displayed on the top with its playing time.

– If video time information is unknown, play time and progress bar are not displayed.

– During playing the video, you can search using the ◄ and ► button.

✎

In this mode, you can enjoy movie clips contained on a Game, but you cannot play the Game itself. y Supported Subtitle Formats Movie 01.avi

00:04:03 / 00:07:38

Name

MPEG-4 time-based text

SAMI

SubRip

SubViewer

Micro DVD

File extension

.ttxt

.smi

.srt

.sub

.sub or .txt

Format

XML

HTML string-based string-based string-based

SUM

1/1

E Chaptering L Jump T Tools R Return

[PC6500]BN68-02901A-00Eng.indb 31

English

31

2010-04-30 오전 9:31:24

Advanced Features y Supported Video Formats

File Extension Container

*.avi

*.mkv

*.asf

*.wmv

*.mp4

*.3gp

*.vro

*.mpg

*.mpeg

*.ts

*.tp

*.trp

AVI

MKV

ASF

ASF

MP4

3GPP

VRO

VOB

PS

TS

Video Codec

Divx 3.11 / 4.x / 5.1 / 6.0

XviD

H.264 BP / MP / HP

MPEG4 SP / ASP

Motion JPEG

Divx 3.11 / 4.x / 5.1 / 6.0

XviD

H.264 BP / MP / HP

MPEG4 SP / ASP

Motion JPEG

Window Media Video v9

H.264 BP / MP / HP

MPEG4 SP / ASP

XVID

H.264 BP / MP / HP

MPEG4 SP / ASP

MPEG1

MPEG2

MPEG1

MPEG2

H.264

MPEG2

H.264

VC1

Resolution

1920x1080

1920x1080

1920x1080

1920x1080

800x600

1920x1080

1920x1080

1920x1080

1920x1080

800x600

1920x1080

1920x1080

1920x1080

6 ~ 30

6 ~ 30

6 ~ 30

6 ~ 30

1920x1080

1920x1080

6 ~ 30

6 ~ 30

1920x1080 6 ~ 30

1920x1080 24 / 25 / 30

1920x1080 24 / 25 / 30

1920x1080 24 / 25 / 30

1920x1080 24 / 25 / 30

1920x1080 6 ~ 30

1920x1080 24 / 25 / 30

1920x1080 6 ~ 30

1920x1080 6 ~ 30

Frame rate

(fps)

6 ~ 30

6 ~ 30

6 ~ 30

6 ~ 30

6 ~ 30

6 ~ 30

6 ~ 30

6 ~ 30

6 ~ 30

30

25

25

30

30

30

25

8

25

8

30

8

25

25

8

8

8

8

8

Bit rate

(Mbps)

8

8

25

25

8

Audio Codec

MP3 / AC3 / LPCM /

ADPCM / DTS Core

MP3 / AC3 / LPCM /

ADPCM / WMA

WMA

MP3 / ADPCM / AAC

ADPCM / AAC / HE-AAC

AC3 / MPEG / LPCM

AC3 / MPEG / LPCM / AAC

AC3 / AAC / MP3 / DD+ /

HE-AAC

Other Restrictions

✎

NOTE x If there are problems with the contents of a codec, the codec will not be supported.

x If the information for a Container is incorrect and the file is in error, the Container will not be able to play correctly.

x Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec listed in the table above.

x If the Index Table is in error, the Seek (Jump) function is not supported.

Video Decoder

• Supports up to H.264, Level 4.1

• H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported.

• XVID, MPEG4 SP, ASP :

– Below 1280 x 720: 60 frame max

– Above 1280 x 720: 30 frame max

• GMC 2 over is not supported.

• H.263 is not supported.

• Only Samsung Techwin MJPEG is supported.

Audio Decoder

• Supports up to WMA 7, 8, 9, STD

• WMA 9 PRO does not support 2 channel excess multi channel or lossless audio.

• WMA sampling rate 22050Hz mono is not supported.

32

English

[PC6500]BN68-02901A-00Eng.indb 32 2010-04-30 오전 9:31:25

Playing movie file continuously (Resume Play)

If you exit the playing videos function, it can be played later from the point where it was stopped.

✎

If you press the ENTER E ( Chaptering ) button during playing the file, you can explore scene divided into 5 chapters you want.

✎

If the index information is damaged or unsupported, you will not be able to use the Chaptering function.

1. Select the movie file you want to play continuously by pressing the ◄ or ► button to select it from the file list section.

2. Press the � (Play) / ENTER E button.

3. Select Play Continuously (Resume Play) by pressing the Blue button. The Movie will begin to play from where it was stopped.

✎

The Blue button is available when resuming play.

✎

If the Cont. movie play help function is set to On in the

Settings menu, a pop-up message will appear when you resume play a movie file.

Movie 01.avi

00:04:03 / 00:07:38

Play continuously

Resumes playing from the last viewed scene.

1/1

SUM Play continuously E Chaptering L Jump T Tools R Return

Music

Playing Music

1. Press the ◄ or ► button to select Music , then press the

ENTER E button in the Media Play menu.

2. Press the ◄ / ► / ▲ / ▼ button to select the desired file in the file list.

3. Press the ENTER E button or � (Play) button.

– During playing the music, you can search using the ◄ and ► button.

– � (REW) and µ (FF) buttons do not function during play.

✎

Only displays the files with MP3 and PCM file extension. Other file extensions are not displayed, even if they are saved on the same USB device.

SUM

I Love You

Jhon

1st Album

Pop

2010

4.2MB

01:10 / 04:02

I Love you

Jhon

Music 1

No Singer

Music 2

No Singer

Music 3

No Singer

Music 4

No Singer

Music 5

No Singer

Playlist 3/15

E Pause L Jump T Tools R Return

✎

If the sound is strange when playing MP3 files, adjust the may cause a sound problem.)

Equalizer in the Sound menu. (An over-modulated MP3 file

✎

You can create My Playlist selecting the desired music in the file, and can play My Playlist .

Photos

Viewing a Photo (or Slide Show)

1. Press the ◄ or ► button to select Photos , then press the

ENTER E button in the Media Play menu.

2. Press the ◄ / ► / ▲ / ▼ button to select the desired file in the file list.

3. Press the ENTER E button or � (Play) button.

– While a photo list is displayed, press the � (Play) /

ENTER E button on the remote control to start slide show.

– All files in the file list section will be displayed in the slide show.

– During the slide show, files are displayed in order from currently being shown.

✎

Music files can be automatically played during the Slide Show if the Background Music is set to On .

✎

The BGM Mode loading.

cannot be changed until the BGM has finished

SUM

Normal Image1024.jpg 1024x768 2010/2/1 3/15

E Pause L Previous/Next T Tools R Return

English

33

[PC6500]BN68-02901A-00Eng.indb 33 2010-04-30 오전 9:31:27

Advanced Features

¦

Playing the Multiple Files

Playing the selected video/music/photo files

1. Press the Yellow button in the file list to select the desired file.

2. Repeat the above operation to select multiple files.

✎

NOTE x The c mark appears to the left of the selected files.

x To cancel a selection, press the Yellow button again. x To deselect all selected files, press the and select Deselect All .

TOOLS button

3. Press the TOOLS button and select Play Selected Contents .

Playing the video/music/photo file group

1. While a file list is displayed, move to the any file in desired group.

2. Press the TOOLS button and select Play Current Group .

Videos

/Movie 01.avi

SUM

Movie 01.avi

Jan.10.2010

Movie 03.avi

Jan.10.2010

Movie 05.avi

Jan.10.2010

Movie 07.avi

Jan.10.2010

Movie 09.avi

Jan.10.2010

Change Device

¦

Media Play Additional Function

Sorting the file list

Press the Blue button in the file list to sort the files.

Category

Basic View

Title

Preference

Latest Date

Earliest Date

Artist

Album

Genre

Mood

Monthly

Operations

It shows whole folder. You can view the photo by selecting the folder.

It sorts and displays the file title in Symbol/Number/Alphabet/Special order.

It sorts and displays the file by preference. You can change the file preference in the file list section using the Green button.

It sorts and shows files by latest date.

It sorts and shows files by earliest date.

It sorts the music file by artist in alphabetical.

It sorts the music file by album in alphabetical order.

It sorts music files by the genre.

It sorts music files by the mood. You can change the music mood information.

It sorts and shows photo files by month. It sorts only by month (from January to December) regardless of year.

2 files selected 1/1 Page

Movie 02.avi

Jan.10.2010

Movie 04.avi

Jan.10.2010

Movie 06.avi

Jan.10.2010

Movie 08.avi

Jan.10.2010

Movie 10.avi

Jan.10.2010

Select Sorting T Tools

Videos Music Photos

>

>

>

>

>

>

> > >

>

>

>

>

>

>

>

>

>

34

English

[PC6500]BN68-02901A-00Eng.indb 34 2010-04-30 오전 9:31:29

Videos/Music/Photos Play Option menu

During playing a file, press the TOOLS button.

Category

Title

Repeat Mode

Picture Size

Picture Setting

Sound Setting

Subtitle Setting

Audio

Operations

You can move the other file directly.

You can play movie and music files repeatedly.

You can adjust the picture size for preference.

You can adjust the picture setting. (p. 13, 14, 15, 16)

You can adjust the sound setting. (p. 16, 17)

You can play the video file with subtitle. This function only works if the subtitles are the same file name as the video file.

You can enjoy video in one of supported languages as required. The function is only enabled when stream-type files which support multiple audio formats are played.

You can start or stop a slide show.

Stop Slide Show /

Start Slide Show

Slide Show Speed

Background Music

Zoom

Rotate

Home Background

Information

You can select the slide show speed during the slide show.

You can set and select background music when watching a slide show.

You can zoom into images in full screen mode.

You can rotate images in full screen mode.

You can move the file to the Media Play desktop.

You can see detailed information about the played file.

Videos Music Photos

>

>

>

>

>

>

>

>

>

>

>

> >

>

>

>

>

>

>

>

Settings

Using the Setup Menu

■ Background Setting : Select to display the background you want.

■ Cont. movie play help (Resume Play) (On / Off) : Select to display the help pop-up message for continuous movie playback.

■ Get the DivX® VOD registration code : Shows the registration code authorized for the TV. If you connect to the DivX web site and register the registration code with a personal account, you can download VOD registration file. If you play the VOD registration using Media Play, the registration is completed.

✎

For more information on DivX® VOD, visit “www.DivX.com.”

■ Get the DivX® VOD deactivation code : When DivX® VOD is not registered, the registration deactivation code is displayed. If you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated.

■ Information : Select to view information about the connected device.

[PC6500]BN68-02901A-00Eng.indb 35

English

35

2010-04-30 오전 9:31:29

Advanced Features

Anynet+

What is Anynet+? t

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung

TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your

Samsung device has this feature, check if there is an Anynet+ logo on it.

To connect to Home Theatre

TV Rear Panel

Home Theatre

Anynet+

Device 1

Anynet+ Device

2, 3, 4

Optical Cable

HDMI Cable HDMI Cable

HDMI Cable

1. Connect the HDMI IN ( 1(DVI), 2, 3 or 4 ) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

2. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using an

HDMI cable.

✎

NOTE x Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input on the Home Theatre.

x When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home Theatre’s Front, Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / Satellite Box (i.e. Anynet Device 1 or 2) directly to the

Amplifier or Home Theatre, not the TV.

x Connect only one Home Theatre.

x You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions.

x Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.

x Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.

36

English

[PC6500]BN68-02901A-00Eng.indb 36 2010-04-30 오전 9:31:30

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu

View TV

Device List

(device_name) MENU

Description

Changes Anynet+ mode to TV broadcast mode.

Shows the Anynet+ device list.

Shows the connected device menus. E.g. If a DVD recorder is connected, the disc menu of the DVD recorder will appear.

(device_name)

Recording

INFO

: (*recorder)

Shows the play menu of the connected device. E.g. If a DVD recorder is connected, the play menu of the DVD recorder will appear.

Starts recording immediately using the recorder. (This is only available for devices that support the recording function.)

Stop Recording : (*recorder) Stops recording.

Receiver Sound is played through the receiver.

If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is connected, it will be represented as (*device_name).

¦

Setting Up Anynet+

■ Setup

Anynet+ (HDMI-CEC) (Off / On) : To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On .

✎

When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated.

Auto Turn Off (No / Yes) : Setting an Anynet+ Device to turn off automatically when the TV is turned off.

✎

The active source on the TV must be set to TV to use the Anynet+ function.

✎

Even if an external device is still recording, it may turn off.

¦

Switching between Anynet+ Devices

1. Anynet+ devices connected to the TV are listed.

✎

If you cannot find a device you want, press the Red button to refresh the list.

2. Select a device and press the ENTER E button. You can switch to the selected device.

✎

Only when you set Anynet+ (HDMI-CEC) to On in the Application menu, the Device List menu appears.

x Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching operation.

x If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function.

Make sure to switch to an Anynet+ device by using the Device List .

¦

Recording

You can make a recording of a TV Programme using a Samsung recorder.

1. Select Recording .

✎

When there are more than two recording devices x When multiple recording devices are connected, the recording devices are listed. Select one recording device in the Device List .

✎

When the recording device is not displayed, select Device List and press the Red button to search devices.

2. Press the EXIT button to exit.

✎

You can record the source streams by selecting Recording : (device_name).

✎

Pressing the � (REC) button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded.

✎

Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device’s users manual.

English

37

[PC6500]BN68-02901A-00Eng.indb 37 2010-04-30 오전 9:31:31

Advanced Features

¦

Listening through a Receiver

You can listen to sound through a receiver (i.e Home Theatre) instead of the TV Speaker .

1. Select Receiver and set to On .

2. Press the EXIT button to exit.

✎

If your receiver supports audio only, it may not appear in the device list.

✎

The receiver will work when you have properly connected the optical in jack of the receiver to the DIGITAL AUDIO

OUT (OPTICAL) jack of the TV.

✎

When the receiver (i.e Home Theatre) is set to On, you can hear sound output from the TV’s Optical jack. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the receiver.

✎

NOTE x You can only control Anynet+ devices using the TV remote control, not the buttons on the TV.

x The TV remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device.

x The Anynet+ functions do not operate with other manufacturers’ products.

¦

Troubleshooting for Anynet+

Problem Possible Solution

Anynet+ does not work.

• Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.

• Connect only one receiver (home theatre).

• Check if the Anynet+ device power cord is properly connected.

• Check the Anynet+ device’s Video/Audio/HDMI cable connections.

• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

• Check whether the TV remote control is in TV mode.

• Check whether it is Anynet+ exclusive remote control.

• Anynet+ doesn’t work in certain situations. (Searching channels, operating Media Play or Plug & Play (Initial setup), etc.)

• When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off and on again.

• Check if the Anynet+ Function of Anynet+ device is set on.

I want to start Anynet+.

I want to exit Anynet+.

The message “Connecting to

Anynet+ device...” appears on the screen.

• Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to

On in the Anynet+ Setup menu.

• Press the TOOLS button to display the Anynet+ menu and select a menu you want.

• Select View TV in the Anynet+ menu.

• Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices.

• Press P > / < , and PRE-CH to change the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.)

• You cannot use the remote control when you are configuring Anynet+ or switching to a view mode.

• Use the remote control when the Anynet+ setting or switching to view mode is complete.

The Anynet+ device does not play.

• You cannot use the play function when Plug & Play (Initial setup) is in progress.

The connected device is not displayed.

The TV Programme cannot be recorded.

The TV sound is not output through the receiver.

• Check whether or not the device supports Anynet+ functions.

• Check whether or not the HDMI cable is properly connected.

• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

• Search Anynet+ devices again.

• You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+ functions.

• If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a power failure, please repeat the device scan.

• Check whether the antenna jack on the recording device is properly connected.

• Connect the optical cable between TV and the receiver.

38

English

[PC6500]BN68-02901A-00Eng.indb 38 2010-04-30 오전 9:31:32

Internet@TV

¦

Getting Started with Internet@TV

@ TV

INTERNET

Internet@TV brings useful and entertaining contents and services directly from the web to your TV.

Recommended

My Applications by Date 1/1

Samsung Apps Settings

Login Mark as Favourite Sort by R Return

✎

NOTE x Configure the network settings before using Internet@TV . For more information, refer to “Network Connection” (p.

22).

x Unsupported fonts within the provider’s content will not display normally.

x Slow responses and/or interruptions may occur, depending on your network conditions.

x English may be only supported in application depending on region.

x This feature is not available in some locations.

x If you experience a problem using a application, please contact the content provider.

x According to circumstances of the contents provider, an application’s updates or the application itself may be discontinued.

x Depending on your country’s regulations, some applications may have limited service or not be supported.

Screen Display

TV Screen:

Displays the current channel.

Recommended

Recommended Applications:

Displays the recommended service by

Samsung. You are not able to add or delete a service in this list.

Information:

Displays notices, new applications, and advertisements brought to you by Samsung product introductions.

My Applications by Date 1/1

Downloaded Applications:

Displays the downloaded applications through the Samsung Apps.

Application service:

You can experience various service by provided samsung.

Samsung Apps Settings

Internet@TV Settings:

Edit and configure applications and Internet@TV settings.

Login Mark as Favourite Sort by R Return

Controls:

• Red ( Login ): To log in to Internet@TV .

• Green ( Mark as Favourite ): To mark the applications as a favourite.

• Blue ( Sort by ): To sort the applications.

• R Return : To return to the previous menu.

✎ The colour buttons may work differently depending on the application.

[PC6500]BN68-02901A-00Eng.indb 39

English

39

2010-04-30 오전 9:31:33

Advanced Features

Account Login

For a application with multiple account, use ◄ and ► to access the different account.

User account :

Password :

Login admin

Create [0~9] Enter PIN R Cancel

✎

For a more enjoyable application experience, register and log in to your account.

✎

For instructions on creating an account, refer to

Settings → Internet@TV ID → Create .

1. Press the Red button in Internet@TV home page.

2. Select desired User account , then press the ENTER E button.

✎

If you want create account, press Red button; then create account OSD window appear.

3. Enter the Password .

✎

When login succeeds, User account will be displayed on the screen.

¦

Setting up Internet@TV

Settings

Create IDs and configure Internet@TV settings from this screen. Highlight Settings using ▲ and ▼ buttons and press the ENTER E button.

Settings

▪ System setup

▪ Internet@TV ID

▪ Service Manager

▪ Properties

▪ Ticker Autorun : Off

▪ Channel Bound Service : Off

▪ Change the Service Lock password

▪ Reset

R Return

■ System Setup

Ticker Autorun (Off / On) : Enable/disable ticker autorun upon powering on the TV.

✎

The Ticker application provides useful News,

Weather, and Stock Market information. The

Ticker application on Internet@TV must be downloaded to use this feature.

✎

You must have Ticker application downloaded on

Internet@TV to use this feature.

Channel Bound Service (Off / On) : Some channels support applications as an Internet data service, allowing you to access the Internet service while watching TV.

✎

Only available if supported by the broadcaster.

Change the Service Lock password

✎

The default password set is “0-0-0-0.”

✎

If you forget the password, press the following sequence of remote control buttons to reset the password to “0-0-0-0”: POWER (off) → MUTE →

8 → 2 → 4 → POWER (on).

Reset : Resets Internet@TV settings to factory default settings.

■ Internet@TV ID

You can use this menu when creating, deleting the account. You can control your account including contents site’s account information.

✎

Account is only for internet@TV.

Create : Create an account and link it with desired applications.

✎

NOTE x Account will be made less than 10.

x Maximum number of characters is 8.

Manager

– Service Site : Register login information for service sites.

– Change Password : Change account password.

– Delete : Delete the account.

■ Service Manager : Delete and lock applications installed to Internet@TV.

Lock : Lock the application.

✎

Accessing a locked application requires the password.

Delete : Delete the application.

■ Properties : Display information about Internet@TV. Use the Check the speed of your internet connection option to test your network connection.

40

English

[PC6500]BN68-02901A-00Eng.indb 40 2010-04-30 오전 9:31:34

¦

Using the Internet@TV service

Samsung Apps

Samsung Apps is a store for downloading applications to be used on Samsung TV/AV equipment.

Users can enjoy a variety of contents like videos, music, photos, games, useful information etc. using the downloaded applications.

Additional applications will be available hereafter.

Samsung Apps

What’s New?

Video

Sports

Lifestyle

Information

Other

Featured

You Tube

Most downloaded

YouTube

TV store Test User002

Most recent Name

Free

Using the Samsung Apps by category

The following categories are available: y What’s New?

: Displays newly registered applications.

y Video : Displays various video media such as movies, TV shows and short length videos.

y Sports : Displays various sports media such as match information, images and short length video.

y Lifestyle : Includes various lifestyle media services such as music, personal photo management tools and social networking such as Facebook and Twitter.

y Information : Includes various information services such as news, stocks and weather.

y Other : Includes other miscellaneous services.

y My Page : My Page offers information about already installed applications on the TV like detailed information, download contents etc. It can allows delete or lock the applications.

y Help : If you have questions about Internet@TV, check this section first.

My Page

Help

Login Thumbnail View Sort by R Return

✎

Using the colour buttons with the Samsung Apps x Red ( Login ): To log in to the internet service.

x Green ( Thumbnail View ): To change the view mode.

.

x Blue ( Sort by ): To sort the widgets by Featured ,

Most downloaded , Most recent or Name .

x R Return : Moves to previous menu.

[PC6500]BN68-02901A-00Eng.indb 41

English

41

2010-04-30 오전 9:31:35

Advanced Features

Troubleshooting for internet@TV

Problem

Some application contents only have English. How can I change the language?

Some application services do not work.

When a network error occurred, I can’t use other menus except setting menu.

Possible Solution

Application content language may be different from application user interface language.

It depends on service provider.

Check with that service provider.

Refer to help website for application service provider information.

If network connection doesn’t work, your service might be limited.

Because all of function except setting menu are needed to connect internet.

¦

Help Website

✎

Approaching step may be changed later on.

✎

It can be different links for special countries.

Country

UAE

Australia

China

India

Indonesia

Japan

Malaysia

NewZealand

Philippines

Singapore

Taiwan

Thailand

Vietnam

South Africa

Website www.samsung.com → Consumer → television → Internet@TV www.samsung.com → Consumer → television → Internet@TV www.samsung.com → 个人消费产品 → 电视产品 → Internet@TV www.samsung.com → consumer products → television → Internet@TV www.samsung.com → Produk → television → Internet@TV www.samsung.com → 製品情報 → 液晶ディスプレイ → Internet@TV www.samsung.com → Consumer → television → Internet@TV www.samsung.com → Consumer → television → Internet@TV www.samsung.com → Consumer → television → Internet@TV www.samsung.com → Consumer → television → Internet@TV www.samsung.com → 個人消費産品 → 電視 → Internet@TV www.samsung.com → ผลิตภัณฑ์ → โทรทัศน์ → Internet@TV www.samsung.com → sản phẩm nghe nhìn → máy thu hình → Internet@TV www.samsung.com → Consumer → television → Internet@TV

42

English

[PC6500]BN68-02901A-00Eng.indb 42 2010-04-30 오전 9:31:36

AllShare

¦

About AllShare

AllShare connects your TV, mobile phones and other devices which are compatible through a network. On your

TV, you can view call arrivals, SMS messages and schedules set on your mobile phones. In addition, you can play media contents including videos, photos and music saved on your mobile phones or the other devices (such as your PC) by controlling them on the TV via the network. Additionally, you can use your TV as a monitor for your mobile when browsing a web page.

✎

For more information, visit “www.samsung.com” or contact the Samsung call centre. Mobile devices may need additional software installation. For details, refer to each device’s user’s guide.

¦

Setting Up AllShare

Setup

■ Message (On / Off) : Enables or disables the message function (for call arrivals, SMS messages and schedules set on your mobile phones).

■ Media (On / Off) : Enables or disables the media function. When the media function is on, it plays videos, photos and music from a mobile phone or other device that supports AllShare .

■ ScreenShare (On / Off) : Enables or disables the

ScreenShare function for using mobile phone as a remote control.

■ TV name : Sets the TV name so you can find it easily on a mobile device.

✎

If you select User Input , you can type on the TV using the OSK (On Screen Keyboard).

AllShare™

Setup

Message

Media

ScreenShare

Message

Media

ScreenShare

TV name

: On

: On

: On

: Home TV

3/7

Message / Media / ScreenShare

Shows a list of mobile phones or connected devices which have been set up with this TV for using the Message ,

Media , or ScreenShare function.

✎

The Media function is available in all mobile devices which support AllShare .

■ Allowed / Denied : Allows/Blocks the mobile phone.

■ Delete : Deletes the mobile phone from the list.

✎

This function only deletes the name of the mobile from the list. If the deleted mobile device is turned on or trys to connect to the TV, it may appear on the list again.

Using the Message Function

Using this function, you view call arrivals, SMS messages and schedules set on the mobile phone through the alarm window while watching TV.

✎

NOTE x To disable the alarm window, set Message to Off in

Setup of AllShare .

x If OK is selected, or if OK is not selected after the message has appeared three times, the message will be deleted. The message is not deleted from the mobile phone.

x The alarm window can be displayed while using some applications such as Media Play etc. To view the contents of a message, switch to TV viewing mode.

x When a message from an unknown mobile phone is displayed, select the mobile phone on the message menu in AllShare and select Denied to block the phone.

Message View

If a new SMS message arrives while you are watching

TV, the alarm window appears. If you click the OK button, the contents of the message are displayed.

✎

You can configure the viewing settings for SMS messages on your mobile phones. For the procedures, refer to the mobile phone manual.

✎

Some types of characters may be displayed as blank or broken characters.

E Select R Return e Exit

Setup R Return

[PC6500]BN68-02901A-00Eng.indb 43

English

43

2010-04-30 오전 9:31:37

Advanced Features

Call Arrival Alarm

If a call arrives while you are watching TV, the alarm window appears.

Schedule Alarm

While you are watching TV, the alarm window appears to display the registered event.

✎

You can configure viewing settings for schedule contents on your mobile phones. For the procedures, refer to the mobile phone manual.

✎

Some special characters may be displayed as blank or broken characters.

Using the Media Function

An alarm window appears informing the user that the media contents (videos, photos, music) sent from a mobile phone will be displayed on your TV. The contents are played automatically 3 seconds after the alarm window appears.

If you press the RETURN or EXIT button when the alarm window appears, the media contents are not played.

✎

NOTE x If the media function executes for the first time, the warning popup windows appears. Press the

ENTER E button to select Allow , then you can use

Media function on that device.

“Unknown Device 0” is requesting that the media file be allowed to play.

If you wish to allow the media file to be played at your device, please press

“Allow”, otherwise press “Deny”.

You can also change the setting (or resetting) of this feature at “AllShare

Setup”.

Warning: Please note that if your device is connected to unsecured or unfamiliar network, unwanted or inappropriate contents might be played.

If you are not sure about the network's identity or content’s appropriateness, we strongly recommend that you do not “Allow” the request to play.

Allow Deny

Using ScreenShare Function

Screenshare displays the same web page as provide in mobile. Using ScreenShare, you can open the various contents saved in a mobile phone. For example, the image below displays an access page for contents from a mobile.

You can read the mobile’s various files and view the phone book and calendar on the TV. Also, in phone book, you can make a call to other person, or can send to SMS.

✎

NOTE x In Samsung mobile, ScreenShare must be installed and the supporting application must be executed; then you can use the ScreenShare function.

x Available buttons on your remote control may vary for each page.

x Doc Viewer can read files in doc format, but cannot modify them.

x The screen display may differ depending on the connected device.

My Mobile

Contacts Calendar

Using your Samsung phone to control your TV Simply

Before you can use this feature, you must connect to a Samsung mobile phone that supports ScreenShare functions. When operating the TV with your mobile phone, only the POWER , Y , P < / > and MUTE buttons are supported.

✎

Even if you keep pressing down on a control button

(channel or volume) on the mobile phone, the value will only go up or down by one unit.

x To turn off the media contents transmission from the mobile phone, set Media to Off in the AllShare setup. x Contents may not be played on your TV depending on their resolution and format.

x The ENTER E and ◄ / ► buttons may not work depending on the type of media content.

x Using the mobile device, you can control the media playing. For details, refer to each mobile’s user’s guide.

x When you want to play media contents from your PC, select the PC icon on the main display of AllShare . Then the TV’s Media Play menu automatically changes. For more detail information, refer to “Media Play” (p. 29).

Doc viewer

E Select Return

44

English

[PC6500]BN68-02901A-00Eng.indb 44 2010-04-30 오전 9:31:37

Other Information

Analogue Channel Teletext Feature

The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

✎

You can change Teletext pages by pressing the numeric buttons on the remote control.

1 / (Teletext on/mix/off):

Activates the Teletext mode for the current channel. Press the button twice to overlap the Teletext mode with the current broadcasting screen. Press it one more time to exit teletext.

2 8 (store): Stores the Teletext pages.

3 4 (size): Displays the teletext on the upper half of the screen in double-size. To move the text to the lower half of the screen, press it again. For normal display, press it once again.

4 9 (hold): Holds the display at the current page, in the case that there are several secondary pages that follow automaticially. To undo, press it again.

5

Colour buttons (red, green, yellow, blue): If the FASTEXT system is used by the broadcasting company, the different topics on a Teletext page are colour-coded and can be selected by pressing the coloured buttons. Press the colour corresponding to the topic of your choice. A new colourcoded page is displayed. Items can be selected in the same way.

To display the previous or next page, press the corresponding coloured button.

6 0 (mode): Selects the Teletext mode (LIST/ FLOF).

If pressed during LIST mode, switches the mode to List save mode. In List save mode, you can save a Teletext page into a list using the 8 (store) button.

7 1 (sub-page): Displays the available sub-page.

1

2

3

4

5

TTX/MIX

TOOLS

SOURCE

CH LIST

MENU

PRE-CH

INFO

RETURN

A B C

EXIT

D

6

7

8

9

2 (page up): Displays the next

Teletext page.

3 (page down): Displays the previous Teletext page.

6 (index): Displays the index

(contents) page at any time while you are viewing Teletext.

5 (reveal): Displays the hidden text (answers to quiz games, for example). To display the normal screen, press it again.

7 (cancel): Shrinks the Teletext display to overlap with the current broadcast.

8

9

0

!

@

Typical Teletext page

0

!

@

Part

A

B

C

D

E

F

Contents

Selected page number.

Broadcasting channel identity.

Current page number or search indications.

Date and time.

Text.

Status information.

FASTEXT information.

English

45

2010-04-30 오전 9:31:38 [PC6500]BN68-02901A-00Eng.indb 45

Other Information

Installing the Wall Mount

Assembling the Blanking Bracket

When installing the TV onto a wall, attach the Blanking Bracket as shown.

Blanking Bracket

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the

TV on your own.

Wall Mount Kit Specifications (VESA)

✎

The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

✎

NOTE x Standard dimensions for wall mount kits are shown in the table below.

x When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

x Do not use screws that do not comply with the VESA standard screw specifications.

x Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.

x For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.

x Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

x Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

x Our 58” model do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model.

x Do not mount the TV at more than a 15 degree tilt.

Product Family inches

42~50

VESA Spec.

(A * B)

400 X 400

Standard Screw Quantity

PDP -TV

58~63

70~79

600 X 400

800 X 400

M8 4

80~ 1400 X 800

✎

Unscrew the hole around before installing Wall-Mount on the wall.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

46

English

[PC6500]BN68-02901A-00Eng.indb 46 2010-04-30 오전 9:31:39

Assembling the Cables

Enclose the cables in the Cable tie so that the cables are not visible through the transparent stand. Overly rigid or thick cables can damage input jacks for long term usage.

Cable Tie

Securing the TV to the wall

Caution : Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided in the included Safety Flyer. For added stability and safety, install the anti-fall device as follows.

¦

To Avoid the TV from Falling

1. Put the screws into the clamps and firmly fasten them onto the wall.

Confirm that the screws have been firmly installed onto the wall.

✎

You may need additional material such as an anchor depending on the type of wall.

✎

Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

2. Remove the screws from the back centre of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

✎

Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.

3. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong cable and then tie the string tightly.

✎

NOTE x Install the TV near to the wall so that it does not fall backwards.

x It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.

x Untie the string before moving the TV.

4. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

Wall

[PC6500]BN68-02901A-00Eng.indb 47

English

47

2010-04-30 오전 9:31:40

Other Information

Troubleshooting

If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit “www.

samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues

Picture Quality

The TV image does not look as good as it did in the store.

The picture is distorted: macro block error, small block, dots, pixelization

Colour is wrong or missing.

There is poor colour or brightness.

There is a dotted line on the edge of the screen.

The picture is black and white.

When changing channels, the picture freezes or is distorted or delayed.

Sound Quality

Solutions and Explanations

First of all, please perform the Picture Test and confirm that your TV is properly displaying test image.

(go to MENU - Support - Self Diagnosis - Picture Test ) (p. 19)

If the test image is properly displayed, the poor picture may caused by the source or signal.

• If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high definition) picture quality.

• Cable/Satellite subscribers: Try HD stations from the channel line up.

• Antenna connection: Try HD stations after performing Auto programme.

✎ Many HD channels are up scaled from SD(Standard Definition) contents.

• Adjust the Cable/Set top box video output resolution to 1080i or 720p.

• Make sure you are watching the TV at the minimum recommended distance based on the size and definition of the signal.

• Compression of video contents may cause picture distortion especially in fast moving pictures such as sports and action movies.

• Low signal level or bad quality can cause picture distortion. This is not a TV issue.

• Mobile phones used close to the TV (cca up to 1m) may cause noise in picture on analogue and digital TV.

• If you’re using a component connection, make sure the component cables are connected to the correct jacks. Incorrect or loose connections may cause colour problems or a blank screen.

• Adjust the Picture options in the TV menu. (go to Picture mode / Colour / Brightness / Sharpness )

(p. 13)

• Adjust Energy Saving option in the TV menu. (go to MENU - Picture - Eco Solution -

Energy Saving ) (p. 13)

• Try resetting the picture to view the default picture settings. (go to MENU - Picture - Picture Reset )

(p. 16)

• If the picture size is set to Screen Fit , change it to 16:9 (p. 14).

• Change cable/set top box resolution.

• If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the TV.

• If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes.

• Set the output resolution of the cable box to 1080i or 720p.

First of all, please perform the Sound Test to confirm that your TV audio is properly operating.

(go to MENU - Support - Self Diagnosis - Sound Test ) (p. 19)

If the audio is OK, the sound problem may caused by the source or signal.

• Please check the volume the of external device connected to your TV.

There is no sound or the sound is too low at maximum volume.

The picture is good but there is no sound.

The speakers are making an inappropriate noise.

• Set the Speaker Select option to TV Speaker in the sound menu (p. 17).

• If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV.

• If you are using an external device, check the device’s audio output option (ex. you may need to change your cable box’s audio option to HDMI when you have a HDMI connected to your TV).

• If you are using a DVI to HDMI cable, a separate audio cable is required.

• If your TV has a headphone jack, make sure there is nothing plugged into it.

• Check the cable connections. Make sure a video cable is not connected to an audio input.

• For antenna or cable connections, check the signal strength. Low signal level may cause sound distortion.

48

English

[PC6500]BN68-02901A-00Eng.indb 48 2010-04-30 오전 9:31:41

Issues

No Picture, No Video

The TV won’t turn on.

Solutions and Explanations

The TV turns off automatically.

There is no picture/Video.

• Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

• Make sure the wall outlet is working.

• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “The remote control does not work” below.

• Ensure the Sleep Timer is set to Off in the Setup menu (p. 17).

• If your PC is connected to the TV, check your PC power settings.

• Make sure the AC power cord is plugged in securely to the wall outlet and the TV.

• When watching TV from an antenna or cable connection, the TV will turn off after 10 ~ 15 minutes if there is no signal.

• Check cable connections (remove and reconnect all cables connected to the TV and external devices).

• Set your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.

• Make sure your connected devices are powered on.

• Be sure to select the TV’s correct source by pressing the SOURCE button on the TV remote.

RF(Cable/Antenna) Connection

The TV is not receiving all channels.

The picture is distorted: macro block error small block, dots, pixelization

• Make sure the Antenna cable is connected securely.

• Please try Plug & Play (Initial setup) to add available channels to the channel list. Go to MENU -

Setup - Plug & Play (Initial setup) and wait for all available channels to be stored (p. 7).

• Verify the Antenna is positioned correctly.

• Compression of video contents may cause picture distortion, especially with fast moving pictures such as sports and action movies.

• A low signal can cause picture distortion. This is not a TV issue.

PC Connection

A “Mode Not Supported” message appears.

“PC” is always shown on the source list, even if a PC is not connected.

The video is OK but there is no audio.

• Set your PC’s output resolution and frequency so they match the resolutions supported by the TV

(p. 21).

• This is normal; “PC” is always shown on the source list, regardless of whether a PC is connected.

• If you are using a HDMI connection, check the audio output setting on your PC.

Network Connection (Depending on Models)

Wireless network connection failed.

• Samsung Wireless USB dongle is required to use a wireless network.

• Make sure the Network Connection is set to Wireless (p. 24).

• Make sure the TV is be connected to a wireless IP sharer (router).

Others

The remote control does not work.

Plasma TV is making humming noise.

Image Retention (Burn In) Issue.

• Replace the remote control batteries with the poles (+/–) in the right direction.

• Clean the sensor’s transmission window on the remote.

• Try pointing the remote directly at the TV from 5~6 feet away.

• Plasma TVs typically make a soft humming sound. This is normal. It’s caused by the electrical charges that are used to create the images on the screen.

• If the humming sound is loud, you may have set the brightness on the TV too high. Try setting the brightness lower.

• You can also have loud humming if the back of your Plasma TV is too close to a wall or other hard surface. Also try rerouting your connection cables.

• Improper installation of wall mount can create excessive noise.

• To minimize the possibility of screen burn, this unit is equipped with screen burn reduction technology.

Pixel Shift technology enables you to set picture movement up / down (Vertical Line) and side to side

(Horizontal Dot).

[PC6500]BN68-02901A-00Eng.indb 49

English

49

2010-04-30 오전 9:31:41

Other Information

Issues

The cable/set top box remote control doesn’t turn the TV on or off, or adjust the volume.

A “Mode Not Supported” message appears.

There is a plastic smell from the TV.

The TV is tilted to the side.

There are difficulties assembling the stand base.

The channel menu is greyed out.

(unavailable)

Your settings are lost after 30 minutes or every time the TV is turned off.

You have intermittent loss of audio or video.

Solutions and Explanations

• Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code.

• Check the supported resolution of the TV, and adjust the external device’s output resolution accordingly. Refer to the resolution settings on page 21 of this manual.

• This smell is normal and will dissipate over time.

• Remove the base stand from the TV and reassemble it.

• Make sure the TV is placed on a flat surface. It is necessary to use magnetized screw driver if you cannot remove the screws from the TV.

• The Channel menu is only available when the TV source is selected.

• If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change the settings from Store Demo mode to Home Use mode in the Plug & Play (Initial setup) procedure.

Press the SOURCE button to select TV mode, and go to MENU → Setup → Plug & Play (Initial setup) → ENTER E . (p. 7)

• Check the cable connections and reconnect them.

• Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for long term use. If mounting the TV to the wall, we recommend using cables with 90 degree connectors.

• This is part of the product’s design and is not a defect.

You see small particles when you look closely at the edge of the frame of the TV.

The PIP menu is not available.

You turned the TV off 45 minutes ago, and it turned on again.

There are recurrent picture/sound issues.

A reaction may occur between the rubber cushion pads on the base stand and the top finish of some furniture.

• PIP functionality is only available when you are using a HDMI, PC or components source (p. 19).

• It is normal. The TV operates the OTA (Over The Aerial) function itself to upgrade firmware downloaded whilst your watching TV.

• Check and change the signal/source.

• To prevent this, use felt pads on any surface of the TV that comes in direct contact with furniture.

✎

Some of above pictures and functions are available at specific models only.

Specifications

Panel native

Environmental Considerations

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

Stand Swivel (Left / Right)

Model Name

Screen Size

Sound

(Output)

Dimensions (WxDxH)

Body

With stand

Weight

Without Stand

With Stand

PS50C6500

50 inches

10W x 2

1212.0 x 36.8 x 743.5 mm

1212.0 x 290.0 x 808.0 mm

24.5 kg

28.8 kg

1920 x 1080 @ 60 Hz

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F)

5% to 95%, non-condensing

-20˚ ~ 20˚

PS58C6500

58 inches

15W x 2

1390.5 x 36.8 x 844.5 mm

1390.5 x 335.0 x 911.0 mm

32.5 kg

39.3 kg

✎

Design and specifications are subject to change without prior notice.

✎

For information about power supply, and more about power consumption, refer to the label attached to the product.

50

English

[PC6500]BN68-02901A-00Eng.indb 50 2010-04-30 오전 9:31:41

¦

Licence

Without producing harmful VOC (Volatile Organic Compounds), Samsung’s Eco-friendly “Crystal

Design” expresses colour gradation thanks to our dual injection technology.

TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc.

TheaterSound technology is incorporated under licence form SRS Labs, Inc.

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under licence under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;

6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc.

Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.

com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content.

To generate the registration code, locate the DivX VOD section in the device setup menu.

Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Open Source Licence Notice

In the case of using open source software, Open Source Licences are available on the product menu.

Open Source Licence Notice is written only English.

[PC6500]BN68-02901A-00Eng.indb 51

English

51

2010-04-30 오전 9:31:42

A

AllShare

Amplify

Anynet+

Auto Adjustment

Auto Volume

B

Background Music

Balance L/R

Basic View

Batteries

Black Tone

Blanking Bracket

Brightness

C

Cable Tie

Change PIN

Channel Menu

Clock

4, 47

18

11

17

Colour Tone

Component

14

8

Connecting to a PC 21

Connecting to an Audio Device 9

6

13

46

13

35

16

34

43

16

36

16

17

D

DIGITAL AUDIO OUT

DivX® VOD

D-sub

Dynamic

Dynamic Contrast

E

Eco Sensor

Edit Name

Editing Channels

Energy Saving

Equalizer

External Speaker

9, 36

35

21

13

13

13

10

12

13

16

17

Other Information

Index

F

Favourite Channel

Film Mode

Fine Tune

Flesh Tone

Frequency

H

HDMI

Home Theatre

I

Installation Space

Internet@TV

L

Language

Licence

Lock

M

Media Play

Melody

Menu Transparency

Music

N

Navigate

Network Connection

Network Setup

O

ON/OFF button

Optimal resolution

P

Password

Photos

Picture Size

PIP (Picture in Picture)

Plug & Play

Power Indicator

40

33

14, 35

19

7

5

11

15

12

14

21

8, 36

9, 36

2

39

18

51

12

29

19

19

33

10

22

23

6

21

T

Timer

Title

Tools

Troubleshooting

TV Speaker

U

USB Drive

V

VCR

Video Formats

Videos

Volume

W

Wall Mount

Warm

White Balance

R

Receiver

Recording

Remote Control

Repeat Mode

RGB Only Mode

Rotate

S

Select All

Self Diagnosis

Sharpness

Sleep Timer

Slide Show

Software Upgrade

Source List

Speaker Select

Specifications

Standby mode

Symbol

18

34

3

48

17

20, 29

33

20

10

17

12

19

13

17

50

5

3

38

37

6

35

14

35

46

14

14

8

32

31

5

52

English

[PC6500]BN68-02901A-00Eng.indb 52 2010-04-30 오전 9:31:43

This page is intentionally left blank.

[PC6500]BN68-02901A-00Eng.indb 53 2010-04-30 오전 9:31:43
