The information provided in this document are subject to change without notice.

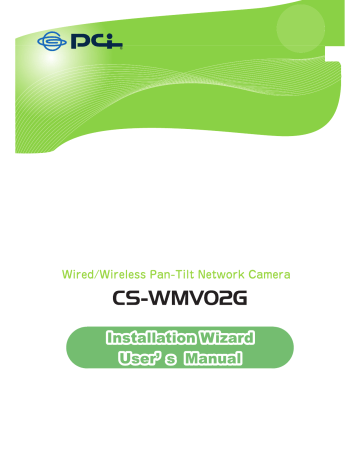

User's Manual Version : CS-WMV02G_manual_HK_US-A_V2
2
Before You Use This Product
The use of surveillance devices may be prohibited by law in your country. The Network
Camera is not only a high-performance web-ready camera but also can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.
It is important to first verify that all contents received are complete according to the list in the "Package Contents" chapter. Take notice of the warnings in “Quick installation guide” before the Network Camera is installed, then carefully read and follow the instructions in the “Installation” chapter to avoid damages due to faulty assembly and installation. This also ensures the product is used properly as intended.
The Network Camera is a network device and its use should be straightforward for those who have basic network knowledge. The “Troubleshooting” chapter in the Appendix provides remedies to the most common errors in set up and configuration. You should consult this chapter first if you run into a system error.
The Network Camera is designed for various applications including video sharing, general security/surveillance, etc. The “How to Use” chapter suggests ways to best utilize the
Network Camera and ensure proper operations. For the creative and professional developers, the "URL Commands of The Network Camera " chapter serves to be a helpful reference to customize existing homepages or integrating with the current web server.
For paragraphs preceded by the reader should use caution to understand completely the warnings. Ignoring the warnings may result in serious hazards or injuries.
3
Table of Contents
Before You Use This Product........................................................................ 3
Package Contents ...................................................................................... 6
Installation ............................................................................................... 7
Hardware installation............................................................................ 7
Software Installation ............................................................................ 9
Initial Access to the Network Camera.................................................... 13
Check Network Settings ................................................................ 13
Add Password to Prevent Unauthorized Access.................................. 13
How to Use ....................................................................................... 14
Authentication.............................................................................. 14
Installing plug-in................................................................................ 15
Primary user’s capability ..................................................................... 16
Main Screen with Camera View....................................................... 16
Client settings.............................................................................. 20
Administrator’s capability .................................................................... 22
Fine-tuning for Best Performance.................................................... 22
Opening accounts for new users ..................................................... 24
Build a security application ............................................................ 24
Definitions in Configuration ....................................................................... 26
System parameters ............................................................................ 27
Security settings ................................................................................ 28
Network settings................................................................................ 29
Network type ............................................................................... 29
HTTP .......................................................................................... 30
RTSP Streaming ........................................................................... 30
WLAN Configuration ...................................................................... 31
DDNS............................................................................................... 33
Access List ........................................................................................ 34
Audio and Video................................................................................. 35
General....................................................................................... 35
Video Settings.............................................................................. 35
Video orientation .......................................................................... 36
Audio settings .............................................................................. 36
Image Settings ............................................................................ 37
Camera Control ................................................................................. 38
Email & FTP....................................................................................... 40
4
Email .......................................................................................... 40
FTP ............................................................................................ 40
Motion detection ................................................................................ 42
Application settings ............................................................................ 43
Snapshot..................................................................................... 43
Weekly schedule........................................................................... 43
Snapshot file name prefix .............................................................. 43
Send out the snapshot while motion detection .................................. 43
Sequential operation ..................................................................... 43
Method for sending snapshot.......................................................... 44
System log........................................................................................ 45
Viewing system parameters................................................................. 46
Maintenance...................................................................................... 47
Appendix................................................................................................ 48
A. Troubleshooting ............................................................................. 48
Status LED .................................................................................. 48
Reset and restore ......................................................................... 48
Technology License Notice................................................................... 49
5
Package Contents
CS-WMV02G LAN cable (Straight)
Power Adapter Lens cleaner
Camera Mount Kit & Pads Quick Installation Guide
Antenna
CD-ROM (Software & Users Manual)
Safety Information / Warranty Card
6
Installation
In this manual, "User" refers to whoever has access to the Network Camera, and
"Administrator" refers to the person who can configure the Network Camera and grant user access to the camera.
Hardware installation
Please verify that your product package contains all the accessories listed in the foregoing Package Contents.
Depending on the user’s application, an Ethernet cable may be needed. The Ethernet cable should meet the specs of UTP
Category 5 and not exceed 100 meters in length.
Connect the power adapter jack to the Network
Camera before plugging in to the power socket. This will reduce the risk of accidental electric shock.
Upon powering up, the front red LED will become lighted first and then the device will go through booting process. During the booting process, red, blue and green LEDs will be on. After booted, the Network Camera will standby for getting IP address. After getting IP
Address, the green LED will blink every second.
The Network Camera will first detect Ethernet. If it does not connect to Ethernet, the
Network Camera will try WLAN. During the searching and connecting process to the wireless access point or station, the red LED of the Network Camera will flash every second. Until the Network Camera connects to the other wireless device, the red LED will become lighted. Operating in either network mode, the green LED will flash every second as heartbeat to indicate alive. If the red LED is blinking, please check the network connections.
7
To install in Ethernet
Make sure the Ethernet is firmly connected to a switch hub. After attaching the Ethernet cable plug in the power adapter. If the LED turns out to be steady blue, go to next paragraph “Software installation”. If the Ethernet is not available, Network Camera will switch to wireless LAN mode.
To install in wireless LAN
If the Ethernet is not available while power on, the Network Camera will search for any access point with the SSID “Planexuser”. Once any access point is found, the LED will turn blue to wait for installation. If the network environment cannot meet the default settings, install Network Camera in Ethernet to proceed with wireless LAN configuration.
8
Software Installation
In this manual, "User" refers to whoever has access to the Network Camera, and
"Administrator" refers to the person who can configure the Network Camera and grant user access to the camera.
At the end of the hardware installation, the Administrator must place the product software CD into the CD-ROM drive of the PC running in MS Windows. An auto-run program will pop up (If the program is not on auto-run, go to the root directory of the software CD and click on “AutoLoader.exe”).
Click on “Installation Wizard Software” item, after the window contains changed, click on
“Installation Wizard” to run installation program.
9
After you click “Installation Wizard” icon on the desktop, a searching box will pop up. This program searches for product on the same LAN:
After searching, Video Servers or Network
Cameras will be located by the Installation
Wizard. There may be several entries shown in the window. The Administrator may differentiate the Network Cameras with the serial number.
For the series number in the “Node ID” field, please check the label on the bottom of the camera.
10
The IP addresses shown in the "Current IP Address" field reflect those on the local network. They may be from the DHCP server. If there is no DHCP server, the camera will try to find a free IP address (this takes from 15 second to 3 minutes, depending on the
LAN status). The method of finding IP address is seeking from 192.168.0.99, to
192.168.0.254. If any of the address inside this range is free, the Network Camera will be assigned to this IP address, and its subnet mask would be 255.255.255.0. If none of the addresses is free, the Network Camera will try the range from 192.168.0.2 to
192.168.0.98. After an IP address is assigned to the camera, the “Activity” status LED blinks.
The UPnP function will always assign an IP address for the Network Camera. The
Administrator can click on button “Link to selected device” to connect the I.E. to the camera.
If the camera is not on the IP installer list, click on the “Search” button to search for the camera on the LAN.
11
For more detailed usage of the Installation Wizard, please refer to the user’s manual of the Installation Wizard included in the product CDROM to find the location of the Network
Camera. There may be many Network Cameras in the local network. Users can differentiate the Network Cameras with the serial number. The serial number is printed on the labels on the carton and the back of the Network Camera body. Please refer to the user’s manual of Installation Wizard for detail.
12
Initial Access to the Network Camera
Check Network Settings
The Network Camera can be connected either before or immediately after software installation onto the Local Area Network. The Administrator should complete the network settings on the configuration page, including the correct subnet mask and IP address of gateway and DNS. Ask your network administrator or Internet service provider for the detail information. By default the Network Camera requires the
Administrator to run installation every time it reboots. If the network settings are to remain unchanged, disable the Install option. Refer to “Network settings” on the
System Configuration page for details. If any setting is entered incorrectly and cannot proceed to setting up the Network Camera, restore the factory settings following the steps in the “Troubleshooting” chapter of the Appendix.
Add Password to Prevent Unauthorized Access
The default Administrator’s password is “password” and the Network Camera initially will not ask for any password. The Administrator should immediately implement a new password as a matter of prudent security practice. Once the Administrator’s password is saved, the Network Camera will ask for the user’s name and password before each access. The Administrator can set up a maximum of twenty (20) user accounts. Each user can access the Network Camera except to perform system configuration. Some critical functions are exclusive for the Administrator, such as system configuration, user administration, and software upgrades. The user name for the Administrator is permanently assigned as “root”. Once the password is changed, the browser will display an authentication window to ask for the new password. Once the password is set, there is no provision to recover the Administrator’s password. The only option is to restore to the original factory default settings.
13
How to Use
Authentication
After opening the Web browser and typing in the URL of the Network Camera, a dialogue window pops up to request a username and password. Upon successful authentication, the following figure is displayed.
The foreground is the login window and the background shows the message if authentication fails. The user may check the option box to save the password for future convenience. This option is not available to the Administrator for obvious reason.
*If the administrator (root user) assigns no password, everybody can access the homepage directly.
14
Installing plug-in
For the initial access to the Network Camera in Windows, the web browser may prompt for permission to install a new plug-in for the Network Camera. Permission request depends on the Internet security settings of the user’s PC or notebook. If the highest security level is set, the computer may prohibit any installation and execution attempt.
This plug-in has been registered for certificate and is used to display the video in the browser. Users may click on to proceed. If the web browser does not allow the user to continue to install, check the Internet security option and lower the security levels or contact your IT or networking supervisor for help.
15
Primary user’s capability
Main Screen with Camera View
The main page layout has three parts:
Configuration functions : The camera can be configured using these user interfaces.
Camera View : What the camera sees.
Pan/Tilt control buttons : These buttons provide a command interface to control the aim of the camera.
Click on the configuration link to the left of the image window to enter the configuration page.
16
The Configuration:
“Snapshot” The button provides users a fast way to capture a single image of the video from the Network Camera.
“Client Settings”
Clicking on this button links you to the client setting pages, please check the following session for more details.
“Configuration” Only the Administrator can access camera configurations.
The camera view:
The information bar at the top of the camera view shows the connection type to the
Network Camera and the current date/time.
The camera view provides not only the live video, but also a way to aim the Network
Camera to different target. Using mouse to click on the target inside the video will command the Network Camera to aim at the target.
17
View capabilities
This feature allows users to open a digital zoom control window to specify the zoom factor for specified area in the camera view. Users can also move the white frame to select the area of the video that she/he wants to view.
“Disable digital zoom” The checkbox selection allows users to disable/enable the digital zoom function.
“Zoom Factors” The range of zoom factor is from 100% to 400%, users can select any integer factor inside this area.
“Hide” Click on this button can close the digital zoom control window.
Stop
Mute
Digital Zoom
Play/Pause
Play volume
“Play” The option will connect to the Network Camera. The button is the same one as
“Pause” .
“Pause” The option will pause the video, but the connection remains. The button is the same one as “Play” .
“Stop” The option will disconnect to the Network Camera.
“Play volume” Click on this button can adjust the audio volume.
“Mute” Disable audio at client side.
18
The pan/tilt control buttons:
The direction buttons are for Left, Right, Up, Down, and Home functions. The Home button centers the camera.
“Go to” Once the Administrator has determined the preset positions; the User can aim the camera using this control.
“Pan speed”
This button sets the moving range of the “Left” and “Right” commands.
“Tilt speed”
This button sets the moving range of the “Up” and “Down” commands.
“Pan”
This button commands the camera to pan from the current position to the left-most and then to the right-most position. After panning, the camera returns to the original position.
“Patrol”
This button commands the camera to patrol between the preset positions on the Patrol
List, which can be modified on the “Camera control page”. After one patrol cycle, the camera returns to the original position.
“Stop” This stops the “Auto Pan” command or “Auto Patrol” command.
19
Client settings
At the initial access to the “Connection type” page in Windows, the web browser will ask for a new plug-in installation, the plug-in being the Network Camera. This plug-in has been registered for certification and can be used to change the parameters at the client’s site. The user may click on to install the plug-in. If the web browser does not allow the user to complete the installation, check the Internet security to lower the security level or contact your IT or networking supervisor.
There are two settings for the client side. One is “ Media Options ” for users to determine the type of media to be streaming. The other is “ Protocol Options ” which allows choices on connection protocol between client and server. There are two protocols choices to optimize your usage – UDP and TCP.
The UDP protocol allows for more real-time audio and video streams. However, some packets may be lost due to network burst traffic and images may be obscured.
The TCP protocol allows for less packet loss and produces a more accurate video display. The downside with this protocol is that the real-time effect is worse than that with the UDP protocol.
20
If no special need is required, UDP protocol is recommended. Generally speaking, the client’s choice will be in the order of UDP → TCP. After the Network Camera is connected successfully, “Protocol Option” will indicate the selected protocol. The selected protocol will be recorded in the user's PC and will be used for the next connection. If the network environment is changed, or the user wants to let the web browser to detect again, manually select the UDP protocol, save, and return HOME to re-connect.
<url> http://<Network Camera>/client.html
<Network Camera> is the domain name or the original IP address of the Network
Camera.
21
Administrator’s capability
Fine-tuning for Best Performance
Best performance generally equates to the fastest image refresh rate with the best video quality, and at the lowest network bandwidth as possible. The three factors,
“Maximum frame rate”, “Constant bit rate”, and “Fix quality” on the Audio and Video
Configuration page, are correlative to allow for achieving the best performance possible.
For Viewing by Mobile Phone
Most 3GPP cell phone supports media streaming with MPEG4 video and GSM-AMR audio. Due to the limitation of the bandwidth for 3GPP, only 176x144 size video is supported for cell phone viewing. Select the “Configure for mobile viewing” option will change the range of other related video settings.
22
For Best Real-time Video Images
To achieve good real-time visual effect, the network bandwidth should be large enough to allow a transmission rate of greater than 20 image frames per second. If the broadband network is over 1 Mbps, set the “Fix bit rate” to 1000Kbps or 1200Kbps. The maximum frame rate is 30. If your network bandwidth is more than 512Kbps, you can fix the bit rate according to your bandwidth and set the maximum frame rate to 30 fps.
If the images vary dramatically in your environment, you may want to slow the maximum frame rate down to 20 fps in order to lower the rate of data transmission.
This allows for better video quality and the human eyes cannot readily detect the differences between those of 20, 25, or 30 frames per second. If your network bandwidth is below 512 Kbps, set the “Fix bit rate” according to your bandwidth and try to get the best performance by fine-tuning with the “Maximum frame rate”. In a slow network, greater frame rate results in blur images. Another work-around is to choose
“160x120” in the “Size” option for better images. Video quality performance will vary somewhat due to the number of users viewing on the network; even when the parameters have initially been finely tuned. Performance will also suffer due to poor connectivity because of the network’s burst constraint.
Only Quality Images Will Do
To have the best video quality, you should set “Fix quality” at “Detailed” or “Excellent” and adjust the “Maximum frame rate” to match your network’s bandwidth. If your network is slow and you receive “broken” pictures, go to the TCP protocol in
“Connection type” and choose a more appropriate mode of transmission. The images may suffer a time delay due to a slower connection. The delay will also increase with added number of users.
Somewhere Between Real-time and Clear Images
If you have a broadband network, set “Fix quality” at ”Normal” or better, rather than setting “Fix bit rate”. You can also fix the bandwidth according to your actual network speed and adjust the frame rate. Start from 30 fps down for best results but not below
15 fps. If the image qualities are not improved, select a lower bandwidth setting.
23
Opening accounts for new users
1
2
3
Protect Network Camera by passwords
The Network Camera is shipped without any password by default. That means everyone can access the Network Camera including the configuration as long as the IP address is known. It is necessary to assign a password if the Network Camera is intended to be accessed by others. Type a new word twice in ○ to enable protection.
This password is used to identify the administrator. Then add an account with user name and password for your friends in ○ . Network Camera can provide twenty accounts for your valuable customers or friends. You may delete some users from ○ .
Build a security application
The Administrator can use the built-in motion detection to monitor any movement to perform many useful security applications. To upload the snapshots, users can choose either email or FTP according to user’s needs. Both e-mail and FTP use the network settings on the Email and FTP page. Refer to the definition section for detail configuration.
24
1.
Click on “ Configuration ” on homepage,
2.
Click on “ Motion detection ” at the left column,
3.
Check “Enable motion detection”,
4.
Click on new to have a new window to monitor video,
5.
Type in a name to identify the new window,
6.
Use the mouse to click, hold, and drag the window corner to resize or the title bar to move,
7.
Fine-tune using the “Sensitivity” and “Percentage” fields to best suit the camera’s environment. Higher ”Sensitivity” detects the slighter motion. Higher “Percentage” discriminates smaller objects,
8.
Clicking on “Save” enables the activity display. Green means the motion in the window is under the watermark set by Administrator and red means it is over the watermark,
9.
Click on “ Application ” at the left column,
10.Check the weekdays as you need and give the time interval to monitor the motion detection every day,
11.Select the Trigger on Motion detection.
12.Set the delay before detecting next motion to avoid continuous false alarms following the original event,
13.Set the number of pre-event and post-event images to be uploaded,
14.Check the window name set in step 5,
15.Check the way to upload snapshot,
Click on save to validate.
25
Definitions in Configuration
Only the Administrator can access system configuration. Each category in the left column will be explained in the following pages. The bold texts are the specific phrases on the Option pages. The Administrator may type the URL below the figure to directly enter the frame page of configuration. If the Administrator also wants to set certain options through the URL, read the reference appendix for details.
<url> http://<Network Camera>/setup/config.html
<Network Camera> is the domain name or original IP address of the Network Camera.
<url> http://<Network Camera>/setup/system.html
<Network Camera> is the domain name or original IP address of the Network Camera.
26
System parameters
"Host name" The text displays the title at the top of the main page.
“Turn off the LED indicator” Check this option to shut off the LED on the rear. It can prevent the camera’s operation being noticed.
"Keep current date and time" Click on this to reserve the current date and time of the Network Camera. An internal real-time clock maintains the date and time even when the power of the system is turned off.
"Sync with computer time" Synchronizes the date and time of the Network Camera with the local computer. The read-only date and time of the PC is displayed as updated.
“Manual” Adjust the date and time according to what is entered by the Administrator.
Notice the format in the related fields while doing the entry.
“Automatic” Synchronize with the NTP server over the Internet whenever the
Network Camera starts up. It will fail if the assigned time-server cannot be reached.
"Time zone" Adjust the time with that of the time-servers for local settings.
“NTP server” Assign the IP address or domain name of the time-server. Leaving the text box blank connects the Network Camera to the default time-servers.
“ Update interval ” Select hourly, daily, weekly, or monthly update with the time on the NTP server.
Remember to click on to immediately validate the changes. Otherwise, the correct time will not be synchronized.
27
Security settings
“Root password” Change the Administrator’s password by typing in the new password identically in both text boxes. The typed entries will be displayed as asterisks for security purposes. After pressing for the new password for access.
, the web browser will ask the Administrator
“Add user” Type the new user's name and password and press to insert the new entry. The new user will be displayed in the user name list. There is a maximum of twenty user accounts.
to “Manager user” Pull down the user list to find the user’s name and press complete.
<url> http://<Network Camera>/setup/security.html
<Network Camera> is the domain name or original IP address of the Network Camera.
28
Network settings
Any changes made on this page will restart the system in order to validate the changes.
Make sure every field is entered correctly before clicking on .
Network type
“LAN” & “PPPoE”
The default type is LAN. Select PPPoE if using ADSL
"Get IP address automatically" & “Use fixed IP address”
The default status is “ Get IP address automatically ”. This can be tedious having to perform software installation whenever the Network Camera starts. Therefore, once the network settings, especially the IP address, have been entered correctly, select
“ Use fixed IP address ” then the Network Camera will skip installation at the next boot. The Network Camera can automatically restart and operate normally after a power outage. Users can run IP installer to check the IP address assigned to the
Network Camera if the IP address is forgotten or using the UPnP function provided by the Network Camera (MS Windows XP provides UPnP function at My Network Place ).
“IP address” This is necessary for network identification.
“Subnet mask” This is used to determine if the destination is in the same subnet. The default value is “255.255.255.0”.
“Default router” This is the gateway used to forward frames to destinations in a different subnet. Invalid router setting will fail the transmission to destinations in different subnet.
“Primary DNS” The primary domain name server that translates hostnames into IP addresses.
“Secondary DNS” Secondary domain name server that backups the Primary DNS.
“Enable UPnP presentation” Enable the UPnP camera short cut
“ Enable UPnP port forwarding ” Enable uPnP port forwarding
“PPPoE” If using the PPPoE interface , fill the following settings from ISP
“User name” The login name of PPPoE account
“Password” The password of PPPoE account
“Confirm password” Input password again for confirmation
29
HTTP
“Http port” This can be other than the default Port 80. Once the port is changed, the users must be notified the change for the connection to be successful. For instance, when the Administrator changes the HTTP port of the Network Camera whose IP address is 192.168.0.100 from 80 to 8080, the users must type in the web browser
“http://192.168.0.100:8080” instead of “http://192.168.0.100”.
RTSP Streaming
“Access name” This is the access URL for making connection from client software.
Using rtsp://<ip address>/<access name> to make connection
“RTSP port” This can be other than the default Port 554
<url> http://<Network Camera>/setup/network.html
<Network Camera> is the domain name or original IP address of the Network Camera.
30
WLAN Configuration
“SSID” (Service Set Identifier), it is a name that identifies a wireless network. Access
Points and wireless clients attempting to connect to a specific WLAN (Wireless Local
Area Network) must use the same SSID. The default setting is Planexuser . Note: The maximum length of SSID is 32 single-byte characters and SSID can’t be any of “, <, > and space character.
“Wireless mode” Clicking on the pull-down menu to select from the following options:
▶ “Infrastructure” Make the Network Camera connect to the WLAN via an Access
Point. (The default setting)
▶ “Ad-Hoc” Make the Network Camera connect directly to a host equipped with a wireless adapter in a peer-to-peer environment.
“Channel” While in infrastructure mode, the channel is selected automatically to match the channel setting for the selected Access Point. In Ad-Hoc mode, the channel must be manually set to the same channel for each wireless adapter. The default channel setting depends on the installed region.
“TX rate” This field is for selecting the maximum transmission rate on the network.
The default setting is “auto”, that is the Network Camera will try to connect to the other wireless device with highest transmitting rate.
“Security” Select the data encrypt method
▶ “None” – No data encryption.
▶ “WEP” – allows communication only with other devices with identical WEP settings.
▶ “WPA-PSK” – Use WPA pre-shared key.
“Auth Mode” Choosing one of the following modes, (Open is the default setting).
▶ “Open” – communicates the key across the network.
▶ “Shared” – allows communication only with other devices with identical WEP settings.
“Key length” The administrator can select the key length among 64 or 128 bits.
64bits is the default setting.
“Key format ” Hexadecimal or ASCII. “ HEX ” is the default setting.
▶ “HEX” digits consist of the numbers 0~9 and the letters A-F.
▶ “ASCII” is a code for representing English letters as numbers from 0-127 except “,
<, > and space characters that are reserved.
31
“Network Key ” Entering a key in either hexadecimal or ASCII format. When selecting different key length, acceptable input length is listed as following:
64 bits key length: 10 Hex digits or 5 characters.
128 bites key length: 26 Hex digits or 13 characters.
Note: When 22(“), 3C(<) or 3E(>) are input in network key, the key format can’t be changed to ASCII format.
“Algorithm” Choosing one of the following algorithm for WPA-PSK modes
▶ “TKIP”
▶ “AES”
“Pre-shared Key ” Entering a key in ASCII format. The length of the key is 8 ~ 63
Some invalid settings may cause the system failing to respond. Change the configuration only if necessary and consult with your network supervisor or experienced users for correct settings. Once the system has lost contact, refer to Appendix A for reset and restore procedures.
<url> http://<Network Camera>/setup/wireless.html
<Network Camera> is the domain name or original IP address of the Network Camera.
32
DDNS
“Enable DDNS” This option turns on the DDNS function.
“Provider” The provider list contains four hosts that provide DDNS services. Please connect to the service provider’s website to make sure the service charges.
“Host Name” If the User wants to use DDNS service, this field must be filled. Please input the hostname that is registered in the DDNS server.
“Username/E-mail” The Username or E-mail field is necessary for logging in the
DDNS server or notify the User of the new IP address. Note: when this field is input as
“Username” the following field must be input as “Password”.
“Password/Key” Please input the password or key to get the DDNS service.
“ Save ” Click on this button to save current settings for the DDNS service and UPnP function.
<url> http://<Network Camera>/setup/ddns.html
<Network Camera> is the domain name or original IP address of the Network Camera.
33
Access List
The access list is to control the access permission of clients by checking the client IP address.
There are two lists for permission control: Allow List and Deny List . Only those clients whose IP address is in the Allow List and not in the Deny List can connect to the Video Server or Network Camera for receiving the audio/video streaming.
Both Allow List and Deny List consist of a list of IP ranges. If you want to add a new
IP address range, type the Start IP Address and End IP Address in the text boxes and click on the Add button. If you want to remove an existing IP address range, just select from the pull-down menu and click on the Delete button.
Both the Allow List and Deny List can have 20 entries.
<url> http://<Network Camera>/setup/accesslist.html
<Network Camera> is the domain name or original IP address of the Network Camera.
34
Audio and Video
General
“Configure for computer viewing” To make quick setting for computer viewing
“Configure for mobile viewing” To make quick setting for cell phone viewing
Video Settings
“Video title” The text string can be displayed on video
“Color” Select either for color or monochrome video display.
“Frame Size” There are four options for video sizes. “160x120” , “176x144”,
“320x240”, “640x480” .
“Power line frequency (for fluorescent light)” , the fluorescent light will flash according to the power line frequency that depends on local utility. Change the frequency setting to eliminate uncomfortable flash image when the light source is only fluorescent light.
There are three dependent parameters provided for video performance adjustment.
“key frame interval”
“Max frame rate” This limits the maximal refresh frame rate, which can be combined with the “Video quality” to optimize bandwidth utilization and video quality. Choose
“ Constant bit rate ” If the user wants to fix the bandwidth utilization regardless of the video quality or choose “Fixed quality” and select the desired bandwidth. The video quality may be poor due to the sending of maximal frame rate within the limited bandwidth when images are moving rapidly. Consequently, to ensure detailed video quality (quantization rate) regardless of the network, it will utilize more bandwidth to send the maximal frames when images change drastically.
35
Video orientation
“Flip” Vertically rotate the video.
“Mirror” Horizontally rotate the video. Check options both if the Network Camera is installed upside down.
“White balance” Adjust the value for best color temperature.
Audio settings
“mute” Audio mute
“Audio type” Select audio codec “AAC” or “GSM-AMR” and the bit rate
36
Image Settings
Click on this button to pop up another window to tune “Brightness” ,
“Contrast” , “Hue” and
“Saturation” for video compensation. Each field has eleven levels ranged from -5 to +5. In
“Brightness” and
“Contrast” fields the value 0 indicates auto tuning. The user may press to fine-tune the image.
When the image is O.K., press to set the image settings.
Click on this to recall the original settings without incorporating the changes.
37
Camera Control
Camera control area
Preset function area
On the Camera Control page, there are two main function control areas:
Camera control area
The pan and tilt functions can be controlled with these buttons. The “Left” button aims the camera to the left; the “Right”, “Up”, and “Down” buttons aim the camera accordingly. The “Home” button aims the camera to the center.
“ Pan speed ” This controls the range of the horizontal movement of the camera. The greater the value, the greater angular movement when performing the “Left” or “Right” functions.
“ Tilt speed ” This controls the range of the vertical movement of the camera. The greater the value, the greater angular movement when performing the “Up” or “Down” functions would be.
“ Auto pan/patrol speed ” This defines the speed of panning and patrol, the greater the value, the faster the speed.
38
Preset function area
” Current position”, If the User wants to save the current view as a preset location, enter a name for each of the current video view at “current position” and click on the
“Add” button. The camera allows for 20 preset locations.
” Preset position ” This keeps a list for preset positions. Clicking on the “Delete” button will remove the current selected position from the preset list.
“ Set as home ” Click on the button will set the current aimed position as home of the
Network Camera. Each time the Network Camera reboots or after calibration, it will automatically aim to the defined home position.
“ Default home ” Restore home position to factory default home by clicking on this button.
” Dwelling time ” The value set here specifies:
1. The stop time of each preset location during auto patrol of the Network Camera.
2. The stay time at the most left and the most right positions when the Network
Camera is doing auto panning.
” Patrol selection ”, After the User has saved a list of preset positions, the “Preset locations” box will also keep a list of the preset positions. And once the “Select>” button is clicked, the “Selected location” box will keep a list of the patrol stops. The
“Remove” button removes the preset position from the patrol stops. The “UP”, “DOWN” buttons adjust the order of the patrol stops. Several preset positions can be added to the patrol stops. The camera can accept up to 40 patrol stops.
“ Save ” button
The button is valid for “Auto pan/patrol speed”, “Enable IR control”, “Dwelling time” and
“Patrol selections”. In other words, after changing these settings, and the “Save” button is not clicked, the new setting of the camera will not take effect.
39
Email & FTP
When the SMTP server support SMTP authentication, users need to give the valid user name and password to send email via the server.
“Sender email address” , the email address of the sender.
There are two external mail server can be configured, primary and secondary email server, The network camera will use primary server as default , and use secondary server when primary server is unreachable.
“Server address” The domain name or IP address of the external email server.
“User name” This granted user name on the external email server.
“Password” This granted password on the external email server.
“Recipient email address” The email address of the recipients for snapshots or log file. Multiple recipients must be separated by semicolon, ‘;’.
FTP
“Built-in FTP server port number” This can be other than the default port 21. The user can change this value from 1025 to 65535. After the changed, the external FTP client program must change the server port of connection accordingly.
There are two external FTP server can be configured, primary and secondary FTP server,
The network camera will use primary server as default , and use secondary server when primary server is unreachable.
“Server address” The domain name or the IP address of the external FTP server. The following user settings must be correctly configured for remote access.
“FTP server port” This can be other than the default port 21. The user can change this value from 1025 to 65535.
“User name” Granted user name on the external FTP server.
“Password” Granted password on the external FTP server.
“Remote folder name” Granted folder on the external FTP server. The string must conform to that of the external FTP server. Some FTP servers cannot accept preceding
40
slash symbol before the path without virtual path mapping. Refer to the instructions for the external FTP server for details. The folder privilege must be open for upload.
<url> http://<Network Camera>/setup/mailftp.html
<Network Camera> is the domain name or original IP address of the Network Camera.
41
Motion detection
“Enable motion detection” Check this option to turn on motion detection.
Click on this button to add a new window. At most three windows can exist simultaneously. Use the mouse to click, hold, and drag the window frame to resize or the title bar to move. Clicking on the ‘x’ at the upper right-hand corner of the window to delete the window. Remember to save in order to validate the changes.
Click on this button to save the related window settings. A graphic bar will rise or fall depending on the image variation. A green bar means the image variation is under monitoring level and a red bar means the image variation is over monitoring level.
When the bar goes red, the detected window will also be outlined in red. Going back to the homepage, the monitored window is hidden but the red frame shows when motion is detected.
"Window Name" The text will show at the top of the window.
“Sensitivity” This sets the endurable difference between two sequential images.
“Percentage” This sets the space ratio of moving objects in the monitoring window.
Higher sensitivity and small percentage will allow easier motion detection.
The following figure shows the screen when is clicked. The monitoring window has been outlined in red and the graphic bar goes red since the goldfish is moving.
42
Application settings
Snapshot
“Enable snapshot” Enable/Disable snapshot application.
Weekly schedule
“Sun” ~ “Sat” Select the days of the week to perform the application.
Select “Always” or input the time interval.
Snapshot file name prefix
The prefix name will be added on the file name of the snapshot images.
Send out the snapshot while motion detection
There are three windows for motion detection each can be assigned a name. Select the windows which need to be monitored. If motion detection has not been set up,
“ undefined ” will be shown instead of the window title. If this happens, clicking on
“Motion detection” and a note will show to direct the User to the configuration page for motion detection.
“Send pre-event image(s)” The number of pre-snapshots will be captured and send when a condition is triggered.
“Send post-event image(s)” The number of post-snapshots will be captured and send when a condition is triggered.
“Delay second(s) before detecting next motion” Set the time delay before restarting to check on the triggering condition when the current condition is triggered.
Sequential operation
“Snapshot interval : second(s)” Network Camera will send snapshots at the specified intervals to the external server using the method selected below. Remember:
This operation is still subject to the conditions set in the weekly schedule.
43
Method for sending snapshot
“Email” This selects the uploading method following the intervals set above. The snapshot named “prefix-yyyymmdd-hhmmss.jpg” will be attached in the email.
“FTP” The snapshots will be uploaded to the external FTP server with the file name defined in the next option. This can also be used to refresh the captured images stored in the external web server to build creative homepages.
“FTP put snapshots with date and time suffix” This option sets up the snapshot capture date and time, which can be used to easily differentiate the snapshot file names in the sequential operation. For instance, “prefix-20030102-030405.jpg” means the JPEG image was captured in the year 2003, January the 2 nd , at 3 o’clock, 4 minute, and 5 second. If this suffix is omitted, the file named “video.jpg” on the external FTP server will be refreshed at the specified interval.
44
System log
The Network camera support log the system messages on remote server. The protocol is compliant to RFC 3164. If you have external Linux server with syslogd service, use
“-r” option to turn on the facility for receiving log from remote machine. Or you can use some software on Windows which is compliant to RFC 3164.
Check “Enable remote log ” and input the “IP address ” and “port” number of the log server to enable the remote log facility.
In the “Current log” , it displays the current system log file. The content of the log provides useful information about configuration and connection after system boot- up.
45
Viewing system parameters
Click on this link on the configuration page to view the entire system’s parameter set.
The content is the same as those in CONFIG.INI.
46
Maintenance
Four actions can be selected
“reboot” click the reboot button to restart system
“factory default” Click on Factory default button on the configuration page to restore the factory default settings. Any changes made so far will be lost and the system will be reset to the initial factory settings. The system will restart and require the installer program to set up the network again.
“Calibrate”
Recalibrate the home position to the default center to recover the tolerance cased by some external forces. This function is the same as the “ Center ” button on the Remote
Controller. Please note that there is no confirming message box after clicking on the
“ Calibrate ” button, the Network Camera will calibrate immediately.
“upgrade firmware” Select the firmware file and click upgrade button
47
Appendix
A. Troubleshooting
Status LED
The following table lists the LED patterns in general.
Loading system after power on
During booting procedure
Detecting and setting network
After network is setup (system up)
During the upgrade firmware process
Enable audio
Steady red
Steady green, blue and red
Steady green and blue. Blink red till IP address is confirmed
Blink green every second and steady red
Blink green every second and fast blink red
Steady blue. Disable audio will turn off blue
LED.
Reset and restore
There is a button in the back side of the Network
Camera. It is used to reset the system or restore the factory default settings.
RESET: Click on the button.
RESTORE:
1. Press on the button continuously.
2. Wait for all LED blink fast.
3. Free the button.
Restoring the factory defaults will erase any previous settings.
48
Technology License Notice
MPEG-4 AAC Technology
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE.
THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED,
EXCEPT REGARD TO PC SOFTWARE, YOU MAY MAKE SINGLE COPIES FOR
ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO
HTTP://WWW.VIALICENSING.COM.
MPEG-4 Visual Technology
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO
LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR
(i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD
("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED
BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO
PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR
ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO
PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE
OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.
AMR-NB Standard
THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE
AGREEMENT. WITH RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING
LICENSORS’ PATENTS MAY APPLY:
TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938;
6058359. NOKIA CORPORATION: US PAT. 5946651; 6199035. VOICEAGE
CORPORATION: AT PAT. 0516621; BE PAT. 0516621; CA PAT. 2010830; CH PAT.
0516621; DE PAT. 0516621; DK PAT. 0516621; ES PAT. 0516621; FR PAT. 0516621; GB
PAT. 0516621; GR PAT. 0516621; IT PAT. 0516621; LI PAT. 0516621; LU PAT. 0516621;
NL PAT. 0516621; SE PAT 0516621; US PAT 5444816; AT PAT. 819303/AT E 198805T1;
AU PAT. 697256; BE PAT. 819303; BR PAT. 9604838-7; CA PAT. 2216315; CH PAT.
819303; CN PAT. ZL96193827.7; DE PAT. 819303/DE69611607T2; DK PAT. 819303; ES
PAT. 819303; EP PAT. 819303; FR PAT. 819303; GB PAT. 819303; IT PAT. 819303; JP PAT.
APP. 8-529817; NL PAT. 819303; SE PAT. 819303; US PAT. 5664053. THE LIST MAY BE
UPDATED FROM TIME TO TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS
AVAILABLE ON LICENSOR’S WEBSITE AT HTTP://WWW.VOICEAGE.COM
.
49
Electromagnetic Compatibility (EMC)
This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.
•
This device may not cause harmful interference, and
•
This device must accept any interference received, including interference that may cause undesired operation.
USA - This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partial installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the seperation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
Europe - This digital equipment fulfills the requirement for radiated emission according to limit B of EN55022/1998.
Liability
PLANEX COMMUNICATIONS Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. PLANEX COMMUNICATIONS Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
DA090421-CS-WMV02G_HK_US_PDF-A_V2
advertisement
Related manuals
advertisement
