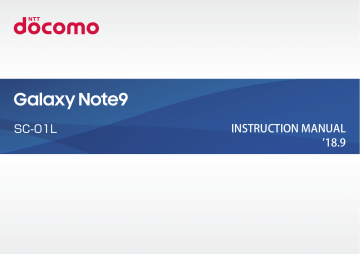

SC-01L
INSTRUCTION MANUAL
ʼ18.9
Introduction
Thank you for purchasing "SC-01L" mobile terminal.
Before and during use of your terminal, be sure to thoroughly read this instruction manual to ensure you are able to correctly use your terminal.
Manual
■ クイックスタートガイド (Quick start guide) (included in basic package) (In
Japanese only)
Part names and functions are explained.
■ Instruction Manual (guide app of the terminal) (In Japanese only)
Detailed guidance of each function and the operations are explained.
• From the Home screen, tap "apps folder" → "Instruction Manual".
For some items, tap the written content, and you can see the content or start the function directly from the description.
• For the first time, download and install the app according to onscreen instructions.
• If you uninstall "Instruction Manual" app, from the Home screen, tap "Play
Store" and search "SC-01L 取扱説明書 (SC-01L Instruction manual)" in Play
Store and download "Instruction Manual" app.
■ INSTRUCTION MANUAL (PDF file)
Detailed guidance of each function and the operations are explained.
• Download from NTT DOCOMO website: https://www.nttdocomo.co.jp/english/support/trouble/manual/download/ index.html
* The latest information can be downloaded. URL and the contents are subject to change without prior notice.
Operation descriptions
In this manual, the operation steps such as the menu operations are simply described as follows.
• Tap is an operation of touching lightly the display of the terminal with finger
(Example) For tapping "apps folder" from the Home screen and then tapping
(Settings icon), the operation is described as follows.
1
From the Home screen, "apps folder" → "Settings"
• In this manual, the operation steps and screen images are described in default status. The operation steps or screen image on the terminal may vary by the service you use or app you installed.
• This manual describes in the case of "Ocean Blue" as the terminal color and "docomo LIVE UX" as the Home app. Home app can be switched by the operation from the Home screen, tap " ホーム切替 (Change home)".
• An operation guidance screen may appear on the Home screen or the Apps screen, etc. If "Do not show again", etc. option is displayed on the screen, select the option to hide the screen from then on.
• The images and illustrations used in this manual are examples. They may differ from the actual products.
• In this manual, function or setting that is available in multiple operations are explained mostly with the easily understandable operation steps.
• In this manual, "SC-01L" mobile terminal is usually referred to as "terminal".
Please be forewarned.
• Reproduction of the content of this manual in part or in whole is prohibited.
• The content of this manual is subject to change without prior notice.
Accessories
■ SC-01L Phone ■ External TV antenna cable SC04
■ Sample for data transfer (Micro
USB cable and USB conversion adapter for OTG) (sample)
■ Clear case (sample) ■ クイックスタートガイド (Quick start guide) (In Japanese only)
■ ご利用にあたっての注意事項
(Notes on Usage) (In Japanese only)
■ データ移行用試供品取扱説明
書 (Sample for data transfer
Manual) (In Japanese only)
■ S Pen SC02 (including S Pen replacement kit) (sample)
■ High-Quality Earphone with
Microphone tuning by AKG
(sample)
You can check or purchase optional accessories compatible with the terminal (sold separately) in the DOCOMO online shop.
https://www.mydocomo.com/onlineshop/options/index.html (In Japanese only)
■ Earpieces (sample) ■ SIM ejector tool (sample)
1 Contents/Precautions
Contents
Contents/Precautions
2
Contents/Precautions
3 Contents/Precautions
About usage of the terminal
• The terminal supports LTE, W-CDMA, GSM/GPRS, and wireless LAN.
• Because your terminal uses wireless transmission, it may not function in locations where it is difficult for radio waves to penetrate, such as tunnels, underground passages and some buildings, in areas where radio waves are weak, or out of LTE service area and FOMA service area. Even when you are high up in a tall building or condominium and nothing blocks your view outside, your terminal may not be able to receive or transmit signals. Also, communication may be interrupted even when the signal meter on your terminal.
• Because your terminal uses radio waves to communicate, it is possible that a third party may attempt to tap your calls. However, LTE, W-CDMA, GSM/GPRS system automatically applies a confidential communication function to all calls, so even if a third party could somehow tap a call, they only hear noise.
• The terminal encodes voice communication as digital data. When you are operating your terminal while moving to a location subject to weaker radio wave conditions, the transmitted digital data may not be correctly decoded and as a result the decoded voice may differ somewhat from the actual voice.
• Keep the data that you registered in the terminal separately by noting down periodically or saving to microSD card, PC etc. Note that DOCOMO cannot assume any responsibility for any loss of saved contents of data resulting from malfunction, repair, changing of the model or other handling of the terminal.
• As with PCs, some user-installed apps or accessed websites may give the terminal instability of this terminal operation, or may send your location information or personal information registered to the terminal to outside via the Internet and the information may be used improperly. Therefore, verify the supplier and operating conditions of the apps or websites before use them.
• The terminal automatically performs communications for some functions, for example, to synchronize data, check the latest software, maintain connection with the server, etc.
Additionally, when you download apps or watch video etc., a large amount of packet communication charges are executed. Therefore, it is highly recommended to use packet pack or packet flat-rate service.
• Depending on apps or services you use, a packet communication fee may be charged even if you perform Wi-Fi communication.
• The terminal internal storage or the microSD card does not have enough memory, running apps may not work normally. In such case, delete saved data.
• The Operating System (OS) may be upgraded due to improve the quality of the terminal and add a function. For latest information of additional function or operation steps, refer to NTT DOCOMO website.
Also some apps used for former OS may not work or unintended failure may occur.
• In case of loss of the terminal, set the screen lock password ,etc. to ensure
the security of the terminal (P.135).
• If you lose your terminal, change password and disable certification of online service accounts from PC so that Google Services such as Gmail, Google Play, and SNS, etc. should not be used by others.
• For services and apps provided by any third party included Google LLC thoroughly read the terms of use of Google LLC. NTT DOCOMO is not liable for malfunctions, for any disadvantage brought to you caused by the app provided by any third party included Google LLC you installed.
• If the terms of use, etc. appear, follow the instructions on the screen.
• Apps or services are subject to change without prior notice.
• The terminal does not support service providers other than sp-mode, mopera U and Business mopera Internet.
• For details about usage fee, etc., refer to the NTT DOCOMO website.
• Although the display is manufactured with extremely advanced technology, some dots may not be lit or be always lit. It is characteristic of the display and not malfunction. Please be forewarned.
• This terminal uses an organic EL display. If the same images are displayed for a long time, then afterimages may be generated on the display, but that is not a malfunction. In order to prevent afterimages, do not keep on displaying the same images for a long time. In addition, color and brightness unevenness, and color changes may be seen depending upon the viewing direction. These are due to the organic EL display's structure, they are not malfunctions.
• DOCOMO shall not be liable for commercially available optional equipment.
4 Contents/Precautions
Safety precautions (Always follow these directions)
■ Before using your terminal, read this "Safety precautions" to ensure safe use and handling.
■ These precautions are intended to protect you and others around you. Read and follow them carefully to avoid injury, damage to the product or damage to property.
■ The signs below differentiate between the levels of danger that can occur if the product is not used within the specified guidelines.
DANGER
This sign denotes that death or serious injury ( *1 directly result from improper use.
) may
WARNING
This sign denotes that death or serious injury ( *1 result from improper use.
) may
CAUTION
This sign denotes that minor injury ( *2 ) or damage ( *3 ) to property may result from improper use.
*1 Serious injury: This refers to loss of sight, injury, burns (high- and low-temperature), electric shock, broken bones, injuries with residual aftereffects from poisoning, etc., and injuries requiring hospital admission for treatment or long term hospital attendance as an outpatient.
*2 Minor injury: This refers to injuries, burns (high- and low-temperature), electric shock, etc. that do not require hospital admission for treatment or long-term hospital attendance as an outpatient.
*3 Physical damage: This refers to extended damage to buildings, furniture, livestock, pets, etc.
■ The symbols below show specific directions.
Don t
This symbol denotes that the action is prohibited.
No disassembly
This symbol denotes that disassembling the terminal or its components is not allowed.
No liquids
This symbol denotes that the terminal should not be used in areas splashed with water, neither should it be wet with water.
No wet hands
This symbol denotes that using the terminal or its components with wet hands is not allowed.
Do
This symbol denotes that an instruction must be obeyed at all times.
Unplug
This symbol denotes that the equipment should be unplugged.
5 Contents/Precautions
1. Handling the terminal, adapter, Wireless charger, docomo nano UIM card and External TV antenna cable, S Pen (common)
DANGER
Don t
Don t
Don t
Don t
Do not use, store or leave the equipment in hot places (e.g. by the fire, near a heater, under a kotatsu, in direct sunlight, in a car in the hot sun, etc.).
May cause fire, burns, injuries or electric shocks, etc.
Do not put the equipment into heating cooking device such as microwave oven, IH cooker or high pressure container such as pressure cooker.
May cause fire, burns, injuries or electric shocks, etc.
Do not pour sand, soil or mud on the product or place the product directly on sand, soil or mud. Avoid touching the product with a hand covered with sand, etc.
May cause fire, burns, injuries or electric shocks, etc.
For waterproofness/dustproofness, refer to the following:
→ P.21 "Waterproofness/Dustproofness"
Do not charge the product if it is wet with water or other liquids (drinking water, sweat, sea water, urine of pet animals, etc.).
Do not charge the product in a bathroom or other water place.
May cause fire, burns, injuries or electric shocks, etc.
For waterproofness, refer to the following:
→ P.21 "Waterproofness/Dustproofness"
Don t
Don t
Do not apply a large amount of force or bend the terminal.
Particularly when putting the terminal in your pocket and carrying it around, do not bump or press it against anything.
The internal battery may damage and may result in fire, burns, injuries, etc.
Note the following examples:
Sitting or squatting when the terminal is in your pants or skirt pocket.
Getting the terminal caught in a door or car door when it is in your shirt pocket.
Sitting or stepping on the terminal when it is on a sofa, bed, blankets, or other soft items, or on the floor.
Do not remove internal battery of this terminal
May cause fire, burns, injuries or electric shocks, etc.
No disassembly
Do not attempt to disassemble or modify the equipment.
May cause fire, burns, injuries or electric shocks, etc.
No liquids
Do not let the equipment get wet with water or other liquids
(drinking water, sweat, sea water, urine of pet animals, etc.)
May cause fire, burns, injuries or electric shocks, etc.
For waterproofness, refer to the following:
→ P.21 "Waterproofness/Dustproofness"
No liquids
Do not let the equipment get wet with water or other liquids
(drinking water, sweat, sea water, urine of pet animals, etc.) into the charging jack or external connection jack.
May cause fire, burns, injuries or electric shocks, etc.
For waterproofness, refer to the following:
→ P.21 "Waterproofness/Dustproofness"
Do
Use the optional equipment specified by NTT DOCOMO for the terminal.
Use other than specified may cause fire, burns, injuries or electric shocks, etc.
6 Contents/Precautions
WARNING
Don t
Don t
Don t
Don t
Don t
Do
Do
Do not subject the equipment to strong forces, impacts or vibration such as being dropped, being stepped on, or being thrown, etc.
May cause fire, burns, injuries or electric shocks, etc.
Do not allow conductive materials (metal pieces, pencil lead, etc.) to come into contact with the charging jack or external connection jack, or dust to get inside it.
May cause fire, burns, injuries or electric shocks, etc.
Do not cover or wrap the equipment with a blanket, etc. while using or charging.
May cause fire or burns, etc.
Do not stick metallic items (such as stickers that contain metal) between the wireless charger and this terminal.
May cause fire, burns or injuries, etc.
Do not place metallic items (such as straps and clips that contain metal) between the wireless charger and this terminal.
May cause fire, burns or injuries, etc.
When charging with the wireless charger, remove the cover, etc. with which the terminal is equipped.
Failure to charge arising from material and thickness of the cover or foreign objects such as dust caught between the product and the cover may cause fire, burns or injury.
Turn the terminal OFF near high-precision electronic control equipment or electronic equipment using low-power signals.
Failure to do so may cause the equipment to fail or malfunction by radio wave.
* Examples of electronic equipment to avoid
Hearing aids, implanted pacemakers or defibrillators, other electronic medical equipment, fire alarms, automatic doors and other automatic control equipment. Users wearing implanted pacemakers or defibrillators or other electronic medical equipment should check with the manufacturer or sales outlet about the effect of radio wave on the equipment.
7
Do
Do
Do
If charging is not completed after the specified charging time, stop charging.
Overcharging the battery may cause fire, burns or injury.
Turn the product OFF and stop charging before entering a place such as a gas station where there is a possibility of flammable gases being generated or a place where there is a possibility of dust being generated.
May catch explosion or fire using at the place where there is a possibility of flammable gases being generated.
When using Osaifu-Keitai at a gas station, be sure to turn off the power in advance.
(If NFC/Osaifu-Keitai lock has been set, cancel the lock before turning off the power.)
When anything is different from before, such as the equipment generates strange smells or strange sounds, emits smoke, produces heat, becomes discolored or deformed, etc. during use, charging or while being stored, then perform the following operations.
• Remove the power plug from outlet or accessory socket.
Turn the terminal OFF.
• If the above operations are not performed, this may cause fires, burns, injuries or electric shocks, etc.
CAUTION
Don t
Do not use damaged terminal.
May cause fire, burns or injuries, etc.
Don t
Don t
Do not leave the equipment on unstable or sloping surfaces. especially while the vibration mode set.
May fall and cause injuries.
Do not store the equipment in extremely humid, dusty or hot areas.
May cause fire, burns, or electric shocks, etc.
For waterproofness/dustproofness, refer to the following:
→ P.21 "Waterproofness/Dustproofness"
Contents/Precautions
Don t
Don t
Children using the equipment should be instructed in proper operation by an adult. Make sure they use the product correctly.
May cause injuries, etc.
Don't store the equipment reach of small children.
May cause injuries, accidentally swallowed or electric shocks, etc.
Do
Exercise caution that the temperature of the product rises when the equipment is continuously being used for prolonged periods and while it is charging. In addition, be careful to not unintentionally continuously touch the terminal if you put it in your pocket or fall a sleep.
If you use apps, make calls, perform data communications, watch
TV or videos, etc. while charging the battery for a long time, the temperatures of the product and the adapter may rise.
Directly touching a hot part for a long time, you may have redness, itching or rash on your skin, or it may result in low-temperature burns etc. depending on your constitution and/or health condition.
2. Handling the terminal
DANGER
Don t
Do not put the battery in a fire or attempt to heat it.
May cause fire, burns or injuries, etc.
Don t
Do
Do not puncture with sharp object (a nail, etc.), strike with hard object (a hammer, etc.), stomp on, or apply excessive force on the battery.
May cause fire, burns or injuries, etc.
If the substance inside the terminal gets into your eyes or mouth, etc., rinse with clean water and receive medical care from a doctor immediately.
The substance inside the terminal may cause loss of sight or poor health.
WARNING
Don t
Do not use iris recognition with infants.
May cause eyesight damage.
Don t
Don t
Do not lighten the light near eyes. Especially, when you capture babies or infants, keep the product enough distance away from them.
May cause eyesight damage. Accident may result from being dazzled or shocked.
Do not turn on the light and face the product to drivers.
It is an impediment to driving and may cause an accident, etc.
Don t
Do not look at a flashing screen for a prolonged period.
May cause seizure or loss of consciousness.
Don t
Don t
Do
Do not put foreign objects such as liquid like drinking water, sweat, seawater or urine of the pet or metal pieces (such as cutter blades and staples) into docomo nano UIM card/ microSD memory card tray.
Please do not mistake the insertion location and direction of the docomo nano UIM card or microSD memory card.
May cause fire, burns, injuries or electric shocks, etc.
Do not expose the camera lens to direct sunlight for a prolonged period.
The light-gathering capabilities of the lens may cause fire, burns, injury, etc.
When boarding an airplane, turn the terminal OFF or turn airplane mode on.
As there are usage restrictions in an airplane, follow the instructions from the airline.
Failure to do so may cause airplane electronic equipment to fail or malfunction by radio wave.
If you commit any prohibited acts, such as using the phone in an airplane, you will be punished in accordance with the law.
8 Contents/Precautions
Do
Do
Do
Do
Do
Do
Do
When using the terminal in a medical facility, follow the instructions of the facility.
Turn the terminal OFF in areas where use is prohibited.
Failure to do so may cause electronic equipment or electronic medical equipment to fail or malfunction by radio wave.
When using the hands free call, ringtone is ringing loudly, or in the standby mode, be sure to keep this terminal off of the ears.
And, when connecting the earphone/microphone, etc. to the product and play a game, video or music, etc. adjust the volume moderately.
If you set the terminal to hands free and make a call, a loud noise will emanate from the terminal.
Even during standby, a ringtone or an alarm may sound suddenly.
Using the terminal continuously for a long time at a loud volume may cause hearing loss, etc.
Also, having the volume too loud may prevent you from hearing sounds around you and might in turn lead to a traffic accident.
If you have weak heart, be careful when setting the vibrator
(vibration) or ringtone volume setting.
The vibrator (vibration) or ringtone suddenly activating or ringing may affect your heart.
When you use electronic medical equipment, check with the equipment manufacturer to determine how the equipment is affected by radio waves before using.
May cause harmful effect on electronic medical equipment, etc. by radio wave.
When the display or rear panel , camera lens is accidentally broken, be careful of broken glass or exposed internal parts of the terminal.
If you mistakenly touch broken or exposed parts, it may cause burns, injuries or electric shocks, etc.
Should the internal battery leak or emit a strange smell, immediately stop use and move it away from fire.
The leaked fluid may catch fire and may cause ignition or explosion.
Take measures to prevent pets from biting on the terminal.
The internal battery may damage and may result in fire, burns, injuries, etc.
CAUTION
Don t
Don t
Don t
Don t
Do
Do
Before using the motion sensor, be sure to check safety around you, firmly grip your terminal and do not swing it more than necessary.
May cause injury or other accidents.
If display part is accidentally broken and internal substance leaks out, do not make the substance contact with your skin of face or hands, clothes, etc.
May cause loss of sight or skin problems.
If the substance gets into your eyes or mouth, etc. or comes into contact with your skin or clothes, rinse with clean water immediately.
And if it gets into your eyes or mouth, etc., rinse with clean water and seek medical care immediately.
Do not dispose with regular trash.
May cause fire, burns or injuries, etc. Environmental damage may also be caused. If the terminal becomes no longer needed, bring it to an outlet such as the docomo shop or follow the instructions given by the collecting municipalities.
Should the substance inside the internal battery leak, avoid it from coming in contact with your face, hand or clothes.
May cause loss of sight or skin problems.
If the substance gets into your eyes or mouth, etc. or comes into contact with your skin or clothes, rinse with clean water immediately.
And if it gets into your eyes or mouth, etc., rinse with clean water and seek medical care immediately.
If you or any members of your family have experienced symptoms of epilepsy, such as dizziness, convulsions, loss of consciousness, or fainting, consult a doctor before using the iris authentication function.
When you remove docomo nano UIM card, be careful of the nib of SIM ejector tool or paper clip.
May cause injuries when you touch the nib of SIM ejector tool or paper clip.
9 Contents/Precautions
Do
Do
Do
Do
To use the terminal in car, check with automobile manufacturer or dealer to determine how the device is affected by radio waves before using.
Using the phone in some vehicle models can cause the vehicle's electronic equipment to malfunction by radio wave. In that case, stop using the terminal immediately.
If you develop skin problems, stop using the phone immediately, and seek medical check.
Mobile phones can give some users skin problems such as itching, allergic reactions or rashes.
For parts materials
Be sure to check that there are no metal fragments (such as cutter blades or staples) adhered to the magnetic parts used in the ear piece/speaker, rear camera and speaker of the terminal.
Adhesion of such fragments may cause injury.
When watching the display, take a certain distance from the display in a fully bright place.
Watching the display in the dark or watching too close may cause reduced visual acuity, etc.
10
3. Handling adapter and wireless charger
WARNING
Don t
Do not use if the cord of the adapter or of the wireless charger gets damaged.
May cause fire, burns, or electric shocks, etc.
Don t
Don t
Don t
Don t
Don t
Don t
Always use the DC adapter with a negative-ground vehicle.
Do not plug it into a positive-ground vehicle.
May cause fire, burns, or electric shocks, etc.
When it starts to thunder, do not touch the adapter or the wireless charger.
May cause electric shock.
Do not short the charging jack while it is connected to the outlet or accessory socket. Do not touch the charging jack with a part of your body such as your hand or finger.
May cause fire, burns, or electric shocks, etc.
Do not place heavy objects on the cord of the adapter or of the wireless charger.
May cause fire, burns, or electric shocks, etc.
When you insert and remove the AC adapter from the power outlet, do not contact metal objects with the jack.
May cause fire, burns, or electric shocks, etc.
Do not connect the voltage converter for overseas travel
(travel converter) to the AC adapter.
May cause ignite, heat or electric shock, etc.
Don t
Don t
Do not apply excessive force to the terminal connected to the adapter.
May cause fire, burns, injuries or electric shocks, etc.
Do not charge any parts wet with liquid such as drinking water, sweat, seawater or urine of the pet with the wireless charger.
May cause fire, burns, injuries or electric shocks, etc.
Contents/Precautions
No wet hands
Do not touch the cord of the adapter cord, charging jack, wireless charger or power plug with wet hands.
May cause fire, burns, or electric shocks, etc.
Do
Do
Do
Do
Do
Do
Only use with the specified power source and voltage.
When charging the terminal overseas, use AC adapter for global use.
If incorrect power source and voltage is used, this may cause fire, burns or electric shocks, etc.
AC adapter : AC100V (Connect to the AC outlet for internal household use)
AC adapter for global use : Between 100V and 240V AC (Connect to the AC outlet for internal household use)
DC adapter : DC12V, 24V (specific for negative ground vehicle)
If the DC adapter's fuse blows, replace it only with the specified fuse.
If fuses other than those specified are used, this may result in fires, burns, or electric shocks, etc. Confirm specified fuses via individual user's manuals.
Wipe off any dust that accumulates on the power plug.
If the terminal is used with dust adhering to it, this may result in fires, burns, or electric shocks, etc.
When you connect the adapter to the outlet or accessory socket, do not fail to properly connect to the outlet.
If not properly connected, this may result in fires, burns, or electric shocks, etc.
When you disconnect the power plug from the outlet or accessory socket, do not put excessive force such as pulling the cord of the adapter. Instead, hold the adapter to disconnect.
If the adapter cord is pulled on, this may result in scratches, fires, burns, or electric shocks, etc.
If you have electronic medical equipment such as an implanted cardiac pacemaker or an implanted cardioverterdefibrillator equipped, consult a doctor about the use of the wireless charger.
The terminal's signals may affect the operation of the electronic medical equipment.
Do
Do
When unplugging and plugging in the adapter from and into the terminal, do not forcibly pull on the cord, etc., and straightly unplug and plug in the adapter from and into the connecting terminals.
If not properly unplugged or plugged in, this may cause fire, burns, injuries, electric shocks, etc.
Immediately discontinue use if the charging jack is bent or deformed. Do not try to straighten and re-use a deformed charging jack.
It may short circuit the battery and may result in fire, burns, injury, electric shock, etc.
Unplug
Always remove the power plug from the outlet or accessory socket when not using.
If the power plug is left plugged in, this may cause fire, burns, electric shocks, etc.
Unplug
Immediately remove the power plug from the outlet or accessory socket if water or other liquids (drinking water, sweat, sea water, urine of pet animals, etc.) adheres to the adapter.
It may short deposit, etc. and may cause fire, burns or electric shocks, etc.
Unplug
Always remove the power plug from the outlet or accessory socket when cleaning the equipment.
May cause fire, burns or electric shocks, etc.
CAUTION
Don t
Do not touch an adapter continuously that has been connected to a power outlet or accessory socket.
May cause burns etc.
11 Contents/Precautions
4. Handling the S Pen
DANGER
Don t
Do not put the battery in a fire or attempt to heat it.
May cause fire, burns or injuries, etc.
WARNING
Don t
Do not point the S Pen at people.
May cause injuries or loss of sight.
Don t
Do not twirl this terminal holding the S Pen when it is attached to this terminal.
May cause injury or other accidents.
5. Handling docomo nano UIM card
CAUTION
Do
Be careful of the cut surface when handling docomo nano
UIM card.
May cause injuries, etc. by the sharp cut surface.
6 Handling mobile phones near electronic medical equipment
WARNING
Do
Do
Do
Do
Wearers of the electronic medical equipment such as implanted pacemakers or defibrillators must carry and use the terminal at least 15 cm away from the implanted device.
The terminal's signals may affect the operation of the electronic medical equipment.
When electronic medical equipment other than implanted pacemakers or defibrillators are in use outside of medical facilities (such as in home care settings), check with the device manufacturer to determine how the device is affected by electrical signals.
The terminal's signals may affect the operation of the electronic medical equipment.
When you are in a crowd etc. and you have difficulties to keep a distance of 15 cm or more from others, turn the airplane mode on or power off the terminal not to transmit signals.
There may be wearers of medical equipment such as implanted pacemakers or defibrillators around you. The terminal's signals may affect the operation of the electronic medical equipment.
When using the product in a medical facility, be sure to observe the regulations of the facility.
The terminal's signals may affect the operation of the electronic medical equipment.
12 Contents/Precautions
7. Material list
Surface treatment Material
Display (touch screen)
Exterior case (side, top, bottom)
Slit (Top/Bottom) docomo nano UIM card/micro SD card tray docomo nano UIM card/ microSD memory card tray
(side) docomo nano UIM card/micro
SD card tray (packing)
Rear panel
Glass
Aluminum
PBT-GF45%
PC
Aluminum
Silicone
Power key/screen lock key,
Volume UP key/Volume DOWN key, Bixby key
Receiver/Speaker (top)
Glass
Aluminum
Aluminum
Fingerprint sensor (surrounding area)
Fingerprint sensor (center area)
Aluminum
Primer
Rear camera surrounding area Aluminum
Rear camera lens panel, heart rate sensor panel
Glass
Corson Alloy USB Type-C connection terminal
USB Type-C connection terminal (surrounding area), headphone connection terminal
(surrounding area)
PBT-GF45%
Part
-
Anodizing
-
Laser printing
Anodizing
-
Film laminating
Anodizing
Anodizing, Water repellent coating
Anodizing
UV coating
Anodizing
Printing, AF coating
-
Gold plating
Surface treatment
Headphone connection jack
Speaker (bottom)
External TV antenna cable SC04
Earphone microphone jack (metal part)
Earphone microphone jack outer cover, Connection plug outer cover
Cable
Material Part
Copper+Titanium Nickel plating and
Gold plating
Aluminum
Brass
Anodizing
Nickel plating and Gold plating
LDPE, TPE -
Plug (metal part)
Plug (resin)
JLS-FR331W803F
BLACK
Brass
-
LDPE, TPE -
Nickel plating and Gold plating
13 Contents/Precautions
Surface treatment
High-Quality
Earphone with
Microphone tuning by AKG
Plug (metal part)
Plug (outer cover)
Cu, Ni
TPE
Material
Cable (string) Polyester
Cable junction
Cable control ring
Cable
Switch
TPE
TPE
TPE
PC
Earpieces
Earphone speaker part
Earphone outer covering
TPU
PC
Earphone
(AKG area)
Earphone
(Cable border side of the speaker)
Aluminum
TPE
Silicone
Part
Nickel plating
Corrosion treatment
Water repellent coating
Corrosion treatment
Corrosion treatment
-
UV coating, HB transparent primer treatment
Discharge corrosion treatment
UV coating, HB transparent primer treatment
Sanding, diacut, anodizing
Corrosion treatment
Corrosion treatment
Surface treatment
S Pen SC02 Phone
Button
Head part
Knock part
Pen nib
Pen nib (for replacement)
Tweezer
SIM ejector tool
Micro USB cable
USB conversion adapter for OTG
Cable
Plug (metal part)
Plug (resin)
Phone
USB Type-C connection terminal
Clear case
Material
PC/ABS+GP30
PC/ABS+GP30
PC
Aluminum
Elastomer/POM
Elastomer/POM
SUS
SUS304
TPE
SUS301
PC
PC
SUS301
TPU
-
-
-
Painting
Painting
Part
UV vapor deposition
Anodizing
-
Barrel polishing
Nickel plating
UV coating
High gloss
Nickel plating
Urethane transparent coating
14 Contents/Precautions
8. Handling samples (High-Quality earphone with
Microphone tuning by AKG, Earpieces, SIM ejector tool, S Pen replacement kit, Clear case)
■ High-Quality earphone with Microphone tuning by AKG, Earpieces,
SIM ejector tool, S Pen replacement kit, Clear case (common)
DANGER
Don t
Don t
Do not use, store or leave the equipment in hot places (e.g. by the fire, near a heater, under a kotatsu, in direct sunlight, in a car in the hot sun, etc.).
May cause fire, burns, injuries or electric shocks, etc.
Do not put the equipment into heating cooking device such as microwave oven, IH cooker or high pressure container such as pressure cooker.
May cause fire, burns, injuries or electric shocks, etc.
WARNING
Don t
Do not subject the equipment to strong forces, impacts or vibration such as being dropped, being stepped on, or being thrown, etc.
May cause fire, burns, injuries or electric shocks, etc.
CAUTION
Don t
Don t
Do not store the equipment in extremely humid, dusty or hot areas.
May cause fire, burns, or electric shocks, etc.
Children using the equipment should be instructed in proper operation by an adult. Make sure they use the product correctly.
May cause injuries, etc.
Don t
Don't store the equipment reach of small children.
May cause injuries, accidentally swallowed or electric shocks, etc.
Do
If you develop skin problems, stop using the phone immediately, and seek medical check.
Mobile phones can give some users skin problems such as itching, allergic reactions or rashes.
For parts materials
■ High-Quality Earphone with Microphone tuning by AKG
DANGER
No disassembly
Do not attempt to disassemble or modify the equipment.
May cause fire, burns, injuries or electric shocks, etc.
No liquids
Do not let the equipment get wet with water or other liquids
(drinking water, sweat, sea water, urine of pet animals, etc.)
May cause fire, burns, injuries or electric shocks, etc.
15
WARNING
Don t
Do not allow conductive materials (metal pieces, pencil lead, etc.) to come into contact with the charging jack or external connection jack, or dust to get inside it.
May cause fire, burns, injuries or electric shocks, etc.
Don t
Do
Do not operate High-Quality earphone with Microphone tuning by AKG while driving a car etc.
It is an impediment to driving and may cause an accident, etc.
If you connect a High-Quality earphone with Microphone tuning by AKG to the terminal and play games, videos, or music, adjust the volume to an appropriate level.
Using the terminal continuously for a long time at a loud volume may cause hearing loss, etc.
Also, having the volume too loud may prevent you from hearing sounds around you and might in turn lead to a traffic accident.
Contents/Precautions
CAUTION
Don t
Do not swing the terminal by the cord of High-Quality earphone with Microphone tuning by AKG.
May cause injury or other accidents.
■ SIM ejector tool
WARNING
Don t
The end of the SIM ejector tool is sharp. Do not use pointed at yourself or other people.
May cause injuries or loss of sight.
CAUTION
Do not leave the equipment on unstable or sloping surfaces.
May fall and cause injuries, etc.
Don t
■ S Pen replacement kit
CAUTION
Don t
Do not get your fingers caught in the tweezers. Also, do not get your fingers caught in between the tweezers and pen nib.
May cause injuries, etc.
■ Clear case
CAUTION
Don t
When putting the clear case on the terminal, be careful not to get your fingers caught.
May cause injuries, etc.
16
Handling precautions
General
■ SC-01L (including S Pen SC02) is waterproof/dustproof, but do not allow liquids (drinking water, perspiration, sea water, pet urine, etc.) such as water, etc. or dust to seep into the terminal and do not allow accessories or optional devices to get wet or dusty.
Adapter, wireless charger, docomo nano UIM card and external TV antenna cable are not waterproof/dustproof. Do not use them in a humid place such as bathroom or in the rain. If you carry your terminal on your body, perspiration may corrode the internal parts of the terminal and cause malfunction. Note that malfunctions deemed to be caused by water are not covered by the warranty. Since these malfunctions are not under warranty, even when repair is possible, it will be done at the user's expense. To repair the terminal, contact "Repairs" provided on the last page of this manual or a repair center specified by DOCOMO.
■ Clean the terminal with a dry soft cloth (such as used for cleaning eyeglasses).
• Rubbing it roughly may scratch the display.
• Drops of water or dirt left on the display may cause stains.
• Do not use alcohol, thinner, benzene, cleaning detergent, etc. to clean the terminal.
■ Clean the jacks and fingerprint sensor occasionally to use them in a clean state.
If you use the jacks when they are soiled, they may not function correctly.
When cleaning, be careful not to damage the jacks, etc.
■ Do not leave the terminal near the air conditioning vent.
Extreme temperature changes may produce condensation and corrode the internal parts of the terminal, causing it to malfunction.
■ Make sure to use the terminal, etc. without excessive force.
If you put the terminal in a bag full of items or sit down with the terminal in the pocket of your clothes, it may damage parts such as display or internal circuit board and cause the terminal to malfunction.
Also, while the external device is connected to the external connection jack, it may cause malfunction or damage.
■ Use the optional equipment specified by NTT DOCOMO for the terminal.
If you use products other than specified, it may cause malfunction or damage.
■ Read the instruction manual supplied with optional devices.
■ Do not drop this terminal or subject it to shock.
May cause malfunction or damage.
Contents/Precautions
Terminal precautions
■ Do not press display surface forcibly, or not operate with a sharp pointed objects such as nail, ballpoint pen, pin, etc.
May hurt the screen and cause malfunction or damage.
■ Do not use the terminal in extremely hot or cold places.
Use the terminal within a temperature range of 0℃ to 45℃ (However, if the temperature is 36℃ or more, only temporary use in a bathroom etc.) and a humidity is 98% or less.
Note that this does not guarantee the continuous use of all functions.
■ The terminal may affect land-line phones, TVs or radios in use nearby, so use it as far as possible from these appliances.
■ Keep the information that you registered in the terminal separately by backing up to microSD card, PC, cloud, etc. or noting down.
Note that DOCOMO assumes no responsibility for any loss of saved data.
■ Do not plug the connector of the external device into the external connection jack at the slant and pull it while connecting.
May cause malfunction or damage.
■ The terminal could become warm while in use and charging. This condition is not abnormal. You can continue to use the terminal.
■ Do not leave the camera under direct sunlight.
May cause discoloring or burn-in of materials.
■ Usually, close the docomo nano UIM card/microSD card tray tightly.
May cause let liquids (drinking water, perspiration, sea water, pet urine, etc.) or dust and cause malfunction.
■ Do not give a strong impact on the fingerprint sensor or scratch the surface.
It may cause not only malfunction of the fingerprint sensor but also disabling authentication.
■ While microSD card is being used, do not take the card out and do not turn off the terminal.
May cause data loss or malfunction.
■ Do not let magnetic cards or magnetized objects come close to the terminal.
The magnetic data in cash cards, credit cards, telephone cards, floppy disks, etc. may be erased.
Putting a strong magnetism close to this terminal might cause false operation.
■ Do not decorate the terminal with plastic film or stickers.
Various functions that use the proximity sensor may not function correctly and the terminal may not recharge with the wireless charger.
For position of Proximity sensor
→ P.25 "Part names and functions"
■ As the internal battery is a consumable product, it is not covered by the warranty.
The internal battery may swell as battery life gets closer depending on operating conditions. Even if you sufficiently recharge the terminal but usage time significantly decreases or the internal battery bulges, this means that the internal battery needs to be replaced. To replace the internal battery, contact "Repairs" provided on the last page of this manual or a repair center specified by DOCOMO.
■ Charge the battery in an environment with the proper ambient temperature (5℃ to 35℃ ).
■ The operating time of the internal battery varies depending on the operating environment and the secular degradation of the internal battery.
■ When storing the terminal, do not store it under the following conditions as the performance and life of the internal battery may deteriorate if you do.
• Keeping under the state of the full charge (right after the charging ends)
• Keeping under the state of empty charge (too exhausted to turn on the terminal)
Store the internal battery with about 40% battery charge remaining.
■ The type of internal battery of this terminal is as follows.
Display
Li-ion 00
Battery type
Li-ion battery
17
Adapter and wireless charger precautions
■ Charge the battery in an environment with the proper ambient temperature (5℃ to 35℃ ).
■ Do not charge in the following places.
• Places that is very humid, dusty or exposed to strong vibrations
• Near ordinary phone or TV/radio
■ The adapter could become warm while charging. This condition is not abnormal. You can continue to use the terminal.
■ When using the DC adapter for charging, keep the vehicle engine running.
The vehicle's battery could become flat.
Contents/Precautions
■ When using an outlet with a mechanism preventing unplugging, follow the handling instructions for that outlet.
■ Do not give a strong impact to the adapter. Also, do not deform the charging jack.
May cause malfunction.
■ Do not use the wireless charger with a blanket, etc. covering it.
■ Connect only the specified device and exclusive AC adapter to the wireless charger.
■ Do not place the terminal on the wireless charger with the adapter or USB cable connected to the terminal.
■ Do not let magnetic cards or magnetized objects come close to the wireless charger.
The magnetic data in cash cards, credit cards, telephone cards, floppy disks, etc. may be erased.
Putting a strong magnetism close to this terminal might cause false operation.
docomo nano UIM card precautions
■ Do not use excessive force to attach/remove docomo nano UIM card.
■ Note that DOCOMO assumes no responsibility for malfunctions occurring as the result of inserting and using a docomo nano UIM card with another IC card reader/writer.
■ Clean the IC area occasionally to use it in a clean state.
If you use the IC area when it is soiled, the terminal may not function correctly.
■ Clean docomo nano UIM card with a soft, dry cloth (such as a cloth for eyeglasses).
■ Make a backup to microSD cards, PC, or cloud or maintain a separate record of the data you saved in docomo nano UIM card.
Note that DOCOMO assumes no responsibility for any loss of saved data.
■ To preserve the environment, bring the old docomo nano UIM card to a sales outlet such as docomo Shop.
■ Do not carelessly damage, contact, or short-circuit an IC.
May cause data loss or malfunction.
■ Do not drop docomo nano UIM card or subject it to shocks.
May cause malfunction.
■ Do not bend docomo nano UIM card or place heavy objects on it.
May cause malfunction.
■ Do not attach docomo nano UIM card to the terminal with a label or sticker put on docomo nano UIM card.
May cause malfunction.
18
S Pen precautions
■ Depending on the material used to make protective film that you install on the display surface, it may cause false operations on the terminal.
■ Make sure to use S pen without excessive force.
If you put the terminal in a bag full of items or sit down with S Pen in the pocket of your clothes, it may cause malfunction or damage.
■ Do not use the terminal in extremely hot or cold places.
Use the terminal within a temperature range of 0℃ to 45℃ (However, if the temperature is 36℃ or more, only temporary use in a bathroom etc.) and a humidity is 98% or less.
Note that continuous operation of all functions is not guaranteed.
■ Do not use the worn-out stylus nib.
May cause malfunction.
■ Do not use S Pen when the tip is chipped or scraped.
The display may be damaged or unwanted operation.
■ Do not use other touch pen or S Pen besides specified one.
The display may be damaged or unwanted operation.
■ Do not use S Pen for other devices.
S Pen or the terminal may cause malfunction or damage.
■ The type of battery of S Pen is as follows.
Super capacitor
Contents/Precautions
Bluetooth function precautions
■ To secure the Bluetooth communication security, the terminal
(including S Pen SC02) supports the security function compliant with Bluetooth standards, but the security may not be sufficient depending on the settings. Be aware of the communication using the Bluetooth function.
■ Note that DOCOMO is not responsible for data or information leak when making data communications using Bluetooth.
• Frequency band
The frequency band used by Bluetooth function/Wireless LAN function of the terminal (including S Pen SC02) is indicated as follows.
2.4 FH1 / DS4 / OF4 / XX8
1
4
8
2.4
FH/DS: /OF/
XX
: This radio equipment uses the 2400 MHz band.
: Modulation scheme is FH-SS, DS-SS, OFDM or other scheme.
: The estimated interference distance is 10 m or less.
: The estimated interference distance is 40 m or less.
: The estimated interference distance is 80 m or less.
: The full band between 2400 MHz and 2483.5 MHz is used and the band of the mobile identification device is unavoidable.
Available channels vary by the country.
For use in an aircraft, contact the airline beforehand.
• Cautions on using Bluetooth devices
The operating frequency band of the terminal (including S Pen SC02) is used by home electric appliances such as microwave oven, industrial, scientific and medical equipment, premises radio stations for identifying mobile units used in the manufacturing lines of plants (radio stations requiring a license), specified low power radio stations (radio stations requiring no license) and amateur radio stations (hereinafter referred to as "another station").
1. Before using the terminal, confirm that "another station" is not being operated nearby.
2. In the event of the terminal causing harmful radio wave interference with "another station", promptly change the operating frequency or stop radio wave emission by "turning off the power", etc.
3. If you have further questions, contact "docomo Information Center" provided on the last page of this manual.
Wireless LAN (WLAN) precautions
■ Wireless LAN (WLAN) uses radio waves to enable communications between compatible devices, thus allowing connection to a local area network from anywhere within the range. On the other hand, there is a risk of data interception, etc. by third party unless security is established. It is recommended to set the security settings on your own responsibility.
■ We cannot assume the responsibility even if leakage of data and information occurs at the time of communication using wireless
LAN function.
• Wireless LAN
Do not use wireless LAN near magnetic devices such as electrical appliances or AV/OA devices, or in radio waves.
• Magnetism or radio waves may increase noises or disable communications, etc. (especially when using a microwave oven).
• When used near TV, radio, etc., reception interference may occur, or channels on the TV screen may be disturbed, etc.
• If there are multiple wireless LAN access points nearby and the same channel is used, search may not work correctly.
• For using WLAN overseas, point of use etc. may be restricted depending on country. In that case, confirm conditions such as available frequency or regulations of the country to use it.
• Cautions on using 2.4 GHz devices
The operating frequency band of the WLAN device is used by home electric appliances such as microwave oven, industrial, scientific, and medical equipment including premises radio stations for identifying mobile units used in the manufacturing lines of plants (radio stations requiring a license), specified low power radio stations (radio stations requiring no license) and amateur radio stations (radio stations requiring a license).
1. Before using the device, confirm that premises radio stations for identifying mobile units, specified low power radio stations and amateur radio stations are not being operated nearby.
2. If the device causes harmful radio interference to premises radio stations for identifying mobile units, immediately change the frequency band or stop use, and contact "docomo Information Center" described on the last page of this manual for crosstalk avoidance, etc. (e.g. partition setup).
3. If the device causes radio interference to specified low power radio stations or amateur radio stations, contact "docomo Information
Center" described on the last page of this manual.
19 Contents/Precautions
• Cautions on using 5GHz devices
The terminal can use 3 frequency bands of 5.2 GHz band (W52), 5.3
GHz band (W53), 5.6 GHz band (W56).
• 5.2 GHz band (W52/36, 40, 44, 48ch)
• 5.3 GHz band (W53/52, 56, 60, 64ch)
• 5.6 GHz band (W56/100, 104, 108, 112, 116, 120, 124, 128, 132,
136, 140ch)
Using the 5.2 GHz band/5.3 GHz band wireless LAN outdoors is prohibited by Law (except when communicating with access point of 5.2
GHz high-output data communication system or relay station).
FeliCa and NFC reader/writer precautions
■ FeliCa and NFC reader/writer and P2P function of the terminal uses weak waves requiring no licenses for radio stations.
■ It uses 13.56 MHz frequency band. When someone uses other FeliCa and NFC reader/writer or P2P function in your surroundings, keep the terminal away sufficiently from them.
Before using the reader/ writer, confirm that there are no radio stations using the same frequency band nearby.
■ For use in an aircraft, contact the airline beforehand. In some countries, use may be restricted. Confirm regulations etc. for the country/area before using.
Samples (High-Quality earphone with Microphone tuning by AKG, SIM ejector tool, Clear case, S Pen replacement kit) precautions
SIM ejector tool, Clear case
■ Do not apply excessive force to the SIM ejection pin when using it.
May cause malfunction or damage.
High-Quality Earphone with Microphone tuning by AKG
■ Do not expose to liquids (drinking water, perspiration, sea water, pet urine, etc.) such as water, etc.
High-Quality earphone with Microphone tuning by AKG is not waterproof.
Do not use them in a humid place such as bathroom or in the rain. If you carry your terminal on your body, perspiration may corrode the internal parts of the terminal and cause malfunction.
■ Clean the jacks occasionally to use them in a clean state.
If you use the jacks when they are soiled, they may not function correctly. When cleaning, be careful not to damage the jacks, etc.
■ Do not leave the terminal near the air conditioning vent.
Extreme temperature changes may produce condensation and corrode the internal parts of the terminal, causing it to malfunction.
■ To remove High-Quality earphone with Microphone tuning by
AKG from the terminal, be sure to hold the plug of High-Quality earphone with Microphone and then pull out horizontally from the terminal.
If you pull out forcibly, it may cause malfunction.
SIM ejector tool
■ Do not insert the SIM ejector tool into any hole other than the docomo nano UIM card/microSD card tray eject hole.
May cause malfunction or damage.
■ When disposing of it, follow the rules regarding disposal in your area.
■ Do not use the SIM ejector tool with other mobile phones.
May cause malfunction or damage to the terminal.
S Pen replacement kit
■ Do not apply excessive force when inserting the stylus nib into the S Pen.
May cause damage.
20 Contents/Precautions
NOTE
■ Do not deform the terminal (including S Pen SC02). Using an altered device is a violation of the Radio Law/Telecommunications
Business Act.
The terminal (including S Pen SC02) is compliant with rules on the technical standard conformance of specified wireless equipment based on the Radio Law/Telecommunications Business Act. As proof of this, the "Technical Compliance Mark " is depicted in the electronic faceplate. The electronic faceplate can be confirmed by operating this terminal as follows.
From the Home screen, "apps folder" → "Settings" → "About phone" →
"Regulatory information"
Also, S Pen faceplate can be confirmed by on the last page of this manual.
If you remove the screws and alter the inside of the terminal, the technical regulations compliance certification becomes invalid. Do not use the terminal with the certification invalid, as it is a violation of the
Radio Law and Telecommunications Business Act.
■ Be careful when using the terminal while driving.
A penalty may be imposed for using by holding a mobile phone while driving.
However, absolutely necessary cases such as rescue of a sick person or maintaining public's safety are exempted.
■ FeliCa and NFC reader/writer function of the terminal complies with the wireless standards in Japan.
When using overseas, confirm in advance the stipulations of the laws and regulations of the nation/region.
■ Do not modify the basic software illegally.
It may be regarded as modifications and repair may be refused.
21
Waterproofness/Dustproofness
SC-01L (including S Pen SC02) provides waterproofness of IPX5 *1 , IPX8 *2 and dustproofness of IP6X *3 with firmly attaching the docomo nano UIM card/microSD memory card slot.
*1 IPX5 means that a phone keeps functioning after applying a jet flow of 12.5 L/min. from every direction from a distance of approximately 3 m for at least 3 minutes using water nozzle in 6.3 mm inner diameter.
*2 IPX8 means that a phone keeps functioning after a phone is slowly submerged to depth of 1.5 m in static tap water at room temperature, left there for 30 minutes and then taken out.
*3 IP6X means a protection degree that dust cannot come in to that do inside of phone and a phone maintains safety after it is placed in a phone with dust in diameter 75 μ m or less for 8 hours, agitated and then taken out.
What you can do with waterproofness of SC-01L
■ You can talk without an umbrella in the rain (for rainfall of 20 mm or less per hour).
■ The terminal can be washed with tap water at room temperature
• Do not apply water flow stronger than allowed (P.21).
• Do not use brush, sponge, soap, detergent, etc.
• If mud or soil is adhered to the terminal, eliminate the dirt first by shaking several times in tap water of wash-basin and then wash the terminal with running water.
• Drain water in the specified steps (P.23) after washing.
• Do not wash rubbing strongly.
■ Precautions for use in a bathroom
• Do not immerse the terminal in a bathtub. In addition, do not use the terminal in hot water. May cause malfunction. If you drop the terminal in a bathtub, remove it immediately and drain water in the specified steps.
• Never immerse the terminal in a hot spring or water with soap, detergent or bath salts in it. If water other than tap water gets on the terminal, rinse the terminal with the aforementioned method.
• Use the terminal within a temperature range of 0℃ to 45℃ (However, if the temperature is 36℃ or more, only temporary use in a bathroom etc.) and a humidity is 98% or less.
Note that this does not guarantee the continuous use of all functions.
• A sudden change in temperature may cause condensation. When you take this terminal from a cold place to a warm place, such as a bathroom, wait until the terminal reaches room temperature before using it.
• Do not pour hot water from a tap or shower onto the terminal.
Contents/Precautions
To ensure waterproofness/dustproofness
■ To avoid water/dust ingress, be sure to observe the following points.
• Do not apply liquids except for tap water at room temperature.
• Do not poke the headphone connection jack, mouthpiece/microphone, receiver/speaker, USB Type-C connection jack with a sharp object.
• Do not let the terminal fall. It may become scratched causing the waterproof/dustproof performance to degrade.
• Make sure that the docomo nano UIM card/microSD card tray is tightly closed. Even a fine debris (a piece of hair, a grain of sand, fine fiber, etc.) between contact surfaces may allow water or dust to enter the interior of the terminal.
To keep the terminal waterproofness/dustproofness, replacement of parts is required every 2 years regardless of whether the terminal appears normal or abnormal. DOCOMO takes the terminal to replace the parts as a chargeable service. Bring the terminal to a sales outlet such as a DOCOMO-specified repair office.
Important precautions
Do not perform actions shown in the illustrations below.
〈Example〉
Attaching Soap/
Detergent/
Soaking in ocean water
Using in hot spring
Attaching sand/mud
Observe the following precautions to use the terminal properly.
• Accessories and optional devices (except for S Pen SC02) are not waterproof/dustproof.
• Do not apply water flow stronger than allowed (P.21). Even if the
SC-01L is waterproof in IPX5 waterproof, water may enter inside from a damaged section and cause troubles such as electric shocks or corrosion of the battery.
• If the terminal gets wet with salt water, sea water, refreshing beverage, etc. or mud or soil adhered, wash it immediately. If they dry out, it is hard to remove the dirt and it may cause damage or malfunction.
• Do not put the terminal in hot water, use it in a sauna or apply hot airflow
(from a hair dryer etc.) to it.
• Do not move the terminal in water or slam the terminal against the surface of water.
22
• The terminal does not float on water.
• Do not leave water droplets adhering to the terminal. They will freeze in cold regions, and that may cause malfunctions.
• Do not leave water on the headphone connection terminal, mouthpiece/ microphone, receiver/speaker or speaker. Such water may interfere with talking.
• If liquid such as water is splashed on the terminal while the docomo nanoUIM card/microSD card tray is open, the liquid may enter the terminal interior and may cause electric shock, malfunction, etc. Do not continue using the terminal and immediately switch off the terminal and contact DOCOMO-specified repair office.
• When a water droplet is attached to the terminal or when your hands are wet, please do not attach/remove the docomo nanoUIM card/microSD card tray.
DOCOMO does not guarantee actual operations under all states.
Malfunctions deemed to be caused by inappropriate operation by the customer are not covered by the warranty.
Contents/Precautions
Draining water
When the terminal is wet, water may flow out after wiping it off; drain the water in the following steps.
■ Draining water of the terminal a Hold the terminal firmly and wipe off moisture on the terminal surface and back side with dry, clean cloth etc.
c Swing the terminal about 10 times against a dry, clean cloth etc. to wipe off water remaining in the headphone connection jack, mouthpiece/microphone, receiver/speaker, S Pen slot, speaker, USB
Type-C connection jack, keys etc.
b Shake the terminal approximately 20 times, firmly holding it, until there is no more water splattering.
d Wipe off water drained from the terminal with dry, clean cloth etc., and dry naturally.
• Water, if any, remaining in the terminal may ooze up after wiping off.
• Do not wipe off water remaining in gaps directly with a cotton swab etc.
■ Draining water of S Pen a Turn the pen button downwards and vertically shake it gently about
10 times.
b Wipe off water drained from S Pen with dry, clean cloth etc., and dry naturally.
• Water, if any, remaining in S Pen may ooze up after wiping off.
• Do not wipe off water remaining in gaps directly with a cotton swab etc.
23 Contents/Precautions
Charging
Check the following before and after charging.
• Never try to charge when the terminal is wet.
• If you want to charge after the terminal gets wet, let the natural wiped dry enough water in such a clean, dry cloth with the water drain well, please be connected to the USB Type-C connection jack.
• Do not use the AC adapter in a bathroom, shower room, kitchen, lavatory or other highly humid area. It may cause fire or electric shock.
• Do not touch the AC adapter with wet hands. It may cause electric shock.
24 Contents/Precautions
Getting started
Part names and functions
h i j c d e a b f g f
Left l m n o
Front p q r s k
C
B
Right u v w
Top
Back t x y z
A B
Bottom
25 a Volume UP key/Volume DOWN key: This key is used to control the volume for various apps, set manner mode, take still images and videos, etc.
b
c
d Iris recognition LED e
Proximity/Light sensor f
*1 g
h Receiver/speaker *2 i
j
Iris recognition camera (P.140)
k
Power/Screen lock key (P.34, P.37):
This key is used to turn the power and screen on and off. Press and hold the power key, you can power off, power off and restart, turn ON/OFF of Emergency mode.
l GPS antenna *3 m
n
o
Wireless charging position: When wireless charging is done, please adjust this position.
p
Wi-Fi/Bluetooth antenna q Flash/Light
*3 r
Heart rate sensor s
t
LTE/FOMA antenna *3 u
docomo nano UIM card/micro SD card tray (P.27)
v docomo nano UIM card/micro SD card tray eject hole w Mouthpiece/Microphone (upper) *4 x
Headphone connection jack y USB Type-C connection terminal (Charging port) *5 z
Mouthpiece/Microphone (lower)
A Speaker *2
*6
B
S Pen
C Pen button
*1 Do not cover around the sensor with your hand and put stickers on any sensor area. May cause not work normally.
*2 Be careful not to place your ear too close to the speaker when you use it to play music and output other sound.
*3 It is a built-in antenna. Covering around antenna may affect the quality of communications.
*4 Mouthpiece/Microphone (upper) operates for calling, hands free calling or recording by voice recorder (INTERVIEW), video recording, speech recognition using Memo app, etc.
*5 Used for charging, etc. It supports USB Power Delivery.
Getting started
*6 Mouthpiece/Microphone (lower) operates for calling, hands free calling, recording by voice recorder (STANDARD/INTERVIEW/
SPEECH-TOTEXT) and video recording, speech recognition using
Memo app, etc.
Information
• The back cover cannot be removed. Attempting to remove the back cover with excessive force may cause damage or malfunction.
• The terminal's battery is built-in and you cannot replace it yourself.
• Be careful not to expose the camera lens to a strong light source, such as direct sunlight. If the camera lens is exposed to a strong light source, such as direct sunlight, the camera image sensor may be damaged. A damaged image sensor is irreparable and will cause dots, etc. in pictures.
docomo nano UIM card
The docomo nano UIM card is an IC card storing user information such as phone numbers.
• Only docomo nano UIM card is available for the terminal. If you have a docomo mini UIM, docomo UIM or FOMA card, bring it to docomo Shop to replace.
• If docomo nano UIM card is not inserted, you cannot use functions such as calling, sending/receiving SMS, packet communication.
• In Japan, calls to emergency telephone numbers (110, 119, 118) cannot be made if docomo nano UIM card is not installed.
• For details on handling docomo nano UIM card, refer to docomo nano
UIM card manual or NTT DOCOMO website.
Security codes of docomo nano UIM card
The docomo nano UIM card has security code, named PIN code (P.137).
26 Getting started
Attaching/Removing docomo nano UIM card
• The included SIM ejector tool (sample) is required to attach/remove docomo nano UIM card.
• Turn off this terminal before inserting/removing the docomo nano UIM card.
Attaching docomo nano UIM card
1
Insert the tip of the SIM ejector tool into the docomo nano
UIM card/microSD memory card tray eject hole horizontally
The docomo nano UIM card/microSD memory card tray will slightly eject.
• Not inserting the tool in a straight line might result in damage or a fault.
2
Pull out the docomo nano UIM card/microSD memory card tray in a straight line
3
Place the IC face of the docomo nano UIM card face down on the docomo nano UIM card/microSD memory card tray
• Fit the docomo nano UIM card securely into the docomo nano UIM card/microSD memory card tray.
Notch
IC
27 Getting started
4
Insert the docomo nano UIM card/microSD memory card tray into the terminal
• Take care to insert the docomo nano UIM card/microSD memory card tray in the correct direction. If the direction you insert the docomo nano UIM card/microSD memory card tray is incorrect, it may be damaged.
Removing docomo nano UIM card
1
Insert the tip of the SIM ejector tool into the docomo nano
UIM card/microSD memory card tray eject hole horizontally
(P.27)
The docomo nano UIM card/microSD memory card tray will slightly eject.
• Not inserting the tool in a straight line might result in damage or a fault.
2
Pull out the docomo nano UIM card/microSD memory card tray in a straight line
3
Remove the docomo nano UIM card/microSD memory card from the docomo nano UIM card/microSD memory card tray
28 Getting started
4
Insert the docomo nano UIM card/microSD memory card tray into the terminal
• Take care to insert the docomo nano UIM card/microSD memory card tray in the correct direction. If the direction you insert the docomo nano UIM card/microSD memory card tray is incorrect, it may be damaged.
Information
• For handling the docomo nano UIM card, take care not to touch or scratch the IC.
• Attaching or removing forcibly may damage the docomo nano UIM card.
• Be careful not to lose the removed docomo nano UIM card.
• If you lost the SIM ejector tool, you can use a paper clip instead.
Example of a paper clip
microSD card
You can attach microSD card (including microSDHC card and microSDXC card) to the terminal and use it.
• The terminal supports microSD cards of up to 2 GB, microSDHC cards of up to 32 GB and microSDXC cards of up to 512GB (as of September,
2018). However, the operations of all commercially sold microSD cards are not guaranteed.
For compatible microSD cards, contact each manufacturer of microSD cards.
• The terminal supports up to Class 10 speed microSD cards, the UHS speed class is Class 3. However, speed class is the performance of microSD card and does not guarantee all the operation of speed class performance.
• microSDXC card can be used only with SDXC compatible devices.
As the data saved in the microSDXC card may damage, do not insert microSDXC card into a device incompatible with SDXC.
• To use microSDXC card with the data damaged again, formatting the microSDXC card with SDXC compatible device is needed (All data is erased).
• To copy data to/from SDXC incompatible device, use memory card compatible with the standard of device for copying to/from such as microSDHC card or microSD card.
• The saved data to the microSD card from other devices may not be displayed or played on this terminal. Also, the saved data to the microSD card from the terminal may not be displayed or played on other devices.
29 Getting started
Attaching/Removing microSD card
• The included SIM ejector tool (sample) is required to attach/remove microSD card.
• Turn off this terminal before inserting/removing microSD card.
Attaching microSD card
1
Insert the tip of the SIM ejector tool into the docomo nano
UIM card/microSD memory card tray eject hole horizontally
The docomo nano UIM card/microSD memory card tray will slightly eject.
• Not inserting the tool in a straight line might result in damage or a fault.
2
Pull out the docomo nano UIM card/microSD memory card tray in a straight line
3
Place the IC (metallic) face of the microSD card face down on the docomo nano UIM card/microSD memory card tray
30 Getting started
4
Insert the docomo nano UIM card/microSD memory card tray into the terminal
• Take care to insert the docomo nano UIM card/microSD memory card tray in the correct direction. If the direction you insert the docomo nano UIM card/microSD memory card tray is incorrect, it may be damaged.
Removing microSD card
Before removing the microSD card, perform "Unmount SD card" (P.133)
and remove the back cover.
1
Insert the tip of the SIM ejector tool into the docomo nano
UIM card/microSD memory card tray eject hole horizontally
(P.30)
The docomo nano UIM card/microSD memory card tray will slightly eject.
• Not inserting the tool in a straight line might result in damage or a fault.
2
Pull out the docomo nano UIM card/microSD memory card tray in a straight line
3
Remove the microSD memory card from the docomo nano
UIM card/microSD memory card tray
31 Getting started
4
Insert the docomo nano UIM card/microSD memory card tray into the terminal
• Take care to insert the docomo nano UIM card/microSD memory card tray in the correct direction. If the direction you insert the docomo nano UIM card/microSD memory card tray is incorrect, it may be damaged.
Charging
■ Internal battery life
• The internal battery is a consumable accessory. Each time it is charged, time available with each charging reduces.
• Watching TV, etc. while charging the battery for a long time may shorten the battery life.
• When a time available with each charging is reduced to about a half from that of a new battery, replacement of the battery is recommended because it is near the end of life.
Information
• If you lost the SIM ejector tool, you can use a paper clip instead.
Example of a paper clip
Formatting microSD card
Note that formatting microSD card erases all data in a microSD card.
1
From the Home screen, "apps folder" → "Setting" → "Device maintenances"
2
"Storage" → → "Storage settings"
3
"SD card" → "Format" → "FORMAT" → "DONE"
32
■ Charging
• AC Adapter 07 (sold separately) is applicable to AC 100-240V.
• For details of AC Adapter 07, see respective manuals.
• The AC adapter has a plug dedicated to AC 100V (for domestic use).
When using the AC adapter in the range of AC 100V and 240V overseas, a conversion plug adapter applicable to the country you are staying is required. Do not charge the battery using a transformer for overseas travel.
• When the terminal is turned ON, you can operate the terminal even while charging. However, in that case, charging takes longer time because of reducing charging volume.
• When inserting/removing the connector, make sure not to put excessive force.
• You can check the latest charger with the terminal in the DOCOMO online shop.
Japanese only) https://www.mydocomo.com/onlineshop/options/index.html (In
■ Do not charge for a long while (several days) with the power turned on.
• If the terminal is left for a long time with the power turned on while charging, the internal battery starts feeding the terminal when the charging is complete. For that reason, the actual battery time may shorten and battery alert may appear shortly. In such case, charge again in a proper way. When charging again, remove the terminal from the AC adapter, DC adapter or wireless charger and set again.
■ Estimate internal battery operating time
• The operating time of the internal battery varies depending on the operating environment and the degradation level of the internal battery etc. For estimate of operating time, see "Main specifications"
Getting started
■ Estimate internal battery charging time
• For estimate of charging time, see "Main specifications" (P.175).
Charging with the AC adapter
Charging using AC Adapter 07 (sold separately) is explained here.
AC adapter
Type-C plug
1
Insert the Type-C plug of AC adapter horizontally into the
USB Type-C connection jack of the terminal
2
Turn up and insert the power plug of AC adapter to the outlet
3
When charging is completed, pull out the power plug of AC adapter from the outlet
4
Pull out the Type-C plug of AC adapter from the terminal horizontally
Charging with the DC adapter
The DC adapter 05 (sold separately) supplies power to charge this terminal through a accessory socket (12 V/24 V) in a vehicle.
When using DC Adapter 05, USB cable A to C 01 (sold separately) is required.
For details, refer to manuals of DC Adapter and USB cable A to C.
Charging with wireless charger
If you charge the terminal with Galaxy genuine wireless charger (sold separately), refer to the instruction manual that is bundled with the product.
For details of Galaxy genuine wireless charger, see Galaxy's website.
• Products with mark conform with wireless power standard of Wireless
Power Consortium (WPC).
33
Precautions for when using a wireless charger to charge the terminal
• If you have placed the terminal in a cover, remove the cover.
• When charging, make sure that vibrate mode is turned off. If the terminal vibrates, it may not fully charge or fall off the wireless charger.
• The terminal may receive interference from a radio or TV, so charge the terminal as far away from a radio or TV as possible.
• Make sure that the terminal is more than 30 cm away from other devices that are compatible with wireless charging. If you fail to do so, the terminal may not be detected correctly and may not be able to charge.
• While charging with a wireless charger, it may be difficult to watch TV or receive content. If you want to watch TV or receive content while charging, please use the AC adapter. Also keep the terminal as far away from the AC adapter's power plug as possible.
• If the terminal becomes hot, charging speed may decrease or stop.
• If you play games, watch movies, or use any functions that consume a large amount of power, charging may stop.
Charging with USB cable A to C
You can charge the terminal with a PC by connecting it to a PC using a
USB cable A to C 01 (sold separately).
• For connection to a PC, see "Connecting with USB cable A to C" (P.157).
• When you perform USB connection with a PC, popup screen may appear on the PC. If you just want to charge the terminal without synchronizing to the PC, select " キャンセル (Cancel)".
• Depending on the terminal condition, it may take time for charging, or may not be charged.
When the battery is almost exhausted
Notification tone sounds, a message prompting to charge appears and the display dims. When the battery is exhausted, the power of the terminal automatically turns off. Depending on the function or app, a message indicating low battery may appear when you try to activate them and they may not be activated.
Getting started
Turning power ON/OFF
Turning power ON
1
Press [Power/Screen lock key] for 2 seconds or longer
• The starting screen appears, and then the lock screen appears.
• When you turn the power on for the first time, make the initial
settings following to the onscreen instructions (P.47).
2
■ Checking the radio wave condition
An icon indicating radio wave reception level appears on the status bar
When appears, you are out of LTE/FOMA service area or in a place where the radio wave cannot reach.
Turning power OFF
1
Press [Power/Screen lock key] for 1 second or longer
2
"Power off" → "Power off"
• The terminal vibrates and power turns off.
Setting/Canceling screen lock
You can set the screen lock to prevent the erroneous operation of the touch screen or keys.
• When the display is turned off with "Screen timeout" (P.130) set, the
screen lock activates automatically after about five seconds.
Setting screen lock
1
Press [Power/Screen lock key]
• The display turns off and the screen lock is set.
Canceling screen lock
1
During the screen lock, press [Power/Screen lock key]/ tap and hold [Home button].
• Lock screen appears.
2
34
Lock screen a d e b c f
Lock screen (example) a
Clock widget b Lock canceling button * c
Camera activating button d Edge panel handle
• Swipe to the center of screen, edge panel is displayed (P.52).
e Machi-chara (e.g. my daiz)
• Notify you of information such as mail reception or incoming call.
f my daiz button *
• Launch my daiz.
* Appears only when the Home App is set to "docomo LIVE UX".
Information
• When notification information for missed calls or others arrives during the screen lock, the notification information may be displayed on the lock screen.
• You can change the unlock method of the screen lock (P.135).
Getting started
Basic Operation
You can operate the terminal variously with touch screen, S Pen and motions.
• Do not contact the touch screen with electric materials or metallic materials. The terminal might not operate well due to static electricity.
• The touch screen might not operate when you use the terminal during charging. In that case, remove the terminal from the charger.
• Do not cover the antenna section with your hand when operating the terminal while holding it.
Using touch screen
■ Notes on using the touch screen
• The touch screen is designed for being touched lightly with fingers or the supplied S Pen. Do not push it forcibly with a finger or S Pen or press it with sharp objects (a nail, ballpoint pen, pin etc.).
• The touch screen may not work in the following cases. Note that it may cause malfunction.
- Operation with gloved hands
- Operation with tip of fingernail
- Operation with a foreign object on the display
- Operation with protective sheet or seal, etc. on the display
- Operation when the touch screen is wet
- Operation when your finger is wet from sweat or water, etc.
- Operating in water
You can operate the touch screen (display) of the terminal by directly touching with your finger or S Pen. In this manual, main operations are described as follows.
■ Tap/Double-tap
Touch a displayed item or icon lightly with your finger or S Pen to select/perform (Tap).
Tap twice quickly on a displayed image or web page to zoom in/out the contents (Double-tap).
■ Touch and hold
Touch and hold a displayed content or item with your finger or S Pen for 1 second or longer to display menu, etc.
■ Drag
With touching with your finger or S Pen, move a displayed item or icon.
■ Swipe
Lightly move your finger or S Pen across the surface of the screen.
■ Scroll
With touching a displayed content with your finger or S Pen, move it up/down/right/left or switch the views.
■ Flick
With touching the displayed content with your finger or S Pen, quickly move it up/down/right/ left and release it to scroll the content.
35 Getting started
■ Pinch out/Pinch in
With touching a displayed image or web page with your two fingers, widen (pinch out) or narrow (pinch in) the distance to zoom in/out the content.
36
Using navigation bar
Icons for operating the screen are displayed at the bottom of the screen on the navigation bar. The names and functions of the icons are described below.
/
Navigation bar
Show and hide button of navigation bar
Set whether to show always the navigation bar by double tapping.
When you change to , the navigation bar is always displayed.
When you change to , the navigation bar is not displayed. If you display the navigation bar again, flick the screen up from bottom.
History button
Tap to display the most recently used apps.
Home button
The Home screen appears. Touch and hold to launch the
Google assistant. The lock screen appears when you
press it while the screen is locked (P.34). If you press
it while Always On Display is displayed, you can quit
Back button
The screen returns to the previous screen. It also closes dialog boxes, option menus and the notification panel. It can also quit some apps.
Getting started
Information
• From the Home screen, tap "apps folder" → "Settings" → "Display" →
"Navigation bar" to set whether to show and hide button of navigation bar, to adjust pressure level of [Home button], to press the
[Home button] harder to unlock the screen and to set layout of the navigation bar buttons, etc.
• Even if you set the navigation bar to always show, it may be hidden on some apps.
• From the Home screen, tap "apps folder" → "Settings" → "Advanced features" → "Device assistance app" → "Device assistance app", you can select apps to launch when touching and holding [Home button],
• Do not forcibly press the S Pen on the [Home button] or around the [Home button]. It may cause deform the nib of the S Pen.
Switching the orientation of the display automatically
Motion sensor which detects the terminal orientation (vertical/horizontal) and tilt can switch the screen view automatically.
1
Open the Notification panel (P.50)
2
Information
• Home screen or some functions may not automatically switch the view orientation.
Switching settings
Tap the toggle switches or drag them and tap checkboxes, to toggle the
ON/OFF and enable/disable settings.
• is ON, and is OFF.
• shows available, and shows unavailable.
Saving display content as image
Save screen content as image (screen capture).
1
Display a screen you want to save as an image
2
Press [Power/Screen lock key] and Volume DOWN key at the same time for 1 second or longer
Information
• Screen capture may not be available for some apps.
• Captured images are saved in the jpg format, and you can check them in "Gallery"/"Photos" app.
• When set "Palm swipe to capture" (P.39) in advanced features to
ON, screen capture is available by swiping the screen of the terminal from right to left or vice versa with the side of your hand.
• When set "Smart capture" (P.39) in advanced features to ON,
menu is displayed after screen capture. Tap "Scroll capture" from displayed menu to capture the area that is able to display by scrolling as one image. Captured images using "Scroll capture" are saved in the jpg format.
Enabling Emergency mode
Enabling Emergency mode changes the following settings to reduce battery consumption.
• Limit number of available apps.
• Turn Mobile data off when the screen turns off.
• Turn off connection functions such as Wi-Fi, Bluetooth function.
• Turn off Manner mode (Vibrate/Mute).
1
Press [Power/Screen lock key] for 1 second or longer
2
"Emergency mode" → Confirm the note and mark the checkbox → "AGREE" → "ON"
37 Getting started
Information
• To disable Emergency mode, → tap "Turn off Emergency mode" or touch and hold [Power/Screen lock key] for 1 second or longer then tap "Emergency mode".
• To enable Wi-Fi, Bluetooth function in Emergency mode,
→ "Settings" → "Wi-Fi"/"Bluetooth" → tap to set.
• To turn Manner mode (Vibrate) ON during Emergency mode, touch and hold the Volume DOWN key until Manner mode is set.
• Enabling Emergency mode restricts part of functions. In addition, available functions for apps may be limited.
• Using TV and browser consumes much power even in Emergency mode.
• Disabling Emergency mode may hide some widgets on the Home screen and may need to reallocate them.
• The emergency call number (119) is registered in Emergency contacts.
• To delete an app on the Home screen, → "Remove" → tap the app you want to delete → "DONE".
Advanced features
Using Advanced features
Moving the terminal performs the following operations.
• This feature may not be available for some other apps.
• Before using Activate advanced features, from the Home screen, "apps folder" → "Settings" → "Advanced features" → tap Advanced features to
ON you want to use.
■ S Pen
Set the S Pen various settings (P.40).
■ Smart stay
Set screen to keep displaying when the terminal detects the screen is seen.
■ Game
Set "Game Launcher" to ON, you can manage all games automatically.
■ One-handed mode
If you turn on "One-handed mode" and select "Gesture" under Reduce
Screen Size by Using, you can reduce the display size by swiping upwards on the screen diagonally right or left. If you select "Button", you can press [Home button] 3 times quickly to reduce the display size.
■ Finger sensor gestures
Swipe the fingerprint sensor up or down to open or close the notification panel.
■ Quick launch Camera
Launch Camera by quickly pressing [Power/Screen lock key] twice.
■ Device assistance app
Select the standard device assistance app or set whether to allow the device assistance app to access various functions.
■ Multi window
Enable the app that you are currently using to be displayed in split
screen view (P.61) or snap window by touching and holding [History
button] or to be displayed as a popup window by swiping it.
38 Getting started
■ Smart capture
After a screen capture, menu ("Crop", "Share", etc.) is displayed and you can use each function.
■ Smart alert
If you pick up the terminal when there are missed calls *1 or new SMS *2 and the screen turns off, the terminal vibrates to notify.
*1 Notify only when the standard call app is "Contacts" or "docomo phonebook".
*2 Notify only when the standard message app is "Message".
■ Palm swipe to capture
Swipe the screen from right to left or vice versa with the side of your hand to capture the displayed screen.
■ Swipe to call or send messages
On the "Dial" or, "Contacts" app provided by Galaxy, you can make a call or display a creating message screen by swiping contacts or phone number.
■ Dual Messenger
The same app can be used with different accounts.
A second app icon will be displayed on the Home screen.
Only apps displayed on the Dual Messenger screen are available with
Dual Messenger.
■ Send SOS messages
Set whether to send SOS message.
■ Direct share
Share the contents directly with specific people from the share panel.
■ Video enhancer
Enhance the image quality of videos on corresponding app.
■ Touch sensitivity
Increase the touch sensitivity of the screen when you use screen protectors.
39 Getting started
Information
• If excessive movement (shakiness, impact, etc.) is given to the terminal, Motion may not function correctly because of sensor characteristic.
• If you wear dark color glove or perform gesture operation out of the sensor recognition range, Gesture may not function correctly because of sensor characteristic.
• The way to use the same app on multiple accounts with Dual
Messenger differs depending on the app.
• To delete the second Dual Messenger app, tap → "UNINSTALL" of the app that you want to delete on the Dual Messenger screen.
Also If you delete first (Main) app, second app is deleted.
S pen
You can do the basic actions using S Pen such as touching, dragging, and zooming in/out instead of using finger. In addition, you can draw the figure or character, or do various functions using S
Pen.
• For details of S Pen, see Galaxy's website.
Pull out the S Pen
• The head of the S Pen is a push button switch, To pull out the S Pen, push the head and pull out until it pops out of the device.
• When pulling out the S Pen, make sure to pull it straight out.
• When you insert the S Pen into the slot, check that it is not sticking out at all.
• When you take out the S Pen, Air Command or Galaxy Notes is activated
• Pull out the S Pen from the terminal when the screen is OFF, screen off
S Pen precautions
• Do not bend or apply excessive force when using S Pen.
• If you use the S Pen at acute angles to the screen, the device may not recognize the S Pen functions.
• Some apps may not be able to use the function of S Pen.
40
Exchanging the stylus nib
S Pen has a rubber cap at the edge of the stylus nib. When the cap becomes worn out, replace it with a new stylus nib.
1
Pinch the stylus nib firmly with tweezer and pull it out to the direction of the arrow tweezer
2
Insert the new stylus nib to the parallel direction of the arrow until it stops
• Make sure that the orientation of the pen tip so that it does not insert the round end of the nib into the S Pen.
stylus nib
Information
• Two different kinds of the stylus nibs, one hard type nib (for replacement) and one soft type nib (for replacement), are provided for replacement so you can experience the various writing touch.
• If the S Pen is not working properly, contact Galaxy customer support center.
Getting started
Main function of S Pen
Using S Pen, main operations are described as follows.
• Before using S Pen function. from the Home screen, "apps folder" →
"Settings" → "Advanced features" → "S Pen" → set S Pen function you want to use to ON.
■ S Pen remote
Apps can be controlled remotely with the S Pen. Touch and hold the pen button enables you to start apps or use S Pen functions. You can take pictures, switch cameras, etc. by pressing the pen button once or twice while the app is in use.
• To set S Pen remote, from the Home screen, "apps folder" → "Settings"
→ "Advanced features" → "S Pen" → "S Pen remote".
- ON/OFF: Displays the connection status between the S Pen and this terminal.
- HOLD DOWN PEN BUTTON TO: Select the operation when touching and holding the pen button.
- APP ACTIONS: Select the operation when touching the pen button on app compatible with S Pen remote.
■ Unlock with S Pen remote
Set whether to unlock screen lock using S Pen.
■ Screen off memo
To use Screen Off Memo, take the S Pen out of the slot or hold down the Pen button while the screen is off and tap the screen. Tap "SAVE IN
NOTES" or insert the S Pen into the slot to save the Screen Off Memo in
Galaxy Notes.
• To pin drawn contents by Screen Off Memo to Always On Display
(P.43), tap → "PIN TO ALWAYS ON DISPLAY".
• You can create memos with colors matching your S pen's color. If you disable this function, from the Home screen, "apps folder" → "Settings"
→ "Advanced features" → "S Pen" → "Screen Off Memo" → set "Use S
Pen signature color" to OFF.
* If S Pen color is "Midnight Black", pen color of "Screen off memo" is not changed.
■ S Preview
When the S Pen hovers close to the screen, preview of the information, magnify the text and images and scroll the screen.
■ Direct pen input
Tap when hovering the S Pen over a text field, handwriting pad is displayed and you can write with handwriting.
■ Pointer
When the S Pen hovers close to the screen, the pointer is displayed.
■ Shortcuts (AIR COMMAND)
Put S Pen closer to the screen then press the S Pen button to use air command. To quit the air command, push the S Pen button again.
Flick the screen up and down, you can select the shortcut of the air command you want to use.
41 Getting started
• Create note: Launch Galaxy Notes.
• View all notes: Launch Galaxy Notes and all of notes are displayed.
• Smart select: You can collect contents selected with the S Pen.
• Screen write: You can capture screenshots and write messages on the captured screenshot.
• Live message: Create a live message (P.43).
• Translate: Hover the S Pen over a word or sentence and check the translation. You can select the translation source and target language on the translation toolbar at the top of the screen.
• PENUP: You can use PENUP (P.59).
• Add shortcuts: Add the app or the function to the air command.
You can register up to 10 shortcuts.
• : Tap it to display setting menu of S Pen.
■ Floating icon
Switch to display (Air command icon).
■ When S Pen is removed
Set whether to display either air command or Galaxy Notes or don't display anything when S Pen is detached.
■ Alarm
Set whether to notify by sound or popup if the S Pen is not being attached for a certain period of time when the display is OFF.
• If you do not operate any operation after the first time warning, you will hear two more notification sound until the display turns on. There will be no more warning until you attach the S Pen and remove it again.
■ Power saver
To reduce the battery power consumption, set whether to disable detection of S Pen operations while it is inserted in the terminal.
■ Sound
Set whether to make a sound when writing with the S Pen on the screen, or inserting or removing the S Pen.
■ Vibration
Set whether to vibrate for insertion or removal of the S Pen into/from this terminal.
42
■ Learn about S Pen features
Check S Pen features such as translation and Loupe.
■ About S Pen
Check S Pen app's information.
■ Contact us
You can use Galaxy Members.
Information
• If you select text on the screen while holding down the S Pen button, you can copy, share, and perform other operations.
About S Pen remote control
• Charge the S Pen before using S Pen remote functions. When you insert the S Pen into the slot, charging will start.
• When you detach the S Pen from the slot, will appear on the status bar.
• In the following cases, the connection between the S Pen and the terminal is disconnected and is displayed in the status bar. You can reconnect by inserting again S Pen in S Pen slot.
- S Pen is discharged.
- S pen is far from the terminal.
- There are obstacles between the S Pen and the terminal.
- With the S Pen taken out, turn off the S Pen remote control once and turn it on again.
• Even If the battery level of S Pen does not exist, you can use S
Pen functions except for S Pen remote (such as tap the screen, air command).
• If you use other S Pen SC02 and insert in S Pen slot, tap →
"Reset S Pen" on the S Pen remote screen.
About Floating icon
• Drag (air command icon) to "Remove", you can delete it. To display the icon again, from the Home screen, "apps folder" → "Settings" →
"Advanced features" → "S Pen" → turn off "Floating icon" once and turn it on again.
• To use "Translate" of air command, Wi-Fi or mobile network is needed.
• Some languages are not supported in "Translate" on air command.
• "Translate" on air command is enabled only for highlighted text and sentences.
Getting started
Using Live Message
You can save messages that you write by hand as animations and send them as file attachments on emails and so on.
1
Start Live Message from air command or keyboard
2
Draw on the live message screen
3
"DONE"
• Live Messages are saved in the Gallery app as animated GIFs.
• Tap "SHARE" to attach a Live Message to an email or the like and send it.
Information
• If a Live Message reaches the maximum savable size, you will no longer be able to draw.
• On the Live Message screen, you can set the pen thickness, color, and effects, and the background.
• You can also share Live Messages from the Gallery app.
• You can also use My Emoji to Live Message.
Set Always On Display
When the screen is OFF, you can display the clock, the calendar and pictures.
1
From the Home screen, "apps folder" → "Settings" → "Lock screen"
2
"Always On Display" →
3
Set the contents to display and layout, etc.
Information
• To turn off the Always On Display, press [Power/Screen lock key] or tap and hold [Home button].
Using Bixby Vision
Bixby Home organizes app notification information and displays it.
The terminal usage information and other data is analyzed and you can display recommended information.
1
Press Bixby key
2
Swipe the screen up and down to view the information
Information
• When Galaxy Home is set on the home app, flick the screen to he right on the Home screen to launch Bixby Home.
• The content of Bixby update automatically at a specified interval. To manually update, swipe downwards on the screen.
• Tap → "Settings" to set Bixby and the apps to display as a cards on the Bixby Home.
• If you sign in Galaxy account, you can use Bixby Home contents suitable for your needs or tastes.
43 Getting started
Using Reminder
You can create a reminder and check its details later Reminders can be checked at the specified time and place.
• To use Reminder, you need to be connected to Wi-Fi or a mobile network.
• To set a notification related to a place, enable the GPS function.
1
Press Bixby key
2
"GET STARTED" of "UPCOMING REMINDERS"
• A reminder screen appears.
3
"Write a reminder" → Input contents of reminder
• Set the app follow the onscreen instructions.
4
"SAVE"
Information
• On the Reminder screen, tap → "Settings" to set a reminder.
• To delete a reminder that you created, tap the reminder that you want to delete → → "Delete" → "DELETE".
• To hide a reminder that you created, tap the reminder → "COMPLETE".
You can check completed reminders by tapping → "Completed".
• The Reminder icon is displayed on the Home screen when you use
Reminder. You can tap the icon to start Reminder.
44
Character entry
To enter characters, tap the character entry field and display the keyboard
(Galaxy keyboard) then tap a key of the keyboard.
Information
• Use Google voice typing or Moji-Henshu to enter characters by voice sound.
• Depending on usage condition, the display or operation of each keyboard may differ or the dedicated keyboard for the app or function you use may appear.
• When you use the keyboard for the first time, the keyboard setup screen will appear. Follow the instructions on the screen and tap
"START".
Switching keyboard types (input method)
1
of navigation bar while displaying the keyboard
2
Tap a input method you want to use
Information
• To switch show/hide of on the navigation bar, from the Home screen, tap "apps folder" → "Settings" → "General management" →
"Show keyboard button "of "Language and input".
Selecting the type of keyboard
1
While the keyboard is displayed,
2
"Languages and types" → Select input language
3
Select keyboard type
Entering with Galaxy keyboard (Japanese)
In Galaxy keyboard (Japanese) , you can use four types of keyboards:
"Qwerty keyboard", "3x4 no flick keyboard", "3x4 flick keyboard", "3x4 8Flick keyboard"
• QWERTY Keyboard: it is a keyboard similar to the one of PC. Enter
Japanese in Roman character.
Getting started
• 3x4 Keyboard: it is a keyboard similar to a general mobile phone keyboard (for multi-tap method). Tap a key assigned character you want to enter several times until the target character is entered.
• 3x4 flick keyboard, 3x4 8Flick keyboard: it is a keyboard to enter by flick operation.
a b c e f g d a h d c b i f d e g
QWERTY keyboard 3x4 keyboard a Additional functions are displayed.
: Switch predictive options/usual conversion options and additional functions.
: Display Emoji/Emoticon/symbol list. Tap to return to the keypad display.
: Enter a stamp. Some apps may not be able to use.
: Launch live message.
: Switch Half-width/Full-width.
: Switch to voice input.
: Display Galaxy keyboard setting menu.
: Use the clipboard.
: Use one-handed operation keyboard.
: Add the function to the additional function and reorder it.
• When a character is entered, predictive options/usual conversion options are displayed. Tap an option to enter text. Tap to widen the display area of predictive options/usual conversion options. Tap to return the previous display.
b Switch input language.
c Switch to Number/Symbol input mode.
• When a character is entered on 3x4 keyboard, is displayed and Alphanumeric/ katakana conversion options is appeared. Tap again to display predictive options/ usual conversion options.
d Moves cursor left or right.
• Tap to continue inputting characters assigned to the same button in 3x4 keyboard.
• When "Wildcard Prediction" is set to ON, wildcard prediction (P.45) can be used
by tapping .
e Enter a space.
• When a character is entered on Hiragana/kanji input, is displayed and tap it to select usual conversion options.
f Delete characters or symbols to the left of the cursor.
g Confirm entered characters.
• If the input character has already been confirmed, execute the function (linefeed/ next/done/search/execute/move) of the input text box.
h Switch an unconfirmed character to the one in reverse order of when you tap the key (Does not switch when using flick input).
i Put a voiced sound mark or the Japanese voiceless bilabial sound mark or switch upper/lower case etc.
Information
• For Moji-Henshu, connection by Mobile network is required. It may not be available via Wi-Fi connection.
Using Wildcard Prediction
Wildcard Prediction is a function to narrow down conversion options by entering numbers of the reading of word etc.
• It is available when "Word Prediction" and "Wildcard Prediction" are set to
ON.
Example : Entering "東京都"
1
When the keyboard is displayed, enter "と" " う"
2
Tap 4 times
• " とう○○○○ " is displayed and " 東京都 " is displayed in the predictive conversion options.
• Tap / to change the numbers of reading.
3
"東京都"
45 Getting started
Selecting/Copying/Cutting/Pasting text
1
While the keyboard is displayed, touch and hold entered character string
• / , etc. appear. Drag / , etc. to move the cursor.
2
Tap the item to use
Item Description
Select all Select all entered characters.
Cut Cut out selected character string.
Copy Copy the selected character string.
Paste Paste copied/cut character string.
Information
• In horizontal view display, the display may be different.
• For some apps, the function may not be available or there may be unavailable functions. And display of icon may be different or icon other than ones in Step 2 may be displayed.
• Touch and hold an entry field in which any characters are not entered to display a menu so that you can use "Select all", "Paste", "Clipboard"
(For some apps, it may be unavailable).
Setting character entry/conversion function
Setting Galaxy Japanese keyboard
You can set entry operations when entering characters using Galaxy
Japanese keyboard, register to the user dictionary, etc.
1
From the Home screen, "apps folder" → "Settings" →
"General management" → "Language and input" → "Onscreen keyboard" → "Galaxy keyboard"
2
Tap an item you want to set
Item Description
Set input language and keyboard type.
Languages and types
Numbers and symbols
Japanese input options
Smart typing
Set keyboard type of Numbers and symbols.
Keyboard layout and feedback
Handwriting
Reset to default settings
About Galaxy keyboard
Set flick input, word learning, wild card prediction, voice input, etc.
Set predictive text, text shortcuts and keyboard swipe controls, etc.
Set keyboard layout and set to vibrate when you tap the keyboard, etc.
Set whether to display handwriting pad and to set prediction type when S pen is detected.
Reset the keyboard settings and delete individual setting data.
Check version of Galaxy keyboard.
46 Getting started
Check information of Moji-Henshu
1
From the Home screen, "apps folder" → "Settings" →
"General management" → "Language and input" → "Onscreen keyboard" → "Moji-Henshu"
2
"アプリ情報 (App information)"
• Check advanced information of Moji-Henshu.
Setting Google voice typing
Set the language, etc. to be used when doing Google voice searching.
1
From the Home screen, "apps folder" → "Settings" →
"General management" → "Language and input"→ "On-screen keyboard" → "Google voice typing"
2
Tap an item you want to set
47
Initial settings
When you turn the terminal ON for the first time after purchasing, follow the onscreen instructions to make settings for language,
Google/Galaxy account, etc. and initial setting for docomo service.
Operation steps may vary depending on connection to network, omitting the setting, etc.
1
of "Start"
• To change the language, slide "ENGLISH".
• If you change accessibility, tap "ACCESSIBILITY" to set it.
• From here on follow the onscreen instructions to configure the following;
- Connect to Wi-Fi
- Agree to the Terms and Conditions
- Sign in
- Name
- Protect your phone
- Google services
2
When the initial setup screen of docomo service is display, mark on "Agree to above" → "NEXT"
• From here on follow the onscreen instructions to configure the following,
- d ACCOUNT
- docomo service all settings
3
Set Galaxy account
4
Set restore data
5
Set change home
6
Check out Advanced features
7
"FINISH"
• "How to use the Home screen" is displayed. Tapping "Next" → "Next"
→ "OK" to display the Home screen.
Information
• Some functions can be changed after you have set them up.
• Before setting up online services, check that the terminal can transmit data (4G/3G/GSM) or that the terminal is connected to a
Wi-Fi network.
• While you can use the terminal without setting up a Google account,
Google services, such as Gmail and Google Play, cannot be used.
Getting started
Notification LED
You can set to notify missed call or status of charging/recording by lighting/blinking of notification LED when the screen is OFF.
• Set whether to activate notification LED by "LED indicator" (P.129).
Operations
Lights red
Lights green
Blinks red
Blinks purple
Blinks blue (Approx. 5 second interval)
Blinks blue (Approx. 1 second interval)
Description
Charging battery
Charging completes
Battery level is low
Notification of new + message
Notifications missed call and new SMS, etc.
Recording with Voice Recorder app
Information
• If a notification exists while charging, operation for a notification is given priority.
• Lighting/blinking of notification LED is depending on the app.
48
Display and icons
About status icon and notification icon
In the status bar at the top of the display, icons which indicate the terminal status or notification information are displayed. Notification icons appear on the left side of status bar, and status icons appear on the right side of status bar.
Notification icon Status icon
Status bar
Main notification icons
• Some notification icons may be displayed with icons overlapped for indicating multiple notifications.
Notification icon
Incoming call/making a call/answering a call
Page
Missed call
New Gmail exists
New Email exists
New +Message exists
New SMS exists
Trouble in delivery of SMS
New Area Mail exists
Data downloading/download completed
Data uploading/upload completed
Messages in Voice Mail service exist
Answering message On
‐
‐
Getting started
Notification icon
Recorded message in the answering message exists
Alarm exists
Alarm of calendar, etc. exists
Playing/pausing music
Error message exists
USB tethering enabled
Wi-Fi tethering ON
Bluetooth tethering enabled
Two or more tethering functions simultaneously enabled
Installation of apps on Galaxy Apps is complete/ updates for installed apps exists
Setting/checking software update
Updatable apps exist in Google Play
Installed Google Play apps
Hidden notification information exists
VPN connecting
Image saved by screen capture exists
Available memory space of the terminal drops
Watching Fullseg/1Seg
Recording Fullseg/1Seg
Omakase lock is set
Page
‐
‐
‐
‐
‐
‐
49
Notification icon
Enable location information providing of docomo apps
Page
Main status icons
Status icon
Airwave status
⇔
(Weak
⇔ Strong)
⇔
(Weak
⇔ Strong)
Radio wave condition (roaming)
Out of service area
Airplane mode
4G(LTE) network available/communication in use *
/
/
/
/
/
3G network available/communication in use
FOMA high-speed/HSDPA network available/ communication in use
GPRS network available/communication in use
Wi-Fi network available/communication in use
Internet connection not established network connection status Connect to a Wi-Fi network that requires user authentication, and the user authentication is in an unestablished state
The Internet cannot be connected to
Bluetooth function enabled
Connected to Bluetooth device
In Manner mode (Vibrate)
Page
‐
‐
‐
‐
‐
‐
‐
Getting started
Status icon
In Manner mode (Mute)
Alarm set
Page
VoLTE network usable
Battery level
‐
⇔
(Low
Strong)
Charging battery
Wi-Fi Direct connected
NFC/Osaifu-Keitai lock is set on the terminal and docomo nano UIM card
NFC/Osaifu-Keitai lock is set on the terminal or docomo nano UIM card
Connected to S Pen
Disconnected from S pen
Remaining battery level of S Pen
* "4G+" is always displayed when the terminal is connected with LTE.
50
Notification panel
Scroll/flick the status bar downward to display the Notification panel. You can check the notification information or tap the icons to set functions.
Scroll and flick upward to close the Notification panel.
a b c f a f i b d e g j k d e g h
Contents on Notification panel Contents on Notification panel (Unfolding) a Display current date and time.
b Using quick settings buttons, you can set or switch ON/OFF Wi-Fi, Bluetooth, light, Dolby Atoms, etc. Scroll the bar that center of notification panel ( c ) downward to display hidden icons. Touch and hold to display setting screen for each function.
c Scroll the bar downward to display the list of quick setting buttons.
d Information in progress or notifications * is displayed. You can confirm the information and launch apps by tapping.
e Set the apps to receive notifications.
f
Tap to display settings menu (P.120).
g Tap to delete notification information and notification icon on the status bar.
• Some notification information may not be deleted.
h Display the connecting network operator name.
Getting started
i Change order and layouts of the quick settings button.
j Indicates the notification panel count and current location.
k
Adjust the display brightness (P.130).
* Some notifications will not be displayed on the notifications panel on the Lock screen (when the terminal is locked by "Pattern", "PIN",
"Password", "Intelligent Scan", "Face", "Iris" or "Fingerprints") and you will not be notified about them.
Information
• Quick settings buttons are displayed in blue when the functions are enabled.
Edge screen
You can use various features on the edge screen.
You can use shortcut of apps (APPS EDGE), contacts use frequently
(PEOPLE EDGE), and smart select.
The screen lights up to inform you when calls, messages, etc. are received.
51 Getting started
Setting Edge panel
If you turn on Edge panel, edge panel handle is displayed and swipe it to display the Edge panel. You can display apps, features and contacts, etc. use frequently on the Edge panel.
Also, you can add the other edge panel or set the Edge panel or set a position of Edge panel handle, etc.
1
From the Home screen, "apps folder" → "Settings" →
"Display" → "Edge screen"
• Setting menu of edge screen is displayed.
2
"Edge panels" →
Changing the order of Edge panel
1
On the setting menu of edge screen, "Edge panels"
2
→ "Reorder"
3
Drag of panel you want to move to the left or right
4
Adding Edge panel
Add the Edge panel you want to use on the edge screen.
1
On the setting menu of edge screen, "Edge panels"
2
Mark Edge panel to add
Downloading Edge panel
You can download the Edge panel from Galaxy Apps.
1
On the setting menu of edge screen, "Edge panels"
2
→ " Download"
• After that, follow the onscreen instructions.
Editing Edge panel
1
On the setting menu of edge screen, "Edge panels"
2
"EDIT" under the Edge panel
• After that, follow the onscreen instructions.
Setting Edge panel handle
Set position or size of Edge panel handle.
1
On the setting menu of edge screen, "Edge panels"
2
→ "Edge panel handle"
3
Set each item
52 Getting started
Using Edge panel
1
Swipe the edge panel handle of Edge screen to center of the screen
• Edge panel is displayed.
2
Swipe the edge panel to display the panel you want to use
c
Edge panel handle
Example of Edge panel handle set the right side a b
Example of edge panel screen a Setting
b Current position
• The number of edge panel and the current position.
c Functions
• Functions of each edge panel is displayed.
d EDIT
• Set apps to display to the edge panel.
d
53 Getting started
Using People edge
Registering frequent contacts such as friends to People edge will make it easier to call and send them messages.
• You should register the contacts to "docomo phonebook" or "Contacts" in advance.
1
Swipe the edge panel handle of Edge screen to center of the screen
• Edge panel is displayed.
2
Swipe the edge panel to display People edge panel
a Contacts
• Register contacts use frequently.
a
Setting Edge lighting
If you turn ON Edge lighting, when a notification is received, the Edge screen lights up. Also, when the terminal is face down with the screen off and call is received, the Edge screen lights up You can set the Edge lighting display conditions and apps to receive notifications.
1
From the Home screen, "apps folder" → "Settings" →
"Display" → "Edge screen"
• Setting menu of edge screen is displayed.
2
"Edge lighting" →
• Select condition of displaying Edge lighting from "When screen is on"/"When screen is off"/"Always".
• Tap "Edge lighting style" to set the effect or color, etc. of Edge lighting.
• Tap "Manage notifications" to set apps to receive notification.
Information
• Notifications may not be displayed by Edge lighting depending on the type of notification.
• You cannot change the color that is displayed when a call is received with the terminal face down.
Edit quick reply message
In "Quick reply", you can sent a reject message by placing your finger on the heart rate sensor for two seconds when the edge screen lights up.
1
On the setting menu of edge screen, "Edge lighting"
2
→ "Quick reply" →
3
Tap message of quick reply message and edit it
4
54 Getting started
Home screen
"docomo LIVE UX" and "Galaxy home" can be set as the screen
(Home screen) displayed by pressing [Home button].
• For information on "docomo LIVE UX", see "Home screen" (P.63).
• The color on the curved screen may differ depending on what angle you look at it from.
• For changing home apps, see "Recently-used apps" (P.61).
Galaxy Home
a d e a b c f
Contents on Home screen (example) a Widgets (e.g. weather information, Google Search)
• Activate or operate widget (app located on the Home screen).
b Current location of the Home screen c Dock
• Displayed even when the Home screen is switched.
• Shortcuts and folders can also be located.
d
e Machi-chara (e.g. my daiz)
• Notify you of information such as mail reception or incoming call.
f Shortcuts
• Tap to activate apps.
55
Information
• From the Home screen, flick the screen up or down to display app
• From the Home screen, flick the screen right to activate "Bixby
• From the Home screen, touch and hold the screen → tap "Home screens" → "apps" to set to display apps button on the Home screen.
Adding shortcuts or widgets
1
From the Home screen, touch and hold a wallpaper in which shortcuts or widgets are not displayed
• To add shortcut of app, flick the screen up on the Home screen, then go to step 3.
2
"Create widgets"
3
Touch and hold an item you want to add to the Home screen
→ Drag to the position you want to move to and release it
Creating a folder
1
Touch and hold an icon you want to create a folder on the Home screen → Drag over the shortcut you want to summarize
2
Enter folder name → "Done"
Changing wallpaper
1
Touch and hold the wallpaper in which shortcuts or widgets are not displayed on the Home screen
2
"Wallpapers"
3
Select a wallpaper → Select the screen to change → "SET
AS WALLPAPER"
• To select an image other than wallpaper, → select an image → select the screen to change from "Home screen"/"Lockscreen"/"Home and lock screens" → tap "SET AS WALLPAPER".
Getting started
Changing theme
1
Touch and hold a wallpaper in which shortcuts or widgets are not displayed on the Home screen
2
"Themes"
3
Select the theme you want to change → "Apply"
Information
• To delete a shortcut, widget, folder, etc., touch and hold a shortcut, widget or folder → tap "Remove from Home"/"Remove from Home screen"/"Delete folder".
• For widgets, wallpapers, themes connecting to network, packet communication fee may be charged.
Apps screen
Apps screen when the Home screen is set to "Galaxy home" is described.
1
Flick the screen up or down on the Home screen
• Apps screen is displayed.
a d b c e f
Contents on Apps screen (example) a
Search
• Enter the character to search apps.
• Tap to search by voice.
b Folder
• Multiple apps are stored.
c Apps d
Menu
• You can reorder the apps and change settings of the Home screen or the Apps screen.
e Machi-chara (e.g. my daiz)
• Notify you of information such as mail reception or incoming call.
f Shows which Apps screen you are on
56 Getting started
App list
• For some apps, you can check functions or operation steps from the help.
• Some apps require subscriptions (charged) to use.
• The installed apps are as follows.
Icon Apps Description docomo mail Send/receive the mail using docomo mail address (@ docomo.ne.jp). if a d ACCOUNT is being used, use the same mail address on several devices such as tablets and computer browsers to send and receive, and read
Phone
Use phone or make settings of phone. → P.68
+ メッセージ
(+Message) docomo phonebook
Schedule
Memo
Hanashite
Hon'yaku
マネレコ
(Manereco)
My
Magazine
Osusume
Apps
This is an app that can send and receive text messages by entering a mobile phone number into the recipient's field. In addition to text, you can also
send images, videos, stamps, etc. → P.81
A phonebook app supplied by DOCOMO. The phonebook data of docomo's account can be
An app for creating/managing events and the data is shared with Memo app.
An app for creating/managing memos and the data is shared with Schedule app.
This is an app which translates your words into the other party's language. Enjoy communicating with other parties whose languages are different.
A household account book app for checking the balance of the bank account and credit card statement, etc. all at once.
My Magazine is a retrieval service which displays
articles from journals that you have selected. → P.67
Display recommend apps. → P.65
57
Icon Apps dphoto my daiz
Description
A service with which you can back up photos or videos to cloud up to 5 GB for free and access them from smartphone, tablet, PC, etc. You can also create a photobook from the photos in the cloud or on the terminal (you need to apply for a separate feebased service to use this service).
By simply speaking, you can easily search for information and have information that you require delivered to you at the optimum timing.
In addition to weather and train information, you can add affiliated services, such as recipe searches and home delivery, for your convenience.
My docomo
アプリ (My docomo app)
You can check your data usage, fees, contract details, and other information.
d Healthcare This is a health app that tracks your steps, manages your weight, and so on. When you achieve various health goals according to your worries, you can receive d points and coupons.
Internet
Email *
Messages
My Files
Set Email accounts to send/receive emails. → P.86
Clock
View/manage data such as still images, videos,
Use Alarm, World Clock, etc. → P.113
Calendar
Calculator *
Use to perform various calculations. → P.116
TV
Dictionary
Voice
Recorder
Watch Fullseg/1Seg etc. → P.108
Search a word etc. using the dictionary. → P.119
Getting started
Icon Apps Description
Galaxy Apps Download apps or update installed apps. → P.105
S Health *
Gear
Manager
Gmail
*
Improve health-care using body scale and a heart rate
Manage and monitor Gear connected to the terminal and Apps for Gear installed from Gear Apps.
Send/receive emails via Gmail. → P.88
Drive * Save images or videos to Google Drive or share them.
Purchase videos from Google Play.
Play Movies
TV *
Duo * Make a video call.
Photos View pictures and movies.
You can also sync with Google Photos to backup images and share them with others.
Facebook Facebook is a social networking service that makes it easy for you to connect and share with your family, friends, and work colleagues online, and find out what is happening in the world.
Messenger A chat app you can use to send stamps and messages to your Facebook friends and contacts in your mobile phone.
Instagram An app that you can use to edit images and videos shot on the terminal, and easily share with your family, friends, and the world.
Word
Twitter Official Twitter client app. Publish short message on the site to communicate with others.
Word Microsoft Word app for Android.
PowerPoint PowerPoint Microsoft PowerPoint app for Android.
Excel Excel Microsoft Excel app for Android.
OneDrive Microsoft OneDrive app. Use for online storage.
Icon Apps Description
Data copy
Data
Storage
BOX
An app for transferring data when you change models, or for backing up to/restoring from "microSD
card" or " Data Storage Box". → P.117
An app for using データ保管 BOX (Data Storage BOX).
Data Storage BOX is a service which allows you to upload files to easily manage them in the cloud.
Disaster kit An app for using Disaster Message Board, Disaster
Voice Messaging Service and Early Warning "Area
遠隔サポー
ト (Enkaku
Support)
An app to use "Anshin Enkaku Support". Anshin
Enkaku Support is a service with which Call Center staff helps your operation checking your terminal's
Anshin Scan Ensure your smartphone by checking virus, apps which require your personal data, by alerting when you attempt to access a non secure website, etc.
Instruction
Manual
Amazon
Shopping
The instruction manual for the terminal. You can activate desired functions from instructions.
It is an official app that you can use online shopping more profitable and more conveniently at Amazon.
Use e-book service provided by Amazon.
Amazon
Kindle
マクドナルド
(McDonald)
ローソン
(LAWSON)
This is McDonald's official app. You can search nearby
McDonald's store using store search or get coupons and the latest information. If you login with d account, etc. you can store the point by one-touch and use it.
This is Lawson's official app. With this your phone serves as a membership card with which you can display your digital membership ID, search for store locations, and check for economical trial coupons.
iD アプリ (iD app)
An app provided by DOCOMO for use of electronic money "iD". You can enjoy shopping simply and conveniently only by holding Osaifu-Keitai set with
"iD" over the IC card reader in stores. → P.108
58 Getting started
Icon Apps d 払い (d payment)
Osaifu-
Keitai
Galaxy
Notes
Tegaki
Hon'yaku
PENUP
Description
This app is for using the smartphone payment service provided by docomo called "d-harai". By just showing the barcode displayed in the app, shopping is easy, convenient, and you can get reasonable prices at participating stores.
It allows you to pay money only by holding the
terminal over a store reader etc. → P.106
This app translates text that you write with your hand or S Pen on the screen into the receiver's language.
In addition to text, you can also use illustrations and photos to enjoy communicating with someone who speaks a different language.
This is a social network service that you can use pictures that you drew using S Pen to enjoy being creative and to socialize at the same time. You can learn how to draw sample illustrations by movie and trace with pictures and draw with a pen.
This is notebook app that you can handwriting by S
Pen.
てがき手
帳 (tegaki notebook)
Play Store
YouTube
Maps
Chrome
Play Music *
Dial
Contacts
Download apps from Google Play. → P.105
Check current location or search a destination with
Search various information by the quick search box.
Web browser app by Google.
Discover, listen to, and share music on your device.
Access your own music collections and upload to the cloud.
Make/receive calls using the terminal's "Dial" app provided by Galaxy.
Manage contacts using the terminal's "Contacts" app provided by Galaxy.
59
Icon Apps
Camera
Gallery
Setting
Description
Shoot still images/videos. → P.94
View/organize still images/videos. → P.102
Make the terminal settings. → P.120
Galaxy
Members * d メニュー
(dmenu) dmarket d ポイント (d
POINT)
Game
Launcher
Secure
Folder
You can get the necessary answers on Galaxy products and take advantage of events, user communities, diagnostics, and customer service.
This is a shortcut app to the "dmenu". In dmenu, you can quickly access DOCOMO recommended sites
Sale of digital content, such as music, videos, books, shopping and travel sites, and various other services
d point is an app with which you can "Confirm", "Save" and "Spend".
You can manage all the games together
Set the secure folder.
* If you perform "Factory data reset", these apps will be uninstalled. When downloading them again, you may need a Wi-Fi connection.
Information
• These apps are preinstalled ones when you purchased the terminal.
Some preinstalled apps can be uninstalled. Even if you uninstall such
apps, downloading again may be available at "Play Store" (P.105),
etc.
• When an app has notification information, number (number of notifications) may be displayed on the icon.
Getting started
Adding shortcuts to the Home screen
1
From the Apps screen, touch and hold an apps to add to the
Home screen
2
When the Home screen is displayed, drag to the position you want to add to and release it
Sorting apps
1
From the Apps screen, touch and hold an apps you want to move
2
Drag to the position you want to move to and release it
Uninstalling/Disabling apps
1
From the Apps screen, touch and hold an apps you want to delete/disable
2
"Uninstall"/"Disable" → "OK"/"DISABLE"
Information
• To enable disabled apps, from the Apps screen, "Settings" →
"Apps" → "All apps" → "Disabled" → tap apps you want to enable →
"ENABLE".
Using Quick search box
You can search information including entered word in the terminal or on the Internet.
1
From the Home screen, tap Google Search widget
• The quick search box appears.
• Enter the characters on the quick search box, information or search options saved in the terminal containing the entered characters are appeared under the search box.
• When Google's notification screen appears, follow the onscreen instructions.
a b
Quick search box a An entered characters are appeared.
b All entered characters are deleted.
Tap before entering character, you can enter words you want to search by voice sound (only for web search). When characters are entered, it changes to.
Information
• From the Home screen, tap "Google" → "Google" to activate Quick search.
60 Getting started
Recently-used apps
1
[History button]
• Tap a thumbnail of app to activate the app.
• Tap "CLOSE ALL" to remove the list.
• Scroll/flick thumbnail left or right to delete it from the list.
• Tap to activate split screen view (P.61).
• Some apps can be launched as a popup by touching and holding the app → dragging to "Drop here for pop-up view".
• If the "Pin windows" (P.136) is set to ON, appears in the app
thumbnails which were displayed just before.
Pinning apps to the screen
You can pin apps to the screen so that other apps cannot be used.
• The "Pin windows" (P.136) needs to be set to ON in advance.
1
Starts up the apps that you want to pin
2
[History button]
3
of app thumbnails
4
"OK"
Information
• To release app pins, simultaneously touch and hold [History button] and [Back button].
Using split screen view
You can display two windows or a pop-up window on the screen to use different apps at the same time.
• Start the apps you want to display in advance.
* Some apps may not support split screen view.
Split screen view example
1
[History button]
• App's thumbnails are displayed.
2
Tap of app's thumbnail
• The screen is divided into two sections, top and bottom, and the app will be displayed on the top part of the screen.
3
Tap of app's thumbnail bottom of the screen
• App is displayed bottom of the screen.
• You can also tap "APP LIST" to select apps displayed at the bottom of the screen.
• → "Settings" to set split screen view.
61 Getting started
Information
• When the display is landscape, the screen is divided into two sections, right and left.
• Drag on the dividing line displayed in the center of the screen up or down (left or right when the screen is horizontal) to change the window size for each app. The selected app is displayed in blue.
• Tap on the dividing line displayed in the center of the screen to display a toolbar.
- Tap to create a shortcut of the split screen view on the Home screen of the two displayed apps that you paired (If you are using
"Galaxy home" on the Home screen, the shortcut is displayed.).
- Tap to select the display range for the selected app and pin it to the top of the screen. This icon is displayed when the screen is portrait.
- Tap to unpin the top of the screen. This icon is displayed when the app is pinned to the top of the screen.
- Tap to switch the top and bottom screens (left and right when the screen is horizontal).
- Tap to display the selected app as a pop-up.
- Tap to close split screen view.
Switching home apps
Change the Home screen displayed by pressing [Home button].
1
From the Home screen, "apps folder" → "Settings" → "Apps"
→ → "Default apps" → "Home screen"
2
"docomo LIVE UX"/"Galaxy home"
3
"OK"
62 Getting started
docomo LIVE UX
This is a home app that enables you to intuitively customize the
Home screen and use the new search service called "My Magazine" that displays world trends and various information customized to your individual tastes in a magazine format.
For details of docomo LIVE UX, see from the Home screen, → →
"Help" or visit the following website.
https://www.nttdocomo.co.jp/service/live_ux/index.html (in
Japanese only)
Home screen
On the Home screen, you can launch the apps or use the widgets.
All apps is located in the Home screen.
• You can toggle the pages by flicking left and right the Home screen.
• When there are app's notification, a dot or number may be displayed on the upper right corner of an app icon or a folder.
a e f b App icon
• Tap it to launch app.
• Touching and holding an app icon will display the shortcut menu enabling you to run certain operations and check app information. If is displayed, touch and hold it and drag it to any location enables you to add shortcuts for certain operations to the Home screen.
c Indicator
• Indicates the Home screen page count and current location.
d Function button
• Display the screen of search app, use Recommends (P.65), change
Wallpaper & Kisekae, reorder Home screens.
e
Customize area
• You can place app, widget and folder, etc.
f
Machi-chara (e.g. my daiz)
• Notify you of information such as mail reception or incoming call.
g
Folder
• Multiple app icons are stored.
h
Dock
• Displayed even when the Home screen is switched.
i
My Magazine button
• Display My Magazine.
b c d g h i
Contents on Home screen (example) a "Widgets"
• Launch a widget (Google search)
• Touch and hold it to display shortcut menu and you can perform certain operations.
63 docomo LIVE UX
Managing Home screen
Moving apps, etc.
1
Touch and hold an app icon or widget, etc. to move on the
Home screen
2
Drag the position you want to move or tap "Move" of displayed balloon and drag
• Drag the edge of the Home screen, it move to the next page.
Deleting Widget
1
Touch and hold the widget to delete on the Home screen
2
"Remove from Home"
• You cannot delete the folder where app is stored.
Uninstalling the app
1
Touch and hold an app icon to uninstall on the Home screen
• If you uninstall the app in a folder, tap a folder and touch and hold an app to uninstall.
2
"uninstall" → "OK"
• If an app cannot be uninstalled, "uninstall" is not displayed.
• When "Disable app" (P.60) is displayed, you can disable the app.
Change the folder name
1
Select the folder on the Home screen
2
Tap folder name
3
Enter folder name
• Tap "Done" displayed on the keyboard.
Setting Home screen
1
Touch and hold area in which icons, etc. are not displayed on the Home screen
64
2
Select an item
Item
Create folder
Wallpaper and
Kisekae
Create Widgets
Description
Add a folder.
You can change Wallpaper & Kisekae.
Home screens
Home setting
Display a list of widgets.
If you add the widget to Home screen, touch and hold the area you want to place the widget on the
Home screen → "Create Widgets" → tap the widget you want to add.
* If there is not enough space, place it automatically into the vacant space.
Display a list of Home screens. For the details of a
Backup and restore the layout of Home screen, set
Machi-Chara and My Magazine.
Changing wallpaper
1
Touch and hold area in which icons, etc. are not displayed on the Home screen → "Wallpaper and Kisekae"
• To change wallpaper, from the Home screen, → "Wallpaper &
Kisekae".
2
Tap the picture you want to set wallpaper
• Tap in right upper corner, select the wallpaper from another app.
3
Follow the onscreen instructions to set the wallpaper
Changing Kisekae
1
Touch and hold area in which icons, etc. are not displayed on the Home screen → "Wallpaper and Kisekae" → "Kisekae"
• To change Kisekae, from the Home screen, → "Wallpaper &
Kisekae" → "Kisekae".
2
Select Kisekae → "Set"
docomo LIVE UX
Displaying Machi-Chara
1
Touch and hold area in which icons, etc. are not displayed on the Home screen → "Home setting" → "Machi-Chara setting"
2
/ of "キャラ表示 (Chara display)"
Managing pages
1
Touch and hold area in which icons, etc. are not displayed on the Home screen → "Home screens"
• To manage pages, from the Home screen, → "Home screens".
2
【+】
• To delete a page on the Home screen, tap the thumbnail of page you want to delete.
• You cannot delete the page where app is stored.
• To reorder the page, touch and hold the thumbnail of page to reorder
→ drag to any place.
Information
• To display a list of Home screen, pinching in on the Home screen.
• Add up to 32 pages.
Using Recommends apps
It is a service that recommends an app according to the usage situation of customers.
1
From the Home screen,
2
"Recommends"
• A confirmation screen appears for the first activation and tap
"ENABLE" to display the description screen. On the description screen, tap / "おすすめアプリ一覧へ(Go to Recommends)" to display app list screen and notification of recommended apps sets ON.
3
Select an app to use
• Introduction screen of apps is displayed.
Information
• On the recommends screen, → tap / switch ON/OFF of setting.
of each setting to
65 docomo LIVE UX
Search app
It is a function to search the list in the order of using the app or in the order of installation, or search by app name.
1
From the Home screen,
2
3
"Search app" → Enter app name
• Tap "By most recently used", "By installation date", "By app name" to list all the apps in any order.
4
Select an app
• App is launched.
• Tap to display the Home screen the selected app is placed that it will be focused.
Backing up and restoring the Home screen
You can restore the layout of your apps and widgets in your Home screen by using the docomo LIVE UX data backed-up in docomo cloud. At this time, the docomo service page will be added to the end of the Home screen.
• To use Backing up and restoring, you need to set d account (P.145).
Backing up Home screen
1
Touch and hold area in which icons, etc. are not displayed on the Home screen → "Home setting"
2
"Layout backup & Restore"
3
→ "BACKUP"
Restoring the Home screen
1
Touch and hold area in which icons, etc. are not displayed on the Home screen → " Home setting"
2
"Layout backup & Restore"
3
"Restore the latest backup data"/"Restore from backup data list"
4
"Restore"
• If you select "Restore from backup data list", select the data to restore → "Restore" → "RESTORE".
66 docomo LIVE UX
My Magazine
My Magazine is a retrieval service which displays articles from category that you have selected. It will get close to your preferences the more and more that you use it via the articles you tend to read and profile information. You can set to receive the notification of
My Magazine and to use customization of My Magazine using the location information and docomo service subscription information.
About article
1
From the Home screen,
• When category selection screen to display, select the category and tap "OK".
• Display the article list by category.
• You can toggle the category by scrolling/flicking right and left the screen.
2
Tap a desired article to display
• Tap to change settings of My Magazine and check the help.
Rearrange category
1
From the Home screen,
2
→ "Rearrange category"
• The category that checked is displayed on My Magazine.
• Tap of upper right corner to reorder the category.
Home app information
You can view the developer or version, etc. about docomo LIVE UX.
1
From the Home screen, →
2
"About"
• If an update of docomo LIVE UX is available, "Update now" is displayed on the app's information screen and tap it to update docomo LIVE UX.
67 docomo LIVE UX
Phone
Making a Call
1
From the Home screen, → "Dial"
2
Enter a phone number of the other party
• Enter a city code even when the other party is in the same city.
a e b c f
3
• To make a video call, tap → "Video call".
4
When the call ends,
d g a Phonebook
Start "docomo phonebook" app.
Dial screen b Dial: Dial screen appears.
Recent calls:
Recent calls screen appears (P.72).
Favorites:
Contacts list added to Favorites appears (P.80).
c Phone number entry field
Entered phone number is displayed.
d Call key
Call to an entered phone number.
e Menu
Display menu.
f Delete key
Delete a number at the far right or a number to the left of the cursor. To delete all numbers entered, touch and hold the key.
g Key for registering to phonebook
Register the entered phone number to phonebook.
68 Phone
Information
• To show/hide the caller ID per call, enter prefix "186" (notify)/"184"
(not notify) before the phone number. You can set to show/hide in
"Caller ID notification" (P.74) in advance.
• Use "Add 2-sec pause" or "Add wait" to dial phone number and additional code in a row when sending an additional code during a call is required for bank balance inquiries, ticket reservation services, etc.
- On the dial screen, enter the phone number → → "Add 2-sec pause" → enter the desired phone number, tap , the call is connected and the touch-tone signals (numbers) are automatically sent after about 2 seconds.
- On the dial screen, enter the phone number → → "Add wait" → enter the desired phone number → tap , the call is connected and the touch-tone signals (numbers) are sent when you have tapped "YES".
• You can make calls and video calls in high quality with VoLTE.
To use VoLTE, you and the other party both need to meet the following conditions.
- The device supports VoLTE.
- It is within the VoLTE area.
- "Network mode" (P.161) of "Mobile networks" is set to "4G/3G/
GSM (auto connect)" and "Call mode" * is set to ON.
* From the Home screen, "apps folder" → "Settings" → "Connections"
→ "Mobile networks" → "Call mode"
• VoLTE (HD+) offers better sound quality than voice and video calls than VoLTE.
In order to use VoLTE (HD+), the requirements for VoLTE must be met and both your and the other party's terminals must be compatible with VoLTE (HD+).
• You can see each other's images while talking with video call. You can also switch to voice call.
- When making video calls, there is a call charge and packet communication charge. In addition, there is also a packet communication charge for incoming video calls.
- Since it is a best effort communication (the optimum communication speed changes depending on the network traffic), the image quality differs depending on the network environment.
- When you could not switch to video call from voice call, a notification will be shown on the display indicating that the switching to video call failed, and voice call will continue.
- As the display processing is different for each phone model, your image displayed on the terminal for the video call picture may differ to what is displayed on the other party's device.
• Alternatively, from the Home screen, "apps folder" → tap "Dial" to activate "Dial" app provided by Galaxy and then tap to make a call.
However, available functions, etc. differ from those of "Phone" app provided by DOCOMO.
69
Emergency call
Emergency call
Police
Fire and ambulance
Marine emergency
110
119
118
Phone number
Information
• The terminal supports "Emergency report location notification".
When calling to 110, 119, or 118, the information of where you are calling from is automatically informed to the police or other agencies. Due to the location where you call or the signal status, the location information may not be informed correctly. If the location information is informed, the agency's name is displayed on the Home screen. Also, if you call with "184" attached or other non-notification functions, the location information and telephone number will not be informed. However, if the agency consider it is necessary to know those information due to lifesaving, the agency may retrieve your information regardless of your current settings. Besides, the introduced region or period of "Emergency report location notification" varies from each agencies.
• When calling to 110, 119 or 118 from the terminal, inform them that you are calling from a mobile phone and give your phone number and your current location precisely for checking callback from the police/ fire department. To make sure that you are not cut off during the call, do not move during the call and do not turn OFF the power after the call, but keep it ON for about 10 minutes.
• For some areas you are calling from, you are not connected to the local fire department or police.
• In Japan, when docomo nano UIM card is not inserted to the terminal, the emergency numbers of 110, 119 or 118 are not available on the
PIN code entry screen or during PIN code lock/PUK lock.
• If you make an emergency call 110, 119, 118 with "Block numbers"
(P.75) is set, call blocking setting will be OFF.
• You may not be able to make an emergency call on some networks.
• You can not make emergency calls with video calls.
Phone
Receiving a call
1
A call is received
• A incoming screen appears.
To answer a video call with a voice call
Drag to outside of the circle.
• A voice call starts.
3
When the call ends,
Information
• To stop ringtone sounding or vibration, press [Power/Screen lock key] or Volume UP key/Volume DOWN key.
• If you set "Answer" in "Suguden settings" (P.77) to ON, you can
answer an incoming call simply by placing the terminal on your ear.
Receiving incoming call while app is activated
If an incoming call is received when an app is activated, the call is displayed in a pop-up dialog box.
Incoming call screen
(voice call)
Incoming call screen
(video call)
2
Drag / to outside of the circle
• A call starts.
To reject a call
Drag to outside of the circle.
To reject a call and inform the caller of the reason of the rejection by SMS
Drag up "SEND MESSAGE" at the bottom of the screen and tap a reject message.
• You can change the reason of rejection (P.76).
• When you "Add reminder" is set to ON, if you reject the call, it will be
registered to Reminder" (P.44) automatically.
To answer with "Answering message" (voice call only)
Drag up "SEND MESSAGE" at the bottom of the screen and tap
"Compose new message".
• You can use this function only with voice call.
When you do not want to show your image to the caller
Tap "Hide me" and drag to the outside of the circle that is shown.
Incoming call screen
• You can start/reject the call by tapping "ANSWER"/"DECLINE".
• You can reject a call and convey the reason for rejecting the call to the caller with a message by tapping "SEND MESSAGE".
• Tap the screen to display in full screen.
70 Phone
Operation during a call
1
A call is received
• A incoming screen appears.
2
Drag / to outside of the circle
• Display the calling screen and start calling.
a d e i d f b c g h
Voice calling screen Video calling screen a Call time b Menu icons
Tap to perform one of the following operations.
• Add call: Make a second call.
• Video call: Switch to video call.
• Bluetooth: Connect with Bluetooth device to call hands-free.
• Speaker: Emit the other party's voice from the speaker to call hands-free.
• Mute: Mute your voice not to be heard by the other party.
• Keypad/Hide: Show/hide the keypad. Tap keypad to send touch-tone signal.
c /
End a call. d /
Display the menu for calling screen (P.72).
j k c e Your own image
Tap → "Switch video displays" to exchange your own image and the other party's image.
f The other party's image
Depending on the other party's settings, a substitute image may be displayed.
g Camera
Switch whether or not to send the picture of yourself to the other party.
h Switch
Switch the cameras for the image to send to the other party from the front side or back side.
i Voice call
Switch to voice call.
j Mute
Mute your voice not to be heard by the other party.
k Speaker
Emit the other party's voice from the speaker to call hands-free.
Information
• If the caller changes to a video call during a voice call, a message is displayed confirming whether you want to switch to a video call. Tap
"Accept" to switch to the video call screen.
• If you change to an app from "Phone" during a video call, video will no longer be transmitted to the other party.
71 Phone
Menu on calling screen
Tap / on the calling screen to display the following items.
Item
Hold call/Resume call *1*2
Record/Stop recording *2
Turn on extra volume/Turn off extra volume *3
View contact/Add to Contacts *2
Send message *3
Keypad *4
Switch to
Bluetooth device/
Switch to phone *4
Switch to voice call *4
Switch video displays *4
Hold/resume a call.
Record/stop recording your current call.
Switch whether or not to enable extra volume.
View a contact or add to contacts.
Send a message.
Show keypad.
Set whether or not to use a Bluetooth device when calling.
Switch to voice call.
Description
Set whether or not to exchange your own image and the other party's image.
*1 Available only when you subscribe to "Call waiting".
*2 Shown only during voice call.
*3 Shown only during voice call. May not show depending on the network which is connected to.
*4 Shown only during video call.
Information
• To adjust the volume of the other party's voice (call volume), press the Volume UP key/Volume DOWN key during a call.
• The voice call screen is turned off automatically when the screen is covered by making the terminal close to your face (except when a headset or the like is attached or the speaker is ON) or about 30 seconds are passed with no operation. To display the call screen, keep the terminal away from your face or press [Power/Screen lock key].
Recent calls
On the Recent calls screen, you can check logs of dialed calls, received calls.
• For number of items that can be displayed to call logs, see "Main
1
From the Home screen, → "Recent calls"
• The Recent calls screen appears.
a b c d e f g
72
Recent calls screen a Phonebook
Start "docomo phonebook" app.
b Dial:
Recent calls: Recent calls screen appears.
Favorites:
Contacts list added to Favorites appears (P.80).
c Switch logs
Switch display between Incoming and outgoing. Tap "All" to display all incoming/outgoing call logs.
d Name, Phone number, Call date and time
• Tap to display the Outgoing call screen. Tap an item on the Outgoing screen to make a call, send an SMS, etc.
• Touch and hold to display the following menu.
- Edit number before call: Edit a number before calling.
Phone
- Delete from call log: Delete from call log.
- Register as blocked number: Register as blocked number of Nuisance call
blocking service (P.74) or register/release to Block list (P.75) that reject
incoming call or messages.
- Register to Favorites: Register to favorites.
- Search location: Connect to imadoco search/imadoco kantan search.
e Menu
Display menu.
f Outgoing call, Incoming call, Missed call
• The difference between voice and video calls are not shown.
g Voice call key
Make a voice call to the number for the call log.
Information
• When there is a missed call, appears on the status bar. Scroll/flick the status bar downward and follow the onscreen instructions.
• Alternatively, from the Home screen, "apps folder" → tap "Dial" to activate "Dial" app provided by Galaxy and then tap "RECENTS" to check incoming/outgoing call log. However, available functions, etc. differ from those of "Phone" app provided by DOCOMO.
Answering message
Set answering message which plays answering message and records caller's message when you cannot answer incoming calls.
• Answering message is not available for video call.
1
From the Home screen, → → "Call settings"
2
"Answering message settings" → "Auto answer with message" → "Always"/"Turn on when set to vibrate/ silent"/"Manual"
• Tap "Play answering message after" to set answer time from 0 to
120 seconds.
• Tap "Language" to set language for answering message.
Information
• When there is an answering message, appears on the status bar. Scroll/flick the status bar downward and tap "New recorded messages" to check answering message. From the Home screen,
→ → "Call settings" → "Answering message settings" → "Record calls.
• For maximum number of seconds of recording per record and number
of saved items for one message , see "Main specifications" (P.175).
73 Phone
Making an international call (WORLD CALL)
WORLD CALL is an international telephone service that you can use inside Japan with DOCOMO terminal.
For using overseas, see "International roaming" (P.160 )
• Depending on the network operator, the caller ID may not be shown/ displayed properly. In this case, calls cannot be made from the logs.
1
From the Home screen, → "Dial" → "0", "1", "0" → Country code → Area code (city code) → Enter a phone number of the other party
• Please omit the prefix "0" in the area code (city code). However, "0" may be required to dial to some countries or areas such as Italy.
2
3
When the call ends,
Information
• When "0" is touched and held to enter prefix "+" before "Country code-
Area code (City code)-phone number", international dial assist screen appears when making a call. When you tap "Call by WORLD CALL", "+" is changed to an international access code "009130010", and you can make an international call.
74
Call settings
You can set functions for calling from the Home screen, → →
"Call settings".
Network services
Item
Hide contacts without numbers
Search for places nearby
Voice mail service
Call forwarding service *1
Call waiting
Caller ID notification
*1
*1
Description
When "Dial" app provided by Galaxy displays the contacts, display the contacts registered phone number only.
Set whether to display phone numbers and other information of companies and facilities near your current location on the "PLACES" tab of "Dial" app provided by Galaxy.
The service takes voice message of the other party for you if you cannot answer an incoming call.
The service forwards a call if you cannot answer an incoming call.
The service which allows you to put the current call on hold and answer a second call or make a call to another party.
Notify your phone number on the screen display of the other party when making a call.
Nuisance call blocking service
Caller ID display request service
Call notification
Save caller's number and set call rejection.
Activate/deactivate Caller ID request.
Activate/deactivate missed call notification.
English guidance Set English guidance.
Remote operation Activate/deactivate remote operation.
Phone
Network services
Roaming
Block numbers
Quick decline messages
Answering and ending calls
Press Volume up to answer calls
Automatic answering
Answering message settings *1
Item
Public mode (turn off)
Description
While the terminal is OFF or in
Airplane mode, a guidance message indicating that the receiver is in a place where power should be turned off is heard on the caller's terminal and then the call ends.
Blocked number categories
Set category of blocked number.
Add phone number Manage the phone numbers which are going to have their incoming call and messages blocked.
Press Power key to end calls
Auto answer with message
Play answering message after
Language
Recorded messages
Set whether to answer call by pressing Volume UP key,
Set whether or not to answer a call automatically after two seconds when a headset or a Bluetooth device is connected to the terminal.
Set whether to end call by pressing
[Power/Screen lock key].
• If "Press Power key to end calls" sets ON and change to the sleep mode during a call, press [Power/
Screen lock key] to cancel the sleep mode and press [Power/
Screen lock key] to end calls.
75
Item
Show caller information
Show calls in pop-up
Call alerts Vibrate when answered
Vibrate when call ends
Play tone when call connects
Play tone when call ends
Description
Set whether to show caller's recent information (call logs or messages logs *2 ) on the incoming call screen.
Set whether to display calling screen in pop-up when the other apps is used.
Set whether to vibrate the terminal when you start a call with caller.
Set whether to vibrate the terminal when the call ends.
Set whether to sound call connect tone.
Set whether to sound call end tone.
Ringtones and keypad tones
Notify during calls Set whether to sound notification sound when there is an alarm or SMS reception.
Ringtones
Vibration pattern
Vibrate while ringing
Dialing keypad tone
Show call stickers
Set ringtones.
Set vibration pattern.
Set whether to vibrate while ringing.
Sound operation sound when dialing keypad is tapped.
Set whether to use call stickers when you call or communicate by "Dial" app provided by Galaxy,
Record calls Notifications
Auto record calls
Receive notifications when the recording is completed.
Record calls to or from selected numbers automatically.
Recorded calls *3 Display the file of recorded calls.
Storage location *4 You can select storage location.
Phone
Suguden settings
About Phone
Item
Auto area code
Description
Set the area code to add to the front of the phone number automatically when calling using "Dial" app provided by Galaxy,
Check the "Dial" app provided by
Galaxy,
*1 Not available for video call.
*2 Display only when the standard message app is "Messages".
*3 Displayed only when there is recorded calls.
*4 Appears only when microSD card is attached.
Registering reason of rejection to send via SMS when rejecting call
The terminal can reject a reception of call and inform the caller of the reason of rejection by SMS. Up to six rejection messages can be registered.
• By default, three rejection messages are registered.
1
From the Home screen, → → "Call settings" → "Quick decline messages"
2
Enter a rejection message →
To edit registered rejection message
Tap a rejection message to edit → edit the rejection message → tap
"SAVE".
To delete a rejection message
Tap of messages to delete.
Blocking call receptions and messages from specified phone number
You can register the phone number you want to block the calls and messages and select number categories.
1
From the Home screen, → → "Call settings" → "Block numbers"
2
Enter a phone number to reject →
• → Tap "CONTACTS"/"GROUPS"/"RECENTS" to enter a phone number by selecting contacts, groups, or Recent calls.
• Tap "Blocked number categories" → mark the number category you want to block, and you can collectively do blocking.
76 Phone
Setting Suguden
You can configure the Suguden function that allows you to control the terminal using motion and voice keyword.
1
From the Home screen, → → "Call settings" → "Suguden settings"
Answer
Call
Item
Mute (Hold)
Disconnect Motion
Voice command
Mute, Reject
Call ranking
Hide the name when receiving
Sending of use information
Disable Suguden during roaming
Description
Set whether to answer calls by holding up the terminal on your ear.
Set whether to enable the microphone on the terminal to be turned off (mute) by moving the terminal away from your ear after a phrase that includes the keyword "mute (hold)" is spoken during a call.
Set whether to disconnect calls by placing the terminal horizontally with the screen faced down during a call, or shaking the terminal twice during a call.
Set whether to disconnect calls after you say the disconnect command during a call and move the terminal away from your ear.
Set whether to make a call to the other party that is registered in advance or saved to call logs by shaking the terminal once then holding up to ear.
Set whether to reject calls by placing the terminal horizontally with the screen faced down during a call is incoming, or shaking the terminal twice. You can select from "OFF", "Mute", "Reject" or "Reject and send SMS".
You can check the contacts to which most calls were made.
Set whether to hide the other party's name until the terminal is moved when there is an incoming call.
Set whether to send your user information to
DOCOMO via Suguden.
Set whether to set OFF the settings for Suguden when you stay abroad.
77
Information
• Suguden will not operate in the following cases:
- When using the speakerphone
- When using the earphone/headset
- When connected with a Bluetooth device with calling function (Mute
(Hold), Disconnect (Call), Call (Motion))
- When making or receiving an additional call during a call
- When you are lying down
- While you perform vigorous exercise such as running, or going up or down stairs
- The display is covered with a book type smartphone case etc.
• If you place the terminal in a bag or pocket with the screen ON while there is an incoming call, in rare cases, Suguden may recognize the action as a motion and answer or end the call.
• The proximity sensor does not respond well to black objects.
When answering calls, if you press the earpiece/speaker over your hair, the proximity sensor may have trouble working and may cause failure to answer the call. In this case, please press the earpiece/speaker directly to your ear.
When disconnecting/rejecting a call, turning the terminal over on a black desk, etc. may cause the operation to fail (cannot disconnect/ reject). In this case, instead of placing the terminal directly on the surface, raise the terminal 1 cm from the desk, etc. as you flip it over to operate (disconnect/reject).
• Suguden does not support video calls. Video calls are only supported by the "Hide the name when receiving" function.
About Disconnect (Motion)
• If a motion is detected after enabling the Suguden call ending function, the call will be ended in the following cases.
- When the other party is on hold
- When the answering message is active (playing the answering message/recording answering message)
• When disconnecting a call with Suguden motion, it may not react
(disconnect) if the speed of motion for placing the terminal facing down is fast. In that case, try the motion slowly to react (disconnect).
• Strongly shaking the terminal will be treated as motion and an incoming call may be disconnected.
About Disconnect (Call)
• If a disconnect command is detected after enabling the Suguden call ending function, the call will be ended in the following cases.
- When the other party is on hold
- When the other party is activating answering message (playing the answering message/recording answering message)
Phone
About Mute(Hold), Disconnect (Call)
• If Mute (Hold), voice call-ending is ON while talking on the phone, other apps that use the microphone or audio during a call (such as a call recording app) may not be available. If you want to use these apps during a call, turn OFF Mute(Hold) and disconnect (Voice command) after ending the call to enable them.
• A call cannot be ended with a Mute (Hold) and voice command while the answering message is running (playing the answering message/ recording a answering message). If you answer the phone while recording a answering message, you can end the call with Mute (Hold) and a voice command.
• If you are using "Hanashite Hon'yaku" during a call, you cannot use a voice command to end the call.
• While the Suguden voice function uses voice recognition technology and language processing technology, docomo does not guarantee the accuracy of this technology.
• Your voice may not be recognized if your mouth is too far away from the smartphone, the volume is too low, or your surroundings are noisy when you issue a voice command.
About Call
• You can only make a call when the terminal is displaying the Home screen or lock screen (unlocking method is "Swipe/Touch").
About Mute, Reject
• Strongly shaking the terminal will be treated as motion and an incoming call may be rejected.
Disable Suguden during roaming
• The Suguden function is automatically disabled overseas. To use
Suguden in overseas, turn off the "Disable Suguden during roaming".
• If you would like to know more detailed information about the Suguden feature, usage precautions, and other items, refer to the following website. https://www.nttdocomo.co.jp/service/suguden/ (In Japanese only)
Phonebook
Registering to phonebook
Manage various contact information such as name, phone number or mail address using "docomo phonebook" app provided by DOCOMO.
• For using the cloud service on phonebook, "docomo phonebook" app is required.
• When you activate "docomo phonebook" for the first time (including after resetting the app), "Use of Cloud" screen appears and set to use cloud.
1
From the Home screen, "apps folder" → "docomo phonebook"
• By default, contacts list screen appears.
2
"Register"
a b c
Edit contacts screen a Accounts
Tap "Set" to select an account.
b Image field
Tap "Set" to register an image.
c Label key
Select a content label (item).
78 Phone
3
Enter the required items
) is register to a contact, tap "Set" in "Group" to group the contact.
4
"Save"
• If the contact is not displayed, on the Contacts list screen, tap →
"Settings" → "Accounts to display" to change the display settings.
Information
• Alternatively, from the Home screen, "apps folder" → tap "Contacts" provided by Galaxy to activate "Contacts" app to register or manage contacts. However, available function, etc. differs from "docomo phonebook" app provided by DOCOMO.
• To save the contact to the terminal, from the Home screen, "apps folder" → "Contacts" → → "Phone".
Checking/Editing a contact
1
From the Home screen, "apps folder" → "docomo phonebook"
→ "Contacts"
e a f g h b c i
79 d j k
Contacts list screen a Contacts
• Display the Contacts list screen.
b Name registered in the phonebook c Photo set in the phonebook d Register
e Log in to/out from the cloud f Menu
• Display menu.
g My profile
• Profile screen appears. You can check the phone number, edit/manage your own
h Group
• Displays the Group list screen. You can add and edit groups (P.80).
i Index character display area
• Tap "Index" to display index characters by which you can search a name in the order of the Japanese syllabary, alphabet, etc.
Phone
j Index
• Display the index character display area.
k Search
• Search contacts.
2
Tap the contact you want to check
• A profile screen appears.
• Tap "Edit" to edit a contact.
Making a call from phonebook
1
On the Contacts list screen, tap the recipient you want to call
• A profile screen appears.
2
• Tap the phone number to create SMS or make video call.
• To create a mail, tap a mail address and select an app.
Adding a contact to Favorites
1
On the Contacts list screen, tap the contact you want to add to Favorites → Tap (white) to change to (yellow)
• Added contact is displayed in the "Favorites" group.
Adding/Editing a group
1
On the Contacts list screen, "Group"
2
"Add group"
To edit saved group
Tap a group you want to edit → "Edit" → edit and then tap "OK".
To delete group
→ "Delete group" → mark groups you want to delete → "OK" → tap
"OK".
To change display order of groups
"Sort" → Tap a group → Drag the group to desired place → tap "OK".
3
Select account → Enter a group name → Select an icon and color
4
"OK"
80
Information
• You can set icon or color to created group or change order in the group list only for the groups saved in docomo's account.
Adding contact to a group
1
On the Contacts list screen, "Group"
2
Tap a group → "Add member" → Mark contacts to add →
"OK" → "OK"
• To delete contact from a group, tap a group that includes a contact you want to delete → "Delete member" → mark contacts to delete →
"OK" → tap "OK".
Information
• Only contacts saved in the save location where the same account is can be added to the group.
Registering My profile
1
On the Contacts list screen, "My profile"
• A profile screen appears.
2
"Edit"
3
Enter the required items → "Save"
Importing/Exporting contacts
You can import contacts between microSD card or docomo nano UIM card and the terminal, or send them as contact data (vCard).
1
On the Contacts list screen, → "SD card/SIM card/ common"
2
Select an item
• Follow the onscreen instructions.
Phone
Mail/Web browser
docomo mail
Send/receive the mail using docomo mail address (@docomo.ne.jp).
Since sent and received mail is saved on the docomo mail servers, data can be transferred when doing model upgrades, or can be simply restored when terminals are lost. In addition, if a d ACCOUNT is being used, use the same mail address on several devices such as tablets and computer browsers, etc. to send and receive, and read mail.
For details of docomo mail, see NTT DOCOMO Website.
https://www.nttdocomo.co.jp/service/docomo_mail/ (In Japanese only)
1
From the Home screen,
• After that, follow the onscreen instructions.
+Message
You can send and receive text messages, images, videos, and stamps, etc. in a chat format to and from a mobile phone number.
Not only can you send messages to one person, but you can also send group messages to multiple people.
You can send and receive text (SMS) messages to people not using
+Message via the +Message app.
For details of +Message, see NTT DOCOMO Website.
https://www.nttdocomo.co.jp/service/plus_message/ (In Japanese only)
1
From the Home screen, "+メッセージ (+Message)"
• Tap to display contacts list screen, tap to display message list screen.
■Contacts list screen ■Message list screen a i b c d g h e
81 f j a Switch tab: By tapping this tab, you can switch between displaying all of your contacts or only +Message users (contacts for which icon is displayed).
b My profile: Display the your profile. Tap it to display and edit my profile.
c Contents of favorites: Display the contacts that set to favorites on the top of the contacts list screen and under the my profile.
Mail/Web browser
d : This icon indicates that the contact is using +Message. You can exchange group messages, pictures, and stamps, etc. with contacts that have this icon displayed.
e Contacts: Tap it to check the details of the contacts. f : Tap it to add the contacts.
g Profile picture: Display the picture of the other party. The image of the profile registered by the other person is preferentially displayed from the profile image registered in the contact.
h Message: Tap it to display the message screen.
i : Display the sub menu.
• Mark as read: Mark all unread messages as read.
• Reorder messages: Reorder messages.
• My page: Display my page. On the my page, you can use edit and set of profile and use stamp store, etc.
j : You can create new message and new group message.
Sending message
1
From the Home screen, "+メッセージ (+Message)"
2
→ → "New message/New group message"
• Group Message is a function for which multiple +Message users
(contacts that have mark) can exchange messages.
3
Select sender
• If you send to recipient not registered to contacts, tap and input the phone number directly.
• If you send group message, select the contacts multiple and tap
"OK".
4
Tap message input field and input →
• If the sender use +Message, you can send pictures, videos and stamps.
ab h g i
82 c de f a
: Launch phone app and make a call.
b : Display sub menu.
• You can register the contacts or change notification settings, etc.
c : Displays a share tray to send pictures, stamps, location information, etc.
• Display a share tray to use the functions such as image sending and voice recording.
d : Tap to activate Camera. Touching and holding this icon enables you to send pictures you have taken as is.
e : Switch to stamp selection screen.
f
Message input field: You can input the message.
g : Send the entered message.
h
: Switch to image selection screen.
i : Switch to text input screen.
j
Display delivery status of the message.
: The recipient has read the message.
• You can only check the read status if both you and the recipient have the
"Use message read function" setting turned on.
: The recipient has received the message.
(No icon display): The message has sent to the server.
: Failed to send message.
k : Switch to voice recording screen.
l
: Switch to map screen.
m : You can select Contacts/Sketch/Gallery.
Mail/Web browser j k l m
Information
About Short message service (SMS)
• You can also send/receive text messages to/from customers using overseas network operators. For available countries/overseas network operators, see DOCOMO website.
• To send to users of overseas network operators, enter "+", "Country code" and then "the recipient mobile phone number". Enter the phone number without a leading "0", if any. You can also enter "010",
"Country code" and "the recipient mobile phone number" to send messages.
• If " # " or " " is included in the address, SMS cannot be sent.
About + Message
• To use the +Message app with international roaming, you need to turn ON the setting to use +Message with international roaming in the +Message app (it is turned OFF by default).
Also turn ON the terminal's data roaming setting.
• Even if you used +Message on your previous terminal before changing mobile phone models or carriers with MNP, you need to start the +Message app and agree to the +Message Terms of
Service to receive messages.
Reading a message
Messages sent and received are displayed in a thread for each destination/sender.
1
From the Home screen, "+メッセージ (+Message)"
2
→ Select a thread you want to read
• For each function of sending message, see P.82 (capture
described page of "Sending a message").
Forwarding a message
1
From the Home screen, "+メッセージ (+Message)"
2
→ Select a thread.
3
Touch and hold the message to forward →
4
Enter a address and a message →
83
Deleting a message
1
From the Home screen, "+メッセージ (+Message)"
2
→ Select a thread
3
Touch and hold the message to delete → → "DELETE"
• Only the messages on the terminal are deleted, and the other party's message is not deleted. Also, you cannot restore the message that has deleted.
Deleting a thread
1
From the Home screen, "+メッセージ (+Message)"
2
→ Touch and hold a thread to delete
3
→ "DELETE"
• If you delete a thread of group message, you will leave the group.
Changing +Message settings
1
From the Home screen, "+メッセージ (+Message)"
2
→ "MyPage" → "Settings"
3
Select an item
Item Description
Message Set backup and restore, etc. the message.
Photos and videos Set the attach files such as pictures and videos, etc. when sending and receiving.
Screen display
Notification
Set theme color and background of the message screen.
Set notifications.
Privacy
Others
Set pass code and privacy.
You can configure user information transfer settings and initialize the +Message service.
Mail/Web browser
■ sms,messageの使い分け。時間が
あれば考える。
SMS
You can send/receive text message to/from mobile phone number as a recipient.
* For details of available number of characters, etc. refer to "Short
Message Service (SMS)" on NTT DOCOMO website.
Creating and sending SMS
1
From the Home screen, "apps folder" → "Messages"
• A thread (sender/recipient of SMS) list screen appears.
• When an confirmation screen that whether to set "Messages" apps as a standard app appears, follow the onscreen instructions.
2
• A select sender screen appears.
3
Select a sender → "START"
• To send the message to recipient not registered to contacts, tap
"Add to recipients" → "START" and enter recipient's mobile phone number.
• To send to multiple recipients, add the contact by same instructions.
• You can also input the sender registered to the contacts.
4
Enter message in "Enter message" field
• To insert saved phrase, tap → "Quick response" → tap a message to insert.
5
To send an SMS on a specified date and time
→ "Schedule message" → set date you want to send it → "DONE" →
"Enter message" → tap .
To save composing SMS as a draft
When a recipient and text are entered and the keypad is displayed, tap
→ .
Information
• You can also send/receive text messages to/from customers using overseas network operators. For available countries/overseas network operators, see DOCOMO website.
• To send to users of overseas network operators, enter "+", "Country code" and then "the recipient mobile phone number". Enter the phone number without a leading "0", if any. You can also enter "010",
"Country code" and "the recipient mobile phone number" to send messages.
• If " #" or " " is included in the address, SMS cannot be sent.
• SMS is not sent if the terminal is not ON at the scheduled date for sending SMS.
• Sending-scheduled SMS is sent at the date and time set on the terminal. Depending on network condition or radio wave condition, sending date may be different from the set scheduled one.
84 Mail/Web browser
Checking received SMS
1
From the Home screen, "apps folder" → "Messages"
• A thread (sender/recipient of SMS) list screen appears.
• Tap "Search" to search messages.
2
Tap a thread you want to read
• A SMS list screen appears.
• Received messages are displayed on the left, sent messages are on the right, and scheduled messages are on the right.
• Tap to make a call to the received phone number.
Information
• If "Notifications" (P.85) is set to ON, when an SMS is received,
appears on the status bar.
Menu on thread list screen
Tap on the thread list screen to display the following items.
Item
Edit
Mark all as read
Starred messages
Quick responses
Description
Edit a thread.
Mark all threads as read.
Display a message to add to favorite.
Add/edit phrase.
85
Item
Settings Notifications ON
App icon badges
Emergency
Alerts
Block numbers and messages
General notifications
New messages
In-app notification settings
Block numbers
Blocked messages
More settings
SMS
Contact us
Description
Turn on notifications.
When there is an unread message, set whether to add badge to the app icon.
Set message of emergency alerts.
Set message of general notifications.
Set notification of new message.
Set whether to display the preview of new message on the lock screen or popup.
Manage the phone numbers which are going to have their incoming call and messages blocked.
Display blocked messages.
Show web previews
Delete old messages
Split view
Privacy Customization
Service
About Messages
Set delivery reports, manage SIM card messages, message center and expiration date.
Show previews of websites linked to in chats.
If the maximum number of messages that can be saved (1000 messages) is reached, the oldest message will be deleted.
Set whether to enable split view on the landscape view.
Set customization service.
Display version of message app or message service app and open source license.
You can use Galaxy Members.
Mail/Web browser
Menu on SMS list screen
On the SMS list screen, tap to display the items. Follow the onscreen instructions.
Menu on message screen
Touch and hold a sent/received SMS or scheduled SMS to display the message options. Follow the onscreen instructions.
Information
• To send a scheduled SMS immediately, tap for an scheduled SMS
→ "Send now" → "SEND".
• Up to 20 SMSs can be copied to the docomo nano UIM card.
You can set a POP3-compatible or IMAP-compatible Email account provided by a general service provider to send/receive email.
Setting Email account
When you enter mail address and password, Email account settings are downloaded and set automatically.
• If settings cannot be made automatically or you make settings manually, you need to enter settings for sending and receiving. Prepare the required information of Email account settings in advance.
• The steps vary depending on the e-mail accounts which are set.
1
From the Home screen, "apps folder" → "Email"
2
Enter mail address and password → "SIGN IN"
• An account type selection screen appears, follow the onscreen instruction to make settings.
Creating and sending an email
1
From the Home screen, "apps folder" → "Email"
2
• The email creation screen appears.
3
In "To" field, enter a mail address to send
• To add Cc/Bcc, tap to enter an address in the Cc field or Bcc field.
• Tap to select and enter recipients from Contacts.
4
Enter a subject in the "Subject" field
5
Enter a text in the message field
6
"SEND"
Information
• If you send/receive emails to/from a PC or other device, some pictograms, HTML mails, etc. may not be displayed correctly depending on the usage environment.
86 Mail/Web browser
Checking received emails
1
From the Home screen, "apps folder" → "Email"
2
Slide Email list downward
3
Tap an email you want to read
• A message screen appears.
Information
• If → → "Notifications" is set to ON, , etc. appears on the status bar when an email is received.
• Tap a sender and select "View contact" on the message screen to register to the Contacts or send email.
• When data is attached, appears on the Email list screen. When you tap the file name of attached data, an attached data list screen appears.
Menu on Email list screen
Tap on the Email list screen to display the items. Follow the onscreen instructions.
Menu on message screen
Tap on the message screen to display the items. Follow the onscreen instructions.
87
Changing Email settings
Account setting
1
From the Home screen, "apps folder" → "Email"
2
→ → Tap an account you want to set
3
Tap an item you want to set
Item Description
Sync account
Account name
Your name
Set whether to synchronize with Email server.
Change account name.
Change user name.
Always Cc/Bcc myself
Signature
Add your mail address to Cc/Bcc.
Set whether to add signature to a Email message. Also edit signature.
Show images
Auto download attachments *1
Set whether to display images.
Set whether to download attached files automatically when connecting via Wi-Fi.
Sync schedule Set Email synchronizing timing.
Email sync period
Set period for synchronizing Email.
Set number of emails to be displayed.
Number of emails to load *2
Limit retrieval size
Set email size for receiving.
Limit retrieval size while roaming
Set email size for receiving while roaming.
Server settings Change settings of sending/receiving server.
*1 Does not appear for POP3 account.
*2 Does not appear for IMAP account.
Mail/Web browser
Information
• When multiple Email accounts are set, tap → "All accounts" on the
Email list screen to check the email registered for all of the accounts in combined view.
• To delete an Email account, on the Email list screen, → → tap email accounts you want to delete → tap "REMOVE" → "REMOVE".
• For Microsoft Exchange ActiveSync account, the setting items differ.
Basic settings
1
From the Home screen, "apps folder" → "Email"
2
→
3
Tap an item you want to set
Gmail
You can use the email services provided by Google or by major
Internet service providers (ISPs).
• To use Gmail, you need to set an email address (P.144). When a
setting screen of email address appears, perform the settings according to onscreen instructions and then operate it.
• For details on Gmail, from the Gmail screen, → tap "Help & feedback" to refer.
Opening Gmail
1
From the Home screen, "Google" → "Gmail"
• If the screen describing new Gmail functions appears, follow the instructions on the screen.
2
Tap an email you want to read
• Content of the selected email appears.
Creating and sending Gmail
1
From the Home screen, "Google" → "Gmail"
2
• The Email creation screen appears.
3
In To field, enter an email address
• To send an email to multiple recipients, separate with a comma (,).
• To add Cc/Bcc, tap .
4
Enter a subject in the "Subject" field
5
Enter a text message in "Compose email" field
6
88 Mail/Web browser
Switching accounts
If you have multiple Email account, you can switch Email accounts.
1
From the Home screen, "Google" → "Gmail"
2
3
Tap an account name → Tap an account to switch
• Inbox of the selected account appears.
89
Early Warning "Area Mail"
Area Mail is a service which the emergency earthquake flash reports and tsunami warnings and special alarm concerning weather, etc. distributed by the Meteorological Agency and the disaster and evacuation information distributed by national and local governments can be received without it being affected by telephone line congestion.
• You can receive Area Mails for free without subscriptions.
• Up to 50 items can be saved Area Mails. If the maximum number of savable Area Mails is exceeded, Area Mails with the oldest received date will be deleted first.
• Area Mail cannot be received in the following case.
- When the power is off
- During International roaming
- During Airplane mode
- When software is being updated
- When the PIN code input screen is displayed
- When a SIM other than by DOCOMO is inserted
- During a voice call (except for VoLTE voice calls)
• When the terminal's free memory capacity is low, you may not be able to receive Area Mails if you are tethering or using packet communications.
• Area Mail (emergency earthquake flash reports) that could not be received cannot be received again.
If Area Mail (tsunami warnings, special alarm concerning weather, etc., fire and evacuation information) is resent and cannot be received, it can be rereceived.
Receiving Early Warning "Area Mail"
When you receive an Area Mail, the details notification screen is displayed and you are alerted by a special buzzer or ringtone and vibration.
• A special buzzer and ringtone cannot be changed.
1
Receive Area Mails automatically
2
When an Area Mail is received, a special buzzer or the ringtone sounds and the icon is displayed then the contents of Area Mail is displayed
Mail/Web browser
Check received Area mail later
1
From the Home screen, "apps folder" → "Disaster kit"
2
"Early Warning "Area Mail"" → Select the Area Mail from the list of Area Mail
Delete an Area Mail
1
From the Home screen, "apps folder" → "Disaster kit"
2
"Early Warning "Area Mail"" → Mark an Area Mail you want to delete
3
"Delete" → "OK"
Setting Early Warning "Area Mail"
Set whether to receive Area Mail or behavior at reception.
1
From the Home screen, "apps folder" → "Disaster kit"
2
"Early Warning "Area Mail"" → → "Settings"
3
Tap an item to set
Item Description
Set whether to receive Area Mail.
Receive setting
Emergency alert history
Vibrate
Display a list of received Area Mail.
Set vibration when Area Mail is received.
Item
Alert reminder sound
Description
Set whether to re-notify received Area Mail.
Re-notification will be announced in a dedicated sound and vibration.
If you set once, it will be re-notified once only two minutes after receiving area mail.
If you set every 2 minutes, it will be re-notified up to three times every 2 minutes from 2 minutes after receiving area mail.
If you set every 15 minutes, it will be re-notified up to three times every 15 minutes from 15 minutes after receiving area mail.
Use full volume
Check screen image and beep tone
やさしい日本語
表示 (Display easy-to understand
Japanese)
Set volume when Area Mail is received.
If you set ON, it will be sounded at maximum volume even when Manner mode is set.
If you set OFF, it will be sounded according to the alarm volume.
However, if the ring volume is 0, it will not be sounded according to the alarm volume.
Check receiving screen and buzzer or ringtone for
Earthquake Early Warning, Tsunami Warning, Disaster/
Evacuation information and special alarm concerning weather, etc.
Set whether Earthquake Early Warning, Tsunami Warning are to be displayed in easy to comprehend Japanese.
90 Mail/Web browser
Web browser
Using web browser
Using web browser, you can view web pages as PCs.
On the terminal, web browser can be used via a packet communication or
Wi-Fi connection.
• Some web pages may not be displayed or may not appear properly.
Activating web browser
1
From the Home screen,
• Web browser activates and web page set as home page (by default, dmenu (http://smt.docomo.ne.jp/?home) (in Japanese only)) appears.
a d e b f c g
Web browser screen a Address bar
Enter a URL of web page or a keyword you want to search.
Tap address bar to display quick access.
b Back/Forward c Home
Return to web page set as homepage.
d Refresh e Menu
Display menu.
f Tabs
Switch between tabs, close and open tabs.
g Bookmarks
Move to the screen of bookmarks, history, saved pages.
91
Information
• When the address bar or icon is not displayed, flick/swipe down the screen to display it.
Exiting web browser
1
[History button] → Flick thumbnail of browser right or left
• Even when you return to the Home screen by tapping [Home button] or tap [Back button] on the browser screen, the browser is not terminated.
Information
• The following operations are available (Some operations are not available depending on the web page display).
- Zooming in/out: Pinch out/in at the point you want to zoom in/out.
- Scrolling: Scroll/flick the screen.
- Back to the previous screen: Tap [Back button].
- Using magnifying glass: Touch and hold the screen.
- Copying text/Sharing text/Searching text: Touch and hold the text which is not posted to the links on the screen → drag / in all directions, select the range of text → tap the functions you want to use.
Opening new tab
1
From the Home screen,
2
"Tabs"
• Tab manager appears.
3
"NEW TAB"
• Web page set as a Homepage (P.93) appears.
4
Enter search URL or keyword you want to search in the search box at the top of screen
• To close tabs, "Tabs" → tap in the window you want to close.
Opening new secret tab
View with the browser without history of browser or search remained.
All of bookmarks and webpages saved in secret mode is not displayed when the secret mode is disabled.
Mail/Web browser
1
From the Home screen,
2
"Tabs"
• Tab manager appears.
3
"TURN ON SECRET MODE"
4
"DON'T USE PASSWORD" → "OK"
• If you use password, tap "SET PASSWORD" and follow the onscreen instructions.
• If you register password after, tap → "Secret mode security" → tap
"Use password" on the tab manager screen and follow the onscreen instructions.
Information
• If you disable secret mode, tap "TURN OFF SECRET MODE" on the tab manager screen or restart browser app.
• For windows viewing in secret mode, frame of the address bar appears in gray.
• Web pages viewed in secret tabs will not appear in the browser or search history. Cookies will not be stored in the terminal while secret mode. However, files downloaded or bookmarked web pages viewing in secret tab will be stored.
Operating links in web pages
You can display links in new tabs, and download images, etc.
1
From the Home screen,
2
Touch and hold a link
3
Tap an item you want to use
Information
• Depending on the web pages, some link operation menu may not be displayed or the displayed items may differ.
Managing history and bookmarks
Viewing web pages from the history
1
From the Home screen,
92
2
"Bookmarks" → "HISTORY" tab
• A history list appears.
• History is displayed in reverse chronological order of view date.
3
Tap a web page you want to view
Information
• To delete all histories, on the history list, tap → "Clear history".
Adding a web page to Bookmarks
1
From the Home screen,
2
Display a web page to add bookmark → → "Add to
Bookmarks"
3
Confirm/change title, web address, and save location of bookmark → "SAVE"
• You can also tap "All", and change the save location.
Viewing web pages from Bookmarks
1
From the Home screen,
2
"Bookmarks"
• A bookmark list appears.
3
Tap a web page you want to view
Information
• Tap on the bookmark list shows the following items.
- "Edit": Select multiple bookmarks, and you can delete and move them, or change their display sequence, etc.
- "Create folder": Create folders.
Bookmarks/History/Saved pages
Touch and hold bookmarks/history/saved pages to display the selection screen. Follow the onscreen instructions.
Mail/Web browser
Setting web browser
1
From the Home screen,
2
→ "Settings"
3
Tap an item you want to set
Item
Homepage
Description
Set default homepage.
Set a search engine.
Default search engine
Auto fill forms
Manual zoom
Privacy
Sync with Galaxy
Cloud
Advanced
Accessibility
Set the profile information that entered automatically.
Set whether to be able to zoom in or out regardless of the web page settings.
Set whether data regarding privacy is to be used, and delete data.
When you sign in to your Galaxy account, you can sync bookmarks, saved pages, etc.
Set detailed functions.
Set whether to enable High contrast mode.
CUSTOMIZATION
SERVICE
Set whether to use Customization service.
Personal information Set the information sending to Customization service. You can set it when Galaxy account is set.
About internet Display the version of browser.
93 Mail/Web browser
Camera
Camera
The terminal's rear camera has a dual lens. Using the Live Focus feature with the dual lens allows you to take separate pictures of the subject and background. The rear camera has a 2x optical zoom and you can take bright and vivid pictures even while zooming.
Furthermore, the terminal has a dual aperture (adjustable diaphragm lens) that can switch between F1.5 and F2.4 modes enabling you to shoot in various environments.
Before using Camera
• Though the camera is manufactured using extremely accurate technology, some dots and lines may always be displayed to be lighter or darker than you expect. Images shot under very low light intensity contain increased noise such as white lines or random dots, but it is not a malfunction.
• Note that a stripe pattern may appear on the screen when Camera is activated, but it is not a malfunction.
• Still images or videos shot by Camera may differ from actual subjects in color and brightness.
• If the lens is contaminated with fingerprints or skin oil, you cannot shoot clear still images/videos. Use a soft cloth to remove any such contaminants on the lens before taking photos.
• When shooting, hold the terminal firmly with your hand not to move.
Moving the terminal when shooting may cause blur shot images.
• Do not cover the lens with your finger or hair when shooting.
• Using Camera consumes much power of battery. Note that if you shoot with low battery, the screen may become dark or a shot image may be blurred.
• If you use Camera for a long time such as continuous shooting of still images and long-time shooting of videos, the terminal may become hot and Camera may be terminated automatically, but it is not a malfunction.
Please use after a while.
• Do not remove microSD card forcibly immediately after capturing. It may not save correctly or may cause data corruption. Before removing the microSD
card, perform "UNMOUNT" (P.133) of microSD card.
94
• Even in Manner mode (Vibrate/Mute), shutter sound for still image shooting and start/stop sound of shooting video sounds.
Copyrights and portrait rights
Avoid copyright infringements when you handle photos taken with your terminal, e.g. copy/alter/edit except for the purpose of personal use.
Please refrain from unauthorized use of portraits or names of other persons that may infringe on portrait rights. Note that capturing or recording a stage performance, entertainment or exhibition may be prohibited even if for personal use.
If you cause the public any trouble using the terminal, you may be punished under law or regulations (for example, nuisance prevention ordinance).
Please be considerate of the privacy of individuals around you when taking and sending photos using camera-equipped mobile phones.
Camera
Shooting screen
1
From the Home screen, "Camera"
• For the first time activation, a confirmation screen for saving location appears when a microSD card is installed. Confirm the contents and tap "CANCEL"/"OK".
• If a screen related to a location tag appears, confirm the content and follow the instructions on the screen.
• According to the setting status, the icon displayed may differ.
a h i b c d e f g n
Still image/video shooting screen a
b
Bixby Vision
c
Setting
• Tap to display settings menu. → P.96
d
Full screen ON/OFF e Set flash
• Switch Flash to AUTO/ON/OFF.
f
Shutter (video shooting) button → P.96
j k l m g
Shutter (still image shooting) button → P.96
• You can also drag the screen right and left to control zoom on the shooting screen.
• Drag the shutter (still image shooting) button up to add a floating camera
h
Saving location (microSD card), shootable number of images, Battery remaining, HDR
• Shootable number of images is shown when the shootable number is 300 or less.
• Shootable number of images is estimate value. Number may not change even after shooting.
• appears when battery level is less than 15%.
i Focus
• Tap the shooting screen to display.
j Adjust brightness k
Optical zoom
• Tap to take pictures with the optical zoom.
l
Camera effect m Switch between rear camera and front camera
• You can also swipe the screen up and down to switch camera on the shooting screen.
n
Thumbnail
• Tap to activate Gallery.
Information
• If no operation is performed with Camera activated for approximately
2 minutes, Camera ends.
• Tap the still image/video shooting to display a focus and a bar to adjust the brightness.
95 Camera
Shooting still images
1
From the Home screen, "Camera"
• Still image/video shooting screen appears.
2
Point Camera at an object
• You can adjust zooming by pinching in/out on the display.
3
• Shutter sound sounds and then an image is shot.
• The shot still images are automatically saved.
• Touch and hold when shooting to take up to 100 pictures.
Information
• If "Take pictures" in the "Press Volume key to" option is selected in the setting menu, you can also press the Volume UP key/Volume
DOWN key to shoot still images (P.97).
Shooting videos
1
From the Home screen, "Camera"
• Still image/video shooting screen appears.
2
Point Camera at an object →
• Start sound sounds and shooting video starts.
• You can adjust zooming by pinching in/out on the display.
• Tap to shoot still images while shooting video.
• To pause the shooting, tap . To resume the shooting, tap during paused.
3
To stop shooting,
• Stop sound sounds and video is saved automatically.
Information
• Before shooting video, check if the memory space is enough.
• If you use the zoom function for a long time while shooting videos, video resolution may be decreased to prevent the terminal overheating.
• The optical zoom may not work in low-light environments.
• If "Record video" in the "Press Volume key to" option is selected in the setting menu, you can also press the Volume UP key/Volume
DOWN key to shoot/stop video (P.97).
96
Setting Camera
1
From the Home screen, "Camera"
• Still image/video shooting screen appears.
2
• There are items that cannot be set from shooting mode.
REAR
CAMERA
FRONT
CAMERA
Item
Picture size
Video size
Scene optimizer
Timer
HDR (rich tone)
Tracking AF
Super Slow-mo
Picture size
Video size
Timer
HDR (rich tone)
Save pictures as previewed
Show palm
Description
Set the size of the still images is going to shoot.
• Turn on "Save RAW and JPEG files" to save pictures as RAW files.
Set the size of the videos is going to shoot.
Set whether to adjust color settings of photos automatically according to theme.
Set self-timer.
Set Auto/ON/OFF of HDR (rich tone).
Keep track of the subject selected on the preview screen and keep focusing.
• If "Tracking AF" is set to ON, you can't use "Video stabilization".
Select the method of shooting super
Set the size of the still images is going to shoot.
Set the size of the videos is going to shoot.
Set self-timer.
Set Auto/ON/OFF of HDR (rich tone).
Save shot images without horizontally flipping as it appears in the preview screen.
Set whether to shoot automatically when the palm is facing the camera.
Camera
FRONT
CAMERA
Item
Face shape correction
COMMON Edit camera modes
Description
Correct face shape.
Set the camera mode to display on the shooting screen.
Set whether to use Flaw detection. → P.100
Flaw detection
Motion photo Record a short video clip of what happens before each picture is taken.
Video stabilization Set ON/OFF of image stabilizer for video shooting.
Grid lines Display grid for shooting range on the shooting screen.
Location tags Set whether to add location information.
• To receive GPS signal correctly, do not
use in a poor reception area. → P.112
• When uploading shot still images, added location information may be tracked by third parties. To avoid leaking location information, set to
OFF.
Review pictures
Quick launch
Displays the result as soon as you shoot a photo.
Launch Camera by quickly pressing [Power/
Screen lock key] twice.
Storage location
Voice control
Floating camera button
Select a saving location of shot still image/video.
Set ON/OFF of Voice control.
Set whether to move the shutter
(Shooting still image button) on the shooting screen,
Hold Camera button to
Set the operation when the shutter button is held down for a long time.
Press Volume key to
Select the operation to perform when pressing the Volume UP key/Volume
DOWN key.
97
Item
COMMON Reset settings
Contact us
About Camera
Description
Reset camera settings.
You can use Galaxy Members.
Display the version of camera app.
3
After setting,
Information
• Tracking AF function may fail in the following conditions:
- The subject is too big or too small.
- The subject moves excessively.
- The subject is backlit or you are shooting in a dark place.
- Colors or patterns on the subject and the background are the same.
- The subject includes horizontal patterns, such as blinds.
- The camera shakes excessively.
- When zooming in or out uses the 2x optical zoom.
Camera
Switching shooting mode
1
From the Home screen, "Camera"
2
Select shooting mode on the top of the shooting screen
• The displayed items will be different depending on the camera (rear camera/front camera) being used and settings of "Edit camera
modes" (P.97). You can change the camera mode to display and
its order by using "Edit camera modes".
Item
FOOD
PANORAMA
PRO
LIVE FOCUS
AUTO
SUPER SLOW-
MO
SELFIE FOCUS
SELFIE
Description
Selecting the highlighted area and changing color tone to shoot photo.
Move the terminal horizontally or vertically to shoot panorama photo. You can also view the capture result as a video.
• Slowly move the camera in a direction not to get the white frame out of the white guideline when shooting.
• Shooting objects in front of a plain colored wall or in empty space may fail.
• No audio is recorded when shooting a panorama photo.
• The vertical/horizontal size of the displayed panorama may be narrower than still images.
Manually adjust ISO speed, exposure value, and white balance, etc.
• You can switch lens diaphragm between F1.5 and
F2.4.
You can take a photo using telephotography to focus
on the object or blur the background. → P.99
Adjust lithographic exposure automatically to optimize color tone and brightness.
Shoot the video to be able to play using super slow
Focus on your face and take selfie.
Take a selfie easily.
Item
AR EMOJI
WIDE SELFIE
HYPERLAPSE
SLOW MOTION
Description
You can create My Emoji by recognizing your face.
If you move the terminal side-to-side when taking a selfie, you can take a selfie of a large number of people.
Create your own time lapse video by recording at various speeds. You can adjust the speed depending on the scene being recorded and the movement of the device.
Record video for playback in slow motion.
98 Camera
Using Bixby Vision
Bixby Vision can use the below functions on recognized images.
1
From the Home screen, "Camera"
2
• Tutorial of Bixby Vision displays. Confirm the contents and follow the onscreen instructions.
• You need to sign in to your Galaxy account to use the Bixby Vision functions.
3
Tap the icon under the picture
4
Turn the camera to the target
• Related information is displayed.
Item
Text
Place
Wine
QR code
Description
Detect and translate text.
Search for images similar to the one you're looking at.
You can check the details of landmarks and places nearby place by looking at them.
Discover more about a wine's vintage, preferred food pairings, and ranking by looking at its label.
Read QR codes.
Translate the text of shooting target
1
From the Bixby Vision screen, "Text"
2
Point the camera at the text you want to translate so that it is in the field of recognition
3
Select the source and target languages on the screen
• The text is translated and appears on the screen.
Information
• You can use Bixby Vision from "Gallery" (P.102).
• On the Bixby Vision screen, tap → "Settings" to configure Bixby
Vision settings. To recognize images with Bixby Vision, you need to turn ON what you want to recognize in "Settings".
• Tap on the Bixby Vision to use light.
• If wine labels are not recognized correctly, change the angle and try shooting the label several times.
Shooting with Selfie Focus
With the Selfie Focus function, the camera recognize your face when you take yourself and you can take a photo blur the background.
1
From the Home screen, "Camera"
2
3
"SELFIE FOCUS" on the top of the shooting screen
4
Information
• If you turn your palm toward the front camera instead of tapping
on the shooting screen, countdown timer will start and you can shoot. This feature is also available "SELFIE", "AR EMOJI" and "WIDE
SELFIE".
Shooting with Live Focus
With the Live Focus function, you can use the dual lens to separate a picture into the object and the background. You can take a photo using telephotography to focus on the object or blur the background.
1
From the Home screen, "Camera"
2
"LIVE FOCUS" on the top of the shooting screen
3
Adjust background blur with the adjustment bar
4
• Both the Live Focus and the normal image will be saved.
99 Camera
Information
• Keep the terminal and the subject Approx. 1 m - 1.5 m away and shoot it.
• Use this feature in a place that has sufficient light.
• You can blur the background after shooting a still image with Live
Focus by tapping "ADJUST BACKGROUND BLUR" on the Gallery.
• If you only want to save the photo shot with Live Focus, tap to change to and then turn the dual capture function off.
Using dual aperture
The dual aperture (variable aperture lens) is optimized to match the light like the human eye.
Since the lens aperture automatically switches and adjusts the light capture to match various environments, beautiful photographs can be easily taken even in bright places or dark places, and in the day or at night.
• F value 1.5 mode: By collecting more light in dark places, bright, sharp photographs can be taken.
• F value 2.4 mode: Sharp and defined photographs can be taken in bright places during the day.
1
From the Home screen, "Camera"
2
"PRO" on top of the shooting screen
3
4
"F1.5"/"F2.4"
5
Using Intelligent camera
Using Scene optimizer
The camera can automatically detect the object to be shot, automatically adjust the picture color settings, and shoot the optimal picture. The object to be shot is selected from food, people, flowers, and other scenes.
1
From the Home screen, "Camera"
2
3
"Scene optimizer" →
Information
• This function is effective only when the camera mode is Auto.
Using Flaw detection
This function detects that shooting has failed and notifies you to take another picture. Closed eyes, blurring, a dirty lens, and backlight are detected.
1
From the Home screen, "Camera"
2
3
"Flaw detection"
100 Camera
Shooting with Super slow-mo
Super slow-mo enables you to take videos of moments you do not want to miss in slow motion.
After taking a video, music is automatically added to the video.
The following two methods can be used to take super slow motion videos.
Shooting with Super slow-mo by single-take
Record a short video by capturing a single moment in super slow motion.
1
From the Home screen, "Camera"
2
"SUPER SLOW-MO" of top of the shooting screen
3
→ "Super Slow-mo" → "Single-take"
4
→
5
"Auto"/"Manual"
• Auto: When motion is detected in the motion detection area, the device will capture the moment in super slow motion. Dragging the detection region enables you to move it or change its size.
• Manual: You can capture the moment you want in super slow motion.
6
• You can check the shooting videos on the Gallery.
Shooting with Super slow-mo by multi-take
Record a video and capture multiple moments in super slow motion.
1
From the Home screen, "Camera"
2
"SUPER SLOW-MO" of top of the shooting screen
3
→ "Super Slow-mo" → "Multi-take"
4
→
5
"Auto"/"Manual"
• Auto: When motion is detected in the motion detection area, the device will capture the moment in super slow motion. Dragging the detection region enables you to move it or change its size.
• Manual: You can capture the moment you want in super slow motion.
6
• You can use super slow motion up to 20 times in a single video.
• When the "Manual" mode, shoot at the moment you tap in Super
Slow Motion.
101
7
• You can check the shooting videos on the Gallery.
Information
• Use this feature in a place that has sufficient light.
• When shooting a video indoors with insufficient or poor lighting, some of the following situations may occur:
- The screen may appear dark due to the small amount of light.
- The screen may flicker in certain lighting conditions, such as fluorescent light.
• If the device shakes, motion may be detected and an unwanted moment may be recorded in super slow motion.
• When recording a video in "Auto" mode, super slow motion recording may start at an unwanted moment if there are conditions such as the following:
- When shaking the device
- When another object is moving near the subject in the motion detection area
- When recording under flickering light, such as a fluorescent light
- When recording in dark areas where noise occurs
Save your video as an animated GIF
1
From the Home screen, "Gallery"
2
Select super slow motion video
3
Drag the screen up
4
Select the video you want to Save from "SUPER SLOW
CLIPS"
5
"SAVE" → "GIF"
• The clip will be saved as an animated GIF.
Information
• When saving as an animated GIF, the video quality may be degraded as the file capacity is reduced.
Camera
Creating AR emoji
You can recognize your face to create a My Emoji and use it as a stamp in messaging or gallery apps. The created emoji recognizes facial expressions and moves.
Creating My Emoji
1
From the Home screen, "Camera"
2
"AR EMOJI" of top of the shooting screen
3
"Create My Emoji"
• Create My emoji follow the onscreen instructions.
Information
• To delete the My emoji, touch and hold My emoji and tap →
"DELETE".
Using My emoji or AR emoji
My or the You can select various sticker to use when shooting still images and videos. The sticker moves in conjunction with your face.
1
From the Home screen, "Camera"
2
3
"AR EMOJI" of top of the shooting screen
4
Select AR EMOJI
5
/
Gallery
You can view or organize still images/videos saved to the terminal or microSD card, etc.
Supported format are as follows. However, even if in the following file format, some still images or some still videos may not be displayed/ played.
Type Format
Still image JPEG, PNG, GIF, BMP, WBMP, WEBP, AGIF, RAW
Video MP4, M4V, 3GP, 3G2, WMV, ASF, AVI, FLV, MKV, WEBM
1
From the Home screen, "Gallery"
• A data list screen arranged by shooting date appears.
• You can change display by tapping "PICTURES"/"ALBUMS"/"STORIES".
• Tap to activate camera and to display function menu of each data list screen.
• If you sign in Galaxy account and tap "SHARED", you can share the album. In order to use this function, authentication of your telephone number is necessary.
2
Tap data
• When any icons are not displayed, tap the screen to display.
Displayed icons vary by displayed data.
Item Description
Back to data list screen.
Use Bixby Vision.
To add the data to "Favorites".
Display a function menu for each selected data type.
Rotate or trim the picture.
Add the effects to the picture.
Add the stickers to the picture.
Draw the picture by a touch pen.
102 Camera
Item
CLOSE-UP
WIDE ANGLE
ADJUST
BACKGROUND BLUR
Description
Share data using online services, send data via
Bluetooth or attaching to mail, or use data on other apps.
Delete data.
Connect the terminal and Wi-Fi Miracast compatible devices via Wi-Fi and display the screen and the Video of the terminal on TV or
Display pictures captured using live focus.
• Appears only when the dual capture function is ON.
Display normal pictures.
• Appears only when the dual capture function is ON.
Adjust background blur of the picture shooting by live focus.
Viewing still image
1
On the data list screen, tap a still image to display
• The still image appears.
• To switch still images, scroll the screen to the left or right.
Playing video
1
On the data list screen, tap a video to play
• To switch still images, scroll the screen to the left or right.
2
• Playing starts.
Information
• Flick up the screen on the data detail screen, check the detail of the data.
• The AKG stereo speaker on the terminal plays dynamic sound.
Furthermore, enabling Dolby Atmos surrounds you with sound from all directions. To enable Dolby Atmos, tap "Dolby Atmos" on the notification panel.
103 Camera
Apps
dmenu
In dmenu, you can quickly access DOCOMO recommended sites and useful apps.
1
From the Home screen, "d メニュー (dmenu)"
• The browser is activated to display "dmenu".
Information
• To use dmenu, Internet connection by packet communication
(LTE/3G/GSM) or Wi-Fi is required.
• For connecting dmenu and downloading apps introduced in dmenu, a packet communication charge is applied separately. Some downloaded apps automatically perform packet communications.
• Apps introduced in dmenu may include charged ones.
dmarket
Sale of digital content, such as music, videos, books, shopping and travel sites, and various other services are provided.
1
From the Home screen, "dmarket"
Information
• For details on dmarket, refer to following website. https://d.dmkt-sp.jp/common/about/index.html (In Japanese only)
104 Apps
Play Store
• To use Google Play, you need to set a Google account (P.144).
Installing an app
1
From the Home screen, "Play Store"
2
Search for an app you want to download, then tap it →
Check details
3
For free apps, "INSTALL", for charged ones, tap the price →
Follow the onscreen instructions
• When installing is complete, appears on the status bar.
• Be very cautious about apps that have access to many functions or a significant amount of data. Once you download an app, you are responsible for the results of using the app on the terminal.
Information
• By agreeing to install the app, you will be responsible for using the app. Be very cautious about apps that have access to many functions or a significant amount of data.
• Be sure to check the security of apps, and then install them at your own risk. The terminal may be infected with a virus and the data may be damaged.
• NTT DOCOMO is not liable for any malfunction, self-or third-party disadvantage due to apps provided by a third party including apps provided by Google LLC installed by you.
• For each app provided by a third party including apps provided by
Google LLC that you installed from the Play Store, contact each provider.
• Some apps automatically perform packet communications. Packet communication is kept active unless you disconnect it or the timeout is occurred.
• If you are not satisfied with the purchased app, you can ask for refund within the specified time frame. Note that refund is accepted only once for each app.
• For details on Google Play, on the Play Store screen, → tap "Help
& feedback".
• For instructions on uninstalling app, see "Uninstalling the app" (P.64).
Galaxy Apps
You can easily download a lot of recommended apps using Galaxy
Apps.
Connecting to Galaxy Apps
1
From the Home screen, "apps folder" → "Galaxy Apps".
2
Search an app you want to use and download it
Information
• Galaxy Apps may not be available depending on the country or region.
For details, refer to the support page in the Galaxy Apps website on a PC.
105 Apps
Osaifu-Keitai
The function allows you to use "Osaifu-Keitai compatible service" for payment or point card by just holding over a reader in a store, etc.
You can save electronic money, point, etc. to IC card or docomo nano
UIM card. Also, you can check deposit or balance of electronic money, or point value, take measures against stolen or misplaced by locking
Osaifu-Keitai.
For details on Osaifu-Keitai, refer to NTT DOCOMO website.
• A setting from the dedicated website or app is required to use Osaifu-
Keitai compatible services.
• The data in the IC card *1 and docomo nano UIM card *2 may be lost or altered from malfunction of the terminal (when we repair your terminal etc., as we cannot repair it with data remained, you are required to erase the data by yourself). For support such as reissuance, restoration, temporary preservation or transfer of data, contact Osaifu-Keitai compatible service providers. For important data, be sure to use a service with backup service.
• Even if you will continue using the docomo nano UIM card that you were using before changing models, you need to install and set the app for the Osaifu-Keitai compatible service provider in order to use Osaifu-
Keitai compatible services which use data on the docomo nano UIM card.
• If the data in the IC card or docomo nano UIM card is lost, altered or damaged by any means related to Osaifu-Keitai compatible service such as malfunction or model change, DOCOMO is not liable for the loss of data.
• If the terminal is stolen or misplaced, immediately contact DOCOMO or
Osaifu-Keitai compatible service provider for an advice for methods of such as suspension of use.
*1 Data saved to IC card in the Osaifu-Keitai compatible device
*2 Data saved to docomo nano UIM card
Using "Osaifu-Keitai compatible service"
To use Osaifu-Keitai compatible service, set up the service on the Osaifu-
Keitai app.
1
From the Home screen, "apps folder" → "Osaifu-Keitai"
• When Osaifu-Keitai initial setting is not completed, initial setting screen appears. Follow the onscreen instructions.
2
Tap service you want to use
3
Configure settings for the service
• Set with the app or website for the service.
4
Hold mark over the reader
Information
• You can hold mark over the reader without activating Osaifu-Keitai compatible app.
• Powering on the terminal is not necessary, but the terminal remains powered off for a long time or battery level is low or a certain period of time after turning on the power, the function may not be available.
• As the communications necessary to provide Osaifu-Keitai compatible services run in the background regardless of the
terminal's Power saving mode (P.132) or Data usage (P.123).
Osaifu-Keitai compatible apps may incur packet communication fees.
• Depending on the apps installed that are compatible with Osaifu-
Keitai and their settings, you may not be able to hold the terminal over a reader and use Osaifu-Keitai when the screen is locked or turned OFF, or the terminal's power is turned off.
• After turning on the terminal and restarting or software updating, release the screen lock and hold it over the reader, and then use the
Osaifu-Keitai compatible service.
• If you are not signed up to sp-mode, note that you may not be able to use some of the Osaifu-Keitai compatible service features.
106 Apps
Notes on holding over the device
Please note the following when holding the terminal over an IC card reader or NFC module equipped device.
Mark
• Bring the mark close to the device slowly, not strike strongly.
• Hold the mark over the device at the center horizontally. If scanning is failed even with it held in front of the center of the scanner, slightly lift up the terminal, or move it backwards/forwards or to the left/right.
• When there is a metal object between the mark and the device, reading may fail. Putting the terminal into a case or cover may affect communication. In that case, remove the case or cover.
Locking Osaifu-Keitai function
Use "NFC/Osaifu-Keitai Lock" to restrict Osaifu-Keitai function or the services. NFC/Osaifu-Keitai lock is different from the screen lock and SIM card lock.
1
From the Home screen, "apps folder" → "Osaifu-Keitai".
2
→ "NFC/Osaifu-Keitai Lock"→ → Enter the password
→ "OK"
• Setting password is required for the first activation. Follow the onscreen instructions to set password.
• To unlock, → "NFC/Osaifu-Keitai Lock" → → enter the password → tap "OK".
Information
• When using "NFC/Osaifu-Keitai Lock", or appears on the status bar.
• Be careful about remaining battery level because "NFC/Osaifu-Keitai
Lock settings" cannot be canceled if the battery runs out while using
"NFC/Osaifu-Keitai Lock". If the battery runs out, charge the battery and then cancel "NFC/Osaifu-Keitai Lock".
• To use Osaifu-Keitai menu while using "NFC/Osaifu-Keitai Lock", unlock
"NFC/Osaifu-Keitai Lock".
• A password for NFC/Osaifu-Keitai cannot be deleted even if the terminal is reset.
• Unlock "NFC/Osaifu-Keitai Lock" with the docomo nano UIM card used at the time when "NFC/Osaifu-Keitai Lock" is set inserted to the terminal.
Tap & pay
Set whether to enable the service that can be used holding over a reader, such as Osaifu-Keitai compatible service.
• For details on Tap & pay, refer to Help.
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "NFC/Osaifu-Keitai settings"
2
"Tap & pay"
• To show Help, on the Tap and pay screen, → tap "Help".
107 Apps
iD app
"iD" is electric money provided by docomo. You can enjoy shopping simply and conveniently only by holding Osaifu-Keitai set with "iD" over the IC card reader in stores. Since multiple card information can be set, you can use them separately according to the benefits, etc.
• To use iD with Osaifu-Keitai, setting with iD app is required.
• The charges required for iD service (including the annual charge) vary by card issuer.
• The packet communication charge for overseas use differs from the one in Japan.
• For details on iD, refer to iD website (https://id-credit.com/) (In Japanese only).
108
TV (Fullseg/1Seg)
TV is an app that allows you to view Fullseg or 1Seg, switching depending on the reception of the airwaves. Also, interactive service using communication function of mobile devices and receiving detailed information are available.
With Fullseg, you can view Digital Terrestrial TV Broadcasting service in high-vision quality.
With 1Seg, you can view Digital Terrestrial TV Broadcasting service for mobile devices.
For details on "Fullseg/1Seg" service, refer to the website below.
The Association for Promotion of Advanced Broadcasting Services http://www.apab.or.jp/en/
Notes on using Fullseg/1Seg
Fullseg/1Seg is a service provided by TV broadcasters (broadcast stations), etc. Transmission charges are not incurred for receiving image, audio, and sound. For details on NHK viewing fees, contact NHK.
The data broadcast area displays two types of information: "Data broadcasting" and "Data broadcasting web site".
"Data broadcasting" is carried in a broadcast wave, together with image, audio, and sound. "Data broadcasting web site" is used to access sites provided by the TV broadcaster (broadcast station).
Packet communication charges are incurred when accessing a site such as a "Data broadcasting web site" or others.
Some sites require information charges to use.
Airwaves
Fullseg/1Seg is a broadcasting service that operates on radio waves
(airwaves) different from those for the LTE service or FOMA service.
Therefore, you cannot receive the 1Seg service in locations that airwaves cannot reach or during hours when program is not available, regardless of whether you are outside of the LTE service or FOMA service area.
Even in areas where the terrestrial digital TV broadcasting service is available, you may have poor or no reception in the following places:
• Places far away from a tower that transmits airwaves
• Places in a mountain area or behind a building where radio waves are blocked by land or structural features
• Inside a tunnel, underground, inner area of a building or other place where radio waves are weak or nonexistent
Changing the direction of included External TV antenna cable SC04 or moving to other location may improve signal reception.
Apps
External TV antenna cable SC04
To watch or TV (Fullseg/1Seg), connect the supplied External TV antenna cable SC04 to the terminal.
Headphone connection jack
Connection plug
External TV antenna cable
SC04
Earphone microphone jack
1
Connect the connection plug of External TV antenna cable
SC04 to the headphone connection jack of the terminal
Watching TV (Fullseg/1Seg)
1
From the Home screen, "apps folder" → "TV".
• When the first activation or if the channel area is not registered,
follow the onscreen instructions to set channel area (P.111).
Information
• According to the airwave status, the images and sounds may be interrupted.
109
Viewing screen
a g a g n b b c k d c l o d m e f i j
Viewing screen (One-seg) h h e f i j
Viewing screen (Fullseg) a Menu b TV image
• Channel can be switched by flicking to the left or right.
• Touch and hold the image to show channel list.
c Subtitle d Data broadcasting e Airwave status f Channel/Program name g Switch One-seg/Fullseg h Channel list
• Display the channel list.
i Record
• Record a TV program.
j TV operation panel
• Channel can be switched with / .
k Data broadcasting operating screen/Switch channels/Display the program detail l Data broadcasting panel m Interactive service buttons
• Use the blue, red, green, and yellow buttons to enter viewer quizzes, surveys, polls, and so on.
Apps
n Switch to data broadcast screen o
3x4 key
■ Key operations on viewing screen
• Adjust the volume with the Volume UP key/Volume DOWN key.
Using Mobile TV (Fullseg/1Seg) menu
1
On the viewing screen,
• The displayed item may differ depending on watching program.
Program guide
Item
Program detail info
Program information
Description
Display G-GUIDE programs list.
Display details of the program. Tap
→ "Recording reservation" to record the program.
Display the information of the watching program.
Recorded program list
Reserve Recording/Viewing
TV link
Change area
Settings Superimpose setting
Data Broadcasting settings
Set to switch superimposed text
ON/ OFF and language.
Set whether to use location information and information of the terminal, etc.
Set the timer to end to watch.
Auto Exit Timer
Recording quality setting Set quality of Fullseg recording.
Device ID of receiver Display Device ID of receiver.
Notes
Software License
Display Notes.
Display software license.
Display subtitles
Sound output
Set the subtitle ON/OFF.
Set the main audio and sub audio of the program broadcasting sub audio.
110
Recording programs
1
On the viewing screen,
• While recording, appears.
• To stop recording, tap → "Stop recording"/"Stop recording as end of program".
Information
• According to the airwave status, the images and sounds may be interrupted.
• You can't switch the channel while recording.
• If you activate any other app during recording, the program may not be recorded correctly.
Playing recorded programs
1
On the viewing screen, → "Recorded program list"
• Display the recording file list screen.
2
Tap a program to be played
Information
• To delete the recorded program, touch and hold the program on the record file list screen → tap → "YES.
• To change the title of recorded program, touch and hold the program on the recording file list screen → tap → change the title and tap
"OK".
• Tap on the recording file list screen, you can set playing mode, display the memory usage and reorder the file.
Recording/Viewing the program manually
1
On the viewing screen, → "Reserve Recording/Viewing"
2
→ "New reservation" → "Viewing reservation"/"Recording reservation"
3
Input the item on the reservation setting screen
4
"SAVE" → "YES"
Apps
Information
• → "New reservation" → "From Program guide" to record the program.
• To delete the reservation, touch and hold the reservation on the recording/watching reservation screen, tap "Delete" → "YES".
Displaying TV link
1
On the viewing screen, → "TV link"
• The list of TV link is displayed.
Information
• To delete TV link, touch and hold the TV link on the TV link screen, tap "Delete" → "YES".
Registering the channel of current area
1
On the viewing screen, tap → "Change area"
2
Tap the area not to be used → "OK"
3
Select regions → Select a prefecture → Select local area
• Channels are searched and the selected area is registered to the channel list.
4
"OK"
GPS/Navigation
Enabling location information
If you use an app that uses location information, you need to enable GPS function in advance.
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "Location"
2
→ "AGREE"
3
"Locating method" → Select a detection method
Item Description
High accuracy
Battery saving
Phone only
Uses GPS, Wi-Fi and mobile networks to identify current location. Although current location can be detected more accurately, the terminal consumes much power of battery.
Uses Wi-Fi and mobile networks to identify current location.
Uses GPS to identify current location.
111 Apps
Precautions on using GPS
• DOCOMO is not liable for any damage caused by abnormality of the system.
• Note that DOCOMO shall have no liabilities for any purely economic loss including those due to missing a chance to check the measurement
(communication) results because of external factors (including the running out of the battery), such as a failure, malfunction, or any other problems of the terminal or the power failure.
• You cannot use the terminal as a navigation device for an aircraft, vehicle, and person. Note that DOCOMO shall have no liabilities whatsoever even if you suffer damage or loss while performing a navigation using the location information.
• You cannot use the terminal as a high-accuracy measurement GPS.
Note that DOCOMO shall have no liabilities whatsoever even if you suffer damage or loss due to a deviation of the location information.
• GPS is a service operated by the USA Department of Defense, so the
GPS radio wave condition may be controlled (accuracy degraded, radio wave suspended, etc.) for reasons of US national security. And, wave conditions differ by satellite locations; therefore, positioning operations in the same location under the same environmental conditions may not yield the same result.
• Some wireless communications products (mobile phone, data detectors and some others) block satellite signals and also cause instability of signal reception.
• Some map displays based on location information (latitude/longitude information) may be not accurate due to some countries' or regions' regulations.
■ Where radio waves are difficult to receive
Note that radio waves may not be received or it may be difficult to receive radio waves in the following conditions, since GPS uses radio waves from a satellite.
• Inside or immediately under a building
• Inside a basement or tunnel, and below the ground or water
• Inside a bag or box
• Building area or residential area
• Inside or under a thick covering of trees
• Near a high-voltage cable
• In a car, inside a train compartment
• Bad weather such as heavy rain or snow
• When there are obstructions (people or objects) near the terminal
112
Using Google Maps
By using Google Maps, you can search for the current location or other locations, or obtain guide information to destination.
• To use Google Maps, enable data connection (4G/3G/GSM) or connect to Wi-Fi.
• Google Maps does not cover the whole world or region.
Opening Google Maps
1
From the Home screen, "Google" → "Maps"
• When the message screen appears, follow the onscreen instructions.
2
Enter area name, etc. in the search box
Searching direction by Google Maps
Use the "Directions" function of Google Maps to search the route by car, by train or on foot.
1
From the Home screen, "Google" → "Maps"
2
→ Tap the locomotion strategy ( / / ) icon
3
Enter the place name in "Your location" field
4
Enter the place name in "Choose destination" field
5
Tap a route
Searching spots around you
You can search stores and facilities around the current location using
Google Maps.
1
From the Home screen, "Google" → "Maps"
2
Tap search box → After that, follow the onscreen instructions
Apps
Clock
You can use Alarm, World clock, Stopwatch or Timer.
1
From the Home screen, "apps folder" → "Clock"
2
Tap a tab at top of the screen
• Tapping switches screen of each function.
Using Alarm
1
On the "ALARM" screen, → Set each item → "SAVE"
• Tap number of hour/minute to display 3x4 keyboard.
2
To stop alarm, drag out of the displayed circle
• If "ALARM" window appears, tap "DISMISS".
• When snooze is set, tap "SNOOZE" and alarm sounds again every five minutes.
Information
• Snooze is a function which stops the alarm and sets it to ring again at a short time later.
• To delete registered alarm, on the "ALARM" screen, tap the alarm to delete → "DELETE".
• To toggle the alarm OFF, tap to .
Using World clock
You can check the date and time of the cities and time difference that registered with a list.
1
On the "WORLD CLOCK" screen, → Tap a registering city
→"ADD"
• To register city based on the current location, tap → tap a city.
Information
• If you enter the city name or country name in the search box that you want to search for via the "ADD CITY" screen, you can search via city/country name.
• To delete registered city, on the "WORLD CLOCK" screen, touch and hold the city you want to delete → tap "DELETE".
• Tap to use time zone converter.
113
Using Stopwatch
1
On the "STOPWATCH" screen, "START"
• Measurement starts.
• To measure lap time, tap "LAP".
2
To stop the measurement, "STOP"
• To restart the measurement, tap "RESUME" and tap "RESET" to remeasure.
Using Timer
1
On the "TIMER" screen, set hour, minute, and second
• Tap hour/minute/second to display 3x4 keyboard.
2
"START"
• The timer starts.
3
To stop time-up notification sound, drag out of the displayed circle
• If "Timer" window appears, tap "DISMISS".
• Tap "RESTART" on "Timer" window, the timer restarts with same setting.
Information
• Tap to add preset timer.
Apps
Calendar
Display Calendar to register event and task. Set up a Google account to synchronize with Google calendar.
1
From the Home screen, "apps folder" → "Calendar"
2
Galaxy Notes
You can input text and draw pictures and create notes. Add photos, or pictures to notes, also save recorded sound in notes.
Create the note
1
From the Home screen, "Pen"→ "Galaxy Notes"
2
3
Create notes → "SAVE"
■ Edit screen a b c d
3
Set items → "SAVE"
Add event screen
114 e
Edit screen a Tool bar
• Select the way to create notes, brush to use, and items to insert to notes.
• The menu corresponding to selected item is displayed under the screen.
b Save
• Save the current note, and return to the display screen.
• When you tap the screen or "EDIT" on the display screen, you can edit again.
c Add a file
• Attach the picture or sound.
Apps
d Menu
• Show or hide rich text menu and set whether to enable or disable the dedicated S Pen mode.
e
Rich text menu
■ Display screen a b c d e
■ List screen a bc a Change the category b Search inside c Display the menu d
Create a note
List screen d a Display a list screen b Edit a note c Add to favorites d Share the menu e Display the menu
Display screen
115 Apps
Voice Recorder
Voice Recorder
1
From the Home screen, "apps folder" → "Voice Recorder"
2
• Recording starts.
• When you select "INTERVIEW" tab and record, you can record a conversation using upper/bottom microphone of the terminal.
• When you select "SPEECH-TO-TEXT" tab and record, text conversion information of voice is displayed. You can convert the voice to text up to 10 minutes.
3
• Recording stops. Input the file name and tap "SAVE" to save the data recorded.
Playing voice sound
1
From the Home screen, "apps folder" → " Voice Recorder"
2
"LIST"
• A recorded data list screen appears.
3
Tap data you want to play
• Playing starts.
Menu of Voice Recorder
When you tap on the recorded data list screen/playback screen the items will be displayed. Follow the onscreen instructions.
Calculator
You can perform four arithmetic operations (+, - , × , ÷ ), percent calculus, functional calculus, etc.
1
From the Home screen, "apps folder" → "Calculator"
• When the "Screen rotation" is ON, turning the terminal sideways switches to the alpha calculator. Alternatively, when the "Screen rotation" is OFF, tap to switch to the alpha calculator.
• Tap to use unit converter.
116 Apps
docomo Data Copy
With "docomo Data Copy", you can copy the data saved in the terminal to another terminal, or back up/restore the data.
Use this app for transferring data when you change the model, or backing up your important data at regular intervals.
• Depending on the OS and file type, you may not be able to correctly copy, backup, or restore data.
Data Transfer
You can copy your data such as phonebook, images, etc. to another terminal with one-to-one direct communication, not using the Internet.
Activate "Data Copy" of both the source terminal and the destination terminal, and line them up before use.
1
From the Home screen, "apps folder" → "Data Copy" → "Data transfer"
• Follow the onscreen instructions.
• Installing this app is required for both the source terminal and the destination terminal. Available for download from NTT DOCOMO website, if it is not installed yet.
• Communication methods vary depending on the use of devices or
OS version.
• For details about compatibility or information, see NTT DOCOMO website.
Backing up to/restoring from microSD card
You can move and back up and restore phonebook entries, images, etc. using microSD card.
• Do not remove microSD card from the terminal while backing up or restoring data. Data may be damaged.
• When item names in phonebook entry of another terminal (phone number etc.) is different from the terminal, the item names may be changed or deleted. And registered characters may be removed on the copying destination because available characters vary by terminal.
• Phonebook data available to back up is phonebook saved in docomo's account and the terminal.
• When backing up phonebook entries to microSD card, data without a name registered cannot be copied.
• Backup may not be performed if the microSD card does not have enough memory space. In this case, delete unnecessary files to make available memory space.
117
• Backup or restoration may not be performed if the battery level is low. In that case, charge the terminal then try to back up or restore again.
• This app only backs up the data such as still images and video, etc. which are stored on the terminal. Data which is stored on microSD cards will not be backed up.
Backing up
Back up data such as phonebook entries, media files, etc. to the terminal.
1
From the Home screen, "apps folder" → "Data Copy" →
"Backup & Restore"
2
"Backup" → Mark data to be backed up → "Start backup" →
"BACKUP"
• Selected data is stored in microSD card.
3
"Back to top"
Restoring
Restore data such as phonebook entries, media files, etc. to the terminal.
1
From the Home screen, "apps folder" "→ "Data Copy" →
"Backup & Restore"
2
"Restore" → "Select" type of data to restore → Mark the data to restore → "Select"
3
Select restoration method → "Start restore" → "RESTORE"
• Selecting restoration method is not necessary for some data types.
• Selected data is restored to the terminal.
4
"Back to top"
• If you have not set periodical backup setting schedule, "Set a backup schedule is displayed, follow the onscreen instructions.
Copying phonebook data to docomo account
Copy phonebook data stored on a Google account and the terminal to docomo account.
1
From the Home screen, "apps folder" → "Data Copy" →
"Backup & Restore"
2
"Phonebook account copy" → "Select" on the phonebook entry to be copied → "OVERWRITE"/"ADD"
• Copied data is saved to docomo account.
3
"OK"
Apps
Backing up to/restoring from Data Storage BOX
You can backup/restore call logs, music, etc. using データ保管BOX (Data
Storage BOX).
1
From the Home screen, "apps folder"→ "Data Copy" → →
"Backup/Restore to Cloud"
2
"Backup"/"Restore"
• Follow the onscreen instructions.
• If you do not sign in to docomo cloud, the confirmation screen appears.
Information
• When the screen is locked or the terminal is set to save power mode, the scheduled backup will not run at the set time. It will run at the next possible time.
• Note that a packet communication charge may be high, if you set
Periodical backup of Data Storage Box.
YouTube
YouTube is a free online video streaming service. You can view or post video.
Playing video
1
From the Home screen, "Google" → "YouTube"
2
Tap a video you want to play
• Video is played.
118 Apps
Dictionary
Use dictionaries to search for words and phrases.
You can use this terminal to download dictionary data.
1
From the Home screen, "apps folder" → "Dictionary"
• Since the dictionary data downloading/installation screen appears when the app is initially started up, tick the dictionaries which are to be downloaded, and tap "Download". After that, follow the onscreen instructions. A Wi-Fi environment is required for downloading dictionary data.
S Health
Support your health by recording the amount of calories you spend and you take, exercises to manage weight using items such as
"TRACK" of steps or heart rate, "Target", "Programs" for warming up or running, etc.
• To backup data to the server, you need a Galaxy Account. If the setting screen of Galaxy Account appears, follow the on-screen instructions and make settings before using.
1
From the Home screen, "apps folder" → "S Health"
• S Health screen appears.
2
Tap an item
Information
• For details on S Health, on the S Health screen, tap → "Contact".
119 Apps
Settings
Setting menu
You can set various items such as screen brightness, screen view, ringtone, communication, etc.
1
From the Home screen, "apps folder" → "Settings"
2
Select a menu item and make settings
Item Description
Connections
Sounds and vibration
Notifications
Display
Wallpapers and themes
Advanced features
Device maintenance
Apps
Lock screen
Biometrics and security
Cloud and accounts docomo service/cloud
Accessibility
General management
Software update
About phone
Information
• Tap to enter a keyword in the search box to search within the settings and check the setting values.
• Depending on the usage status of the terminal, recommended settings may be displayed above "Connections".
120
Connections
1
From the Home screen, "apps folder" → "Settings" →
"Connections"
2
Select the item and set
Item Description
Wi-Fi
Bluetooth
Data usage
Airplane mode
NFC/Osaifu-Keitai settings
Tethering
Mobile networks
Location
More connection settings
Wi-Fi
You can use Wi-Fi function of the terminal to connect to wireless access point of your home or company network. Also, you can connect to Public wireless LAN service access point to use mails and Internet.
■ Reception interference caused by Bluetooth devices
The terminal's wireless LAN device and Bluetooth devices use the same frequency band (2.4 GHz). If you use the terminal near a Bluetooth device, reception interference may occur or the communication speed may become lower. Also, you may hear noise or have a connection problem. In these cases, do the following:
1. Keep the wireless LAN device over approximately 20 m away from a
Bluetooth device.
2. Within approximately 20 m, turn off the Bluetooth device.
Settings
Information
• Packet communication can also be used even when Wi-Fi function is ON. However, Wi-Fi will be used first during Wi-Fi connection. If
Wi-Fi network is disconnected, network is automatically switched to 4G/3G/GSM. Be noticed that packet communication charge is applied if you keep using 4G/3G/GSM network after toggling.
• When connection to Wi-Fi network that requires user authentication and the user authentication is unestablished, is displayed. In that case, the communication may carry out using a mobile network rather than a Wi-Fi network.
To perform Wi-Fi communications via these kinds of access points, set the "Turn on Wi-Fi automatically" to OFF when making connections with access points.
• Setting d ACCOUNT is required for using docomo service via Wi-Fi.
From the Home screen, "apps folder" → "Settings" → "docomo service/ cloud" → "d アカウント設定 (d ACCOUNT setting)".
■ Enabling Wi-Fi and connecting to network
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Wi-Fi"
2
• Scanning available Wi-Fi networks starts automatically and a list is displayed.
3
Tap a Wi-Fi network you want to connect → "CONNECT"
• To connect to a Wi-Fi network protected by security, enter a password (security key) and tap "CONNECT".
• Wi-Fi network available WPS can be connected using WPS (Wi-Fi
Protected Setup). On the Wi-Fi network list screen, → "Advanced"
→ "VIEW MORE" → "WPS push button"/"WPS PIN entry" → Operate on access point device.
• Mark the "Auto reconnect" check box to automatically reconnect to that network when Wi-Fi is enabled.
Information
• The Wi-Fi network password (security key) is automatically saved when connection is established so that you do not need to enter it next time.
121
■ Deleting connection of Wi-Fi network
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Wi-Fi"
2
Tap a connected Wi-Fi network → "FORGET"
■ Setting Wi-Fi access point
• For information necessary for connection, refer to user manual of wireless
LAN access point you use. For connecting to company LAN or using Public wireless LAN service, ask a network administrator or service provider about the required information for connecting.
• When the wireless LAN access point is set for connecting only to the MAC address registered device, register the MAC address of the terminal to the wireless LAN access point. To check MAC address, from the Home screen, "apps folder" → "Settings" → "Connections" → "Wi-Fi" →
→ "Advanced" → tap "VIEW MORE" to display and to be able to check it.
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Wi-Fi"
2
"Add network"
3
Enter the network name → Set the security
• The possible certificate method is "WEP", "WPA/WPA2/FT PSK",
"802.1x EAP".
4
Enter a password → "CONNECT"
• If you set Security to "None", entering password is not needed.
■ Setting Wi-Fi to automatically turn on
You can set Wi-Fi to automatically turn on at locations you often use Wi-Fi.
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Wi-Fi"
2
→ "Advanced"
3
"Turn on Wi-Fi automatically"
Information
• If the Wi-Fi connection disconnects to an access point that does not connect to the Internet, such as an internal memory card with wireless LAN, while "Turn on Wi-Fi automatically" is turned on, turn off
"Turn on Wi-Fi automatically".
Settings
■ Setting Wi-Fi power saving mode
Set whether to analyze Wi-Fi traffic patterns and reduce battery usage when using Wi-Fi.
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Wi-Fi"
2
→ "Advanced"
3
"Wi-Fi power saving mode"
■ Managing networks
Saved Wi-Fi networks are displayed.
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Wi-Fi"
2
→ "Advanced"
3
"Manage networks"
■ Connecting Hotspot 2.0 compatible access point automatically
Set whether to automatically connect to Hotspot 2.0 compatible Wi-Fi access point within the area without the Wi-Fi access point set.
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Wi-Fi"
2
→ "ADVANCED"
3
"VIEW MORE" → "Hotspot 2.0"
■ Installing a network certificate
Install a network certificate.
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Wi-Fi"
2
→ "ADVANCED"
3
"VIEW MORE" → "Install network certificates"
■ Using static IP address
You can set the terminal to connect to Wi-Fi network using the static IP address.
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Wi-Fi"
122
2
Tap Wi-Fi network to connect → Mark "Show advanced options"
3
Tap "IP settings" field → "Static"
4
Set required items
• For using static IP address, enter the following items.
- IP address
- Gateway
- Network prefix length
- DNS 1/DNS 2
• If you need to set the proxy, select "Manual" or "Auto-config" from proxy and follow the onscreen instructions.
5
"CONNECT"
■ Using Wi-Fi Direct
You can exchange data by connecting Wi-Fi Direct compatible devices.
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Wi-Fi"
2
"Wi-Fi Direct"
3
Tap a detected device name
• When the connection is accepted on the searched device, the terminal will be connected via Wi-Fi Direct and appears on the status bar.
■ Disconnecting Wi-Fi Direct
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Wi-Fi"
2
"Wi-Fi Direct"
3
Tap a device name to disconnect
Settings
Data usage
Enable/disable mobile data communication or set upper limit of data communication. Also set a period of time for measuring amount of communication.
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Data usage"
• Data usage screen appears.
• Set "Mobile data" ON to enable Internet access via mobile networks.
• Tap "Mobile data usage" to display mobile data communication usage (Estimate) by each period or each app. Tap to limit of mobile data communication usage and set to alert when limit reaches on the chart. To set limit, set "Set data limit" ON.
Limiting background data communication
On the data usage screen, tap "Data saver" → tap to restrict mobile data communication automatically made by apps.
Tap "Allow app while Data saver on" to restrict usage of mobile data of
Individual apps.
Displaying status of Wi-Fi use
On the data usage screen, tap "Wi-Fi data usage" to display estimated amount of Wi-Fi data usage for a period and for each app.
Restricting use of Wi-Fi network for using Wi-Fi tethering
Tap "Restrict networks" to prevent background apps from using specified Wi-Fi network.
Information
• Displayed data traffic volume is an estimate. It may be different from the actual one. You can check your data traffic volume at My docomo.
• Note that mobile data communication will suspend when data usage volume reaches to the limit. To resume mobile data communications, tap the "TURN ON MOBILE DATA" on the popup screen for "Mobile data turned off" or change the maximum amount of data that can be used.
123
Airplane mode
Disable all wireless connections.
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "Airplane mode"
2
Information
• Alternatively, tap "Airplane mode" on the notification panel to switch setting.
• If you enable "Airplane mode", Wi-Fi, Bluetooth, and functions of the
NFC such as reader/writer, P2P, etc. turn OFF. However, you can turn them ON again during Airplane mode.
NFC/Osaifu-Keitai settings
Lock NFC/Osaifu-Keitai function, or set to permit/deny sending/receiving of a content/file etc. via Reader/Writer, P2P function.
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "NFC/Osaifu-Keitai settings"
2
Tap an item to set
Item Description
Lock NFC/Osaifu-Keitai function.
NFC/Osaifu-Keitai
Lock
Reader/Writer,
P2P
Android Beam
Tap & pay
Set whether to permit exchange of data when putting the terminal close to the other device with
NFC module built-in or Reader/Writer, P2P function
Set whether to permit to send/receive contents such as web pages or contacts to/from other device with
P2P function installed.
• Enable "Reader/Writer, P2P" before using.
Set whether to enable the service that can be used holding over a reader, such as Osaifu-Keitai
Settings
Using tethering
Tethering is a function which uses a mobile device such as smart phone as modem to connect wireless LAN devices, USB compatible devices and
Bluetooth compatible devices to Internet.
• Up to 10 devices can be connected using Wi-Fi tethering at one time, one device can be connected using USB tethering, and up to 3 devices can be connected using Bluetooth tethering. When you use Wi-Fi tethering, USB tethering and Bluetooth tethering at one time, 14 devices in total can be connected.
• When using tethering, subscribing to a packet pack or packet flat-rate service is highly recommended.
■ Setting Wi-Fi tethering
You can use your terminal as an Internet access point and connect at most 10 wireless LAN devices to Internet.
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "Tethering" → "Wi-Fi tethering"
2
• After the precautions are displayed, confirm them and tap "OK".
• When the description about Wi-Fi sharing displays, check the contents and follow the onscreen instructions.
■ Setting access point for Wi-Fi tethering
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "Tethering" → "Wi-Fi tethering"
2
• When the description about Wi-Fi sharing displays, check the contents and follow the onscreen instructions.
3
→ "Configure Wi-Fi tethering"
4
Tap "Network name" field → Input the network name
• "AndroidAP" is set in advance.
5
Tap "Security" field
• Select a proper setting from "Open" and "WPA2 PSK".
6
Tap "Password" field → Enter password
• Password is not required if you set "Open" in "Security".
7
"SAVE"
124
Information
• "WPA2 PSK" is set by default.
• While connected via Wi-Fi tethering, on the Wi-Fi tethering screen,
→ "Configure Wi-Fi tethering" → mark "Hide my device" → tap "SAVE" to disconnect the connected wireless LAN device.
• If "Hide my device" is marked, the terminal cannot be scanned. When you connect from the other device, confirm the information displayed in "How to connect from other devices" on the Wi-Fi tethering screen, and then set the Wi-Fi access point manually.
• When connected via Wi-Fi tethering, on the Wi-Fi tethering screen, tap → "WPS push button" to connect by pressing WPS button on connected device. Also, on the Wi-Fi tethering screen, tap →
"Timeout settings" to turn off Wi-Fi tethering automatically when there is no connected device for specified time.
■ Setting Bluetooth Tethering
You can connect up to 3 Bluetooth devices to the Internet at one time, using the terminal as an Internet access point.
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "Tethering" → "Bluetooth tethering"
2
Information
• In order to use Bluetooth tethering, this terminal needs to be detectable. For details, refer to "Enabling Bluetooth function and
making your terminal detectable" (P.154).
Settings
You can connect to the Internet by connecting the terminal to a PC via
USB cable A to C 01 (sold separately).
1
Insert■Type-C■plug■of■the■USB■cable■A■to■C■into■the■USB■
Type-C■connection■jack■of■the■terminal
• For connecting method, see "Connecting with USB cable A to C"
2
Insert■USB■plug■of■the■USB■cable■A■to■C■into■a■PC■USB■port
3
From■the■Home■screen,■"apps■folder"■→■"Settings"■→■
"Connections"■→■"Tethering"
4
"USB■tethering"
Information
• During USB tethering, you can't look inside this terminal and microSD card from connected PC.
• Operating environments for USB tethering are as follows. DOCOMO is not liable for the operation after upgrading/adding/changing OS.
- Windows 7
- Windows 8.1
- Windows 10
125
Setting access point
Access point for connecting the Internet (sp-mode) is already registered.
You can add or change it if necessary.
For details on sp-mode, refer to NTT DOCOMO website.
https://www.nttdocomo.co.jp/service/spmode/ (In Japanese only)
When using mopera U or Business mopera Internet, add access point manually.
For details on mopera U, refer to mopera U website.
https://www.mopera.net/ (In Japanese only)
1
From■the■Home■screen,■"apps■folder"→■"Settings"■→■
"Connections"■→■"Mobile■networks"■→■"Access■Point■Names"
1
From■the■Home■screen,■"apps■folder"→■"Settings"■→■
"Connections"■→■"Mobile■networks"■→■"Access■Point■Names"■
→■"ADD"
2
"Name"■→■Enter■a■name■of■network■profile■to■create■→■"OK"
3
"APN"■→■Enter■the■access■point■name■→■"OK"
4
Enter■the■other■items■required■by■the■network■operator
• Do not change "MCC" other than 440 and "MNC" other than 10, respectively. If they are changed, they are not displayed on the screen.
5
■→■"Save"
Information
• When you changed settings of MCC or MNC and access points are not displayed, initialize the access point or set an access point manually.
■ Initializing■an■access■point
By initializing an access point, the settings return to the default state.
1
From■the■Home■screen,■"apps■folder"→■"Settings"■→■
"Connections"■→■"Mobile■networks"■→■"Access■Point■Names"■
2
→■"Reset■to■default"■→■"RESET"
Settings
Download booster
Set to use Wi-Fi and LTE network at the same time so that you can download large files (over 30 MB) faster.
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "More connection settings" → "Download booster"
2
Connecting to VPN (Virtual Private Network)
VPN (Virtual Private Network) is a technology to connect to the information in a protected local network from another network. Generally, VPNs are provided to companies, schools and other facilities. A user can access to the information in the local network from outside of the premises.
• To set up a VPN access from the terminal, you need to retrieve the information related to security from your network administrator.
■ Adding a VPN
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "More connection settings" → "VPN"
2
"ADD VPN"
• If an attention screen appears, tap "OK" and set screen unlock method following the onscreen instructions.
To edit VPN
Tap of VPN to edit → set each item → tap "SAVE".
To delete VPN
Tap of VPN to delete → tap "DELETE".
3
Follow the instruction of the network administrator to set required items of VPN settings
4
"SAVE"
■ Connecting to a VPN
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "More connection settings" → "VPN"
2
Tap a VPN you want to connect to
3
Enter necessary authentication information → "CONNECT"
• appears on the status bar.
■ Disconnecting VPN
1
Open the Notification panel → Tap the VPN connecting notification
2
"DISCONNECT"
126 Settings
Sounds and vibration
1
From the Home screen, "apps folder" → "Settings" →
"Sounds and vibration"
2
Select the item and set
Item Description
Sound mode
Vibrate while ringing
Select from sound, vibrate, or mute. → P.127
Set whether to vibrate while ringing.
• This setting is valid if manner mode (Vibrate/Mute) has not been set.
Use Volume keys for media
Set whether to adjust the media volume with the
Volume UP key/Volume DOWN key even when you are not playing media.
Volume
Vibration intensity Adjust the vibration intensity of incoming call or notifications.
Ringtone
Vibration pattern
Do not disturb
Touch sounds
GPS notifications
Charging sound
Vibration feedback
Dialing keypad tones
Keyboard sound
Set whether to vibrate when you tap [Back button]
or [History button] ,etc. → P.128
Sound quality and effects
Customize your preferred sound quality and set sound effects.
127
Setting manner mode
When set to manner mode (Vibrate/Mute), incoming call ringtones and notification sounds no longer ring.
1
From the Home screen, "apps folder" → "Settings" →
"Sounds and vibration" → "Sound mode"
2
"Vibrate"/"Mute"
Information
• If you change "Ringtone" (P.127) of "Volume" when manner mode
(Vibrate, Mute) is set to "Vibrate"/"Mute", manner mode (Vibrate,
Mute) turns to off.
• Tap "Temporary mute" during mute mode to set mute duration until you return to "Sound"/"Vibrate" mode.
• Regardless of manner mode (Vibrate, Mute) settings, the sound
(sound of playing the movie or music, shutter sound, etc.) except for ringtone or each of notification sound are not muted.
Adjusting volumes
1
From the Home screen, "apps folder" → "Settings" →
"Sounds and vibration" → "Volume"
• The volume bar appears.
Item
Ringtone
Media
Notifications
System
Description
Adjust ringtone volume for incoming call.
Adjust playback sound volume of music, etc.
Adjust notification sound volume for notification
Adjust sound volume for touch operation, screen lock/unlock, GPS enabling.
2
Drag of each sound volume left or right
■ Adjusting volumes with the Volume UP key/Volume DOWN key
1
Press Volume UP key/Volume DOWN key on the Home screen, etc.
Settings
Notifying incoming call/notification by sound/ vibration
Set melody, etc. of ringtone/notification sound for incoming call or notification or whether to vibrate the terminal.
■ Setting ringtone
1
From the Home screen, "apps folder" → "Settings" →
"Sounds and vibration" → "Ringtone"
2
Tap a ringtone you want to set
• When "Silent" is set, ringtone does not sound.
• Tap "ADD" to search ringtone to add.
■ Setting Vibration pattern
1
From the Home screen, "apps folder" → "Settings" →
"Sounds and vibration" → "Vibration pattern"
2
Tap a vibration pattern you want to set
■ Setting notification sound
1
From the Home screen, "apps folder" → "Settings" →
"Sounds and vibration" → "Notification sound"
2
Tap a notification sound you want to set
• When "Silent" is set, notification sound does not sound.
Information
• If "Vibrate while ringing" is set to on when manner mode (Vibrate,
Mute) is not set, ringtone sounds and the terminal vibrates when receiving calls. If "Vibrate while ringing" is set to off, only ringtone sounds.
• Notification sounds and vibration pattern of SMS, calendar and Email can be set individually.
Muting notification sounds
Set to mute ringtone/notification sound and alarms, and not display notifications, apart from any exceptions you have selected.
1
From the Home screen, "apps folder" → "Settings" →
"Sounds and vibration" → "Do not disturb"
2
"Turn on now"
Information
• To set the time period to mute notifications, turn on "Turn on as scheduled" and set "Days" and "Set schedule".
• To allow exceptions, tap "Allow exceptions" → tap on the items you want to exempt.
• Tap "Hide visual notifications" to set to hide notifications.
Setting system sound and vibration
Set whether to generate sound or vibration when operating the terminal.
1
From the Home screen, "apps folder" → "Settings" →
"Sounds and vibration" → "Touch sounds"/"Screen lock sounds"/"GPS notifications"/"Charging sound"/"Vibration feedback"
Setting Sounds and vibration when tapped key
Set whether to generate sound or vibration when key is tapped.
1
From the Home screen, "apps folder" → "Settings" →
"Sounds and vibration" → "Dialing keypad tones"/"Keyboard sound"/"Keyboard vibration"
128 Settings
Notifications
Set the apps to receive notifications.
1
From the Home screen, "apps folder" → "Settings" →
"Notification"
2
of apps you want to receive notifications
Information
• Tap "ADVANCED" to set the details of app's notifications.
• Tapping "App icon badges" enables you to set whether to display a badge on an app icon and with the number of notifications when you receive a notification. However, if you set it to ON, some apps may not be displayed.
129
Display
1
From the Home screen, "apps folder" → "Settings" →
"Display"
2
Select the item and set
Item Description
Brightness
Auto brightness
Blue light filter
Record display brightness adjustments so that the brightness is automatically adjusted when the brightness in your surroundings are the same as when you recorded the brightness.
• You can delete brightness adjustment history by tapping "Reset usage patterns" → "RESET".
Reduce the amount of blue light.
Font and screen zoom
Screen mode
Screen resolution Set the screen resolution.
Home screen Customize the Home screen.
• If you are using "Galaxy home" on the Home App, this setting does activate.
Full screen apps
Easy mode
Select the app to use with the aspect ratio of the full screen.
Change to the easy mode that includes of simple
Home screen layout and bigger icon.
Icon frames
Edge screen
LED indicator
Set zoom of the screen, size of characters and font style.
Set the contrast and color balance of the screen. → P.130
Display the icon with frame on the Home screen and the app screen.
• If you are using "Galaxy home" on the Home App, this setting does activate.
You can set to notify missed call or status of charging/recording by lighting/blinking of notification
LED when the screen is OFF.
Settings
Item
Status bar
Navigation bar
Screen timeout
Block accidental touches
Screen saver
Description
Set whether to show percentage of battery power remaining on the status bar.
• When "Show recent notifications only" sets ON, only three latest notification icons are displayed.
Set time until screen display turns off.
• The screen becomes a little dark before the set time comes close.
Set whether not to detect touch operation of the display while the device is in a dark place such as a pocket or bag.
Adjusting brightness of the display
1
From the Home screen, "apps folder" → "Settings" →
"Display"
2
Drag right or left of "Brightness"
Setting color balance of screen
You can adjust screen color details.
1
From the Home screen, "apps folder" → "Settings" →
"Display" → "Screen mode"
2
Drag right or left of "Full screen color balance"
• You can adjust the display color only when "Screen mode" is
"Adaptive display".
• You cannot change the screen mode while the "Blue light filter" is
ON.
• When you drag the bar towards "Warm", the red color tone will increase. When you drag the color adjustment bar towards "Cool", the blue color tone will increase.
• Mark "Advanced options" to adjust the balance of the red, green, and blue colors individually.
Screen saver
Set ON/OFF, type for screen saver while charging.
1
From the Home screen, "apps folder" → "Settings" →
"Display" → "Screensaver"
2
3
"Color"/"Photo"/"Photo Table"/"Photo frame"
• When "Photo"/"Photo Table"/"Photo frame" is set, tap and then mark a folder in which image to be displayed is saved.
130 Settings
Wallpapers and themes
Set wallpapers and themes, etc.
1
From the Home screen, "apps folder" → "Settings" →
"Wallpapers and themes"
2
"Wallpapers"/"Themes"/"Icons"/"AODs"
3
Select Wallpapers and themes to set
4
Set according to the onscreen instructions
131
Device maintenance
Set confirmation of maintenance status, battery, performance mode, storage, memory and device security.
1
From the Home screen, "apps folder" → "Settings" → "Device maintenances"
• Display maintenance status of the terminal. Perform further optimization, tap "OPTIMIZE NOW", etc.
2
Select the item and set
Item Description
Battery
Performance mode
Storage
Memory
Device security
Battery
Displays battery usage data, remaining battery, settings of power saving mode and information of apps to save the battery power, etc.
1
From the Home screen, "apps folder" → "Settings" → "Device maintenances" → "Battery"
Item
Battery power remaining
Estimated usage time remaining
Estimated battery life
Description
Display the percentage of battery power remaining when not charging.
Display the estimated time until the battery is fully charged when charging. However, the estimated time until fully charged may not be displayed if charging in a low or high temperature environment.
Display the estimated battery life when not charging.
Settings
Item Description
BATTERY USAGE Displays the battery usage. You can also check to see which apps are consuming power and optimize battery usage of each app.
• To change the settings of battery usage optimization, tap → "Optimize battery usage" →
"Apps not optimized" → "All apps" to select apps to change the settings.
Power saving mode
Set power saving mode.
App power monitor Apps that are using the battery in the background are displayed. By putting apps to sleep, you can extend the life of the battery.
• To put apps to sleep, select the check box for the app that you want to put to sleep and tap "SAVE
POWER".
Unmonitored apps Select apps that you do not want to put to sleep to extend your battery life.
Always sleeping apps
Select apps that you want to put to sleep immediately when you are not using them.
Performance mode
You can adjust battery consumption and screen resolution to suit your daily usage.
1
From the Home screen, "apps folder" → "Settings" → "Device maintenances" → "Performance mode"
• Tap "SETTINGS" or "DETAILS" in each item to manually configure performance settings.
Item
Optimized
(recommended)
Game
Description
This is the default setting.
Entertainment
Enhance your gaming experience by making games run more smoothly.
Enjoy music and videos with ultra high quality sound and enhanced images.
High performance Experience the highest quality display settings.
132 Settings
Storage
You can check memory space of the terminal or microSD card or format microSD card.
1
From the Home screen, "apps folder" → "Settings" → "Device maintenances" → "Storage"
• Free space of storage, etc. is displayed. To further increase the free space, tap "CLEAN NOW".
• Tap "SD card" to check the free space of SD card, etc.
■ Set storage
1
From the Home screen, "apps folder" → "Setting" → "Device maintenances" → "Storage" → → "Storage setting"
Item
Internal storage
SD card *
Description
Display total memory space of the terminal.
Display the stored data space of apps, images, etc.
Tap an item to check data.
Display entire memory space of microSD card.
• Tap "Format" to format microSD card.
• Tap "UNMOUNT" to unmount microSD card. After unmount microSD card, tap "SD card" → "MOUNT" to mount micro SD card.
* Appears only when microSD card is attached.
Information
• When USB storage is attached to the terminal, corresponding items appear.
Memory
Check the memory condition.
1
From the Home screen, "apps folder" → "Settings" → "Device maintenances" → "Memory"
• Free space of memory, etc. are displayed. To further increase the free space, tap "CLEAN NOW".
Information
• When several apps are running, battery consumption may increase and usage time may shorten. Therefore, ending unused apps is recommended.
Device security
Protect the terminal.
1
From the Home screen, "apps folder" → "Settings" → "Device maintenance" → "Device security" → "SCAN PHONE"
• Device security status is displayed.
133 Settings
Apps
Set the Apps.
1
From the Home screen, "apps folder" → "Settings" → "Apps"
2
Tap an app
• Set the app follow the onscreen instructions.
Information
• On the app settings screen, tap → "Default apps" to set a default
Home screen app or browser app.
• On the app settings screen, tap to display system apps and set permission of apps.
Disabling apps
Disabled app stops its operation and it is not displayed on the Home screen.
• The app is not uninstalled.
• It is available for some apps or services that cannot be uninstalled.
1
From the Home screen, "apps folder" → "Settings" → "Apps"
2
Tap an app to disable → "DISABLE" → "DISABLE"
Information
• If you disable an app, other apps linking with the disabled app may not be operated correctly. Enable the app again to operate linked apps correctly. To enable again, from the Home screen, "apps folder"
→ "Settings" → "Apps" → "All apps" → "Disabled" → tap an app you want to enable → tap "ENABLE".
Setting the app's permission
When you access a app or function on the terminal for the first time, a confirmation screen will appear requesting you to permit the access privileges.
When you grant access privileges to permit to app or function, it can use applicable function or information.
Example: When viewing the TV for the first time
1
From the Home screen, "apps folder" → "TV"
2
"DENY"/"ALLOW"
Information
• If you do not select "ALLOW", you may be unable to activate the app/ function or the function may be restricted.
• To change the permission setting, from the Home screen, "apps folder" → "Settings" → "Apps" → tap the app whose permission setting you want to change → "Permissions" → tap permission you want to change.
/ of the
134 Settings
Lock screen
1
From the Home screen, "apps folder" → "Settings" → "Lock screen"
2
Select the item and set
Item Description
Screen lock type
Smart Lock
Secure lock settings *
Always On Display
Clock style
Roaming clock
FaceWidget
Contact information
Notifications
Set to unlock the touch screen automatically by a trusted location or terminal that you have set up.
• You have to set the authentication method required to unlock the device in advance.
Set the secure lock function to lock instantly with the power key, lock automatically, etc.
• If "Auto factory reset" is enabled, the terminal will be reset to the factory default settings after 15 incorrect attempts to unlock the terminal.
When the screen is OFF, you can display
the clock, calendar and pictures. → P.43
Select the clock style and color to display on the lockscreen and Always On Display.
Set whether to change to digital clock showing both local and home time zones when roaming.
Select the Widgets to display on the lock screen and Always On Display.
You can display contact information on the lock screen and Always On Display by inputting phone number or email address, etc.
Set the notifications on the lock screen and
Always On Display.
135
Item
App shortcuts
About Lock screen
Description
Select the apps to boot from lock screen.
• If you are using "Galaxy home" on the
Home App, this setting does activate.
Check the version of lock screen and open source licenses.
* Display differs depending on the "Screen lock type".
Setting unlock method for the screen lock
You can set to require entering unlock pattern, PIN or password set in advance on the touch screen etc. for unlocking the screen lock.
1
From the Home screen, "apps folder" → "Settings" → "Lock screen" → "Screen lock type"
2
Select unlock method → Enter according to the onscreen instructions
• Set "PIN" with 4- to 16-digit number; set "PASSWORD" with 4 to 16 characters including alphabets.
• If "Notifications on lock screen" screen appears, follow the onscreen instructions.
Information
• To set the screen lock to OFF, from the Home screen, "apps folder"
→ "Settings" → "Lock screen" → "Screen lock type" → enter the set unlocking method → "None".
• When you incorrectly enter the unlock pattern, PIN, or password 5 times, a message indicating to retry in 30 seconds appears. If you fail
10 times continuously, a message will be displayed to execute again after 30 seconds after every failure.
- If you forget PIN, password, or backup PIN, access from a PC to
Find My Mobile web page and perform "Unlock my screen" to unlock screen. This function can be used when the terminal connected to
Wi-Fi or mobile network and set Galaxy account. For details, refer to
the Find My Mobile web page. → P.143
• If you forget how to unlock the screen without a Galaxy account, you cannot use this terminal until you initialize this terminal. As for our company we can not assume responsibility so please be forewarned.
Settings
Biometrics and security
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security"
2
Select the item and set
Item Description
Intelligent Scan
Face recognition
Iris Scanner
Fingerprint Scanner
Screen transition effect
Google Play Protect
Find My Mobile
Security update
Install unknown apps
Galaxy Pass
Secure Folder
App permission monitor
Secure startup
Set whether to display screen transition effect when you use biometrics to unlock the terminal.
Set Google Play Protect.
You can check the update status of security and security update.
Permit to install the unknown apps.
Keep your private contents safe and secure.
Set whether to receive notifications if the selected permissions are used for apps running in the background.
Set whether to protect the terminal using unlock screen method when the terminal is started up.
• The terminal will be initialized if the method to unlock the terminal is entered incorrectly a certain number of times. Do not forget how to unlock the screen.
• Until this terminal is started up, notifications such as incoming calls, messages, etc. will not be received and the alarm will not sound.
136
Item
Encrypt SD card
Description
Encrypt data saved on a microSD card is set so that it cannot be used on another terminal or a PC. When the microSD card is encrypted, the item name will change to
"Decrypt SD card",
• When the microSD card is encrypted and do "Factory data reset", you can't use the date in the microSD card. Please decrypt by tapping "Decrypt SD card" before doing
"Factory data reset".
Other security settings
Set up SIM card lock
Make passwords visible
Security policy updates
Send security reports
Set whether to display temporarily the entered characters on the password entry screen.
Update security policy and improve the security of the terminal.
Send security report via Wi-Fi to analyze security threat.
Device admin apps
Storage type
Set whether to enable Device administrators.
Show the location for credential storage backup.
Show security certificates.
View security certificates
User certificates Show user certificates.
Install from device storage *1
Install certificates from the system memory
(terminal).
Clear credentials Delete all certificates and passwords such as VPN setting information.
Trust agents *2 Perform selected actions when trusted devices are connected.
Pin windows Set whether to pin certain apps to the terminal screen.
Settings
Other security settings
Item
Usage data access
Notification access
Do not disturb permission
Description
Set the apps whether or not to allow the terminal's usage histories to be read.
Set whether to allow apps to read notifications.
Show the app to have the authority to change settings of "Do not disturb".
*1 To clear installed certificate, tap "Clear credentials" to clear it from credential storage. Operation of "Clear credentials" clears all certificate in the credential storage.
*2 Display differs depending on the "Screen lock type" (P.135).
137
Security codes used on the terminal
Some functions provided for convenient use of the terminal require the security code to use them. Besides a password for screen lock of the terminal, a network security code necessary for the network services etc. are available. Make use of the terminal using an appropriate security code according to the purpose.
• Entered PIN/password for screen lock, network security code, PIN code and PUK code are shown as " ● ".
■ Notes on the security codes
• Avoid using a number that is easy to guess, such as "birth date", "part of your phone number", "street address number or room number", "1111", and
"1234". Make sure to make a note of the security code you set lest you should forget it.
• Be very careful not to let others know your security code. If your security code is known by anyone else, DOCOMO shall have no liability for any loss due to any unauthorized use of it.
• If you forget security codes, you should bring your official identification
(such as driver's license), the terminal, and docomo nano UIM card with you to the nearest docomo Shop. For details, contact the "docomo Information
Center" on the last page of this manual.
• The PUK code is written on the subscription form (copy for customer) handed at the subscription in the docomo Shop. If you have subscribed at other than docomo Shop, you should bring your official identification (such as driver's license), the docomo nano UIM card with you to the nearest docomo Shop or contact "docomo Information Center" on the last page of this manual.
■ PIN/password for screen lock
The security code is used for lock function of the terminal.
■ Network security code
The network security code is a 4-digit number necessary for identification at reception of your request in docomo Shop, docomo
Information Center or " お客様サポート (Customer support)", or using the docomo Network Services. It can be set any number at the subscription and also changed later by yourself.
For details on Network security code, refer to NTT DOCOMO website.
https://www.nttdocomo.co.jp/support/trouble/password/network/ (in
Japanese only)
■ PIN code
You can set security code, named PIN, for the docomo nano UIM card.
This code are set to "0000" at the time of subscription. They can be changed by yourself.
Settings
PIN is a 4- to 8-digit number (code) that must be entered for user confirmation to prevent unauthorized use of docomo nano UIM card by a third party every time you insert the docomo nano UIM card into the terminal or when the terminal is powered on. You can set entering the
PIN code enables making/receiving calls and terminal operations.
• If you use newly purchased the terminal with the docomo nano UIM card you used inserted, use the set PIN code on the former terminal.
• If you enter a incorrect PIN code 3 consecutive times, the PIN code is locked and you cannot use the code. In this case, enter "PIN
Unblocking Key" (PUK) to unlock and then set PIN code again.
Enter PUK (8 digits) → "OK" → enter a new PIN code → "OK" → enter the PIN code again → "OK".
■ PUK code
The PUK code is an 8-digit number for canceling the locked PIN code.
The PUK code cannot be changed by yourself.
• If you enter a incorrect PUK code 10 consecutive times, the docomo nano UIM card is locked. If it locked, please contact a docomo Shop.
■ d ACCOUNT d ACCOUNT is an ID/password to use services provided by DOCOMO such as d POINT, dmarket, etc. with smartphone, tablet, PC, etc.
■ Google account
Google account is an ID/password to use Google services. By setting
Google account to the terminal, you can use Gmail to send Email, use
Google Play to download apps or contents such as games.
Setting PIN code
You can set to require the PIN code entry for using the terminal when the power is turned on.
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Other security settings" → "Set up SIM card lock" → "Lock SIM card" → Enter PIN → "OK"
• Lock SIM card turns on.
Changing PIN code
When "Lock SIM card" (P.138) is set, you can change the PIN code.
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Other security settings" →
"Set up SIM card lock"
2
"Change SIM card PIN" → Enter the current PIN code and a new PIN code according to the onscreen instructions
138
Intelligent Scan
By using both face recognition and iris scanner, authentication function is improved.
For precaution of using each authentication, see Face recognition
(P.139) and Iris scanner (P.140).
Setting intelligent scan
■ Registering face and iris
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security " → "Intelligent Scan"
• When a security unlock preference which requires authentication is selected, proceed to step 3 after authentication operation.
2
"CONTINUE" → Set the unlock screen method →
"CONTINUE"
• For unlocking method of screen lock, see "Setting unlock method for
3
"CONTINUE" → Register your face (P.139)
4
"CONTINUE" → Register your iris (P.140)
5
Follow the onscreen instruction to register intelligent scan
■ Deleting face data and iris data
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security " → "Intelligent Scan"
• Cancel the security to protect intelligent scan.
2
"Remove face and iris data" → "REMOVE"
Operating intelligent scan recognition
1
Directing the face on the screen
• If the authentication failed, perform the authentication operations with the auxiliary security unlock preference registered at face recognition.
Information
• If you do not want to use Intelligent Scan to unlock the terminal, set
"Intelligent Scan unlock" to OFF in the Intelligent Scan authentication screen.
Settings
Face recognition
You can unlock the terminal by recognizing the face.
■ Precautions for using face recognition
• Your device could be unlocked by someone or something that looks like your image.
• Face recognition is less secure than Pattern, PIN, Password or Finger print.
■ Precautions for registering face
• Consider the conditions when registering, such as wearing glasses, hats, masks, beards, or heavy makeup.
• Ensure that you are in a well-lit area and that the camera lens is clean when registering.
• Ensure your image is not blurry for better match results.
Setting face recognition
■ Registering the face
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Face recognition"
• When a security unlock preference which requires authentication is selected, proceed to step 3 after authentication operation.
2
"CONTINUE" → Set the unlock screen method
• For unlocking method of screen lock, see "Setting unlock method for
3
"CONTINUE" → Follow the onscreen instruction to register face
■ Removing face data
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Face recognition"
• Cancel the security to protect face recognition.
2
"Remove face data" → "REMOVE"
Operating face recognition
1
Directing the face on the screen
• If the authentication failed, perform the authentication operations with the auxiliary security unlock preference registered at face recognition.
Information
• If you do not want to use Face recognition to unlock the terminal, set
"Face recognition unlock" to OFF in the face authentication screen.
139 Settings
Iris Scanner
The terminal has an iris authentication function to authenticate the iris information that is registered for the owner of the terminal.
■ Precautions when using a camera for iris authentication and LED
Precautions when using a camera for iris authentication and LED are as follows.
• To protect your eyes, keep the screen at least 20 cm away from your face when using iris recognition.
• Do not attach unofficial screen protectors (privacy protection films, tempered glass protectors, etc.) to your device. The iris recognition
LED may not turn off even when you are very close to it.
• Do not use iris recognition with infants. May cause eyesight damage.
• Anyone who experiences dizziness, seizures, loss of awareness, blackouts, or other symptoms linked to an epileptic condition, or a family history of such symptoms or conditions, should see a doctor before using iris recognition.
• The iris scanner is not intended for use as a medical device; biometric data collected and stored locally by the iris scanner is not intended for any diagnostic, therapeutic, or preventative medical purposes.
■ Precautions for registering iris
Precautions for registering iris are as follows.
• Register iris information inside or at a place where there is no direct sunlight.
• Remove glasses or contact lenses before registering your irises.
■ Precautions for using iris authentication
Precautions for using iris authentication are as follows.
In the following cases, the phone may not recognize your irises.
• Something prevents the camera from getting a good view of your irises (e.g. glasses, glare, low eyelids, recent eye surgery, or a medical condition).
• Something gets in the way of the camera or the LED (e.g. a screen protector, dirt, damage to the camera).
• The lighting is very different from when you recorded your irises (e.g., too bright room).
• The phone is tilted too much or is moving.
Setting iris scanner
■ Registering iris
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Iris Scanner"
• When a security unlock preference which requires authentication is selected, proceed to step 3 after authentication operation.
2
"CONTINUE" → Set the unlock screen method
• For unlocking method of screen lock, see "Setting unlock method for
3
"CONTINUE" → Follow the onscreen instruction to register iris
■ Set the iris scanner
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Iris Scanner"
• Cancel the security to protect iris.
2
Set each item.
■ Removing iris information
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Iris Scanner"
• Cancel the security to protect iris.
2
"Remove iris data" → "REMOVE"
Operating iris authentication
1
On the lock screen, perform the operation of iris authentication
• If the authentication failed, perform the authentication operations with the auxiliary security unlock preference registered at iris registration.
Information
• If you do not want to use Iris Scanner to unlock the terminal, set "Iris unlock" to OFF in the iris authentication screen.
140 Settings
Fingerprints
Fingerprint authentication is an authentication sliding your finger over the fingerprint sensor.
■ Precautions for using fingerprint authentication
• This function is designed to authenticate using the characteristics information of fingerprint image. For this reason, user with fingerprint that does not provide enough characteristics information may not be able to use the fingerprint authentication.
• Scanning several times with the same finger is needed to register your fingerprint. Do not use different fingers to register.
• Authentication performance (the probability of successful fingerprint authentication for correctly holding down your finger) depends on usage conditions. Fingerprint registration may be difficult or the authentication performance may decrease depending on conditions such as the hand is dry. Taking measures according to the condition of your finger including washing hands, wiping hands, using a different finger for fingerprint authentication, etc. may improve the authentication performance.
• When registering or authenticating your fingerprint, align the first joint of one of your fingers to the center of the sensor, hold your finger and slide it repeatedly underneath. To prevent authentication failure due to difference in finger positions at registration and authentication, keep your finger parallel to the terminal as you place it.
• If you bend your finger or touching the fingerprint sensor with fingertip, recognition may not be performed normally.
• If you hold down your finger too lightly or take it away too quickly, your fingerprint may not be recognized correctly. Try as much as possible to place your finger so that the center of the whorl of the fingerprint comes to the center of the fingerprint sensor.
• Do not touch the fingerprint sensor before the lock screen appears by pressing [Power/Screen lock key]/pressing [Home button] harder.
The fingerprint sensor may fail to work.
• If fingerprint registration or authentication is started with the finger put on the fingerprint sensor, activation may fail. Put the finger off from the fingerprint sensor and retry the operation.
• Fingerprint authentication technology does not guarantee complete identity authentication or verification. The likelihood of the fingerprint sensor confusing two different fingerprints is very low. However, in rare cases where separate fingerprints are very similar the sensor may recognize them as identical. Note that DOCOMO assumes no responsibility for any damage caused by use of the terminal or unavailability of the terminal.
141
■ Usage precautions for fingerprint sensor
• Malfunction may occur if dirt adheres to the surface of the fingerprint sensor or your finger. Wipe any dirt with a soft cloth before use. Also wrinkled finger with water may cause malfunction.
• Do not strike the terminal or give a hard shock. May cause failure or damage. Do not scratch the surface of the fingerprint sensor or pick with a pointed objected, such as a nib.
• Rubbing hard with a fingernail or hard object such as metal piece of strap may scratch the surface of the fingerprint sensor.
• Dirt with mud etc. or scratch on the surface of the fingerprint sensor may cause failure or damage.
• Do not attach a sticker or paint with ink etc. on the fingerprint sensor.
• Dirt of dust, sebum, etc. may make fingerprint scanning difficult or reduce the authentication performance. Clean the surface of the fingerprint sensor from time to time.
• When fingerprint registration or authentication fails often, clean the surface of the fingerprint sensor. The phenomenon may be improved.
• To clean the fingerprint sensor, wipe its surface with a dry, soft and static-free cloth. Long-period use may cause the fingerprint sensor to get dusty, but do not try to remove the dust with a pointed object even in such a case.
• Static electricity may cause malfunction. Before placing the finger on the fingerprint sensor, eliminate static electricity by touching a metal object with the hand etc. Take particular care in dry seasons such as winter.
Setting fingerprint authentication
Register fingerprints or set function to use. You can register up to four fingerprints.
■ Registering fingerprint
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Fingerprint Scanner"
• When a security unlock preference which requires authentication is selected, proceed to step 3 after authentication operation.
2
"CONTINUE" → Set the unlock screen method
• For unlocking method of screen lock, see "Setting unlock method for
3
After this step, follow the onscreen instructions to register fingerprint
Settings
■ Removing fingerprint
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Fingerprint Scanner"
• Cancel the security to protect fingerprint.
2
Touch and hold the fingerprint to unregister → "REMOVE" →
"REMOVE"
Authenticating fingerprint
1
When the fingerprint authentication screen appears, place your finger all over the fingerprint sensor to cover it
• If authentication failed, put off your finger from the fingerprint sensor then retry authentication.
Information
• If you do not want to use fingerprints to unlock the terminal, set
"Fingerprint unlock" to OFF in the fingerprint authentication screen.
• When the security is not registered correctly, tap to cancel the screen lock using the method of unlock when you registered the fingerprint.
• If fingerprint authentication fails five times in a row, a message will be displayed to input again after 30 seconds.
Galaxy Pass
You can sign in to the website or app, etc. easily using Galaxy Pass
with biometrics authentication such as face authentication (P.139),
iris scanner (P.140) and fingerprint authentication (P.141).
• Sign in Galaxy account to use Galaxy Pass.
• The website sign-in feature is only available for websites that you access
via some app such as the "Internet" app (P.91). Some websites may
not support this feature.
142
Setting Galaxy Pass
■ Registering each Biometric to Galaxy Pass
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Face Recognition"/"Iris
Scanner"/"Fingerprint Scanner"
• Cancel the security to protect each Biometric.
2
"Galaxy Pass"
3
After this step, follow the onscreen instructions to register fingerprint
• Galaxy Pass Icon is displayed on the Home screen.
■ Setting Galaxy Pass
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Galaxy Pass"
• Cancel the security to protect each Biometric.
2
Set each item.
■ Deleting the data of Galaxy Pass
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Galaxy Pass"
• Cancel the security to protect each Biometric.
2
→ "Settings" → "Delete data" → "DELETE"
3
Input the password of Galaxy account → "CONFIRM" → "OK"
Using Galaxy Pass
■ Using Galaxy Pass to sign in to Website
1
Open a website that you want to sign in to on the "Internet"
2
Enter your user name and password, and then tap the website's sign in
3
Mark the mark on the "Save sign-in information?" screen and tap "REMEMBER"
• Save sign-in information in Galaxy Pass. You can sign in using
Galaxy Pass from next time.
Settings
■ Using Galaxy Pass to sign in to App
1
Launch the app you want to sign in
2
Enter your user name and password, and then sign in
3
When a dialog asking whether to save the sign-in information is displayed, "Save"
• Save sign-in information in Galaxy Pass. You can sign in using
Galaxy Pass from next time.
■ Using Galaxy Pass to sign in to your Galaxy account
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Galaxy Pass"
• Cancel the security to protect each Biometric.
2
→ "Settings" → "Galaxy account"
3
"Use with Galaxy Pass"
• You can sign in Galaxy account using Galaxy Pass.
Information
• Tap account information on the Galaxy Pass screen to confirm, edit, delete saved sign in information.
Find My Mobile details
Track and manage the device remotely.
• To use Find My Mobile, you need to set a Galaxy Account.
1
From the Home screen, "apps folder" → "Settings" →
"Biometrics and security" → "Find My Mobile"
2
"Add account"
• Follow the onscreen instructions.
• Sign in if you have already had a Galaxy account. → P.144
• Since "Remote controls" automatically turns ON if Galaxy accounts is registered,
3
Open Find My Mobile (Device Remote tracking) web page from a PC
• For details on Find My Mobile, refer to the following website. https://findmymobile.samsung.com/ (in Japanese only)
4
After signing in by the Galaxy account, follow the onscreen instruction to make settings
143
Cloud and accounts
1
From the Home screen, "apps folder" → "Settings" → "Cloud and Accounts"
2
Select the item and set
Item Description
Galaxy Cloud
Accounts
Set synchronization of contacts, the data of calendar, browser, and gallery, etc., using Galaxy cloud and backing and restoring.
• To use Galaxy cloud, you need to sign in Galaxy account.
Backup and restore
Smart Switch Transfer images, contacts and messages, etc. from the terminal which you used before.
Accounts
1
From the Home screen, "apps folder" → "Settings" → "Cloud and Accounts" → "Accounts"
Item docomo
Add account
Auto sync data
Description
Your docomo account is set by default.
Set whether to sync account data automatically.
Information
• You can use Google service such as Gmail and Google Play by setting Google account on "Add account".
Settings
Setting account
1
From the Home screen, "apps folder" → "Settings" → "Cloud and Accounts " → "Accounts" → "Add Account"
2
Tap an account type you want to add
3
Follow the onscreen instructions
Information
• To edit a registered account, delete the account and register again.
• To change synchronizing items, from the Home screen, "apps folder"
→ "Settings" → "Cloud and accounts" → "Accounts" → tap an account to change → "Sync account" → set only items to synchronize to on.
Item names and procedures may vary depending on the account.
• To synchronize manually, from the Home screen, "apps folder" →
"Settings" → "Cloud and accounts" → "Accounts" → tap an account to synchronize "Sync account" → → "Sync now". Item names and procedures may vary depending on the account.
Galaxy account
If the Galaxy account is set, use Find My Mobile or a part of Galaxy Apps function, and the data between the terminal and the Galaxy account can be synchronized.
1
From the Home screen, "apps folder" → "Settings" → "Cloud and Accounts" → "Accounts"
2
"Add account" → "Galaxy account"
• Follow the onscreen instructions.
Information
• Make sure to note down, etc., the password you set when registering a Galaxy account not to forget it. If you forget your Galaxy account password, Tap "Forgot your ID or password?", follow the onscreen instructions.
Removing account
When registered account is deleted, the account data saved to the terminal (messages, contacts, settings, etc.) are also deleted.
• The data stored on the server is not deleted.
1
From the Home screen, "apps folder" → "Settings" → "Cloud and Accounts" → "Accounts"
2
Tap an account to delete → "REMOVE ACCOUNT"
• If input password screen appears, input password.
• The procedure may differ depending on the accounts.
3
"REMOVE ACCOUNT"
Information
• Some accounts may not be deleted. To delete the account, perform
Launch Smart Switch connecting Wi-Fi Direct
By connecting to Wi-Fi Direct, you can migrate data wirelessly.
For example, migrating data from an older terminal
1
Start Smart Switch on the previous terminal
• If the app isn't installed, download it from Play Store or Galaxy Apps.
2
From the Home screen of the terminal, "apps folder" →
"Settings" → "Cloud and Account" → "Smart Switch"
3
The terminal and the other device closer
4
On the previous device, "WIRELESS" → "SEND" →
"CONNECT"
• The display or operation steps may differ depending on the terminal.
5
On the device, "WIRELESS" → "RECEIVE"
• Follow the onscreen instructions.
144 Settings
Backup and restore
1
From the Home screen, "apps folder" → "Settings" → "Cloud and accounts" → "Backup and restore"
Item
Back up data
Restore data
Back up my data
Description
Use your Galaxy account to back up the data.
Use your Galaxy account to restore your backup data.
Back up the settings, data, etc. of Google app to
Google server.
Backup account
Google Account *
Set an account for backup.
Set each app's backup related to Google account.
Automatic restore Restore backed up settings and data when reinstalling app.
External storage transfer
You can backup the data to microSD card or USB storage or restore backup data using Smart Switch.
* Appears only when "Back up my data" is ON.
145
docomo service/cloud
1
From the Home screen, "apps folder" → "Settings" →
"docomo service/cloud"
2
Select the item and set
Item Description d ACCOUNT setting docomo cloud docomo
Application Data
Backup
Set d ACCOUNT for using in docomo apps. Also, you can set d ACCOUNT certification using biological information (iris, finger print) registered the terminal.
Make settings for docomo cloud compatible services.
Set back up of the docomo's apps.
Set regularly update checking, etc.
docomo apps management
Osusume Apps
Osusume hint
AUTO-GPS docomo location information
Send app information
Member/profile settings docomo service initial settings
Switch USB debugging
Open source licenses
Set Osusume Apps and check received notifications.
Set Osusume hint to use.
Set AUTO-GPS or display log of positioned places.
Set location information service function for imadoco search/imadoco kantan search/Keitai-Osagashi service.
Make settings for sending app information to the server managed by docomo.
Check or change your member information and profile information used for docomo services.
Configure the service settings, etc. all at once in order to use the terminal.
Make settings for using dedicated devices such as those for docomo shops.
Shows Open source license.
Settings
Information
• Some apps displayed in docomo services can be disabled. Disabled apps may not appear in the list of docomo services.
• By newly downloading an app provided by DOCOMO, an item may be added to the docomo service list.
Confirm/change/delete settings and information about Google account and Google services.
• For details on Google settings, tap to check the help on the Google settings screen.
1
From the Home screen, "apps folder" → "Settings" →
"Google"
2
Select the item and set
Information
• To use a Bluetooth device to voice search, in step 2, tap "Search" →
"Voice" → "Bluetooth headset".
146 Settings
Accessibility
1
From the Home screen, "apps folder" → "Settings" →
"Accessibility"
2
Select the item and set
Item Description
Vision Voice Assistant Enable user accessibility such as service with which sound or vibration responds to your operations and text-reading service.
Voice Assistant help Provides touch operation practice and tutorials.
• You can use it when set "Voice
Assistant" is ON.
Dark screen Set to turn off the screen all the time to protect privacy.
• You can use it when set "Voice
Assistant" is ON.
• Press [Power/Screen lock key] twice to enable or disable this function.
Rapid key input
Voice Label
Set to input selected text by releasing the finger.
• You can use it when set "Voice
Assistant" is ON.
Write voice recordings to NFC tags to provide information about nearby objects.
Font and screen zoom
High contrast fonts
Change the font size, font style and zoom,
Adjust the color and outline of fonts.
High contrast keyboard
Adjust the size of Galaxy Japanese keyboard and change the color of it.
Show button shapes Show buttons with border line.
147
Vision
Hearing
Item
Magnifier window
Magnification
Large mouse/ touchpad pointer
Remove animations
Negative colors
Color adjustment
Color lens
Sound detectors
Flash notification
Description
Magnify content shown on the screen.
Set how to magnify screen.
Increase the size of mouse pointer and touchpad pointer.
If you are concerned about animation or screen movement, you can delete specific screen effects.
Invert screen color.
Test color sense to adjust the screen display in most suitable colors.
If the character is difficult to read, you can adjust the color of the screen.
Set to notify with vibration when detecting baby crying or doorbell.
Set whether to notify information or alarm by flashing the light.
Mute all sounds Turn OFF all sound including
Ringtone, Notifications, Media.
Galaxy subtitles (CC) Set and check how to display
Google subtitles subtitles.
(CC)
Left/right sound balance
Mono audio
Set sound balance when listening music using earphone.
Change audio to monaural for easy listening with monaural earphone.
Settings
Dexterity and interaction
Item
Universal switch
Assistant menu
Description
Control the terminal with customized switches.
Turn on functions to improve the terminal accessibility for users with reduced dexterity.
Direction lock
Direct access
Easy screen turn on Set whether to turn ON the screen simply by holding your hand over the terminal placed upward.
Touch and hold delay Set time for sensing touching and holding the touch panel.
Click after pointer stops
Set whether to performs click automatically where the mouse cursor is stopped.
Interaction control Set to touch operation blocking range.
• To set operations when the function is enabled, press and hold [Power/Screen lock key] and Volume UP key simultaneously, then operate following onscreen instructions.
• Enable the function automatically
disables "Auto rotate" (P.37).
Text-to-speech Set sound synthesizing engine for text reading or text reading speed.
Unlock the screen by swiping in a series of directions. To cancel the setting, on the direction lock screen, tap "ON" and follow the onscreen instructions.
Set to activate/cancel user accessibility function by pressing
[Power/Screen lock key] and
Volume UP key simultaneously.
Item
Accessibility shortcut
Notification reminder
Answering and ending calls
Single tap mode
Accessibility settings backup
Osusume hint
Description
Set whether to use the set shortcut service when you press Volume
UP key and Volume DOWN key simultaneously for three second.
Set whether to beep and the alert, reminder interval and apps that show notifications when there is unread notification of apps.
You can add incoming answering the phone method of operation, or set it so that you can hang up by pressing [Power/Screen lock key].
• If sleep mode turns on during a call when "Press Power key to end calls" is turned on, press [Power/
Screen lock key] to turn off sleep mode and then press [Power/
Screen lock key] to end the call.
Set whether to operate answering/ rejecting a call, stopping/snoozing an alarm, etc. by taping once instead of swiping.
Import/Export: Save (export) accessibility settings as a file or update them by importing saved file.
Share: Share accessibility settings file using online services, send it via
Bluetooth or attaching to mail, etc.
To display how to use the terminal according with the operation or usage.
148 Settings
Information
• Note that if you permit use of "Voice Assistant", personal information such as credit card number and communication using the user interface are recorded. Note that DOCOMO is not responsible for data or information leak.
• If "Voice Assistant" is allowed to be used, the touch guide function will be enabled. Touch guide is a function for reading up or displaying an explanation for an item of your finger position. When the touch guide function is ON, tap once to select item and then double-tap it for item selection and scroll with 2 fingers for operation.
• Voice Assistant may not work properly when docomo LIVE UX is set as Home screen App.
149
General management
1
From the Home screen, "apps folder" → "Settings" →
"General management"
2
Select the item and set
Item Description
Language and input
Date and time
Contact us
You can use Galaxy Members.
Set whether to send diagnostic report.
Report diagnostic information
Marketing information
Reset
Set whether to receive marketing information.
Language and input
1
From the Home screen, "apps folder" → "Settings" →
"General management" → "Language and input"
Item Description
Language
Default keyboard
Set language to use.
Set the keyboard that use for default.
On-screen keyboard
Set Galaxy keyboard/Moji-Henshu/Google voice typing.
Physical keyboard Set up for using external keyboard.
Show Keyboard button
Autofill service
Set whether to display the keyboard button on the navigation bar.
With your permission, you can enter user name or password automatically when apps ask for them.
Settings
Item
Text-to-speech
Pointer speed
Description
Set sound synthesizing engine for text reading or text reading speed.
Set a pointer speed when using mouse/trackpad.
Date and time
1
From the Home screen, "apps folder" → "Settings" →
"General management" → "Date and time"
Item
Automatic date and time
Set date *
Set time *
Select time zone
Use 24-hour format
Description
Adjust date and time automatically according to online settings. By default, they are set to be corrected automatically.
Set the date.
• To set date manually, turn "Automatic date and time" OFF and make the setting.
Set the time.
• To set time manually, turn "Automatic date and time" OFF and make the setting.
Set time zone.
• To set time zone manually, turn "Automatic time zone" OFF and make the setting.
Switch clock to 24-hour format.
* Date and time information may be adjusted automatically.
Reset
1
From the Home screen, "apps folder" → "Settings" → "General management" → "Reset"
Item
Reset settings
Description
Reset the terminal to the default state except for settings of individual data, download app setting, security, language and accounts.
150
Item
Reset network settings
Factory data reset
Auto restart
Description
Reset the network settings such as Wi-Fi, mobile data and Bluetooth.
Reset the terminal to the default state.
• Please note that some apps preinstalled at the time of purchase are uninstalled.
Set whether to restart the terminal automatically at set day of the week and time.
• The terminal is optimized by restarting. Any unsaved data will be lost when the device restarts.
Settings
Software update
1
From the Home screen, "apps folder" → "Settings" →
"Software update"
2
Select the item and set
Item Description
Download updates manually
Download updates automatically
Scheduled software updates
Last update information
Set reservation time of software update.
Display software update information.
About phone
1
From the Home screen, "apps folder" →"Settings" → "About phone"
2
Select the item and set
Item Description
EDIT You can edit the name is displayed on Bluetooth or
Wi-Fi Direct, etc.
My Phone number Display your phone number.
Model number Display model number.
Serial number
IMEI
Status
Display your phone number.
Display IMEI.
Displays the SIM card status and IMEI information, etc.
Legal information Check open source licenses, Google legal, etc.
Regulatory information
Display regulatory information of the terminal.
Check Android version, etc.
Software information
Battery information
Check the battery status, etc.
151 Settings
File management
Storage folder structure
Phone (Internal storage)
Main created folders in the phone (/storage/emulated/0) by default are as follows.
• Depending on operations on the terminal, displayed folders may differ.
Item
Alarms
Android
DCIM
Download
Movies
Music
Notifications
Pictures
Podcasts
Ringtones
Samsung
Description
Save music data, etc. to be set as alarm sound.
Save setting data or temporary files, etc. for the system or apps.
Save still image/video data shot by the camera and image data of displayed screen (screen capture) (when the saving location is set to the terminal).
Save data downloaded by the browser.
Save video data.
Save music data.
Save music data, etc. to be set as notification sound.
Save image data, etc.
Save podcast data.
Save music data, etc. to be set as ringtone.
Save data obtained from Galaxy related site.
microSD card (external storage)
You can insert a microSD card into the terminal.
• For details about what microSD cards you can use with the terminal,
refer to "microSD card" (P.29).
• For details about attaching/removing microSD card, refer to "Attaching
microSD card" (P.30) and "Removing microSD card" (P.31).
152
File operation
Handling files and folders
Use "My Files" to display, etc. or manage various data such as still images, videos, music or document saved on the terminal, or microSD card.
• Depending on the folders, there are some operations which cannot be operated such as changing name and deleting folders, etc.
1
From the Home screen, "apps folder" → "My Files"
2
Tap a category/item of the terminal → Tap a folder as required
• When you touch and hold a folder/file to mark, the items such as menu appear. Follow the onscreen instructions.
3
Tap a file you want to use
• Display/play the file.
Creating shortcuts
1
From the Home screen, "apps folder" → "My Files"
2
Tap a category/item of the terminal
3
Touch and hold a folder/file you want to create a shortcut →
→ "Add shortcut" → "My Files"/"Home screen"
Removing shortcuts on the main screen of My Files
1
From the Home screen, "apps folder" → "My Files"
2
→ "Manage shortcuts" → Tap the shortcut you want to delete → "REMOVE"
Creating a folder
1
From the Home screen, "apps folder" → "My Files"
2
Tap an item of the terminal → Tap a folder as required
3
→ "Create folder" → Enter name of the folder → "CREATE"
File management
Renaming a file or folder
1
From the Home screen, "apps folder" → "My Files"
2
Tap a category/item of the terminal → Tap a folder as required
3
Touch and hold a folder/file you want to rename → →
"Rename" → Enter name → "RENAME"
Deleting a file or folder
1
From the Home screen, "apps folder" → "My Files"
2
Tap a category/item of the terminal → Tap a folder as required
3
Touch and hold a folder/file you want to delete → "DELETE"
→ "DELETE"
Moving/Copying a file or folder
1
From the Home screen, "apps folder" → "My Files"
2
Tap a category/item of the terminal → Tap a folder as required
3
Touch and hold a folder/file you want to move/copy → →
"Move"/"Copy"
4
Select a folder to move to/copy to → "DONE"
Menu of My files
The items appear when tapping on the main screen, folder/file list screen of My Files. Follow the onscreen instructions.
Data search
1
On the main screen, folder/file list screen of My Files,
2
Enter a file name or extension
• Searched files are displayed in a list.
• Search the file from the file type.
153
Information
• Tap → "Get more space" on the My File's screen and confirm the status of memory usage.
File management
Data communication
Bluetooth communication
You can transfer data between the terminal and Bluetooth device wirelessly.
• For Bluetooth compatible version or profile, see "Main specifications"
• For setting or operations, refer to the user manual of Bluetooth device to connect.
• Wireless connections are not guaranteed between the terminal and for all Bluetooth devices.
■ Notes on using Bluetooth function
1. Connect the terminal to the other Bluetooth device within approximately 10 m of vistaed distance. Depending on the environment (wall, furniture, etc.) or structure of building, available distance for connecting becomes short.
2. Keep more than approximately 2 m away from the other device
(electronic products, AV equipment, OA equipment etc.) and connect it. Always keep more than approximately 3 m away from a microwave oven because it strongly affects the connection when it is operated.
If it is near, the connection may not be established properly when the other device power on. Or the connection may cause noises on TV or radio or the image may be distorted.
3. Under strong ambient signals, connection may not be established.
4. Radio waves emitted by a Bluetooth device may affect electronic medical equipment. Turn off the terminal and other Bluetooth devices in a train, aircraft or hospital, near an automatic door or fire alarm, and at a place where flammable gases are generated such as a gas station.
■ Reception interference caused by wireless LAN devices
The terminal's Bluetooth function and wireless LAN devices use the same frequency band (2.4 GHz). If you use the terminal near a wireless
LAN device, reception interference may occur or the communications speed may lower. Also, you may hear noise or have a connection problem. In these cases, do the following:
1. Keep the Bluetooth device over approximately 20 m away from a wireless LAN device.
2. Within approximately 20 m, turn off either the Bluetooth device or the wireless LAN device.
154
■ Bluetooth pass code
Pass code is an authentication code to enter when accessing Bluetooth devices for the first time to recognize and permit them to connect with each other. Entering the same pass code (up to 16 half-width alphanumeric characters) on each sending/receiving device is required.
Entering may be required depending on the Bluetooth device.
• On the terminal, pass code may be displayed as "PIN", "passkey".
Enabling Bluetooth function and making your terminal detectable
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "Bluetooth"
2
Information
• When you do not use Bluetooth function, turn it OFF to save the battery.
• The setting of the Bluetooth ON/OFF is not changed even when the power is turned off.
Pairing/Connecting with Bluetooth device
To transfer data between your terminal and other Bluetooth device, perform paring with the device and register it to the terminal beforehand. And then perform connection.
• Depending on Bluetooth device, only pairing may be performed or pairing and connection may be performed successively.
• When pairing, entering the passcode (PIN) may be required depending on
Bluetooth device.
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "Bluetooth"
2
• Detected Bluetooth devices are displayed by list.
• If no Bluetooth devices are displayed, tap "SCAN" to re-search.
3
Tap a device you want to connect
4
Confirm a passkey → "OK"
Data communication
When the other device requests for pairing
When pairing request for Bluetooth communication screen appears, tap
"OK" as required.
Canceling connection
On the Bluetooth device list, tap a connected device.
Canceling pairing
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "Bluetooth"
2
Tap of a device you want to cancel pairing → "Unpair"
Sending/Receiving data via Bluetooth
• Set the Bluetooth function to ON beforehand to be detectable.
Sending data via Bluetooth
You can send contacts (contact data in vcf format) or files such as still images or videos, etc., to a device (PC, etc.) compatible with Bluetooth.
• For sending, perform the operation from the menu such as "Share", "Send", etc., of each app.
Receiving data via Bluetooth
1
If "File transfer" screen appears, tap "ACCEPT"
• appears on the status bar and data reception starts.
• Reception status can be checked by the Notification panel.
• After completion of the reception, display Notification panel and tap
"File received" to display the list of received data. Tap data you want to view/play, you can check received data.
NFC communication
NFC is an abbreviation of Near Field Communication that is an international standard proximity wireless communication method specified by ISO
(International Organization for Standardization). By using reader/writer function (R/W) or device communication function (P2P), put the terminal close to NFC tag to receive data, send/receive data to/from other device with NFC module installed, etc.
• For holding over the other device, see "Notes on holding over the device"
Enabling NFC Reader/Writer, P2P function
To send/receive data between the terminal and an NFC equipped mobile phone etc., turn Reader/Writer, P2P function ON.
• When "Android Beam" is set to ON, you can send/receive contents such as web pages or contacts to/from the other device with P2P function installed.
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "NFC/Osaifu-Keitai settings" → "Reader/
Writer, P2P"
2
• To use Android Beam, tap "Android Beam" → on "NFC/Osaifu-
Keitai settings" screen.
Sending/Receiving data
1
Display a content to send on the terminal/recipient device
2
Put marks of the terminal and the recipient device closer
3
Tap a screen on the terminal/perform sending operation on the recipient device
• The content is sent/received.
• If the app selection screen appears, select an app to use.
155 Data communication
Information
• If you perform sending operations from the terminal and the other device at the same time, sending may fail.
• While the screen is locked, NFC tag information cannot be sent/ received.
• When NFC/Osaifu-Keitai Lock is set, Android Beam cannot be used.
• For some apps, Android Beam is unavailable.
• Actual communications are not guaranteed for all devices equipped with Reader/Writer, P2P function.
156 Data communication
External device connection
Connecting to a PC
Connecting with USB cable A to C
When you connect this terminal with PC via a USB cable A to C 01 (sold separately), you can synchronize data with Galaxy Smart Switch PC
(P.158) or recognize this terminal as a media device.
• The connectable OS are Windows 7, Windows 8.1 and Windows 10, Mac
OS X 10.5 or late.
1
Insert Type-C plug of USB cable A to C into USB Type-C connection terminal of this terminal to connect this terminal to a PC
• Insert the USB plug and Type-C plug horizontally.
Type-C plug
USB cable A to C
To a PC
USB plug
2
Open the Notification panel → "USB for file transfer"
• "Use USB to" screen is displayed on the terminal.
Item
Transfer files
Transfer images
Description
The terminal is recognized as a media device (MTP) and you can transfer media files such as music or videos, etc.
You can transfer still images and videos captured by the terminal to the PC.
• Use for transferring data to a PC, etc. that is not compatible to MTP.
Use the terminal for MIDI player or MIDI input.
Connect a MIDI device
Charge this phone
Charge connected device
Only charging is performed.
Charge a connected device.
• Depending on the device to be connected, power supply may not be possible.
Information
• Connect the USB plug of USB cable A to C directly to the USB connector of a PC. If you connect it via USB HUB or USB extension cable, it may not work properly.
• Do not remove USB cable A to C while data is transferring. Data may be damaged.
157 External device connection
Using Galaxy Smart Switch
Using Galaxy Smart Switch to manage media files such as music/video and personal information and update the software of the terminal.
You can only forward content that you own or have the rights to.
Samsung Electronics Co., Ltd. takes no responsibility for any infringements on the Copyright Law.
• You can download Galaxy Smart Switch PC from Galaxy Smart Switch homepage and install it into your computer. For the terms of use or more information, see Galaxy Smart Switch homepage. https://www.galaxymobile.jp/apps/smart-switch/ (In Japanese only)
Information
• For connecting method using sample for data transfer, see " データ移
行用試供品取扱説明書 (sample for data transfer Instruction manual)".
Launching Smart Switch connecting PC
1
Connect this terminal to PC via USB cable A to C (P.157)
2
Start up "Smart Switch" on a PC
• Follow the onscreen instructions.
Information
• Do not remove USB cable A to C while data is transferring. Data may be damaged.
• Check the battery capacity before data transfer.
Connecting to printer
You can print on a compatible printer via Wi-Fi or USB connection.
• When using the Wi-Fi functions, the terminal and printer need to be connected to the same Wi-Fi network or connected via Wi-Fi Direct.
Configure the Wi-Fi and printer side settings in advance.
• For compatible connection cables when using USB connection, refer to the instruction manual of the printer.
• The printer plug-in needs to be installed in advance in order to connect the printer which is going to be used. To install the plug-in, from the
Home screen, "apps folder" → "Settings" → "Connections" → "More connection settings" → "Printing" → "Add service" and following onscreen instructions.
Printing with printer
1
On a screen of app that printing is available, → "Share" →
"Print"
• Follow the onscreen instructions.
• The method of printing is depending on the app.
158 External device connection
Smart View
Connect the terminal and Wi-Fi Miracast compatible devices via
Wi-Fi and display the screen and the contents of the terminal on
TV or display.
1
Open the Notification panel
2
3
Tap Wi-Fi Miracast compatible devices that detected
• To disconnect to Wi-Fi Miracast compatible devices, tap the device connected → tap "Disconnect"
Information
• The image degradation may occur on the image transmission using
Wi-Fi Miracast due to transcode and send.
159 External device connection
International roaming
Overview of international roaming (WORLD
WING)
The international roaming (WORLD WING) is a service that allows you to use the same phone number and Email address as ones used in
Japan within the service area of overseas network operator that is associated with DOCOMO. You can use without changing of call and
SMS settings.
For details of international roaming (WORLD WING), refer to NTT
DOCOMO website.
https://www.nttdocomo.co.jp/service/world/roaming/ (In Japanese only)
■ Supported network
You can use the terminal in LTE network, 3G network and GSM/GPRS network service area. Services are also available in countries and areas supporting 3G850MHz/GSM850MHz.
Information
• For country codes/international call access codes/universal number international prefix, supported countries/areas and network operators, refer to NTT DOCOMO website.
Available overseas services
( ○ : Available)
Main
Communication service
Call
SMS
Packet communication *
LTE
○
○
○
3G
○
○
○
3G850
○
○
○
GSM(GPRS)
○
○
○
* To use data communication when roaming, turn ON the data roaming
Information
• Some services are not available depending on the overseas network operator or network.
• Connected network operators can be checked on the Notification
160 International roaming
Before using the terminal overseas
Checking before leaving Japan
Check the following for using terminal overseas before leaving Japan.
■ Subscription
• Confirm your app status of WORLD WING. For details, contact
"docomo Information Center" on the last page of this manual.
■ Charging
• Refer to docomo's website.
■ Usage fee
• Overseas usage charge (call and packet communication) differs from those in Japan. For details, see NTT DOCOMO website.
• As some apps automatically perform packet communications, the packet communication charge may become expensive. For each app, confirm with your app provider by yourselves.
Preset
■ Network service
If you subscribed to network services, Voice mail service, Call forwarding service and Caller ID request service, etc. are available from overseas.
However, some network services may not be used.
• To use network services overseas, you need to activate "Remote operation". Alternatively, you can set "Remote operation (paid)"
overseas. Setting in Japan (P.74), Setting overseas (P.164).
• Depending on overseas network operators to connect, network services may not be used even if it can be activate/deactivate.
Checking in the country you stay
When you arrive overseas and turn on the terminal, an available network is automatically connected.
■ Connection
The optimum network will be selected automatically if "Select automatically" is selected in "Network operators".
161
Settings for overseas use
■ Setting data roaming
To perform packet communications overseas, the data roaming setting must be turned ON.
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Mobile networks"
2
"Data roaming" → Confirm notes screen and tap "OK"
■ Setting a network operator
By default, the terminal automatically searches available network and connect to it. To switch network manually, set as follows.
1
From the Home screen, "apps folder" → "Settings" →
"Connections" → "Mobile networks" → "Network operators"
→ "Search networks"
• Available networks are displayed.
• When an confirmation screen appears, tap "OK".
• Error occurs in network search, turn "Mobile data" OFF and retry
2
Select the network of overseas network operator
Information
• If you tap "Select automatically" in Step 1, the network that can be used will be detected and automatically selected.
■ Setting network mode
1
From the Home screen, "apps folder"→ "Settings" →
"Connections" → "Mobile networks" → "Network mode"
2
"4G/3G/GSM (auto connect)"/"3G/GSM (auto connect)"/"GSM only"
■ Date and time
When "Automatic date and time" in "Date and time" are set to ON, the clock time/time difference of the terminal is corrected by receiving information about time/time difference from the network overseas operator.
• Depending on the network provided by overseas network operator, time/time difference correction may not be performed correctly. Set the time zone manually if it is not performed correctly.
• Correction timing varies by overseas network operator in connection.
International roaming
■ About inquiries
• If the terminal or the docomo nano UIM card is lost or stolen overseas, immediately contact DOCOMO from the spot and request for suspension of usage. Please see the last page of this manual for contact information. You can also request for suspension of usage by My docomo. Be careful that you are charged also for calls and/or communications, if any, occurring after lost or theft.
• For contact from a land-line phone etc., add "International call access code" or "Universal number international prefix" assigned to the countries.
162
Making/Receiving calls in the country you stay
Making a call to outside country you stay (including
Japan)
You can make a call from the country you stay to other country using the international roaming service.
• For information of available countries or network operators, see NTT
DOCOMO website.
1
From the Home screen, → "Dial"
2
+ (Touch and hold "0") → Country code → Area code (city code) → Enter a phone number of the other party
• Please omit the prefix "0" in the area code (city code). However, "0" may be required to dial to some countries or areas such as Italy.
3
• To make a video call, tap → "Video call".
4
End a call,
Information
• For the details of video calls, refer to "Making a call" (P.68).
• When "Automatic conversion" of "Assist international call" is set ON and call the country which set in "Country code", you can make a call by input area code → → tap "Call to (country name);" * .
* The country name set in "Country code" of "International dial assist" is displayed in the above <country name>. By default, country code is set " 日本 (JPN)+81".
Making a call within the country you stay
You can make a call to a land-line phone or mobile phone in the same way as in Japan.
1
From the Home screen, → "Dial"
2
Enter a phone number of the other party
3
4
End a call,
International roaming
Making a call to WORLD WING user overseas
If you call to the other party who is overseas "WORLD WING" user, even when he/she is in the country you stay, please make an international call to Japan.
• Regardless of in what country you stay, the communication is always performed via Japan. Add prefix "+" and "81" (Country code of Japan), just like when you make an international call to Japan, and then entering a phone number omitting leading "0".
Receiving a call in the country you stay
You can receive a call in the same way as in Japan.
Information
• When you receive a call during the international roaming, regardless of which country the call is from, it is forwarded internationally from
Japan. A caller is charged for a call fee to Japan, and the receiver is charged for a reception fee.
• Even if the other party calls with the caller ID notified, depending on the overseas network operator, the caller ID may not be notified. Or depending on the network the other party uses, the caller ID may be notified in the different number from the other party's caller ID.
• For overseas use, "Block numbers" (P.75) may not work.
Making a call from the other party
■ To have the other party in Japan call you overseas
Have the other party dial a phone number in the same way as in Japan.
■ To have the other party make a call from outside Japan to the country you stay
Regardless of countries, you will receive a call via Japan. The other party should dial with prefix an international access code and "81" (Country code of Japan).
International access code of the country the dialer stays -81-90 (or
80, 70) -XXXX-XXXX
International roaming settings
Set up to use the international roaming service or international phone calls.
• Depending on overseas network operators, you cannot make the settings.
1
From the Home screen, → → "Call settings" →
"Roaming"
2
Change settings as required
Item Description
Restricting incoming calls Set whether to restrict incoming phone calls during international roaming.
Incoming notification while roaming
Set whether to be notified via SMS when you could not answer the phone when out of range, etc. while internationally roaming.
Roaming guidance
Assist international call
Network services
Set whether to play guidance to inform the person who calls you while you are internationally roaming that you internationally roaming.
■ Setting Assist international call
1
From the Home screen, → → "Call settings" →
"Roaming" → "Assist international call"
2
Select an item
Item Description
Automatic conversion
Country code
International prefix
Add the international prefix or country code automatically.
Select the country code used in the automatic conversion function.
Select the international prefix used in the automatic conversion function.
163 International roaming
■ Setting network service (overseas)
Set network services such as Voice mail from overseas.
• Activate "Remote operation" beforehand (P.74).
• For operations from overseas, international call fee to Japan in the country you use is charged.
• Depending on overseas network operators, you cannot make the settings.
1
From the Home screen, → → "Call settings" →
"Roaming"
2
"Network services" → Select a service
Item Description
Remote operation (paid) Set whether to start remote operation.
Caller ID notification request
(paid)
Noti. while roaming (paid)
Roaming guidance (paid)
Voicemail service (paid)
Call forwarding (paid)
Set to notify a caller with voice prompt to request caller ID when receiving an anonymous call.
Set the terminal to take a message from a caller while you are outside the service area or you turn the terminal off.
(Subscription is required.)
You can forward calls that you receive to another mobile phone that you register in advance. (Subscription is required.)
3
Follow the onscreen instructions
4
Follow the voice guidance
After returning to Japan
After returning to Japan please return to the setting before traveling.
■ If you used packet communication overseas
• Turn OFF the "data roaming" (P.161) settings.
■ If you can not connect to DoCoMo's network automatically after returning to Japan
• Set "Network mode" of "Mobile networks" to "4G/3G/GSM (auto connect)"
• Set "Network operators" of "Mobile networks" to "Select automatically"
164 International roaming
Appendix/Index
Sample
High-Quality Earphone with Microphone tuning by
AKG
• Use High-Quality Earphone with Microphone tuning by AKG for the terminal. If you use another earphone with microphone, playback sound, etc. you may hard to hear.
• When you connect High-Quality Earphone with Microphone tuning by
AKG, you can answer an incoming call by pressing the switch of High-
Quality Earphone with Microphone tuning by AKG.
How to use
1
Insert the plug of High-Quality Earphone with Microphone tuning by AKG to the headphone connection jack of the terminal
• While displaying the Home screen, etc., press the switch to operate the followings.
- Play/pause music
- Receive/end a call
• Press the Volume UP key/Volume DOWN key to adjust the volume.
• Firmly insert the plug to the end. If the connecting plug stays on the way, sound may not be heard.
• Take care so that cord of High-Quality Earphone with Microphone tuning by AKG does not get entangled with you, surrounding people or objects.
Earphone
Plug
Volume key
Switch
Microphone
(on rear side)
165
• When you finished using it, pull out the connecting plug from the headphone connection jack horizontally.
■ When the size of earpieces does not fit
Earpieces in two different sizes are supplied with High-Quality Earphone with Microphone tuning by AKG other than earpieces attached in advance. Change the earpieces if it does not fit in size.
Clear case
• Make sure to and hold the product in your hand when attaching/ detaching the clear case so that the display does not get damaged.
And be aware not to press the [Power/Screen lock key], Bixby key, and
Volume UP key/Volume DOWN key.
How to use
■ Attaching the clear case
1
Hang on part
a
of clear case with the terminal, attach the clear case in direction of the allow
a a
Appendix/Index
■ Detaching the clear case
1
Place your fingertip on the part
a
of the clear case, detach the clear case in direction of the allow
a a
166
Troubleshooting (FAQ)
Troubleshooting
• If you suspect the terminal does not operate correctly, you can check with diagnostics by yourself.
For details, see NTT DOCOMO website. https://www.nttdocomo.co.jp/support/trouble/repair/ (in Japanese only)
• First, check if software update is needed and if it is necessary, update
the software (Updating software) (P.174).
• When problems do not improve after checking the following items, contact the phone number given in "Repairs" on the last page (in
Japanese only) or DOCOMO-specified repair office.
Power
Trouble
Cannot turn on the terminal.
Screen is frozen, cannot turn off the power.
Check and remedy
• Is the battery exhausted? → P.33
• Restart the terminal forcibly by pressing and holding [Power/Screen lock key] and Volume
DOWN key for 7-8 seconds when the screen is frozen or you cannot turn the power off.
* Note that data and the settings may be erased since the operation restart forcibly.
Charging
Trouble
Cannot charge the terminal.
Check and remedy
• Is the power plug of adapter correctly inserted to an outlet or accessory socket?
• Are the adapter and terminal inserted correctly?
• When using the AC adapter (sold separately), is the Type-C plug of AC adapter firmly connected
• When using a USB cable A to C 01 (sold separately), is the power of the PC turned on?
• If you execute calls, communications or other operation for a long time while charging, hot and cannot charge the terminal. In this case, wait until the temperature of the terminal drops down and retry charging.
Appendix/Index
Operating terminal
Trouble
Become hot while operating/ charging.
The operation time is short.
Check and remedy
• While operating or charging, or if you operate apps or watch TV (Fullseg/1Seg) for a long time while charging, the terminal or adapter may become hot. There is no operation problems and you can continue to use it.
• Is the terminal left for a long time out of service area? Staying outside of the service area may consume much power to search available radio waves for communication.
• The operating time of the internal battery varies depending on the operating environment and the secular degradation of the internal battery.
• The internal battery is a consumable accessory.
The usage duration of the battery per 1 charge decreases gradually each time the battery is recharged. When the operation time is too short even if the terminal is fully charged, contact
"Technical Inquiries & Repairs" (in Japanese only) on the back cover of this manual or a repair counter specified by DOCOMO.
• Is the multiple apps booted? Close the apps you
• Set to OFF Wi-Fi or Bluetooth when you are not
• Is the screen locked? Unlock the screen by pressing [Power/Screen lock key] or tap and
hold [Home button] → P.34, P.135
No operation is performed even when tapping the touch screen.
The touch screen reacts slowly when a screen is tapped.
The docomo nano
UIM card is not recognized.
• It may be occurred when large amount of data is saved in the terminal or transferring large-size data between the terminal and microSD card.
• Do you attach a protection sheet on the terminal?
The operations may be impeded by the protection sheet.
• Is the docomo nano UIM card installed with a
167
Trouble
Time is incorrect.
Terminal becomes unstable.
Check and remedy
• It may be occurred if the terminal keeps turned on for a long time.
Check if "Automatic date and time" is set to ON, and turn on the terminal at places where signal is
• It may be caused by apps installed to the terminal after purchase. If problems improve when you start in Safe mode (a function to activate the terminal in a mode similar to default), problems may be improved by uninstalling the app.
- To start Safe mode
Press [Power/Screen lock key] for 2 seconds or more when power is OFF, and after docomo logo disappears, continue to press Volume
DOWN key.
When power is ON, press [Power/Screen lock key] for 1 seconds or more → touch and hold
"Power off" → tap "Safe mode".
* When Safe mode starts, "Safe mode" appears on the lower left corner of the screen.
* To terminate Safe mode, turn on the terminal again.
- For using Safe mode, back-up the required data beforehand.
- Note that apps or widgets you created may be removed.
- Safe Mode is not normal activation. Usually exit
Safe Mode and then use the terminal.
• Confirm the internal memory usage of the terminal and obtain memory by ending some activated
Terminal reacts slowly/Behaviors become unstable/
Some of the program cannot activate.
Data is not displayed properly/
Cannot operate the touch screen properly.
• Turn off and on the power. If it does not solve the problem, trying "Factory data reset" may improve the symptoms. Note that the operation erases all data saved on the terminal. Make sure to back up necessary data beforehand.
Appendix/Index
Trouble
App does not work properly (cannot activate, errors occur frequently, etc.).
Check and remedy
• Are there any apps being disabled? Enable the
disabled apps and try again. → P.134
Calling
Trouble
Cannot make a call even though Call key is tapped.
The ringtone does not sound.
Check and remedy
• Is the docomo nano UIM card installed to the
• Is the terminal set to Airplane mode? → P.123
Cannot connect calls (out of area does not disappear even when you change the location, or cannot make/receive a call even when radio wave when strong).
Cannot connect to network.
• Is the "Volume" set to minimum? → P.127
• Is "Ringtone" set to "Silent"? → P.128
• Is the terminal set to Manner mode (Vibrate,
• Is the terminal set to "Block numbers"? → P.75
• Is the terminal set to Airplane mode? → P.123
• Is the ring time of Voice mail service or Call
forwarding service to "0 seconds"? → P.74
• Is the Play after of Answering message set
• Turn the power off and on, or remove and attach
the docomo nano UIM card. → P.27, P.34
• Due to the radio wave types, making/receiving calls may be unavailable even in the service area and even when strong radio wave is indicated in
4 signal marks. Move to the other place and call again.
• Is the terminal set to "Block numbers"? → P.75
• Due to the crossing of radio waves, at the crowded public places, calls/mails are crossed and the connection status may not be good. In that case, calling sound is played. Move to other place or call again at other time.
• Do you use at a place where signal is weak?
• Turning the terminal power OFF and then turning
ON again may work for the restoration. → P.34
168
Display
Trouble
The display is dimmed.
Check and remedy
• Is the time set on "Screen timeout" over? → P.130
• Do you adjust the brightness of the display? → P.130
• Is Power saving mode set? → P.132
• Is the battery level low? → P.151
Voice command
Trouble
During a voice call, the other party's voice is hard to be heard to or too loud.
Check and remedy
• Do you change the listening volume? → P.72
Trouble Check and remedy
Mail is not received automatically.
• Do you set "Sync account" to OFF? Set it ON. → P.87
• Do you set "Set sync schedule" on "Sync schedule"
to "Manual"? Set Sync schedule. → P.87
Attached file is deleted and cannot view images.
• Check "Limit retrieval size". → P.87
Camera
Trouble
Still images and videos shot with the camera are blurred.
Check and remedy
• Check if clouds or dirt attach to the lens of camera.
Appendix/Index
TV (Fullseg/1Seg)
Trouble
Cannot watch TV
(Fullseg/1Seg).
Check and remedy
• Are you in an area where outside the digital terrestrial broadcasting area or where an airwave is weak?
• Check if you set area information. → P.111
• Do you connect External TV antenna cable SC04
Osaifu-Keitai
Trouble
Cannot use Osaifu-
Keitai.
Check and remedy
• If you activate Omakase Lock, Osaifu-Keitai function cannot be used regardless of NFC/
Osaifu-Keitai lock settings.
• Check if you activate NFC/Osaifu-Keitai lock.
• Check if you hold the mark position on the
terminal over a reader. → P.107
International roaming
Trouble
Cannot use the terminal overseas.
Check and remedy
■ If the signal mark is displayed
• Do you subscribe to WORLD WING?
Check the subscription of WORLD WING.
■ If out of area is displayed
• Are you out of the service area of the international roaming service or in weak radio wave area?
Check if it is available service area or overseas network operator with NTT DOCOMO website.
• Try to change the network settings or settings for overseas communication operator.
Set "Network mode" to "4G/3G/GSM (auto
Set "Network operators" to "Select automatically".
• Turning the terminal power OFF and then turning
ON again may work for the restoration. → P.34
169
Trouble
Cannot use data communication overseas.
Check and remedy
• Set "Data roaming" to ON. → P.161
The terminal cannot be used suddenly while you use it overseas.
• Is the limit of maximum charges for use exceeded?
A limit of maximum charges for use is set beforehand if you use "International Roaming
Service (WORLD WING)". If the limit of maximum charges for use is exceeded, check out your accumulated fee.
• Is "Restricting incoming calls" set to "Turn on
There is no incoming call overseas.
No caller ID is notified/A notified caller ID is different from that of the caller/
Functions for using contents saved in
Contacts or those using Caller ID notification do not operate.
• Even though a caller notifies the caller ID, it is not displayed on the terminal if the network or network operator does not notify the ID. A notified caller ID may be different from that of the caller by some networks or networks operators you use.
Data Management
Trouble
Data transfer is not performed.
Data saved in microSD card is not displayed.
Image is not displayed.
Check and remedy
• Do you use USB HUB? When USB HUB is used, the terminal may not be operated correctly.
• Remove and attach microSD card. → P.30
• If it is not supported image data, appears.
Appendix/Index
Trouble
No operation is performed even by connecting the terminal to a PC.
Check and remedy
• Install Galaxy Smart Switch or Windows Media
Player 10 or later to a PC.
Bluetooth
Trouble
Cannot connect to
Bluetooth device/
Bluetooth device cannot be found by scanning.
Check and remedy
• The Bluetooth device (commercial item) is needed to be in registration stand-by state. If you register the device again after deleting the registration, delete the registrations on both Bluetooth communication device and the terminal, and then perform registration of the devices.
Cannot call from the terminal with external device connected such as car navigation or hands-free device.
• If you made several calls to a person when he or she does not answer the calls or is out of the service area etc., calling the number may become unavailable. Turn the power off then on the terminal.
Maps/GPS function
Trouble
AUTO-GPS service information cannot be set.
Check and remedy
• Is AUTO-GPS disabled because battery is low?
If AUTO-GPS is disabled due to "Lowpower operation settings", AUTO-GPS service information cannot be set. In this case, set
"Lowpower operation settings" to "Not suspend"
or charge the battery. → P.32, P.145
• Is "AUTO-GPS operation settings" turned off?
170
Error message
Error message
The application
XXXX (process
XXXX) has stopped unexpectedly. /XXXX
(XXXX) has stopped.
Mobile network not available.
Cause and remedy
Appears when an error is occurred in the terminal or function. Tap "Force close"/"OK" and then retry.
Please wait for a while (Voice service)
Request to switch to video call failed.
Request to switch to voice call failed.
Unable to dial
You're dangerously low on space
This may slow down some apps and functions. Delete or back up your files to free up space.
Page
-
The docomo nano UIM card is not correctly installed to the terminal. Make sure that the docomo nano UIM card is correctly attached.
Appears when communication is restricted due to access congestion on call/communication. Operate again after the restriction is released.
-
Appears when switching to video call fails. Switching is not possible during emergency call and audio guide, when the other party is using Catch Phone (call waiting service), when calling outside the service area, etc.
Appears when switching to voice call from video call fails due to connection error, etc. Please wait for a while and try the operation again.
Appears when making video call fails. If the other party does not support video calls, you can not make a video call.
Appears when available memory of the
Device memory is low. If you keep using the terminal, some functions or apps may not work. Delete data such as one for app or media contents to increase available memory space.
Appendix/Index
Error message
Unable to update software. A network or server error occurred. Try again later.
Cause and remedy
Communication with the server is failed.
Please wait for a while and try the operation again.
Page
Camera failed.
Recording failed.
Appears when activating Camera fails.
Wait for a while and retry the operation or turn the power off then turn on the terminal.
Check the battery level and available memory space of the terminal.
Appears when camera recording is failed.
Exit the camera app and restart the app.
Disabling built-in apps may cause errors in other apps.
If you disable app, other apps linking to the disabled app may not work properly.
If other app does not work properly when
"OK" is tapped and app is disabled, enable the app.
Unfortunately,
XXXX (process.com.
android.browser) has stopped.
Appears when an error occurs in the browser. Tap "OK" and wait for a while, then retry the operation.
* XXXX indicates app or function name in which an error is occurred.
171
Anshin Enkaku Support
By sharing screens of your terminal with operator of Anshin Enkaku
Support center, you can receive technical support to make settings, to use apps, to connect to peripheral devices such as a PC, etc. (In
Japanese only)
• This service is not available if your docomo nano UIM card is not inserted, during international roaming, or in Airplane mode.
• Anshin Enkaku Support is a service requiring subscription.
• Some operations and settings are not supported.
• For details on Anshin Enkaku Support, refer to NTT DOCOMO's website.
■ Share the screen with operator (Inquiries by phone)
1
Call " あんしん遠隔サポートセンター (Anshin Enkaku Support center for smartphone)"
From DOCOMO mobile phones : (No prefix)15710 (toll free)
From land-line phones: 0120-783-360
Business hours 9:00 a.m. to 8:00 p.m. (open all year round)
When calling Anshin Enkaku Support from the terminal, from the Home screen, "apps folder" → " 遠隔サポート (Enkaku Support)" → " 電話で問い合
わせる (Inquiry by phone)" → tap "Phone"/"Dial".
2
From the Home screen, "apps folder" → " 遠隔サポート
(Enkaku Support)"
3
" 接続画面に進む (Go to connection screen)" → " 同意する
(Agree)"
4
Enter connection number notified by DOCOMO
5
Enkaku support starts when you are connected
You can also use a Q&A website that is only for Anshin Enkaku Support subscribers and contact an operator with LINE.
* You cannot use screen sharing inquires by LINE.
■ Troubleshooting on the Q&A website
1
From the Home screen, "apps folder" → "遠隔サポート (Enkaku
Support)"
2
"Q&A サイト/ アプリで調べる (Inquiry by Q&A/app)"
Appendix/Index
■ Contacting an operator with LINE
1
From the Home screen, "apps folder" → "遠隔サポート (Enkaku
Support)"
2
"LINE で問い合わせる (Inquiry by LINE)"
172
Warranty and After-Sales Service
Warranty
• The warranty is valid for a period of one year from the date of purchase.
• The external TV antenna cable SC04, High-Quality earphone with
Microphone tuning by AKG, earpieces, S Pen SC02, S Pen replacement kit, SIM ejector tool, MicroUSB cable, USB conversion adapter for OTG and Clear case are not covered by the free repair warranty.
• High-Quality earphone with Microphone tuning by AKG, earpieces, S
Pen replacement kit, SIM ejector tool, MicroUSB cable, USB conversion adapter for OTG and Clear case are sample. Refer to For Inquiries about
Sample. Refer to inquiries for sample accessories.
• Specifications and appearance of this product and all accessories are subject to change, in part or whole, for the sake of improvement without prior notice.
• Since troubles, repair or other handling of the terminal may cause contents in the Contacts etc. to be modified or deleted. DOCOMO recommends making a copy of the Contacts data etc., in case.
* With the terminal, data such as phonebook entries can be saved to microSD card.
* Data such as phonebook entries can be backed up using docomo cloud.
Conditions for free repair
1 If you use the terminal in accordance with the warnings stated in this manual and faults occur within the warranty period, the terminal will be repaired for free. (Your terminal may be replaced with an equivalent instead of repairing it.)
2 The following case are not subject to free repair even if they occur during the warranty period:
(1) Faults and damage caused by modifications (including software modifications).
(2) Faults and damage caused by the terminal, display, and/or external jack breaking from external pressure or being dropped, or faults and damage caused by the motherboard inside the terminal breaking or deforming.
(3) Faults and damage caused by fires, pollution, abnormal voltage, earthquakes, thunder, floods, or other natural disasters.
(4) Faults and damage caused by connecting devices and consumables to the terminal that are not DOCOMO-approved.
Appendix/Index
(5) Faults and damage caused by water entering the terminal, the terminal's water leak seal is showing signs of leaks, indications that the terminal was dropped in water or signs of leaking were discovered, or corrosion caused by condensation or the like is discovered.
(6)The case where you have repaired at a location other than the brochure window specified by docomo.
3 This warranty is valid only in Japan.
4 This warranty is for free repairs in the stated period and conditions, and does not restrict lawful customer rights.
5 If there are multiple defects on the terminal, all the defects will be repaired as product quality cannot be guaranteed by just fixing some faults. In that case, some faults may not be subject to free repair.
6 Regardless of whether repairs were performed or not, terminals that underwent performance testing will be returned with the latest software updates.
7 See the repairs result form that you receive once repairs are complete to check the date of repairs and what repairs were performed.
<Sales>
NTT DOCOMO, INC.
11-1, Nagata-cho 2-chome, Chiyoda-ku, Tokyo Japan
After-Sales Service
When problems occur
Before requesting repair, read the section on "Troubleshooting" in this manual.
If the problem still persists, contact "Repairs" on the last page of this manual (in Japanese only).
If the result of inquiries indicates that a repair is required
Take your terminal to DOCOMO-specified repair office. Be sure to check the business hours of the repair office before you go. Note that, repair may take longer time depending on the state of damage.
■ After expiration of the warranty
All repairs that are requested are charged.
■ Replacement parts
Replacement parts (parts required to maintain the product functions) are basically kept in stock for at least 4 years after termination of production.
For details about technical inquiries and repairs, see NTT DOCOMO website.
https://www.nttdocomo.co.jp/support/trouble/repair/shop/compatible/ index.html (in Japanese only)
However, depending on the malfunctioning part, repair may not be possible due to a lack of replacement parts. Please contact a repair counter specified by DOCOMO.
Notes
• Do not modify terminal or its accessories.
- Doing so may cause fire, injury or damage.
- Modified terminals etc. are repaired only after the customer accepts that the modified parts are to be restored to the condition at the time of purchase. However, repair may be refused depending on the nature of modification.
The following cases may be regarded as modifications.
› A sticker etc. is put on the display part or keypad part.
› The terminal is embellished with adhesive.
› Exteriors are replaced with other than DOCOMO's genuine parts.
- Repair of failures or damage caused by modification is charged even during the warranty period.
• Data such as settings for each function may be cleared (reset) by malfunctions, repair or other handling of terminal. Should that happen, set up the functions again. A packet communication fee may be charged due to the settings.
• When the repair is executed, MAC address of Wi-Fi/Bluetooth address in the terminal may be changed regardless of repaired part.
• Do not allow cash cards or other devices that are vulnerable to magnetism to come into contact with the phone.
• The terminal is waterproof. If inside of the terminal gets wet or moist, immediately turn the power off, bring the terminal to a repair office as soon as possible. However, repair may not be possible depending on the condition of terminal.
173 Appendix/Index
Precautions on data created by you and downloaded data
Note that data you created, retrieved or downloaded from sources other than your terminal may be changed or lost when you change the model or have repairs done to the terminal. DOCOMO shall have no liability for any change or loss of any kind. Please understand beforehand that you can not be compensated by docomo for packet communication charges generated by re-downloading data. Under some circumstances, DOCOMO may replace your terminal with its equivalent instead of repairing it. When replacing your phone, most of the above-mentioned data cannot be transferred to the new phone.
Updating software
Software update
Download update file for the terminal from the download site on the
Internet and update the software. For software update, there are 2 methods; connecting to the network directly on the terminal and using
Galaxy Smart Switch PC (P.158) installed to a PC.
Precautions on software update
Software update can be done with the data saved to the terminal remained.
However, note that depending on your terminal condition (malfunction, damage, water-soaked, etc.), the data may not be protected. You are recommended to backup the user information and data in the terminal just in case. However, some data may not be backed up.
• Prepare the followings before software update.
- Exit all programs running on the terminal (P.61).
- Charge (P.32) the terminal to make the battery level enough.
• For updating software by connecting the terminal to network directly, you are recommended to perform in a place with good signal condition, without moving. When the signal condition is bad, software update may be interrupted.
• It may take time to update software (download and installation of update files).
• During installing the update files for software update, all functions including making/receiving phone call are not available.
• To update the software while you are overseas, connect to Wi-Fi network
(with the DOCOMO nano UIM card removed).
• When you cannot perform any operations because of the failure of the software update, please take your terminal to DOCOMO-specified repair office.
174 Appendix/Index
Updating software only with the terminal
You can update the software of the terminal by connecting network with the terminal.
1
From the Home screen, "apps folder" → "Settings" →
"Software update" → "Download updates manually"
• If you permit downloading a file only when connecting via Wi-Fi, set
"Download updates automatically" to ON.
2
Set according to the onscreen instructions
• Operating the terminal to update after the updating file has been downloaded successfully restarts the terminal and starts the update. You cannot use the phone and other functions while updating the software.
Information
• After downloading the software, you may postpone the installation by tapping either "LATER" or "INSTALL OVERNIGHT" on the installation confirmation screen.
You can start the installation immediately by performing the following steps, even after you have postponed the installation:
- From the Home screen, "apps folder" → "Settings" → "Software update" → "Download updates manually" → "INSTALL NOW"
- Open the Notification panel → "Software update" → "INSTALL NOW"
• The available network may be restricted depending on the content of the update.
Main specifications
Phone
Product name
Size
Weight
Display
Memory
Internal
Battery
Continuous stand-by time *2
Continuous call time *3
Charging time
SC-01L
H: Approx. 162 mm
W: Approx. 76 mm
T: Approx. 8.8 mm (Maximum thickness:
Approx. 9.3 mm)
Approx. 201 g
Super AMOLED (Organic EL) Type
Size
Number of colors
Approx. 6.4 inch
16,777,216 colors
Resolution
1440 (W) pixels x 2960 (H) pixels
QHD+)
ROM 128 GB *1
RAM 6 GB
Battery used Li-ion battery
Nominal voltage DC3.85 V
4000 mAh Nominal capacity
LTE GSM Stationary (Auto): Approx. 330 H
FOMA/3G
GSM
LTE (VoLTE)
GSM Stationary (Auto): Approx. 340 H
GSM Stationary (Auto): Approx. 290 H
VoLTE: Approx. 1560 min./
VoLTE(HD+): Approx. 1380 min.
Approx. 430 min.
LTE (VoLTE):
Video call
3G
GSM
Approx. 1310 min.
Approx. 800 min.
AC adapter 07: Approx. 120 min.
*4
175 Appendix/Index
Wireless
LAN
Bluetooth
Headphone connection jack
Image pickup device
Corresponding standard
IEEE802.11a/b/g/n *5 /ac *5 compliant
(IEEE802.11n: 2.4GHz/5GHz )
Version *6
Output
Vistaed communication distance *7
Bluetooth standard Ver. 5.0
Bluetooth standard Power Class 1
Within approx. 10 m
Bluetooth function
Compatible profile
Size
*8
HFP (mSBC: 16kHz) (1.7), HSP (1.2),
OPP (1.1), SPP (1.2), HID (1.0), A2DP
(aptX/SBC/LDAC) (1.3), AVRCP (1.4),
PBAP (1.1.1), PAN (PAN-NAP/PANU)
(1.0), SAP (1.1), HOGP (1.0), MAP (1.2),
DI (1.3)
3.5 mm earphone jack
Pole number
Tetrapolar
Type
Size
Number of effective pixels on
Camera
Number of recording pixels
(Max.) on camera
File format
Zoom
(digital)
Video
Still image
Video
Still image
Out-camera: Back-illuminated CMOS,
Back-illuminated CMOS
In-camera: Back-illuminated CMOS
Out-camera: 1/2.5 inch, 1/3.4 inch
In-camera: 1/3.6 inch
Out-camera Approx. 12.2 mil. pixels,
Approx. 12.2 mil. pixels,
In-camera: Approx. 8 mil. pixels,
Out-camera: Approx. 12.2 mil. pixels,
Approx. 12.2 mil. pixels,
In-camera: Approx. 8 mil. pixels,
MP4
JPEG, DNG, AGIF
Out-camera: Up to Approx. 10.0 x
In-camera: -
Out-camera: Up to Approx. 10.0 x
In-camera: -
176
Zoom
(optical)
Digital zoom x Optical zoom
Video
Still image
Video
Still image
Shooting time of videos
Movie
Music
Supported codecs
Supported codecs
Out-camera: Up to Approx. 2.0 x
In-camera: -
Out-camera: Up to Approx. 2.0 x
In-camera: -
Out-camera: Up to Approx. 10.0 x
In-camera: -
Out-camera: Up to Approx. 10.0 x
In-camera: -
Approx. 33 min. per one item *9
H.263, H.264(AVC), MPEG4, VC-
1, MP43, WMV7, WMV8, VP8, VP9,
H.265(HEVC)
MP3, AMR-NB/WB, AAC/ AAC+/ eAAC+, WMA, Vorbis, FLAC, Opus, APE,
DSD, AC3, E-AC3, AC4
Approx. 820 min.
1 Seg Continuous watching time *10
1 Seg
Recording time
Maximum recording time per item
Recording time per 1 GB
Fullseg Continuous watching time *10
Fullseg
Recording time
Maximum recording time per item
Recording time per 1 GB
Display language
Language
Character input:
Approx. 600 min.
Approx. 300 min.
Approx. 840 min.
Approx. 1440 min.
Approx. 20 min.
*11
Japanese/English/Korean/Chinese/
Portuguese/Vietnamese
Character input: Japanese/English/
Korean
Appendix/Index
Number of storable items
Answering message
Maximum recording time per item
Number of incoming and outgoing calls displayed
No limit *12
Approx. 13 H
Up to 500
*1 Not all of the memory capacity is available for saving shot videos and still images, downloaded apps and data, and other data. For available
memory space, refer to "storage" (P.133).
*2 Stationary continuous stand-by time is the estimated average operation time when radio signal reception is normal in the stationary state.
Continuous stand-by time is the estimated average operation time when radio signal reception is normal in the stationary state.
If you use functions a lot, the actual time may drop by more than half.
*3 The continuous stand-by time fluctuates greatly due to the settings, use environment, and call, email, and camera use frequency.
If you use functions a lot, the actual time may drop by more than half.
*4 The numerical value of when "Fast cable charging" is ON. On the
Home screen. "apps folder" → "Settings" → "Device maintenance" →
"Battery" → → "Advanced settings" → "Fast cable charging" to set.
*5 Support MIMO, MU-MIMO (Client).
*6 It is confirmed that the terminal and all Bluetooth devices are compliant with Bluetooth standards designated by Bluetooth SIG, and they are authenticated.
However, procedures may differ or data transfer may not be possible depending on the device's characteristics or specifications.
*7 May vary by the signal status and/or whether there is interference between communications devices.
*8 Bluetooth compatible devices with specifications according to the intended use, Bluetooth standards.
*9 This is the shooting time when the movie size (rear) is 1920 × 1080
(FHD).
*10 It shows the time when using the vertical screen and using earphone with microphone.
*11 Recording time when "Recording quality setting" (P.110) is
"Standard · SP".
*12 The maximum saved number varies depending on the free space of the memory of this terminal.
External TV antenna cable SC04
Length
Weight
Approx. 130 mm
Approx. 5 g
S Pen SC02
Length
Weight
Approx. 108 mm
Approx. 3 g
177 Appendix/Index
Specific Absorption Rate (SAR) of Mobile
Phones
Specific Absorption Rate (SAR) of Mobile Phones
This model [SC-01L] mobile phone complies with Japanese technical regulations and international guidelines regarding exposure to radio waves.
This mobile phone was designed in observance of Japanese technical regulations regarding exposure to radio waves(*1) and limits to exposure to radio waves recommended by a set of equivalent international guidelines. This set of international guidelines was set out by the
International Commission on Non-Ionizing Radiation Protection (ICNIRP), which is in collaboration with the World Health Organization (WHO), and the permissible limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health condition.
The technical regulations and international guidelines set out limits for radio waves as the Specific Absorption Rate, or SAR, which is the value of absorbed energy in any 10 grams of tissue over a 6-minute period. The
SAR limit for mobile phones is 2.0 W/kg. The highest SAR value for this mobile phone when tested for use near the head is 0.852 W/kg (*2) and when worn on the body is 0.903 W/kg (*3). There may be slight differences between the SAR levels for each product, but they all satisfy the limit.
The actual SAR of this mobile phone while operating can be well below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum required to reach the network. Therefore in general, the closer you are to a base station, the lower the power output of the device.
This mobile phone can be used in positions other than against your head.
Please keep the mobile phone farther than 1.5 cm away from your body by using such as a carrying case or a wearable accessory without including any metals. This mobile phone satisfies the technical regulations and international guidelines.
The World Health Organization has stated that "a large number of studies have been performed over the last two decades to assess whether mobile phones pose a potential health risk. To date, no adverse health effects have been established as being caused by mobile phone use."
Please refer to the WHO website if you would like more detailed information.
http://www.who.int/docstore/peh-emf/publications/facts_press/fact_ english.htm
Please refer to the websites listed below if you would like more detailed information regarding SAR.
Ministry of Internal Affairs and Communications Website: http://www.tele.soumu.go.jp/e/sys/ele/index.htm
Association of Radio Industries and Businesses Website: https://www.arib-emf.org/01denpa/denpa02-02.html (in Japanese only)
NTT DOCOMO, INC. Website: https://www.nttdocomo.co.jp/english/product/sar/
Galaxy Website: https://www.samsung.com/sar/sarMain.do
→ Select "JAPAN" from "LOCATION" → Type "SC-01L" in Phone Model field
→ "GO"
*1 Technical regulations are defined by the Ministerial Ordinance Related to Radio Law (Article 14-2 of Radio Equipment Regulations).
*2 Including other radio systems that can be simultaneously used with
LTE/FOMA.
*3 Including other radio systems that can be simultaneously used with
LTE/FOMA.
178 Appendix/Index
FCC notice
• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
• Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.
■ Information to User
This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient/relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
179
FCC RF exposure information
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves
(radio frequency electromagnetic fields) adopted by the Federal
Communications Commission (FCC).
These limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is
1.6 W/kg.
Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands.
The highest SAR values under the FCC guidelines for this device model are:
Head : 0.90 W/Kg
Body-worn accessory : 0.39 W/Kg
During use, the actual SAR values for this device are usually well below the values stated above.
This is because, for purposes of system efficiency and to minimize interference on the network, the operating power of your mobile device is automatically decreased when full power is not needed for the call.
The lower the power output of the device, the lower its SAR value.
Body-worn SAR testing has been carried out at a separation distance of
1.5 cm. To meet RF exposure guidelines during body-worn operation, the device should be positioned at least this distance away from the body.
Organizations such as the World Health Organization and the US Food and
Drug Administration have suggested that if people are concerned and want to reduce their exposure, they could use a hands-free accessory to keep the wireless device away from the head and body during use, or reduce the amount of time spent using the device.
Note:
The maximum SAR value listed above is the value recorded for the latest version of this handset.
Earlier versions may have different measured SAR values, which are detailed in the User Manuals that accompany those handsets.
Appendix/Index
Body-worn operation
For body worn operation, this phone has been tested and meets the FCC
RF exposure guidelines. Please use an accessory designated for this product or an accessory which contains no metal and which positions the handset a minimum of 1.5 cm from the body.
The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.
The FCC has granted an Equipment Authorization for this model handset with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model handset is on file with the FCC and can be found under the Display Grant section of https://www.fcc.gov/oet/ea/fccid after searching on FCC ID ASLSC01L
Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Website at https://www.ctia.org/.
The terminal and S Pen SC02 acquires the certification of the Federal
Communications Commission (FCC).
FCC ID of the terminal and S Pen SC02 can be viewed by the following steps.
From the Home screen, "apps folder" → "Settings" → "About phone" →
"STATUS".
180
European RF Exposure Information
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves
(radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2
W/kg.
Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands.
The highest SAR values under the ICNIRP guidelines for this device model are:
Head SAR : 0.651 W/Kg
Body SAR : 1.510 W/Kg
During use, the actual SAR values for this device are usually well below the values stated above.
This is because, for purposes of system efficiency and to minimize interference on the network, the operating power of your mobile device is automatically decreased when full power is not needed for the call.
The lower the power output of the device, the lower its SAR value.
Body-worn SAR testing has been carried out at a separation distance of
0.5 cm.
To meet RF exposure guidelines during body-worn operation, the device should be positioned at least this distance away from the body.
Organizations such as the World Health Organization and the US Food and
Drug Administration have suggested that if people are concerned and want to reduce their exposure, they could use a hands-free accessory to keep the wireless device away from the head and body during use, or reduce the amount of time spent using the device.
Note:
The maximum SAR value listed above is the value recorded for the latest version of this handset.
Earlier versions may have different measured SAR values, which are detailed in the User Manuals that accompany those handsets.
Appendix/Index
Declaration of Conformity
Product details
For the following
Product : GSM WCDMA LTE Bluetooth/Wi-Fi Mobile Phone
Model(s) : SC-01L
Declaration & Applicable standards
We hereby declare, that the product above is in compliance with the essential requirements of the
Radio Equipment Directive (2014/53/EU) by application of:
SAFETY EN 50360 : 2017 EN 50566 : 2017
EN 50663 : 2017
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN 62311 : 2008
EMC Draft EN 301 489-19 V2.1.0 (03-2017)
Draft EN 301 489-52 V1.1.0 (11-2016)
EN 301 489-17 V3.1.1 (02-2017)
Draft EN 301 489-3 V2.1.1 (03-2017)
EN 301 489-1 V2.1.1 (02-2017)
EN 55035 : 2017
RADIO Draft EN 300 440 V1.1.0 (09-2017)
EN 300 328 V2.1.1 (11-2016)
EN 300 440 V2.1.1 (03-2017)
EN 301 893 V2.1.1 (05-2017)
EN 301 908-13 V11.1.2 (07-2017)
EN 303 413 V1.1.1 (06-2017)
Draft EN 303 660 V1.1.1_0.0.6
EN 300 330 V2.1.1 (02-2017)
EN 301 511 V12.5.1 (03-2017)
EN 301 908-1 V11.1.1 (07-2016)
EN 301 908-2 V11.1.2 (08-2017)
EN 303 417 V1.1.1 (09-2017) and the Directive (2011/65/EU) on the restriction of the use of certain hazardous substances in electrical and electronic equipment by application of EN 50581:2012.
and the Eco-Design Directive (2009/125/EC) implemented by Regulation (EC) No 1275/2008 for standby and off mode, and network standby, electric power consumption using test methods from EN 50564:2011
The Notified Body TÜV SÜD BABT, 0168 has reviewed the technical file for the product to assess the compliance of the product with requirements of the RED 2014/53/EU and has issued the EU-type examination certificate: RED835 i01
Samsung Electronics QA Lab.
Blackbushe Business Park
Saxony Way, Yateley, Hampshire
GU46 6GG, UK *
2018.08.29
(Place and date of issue)
Stephen Colclough/Director of Regulatory Affairs
(Name and signature of authorized person)
* This is not the address of Samsung Service Centre. For the address or the phone number of
Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.
181
Export Administration Regulations
This product and its accessories may be under coverage of the Export Administration Regulations of Japan ("Foreign
Exchange and Foreign Trade Control Laws" and related laws and regulations). Additionally, it may also be under coverage of the
Export Administration Regulations of the U.S.. When exporting this product and its accessories, take necessary procedures on your responsibility and expense. For details, contact Ministry of Economy,
Trade and Industry of Japan or U.S. Department of Commerce.
Appendix/Index
Intellectual Property Right
Copyrights
The works and copyright of music, video picture, computer program, data base, etc., are protected their right by copyright law. Copying such copyrighted works can be permitted only for the purpose of personal use or use at home. If you copy (including conversion of data format), alter, hand over of duplication, distribute on network, etc., without any approval of copyright owner exceeding above mentioned purposes, you may be claimed for damages or punished as "copyright infringement" or "infringement of moral right of an author". When you make duplications etc. using this product, please observe the copyright law and use them properly. Also, for recorded items using the camera function mounted to this product, please use them properly as above.
Portrait rights
Portrait rights are claimable rights against taking photos by others, publishing or using the taken photos without any permission. In Portrait rights, there are moral right authorized to everyone and property right
(publicity right) focused on economic benefit of talent etc. Therefore, taking photos of others or talent, publishing or distributing the photos without any permission are illegal act. Please use the camera function properly.
Trademarks
• FOMA, "WORLD CALL", "WORLD WING", "mopera U", "sp-mode", "ToruCa",
"ToruCa" logo, "dmenu" logo are trademarks or registered trademarks of
NTT DOCOMO.
• Bluetooth ® and Bluetooth ® logo are owned by the Bluetooth SIG, INC.
• Wi-Fi Certified ®
Wi-Fi Alliance.
and its logo are registered trademark or trademark of
• Catch Phone (Call waiting service) is a registered trademark of Nippon
Telegraph and Telephone Corporation.
• Wnn© OMRON SOFTWARE Co., Ltd. 2008-2018 All Rights Reserved.
182
• Rovi, G-GUIDE, G-GUIDE MOBILE and G-Guide related logos are trademarks or registered trademarks of Rovi Corporation and/or its subsidiaries in Japan.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby
Atmos, and the double-D symbol are trademarks of Dolby Laboratories.
• Other products and company names written in this manual are registered trademarks or trademarks of each company.
HEVC Advance
Others
• This product is licensed based on MPEG-4 Visual Patent Portfolio
License. The use of MPEG-4 Video Codec function is allowed for personal and nonprofit use only in the cases below.
- Recording moving pictures that conform to MPEG-4 Visual Standard
(hereinafter referred to as MPEG-4 Video)
- Playing MPEG-4 Videos recorded personally by consumers not engaged in profit activities
- Playing MPEG-4 Video supplied from the provider licensed from
MPEGLA.
For further utilizing such as promotion, in-house use or profit-making business, please contact MPEG LA, LLC in U.S.
Appendix/Index
Canceling SIM Lock
The SIM lock for the terminal can be unlocked. Non-DOCOMO SIM can be used with the terminal, once SIM Lock is unlocked.
• Service and function may be limited. DOCOMO shall not be liable for performance.
• For details on unlocking SIM lock, refer to NTT DOCOMO website.
1
Insert the other company's SIM card
2
Start up the terminal, and release the screen lock
3
Enter the SIM lock release code
4
"UNLOCK"
Information
• If the SIM lock release code is incorrectly entered 10 times in a row, the SIM lock release will be blocked.
• You can check the SIM lock release code status via the lock screen when starting up the terminal.
183 Appendix/Index
Index
A
AC adapter………………………………………………………………………… 33
Charging…………………………………………………………………………… 33
Access point
Initializing… …………………………………………………………………… 125
Setting…………………………………………………………………………… 125
Accounts ……………………………………………………………………… 143
Removing… …………………………………………………………………… 144
Setting…………………………………………………………………………… 144
Adjusting volumes …………………………………………………………… 127
Advanced features ……………………………………………………………… 38
Airplane mode ………………………………………………………………… 123
Always On Display ……………………………………………………………… 43
Anshin Enkaku Support …………………………………………………… 171
Answering message …………………………………………………………… 73
Apps ……………………………………………………………………………… 134
Apps screen ……………………………………………………………………… 56
AR emoji ………………………………………………………………………… 102
Available overseas services ……………………………………………… 160
B
Backing up and restoring the Home screen …………………………… 66
Backing…up………………………………………………………………………… 66
Restoring… ……………………………………………………………………… 66
Bixby ………………………………………………………………………………… 43
Bixby Vision ……………………………………………………………………… 99
Blocking call receptions and messages from
specified phone number ……………………………………………………… 76
Bluetooth ……………………………………………………………………… 154
Brightness ……………………………………………………………………… 130
C
Calculator ……………………………………………………………………… 116
Calendar ………………………………………………………………………… 114
Caller ID notification …………………………………………………………… 74
184
Call forwarding service ……………………………………………………… 74
Call settings ……………………………………………………………………… 74
Call waiting ……………………………………………………………………… 74
Camera …………………………………………………………………………… 94
Setting……………………………………………………………………………… 96
Shooting…screen… ……………………………………………………………… 95
Shooting…still…images…………………………………………………………… 96
Shooting…videos… ……………………………………………………………… 96
Canceling screen lock ………………………………………………………… 34
Canceling SIM Lock ………………………………………………………… 183
Character entry ………………………………………………………………… 44
Copying… ………………………………………………………………………… 46
Cutting……………………………………………………………………………… 46
Pasting… ………………………………………………………………………… 46
Setting……………………………………………………………………………… 46
Charging …………………………………………………………………………… 32
Clear case ……………………………………………………………………… 165
Clock ……………………………………………………………………………… 113
Alarm……………………………………………………………………………… 113
Stopwatch……………………………………………………………………… 113
Timer……………………………………………………………………………… 113
World…clock……………………………………………………………………… 113
Connecting to a PC
Connecting…with…USB…cable…A…to…C……………………………………… 157
D
Data usage …………………………………………………………………… 123
Dictionary ……………………………………………………………………… 119
Displaying Machi-Chara ……………………………………………………… 65
dmarket ………………………………………………………………………… 104 dmenu …………………………………………………………………………… 104
docomo apps management ……………………………………………… 145
docomo Data Copy …………………………………………………………… 117
docomo LIVE UX ………………………………………………………………… 63
Kisekae… ………………………………………………………………………… 64
docomo mail ……………………………………………………………………… 81
docomo nano UIM card
Attaching… ……………………………………………………………………… 27
PIN…code………………………………………………………………………… 137
Removing… ……………………………………………………………………… 28
Appendix/Index
Double-tap ………………………………………………………………………… 35
Download booster …………………………………………………………… 126
Drag ………………………………………………………………………………… 35
E
Early Warning "Area Mail" …………………………………………………… 89
Easy mode ……………………………………………………………………… 129
Edge screen ……………………………………………………………………… 25
Edge…panel………………………………………………………………………… 52
Email ………………………………………………………………………………… 8 6
Creating…and…sending… ……………………………………………………… 86
received… ………………………………………………………………………… 87
Setting…account… ……………………………………………………………… 86
Settings… ………………………………………………………………………… 87
Emergency call ………………………………………………………………… 69
F
Face recognition ……………………………………………………………… 139
Fingerprints …………………………………………………………………… 141
Flick ………………………………………………………………………………… 3 5
Fullseg …………………………………………………………………………… 108
G
Galaxy account ……………………………………………………………… 144
Galaxy Apps …………………………………………………………………… 105
Galaxy Home ……………………………………………………………………… 55
Galaxy keyboard ………………………………………………………………… 4 4
Keyboard…type… ………………………………………………………………… 44
Wildcard…Prediction……………………………………………………………… 45
Galaxy Notes ………………………………………………………………… 114
Galaxy Pass …………………………………………………………………… 142
Galaxy Smart Switch ……………………………………………………… 158
Gallery …………………………………………………………………………… 102
Gmail ………………………………………………………………………………… 88
Google Maps …………………………………………………………………… 112
Searching…direction… ……………………………………………………… 112
Google Play …………………………………………………………………… 105
GPS ……………………………………………………………………………… 111
185
H
High-Quality Earphone with Microphone ……………………………… 165
Hold ………………………………………………………………………………… 72
Home screen ………………………………………………………………… 55, 63
I
Initial settings …………………………………………………………………… 47
Intelligent camera …………………………………………………………… 100
Intelligent Scan ……………………………………………………………… 138
Internal battery
Charging…time… ……………………………………………………………… 175
Continuous…call…time………………………………………………………… 175
Continuous…stand-by…time… ……………………………………………… 175
Internal…battery…life……………………………………………………………… 32
International call (WORLD CALL) ………………………………………… 74
International roaming (WORLD WING) ………………………………… 160
Iris Scanner …………………………………………………………………… 140
L
Live Focus ………………………………………………………………………… 99
Location information ………………………………………………………… 111
Lock screen ……………………………………………………………………… 34
M
Mail ………………………………………………………………………………… 81 docomo…mail… …………………………………………………………………… 81
Email………………………………………………………………………………… 86
Gmail………………………………………………………………………………… 88
+Message………………………………………………………………………… 81
SMS… ……………………………………………………………………………… 84
Main specifications ………………………………………………………… 175
Making a call ……………………………………………………………………… 68
Phonebook………………………………………………………………………… 80
Recent…calls… …………………………………………………………………… 72
Manner mode ………………………………………………………………… 127
Appendix/Index
microSD card …………………………………………………………………… 29
Attaching… ……………………………………………………………………… 30
Formatting………………………………………………………………………… 32
Removing… ……………………………………………………………………… 31
My Files ………………………………………………………………………… 152
My Magazine ……………………………………………………………………… 67
My profile ………………………………………………………………………… 80
N
Navigation bar …………………………………………………………………… 36
NFC/Osaifu-Keitai settings ……………………………………………… 123
Notification LED ………………………………………………………………… 48
Notification panel ……………………………………………………………… 50
Notification sound
Settings… ……………………………………………………………………… 128
O
Osaifu-Keitai …………………………………………………………………… 106
P
Phonebook ………………………………………………………………………… 78
Making…a…call……………………………………………………………………… 80
Registering………………………………………………………………………… 78
Pinch in …………………………………………………………………………… 36
Pinch out …………………………………………………………………………… 36
Play Store ……………………………………………………………………… 105
Power saving mode ………………………………………………………… 132
Printing ………………………………………………………………………… 158
Public mode (turn off) ………………………………………………………… 75
Q
Quick search box ……………………………………………………………… 60
R
Receiving a call ………………………………………………………………… 70
Recent calls ……………………………………………………………………… 72
186
Recently-used apps …………………………………………………………… 61
Reject a call ……………………………………………………………………… 70
Registering…reason…of…rejection…to…send…via…SMS…
when…rejecting…call……………………………………………………………… 76
SEND…MESSAGE………………………………………………………………… 70
Reminder …………………………………………………………………………… 44
Ringtone
Setting…………………………………………………………………………… 128
S
Screen capture ………………………………………………………………… 37
Screen saver ………………………………………………………………… 130
Scroll ………………………………………………………………………………… 3 5
Security code
Network…security…code……………………………………………………… 137
PIN…code………………………………………………………………………… 137
PUK…code… …………………………………………………………………… 138
Selfie Focus ……………………………………………………………………… 99
Setting menu ………………………………………………………………… 120
Setting screen lock …………………………………………………………… 34
Setting unlock method for the screen lock ………………………… 135
Setting vibration pattern …………………………………………………… 128
Set up SIM card lock ………………………………………………………… 138
S Health ………………………………………………………………………… 119
Smart Switch ………………………………………………………………… 158
Smart View …………………………………………………………………… 159
SMS ………………………………………………………………………………… 84
Creating…and…sending… ……………………………………………………… 84
Received…………………………………………………………………………… 85
Specific Absorption Rate (SAR) ………………………………………… 178
S Pen ……………………………………………………………………………… 40
Split screen view ………………………………………………………………… 61
sp-mode ………………………………………………………………………… 125
Status bar ………………………………………………………………………… 48
Main…notification…icons………………………………………………………… 48
Main…status…icons… …………………………………………………………… 49
Still image
Shooting…………………………………………………………………………… 96
Viewing… ……………………………………………………………………… 103
Appendix/Index
Storage ………………………………………………………………………… 133
Super slow motion …………………………………………………………… 101
Swipe ……………………………………………………………………………… 35
Switching keyboard types (input method) ……………………………… 44
S Pen remote …………………………………………………………………… 41
T
Tap …………………………………………………………………………………… 35
Tap & pay ……………………………………………………………………… 107
Tethering ……………………………………………………………………… 124
The orientation of the display
Switch……………………………………………………………………………… 37
Touch and hold …………………………………………………………………… 35
Touch screen …………………………………………………………………… 35
Troubleshooting ……………………………………………………………… 166
Turning power ON/OFF ……………………………………………………… 34
TV (Fullseg/1Seg) …………………………………………………………… 108
U
Updating software …………………………………………………………… 174
V
Video
Playing…………………………………………………………………………… 103
Shooting…………………………………………………………………………… 96
Video call
Calling…screen… ………………………………………………………………… 71
Voice mail service ……………………………………………………………… 74
Voice Recorder ……………………………………………………………… 116
VPN ……………………………………………………………………………… 126
W
Waterproofness/Dustproofness …………………………………………… 21
Web browser ……………………………………………………………………… 91
Wi-Fi ……………………………………………………………………………… 120
WORLD CALL …………………………………………………………………… 74
Y
YouTube ………………………………………………………………………… 118
Number
1Seg ……………………………………………………………………………… 108
Symbol
+Message ………………………………………………………………………… 81
Deleting…message… …………………………………………………………… 83
Deleting…thread… ……………………………………………………………… 83
Forwarding…message…………………………………………………………… 83
Reading…message… …………………………………………………………… 83
Sending…message… …………………………………………………………… 82
Setting……………………………………………………………………………… 83
187 Appendix/Index
Use mobile phone with your manners!
Remember to be courteous to others when you use your terminal.
Always turn OFF your terminal in cases below
■ In a place where use of mobile phones is prohibited
Follow the instructions of each airline or medical facility for the use of mobile phones on their premises. Power off the terminal in a place where the use is prohibited.
Always set to public mode in case below
■ When driving
A penalty may be imposed for using by holding a mobile phone while driving. Absolutely necessary cases such as rescue of a sick person or maintaining public's safety are exempted.
■ When you are in a public place such as a theater, movie theater, or museum
Using the terminal in a public place, where you need to be quiet, annoys people around you.
Be considerate of where you use your terminal and keep your voice and ringtone down
■ Keep your voice down in quiet places like restaurants and hotel lobbies, etc.
■ If you are in an outdoor public place, make sure you do not disturb others.
Respect privacy
■ Please be considerate of the privacy of individuals around you when taking and sending photos using camera-equipped mobile phones.
Do not use smartphone while walking.
■ Walking while looking at the screen of a smartphone or mobile phone is very dangerous. The field of view becomes extremely narrow, which may lead to accidents involving not only yourself but also the surrounding people.
■ Stop in a safe place and then use smartphone.
Functions for maintaining good manners in public places
There are some advanced settings such as not answering incoming call or muting sound, etc.
Tells the caller via a guidance message that receiver need to turn the power off, and the call ends automatically.
Notify the call by vibration.
■ Manner mode (Vibrate, Mute) (P.127)
Mute sound/ringtone, etc.
* Shutter sound cannot be muted.
Besides these things, option services such as Voice Mail Service (P.74), Call
Forwarding Service (P.74). etc., are available.
Checking various procedures and contract details online
From the terminal
From PC dメニュー (dmenu) → "My docomo (お客様サポート (Customer support))"
(In Japanese only)
My docomo (https://www.nttdocomo.co.jp/mydocomo/)
● There are cases where the site may not be available due to system maintenance, etc.
● Network security code or "ID/Password" of dACCOUNT is required to use "docomo online procedures".
Bring no longer needed mobile telephones, etc., to your nearest docomo Shop to be recycled regardless of whether the products were manufactured by DOCOMO or by other companies.
* Recyclables: mobile telephones, PHS, batteries, battery chargers, tabletop stands (regardless of whether manufactured by DOCOMO or by other companies)
General Inquiries <docomo Information Center>
R0120-005-250
(toll free)
* Service available in: English, Portuguese, Chinese, Spanish
* Unavailable from part of IP phones. (Business hours: 9:00 a.m. to 8:00 p.m.)
■ From DOCOMO mobile phones (In Japanese only) ■ From land-line phones (In Japanese only)
(No prefix)
151
(toll free)
* Unavailable from land-line phones, etc.
R0120-800-000
* Unavailable from part of IP phones.
Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)
Technical Inquiries & Repairs
■ From DOCOMO mobile phones (In Japanese only) ■ From land-line phones (In Japanese only)
(No prefix)
113
(toll free)
* Unavailable from land-line phones, etc.
R0120-800-000
* Unavailable from part of IP phones.
Business hours: 24 hours (open all year round)
● For●Apps●or●Repairs●and●After-Sales●Service,●please●contact●the●above-mentioned●information●center●or●the●docomo●Shop●etc.●near●you●on●the●NTT●DOCOMO●website.●
NTT●DOCOMO●website●https://www.nttdocomo.co.jp/english/
For inquiries while overseas (for loss, theft, malfunction, etc.)
■ From DOCOMO mobile phones
Before calling, display "+" -81-3-6832-6600 (toll free)
(To enter "+", touch and hold the "0" key)
* You can use international call access codes instead of “+” to call.
■ From land-line phones
International call access code for the country you stay
-81-3-6832-6600 (toll)
* You are charged a call fee to Japan.
* For international call access codes, refer to NTT DOCOMO website.
Business●hours:●24●hours●(open●all●year●round)
● Please●confirm●the●phone●number●before●you●dial.
●
● suspending●the●use●of●the●terminal.
● If●the●terminal●you●purchased●is●damaged,●bring●your●terminal●to●DOCOMO-specified● repair●office●after●returning●to●Japan.
For Inquiries about Sample
■ Galaxy Customer Support Center (In Japanese only)
R0120-363-905
Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)
●
● Check●the●supplied●sample●accessories●in●this●manual.
Don't forget your mobile phone ... or your manners!
When using your mobile phone in a public place, don't forget to show common courtesy and consideration for others around you.
Sales: NTT DOCOMO, INC.
'18.9 (1.1th Edition)
advertisement
Key Features
- A large display for an immersive viewing experience.
- Capture life's moments with the high-quality camera.
- Effortlessly transfer data with Micro USB and OTG support.
- Stay connected with ease using docomo mail and +Message.
- Access a world of information and entertainment with the web browser.
Related manuals
Frequently Answers and Questions
How do I transfer data to my new device?
What email services are supported on the device?
Can I use the device to browse the internet?
advertisement
Table of contents
- 1 SC-01L INSTRUCTION MANUAL
- 2 Introduction
- 2 Manual
- 2 Operation descriptions
- 4 Contents/Precautions
- 3 Accessories
- 6 About usage of the terminal
- 7 Safety precautions (Always follow these directions)
- 18 Handling precautions
- 23 Waterproofness/Dustproofness
- 27 Getting started
- 27 Part names and functions
- 28 docomo nano UIM card
- 31 microSD card
- 34 Charging
- 36 Turning power ON/OFF
- 37 Basic Operation
- 40 Advanced features
- 46 Character entry
- 49 Initial settings
- 50 Notification LED
- 50 Display and icons
- 53 Edge screen
- 57 Home screen
- 58 Apps screen
- 62 Using Quick search box
- 63 Recently-used apps
- 63 Using split screen view
- 64 Switching home apps
- 65 docomo LIVE UX
- 65 Home screen
- 66 Managing Home screen
- 67 Using Recommends apps
- 68 Search app
- 68 Backing up and restoring the Home screen
- 69 My Magazine
- 69 Home app information
- 70 Phone
- 70 Making a Call
- 72 Receiving a call
- 73 Operation during a call
- 74 Recent calls
- 75 Answering message
- 76 Making an international call (WORLD CALL)
- 76 Call settings
- 80 Phonebook
- 83 Mail/Web browser
- 83 docomo mail
- 83 +Message
- 86 SMS
- 88 Email
- 90 Gmail
- 91 Early Warning "Area Mail"
- 93 Web browser
- 96 Camera
- 96 Camera
- 104 Gallery
- 106 Apps
- 106 dmenu
- 106 dmarket
- 107 Play Store
- 107 Galaxy Apps
- 108 Osaifu-Keitai
- 110 iD app
- 110 TV (Fullseg/1Seg)
- 113 GPS/Navigation
- 115 Clock
- 116 Calendar
- 116 Galaxy Notes
- 118 Voice Recorder
- 118 Calculator
- 119 docomo Data Copy
- 120 YouTube
- 121 Dictionary
- 121 S Health
- 122 Settings
- 122 Setting menu
- 122 Connections
- 129 Sounds and vibration
- 131 Notifications
- 131 Display
- 133 Wallpapers and themes
- 133 Device maintenance
- 136 Apps
- 137 Lock screen
- 138 Biometrics and security
- 145 Cloud and accounts
- 147 docomo service/cloud
- 148 Google
- 149 Accessibility
- 151 General management
- 153 Software update
- 153 About phone
- 154 File management
- 154 Storage folder structure
- 154 File operation
- 156 Data communication
- 156 Bluetooth communication
- 157 NFC communication
- 159 External device connection
- 159 Connecting to a PC
- 160 Connecting to printer
- 161 Smart View
- 162 International roaming
- 162 Overview of international roaming (WORLD WING)
- 162 Available overseas services
- 163 Before using the terminal overseas
- 164 Making/Receiving calls in the country you stay
- 165 International roaming settings
- 166 After returning to Japan
- 167 Appendix/Index
- 167 Sample
- 168 Troubleshooting (FAQ)
- 173 Anshin Enkaku Support
- 174 Warranty and After-Sales Service
- 176 Updating software
- 177 Main specifications
- 180 Specific Absorption Rate (SAR) of Mobile Phones
- 183 Export Administration Regulations
- 184 Intellectual Property Right
- 185 Canceling SIM Lock
- 186 Index
- 190 Use mobile phone with your manners!
- 191 General Inquiries
- 191 For inquiries while overseas (for loss, theft, malfunction, etc.)
