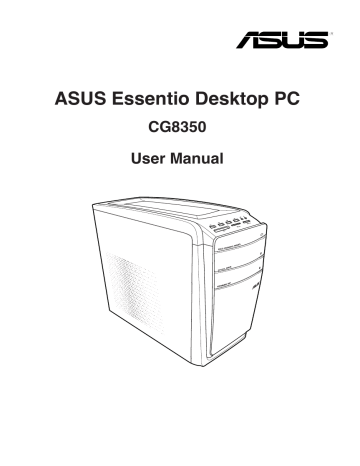

ASUS Essentio Desktop PC
CG8350
User Manual
E6181
First Edition
October 2010
ii
Copyright © 2010 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.
Contents
Where to find more information
................................................................... viii
Chapter 1 Getting started
Turning your computer ON/OFF ................................................................. 1-8
Chapter 2 Using Windows
7
Starting for the first time
..............................................................................
2-
Using Windows ® 7 desktop .........................................................................
2-2
Managing your files and folders
..................................................................
2-
Restoring your system ..............................................................................
2-10
Protecting your computer ...........................................................................
2-1
Getting Windows ® Help and Support ........................................................
2-1
Chapter 3 Connecting devices to your computer
Connecting a USB storage device .............................................................. 3-1
Connecting microphone and speakers ....................................................... 3-
2
Connecting multiple external displays ........................................................ 3-5
Chapter 4 Using your computer
Proper posture when using your Desktop PC............................................. 4-1
Using the memory card reader ................................................................... 4-
2
Using the multimedia keyboard (on selected models only) ........................ 4-4
Chapter 5 Connecting to the Internet
Chapter 6 Using the Utilities
iii
iv
Contents
0
Chapter 7 Troubleshooting
Notices
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of
Chemicals) regulatory framework, we published the chemical substances in our products at
ASUS REACH website at http://green.asus.com/english/REACH.htm
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference; and
• This device must accept any interference received including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
v
vi
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
This class B digital apparatus complies with Canadian ICES-003.
Macrovision Corporation Product Notice
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation . Reverse engineering or disassembly is prohibited.
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
Safety information
Disconnect the AC power and peripherals before cleaning. Wipe the Desktop PC using a clean cellulose sponge or chamois cloth dampened with solution of nonabrasive detergent and a few drops of warm water then remove any extra moisture with a dry cloth.
• DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.
• DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak.
• DO NOT place or drop objects on top and do not shove any foreign objects into the
Desktop PC.
• DO NOT expose to strong magnetic or electrical fields.
• DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
• Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery.
• Use this product in environments with ambient temperatures between 0˚C (32̊F)and
35˚C (95̊F).
• DO NOT cover the vents on the Desktop PC to prevent the system from getting overheated.
• DO NOT use damaged power cords, accessories, or other peripherals.
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
• Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
vii
viii
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.
DANGER/WARNING
:
Information to prevent injury to yourself when trying to complete a task.
CAUTION: Information to prevent damage to the components when trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.
Where to find more information
Refer to the following sources for additional information and for product and software updates.
ASUS websites
The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS website www.asus.com.
ASUS Local Technical Support
Visit ASUS website at http://support.asus.com/contact for the contact information of local Technical Support Engineer.
Package contents
ASUS Essentio Desktop PC
Power cord x1
Keyboard x1
Installation Guide
Mouse x1
Installation Guide x1
Warranty card x1 Nero 9 burning software DVD x1
• If any of the above items is damaged or missing, contact your retailer.
• The illustrated items above are for reference only. Actual product specifications may vary with different models.
ix
Chapter 1
Getting started
Welcome!
Thank you for purchasing the ASUS Essentio CG8350 Desktop PC!
The ASUS Essentio CG8350 Desktop PC provides cutting-edge performance, uncompromised reliability, and user-centric utilities. All these values are encapsulated in a stunningly futuristic and stylish system casing.
Read the ASUS Warranty Card before setting up your ASUS Desktop PC.
Getting to know your computer
Illustrations are for reference only. The ports and their locations, and the chassis color vary with different models.
Front panel
Click the number to view its corresponding description.
1-1 ASUS CG8350
1-2
1. USB 2.0 ports.
These Universal Serial Bus 2.0 (USB 2.0) ports connect to USB 2.0 devices such as a mouse, printer, scanner, camera, PDA, and others.
2. Microphone port.
This port connects to a microphone.
3. Headphone port.
This port connects to a headphone or speaker.
4. Power button.
Press this button to turn on your computer.
5. Optical disk drive eject button.
Press this button to eject the optical disk drive tray.
6. Optical disk drive bay (empty).
Allows you to install an additional optical disk drive in this bay.
7. Optical disk drive bay.
There is an optical disk drive in this bay.
8. Memory Stick™ / Memory Stick Pro™ card slot.
Insert a Memory Stick™ / Memory
Stick Pro™ card into this slot.
9. Secure Digital™ / MultiMediaCard slot.
Insert a Secure Digital™ / MultiMediaCard card into this slot.
10. CompactFlash ® into this slot.
/ Microdrive™ card slot.
Insert a CompactFlash ® / Microdrive™ card
Rear panel
19
Click the number to view its corresponding description.
Chapter 1: Getting started
1. Power connector. Plug the power cord to this connector.
2. Power switch. Switch to turn ON/OFF the power supply to your computer.
3. Air vents.
These vents allow air ventilation.
DO NOT block the air vents on the chassis. Always provide proper ventilation for your computer.
4. PS/2 Keyboard / Mouse Combo port (purple/green).
This port is for a PS/2 keyboard or mouse.
5. USB 2.0 ports.
These Universal Serial Bus 2.0 (USB 2.0) ports connect to USB 2.0 devices such as a mouse, printer, scanner, camera, PDA, and others.
6. Optical S/PDIF_OUT port.
This port connects to an external audio output device via an optical S/PDIF cable.
7. HDMI port.
This port is for a High-Definition Multimedia Interface (HDMI) connector, and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected content.
8. DVI-D port.
This port is for any DVI-D compatible device and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected content.
9. VGA port.
This port is for VGA-compatible devices such as a VGA monitor.
10. USB 3.0 ports.
These Universal Serial Bus 3.0 (USB 3.0) ports connect to USB 3.0 devices such as a mouse, printer, scanner, camera, PDA, and others.
• DO NOT connect a keyboard / mouse to any USB 3.0 port when installing Windows ® operating system.
• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under Windows ®
OS environment and after the USB 3.0 driver installation.
• USB 3.0 devices can only be used as data storage only.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster and better performance for your USB 3.0 devices.
11.
USB 2.0 ports. These Universal Serial Bus 2.0 (USB 2.0) ports connect to USB 2.0 devices such as a mouse, printer, scanner, camera, PDA, and others.
12. LAN (RJ-45) port.
This port allows Gigabit connection to a Local Area Network (LAN) through a network hub.
LAN port LED indications
ACT/LINK
LED
SPEED
LED
Activity/Link LED Speed LED
Status Description Status
OFF No link OFF
ORANGE
BLINKING
Linked
Data activity
ORANGE
GREEN
Description
10Mbps connection
100Mbps connection
1Gbps connection
LAN port
ASUS CG8350 1-3
1-4
13. Side Speaker Out port (gray).
This port connects to the side speakers in an 8-channel audio configuration.
14. Rear Speaker Out port (black).
This port connects to the rear speakers in a 4, 6, and
8-channel audio configuration.
15. Center/Subwoofer port (orange).
This port connects to the center/subwoofer speakers.
16. Microphone port (pink).
This port connects to a microphone.
17. Line Out port (lime).
This port connects to a headphone or speaker. In a 4, 6, or
8-channel configuration, the function of this port becomes Front Speaker Out.
18. Line In port (light blue).
This port connects to a tape, CD, DVD player, or other audio sources.
Refer to the audio configuration table below for the function of the audio ports in a 2, 4, 6, or 8-channel configuration.
Audio 2, 4, 6, or 8-channel configuration
Port
Light Blue
Lime
Pink
Orange
Black
Gray
Headset
2-channel
Line In
Line Out
Mic In
–
–
–
4-channel
Line In
Front Speaker Out
Mic In
–
Rear Speaker Out
–
6-channel
Line In
Front Speaker Out
Mic In
Center/Subwoofer
Rear Speaker Out
–
8-channel
Line In
Front Speaker Out
Mic In
Center/Subwoofer
Rear Speaker Out
Side Speaker Out
19. ASUS Graphics Card (on selected models only).
The display output ports on this optional ASUS Graphics Card may vary with different models.
20. Expansion slot bracket.
Remove the expansion slot bracket when installing an expansion card.
Chapter 1: Getting started
Setting up your computer
This section guides you through connecting the main hardware devices, such as the external monitor, keyboard, mouse, and power cord, to your computer.
Connecting an external monitor
Using the ASUS Graphics Card (on selected models only)
Connect your monitor to the display output port on the discrete ASUS Graphics Card.
To connect an external monitor using the ASUS Graphics Card:
1. Connect a monitor to a display output port on the ASUS Graphics Card.
2. Plug the monitor to a power source.
The display output ports on the ASUS Graphics Card may vary with different models.
ASUS CG8350 1-5
Using the onboard display output ports
Connect your monitor to the onboard display output port.
To connect an external monitor using the onboard display output ports:
1. Connect a VGA monitor to the VGA port, or a DVI-D monitor to the DVI-D port, or an
HDMI monitor to the HDMI port on the rear panel of your computer.
2. Plug the monitor to a power source.
1-6
• If your computer comes with an ASUS Graphics Card, the graphics card is set as the primary display device in the BIOS. Hence, connect your monitor to a display output port on the graphics card.
Chapter 1: Getting started
Connecting a USB keyboard and a USB mouse
Connect a USB keyboard and a USB mouse to the USB ports on the rear panel of your computer.
Connecting the power cord
Connect one end of the power cord to the power connector on the rear panel of your computer and the other end to a power source.
ASUS CG8350 1-7
1-8
Turning your computer ON/OFF
This section describes how to turn on/off your computer after setting up your computer.
Turning your computer ON
To turn your computer ON:
1. Turn your monitor ON.
2. Turn the power switch ON, then press the power button on your computer.
Power button
3. Wait until the operating system loads automatically.
Turning your computer OFF
To turn your computer OFF:
1. Close all running applications.
2. Click on the Windows ® desktop.
3. Click to shut down the operating system.
Chapter 1: Getting started
Chapter 2
Using Windows
®
7
Starting for the first time
When you start your computer for the first time, a series of screens appear to guide you in configuring the basic settings of your Windows ® 7 operating system.
To start for the first time:
1. Turn your computer on. Wait for a few minutes until the Set Up Windows screen appears.
2. From dropdown list, select your language. Click Next .
3. From the dropdown lists, select your Country or region , Time and currency , and
Keyboard layout . Click Next .
4. Key in uniques names for the user name and computer name . Click Next .
5. Key in the necessary information to set up your password, then click Next . You may also click Next to skip this step without entering any information.
If you want to set up a password for your account later, refer to the section Setting up a user account and password in this chapter.
6. Carefully read the license terms. Tick I accept the license terms and click Next .
7. Select Use recommended settings or Install important updates only to set up the security settings for your computer. To skip this step, select Ask me later .
8. Review your date and time settings. Click Next . The system loads the new settings and restarts. You may now start using your computer.
ASUS CG8350 2-1
Using Windows
®
7 desktop
Click the Start icon > Help and Support to obtain more information about Windows ® 7.
2-2
Start menu
Taskbar
Notification area
Using the Start menu
The Start menu gives you access to programs, utilities, and other useful items on your computer. It also provides you with more information about Windows 7 through its Help and
Support feature.
Launching items from the Start menu
To launch items from the Start menu:
1. From the Windows ® taskbar, click the Start icon .
2. From the Start menu, select the item that you want to launch.
You may pin programs that you want constantly displayed on the Start menu. For more details, refer to the section Pinning programs on the Start menu or taskbar on this chapter.
Chapter 2: Using Windows ® 7
Using the Getting Started item
The Getting Started item on the Start menu contains information about some basic tasks such as personalizing Windows with using Windows ® 7.
® , adding new users, and transferring files to help you to familiarize yourself
To use the Getting Started item:
1. From the Windows ® taskbar, click the Start icon to launch the Start menu.
2. Select Getting Started . The list of available tasks appears.
3. Select the task that you want to do.
Using the taskbar
The taskbar allows you to launch and manage programs or items installed on your computer.
Launching a program from the taskbar
To launch a program from the taskbar:
• From the Windows ® program.
taskbar, click an icon to launch it. Click the icon again to hide the
ASUS CG8350
You may pin programs that you want constantly displayed on the taskbar. For more details, refer to the section Pinning programs on the Start menu or taskbar on this chapter.
2-3
2-4
Pinning items on the jumplists
When you right-click an icon on the taskbar, a jumplist launches to provide you with quick-access to the program’s or item’s related links.You may pin items on the jumplist such as favorite websites, often-visited folders or drives, or recently played media files.
To pin items to the jumplist:
1. From the taskbar, right-click an icon.
2. From the jumplist, right-click the item that you want to pin, then select Pin to this list .
Unpinning items from the jumplist
To unpin items from the jumplist:
1. From the taskbar, right-click an icon.
2. From the jumplist, right-click the item that you want to remove from the jumplist, then select Unpin from this list .
Pinning programs on the Start menu or taskbar
To pin programs on the Start menu or taskbar:
1. From the Windows ® taskbar, click the Start icon
to launch the Start menu.
2. Right-click the item that you want to pin on the
Start menu or taskbar.
3. Select Pin to Taskbar or Pin to Start menu .
You may also right-click on the icon of a running program on the taskbar, then select Pin this program to taskbar .
Chapter 2: Using Windows ® 7
Unpinning programs from the Start menu
To unpin programs from the Start menu:
1. From the Windows ® taskbar, click the Start icon to launch the Start menu.
2. From the Start menu, right-click the program that you want to unpin, then select
Remove from this list .
Unpinning programs from the taskbar
To unpin programs from the taskbar:
1. From the taskbar, right-click the program that you want to remove from the taskbar, then select Unpin this program from taskbar .
Using the notification area
By default, the notification area shows these three icons:
Action Center notification
Click this icon to display all the alert messages/notifications and launch the Windows ® Action Center.
Network connection
This icon displays the connection status and signal strength of the wired or wireless network connection.
Volume
Click this icon to adjust the volume.
Displaying an alert notification
To display an alert notification:
• Click the Notification icon , then click the message to open it.
ASUS CG8350
For more details, refer to the section Using Windows ® Action Center in this chapter.
2-5
Customizing icons and notifications
You may choose to display or hide the icons and notifications on the taskbar or on the notification area.
To customize icons and notifications:
1. From the notification area, click on the arrow icon
2. Click Customize .
.
3. From the dropdown list, select the behaviors for the icons or items that you want customize.
2-6 Chapter 2: Using Windows ® 7
Managing your files and folders
Using Windows
®
Explorer
Windows ® Explorer allows you to view, manage, and organize your files and folders.
Launching Windows
®
Explorer
To launch Windows Explorer:
1. From the Windows ® taskbar, click the Start icon to launch the Start menu.
2. Click Computer to launch Windows Explorer.
Breadcrumb bar View icon
Toolbar
Search bar
Preview icon
Navigation pane
View pane
Exploring files and folders
To explore files and folders:
1. Launch Windows Explorer.
2. From the navigation or view pane, browse for the location of your data.
3. From the breadcrumb bar, click the arrow to display the contents of the drive or folder.
ASUS CG8350 2-7
2-8
Customizing the file/folder view
To customize the file/folder view:
1. Launch Windows Explorer.
2. From the navigation pane, select the location of your data.
3. From the toolbar, click the View icon .
4. From the View menu, move the slider to select how you want to view the file/folder.
You may also right-click anywhere on the View pane, click View , and select the view type that you want.
Arranging your files
To arrange your files:
1. Launch Windows Explorer.
2. From the Arrange by field, click to display the dropdown list.
3. Select your preferred arrangement type.
Chapter 2: Using Windows ® 7
Sorting your files
To sort your files:
1. Launch Windows Explorer.
2. Right-click anywhere on the View pane.
3. From the menu that appears, select Sort by , then select your preferred sorting type.
Grouping your files
To group your files:
1. Launch Windows Explorer.
2. Right-click anywhere on the View pane.
3. From the menu that appears, select
Group by , then select your preferred grouping type.
Adding a new folder
To add a new folder:
1. Launch Windows Explorer.
2. From the toolbar, click New folder .
3. Key in a name for the new folder.
You may also right-click anywhere on the View pane, click New >
Folder .
ASUS CG8350 2-9
Backing up your files
Setting up a backup
To set up a backup:
1. Click > All Programs > Maintenance > Backup and Restore .
2. Click Set up backup . Click Next .
2-10
3. Select your backup destination. Click Next .
4. Select Let Windows choose (recommended) or Let me choose as your backup mode .
If you select Let Windows choose , Windows will not back up your programs, FATformatted files, Recycle Bin files, or temporary files that are 1GB or more.
5. Follow the onscreen instructions to finish the process.
Restoring your system
The Windows ® System Restore feature creates a restore point where the computer’s system settings are stored at certain time and date. It allows you to restore or undo changes to your computer’s system settings without affecting your personal data.
To restore your system:
1. Close all running applications.
2. Click > All Programs > Accessories > System Tools > System Restore .
3. Follow the onscreen instructions to complete the process.
Chapter 2: Using Windows ® 7
Protecting your computer
Using Windows
®
7 Action Center
Windows ® 7 Action Center provides you with alert notifications, security information, system maintenance information, and the option to automatically troubleshoot and fix some common computer problems.
You may customize the notifications. For more details, refer to the previous section
Customizing icons and notifications in this chapter.
Launching Windows
®
7 Action Center
To launch Windows ® 7 Action Center:
1. To launch Windows 7 Action Center, click the Notification icon , then click Open
Action Center .
2. From Windows 7 Action Center, click the task that you want to do.
ASUS CG8350 2-11
Using Windows
®
Update
Windows Update allows you to check and install the latest updates to enhance the security and performance of your computer.
Launching Windows
®
Update
To launch Windows ® Update:
1. From the Windows ® taskbar, click the Start icon to launch the Start menu.
2. Select All Programs > Windows Update .
3. From the Windows Update screen, click the task that you want to do.
2-12 Chapter 2: Using Windows ® 7
Setting up a user account and password
You may create user accounts and passwords for people who will use your computer.
Setting up a user account
To set up a user account:
1. From the Windows ® taskbar, click > Getting Started > Add new users .
2. Select Manage another account .
3. Select Create a new account .
4. Key in the name of the new user.
5. Select either Standard user or Administrator as the user type.
6. When done, click Create Account .
ASUS CG8350 2-13
Setting up a user’s password
To set up a user’s password:
1. Select the user that you would like to set a password.
2. Select Create a password .
3. Key in a password and confirm it. Key in your password’s hint.
4. When done, click Create password .
2-14 Chapter 2: Using Windows ® 7
Activating the anti-virus software
Trend Micro Internet Security is pre-installed on your computer. It is a third-party anti-virus software protecting your computer from virus attacking. It is purchased separately. You have a 30-day trial period after activating it.
To activate Trend Micro Internet Security:
1. Run the Trend Micro Internet Security application.
2. Carefully read the license terms. Click Agree & Activate .
3. Input your e-mail address and select your location. Click Next .
4. Click Finish to complete the activation.
Getting Windows
®
Help and Support
Windows ® Help and Support provides you with guides and answers in using the applications in Windows ® 7 platform.
To launch Windows ® Help and Support, click > Help and Support .
ASUS CG8350
Ensure that you are connected to the Internet to obtain the latest Windows ® online help.
2-15
Chapter 3
Connecting devices to your computer
Connecting a USB storage device
This desktop PC provides USB 2.0/1.1 ports on both the front and rear panels. The USB ports allow you to connect USB devices such as storage devices.
To connect a USB storage device:
• Insert the USB storage device to your computer.
Front panel
To remove a USB storage device:
1. Click from the Windows notification area on your computer, then click Eject USB2.0 FlashDisk .
Rear panel
2. When the Safe to Remove Hardware message pops up, remove the USB storage device from your computer.
DO NOT remove a USB storage device when data transfer is in progress. Doing so may cause data loss or damage the USB storage device.
ASUS CG8350 3-1
Connecting microphone and speakers
This desktop PC comes with microphone ports and speaker ports on both the front and rear panels. The audio I/O ports located on the rear panel allow you to connect 2-channel,
4-channel, 6-channel, and 8-channel stereo speakers.
Connecting Headphone and Mic
Connecting 2-channel Speakers
3-2 Chapter 3: Connecting devices to your computer
Connecting 4-channel Speakers
Connecting 6-channel Speakers
ASUS CG8350 3-3
Connecting 8-channel Speakers
3-4 Chapter 3: Connecting devices to your computer
Connecting multiple external displays
Your desktop PC may come with VGA, HDMI, or DVI ports and allows you to connect multiple external displays.
When a graphics card is installed in your computer, connect the monitors on the output ports of the graphics card.
Setting up multiple displays
When using multiple monitors, you are allowed to set display modes. You can use the additional monitor as a duplicate of your main display, or as an extension to enlarge your
Windows desktop.
To set up multiple displays:
1. Turn off your computer.
2. Connect the two monitors to your computer and connect the power cords to the monitors. Refer to Setting up your computer section in Chapter 1 for details on how to connect a monitor to your computer.
ASUS CG8350
For some graphic cards, only the monitor that is set to be the primary display has display during POST. The dual display function works only under Windows.
3-5
3. Turn on your computer.
4. Do any of the following to open the Screen Resolution setting screen:
• Click > Control Panel > Appearance and Personalization > Display >
Change display settings .
• Right click anywhere on your Windows desktop. When the pop-up menu appears, click Personalize > Display > Change display settings .
5. Select the display mode from the Multiple displays: drop-down list.
• Duplicate these displays : Select this option to use the additional monitor as a duplicate of your main display.
• Extend these displays : Select this option to use the additional monitor as an extension display. This increases your desktop space.
• Show desktop only on 1 / 2
1 or monitor 2.
: Select this option to show desktop only on monitor
• Remove this display : Select this options to remove the selected display.
3-6
6. Click Apply or OK . Then click Keep Changes on the confirmation message.
Chapter 3: Connecting devices to your computer
Connecting an HDTV
Connect a High Definition TV (HDTV) to the HDMI port of your computer.
• You need an HDMI cable to connect the HDTV and the computer. The HDMI cable is purchased separately.
• To get the best display performance, ensure that your HDMI cable is less than 15 meters.
ASUS CG8350 3-7
Chapter 4
Using your computer
Proper posture when using your Desktop PC
When using your Desktop PC, maintaining the proper posture is necessary to prevent strain to your wrists, hands, and other joints or muscles. This section provides you with tips on avoiding physical discomfort and possible injury while using and fully enjoying your Desktop PC.
Eye level to the top of the monitor screen
Foot rest 90˚ angles
To maintain the proper posture:
•
•
•
•
•
•
•
•
Position your computer chair to make sure that your elbows are at or slightly above the keyboard to get a comfortable typing position.
Adjust the height of your chair to make sure that your knees are slightly higher than your hips to relax the backs of your thighs. If necessary, use a footrest to raise the level of your knees.
Adjust the back of your chair so that the base of your spine is firmly supported and angled slightly backward.
Sit upright with your knees, elbows and hips at an approximately 90º angle when you are at the PC.
Place the monitor directly in front of you, and turn the top of the monitor screen even with your eye level so that your eyes look slightly downward.
Keep the mouse close to the keyboard, and if necessary, use a wrist rest for support to reduce the pressure on your wrists while typing.
Use your Desktop PC in a comfortably-lit area, and keep it away from sources of glare such as windows and straight sunlight.
Take regular mini-breaks from using your Desktop PC.
ASUS CG8350 4-1
Using the memory card reader
Digital cameras and other digital imaging devices use memory cards to store digital picture or media files. The built-in memory card reader on the front panel of your system allows you to read from and write to different memory card drives.
1
4-2
To use the memory card:
1. Insert the memory card into the card slot.
• A memory card is keyed so that it fits in only one direction. DO NOT force a card into a slot to avoid damaging the card.
• You can place media in one or more of the card slots and use each media independently.
Place only one memory card in a slot at one time.
2. Select a program from the AutoPlay window to access your files.
• If AutoPlay is NOT enabled in your computer, click Windows on it.
® 7 Start button on the taskbar, click Computer , and then double-click the memory card icon to access the data
• Each card slot has its own drive icon which is displayed on the Computer screen.
• The memory card reader LED lights up and blinks when data is being read from or written to the memory card.
3. When finished, right-click the memory card drive icon on the Computer screen, click
Eject , and then remove the card.
Never remove cards while or immediately after reading, copying, formatting, or deleting data on the card or else data loss may occur.
To prevent data loss, use “Safely Remove Hardware and Eject Media” in the Windows notification area before removing the memory card.
Chapter 4: Using your computer
Using the optical drive
1 2
3
Inserting an optical disc
To insert an optical disc:
1. While your system is on, press the eject button below the drive bay cover to open the tray.
2. Place the disc to the optical drive with the label side facing up.
3. Push the tray to close it.
4. Select a program from the AutoPlay window to access your files.
If AutoPlay is NOT enabled in your computer, click Windows ® 7 Start button on the taskbar, click Computer , and then double-click the CD/DVD drive icon to access the data on it.
Removing an optical disc
To remove an optical disc:
1. While the system is on, do either of the following to eject the tray:
• Press the eject button below the drive bay cover.
• Right-click the CD/DVD drive icon on the Computer screen, and then click Eject .
2. Remove the disc from the disc tray.
ASUS CG8350 4-3
4-4
Using the multimedia keyboard
(on selected models only)
The keyboard varies with models. The illustrations on this section are for reference only.
ASUS PRIMAX/KB2621 keyboard
5.
6.
3.
4.
Keys
1.
2.
Description
Increases the system volume.
Turns the volume’s mute mode on/off.
Increases the system volume.
Goes to the previous track in a media player.
Plays or pauses playback in a media player.
Goes to the next track in a media player.
1
4
2
5
3
6
The special function keys only work on Windows ® Vista / Windows ® 7 operating systems.
Chapter 4: Using your computer
Chapter 5
Connecting to the Internet
Wired connection
Use an RJ-45 cable to connect your computer to a DSL/cable modem or a local area network
(LAN).
Connecting via a DSL/cable modem
To connect via a DSL/cable modem:
1. Set up your DSL/cable modem.
Refer to the documentation that came with your DSL/cable modem.
2. Connect one end of an RJ-45 cable to the LAN (RJ-45) port on the rear panel of your computer and the other end to a DSL/cable modem.
Modem
RJ-45 cable
3. Turn on the DSL/cable modem and your computer.
4. Configure the necessary Internet connection settings.
Contact your Internet Service Provider (ISP) for details or assistance in setting up your
Internet connection.
ASUS CG8350 5-1
Connecting via a local area network (LAN)
To connect via a LAN:
1. Connect one end of an RJ-45 cable to the LAN (RJ-45) port on the rear panel of your computer and the other end to your LAN.
RJ-45 cable
LAN
2. Turn on your computer.
3. Configure the necessary Internet connection settings.
Contact your network administrator for details or assistance in setting up your Internet connection.
5-2 Chapter 5: Connecting to the Internet
Chapter 6
Using the Utilities
The support DVD and Recovery DVD may not be included in the package. You can burn them by yourself. Refer to Recovering your system for details.
ASUS AI Suite II
ASUS AI Suite II is an all-in-one interface that integrates several ASUS utilities and allows users to launch and operate these utilities simultaneously.
Installing AI Suite II
To install AI Suite II:
1. Place the support DVD in the optical drive. The Drivers installation tab appears if your computer has enabled the Autorun feature.
2. Click the Utilities tab, then click ASUS AI Suite II.
3. Follow the onscreen instructions to complete the installation.
Using AI Suite II
AI Suite II automatically starts when you enter the Windows ®
Suite II icon appears in the Windows ® main menu bar.
operating system (OS). The AI
notification area. Click the icon to open the AI Suite II
Click each button to select and launch a utility, to monitor the system, to update the motherboard BIOS, to display the system information, and to customize the settings of AI
Suite II.
ASUS CG8350
Click to show the system information
Click to customize the interface settings
Click to update the motherboard BIOS
Click to monitor sensors or CPU frequency
Click to select a utility
6-1
Tool
The Tool section includes the EPU, Probe II and Sensor
Record panels.
EPU
EPU is an energy-efficient tool that satisfies different computing needs. This utility provides several modes that you can select to save system power. Selecting Auto mode will have the system shift modes automatically according to current system status. You can also customize each mode by configuring settings like CPU frequency, GPU frequency, vCore Voltage, and
Fan Control.
Launching EPU
After installing AI Suite II from the support DVD, launch EPU by clicking Tool > EPU on the
AI Suite II main menu bar.
Displays the following message if no VGA power saving engine is detected.
6-2
Displays current mode
The items lighting up means power saving engine is activated
Displays the amount of CO2 reduced
*Shifts between the display of Total and
Current CO2 reduced
Displays the current
CPU power
Multiple system operating modes
Advanced settings for each mode
Displays the system properties of each mode
*• Select From EPU Installation to show the CO2 that has been reduced since you installed EPU.
*• Select From the Last Reset to show the total CO2 that has been reduced since you click the Clear button .
Chapter 6: Using the Utilities
Probe II
Probe II is a utility that monitors the computer’s vital components, and detects and alerts you of any problem with these components. Probe II senses fan rotations, CPU temperature, and system voltages, among others. With this utility, you are assured that your computer is always at a healthy operating condition.
Launching Probe II
After installing AI Suite II from the support DVD, launch Probe II by clicking Tool > Probe II on the AI Suite II main menu bar.
Configuring Probe II
Click the Voltage/Temperature/Fan Speed tabs to activate the sensors or to adjust the sensor threshold values. The Preference tab allows you to customize the time interval of sensor alerts, or change the temperature unit.
Saves your configuration
Loads your saved configuration
Loads the default threshold values for each sensor
Applies your changes
ASUS CG8350 6-3
6-4
Sensor Recorder
Sensor Recorder allows you to monitor the changes in the system voltage, temperature, and fan speed, as well as recording the changes.
Launching Sensor Recorder
After installing AI Suite II from the support DVD, click Tool > Sensor Recorder on the AI
Suite II main menu bar to launch PC Probe .
Configuring Sensor Recorder
Click the Voltage/Temperature/Fan Speed tabs and select the sensors that you want to monitor. The History Record tab allows you to record the changes in the sensors that you enable.
Select the sensors that you want to monitor
Drag to view the status during a certain period of time
Click to return to the default mode
Click to zoom in/out the Y axis
Click to zoom in/out the X axis
Chapter 6: Using the Utilities
Monitor
The Monitor section includes the Sensor and
CPU Frequency panels.
Sensor
The Sensor panel displays the current value of a system sensor such as fan rotation, CPU temperature, and voltages. Click Monitor > Sensor on the AI Suite II main menu bar to launch the Sensor panel.
CPU Frequency
The CPU Frequency panel displays the current CPU frequency and CPU usage. Click
Monitor > CPU Frequency on the AI Suite II main menu bar to open the CPU Frequency panel.
Resident in the right pane (system information area) Sensor panel CPU Frequency panel
ASUS CG8350 6-5
6-6
Update
The Update section allows you to update the motherboard BIOS and the BIOS boot logo with the ASUS designed update utilities.
ASUS Update
The ASUS Update is a utility that allows you to manage, save, and update the motherboard
BIOS in Windows ® OS. The ASUS Update utility allows you to update the BIOS directly from the Internet, download the latest BIOS file from the Internet, update the BIOS from an updated BIOS file, save the current BIOS file or view the BIOS version information.
Updating the BIOS through the Internet
To update the BIOS through the Internet:
1. From the ASUS Update screen, select Update BIOS from Internet , and then click Next .
2. Select the ASUS FTP site nearest you to avoid network traffic.
If you want to enable the BIOS downgradable function and auto
BIOS backup function, check the checkboxs before the two items on the screen.
3. Select the BIOS version that you want to download. Click Next .
When no updated version is detected, it is shown as the screen on the right side.
Chapter 6: Using the Utilities
4. You can decide whether to change the BIOS boot logo, which is the image appearing on screen during the Power-On Self-Tests (POST).
Click Yes if you want to change the boot logo or No to continue.
5. Follow the onscreen instructions to complete the update process.
Updating the BIOS through a BIOS file
To update the BIOS through a BIOS file:
1. From the ASUS Update screen, select Update BIOS from file , and then click Next .
2. Locate the BIOS file from the Open window, click Open , and click Next .
3. You can decide whether to change the BIOS boot logo. Click Yes if you want to change the boot logo or No to continue.
4. Follow the onscreen instructions to complete the update process.
ASUS CG8350 6-7
6-8
System Information
The System Information section displays the information about the motherboard, CPU, and memory slots.
• Click the MB tab to see the details on the motherboard manufacturer, product name, version, and BIOS.
• Click the CPU tab to see the details on the processor and the Cache.
• Click the SPD tab and then select the memory slot to see the details on the memory module installed on the corresponding slot.
Chapter 6: Using the Utilities
Settings
The Settings section allows you to customize the main menu bar settings and the interface’s skin.
• Application allows you to select the application that you want to enable.
• Bar allows you to modify the bar setting,
• Skin allows you to customize the interface’s contrast, brightness, saturation, hue, and gamma.
ASUS CG8350 6-9
6-10
ASUS AI Manager
ASUS AI Manager is a utility which gives you quick and easy access to frequently-used applications.
Installing AI Manager
To install AI Manager:
1. Place the support DVD in the optical drive. If Autorun is enabled, the Drivers installation wizard appears.
If Autorun is disabled, double-click the setup.exe
file from the ASUS AI Manager folder in the support DVD.
2. Click the Utilities tab, then click ASUS AI Manager .
3. Follow the onscreen instructions to complete the installation.
Launching AI Manager
To launch the AI Manager from the Windows ® desktop, click Start > All Programs > ASUS >
AI Manager > AI Manager 1.xx.xx
. The AI Manager quick bar appears on the desktop.
After launching the application, the AI Manager icon appears in the Windows ® taskbar.
Right-click this icon to switch between the quick bar and the main window, and to launch the AI Manager either from the quick bar or taskbar.
Chapter 6: Using the Utilities
AI Manager quick bar
The AI Manager quick bar saves the desktop space and allows you to launch the ASUS utilities or display system information easily. Click any of the Main, My Favorites, Support or
Information tab to display the menu’s contents.
Exit button
Switch to main Window
Add to ToolBar
Main
My Favorites
Support
Information
Click the Maximize/restore button to switch between full window and quick bar. Click the
Minimize button to keep the AI Manager on the taskbar. Click the Close button to quit the AI Manager.
Main
The Main menu contains three utilities: AI Disk , AI Security , and AI Booting . Click the arrow on the Main menu icon to browse through the utilities in the main menu.
Click to extend or restore
AI Disk
AI Disk allows you to easily clear temporary IE files, IE cookies, IE URLs, IE history, or the Recycle Bin. Click the AI Disk icon on the quick bar to display the full AI Disk window and select the items you want to clear. Click Apply when done.
ASUS CG8350 6-11
AI Security
AI Security enables you to set a password to secure your devices, such as USB flash disks and CD/DVD disks, from unauthorized access.
To lock a device:
1. When using AI Security for the first time, you are asked to set a password. Key in a password with at most 20 alphanumeric characters.
2. Confirm the password.
3. Key in the password hint (recommended).
4. When done, click Ok .
5. Select the device you want to lock, then click Apply .
6. Key in the password you have set previously, then click Ok .
6-12
To unlock the device:
1. Deselect the locked device, then click Apply .
2. Key in the password you have set previously, then click Ok .
To change the password:
• Click Change Password , then follow the onscreen instructions to change password.
Chapter 6: Using the Utilities
AI Booting
AI Booting allows you to specify the boot device priority sequence.
To specify the boot sequence:
1. Select a device, then click the left/right button to specify the boot sequence.
2. When done, press Apply .
My Favorites
My Favorites allows you to add applications that you frequently use, saving you from searching for the applications throughout your computer.
To add an application:
1. Click Add , then locate the application you want to add to My Favorites .
2. Click Open on the file location window. The application is added to My Favorites list.
Right click on the application icon to launch, delete, or rename the selected application. You can also double click to launch the selected application.
ASUS CG8350 6-13
Support
Click any links on the Support window to go to the ASUS website, technical support website, download support website, or contact information.
Information
Click the tab on the Information window to see the detailed information about your system, motherboard, CPU, BIOS, installed device(s), and memory.
6-14 Chapter 6: Using the Utilities
Nero 9
Nero 9 allows you to create, copy, burn, edit, share, and update different kinds of data.
Installing Nero 9
To install Nero 9:
1. Insert the Nero 9 DVD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically.
If Autorun is disabled, double-click the SeupX.exe
file from the main directory of your Nero
9 DVD.
3. From the main menu, click Nero 9 Essentials .
ASUS CG8350 6-15
6-16
4. Select the language you want to use for Installation Wizard. Click Next .
5. Click Next to continue.
6. Tick I accept the License Conditions . When done, click Next .
Chapter 6: Using the Utilities
7. Select Typical then click Next .
8. Tick Yes, I want to help by sending anonymous application data to Nero then click
Next .
9. When done, click Exit .
ASUS CG8350 6-17
Burning files
To burn files:
1. From the main menu, click Data Burning > Add .
2. Select the files that you want to burn. When done, click Add .
6-18 Chapter 6: Using the Utilities
3. After selecting files that you want to burn, click Burn to burn the files to a disc.
For more details about using Nero 9, refer to the Nero website at www.nero.com
Recovering your system
Using the Recovery Partition
The Recovery Partition quickly restores your Desktop PC’s software to its original working state. Before using the Recovery Partition, copy your data files (such as Outlook PST files) to USB storage devices or to a network drive and make note of any customized configuration settings (such as network settings).
About the Recovery Partition
The Recovery Partition is a reserved space on your hard disk drive used to restore the operating system, drivers, and utilities installed on your Desktop PC at the factory.
DO NOT delete the partition named
RECOVERY . The Recovery Partition is created at the factory and cannot be restored if deleted. Take your Desktop
PC to an authorized ASUS service center if you have problems with the recovery process.
Using the Recovery Partition:
1. Press < F9 > during bootup.
2. Press < Enter > to select Windows Setup [EMS Enabled].
ASUS CG8350 6-19
6-20
3. Select one of the following recovery options.
System Recovery:
This feature allows you to restore the system to the factory default settings.
System Image Backup:
This feature allows you to burn the system image backup in DVD discs, which you can use later to restore the system to its default settings.
System DVD Backup:
This feature allows you to make a backup copy of the support DVD.
4. Follow the onscreen instructions to complete the recovery process.
Visit the ASUS website at www.asus.com for updated drivers and utilities.
Using the Recovery DVD (on selected models)
Prepare 1~3 blank writable DVDs as instructed to create the Recovery DVD.
Remove the external hard disk drive before performing system recovery on your Desktop
PC. According to Microsoft, you may lose important data because of setting up Windows on the wrong disk drive or formatting the incorrect drive partition.
To use the Recovery DVD:
1. Insert the Recovery DVD into the optical drive. Your Desktop PC needs to be powered
ON.
2. Restart the Desktop PC and press < F8 > on bootup and select the optical drive (may be labeled as “CD/DVD”) and press < Enter > to boot from the Recovery DVD.
3. Select OK to start to restore the image.
4. Select OK to confirm the system recovery.
Restoring will overwrite your hard drive. Ensure to back up all your important data before the system recovery.
5. Follow the onscreen instructions to complete the recovery process.
DO NOT remove the Recovery disc, unless instructed to do so, during the recovery process or else your partitions will be unusable.
Visit the ASUS website at www.asus.com for updated drivers and utilities.
Chapter 6: Using the Utilities
Chapter 7
Troubleshooting
Troubleshooting
This chapter presents some problems you might encounter and the possible solutions.
?
My computer cannot be powered on and the power LED on the front panel does not light up
• Check if your computer is properly connected.
•
•
Check if the wall outlet is functioning.
Check if the Power Supply Unit is switched on. Refer to the section Turning your computer ON/OFF in Chapter 1.
?
My computer hangs.
• Do the following to close the programs that are not responding:
•
1. Simultaneously press <Alt> + <Ctrl> + <Delete> keys on the keyboard, then click Start Task Manger .
2. Click Applications tab.
3. Select the program that is not responding, then click End Task .
If the keyboard is not responding. Press and hold the Power button on the top of your chassis until the computer shuts down. Then press the Power button to turn it on.
?
I cannot connect to a wireless network using the ASUS WLAN Card
(on selected models only)?
• Ensure that you enter the correct network security key for the wireless network you want to connect to.
• Connect the external antennas (optional) to the antenna connectors on the
ASUS WLAN Card and place the antennas on the top of your computer chassis for the best wireless performance.
?
The arrow keys on the number key pad are not working.
Check if the Number Lock LED is off. When the Number Lock LED is on, the keys on the number key pad are used to input numbers only. Press the
Number Lock key to turn the LED off if you want to use the arrow keys on the number key pad.
ASUS CG8350 7-1
7-2
?
No display on the monitor.
• Check if the monitor is powered on.
•
•
•
•
•
Ensure that your monitor is properly connected to the video output port on your computer.
If your computer comes with a discrete graphics card, ensure that you connect your monitor to a video output port on the discrete graphics card.
Check if any of the pins on the monitor video connector is bent. If you discover bent pins, replace the monitor video connector cable.
Check if your monitor is plugged to a power source properly.
Refer to the documentation that came with your monitor for more troubleshooting information.
?
When using multiple monitors, only one monitor has display.
• Ensure that the both monitors are powered on.
•
•
•
During POST, only the monitor connected to the VGA port has display. The dual display function works only under Windows.
When a graphics card is installed on your computer, ensure that you connect the monitors to the output port on the graphics card.
Check if the multiple displays settings are correct. Refer to section
Connecting multiple external displays in Chapter 3 for details.
?
My computer cannot detect my USB storage device.
• The first time you connect your USB storage device to your computer,
Windows automatically installs a driver for it. Wait for a while and go to My
Computer to check if the USB storage device is detected.
• Connect your USB storage device to another computer to test if the USB storage device is broken or malfunctions.
?
I want to restore or undo changes to my computer’s system settings without affecting my personal files or data.
The Windows ® System Restore feature allows you to restore or undo changes to your computer’s system settings without affecting your personal data such as documents or photos. For more details, refer to the section Restoring your system in Chapter 2.
Chapter 7: Troubleshooting
?
The picture on the HDTV is stretched.
• It is caused by the different resolutions of your monitor and your HDTV. Adjust the screen resolution to fit your HDTV. To change the screen resolution:
1. Do any of the following to open the Screen Resolution setting screen:
• Click > Control Panel > Appearance and Personalization >
Display > Change display settings .
• Right click anywhere on your Windows desktop. When the pop-up menu appears, click Personalize > Display > Change display settings .
2. Adjust the resolution. Refer to the documentation came with your HDTV for the resolution.
3. Click Apply or OK . Then click Keep Changes on the confirmation message.
?
My speakers produce no sound.
• Ensure that you connect your speakers to the Line out port (lime) on the front panel or the rear panel.
• Check if your speak is connected to a electrical source and turned on.
•
•
Adjust your speakers’ volume.
Ensure that your computer’s system sounds are not Muted.
• If it is muted, the volume icon is displayed as . To enable the system sounds, click from the Windows notification area, then click .
•
• If it is not muted, click and drag the slider to adjust the volume.
Connect your speakers to another computer to test if the speakers arer working properly.
?
The DVD drive cannot read a disc.
• Check if the disc is placed with the label side facing up.
•
•
Check if the disc is centered in the tray, especially for the discs with non-standard size or shape.
Check if the disc is scratched or damaged.
?
The DVD drive eject button is not respond.
1. Click > Computer .
2. Right-click , then click Eject from the menu.
ASUS CG8350 7-3
7-4
Power
Problem
No power
(The power indicator is off)
Possible Cause
Incorrect power voltage
Your computer is not turned on.
Your computer’s power cord is not properly connected.
PSU (Power supply unit) problems
Action
• Set your computer’s power voltage switch to your area’s power requirements.
• Adjust the voltage settings. Ensure that the power cord is unplugged from the power outlet.
Press the power key on the front panel to ensure that your computer is turned on.
• Ensure that the power cord is properly connected.
• Use other compatible power cord.
Try installing another PSU on your computer.
Display
Problem
No display output after turning the computer on
(Black screen)
Possible Cause
The signal cable is not connected to the correct VGA port on your computer.
Signal cable problems
Action
• Connect the signal cable to the correct display port (onboard VGA or discrete VGA port).
• If you are using a discrete VGA card, connect the signal cable to the discrete VGA port.
Try connecting to another monitor.
Chapter 7: Troubleshooting
LAN
Problem
Cannot access the Internet
Possible Cause
The LAN cable is not connected.
LAN cable problems
Your computer is not properly connected to a router or hub.
Network settings
Problems caused by the anti-virus software
Driver problems
Audio
Problem
Action
Connect the LAN cable to your computer.
Ensure the LAN LED is on. If not, try another LAN cable. If it still does not work, contact the ASUS service center.
Ensure that your computer is properly connected to a router or hub.
Contact your Internet Service Provider
(ISP) for the correct LAN settings.
Close the anti-virus software.
Reinstall the LAN driver
No Audio
Possible Cause
Speaker or headphone is connected to the wrong port.
Speaker or headphone does not work.
The front and back audio ports do not work.
Driver problems
Action
• Refer to your computer’s user manual for the correct port.
• Disconnect and reconnect the speaker to your computer.
Try using another speaker or headphone.
Try both the front and back audio ports. If one port failed, check if the port is set to multi-channel.
Reinstall the audio driver
ASUS CG8350 7-5
System
Problem
System speed is too slow
The system often hangs or freezes.
Possible Cause
Too many programs are running.
Computer virus attack
Hard disk drive failure
Memory module problems
There is not enough air ventilation for your computer.
Incompatible softwares are installed.
Action
Close some of the programs.
• Use an anti-virus software to scan for viruses and repair your computer.
• Reinstall the operating system.
• Send the damaged hard disk drive to ASUS Service Center for servicing.
• Replace with a new hard disk drive.
• Replace with compatible memory modules.
• Remove the extra memory modules that you have installed, then try again.
Move your computer to an area with better air flow.
Reinstall the OS and reinstall compatible softwares.
7-6 Chapter 7: Troubleshooting
CPU
Problem
Too noisy right after turning on the computer.
Computer is too noisy when in use.
Possible Cause
Your computer is booting up.
The BIOS settings have been changed.
Old BIOS version
The CPU fan has been replaced.
There is not enough air ventilation for the computer.
Action
It is normal. The fan runs on its full speed when the computer is powering on. The fan slows down after entering the OS.
Restore the BIOS to its default settings.
Update the BIOS to the latest version. Visit the ASUS Support site at http://support.asus.com
to download the latest BIOS versions.
Ensure that you are using a compatible or ASUS-recommended
CPU fan.
Move your computer to an area with better air flow.
The system temperature is too high.
• Update the BIOS.
• If you know how to reinstall the motherboard, try to clean the inner space of the chassis.
If the problem still persists, refer to your Desktop PC’s warranty card and contact the ASUS
Service Center. Visit the ASUS Support site at http://support.asus.com
for the service center information.
ASUS CG8350 7-7
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
