DUALphone RTX3080 is a cordless phone with a range of features that can make your life easier. With its ability to make VoIP calls, traditional landline calls, and access online information services, the DUALphone RTX3080 is the perfect all-in-one communication device for your home or office.
Here are just a few of the things you can do with your DUALphone RTX3080:
-
Make and receive VoIP calls over your broadband Internet connection, using the included gateway to connect to your router and the PSTN (public switched telephone network)
-
Make and receive traditional landline calls using the included telephone cable to connect to your telephone wall jack
advertisement

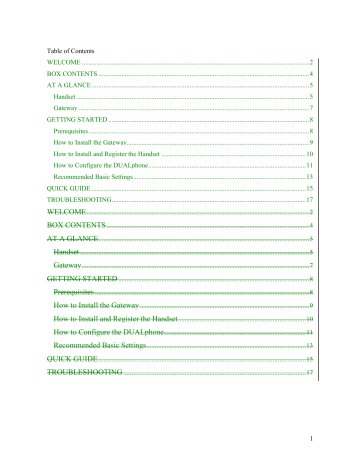

Table of Contents
WELCOME .........................................................................................................................................2
BOX CONTENTS ...............................................................................................................................4
AT A GLANCE ...................................................................................................................................5
Handset ............................................................................................................................................5
Gateway ...........................................................................................................................................7
GETTING STARTED .........................................................................................................................8
Prerequisites.....................................................................................................................................8
How to Install the Gateway..............................................................................................................9
How to Install and Register the Handset .......................................................................................10
How to Configure the DUALphone...............................................................................................11
Recommended Basic Settings........................................................................................................13
QUICK GUIDE .................................................................................................................................15
TROUBLESHOOTING.....................................................................................................................17
WELCOME
......................................................................................................................................2
BOX CONTENTS
..........................................................................................................................4
AT A GLANCE
...............................................................................................................................5
Handset
..........................................................................................................................................5
Gateway
.........................................................................................................................................7
GETTING STARTED
...................................................................................................................8
Prerequisites
.................................................................................................................................8
How to Install the Gateway
......................................................................................................9
How to Install and Register the Handset
.............................................................................10
How to Configure the DUALphone
.....................................................................................11
Recommended Basic Settings
................................................................................................13
QUICK GUIDE
.............................................................................................................................15
TROUBLESHOOTING
..............................................................................................................17
1
WELCOME
Thank you for purchasing the LAN Cordless DUALphone. This guide describes how to install the
LAN Cordless DUALphone, enabling you to make Internet calls, landline calls and use onscreen information services. Included in this guide is also a brief description of the basic functions of the
DUALphone and a troubleshooting section. Note that throughout this guide, we refer to the LAN
Cordless DUALphone as DUALphone.
For detailed information about the features of the DUALphone refer to the User Manual on our website. On the website you can also find out how to contact product support.
www.dualphone.net/lan
Have your serial number and MAC address ready when contacting support. You find the numbers on the bottom of the gateway. For matters concerning telephony services, contact your Internet Telephony Service Provider. For matters concerning your broadband connection, contact your Internet Service Provider (ISP), and for matters concerning Onscreen
Information Services contact your Information Service Provider.
For EU: Conformity of the telephone to EU directives is confirmed by the CE symbol. Hereby, we declare that the LAN
Cordless DUALphone and/or LAN Cordless DUALhandset are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
For US: This equipment complies with Part 15 of the FCC rules and Part 68 of the FCC rules, and the requirements adopted by the Administrative Council for Terminal Attachments (ACTA).
Located on the equipment is a label that contains, among other information, the FCC registration number, and ringer equivalence number (REN.) If requested, this information must be provided to the telephone company.
The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive REN's on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the
REN's should not exceed five (5.0) To be certain of the number of devices that may be connected to the line, as determined by the total REN's, contact the telephone company to determine the maximum REN for the calling area.
This equipment cannot be used on the telephone company-provided coin service. Connection to Party Line Service is subject to State Tariffs.
If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. If advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary modifications in order to maintain uninterrupted service.
If the trouble is causing harm to the telephone network, the telephone company may request you to remove the equipment from the network, until the problem is resolved.
This equipment uses the following USOC jacks: RJ11C.
It is recommended that the customer install an AC surge arrester in the AC outlet to which this device is connected. This is to avoid damaging the equipment caused by local lightening strikes and other electrical surges.
This product is manufactured for RTX Products A/S. Copyright ©. All rights reserved. All forms of copying or reproduction of the product or its associated user manual is strictly prohibited.
For further information, see “FCC and other information” on the Safety Information sheet for US.
2
3
BOX CONTENTS
The following items are included in the box. If the items in the box do not comply with the items on this list, contact your place of purchase before you start installation.
1 1 DUALphone handset
2 1 DUALphone handset charging cradle
3 1 DUALphone gateway with LAN and telephone line interface
4 2 Mains power adapters for gateway and handset charger
5 1 Ethernet cable
6 1 Telephone cable
7 1 Installation Guide
8 2 standard rechargeable AA Ni-MH batteries
1
2
5 6
7
3
4
8
4
AT A GLANCE
Handset
Front
Handset Charger
9
10
11
12
6
7
8
3
4
5
1
2
18
19
13
14
15
16
17
Side
5
1
2
3
4
Message indicator – used for voicemail, missed calls, etc.
Earpiece
Color display
Soft keys – used for various functions
5
6
7
8
Red phone key - used to hang up or leave a menu, or to turn the handset on or off
OK key - used to enter the main menu or to choose and confirm
Navigational keys - used to navigate through menus and services
Green phone key - used for making or answering calls
9 R-key - used for sending flash
10 Key pad - used for entering numbers and letters
11 Star key – used in the name editor to capitalize letters and type numbers and as star
12 Microphone
13 Headset jack connector
14 Loudspeaker for speakerphone
15 Volume up key
16 Volume down key
17 Speakerphone activation key
18 Handset charger
19 Power supply connector on handset charger
Standby Mode
1
4
5
2
3
6
Main Menu
7
8
9
10
11
12
13
6
1 Connection status indicators:
Black/black - out of range of the gateway.
Yellow/black - within range of the gateway, but not ready for Internet calls.
Yellow/yellow - within range of the gateway, and ready for Internet calls.
5
6
7
2
3
4
Time and date
OK button indicator
Battery status indicator
Handset number
Call log soft key
Intercom
8
9
Onscreen Information Services
Messages
10 Call log
11 Settings
12 Product website
13 Contacts
Gateway
1
2
3
4
Back
1 2 3 4
Reset button
Power connection
WAN connection port – for Ethernet cable
Landline (POTS/PSTN) connection port
7
Front
2
1
4
3
1
2
3
4
POWER indicator – indicates power on
I-NET indicator – indicates active LAN connection
VoIP indicator – indicates ready for Internet telephony
CALL indicator – indicates call in progress
GETTING STARTED
Prerequisites
In order to take full advantage of the features of the DUALphone, you need to have the following in place:
•
Internet Telephony Service Provider subscription – to make Internet calls
•
Internet Service Provider subscription – to access the Internet
•
Broadband connection – cable, DSL or equivalent for high-speed access
•
Landline subscription – to make ordinary phone calls
Furthermore, before you start the installation process, make sure that you have the following within reach of the gateway:
•
Router or broadband modem
•
Power outlet for the gateway
8
•
(Optional) Telephone wall outlet used for landline telephony
Note
The gateway can be placed on either a tabletop or wall mounted. If you need longer cables, you can use ordinary cable extensions. The handset has an indoor signal range of up to 50 meters from the gateway, and you must place your handset charger within the signal range. Concrete and metal might affect the signal range.
How to Install the Gateway
1. To prepare the gateway for Internet telephony, connect the Ethernet cable to the WAN port on the gateway, and then to a LAN port on your broadband modem or router.
2. To prepare the gateway for landline telephony, connect the telephone cord to the Line port on the gateway, and then to a telephone wall outlet.
3. Connect the power adaptor to the gateway and to a power outlet. Make sure that power is on.
9
How to Install and Register the Handset
1. Push the two holes in the back of the handset to release the battery cover.
2. Insert the two batteries in the handset, making sure that their plus and minus ends are facing as shown in the illustration, and then slide the battery cover shut.
3. Connect the power adaptor to the charger and the other end to a power outlet.
4. Place the handset in the charger, and make sure the batteries are fully charged before first use. This takes approximately 10 hours. When you place the handset in the charger, it turns on automatically and registers with the gateway.
10
Note
After registration of the first handset, there is a 5-minute period where you can register additional handsets. If you want to register additional handsets after the 5-minute period has expired, press the reset button on the gateway to start the registration process.
How to Configure the DUALphone
You will need the account information that you received from your Internet Telephony Service
Provider to complete the configuration of your DUALphone. If you have not registered with your
Internet Telephony Service Provider yet, you need to do so before continuing. For more information, see your router’s user manual.
You can either configure your DUALphone online, or you can use the handset. Both options are described in the following.
Note
If you bought your DUALphone as a plug and play solution, it comes with an Internet
Telephony Service Provider subscription, and a complete configuration. The
DUALphone is therefore ready for use once you have plugged in all cables and turned on the power.
How to Configure the DUALphone Online
1. Open a browser on your PC and go to www.dualphone.net/lan . Click the
Configuration link and follow the login instructions. You will need the MAC address, which you find on the bottom of the gateway.
2. Fill in the form on the screen using the account information from your Internet
Telephony Service Provider. Typically, you need to fill in the following fields:
•
SIP Display name (optional)
•
SIP User name
•
SIP Authentication Name
•
SIP Password
•
SIP Registration Server
•
SIP Proxy
•
Domain/Realm
•
Voicemail (optional)
3. Click OK . The gateway is reset automatically.
11
When you have successfully configured your DUALphone, the status indicators in the upper left corner of the screen will be yellow after a few seconds.
For more detailed information on how to configure your account, refer to your Internet Telephony
Service Provider’s configuration instructions.
Note
If, for some reason, you need to change your configuration, remember to reset the gateway afterwards. If you do not configure your DUALphone on installation, you can only make landline calls. However, you can always complete the configuration at www.dualphone.net/lan or return to the configuration menu on the handset.
How to Configure the DUALphone Using the Handset
If you are unable to complete the online configuration, the handset displays instructions on how to configure your DUALphone using the handset keys. Follow the instructions to complete the configuration.
1. Enter the main menu, and choose Settings .
2. Choose VoIP settings , and when prompted for a PIN code, enter the default PIN code
1234, and press OK.
3. Choose VoIP subscriptions , and choose the parameters one by one, and enter the relevant information, based on the account information you received from your Internet
Telephony Service Provider or broadband provider:
•
SIP Display name (optional)
•
SIP User name
•
SIP Authentication Name
•
SIP Password (use the star key to change the case of letters)
•
SIP Registration Server
•
SIP Proxy
•
Domain/Realm
•
Voicemail (optional)
When you have completed the configuration, you are ready to use the DUALphone. Make sure to change the PIN code after first login:
12
•
To change the PIN code, choose VoIP settings , and then Set PIN . Change the PIN code, and press .
How to Configure Onscreen Information Services
To take full advantage of the onscreen information services features, you need to configure the settings of your onscreen information services online.
1. Go to www.dualphone.net/lan/configurations , and click the Onscreen Information link.
2. Follow the instructions, and specify whether you want to use the default settings, or if you want to personalize the information services.
3. Click OK.
Once you have configured the onscreen information services, you can use the onscreen information services features on the handset. For more detailed information, see the User Manual.
Recommended Basic Settings
Before you start using your phone, we recommend that you specify handset language, country, and emergency dialing settings.
How to Set the Handset Language
The handset language setting determines in which language the text on the display is presented.
1. In the Settings menu, choose System settings .
2. Choose Handset language, and then select the language in which you want the text to be displayed.
How to Specify Country Settings
The country setting determines, among other things, whether you can receive incoming calls, and it determines the dial tone. You therefore have to specify which country you are in.
1. In the Settings menu , choose System settings .
2. Choose Country, and then select the country that you are in.
Note
The handset language and country settings are independent of each other. You can change the handset language whenever you want, but we recommend that you only change the country settings if you bring your DUALphone to another country and want to make landline calls.
13
How to Specify an Emergency Line
The default setting for emergency dialing is landline. However, you can change this to Internet instead.
1. In the Settings menu , choose Telephony settings .
2. Choose Emergency line and select VoIP .
Note
If you set your emergency line to VoIP (Internet call), you must check with you ITSP whether they have a service that makes it possible for your call to reach the appropriate emergency call center, and for the emergency call center to locate from where you are calling.
14
QUICK GUIDE
How to…
Turn telephone on and off
Make an Internet call
Answer a call
Enter the main menu
Make a landline call
End a call
Use the speakerphone
Redial a call
View the call log
Adjust volume
Add an entry to contacts
Call a contact.
Mute the microphone
Change the ringer melody
Use voicemail
Use information services
Make simultaneous calls
•
To turn the handset on, long press .
•
To turn the handset off, long press .
•
Enter a number and press .
•
Press .
•
Press in standby mode.
•
Enter a number and press Options . Choose Landline call and press .
•
Press to end a conversation, or return the handset to the charging cradle.
•
To turn the speakerphone on, press on the side of the telephone.
•
To turn the speakerphone off, press again.
•
In standby mode, press Options and then choose Redial to see the most recently dialed number. Press to dial the number.
•
In standby mode, press Call log , or choose Call log from the main menu.
•
During a call, press on the side of the telephone to increase the volume.
•
During a call, press to decrease the volume.
•
Press to enter the main menu, and choose Contacts .
Choose Options , and then choose Add contact .
•
Press to enter the main menu, choose Contacts , and choose the contact you want to call, and then press .
•
During conversation, press Mute .
•
To deactivate the microphone, press Unmute .
•
Press to enter the main menu, choose Settings and then
Audio settings . Choose Ringer melody , and then choose the type of call. Browse the list of melodies and press to choose a melody.
•
Sign up for a voicemail account with your Internet
Telephony Service Provider.
•
In the main menu, choose Messages , and then Listen to messages .
•
Press to enter the main menu, choose Info Services, and then choose Browse to see a list of available services.
•
In the Info Services menu, choose Show Push to view the most recent information.
•
During an Internet call, choose Options , and then Hold call . Enter the number you want to call, and choose
15
Capitalize letters
Options and then Landline call .
•
Press to capitalize letters or write numbers when working in a text editor.
For a detailed description of all features of the DUALphone, see the User Manual on http://www.dualphone.net/lan.
16
TROUBLESHOOTING
The following is a list of solutions to the most common issues that may occur during installation and use of the DUALphone. Some problems you can easily solve yourself, and some require that you call your service provider.
General Problem
The display screen is black.
Deep sleep mode
The handset does not charge.
The handset registration failed, and the status indicator on the display is black.
The display says
“Searching for
Gateway”.
The POWER indicator on the gateway is not lit.
The I-NET indicator on the gateway is not lit.
I cannot make landline calls.
Possible Causes
1. Power is not turned on.
2. Batteries are flat.
1. Power is not turned on.
2. Batteries are not inserted correctly.
1. The landline cable is not connected.
2. The landline is out of order.
Possible Solutions
1. Check that the power cord is connected properly, and that power is turned on.
2. Charge the batteries.
3. press a key
1. Check that the power cord is connected properly, and that power is turned on.
2. Check that the batteries are inserted with the plus and minus ends facing the right way.
1. Handset is out of range of the gateway.
1. Move the handset closer to the gateway, and turn the handset off and then on again. Reset the gateway, and place the handset in the charger.
1. The handset is out of range of the gateway.
2. Power is not turned on.
1. Move the handset closer to the gateway.
2. Turn the power on.
1. Power is not turned on. 1. Check that the gateway power cord is connected properly, and that power is turned on.
1. The Ethernet cable is not connected.
2. The router or modem is not turned on.
1. Check that the Ethernet cable between the WAN port on the gateway and the LAN port on your modem or router is connected properly.
2. Turn on the power to the modem or router.
1. Check that the landline cable between the Line port on the gateway and the telephone wall outlet is connected properly.
2. Contact your landline provider.
17
When I make
Internet calls, the sound quality is poor.
1. There is too much simultaneous data traffic on your broadband connection.
1. Reduce the amount of traffic on your broadband connection.
2. Sign up for a Quality of Service agreement with your broadband provider.
3. Order a connection with higher speed from your broadband provider.
Things to check Router Problem Possible causes
I cannot make
Internet calls, the
VoIP indicator on the gateway is not lit, and the right status indicator in the upper left corner of the display is black.
1. The configuration of the
DUALphone is not complete.
2. The gateway has not been reset after you saved the configuration.
3. The router or modem has not assigned an IP address to the
DUALphone.
4. The router blocks Internet telephony.
5. The router firmware needs updating.
1. Check that you have configured your DUALphone properly. Go to www.dualphone.net/lan and then click Configuration . For more information, see, How to
Configure the DUALphone in this guide or in the User Manual or contact your Internet
Telephony Service Provider.
2. Reset the gateway and allow the gateway 2 minutes to login at your Internet Telephony Service
Provider.
3. Check that your router or modem is working properly. Check the IP address by pressing the volume up key on the handset. The handset must be in the status window status mode to do this.
4. a) Change the configuration to disable STUN. For more information, see the User Manual or contact your Internet
Telephony Service Provider. b) Use port forwarding. The default SIP port is 5060, and the default RTP port is 5004. If you use Port Forwarding, you must use static IP mode. For more information, check your router’s user manual.
5. Check your router’s user manual to see how to update the firmware.
I cannot make
Internet calls, but it
1. The gateway is not logged in at the Internet Telephony Service
1. Check that all cables are connected properly, and then
18
worked yesterday.
There is no audio, when I make
Internet calls.
Provider.
2. The router is turned off.
3. The router is using Port
Forwarding, but the DUALphone has dynamic IP mode enabled.
4. The SIP server is down.
5. The Internet connection is down. check that power is turned on and reset the gateway.
2. Turn on the router.
3. Change to static IP mode. For more information, see the User
Manual. Note that the configured static IP address must agree with the configured Port Forwarding.
4. Contact your Internet Telephony
Service Provider.
5. Contact your broadband provider.
1. The router blocks audio.
2. The Internet Telephony Service
Provider you signed up with does not support the same audio codec’s as are supported by the
DUALphone.
1. Use port forwarding. Check your router’s user manual to see how to configure port forwarding.
2. Contact your Internet Telephony
Service Provider for more information.
19
advertisement
Related manuals
advertisement
