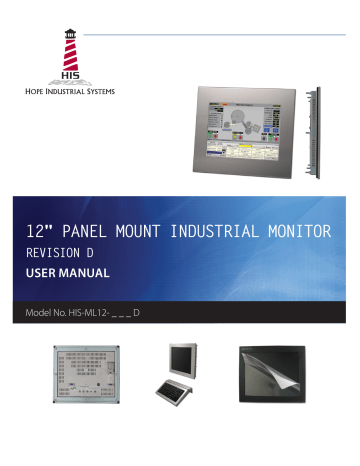

12" PANEL MOUNT INDUSTRIAL MONITOR
REVISION D
USER MANUAL
Model No. HIS-ML12- _ _ _ D
Table of Contents
Safety and Regulatory Information ��������������������������������������������������������������������������������3
FCC Notice �����������������������������������������������������������������������������������������������������������������������������3
Waste Electrical and Electronic Equipment Directive (WEEE) �����������������������������������������������3
Mechanical Drawings ������������������������������������������������������������������������������������������������������4
Front and Side Views ��������������������������������������������������������������������������������������������������������������4
Bottom View ����������������������������������������������������������������������������������������������������������������������������4
Installation Instructions ��������������������������������������������������������������������������������������������������5
Step 1: Prepare for Installation ����������������������������������������������������������������������������������������������5
Step 2: Bench-test Configuration �������������������������������������������������������������������������������������������6
Install Cable Connections ������������������������������������������������������������������������������������������������������������������ 6
Install Touch Screen Driver ���������������������������������������������������������������������������������������������������������������� 7
Step 3: Install into Panel ��������������������������������������������������������������������������������������������������������9
Video Settings ����������������������������������������������������������������������������������������������������������������11
Setting the Timing Mode ������������������������������������������������������������������������������������������������������� 11
Control Panel Buttons �����������������������������������������������������������������������������������������������������������12
On-Screen Display (OSD) Menus �����������������������������������������������������������������������������������������14
Cleaning Instructions ����������������������������������������������������������������������������������������������������16
Troubleshooting ������������������������������������������������������������������������������������������������������������17
Video Troubleshooting ����������������������������������������������������������������������������������������������������������17
Touch Screen Troubleshooting ���������������������������������������������������������������������������������������������19
Specifications ����������������������������������������������������������������������������������������������������������������20
Display ����������������������������������������������������������������������������������������������������������������������������������20
Video �������������������������������������������������������������������������������������������������������������������������������������20
Electrical �������������������������������������������������������������������������������������������������������������������������������21
Environmental �����������������������������������������������������������������������������������������������������������������������21
Functional �����������������������������������������������������������������������������������������������������������������������������21
Physical ��������������������������������������������������������������������������������������������������������������������������������22
Compliances and Certifications ��������������������������������������������������������������������������������������������22
Warranty Statement �������������������������������������������������������������������������������������������������������23
2 ML12D User Manual, January 2015
Safety and Regulatory Information
Safety and Regulatory Information
!
WARNING!
To prevent fire or shock hazard, do not expose live components to rain or moisture�
Dangerously high voltages are present inside the unit� Do not disassemble the unit�
Refer servicing to qualified personnel only�
This equipment is not intended for use in critical applications where its failure to operate would create immediate life threatening circumstances� Applications including, but not limited to, nuclear reactor control, aerospace navigation systems and life support systems are not appropriate for this product�
This product is intended to be mounted in a suitable cabinet or other enclosure�
The NEMA 4, 4X, or 12 ratings are applicable only when properly installed in a like rated enclosure�
FCC Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules� These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment� This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications� Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense� Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the device�
Waste Electrical and Electronic Equipment Directive (WEEE)
The following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and
Electronic Equipment Directive 2002/96/EC (WEEE)�
The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law� Users should contact their supplier and check the terms and conditions of the purchase contract�
When purchased directly from Hope Industrial Systems, you may contact technical support for disposal arrangements�
ML12D User Manual, January 2015 3
Mechanical Drawings
Mechanical Drawings
Front and Side Views
338.1 mm
(13.31") 35.7 mm
(1.40")
295.7 mm
(11.64")
Bottom View
49.8 mm
(1.96")
249 mm
(9.8")
280.9 mm
(11.06")
338.1 mm
(13.31")
4 ML12D User Manual, January 2015
188 mm
(7.4")
35.7 mm
(1.40")
7.1 mm
(0.28")
7.1 mm
(0.28")
Installation Instructions
Installation Instructions
Step 1: Prepare for Installation
IMPORTANT!
Perform the following steps BEFORE installation of the monitor into the panel�
1� Ensure that sufficient power is available�
!
2� Ensure that sufficient space is available to allow for proper air flow into and out of the unit�
3� Ensure that the air temperature around the unit (top and bottom) will not exceed the rated specifications of the unit.
f The maximum rated temperature for the HIS-ML12 is 50°C (122°F)� f Remember that heat rises – the temperature at the top of the cabinet will be much hotter than at the bottom if air inside the enclosure is not actively circulating� Even in a sealed enclosure, use of a circulation fan can greatly reduce temperature� f Also, remember that even though this product is designed to operate at 50°C, the life span of any electronic device is shortened when it is consistently operated at high temperatures� Therefore, it is wise to take steps to keep the temperature of the ambient air around the unit as low as possible�
4� Ensure that the ambient humidity of the air around the unit does not exceed the specifications of the unit.
f The maximum rated humidity for the HIS-ML12 is 90% non-condensing�
ML12D User Manual, January 2015 5
Installation Instructions
Step 2: Bench-test Configuration
Make sure everything works before installing into the production environment�
TIP!
If using a KVM extender, please refer to the installation instructions included with the KVM extender module� It is particularly important to bench-test the full configuration prior to final installation� This will help to identify and troubleshoot any system issues while configuration changes may still be easily made�
Install Cable Connections
All monitors are shipped with a 6 ft� (1�8 m) VGA video cable, 6 ft� (1�8 m) power cable, and power supply, unless longer cables were ordered in their place� If you ordered a touch screen monitor, you also received a 6 ft� (1�8 m) USB cable, unless a longer cable was ordered in its place� Serial (RS-232) cables may be ordered separately�
The cable ports are located on the rear of the monitor� Refer to the following diagram and instructions to connect power, video, and touch screen (if applicable) to your monitor�
VIDEO
CONTROL PANEL BUTTONS
6 ML12D User Manual, January 2015
POWER INPUT
USB
SERIAL
(RS-232)
(for Touch Screen option)
Installation Instructions
Video Connection
The HIS-ML12 supports analog video� Connect one end of the VGA video cable to the HD-15 input port on the rear of the monitor� Connect the other end to the video output port on the host computer�
Power Connection
The HIS-ML12 is powered by 12 VDC, 2�5 A (100 to 240 VAC, 60/50 Hz with external power adapter)�
Connect the external power adapter barrel connector to the DC power input on the rear of the monitor� Connect the supplied AC power cable to the external power adapter and to a nearby outlet� Secure the external power adapter to the rear of the monitor using the supplied bracket�
Install Touch Screen Driver
Applies to touch screen monitors only� Instructions below apply to Windows systems� Both Serial and USB ports are present on all touch screen monitors, but only one should be used to connect the touch screen interface to the monitor�
All touch screen monitors are shipped with a CD-ROM that contains documentation and drivers for all major operating systems� To be sure that you have the most current information, please check the following Internet address: http://www�HopeIndustrial�com/Touchscreen_Drivers�htm
IMPORTANT!
If you will be using a USB connection, install the touch screen driver first, and then connect the USB cable� If you will be using a Serial connection, connect the Serial cable first, and then install the touch screen driver�
USB Connection
1� Select the appropriate driver for your operating system� a� If downloading from the web address listed above, select the appropriate driver for your operating system� b� If using the included CD, insert it into the host computer's CD-ROM drive�
ML12D User Manual, January 2015 7
Installation Instructions
If the CD does not automatically run, browse the contents of the CD and open the READ�ME�FIRST�htm file in a web browser� Select the appropriate driver�
2� Click to "Run" the software when prompted� Follow on-screen instructions to download and execute the touch screen driver installation�
3� A cable retention clip comes installed on the USB port on the rear of the monitor and will help to secure the cable and ensure adequate strain relief� Without removing the clip, route one end of the USB cable through the retention clip and connect it to the
USB input port on the monitor� Connect the other end to the USB port on the host computer�
Serial (RS-232) Connection
1� Connect one end of the Serial cable to the Serial input port on the rear of the monitor�
Connect the other end to the Serial port on the host computer� Tighten the captive screws on the cable connectors to ensure adequate strain relief�
2� Select the appropriate driver for your operating system� a� If downloading from the web address listed above, select the appropriate driver for your operating system� b� If using the included CD, insert it into the host computer's CD-ROM drive�
If the CD does not automatically run, browse the contents of the CD and open the READ�ME�FIRST�htm file in a web browser� Select the appropriate driver�
3� Click to "Run" the software when prompted� Follow on-screen instructions to download and execute the touch screen driver installation�
Calibrate the Touch Screen
Once the driver has finished installing, you are ready to calibrate the touch screen�
Open the touch screen's Control Panel by clicking on the "Elo Touchscreen" icon, located in the host computer's Control Panel� Under the "General" tab, click the
"Align" button to start the calibration routine�
8 ML12D User Manual, January 2015
Installation Instructions
Step 3: Install into Panel
Once you have completed the full bench-test configuration and confirmed that all components are working properly, you are ready to install the monitor into its panel cutout�
!
WARNING!
Hope Industrial Systems will not assume liability for damage to internal electronics due to improper installation� Contact Hope Industrial Systems if you need additional assistance�
1� Refer to the drawing below for the cutout dimensions for the HIS-ML12�
308 mm
(12.12")
263 mm
(10.35")
2� Locate position in panel for mounting of the monitor� Ensure that there is adequate space behind the panel� Allow extra space – 12�7 mm (0�5") behind and on each side – for air ventilation�
ML12D User Manual, January 2015 9
Installation Instructions
3� Cut a rectangular hole in the panel� f Cutout Dimensions (W x H) for the HIS-ML12:
308 mm x 263 mm (12�12" x 10�35"); ± 0�5 mm (0�020")
4� Clean and deburr the panel hole�
5� Separate the rear collar from the monitor by removing the 8 nuts�
6� Refer to the enclosure mounting diagram below�
10
7� Insert the unit into the front of the panel and re-attach the collar�
NOTE: Contact Hope Industrial Systems if for any reason your application does not allow for installation of the collar�
8� Tighten all 8 nuts to a torque of 10-15 inch-pounds to ensure a watertight seal between the bezel gasket on the monitor and the equipment panel� Go around all nuts twice to ensure an even compression on gasket�
NOTE: If a torque wrench is not available, tighten all nuts evenly until bezel sits
1�6 to 2�4 mm (1/16" to 3/32") off the front of the panel�
ML12D User Manual, January 2015
Video Settings
Video Settings
Setting the Timing Mode
Setting the timing mode of your computer graphics adapter (or other video source) is important for maximizing the quality of the screen image and for minimizing eye strain� The timing mode consists of the resolution (e�g� 800 x 600) and refresh rate (or vertical frequency; e�g� 60 Hz)�
After setting the timing mode, use the On-Screen Display (OSD) controls to adjust the screen image�
TIP!
For the best picture quality, set your computer graphics adapter timing mode to:
VESA 800 x 600 @ 60 Hz
Please refer to the computer graphics adapter manufacturer's manual for instructions on setting the resolution and timing mode� In Microsoft Windows, these settings may be found at the following location: f 2000, XP: Control Panel > Display > Settings f Vista: Control Panel > Personalization > Display Settings f Windows 7, 8: Control Panel > Appearance and Personalization >
Adjust Screen Resolution
ML12D User Manual, January 2015 11
Video Settings
Control Panel Buttons
Use the control panel buttons located on the back of the monitor to display and adjust various settings on the On-Screen Display (OSD) menu�
CONTROL PANEL BUTTONS
1� To display the Main Menu, press the button�
NOTE: All OSD menus and adjustments screens disappear automatically after
10 seconds�
2� To select a control to adjust, press the left [◄] or right [►] button to scroll through the menu�
3� Press the button to open the menu for a selected control�
4� To adjust the control, press the left [◄] or right [►] button�
12 ML12D User Manual, January 2015
Button Control
Left / Down
Right / Up
Menu
Power Indicator
Light
Power
Video Settings
Functions
When the OSD menu IS displayed:
• Scrolls left and adjusts items in the menu down�
When the OSD menu IS displayed:
• Scrolls right and adjusts items in the menu up�
When the OSD menu IS NOT displayed:
• Opens the OSD menu�
When the OSD menu IS displayed:
• Selects the highlighted menu function�
• LED lit green – power is ON
• LED not lit – power is OFF
• LED lit orange – monitor is in Power Saving mode
Turns the monitor on and off�
NOTE: This unit has "Energy Star" capability – you may leave the monitor power On when the computer is powered Off�
ML12D User Manual, January 2015 13
Video Settings
On-Screen Display (OSD) Menus
To open the OSD menu, press the button�
Menu
Brightness
Contrast
Description
Adjusts the Brightness� 101 scales of brightness are available
(0 to 100)�
Adjusts the Contrast� 101 scales of contrast are available (0 to
100)�
Moves the screen image left or right� H� Position (Horizontal
Position)
V� Position (Vertical
Position)
Phase
Moves the screen image up or down�
Clock
Auto Adjustment
OSD H� Position
OSD V� Position
Graphics Text
Recall
Adjusts the focus and clarity of the display� 101 scales are available (0 to 100)�
Provides a frequency-tracking feature that allows the user to achieve stability and clarity�
Adjusts the size of the display to fill the screen�
Moves the position of the OSD menu left or right�
Moves the position of the OSD menu up or down�
Allows the operator to choose a display that maximizes graphics text quality� Graphics Text works in the following resolutions:
• 640 x 400 @ 70 Hz
• 720 x 400 @ 70 Hz
Refer to the Specifications section of this manual for a full list of supported video standards�
Returns adjustments back to factory default settings�
14 ML12D User Manual, January 2015
Menu
Language
Color Temperature
Exit
Video Settings
Description
Allows the user to choose the language used in the OSD menu�
Five language options are available: English, German, French,
Spanish, and Italian�
Three different modes are available:
• User – allows the user to make individual adjustments for
Red (User R), Green (User G), and Blue (User B)
• 6500 – CIE coordinated Color Temperature of 6500°K
• 9300 – CIE coordinated Color Temperature of 9300°K
Saves the settings and exits the OSD menu�
ML12D User Manual, January 2015 15
Cleaning Instructions
Cleaning Instructions
!
CAUTION!
DO NOT USE ABRASIVE MATERIALS, SUCH AS PAPER TOWELS OR DIRTY SHOP
RAGS, ON THE DISPLAY AS IT WILL SCRATCH THE PROTECTIVE COATING�
ALWAYS USE A SOFT CLOTH, PREFERABLY MADE OF COTTON�
All displays may be cleaned using any standard glass cleaner as long as there is no abrasive or oily content� Vinegar or ammonia will not hurt the screen�
The anti-reflective coatings on glass window-equipped displays are physically part of the surface of the glass and resist degradation to the Military Specifications�
To minimize over-run of cleaning solution, spray the cloth first and then clean the screen�
16 ML12D User Manual, January 2015
Troubleshooting
Video Troubleshooting
Troubleshooting
IMPORTANT!
If using a KVM extender, first try to resolve any problems using the solutions listed below� If the problem still exists, try bypassing the KVM extender� If this fixes the problem and allows the monitor to work properly, then the KVM extender is the source of the problem� Please refer to the troubleshooting section of the KVM extender manual or contact Hope Industrial Systems for additional assistance�
Symptom
No image on the screen and control's Power
Indicator light is not lit
Causes
Monitor is not powered on�
Solutions
• Press the Power button on the monitor and make sure the Power
Indicator light is lit green�
• Check power connections at the monitor and power source�
• Ensure the power supply is receiving power by checking for the green LED�
"No Input
Signal" message box and no image on the screen
Video cable is not plugged in correctly�
PC is in Power Saving mode�
Check the video cable connection at the monitor, PC, and/or KVM extender�
Power Saving mode can usually be exited by moving the mouse or pressing a key on the keyboard�
PC is not powered on�
PC is not sending signal�
Ensure PC is powered on�
Connect the PC to another known working monitor to check the PC source signal�
ML12D User Manual, January 2015 17
Troubleshooting
Symptom
No image on the screen and control's Power
Indicator light is lit orange
"Out of Range" message box and no image on the screen
Incorrectly displayed or partial image on the screen
Causes
Video cable is not plugged in correctly�
Solutions
Check the video cable connection at the monitor, PC, and/or KVM extender�
PC is in Power Saving mode� Power Saving mode can usually be exited by moving the mouse or pressing a key on the keyboard�
PC is not powered on�
PC is not sending signal�
Ensure PC is powered on�
Connect the PC to another known working monitor to check the PC source signal�
The signal from the computer exceeds the maximum resolution and/or refresh rate that the monitor can handle
( > 800 x 600 resolution or
> 60 Hz refresh rate)�
Monitor has not been adjusted correctly for the source signal�
Adjust the computer settings to the monitor's native resolution:
800 x 600 @ 60 Hz
• Activate the "Auto Adjustment" function in the OSD menu�
• Manually adjust the image using the "V-Position" and "H-Position" functions in the OSD menu�
Wrong or abnormal colors
(white is not white)
Monitor color settings are incorrectly adjusted�
Video cable is bad�
Reset the monitor to the factory default settings by activating the "Recall" function in the OSD menu�
Check to make sure there are no loose or broken pins in the cable connector�
Switch to a known good video cable�
Screen image is dim
Brightness and/or contrast settings are not set properly�
Adjust the monitor's brightness and contrast settings in the OSD menu�
18 ML12D User Manual, January 2015
Troubleshooting
Touch Screen Troubleshooting
Applies to touch screen monitors only� To be sure that you have the most current driver, please check the following Internet address: http://www�HopeIndustrial�com/Touchscreen_Drivers�htm
Symptom
No response when touching the touch screen
The cursor moves but does not follow my finger when touching the touch screen
Causes
Touch screen driver has not been installed�
Touch screen cable is not plugged in correctly�
If using a USB connection, does the USB cable length exceed 3 meters?
If using a Serial connection, is the Serial cable plugged into the correct COM port?
Touch screen driver has not been installed�
Touch screen has not been calibrated�
Solutions
Download and install the latest driver from the Hope Industrial website�
Make sure either the USB or Serial cable is securely connected to the monitor and PC� Do not connect both�
USB cables have a 3 meter limitation and could cause no touch response if this is exceeded�
Ensure that the Serial cable is connected to the COM port being used prior to installing the touch screen driver�
Download and install the latest driver from the Hope Industrial website�
Activate the calibration utility� In
Windows systems, these settings may be found at the following location:
Control Panel > Elo Touchscreen >
"General" Tab
• Press the Align button�
• Touch all targets as the appear to calibrate the touch screen�
• Press the Green Check button when verified�
ML12D User Manual, January 2015 19
Specifications
Specifications
Display
Type
Size
Image Size (W x H)
Native Resolution
Minimum Resolution
Pixel Pitch
Number of Colors
Brightness (white)
Thin-film transistor (TFT) Active Matrix Liquid Crystal
12�1" diagonal
246 mm x 184�5 mm (9�7" x 7�3")
SVGA (800 x 600, 4:3 aspect ratio)
VGA (640 x 350)
0�308 mm x 0�308 mm
262,144
400 nits (cd/m 2 )
Viewing Angle (Hori/Vert) 160 ° / +60 ° , -50 °
Contrast Ratio (typical)
Backlight
600:1
Two CCFTs (Cold Cathode Fluorescent Tube); 50,000 hour brightness half-life
Video
Input Connectors
Input Signal Formats
• HD-15
• Optional BNC input using HD-15 to 5-wire BNC adapter; see
"Input Signal Formats" for a list of compatible video signals�
• Optional DisplayPort input using DisplayPort to VGA adapter�
RGB Analog video, 0�7 Vp-p, 75 Ohms
Compatible sync modes: Separate H/V sync, Combined sync
Horizontal Scan
NOTE: NTSC/PAL composite input available (call for details)
31 – 38 kHz
Vertical Scan
Supported Video
Standards
60 – 75 Hz
• Standard VGA – 640 x 480 @ 60 Hz
• SVGA – 800 x 600 @ 60 Hz
Response Rate (typical) 35 ms
20 ML12D User Manual, January 2015
Specifications
Electrical
Power Adapter Input
Power Adapter Output
Monitor Input
Power Consumption
Power Consumption
(Standby mode)
100 to 240 VAC, 1�2 A, 60/50 Hz
12 VDC
12 VDC, 2�5 A
~ 20 W
DPMS, < 5 W
Environmental
Operating Temperature
Storage Temperature
0° to 50°C (32° to 122°F)
-20° to 60°C (-4° to 140°F)
Humidity
Transport Vibration
(random)
20% to 90% non-condensing
Operating Shock 15 g, 6 msec, half-sine
Operating Vibration (sine) 1�0g, swept sine 9 – 500 Hz
0�1g 2 / Hz, 10 – 200 Hz
0�03g 2 / Hz, 200 – 2000 Hz
Altitude • Operating: up to 10,000 feet
• Non-operating: up to 40,000 feet
Functional
Control Panel Buttons
On-Screen Display (OSD)
Menus
Touch Screen Option
Left / Down, Right / Up, Menu, Power Indicator Light, Power
Brightness, Contrast, H� Position, V� Position, Phase, Clock, Auto
Adjustment, OSD H� Position, OSD V� Position, Graphics Text,
Recall, Language, Color Temperature, Save + Exit
5-wire resistive system; emulates a mouse; Serial (RS-232) and
USB interface to host computer
ML12D User Manual, January 2015 21
Specifications
Physical
Enclosure Type
Panel Rating (with proper installation)
Depth Behind Panel
Front Bezel Outside
Dimensions (W x H x D)
Cutout Dimensions
(W x H)
Net Weight
Shipping Weight
Panel mount; rear collar compresses gasket against panel (5/16" maximum panel thickness); held by 8 M5 studs
Built to IP65/IP66 standards; NEMA/UL Type 12/4/4X
40�6 mm (1�6") maximum; 63�5 mm (2�5") at connectors
338�1 mm x 295�7 mm x 7�1 mm (13�31" x 11�64" x 0�28") (not including gasket)
308 mm x 263 mm (12�12" x 10�35"); ± 0�5 mm (0�020")
9 lbs�
13 lbs�
Compliances and Certifications
Electrical • UL 1950 3 rd Edition / cUL Recognized Component (File No�
E212889)
Environmental
Enclosure
• UL 508A Listed (File No� E318630)
• FCC Class A
• CAN ICES-3A/NMB-3A
• CE
• IEC 60721-3 (Reliability)
• WEEE (Registration No� WEE/DJ1859ZX for UK only)
UL 50E Type 12/4/4X (File No� E318630)
22 ML12D User Manual, January 2015
Warranty Statement
Warranty Statement
Who is Covered?
This warranty covers the purchaser of this product only and is not transferable without our written consent�
What Does This Warranty Cover and What is the Period of Coverage?
We warrant this product to be free from defects in material and workmanship, subject to the conditions set forth below� The warranty on all industrial display products, KB-R2 and KB-M2 keyboard series, KVM2 extender series, and ENCL-TC and ENCL-PC enclosure series remains in force for a three year period beginning on the date we invoice you� The warranty period on KB-PL1 keyboards is two years, and all other keyboards carry a one year warranty� If Hope Industrial Systems repairs or replaces a product under warranty, its warranty term is not extended�
What Will We Do to Correct Problems and How Do You Get Service?
We will repair or replace (at our sole option) any part of the unit which proves to be defective� Replacement parts may be new or refurbished and will meet the same specifications of the original parts or unit� For orders sold through our U�S� operations, at our expense we will return the product to any location within the
U�S�A� via the shipping method of our choice� Shipping fees for products returned to customers outside the U�S�A� are the responsibility of the customer� For products originally sold through Hope Industrial U�K�, return shipping to and from Hope Industrial repair facilities and any EU member country (except Croatia,
Cyprus, and Malta) will be provided using a pre-paid UPS shipping label sent via email� In order to receive warranty service you must get prior approval from Hope Industrial Systems� To request warranty service you can telephone us at +1 678 762 9790 or +44 (0) 20 7193 2618 in the United Kingdom or send an email to support@HopeIndustrial�com� If we determine that warranty service is needed we will give you a Return
Material Authorization (RMA) number� This RMA number must be conspicuously marked on the outside of the shipping box� Hope Industrial Systems will not accept shipments not accompanied by the RMA number�
Except where otherwise noted, you must ship or deliver the product to Hope Industrial Systems Freight prepaid�
What Does This Warranty Not Cover?
This warranty does not cover equipment which has been damaged due to misuse, abuse, or accident such as: operating the equipment outside of published specifications; exposure to chemicals or gases not covered by specified NEMA standards; displaying fixed images for long periods of time resulting in afterimage effects; improper or unauthorized repair by anyone other than Hope Industrial Systems or a service agency authorized by Hope Industrial Systems to perform such repairs; fire, flood, “acts of God”, or other contingencies beyond the control of Hope Industrial Systems�
Hope Industrial Systems’ responsibility for malfunctions and defects in hardware is limited to repair and replacement as set forth in this warranty statement� Hope Industrial Systems shall not be liable for direct, indirect, incidental, consequential, or other types of damages resulting from the use of any Hope Industrial
Systems product other than the liability stated above� These warranties are in lieu of all other warranties express or implied, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose� Some states do not allow the exclusion of implied warranties or the limitation or exclusion of liability for incidental or consequential damages so the above exclusions or limitations may not apply to you� You are cautioned that the performance of this product can be affected by many factors, such as system configuration, software, application, and operator control of the system� It is your responsibility to determine suitability of this product for your purpose and application�
ML12D User Manual, January 2015 23
Hope Industrial Systems, Inc.
US / International
1325 Northmeadow Parkway
Suite 100
Roswell, GA 30076
United States
Toll Free: (877) 762-9790
International: +1 (678) 762-9790
Fax: +1 (678) 762-9789
Sales and Customer Service: [email protected]
Support and Returns: [email protected]
Accounting Department: [email protected]
www.HopeIndustrial.com
United Kingdom
Harling Road
Snetterton
Norwich
NR16 2JU
United Kingdom
Phone: +44 (0) 20 7193 2618
Fax: +44 (0) 20 7117 1194
Sales and Customer Service: [email protected]
Support and Returns: [email protected]
Accounting Department: [email protected]
www.HopeIndustrial.co.uk
24 ML12D User Manual, January 2015 © 2015 Hope Industrial Systems, Inc.
advertisement
Related manuals
advertisement
Table of contents
- 3 Safety and Regulatory Information
- 3 FCC Notice
- 3 Waste Electrical and Electronic Equipment Directive (WEEE)
- 4 Mechanical Drawings
- 4 Front and Side Views
- 4 Bottom View
- 5 Installation Instructions
- 5 Step 1: Prepare for Installation
- 6 Step 2: Bench-test Configuration
- 6 Install Cable Connections
- 7 Install Touch Screen Driver
- 9 Step 3: Install into Panel
- 11 Video Settings
- 11 Setting the Timing Mode
- 12 Control Panel Buttons
- 14 On-Screen Display (OSD) Menus
- 16 Cleaning Instructions
- 17 Troubleshooting
- 17 Video Troubleshooting
- 19 Touch Screen Troubleshooting
- 20 Specifications
- 20 Display
- 20 Video
- 21 Electrical
- 21 Environmental
- 21 Functional
- 22 Physical
- 22 Compliances and Certifications
- 23 Warranty Statement
