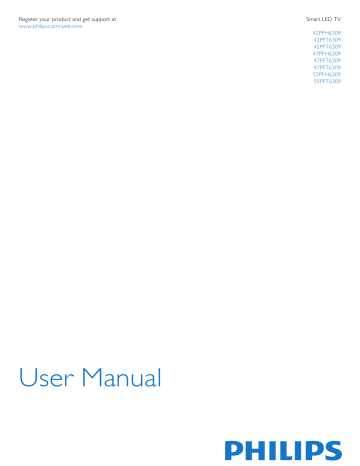

Register your product and get support at www.philips.com/welcome
Smart LED TV
42PFH6309
42PFT6309
42PFT6309
47PFH6309
47PFT6309
47PFT6309
55PFH6309
55PFT6309
User Manual
Contents
1 My new TV
2 Setting up
2.2 TV stand and wall mounting 7
3 Network
4 Connections
4.5 Home Theatre System - HTS 15
5 Switch on
6 Remote control
6.2 IR sensor for non-RF remote control 24
7 TV channels
8 Home menu
9 TV guide
2
10 Sources
11 Timers and clock
12 3D
12.3 Care of the 3D glasses 38
13 Games
14 Your photos, videos and music
14.1 From a USB connection or network computer 41
15 Pause TV
16 Recording
17 Skype
17.12 Terms of use & Privacy Policy 53
18 Smart TV
19 Multi room
20 Settings
21 Specifications
21.4 Dimensions and weights (6309 series) 69
22 Software
23 Troubleshooting and support
23.5 Consumer Care / Repair 79
24 Safety and care
25 Terms of use, copyrights and licenses
25.2 Copyrights and licenses 82
Index
3
1
My new TV
1.1
Smart TV
Connect this Philips Smart LED TV to the Internet and discover a new world of television. You can make a wired connection to your router or you can link up wirelessly with Wi-Fi.
With the TV connected to your home network, a smartphone can show a photo on TV, you can play videos stored on your computer or control the TV with your tablet.
With your TV connected to the Internet, you can watch a rental video from an online video store, read the online TV guide or record your favourite TV show on a USB Hard Drive.
The Smart TV Apps add to the fun with all sorts of entertainment and convenient services.
In Help , press Keywords and look up Smart TV for more information.
1.2
App gallery
Open the App gallery in Smart TV to browse the Apps, the
collection of tailored websites for TV.
Find the App for YouTube videos, a national newspaper, an
online photo album, Facebook, Twitter, etc.
There are Apps to rent a video from an online video store and
Apps for watching programmes you missed.
If the App gallery does not hold what you are looking for, try the World Wide Web and surf the Internet on TV.
In Help , press Keywords and look up App gallery for more information.
1.3
Rental videos
To watch a rental video , you don't need to leave your home.
Simply rent the latest movie from your regional online video store.
Start Smart TV and add the video store App to the Smart TV
start page.
Open the video store App, create your personal account, select the movie and press play.
No fuss with downloading, you can watch the movie immediately*.
In Help , press Keywords and look up Rental videos for more information.
* Depending on the video streaming service of the selected video store.
1.4
Social networks
No need to get up to check your friend's messages on your computer.
Open Smart TV, select your social network page and send a message back from your couch.
Smart TV supports the popular social networks Facebook and
Twitter.
In Help , press Keywords and look up App gallery for more information.
1.5
Ambilight+hue
With Ambilight+hue , you can set up your Philips hue lamps to follow the Ambilight colours of the TV.
The Philips hue lamps will expand the Ambilight effect across the room. If you don’t have any Philips hue lamps yet, buy the
Philips hue Starter Kit (includes a hue bridge and 3 hue bulbs) and install the bulbs and bridge. You can buy extra Philips hue bulbs separately.
4
tablet, you can call up the TV guide, read about the programmes and switch the TV to a channel with a simple tap of your finger.
The MyRemote app is available for iOS and Android.
In Help , press Keywords and look up MyRemote app for more information.
1.8
Pause TV and recordings
If you connect a USB Hard Drive , you can pause and record a broadcast from a digital TV channel.
1.6
Skype
With Skype™ you can make video calls on your TV for free.
You can call and see your friends from anywhere in the world.
To make a video call, you need a camera with a built-in microphone and a good connection to the Internet. Some
Philips TVs have a camera and microphone built in.
In Help , press Keywords and look up Skype for more information.
1.7
Smartphones and tablets
To use your smartphone or tablet as a TV remote control or as your media controller, download the Philips MyRemote app from your smartphone or tablet app store.
Pause your TV and answer that urgent phone call or simply take a break during a sports match, while the TV stores the broadcast on the USB Hard Drive. You can start watching again later.
With a USB Hard Drive connected, you can also record digital broadcasts. You can record while you are watching a programme or schedule a recording of an upcoming programme.
In Help , press Keywords and look up Pause TV or
Recording for more information.
1.9
Gaming
If you select your game console in the Home menu, the TV switches to the settings ideal for gaming automatically.
If you play a multi-player game with split screens, you can set the
TV to show each screen as a full screen simultaneously.
Each player can focus on his own game to play.
Operate your TV from your smartphone or tablet, switch channels or change the volume. With the MyRemote app, you can use your phone or tablet to send photos, music or videos from your computer to your TV. And with MyRemote app on a
The TV uses 3D technology to show both screens. To play a two-player game with two different full screen pictures, you need a pair of 3D glasses for each player.
5
In Help , press Keywords and look up Game console or
Two player games for more information.
1.10
EasyLink
With EasyLink you can operate a connected device, like a Bluray
Disc player, with the remote control of the TV.
EasyLink uses HDMI CEC to communicate with the connected devices.
In Help , press Keywords and look up EasyLink for more information.
6
2
Setting up
2.1
Read safety
Read the safety instructions first before you use the TV.
In Help, go to Safety and care > Safety .
2.2
TV stand and wall mounting
TV stand
You can find the instructions for mounting the TV stand in the
Quick Start Guide that came with the TV. In case you lost this guide, you can download it from www.philips.com
.
Use the product type number of the TV to look for the Quick
Start Guide to download.
Wall mounting
Your TV is also prepared for a VESA-compliant wall mount bracket (sold separately).
Use the following VESA code when purchasing the wall mount .
. .
To fix the bracket securely, use screws with a length indicated in the drawing.
meet safety standards according to the TV's weight. Also read the safety precautions before positioning the TV.
TP Vision Europe B.V. bears no responsibility for improper mounting or any mounting that results in accident or injury.
2.3
Tips on placement
• Position the TV where light does not shine directly on the screen.
• Dim lighting conditions in the room for best Ambilight effect.
• Position the TV up to 15 cm away from the wall.
• The ideal distance to watch TV is 3 times its diagonal screen size. When seated, your eyes should be level with the centre of the screen.
2.4
Power cable
• Insert the power cable into the POWER connector on the back of the TV.
• Make sure the power cable is securely inserted in the connector.
• Make sure that the power plug, in the wall socket, is accessible at all times.
• When you unplug the power cable, always pull the plug, never pull the cable.
• For 6309 series 47-inch/55-inch TV
VESA MIS-F 400x400, M6
• For 6309 series 42-inch TV
VESA MIS-F 200x200, M6
• For 6109 series 55-inch TV
VESA MIS-F 400x400, M6
• For 6109 series 42-inch/47-inch TV
VESA MIS-F 400x200, M6
Caution
Wall mounting the TV requires special skills and should only be performed by qualified personnel. The TV wall mounting should
Although this TV has a very low standby power consumption, unplug the power cable to save energy if you do not use the TV for a long period of time.
In Help , press Keywords and look up Switching on for more information on switching the TV on or off.
7
2.5
Antenna cable
Insert the antenna plug firmly into the ANTENNA socket at the back of the TV.
You can connect your own antenna or an antenna signal from an antenna distribution system. Use an IEC Coax 75 Ohm RF antenna connector.
Use this antenna connection for DVB-T and DVB-C input signals.
8
3
Network
3.1
Wireless network
What you need
To connect the TV wirelessly to the Internet, you need a wireless router. Use a high-speed (broadband) connection to the Internet..
Network devices
The TV can connect to other devices in your wireless network, like your computer or smartphone. You can use a computer with Microsoft Windows or Apple OS X.
File sharing
On this TV, you can open photos, music and videos stored on your computer. Use a recent version of media server software like Philips MediaManager*, Windows Media Player 11,
Twonky™ or similar.
Install the media server software on your computer and set it up to share your media files with the TV. Read the manual of the media server software for more information. This software must be running on your computer to view or play your files on TV.
* You can download the Philips MediaManager software from the Philips support site www.philips.com/support
Make the connection
Follow steps 1 to 5.
Step 1 - Make sure that the router of your wireless network is switched on.
Step 2 - Press and select Setup and press OK .
Step 3 - Select Connect to network and press OK .
Step 4 - Select Connect and press OK .
Step 5 - Select Wireless and press OK .
Step 6 - Select Scan to scan for your wireless network. If you have a router with WPS (Wi-Fi Protected Setup), you can select
WPS . Select your choice and press OK .
• Scan
Select Scan to scan for your wireless network (your wireless router). The TV might find several wireless networks in your proximity.
• WPS
If your router has WPS, you can directly connect to the router without scanning. Go to the router, press the WPS button and return to the TV within 2 minutes. Then press Connect to make the connection.
If you have devices in your wireless network that use the WEP security encryption system, you cannot use WPS.
If you must use the WPS PIN code to connect, select Scan instead of WPS.
Step 7 - In the list of networks found, select your wireless network and press OK .
If your network is not in the list because the network name is hidden (you switched off the SSID broadcast of the router), select Manual entry to enter the network name yourself.
Step 8 - Depending on the type of router, you can now enter your encryption key (WEP, WPA or WPA2). If you entered the encryption key for this network before, you can select Next to make the connection immediately.
If your router supports WPS or WPS PIN, you select WPS ,
WPS PIN or Standard . Select your choice and press OK .
• Standard
Select Standard to enter the encryption key (password, passphrase or security key) manually.You can use the keyboard on the RC to enter the encryption key. Once you have entered the key, press Connect .
• WPS PIN
To make a secured WPS connection with a PIN code, select
WPS PIN and press OK . Write down the 8-digit PIN code shown and enter it in the router software on your PC. Return to the TV and press Connect . Consult the router manual on where to enter the PIN code in the router software.
Step 9 - A message will be shown when the connection is successful.
Network configuration
If the connection fails, you can check the DHCP setting of the router. DHCP should be set to On .
Alternatively, if you are an advanced user and want to install your network with Static IP addressing, set the TV to Static IP.
To set the TV to Static IP, press and select Setup and press
OK . Select Network settings > Network settings > Network configuration > Static IP . With Static IP selected in the menu, you can set the IP address and other necessary settings in Static
IP configuration in the same menu.
9
Network problems
Wireless network not found or distorted
• Microwave ovens, DECT phones or other Wi-Fi 802.11b/g/n devices in your proximity might disturb the wireless network.
• Make sure that the firewalls in your network allow access to the TV's wireless connection.
• If the wireless network does not work properly in your home, try the wired network installation.
Internet does not work
• If the connection to the router is OK, check the router connection to the Internet.
The PC and Internet connection are slow
• Look in your wireless router's user manual for information on indoor range, transfer rate and other factors of signal quality.
• Use a high-speed (broadband) Internet connection for your router.
3.2
Wired network
What you need
You need a network router to connect the TV to the Internet.
Use a router with a high-speed (broadband) connection to the
Internet.
File sharing
On this TV, you can open photos, music and videos stored on your computer. Use a recent version of media server software like Philips MediaManager*, Windows Media Player 11,
Twonky™ or similar.
Install the media server software on your computer and set it up to share your media files with the TV. Read the manual of the media server software for more information. This software must be running on your computer to view or play your files on TV.
* You can download the Philips MediaManager software from the Philips support site www.philips.com/support
In Help , press Keywords and look up Media server software, supported for an overview of supported media server software.
Connect the router
To connect and setup the router follow steps 1 to 5 .
1 - Connect the router to the TV with a network cable
(Ethernet cable**).
2 - Make sure that the router is switched on.
3 - Press and select Setup and press OK .
4 - Select Connect to network and press OK .
5 - Select Wired and press OK .
The TV constantly searches for the network connection. A message will be shown when the connection is successful.
Network configuration
If the connection fails, you can check the DHCP setting of the router. DHCP should be set to On .
Alternatively, if you are an advanced user and want to install your network with static IP addressing, set the TV to Static IP.
To set the TV to Static IP, press and select Setup and press OK .
Select Network settings > Network settings > Network configuration > Static IP . With Static IP selected in the menu, you can set the IP address and other necessary settings in Static
IP configuration in the same menu.
**To fulfill EMC regulations, use a shielded FTP Cat. 5E Ethernet cable.
3.3
Network settings
To open the Network settings . . .
1 - Press and select Setup and press OK .
2 - Select Network settings and press OK .
• View network settings
All current network settings are shown here. The IP and MAC address, signal strength, speed, encryption method, etc.
• Network settings
- Network type
Sets the network to Wired or Wireless.
- Network configuration
Sets the network configuration to DHCP or Static IP.
• Wi-Fi media playback
To receive multimedia files from smartphones or tablets, set the
DMR to On.
• Static IP configuration
If Static IP is selected in Network Settings menu, you can set all necessary static IP settings here.
• Wi-Fi Miracast
10
For more information on Wi-Fi Miracast, press Keywords and look up Wi-Fi Miracast™ .
• Reset Wi-Fi Miracast group
Clear the list of connected and blocked devices that are used with Miracast.
• Wi-Fi smart screen
For more information on Wi-Fi smart screen, press Keywords and look up Wi-Fi smart screen .
• TV network name
If you have more than one TV in your network, you can rename the TVs here.
• Netflix Settings
Adjust Netflix settings.
• Clear Internet memory
With Clear Internet memory, you can clear all Internet files stored on your TV. You clear your Philips Smart TV registration and parental rating settings, your video store app logins, all Smart
TV app favourites, Internet bookmarks and history. Interactive
MHEG applications can also save so-called 'cookies', on your TV.
These files will also be cleared.
11
4
Connections
4.1
Tips on connections
Connectivity guide
Always connect a device to the TV with the highest quality connection available. Also, use good quality cables to ensure a good transfer of picture and sound.
If you need help to connect several devices to the TV, you can visit the Philips TV connectivity guide. The guide offers information on how to connect and which cables to use.
Go to www.connectivityguide.philips.com
Antenna
If you have a Set-top box (a digital receiver) or Recorder, connect the antenna cables to run the antenna signal through the Set-top box and/or Recorder first before it enters the TV. In this way, the antenna and the Set-top box can send possible additional channels to the Recorder to record.
HDMI
HDMI CEC
An HDMI connection has the best picture and sound quality.
One HDMI cable combines video and audio signals. Use an
HDMI cable for High Definition (HD) or Ultra HD (UHD) TV signals. For best signal quality transfer, use a High speed HDMI cable and do not use an HDMI cable longer than 5 m.
If your devices are connected with HDMI and have EasyLink, you can operate them with the TV remote control. EasyLink HDMI
CEC must be switched On on the TV and the connected device.
For more information on using EasyLink, press Keywords and look up EasyLink CEC .
DVI to HDMI
Use a DVI to HDMI adapter if your device only has a DVI connection. Use one of the HDMI connections and add an
Audio L/R cable (mini-jack 3.5mm) to AUDIO IN for sound, on the back of the TV.
Copy protection
DVI and HDMI cables support HDCP (High-bandwidth Digital
Content Protection). HDCP is a copy protection signal that prevents copying content from a DVD disc or Blu-ray Disc. Also referred to as DRM (Digital Rights Management).
HDMI ARC
All of the HDMI connections on the TV have HDMI ARC
(Audio Return Channel).
If the device, typically a Home Theatre Sysytem (HTS), also has the HDMI ARC connection, connect it to any of the HDMI connections on this TV. With the HDMI ARC connection, you do not need to connect the extra audio cable that sends the sound of the TV picture to the HTS. The HDMI ARC connection combines both signals.
You can use any HDMI connection on this TV to connect the
HTS but ARC is only available for 1 device/connection at a time.
In case you prefer to switch off ARC on the HDMI connections, press and select Setup and press OK .
Select TV settings > Sound > Advanced > HDMI ARC .
Y Pb Pr - Audio L R
Y Pb Pr - Component Video is a high quality connection. The
YPbPr connection can be used for High Definition (HD) TV signals. Next to the Y, Pb and Pr signals add the Audio Left and
Right signals for sound.
• Y shares the same jack with CVBS.
• Component and Composite share audio jacks.
EasyLink HDMI CEC
12
Audio Out - Optical
Audio Out - Optical is a high quality sound connection. This optical connection can carry 5.1 audio channels. If your device, typically a Home Theatre System (HTS), has no HDMI ARC connection, you can use this connection with the Audio In -
Optical connection on the HTS. The Audio Out - Optical connection sends the sound from the TV to the HTS.
• Only for TVs with component connectors.
CVBS - Audio L R
CVBS - Composite Video is a high quality connection. Next to the CVBS signal adds the Audio Left and Right signals for sound.
• Y shares the same jack with CVBS.
• Component and Composite share audio jacks.
• Only for TVs with component/composite connectors.
Scart
SCART is a good quality connection. The SCART connection can be used for CVBS and RGB video signals but cannot be used for High Definition (HD) TV signals. The SCART connection combines video and audio signals.
Use the SCART adapter cable to connect your device.
You can set the type of the audio out signal to fit the audio capabilities of your Home Theatre System.
For more information, press Keywords and look up Audio
Out settings .
If the sound does not match the video on screen, you can adjust the audio to video synchronisation.
For more information, press Keywords and look up Audio to video sync .
4.2
EasyLink HDMI CEC
EasyLink
With EasyLink you can operate a connected device with the TV remote control. EasyLink uses HDMI CEC (Consumer
Electronics Control) to communicate with the connected devices. Devices must support HDMI CEC and must be connected with an HDMI connection.
13
EasyLink setup
The TV comes with EasyLink switched on. Make sure that all
HDMI CEC settings are properly set up on the connected
EasyLink devices. EasyLink might not work with devices from other brands.
HDMI CEC on other brands
The HDMI CEC functionality has different names on different brands. Some examples are: Anynet, Aquos Link, Bravia Theatre
Sync, Kuro Link, Simplink and Viera Link. Not all brands are fully compatible with EasyLink.
Example HDMI CEC branding names are property of their respective owners.
Operate devices
To operate a device connected to HDMI and set up with
EasyLink, select the device - or its activity - in the list of TV connections. Press SOURCES , select a device connected to an HDMI connection and press OK .
Once the device is selected, the TV remote control can control the device. However and OPTIONS keys and some other TV keys are not forwarded to the device.
If the key you need is not on the TV remote control, you can select the key in the Options menu.
Press OPTIONS and select Controls in the menu bar. On the screen, select the device key you need and press OK .
Some very specific device keys might not be available in the
Controls menu.
Note: Only devices that support EasyLink remote control function will respond to the TV remote control.
EasyLink settings
The TV comes with all EasyLink settings switched on. You can switch off any EasyLink setting independently.
EasyLink
To switch off EasyLink completely . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > EasyLink, and press
OK.
3 - Select Off and press OK .
4 - Press , repeatedly if necessary, to close the menu.
EasyLink Remote Control
If you want devices to communicate but you don't want to operate them with the TV remote control, you can switch off
EasyLink remote control separately.
In the EasyLink settings menu, select EasyLink remote control and select Off .
Pixel Plus Link
Some devices, a DVD or Blu-ray Disc player, might have their own picture quality processing. To avoid bad picture quality caused by interference with the TV processing, the picture processing of these devices should be disabled. The TV comes with Pixel Plus Link switched on and disables the picture quality processing of recent Philips devices connected to the TV.
To switch off Pixel Plus Link, in the EasyLink settings menu, select Pixel Plus Link and select Off .
Auto subtitle shift
If you play a DVD or Blu-ray Disc on a Philips disc player that supports subtitles, the TV can move the subtitles upwards.
Subtitles will be visible whatever Picture format you select. The
TV comes with Auto subtitle shift switched on.
To switch off Auto subtitle shift, in the EasyLink settings menu, select Auto subtitle shift and select Off .
Auto switch off devices
You can set the TV to switch off the connecting HDMI-CEC compliant devices if they are not the active source. The TV switches the connected device to standby after 10 minutes of inactivity.
4.3
Common interface - CAM
CI+
This TV is ready for the CI+ Conditional Access.
With CI+ you can watch premium HD programmes, like movies and sports, offered by digital TV broadcasters in your region.
These programmes are scrambled by the TV broadcaster and descrambled with a prepaid CI+ module.
Digital TV broadcasters provide this CI+ module (Conditional
Access Module - CAM) when you subscribe to their premium programmes. These programmes have a high level of copy protection.
Contact a digital TV broadcaster for more information on terms
& conditions.
For more information on connecting a CAM module, press
Keywords and look up Common Interface CAM .
CAM
Insert a CAM module
Switch off the TV before inserting a CAM.
Look on the CAM for the correct method of insertion. Incorrect insertion can damage the CAM and TV.
14
Use the Common Interface slot on the TV to insert the CAM card.
With the front of the card facing towards you, gently insert the
CAM as far as it will go.
Leave the card in the slot permanently.
It may take a few minutes before the CAM is activated.
Removing the CAM will deactivate the broadcast service on TV.
If a CAM is inserted and subscription fees are paid, (connection methods can differ), you can watch the TV broadcast. The inserted CAM is exclusively for your TV.
CAM settings
To set passwords or PIN codes for the CAM TV broadcast, press and select Setup and press OK .
Select Channel settings > Common Interface .
Select the CAM TV broadcaster and press OK .
4.4
Set-top box - STB
Use 2 antenna cables to connect the antenna to the Set-top box
(a digital receiver) and the TV.
Switch off this automatic timer, if you only use the remote control of the Set-top box. Do this to prevent the TV from switching off automatically after a 4 hour period without a key press on the remote control of the TV.
To switch off the Switch off timer, press and select Setup and press OK .
Select TV settings > General settings > Switch off timer and set the slider bar to Off .
4.5
Home Theatre System - HTS
Connect HTS
Use an HDMI cable to connect a Home Theatre System (HTS) to the TV. You can connect a Philips Soundbar or an HTS with a built-in disc player.
Alternatively, you can use a SCART cable if the device has no
HDMI connection.
HDMI ARC
If your Home Theatre System has an HDMI ARC connection, you can use any HDMI connection on the TV to connect. With
HDMI ARC, you do not need to connect the extra audio cable.
The HDMI ARC connection combines both signals.
All HDMI connections on the TV can offer the Audio Return
Channel (ARC) signal. But once you have connected the Home
Theatre System, the TV can only send the ARC signal to this
HDMI connection.
Next to the antenna connections, add an HDMI cable to connect the Set-top box to the TV.
Alternatively, you can use a SCART cable if the Set-top box has no HDMI connection.
If the Home Theatre System has no HDMI ARC connection, add an optical audio cable (Toslink) to send the sound of the TV picture to the Home Theatre System.
Switch off timer
15
Audio to video synchronisation (sync)
If the sound does not match the video on screen, you can set a delay on most Home Theatre Systems with a disc player to match the sound with the video.
For more information, press Keywords and look up Audio to video sync .
Audio Out settings
Audio Out delay
With a Home Theatre System (HTS) connected to the TV, the picture on TV and the sound from the HTS should be synchronised.
Automatic audio to video sync
With recent Philips Home Theatre Systems, the audio to video sync is done automatically synchronised and always correct.
Audio sync delay
For some Home Theatre Systems you might need to adjust the audio sync delay to synchronise the audio to the video. On the
HTS, increase the delay value until there is a match between picture and sound. A delay value of 180ms may be required.
Read the user manual of the HTS. With a delay value set up on the HTS, you need to switch off Audio out delay on the TV.
To switch off the Audio Out delay . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Advanced > Audio out delay .
3 - Select Off and press OK .
4 - Press , repeatedly if necessary, to close the menu.
Audio Out offset
If you cannot set a delay on the Home Theatre System, you can set the TV to sync the sound. You can set an offset that compensates for the time necessary for the Home Theatre
System to process the sound of the TV picture. You can set the value in steps of 5ms. Maximum setting is -60ms. The Audio Out delay setting should be switched on.
To synchronise the sound on the TV . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Advanced > Audio out offset .
3 - Use the slider bar to set the sound offset and press OK .
4 - Press , repeatedly if necessary, to close the menu.
Audio Out format
If you have a Home Theatre System (HTS) with multichannel sound processing capabilities like Dolby
Digital, DTS® or similar, set the Audio out format to
Multichannel. With Multichannel, the TV can send the compressed multichannel sound signal from a TV channel or connected player to the Home Theatre System. If you have a
Home Theatre System without multichannel sound processing, select Stereo.
To set the Audio out format . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Advanced > Audio out format .
3 - Select Multichannel or Stereo .
4 - Press , repeatedly if necessary, to close the menu.
Audio Out levelling
Use the Audio Out levelling setting to level the volume
(loudness) of the TV and the Home Theatre System when you switch over from one to another. Volume differences can be caused by differences in sound processing.
To level the difference in volume . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Advanced > Audio out levelling .
3 - If the volume difference is large, select More . If the volume difference is small, select Less .
4 - Press , repeatedly if necessary, to close the menu.
Audio Out levelling affects both the Audio Out - Optical and
HDMI ARC sound signals.
Problems with HTS sound
Sound with loud noise
If you watch a video from a plugged in USB flash drive or connected computer, the sound from your Home Theatre
System might be distorted. This noise is heard when the audio or video file has DTS sound but the Home Theatre System has no DTS sound processing. You can fix this by setting the Audio out format of the TV to Stereo .
Press and select Setup > TV settings > Sound > Advanced >
Audio out format .
No sound
If you cannot hear the sound from the TV on your Home
Theatre System, check the following . . .
• Check if you connected the HDMI cable to an HDMI ARC connection on the Home Theatre System. All HDMI connections on the TV are HDMI ARC connections.
• Check if the HDMI ARC setting on the TV is switched On .
Press and select Setup > TV settings > Sound > Advanced >
HDMI ARC .
16
4.6
Blu-ray Disc player
Use a High speed HDMI cable to connect the Blu-ray Disc player to the TV.
HDMI
For best quality, connect the game console with an High speed
HDMI cable to the TV
If the Blu-ray Disc player has EasyLink HDMI CEC, you can operate the player with the TV remote control.
For more information on EasyLink, press Keywords and look up EasyLink HDMI CEC .
4.7
DVD player
Use an HDMI cable to connect the DVD player to the TV.
Alternatively, you can use a SCART cable, if the device has no
HDMI connection.
Y Pb Pr - Audio L R
Connect the game console with a component video cable (Y Pb
Pr) and an audio L/R cable to the TV.
If the DVD player is connected with HDMI and has EasyLink
CEC, you can operate the player with the TV remote control.
For more information on EasyLink, press Keywords and look up EasyLink HDMI CEC .
4.8
Game console
• Y shares the same jack with CVBS.
• Component and Composite share audio jacks.
CVBS - Audio L R / Scart
Connect the game console to the TV with a composite cable
(CVBS) and an audio L/R cable to the TV.
If your game console only has Video (CVBS) and Audio L/R output, use a Video Audio L/R to SCART adapter to connect to the SCART connection.
Note: the CVBS to SCART Adapter is not provided in the TV set.
17
CVBS - Audio L R
Connect the game console to the TV with a composite cable
(CVBS) and an audio L/R cable to the TV.
Installation
Before you can pause or record a broadcast, you must connect and format a USB Hard Drive. If you want to record a broadcast with TV guide data from the Internet, you need to have the
Internet connection installed on your TV before you install the
USB Hard Drive. Formatting removes all files from the USB
Hard Drive.
1 - Connect the USB Hard Drive to one of the USB connections on the TV. Do not connect another USB device to the other USB ports when formatting.
• Y shares the same jack with CVBS.
• Component and Composite share audio jacks.
4.9
USB Hard Drive
What you need
If you connect a USB Hard Drive, you can pause or record a TV broadcast. The TV broadcast must be a digital broadcast (DVB broadcast or similar).
To pause
To pause a broadcast, you need a USB 2.0 compatible Hard
Drive with a minimum of 32GB disk space.
To record
To pause and record a broadcast, you need a minimum of
250GB disk space.
TV guide
Before you decide to buy a USB Hard Drive to record, you can check if it is possible to record digital TV channels in your country.
Press TV GUIDE on the remote control. If there is a Record button on the TV guide page, you can record.
For more information on how to install a USB Hard Drive, press
Keywords and look up USB Hard Drive, installation .
2 - Switch on the USB Hard Drive and the TV.
3 - When the TV is tuned to a digital TV channel, press
(Pause). Trying to pause will start the formatting.
Follow the instructions on screen.
When the USB Hard Drive is formatted, leave it connected permanently.
Warning
The USB Hard Drive is formatted exclusively for this TV, you cannot use the stored recordings on another TV or PC. Do not copy or change recording files on the USB Hard Drive with any
PC application. This will corrupt your recordings. When you format another USB Hard Drive, the content on the former will be lost. A USB Hard Drive installed on your TV will need reformatting for use with a computer.
For more information, press Keywords and look up Pause
TV or Recording .
4.10
USB keyboard or mouse
USB keyboard
Connect a USB keyboard (USB-HID type) to enter text on your
TV.
You can connect a keyboard and a mouse to the TV.
Use one of the USB connections to connect.
18
Install the keyboard
To install the USB keyboard, switch on the TV and connect the
USB keyboard to one of the USB connections on the TV. When the TV detects the keyboard for the first time, you can select your keyboard lay-out and test your selection. If you select a
Cyrillic or Greek keyboard lay-out first, you can select a secondary Latin keyboard lay-out.
To change the keyboard lay-out setting when a lay-out was selected…
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > USB keyboard settings and press OK .
Keys for channel renaming
• Enter key = OK
• Backspace = delete character before cursor
• Arrow keys = navigate within a text field
• To switch between keyboard lay-outs, if a secondary lay-out is set, press the Ctrl + Shift keys simultaneously.
Keys for Smart TV Apps and Internet pages
• Shift + Tab = Next and Previous
• Home = scroll to the top of the page
• End = scroll to the bottom of the page
• Page Up = jump one page up
• Page Down = jump one page down
• + = zoom in one step
• - = zoom out one step
• * = fit the web page to the screen width.
USB mouse
Connect USB mouse
You can connect a USB mouse (USB-HID type) to navigate pages on the Internet.
On an Internet page, you can select and click on links more easily.
Connect the mouse
Switch the TV on and connect the USB mouse to one of the
USB connections on the TV. You can also connect the USB mouse to a connected USB keyboard.
Mouse clicks
• Left click = OK
• Right click = Back
You can use the scroll wheel to scroll pages up and down.
For more information on how to connect a keyboard, press Keywords and look up USB keyboard .
Mouse speed
You can adjust the speed of the mouse moving on screen.
To adjust the speed . . .
1 - Press and select Setup and press OK .
2 - Select TV settings and press OK .
3 - Select General settings > Pointer / Mouse settings and press OK .
4 - Press the arrows (up) or (down) to increase or lower the speed.
5 - Press OK to store and close the setting.
6 - Press , repeatedly if necessary, to close the menu.
4.11
USB flash drive
You can view photos or play your music and videos from a connected USB flash drive.
Insert a USB flash drive in one of the USB connections on the
TV while the TV is switched on.
The TV detects the flash drive and opens a list showing its content.
If the contents list does not appear automatically, press
SOURCE , select USB and press OK .
To stop watching the USB flash drive content, press EXIT or select another activity.
To disconnect the USB flash drive, you can pull out the flash drive anytime.
For more information on watching or playing content from a
USB flash drive, press Keywords and look up Your photos, videos and music .
4.12
Photo camera
To view photos stored on your digital photo camera, you can connect the camera directly to the TV.
Use one of the USB connections on the TV to connect. Switch on the camera after you made the connection.
19
If the contents list does not appear automatically, press
SOURCE , select USB and press OK .
Your camera might need to be set to transfer its content with
PTP (Picture Transfer Protocol). Read the user manual of the digital photo camera.
For more information on viewing photos, press
Keywords and look up Your photos, videos and music .
Ultra HD on USB
You can view photos in Ultra HD resolution from a connected
USB device or flash drive. The TV will downscale the resolution to Ultra HD if the resolution of the photo is higher. You cannot play a native Ultra HD video on any of the USB connections.
4.13
Camcorder
HDMI
For best quality, use an HDMI cable to connect the camcorder to the TV.
CVBS - Audio L R
Use a Video Audio L/R cable to connect the camcorder to the
TV.
• Y shares the same jack with CVBS.
• Component and Composite share audio jacks.
4.14
Computer
Connect
You can connect your computer to the TV and use the TV as a
PC monitor.
With HDMI
Use an HDMI cable to connect the computer to the TV.
CVBS - Audio L R / Scart
You can use an HDMI, YPbPr or SCART connection to connect your camcorder. If your camcorder only has Video (CVBS) and
Audio L/R output, use a Video Audio L/R to SCART adapter to connect to the SCART connection.
Note: the CVBS to Scart Adaptor is not provided in the TV set.
With DVI to HDMI
Alternatively, you can use a DVI to HDMI adapter to connect
20
the PC to HDMI and an audio L/R cable (mini-jack 3.5mm) to
AUDIO IN L/R on the back of the TV.
Settings
Ideal monitor setting
If your computer is added as a Computer type of device in the
Source menu (the list of connections), the TV is set to the ideal
Computer setting automatically.
If you use your computer to watch movies or use it to play games, you might want to set the TV back to the ideal TV watching or gaming setting.
To set the TV to the ideal setting manually . . .
1 - Press and select Setup and press OK.
2 - Select TV settings > Picture > Advanced > Activity style and press OK .
3 - Select Game (for gaming) or select Computer (for watching a movie) and press OK .
4 - Press , repeatedly if necessary, to close the menu.
Remember to set the Game or computer setting back to Computer when you stop playing the game.
4.15
Headphones
You can connect a set of headphones to the connection on the TV. The connection is a mini-jack 3.5mm. You can adjust the volume of the headphones separately.
To adjust the volume . . .
1 - Press and select Setup and press OK.
2 - Select TV settings > Sound > Headphones volume and press OK .
3 - Press (up) or (down) to adjust the volume.
4 - Press , repeatedly if necessay, to close the menu.
21
5
Switch on
5.1
On or Standby
Make sure you plugged in the mains power on the back of the
TV before you switch on the TV.
If the red indicator light is off, press the Joystick on the right side or on the back of the TV to put the TV in standby - the red indicator will light up.
• Press the Joystick to confirm a selection or setting.
With the TV in standby, press onon the remote control to switch the TV on.
5.3
Word mark brightness
You can switch off or adjust the word mark lighting.
To adjust or switch off…
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Word mark brightness and press OK .
3 - Select Maximum , Medium , Minimum or select Off to switch off the lighting of the word mark.
4 - Press , repeatedly if necessary, to close the menu.
• Only available for certain TV models
Switch to standby
To switch the TV to standby, press on the remote control.
Switch Off
To switch the TV Off, press the Joystick on the right or on the back. The red indicator light is off. The TV is still connected to the mains power but consumes a minimum of energy.
To switch off the TV completely, disconnect the power plug.
When disconnecting the power plug, always pull the power plug, never the cord. Ensure that you have full access to the power plug, power cord and outlet socket at all times.
5.2
Keys on TV
While the on-screen display is on, press the Joystick to display the menu.
• Use the arrow/nevigation keys to nevigate up, down, left or right.
22
6
Remote control
6.1
Key overview
Top
1 - Standby / On
To switch the TV On or back to Standby.
2 - Playback and record keys
• Play , to playback.
• Pause , to pause playback
• Stop , to stop playback
• Rewind , to rewind
• Fast forward , to go fast forward
• Record , to record now
3 - Ambilight
To select an Ambilight setting.
4 - TV GUIDE
To open or close the TV guide.
5 - Settings
To open the Settings menu.
6 - Picture format
To open or close the Picture format menu.
7 - SOURCES
To open or close the Sources menu - the list of connected devices.
8 - SEARCH
To open the Popular searches page.
1 - SMART TV
To open the Smart TV start page.
2 - Colour keys
Follow on screen instructions. Blue key , opens Help.
3 - INFO
To open or close programme info.
4 - BACK
To switch back to the previous channel you selected.
To close a menu without changing a setting.
To go back to the previous Smart TV page.
5 - HOME
To open or close the home menu.
6 - EXIT
To switch back to watching TV.
7 - OPTIONS
To open or close the Options menu.
8 - OK key
To confirm a selection or setting.
9 - Arrow / navigation keys
To navigate up, down, left or right.
10 - MULTIVIEW
To open an extra small screen.
Bottom
Middle
23
1 - Volume
To adjust the volume level.
2 - Number keys and text keypad
To select a TV channel directly or to enter text.
3 - SUBTITLE
To switch subtitles on, off or Automatic.
4 - LIST
To open or close the channel list.
5 - Channel
To switch to the next or previous channel in the channel list.
To open the next or previous page in Text or start the next or previous chapter on a disc.
6 - Mute
To mute the sound or to restore it.
7 - TEXT
To open or close Text / Teletext.
6.2
IR sensor for non-RF remote control
The TV can receive commands from a remote control that uses
IR (infrared) to send commands. If you use such a remote control, always make sure you point the remote control at the infrared sensor on the front of the TV.
6.4
Cleaning
Your remote control is treated with a scratch-resistant coating.
To clean the remote control, use a soft damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the remote control.
6.3
Batteries
1 - Slide the battery door in the direction shown by the arrow.
2 - Replace the old batteries with 2 type AAA-R03-1.5V
batteries. Make sure the + and the - ends of the batteries line up correctly.
3 - Reposition the battery door and slide it back until it clicks.
Remove the batteries if you are not using the remote control for a long time.
Safely dispose of your old batteries according to the end of use directions.
For more information, press Keywords and look up End of use .
24
7
TV channels
7.1
Watching TV channels
Switch channels
To watch TV channels, press . The TV tunes to the TV channel you last watched.
Alternatively, press to open the Home menu and select
Watch TV and press OK .
To switch channels, press + or . If you know the channel number, type in the number with the number keys. Press OK after you entered the number to switch channels.
To switch back to the previously tuned channel, press .
To switch to a channel from a channel list
While watching a TV channel, press LIST to open the channel lists.
Channel list
Favourite channels
You can create a favourite channel list that only holds the channels you want to watch. With the Favourite channel list selected, you will only see your favourite channels when you switch through channels.
Create your favourite channel list
1 - While watching a TV channel, press LIST to open the channel list.
2 - Select All to view all channels.
3 - Select the channel, and press to mark as favourite.
4 - The selected channel is marked with a .
5 - To finish, press . The channels are added to the Favourites list.
To remove a channel from the favourites list, select the channel with , then press again to unmark as favourite.
Reorder
You can reorder — reposition — channels in the Favourite channel list.
1 - In the channel list Favourites , highlight the channel you want to reposition.
2 - Press .
3 - Select the channel to reorder and press OK .
4 - Press the Navigation buttons to move the highlighted channel to another location and press OK .
5 - Once complete, press EXIT to exit from the Favourite channel list.
You can highlight another channel and do the same.
The channel list can have several pages with channels. To view the next or previous page, press + or .
To close the channel lists without switching channels, press
LIST again.
Radio channels
If digital broadcasting is available, digital radio stations are installed during installation. Switch to a radio channel just like you switch to a TV channel.
Channel list views
In the channel lists, you can find all installed TV and radio channels.
Next to the channel list All , which holds all installed channels, you can set up a list of Favourites , view the installed Radio stations separately or discover the newly added channels in New .
Channel logos
In some countries, the TV can show the channel logos. If you do not want these logos to appear, you can switch them off.
To switch off Channel logos . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Channel logos and press OK .
3 - Select Off and press OK .
4 - Press , repeatedly if necessary, to close the menu.
25
Rename channels
You can rename channels in the channel list.
1 - Select the channel you want to rename in one of the channel lists.
2 - Select the channel to rename.
3 - Press .
You can enter text with the remote control keyboard or open the on-screen keyboard.
With the on-screen keyboard
• To open the on-screen keyboard, place the cursor in the name text field and press OK .
• To delete the character in front of the cursor, press
Backspace .
• To enter a character, select the character with the arrow keys and press OK .
• To select uppercase characters, press .
• To select numbers or special characters, press .
• When you are ready, press to close the on-screen keyboard.
• To finish renaming, select Done and press OK .
With the remote control keyboard*
• To delete a character, position the cursor behind the character and press .
• To enter a character, press the character on the keyboard.
• When you are ready, press OK to select Done .
Press OK again to finish renaming.
For more information on using the keyboard, press Keywords and look up Remote control, keyboard .
* Only for the remote control with keyboard
Lock a channel
To prevent children from watching a channel or a programme, you can lock channels or lock age rated programmes.
Lock a channel
You can lock a channel to prevent children from watching it. To watch a locked channel you need to enter the Child lock code.
You cannot lock programmes from connected devices.
To lock a channel . . .
1 - While watching a TV channel, press LIST to open the
Channel list .
2 - In any list, select the channel you want to lock.
3 - Press OPTIONS and select Lock channel . In a channel list, a locked channel is marked with a lock .
To unlock a channel, select the locked channel in the channel list.
Press OPTIONS and select Unlock channel. You will need to enter the Child lock code.
Parental rating
To prevent children from watching a programme not suitable for their age, you can use an age rating.
Some digital broadcasters have age rated their programmes.
When the age rating of a programme is equal to or higher than the age you have set as age rating for your child, the programme will be locked.
To watch a locked programme you must enter the child lock code. The parental age rating is set for all channels.
To set an age rating . . .
1 - Press and select Setup and press OK .
2 - Select Channel settings > Child lock > Parental rating and press OK.
3 - Enter a 4-digit Child lock code and confirm. Now you can set an age rating.
4 - Set the age and press OK .
5 - Press , repeatedly if necessary, to close the menu.
To switch off the parental age rating, select None as age setting.
The TV will ask for the code to unlock the programme. For some broadcasters / operators, the TV only locks programmes with a higher rating.
Set or change the lock code
To set the lock code or to change the current code . . .
1 - Press and select Setup and press OK .
2 - Select Channel settings > Child lock > Change code and press OK .
3 - If a code is set already, enter the current Child lock code and then enter the new code twice.
The new code is set.
Forgotten your Child lock code?
If you forgot your code, you can override the current code and enter a new code.
1 - Press and select Setup and press OK .
2 - Select Channel settings > Child lock > Change code and press OK .
3 - Enter the overriding code 8888 .
4 - Now enter a new Child lock code and enter it again to confirm.
Options for channels
While watching a channel, depending on the type of channel
(analogue or digital) you are watching or depending on the TV settings you made, some options are available.
Open the options menu
While watching a channel, press OPTIONS .
26
Select Status to view technical information on the channel (if it is analogue or digital) or a connected device you are watching.
Share
Enables the user to communicate his activity with his social networks (such as Twitter, facebook or email).
Universal access
With Universal access switched on, you can set some options for hearing impaired and visually impaired people.
For more information, press Keywords and look up
Universal access .
Video selection
Digital TV channels can offer multi video signals (multi-feed broadcast), different camera viewpoints or angles of the same event or different programmes on one TV channel. The TV shows a message if any such TV channels are available.
Subtitles
Switch Subtitles on or Subtitles off with this options. Select
Automatic to show subtitles only when the sound is muted with
.
Subtitle language
For digital broadcast, you can select an available subtitle language temporarily if none of your preferred languages are available.
For more information, press Keywords and look up
Subtitles .
Audio languages
For digital broadcast, you can select an available audio language temporarily if none of your preferred languages are available.
For more information, press Keywords and look up Audio languages .
Dual I-II
If an audio signal contains two audio languages but one language
— or both — has no language indication, this option is available.
Common interface
If prepaid premium content is available from a CAM, you can set the provider settings with this option.
HbbTV on this channel
You can block the HbbTV pages from a channel that offers
HbbTV.
For more information, press Keywords and look up HbbTV .
MHP applications
Enable or disable the MHP applications.
For more information, press Keywords and look up MHP .
Status
Picture format
If black bars appear on top and bottom or on both sides of the picture, you can adjust the picture format to a format that fills the screen.
To change the picture format . . .
1 - While watching a TV channel, press to open the Picture format menu.
2 - Select a format from the list and press OK .
The following format can be available according the picture on screen . . .
• Basic
- Fill screen
- Fit to screen
• Advanced
- Last setting
- Shift
- Zoom
- Stretch
- Native
- Undo
Text / Teletext
Text pages
To open Text (Teletext) while you are watching TV channels, press TEXT .
To close Text, press TEXT again.
Select a Text page
To select a page . . .
1 - Enter the page number with the number keys.
2 - Use the arrow keys to navigate.
27
3 - Press a colour key to select a colour-coded subject at the bottom of the screen.
Text sub-pages
A Text page number can hold several subpages. The subpage numbers are shown on a bar next to the main page number.
To select a subpage, press or .
T.O.P. Text pages
Some broadcasters offer T.O.P. Text.
To open T.O.P. Text pages within Text, press OPTIONS and select T.O.P. overview .
Text options
In Text, press OPTIONS to select the following . . .
• Freeze page
To stop the automatic rotation of subpages.
• Dual screen / Full screen
To show the TV channel and Text alongside each other.
• T.O.P. overview
To open T.O.P. Text.
• Enlarge
To enlarge the Text page for comfortable reading.
• Reveal
To unhide hidden information on a page.
• Cycle subpages
To cycle subpages when these are available .
• Language
To switch the group of characters that Text uses to display correctly.
• Text 2.5
To activate the Text 2.5 for more colours and better graphics.
Text setup
Text language
Some digital TV broadcasters have several Text languages available.
To set your primary and secondary Text language . . .
1 - Press and select Setup and press OK .
2 - Select Channel settings > Language .
3 - Select Primary Teletext or Secondary Teletext .
4 - Select your preferred Text languages.
5 - Press , repeatedly if necessary, to close the menu.
Text 2.5
If available, Text 2.5 offers more colours and better graphics.
Text 2.5 is activated as a standard factory setting.
To switch off Text 2.5 . . .
1 - Press TEXT .
2 - While watching the teletext, press OPTIONS .
3 - Select Text 2.5
> Off .
4 - Press , repeatedly if necessary, to close the menu.
Menu language
To change the language or the TV menus and messages . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Menu language and press OK .
3 - Select the language you want and press OK .
4 - Press , repeatedly if necessary, to close the menu.
Audio languages
If the TV channel broadcasts multiple or dual audio languages, you can select your preferred audio language.
1 - While you watch TV, press OPTIONS .
2 - For digital channels, select Audio language . For analogue channels, select Alternate audio . Press OK to confirm your selection.
3 - Select from the available languages, then press OK .
Note:
If you have selected Alternate audio for analogue channels, select between:
• Main : Primary audio language or
• SAP : Secondary audio language
Subtitles and languages
Subtitles
Switch subtitles on
To open the Subtitle menu, press SUBTITLE .
You can set subtitles to On , Off or Automatic .
To show subtitles when the broadcasted programme is not in your language — the language you set for the TV, select
Automatic . Also, this setting will show subtitles when you mute the sound with .
For analogue channels, subtitles must be made available in Text .
Subtitles for digital channels
There is no need to set subtitles in Text for digital channels.
Digital channels can offer several subtitle languages for a programme. You can set a preferred primary and secondary subtitle language. If subtitles in one of these languages are available, the TV will show them.
28
If none of the preferred subtitle languages are available, you can select another subtitle language which is available.
To set the primary and secondary subtitle language . . .
1 - Press and select Setup and press OK .
2 - Select Channel settings and select Languages > Primary subtitles language or Secondary subtitles language and press
OK .
3 - Select a language and press OK .
4 - Press , repeatedly if necessary, to close the menu.
To select a subtitle language when none of your preferred languages are available . . .
1 - Press OPTIONS .
2 - Select Subtitle language and select a language you want temporarily and press OK .
Subtitles for analogue channels
For analogue channels, you need to make the subtitles available for each channel manually.
1 - Switch to a channel and press TEXT to open Text.
2 - Enter the page number for subtitles, usually 888 .
3 - Press TEXT again, to close Text.
If you select On in the Subtitle menu when watching this analogue channel, subtitles will be shown if available.
To know if a channel is analogue or digital, switch to the channel and open Status in the Options menu.
Menu language
To change the language or the TV menus and messages . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Menu language and press OK .
3 - Select the language you want and press OK .
4 - Press , repeatedly if necessary, to close the menu.
Interactive TV
About iTV
With interactive TV, some digital broadcasters combine their normal TV programme with information or entertainment pages.
On some pages, you can respond to a programme or vote, do online shopping or pay for a video-on-demand programme.
HbbTV, MHEG, . . .
Broadcasters use various interactive TV systems : HbbTV
(Hybrid Broadcast Broadband TV) or iTV (Interactive TV -
MHEG). Interactive TV is sometimes referred to as Digital Text or Red button. But each system is distinct.
Visit the broadcaster's Internet website for more information.
Audio languages
Digital TV channels can broadcast audio with several spoken languages for a programme. You can set a preferred primary and secondary audio language. If audio in one of these languages is available, the TV will switch to this audio.
If none of the preferred audio languages is available, you can select another audio language which is available.
To set the primary and secondary audio language . . .
1 - Press and select Setup and press OK .
2 - Select Channel settings and select Languages > Primary audio language or Secondary audio language and press OK .
3 - Select a language and press OK .
4 - Press , repeatedly if necessary, to close the menu.
To select an audio language when none of your preferred audio language is available . . .
1 - Press OPTIONS .
2 - Select Audio language and select an audio language you want temporarily and press OK .
Audio languages for the hearing and visually impaired
Some digital TV channels broadcast special audio and subtitles adapted for people who are hearing or visually impaired.
For more information, press Keywords and look up
Universal access.
What you need
Interactive TV is only available on digital TV channels. To enjoy the full benefits of Interactive TV, you need a high-speed
(broadband) Internet connection to the TV.
HbbTV
If a TV channel offers HbbTV pages, you must first switch on
HbbTV in the TV settings to view the pages.
1 - Press and select Setup and press OK .
2 - Select TV settings and select General settings > HbbTV and press OK .
3 - Select On and press OK .
4 - Press , repeatedly if necessary, to close the menu.
If you want to avoid access to HbbTV pages on a specific channel, you can block the HbbTV pages for this channel only.
1 - Tune to the channel of which you want to block the HbbTV pages.
2 - Press OPTIONS and select HBB TV on this channel and press OK .
3 - Select Off and press OK .
Use iTV
Open iTV pages
Most channels that offer HbbTV or iTV invite you to press the
29
key or OK key to open their interactive programme.
Navigate iTV pages
You can use the arrow and colour keys, the number keys and the key to navigate the iTV pages.
You can use the (Play), (Pause) and (Stop) keys to watch videos within iTV pages.
Digital Text (UK only)
To open Digital Text, press TEXT . To close, press .
Close iTV pages
Most iTV pages inform you which key to use to close.
To force an iTV page to close, switch to the next TV channel and switch back.
Off .
To switch off the Automatic channel update . . .
1 - Press and select Setup and press OK .
2 - Select Channel settings and press OK .
3 - Select Channel installation > Automatic channel update >
Off and press OK .
Start an update
To start an update yourself . . .
1 - Press and select Setup and press OK .
2 - Select Search for channels and press OK .
3 - Select Update channels and follow the instructions on screen. The update may take a few minutes.
In certain countries, the Automatic channel update is done while watching TV or any moment when the TV is in standby.
About interactive TV
With interactive TV, some digital broadcasters combine their normal TV programme with information or entertainment pages.
Note:
• You cannot download files to your TV with this feature.
• Not all TV programmes, commercials and features include closed captioning information.
• You cannot respond to the digital content.
Visit the broadcaster's Internet website for more information.
7.2
Channel installation
Update channels
Automatic update
If you receive digital channels, you can set the TV to automatically update the list with new channels.
Alternatively, you can start a channel update yourself.
Automatic channel update
Once a day, at 6 AM, the TV updates the channels and stores new channels. New channels are stored in the All channels list but also in the New channels list. Empty channels are removed.
If new channels are found or if channels are updated or removed, a message is shown at TV start up. The TV must be in standby to automatically update channels.
To switch off the message at start up . . .
1 - Press and select Setup and press OK .
2 - Select Channel settings and press OK .
3 - Select Channel installation > Channel update message >
Reinstall channels
You can search for and reinstall channels and leave all other TV settings untouched. Alternatively, you can do a full new TV installation.
If a child lock code is set, you will need to enter this code before you can reinstall channels.
Reinstall channels
To reinstall the channels only . . .
1 - Press and select Setup and press OK .
2 - Select Search for channels > Re-install channels and press
OK .
3 - Select the country where you install the TV.
4 - Select Antenna (DVB-T) or Cable (DVB-C) . The channel search may take a few minutes. Follow the instructions on screen.
Full installation
To redo a full TV installation . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Reinstall TV and press OK . The installation may take a few minutes. Follow the instructions on screen.
Factory settings
Factory settings sets the TV back to the original TV settings for picture and sound. To switch back to the original Factory settings . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Factory settings and press OK .
3 - Press OK to confirm.
4 - Press , repeatedly if necessary, to close the menu.
30
Channel list copy
Introduction
Channel list copy is intended for dealers and expert users. In some countries, Channel list copy is only available for copying satellite channels.
With Channel list copy , you can copy the channels installed on one TV onto another Philips TV of the same range. With
Channel list copy, you avoid the time-consuming channel search by uploading a predefined channel list on a TV. Use a USB flash drive of minimum 1 GB.
Conditions
• Both TVs are from the same year range.
• Both TVs have the same hardware type. Check the hardware type on the TV type plate on the back of the TV. Typically noted as Q . . . LA
• Both TVs have compatible software versions.
Current version
You can check the current version of the TV software with Current software info in > Setup > Software settings .
Copy channel list
To copy a channel list . . .
1 - Switch on the TV which has its channels installed. Plug in a
USB memory device.
2 - Press and select Setup and press OK .
3 - Select TV settings > General settings > Channel list copy >
Copy to USB and press OK . To copy the channel list from this
TV, you might be asked to enter the Child lock code you entered during the installation.
4 - When copying is done, unplug the USB memory device.
Now you can upload the copied channel list onto another
Philips TV.
Upload channel list
Upload a copied channel list
Depending on whether your TV is already installed or not, you must use a different way to upload a channel list.
To a TV that is not yet installed
1 - Plug in the power plug to start the installation and select language and country. You can skip Search for channels. Finish the installation.
2 - Plug in the USB memory device that holds the channel list of the other TV.
3 - To start the channel list upload, press and select Setup and press OK .
4 - Select TV settings > General settings > Channel list copy >
Copy to TV and press OK . You might be asked to enter the
Child lock code of this TV.
5 - The TV notifies you if the channel list is copied to the TV successfully. Unplug the USB memory device.
To an already installed TV
1 - Verify the country setting of the TV. (To verify this setting, press and select Setup and press OK . Select Search for channels > Re-install channels and press OK . Press and later Cancel to leave the Search for channels.)
If the country is correct continue with step 2.
If the country is not correct, you need to start a reinstallation. To start the reinstallation, press and select Setup and press OK .
Select TV settings > General settings > Reinstall TV > OK .
Select the correct country and skip the Search for channels.
Finish the installation. When done, continue with step 2.
2 - Plug in the USB memory device that holds the channel list of the other TV.
3 - To start the channel list upload, press and select Setup and press OK .
4 - Select TV settings > General settings > Channel list copy >
Copy to TV and press OK . You might be asked to enter the
Child lock code of this TV.
5 - The TV notifies you if the channel list is copied to the TV successfully. Unplug the USB memory device.
DVB-T or DVB-C
DVB-T or DVB-C reception
If both DVB-T and DVB-C reception is available in your country and if this TV is ready to receive DVB-T and DVB-C for your country, you have selected one or the other during the channel installation.
If you want to change the DVB setting to start a new channel installation . . .
1 - Press and select Setup and press OK .
2 - Select Channel settings and press OK .
3 - Select Channel installation > Antenna connection >
Antenna (DVB-T) or Cable (DVB-C) and press OK .
4 - Select the DVB setting you want.
5 - Press , repeatedly if necessary, to close the menu.
DVB-C channel installation
For ease of use, all DVB-C settings are set to automatic.
If your DVB-C provider gave you specific DVB-C values, the network ID or network frequency, enter these values when the
TV asks for them during installation.
It might be necessary to adjust the scanning (full or quick scan) or enter a specific symbol rate in the Settings menu while installing. To set a Symbol rate , first set the Symbol rate to
Manual .
Channel number conflicts
In some countries, different TV channels (broadcasters) might have the same channel number. While installing, the TV shows the list with channel number conflicts. You need to select which
31
TV channel you want to install on a channel number with multiple TV channels.
DVB-T + DVB-C
If you can use a DVB-T antenna input but also a DVB-C input, you can set up your TV for both DVB-T and DVB-C. Install one system followed by the other with the necessary settings.
Once each system is installed, you need to switch the antenna input signal on the Antenna connection on the back of the TV and set the TV in the appropriate system to view the installed channels on TV.
To select the DVB-T or DVB-C setting, see above.
DVB settings
Access DVB settings
1 - Press and select Setup and press OK.
2 - Select Search for channels and press OK.
3 - Select Re-install Channels .
4 - Select the country where you install this TV.
5 - Select Cable (DVB-C) .
6 - Select Start to search channels , or select Settings for DVB-
C settings .
7 - Press , repeatedly if necessary, to close the menu.
Symbol rate mode
If your cable provider did not give you a specific symbol rate value to install the TV channels, leave the Symbol rate mode setting on Automatic .
If you received a specific symbol rate value, select Manual .
However, the value you received could be in the predefined list of symbol rates already. Select Predefined symbol rates to check if your value is available automatically.
Symbol rate
With the Symbol rate mode set to Manual , you can enter the symbol rate value you received from your cable provider. To enter the value, use the number keys.
Network frequency mode
If you intend to use the fast Quick scan method in Frequency scan to search for channels, select Automatic . The TV will use 1 of the predefined network frequencies (or HC - homing channel) as used by most cable providers in your country.
If you received a specific network frequency value to search for channels, select Manual .
Network frequency
With the Network frequency mode set to Manual , you can enter the network frequency value received from your cable provider here. To enter the value, use the number keys.
Frequency scan
Select the method of searching for channels. You can select the faster Quick scan method and use the predefined settings used by most cable providers in your country.
If this results in having no channels installed or if some channels are missing, you can select the extended Full scan method. This method will take more time to search for and install channels.
Digital channels
If you know your cable provider is not offering digital channels, you can skip searching for digital channels.
Select Off .
Analogue channels
If you know your cable provider is not offering analogue channels, you can skip searching for analogue channels. Select
Off .
Free / Scrambled
If you have a subscription and a CAM - Conditional Access
Module for pay TV services, select Free + scrambled . If you did not subscribe to pay TV channels or services, you can select
Free channels only.
For more information, press Keywords and look up CAM -
Conditional Access Module .
Reception quality
If you receive digital channels, you can check the quality and signal strength of a channel.
If you have your own antenna, you can reposition the antenna to try and improve the reception.
To check the reception quality of a digital channel . . .
1 - Tune to the channel.
2 - Press and select Setup and press OK .
3 - Select Channel settings > Channel installation > Digital : reception test and press OK .
The digital frequency is shown for this channel. If the reception is poor, you can reposition your antenna. To check the signal quality of this frequency again, select Search and press OK .
To enter a specific digital frequency yourself, use the remote
32
control digit keys. Alternatively, select the frequency, position the arrows on a number with and and change the number with
and . To check the frequency, select Search and press OK .
If you use DVB-C to receive channels, the option Symbol rate mode is available. For Symbol rate mode, select Automatic , unless your cable provider gave you a specific symbol rate value.
To enter the symbol rate value, use the number keys.
Manual installation
Analogue TV channels can be manually installed, channel by channel.
To install analogue channels manually . . .
1 - Press and select Setup and press OK .
2 - Select Channel settings > Channel installation > Analogue :
Manual installation and press OK .
• System
To set up the TV system, select System and press OK .
Select your country or the part of the world where you are now.
• Search channel
To find a channel, select Search channel and press OK . Select
Search and press OK . You can also enter a frequency yourself. If the reception is poor, press Search again. If you want to store the channel, select Done and press OK .
• Fine tune
To fine tune a channel, select Fine tune and press OK . You can fine tune the channel with or .
If you want to store the channel found, select Done and press
OK .
• Store current channel / Store as new channel
You can store the channel on the current channel number or as a new channel number.
Select Store current channel or Store as new channel .
You can redo these steps until you have found all available analogue TV channels.
33
8
Home menu
From the Home menu, you can start any activity you can do with the TV.
Open the Home menu to start watching TV or start watching a disc on your Home Theatre System. Also in the Home menu, you can open Smart TV to surf the Internet, start Skype or open
Help if you need information on using the TV.
Open the Home menu
1 - To open the Home menu, press .
2 - Select an activity using the arrow keys and press OK to start the activity.
3 - To close the Home menu without changing the current activity, press .
• Help
Select Help and press OK to open the on screen Help. You can look up a topic in an alphabetical list.
• Setup
Select Setup to install channels or adjust all TV settings.
• TV
Select TV and press OK to watch TV channels.
• Smart TV
Select Smart TV and press OK to open the Smart TV start page.
• Source
Select Source and select a connected device in the list underneath the icon. Press OK to switch to the selected device.
• TV guide
Select TV guide and press OK to open a list of the current and scheduled TV programmes of your channels.
• Recordings
Select Recordings and press OK to open the list of your recordings.
• Skype
Select Skype to make video calls for free.
• Demo
Select Demo to watch demonstration videos.
34
9
TV guide
9.1
What you need
With the TV guide you can view a list of the current and scheduled TV programmes of your channels. Depending on where the TV guide information (data) is coming from, analogue and digital channels or only digital channels are shown. Not all channels offer TV guide information.
The TV can collect TV guide information for the channels that are installed on the TV (e.g the channels you watch with Watch
TV). The TV cannot collect the TV guide information for channels viewed from a digital receiver.
9.2
Using the TV guide
Open the TV guide
To open the TV guide, press TV GUIDE .
Press TV GUIDE again to close.
The first time you open the TV guide, the TV scans all TV channels for programme information. This may take several minutes. TV guide data is stored in the TV.
Tune to a programme
Switch to a programme
From the TV guide, you can switch to a current programme.
To select a programme, use the arrow keys to highlight the programme name.
Navigate to the right to view programmes scheduled later that day.
To switch to the programme (channel), select the programme and press OK .
View programme details
To call up the details of the selected programme, press INFO .
Change day
The TV guide can show scheduled programmes for the upcoming days (maximum up to 8 days).
If the TV guide information comes from the broadcaster, you can press + to view the schedule of one of the next days.
Press to go back to the previous day.
Alternatively, you can press OPTIONS and select Change day .
Select Previous day , Today or Next day and press OK , to select the day of the schedule.
Set a reminder
You can set reminders that alert you of the start of a programme with a message on screen.
• To set a reminder, select the programme in the schedule and press for Set reminder . The programme is marked with a clock.
• To cancel the reminder, press the for Clear reminder .
• To view a list of all reminders you have set, press OPTIONS, and select All reminders .
Search by genre
If the information is available, you can look up scheduled programmes by genre like movies, sports, etc.
To search for programmes by genre, press OPTIONS and select Search by genre .
Select a genre and press OK . A list with the found programmes appears.
9.3
Recordings
From the TV guide, you can instantly record or schedule a recording of a TV programme. To store the recordings, connect a USB Hard Drive to the TV.
For more information on Recording, press Keywords and look up Recording .
35
10
Sources
10.1
Sources list
In the list of connections - the Source menu - you can find the devices connected to the TV. From this Source menu, you can switch to a device.
Sources menu
To open the Sources menu, press SOURCES .
To switch to a connected device, select the device with the arrows (left) or (right) and press OK .
For some devices (HDMI-CEC devices), you can select an activity directly in the list underneath the device icon.
Select the device and select an activity and press OK .
To close the Source menu without switching to a device, press SOURCES again.
To rescan all TV connections and update the Sources menu, press OPTIONS.
select Scan connections and press OK .
10.2
From standby
With the TV in standby, you can switch on a connected device with your TV remote control.
Play
To switch on both disc player and TV from standby and start playing the disc or programme immediately, press (play) on the TV remote control.
The device should be connected with an HDMI cable and both
TV and device must have HDMI CEC switched on.
Automatic detection
When you connect a new device to the TV, the device is detected automatically and put in the Sources menu. The device is shown as an icon (the device type) and has a name. If the device type does not correspond with the device, e.g. the TV says it is a player but it is not, you can change the type.
To change the type of the device, press Change type and select a type that fits the device and press OK .
If the name does not fit the device or you want to give the device a name of your own, press Rename . Use the remote control keypad to enter a new name.
An appropriate device type helps you in using the device. The device type determines picture and sound styles, resolution values, specific settings or the position within the Sources menu.
When you connect a new device to the TV, the icon of the device jumps to the front of the Sources menu.
If the TV does not detect the device automatically, select the connection you used to connected the device and adjust the
Device type and name.
Original name and icon
To restore the device icon to its original name and type icon, press OPTIONS.
Select Original name and icon and press OK .
Scan connections
Home Theatre System
You can switch on your Home Theatre System to listen to an audio disc or a radio channel and leave the TV in standby.
To only switch on the HTS, with the TV in standby, press SOURCES on the TV remote control.
10.3
EasyLink
With EasyLink you can operate a connected device with the TV remote control. EasyLink uses HDMI CEC to communicate with the connected devices. Devices must support HDMI CEC and must be connected with an HDMI connection.
For more information, press Keywords and look up EasyLink .
36
11
Timers and clock
11.1
Sleeptimer
With the sleep timer, you can set the TV to switch to standby automatically after a preset time.
To set the sleep timer . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Sleep timer .
With the slider bar you can set the time to up to 180 minutes in increments of 5 minutes. If set to 0 mins , the sleep timer is switched off. You can always switch off your TV earlier or reset the time during the countdown.
3 - Press , repeatedly if necessary, to close the menu.
11.2
Clock
To know what time it is, press TV GUIDE to find the time in the TV guide.
In some countries, digital broadcasts do not send UTC -
Coordinated Universal Time information. The daylight saving change might be ignored and the TV might show an incorrect time.
To correct the TV clock . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Clock > Auto clock mode, and select Country dependent .
3 - Select Daylight saving and select the appropriate setting.
4 - Press , repeatedly if necessary, to close the menu.
To set the TV clock manually . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Clock > Auto clock mode, and select Manual .
3 - Select Date and Time to adjust.
4 - Press , repeatedly if necessary, to close the menu.
11.3
Switch off timer
If you do not press a key on the remote control during a 4 hour period, or if the TV receives no input signal nor remote control commands for 10 minutes, the TV switches off automatically to save energy.
If you use the TV as a monitor or use a digital receiver to watch
TV (a Set-top box - STB) and you do not use the remote control of the TV, you should deactivate the automatic switch off.
To deactivate the Switch off timer . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Switch off timer and set the slider bar to Off .
3 - Press , repeatedly if necessary, to close the menu.
For more information on environmentally friendly TV settings, press Keywords and look up Eco settings .
37
12
3D
12.1
What you need
For Passive 3D sets
This is a Passive 3D TV.
To watch 3D you need to :
• Tune to a TV channel that broadcasts programmes in 3D.
• Rent a movie in 3D from an online video store with Smart TV.
• Watch a movie in 3D from a 3D Blu-ray Disc, a USB device or computer.
You can view photos in Ultra HD resolution in 3D, from a USB connection.
12.2
The 3D glasses
For Passive 3D sets
When a 3D programme is shown on screen, simply put on the
3D glasses to watch the programme in 3D.
Recommended viewing height
For best picture quality, when watching passive 3D, your eyes should be level with the centre of the screen.
12.3
Care of the 3D glasses
• Do not use cleaning chemicals containing alcohol, solvent, surfactant, or wax, benzene, thinner, mosquito repellent or lubricant. Using these chemicals can cause discoloration or cracks.
• Do not expose the 3D glasses to direct sunlight, heat, fire or water. This may result in a product malfunction or fire.
• Do not drop, bend or apply force to the lenses of the 3D glasses.
• Use a clean soft cloth (microfiber or cotton flannel) to clean the lenses to avoid scratching them. Never spray cleaner directly onto the 3D glasses. This may damage the electronics (for
Active 3D glasses).
12.4
Watch 3D
To experience the best 3D effect while you watch 3D programmes:
• Sit at a distance that is at least three times the width (w) of the TV screen.
• Do not sit more than 6m away.
3D switching
The first time a 3D signal is detected, you can set your preference on how to start 3D in the future.
• To switch to 3D automatically, select Automatic .
• To show a notification first, select Notification only .
• To never switch to 3D, select Never .
You can still change this preference in > Setup > TV settings
> 3D > Switch to 3D .
Start 3D
When the TV switches to 3D or when a notification is shown that 3D is available, put on your 3D glasses.
If the TV cannot detect the 3D signal (the 3D signal tag is missing), the 3D programme is shown as a double image on screen. To switch to 3D, adjust the 3D settings and select Side by side or Top / bottom according to the double image positions.
1 - Press .
2 - Select 3D settings > 3D - Side by side or 3D - Top / bottom , then press OK .
Stop 3D
To stop watching 3D, press , select 3D settings and select 2D .
3D is switched to 2D when you switch to another channel or connected device.
2D to 3D conversion
You can convert any 2D programme to watch it in 3D.
1 - Press .
2 - Select 3D settings > 2D to 3D conversion .
Adjust the 3D depth
1 - Press and select Setup, then press OK .
2 - Select TV settings > 3D > 3D effect .
3 - Select Off , or On .
4 - Press , repeatedly if necessary, to close the menu.
Switch off 2D to 3D conversion
1 - Press .
2 - Select 3D settings > 2D , then press OK .
38
12.5
Optimal 3D viewing
For an optimal 3D viewing experience, we recommend that you:
• sit at least 3 times the height of the TV screen away from the
TV, but no further than 6 meters away.
• avoid fluorescent lighting (such as TL lighting or certain energy saving light bulbs which operate on a low frequency) and direct sunlight as they may interfere with the 3D experience.
12.6
Health warning
• Watching 3D is not recommended for children under the age of six.
• If you or your family have a history of epilepsy or photosensitive seizures, consult a medical professional before exposing yourself to flashing light sources, rapid image sequences or 3D viewing.
• If you experience any discomfort, stop watching 3D and do not immediately engage in any potentially hazardous activity (for example driving a car) until your symptoms have disappeared. If symptoms persist, do not resume watching 3D without consulting a medical professional first.
• To avoid discomfort such as dizziness, headache or disorientation, we recommend not watching 3D for extended periods of time.
• Do not use the 3D glasses for any purpose other than watching 3D TV.
• If you normally wear corrective glasses or use contact lenses, wear the 3D glasses together with these glasses or lenses.
• Keep the glasses away from small children to avoid the swallowing of small parts or batteries.
• Parents should monitor their children during 3D viewing and ensure they do not experience any discomfort as mentioned above. Watching 3D is not recommended for children under six years of age as their visual system is not fully developed yet.
• Avoid the use of the 3D glasses in case of eye infection or other diseases transmitted by contact (e.g. conjunctivitis, head lice, etc.). Only start using the 3D glasses again when the infection has disappeared completely.
39
13
Games
13.1
Play a game
With a game console connected to the TV, you can play games on TV.
For more information on connecting a game console, press
Keywords and look up Game console, connect .
Start a game
1 - Press SOURCES , select the game console and press OK .
2 - On the game console, start the game and select the multi or two-player mode.
Ideal game setting
For some games, where speed and precision is needed, set the
TV to the ideal Game setting before you start playing.
If your game console is added as a Game type of device in the
Sources menu (list of connections), the TV is set to the ideal
Game setting automatically.
If the type of your game console is set as Player and used as a disc player most of the time, leave the device type set to Player .
To set the TV to the ideal setting manually . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Activity style and press OK .
3 - Select Game and press OK .
4 - Press , repeatedly if necessary, to close the menu. Remember to set Activity Style setting back to TV when you stop playing the game.
13.2
Two-player games
For Passive 3D sets
About two-player gaming
If you play a multi-player game with split screens, you can set the
TV to show each screen as a full screen. Each player sees only his part of the game, full screen. The TV uses 3D technology to show both screens.
To view the two different full screen pictures, you need a pair of
3D glasses for each player.
What you need
To play a two-player game with this TV, you need a two-player kit with 2 passive 3D glasses - Philips PTA436 (sold separately).
Also, the game console must be connected with HDMI.
Play a two-player game
To start a two-player game . . .
1 - Press SOURCES , select the game console and press OK .
2 - On the game console, start the game and select the multi or two-player mode. Select the mode for split screen viewing.
3 - On the TV, press , select 2 player gaming and press OK .
4 - Select the format in which the split screen game is shown on screen, Side by side or Top / bottom and press OK . The TV shows the 2 screens as full screens.
To watch the 2 different screens, put on the 3D glasses.
To switch the glasses to watch the Player 1 screen or Player 2 screen, press the Player 1/2 selection key on the glasses.
In and out of split screen view
In two-player split screen view, you can switch back and forth from split screen to combined view, to be able to read the game menu or game scores.
To switch views back and forth, press OK on the remote control of the TV.
Stop a Two-player game
To stop the two-player split screen view, press and select another activity.
40
14
Your photos, videos and music
14.1
From a USB connection or network computer
What you need
You can view your photos or play your music and videos from a connected USB flash drive or USB Hard Drive. If you have a computer in your home network, you can view and play your files from your computer on the TV.
From a USB device
With the TV switched on, plug in a USB flash drive or USB Hard
Drive to one of the USB connections. The TV detects the device and lists your files.
If the list does not appear automatically, press SOURCES , select Browse USB and press OK .
Warning
If you try to pause or record a programme with a USB Hard
Drive connected, the TV will ask you to format the USB Hard
Drive. This formatting will delete all current files on the USB
Hard Drive.
From a computer
If the TV and the computer are in the same network, the TV can browse and play files stored on your computer.
On your computer, you need to install media server software like Twonky™ to share your files with the TV. The TV shows your files and folders as they are organised on your computer.
To browse the files on your computer, press SOURCES , select Browse network and press OK .
Menu bar and sorting
With a USB device connected, the TV sorts the files by type.
Navigate to the menu bar and select the type of file you are looking for.
If you browse files from a computer, you can only browse the files and folders as they are organized on the computer.
The menu bar
Navigate to the menu bar and select the type of file you want to watch or play.
Select Photos , Music or Videos . Alternatively, you can open the Folders view and browse your folders to look for a file.
Sorting
To browse your photos by date, month, year or alphabetically by name, press Sort .
To browse your music by album, artist, genre or alphabetically by name, press Sort .
Videos are sorted alphabetically.
View photos
To view photos, select Photos in the menu bar, select a photo thumbnail and press OK .
If there are several photos in the same folder, select a photo and press Slide show to start a slide show of all photos in this folder.
To jump to the next or previous photo, press + or .
To stop the slide show or close the photo, press LIST or
(Stop).
You can play music with a slide show.
Start the slide show after you started the music.
1 - Select a song or a folder with songs and press OK .
2 - Press LIST and select Photos .
3 - Select a photo or a folder with photos and press Slide show .
Info
To view info on a photo (size, creation date, file path, etc.), select a photo and press INFO .
Press again to hide the info.
Options
Press OPTIONS .
• Shuffle
Shows your photos in a random order.
• Repeat
Plays the slide show continuously.
• Slide show speed
Sets the speed of the slide show.
• Slide show transition
Sets the style of the photo transitions.
To close Browse USB or Browse network , press and select another activity.
41
Play music
To play music, select Music in the menu bar, select a song and press OK .
If there are more songs in the same folder, press Play all to play all songs in this folder.
To jump to the next or previous song, press + or .
To pause the music, press OK . Press OK again to continue.
To make a 10-second jump in a song or 10-second jump back, press or .
To rewind or fast forward, press or . Press the keys several times to speed up - 2x, 4x, 8x, 16x, 32x.
To stop the music playback, press (Stop).
If you press LIST or , the music keeps on playing.
Info
To view song info (title, artist, duration, etc.), select the song and press INFO .
Press again to hide the info.
Options
Press OPTIONS .
• Shuffle
Plays your music randomly.
• Repeat
Plays the song once or continuously.
To close Browse USB or Browse network , press and select another activity.
Play videos
To play a video, select Videos in the menu bar, select a video and press OK .
If there are more videos in the same folder, press Play all to play all videos in this folder.
To jump to the next or previous video, press + or .
To pause the video, press OK . Press OK again to continue.
To make a 10-second jump forward or backward in a video, press or .
To rewind or go fast forward, press or . Press the keys several times to speed up - 2x, 4x, 8x, 16x, 32x.
To stop the video playback, press (Stop).
Info
To view info on a video (playhead position, duration, title, date, etc.), select the video and press INFO .
Press again to hide the info.
Options
Press OPTIONS .
• Subtitles
If available, you can switch subtitles On , Off or On during mute .
• Shuffle
Plays your videos in a random order.
• Repeat
Plays a video once or continuously.
To close Browse USB or Browse network , press and select another activity.
14.2
Wi-Fi Miracast
About Wi-Fi Miracast
Your TV is a Wi-Fi Certified Miracast™ device. With
Miracast™, you can watch and share the screen of your smartphone, tablet or computer on your TV screen wirelessly.
You can stream videos (audio and video), share photos or anything else that's on screen of the device. No need to connect the device to your home network. Both the TV and the device must be Wi-Fi Certified Miracast™ devices and have Miracast switched on.
For more information on Wi-Fi Certified Miracast™ go to www.wi-fi.org
Wi-Fi® , the Wi-Fi CERTIFIED logo, the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. Wi-Fi CERTIFIED
Miracast™ , Miracast ™ are trademarks of the Wi-Fi Alliance.
Switch Miracast On or Off
Switch on Miracast
Make sure Wi-Fi Miracast is switched on.
1 - Press and select Setup and press OK .
2 - Select Network settings > Wi-Fi Miracast > On and press OK .
3 - Press , repeatedly if necessary, to close the menu.
Switch off Miracast
If you do not want the TV to receive requests for screen sharing from other devices, you can switch off Miracast on the TV.
1 - Press and select Setup and press OK .
2 - Select Network settings > Wi-Fi Miracast > Off and press OK .
3 - Press , repeatedly if necessary, to close the menu.
42
Share a screen on TV
To share the screen of your smartphone, tablet or computer on the TV . . .
1 - Switch on the TV.
2 - On the device, open an application such as Wi-Fi Miracast,
Wi-Fi Direct™, Intel®Wireless Display* or similar and start scanning for other Miracast devices.
3 - In the list of found devices, select the TV and connect.
4 - On the TV, agree to the request to connect to the TV. You might be asked to enter a PIN code from the device on the TV enter the numbers with the digit keys on the remote control.
Alternatively, you might be asked by the TV to enter a PIN code on the device. If you connect, the TV will show the screen of the device.
5 - On the device, select the videos, photos or files you want to watch on TV.
* Miracast is supported by WiFi 3.5 onwards.
4 - Press , repeatedly if necessary, to close the menu.
Blocking a previously connected device
If you want to block a device that you previously connected, you need to clear the Wi-Fi Miracast connections list first. If you clear this list, you will have to confirm or block the connection for every device again.
Screen delay
The normal delay when sharing a screen with Miracast is about 1 second. The delay might be longer if you are using older devices/computers with less processing power.
Specifics
• Miracast on this TV is subject to the HDCP protocol and cannot display copy-protected premium content sent by a device.
• The maximum video resolution supported is 720p.
Stop sharing
You can stop sharing a screen from the TV or from the mobile device.
From the device
With the application you use to start Miracast, you can disconnect and stop watching the screen of the device on TV.
The TV will switch back to the last selected programme.
From the TV
To stop watching the screen of the device on TV, you can . . .
• press to watch a TV broadcast
• press to start another activity on TV
• press SOURCES to open the Sources menu and select a connected device.
Block a device
The first time you receive a request to connect from a device, you can block the device. This request, and all requests in the future, from this device, will be ignored.
To block a device, select Block . . .
in the request window and press OK .
Unblock all devices
All previously connected and blocked devices are stored in the
Wi-Fi Miracast list of connections. If you clear this list, all blocked devices will be unblocked.
To unblock all blocked devices . . .
1 - Press and select Setup and press OK .
2 - Select Network settings > Reset Miracast group .
3 - Press OK to clear the list.
43
15
Pause TV
You can pause a TV broadcast and resume watching it later.
Only digital TV channels can be paused. You must connect a
USB Hard Drive to buffer the broadcast. You can pause a broadcast for a maximum time span of 90 minutes.
For more information, press Keywords and look up USB
Hard Drive .
Pause or resume a broadcast
To pause a broadcast, press (Pause). A progress bar appears briefly on screen.
To call up the progress bar, press (Pause) again.
To resume watching, press (Play). The icon on screen indicates you are watching a paused broadcast.
Back to the actual TV broadcast
To switch back to the actual TV broadcast, press (Stop).
The moment you switch to a digital channel, the USB Hard
Drive starts buffering the broadcast. When you switch to another digital channel, the broadcast of the new channel is buffered and the broadcast of the former channel is cleared.
When you switch to a connected device (a Blu-ray Disc player or digital receiver) the USB Hard Drive stops buffering and the broadcast is cleared. Also when you switch the TV to standby the broadcast is cleared.
Whilst recording a programme on the USB Hard Drive, you cannot pause a broadcast.
Instant replay
Whilst watching a broadcast from a digital TV channel, you can easily instant replay the broadcast.
To replay the last 10 seconds of a broadcast, press (Pause) and press (Left).
You can press repeatedly until you reach the start of the broadcast buffer or the maximum time span.
Progress bar
With the progress bar on screen, press (Rewind) or press
(Forward) to select from where you want to start viewing the paused broadcast. Press these keys repeatedly to change speed.
Specifics
• The Audio Description audio (commentary) for the visually impaired is not available for playback in Pause TV or Recording.
• You can buffer the digital (DVB) subtitles of a channel. You cannot buffer subtitles that come from Text services. To check if digital (DVB) subtitles are available, tune to the TV channel and press OPTIONS , select Subtitle language to open the list of
Subtitles. You can only buffer a subtitle language preceded by a
DVB icon.
44
16
Recording
16.1
What you need
To record a TV programme you need . . .
• a connected USB Hard Drive formatted on this TV
• digital TV channels installed on this TV (the channels you watch with Watch TV)
• to receive channel information for the built-in TV guide (from the broadcaster or from the Internet)
For more information, press Keywords and look up USB
Hard Drive, installation .
16.2
Record a programme
Record now
To record the programme you are watching, press (Record) on the remote control.
If you receive TV guide information from the Internet, you can adjust the end time of the recording in the pop-up window before you confirm the recording.
If you receive TV guide information from the broadcaster, the recording starts immediately. You can adjust the end time of the recording in the list of recordings.
To stop recording, press (Stop).
Schedule a recording
You can schedule a recording of an upcoming programme for today or a few days from today (maximum of 8 days away).
1 - To schedule a recording, press TV Guide .
On the TV guide page, select the channel and programme you wish to record.
You can enter the channel number to jump to the channel in the list.
Press (Right) or (Left) to scroll through the programmes of a channel.
To change the date of the list, press OPTIONS and select
Change day . In the list, select the day you want and press OK . If the TV guide comes from the Internet, you can select the date at the top of the page and press OK .
2 - With the programme highlighted, press Record . The TV adds some time buffer at the end of the programme. You can add some extra buffer if needed.
3 - Select Schedule and press OK . The programme is scheduled for recording. A warning will appear / will be shown automatically when overlapping recordings are scheduled.
If you plan to record a programme in your absence, remember to leave the TV switched to standby and the USB Hard Drive switched on.
List of recordings
To view the list of recordings and scheduled recordings, press , select Recordings and press OK .
In this list, you can select a recording to watch, remove recorded programmes, adjust the end time of an ongoing recording or check the free disk space. Also in this list, if the TV guide comes from the Internet, you can schedule a recording for which you set the beginning and end time yourself, as a timed recording not linked to a programme. To set a timed recording, select
Schedule recording at the top of the page and press OK . Set the channel, date and time span. To confirm the recording, select Schedule and press OK .
Remove a scheduled recording
To remove a scheduled recording, select the upcoming recording in the list and press OK . Alternatively, you can select the scheduled recording and press OPTIONS and select
Cancel recording .
Specifics
• While recording a programme, you can watch a previously recorded programme.
• While recording, you cannot switch TV channels.
• While recording, you cannot pause the TV broadcast.
• To Record, broadcasters need a reliable clock setting. If you reset the TV clock manually, recordings may fail.
• The Audio Description audio (commentary) for the visually impaired cannot be recorded.
• You can record the digital (DVB) subtitles of channel. You cannot record subtitles that come from Text services. To check if digital (DVB) subtitles are available, tune to the TV channel and press OPTIONS , select Subtitle language to open the list of Subtitles. You can only record a subtitle language preceded by a DVB icon.
45
16.3
Watch a recording
To watch a recording . . .
1 - Press , select Recordings and press OK .
2 - In the list, select the recording and press (Play) to start the playback. You can use the (Forward), (Rewind),
(Pause) or (Stop) keys on the remote control.
Expired recording
Broadcasters can limit the number of days a recording can be viewed. A recording in the list can show the number of days before it expires.
Failed recording
When a scheduled recording was prevented by the broadcaster or when the broadcast was interrupted, a recording is marked as
Failed .
Delete a recording
To delete a made recording, select the recording in the list, press OPTIONS and select Delete recording .
For more information, press Keywords and look up Record a programme .
46
17
Skype
17.1
About Skype
With Skype™ you can make video calls on your TV for free.
You can call and see your friends from anywhere in the world.
Talk to your friends while watching them on the big screen of your TV.
17.2
What you need
To make a video call on Skype, you need the separately sold
Philips PTA317 TV camera with a built-in microphone and a good connection to the Internet.
Before you can start Skype, the TV must have a good quality connection to the Internet. You can connect your TV either wireless or wired.
For more information, press Keywords and look up
Network, wireless .
Skype account
To use Skype, you need to create a Skype account for yourself or for your family. You can create a new account for Skype on your TV or on your computer.
Skype Credit or Skype Subscriptions
With Skype, for a little cost, you can also call phones or mobile phones. Using your computer you can buy Skype Credit or take a Skype subscription at www.skype.com
No emergency calls
Skype is not a replacement for your telephone and cannot be used for emergency calling.
17.3
Start with Skype
Install the camera
Connect the TV camera cable to one of the USB connections on the TV.
Bend the small clamp as shown in the illustration below and position the camera on the top of the TV.
Point the camera to the position you usually sit at. When you are making a Skype call, you can pan, tilt or zoom in or out the camera image.
You can position the camera anywhere you want but it is recommended to put it away from the speakers of the TV.
If the TV camera is not connected, Skype will not start.
Sign in
Sign in to Skype with your Skype Name and password . If you don't have a Skype Name yet, you have to create a new Skype account.
To sign in to Skype…
1 - Press to open the Home menu.
2 - Select Skype and press OK to start Skype and open the Sign in page.
3 - Select the Skype Name text field and enter your Skype
Name. To open the on screen keyboard, select the text field and press OK . If you have signed in before, press LIST and select your Skype Name. The TV remembers the 5 last Skype
Names that signed in.
4 - Select the Password text field and enter your password.
5 - When done, select Sign in and press OK .
You are signed in if the Skype menu opens on screen.
Need help?
If you have forgotten your Skype Name or password, or are having problems signing in, please visit www.skype.com/support
New Skype account
If you don't have a Skype Name and Password yet, you can create a new Skype account on your computer. Once you have successfully created the new account, you can use your Skype
Name and password to sign in on TV. To create a Skype account on your computer, go to www.skype.com
If you have a remote control with an integrated keyboard or have a USB keyboard connected to the TV, you can create a new Skype account on your TV.
To create a new account on your TV…
1 - On the Skype Sign in page, select Create a new account and press OK .
2 - On the next menu, select Open browser and press OK .
3 - The TV opens the web page of www.skype.com
directly.
You can create your new account on this web page.
4 - When Skype confirms that your new account is successfully created, leave the web browser and go back to the Sign in page of Skype on TV.
5 - Enter your Skype name and Password to sign in.
Skype Name
A Skype Name must begin with a letter, upper or lowercase. It must have 6 to 32 characters and can contain numbers. A Skype
Name cannot contain a space.
Password
Your password must have 6 to 20 characters and must at least contain one letter or one number. It cannot contain special characters like a trademark, bullet or euro sign. A Skype
47
password cannot contain a space.
If you don't have a Skype Name and Password yet, you can create a new account on the sign in page on TV.
1 - On the sign-in page, select New account and press OK.
2 - Create your new account.
• Full name
Enter your full name.
• Skype name
Enter a name as your Skype name. Your Skype Name will be shown in the list of contacts of other Skype users. A Skype
Name must begin with a letter, upper or lowercase. It must have
6 to 32 characters and can contain numbers. A Skype Name cannot contain a space.
• Password
Enter your password. Your password must have 6 to 20 characters and must at least contain one letter or one number. It cannot contain special characters like a trademark, bullet or euro sign. A Skype password cannot contain a space.
Enter your email address.
3 - Read and accept the Skype Terms of Use.
4 - If your new account was accepted, you are signed in.
You can edit or complete your Skype profile on your computer.
Start Skype on your computer, sign in with your Skype Name and Password and open your Skype profile. You can change your profile picture, add a mood message or set the privacy settings.
Microsoft account
If you have a Microsoft account, you can use this account to sign in to Skype on TV.
To sign in with a Microsoft account…
1 - On the Skype Sign in page, select Sign in with Microsoft account and press OK .
2 - Select Next and press OK . The TV will open the Microsoft account sign in web page.
3 - Enter your Microsoft account email and password.
4 - Select the Submit button and press OK .
No emergency calls
No emergency calls with Skype
Skype is not a replacement for your telephone and cannot be used for emergency calling.
17.4
Skype menu
When you have signed in successfully, Skype opens the Skype menu .
The Skype menu items are…
• My profile - your Skype name
To view or modify your Skype profile. Select your Skype Name and press OK .
• People
In People , you can start making a Skype call and manage your contacts.
• Call phones
In Call phones , you can call a landline or a mobile phone number by dialing the number on a dial pad. You must have
Skype Credit or a Skype subscribtion to call a phone number.
You can't select Call phones if a camera and microphone are not connected.
• History
In History , you can view your missed and former calls or view
Contact requests .
• Settings
In Settings , you can change your password, set your privacy and voicemail settings or view your blocked contacts and much more.
• Sign out
To sign out of Skype on TV.
17.5
My profile
In My profile , you can edit your personal profile for Skype.
• Public
View or change your profile information that can be viewed by your contacts.
• Phone
You can enter or change your home, office or mobile phone number here.
• Private
48
View or change your email address, check the amount of credit you have or view the subscription information, or write a message that reflects your mood.
• Profile picture
If you did not upload a profile picture with your computer yet, you can select one of the available avatars as Profile picture here.
• Online status
You can change your online status. Select the status you want your contacts to see when you are online.
17.6
People
Your contacts
In People , you can find the list of your Skype contacts .
Your contacts are shown with their Skype Name . Contacts are online and available for a Skype call when a green dot is shown next their name.
You can use the text box in the top left corner of the contact page to search for a contact within your contact list. Or, simply scroll down the list to find the contact you want.
Add a contact
Add a Skype contact
In People , the list of your contacts, you can add a new Skype contact.
Add a Skype contact
If you know the Skype Name or email of a friend, Skype can easily find your contact. If you do not know their Skype Name or email, you can also try to look for them by name.
To add a Skype contact…
1 - On the Contacts page, press OPTIONS .
2 - Select Add Skype Contact and press OK .
3 - Enter a Skype Name or email address of your new contact.
You can also try to enter a name. To open the on screen keyboard, press OK . When you're done, press OK .
4 - Skype will search for the contact you are looking for and will show the search results.
5 - Select the contact you want and press OK to send a contact request.
6 - Write the request and press OK . Skype will send the request message to your new contact. If the contact accepts the request, the Skype Name of the new contact will appear in the your list and you can call your contact on Skype.
Add a phone number
In People , the list of your contacts, you can add a phone number as a contact. You can call a phone with a Skype voice call. You need Skype Credits to make a phone call.
To add a phone number…
1 - On the Contacts page, press OPTIONS .
2 - Select Add a Phone Number and press OK .
3 - Enter the name of your contact. To open the on screen keyboard, press OK . When you're done, press OK .
4 - Enter the phone number of your contact. Always start with a country code (e.g. +31 for The Netherlands). Do not use the double zero. When you're done , press OK . The name of your phone number contact will appear in your list.
Accept a contact request
When you receive a Contact request , a small icon will show next to History in the Skype menu .
To accept a contact request…
1 - In the Skype menu , select History and press OK .
2 - Select Contact requests and press OK . Select the request and press OK . Skype will ask you to accept this contact. If you accept, the contact will appear in your contact list.
Block a contact
You can Block a Skype contact. A blocked contact will be unable to contact you on Skype. A blocked contact will not be notified, you will appear as being offline in the contact list of the blocked contact. You can always unblock contacts you have blocked.
To block a contact…
1 - On the Contacts page, select the contact you want to block.
2 - Press OPTIONS and select Block and press OK . The contact is blocked.
To unblock a contact…
1 - Select a contact that is blocked.
2 - Press OPTIONS and select Unblock and press OK . The contact is unblocked.
To view a list of blocked contacts…
1 - In the Skype menu , select Settings and press OK .
2 - Select Blocked contacts and press OK . The list will show all contacts you have blocked.
49
Remove or rename
You can Remove or Rename contacts.
To remove a contact…
1 - On the Contacts page, select the contact you want to remove.
2 - Press OPTIONS and select Remove and press OK . The contact is removed from the list.
To rename a contact…
1 - On the Contacts page, select the contact you want to rename.
2 - Press OPTIONS and select Rename and press OK .
3 - Enter the new name for this contact in the text field. To open the on screen keyboard, press OK . When you're done, press OK .
17.7
Calling on Skype
Video or voice call
Make a Video call
Make a Video call to call and see your friends on your TV screen.
To make a Video call…
1 - On the Contacts page, select the contact you want to call.
2 - Select Video call and press OK . If your contact is on Skype, has a Skype camera connected and answers the call, you can see this person on TV.
3 - To end the call, select End call and press OK .
When your Skype camera is switched on, a blue indicator LED lights up. You can check what your contact can see in the small screen on the bottom right of the TV screen.
To switch the Skype camera off, select Video Off and press
OK . To switch it back on, select Video On and press OK .
To mute your microphone, select Mic Off and press OK . To switch it back on, select Mic On and press OK .
While you are making a video call, you can change the viewpoint of the camera.
For more information on changing the viewpoint, press
Keywords and look up Skype, camera zoom, pan and tilt .
1 - On the Contacts page, select the contact you want to call.
2 - Select Call and press OK . If your contact is on Skype and answers the call, you can talk to your contact.
3 - To end the call, select End call and press OK .
A contact can add you to a voice call with more than one participant. You cannot add an extra participant yourself.
Calling phones
With Skype you can also call landline phones and mobile phones. To call phones you need to buy Skype Credit or a
Skype subscription.
To call a phone…
1 - On the Contacts page, select a phone number contact.
2 - Select Call and press OK . You must have Skype Credits available or have a Skype subscription to make a call with a phone number. If your contact answers the phone, you can talk to your contact.
3 - To end the call, select End call and press OK .
With Skype, you can also call a phone number directly. You can enter the phone number with the dial pad.
To open the dial pad…
1 - In the Skype menu , select Call phones and press OK .
2 - If the dial pad is not on screen, select Show Dial Pad and press OK .
3 - Dial the phone number. You can navigate to the numbers and press OK or use the number keys on the remote control.
No emergency calls
Skype is not a replacement for your telephone and cannot be used for emergency calling.
Receiving a call
When you are signed in to Skype and watching TV, a ringtone and a message on screen will alert you of an incoming call. The message will show who is calling and you can answer or decline the call.
To answer the call, select Answer with video and press OK .
To answer the call with the camera switched off, select Answer with audio and press OK .
To decline the call, select Decline call and press OK .
Make a Voice call
Make a Voice call to call without video, with the camera switched off.
To make a Voice call…
History
In the History page of the Skype menu, you will find a list of all calls you made, including the calls you missed. You can also see new contact requests and listen to voicemails.
To view a list, select All calls , Missed calls , Incoming calls or
50
Outgoing calls and press OK .
To view new contact requests, select Contact requests and press OK .
To view and listen to your voicemails, select Voicemails and press OK .
For how long your Skype events are kept in this history list depends on the amount of contacts you have and how intensively you use Skype.
Voicemail
About Voicemail
If someone calls you on Skype and you do not take the call, he or she can leave a spoken message on your Skype voicemail . If you call a contact and they can't take the call, you can send a
Skype voicemail to your contact.
To send a voicemail or to receive a voicemail, you - or your contact - must set up Skype voicemail first. You can set up
Voicemail on your computer. Go to www.skype.com
When you made voicemail available for you on a computer, set your voicemail preferences in the Skype menu > Settings >
Voicemails .
Record a Voicemail
When you call a contact and they can't take the call, you can leave a voicemail.
To record a voicemail…
1 - Call a contact. If your call was not answered, Skype will propose to send a Voicemail .
2 - Select Yes and speak your message.
3 - To stop recording, select End call and press OK .
17.8
Skype credit
On Skype, you can buy Skype Credit or take a Skype subscription. With Skype Credit or a Skype subscription available, you can call landline phones and mobile phones with your TV.
Buy Skype Credit
To buy Skype Credit or take a Skype subscription, sign in to
Skype on your computer.
The Skype Credit you buy will be available when you sign in to
Skype on your TV.
The amount of credit or the subscription information is shown on each page where you can make a phone call.
Skype Credit low
You will be notified if your credit is too low to make a phone call.
17.9
Skype settings
Signing in
You can set Skype to automatically sign in when you select
Skype from the Home menu. You do not need to enter your
Skype Name or password.
To sign in when Skype starts…
1 - Sign in to Skype with your account.
2 - In the Skype menu , select Settings and press OK .
3 - Select Signing in and press OK .
4 - Press (right) to select the check box and press OK to mark Sign me in when Skype starts .
Play a Voicemail
A contact can send a voicemail message to you. If a voicemail was sent to you, a small icon will show on the Skype menu. You can play a voicemail from the History page.
To play a voicemail…
1 - In the Skype menu , select History and press OK .
2 - Select Voicemails and press OK .
3 - Select the voicemail you want to play and press OK . You can listen to a voicemail as many times you want. To manage your voicemails, press OPTIONS .
Change password
You can change your current Skype password and enter a new password for your Skype account.
To change your password…
1 - Sign in to Skype with your account.
2 - In the Skype menu , select Settings and press OK .
3 - Select Change password .
4 - Press (right) to select Current password and enter your current password. Press OK first if you want to use the on screen keyboard.
5 - Press (down) to select New password and enter you new password.
6 - Press (down) again to select Repeat new password and reenter the new password.
7 - Press (down) again to select Apply to send the new
51
password for confirmation.
Video
You can set Skype to restrict the use of video in Skype calls.
With Automatically receive video from , you can set Skype to automatically receive and show video from Anyone , People in my contact list only or from No one .
With Show that I have video to , you can set Skype to send out your video to People in my contact list only or to No one .
To set the Video settings…
1 - Sign in to Skype with your account.
2 - In the Skype menu , select Settings and press OK .
3 - Select Video .
4 - Press (right) to select the radio buttons and press OK to mark or unmark.
Privacy
You can set Skype to restrict incoming Skype calls.
You can allow calls from Anyone or from From people in my contact list only .
To set the Privacy settings…
1 - Sign in to Skype with your account.
2 - In the Skype menu , select Settings and press OK .
3 - Select Privacy .
4 - Press (right) to select the radio buttons and press OK to mark or unmark.
Blocked contacts
You can view a list of all your Blocked contacts.
To view the list…
1 - Sign in to Skype with your account.
2 - In the Skype menu , select Settings and press OK .
3 - Select Blocked contacts and press OK . To manage your blocked contacts, press OPTIONS .
Voicemail
You can set some preferences for sending voicemails.
If you allow a contact to send you a voicemail when you can't take the call, check the box of Send unanswered calls to voicemail . Leave the box unchecked, if you do not want to receive voicemails.
If you allow a contact to send you a voicemail when you can't answer the call within 15 seconds and you are in another call, check the box of I am already in a call .
If you allow a voicemail, when you declined a call, check the box of I decline an incoming call .
To set your preferences for voicemail…
1 - Sign in to Skype with your account.
2 - In the Skype menu , select Settings and press OK .
3 - Select Voicemail and press OK .
4 - Press (down) or (up) to select a check box. Press OK to check or uncheck.
Call forwarding
Never miss a Skype call with Call Forwarding .
If you are not online or can't take the call, you can forward a
Skype call to any phone or mobile phone. You can also forward a Skype call to another Skype account. You can set up to three phone numbers or Skype Names in order of preference to forward calls to. You need Skype Credit or a Skype subscription to forward calls to phones. Forwarding Skype calls to other
Skype accounts is free of charge. For more information on call forwarding, go to www.skype.com/support
To set up call forwarding…
1 - Sign in to Skype with your account.
2 - In the Skype menu , select Settings and press OK .
3 - Press OK to check the check box for Forward calls when I am not on Skype .
4 - In the entry fields below, enter the phone numbers or Skype
Names from your contact list in order of preference to forward your calls to. Always add the country code for phone numbers.
5 - Change, if necessary, the amount of seconds before Skype forwards your call.
6 - Select Save to store your Call Forwarding setup.
Camera zoom, pan and tilt
You can set the viewpoint of your camera. You can zoom in or out, pan or tilt the camera frame. While you are in a Video call, you can set the camera viewpoint.
To set the camera viewpoint…
1 - Start a Video call and wait until the call is ongoing.
2 - Press (right) to select the icon above the small screen and press OK . A bar with colour key functions appears.
3 - To shift (pan) the camera frame, press (left) or
(right). To tilt the camera frame, press (up) or (down). To zoom in, press Zoom in . To zoom out, press Zoom out .
52
4 - Press Done to store the camera viewpoint and to go back to your Skype call.
17.10
Sign out
When you sign out of Skype, you are signing out your Skype account. Your Online status will change to Offline . Your contacts will not be able to call you.
To sign out…
1 - Press Back from anywhere within Skype to return to the
Skype menu .
2 - Select Sign out in the Skype menu and press OK .
The TV will ask you to quit Skype or to use Skype with another
Skype account.
17.11
Quit Skype
When you sign out of Skype, the Skype application on TV is still active. Another Skype account can sign in or you can create a new account. To stop the Skype application on TV, you must quit Skype.
17.12
Terms of use & Privacy Policy
Read the Terms of Use of Skype at www.skype.com/go/tou
Also read the Privacy Policy at www.skype.com/go/privacy
53
18
Smart TV
18.1
About Smart TV
Connect this Philips Smart LED TV to the Internet and discover a new world of television. You can make a wired connection to your router or you can link up wirelessly with Wi-Fi.
With the TV connected to your home network, a smartphone can show a photo on TV, you can play videos stored on your computer or control the TV with your tablet.
With your TV connected to the Internet, you can watch a rental video from an online video store, read the online TV guide or record your favourite TV show on a USB Hard Drive. The Smart
TV Apps add to the fun with all sorts of entertainment and convenient services.
18.2
What you need
To enjoy Smart TV Apps you must connect the TV to a router with a high-speed (broadband) connection to the Internet. You can use a home network connected to the Internet. You do not need a computer.
For more information, press Keywords and look up Network .
Tip
To enter text or to navigate an Internet page more easily, you can consider to connect a USB keyboard and a USB mouse to the TV.
For more information, press Keywords and look up USB keyboard or USB mouse .
18.3
Setup Smart TV
The first time you open Smart TV, you need to configure your connection. Read and agree to the terms and conditions to continue. If you do not want to set up Smart TV, press .
Register
To register with Club Philips . . .
1 - Select Register and press OK .
2 - Enter your email address, select Continue and press OK .
3 - Confirm the email address.
Parental control
To lock Adult 18+ rated apps . . .
1 - Switch on Smart TV parental control by selecting Enable and then press OK .
2 - Enter an unlock PIN code of your choice.
3 - Confirm your PIN code.
Adult 18+ rated apps are now locked. To open a locked app, select the app and press OK . The TV will ask you to enter your
4-digit code.
18.4
Smart TV Apps
Open Smart TV
The Smart TV start page is your link to the Internet. You can rent movies online, read newspapers, watch videos and listen to music, also shop online, open your social network page
(Facebook, Twitter, . . .) or watch TV programmes when it suits you with Online TV. To do this, you open Apps - Internet sites which are tailored for TV. With your TV connected to the
Internet, you can open Smart TV.
Open Smart TV
To open the Smart TV start page, press Smart TV .
Alternatively, you can press , select Smart TV and press OK .
The TV connects to the Internet and opens the Smart TV start page. This may take a few seconds.
Close Smart TV
To close the Smart TV start page, press and select another activity.
TP Vision Europe B.V. bears no responsibility regarding the content and the quality of the content provided by the content service providers.
Smart TV start page
1 - Now on your TV
2 - Your Apps
3 - App gallery
4 - Internet
5 - Recommended Apps
6 - Search
7 - Colour keys for control
Your Apps
You start Apps from the Smart TV start page. If the start page does not hold any Apps yet, you can add Apps from the App gallery.
App gallery
In the App gallery you find all available Apps.
Internet
54
The Internet App opens the World Wide Web on your TV.
On your TV, you can view any Internet website but most of them are not tailored for a TV screen.
- Some plug-ins (e.g. to view pages or videos) are not available on your TV.
- Internet pages are shown one page at a time and full screen.
Recommended Apps
In this window, Philips presents a range of recommended Apps for your country, Apps for Online TV or a selection of rental movies from Video stores. You can select and open them from the Recommended Apps window.
Search
With Search, you can search the App gallery for relevant Apps.
Enter a keyword in the text field, select and press OK to start searching. You can enter names, titles, genres and description keywords to search.
Alternatively, you can leave the text field empty and search for the most popular searches/keywords for a range of categories. In the list of found keywords, select a keyword and press OK to search for items with that keyword.
Open an App
To open an App, you must add it to your list of Apps in the
Smart TV start page first.You can add Apps to your list from the
App gallery.
The list of your Apps on the Smart TV start page can be several pages long. Use the arrow keys to go to the next or previous page. Alternatively, press + (Next page) or (Previous page).
Open an App
To open an App . . .
1 - Press and select Smart TV .
2 - On the start page, select an App icon and press OK .
In an App, press to go back 1 step or page.
Close an App
To close an App and return to the Smart TV start page, press
Smart TV .
Reload an App page
If an App page did not load properly, press OPTIONS and select Reload to reload the page.
Zoom
To zoom in on an App page . . .
1 - Press OPTIONS and select Zoom page .
2 - Use the slider bar to set the zoom level.
3 - Return to normal view by resetting the slider bar.
View security info
You can check the security level of an App page.
On an App page, press OPTIONS and select Security info .
If a lock is shown next to the loading animation on the bottom of the screen while loading a page, the transfer is secured.
Feedback on an App
Select the App and press Feedback to select a 'like' or 'don't like' button and send a suggestion or remark to us. You can also report an App malfunction.
Manage your Apps
In the list of Apps on the Smart TV start page you can . . .
• Remove an App
To remove an App from the list, select the App icon and press Remove . The App is still available in the App gallery.
• Move an App
To reposition an App in the list, select the App icon, press Move and use the arrow keys to reposition the App.
Press OK to confirm the position.
• Lock an App
To lock an App, select the App icon and press Lock .
When you lock an App, you must enter the 4 digit PIN code you set for Parental control when you configured Smart TV. In the list, a locked App is marked with a lock .
To unlock an App, select the App icon and press Unlock .
You must enter the 4 digit PIN code to unlock.
App gallery
Open the App gallery in Smart TV to browse the Apps, the collection of tailored websites for TV.
Find the App for YouTube videos, a national newspaper, an online photo album, Facebook, Twitter, etc. There are Apps to rent a video from an online video store and Apps for watching programmes you missed. If the App gallery does not hold what you are looking for, try the World Wide Web and surf the
Internet on TV.
Rental video Apps
With the video store Apps in Smart TV, you can rent your favourite movie from an online rental video store. You can pay securely with your credit card.
Rent a movie
1 - Open a Video store App in your list of Apps or select a recommended video on the Smart TV start page.
2 - Select a movie.
3 - Make the online payment.
4 - Start watching. You can use the (Play) and (Pause) keys.
Most Video stores ask you to create a login account.
55
Streaming video
With this TV, you can watch rental movies sent as a streaming video format. You can almost instantly watch the movie. You might need a USB Hard Drive to store some video buffer. If you have a USB Hard Drive connected, you can also download rental movies from video stores that offer movie downloading only. You can pause or restart a downloaded rental movie.
Consult the video store regarding the rental duration of rental movies.
Internet traffic
Streaming or downloading many videos may exceed your monthly Internet traffic limit.
Online TV
With the Online TV App on the Smart TV start page*, you can watch TV programmes you missed or watch programmes whenever it suits you best.
Open Online TV
To open the Online TV App . . .
1 - Press Smart TV .
2 - On the start page, select the Online TV icon and press
OK .
3 - Select a programme on the page and press OK to start watching. You can use the (Play) and (Pause) keys.
List per broadcaster
To view the Online TV programmes ordered by broadcaster, press All broadcasters .
Select a broadcaster and press OK .
* If available in your region.
18.5
Multi view
While you are on a Smart TV App or the Internet, you can watch the current TV channel. Multi view opens a small screen for the TV channel next to the Smart TV screen.
To open Multi view…
1 - Press SMART TV to open Smart TV.
2 - Press MULTI VIEW to open the small screen.
3 - Press + or – to change the TV channel in the small screen.
The Multi view screen cannot display video in 3D or in UHD.
With Multi view open, you cannot use the Remote Control
Pointer nor use a connected USB mouse in the Smart TV screen.
18.6
Reset Smart TV
To reset your connection with Smart TV, clear the Internet memory on the TV.
You will clear your Philips Smart TV registration and parental rating setting, your video store app logins, all Smart TV app favourites, Internet bookmarks and history.
To clear the Internet memory . . .
1 - Press and select Setup and press OK .
2 - Select Network settings > Clear Internet memory and press OK .
56
19
Multi room
19.1
About Multi room
With Multi Room you can watch a TV programme that comes from another TV in your home. The programme is streamed from one TV to the other. You can stream a programme to a
TV that has no antenna connection or has no Smart card subscription of its own. You can also stream a recorded programme from a TV with a connected Hard Drive.
The TV that streams the programme to the other TV, must be switched on and must tune to the channel or play the recording.
Streaming a TV programme with Multi Room will reduce the picture resolution to 720p maximum. You cannot stream radio channels. Some broadcasters protect their programmes to prevent this kind of streaming.
19.2
What you need
To stream a TV programme from one TV to another, the programme must come from a digital TV channel.
Both TVs must be connected to your wireless home network. For more information, press Keywords and look up Wireless Network .
Also, both TVs must have a Philips model number that ends with an 8 or higher - e.g. xxXXXxxx 8 . It might be necessary to update the older TV with its latest software. On the older TV, read the Help chapter on updating software.
Make sure that both TVs have the setting Switch on with Wi-Fi
(WoWLAN) switched on in the TV setup.
To check this setting on this TV…
1 - Press , select Setup and press OK .
2 - Select Network settings > Switch on with Wi-Fi and select On , and press OK .
3 - Press BACK repeatedly if necessary, to close the menu.
19.3
Using Multi room
First time use
When you start Multi room for the first time, switch on both
TVs.
Once this TV made a connection with the other TV, the other one will appear automatically in the Browse network menu even when it's in standby.
Stream a TV channel
With Multi room, you can watch the current TV channel or open the channel list of the other TV. If you select a channel from the list, the other TV will also switch to the channel you selected. If the other TV has a build-in satellite tuner with installed channels or a connected Hard Disc Drive (HDD) with recordings*, you can also watch these on this TV. You cannot switch channels while the other TV is recording, in Pause TV mode or using Skype.
To watch a TV channel from the other TV . . .
1 - Make sure the other TV is in standby* or switched on.
2 - On this TV, press SOURCES , select Browse network and press OK .
3 - If the TV is not yet connected to your home network, the network installation will start automatically. If the TV is already connected, go to step 4.
4 - In the Browse network menu, select the name of the other
TV and press OK . If you have several TVs in your home, you might want to change the name of the other TV. You can do that on the TV itself.
5 - Select what you want to watch from the other TV . . .
• to watch the current channel of the other TV, select Current channel and press OK .
• to open the channel list of the other TV, select Watch TV and press (Right).
• to open the satellite channel list of the other TV, select Watch satellite and press (Right).
• to open the list of recordings* on the other TV, select Watch recordings and press (Right).
• you can switch channels with + and . You cannot switch channels when the other TV is recording, in Pause TV mode or using Skype.
* To switch on the other TV from standby or to watch its recordings from a connected HDD, both TVs must have a type number that ends with an 8 or higher - e.g. xxXXXxxx8 or xxXXXxxx9.
TV name
To change the TV name . . .
Press > Setup > Network settings > TV network name .
57
20
Settings
20.1
Setup menu
Quick picture and sound settings
With Quick picture and sound settings you can set your basic picture preferences in a few easy steps. The settings you made are stored under the Picture style - Personal . You can return to your picture preference if some settings were changed. You can set a preferred picture setting for every TV activity or connected device individually.
To return to your preferred picture setting, while watching a TV channel, press , select Picture style and select Personal .
To set a Quick picture setting . . .
1 - Press , select Setup and press OK .
2 - Select Quick picture and sound settings and press OK . Go through the steps and finish.
For more information, press Keywords and look up Picture style .
Automatic channel update, do a digital reception test or install analogue channels manually.
Languages
Press Keywords and look up Audio language or Subtitles .
Universal access
Press Keywords and look up Universal access for visually and hearing impaired users settings.
Channel installation
Press Keywords and look up Automatic channel update or
Channel update message . Also look up Manual installation for installing analogue channels or DVB to switch the antenna connection.
Child lock
Press Keywords and look up Child lock .
Connect to network
Press Keywords and look up Network, wireless or
Network, wired .
TV settings
In the TV settings menu you can set all settings. The item
General settings in the menu holds a collection of settings like
Menu language , Sleep timer , Switch off timer , Universal access and more.
For more information, press Keywords and look up the topic you need.
Network settings
Press Keywords and look up Network, settings .
Update software
Press Keywords and look up Software, Internet update or Software, USB update .
Search for channels
With Search for channels , you can update your current channel list and possible newly found channels are added to the channel list. You can also do a re-installation of all channels. A channel update or a channel reinstall may take some time.
Press Keywords and look up Channel, update or Channels, re-install .
Channel settings
In the Channel settings menu, you can set your language preferences or set Hearing impaired and Audio description for people who are hearing and visually impaired. You can set an age rating to prevent children from watching a rated programme and set or change your Child lock code. You can switch on the
Update software
Press Keywords and look up Software, USB update .
Software settings
Press Keywords and look up Software, current version .
Watch demo
With Demo in menu, you can watch some demonstration videos of some of the picture quality features of your TV.
58
20.2
Picture style
For easy picture adjustment, you can select a preset setting with
Picture style .
1 - While watching a TV channel, press , then select Picture style .
2 - Select a style and press OK .
The available Picture styles are . . .
• Personal - Your preferences made in Quick picture settings
• Vivid - Ideal for daylight viewing
• Natural - Natural picture settings
• Standard - Factory standard settings
• Movie - Ideal for watching movies
• Photo - Ideal for viewing photos
Restore a Style
With a Picture Style selected, you can adjust any picture setting in Setup > TV settings > Picture …
The selected style will store the changes you made. We recommend to adjust the picture settings for the style Personal only.
To restore the style to its original setting…
1 - Press and select Setup , and press OK .
2 - Select TV settings > Picture > Picture style and select the style you want to reset.
3 - Press Restore Style .
4 - Select Yes and press OK . The style is restored.
5 - Press , repeatedly if necessary, to close the menu.
For more information on adjusting individual picture settings, press Keywords and look up Picture .
Home or Shop
If the Picture style is switched back to Vivid every time you switch on the TV, the TV location is set to Shop . A setting meant for in-store promotion.
To set the TV for Home use . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Location and press
OK .
3 - Select Home and press OK .
4 - Press , repeatedly if necessary, to close the menu.
Picture settings
Colour
With Colour , you can adjust the colour saturation of the picture.
To adjust the colour . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Colour .
3 - Press (right) and adjust the value with (up) or (down).
4 - Press , repeatedly if necessary, to close the menu.
Contrast
With Contrast , you can adjust the contrast of the picture. If you are watching 3D pictures, this setting is switched to 3D contrast .
To adjust the contrast . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Contrast .
3 - Press (right) and adjust the value with (up) or
(down).
4 - Press , repeatedly if necessary, to close the menu.
Sharpness
With Sharpness , you can adjust the level of sharpness in fine detail of the picture.
To adjust the sharpness . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Sharpness .
3 - Press (right) and adjust the value with (up) or (down).
4 - Press , repeatedly if necessary, to close the menu.
Advanced picture settings
Colour settings
Colour enhancement
With Colour enhancement , you can enhance the colour intensity and the details in bright colours.
To adjust the level . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Colour
> Colour enhancement .
3 - Press (right) and select Maximum , Medium , Minimum or Off .
4 - Press , repeatedly if necessary, to close the menu.
Colour temperature
With Colour temperature , you can set the picture to a preset colour temperature or select Custom to set a temperature setting yourself with Custom colour temperature . Colour temperature and Custom colour temperature are settings
59
intended for expert users.
To select a preset . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Colour
> Colour temperature .
3 - Press (right) and select Normal , Warm or Cool . Select
Custom if you want to set a colour temperature yourself.
4 - Press , repeatedly if necessary, to close the menu.
Custom colour temperature
With Custom colour temperature , you can set a colour temperature yourself. To set a Custom colour temperature , first select Custom in the Colour temperature setting to make the Custom colour temperature menu available. Custom colour temperature is a setting intended for expert users.
To set a custom colour temperature . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Colour
> Custom colour temperature .
3 - Press (right).
4 - Select a setting with the arrow keys.
5 - Press OK to confirm a setting.
6 - Press , repeatedly if necessary, to close the menu.
Contrast settings
Contrast modes
With Contrast modes , you can set the level at which power consumption can be reduced by dimming the intensity of the screen. Choose for the best power consumption or for the picture with the best intensity.
To adjust the level . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Contrast >
Contrast modes .
3 - Press (right) and select Best Picture , Best Power ,
Standard or Off .
4 - Press , repeatedly if necessary, to close the menu.
Brightness
With Brightness , you can set the level of brightness of the picture signal. Brightness is a setting intended for expert users.
We recommend non-expert users to adjust the brightness of the picture with the Contrast setting.
To adjust the level . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Contrast
> Brightness .
3 - Press (right) and adjust the value with (up) or (down).
4 - Press , repeatedly if necessary, to close the menu.
Video contrast
With Video contrast , you can decrease the range of the video contrast. If you are watching 3D pictures, this setting is switched to 3D video contrast . Video contrast and 3D video contrast are settings intended for expert users.
To adjust the level . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Contrast
> Video contrast .
3 - Press (right) and adjust the value with (up) or
(down).
4 - Press , repeatedly if necessary, to close the menu.
Light sensor
The Light sensor adjusts the picture and Ambilight settings automatically to the lighting conditions of the room. You can switch Light sensor on or off.
To switch on or off . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Contrast
> Light sensor .
3 - Press (right) and select On or Off .
4 - Press , repeatedly if necessary, to close the menu.
Gamma
With Gamma , you can set a non-linear setting for picture luminance and contrast. Gamma is a setting intended for expert users.
To adjust the level . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Contrast
> Gamma .
3 - Press (right) and adjust the value with (up) or (down).
4 - Press , repeatedly if necessary, to close the menu.
Sharpness settings
Super resolution
With Super resolution , you switch on a superior sharpness in line edges and contours.
To switch on or off . . .
60
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Sharpness >
Super resolution .
3 - Press (right) and select On or Off .
4 - Press , repeatedly if necessary, to close the menu.
Noise reduction
With Noise reduction , you can filter out and reduce the level of image noise.
To adjust the noise reduction . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Sharpness
> Noise reduction .
3 - Press (right) and select Maximum , Medium , Minimum or
Off .
4 - Press , repeatedly if necessary, to close the menu.
MPEG artefact reduction
With MPEG artefact reduction , you can smoothen the digital transitions in the picture. MPEG artefacts are mostly visible as small blocks or jagged edges in images.
To reduce the MPEG artefacts . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Sharpness
> MPEG artefact reduction .
3 - Press (right) and select Maximum , Medium , Minimum or Off .
4 - Press , repeatedly if necessary, to close the menu.
Game or computer
You can switch the TV to the ideal picture setting for gaming or for using the TV as a computer monitor. There is a different setting for Game or Computer . If a device has a correct type set in the Source menu - Game console or Computer - the TV switches automatically to the ideal setting when you switch to the device. If you switch the setting manually, do not forget to switch it off when you switch to watching TV or another connected device.
To switch the setting manually . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Picture > Advanced > Activity style .
3 - Select Game , Computer or TV . The setting TV returns to the picture settings for watching TV.
4 - Press , repeatedly if necessary, to close the menu.
Location
If the TV is located in a shop, you can set the TV to display an in store promotion banner. The Picture style is set to Vivid automatically. The automatic Switch off timer is switched off.
To set the TV to Shop location . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Location and press
OK .
3 - Select Shop and press OK .
4 - Press , repeatedly if necessary, to close the menu.
20.3
Sound
Sound style
For easy sound adjustment, you can select a preset setting with
Sound style .
1 - While watching a TV channel, press , then select Sound style .
2 - Select a style and press OK .
The different Sound styles are . . .
• Personal - Your personal choices made in Personalise sound
• Original - Factory standard
• Movie - Ideal for watching movies
• Music - Ideal for listening to music
• Game - Ideal for gaming
• News - Ideal for speech
Restore a Sound style
With a Sound style selected, you can adjust any sound setting in
Setup > TV settings > Sound …
The selected style will store the changes you made. We recommend to adjust the sound settings for the style Personal only
To restore the style to its original setting…
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Sound style and select the style you want to reset.
3 - Press Restore Style .
4 - Select Yes and press OK . The style is restored.
5 - Press BACK repeatedly if necessary, to close the menu.
Press Keywords and look up Sound for adjusting individual sound settings.
61
Sound settings
Bass
With Bass , you can adjust the level of low tones in the sound.
To adjust the level . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Bass .
3 - Press (right) and adjust the value with (up) or (down).
4 - Press , repeatedly if necessary, to close the menu.
Treble
With Treble , you can adjust the level of high tones in the sound.
To adjust the level . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Treble .
3 - Press (right) and adjust the value with (up) or (down).
4 - Press , repeatedly if necessary, to close the menu.
Surround mode
With Surround mode , you can set the sound effect of the TV speakers. If you select Incredible surround for 2D viewing, the
TV will switch to Incredible surround 3D automatically when you start watching 3D. If you do not want the TV to switch automatically, select Off in Auto surround 3D .
To set the surround mode . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Surround mode .
3 - Press (right) and select Stereo , Incredible surround or
Incredible surround 3D .
4 - Press , repeatedly if necessary, to close the menu.
Auto surround 3D
With Auto surround 3D , you can block the TV to automatically switch to Incredible surround 3D when the TV is switched to
3D.
To switch on or off . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Auto surround 3D .
3 - Press (right) and select On or Off .
4 - Press , repeatedly if necessary, to close the menu.
Headphones volume
With Headphones volume , you can set the volume of a connected headphones separately.
To adjust the volume . . .
1 - Press and select Headphones volume in the menu bar.
2 - Press (up) or (down) to adjust the volume.
3 - Press , repeatedly if necessary, to close the menu.
Advanced sound settings
Auto volume levelling
With Auto volume levelling , you can set the TV to automatically level out sudden volume differences. Typically at the beginning of adverts or when you are switching channels.
To switch on or off . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Advanced > Auto volume leveling .
3 - Press (right) and select On or Off .
4 - Press , repeatedly if necessary, to close the menu.
TV speakers
You can send the TV sound to a connected audio device - a
Home Theatre System or audio system. With TV speakers , you select where you want to hear the TV sound and how you want to control it.
• If you select Off , you permanently switch off the TV speakers.
• If you select TV speakers , the TV speakers are always on.
With an audio device connected with HDMI CEC, you can use one of the EasyLink settings.
• If you select EasyLink , the TV sends the TV sound to the audio device. The TV will switch off the TV speakers when the device is playing the sound.
• If you select EasyLink autostart , the TV will switch on the audio device, send the TV sound to the device and switch off the TV speakers.
With EasyLink or EasyLink autostart selected, you can still switch to TV speakers or device speakers in sound menu.
To set the TV speakers . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Sound output .
3 - Press (right) and select Off , TV speakers , EasyLink or
EasyLink autostart .
4 - Press , repeatedly if necessary, to close the menu.
To switch speakers directly . . .
1 - While watching TV, press OPTIONS and select Picture and sound .
2 - Select Speakers and select TV or Amplifier (audio device).
62
3 - Press , repeatedly if necessary, to close the menu.
Clear sound
With Clear Sound , you improve the sound for speech. Ideal for news programmes. You can switch the speech improvement on or off.
To switch on or off . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Advanced > Clear Sound .
3 - Press (right) and select On or Off .
4 - Press , repeatedly if necessary, to close the menu.
HDMI ARC
If you do not need an Audio Return Channel (ARC) on any of the HDMI connections, you can switch the ARC signal off.
For more information, press Keywords and look up HDMI
ARC .
Audio out format
With Audio out format you can set the audio out signal of the
TV to fit the sound processing capabilities of your Home
Theatre System.
For more information, press Keywords and look up Audio
Out format .
Audio out levelling
With Audio out leveling you can level the sound volume of the
Home Theatre System with the volume of the TV when you switch over from one to another.
For more information, press Keywords and look up Audio
Out leveling .
Audio out delay
If you set an Audio sync delay on your Home Theatre System, to synchronise the sound with the picture, you must switch off
Audio out delay on the TV.
For more information, press Keywords and look up Audio
Out delay .
Audio out offset
If you cannot set a delay on the Home Theatre System, you can set a delay on the TV with Audio out offset .
For more information, press Keywords and look up Audio
Out offset .
Speakers
Home Theatre System
You can send the TV sound to a connected audio device - a
Home Theatre System or audio system.
You can select where you want to hear the TV sound and how you want to control it.
• If you select Off , you permanently switch off the TV speakers.
• If you select TV speakers , the TV speakers are always on.
With an audio device connected with HDMI CEC, you can use one of the EasyLink settings.
• If you select EasyLink , the TV sends the TV sound to the audio device. The TV will switch off the TV speakers when the device is playing the sound.
• If you select EasyLink autostart , the TV will switch on the audio device, send the TV sound to the device and switch off the TV speakers.
With EasyLink or EasyLink autostart selected, you can still switch to TV speakers if necessary.
To set the TV speakers . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Sound > Sound output .
3 - Press (right) and select Off , TV speakers , EasyLink or
EasyLink autostart .
4 - Press , repeatedly if necessary, to close the menu.
To switch to speakers directly . . .
1 - While watching TV, press .
2 - Select Speakers and select TV or Amplifier (audio system).
3 - Press , repeatedly if necessary, to close the menu.
TV placement
As part of the first installation, this setting is set to either On a
TV stand or Wall mounted . If you have changed the placement of the TV since then, adjust this setting accordingly for best sound reproduction.
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > TV placement and press OK .
3 - Select On a TV stand or Wall mounted and press OK .
4 - Press , repeatedly if necessary, to close the menu.
63
20.4
Ambilight
Ambilight style
Ambilight can have a preset mode or a static mode.
With preset mode, the TV follows the colours of the image on screen.
With Static , Ambilight has a constant static colour. You can create an Ambilight static colour yourself.
First, select the Ambilight style you prefer.
To select an Ambilight style . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Ambilight > Ambilight style .
3 - Select one of the preset style or Off .
4 - Press , repeatedly if necessary, to close the menu.
To select a static colour . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Ambilight > Ambilight style > Static and press OK .
3 - Select the colour from the colour palette. Press OK to confirm.
4 - Press , repeatedly if necessary, to close the menu.
Ambilight settings
Ambilight brightness
With Ambilight Brightness , you can set the level of brightness of the Ambilight.
To adjust the level . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Ambilight > Brightness .
3 - Press OK and adjust the value with (up) or (down).
4 - Press , repeatedly if necessary, to close the menu.
Ambilight saturation
With Ambilight Saturation , you can set the level of saturation of the Ambilight.
To adjust the level . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Ambilight > Saturation .
3 - Press OK and adjust the value with (up) or (down).
4 - Press , repeatedly if necessary, to close the menu.
Ambilight+hue
What you need
With Ambilight+hue , you can set up your Philips Hue lamps to follow the Ambilight colours of the TV. The Philips Hue lamps will expand the Ambilight effect across the room. If you don’t have any Philips Hue lamps yet, buy the Philips Hue Starter Kit
(includes a hue bridge and 3 hue bulbs) and install the bulbs and bridge. You can buy extra Philips Hue bulbs separately.
To set up Ambilight+hue on your TV you need…
• a Philips Hue bridge
• a few Philips Hue bulbs
• this TV connected to your home network
You can do the complete Ambilight+hue setup on TV and don’t need the Ambilight+hue App.
If you do download the free Ambilight+hue App on your smartphone or tablet later, you can use this App to adjust some
Ambilight+hue settings.
Configure
Configuration steps
To configure Philips Hue bulbs as Ambilight+hue bulbs, follow the steps on the following pages…
1 - Network
2 - Hue bridge
3 - Hue bulbs
4 - Configure bulb
Network
In this first step, you will prepare the TV to find the Philips Hue
Bridge .
The TV and the Philips Hue Bridge must use the same network.
Connect the Philips Hue Bridge to the router — the router of the network the TV is using.
Switch on the hue bulbs.
To start the configuration…
1 - Press (Ambilight) and select on any Ambilight Style.
2 - Press and select Setup and press OK .
3 - Select TV settings > Ambilight > Ambilight+hue and press
OK .
4 - Select Ambilight+hue one step further, select On and press
OK .
5 - Select Configure Ambilight+hue and press OK .
If the TV is connected to your home network, it will start looking for the Philips Hue Bridge immediately.
If the TV is not yet connected to your network, the TV will start the network setup first. You must connect the TV to your home network.
With the TV connected to your network, go to page Hue
Bridge .
64
For more info on connecting the TV to your home network, press Keywords and look up Network, wireless .
Hue Bridge
In the following step, you will link up the TV with the Philips
Hue Bridge .
The TV can only be linked up to one Hue Bridge.
To link the Hue Bridge…
1 - With the TV connected to the network, it will show the available Hue Bridges. If the TV did not find your Hue Bridge yet, you can select Scan again and press OK .
If the TV found the only Hue Bridge you have, select Next and press OK .
If you have more than one Hue Bridge available, press (up) or
(down) to select the Hue Bridge you want to use and then select Next and press OK .
2 - After you pressed OK , go to the Philips Hue Bridge and press the link button in the middle of the device. This will link the Hue Bridge with the TV. Do this within 30 seconds. The TV will confirm if a Hue Bridge is linked to the TV.
3 - On this confirmation, select OK and press OK .
With the Philips hue bridge linked to the TV, go to page Hue bulbs .
TV. The further away from the TV, the weaker the Ambilight colour. Press (up) or (down) to adjust.
5 - Press (right) to set the brightness.
6 - Finally, set the Brightness of the bulb. Press (up) or
(down) to adjust.
7 - To stop configuring this bulb, select OK and press OK .
8 - In the Configure Ambilight+hue menu, you can select every bulb and do the same.
9 - When all Ambilight+hue bulbs are configured, select Finish and press OK .
Ambilight+hue is ready for use.
You can always change the Ambilight+hue configuration later.
To change the configuration, press and select Setup > TV settings > Ambilight > Ambilight+hue > Configure
Ambilight+hue.
Immersion
With Immersion , you can adjust the level of the Ambilight effect for the Ambilight+hue bulbs.
To adjust the Ambilight+hue Immersion…
1 - Press and select Setup and press OK .
2 - Select TV settings > Ambilight > Ambilight+hue >
Immersion and press OK .
3 - Press (up) or (down) to adjust.
4 - Press , repeatedly if necessary, to close the menu.
Hue bulbs
In the following step, you will select the Philips Hue bulbs that have to follow the Ambilight.
You can select a maximum of 9 Philips Hue bulbs for
Ambilight+hue.
To select the bulbs for Ambilight+hue…
1 - In the Configure Ambilight+hue menu, select Hue bulbs and press OK .
2 - Mark the bulbs that have to follow the Ambilight. To mark a bulb, select the bulb name and press OK .
3 - When you’re done, select the OK button and press OK .
With the bulbs marked for Ambilight+hue, go to page
Configure bulb .
Info
In View configuration , you can consult the current
Ambilight+hue configuration. Which network you use, how many bulbs are connected, etc.
To view the current Ambilight+hue setup…
1 - Press and select Setup and press OK .
2 - Select TV settings > Ambilight > Ambilight+hue > View configuration and press OK .
3 - Select the item you want to view and press OK .
4 - Press , repeatedly if necessary, to close the menu.
Configure bulb
In the following step, you will configure each Philips Hue bulb .
To configure each Hue bulb…
1 - Select the bulb name in the Configure Ambilight+hue menu and press OK . The bulb you selected is blinking.
2 - First indicate where you placed the bulb relative to the TV. A correct setting of the Angle will send the correct Ambilight colour to the bulb. Press (up) or (down) to adjust.
3 - Press (right) to set the distance.
4 - Secondly, indicate the Distance between the bulb and the
Advanced Ambilight settings
Wall Colour
With Wall Colour , you can neutralise the influence of a coloured wall on the Ambilight colours. Select the colour of the wall behind the TV and the TV will modify the Ambilight colours to appear as they are intended.
To select the colour of the wall . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > Ambilight > Advanced > Wall Colour .
3 - Select the colour sample that matches the colour of the wall
65
behind the TV and press OK .
4 - Press , repeatedly if necessary, to close the menu.
TV switch off
With TV switch off , you can set Ambilight to switch off immediately or slowly fade out when you switch off the TV. The slow fade out gives you some time to switch on the lights in your living room.
To select the way how Ambilight switches off…
1 - Press and select Setup and press OK .
2 - Select TV settings > Ambilight > Advanced > TV switch off .
3 - Select Fade out to off or Immediate switch off .
4 - Press , repeatedly if necessary, to close the menu.
Lounge light mood
When the TV is on standby, you can switch Ambilight on and create a Lounge light effect in your room.
To switch Ambilight on while the TV is on standby, press
(Ambilight).
To change the Lounge light colour range, press
(Ambilight) again.
To switch off Lounge light, press and hold (Ambilight) for a few seconds.
You can also set up the colour range in the TV settings menu.
1 - Switch on the TV (out of the Lounge light mode).
2 - Press and select Setup and press OK .
3 - Select TV settings > Ambilight > Advanced > Lounge light mood and press OK .
4 - Select the colour range you prefer.
5 - Press , repeatedly if necessary, to close the menu.
Lounge light+hue
If you installed Ambilight+hue, you can let the hue bulbs follow
Lounge light from Ambilight. The Philips Hue lamps will expand the Loung light effect across the room. The Hue bulbs are switched on and automatically set to follow Lounge light when you configure Ambilight+hue.
To switch the hue bulbs on or off…
1 - Press and select Setup and press OK .
2 - Select TV settings > Ambilight > Advanced > Lounge light+hue .
3 - Select On or Off .
4 - Press , repeatedly if necessary, to close the menu.
20.5
Universal access
Switch on
With Universal access switched on, the TV is set for use for hearing and visually impaired people.
Switch on
If you did not switch on Universal access during the installation, you can still switch it on in Setup .
To switch on Universal access . . .
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Universal access and press OK .
3 - Select On and press OK .
4 - Press , repeatedly if necessary, to close the menu.
With Universal access switched on in Setup , the Universal access option is added in the Options menu.
Hearing impaired
Switch on
Digital TV channels can broadcast special audio commentary describing what is happening on screen.
To be able to set the visually impaired audio and effects, you have to switch on Audio description first.
Also, before you can switch on Audio description , you have to switch on Universal access .
Audio description
With Audio description , a narrator's commentary is added to the normal audio.
To switch on the commentary (if available) . . .
1 - With Universal access switched on, press
OPTIONS and select Universal access.
2 - Select Audio description and press OK.
3 - Select On and press OK .
You can check if an audio commentary is available.
In the Options menu, select Audio language and look for an audio language marked with a .
Speakers / Headphones
With Speakers / Headphones , you can select where you want to hear the audio commentary.
On the TV speakers only, on the headphones only or on both.
To set Speakers / Headphones . . .
1 - Press and select Setup and press OK .
2 - Select Channel settings > Languages > Audio description >
66
Speakers / Headphones and press OK .
3 - Select Speakers , Headphones or Speakers + headphones and press OK .
4 - Press , repeatedly if necessary, to close the menu.
Visually impaired
Mixed volume
You can mix the volume of the normal audio with the audio commentary.
To mix the volume . . .
1 - Press OPTIONS and select Universal access in the menu bar.
2 - Select Mixed volume and press OK .
3 - Use or to set the slider bar.
4 - Press OK to confirm.
Audio effect
Some audio commentary can hold extra audio effects, like stereo or fading sound.
To switch on Audio effects (if available) . . .
1 - Press and select Setup and press OK .
2 - Select Channel settings > Languages > Audio description >
Audio effects and press OK .
3 - Select On or Off and press OK .
4 - Press , repeatedly if necessary, to close the menu.
Speech
The audio commentary can also hold subtitles for the words which are spoken.
To switch on these subtitles (if available) . . .
1 - Press and select Setup and press OK .
2 - Select Channel settings > Languages > Audio description >
Speech and press OK .
3 - Select Descriptive (audio) or Subtitles and press OK .
4 - Press , repeatedly if necessary, to close the menu.
Key beep
Key beep gives an audio feedback each time you press a key on the remote control. The volume of the beep is fixed.
To switch on Key beep . . .
1 - Press OPTIONS , select Universal access and press OK .
2 - Select Key beep and select On .
If Universal access does not appear in the Options menu, switch on Universal access in Setup .
For more information, press Keywords and look up Universal access .
67
21
Specifications
21.1
Environmental
Saving energy
The Eco settings bundle the settings that help the environment.
While you are watching TV channels, press icon, then select Eco settings , press OK .
Active settings are marked with a . You can mark or unmark each setting with the OK key.
Press again to close Eco settings .
Energy saving
This Picture style sets the picture, in the most ideal energy conscious setting.
For more information, press Keywords and look up Picture style .
Screen off
If you only listen to music, you can switch off the TV screen to save energy.
Select Screen off and press OK . To switch the screen back on, press any key on the remote control. (Except key)
Light sensor*
To save energy, the built-in ambient light sensor lowers the brightness of the TV screen when the surrounding light darkens.
The built-in light sensor automatically adjusts the picture, to the lighting conditions of the room.
* Only for TVs with light sensor
Switch off timer
If you do not press a key on the remote control during a 4 hour period, or if the TV receives no signal for 10 minutes, the TV switches off automatically to save energy.
If you use the TV as a monitor or use a digital receiver to watch
TV (a Set-top box - STB) and you do not use the remote control of the TV, deactivate the automatic switch off.
In addition to the Eco settings, your TV also has environmentally friendly technology with regard to power consumption.
Inactive devices off
Switch off connected EasyLink HDMI-CEC (Consumer
Electronic Control) compliant devices that are inactive.
European energy label
The European Energy Label informs you on the energy efficiency class of this product. The greener the energy efficiency class of this product is, the lower the energy it consumes.
On the label, you can find the energy efficiency class, the average power consumption of this product in use and the average energy consumption for 1 year. You can also find the power consumption values for this product on the Philips website for your country at www.philips.com/TV
End of use
Disposal of your old product and batteries
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European
Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.
Your product contains batteries covered by the European
Directive 2006/66/EC, which cannot be disposed with normal household waste.
Please find out for yourself about the local rules on separate collection of batteries because correct disposal will help to prevent negative consequences for the environment and human health.
21.2
Display
68
Type
• Diagonal screen size :
- 61 cm / 24 inch
- 81 cm / 32 inch
- 102 cm / 40 inch
- 107 cm / 42 inch
- 119 cm / 47 inch
- 122 cm / 48 inch
- 127 cm / 50 inch
- 140 cm / 55 inch
- 164 cm / 65 inch
• Display resolution :
- PFxxxx9 : 1920x1080p
- PHxxxx9 : 1366x768p
Input resolution for HD/FHD TVs
Video formats
Resolution — Refresh rate
• 480i - 60 Hz
• 480p - 60 Hz
• 576i - 50 Hz
• 576p - 50 Hz
• 720p - 50 Hz, 60 Hz
• 1080i - 50 Hz, 60 Hz
• 1080p - 24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz
Computer formats
Resolutions (amongst others)
• 640 x 480p - 60 Hz
• 800 x 600p - 60 Hz
• 1024 x 768p - 60 Hz
• 1280 x 768p - 60 Hz
• 1360 x 765p - 60 Hz
• 1360 x 768p - 60 Hz
• 1280 x 1024p - 60 Hz
• 1920 x 1080p - 60 Hz
21.3
Power
Product specifications are subject to change without notice. For more specification details of this product, see www.philips.com/support
Power
• Mains power : AC 220-240V +/-10%
• Ambient temperature : 5°C to 35°C
• Standby power consumption : < 0.3W
• Power saving features : Energy saving, Screen off, Light sensor,
Switch off timer, Inactive devices off.
The power rating stated on the product typeplate is the power consumption for this product during normal household use (IEC
62087 Ed.2). The maximum power rating, stated between brackets, is used for electrical safety (IEC 60065 Ed. 7.2).
21.4
Dimensions and weights (6309 series)
42Pxx6309
• without TV stand:
Width 952.2 mm - Height 557.1 mm - Depth 69.6 mm - Weight
±10.4 kg
• with TV stand:
Width 952.2 mm - Height 616.9 mm - Depth 213.1 mm -
Weight ±11.7 kg
47Pxx6309
• without TV stand:
Width 1063.9 mm - Height 619.9 mm - Depth 69.6 mm -
Weight ±13.4 kg
• with TV stand:
Width 1063.9 mm - Height 679.7 mm - Depth 254.4 mm -
Weight ±14.8 kg
55Pxx6309
• without TV stand:
Width 1233.8 mm - Height 715.5 mm - Depth 71.9 mm -
Weight ±18.8 kg
• with TV stand:
Width 1233.8 mm - Height 782 mm - Depth 300 mm - Weight
±20.5 kg
21.5
Connectivity
TV Rear
• Audio In (DVI to HDMI): Stereo mini-jack 3.5mm
• CVBS: Audio L/R, CVBS in, RGB
• SCART: Audio L/R, CVBS in, RGB
• YPbPr : Y Pb Pr, Audio L/R : Stereo mini-jack 3.5mm
• Digital Audio out: Optical, Toslink
• Network LAN : RJ45
• HDMI in with ARC
TV Side
• HDMI in with ARC
• USB 2.0
• Common interface slot: CI+/CAM
• Headphones: Stereo mini-jack 3.5mm
69
21.6
Multimedia
Connections
• USB 2.0
• Ethernet LAN RJ-45*
• Wi-Fi 802.11b/g/n (built-in)*
Supported USB file systems
• FAT 16, FAT 32, NTFS
Playback formats
• Containers : 3GP, AVCHD, AVI, MPEG-PS, MPEG-TS,
MPEG-4, Matroska (MKV), Quicktime (MOV, M4V, M4A),
Windows Media (ASF/WMV/WMA)
• Video Codecs : MPEG-1, MPEG-2, MPEG-4 Part 2, MPEG-4
Part 10 AVC (H264), VC-1, WMV9
• Audio Codecs : AAC, HE-AAC (v1/v2), AMR-NB, Dolby
Digital, Dolby Digital Plus, DTS 2.0 + Digital Out™,
MPEG-1/2/2.5 Layer I/II/III (includes MP3), WMA (v2 to v9.2),
WMA Pro (v9/v10)
• Subtitles :
– Formats : SAMI, SubRip (SRT), SubViewer (SUB), MicroDVD
(TXT), mplayer2 (TXT), TMPlayer (TXT)
– Character encodings : UTF-8, Central Europe and Eastern
Europe (Windows-1250), Cyrillic (Windows-1251), Greek
(Windows-1253), Turkish (Windows-1254), Western Europe
(Windows-1252)
• Image Codecs : JPEG
• Limitations :
– Maximum supported total bit rate for a media file is 30Mbps.
– Maximum supported video bit rate for a media file is 20Mbps.
– MPEG-4 AVC (H.264) is supported up to High Profile @ L4.1.
– VC-1 is supported up to Advanced Profile @ L3.
Wi-Fi Certified Miracast™*
This TV supports WiDi 4.x devices.
Supported media server software (DMS)*
• PC - Microsoft Windows XP, Vista or Windows 7
– You can use any DLNA certified® media server software.
– Microsoft - Windows Media Player
• Mac OS X
– You can use any DLNA certified® media server software.
• Mobile devices
– Philips MyRemote - iOS, Android
– Interoperability and performance may vary, depending on the capabilities of the mobile device and the software used.
ESD regulations
This apparatus meets performance criteria A for ESD. In case the apparatus does not recover in file sharing mode due to electrostatic discharge, user interference is required.
* Only for Smart TVs.
70
22
Software
22.1
Software update
Update from USB
It might be necessary to update the TV software. You need a computer with an high-speed Internet connection and a USB memory device to upload the software on the TV. Use a USB memory device with 256MB free space. Make sure that write protection is switched off.
1 - Start the update on TV
Press , select Setup and press OK .
Select Update software > USB and press OK .
2 - Identify the TV
Insert the USB memory into one of the USB connections of the
TV.
Select Start and press OK . An identification file is written on the
USB memory device.
3 - Download the TV software
Insert the USB memory into your computer.
On the USB memory device, locate the file update.htm
and double click it.
Click on Send ID .
If new software is available, download the .zip file.
After the download, unzip the file and copy the file autorun.upg
onto the USB memory device.
Do not place this file in a folder.
4 - Update the TV software
Insert the USB memory into the TV again. The update starts automatically.
The TV switches itself off for 10 seconds and then back on again.
Please wait.
Do not . . .
• use the remote control
• remove the USB memory device from the TV
If a power cut occurs during the update, never remove the USB memory device from the TV. When the power returns, the update will continue.
At the end of the update, the message Operation successful appears on screen. Remove the USB memory device and press on the remote control.
Do not . . .
• press twice
• press the power switch on the TV
The TV switches itself off (for 10 seconds) and then back on again. Please wait.
The TV software has been updated. You can use the TV again.
To prevent an accidental update of the TV software, delete the autorun.upg file from the USB memory device.
Update from Internet
If the TV is connected to the Internet, you may receive a message from TP Vision to update the TV software. You need a high-speed (broadband) Internet connection.
If you receive this message, we recommend you carry out the update.
Select Update. Follow the instructions on screen.
You can also look for new updates yourself.
To look for an update . . .
1 - Press and select Setup and press OK .
2 - Select Update software > TV with Internet , then press OK . Follow the instructions on screen.
When the update is complete, the TV switches off and back on again automatically.
Wait for the TV to switch itself back on.
22.2
Software version
To view the current TV software version . . .
1 - Press and select Setup and press OK .
2 - Select Software settings and press OK .
3 - Select Current software info and see Release Version.
4 - Press , repeatedly if necessary, to close the menu.
22.3
Open source software
This television contains open source software. TP Vision Europe
B.V. hereby offers to deliver, upon request, a copy of the complete corresponding source code for the copyrighted open source software packages used in this product for which such offer is requested by the respective licences.
This offer is valid up to three years after product purchase to anyone in receipt of this information.
To obtain the source code, please write in English to . . .
Intellectual Property Dept.
TP Vision Europe B.V.
Prins Bernhardplein 200
1097 JB Amsterdam
The Netherlands
22.4
Open source license
Acknowledgements and License Texts for any open source software used in this Philips TV.
71
This is a document describing the distribution of the source code used on the Philips TV, which fall either under the GNU
General Public License (the GPL), or the GNU Lesser General
Public License (the LGPL), or any other open source license.
Instructions to obtain source code for this software can be found in the user manual.
PHILIPS MAKES NO WARRANTIES WHATSOEVER, EITHER
EXPRESS OR IMPLIED, INCLUDING ANY WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, REGARDING THIS SOFTWARE. Philips offers no support for this software. The preceding does not affect your warranties and statutory rights regarding any Philips product(s) you purchased. It only applies to this source code made available to you.
Freetype (2.4.3)
FreeType is a software font engine that is designed to be small, efficient, highly customizable, and portable while capable of producing high-quality output (glyph images).
This piece of software is made available under the terms and conditions of the FreeType Project license, which can be found below.
Source: http://freetype.sourceforge.net zlib (1.2.3)
The 'zlib' compression library provides in-memory compression and decompression functions, including integrity checks of the uncompressed data.
This piece of software is made available under the terms and conditions of the zlib license, which can be found below.
Source: http://www.zlib.net/
Fraunhofer AAC Ecnoder (3.3.3)
AAC Ecnoder.
Source: Android JB source code unicode (3.2)
This library is used to perform UNICODE string manipulation.
This piece of software is made available under the terms and conditions of the ICU license, which can be found below.
Source: http://www.icu-project.org/ libpng (1.2.43)
PNG decoder.
This piece of software is made available under the terms and conditions of the libpng license, which can be found below.
Source: http://www.libpng.org/pub/png/libpng.html libjpg (6b)
This library is used to perform JPEG decoding tasks.
This piece of software is made available under the terms and conditions of the libjpg license, which can be found below.
Source: http://www.ijg.org/ libmng (1.0.10) libmng -THE reference library for reading, displaying, writing and examining Multiple-Image Network Graphics.MNG is the animation extension to the popular PNG image-format.
This piece of software is made available under the terms and conditions of the libmng license, which can be found below.
Source: http://sourceforge.net/projects/libmng/files/ u-Boot loader (1.3.4)
Used by boot loader and only linked with boot loader, GPL license.
This piece of software is made available under the terms and conditions of the u-Boot loader license, which can be found below.
Source: http://sourceforge.net/projects/u-boot/files/u-boot/U-
Boot-1.1.4/u-boot-1.1.4.tar.bz2/download
Libcurl (7.21.7)
HTTP client;libcurl is a free and easy-to-use client-side URL transfer library, supporting FTP, FTPS, HTTP, HTTPS, SCP, SFTP,
TFTP, TELNET, DICT, LDAP, LDAPS, FILE, IMAP, SMTP, POP3 and RTSP. libcurl supports SSL certificates, HTTP POST, HTTP
PUT, FTP uploading, HTTP form based upload, proxies, cookies, user+password authentication (Basic, Digest, NTLM, Negotiate,
Kerberos4), file transfer resume, http proxy tunneling and more!
This piece of software is made available under the terms and conditions of the Libcurl license, which can be found below.
Source: http://curl.haxx.se/ c-ares (1.7.4) c-ares is a C library that performs DNS requests and name resolves asynchronously.
This piece of software is made available under the terms and conditions of the c-ares license, which can be found below.
Source: http://c-ares.haxx.se/c-ares-1.7.1.tar.gz openssl (1.0.0d)
OpenSSL is an open source implementation of the SSL and TLS protocols. The core library (written in the C programming language) implements the basic cryptographic functions and provides various utility functions. Wrappers allowing the use of the OpenSSL library in a variety of computer languages are available.
This piece of software is made available under the terms and conditions of the 1.7.4 license, which can be found below.
Source: http://www.openssl.org/source/openssl-1.0.0.tar.gz
Expat (2.01) xml paser; Expat is an XML parser library written in C. It is a stream-oriented parser in which an application registers handlers for things the parser might find in the XML document (like start tags). An introductory article on using.
This piece of software is made available under the terms and conditions of the Expat license, which can be found below.
Source: http://expat.sourceforge.net/
DirectFB include SAWMAN (1.4.0)
It is a software library for GNU/Linux/UNIX based operating system with a small memory footprint that provides graphics acceleration, input device handling and abstraction layer, and integrated windowing system with support for translucent
72
windows and multiple display layers on top of the Linux framebuffer without requiring any kernel modifications.
This piece of software is made available under the terms and conditions of the DirectFB license, which can be found below.
Source: http://sourceforge.net/projects/jointspace/files/remote_a pplications_SDK/remote_spplications_SDK_v1.3.1/DirectFB141_ source_1.3.1.7z/download
SAWMAN
SquashFS is a compressed read-only file system for Linux.
SquashFS compresses files, inodes and directories, and supports block sizes up to 1 MB for greater compression. SquashFS is also the name of free/open software, licensed under the GPL, for accessing SquashFS filesystems.
Source: http://squashfs.sourceforge.net/
Linux Kernel (3.0)
The Linux kernel is an operating system kernel used by the Linux family of Unix-like operating systems.
This piece of software is made available under the terms and conditions of the Linux Kernel license, which can be found below.
Source: http://www.kernel.org
SQLite (3.7.2)
SQLite is a in-process library that implements a self-contained, serverless, zero-configuration, transactional SQL database engine.
This piece of software is made available under the terms and conditions of the SQLite license, which can be found below.
Source: http://www.sqlite.org/download.html
SquashFS (3.4)
SquashFS is a compressed read-only file system for Linux.
SquashFS compresses files, inodes and directories, and supports block sizes up to 1 MB for greater compression. SquashFS is also the name of free/open software, licensed under the GPL, for accessing SquashFS filesystems.
This piece of software is made available under the terms and conditions of the SquashFS license, which can be found below.
Source: http://squashfs.sourceforge.net/ glibc (2.6.1)
Any Unix-like operating system needs a C library: the library which defines the ``system calls'' and other basic facilities such as open, malloc, printf, exit...The GNU C library is used as the C library in the GNU system and most systems with the Linux kernel
This piece of software is made available under the terms and conditions of the glibc license, which can be found below.
Source: http://www.gnu.org/software/libc/ mtd-utils (1)
The aim of the system is to make it simple to provide a driver for new hardware, by providing a generic interface between the hardware drivers and the upper layers of the system. Hardware drivers need to know nothing about the storage formats used, such as FTL, FFS2, etc., but will only need to provide simple routines for read, write and erase. Presentation of the device's contents to the user in an appropriate form will be handled by the upper layers of the system.
This piece of software is made available under the terms and conditions of the mtd-utils license, which can be found below.
Source: http://www.linux-mtd.infradead.org/index.html libusb (1.0.6)
This is the home of libusb, a library that gives user level applications uniform access to USB devices across many different operating systems. libusb is an open source project licensed under the GNU Lesser General Public License version 2.1.Many
participants in the libusb community have helped and continue to help with ideas, implementation, support and improvements for libusb.
This piece of software is made available under the terms and conditions of the libusb license, which can be found below.
Source: http://libusb.wiki.sourceforge.net http://www.libusb.org/ libusb-compat (0.1.3)
Library to enable user space application programs to communicate with USB devices.
This piece of software is made available under the terms and conditions of the libusb-compat license, which can be found below.
Source: http://libusb.wiki.sourceforge.net/LibusbCompat0.1
NTFS-3G Read/Write Driver (2010.5.22)
NTFS-3G is an open source cross-platform implementation of the Microsoft Windows NTFS file system with read-write support. NTFS-3G often uses the FUSE file system interface, so it can run unmodified on many different operating systems. It is runnable on Linux, FreeBSD, NetBSD, OpenSolaris, BeOS,
QNX, WinCE, Nucleus, VxWorks, Haiku,MorphOS, and Mac
OS X It is licensed under either the GNU General Public
License or a proprietary license. It is a partial fork of ntfsprogs and is under active maintenance and development.
This piece of software is made available under the terms and conditions of the NTFS-3G Read/Write Driver license, which can be found below.
Source: http://www.tuxera.com
WPA Supplicant (0.5.10 & 0.6.7)
These packages are used to provide WiFi access.The supplier for these tools is Atheros.These pieces of software are made available under the terms and conditions of the GPL v2 license, which can be found below.
This piece of software is made available under the terms and conditions of the WPA Supplicant license, which can be found below.
Source: http://hostap.epitest.fi/wpa_supplicant/ ntfsprogs (2.0.0)
Some useful tool for ntfs file sytem.
This piece of software is made available under the terms and conditions of the ntfsprogs license, which can be found below.
73
Source: http://sourceforge.net/projects/linux-ntfs fuse (2.8.4)
Fuse is a simple interface for userspace programs to export a virtual filesystem to the linux kernel.
This piece of software is made available under the terms and conditions of the fuse license, which can be found below.
Source: http://fuse.sourceforge.net/ libiconv (1.11.1)
This library provides an iconv() implementation, for use on systems which don't have one, or whose implementation cannot convert from/to Unicode. .
This piece of software is made available under the terms and conditions of the libiconv license, which can be found below.
Source: http://ftp.gnu.org/pub/gnu/libiconv electric-fence (2.1.13)
Used for memory corruption detection.
This piece of software is made available under the terms and conditions of the electric-fence license, which can be found below.
Source: http://perens.com/FreeSoftware/ElectricFence/electricfence_2.1.13-0.1.tar.gz liveMedia
When Wifi Display or streaming RtspPlayer are enabled.
This piece of software is made available under the terms and conditions of the electric-fence license, which can be found below.
Source: www.live555.com
QT (4.7.0)
Netflix skpe besttv pandora picasa? will use QT.
This piece of software is made available under the terms and conditions of the QT license, which can be found below.
Source: http://qt.nokia.com/ e2fsprogs (1.41.14) e2fsprogs provides the filesystem utilities for use with the ext2 filesystem, it also supports the ext3 and ext4 filesystems.
This piece of software is made available under the terms and conditions of the e2fsprogs license, which can be found below.
Source: http://e2fsprogs.sourceforge.net/ alsa (1.0.24.1)
Advanced Linux Sound Architecture (ALSA).
This piece of software is made available under the terms and conditions of the alsa license, which can be found below.
Source: http://www.alsa-project.org lvm2 (2.02.89)
DM_VERITY.
This piece of software is made available under the terms and conditions of the lvm2 license, which can be found below.
Source: ftp://sources.redhat.com/pub/lvm2/releases/ encfs (1.3.2)
A library provides an encrypted filesystem in user-space.
Source: http://www.arg0.net/encfs boost (1.15.0)
A library provides free peer-reviewed portable C++ source libraries is used for encfs.
Source: http://www.boost.org rlog (1.4)
A library that provides a flexible message logging facility for C programs and libraries is used for encfs.
Source: http://www.arg0.net/rlog iptables (1.4.15)
For Cross connection.
Source: http://www.netfilter.org/projects/iptables/ bash (3.2.48)
Bash is the shell, or command language interpreter, that will appear in the GNU operating system.
Bash is an sh-compatible shell that incorporates useful features from the Korn shell (ksh) and C shell (csh).
It is intended to conform to the IEEE POSIX P1003.2/ISO
9945.2 Shell and Tools standard.
It offers functional improvements over sh for both programming and interactive use.
In addition, most sh scripts can be run by Bash without modification.
Source: http://www.gnu.org/software/bash/ coreutils (6.9)
The GNU Core Utilities are the basic file, shell and text manipulation utilities of the GNU operating system.
These are the core utilities which are expected to exist on every operating system.
Source: http://www.gnu.org/software/coreutils/ findutils (4.2.31)
The GNU Find Utilities are the basic directory searching utilities of the GNU operating system.
These programs are typically used in conjunction with other programs to provide modular and powerful directory search and file locating capabilities to other commands.
Source: http://www.gnu.org/software/findutils/ gawk (3.1.5)
If you are like many computer users, you would frequently like to make changes in various text files wherever certain patterns appear, or extract data from parts of certain lines while discarding the rest.
To write a program to do this in a language such as C or Pascal is a time-consuming inconvenience that may take many lines of code.
The job is easy with awk, especially the GNU implementation: gawk.
Source: http://www.gnu.org/software/gawk/ grep (2.5.1a)
74
The grep command searches one or more input files for lines containing a match to a specified pattern. By default, grep prints the matching lines.
Source: http://www.gnu.org/software/grep/ gzip (1.3.12)
GNU Gzip is a popular data compression program originally written by Jean-loup Gailly for the GNU project. Mark Adler wrote the decompression part.
Source: http://www.gnu.org/software/gzip/ inetutils (1.4.2)
Inetutils is a collection of common network programs.
Source: http://www.gnu.org/software/inetutils/ iputils (s20101006)
The iputils package is set of small useful utilities for Linux networking. It was originally maintained by Alexey Kuznetsov.
Source: http://www.skbuff.net/iputils/ module-init-tools (3.12)
Provides developer documentation for the utilities used by Linux systems to load and manage kernel modules (commonly referred to as "drivers").
Source: https://modules.wiki.kernel.org/index.php/Main_Page ncurses (5.7)
The Ncurses (new curses) library is a free software emulation of curses in System V Release 4.0, and more.
It uses Terminfo format, supports pads and color and multiple highlights and forms characters and function-key mapping, and has all the other SYSV-curses enhancements over BSD Curses.
Source: http://www.gnu.org/software/ncurses/ net-tools (1.6)
The Net-tools?package is a collection of programs for controlling the network subsystem of the Linux kernel.
Source: http://www.linuxfromscratch.org/blfs/view/6.3/basicnet/n et-tools.html procps (ps, top) (3.2.8) procps is the package that has a bunch of small useful utilities that give information about processes using the /proc filesystem.
The package includes the programs ps, top, vmstat, w, kill, free, slabtop, and skill.
Source: http://procps.sourceforge.net/index.html psmisc (22.13)
This PSmisc package is a set of some small useful utilities that use the proc filesystem. We're not about changing the world, but providing the system administrator with some help in common tasks.
Source: http://psmisc.sourceforge.net/ sed (4.1.5) sed (stream editor) isn't an interactive text editor. Instead, it is used to filter text, i.e., it takes text input, performs some operation (or set of operations) on it, and outputs the modified text. sed is typically used for extracting part of a file using pattern matching or substituting multiple occurrences of a string within a file.
Source: http://www.gnu.org/software/sed/ tar (1.17)
GNU Tar provides the ability to create tar archives, as well as various other kinds of manipulation.
For example, you can use Tar on previously created archives to extract files, to store additional files, or to update or list files which were already stored.
Source: http://www.gnu.org/software/tar/ util-linux-ng (2.18)
Various system utilities.
Source: http://userweb.kernel.org/~kzak/util-linux-ng/ udhcpc (0.9.8cvs20050303-3)
Udhcpc is a very small?DHCP?client geared towards?embedded
systems.
Source: http://udhcp.sourcearchive.com/downloads/0.9.8cvs20050303-3/
Libxml2 (2.7.8)
The "libxml2" library is used in AstroTV as a support for the execution of NCL application. This library was developed for the
GNOME software suite and is available under a "MIT" license.
Source: http://www.xmlsoft.org uriparser (0.7.7)
For MPEG-DASH
Source: http://uriparser.sourceforge.net/ xerces-c++ (3.1.1)
For MPEG-DASH
Source: http://xerces.apache.org/ webp (0.2.1)
For Netflix
Source: https://code.google.com/p/webp/ wget (1.10.2)
GNU Wget is a free software package for retrieving files using
HTTP, HTTPS and FTP, the most widely-used Internet protocols.
It is a non-interactive commandline tool, so it may easily be called from scripts,?cron?jobs, terminals without X-Windows support, etc.
Source: http://ftp.gnu.org/gnu/wget/wget-1.10.2.tar.gz wireless_tools (0.29)
The Wireless Tools (WT)?is a set of tools allowing to manipulate the Wireless Extensions.
They use a textual interface and are rather crude, but aim to support the full Wireless Extension.
Source: http://www.hpl.hp.com/personal/Jean_Tourrilhes/Linux/T ools.html
75
ezxml (0.8.6) ezXML is a C library for parsing XML documents. Used inside
Philips libraries.
Source: http://sourceforge.net/projects/ezxml/
SQLite (3.7.7.1)
SQLite is a in-process library that implements a self-contained, serverless, zero-configuration, transactional SQL database engine.
Source: http://www.sqlite.org/download.html
AES (aes-src-29-04-09.zip)
Advanced Encryption Standard (AES) is a specification for the encryption of electronic data. Used inside Philips libraries.
Source: http://gladman.plushost.co.uk/oldsite/AES/ microhttpd (libmicrohttpd-0.9.9.tar.gz)
GNU libmicrohttpd is a small C library that is supposed to make it easy to run an HTTP server as part of another application.
The original download site for this software is : http://www.gnu.org/software/libmicrohttpd/This piece of software is made available under the terms and conditions of the
LGPL v2.1 license
Source: http://ftp.gnu.org/gnu/libmicrohttpd/libmicrohttpd-0.9.9.tar.gz yajl (lloyd-yajl-2.0.1-0-gf4b2b1a.tar.gz)
YAJL is a small event-driven (SAX-style) JSON parser written in
ANSI C, and a small validating JSON generator. YAJL is released under the ISC license.
The original download site for this software is : http://lloyd.github.com/yajl/This piece of software is made available under the terms and conditions of the ISC license
Source: http://pkgs.fedoraproject.org/repo/pkgs/yajl/lloyd-yajl-2.0.
1-0-gf4b2b1a.tar.gz/df6a751e7797b9c2182efd91b5d64017/lloydyajl-2.0.1-0-gf4b2b1a.tar.gz
HMAC-SHA1 (0.1) keyed-hash message authentication code (HMAC) is a specific construction for calculating a message authentication code
(MAC) involving a cryptographic hash function in combination with a secret cryptographic key.
As with any MAC, it may be used to simultaneously verify both the data integrity and the authentication of a message.
Any cryptographic hash function, such as MD5 or SHA-1, may be used in the calculation of an HMAC; the resulting MAC algorithm is termed HMAC-MD5 or HMAC-SHA1 accordingly.
Source: http://www.deadhat.com/wlancrypto/hmac_sha1.c gSoap (2.7.15)
The gSOAP toolkit is an open source C and C++ software development toolkit for SOAP/XML Web services and generic
(non-SOAP) C/C++ XML data bindings.
Part of the software embedded in this product is gSOAP software. Portions created by gSOAP are Copyright 2000-2011
Robert A. van Engelen, Genivia inc. All Rights Reserved.
Source: http://sourceforge.net/projects/gsoap2/ jquery (1.10.2) jQuery is a fast and concise JavaScript Library that simplifies
HTML document traversing, event handling, animating, and Ajax interactions for rapid web development.
Source: http://jquery.com/
Libupnp (1.2.1)
The Linux* SDK for UPnP* Devices (libupnp) provides developers with an API and open source code for building control points, devices, and bridges that are compliant with
Version 1.0 of the UPnP Device Architecture Specification.
Source: http://upnp.sourceforge.net/ mDNSResponder (mDNSResponder-320.10.80)
The mDNSResponder project is a component of Bonjour,
Apple's ease-of-use IP networking initiative:<http://developer.apple.com/bonjour/>
In our project, Bonjour is used for the automatic discovery of devices and services
Source: http://developer.apple.com/bonjour/
76
23
Troubleshooting and support
23.1
Troubleshooting
Channels
No digital channels found during the installation
See the technical specifications to make sure that your TV supports DVB-T or DVB-C in your country.
Make sure that all cables are properly connected and that the correct network is selected.
Previously installed channels are not in the channel list
Make sure that the correct channel list is selected.
General
The TV does not switch on
• Disconnect the power cable from the power outlet. Wait for one minute then reconnect it.
• Make sure that the power cable is securely connected.
Creaking sound at startup or switch off
When you are turning the TV on, off or to standby, you hear a creaking sound from the TV chassis. The creaking sound is due to the normal expansion and contraction of the TV as it cools and warms up. This does not affect performance.
TV does not respond to the remote control
The TV requires some time to start up. During this time, the TV does not respond to the remote control or TV controls. This is normal behaviour.
If the TV continues to be unresponsive to the remote control, you can check if the remote control is working by means of a mobile phone camera. Put the phone in camera mode and point the remote control to the camera lens. If you press any key on the remote control and you notice the infra red LED flicker through the camera, the remote control is working. The TV needs to be checked.
If you do not notice the flickering, the remote control might be broken or its batteries are low.
This method of checking the remote control is not possible with remote controls which are wirelessly paired with the TV.
The TV goes back to standby after showing the Philips startup screen
When the TV is in standby, a Philips startup screen is displayed, then the TV returns to standby mode. This is normal behaviour.
When the TV is disconnected and reconnected to the power supply, the startup screen is displayed at the next startup. To switch on the TV from standby, press on the remote control or the TV.
The standby light keeps on blinking
Disconnect the power cable from the power outlet. Wait 5 minutes before you reconnect the power cable. If the blinking reoccurs, contact Philips TV Consumer Care.
Wrong menu language
Change the language back to your language.
1 - Press and select Setup and press OK .
2 - Select TV settings > General settings > Menu language and press OK .
3 - Select the language you want and press OK .
4 - Press , repeatedly if necessary, to close the menu.
No picture / distorted picture
• Make sure that the antenna is properly connected to the TV.
• Make sure that the correct device is selected as the display source.
• Make sure that the external device or source is properly connected.
Sound but no picture
• Make sure that the picture settings are set correctly.
Poor antenna reception
• Make sure that the antenna is properly connected to the TV.
• Loud speakers, unearthed audio devices, neon lights, high buildings and other large objects can influence reception quality.
If possible, try to improve the reception quality by changing the antenna direction or moving devices away from the TV.
• If reception on only one channel is poor, fine-tune this channel.
Poor picture from a device
• Make sure that the device is connected properly.
• Make sure that the picture settings are set correctly.
Picture settings change after a while
Make sure that Location is set to Home . You can change and save settings in this mode.
A commercial banner appears
Make sure that Location is set to Home .
Picture does not fit the screen
Change to a different picture format. Press .
Picture format keeps changing with different channels
Select a non 'Auto' picture format.
Picture position is incorrect
77
Picture signals from some devices may not fit the screen correctly. Check the signal output of the connected device.
Computer picture is not stable
Make sure that your PC uses the supported resolution and refresh rate.
Sound
No sound or poor sound quality
If no audio signal is detected, the TV automatically switches the audio output off — this does not indicate malfunction.
• Make sure that the sound settings are correctly set.
• Make sure that all cables are properly connected.
• Make sure that the volume is not muted or set to zero.
• Make sure that the TV audio output is connected to the audio input on the Home Theatre System.
Sound should be heard from the HTS speakers.
• Some devices may require you to manually enable HDMI audio output. If HDMI audio is already enabled, but you still do not hear audio, try changing the digital audio format of the device to PCM (Pulse Code Modulation). Refer to the documentation accompanying your device for instructions.
Connections
HDMI
• Note that HDCP (High-bandwidth Digital Content Protection) support can delay the time taken for a TV to display content from an HDMI device.
• If the TV does not recognise the HDMI device and no picture is displayed, switch the source from one device to another and back again.
• If there are intermittent sound disruptions, make sure that output settings from the HDMI device are correct.
• If you use an HDMI-to-DVI adapter or HDMI-to-DVI cable, make sure that an additional audio cable is connected to
AUDIO IN (mini-jack only), if available.
EasyLink does not work
• Make sure that your HDMI devices are HDMI-CEC compatible. EasyLink features only work with devices that are
HDMI-CEC compatible.
No volume icon shown
• When a HDMI-CEC audio device is connected this behaviour is normal.
Photos, videos and music from a USB device do not show
• Make sure that the USB storage device is set to Mass Storage
Class compliant, as described in the storage device's documentation.
• Make sure that the USB storage device is compatible with the
TV.
• Make sure that the audio and picture file formats are supported by the TV.
Choppy playback of USB files
• The transfer performance of the USB storage device may limit the data transfer rate to the TV which causes poor playback.
23.2
Register
Register your TV and enjoy a range of benefits including full support (including downloads), privileged access to information about new products, exclusive offers and discounts, the chance to win prizes and even participate in special surveys about new releases.
Go to www.philips.com/welcome
23.3
Help
This TV offers help on screen.
Open Help
1 - Press to open the Home menu.
2 - Select Help and press OK .
To look up topics alphabetically, select Keywords .
To read the Help as a book, select Book .
Before you execute the Help instructions, close Help.
To close Help, press .
Direct help
Press the key (blue) to open Help immediately. Help will open on the chapter that is most relevant to what you are doing or what is selected on TV.
For some activities, like Text (Teletext), the colour keys have specific functions and cannot open Help.
TV Help on your tablet, smartphone or computer
To carry out extended sequences of instructions more easily, you can download the TV Help in PDF format to read on your smartphone, tablet or computer. Alternatively, you can print the relevant Help page from your computer.
To download the Help (user manual) go to www.philips.com/support
UMv 7500140505 - 20140805
78
23.4
Online help
To solve any Philips TV related problem, you can consult our online support. You can select your language and enter your product model number.
Go to www.philips.com/support .
On the support site you can find your country's telephone number to contact us as well as answers to frequently asked questions (FAQs). In some countries, you can chat with one of our colaborators and ask your question directly or send a question by email.
You can download new TV software or the manual to read on your computer.
23.5
Consumer Care / Repair
For support and repair, call the Consumer Care hotline in your country. Find the telephone number in the printed documentation that came with the TV.
Or consult our website www.philips.com/support .
TV model number and serial number
You might be asked to provide the TV product model number and serial number. Find these numbers on the packaging label or on the type label on the back or bottom of the TV.
Warning
Do not attemp to repair the TV yourself. This may cause severe injury, irrepairable damage to your TV or void your warranty.
79
24
Safety and care
24.1
Safety
Important
Read and understand all safety instructions before you use the
TV. If damage is caused by failure to follow instructions, the warranty does not apply.
Secure the TV from falling over
Always use the supplied wall bracket to secure the TV from falling over. Mount the bracket and secure the TV onto the bracket, even if you put the TV on the floor.
You can find the mounting instructions in the Quick Start Guide that came with the TV. In case you lost this guide, you can download the guide from www.philips.com
Use the product type number of the TV to look for the Quick
Start Guide to download.
Risk of electric shock or fire
• Never expose the TV to rain or water. Never place liquid containers, such as vases, near the TV.
If liquids are spilt on or into the TV, disconnect the TV from the power outlet immediately.
Contact Philips TV Consumer Care to have the TV checked before use.
• Never expose the TV, remote control or batteries to excessive heat. Never place them near burning candles, naked flames or other heat sources, including direct sunlight.
• Never insert objects into the ventilation slots or other openings on the TV.
• Never place heavy objects on the power cord.
• Avoid force coming onto power plugs. Loose power plugs can cause arcing or fire. Ensure that no strain is exerted on the power cord when you swivel the TV screen.
• To disconnect the TV from the mains power, the power plug of the TV must be disconnected. When disconnecting the power, always pull the power plug, never the cord. Ensure that you have full access to the power plug, power cord and outlet socket at all times.
Risk of injury or damage to the TV
• Two people are required to lift and carry a TV that weighs more than 25 kg or 55 lbs.
• If you mount the TV on a stand, only use the supplied stand.
Secure the stand to the TV tightly.
Place the TV on a flat, level surface that can support the weight of the TV and the stand.
• When wall mounted, ensure that the wall mount can safely bear the weight of the TV set. TP Vision bears no responsibility for improper wall mounting that results in accident, injury or damage.
• Parts of this product are made of glass. Handle with care to avoid injury or damage.
Risk of damage to the TV !
Before you connect the TV to the power outlet, ensure that the power voltage matches the value printed on the back of the TV.
Never connect the TV to the power outlet if the voltage is different.
Risk of injury to children
Follow these precautions to prevent the TV from toppling over and causing injury to children:
• Never place the TV on a surface covered by a cloth or other material that can be pulled away.
• Ensure that no part of the TV hangs over the edge of the mounting surface.
• Never place the TV on tall furniture, such as a bookcase, without anchoring both the furniture and TV to the wall or a suitable support.
• Teach children about the dangers of climbing on furniture to reach the TV.
Risk of swallowing batteries !
The remote control may contain coin-type batteries which can easily be swallowed by small children. Keep these batteries out of reach of children at all times.
Risk of overheating
Never install the TV in a confined space. Always leave a space of at least 10 cm or 4 inches around the TV for ventilation. Ensure curtains or other objects never cover the ventilation slots on the
TV.
80
Lightning storms
Disconnect the TV from the power outlet and antenna before lightning storms.
During lightning storms, never touch any part of the TV, power cord or antenna cable.
Risk of hearing damage
Avoid using earphones or headphones at high volumes or for prolonged periods of time.
Low temperatures
If the TV is transported in temperatures below 5°C or 41°F, unpack the TV and wait until the TV temperature reaches room temperature before connecting the TV to the power outlet.
Humidity
In rare occasions, depending on temperature and humidity, minor condensation can occur on the inside of the TV glass front (on some models). To prevent this, do not expose the TV to direct sunlight, heat or extreme humidity. If condensation occurs, it will disappear spontaneously while the TV is playing for a few hours.
The condensation moisture will not harm the TV or cause malfunction.
24.2
Screen care
• Never touch, push, rub or strike the screen with any object.
• Unplug the TV before cleaning.
• Clean the TV and frame with a soft damp cloth and wipe gently. Avoid touching the Ambilight LEDs on the backside of the TV. Never use substances such as alcohol, chemicals or household cleaners on the TV.
• To avoid deformations and colour fading, wipe off water drops as quickly as possible.
• Avoid stationary images as much as possible. Stationary images are images that remain onscreen for extended periods of time.
Stationary images include onscreen menus, black bars, time displays, etc. If you must use stationary images, reduce screen contrast and brightness to avoid screen damage.
81
25
Terms of use, copyrights and licenses
25.1
Terms of use
2014 © TP Vision Europe B.V. All rights reserved.
This product was brought to the market by TP Vision Europe
B.V. or one of its affiliates, hereinafter referred to as TP Vision, which is the manufacturer of the product. TP Vision is the warrantor in relation to the TV with which this booklet was packaged. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V or their respective owners. TP Vision reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.
The written material packaged with the TV and the manual stored in the memory of the TV or downloaded from the Philips website are believed to be adequate for the intended use of the system.
The material in this manual is believed adequate for the intended use of the system. If the product, or its individual modules or procedures, are used for purposes other than those specified herein, confirmation of their validity and suitability must be obtained. TP Vision Europe B.V. warrants that the material itself does not infringe any United States patents. No further warranty is expressed or implied. TP Vision Europe B.V. cannot be held responsible neither for any errors in the content of this document nor for any problems as a result of the content in this document. Errors reported to Philips will be adapted and published on the Philips support website as soon as possible.
Terms of warranty Risk of injury, damage to TV or void of warranty! Never attempt to repair the TV yourself. Use the TV and accessories only as intended by the manufacturer. The caution sign printed on the back of the TV indicates risk of electric shock. Never remove the TV cover. Always contact
Philips TV Customer Care for service or repairs. Any operation expressly prohibited in this manual, or any adjustments and assembly procedures not recommended or authorised in this manual, shall void the warranty. Pixel characteristics This
LCD/LED product has a high number of colour pixels. Although it has effective pixels of 99.999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen. This is a structural property of the display (within common industry standards) and is not a malfunction. CE compliance This product is in compliance with the essential requirements and other relevant provisions of Directives
2006/95/EC (Low Voltage), 2004/108/EC (EMC) and
2011/65/EU (ROHS). Compliance with EMF TP Vision Europe
B.V. manufactures and sells many products targeted at consumers which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. One of
Philips’ leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the Electro
Magnetic Field (EMF) standards applicable at the time of producing the products. Philips is committed to develop, produce and market products that cause no adverse health effects. TP Vision confirms that, as long as its products are handled properly for their intended use, they are safe to use according to scientific evidence available today. Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardisation for early integration in its products.
25.2
Copyrights and licenses
HDMI
HDMI®
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Dolby
Dolby®
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
DTS 2.0 + Digital Out ™
DTS 2.0 + Digital Out™
Manufactured under license under U.S. Patent Nos: 5,956,674;
5,974,380; 6,487,535 and other U.S. and worldwide patents issued and pending. DTS, the Symbol, and DTS and the Symbol together are registered trademarks and DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc.
82
All Rights Reserved.
Skype
Skype™
© 2013 Skype and/or Microsoft. The Skype name, associated trade marks and logos and the "S" logo are trade marks of Skype or related entities.
Skype is a trademark of Skype or its related companies.
Although this product has been tested and met our certification standards for audio and video quality, it is not endorsed by
Skype, Skype Communications S.a.r.l. or any of their related companies.
DLNA Certified®
© 2013 Digital Living Network Alliance. All rights reserved.
© 2013 DLNA. All rights reserved.
DTVi
Microsoft
Windows Media
Windows Media is either a registered trademark or trademark of
Microsoft Corporation in the United States and/or other countries.
Microsoft PlayReady
Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content.
This device uses PlayReady technology to access PlayReadyprotected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.
Wi-Fi Alliance
The DTVi brand and logo are registered marks of Pontifical
Catholic University of Rio de Janeiro (PUC-Rio) and the Federal
University of Paraíba (UFPB).
Java
Wi-Fi® , the Wi-Fi CERTIFIED logo, the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. Wi-Fi CERTIFIED
Miracast™ , Miracast™ are trademarks of the Wi-Fi Alliance.
MHEG software
The copyright in MHEG software ("the Software") comprised in this television ("this product") and included to enable you to use interactive television features is owned by S&T CLIENT
SYSTEMS LIMITED ("the Owner"). You are permitted to use the
Software only in conjunction with this product.
Kensington
Java and all Java based trademarks are registered trademarks of
Oracle and/or its affiliates, in the United States and other countries.
Kensington and Micro Saver are registered US trademarks of
ACCO World Corporation with issued registrations and
83
pending applications in other countries throughout the world.
Other trademarks
All other registered and unregistered trademarks are the property of their respective owners.
84
Index
3
39
39
A
58
64
62
12
55
55
59
63
68
29
13
62
B
61
60
C
CAM - Conditional Access Module 14
32
25
26
28
25
34
63
37
85
59
59
12
79
81
63
60
60
60
D
68
DVB (Digital Video Broadcast) 31
32
12
E
13
16
68
70
F
54
32
G
17
40
42
62
H
29
16
18
21
62
66
15
Home Theatre System, multichannel
16
Home Theatre System, problems 16
63
Home Theatre System, volume leveling
16
I
29
Interactive TV, what you need 31
10
56
I
31
K
18
L
31
29
68
M
31
43
43
42
19
61
57
56
42
N
9
10
12
15
10
O
22
80
56
35
P
44
66
19
Picture, backlight contrast 65
86
7
70
Q
R
27
32
Recording, list of recordings 45
45
Recording, schedule a recording
45
45
18
33
28
S
80
81
Sharpness, MPEG artefact reduction
63
Sharpness, super resolution 60
51
Skype, camera zoom, pan and tilt
52
49
52
47
48
50
47
54
Skype, rental movies and Pause TV 56
50
50
37
54
65
58
54
69
24
28
46
64
37
26
Synchronise audio and video 18
T
29
39
58
63
U
66
Universal access, audio effect
67
Universal access, hearing impaired
68
Universal access, mixed volume 67
Universal access, Speakers / Headphones
66
67
19
USB Hard Drive, installation 18
21
V
32
42
9
70
W
11
12
19
21
Y
12
87
Contact information
Argentina
0800 444 7749
Buenos Aires 0810 444 7782
België / Belgique
070 700 035 (0,15€/min.)
Bosna i Hercegovina
033 941 251 (Lokalni poziv)
Brazil
0800 701 0245
Sao Paulo 2938 0245
Бълария
02 4916 273 (Национален номер)
Česká republika
228880895 (Místní tarif)
Danmark
3525 8314
Deutchland
0180 501 04 69 (0,14€/Min.)
Ελλάδα
2111983028 (Εθνική κλήση)
España
902 88 10 83 (0,10€ + 0,08€/min.)
Estonia
6683061 (Kohalikud kõned)
France
01 57 32 40 50 (local)
Hrvatska
01 777 66 01 (Lokalni poziv)
Italia
0245 28 70 14 (chiamata nazionale)
Ireland
0818 210 140 (national call)
Northern Ireland
0844 338 04 88 (5p/min BT landline)
Kaзaкcтaн
8 10 800 2000 00 04 (free)
Latvia
6616 3263 (Vietējais tarifs)
Lithuania
8 5 214 0293 (Vietinais tarifais)
Luxembourg / Luxemburg
2487 1100 (Nationale Ruf / appel national)
Magyarország
06 1 700 8151 (Belföldi hívás)
Nederland
0900 202 08 71 (0,10€/min.)
Norge
22 97 19 14
Österreich
0820 40 11 33 (0,145€/Min.)
Polska
22 397 15 04 (Połączenie lokalne)
Portugal
707 78 02 25 (0,12€/min. - Móvel
0,30€/min.)
Romānä
031 6300042 (Tarif local)
Россия
8-800-22 00004 (бесплатно)
Suisse / Schweiz / Svizzera
0848 000 291 (0,081 CHF/Min.)
Србија
011 321 6840 (Lokalni poziv)
Slovakia
2 332 154 93 (Vnútroštátny hovor)
Slovenija
1 888 83 12 (Lokalni klic)
Suomi
09 88 62 50 40
Sverige
08 5792 9096 (lokalsamtal)
ประเทศไทย (Thailand)
02 652 7650
Türkiye
444 8 445
United Kingdom
0844 338 04 88 (5p/min BT landline)
Україна
0-800-500-480 (безкоштовно) www.philips.com/support
Powered by TCPDF (www.tcpdf.org)
Non-contractual images / Images non contractuelles / Außervertragliche Bilder
Specifications are subject to change without notice.
Philips and the Philips’ shield emblem are registered trademarks of Koninklijke Philips N.V.
and are used under license from Koninklijke Philips Electronics N.V.
All registered and unregistered trademarks are property of their respective owners.
2014 © TP Vision Europe B.V. All rights reserved.
www.philips.com
88
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
