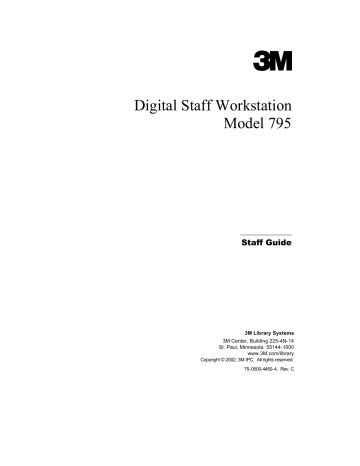

Digital Staff Workstation
Model 795
Staff Guide
3M Library Systems
3M Center, Building 225-4N-14
St. Paul, Minnesota 55144-1000 www.3M.com/library
Copyright © 2002, 3M IPC. All rights reserved.
75-0500-4450-4, Rev. C
This page is intentionally left blank.
ii
75-0500-4450-4 C, 060-A
Table of Contents
Safety Information 3M Digital Staff
Workstation............................................................ 1
Intended Use Statement .......................................................................... 1
Safety Messages ...................................................................................... 2
Safety Message Format ...................................................................... 2
Safety Messages for the Digital Staff Workstation.............................. 3
Safety Labels ............................................................................................ 5
Explanation of Labels and Symbols .................................................... 5
Safety Label Replacement .................................................................. 5
Safety Label Locations ........................................................................ 6
EMC Compliance USA and Canada ....................................................... 7
FCC Radio Frequency Rules and Regulations ................................... 7
FCC Intentional Radiator Certification................................................... 7
Industry Canada Radio Frequency Rules and Regulations ................ 7
EMC Compliance Europe ........................................................................ 7
Introduction ........................................................... 8
Digital Staff Workstation Configurations .............................................. 9
Standard Configuration........................................................................ 9
Local Configuration .............................................................................. 9
Remote Configuration .......................................................................... 9
Digital Identification Tags versus Bar Codes ..................................... 10
Magnetic Materials ................................................................................. 10
Conversion Software ............................................................................. 10
Components............................................................................................ 10
Electronics Enclosure with computer ................................................ 10
Memory Card Drive............................................................................ 10
Workstation Upper Unit ..................................................................... 11
Keyboard Wedge (Standard Configuration only) .............................. 11
Software Wedge (Local and Remote Configurations only)............... 12
Using the KVM Switch
(Remote Configuration only) .............................. 13
Operating the KVM Switch ................................................................ 13
Startup Procedure............................................... 14
Exit/Shut Down Procedure ................................. 15
Standard Configuration ......................................................................... 15
Local Configuration ............................................................................... 16
Remote Configuration ........................................................................... 16
75-0500-4450-4 C, 060-A
iii
Processing Items ................................................ 17
Standard Configuration ......................................................................... 17
Local and Remote Configurations ....................................................... 19
Item Placement................................................... 21
Placement of Bar-coded Items ............................................................. 22
Placement of Bar-coded Items (Parallel Bar Codes).......................... 23
Placement of Items with Digital ID Tags (Correct) ............................. 24
Placement of Items with Digital ID Tags (Warnings).......................... 25
Placement of Items with Digital ID Tags (Incorrect)........................... 26
Operations ........................................................... 27
Check-In................................................................................................... 29
Check-Out ............................................................................................... 30
Secure/Un-secure Only (if enabled) ..................................................... 31
To secure items only.......................................................................... 31
To un-secure items only .................................................................... 32
Send ID Only (if enabled)....................................................................... 33
Number of Items (if enabled) ................................................................ 34
Verify........................................................................................................ 34
Staff Settings....................................................... 35
Adjusting the Sound Volume................................................................ 36
Setting the Language for the User Interface ....................................... 36
Using the Always on Top setting ......................................................... 37
Search Lists (All Configurations) ......................................................... 38
Lists, Digital Data Manager (DDM), and Memory Cards .................. 38
To Begin Using Lists .......................................................................... 38
Enabling and Disabling Search Lists................................................. 39
Viewing Database Information .......................................................... 39
Appendix .............................................................. 40
Items That Don’t Fit on the Deck (Standard Configuration only).... 40
Sets .......................................................................................................... 40
No Activity ............................................................................................... 40
Running Conversion Software on the Digital Staff Workstation ...... 40
Inserting a Memory Card ....................................................................... 42
Removing a Memory Card..................................................................... 42
iv
75-0500-4450-4 C, 060-A
Safety Information 3M Digital Staff
Workstation
We provide important safety information and warnings to assist you in understanding and avoiding potential harm to yourself, and possible damage to equipment, during the installation and use of the 3M
Digital Staff Workstation.
Although this manual describes many potential hazards that you may encounter during the installation and operation of this product, we cannot predict all of the possible hazards and this list should not be a substitute for your judgment and experience.
Before you install and use this equipment, please read and observe all safety information and instructions in this manual.
If you are unsure about any part of this installation or of the potential hazards discussed, please contact your supervisor immediately.
Intended Use Statement
The 3M™ Digital Staff Workstation is designed and tested for use in processing library materials with 3M
™
Tattle-Tape
™
Security Strips B1, B2,
R2, DVM-1, and DCD-2.
The product has not been tested or proven safe for other uses.
75-0500-4450-4 C, 060-A
1
Safety Messages
We include safety messages and safety labels in this manual to help you protect your safety and the safety of others. This section contains important information to help you recognize and understand these safety messages.
NOTE: BEFORE YOU PROCEED WITH THE INSTALLAT ION, PLEASE
READ ALL SAFETY MESSAGES.
Safety Message Format
Safety messages are designed to alert you to potential hazards that can cause personal injury to you or others. They can also indicate the possibility of property damage.
Each safety message box contains a safety alert symbol ( ); one of three signal words: DANGER , WARNING , or CAUTION ; and a safety message.
The signal words and symbols, and their meanings, are shown below.
In addition to the symbols and words explained previously, each safety message:
Identifies the hazard.
Describes what you can and should do to avoid the risk of exposure to the hazard.
Describes the probable consequences of not avoiding the hazard.
DANGER means you and/or someone else WILL be
KILLED or SERIOUSLY HURT if you do not follow these instructions.
The safety message is in this box.
WARNING means you and/or someone else MAY be
KILLED or SERIOUSLY HURT if you do not follow these instructions.
DANGER
WARNING
The safety message is in this box.
CAUTION means you and/or someone else MAY be
HURT or property damage may result if you do not follow these instructions.
CAUTION
The safety message is in this box.
2
75-0500-4450-4 C, 060-A
Safety Messages for the Digital Staff Workstation
The following safety messages appear in this manual:
DANGER
This equipment contains high voltage. Risk of electric shock.
Do not remove protective panels. Only certified 3M technicians should service this equipment.
Make sure power is off before disconnecting monitor. If power is not off, the monitor will be damaged.
WARNING
Possibility of personal injury. The operation of the Staff
Workstation involves repeated body movements. To minimize any possibility of injury, avoid prolonged repetitive movements, rest when becoming fatigued, and, when possible, alternate job functions with other people. Avoid any awkward reaching for library items.
WARNING
Possibility of counter top mounted Staff Workstations tipping over. Ensure that the on-counter mounting skirt is secured to the counter top with 3M Command
Adhesive strips.
WARNING
Danger of explosion if internal lithium battery is incorrectly replaced. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
WARNING
Dispose of this product and components according to the manufacturer’s directions and local disposal regulations to avoid hazards and harm to the environment.
CAUTION
This product contains laser devices. Do not allow the scanner laser beam to reflect off a shiny, mirror-like surface into anyone’s eyes. Observe the labels on the unit.
CAUTION
Possibility of personal injury. The Staff Workstation weighs 70
75-0500-4450-4 C, 060-A
3
pounds (32 Kg). Attempting to lift the Staff Workstation may cause personal injury. To avoid any possibility of injury, the
Staff Workstation should be lifted by more than one person.
The Staff Workstation should be lifted more with the leg muscles and less with back and arm muscles.
CAUTION
Using controls or adjustments or performing procedures other than those specified herein may result in hazardous laser light exposure.
CAUTION
Flickering or color variations may occur on CRT-type monitors placed in proximity to the Digital Staff Workstation due to its electromagnetic properties.
Maintain a separation of at least
18 in. to 48 in. (457 mm to 1,219 mm) between CRT-type monitors and the Digital Staff Workstation.
The required separation distance varies depending on the type of monitor and the environment around the Digital Staff Workstation.
In most cases, LCD-type monitors do not exhibit any type of flickering , or color variations , when placed in close proximity to the Digital Staff Workstation.
4
75-0500-4450-4 C, 060-A
Safety Labels
We include safety labels on the devices for your safety and the safety of others. Safety labels are designed to alert you to potential hazards associated with a piece of equipment that can cause personal injury to you or others. Safety labels can also indicate the possibility of property damage.
Please read all safety labels.
Explanation of Labels and Symbols
Each safety label contains a safety alert symbol ( ); one of three signal words: DANGER , WARNING , or CAUTION ; a pictorial showing the nature of the hazard; and a safety message.
The signal words and symbols, and their meanings, are shown below:
DANGER means you and/or someone else WILL be KILLED or SERIOUSLY
HURT if you do not follow these instructions.
WARNING means you and/or someone else MAY be KILLED or
SERIOUSLY HURT if you do not follow these instructions.
The following labels may also be applied to the equipment:
Refer to accompanying documents.
Risk of electric shock. Refer all servicing to manufacturer.
Safety Label Replacement
We consider safety labels to be an important part of all devices. Safety labels should be replaced immediately if they become hard to read.
If any of the safety labels are missing or cannot be read, please contact 3M
Library Systems Technical Service for a replacement label (651-733-0175).
75-0500-4450-4 C, 060-A
5
Safety Label Locations
6
LASER APERTURE
This product complies with
21 CFR Subchapter J,
IEC 60825-1:1977 and EN 60825-1:1996
Model 795 Staff Workstation
100-120V/200-240 V~
50/60 Hz
2.5/1.5 A
0678
110 W
S/N:
L
3M Library Systems
St. Paul, Minnesota 55144-1000
Figure 1: Safety Label Locations
795_QuickStart_02
75-0500-4450-4 C, 060-A
EMC Compliance USA and Canada
FCC Radio Frequency Rules and Regulations
This equipment has been tested and found to comply with the limits for a
Class A device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can emit radiated radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Intentional Radiator Certification
This equipment contains an intentional radiator approved by the FCC under the FCC ID number shown above. This device complies with Part 15 of the
FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC ID: DGFLSD795
NO MODIFICATIONS. Modifications to this device shall not be made without the written consent of The 3M Company. Unauthorized modifications may void the authority granted under Federal Communications Commission Rules permitting the operation of this device.
Industry Canada Radio Frequency Rules and Regulations
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
CANADA: Pending
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.
EMC Compliance Europe
This equipment complies with the requirements of the
RTTE and EMC directives.
75-0500-4450-4 C, 060-A
7
Introduction
The 3M™ Digital Staff Workstation consolidates a number of library functions to enable staff to process items identified by either digital identification tags or bar codes.
The workstation reads item identification information from existing media and passes it to the library terminal connected to the library circulation system.
The system secures and un-secures 3M Tattle-Tape
™
Security Strips in items as required.
The Digital Staff Workstation can: a Check-in and Check-out – Send ID to circulation and secure or unsecure the item.
b Secure/Un-secure – Change the status of an item’s security marker without sending the ID to the circulation system. c Send ID – Send the item identifier read from the digital identification tag or bar code to the library circulation system. d Verify – Indicate if a secured security strip is present. e Read Tags – Read and display the digital identification tag information.
The workstation can be set up to match its intended functional requirements, whether as a backroom check-in unit or as a front counter/utility machine that checks items in and out and occasionally is used for special processing of items.
CAUTION
Flickering or color variations may occur on CRT-type monitors placed in proximity to the Digital Staff Workstation due to its electromagnetic properties.
Maintain a separation of at least
18 in. to 48 in. (457 mm to 1,219 mm) between CRT-type monitors and the Digital Staff Workstation upper unit.
The required separation distance varies depending on the type of monitor and the environment around the Digital Staff
Workstation.
In most cases, LCD-type monitors do not exhibit any type of flickering , or color variations , when placed in close proximity to the Digital Staff Workstation.
8
75-0500-4450-4 C, 060-A
Digital Staff Workstation Configurations
There are three Digital Staff Workstation configurations.
Please note your system's configuration. Certain information in this guide is specific to configuration. This is noted throughout the guide.
Standard Configuration
In this configuration, the main user interface controls the functions of the Digital Staff Workstation. The circulation system software runs on the library computer. The Digital Staff
Workstation computer and the library computer communicate through a hardware wedge.
Upper Unit
Electronics
Enclosure
Local Configuration
In this configuration, the Companion user interface controls the functions of the Digital Staff Workstation. The circulation system software and the Companion software are installed on the Digital
Staff Workstation computer.
Upper Unit
Electronics
Enclosure
Remote Configuration
In this configuration, the Companion user interface controls the functions of the Digital Staff Workstation. The circulation system software and the Companion software are installed on the library computer. The library computer and the Digital Staff Workstation computer communicate through a network connection.
Upper Unit
Network
Connection
Electronics
Enclosure
Library
Computer
Hardware
Wedge
Monitor Options:
1. Customer supplied
2. 12-inch LCD touchscreen
(mounted on upper unit)
3. 15-inch standalone LCD monitor
Library
Computer
KVM
Switch
Box
75-0500-4450-4 C, 060-A
9
Digital Identification Tags versus Bar Codes
Bar codes on patron cards or library items may be read to provide item identifier information to the library circulation system. Digital identification tags also contain information about the type of media being processed. This enables the workstation to inhibit security operations for magnetic materials.
Magnetic Materials
Recorded magnetic media, such as audio or video tapes, may be damaged by security operations of the Digital Staff Workstation. The workstation is not designed to secure or un-secure recorded magnetic media. The digital identification tag information inhibits security actions for magnetic media.
Conversion Software
As an option, the workstation can also be used to convert bar-coded items to digital identification technology.
A related product, the 3M
™
Digital Conversion Station, uses software that converts bar-coded items to digital identification technology. The same conversion software used in the Digital Conversion Station can be run – and used to convert items – on the Digital Staff Workstation. Refer to Running
Conversion Software on the Digital Staff Workstation in the appendix of this guide.
The conversion software programs identification information onto a 3M™
Digital Identification Tag. The touchscreen monitor shows where the Digital
ID tag should be applied to the book or other media.
Components
The 3M™ Digital Staff Workstation consists of the following components:
Electronics Enclosure with computer
The Electronics Enclosure (Figure 2) contains the computer and the power switch for the
Digital Staff Workstation. Communications and other cables are routed through the back of the enclosure.
Figure 2: Electronics Enclosure
Memory Card Drive
10
75-0500-4450-4 C, 060-A
The memory card drive (Figure 3) is used to access memory cards containing the memory card database, which contains Search Lists and other information.
Figure 3: Memory Card Drive
Workstation Upper Unit
The workstation upper unit (Figure 4) can be set on the counter top and moved as needed or permanently installed in-counter so that the deck surface is flush with the counter top.
The upper unit consists of:
§ the deck ( a ), where item bar codes are scanned, digital tags are read, or 3M™
Tattle Tape™ Security Strips are secured or un-secured;
§ the bar code scanner ( b ) used for scanning bar codes on library items; and
§ the touchscreen monitor ( c ) (optional).
The Digital Staff Workstation also includes a keyboard and mouse (not shown). a c
Figure 4: Workstation Upper Unit
A diagnostic program for the touchscreen monitor is included with the
Digital Staff Workstation. Refer to the 3M Digital Staff Workstation
Administrator's Guide for the procedure to calibrate the touchscreen.
Keyboard Wedge (Standard Configuration only)
A keyboard wedge ( a ) may be installed on your Digital Staff Workstation. The keyboard wedge sends information from the Digital Staff
Workstation to the library circulation system. A light pen ( b ) may be connected to the keyboard wedge. The light pen scans bar codes on materials that require special processing, such as materials that cannot be scanned by the bar code scanner mounted on the Digital Staff Workstation.
a b b
Figure 5: Keyboard Wedge and Light Pen
75-0500-4450-4 C, 060-A
11
Software Wedge (Local and Remote Configurations only)
The software wedge is part of the Companion user interface and is responsible for sending ID information from barcodes, or Digital ID tags to the library circulation system. It works similarly to a hardware wedge, sending ID information to the currently active application. Normally this is your library circulation system.
If the software wedge is unable to determine which application to send the
ID information to, it will prompt you with the Select Target Application window. If this happens, select the target application from this window and click OK .
Select Target Application window
If the target application is not active, you will have to start the application in order to select it.
You can also configure the software wedge to always send ID information to a specific application. The Digital Staff Workstation will always send ID information to the selected target application when the checkbox next to
Always send IDs to the selected application is selected, and the selected target application is currently active. If the target application is not active when an item is processed on the Staff Workstation, you will be prompted to select an application in the Select Target Application window.
If you need to change the target application, follow these steps:
1 Start the target application. Normally, this is the library circulation system.
2 Start the Companion UI (refer to Startup Procedure in this guide).
3 Press Ctrl+Alt+t to display the Select Target Application window.
4 Select the desired target application from the list in the window. f If you want the software wedge to always send ID information to the same application, select Always send ID's to the same application as shown in the figure above. This configuration causes ID information to always be sent to the same application, regardless other applications. g If you want the software wedge to send information to whatever application has the focus, deselect Always send ID's to the same application . In this case, if the Companion UI has the focus, you will be prompted to select a target application. Otherwise, the application that has the focus will receive the ID information.
5 Click OK .
If the Companion UI is automatically brought to the focus, for example, to confirm a transaction, the focus will be automatically returned to the application that previously had the focus.
12
75-0500-4450-4 C, 060-A
Using the KVM Switch (Remote
Configuration only)
The KVM switch box allows the Digital Staff Workstation and a library computer to share one monitor, mouse, and keyboard.
The KVM switch box is typically configured as follows:
§
Computer 1 represents the library computer.
§
Computer 2 represents the Digital Staff Workstation computer.
Operating the KVM Switch
Using the Keyboard
§ Press the Ctrl key twice in rapid succession to change the selected computer.
Using the Select Button on the KVM Switch
§
Press the Select button on the front of the KVM switch box to change the selected computer.
The indicator lights on the front of the KVM switch show which computer has keyboard/monitor/mouse control. The
"On Line" light indicates that the corresponding computer is connected to the KVM switch. The "Selected" light indicates that the corresponding computer has keyboard/mouse/monitor control.
Select button
KVM switch
KVM switch indicator lights
75-0500-4450-4 C, 060-A
13
Startup Procedure
To apply power to the Digital Staff
Workstation:
§ Move the On/Off switch located on the front of the cabinet to the On position. (Figure
6).
Only 3M-trained service technicians should remove the cover of the unit.
Standard Configuration
§ The main user interface appears on the screen after you apply power to the Digital
Staff Workstation. The software will take a few seconds to load.
Local Configuration
§ The Companion user interface appears on the screen after you apply power to the
Digital Staff Workstation. The software will take a few seconds to load.
Remote Configuration
§ Make sure the KVM switch is set to the library computer.
On/off switch
Figure 6: Digital Staff Workstation cabinet
§ Double-click on the desktop to start the Companion user interface (UI). The
Companion UI can also be set to start automatically.
14
75-0500-4450-4 C, 060-A
Exit/Shut Down Procedure
Standard Configuration
1 On the Staff screen, click the Exit button.
§
The Exit window appears.
Staff screen
2 Select one of the following:
•
Exit – Exits the Staff Workstation application and returns to the Windows desktop.
•
Exit and shut down computer – Does a complete shut down of the Digital Staff
Workstation computer. You’ll need to turn off the power switch on the workstation once Windows has shut down.
•
Exit and restart computer – Restarts the computer.
3 Click OK .
The option you select will be retained.
For example, if you select Exit and shutdown computer , that option will be selected the next time the Exit pop-up appears.
4 When Windows has completely shut down, switch off the Digital Staff Workstation power switch.
Exit window
75-0500-4450-4 C, 060-A
15
Local Configuration
1 Click Exit in the Operations menu of the
Companion user interface.
2 Click Shutdown in the Windows Start menu.
3 Click Shutdown the computer , then click
Yes .
4 When Windows has completely shut down, switch off the Digital Staff Workstation power switch.
Remote Configuration
Companion UI - Operations menu
1 Make sure the KVM switch is set to the library computer.
2 Click Exit in the Operations menu of the Companion user interface (UI).
3 Press the Ctrl key twice quickly to toggle the KVM switch to the
Digital Staff Workstation computer.
4 Click Shutdown in the Windows Start menu.
5 Click Shutdown the computer , then click Yes .
6 When Windows has completely shut down, switch off the Digital
Staff Workstation power switch.
16
75-0500-4450-4 C, 060-A
Processing Items
The following procedures allow you to process items using the Digital Staff
Workstation. The procedures vary according to your Digital Staff
Workstation's configuration. Refer to the appropriate procedure for your configuration: h Standard configuration i Local and Remote configurations
Standard Configuration
Use the following procedure to process items using the Digital Staff
Workstation - Standard configuration.
1 Select the Operation
•
The primary operations are check-in and check-out.
To select the operation:
§ Select the Check-In ( a ) or Check-Out
( b ) button. a b
2 Select the Number of Items to Process
(if enabled).
§
If the library Administrator has configured the workstation to display Number of Items buttons, select the number of items to process.
§ If no Number of Items buttons appear, the default setting (one item at a time) is in effect and you cannot select the number of items to process.
3 Follow the Instructions.
Instructions appear in the Message area. In this example, “Present
Items.”
Continued on next page…
3
2
75-0500-4450-4 C, 060-A
17
When a confirmation for an action is required, a button will be displayed on the right side of the message area. The example to the right shows a case where the edge sensors are covered and a confirmation is required for the
SECURE action. The Check-in button is the default action so the user can press the Enter key on the keyboard to select it, or touch the
Check-in button on the screen.
4 Place the Item on the Deck.
§
Place the book or other item on the deck in the correct position for processing ( Figure 7 ). See
Placement of Items on the Deck
– General Guidelines . 4
Figure 7: Correct Position For Processing
The system checks for a digital identification tag or bar code.
§ If a digital identification tag is present, the workstation reads the tag.
§ If a digital identification tag is not present, the workstation goes into scan mode, which means the bar code scanner will be turned on after a short delay and the workstation reads the bar code.
5 You will hear a sound.
The workstation emits several distinctive sounds:
§ Thump Sound produced when two adjacent non-edge sensors are covered and an item is secured/un-secured.
§ Beep Sound produced if the security strip in the item was not secured or un-secured (for example, for a video).
§
Error Sound or Warning Sound to indicate that error or warning conditions are detected.
6 Remove the item and place the next item on the deck for processing. place the next item on the deck. If an error/warning sound occurs, follow the on-screen instructions.
7 To continue processing items, repeat Steps 4 - 6 above.
18
75-0500-4450-4 C, 060-A
Local and Remote Configurations
Use the following procedure to process items using the Digital Staff
Workstation - Local and Remote configurations.
Check-in/Check-out
The check-in and check-out functions send
IDs to the circulation system and secure, or un-secure the item. Check-in ( a ) and checkout ( b ) may be selected using the buttons to the right, or through the Operation menu.
If you configured the Administrative
Settings to not allow choices (e.g.,
Check-in only or Check-out only ), only one of these buttons will appear. a
1 Select the operation. The primary operations are check-in and check-out.
§ Select the Check-In ( a ) or Check-Out ( b ) button.
You can use hotkeys to select the check-in and check-out buttons.
Hotkeys have been assigned in the
Companion software adminstrative settings. Refer to the Digital Staff
Workstation Adminstrator's Guide for further information on hotkeys.
2 Select the number of items to process in the Items menu (if enabled) b
Check-in and Check-out buttons
3 Follow the Instructions.
Instructions appear in the Message area, such as “Present Items.”
Companion UI Staff screen - Item menu
When a confirmation for an action is required, a button will be displayed on the right side of the message area. The example to the right shows a case where the edge sensors are covered and a confirmation is required for the
SECURE action. The Check-in button is the default action so the user can press the Enter key on the keyboard to select it, or select the Check-in button on the screen.
Continued on next page…
Check-in message in the Companion UI screen.
75-0500-4450-4 C, 060-A
19
4 Place the Item on the Deck.
§ Place the book or other item on the deck in the correct position for processing (shown at right). See
Placement of Items on the Deck –
General Guidelines .
Correct Position For Processing
The system checks for a digital identification tag or bar code. j If a digital identification tag is present, the workstation reads the tag. k If a digital identification tag is not present, the workstation goes into scan mode, which means the bar code scanner will be turned on after a short delay and the workstation reads the bar code.
Depending on the configuration of the software wedge, you will be prompted to select a target application in the Select Target Application window to the right. This determines which application receives the item ID, or other information. To set the target application, refer to the Software Wedge section of this guide.
Select Target Application window
5 You will hear a sound.
The workstation emits several distinctive sounds:
§
Thump Sound produced when two adjacent non-edge sensors are covered and an item is secured/un-secured.
§ Beep Sound produced if the security strip in the item was not secured or un-secured (for example, for a video).
§ Error Sound or Warning Sound to indicate that error or warning conditions are detected.
6 Remove the item and place the next item on the deck for processing. place the next item on the deck. If an error/warning sound occurs, follow the on-screen instructions.
7 To continue processing items, repeat Steps 4 - 6 above.
20
75-0500-4450-4 C, 060-A
Item Placement
There are six sensors on the workstation deck. Sensors 6 and 1 are “edge sensors.” Sensors 5, 4, 3, and 2 are “inner (or non-edge) sensors.”
Correct Placement
Items correctly placed on the deck must be ( Figure 8 ):
§ touching the back wall ( a ) (for books, the spine should be touching the back wall),
§ within (inside of) the edge sensors on the deck ( b ), and
§ covering at least two adjacent inner sensors ( c ). c
6
5 4
3
2 b
Figure 8: Correct placement on deck (top view)
1 a
Oversize Items
If the item can’t fit between the edge sensors, on-screen instructions will enable you to process the item.
Refer to the following pages for examples of correct and incorrect placement of bar-coded items and items with Digital ID tags.
75-0500-4450-4 C, 060-A
21
Placement of Bar-coded Items
Correct Placement for
Barcoded Items
Incorrect Placement for
Barcoded Items
Patron Card
Move Item to Back Wall
CD Move Item Under Scan Line
Book
Scanner and bar code placement in your library may be different than shown above.
795_OG_001
22
75-0500-4450-4 C, 060-A
Placement of Bar-coded Items (Parallel Bar Codes)
Correct Placement for
Barcoded Items
Incorrect Placement for
Barcoded Items
Patron Card
Move Book Left
CD
Book
Move Book Left and to Back Wall
Move Book Left
75-0500-4450-4 C, 060-A
23
Placement of Items with Digital ID Tags (Correct)
Covering two adjacent non-edge sensors left
Covering three adjacent non-edge sensors left
Covering three adjacent non-edge sensors right
Covering two adjacent non-edge sensors center
Covering two adjacent non-edge sensors right
For books, the spine or binding must be against the back wall of the deck.
24
75-0500-4450-4 C, 060-A
Placement of Items with Digital ID Tags (Warnings)
Oversize Book
−
Left Oversize Book
−
Right
Oversize Book Covering Deck
Oversize books will produce a warning sound. On-screen instructions will assist you in processing the items.
75-0500-4450-4 C, 060-A
25
Placement of Items with Digital ID Tags (Incorrect)
Move Item to Back Wall
Move Item to Back Wall
Covering Only One Sensor
Edge Condition
For books, the spine or binding must be against the back wall of the deck.
26
75-0500-4450-4 C, 060-A
Operations
The standard user interface is factory set to display the
Check-in and Check-out buttons, the Settings button, the Verify button and the Help button.
The library
Administrator may choose to change the configuration settings and may select additional functions.
3
5
2
4
6
14
1
7
8
9
10
11
12
13
Standard user interface
1 Message area
2 Current Operation
3
4
Check-In
Check-Out
Displays instructions, conditions, and messages that prompt the user, such as
“Present Items” or “Select Operation.” May also contain a button that appears only when needed; for example, to confirm that an item should be secured or un-secured.
Provides a description of the current operation; for example, Check-In, Check-Out,
Secure Only, Un-secure Only, or Send ID Only.
Press to place the Staff Workstation in “check-in” mode. This allows you to secure an item (if appropriate) and send the item ID to the library circulation system.
Press to place the Staff Workstation in “check-out” mode. This allows you to unsecure an item (if appropriate) and send the item ID to the library circulation system.
Turns the security function on and off. (Companion UI menu item)
5 Security
6 Send ID
Turns the Send ID function on and off. When on, the item ID is sent to the circulation system. (Companion UI menu item)
7
8
9
10
11
12
One Item
Verify
Settings
Causes the Staff Workstation to expect one item to process at a time
(Companion UI menu item)
Two Items
Causes the Staff Workstation to expect two items to process at a time.
(Companion UI menu item)
Three Items
Causes the Staff Workstation to expect three items to process at a time
(Companion UI menu item)
Turns the verify function on or off. When you select Verify, the security strip verifier is turned on (Companion UI menu item)
Accesses the sound volume setting, version information, languages, and the administrative settings. Accesses languages and Always on Top feature in the
Companion user interface.
Accesses on-line help topics for the Staff Workstation.
Help
Displays the Exit dialog box.
13 Exit
14 Item information Displays specific item status information, error feedback messages, and information about hardware devices, such as the tag reader and bar code scanner. Some messages can be cleared pressing the Enter key.
75-0500-4450-4 C, 060-A
27
The Companion user interface (UI) for the
Digital Staff Workstation allows you to perform the same functions as the standard user interface.
Refer to the table on page 30 for user interface control descriptions.
The Companion UI uses a software program called a software wedge to send keyboard input and item IDs to the circulation system.
Refer to the Digital Staff Workstation
Administrator's Guide for information on administrative settings.
3
1
11
12
4
14
The Companion user interface (UI) allows you to control the Digital Staff Workstation from the same computer that runs the circulation software.
11
6
5
7
8 9
10
Companion UI Staff screen menus
Messages
Messages will appear in the message area in the Standard UI and Companion UI. When a confirmation for an action is required, a button will be displayed on the right side of the message area, as shown in the figure to the right. The button displayed is the default action so you can press the Enter key on the keyboard, touch the button, or click to select it.
Check-in message in the Companion UI screen.
The menu selections that appear in the Companion user interface (UI) are selected in the Administrative Settings window that is accessed through the Settings icon desktop.
on the Digital Staff Workstation
Refer to Startup Procedure and Exit/Shutdown Procedure in this guide for startup and shutdown procedures for Companion software in the
Local and Remote configurations.
28
75-0500-4450-4 C, 060-A
Check-In
To check items into the library:
1 Go into Check-in mode:
For the Standard configuration:
button and follow the instructions on the screen.
For Local and Remote configurations with the Companion UI:
button and follow the instructions on the screen.
2 Place an item on the deck within the designated area.
The item should be: back wall), other).
3 Position the item until the digital identification tag is read or the bar code is under the scan line.
4 When the digital identification tag is read or the bar code is scanned, you may hear a thump sound, which indicates that the security strip in the item was secured (if appropriate) and the item ID was sent to the library circulation system.
§
Check-in mode, you will receive the message
“IDs Sent. Items Secured. Remove items.” of the message area.
The system can be set up to automatically switch to Check-Out mode.
See Check-Out .
Changing to Check-in overrides any other current setting, unless
Auto-switch to Check-out with Library card is selected in the
Administrative Settings window - Function tab.
A complete check-in includes sending the item ID and securing the item, if applicable. On items where the security action is automatic, the item ID is not sent until the item is secured. On items where the security action must be confirmed, the item ID is sent before the confirmation message appears.
75-0500-4450-4 C, 060-A
29
Check-Out
To check items out of the library:
1 Go into Check-out mode:
For the Standard configuration:
button and follow the instructions on the screen.
For Local and Remote configurations with the Companion UI:
button and follow the instructions on the screen.
2 Place an item on the deck within the designated area. The item should be: back wall), other).
3 Position the item until the digital identification tag is read or the bar code is under the scan line.
4 When the digital identification tag is read or the bar code is scanned, you may hear a thump sound, which indicates that the security strip in the item was un-secured (if appropriate) and the item ID was sent to the library circulation system. items, you will receive the message “IDs Sent. Items Un-secured.
Remove items." In some cases, depending on item type or condition, unsecuring will occur automatically. In other cases, it must be confirmed by the user or will not occur. of the message area.
The workstation can be set up to automatically switch to Check-Out mode if the scanner is turned on, the patron card is placed over a single sensor on the scanner side of the deck, and the bar code is read. The patron ID is sent to the library circulation system and the workstation goes into Check-Out operation.
Changing to Check-Out overrides any other current setting.
A complete check-out includes sending the item ID and un-securing the item, if applicable. On items where the security action is automatic, the item ID is not sent until the item is un-secured. On items where the security action must be confirmed, the item ID is sent before the confirmation message appears.
30
75-0500-4450-4 C, 060-A
Secure/Un-secure Only (if enabled)
Item types can be secured/un-secured automatically, secured/unsecured only after confirmation, or never secured. These settings can be modified in administrative settings. Refer to the 3M Digital Staff
Workstation Model 795 Administrator Guide .
To secure items only
The following steps will secure an item without sending the item ID to the library circulation system.
1 Go into Check-in mode:
For the Standard configuration:
button. The message “Present Item(s)” appears in the message area on the screen.
(Send ID) button to turn OFF sending IDs and follow the instructions on the screen.
For Local and Remote configurations with the Companion UI:
•
Click Secure only in the Operations menu and follow the instructions on the screen.
Companion UI - Operation menu
2 Place an item on the deck within the designated area.
The item should be: back wall), other).
3 Position the item until the digital identification tag is read or the bar code is under the scan line.
4 When the digital identification tag is read or the bar code is scanned, you will hear a thump sound, which indicates that the security strip in the item was secured.
For items requiring user confirmation to be secured, a variable button appears in the Message area requesting user confirmation. An example would be items long enough to cover the edge sensors. Other non-standard conditions may occur if fewer than the expected number of items is detected, or if a partial set is detected.
75-0500-4450-4 C, 060-A
31
To un-secure items only
The following steps will un-secure an item without sending the item ID to the library circulation system.
1 Go into Check-out mode:
For the Standard configuration:
button.
(Send ID) button to turn off sending IDs. You will receive the messages “Present items and Un-secure Only.” Follow the instructions on the screen.
For Local and Remote configurations with the Companion UI:
§
Un-secure only in the Operations menu and follow the instructions on the screen.
Companion UI - Operation menu
2 Place an item on the deck within the designated area. The item should be: back wall), other).
3 Position the item until the digital identification tag is read or the bar code is under the scan line.
4 When the bar code is scanned or the digital tag is read, you will hear a thump sound, which indicates that the security strip in the item was unsecured.
32
75-0500-4450-4 C, 060-A
Send ID Only (if enabled)
To send item IDs to the library circulation system:
1 Go into Check-in or Check-out mode.
For the Standard configuration:
button or the button.
(Security) button to turn OFF the security function. This will turn ON the Send ID Only function. Follow the instructions on the screen.
For Local and Remote configurations with the Companion UI:
§
Send ID in the Operations menu and follow the instructions on the screen.
Companion UI - Operation menu
2 Place an item on the deck within the designated area. The item should be: back wall), other).
3 Position the item until the digital identification tag is read or the bar code is under the scan line.
4 When the bar code is scanned or the digital tag is read, you will hear a confirmation sound, which indicates that the item ID was sent to the library's circulation system.
The icon on the Security button changes depending on whether
Check-in or Check-out is selected.
75-0500-4450-4 C, 060-A
33
Number of Items (if enabled)
To select the number of items to process at one time
For the Standard configuration:
Select the appropriate item number button:
§ (to process one item)
§ (to process two items)
§
(to process three items)
For Local and Remote configurations with the Companion UI:
§
Click the desired number of items in the
Items menu. The number will appear in the menu bar next to Items .
The factory default setting is one item at a time with no number of items buttons appearing on the Staff screen. The library
Administrator can adjust the total number of items to process at one time, as well as which buttons will display (if any).
Companion UI - Item menu
Verify
The verifier detects when an item with a secured security strip is placed on the workstation. When the verifier detects a secured security strip in an item, a green light located on the back wall of the workstation deck is turned ON .
Otherwise, the green light is OFF .
To turn verify functions on and off:
For the Standard configuration:
Select or de-select the
ON or OFF .
button. This will turn the Verify function
For Local and Remote Configurations:
§ Click On or Off in the Verify menu. The selection will appear in the menu bar next to
Verify .
The factory default setting for Verify is User
Choice - ON . This means the Verify function is ON by default and you are allowed to turn the function ON or OFF .
The library Administrator can configure the
Verify function through administrative settings to be ON or OFF by default, without user choice. In this case, neither the button, nor the Verify menu appear on the Standard, or Local and Remote configurations.
Companion UI - Verify menu
34
75-0500-4450-4 C, 060-A
Staff Settings
Library personnel have access to various configuration settings in the Staff Settings window.
At the Staff Settings screen you can:
§
Adjust the sound volume ( a )
§ View the software version information ( b )
§ Access the password-protected
Administrative settings ( c ) (if you are a library Administrator)
§ Access on-line help topics ( d )
§
Language selection ( e )
§
Access search lists ( f )
§ Access database information ( g )
§ Set Always on Top feature( h ) f c g a
The Staff Settings window e
Use the following menu selections to configure the Companion user interface (UI) to your library's needs. The menu selections that appear in the Companion UI are selected in the Administrative Settings window in the
Digital Staff Workstation software. h c
Companion UI Settings menu – use to turn the Always on top functions on or off (ON = checked, OFF = not checked). You can also use the Settings menu to select a different
Language for the Companion user interface. e
Companion UI Staff screen - Settings menu
Accessing Administrative Settings requires a password. Refer to the 3M™
Digital Staff Workstation Administrator's Guide for further information.
To access the Staff Settings window:
Standard Configuration: On the Staff screen, select the button. The Staff Settings screen appears.
b d d
Local Configuration: On the Windows desktop, double-click the button. The Staff Settings screen appears.
Remote Configuration: l Press the Ctrl key on the keyboard twice to toggle the KVM switch to
Digital Staff Workstation computer. m On the Windows desktop, double-click the
Settings screen appears.
button. The Staff
75-0500-4450-4 C, 060-A
35
Adjusting the Sound Volume
For Standard Configuration:
1 Click the Sound Volume button. A sound volume adjustment pop-up appears.
2 Adjust the sound volume by using the mouse to drag the volume adjustment bar
(up or down) to the desired setting. You can also press the Up and Down arrow keys on the keyboard to adjust the setting.
3 Click the Close button.
Loud
(Default)
For Local and Remote Configurations:
Moderate
1 Click the Volume icon in the Windows taskbar. The volume control appears.
2 Adjust the sound volume by using the mouse to drag the volume adjustment bar
(up or down) to the desired setting. You can also use the Up and Down arrow keys to adjust the volume
Volume Control
3 Click Exit in the Options menu to close the master volume control window.
Setting the Language for the User Interface
For the Standard Configuration:
1 Click the button in the Language field that corresponds to the desired language. This controls the language that appears on the
Digital Staff Workstation screens.
The Language field appears in the Staff
Settings window only when more than one language has been selected through the Administrative Settings window.
2 Click the OK button in the Staff Settings window.
The languages that appear in the Staff
Settings window can be changed through the Administrative Settings window (refer to the Digital Staff
Workstation Administrator Guide).
2
Staff Settings window
36
1
Soft
75-0500-4450-4 C, 060-A
For Local and Remote Configurations:
1 From the Settings menu, click
Language .
2 From the Language list, select one of the supported languages.
§
The text in the Companion UI will be displayed in the selected language.
Select the language for the menus and messages on the
Companion UI.
Using the Always on Top setting
If you select Always on top
The Companion UI is always visible on the screen.
You can still use the Minimize button to remove the Companion UI from the screen.
If you do not select Always on top
The Companion UI will not necessary always be visible on the screen when it is running.
However, it will be represented in the taskbar at the bottom of the screen.
Click Always on Top in the Settings menu.
If an error or confirmation message is displayed, the Companion UI will be displayed until the Confirm button is pressed or the item is removed.
Refer to the 3M™ Digital Staff Workstation Administrator Guide for information on Administrative Settings .
75-0500-4450-4 C, 060-A
37
Search Lists (All Configurations)
A search list is a list of items the library would like to find. Search lists can include missing or lost items, items that are on hold, or items to be removed from circulation or “weeded.” Several search lists can be active at the same time. Alerts display on the Staff screen for any items found on active search lists.
If the Search List feature of the Digital Staff Workstation software is enabled, the application automatically checks to see if the item being processed is on one of the search lists you have selected. If it is, you will be notified of the list it is on.
The Search Lists field appears in the Staff Settings window only when Search Lists are enabled and a database location is designated through the Administrative Settings window.
The Digital Staff Workstation software provides the option of using search lists to find library items.
Lists, Digital Data Manager (DDM), and Memory Cards
The DDM software package processes the order lists and search lists you extracted from your library’s circulation system and exports them to a memory card. You load the memory card into the Digital Staff Workstation memory card drive and use the lists on the memory card as a basis for searching.
Some libraries may elect to export their search lists onto the unit’s hard drive.
For more information on lists , see Exporting Lists using DDM below, or refer to the 3M™ Digital Conversion Software Staff Guide .
For more information on the Digital Data Manager (DDM), refer to a separate document, the 3M™ Digital Data Manager Owner’s Manual .
For more information on memory cards , see Inserting a Memory Card and
Removing a Memory Card in the appendix of this guide.
To Begin Using Lists
Before you can use search lists to identify items, you must first export the lists from your library’s circulation system to a memory card using Digital
Data Manager (DDM).
Exporting Lists using DDM
For detailed instructions on installing the DDM software and exporting lists to a memory card using DDM, refer to a separate document, the 3M™ Digital
Data Manager Owner’s Manual .
If you will not be using the List feature to perform searching for items, you do not need to export lists using DDM and there is no need for a memory card.
38
75-0500-4450-4 C, 060-A
Enabling and Disabling Search Lists
The Search List window displays search lists for the
Memory Card Database and allows you to enable and disable search lists . To view the Search Lists window, click in the Staff Settings window.
Click the check boxes next to search lists to enable and disable them. A red check mark indicates that the list is enabled.
A notification appears in a message box on the screen when an item included in an enabled search list is processed. The notification states that the item is on a search list .
The search list feature will not be available if search list processing is disabled. Refer to the
Digital Staff Workstation Administrator's Guide for information on enabling search lists.
Viewing Database Information
The Database Information window allows you to review the attributes of the Memory Card Database, such as what lists exist in the database and the number of items in specific lists.
The Database Information window is available whenever a valid database location has been set.
Refer to the User Guide for the 3M equipment you are using for further information.
Search Lists window
Database Information window
75-0500-4450-4 C, 060-A
39
Appendix
Items That Don’t Fit on the Deck
(Standard Configuration only)
If an item doesn’t fit on the deck, you can still process the item using the light pen .
To process an item using the light pen, move the tip of the light pen across the surface of the item’s bar code. The item’s identification information is passed on to the library circulation system.
Sets
A set is two or more items – with or without a case and with the same item identifier – that will always be checked in, or checked out together.
The workstation can be set up (by the Administrator) to automatically process whole or partial sets of items (parts of a set that are detected at the same time).
If the workstation has been configured to process whole sets only and a partial set is detected, user confirmation is required to process the set.
No Activity
If there is no activity on the workstation for a period of time defined by the administrative settings, the workstation will revert to its default operation; for example, Read Tags Only, Check-in , or Check-out .
Running Conversion Software on the Digital Staff Workstation
You can run the conversion software on the Digital Staff Workstation, but you will need to exit the Digital Staff Workstation application and then start the
Digital Conversion Station application.
For Standard Configuration:
1 To exit the Digital Staff Workstation application:
§ Exit button > Exit > OK .
2 To start the conversion software: or
§
Start > Programs > 3M Library
Systems > 3M Digital Conversion Station > 3M Digital Conversion
Station . The Digital Conversion Station software will take a few seconds to load.
40
75-0500-4450-4 C, 060-A
For Local and Remote Configurations:
1 To exit the Digital Staff Workstation application:
§
Exit in the Operations menu.
2 If you're using the Remote configuration, use the KVM switch to change the selected computer to the Digital Staff Workstation computer.
3 To start the conversion software: or
§
Start > Programs > 3M Library
Systems > 3M Digital Conversion Station > 3M Digital Conversion
Station . The Digital Conversion Station software will take a few seconds to load.
For details on using the conversion software, refer to the 3M
Conversion Software Staff Guide (for Staff users) and the 3M
Digital
Digital
Conversion Software Administrator’s Guide (for Administrators).
75-0500-4450-4 C, 060-A
41
Inserting a Memory Card
Ensure that the memory card is properly oriented and then insert it into the memory card drive.
Removing a Memory Card
Always use the following procedure to remove the memory card from the memory card drive.
CAUTION
DO NOT remove a memory card while the activity light on the memory card drive is flashing.
§ If you remove the memory card before the activity light stops flashing, you may corrupt the data files on the memory card, making it impossible to read the data. If this happens, you may have to use Windows to reformat the memory card.
For Remote Configuration: n If you're using the Remote configuration, use the KVM switch to change the selected computer to the Digital Staff Workstation computer.
1 From the Windows Desktop, double-click My Computer .
2 Right click on the Removable Drive icon in the My Computer window.
3 On the pop-up menu, click Eject .
If you see the following error message, click Continue .
This will not affect the data on the memory card.
4 Wait for ten seconds.
5 Remove the memory card.
Cannot Unmount Volume window
42
75-0500-4450-4 C, 060-A
advertisement
