Acer HLZAS1710 NotebookComputer User Manual

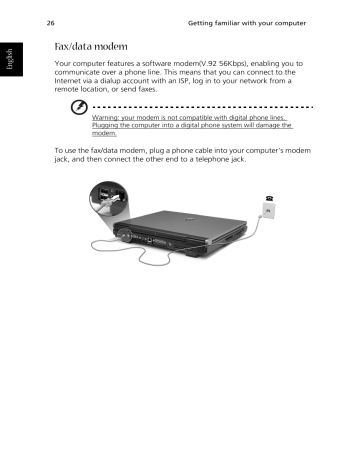

26 Getting familiar with your computer

Fax/data modem

Your computer features a software modem(V.92 56Kbps), enabling you to communicate over a phone line. This means that you can connect to the

Internet via a dialup account with an ISP, log in to your network from a remote location, or send faxes.

Warning: your modem is not compatible with digital phone lines.

Plugging the computer into a digital phone system will damage the modem.

To use the fax/data modem, plug a phone cable into your computer's modem jack, and then connect the other end to a telephone jack.

Audio

Your computer includes an integrated stereo audio system. Built-in stereo speakers and a sub woofer are located at the front of the unit.

27

Volume is adjusted using software, such as Volume Control in Windows, or any other application that provides a volume adjustment control.

Two audio ports on the right side of the computer enable external devices to be connected. See “A tour of your computer” on page 3 for the location of the audio ports. For information on connecting external devices, See “Audio devices” on page 45.


Audio DJ

Audio DJ offers all the convenience of an audio CD / MP3 player, enabling you to play your favorite music CDs or “My MP3” folder from the HDD even when your computer is in power-off mode.

Operate Audio DJ as follows:

• Press “Play” button to turn on the audio function.

• Press both “Volume Up” & “Volume Down” buttons at the same time to select the “My MP3” folder from HDD.

• Press the Stop/Eject button, and then load a CD into the CD/DVD drive.

Push the drawer to close it.

• Press the Play/Pause button to start playing the CD or the selected MP3.

• Use the other buttons to control the playback of the CD or MP3.

• Audio DJ can be shut down by:

• pressing the system power button, or

• pressing the Stop/Eject button to end playback, when inactive for 5 minutes, the system will power down automatically

Audio DJ features the following control buttons

29

No.

5

6

7

3

4

1

2

Description

Volume Down

Volume Up

Previous Track

Next Track

Stop/Eject

Play/Pause

Shuffle On/Shuffle Off


Securing your computer

Your computer features hardware and software security solutions, in the form of a slot for a Kensington lock and a password facility.

Security slot

•

•

A slot for a Kensington slot enables you to physically protect your computer from theft. Use this feature as follows:

Wrap a security lock cable around a heavy or immoveable object, such as a drawer handle on a file cabinet, or a table leg.

Insert the lock into the slot on the computer, turn it 90°, and then lock it in place.

31

Passwords

•

•

•

•

You can protect your computer from unauthorized access by setting

Windows password protection. The user must enter the password before beginning a Windows session.

First, open User Accounts in Windows Control Panel and select your account.

Click Create a Password, and then set your desired password.

Click Performance and Maintenance, Power Options in Control Panel.

On the Advanced tab, select the option to prompt for a password when your computer resumes from stand by.

To cancel password protection, reset the password with a blank password.


Operating on battery power

Your Aspire 1710 series computer operates on battery or AC power.

This chapter provides information for operating on battery power, as well as information on how your computer manages and saves power.

Battery pack (Optional)

Your computer uses a re-chargeable 12-cell Li-ion 2.2Ah battery pack.

35

Battery pack characteristics

•

•

The battery pack has the following characteristics:

Employs current battery technology standards.

Delivers a battery-low warning.

A Li-ion battery can be recharged at any time.

The battery is recharged whenever you connect the computer to the mains power supply. Your computer supports charge-in-use, enabling you to recharge the battery while you continue to operate the computer. However, recharging with the computer turned off results in a significantly faster charge time.

The battery will come in handy when you travel or during a power failure. It is advisable to have an extra fully charged battery pack available as backup. Contact your dealer for details on ordering a spare battery pack.

Maximizing the battery's life

Like all other batteries, your computer's battery will degrade over time. This means that the battery's performance will diminish with time and use. To maximize your battery's life, you are advised to adhere to the recommendations set out below.

Conditioning a new battery pack

4

5

2

3

Before you use a battery pack for the first time, there is a

"conditioning" process that you should follow:

1 Insert the new battery in the computer. Do not turn the computer on.

Connect the AC adapter and fully charge the battery.

Disconnect the AC adapter.

Turn on the computer and operate using battery power.

Fully deplete the battery until the battery-low warning appears.

36 Operating on battery power

6 Reconnect the AC adapter and fully charge the battery again.

Follow these steps again until the battery has been charged and discharged three times.

Use this conditioning process for all new batteries, or if a battery hasn't been used for a long time. If the computer is to be stored for more than two weeks, you are advised to remove the battery pack from the unit.

Warning: do not expose battery packs to temperatures below 0°C

(32°F) or above 60°C (140°F). Extreme temperatures may adversely affect the battery pack.

By following the battery conditioning process you condition your battery to accept the maximum possible charge. Failure to follow this procedure will prevent you from obtaining the maximum battery charge, and will also shorten the effective life span of the battery.

•

•

•

In addition, the useful life span of the battery is adversely affected by the following usage patterns:

Using the computer on constant AC power with the battery inserted. If you want to use constant AC power, you are advised to remove the battery pack after it is fully charged.

Not discharging and recharging the battery to its extremes, as described above.

Frequent use; the more you use the battery, the faster it will reach the end of its effective life. A standard computer battery has a life span of about 500 charges.

Installing and removing the battery pack

Important! Before removing the battery from the unit, connect the AC adapter if you want to continue using your computer.

Otherwise, turn off the computer first.

37

To install a battery pack:

* Please refer to “Opening The Case” on page 49 before you proceed to next step.

1

2

Loosen the screws on the battery cover and remove it from the battery bay.

Align the battery to the battery bay and tighten the screws.

2

3

To remove a battery pack:

1 Refer to “Opening The Case” on page 49.

Loosen the battery screws.

Pull the battery from the battery bay.


Charging the battery

To charge the battery, first make sure that it is correctly installed in the battery bay. Plug the AC adapter into the computer, and connect to a mains power outlet. You can continue to operate your computer on AC power while your battery is charging. However, charging the battery with the computer turned off results in a significantly faster charge time.

Note: you are advised to charge the battery before retiring for the day. Allowing the battery to charge overnight before traveling enables you to start the next day with a fully charged battery.

Checking the battery level

The Windows Power Meter indicates the current battery level. Rest the cursor over the battery/power icon on the task bar to see the battery's present charge level .

Optimizing battery life

•

•

•

•

•

•

Optimizing battery life helps you get the most out of battery operation, prolonging the charge/recharge cycle and improving recharging efficiency. You are advised to follow the suggestions set out below:

Purchase an extra battery pack.

Use AC power whenever possible, reserving your battery for onthe-go use.

Eject a PC card if it is not being used, as it will continue to draw power.

Store the battery pack in a cool, dry place. The recommended temperature is 10°C to 30°C. Higher temperatures cause the battery to self-discharge faster.

Excessive recharging decreases the battery life.

Look after your AC adapter and battery. See, "Taking care of your

AC adapter".

Battery-low warning

When using battery power pay attention to the Windows Power

Meter .

Warning: connect the AC adapter as soon as possible after the battery-low warning appears. Data will be lost if the battery to become fully depleted and the computer shuts down.

When the battery-low warning appears, the recommended course of action depends on your situation:

Situation

The AC adapter and a power outlet are available.

Recommended Action

1. Plug the AC adapter into the computer, and then connect to the mains power supply.

2. Save all necessary files.

3. Resume work.

Turn off the computer if you want to recharge the battery rapidly.

An extra fully charged battery pack is available .


2. Close all applications.

3. Shut down the operating system to turn off the computer.

4. Replace the battery pack.

5. Turn on the computer and resume work.

The AC adapter or a power outlet is unavailable. You have no spare battery pack.


2. Close all applications.

3. Shut down the operating system to turn off the computer.

39


Power management

Your computer features a built-in power management unit that constantly monitors system activity. System activity refers to any activity involving one or more of the following devices: keyboard, touchpad/mouse, floppy disk drive, hard disk drive, optical drive, peripherals connected to the computer. If no activity is detected for a period of time (the settings are controlled in Windows Power

Management), the computer turns off some, or all, of these devices in order to conserve power.

Your computer employs a power management scheme that supports

ACPI (Advanced Configuration and Power Interface), enabling maximum power conservation without compromising system performance. ACPI allows Windows to control the amount of power given to each device attached to the computer. In this way, Windows handles all power-saving chores for your computer. Refer to Windows

Help for more information.

Peripherals and options

Your Aspire 1710 series an expandable desktop replacement.

This chapter provides information on connecting peripherals to expand your system and upgrading key components to enhance system performance and keep your computer in step with the latest technology.

You are advised to consult your dealer for information on peripherals. In addition, make sure that you read the manuals and other documentation provided with new hardware.

43

External display devices

You can connect an external (VGA) monitor or projector to your computer's external display port. See the section entitled "Display" for information on using the computer's simultaneous display and multidisplay features.

Use the Fn + F5 hot key to toggle the display setting between the computer's LCD panel and the external display device. See "Hotkeys" for more information.

External input devices

You can connect a variety of input devices to your computer's USB ports, providing increased functionality and greater ease-of-use. In addition, the USB ports can be used to connect many other peripheral devices, such as digital cameras, printers and scanners. See "Expansion devices" for more information on connecting USB devices.

44 Peripherals and options

External keyboard

Your computer features a full-size keyboard. However, if you prefer, you can connect an external keyboard to one of your computer's USB ports. This enables you to enjoy the comfort and added features of a full-size desktop system keyboard when inputting typed data on your computer.

External keypad

Your computer features an embedded keypad that, when combined with the Num Lock feature, enables you to easily input typed numeric data. Alternatively, you can connect a 17-key numeric keypad to one of your computer's USB ports. This enables you to enjoy the benefits of a numeric keypad while leaving your keyboard configured for text entry.

External pointing device

Your computer features a sensitive touchpad pointing device with two click buttons and a scroll key. However, if you prefer to use a conventional mouse or other pointing device, you can connect it to one of your computer's USB ports.

45

Printer

Your computer supports both parallel and USB printers.

•

•

•

Refer to the printer's manual for information on:

Setting up the hardware.

Installing the necessary drivers in Windows.

Operating instructions.

To use a USB printer, simply connect the device to one of your computer's USB ports, and then wait for Windows to find the new hardware.

To connect a parallel printer, first shut down the operating system.

Connect the printer to the parallel port, and then restart the computer.

Wait for Windows to find the new hardware.

Audio devices

Your computer offers built-in stereo speakers. See the section entitled

"Audio" for more information on these features. However, in addition to the integrated devices, the two audio ports on the right side of the unit enable you to connect external audio input and output devices.

You can plug an external microphone into your computer's microphone-in jack. This offers the convenience of greater freedom of movement, as well as improved audio input quality.

Connect headphones to the headphone jack for private listening and improved audio output quality.

46

Expansion devices


PC Card

Your computer features a PC card slot that supports a standard Type II

PC card (PCMCIA or CardBus). This greatly increases your computer's usability and expandability. A variety of PC cards are available, such as flash memory, fax/data modem, LAN, and SCSI cards. Consult your dealer for information on PC card options for your computer.

Note: Refer to the documentation provided with your PC card for details about installation and use.

To insert a PC card:

1 Align the card with your computer's PC card slot. Make sure that the edge with the connectors is facing the slot, and that the card is the right (label) side up. Most cards are marked with an arrow to help you insert them correctly.

2 Slide the card into the slot, and then push gently until the card connects.

3

4

If necessary, connect the card's cable to the jack on the outer edge of the card.

Windows will automatically detect the card's presence.

47

To remove a PC card:

1 Close any applications using the PC card.

2 Double click on the PC card icon on the task bar, and then select the option to safely remove the card. Wait for the message telling you that it is now safe to remove the card.

3

4

Press the PC card eject button to partially eject the card from the slot.

Remove the card from the slot.

USB devices

Your computer features four USB (Universal Serial Bus) ports for connecting a range of USB peripherals. See "External display devices" and "Printer" for information on connecting a USB keyboard, keypad, mouse or printer. Other common USB devices include digital cameras, scanners, and external storage devices.

USB is plug and play, which means that you can connect and start using a USB device without having to restart your computer. You can also disconnect the device at any time.

A further advantage of USB is the ability to use USB hubs. This means that several devices can share a USB port simultaneously .


Miscellaneous options

Battery pack

It is a good idea to have a battery, especially when you travel with your computer. This greatly increases your productive range when you are on the move.

AC adapter

Having a spare AC adapter allows you to keep one in two different places. For example, you could have one AC adapter at home and another at work. This means that you don't have to carry an AC adapter when traveling between your two base locations.

49

Installing New Components

Make sure you only use components that are compatible with your

Aspire computer. Consult your dealer regarding compatibility of new components before you purchase them.

•

•

•

•

To ensure proper installation, refer to the documentation provided with new components before you start to add or replace components.

Possible upgrade options include the following:

Replace the HDD with a higher capacity model.

Install additional memory.

CPU upgrade

Replace the CD drive with a DVD or CD-RW drive.

Opening The Case

Before you open the case, turn your computer off and unplug the power cord from the wall outlet or the battery.

a) Turn the computer over to access the panel on the bottom of the unit.

b) Loosen the seven screws on the bottom panel(a), and then lift the bottom panel off(b)..

50

CPU upgrade


Caution!

A microprocessor and heat sink may be hot if the system has been running. Also, there may be sharp pins and edges on some board and chassis parts. Contact should be made with care. Consider wearing protective gloves.

After removing the bottom panel: a) Loosen the four screws in the air baffle/heat sink assembly.

b) Unplug the air baffle power connector from the system main board and remove the air baffle/heat sink assembly to expose the CPU socket.

To install a new processor

51

1 Raise the locking bar on the socket.

2 Align the processor with the socket.

3 Orient the processor so that the triangle on the corner of the processor aligns with the triangle on the corner of the socket.

4 Insert the processor into the socket.

Caution: Do not force the processor into the socket.


Hard disk upgrade

It is possible to replace your hard disk with a higher capacity drive when you need more storage space. Your computer uses a 3.5 inch

Enhanced-IDE hard disk. Consult your dealer if you need to perform a hard disk upgrade.

* Refer to “Opening The Case” on page 49.

a) Remove the four screws that hold the hard disk.

b) Lift up the hard disk; and detect the power and hard disk cables from the hard disk.

c) Detach the hard disk from the main board.

53

Memory upgrade

Your computer features two memory slots that accept DT DDR333/400

DIMMs (Dual Inline Memory Modules). The memory slots support 256-

MB ,512-MB and 1GB DDR SDRAM.

The memory slots are easily accessible, allowing you to upgrade your computer's memory.

To install memory:

* Refer to “Opening The Case” on page 49 and locate the DDR DIMM socket on the main board.

a) Align the DDR DIMM with the socket and press the DDR DIMM into the socket.

b) Press the holding clips on both sides of the DDR DIMM socket inward to lock the DDR DIMM.

Your computer automatically detects the amount of memory installed.

Run the BIOS utility to view the new value for total system memory and make a note of it.


Moving with your computer

Your Aspire 1710 series computer is ideal for taking with you when you move around.

This chapter provides tips on things to consider when traveling with your computer.

57

Disconnecting from the desktop

Before moving with your computer, you must turn it off and disconnect all peripherals:

1 Save your work and close all applications.

2 Shut down Windows to turn off your computer.

3

4

Unplug the AC adapter from the mains outlet, and then disconnect it from the computer.

Disconnect any external devices, such as a keyboard, mouse, or printer, that are attached to your computer.

5

6

If you are using a security lock cable, disconnect the lock from the computer.

Pack your computer in a strong, waterproof bag or case.

58 Moving with your computer

Moving around

Sometimes you might need to move your computer a short distance.

For example, you might need to move from your office desk to a meeting room. In these situations, you don't have to shut down the operating system.

Preparing the computer

First, disconnect any peripherals that you don't want to take with you.

Next close the lid, placing your computer in Standby mode. You can now safely carry it around the building with you.

When you are ready to use your computer again, open the lid and then press the power button to bring it out of Standby mode.

What to bring to short meetings

If your battery is fully charged, you probably won't need to take anything else with you to the meeting.

What to bring to long meetings

For longer meetings, take along the AC adapter. You can use mains power throughout the meeting, or you can run down your battery first, and then connect the AC adapter after receiving the battery-low warning.

If the meeting room does not have an available power outlet, reduce your computer's power consumption by putting it in Standby mode during long periods of inactivity. It is advisable to take along a spare battery if you have one.

59

Taking the computer home

When you move between your office and home you will need to prepare your computer for the short trip.


After disconnecting your computer from the desktop (see

"Disconnecting from the desktop"), prepare the unit as follows:

1 Remove all media from the drives. Loaded media can damage the drive heads during transit.

2 Pack the computer in a protective case that is padded to guard against knocks. Make sure that the unit cannot slide around inside the case.

Caution: avoid packing items next to the top of the computer, as this could result in damage to the screen.

What to bring with you

If you don't have spare items at home, it is advisable to take along the

AC adapter and this User's Guide.

Special considerations

•

•

•

To protect your computer in transit, it is advisable to pay attention to the following:

Minimize the effect of temperature changes. Keep your computer with you instead of placing it in storage holds.

Avoid leaving your computer in a hot car.

Changes in temperature and humidity can cause condensation to form in your computer. Before turning the computer on, allow it to return to room temperature, and then check the screen for signs of condensation. If the temperature change is greater than

10°C (18°F), allow the computer to come to room temperature slowly by placing it in a room with a temperature between the outside and room temperatures.


Setting up a home office

If you frequently work on your computer at home, as well as at work, it may be worthwhile purchasing a second AC adapter. This will allow you to travel lighter, as you can keep an AC adapter in each location.

You might also find it worthwhile keeping a second set of peripherals at home, such as a keyboard, keypad, mouse and printer.

traveling with the computer

Sometimes you might need to make longer trips with your computer.

61


Prepare the computer as you would for moving between your office and home. It is advisable to make sure that the battery is fully charged.

If you are traveling by air, you might be required to turn on the computer during security checks.

What to take with you

•

•

•

•

It is advisable to take the following items with you:

AC adapter.

Spare, fully charged battery packs.

Additional printer driver files (if you plan to use another printer).

Phone and network cables (if you plan to use the computer's modem and network connections).


•

•

•

In addition to the considerations for taking your computer home, keep the following in mind:

Always take your computer as carry-on luggage.

If possible, have your computer manually inspected at security checks. Although the computer can pass safely through security Xray machines, you should never expose it to a metal detector.

If carried separately, avoid exposing floppy disks to hand-held metal detectors.


traveling internationally with your computer

Occasionally you might need to travel between countries with your computer.


Prepare the computer as you would for normal travel. Remember to take special precautions for air travel (see "traveling with your computer").

What to take with you

•

•

•

•

•

It is advisable to take the following items with you:

AC adapter.

Power cords that are appropriate for the countries you plan to visit.

Spare, fully charged battery packs.

Additional printer driver files (if you plan to use another printer).

Phone and network cables (if you plan to use the computer's modem and network connections). Check that your modem is suitable for the telephone system in the countries you plan to visit.

You might have to use a PC card modem in some locations.


•

•

•

In addition to the considerations for normal travel with your computer, keep the following in mind when traveling internationally:

Check that your power cord is suitable for the local power supply.

If necessary, purchase a power cord that meets local requirements.

Avoid using converter kits.

If you plan to connect over a phone line, check that the computer's modem and your phone cord are suitable for the local phone system. If necessary, purchase a PC card modem that meets local requirements.

If carried separately, avoid exposing floppy disks to hand-held metal detectors.

Software

Your Aspire 1710 series computer includes system utilities.

This chapter provides information on the important software that comes with your computer.

65

System software

•

•

•

Your computer comes preloaded with the following software:

Microsoft® Windows® operating system.

Hardware BIOS setup utility.

System utilities, drivers and application software.

Note: to run software applications in Windows, first click on the

Start button. Next, select the appropriate folder, and then click on the application icon. To learn about the software and utility, make use of the online help provided by the software.

Launch Manager

Launch Manager allows you to set the four launch keys located above the keyboard. See “Launch keys” on page 22 for the location of the launch keys.

You can access the Launch Manager by clicking on Start, All Programs, and then Launch Manager to start the application.

66 Software

BIOS Setup Utility

The BIOS Utility is a hardware configuration program built into your computer’s BIOS (basic input/output system).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problem, you may need to run it.

To activate the BIOS Utility, press F2 during the POST(power-on-selftest) while the Aspire logo is being displayed. .

Troubleshooting

This chapter instructs you on how to deal with common system problems. Please read it before calling a technician.

Solutions to more serious problems may require opening the computer. Do not attempt to open and service the computer by yourself. Contact your dealer or an authorized service center for assistance.

69

Frequently asked questions

This section suggests solutions to commonly encountered problems.

I press the power switch, but my computer does not start or boot-up.

•

•

Look at the Power status indicator:

If it is not lit, no power is being delivered to the computer. Check the following:

• If you are running on battery power, the battery may be low and unable to power the computer. Connect the AC adapter to recharge the battery pack.

• If you are running on mains power, make sure that the AC adapter is properly plugged in to the computer and to the power outlet.

If it is lit, check the following:

• Make sure that there is not a non-bootable (non-system) diskette in the floppy disk drive. If so, remove the diskette or replace it with a system diskette, and then press Ctrl-Alt-Del to restart the system.

• The operating system files may be damaged or missing. Insert the Windows startup disk, and then press Ctrl-Alt-Del to restart the system. Windows will diagnose your system and make necessary fixes.

Nothing appears on the screen.

The computer's power management system automatically blanks the screen to save power. Press any key to turn the display back on.

•

•

•

If pressing a key does not turn the display back on, check the following:

The brightness level might be too low. Press Fn

+ <right arrow>

hot key to increase the screen brightness level.

The display device might be set to an external monitor. Press the

Fn

+ <Left arrow>

hot key to toggle the display setting.

The system may be in standby mode. Try pressing the power switch to resume.

70 Troubleshooting

The image is not full-screen.

•

•

Make sure that the resolution is set to a resolution your system supports:

Right click on your Windows desktop and select Properties to bring up the Display Properties dialog box. Alternatively, click on the

Display icon in Control Panel.

Click on the Settings tab to check the resolution setting.

Resolutions lower than the specified resolution result in a display that is less than full-screen.

There is no audio coming from my computer.

•

•

•

Check the following:

The volume may be muted. In Windows, look at the volume control icon on the taskbar. If it is crossed-out, click on the icon and deselect the Mute option.

The volume level may be too low. In Windows, click on the volume control icon on the taskbar, and then use the slider control to increase the volume level.

If headphones are connected to the headphone jack on the computer, your computer's built-in speakers will be turned off.

My external microphone does not work.

•

•


Make sure that the external microphone is properly plugged into the microphone-in jack on the computer.

Make sure that the volume is not muted or set too low (see the problem, "There is no audio coming from my computer").

I can't eject the optical drive tray with my computer turned off.

The computer needs to be turned on for the optical drive eject button to function. If you need to eject the optical drive tray when the computer is turned off, push a straightened paper clip into the optical drive emergency eject hole. See "Emergency ejection of the optical drive tray" for more information.

71

The keyboard does not respond.

Try attaching an external USB keyboard to one of your computer's USB ports. If it works, the internal keyboard might have become disconnected. Contact your dealer or an authorized service center.

The floppy disk drive cannot read a diskette.

•

•

•

•


Make sure that the diskette is properly inserted in the floppy disk drive.

Make sure that the diskette is formatted.

Try to read a second diskette. If this works, then the first diskette might have a problem.

If the diskette is not the cause of the problem, then the drive head might be dirty. Clean it using a drive head cleaning kit.

The optical drive cannot read a disc.

•

•

•

•


Make sure that the disc is supported by the drive. If your computer has a CD-ROM drive, it can read CDs but cannot read DVDs. If your computer has a DVD drive, it can read CDs and DVDs.

When placing a disc in the drive tray, make sure that it is secure on the spindle of the drive tray.

Make sure that the disc is free from scratches or smudges. If the disc is dirty, clean it using a disc cleaning kit.

If the disc is OK, the drive head might be dirty. Clean it using a drive head cleaning kit.

The printer does not work.

•

•

•


Make sure that the printer is connected to a power outlet and it is turned on.

Check that the cable is properly connected to the appropriate ports on both the computer and the printer.

If you are using a printer connected to your computer's parallel port, restart the computer. Windows needs to find the new hardware and install the necessary drivers.

72 Troubleshooting

I want to set up my location to use the internal modem.

•

•

•

Follow these steps:

Click on Start, and then click on Control Panel.

Double-click on Phone and Modem Options.

In the Dialling Rules tab, begin setting up your location.

Refer to Windows Help for more information.

When the battery is 95-99% full, it won't charge to 100% capacity.

To preserve the life of the battery, the system only lets you charge the battery when its capacity falls below 95%. It is recommended that you run down the battery, and then fully recharge it.

Appendix A

Specifications

This appendix lists the general specifications of your computer.

75

•

Microprocessor

Intel® Pentium® 4 FSB 800 processor.

•

•

•

Memory

256-MB/512-MB/1-GB DDR SDRAM, upgradeable to 2-GB with 2 slots

Two user-upgradeable 184-pin industry-standard DIMM slots (DDR-

333/400).

4MB Flash ROM BIOS.

•

•

•

•

Data storage

One internal floppy disk drive (3.5", 1.44 MB).(Optional)

One E-IDE hard disk (Desktop 3.5", UltraDMA-100).(Optional)

One internal optical drive.

One 6 in 1 Multimedia memory card reader. (Optional)

•

•

•

•

Display and video

17” Desktop liquid-crystal display (LCD) at 1280 x 1024 Super

Graphics Array (SXGA) resolution.

Simultaneous LCD and CRT display.

dual independent display support

Hardware 3D graphic engine

•

•

•

Audio

16-bit stereo audio (AC'97).

Two built-in stereo speakers.

Audio ports for microphone-in and headphones.

•

•

Keyboard and pointing device

103-/105-/107-/109-key Windows keyboard.

Ergonomically-centered touchpad pointing device.

76 Appendix A Specifications

•

•

•

•

•

•

•

•

•

•

•

I/O ports

One type II PC Card slot (PCMCIA and CardBus).

One RJ-11 modem jack (V.92, 56K).

One RJ-45 network jack (Gigabit Ethernet).

One DC-in jack.

One parallel port (ECP/EPP).

One external monitor port.

Two IEEE 1394 port.

One PS/2 port.

One microphone-in jack(3.5 mm mini jack).

One headphone jack(3.5 mm mini jack).

Four Universal Serial Bus(USB) ports.

•

Weight and dimensions

17”-display model:

• 7.1 kg .

• 378(W) x 320(D) x 55(H) mm

•

•

Environment

Temperature:

• Operating: 5°C ~ 35°C.

• Non-operating: -20°C ~ 65°C.

Humidity (non-condensing):

• Operating: 20% ~ 80% RH.

• Non-operating: 10% ~ 90% RH.

•

Operating system

Microsoft® Windows® XP Home/Pro.

•

•

Power

12-cell Li-ion smart battery pack.

180-Watt AC adapter, auto sensing 90~264V AC, 47~63Hz.

•

•

•

Options

256-MB/512-MB/1-GB DDR SDRAM memory upgrade module.

Additional AC adapter.

Additional battery pack.

77

78 Appendix A Specifications

Appendix B

Notices

This appendix lists the general notices for your computer.

81

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

•

•

•

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the device and receiver.

•

Connect the device into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications

Commission, to operate this computer.

Use conditions

This part complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

82 Appendix B Notices

Notice: Canadian users

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Remarque à l’intention des utilisateurs canadiens

Cet appareil numérique de la classe B respected toutes les exigences du

Règlement sur le materiel brouilleur du Canada.

Modem notices

FCC

This equipment complies with Part 68 of the FCC rules. Located on the bottom side of the modem is a label that contains, among other information, the FCC

Registration Number and Ringer Equivalence Number (REN) for this equipment.

Upon request, you must provide this information to your telephone company.

If your telephone equipment causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But, if advance notice is not practical, you will be notified as soon as possible. You will also be informed of your right to file a complaint with the FCC.

Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If this equipment should fail to operate properly, disconnect the equipment from the phone line to determine if it is causing the problem. If the problem is with the equipment, discontinue use and contact your dealer or vendor.

TBR 21

This equipment has been approved [Council Decision 98/482/EC - "TBR 21"] for single terminal connection to the Public Switched Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact your equipment supplier in the first instance.

83

Declaration of Conformity

Hereby, Acer, declares that this Aspire 1710 series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

(Please visit www.acer.com/about/certificates/nb for complete documents.)

List of Applicable Countries

EU member states as of April 2003 are: Belgium, Denmark, Germany, Greece,

Spain, France, Ireland, Italy, Luxembourg, the Netherlands, Austria, Portugal,

Finland, Sweden, and the United Kingdom. Usage allowed in the countries of

European Union, as well as Norway, Switzerland, Iceland and Liechtenstein.

This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact local office in the country of use.

Telecommunications notices

A-Tick notice

For safety reasons, only connect headsets with a telecommunications compliance label. This includes customer equipment previously labelled permitted or certified.

Important safety instructions

3

4

Read these instructions carefully. Save them for future reference.

1 Follow all warnings and instructions marked on the product.

2 Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Do not use this product near water.

Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

5 Slots and openings are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.

This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

6 This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

7 Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.


8 If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

9 Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

10 Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

11 Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: c d a b

When the power cord or plug is damaged or frayed.

If liquid has been spilled into the product.

If the product has been exposed to rain or water.

If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

e f

If the product has been dropped or the case has been damaged.

If the product exhibits a distinct change in performance, indicating a need for service.

12 Replace the battery with the same type as the product's battery we recommend. Use of another battery may present a risk of fire or explosion.

13 Warning! Batteries may explode if not handled properly. Do not disassemble or dispose of them in fire. Keep them away from children and dispose of used batteries promptly.

14 Use only the proper type of power supply cord set (provided in your accessories box) for this unit. It should be a detachable type: UL listed/CSA certified, type SPT-2, rated 7A 125V minimum, VDE approved or its equivalent. Maximum length is 15 feet (4.6 meters).

Laser compliance statement

The CD or DVD drive used with this computer is a laser product. The CD or DVD drive's classification label (shown below) is located on the drive.

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO

BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS

D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET

NICHT DEM STRAHLL AUSSETZEN

PRODUCTO LÁSER DE LA CLASE I

ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO. EVITE

EXPONERSE A LOS RAYOS.

ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN.

VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.

VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ TUIJOTA

SÅTEESEENSTIRRA EJ IN I STRÅLEN

VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ IN I

STRÅLEN

ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I STRÅLEN

85

Lithium battery statement

The Aspire 1710 series uses the lithium battery, model 55E3 or 56E3.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

ADVARSEL!

Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Léver det brugte batteri tilbage til leverandøren.

ADVARSEL

Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner.

VARNING

Explosionsfara vid felaktigt batteribyte. Anvãnd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvãnt batteri enligt fabrikantens instruktion.


VAROITUS

Päristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

VORSICHT!

Explosionsgefahr bei unsachgemäßen Austausch der Batterie Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.

LCD pixel statement

The LCD unit is produced with high-precision manufacturing techniques.

Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction.

Macrovision copyright protection notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision

Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and

4,907,093 licensed for limited viewing uses only.

87

Note: Below regulatory information is for models with wireless

LAN and/or Bluetooth only.

Regulatory Notice

General

This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use.

Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth™ modules). Below information is for products with such devices.


Canada - Industry Canada (IC)

This device complies with RSS 210 of Industry Canada.

USA - Federal Communications Commission (FCC)

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:

1 This device may not cause harmful interference, and

2 This device must accept any interference received, including interference that may cause undesired operation.

Caution: Exposure to Radio Frequency Radiation

The radiated output power of the wireless module is far below the

Federal Communications Commission (FCC) radio frequency exposure limits. Nevertheless, the wireless module shall be used in such a manner that the potential for human contact during normal operation is minimized.

The transmitter and the antenna are permanently installed inside the notebook, and are specific for this model (not for generic computer).

For compliance with FCC radiation exposure limits, it should be operated with a separation distance of 20cm or more between the antenna and the body of user, and the antenna should not be operated next to a nearby person.

FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Index

A

ACPI 40 audio 27 connecting externally 45 controlling volume 27 troubleshooting 70

B battery bay 9 battery pack battery-low warning 39 caring for ix characteristics 35 charging 38 checking charge level 38 installing 37 low conditions 39 maximizing life 35 optimizing 38 removing 38 using the first time 35

BIOS Setup Utility 66 –??

entering 66 brightness hotkeys 17 , 18

C caps lock 15 on indicator 13 care battery pack ix computer viii

CD troubleshooting 71 charging checking level 38 cleaning computer ix computer bringing to meetings 58 caring for viii cleaning ix disconnecting 57 features 10 moving around 58 security 30 setting up a home office 60 taking home 59 traveling internationally 62 traveling on local trips 61 turning off vii connections audio 45 external display devices 43 external input devices 43 keyboard, external 44 keypad, external 44 mouse 44 printer 45

USB 47 connectivity options 25

Ethernet 25

D display 12 hotkeys 17 performance 12 simultaneous 12 troubleshooting 69 , 70

DVD troubleshooting 71

E

Ethernet connection 25

F

FAQ. See frequently-asked questions floppy drive troubleshooting 71 frequently-asked questions 69 front view 3 , 5

G guide vii

H hard disk 23 upgrading 52 help vii hotkeys 17

K keyboard 15 connecting externally 44

89

90 hotkeys 17 lock keys 15 troubleshooting 71

Windows keys 16 keypad connecting externally 44

L launch keys 22 left view 5

M memory installing 53 upgrading 53 microphone troubleshooting 70 modem setting location 72 mouse mute connecting externally 44 hotkeys 17

N notice

DVD copyright protection 86 num lock 15 on indicator 14

O optical drive 23 options hard disk upgrade 52 memory upgrade 53

PC Cards 46 spare AC adapter 48 spare battery 48

P palm rest 19 password 31

PC Card inserting 46 removing 47 ports external display 8 parallel 8

USB 7 , 8 power management 40 printer connecting 45 troubleshooting 71 problems 69 audio 70

CD 71 diskette 71 display 69 , 70

DVD 71 floppy drive 71 keyboard 71 printer 71 startup 69

R rear view 8 right view 7

S safety

CD or DVD 84

FCC notice 81 general instructions 83 lithium battery 85 modem notices 82 scroll lock on indicator 14 security password 31 slot 30 service when to call ix software bundled 65 speakers troubleshooting 70 status indicators 13 status LCD 13 storage 23 hard disk 23 optical drive 23

T touchpad 20 using 20 – 21 travel international flights 62 local trips 61

U

USB utility connecting 47

BIOS Setup 66 –??

V volume adjusting 27

W

Windows keys 16

91

92

No results
