Samsung Electronics A3LDL507W is a high-performance projection TV with a wide range of features for an enjoyable viewing experience. It boasts an easy-to-use on-screen menu system accessible from the side panel or remote control, allowing for quick adjustments to picture and sound settings. With automatic channel tuning for up to 181 channels, a filter to reduce reception issues, and fine-tuning control, you can expect crystal-clear reception.
advertisement

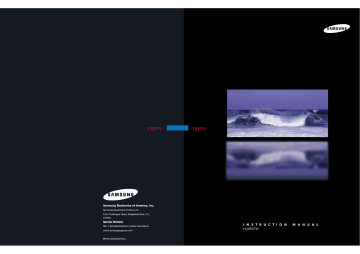

DLPTV DLPTV
Samsung Electronics of America, Inc.
Samsung Electronics America inc.
105 Challenger Road, Ridgefield Park, N.J.
07660
Service Division
TEL: 1-800-SAMSUNG (1-800-726-7864) www.samsungsupport.com
BP68-00000A(ENG)
I N S T R U C T I O N M A N U A L
HLM507W
Safety Instructions
Warning! Important
Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates high voltage is present. It is dangerous to make any kind of contact with any part inside this product.
2
This symbol alerts you that important literature concerning operation and maintenance has been included with this product.
CAUTION: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment may void the user’s authority to operate it.
CAUTION: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug.
ATTENTION: Pour eviter les chocs electriques, introduire la lame le plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.
Note to CATV system installer: This reminder is provided to call CATV system installer’s attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian
Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as possible.
Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws. Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or in part may be in violation of these laws.
To prevent damage which may result in fire or electric shock, do not expose this appliance to rain or moisture.
Table of Contents
3
Introduction
Thank You for Choosing Samsung
• Protect the power cord. Power supply cords should be routed so that they won’t be walked on or pinched by objects placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.
Thank you for choosing Samsung! Your new Samsung projection TV represents the latest in television technology. We designed it with easy-to-use on-screen menus and closed captioning capabilities, making it one of the best products in its class. We are proud to offer you a product that will provide convenient, dependable service and enjoyment for years to come.
Important Safety Information
• Unplug the TV from the wall outlet and disconnect the antenna or cable system during a lightning storm or when left unattended and unused for long periods of time. This will prevent damage to the unit from lightning and power-line surges.
• Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, be extremely careful to keep from touching the power lines or circuits. Contact with such lines can be fatal.
• Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock.
• Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts. Never spill liquid of any kind on the TV.
Always be careful when using your TV. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your unit.
• Read all safety and operating instructions before operating your TV.
• Keep the safety and operating instructions for future reference.
• Heed all warnings on the TV and in the operating instructions.
• Unplug the TV from the wall outlet before cleaning. Use a damp cloth; do not use liquid or aerosol cleaners.
• Ground outdoor antennas. If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the
National Electrical Code, ANSI/NFPA No.70-1984, provides information about proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
EXAMPLE OF
ANTENNA GROUNDING
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
NEC — NATIONAL ELECTRICAL CODE
ANTENNA
LEAD IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
• Never add any attachments and/or equipment without approval of the manufacturer. Such additions can increase the risk of fire, electric shock, or other personal injury.
• Do not use the TV where contact with water is possible, such as near bath tubs, sinks, washing machines, swimming pools, etc.
• Do not attempt to service the TV yourself. Refer all servicing to qualified service personnel. Unplug the unit from the wall outlet and refer servicing to qualified service personnel when:
- The power-supply cord or plug is damaged
- Liquid has been spilled on the unit or if objects have fallen into the unit
- The TV has been exposed to rain or water
- The TV does not operate normally by following the operating instructions
- The TV has been dropped or the cabinet has been damaged
- The TV exhibits a distinct degradation in performance
- When the LAMP(BULB ONLY) replacement is needed
• Do not place the TV on an unstable cart, stand, tripod, bracket, or table where it can fall. A falling TV can cause serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the TV. Follow the manufacturer’s instructions when mounting the unit, and use a mounting accessory recommended by the manufacturer. Move the TV and cart with care.
Quick stops, excessive force, and uneven surfaces can make the unit and cart unsteady and more likely to overturn.
• If you make adjustments yourself, adjust only those controls that are covered by the operating instructions. Adjusting other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to normal.
4
• The TV is designed with slots in the cabinet for ventilation to protect it from overheating. Do not block these openings with any object, and do not put the TV on a bed, sofa, rug, or other similar surface. Do not put the TV near a radiator or heat register. If you do put the TV on a rack or bookcase, make sure that there is adequate ventilation and that you’ve followed the manufacturer’s instructions for mounting.
• Operate your TV only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company.
• Use only a grounded or polarized outlet. For your safety, this TV is equipped with a polarized alternating current line plug having one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still does not fit, contact an electrician to replace your outlet.
• When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in additional damage to the unit.
• Upon completion of any service or repairs to this TV, ask the service technician to perform safety checks to determine that the TV is in a safe operating condition.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference that may cause undesired operation.
This television receiver provides display of television closed captioning in accordance with §15.119 of the FCC rules.
5
Your New Wide TV
8
Your New Wide TV
List of Features
Your TV was designed and engineered using the latest technology. It is a full-featured, high-performance unit that exceeds industry standards. In addition, it has these special features:
• Easy-to-operate remote control
• Easy-to-use on-screen menu system you can access from the side panel or remote control
• Automatic timer to turn the TV on and off at any time you choose
• Adjustable picture and sound settings and the ability to memorize your favorite settings
• Automatic channel tuning for up to 181 channels
• A special filter to reduce or eliminate reception problems
• Fine tuning control for the sharpest picture possible
• A built-in multi-channel sound decoder for stereo and bilingual listening
• Built-in, dual channel speakers
• A special sleep timer
• Picture-in-Picture capability that lets you watch two channels at once
• Headphone jack for private listening
• Widescreen TV with adjustable image size
Checking Parts
Once you have unpacked your TV, check to make sure that you have all the parts shown here.
If any piece is missing or broken, call your dealer.
Television
This
Manual
RCA Cable
Remote
Control
Warranty
Card
Side Panel Buttons
The buttons on the side panel control your TV’s basic features, including the on-screen menu system.
To use the more advanced features, you must use the remote control.
Œ TV/VIDEO
Press to switch between viewing TV programs and signals from connected components.
´ MENU
Press to see the on-screen menu.
ˇ ▼ CHANNEL ▲
Press to change channels and move between items on the on-screen menu.
¨ VOLUME +, –
Press to lower or raise the volume and to select items when using the on-screen menu.
ˆ POWER
Press to turn the TV on and off.
Side Panel Jacks
Use the side panel jacks to connect a component that is used only occasionally (a camcorder or video game, for example).
Œ VIDEO Input jack
Connect the video signal from a camcorder or video game.
´ AUDIO Input jacks
Connect the audio signal from a camcorder or video game.
ˇ S-VIDEO Input jack
Connect an S-video signal from a camcorder or video game.
(S-Video 3 jack and Audio L/R input 3 interlock.)
9
Your New Wide TV
Front Panel LED Indicators
The three lights on the front panel indicate the status of your TV.
TIMER
POWER
TEMP.
10
Indicator Light Key
: Light is On
: Light is Blinking
: Light is Off
Indicator Light
Timer Lamp Temperature
Indication
Normal operation.
On time or off time is set.
On time or off time is set. Normal operation.
Lamp is warming up. The normal picture comes on in about 30 seconds.
Air vent cover at the rear of the TV is not properly installed.
Inside temperature of the TV is too high. Turn the TV off and clean the air vent cover on the back of the TV. Turn the TV on after 1 hour.
Lamp inside the TV needs to be replaced.
• It takes about 30 seconds for the TV to warm up, so normal brightness may not appear immediately.
• The TV has a fan to keep the inside lamp from overheating. You’ll occasionally hear it working.
Rear Panel Jacks
Use the rear panel jacks to connect components such as a VCR or laserdisc player.
You can connect two different components such as two VCRs, Set-Top Box and a DVD player etc., because there are two sets of video input jacks and one set of component video input jacks on the rear panel of your TV. For more information, please see “Connections”.
ANT-A
ANT A-OUT
ANT-B S-VIDEO 1 S-VIDEO 2
V L R
Y
P b
MONITOR
OUT
VIDEO
2
VIDEO
1
P r
L
R
DVD DTV1 DTV2 PC AUDIO
R
L
DVI
PC
RS-232C
Œ ANTENNA terminals
Two independent cables or antennas can be connected to these terminals. Use ANT-A and ANT-B terminals to receive a signal from
VHF/UHF antennas or your cable system. Use the ANT A-OUT terminal to send the signal being received by the ANT-A terminal out to another component (such as a Cable Set Top Box).
The PIP channel can be received only when a signal source is connected to ANT-A.
´ S-VIDEO INPUT jacks
Connects an S-Video signal from an S-VHS VCR or DVD player.
ˇ VIDEO/AUDIO INPUT jacks(VCR1, VCR2)
Connect video/audio signals from external sources, such as a VCR or
DVD players.
¨ VIDEO/AUDIO MONITOR OUTPUT jacks
Sends a video signal from the TV to an external source, such as a
VCR.
ˆ DVD INPUT jacks (Y, P b
, P r,
L, R)
Use these jacks to connect the component video/audio signals from a
DVD player when using the component video input jacks.
Note: Only 480i format is supported in its original format.
Ø DTV INPUT jacks (Y, P b , P r, L, R)
Receives the DTV video/audio signals from a set top box.
Note: Only 480p, 720p and 1080i formats are supported in their original formats.
∏ PC AUDIO INPUT jacks
Connect these to the audio-output jacks on your PC.
” DVI (Digital Video Interface) jack
Receives the digital signals from a set top box or PC etc.
’ PC VIDEO INPUT jack
Connect to the video output port on your PC.
˝ RS-232C jack
Only for servicing.
11
Your New Wide TV
Remote Control
You can use the remote control up to a distance of about 23 feet from the TV. When using the remote, always point it directly at the TV. The remote control can also operate your VCR, cable box, and DVD player.
12
1. POWER
Turns the TV on and off.
2. +100
Press to select cable channels over 100 on
TV.
3. Menu
Displays the main on-screen menu.
4. CH(Channel)
VOL(Volume) and
Controls volume, channel selection.
5. Mute
Press to mute the TV sound.
6. Display
Press to display information on the TV screen.
7. Aspect
Press to change the screen size.
8. Surround
Press to hear the Dolby surround effect.
9. MTS(Multichannel
Television Stereo)
Press to choose stereo, mono or Separate
Audio Program (SAP broadcast).
10. Mode
Selects a target device to be controlled by the Samsung remote control (i.e., TV, VCR,
Cable, or DVD).
11. Pre-ch
Tunes to the previous channel.
12. TV/Video
Press to display all of the available video sources (i.e., TV, VCR, DVD, DTV, PC).
13. Joystick
Use to highlight on-screen menu items and change menu values.
14. Caption
Controls the caption decoder.
15. PIP
Activates picture in picture.
16. Still
Press to stop the action during a particular scene. Press again to resume normal video.
17. Fav.CH (Favorite
Channel)
Press to switch between your favorite channels.
18. S.Mode
Adjust the TV sound by selecting one of the preset factory settings (or select your personal, customized sound settings.)
19. P.Mode
Adjust the TV picture by selecting one of the preset factory settings (or select your personal, customized picture settings.)
20. VCR controls
Controls VCR tape functions: Rewind, Play,
Fast Forward, Stop, Pause.
21. PIP controls
Source ; Press to select one of the available signal sources for the PIP window.
Scan; Press to scan the memorized channels.
Locate; Press to move the PIP window to any of the four corners of the TV screen.
Swap; Exchanges the video signal that is currently displayed on the main screen with the signal in the PIP window.
Size; Press to make the PIP window larger or smaller.
CH(PIP); Displays the available channels in sequence. (These buttons change channels in the PIP window only.)
22. V.chip
Press to set up and activate the parental locks.
23. Set
Used during set up of this remote control, so that it will work compatibly with other devices (VCR, cable box, DVD, etc.)
24. Sleep
Press to select a preset time interval for automatic shutoff.
25. Add/Erase
Press to add or erase channels in the TV’s memory.
Use the Add/Erase button to memorize/erase the optimal state of value after fine tuning channels.
Installing Batteries in the Remote Control
With normal use, the batteries in the remote control should last about a year. If you notice a performance degradation while using the remote, the batteries may need to be replaced. Make sure you replace both batteries and do not mix old and new batteries in the remote control. If you won’t be using the remote control for a long time, remove the batteries and store them in a cool dry place.
1 Slide the back cover all the way out to open the battery compartment of the remote control.
2 Install two AAA size batteries.
Make sure to match the “+” and
“–” ends of the batteries with the diagram inside the compartment.
3 Slide the cover back into place.
13
Connections
16
Connections
Connecting VHF and UHF Antennas
If you do not have a cable system, you will need to connect an antenna to your TV.
Antennas with 300-ohm Flat Twin Leads
If your antenna looks like this: it has 300-ohm flat twin leads.
1 Place the wires from the twin leads under the screws on the
300-75 ohm adapter. Use a screwdriver to tighten the screws.
2 Plug the adapter into the
ANT-A terminal on the back panel of the TV.
ANT-A
ANT A-OUT
ANT-B S-VIDEO 1 S-VIDEO 2
V L R
Antennas with 75-ohm Round Leads
If your antenna looks like this: it is an antenna with 75-ohm round leads.
1 Plug the antenna lead into the
ANT-A terminal on the back panel of the TV.
ANT-A
ANT A-OUT
ANT-B
S-VIDEO 1 S-VIDEO 2
V L R
M
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting them to the TV. This requires a combiner attachment, which you can buy at an electronics store.
1 Connect both antenna leads to the combiner.
2 Plug the combiner into the
ANT-A terminal on the back panel of the TV.
ANT-A
ANT A-OUT
ANT-B
S-VIDEO 1 S-VIDEO 2
17
18
Connections
Connecting Cable TV and VCR
You can connect different cable systems to your TV, including cable without a cable box, and cable with a cable box that descrambles some or all channels.
Cable without a Cable Box
If you want to connect cable, and you do not need to use a cable box:
1 Plug the incoming cable into the ANT-A antenna terminal on the back of the
TV.
ANT-A
ANT A-OUT
ANT-B
S-VIDEO 1 S-VIDEO 2
V L R
Cable with a Cable Box that Descrambles All Channels
1 Find the cable that is connected to the ANTENNA
OUT terminal on your cable box. This terminal might be labeled “ANT
OUT,” “VHF OUT,” or simply, “OUT.”
2 Connect the other end of this cable to the ANT A antenna terminal on the back of the TV.
ANT-A
ANT A-OUT
ANT-B
S-VIDEO 1 S-VIDEO 2
V L R
Connecting a Cable Converter Box
This connection allows you to watch cable and premium channels. You should keep your TV selected to ANT-A so that you can use the TV features. When viewing premium channels, select
ANT-B and tune the TV to channel 3 or 4 (whichever channel is vacant in your area), then use the converter box to change channels. You will need two coaxial cables.
ANT-A
ANT A-OUT
ANT-B
S-VIDEO 1 S-VIDEO 2
MO
O
V
V
Note: When you use a converter box with your TV, there may be features that you can not program using the remote control, such as programming your favorite channels and blocking channels.
V L R
Connecting a Cable Converter Box and a VCR
This connection allows you to watch and record basic and premium cable channels, as well as watch videotapes. You should keep your TV selected to ANT-A so that you can use the TV’s features. When viewing premium channels or recording with the VCR, select ANT-B (whichever channel is vacant in your area), then use the converter box to change channels.
TV Rear Panel
ANT-A
ANT A-OUT
ANT-B
S-VIDEO 1 S-VIDEO 2
V L R
Y
P b
MONITOR
OUT
VIDEO
2
VIDEO
1
P
R
L
DVD DTV1 DTV2 PC AUDIO
R
L
Stereo VCR
DVI
PC
RS-232C
Caution: If you want to record one channel while watching another channel, a splitter
(not included) must be added between the cable and ANT-A. One output of the splitter goes to ANT-A and the second output is connected to IN on the cable converter box.
If you have a mono VCR, connect L/Mono to VCR Audio OUT using only one audio cable.
If you have a S-VHS VCR, use the S-video connections and remove the video cable.
Do not connect the video cable and the
S-video cable to video1 simultaneously.
When you use a converter box with your
TV there may be features that you can not program using the remote control, such as programming your favorite channels and blocking channels.
19
20
Connections
Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV.
You can use your camcorder to view tapes without using a VCR.
1 Locate the A/V output jacks on the camcorder. They are usually found on the side or back of the camcorder.
TV Side panel 2 Connect an audio cable between the AUDIO OUT-
PUT jack on the camcorder and the AUDIO terminals on the side of the TV.
If your camcorder is stereo, you must connect two separate cables.
(The audio cables are usually included with the camcorder.)
3 Connect a video cable between the VIDEO OUT-
PUT jack on the camcorder and the VIDEO terminal on the side of the TV. (A video cable is usually included with the camcorder.) To watch a tape, follow your camera’s instructions and the section on “Viewing an
External Signal Source” in this manual.
Camcorder
Connecting a DVD Player
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
Connecting to Y,P
b
,P
r
1 Connect a set of audio cables between the DVD
AUDIO IN jacks on the TV and the AUDIO OUT jacks on the DVD player.
TV Rear Panel
ANT-A
ANT A-OUT
ANT-B
S-VIDEO 1 S-VIDEO 2
V L R
Y
P b
MONITOR
OUT
VIDEO
2
P
L
VIDEO
1 R
DVD DTV1 DTV2 PC AUDIO
L
R
DVI
PC
RS-232C
2 To enable Component video viewing, connect video cables between the DVD Y,
P b and P r inputs on the TV and Y, P b and P r
(or Y, C b
,
C r
) outputs on the DVD player. Note: For an explanation of Component video, see your DVD player's owner's manual.
DVD Player
TV Rear Panel
ANT-A
ANT A-OUT
ANT-B
S-VIDEO 1 S-VIDEO 2
V L R
Y
P b
MONITOR
OUT P
VIDEO
2
VIDEO
1 R
L
DVD DTV1 DTV2 PC AUDIO
L
R
DVI
PC
RS-232C
Connecting to audio and video jacks
1 Connect a set of audio cables between the AUDIO
IN jacks on the TV and the
AUDIO OUT jacks on the
DVD player.
2 Connect video cables between the VIDEO OUT jack on the DVD player and the VIDEO IN jack on the
TV.
DVD Player
21
Connections
Connecting a DTV Set Top Box
Connecting to Y,P
b
,P
r
1 Connect a set of audio cables between the DTV1 or
DTV2 AUDIO IN jacks on the TV and the AUDIO OUT jacks on the Set Top Box.
TV Rear Panel
ANT-A
ANT A-OUT
ANT-B
S-VIDEO 1 S-VIDEO 2
V L R
Y
P b
MONITOR
OUT P
VIDEO
2
VIDEO
1
L
R
DVD DTV1 DTV2 PC AUDIO
L
R
DVI
PC
RS-232C
22
2 Connect video cables between the DTV1 or DTV2
Y, P b and P r inputs on the
TV and Y, P b and P r
(or Y,
C b
, C r
) outputs on the Set
Top Box. Note: For an explanation of Component video, see your Set Top Box owner's manual.
Connecting to DVI (Digital Video
Interface)
1 Connect a set of audio cables between the PC
AUDIO IN jacks on the TV and the AUDIO OUT jacks on the Set Top Box.
DTV Set Top Box
TV Rear Panel
ANT-A
ANT A-OUT
ANT-B S-VIDEO 1 S-VIDEO 2
V L R
P b
MONITOR
OUT P
VIDEO
2
L
VIDEO
1
R
Y
DVD DTV1
DTV2
PC AUDIO
L
R
DVI
PC
RS-232C
DVI
2 Connect video cables between the DVI OUT jack on the Set Top Box and the
DVI IN jack on the TV.
NOTES
The DTV Set-Top-Box connection is not supported in PC mode.
DTV Set Top Box
When switching into DTV or PC mode, Monitor Out remains in the previous mode (RF, Video,
DVD). But in DVD mode, only black signal is output. (Audio is output in the last selected mode.)
23
Operation
26
Operation
Turning the TV On and Off
Press the Power button on the remote control or on the side panel to turn your TV on and off.
Note:There are cases where the screen appears hazy when the TV is initially powered on.
However, you can obtain most optimum picture quality about one hour later.
Viewing the Menus and Displays
The on-screen menu system allows you to control the settings of your TV. Access the on-screen menu system by pressing the Menu button on the remote control. Once the on-screen menu appears, use the joystick button on your remote control to move between menu items, select menu items, and make adjustments. You can also view the on-screen menu system and make some adjustments using the TV’s side panel buttons.
Displaying the Menus
1 With the power on, press the
Menu button on the remote control. The main menu appears on the screen.
The Video menu is selected.
Mode
Adjust
Scaling
Color Tone
Standard
Wide
Cool 2
Move Enter Exit
2 Use the joystick (up, down) or
CH( , )buttons to move to items in the menu. Use the joystick (left, right) or VOL(+,-) buttons to display, change, or use the selected items. Use the joystick ( or √ ) button to enter items in the menu.
On-screen menus disappear from the screen automatically after about thirty seconds, or you can press the
Menu button on your remote control to exit the menu.
SOUND
Mode
Adjust
Standard
Dolby
B B E
M T S
Off
Off
Mono
Auto Volume Off
Move Enter Exit
Displaying Status Information
1 Press the Display button on the remote control. The TV will display the channel, current time, and the audio signal you are listening to.
AIR 11
Picture : Custom
Sound : Custom
Dolby : Off
MTS : Mono
Signal : Mono
V-chip : Off
Time : --:-- am
Selecting the Menu Language
Choose a language for the on-screen menus: English, Spanish or French.
1 Press the Menu button.
Move the joystick down to select SETUP, then press the joystick to enter.
SETUP
Channel Setup
Closed Caption
Time
Language
Melody
Blue Screen
V-chip
English
Off
Off
Move Enter Menu
2 Move the joystick down to select ”Language.”
SETUP
Channel Setup
Closed Caption
Time
Language
Melody
Blue Screen
V-chip
English
Off
Off
Move Select Menu
3 Move the joystick right or left to select the language.
Press the Menu button on the remote control to exit the menu.
INSTALLER
R glage des Cha ne
L gende
Heure
Langue Fran ais
M lodie Off
Partag Bleu Off
V-chip
D pl Cho. Menu
Selecting the Antenna Input
You can connect to two different signal sources by choosing the antenna input(ANT A or ANT B).
1 Press the Menu button.
Move the joystick down to select
SETUP, then press the joystick to enter.
SETUP
Channel Setup
Closed Caption
Time
Language
Melody
Blue Screen
V-chip
English
Off
Off
Move Enter Menu
2 Press the joystick to enter. The channel setup menu will appear. The first line of the menu is selected.
3 Move the joystick right or left to select “A” or “B”.
Press the Menu button on the remote control to exit the menu.
SETUP
Antenna
Air or CATV
Add/Erase
Labeling
A
AIR
Favorite Channel
Auto Channel Memory
Fine Tune 0
- - - -
Move Select Menu
27
28
Operation
Channel Memory
Your TV can memorize and store all of the channels available. Once the channels are memorized, you can use the CH and CH buttons to scan through the available channels.
Selecting the Broadcast Source
Before memorizing available channels, you must select what broadcast source your TV is connected to, either an antenna or a cable system.
1 Press the Menu button.
Move the joystick down to select SETUP, then press the joystick to enter.
SETUP
Channel Setup
Closed Caption
Time
Language
Melody
Blue Screen
V-chip
English
Off
Off
Move Enter Menu
2 Press the joystick to enter. The channel setup menu will appear. Move the joystick down to select “Air or CATV”.
SETUP
Antenna
Air or CATV
Fine Tune
Add/Erase
A
AIR
Favorite Channel
Auto Channel Memory
0
Labeling - - - -
Move Select Menu
3 If you are connected to an antenna, leave “AIR” displayed. If you connected cable, press the joystick to the right to display the type of cable system: “STD,” “HRC,” or “IRC.” (If you are not sure which type of cable system you have, contact your cable company.)
SETUP
Antenna A
Air or CATV STD
Favorite Channel
Auto Channel Memory
Fine Tune 0
Add/Erase
Labeling - - - -
Move Select Menu
Storing Channels in Memory Automatically
1 First, select the broadcast source as described on the previous page. With the Channel Setup menu on screen, move the joystick down to select “Auto
Channel Memory.”
SETUP
Antenna A
Air or CATV AIR
Favorite Channel
Auto Channel Memory
Fine Tune 0
Add/Erase
Labeling - - - -
Move Select Menu
2 Press the joystick to enter. The TV will begin memorizing all of the available stations. Press the VOL+ button at any time to interrupt the memorization process.
If the TV set stops operation when Auto
Channel Memory runs, it is recommended to re-run the program.
Auto Channel Memory
AIR 11
AIR 32
+ : Stop
Note: When the ANT B mode is selected, the auto programming runs on the main screen.
Adding and Erasing Channels
1 Use the number buttons to select the channel you want to add or erase.
2 To add a channel, select it and press the
Add/Erase button on the remote control.
The channel will be added to the TV’s memory and the word “Channel added” will appear in the corner of the screen.
3 To erase a channel, select it and then press the Add/Erase button on the remote control. The word “Channel erased” will appear in the corner of the screen. You can still view a channel that has been erased from memory by using the number buttons on the remote control to select the channel directly.
29
30
Operation
Changing Channels
You can change channels on your TV by using the CH and CH buttons, or by direct selection using the number buttons. You can use the number buttons to tune to any channel (even one that has been erased or has not been memorized).
Using the Channel Buttons
Press the CH or CH buttons to change channels.
The TV changes each channel in order, up or down, depending on which button you press. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels.) You will not see channels that were not memorized or have been erased.
Using the Number Buttons
To change to single-digit channels (0–9) faster, press
“0” before the single digit.
Example: For channel 4, press “0,” then “4.”
To select a channel over 100, press the +100 button first.
Example: For channel 122, press “+100,” then “2,” then “2.”
Using the Previous Channel
Press the Pre-ch button on the remote control. The TV changes to the last channel you were watching.
Scanning channels
You can automatically scan all of the channels in memory at the touch of just one button. Press the Scan button on the remote control. The TV will change the channels automatically, one by one. To stop channel scan, press the Scan button again.
Note: When the ANT B mode is selected, the chan-nels scan function doesn’t work.
Selecting Your Favorite Channels
You can store up to ten of your favorite channels for each available input source (such as TV and
CATV). Then, when you press the Fav.CH button on the remote control, the TV displays only the favorite channels you previously stored, allowing you to quickly and easily find frequently watched channels.
To Store Your Favorite Channels:
1 Press the Menu button. Move the joystick down to select
SETUP, then press the joystick to enter.
SETUP
Channel Setup
Closed Caption
Time
Language
Melody
Blue Screen
V-chip
English
Off
Off
Move Enter Menu
2 Press the joystick to enter.
The channel setup menu will appear. Move the joystick down to select Air or CATV, then move the joystick to the right to display the type of cable system or Air.
3 Move the joystick down to select “Favorite Channel”, then press the joystick to enter.
SETUP
Antenna
Air or CATV
A
AIR
Favorite Channel
Auto Channel Memory
0 Fine Tune
Add/Erase
Labeling - - - -
Move Select Menu
4 Move the joystick to the left or right to select channel.
Note: Only memorized channels can be set as Favorite channels.
SETUP
Antenna
Air or CATV
A
AIR
Favorite Channel
Auto Channel Memory
0 Fine Tune
Add/Erase
Labeling - - - -
Move Select Menu
FAVORITE CHANNEL
Source AIR
♡ 111 ♡ - - -
♡ 112
♡ - - -
♡
♡
- - -
- - -
♡ - - -
♡ - - -
♡ - - -
♡ - - -
Move Select Menu
To View Your Favorite Channels:
Press the Fav.CH button repeatedly to jump from one favorite channel to another.
The favorite channels are selected in ascending sequence.
31
32
Operation
Labeling the Channels
Use this feature to assign an easy-to-remember label to any channel (i.e., “CBS”, “ESPN”,
“PBS2”, CNN1”, etc.) A label consists of four fields, where each field is a letter, a num-ber,
“*”, or a blank. When the DISPLAY button is pressed, the channel label will appear next to the channel number.
1 Press the CH or CH button to tune to the channel that will be labeled.
11
2
3
Press the Menu button. Move the joystick down to select
SETUP, then press the joystick to enter.
Press the joystick to enter.
Move the joystick down to select Labeling.
4 Move the joystick to the right to begin labeling. (Each label has four fields. See top paragraph.)
Move the joystick up or down to select a letter, a number,
“*”, or a blank. (Pressing the
CH button results in this sequence:
A,B,...Z,*, blank,0,1,...9).
5 Move the joystick to the right to switch to the next field, which will be selected. Select a second letter or digit using joystick(up or down), as above. Repeat the process to select the last two digits.
Press the Menu button to exit.
SETUP
Channel Setup
Closed Caption
Time
Language
Melody
Blue Screen
English
Off
Off
V-chip
Move Enter Menu
SETUP
Antenna
Air or CATV
A
AIR
Favorite Channel
Auto Channel Memory
0 Fine Tune
Add/Erase
Labeling - - - -
Move Select Menu
SETUP
Antenna
Air or CATV
Fine Tune
Add/Erase
A
AIR
Favorite Channel
Auto Channel Memory
0
Labeling C - - -
Select Move Menu
SETUP
Antenna
Air or CATV
A
AIR
Favorite Channel
Auto Channel Memory
0 Fine Tune
Add/Erase
Labeling CNN1
Select Move Menu
Setting The On/Off Melody
You can hear clear melody sound when the TV is powered on or Off.
1 Press the Menu button. Move the joystick down to select
SETUP, then press the joystick to enter.
2
3
Move the joystick down to select Melody.
Move the joystick to the right or left to select “On”.
SETUP
Channel Setup
Closed Caption
Time
Language
Melody
Blue Screen
V-chip
English
Off
Off
Move Enter Menu
SETUP
Channel Setup
Closed Caption
Time
Language
Melody
Blue Screen
English
Off
Off
V-chip
Move Select Menu
SETUP
Channel Setup
Closed Caption
Time
Language
Melody
Blue Screen
V-chip
English
On
Off
Move Select Menu
4 Press the Menu button to exit.
33
34
Operation
Picture Control
Using the remote, you can change the contrast, brightness, tint, color, and sharpness settings of the TV.
Customizing the Picture
1 Press the Menu button.
Press the joystick to enter.
Mode
Adjust
Scaling
Color Tone
Standard
Wide
Cool 2
Move Select Menu
2 Move the joystick down to select Adjust, then press the joystick to enter. You will see the items “Contrast”,
“Brightness”, “Sharpness”,
“Color” and “Tint”.
3 Move the joystick up or down to select the item you want to change.
4 Move the joystick right or left to raise or lower the value of the item, using the on-screen gauge as your guide.
: Custom Mode
Contrast
Brightness
Sharpness
Color
Tint
Move Adjust Menu
Contrast 80
When you are finished adjusting an item, wait a moment. The level indicator will disappear and the Video menu will return.
You can continue to make adjustments, or press the Menu button to exit.
Using Automatic (“Standard”) Picture Settings
1 Press the P.Mode button on the remote control to change the picture settings.
Standard
2 Press P.Mode repeatedly to select the
“Standard”, “Dynamic”, “Movie” or
“Custom” picture setting.
Guide to Automatic Picture Settings
• Choose Standard to set the TV to operate at top performance according to your TV’s specifications.
• Choose Dynamic for viewing the TV during the day or when there is brightlight in the room.
• Choose Movie when viewing the movie.
• Choose Custom if you want to adjust the settings yourself.
35
36
Operation
Sound Control
You can control and customize the sound levels and settings of the TV with the remote control.
Using the on-screen menus, you can change the TV’s bass, treble, and balance settings.
Adjusting the Volume
Press VOL + to raise the volume or
VOL – to lower the volume.
Using the Mute Button
Press the Mute button on the remote control to silence the volume. The word
“Mute” will appear in the lower left corner of the screen.
To turn mute off, press the Mute button again, or raise or lower the volume with the VOL – and VOL + buttons.
Customizing the Sound
1 Press the Menu button.
Move the joystick down to select SOUND, then press the joystick to enter.
2 Move the joystick down to select Adjust, then press the joystick to enter. You will see the items “Bass”, “Treble” or
“Balance”.
SOUND
Mode Standard
Adjust
Dolby
B B E
M T S
Off
Off
Mono
Auto Volume Off
Move Select Exit
Mode
Bass
Treble
Balance
SOUND
: Custom
Move Adjust Menu
Continued...
3 Move the joystick up or down to select the item you want to change.
4 Move the joystick right or left to raise or lower the value of the item, using the onscreen gauge as your guide.
Bass 50
You can continue to make adjustments, or press the Menu button to exit.
Using Automatic(Standard) Sound Settings
1 Press the S.Mode button on the remote control to change the automatic sound setting.
Standard
2 Press the S.Mode button again to select the “Standard”, “Music”, “Movie”,
“Speech” or “Custom” sound setting.
Guide to Automatic Sound Settings
• Choose Standard for the “factory” settings (the best choice for most people).
• Choose Music when watching music videos or concerts.
• Choose Movie when watching a movie.
• Choose Speech when watching a show that is mostly dialogue, like a news show.
• Choose Custom if you want to adjust the settings yourself.
37
38
Operation
Setting the Clock
This TV has a built-in clock that will appear on screen when you press the Display button on the remote control. Setting this clock also allows you to use it to automatically turn the TV on or off.
1 Press the Menu button.
Move the joystick down to select SETUP, then press the joystick to enter.
SETUP
Channel Setup
Closed Caption
Time
Language
Melody
Blue Screen
V-chip
English
Off
Off
Move Enter Menu
2 Move the joystick down to select Time, then press the joystick to enter.
TIME
Clock
On Time
- - : - - am
- - : - - am off
Off Time - - : - - am off
Sleep Timer off
On Timer Vol. 10
On Timer CH 1
Move Select Menu
3 Move the joystick right to select the hour. Move the joystick up or down to select the correct hour.
TIME
Clock
On Time
07 : 00 pm
- - : - - am off
Off Time - - : - - am off
Sleep Timer off
On Timer Vol. 10
On Timer CH 1
Select Move Menu
4 Move the joystick right to select the minute. Move the joystick up or down to select the correct minute. Move the joystick to the right to select
AM, then move the joystick up or down to select am or pm.
5 Press Menu to exit the menus.
TIME
Clock
On Time
Off Time
07 : 30 pm
- - : - - am off
- - : - - am off
Sleep Timer off
On Timer Vol. 10
On Timer CH 1
Select Move Menu
Setting the Timers
This TV can be set to turn on or off automatically at specific times that you choose. Before using the timers, you must set the TV’s clock, as described previously.
Setting the On/Off Timer
1 Press the Menu button. Move the joystick down to select SETUP, then press the joystick to enter.
SETUP
Channel Setup
Closed Caption
Time
Language
Melody
English
Off
Blue Screen Off
V-chip
Move Enter Menu
2 Move the joystick down to select Time, then press the joystick to enter.
3
4
Move the joystick down to select the
“On Time”. Move the joystick right to select the hour, then Move the joystick up or down to adjust the hour for the TV to turn on.
Move the joystick right to select the minute. Move the joystick up or down to adjust the minute. Move the joystick right to select AM, then move the joystick up or down to select am or pm.
TIME
Clock
On Time
07: 30 pm
- - : - - am off
Off Time - - : - - am off
Sleep Timer off
On Timer Vol. 10
On Timer CH 1
Move Select Menu
TIME
Clock
On Time
07: 30 pm
06 : 00 am off
Off Time - - : - - am off
Sleep Timer off
On Timer Vol. 10
On Timer CH 1
Select Move Menu
TIME
Clock
On Time
Off Time
07: 30 pm
06: 30 am off
- - : - - am off
Sleep Timer off
On Timer Vol. 10
On Timer CH 1
Select Move Menu
Continued...
39
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
Frequently Answers and Questions
Where should a Samsung TV be placed to prevent overheating?
What should be done during a lightning storm or when leaving the TV unattended for a long time?
How many channels can the A3LDL507W TV tune to?
What is the purpose of the sleep timer?
How do I switch between TV programs and signals from connected components?
advertisement
