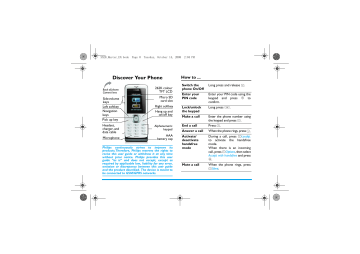

Discover Your Phone

Back of phone:

Camera lens

Side volume keys

Left softkey

Navigation keys

Pick up key

Headset, charger, and data cable

Microphone

262K colour

TFT LCD

Micro SD card slot

Right softkey

Hang up and on/off key

Alphanumeric keypad

AAA battery cap

Philips continuously strives to improve its products.Therefore, Philips reserves the rights to revise this user guide or withdraw it at any time without prior notice. Philips provides this user guide “as is” and does not accept, except as required by applicable law, liability for any error, omission or discrepancy between this user guide and the product described. The device is meant to be connected to GSM/GPRS networks.

How to ...

Switch the phone On/Off

Enter your

PIN code

Long press and release

)

.

Enter your PIN code using the keypad and press

,

to confirm.

Long press

*

.

Lock/unlock the keypad

Make a call Enter the phone number using the keypad and press

(

.

End a call Press

)

.

Answer a call When the phone rings, press ( .

Activate/ deactivate handsfree mode

During a call, press

R

Loudsp.

to activate the handsfree mode.

When there is an incoming call, press

L

Options , then select

Accept with handsfree and press

,

.

Mute a call When the phone rings, press

R Silent .


Reject a call

Adjust conversation volume

Adjust ring volume

Access all calls list

Access Main

Menu

Go to previous menu

Quickly return to idle when browsing menus

When the phone rings, press

) .

Press volume side keys to adjust the volume during a call.

When the phone is in idle mode, press , > Settings >

Sounds > Ring volume to adjust the ring volume of an incoming call.

Press

( in idle mode.

Press

, in idle mode.

Press

R

Back when browsing menu or in editing mode.

Short press

)

.

Softkeys

The left and right soft keys (

L and

R

) are located at the top of the keypad area. Pressing the soft keys allows you to select the option displayed on the screen directly above them, including options during a call. The functions of the soft keys change according to the current context.

Operations of the headset

The following operations are applicable to headsets with only one key.

When you enter a phone number in idle mode, short press the headset key to dial the number. To stop dialing, long press the headset key.

During a call, short press the headset key to record or stop recording; long press to hang up the phone.

When there is an incoming call, press the headset key to answer the call; long press to reject the call.

Main Menu

You can access different features of your Xenium

X520 phone from the main menu. The following table summarizes the structure of the main menu, what the icons represent and the page number on which you

1

X520_Master_EN.book Page 2 Tuesday, October 14, 2008 2:04 PM can obtain more information regarding the menu functions.

Entertainment Browser Media player page 62 page 65 page 69

Press

, in idle mode to access the main menu and press + , , < or > to navigate through the icons and lists,

2

page 20

Camera page 29

Business page 51

Connectivity page 21

Messages page 34

Contacts page 57

Calls page 24

My Favorites page 47

Profiles page 60

Settings or press

0

-

9 keys, and

* or

# keys to access the options and functions directly. You can also press

L to set the browse style as List or Grid .

When navigating through a list, the scrolling bar on the right of the screen will indicate your current position in the list. Press

,

Select to access the corresponding options of the selected item in the list.

Press

R

Back to return to the previous menu.

Menu without SIM

If you do not have a SIM card, those menu items whose functions that cannot work without a SIM will be greyed out and not accessible.

Setting hot keys

You can configure the + , , < , > , L and R to access your favorite features. Once they have been set, you can simply long press the numeric key to access the corresponding features.

Majority of the hotkeys have been preset and configured. To check the hotkey settings, go to Settings

> General > Shortcuts > keypad . To change the hot key settings, press the numeric key you wish to change and press , Change , then select a feature to

X520_Master_EN.book Page 3 Tuesday, October 14, 2008 2:04 PM be associated with the numeric key from the following list:

• Alarm • Bluetooth

• Calculator

• View calls

• Calendar

• Camera

• Contacts

• Firewall

• Games

• Inbox

• Create message

• Flight mode

• Homepage

• Languages

• Menu

• Meeting

• My Favorites

• Ringtones

• Tasks

• Flash dial

• Secretary OTG

• Messages

• Music

• Profiles

• Shortcuts

• Unit converter

• Voice recorder

• Empty

Numeric keys

0

,

1

,

# and

* have been preconfigured as the default keys to enter “+”, access voice mailbox, activate Meeting profile and unlock the keypad respectively, and cannot be modified.

3


Table of contents

1. Getting Started

........................................... 7

Inserting the SIM card ..................................... 7

Charging the the phone .................................. 9

Using the AC power ....................................... 9

Using the backupower

TM

.............................. 10

Recharging the AAA battery ........................ 11

Inserting a micro SD Card ........................... 11

2. Calling

............................................................. 13

Switch on the phone ..................................... 13

Switch off the phone ..................................... 13

Make a call ....................................................... 13

Options during a call ..................................... 14

Mute or unmute a call ................................... 14

Adjust speaker/earpiece volume ................ 14

Call recording ................................................. 14

End a call .......................................................... 14

Make an international call ............................ 14

Make an emergency call ................................ 15

Make a second call (Network dependent) ..... 15

Make a Conference Call (Network dependent) ....................................................... 15

Switch calls (Network dependent) ............ 16

Call Handsfree ................................................ 16

IP Dial (if available).......................................... 16

Answer a call ................................................... 16

Reject a call ..................................................... 16

Answer a second call (Network dependent) ...................................................... 16

Contact Picture .............................................. 16

3. Text entry

................................................... 18

Select text entry methods ............................ 18

Enter text ........................................................ 18

4. Entertainment

........................................... 20

Games ............................................................... 20

JAVA ................................................................. 20

5. Browser

........................................................ 21

WAP ................................................................. 21

Push Inbox ....................................................... 23

6. Media Player

............................................... 24

FM radio ........................................................... 24

Music player .................................................... 25

7. Camera

.......................................................... 29

Camera ............................................................. 29

4


Video recorder ............................................... 31

8. Messages

....................................................... 34

Create message .............................................. 34

Inbox ................................................................. 36

Sent ................................................................... 38

Outbox ............................................................. 39

Drafts ................................................................ 40

My favourites .................................................. 40

Spam box ......................................................... 41

SIM archive ...................................................... 41

Templates ........................................................ 42

Email .................................................................. 42

Advanced ......................................................... 44

Voice mail ........................................................ 45

Settings ............................................................. 45

9. My Favorites

............................................... 47

Pictures ............................................................. 47

Sounds .............................................................. 48

Videos ............................................................... 49

Others .............................................................. 50

Memory status ................................................ 50

10. Business

...................................................... 51

Calendar ........................................................... 51

Alarm ................................................................ 52

Calculator ........................................................ 52

Voice recorder ............................................... 53

Secretary OTG ............................................... 53

Stopwatch ........................................................ 53

Countdown ..................................................... 54

Unit converter ................................................ 54

Firewall ............................................................. 54

Task.................................................................... 55

11. Contacts

.................................................... 57

New contacts ................................................. 57

View contacts ................................................. 58

View groups .................................................... 58

Special numbers ............................................. 59

Advanced ......................................................... 59

12. Profiles

........................................................ 60

13. Connectivity

............................................ 62

Bluetooth ......................................................... 62

USB function ................................................... 63

Using PhilipsPhoneTools ............................... 63

14. Calls

.............................................................. 65

View calls ......................................................... 65

Call options ..................................................... 65

Clear history ................................................... 68

15. Settings

....................................................... 69

Transfer backupower ................................... 69

General ............................................................ 69

Display .............................................................. 71

5


Sounds .............................................................. 72

Connectivity .................................................... 72

Icons & Symbols

............................................ 74

Precautions

....................................................... 76

Troubleshooting

............................................ 82

Philips Authentic Accessories

.............. 84

Trademark Declaration

............................ 85

Specific Absorption Rate Information

.... 86

Limited Warranty

........................................ 87

Declaration of conformity

...................... 90

6


1. Getting Started

Please read the safety instructions in the

"Precautions" section before use.

Before you start using your phone, you must insert a valid SIM card supplied by your GSM operator or retailer. The SIM card contains your subscription information, your mobile telephone number, and a small quantity of memory in which you can store phone numbers and messages (for more information, see "Contacts" on page 57).

Inserting the SIM card

Remove the back cover

Make sure that the phone is switched off. Hold the phone with the front facing downwards and slide the back cover upwards as shown below .

Remove the battery

Lift the battery up from the bottom as shown below.

Getting Started

You may lose all your personal settings if you remove the battery when the phone is switched on.

7


Insert the SIM card

Make sure that the clipped corner of the SIM card is facing the correct direction and the metallic contacts are facing downwards. Slide the SIM card into the card slot until it stops. When you remove your SIM card the first time, make sure that you smoothen the edges, otherwise you may have difficulty sliding in the card.

Replace the back cover

Slide the back cover down into its slot until it stops.

Replace the battery

With the metallic contacts facing upwards, press the battery down into its slot until it locks into place.

8

When inserting the battery, be careful not to damage the metallic connectors of the SIM card slot.

Getting Started


Charging the phone

Your phone is powered by a rechargeable main battery and a smartcavity

TM

that supports the backupower

TM backupower

TM

technology. You can use the

feature to keep your phone running when the AC charger is inconvenient.

Using the AC power

Once the main battery and battery cover are installed, you can charge the phone. Plug in the connector as shown below. Then plug the other end into an AC power socket.

On the idle screen, the two battery symbols indicate the state of charging ， the left one for the main battery and the right one for the AAA battery.

During charging, the left indicator will scroll and it

Getting Started

takes more than 3 hours to fully charge the main battery. Depending on the network and condition of use, talk time and stand-by time can last up to 8 hours* and 1 month* respectively.

*Depending on the network conditions, user settings, method of use, etc the actual results may differ.

If you do not intend to use your phone for several days, we recommend that you remove the battery.

You can use the phone while it is charging. If the battery is completely flat, the battery icon will only reappear after a few minutes of charging.

Using the backupower

TM

The backupower

TM

technology accepts either a standard AAA battery or a rechargeable AAA battery.

One Energizer Lithium AAA battery can provide up to 3 extra hours* of talk time or an extra 1 week* of stand-by time, depending on the network and conditions of use.

9


Use quality batteries to ensure that the battery can be correctly detected by your phone.

Your phone is by-packed with an Energizer Lithium

AAA battery to provide you with maximum power.

Insert an AAA battery

1.

A key comes with the supplied phone strap.

Use the key to loosen the AAA battery cap on the smartcavity

TM

.

2. Take off the battery cap by hand, put in the battery and tighten the cap by hand again.

10

Tighten the battery cap by hand. Stop tightening the cap when it is secure (at the groove).

When an AAA battery is inserted, the AAA battery cap cannot be pushed inside completely. There will be a protrusion at around 5mm.

Remove the AAA battery if you will not use it for power transfer for a long time.

Charge your phone using the AAA battery

1.

Check that the AAA battery has sufficient power (the right battery symbol is not in red).

2. Automatic charging:

• If the main battery is low, the AAA battery in the smartcavity™ will charge the main battery automatically. The message “Transferring” is displayed.

Manual charging:

• Select Settings > Transfer backpower to start charging.

• Select Stop transferring backpower to stop charging.

When the main battery voltage reaches 4.0V, the

Getting Started


AAA battery will automatically stop charging the main battery.

No audible alert or message is given by your phone if the backpower transfer happens at the time that your phone is turned off.

Use the AAA battery in time of drained main battery

If the main battery is drained and your phone cannot be powered on, you can insert a full capacity

AAA battery into the smartcavity

TM

. It will automatically charge the main battery and your phone can be powered on again. The time needed for charging depends on the remaining power of the main battery. The lower the voltage, the longer is takes to wake up the main battery.

Recharging the AAA battery

If you have put a rechargeable AAA battery in the smartcavity

TM

, you can charge both the main battery and AAA battery using the AC power charger(see "Using the AC power" on page 9). If any of the main battery or rechargeable AAA battery is full, only the other one will be charged.

Your phone accepts Alkaline, Lithium and rechargeable Nickel Metal Hydride (NiMH)

Getting Started

batteries.

We recommend that you use

Energizer batteries.

Remove the non-rechargeable AAA battery from your charger before you plug the charger into the AC power socket.

Remove the rechargeable AAA battery from your charger after it is fully charged.

Inserting a Micro-SD card

You can expand the memory of your phone by adding a Micro-SD card.

1.

Gently slip the card into the micro SD card slot, with the gold contacts facing downwards.

11


2. Press the card until it is locked in place.

To remove the card, press the card to unlock it first.

X520 can support up to 2GB micro SD card.

12 Getting Started


2. Calling

This chapter describes the features and options related to making and receiving calls.

Switch on the phone

Long press

) to switch on the phone.

You may set a security code (PIN code) on your phone to protect it from unauthorized use. If you have set a security code, you will be prompted to enter the corresponding security code when you switched on the phone.

1. Enter the PIN code. If you have entered the wrong number, press

R

Clear to clear it.

2. Press

,

. The phone will validate the PIN code and commence network registration.

3. Once a network name is displayed on the screen, you are ready to make or answer a call.

If there is no network name on the screen, you need to re-register.

If you enter a wrong PIN code 3 times in succession, your SIM card will be blocked. To unblock it, you must request the PUK code from your operator. If you enter a wrong PUK code

10 times in succession, your SIM card will be permanently blocked and cannot be used

Calling

anymore. If this happens, please contact your network operator.

Switch off the phone

At all times, you can long press

) to switch off the phone.

Make a call

You can make a call only when the network name appears on the screen.

1. Enter the phone number.

2. Press ( to dial the number or press L Options to enter options menu, then select Dial .

Speed dial

On the idle screen, you can call a contact in your phonebook by long pressing a numeric key. To assign a speed dial key to a contact:

1.

Go to Settings > General > Speed dial .

2.

Select one of the locations ( 2 to 9 ).

3. Assign to the location a contact from your phonebook.

13


Options during a call

During a call, you can press

R

to activate/cancel

Handsfree or press

L

Options to carry out the following operations:

- Put the call on Hold

Mute / Unmute the call

Record phone conversation (which includes 3 sub-options: Record both , Record the opposite party and Record own )

- Make a New call

- End the current call

Mute or unmute a call


L

Options and select Mute or

Unmute . If you select Mute , the microphone will be deactivated.

When you switch from one call to another, muting will be cancelled.

Adjust speaker/earpiece volume

During a call, call on hold or call waiting, you can press + or - side key to increase or decrease the volume (if you are not browsing the call options menu).

14

When the volume has been set, the call volume will take effect immediately and the settings will be applied to your subsequent calls.

Call recording


L

Options and select Record to access the 3 recording options; namely, Record both

(default), Record the opposite party and Record own

(applicable to two-party calls or multi-party calls).

When you end the call, the recording will stop and save automatically in AMR format under My files >

Sounds .

There is no limit to the length of the recording; the recording will stop only when you press

R key to stop the recording, when there is insufficient memory, or when the call has ended.

End a call

Press

) to end a call.

Make an international call

1. Long press

0

until "+"appears on the screen.

2. Enter the country code.

3. Enter the area code (normally without the 0 in front), followed by the phone number.

Calling


4. Press

(

to call directly.

Make an emergency call

You can make an emergency call anytime, irrespective of whether the mobile phone has been registered on the network.

1. In idle mode, enter the emergency call number

(specific number in the caller's country)

2. Press

(

.

Note that an emergency call will not be stored in the call record.

3. Alternatively, if there is no SIM card, pressing

R

SOS can also bring you to the emergency call screen. Then press

(

or the OK softkey to directly make an emergency call and the dial animation will be displayed.

Make a second call (Network dependent)

You can make a second call by putting the current call on hold:

1. During a call with Party A, you can enter Party

B's number using the keypad.

Calling

2. Press

(

to dial Party B's number. Party A will be put on hold automatically.

Make a Conference Call (Network dependent)

Your phone supports multi-party call of up to five members. The screen will display Conference call during the multi-party call.

When there is a call waiting while you are already on the phone, you can carry out the following operations to establish the multi-party call:

1. Press

(

to answer the second call. The first call will be put on hold automatically.

2. Select Conference Call from the call menu. The two calls will be combined and a conference call is established.

During the multi-party call, you can answer a new incoming call or add a new member to the call by dialing the new member (the ongoing multi-party call will be put on hold automatically). Once the call is established, select Establish conference call from the call menu to add the new member to the multiparty call (you can add up to five members).

If you wish to separate one member from the call, you can select Split conference call during the multi-

15

X520_Master_EN.book Page 16 Tuesday, October 14, 2008 2:04 PM party call. To disconnect a member from the call, select End call in conference .

Switch calls (Network dependent)

When you have one active call and one call on hold, you can press

,

Swap to switch between the two calls.

Call Handsfree


R

Loudsp.

.

IP Dial (if available)

You may select IP dial . When you select IP dial option, the mobile phone will automatically add the

IP special service number preset by you in front of the phone number and then make the IP dial. You can also long press

( to activate the IP dial.

Answer a call

Press

( to answer a call.

Reject a call

Press

) to reject a call.

16

Answer a second call (Network dependent)

If you have activated Call waiting , you will be alerted when there is a second incoming call. You can:

1. Press

( to answer the second call. The current call will be put on hold automatically.

2. Press

)

to reject the second call and continue with your current call.

3. When there is one active call and one call on hold, you can press

,

Swap or

L


• Conference call • Transfer call • Loudsp.

• Mute

• End call

• Record

• View contact

• End all calls

• Menu

If you press the numeric keys, the notepad editor will be opened under call waiting mode.

Contact Picture

This feature allows you to link a contact in your phonebook to a photo you have taken using the camera function, or a picture you have downloaded via WAP or data cable. During a call, if the other

Calling

X520_Master_EN.book Page 17 Tuesday, October 14, 2008 2:04 PM party's name card is linked to a picture, the incoming call background will display the corresponding picture. This feature is referred to as Contact picture .

Contact picture is only available on the phone memory. The photo size should not be larger than 176 x 220 pixels.

Calling 17


3. Text entry

Your mobile phone supports a number of text entry modes, including T9 input, multi-tap input, numeric input and symbol input.

Select text entry methods

1.

During text editing, press

#

repeatedly to select your desired inputs:

ENG/eng/Eng: for English entry

123: for numeric entry

: Pinyin input for Simplified Chinese

: Stroke input for Simplified/Traditional

Chinese

2.

Long press

*

to switch the T9 English input on or off.

3.

To enter a symbol and punctuations, press

*

.

The text editor remembers the last input method you have used before you exit the editing screen.

When you access the editor again, it will automatically select the last input method you have used.

Depending on the language you select for your phone, the supported input methods may vary.

18

Enter text

1.

Select your desired text entry methods.

2.

Enter text by using the alphanumeric keypad.

2

to

9

To input letters (T9 input)

Press repeatedly to input the desired

letter (multi-tap input)

1

to

6

To enter strokes (stroke input)

<

,

>

To browse candidate

words (T9 input/multi-tap input)

+

,

-

To browse the candidate words on the

previous/next page (T9 input/multi-tap

input)

,

Select To confirm the selection

0

To input a space

R Clear Short press to clear a letter,

long press to clear all entries.

If necessary, press

R

Back

t to exit

the input mode first.

T9

®

input

Tegic Euro. Pat.

App. 0842463

T9

®

predictive text input is an intelligent editing mode for messages, which includes a comprehensive dictionary. It allows you to quickly enter text. You need to press only

Text entry

X520_Master_EN.book Page 19 Tuesday, October 14, 2008 2:04 PM once on the key corresponding to each letter needed to spell a word: keystrokes input are analyzed and the word suggested by T9

®

is displayed at the pop-up window.

Examples: how to enter the word "home":

1.

Press

4

,

6

,

6

,

3

. The screen displays the first word of a list: Good .

2.

Press

-

to scroll and select Home .

3.

Press

,

Select to confirm.

Multi-tap input (ABC/Abc/abc)

Press the keys that are marked with the corresponding letter you wish to enter. Press once to get the first letter on the key, press twice quickly to get the second letter and so on until the letter you want is displayed on the screen.

Example: how to enter the word "home":

Press

4

,

4

( G H I )

6

,

6

,

6

( MN O),

6

(M NO ),

3

,

3

( D E F ). Press

,

when the message is completed.

Stroke input

The principle of stroke input is to dissect and separate every stroke of a Chinese character according to sequence. When you wish to input the

Text entry

character, press the keys corresponding to the required strokes according to sequence to get the desired character. The stroke input method in this phone classifies a Chinese character into 5 basic strokes: (horizontal, vertical, left falling stroke, right falling stroke and over-down) as well as a special stroke. When the stroke you need does not correspond to the 5 basic strokes, replace it with the special stroke.

19


4. Entertainment

This section describes the games and additional tools installed on your mobile phone.

Some of the features described here are dependent on the configuration of your mobile phone, the country in which you purchased your mobile phone, and/or your service provider.

Games

Default games

This menu features games that are pre-installed in your mobile phone. Press

, to enter the main menu from idle mode and select Entertainment >

Games .

Java

Your mobile phone features a Java run-time environment, which allows you to run Java applications, such as games downloaded from the network. You can also download games and other

20

applications via WAP or USB and run them in the

Java environment.

When installing games via a USB data cable, make sure that the application files are under the same file folder as the .jar and .jad files.

Entertainment


5. Browser

Your phone comes with a WAP browser. You can obtain news, sports and weather information, as well as services from the internet via the WAP browser.

This feature is available only if your subscription includes WAP access services. The settings have been pre-configured (depends on country variants) and you do not need to modify them. For more information, please contact your network operator.

WAP

Normally, the phone would have been preconfigured. If you wish to add or modify the configuration parameters, you need to obtain the necessary information from your network operator before you proceed. Philips is not liable to give prior notification nor shall it bear any consequences for any failures arising from

Browser

changes of configuration made by you or by the network operator. Please check with your network operator for the most updated information.

Homepage

Select this menu to access the homepage directly.

You can also set the homepage address in the settings menu.

Bookmarks

You can save the current web page or the web pages that you frequently visit to the Bookmarks list, manage and organize them.

When you enter the menu, a list of bookmark entries is displayed. To connect to the web address of a particular bookmark entry, select an entry using

+ or

and press

,

.

If there are no existing entries, you can select the following options to add and manage your bookmarks:

Add bookmark

Edit the title and web address.

21


To add a new bookmark:

Go to Bookmark menu Press

, to enter the main menu from idle mode and select

Browser > Bookmarks .

Select Add bookmark Press , .

Add a new bookmark Enter the Address and

Title of the new bookmark and press

,

Save .

To edit a bookmark:

Go to Bookmark menu Press

, to enter the main menu from idle mode and select

Browser > Bookmarks .

Select a bookmark you wish to edit

Press

+ or

and press

L

Options . Then select

Edit and press

,

Select .

Edit the bookmark Edit the Title and URL of the bookmark and press

,

.

Enter address

Enter the web address and press

, to connect, press

R

Back to return to previous web page.

22

History

This menu allows you to quickly access the last web page you have visited.

1.

When you enter this menu, the web pages you have previously visited will be listed.

2.

Select a web page on the list and press

,

.

Then press

L

Options to access the following:

Info

Exit

Open

Navigate

Go to

History

Save as

Send as SMS

Settings

This menu allows you to configure the web settings for web browsing. Your phone may have been preconfigured with the settings of a specific network operator. If you are a subscriber of the network operator, you may start using your WAP browser immediately. Otherwise, you need to re-configure the settings.

Philips is not liable to give prior notification nor shall it bear any consequences for failures arising from changes in configuration made by

Browser

X520_Master_EN.book Page 23 Tuesday, October 14, 2008 2:04 PM you or by the network operator, or changes in

WAP address or contents made by the internet content provider. Please check with your network operator and your internet content provider for the most updated information.

The following options are available:

WAP profiles Allows you to configure the WAP profiles.

Clear cache Allows you to set the Clear cache .

Clear history Allows you to remove the web history.

Options Allows you to Show images , Exit info or Enable cookies.

Push Inbox

Allows you to check your Push messages and configure your Push settings, such as select whether or not to accept Push messages, delete push messages, etc.

Browser 23


6. Media player

FM radio

This menu allows you to listen to the radio on your phone. Connect the headset connector to your phone. There are 2 ways to tune to a station: Preset stations and Auto preset .

Preset stations

You can use

<

or

>

for radio stations scan.

Auto preset

Press

+

will do a radio station scan. The search will stop once a nearest station is found and the screen will show the frequency where it stops.

When you select Auto preset , the channel will be searched automatically. When the auto preset is in process, all the keys are made unavailable except

) and

R

.

Keys operation

The keypad operations during radio broadcast are as follows:

Key

-

)

<

or

>

Volume side keys

L

Options

R

Back

Operation

Short press to start/stop radio playback.

Exit the radio menu and return to the idle mode.

Short press to select the previous or next radio station from the preset list.

Adjust the volume. Once you have set the volume, the settings will be saved until the next time you adjust it again.

Open options menu.

Return to previous menu.

FM radio options menu

Saved as preset

Save the current radio frequency to selected presets.

24 Media player


Preset stations

Show list of radio frequency presets. When you highlight on a preset station, you can select to

Play , Rename or Clear the selected station.

Auto presets Scan the radio frequency automatically and save it to the preset channel list.

Off

Play in background

Stop the radio.

Allows you to listen to the radio station when you exit the radio application.

RDS (dependent on the radio station service)

The feature RDS (Radio Data System) is a service that allows FM stations to send additional information along with the regular FM radio signal. When you are listening to an RDS station, received text information rolls on the screen, including station name, program type (for example,

News, Sports, and Info), and frequency. A pop-up window appears when radio text messages are received.

Media player

Music player

This feature allows you to download music from the network, save the audio files, edit your playlist, and play music. The phone supports audio files in

MP3 and AAC format. However, only MP3 format is supported with the bluetooth headset.

Tracks

This feature allows you to play downloaded music in your Phone memory or Memory card (under

Sounds folder). From the listed tracks, use

+

/

to select the music file you want to play and then press

,

Open to open the music player to play the selected track or press

L

Options .

Options Description

Add to playlist

Open the playlist, select a playlist and add the selected track to the playlist.

Delete track Delete the selected track.

Details View detailed information of the selected track.

Playlists

The stored playlists are displayed on the screen. To create a new playlist, select New playlist . Enter the

25

X520_Master_EN.book Page 26 Tuesday, October 14, 2008 2:04 PM playlist name and press

,

. Then use

+

/

to select a playlist, press

,

. Then press

,

Edit and select the tracks that you want to add to the playlist. Then press

,

Done to confirm and store the songs in the playlist.

You can create up to 10 playlists. You can press

,

Open to open the music player to play the selected track or press

L

Options .

Options Description

Edit playlist Edit the playlist.

Rename playlist

Modify the playlist name.

Delete the current playlist.

Delete playlist

Tracks sequence

Details

Modify the play sequence of the current playlist.

View detailed information of the selected file.

Artists

A list of singer names is displayed on the screen.

You can press

+

/

to select a certain artist and press

, to display all tracks of the selected artist.

From the listed tracks, use

+

/

to select the music file you want to play. You can press

,

Open to open

26

the music player to play the selected track or press

L

Options .

Options Description

Open Open the music player to play the selected track.

Add to playlist


Delete the selected track.

Delete track

Delete artist

Details

Delete all tracks of the same artist.

View detailed information of the selected track.

Last played

List the last 10 tracks you have played, and the last played track is displayed at the top of the list.

Settings

The available options include:

Options Description

Media player



Allows you to listen to the music when you exit the music player application. You can select Ask first , Always or Never .

Play mode

Help

Refresh all lists

Select between Repeat one , Repeat all , Shuffle and repeat , Shuffle or

Off .

Display descriptions on how to use the music player.

All tracks stored in the phone memory and the memory card will be refreshed.

Now playing

The screen displays the last played song. This function enables you to go on playing the last playlist you were listening to.

Keys operation

The keypad operations during music playback are as follows:

Key

,

Operation

Short press to start/pause/resume the music playback.

Media player

<

or

>

Short press to select the previous song/next song. Long press to fast rewind/fast forward the track during playback.

+

or

-

Adjust volume. Once you have set the volume, the settings will be saved until the next time you adjust it again.

L

Options

R

Back

Open options menu.

Return to previous menu. When you exit the music player, the music playback will stop.

Press

L



Add to playlist

Allows you to listen to the music when you exit the music player application. You can select Ask first , Always or Never .


Play mode Select between Repeat one , Repeat all , Shuffle and repeat , Shuffle or Off .

27


Off

Details

Turn off the music player.

View detailed information of the selected track.

28 Media player


7. Camera

Camera

Your mobile phone features a 2.0 mega pixel digital camera that allows you to take pictures and record videos, store them in your phone and memory card, use them as wallpaper or send them to your friends.

Please ensure that the camera lens is clean before you take pictures, as small dust particles can strongly affect the picture quality.

Camera mode

Consult the table below on how to carry out some common operations with your camera.

How to ...

Launch Camera Press

, to enter the main menu from the idle mode and select Camera . Then switch to the camera mode.

Zoom in/out

Adjust brightness

Press

+

/

-

.

Only available for picture resolution of 640*480 or below.

Press

+

/

-

side keys.

Brightness level is -3 to +3.

Default level is 0.

Take a picture Press , .

The picture will be automatically saved and stored in My Favorites >

Pictures .

Exit from

Camera and return to the idle mode

Press ) key or R Back twice.

At any point in time, you can press

)

key to cancel the current operation and return to the idle mode.

Camera 29


Camera option menu

When the camera mode is activated and before a picture is taken, you can change a number of settings by pressing

L

Options .


Picture resolution

Picture quality

Select image size: and 176*220 .

1600*1200

1280*1024 , 1024*768 , 640*480

Select image quality: Superfine , Fine and Normal .

,

The last selected value will remain active until you change it again.

View picture

Enter My Favorites > Pictures to view the pictures taken.

Camera

Mode

Color effects : Off (default), B&W ,

Sepia , Blue or Red .

The selected color effect will be displayed on the screen in real time.

Night mode : On or Off

Self-timer : On or Off

The time limit is 8 seconds.

Multishot : On or Off

Three pictures can be taken at the same time.

Advanced Storage location : My files or Memory card

Default name : modify the default name of the photo.

Frequency : 50Hz or 60Hz

Full screen preview : On or Off

Photo preview option menu

Once you have activated the camera, simply press

,

to take a picture. The picture is automatically saved and displayed on the screen. You can press ,

30 Camera

X520_Master_EN.book Page 31 Tuesday, October 14, 2008 2:04 PM to Send the picture via Bluetooth or via MMS , or

L



Delete

Rename

Capture

Delete the current picture.

Change the name of the picture.

Set as contact picture

Return to the viewfinder screen to take a new picture.

Link the picture to a contact in your mobile phone so that the picture will be displayed when the contact calls you.

Available for picture resolution of

176*220 only.

Set as wallpaper

Details

Set the picture as a wallpaper in idle screen.

View detailed information of the picture.

When there is not enough memory space, you will not be able to save the picture and you will be prompted with a warning message. You have to delete existing pictures before you can store new ones.

Camera

Video recorder

This option allows you to record short videos.

You can play the video, store it in your phone or in the memory card. You can also send the video to your friends via MMS or Bluetooth.

How to ...

Launch Video recorder

Adjust brightness

Press

, to enter the main menu in idle mode and select Camera .

Then, press

<

or

> to switch to the video mode.

Press

+

/

-

side keys.

Brightness level is -3 to +3.

Default level is 0.

Record a video

Press

, key once. Press again to stop recording.

The video will be automatically saved and stored in My Favorites >

Videos .

Press

) key or

R

Back twice.

Exit from

Video mode and return to idle mode

31


Video option menu

When the video mode is activated and before you start recording, you can change a number of settings by pressing

L

Options .


Video quality Select video quality: Fine or

Normal .

The last selected value will remain active until you change it again.

View video

Video mode

Enter My Favorites view the recorded videos.

Color effect : Off (default),

Sepia , Blue , or Red

> Videos to

B&W

The selected color effect will be displayed on the screen.

Video format : MPEG-4 or H263

Frames per second : 5 , 10 or 15 frame per second.

,

Advanced

32

Storage location : My files or

Memory card .

Default name : modify the default name of the video

Mute : On or Off

If you select On , sound will not be recorded.

Video length : MMS (default) or

Unlimited .

If you select MMS , the size of the recorded video will be smaller than the currently specified maximum MMS size.

Recording will stop when reaching the maximum MMS size and the video will be stored automatically. If you select Unlimited , there will be no restrictions on the size of the recorded video. The maximum size shall be determined by the memory capacity of your mobile phone or the memory card.

Camera


Video Playback

Once you have activated the video mode, simply press

, to start recording. Press again to stop recording. The video is automatically saved and the last recorded scene is displayed on the screen. You can press

,

Play / Pause to play the recorded video or pause the playback, or press

L



Send Send the recorded video:

Via Bluetooth and Via MMS .

Delete

Details

Delete the recorded video.

Record new Return to video mode to record a new video clip.

View detailed information of the recorded video.

When there is not enough memory space, you will not be able to save the recorded video and you will be prompted wtih a warning message.

Camera 33


8. Messages

Create message

SMS

SMS enables you to send text messages to the other party, which is a convenient and affordable mode of communication. You can use the SMS menu to send messages to another handphone or a device that is capable of receiving SMS.

Your phone can store up to 1000 messages. Once you have reached 1000 messages, the screen will flash an icon to alert you. You need to delete some messages in order to receive new ones.

Create, edit and send SMS

You need to enter the correct message centre number before you can send SMS. The number can be obtained from your network operator.

1.

In idle mode, press

,

to enter the main menu.

2.

Select Messages > Create Message > SMS and press

,

. The SMS editing screen will appear.

34

3.

Enter the SMS content in the SMS editor and press

L


Clear text Delete the text on the editing screen.

Save Save as draft : save the SMS as draft.

Save as template : save the SMS as template.

Insert contact Insert the contact from the phonebook list.

Use template Insert a preset message.

Exit editor Exit from the SMS editor.

Spell word

Help

Select Chinese pinyin input method.

Displays the shortcuts for editing.

If your SMS is not sent successfully, you can resend it. If your SMS cannot be sent successfully after several attempts, please check if your SMS center number has been set correctly.

When editing SMS, for certain reasons (such as an incoming call, out of battery), you are forced

Messages

X520_Master_EN.book Page 35 Tuesday, October 14, 2008 2:04 PM to exit from the SMS editing screen before you managed to send or save your message successfully, the edited message will be saved automatically. The next time you enter the

SMS editor, the message will be displayed on the screen.

MMS (network dependent)

Your phone allows you to send and receive multimedia messages, known as MMS, which features texts, pictures, sound and video clips. MMS can comprise one or several slides. Whether you send it to an e-mail address or to another mobile phone, the MMS will be played as a slide show.

Your phone can support 50 MMS (maximum

100KB). When the maximum of 50 MMS is reached, the screen will display a MMS icon to alert you. You will need to delete some old MMS in order to receive new ones.

Before you can send MMS, you need to enter the correct MMS Center number and ensure that the network profile of your MMS has been correctly configured. You can obtain such information from your network operator.

Create, edit and send MMS

1.

In idle mode, press

, to enter the main menu.

2.

Select Messages > Create Message > MMS and press

,

. The MMS editing screen will appear.

3.

Enter the MMS content in the MMS editor and press

,

. Then press

L


Insert object Insert picture, video, melody, page or object.

Only a picture, a melody and a video can be inserted on one page. If 3 of them exist at the same time, only one can be saved.

Edit subject

Preview

Page timing

Save

Exit editor

Edit the subject of the MMS.

Preview the current MMS.

Set play time of the MMS slides. The default value is 30 seconds.

Save as draft : save the MMS as draft.

Save as template : save the MMS as template.

Exit from the MMS editor.

Messages 35


Spell word Select Chinese pinyin input method.

Help Displays the shortcuts for editing.

When there is more than one page, you can press

<

/

>

to view the different pages of the MMS. At the same time, the title bar at the top of the screen will display the current page you are viewing and the total number of pages in your MMS.

4.

Press

,

Send to access the next option menu:

Contacts

Groups

Phone number

Recently list

Select the contact from the Contacts list.

Select the group from the Groups list.

Enter the phone number of the recipient.

Email address

Select from the list of recipients you received the messages from.

Enter the e-mail address of the recipient.

Inbox

The Inbox stores the messages you have received.

1.

In idle mode, press , to enter the main menu.

2.

Select Messages > Inbox and press

,

.

36

3.

If there are messages in the Inbox , they will be listed on the screen in the order they were received (the most recent message will appear at the top of the list).

4.

Press

+

/

to select a message. When a message is selected, its contents will be displayed on the screen. Press

,

View to view the selected messages or press

L


Reply The sender's number will be used as the destination number automatically and the message editor will be activated. Enter your reply and send the message.

Forward

Delete

When you select Forward , the contents of the selected message will appear in the message editor.

You may edit the message before sending.

Delete the message from the

Inbox .

Messages


Add to blacklist

Archive to SIM Copy the selected message to SIM archive .

Move to my favourites

Details

Move the selected message to favourites .

View information of the message such as date, time and sender.

My

Dial

When you add the contact to the blacklist, you will not receive call/ message from this contact anymore.

Smart search

Extract the sender's number from the message and dial the number.

Search the messages by sender's name, number or time.

Select multiple You can choose to Select one by one or Select all . You can press

,

to Select / Undone the operations on multiple messages.

Checkboxes will be marked on the left of the selected message. Press

L

Options to delete the selected messages, or you can move them to My favourites .

Messages

5.

Press

,

to enter the next screen whereby the message details will be displayed. Press

,

Reply the message by SMS or MMS or press

L


Forward

Delete

Extract numbers

Add to blacklist

When you select Forward , the contents of the selected message will appear in the message editor.

You may edit the message before sending.

Delete the message from the

Inbox .

Opens the list of numbers available in the message. In this list, the

L option opens a pop-up window showing the following options:

• Save

• Update existing

• Dial

• Send message


37


Archive to SIM Copy the selected message to SIM archive .


Move the selected message to favourites .

My

Move to spam box

Details

Move the selected message to spam box .

View information of the message such as date, time and sender.

Dial Extract the sender's number from the message and dial the number.

Sent

The Sent box allows you to save the messages you have sent successfully.

1.

In idle mode, press

, to enter the main menu.

2.

Select Messages > Sent and press

,

.

3.

If there are messages in the Sent box, they will be listed on the screen.

4.

Press

+

/


,

View to view the selected

38

mesage, or press

L


Resend Resend the selected message.

Forward When you select Forward , the contents of the selected message will appear on the message editor. You may edit the message before sending.

Delete

Archive to

SIM


Details

Select multiple

Delete the message from archive.

Favourites .

such as date and time.

Sent .

Copy the selected message to SIM

Move the selected message to My

View information of the message

You can select several messages one by one or all at once. You can press

, to select/cancel the operations on multiple messages. Checkboxes will be marked on the left of the selected message. Press

L

Options to delete the selected messages, or you can move them to My favourites .

Messages


5.

Press

,


,

Resend to resend th e selected mesage, or press

L


Forward When you select Forward , the contents of the selected message will appear on the message editor. You may edit the message before sending.

Delete

Archive to

SIM

Delete the message from the archive.

Outbox

Copy the selected message to SIM

.


Details

Move the selected message to My favourites .

View information of the message such as date and time.

Outbox

The Outbox allows you to save the messages you have not sent successfully.

1.

In idle mode, press

,


2.

Select Messages > Outbox and press , .

3.

If there are messages in the Outbox , they will be listed on the screen.

Messages

4.

Press

+

/


,

View to view the selected message, or press

L


Resend

Forward

Resend the selected message.

Delete

When you select Forward , the contents of the selected message will appear on the message editor. You may edit the message before sending.

Delete the message from Sent .


Details

Select multiple


View information of the message such as date and time.


, to select/cancel the operations on multiple messages. Checkboxes will be marked on the left of the selected message. Press L Options to delete the selected messages, or you can move them to My favourites .

39


5.

Press

,


,

Forward to edit the selected message or press

L

Options to carry out the following operations.

Resend Resend the selected message.

Delete


Details

Delete the message from the favourites .

such as date and time.

Outbox

Move the selected message to My

View information of the message

.

Drafts

List the messages that were created and saved but were not sent, and messages that were automatically saved before you were able to save or send them when you exit from the message editor.

Select a message from the Drafts box and press

,

View , or press

L

Options to: Send , Edit , Delete , view

Details or Select multiple . If you press

,

View , the subsequent procedures would be similar to the

Inbox operations.

40

My favourites

This menu contains all the messages received and saved in the phone memory via Move to my favourites option.

1.

In idle mode, press

,


2.

Select Messages > My favourites and press

, .

3.

If there are messages in My favourites , they will be listed on the screen.

4.

Press

+

/

to select a message. When a message is selected, its content will be displayed on the screen. Press

,

View to view the selected messages or press

L


Details View information of the message such as date, time and sender.

Reply

Forward

The sender's number will be used as the destination number automatically and the message editor will be activated. Enter your reply and send the message.

When you select Forward , the contents of the selected message will appear in the message editor. You may edit the message before sending.

Messages


Delete

Restore location

Dial

Delete the message from My

Favourites .

Move the message to the original location where the message is sent or received.


Select multiple


, to select/cancel the operations on multiple messages. Checkboxes will be marked on the left of the selected message. Press L Options to delete the selected messages.

5.

Press , to enter the next screen whereby the details will be displayed. Press

L


Details View information of the message such as date, time and sender.

Reply The sender's number will be used as the destination number automatically and the message editor will be activated. Enter your reply and send the message.

Messages

Forward

Delete

Restore location

Dial

When you select Forward , the contents of the selected message will appear in the message editor. You may edit the message before sending.

Delete the message from My

Favourites .

Move the message to the original location where the message is sent or received.


Spam box

This menu allows you to filter messages after the firewall has been set. When the firewall is activated, any message from a person on your blacklist will go to the spam SMS box automatically.

SIM archive

In the menu, you can see the read and unread messages saved in the SIM Card. Press

,

View to

41

X520_Master_EN.book Page 42 Tuesday, October 14, 2008 2:04 PM view the selected messages or press

L



Reply

Forward

Reply the message.

Forward the message to other recipients.

Delete

Add to blacklist


Details

Dial

Select multiple

Delete the message.



View information of the message, such as date, time and sender, etc.

Call the sender of the message.

You can press

, to select/cancel the operations on multiple messages.

Checkboxes will be marked on the left of the selected message. You can delete the selected messages.

Templates

This menu allows you to select a message saved as a SMS or MMS template. You can create, send, modify and delete your preset messages.

Email

Your phone can send and receive e-mail messages, provided this service is included in your subscription. You must already have an e-mail account and have received the settings from your e-mail service provider. In some cases, your mobile phone service provider may also provide an e-mail service.

Create e-mail

To write an e-mail, select Email > Create . Enter the address ( To ), a copy ( Cc ), or blind copy ( Bcc ), Subject and the e-mail Content . When you have finished writing your e-mail, press

L to access the following:

Save Save the message in the draft box without sending it.

Send Send the e-mail.

42 Messages


Inbox

This menu allows you to connect to your mailbox and download the e-mail headers. Press

L to

Receive the e-mails. You may then select an e-mail header and press

L to access the following options: View , Delete , Reply , Reply all , Forward , Delete all , Receive .

Drafts

The menu lists all the e-mails you have saved but not sent. Press

L to: Edit , View , Delete , Delete all .

Outbox

The menu lists all the e-mails you have sent. Press

L to: Edit , View , Delete , Delete all .

Check mail

The menu allows you to connect to your mailbox and to download the e-mails. This might bring up a message requesting airtime. Select Yes to continue and receive new e-mails.

Settings

This menu allows you to edit e-mail's Account

Settings or Activate one of the available profiles by pressing

L

. Use

+

/

- key to access the menu list, press

, or numeric keypad to edit the content. In the editing screen, press

, to return, press

L to

Save and

R to Clear . You may edit the following details:

Menu Description

Profile name To name the profile.

E-mail address To enter an e-mail address.

User ID To enter a login name.

Password

Number of mails received at a time

To enter the password.

To define the number of mails received at a time.

Incoming server

Outgoing server

SMTP authentication

Type

To set the POP information used to receive e-mails.

To set the SMTP information used to send e-mails.

To turn on/off the authentication.

To select POP3 or IMAP.

Exit

You will be exited from the e-mail menu.

Messages 43


Advanced

Cell Info

This is a network service which allows you to receive text messages of various contents, such as news, traffic, etc. These messages are provided by the network to the subscribers within a certain network area. If this service is available, the network will provide you with the broadcast channel numbers. It gives you access to the options listed below.


Reception Select to turn on/off the reception of new cell broadcast messages.

Topics Add, change or delete channels.

<Add new> : Press , Add to add a new channel.

Change : Edit a channel number.

Delete : Delete a channel in the channel list.

Memory status

This feature allows you to see how much memory space remains for messages in your phone and SIM card.

44

SMS timer

You may set a specific time to send an edited text message to a particular contact.

This menu allows you to select Add to send text messages at specific times and display such messages in a list on the screen.

Select Add to enter into the SMS editing screen.

Press

, to open the contacts list and select a contact, or enter the phone number directly and set message sending options. You can set the date and time to send the message.

When you select a message from the list of text messages configured for sending at specific times, you can press

,

View to view the details of the message or press

L


Delete Delete the message.

Delete all Delete all messages.

When you enter a message detail screen, you can press

,

Send to send the message to the recipient

Messages

X520_Master_EN.book Page 45 Tuesday, October 14, 2008 2:04 PM directly or press

L

Option to carry out the following operations:

Edit You can edit the contents, contact or date.

Delete Delete the message.

Voice mail

This menu allows you to set your voice mailbox number and listen to voice messages your correspondents have left for you.

You can forward your calls to your voice mailbox (the phone number for callers to leave a message) via the Call forwarding feature.

Call voice mail

When you receive a voice mail, the phone will send you an alert. You can then call your voice mailbox number to retrieve your voice mail.

In idle mode, long press 1 to call your voice mailbox directly. If the number is empty, you will be prompted to enter the number.

Voice mail number

Generally, you can obtain two sets of numbers from your network provider:

• number for the caller to leave a message (this number can also used for call forwarding)

Messages

• number for you to retrieve your voice messages

Settings

SMS

Select Messages > Settings > SMS to open the list of

SMS accounts. Press L Reset to edit the SMS settings:

Service center number

This menu allows you to save and edit the SMS service center number of your home network. If the service center number is empty, you will not be able to send any SMS.

Validity period

Allows you to select the duration by which your messages will be stored in the service center. You can select from: 1 hour , 12 hours , 1 day , 1 week and

Maximum (default). Press

+

/

to select a value.

This option is useful when your recipient is not connected to the network and is not able to receive your messages immediately.

This feature is subscription dependent.

Delivery report

You can select

, to set this option On or Off . This option allows you to set whether or not to notify

45

X520_Master_EN.book Page 46 Tuesday, October 14, 2008 2:04 PM you the send status of your messages: successfully sent to the recipient, or not sent successfully.

This feature is subscription dependent.

Signature

You can select

, to set this option On or Off

(Default is Off ). If set to On , it opens an editor where you can enter your signature. The signature will be added to the end of your message before it is sent to your recipient.

If the SMS is too long after adding the signature, the signature will be ignored.

Storage location

You can press

,

Change to change the preferred storage location of your messages: SIM card

(Default) or Mobile phone .

Send and Save

You can select , to set this option On or Off . This option allows you to set whether or not to save the sent messages.

MMS

This menu allows you to set your MMS center and personalize your MMS settings. The options include:

46

Profiles

You can select or edit the parameters.

Sender visibility

You can press

,

Change to set this option On or off .

It is used to set if your identity will be visible when

MMS is sent.

Priority

This option allows you to set the priority level of your MMS. You can set Low , Normal (default) or High .

Delivery report

You can press

,


When it is set to On , a report will be sent to notify you if the MMS has been delivered to the recipient.

Read report

You can press

,


When it is set to On , a report will be sent to notify you if the MMS has been read by the recipient.

Expiry time

Allows you to select the duration by which your

MMS will be stored in the MMS center. You can choose from 6 hours , 12 hours , 1 day , 1 week or

Maximum (default).

Retrieval

Allows you to select Automatic , Deferred , Auto in home network when downloading MMS messages.

Messages


9. My Favorites

This menu allows you to store the files in different folders ( Pictures , Sounds , Videos , Others ) to facilitate more efficient management of files in your phone and the memory card. In addition, you can obtain information regarding your phone and memory card, such as the availability of free memory, memory utilized and total memory size via the Memory status option.

Pictures

When you enter this menu, the photos which you have taken using the phone's camera as well as pictures you have downloaded via MMS, WAP, BT, or USB will be displayed in a list.

1. Select My Favorites > Pictures and press

,

to enter the menu.

2. Press

,

View / Open to view the selected picture/ open the selected folder or press

L

Options to carry out the following operations to a selected file:


Send

Advanced

Rename

Send the selected file: Via bluetooth or

Via MMS .

Cut : Similar to copy, but the original file will be deleted.

Copy : Copy the selected file to another folder.

Modify the name of the selected file.

Details

Use

Display detailed information of the selected photo, such as last modification time, file size, etc.

As contact ID : If you select this option, the phonebook list will be displayed.

After you have selected a contact from the phonebook, press

L

Select to associate the picture to the selected contact.

Only available for picture of

176*220 or smaller.

My Favorites 47


As wallpaper : If the selected photo is

176*220 or smaller, it will be displayed as wallpaper in its original size.

Delete

Slide show

Delete the selected picture.

If you select this option, the screen will display the full screen view of all the pictures in the form of slideshow every 4 seconds. Press any key to exit from the slide show mode.

Change view You can select to view the pictures in List view , Grid view or Full screen .

Sort Sort the pictures and folders by name or date.

Select multiple

Select one by one : select the picture one by one and then Cut , Copy or

Delete them.

Select all : select all the pictures and then Cut , Copy or Delete them.

3. The folder options include:

Rename Modify the name of the selected folder.

Details Display detailed information of the selected folder.

Delete the selected folder.

Delete

Change view Select List view or Grid view .

Sort Sort the pictures and folders by name or date.

Sounds

When you enter this menu, the sounds which you have stored or downloaded via MMS, WAP, BT, or

USB will be displayed in a list.

1. Select My Favorites > Sounds and press

,

to enter the menu.

2. Press

,

Play / Open to play the selected audio file/ open the selected folder or press

L


48 My Favorites


Send

Advanced

Use

Rename

The available options are: Via bluetooth and Via MMS .


Copy : Copy the selected file to another folder

You can set the audio file: as ringtone or as contact ID .


Details

Delete

Display detailed information of the selected audio file, such as last modification time, file size, etc.

Delete the selected audio file.

Change view

Sort

Select List view or Grid view .

Sort the audios and folders by name or date.

Select multiple Select one by one : select the audio files one by one and then Cut , Copy or Delete them.

Select all : select all the audio files and then Cut , Copy or Delete them.

My Favorites

3. The folder options and their operations are the same as Pictures menu.

Videos

When you enter this menu, the videos which you have recorded using the phone's camera as well as videos you have downloaded via MMS, WAP, BT, or USB will be displayed as a list.

1. Select My Favorites > Videos and press

,

to enter the menu.

2. Press

,

Play / Open to play the selected video/ open the selected folder or press

L


Options

Send

Advanced

Rename

Description

Send the selected file: Via bluetooth or

Via MMS .


Copy : Copy the selected file to another folder.


49


Details Display the detailed information of the selected video, such as last modification time, file size, etc.

Delete the selected video.

Delete

Change view You can select to view the video files in List view or Grid view .

Sort Sort the videos and folders by name, date, or size.

Select multiple

Select one by one : select the videos one by one and then Cut , Copy or

Delete them.

Select all : select all the videos and then Cut , Copy or Delete them.

3. The folder options and their operations are the same as Pictures menu.

Videos are played in the middle of the screen. A status bar is displayed at the top of the screen. The keypad operations when playing videos are as follows:

Key

,

<

Operation

Start/pause the playback.

Long press to rewind.

50

>

R

)

Long press to fast forward.

Exit/return to an upper menu level.

Return to idle screen.

Others

You can save all other files into this folder. The file and folder options and their operations are the same as the Pictures menu.

Memory status

All memory capacity, used memory capacity and free memory capacity between all memory capacity used in both the mobile phone and memory card will be displayed.

Settings

The phone has a micro SD memory card slot to increase the phone's memory. The phone supports

FAT16 and FAT32 format for 1GB capacity, and supports FAT32 format for 2GB capacity. You can select Uninstall to safely remove memory card from the phone, and select Format to format it.

For 2GB capacity, in order to ensure the card can be recognized by the phone, please connect the card to a computer and format it to FAT32 before using it for the first time with X520.

My Favorites


10. Business

Calendar

This menu displays the calendar. You can select

Day view, Week view or Month view. You can create new appointments, view appointments list, delete or modify appointments in the calendar. The calendar stores the alarm date and time of every event. If the current date and time correspond with the date and time of the event, the phone will emit an alarm (if needed), and the screen will display a prompt to indicate that a new event has arrived.

You can create a maximum of 30 events. The list will display part of the contents. Once you have selected an event, you can press

, to view the detailed information.

1.

Enter the menu. Press

, to access View or press

L to access the options menu.

2. The options include: View week , New event , Go to date , Advanced .

New event

The list of events will be displayed. When you add a new event, you need to enter the corresponding

Business

information of the event, such as subject, location, start date, start time, end date, end time, reminder and repeat method.

If the memory space for events is full, the phone will prompt you that there is no more space.

When you edit date and time, the phone will display the default or the selected date and time. You can edit or confirm them directly.

The maximum length of an event is 100 characters.

Reminder

On time , 5 min. before , 15 min. before , 1 hour before and 1 day before .

Repeat method

The phone provides the following repeat methods:

Once , Daily , Weekly , Monthly and Annually .

When you change the date and time of your phone, the next alert will be repeated based on the modified date and time of the phone.

When you switched off the phone, the organizer alert will be postponed until the next time you

51

X520_Master_EN.book Page 52 Tuesday, October 14, 2008 2:04 PM switch on the phone. For repeated events, only the latest one will be alerted.

Alarm

This phone supports 24-hour alarm.

The available options are:

Options

Simple alarm

Description

A simple alarm rings only once. Set the alarm status to On or Off by pressing

,

Change . When it is set to

On , you need to specify the alarm time and press

, to confirm.

Reccurent alarm

A recurrent alarm rings according to the day you specify in a week. Set the alarm status to On or Off by pressing

,

Change . When it is set to

On , you need to specify the Time and

Repetition . For example, if you select

Sunday and Monday, the alarm clock will ring every Sunday and Monday.

Then press

, to confirm.

Alarm tone Select an alarm tone.

Snooze Select On or Off .

52

Calculator

Your mobile phone has a built-in calculator. Enter the numbers with the keypad.

Description Options

+

-

>

<

,

*

Addition

Subtraction

Multiplication

Division

Equals

To toggle between negative and positive figures.

L

Options >

%

L

Options

> Modular

#

Add a percentage symbol.

Calculate a remainder of a division.

Add a decimal point.

The maximum length of the numbers and the result is 9 digits. The result of the calculator is indicative.

Business


Voice recorder

This menu allows you to record a voice memo.

From the main menu, select Business > Voice recorder . Then you can press

L to set the MMS size and select the Storage location . When you set the

MMS size On , the recording will stop if it exceeds the MMS size limit.

To start recording, press

,

Record . During the process, the recorded time will be displayed in real time. To stop recording, press

, and the file will be saved in My Favorites > Sounds . Then you could press

,

to play the recorded file or press

L

Options to access the following options:

Description

Make another recording.

Options

New episode

Delete

Send

Rename

Delete the selected file.

Send the selected file.

Change the name of the selected file.

Business

Secretary OTG

This menu allows you to make long recordings.

From the main menu, select Business > Secretary

OTG .

To start recording, press

,

New . During the process, the recorded time will be displayed in real time. To stop recording, press

, and the file will be saved. Then you can edit the start date , start time , and reminders for this recording. Other available options are:


Delete

Send

Rename

Edit

Details

Delete the selected file.

Send the selected file.

Change the name of the selected file.

Edit the start date , start time and reminders of the selected file.

View the detailed information of the selected file.

Stopwatch

Your phone features a stop watch and the minimum unit is 0.1 second.

53


The starting time is 00:00.0, in the format

“mm:ss.n”, where mm stands for minutes of the watch, which can be any number from 0 to 59; ss stands for seconds, a number between 0 and 59; n stands for 0.x second, x being any number from 0 to 9. The stopwatch will start the timing when you press

,

Start . You can pause the timing, press

,

Pause , to resume, press

,

Go , to stop the timing, press

R

Stop .

Countdown

This feature is very similar to the alarm clock, except that you will be alerted of the remaining time, and the phone will emit an alarm at the end of the count-down. The alarm tone is the same as your alarm clock.

The minimum time is 1 minute. The format of the time is hh:mm:ss , and the maximum time input is 23 hours 59 minutes 59 seconds.

You can edit the time timer and start the countdown by pressing

,

Go . To stop countdown, press

,

Pause , to reset, press

L

Reset .

You can exit the menu by pressing the

R

Back .

The count-down timer will switch on automatically and emit an alarm at the end of

54

the count-down even if your phone is in idle mode.

Unit converter

This application allows you to convert many types of units such as time, exchange rate, area, energy, mass, power, pressure, temperature and volume.

Select the type of unit and input the figure and then press

,

Change to calculate the result.

Press

# key to enter the decimal point.

Firewall

This function provides a simple and quick method for you to avoid nuisance calls and SMS. Blacklist contains a list of phone numbers from which you do not wish to receive calls or SMS.

Select Business > Firewall > Set and choose between the following options:

• Status: Status icon , Event or None .

• Activate: On or Off .

To add the phone numbers into the black list, select

Black list , select Add new , then you can carry out the following operations:

Business


Option Operation

New number Open the phone number editor, enter the new number and save the number into the black list.

Contacts Open the phonebook list and select a phone number for saving into the black list.

You can press

+

/

- to select a particular number in the black list, then press L Options to carry out the following operations:

Change Open the phone number editor, to edit the selected number in the black list.

Delete Delete the selected number in the black list.

Task

This menu allows you to create, store and manage events in your task list.

Create task

This menu allows you to create a new task. There are 2 types of tasks: Phone Call and Task . Select New task and press

,

Select to access the following options:

Type Allow you to create a or Task .

Phone Call

Subject Create a subject for your task.

Call number

(Available only in Phone call)

Enter the phone number directly, or press

,

Select for:

• Contacts : Display the list of contacts for calling.

• Enter number : Enter the number.

Display on idle

Set On or Off to choose whether the event will display on screen in idle mode.

Set Reminder Set On or Off to choose whether you want to receive the alert.

When it is set to On , you need to set the alert date and time. Press

, to confirm.

After you have finished editing, press

, to save your new task.

Business 55


Manage task

This menu allows you to manage your tasks . Select a task, then press

, to View the task or Call the contact (depending on if it is the Task or Phone Call ) or press

L

Option to access the following options:

Mark as (not) done

Edit

Delete

Delete all

Mark a tick on the task as done or untick for not done.

Edit the selected task.

Delete the selected task.

Delete all tasks on the list.

56 Business


11. Contacts

Your phone features two phonebooks. The SIM phonebook is located on your SIM card and the number of entries you can store depends on the

SIM card. The second phonebook (Smart phonebook) is integrated in the phone memory and the maximum number of name cards you can store is 2000 (a namecard can consist of a name, 4 phone numbers, groups, email address, address, etc.).

The SIM card is the default phonebook, but the entries in the two phonebooks are combined, sorted and displayed as a list. When you add a new contact to your phonebook, the new contact will only be added to the phonebook you have selected.

You can store up to 2000 name cards, provided other features in the phone such as Calendar,

Sounds, Pictures, and Videos, etc. did not use up a large amount of the phone's memory space.

Contacts

New contact

To create a new SIM/phone contact:

Enter new contact Press

, and select New

Contact .

Enter contact details

Store the new contact

Enter the following for SIM card contacts:

• Name

• Number

Enter the following for onboard phonebook contacts:

• Name

• General

• Mobile

• Home

• Work and etc

Press

,

Save .

To create a contact, you must enter at least a phone number.

Most of the fields are free-text, which means you can enter alphanumeric data using the text entry functions of your mobile phone (for more

57

X520_Master_EN.book Page 58 Tuesday, October 14, 2008 2:04 PM information on text entry, see "Text entry" on page 18).

View contacts

I n the phonebook, you can display the details of a contact by selecting it. Then press

,

View to view the details of the selected contact or press

L


Description

Create a new contact.

Options

New contact

Send message

Call

Edit before call

Call handsfree

Delete

Add to blacklist

Send an SMS or MMS to the contact.

Call the contact.

Change the contact’s information before calling the contact.

Call the contact by handsfree mode.

Delete the contact.

Add the contact into the blacklist.

Send

Contact

Copy to phone/SIM

Move to phone/SIM

Select multiple

Send the selected record: via SMS , via MMS or via Bluetooth .

Copy the SIM/phone entry to phone/SIM.

Similar to copy, but the source record will be deleted after copying.

Select one contact at a time or select all contacts.

View groups

The View groups feature allows you to organize your contacts so that you can send messages to all the members of the group. From the Contacts menu, select View groups and the list of groups is displayed.

View

Select a group and

,

View to display the group members or press

L

Options to access the following group options:

Options

Rename

Description

Rename the group.

58 Contacts


Send message

Reset

Send an SMS or MMS to members of a group.

Restore the group to default settings.

Special numbers

This menu allows you to keep a list of useful numbers such as your own numbers, service numbers, voicemail and SOS numbers.

Options

My number

Description

View, edit or clear your own phone number.

Emergency

Voice mail

Display the emergency phone number.

Dial the number for your voice mail service provider.

Service numbers This entry of the SIM phonebook allows you to select one of the available services provided by your operator and to copy it into the selected phonebook.

Contacts

Advanced

This menu provides you with advanced features so that you can view and edit your contacts:


Choose contact list Default list : Switch contact list between SIM , Phone or

All .

Default location : Select the location to store new contact entry: Phone or SIM card.

Copy contact Copy to SIM : Copy all entries to SIM.

Copy to phone : Copy all entries to Phone.

Move to SIM : Move all entries to SIM.

Move to phone : Move all entries to Phone.

Delete all contacts Delete SIM entries : Delete all entries saved in SIM card.

Delete phone entries : Delete all entries saved in Phone.

59


12. Profiles

Car

Your mobile phone has been preconfigured with the following modes:

• Personal (default) • Car • Flight

• Home • Meetings • Outdoor

• Silent

You can activate and modify all the modes, except the Flight mode and Silent mode. These 2 modes can only be activated and viewed.

The profiles and their respective parameters are as follows:

Personal Ring volume

Level 9

Ringtones Default

Alert type

Vibrate and ring

Key sound

On

Backlight level Level 3

Flight

Home

60

Ring volume

Ringtones

Alert type

Key sound

Backlight level

Ring volume

Alert type

Key sound

Level 8

Default

Vibrate and ring

On

Level 4

No volume

None

Off

Backlight level

Ring volume

Ringtones

Alert type

Key sound

Backlight level

Level 3

Level 4

Default

Vibrate and ring

On

Level 3

Profiles


Meetings

Outdoor

Silent

Ring volume

Ringtones

Alert type

Key sound

Backlight level

Ring volume

Ringtones

Alert type

Silence

Default

Vibrate

Off

Level 2

Level 9

Default

Vibrate and ring

Key sound

Backlight level

Ring volume

Alert type

Key sound

Backlight level

On

Level 4

No volume

None

Off

Level 2

Profiles

Profile selection

To select a different profile:

Go to Profiles menu

Select the profile

Press

, to enter the main menu from the idle mode and select

Profiles .

Press

+

or

-

, and press

,

Select to activate the selected profile.

Modify the profile

Press L Modify .

You can modify the settings of the profile.

Modify settings


Options

Ring volume

Ringtones

Alert type

Key sound

Backlight level

Description

Select from 9 volume levels.

Select the ringtone for Calls ,

Alarm , Calendar , Messages or Cell info .

Select an alert type: Ring only ,

Vibrate only , Vibrate and ring ,

Vibrate then ring or Silent .

Set the key sound On or Off .

Select a backlight level from level 1 to level 4.

61

X520_13_Connectivity.fm Page 62 Tuesday, October 14, 2008 6:04 PM

13. Connectivity

This menu provides you with more features to set up a connection with these external devices.

Bluetooth

Your phone supports Bluetooth wireless technology, allowing connection to a compatible

Bluetooth device. To ensure interoperability between other Bluetooth devices, please check with the manufacturers of other devices. The

Bluetooth connection can be subjected to interference from obstructions such as walls or other electronic devices.

To use Bluetooth connection, the device with which you want to establish a connection must support Bluetooth function. Please contact the device's manufacturer or its accompanied documentation.

Establish a Bluetooth connection

To activate, press

,

to enter the main menu from the idle mode and then select Connectivity >

Bluetooth . On the Bluetooth screen, select Activate .

Next, select Search for devices . When the list of

62

devices appears, select the device you wish to establish a connection with.

If you do not intend to use the Bluetooth feature for some time, you should deactivate it in order to conserve battery power.

Bluetooth menu

Options

Activate

Description

Turn Bluetooth feature on or off.

Search for devices

Search for the external devices that you can connect to.

My devices Display the bluetooth devices that you can connect to.

Settings Select to display more features:

• My name : edit the name of the device

• Visibility : choose to show or hide the device by selecting On or Off

• My profiles : lists the phone’s available profiles

When searching for a device, you are presented with a list of any devices discovered within the range of your Bluetooth-enabled phone. As soon as you select a device and a connection is made, you

Connectivity

X520_13_Connectivity.fm Page 63 Tuesday, October 14, 2008 6:04 PM are prompted to enter a passkey in order to pair with the device. This passkey is supplied by the manufacturer of the other Bluetooth device. Refer to its documentation for further information. The passkey feature ensures that only legitimate connections are allowed to connect either to your device or to the selected device.

USB Function

Connect your phone to a PC via USB cable, and your phone will then behave like a USB drive. With your phone, you can access files on your memory card.

You can upload and download music, videos and pictures via the USB cable, and the size of file transfer is unlimited until your memory is full.

When copying files from your PC to phone, first insert a Micro-SD memory card into your phone.

When the transfer is finished, please make sure that you safely remove your device based on the instruction of your computer.

Using PhilipsPhoneTools

Besides, your phone can perform PC connections with the supplied PhilipsPhoneTools.

PhilipsPhoneTools offers instant sychronization between your phone and your computer, and enables you to backup your mobile phone data and recover the data saved in the computer, receive

SMS and edit your mobile phone contacts

Installing PhilipsPhoneTools on your PC

1.

Insert the supplied PhilipsPhoneTools into the

CD drive.

2.

Run the Setup.exe program.

3.

Make selections as prompted, and installation

starts automatically.

During the installation, interruption may occur when your PC system detects the new software.

Press Continue Anyway repeatedly until the installation resumes.

Connecting your Phone to the PC

1.

Check that the Phone Setup wizard starts. If necessary, double click the PhilipsPhoneTools icon.

2.

Connect your phone to the PC as prompted.

Connectivity 63

X520_13_Connectivity.fm Page 64 Tuesday, October 14, 2008 6:04 PM

3.

On your phone, select Connectivity > USB function > PC Sync from the main menu.

A functional menu appears on your PC screen.

64 Connectivity


14. Calls

Most options described in this chapter are operator and/or subscription dependent and require either a PIN2 code or a phone code. For more information on PIN codes, see "Transfer backupower" on page 69.

View calls

This menu provides you with a list of calls you have missed, answered and made. The calls include All calls , Missed calls , Answered call , Outgoing calls and

Rejected calls , which are displayed in chronological order with the most recent call at the top of the list. Select a call from one of the lists and press

,

Dial to call or press

L

Options to access the following:


View View the detailed information of the selected call.

Save Save the number if the number is not in the contacts list.

Calls

Save to existing

Save the number in the current the contacts list.

Send messages

Send a message to the selected number. You can send by SMS or

MMS .

Delete Delete the selected number from the list.

Delete all Delete all numbers from the list.

Dial

Add to blacklist

Edit number before dialing

Call the selected number.

To add the phone number into the blacklist, see "Firewall" on page 54.

Open the contacts list and edit the number if it is in the contacts list.

Call options

This menu allows you to configure the call settings:


65


Auto answer

Any key answer

Minute reminder

Turn Auto answer on/off. When this function is on, the incoming call will be answered automatically in 10 seconds.

Turn Any key answer on/off. When this function is on, you can answer incoming calls by pressing any key, except

) and

R

.

Select On or Off to activate or deactivate the minute reminder during a call. The default is Off and the default setting is 45 seconds.

Call services


• Call time : Display the duration of your calls and their charges: Total incoming calls , Total outgoing calls and Total calls .

• Call waiting : Select Enable or

Cancel , or check Status .

This feature is network/ subscription dependent.

• Own ID : Select Show ID or Hide ID or Set by network to display or not your phone number or identity to the called party.

• Caller ID : To check your operator setting of showing the identity of your caller.

This feature is network/ subscription dependent.

66 Calls


• Cost settings : This option is available only when the charge information is included in your

SIM card. You can view information of the current call and all recent calls. You need to enter the PIN2 code to manage maximum cost credit and unit rate.

Call forward

Set the following call divert options:

All calls , If no reply , If out of reach , If busy .

• When All calls is on, all incoming calls will be diverted to the pre-set number without any reminder.

• When If no reply is on, incoming calls will be diverted if the user does not answer.

• When If out of reach is on, incoming calls will be diverted to the pre-set number when the user is not connected to the network.

• When If busy is on, calls will be diverted if the user is already online or the call is rejected.

• You can also check the Status of your call diverts or Cancel all call diverts.

Calls 67


Call barring

This menu allows you to limit the use of your phone to specific calls by preventing the reception or making of different types of calls. To activate call barring, you need to enter a communication limit code. This

PIN2 code will then be sent to the network for validation.

Note that this operation only supports GSM calls.

Restricted dialing

The types of calls you can bar are as follows:

• All outgoing calls

• All international calls

• Only here & home

• All incoming calls

• Incoming if abroad

You can also check the Barring status of your call barring or Cancel barring .

This menu allows you to set the password to prevent the phone from being used by another person.

IP number Dial IP prefix of your network operator.

68

Clear history

This menu allows you to clear the call history in:

Delete all / Missed calls / Answered calls / Outgoing calls /

Rejected calls . Press

,

Select to confirm deletion and

R

Back to cancel deletion.

Calls


15. Settings

You can configure your Xenium X520 mobile phone to best suit your usage preference. You can configure the following settings: General , Display ,

Sounds and Connectivity .

Enter the menu

Press

,

to enter the main menu from idle mode and select Settings .

Press

+ or

-

.

Select a settings menu

Transfer backupower

By taking the advantage of the backupower

TM technology, this menu allows you to transfer power from an AAA battery to the main battery in your phone. see "Using the backupowerTM" on page 9

General

This menu allows you to configure some general settings:


Languages Set the display language of the phone.

Time & date

• Display time : Select On or Off .

When you select On , the time information will be displayed in the idle screen.

• Set time : Set the time in the format HH:MM .

• Set date : Set the date.

• Time format : Set the time format as 24 hours or 12 hours .

• Date format : Set the date format as YYYY/MM/DD , YYYY.MM.DD

,

DD.MM.YYYY

, YYYY-MM-DD or

DD-MM-YYYY .

Settings 69


70

• International clock : Go to the international clock menu and change the time zone.

• Power-on time : Set a time for the phone to be switched on. You can select On or Off . When you select

On , you need to enter the time you want your phone to be switched on.

• Power-off time : same as above.

Security

• PIN protection : Select On or Off .

When you select On , you need to enter the PIN code when you switch on the phone.

The default PIN code is network dependent on your service provider. Please contact your service operator for the PIN information.

• Change PIN/PIN2 : You can modify the password for PIN, PIN2, safeguard and phonelock.

• Safeguard : You can safeguard important information such as messages, contacts on your phone by activating safeguard. You can also change the safeguard password.

• Change safeguard password : You can modify the password for

PIN, PIN2, safeguard and phonelock.

The default safeguard and phonelock password is 1234.

Settings


Auto keypad lock

Shortcuts

Select to activate this feature after

60 seconds , 30 seconds or 15 seconds , or select Off .

Displays a list of shortcut features.

You can set a new shortcut key by establishing a link between a certain feature and a navigation key. You can also change or delete an existing shortcut key.

Speed dial Call a contact by long pressing a numeric key (see "Speed dial" on page 13).

Default storage

Set the default storage location:

Phone memory or Memory card for different applications.

Memory status

You can check the memory status of

Contacts , Messages and My Favorites .

You can also check the memory status of Memory card if it is inserted.

Mainmenu style

Factory settings

Select the browse style as List or

Grid .

Restore your phone settings to the default values.

Settings

Display

You may configure your phone with different display settings:

Options Description

Wallpaper Turn the wallpaper display On or

Off .

Themes Select from 2 themes.

Backlight level

Select from 4 backlight levels. You can select the backlight level by pressing

+ or

- keys. Press

,

to confirm.

Backlight duration

Greeting

Select the backlight duration from

60 seconds , 30 seconds and 15 seconds .

Turn greetings On or Off . When you select On , you can edit the greeting message.

The maximum length of greetings is 20 Chinese words or 40 English characters.

71


Sounds

You can set your phone to operate with different sound profiles. For details, see "Sounds" on page 72 .

Options Description

Alert type

Ringtones

You can select Ring only , Vibrate only ,

Vibrate & ring , Vibrate then ring or Silent .

Select the ringtone for Calls , Alarm ,

Calendar , Messages and Cell info .

Select from 9 volume levels.

Ring volume

Key sound

Shutter sound

Low battery alert

Turn the key sound On or Off .

Select from 3 shutter sounds. You can also select Off .

Turn the warning On or Off .

If you have downloaded your own ring tones and have selected such a ring tone to be the alarm alert, then after you set the alarm and switched off the phone, the alert tone will be changed back to the original factory settings.

This does not apply if the ring tone you have

72

chosen is one that comes as default with your phone.

Connectivity

Call options

For more information, see "Call options" on page 65.

Message settings

For more information, see "Settings" on page 43.

Network settings

The network name will be displayed on the idle screen. If the phone is not able to identify the network name, it will display the country code and the network code of the unknown network.

Select network

It will vary according to the search mode you have selected. If you select Auto , the network will be searched automatically. If you select Manual , the search will commence only when you confirm to start searching.

Search mode

You can select Auto or Manual .

Settings


Preferred networks

Preferred network list is stored in the SIM card. It specifies the priority by which your phone will register to the available network during automatic registration.

1. In idle mode, press

,


2. Select Settings > Connectivity > Network settings >

Preferred networks .

3. Press

,

Select to enter the preferred network list. The most preferred network will be at the top of the list.

4. Press

+

/

-

to select a certain network.

5. You can then press

, to Insert or press

L

Option and select to Add to end or Delete the selected network.

Browser

Various parameters relative to browser can be set under this option, including WAP profiles and Push messages.

Connections

GPRS profiles

This menu allows you to configure a GPRS

(General Packet Radio Service) connection to the network. The available GPRS settings are:


Settings

Profile name

APN

Login

To name the current profile

To enter GPRS APN.

To enter a login name.

Password To enter the password.

GPRS info

This feature allows you to monitor the amount of data transferred during GPRS connection.

73


Icons & Symbols

In idle mode, several icons and symbols can be displayed on the main screen. The status, network and battery icons are displayed all the time. The rest of the icons are displayed if the feature is available, and not displayed if the feature is unavailable.

If the network symbol is not displayed, it implies that the network is currently unavailable. You may be in a bad reception area; moving to a different location may help.

Network - Network icon comprises of 2 portions. The left portion indicates whether or not your phone is already registered with a network, and the right portion indicates signal strength in 5 levels (from no signal to strongest).

Battery - Indicates battery level with 5 battery level indicator bars. During charging, a scrolling icon will be displayed.

74

International roaming - Displayed when your phone is registered to a network other than your own.

Whether to log on GPRS - There are 2

GPRS status which are mutually exclusive: GPRS network is available but not in use; or GPRS network is available and in use. The icon will be displayed only when you have logged on to GPRS.

MMS - Indicates there is a MMS message.

WAP Push message - Indicates there is a

WAP push message. Go to Browser >

Push Inbox to check it.

Voicemail - Indicates voice messages that have not been heard.

Alarm Clock - Indicates that the alarm clock is activated.

Vibration - Your phone will vibrate when there is an incoming call or when the alarm clock rings.

Firewall - Indicates that firewall feature is activated

Icons & Symbols


Missed call - Indicates there is a missed call.

Call forward - Indicates that the call forward function is activated.

Silence - Indicates that silent mode is activated.

Auto answer - Indicates that Auto answer is on.

Keypad Locked - Indicates that the keypad is locked.

Memory card - Indicates the memory card is in use.

Bluetooth - Feature is activated.

Icons & Symbols 75


Precautions

Radio Waves

Your cellular mobile phone is a low power radio transmitter and receiver . When it is operating, it sends and receives radio waves. The radio waves carry your voice or data signal to a base station that is connected to the telephone network. The network controls the power at which the phone transmits.

• Your phone transmits/receives radio waves in the

GSM frequency (900 / 1800 / 1900 MHz).

• The GSM network controls transmission power

(0.01 to 2 watts).

• Your phone complies with all relevant safety standards.

• The CE mark on your phone shows compliancy with European electromagnetic compatibility

(Ref. 89/336/EEC) and low voltage directives

(Ref. 73/23/EEC).

Your cellular mobile phone is your responsibility.

To avoid damage to yourself, to others or to the phone itself, read and follow all the safety instructions and make them known to anyone

76

borrowing your phone.Furthermore to prevent unauthorized use of your phone:

Keep your phone in a safe place and keep it out of small children's reach.

Avoid writing down your PIN code. Try to remember it instead.

Switch off the phone and remove the battery if you are going to leave it unused for a long time.

Change your PIN code after purchasing the phone and to activate call restriction options.

The design of your phone complies with all applicable laws and regulations.

However your phone may cause interference with other electronic devices. Consequently you should follow all local recommendations and regulations when using your cellular phone both at home and when away.

Regulations on the use of cellular phones in vehicles and aircraft are particularly stringent.

Public concern has been focused for some time on the possible health risks for users of cellular phones.

The current research on radio wave technology, including the GSM technology, has been reviewed and safety standards have been drawn up to ensure protection from exposure to radio wave energy.

Precautions


Your cellular telephone complies with all applicable safety standards and the Radio

Equipment and Telecommunications Terminal

Equipment Directive 1999/5/EC.

Always switch off your phone

Inadequately protected or sensitive electronic equipment may be affected by radio energy. This interference can lead to accidents.

Before boarding an aircraft and/or when packing the phone in your luggage: the use of mobile phones in an aircraft may be dangerous for the operation of the aircraft, disrupt the mobile phones network and may be illegal.

In hospitals , clinics, other health care centres and anywhere else where you may be in the close vicinity of medical equipment .

In areas with a potentially explosive atmosphere (e.g. petrol stations and also areas where the air contains dust particles, such as metal powders).

In a vehicle transporting flammable products (even if the vehicle is parked) or a vehicle powered by

Precautions

liquefied petroleum gas (LPG), check first that the vehicle complies with the applicable safety rules.

In areas where you are requested to turn off radio transmitting devices, such as quarries or other areas where blasting operations are in progress.

Check with the vehicle manufacturer that electronic equipment used in your vehicle will not be affected by radio energy.

Pacemakers

If you have a pacemaker :

• Always keep the phone more than 15 cm from your pacemaker when the phone is switched on, in order to avoid potential interference.

• Do not carry the phone in a breast pocket.

• Use the ear opposite to the pacemaker to minimize the potential interference.

• Switch off your phone if you suspect that interference is taking place.

Users of hearing aids

If you are a user of a hearing aid , consult your physician and hearing aid manufacturer to learn whether your particular device is susceptible to cellular phone interference.

77


Improved performance

In order to improve the performance of your phone , reduce radio energy emission, reduce battery consumption and ensure safe operation adhere to the following guidelines:

For the optimal and satisfactory operation of the phone, you are recommended to use the phone in the normal operating position (when not using in hands-free mode or with a hands-free accessory).

• Do not expose your phone to extreme temperatures.

• Treat the phone with care. Any misuse will void the International Guarantee.

• Do not immerse the phone in any liquid; if your phone is damp, switch it off, remove the battery.

and let them dry for 24hrs before using them again.

• To clean the phone, wipe it with a soft cloth.

• Placing and receiving calls consumes the same amount of battery energy. However, the mobile consumes less energy in idle screen when kept in the same place. When in idle screen and while you are moving, your phone consumes energy to transmit updated location information to the network. Setting the backlight for a shorter

78

period of time as well as avoiding unnecessary navigating in the menus will also help to save the battery's energy for longer phoning and stand-by performances.

Battery information

• Your phone is powered by a rechargeable battery.

• Use specified charger only.

• Do not incinerate.

• Do not deform or open the battery.

• Do not allow metal objects (such as keys in your pocket) to short circuit the battery contacts.

• Avoid exposure to excessive heat (>60°C or

140°F), moisture or caustic environments.

You should only use Philips authentic battery and accessories, as the use of any other accessories may damage your phone and may be dangerous, and will make all guarantees for your Philips phone null and void. The use of an incorrect type of battery may also cause an explosion.

Make sure damaged parts are replaced immediately by a qualified technician and that they are replaced with genuine Philips replacement parts.

Precautions


• X520 is equipped with a backupower

TM

supported smartcavity

• In the smartcavity

TM

TM

.

, use the supplied Energizer

Lithium AAA battery (L92), or quality batteries to ensure the charging performance.

Do not use your phone while driving

Speaking on the telephone while driving lowers your concentration, which can be dangerous. Adhere to the following guidelines:

• Give your full attention to driving. Pull off the road and park before using the phone.

• Respect the local regulations in countries where you drive and use your GSM phone.

• If you want to use your phone in a vehicle, install the hands-free car kit which is designed for that purpose.

• Ensure that your phone and car kit do not block any air bags or other security devices fitted in your car.

The use of an alarm system to operate a vehicle's lights or horn to indicate incoming phone calls is prohibited on public roads in some countries. Check local regulations.

EN60950 Norm

In case of hot weather or after a prolonged exposure to the sun (e.g., behind a window or a windscreen), the temperature of your phone's casing might increase, especially when featuring a metallic finish.

Be very careful in this case when picking up your phone and also avoid using it with an ambient temperature over 40°C.

For your phone, the socket-outlet shall be installed near the phone and shall be accessible.

Environmental care

Remember to observe the local regulations regarding the disposal of the packaging materials, exhausted batteries and old phone and please promote recycling.

Philips has marked the battery and packaging with standard symbols designed to promote the recycling and appropriate disposal of your eventual waste.

The labelled packaging material is recyclable.

Precautions 79


A financial contribution has been made to the associated national packaging recovery and recycling system.

The plastic material is recyclable (also identifies the type of plastic).

WEEE Marking in the DFU:

“Information to the Consumer”

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the

European Directive 2002/96/EC

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative

80

consequences for the environment and human health.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Precautions


Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Precautions 81


Troubleshooting

The phone does not switch on

Remove/reinstall the battery. Then charge the phone until the battery icon stops scrolling. Unplug from charger and try to switch on the phone.

Your phone doesn’t return to the idle screen

Long press the hangup key or switch off the phone, check that the SIM card and the battery have been installed correctly and switch it on again.

The network symbol is not displayed

The network connection is lost. Either you are in a radio shadow (in a tunnel or between tall buildings) or you are outside the network coverage area. Try from another place, try to reconnect to the network

(especially when abroad), check that the antenna is in place if your mobile has an external antenna, or contact your network operator for assistance/ information.

The display doesn’t respond (or the display responds slowly) to key presses

The display responds more slowly at very low temperatures. This is normal and does not affect the operation of the phone. Take the phone to a warmer place and try again. In other cases, please contact your phone supplier.

Your battery seems to over heat

You might be using a charger that was not intended for use with your phone. Make sure you always use the Philips authentic accessory shipped with your phone.

Your phone doesn’t display the phone numbers of incoming calls

This feature is network and subscription dependent. If the network does not send the caller’s number, the phone will display Call 1 or

Withheld instead. Contact your operator for detailed information on this subject.

You can’t send text messages

Some networks don’t allow message exchanges with other networks. First check that you entered the number of your SMS centre, or contact your operator for detailed information on this subject.

You have the feeling that you miss some calls

Check your call divert options.

82


The display shows INSERT SIM

Check that the SIM card has been inserted correctly. If the problem remains, your SIM card may be damaged. Contact your operator.

When attempting to use a feature in the menu, the mobile displays NOT

ALLOWED

Some features are network dependent. Therefore, they are only available if the network or your subscription supports them. Contact your operator for detailed information on this subject.

Your phone is not charging

If your battery is completely flat, it might take several minutes of pre-charge (up to 10 minutes in some cases) before the charging icon is displayed on the screen.

83


Philips Authentic

Accessories

Some accessories, such as a standard battery and a charger, are included as standard accessories in your mobile phone package. Additional accessories may also be provided or sold separately. Package contents may therefore vary.

To maximize the performance of your Philips phone and not to void the warranty, always purchase Philips Authentic Accessories that are specially designed for use with your phone.

Philips Consumer Electronics cannot be held liable for any damages due to use with non authorized accessories.

Charger

Charges your battery in any AC outlet. Small enough to carry in a briefcase/handbag.

Data connect kit

Provides easy data connection to your Philips mobile phone. The USB cable enables high-speed communication between your phone and your computer. The provided software allows you to download pictures and melodies and to synchronize your contacts and appointments.

Deluxe Headset

The integrated answer button offers you a simple way to answer your calls. Simply answer an incoming call by pressing the button or long press to reject the incoming call.

84


Trademark Declaration

Tegic Euro. Pat.

App. 0842463

T9 ® is a trademark of Tegic

Communications Inc.

Bluetooth™ is a trademark owned by telefonaktiebolaget L M

Ericsson, Sweden and licensed to Philips.

PHILIPS and PHILIPS’ Shield

Emblem are registered trademarks of Koninklijke

Philips Electronics N.V. manufactured by Shenzhen

Sang Fei Consumer

Communications Co., Ltd.

under license from

Koninklijke

Philips Electronics N.V.

85

X520_SAR.fm Page 86 Wednesday, November 5, 2008 2:27 PM

Specific Absorption Rate Information

International standards

THIS MOBILE PHONE MEETS THE INTERNATIONAL RECOMMENDATIONS FOR EXPOSURE TO

RADIO WAVES

Your mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radio frequency (RF) energy defined by the international standards. These recommendations have been established by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) and, the

Institute of Electrical and Electronics Engineers (IEEE) that forecast a substantial safety margin for assuring the protection of all persons, regardless of age and health.

The exposure recommendations for mobile phones use a measurement unit known as the Specific Absorption

Rate (SAR). The SAR limit recommended by the ICNIRP for the mobile phones used by the general public is

2.0W/kg averaged over ten grams of tissue and, is 1,6W/kg averaged over one gram of tissue by IEEE

Std 1528 for the head.

Tests for SAR have been conducted using recommended operating positions with the mobile phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR levels of the mobile phone while operating are generally below the maximum

SAR value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station antenna, the lower the power output.

While there may be differences between the SAR levels of various phones and at various positions, they all meet the international protection standards for exposure to radio waves.

The highest SAR value for this Xenium X520 model phone when tested for compliance against the standard was

0.774 W/kg for ICNIRP recommendation and 1.11 W/kg for IEEE Std 1528.

For limiting the radio waves exposure, it is recommended to reduce the mobile phone call duration or to use a headset. The purpose of those precautions is to take the mobile phone away from the head and the body.

For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used whit an accessory that contains no metal and that positions the handset a minimum of 1.5cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

86 Specific Absorption Rate Information


1.

Limited warranty

What Does This Limited Warranty Cover?

Philips warrants to the original retail purchaser

(“Consumer” or “You”) that this Philips cellular product and all accessories originally provided by Philips in the sales package

(“Product”) are free from defects in materials, design and workmanship under normal use in accordance with the operating instructions and pursuant to the following terms and conditions. This limited warranty extends only to the Consumer for Products purchased and used in the original country of purchase. The limited warranty is valid only in Philips’ intended country of sales of the product.

2. How Long is The Limited Warranty Period?

The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase of the Product, documented by valid proof of purchase. The limited warranty for original Philips rechargeable battery extends for six (6) months from the date of purchase.

3. What Will Philips Do if The Product is Not

Free From Material Defects in Materials and

Workmanship During The Limited Warranty

Period?

During the limited warranty period, Philips or its authorized service representative will, at its option either repair or replace, without charge for parts or labour, a materially defective

Product with new or refurbished parts or

Product and return such repaired or replaced

Product to the Consumer in working condition. Philips will retain defective parts, modules or equipment.

Repaired or replaced Product will be covered by this limited warranty for the balance of the original limited warranty period or ninety (90) days from the date of repair or replacement whichever is longer. Repair or replacement of

Product, at Philips’ option is your exclusive remedy.

4. What is Not Covered By This Limited

Warranty?

This limited warranty does not cover: a) Product that has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation handling, neglect,

87

X520_Master_EN.book Page 88 Tuesday, October 14, 2008 2:04 PM inundation, fire, water or other liquid intrusion; or b) Product that has been damaged due to repair, alteration, or modification by anyone not authorized by Philips; or c) Product that has reception or operation problems caused by signal conditions, network reliability or cable or antenna systems; or d) Product defects or problems caused by uses with non-Philips products or accessories; or e) Product which warranty/quality stickers, product serial number or electronic serial number has been removed, altered or rendered illegible; or f) Product purchased, used, serviced, or shipped for repair from outside the original country of purchase, or used for commercial or institutional purposes

(including but not limited to Products used for rental purposes); or g) Product returned without valid proof of purchase or which proof of purchase has been altered or is illegible.

h) Normal wear and tear or Force Majeure.

5. How Do You Get Warranty Service?

a) Return the Product to an authorized service center of Philips. You may contact the local Philips office for the location of the nearest authorized service center.

b) The SIM card must be removed from the

Product before it is given to Philips. Philips assumes no liability for damaged or loss of the SIM card or the data contained therein.

c) If the Product failure is not covered by this limited warranty, or this limited warranty is inapplicable, void or invalid due to any terms and conditions stated herein, the

Consumer will be charged for the cost of repair or replacement of the Product and all other related cost incurred in repairing or replacing the Product.

d) IMPORTANT - you are required to return the Product together with a valid proof of purchase which must identify the point of purchase, date of purchase, Product model and Product serial number clearly.

6. Other Limitation: This Warranty is The Entire

Agreement.

EXCEPT FOR THE EXPRESS WARRANTIES

SET FORTH ABOVE AND THOSE IMPLIED

BY LAW AND WHICH CANNOT BE

EXCLUDED OR MODIFIED BY

88


AGREEMENT, PHILIPS PROVIDES NO

OTHER WARRANTY WHETHER EXPRESS

OR IMPLIED (WHETHER BY STATUTE,

UNDER THE OPERATION OF LAW OR

OTHERWISE) AND SPECIALLY DISCLAIMS

ANY WARRANTY OF SATISFACTORY

QUALITY MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE.

PHILIPS’ TOTAL LIABILITY FOR DAMAGES

RELATING TO OR ARISING OUT OF THE

PURCHASE OR USE OF THE PRODUCT,

REGARDLESS OF THE TYPE OR CAUSE OF

SUCH DAMAGE OR THE FORM OR

CHARACTERISATION OF THE CLAIM

ASSERTED (E.G. CONTRACT OR TOPIT),

SHALL NOT EXCEED THE ORIGINAL

PURCHASE PRICE PAID FOR THE

PRODUCT.

HOWEVER IN NO EVENT SHALL PHILIPS BE

LIABLE FOR ANY PUNITIVE, SPECIAL,

INCIDENTAL, INDIRECT OR

CONSEQUENTIAL DAMAGES (INCLUDING

BUT NOT LIMITED TO THE LOSS OF USE,

LOSS OF TIME, INCONVENIENCE,

COMMERIAL LOSS, LOST PROFITS, LOST

BUSINESS OPPORTUNITIES, COST OF

SUBSTITUTION OF GOODS OR SERVICES,

INVESTMENTS, DAMAGE TO GOODWILL

OR REPUTATION, OR LOSS OF DATA AND

CLAIMS BY THIRD PARTIES) RESULTING

FROM PURCHASE OR USE OF THE

PRODUCT, TO THE FULLEST EXTENT

ALLOWED BY LAW, WHETHER OR NOT

PHILIPS HAS BEEN ADVISED OF THE

POSSIBILTY OF SUCH DAMAGES. THESE

LIMITATIONS SHALL APPLY

NOTWITHSTANDING THE FAILURE OF

THE ESSENTIAL PURPOSE OF ANY LIMITED

REMEDY.

This limited warranty represents the complete and exclusive agreement between the

Consumer and Philips with respect to this cellular Product and it supercedes all prior agreements between the parties, oral or written, and all other communications between the parties relating to the subject matter of this limited warranty. No carrier, retailer, agent, dealer, employee, thereof, or employee of Philips is authorized to make modifications to this limited warranty and you should not rely on any such representation.

This limited warranty does not affect the

Consumer’s statutory rights under applicable national laws in force.

89

X520_3e Couv.fm Page 91 Wednesday, November 5, 2008 2:28 PM

Declaration of conformity

We,

Shenzhen Sang Fei Consumer

Communications Co., Ltd.

11 Science and Technology Road,

Shenzhen Hi-tech Industrial Park,

Nanshan District, Shenzhen 518057

China declare under our sole responsibility that the product

Xenium X520

GSM/GPRS/EDGE 850/900/1800/1900

TAC: 35578902 to which this declaration relates, is in conformity with the following Standards:

SAFETY : EN 60950-1: 2006

HEALTH: EN50360: 2001;

EN62209-1: 2006

EMC: EN301 489-1 V 1.6.1;

EN301 489-7 V 1.3.1;

EN 301489-17 V1.2.1

SPECTRUM: EN 301 511 V9.0.2;

EN 300 328 V1.7.1

We hereby declare that all essential radio test suites have been carried out and that the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.

The conformity assessment procedure referred to in Article 10 and detailed in Annex V of Directive

1999/ 5/EC has been followed related to articles 3.1

and 3.2 with the involvement of the following Notified Body: CETECOM ICT Services GmbH, Unterturkhelmer Strabe6-10, 66117, Saarbrucken,

Germany.

Identification mark: 0682

October 20, 2008

Quality Manager

No results
