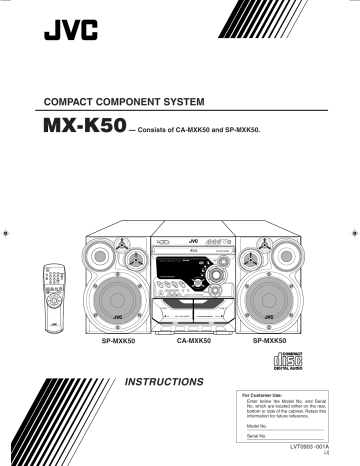

JVC MX-K50UU Instruction Manual

COMPACT COMPONENT SYSTEM

MX-K50

— Consists of CA-MXK50 and SP-MXK50.

STANDBY/ON

SLEEP

AUX

1

4

7

10

2

5

3

ACTIVE BASS

EX. LEVEL

6

SOUND

MODE

8 9

FM MODE

+10

FM/AM TAPE

TAPE A/B

FADE

MUTING

CD

+

VOLUME

DISC

SKIP

RM–SMXK50A REMOTE CONTROL

SP-MXK50

STANDBY

STANDBY/ON

3

CD

CD 1 CD 2 CD 3

DISC CHANGE

CD-R/RW PLAYBACK

MX-K50

CLOCK

/TIMER

DISPLAY

ACTIVE BASS EXTENSION

AUX

PHONES

FM

/AM

CD TAPE

REPEAT PROGRAM RANDOM

REC START

/STOP

CD REC

START DUBBING

TAPE A

TUNING

TAPE B

C O M P U P L A Y C O N T R O L

ACTIVE BASS

EX. LEVEL

SOUND

MODE

FULL - LOGIC CONTROL

CD SYNCHRO RECORDING

CA-MXK50 SP-MXK50

1

INSTRUCTIONS

02.2.18, 8:22 PM

For Customer Use:

Enter below the Model No. and Serial

No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

LVT0903 -001A

[J]

MX-K50[J]Cover.pm6

Warnings, Cautions and Others

Mises en garde, précautions et indications diverses

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1.

Do not remove screws, covers or cabinet.

2.

Do not expose this appliance to rain or moisture.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1.

Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2.

Ne pas exposer l’appareil à la pluie ni à l’humidité.

Caution –– STANDBY/ON switch!

Disconnect the mains plug to shut the power off completely.

The STANDBY/ON switch in any position does not disconnect the mains line. The power can be remote controlled.

Attention –– Commutateur STANDBY/ON!

Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé.

1. CLASS 1 LASER PRODUCT

2.

CAUTION : Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3.

CAUTION : Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel.

1. PRODUIT LASER CLASSE 1

2.

ATTENTION: Radiation laser invisible quand l'appareil est ouvert ou que le verrouillage est en panne ou désactivé. Eviter une exposition directe au rayon.

3.

ATTENTION: Ne pas ouvrir le couvercle du dessus. Il n'y a aucune pièce utilisable à l'intérieur. Laisser à un personnel qualifié le soin de réparer votre appareil.

WARNING: TO REDUCE THE RISK OF FIRE

OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE.

MX-K50[J]Safety.pm6

1

– G-1 –

02.2.18, 8:20 PM

For Canada/pour le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS

LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER

JUSQUAU FOND.

For Canada/pour le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B

LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL

APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING

EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,”

ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.

CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE

BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS

NUMIRIQUES DE CLASSE B PRESCRITES DANS LA NORME

SUR LE MATERIEL BROUILLEUR: “APPAREILS NUMERIQUES”,

NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1 Front:

No obstructions and open spacing.

2 Sides/ Top/ Back:

No obstructions should be placed in the areas shown by the dimensions below.

3 Bottom:

Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

Attention: Aération correcte

Pour prévenir tout risque de décharge électrique ou d’incendie et

éviter toute détérioration, installez l’appareil de la manière suivante:

1 Avant:

Bien dégagé de tout objet.

2 Côtés/dessus/dessous:

Assurez-vous que rien ne bloque les espaces indiqués sur le schéma ci-dessous.

3 Dessous:

Posez l’appareil sur une surface plane et horizontale. Veillez à ce que sa ventilation correcte puisse se faire en le plaçant sur un support d’au moins dix centimètres de hauteur.

Front view

Face

15 cm

(5 15 /

16

in.)

SP-MXK50

1 cm

( 7 /

16

in.)

15 cm

(5 15 /

16

in.)

1 cm

( 7 /

16

in.)

CA-MXK50 SP-MXK50

15 cm

(5 15 /

16

in.)

Sideview

Côté

15 cm

(5 15 /

16

in.)

15 cm

(5 15 /

16

in.)

CA-MXK50

10 cm

(3 15 /

16

in.)

– G-2 –

MX-K50[J]Safety.pm6

2 02.2.18, 8:20 PM

Introduction

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance from your unit, and retain this manual for future reference.

About This Manual

This manual is organized as follows:

• The manual mainly explains operations using the buttons and controls on the unit. You can also use the buttons on the remote control if they have the same or similar names (or marks) as those on the unit.

If operation using the remote control is different from that using the unit, it is then explained.

• Basic and common information that is the same for many functions is grouped in one place, and is not repeated in each procedure. For instance, we do not repeat the information about turning on/off the unit, setting the volume, changing the sound effects, and others, which are explained in the section “Common Operations” on pages 9 and 10.

• The following marks are used in this manual:

Gives you warnings and cautions to prevent damage or risk of fire/electric shock.

Also gives you information which is not good for obtaining the best possible performance from the unit.

Gives you information and hints you had better know.

Power sources

• When unplugging from the wall outlet, always pull the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting heating in the room

• In a damp room

• If the unit is brought directly from a cold to a warm place

Should this occur, the unit may malfunction. In this case, leave the unit turned on for a few hours until the moisture evaporates, unplug the AC power cord, and then plug it in again.

Others

• Should any metallic object or liquid fall into the unit, unplug the unit and consult your dealer before operating any further.

• If you are not going to operate the unit for an extended period of time, unplug the AC power cord from the wall outlet.

DO NOT disassemble the unit since there are no user serviceable parts inside.

If anything goes wrong, unplug the AC power cord and consult your dealer.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor too cold—between 5˚C (41˚F) and 35˚C (95˚F).

• Install the unit in a location with adequate ventilation to prevent internal heat built-up in the unit.

• Leave sufficient distance between the unit and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

DO NOT install the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

– 1 –

02.2.18, 8:20 PM EN01-11.MX-K50[J].pm6

1

Contents

Location of the Buttons and Controls ....................... 3

Front Panel ................................................................. 3

Remote Control .......................................................... 5

Getting Started ............................................................ 6

Unpacking .................................................................. 6

Putting the Batteries into the Remote Control ........... 6

Connecting Antennas ................................................. 6

Connecting Speakers .................................................. 7

Connecting Other Equipment ..................................... 8

Canceling the Display Demonstration ....................... 8

Common Operations .................................................. 9

Turning On or Off the Power ....................................... 9

Setting the Clock ........................................................ 9

Selecting the Sources ................................................... 9

Adjusting the Volume ............................................... 10

Reinforcing the Bass Sound ..................................... 10

Selecting the Sound Modes ...................................... 10

Listening to the Radio .............................................. 11

Tuning in a Station ................................................... 11

Presetting Stations .................................................... 11

Tuning in a Preset Station ........................................ 11

Playing Back CDs ..................................................... 12

Loading CDs ............................................................ 12

Playing Back CDs—All Disc and One Disc ............ 12

Basic CD Operations ................................................ 13

Programing the Playing Order of the Tracks

—Program Play .................................................. 14

Playing at Random—Random Play ......................... 15

Repeating Tracks or CDs—Repeat Play .................. 15

Prohibiting Disc Ejection—Tray Lock .................... 15

Playing Back Tapes ................................................... 16

Playing Back a Tape ................................................. 16

Recording .................................................................. 17

Recording a Tape on Deck B .................................... 17

Dubbing Tapes .......................................................... 18

CD Synchronized Recording ..................................... 18

Using the Timers ....................................................... 19

Using Daily Timer .................................................... 19

Using Recording Timer ............................................ 20

Using Sleep Timer .................................................... 21

Timer Priority ........................................................... 21

Maintenance .............................................................. 22

Troubleshooting ........................................................ 23

Specifications ............................................................. 24

– 2 –

02.2.18, 8:20 PM EN01-11.MX-K50[J].pm6

2

Location of the Buttons and Controls

Become familiar with the buttons and controls on your unit.

Front Panel

1

2

3

4

5

6

7

8

9 p q w e r t y u

STANDBY

STANDBY/ON

3 CD

CD 1 CD 2 CD 3

DISC CHANGE


MX-K50

CLOCK

/TIMER

DISPLAY

ACTIVE BASS EXTENTION

AUX

FM

/AM

CD TAPE

PHONES

REPEAT PROGRAM RANDOM

REC START

/STOP

CD REC

START DUBBING

TAPE A TAPE B


ACTIVE BASS

EX. LEVEL

SOUND

MODE

FULL - LOGIC CONTROL CD SYNCHRO RECORDING i o

; a s d f g h j

EN01-11.MX-K50[J].pm6

3

– 3 –

02.2.18, 8:20 PM

Display Window

1 2 3 4 5 6

Continued

7 8 9 p

See pages in the parentheses for details.

Front Panel

1 STANDBY/ON button and STANDBY lamp (9)

2 CLOCK/TIMER button (9, 19 – 21)

3 DISPLAY button (9)

4 PRESET +/– buttons (11)

4

/

¢

(reverse search/forward search) buttons

(9, 13 – 15, 19 – 21)

5 7

(stop) button (12 – 18)

6 TUNING +/– buttons (11)

1 / ¡ (fast rewind/fast forward) buttons (13, 16)

7 Display window

8 Remote sensor

9 TAPE 3 button and lamp (9, 16, 18)

Pressing this button also turns on the unit.

p CD

6

(play/pause) button and lamp (9, 12 – 15)


q FM/AM button and lamp (9, 11)


w AUX button and lamp (9)


e PHONES jack (10) r REPEAT button (12, 13, 15)

PROGRAM button (14)

RANDOM button (15) t REC START/STOP button (17)

CD REC START button (18)

DUBBING button (18) y TAPE A button (16)

TAPE B button (16) u Deck A cassette holder (16, 18)

Pressing the

0

EJECT portion opens the holder.

i Carrousel o 0

(Carrousel open/close) button (12 – 15)


; DISC CHANGE button (12, 13) a Disc number buttons and lamps (CD1, CD2, and CD3)

(13 – 15, 18)

Pressing one of these buttons also turns on the unit.

s SET button (9, 11, 14, 19 – 21) d CANCEL/DEMO button (8, 9, 14, 20, 21) f SOUND MODE control (10) g VOLUME control (10) h ACTIVE BASS EX. LEVEL control (10) j Deck B cassette holder (16 – 18)

Pressing the EJECT

0 portion opens the holder.

Display window

1 Timer indicators

• DAILY (daily timer), REC (recording timer), SLEEP

(sleep timer), and (timer) indicators

2 Tape operation indicators

• A/B (operating deck), REC (recording), and

2 3

(tape running) indicators

3 CD play mode indicators

• REPEAT (1, 1 DISC, ALL DISC), PRGM (program), and RANDOM indicators

4 Tuner operation indicators

• MONO and ST (stereo) indicators

5 SOUND MODE indicator

6 Disc indicators

7 Volume level, Active Bass Ex. level, and Sound Mode pattern indicators

8 BASS and its level indicators

9 CD track number indicators p Main display

• Shows the source name, frequency, etc.

– 4 –

EN01-11.MX-K50[J].pm6

4 02.2.18, 8:20 PM

4

5

6

1

2

3

7

8

9

Remote Control

STANDBY/ON

SLEEP

AUX

1

4

7

10

2

5

3 ACTIVE BASS

EX. LEVEL

6 SOUND

MODE

8 9

FM MODE

+10

FM/AM TAPE

TAPE A/B

FADE

MUTING

CD

+

VOLUME

DISC

SKIP

VOLUME

– t y u i p q w e r

Remote Control

1 STANDBY/ON button (9)

2 SLEEP button (21)

3 AUX button (9)


4 Number buttons (11, 13)

5 TAPE

3

button (9, 16)


6 FM/AM button (9, 11)


7 CD 6 button (9, 12 – 15)


8 4 / 1 (fast rewind/reverse search) button

(11, 13, 15, 16)

9 VOLUME – button (10) p ACTIVE BASS EX. LEVEL button (10) q SOUND MODE button (10) w FM MODE button (11) e TAPE A/B button (16) r FADE MUTING button (10) t DISC SKIP button (12, 13) y VOLUME + button (10) u ¢ / ¡ (fast forward/forward search) button

(11, 13, 15, 16) i 7 (stop) button (12 – 18)

RM–SMXK50A REMOTE CONTROL

EN01-11.MX-K50[J].pm6

STANDBY

STANDBY/ON

3 CD

CD 1 CD 2 CD 3

DISC CHANGE


MX-K50

CLOCK

/TIMER

DISPLAY

ACTIVE BASS EXTENSION

AUX

FM

/AM

CD TAPE

PHONES REPEAT

PROGRAM RANDOM

REC START

/STOP

CD REC

START DUBBING

TAPE A TAPE B


ACTIVE BASS

EX. LEVEL

SOUND

MODE

FULL - LOGIC CONTROL CD SYNCHRO RECORDING

PLAY

When using the remote control, point it at the remote sensor on the front panel.

– 5 –

5 02.2.18, 8:20 PM

Getting Started

Continued

Unpacking

After unpacking, check to be sure that you have all the following items.

The number in the parentheses indicates the quantity of the pieces supplied.

• AM loop antenna (1)

• FM antenna (1)

• Remote control (1)

• Batteries (2)

If any is missing, consult your dealer immediately.

Connecting Antennas

FM antenna

ANTENNA AM

FM [75 ]

FM antenna (supplied)

Putting the Batteries into the Remote Control

Insert the batteries—UM-4/AAA/IEC R03—into the remote control, by matching the polarity (+ and –) on the batteries with the + and – markings on the battery compartment.

When the remote control can no longer operate the unit, replace both batteries at the same time.

1

1 Attach the FM antenna to the FM [75

Ω

] coaxial terminal.

2

Extend the FM antenna.

3

Fasten it up in the position which gives you the best reception, then fix it on the wall, etc.

About the supplied FM antenna

The FM antenna supplied with this unit can be used as temporary measure. If reception is poor, you can connect an outdoor FM antenna.

To connect an outdoor FM antenna

Before connecting it, disconnect the supplied FM antenna.

2

UM-4/AAA/IEC R03

Outdoor FM antenna

(not supplied)

3

+

-

-

+

ANTENNA AM

FM [75 ]

EN01-11.MX-K50[J].pm6

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time.

Otherwise, it will be damaged from battery leakage.

– 6 –

A 75

Ω

antenna with coaxial type connector should be used.

6 02.2.18, 8:20 PM

AM antenna

1 2, 3

Connecting Speakers

1 2, 3

Vinyl-covered wire

(not supplied)

ANTENNA

AM

Red

SPEAKER

Speaker cord

(red/black)

Speaker cord

(red/black)

Black

AM loop antenna

(supplied)

1 Press and hold the clamp of the AM terminal on the rear of the unit.

2

Insert the end of the AM loop antenna cord into the terminal.

• If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as shown in the diagram.

3

Release the finger from the clamp.

4 Turn the AM loop antenna until you have the best reception.

To connect an outdoor AM antenna

When reception is poor, connect a single vinyl-covered wire to the AM terminal and extend it horizontally. (The AM loop antenna must remain connected.)

For better reception of both FM and AM

• Make sure the antenna conductors do not touch any other terminals and connecting cords.

• Keep the antennas away from metallic parts of the unit, connecting cords, and the AC power cord.

From right speaker’s terminals

From left speaker’s terminals

1 Press and hold the clamp of the speaker terminal on the rear of the unit.

2

Insert the end of the speaker cord into the terminal.

Match the polarity (colors): Red (+) to red (+) and black

(–) to black (–).

• If the wire is covered with vinyl, remove the vinyl by twisting it as shown in the diagram.

3 Release the finger from the clamp.

IMPORTANT:

• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

• DO NOT connect more than one speaker to one speaker terminal.

– 7 –

EN01-11.MX-K50[J].pm6

7 02.2.18, 8:20 PM

Connecting Other Equipment

You can connect an audio equipment.

• DO NOT connect any equipment while the power is on.

• DO NOT plug in any equipment until all connections are complete.

Canceling the Display Demonstration

When connecting the AC power cord into a wall outlet, the unit automatically starts display demonstration.

On the unit ONLY:

To cancel the display demonstration, press

CANCEL/DEMO.

CANCEL

/ DEMO

To connect an analog component

Be sure that the plugs of the audio cords are color coded:

White plugs and jacks are for left audio signals, and red ones for right audio signals.

When you press other buttons

The display demonstration stops temporarily. It will start automatically again (if no operation is done for 2 minutes) until you cancel it by pressing CANCEL/DEMO.

AUX IN

To start the display demonstration manually

Press and hold CANCEL/DEMO again for more than 2 seconds.

CANCEL

/ DEMO

Audio/video equipment

To audio output

For playing the other equipment through this unit, connect between the audio output jacks on the other equipment and AUX IN jacks by using audio cords (not supplied).

NOW, you can plug in the unit and other connected equipment FINALLY!

EN01-11.MX-K50[J].pm6

8

– 8 –

02.2.18, 8:20 PM

Common Operations

Turning On or Off the Power

To turn on the unit, press STANDBY/

ON so that the STANDBY lamp goes off.

STANDBY

STANDBY/ON

3

Press

4

or

¢

to adjust the minute, then press SET.

SET

To turn off the unit (on standby), press

STANDBY/ON again so that the

STANDBY lamp lights up.

STANDBY

STANDBY/ON

A little power is always consumed even while the unit is on standby.

To switch off the power supply completely, unplug the AC power cord from the AC outlet.

When you unplug the AC power cord or if a power failure occurs

The clock is reset to “– – : – –” soon, while the tuner preset stations

(see page 11) will be erased in a few days.

To check the clock time

Press DISPLAY while playing any source.

• Each time you press the button, the source indication and the clock time alternate on the display.

DISPLAY

To adjust the clock again

If you have adjusted the clock before, you need to press

CLOCK/TIMER repeatedly until “CLOCK” is selected.

• Each time you press the button, the clock/timer setting modes change as follows:

DAILY

Canceled

ON TIME

(Daily Timer)

CLOCK

REC

ON TIME

(Recording Timer)

Setting the Clock

Before operating the unit any further, first set the clock built in this unit. You can set the clock whether the unit is on or off.


1

Press CLOCK/TIMER.

CLOCK

/ TIMER

If there is a power failure

The clock loses the setting and is reset to “– – : – –.” You need to set the clock again.

Selecting the Sources

To listen to the radio, press FM/AM. (See page 11.)

To play back CDs, press CD

6

. (See pages 12 to 15.)

To play back tapes, press TAPE

3

. (See page 16.)

To select the external equipment as the source, press AUX.

The hour digits start flashing on the display.

2

Press

4

or

¢

to adjust the hour, then press SET.

AUX

FM

/AM

CD

TAPE

The minute digits start flashing on the display.

• If you want to correct the hour after pressing

SET, press CANCEL/DEMO. The hour digits start flashing again.

SET

When you press the play button for a particular source (AUX,

FM/AM, CD 6 , and TAPE 3 ), the unit turns on (and the unit starts playing the source if it is ready—COMPU PLAY

CONTROL).

– 9 –

02.2.18, 8:20 PM EN01-11.MX-K50[J].pm6

9

Adjusting the Volume

You can adjust the volume level only while the unit is turned on.

Turn the VOLUME control clockwise to increase the volume or counterclockwise to decrease it.

• The volume level can be adjusted in 32 steps (VOL MIN, VOL 1 — VOL 30, and

VOL MAX).

Selecting the Sound Modes

This function only affects the playback sound, not your recording.

You can select one of the 6 preset sound modes (3 surround modes and 3 SEA—Sound Effect Amplifier—modes).

When using the remote control, press VOLUME + to increase the volume or press VOLUME – to decrease it.

To select the sound modes, turn the

SOUND MODE control until the sound mode you want appears on the display.

SOUND

MODE

SOUND MODE indicator also lights up on the display

For private listening

Connect a pair of headphones to the PHONES jack. No sound comes out of the speakers. Be sure to turn down the volume before connecting or putting on headphones.

DO NOT turn off (on standby) the unit with the volume set to an extremely high level; otherwise, a sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the unit or start playing any source next time.

REMEMBER you cannot adjust the volume level while the unit is on standby.

To turn down the volume level temporarily

Press FADE MUTING on the remote control.

The volume level gradually decreases to

“VOL MIN.”

To restore the sound, press the button again.

FADE

MUTING

Reinforcing the Bass Sound

This function only affects the playback sound, not your recording.

The ACTIVE BASS EX. (extension) LEVEL control provided for this unit can maintain the richness and fullness of the bass sound while listening to any source at low volume.

Turn the ACTIVE BASS EX. LEVEL control clockwise to increase the bass sound or counterclockwise to decrease it.

ACTIVE BASS

EX. LEVEL

• The bass sound level can be adjusted in 3 steps

(LOW, MID, HIGH).

BASS indicator lights up when the

Active Bass Extension is turned on.

When using the remote control, press ACTIVE BASS EX.

LEVEL to adjust the bass sound level. Each time you press the button, the Active Bass Extension level changes as OFF

= LOW = MID = HIGH = (back to the beginning).

– 10 –

• As you turn the control, the sound modes change as follows:

D.CLUB

(Dance CLUB)

HALL STADIUM ROCK

OFF

(Canceled)

CLASSIC POP

Surround modes * :

D.CLUB

: Increases resonance and bass.

HALL : Adds depth and brilliance to the sound.

STADIUM : Adds clarity and spreads the sound, like in an outdoor stadium.

SEA (Sound Effect Amplifier) modes:

ROCK : Boosts low and high frequency. Good for acoustic music.

POP : Good for vocal music.

CLASSIC : Good for classical music.

OFF : Cancels the sound mode.

* Surround elements are added to the SEA elements to create being-there feeling in your room.

When one of these modes is selected, the SOUND MODE indicator lights up as —

While one of the SEA modes (SEA elements without surround elements) is selected, the SOUND MODE indicator lights up as

—

When using the remote control, press SOUND MODE to select the sound mode.

• Each time you press the button, the sound modes change as follows:

HALL STADIUM ROCK D.CLUB

(Dance CLUB)

OFF

(Canceled)

CLASSIC POP

EN01-11.MX-K50[J].pm6

10 02.2.18, 8:20 PM

Listening to the Radio

Tuning in a Station

1

Press FM/AM.

The unit automatically turns on and tunes in the previously tuned station (either FM or AM).

• Each time you press the button, the band alternates between FM and AM.

2

Start searching for stations.

On the unit:

Press and hold TUNING + or

TUNING – for more than 1 second.

On the remote control:

Press and hold

4

/

1

or

¢

/

¡

for more than 1 second.

The unit starts searching for stations and stops when a station of sufficient signal strength is tuned in.

If a program is broadcast in stereo, the ST (stereo) indicator lights up.

FM

/AM


1

Tune in the station you want to preset (in this example, of FM 87.50).

2

3

4

• See “Tuning in a Station”.

Press SET.

Press PRESET + or PRESET – to select a preset number.

Press SET again.

SET

SET

To stop during searching, press TUNING + or TUNING –

(or

4

/

1

or

¢

/

¡

on the remote control).

When you press TUNING + or TUNING –

(or

4

/

1

or

¢

/

¡

on the remote control) briefly and repeatedly

The frequency changes step by step.

To change the FM reception mode

When an FM stereo broadcast is hard to receive or noisy, press FM MODE on the remote control so that “MONO” appears and MONO indicator also lights up on the display. Reception improves.

FM MODE

To restore the stereo effect, press FM MODE again so that

“STEREO” appears on the display.

In this stereo mode, you can hear stereo sounds when a program is broadcast in stereo.

Presetting Stations

You can preset 30 FM and 15 AM stations.

In some cases, test frequencies have been already memorized for the tuner since the factory examined the tuner preset function before shipment. This is not a malfunction. You can preset the stations you want into memory by following the presetting method.

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

The tuned station in step 1 is stored in the preset number selected in step 3 .

• Storing a new station on a used number erases the previously stored one.

When you unplug the AC power cord or if a power failure occurs

The preset stations will be erased in a few days. If this happens, preset the stations again.

Tuning in a Preset Station

1

Press FM/AM.

The unit automatically turns on and tunes in the previously tuned station (either FM or AM).

• Each time you press the button, the band alternates between FM and AM.

2

Select a preset number.

On the unit:

Press PRESET + or PRESET –.

On the remote control:

Press the number buttons.

Ex.: For preset number 5, press 5.

For preset number 15, press +10 then 5.

For preset number 20, press +10, then 10.

For preset number 25, press +10,

+10, then 5.

For preset number 30, press +10,

+10, then 10.

10

1

4

7

2

5

8

+10

FM

/AM

3

6

9

– 11 –

EN01-11.MX-K50[J].pm6

11 02.2.18, 8:20 PM

.

Playing Back CDs

Continued

This unit has been designed to playback the following CDs:

Audio CD, CD-R, and CD-RW.

When playing a CD-R or CD-RW

User-edited CD-Rs (CD-Recordable) and CD-RWs

(CD-ReWritable) can be played back when they are already

“finalized.”

• You can play back your original CD-Rs or CD-RWs recorded in music CD format ONLY. (If CD-RWs have been recorded in different format, erase all the data on CD-

RWs completely before re-recording on the discs.)

DO NOT play back CD-Rs or CD-RWs recorded the sound files such as MP3.

• Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, damage or stain on them, or if the player’s lens is dirty.

Important notices:

• In general, you will have the best performance by keeping your CDs and the mechanism clean.

- Store CDs in their cases, and keep them in cabinets or on shelves.

- Keep the unit’s carrousel closed when not in use.

• Continuous use of irregular shaped discs (heart-shape, octagonal, etc.) can damage the disc rotating mechanism.

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than for regular CDs.

Loading CDs

1

Press

0

.

The unit automatically turns on and the carrousel comes out.

2

Place one or two discs correctly on the front recesses of the disc tray, with its label side up.

3

If you wish to load a third disc, press DISC CHANGE on the unit or DISC SKIP on the remote

4 control.

The disc tray rotates by 120˚.

Press

0

again.

The carrousel closes.

Disc number

Disc indicator

DISC CHANGE

About the disc indicators

Each disc indicator corresponds to the disc tray of the same number.

Disc marker

DISC

SKIP

• The disc marker lights up for the disc number you have selected.

• The disc indicator rotates while the corresponding CD is being played.

• The disc indicator goes off when the unit has detected that there is no CD on the corresponding disc tray.

Playing Back CDs—All Disc and One Disc

You can play all loaded CDs continuously—All Disc play, or one selected disc—One Disc play.

All Disc play

1

Load CDs.

• If the current playing source is not the CD player, press

CD

6

, then

7

before going to the next step.

2

Press REPEAT repeatedly so that the

ALL DISC indicator lights up on the display.

REPEAT PROG

Track number of the currently playing disc flashes

(Track numbers exceeding 16 are not displayed.)

INCORRECT CORRECT

• When using a CD single (8 cm), place it on the inner recess of the disc tray.

Track number Elapsed playing time

• Each time you press the button, the indication on the display changes as follows:

ALL DISC

(initial setting)

1 DISC

REPEAT ALL DISC *

REPEAT 1

REPEAT 1 DISC *

*

* See page 15.

– 12 –

EN12-16.MX-K50[J].pm6

12 02.2.18, 8:20 PM

3

Press one of the disc number buttons (CD1, CD2 or CD3) for the disc you want to start

CD 1 CD 2 to play from.

CD play starts from the first track of the selected disc.

• Pressing CD

6

instead of the disc number buttons starts playing back if a CD is on the trays.

CD 3

To stop during play, press

7

.

To remove the disc, press

0

.

Basic CD Operations

While playing a CD, you can do the following operations.

To exchange CDs during playback of another

Press DISC CHANGE to change the CD and the carrousel comes out.

If you change CDs during play, the current play will not stop until all CDs you have changed are played.

To close the carrousel , press DISC CHANGE or

0

.

DISC CHANGE

CD playback sequence

When 3 CDs are loaded on the disc trays, they are played in one of the following sequences.

• When CD1 is pressed : CD1

]

CD2

]

CD3 (then stops)


]

CD3

]

CD1 (then stops)


]

CD1

]

CD2 (then stops)

* When only 2 CDs are loaded, they are played in the same order, but the disc tray without a CD is skipped.

One Disc play

When 2 or 3 CDs are loaded on the disc trays, you can select one particular disc to be played back.

1

Load CDs.


CD

6

, then

7


2

Press REPEAT repeatedly so that the

1 DISC indicator lights up on the display.

REPEAT PRO

To skip to the another CD in the carrousel

Press DISC SKIP on the remote control.

To stop play for a moment

Press CD

6

.

While pausing, “PAUSE” appears on the display.

To resume play, press CD 6 again.

To locate a particular point in a track

During play, press and hold

1

or

¡

.

•

1

: Fast reverses the disc.

•

¡

: Fast forwards the disc.

When using the remote control, press and hold

4

/

1

or

¢

/

¡

.

DISC

SKIP

CD

• Each time you press the button, the indication on the display changes as follows:

ALL DISC

(initial setting)

1 DISC REPEAT 1 *

To go to another track

Press 4 or ¢ repeatedly before or during playback.

•

4

: Goes back to the beginning of the current or previous tracks.

•

¢

: Skips to the beginning of the next or succeeding tracks.

REPEAT ALL DISC *

* See page 15.

REPEAT 1 DISC *

3

Press one of the disc number buttons (CD1, CD2 or CD3) you want to listen.

CD 1 CD 2 CD 3

If you press and hold

4

or

¢

on the unit before playing

The track number keeps changing until you release it.

Playback stops when all tracks of the selected disc are played once and resumes to All Disc play.

To stop during play, press 7 .

To remove the disc, press 0 .

To exit from One Disc Play, press REPEAT repeatedly so that ALL DISC indicator lights up on the display.

The following operations will also cancel the One Disc play and restore All Disc play when—

• Turning off the power,

• Ejecting the carrousel, or

• Changing the source to play.

– 13 –

To go to another track directly using the number buttons

Pressing the number button(s) before or during play allows you to start playing the track number you want.

Ex.: For track number 5, press 5.

For track number 15, press +10, then 5.

1

4

2

5

3

6

For track number 20, press +10, then 10.

For track number 32, press +10,

+10, +10, then 2.

7

10

8

+10

9

EN12-16.MX-K50[J].pm6

13 02.2.18, 8:20 PM

Continued

Programing the Playing Order of the Tracks

—–Program Play

You can arrange the order in which the tracks play before you start playing. You can program up to 32 tracks.

• To use Repeat play (see page 15) for Program play, press

REPEAT after starting Program play.

5

Program other tracks you want.

• To program tracks from the same disc, repeat step 4 .

• To program tracks from a different disc, repeat steps 3 and 4 .

6

Press CD

6

.

The tracks are played in the order you have programed.

CD


1

Load CDs.


CD

6

, then

7


2

Press PROGRAM so that

“PROGRAM” appears on the display.

PROGRAM

The PRGM (program) indicator also lights up on the display.

• All Disc play mode is selected automatically. You cannot select One Disc play mode for Program play.

RAND

• If a program has been stored in memory, the program is called up.

3

Press one of the disc number buttons (CD1, CD2, and CD3) to select the disc number you want to play.

Track number

CD 1 CD 2 CD 3

To stop during play, press 7 .

To exit from Program play mode, press PROGRAM again before or after play so that the unit enters All Disc play mode. (The program you have made is stored in memory until you turn off the unit, eject the carrousel, or erase the program.)

• Program play mode is also canceled when you press

0

.

To modify the program

Before playing, you can erase the last programed track shown on the display by pressing

CANCEL/DEMO.

• Each time you press the button, the last programed track is erased from the program.

CANCEL

/ DEMO

To check the program during play, press

¢

(or

4

) so that the playing track will change according to the program

(or reverse) order.

To add tracks in the program before play, simply select the disc numbers and/or track numbers you want to add by following steps 3 and 4 of the programing procedure.

To erase the entire program before or during play, press 7 twice.

• Turning the power off or ejecting the carrousel will also erase the stored memory.

If you try to program a 33rd track

“FULL” will appear on the display.

Disc number Program step number

4

Press

4

or

¢

to select the track number, then press SET.

Each time you select a track and press SET, the selected track number is added to the track number indicator.

SET

If your entry is ignored

You have tried to program a track from an empty tray, or a track number that does not exist on the CD. Such entries are ignored.

EN12-16.MX-K50[J].pm6

14

– 14 –

02.2.18, 8:20 PM

Playing at Random—–Random Play

The tracks of the selected CD will play at random.

• To use Random play mode, you have to cancel the Program play mode.

1

Load a CD.

2

Press one of the disc number buttons (CD1, CD2, and CD3) for the disc you want to play, then press

7

.

CD 1 CD 2 CD 3

3

Press RANDOM so that “RANDOM” AM RANDOM appears on the display.

The RANDOM indicator also lights up on the display.

• Activating Random play cancels Repeat play or All Disc play. (One Disc is automatically selected.)

Repeating Tracks or CDs—–Repeat Play

You can have all the CDs, the program or the individual track currently playing repeat as many times as you like.

• Repeat play and Random play cannot be used at the same time.

REPEAT PRO

To repeat play, press REPEAT during or before playing.

• Each time you press the button, Repeat play mode changes as follows, and the following indicator lights up on the display:

ALL DISC * 1 DISC *

REPEAT ALL DISC

REPEAT 1

REPEAT 1 DISC

REPEAT 1 : Repeats one track on one CD.

REPEAT 1 DISC ** : Repeats all the tracks on one CD.

REPEAT ALL DISC : Repeats all the tracks on all the CDs, or all the tracks on the program.

* See pages 12 and 13.

** REPEAT 1 DISC is not used for Program play.

To cancel Repeat play, press REPEAT repeatedly until the

REPEAT indicator (REPEAT 1, REPEAT 1 DISC or

REPEAT ALL DISC) goes off from the display.

• Repeat play is also canceled when you press 0 .

• The tracks are played automatically at random. Random play ends when all tracks are played once.


7

.

To exit from Random play mode, press RANDOM again during play so that the unit enters All Disc play mode.

• Random play is also canceled when you press

0

.

If you press

4

or

¢

Skips to the next track selected randomly.

Prohibiting Disc Ejection—–Tray Lock

You can prohibit CD ejection from the unit and can lock the carrousel.

• This operation is possible only while the unit is on with CD selected as the source.


To prohibit disc ejection, press 0 for the carrousel while holding 7 .

“LOCKED” appears for a while, and the carrousel is locked.

To cancel the prohibition and unlock the carrousel, press

0

for the carrousel while holding

7

.

“UNLOCKED” appears for a while, and the carrousel is unlocked.

If you try to eject CDs

“LOCKED” appears to inform you that the Tray Lock is in use.

EN12-16.MX-K50[J].pm6

15

– 15 –

02.2.18, 8:20 PM

Playing Back Tapes

Playing Back a Tape

1

Press

0

EJECT for deck A or EJECT

0

for deck B.


7

.

To operate the other deck, press TAPE A or TAPE B (or

TAPE A/B on the remote control), then TAPE

3

.

To fast-forward the tape, press

¡

(or

¢

/

¡

on the remote control). The tape running indicator ( 3 ) starts flashing quickly.

To rewind the tape, press 1 (or 4 / 1 on the remote control). The tape running indicator ( 2 ) starts flashing quickly.

To remove the cassette, press

0

EJECT for deck A or

EJECT

0

for deck B.

For Deck B

For Deck A

2

Put a cassette in, with the exposed part of the tape down and the side you want to play facing front.

• You can play back only type I tapes.

3

Close the cassette holder gently.

If you put cassettes in both decks A and B, the last deck which you have put a cassette into is selected.

To operate the other deck, press TAPE A or TAPE B (or

TAPE A/B on the remote control).

4

Press TAPE

3

.

The tape play starts and the tape running indicator (

3

) starts flashing slowly.

When the tape plays to the end, the deck automatically stops.

TAPE

– 16 –

EN12-16.MX-K50[J].pm6

16

The use of the C-120 or thinner tape is not recommended, since characteristic deterioration may occur and this tape easily jams in the pinchrollers and the capstans.

02.2.18, 8:20 PM

Recording

IMPORTANT:

• It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable program and in any literary, dramatic, musical, or artistic embodied therein.

• The recording level is automatically set correctly, so it is not affected by the VOLUME, the ACTIVE BASS EX.

LEVEL, and the SOUND MODE controls. Thus, during recording you can adjust the sound you are actually listening to without affecting the recording level.

• While recording, you can hear sound modes through the speakers or headphones. However, the sound is recorded without these effects (see page 10).

• If recordings you have made have excessive noise or static, the unit may be too close to a TV. Place the unit away from the TV.

• You can use type I tape for recording.

To protect your recording

Cassettes have two small tabs on the back to protect unexpected erasure or rerecording.

To protect your recording, remove these tabs.

To re-record on a protected tape, cover the holes with adhesive tape.

To keep the best recording and playback sound quality

If the heads, capstans, and pinch rollers of the cassette decks become dirty, the following will occur:

• Impaired sound quality

• Discontinuous sound

• Fading

• Incomplete erasure

• Difficulty in recording

To clean the head, capstan, and pinch roller

Use a cotton swab moistened with alcohol.

Capstan

Erase head

Recording a Tape on Deck B


1

Press EJECT

0

for deck B.

2

Put a recordable cassette in, with the exposed part of the tape down and the side you want to record facing front.

3

Close the cassette holder gently.

4

Start playing the source—FM, AM, CD player or auxiliary equipment connected to

AUX IN jacks.

• For duplicating tapes, see “Dubbing Tapes” on page 18.

• For recording from CD, see “CD Synchronized

Recording” on page 18.

5

Press REC START/STOP.

The REC (recording) indicator lights up on the display and recording starts.

REC START

/STOP

CD

ST

To stop during recording, press REC START/STOP again or 7 .

To remove the cassette, press EJECT

0

for deck B.

Pinch roller

Head

To demagnetize the head

Turn off the unit, and use a head demagnetizer (available at electronics and audio shops).

– 17 –

EN17-24.MX-K50[J].pm6

17 02.2.18, 8:21 PM

Dubbing Tapes


1

Press TAPE

3

, then

7

.

TAPE

2

Put the source cassette in deck A, and a recordable cassette into deck B.

3

Press DUBBING.

Dubbing starts.

“DUBBING” appears, and the REC

(recording) indicator lights up on the display.

REC

ART DUBBING

CD Synchronized Recording

You can easily record a CD onto a tape.

• You can also record the tracks in order you have made the program.


1

Put a recordable cassette into deck B.

2

Place a disc correctly on the recess of the disc tray, with its label side up.

3

Press one of the disc number buttons (CD1,

CD2, and CD3) to select the disc, then

7

.

CD 1 CD 2 CD 3

4

Press CD REC START.

“CD REC” appears, and the REC (recording) indicator lights up on the display.

ART

P

CD REC

START DUBB

To stop during dubbing, press 7 or REC START/STOP.

To remove the cassette, press

0

EJECT for deck A and

EJECT

0

for deck B.

Deck B starts recording and the CD player starts playing.

When the recording is done, the CD player and deck B stop.

To stop during CD Synchronized Recording, press 7 or

REC START/STOP.

To remove the cassette, press EJECT

0

for deck B.

EN17-24.MX-K50[J].pm6

18

– 18 –

02.2.18, 8:21 PM

Using the Timers

There are three timers available—Daily Timer, Recording

Timer, and Sleep Timer.

Before using the timers, you need to set the clock built in the unit. (See “Setting the Clock” on page 9.)

2

Press CLOCK/TIMER again.

“ON TIME” appears for 2 seconds, then the unit enters on-time setting mode.

CLOCK

/ TIMER

Using Daily Timer

With Daily Timer, you can wake to your favorite music or radio program. You can set the timer whether the unit is on or off.

How Daily Timer actually works

The unit automatically turns on, set the volume level to the preset level, and starts playing the specified source when the on-time comes (the indicator flashes while the timer is operating). Then, when the off-time comes, the unit automatically turns off (stands by).

Daily Timer works every day unless you cancel it.


• If you have made a mistake while setting timer, press

CANCEL/DEMO. (However, this does not always work. If

CANCEL/DEMO does not work, press CLOCK/TIMER repeatedly and start from step 1 again.)

3

Set the on-time you want the unit to turn on.

1) Press 4 or ¢ to set the hour, then press SET.

2) Press 4 or ¢ to set the minute, then press SET.

“OFF TIME” appears for 2 seconds, then the unit enters off-time setting mode.

4

Set the off-time you want the unit to turn off (on standby).

1) Press 4 or ¢ to set the hour, then press SET.

2) Press 4 or ¢ to set the minute, then press SET.

The unit enters source selecting mode.

SET

SET

Before you start...

• When using a CD as the source to play:

—Make sure there is a CD on the currently selected

disc number tray.

• When using a tape as the source to play:

—Make sure that a tape is in the deck whose deck

indicator (A or B) is lit on the display.

• When using the external component as the source to play:

—Set the timer equipped with the external component

at the same time.

5

Press

4

or

¢

to select the source to play, then press SET.

• Each time you press

4

or

¢

, the source changes as follows:


1

Press CLOCK/TIMER repeatedly until “DAILY” appears on the display.

indicator lights up and the DAILY (daily timer) indicator starts flashing on the display.

CLOCK

/ TIMER

TUNER FM

AUX TAPE

TUNER AM

CD

SET

• Each time you press the button, the timer setting modes change as follows:

DAILY ON TIME

(Daily Timer)

REC

Canceled CLOCK

(See page 9.)

ON TIME

(Recording Timer)

– 19 –

TUNER FM : tunes in to a specified preset FM station.

= go to step 6 .

TUNER AM : tunes in to a specified preset AM station.

= go to step 6 .

CD : plays a disc from the first track.

=

go to step 7 .

TAPE

AUX

: plays a tape in deck A or B.

=

go to step 7 .

: plays an external source.

=

go to step 7 .

EN17-24.MX-K50[J].pm6

19 02.2.18, 8:21 PM

Continued

6

Select the preset station number.

Press

4

or

¢

to select the preset station number, then press SET.

The unit enters volume setting mode.

7

Press

4

or

¢

to set the volume level.

• You can select the volume level from VOL

MIN, VOL 1 — VOL30, and VOL MAX.

SET

Using Recording Timer

With Recording Timer, you can make a tape of a radio broadcast automatically. You can set the timer whether the unit is on or off.

How Recording Timer actually works

The unit automatically turns on, tunes into the specified station, sets the volume level to “VOL MIN,” and starts recording when the on-time comes (the indicator flashes while the timer is operating). Then, when the off-time comes, the unit automatically turns off (stands by).

Recording Timer works only once, but the timer setting remains in memory until you change it.


• If you have made a mistake while setting the timer, press

CANCEL/DEMO. (However, this does not always work. If

CANCEL/DEMO does not work, press CLOCK/TIMER repeatedly and start from step 2 again.)


1

Put a recordable cassette into deck B.

2

Press CLOCK/TIMER repeatedly until “REC” appears on the display.

indicator lights up and the REC (recording timer) indicator starts flashing on the display.

CLOCK

/ TIMER

8

Press SET to complete the Daily

Timer setting.

The DAILY (daily timer) indicator stops flashing and remains lit. The settings you have done are shown on the display in sequence for your confirmation.

SET

9

Press STANDBY/ON to turn off the unit (on standby) if you have set the Daily Timer with the unit turned on.

STANDBY

STANDBY/ON

If the unit is turned on when the timer-on time comes

Daily Timer does not work.

To turn on or off Daily Timer after its setting is done

1 Press CLOCK/TIMER repeatedly until

“DAILY” appears on the display.

2 To turn off the Daily Timer, press

CANCEL/DEMO.

The DAILY (daily timer) indicator goes off from the display (“OFF” appears for a while).

The Daily Timer is canceled, but the setting for the Daily Timer remains in memory until you change it.

To turn on the Daily Timer, press SET.

The DAILY (daily timer) indicator lights up on the display. The settings you have done are shown on the display in sequence for your confirmation.

CLOCK

/ TIMER

CANCEL

/ DEMO

SET

• Each time you press the button, the timer setting modes change as follows:

DAILY

Canceled

ON TIME

(Daily Timer)

CLOCK

(See page 9.)

REC

ON TIME

(Recording Timer)

3

Press CLOCK/TIMER again.

“ON TIME” appears for 2 seconds, then the unit enters on-time setting mode.

CLOCK

/ TIMER

– 20 –

EN17-24.MX-K50[J].pm6

20 02.2.18, 8:21 PM

4

Set the on-time you want the unit to turn on.

1) Press

4

or

¢

to set the hour, then press SET.

2 ) Press 4 or ¢ to set the minute, then press SET.

“OFF TIME” appears for 2 seconds, then the unit enters off-time setting mode.

5

Set the off-time you want the unit to turn off (on standby).

1) Press

4

or

¢

to set the hour, then press SET.

2) Press

4

or

¢

to set the minute, then press SET.

The unit enters preset station selecting mode.

6

Select the preset station.

1) Press

4

or

¢

to select the band

(“TUNER FM” or “TUNER AM”), then press SET.

2) Press 4 or ¢ to select a preset channel number, then press SET.

The REC (recording timer) indicator stops flashing and remains lit. The settings you have done are shown on the display in sequence for your confirmation.

SET

SET

SET

Using Sleep Timer

With Sleep Timer, you can fall asleep to music.

You can set Sleep Timer when the unit is turned on.

How Sleep Timer actually works

The unit automatically turns off after the specified time length passes.

On the remote control ONLY:

1

Press SLEEP.

The time length until the shut-off time appears and the SLEEP indicator starts flashing on the display.

• Each time you press the button, the time length changes as follows:

SLEEP

SLEEP10 SLEEP20 SLEEP30 SLEEP60

OFF SLEEP120 SLEEP90

(Canceled)

2

Wait for about 5 seconds after specifying the time length.

The SLEEP indicator stops flashing and remains lit.

To check the remaining time until the shut-off time, press SLEEP once so that the remaining time until the shutoff time appears for about 5 seconds.

To change the shut-off time, press SLEEP repeatedly until the desired time length appears on the display.

To cancel the setting, press SLEEP repeatedly until “OFF” appears on the display so that the SLEEP indicator goes off from the display.

• Sleep Timer is also canceled when you turn off the unit.

7

Press STANDBY/ON to turn off the unit (on standby) if necessary.

STANDBY

STANDBY/ON

Timer Priority

About the recording source

If you change the source while recording, the recording also changes.

To turn on or off Recording Timer after its setting is done

1 Press CLOCK/TIMER repeatedly until

“REC” appears on the display.

CLOCK

/ TIMER

2 To turn off the Recording Timer, press

CANCEL/DEMO.

The REC (recording timer) indicator goes off from the display (“OFF” appears for a while).

The Recording Timer is canceled, but the setting for the Recording Timer remains in memory until you change it.

CANCEL

/ DEMO

To turn on the Recording Timer, press SET.

The REC (recording timer) indicator lights up on the display. The settings you have done are shown on the display in sequence for your confirmation.

SET

– 21 –

Since each timer can be set separately, you may wonder what happens if the setting for these timers overlaps.

Here are some examples.

• Recording Timer has priority over Daily Timer.

If Recording Timer is set to come on while Daily Timer is operating, Daily Timer is canceled and Recording Timer start working.

AM 6:00 6:30 7:00 7:30

Recording Timer

Daily Timer canceled.

• If Sleep Timer overlaps with another timer (either Daily

Timer or Recording Timer), a timer with the earlier shutoff time has priority.

AM 6:00 6:30 7:00 7:30

Sleep Timer

Recording Timer canceled.

When using the Recording Timer and Sleep Timer at the same time, pay special attention to the shut-off time.

EN17-24.MX-K50[J].pm6

21 02.2.18, 8:21 PM

Maintenance

To get the best performance of the unit, keep your discs, tapes, and mechanism clean.

Cleaning the unit

• Stains on the unit

Should be wiped off with a soft cloth. If the unit is heavily stained, wipe it with a cloth soaked in water-diluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Avoid the following since they may cause damage to the unit.

- DO NOT wipe it with a hard cloth.

- DO NOT wipe it strong.

- DO NOT wipe it with thinner or benzine.

- DO NOT apply any volatile substance such as insecticides to it.

- DO NOT allow any rubber or plastic to remain in contact with it for a long time.

Handling cassette tapes

• If the tape is loose in its cassette, take up the slack by inserting a pencil in one of the reels and rotating.

• If the tape is loose, it may get stretched, cut, or caught in the cassette.

• Be careful not to touch the tape surface.

• Avoid the following places to store the tape:

— In dusty places

— In direct sunlight or heat

— In moist areas

— Near a magnet

Handling discs

• Remove the disc from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when placing it back in its case.

• Avoid exposure to direct sunlight, temperature extremes, and moisture.

To clean the disc

Wipe the disc with a soft cloth in a straight line from center to edge.

DO NOT use any solvent—such as conventional record cleaner, spray, thinner, or benzine—to clean the disc.

EN17-24.MX-K50[J].pm6

22

– 22 –

02.2.18, 8:21 PM

Troubleshooting

If you are having a problem with your unit, check this list for a possible solution before calling for service.

If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person, such as your dealer, for service.

Symptom

Unable to cancel the display demonstration.

No sound is heard.

Cause

Other buttons are pressed to cancel the display demonstration.

Connections are incorrect or loose.

Hard to listen to broadcasts because of noise.

The disc sound is discontinuous.

The carrousel does not open or close.

The disc does not play.

The cassette holders cannot be opened.

Impossible to record.

Operations are disabled.

Unable to operate the unit from the remote control.

• Antennas are disconnected.

• The AM loop antenna is too close to the unit.

• The FM antenna is not properly extended and positioned.

The disc is scratched or dirty.

• The AC power cord is not plugged in.

• The carrousel is locked.

The disc is placed upside down.

Power supply from the AC power cord has been cut off while the tape was running.

Small tabs on the back of the cassette are removed.

The built-in microprocessor may malfunction due to external electrical interference.

• The path between the remote control and the remote sensor on the unit is blocked.

• The batteries are exhausted.

Action

Press DEMO on the unit. (See page 8.)

Check all connections and make corrections. (See pages 6 to 8.)

• Reconnect the antennas correctly and securely.

• Change the position and direction of the

AM loop antenna.

• Extend the FM antenna at the best position.

Clean or replace the disc. (See page 22.)

• Plug the AC power cord.

• Unlock the carrousel. (See page 15.)

Place the disc with the label side up.

Turn on the unit.

Cover the holes with adhesive tape.

Unplug the AC power cord and then plug it back in.

• Remove the obstruction.

• Replace the batteries.

EN17-24.MX-K50[J].pm6

23

– 23 –

02.2.18, 8:21 PM

Specifications

Amplifier section — CA-MXK50

Output Power:

100 W per channel, min. RMS, driven into 6

Ω

at 1 kHz with no more than 10% total harmonic distortion.

Audio input sensitivity/Impedance (at 1 kHz)

AUX: 400 mV/50 k

Ω

Speakers/Impedance: 6

Ω

– 16

Ω

Tuner

FM tuning range: 87.50 MHz – 108.00 MHz

AM tuning range: 530 kHz – 1 710 kHz

CD player

CD Capacity:

Dynamic range:

3 CDs

85 dB

Signal-to-noise ratio: 85 dB

Cassette deck

Frequency response

Normal (type I): 50 Hz — 14 000 Hz

Wow and flutter

0.15% (WRMS)

General

Power requirement: AC 120 V , 60 Hz

Power consumption: 120 W / 158 VA (at operation)

17 W (on standby)

Dimensions (approx.): 270 mm x 317 mm x 449 mm (W/H/D)

(10 11 /

16

in. x 12 1 /

2

in. x 17 11 /

16

in.)

Mass (approx.): 8.6 kg (19.0 lbs)

Supplied accessories

See page 6.

Speaker section — SP-MXK50

T ype:

Speaker units:

3-way bass-reflex type

Woofer: 13.5 cm (5 3 /

8

in.) cone x1

Midrange:

Tweeter:

5 cm (2 in.) cone x1

2 cm ( 13 /

16

in.) dome x1

Power handling capacity:

Impedance:

Frequency range:

100 W

6

Ω

32 Hz — 20 000 Hz

Sound pressure level: 81 dB/W•m

Dimensions (approx.): 228 mm x 318 mm x 255 mm (W/H/D)

Mass (approx.):

(9 in. x 12 9 /

6

in. x 10 1 /

16

in.)

3.5 kg (7.8 lbs) each

Design and specifications are subject to change without notice.

– 24 –

02.2.18, 8:21 PM EN17-24.MX-K50[J].pm6

24

Authorized Service Centers

®

QUALITY SERVICE

HOW TO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE: 1 (800) 537-5722 http://www.jvc.com

Dear Customer,

In order to receive the most satisfaction from your purchase,please read the instruction booklet before operating the unit.In the event that repairs are necessary, please call 1 (800)537-5722 for your nearest authorized servicer or visit our website at www.JVC.com

Remember to retain your Bill of Sale for Warranty Service.

Do not service the television yourself

Caution

To prevent electrical shock,do not open the cabinet.There are no user serviceable parts inside.Please refer to qualified service personnel for repairs.

Accessories

To purchase accessories for your JVC product,please call toll free:1 (800)882-2345 or on the web at www.JVC.com

BT-51002-5

(0301)

MX-K50[J]Warranty.pm6

2 02.2.18, 8:21 PM

LIMITED WARRANTY

AUDIO-1

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE

ORIGINAL PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail purchase for the period as shown below. ("The Warranty Period")

PARTS LABOR

1

YR

1

YR

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND

IN COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner.

Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are covered on an in-home basis.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service center, please call toll free: (800) 537-5722.

If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be given to you by the toll-free number.

If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by

JVC to render such service, or if affixed to any attachment not provided with the products, or if the model number or serial number has been altered, tampered with, defaced or removed;

2. Initial installation and installation and removal for repair;

3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;

4. Damage that occurs in shipment, due to act of God, and cosmetic damage;

5. Signal reception problems and failures due to line power surge;

6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;

7. Accessories

8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);

There are no express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS

LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER

DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE

TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH

OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANT-

ABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

JVC COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

1700 Valley Road

Wayne, NJ 07470

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF

REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION

PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No. :

Purchase data :

Serial No. :

Name of dealer :

02.2.18, 8:21 PM MX-K50[J]Warranty.pm6

3

MEMO

MEMO 1 02.2.18, 8:21 PM

MEMO

MEMO 2 02.2.18, 8:21 PM

VICTOR COMPANY OF JAPAN, LIMITED

EN

MX-K50[J]Cover.pm6

2 02.2.18, 8:22 PM

J

V

C

0202KSMMDWSAM

No results
