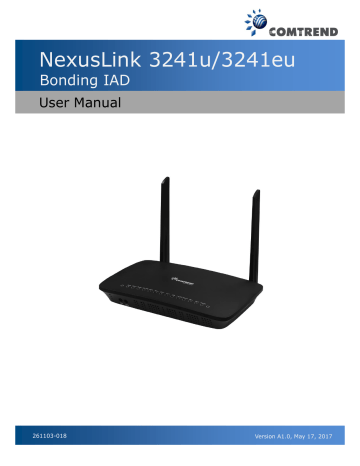

NexusLink 3241u/3241eu
Bonding IAD
User Manual
261103-018 Vers io n A1.0, May 17, 2017
Preface
This manual provides information related to the installation and operation of this device. The individual reading this manual is presumed to have a basic understanding of telecommunications terminology and concepts.
If you find the product to be inoperable or malfunctioning, please contact technical support for immediate service by email at [email protected]
For product update, new product release, manual revision, or software upgrades, please visit our website at http://www.comtrend.com
Important Safety Instructions
With reference to unpacking, installation, use, and maintenance of your electronic device, the following basic guidelines are recommended:
Do not use or install this product near water, to avoid fire or shock hazard. For example, near a bathtub, kitchen sink or laundry tub, or near a swimming pool.
Also, do not expose the equipment to rain or damp areas (e.g. a wet basement).
Do not connect the power supply cord on elevated surfaces. Allow it to lie freely.
There should be no obstructions in its path and no heavy items should be placed on the cord. In addition, do not walk on, step on, or mistreat the cord.
Use only the power cord and adapter that are shipped with this device.
To safeguard the equipment against overheating, make sure that all openings in the unit that offer exposure to air are not blocked.
Avoid using a telephone (other than a cordless type) during an electrical storm.
There may be a remote risk of electric shock from lightening. Also, do not use the telephone to report a gas leak in the vicinity of the leak.
Never install telephone wiring during stormy weather conditions.
CAUTION:
To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
WARNING
Disconnect the power line from the device before servicing.
Power supply specifications are clearly stated in Appendix C -
Specifications .
1
Copyright
Copyright©2017 Comtrend Corporation. All rights reserved. The information contained herein is proprietary to Comtrend Corporation. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of Comtrend Corporation.
This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software
Foundation, either version 3 of the License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS
FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/
NOTE: This document is subject to change without notice.
Protect Our Environment
This symbol indicates that when the equipment has reached the end of its useful life, it must be taken to a recycling centre and processed separate from domestic waste.
The cardboard box, the plastic contained in the packaging, and the parts that make up this router can be recycled in accordance with regionally established regulations.
Never dispose of this electronic equipment along with your household waste; you may be subject to penalties or sanctions under the law. Instead, please be responsible and ask for disposal instructions from your local government.
2
Table of Contents
CHAPTER 1 INTRODUCTION ........................................................................................................... 6
CHAPTER 2 INSTALLATION ............................................................................................................. 7
2.1
H ARDWARE S ETUP ........................................................................................................................... 7
2.2
LED I NDICATORS ............................................................................................................................. 9
CHAPTER 3 WEB USER INTERFACE ............................................................................................ 11
3.1
D EFAULT S ETTINGS ....................................................................................................................... 11
3.2
IP C ONFIGURATION ........................................................................................................................ 12
3.3
L OGIN P ROCEDURE ........................................................................................................................ 14
CHAPTER 4 DEVICE INFORMATION ........................................................................................... 16
4.1
WAN ............................................................................................................................................. 17
4.2
S TATISTICS ..................................................................................................................................... 18
4.2.1
LAN Statistics ................................................................................................................. 18
4.2.2
WAN Service ................................................................................................................... 19
4.2.3
XTM Statistics ................................................................................................................. 20
4.2.4
xDSL Statistics ................................................................................................................ 21
4.3
R OUTE ........................................................................................................................................... 26
4.4
ARP ............................................................................................................................................... 27
4.5
DHCP............................................................................................................................................ 28
4.6
NAT S ESSION ................................................................................................................................ 30
4.7
IGMP I NFO .................................................................................................................................... 31
4.8
IP V 6 .............................................................................................................................................. 32
4.8.1 IPv6 Info ................................................................................................................................ 32
4.8.2 IPv6 Neighbor ....................................................................................................................... 33
4.8.3 IPv6 Route ............................................................................................................................. 34
4.9
CPU & M EMORY ........................................................................................................................... 35
CHAPTER 5 ADVANCED SETUP ..................................................................................................... 36
5.1
L AYER 2 I NTERFACE ...................................................................................................................... 36
5.1.1
ATM Interface ................................................................................................................. 36
5.1.2
PTM Interface ................................................................................................................. 36
5.1.3
ETH Interface ................................................................................................................. 37
5.2
WAN S ERVICE ............................................................................................................................... 38
5.3
LAN .............................................................................................................................................. 39
5.3.1 LAN IPv6 Autoconfig ............................................................................................................. 42
5.3.2 Static IP Neighbor ................................................................................................................. 46
5.4
NAT .............................................................................................................................................. 47
5.4.1
Virtual Servers ................................................................................................................ 47
5.4.2
Port Triggering ............................................................................................................... 49
5.4.3
DMZ Host ....................................................................................................................... 51
5.4.4
IP Address Map .............................................................................................................. 52
5.4.5 ALG/Pass-Through ......................................................................................................... 53
5.5
S ECURITY ...................................................................................................................................... 54
5.5.1
IP Filtering ..................................................................................................................... 54
5.5.2
MAC Filtering................................................................................................................. 58
5.6
P ARENTAL C ONTROL ...................................................................................................................... 60
5.6.1
Time Restriction .............................................................................................................. 60
5.6.2
URL Filter....................................................................................................................... 61
5.7
Q UALITY OF S ERVICE (Q O S) .......................................................................................................... 63
5.7.1
Queue Management Configuration ................................................................................ 63
5.7.2
QoS Queue ...................................................................................................................... 64
5.7.3
QoS Classification .......................................................................................................... 68
5.7.4 QoS Port Shaping ........................................................................................................... 71
5.8
R OUTING ....................................................................................................................................... 72
5.8.1
Default Gateway ............................................................................................................. 72
5.8.2
Static Route ..................................................................................................................... 73
5.8.3
Policy Routing ................................................................................................................ 74
3
5.8.4
RIP .................................................................................................................................. 75
5.9
DNS .............................................................................................................................................. 76
5.9.1
DNS Server ..................................................................................................................... 76
5.9.2
Dynamic DNS ................................................................................................................. 77
5.10
DSL ............................................................................................................................................. 79
5.11
DSL B ONDING ............................................................................................................................. 81
5.12
UP N P........................................................................................................................................... 82
5.13
DNS P ROXY /R ELAY .................................................................................................................... 83
5.14
P RINT S ERVER ............................................................................................................................. 84
5.15
DLNA ......................................................................................................................................... 85
5.16
S TORAGE S ERVICE ....................................................................................................................... 86
5.17
I NTERFACE G ROUPING ................................................................................................................. 87
5.18
IP T UNNEL ................................................................................................................................... 90
5.18.1 IPv6inIPv4 ........................................................................................................................... 90
5.18.2 IPv4inIPv6 ........................................................................................................................... 92
5.19
IPS EC .......................................................................................................................................... 94
5.20
C ERTIFICATE ................................................................................................................................ 98
5.20.1
Local ............................................................................................................................... 98
5.20.2
Trusted CA .................................................................................................................... 101
5.21
M ULTICAST ................................................................................................................................ 103
CHAPTER 6 WIRELESS .................................................................................................................. 105
6.1
B ASIC 5GH Z ................................................................................................................................ 105
6.2
S ECURITY 5GH Z .......................................................................................................................... 107
6.3
WPS 5GH Z .................................................................................................................................. 110
6.4
MAC F ILTER 5GH Z ..................................................................................................................... 113
6.5
W IRELESS B RIDGE 5GH Z ............................................................................................................ 115
6.6
A DVANCED 5GH Z ........................................................................................................................ 116
6.7
S ITE S URVEY 5GH Z ..................................................................................................................... 121
6.8
S TATION I NFO 5GH Z .................................................................................................................... 122
6.9
B ASIC 2.4GH
Z ............................................................................................................................. 123
6.10
S ECURITY 2.4GH
Z ..................................................................................................................... 125
6.11
WPS 2.4GH
Z ............................................................................................................................. 128
6.12
MAC F ILTER 2.4GH
Z ................................................................................................................ 131
6.13
W IRELESS B RIDGE 2.4GH
Z ....................................................................................................... 133
6.14
A DVANCED 2.4GH
Z ................................................................................................................... 134
6.15
S ITE S URVEY 2.4GH
Z ................................................................................................................ 138
6.16
S TATION I NFO 5GH Z .................................................................................................................. 139
6.17
W I F I P ASSPOINT ........................................................................................................................ 140
CHAPTER 7 VOICE .......................................................................................................................... 141
7.1
SIP B ASIC S ETTING ..................................................................................................................... 143
7.1.1 Global Parameters .............................................................................................................. 144
7.1.2 Service Provider .................................................................................................................. 145
7.2
SIP A DVANCED S ETTING ............................................................................................................. 148
7.2.1 Global Parameters .............................................................................................................. 149
7.2.2 Service Provider .................................................................................................................. 150
7.3
SIP D EBUG S ETTING .................................................................................................................... 153
7.3.1 Global Parameters .............................................................................................................. 154
7.3.2 Service Provider .................................................................................................................. 155
7.4
SIP CCTK S ETTING ..................................................................................................................... 156
7.5
T ELEPHONE C ALLS ...................................................................................................................... 157
CHAPTER 8 DIAGNOSTICS ........................................................................................................... 159
8.1
D IAGNOSTICS
–
I NDIVIDUAL T ESTS ............................................................................................. 159
8.2
E THERNET OAM ......................................................................................................................... 160
8.3
U PTIME S TATUS ........................................................................................................................... 162
CHAPTER 9 MANAGEMENT ........................................................................................................ 163
9.1
S ETTINGS ..................................................................................................................................... 163
9.1.1
Backup Settings............................................................................................................. 163
9.1.2
Update Settings ............................................................................................................. 164
4
9.1.3
Restore Default ............................................................................................................. 164
9.2
S YSTEM L OG ............................................................................................................................... 166
9.3
SNMP A GENT ............................................................................................................................. 168
9.4
TR-069 C LIENT ........................................................................................................................... 169
9.5
I NTERNET T IME ........................................................................................................................... 171
9.6
A CCESS C ONTROL ....................................................................................................................... 172
9.6.1 Passwords ......................................................................................................................... 172
9.6.2 Services ............................................................................................................................. 173
9.6.3 IP Address ......................................................................................................................... 174
9.7
W AKE ON -LAN ........................................................................................................................... 175
9.8
U PDATE S OFTWARE ..................................................................................................................... 176
9.9
R EBOOT ....................................................................................................................................... 177
APPENDIX A - FIREWALL ............................................................................................................. 178
APPENDIX B - PIN ASSIGNMENTS .............................................................................................. 181
APPENDIX C – SPECIFICATIONS ................................................................................................ 182
APPENDIX D - SSH CLIENT .......................................................................................................... 184
APPENDIX E - PRINTER SERVER................................................................................................ 185
APPENDIX F - CONNECTION SETUP .......................................................................................... 192
5
Chapter 1 Introduction
NexusLink 3241u/3241eu is a Multi-DSL bonding IAD. It not only provides both
ADSL and VDSL but also supports xDSL bonding for extend WAN access bandwidth.
Integrated 5 Giga Ethernet ports and WLAN 802.11n 2.4GHz frequency band and
802.11ac 5GHz Frequency band. Therefore, NexusLink 3241u/3241eu is designed for high speed applications and is suitable for triple play services.
NL-3241eu : ADSL2+ (Annex B): single line and bonding
NL-3241u : ADSL2+ (Annex A): single line and bonding
6
Chapter 2 Installation
2.1 Hardware Setup
Follow the instructions below to complete the hardware setup.
Non-stackable
This device is not stackable – do not place units on top of each other, otherwise damage could occur.
BACK PANEL
The figure below shows the back panel of the device.
Power ON
Press the power button to the OFF position (OUT). Connect the power adapter to the power port. Attach the power adapter to a wall outlet or other AC source. Press the power button to the ON position (IN). If the Power LED displays as expected then the device is ready for setup (see section 2.2 LED Indicators ).
Caution 1: If the device fails to power up, or it malfunctions, first verify that the power cords are connected securely and then power it on again. If the problem persists, contact technical support.
Caution 2: Before servicing or disassembling this equipment, disconnect all power cords and telephone lines from their outlets.
Reset Button
Restore the default parameters of the device by pressing the Reset button for 10 seconds. After the device has rebooted successfully, the front panel should display as expected (see section 2.2 LED Indicators for details).
NOTE: If pressed down for more than 60 seconds, the NexusLink 3241u/3241eu will go into a firmware update state (CFE boot mode). The firmware can then be updated using an Internet browser pointed to the default IP address.
7
Phone Ports
For VoIP service, connect telephone(s) to these ports with RJ11 cables.
ETH WAN PORT
This port is designated to be used for Ethernet WAN functionality only. Use
1000-BASE-T RJ-45 cables to connect to Gigabit WAN server, or 10/100BASE-T
RJ-45 cables for standard network usage. This ports is auto-sensing MDI/X; so either straight-through or crossover cable can be used.
Ethernet (LAN) Ports
Use 1000-BASE-T RJ-45 cables to connect up to four network devices to a Gigabit
LAN, or 10/100BASE-T RJ-45 cables for standard network usage. These ports are auto-sensing MDI/X; so either straight-through or crossover cable can be used.
USB Host Port (Type A)
A USB host port supports compatible printers (See Appendix E for setup instructions) or storage devices. If a storage device is connected to the USB host port, it can be used to stream the DLNA service. Support for other devices may be added in future firmware upgrades.
DSL Port
Connect to an ADSL2/2+ or VDSL RJ11 port or bonding xDSL RJ14 port.
FRONT PANEL
WPS Button
Press this button to begin searching for WPS clients. These clients must also enable
WPS push button mode (see 6.3 WPS 5GHz or 6.11 WPS 2.4GHz
for instructions).
WiFi Button
Press and release the Wi-Fi button to enable/disable the wireless LAN (WLAN).
8
2.2 LED Indicators
The front panel LED indicators are shown below and explained in the following table.
This information can be used to check the status of the device and its connections.
LED
POWER
PHONE 1
PHONE 2
ETH WAN
ETH 4 to 1
WPS
Color
GREEN
RED
GREEN
GREEN
GREEN
ORANGE
GREEN
ORANGE
GREEN
ORANGE
Mode Function
On The device is powered up.
Off The device is powered down.
Blink Software upgrade is being upgraded.
On
POST (Power On Self Test) failure or other malfunction. A malfunction is any error of internal sequence or state that will prevent the device from connecting to the
DSLAM or passing customer data.
On An FXS port is off hook.
Off An FXS port is on hook.
On An FXS port is off hook.
Off An FXS port is on hook.
On WAN is connected at 1000 Mbps.
Off Ethernet WAN is not connected.
Blink In TX/RX over 1000 Mbps
On Ethernet is connected at 10/100 Mbps.
Off Ethernet WAN is not connected.
Blink In TX/RX over 10/100 Mbps.
On Ethernet is connected at 1000 Mbps.
Off Ethernet is not connected.
Blink In TX/RX over 1000 Mbps.
On Ethernet is connected at 10/100 Mbps.
Off Ethernet is not connected.
Blink In TX/RX over 10/100 Mbps.
On WPS(2.4G) WPS enabled and client connected to WLAN.
Off WPS(2.4G) WPS disabled.
Blink WPS(2.4G) WPS connection in progress,
120 seconds or until client connected.
On WPS(5G WPS enabled and client connected to WLAN.
Off WPS(5G) WPS disabled.
Blink WPS(5G) WPS connection in progress,
120 seconds or until client connected.
9
WiFi
2.4G
WiFi
5G
DSL 1
DSL 2
INTERNET
GREEN
GREEN
GREEN
GREEN
GREEN
RED
On The wireless module is ready.
(i.e. installed and enabled).
Off
The wireless module is not ready.
(i.e. either not installed or disabled).
Blink Data transmitting or receiving over
WLAN.
On The wireless module is ready.
(i.e. installed and enabled).
Off
The wireless module is not ready.
(i.e. either not installed or disabled).
Blink Data transmitting or receiving over
WLAN.
On xDSL Link is established.
Off The device is powered down.
Blink The xDSL link is training or some traffic is passing through xDSL.
On xDSL Link is established.
Off The device is powered down.
Blink The xDSL link is training or some traffic is passing through xDSL.
On IP connected and no traffic detected. If an IP or PPPoE session is dropped due to an idle timeout, the light will remain green if an ADSL connection is still present.
Off Modem power off, modem in bridged mode or ADSL connection not present.
Blink IP connected and IP Traffic is passing thru the device (either direction).
On
Device attempted to become IP connected and failed (no DHCP response, no PPPoE response, PPPoE authentication failed, no IP address from IPCP, etc.)
10
Chapter 3 Web User Interface
This section describes how to access the device via the web user interface (WUI) using an Internet browser such as Internet Explorer (version 5.0 and later).
3.1 Default Settings
The factory default settings of this device are summarized below.
LAN IP address: 192.168.1.1
LAN subnet mask: 255.255.255.0
Administrative access (username: root , password: 12345 )
User access (username: user , password: user )
Remote (WAN) access (username: support , password: support )
WLAN access: enabled
Technical Note
During power on, the device initializes all settings to default values. It will then read the configuration profile from the permanent storage section of flash memory.
The default attributes are overwritten when identical attributes with different values are configured. The configuration profile in permanent storage can be created via the web user interface or telnet user interface, or other management protocols.
The factory default configuration can be restored either by pushing the reset button for more than ten seconds until the power indicates LED blinking or by clicking the
Restore Default Configuration option in the Restore Settings screen.
11
3.2 IP Configuration
DHCP MODE
When the NexusLink 3241u/3241eu powers up, the onboard DHCP server will switch on. Basically, the DHCP server issues and reserves IP addresses for LAN devices, such as your PC.
To obtain an IP address from the DCHP server, follow the steps provided below.
NOTE: The following procedure assumes you are running Windows. However, the general steps involved are similar for most operating systems (OS).
Check your OS support documentation for further details.
STEP 1 : From the Network Connections window, open Local Area Connection ( You may also access this screen by double-clicking the Local Area Connection icon on your taskbar ). Click the Properties button.
STEP 2 : Select Internet Protocol (TCP/IP) and click the Properties button.
STEP 3: Select Obtain an IP address automatically as shown below.
STEP 4: Click OK to submit these settings.
If you experience difficulty with DHCP mode, you can try static IP mode instead.
12
STATIC IP MODE
In static IP mode, you assign IP settings to your PC manually.
Follow these steps to configure your PC IP address to use subnet 192.168.1.x.
NOTE: The following procedure assumes you are running Windows. However, the general steps involved are similar for most operating systems (OS).
Check your OS support documentation for further details.
STEP 1 : From the Network Connections window, open Local Area Connection ( You may also access this screen by double-clicking the Local Area Connection icon on your taskbar ). Click the Properties button.
STEP 2 : Select Internet Protocol (TCP/IP) and click the Properties button.
STEP 3: Change the IP address to the 192.168.1.x (1<x<255) subnet with subnet mask of 255.255.255.0. The screen should now display as shown below.
STEP 4: Click OK to submit these settings.
13
3.3 Login Procedure
Perform the following steps to login to the web user interface.
NOTE: The default settings can be found in section 3.1 Default Settings .
STEP 1: Start the Internet browser and enter the default IP address for the device in the Web address field. For example, if the default IP address is
192.168.1.1, type http://192.168.1.1.
NOTE: For local administration (i.e. LAN access), the PC running the browser must be attached to the Ethernet, and not necessarily to the device.
For remote access (i.e. WAN), use the IP address shown on the Device
Information screen and login with remote username and password.
STEP 2: A dialog box will appear, such as the one below. Enter the default username and password, as defined in section 3.1 Default Settings .
Click OK to continue.
NOTE: The login password can be changed later (see section 9.6.1 Passwords ).
14
STEP 3: After successfully logging in for the first time, you will reach this screen.
15
Chapter 4 Device Information
The web user interface window is divided into two frames, the main menu (on the left) and the display screen (on the right). The main menu has several options and selecting each of these options opens a submenu with more selections.
NOTE: The menu items shown are based upon the configured connection(s) and user account privileges. For example, user account has limited access to configuration modification.
Device Info is the first selection on the main menu so it will be discussed first.
Subsequent chapters will introduce the other main menu options in sequence.
The Device Info Summary screen displays at startup.
This screen shows hardware, software, IP settings and other related information.
16
4.1 WAN
Select WAN from the Device Info submenu to display the configured PVC(s).
Heading
Interface
Description
Type
VlanMuxId
IPv6
Igmp Pxy
Igmp Src Enbl
MLD Pxy
MLD Src Enbl
NAT
Firewall
Status
IPv4 Address
IPv6 Address
Description
Name of the interface for WAN
Name of the WAN connection
Shows the connection type
Shows 802.1Q VLAN ID
Shows WAN IPv6 status
Shows Internet Group Management Protocol (IGMP) proxy status
Shows the status of WAN interface used as IGMP source
Shows Multicast Listener Discovery (MLD) proxy status
Shows the status of WAN interface used as MLD source
Shows Network Address Translation (NAT) status
Shows the status of Firewall
Lists the status of DSL link
Shows WAN IPv4 address
Shows WAN IPv6 address
17
4.2 Statistics
This selection provides LAN, WAN, ATM and xDSL statistics.
NOTE: These screens are updated automatically every 15 seconds.
Click Reset Statistics to perform a manual update.
4.2.1 LAN Statistics
This screen shows data traffic statistics for each LAN interface.
Heading
Interface
Received/Transmitted: - Bytes
- Pkts
- Errs
- Drops
Description
LAN interface(s)
Number of Bytes
Number of Packets
Number of packets with errors
Number of dropped packets
18
4.2.2 WAN Service
This screen shows data traffic statistics for each WAN interface.
Heading
Interface
Description
Received/Transmitted - Bytes
- Pkts
- Errs
-
Drops
Description
WAN interfaces
WAN service label
Number of Bytes
Number of Packets
Number of packets with errors
Number of dropped packets
19
4.2.3 XTM Statistics
The following figure shows ATM (Asynchronous Transfer Mode)/PTM (Packet
Transfer Mode) statistics.
XTM Interface Statistics
Heading Description
Port Number
In Octets
ATM PORT (0-1)
Number of octets received over the interface
Out Octets
In Packets
Out Packets
In OAM Cells
Number of octets transmitted over the interface
Number of packets received over the interface
Number of packets transmitted over the interface
Number of OAM Cells received over the interface
Out OAM Cells Number of OAM Cells transmitted over the interface
In ASM Cells Number of ASM Cells received over the interface
Out ASM Cells Number of ASM Cells transmitted over the interface
In Packet Errors Number of packets in Error
In Cell Errors Number of cells in Error
20
4.2.4 xDSL Statistics
The xDSL Statistics screen displays information corresponding to the xDSL type.
The two examples below (VDSL & ADSL) show this variation.
VDSL
21
ADSL
Click the Reset Statistics button to refresh this screen.
Field Description
Mode
Traffic Type
VDSL, VDSL2
ATM, PTM
Status
Link Power State phyR Status
Lists the status of the DSL link
Link output power state
Shows the status of PhyR™ (Physical Layer
Re-Transmission) impulse noise protection
22
M
T
R
S
L
D
I
Field
Line Coding (Trellis)
Description
Trellis On/Off
SNR Margin (0.1 dB) Signal to Noise Ratio (SNR) margin
Attenuation (0.1 dB) Estimate of average loop attenuation in the downstream direction
Output Power
(0.1 dBm)
Total upstream output power
Attainable Rate (Kbps) The sync rate you would obtain
Rate (Kbps) Current sync rates downstream/upstream
In VDSL mode, the following section is inserted.
MSGc Number of bytes in overhead channel message
B Number of bytes in Mux Data Frame
Number of Mux Data Frames in a RS codeword
Number of Mux Data Frames in an OH sub-frame
Number of redundancy bytes in the RS codeword
Number of data symbols the RS codeword spans
Number of bits transmitted in each data symbol
The interleaver depth
The interleaver block size in bytes
N
Delay
RS codeword size
The delay in milliseconds (msec)
INP
Super Frames
DMT symbol
Super Frame Errors
RS Words
Total number of super frames
Number of super frames received with errors
Total number of Reed-Solomon code errors
RS Correctable Errors Total Number of RS with correctable errors
RS Uncorrectable Errors Total Number of RS words with uncorrectable errors
OH Frames Total number of OH frames
OH Frame Errors
RS Words
Number of OH frames received with errors
Total number of Reed-Solomon code errors
RS Correctable Errors Total Number of RS with correctable errors
RS Uncorrectable Errors Total Number of RS words with uncorrectable errors
HEC Errors Total Number of Header Error Checksum errors
OCD Errors
LCD Errors
Total Number of Out-of-Cell Delineation errors
Total number of Loss of Cell Delineation
Total Cells
Data Cells
Bit Errors
Total number of ATM cells (including idle + data cells)
Total number of ATM data cells
Total number of bit errors
23
Total ES
Total SES
Total UAS
Total Number of Errored Seconds
Total Number of Severely Errored Seconds
Total Number of Unavailable Seconds xDSL BER TEST
Click xDSL BER Test on the xDSL Statistics screen to test the Bit Error Rate (BER).
A small pop-up window will open after the button is pressed, as shown below.
Click Start to start the test or click Close to cancel the test. After the BER testing is complete, the pop-up window will display as follows.
24
xDSL TONE GRAPH
Click Draw Graph on the xDSL Statistics screen and a pop-up window will display the xDSL statistics graph, including SNR, Bits per tone, QLN and Hlog of the xDSL line connection, as shown below.
25
4.3 Route
Choose Route to display the routes that the NexusLink 3241u/3241eu has found.
Field
Destination
Gateway
Description
Destination network or destination host
Next hop IP address
Subnet Mask Subnet Mask of Destination
Flag
Metric
U: route is up
!: reject route
G: use gateway
H: target is a host
R: reinstate route for dynamic routing
D: dynamically installed by daemon or redirect
M: modified from routing daemon or redirect
The 'distance' to the target (usually counted in hops). It is not used by recent kernels, but may be needed by routing daemons.
Service
Interface
Shows the WAN connection label
Shows connection interfaces
26
4.4 ARP
Click ARP to display the ARP information.
Field
IP address
Flags
HW Address
Device
Description
Shows IP address of host PC
Complete, Incomplete, Permanent, or Publish
Shows the MAC address of host PC
Shows the connection interface
27
4.5 DHCP
Click DHCP to display all DHCP Leases.
Field
Hostname
Description
Shows the device/host/PC network name
MAC Address Shows the Ethernet MAC address of the device/host/PC
IP Address Shows IP address of device/host/PC
Expires In Shows how much time is left for each DHCP Lease
28
Field Description
IPv6 Address Shows IP address of device/host/PC
MAC Address Shows the Ethernet MAC address of the device/host/PC
Duration
Expires In
Shows leased time in hours
Shows how much time is left for each DHCP Lease
29
4.6 NAT Session
This page displays all NAT connection session including both UPD/TCP protocols passing through the device.
Click the “Show All” button to display the following.
Field
Source IP
Description
The source IP from which the NAT session is established
Source Port The source port from which the NAT session is established
Destination IP The IP which the NAT session was connected to
Destination Port The port which the NAT session was connected to
Protocol
Timeout
The Protocol used in establishing the particular NAT session
The time remaining for the TCP/UDP connection to be active
30
4.7 IGMP Info
Click IGMP Info to display the list of IGMP entries broadcasting through the IGMP proxy enabled WAN connection.
Field Description
Interface The Source interface from which the IGMP report was received
WAN
Groups
The WAN interface from which the multicast traffic is received
The destination IGMP group address
Member The Source IP from which the IGMP report was received
Timeout The time remaining before the IGMP report expires
31
4.8 IPv6
4.8.1 IPv6 Info
Click IPv6 Info to display the IPv6 WAN connection info.
Field
Interface
Status
Description
WAN interface with IPv6 enabled
Connection status of the WAN interface
Address
Prefix
IPv6 Address of the WAN interface
Prefix received/configured on the WAN interface
Device Link-local Address The CPE's LAN Address
Default IPv6 Gateway The default WAN IPv6 gateway
IPv6 DNS Server The IPv6 DNS servers received from the WAN interface / configured manually
32
4.8.2 IPv6 Neighbor
Click IPv6 Neighbor to display the list of IPv6 nodes discovered.
Field
IPv6 Address
Flags
HW Address
Device
Description
Ipv6 address of the device(s) found
Status of the neighbor device
MAC address of the neighbor device
Interface from which the device is located
33
4.8.3 IPv6 Route
Click IPv6 Route to display the IPv6 route info.
Field
Destination
Gateway
Metric
Interface
Description
Destination IP Address
Gateway address used for destination IP
Metric specified for gateway
Interface used for destination IP
34
4.9 CPU & Memory
Displays the system performance graphs. Shows the current loading of the CPU and memory usage with dynamic updates.
35
Chapter 5 Advanced Setup
5.1 Layer 2 Interface
The ATM interface screen is described here.
5.1.1 ATM Interface
Add or remove ATM interface connections here.
Click Add to create a new ATM interface (see Appendix F - Connection Setup ).
NOTE: Up to 16 ATM interfaces can be created and saved in flash memory.
To remove a connection, select its Remove column radio button and click Remove .
5.1.2 PTM Interface
Add or remove PTM interface connections here.
Click Add to create a new connection (see Appendix F - Connection Setup ). To remove a connection, select its Remove column radio button and click Remove .
36
5.1.3 ETH Interface
This screen displays the Ethernet WAN Interface configuration.
Click Add to create a new connection (see Appendix F - Connection Setup ).
NOTE : One Ethernet WAN interface can be created and saved in flash memory.
To remove a connection, select its Remove column radio button and click remove.
37
5.2 WAN Service
This screen allows for the configuration of WAN interfaces.
Click the Add button to create a new connection. For connections on ATM or ETH
WAN interfaces see Appendix F - Connection Setup .
NOTE : In Default Mode, up to 16 WAN connections can be configured; while
VLAN Mux Connection Mode supports up to 16 WAN connections.
To remove a connection, select its Remove column radio button and click Remove.
Heading Description
Interface
Description
Type
Vlan8021p
Name of the interface for WAN
Name of the WAN connection
Shows the connection type
VLAN ID is used for VLAN Tagging (IEEE 802.1Q)
VlanMuxId
VlanTpid
IGMP Proxy
Shows 802.1Q VLAN ID
VLAN Tag Protocol Identifier
Shows Internet Group Management Protocol (IGMP) Proxy status
IGMP Source
NAT
Firewall
IPv6
MLD Proxy
Shows the status of WAN interface used as IGMP source
Shows Network Address Translation (NAT) status
Shows the Security status
Shows the WAN IPv6 address
Shows Multicast Listener Discovery (MLD) Proxy status
Mld Source
Remove
Shows the status of WAN interface used as MLD source
Select interfaces to remove
Edit Click the Edit button to make changes to the WAN interface.
To remove a connection, select its Remove column radio button and click Remove.
To Add a new WAN connection, click the Add button and follow the instructions.
NOTE: Up to 16 PVC profiles can be configured and saved in flash memory.
38
5.3 LAN
Configure the LAN interface settings and then click Apply/Save .
Consult the field descriptions below for more details.
GroupName: Select an Interface Group.
1 st LAN INTERFACE
IP Address: Enter the IP address for the LAN port.
Subnet Mask: Enter the subnet mask for the LAN port.
Enable IGMP Snooping: Enable by ticking the checkbox .
39
Standard Mode: In standard mode, multicast traffic will flood to all
bridge ports when no client subscribes to a multicast
group – even if IGMP snooping is enabled.
Blocking Mode: In blocking mode, the multicast data traffic will be
blocked and not flood to all bridge ports when there are
no client subscriptions to any multicast group.
Enable IGMP LAN to LAN Multicast: Select Enable from the drop-down menu to allow IGMP LAN to LAN Multicast forwarding
Enable LAN side firewall: Enable by ticking the checkbox .
DHCP Server: To enable DHCP, select Enable DHCP server and enter Start and
End IP addresses and the Leased Time. This setting configures the router to automatically assign IP, default gateway and DNS server addresses to every PC on your LAN.
Static IP Lease List: A maximum of 32 entries can be configured.
To add an entry, enter MAC address and Static IP and then click Save/Apply .
To remove an entry, tick the corresponding checkbox in the Remove column and then click the Remove Entries button, as shown below.
DHCP Server Relay : Enable with checkbox and enter DHCP Server IP address.
40
2 ND LAN INTERFACE
To configure a secondary IP address, tick the checkbox outlined (in RED ) below.
IP Address: Enter the secondary IP address for the LAN port.
Subnet Mask: Enter the secondary subnet mask for the LAN port.
Ethernet Media Type:
Configure auto negotiation, or enforce selected speed and duplex mode for each
Ethernet port.
41
5.3.1 LAN IPv6 Autoconfig
Configure the LAN interface settings and then click Save/Apply .
Consult the field descriptions below for more details.
42
LAN IPv6 Link-Local Address Configuration
Heading
EUI-64
Description
Use EUI-64 algorithm to calculate link-local address from MAC address
User Setting Use the Interface Identifier field to define a link-local address
Static LAN IPv6 Address Configuration
Heading
Interface Address
(prefix length is required):
Description
Configure static LAN IPv6 address and subnet prefix length
IPv6 LAN Applications
Heading
Stateless
Description
Use stateless configuration
Refresh Time (sec):
Stateful
The information refresh time option specifies how long a client should wait before refreshing information retrieved from DHCPv6
Use stateful configuration
Start interface ID:
End interface ID:
Start of interface ID to be assigned to dhcpv6 client
End of interface ID to be assigned to dhcpv6 client
Leased Time (hour): Lease time for dhcpv6 client to use the assigned IP address
Static IP Lease List: A maximum of 32 entries can be configured.
To add an entry, enter MAC address and Static IP and then click Apply/Save .
43
To remove an entry, tick the corresponding checkbox in the Remove column and then click the Remove Entries button, as shown below.
Heading
Enable RADVD
RA interval Min(sec):
RA interval Max(sec):
Description
Enable use of router advertisement daemon
Minimum time to send router advertisement
Maximum time to send router advertisement
Reachable Time(ms):
Default Preference:
MTU (bytes):
Enable Prefix Length Relay
The time, in milliseconds that a neighbor is reachable after receiving reachability confirmation
Preference level associated with the default router
MTU value used in router advertisement messages to insure that all nodes on a link use the same MTU value
Use prefix length receive from WAN interface
Enable Configuration Mode Manually configure prefix, prefix length, preferred lifetime and valid lifetime used in router advertisement
Enable ULA Prefix Advertisement Allow RADVD to advertise Unique Local Address
Randomly Generate
Prefix
Use a Randomly Generated Prefix
Statically Configure Specify the prefix to be used
Prefix
Preferred Life Time (hour)
Valid Life Time (hour)
The prefix to be used
The preferred life time for this prefix
The valid life time for this prefix
44
Heading Description
Enable MLD Snooping Enable/disable IPv6 multicast forward to LAN ports
Enable MLD LAN to LAN Multicast Enable/Disable Multicast Listener Discovery between LAN ports for IPv6.
45
5.3.2 Static IP Neighbor
Click the Add button to display the following.
Heading
IP Version
IP Address
MAC Address
Associated Interface
Description
The IP version used for the neighbor device
Define the IP Address for the neighbor device
The MAC Address of the neighbor device
The interface where the neighbor device is located
46
5.4 NAT
To display this option, NAT must be enabled in at least one PVC shown in Chapter 5
Advanced Setup . NAT is not an available option in Bridge mode .
5.4.1 Virtual Servers
Virtual Servers allow you to direct incoming traffic from the WAN side (identified by
Protocol and External port) to the internal server with private IP addresses on the
LAN side. The Internal port is required only if the external port needs to be converted to a different port number used by the server on the LAN side.
A maximum of 32 entries can be configured.
To add a Virtual Server, click Add . The following will be displayed.
47
Consult the table below for field and header descriptions.
Field/Header Description
Choose All Interface Virtual server rules will be created for all WAN interfaces.
Choose One
Interface
Use Interface
Use Interface
Select a WAN interface from the drop-down menu.
Select a Service
Or
Custom Service
Select a WAN interface from the drop-down box.
User should select the service from the list.
Or
User can enter the name of their choice.
Server IP Address Enter the IP address for the server.
Enable NAT
Loopback
Allows local machines to access virtual server via WAN IP
Address.
External Port Start Enter the starting external port number (when you select
Custom Server). When a service is selected, the port ranges are automatically configured.
External Port End
Protocol
Enter the ending external port number (when you select
Custom Server). When a service is selected, the port ranges are automatically configured.
TCP, TCP/UDP, or UDP.
48
Field/Header
Internal Port End
Description
Internal Port Start Enter the internal port starting number (when you select
Custom Server). When a service is selected the port ranges are automatically configured
Enter the internal port ending number (when you select
Custom Server). When a service is selected, the port ranges are automatically configured.
5.4.2 Port Triggering
Some applications require that specific ports in the firewall be opened for access by the remote parties. Port Triggers dynamically 'Open Ports' in the firewall when an application on the LAN initiates a TCP/UDP connection to a remote party using the
'Triggering Ports'. The Router allows the remote party from the WAN side to establish new connections back to the application on the LAN side using the 'Open
Ports'. A maximum 32 entries can be configured.
To add a Trigger Port, click Add . The following will be displayed.
49
Consult the table below for field and header descriptions.
Field/Header Description
Use Interface
Select an Application
Or
Custom Application
Trigger Port Start
Select a WAN interface from the drop-down box.
User should select the application from the list.
Or
User can enter the name of their choice.
Trigger Port End
Trigger Protocol
Open Port Start
Enter the starting trigger port number (when you select custom application). When an application is selected, the port ranges are automatically configured.
Enter the ending trigger port number (when you select custom application). When an application is selected, the port ranges are automatically configured.
TCP, TCP/UDP, or UDP.
Open Port End
Open Protocol
Enter the starting open port number (when you select custom application). When an application is selected, the port ranges are automatically configured.
Enter the ending open port number (when you select custom application). When an application is selected, the port ranges are automatically configured.
TCP, TCP/UDP, or UDP.
50
5.4.3 DMZ Host
The DSL router will forward IP packets from the WAN that do not belong to any of the applications configured in the Virtual Servers table to the DMZ host computer.
To Activate the DMZ host, enter the DMZ host IP address and click Save/Apply .
To Deactivate the DMZ host, clear the IP address field and click Save/Apply .
51
5.4.4 IP Address Map
Mapping Local IP (LAN IP) to some specified Public IP (WAN IP).
Consult the table below for field and header descriptions.
Field/Header
Rule
Type
Local Start IP
Local End IP
Public Start IP
Public End IP
Remove
Description
The number of the rule
Mapping type from local to public.
The beginning of the local IP
The ending of the local IP
The beginning of the public IP
The ending of the public IP
Remove this rule
Click the Add button to display the following screen.
Select a Service, then click the Save/Apply button.
52
One to One: mapping one local IP to a specific public IP
Many to One: mapping a range of local IP to a specific public IP
Many to Many(Overload): mapping a range of local IP to a different range of public IP
Many to Many(No Overload): mapping a range of local IP to a same range of public IP
5.4.5 ALG/Pass-Through
Support ALG Pass-through for the listed protocols.
To allow/deny the corresponding ALG protocol, select Enable / Disable and then click the Save button. After reboot, the protocol will be added/removed from the system module.
53
5.5 Security
To display this function, you must enable the firewall feature in WAN Setup.
For detailed descriptions, with examples, please consult Appendix A - Firewall .
5.5.1 IP Filtering
This screen sets filter rules that limit IP traffic (Outgoing/Incoming). Multiple filter rules can be set and each applies at least one limiting condition. For individual IP packets to pass the filter all conditions must be fulfilled.
NOTE: This function is not available when in bridge mode. Instead, 5.5.2 MAC
Filtering performs a similar function.
OUTGOING IP FILTER
By default, all outgoing IP traffic is allowed, but IP traffic can be blocked with filters.
To add a filter (to block some outgoing IP traffic), click the Add button.
On the following screen, enter your filter criteria and then click Apply/Save .
54
Consult the table below for field descriptions.
Field Description
Filter Name
IP Version
The filter rule label.
IPv4 selected by default.
Protocol
Source IP address
TCP, TCP/UDP, UDP, or ICMP.
Enter source IP address.
Source Port (port or port:port) Enter source port number or range.
Destination IP address Enter destination IP address.
Destination Port (port or port:port) Enter destination port number or range.
INCOMING IP FILTER
By default, all incoming IP traffic is blocked, but IP traffic can be allowed with filters.
To add a filter (to allow incoming IP traffic), click the Add button.
On the following screen, enter your filter criteria and then click Apply/Save .
55
Consult the table below for field descriptions.
Field Description
Filter Name
IP Version
The filter rule label
IPv4 selected by default.
Protocol
Policy
TCP, TCP/UDP, UDP, or ICMP.
Permit/Drop packets specified by the firewall rule.
Enter source IP address. Source IP address
Source Port (port or port:port)
Destination IP address
Enter source port number or range.
Enter destination IP address.
Destination Port (port or port:port) Enter destination port number or range.
At the bottom of this screen, select the WAN and LAN Interfaces to which the filter rule will apply. You may select all or just a subset. WAN interfaces in bridge mode or without firewall enabled are not available.
56
Denial of Service
Denial of Services currently provides Syn-flood protection, furtive port scanner protection and Ping of death protection. This web page allows you to activate/de-activate them and to set the maximum average limit (packet per second) and the maximum burst (packet amount) for each protection.
Click the Apply/Save button to save and (de)activate the protection.
57
5.5.2 MAC Filtering
NOTE: This option is only available in bridge mode. Other modes use 5.5.1 IP
Filtering to perform a similar function.
Each network device has a unique 48-bit MAC address. This can be used to filter
(block or forward) packets based on the originating device. MAC filtering policy and rules for the AR-5381u can be set according to the following procedure.
The MAC Filtering Global Policy is defined as follows. FORWARDED means that all
MAC layer frames will be FORWARDED except those matching the MAC filter rules.
BLOCKED means that all MAC layer frames will be BLOCKED except those matching the MAC filter rules. The default MAC Filtering Global policy is
FORWARDED . It can be changed by clicking the Change Policy button.
Choose Add or Remove to configure MAC filtering rules. The following screen will appear when you click Add . Create a filter to identify the MAC layer frames by specifying at least one condition below. If multiple conditions are specified, all of them must be met. Click Save/Apply to save and activate the filter rule.
58
Consult the table below for detailed field descriptions.
Field Description
Protocol Type PPPoE, IPv4, IPv6, AppleTalk, IPX, NetBEUI, IGMP
Destination MAC Address Defines the destination MAC address
Source MAC Address
Frame Direction
WAN Interfaces
Defines the source MAC address
Select the incoming/outgoing packet interface
Applies the filter to the selected bridge interface
59
5.6 Parental Control
This selection provides WAN access control functionality.
5.6.1 Time Restriction
This feature restricts access from a LAN device to an outside network through the device on selected days at certain times. Make sure to activate the Internet Time server synchronization as described in 9.5 Internet Time , so that the scheduled times match your local time.
Click Add to display the following screen.
See below for field descriptions. Click Apply/Save to add a time restriction.
60
User Name: A user-defined label for this restriction.
Browser's MAC Address: MAC address of the PC running the browser.
Other MAC Address: MAC address of another LAN device.
Days of the Week: The days the restrictions apply.
Start Blocking Time: The time the restrictions start.
End Blocking Time: The time the restrictions end.
5.6.2 URL Filter
This screen allows for the creation of a filter rule for access rights to websites based on their URL address and port number.
Select URL List Type: Exclude or Include.
Tick the Exclude radio button to deny access to the websites listed.
Tick the Include radio button to restrict access to only those listed websites.
Then click Add to display the following screen.
Enter the URL address and port number then click Apply/Save to add the entry to the URL filter. URL Addresses begin with “www”, as shown in this example.
61
A maximum of 100 entries can be added to the URL Filter list.
62
5.7 Quality of Service (QoS)
NOTE : QoS must be enabled in at least one PVC to display this option.
(See Appendix F - Connection Setup for detailed PVC setup instructions).
5.7.1 Queue Management Configuration
To Enable QoS tick the checkbox and select a Default DSCP Mark.
Click Apply/Save to activate QoS.
QoS and DSCP Mark are defined as follows:
Quality of Service (QoS): This provides different priority to different users or data flows, or guarantees a certain level of performance to a data flow in accordance with requests from Queue Prioritization.
Default Differentiated Services Code Point (DSCP) Mark: This specifies the per hop behavior for a given flow of packets in the Internet Protocol (IP) header that do not match any other QoS rule.
63
5.7.2 QoS Queue
5.7.2.1 Queue Configuration
This function follows the Differentiated Services rule of IP QoS. You can create a new
Queue entry by clicking the Add button. Enable and assign an interface and precedence on the next screen. Click Save/Reboot on this screen to activate it.
64
Click Enable to activate the QoS Queue. Click Add to display the following screen.
65
Name: Identifier for this Queue entry.
Enable: Enable/Disable the Queue entry.
Interface: Assign the entry to a specific network interface (QoS enabled).
66
5.7.2.2 Wlan Queue
Displays the list of available wireless queues for WMM and wireless data transmit priority.
67
5.7.3 QoS Classification
The network traffic classes are listed in the following table.
Click Add to configure a network traffic class rule and Enable to activate it. To delete an entry from the list, click Remove .
This screen creates a traffic class rule to classify the upstream traffic, assign queuing priority and optionally overwrite the IP header DSCP byte. A rule consists of a class name and at least one logical condition. All the conditions specified in the rule must be satisfied for it to take effect.
68
Field
Traffic Class Name
Rule Order
Description
Enter a name for the traffic class.
Last is the only option.
Rule Status
Classification Criteria
Disable or enable the rule.
Ingress Interface Select an interface: (i.e. LAN, WAN, local, eth1, eth2, eth3, eth4, eth5, wl0, wl1)
Set the Ethernet type (e.g. IP, ARP, IPv6). Ether Type
Source MAC Address A packet belongs to SET-1, if a binary-AND of its source
MAC address with the Source MAC Mask is equal to the binary-AND of the Source MAC Mask and this field.
Source MAC Mask This is the mask used to decide how many bits are checked in Source MAC Address.
Destination MAC
Address
A packet belongs to SET-1 then the result that the
Destination MAC Address of its header binary-AND to the
Destination MAC Mask must equal to the result that this field binary-AND to the Destination MAC Mask.
69
Field
Destination MAC
Mask
Classification Results
Description
This is the mask used to decide how many bits are checked in Destination MAC Address.
Specify Egress
Interface
Choose the egress interface from the available list.
Specify Egress Queue Choose the egress queue from the list of available for the specified egress interface.
Mark Differentiated
Service Code Point
The selected Code Point gives the corresponding priority to packets that satisfy the rule.
Mark 802.1p Priority Select between 0-7.
- Class non-vlan packets egress to a non-vlan interface will be tagged with VID 0 and the class rule p-bits.
- Class vlan packets egress to a non-vlan interface will have the packet p-bits re-marked by the class rule p-bits.
No additional vlan tag is added.
- Class non-vlan packets egress to a vlan interface will be tagged with the interface VID and the class rule p-bits.
- Class vlan packets egress to a vlan interface will be additionally tagged with the packet VID, and the class rule p-bits.
The data transmission rate limit in kbps. Set Rate Limit
70
5.7.4 QoS Port Shaping
QoS port shaping supports traffic shaping of the Ethernet interface.
Input the shaping rate and burst size to enforce QoS rule on each interface.
If "Shaping Rate" is set to "-1", it means no shaping and "Burst Size" will be ignored.
Click Apply/Save to apply and save the settings.
71
5.8 Routing
These following routing functions are accessed from this menu:
Default Gateway, Static Route, Policy Routing and RIP .
NOTE: In bridge mode, the RIP menu option is hidden while the other menu options are shown but ineffective.
5.8.1 Default Gateway
Default gateway interface list can have multiple WAN interfaces served as system default gateways but only one will be used according to the priority with the first being the highest and the last one the lowest priority if the WAN interface is connected. Priority order can be changed by removing all and adding them back in again.
72
5.8.2 Static Route
This option allows for the configuration of static routes by destination IP.
Click Add to create a static route or click Remove to delete a static route.
After clicking Add the following screen will display.
Input the Destination IP Address, select the interface type, Input the Gateway IP,
(and the Metric number if required). Then, click Apply/Save to add an entry to the routing table.
73
5.8.3 Policy Routing
This option allows for the configuration of static routes by policy.
Click Add to create a routing policy or Remove to delete one.
On the following screen, complete the form and click Apply/Save to create a policy.
74
Field
Policy Name
Physical LAN Port
Source IP
Use Interface
Default Gateway IP
Description
Name of the route policy
Specify the port to use this route policy
IP Address to be routed
Interface that traffic will be directed to
IP Address of the default gateway
5.8.4 RIP
To activate RIP, configure the RIP version/operation mode and select the Enabled checkbox for at least one WAN interface before clicking Save/Apply .
75
5.9 DNS
5.9.1 DNS Server
Select DNS Server Interface from available WAN interfaces OR enter static DNS server IP addresses for the system. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses must be entered.
DNS Server Interfaces can have multiple WAN interfaces served as system dns servers but only one will be used according to the priority with the first being the highest and the last one the lowest priority if the WAN interface is connected.
Priority order can be changed by removing all and adding them back in again.
76
If is no IPv6 WAN interface is configured, a warning message system will pop up when accessing DNS Server.
5.9.2 Dynamic DNS
The Dynamic DNS service allows you to map a dynamic IP address to a static hostname in any of many domains, allowing the AR-5381u to be more easily accessed from various locations on the Internet.
To add a dynamic DNS service, click Add . The following screen will display.
77
Make your settings and click the Apply/Save button.
Consult the table below for field descriptions.
Field Description
D-DNS provider Select a dynamic DNS provider from the list
Hostname
Interface
Username
Password
Enter the name of the dynamic DNS server
Select the interface from the list
Enter the username of the dynamic DNS server
Enter the password of the dynamic DNS server
78
5.10 DSL
The DSL Settings screen allows for the selection of DSL modulation modes.
For optimum performance, the modes selected should match those of your ISP.
79
DSL Mode
G.Dmt
G.lite
T1.413
ADSL2
AnnexL
Data Transmission Rate - Mbps (Megabits per second)
Downstream: 12 Mbps Upstream: 1.3 Mbps
Downstream: 4 Mbps Upstream: 0.5 Mbps
Downstream: 8 Mbps Upstream: 1.0 Mbps
Downstream: 12 Mbps Upstream: 1.0 Mbps
Supports longer loops but with reduced transmission rates
ADSL2+
AnnexM
Downstream: 24 Mbps
Downstream: 24 Mbps
Upstream: 1.0 Mbps
Upstream: 3.5 Mbps
VDSL2 Downstream: 100 Mbps Upstream: 60 Mbps
VDSL Profile Maximum Downstream Throughput- Mbps (Megabits per second)
8a Downstream 50
8b
8c
8d
12a
Downstream 50
Downstream: 50
Downstream: 50
Downstream: 68
12b
17a
30a
Options
Downstream: 68
Downstream: 100
Downstream: 100 Mbps Upstream: 100 Mbps
US0
Description
Band between 20 and 138 kHz for long loops to upstream
Inner/Outer Pair Select the inner or outer pins of the twisted pair (RJ11 cable)
Bitswap Enable Enables adaptive handshaking functionality
SRA Enable
G997.1 EOC xTU-R Serial
Number
Enables Seamless Rate Adaptation (SRA)
Select Equipment Serial Number or Equipment MAC Address to use router’s serial number or MAC address in ADSL EOC messages
80
5.11 DSL Bonding
This page displays the bonding status of the connected xDSL line.
81
5.12 UPnP
Select the checkbox provided and click Apply/Save to enable UPnP protocol.
82
5.13 DNS Proxy/Relay
DNS proxy receives DNS queries and forwards DNS queries to the Internet. After the
CPE gets answers from the DNS server, it replies to the LAN clients. Configure DNS proxy with the default setting, when the PC gets an IP via DHCP, the domain name,
Home, will be added to PC’s DNS Suffix Search List, and the PC can access route with
“Comtrend.Home”.
DNS Relay
When DNS Relay is enabled, the router will play a role as DNS server that send request to ISP DNS server and cache the information for later access. When DNS relay is disabled, the computer will pull information from ISP DNS server.
83
5.14 Print Server
The AR-5381u can provide printer support through an optional USB2.0 host port.
If your device has this port, refer to Appendix E - Printer Server for detailed setup instructions.
84
5.15 DLNA
Enabling DLNA allows users to share digital media, like pictures, music and video, to other LAN devices from the digital media server.
85
5.16 Storage Service
Enabling Samba service allows the user to share files on the storage device. Different levels of user access can be configured after samba security mode is enabled. This page also displays storage devices attached to USB host.
Display after storage device attached (for your reference).
86
5.17 Interface Grouping
Interface Grouping supports multiple ports to PVC and bridging groups. Each group performs as an independent network. To use this feature, you must create mapping groups with appropriate LAN and WAN interfaces using the Add button.
The Remove button removes mapping groups, returning the ungrouped interfaces to the Default group. Only the default group has an IP interface.
To add an Interface Group, click the Add button. The following screen will appear.
It lists the available and grouped interfaces. Follow the instructions shown onscreen.
87
Automatically Add Clients With Following DHCP Vendor IDs:
Add support to automatically map LAN interfaces to PVC's using DHCP vendor ID
(option 60). The local DHCP server will decline and send the requests to a remote
DHCP server by mapping the appropriate LAN interface. This will be turned on when
Interface Grouping is enabled.
88
For example, imagine there are 4 PVCs (0/33, 0/36, 0/37, 0/38). VPI/VCI=0/33 is for PPPoE while the other PVCs are for IP set-top box (video). The LAN interfaces are
ENET1, ENET2, ENET3, and ENET4.
The Interface Grouping configuration will be:
1. Default: ENET1, ENET2, ENET3, and ENET4.
2. Video: nas_0_36, nas_0_37, and nas_0_38. The DHCP vendor ID is "Video".
If the onboard DHCP server is running on "Default" and the remote DHCP server is running on PVC 0/36 (i.e. for set-top box use only). LAN side clients can get IP addresses from the CPE's DHCP server and access the Internet via PPPoE (0/33).
If a set-top box is connected to ENET1 and sends a DHCP request with vendor ID
"Video", the local DHCP server will forward this request to the remote DHCP server.
The Interface Grouping configuration will automatically change to the following:
1. Default: ENET2, ENET3, and ENET4
2. Video: nas_0_36, nas_0_37, nas_0_38, and ENET1.
89
5.18 IP Tunnel
5.18.1 IPv6inIPv4
Configure 6in4 tunneling to encapsulate IPv6 traffic over explicitly-configured IPv4 links.
Click the Add button to display the following.
90
Options Description
Tunnel Name
Mechanism
Associated WAN Interface
Associated LAN Interface
Manual/Automatic
Input a name for the tunnel
Mechanism used by the tunnel deployment
Select the WAN interface to be used by the tunnel
Select the LAN interface to be included in the tunnel
Select automatic for point-to-multipoint tunneling / manual for point-to-point tunneling
IPv4 Mask Length The subnet mask length used for the IPv4 interface
6rd Prefix with Prefix Length Prefix and prefix length used for the IPv6 interface
Border Relay IPv4 Address Input the IPv4 address of the other device
91
5.18.2 IPv4inIPv6
Configure 4in6 tunneling to encapsulate IPv4 traffic over an IPv6-only environment.
Click the Add button to display the following.
92
Options Description
Tunnel Name
Mechanism
AFTR
Input a name for the tunnel
Mechanism used by the tunnel deployment
Associated WAN Interface Select the WAN interface to be used by the tunnel
Associated LAN Interface Select the LAN interface to be included in the tunnel
Manual/Automatic Select automatic for point-to-multipoint tunneling / manual for point-to-point tunneling
Address of Address Family Translation Router
93
5.19 IPSec
You can add, edit or remove IPSec tunnel mode connections from this page.
Click Add New Connection to add a new IPSec termination rule.
The following screen will display.
94
IPSec Connection Name User-defined label.
IP Version
Tunnel Mode
Select the corresponding IPv4 / IPv6 version for the IPSEC connection.
Select tunnel protocol, AH (Authentication
Header) or ESP (Encapsulating Security
Payload) for this tunnel.
Local Gateway Interface Select from the list of wan interface to be used as gateway for the IPSEC connection.
Remote IPSec Gateway Address The location of the Remote IPSec Gateway. IP address or domain name can be used.
Tunnel access from local IP addresses
Specify the acceptable host IP on the local side. Choose Single or Subnet .
IP Address/Subnet Mask for VPN If you chose Single , please enter the host IP address for VPN. If you chose Subnet , please enter the subnet information for VPN.
95
Tunnel access from remote IP addresses
Specify the acceptable host IP on the remote side. Choose Single or Subnet .
IP Address/Subnet Mask for VPN If you chose Single , please enter the host IP
Key Exchange Method address for VPN. If you chose Subnet , please enter the subnet information for VPN.
Select from Auto(IKE) or Manual
For the Auto(IKE) key exchange method, select Pre-shared key or Certificate (X.509) authentication. For Pre-shared key authentication you must enter a key, while for
Certificate (X.509) authentication you must select a certificate from the list.
See the tables below for a summary of all available options.
Auto(IKE) Key Exchange Method
Pre-Shared Key / Certificate (X.509) Input Pre-shared key / Choose Certificate
Perfect Forward Secrecy Enable or Disable
Advanced IKE Settings Select Show Advanced Settings to reveal the advanced settings options shown below.
Advanced IKE Settings
Phase 1 / Phase 2
Mode
Encryption Algorithm
Integrity Algorithm
Select Diffie-Hellman Group
Select Hide Advanced Settings to hide the advanced settings options shown above.
Choose settings for each phase, the available options are separated with a “/” character.
Main / Aggressive
DES / 3DES / AES 128,192,256
MD5 / SHA1
768 – 8192 bit
Key Life Time Enter your own or use the default (1 hour)
The Manual key exchange method options are summarized in the table below.
96
Manual Key Exchange Method
Encryption Algorithm
Encryption Key
Authentication Algorithm
Authentication Key
SPI (default is 101)
DES / 3DES / AES (aes-cbc)
DES: 16 digit Hex, 3DES: 48 digit Hex
MD5 / SHA1
MD5: 32 digit Hex, SHA1: 40 digit Hex
Enter a Hex value from 100-FFFFFFFF
97
5.20 Certificate
A certificate is a public key, attached with its owner’s information (company name, server name, personal real name, contact e-mail, postal address, etc) and digital signatures. There will be one or more digital signatures attached to the certificate, indicating that these entities have verified that this certificate is valid.
5.20.1 Local
CREATE CERTIFICATE REQUEST
Click Create Certificate Request to generate a certificate-signing request.
The certificate-signing request can be submitted to the vendor/ISP/ITSP to apply for a certificate. Some information must be included in the certificate-signing request.
Your vendor/ISP/ITSP will ask you to provide the information they require and to provide the information in the format they regulate. Enter the required information and click Apply to generate a private key and a certificate-signing request.
98
The following table is provided for your reference.
Field Description
Certificate Name
Common Name
A user-defined name for the certificate.
Usually, the fully qualified domain name for the machine.
Organization Name The exact legal name of your organization.
Do not abbreviate.
State/Province Name The state or province where your organization is located.
It cannot be abbreviated.
Country/Region Name The two-letter ISO abbreviation for your country.
99
IMPORT CERTIFICATE
Click Import Certificate to paste the certificate content and the private key provided by your vendor/ISP/ITSP into the corresponding boxes shown below.
Enter a certificate name and click Apply to import the local certificate.
100
5.20.2 Trusted CA
CA is an abbreviation for Certificate Authority, which is a part of the X.509 system.
It is itself a certificate, attached with the owner information of this certificate authority; but its purpose is not encryption/decryption. Its purpose is to sign and issue certificates, in order to prove that these certificates are valid.
Click Import Certificate to paste the certificate content of your trusted CA. The
CA certificate content will be provided by your vendor/ISP/ITSP and is used to authenticate the Auto-Configuration Server (ACS) that the CPE will connect to.
101
Enter a certificate name and click Apply to import the CA certificate.
102
5.21 Multicast
Input new IGMP or MLD protocol configuration fields if you want modify default values shown. Then click Apply/Save .
Multicast Precedence:
Select precedence of multicast packets.
Multicast Strict Grouping Enforcement:
Enable/Disable multicast strict grouping.
103
Field
Default Version
Description
Define IGMP using version with video server.
Query Interval
Query Response Interval The query response interval is the maximum amount of time in seconds that the IGMP router waits to receive a response to a General Query message. The query response interval is the Maximum Response
Time field in the IGMP v2 Host Membership Query message header. The default query response interval is 10 seconds and must be less than the query interval.
Last Member Query
Interval
The query interval is the amount of time in seconds between IGMP General Query messages sent by the router (if the router is the querier on this subnet). The default query interval is 125 seconds.
Robustness Value
The last member query interval is the amount of time in seconds that the IGMP router waits to receive a response to a Group-Specific Query message. The last member query interval is also the amount of time in seconds between successive Group-Specific Query messages. The default last member query interval is
10 seconds.
The robustness variable is a way of indicating how susceptible the subnet is to lost packets. IGMP can recover from robustness variable minus 1 lost IGMP packets. The robustness variable should be set to a value of 2 or greater. The default robustness variable value is 2.
Setting the maximum number of Multicast groups. Maximum Multicast
Groups
Maximum Multicast Data
Sources (for IGMPv3)
Define the maximum multicast video stream number.
Maximum Multicast
Group Members
Fast Leave Enable
Setting the maximum number of groups that ports can accept.
When you enable IGMP fast-leave processing, the switch immediately removes a port when it detects an
IGMP version 2 leave message on that port.
104
Chapter 6 Wireless
6.1 Basic 5GHz
The Basic option allows you to configure basic features of the wireless LAN interface.
Among other things, you can enable or disable the wireless LAN interface, hide the network from active scans, set the wireless network name (also known as SSID) and restrict the channel set based on country requirements.
Click Apply/Save to configure the basic wireless options.
Consult the table below for descriptions of these options.
105
Option
Enable
Wireless
Hide Access
Point
Clients
Isolation
Description
A checkbox that enables or disables the wireless LAN interface.
When selected, a set of basic wireless options will appear.
Select Hide Access Point to protect the access point from detection by wireless active scans. To view and connect to available wireless networks in Windows, open Connect to a Network by clicking the network icon ( or ) in the notification area. If the access point is hidden, it will not be listed there. To connect a client to a hidden access point, the station must add the access point manually to its wireless configuration.
When enabled, it prevents client PCs from seeing one another in My
Network Places or Network Neighborhood. Also, prevents one wireless client communicating with another wireless client.
Disable
WMM
Stops the router from ‘advertising’ its Wireless Multimedia (WMM) functionality, which provides basic quality of service for time-sensitive
Advertise applications (e.g. VoIP, Video).
Select the checkbox to enable this function. Enable
Wireless
Multicast
Forwarding
SSID
[1-32 characters]
BSSID
Sets the wireless network name. SSID stands for Service Set
Identifier. All stations must be configured with the correct SSID to access the WLAN. If the SSID does not match, that user will not be granted access.
Country
The BSSID is a 48-bit identity used to identify a particular BSS (Basic
Service Set) within an area. In Infrastructure BSS networks, the
BSSID is the MAC (Media Access Control) address of the AP (Access
Point); and in Independent BSS or ad hoc networks, the BSSID is generated randomly.
A drop-down menu that permits worldwide and specific national settings. Local regulations limit channel range:
US= worldwide, Japan=1-14, Jordan= 10-13, Israel= 1-13
Country
RegRev
Wireless country code for transmit power limit.
Max Clients The maximum number of clients that can access the router.
Wireless -
Guest /
Virtual
Access
Points
This router supports multiple SSIDs called Guest SSIDs or Virtual
Access Points. To enable one or more Guest SSIDs select the checkboxes in the Enabled column. To hide a Guest SSID, select its checkbox in the Hidden column.
Do the same for Isolate Clients and Disable WMM Advertise . For a description of these two functions, see the previous entries for
“Clients Isolation” and “Disable WMM Advertise”. Similarly, for Enable
WMF , Max Clients and BSSID , consult the matching entries in this table.
NOTE: Remote wireless hosts cannot scan Guest SSIDs.
106
6.2 Security 5GHz
The following screen appears when Wireless Security is selected. The options shown here allow you to configure security features of the wireless LAN interface.
Please see 6.3
for WPS setup instructions.
Click Apply/Save to implement new configuration settings.
WIRELESS SECURITY
Setup requires that the user configure these settings using the Web User Interface
(see the table below).
Select SSID
Select the wireless network name from the drop-down menu. SSID stands for
Service Set Identifier. All stations must be configured with the correct SSID to access the WLAN. If the SSID does not match, that client will not be granted access.
Network Authentication
This option specifies whether a network key is used for authentication to the wireless network. If network authentication is set to Open, then no authentication is provided. Despite this, the identity of the client is still verified.
Each authentication type has its own settings. For example, selecting 802.1X authentication will reveal the RADIUS Server IP address, Port and Key fields. WEP
Encryption will also be enabled as shown below.
Different authentication type pops up different settings requests.
107
Choosing 802.1X
, enter RADIUS Server IP address, RADIUS Port, RADIUS key and
Current Network Key.
Also, enable WEP Encryption and select Encryption Strength.
Select the Current Network Key and enter 13 ASCII characters or 26 hexadecimal digits for 128-bit encryption keys and enter 5 ASCII characters or 10 hexadecimal digits for 64-bit encryption keys.
Choosing WPA2-PSK , you must enter WPA Pre-Shared Key and Group Rekey
Interval.
WEP Encryption
This option specifies whether data sent over the network is encrypted. The same network key is used for data encryption and network authentication. Four network keys can be defined although only one can be used at any one time. Use the Current
Network Key list box to select the appropriate network key.
Security options include authentication and encryption services based on the wired equivalent privacy (WEP) algorithm. WEP is a set of security services used to protect 802.11 networks from unauthorized access, such as eavesdropping; in this case, the capture of wireless network traffic.
108
When data encryption is enabled, secret shared encryption keys are generated and used by the source station and the destination station to alter frame bits, thus avoiding disclosure to eavesdroppers.
Under shared key authentication, each wireless station is assumed to have received a secret shared key over a secure channel that is independent from the 802.11 wireless network communications channel.
Encryption Strength
This drop-down list box will display when WEP Encryption is enabled. The key strength is proportional to the number of binary bits comprising the key. This means that keys with a greater number of bits have a greater degree of security and are considerably more difficult to crack. Encryption strength can be set to either
64-bit or 128-bit. A 64-bit key is equivalent to 5 ASCII characters or 10 hexadecimal numbers. A 128-bit key contains 13 ASCII characters or 26 hexadecimal numbers. Each key contains a 24-bit header (an initiation vector) which enables parallel decoding of multiple streams of encrypted data.
109
6.3 WPS 5GHz
Wi-Fi Protected Setup (WPS) is an industry standard that simplifies wireless security setup for certified network devices. Every WPS certified device has both a PIN number and a push button, located on the device or accessed through device software. The NexusLink 3241u/3241eu has a WPS button on the device.
Devices with the WPS logo (shown here) support WPS. If the WPS logo is not present on your device it still may support WPS, in this case, check the device documentation for the phrase “Wi-Fi Protected Setup”.
NOTE: WPS is only available in Open, WPA-PSK, WPA2-PSK and Mixed
WPA2/WPA-PSK network authentication modes. Other authentication modes do not use WPS so they must be configured manually.
To configure security settings with WPS, follow the procedures below.
I. Setup
Step 1: Enable WPS by selecting Enabled from the drop down list box shown.
Step 2: Set the WPS AP Mode. Configured is used when the NexusLink
3241u/3241eu will assign security settings to clients. Unconfigured is used when an external client assigns security settings to the NexusLink
3241u/3241eu.
NOTES: Your client may or may not have the ability to provide security settings to the NexusLink 3241u/3241eu. If it does not, then you must set the WPS
AP mode to Configured. Consult the device documentation to check its capabilities.
110
IIa. PUSH-BUTTON CONFIGURATION
The WPS push-button configuration provides a semi-automated configuration method. The WPS button on the front panel of the router can be used for this purpose.
The WPS push-button configuration is described in the procedure below. It is assumed that the Wireless function is Enabled and that the router is configured as the Wireless Access Point (AP) of your WLAN. In addition, the wireless client must also be configured correctly and turned on, with WPS function enabled.
NOTE: The wireless AP on the router searches for 2 minutes. If the router stops searching before you complete Step 4, return to Step 3.
Step 3: Press WPS button
Press the WPS button on the front panel of the router. The WPS LED will
blink to show that the router has begun searching for the client.
Step 4: Go to your WPS wireless client and activate the push-button function.
A typical WPS client screenshot is shown below as an example.
Now go to Step 7 (part III. Check Connection) to check the WPS connection.
IIb. WPS – PIN CONFIGURATION
Using this method, security settings are configured with a personal identification number (PIN). The PIN can be found on the device itself or within the software.
The PIN may be generated randomly in the latter case. To obtain a PIN number for your client, check the device documentation for specific instructions.
The WPS PIN configuration is described in the procedure below. It is assumed that the Wireless function is Enabled and that the router is configured as the Wireless
Access Point (AP) of your wireless LAN. In addition, the wireless client must also be configured correctly and turned on, with WPS function enabled.
Step 5: Select the PIN radio button in the WSC Setup section of the Wireless
Security screen, as shown in A or B below, and then click the appropriate button based on the WSC AP mode selected in step 2.
A For Configured mode, click the Add Enrollee button.
111
Enter STA PIN : a Personal Identification Number (PIN) has to be read from either a sticker or the display on the new wireless device. This PIN must then be inputted at representing the network, usually the Access Point of the network.
B - For Unconfigured mode, click the Config AP button.
Step 6: Activate the PIN function on the wireless client. For Configured mode, the client must be configured as an Enrollee. For Unconfigured mode, the client must be configured as the Registrar. This is different from the
External Registrar function provided in Windows Vista.
The figure below provides an example of a WPS client PIN function in-progress.
III. CHECK CONNECTION
Step 7: If the WPS setup method was successful, you will be able access the wireless AP from the client. The client software should show the status.
The example below shows that the connection established successfully.
You can also double-click the Wireless Network Connection icon from the
Network Connections window (or the system tray) to confirm the status of the new connection.
112
6.4 MAC Filter 5GHz
This option allows access to the router to be restricted based upon MAC addresses.
To add a MAC Address filter, click the Add button shown below. To delete a filter, select it from the MAC Address table below and click the Remove button.
Option Description
Select
SSID
Select the wireless network name from the drop-down menu. SSID stands for Service Set Identifier. All stations must be configured with the correct SSID to access the WLAN. If the SSID does not match, that user will not be granted access.
MAC
Restrict
Mode
MAC
Address
Disabled: MAC filtering is disabled.
Allow: Permits access for the specified MAC addresses.
Deny: Rejects access for the specified MAC addresses.
Lists the MAC addresses subject to the MAC Restrict Mode. A maximum of 60 MAC addresses can be added. Every network device has a unique
48-bit MAC address. This is usually shown as xx.xx.xx.xx.xx.xx, where xx are hexadecimal numbers.
After clicking the Add button, the following screen appears.
113
Enter the MAC address in the box provided and click Apply/Save.
114
6.5 Wireless Bridge 5GHz
This screen allows for the configuration of wireless bridge features of the WiFi interface. See the table below for detailed explanations of the various options.
Click Apply/Save to implement new configuration settings.
Feature Description
Bridge Restrict Selecting Disabled disables wireless bridge restriction, which means that any wireless bridge will be granted access.
Selecting Enabled or Enabled (Scan) enables wireless bridge restriction. Only those bridges selected in the Remote Bridges list will be granted access. Click Refresh to update the station list when Bridge Restrict is enabled.
Remote Bridges
MAC Address
Enter the list of MAC addresses allowed to act as wireless bridge clients.
115
6.6 Advanced 5GHz
The Advanced screen allows you to configure advanced features of the wireless LAN interface. You can select a particular channel on which to operate, force the transmission rate to a particular speed, set the fragmentation threshold, set the RTS threshold, set the wakeup interval for clients in power-save mode, set the beacon interval for the access point, set XPress mode and set whether short or long preambles are used. Click Apply/Save to set new advanced wireless options.
116
117
Field
Band
Description
Set to 2.4 GHz for compatibility with IEEE 802.11x standards. The new amendment allows IEEE 802.11n units to fall back to slower speeds so that legacy IEEE 802.11x devices can coexist in the same network. IEEE 802.11g creates data-rate parity at 2.4 GHz with the IEEE 802.11a standard, which has a 54 Mbps rate at 5 GHz. (IEEE
802.11a has other differences compared to IEEE 802.11b or g, such as offering more channels.)
Channel Drop-down menu that allows selection of a specific channel.
Auto channel scan timer in minutes (0 to disable) Auto Channel Timer
(min)
802.11n/EWC An equipment interoperability standard setting based on
IEEE 802.11n Draft 2.0 and Enhanced Wireless Consortium
(EWC)
Select 20MHz or 20MHz/40MHz Mixed Mode bandwidth. Bandwidth
Control Sideband Displays the control sideband status if channel is on
“Auto”. Select the desired sideband to adjust channel list if current channel is on a specific channel.
Set the physical transmission rate (PHY). 802.11n Rate
802.11n Protection Turn Off for maximized throughput.
Turn On for greater security.
Support 802.11n
Client Only
Turn Off to allow 802.11b/g clients access to the router.
Turn On to prohibit 802.11b/g client’s access to the router.
RIFS Advertisement One of several draft-n features designed to improve efficiency. Provides a shorter delay between OFDM transmissions than in 802.11a or g.
OBSS Co-Existence Co-existence between 20 MHz AND 40 MHz overlapping
Basic Service Set (OBSS) in WLAN.
RX Chain Power Save Enabling this feature turns off one of the Receive chains, going from 2x2 to 2x1 to save power.
RX Chain Power Save
Quiet Time
The number of seconds the traffic must be below the PPS value below before the Rx Chain Power Save feature activates itself.
RX Chain Power Save
PPS
54g Rate
The maximum number of packets per seconds that can be processed by the WLAN interface for a duration of Quiet
Time, described above, before the Rx Chain Power Save feature activates itself.
Drop-down menu that specifies the following fixed rates:
Auto: Default. Uses the 11 Mbps data rate when possible but drops to lower rates when necessary. 1 Mbps, 2Mbps,
5.5Mbps, or 11Mbps fixed rates. The appropriate setting is dependent on signal strength.
Multicast Rate
Basic Rate
Setting for multicast packet transmit rate (1-54 Mbps)
Setting for basic transmission rate.
118
Field
Fragmentation
Threshold
RTS Threshold
Description
A threshold, specified in bytes, that determines whether packets will be fragmented and at what size. On an
802.11 WLAN, packets that exceed the fragmentation threshold are fragmented, i.e., split into, smaller units suitable for the circuit size. Packets smaller than the specified fragmentation threshold value are not fragmented. Enter a value between 256 and 2346. If you experience a high packet error rate, try to slightly increase your Fragmentation Threshold. The value should remain at its default setting of 2346. Setting the Fragmentation
Threshold too low may result in poor performance.
Request to Send, when set in bytes, specifies the packet size beyond which the WLAN Card invokes its RTS/CTS mechanism. Packets that exceed the specified RTS threshold trigger the RTS/CTS mechanism. The NIC transmits smaller packet without using RTS/CTS. The default setting of 2347 (maximum length) disables RTS
Threshold.
DTIM Interval
Beacon Interval
Delivery Traffic Indication Message (DTIM) is also known as
Beacon Rate. The entry range is a value between 1 and
65535. A DTIM is a countdown variable that informs clients of the next window for listening to broadcast and multicast messages. When the AP has buffered broadcast or multicast messages for associated clients, it sends the next
DTIM with a DTIM Interval value. AP Clients hear the beacons and awaken to receive the broadcast and multicast messages. The default is 1.
The amount of time between beacon transmissions in milliseconds. The default is 100 ms and the acceptable range is 1 – 65535. The beacon transmissions identify the presence of an access point. By default, network devices passively scan all RF channels listening for beacons coming from access points. Before a station enters power save mode, the station needs the beacon interval to know when to wake up to receive the beacon (and learn whether there are buffered frames at the access point).
Global Max Clients The maximum number of clients that can connect to the router.
Xpress TM Technology Xpress Technology is compliant with draft specifications of two planned wireless industry standards.
54g™ Mode
54g™ Protection
Set the mode to 54g Auto for the widest compatibility.
Select the mode to 54g Performance for the fastest performance among 54g certified equipment. Set the mode to 54g LRS if you are experiencing difficulty with legacy 802.11b equipment.
In Auto mode the router will use RTS/CTS to improve
802.11g performance in mixed 802.11g/802.11b networks. Turn protection off to maximize 802.11g throughput under most conditions.
119
Field
Regulatory Mode
Pre-Network Radar
Check
In-Network Radar
Check
Description
Configure the regulatory operation mode if needed. Select
802.11h for European regulations Dynamic Frequency
Selection (DFS) and Transmit Power Control (TPC) and
802.11d if operates in country domains defined in IEEE
802.11d
The number of seconds to check for radar on a channel before establishing a network. Used for 802.11h only.
The number of seconds to check for radar when switching to a new channel after a network has been established. Used for 802.11h only.
Transmitter power control (TPC) mitigation setting. TPC Mitigation
Afterburner
Technology
Preamble Type
WMM (Wi-Fi
Multimedia)
WMM No
Acknowledgement
WMM APSD
Iperf Support
Video Error
Correction
Beamforming
Transmission (BFR)
Beamforming
Reception (BFE)
Band Steering
Enable Traffic
Scheduler
Airtime Fairness
Short preamble is intended for application where maximum throughput is desired but it doesn’t cooperate with the legacy.
Long preamble interoperates with the current 1 and 2
Mbit/s DSSS specification as described in IEEE Std
802.11-1999
The technology maintains the priority of audio, video and voice applications in a Wi-Fi network. It allows multimedia service get higher priority.
Refers to the acknowledge policy used at the MAC level.
Enabling no Acknowledgement can result in more efficient throughput but higher error rates in a noisy Radio
Frequency (RF) environment.
This is Automatic Power Save Delivery. It saves power.
The ultimate speed test tool for TCP, UDP and SCTP. The
CPE can support this feature.
The transmission of any data is always subject to corruption due to errors, but video transmission, because of its real time nature must deal with these errors without retransmission of the corrupted data. The error can be handled by using forward error correction in the encoder or error concealment techniques in the decoder.
Enable beamforming signal enhance for wireless transmission.
Enable beamforming signal enhance for wireless reception.
Enable band steering for dual band traffic control if applicable.
Enable traffic scheduler to ensure wireless traffic is shared based on scheduler scheme.
Enable airtime fairness for varied wireless clients.
120
6.7 Site Survey 5GHz
The graph displays wireless APs found in your neighborhood by channel.
121
6.8 Station Info 5GHz
This page shows authenticated wireless stations and their status. Click the Refresh button to update the list of stations in the WLAN.
Consult the table below for descriptions of each column heading.
Heading Description
MAC Lists the MAC address of all the stations.
Associated Lists all the stations that are associated with the Access
Point, along with the amount of time since packets were transferred to and from each station. If a station is idle for too long, it is removed from this list.
Authorized Lists those devices with authorized access.
SSID Lists which SSID of the modem that the stations connect to.
122
6.9 Basic 2.4GHz
The Basic option allows you to configure basic features of the wireless LAN interface.
Among other things, you can enable or disable the wireless LAN interface, hide the network from active scans, set the wireless network name (also known as SSID) and restrict the channel set based on country requirements.
Click Apply/Save to configure the basic wireless options.
Consult the table below for descriptions of these options.
Option Description
Enable
Wireless
A checkbox that enables or disables the wireless LAN interface.
When selected, a set of basic wireless options will appear.
123
Option
Hide
Access
Point
Description
Select Hide Access Point to protect the access point from detection by wireless active scans. To view and connect to available wireless networks in Windows, open Connect to a Network by clicking the network icon ( or ) in the notification area. If the access point is hidden, it will not be listed there. To connect a client to a hidden access point, the station must add the access point manually to its wireless configuration.
Clients
Isolation
When enabled, it prevents client PCs from seeing one another in My
Network Places or Network Neighborhood. Also, prevents one wireless client communicating with another wireless client.
Disable
WMM
Advertise
Stops the router from ‘advertising’ its Wireless Multimedia (WMM) functionality, which provides basic quality of service for time-sensitive applications (e.g. VoIP, Video).
Select the checkbox to enable this function. Enable
Wireless
Multicast
Forwarding
SSID
[1-32 characters]
Wireless -
Guest /
Virtual
Access
Points
Sets the wireless network name. SSID stands for Service Set
Identifier. All stations must be configured with the correct SSID to access the WLAN. If the SSID does not match, that user will not be granted access.
BSSID The BSSID is a 48-bit identity used to identify a particular BSS (Basic
Service Set) within an area. In Infrastructure BSS networks, the
BSSID is the MAC (Media Access Control) address of the AP (Access
Point); and in Independent BSS or ad hoc networks, the BSSID is generated randomly.
Local regulations limit channel range: US/Canada = 1-11. Country
Country
RegRev
Wireless country code for transmit power limit.
Max Clients The maximum number of clients that can access the router.
This router supports multiple SSIDs called Guest SSIDs or Virtual
Access Points. To enable one or more Guest SSIDs select the checkboxes in the Enabled column. To hide a Guest SSID select its checkbox in the Hidden column.
Do the same for Isolate Clients and Disable WMM Advertise . For a description of these two functions, see the previous entries for
“Clients Isolation” and “Disable WMM Advertise”. Similarly, for Enable
WMF , Max Clients and BSSID , consult the matching entries in this table.
NOTE: Remote wireless hosts cannot scan Guest SSIDs.
124
6.10 Security 2.4GHz
The following screen appears when Wireless Security is selected. The options shown here allow you to configure security features of the wireless LAN interface.
Please see 6.11
for WPS setup instructions.
Click Apply/Save to implement new configuration settings.
WIRELESS SECURITY
Setup requires that the user configure these settings using the Web User Interface
(see the table below).
Select SSID
Select the wireless network name from the drop-down menu. SSID stands for
Service Set Identifier. All stations must be configured with the correct SSID to access the WLAN. If the SSID does not match, that client will not be granted access.
Network Authentication
This option specifies whether a network key is used for authentication to the wireless network. If network authentication is set to Open, then no authentication is provided. Despite this, the identity of the client is still verified.
Each authentication type has its own settings. For example, selecting 802.1X authentication will reveal the RADIUS Server IP address, Port and Key fields. WEP
Encryption will also be enabled as shown below.
125
Different authentication type pops up different settings requests.
Choosing 802.1X
, enter RADIUS Server IP address, RADIUS Port, RADIUS key and
Current Network Key.
Also, enable WEP Encryption and select Encryption Strength.
Select the Current Network Key and enter 13 ASCII characters or 26 hexadecimal digits for 128-bit encryption keys and enter 5 ASCII characters or 10 hexadecimal digits for 64-bit encryption keys.
Choosing WPA2-PSK , you must enter WPA/WAPI passphrase and Group Rekey
Interval.
WEP Encryption
This option specifies whether data sent over the network is encrypted. The same network key is used for data encryption and network authentication. Four network keys can be defined although only one can be used at any one time. Use the Current
Network Key list box to select the appropriate network key.
Security options include authentication and encryption services based on the wired equivalent privacy (WEP) algorithm. WEP is a set of security services used to protect 802.11 networks from unauthorized access, such as eavesdropping; in this case, the capture of wireless network traffic.
126
When data encryption is enabled, secret shared encryption keys are generated and used by the source station and the destination station to alter frame bits, thus avoiding disclosure to eavesdroppers.
Under shared key authentication, each wireless station is assumed to have received a secret shared key over a secure channel that is independent from the 802.11 wireless network communications channel.
Encryption Strength
This drop-down list box will display when WEP Encryption is enabled. The key strength is proportional to the number of binary bits comprising the key. This means that keys with a greater number of bits have a greater degree of security and are considerably more difficult to crack. Encryption strength can be set to either
64-bit or 128-bit. A 64-bit key is equivalent to 5 ASCII characters or 10 hexadecimal numbers. A 128-bit key contains 13 ASCII characters or 26 hexadecimal numbers. Each key contains a 24-bit header (an initiation vector) which enables parallel decoding of multiple streams of encrypted data.
127
6.11 WPS 2.4GHz
Wi-Fi Protected Setup (WPS) is an industry standard that simplifies wireless security setup for certified network devices. Every WPS certified device has both a PIN number and a push button, located on the device or accessed through device software. The NexusLink 3241u/3241eu has a WPS button on the device.
Devices with the WPS logo (shown here) support WPS. If the WPS logo is not present on your device it still may support WPS, in this case, check the device documentation for the phrase “Wi-Fi Protected Setup”.
NOTE: WPS is available in Open, WPA2-PSK and Mixed WPA2/WPA-PSK network authentication modes. Other authentication modes do not use WPS so they must be configured manually.
To configure security settings with WPS, follow the procedures below.
I. Setup
Step 1: Enable WPS by selecting Enabled from the drop down list box shown.
Step 2: Set the WPS AP Mode. Configured is used when the NexusLink
3241u/3241eu will assign security settings to clients. Unconfigured is used when an external client assigns security settings to the NexusLink
3241u/3241eu. Then click the Apply/Save button.
NOTES: Your client may or may not have the ability to provide security settings to the NexusLink 3241u/3241eu. If it does not, then you must set the WPS
AP mode to Configured. Consult the device documentation to check its capabilities.
128
IIa. PUSH-BUTTON CONFIGURATION
The WPS push-button configuration provides a semi-automated configuration method. The WPS button on the front panel of the router can be used for this purpose.
The WPS push-button configuration is described in the procedure below. It is assumed that the Wireless function is Enabled and that the router is configured as the Wireless Access Point (AP) of your WLAN. In addition, the wireless client must also be configured correctly and turned on, with WPS function enabled.
NOTE: The wireless AP on the router searches for 2 minutes. If the router stops searching before you complete Step 4, return to Step 3.
Step 3: Press WPS button
Press and release the WPS button on the front panel of the router. The
WPS LED will blink to show that the router has begun searching for the client.
Step 4: Go to your WPS wireless client and activate the push-button function.
A typical WPS client screenshot is shown below as an example.
Now go to Step 5 (part III. Check Connection) to check the WPS connection.
IIb. WPS – PIN CONFIGURATION
Using this method, security settings are configured with a personal identification number (PIN). The PIN can be found on the device itself or within the software.
The PIN may be generated randomly in the latter case. To obtain a PIN number for your client, check the device documentation for specific instructions.
The WPS PIN configuration is described in the procedure below. It is assumed that the Wireless function is Enabled and that the router is configured as the Wireless
Access Point (AP) of your wireless LAN. In addition, the wireless client must also be configured correctly and turned on, with WPS function enabled.
Step 3: Select the Use STA PIN radio button in the WPS Setup section of the
Wireless Security screen, as shown in A below.
A For Configured mode, input the STA PIN* and click the Add
Enrollee button.
129
* Personal Identification Number (PIN) has to be read from either a sticker or the display on the new wireless device.
B - For Unconfigured mode, select Unconfigured from the Set WPS AP mode drop-down menu and click the Apply/Save button. Input the Device PIN displayed to your wireless client to initiate the PIN connection.
Step 4: Activate the PIN function on the wireless client. For Configured mode, the client must be configured as an Enrollee. For Unconfigured mode, the client must be configured as the Registrar. This is different from the
External Registrar function provided in Windows Vista.
The figure below provides an example of a WPS client PIN function in-progress.
III. CHECK CONNECTION
Step 5: If the WPS setup method was successful, you will be able access the wireless AP from the client. The client software should show the status.
The example below shows that the connection established successfully.
You can also double-click the Wireless Network Connection icon from the
Network Connections window (or the system tray) to confirm the status of the new connection.
130
6.12 MAC Filter 2.4GHz
This option allows access to the router to be restricted based upon MAC addresses.
To add a MAC Address filter, click the Add button shown below. To delete a filter, select it from the MAC Address table below and click the Remove button.
Option Description
Select
SSID
Select the wireless network name from the drop-down menu. SSID stands for Service Set Identifier. All stations must be configured with the correct SSID to access the WLAN. If the SSID does not match, that user will not be granted access.
MAC
Restrict
Mode
MAC
Address
Disabled: MAC filtering is disabled.
Allow: Permits access for the specified MAC addresses.
Deny: Rejects access for the specified MAC addresses.
Lists the MAC addresses subject to the MAC Restrict Mode. A maximum of 60 MAC addresses can be added. Every network device has a unique
48-bit MAC address. This is usually shown as xx.xx.xx.xx.xx.xx, where xx are hexadecimal numbers.
After clicking the Add button, the following screen appears.
131
Enter the MAC address in the box provided and click Apply/Save.
132
6.13 Wireless Bridge 2.4GHz
This screen allows for the configuration of wireless bridge features of the WiFi interface. See the table below for detailed explanations of the various options.
Click Apply/Save to implement new configuration settings.
Feature Description
Bridge Restrict Selecting Disabled disables wireless bridge restriction, which means that any wireless bridge will be granted access.
Selecting Enabled or Enabled (Scan) enables wireless bridge restriction. Only those bridges selected in the Remote Bridges list will be granted access. Click Refresh to update the station list when Bridge Restrict is enabled.
Remote
Bridges MAC
Address
Enter the list of MAC addresses allowed to act as wireless bridge clients.
133
6.14 Advanced 2.4GHz
The Advanced screen allows you to configure advanced features of the wireless LAN interface. You can select a particular channel on which to operate, force the transmission rate to a particular speed, set the fragmentation threshold, set the RTS threshold, set the wakeup interval for clients in power-save mode, set the beacon interval for the access point, set XPress mode and set whether short or long preambles are used. Click Apply/Save to set new advanced wireless options.
134
Field
Band
Description
Set to 2.4 GHz for compatibility with IEEE 802.11x standards. The new amendment allows IEEE 802.11n units to fall back to slower speeds so that legacy IEEE 802.11x devices can coexist in the same network. IEEE 802.11g creates data-rate parity at 2.4 GHz with the IEEE 802.11a standard, which has a 54 Mbps rate at 5 GHz. (IEEE
802.11a has other differences compared to IEEE 802.11b or g, such as offering more channels.)
Channel Drop-down menu that allows selection of a specific channel.
Auto channel scan timer in minutes (0 to disable) Auto Channel Timer
(min)
802.11n/EWC
Bandwidth
Control Sideband
An equipment interoperability standard setting based on
IEEE 802.11n Draft 2.0 and Enhanced Wireless Consortium
(EWC)
Select 20MHz or 20MHz/40MHz Mixed Mode bandwidth.
Displays the control sideband status if channel is on
“Auto”. Select the desired sideband to adjust channel list if current channel is on a specific channel.
Set the physical transmission rate (PHY). 802.11n Rate
802.11n Protection
Support 802.11n
Client Only
RIFS Advertisement
Turn Off for maximized throughput.
Turn On for greater security.
Turn Off to allow 802.11b/g clients access to the router.
Turn On to prohibit 802.11b/g client’s access to the router.
OBSS Co-Existence Co-existence between 20 MHz AND 40 MHz overlapping
Basic Service Set (OBSS) in WLAN.
RX Chain Power Save Enabling this feature turns off one of the Receive chains, going from 2x2 to 2x1 to save power.
RX Chain Power Save
Quiet Time
The number of seconds the traffic must be below the PPS value below before the Rx Chain Power Save feature activates itself.
RX Chain Power Save
PPS
One of several draft-n features designed to improve efficiency. Provides a shorter delay between OFDM transmissions than in 802.11a or g.
54g Rate
The maximum number of packets per seconds that can be processed by the WLAN interface for a duration of Quiet
Time, described above, before the Rx Chain Power Save feature activates itself.
Drop-down menu that specifies the following fixed rates:
Auto: Default. Uses the 11 Mbps data rate when possible but drops to lower rates when necessary. 1 Mbps, 2Mbps,
5.5Mbps, or 11Mbps fixed rates. The appropriate setting is dependent on signal strength.
Multicast Rate
Basic Rate
Setting for multicast packet transmit rate (1-54 Mbps)
Setting for basic transmission rate.
135
Field
Fragmentation
Threshold
RTS Threshold
Description
A threshold, specified in bytes, that determines whether packets will be fragmented and at what size. On an
802.11 WLAN, packets that exceed the fragmentation threshold are fragmented, i.e., split into, smaller units suitable for the circuit size. Packets smaller than the specified fragmentation threshold value are not fragmented. Enter a value between 256 and 2346. If you experience a high packet error rate, try to slightly increase your Fragmentation Threshold. The value should remain at its default setting of 2346. Setting the Fragmentation
Threshold too low may result in poor performance.
Request to Send, when set in bytes, specifies the packet size beyond which the WLAN Card invokes its RTS/CTS mechanism. Packets that exceed the specified RTS threshold trigger the RTS/CTS mechanism. The NIC transmits smaller packet without using RTS/CTS. The default setting of 2347 (maximum length) disables RTS
Threshold.
DTIM Interval
Beacon Interval
Delivery Traffic Indication Message (DTIM) is also known as
Beacon Rate. The entry range is a value between 1 and
65535. A DTIM is a countdown variable that informs clients of the next window for listening to broadcast and multicast messages. When the AP has buffered broadcast or multicast messages for associated clients, it sends the next
DTIM with a DTIM Interval value. AP Clients hear the beacons and awaken to receive the broadcast and multicast messages. The default is 1.
The amount of time between beacon transmissions in milliseconds. The default is 100 ms and the acceptable range is 1 – 65535. The beacon transmissions identify the presence of an access point. By default, network devices passively scan all RF channels listening for beacons coming from access points. Before a station enters power save mode, the station needs the beacon interval to know when to wake up to receive the beacon (and learn whether there are buffered frames at the access point).
Global Max Clients The maximum number of clients that can connect to the router.
Xpress TM Technology Xpress Technology is compliant with draft specifications of two planned wireless industry standards.
WMM (Wi-Fi
Multimedia)
WMM No
Acknowledgement
The technology maintains the priority of audio, video and voice applications in a Wi-Fi network. It allows multimedia service get higher priority.
Refers to the acknowledge policy used at the MAC level.
Enabling no Acknowledgement can result in more efficient throughput but higher error rates in a noisy Radio
Frequency (RF) environment.
WMM APSD
Beamforming
Transmission (BFR)
This is Automatic Power Save Delivery. It saves power.
Enable beamforming signal enhance for wireless transmission.
136
Field
Beamforming
Reception (BFE)
Band Steering
Enable Traffic
Scheduler
Airtime Fairness
Description
Enable beamforming signal enhance for wireless reception.
Enable band steering for dual band traffic control if applicable.
Enable traffic scheduler to ensure wireless traffic is shared based on scheduler scheme.
Enable airtime fairness for varied wireless clients.
137
6.15 Site Survey 2.4GHz
The graph displays wireless APs found in your neighborhood by channel.
138
6.16 Station Info 5GHz
This page shows authenticated wireless stations and their status. Click the Refresh button to update the list of stations in the WLAN.
Consult the table below for descriptions of each column heading.
Heading Description
MAC Lists the MAC address of all the stations.
Associated Lists all the stations that are associated with the Access
Point, along with the amount of time since packets were transferred to and from each station. If a station is idle for too long, it is removed from this list.
Authorized Lists those devices with authorized access.
SSID Lists which SSID of the modem that the stations connect to.
139
6.17 WiFi Passpoint
Note: This function is not supported on this release.
140
Chapter 7 Voice
This chapter first describes the various options for configuration of the SIP voice service. It then provides detailed instructions for making telephone calls using VoIP
(Voice over IP) or PSTN (Public Switched Telephone Network) services. Session
Initiation Protocol (SIP) is a peer-to-peer protocol used for Internet conferencing, telephony, events notification, presence and instant messaging.
SIP is designed to address the functions of signaling and session management within a packet telephony network. Signaling allows call information to be carried across network boundaries. Session management provides the ability to control the attributes of an end-to-end call.
NOTE : The SIP standard is set by the Internet Engineering Task Force (IETF).
141
The SIP standard defines the following agents/servers:
User Agents ( UA ) - SIP phone clients (hardware or software)
Proxy Server – relays data between UA and external servers
Registrar Server - a server that accepts register requests from UA
Redirect Server – provides an address lookup service to UA
The following subsections present Basic , Advanced and Debug SIP screens.
Each screen provides various options for customizing the SIP configuration.
142
7.1 SIP Basic Setting
143
7.1.1 Global Parameters
A common parameter setting.
Bound Interface Name:
Select a WAN interface to send SIP control messages.
IP Address Family:
Select to use IPv4 or IPv6 for VoIP messages.
144
7.1.2 Service Provider
Enter the SIP parameters and click Start/Stop to save the parameters and start/stop the voice application.
Once settings are configured click Apply to begin using the service.
Field Description
Locale Selection Sets tone, ring type and physical characteristics for specific countries.
145
Field
SIP domain name
VoIP Dialplan Setting
Use SIP proxy
SIP Proxy
SIP Proxy port
Description
Provided by your VoIP provider.
A dial plan establishes the expected sequence of digits dialed on subscriber premises equipment, such as telephones, in private branch exchange (PBX) systems, or in other telephone switches to effect access to specific telephone networks for telephone calls, and to effect or activate specific telephone system features.
In private branch exchanges in the U.S. a dial plan may specify the dialing for the following destinations:
Internal extension numbers of two, three, or four digits.
Local numbers of seven or ten digits, which may be preceded by a 9, if required to access an outside line.
Long distance numbers of eleven digits, consisting of a 1, a three-digit area code, and a seven-digit number; preceded by a 9 if required.
International numbers of any length starting with 011 and preceded by a 9 if required.
Similarly, telephony service operators may provide dialing sequences for special services, such as directory assistance and emergency services.
PBX equipment, carrier switching systems, or end-user telephones may specify a variable-length dial plan or a fixed-length dial plan.
Enable the SIP proxy by selecting the checkbox and setting proxy parameters.
Input IP address or domain name of the SIP proxy server, used for VoIP service.
This value is set by your VoIP provider.
146
Field
Use SIP Outbound Proxy
Use SIP Registrar
SIP Registrar
Preferred codec 1-6
SIP Outbound Proxy port
Description
Enable the SIP outbound proxy by selecting the checkbox and setting outbound proxy parameters. It forwards the requests if you cannot reach SIP proxy directly.
This value is set by your VoIP provider.
Enable the SIP Registrar proxy by selecting the checkbox
Input IP address or domain name of the SIP proxy server, used for VOIP service.
SIP Registrar Port This value is set by your VoIP provider.
FYI: A proxy is an intermediary program that acts as both a server and a client for the purpose of making requests on behalf of other clients. Requests are serviced internally or transferred to other servers. A proxy interprets and, if necessary, rewrites a request message before forwarding it.
SIP Account 1 & 2
SIP Account
Ports FXS1 & FXS2
Map SIP accounts to physical ports. “0” represents to FXS1 and “1” represents to
FXS2.
The line extension number. Extension
Display Name
Authentication Name
Authentication Password
The caller ID display name.
The authentication username for the
Registrar/Proxy, given by VoIP provider.
The authentication password for the
Registrar/proxy, given by VoIP provider.
Physical Terminal Assignment
Preferred ptime
Connect the FXS port to the physical port.
The time period used to digitally sample the analog voice signal. The default is 20 ms.
Choose from G.711MuLaw/ALaw, G.729a,
G.723.1, G.726_24/32, or GSM_AMR codecs
147
7.2
SIP Advanced Setting
148
7.2.1 Global Parameters
This screen contains the advanced SIP configuration settings.
149
7.2.2 Service Provider
Configure your settings based on your service provider.
These settings are described in the tables below. Once configuration is complete, click Apply to begin using the service.
NOTE: Some of these options can also be set using telephone keypad commands, as described in the call command list in section 7.5 Telephone Calls .
150
Line 1 & 2 Ports FXS1 & FXS2
Call waiting Tick the checkbox to enable this option.
Call forwarding number Enter the forwarding phone number.
Forward unconditionally Tick the checkbox to enable this option.
Forward on “busy” Tick the checkbox to enable this option.
Forward on “no answer” Tick the checkbox to enable this option.
Call barring Tick the checkbox to enable this option.
Call Barring allows you to bar certain types of calls from being made from your phone and also allows you to bar incoming calls.
Call barring pin
Call barring digit map
Warm line
The default setting for the Call Barring PIN code is the same as the four-digit PIN code.
Set the dial plan for call barring.
When the Warm Line function is in use, the user can dial a number. Otherwise the system will divert incoming calls from an outside line to the Warm Line Number after a set wait time.
Warm line number Define warm line number.
Anonymous call blocking Tick the checkbox to enable this option.
Anonymous calling
DND (Do Not Disturb)
Tick the checkbox
Tick the checkbox
to enable this option.
to enable this option.
Enable T38 support
Enable V18 support
Enable or disable T38 Fax mode support with this checkbox . You can plug a fax machine into either phone port to send or receive faxes. Functionality depends upon FAX support by your VoIP service provider.
Enable or disable for V18 support with this checkbox .
Registration Expire
Timeout
The time period the user would like the registration to be valid for the Registrar/ Proxy Server. The default is
3600 seconds.
151
Registration Retry
Interval
DSCP for SIP
DSCP for RTP
The time interval between re-registration attempts.
Diff Serv Code Point (DSCP) for SIP.
Diff Serv Code Point (DSCP) for RTP.
Dtmf Relay setting Set the special use of RTP packets to transmit digit events.
Hook Flash Relay setting Set flash hook event will be sent via which signal.
SIP Transport protocol
SRTP Configuration
SIP control message will be sent via which protocol.
Enable or disable for Security RTP support.
RFC 2198 Redundant
Level Configuration
Enable or disable for RFC 2198 support.
Enable SIP tag matching
(Uncheck for Vonage
Interop).
Since CPE rely on the tags for matching purposes, implementations which support Replacements MUST support the SIP specification, which requires tags.
Music Server
Music Server port
Conference URI
Set music server address for on-hold state.
Set music server port for on-hold state.
Set conference URI.
Set conference option.
Set secondary outbound address.
Conference Option
Secondary Outbound
Proxy IP
Secondary Outbound
Proxy Port
Set secondary outbound port.
152
7.3 SIP Debug Setting
This screen contains SIP configuration settings used for debugging.
153
7.3.1 Global Parameters
A common parameter setting.
Vodsl Console Log Level:
The log level allows users select what message will be shown in the log. It is separated into 3 levels (Error, Notice and Debug).
154
7.3.2 Service Provider
Configure your settings based on your service provider.
Once settings are configured, click Apply to begin using the service.
Checkbox Description
Enter the IP address and port of the SIP log server. SIP log server
IP address & port
Enable Vad Support
Ingress gain
Select the checkbox to enable VAD support.
Adjust the volume for incoming (Ingress) or outgoing (Egress) gain with the drop-down boxes.
Enhances the volume of speaking (the volume heard from the other side).
Enhances the volume of hearing. Egress gain
155
7.4 SIP CCTK Setting
The CCTK WEB setting allows the user to set up a digitmap for dialing number rule.
156
7.5 Telephone Calls
To make a call, simply dial the number. The dial plan (i.e. the dialed digits) is normally customized for each installation. The default dial plan allows for dialing of
4-digit extensions or direct IP addresses. For shorter extension numbers (e.g.
3-digits) adding a “#” at the end.
When a Call Server (SIP Proxy Server) is configured into the system, the dialed digits are translated and routed by the Call Server to the correct destination as registered with the Call Server.
If no Call Server is configured, calls can still be made using 4-digit extensions, rather than using full IP addresses. The originator translates the dialed-digits to a destination device as follows:
First Digit: Line identifier (for multi-line gateways)
Remaining digits: Host number part of an IP address. The Network number
part is considered to be the same as the caller’s IP address.
For example, if a caller at address 10.136.64.33/24 dials “2023”, the call will be placed to the second line at address 10.136.64.23. All devices have to be on the same Class C subnet (24-bit subnet mask).
To dial an IP address directly, dial the IP address digits using * on the keypad as the dot. Complete the address with a final * or #. When using IP address dialing it is not possible to specify which line at a gateway is called, so the gateway always routes
IP-address dialed calls to the first line.
Network busy tone (fast busy) will be played for unknown or unreachable destinations. To answer a call, pick up the phone or press the hands free button.
Caller ID
The Call Manager delivers Calling Number when placing calls. The calling number is transmitted to the analog line for CLASS recognition.
Call Hold
To put a call on hold, press flash then hang up (optional). To return to the original call, press flash or pick up the phone. The phone will issue a short ring burst every
30 seconds or so while on-hook to remind you that a call is on hold.
Call Transfer
To transfer a call, press flash then dial the new number.
To transfer immediately, hang up (blind transfer).
To transfer with consultation, wait for the party to answer, consult, and hang up.
To abort the transfer (if the third party does not answer); press flash to return to the original call.
Conference Calling
To turn a two-party call into a three-party conference call, press flash and dial the third party. Wait for the party to answer, then press flash. To drop the third party and return to a two-party call, press flash again. To drop yourself out of the conference, hang up. The call will be transferred (so that the other two parties remain connected to each other). In conference mode, the conference initiator performs the audio bridge/mixing function – there are only two voice streams established.
157
Call Waiting
If call waiting is enabled on a line, and you hear the call waiting tone during a call, press flash to answer the second call. The first call is automatically placed on hold.
To switch between calls, press flash again.
To disable the call waiting feature, dial *60
To enable the call waiting feature, dial *61
Call forward feature settings (Busy or All) takes priority over the call-waiting feature.
The call-waiting feature is ignored on new incoming calls if there is already a call on hold or in conference.
Call Forward Number
To set the call forward number, dial *74 then the number. Note that this does not actually enable forwarding; to do so, select the call forward action as described below.
To disable all call forwarding features, dial *70.
Call Forward Unconditionally
To enable call forward on no answer, dial *71. Incoming calls will be forwarded if unanswered for 18 seconds.
To disable all call forward unconditionally, dial *75.
Call Forward Busy
To enable call forward if busy, dial *72. Incoming calls will be immediately forwarded if the phone is off-hook.
To disable all call forward busy, dial *75.
Call Forward No Answer
To enable call forward on no answer, dial *71. Incoming calls will be forwarded if unanswered for 18 seconds.
To disable all call forward no answer, dial *75.
Call Barring
When enabled, dial *85[PIN]0/*85[PIN]1/*85[PIN]2 to deactivate/
activate/activate per digitmap.
Warm Line
When enabled, dial *78 to activate, *79 to deactivate.
Anonymous Call Blocking
When enabled, dial *80 to activate, *81 to deactivate.
Anonymous Calling
When enabled, dial *82 to activate for current call.
DND
When enabled, dial *86 to activate, *87 to deactivate for Do Not Disturb (DND) feature
.
158
Chapter 8 Diagnostics
You can reach this page by clicking on the following icon located at the top of the screen.
8.1 Diagnostics
–
Individual Tests
The first Diagnostics screen is a dashboard that shows overall connection status.
Click the Diagnostics Menu item on the left side of the screen to display the individual connections.
159
8.2 Ethernet OAM
The Ethernet OAM (Operations, Administration, Management) page provides settings to enable/disable 802.3ah, 802.1ag/Y1.731 OAM protocols.
To enable Ethernet Link OAM (802.3 ah), click Enabled to display the full configuration list. At least one option must be enabled for 802.1ah.
WAN Interface
OAM ID
Select layer 2 WAN interface for outgoing OAM packets
OAM Identification number
Auto Event Supports OAM auto event
Variable Retrieval Supports OAM variable retrieval
Link Events Supports OAM link events
Remote Loopback Supports OAM remove loopback
Active mode Supports OAM active mode
160
To enable Ethernet Service OAM (802.1ag/Y1731), click Enabled to display the full configuration list.
Click Apply/Save to implement new configuration settings.
WAN Interface
MD Level
MD Name
MA ID
Select from the list of WAN Interfaces to send OAM packets
Maintenance Domain Level
Maintenance Domain name
Maintenance Association Identifier
Local MEP ID Local Maintenance association End Point Identifier
Local MEP VLAN ID VLAN IP used for Local Maintenance End point
Click CCM Transmission to enable CPE sending Continuity Check Message (CCM) continuously.
Remote MEP ID Maintenance association End Point Identifier for the remote receiver
To perform Loopback/Linktrace OAM test, enter the Target MAC of the destination and click “Send Loopback” or “Send Linktrace” button.
Target MAC
Linktrace TTL
MAC Address of the destination to send OAM loopback/linktrace packet
Time to Live value for the loopback/linktrace packet
161
8.3 Uptime Status
This page shows System, DSL, ETH and Layer 3 uptime. If the DSL line, ETH or Layer
3 connection is down, the uptime will stop incrementing. If the service is restored, the counter will reset and start from 0. A Bridge interface will follow the DSL or ETH timer.
The "ClearAll" button will restart the counters from 0 or show "Not Connected" if the interface is down.
162
Chapter 9 Management
9.1 Settings
This includes Backup Settings , Update Settings , and Restore Default screens.
9.1.1 Backup Settings
To save the current configuration to a file on your PC, click Backup Settings . You will be prompted for backup file location. This file can later be used to recover settings on the Update Settings screen, as described below.
163
9.1.2 Update Settings
This option recovers configuration files previously saved using Backup Settings .
Press Browse… to search for the file, or enter the file name (including folder path) in the File Name box, and then click Update Settings to recover settings.
9.1.3 Restore Default
Click Restore Default Settings to restore factory default settings.
164
After Restore Default Settings is clicked, the following screen appears.
Close the browser and wait for 2 minutes before reopening it. It may also be necessary, to reconfigure your PC IP configuration to match any new settings.
NOTE: This entry has the same effect as the Reset button. The NexusLink
3241u/3241eu board hardware and the boot loader support the reset to default. If the Reset button is continuously pressed for more than 10 seconds, the current configuration data will be erased. If the Reset button is continuously pressed for more than 60 seconds, the boot loader will erase all configuration data saved in flash memory and enter bootloader mode.
165
9.2 System Log
This function allows a system log to be kept and viewed upon request.
Follow the steps below to configure, enable, and view the system log.
STEP 1: Click Configure System Log , as shown below (circled in Red ).
STEP 2: Select desired options and click Apply/Save .
Consult the table below for detailed descriptions of each system log option.
166
Option Description
Log Indicates whether the system is currently recording events. The user can enable or disable event logging. By default, it is disabled. To enable it, select the Enable radio button and then click Apply/Save .
Log
Level
Display
Level
Allows you to configure the event level and filter out unwanted events below this level. The events ranging from the highest critical level
“Emergency” down to this configured level will be recorded to the log buffer on the NexusLink 3241u/3241eu SDRAM. When the log buffer is full, the newer event will wrap up to the top of the log buffer and overwrite the old event. By default, the log level is “Debugging”, which is the lowest critical level.
The log levels are defined as follows:
Emergency = system is unusable
Alert = action must be taken immediately
Critical = critical conditions
Error = Error conditions
Warning = normal but significant condition
Notice= normal but insignificant condition
Informational= provides information for reference
Debugging = debug-level messages
Emergency is the most serious event level, whereas Debugging is the least important. For instance, if the log level is set to Debugging, all the events from the lowest Debugging level to the most critical level
Emergency level will be recorded. If the log level is set to Error, only
Error and the level above will be logged.
Allows the user to select the logged events and displays on the View
System Log window for events of this level and above to the highest
Emergency level.
Mode Allows you to specify whether events should be stored in the local memory, or be sent to a remote system log server, or both simultaneously. If remote mode is selected, view system log will not be able to display events saved in the remote system log server.
When either Remote mode or Both mode is configured, the WEB UI will prompt the user to enter the Server IP address and Server UDP port.
STEP 3: Click View System Log . The results are displayed as follows.
167
9.3 SNMP Agent
Simple Network Management Protocol (SNMP) allows a management application to retrieve statistics and status from the SNMP agent in this device. Select the
Enable radio button, configure options, and click Save/Apply to activate SNMP.
168
9.4 TR-069 Client
WAN Management Protocol (TR-069) allows an Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and diagnostics to this device.
Select desired values and click Apply/Save to configure TR-069 client options.
The table below is provided for ease of reference.
Option Description
Inform
Inform Interval
Disable/Enable TR-069 client on the CPE.
The duration in seconds of the interval for which the CPE
MUST attempt to connect with the ACS and call the Inform method.
ACS URL URL for the CPE to connect to the ACS using the CPE WAN
Management Protocol. This parameter MUST be in the form of a valid HTTP or HTTPS URL. An HTTPS URL indicates that the ACS supports SSL. The “host” portion of this URL is used by the CPE for validating the certificate from the ACS when using certificate-based authentication.
169
Option
ACS User Name
ACS Password
Description
Username used to authenticate the CPE when making a connection to the ACS using the CPE WAN Management
Protocol. This username is used only for HTTP-based authentication of the CPE.
Password used to authenticate the CPE when making a connection to the ACS using the CPE WAN Management
Protocol. This password is used only for HTTP-based authentication of the CPE.
Choose Any_WAN, LAN, Loopback or a configured connection.
WAN Interface used by TR-069 client
Display SOAP messages on serial console
Enable/Disable SOAP messages on serial console. This option is used for advanced troubleshooting of the device.
Connection Request
Authentication Tick the checkbox to enable.
User Name Username used to authenticate an ACS making a
Connection Request to the CPE.
Password Password used to authenticate an ACS making a
Connection Request to the CPE.
URL IP address and port the ACS uses to connect to the router.
The Send Inform button forces the CPE to establish an immediate connection to the ACS.
170
9.5 Internet Time
This option automatically synchronizes the router time with Internet timeservers.
To enable time synchronization, tick the corresponding checkbox , choose your preferred time server(s), select the correct time zone offset, and click Apply/Save .
NOTE: Internet Time must be activated to use. See 5.6 Parental Control .
The internet time feature will not operate when the router is in bridged mode, since the router would not be able to connect to the NTP timeserver.
171
9.6 Access Control
9.6.1 Passwords
This screen is used to configure the user account access passwords for the device.
Access to the NexusLink 3241u/3241eu is controlled through the following user accounts:
The root account has unrestricted access to view and change the configuration of your Broadband router.
The support account is typically utilized by Carrier/ISP technicians for maintenance and diagnostics.
The user account is typically utilized by End-Users to view configuration settings and statistics, with limited ability to configure certain settings.
The apuser account is typically utilized by End-Users to view configuration settings and statistics, with limited ability to configure wireless settings.
Use the fields to update passwords for the accounts, add/remove accounts (max of
5 accounts) as well as adjust their specific privileges.
Note: Passwords may be as long as 16 characters but must not contain a space.
Click Apply/Save to continue.
172
9.6.2 Services
The Services option limits or opens the access services over the LAN or WAN. The access services available are: HTTP, SSH, TELNET, SNMP, HTTPS, FTP, TFTP and ICMP.
Enable a service by selecting its dropdown listbox. Click Apply/Save to activate.
173
9.6.3 IP Address
The IP Address Access Control mode, if enabled, permits access to local management services from IP addresses contained in the Access Control List. If the
Access Control mode is disabled, the system will not validate IP addresses for incoming packets. The services are the system applications listed in the Service
Control List beside ICMP .
Click the Add button to display the following.
Configure the address and subnet of the management station permitted to access the local management services, and click Save/Apply .
IP Address – IP address of the management station.
Subnet Mask – Subnet address for the management station.
Interface – Access permission for the specified address, allowing the address to access the local management service from none/lan/wan/lan&wan interfaces.
174
9.7 Wake-on-LAN
This tool allows you to wake up (power on) computers connected to the Broadband
Router LAN interface by sending special "magic packets".
The network interface card in the computer or device that is going to be woken up must support Wake-on-LAN.
LAN Interface – Select the LAN interface to send the Wake-on-LAN packet.
MAC Address – Specify the MAC address of the device that is going to be woken up.
Click “ Send WoL magic packet to the Broadcast address ” if the WoL packets should be sent to the broadcast address.
Click the Wake Up!
button to send the magic packet out to the LAN interface.
175
9.8 Update Software
This option allows for firmware upgrades from a locally stored file.
STEP 1: Obtain an updated software image file from your ISP.
STEP 2 : Press Browse… to search for the file, or enter the file name (including folder path) in the File Name box to locate the image file.
STEP 3 : Click the Update Software button once to upload the new image file.
NOTE : The update process will take about 2 minutes to complete. The device will reboot and the browser window will refresh to the default screen upon successful installation. It is recommended that you compare the
Software Version on the Device Information screen with the firmware version installed, to confirm the installation was successful.
176
9.9 Reboot
To save the current configuration and reboot the router, click Reboot .
NOTE: You may need to close the browser window and wait for 2 minutes before reopening it. It may also be necessary, to reset your PC IP configuration.
177
Appendix A - Firewall
STATEFUL PACKET INSPECTION
Refers to an architecture, where the firewall keeps track of packets on each connection traversing all its interfaces and makes sure they are valid. This is in contrast to static packet filtering which only examines a packet based on the information in the packet header.
DENIAL OF SERVICE ATTACK
Is an incident in which a user or organization is deprived of the services of a resource they would normally expect to have. Various DoS attacks the device can withstand are ARP Attack, Ping Attack, Ping of Death, Land, SYN Attack, Smurf
Attack, and Tear Drop.
TCP/IP/PORT/INTERFACE FILTER
These rules help in the filtering of traffic at the Network layer (i.e. Layer 3).
When a Routing interface is created, Enable Firewall must be checked.
Navigate to Advanced Setup Security IP Filtering.
OUTGOING IP FILTER
Helps in setting rules to DROP packets from the LAN interface. By default, if the
Firewall is Enabled, all IP traffic from the LAN is allowed. By setting up one or more filters, specific packet types coming from the LAN can be dropped.
Example 1: Filter Name
Protocol
Source IP address
: Out_Filter1
: TCP
: 192.168.1.45
Source Subnet Mask : 255.255.255.0
Source Port
Dest. IP Address
Dest. Subnet Mask
Dest. Port
: 80
: NA
: NA
: NA
This filter will Drop all TCP packets coming from the LAN with IP
Address/Subnet Mask of 192.168.1.45/24 having a source port of 80 irrespective of the destination. All other packets will be Accepted.
Example 2: Filter Name
Protocol
Source IP Address
: Out_Filter2
: UDP
: 192.168.1.45
Source Subnet Mask : 255.255.255.0
Source Port
Dest. IP Address
Dest. Subnet Mask
Dest. Port
: 5060:6060
: 172.16.13.4
: 255.255.255.0
: 6060:7070
This filter will drop all UDP packets coming from the LAN with IP Address /
Subnet Mask of 192.168.1.45/24 and a source port range of 5060 to 6060, destined to 172.16.13.4/24 and a destination port range of 6060 to 7070.
INCOMING IP FILTER
Helps in setting rules to Allow or Deny packets from the WAN interface. By default, all incoming IP traffic from the WAN is Blocked, if the Firewall is Enabled. By setting up one or more filters, specific packet types coming from the WAN can be Accepted.
178
Example 1: Filter Name
Protocol
Policy
Source IP Address
: In_Filter1
: TCP
: Allow
: 210.168.219.45
Source Subnet Mask : 255.255.0.0
Source Port : 80
Dest. IP Address
Dest. Subnet Mask
: NA
: NA
Dest. Port : NA
Selected WAN interface : br0
This filter will ACCEPT all TCP packets coming from WAN interface “br0” with IP
Address/Subnet Mask 210.168.219.45/16 with a source port of 80, irrespective of the destination. All other incoming packets on this interface are DROPPED.
Example 2: Filter Name
Protocol
Policy
Source IP Address
: In_Filter2
: UDP
: Allow
: 210.168.219.45
Source Subnet Mask : 255.255.0.0
Source Port
Dest. IP Address
Dest. Sub. Mask
Dest. Port
: 5060:6060
: 192.168.1.45
: 255.255.255.0
: 6060:7070
Selected WAN interface : br0
This rule will ACCEPT all UDP packets coming from WAN interface “br0” with IP
Address/Subnet Mask 210.168.219.45/16 and a source port in the range of
5060 to 6060, destined to 192.168.1.45/24 and a destination port in the range of 6060 to 7070. All other incoming packets on this interface are DROPPED.
MAC LAYER FILTER
These rules help in the filtering of Layer 2 traffic. MAC Filtering is only effective in
Bridge mode. After a Bridge mode connection is created, navigate to Advanced
Setup Security MAC Filtering in the WUI.
Example 1: Global Policy
Protocol Type
Dest. MAC Address
: Forwarded
: PPPoE
: 00:12:34:56:78:90
Source MAC Address : NA
Src. Interface
Dest. Interface
: eth1
: eth2
Addition of this rule drops all PPPoE frames going from eth1 to eth2 with a
Destination MAC Address of 00:12:34:56:78:90 irrespective of its Source MAC
Address. All other frames on this interface are forwarded.
Example 2: Global Policy
Protocol Type
Dest. MAC Address
: Blocked
: PPPoE
: 00:12:34:56:78:90
Source MAC Address : 00:34:12:78:90:56
Src. Interface : eth1
Dest. Interface : eth2
Addition of this rule forwards all PPPoE frames going from eth1 to eth2 with a
Destination MAC Address of 00:12:34:56:78 and Source MAC Address of
00:34:12:78:90:56. All other frames on this interface are dropped.
179
DAYTIME PARENTAL CONTROL
This feature restricts access of a selected LAN device to an outside Network through the NexusLink 3241u/3241eu, as per chosen days of the week and the chosen times.
Example: User Name : FilterJohn
Browser's MAC Address : 00:25:46:78:63:21
Days of the Week
Start Blocking Time
End Blocking Time
: Mon, Wed, Fri
: 14:00
: 18:00
With this rule, a LAN device with MAC Address of 00:25:46:78:63:21 will have no access to the WAN on Mondays, Wednesdays, and Fridays, from 2pm to 6pm.
On all other days and times, this device will have access to the outside
Network.
180
Appendix B - Pin Assignments
Giga ETHERNET Ports (RJ45)
Pin Name Description
1 BI_DA+ Bi-directional pair A +
2 BI_DA- Bi-directional pair A -
3 BI_DB+ Bi-directional pair B +
4 BI_DC+ Bi-directional pair C +
5 BI_DC- Bi-directional pair C -
6 BI_DB- Bi-directional pair B -
7 BI_DD+ Bi-directional pair D +
8 BI_DD- Bi-directional pair D -
181
Appendix C – Specifications
Hardware Interface
RJ-14 X 1 for ADSL2+ bonding/VDSL2, 17a bonding, RJ-45 X 4 for LAN,
RJ-45 X 1 for WAN, FXS X 2, Reset Button X 1, WiFi on/off button X 1,
Internal Wi-Fi Antennas X 1, External Wi-Fi Antennas X 2, Power Switch X 1,
USB 2.0 Host X 1
WAN Interface
ADSL2+ (Annex B): single line and bonding (NL-3241eu)
ADSL2+ (Annex A): single line and bonding (NL-3241u)
VDSL2 17a, single line and bonding
VDSL2 35b, single line
10/100/1000 Base T, IEEE 802.3, IEEE 802.3u IEEE 802.3ab
LAN Interface
Standard ......................IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
10/100/1000 BaseT .......Auto-sense
MDI/MDX support ..........Yes
WLAN Interface
Standard ....................IEEE802.11b/g/n/ac
Encryption ....................64/128-bit Wired Equivalent Privacy (WEP)
Channels ......................11 (US, Canada)/ 13 (Europe)/ 14 (Japan)
Data Rate……………………….Up to 300Mbps (2.4GHz) Up to 800Mbps (5GHz)
WEP ............................Yes
WPA ............................Yes
IEEE 802.1x .................Yes
MAC Filtering ................Yes
ATM Attributes
RFC 2684 (RFC 1483) Bridge/Route; RFC 2516 (PPPoE);
RFC 2364 (PPPoA); RFC 1577 (IPoA)
PVCs ..........................16
AAL type ......................AAL5
ATM service class ..........UBR/CBR/VBR
ATM UNI support ...........UNI 3.1/4.0
OAM F4/F5 ...................Yes
Management
Compliant with TR-069/TR-098/TR-104/TR-111 remote management protocols, Telnet, Web-based management, Configuration backup and restoration, Software upgrade via HTTP / TFTP / FTP server
182
Bridge Functions
Transparent bridging ...............................Yes
VLAN support ........................................Yes
Spanning Tree Algorithm .........................Yes
IGMP Proxy ...........................................Yes
Routing Functions
Static route, RIP v1/v2, NAT/PAT, DHCP Server/Relay, DNS Proxy, ARP,
Security Functions
Authentication protocols: PAP, CHAP
TCP/IP/Port filtering rules, Packet and MAC address filtering, Access Control,
SSH
QoS
IP QoS, L3 policy-based QoS, ToS
Environment Condition
Operating temperature ...........................0 ~ 40 degrees Celsius
Relative humidity ...................................5 ~ 95% (non-condensing)
Dimensions ..................................... 280 mm (W) x 35 mm (H) x 210 mm (D)
Kit Weight
(1* NexusLink 3241u/3241eu, 1*RJ11 cable, 1*RJ45 cable, 1*power adapter) =
1.2 kg
NOTE: Specifications are subject to change without notice.
183
Appendix D - SSH Client
Unlike Microsoft Windows, Linux OS has a ssh client included. For Windows users, there is a public domain one called “putty” that can be downloaded from here: http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html
To access the ssh client you must first enable SSH access for the LAN or WAN from the Management Access Control Services menu in the web user interface.
To access the router using the Linux ssh client
For LAN access, type: ssh -l root 192.168.1.1
For WAN access, type: ssh -l support WAN IP address
To access the router using the Windows “putty” ssh client
For LAN access, type: putty -ssh -l root 192.168.1.1
For WAN access, type: putty -ssh -l support WAN IP address
NOTE: The WAN IP address can be found on the Device Info WAN screen
184
Appendix E - Printer Server
These steps explain the procedure for enabling the Printer Server.
NOTE : This function only applies to models with a USB host port.
STEP 1: Enable Print Server from Web User Interface. Select the Enable on-board print server checkbox and input Printer name & Make and model. Click the Apply/Save button.
NOTE : The Printer name can be any text string up to 40 characters.
The Make and model can be any text string up to 128 characters.
185
STEP 2: Click the Windows start button. Then select Control Panel .
186
STEP 3: Select Devices and Printers .
STEP 4: Select Add a printer .
187
STEP 5: Select Add a network, wireless or Bluetooth printer .
STEP 6: Click the Stop button. Select The printer that I want isn’t listed .
188
STEP 7: Choose Select a shared printer by name . Then input the printer link
and click Next . http://LAN IP:631/printers/ the name of the printer
NOTE : The printer name must be the same name inputted in the WEB UI “printer server settings” as in step 1.
STEP 8: Select the manufacturer and model of your printer then, click OK .
189
STEP 9: The printer has been successfully installed.
Click the Next button.
STEP 10: Click Finish (or print a test page if required).
190
STEP 11: Go to Control Panel All Control Panel Items Devices and
Printers to confirm that the printer has been configured.
191
Appendix F - Connection Setup
Creating a WAN connection is a two-stage process.
1 -
2 -
Setup a Layer 2 Interface (ATM, PTM or Ethernet).
Add a WAN connection to the Layer 2 Interface.
The following sections describe each stage in turn.
F1 ~ Layer 2 Interfaces
Every layer2 interface operates in Multi-Service Connection (VLAN MUX) mode, which supports multiple connections over a single interface. Note that PPPoA and
IPoA connection types are not supported for Ethernet WAN interfaces. After adding
WAN connections to an interface, you must also create an Interface Group to connect LAN/WAN interfaces.
F1.1 ATM Interfaces
Follow these procedures to configure an ATM interface.
NOTE : The NexusLink 3241u/3241eu supports up to 16 ATM interfaces.
STEP 1: Go to Advanced Setup Layer2 Interface ATM Interface.
This table is provided here for ease of reference.
Heading Description
Interface
VPI
WAN interface name
ATM VPI (0-255)
VCI
DSL Latency
Category
Peak Cell Rate
Sustainable Cell
Rate
Max Burst Size
ATM VCI (32-65535)
{Path0} portID = 0
ATM service category
Maximum allowed traffic rate for the ATM PCR service connection
The average allowable, long-term cell transfer rate on the VBR service connection
The maximum allowable burst size of cells that can be transmitted continuously on the VBR service connection
192
Heading
Min Cell
Rate(cells/s)
Link Type
Description
Min Cell Rate(cells/s)
Connection Mode Default Mode – Single service over one connection
Vlan Mux Mode – Multiple Vlan service over one connection
IP QoS
MPAAL
Choose EoA (for PPPoE, IPoE, and Bridge), PPPoA, or IPoA.
Quality of Service (QoS) status
QoS Scheduler algorithm and queue weight defined for the connection
Remove Select items for removal
STEP 2: Click Add to proceed to the next screen.
NOTE: To add WAN connections to one interface type, you must delete existing connections from the other interface type using the remove button.
193
There are many settings here including: VPI/VCI, DSL Link Type, Encapsulation
Mode, Service Category and Queue Weight.
Here are the available encapsulations for each xDSL Link Type:
EoA- LLC/SNAP-BRIDGING, VC/MUX
PPPoA- VC/MUX, LLC/ENCAPSULATION
IPoA- LLC/SNAP-ROUTING, VC MUX
STEP 3: Click Apply/Save to confirm your choices.
On the next screen, check that the ATM interface is added to the list. For example, an ATM interface on PVC 0/35 in Default Mode with an EoA Link type is shown below.
To add a WAN connection go to Section F2 ~ WAN Connections.
F1.2 PTM Interfaces
Follow these procedures to configure a PTM interface.
STEP 1: Go to Advanced Setup Layer2 Interface PTM Interface.
This table is provided here for ease of reference.
Heading Description
Interface
DSL Latency
WAN interface name.
{Path0} portID = 0
PTM Priority Normal or High Priority (Preemption).
Connection Mode Default Mode – Single service over one interface.
Vlan Mux Mode – Multiple Vlan services over one interface.
IP QoS
Remove
Quality of Service (QoS) status.
Select interfaces to remove.
194
STEP 2: Click Add to proceed to the next screen.
NOTE: To add WAN connections to one interface type, you must delete existing connections from the other interface type using the remove button.
Default PTM interface Quality of Service can be configured here, including Scheduler,
Queue Weight and Rate Limit.
STEP 3: Click Apply/Save to confirm your choices.
On the next screen, check that the PTM interface is added to the list.
For example, a PTM interface in Default Mode is shown below.
To add a WAN connection go to Section F2 ~ WAN Connections.
195
F1.3 Ethernet WAN Interface
The NexusLink 3241u/3241eu supports a single Ethernet WAN interface over the
ETH WAN port. Follow these procedures to configure an Ethernet interface.
STEP 1: Go to Advanced Setup Layer2 Interface ETH Interface.
This table is provided here for ease of reference.
Heading Description
Interface/ (Name) WAN interface name.
Connection Mode Default Mode – Single service over one interface.
Vlan Mux Mode – Multiple Vlan services over one interface.
Remove Select interfaces to remove.
STEP 2: Click Add to proceed to the next screen.
STEP 3: Select an Ethernet port and Click Apply/Save to confirm your choices.
On the next screen, check that the ETHERNET interface is added to the list.
To add a WAN connection go to Section F2 ~ WAN Connections.
196
F2 ~ WAN Connections
The NexusLink 3241u/3241eu supports one WAN connection for each interface, up to a maximum of 16 connections.
To setup a WAN connection follow these instructions.
STEP 1: Go to the Advanced Setup WAN Service screen.
STEP 2: Click Add to create a WAN connection. The following screen will display.
STEP 3: Choose a layer 2 interface from the drop-down box and click Next .
The WAN Service Configuration screen will display as shown below.
197
NOTE : The WAN services shown here are those supported by the layer 2 interface you selected in the previous step. If you wish to change your selection click the Back button and select a different layer 2 interface.
STEP 4: For VLAN Mux Connections only, you must enter Priority & VLAN ID tags.
Select a TPID if VLAN tag Q-in-Q is used.
STEP 5: You will now follow the instructions specific to the WAN service type you wish to establish. This list should help you locate the correct procedure:
(1) For F2.1 PPP over ETHERNET (PPPoE) – IPv4
(2) For F2.2 IP over ETHERNET (IPoE) – IPv4
(3) For F2.3 Bridging – IPv4
(4) For F2.4 PPP over ATM (PPPoA) – IPv4
(5) For F2.5 IP over ATM (IPoA) – IPv4
(6) For F2.6 PPP over ETHERNET (PPPoE) – IPv6
(7) For F2.7 IP over ETHERNET (IPoE) – IPv6
(8) Bridging – IPv6 (Not Supported)
(9) For F2.8 PPP over ATM (PPPoA) – IPv6
(10) IPoA – IPv6 (Not Supported)
The subsections that follow continue the WAN service setup procedure.
198
F2.1 PPP over ETHERNET (PPPoE) – IPv4
STEP 1: Select the PPP over Ethernet radio button and click Next .
*
For tagged service, enter valid 802.1P Priority and 802.1Q VLAN ID.
For untagged service, set -1 to both 802.1P Priority and 802.1Q VLAN ID
Select a TPID if VLAN tag Q-in-Q is used.
199
STEP 2: On the next screen, enter the PPP settings as provided by your ISP.
Click Next to continue or click Back to return to the previous step.
Click Next to continue or click Back to return to the previous step.
The settings shown above are described below.
200
PPP SETTINGS
The PPP Username, PPP password and the PPPoE Service Name entries are dependent on the particular requirements of the ISP. The user name can be a maximum of 256 characters and the password a maximum of 32 characters in length. For Authentication Method, choose from AUTO, PAP, CHAP, and MSCHAP.
ENABLE FULLCONE NAT
This option becomes available when NAT is enabled. Known as one-to-one NAT, all requests from the same internal IP address and port are mapped to the same external IP address and port. An external host can send a packet to the internal host, by sending a packet to the mapped external address.
DIAL ON DEMAND
The NexusLink 3241u/3241eu can be configured to disconnect if there is no activity for a period of time by selecting the Dial on demand checkbox . You must also enter an inactivity timeout period in the range of 1 to 4320 minutes.
PPP IP EXTENSION
The PPP IP Extension is a special feature deployed by some service providers.
Unless your service provider specifically requires this setup, do not select it.
PPP IP Extension does the following:
Allows only one PC on the LAN.
Disables NAT and Firewall.
The device becomes the default gateway and DNS server to the PC through DHCP using the LAN interface IP address.
The device extends the IP subnet at the remote service provider to the
LAN PC. i.e. the PC becomes a host belonging to the same IP subnet.
The device bridges the IP packets between WAN and LAN ports, unless the packet is addressed to the device’s LAN IP address.
The public IP address assigned by the remote side using the PPP/IPCP protocol is actually not used on the WAN PPP interface. Instead, it is forwarded to the PC LAN interface through DHCP. Only one PC on the
LAN can be connected to the remote, since the DHCP server within the device has only a single IP address to assign to a LAN device.
ENABLE NAT
If the LAN is configured with a private IP address, the user should select this checkbox . The NAT submenu will appear in the Advanced Setup menu after reboot.
On the other hand, if a private IP address is not used on the LAN side (i.e. the LAN side is using a public IP), this checkbox should not be selected to free up system resources for better performance.
ENABLE FIREWALL
If this checkbox is selected, the Security submenu will be displayed on the
Advanced Setup menu after reboot. If firewall is not necessary, this checkbox should not be selected to free up system resources for better performance.
201
USE STATIC IPv4 ADDRESS
Unless your service provider specially requires it, do not select this checkbox . If selected, enter the static IP address in the IPv4 Address field.
Don’t forget to adjust the IP configuration to Static IP Mode as described in section
3.2 IP Configuration .
FIXED MTU
Maximum Transmission Unit. The size (in bytes) of largest protocol data unit which the layer can pass onwards. This value is 1492 for PPPoE.
ENABLE PPP DEBUG MODE
When this option is selected, the system will put more PPP connection information into the system log. This is for debugging errors and not for normal usage.
BRIDGE PPPOE FRAMES BETWEEN WAN AND LOCAL PORTS
(This option is hidden when PPP IP Extension is enabled)
When Enabled, this creates local PPPoE connections to the WAN side. Enable this option only if all LAN-side devices are running PPPoE clients, otherwise disable it.
The NexusLink 3241u/3241eu supports pass-through PPPoE sessions from the LAN side while simultaneously running a PPPoE client from non-PPPoE LAN devices.
ENABLE IGMP MULTICAST PROXY
Tick the checkbox to enable Internet Group Membership Protocol (IGMP) multicast. This protocol is used by IPv4 hosts to report their multicast group memberships to any neighboring multicast routers.
ENABLE IGMP MULTICAST SOURCE
Enable the WAN interface to be used as IGMP multicast source.
STEP 3: Choose an interface to be the default gateway.
Click Next to continue or click Back to return to the previous step.
202
STEP 4: Select DNS Server Interface from available WAN interfaces OR enter
static DNS server IP addresses for the system. In ATM mode, if only a
single PVC with IPoA or static IPoE protocol is configured, Static DNS
server IP addresses must be entered.
Click Next to continue or click Back to return to the previous step.
203
STEP 5: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to modify them.
After clicking Apply/Save , the new service should appear on the main screen.
204
F2.2 IP over ETHERNET (IPoE) – IPv4
STEP 1: * Select the IP over Ethernet radio button and click Next.
*
For tagged service, enter valid 802.1P Priority and 802.1Q VLAN ID.
For untagged service, set -1 to both 802.1P Priority and 802.1Q VLAN ID
Select a TPID if VLAN tag Q-in-Q is used.
205
STEP 2: The WAN IP settings screen provides access to the DHCP server settings.
You can select the Obtain an IP address automatically radio button to enable DHCP (use the DHCP Options only if necessary). However, if you prefer, you can use the Static IP address method instead to assign WAN
IP address, Subnet Mask and Default Gateway manually.
Click Next to continue or click Back to return to the previous step.
206
STEP 3: This screen provides access to NAT, Firewall and IGMP Multicast settings.
Enable each by selecting the appropriate checkbox . Click Next to continue or click Back to return to the previous step.
ENABLE NAT
If the LAN is configured with a private IP address, the user should select this checkbox . The NAT submenu will appear in the Advanced Setup menu after reboot. On the other hand, if a private IP address is not used on the LAN side (i.e. the LAN side is using a public IP), this checkbox should not be selected, so as to free up system resources for improved performance.
ENABLE FULLCONE NAT
This option becomes available when NAT is enabled. Known as one-to-one NAT, all requests from the same internal IP address and port are mapped to the same external IP address and port. An external host can send a packet to the internal host, by sending a packet to the mapped external address.
ENABLE FIREWALL
If this checkbox is selected, the Security submenu will be displayed on the
Advanced Setup menu after reboot. If firewall is not necessary, this checkbox should not be selected so as to free up system resources for better performance.
ENABLE IGMP MULTICAST PROXY
Tick the checkbox to enable Internet Group Membership Protocol (IGMP) multicast. This protocol is used by IPv4 hosts to report their multicast group memberships to any neighboring multicast routers.
ENABLE IGMP MULTICAST SOURCE
Enable the WAN interface to be used as IGMP multicast source.
207
STEP 4: C hoose an interface to be the default gateway.
Click Next to continue or click Back to return to the previous step.
208
STEP 5: Select DNS Server Interface from available WAN interfaces OR enter static
DNS server IP addresses for the system. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses must be entered.
Click Next to continue or click Back to return to the previous step.
209
STEP 6: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to modify them.
After clicking Apply/Save , the new service should appear on the main screen.
210
F2.3 Bridging – IPv4
STEP 1: * Select the Bridging radio button and click Next .
Allow as IGMP Multicast Source
Click to allow use of this bridge WAN interface as IGMP multicast source.
Allow as MLD Multicast Source
Click to allow use of this bridge WAN interface as MLD multicast source.
*
For tagged service, enter valid 802.1P Priority and 802.1Q VLAN ID.
For untagged service, set -1 to both 802.1P Priority and 802.1Q VLAN ID
Select a TPID if VLAN tag Q-in-Q is used.
211
STEP 2: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to return to the previous screen.
After clicking Apply/Save , the new service should appear on the main screen.
NOTE: If this bridge connection is your only WAN service, the NexusLink
3241u/3241eu will be inaccessible for remote management or technical support from the WAN.
212
F2.4 PPP over ATM (PPPoA) – IPv4
STEP 1: Click Next to continue.
213
STEP 2: On the next screen, enter the PPP settings as provided by your ISP.
Click Next to continue or click Back to return to the previous step.
PPP SETTINGS
The PPP username and password are dependent on the requirements of the ISP.
The user name can be a maximum of 256 characters and the password a maximum of 32 characters in length. (Authentication Method: AUTO, PAP, CHAP, or MSCHAP.)
ENABLE FULLCONE NAT
This option becomes available when NAT is enabled. Known as one-to-one NAT, all requests from the same internal IP address and port are mapped to the same external IP address and port. An external host can send a packet to the internal host, by sending a packet to the mapped external address.
214
DIAL ON DEMAND
The NexusLink 3241u/3241eu can be configured to disconnect if there is no activity for a period of time by selecting the Dial on demand checkbox . You must also enter an inactivity timeout period in the range of 1 to 4320 minutes.
PPP IP EXTENSION
The PPP IP Extension is a special feature deployed by some service providers.
Unless your service provider specifically requires this setup, do not select it.
PPP IP Extension does the following:
Allows only one PC on the LAN.
Disables NAT and Firewall.
The device becomes the default gateway and DNS server to the PC through DHCP using the LAN interface IP address.
The device extends the IP subnet at the remote service provider to the
LAN PC. i.e. the PC becomes a host belonging to the same IP subnet.
The device bridges the IP packets between WAN and LAN ports, unless the packet is addressed to the device’s LAN IP address.
The public IP address assigned by the remote side using the PPP/IPCP protocol is actually not used on the WAN PPP interface. Instead, it is forwarded to the PC LAN interface through DHCP. Only one PC on the
LAN can be connected to the remote, since the DHCP server within the device has only a single IP address to assign to a LAN device.
ENABLE NAT
If the LAN is configured with a private IP address, the user should select this checkbox . The NAT submenu will appear in the Advanced Setup menu after reboot.
On the other hand, if a private IP address is not used on the LAN side (i.e. the LAN side is using a public IP), this checkbox should not be selected to free up system resources for better performance.
ENABLE FIREWALL
If this checkbox is selected, the Security submenu will be displayed on the
Advanced Setup menu after reboot. If firewall is not necessary, this checkbox should not be selected to free up system resources for better performance.
USE STATIC IPv4 ADDRESS
Unless your service provider specially requires it, do not select this checkbox . If selected, enter the static IP address in the IP Address field. Also, don’t forget to adjust the IP configuration to Static IP Mode as described in Section 3.2
.
Fixed MTU
Fixed Maximum Transmission Unit. The size (in bytes) of largest protocol data unit which the layer can pass onwards. This value is 1500 for PPPoA.
ENABLE PPP DEBUG MODE
When this option is selected, the system will put more PPP connection information into the system log. This is for debugging errors and not for normal usage.
215
ENABLE IGMP MULTICAST PROXY
Tick the checkbox to enable Internet Group Membership Protocol (IGMP) multicast. This protocol is used by IPv4 hosts to report their multicast group memberships to any neighboring multicast routers.
ENABLE IGMP MULTICAST SOURCE
Enable the WAN interface to be used as IGMP multicast source.
STEP 3: Choose an interface to be the default gateway.
Click Next to continue or click Back to return to the previous step.
216
STEP 4: Select DNS Server Interface from available WAN interfaces OR enter static
DNS server IP addresses for the system. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses must be entered.
Click Next to continue or click Back to return to the previous step.
217
STEP 5: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to modify them.
After clicking Apply/Save , the new service should appear on the main screen.
218
F2.5 IP over ATM (IPoA) – IPv4
STEP 1: Click Next to continue.
STEP 2: Enter the WAN IP settings provided by your ISP. Click Next to continue.
STEP 3: This screen provides access to NAT, Firewall and IGMP Multicast settings.
Enable each by selecting the appropriate checkbox . Click Next to continue or click Back to return to the previous step.
219
ENABLE NAT
If the LAN is configured with a private IP address, the user should select this checkbox . The NAT submenu will appear in the Advanced Setup menu after reboot. On the other hand, if a private IP address is not used on the LAN side (i.e. the LAN side is using a public IP), this checkbox should not be selected, so as to free up system resources for improved performance.
ENABLE FULLCONE NAT
This option becomes available when NAT is enabled.
Known as one-to-one NAT, all requests from the same internal IP address and port are mapped to the same external IP address and port. An external host can send a packet to the internal host by sending a packet to the mapped external address.
ENABLE FIREWALL
If this checkbox is selected, the Security submenu will be displayed on the
Advanced Setup menu after reboot. If firewall is not necessary, this checkbox should not be selected so as to free up system resources for better performance.
ENABLE IGMP MULTICAST PROXY
Tick the checkbox to enable Internet Group Membership Protocol (IGMP) multicast. This protocol is used by IPv4 hosts to report their multicast group memberships to any neighboring multicast routers.
ENABLE IGMP MULTICAST SOURCE
Enable the WAN interface to be used as IGMP multicast source.
STEP 4: Choose an interface to be the default gateway.
Click Next to continue or click Back to return to the previous step.
220
NOTE : If the DHCP server is not enabled on another WAN interface then the following notification will be shown before the next screen.
STEP 5: Select DNS Server Interface from available WAN interfaces OR enter static
DNS server IP addresses for the system. In ATM mode, if only a single PVC
with IPoA or static IPoE protocol is configured, Static DNS server IP
addresses must be entered.
Click Next to continue or click Back to return to the previous step.
221
STEP 6: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to modify them.
After clicking Apply/Save , the new service should appear on the main screen.
222
F2.6 PPP over ETHERNET (PPPoE) – IPv6
STEP 1: *Select the PPP over Ethernet radio button. Then select IPv6 only from the drop-down box at the bottom off the screen and click Next .
*
For tagged service, enter valid 802.1P Priority and 802.1Q VLAN ID.
For untagged service, set -1 to both 802.1P Priority and 802.1Q VLAN ID.
Select a TPID if VLAN tag Q-in-Q is used.
223
STEP 2: On the next screen, enter the PPP settings as provided by your ISP.
Click Next to continue or click Back to return to the previous step.
The settings shown above are described below.
224
PPP SETTINGS
The PPP Username, PPP password and the PPPoE Service Name entries are dependent on the particular requirements of the ISP. The user name can be a maximum of 256 characters and the password a maximum of 32 characters in length. For Authentication Method, choose from AUTO, PAP, CHAP, and MSCHAP.
ENABLE FULLCONE NAT
This option becomes available when NAT is enabled. Known as one-to-one NAT, all requests from the same internal IP address and port are mapped to the same external IP address and port. An external host can send a packet to the internal host, by sending a packet to the mapped external address.
DIAL ON DEMAND
The NexusLink 3241u/3241eu can be configured to disconnect if there is no activity for a period of time by selecting the Dial on demand checkbox . You must also enter an inactivity timeout period in the range of 1 to 4320 minutes.
PPP IP EXTENSION
The PPP IP Extension is a special feature deployed by some service providers.
Unless your service provider specifically requires this setup, do not select it.
PPP IP Extension does the following:
Allows only one PC on the LAN.
Disables NAT and Firewall.
The device becomes the default gateway and DNS server to the PC through DHCP using the LAN interface IP address.
The device extends the IP subnet at the remote service provider to the
LAN PC. i.e. the PC becomes a host belonging to the same IP subnet.
The device bridges the IP packets between WAN and LAN ports, unless the packet is addressed to the device’s LAN IP address.
The public IP address assigned by the remote side using the PPP/IPCP protocol is actually not used on the WAN PPP interface. Instead, it is forwarded to the PC LAN interface through DHCP. Only one PC on the
LAN can be connected to the remote, since the DHCP server within the device has only a single IP address to assign to a LAN device.
ENABLE FIREWALL
If this checkbox is selected, the Security submenu will be displayed on the
Advanced Setup menu after reboot. If firewall is not necessary, this checkbox should not be selected to free up system resources for better performance.
USE STATIC IPv4 ADDRESS
Unless your service provider specially requires it, do not select this checkbox . If selected, enter the static IP address in the IPv4 Address field.
Don’t forget to adjust the IP configuration to Static IP Mode as described in section
3.2 IP Configuration .
225
USE STATIC IPv6 ADDRESS
Unless your service provider specially requires it, do not select this checkbox . If selected, enter the static IP address in the IPv6 Address field.
Don’t forget to adjust the IP configuration to Static IP Mode as described in section
3.2 IP Configuration .
ENABLE IPv6 UNNUMBERED MODEL
The IP unnumbered configuration command allows you to enable IP processing on a serial interface without assigning it an explicit IP address. The IP unnumbered interface can "borrow" the IP address of another interface already configured on the router, which conserves network and address space.
LAUNCH DHCP6C FOR ADDRESS ASSIGNMENT (IANA)
The Internet Assigned Numbers Authority (IANA) is a department of ICANN responsible for coordinating some of the key elements that keep the Internet running smoothly. Whilst the Internet is renowned for being a worldwide network free from central coordination, there is a technical need for some key parts of the
Internet to be globally coordinated, and this coordination role is undertaken by
IANA.
Specifically, IANA allocates and maintains unique codes and numbering systems that are used in the technical standards (“protocols”) that drive the Internet.
IANA’s various activities can be broadly grouped in to three categories:
• Domain Names
IANA manages the DNS Root, the .int and .arpa domains, and an IDN practices
resource.
• Number Resources
IANA coordinates the global pool of IP and AS numbers, providing them to
Regional Internet Registries.
• Protocol Assignments
Internet protocols’ numbering systems are managed by IANA in conjunction
with standards bodies.
LAUNCH DHCP6C FOR PREFIX DELEGATION (IAPD)
An Identity Association for Prefix Delegation (IAPD) is a collection of prefixes assigned to a requesting device. A requesting device may have more than one IAPD; for example, one for each of its interfaces.
A prefix-delegating router (DHCPv6 server) selects prefixes to be assigned to a requesting router (DHCPv6 client) upon receiving a request from the client. The server can select prefixes for a requesting client by using static and dynamic assignment mechanisms. Administrators can manually configure a list of prefixes and associated preferred and valid lifetimes for an IAPD of a specific client that is identified by its DUID.
When the delegating router receives a request from a client, it checks if there is a static binding configured for the IAPD in the client’s message. If a static binding is present, the prefixes in the binding are returned to the client. If no such binding is found, the server attempts to assign prefixes for the client from other sources.
An IPv6 prefix delegating router can also select prefixes for a requesting router based on an external authority such as a RADIUS server using the
Framed-IPv6-Prefix attribute.
LAUNCH DHCP6C FOR RAPID COMMIT
Rapid-Commit; is the process (option) in which a Requesting Router (DHCP Client) obtains "configurable information" (configurable parameters) from a Delegating
Router (DHCP Server) by using a rapid DHCPv6 two-message exchange. The messages that are exchanged between the two routers (RR and DR) are called the
DHCPv6 "SOLICIT" message and the DHCPv6 "REPLY" message.
226
FIXED MTU
Maximum Transmission Unit. The size (in bytes) of largest protocol data unit which the layer can pass onwards. This value is 1492 for PPPoE.
ENABLE PPP DEBUG MODE
When this option is selected, the system will put more PPP connection information into the system log. This is for debugging errors and not for normal usage.
BRIDGE PPPOE FRAMES BETWEEN WAN AND LOCAL PORTS
(This option is hidden when PPP IP Extension is enabled)
When Enabled, this creates local PPPoE connections to the WAN side. Enable this option only if all LAN-side devices are running PPPoE clients, otherwise disable it.
The NexusLink 3241u/3241eu supports pass-through PPPoE sessions from the LAN side while simultaneously running a PPPoE client from non-PPPoE LAN devices.
ENABLE MLD MULTICAST PROXY
Multicast Listener Discovery (MLD) is a component of the Internet Protocol Version
6 (IPv6) suite. MLD is used by IPv6 routers for discovering multicast listeners on a directly attached link, much like IGMP is used in IPv4. The protocol is embedded in
ICMPv6 instead of using a separate protocol.
ENABLE MLD MULTICAST SOURCE
Click to allow use of this WAN interface as Multicast Listener Discovery (MLD) multicast source.
STEP 3: Choose an interface to be the default gateway. Also, select a preferred
WAN interface as the system default IPv6 gateway (from the drop-down
box).
Click Next to continue or click Back to return to the previous step.
227
STEP 4: Select DNS Server Interface from available WAN interfaces OR enter
static DNS server IP addresses for the system. In ATM mode, if only a
single PVC with IPoA or static IPoE protocol is configured, Static DNS
server IP addresses must be entered.
Select the configured WAN interface for IPv6 DNS server information OR enter the static IPv6 DNS server Addresses. Note that selecting a WAN interface for IPv6 DNS server will enable DHCPv6 Client on that interface.
Click Next to continue or click Back to return to the previous step.
228
STEP 5: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to modify them.
After clicking Apply/Save , the new service should appear on the main screen.
229
F2.7 IP over ETHERNET (IPoE) – IPv6
STEP 1: Select the IP over Ethernet radio button and click Next. * Then select
IPv6 only from the drop-down box at the bottom off the screen and click
Next .
*
For tagged service, enter valid 802.1P Priority and 802.1Q VLAN ID.
For untagged service, set -1 to both 802.1P Priority and 802.1Q VLAN ID
Select a TPID if VLAN tag Q-in-Q is used.
230
STEP 2: The WAN IP settings screen provides access to the DHCP server settings.
You can select the Obtain an IPv6 address automatically radio button to enable DHCP (use the DHCP Options only if necessary). However, if you prefer, you can use the Static IPv6 address method instead to assign
WAN IP address, Subnet Mask and Default Gateway manually.
Enter information provided to you by your ISP to configure the WAN IPv6 settings.
Notice: If “Obtain an IPv6 address automatically” is chosen, DHCP client will be enabled on this WAN interface.
If “Use the following Static IPv6 address” is chosen, enter the static WAN IPv6 address. If the address prefix length is not specified, it will be default to /64.
Click Next to continue or click Back to return to the previous step.
231
DHCP6C FOR ADDRESS ASSIGNMENT (IANA)
The Internet Assigned Numbers Authority (IANA) is a department of ICANN responsible for coordinating some of the key elements that keep the Internet running smoothly. Whilst the Internet is renowned for being a worldwide network free from central coordination, there is a technical need for some key parts of the
Internet to be globally coordinated, and this coordination role is undertaken by
IANA.
Specifically, IANA allocates and maintains unique codes and numbering systems that are used in the technical standards (“protocols”) that drive the Internet.
IANA’s various activities can be broadly grouped in to three categories:
• Domain Names
IANA manages the DNS Root, the .int and .arpa domains, and an IDN practices
resource.
• Number Resources
IANA coordinates the global pool of IP and AS numbers, providing them to
Regional Internet Registries.
• Protocol Assignments
Internet protocols’ numbering systems are managed by IANA in conjunction
with standards bodies.
DHCP6C FOR PREFIX DELEGATION (IAPD)
An Identity Association for Prefix Delegation (IAPD) is a collection of prefixes assigned to a requesting device. A requesting device may have more than one IAPD; for example, one for each of its interfaces.
A prefix-delegating router (DHCPv6 server) selects prefixes to be assigned to a requesting router (DHCPv6 client) upon receiving a request from the client. The server can select prefixes for a requesting client by using static and dynamic assignment mechanisms. Administrators can manually configure a list of prefixes and associated preferred and valid lifetimes for an IAPD of a specific client that is identified by its DUID.
When the delegating router receives a request from a client, it checks if there is a static binding configured for the IAPD in the client’s message. If a static binding is present, the prefixes in the binding are returned to the client. If no such binding is found, the server attempts to assign prefixes for the client from other sources.
An IPv6 prefix delegating router can also select prefixes for a requesting router based on an external authority such as a RADIUS server using the
Framed-IPv6-Prefix attribute.
DHCP6C FOR RAPID COMMIT
Rapid-Commit; is the process (option) in which a Requesting Router (DHCP Client) obtains "configurable information" (configurable parameters) from a Delegating
Router (DHCP Server) by using a rapid DHCPv6 two-message exchange. The messages that are exchanged between the two routers (RR and DR) are called the
DHCPv6 "SOLICIT" message and the DHCPv6 "REPLY" message.
WAN NEXT-HOP IPv6 ADDRESS
Specify the Next-Hop IPv6 address for this WAN interface.
This address can be either a link local or a global unicast IPv6 address.
232
STEP 3: This screen provides access to NAT, Firewall and IGMP Multicast settings.
Enable each by selecting the appropriate checkbox .
Click Next to continue or click Back to return to the previous step.
ENABLE NAT
If the LAN is configured with a private IP address, the user should select this checkbox . The NAT submenu will appear in the Advanced Setup menu after reboot. On the other hand, if a private IP address is not used on the LAN side (i.e. the LAN side is using a public IP), this checkbox should not be selected, so as to free up system resources for improved performance.
ENABLE FIREWALL
If this checkbox is selected, the Security submenu will be displayed on the
Advanced Setup menu after reboot. If firewall is not necessary, this checkbox should not be selected so as to free up system resources for better performance.
ENABLE MLD MULTICAST PROXY
Multicast Listener Discovery (MLD) is a component of the Internet Protocol Version
6 (IPv6) suite. MLD is used by IPv6 routers for discovering multicast listeners on a directly attached link, much like IGMP is used in IPv4. The protocol is embedded in
ICMPv6 instead of using a separate protocol.
ENABLE MLD MULTICAST SOURCE
Click to allow use of this WAN interface as Multicast Listener Discovery (MLD) multicast source.
233
STEP 4: To choose an interface to be the default gateway. Also, select a preferred
WAN interface as the system default IPv6 gateway (from the
drop-down box).
Click Next to continue or click Back to return to the previous step.
234
STEP 5: Select DNS Server Interface from available WAN interfaces OR enter static
DNS server IP addresses for the system. In ATM mode, if only a single PVC
with IPoA or static IPoE protocol is configured, Static DNS server IP
addresses must be entered.
Select the configured WAN interface for IPv6 DNS server information OR enter the static IPv6 DNS server Addresses. Note that selecting a WAN interface for IPv6 DNS server will enable DHCPv6 Client on that interface.
Click Next to continue or click Back to return to the previous step.
235
STEP 6: The WAN Setup - Summary screen shows a preview of the WAN service
you have configured. Check these settings and click Apply/Save if they
are correct, or click Back to modify them.
After clicking Apply/Save , the new service should appear on the main screen.
236
F2.8 PPP over ATM (PPPoA) – IPv6
STEP 1: Select IPv6 Only from the drop-down box at the bottom
of this screen and click Next .
237
STEP 2: On the next screen, enter the PPP settings as provided by your ISP.
Click Next to continue or click Back to return to the previous step.
PPP SETTINGS
The PPP username and password are dependent on the requirements of the ISP.
The user name can be a maximum of 256 characters and the password a maximum of 32 characters in length. (Authentication Method: AUTO, PAP, CHAP, or MSCHAP.)
238
ENABLE FULLCONE NAT
This option becomes available when NAT is enabled. Known as one-to-one NAT, all requests from the same internal IP address and port are mapped to the same external IP address and port. An external host can send a packet to the internal host, by sending a packet to the mapped external address.
DIAL ON DEMAND
The NexusLink 3241u/3241eu can be configured to disconnect if there is no activity for a period of time by selecting the Dial on demand checkbox . You must also enter an inactivity timeout period in the range of 1 to 4320 minutes.
PPP IP EXTENSION
The PPP IP Extension is a special feature deployed by some service providers.
Unless your service provider specifically requires this setup, do not select it.
PPP IP Extension does the following:
Allows only one PC on the LAN.
Disables NAT and Firewall.
The device becomes the default gateway and DNS server to the PC through DHCP using the LAN interface IP address.
The device extends the IP subnet at the remote service provider to the
LAN PC. i.e. the PC becomes a host belonging to the same IP subnet.
The device bridges the IP packets between WAN and LAN ports, unless the packet is addressed to the device’s LAN IP address.
The public IP address assigned by the remote side using the PPP/IPCP protocol is actually not used on the WAN PPP interface. Instead, it is forwarded to the PC LAN interface through DHCP. Only one PC on the
LAN can be connected to the remote, since the DHCP server within the device has only a single IP address to assign to a LAN device.
ENABLE FIREWALL
If this checkbox is selected, the Security submenu will be displayed on the
Advanced Setup menu after reboot. If firewall is not necessary, this checkbox should not be selected to free up system resources for better performance.
USE STATIC IPv4 ADDRESS
Unless your service provider specially requires it, do not select this checkbox . If selected, enter the static IP address in the IP Address field. Also, don’t forget to adjust the IP configuration to Static IP Mode as described in 3.2 IP Configuration .
USE STATIC IPv6 ADDRESS
Unless your service provider specially requires it, do not select this checkbox . If selected, enter the static IP address in the IPv6 Address field.
Don’t forget to adjust the IP configuration to Static IP Mode as described in section
3.2 IP Configuration .
239
ENABLE IPv6 UNNUMBERED MODEL
The IP unnumbered configuration command allows you to enable IP processing on a serial interface without assigning it an explicit IP address. The IP unnumbered interface can "borrow" the IP address of another interface already configured on the router, which conserves network and address space.
LAUNCH DHCP6C FOR ADDRESS ASSIGNMENT (IANA)
The Internet Assigned Numbers Authority (IANA) is a department of ICANN responsible for coordinating some of the key elements that keep the Internet running smoothly. Whilst the Internet is renowned for being a worldwide network free from central coordination, there is a technical need for some key parts of the
Internet to be globally coordinated, and this coordination role is undertaken by
IANA.
Specifically, IANA allocates and maintains unique codes and numbering systems that are used in the technical standards (“protocols”) that drive the Internet.
IANA’s various activities can be broadly grouped in to three categories:
• Domain Names
IANA manages the DNS Root, the .int and .arpa domains, and an IDN practices
resource.
• Number Resources
IANA coordinates the global pool of IP and AS numbers, providing them to
Regional Internet Registries.
• Protocol Assignments
Internet protocols’ numbering systems are managed by IANA in conjunction
with standards bodies.
LAUNCH DHCP6C FOR PREFIX DELEGATION (IAPD)
An Identity Association for Prefix Delegation (IAPD) is a collection of prefixes assigned to a requesting device. A requesting device may have more than one IAPD; for example, one for each of its interfaces.
A prefix-delegating router (DHCPv6 server) selects prefixes to be assigned to a requesting router (DHCPv6 client) upon receiving a request from the client. The server can select prefixes for a requesting client by using static and dynamic assignment mechanisms. Administrators can manually configure a list of prefixes and associated preferred and valid lifetimes for an IAPD of a specific client that is identified by its DUID.
When the delegating router receives a request from a client, it checks if there is a static binding configured for the IAPD in the client’s message. If a static binding is present, the prefixes in the binding are returned to the client. If no such binding is found, the server attempts to assign prefixes for the client from other sources.
An IPv6 prefix delegating router can also select prefixes for a requesting router based on an external authority such as a RADIUS server using the
Framed-IPv6-Prefix attribute.
LAUNCH DHCP6C FOR RAPID COMMIT
Rapid-Commit; is the process (option) in which a Requesting Router (DHCP Client) obtains "configurable information" (configurable parameters) from a Delegating
Router (DHCP Server) by using a rapid DHCPv6 two-message exchange. The messages that are exchanged between the two routers (RR and DR) are called the
DHCPv6 "SOLICIT" message and the DHCPv6 "REPLY" message.
FIXED MTU
Fixed Maximum Transmission Unit. The size (in bytes) of largest protocol data unit which the layer can pass onwards. This value is 1500 for PPPoA.
240
ENABLE PPP DEBUG MODE
When this option is selected, the system will put more PPP connection information into the system log. This is for debugging errors and not for normal usage.
ENABLE MLD MULTICAST PROXY
Multicast Listener Discovery (MLD) is a component of the Internet Protocol Version
6 (IPv6) suite. MLD is used by IPv6 routers for discovering multicast listeners on a directly attached link, much like IGMP is used in IPv4. The protocol is embedded in
ICMPv6 instead of using a separate protocol.
ENABLE MLD MULTICAST SOURCE
Click to allow use of this WAN interface as Multicast Listener Discovery (MLD) multicast source.
STEP 3: Choose an interface to be the default gateway.
Click Next to continue or click Back to return to the previous step.
241
STEP 4: Select DNS Server Interface from available WAN interfaces OR enter static
DNS server IP addresses for the system. In ATM mode, if only a single PVC
with IPoA or static IPoE protocol is configured, Static DNS server IP
addresses must be entered.
Select the configured WAN interface for IPv6 DNS server information OR enter the static IPv6 DNS server Addresses. Note that selecting a WAN interface for IPv6 DNS server will enable DHCPv6 Client on that interface.
Click Next to continue or click Back to return to the previous step.
242
STEP 5: The WAN Setup - Summary screen shows a preview of the WAN service
you have configured. Check these settings and click Apply/Save if they
are correct, or click Back to modify them.
After clicking Apply/Save , the new service should appear on the main screen.
243
