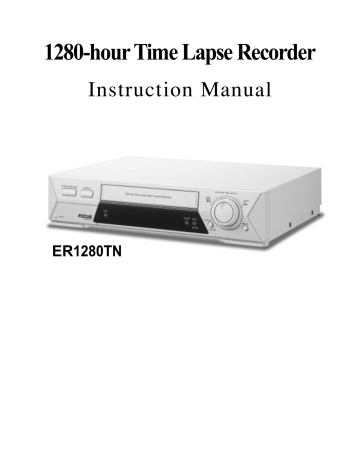

1280-hour Time Lapse Recorder
Instruction Manual
ER1280TN
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
AVERTISSEMENT
DANGER D’ÉLECTROCUTION
NE PAS OUVRIR
AVERTISSEMENT:
POUR ÉLIMINER TOUT RISQUE
D’ÉLECTRO-CUTION, NE PAS OUVRIR LE COUVERCLE
(OU LA PARTIE ARRIÈRE). AUCUNE PIECE RÉPARABLE
PAR L’UTILISATEUR NE SE TROUVE À L’INTÉRIEUR.
POUR TOUTE INTERVENTION D’ENTRETIEN OU DE
RÉPARATION SE CONFIER AUX TECHNICIENS
QUALIFIÉS.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
La fléche symbolisant l’éclair dans un triangle équilateral a pour objet de tirer l’attention de l’utilisateur sur le fait, qu’il y a des “tensions dangereuses” non-isolées à l’intérieur de l’enceinte du produit qui peuvent être suffisamment impor-tantes pour conduire au risque d’électrocution.
Le point d’exclamation au sein d’un triangle
équilateral a pour objet de tirer l’attention de l’utilisateur sur le fait qu’il y a des instructions de mise en service et d’entretien (de réparation) dans les fiches descriptives de l’apprareil qui doivent obligatoirement être respectées.
ii
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK DO NOT USE
THIS (POLARIZED) PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED
TO PREVENT BLADE EXPOSURE.
AVERTISSEMENT:
AFIN D’ÉVITER TOUT RISQUE D’INCENDIE OU
D’ÉLECTROCUTION, NE PAS EXPOSER CET
APPAREIL À LA PLUIE NI À L’HUMIDITÉ.
ATTENTION:
POUR PRÉVENIR LES CHOCS ÉLECTRIQUES NE
PAS UTILISER CETTE FICHE POLARISÉE AVEC UN
PROLONGATEUR, UNE PRISE DE COURANT OU
UNE AUTRE SORTIE DE COURANT, SAUF SI LES
LAMES PEUVENT ÊTRE INSÉRÉES À FOND SANS
EN LAISSER AUCUNE PARTIE À DÉCOUVERT.
Important Safeguards
Please read all these instructions carefully regarding your VCR before you begin operating it.
Follow all warnings and instructions marked on the VCR.
1 Read Instructions
All the safety and operating instructions should be read before the product is operated.
2 Retain Instructions
The safety and operating instructions should be retained for future reference.
11 Power Sources
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
3 Heed Warnings
All warnings on the product and in the operating instructions should be adhered to.
4 Follow Instructions
All operating and use instructions should be followed.
12 Grounding or Polarization
This video product is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
5 Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6 Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
13 Power-Cord Protection
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
7 Water and Moisture
Do not use this product near water — for example, near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, and the like.
14 Lightning
For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
8 Accessories
Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
9 A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
15 Overloading
Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in fire risk or electric shock.
16 Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
17 Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
10 Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
18 Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
(a) When the power-supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen into the product.
(c) If the product has been exposed to rain or water.
(d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
(e) If the product has been dropped or damaged in any way.
(f) When the product exhibits a distinct change in performance – this indicates a need for service.
iii
Important Safeguards
19 Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
20 Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
21 Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, try to correct the interference by one or more of these measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a different circuit than the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
INFORMATION
This Class B digital apparatus complies with Canadian ICES-
003.
INFORMATION
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
iv
Note A point to notice Info.
Supplementary information
Caution and Care
CONDENSATION IS THE ENEMY OF VIDEO RECORDERS
WHAT IS CONDENSATION?
1. When a very cold drink is poured into a glass, the water droplets which form on the outer surface of the glass are an example of condensation.
2. If the VCR is exposed to a rapid increase in temperature (such as warming a cold room or transporting it from a cold location to a warm one) condensation may form on the tape transport mechanism inside the VCR. By heating the inside of the VCR, it can dry up the moisture and prevent damage to the VCR or video tape from condensation. To do this, plug the VCR in and switch the VCR
POWER to ON. Leave the VCR on for at least two hours before using it for recording or playback.
CONDENSATION IS LIKELY TO OCCUR WHEN:
1. The VCR is moved inside from outdoors or from a cold room to a warm one.
2. A cold room is heated quickly.
3. Humidity is high.
Note
• Avoid using the VCR where cold air (e.g., from an air conditioner) will blow directly on it.
Never place anything containing water on top of the VCR (e.g., vases, cups, etc.)
Heavy objects (e.g., TV) should never be placed on the VCR
NEVER TOUCH OR INSERT ANY OBJECT INSIDE THE VCR
Touching the inside of the cabinet or inserting foreign objects of any kind not only creates a safety hazard but can also cause extensive damage.
PROTECT THE POWER CORD
Damage to the power cord may cause fire or shock hazard. When unplugging, hold by the plug only and pull out carefully.
UNPLUG THE POWER CORD DURING A LONG ABSENCE
Turn off the power and unplug the power cord during a long absence.
MAINTAIN GOOD VENTILATION
Do not obstruct the ventilation holes on the VCR. For maximum ventilation, place the unit on a hard level surface only, and ensure it is not covered during use.
WHEN NOT IN USE
When you finish operating the VCR, always unload the cassette and turn OFF the VCR POWER.
CABINET CARE
Never use petroleum-based cleaners. Clean with a soft cloth moistened with soap and water and wipe dry. PVC cables or leads should not be left in contact with the cabinet surface for long periods.
INSTALLATION LOCATION
For excellent performance and lasting reliability, install in a location that is:
1. Well ventilated, out of direct sunlight, and away from direct heat.
2. A solid, vibration-free surface.
3. Free from high humidity or excessive dust and away from magnetic fields.
Note Never move the VCR without first removing the tape.
CARE OF THE VIDEO CASSETTE TAPES
• Avoid vibration or shock.
• Do not place near a strong magnetic field (e.g., a motor, transformer, or magnet).
• Never place or store in direct sunlight.
• Avoid dusty places.
• Place the cassette in its case and store vertically.
• Never store tape in high humidity.
WARNING:
The included power cord is used for 120 V, 60 Hz.
Never connect any outlet or power supply having a different voltage or frequency.
Reference page v
Features
This unit records in 26 modes and supports both T-120 and T-160 tapes. With a T-160 the Recording Hour modes supported are 8, 24, 40, 64, 96, 128, 160, 224, 320, 480, 640, 960, and 1280-Hour mode.
Audio recording
High resolution and image quality
Automatic head cleaning
Recording options for varied needs
• Daily/weekly/holiday timer recording
• Alarm recording
• Series recording
Easy menu setting on-screen
• Remote recording
• Repeat recording
Easy cueing with alarm recording
All button lock
Special playback features
• Still picture
Protection against power failure
• Speed search using shuttle ring
Variety of search functions
• Frame-by-frame and field-by-field playback using jog dial
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Contents
Important Safeguards ............................................. ii - iv
Caution and Care ......................................................... v
Features ...................................................................... vi
Introduction
Controls and Functions ................................................ 1
Front View ............................................................................ 1
Fluorescent Display ............................................................. 2
Rear View ............................................................................ 3
Set Up
Connecting with CCD Camera, Monitor, and Sensor ... 5
Language Selection ..................................................... 5
Setting the Clock .......................................................... 6
Basic Functions
Loading/Unloading a Tape ........................................... 7
Manual Recording ........................................................ 8
Playback ....................................................................... 9
Advanced Functions
Recording Techniques ................................................ 11
Timer Recording ................................................................ 11
Alarm Recording ................................................................ 13
Emergency Recording ....................................................... 13
Series Recording 1 ............................................................ 14
Series Recording 2 ............................................................ 14
Remote Recording ............................................................ 15
Repeat Recording ............................................................. 15
Additional Features .................................................... 16
Memory Backup in Case of Power Failure ........................ 16
After a Power Failure ......................................................... 16
Displaying/Clearing the Power Loss List ........................... 16
Displaying/Clearing the Alarm List ..................................... 16
Number of Tape Uses and Elapsed Time of VCR ............. 17
Lock Function .................................................................... 17
Special Effects Playback ............................................ 18
Still Picture ........................................................................ 18
Shuttle Ring ....................................................................... 18
Shuttle Hold ....................................................................... 18
Direct Shuttle Ring ............................................................ 18
Frame or Field Playback ................................................... 18
Adjustment during Playback ...................................... 19
Tracking Adjustment .......................................................... 19
Vertical Adjustment ............................................................ 19
Searching Techniques ................................................ 20
Counter Memory Stop ....................................................... 20
Skip Search ....................................................................... 20
Index Search ..................................................................... 20
Installation
Connections for Various Functions ............................ 21
Alarm Recording Connection ............................................ 21
Series Recording Connection ............................................ 21
Remote Recording Connection ......................................... 21
Connection for External Time Clock Adjustment ............... 22
Setting the Menus ...................................................... 23
Menu Chart ........................................................................ 23
Main Menu ......................................................................... 24
Display ............................................................................... 24
Timer Program ................................................................... 24
Recording Set Up .............................................................. 24
Rear Terminal .................................................................... 24
Maintenance ...................................................................... 25
First Time Set Up ............................................................... 25
Others
Before Calling for Service .......................................... 27
Warning Display ......................................................... 29
Control Input/Output Signals and Circuit .................... 30
Maintenance Guide .................................................... 31
Specifications ............................................................. 33
Accessories
1 User’s manual
1 Power cord
1 VCR cable
2 BNC-RCA adapters
1 Warranty card vi
Note A point to notice Info.
Supplementary information
Controls and Functions
Front View
POWER/TIMER REC EJECT
POSITION
TRACKING/
VERTICAL ADJUST
COUNTER
RESET
MODE SEARCH MENU
PAUSE
PLAY
STOP
JOG/ADJUST SHUTTLE
REC
POWER/TIMER REC button
Press to turn the VCR on or off.
If you have programmed your VCR to record, press to turn off the VCR and press again to stand by for the timer recording.
EJECT button
Press to remove the cassette.
Cassette Loading Slot
Cassette is inserted in this slot for loading.
JOG dial
Use to forward/reverse a tape frame-by-frame (fieldby-field) or to set the menus.
SHUTTLE ring
When the VCR is in stop mode, turn to the right to forward a tape or to the left to rewind.
Also, use for special effects playback or to set the menus.
POSITION buttons
• When the day and present time display is shown on screen, press to move it right forward or bottom forward. During an alarm recording or if a warning display is shown on screen, the day and present time display cannot be moved.
TRACKING buttons
• If noise occurs on screen during playback, slow playback, etc., press to adjust the tracking.
VERTICAL ADJUST buttons
• If screen images are blurred vertically during a still picture, press to reduce/eliminate the picture vibration.
COUNTER RESET button
Press to reset the counter to “00000”.
MODE button
Press to select the recording or playback speed.
Fluorescent Display
See the next page for details.
SEARCH button
Press to display the <SEARCH FUNCTION> menu.
During recording or when the VCR is turned off, press this button for more than 10 seconds to lock/unlock all buttons.
MENU/PAUSE button
When the VCR is in stop mode, press to display the
<MAIN MENU>.
When pressed during recording or playback, tape movement stops temporarily. Press again to continue the recording or playback.
PLAY/STOP button
Press to playback a previously recorded tape or to discontinue all tape-related functions.
REC button
Press to begin recording.
Reference page
Introduction 1
Controls and Functions
Fluorescent Display
(Counter Memory Stop) indicator
Illuminates during the counter memory stop.
(Power Loss) indicator
Illuminates when the VCR is turned on after a power failure occurs during recording.
(Alarm Recording) indicator
Flashes during alarm recording and stays on when the alarm recording is finished.
(Index Search) indicator
Flashes when recording an index signal and illuminates during the index number setup and the index search. (Index number is shown on the
Recording and Playback Mode display.)
(Skip Search) indicator
Illuminates during the skip search.
(Daylight Savings Time) indicator
Illuminates when “DAYLIGHT SAVINGS” is set to “ON.”
, (Tape Speed) indicator
Indicates the tape speed.
SP is standard play; EP is extended play.
(Repeat) indicator
Illuminates when “TAPE END” in “FIRST TIME SET
UP” menu is set to “REPEAT” or “ALARM•PROT.”
(Cassette Status) indicator
Illuminates when a tape is inserted. The light advances, stops, or flashes corresponding to the movement of the tape.
(Timer Recording) indicator
Illuminates when the VCR is in stand-by for timer recording or during timer recording.
Counter/Clock display
While the VCR is turned on, indicates the relative position on the tape. (The Counter stops counting where no recording is made on the tape.) When it is off, (when set) the clock (24-hour format) is shown.
Recording and Playback Mode/Index Number display
Displays the number corresponding to a selected recording or playback mode. The mode shown here varies by the “TAPE LENGTH” setting (T-120 or T-160) setting in “FIRST TIME SET UP” menu. Also, displays the index number during the index number setup and the index search.
(Emergency Recording) indicator
Illuminates when “EMERGENCY REC” in
“RECORDING SET UP” menu is set to “ON.”
(Lock) indicator
Illuminates when the lock feature is in use.
(Playback) indicator
Illuminates during playback.
(Recording) indicator
Illuminates during recording.
2 Introduction
Note A point to notice Info.
Supplementary information
Rear View
ALM RST
IN
REC GND ALM MODE
OUT
CLK CALL
IN OUT
AUDIO
IN OUT
VIDEO
RESET
BATTERY OPEN
AC power socket
This socket connects to the power cord. Insert the cord firmly.
Input terminals
ALM IN
Use for alarm recording. The alarm sensor is connected here.
RST IN
Use to stop alarm recording.
• When “ALARM REC DURATION” in
“RECORDING SET UP” menu is set to “MAN1,” connected here.
• When set to other than “MAN1,” it can be used to adjust the VCR’s clock.
REC IN
Use to start/stop recording or for series recording.
GND
Warning:
The included power cord is used for 120 V, 60 Hz.
Never connect to any outlet or power supply having a different voltage or frequency.
Ensure the power cord is not plugged into the AC outlet before connecting to any rear terminals.
the alarm recording stops when a signal is input to this terminal. The alarm reset switch is
When a lead connected to other terminals requires a ground, connect the ground lead here.
Output terminals
ALM OUT
Use to indicate an alarm recording to an external alarm.
MODE OUT
Use to indicate the VCR’s mode of operation.
• When “MODE OUT” in “REAR TERMINAL” menu is set to “CLOCK ADJ,” the clock of all connected
VCRs can be adjusted. ( page 22)
CLK OUT
Use to control an external camera switcher.
CALL OUT
Use to indicate when a tape reaches its end during recording or if there has been a problem during recording.
Reference page
Battery Box
Battery is stored here.
Note
• This VCR contains a special battery. Consult your dealer to replace it.
AUDIO IN connector
Audio input connector (RCA pin).
AUDIO OUT connector
Audio output connector (RCA pin).
VIDEO IN connector
Input connector for video signal (BNC connector).
Connect cameras here.
VIDEO OUT connector
Output connector for video signal (BNC connector).
Connect a monitor here.
RESET button
page 33
For the rating of each connector at the rear panel of
VCR, page 30.
Introduction 3
THIS PAGE INTENTIONALLY LEFT BLANK.
4 Introduction
Note A point to notice Info.
Supplementary information
Connecting with CCD Camera, Monitor and Sensor
MOTION DETECTOR,
SURFACE CONTACTS, etc.
CCD CAMERA
ALM IN GND
ALM RST
IN
REC GND ALM MODE
OUT
CLK CALL
VCR REAR
IN OUT
AUDIO
IN OUT
VIDEO
RESET
BNC-RCA adapter
AUDIO IN,
AUDIO OUT
VIDEO IN,
VIDEO OUT
RJ-11E terminal
VCR cable
MONITOR
Note
• Monitor to be connected
– Connecting with some monitors may cause picture vibration and/or picture distortion at the top or bottom of the image at still picture or normal playback.
– A television for domestic use may easily cause the picture vibration and distortion.
• CCD camera to be connected
– Do not connect color and black-and-white cameras together.
Language Selection
The menu which appears on screen offers three languages: English (ENGLISH), Spanish (ESPAÑOL), or French (FRANÇAIS).
This menu appears by pressing the MENU button when the VCR is turned on for the first time after the purchase or when the
RESET button is pressed during use.
1. Press the MENU button.
• The menu appears as shown to the right.
2. Turn the JOG dial to select the desired language.
ENGLISH
FRANÇAIS
ESPAÑOL
3. Turn the SHUTTLE ring to the right.
• <MAIN MENU> appears on screen in the selected language.
4. Press the MENU button to exit.
Use JOG to select, and ENTER .
Note
• After first time setup and selecting the language to be used, the only way to go back and access the main menu in the three languages is to PRESS the RESET button found on the back panel. The RESET button can be accessed with a small pointed object. Once the RESET button is pressed, repeat steps 1 to 4 above.
Reference page
Set Up 5
Setting the Clock
Accurately set the day and present time before timer programming.
Month
Day
Year Minute
Hour
Alarm
Recording
Counter
Second
• ’01 indicates year 2001.
• The clock is shown in 24-hour format.
• Alarm recording counter is shown during alarm recording only.
07-09-’01 20:25:00 A0001
Example : Setting the day and present time to 8:25 p.m., 9
July, 2002.
1. Press the MENU button.
• <MAIN MENU> appears.
<MAIN MENU>
DISPLAY
TIMER PROGRAM
RECORDING SET UP
REAR TERMINAL
MAINTENANCE
CLOCK/FIRST TIME SET UP
2. Turn the JOG dial to select CLOCK/FIRST TIME SET UP and turn the SHUTTLE ring to the right.
• <FIRST TIME SET UP> menu appears.
<FIRST TIME SET UP>
TIME DATE ADJUST
TAPE END
QUASI V-SYNC
VIDEO MODE
TAPE LENGTH
STOP
ON
AUTO
T-160
3. Turn the JOG dial to select TIME DATE ADJUST and turn the SHUTTLE ring to the right.
• <TIME DATE ADJUST> menu appears.
<TIME DATE ADJUST>
DAYLIGHT SAVINGS
MONTH
DAY
YEAR
TIME
OFF
01
31
2001
00:00:00
4. Turn the JOG dial to set DAYLIGHT SAVINGS and turn the SHUTTLE ring to the right.
• When set to ON, the clock moves forward one hour.
• When set to AUTO, the clock moves forward one hour from the 1st Sunday of April (at 2 a.m.) to the last
Sunday of October (at 3 a.m.).
• When set to ON or AUTO and the clock is put forward one hour, the Daylight Savings Time symbol ( ) is shown next to the hour digit of TIME on screen and the
Daylight Savings Time indicator ( ) illuminates on the fluorescent display.
5. Turn the JOG dial to show “07” for MONTH and turn the
SHUTTLE ring to the right.
<TIME DATE ADJUST>
DAYLIGHT SAVINGS
MONTH
DAY
YEAR
TIME
AUTO
01
31
2001
00:00:00
<TIME DATE ADJUST>
DAYLIGHT SAVINGS
MONTH
DAY
YEAR
TIME
AUTO
07
09
2002
20:25:00
6. Set DAY, YEAR, TIME (hour digits, ten-minute digit, and one-minute digit) in a similar fashion.
7. Turn the JOG dial while the one-minute digit of TIME is flashing.
• The setting is now complete.
• <FIRST TIME SET UP> menu appears.
8. Press the MENU button.
• The day and present time display appears on screen.
Setting the current time to exact second
Set the clock as described above, but set minute digits to one or two minutes ahead of the reference time being used. When the reference time reaches 00 seconds of the minute you have set, turn the SHUTTLE ring to the right. The VCR’s clock now corresponds to the reference time to the nearest second.
Info.
• To move the displayed position of the day and present time display on screen, press the POSITION button
( ) or ( ). ( ) moves the display towards right-forward direction and
( ) towards a downward direction.
Note
• When the DAYLIGHT SAVINGS is set to AUTO, the programmed recordings starting or finishing in the daylight saving time changeover period may not be recorded correctly.
• The daylight saving time may vary from the one above depending on your region or the year. In this case, set DAYLIGHT SAVINGS to ON or
OFF manually.
6
Set Up
Note A point to notice Info.
Supplementary information
Loading/Unloading a Tape
Tapes can be loaded into your VCR as long as the VCR is plugged into an AC outlet.
Even if the VCR is turned off, loading a tape will automatically cause it to turn on. Use only video cassette tapes marked .
• It is recommended to use T-120 or T-160 tapes. Do not use tapes longer than T-160.
Loading
1. Insert the tape into the cassette slot by holding it so that the long narrow edge with the contents label faces towards you.
Note
INCORRECT
• The Cassette Status indicator illuminates on the fluorescent display when the tape is inserted.
Unloading
1. Press the EJECT button on the front panel of the VCR.
2. Remove the tape.
EJECT
• Your VCR has a protection circuit which will eject the tape if it is loaded improperly. If the VCR ejects the tape, remove it completely and check that the long narrow edge with the contents label is facing towards you, and the clear plastic window that shows the video tape is facing upwards. Wait a few seconds, and try inserting the tape again.
• You cannot insert a tape when the
VCR is locked.
Preventing accidental erasure
Tapes come with an erasure prevention tab which, when removed, prevents the tape’s contents from being erased or recorded over. If the tape you insert into the VCR has the erasure prevention tab removed, your VCR will automatically eject it if you attempt to record on it.
Info.
• The VCR automatically turns on when the tape is loaded, AUTO POWER
ON.
• The VCR automatically plays back the tape on which the erasure prevention tab has been removed, AUTO PLAY.
• The VCR will eject a tape even if the power to the VCR is turned off (as long as the VCR is plugged into an
AC outlet), POWER OFF EJECT.
erasure prevention tab
Recommended number of tape uses
It is recommended that the cassette tape is replaced with a new one depending on the recording time mode and type of tape used. Providing TAPE LENGTH of FIRST TIME
SET UP menu is set to the same type of the tape you use.
In case of T-120 setting
Recording time mode
6H
L18H
L30H
48H
72H
96H
120H
168H
240H
360H
480H
720H
960H
Number of tape uses
15
15
10
8
50
35
20
20
4
2
6
4
2
In case of T-160 setting
Recording time mode
8H
L24H
L40H
64H
96H
128H
160H
224H
320H
480H
640H
960H
1280H
Number of tape uses
2
1
3
3
45
30
10
5
1
1
1
1
1
Reference page
Note
• When ejecting the tape during recording, press the STOP button once to stop recording, and then press the EJECT button to unload the tape.
• You cannot eject a tape when the
VCR is locked.
Note
• We recommend that you take any broken or torn tapes to a professional for repair. The adhesives on many common types of tape could damage the head of your VCR.
Basic Functions 7
Manual Recording
1. Turn on the VCR and peripheral devices.
2. Load a tape with an erasure prevention tab intact.
3. Press the MODE button to select the desired recording mode.
Refer to Recording/playback time below for the actual recording/playback time when T-
120 or T-160 tape is used.
4. Press the REC button to begin recording.
5. Press the PLAY/STOP button to stop recording.
MODE
REC
Note
• If the tape you insert in your VCR has the erasure prevention tab removed, your VCR will automatically eject it if you attempt to record on it.
• The REC button will not function unless a tape is in stop or pause mode.
• A tape recorded by this VCR may not be played back correctly by another
VCR.
Info.
• Press the PAUSE button to momentarily stop recording. Press it again to resume recording. To protect the tape, the pause mode is automatically cancelled after about five minutes.
PLAY
STOP
Recording/playback time
(hours : minutes)
TAPE LENGTH
Recording setting time mode
T-120
2H*
6H
L18H
L30H
48H
72H
96H
120H
168H
240H
360H
480H
720H
960H
*
is for playback only
2:00
6:00
18:00
30:00
54:00
78:00
102:00
126:00
174:00
246:00
366:00
486:00
726:00
966:00
Audio recording
TAPE LENGTH
Recording setting time mode
2H*
8H
L24H
L40H
64H
96H
128H
160H
224H
320H
480H
640H
960H
1280H
T-160
2:40
8:00
24:00
40:00
72:00
104:00
136:00
168:00
232:00
328:00
488:00
648:00
968:00
1288:00
The 2H (playback only), 6H, 8H modes, and the modes with the letter “L” (L18H, L24H,
L30H, and L40H) are for audio recording and playback on the linear track.
• For the VCR’s function when the tape reaches its end during recording, go to page 25.
Note
• Audio will not be recorded if a camera with a built-in microphone or other peripherals for audio are not connected.
• The longer the recording mode is set, the worse the sound quality gets. In
L30H or L40H mode, the sound quality is of the degree that the speaking voice can be heard.
8 Basic Functions
Note A point to notice Info.
Supplementary information
Playback
1. Turn on the VCR and peripheral devices.
2. Load a pre-recorded tape.
3. Press the MODE button to select the desired playback mode.
4. Press the PLAY/STOP button to start playback.
• If noise occurs during playback, adjust the tracking, page 19.
5. Press the PLAY/STOP button again to stop playback.
MODE
PLAY
STOP
When the tape reaches its end during playback/fast forwarding
VCR’s function varies by the setting of TAPE END in the FIRST TIME SET UP menu.
TAPE END setting
VCR’s function
STOP or REWIND
Playback
Stop
Fast
Forward
Stop
REPEAT or
ALARM•PROT
VCR automatically rewinds to the beginning of the tape and stops.
Stop
Rewinding a tape
While the tape is stopped, turn the SHUTTLE ring to the left.
To stop rewinding, press the PLAY/STOP button on the front panel.
Fast-forwarding a tape
While the tape is stopped, turn the SHUTTLE ring to the right.
To stop fast-forwarding, press the PLAY/STOP button on the front panel.
Audio playback and picture quality
Playback mode
Audio playback
Quality
2H-8H
Very good
Very good
L18H-L40H 48H-1280H
Good
Not available
Good Good
Info.
• The VCR automatically plays back the tape on which the erasure prevention tab has been removed, AUTO PLAY.
Note
• Playback mode
When TAPE LENGTH in FIRST TIME
SET UP menu is set to T-120, the playback mode is switched in the order of 6H L18H L30H 48H
72H 96H 120H 168H
240H 360H 480H 720H
960H 6H... (for a tape recorded in the recording mode longer than 6H mode).
When TAPE LENGTH in FIRST TIME
SET UP menu is set to T-160, the playback mode is switched in the order of 8H L24H L40H 64H
96H 128H 160H 224H
320H 480H 640H 960H
1280H 8H... (for a tape recorded in the recording mode longer than 8H mode).
– A tape recorded in SP mode using another VCR can only be played back in 2H mode.
• Picture jitter or noise may occur when the tape is played back in L18H,
L24H, L30H, or L40H mode even if the tape was recorded in its respective mode.
• When a pre-recorded tape is used for recording, the colored noise may appear on the beginning of the playback picture.
• There is normal sound playback only when a tape recorded in 6H, 8H,
L18H, L24H, L30H, or L40H mode is played back in its respective mode.
• To find a picture you wish to view, go to page 20.
• For TAPE END setting, go to page 25.
Note
• The fast-forward/rewind time of a T-
160 tape is approximately 160 seconds; however, the time varies by the type of tape you use.
Reference page
Basic Functions 9
THIS PAGE INTENTIONALLY LEFT BLANK.
10 Basic Functions
Note A point to notice Info.
Supplementary information
Recording Techniques
Timer Recording
1 2
Accurately preset the day and present time before timer programming. ( page 6)
3 4 5 6
<PROGRAM TO RECORD>
DW
1 ---
2 ---
3 ---
4 ---
5 ---
6 ---
7 ---
8 ---
START
--:--
--:--
--:--
--:--
--:--
--:--
--:--
--:--
END HR
--:-------
--:-------
--:-------
--:-------
--:-------
--:-------
--:-------
--:-------
T-120
T-160
6EP L18EP L30EP 48EP 72EP
96EP 120EP 168EP 240EP
360EP 480EP 720EP 960EP SKIP
8EP L24EP L40EP 64EP 96EP
128EP 160EP 224EP 320EP
480EP 640EP 960EP 1280EP SKIP
1) Program number
Up to eight programs can be set.
2) Day of the week display
• Display HLD to apply HOLIDAY SET UP setting. Display SPL to apply
SPECIAL DW setting. ( next page)
• Display DAY to record at the programmed time everyday.
3) Recording start-time
4) Next day indicator (•)
Recording continues to the following day.
5) Recording end-time
6) Recording mode
• Recording mode varies by the TAPE LENGTH setting of FIRST TIME SET
UP menu. See the table shown to the left.
• Timer recording will not be performed when set to SKIP.
Example: Setting number 2 to L24H mode timer recording from
12:00 to 15:00 every Tuesday.
1. Press MENU button.
• <MAIN MENU> appears.
2. Turn the JOG dial to select TIMER PROGRAM and turn the
SHUTTLE ring to the right.
• <TIMER PROGRAM> menu appears.
3. When the cursor ( ) is next to PROGRAM TO RECORD, turn the SHUTTLE ring to the right.
• <PROGRAM TO RECORD> menu appears.
4. Turn the JOG dial to select the program number and turn the
SHUTTLE ring to the right to select.
5. In the DW column, turn the JOG dial to select the Day of the
Week. Turn the SHUTTLE ring to the right to select.
6. In the START column, turn the JOG dial to select the hour digits of the start time. Turn the SHUTTLE ring to the right when done.
Set the
10-minute
digit and
1-minute
digit in a similar fashion.
7. In the END column, turn the JOG dial to select the hour digits of the end time. Turn the SHUTTLE ring to the right when done.
Set the
10-minute
digit and
1-minute
digit in a similar fashion.
8. In the HR column, turn the JOG dial to select the
RECORDING mode.
<MAIN MENU>
DISPLAY
TIMER PROGRAM
RECORDING SET UP
REAR TERMINAL
MAINTENANCE
CLOCK/FIRST TIME SET UP
<TIMER PROGRAM>
PROGRAM TO RECORD
HOLIDAY SET UP
SPECIAL DW MON-SAT
<PROGRAM TO RECORD>
DW START END HR
1 DAY 08:00 20:00 L40EP
2 ---
3 ---
--:--
--:--
--:--
--:--
------
------
<PROGRAM TO RECORD>
DW START END HR
1 DAY 08:00 20:00 L40EP
2 ---
3 ---
--:--
--:--
--:--
--:--
------
------
<PROGRAM TO RECORD>
DW START END HR
1 DAY 08:00 20:00 L40EP
2 TUE
3 ---
--:--
--:--
--:--
--:--
------
------
<PROGRAM TO RECORD>
DW START END HR
1 DAY 08:00 20:00 L40EP
2 TUE
3 ---
12:00
--:--
--:--
--:--
------
------
<PROGRAM TO RECORD>
DW START END HR
1 DAY 08:00 20:00 L40EP
2 TUE 12:00 15:00 ------
3 ----:---:-------
<PROGRAM TO RECORD>
DW START
1 DAY 08:00
2 TUE 12:00
3 ----:--
END HR
20:00 L40EP
15:00 L24EP
--:-------
Info.
• Time is displayed in 24-hour format.
Info.
When the Timer Recording indicator ( ) starts flashing: a) A tape is not inserted.
b) A tape without erasure prevention tab is inserted.
– Remedy -
1. Press the TIMER REC button to turn off the Timer Recording indicator( ).
2. In case of this: a) Insert a tape.
b) Insert a tape with erasure prevention tab intact.
3. Press the TIMER REC button twice to turn on the Timer Recording indicator.
Info.
• To erase a program:
Select the program number you wish to erase, turn the SHUTTLE ring to the right (DW column flashes), and then turn the SHUTTLE ring to the left.
9. Turn SHUTTLE to the right when done. (Cursor flashing will stop.)
• If the program has not been set completely, the DW column will continue to flash.
Repeat steps 4 to 9 to set two or more programs at once.
10. Press MENU button.
• The day and present time display appears on screen.
<PROGRAM TO RECORD>
DW START END HR
1 DAY 08:00 20:00 L40EP
2 TUE 12:00 15:00 L24EP
3 ----:---:-------
Note
• If the VCR’s clock has not been set, the VCR will not be in timer recording stand-by mode even though the
TIMER REC button is pressed.
11. Press TIMER REC button twice.
• The VCR is turned off and the Timer Recording indicator ( ) illuminates on the fluorescent display.
When TIMER REC button is pressed during the programmed period, the VCR starts recording immediately.
Reference page
Advanced Functions 11
Recording Techniques
Holiday set up
Up to 20 days per year can be set for Holiday for when the timer recording will be performed, or if HR in PROGRAM TO RECORD menu is set to SKIP, the timer recording will not be performed during the programmed period.
1. Display the <TIMER PROGRAM> menu.
2. Turn the JOG dial to select HOLIDAY SET UP and turn the
SHUTTLE ring to the right.
• <HOLIDAY SET UP> menu appears.
3. Turn the JOG dial to move the cursor ( ) and turn the
SHUTTLE ring to the right.
• Each time the JOG dial is turned, the cursor moves towards right-forward direction.
4. Turn the JOG dial to select the month you want, and turn the
SHUTTLE ring to the right.
5. Turn the JOG dial to select the day you want, and turn the
SHUTTLE ring to the right.
Repeat steps 3 to 5 to set two or more days at once.
6. Press the MENU button.
• The day and present time display appears on screen.
<HOLIDAY SET UP>
01/01 01/15 02/11 03/22
04/29 05/03 05/04 05/05
07/20 09/15 09/23 10/10
11/03 11/23 12/23 - - / - -
- - / - - - - / - - - - / - - - - / - -
MONTH / DAY
Special day of the week
Set the recording period by specifying the start and end day of the week for timer recording.
1. Display the <TIMER PROGRAM> menu.
2. Turn the JOG dial to select SPECIAL DW and turn the
SHUTTLE ring to the right.
3. Turn the JOG dial to set the start and end day of the week, and turn the SHUTTLE ring to the right.
4. Press the MENU button.
• The day and present time display appears on screen.
<TIMER PROGRAM>
PROGRAM TO RECORD
HOLIDAY SET UP
SPECIAL DW MON-SAT
When the recording periods of two or more programs are overlapped
The VCR always gives priority to the higher-numbered program.
Info.
• To erase the pre-set month and day, turn the SHUTTLE ring to the left while the month item is flashing.
Note
• Start day of the week and end day of the week cannot be identical.
Info.
• To make sure that the HOLIDAY SET
UP setting is applied correctly, set a timer program with HLD in DW column to the higher-numbered program.
12 Advanced Functions
Note A point to notice Info.
Supplementary information
Alarm Recording
If an alarm occurs, the VCR switches to alarm recording.
Alarm signal input
Example)
When ALARM REC MODE is set to L40H and
ALARM REC DURATION is 10 min.
1. Press the MENU button.
• <MAIN MENU> appears.
Recording
2. Turn the JOG dial to select RECORDING SET UP and turn the SHUTTLE ring to the right.
• <RECORDING SET UP> menu appears.
L40H
Recording
Alarm Recording
10 min
<MAIN MENU>
DISPLAY
TIMER PROGRAM
RECORDING SET UP
REAR TERMINAL
MAINTENANCE
CLOCK/FIRST TIME SET UP
<RECORDING SET UP>
ALARM REC MODE
ALARM REC DURATION
EMERGENCY REC
8H
1M
OFF
3. When the cursor ( ) is next to ALARM REC MODE, turn the SHUTTLE ring to the right.
<RECORDING SET UP>
ALARM REC MODE
ALARM REC DURATION
EMERGENCY REC
8H
1M
OFF
4. Turn the JOG dial to set the alarm recording mode you want and turn the SHUTTLE ring to the right.
<RECORDING SET UP>
ALARM REC MODE
ALARM REC DURATION
EMERGENCY REC
L40H
1M
OFF
• For alarm recording connection, go to page 21.
Info.
• The index signal is automatically recorded when an alarm recording begins. (The Index indicator ( flashes on the fluorescent display.)
)
• Even if an alarm recording is proceeding, the new alarm recording starts when the next alarm signal is input. (While an index signal is being recorded and then the next alarm signal is input, the second signal may not be detected during skip or index search.)
• An alarm recording continues till its end during timer recording, even if the timer recording end-time is reached.
• An alarm recording will be cancelled if the tape reaches its end.
• If the interval between two alarm recording start-times is too short, the skip or index search may not function correctly. ( For the minimum interval between two alarm recording start-times, go to page 20.)
5. Turn the JOG dial to select ALARM REC DURATION and turn the SHUTTLE ring to the right.
<RECORDING SET UP>
ALARM REC MODE
ALARM REC DURATION
EMERGENCY REC
L40H
1M
OFF
6. Turn the JOG dial to set the alarm recording duration you want and turn the SHUTTLE ring to the right.
• When set to MAN 1, alarm recording continues until RST
IN terminal is grounded.
• When set to MAN 2, alarm recording continues while
ALM IN terminal is grounded.
<RECORDING SET UP>
ALARM REC MODE
ALARM REC DURATION 10M
EMERGENCY REC
L40H
OFF
7. Press the MENU button.
• The day and present time display appears on screen.
Emergency Recording
The VCR automatically starts an alarm recording when an alarm signal is input even if the VCR is in stop mode, turned off, or in stand-by mode for timer recording.
1. After step 6 above, turn the JOG dial to select EMERGENCY REC and turn the
SHUTTLE ring to the right.
2. Turn the JOG dial to select ON and turn the SHUTTLE ring
<RECORDING SET UP>
ALARM REC MODE
ALARM REC DURATION 10M
EMERGENCY REC
L40H
ON to the right.
• The Emergency Recording indicator ( on the fluorescent display.
) illuminates
Display during alarm recording
• During the alarm recording, the alarm recording counter will automatically be displayed on-screen if DISPLAY MODE ( page 24) is set to 1, 2, or 3.
• The Alarm Recording indicator ( ) on the fluorescent display flashes during alarm recording and stays on when the alarm recording is finished.
• The alarm recording counter shows up to 9999 alarm recordings, then it is reset to 0000 and continues counting.
• When initializing the alarm recording list, the alarm recording counter will also be reset.
Alarm recording counter
01-01-’01 09:30:00 A0001
Reference page
Note
• After an emergency recording, the
VCR automatically returns to its original state.
Advanced Functions 13
Recording Techniques
Series Recording 1
Series recording is possible if two or more of these units are connected. When the first
VCR’s tape reaches its end or an error occurs on VCR, the second VCR automatically begins recording.
1. Press the MENU button.
• <MAIN MENU> appears.
<MAIN MENU>
DISPLAY
TIMER PROGRAM
RECORDING SET UP
REAR TERMINAL
MAINTENANCE
2. Turn the JOG dial to select REAR TERMINAL and turn the
SHUTTLE ring to the right.
• <REAR TERMINAL> menu appears.
<REAR TERMINAL>
CALL OUT
CLOCK OUT
MODE OUT
REC IN
WRNG
REC- 1
REC
REC-START/STOP
Step 3 and 4 on 1st VCR only:
3. When the cursor ( ) is next to CALL OUT, turn the
SHUTTLE ring to the right.
<REAR TERMINAL>
CALL OUT
CLOCK OUT
MODE OUT
REC IN
WRNG
REC- 1
REC
REC-START/STOP
4. Turn the JOG dial to select WRNG•TAPE END and turn the
SHUTTLE ring to the right.
<REAR TERMINAL>
CALL OUT WRNG•TAPE END
CLOCK OUT
MODE OUT
REC IN
REC- 1
REC
REC-START/STOP
Step 5 and 6 on 2nd VCR only:
5. Turn the JOG dial to select REC IN and turn the SHUTTLE ring to the right.
<REAR TERMINAL>
CALL OUT
CLOCK OUT
MODE OUT
REC IN
WRNG
REC- 1
REC
REC-START/STOP
6. Turn the JOG dial to select SERIES and turn the SHUTTLE ring to the right.
<REAR TERMINAL>
CALL OUT
CLOCK OUT
MODE OUT
REC IN
WRNG
REC- 1
REC
SERIES
7. Press the MENU button.
• The day and present time display appears on screen.
• For series recording connection, go to page 21.
Note
• Timer or emergency recording function cannot be used with series recording at the same time.
Series Recording 2
Series Recording 2
provides a function: when the first VCR’s tape reaches its end, the second VCR automatically begins recording. When the tape in second VCR finishes, the first VCR starts recording again. (The two VCRs keep recording one after another.)
Set both the first and second VCRs as in the steps below.
1. Repeat steps 1 to 6 of Series Recording 1.
Steps 3 to 6 must be set to both 1st and 2nd VCRs.
2. Turn the SHUTTLE ring to the left.
• <MAIN MENU> appears.
3. Turn the JOG dial to select CLOCK/FIRST TIME SET UP and turn the SHUTTLE ring to the right.
• <FIRST TIME SET UP> menu appears.
<MAIN MENU>
DISPLAY
TIMER PROGRAM
RECORDING SET UP
REAR TERMINAL
MAINTENANCE
CLOCK/FIRST TIME SET UP
<FIRST TIME SET UP>
TIME DATE ADJUST
TAPE END
QUASI V-SYNC
VIDEO MODE
TAPE LENGTH
STOP
ON
COLOR
T-160
4. Turn the JOG dial to select TAPE END and turn the
SHUTTLE ring to the right.
<FIRST TIME SET UP>
TIME DATE ADJUST
TAPE END
QUASI V-SYNC
VIDEO MODE
TAPE LENGTH
STOP
ON
COLOR
T-160
5. Turn the JOG dial to select REWIND and turn the SHUTTLE ring to the right.
6. Press the MENU button.
• The day and present time display appears on screen.
<FIRST TIME SET UP>
TIME DATE ADJUST
TAPE END
QUASI V-SYNC
VIDEO MODE
TAPE LENGTH
REWIND
ON
COLOR
T-160
14 Advanced Functions
Note A point to notice Info.
Supplementary information
Remote Recording
This function permits you to control the start/end of recording from a remote place. The
VCR starts recording while the REC IN terminal is grounded.
1. Display <REAR TERMINAL> menu.
2. Set REC IN to REC-START/STOP.
3. Press the MENU button.
• The day and present time display appears on screen.
<REAR TERMINAL>
CALL OUT WRNG•TAPE END
CLOCK OUT
MODE OUT
REC IN
REC- 1
REC
REC-START/STOP
• For remote recording connection, go to page 21.
Repeat Recording
With this function, when the tape reaches its end during recording, the VCR rewinds the tape and starts recording again.
1. Press the MENU button.
• <MAIN MENU> appears.
2. Turn the JOG dial to select CLOCK/FIRST TIME SET UP and turn the SHUTTLE ring to the right.
• <FIRST TIME SET UP> menu appears.
<MAIN MENU>
DISPLAY
TIMER PROGRAM
RECORDING SET UP
REAR TERMINAL
MAINTENANCE
CLOCK/FIRST TIME SET UP
<FIRST TIME SET UP>
TIME DATE ADJUST
TAPE END
QUASI V-SYNC
VIDEO MODE
TAPE LENGTH
STOP
ON
COLOR
T-160
3. Turn the JOG dial to select TAPE END and turn the
SHUTTLE ring to the right.
<FIRST TIME SET UP>
TIME DATE ADJUST
TAPE END
QUASI V-SYNC
VIDEO MODE
TAPE LENGTH
STOP
ON
COLOR
T-160
4. Turn the JOG dial to select REPEAT or ALARM•PROT and turn the SHUTTLE ring to the right.
Refer to the table below for REPEAT and ALARM•PROT.
Repeat indicator ( ) illuminates on the fluorescent display.
<FIRST TIME SET UP>
TIME DATE ADJUST
TAPE END
QUASI V-SYNC
VIDEO MODE
TAPE LENGTH
REPEAT
ON
COLOR
T-160
Note
• An index signal will not be recorded during remote recording.
• Series or timer recording function cannot be used with remote recording at the same time.
5. Press the MENU button.
• The day and present time display appears on screen.
When the tape reaches its end during recording
The following functions are automatically engaged when the tape ends during recording.
TAPE END setting
ALARM•PROT
STOP
REWIND
REPEAT
When there are alarm recordings on tape When there is NO alarm recording on tape
The tape stops.(*)
The tape is rewound automatically to the beginning and then recording is resumed.
The tape stops.
The tape is rewound automatically to the beginning (except in timer recording) and then stops.
The tape is rewound automatically to the beginning and then recording is resumed (also recording over existing alarms).
* To repeat recording on the same tape again, eject the tape and reinsert.
Reference page
Advanced Functions 15
Additional Features
Memory Backup in Case of Power Failure
This VCR includes a built-in backup memory, so the preset day and present time will remain in memory even if there is a power failure. However, if the power cord is disconnected for a long period of time (2-3 months), the present time may not be accurate. In this case, set the clock again.
After a Power Failure
If a power failure occurs during manual, timer, or alarm recording, the VCR will return to the recording mode when the power comes back on. The Power Failure symbol (X) will be displayed for about 1 minute on screen and the Power Loss indicator ( ) will illuminate on the fluorescent display when the power comes back on. If a power failure occurs while the VCR’s power is on, the VCR will turn on by itself when the power comes back on.
Displaying/Clearing the Power Loss List
01-01-’01 MON
00:00:00 X L30
Displaying the power loss list
The power failure start time is logged in the VCR’s Power Loss List. To view the list, please follow the steps listed below.
1. Press the MENU button.
• <MAIN MENU> appears.
2. Turn the JOG dial to select MAINTENANCE and turn the
SHUTTLE ring to the right.
• <MAINTENANCE> menu appears.
3. Turn the JOG dial to select POWER LOSS LIST and turn the
SHUTTLE ring to the right.
• <POWER LOSS LIST> appears.
4. Press the MENU button.
• The day and present time appears on screen.
<POWER LOSS LIST>
01 01-31-’01 00:00
02
03
Clearing the power loss list
1. Select POWER LOSS LIST CLEAR in <MAINTENANCE> menu and turn the SHUTTLE ring to the right.
2. Turn the SHUTTLE ring to the left to clear the list.
• <MAINTENANCE> menu appears.
To exit the menu without clearing the list, press the
MENU button.
3. Press the MENU button.
• Once the list is cleared, the Power Loss indicator ( ) will go off.
POWER LOSS LIST CLEAR
Turn the SHUTTLE RING then POWER LOSS LIST will be cleared.
Displaying/Clearing the Alarm List
Displaying the alarm list
The alarm recording start time/date are logged in the VCR’s Alarm List. To view the list, please follow the steps listed below.
1. Press the MENU button.
• <MAIN MENU> appears.
2. Turn the JOG dial to select MAINTENANCE and turn the
SHUTTLE ring to the right.
• <MAINTENANCE> menu appears.
3 Turn the JOG dial to select ALARM LIST and turn the
SHUTTLE ring to the right.
• <ALARM LIST> appears.
4. Press the MENU button.
• The day and present time appears on screen.
<ALARM LIST>
0001 01-31-’01 00:00
0002
0003
0004
0005
0006
0007
0008
Info.
• The battery is fully charged if the
VCR’s power cord is plugged into an
AC outlet for 40 or more hours per week.
• If the battery is fully charged, even if the power cord is not plugged in, the following settings will remain in memory for up to 31 days:
– The day and present time display
– Alarm list
– Power loss list
– Number of tape uses
– Counter display
– Recording/Playback mode
Note
• When ALARM REC DURATION of the
RECORDING SET UP menu is set to
MAN1 or MAN2 and a power failure occurs during the alarm recording, the
VCR may not return to the alarm recording mode when the power comes back on.
Note
• Up to three power failure start times will be displayed. If more than three failures have occurred, the first start time and the last two start times will be displayed on the list.
Note
• Maximum of 9,999 alarm recording start times will be counted.
• Up to eight alarm recording start times will be displayed. If more than eight alarm recordings have occurred, the first start time and the last seven start times will be displayed on the list.
16 Advanced Functions
Note A point to notice Info.
Supplementary information
Clearing the alarm list
1. Select ALARM LIST CLEAR in <MAINTENANCE> menu and turn the SHUTTLE ring to the right.
2. Turn the SHUTTLE ring to the left to clear the list.
• <MAINTENANCE> menu appears.
To exit the menu without clearing the list, press the
MENU button.
3. Press the MENU button.
• Once the list is cleared, the Alarm Recording indicator ( display will go off.
ALARM LIST CLEAR
Turn the SHUTTLE RING then ALARM LIST will be cleared.
) on the fluorescent
Number of Tape Uses and Elapsed Time of VCR
REPEAT REC TIMES Indicates how many times a tape has been recorded over since it was first inserted.
ELAPSED TIME Indicates the total time the VCR has been used for recording or playback.
1. Press the MENU button.
• <MAIN MENU> appears.
2. Turn the JOG dial to select MAINTENANCE and turn the
SHUTTLE ring to the right.
• <REPEAT REC TIMES> and <ELAPSED TIME> are shown at the bottom of the <MAINTENANCE> menu.
3. Press the MENU button.
• The day and present time display appears on screen.
<MAINTENANCE>
POWER LOSS LIST
ALARM LIST
ALL MENU INITIALIZE
POWER LOSS LIST CLEAR
ALARM LIST CLEAR
<REPEAT REC TIMES>
<ELAPSED TIME>
0
0H
Lock Function
When the SEARCH button is pressed for more than 10 seconds, all buttons on the front panel of VCR are locked and kept in the current condition. The Lock indicator
( ) illuminates on the fluorescent display when the VCR is locked. To release the lock, press the SEARCH button for more than 10 seconds again. This function is only valid when the VCR is turned off or recording.
Note
• <REPEAT REC TIMES> is:
– counted when the tape ends during recording (except when
TAPE END of FIRST TIME SET
UP menu is set to STOP)
– memorized even if the VCR is turned off
– reset when a tape is inserted
– shown up to 200 times. OVER is shown if the number exceeds 200 times.
• <ELAPSED TIME> is shown up to
89,999 hours.
Reference page
Advanced Functions 17
Special Effects Playback
The following convenient functions are available. Audio output is muted during special effects playback.
Still picture
1. Press PAUSE button during playback.
• Press PAUSE button again to resume the playback.
Shuttle ring
By turning the SHUTTLE ring during still picture, you can obtain a variety of playback speeds as shown below.
1
2
3
5
4 1/30
3
9(5)
1/15
1 1/7
15(7)
6
7
1/30
1/15
1/7
8
1
2
9(5)
15(7)
9
10
11
( ) indicates the playback speed of the recorded tape in 2H mode.
1 Reverse high speed search
2 Reverse speed search
3 Reverse fast playback (x3)
4 Reverse playback
5 Reverse slow
6 Still
7 Slow playback
8 Normal playback
9 Fast playback (x2)
10 Forward speed search
11 Forward high speed search
1. Turn SHUTTLE to the right or left during still picture.
• The playback speed varies by the angle of SHUTTLE ring.
• When SHUTTLE ring is released, it comes back to the center position and the playback picture stays at still.
Shuttle hold
When the SHUTTLE ring is released, the playback speed can be fixed to one selected.
1. Turn SHUTTLE to the right or left to obtain a desired playback speed, then press
PAUSE button.
2. Release SHUTTLE.
Cancelling the shuttle hold playback
1. Press PAUSE button once to go back to the still picture and press once again to return to the playback.
Direct shuttle ring
By turning the SHUTTLE ring during playback, you can obtain some of special effects playback as shown below.
1
2
9(5)
15(7)
3
3
4
2
5
9(5)
6
15(7)
7
1 Reverse high speed search
2 Reverse speed search
3 Reverse fast playback (x3)
4 Normal playback
5 Fast playback (x2)
6 Forward speed search
7 Forward high speed search
( ) indicates the playback speed of the recorded tape in 2H mode.
Frame or field playback
1. To forward frames or fields one by one, turn the JOG dial during still picture.
• Turn to the right to forward.
• Turn to the left to reverse.
To forward frames or fields continuously, keep turning the JOG dial during still picture.
• Keep turning to the right to forward frames (fields) continuously.
• Keep turning to the left to reverse frames (fields) continuously.
To stop frame or field playback, release the JOG dial.
• The playback picture stays at still.
18 Advanced Functions
Note A point to notice
Note
• Noise bars may appear on the picture while switching between forward and reverse frame or field playback.
Info.
Supplementary information
Adjustment during Playback
Tracking Adjustment
If noise appears in the picture during playback, reverse/forward slow playback, fast playback, reverse playback, frame or field playback, you can reduce or eliminate it by adjusting the tracking.
How to adjust during playback
1. Press TRACKING button (+) or (–) to achieve the best picture.
If noise appears
POSITION
TRACKING/
VERTICAL ADJUST
Note
• Adjust the tracking at each playback mode or the type of playback (fast playback, reverse playback, etc.), since the method of tracking adjustment varies.
• Although the tracking is adjusted during reverse playback or reverse slow playback, the noise may remain on screen.
• When a picture recorded in 6H or 8H mode is played back in L18H, L24H,
L30H, or L40H mode, noise may appear on screen after the adjustment.
• The noise bars will move continuously when a TRACKING button is depressed.
How to adjust during reverse/forward slow playback, fast playback, reverse playback, frame or field playback
1. During still picture, turn SHUTTLE to obtain the respective playback mode.
If noise appears in frame or field playback, set to slow playback.
2. While turning SHUTTLE, press PAUSE button.
• The playback picture is fixed at the selected speed.
3. Release SHUTTLE.
4. Press TRACKING button (+) or (–) to achieve the best picture.
Initializing the tracking
The tracking will be reset to its initial setting by pressing both TRACKING buttons (+) and (–) together during playback.
Vertical Adjustment (picture vibration at the top and bottom)
The picture vibration during still picture, fast playback, or playback at L18H-1280H mode can be reduced or eliminated by the following steps.
How to adjust
1. Press PAUSE button during playback.
2. Press VERTICAL ADJUST button (+) or (–) to reduce or eliminate the picture vibration.
Note
• Horizontal vibration cannot be corrected with VERTICAL ADJUST buttons.
• VERTICAL ADJUST buttons will not work, when QUASI V-SYNC of FIRST
TIME SET UP menu is set to OFF.
• The picture vibration during still picture or frame or field playback may not be adjusted with VERTICAL
ADJUST buttons.
When the picture is vibrating
POSITION
TRACKING/
VERTICAL ADJUST
Initializing the vertical adjustment
The vertical adjustment will be reset to its initial setting by pressing both VERTICAL
ADJUST buttons (+) and (–) together during still picture, fast playback, or playback at
L18H-1280H mode.
Reference page
Advanced Functions 19
Searching Techniques
The various search functions help you find pictures you wish to view.
Counter Memory Stop
Rewinds a tape till the counter on the fluorescent display reaches “00000” and stops.
1. Press the SEARCH button once.
• <SEARCH FUNCTION> menu appears and COUNTER
MEMORY STOP is highlighted.
• The Counter Memory Stop indicator ( ) illuminates on the fluorescent display.
<SEARCH FUNCTION>
COUNTER MEMORY STOP
SKIP SEARCH
INDEX SEARCH
Turn the SHUTTLE RING to execute.
Press STOP to exit.
2. Turn the SHUTTLE ring to the right.
• The VCR starts rewinding the tape.
To quit while rewinding, press the STOP button.
To exit the <SEARCH FUNCTION> menu without rewinding, press the STOP button.
Skip Search
During fast forwarding or rewinding, the VCR plays back a tape (at 2H, 6H, or 8H mode) for about four seconds where an index signal is recorded. This process is repeated until the end or beginning of the tape is reached.
1. Press the SEARCH button until SKIP SEARCH is highlighted.
• The Skip Search indicator ( fluorescent display.
) illuminates on the
<SEARCH FUNCTION>
COUNTER MEMORY STOP
SKIP SEARCH
INDEX SEARCH
Turn the SHUTTLE RING
or to execute
Press STOP to exit.
2. Turn the SHUTTLE ring to the right or left to start the search.
• Turning the SHUTTLE ring to the right proceeds the search in the forward direction.
• Turning the SHUTTLE ring to the left proceeds the search in the reverse direction.
To quit while searching, press the STOP button.
To exit the <SEARCH FUNCTION> menu without searching, press the STOP button.
3. When you find a picture you wish to view, press the PLAY button.
Index Search
During fast forwarding or rewinding, the VCR will search for an index signal you have selected. When the index signal is found, the VCR will play back in still picture.
1. Press the SEARCH button until INDEX SEARCH is highlighted.
• The Index Search indicator ( ) illuminates on the fluorescent display.
<SEARCH FUNCTION>
COUNTER MEMORY STOP
SKIP SEARCH
INDEX SEARCH 1
2. Turn the JOG dial to select an index number (between 1 and
255) you wish to find.
To exit the <SEARCH FUNCTION> menu without searching, press the STOP button.
Use JOG to adjust, turn the SHUTTLE RING
or to execute.
Press STOP to exit.
3. Turn the SHUTTLE ring to the right or left to start the search.
• Turning the SHUTTLE ring to the right proceeds the search in the forward direction.
• Turning the SHUTTLE ring to the left proceeds the search in the reverse direction.
• The index number shown on the fluorescent display will decrease one by one as each index signal goes by.
To quit while searching, press the STOP button.
Note
• When the counter on the fluorescent display indicates “00000,” COUNTER
MEMORY STOP in the SEARCH
FUNCTION menu cannot be selected.
Info.
• Skip search or index search may not function if the interval between two alarm recording start-times is too short. The table below indicates the minimum interval between two alarm recording start-times for the skip or index search to work correctly.
Alarm recording mode
6H(8H)
L18H(L24H)
L30H(L40H)
Minimum interval between two alarm recording start-times approx. 15 sec.
approx. 2 min.
approx. 2 min.
( ) appears when TAPE LENGTH is set to T-160.
Note
• Audio output is muted during the skip search.
Info.
Skip search mechanism
Present position
Index
ALARM
RECORDING
Index
ALARM
RECORDING
Fast forward Fast forward
Approx. 4 sec.
playback
Fast forward
Approx. 4 sec.
playback
Info.
How to count index number
• Index number is the count from the present position. The index number of one alarm recording before the present position is “-1.” One after is
“+1.”
•
±
255 alarm recordings are counted at the maximum.
Rewind direction
Present position
Fast forward direction
-255 -2 -1
Alarm Recording
+1 +2 +255
Note
• The index signal may be difficult to locate in some recording conditions.
20 Advanced Functions
Note A point to notice Info.
Supplementary information
Connections for Various Functions
Alarm Recording Connection
The alarm can be confirmed from a distance by connecting the ALM OUT terminal with an existing alarm system panel or other peripherals such as a buzzer. Connect the VCR and other peripherals as shown to the right. ( menu setting)
Page 13 for the Alarm reset switch External alarm lamp and buzzer
ALM RST
IN
REC GND ALM MODE
OUT
CLK CALL
Alarm set switch
Series Recording Connection
Connect VCRs to be used as shown below. ( Page 14 for the menu setting)
ALM RST
IN
REC GND ALM MODE
OUT
1st VCR
CLK CALL
*1
ALM RST
IN
REC GND ALM MODE
OUT
2nd VCR
CLK CALL
*1 : This connection is necessary
in case of Series Recording 2.
Remote Recording Connection
(
Connect the VCR with a remote switch as shown to the right.
Page 15 for the menu setting)
Reference page
ALM RST
IN
REC GND ALM MODE
OUT
CLK CALL
Remote switch
Installation 21
Connections for Various Functions
Connection for External Time Clock Adjustment
Connect VCRs as shown below.
Switch
*1
ALM RST
IN
REC GND ALM MODE
OUT
CLK CALL ALM RST
IN
REC GND ALM MODE
OUT
CLK CALL
1st VCR 2nd VCR
*1 : When connecting MODE OUT terminal of the first VCR with RST IN terminal of the second VCR, the on-screen clock of the second VCR can be adjusted to that of the first VCR.
External time clock adjustment
The VCR’s clock can be set to the nearest hour by connecting with an external clock. When two or more VCRs are connected, the clock can be set to the first VCR’s clock simultaneously. Make the following settings on all VCRs that you wish to set the clock.
1 Press the MENU button.
• <MAIN MENU> appears.
2 Set ALARM REC DURATION of <RECORDING SET UP> menu to other than MAN1.
<RECORDING SET UP>
ALARM REC MODE
ALARM REC DURATION
EMERGENCY REC
8H
1M
OFF
Set step 3 to the first VCR only when setting the clock of more than two VCRs.
3 Set MODE OUT of <REAR TERMINAL> menu to CLOCK ADJ.
4 Press the MENU button.
• The day and present time display appears on screen.
<REAR TERMINAL>
CALL OUT WRNG•TAPE END
CLOCK OUT
MODE OUT
REC IN
REC- 1
CLOCK ADJ
SERIES
How the external time clock adjustment works
When the RST IN terminal is grounded at the rear panel, the clock is automatically set to the nearest hour.
Example)
• When the display shows 11:29:59, the clock is adjusted to 11:00:00.
• When the display shows 11:30:00, the clock is adjusted to 12:00:00.
When more than two VCRs are connected and the clock of the first VCR is adjusted to the nearest hour, the additional VCRs will also be set to the nearest hour.
22 Installation
Note A point to notice Info.
Supplementary information
Setting the Menus
Menu Chart
<DISPLAY>
DISPLAY MODE
TIME DATE SIZE
BLUE BACK e.g.<MODE 2>
2
SMALL
OFF
01-31-’01 WED
00:00:00 L24
<TIMER PROGRAM>
PROGRAM TO RECORD
HOLIDAY SET UP
SPECIAL DW MON-SAT
The Day and Present Time Display
01-01-’01 16:26:48
<RECORDING SET UP>
ALARM REC MODE
ALARM REC DURATION
EMERGENCY REC
8H
1M
OFF
<PROGRAM TO RECORD>
DW START END HR
1 DAY 12:00 15:00 L40EP
2 TUE 12:00 15:00 L24EP
3 WED 12:00 15:00 8EP
8EP 4 THU 12:00 15:00
5 FRI 12:00 15:00 L40EP
6 HLD 12:00 15:00 SKIP
7 SUN 12:00 15:00 L40EP
8 SPL 20:00 22:00 SKIP
<HOLIDAY SET UP>
01/01 01/15 02/11 03/22
04/29 05/03 05/04 05/05
07/20 09/15 09/23 10/10
11/03 11/23 12/23 - - / - -
- - / - - - / - - - / - - - / - -
MONTH / DAY
<POWER LOSS LIST>
01 01-01-’01 00:00
02
03
<ALARM LIST>
0001 01-01-’01 00:00
0002
0003
0004
0005
0006
0007
0008
ALL MENU INITIALIZE
Turn the SHUTTLE RING then all MENU will be initialized.
<MAIN MENU>
DISPLAY
TIMER PROGRAM
RECORDING SET UP
REAR TERMINAL
MAINTENANCE
CLOCK/FIRST TIME SET UP
Use JOG to select, and ENTER.
Press MENU to exit.
<REAR TERMINAL>
CALL OUT WRNG•TAPE END
CLOCK OUT
MODE OUT
REC IN
REC- 1
REC
SERIES
POWER LOSS LIST CLEAR
Turn the SHUTTLE RING then POWER LOSS LIST will be cleared.
<MAINTENANCE>
POWER LOSS LIST
ALARM LIST
ALL MENU INITIALIZE
POWER LOSS LIST CLEAR
ALARM LIST CLEAR
<REPEAT REC TIMES>
<ELAPSED TIME>
0
0H
<FIRST TIME SET UP>
TIME DATE ADJUST
TAPE END
QUASI V-SYNC
VIDEO MODE
TAPE LENGTH
STOP
ON
COLOR
T-160
<TIME DATE ADJUST>
DAYLIGHT SAVINGS
MONTH
DAY
YEAR
TIME
OFF
01
01
2001
00:00:00
ALARM LIST CLEAR
Turn the SHUTTLE RING then ALARM LIST will be cleared.
Set the menus by the following steps.
1. Press MENU button.
• <MAIN MENU> appears.
2. Turn the JOG dial to the left or right to select the desired item.
• When turned to the right, the cursor moves downward.
• When turned to the left, the cursor moves upward.
3. Turn the SHUTTLE ring to the right.
• The desired item is selected and the menu appears.
4. Turn the JOG dial to the left or right to select item.
5. Turn the SHUTTLE ring to the right, then the setting item flashes.
6. Turn the JOG dial to the left or right to change the setting.
7. Turn the SHUTTLE ring to the right to set.
8. Press MENU button.
• The day and present time display appears.
Reference page
Installation 23
Setting the Menus
MAIN MENU
DISPLAY
Sets the display format of the date and present time on screen.
TIMER PROGRAM
Sets the timer recording.
<MAIN MENU>
DISPLAY
TIMER PROGRAM
RECORDING SET UP
REAR TERMINAL
MAINTENANCE
CLOCK/FIRST TIME SET UP
Use JOG to select, and ENTER.
Press MENU to exit.
RECORDING SET UP
Sets the alarm recording mode, alarm recording duration, and emergency recording.
REAR TERMINAL
Sets the frequency division ratio of CLOCK OUT, output signal of CALL OUT terminal, MODE OUT terminal, etc.
MAINTENANCE
Displays the power loss list, and alarm list, etc. Also, initializes all menu settings and clears the power loss list and alarm list.
CLOCK/FIRST TIME SET UP
Sets the present time and the operation at the tape end, etc.
DISPLAY
Setting the display mode
(DISPLAY MODE)
1 Shows date and present time.
2 Shows date, day of the week, present time, and recording mode.
3 Displays nothing. In case of alarm recording, same as
DISPLAY MODE 2.
4 Displays nothing.
<DISPLAY>
DISPLAY MODE
TIME DATE SIZE
BLUE BACK
1
SMALL
ON e.g.<MODE 1>
07-09-’01 00:00:00
TIMER PROGRAM
Page 11, Timer Recording.
RECORDING SET UP
Setting the alarm recording mode
(ALARM REC MODE)
Sets the alarm recording time mode.
<RECORDING SET UP>
ALARM REC MODE
ALARM REC DURATION
EMERGENCY REC
6H
1M
OFF
• Providing TAPE LENGTH in
FIRST TIME SET UP menu is set to T-120.
When the JOG dial is turned, the display will be switched in the order of 6H L18H
L30H 6H ...
• Providing TAPE LENGTH in FIRST TIME SET UP menu is set to T-160.
When the JOG dial is turned, the display will be switched in the order of 8H L24H L40H 8H ...
Setting the alarm recording duration (ALARM REC
DURATION)
Sets the duration of the alarm recording period. When the JOG dial is turned, the display will be switched in the order of 1M
(minute) 2M 5M 10M MAN1 MAN2 15S
(second) 30S 45S 1M ...
Setting the emergency recording (EMERGENCY REC)
ON
OFF
Starts alarm recording when the ALM IN terminal is grounded while the VCR is recording, in stop mode, turned off or in stand-by mode for timer recording.
Starts alarm recording when the ALM IN terminal is grounded during recording.
DISPLAY MODE 1
Month
Day
Year
Alarm
Recording
Counter*
DISPLAY MODE 2 and 3
Month
Day
Year Day of the Week
Alarm
Recording
Counter*
0 7 - 0 9 - ’ 0 1 2 0 : 2 5 : 0 0 A 0 0 0 1
Hour Second
Minute
0 7 - 0 9 - ’ 0 1 M O N A 0 0 0 1
2 0 : 2 5 : 0 0 8
Hour Second
Minute
Recording
Mode
* shown when DISPLAY MODE 1, 2, or 3 is selected.
Setting the size of letters for date and present time display
(TIME DATE SIZE)
SMALL The size of the letters become small.
LARGE The size of the letters become large.
Setting the background color (BLUE BACK)
ON
OFF
The blue colored screen overlays on the recorded picture when the menu is displayed on the monitor.
The blue colored screen will be replaced by the recorded picture overlaid with the menu display.
• When the setting is OFF and the video signal is not input, the blue colored screen overlays on the recorded picture when the menu is displayed on the monitor.
• When the setting is ON and the video signal is not input, the background color will be in blue. In this case, the warning
“NO SIGNAL” flashes on screen and “noSIg” flashes on the fluorescent display.
REAR TERMINAL
Setting the operation mode of the CALL OUT terminal (CALL
OUT)
Sets the mode of call signal output from the CALL OUT terminal. If any abnormalities occur with the
VCR during recording, the call signal is output from the CALL OUT terminal on the rear panel regardless of CALL OUT setting.
<REAR TERMINAL>
CALL OUT WRNG•TAPE END
CLOCK OUT
MODE OUT
REC IN
REC- 1
REC
SERIES
WRNG•TAPE END The VCR outputs a call signal when the tape reaches its end during recording or when a malfunction occurs during recording. The VCR’s function when the tape ends depends on the setting of TAPE
END in FIRST TIME SET UP menu ( next page).
WRNG The VCR outputs a call signal only when a malfunction occurs during recording.
24 Installation
Note A point to notice Info.
Supplementary information
Setting the recording mode and frequency division ratio
(CLOCK OUT)
Sets the recording mode and the frequency division ratio of clock pulse output from the CLOCK OUT terminal.
• Setting the recording mode during the clock pulse output
REC
T/L REC
When recording in any mode.
When recording in time-lapse mode (L18H-
1280H).
• Setting the frequency division ratio of the clock pulse output
When the JOG dial is turned, the display will be switched in the order of 1 2 3 4 5 10
15 20 25 30 50 60 F (field) 1 ...
The numbers 1 to 60 indicate the number of frames at
6H recording mode and the number of fields at time lapse recording modes. (One frame consists of two fields.) When set to F (field), one field is selected.
Setting the operation mode of the MODE OUT terminal
(MODE OUT)
A mode signal is output under the following circumstances.
REC During recording.
PLAY
POWER
TAPE IN
During playback.
While the VCR is turned on.
When a tape is inserted in the VCR.
CLOCK ADJ When the clock indicates “00(min.):00(s),” the signal is output for 1 second only.
Setting the operation mode of REC IN terminal (REC IN)
SERIES Recording starts when the REC IN terminal is grounded.
REC-START/STOP Recording continues while the REC IN terminal is grounded. If the signal is input for a short period, the VCR may not start recording.
MAINTENANCE
Displaying the power loss list
(POWER LOSS LIST)
page 16
Displaying the alarm list (ALARM
LIST)
page 16
<MAINTENANCE>
POWER LOSS LIST
ALARM LIST
ALL MENU INITIALIZE
POWER LOSS LIST CLEAR
ALARM LIST CLEAR
<REPEAT REC TIMES>
<ELAPSED TIME>
0
0H
Initializing all menu settings (ALL MENU INITIALIZE)
All menus will be initialized except timer programs.
1. Press the MENU button.
• <MAIN MENU> appears.
2. Turn the JOG dial to select
MAINTENANCE and turn the
SHUTTLE ring to the right.
ALL MENU INITIALIZE
Turn the SHUTTLE RING then all MENU will be initialized.
• <MAINTENANCE> menu appears.
3. Turn the JOG dial to select ALL
MENU INITIALIZE and turn the SHUTTLE ring to the right.
• <ALL MENU INITIALIZE> menu appears.
4. Turn the SHUTTLE ring to the left.
• The setting of all menus (except TIMER PROGRAM) will return to its initial setting.
To exit the menu without initializing all menus, press the
MENU button.
5. Press the MENU button.
• The day and present time display appears on screen.
Clearing the power loss list (POWER LOSS LIST CLEAR)
page 16
Clearing the alarm list (ALARM LIST CLEAR)
page 17
Displaying number of tape use (REPEAT REC TIMES)
page 17
Displaying the elapsed time of VCR (ELAPSED TIME)
page 17
FIRST TIME SET UP
Setting the present time, date, and Daylight Saving Time settings (TIME DATE ADJUST)
page 6
<FIRST TIME SET UP>
TIME DATE ADJUST
TAPE END
QUASI V-SYNC
VIDEO MODE
TAPE LENGTH
STOP
ON
AUTO
T-160
Setting operation of VCR when the tape reaches its end during recording or playback (TAPE END)
The VCR’s function when the tape reaches its end during recording is as follows.
STOP The tape stops, the indication “End” appears on the fluorescent display, and “TAPE END” appears on screen. When CALL OUT is set to
WRNG•TAPE END, a call signal is output from the CALL OUT terminal.
REWIND
REPEAT
Rewinds the tape to the beginning and stops
(except during timer recording). When CALL
OUT is set to WRNG•TAPE END and a tape reaches its end, a call signal is output for two seconds from the CALL OUT terminal.
Rewinds the tape to the beginning and resumes the recording. When CALL OUT is set to
WRNG•TAPE END and a tape reaches its end, a call signal is output for two seconds from the
CALL OUT terminal.
ALARM•PROT (alarm protection)
If any alarm recordings are present on the tape and the tape stops, the indication “End” appears on the fluorescent display and “TAPE END” appears on screen. When CALL OUT is set to
WRNG•TAPE END, a call signal is output from the CALL OUT terminal. If there is no alarm recording, the VCR rewinds the tape to the beginning and resumes the recording.
Go to page 9 for the VCR’s function when the tape reaches its end during playback.
Setting Quasi-V-sync on or off (QUASI V-SYNC)
ON Quasi-V-sync. signal is inserted to the video output signal in the special effects playback ( page 18) or normal playback in L18H-1280H mode.
OFF Quasi-V-sync. signal is not inserted.
Note
• Some multiplexers may require Quasi-V-sync to be OFF in order to work properly.
Reference page
Installation 25
Setting the Menus
Setting the playback/recording color mode (VIDEO MODE)
AUTO The VCR automatically switches the circuits according to type of the input/playback video signal, color or black and white.
COLOR Select for recording or playback in color.
B/W Select for recording or playback in black and white.
Setting the tape length (TAPE LENGTH)
T-120 Select when using a T-120 tape.
T-160 Select when using a T-160 tape.
26 Installation
Note A point to notice Info.
Supplementary information
Before Calling for Service
When you find any problem with this VCR, first check the following. If you still cannot solve the problem, stop using the VCR, unplug it from the AC outlet, and contact your dealer.
Symptom
Installation
No power supplied to VCR.
Remedy
The VCR POWER is ON, but the unit does not operate.
No picture displays on the MONITOR screen.
The picture is not clear on the monitor.
• Has the power cord been disconnected from the AC outlet?
• Is the Lock indicator ( ) illuminated?
Press the SEARCH button on the front panel for more than 10 seconds to unlock the VCR.
• Is the Timer Recording indicator ( ) illuminated?
Press the TIMER REC button on the front panel to cancel the timer recording.
• Is the Lock indicator ( ) illuminated?
Press the SEARCH button on the front panel for more than 10 seconds to unlock the VCR.
• Safety devices are in operation.
Press the RESET button on the back panel using a pointed instrument, and then turn the power on again.
• Is the monitor or the camera connected correctly?
Check the connection.
• Is the connecting cable properly connected, or is the cable defective?
Check the connection and also check for the snapping of a wire in the cable.
• Is the camera focused?
See the user’s manual for your camera and focus the camera correctly.
Function/operation
No operation when any tape operation button is pressed.
The present time is not correct even if using the VCR everyday.
The power cord has been disconnected for less than 31 days, but the present time has been reset.
• Is the Lock indicator ( ) illuminated?
Press the SEARCH button on the front panel for more than 10 seconds to unlock the VCR.
• Is a cassette inserted?
Make sure the power cord is connected to the AC outlet for approximately 40 or more hours per week when using it everyday.
Make sure the power cord is connected to the AC outlet for approximately 40 or more hours per week when using it everyday.
• The reserved contents may be erased even within 31 days depending on the charging time of the power failure compensation circuit.
Set the present time setting again.
Recording
Recording does not work by pressing the REC button.
Recording cannot be stopped by pressing the STOP button.
Repeat recording does not work.
Reference page
• Is the Lock indicator ( ) illuminated?
Press the SEARCH button on the front panel for more than 10 seconds to unlock the VCR.
• Has the cassette’s erasure prevention tab been broken off?
Load the cassette with its erasure prevention tab intact.
• Has the tape run out?
Rewind the tape or load a new tape.
• Is the Lock indicator ( ) illuminated?
Press the SEARCH button on the front panel for more than 10 seconds to unlock the VCR.
• Is the VCR in timer recording mode (Timer recording indicator ( ) is illuminating)?
Press the TIMER REC button once.
• Is the Repeat indicator ( ) illuminated?
Set TAPE END in the FIRST TIME SET UP menu to REPEAT or
ALARM•PROT.
When TAPE END in the FIRST TIME SET UP menu is set to ALARM•PROT, repeat recording does not work using a tape with an alarm recording.
When a tape reaches its end during the emergency recording (recording started while the VCR is stopped or the VCR power is off), the VCR rewinds the tape and stops (recording does not start again) even though TAPE END in the FIRST TIME SET UP menu is set to REPEAT.
Others 27
Before Calling for Service
Symptom
Recording
(continued)
Timer recording does not operate.
Alarm recording does not work.
Remedy
• Have the day and present time been set accurately?
Set the day and present time again.
• Have the recording start-time, recording end-time, and the recording mode been set accurately?
Confirm the settings on the <PROGRAM TO RECORD> menu.
• Is the TIMER REC indicator ( ) illuminated?
If not, press the TIMER REC button on the front panel to stand by for the timer recording.
• Is the external switch connected correctly?
Check the connection.
• Is the Emergency Recording indicator ( ) illuminated?
Set EMERGENCY REC in the RECORDING SET UP menu to ON.
Playback
Playback does not start by pressing the
PLAY button.
• Is the Lock indicator ( ) illuminated?
Press the SEARCH button on the front panel for more than 10 seconds to unlock the VCR.
• Is a cassette inserted?
• Has the tape run out?
Adjust the tracking by pressing the TRACKING buttons on the front panel.
Noise bars in the picture during playback.
Playback speed is fast or slow.
The picture vibrates at the top and bottom when in still picture mode.
Clear camera pictures during recording, but during playback the picture is not clear.
Adjust the playback speed by pressing the MODE button on the front panel.
Adjust the picture by pressing the VERTICAL ADJUST buttons on the front panel.
• The video heads may be clogged.
Eject the cassette, insert it again, and wait for more than 5 seconds. Repeat this step for 4 to 5 times. If this does not correct the problem, contact your dealer.
28 Others
Note A point to notice Info.
Supplementary information
Warning Display
Self-diagnostic function
This VCR uses a self-diagnostic function to detect an internal malfunction during recording. When a malfunction occurs in the VCR during recording, the indicator corresponding to each malfunction illuminates on the fluorescent display and/or on screen.
The type of malfunction corresponding to the indicator and countermeasures are given below.
Fluorescent display
Monitor Cause
End noSIg
TAPE END
NO SIGNAL
The tape ends during recording.
Lack of video signal input during recording.
Remedy To turn off the indicator
Rewind the tape or press the EJECT button.
Check for loose connections.
Turn off the indicator on the fluorescent display and screen by pressing the
EJECT button or rewinding the tape.
When a video signal is restored or the recording mode is cleared, the indicator on the fluorescent display and screen turns off.
(the display starts flashing)
CHECK
Tape/deck trouble during recording.
First, check the cassette. If there seems to be nothing wrong with the cassette, try the recording operation again. If the indicator
“CHECK” is still displayed, replace the cassette with a new one and try the operation again. If this does not clear the indicator, unplug the power cord and contact your dealer.
When the tape ends
When the tape reaches its end during recording, “End” illuminates on the fluorescent display and “TAPE END” illuminates on screen.
The warning indicators will not illuminate if TAPE END in FIRST TIME SET UP menu is set to REPEAT, ALARM•PROT (when no alarm recording is made), or REWIND.
Lack of video signal input
The indicator “NO SIGNAL” appears on screen and “noSIg” flashes on the fluorescent display when the VCR cannot get any video input signal during recording. The video input signal will not be obtained in case of any malfunction such as a broken video cable or when POWER to the camera is turned off.
Reference page
Others 29
Control Input/Output Signals and Circuit
ALM/RST/REC IN terminals (screw)
Active When input terminals are short-circuited to
GND or “L” level voltage (0 – + 1.6V) applied.
Time for active 0.1 sec. or over.
Non active Open the input.
ALM/RST/REC IN
DC 5 V
22 k
Ω
0.047
µ
F
10 k
Ω
22 k
Ω
GND
<Interface circuit inside the VCR>
ALM/MODE/CALL OUT terminals (screw)
Active
Non active
“L” level voltage (0 – + 0.4V) output; max.
drive current 50 mA (+5V dc)/10 mA (+24V dc)
Open; max. voltage +24V dc
ALM/MODE/CALL OUT
GND
<Interface circuit inside the VCR>
CLK OUT terminals (screw)
DC 12 V
10 k
Ω
CLK OUT
10 k
Ω
GND
<Interface circuit inside the VCR>
CLK OUT signal
• When F is selected in CLOCK OUT of REAR TERMINAL menu (at 6H or 8H mode) or while recording in L18H-1280H mode.
+12 V
0 V
8 ms
• When REC-1 to REC-60 is selected in CLOCK OUT of REAR
TERMINAL menu (at 6H or 8H mode).
+12 V
0 V
16 ms
30 Others
Note A point to notice Info.
Supplementary information
Maintenance Guide
[
: CLEANING : CHECK & ADJUSTMENT : REPLACEMENT : GREASING
]
SPECIFICATION
EVERY
500
HOURS
EVERY
1,000
HOURS
EVERY
4,000
HOURS
EVERY
10,000
HOURS
VIDEO HEAD * 1
BRUSH * 1
DRUM MOTOR * 2
ASSY DRUM * 3
FE HEAD
A/C HEAD UNIT
TAPE PATH POLES
CAPSTAN SHAFT
REEL DISK
CAPSTAN MOTOR
PINCH ARM UNIT
REEL BELT
BCP UNIT
BRAKE BELT (SP, TU)
IDLER UNIT
ASSY GEAR PULLY
CLEANING ROLLER
LOADING MOTOR ASSY
LOADING MECHANISM
SERVO CIRCUIT * 4
Interchangeability Adjustment of the Mechanism
* 1 Included in the UPPER DRUM ASSY of the ASSY DRUM.
The exchange every 4,000 hrs is recommended only when over 24H mode is used.
* 2 Included in the ASSY DRUM.
3 Means the UPPER DRUM ASSY and LOWER DRUM ASSY, excluding the VIDEO HEAD.
* 4 Included in the PCB-MAIN.
Note : 1. Check tape running functions and performance, such as picture and sound, concerning each mode at inspection.
2. Disassembly for repair is required when the operating time exceeds approx. 10,000 hrs.
3.
: Replace with new part at 4,000 hrs or three years.
Reference page
Others 31
THIS PAGE INTENTIONALLY LEFT BLANK.
32 Others
Note A point to notice Info.
Supplementary information
Specifications
General
Power Source
Power Consumption
Television System
100-230 V ac
±
10%, 50/60 Hz
(The included power cord is used for
120 V, 60 Hz.)
Approx. 18 Watts
CCIR standard 525 lines, 60 field
Color Signal
NTSC
Low frequency conversion, sub-carrier phase shift recording
Tape Format VHS 1/2” width high-density video cassette tape
Tape Speed and Recording
Fast Forward/Rewind Time
Operating Temperature
Relative Humidity
See below (*1)
Approx. 160 seconds with T-160 tape
41
°
F to 104
°
F (5
°
C to 40
°
C)
Max. 80 %
Dimensions (JOG dial included) 16.7 W x 12.4 D x 3.7 H in.
Weight
Heads-Video
Luminance Signal
Audio Track
Audio/Control
Erase
Motors
Battery Backup
(425 W x 314 D x 95 H mm)
9 lbs (4.2 kg)
4 rotary heads
Frequency modulation recording
1 track
1 stationary head
1 full-track head
3 motors-drum/capstan direct drive system
31 day
Audio
Input
Output
Signal-to-Noise Ratio
Frequency Response
Video
Input
Output
Signal-to-Noise Ratio
Horizontal Resolution
308 mV (rms), 50 k , RCA plug
388 mV (rms), 1 k , RCA plug
Better than 43 dB
70 Hz - 4 kHz (6H mode)
1.0 V (p-p), 75 , BNC plug
1.0 V (p-p), 75 , BNC plug
Better than 42 dB
More than 330 lines (black & white)
More than 240 lines (color)
Connectors
ALM Input
RST Input
REC Input
Screw terminal for starting alarm recording
Screw terminal for finishing alarm recording or for adjusting on-screen clock
Screw terminal for starting/finishing recording or for series recording
Screw terminal for ground GND
ALM Output Screw terminal for output while alarm recording is under way
CLK Output Screw terminal to command camera switching
MODE Output Screw terminal for indication of VCR selected mode
CALL Output Screw terminal for external warning device or for series recording
Weight and dimensions shown are approximate.
Design and specifications are subject to change without notice.
(*1)
Tape Speed and Recording Time:
MODE
T-120
6H (EP)
L18H (EP)
L30H (EP)
48H (EP)
72H (EP)
96H (EP)
120H (EP)
168H (EP)
240H (EP)
360H (EP)
480H (EP)
720H (EP)
960H (EP)
T-160
TIME
(hour:minute)
6:00
18:00
30:00
54:00
78:00
102:00
126:00
174:00
246:00
366:00
486:00
726:00
966:00
MODE
8H (EP)
L24H (EP)
L40H (EP)
64H (EP)
96H (EP)
128H (EP)
160H (EP)
224H (EP)
320H (EP)
480H (EP)
640H (EP)
960H (EP)
1280H (EP)
TIME
(hour:minute)
8:00
24:00
40:00
72:00
104:00
136:00
168:00
232:00
328:00
488:00
648:00
968:00
1288:00
TAPE
SPEED
(mm/s)
11.12
3.71
2.22
–
–
–
–
–
–
–
–
–
–
*1 Case of using Dedicated Micro’s MPX.
RECORDING
INTERVAL
(s/field)
NUMBER OF
RECORDING FIELDS
(fields/s)
0.0167
0.050
0.083
0.150
0.217
0.284
0.350
0.484
0.684
1.02
1.35
2.02
2.69
1.5
0.98
0.74
0.50
0.37
60
20
12
6.7
4.6
3.5
2.8
2.1
TAPE DRIVE
RECORDING
Continuous
Continuous (Slow)
Continuous (Slow)
Time Lapse
Time Lapse
Time Lapse
Time Lapse
Time Lapse
Time Lapse
Time Lapse
Time Lapse
Time Lapse
Time Lapse
AUDIO
Yes
Yes
Yes
No
No
No
No
No
No
No
No
No
No
MPX field delay setting *1
002
003
005
009
013
017
021
029
041
061
081
121
161
Note
If the VCR is not working correctly or showing an unusual indication on the fluorescent display, press the RESET button on the back panel using a pointed instrument. When pressed, Date/Present time/ALARM LIST/POWER LOSS LIST/Counter display/Recording and Playback mode will be set to the default setting and the VCR turns off.
To restart the VCR, press the POWER button to turn on the VCR, and then set the day and present time.
Reference page
Specifications 33
