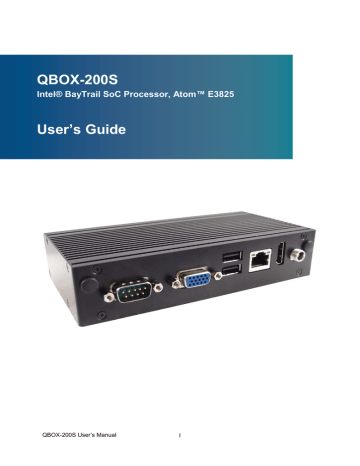

QBOX-200S
Intel® BayTrail SoC Processor, Atom™ E3825
User’s Guide
QBOX-200S User’s Manual
I
Content
Content
When Working Inside a Computer ............................................................... 6
Preventing Electrostatic Discharge .............................................................. 7
Regulatory Compliance Statements ............................................................ 9
Maintaining Your Computer ....................................................................... 10
Mounting your PC to a monitor .................................................................. 23
QBOX-200S User’s Manual
2
Figures
Figures
Figure 3 Mechanical Dimensions ............................................................... 17
Figure 5 Connect USB mouse & keyboard ................................................ 19
Figure 8 Turning on the system .................................................................. 22
Figure 9 VESA mounting (1) ...................................................................... 23
Figure 10 VESA mounting (2) .................................................................... 23
QBOX-200S User’s Manual
3
Tables
Tables
Table 1 QBOX-200S Specification ............................................................. 13
Table 2 QBOX-200S BIOS Main Menu ...................................................... 25
Table 4 Advanced Menu – Display Configuration ....................................... 27
Table 5 Advanced Menu – Super IO Configuration .................................... 28
Table 6 Advanced Menu – Super IO Configuration – Serial Port 1
Configuration ................................................................................. 28
Table 7 Advanced Menu –CPU Advanced Configuration ........................... 29
Table 8 Advanced Menu –SATA Configuration ........................................... 29
Table 9 Advanced Menu –USB Configuration ............................................ 30
Table 10 Advanced Menu –TPMConfiguration ........................................... 31
Table 11 Advanced Menu –H/W Monitor .................................................... 32
Table 12 Power Configuration .................................................................... 33
QBOX-200S User’s Manual
4
Safety Instructions
Safety Instructions
Before You Begin
Before handling the product, read the instructions and safety guidelines on the following pages to prevent damage to the product and to ensure your own personal safety. Refer to the “Advisories” section in the Preface for advisory conventions used in this user’s guide, including the distinction between Warnings, Cautions, Important
Notes, and Notes.
Always use caution when handling/operating a computer. Only qualified, experienced, authorized electronics service personnel should access the interior of a computer. The power supplies produce high voltages and energy hazards, which can cause bodily harm.
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures.
If you have any questions, please contact our Post-Sales Technical
Support.
Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken; and access is through the use of a tool or lock and key, or other means of security, and is controlled by authority responsible for the location.
WARNING
High voltages are present inside the chassis when the unit’s power cord is plugged into an electrical outlet. Turn off system power, turn off the power supply, and then disconnect the power cord from its source before removing the chassis cover. Turning off the system power switch does not remove power to components.
The product chassis may be hot when the system is working. Please do not touch the surface before turn off the system power and wait for about 5 minutes until the system cools down.
QBOX-200S User’s Manual
5
Safety Instructions
When Working Inside a Computer
Before taking covers off a computer, perform the following steps:
1. Turn off the computer and any peripherals.
2. Disconnect the computer and peripherals from their power sources or subsystems to prevent electric shock or system board damage. This does not apply when hot swapping parts.
3. Follow the guidelines provided in “Preventing Electrostatic Discharge” on the following page.
4. Disconnect any telephone or telecommunications lines from the computer.
In addition, take note of these safety guidelines when appropriate:
To help avoid possible damage to system boards, wait five seconds after turning off the computer before removing a component, removing a system board, or disconnecting a peripheral device from the computer.
When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. Some cables have a connector with locking tabs. If you are disconnecting this type of cable, press in on the locking tabs before disconnecting the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any connector pins. Also, before connecting a cable, make sure both connectors are correctly oriented and aligned.
CAUTION
Do not attempt to service the system yourself except as explained in this user’s guide. Follow installation and troubleshooting instructions closely.
QBOX-200S User’s Manual
6
Safety Instructions
Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. We strongly encourage you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment.
You can also take the following steps to prevent damage from electrostatic discharge (ESD):
When unpacking a static-sensitive component from its shipping carton, do not remove the component’s antistatic packing material until you are ready to install the component in a computer. Just before unwrapping the antistatic packaging, be sure you are at an ESD workstation or grounded. This will discharge any static electricity that may have built up in your body.
When transporting a sensitive component, first place it in an antistatic container or packaging.
Handle all sensitive components at an ESD workstation. If possible, use antistatic floor pads and workbench pads.
Handle components and boards with care. Don’t touch the components or contacts on a board. Hold a board by its edges or by its metal mounting bracket.
Do not handle or store system boards near strong electrostatic, electromagnetic, magnetic, or radioactive fields.
QBOX-200S User’s Manual
7
Safety Instructions
Instructions for Lithium Battery
WARNING
Danger of explosion when battery is replaced with incorrect type. Only replace with the same or equivalent type recommended by the manufacturer.
Do not dispose of lithium batteries in domestic waste. Dispose of the battery according to the local regulations dealing with the disposal of these special materials (e.g. to the collecting points for disposal of batteries)
QBOX-200S User’s Manual
8
Preface
Preface
How to Use This Guide
This guide is designed to be used as step-by-step instructions for installation, and as a reference for operation, troubleshooting, and upgrades.
Unpacking
When unpacking, follow these steps:
1. After opening the box, save it and the packing material for possible future shipment.
2. Remove all items from the box. If any items listed on the purchase order are missing, notify our customer service immediately.
3. Inspect the product for damage. If there is damage, notify our customer service immediately.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices.
FCC Compliance Statement for Class A Devices
The product(s) described in this user’s guide has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the user’s guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense. The user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
QBOX-200S User’s Manual
9
Preface
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications are not expressly approved by us which could void the user's authority to operate the equipment.
NOTE
The assembler of a personal computer system may be required to test the system and/or make necessary modifications if a system is found to cause harmful interference or to be noncompliant with the appropriate standards for its intended use.
Maintaining Your Computer
Environmental Factors
Temperature
The ambient temperature within an enclosure may be greater than room ambient temperature. Installation in an enclosure should be such that the amount of air flow required for safe operation is not compromised.
Consideration should be given to the maximum rated ambient temperature.
Overheating can cause a variety of problems, including premature aging and failure of chips or mechanical failure of devices.
If the system has been exposed to abnormally cold temperatures, allow a two-hour warm-up period to bring it up to normal operating temperature before turning it on. Failure to do so may cause damage to internal components, particularly the hard disk drive.
Humidity
High-humidity can cause moisture to enter and accumulate in the system. This moisture can cause corrosion of internal components and degrade such properties as electrical resistance and thermal conductivity. Extreme moisture buildup inside the system can result in electrical shorts, which can cause serious damage to the system.
Buildings in which climate is controlled usually maintain an acceptable level of humidity for system equipment. However, if a system is located in an unusually
QBOX-200S User’s Manual
10
Preface
humid location, a dehumidifier can be used to maintain the humidity within an acceptable range. Refer to the “Specifications” section of this user’s guide for the operating and storage humidity specifications.
Power Protection
The greatest threats to a system’s supply of power are power loss, power spikes, and power surges caused by electrical storms, which interrupt system operation and/or damage system components. To protect your system, always properly ground power cables and one of the following devices.
Surge Protector
Surge protectors are available in a variety of types and usually provide a level of protection proportional with the cost of the device. Surge protectors prevent voltage spikes from entering a system through the AC power cord. Surge protectors, however, do not offer protection against brownouts, which occur when the voltage drops more than 20 percent below the normal AC line voltage level.
Line Conditioner
Line conditioners go beyond the over voltage protection of surge protectors.
Line conditioners keep a system’s AC power source voltage at a fairly constant level and, therefore, can handle brownouts. Because of this added protection, line conditioners cost more than surge protectors. However, line conditioners cannot protect against a complete loss of power.
Uninterruptible Power Supply
Uninterruptible power supply (UPS) systems offer the most complete protection against variations on power because they use battery power to keep the server running when AC power is lost. The battery is charged by the AC power while it is available, so when AC power is lost, the battery can provide power to the system for a limited amount of time, depending on the UPS system.
UPS systems range in price from a few hundred dollars to several thousand dollars, with the more expensive unit s allowing you to run larger systems for a longer period of time when AC power is lost. UPS systems that provide only 5 minutes of battery power let you conduct an orderly shutdown of the system, but are not intended to provide continued operation. Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters
Laboratories (UL) safety approved.
QBOX-200S User’s Manual
11
Chapter 1
Chapter 1
Introduction
Overview
The QBOX-200S is a fanless digital signage player ideal for space critical applications.
This embedded hardware platform features Intel® BayTrail Processor, Atom™ E3825, and DDR3L SO-DIMM. It comes with 1x HDMI, 1x VGA, 2x USB2.0, 1x USB 3.0, 1x
GbE LAN, 1x mSATA, 1x Micro SD card cage, 1x COM.
The QBOX-200S provides high reliability rugged case not only for great protection from EMI, cold and heat, but also integrated with passive cooling design for quiet fanless operation such as Transportation, Surveillance
Checklist
QBOX-200S
Power Adapter
Power Cord
Driver CD
Quick installation Guide
Optional VESA Mounting Kit
Optional wireless LAN antennas
Features
Intel® BayTrail Processor, Atom™ E3825
DDR3L SO-DIMM Socket
1x HDMI, 1x VGA, 2x USB2.0,1x USB 3.0, 1x GbE LAN, 1x COM
1x mSATA, 1x Micro SD Card Cage, 1x mini PCIe
Fanless design
QBOX-200S User’s Manual
12
Chapter 1
Product Specifications
Construction
System Board
Memory
Front IO Panel
Rear IO Panel
Storage
Expansion
Cooling
OS Support
Power Unit
Humidity
Dimensions
Certifications
Aluminum extrusion
Intel® BayTrail SoC Processor, Atom™ E3825 (1M Cache, 1.33 GHz)
1x DDR3L SO-DIMM
1x Audio Jack for Line-out & MIC-In
1x Micro SD Card Cage
1x USB 3.0
1x Reset Button
1x HDD LED
1x WiFi LED
1x Power Button (with LED)
1x DC Jack
1x HDMI
1x RJ-452x USB 2.0
1x VGA
1x COM (with RS-232/422/485 )
2x Antennas
1x mSATA Socket
1x Micro SD Card Cage
1 x Mini PCI-Express Socket
Fanless
Windows 8
Input: 100-240 VAC, 50-60 Hz
Output: 30W,+12VDC/2.5A
ATX/AT Mode Support
Operating: 0°C to 45°C
Storage: -20°C to 80°C
Humidity: 0% to 90%
150.6 x 80.8 x 33mm ( W x D x H )
CE, FCC Class A
Table 1 QBOX-200S Specification
QBOX-200S User’s Manual
13
System Tour
Refer to the figure below to identify the components of the system.
Front Panel
Chapter 1
Figure 1 Front Panel
Power Switch
The power button allows powering ON and OFF the system.
WiFi LED (Green)
The WiFi LED will light when the WiFi is on.
HDD LED (Red)
The hard disk LED blinks when data is being written into or read from the HDD.
Phone Jack
Audio Out
The green stereo headphone jack is used to connect the system’s audio out signal to amplified speakers or headphones.
QBOX-200S User’s Manual
14
Chapter 1
MIC-IN
The pink microphone jack is designed to connect the microphone used for video conferencing, voice narrations, or simple audio recordings.
Reset Button
1x reset button for clear CMOS.
USB
The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs.
QBOX-200S User’s Manual
15
Chapter 1
Rear Panel
Figure 2 Rear Panel
DC Jack
The supplied power adapter converts AC power to DC for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter.
COM 1
D-Sub 9 pin connector for RS-232/422/485 connection
Ethernet
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network.
HDMI
HDMI connector for display output
VGA
D-Sub 15 pin VGA connector for display output
Antenna
2x reserved holes for wireless antenna connections.
QBOX-200S User’s Manual
16
Mechanical Dimensions
Chapter 1
Dimension: 150.6 x 80.8 x 33mm ( W x D x H )
Figure 3 Mechanical Dimensions
QBOX-200S User’s Manual
17
Chapter 2
Getting Started
Setting up your PC
Connect the VGA/ HDMI cable from your display to the VGA/ HDMI port.
VGA
HDMI
Chapter 2
Figure 4 VGA/ HDMI
NOTE
When the system reboots without connecting the VGA/HDMI, there might be no image on screen when you insert the VGA/HDMI cable.
Please pressing <Ctrl>+<Alt>+<F4> simultaneously to show the image on screen.
QBOX-200S User’s Manual
18
Chapter 2
Connect USB mouse & keyboard
Your QBOX-200S does not come with a keyboard and mouse connector, but you can use any USB keyboard or mouse to connect with your computer.
USB 3.0
USB
Figure 5 Connect USB mouse & keyboard
NOTE
Using a third-party USB mouse or keyboard may require software drivers.
Check the manufacturer’s website for the latest software drivers.
Chapter 2
Connect LAN port
Connect one end of a network cable to the LAN port on the system rear panel and the other end to a hub or switch.
RJ45
Figure 6 RJ45 connector
QBOX-200S User’s Manual
20
COM Ports
COM ports with the pin definitions.
COM 1
COM1 RS-232/422/485 Port 1 D-SUB 9P
Chapter 2
Figure 7 Com ports
QBOX-200S User’s Manual
21
Chapter 2
Turning on the system
1. Connect the power adapter cable to the DC Jack (DC IN) of the
QBOX-200S
2. Connect the power cable to the power adapter
3. Connect the power cable to a power outlet
4. Press the power switch on the front panel to turn on the system
DC Jack
Power Switch
Figure 8 Turning on the system
QBOX-200S User’s Manual
22
Mounting your PC to a monitor
Secure the VESA mounting kit to your monitor with four screws.
Chapter 2
Figure 9 VESA mounting (1)
NOTE
To fasten the metal shelf, your monitor must comply with VESA75 or
VESA100 standard.
Place the QBOX-200S onto the monitor and secure it with the four screws properly on both sides of VESA mount kit as shown below.
QBOX-200S User’s Manual
Figure 10 VESA mounting (2)
23
Chapter 3
Chapter 3
AMI BIOS Setup
Overview
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact us
NOTE: The BIOS menus and selections for your product may vary from those in this chapter. For the BIOS manual specific to your product, please contact us
AMI's ROM BIOS provides a built-in Setup program, which allows the user to modify the basic system configuration and hardware parameters. The modified data will be stored in a battery-backed CMOS, so that data will be retained even when the power is turned off. In general, the information saved in the CMOS RAM will not need to be changed unless there is a configuration change in the system, such as a hard drive replacement or when a device is added.
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings.
QBOX-200S User’s Manual
24
Chapter 3
Main Menu
The BIOS Setup is accessed by pressing the DEL key after the Power-On Self-Test
(POST) memory test begins and before the operating system boot begins. Once you enter the BIOS Setup Utility, the Main Menu will appear on the screen. The Main
Menu provides System Overview information and allows you to set the System Time and Date. Use the “<” and “>” cursor keys to navigate between menu screens.
Table 2 QBOX-200S BIOS Main Menu
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S a v e & E x i t
Product Information
Product Name
BIOS Version
QBOX-200S
R0.04 (x64)
BIOS Build Date 07/04/2014
ME FW Version 01.00.02.1067
CPU Information
Intel® Atom™ BayTrail Dual Core E3825
Microcode Revision 321
Processor Cores
Memory Information
Total Size
Frequency
System date
System time
Access Level
2
2048 MB (DDR3L)
1066 MHz
[Wed 01/01/2014]
Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
[13:23:12]
Administrator
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc.
QBOX-200S User’s Manual
25
Chapter 3
Advanced Menu
Table 3 Advanced Menu
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S e r v e r M g m t S a v e & E x i t
Onboard LAN1 Controller
Onboard LAN1 Boot
Audio Controller
> Display Configuration
> Super IO Configuration
> CPU Chipset Configuration
[Enabled]
[Disabled]
[Enabled]
Select Screen
↑↓ Select Item
Enter: Select
> SATA Configuration
> USB Configuration
> TPM Configuration
> H/W Monitor
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc.
Onboard LAN 1 Controller
Options: Disabled, Enabled
Onboard LAN 1 Boot
Options: Disabled, Enabled
Audio Controller
Options: Disabled, Enabled
QBOX-200S User’s Manual
26
Chapter 3
Table 4 Advanced Menu – Display Configuration
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S e r v e r M g m t S a v e & E x i t
Display Configuration
Primary Display
DVMT Pre-Allocated
DVMT Total Gfx Mem
Primary IGFX Boot Display
[ Auto ]
[64M]
[256 M]
[VBIOS Default]
Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc.
Primary Display
Options: Auto, IGD
UMA Frame Buffer Size
Options: 128MB, 256MB, 512MB
DVMT Pre-Allocated
Options:64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M,
416M, 448M, 480M, 512M
DVMT Total Gfx Mem
Options: 128M, 256M, MAX
Primary IGFX Boot Display
Options: VBIOS Default, CRT, HDMI, LVDS
QBOX-200S User’s Manual
27
Chapter 3
Table 5 Advanced Menu – Super IO Configuration
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S a v e & E x i t
Super IO Configuration
>Serial Port 1 Configuration
Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc.
Table 6 Advanced Menu – Super IO Configuration – Serial Port 1 Configuration
BIOS SETUP UTILITY
Serial Port 1 Configuration
Serial Port [Enabled]
Device Settings IO=3F8h ; IRQ=4;
Change Settings [Auto]
Serial Port 1 Type [RS232]
M a i n A d v a n c e d B o o t C h i p s e t P o w e r S e c u r i t y E x i t
: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save and Exit
ESC: Exit
Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc.
Serial Port
Options: Disabled, Enabled
Change Settings
Options: Auto,
IO=3F8h; IRQ=4;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
Serial Port Type
Options: RS232, RS422, RS485
QBOX-200S User’s Manual
28
Chapter 3
Table 7 Advanced Menu –CPU Advanced Configuration
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S a v e & E x i t
CPU Chipset Configuration
EIST
Limit CPUID Maximum
Execute Disable Bit
Intel Virtualization Technology
[Enabled]
[Disabled]
[Enabled]
[Disabled]
Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc.
EIST
Options: Disabled, Enabled
Limit CPUID Maximum
Options: Disabled, Enabled
Execute Disable Bit
Options: Disabled, Enabled
Intel ® Virtualization Tech
Options: Disabled, Enabled
Table 8 Advanced Menu –SATA Configuration
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S a v e & E x i t
SATA Controller(s)
Serial-ATA (SATA)
SATA Mode mSATA Port 1
Port 1
[Enabled]
[ AHCI Mode]
Empty
[ Enabled ]
Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc.
SATA
Options: Disabled, Enabled
SATA Mode
Options: IDE Mode, AHCI Mode
Port 1
Options: Disabled, Enabled
QBOX-200S User’s Manual
29
Chapter 3
Table 9 Advanced Menu –USB Configuration
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S a v e & E x i t
USB Configuration
USB Devices:
1 Keyboard, 2 Hubs
Legacy USB Support [Enabled]
xHCI Legacy Support [Enabled]
xHCI hand-off [Enabled]
EHCI Hand-off [Disabled]
USB Mass Storage Driver Support [Enabled] xHCI Mode [ Smart Auto ]
Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc.
Legacy USB Support
Options: Disabled, Enabled, Auto
XHCI Legacy Support
Options: Disabled, Enabled
XHCI hand-off
Options: Disabled, Enabled
EHCI hand-off
Options: Disabled, Enabled
USB Mass Storage Driver Support
Options: Disabled, Enabled
XHCI hand-off
Options: Smart Auto, Enabled
QBOX-200S User’s Manual
30
Chapter 3
Table 10 Advanced Menu –TPMConfiguration
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S a v e & E x i t
TPM Configuration
Security Device Support
Current Status Information
[ Disabled ]
Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc.
Security Device Support
Options: Disabled, Enabled
QBOX-200S User’s Manual
31
Chapter 3
Table 11 Advanced Menu –H/W Monitor
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S a v e & E x i t
PC Health Status
CPU Temperature : +39 C
System Temperature : +39 C
+VCORE : +0.789 V
+VIN : +11.644 V
+5V : +5.106 V
+VMEN : +1.349 V
Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc.
QBOX-200S User’s Manual
32
Chapter 3
Table 12 Power Configuration
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S e r v e r M g m t S a v e & E x i t
Power Management Configuration
ACPI Sleep State
Restore AC Power Loss
Power Saving Mode
Resume Event control
Resume By PCIE Device
Resume By Ring Device
Resume By RTC Alarm
>Watchdog Timer Configuration
[S3 (Suspend to RAM)]
[Power Off]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc.
ACPI Sleep State
Options: Suspend Disabled, S1 (CPU Stop Clock), S3 (Suspend to RAM)
Restore AC Power Loss
Options: Power Off, Power On, Last State
Resume By PCIE Device
Options: Disabled, Enabled
Resume By RTC Alarm
Options: Disabled, Enabled
EUP Power Saving Mode
Options: Disabled, Enabled
Watchdog Timer Configuration
■
WDT Function [Disabled]
Options: Disabled, Enabled
QBOX-200S User’s Manual
33
Chapter 3
Boot Menu
Table 13 Boot Menu
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S a v e & E x i t
Boot Configuration
Full Screen LOGO Display
Setup Prompt Timeout
Bootup NumLock State
Keyboard Detect Warning
CSM Support
Boot Option Filter
Boot Option Priorities
[Disabled]
1
[On]
[Enabled]
[Enabled]
[Legacy Only]
Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Full Screen LOGO Display
Options: Disabled, Enabled
Bootup Numlock State
Options: On, Off
Keyboard Detect Warning
Options: Disabled, Enabled
CSM Support
Options: Disabled, Enabled
Boot Option Filter
Options: UEFI and Legacy, Legacy only, UEFI only
QBOX-200S User’s Manual
34
Chapter 3
Security Menu
Table 14 Security Menu
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S a v e & E x i t
Password Description
If ONLY the Administrator’s password is set, then this only limits access to
Setup and is only asked for when entering Setup
If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have
Administrator rights
The password length must be in the following range:
Minimum Length 3
Maximum length 20
Select Screen
↑↓ Select Item
Enter: Select
Administrator Password
User Password
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
HDD Security Configuration:
HDD 0: WDC WD1600BE
F4 Save & Exit
ESC Exit
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc.
Save & Exit Menu
Table 15 Save & Exit Menu
BIOS SETUP UTILITY
M a i n A d v a n c e d B o o t S e c u r i t y S a v e & E x i t
Save Changes and Reset
Discard Changes and Reset
Save Options
Save Changes
Discard Changes
Restore Defaults
Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc.
QBOX-200S User’s Manual
35
Chapter 3
Save Changes and Exit
Exit system setup after saving the changes. Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved to the CMOS RAM. The CMOS RAM is sustained by an onboard backup battery and stays on even when the PC is turned off. When you select this option, a confirmation window appears. Select [Yes] to save changes and exit.
Discard Changes and Exit
Exit system setup without saving any changes. Select this option only if you do not want to save the changes that you made to the Setup program. If you made changes to fields other than system date, system time, and password, the BIOS asks for a confirmation before exiting.
Discard Changes
Discards changes done so far to any of the setup values. This option allows you to discard the selections you made and restore the previously saved values. After selecting this option, a confirmation appears. Select [Yes] to discard any changes and load the previously saved values.
Load Optimal Defaults
Load Optimal Default values for all the setup values. This option allows you to load optimal default values for each of the parameters on the Setup menus, which will provide the best performance settings for your system. The F9 key can be used for this operation.
Load Failsafe Defaults
Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation.
QBOX-200S User’s Manual
36
Chapter 4
Chapter 4
Driver Installation
If your QBOX-200S does not come with an operating system pre-installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system.
You can download the drivers for the QBOX-200S from the our website and install as instructed there. For other operating systems, please contact us.
QBOX-200S User’s Manual
37
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
