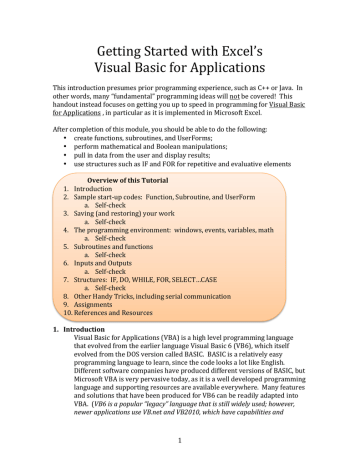

Getting  Started  with  Excel’s

Visual  Basic  for  Applications



This  introduction  presumes  prior  programming  experience,  such  as  C++  or  Java.    In   other  words,  many  “fundamental”  programming  ideas  will  not  be  covered!    This   handout  instead  focuses  on  getting  you  up  to  speed  in  programming  for  Visual  Basic   for  Applications  ,  in  particular  as  it  is  implemented  in  Microsoft  Excel.



After  completion  of  this  module,  you  should  be  able  to  do  the  following:

• create  functions,  subroutines,  and  UserForms;

• perform  mathematical  and  Boolean  manipulations;

• pull  in  data  from  the  user  and  display  results;

• use  structures  such  as  IF  and  FOR  for  repetitive  and  evaluative  elements



Overview  of  this  Tutorial

1. Introduction

2. Sample  start-­‐up  codes:    Function,  Subroutine,  and  UserForm   a. Self-­‐check

3. Saving  (and  restoring)  your  work   a. Self-­‐check

4. The  programming  environment:    windows,  events,  variables,  math   a. Self-­‐check

5. Subroutines  and  functions   a. Self-­‐check

6. Inputs  and  Outputs   a. Self-­‐check

7. Structures:    IF,  DO,  WHILE,  FOR,  SELECT…CASE   a. Self-­‐check

8. Other  Handy  Tricks,  including  serial  communication

9. Assignments

10. References  and  Resources



1. Introduction

Visual  Basic  for  Applications  (VBA)  is  a  high  level  programming  language   that  evolved  from  the  earlier  language  Visual  Basic  6  (VB6),  which  itself   evolved  from  the  DOS  version  called  BASIC.    BASIC  is  a  relatively  easy   programming  language  to  learn,  since  the  code  looks  a  lot  like  English.

Different  software  companies  have  produced  different  versions  of  BASIC,  but

Microsoft  VBA  is  very  pervasive  today,  as  it  is  a  well  developed  programming   language  and  supporting  resources  are  available  everywhere.    Many  features   and  solutions  that  have  been  produced  for  VB6  can  be  readily  adapted  into

VBA.    (VB6  is  a  popular  “legacy”  language  that  is  still  widely  used;  however,

newer  applications  use  VB.net  and  VB2010,  which  have  capabilities  and

1

complexity  beyond  what  is  used  in  your  EP  courses.)    With  VBA  in  Excel,  users   can  go  beyond  simple  macros  and  write  programs  that  draw  on  both  the

Excel  functionality  (functions,  charts,  shapes)  as  well  as  those  of  the

Windows  Application  Programming  Interface  (API).

i,ii

Because  VBA  is

  accessible  through  the  Microsoft  Office  suite,  it  can  be  used  to  create

“macros”  within  those  programs.    However,  it  can  also  be  used  to  access   nearly  any  aspect  of  your  computer  through  the  Windows  API  (  which  can  be   incorporated  into  Excel  and  other  MSOffice  programs.

In  VBA,  programming  is  done  in  a  graphical  (visual)  environment.    In  the  old

BASIC,  one  would  write  program  code  for  each  graphical  object  on  the   screen,  including  its  position  and  its  color.    However,  In  VBA,  this  can  be  done   simply  via  drag  and  drop  and  menu  controls.



Each  object  has  to  be  programmed  independently  to  be  able  to  response  to   actions  (events).  Therefore,  a  VBA  Program  is  made  up  of  many   subprograms,  each  with  its  own  program  code.    Each  can  be  executed

  independently  and  at  the  same  time  each  can  be  linked  together.

Visual  Basic  for  Applications:    Basics  in  Excel

Several  books  and  websites  exist  that  show  the  basics  of  VBA  in  Excel.

iii

   Here   we  present  an  overview  of  how  to  get  started.

1. First,  enable  the  “Developer”  tab  in  Excel  (see  Figure  1  below).    This  is   done  by  checking  the  appropriate  box  under  “Excel  Options,”  and  enables   access  to  VBA  programming  and  code.

Figure 1. Developer tab in Excel 2010 (from Microsoft Developer Network; http://msdn.microsoft.com/en-us/library/ee814737(v=office.14).aspx

.

2. Selecting  “Visual  Basic”  (leftmost  button  in  Figure  1)  switches  to  the

Visual  Basic  Editor  (VBE)  view,  which  shows  the  code  windows.    The

“Project”  window  (Figure  3  below)  shows  the  worksheets  in  the   workbook,  as  well  as  any  modules  associated  with  the  workbook.

(Modules  are  containers  for  code  that  can  be  used  by  the  entire   workbook;  right-­‐clicking  on  the  VBA  Project  allows  one  to  insert  or   import  a  new  module.)

3. By  double-­‐clicking  the  module,  a  coding  window  appears  (Figure  2).

Here,  one  may  create  functions  –  which  return  a  value  –  or  a  subroutine,   which  can  follow  more  complex  instructions.    Once  created,  these  can  be   called  within  Excel  or  by  other  subroutines  and  functions.

2



Figure 3. Project window in VBA. Modules are

“containers” for code that can be accessed by the entire workbook.

Figure 2. Coding window for a module.





2. Sample  start-­‐up  codes:    Function,  Subroutine,  and  UserForm

To  begin,  we’ll  create  some  simple  programs  in  order  to  get  introduced  to  VBA.

We’ll  create  three  of  the  common  types  of  programming  objects,  which  will  all  be   described  in  more  detail  in  later  sections:    Functions,  Subroutines,  and



UserForms.

First,  we’ll  use  VBA  to  create  a  simple  function  that  can  be  used  in  Excel

(or  in  other  VBA  programs).



A  Function  is  a  group  of  VBA  statements  that  performs  a  calculation  and  returns  a   single  value.    This  is  much  like  the  functions  you  already  know  how  to  use  in  Excel:     sin(),  exp(),  etc.    Functions  can  be  executed  on  a  spreadsheet,  or  by  another   subroutine.



To  create  the  function,  the  first  steps  are  similar  to  what’s  needed  for  Subroutines

  and  UserForms:

A. Start  Microsoft  Excel.    If  the  Developer  tab  is  not  visible  or  available,  open  the

“Options”  window  in  Excel,  and  enable  the  Developer  tab,  as  described  above.

3









(Alternatively,  depending  on  your  version  of  Excel,  you  check  the

“Developer”  box  under  “Customize  Ribbon.”)

B. In  your  Excel  workbook,  click  on  the  Developer  tab,  and  then  the  “Visual

Basic”  button  at  the  far  left.    This  puts  you  into  “Visual  Basic  Editor”  mode

(VBE).    To  the  left,  you  will  see   the  “Project  Explorer”  window

(which  is  simply  titled

“VBAProject”).      In  this   window,  you  see  the

“Microsoft  Excel  Objects”  of   your  workbook  –  most  likely   three  worksheets.    To  add  a

Module,  where  you  can  write   code  that  the  entire  workbook   can  use,  right-­‐click  on  the

“VBAProject”  in  the  Project   window.    In  the  pop-­‐up   window,  select  “Insert  >

Module.”    You  will  then  have   added  Module1,  and  its  Code   window  will  appear  (see



Figure  4).

Figure 4. Inserting a Module in the Visual Basic

Editor.

C. In  this  “Book1  –  Module1  (Code)”  window  enter  the  following:

Function CubeRoot(number)

CubeRoot = number ^ (1/3)

End Function

D. Now,  go  back  to  “regular  Excel”  by  clicking  on  the  green  “Excel”  icon  in  the   upper  left  of  the  screen.    Select  a  cell  in  your  spreadsheet  and  try  out  your   new  function.    (I.e.,  type  “=cuberoot(8)”.)    Congratulations!    You’ve  just   extended  Excel’s  capabilities.



E. You  can  easily  create  functions  of  more  than  one  variable,  too.    Go  back  to  the

VBE  and  enter  the  following  (these  can  be  entered  below  the  previous   function),  then  try  it  out  in  the  spreadsheet!

Function sum(a, b) sum = a + b

End Function







4











Next,  we’ll  create  a  simple  subroutine  in  the  VBE.

F. You  will  next  write  a  Sub  procedure  (or  subroutine):    a  group  of  statements   that  performs  an  action  (or  actions).    Subroutines  can  call  the  same  functions   that  Excel  can  call.    Enter  the  following  in  the  VBE,  below  your  previous   work:

Sub NewSub() dim a as double a = inputbox(“enter a number”) msgbox cuberoot(a)

End Function

G. Notice  a  few  things,  before  we  go  any  farther:    (1)  the  VBE  automatically   capitalized  words  for  you;  (2)  we  had  to  declare  the  variable  type  for  a  (more   on  this  below);  (3)  the  subroutine  uses  your  new  CubeRoot  function;  (4)  we   are  using  two  new  VBA  objects  for  input  &  output:    InputBox  and  MsgBox.    We

  will  get  into  more  detail  on  these  shortly.

H. To  run  this  subroutine,  you  can  either:    (1)  press  the  F5  key  while  the  cursor   is  in  the  Code  window,  or  (2)  press  the  “play”  icon  (triangle)  in  the  Standard   toolbar  at  the  top  of  the  window.    Do  this.    You’ve  now  created  a  program   usable  in  Excel!    Granted,  this  was  a  simple  program  –  read  on  for  more   powerful  applications.

Finally,  we’ll  create  a  simple  UserForm.

I. A  UserForm  appears  to  the  user  as  a  separate,  stand-­‐alone  window.    You’ve   been  exposed  to  simple  versions  of  UserForms  in  the  previous  example,  with

InputBox  and  MsgBox.    A  UserForm  is  handy  for  collecting  multiple  pieces  of   information  from  the  user:    input  values,  destinations,  etc.



J. For  now,  we’ll  create  a  UserForm  that  can  be  called  with  a  button  on  the

  spreadsheet,  and  will  execute  a  simple  routine.    First,  go  to  the  VBE  (Visual

Basic  Editor).

K. Right-­‐click  on  the  Project  window,  as  you  did  before  when  inserting  a  new

Module.    This  time,  select  Insert  >  UserForm.



L. Two  new  windows  will  appear:    the  UserForm  window,  and  the  Toolbox.



First,  we’ll  “draw”  the  UserForm.    (See  Figure  5.)

5









M. On  the  Toolbox,  select  the  CommandButton  icon  (10 th

 icon;  hovering  the   pointer  over  it  reveals  the  name).    Then,  click  on  the  UserForm  and  draw  a

  button.

N. Next,  select  the

TextBox  icon  on  the

ToolBox  (3 rd

 icon).

Draw  a  rectangle  on   your  UserForm.    Your

UserForm  should  look   something  like  the   figure  below.

O. We  now  need  to  add   some  code  that  is   executed  with  the   button  click.    Double-­‐

Figure 5. ToolBox and UserForm windows.

click  on  the

CommandButton1  icon  in  the  UserForm.



P. A  new  window  should  appear:    “Book1  –

UserForm1(Code)”.    The  first  and  last  lines  of  a   subroutine  associated  with  that  button  will   appear.    Complete  the  following  code,  which   will  run  every  time  CommandButton1  is   clicked:

Figure 6. Completed UserForm.

Private Sub CommandButton1_Click()

Range(“B2”)=CubeRoot(TextBox1.Value)

End Sub

Q. Now,  we  want  to  make  the  new  UserForm  appear  with  the  click  of  a  button.

Go  back  to  the  spreadsheet  (click  on  the  green  “Excel”  icon,  top  left).    Select   the  Developer  tab.



R. Click  on  the  “Insert”  button,  then   select  the  “Button”  from  the  Form

Controls  in  the  window  that  appears

(see  Figure  7).

S. Click  and  drag  on  the  spreadsheet  to   draw  the  button.



T. Once  you  release  the  mouse,  an

“Assign  Macro”  window  appears.

Figure 7. Selecting Form Controls for the spreadsheet (in Spreadsheet view).

Select  “New,”  as  this  macro  doesn’t  yet  exist.    (See  Figure  8  below.)

6



U. Yet  another  coding  window  appears,  again   with  the  first  and  last  lines  of  code  written  for   you.    Enter  the  code  below:



Sub Button1_Click()

UserForm1.Show

End Sub



V. That’s  it!    To  try  your  code,  go  back  to  the   spreadsheet  view.    Click  on  Button1.    (You   may  need  press  the  Escape  key,  first,  to  de-­‐ select  the  button.)    When  your  new  UserForm

Figure 8. The Assign Macro window, which appears after creating a new button on the spreadsheet.

appears,  enter  a  number  in  the  TextBox  and  press  the  CommandButton.    You   should  see  its  cube  root  appear  in  cell  B2.    When  you’re  done  using  the

UserForm,  “X”  out  the  window.



W. This  example  is  of  course  underutilizing  the  UserForm’s  abilities,  but  should   serve  as  an  introduction;  again,  more  details  are  below.



At  this  point,  you  have  created  working  examples  of  Functions,  Subroutines,  and  a

UserForm.    We  will  delve  more  into  these,  below.





Self-­‐Check

1. Modify  your  programs:   a. Create  a  function  that  returns  the  radius  of  a  circle,  given  its   circumference.   b. Create  a  subroutine  that  applies  your  new  function  to  a  user’s  input.   c. Create  a  button  on  your  spreadsheet  that  summons  this  new   subroutine.   d. “CommandButton1”  etc.    is  a  boring  caption  –  change  it  by  exploring   the  “Properties”  window.    In  the  Visual  Basic  Editor  (VBE),  access  this   by  clicking  on  View  à  Properties  Window  (or  select  F4).   e. Further  explore  the  “Properties”  window  to  modify  colors  and  fonts.



3.    Saving  (and  restoring)  your  work

Saving  your  programming  is  simple:    all  of  your  code  is  saved  with  the  Excel   workbook.    In  the  current  version  of  Excel,  you  will  need  to  save  your  file  in  the



“.xlsm”  format,  which  is  a  “macro-­‐enabled  workbook.”

What  if  you  wanted  to  use  your  handy  functions,  subroutines  and  UserForms  in   other  Excel  workbooks?    Fortunately,  we  don’t  have  to  re-­‐type  everything:    we  can   simply  “export”  the  Module  or  UserForm,  and  then  “import”  it  into  our  new   workbook.

7



To  export,  switch  to  the  Visual  Basic  Editor.    In  the  Project  Window,  right-­‐click  on   the  Module  or  Form  that  you’d  like  to  use  in  other  worksheets.    The  window  shown   above  in  Figure  4  will  appear;  this  time,  select  “Export  File…”.    Save  this  file  (.bas  for



Modules,  .frm  for  forms)  as  you  would  any  other  file.

To  import,  you  would  again  right-­‐click  in  the  VBE  Project  Window,  this  time   selecting  “Import  File…”.    Select  your  file,  and  it’s  added  to  the  current  document!

Note  that  all  of  the  functions  and  subroutines  in  a  Module  are  exported/imported



together.

Self-­‐Check

1. Export  your  CubeRoot  function  (and  other  subroutines),  and  email  it  to   yourself.    Restart  Excel,  and  add  it  to  a  new  spreadsheet.



4.    The  Programming  Environment

This  section  will  give  more  details  about  some  of  the  parts  that  you  used  in  your



“Hello  World”  program.

The  Visual  Basic  Editor  (VBE)

Visual  Basic  for  Applications  features  an  Integrated  Development  Environment

(IDE).    IDE  is  a  term  commonly  used  in  the  programming  world  to  describe  the   interface  and  environment  that  we  use  to  create  our  applications.    It  is  called

integrated  because  we  can  access  virtually  all  of  the  development  tools  that  we  need   from  one  screen  called  an  interface.  The  VBE  is  also  commonly  referred  to  as  the



design  environment,  or  the  program.

The  Visual  Basic  Editor  is  made  up  of  a  number  of  components.    Those  we  will  find   useful  include:

• Menu  Bar

• Tool  Bar

• Toolbox

• Project  Window

• Properties  window

• UserForm  Layout  Window

• Code  Window



Menu  Bar  and  Toolbar

These  are  most  similar  to  the  commands  you  access  in,  for  example,  Word  or  Excel.

The  Menu  Bar  at  the  top  of  the  main  window  displays  the  commands  (File,  Edit,

View…)  that  are  required  to  build  an  application.  The  main  menu  items  have  sub   menu  items  that  can  be  chosen  when  needed.  The  toolbars  below  the  menu  bar   provides  quick  access  to  the  commonly  used  commands  and  a  button  in  the  toolbar   is  clicked  once  to  carry  out  the  action  represented  by  it.    The  “Standard”  toolbar  and   the  “Editing”  toolbar  are  the  most  useful  for  VBA  editing.    They  can  be  activated  by   clicking  on  View  >  Toolbars  .

8



Figure 9. The Visual Basic Editor (VBE) environment.

Toolbox

The  Toolbox  contains  a  set  of  controls  that  are  used  to  place   objects  on  a  UserForm,  thereby  creating  the  user  interface   area.    Note  that  the  ToolBox  is  only  visible  when  the  UserForm

window  is  active.



Project  Window

Docked  on  the  left  side  of  the  screen,  just  under  the  toolbar,  is





  the  Project  window  (see  Figure  11).    The  Project  window,  as   shown  here,  serves  as  a  quick  reference  to  the  various   elements  of  a  project,  namely

UserForms,  modules,  and  classes  (we   won’t  be  using  classes,  here).    All  of  the   objects  associated  with  the  workbook   are  packed  in  a  project.  A  simple  project   will  typically  contain  one  form,  which  is   a  window  that  is  designed  as  part  of  a   program's  interface.  It  is  possible  to   develop  any  number  of  forms  for  use  in   a  program,  although  a  program  may   consist  of  a  single  form.    Using  the  three   buttons  on  the  top  of  this  window,  one   can  quickly  jump  to  the  Code  or  Object   window  associated  with  a  selected

UserForm  or  Module.

Figure 10. Toolbox window (for

UserForm creation).

Figure 11. Proect Window. Here, UserForm1 is selected; clicking on either of the icons at the top left will “jump” you to the Code or UserForm window, respectively.

9

Properties  Window

The  Properties  Window  can  be  revealed  via

View  >  Properties  Window  (or  F4).    (See

Figure  12.)    The  Properties  Window   displays  the  various  characteristics  of   selected  objects,  such  as  forms,  buttons,  etc.

Each  and  every  form  in  an  application  is   considered  an  object.    Each  object  in  Visual

Basic  has  characteristics  such  as  color  and   size.  Other  characteristics  affect  not  just  the   appearance  of  the  object  but  the  way  it   behaves  too.    All  these  characteristics  of  an   object  are  called  its  properties.    Thus,  a   form  has  properties  and  any  controls  placed   on  it  will  have  properties  too.    All  of  these   properties  are  displayed  in  the  Properties

Window,  which  is  a  convenient  means  of   modifying  these  values!

Figure 12. Properties Window. The window shows the property of the selected object, whether button, text box, or UserForm.



UserForm  Layout  Window

This  window  can  be  activated  by  double-­‐clicking  on  the  UserForm  icon  in  the

Project  window.    It  simply  shows  the  location  on  the  screen  of  the  various  windows

(objects)  associated  with  your  UserForm,  and  allows  you  to  reposition  them  to  the   center,  top,  bottom,  etc.  of  the  window.



Code  Window

You  used  the  code  window  with  your  function  and  subroutines.    This  window  shows   all  of  the  code  associated  with  all  of  the  objects  in  your  program.    (Again,  an  object   can  be  a  button,  text  box,  check  box,  etc.)    The  code  window  is  normally  visible;  if  it

  is  not,  select  View  à  Code  from  the  menu.

In  the  code  window,  you  are  able  to  select  any  of  the  objects  in  your  program  from   the  top  left  drop-­‐down  menu  (see  Figure  13).    Once  the  object  is  selected,  then  you   are  able  to  select  the  event  for  which  you  wish  to  write  code,  from  the  top  right   drop-­‐down  menu  (see  Figure  14).    In  the  figures  shown  here,  the  “Click”  event  is   selected  for  the  “CommandButton1”  (button)  object.







Event-­‐driven  Programming

10











Figure 14. The “action” associated with the selected object. You can thus create code for many more actions than just “clicking” on a button.







Event-­‐Driven  Programming

Visual  Basic  programs  are  built  around  events.    Events  are  various  things  that  can   happen  in  a  program.    For  context,  let  us  contrast  this  with  procedural   programming.    In  procedural  languages,  an  application  is  written  is  executed  by   checking  for  the  program  logically  through  the  program  statements,  one  after   another.  For  a  temporary  phase,  the  control  may  be  transferred  to  some  other  point   in  a  program.    In  an  event  driven  application,  on  the  other  hand,  the  program   statements  are  executed  only  when  a  particular  event  calls  a  specific  part  of  the   code  that  is  assigned  to  that  event.



Let  us  consider  a  TextBox  control  and  a  few  of  its  associated  events  to  understand   the  concept  of  event  driven  programming.  The  TextBox  control  supports  various   events  such  as  Change,  Click,  MouseMove  and  many  more  that  will  be  listed  in  the

Procedure  dropdown  list  in  the  code  window  for  the  TextBox  control.    Details  of   some  of  these  are  given  below.

• The  code  entered  in  the  Change  event  runs  when  there  is  a  change  in  the   contents  of  the  TextBox

• The  DblClick  event  runs  its  code  when  the  TextBox  area  is  double-­‐clicked  by   the  user.



As  an  example,  the  UserForm  code  above  could  have  been  modified  to  act  on  a   different  event:    the  clicking  of  a  text  box    (TextBox  will  be  described  below.)

Private Sub TextBox1_DblClick( default ignorable code here)

MsgBox("Hello, World! Double-click!")

End Sub

11



Variables

Visual  Basic  has  the  several  data  types  –  Boolean,  integer,  string,  etc.    By  default

Visual  Basic  variables  are  of  variant  data  types.  The  variant  data  type  can  store   numeric,  date/time  or  string  data.  When  a  variable  is  declared,  a  data  type  is   supplied  for  it  that  determines  the  kind  of  data  they  can  store.  The  fundamental  data   types  in  Visual  Basic  including  variant  are  shown  in  the  table  below.

TYPE   Can  Hold

Boolean   True  or  False

Byte   A  number  0  to  255

Double   A  64  bit  floating  point  number  (I.E.  3.1415)  -­‐  This  is  used  when  a  high   degree  of  accuracy  is  needed.

Integer   A  whole  number  from  -­‐32,768  to  32,767

Long   A  whole  number  from  -­‐2,147,483,648  to  2,147,483,647

Single   A  32  bit  number  like  a  double,  but  with  less  precision

String   A  collection  of  letters  such  as  "Hello".  Used  to  store  words  and  sentences.



In  a  program,  the  variables  are  declared  with  the  “Dim  xxx  As  yyy”  command.    A

  sample  variant  of  the  “Hello  World”  code  is  shown  below.

Private Sub Command1_Click()

Dim var1 As String var1 = “Hello, World!”

MsgBox (var1)



End Sub

A  note  on  variable  declarations:    advanced  programmers  may  prefer,  for  debugging

purposes,  to  declare  all  of  their  variables.    If  you  wish  to  do  this,  select  Tools  à

Options…  and  check  the  “Require  Variable  Declaration”  box  in  the  resulting  window.

Alternatively,  you  may  type  the  line  “Option  Explicit”  at  the  top  of  your  program.    The   reasons  for  wanting  to  do  this  are  beyond  the  scope  of  this  tutorial;  suffice  to  say  it  can



greatly  simplify  the  debugging  of  typos  in  variable  names.

Mathematical  Functions

Math  functions  are  what  you  might  suspect:    +,  -­‐,  *,  -­‐,  and  ^  for  addition,  subtraction,

  multiplication,  subtraction,  and  raising  to  a  power.    Others  are  below.    Note:    the

carat  ^  needs  a  space  on  either  side.

VBA  function   Description

Abs

Atn

Cos

Exp

Returns  the  absolute  value  of  a  specified  number.

Returns  a  Double  value  containing  the  angle  whose  tangent  is   the  specified  number.

Returns  a  Double  value  containing  the  cosine  of  the  specified   angle.

Returns  a  Double  value  containing  e  (the  base  of  natural

12

Log

Round

Rnd

Sgn

Sin

Sqr

Tan   logarithms)  raised  to  the  specified  power.

Returns  a  Double  value  containing  the  logarithm  of  a  specified   number.  This  method  can  return  either  the  natural  (base  e)   logarithm  or  the  logarithm  in  a  specified  base.

Returns  a  Double  value  containing  the  number  nearest  the   specified  value.

Returns  a  random  number  from  zero  to  just  less  than  one.

Works  best  with  the  “Randomize”  command  typed  on  a  prior   line.

Returns  an  Integer  value  indicating  the  sign  of  a  number.

Returns  a  Double  value  specifying  the  sine  of  an  angle.

Returns  a  Double  value  specifying  the  square  root  of  a  number.

Returns  a  Double  value  containing  the  tangent  of  an  angle.



Self-­‐Check

1. Modify  “Hello  World”  so  that  it  returns  a  random  number  as  its  message.

2. Round  this  number  to  three  figures.





5.    Subroutines  and  Functions

We  will  now  create  a  more  complicated  program.



What  Are  Subroutines?

Subroutines  can  be  thought  of  as  miniature  programs.  A  subroutine  has  a  name   attributed  with  it,  much  like  a  variable  does.  Unlike  a  variable,  a  subroutine  doesn't   hold  data.  Instead,  it  holds  code.  When  the  code  in  a  subroutine  is  executed,  the   subroutine  is  said  to  be  "called."    Therefore,  one  subroutine  can  "call"  another   subroutine.  Some  subroutines  are  called  automatically  when  certain  actions  are   performed.  For  example,  the  UserForm_Initialize  subroutine  is  automatically  called   when  a  UserForm  appears,  and  Worksheet_Activate  is  called  when  a  worksheet  is   selected.    UserForm_Terminate  is  called  when  the  UserForm  program  is  stopped.

  Note:  UserForm_Initialize  is  the  1 st

 subroutine  to  be  run  when  starting  your

UserForm.



Creating  A  Subroutine

Creating  a  subroutine  involves  two  lines  of  code.  Luckily  though,  the  Visual  Basic   code  editor  is  smart,  and  will  insert  the  second  line  for  you!    A  subroutine  begins   with  the  word  "Sub",  followed  by  a  space,  then  a  name  identifying  the  subroutine.

Two  parentheses  follow,  which  are  used  for  a  parameter  list.  Don't  worry  about   these  yet,  they  will  be  covered  later.

Sub TestSub()

End Sub

After  you  enter  the  first  line  and  press  Enter,  the  second  line  will  automatically  be   added  for  you.  These  lines  represent  the  start  and  end  of  the  subroutine.  Any  code   inserted  between  these  lines  will  be  executed  when  the  subroutine  is  called.  A

13

subroutine  can  be  called  in  one  of  two  ways:  using  the  Call  keyword,  or  by  simply   stating  its  name.    Enter  the  following  code  into  your  UserForm;  try  to  predict  what

  will  happen  before  running  it.

Sub TestSub()

MsgBox "Code in TestSub()"

End Sub

Private Sub UserForm_Initialize()

MsgBox "Code in UserForm_Initialize ()"

TestSub ‘ use subroutine to post message box

MsgBox "Back in UserForm_Initialize ()"

End Sub



You  can  also  use  the  Call  keyword,  as  mentioned  above:    replace  the  line  consisting

  only  of  “TestSub”,  above,  with  “Call  TestSub”.    Try  this  on  your  own.

Comments

The  code  above  also  illustrates  how  one  adds  comments  in  VBA:    by  using  an

  apostrophe  (  ‘  ).    Comments  begin  with  the  apostrophe  and  end  with  a  new  line.

Subroutine  Scope

You  may  have  noticed  that  the  UserForm_Initialize  subroutine  above  has  the  word

"Private"  before  "Sub".    This  optional  keyword  in  the  declaration  of  a  subroutine  is   used  to  represent  scope.  "Private"  and  "Public"  are  examples  of  scopes;  a  Private   scope  means  the  routine  can  only  be  called  from  other  routines  in  its  UserForm  or

Module.    For  our  purposes,  the  programs  will  be  small  and  we  will  simply  use  the

“Private”  scope.



Parameters



Parameters,  also  called  Arguments,  are  variables  that  can  be  "passed  into"  a   subroutine.  A  subroutine  with  parameters,  DisplayAdd,  is  below:

Private Sub DisplayAdd(x As Integer, y As Integer)

MsgBox x + y

End Sub

Private Sub UserForm_Initialize()

DisplayAdd 5, 2



End Sub

A  new  subroutine  has  been  declared  called  DisplayAdd.  This  declaration  is  different   than  the  declarations  that  you  have  seen  so  far,  however,  as  code  has  been  added   between  the  parenthesis.  From  your  knowledge  of  variables,  this  syntax  should  look   somewhat  similar  to  you.    “x  As  Integer”  and  “y  As  Integer”  are  variable  declarations   without  the  "Dim"  keyword.    These  declarations  are  separated  by  a  comma.    These

14

variables  are  the  Parameters  for  the  DisplayAdd  subroutine.  Code  within  the   subroutine  can  access  x  and  y  as  usual,  as  if  they  were  normal  variables.  However,   when  the  subroutine  is  called,  the  calling  subroutine  will  also  provide  values  for   these  parameters.  Therefore,  the  subroutine  has  now  become  dynamic.  The  code   can  act  on  input  without  caring  where  the  input  came  from.  When  the

UserForm_Initialize  subroutine  calls  DisplayAdd  with  the  parameters  5  and  2,  the   code  within  DisplayAdd  is  executed.  The  first  line  adds  x  and  y  together  and  displays   the  result.    x  and  y  have  already  been  filled  with  the  values  5  and  2  from  the

UserForm_Initialize  subroutine.  The  calling  subroutine  doesn't  have  to  use  numeric

  constants,  however.  It  can  use  variables  as  well:

Private Sub DisplayAdd(x As Integer, y As Integer)

MsgBox x + y

End Sub

Private Sub UserForm_Initialize()

Dim a As Integer

Dim b As Integer

a = 5

b = 2

DisplayAdd a, b



End Sub

This  code  has  identical  results.  Note  that  DisplayAdd  cannot  access  a  and  b.  As  far  as

DisplayAdd  is  concerned,  a  and  b  are  represented  as  x  and  y.  Attempting  to  access  a

  or  b  from  DisplayAdd  would  result  in  an  error.

ByRef  and  ByVal

Parameters  can  be  sent  to  a  subroutine  By  Reference  (ByRef)  or  By  Value  (ByVal).

The  ByRef  and  ByVal  keywords  are  rarely  used  in  simple  programs,  but  it's  a  nice   trick  for  your  toolkit.    ByRef  is  the  default,  and  means  that  changes  to  the  variable  in   the  subroutine  will  result  in  changes  to  the  source  variable  outside  of  the   subroutine.    ByVal  literally  copies  the  values  of  the  variables  from  the  calling   subroutine  into  the  called  subroutine.  By  doing  this,  the  variables  can  be  changed,   but  their  values  will  not  change  outside  of  the  called  subroutine.    ByVal  can  also  be  a   lot  slower  with  large  variable  types,  however,  since  memory  has  to  be  copied  from   one  location  to  another.  If  you  don't  have  any  reason  to  do  so,  there  is  no  need  to   pass  variables  ByVal.  You  can  explicitly  state  the  way  that  a  variable  is  passed  to  a   subroutine  by  using  these  keywords  before  the  variable  name.  Using  the  ByRef   keyword,  one  could  write  a  Swap  function,  which  switches  the  values  of  two   variables.

Private Sub Swap(ByRef x As Integer, ByRef y As

Integer)

Dim temp As Integer

temp = x

x = y

15

y = temp

End Sub

Private Sub DisplayVals(ByRef a As Integer, ByVal b As

Integer)

'Don't worry about understanding the next line yet

MsgBox "a = " & CStr(a) & vbCrLf & "b = " & CStr(b)

End Sub

Private Sub UserForm_Initialize()

Dim a As Integer

Dim b As Integer

a = 10

b = 12

'Display values, swap, and display again

DisplayVals a, b

'The next line is identical to "Swap a, b"

Call Swap(a, b)

DisplayVals a, b

End Sub



Notice  that  Call  was  used  instead  of  simply  stating  the  subroutine  name.  When  using   the  Call  method  however,  you  must  use  parenthesis  when  calling  the  subroutine.

Note  that  this  program  would  also  have  worked  without  typing  "ByRef"  anywhere,



since  “ByRef”  is  the  default.

Functions

Subroutines  have  a  close  cousin  called  Functions.    Functions  are  basically  the  exact   same  as  subroutines,  except  that  they  return  a  value.    That  means  that  the  function   itself  has  a  type  (integer,  double,  …),  and  the  function  will  return  a  value  to  the   calling  subroutine  based  on  the  code  that  it  contains.    An  example  of  this  would  be  a   function  that  adds  two  numbers,  shown  below.    A  function  is  declared  the  exact   same  way  as  a  subroutine,  except  using  the  "Function"  keyword  instead  of  "Sub".  To   return  a  value,  assign  a  value  of  the  proper  type  to  the  function's  name,  as  if  it  were   a  variable.

Private Function Add(ByVal x As Integer, ByVal y As

Integer) As Integer

Add = x + y

End Function

Private Sub UserForm_Initialize()

Dim a As Integer

Dim b As Integer

16



a = 32

b = 64

MsgBox Add(a, b)

End Sub



Functions  Or  Subroutines?

The  best  way  to  determine  which  is  better  for  your  application  is  by  asking  yourself   a  simple  question.  Will  you  need  to  return  a  value?  If  so,  use  Functions.  If  you  don't,

  use  subroutines.

Self-­‐Check

1.    Write  a  subroutine  that  calls  a  function  to  find  the  square  root  of  a  number   divided  by  its  base-­‐ten  logarithm.    The  subroutine  should  then  show  this  number   and  its  cube  root  in  a  message  box.

2.    Modify  the  “swap”  code  sequence  above  so  that  it  executes  not  with  the  loading  of   a  UserForm,  but  instead  with  the  click  of  a  button  on  your  spreadsheet.



6.    Inputs  and  Outputs

Sending  Inputs  to  your  Program

You  may  wish  to  have  a  user  enter  data  that  can  be  acted  upon  by  your  program.

Two  good  ways  to  do  this  are  the  TextBox  (in  a  UserForm)  and  the  InputBox





(anywhere).

The  TextBox  can  be  added  to  your  UserForm  by  using  the  proper  icon  on  the  toolbox

(see  above):  click  on  the  toolbox,  and  click-­‐and-­‐drag  on  the  UserForm  window  to   add  it.    You  can  use  the  Properties  window  to  set  its  default  Value  (either  text  or   numerical).    You  can  then  access  its  value  from  the  program  by  using  its  .Value   property.    For  example,  if  it  is  a  number,  this  code  snippet  grabs  the  value  and  prints   its  inverse  natural  logarithm:

Value = TextBox1.Value

Output = Exp(Value)

MsgBox Output



The  InputBox  displays  a  prompt  in  a  dialog  box,  waits  for  the  user  to  input  text  or   click  a  button,  and  takes  the  contents  of  the  text  box  into  the  program.    Here  is  a

  complete  code  sample  that  accepts  a  user  input  and  assigns  it  to  the  variable

“AcctID,”  which  gets  posted  to  a  MessageBox:

Private Sub UserForm_Initialize()

AcctID = InputBox("Enter:")

MsgBox AcctID

End Sub

17

Note  that  if  the  user  clicks  Cancel  instead  of  OK,  the  function  returns  a  zero-­‐length   string  ("").



(A  slightly  fancier  version  provides  a  ‘default’  value  of  “123”  and  gives  a  label  to  the

InputBox.    This  is  done  by  replacing  the  “AcctID”  line  as  follows:)

AcctID = InputBox("Enter ID:", "Label", "123")



Outputs  from  your  Program

To  pass  results  from  our  program  to  the  user,  you  have  already  seen  one  method:     the  MessageBox.    Of  course,  this  is  inconvenient  for  a  list  of  numbers,  and  the

“interruption”  of  the  MessageBox  can  get  annoying.    Two  other  methods  are



TextBox  (again!)  and  Label  (UserForm)  and  Range  (worksheet).



If  your  program  uses  a  UserForm,  TextBox  and  Label  (accessible  via  the  Toolbox   window)  can  pass  along  outputs  to  the  user  –  without  need  for  a  MessageBox  –  as   shown  below.    This  snippet  simply  replaces  the  MsgBox  command  line  from  the   snippet  above:

Value = TextBox1.Value

Output = Exp(Value)

TextBox2.Value = Output

Label1.Caption = Output



The  difference  between  TextBox  and  Label  is  that  a  Label  cannot  be  altered  by  the

  user,  whereas  the  user  can  type  into  the  TextBox.

Alternatively,  you  could  put  your  output  into  the  spreadsheet,  for  later  calculations,   plots,  etc.    The  Range  object  allows  the  program  to  read  in  values  from  a

  spreadsheet;  i.e.  this  line  of  code  squares  the  number  in  cell  A1:



MsgBox Range(“A1”) ^ 2



Range  can  also  be  used  to  place  results:

Range(“A1”) = CubeRoot(value)



To  add  data  cell  by  cell,  the  Offset  property  can  be  useful.    The  following  expression

  refers  to  a  cell  two  rows  below  cell  E2  and  three  columns  to  the  right  of  E2.    In  other   words,  cell  H4:





Range(“E2”).Offset(2,3)



Since  the  arguments  of  Offset  could  be  variables,  the  sky  is  the  limit!

18



Self-­‐Check

1. Write  a  simple  program  that  reads  someone’s  age  and  prints  out  the  year   they  were  born  (don’t  worry  about  being  off  by  a  half  year;  this  is  meant  to   be  simple).    Do  this  using  both  forms  of  input  and  output  described  above.



7.    Structures:    IF,  DO,  WHILE,  FOR,  SELECT…CASE

These  fundamental  programming  structures  are  similar  to  those  you  have  probably   used  already.





Conditional  (IF)  Statements

These  are  similar  to  those  you  have  seen  in  other  programming  languages.    Some   sample  code  snippets  are  shown  below  as  illustrative  examples:

If var1 = 10 Then

MsgBox "The condition is true."



End If



The  ELSE  statement  also  exists  in  VBA:

If var1 = 10 Then

MsgBox "The variable is ten"

Else

MsgBox "The variable is not ten"



End If

The  logical  operators  are  as  shown  in  the  table  below:

=   Equality

<>

>

<

>=

Inequality

Greater  Than

Less  Than

Greater  Than  Or  Equal  To

<=   Less  Than  Or  Equal  To

And   Conjunction  [i.e.  (X>0  And  X<=3)]

(other  Boolean:    Not  Or  Xor)     (As  with  “And”,  above)





Finally,  here  is  a  sample  block  of  code  that  also  illustrates  the  “ElseIf”  command.    It   compares  the  variables  ‘Major’  and  ‘GPA’  to  expected  values.    Each  “ElseIf”   statement  only  occurs  if  all  statements  above  are  false.

If Major <> "EP" Then

MsgBox ("Major is not EP.")

ElseIf (GPA > 2 And GPA <= 3) Then

MsgBox ("GPA is > 2.0 and <= 3.0, and Major is EP.")

ElseIf GPA > 3 Then

MsgBox ("GPA is >3 and Major is EP.")

19

Else

MsgBox ("Major is EP and GPA is <= 2.0")



End If

Do  and  While  Loops

Do-­‐Loops

The  most  basic  form  of  loop  in  Visual  Basic  is  the  Do-­‐Loop.  Its  construct  is  very   simple:

Do

(Code to execute)


Loop



The  drawback?    This  is  an  infinite  loop!    It  can  be  exited  by  using  the  Exit  Do   command  in  the  code:

If n>300 Then

Exit Do

End If



Do  Until

As  an  alternative  approach  to  nesting  an  If-­‐Statement  inside  the  loop,  and  invoking

Exit  Do  once  we're  done  looping,  VB6  provides  a  Do  Until  statement.    Its  syntax  is   the  following:

Do Until (Expression)

(Code to execute)


Loop

(Expression)  can  be  any  legal  logical  expression  that  we  wish  to  evaluate  to   determine  whether  or  not  to  exit  the  loop.  Each  time  the  program  reaches  Loop  it   will  evaluate  this  expression.  If  the  expression  is  True,  it  will  exit  the  loop,  but   otherwise  it  will  continue  looping.



Do  While

In  the  place  of  Do  Until,  you  can  also  use  Do  While.  Its  syntax  is  the  following:

Do While (Expression

(Code to execute)


Loop



Here,  (Expression)  can  be  any  legal  logical  expression  that  we  wish  to  evaluate  to   determine  whether  or  not  to  exit  the  loop.    Each  time  the  program  reaches  Loop  it   will  verify  that  this  expression  is  True,  and  if  it  is  False,  it  will  exit  the  loop.  Thus,   instead  of  exiting  when  an  expression  is  True,  it  now  exits  only  once  this  expression   is  False.



For-­‐Next  Loops

In  situations  where  you  merely  want  to  run  the  loop  a  predefined  number  of  times,   it  can  become  quite  tiresome  to  have  to  create  and  manage  a  counter  for  each  loop,

20

which  is  why  we  also  have  something  called  a  For-­‐Next  Loop.  This  kind  of  loop   allows  you  to  specify  a  counter,  to  tell  it  to  count  from  one  number  to  another  each   time  through  the  loop,  and  to  exit  once  the  counter  has  reached  its  upper  limit.  The   syntax  is  as  follow:

Dim I As Integer

For I = (Integer) To (Integer)

(Code to execute)

Next I



We  used  the  variable  name  "I"  above,  as  it  is  the  most  common  name  used  for  For-­‐

Loops;  however,  you  can  use  any  variable  name  you  want,  so  long  as  the  variable  is   of  the  type  Integer.



Step

By  default,  the  variable  used  in  the  declaration  of  the  For-­‐Next  loop  is  incremented   by  1  each  time  through  the  loop;  however,  if  you  want  to  increment  this  value  by  a   different  amount  each  time  through  the  loop,  you  can  simply  append  Step  (Integer)   to  the  end  of  the  For-­‐Next  loop  declaration.  If,  for  instance,  we  wanted  to  print  out   every  even  number  counting  backward  from  20  to  0,  we  could  do  this  using  the   following  code:

Dim I As Integer

For I = 20 To 0 Step -2

Range(“C2”).Offset(I,0) = i

Next I



Exit  For

As  with  Do  Loops,  there  is  a  statement  that  can  be  used  to  exit  a  For-­‐Next  loop,  and   it  is  called  Exit  For.    Simply  invoke  this  statement  anywhere  within  a  For-­‐Next  loop   and  the  current  loop  will  be  exited.



Select...Case  Selection  Structure

Select...Case  structure  is  an  alternative  to  If...Then...ElseIf  for  selectively  executing   a  single  block  of  statements  from  among  multiple  block  of  statements.    Select...case

  can  be  more  convenient  to  use  than  the  If...Else...End  If.    The  following  program   block  illustrates  the  working  of  Select...Case.

Private Sub Command13_Click()

Dim averageV As Integer averageV = Val(TextBox8.Value) ‘pull grade from TextBox8

Select Case average

Case 75 To 100

‘Case values run from low to high

TextBox9.Value = "A" ‘ Print grade in Text9 box.

Case 65 To 74

TextBox9.Value = "B"

21

Case 55 To 64

TextBox9.Value = "C"

Case 45 To 54

TextBox9.Value = "D"

Case 0 To 44

TextBox9.Value = "F"

Case Else

MsgBox "Invalid average marks"

End Select



End Sub



Self-­‐Check

1. Create  a  program  that,  given  a  student’s  major  and  General  Engineering  core

GPA,  will  determine  whether  that  student  is  accepted  into  the  engineering   program  of  their  choice.    Use  the  data  in  the  UW-­‐Platteville  catalog

( http://www3.uwplatt.edu/catalog/department-­‐general-­‐engineering )  and   for  the  sake  of  simplicity  only  worry  about  EP,  ME,  and  EE.    The  user  should   input  two-­‐letter  abbreviations  for  major  and  a  number  for  GPA.



8.    Other  Handy  Tricks,  including  serial  communication

Combining  several  values  for  an  output

MsgBox ("This is a list " & Add(a, b) & " " & a)



Changing  object  properties  as  an  event.



In  this  case,  the  caption  on  a  “Label”  object  depends  on  the  value  of  a  variable:

If Rnd()<= 0.5 Then

Label1.Caption = "Less than or equal to 0.5"

Else

Label1.Caption = "Greater than 0.5"

End If



To  see  other  options,  you  will  notice  that  typing  “Label1.”  and  then  pausing  yields





a  pop-­‐up  menu,  which  lists  all  possible  properties  that  may  be  modified.

Accessing  Excel  functions

If  you  try  to  enter  the  following  code,  VBA  will  give  you  an  error:

Sub TryThis()

‘ this program won’t work!

MsgBox Sum(Range(“A1:A3”))

End Sub



This  program  fails  because  Excel  has  many  more  built-­‐in  functions  –  including

SUM()  –  than  VBA  has.    As  you  might  expect,  though,  VBA  can  access  these  functions   using  the  WorksheetFunction  object.    The  following  code  will  work:

22



Sub TryThis2()

‘ this program WILL work!

MsgBox WorksheetFunction.Sum(Range(“A1:A3”))

End Sub



Using  the  Macro  Recorder

VBA  can  access  all  the  functionality  that  Excel  has.    But  how  would  one  write  the   code  for  creating  a  chart?    Fortunately,  VBA  has  a  “Record  Macro”  feature  that  will

  generate  code  for  you  –  and  which  you  can  then  modify  to  your  own  ends.

Access  this  from  the  spreadsheet  view,  Developer  tab.    The  “Record  Macro”  is  at  the   top  left  (see  Figure  1).    Click  this,  and  you  will  get  a  prompt  for  a  name  for  this  new   macro;  click  “OK”  when  ready  to  record.    Once  you’ve  created  your  chart  (or   whatever  your  task  was),  return  to  the  Developer  tab  and  click  “Stop  Recording.”



You’re  done!



The  code  that  was  generated  is  now  in  a  Module.    Sample  code  generated  by  the   creation  of  a  scatter  chart,  with  its  legend  removed,  is  below.

Sub Macro1()

'

' Macro1 Macro

'

'

Range("A1:B6").Select

ActiveSheet.Shapes.AddChart.Select

ActiveChart.ChartType = xlXYScatter

ActiveChart.SetSourceData Source:=Range("Sheet1!$A$1:$B$6")

ActiveChart.Legend.Select

Selection.Delete



End Sub



This  not  only  gives  you  a  template  you  can  edit,  but  it  also  is  educational!

Serial  Communication:    Sending  Text  Commands  to  an  External  Device

Sometimes  it  is  necessary  to  pass  commands  to  an  external  device  that  is  connected   to  the  PC  via  the  computer’s  serial  port  (COM  port)  or  a  USB  port.    Many   instruments,  such  as  DAQs,  RFID  readers,  and  bench  top  measurement  equipment,

  are  equipped  to  receive  text  commands  for  remote  operation.

To  enable  VBA  to  access  the  serial/USB  ports,  you  will  have  to  import  a  new  Module,

“modCOMM,”  to  your  Project  (see  Import/Export,  above):    right-­‐click  on  the  Project   window,  select  “Import  File…”,  and  find  modCOMM.bas.    This  file  is  part  of  all  the   routines  used  in  ENGRPHYS  4210;  it  is  also  at  these  links:

Windows  7  (64-­‐bit):

https://dl.dropboxusercontent.com/u/37968177/modCOMM.bas





23

Windows  XP  (non  64-­‐bit):

https://dl.dropboxusercontent.com/u/37968177/modCOMMxp.bas





The  modCOMM  module  was  written  by  David  M.  Hitchner,  and  can  be  downloaded   from  several  locations  on  the  Web.

1

   The  code  has  been  modified  somewhat  for  64-­‐ bit  systems,  and  to  increase  the  number  of  COM  ports  that  can  be  accessed.    This

  module  uses  Windows  Application  Programming  Interface  (API)  commands.

Once  your  workbook  has  access  to  these  commands,  you  are  now  able  to  access  the   serial  communication  port  (both  the  RS-­‐232  port,  and  any  USB  ports).    These  ports   are  typically  numbered  COM1,  for  the  RS-­‐232  port  at  the  back  of  the  computer,  and

COM2,  COM3,  etc.  for  the  USB  and  other  ports.    Use  another  program  (i.e.  National

Instruments  MAX;  Agilent  Technologies’  Connection  Expert)  to  determine  the  COM

  port  you  need  to  address.

1.    Open

To  send  commands  through  the  serial  port,  you  will  first  need  to  “open”  the

  serial/USB  port  in  order  to  prepare  it  to  send  and  receive  data.    This  requires  the

CommOpen  routine;  see  the  sample  code  below:

Private Sub Button1_Click()

'Initialize serial port

'Set baud=9600 parity=N data=8 stop=1 for most devices

‘ intPortID is 1 for COM1, 2, for COM2, etc.

‘ strError is a public String variable

‘ lngStatus and lngSize are Long variables lngStatus = CommOpen(intPortID, "COM" & CStr(intPortID), _

"baud=9600 parity=N data=8 stop=1")

If lngStatus <> 0 Then

' Handle error. lngStatus = CommGetError(strError)

MsgBox "COM Error: " & strError

End If

End Sub

2.    Send  Command

To  send  text  commands  to  your  external  device,  use  the  CommWrite  routine,  which   simply  sends  a  string  to  the  port.    An  example  is  below:



1

 The  serial  I/O  module  was  created  by  David  M.  Hitchner;  the  code  was   downloaded  from   http://www.thescarms.com/VBasic/commio.aspx

.    Another  site   has  similar  code  (though  without  the  acknowledgment  to  Mr.  Hitchner):     http://dev.emcelettronica.com/serial-­‐port-­‐communication-­‐excel-­‐vba  .    Finally,  the   code  (again  without  the  acknowledgment  to  Mr.  Hitchner)  was  found  as  part  of  a   sample  code  for  controlling  a  Dimetix,  Inc.  distance  sensor  at  this  site:     http://www.dimetix.com/appl/_FRMappl.html

 .

24





Private Sub SendTypedCommand_Click()

' This sends the command that's in TextBox1.

‘ The actual command will depend on your device;

‘ read the device’s user manual to learn these.

' This uses the API-based calls of modCOMM.

‘ lngStatus and lngSize are Long variables

‘ strData is a String variable

‘ intPortID is again 1 for COM1, 2 for COM2, etc.

strData = Trim(CStr(TextBox1.Value)) & Chr$(13)

lngSize = Len(strData)

lngStatus = CommWrite(intPortID, strData)

If lngStatus <> lngSize Then

' Handle error.

'Place error handler in your software here

End If

End Sub



The  “Chr$(13)”  is  a  carriage  return  and  tells  the  instrument,  “here  is  the  end  of  the   command  line.”    Typically,  instruments  need  a  string  command  followed  by  the   carriage  return.





3.    Read  Response

To  read  the  instrument’s  response  to  your  command  (if  there  is  one!),  use  the

CommRead  routine;  an  example  is  below:

Private Sub ReadCommand_Click()

‘ lngStatus and lngSize are Long variables

‘ strData is a String variable

‘ intPortID is again 1 for COM1, 2 for COM2, etc.

Dim readDAQ as String

' Depending on the device and the connection, you

‘ may need to insert a time delay between sending the

‘ command and reading the response. This takes some

‘ “playing” to get right.

Sleep DelaySleep ' delay in milliseconds;

‘ The Sleep routine is called from the kernel32.dll

' Read maximum of 64 bytes from serial port. The beauty of these

' commands from modCOMM is that it's "OK" if the return string is

' not equal to 64 bytes.

' read data into the "strData" variable...

lngStatus = CommRead(intPortID, strData, 64)

If lngStatus > 0 Then

readDAQ = strData

ElseIf lngStatus < 0 Then

' Handle error.

lngStatus = CommGetError(strError)

MsgBox "COM Error: " & strError

End If

MsgBox readDAQ

End Sub

25



The  above  code  uses  the  “Sleep”  subroutine,  which  is  from  the  Windows  API.    It  is   part  of  the  kernel32.dll,  the  32-­‐bit  dynamic  link  library  found  in  the  Windows   operating  system  kernel.    It  can  be  used  in  your  routines  if  it  is  imported  into  your   module  by  entering  this  line  outside  of  any  functions  or  subroutines:

2



Declare Sub Sleep Lib "kernel32" (ByVal dwMilliseconds As Long)



4.    Close  the  Port



Finally,  be  sure  to  close  the  port  when  exiting  your  program!    Otherwise,  you  risk   crashing  the  program  the  next  time  you  try  to  use  the  port.    This  is  simply  done  wit   the  CommClose  routine  –  see  below  for  example.    If  using  a  UserForm,  it  is  handy  to

include  CommClose  in  your  UserForm_Terminate  subroutine.

Private Sub CloseCOMport_Click()

‘ intPortID is 1 for COM1, 2 for COM2 etc.

Call CommClose(intPortID)

End Sub



9.    Assignments

1. Create  a  simple  calculator  that  combines  two  numbers,  which  the  user  can   enter  into  text  boxes.    The  interface  should  consist  of  two  blank  boxes  for   data  entry  (i.e.  for  variables  X  and  Y),  one  blank  box  for  output,  plus  an  array   of  buttons  that  will  allow  us  to  determine  X+Y,  X/Y,  X

Y

,  sine  of  X*Y,  etc.

2. Print  the  first  N  odd  numbers,  where  N  is  provided  by  user  input.

3. Compute  the  factorial  of  N,  where  N  is  provided  by  user  input.

4. Use  the  references  below  to  investigate  two  means  of  printing  a  list  of  values

(i.e.  not  just  a  single  number)  for  the  user  to  read:    (1)  simply  printing  to  the   spreadsheet;  (2)  printing  to  a  ListBox  using  the  List1.AddItem  command.

Demonstrate  these  in  a  single  program;  you  may  print  a  simple  sequence  of   numbers,  squares,  square  roots,  etc.

5. Investigate  the  With…End  statement  as  a  means  of  setting  several  Object   parameters.    Use  this  statement  to  change  the  appearance  of  a  button  or  a   label  according  to  an  event.    (I.e.  when  clicking  a  button,  or  when  a  value



(random?)  crosses  a  threshold.    Use  the  references  below.

6. Use  the  Macro  Recorder  to  create  a  chart  with  your  favorite  formatting;  save   this  as  a  subroutine  so  that  all  of  your  charts  have  this  formatting!



10.    References  and  Resources

Because  of  the  similarities  between  VBA  and  VB6,  you  can  get  a  lot  of  useful   information  from  resources  for  either  language.    The  VB6.us  site  has  many  tutorials   and  is  very  useful…  perhaps  more  useful  than  VB6’s  own  help  files!     http://www.vb6.us/guides/visual-­‐basic-­‐6-­‐beginners-­‐guide



2

 Don’t  worry  if  this  paragraph  makes  no  sense  to  you;  just  add  the  line  to  the   beginning  of  your  Module  and  use  Sleep

26

These  books  are  in  EGH  246,  the  EP  Lab/Sensor  Lab:

Wang,  Wallace.    Visual  Basic  6  for  Dummies.  IDG  Books  Worldwide,  1998.

Walkenbach,  John.    Microsoft  Excel  VBA  Programming  for  Dummies.    Wiley

Publishing,  Inc.    2010.





Finally,  some  other  sites  that  you  may  find  useful:

Microsoft  has  a  good  “getting  started”  site:

http://msdn.microsoft.com/en-­‐us/library/ee814737(v=office.14).aspx



Excel-­‐Easy.com:   http://www.excel-­‐easy.com/vba.html





Excel  VBA  Tutor:

  http://excelvbatutor.com/vba_tutorial.html



Comment  boards;  users  post  &  answer  questions:   http://www.stackoverflow.com



  http://www.mrexcel.com/archive/VBA/



References

i



“Visual Basic for Applications.” January 4, 2014. In Wikipedia: The Free

Encyclopedia. http://en.wikipedia.org/wiki/Visual_Basic_for_Applications ii

Ribando, R.J., "An Excel/Visual Basic for Applications (VBA) Primer," Computers in

Education Journal, Vol. VIII, No. 2, April-June 1998, pp. 38-43. iii

Walkenbach, J., “Microsoft

®

Excel

®

VBA Programming for Dummies,” Wiley

Publishing, Indianapolis (2010); see also “Getting Started with VBA in Excel 2010,” downloaded from http://msdn.microsoft.com/en-us/library/ee814737(v=office.14).aspx

on Jan. 4 2013 (Microsoft Developer Network).

27

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

advertisement
