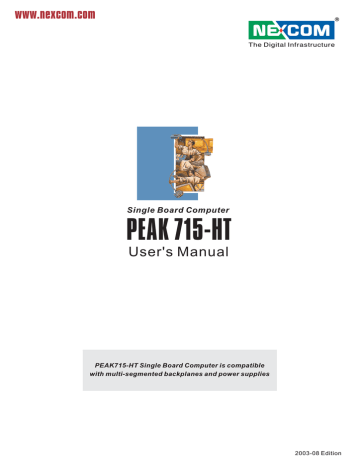

PEAK 715-HT

www.nexcom.com

The Digital Infrastructure

Single Board Computer

PEAK 715-HT

User's Manual

PEAK715-HT Single Board Computer is compatible with multi-segmented backplanes and power supplies

2003-08 Edition

Preface

Copyright

This document contains information protected by copyright. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., LTD.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., LTD. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com.

NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

PEAK 715VL(2/2G/HT) is a trademark of NEXCOM International Co., LTD. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

FCC Compliance Statement for Class A Devices

The product(s) described in this user’s guide has been tested and proved to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the user’s guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE Certification

The product(s) described in this user’s guide complies with all applicable European

Union (CE) directives if it has a CE marking.

1

Contents

Chapter 1 General Information............................................. 5

1.1 Features..................................................................................6

1.2 Specifications.........................................................................6

1.3 PEAK 715HT Series Models ....................................................9

1.4 Checklist ................................................................................10

Chapter 2 Jumper Setting.....................................................11

2.1 Functions of Jumpers.............................................................12

2.2 Setting Jumpers.....................................................................13

2.3 Locating Jumpers...................................................................14

2.4 Setting CMOS CLEAR (JP2)....................................................15

2.5 Setting CPU Type (JP3).........................................................15

2.6 Setting Compact Flash Type (J15)........................................15

2.7 Setting Power Mode (J28, J17).............................................15

Chapter 3 Capability Expanding............................................16

3.1 System Memory......................................................................17

3.2 Installing DIMM......................................................................18

3.3 Change CPU............................................................................20

3.4 Installing the Fan Heatsink...................................................21

Chapter 4 Award BIOS Setup...............................................24

4.1 Entering Setup........................................................................25

4.2 The Main Menu .....................................................................26

4.3.1 Getting Help........................................................................28

4.3.2 Control Keys........................................................................29

4.4 Standard CMOS Features.......................................................30

4.5 Advanced BIOS Features........................................................34

4.6 Advanced Chipset Features....................................................38

4.7 Integrated Peripherals...........................................................41

4.8 Power Management Setup.....................................................44

4.9 PnP/PCI Configurations.........................................................47

4.10 PC Health Status..................................................................49

4.11 Frequency/Voltage Control..................................................50

4.12 Load Fail-Safe Defaults........................................................51

4.13 Load Optimized Defaults......................................................51

4.14 Set Supervisor/User Password............................................51

4.15 Save & Exit Setup................................................................52

4.16 Exit Without Saving.............................................................52

2

Chapter 5 Driver Installation ..............................................53

5.1 Find the Main Menu of Driver CD...........................................54

5.2 Installing VGA Driver.............................................................55

5.3 Installing INF.........................................................................58

5.4 Installing IAA.........................................................................60

Appendix A : Pin Assignments of Connectors.................................63

Appendix B : Watchdog Timer Setting............................................66

B.1 Watchdog Timer Working Procedure.....................................66

B.2 Watchdog Timer Control Register..........................................67

B.3 Watchdog Timer Programming Procedure.............................67

B.3.1 Power On or Reset the System...............................................67

B.3.2 Clear the WDT.........................................................................68

B.3.3 WDT Control Register.............................................................68

Tables

Table 1-1 : PEAK 715-HT Series Models..........................................9

Table 2-1 : Functions of Jumpers.................................................12

Table 3-1 : PEAK 715-HT Series DIMM Configurations..................18

Table 4-1 : BIOS Control Keys.....................................................29

Table B-1 : Watchdog Timer Character and Function....................66

Table B-2 : WDT Control Register Bit Definition............................67

Table B-3 : WDT Control Register Initial Value.............................67

Figures

Figure 1-1 : PEAK 715VL2G-HT Board Layout...............................10

Figure 2-1 : How to Set Jumpers..................................................13

Figure 2-2 : Jumper Locations......................................................14

Figure 3-1 : How to Install DIMM (1)...........................................18




Figure 3-5 : How to Change CPU ..................................................20

Figure 3-6 : Installing the Fan Heatsink (1)..................................22



Figure 3-9a : Installing the Fan Heatsink (4)................................23

Figure 3-9b : Installing the Fan Heatsink (5)................................23

Figure 3-9c : Installing the Fan Heatsink (6)................................23

Figure 3-10 : Installing the Fan Heatsink (7)................................23

3

Figure 4-1 : BIOS Main Menu........................................................26

Figure 4-2 : BIOS- Standard CMOS Features................................30

Figure 4-3 : BIOS- IDE Primary Master.........................................31

Figure 4-4 : BIOS- Advanced BIOS Features.................................34

Figure 4-5 : BIOS- Advanced Chipset Features.............................38

Figure 4-6 : BIOS- Integrated Peripherals...................................41

Figure 4-7 : BIOS- Power Management Setup..............................44

Figure 4-8 : BIOS- PnP/PCI Configurations..................................47

Figure 4-9 : BIOS- PC Health Status.............................................49

Figure 4-10 : BIOS- Frequency/ Voltage Control..........................50

4

Chapter 1

General Information

5

1.1 Features

PEAK 715-HT Series is a memeber of NEXCOM’s P4-based SBC (single

board computer) family. The features of this series are as follows:

o Socket 478 Intel

®

Pentium

®

4 processor with 400/533MHz system bus

up to 3.06 GHz or above, support Hyper-Threading

TM

technology o Socket 478 Intel

®

2.0 GHz or above

Celeron

®

processor with 400 MHz system bus up to o o o o

Intel

®

Pentium

®

4-M processor with 400 MHz system bus up to 2.2 GHz or above

Intel

®

845GV Chipsets (B stepping)

Max. 2GB DDR 333 SDRAM, DDR DIMM x 2

Intel

®

82845GV chipset integrated Graphics controller with 64MB system memory o Intel

®

82551QM Ethernet controller x 1 for PEAK 715VL-HT; Dual Intel

®

82551QM Ethernet controllers for PEAK 715 VL2-HT; Intel

®

82551QM x 1

and Intel

®

82540EM Gigabit Ethernet controller x1 for PEAK 715VL2G-HT o USB 2.0 port (480 Mbps) x 4

1.2 Specification

System Architecture

- Full size SBC with PCI/ISA gold-plated DIMMs

- PCI V2.2 compliant

- PICMG 1.0 (Rev.2.0) compliant

CPU Support

- Intel® Pentium

®

4/Celeron

®

processor with 256K/512K L2 cache on-die; Intel

®

Pentium

®

4-M

processor with 512 KB L2 cache on-die

- Support 400/533MHz system bus, CPU speed up to 3.06GHz or above

- Support Hyper-Threading

TM

technology

Main Memory

- DDR DIMM x2 support maximum 2GB (DDR 200/266/333) of memory

- Support single-sided/double-sided (Does not support double-sided x16 DDR DIMMs)

- Support unbuffered non-ECC DIMMs only

BIOS

- Award System BIOS

- Plug & Play support

- Advanced power management support

- ACPI 1.0b compliant

- 4M bits flash ROM

6

Chipsets

- Intel

®

845GV (GMCH) chipsets (B stepping)

- Intel

®

82801DB x 1 I/O Controller Hub (ICH4)

- Firmware Hub (FWH) 4M bits flash ROM x1

- PCI V2.2 compliant

On Board LAN

- Intel

®

82551QM 10/100 Ethernet controller x1 for PEAK 715VL-HT

- Dual Intel

®

82551QM 10/100 Ethernet controllers for PEAK 715VL2-HT

- Intel

®

82551QM controller x1 and Intel® 82540EM Gigabit Ethernet controller x1

for PEAK 715VL2G-HT

- Compliant with PCI V2.1/V2.2, IEEE802.3, IEEE 802.3u, IEEE802.3x, IEEE802.3y, IEEE802.

3ab

- WfM 2.0 compliant

- Drivers support: DOS/Windows

®

, Windows

®

95/98/2000, Windows

®

NT, Netware 5.0, Linux

- RJ45 with LED connector x 2

On Board VGA

- Intel 82845GV (GMCH) chipset integrated with Graphics controller

- Hardware motion compensation assist for software MPEG/DVD decode

- 64MB VGA share Memory

- Fully PC 98 and PC 99 Compliant

- 15-pin CRT connector x1

On Chip I/O (ICH4)

- On-board USB port (480 Mbps) x 4 (via NEXCOM’s proprietary USB cable)

- Ultra ATA100/66/33 support, 40-pin connector x 2.

On Board I/O

- ITE 8712F-A Super I/O

- SIO x 2, with 2 x 16C550 UARTs, 10-pin header x 2

- PIO x 1, bi-directional, EPP/ECP support, 26-pin connector x 1

- Floppy Disk controller: 34-pin connector x 1

- 6-pin mini DIN connector x1, for PS/2 keyboard/mouse, 5-pin connector x 1

(for external keyboard)

- Optional on-board compact flash socket

- On-board buzzer x1

- GPIO (4-in/4-out)

7

- On-board 2-pin header for I 2 C

- On-board 2-pin header for reset SW / 2-pin for IDE active LED / 2 pin ATX power SW

- One 3-pin power header for 3-pin power cable to connect to Backplane board

and support ATX power-on function

- On-board 4-pin additional power source input

- AC97 output, 10-pin header x 1

- Optional Compact Flash Socket x 1

System Monitor

- Derived from Super IO ITE 8712F-A to support system monitor

- 8 voltage (For +1.5V, +3.3V, +5V, -5V, +12V, -12V, Vcore and Vcc5V Stand-By)

- Monitoring CPU fan speed

- Monitoring CPU & system temperatures

ACPI Function

( Only when 3-pin power cable is connected to backplane and thus connected to ATX power source. )

- Soft power-off

- Power-on by LAN

- Power-on by Keyboard

- Power-on by Ring

Real Time Clock

- On-chip RTC with one back-up external Li battery

Watchdog Timer

- Watchdog timeout programmable from 1, 2, 4, 8, …to 128 seconds

PCI to ISA Bridge & ISAMAX Support

- ITE 8888F x1 PCI to ISA Bridge

- Provide 64mA driving capability to maximize expansion of ISA cards up to 20 ISA slots

Dimensions

- 338.58mm(L) x 122mm(W)

Power Requirements

V o l t a g e

+ 5 V

+ 1 2 V

M a x i m u m

1 2 A

8 A

8

Environments

- Operating temperature: 0°C to 60°C

- Storage temperature: -20°C to 80°C

- Relative humidity: 10% to 90% (Non-condensing)

Certification

- CE approval

- FCC Class A

1.3 PEAK 715-HT Series Models

The PEAK 715-HT single board computer series come in 3 models. The following table compares their main features:

P E A K 7 1 5 V L 2 G -

H T

P E A K 7 1 5 V L 2 H T

P E A K 7 1 5 V L H T

C h i p s e t s

I n t e l

( B S

8 t e

4 5 p p

G V i n g )

(

I n t

B e l

S

8 t e

4 p

5 p

G V i n g )

I n t e l

( B S

8 t e

4 5 p p

G V i n g )

M e m o r y

D D R 3 3 3

D D R 3 3 3

D D R 3 3 3

I n t e

C h r g i p s e r a t e d t s

V G A

Y e s

I n

1 0 t e

/ 1 l

0

8 2 5 5 1 Q M

0 E t h e r n e t

1 p o r t

G

I n i g t e l a b i

8 2 t

5 4

E t h

0 E M e r n e t

1 p o r t

Y

Y e e s s

2

1 p o r p o t s r t

-

-

Table 1-1 : PEAK 715-HT Series Models

9

1.4 Checklist

After opening the package of PEAK 715-HT Series, please check and make sure you have all of the following items:

One PEAK 715-HT series SBC

(An example of PEAK 715VL2G-HT is given below; please carefully examine every component of the board in case it lacks any.)

One PEAK 715-HT Quick Reference Guide (the sticker printed with jumper info attached on the white box which packs the mainboard)

One 50CM Cable JST 2.5mm 3 pin to 3 pin (5V standby ATX Power-on

Cable)

One Y Cable for Keyboard and Mouse

One 180 mm AUX Power Cable (for J2)

One Cable Set (FDD x1, SIO+PIO x1, SIO x1/Keyboard x1/IDE66 x1)

One USB Cable with Bracket

One Driver / Manual CD

Figure 1-1 : PEAK 715VL2G-HT Board Layout

10

Chapter 2

Jumper Setting

11

J 2 1

J 2 2

J 2 3

J 2 4

J 1 7

J 1 8

J 1 9

J 2 0

J 9

J 1 1

J 1 2

J 1 3

J 1 4

J 1 5

J 1 6

J 2 5

J 2 6

J 2 7

C o n n e c t o r

J P 1

J P 2

J 5

J 6

J 7

J 8

J P 3

J 1

J 2

J 4

J 2 8

J 2 9

I D E 1

I D E 2

V G A 1

2.1 Functions of Jumpers

You can use jumpers to set configuration options. The table below defines function of each jumper:

F u n c t i o n

A C ' 9 7

C M O S C L E A R

C P U T y p e S w ti c h

F A N C o n n e c t o r

A U X + 1 2 V P o w e r C o n n e c t o r

I D E A c it v e L E D

F A N C o n n e c t o r

G A L J T E C C o n n e c t o r

S p e a k e r

A T X P u s h b u tt o n

S M B U S C o n n e c t o r

H a r d w a r e R e s e t

C O M 2

C O M 1

U S B C o n n e c t o r

C o m p a c t F l a s h T y p e

A T X P o w e r C o n n e c t o r

P o w e r M o d e

G P /I O P o r t ( S u p e r I O )

K e y l o c k

I R C o n n e c t o r

F l o p p y C o n n e c t o r

P I O P o r t

E x t e r n a l K e y b o a r d C o n n e c t o r

K e y b o a r d / M o u s e C o n n e c t o r

L A N 1 C o n n e c t o r

L A N 2 C o n n e c t o r

( O p it o n a )l C m p a c t F l a s h S o c k e t

P o w e r M o d e

U S B C o n n e c t o r

S e c o n d a r y I D E C o n n e c t o r

P ir m a r y I D E C o n n e c t o r

V G A C o n n e c t o r

Table 2-1: Functions of Jumpers

12

2.2 Setting Jumpers

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is SHORT.

If you remove the jumper cap, or place the jumper cap on just one pin, the jumpr is

OPEN. Please see the following illustrations:

The illustrations on the right show a 2-pin jumper. When the jumper cap is placed on both pins, the jumper is SHORT. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is OPEN.

Open (Off) Short (On)

These illustrations show a 3-pin jumper. Pins 1 and 2 are SHORT.

Figure 2-1 : How to Set Jumpers

13

2.3 Locating Jumpers

The illustration below shows the location of the mainboard jumpers:

* = Pin 1

Figure 2-2 : Jumper Locations

14

2.4 Setting CMOS CLEAR (JP2)

P I N N O .

* 1 2

2 3

D e s c r i p t i o n

N o r m a l

C l e a r

* Default

Note: Clear CMOS procedure:

1. Turn off the power.

2. Short pin 2 and pin 3 of Jumper JP2. Wait 1~2 seconds.

3. Put the jumper cap back to pin 1 and pin 2.

4. After turning on the power, clear procedure is completed.

2.5 Setting CPU Type (JP3)

P I N N o .

* N .

C .

1 2


P 4 / C e l e r o n

P 4 M

* Default

Note: Please turn off the power and change CPU before setting this jumper.

2.6 Setting Compact Flash Type (J15)

P I N N o .

* 1 2

2 3


S l a v e

M a s t e r

* Default

2.7 Setting Power Mode (J28, J17)

P I N N o .

* 1 2

2 3


A T P o w e r ( S h o r t )

A T X P o w e r ( O p e n )

* Default

15

Chapter 3

Capability Expanding

16

3.1 System Memory

Your system memory is provided by DIMM’s (Dual In-line Memory Modules) on the

CPU board. The CPU board contains two memory banks: Bank 0 and 1, corresponds to connector DIMM1, DIMM2.

The table below shows possible DIMM configurations for the memory banks.

Please be noted that the PEAK 715-HT Series support Double Data (DDR333)

SDRAM. Configurations using different brands of memory modules are not recommended.

DIMM 1 DIMM2 Total Memory

128MB Empty 128MB

Empty 128MB 128MB

128MB 128MB 256MB

256MB Empty 256MB

Empty 256MB 256MB

256MB 256MB 512MB

512MB Empty 512MB

Empty 512MB 512MB

512MB 512MB 1024MB

1024MB Empty 1024MB

Empty 1024MB 1024MB

1024MB 1024MB 2048MB

Table 3-1 : PEAK 715-HT Series DIMM Configurations

17

3.2 Installing DIMM

To install DIMM:

1. Make sure the two handles of the DIMM sockets are in the “open” position, i.e.

the handles stay outward.

Figure 3-1 : How to Install DIMM (1)

2. Slowly slide the DIMM modules along the plastic guides in the both ends of the socket.


18

3. Then press the DIMM module down right into the socket, until a click is heard.

That means the two handles automatically locked the memory modules into the right position of the DIMM socket.


4. To take away the memory module, just push the both handles outward, the memory module will be ejected by the mechanism in the socket.


19

3.3 Change CPU

To change the CPU:

1. Pull the handling bar of the socket upward to the other end to loosen the socket’s openings. Carefully lift the existing CPU up to remove it from the socket.

2. Place the new CPU on the middle of the socket, orienting its beveled corner to line up with the socket’s beveled corner. Make sure the pins of the CPU fit evenly to the socket openings. Replace the handling bar to fasten the CPU to the socket.

Figure 3-5 : How to Change CPU

20

3.4 Installing the Fan Heatsink

Use the following instructions for installing the fan heatsink:

1. The heatsink has thermal interface material attached to the bottom, shown in

Figure 3-7. Be careful not to damage the thermal interface material.

2. Align the fan heatsink and clip assembly (A in Figure 3-6) with the retention mechanism (the fan heatsink is symmetrical) and place it on the processor (as shown in Figure 3-7). Allow the heatsink base to compress (without rotating or twisting) the thermal interface material over the surface of the processor's integrated heat spreader.

3. With the clip levers (C in Figure 3-6) in the upward position, push down on all four clip frame corners (D in Figure 3-6) to secure the clip frame latches (E in

Figure 3-6) to the retention mechanism hooks (F in Figure 3-6), as shown in Figure

3-8.

Note: Make sure the processor fan cable is free from any obstruction and is not trapped under clip frame (B in Figure 3-6).

4. Note: It is important to not allow the heatsink to rotate or twist on the processor's integrated heat spreader. Securing the fan heatsink while closing the clip levers will ensure the thermal interface material is not damaged and the processor will operate correctly. Follow these steps, for closing the clip levers and ensuring the thermal interface material is not damaged: a. ) Make sure to close the clips levers in opposing directions, one at a time

(levers require force to be completely closed), as shown in Figure 3-9a. First, close the clip lever (1 in Figure 3-9b), while holding the topside of the fan heatsink with your other hand (A in Figure 3-9b).

b. ) Then, close the clip lever (2 in Figure 3-9c), while holding the topside of the fan heatsink with your other hand (B in Figure 3-9c).

5. Once the clip levers are closed, verify that the heatsink is securely retained and that the clip frame latches are properly engaged with the retention mechanism hooks.

Note: When installed, the fan heatsink and clip assembly may cause the motherboard to slightly bend or flex. This provides the proper mechanical support for the processor (with attached fan heatsink and clip assembly) and helps prevent against damage during system shipment.

21

6. Lastly, connect the processor fan cable to the motherboard fan power header

(Figure 3-10). Consult the motherboard manual to determine the correct fan header to use.

Figure 3-6: Installing the Fan Heatsink (1)

Fan Heatsink and Clip Assembly Terminology


Push Down Clip Frame

Corners to Secure to Retention

Mechanism Hooks


Align Fan Heatsink and Clip Assembly

22

Figure 3-9a: Installing the Fan Figure 3-9b: Installing the Fan

Heatsink (4) Heatsink (5)

Close Clip Levers, Close Clip Lever (1),

One at a Time While Holding the Topside

of Fan Heatsink (A)

Figure 3-9c: Installing the Fan Figure 3-10: Installing the Fan

Heatsink (6) Heatsink (7)

Close Clip Lever (2), Connect Fan Cable to Motherboard

While Holding the Topside of

Fan Heatsink (B)

23

Chapter 4

Award BIOS Setup

24

Award’s BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed

RAM (CMOS RAM) so that it retains the Setup information when the power is turned off.

4.1 Entering setup

Power on the computer and press <Del> immediately will allow you to enter

Setup.The other way to enter Setup is to power on the computer. When the below message appears briefly at the bottom of the screen during the POST(Power On

Self Test), press <Del> key or simultaneously press <Ctrl>, <Alt>, and <Esc> keys.

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> OR <DEL> KEY

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it Off then On or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing

<Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to:

PRESS <F1> TO CONTINUE, <CTRL-ALT-ESC> OR <DEL> TO ENTER SETUP

25

4.2 The Main Menu

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 1) will appear on the screen. The main menu allows you to select from ten setup functions and two exit choices. Use arrow keys to select among the items and press

<Enter> to accept or enter the sub-menu.

Figure 4-1 : BIOS Main Menu

Standard CMOS Features

Use this menu for basic system configuration.

Advanced BIOS Features

Use this menu to set the Advanced Features available on the system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize the system’s performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

26

Power Management Setup

Use this menu to specify your settings for power management.

PnP/PCI Configurations

This entry appears if your system supports Plug and Play and PCI

Configuration.

PC Health Status

Displays CPU, System Temperature, Fan Speed, and System Volt-ages

Value.

Frequency/Voltage Control

Use this menu to specify CPU and memory frequency, and voltage control settings.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable performance for your system to operate.

Load Optimized Defaults

Use this menu to load the BIOS default values, i.e., factory settings for optimal performance system operations. While Award has de-signed the custom BIOS to maximize performance, the factory has the option to change these defaults to meet their needs.

Set Supervisor/User Password

Enables you to change, set, or disable the supervisor or user pass-word.

Save & Exit Setup

Saves CMOS value changes to CMOS and exits setup.

Exit Without Saving

Ignores all CMOS value changes and exits setup.

27

4.3.1 Getting Help

Main Menu

The on-line description of the highlighted setup function is displayed at the bot-

tom of the screen.

Status Page Setup Menu/ Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys

to use and the possible selections for the highlighted item. To exit the Help

Window press <F1> or <Esc>.

28

4.3.2 Control Keys

The table below lists the keys that help you navigate the setup program.

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu --

Exit current page and return to Main Menu

PgUp / “+” key Increase the numeric value or make changes

PgDn / “-“ key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and

Option Page Setup Menu

(Shift) F2 key Change color from total 16 colors. F2 to select color

forward, (Shift) F2 to select color backward

F3 key Reserved

F4 key Reserved

F5 key Restore the previous CMOS value from CMOS, only for

Option Page Setup

Menu

F6 key Load the default CMOS value from BIOS default table,

only for Option Page Setup Menu

F7 key Load the Setup default , only for Option Page Setup Menu

F8 key Reserved

F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Table 4-1 : BIOS Control Keys

29

4.4 Standard CMOS Features

Selecting Standard CMOS Features on the main program screen displays the following menu:

Figure 4-2 : BIOS- Standard CMOS Features

The Standard CMOS Setup utility is used to configure the following features:

Date

The date format is <week>, <month>, <day>, <year>.

Day The week, from Sun to Sat, determined by the BIOS and is display only

Month The month, Jan. through Dec.

Date The day, from 1 to 31 (or the maximum allowed in the month)

Year The year, depend on the year of BIOS

Time

The times format in <hour> <minute> <second>. The time is calculated base on the

24-hour military-time clock. For example, 1 p.m. is 13:00:00.

IDE Devices

Your computer has two IDE channels (Primary and Secondary) and each channel can

be installed with one or two devices (Master and Slave). Use these items to configure

each device on the IDE channel. Press <Enter> to display the IDE submenu:

30

Figure 4-3 : BIOS- IDE Primary Master

IDD HDD Auto-Detection

If you want the Setup Utility to automatically detect and configure a hard disk drive on the IDE channel, press <Enter> while this item is highlighted.

If your system has an IDE hard drive, you can use this utility to detect its parameters and enter them into the Standard CMOS Setup automatically.

If the auto-detected parameters displayed do not match the ones that should be used for your hard drive, do not accept them. Press the <N> key to reject the values and enter the correct ones manually in the Standard CMOS Setup screen.

(Note: If you are setting up a new hard disk drive that supports LBA mode, more than one line will appear in the parameter box. Choose the line that lists LBA for an

LBA drive.)

Do not choose Large or Normal if the hard disk drive is already fully formatted when you installed it. Select the mode that was used to format it.

IDE Primary/Secondary Master/Slave

If you leave this item at Auto, the system will automatically detect and configure any IDE devices it finds. If it fails to find a hard disk, change the value to Manual and then manually configure the drive by entering the characteristics of the drive in the items below:

Capacity approximate hard disk drive capacity

Cylinder number of cylinders

Head number of heads

Precomp write precompensation cylinder

Landing Zone landing zone

Sector number of sectors

31

Refer to your drive’s documentation or look on the drive if you need to obtain this information. If no device is installed, change the value to None.

Access Mode

This item defines some special ways that can be used to access IDE hard disks such as LBA (Logical Block Addressing). Leave this value at Auto and the system will automatically decide the fastest way to access the hard disk drive.

Press <Esc> to close the IDE device submenu and return to the Standard CMOS

Features page.

Floppy Drive A and Floppy Drive B

Options for these fields are:

None No floppy drive installed

360K, 5.25 in 5-1/4 inch PC-type standard drive; 360 kilobyte capacity

1.2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2 megabyte capacity

720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte capacity

1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 megabyte capacity

2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 megabyte capacity

The None option could be used for diskless workstations.

Floppy 3 Mode Support

Floppy 3 mode refers to a 3.5" diskette with a capacity of 1.2 MB. This mode is sometimes used in Japan.

Video

Set this field to the type of graphics card installed in your system. If you are using a VGA or higher resolution card, choose the EGA/VGA option. The options are:

EGA/VGA Enhanced Graphics Adapter/Video Graphics Array. For EGA, VGA,

SEGA, or PGA monitor adapters.

CGA 40 Color Graphics Adapter, power up in 40 column mode

CGA 80 Color Graphics Adapter, power up in 40 column mode

Mono Monochrome adapter, includes high resolution monochrome adapters

32

Halt On

This setting determines which type of errors will cause the system to halt during boot. The options are:

All Errors Whenever the BIOS detects a non-fatal error, the system

will be stopped and you will be prompted.

No Errors The system boot will not be stopped for any error that may

be detected.

All, But Keyboard The system boot will not stop for a keyboard error; it will

stop for all other errors.

All, But Diskette The system boot will not stop for a disk error; it will stop

for all other errors.

All, But Disk/Key The system boot will not stop for a keyboard or disk error; it

will stop for all other errors.

Base/Extended/Total Memory

These items are automatically detected by the system at start up. These are display-only fields. You cannot make changes to these fields.

After you have made your selections in the Standard CMOS Setup screen, press

<ESC> to go back to the main screen.

33

4.5 Advanced BIOS Features

Selecting Advanced BIOS Features on the main program screen displays this menu, which allows you to define advanced information about your system. You can make modifications to most of these items without causing fatal errors to your system.

Figure 4-4 : BIOS- Advanced BIOS Features

The following explains the options for each feature:

Virus Warning

Allows you to choose the Virus Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempts to write data into this area, BIOS will show a warning message on screen and an alarm will beep.

· Enabled:

Activates automatically when the system boots up causing the following warning message to appear when anything attempts to access the boot sector or hard disk partition table:

! WARNING!

Disk boot sector is to be modified

Type “Y” to accept write or “N” to abort write

Award Software, Inc.

·

Disabled

: No warning message will appear when an attempt is made to access the boot sector or hard disk partition table.

34

CPU L1 & L2 Cache

The choices are: Enabled, Disabled.

Pentium 4 M CPU Speed

This item allows user to choose the CPU speed to Low or High. The default is

High.

Hyper Threading Technology

The Intel Hyper-Threading Technology allows a single processor to execute two or

more separate threads concurrently. When hyper-threading is enabled, multithreaded software applications can execute their threads in parallel, thereby improving the processor’s performance.

Quick Power On Self Test

This item speeds up the Power On Self Test (POST) when you turn on the computer. If it is set to Enabled, BIOS will shorten or skip some check items during the POST.

First/Second/Third Boot Device

BIOS attempts to load the operating system from the devices in the sequence selected in these items. The available choices are Floppy, LS120, HDD-0, SCSI,

CDROM, HDD-1, HDD-2, HDD-3, ZIP100, USB-FDD, USB-ZIP, USB-CDROM,

USB-HDD, LAN, Disabled.

Boot Other Device

If the selected boot devices fail to boot, selecting Enabled for this item allows the

BIOS to boot from other boot devices (in a predefined sequence) which are present but not selected as boot devices in the setup.

Swap Floppy drive

If the system has two floppy drives, use this item to swap the logical drive name assignments.

Boot Up Floppy Seek

Enable this to allow the system to search for floppy drives during the POST. Disable this item to boot faster.

Boot Up NumLock Status

Selects the power on state for NumLock. The available choices are Off and On.

35

Gate A20 Option

Enables you to select whether the chipset or the keyboard controller should control

Gate A20. The options are:

· Normal: A pin in the keyboard controller controls Gate A20.

· Fast: Lets chipset control Gate A20.

Typematic Rate Setting

If set to Enabled, enables you to set the Typematic Rate and Typematic Delay.

Typematic Rate (Chars/Sec)

This setting controls the speed at which the system registers held-down keystrokes. The choices range from 6 to 30 Chars/Sec.

Typematic Delay (Msec)

This setting controls the time between the display of the first character and successive characters. There are four delay choices: 250ms, 500ms, 750ms and

1000ms.

Security Option

Enables you to select whether the password is required every time the system boots or only when you enter Setup.

System: The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.

Setup: The system will boot, but access to Setup will be denied if the correct password is not entered at setup.

APIC Mode

The APIC Mode BIOS feature is used to enable or disable the motherboard’s APIC

(Advanced Programmable Interrupt Controller). If your single-processor motherboard supports APIC and you are using a Win32 operating system

(Windows NT, 2000 and XP), it’s recommended that you enable this feature to allow faster and better IRQ handling. If you are using a multiprocessor motherboard, you must enable this feature because it’s required for IRQ handling in multiprocessor systems.

36

MPS Version Control for OS

This feature is only applicable to multiprocessor motherboards as it specifies the version of the Multi-Processor Specification (MPS) that the motherboard will use.

The MPS is a specification by which PC manufacturers design and build Intel architecture systems with two or more processors.

MPS version 1.4 is required for a motherboard to support a bridgeless secondary

PCI bus.

OS Select for DRAM > 64MB

Set to OS2 if the system memory size is greater than 64 MB and the operating system is OS/2.

HDD S.M.A.R.T Capability

Built in problem-detection capability (Self-Monitoring Analysis and Reporting

Technology) of hard disk drives signals warning of any foreseen problem.

The choices are: Enabled, Disabled.

37

4.6 Advanced Chipset Features

Figure 4-5 : BIOS- Advanced Chipset Features

DRAM Timing Selectable

The Choices are: Manual, By SPD. Set the latter to enable the system to automatically set the SDRAM timing by SPD (Serial Presence Detect). SPD is an

EEPROM chip on the DIMM module that stores information about the memory chips it contains, including size, speed, voltage, row and column addresses, and manufacturer.

CAS Latency Time

When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. Do not reset this field from the default value specified by the system designer.

Active to Precharge Delay

The choices: 5,6,7

DRAM RAS# to CAS# Delay

The choices: 2, 3.

DRAM RAS# Percharge

The choices are 2 and 3.

38

Turbo Mode

This item allows you to enable or disable the memory turbo mode.

The choices : Enabled and Disabled.

Memory Frequency For

The choices are DDR266, DDR333, and Auto.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The available choices are Enabled,

Disabled.

Video BIOS Cacheable

Selecting Enabled allows caching of the video BIOS ROM at C0000h, resulting in better video performance. However, if any program writes to this memory area, a system error may result. The choices : Enabled, Disabled.

Memory Hole At 15M-16M

In order to improve performance, certain space in memory is reserved for ISA cards. This memory must be mapped into the memory.

The choices : Enabled, Disabled.

Delayed Transaction

The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version

2.1.

Delay Prior to Thermal

The choices: 4,8,16,32 Mins.

AGP Aperture Size(MB)

Select the size of Accelerated Graphics Port (AGP) aperture. The aperture is a portion of the PCI memory address range dedicated for graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation. The choices are from 4 in doubles up to 256.

39

On-Chip VGA Setting includes:

On-chip VGA

The choices are Enabled, Disabled.

On-chip Frame Buffer Size

The choices are 1MB, 8 MB.

Boot Display

The choices are Auto, CRT, TV, EFP.

40

4.7 Integrated Peripherals

Figure 4-6 : BIOS- Integrated Peripherals

Onboard LAN Boot ROM

Decides whether to invoke the boot ROM of the onboard LAN chip. The available choices are LAN1, LAN2, and Disabled.

On-Chip Primary/Secondary PCI IDE

The system chipset contains a PCI IDE interface with support for two IDE channels. Select Enabled to activate the primary and/or secondary IDE interface.

Select Disabled to deactivate this interface, if you install a primary and/or secondary add-in IDE interface.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmable Input/Output) fields let you set a PIO mode (0-1) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. The choices are: Auto,

Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.

IDE Primary/Secondary Master/Slave UDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a thirdparty IDE bus master driver). If your hard drive and your system software both support Ultra DMA/33, select Auto to enable BIOS support. The choices are: Auto,

Disabled.

41

USB Controller

Select Enabled if your system contains a Universal Serial Bus controller and you have USB peripherals.

USB 2.0 Connector

Select Enable if your system contains a Universal Serial Bus 2.0 controller and you have USB peripherals.

USB Keyboard Support

Select Enabled if your USB controller is enabled and it needs USB keyboard support in legacy (old) OS operating systems such as DOS.

AC97 Audio

Selecting Auto will enable the AC97 audio if it is detected onboard.

AC97 Modem

Selecting Auto will enable the AC97 modem, if it is detected onboard.

Init Display First

This item allows you to active PCI slot or onboard display first. The choices are:

PCI slot, Onboard/AGP.

IDE HDD Block Mode

Block Mode transfers can improve the access to IDE devices. Enable this item if your IDE devices support block mode transfers.

Power ON Function

Select the different manners for powering on the system. The choices: Keyboard

98, Password, Any KEY, Hot KEY, BUTTON ONLY, Mouse Click, Mouse Move.

KB Power ON Password

The system will ask for a password. After entering the correct password, the keyboard starts running.

Hot Key Power ON

The choices are: Ctrl+F1,Ctrl+F2,......Ctrl+F12.

42

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed on the system board and you wish to use it. If you install an add-in FDC or the system has no floppy drive, select Disabled in this field.

Onboard Serial Ports (1, 2)

Select an address and corresponding interrupt for the first and second serial ports.

The choices: Auto, 3F8/IRQ4, 3E8/IRQ4, 2F8/IRQ3, 2E8/IRQ3, Disabled.

UART Mode Select

This item allows you to select UART mode.

The choices: Normal, IrDA, ASKIR, SCR.

UR2 Duplex Mode

The choices: Half, Full.

Onboard Parallel Port

This item allows you to determine access On-Board parallel port controller with which I/O address.

The choices: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, Disabled.

Parallel Port Mode

Select an operating mode for the On-Board parallel (printer) port. Select Normal,

Compatible, or SPP unless you are certain your hardware and software both support one of the other available modes.

The choices: SPP, ECP, EPP, ECP + EPP.

ECP Mode Use DMA

Select a DMA channel for the port.

The choices: 1, 3.

43

4.8 Power Management Setup

Figure 4-7 : BIOS- Power Management Setup

Power Supply Type

The choices: AT, ATX.

Soft-Off by PWRBTN (Power Button)

Pressing the power button for more than 4 seconds forces the system to enter the

Soft-Off state when the system “hangs”. The available choices are Delay 4

Seconds, Instant-Off

PWRON After PWR-Fail

This setting specifies whether your system reboots after a power failure.

There are three selections:

Off: The system will remain off when power comes back after a power failure.

On: The system will switch on when power comes back after a power failure.

Former-Sts: The system will return to the last state before the power failure when power returns.

ACPI Function

This item allows you to Enable/Disable the Advanced Configuration and Power

Interface (ACPI). The Choice: Enabled, Disabled.

44

Power Management

This category allows you to select the type (or degree) of power saving and is directly related to the following modes:

1. HDD Power Down

2. Suspend Mode

There are three selections for Power Management; three of them have fixed mode settings.

Min. Power Saving: Minimum power management. Suspend Mode = 1 hr., and

HDD Power Down = 15 min.

Max. Power Saving: Suspend Mode = 1 min., and HDD Power Down = 1 min.

User Define: Allows you to set each mode individually. When not disabled, each of the ranges are from 1 min. to 1 hr. except for HDD Power Down which ranges from

1 min. to 15 min. and Disabled.

Video Off Method

This determines the manner in which the monitor is blanked. There are three choices:

1. V/H SYNC+Blank: This selection will cause the system to turn off the vertical and horizontalsynchronization ports and write blanks to the video buffer.

2. Blank Screen: This option only writes blanks to the video buffer.

3. DPMS: Initial display power management signaling.

Video Off In Suspend

This determines the manner in which the monitor is blanked.

The Choices: Yes, No.

Suspend Type

Select the Suspend Type.

The Choices: PwrON Suspend, Stop Grant.

MODEM Use IRQ

This determines the IRQ in which the MODEM can use.

The Choice: 3, 4, 5, 7, 9, 10, 11, NA.

Suspend Mode

When enabled and after the set time of system inactivity, all devices except the

CPU will be shut off. The choices are: 1~2 min, 2~3 min,... up to 1 hour.

45

HDD Power Down

When enabled and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active.

Wake-Up by Ring/LAN

The choices: Enabled, Disabled.

Resume by Alarm

When Enabled, your can set the date and time at which the RTC (real-time clock) alarm awakens the system from Suspend mode.

The choice: Enabled, Disabled.

Reload Global Timer Events

Primary IDE 0

Primary IDE 1

Secondary IDE 0

Secondary IDE 1

FDD, COM, LPT Port

PCI PIRQ[A-D] #

The events are I/O events whose occurrence can prevent the system from entering a power saving mode or can awaken the system from such a mode. In effect, the system remains alert for anything which occurs to a device which is configured as

Enabled, even when the system is in a power down mode. The choices: Enabled,

Disabled.

46

4.9 PnP/PCI Configurations

Figure 4-8 : BIOS- PnP/PCI Configurations

PNP OS Installed

Select Yes if the system operating environment is Plug-and-Play aware (e.g. Windows 95).

The Choices: Yes, No.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset Extended System

Configuration Data (ESCD) when you exit Setup if you have installed a new add-on

Card and the system reconfiguration has caused such a serious conflict that the operating system can not boot.

The choices: Enabled, Disabled .

Resources Controlled By

The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug and Play operating system such as

Windows95. If you set this field to Manual, then choose specific resources by going into each of the submenus that follows this field.

The Choice: Auto (ESCD), Manual.

47

PCI/VGA Palette Snoop

Leave this field at Disabled.

The Choices: Enabled, Disabled.

Assign IRQ for VGA

Assign an IRQ for VGA.


Assign IRQ for USB

Assign an IRQ for USB.


PCI Latency Timer (CLK)

This item controls how long each PCI device can hold the bus before another takes over.

INT Pin 1~4 Assignment

Name the interrupt request (IRQ) line assigned to PCI 1 through PCI 4 on your system. Activity of the selected PCI slot awakens the system.

The choices: Auto, 3, 4, 5, 7, 9, 10, 11

Onboard LAN 1, 2 INT Assign

The choices: Auto, 3, 4, 5, 7, 9, 10, 11

48

4.10 PC Health Status

Figure 4-9 : BIOS- PC Health Status

System Monitor Device

Default is Enabled. Select Disabled can release IO range 294h to 297h for other device.


Shutdown Temperature

This item allows you to set up the CPU shutdown temperature. This item is only effective under Windows 98 ACPI mode.

The Choices: Disabled, 60 0 C

/

140 0 F, 65 0 C/149 0 F, 70 0 C

/

158 0 F.

49

4.11 Frequency/Voltage Control

Figure 4-10 : BIOS- Frequency/Voltage Control

CPU Clock Ratio

This item allows you to set up the CPU clock ratio, but this function depends on different CPU performance. It is only effective for those clock ratio that have not been locked.

Auto Detect PCI Clk

When enabled, this item will auto detect if the PCI sockets have devices and will send clock signal to PCI devices. When disabled, it will send the clock signal to all

PCI sockets.


Spread Spectrum Modulated

This item allows you to enable/disable the spread spectrum modulate to reduce

EMI.


50

4.12 Load Fail-Safe Defaults

This option opens a dialog box that lets you install fail-safe defaults for all appropriate items in the whole setup utility.

Use this option if you have changed your system and it does not operate correctly or does not power up.

4.13 Load Optimized Defaults

This option opens a dialog box that lets you install optimized defaults for all appropriate items in the whole Setup Utility. Press the <Y> key and then <Enter> to install the defaults. Press the <N> key and then <Enter> to not install the defaults.

The optimized defaults place demands on the system that may be greater than the performance level of the components, such as the CPU and the memory. You can cause fatal errors or instability if you install the optimized defaults when your hardware does not support them. If you only want to install setup defaults for a specific option, select and display that option, and then press the <F7> key.

4.14 Set Supervisor/User Password

The Supervisor/User Password utility sets the password. The mainboard is shipped with the password disabled. If you want to change the password, you must first enter the current password, then at the prompt enter your new password. The password is case sensitive. You can use up to eight alphanumeric characters.

Press <Enter> after entering the password. At the next prompt, confirm the new password by retyping it and pressing <Enter> again.

To disable the password, press <Enter> instead of entering a new password when the Enter Password dialog box appears. A message appears confirming that the password has been disabled.

If you have set supervisor and user passwords, only the supervisor password allows you to enter the BIOS Setup Program.

Note: If you forget your password, the only way to solve this problem is to discharge the CMOS memory by turning power off and placing a shunt (jumper cap) on jumper JP2 to short pin 2 and pin 3 for five seconds, then putting the shunt back to pin 1 and pin 2 of JP2.

51

4.15 Save & Exit Setup

Selecting this option and pressing <Enter> will save the new setting information in the CMOS memory and continue with the booting process.

4.16 Exit Without Saving

Selecting this option and pressing <Enter> will exit the Setup Utility without recording any new values or changing old ones.

52

Chapter 5

Driver Installation

53

PEAK 715-HT Series come with a driver installation CD-ROM that enables you to install VGA driver software, INF(Intel Chipset Software Installation Utility) and IAA

(Intel Application Accelerator).

5.1 Find the Main Menu of Driver CD

Please follow the following steps to find VGA driver, INF and IAA in the driver CD-

ROM to implement installation.

Note: In this manual, Windows 2000 is the model for OS operation system.

Step 5.1.1

Place the driver installation CD-ROM in your CD-ROM driver.

Then cick My Computer on your desktop items.

Step 5.1.2

The menu of My Computer will display.

Find your drive which supports

CD-ROM and click that item.

Step 5.1.3

Select DRIVER folder.

54

Step 5.1.4

The menu of the driver installation

CD will display.

You can see the folders of VGA,

INF and IAA installation driver.

5.2 Installing VGA Driver

Step 5.2.1

Double click the folder of VGA.

The menu will display.

Select the folder of WIN2K_XP for Windows 2000 operating system.

Step 5.2.2

After the menu displays, select the folder of GRAPHICS.

55

Step 5.2.3

After this screen displays, double click the blue sign

SETUP.

Step 5.2.4

After a sequence of system processing, you will see a static screen instructing the installation process.

Click Next to continue setup.

Step 5.2.5

If you accept License Agreement, click Yes to continue.

56

Step 5.2.6

Select Yes to continue.

Step 5.2.7

Click Yes.

Step 5.2.8

An installation wizard will inform successful completion of driver software installation and ask you to restart your computer.

Select “Yes, I want to restart my

computer now,” and then click

Finish.

After your computer reboots,

VGA driver is already setup in your computer.

57

5.3 Installing INF

After installing VGA driver, go back to 5.1. Go through step 5.11 to step 5.14

again, and open the folder of INF to start installing INF.

Step 5.3.1

Open the folder of

98_ME_2K_XP.

Step 5.3.2

Double click the blue sign

INFINST_AUT OL.

Step 5.3.3

Click Next to install INF.

58

Step 5.3.4

Click Yes to continue.

Step 5.3.5

Click Yes.

Step 5.3.6

Select Yes, I want to restart

my computer now.

Then click Finish.

INF is installed.

59

5.4 Installing IAA

After installing INF, go back to 5.1. Go through step 5.11 to step 5.14 again, and open the folder of IAA to start installing INF.

Step 5.4.1

After the folder of ALL_OS displays, click it..

Step 5.4.2

Double click the blue sign

IATA_CD.

Step 5.4.3

Click Next to install.

60

Step 5.4.4

Click Yes.

Step 5.4.5

Click Next.

Step 5.4.6

Select Next.

61

Step 5.4.7

Click Yes.

Step 5.4.8

Select Yes, I want to restart

my computer now, then click

Finish.

Your computer is installed with

IAA.

62

Appendix A : Pin Assignments of Connectors

JP1 : AC97’

PIN No. Description PIN No. Description

1 AC_SDOUT 2 VCC3

3 AC_RST# 4 GND

5 AC_SYNC 6 +12V

7 AC_SDIN0 8 AC_SDIN1

9 AC_BTCLK 10 AC_SDIN2

J14 : USB Connector J19 : Keylock


1 VCC5 1 VCC5

2 USBP0N 2 N.C

3 USBP0P 3 GND

4 USBP1N 4 Keylock

5 USBP1P 5 GND

6 GND

J18 : GPIO PORT (Super IO)

PIN No. Description PIN No. Description

1 GP20 (PIN27) 2 GP24 (PIN23)

3 GP21 (PIN26) 4 GP25 (PIN22)

5 GP22 (PIN25) 6 GP26 (PIN21)

7 GP23 (PIN24) 8 GP27 (PIN20)

9 GND 10 GND

63

J 20 : IR Connector J 23 : External Keyboard Connector


1 VCC5 1 Keyclk

2 CIRRX 2 Keydata

3 IRRX 3 N.C

4 GND 4 GND

5 IRTX 5 VCC5

J 9 : SMBUS Connector J 8 : ATX Push Button


1 SMBDATA 1 GND

2 SMBCLK 2 Plus Signal

J 11 : Hardware Reset J 16 : ATX Power Connector


1 GND 1 5VSBY

2 Reset # 2 GND

3 PSON #

64

J 7 : Speaker J 4 : IDE Active LED


1 Speaker Out 1 VCC5

2 GND 2 IDE_ACT#

3 GND

4 VCC5

J 2 : AUX +12 V Power Connector

PIN No. Description

1 GND

2 GND

3 +12V

4 +12V

65

Appendix B : Watchdog Timer Setting

B.1 Watchdog Timer Working Procedure

Watchdog Timer (WDT) is a special hardware device that monitors the computer system during normal operation. WDT has a clock circuit that times down from a set number to zero. If a monitored item occurs before the timer reaches zero, WDT resets and counts down again. If for some reason the monitored item doesn’t occur before the timer reaches zero, WDT performs an action, such as a diagnostic operation (rebooting the computer).

You must enter timer values into WDT Configuration Register (Write the control value to the Configuration Port), and clear WDT counter (read the Configuration

Port).

WDT Configuration port F2

Watch Dog Timer

Default at F2

Disabled 1. Default at disabled

Enabled 2. Enabled for user’s programming

WDT Active Time 1 sec Default at 64 sec

2 sec

4 sec

8 sec

16 sec

32 sec

64 sec

128 sec

Table B-1 : Watchdog Timer Character and Function

66

B.2 Watchdog Timer Control Register

The Watchdog Timer Control Register controls the WDT working mode. Write the value to the WDT Configuration Port. The following table describes the Control

Register bit definition:

Table B-2 : WDT Control Register Bit Definition

B.3 Watchdog Timer Programming Procedure

·

B.3.1 Power On or Reset the System

The initial value of WDT Control Register (D3~D0) is zero (0), when power is on or the system has been reset. The following table indicates the initial value of WDT (

00000000b ) :

Bit

3

Value Mean

0 Disable Watchdog Timer

2, 1, 0 0 0 0 Select 64 second

Table B-3 : WDT Control Register Initial Value

67

B.3.2 Clear the WDT

WDT counter interval cannot be longer than the preset time, otherwise, WDT sends a reset signal to the system.

The following is an example of clearing the WDT program in Intel 8086 assembly language.

; ( Clear the WDT)

Mov dx, F2h ;Setting the WDT configuration port

In al, dx

Note: Before running WDT, you must clear WDT to ensure

that the initial value is zero.

B.3.3 WDT Control Register

Note: This register writes to WDT configuration port.

Set WDT Control Register to control the WDT working mode. The initial value of

WDT Control Register is shown as follows:

; (Setting the WDT Control Register as AL)

Mov al, 0h ; Setting initial value = 0 for the WDT Control Register

Follow these instructions to set the register:

1.

Select the time-out intervals of WDT (decide the values of D2, D1, D0 in F2 )

Example: If D2~D0 = 0, the time-out interval is 64 seconds.

AND al, 11111000b ; Setting the time-out interval as 64 sec.

2.

Enable or Disable WDT ( decide D3 value in F2) i.e. D3=0, Disables WDT

AND al, 11110111b ; Disable the WDT

68

i.e. D3=1, Enables WDT

OR al, 00001000b ; Enable the WDT

After finishing the above settings, you must output the Control Register’s value to

WDT Configuration Port. Then WDT will start according to the above settings.

MOV dx, F2h ; Setting WDT Configuration Port

OUT dx, al ; Output the Control Register Value

69

The

Digital

Infrastructure

C

Copyright 2003 NEXCOM International Co., Ltd.

Version 1.0

No results
