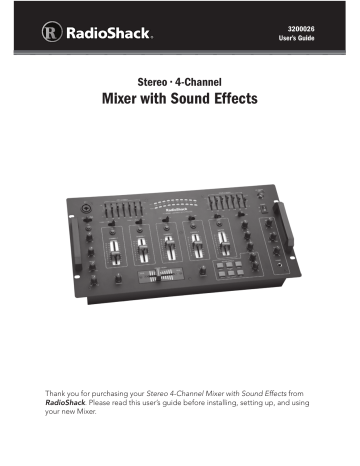

Stereo • 4-Channel

Mixer with Sound Effects

3200026

User’s Guide

Thank you for purchasing your Stereo 4-Channel Mixer with Sound Effects from

RadioShack . Please read this user’s guide before installing, setting up, and using your new Mixer.

Contents

What’s Included .................................................................................................. 3

IMPORTANT SAFETY INSTRUCTIONS .............................................................. 4

Setup ................................................................................................................ 10

Connecting Outputs .................................................................................................... 10

Connecting Inputs ....................................................................................................... 11

Connecting Microphones ............................................................................................ 12

Connecting Power ....................................................................................................... 12

Connecting a Lamp ..................................................................................................... 13

Connecting Headphones ............................................................................................ 13

Using Your Mixer .............................................................................................. 14

Presetting Input Signal Levels ..................................................................................... 14

Presetting Audio Input Sources .................................................................................. 15

Presetting Microphone(s) ............................................................................................ 15

Checking the Sound .................................................................................................... 16

Mixing Your Inputs ....................................................................................................... 16

Playing One Input Source ....................................................................................... 16

Monitoring a Second Input Source ......................................................................... 17

Switching to a Second Input Source ....................................................................... 17

Using Microphone(s) ................................................................................................... 18

TREBLE and BASS Controls .................................................................................... 18

TALKOVER .............................................................................................................. 18

Using the Seven Band Equalizer ................................................................................. 19

Using ECHO Effects .................................................................................................... 19

Adjust Echo Delay, Repeat, and Level .................................................................... 19

Using Sound Effects .................................................................................................... 20

Using Booth Level Control .......................................................................................... 20

Monitoring (Cuing) Inputs ........................................................................................... 20

Using the USB Port ...................................................................................................... 21

Input ........................................................................................................................ 21

Record ..................................................................................................................... 21

Additional Information ..................................................................................... 21

Replacing the Fuse ...................................................................................................... 21

Service and Repair ....................................................................................................... 21

Troubleshooting .......................................................................................................... 22

Specifications............................................................................................................... 22

FCC Information .......................................................................................................... 23

2

What’s Included

• Stereo 4-Channel Mixer with Sound Effects

• User’s Guide

WARNING : To reduce the risk of fire or shock hazard, do not expose this product to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE THE COVER OR BACK. NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

This symbol is intended to alert you to the presence of uninsulated dangerous voltage within the product’s enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product’s case.

This symbol is intended to inform you that important operating and maintenance instructions are included in the literature accompanying this product.

3

IMPORTANT SAFETY INSTRUCTIONS

1.

Read all safety and operating instructions before the appliance is operated.

2.

Keep all safety and operating instructions for future reference.

3.

Follow all warnings on the appliance and in the operating instructions.

4.

Unplug this appliance from the wall outlet before cleaning. Use only a damp cloth for cleaning. Do not use liquid or aerosol cleaners.

5.

Do not use this appliance near water (for example, near a bathtub, washbowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool).

6.

Do not place this appliance on an unstable cart, stand, tripod, bracket, or table.

The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the appliance. Follow the manufacturer’s instructions for mounting, and use a recommended mounting accessory.

7.

Slots and openings in the cabinet provide ventilation, ensure reliable operation, and protect from overheating. Do not block or cover these openings, and do not place the appliance on a bed, sofa, rug, or other similar surface. Do not place the appliance in a built-in installation such as a bookcase or rack unless it provides proper ventilation as specified by the manufacturer.

8.

Keep appliance away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

9.

Operate this appliance using only the power source indicated on its marking label. If you are not sure of your home’s power type, consult your appliance dealer or local power company.

10.

This appliance is equipped with a polarized power cord plug (a plug having one blade wider than the other). This plug will fit in the power outlet only one way. This is a safety feature. If you cannot insert the plug fully into the outlet, try reversing the plug. If the plug still doesn’t fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

11.

Route power-supply cords so they are not likely to be walked on or pinched by items placed on or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

12. Clean only as recommended by the manufacturer.

13. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

14. Unplug the power cord from the outlet when you know that you will not be using the appliance for a long period of time.

15. Do not overload wall outlets, extension cords, or integral convenience receptacles, as this can result in a risk of fire or electric shock.

4

16. Never push objects of any kind into this appliance through openings, as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

17.

Move appliance and cart combinations with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

18. Unplug this appliance from the wall outlet and refer servicing to a qualified service personnel under the following conditions:

• When the power-supply cord or plug is damaged.

• If liquid has been spilled or objects have fallen into the appliance.

• If the appliance has been exposed to rain or water.

• If the appliance does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

• If the appliance has been dropped or damaged in any way.

• When the appliance exhibits a distinct change in performance.

19 . Do not attempt to service this appliance yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

21. Upon completion of any service or repairs to this appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operating condition.

22.

For added protection for this product during a lightning storm, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power line surges.

23.

Only use attachments recommended by the product manufacturer.

24. The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

25.

Do not overload wall outlets, extension cords, or integral convenience receptacles, as this can result in a risk of fire or electric shock.

5

MIC 1 Combo Input Jack

Connect a balanced or unbalanced low impedance microphone with XLR-type or ¼ in. (6.35 mm) plug.

MIC TALKOVER ON/OFF

MIC CUE

Monitor and prepare for mixing when wearing headphones.

MIC 1/MIC 2 Level Controls

MIC TREBLE

MIC BASS

LED Meters

LEFT CHANNEL / EQ

Cut or boost channel frequencies by ± 12dB.

RIGHT CHANNEL / EQ

CHANNELS 1–4

Select the input source and adjust the volume of each channel.

Channel CUE Buttons

Select a channel to monitor and prepare for mixing when wearing headphones .

MONO

Set the sound output to stereo or monaural.

MASTER

Control the mixer’s overall volume level.

6

LED Meters

LEFT CHANNEL / EQ

Cut or boost channel frequencies by ± 12dB.

RIGHT CHANNEL / EQ

Echo Controls

Compensate for environmental conditions or adjust for personal preference.

BOOTH

Control the mixer’s booth volume level.

CUE/MIX/PGM

Balance output volume with the input being prepared for mixing when wearing headphones.

CUE

Adjust the headphones volume.

PHONES

CROSS FADER

Select an input source for

Channel A and Channel B and mix the sound output between the two sources.

SOUND EFFECT

SPEED

Control the pitch of the selected effect.

F/X

Control the level of the selected effect.

7

Fuse

Output Connections

BALANCED

Connect your amplifier or receiver using a balanced ¼ in. (6.35 mm) audio cable (not supplied).

AMP

Connect the mixer’s output to your receiver or amplifier.

BOOTH

Connect to another receiver or amplifier, or connect to powered speakers.

REC

Connect to the line input of your recording device so you can record sound from the mixer.

8

Input Connections

CH 1 (LINE 1/LINE 2), CH 2 (LINE 3/LINE 4), CH 3 (LINE 5/

LINE 6) CH 4 (LINE 7/USB)

PHONO 1/LINE 1 and PHONO 2/LINE 3

In PHONO 1 and PHONO 2 settings, connect low-level audio sources (such as turntables). In LINE 1 and LINE 3 settings, connect high-level audio sources.

INPUT SELECT

Set switches based on what is plugged into PHONO 1/LINE

1 and PHONO 2/LINE 3 input jacks.

MIC 2

Connect a balanced or unbalanced low-impedance microphone with a

¼ in. (6.35 mm) plug.

GROUND

Connect the ground wire from a magnetic cartridge turntable.

9

Setup

w

Caution: A sudden high output from the mixer could damage your hearing or damage the audio devices connected your mixer. Before connecting to AC power, turn off your mixer and all audio devices connected to your mixer.

Connecting Outputs

To play the mixer’s output signal through your sound system, connect one end of an RCA audio cable (not included) to the mixer’s AMP OUTPUT L (white) and R (red) jacks. Then connect the other end to your receiver/amplifier’s L and

R input jacks, matching L to L and R to R.

AMP OUTPUT L/R

If your amplifier or receiver is not equipped with RCA jacks, connect one end of a ¼ in. (6.35 mm) audio cable to the mixer’s BALANCE OUTPUT L/R jacks.

Then connect the other end to your amplifier or receiver’s input jack.

n Note: Do not connect the ¼ in. (6.35 mm) audio cable and RCA audio cable simultaneously.

BALANCED OUTPUT L/R

To record the mixer’s output signal, connect one end of an audio patch cord

(not supplied) to the mixer’s REC OUTPUT L (white) and R (red) jacks, then connect the other end to your recording device’s L and R line input jacks, matching L to L and R to R.

REC OUTPUT L/R

10

To monitor the mixer output on a second set of speakers, connect one end of an audio patch cord (not supplied) to the mixer’s BOOTH OUTPUT L (white) and R (red) jacks. Then connect the other end to your secondary amplifier’s L and R input jacks, matching L to L and R to R.

BOOTH OUTPUT L/R

Connecting Inputs

You can connect up to eight audio input sources (such as a tuner, cassette deck, CD player, or VCR) to the input jacks on the back of the mixer.

w Caution: Do not connect an audio source with a line-level to the low-level

PHONO 1 or PHONO 2 audio input jacks.

1.

Connect the line-level outputs from up to seven audio sources to the LINE

(1–7) input jacks, matching left to left, and right to right.

n

Note: PHONO 1 and LINE 1 (as well as PHONO 2 and LINE 3 ) use the same jack. When connecting the line-level output audio sources, slide INPUT

SELECT to LINE 1 and LINE 3 .

2.

Connect the low-level outputs from up to two audio sources (such as turntables) to the PHONO 1 and PHONO 2 input jacks.

PHONO 1 and

PHONO 2

GROUND n Note:

• If you connect magnetic-cartridge turntables, connect their ground wires

(usually black or green) to GROUND .

• To use PHONO 1 and PHONO 2 input jacks, slide INPUT SELECT to

PHONO 1 and PHONO 2 .

11

Connecting Microphones

You can connect two microphones (not supplied) to the mixer.

Connect a microphone with either an XLR plug or a ¼ in. (6.35 mm) plug to

MIC 1 on the top panel.

MIC 1 Jack

Connect a microphone with a ¼ in. (6.35 mm) plug to MIC 2 on the lower right corner of the back panel.

MIC 2 Jack

Connecting Power

Connect the mixer’s power cord to a standard AC outlet.

w Caution: The power cord has a polarized plug that only fits one way into a standard AC outlet. If the plug does not fit, turn it over so it fits properly. Do not force it.

12

Connecting a Lamp

Connect a 12V DC/3W BNC lamp (not supplied) to the 12V/3W MAX LAMP socket so you can see the control panel in dark or low-light conditions.

12V/3W MAX LAMP

Connecting Headphones

To listen in privacy or monitor the audio source inputs so you can locate an exact passage or section before mixing it, connect a pair of stereo headphones

(not supplied) with a ¼ in. (6.35 mm) plug to the PHONES jack.

CUE

PHONES Jack

Do not listen at extremely high volume levels. Extended, high-volume listening can lead to permanent hearing loss. To protect your hearing when using headphones, always follow these guidelines to set the listening volume:

• Set CUE (headphones volume) to minimum before putting on your headphones.

• After you put on the headphones, adjust CUE to a comfortable listening level. Do not increase the CUE setting. Over time, your ears adapt to the volume level.

13

Using Your Mixer

1.

Set the volume level on the output devices (receiver, amplifier, and so forth) to minimum and turn them on.

2.

Press POWER to turn on the mixer.

3.

Turn on the audio input sources you want to mix.

4.

Using the mixer requires two basic operations:

• To preset the input signal levels, see “Presetting Input Signal Levels” on page 14, and “ “Presetting Audio Input Sources” on page 15.

• To mix audio input sources, see “Mixing Your Inputs” on page 16.

5.

When finished, turn off all connected audio sources, and press POWER to turn off the mixer.

Presetting Input Signal Levels

To avoid overdriving a channel or prematurely mixing an audio input source, adjust your mixer to these settings:

• Set CHANNELS 1–4 to 0 .

• Set CUE , MIC 1–2 , TREBLE , and BASS level controls, and BOOTH to 0 , and set CUE/MIX/PGM to MIX .

• Set MASTER level control to 5 .

• Press MASTER MONO (in) for monaural output. Press again (out) for stereo output.

MIC 1 level

MIC 2 level

MIC TREBLE

MIC BASS

BOOTH

MASTER

CUE

CHANNEL Volume Controls

14

Presetting Audio Input Sources

Before mixing your audio sources (devices connected to PHONO 1/LINE 1 ,

LINE 2 , PHONO 2/LINE 3, LINE 4–7 , and USB port), you must set their input signal levels to each channel input ( CHANNELS 1–4 ). You do not have to mix every connected input source.

1.

Above each CHANNEL Volume Control, there is a channel selector. Set the channel selector to the desired input source ( PHONO 1/LINE 1/LINE 2 ,

PHONO 2/LINE 3/LINE 4 , LINE 5/LINE 6 , LINE 7/USB ).

2.

Play the selected input source.

3.

Adjust the volume on your headphones or receiver to a comfortable listening level.

4.

Slowly slide up the CHANNEL volume control until you get a reading of up to 0 on the mixer’s LED meters.

5.

Stop playback of the selected input source.

6.

Repeat these steps to preset PHONO 1/LINE 1 and LINE 2 to CHANNEL

1 ; PHONO 2/LINE 3 and LINE 4 to CHANNEL 2 ; LINE 5 and LINE 6 to

CHANNEL 3 ; LINE 7 and USB to CHANNEL 4 .

n Note:

• Write down the channel volume control’s setting for each audio source, so each time you want to mix that source, you can adjust its volume to that setting.

• If you had to set the channel volume to maximum to get a reading of 0 or less on the LED meter, then slide channel volume down to about 8 and slide MASTER up until you get a reading of 0 on both LED meters.

Presetting Microphone(s)

1.

If your microphone has an ON/OFF control, turn it ON. Otherwise, rotate MIC

1/2 level controls to 0.

2.

Set TALKOVER/ON/OFF to ON .

3.

While talking, adjust MIC 1/2 level controls until you get a signal reading of up to 0 on both LED meters.

4.

Set TALKOVER/ON/OFF to OFF .

n Note:

• Write down the MIC 1 level or MIC 2 level settings. When you want to mix with the microphone, you can adjust it to this setting.

• If you have to adjust MASTER , this affects the level of the previously set input sources. You must readjust those sources accordingly.

15

Checking the Sound

1.

Select an input source to play.

2.

Adjust its volume ( CHANNEL volume control) to its preset signal level (see

“Presetting Input Signal Levels” on page 14). The mixer’s LED meters should read 0 dB or less.

3.

Adjust your receiver/amplifier’s volume to an appropriate level for the location.

4.

Adjust the LEFT CHANNEL and RIGHT CHANNEL frequency controls to your preference (see “Using the Seven Band Equalizer” on page 19). If this causes the LED meters to exceed 0 dB, slide MASTER down until their readings return to 0 dB.

Adjust your output device’s volume accordingly.

Mixing Your Inputs

LEFT

CHANNEL

RIGHT

CHANNEL

MASTER

You can select any two of your connected audio sources and mix them so one or both play through your sound system. Mixing consists of three parts:

• Playing one input source

• Monitoring a second input source

• Switching to a second input source

Playing One Input Source

1.

Set ASSIGN A to the desired audio source ( 1 , 2 , 3 , and 4 correspond to

CHANNELS 1–4 ).

2.

Slide the CROSS FADER all the way to CH A .

3. Set PHONO 1/LINE 1 , LINE 2 , PHONO 2/LINE 3 , LINE 4–7 and USB to the input source you are going to play first.

4.

Adjust the input source’s volume to the desired level.

5.

Play the source.

16

Monitoring a Second Input Source

Monitoring a second input source requires listening to an input source, finding the desired audio section you want to mix, and adjusting its sound level to match the volume of the first input source ( ASSIGN A ).

1.

Connect and put on your headphones. You can listen to one source through the headphones while the other source plays over the sound system.

2.

Set ASSIGN B to the second input source.

3. Press CUE for the second input (above the CHANNEL control).

4.

Select PHONO 1/LINE 1 , LINE 2 , PHONO 2/LINE 3 , LINE 4, LINE 5, LINE 6,

LINE 7 or USB , depending on the location of the second input source.

5.

Play the second input source.

6.

Adjust the second input source’s volume to its preset signal level. If using headphones, adjust the CUE level (headphones volume) to a comfortable listening level.

7.

When you reach the desired section of music to mix, stop or pause the second input source.

Switching to a Second Input Source

ASSIGN A CROSS FADER ASSIGN B

1.

Play the second input source.

2.

When you are ready to hear it play on your sound system, slide the CROSS

FADER from CH A to CH B .

3.

Slide the CROSS FADER to the left ( CH A ) to fade in ASSIGN A (first input source) and fade out ASSIGN B (second input source). Slide the CROSS

FADER to the right ( CH B ) to fade in ASSIGN B and fade out ASSIGN A . Slide the CROSS FADER to the center to equally mix the two.

n Note: Do not slide the CROSS FADER to the center when monitoring a channel while another is playing. Instead, slide the CROSS FADER to the channel you are not monitoring. For example, to monitor channel 1 ( ASSIGN

A ) while channel 2 ( ASSIGN B ) is playing, slide CROSS FADER to CH A .

17

3200026_UG_EN_041912.indd 17 5/15/2012 10:19:14 AM

Using Microphone(s)

To mix the microphone connected to the MIC 1 or MIC 2 jack with other audio input sources, rotate MIC 1 or MIC 2 to increase or decrease the microphone volume. Set MIC 1 or MIC 2 to 0 when you are not using the microphone.

TREBLE and BASS Controls

Your mixer has a set of TREBLE and BASS controls to tailor the frequency sounds for each microphone.

1.

For regular sound, leave MIC TREBLE and MIC BASS set to 0.

2.

Rotate MIC TREBLE toward +12 to increase high frequency sounds, or toward

-12 to decrease high frequency sounds.

3. Rotate MIC BASS toward +12 to increase low frequency sounds, or toward -12 to decrease low frequency sounds.

TALKOVER

ON/OFF

TREBLE

BASS

TALKOVER

When you are not using your microphone, set TALKOVER/ON/OFF to OFF .

The microphone’s input is turned off and all other audio input sources are unaffected.

1.

To use your microphone, set TALKOVER/ON/OFF to ON . The microphone sound is mixed equally with the other audio input sources.

2. Set TALKOVER/ON/OFF to TALKOVER so the microphone’s sound is louder than the other audio input sources.

18

Using the Seven Band Equalizer

The seven band equalizer controls, LEFT CHANNEL and RIGHT CHANNEL , further tailor the frequency for CHANNELS 1–4 to match your acoustic surroundings or to suit your personal preference.

1.

To activate the equalizer, slide EQ ON/OFF to ON .

2.

Set the LEFT CHANNEL and RIGHT CHANNEL controls for a selected frequency to +12dB to boost, or toward -12dB to cut the frequency’s sound.

To provide smooth frequency control, the equalizer’s controls must overlap slightly. Thus, the 1K control has a light effect on the range of frequencies covered by the 400Hz and 2.4K

controls.

Using ECHO Effects

The mixer provides an echo effect and lets you adjust each delay, number of echo repeats, and the echo’s volume. The echo is applied to the sound after all of the inputs are mixed.

Slide ECHO ON/OFF to ON to turn on the echo effect. To turn it off, slide

ECHO ON/OFF to OFF .

Adjust Echo Delay, Repeat, and Level

To adjust the time interval between echoes, rotate ECHO DELAY . Set ECHO

DELAY to 0 for minimum delay, and to 10 for maximum time delay.

To adjust the length of time a tone is repeated (reverberation), rotate ECHO

REPEAT . Set ECHO REPEAT to 10 for the longest reverberation and to 0 for the shortest.

To adjust the echo output level, rotate ECHO LEVEL . Rotate ECHO LEVEL toward 10 to increase the echo level, and toward 0 to decrease it.

ECHO ON/OFF

ECHO REPEAT

ECHO DELAY

ECHO LEVEL

19

Using Sound Effects

Your mixer provides six preprogrammed sound effects: TRON, UFO, MACHINE

GUN, EMERGENCY, LASER, and SIREN.

To play a sound effect, repeatedly press or hold down the desired SOUND

EFFECT button.

To control sound effect pitch, rotate SOUND EFFECT SPEED .

To control sound effect level, rotate SOUND EFFECT F/X .

SOUND EFFECT SPEED

SOUND EFFECT F/X

Using Booth Level Control

If you set up remote speakers or DJ booth monitors, rotate BOOTH control to control the mixer’s overall booth volume level.

Monitoring (Cuing) Inputs

1.

Press in the CUE button for the input source you wish to monitor ( MIC ,

CHANNEL 1 , CHANNEL 2 , CHANNEL 3 , and CHANNEL 4 ).

2.

Rotate CUE located above the PHONES jack to set a comfortable listening level for the headphones.

3.

To listen to the CUE material, rotate CUE/MIX/PGM to CUE .

To listen to the active program, rotate CUE/MIX/PGM to PGM .

To listen to both simultaneously, set CUE/MIX/PGM to MIX .

Using the USB Port

You can input audio from a PC or Mac ® to the mixer, or record audio to a PC or

MAC through the USB port.

20

Input

1.

Set the channel selector to USB .

2.

Connect the PC or Mac to the USB port with a standard high-speed USB cable

(not supplied). Then play the audio through the computer’s audio player.

Record

1.

On the mixer, mix your inputs.

2.

Connect the PC or Mac to the USB port with a standard high-speed USB cable

(not supplied). Record the audio to the PC or Mac.

Additional Information

Replacing the Fuse

Your mixer requires a 250 Volt, 0.5 Amp fuse to protect it from power surges and short circuits. If the mixer suddenly turns off or will not turn on, the fuse could be blown. Replace the fuse with a 250 Volt, 0.5 Amp, fast-blow, 1¼ x ¼ inch (32 mm x 6.35 mm) fuse (not supplied, available at your local RadioShack store or at www.radioshack.com).

n Note: Do not use a fuse with a rating other than that specified here. Doing so might damage your mixer.

1.

Unplug the mixer from the AC outlet.

2.

Use a Phillips screwdriver to remove the fuse compartment cap from the mixer.

3.

Remove the old fuse and replace it with an identical fuse.

4.

Replace the fuse compartment cap.

Fuse Compartment

Cap

Service and Repair

If your mixer is not performing as it should, take it to your local RadioShack store for assistance. Modifying or tampering with the mixer‘s internal components can cause a malfunction and might invalidate its warranty.

21

Troubleshooting

Problem

The mixer won’t turn on.

There no signal from my input sources.

I hear a humming noise from the PHONO source.

I hear a humming noise from another (non-PHONO) input source.

I hear microphone feedback

(squealing).

Solution

Check the AC power connection and make sure the AC outlet is “live.”

Check the power connections to the rest of system

(amplifier/receiver, input sources, and so on).

Check the fuse, and replace it if necessary.

Check the control settings of the mixer and the input sources.

Ensure the proper connection between the mixer and input sources.

Make sure TALKOVER/ON/OFF is not set to

TALKOVER .

Make sure the input source is turned on.

Make sure the PHONO 1 or PHONO 2 source’s ground wire is connected to the mixer’s GROUND terminal.

Make sure there are no low-level inputs connected to the mixer’s line input jacks.

Move the microphone farther away from the output speakers or use a directional microphone.

Specifications

Input Sensitivity/Impedance

MIC 1 (Combo jack) ..............................................1.5 mV, 600 ohms, Balanced/Unbalanced

MIC 2 (PHONE jack) .............................................1.5 mV, 600 ohms, Balanced/Unbalanced

PHONO 1, PHONO 2 .....................................................................................3 mV/50 kOhms

LINE 1, LINE 2, LINE 3, LINE 4, LINE 5, LINE 6, LINE 7 ...........................150 mV/27 kOhms

USB Port .................................................................................................................... USB 1.1

Output Level

Main Out ..........................................................................................................1.2V/10 kOhms

Record .........................................................................................................150 mV/10 kOhms

Frequency Response ......................................................................................20–20K Hz±3dB

S/N Ratio (for 1 kHz)

MIC ....................................................................................................................................60dB

PHONO .............................................................................................................................70dB

LINE ...................................................................................................................................80dB

Distortion

MIC ...................................................................................................................................0.20%

PHONO ............................................................................................................................0.08%

LINE ..................................................................................................................................0.05%

22

Tone Control (MIC)

TREBLE ........................................................................................................................... ±12dB

BASS ............................................................................................................................... ±12dB

Equalizer Control

Control Frequencies .................................................... 60, 150, 400, 1k, 2.4k, 6k, and 15k Hz

Boost/Cut Range ......................................................................................±12dB from Center

Talkover Attenuation .......................................................................................................-16dB

Power Source ...........................................................................................AC 120V, 60Hz, 20W

Dimensions (H × W × D) .............................................9.5 × 19 × 4 in. (240 × 482 × 102mm)

Weight ............................................................................................................... 9.68 lb (4.4 kg)

Fuse ............................................................250V, 0.5A, fast-blow, 1¼ x ¼ in. (32 × 6.35 mm)

Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your local RadioShack store or an experienced radio/TV technician for help.

If you cannot eliminate the interference, the FCC requires that you stop using your equipment.

Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Product

Model

Responsible

Party

Phone

Stereo 4-Channel Mixer with

Sound Effects

3200026

RadioShack

300 RadioShack Circle

Fort Worth, TX 76102

817-415-3200

Limited Warranty

RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for one (1) year after the date of purchase from a RadioShack -owned store or an authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS

WARRANTIES.

23

This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs;

(f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser.

Should a problem occur that is covered by this warranty, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store in the U.S. RadioShack will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack . New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period.

RADIOSHACK EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN THIS

LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING

THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY

OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED

WARRANTY PERIOD.

EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO

THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY

LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF

THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT

LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA,

PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL

DAMAGES, EVEN IF RADIOSHACK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. You may contact RadioShack at:

RadioShack Customer Relations

300 RadioShack Circle, Fort Worth, TX 76102 04/08 www.RadioShack.com

Mac is a trademark of Apple, Inc., registered in the U.S and other countries.

Complies with the European Union’s “Restriction of Hazardous Substances

Directive,” which protects the environment by restricting specific hazardous materials and products.

Protect the environment by recycling your used electronics. Go to

E-CyclingCentral.com to find an electronic recycling center near you.

©2012. RadioShack Corporation.

All rights reserved. RadioShack and RadioShack.com

are trademarks used by RadioShack Corporation.

Printed in China

04A12

3200026
