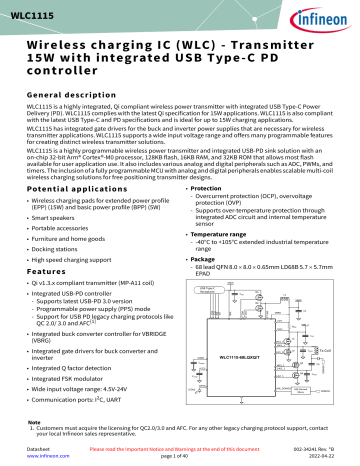

WLC1115
Wireless charging IC (WLC) - Transmitter
15W with integrated USB Type-C PD controller
General description
WLC1115 is a highly integrated, Qi compliant wireless power transmitter with integrated USB Type-C Power
Delivery (PD). WLC1115 complies with the latest Qi specification for 15W applications. WLC1115 is also compliant with the latest USB Type-C and PD specifications and is ideal for up to 15W charging applications.
WLC1115 has integrated gate drivers for the buck and inverter power supplies that are necessary for wireless transmitter applications. WLC1115 supports a wide input voltage range and offers many programmable features for creating distinct wireless transmitter solutions.
WLC1115 is a highly programmable wireless power transmitter and integrated USB-PD sink solution with an on-chip 32-bit Arm® Cortex®-M0 processor, 128KB flash, 16KB RAM, and 32KB ROM that allows most flash available for user application use. It also includes various analog and digital peripherals such as ADC, PWMs, and timers. The inclusion of a fully programmable MCU with analog and digital peripherals enables scalable multi-coil wireless charging solutions for free positioning transmitter designs.
Potential applications
• Wireless charging pads for extended power profile
(EPP) (15W) and basic power profile (BPP) (5W)
• Smart speakers
• Portable accessories
• Furniture and home goods
• Docking stations
• High speed charging support
Features
• Protection
- Overcurrent protection (OCP), overvoltage protection (OVP)
- Supports over-temperature protection through integrated ADC circuit and internal temperature sensor
• Temperature range
- -40°C to +105°C extended industrial temperature range
• Package
- 68 lead QFN 8.0 8.0 0.65mm LD68B 5.7 5.7mm
EPAD
• Qi v1.3.x compliant transmitter (MP-A11 coil)
VBUS
USB Type‐C
Receptacle • Integrated USB-PD controller
- Supports latest USB-PD 3.0 version
- Programmable power supply (PPS) mode
- Support for USB PD legacy charging protocols like
QC 2.0/ 3.0 and AFC
• Integrated buck converter controller for VBRIDGE
(VBRG)
• Integrated gate drivers for buck converter and inverter
• Integrated Q factor detection
VDDD
C
VDDD
VCCD
C
VIN
Q5
Q6
WLC1115-68LQXQ/T
VBRG
CSPO
CSNO
LG1_1
L1
HG1_1
SW1_1
HG2_1
SW2_1
Q1
Q2
VBRG
R
SNS
VBB_1
Q3
Q4
C1
C
BRG
C
ZVS1
Cp
Tx Coil
C
ZVS2
• Integrated FSK modulator
• Wide input voltage range: 4.5V-24V
• Communication ports: I
2
C, UART
C
VCCD
LED(s)
GPIOs
LG2_1
ASK_DEMOD
ASK Demod filters
DEMOD
Note
1. Customers must acquire the licensing for QC2.0/3.0 and AFC. For any other legacy charging protocol support, contact your local Infineon sales representative.
Datasheet www.infineon.com
Please read the Important Notice and Warnings at the end of this document
page 1 of 40
002-34241 Rev. *B
2022-04-22
Wireless charging IC (WLC) - Transmitter 15W with integrated
USB Type-C PD controller
Logic block diagram
Logic block diagram
WLC1115: Wireless Transmitter Controller with Integrated PD
MCU Subsystem arm
®
CORTEX -M0
48 MHZ
Integrated Digital Blocks
4 x TCPWM
SCB X 4
(2 x I2C, SPI, UART)
IO Subsystem
CC
GPIOs
Flash
(128 KB)
SROM
(32 KB)
Buck Controller
PWM
High Side & Low
Side Gate drivers
Current Sense
Amplifier
2 X OVT
SRAM
(16 KB)
System
Resource
USB PD Legacy Charging
Protocols - QC 2.0 / 3.0 & AFC
Wireless Controller with Integrated PD
Qi v1.3.x Stack
PWM
Baseband MAC &
PHY
Hi-Voltage LDO
High Side & Low
Side Gate Drivers
FOD
Q Factor, Resonance
Freq. & Power Loss
VBRG OVP, SCP
Protection
1 x 8-bit SAR ADC
ASK Demodulator
Voltage & Current
ASK Decoder
NFET Gate Driver w/
Slew Rate Control
Current Sense
Amplifier
PPDE/Samsung FC,
Apple 7.5W
Note
2. Customers need to acquire their own licensing for Samsung FC.
Datasheet 2 of 40 002-34241 Rev. *B
2022-04-22
Wireless charging IC (WLC) - Transmitter 15W with integrated
USB Type-C PD controller
Table of contents
Table of contents
.................................................................................................................................................................................. 24
Datasheet 3 of 40 002-34241 Rev. *B
2022-04-22
Wireless charging IC (WLC) - Transmitter 15W with integrated
USB Type-C PD controller
Table of contents
Datasheet 4 of 40 002-34241 Rev. *B
2022-04-22
Wireless charging IC (WLC) - Transmitter 15W with integrated
USB Type-C PD controller
Application diagram for 15W transmitter solution with MP-A11 Tx coil
1 Application diagram for 15W transmitter solution with MP-A11
Tx coil
illustrates a typical application of WLC1115 for 15W, Qi v1.3.x compliant transmitter for fixed frequency and voltage control based MP-A11 Qi transmitter coil. The input power to the system is through Type-C PD sink, powering the buck converter. The buck converter powers the full bridge inverter which in turn drives the transmitter coil. The WLC1115 controls the inverter bridge voltage (VBRG) using the buck converter to regulate the power flow to the transmitter coil powering the receiver. A dual Opamp is used for converting the amplitude shift key (ASK) modulated power signal into binary signal. WLC1115 uses a digital logic for decoding the binary signals. The OPTIGA ™ Trust Security IC is interfaced over I 2 C for authentication requirements per Qi v1.3.x.
VBUS_IN BB_IN 5 m 10 m
NFET_CTRL_1
DP
DM
CC1
CC2
VDDD
68 67 1 2
0.1μF 1μF
GND
390pF
390pF
66
CSNI_0
65
61
CSPI_0
VIN
62
VCCD
10
COMP
69
64
34
GND (EPAD)
GND
GND
23
DP
24
DM
15
CC1
16
CC2
Config PC
USB-I2C*
VDDD
Optiga Trust
Charge
( Qi v1.3.x EPP )
VDDD
VDDD 63
0.1μF 10μF
25
0.1μF 1μF
28
SWD_DAT/HPI_SDA 56
SWD_CLK/HPI_SCL
57
VDDD
VDDD
XRES
SWD_DAT/GPIO9
SWD_CLK/GPIO10
VDDD
I2C_SDA
I2C_SCL
OPTIGA RESET
29
30
33
31
SDA_SEC
SCL_SEC
RES_SEC
UART/GPIO7
USB-UART*
58
59
Debug PC
VDDD
5 9 7 8 6 13 11 12 14
WLC1115-68LQXQ/T
PVDD_0
PGND_0
PVDD_1
PGND_1
DNU2
1μF
4
3
48
49
1μF
55
DNU1
54
VBB_1
HG2_1
46
44
VDDD
BST2_1
SW2_1
LG2_1
43
45
HG1_1
47
52
VDDD
BST1_1 53
SW1_1
51
LG1_1
50
ASK_P
ASK_N
41
40
ASK_OUT
ASK_DEMOD
ASK_SEL
18
19
36
VDDD
Dual Opamp
VBB_1
Qi PTx Coil
26 27 60 39
QCOMP2
QCOMP1
32
37
Oscillator
(optional)
NOTE:
1/ Sink FET is Optional
2/ Optiga Trust Charge is required for Qi v1.3.x EPP 15W only
* These are External Dongle Board not part of Solution HW
Figure 1 Application diagram for 15W transmitter solution with MP-A11 Tx coil
Datasheet 5 of 40 002-34241 Rev. *B
2022-04-22
Wireless charging IC (WLC) - Transmitter 15W with integrated
USB Type-C PD controller
Pin information
16
17
18
19
20
3
4
5
9
10
7
8
11
12
13
14
2
Table 1
Pin#
1
2
6
15
Pin information
WLC1115 pinouts
Pin name
Pin function for 15W
MP-A11 application firmware
VBRG_DIS
NFET_CTRL_0
ASK_OUT
ASK_DEMOD
GD_OVR_HB_1
SW1_0
LG1_0
PGND_0
PVDD_0
LG2_0
VBB_0
SW2_0
HG2_0
BST2_0
COMP
CSPO
CSNO
VBRG
CC1
CC2
PWM_IN1
Pin description
Buck converter switching node (DC-DC bank 1) and input to zero current detector for low side gate driver. Connect this pin to switch node of buck with a short and wide trace.
Low side gate driver output for buck converter (DC-DC bank 1).
Connect to the buck Low side FET gate. Use a wide trace to minimize inductance of this connection.
Ground for gate driver (DC-DC). Connect all grounds (GND) and
PGND pins (PNGD_0 and PGND_1) together. Connect directly PCB ground plane and Exposed pad (E-PAD).
Connect to VDDD and to decoupling capacitors (1µF and 0.1µF), as close to the IC as possible.
Low side gate driver output for DC-DC bank 2.
Float this pin for 15W MP-A11 application.
Input rail of inverter bridge, connected to output of the buck converter. Connect this to the buck side terminal of current sense resistor for inverter bridge input current sensing. Use a dedicated
(Kelvin) trace for this connection.
Switching node (DC-DC bank 2).
Connect this pin directly to the E-PAD.
High side gate driver output of DC-DC bank 2.
Float this pin for 15W MP-A11 application.
Bootstrap power supply for DC-DC bank 2.
Connect this pin to VDDD via a Schottky diode.
Error amplifier (EA) output for buck controller.
Connect the RC compensation network to GND.
Positive input of current sensing amplifier of inverter bridge input current. Connect to positive terminal of the output current sense resistor (VBB_0).
Negative input of current sensing amplifier of inverter bridge input current. Connect to negative terminal of the current sense resistor.
Feedback pin for buck output voltage. Connect it to buck output before inverter bridge input current sense resistor.
Inverter input power supply voltage. Connect to buck output before inverter bridge input current sense resistor. Used as weak discharge of VBRG.
Type-C connector configuration channel 1. Connect directly to the CC1 pin on the port’s Type-C connector and to a capacitor
(recommended value 390pF) to ground.
Type-C connector configuration channel 2. Connect directly to the CC2 pin on the port’s Type-C connector and to a capacitor
(recommended value 390pF) to ground.
NFET gate driver output. Float this pin if it is not used.
ASK voltage/current sensing path.
IC output for ASK signal processing.
Input for ASK signal decoding. Connect external ASK comparator output to this pin. Short this pin to pin-36 (ASK_SEL).
Inverter gate driver input signal for inverter bank 1.
Short this pin to pin-22. PWM_OUT.
