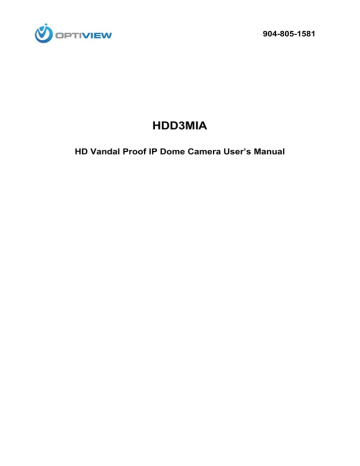

HDD3MIA
HD Vandal Proof IP Dome Camera User
’s Manual
Version 3.0.0
2
Welcome
Thank you for purchasing our IP camera!
This user
’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user
’s manual well for future reference! i
Important Safeguards and Warnings
1
.Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1.
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2
.Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.
3
.Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
4
.Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5
.Environment
This series IP camera should be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
Thunder-proof device is recommended to be adopted to better prevent thunder.
The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera.
6. Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily maintenance work.
Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens surface. ii
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
7. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
Accessory Name
IPC Unit
Amount
1
MD9M data converter cable
1
Accessories bag
Quick Start Guide
1
1
CD
1 iii
Table of Contents
iv
v
1 General Introduction
1.1 Overview
This series IP camera integrates the traditional camera and network video technology. It adopts audio and video data collection, transmission together. It can connect to the network directly without any auxiliary device.
This series IPC uses standard H.264 video compression technology and G.711a audio compression technology, which maximally guarantee the audio and video quality.
This series IPC enclosure has the strong resistance capacity, which can guarantee the proper work performance under heavy strike. It supports real-time monitor and listening at the same time. It supports analog video output and dual-way bidirectional talk.
It can be used alone or used in a network area. When it is used lonely, you can connect it to the network and then use a network client-end. Due to its multiple functions and various uses, this series
IPC is widely used in many environments such office, bank, road monitor and etc.
1.2 Features
User
Management
Different user rights for each group, one user belongs to one group.
The user right shall not exceed the group right.
Storage
Function
Alarm
Function
Network
Monitor
Network
Management
Support central server backup function in accordance with your configuration and setup in alarm or schedule setting
Support record via Web and the recorded file are storage in the client-end
PC.
Support built-in SD card.
Support local SD card hot swap, support short-time storage when encounter disconnection.
Real-time respond to external local alarm input and video detect as user predefined activation setup and exert corresponding message in screen and audio prompt(allow user to pre-record audio file)
Real-time video detect: motion detect, camera masking.
Can generate an alarm when network abnormal, SD card abnormal event occurred.
IPC supports one-channel audio/video data transmit to network terminal and then decode. Delay is within 270ms (network bandwidth support needed)
Max supports 20 connections.
Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,
MULTICAST, RTP/RTCP, RTSP and etc.
Support web access, widely used in WAN.
Realize IPC configuration and management via Ethernet.
Support device management via web or client-end.
Support various network protocols.
Support the on-off alarm device to alarm via the sound or the light.
Peripheral
Equipment
Power
Assistant
Function
External power adapter DC12V/AC 24V
Support PoE.
Log function
Support PAL/NTSC
1
Support system resource information and running status real-time display.
Day/Night mode auto switch (ICR switch).
Built-in IR light. Support IR night vision (For HDBW Series only).
Backlight compensation: screen auto split to realize backlight compensation to adjust the bright.
Support electronic shutter and gain setup.
Support video watermark function to avoid vicious video modification.
1.3 Specifications
1.3.1 Performance
Please refer to the following sheet for IPC performance specification.
Model
Parameter
Main
Processor
OS
HDD3MIA Series
TI Davinci high performance DSP
Embedded LINUX
System
Resources
Support real-time network, local record, and remote operation at the same time.
User Interface
Remote operation interface such as WEB, DSS, PSS
System Status
SD card status, bit stream statistics, log, and software version.
Image Sensor
1/2.8-inch CMOS
Pixel
Day/Night
Mode
Auto Iris
2048(H)*1536(V)
Support day/night mode switch and IR-CUT at the same time.
DC drive
Gain Control
Fixed/Auto
White Balance
Manual/Auto
BLC
Electronic
Shutter
Manual/Auto
Manual/Auto
PAL: It ranges from 1/3 to 1/10000.
NTSC: It ranges from 1/4 to 1/10000.
Video
Compression
Standard
H264/JPEG/MJPEG
Video Frame
Rate
Video Bit Rate
Video Flip
Snapshot
PAL:
Main stream(2048*1536@15fps) extra stream,(704*576@15fps)
Main stream(1920*1080@25fps) extra stream(704*576@25fps)
NTSC:
Main stream(2048*1536@15fps) extra stream(704×480@15fps)
Main stream(1920*1080@30fps) extra stream(704×480@30fps)
H.264: 56Kbps-8192Kbps.
MJPEG is adjustable and bit rate is adjustable.
Support customized setup.
Support mirror.
Support flip function.
Max 1f/s snapshot. File extension name is JPEG.
Privacy Mask
Supports max 4 privacy mask zones
Video Setup
Support parameter setup such as bright, contrast.
2
Video
Information
Lens
Channel title, time title, motion detect, privacy mask.
Lens Interface
CS. Lens is the default accessories
Audio Input
1-channel,RCA audio input.
Audio Output
1-channel, RCA, audio output.
Bidirectional
Talk Input
Reuse the first audio input channel
Audio Bit Rate
16kbps 16bit
Audio
Compression
Standard
G.711a/G.711u/PCM
Motion Detect
Video Loss
Alarm Input
396 (18*22) detection zones;sensitivity level ranges from 1 to 6 (The 6 th level has the highest sensitivity)
Activation event, alarm device, audio/video storage, image snapshot, log, email function and etc.
Activation event, alarm device, audio/video storage, image snapshot, log, email function and etc.
2-channel input,1-channel output
Record
Priority
Manual>External alarm >Video detect>Schedule
Local Storage
Support Micro SD card storage
Wire Network
1-channel wire Ethernet port, 10/100 Base-T Ethernet
Network
Protocol
Remote
Operation
Standard HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP, UDP,
SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP,
NFS.
Monitor, system setup, file download, log information, maintenance , upgrade and etc
Video Output
1-channel analog video output,BNC port, 9-pin port connection
Reset
6-pin port connection
IR light
35 LED, IR distance 10 to 20 meters (For HDBW series product only)
Power
Power
Consumption
Working
Temperature
Working
Humidify
Dimensions(m m)
Weight
Installation
Support AC24V/DC12V power. PoE
7W MAX
-10
℃~+60℃
10%~90%
¢160x118.5
1.25g
Support various installation modes(Enclosure and bracket is optional)
1.3.2 Factory Default Setup
Please refer to the following sheet for factory default setup information.
Function
Setup Type
Item
Default setup
HDD3MIA
Brightness
Contrast
50
50
3
Function
Setup Type
Item
Hue
Saturation
Gain mode
Gain limit
Exposure mode
Auto iris
Scene mode
Day/night mode
BLC
Flip
Video bit stream
Main stream
Extra stream
Default setup
HDD3MIA
50
50
Auto
80
Auto
Enable
Auto
Auto
Off
Disable
Bit stream type
Encode mode
General
H.264B
Resolution
1080P
(1920*1080)
Frame rate
(FPS)
PAL: 25
NTSC:30
Bit stream type
Reference bit rate
Bit rate
I frame interval
CBR
3584-8192 Kb/S
8192
50
Watermark settings
Watermark character
Enable
Bit stream type
I frame interval
Enable
DigitalCCTV
Enable
General
Encode mode
H.264B
Resolution
Frame rate
(FPS)
CIF(352×288/35
2×240)
PAL: 25
NTSC:30
Bit rate type CBR
Reference bit rate
Bit rate
192-1024Kb/S
640
50
720P(1280*72
0)
CIF(352×288/3
52×240)
4
Function
Setup Type
Item
Snapshot
Overlay
Path
Main stream
Sub(Extra) stream
Snap type
Image size
Default setup
HDD3MIA
General snap
1080P
(1920*1080)
Quality
Interval
Better
7s
Privacy mask Enable
Channel title Enable
Time title Enable
Snapshot path
C:\PictureDownload
Record path C:\RecordDownload
Enable
Encode mode
Enable
Enable
G.711A
Disable
Encode mode
G.711A
Host name IPC
Ethernet card Wire(Default)
Mode Static
720P(1280*7
20)
Network setup
TCP/IP
Connection
PPPoE
MAC address
IP version
IP address
Depends on the device
IPV4
192.168.1.168
Subnet mask 255.255.255.0
Default gateway
Preferred
DNS
Alternate
DNS
Enable
ARP/Pingto to set IP address service
192.168.1.1
8.8.8.8
8.8.8.8
Enable
Max connection
TCP port
UDP port
10
37777
37778
HTTP port 80
RTSP port 554
Enable Disable
5
Function
Setup Type
Item
Default setup
HDD3MIA
User name N/A
Password N/A
DDNS
IP filter
SMTP(email)
Server type
Disable ,CN99 DDNS
Server IP
Port none
80
Domain name
User name
Password
Update period none none
N/A
5m
Trusted sites Disable
SMTP server none
Port
Anonymity
25
Disable
User name
Password
Sender
Authenticatio n (Encrypt mode)
Title
(Subject)
Main
Receiver
Interval anonymity
N/A none
N/A
IPC Message
N/A
0s
UPnP
SNMP
Bonjour
Multicast
Health email Disable ,interval=60m
Enable UPnP Disable
SNMP v1 Disable
SNMP v2 Disable
SNMP port 161
Read community public
Write community private
Trap address N/A
Trap port 162
Enable
Server name
Enable
“Device name+SN”.
Depends on the device.
Multicast address
Port
239.255.42.42
36666
6
Function
Setup Type
Item
Auto register
WIFI
QoS
Enable
SN
Server IP
HDD3MIA
Disable
1
0.0.0.0
Port
Sub-device
ID
7000 none
On(Enable) Enable
Real-time monitor
Command
Enable
Anti-dither
Sensitivity
Default setup
0
0
Disable
5 seconds
3
Event management
Video detect
Record
Channel
Record
Delay
Enable
10 seconds
Relay
(Alarm) output
Enable
Alarm delay 10s
Send email Disable
PTZ Disable
Activation
Address
Snapshot
Enable
Record
Channel
Record
Delay
Relay out
N/A
0
Disable
Disable
Enable
10 seconds
Enable
Record
Delay
10 seconds
Send email Disable
PTZ Disable
Alarm setup
Activation Disable
Address 0
Snapshot
Enable
Disable
Disable
Relay input Alarm1
Anti-dither 5s
Sensor type NO
7
Function
Setup Type
Item
Default setup
HDD3MIA
Record channel
Enable
Record delay 10s
Abnormity
Relay
(Alarm) output
Enable
Relay
(Alarm) delay
10s
Send email Disable
PTZ
Activation
Address
Snapshot
Disable
N/A
0
Disable
Relay output
(Alarm)
Enable
Relay
(Alarm) output
1
Disable
Enable
Relay output delay
10s
Send email Disable
Enable Disable
Capacity limit
(Space threshold)
Relay
(Alarm) output
Relay output delay
10%
Enable
10s
Send email Disable
Enable Disable
Relay
(Alarm) output
Enable
Relay output delay
10s
Send email Disable
Enable Disable
Record Enable
Record delay 10s
Relay
(Alarm) output
Enable
Relay output
10s
8
Function
Setup Type
Item
Default setup
HDD3MIA
delay
Enable
Record
Disable
Enable
Record delay 10s
Relay
(Alarm) output
Relay output delay
Enable
10s
Storage management
System management
Destination(Storag e )
Conditions control)
General setup
FT
P
(Record
FTP enable Disable
Server IP N/A
Port 21
User name anonymity
Password
Remote storage path
N/A share
Emergency storage to local path
Disable
NAS enable Disable
Mode NFS
Server IP N/A
Port 21
User name N/A
Password N/A
Remote storage path
Pack duration
Pre-record
Disk full
N/A
8m
5s
Overwrite
Record mode Auto
Device name Device factory SN
English Language
Video standard
NTSC NTSC
Date format Y-M-D
Time format 24H
Time zone GMT+08:00
Current time Sync PC
DST
DTS type
Disable
Week
9
Function
Setup Type
Item
Start time
End time
Default setup
HDD3MIA
00:00:00 of the first Sunday of the month
00:00:00 of the second Monday of the month
Synchronize with NTP
Disable
NTP server clock.isc.org
Port 37
PTZ setup
Auto maintenance
Update period
Protocol
Address
Baud rate
Data bit
10m
PELCOD
1
9600
8
Stop bit
Parity
1
N/A
Auto reboot Enable
Auto delete old files
Disable
10
2 Structure
2.1 Multiple-function Combination Cable
You can refer to the following figure for multiple-function combination cable
Figure 2-1
Please refer to the following sheet for detailed information.
Port Name Function Connection Note
VIDEO OUT
Video output port
BNC
Output analog video signal. It can connect to the
TV monitor to view the video.
AUDIO IN
AUDIO OUT
12V DC/AC24V
Audio port port input
Audio output
RCA
RCA
Power input port
/
Input audio signal. It can receive the analog audio signal from the pickup.
Output audio signal to the devices such as the sound box.
Power port. Input DC 12V/AC 24V
I/O
LAN
I/O cable port /
Network port
Ethernet port
Connect to I/O port cable.
Connect to standard Ethernet cable.
Support PoE.
Please refer to the follow sheet for detailed information of MD9M data converter cable.
Port Name Cable
Color
Name Note
Red
I/O Port
Pin
Brown
ALARM_COM Alarm output public port.
ALARM_IN1
Alarm input port 1. It is to receive the on-off signal from the external alarm source.
11
Port Name Cable
Color
Name Note
Grey
White
Blue
ALARM_IN2
ALARM_NO
RESET
Alarm input port 2. It is to receive the on-off signal from the external alarm source.
Alarm output port. It is to output the alarm signal to the alarm device.
NO: normal open alarm output port.
It works with the ALARM_COM port.
It is to restore factory default setup.
When the device is working properly, please connect the blue cable (restore default setup port) to the orange cable (GND signal) for 5 seconds, the device can resume factory default setup.
Orange GND Ground port
2.2 Framework and Dimension
Figure 2-2
12
Figure 2-3
2.3 Bidirectional talk
2.3.1 Device Connection
Before the operation, connect the active pickup to the audio input port of the device. Connect the active speaker to the audio output port of the device. Please make sure the client-end device has the audio input and output function. For example, you need to connect the microphone and then earphone to the PC if you want to implement the bidirectional talk function.
2.3.2 Operation
Login the Web and click the bidirectional talk button to enable this function. Click this button again; you can close current bidirectional talk.
2.4 Alarm Setup
and output connection.
1) Connect the alarm input device to the alarm input port (grey or brown pin of I/O port cable).
2) Connect the alarm output device to the alarm output port (White-pin) and alarm output public port
(Red-pin). The alarm output port supports NO (normal open) alarm device only.
3) Open the Web, go to the Figure 2-4. Please set the alarm input 01 port for the brown-pin (the 1
st channel) of I/O port cable. The alarm input 02 is for the grey-pin (the 2 nd
channel) of I/O port cable.
Then you can select the corresponding type (NO/NC.)
4) Set the WEB alarm output. The alarm output port of the alarm output 01 device (The white-pin of the
I/O port cable).
13
Figure 2-4
14
3 Installation
This series IPC can be put on the table to realize surveillance. Or you can use the bracket or the inceiling installation to realize the hang function. Please refer to the steps listed below.
3.1 Device Installation
Step 1
Use the inner hexagonal wrench (provided) to loose the three inner hexagon screws in the dome cover
and then open the cover. The device is shown as in Figure 3-1
Figure 3-1
Step 2
Use the inner hexagonal wrench (provided) to loose the three inner hexagon screws in the dome and
then remove the device pedestal. See
With IR light Without IR light
Figure 3-2
15
Step 3
Draw out the cable exit and four screw holes in the installation position according to the device pedestal. Dig the four plastic expansion bolt holes and cable exit. Insert the four plastic expansion bolts into the screw holes
Step 4
Adjust the camera pedestal to the proper position and then draw the cable through the cable exit you just dug in the ceiling (wall). Line up the four screw holes in the device pedestal to the four plastic expansion bolt holes in the installation position. Put the four self-tapping screws in the device pedestal and then use the screwdriver to secure the screws in the four plastic expansion bolts firmly.
Step 5
Adjust the device position and line up the three inner hexagon screws of the device to the three holes of the installation position. Put the three inner hexagon screws into the screw holes at the bottom of the pedestal. Use the inner hexagon screwdriver to fix firmly. Connect the GND to the ground wires to
improve stability. See Figure 3-3 .
With IR light Without IR light
Figure 3-3
Step 6
Adjust the X-Y-Z axis module to turn the device to the proper monitor angle. Please follow the steps listed below to adjust. See Figure 3-4.
Please note, for the dome of the IR light, you can skip step a) and step e).
a): Slightly push the two sides to squeeze the plastic hook so that you can take off the dome enclosure.
b):Slightly loose the screws at the two sides of the X-Y-Z module manually, you can adjust the module tilt rotation angle (15°~90°).
c):Slightly loose the screw of the pressing slice, you can adjust the video rotation angle of the module (0°~355°)
d):Adjust the turning ring of the pedestal, you can adjust the module pan rotation angle (
0°~
355°
).
16
e): Put the enclose back after you completed the setup.
With IR light Without IR light
Figure 3-4
Please note, the screws in the following figure are the optical adjustment component. Please
make sure it is outward and do not allow it to touch the X-Y-Z axis module. See Figure 3-5
Figure 3-5
Step 7
Put the dome cover back and then put the three inner hexagon screws into the holes of the device.
Use the inner hexagonal wrench to fasten these three screws. See Figure 3-6
Figure 3-6
17
3.2 SD Card Installation
Important
Before you install the SD card, please unplug he power cable to shut down the device!
First, please refer to the step1 in the chapter 3.1 to open the device.
Second, please adjust the proper position to install the SD card.
Last, please refer to the step 7 in the chapter 3.1 to complete the installation. See Figure 3-7.
With IR light Without IR light
Figure 3-7
3.3 Lens Adjustment
Step 1
Slightly loose the screw B manually and then turn the screw B slowly. Adjust the lens focus distance to
the proper position according to the monitor video. See Figure 3-8.
Step 2
Use the flat screwdriver to loose the screw A slightly and then turn the Screw A slowly. Adjust the lens focus to get the clear video and then use the flat screwdriver to secure the screw firmly.
Step 3
When you are adjusting the screw A, the video may becomes blur. Please slightly adjust the screw B manually to get the vivid video. Finally fix the screw.
18
With IR light Without IR light
Figure 3-8
19
4 Quick Configuration
4.1 Overview
Quick configuration can search current IP address, modify IP address.
Please note the search only applies to the IP addresses in the same segment.
4.2 Operation
Run the Hybrid NDVR, click the “Menu” button on the bottom right corner, select “Add/Del IP camera”, and click “IPC search”, you’ll see an interface shown in Figure 4-1.
Figure 4-1
Select
“DH series IPC search”, you can view device IP address, data port number, subnet mask, default gateway, MAC address and etc. See in Figure 4-2, click on one device and its detailed information will be shown there.
.
20
Figure 4-2
Select one IP addre ss and then click “Add to DVR”, then “Exit”, you can see an interface shown in
Figure4-3.
Figure 4-3
21
After camera added, right click on it and select the “IP camera setup” item; you can go to the configuration interface.
If you want to modify the device IP address without logging in the device web interface, you can go to the software interface to set.
In Figure 4-2, you can view device IP address, user name, password and port. Please modify the corresponding information to login.
Click the “IE setup”, then you can login to the web interface.
22
Figure 4-5
Please note to login with HTTP port (Default 80) in web client and Data port (Default 37777) in software. Otherwise, you cannot login the device.
For detailed information and operation instruction of the quick configuration tool, please refer to the
IP_System_Quick_Start_Guide
.
23
5 Web Operation
This series IPC product support the Web access and management via PC.
Web includes several modules includes monitor channel preview, PTZ control, system configuration, alarm and etc.
IP camera factory default setup:
IP address: 192.168.1.108.
User name: admin
Password: admin
5.1 Network Connection
Please follow the steps listed below for network connection.
Make sure the IPC has connected to the network properly.
Please set the IP address, subnet mask and gateway of the PC and the IPC respectively. IPC default IP address is 192.168.1.108. Subnet mask is 255.255.255.0. Gateway is 192.168.1.1
Use order ping ***.***.***.***(* IP camera address) to check connection is OK or not.
5.2 Login and Main Interface
Open IE and input IP camera address in the address bar.
For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address
Input your IP address here
Figure 5-1
The login interface is shown as below. See Figure 5-2.
Please input your user name and password.
Default factory name is admin and password is admin.
Note: For security reasons, please modify your password after you first login.
24
Figure 5-2
If it is your first time to login in, system pops up warning information to ask you whether install control webrec.cab
or not after you logged in for one minute. Please click OK button, system can automatically install the control. When system is upgrading, it can overwrite the previous Web too.
If you can
’t download the ActiveX file, please check whether you have installed the plug-in to disable
the control download. Or you can lower the IE security level. See Figure 5-3.
Figure 5-3
After you logged in, you can see the main window. See Figure 5-4.
25
Figure 5-4
Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction.
26
6 FAQ
Bug
I cannot boot up the device.
Please click RESET button for at least five seconds to restore factory default setup.
SD card write times
Do not set the SD card as the storage media to storage the schedule record file. It may damage the SD card duration.
I cannot use the disk as the storage media.
When disk information is shown as hibernation or capacity is 0, please format it first (Via Web).
I cannot upgrade the device via network.
When network upgrade operation failed, you can use port 3800 to continue upgrade.
Recommended SD card brand
Kingston 4GB, Kingston 1GB, Kingston 16GB, Transcend
16GB, SanDisk 1G, SanDisk 4G.
Usually we recommend the 4GB (or higher) or industry-level high speed card in case the slow speed results in data loss.
Audio function
The lightproof ring of the IR device
Please use active device for the audio monitor input, otherwise there is no audio in the client-end.
The lightproof ring of the IR device lens is the necessary component when it works. You cannot view the clear video when the IR light is on if you remove the lightproof ring.
27
Appendix Toxic or Hazardous Materials or Elements
Toxic or Hazardous Materials or Elements
Component
Name
Pb Hg Cd Cr VI PBB PBDE
Circuit Board
Component
○ ○ ○ ○ ○ ○
Device
Construction
Material
○ ○ ○ ○ ○ ○
Wire and Cable
○ ○ ○ ○ ○ ○
Packing
Components
Accessories
○
○
○
○
○
○
○
○
○
○
○
○
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements contained in products will not leak or mutate so that the use of these (substances or elements) will not result in any severe environmental pollution, any bodily injury or damage to any assets. The consumer is not authorized to process such kind of substances or elements, please return to the corresponding local authorities to process according to your local government statutes。
Note
This user
’s manual is for reference only. Slight difference may be found in user interface.
All the designs and software here are subject to change without prior written notice.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website for more information.
28
advertisement
Related manuals
advertisement
Table of contents
- 8 General Introduction
- 8 Overview
- 8 Features
- 9 Specifications
- 9 Performance
- 10 Factory Default Setup
- 18 Structure
- 18 Multiple-function Combination Cable
- 19 Framework and Dimension
- 20 Bidirectional talk
- 20 Device Connection
- 20 Operation
- 20 Alarm Setup
- 22 Installation
- 22 Device Installation
- 25 SD Card Installation
- 25 Lens Adjustment
- 27 4 Quick Configuration
- 27 Overview
- 27 Operation
- 31 Web Operation
- 31 Network Connection
- 31 Login and Main Interface
