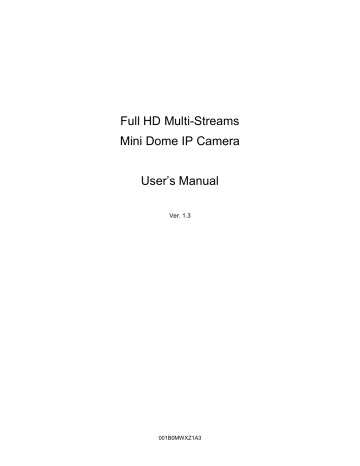

Full HD Multi-Streams

Mini Dome IP Camera

User ’s Manual

Ver. 1.3

001B0MWXZ1A3

Table of Contents

1.

Overview ................................................................................................................................ 2

1.1

Features ...................................................................................................................... 2

1.2

Package Contents ....................................................................................................... 3

1.3

Dimensions .................................................................................................................. 5

1.4

Connectors (Indoor Only)............................................................................................. 6

1.5

Function Cable Definition (Outdoor Only) .................................................................... 7

2.

Camera Cabling ..................................................................................................................... 8

2.1

Connect Power ............................................................................................................ 8

2.2

Connect Ethernet Cable............................................................................................... 8

2.3

Connect Alarm I/O ....................................................................................................... 9

2.4

Waterproof Cable Connector ....................................................................................... 9

3.

System Requirements ........................................................................................................ 11

4.

Access Camera ................................................................................................................... 12

5.

Setup Video Resolution ...................................................................................................... 17

6.

Configuration Files Export / Import ................................................................................... 18

Appendix A: Technical Specifications ...................................................................................... 19

Appendix B: Delete the Existing DC Viewer .............................................................................. 25

Appendix C: Setup Internet Security ......................................................................................... 26

1

1. Overview

The Full HD Multi-Streams Mini Dome IP Camera is an easy setup camera with

PoE supported to reduce complicate cabling. Up to 5 Megapixel Resolution is offered for providing high definition images. Quad Streams Compression (H.264

Baseline / Main / High Profile + MJPEG) are supported for efficient bandwidth and storage management. For dark environments, the camera has incorporated

WDR, 3DNR and Day/Night ICR technologies to capture clear images in lowlight conditions.

1.1 Features



Progressive Scan CMOS Sensor



2M / 3M / 5M Resolution*



Dual Streaming- Full HD 1080P Real Time + D1 Real Time



Quad Streams Compression- H.264 Baseline / Main / High Profile + MJPEG



Multi-language Support



Tampering Alarm



Wide Dynamic Range



Motion Detection



Privacy Masks



Smart Picture Quality / 3D Noise Reduction



Vertical View Mode (image rotation by 90 degrees)



Smart IR Mode



Network Failure Detection



True Day/Night (ICR)



IR LED Module (working distance up to 25m)*

 microSD Support



BNC Analog Output*



Weatherproof (IP66 International)*



ONVIF Support

(*) Optional

2

1.2 Package Contents

Please check the package contains the following items listed below.

Indoor Camera Package Contents

Full HD Multi-Streams

Mini Dome IP Camera

Self Tapping Screws (x3)

Quick Guide

Plastic Screw Anchors (x3)

CD

(bundled software and documentation)

3

4

Outdoor Camera Package Contents

Rubber Washers (x2)

Full HD Multi-Streams

Mini Dome IP Camera

Security Torx

Self Tapping Screws (x3)

Quick Guide

Plastic Screw Anchors (x3)

CD

(bundled software and documentation)

1.3 Dimensions

The dimensions of the IP Camera are shown below.

Indoor

Outdoor

5

1.4 Connectors (Indoor Only)

The diagram below shows the default button, microSD card slot and various connectors of the IP Camera. Definition for each connector will be given as follows.

No.

1

Connector

RJ-45

Pin Definition

- 10/100 Mbps Ethernet / PoE

1 AC 24V Power-1 DC 12V Power

2

Power

(AC 24V / DC 12V)

2 AC 24V GND DC 12V Reserved

3 AC 24V Power-2 DC 12V GND

3 microSD Card Slot - For video recordings storage

4

Video

(BNC Connector)*

- For analog videos output

1 Alarm In –

2 Alarm In +

3 Alarm Out –

5

6

Alarm & Audio I/O

Default Button

Remarks

Power connection

Alarm connection

4 Alarm Out +

5 Audio Out L

6 Audio Out R

Line Out

7 GND

8 Audio In

-

Line In

Press the button with a proper tool for at least 20 seconds to restore the system.

(*) Optional

NOTE: Insert the microSD card into the microSD card slot before powering on the camera. If the camera is already powered on, reboot the camera after the microSD card is inserted.

6

1.5 Function Cables Definition (Outdoor Only)

No.

1

4

5

RJ-45

Audio I/O

BNC

Connector

2 Power (AC 24V / DC 12V)

3

-

Alarm I/O

(4-Pin Terminal Block)

Default Button

Pin

-

1

2

3

1

2

Definition

10/100 Mbps Ethernet / PoE

AC 24V 1 / DC 12V –

GND

AC 24V 2 / DC 12V +

Power connection

Alarm In – Blue

Alarm In +

Alarm Out –

Remarks

Green

Yellow 3

4 Alarm Out +

Green Line Out

Pink Line In

- For analog videos output

Orange

Two-way audio transmission

-

For the position of the default button, please refer to the diagram shown in section Connectors (Indoor Only) .

7

2. Camera Cabling

Before users connect cables, make sure that all cables and the power adaptor are placed in dry and well-waterproofed environments, e.g. waterproof boxes.

The purpose is to prevent moisture accumulation inside the camera and moisture penetration into cables, which might lead to camera breakdown.

Please follow the instructions below to complete IP Camera connection.

2.1 Connect Power

For power connection, please refer to section Connectors (Indoor Only) for the

Indoor models, and see section Function Cables Definition (Outdoor Only) for the Outdoor models. Alternatively, users can power the camera by PoE if a PSE switch is available. Please refer to the section below for Ethernet cable connection.

NOTE: If PoE is used, make sure Power Sourcing Equipment (PSE) is in used in the network.

2.2 Connect Ethernet Cable

For best transmission quality, cable length shall not exceed 100 meters.

Connect one end of the Ethernet cable to the RJ-45 connector of the camera, and plug the other end of the Ethernet cable to the network switch or PC.

NOTE: In some cases, Ethernet Crossover cable might be needed when connecting the IP Camera directly to the PC.

Check the status of the link indicator and activity indicator LEDs. If the LEDs are unlit, please check the LAN connection.

Green Link Light indicates good network connection.

Orange Activity Light flashes for network activity indication.

8

2.3 Connect Alarm I/O

For Indoor models, there is an 8-pin terminal block for the Alarm I/O and the

Audio I/O connections. For Outdoor models, the Alarm I/O is connected by a

4-pin terminal block. Refer to sections Connectors (Indoor Only) and Function

Cables Definition (Outdoor Only) for the pin definitions.

2.4 Waterproof Cable Connector

Follow the instruction below to waterproof the connectors of different types of cables. The supported cables are as shown below, from left to right are:

All-in-One Cable, RJ-45 Cable and IP66 RJ-45 Cable.

All-in-One Cable

Follow the steps below to waterproof the connectors of the All-in-One cable.

Step 1:

Plug the cables to the connectors of the

All-in-One cable and coat the joints with silicone gel. There should be no gap between the connectors and the cables. For alarm I/O connector and power connector, make sure the side with wires attached is also sealed with silicone gel.

Step 2:

Seal the end of the rubber coating of the

All-in-One cable as indicated in the figure on the right. Please use enough silicone gel to fill in the hose and wrap around each wire; otherwise, waterproof function cannot be guaranteed.

9

RJ-45 Cable

Follow the instruction below to waterproof the connector of the RJ-45 cable.

Plug the Ethernet cable to the connector of the RJ-45 cable and coat the joint with silicone gel. Make sure there is no gap between the Ethernet cable and the connector; otherwise, waterproof function cannot be guaranteed.

IP66 RJ-45 Cable

For IP66 RJ-45 cable, please use an RJ-45 IP66 plug for connection to prevent water damage. Follow the steps below for cable connection.

Step 1:

Loosen the thread-lock sealing nut on the

RJ-45 IP66 plug, and take out the supplied connector from the plug. Thread the Ethernet cable through the thread-lock sealing nut and the RJ-45 IP66 plug. If the Ethernet cable is already attached to a connector, please remove it first.

Step 2:

Carefully remove a section of rubber coating from the end of the Ethernet cable to reveal the wires. Inset the wires to the correct pins of the connector. Plug the Ethernet cable to the connector of IP66 RJ-45 cable.

Step 3:

Fasten the RJ-45 IP66 plug to the connector of the IP66 RJ-45 cable. Lastly, tighten the thread-lock sealing nut to the plug.

10

3. System Requirements

To perform the IP Camera via web browser, please ensure the PC is in good network connection, and meet system requirements as described below.

Items

Personal Computer

System Requirement

1. Intel

®

Pentium

®

M, 2.16 GHz or

Intel

®

Core TM 2 Duo, 2.0 GHz

2. 2 GB RAM or more

Operating System

Web Browser

Network Card

Viewer

Windows VISTA / Windows XP / Windows 7

Microsoft Internet Explorer 6.0 or later

Firefox

Chrome

Safari

10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation

ActiveX control plug-in for Microsoft IE

11

4. Access Camera

For initial access to the IP Camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD.

Accessing the Camera by Device Search Software

Step 1: Double click on the program Device Search.exe.

Step 2: After its window appears, click on the <Device Search> button on the top. All the finding IP devices will be listed in the page.

Step 3: Find the camera in the list by its IP address and click on it. The default

IP address of the camera is: 192.168.0.250

.

Step 4: The default IP address of the camera may not be in the same LAN as the IP address of the PC. If so, the IP address of the camera needs to be changed. Right click on the camera and click <Network Setup>.

Meanwhile, record the MAC address of the camera, for future identification.

Step 5: The <Network Setup> page will come out. Select <DHCP> and click

<Apply> down the page. The camera will be assigned with a new IP address.

Step 6: Click <OK> on the Note of setting change. Wait for one minute to re-search the camera.

Step 7: Click on the <Device Search> button to re-search all the devices. Find the camera in the list by its MAC address. Then double click or right click and select <Browse> to access the camera directly via a web browser.

12

Step 8: A prompt window requesting for default username and password will appear. Enter the default username and password shown below to login to the camera.

Login ID

Admin

Password

1234

NOTE: ID and password are case sensitive.

NOTE:

It is strongly advised that administrator’s password be altered for the security concerns. Refer to the Full HD Multiple

Streams IP Camera Menu Tree in the supplied CD for further details.

Installing DC Viewer Software Online

For the initia l access to the IP Camera, a client program, DC Viewer, will be automatically installed to the PC when connecting to the IP Camera.

If the Web browser doesn’t allow DC Viewer installation, please check the

Internet security settings or ActiveX controls and plug-ins settings (refer to

Appendix C: Setup Internet Security ) to continue the process.

The Information Bar (just below the URL bar) may come out and ask for permission to install the ActiveX Control for displaying video in browser.

Right click on the Information Bar and select < Install ActiveX Control…> to allow the installation.

The download procedure of DC Viewer software is specified as follows.

Step 1: In the DC Viewer installation window, click on <Next> to start the installation.

Step 2: The status bar will show the installation progress. After the installation is completed, click on <Finish> to exit the installation process.

Step 3: Click on <Finish> to close the DC Viewer installation page.

13

14

Once the DC Viewer is successfully installed, the Home page of the IP Camera will be shown as the figure below.

Vari-focal Lens Models

Motorized Lens Models

15

3x Zoom Lens Models

Image and Focus Adjustment

The image will be displayed on the Home page when the IP Camera is successfully accessed. Adjust the zoom and the focus as necessary to produce a clear image.

NOTE: Please refer to the Full HD Multiple Streams IP Camera Menu

Tree in the supplied CD for more details about the function items on the

Home page.

16

5. Setup Video Resolution

Users can setup video resolution on the Video Format page of the user-friendly browser-based configuration interface.

Video Format can be found under this path: Streaming> Video Format .

The default value of video resolution is as below.

2M

2M Real-time

3M

5M

H.264- 1920 x 1080 (15 fps) + H.264- 1280 x 720 (30 fps)

H.264- 1920 x 1080 (30 fps) + H.264- 720 x 480 (30 fps)

For more video resolution combination details, please refer to the Full HD

Multiple Streams IP Camera Menu Tree in the supplied CD.

17

6. Configuration Files Export / Import

To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface.

The Maintenance setting can be found under this path: System> Maintenance .

Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the IP Camera. This is especially convenient to make multiple cameras having the same configuration.

Export

Users can save the system settings by exporting the configuration file (.bin) to a specified location for future use. Click on the <Export> button, and the popup

File Download window will come out. Click on <Save> and specify a desired location for saving the configuration file.

Upload

To upload a configuration file to the IP Camera, please first click on <Browse> to select the configuration file, and then click on the <Upload> button for uploading.

18

Appendix A: Technical Specifications

Camera

Image Sensor

Effective Pixels

Shutter Speed

Lens

Lens

F Number

Focal Length

FOV

Minimum Illumination

Operation

Multiple Languages

2M 2M Real-time

1/2.8

” Sony Progressive CMOS

1920 (H) x 1080 (V)

1 ~ 1/10000 sec.

3X AF / Motorized / Vari-focal

3X AF / Motorized- F 1.2

Vari-focal- F1.2 / F1.4

3X AF / Motorized / Vari-focal (F1.2)- 3.0 ~ 9.0 mm

Vari-focal (F1.4)- 2.8 ~ 12.0 mm

3X AF- 96.1° (Wide) ~ 32.0° (Tele)

Motorized / Vari-focal (F1.2)- 96.7° (Wide) ~ 22.6° (Tele)

Vari-focal (F1.4)- 93.0° (Wide) ~ 21.7° (Tele)

3X AF / Vari-focal (F1.4)- 0.2 lux (Color) / 0.02 lux (B/W)

Motorized / Vari-focal (F1.2)- TBD

Iris Control*

Image Setting

Backlight Compensation

White Balance

Noise Reduction (3D)

Wide Dynamic Range

Privacy Mask

Brightness

Exposure

Sharpness

Contrast

Saturation

Hue

Digital Zoom

Motion Detection

Privacy Mask Type

ICR

ICR + IR LED*

Tampering Alarm

Audio

Two-way Audio

Compression

Network

Interface

Video Compression

Video Streaming

English / French / German / Italian / Japanese / Korean / Portuguese /

Russian / Simplified Chinese / Spanish / Traditional Chinese

3X AF- P-Iris / DC-Iris

Vari-focal / Motorized- DC-Iris

On / Off

Auto / Manual / ATW / One Push

On / Off

On / Off

On / Off

Manual

Auto / Manual

Manual

Manual

Manual

Manual

Support

On / Off / By Schedule

Color

Auto / On / Off / Smart

Auto / LED On / LED Off / Smart IR / Light Sensor

On / Off / By Schedule

Line In / Line Out

G.711 / G.726

Video Resolution

Frame Rate Dual Streams

Protocol

Security / Authorization

Alarm

Event Notification

Input

Output microSD

Supported Web Browser

User Account

Password Levels

RJ-45, 10/100 Mbps Ethernet

H.264 (MPEG-4 Part 10/AVC) / MJPEG

Dual Streams- H.264 + H.264 / H.264 + MJPEG

Quad Streams- H.264 x 4 / H.264 x 3 + MJPEG

H.264- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF

MJPEG- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF

1080P (15/13 fps) + 720P (30/25 fps) 1080P (30/25 fps) + D1 (30/25 fps)

ARP, IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP,

SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF

HTTPS / IP Filter / IEEE 802.1X

1 Set,

5V 10kΩ pull up

1 Set, Photo Relay Output 300V DC/AC

HTTP / FTP / SMTP microSDHC 32GB support

Internet Explorer (6.0+) / Chrome / Firefox / Safari

20

User and Administrator

19

Mechanical

Built-in IR

Illuminator*

Working Distance

Wavelength

Number of LEDs

LED Indicator

Connectors

Audio

General

Operating Temperature

Humidity

Weatherproof Standard*

Dimension

Weight

Power Source

System

Power

Consumption

Built-in IR Illuminator

3X Zoom Lens

Motorized Lens

Regulatory

Alarm

Power

Ethernet

Analog Video

(*) Optional

Up to 25 m

850 nm

24

Power / Link / ACT

4 of 8 Pin Terminal Block (Female)

3 Pin Terminal Block

RJ-45

1.0 Vp-p / 75 Ω / BNC Cable*

4 of 8 Pin Terminal Block (Female)

-10°C ~ 50°C (14°F ~ 122°F)

10% ~ 90%, No Condensation

IP66

∅

117.0 x 90.0 mm (

∅

4.6 x 3.5 in.)

280 g

DC 12V / AC 24V / PoE

3.8 W

+1.5 W

+4.0 W

+1.8 W

FCC / EMC / LVD / RoHS

20

Camera

Image Sensor

Effective Pixels

Shutter Speed

Lens

Lens

Focal Length

3M

1/2.8

” Sony Progressive CMOS

2048 (H) x 1536 (V)

1 ~ 1/10000 sec.

F Number

FOV

3X AF / Motorized / Vari-focal

3X AF / Motorized / Vari-focal (F1.2)- 3.0 ~ 9.0 mm

Vari-focal (F1.4)- 2.8 ~ 12.0 mm

3X AF / Motorized- F 1.2

Vari-focal- F1.2 / F1.4

3X AF- 99.7° (Wide) ~ 35.1° (Tele)

Motorized / Vari-focal (F1.2)- 96.7° (Wide) ~ 22.6° (Tele)

Vari-focal (F1.4)- 96.6° (Wide) ~ 22.5° (Tele)

3X AF / Vari-focal (F1.4)- 0.2 lux (Color) / 0.02 lux (B/W)

Motorized / Vari-focal (F1.2)- TBD

Minimum Illumination

Operation

Multiple Languages

Iris Control*

Image Setting

Backlight Compensation

White Balance

Noise Reduction (3D)

Wide Dynamic Range

Privacy Mask

Brightness

Exposure

Sharpness

Contrast

Saturation

Hue

Digital Zoom

Motion Detection

Privacy Mask Type

ICR

ICR + IR LED*

Tampering Alarm

Two-way Audio

Audio

Compression

Network

Interface

Video Compression

Video Streaming

Video Resolution

Frame Rate

Protocol

Dual Streams

Security / Authorization

Input

Alarm

Output

Event Notification microSD

Supported Web Browser

User Account

Password Levels

English / French / German / Italian / Japanese / Korean / Portuguese /

Russian / Simplified Chinese / Spanish / Traditional Chinese

3X AF- P-Iris / DC-Iris

Vari-focal / Motorized- DC-Iris

On / Off

Auto / Manual / ATW / One Push

On / Off

On / Off

On / Off

Manual

Auto / Manual

Manual

Manual

Manual

Manual

Support

On / Off / By Schedule

Color

Auto / On / Off / Smart

Auto / LED On / LED Off / Smart IR / Light Sensor

On / Off / By Schedule

Line In / Line Out

G.711 / G.726

RJ-45, 10/100 Mbps Ethernet

H.264 (MPEG-4 Part 10/AVC) / MJPEG

Dual Streams- H.264 + H.264 / H.264 + MJPEG

Quad Streams- H.264 x 4 / H.264 x 3 + MJPEG

H.264- 2048 x 1536 (3M) / Full HD 1080P / SXGA / HD 720P / XGA /

SVGA / D1 / VGA / CIF

MJPEG- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF

1080P (30/25 fps) + D1 (30/25 fps)

ARP, IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP,

SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF

HTTPS / IP Filter / IEEE 802.1X

1 Set, 5V 10k Ω pull up

1 Set, Photo Relay Output 300V DC/AC

HTTP / FTP / SMTP microSDHC 32GB support

Internet Explorer (6.0+) / Chrome / Firefox / Safari

20

User and Administrator

21

Mechanical

Built-in IR

Illuminator*

Working Distance

Wavelength

Number of LEDs

LED Indicator

Connectors

Audio

General

Operating Temperature

Humidity

Weatherproof Standard*

Dimension

Weight

Power Source

System

Power

Consumption

Built-in IR Illuminator

3X Zoom Lens

Motorized Lens

Regulatory

Alarm

Power

Ethernet

Analog Video

(*) Optional

Up to 25 m

850 nm

24

Power / Link / ACT

4 of 8 Pin Terminal Block (Female)

3 Pin Terminal Block

RJ-45

1.0 Vp-p / 75 Ω / BNC Cable*

4 of 8 Pin Terminal Block (Female)

-10°C ~ 50°C (14°F ~ 122°F)

10% ~ 90%, No Condensation

IP66

∅

117.0 x 90.0 mm (

∅

4.6 x 3.5 in.)

280 g

DC 12V / AC 24V / PoE

3.8 W

+1.5 W

+4.0 W

+1.8 W

FCC / EMC / LVD / RoHS

22

Camera

Image Sensor

Effective Pixels

Shutter Speed

Lens

Lens

Focal Length

F Number

FOV

Minimum Illumination

Operation

Multiple Languages

Iris Control*

Image Setting

Backlight Compensation

White Balance

Noise Reduction (3D)

Wide Dynamic Range

Privacy Mask

Brightness

Exposure

Sharpness

Contrast

Saturation

Hue

Digital Zoom

Motion Detection

Privacy Mask Type

ICR

ICR + IR LED*

Tampering Alarm

Audio

Two-way Audio

Compression

Network

Interface

Video Compression

Video Streaming

Video Resolution

Frame Rate

Protocol

Dual Streams

Security / Authorization

Input

Alarm

Output

Event Notification microSD

Supported Web Browser

User Account

Password Levels

5M

1/2.5

” Progressive CMOS

2592 (H) x 1944 (V)

1 ~ 1/10000 sec.

3X AF / Motorized / Vari-focal

3.6 ~ 9.0 mm

3X AF- F 1.5

Motorized / Vari-focal- F 1.8

3X AF- TBD

Motorized / Vari-focal- 81.54° (Wide)

TBD

English / French / German / Italian / Japanese / Korean / Portuguese /

Russian / Simplified Chinese / Spanish / Traditional Chinese

3X AF- P-Iris / DC-Iris

Vari-focal / Motorized- DC-Iris

On / Off

Auto / Manual / ATW / One Push

On / Off

On / Off

On / Off

Manual

Auto / Manual

Manual

Manual

Manual

Manual

Support

On / Off / By Schedule

Color

Auto / On / Off / Smart

Auto / LED On / LED Off / Smart IR / Light Sensor

On / Off / By Schedule

Line In / Line Out

G.711 / G.726

RJ-45, 10/100 Mbps Ethernet

H.264 (MPEG-4 Part 10/AVC) / MJPEG

Dual Streams- H.264 + H.264 / H.264 + MJPEG

Quad Streams- H.264 x 4 / H.264 x 3 + MJPEG

H.264- 2592 x 1944 (5M) / 2048 x 1536 (3M) / Full HD 1080P / SXGA /

HD 720P / XGA / SVGA / D1 / VGA / CIF

MJPEG- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF

1080P (30/25 fps) + D1 (30/25 fps)

ARP, IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP,

SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF

HTTPS / IP Filter / IEEE 802.1X

1 Set, 5V 10kΩ pull up

1 Set, Photo Relay Output 300V DC/AC

HTTP / FTP / SMTP microSDHC 32GB support

Internet Explorer (6.0+) / Chrome / Firefox / Safari

20

User and Administrator

23

Mechanical

Built-in IR

Illuminator*

Working Distance

Wavelength

Number of LEDs

LED Indicator

Connectors

Audio

General

Operating Temperature

Humidity

Weatherproof Standard*

Dimension

Weight

Power Source

System

Power

Consumption

Built-in IR Illuminator

3X Zoom Lens

Motorized Lens

Regulatory

Alarm

Power

Ethernet

Analog Video

(*) Optional

Up to 25 m

850 nm

24

Power / Link / ACT

4 of 8 Pin Terminal Block (Female)

3 Pin Terminal Block

RJ-45

1.0 Vpp / 75Ω / BNC Cable*

4 of 8 Pin Terminal Block (Female)

-10°C ~ 50°C (14°F ~ 122°F)

10% ~ 90%, No Condensation

IP66

∅

117.0 x 90.0 mm (

∅

4.6 x 3.5 in.)

280 g

DC 12V / AC 24V / PoE

3.8 W

+1.5 W

+4.0 W

+1.8 W

FCC / EMC / LVD / RoHS

24

Appendix B: Delete the Existing DC Viewer

For users who have installed the DC Viewer in the PC previously, please remove the existing DC Viewer from the PC before accessing to the IP Camera.

Deleting the DC Viewer

In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or

Remove Programs>. In the <Currently installed programs> list, select <DCViewer> and click on the button <Remove> to uninstall the existing DC Viewer.

Deleting Temporary Internet Files

To improve browser performance, it is suggested to clean up all the files in the Temporary

Internet Files. The procedure is as follows.

Step 1: In the web browser, clicks on the <Tools> tab on the menu bar and select <Internet

Options>.

Step 2: Click on the <Delete> button under <Browsing history> section. In the appeared window, tick the box beside the <Temporary Internet files>.

Step 3: Click on <Delete> to start deleting the files.

25

Appendix C: Setup Internet Security

If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings.

Internet Security Level: Default

Step 1: Start the Internet Explorer (IE).

Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>.

Step 3: Click on the <Security> tab, and select <Internet> zone.

Step 4: Down the page, click on the <Default Level> button and click on <OK> to confirm the setting. Close the browser window, and restart a new one later to access the IP

Camera.

ActiveX Controls and Plug-ins Settings

Step 1: Repeat Step 1 to Step 3 of the previous section above.

Step 2: Down the page, click on the <Custom Level> button to change ActiveX controls and plug-ins settings. The Security Settings window will pop up.

Step 3: Under <ActiveX controls and plug-ins>, set ALL items (as listed below) to

<Enable> or <Prompt>. Please note that the items vary by IE version.

ActiveX controls and plug-ins settings:

1. Binary and script behaviors.

2. Download signed ActiveX controls.

3. Download unsigned ActiveX controls.

4. Allow previously unused ActiveX controls to run without prompt.

5. Allow Scriptlets.

6. Automatic prompting for ActiveX controls.

7. Initialize and script ActiveX controls not marked as safe for scripting.

8. Run ActiveX controls and plug-ins.

9. Only allow approved domains to use ActiveX without prompt.

10. Script ActiveX controls marked safe for scripting*.

11. Display video and animation on a webpage that does not use external media player.

Step 4: Click on <OK> to accept the settings. A prompt window will appear for confirming the setting changes, click <Yes(Y)> to close the Security Setting window.

Step 5: Click on <OK> to close the Internet Options screen.

Step 6: Close the browser window, and restart a new one later to access the IP Camera.

26
