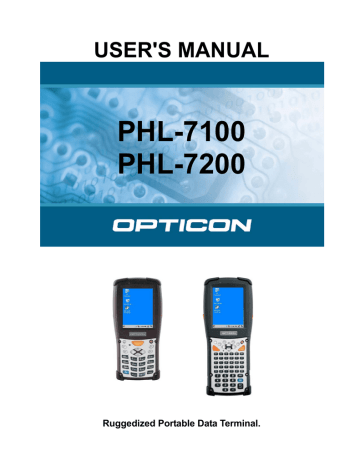

USER'S MANUAL
PHL-7100
PHL-7200
Ruggedized Portable Data Terminal.
OPTICON
User’s manual
PHL-7000 series
CAUTION: This information is subject to change without prior notice.
Document History
Model Number:
PHL 7100, PHL 7200
Copyright 2006 Opticon. All rights reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic or machine readable form without prior written consent of Opticon.
Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PRODUCT.
Serial Number
A serial number appears on all Opticon products. This official registration number is directly related to the device purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty.
Warranty
Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned under warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages.
Packaging
The packing materials are recyclable. We recommend that you save all packing material to use should you need to transport your scanner or send it for service. Damage caused by improper packaging during shipment is not covered by the warranty.
Trademarks
Trademarks used are the property of their respective owners.
SUPPORT
USA Europe
Phone: 800-636-0090
Email: [email protected]
Web: www.opticonusa.com
Email: [email protected]
Web: www.opticon.com
OPTICON
User's manual
PHL-7000 series
Table of Contents
Table of Contents .............................................................................i
Chapter 1.
Introduction............................................................... 1-1
1.1 About this Manual.................................................................1-1
1.2 User and Product Safety ......................................................1-2
1.3 Battery Safety ......................................................................1-3
1.4 FCC Statement.....................................................................1-4
1.5 Recycling & disposal instructions. ........................................1-5
1.6 Regulatory information. ........................................................1-5
1.7 Product Labeling ..................................................................1-6
1.8 System Specifications ........................................................1-10
1.9 Environment and durability. ................................................1-13
1.10 Warranty and after service ...............................................1-13
Chapter 2.
Getting started .......................................................... 2-1
2.1 Check the package ..............................................................2-1
2.1.1 PHL-7100.....................................................................2-2
2.1.2 PHL-7200.....................................................................2-3
2.2 General View of the PDT .....................................................2-4
2.2.1 PHL-7100 front view ....................................................2-4
2.2.2 PHL-7100 rear view .....................................................2-4
2.2.3 PHL-7200 front view ....................................................2-6
2.2.4 PHL-7200 rear view .....................................................2-6
2.3 Charging the Battery Pack ...................................................2-8
2.3.1 Installing the battery pack ............................................2-8
2.3.2 Charging the battery pack with Power Adapter ..........2-10
2.3.3 Charging the battery pack with IRU-7000 .................. 2-11
2.4 Handling the PDT...............................................................2-13
2.4.1 Starting the PDT ........................................................2-13
2.4.2 Power on / off.............................................................2-13
2.4.3 Calibration of the touch Screen..................................2-14
2.4.4 Adjusting the brightness.............................................2-14
2.4.5 To mute the sound .....................................................2-15
i
OPTICON
User's manual
2.4.6 Using the stylus .........................................................2-15
PHL-7000 series
2.4.7 Using the PHL-7100 keypad ......................................2-15
2.4.8 Using the PHL-7200 keypad ......................................2-24
2.5 Navigating the Display .......................................................2-36
2.5.1 Setting Time and Date ...............................................2-36
2.5.2 Entering the Data.......................................................2-36
2.5.3 The Command Bar ....................................................2-37
2.5.4 The Task Bar..............................................................2-37
2.5.5 The Soft Keypad ........................................................2-38
2.5.6 Setting Up Wireless LAN RF......................................2-38
2.5.7 Reading bar codes, 1D laser version.........................2-40
2.5.8 Reading bar codes, 2D CMOS version......................2-41
2.5.9 Help ...........................................................................2-42
2.6 Power management ...........................................................2-43
2.6.1 Suspend Mode...........................................................2-43
2.6.2 Resuming...................................................................2-44
2.7 Resetting the PDT..............................................................2-44
2.7.1 Warm Reset...............................................................2-44
2.7.2 Cold Reset .................................................................2-44
Chapter 3.
PDT settings ............................................................. 3-1
3.1 Introduction ..........................................................................3-1
3.2 Control Panel .......................................................................3-1
3.2.1 BarCode Settings.........................................................3-2
3.2.2 Bluetooth Device Properties ......................................3-17
3.2.3 Certificates.................................................................3-20
3.2.4 Control Center ...........................................................3-22
3.2.5 Date/Time ..................................................................3-27
3.2.6 Dialing Properties ......................................................3-27
3.2.7 Display Properties......................................................3-29
3.2.8 Input Panel.................................................................3-31
3.2.9 Internet Options .........................................................3-32
3.2.10 Keyboard .................................................................3-34
3.2.11 Network and Dial-up Connections............................3-35
3.2.12 Owner ......................................................................3-40
ii
OPTICON
User's manual
3.2.13 Password .................................................................3-41
PHL-7000 series
3.2.14 PC Connection.........................................................3-42
3.2.15 Power ......................................................................3-43
3.2.16 Regional Settings.....................................................3-45
3.2.17 Remove Programs...................................................3-46
3.2.18 Storage Manager .....................................................3-46
3.2.19 Stylus .......................................................................3-47
3.2.20 System.....................................................................3-49
3.2.21 Volume & Sounds Properties ...................................3-51
3.3 Taskbar and Start Menu .....................................................3-52
Chapter 4.
Communication......................................................... 4-1
4.1 Installing & Setting Up Microsoft ActiveSync ........................4-1
4.1.1 Installing Microsoft ActiveSync on the Host PC ...........4-1
4.1.2 Connecting PDT to Host PC ........................................4-1
4.2 Using ActiveSync .................................................................4-1
4.2.1 Setting up a Partnership ..............................................4-1
4.2.2 ActiveSync File Synchronization ..................................4-3
4.3 Networking ...........................................................................4-3
Chapter 5.
Software Applications ............................................... 5-1
5.1 Introduction ..........................................................................5-1
5.2 Software Applications...........................................................5-1
5.2.1 Calculator.....................................................................5-1
5.2.2 Inbox............................................................................5-2
5.2.3 Internet Explorer ........................................................ 5-11
5.2.4 Media Player..............................................................5-14
5.2.5 Messenger .................................................................5-14
5.2.6 Microsoft WordPad ....................................................5-15
5.2.7 Remote Connection ...................................................5-21
5.2.8 Windows Explorer......................................................5-22
5.3 DiskOnChip........................................................................5-24
5.3.1 Saving to Flash ..........................................................5-24
5.3.2 DiskOnChip Location .................................................5-24
5.3.3 DiskOnChip Size........................................................5-25
Chapter 6.
Phone tools (GSM/GPRS)........................................ 6-1
iii
OPTICON
User's manual
6.1 Using the Phone Features ...................................................6-1
PHL-7000 series
6.1.1 SIM Card......................................................................6-1
6.1.2 Inserting a SIM Card....................................................6-2
6.1.3 Enabling GSM/GPRS module......................................6-3
6.2 Interface layout.....................................................................6-4
6.2.1 Looking up messages..................................................6-4
6.2.2 Icons and menus .........................................................6-7
6.3 Selecting communication settings ........................................6-9
General Setup Menu.............................................................6-9
6.3.1 System Extensions ....................................................6-10
6.4 Dialer.................................................................................. 6-11
6.4.1 Accessing the dialer...................................................6-12
6.4.2 Making a voice call ....................................................6-12
6.4.3 Receiving a call..........................................................6-14
6.4.4 Logs...........................................................................6-14
6.5 Internet connection.............................................................6-15
6.5.1 Configuration .............................................................6-15
6.6 SMS ...................................................................................6-16
6.7 Phonebook management ...................................................6-21
6.7.1 Creating a phonebook ...............................................6-21
6.7.2. Managing the phonebooks .......................................6-22
6.8 Internet connections...........................................................6-23
6.8.1 Configuring Network operator ....................................6-23
6.8.2 Creating and changing access configurations ...........6-24
iv
OPTICON
User's manual
PHL-7000 series
Chapter 1. Introduction
Congratulations on purchasing the Opticon PHL-7000 series Portable Data Terminal (PDT), a
Microsoft Windows®CE .Net rugged PDT. Its special combination of features makes it perfect for using in a wide range of applications. These features as:
Intel® XScale
TM
PXA255 400MHz 32 bits RISC processor
Windows® CE .NET 4.2 Operating System
128 MB SDRAM & 64 MB FlashROM
User accessible SD/CF slot
240 x 320, 3.5” Color TFT display with touch panel
Numeric keypad or alphanumeric keypad with LED backlight
802.11b Wireless LAN support (optional)
Bluetooth support (optional)
GSM/GPRS support (optional)
Integrated 1D or 2D bar code reader
1.1 About this Manual
The following chapters contained in this manual are:
Chapter 1: Introduction, General information about the PDT.
Chapter 2: Getting started, Describe the basic use of the PDT.
Chapter 3: Setting, Provide basic instructions for customizing the PDT.
Chapter 4: Communication, Describe how to use all kinds of communication of the PDT.
Chapter 5: Software Application, Describe the installed applications on the PDT.
For configuration of the bar code reader, refer to the Opticon Universal Menu Book.
The Universal Menubook can be downloaded from the opticon website
1-1
OPTICON
User's manual
PHL-7000 series
1.2 User and Product Safety
• Do not stare into the laser or LED beam directly or shine it into eyes.
• Never use strong pressure onto the screen or subject it to severe impact, as the LCD panel could become cracked and possibility cause personal injury. If the LCD panel is broken, never touch the liquid inside because the liquid irritates the skin.
• Although the PDT has passed the test of IP54 standard for water and dust resistance, avoid prolonged exposure to rain or other concentrated moisture. Such conditions exceeds the IP54 standard, and could result in water or other contaminants entering into the PDT.
•
Use only the original approved AC Adapter with the PDT. Use of an unapproved AC Adapter could result in electrical problems, or even cause a fire or electrical shock to the user.
•
Do not disassemble the PDT. Servicing should be done by Opticon only. If the PDT or accessories gets damaged due to wrong handling or unauthorized repair, warranty is void. In case the warranty seals are broken, warranty is void too.
• Make regularly back-ups of all important data.
• Under no circumstance will Opticon be liable for any direct, indirect, consequential or incidential damages aring out of the use or inability to use both the hardware and software and/or any data loss, even if Opticon has been informed about the possibility of such damages.
1-2
OPTICON
User's manual
PHL-7000 series
1.3 Battery Safety
Lithium-ion battery packs might get hot, explode, ignite and/or cause serious injury if exploded by abusive using. Please follow the safety warnings listed as below:
•
Do not throw the battery pack in fire. Do not expose the battery to high temperatures.
•
Do not connect the positive battery pack with negative battery pack to each other with any metal object (like wire).
• Do not carry or store battery pack together with metal objects.
• Do not pierce the battery pack with nails or drills, strike the battery pack with a hammer, step on the battery pack or otherwise expose it to strong impacts, shocks or excessive force.
• Do not solder onto the battery pack.
• Do not expose battery pack to liquid or allow the battery contacts to get wet.
• Do not disassemble or modify the battery pack. The battery pack contains safety and protection measures, which, if damaged, may cause the battery pack to generate heat, explode or ignite.
• Do not discharge the batteries outside the PHL-7000 series PDT. Do not use the battery in another device then the PDT or IRU-7000 series cradles. Otherwise, the battery pack can be damaged, or its life expectancy reduced. If the device causes any abnormal current to flow, it may cause the battery pack to become hot, explode or ignite and cause serious injury.
• In the event the battery pack leaks and the fluid gets into one’s eye, do not rub the eye. Rinse well with water and immediately seek medical care. If left untreated, the battery fluid could cause damage to the eye.
1-3
OPTICON
User's manual
PHL-7000 series
1.4 FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
LED AND LASER SAFETY INFORMATION
• Class 1 LED/Laser Product
•
Do not stare at the LED/Laser or shine into eyes
•
Do not allow young children to use the product without adult supervision
•
Do not replace/repair the LED/Laser, these are not user replaceable
• Do not shine the LED/Laser on a shiny reflective surface
1-4
OPTICON
User's manual
PHL-7000 series
1.5 Recycling & disposal instructions.
Do not throw this product in the home waste bin. For proper end-of-life treatment consult the Environmental care section of the opticon website
1.6 Regulatory information.
For CE, FCC, RoHS and other Document of Conformities, consult the Regulatory section of the opticon website
1-5
1.7 Product Labeling
The PHL-7100 series PDT has several labels as showed in Figure 1-1 and 1-2.
OPTICON
User's manual
PHL-7000 series
Figure 1-1 PHL-7100 Labeling (Front and side views)
Label nr.
1
Description
LCD panel protection film
5 Warranty seal PDT
Table 1-1 Front labeling
1-6
OPTICON
User's manual
PHL-7000 series
Figure 1-2 PHL-7100 Labeling (Rear view)
Label nr.
3
Description
System and regulatory label
4
5
LED/Laser radiation warning label
Warranty label bar code reader
7 Article number and model number
8 Windows CE .NET label
Table 1-2 Rear labeling
1-7
OPTICON
User's manual
The PHL-7200 series PDT has several labels as showed in Figure 1-3 and 1-4.
PHL-7000 series
Figure 1-3 PHL-7200 Labeling (Front and side views)
Label nr.
1
Description
LCD panel protection film
5 Warranty seal PDT
9 SIM card insertion (GSM/GPRS model only)
Table 1-3 Front labeling
1-8
OPTICON
User's manual
PHL-7000 series
Figure 1-4 PHL-7200 Labeling (Rear view)
Label nr.
3
Description
System and regulatory label
4
5
LED/Laser radiation warning label
Warranty label bar code reader
7 Article number and model number
8 Windows CE .NET label
Table 1-4 Rear labeling
1-9
OPTICON
User's manual
PHL-7000 series
1.8 System Specifications
The PHL-7000 series detailed specifications as follows. Unless otherwise noted, all the specifications are subject to change without prior notification.
PHL-7100, PHL-7200
Processor
- 400MHz Intel PXA255 32 bits RISC CPU
Memory
- 64 MB Flash ROM
- 128 MB SDRAM
Display
- 240 x 320 3.5” TFT 256K Color LCD with LED backlight
Audio
Radio Support
Communication
Ports
Scan Engine
Expansion Slot
LED
- One mono speaker
- 2.5mm Stereo earphone jack with microphone input
- Wireless LAN: 802.11b (optional)
- Bluetooth: Ver 1.2, class II (optional)
- GSM/GPRS: (optional)
- USB: Support USB v1.1 both host and client.
(PDT and Cradle)
- Serial: RS232 via optional cable or Cradle.
- Default: 1D laser bar code reader
- Optional: 2D CMOS SXGA (1280*1024) bar code reader
- One SD Card slot
(SD memory only, no SDIO support)
- One Compact Flash type-II slot
(Availability depends of PHL-7000 model)
- One triple-color LED for charging indication and alarm notification
- One dual-color LED for bar code reader indicator
1-10
Power System
Keypad
Dimensions and
Weight
PHL-7100, PHL-7200
- Standard Li-Ion battery pack, 3.7V, 3000mAh
- Advanced smart battery
- Built-in battery charger
- 2.4V/15mAh rechargeable backup battery
- Battery cover sensor switch
- Power adapter:
100~240VAC, 50/60Hz input ;
5VDC, 2.6A output
- Power button
- 4-way navigation button
- 4 application keys
- 3 bar code reader trigger keys
- Software reset input button
- 1 Pistol grip trigger button
- 16 alpha-numeric keyboard
- Power button
- 4-way navigation button
- 4 application keys
- 4 bar code reader trigger keys
- Software reset input button
- 1 Pistol grip trigger button
- 44 alpha-numeric keyboard
- Dimensions:
L : 192.5mm
W: 91.3mm / 78mm
H: 60.6mm / 42.2mm
- Weight:
560g with standard battery pack
500g without battery pack
OPTICON
User's manual
PHL-7000 series
1-11
PHL-7100, PHL-7200
- Dimensions:
L : 200 mm
W: 91.3mm / 78mm
H: 60.6mm / 42.2mm
- Weight:
660g with standard battery pack
600g without battery pack
Color
- Black
Optional
Peripherals and
Accessories
- RS232 serial cable for PDT
- USB host cable for PDT
- High-capacity Li-Ion battery pack (3.7V, 4000mAh)
- Compact Flash RFID card cover
- IRU-7000 single slot cradle + battery charger
- IRU-7004 4-slot battery charger
- Power adapter for IRU-7000 and IRU-7004
100~240VAC, 50/60Hz input ;
5VDC, 6.5A output
- Car adapter
- Holster
- Display Protect film
Software
Table 1-5 System Specification
- Microsoft Windows CE.NET 4.2 Professional
OPTICON
User's manual
PHL-7000 series
1-12
OPTICON
User's manual
PHL-7000 series
1.9 Environment and durability
Operating Temperature
14 o
F ~ 122 o
F (-10 o
C ~ 50 o
C)
Storage Temperature
-4 o
F ~ 158 o
F (-20 o
C ~ 70 o
C)
Humidity
Drop
5% ~ 80% (non-condensing)
5ft (1.5m) Drop on concrete
Water & Dust proof
IP54 certified and IP64 compliant
Vibration
MIL STD 810F
Table 1-6 Environmental and durability
1.10 Warranty and after service
Should this PDT require service, please contact your local reseller. In case of technical questions, send an email to [email protected] and provide information about the product name, the serial number (see chapter 1.7 "Product labeling" and/or chapter 3.2.4.1 "Information") and provide a detailed problem description.
1-13
OPTICON
User's manual
PHL-7000 series
Chapter 2. Getting started
2.1 Check the package
Open the package and check if no parts are missing or damaged. See next page:
2-1
2.1.1 PHL-7100
Figure 2-1 Package contents
1. PHL-7100 PDT
2. Stylus
3. USB client cable for PDT
4. Earphone/ microphone set
5. Standard AC adapter 5VDC/2.6A
6. AC power cord
7. Standard battery pack (3.7V, 3000 mAh)
8. CF support guide
9. Quick Guide (not shown in the picture)
2-2
OPTICON
User's manual
PHL-7000 series
OPTICON
User's manual
PHL-7000 series
2.1.2 PHL-7200
Figure 2-2 Package contents
1. PHL-7200 PDT
2. Stylus
3. USB client cable for PDT
4. Earphone/ microphone set
5. Standard AC adapter 5VDC/2.6A
6. AC power cord
7. Standard battery pack (3.7V, 3000 mAh)
8. CF support guide
9. Quick Guide (not shown in the picture)
2-3
2.2 General View of the PDT
2.2.1 PHL-7100 front view
OPTICON
User's manual
PHL-7000 series
Figure 2-3 PHL-7100 front view
2.2.2 PHL-7100 rear view
Figure 2-4 PHL-7100 rear view
2-4
1
2
Bar code reader LED indicator
Charge LED indicator
OPTICON
User's manual
PHL-7000 series
“Red” color Bar code reader on
“Green” color Successful reading
“Red” color Charging battery
“Green” color Battery fully charged
User input on touch panel by stylus
Start scanning bar codes by pressing any of these three scan keys
3
4
5
6
7
8
9
LCM / touch panel
Left scan key
Right scan key
Scan key
Power key
Alpha-Numeric keys
Alpha key
10 Fn key
11
F1 ~ F4 key
Navigation key
Enter key
Put the PDT into suspend mode
Awake the PDT from suspend mode
Application keys, hot keys of application program defined by end user.
Navigation keys for left, right, up and down directions
Numeric keys, change to alpha keys
Toggle alpha-mode for alpha-numeric keys
This key is used in combination with other keys to type special characters and perform system functions.
This key confirms data entry
Connector input for earphone set
Connector
13 USB / RS232
Synchronization port
14
15
Scan window
Stylus
16 Battery Cover
17 Battery cover latch
18 Hand Strap
19 Speaker
20 DC Power Jack
21 End Cap
A connector to support USB host, client and RS232.
Bar code reader window
Use the stylus for selecting items and entering information.
Protect battery pack and remain IP54 rating
To keep battery cover locked
This strap can be sealed tighter or looser
1.5W speaker for audio output
A connector to input power suppy to PDT.
Protect CF slot and SD slot from dust and water
Table 2-1 Description of PHL-7100 General View
2-5
2.2.3 PHL-7200 front view
OPTICON
User's manual
PHL-7000 series
Figure 2-5 PHL-7200 front view
2.2.4 PHL-7200 rear view
Figure 2-6 PHL-7200 rear view
2-6
1
2
Bar code reader LED indicator
Charge LED indicator
OPTICON
User's manual
PHL-7000 series
“Red” color Bar code reader on
“Green” color Successful reading
“Red” color Charging battery
“Green” color Battery fully charged
User input on touch panel by stylus
Start scanning bar codes by pressing any of these four scan keys
3
4
5
6
7
8
9
10
11
LCM / touch panel
Left side scan key
Right side scan key
Left upper scan key
Right upper scan key
Power key
F1 ~ F4 key
Navigation key
Numeric keys
Alpha key
Fn key
Enter key
Put the PDT into suspend mode
Awake the PDT from suspend mode
Application keys, hot keys of application program defined by end user.
Navigation keys for left, right, up and down directions
Numeric keys
Alpha keys
This key is used in combination with other keys to type special characters and perform system functions.
This key confirms data entry
Connector input for earphone set
Connector
13 USB / RS232
Synchronization port
14
15
Scan window
Stylus
16 Battery Cover
17 Battery cover latch
18 Hand Strap
19 Speaker
20 DC Power Jack
21 End Cap
A connector to support USB host, client and RS232.
Bar code reader window
Use the stylus for selecting items and entering information.
Protect battery pack and remain IP54 rating
To keep battery cover locked
This strap can be sealed tighter or looser
1.5W speaker for audio output
A connector to input power suppy to PDT.
Protect CF slot and SD slot from dust and water
Table 2-2 Description of PHL-7200 General View
2-7
OPTICON
User's manual
PHL-7000 series
2.3 Charging the Battery Pack
Before using the PDT, install and charge the battery by executing the steps described in this paragraph.
2.3.1 Installing the battery pack
1. On the PDT attached with a hand-strap, detach the hand-strap.
Figure 2-7 Release the Hand strap from PDT
2. Turn both battery cover latches downwards and lift the battery cover away from the PDT.
Figure 2-8 Detach the battery cover from PDT
2-8
OPTICON
User's manual
PHL-7000 series
3. Insert the battery pack into the battery compartment with the label facing upwards, and ensuring the battery snaps into it's place.
Figure 2-9 Insert the battery pack
4. Install the battery cover by inserting the top first, and then press the bottom in firmly. Turn both the battery cover latches upwards to secure the cover to the PDT.
Figure 2-10 Replace the battery cover
2-9
OPTICON
User's manual
PHL-7000 series
2.3.2 Charging the battery pack with Power Adapter
1. Connect the power cord to the power adapter.
2. Plug in the connector of the power adapter to the PDT.
3. Connect the power cord to a power source.
Figure 2-11 Charging with power adapter (PHL-7100 shown)
4. Charging time: to charge the battery pack for the first time, it needs approximately 6 hours.
Subsequent charging time is approximately 4 hours.
• When charging the battery pack, the charge LED indicator on the PDT turns on
Red .
• After the battery pack is fully charged, the charge LED indicator turns to
Green .
2-10
OPTICON
User's manual
PHL-7000 series
2.3.3 Charging the battery pack with IRU-7000
CAUTION: IRU-7000 power adapter (5VDC/6.5A) is different from PDT power adapter
(5VDC/2.6A). Please use the IRU-7000 Cradle power adapter only.
a) Leave the battery pack inside the PDT :
1. Connect the power cord to the power adapter
2. Plug in the connector of the power adapter to the IRU-7000
3. Connect the power cord to a power source
4. Insert the PHL-7100 into the IRU-7000. In case of PHL-7200 insert the support bracket in
IRU-7000 first, thereafter insert PHL-7200 in IRU-7000.
Figure 2-12 Charging with IRU-7000 cradle
• When charging the battery pack, the charge LED indicator on the PDT turns on
Red .
• After the battery pack is fully charged, this LED indicator turns to
Green .
2-11
OPTICON
User's manual
PHL-7000 series b) Place the spare battery pack into the IRU-7000’s spare battery charging slot :
1. Connect the power cord to the power adapter
2. Plug in the connector of the power adapter to the IRU-7000
3. Connect the power cord to a power source
4. Insert the battery pack into the IRU-7000 spare battery slot
• When charging the battery pack in the IRU-7000 spare battery slot, the IRU-7000 charging LED indicator turns on Red .
• After the battery pack is fully charged, this LED indicator turns to
Green .
CAUTION: Do not remove the battery pack too long from PDT after you have already full-charged the battery pack and backup battery pack and start to use the PDT.
Otherwise the data stored inside SDRAM memory will be lost. Please also keep in mind power the PDT off if you want to change the main Battery pack.
2-12
OPTICON
User's manual
PHL-7000 series
2.4 Handling the PDT
2.4.1 Starting the PDT
Press the power key to turn ON/OFF the PDT. If the PDT does not power on, perform a cold boot, see chapter 2.7 “Resetting”.
CAUTION: When a battery is fully inserted in PDT for the first time, the PDT powers on and boots automatically.
When the PDT is powered on for the first time, it initializes its system. A splash screen (figure 2-13) appears for a short period of time followed by the WinCE.NET
4.2 window.
Figure 2-13 Starting the PDT
2.4.2 Power on / off
To turn ON the PDT
Press the power key briefly ( ). If the PDT does not power on, perform a cold reset, see chapter 2.7.
While the PDT initializes its file system, the splash screen displays for about 30 seconds followed by the calibration screen. Every time you perform a cold reset, these screens will appear.
To turn OFF the PDT
Press the power key again. This action does not actually turn off the PDT, it only turns the PDT into suspend mode. All running applications remain as you left them, until you press the power key again to resume operation of the PDT.
2-13
OPTICON
User's manual
PHL-7000 series
2.4.3 Calibration of the touch Screen
On the initial boot-up of the PDT, the stylus calibration screen opens. Use the stylus to press and hold briefly on the center of each target as it moves around the screen.
If necessary, adjust the backlight on the PDT to make the screen readable (see chapter 2.4.4
“Adjusting the brightness”).
When you experience that the touch screen function is poor or the operation does not match the exact location it should be, please recalibrate the screen by using the stylus to tap the Start > Settings >
Control Panel > Stylus, to open the “Calibration” to recalibrate again.
Figure 2-14 Calibration
2.4.4 Adjusting the brightness
The factory default for the brightness is in middle level. You can adjust the brightness to meet your environment and comfort as:
1) Increase brightness: Press the key and then press on the right key of Navigation key .
2) Decrease brightness: Press the key and then press on the left key of Navigation key
.
3) The display will dim automatically, if you do not perform any operation for a specific period of time. This will help to save the battery power. You can set up the specific period of time to see chapter 2.7 as reference.
2-14
OPTICON
User's manual
PHL-7000 series
2.4.5 To mute the sound
To mute the sound on PHL 7100, press the turn off and on of the sound.
key first, and then press the key to
To mute the sound on PHL 7200, press the key to move the sound up or down.
2.4.6 Using the stylus
key first, and then press the or
The stylus is located next to hand-strap on the rear of the PDT as illustrated in figure 2-4 PDT rear view. The stylus function is similar as the mouse on a PC. Use the stylus to:
1) Navigate the display, select menu item and open optional applications.
2) Tap the characters on soft keyboard panel.
3) Hold the stylus on the screen and drag across the screen to select multiple items.
CAUTION:
Never use a pen, pencil or any other sharp object on the display to avoid damage of the touch screen.
2.4.7 Using the PHL-7100 keypad
Figure 2-15 PDT Keypad
2-15
User configurable
Default : None
Main bar code scan key
Power On/Off
Fn + Main
Function
Alpha + Main
Function
OPTICON
User's manual
PHL-7000 series
Internet Explorer
Microsoft
WordPad
Inbox
File Explorer
Right
Left
Down
Backlight
Increase
Backlight
Decrease
Page Down
Up
ESC
Backspace
Page Up
Audio Mute
TAB
2
3
4
Change to letters
Function change
1
＠
’
＋
5
6
Paste
Del
－
＄
€
Caps
：
＼
Ａ
Ｂ Ｃ
Ｄ
Ｅ Ｆ
Ｇ
Ｈ Ｉ
Ｊ
Ｋ Ｌ
Ｍ
Ｎ Ｏ
2-16
7
8
9
0
. (Point)
Enter
Table 2-3 Keypad list
Reset Key
＆
＊
／
Fn + Main
Function
Copy
Space
Start Menu
Alpha + Main
Function
Ｐ
Ｑ Ｒ Ｓ
Ｔ
Ｗ
〔
，
＝
Ｕ Ｖ
Ｘ Ｙ Ｚ
〕
；
％
Functionality Definition
Warm Reset
Press “F1” and “F4” button simultaneously.
Cold Reset
Press “Power”, “F1” and “F4” button simultaneously.
Table 2-4 Special reset key combinations
Definition
User configurable
Configure its function by customer
Default : None
demand.
Main BarCode
Scan Key
Activates the scan function of PDT.
Power On/Off
Puts the terminal into and wakes the terminal from suspend mode.
Internet Explorer
Microsoft
WordPad
Inbox
File Explorer
Application key 1, User can define F1
function from setting.
Application key 2, User can define F2
function from setting.
Application key 3, User can define F3
function from setting.
Application key 4, User can define F4
function from setting.
OPTICON
User's manual
PHL-7000 series
2-17
Right
Left
Down
Up
ESC
Backspace
Definition
Move the cursor one character to the right. The cursor will move continuously if button remains is pressed.
Move the cursor one character to the left. The cursor will move continuously if button remains pressed.
Move the cursor down one row or line
The cursor will move continuously if button remains pressed.
Move the cursor up one row or line The cursor will move continuously if button remains pressed.
This key performs a cancel action
“Backspace” key, it moves the cursor back one space each time the key is pressed. It deletes the previous character each time it is pressed if you are typing text. The cursor will move continuously if button remains pressed.
OPTICON
User's manual
PHL-7000 series
1. The key enables you to toggle
Change to letters
between the numeric and alpha modes. Numeric mode is when you type numbers with number keys. Alpha mode is when you type letters with the number keys.
2. When you press key, the
“Alpha” icon appears at the task bar to indicate alpha mode is enabled. The keypad stays in the alpha mode until you press key again.
2-18
OPTICON
User's manual
PHL-7000 series
Definition
The key is used in combination
Function change
1
2
3
4
5
6
7
8
9
0
.
Enter
Table 2-5 Definition of Main Function with other keys to type special characters and perform system functions.
Number key “1”
Number key “2”
Number key “3”
Number key “4”
Number key “5”
Number key “6”
Number key “7”
Number key “8”
Number key “9”
Number key “0”
Dot key
This key confirms data entry
2.4.7.1 Special Function by “Fn” + main Function
The “Fn” key is used in combination with other keys to type special characters and perform system functions.
Key
Sequence
Fn + Main
Function
Definition
Increase the LED backlight brightness of display screen(make lighter)
Backlight
Increase
You must press key, then press
Backlight
Decrease
key to increase backlight brightness each time.
1. Decrease the LED backlight brightness of display screen (make darker)
2-19
OPTICON
User's manual
PHL-7000 series
Key
Sequence
Fn + Main
Function
Definition
2. You must press key, then press key to decrease backlight brightness each time.
1. Move the cursor down one page. The cursor will move continuously if button remains pressed.
Page Down
2. You must press key, then press key to cursor down one page each time.
1. Move the cursor up one page. The cursor will move continuously if button remains pressed.
Page Up
2. You must press key, then press key to cursor up one page each time.
1. Toggle the audio mute/on
Audio Mute
2. You must press key, then press key to enable audio mute or turn on audio function each time.
1. The “TAB” function is to move the cursor to the next tab stop or the next control (on a form)
TAB (Tabulation)
2. To do this function by pressing key first, and then pressing key each time.
key, then
@ (at)
Enter an {
@
, at} by pressing pressing key.
’
Enter a {
’
} by pressing key, then pressing
2-20
OPTICON
User's manual
PHL-7000 series
Key
Sequence
Fn + Main
Function
Definition
＋
(Plus Sign)
Paste
Del (Delete)
key.
Enter a plus sign by pressing key, then pressing key
1. It is to do “Paste” function.
2. To do this function by pressing key first, and then pressing key each time.
1. The “Delete” function delete the next character forward each time.
2. To do “Delete” function by pressing key first, and then pressing key each time.
－
(Minus Sign)
Enter a minus sign by pressing
Copy
key, then pressing key.
1. Copy action.
2. You must press key, then press key to do “Copy” action each time.
Enter an AND sign by pressing key, then
＆
(AND) pressing key.
＊
(Asterisk)
Enter an asterisk sign by pressing key first,
2-21
OPTICON
User's manual
PHL-7000 series
Key
Sequence
Fn + Main
Function
Definition
Space
Start Menu
and then pressing key.
1. The “Space” function is to input a space at the cursor.
2. To do this function by pressing key first, and then pressing key each time.
1. It displays the Start menu.
2. To do this function by pressing key first, and then pressing key each time.
Enter a backslash by pressing
／
(Backslash) and then pressing
Table 2-6 Special Function key define
2.4.7.2 Alpha keys by “Alpha” + main Function
key.
key first,
1. The key enables you to toggle between the numeric and alpha modes. Numeric mode is when you type numbers with number keys. Alpha mode is when you type letters with the number keys.
2. When you press key, the “Alpha” icon appears at the task bar to indicate Alpha mode is enabled. It means Alpha mode is disabled if the “Alpha” icon is not present at Task bar. The keypad stays in the alpha mode until you press key again. For an example
< wait 0.5 seconds > to type “cap1” word, press
.
2-22
3. If you want to type a lowercase “c”, press (The
OPTICON
User's manual
PHL-7000 series
key three times, the key is needed if it’s the first alpha character keying in). If a letter that is on the same key as the last letter entered, wait two seconds after you pressed the last key, then you can enter the correct series of keystrokes to create the next letter.
4. While you are in the Alpha mode and you press key to set the Caps mode, the Caps mode remains until you press key again. ｋ ｌ ｍ ｎ ｏ ｐ ｑ ｅ ｆ ｇ ｈ ｉ ｊ
5. The “A” icon appears at the task bar during Caps mode.
To enter
＄
Press the Keys
To enter
€
Press the Keys
Caps
： ａ
＼
Ａ ｂ ｃ ｄ
Ｂ
Ｃ
Ｄ
Ｅ
Ｆ
Ｇ
Ｈ
Ｉ
Ｊ
Ｋ
Ｌ
Ｍ
Ｎ
Ｏ
Ｐ
Ｑ
2-23
To enter
ｒ
Press the Keys
ｓ ｔ ｕ ｖ ｗ ｘ ｙ ｚ
〔
，
＝
Table 2-7 Alpha + Numeric keys define
2.4.8 Using the PHL-7200 keypad
To enter
Ｒ
Ｓ
Ｔ
Ｕ
Ｖ
Ｗ
Ｘ
Ｙ
Ｚ
〕
；
％
Press the Keys
OPTICON
User's manual
PHL-7000 series
Figure 2-16 PDT Keypad
2-24
Down
Up
A
B
C
D
Esc
Caps
Tab
Backspace
E
F
None
Main Barcode
Scan Key
Power On/Off
Internet Explorer
Microsoft
WordPad
Inbox
File Explorer
Right
Left
Increase of Brightness
Decrease of Brightness
Page Down
Page Up
(
)
F5
F6
F7
F8
2-25
OPTICON
User's manual
PHL-7000 series
J
K
L
M
G
H
I
[
]
{
}
€
$
#
N
O
P
Q
%
^
~
,
、
R
S
T
U
!
?
\
= V
W
X
Y
Z
1
2
3
4
5
;
/
@
’
＋
Paste
Del
－
6
7 Copy
8
9
0
.
SHIFT
Function change
&
＊
Start Menu
Space
2-26
OPTICON
User's manual
PHL-7000 series
Enter
Table 2-8 Keypad list
Assembler Key Functionality Definition
Warm Reset
Press “F1” and “F4” button simultaneously.
Cold Reset
Table 2-9 Special reset key combinations
Press “Power”, “F1” and “F4” button simultaneously.
None
Definition
Configure its function by customer demand.
Main Barcode
Scan Key
The key activates the scan function of PDT
Power On/Off
The key puts the terminal into and
Internet Explorer
Microsoft
WordPad
Inbox
File Explorer
Right
wakes the terminal from suspend mode
Application key 1, User can define F1
function from setting.
Application key 2, User can define F2
function from setting.
Application key 3, User can define F3
function from setting.
Application key 4, User can define F4
function from setting.
Move the cursor one character to the right. The cursor will move continuously if button is pressed continuously.
OPTICON
User's manual
PHL-7000 series
2-27
~
~
Left
Down
Up
Esc
Caps
Tab
Backspace
A ~ Z
1 ~ 0
.
SHIFT
Definition
Move the cursor one character to the left. The cursor will move continuously if button is pressed continuously.
Move the cursor down one row or line
The cursor will move continuously if button is pressed continuously.
Move the cursor up one row or line The cursor will move continuously if button is pressed continuously.
This key performs a cancel action
Conversion of the capital & lower case of the alpha key.
The “TAB” function is to move the cursor to the next tab stop or the next control
(on a form)
“Backspace” key, it moves the cursor back one space each time the key is pressed. It deletes the previous character each time it is pressed if you are typing text. The cursor will move continuously if button is pressed continuously.
Use the alpha keys for alphabetic characters.
OPTICON
User's manual
PHL-7000 series
Numeric value keys.
Point key
Press and release the SHIFT key to activate the keypad alternate SHIFT functions. The icon appears on the taskbar. Press and release the SHIFT key again to return to the normal keypad functions.
2-28
OPTICON
User's manual
PHL-7000 series
Definition
The key is used in combination
Function change
with other keys to type special characters and perform system functions.
Enter
This key confirms data entry
Table 2-10 Definition of Main Function
2.4.8.1 Special Function by “Fn” + main Function
The “Fn” key is used in combination with other keys to type special characters and perform system functions.
Key
Sequence
Fn + Main
Function
Definition
Increase the LED backlight brightness of display screen(Lighter)
Increase of
Brightness
You must press key, then press
key to increase backlight brightness each time.
3. Decrease the LED backlight brightness of display screen (darker)
Decrease of
Brightness
4. You must press key, then press
key to decrease backlight brightness each time.
2-29
Key
Sequence
Fn + Main
Function
Page Down
Definition
3. Move the cursor down one page. The cursor will move continuously if button is pressed continuously.
OPTICON
User's manual
PHL-7000 series
4. You must press key, then press
Page Up
key to cursor down one page each time.
3. Move the cursor up one page. The cursor will move continuously if button is pressed continuously.
4. You must press key, then press
F5
F6
F7
(Barcode
Settings)
(Media
Player)
(Calculator)
F8
(Information) key to cursor up one page each time.
Application key 5, User can define F5
function from setting.
Application key 6, User can define F6
function from setting.
Application key 7, User can define F7
function from setting.
Application key 8, User can define F8
function from setting.
Enter a
(
by pressing key, then
(
pressing key.
key, then
)
Enter a
)
by pressing pressing key.
2-30
Key
Sequence
[
]
{
}
€
$
#
%
Fn + Main
Function
Definition
Enter a
[
by pressing pressing key.
Enter a
]
by pressing pressing key.
Enter a
{
by pressing pressing key.
Enter a
}
by pressing pressing key.
Enter a
€
by pressing pressing key.
Enter a
$
by pressing
key, then
key, then
key, then
key, then
key, then
key, then pressing key.
Enter a
#
by pressing pressing key.
Enter a
%
by pressing press key.
key, then key, then
OPTICON
User's manual
PHL-7000 series
2-31
Key
Sequence
^
~
,
、
!
?
\
=
Fn + Main
Function
Definition
Enter a
^
by pressing press key.
Enter a
~
by pressing pressing key.
key, then
key, then
Enter a
,
by pressing pressing key.
Enter a
、
by pressing
key, then
key, then pressing key.
Enter a
!
by pressing pressing key.
Enter a
?
by pressing pressing key.
key, then
key, then
Enter a
\
by pressing pressing key.
Enter a
=
by pressing press key.
key, then
key, then
OPTICON
User's manual
PHL-7000 series
2-32
Key
Sequence
;
/
@
’
＋
Del
Fn + Main
Function
Paste
Definition
Increases device volume, press key and then press key.
Decreases device volume, press key and then press key.
Enter a
;
by pressing pressing key.
key, then
Enter a
/
character by pressing key, then pressing key.
Enter a
@
by pressing key, then pressing key.
Enter a
’
by pressing key, then pressing key.
Enter a
＋ by pressing key, then pressing key
To do a paste function by pressing key first, and then pressing each time.
To do a delete action, press
key
key
OPTICON
User's manual
PHL-7000 series
2-33
Key
Sequence
Fn + Main
Function
Definition
first, and then press
Enter a
－ by pressing
key.
key, then
－ pressing key.
To do a copy action, press key,
Copy
then press key.
Enter a
＆ by pressing key, then
＆ pressing key.
Enter a
＊ by pressing key first,
＊ and then pressing key.
To display
Start
menu press key
Start Menu
first, and then pressing key each time.
Enter a
Space
character by pressing
Space
Table 2-11 Special Function key define
key first, and then pressing key each time.
OPTICON
User's manual
PHL-7000 series
2-34
OPTICON
User's manual
PHL-7000 series
2.4.9 Using the Ear/Microphone
Connect the ear/microphone set to PDT earphone jack connector. The PDT has no built in microphone, if you like to record the voice, you have to the use ear/microphone set.
Figure 2-17 Ear/microphone
2-35
OPTICON
User's manual
PHL-7000 series
2.5 Navigating the Display
2.5.1 Setting Time and Date
In the Date/Time options, you can change the year, month, date, time, time zone, or select automatic adjust for daylight saving time. To set or change the date and time:
1. Select Start > Settings > Control Panel >
Date/Time.
2. To change the year, select the year. Select the up arrow to increase the value, select the down arrow to decrease the value. Or you can type a new value in the field.
3. Select the month to open a pull-down list of months or press the arrow buttons to either side of the month to increase or decrease the month.
4. To change the time, select the hour, minute, seconds, or AM/PM and select the up arrow to increase the value; select the down arrow to decrease the value. Or you can type a new value in the field.
5. Select your correct time zone from the pull-down list.
6. To automatically adjust the clock for daylight saving time, enable the checkbox at the bottom
Figure 2-18 Date/Time properties of the screen.
7. Select Apply to save your changes or select OK to exit the Date/Time settings.
2.5.2 Entering the Data
To select and open programs, select Start > Programs from the task bar to open a list of available programs. If the program has an icon on the desktop, double-tap to open it.
There are several ways to enter data in an application on the PDT: z
Use the keypad to enter alpha-numeric characters, Refer to “2.4.7 Using the PHL-7100 z z z z
keypad” and “2.4.8 Using the PHL-7200 keypad” .
Use the stylus on the touch screen, Refer to “2.4.6 Using the stylus”.
Select text in the same way you select the text on a PC. Use the stylus to highlight the desired text by dragging the stylus across the desired text, double-tapping to select one word and triple-tapping to select an entire line/paragraph. Refer to “2.4.6 Using the
stylus”.
Use the soft input panel with the stylus. Refer to “2.5.5 The Soft Keypad”
Use the bar code reader to input the data from a bar code. Press one of the three trigger keys to start the bar code reader. The bar code data will enter in the current application’s open window.
2-36
OPTICON
User's manual
PHL-7000 series
For more information on factory installed applications, refer to Chapter 5 “Software
Applications”.
2.5.3 The Command Bar
Use the Command bar at top of the screen to perform tasks in programs, such a opening a file, or editing a file.
2.5.4 The Task Bar
The Task bar at the bottom of the screen displays the icon, an icon for the active program, the current time, and system icons for utilities loaded in memory. The Task bar includes menu names, buttons, and the keyboard icon, which opens and closes the Soft Input Panel (SIP). The
Task bar allows you to select and close programs. Refer to Figure 2-19 to view the Task bar.
Command Bar
Figure 2-19 Task Bar & Command Bar
Task Bar
2-37
OPTICON
User's manual
PHL-7000 series
2.5.5 The Soft Keypad
In applications that accept keypad input, the Soft Input Panel (SIP) can be used to enter data using the stylus. The SIP is a software, QWERTY-style keyboard.
To open the SIP, tap the keyboard icon to open the menu and select Hide Input Panel to close the keyboard.
Use the stylus to select letters, numbers, or symbols from the Soft Input Panel for the current application.
2.5.6 Setting Up Wireless LAN RF
1) Press “Start”---“Settings”---“Control Panel” --- “WLAN Manager”.
2) Launch the WLAN Manager to Enable WLAN device.
3) Into AP Browser tab, tap Scan button to renew the network.
4) Select a network, tap the Join button or double tap it for more options.
5) Press OK to save all your WLAN settings.
6) Tap the “Exit” button to Disable WLAN device.
WLAN Manager
2-38
802.11b WLAN is not connected to a network.
802.11b WLAN no signal.
802.11b WLAN signal is Low.
802.11b WLAN signal is Average.
802.11b WLAN signal is Good.
Table 2-12 WLAN Manager
OPTICON
User's manual
PHL-7000 series
Figure 2-22 WLAN Manager Figure 2-23 WLAN Manager
2-39
OPTICON
User's manual
PHL-7000 series
2.5.7 Reading bar codes, 1D laser version.
To use the scanning function, complete the following steps:
1. If you have not already done so, remove the protective plastic film before using devices equipped with a 1D laser bar code reader.
2. Run the WordPad software program.
3. Press one of the three bar code reader trigger buttons.
4. Aim the scanning beam at the center of bar code.
5. Good scanning position.
The reading range is from 50 to 650mm distance.
1) Decrease the scanning distance to the bar code when scanning small bar codes.
2) Increase the scanning distance from the bar code when scanning large bar codes
3) The scanning area is visible by a red laser beam.
6. Bad scanning position.
1) Make sure that the laser beam sweeps across whole bar code.
2) Scanning operations may fail if the laser beam is positioned as below.
7. Upon reading a bar code, the red LED indicator turns on until the trigger is release or after five seconds. The green LED and the beep tone indicates a good read.
Note: this product scans using laser light. Never look directly into the laser light or shine the laser light into the eyes.
2-40
OPTICON
User's manual
PHL-7000 series
2.5.8 Reading bar codes, 2D CMOS version.
The 2D CMOS version can read both 1D and 2D bar codes. To use the scanning function, complete the following steps:
1. If you have not already done so, remove the protective plastic film before using devices equipped with a 2D CMOS bar code reader.
2. Run the WordPad software program.
3. Press one of the three bar code reader trigger buttons.
4. Aim the scanning beam at the center of bar code. To assists in aiming, there are 4 green aiming light spots. The bar code should be between the outside 2 green spots.
The scanner is in focus in case the center 2 green spots joins into 1 spot.
5. Good scanning position.
The reading range is from 45 to 260mm distance.
4) Decrease the scanning distance to the bar code when scanning small bar codes.
5) Increase the scanning distance from the bar code when scanning large bar codes
6) The bar code should be located within the green light spots
7) The scanning area is visible by a red illumination area.
2-41
OPTICON
User's manual
PHL-7000 series
6. Bad scanning position.
1) Make sure that the laser beam sweeps across whole bar code.
2) Scanning operations may fail if the illumination beam is positioned as below.
7. Upon reading a bar code, the red LED indicator turns on until the trigger is release or after five seconds. The green LED and the beep tone indicates a good read.
2.5.9 Help
Tap “?” to get information for each program.
2-42
OPTICON
User's manual
PHL-7000 series
2.6 Power management
2.6.1 Suspend Mode
The PDT will go into a suspend mode when it is idle for a period of time. The idle duration can be customized using the Power control panel (refer to
Figure “Schemes Tab”) Suspend mode works and looks just like you have turned the unit off. Press the
key to suspend the PDT, Press the key again for the PDT to resume its Previous state.
Use the Battery power control panel to set the duration to switch state to Suspend mode when system using battery power. This will save battery power when PDT is not in use.
Figure 2-24 Schemes Tab
Suspending:
The following conditions will suspend: z z
Press <Power> key while the unit is on.
The duration timer of item “Switch state to Suspend” expires, which indicates that there z z has been no user activity for a specified of time.
The battery pack is almost empty.
Tap Start > Suspend
Tap here to let PDT enter into suspend mode
Figure 2-25 Suspend
2-43
OPTICON
User's manual
PHL-7000 series
2.6.2 Resuming
Use the following method to resume (wake up the PDT): z
Press <Power> key to suspend or resume (wake up).
When a battery pack completely discharges while the unit is in suspend mode, the PDT remains suspended until discharged battery condition is corrected.
2.7 Resetting the PDT
2.7.1 Warm Reset
A warm reset is a transition from the on, idle, or suspend power state that close all applications, clears the working RAM, but preserves the file system.
Reason to Warm Reset: If an application “hangs”, initiate a warm reset to terminate the application only.
Process to Warm Reset: To warm reset, press “F1” and “F4” button simultaneously.
After Warm Reset:
z
The desktop appears with the application shortcuts on the screen.
z
The custom settings in the registry are persistent.
2.7.2 Cold Reset
CAUTION: Try warm reset before you initiate Cold Reset. All applications will be Closed and working RAM and all files will be cleared if you initiate the Cold Reset. It is strongly recommended to back up your files to FlashROM, Flashcard or PC.
1) You can use Cold Reset to initialize the PDT if WINCE.NET OS lock up or Warm Reset has no effect.
2) To perform Cold Reset, press “Power”, “F1” and “F4” button simultaneously.
3) PDT will initiate boot up after Cold Reset.
2-44
OPTICON
User's manual
PHL-7000 series
Chapter 3. PDT settings
3.1 Introduction
To view available options for PDT’s setting, tap Start > Settings. Then, there are three items inside Settings: “Control Panel”, “Network and Dial-up” and “Taskbar and Start”.
3.2 Control Panel
To view the Control Panel and settings you can modify by tapping Start > Settings > Control
Panel.
Figure 3-1 Control Panel
3-1
3.2.1 BarCode Settings
ICON
•
ITEM & FUNCTION
Start bar code settings tool :
9 Enable or disable bar code scanner
9 Select bar code symbologies
9 Select prefixes and suffixes
9 Select quiet zone options
9 Select read mode options
Table 3-1 Bar code settings
3.2.1.1 Basic TAB
In the “Basic tab” the bar code reader behavior can be changed.
OPTICON
User's manual
PHL-7000 series
Figure 3-2 Basic Tab
Field name Description
Enable bar code reader Enable or disable the bar code reader.
Default is enabled.
Beep After Scan OK Select the number of beeps after scanning a bar code which is successfully decoded by the bar code reader.
3-2
Keybd Message
Read mode
Read time
None Disable beep after scanning bar code.
OPTICON
User's manual
PHL-7000 series
One Time Beep one time after scanning bar code
(default).
Two Times Beep two times after scanning bar code.
Select the bar code data transfer method
Disable Data code reader is ignored.
Type
Writing
Data from bar code reader is send as keyboard data to the application which currently has the focus (default).
Select the bar code reading mode.
Single read
Multiple read
When a bar code has been decoded, the reader will be turned OFF. The reader must be triggered again to read another bar code (default).
When a bar code has been decoded, the reader will stay ON for the time as set by
‘Read time’ options. The same bar code can only be decoded again after the label has not been detected for a number of scans.
The length of the period that the reader is ON after the trigger switch is pressed, or (in multiple read mode), after a label has been read.
0 sec
1 sec
2 sec
Reader will stay on as long as the trigger switch is being pressed.
1 second
2 seconds (default)
3 sec
4 sec
5 sec
6 sec
7 sec
8 sec
3 seconds
4 seconds
5 seconds
6 seconds
7 seconds
8 seconds
3-3
OPTICON
User's manual
PHL-7000 series
9 sec 9 seconds
Version
Table 3-2 Basic TAB description until a bar code is read.
Multiple read mode : reader will stay on until power is recycled (not recommended)
No multiplication of read time (default) X1
X10 Read time * 10
Information field which shows the bar code readers firmware version.
RBAV01xx is used for 1D laser module.
FL23Jxx is used for 2D CMOS module.
If no version is displayed the bar code reader is not found.
Note xx can have a value between 01 and 99.
3.2.1.2 Code Configure TAB
In the Code Configure tab the bar code symbologies can be enabled or disabled.
It is strongly recommended to select only the required code. Advantages of selecting the required codes are :
• no accidental scanning of unwanted bar codes,
• reduced probability of reading errors which can not be prevented completely, because of the limited security of some bar code types.
Bar code specific options can not be selected in this version of the Bar Code Settings tool.
In case bar code specific options are required, refer to Opticon’s Universal Menu Book, chapter
3 and lookup the serial command sequence, and enter this commands sequence in Bar Code
Settings tool’s “Advanced” TAB.
3-4
The Opticon Universal Menu Book can be downloaded from the opticon website.
OPTICON
User's manual
PHL-7000 series
Note : support for symbologies may be dependent of the bar code reader firmware.
Figure 3-3 Code configure Tab
Field name
UPC
UPC+2
UPC+5
EAN
Code 39
Industrial 2of5
Interleaved 2of5
S Code
Matrix 2of5
Description
Enable UPC A and UPC-E (default)
Enable UPC-A ADDON 2 and UPC-E ADDON 2
Enable UPC-A ADDON 5 and UPC-E ADDON 5
Enable EAN-13 and EAN-8 (default)
Enable Code 39 (default)
Enable Industrial 2of5 (default)
Enable Interleaved 2of5 (default)
Enable S Code (default)
Enable Matrix 2of5
3-5
Chinese Post Matrix 2of5
Korean Postal Authority code
IATA
MSI/Plessey
UK/Plessey
Code 128
Code 93
Code 11
Enable Chinese Post Matrix 2of5
Enable Korean Postal Authority code
Enable IATA (default)
Enable MSI/Plessey (default)
OPTICON
User's manual
PHL-7000 series
Enable UK/Plessey (default)
Enable Code 128 (default)
Enable Code 93 (default)
Enable Code 11
PDF417 Enable PDF417 (default)
Table 3-3 Code configure description 1D laser
UPC
Field name Description
Enable UPC A and UPC-E (default)
UPC+2
UPC+5
EAN
Enable UPC-A ADDON 2 and UPC-E ADDON 2
Enable UPC-A ADDON 5 and UPC-E ADDON 5
Enable EAN-13 and EAN-8 (default)
Code 39
Industrial 2of5
Interleaved 2of5
IATA
MSI/Plessey
Code 128
Code 93
Enable Code 39 (default)
Enable Industrial 2of5 (default)
Enable Interleaved 2of5 (default)
Enable IATA (default)
Enable MSI/Plessey (default)
Enable Code 128 (default)
Enable Code 93 (default)
3-6
OPTICON
User's manual
PHL-7000 series
DataMatrix ECC000-ECC140
DataMatrix ECC200
Aztec Runes
QR Code
Maxi Code
PDF417
Enable DataMatrix ECC000-ECC140
Enable DataMatrix ECC200 (default)
Enable Aztec Runes
Enable QR Code (default)
Enable Maxi Code (default)
Enable PDF417 (default)
Table 3-4 Code configure description 2D CMOS
3.2.1.3 Prefix and suffix TAB
With these options alterations can be made to the format of the transmitted data string.
Options available are :
- Transmission of a preamble,
- Transmission of a prefix,
- Transmission of a suffix,
- Transmission of a postamble.
Figure 3-4 Prefix and Suffix Tab
3-7
OPTICON
User's manual
PHL-7000 series
The transmitted string format is :
Figure 3-5 Transmitted string format
A prefix and suffix of maximum 4 direct input entries each may be included in front and at the end of the string respectively. A preamble is transmitted before the prefix and can contain up to
8 direct input characters. A postamble is transmitted after the suffix and can contain up to 8 direct input characters. A preamble and postamble will be transmitted for all symbologies.
Default settings are :
- Preamble : None
- Prefix : None
- Suffix : ^M (CR)
- Postamble : None
Tap the “Please Select Option” field to select one of above mentioned options :
Figure 3-6 Prefix and Suffix, select Option list box
Select one of these 4 options which meet your requirement.
3-8
OPTICON
User's manual
PHL-7000 series
In the Prefix and Suffix option, 4 key input fields and their current settings are shown :
Figure 3-7 Prefix option Figure 3-8 Suffix option
The default suffix is ^M (CR) .
In the Preamble and Postamble option, 8 key input fields and their current settings are shown :
Figure 3-9 Preamble option
3-9
Figure 3-10 Postamble option
OPTICON
User's manual
PHL-7000 series
In the code option field can be indicated for which symbology the current prefix or suffix should be configured. The “Clear All Codes” options will clear the prefix for all symbologies.
Figure 3-11 Prefix : Code list box.
Example : to set the characters “UPCA” for bar code symbology UPC-A, tap in the “Direct Input
Keys” section, the field “1st Key Input”. A list box will popup, which shows all 128 ASCII characters.
SPACE is the <Space> character
(ASCII 32dec, 20hex).
DEL is the <DEL> character 127dec
7Fhex.
Scroll downwards to the character ‘U’ and tap the character ‘U’.
Figure 3-12 Prefix : Direct input keys selection box.
3-10
OPTICON
User's manual
PHL-7000 series
Thereafter the display will look like :
Repeat these steps for the characters
‘P’, ‘C’ and ‘A’.
Thereafter the display will look like :
Figure 3-13 Prefix : Selected character ‘U’ for UPC-A.
Figure 3-14 Prefix : Selected characters ‘UPCA’ for UPC-A.
If the bar code reader reads an UPCA label with data ‘071589812309’, it will be send to the application as : ‘UPCA071589812309<CR>’ where <CR> is the default suffix ASCII character
<CR>.
3-11
OPTICON
User's manual
PHL-7000 series
Preamble and postamble are applicable for all bar code symbologies. Therefore the code option list box shows only 1 option : “Clear all codes”.
Figure 3-15 Preamble : Only 1 code option.
3-12
OPTICON
User's manual
PHL-7000 series
3.2.1.4 Quiet zone TAB
With this option the reader can decode bar codes that have smaller start and/or end margins than specified for the symbology. Be carefully when using this option. It may increase the possibility of partial reads and ghost reads. Do not use smaller margin checks then necessary. If possible replace the bar code labels by ones that have correct start and end margins.
Figure 3-16 Quiet zone options.
3-13
3.2.1.5 Read Mode TAB
With this option several read modes can be changed.
OPTICON
User's manual
PHL-7000 series
Figure 3-17 Read mode options.
Field name
Trigger repeat
Redundancy
Description
This option makes it more easy to select a single bar code from a sheet filled with barcodes. If the trigger switch is pressed once, the laser beam is on during the configured read time. The laser beam can now be moved to the required bar code. If the trigger switch is pressed again, the bar code is decoded and transmitted.
If the read time timer expires, the laser switches off and the trigger sequence should be repeated. If the read time is set to zero, then if the trigger switch is pressed, the laser is on, but does not accept bar codes. As soon the trigger switch is released, the barcode is decoded and transmitted. Default is disabled.
This is the number of times that a label must be correctly decoded before it is transmitted. Selecting a higher redundancy count makes reading slower, but is reduces the probability of reading errors, especially when labels of poor definition are used.
3-14
Positive / Negative bar codes
OPTICON
User's manual
PHL-7000 series
Read 1 time
Read 2 times
Redundancy = 0
Redundancy = 1 (default)
Read 3 times Redundancy = 2
Read 4 times Redundancy = 3
Usually bar codes are printed black on white, but sometimes white on black. These labels are called positive and negative respectively. In case the ‘negative bar codes’ option has been selected, positive labels may not be decoded or with difficulty.
Positive bar codes Read black on white labels only (default)
Negative bar codes Read white on black labels only
Positive and negative bar codes
Read positive or negative labels automatically.
Table 3-5 Read mode options descriptions
3.2.1.6 Advanced TAB
If enabled, this field can be used to send serial commands to the bar code reader.
Use this option only in case you want to access bar code reader features which are not documented in this user’s manual, but are documented in Opticon’s Universal Menu Book.
If there is no need to make any other change to the bar code reader settings, do not use this option. A maximum of 180 characters can be input. Default this option is disabled.
Figure 3-18 Command line options.
3-15
OPTICON
User's manual
PHL-7000 series
Example :
To set a prefix ‘Test’ for UPC-A, lookup in Opticon’s Universal Menu Book (UMB) the serial command’s of :
- prefix UPC-A : see UMB paragraph 4.2.1, serial command = N1
- Direct input ‘T’ : see UMB paragraph 4.3.4, serial command = 0T
- Direct input ‘e’ : see UMB paragraph 4.3.5, serial command = $E
- Direct input ‘s’ : see UMB paragraph 4.3.5, serial command = $S
- Direct input ‘t’ : see UMB paragraph 4.3.5, serial command = $T
Input these 5 commands into the Command line field by using the keyboard Input panel.
If the Send button is pressed, the serial command sequence is send to the bar code reader.
To save the settings in the bar code reader, add the commands Z2 after the last command sequence.
See picture below :
Figure 3-19 Example of command line usage.
3-16
3.2.2 Bluetooth Device Properties
ICON
ITEM & FUNCTION
•
“Scan Device” Tab (Figure 3-20) :
9 Tap Scan Device button to initiate a scan for Bluetooth devices. The Bluetooth manager lists the Bluetooth devices that it finds, see Figure 3-21. If Bluetooth hardware is not found in the PDT, the Bluetooth Hardware Error window appears, see Figure 3-22. Table 3-7 describes the
Bluetooth Icons.
9 Double tap the device to connect to on the device list. The
Bluetooth Manager Authentication window appears. Tap
No to connect to the device without authentication, or tap
Yes to authenticate the device before connecting.
(Figure
3-23)
9 If Yes button was selected in the Bluetooth Manager
Authentication window, the enter PIN windows appears.
Enter a PIN (between 1 and 16 alpha numeric characters)
9 in the Enter PIN: text box, and tap OK. The mobile computer sends the PIN request to the device for bonding.
(Figure 3-24)
When prompted, the same PIN must be entered on the other device. When the PIN is entered correctly on the other device, the bonded icon appears on the device list. (Figure 3-25)
Table 3-6 Bluetooth Device Properties
OPTICON
User's manual
PHL-7000 series
3-17
OPTICON
User's manual
PHL-7000 series
Bluetooth Manager Window
Bluetooth Manager Window
3-18
Bluetooth Manager Window
Note:
If the device to which the PDT is bonding does not appear in the list, ensure it is turned on, in discoverable mode, and within range (30 feet / 10 meters) of the PDT.
Icon Description
Unknown device icon Device is not defined
Locked icon
Not locked icon
Device is locked and can not be bonded to.
Device is not locked and can be bonded to.
Bluetooth device icon Bluetooth device
Bonded device icon
Mobile device icon
Phone icon
Printer icon
Network icon
Linked icon
Table 3-7 Bluetooth Icons
Bonded Bluetooth device
Device is a mobile device
Device is a phone.
Device is a printer
Device is a network.
Device is linked.
OPTICON
User's manual
PHL-7000 series
3-19
3.2.3 Certificates
Certificates are used by some applications for establishing trust and for secure
OPTICON
User's manual
PHL-7000 series communications.
Certificates are signed and issued by certificate authorities and are valid for a prescribed period of time. Windows CE manages multiple certificate stores.
ICON
ITEM & FUNCTION
•
9
9
9
9
•
9
9
9
Table 3-8 Certificates
“Store” Tab (Figure 3-26) :
In the Stores tab, select the certificate store you wish to view or modify from the drop-down list (Figure 3-27).
The “Trusted Authorities“ store lists the top-level certificates for authorities you trust. (Figure 3-28, Figure
3-29)
The “My Certificates“ store contains your personal certificates, which you use to identify yourself.
Intermediate certificate authorities that help establish a chain of trust are stored in the “Other Authorities” store.
“Store” Tab :
To add a certificate or associated private key to the selected store, select “Import” (Figure 3-30).
To view more details of the selected certificate, such as the expanded name or expiration date, choose “View”.
To delete the selected certificate from the store, choose
“Remove”.
3-20
OPTICON
User's manual
PHL-7000 series
Certificates
Figure 3-28 Certificates Figure 3-29 Certificates
Figure 3-30 Certificates
3-21
OPTICON
User's manual
PHL-7000 series
3.2.4 Control Center
The Control Center includes four Property buttons. These are property buttons for PDT device information, display brightness, system Backup Restore and Fn-Key Settings.
Figure 3-31 Control Center
3.2.4.1 Information
ICON
•
ITEM & FUNCTION
“Information” Tab :
9 Provide Software version, MAC address, Bluetooth ID,
Table 3-9 Information
Serial No. and Configuration No.
3-22
OPTICON
User's manual
PHL-7000 series
3.2.4.2 Brightness
ICON ITEM & FUNCTION
LCD Brightness
Tune the LCD brightness by tapping right-arrow & left-arrow. Can also tune the LCD brightness by pressing right-direction key or left-direction key of keypad.
Amounts 7 steps: Every step have corresponding picture of self.
1.
2.
3.
4.
5.
6.
7.
Enable Keypad
Brightness
Open keypad brightness or not.
Backlight Timeout
Save battery life by automatically turning off the backlight when not used.
Battery Power, turn off backlight after
The table must disable when its item is not marked.
The table has 15 seconds, 30 seconds, 1 minute,
2 minutes and 5 minutes.
AC Power, turn off backlight after
The table must disable when its item is not marked.
The table has 15 seconds, 30 seconds, 1 minute,
2 minutes and 5 minutes.
Save battery life functionally of idleness mode, open it or not. idleness.
Table 3-10 Brightness
Dim backlight after 20 seconds of
3-23
Figure 3-32 Brightness
OPTICON
User's manual
PHL-7000 series
3-24
OPTICON
User's manual
PHL-7000 series
3.2.4.3 Backup Restore
ICON ITEM & FUNCTION
1. You can backup/restore the system to/from flash disk or inserted memory card. (A. Disk on Chip, B. CF Card, C. SD
Card, Figure 3-33)
2. When you launch this application, it must check backup file in Disk On Chip first. And if you select other storage, it will check again.
3. If a previous backup file is found, its date appears behind
“Last backup date:”; if not, the “Restore Now” button is disabled.
4. When you press the Backup/Restore Button, a warning dialog will pop up. (Figure 3-34)
5. When system backup/restoring is finished, a message dialog will pop up. (A. Backup: Figure 3-35, B. Restore: Figure
3-36)
Table 3-11 Backup Restore
Figure 3-33 Backup Restore
Figure 3-35 Backup OK
Figure 3-34 Backup & Restore Start
Figure 3-36 Restore OK
3-25
3.2.4.4 Fn-key Settings
ICON
ITEM & FUNCTION
•
Fn-Key Setting (Figure 3-37)
Fn Key The Application Program of default setting
OPTICON
User's manual
PHL-7000 series
F3 Inbox
9
9
9
9
9
Table 3-12 Fn-Key
To assign your favorite application program to F1, F2, F3 and
F4 hot keys.
Choose one of F1, F2, F3 and F4 from pull-down list. (Figure
3-37)
To tap “Browse…” inside “Assign program” applet.
Select one application program you want from program list, then, choose “OK”. (Figure 3-38)
To tap “Default” to return back to default setting. (Figure 3-37)
3-26
3.2.5 Date/Time
ICON
ITEM & FUNCTION
•
9
“Date/Time” Tab (Figure 2-18) :
Please see the detail information of 2.5.1 Setting Time
and Date
Table 3-13 Date/Time
3.2.6 Dialing Properties
ICON
ITEM & FUNCTION
•
9
9
9
9
9
“Dialing Properties” Tab (Figure 3-39) :
In the When dialing from list, select the “Location” where you want to change settings. (Figure 3-40)
To create a new location, select “New”. Enter the name of the location, and then select “OK”. (Figure 3-41)
Enter or edit the area code and local country code as needed.
In Dial using, select “Tone dialing” or “Pulse dialing”.
Most phone lines are tone.
To automatically disable call waiting, select “Disable call
waiting by dialing”, select the appropriate number sequence in the list, or enter a new sequence.
•
9
Editing dialing patterns (Figure 3-42)
Using the codes listed in the topic; revise the dialing patterns as needed.
Notes:
If you need to use character other than the ones listed here, use manual dialing.
Hyphens and spaces in dialing strings are ignored.
Some modems may not respond to the following characters, even though your device lets you add them to the dial string.
Table 3-14 Dialing properties
OPTICON
User's manual
PHL-7000 series
3-27
OPTICON
User's manual
PHL-7000 series
3-28
3.2.7 Display Properties
ICON
ITEM & FUNCTION
•
9
9
9
“Background” Tab (Figure 3-43) :
From the “Image” list, select an image you want as the background of the desktop. (Figure 3-44)
To locate an image in another folder, select “Browse”.
(Figure 3-45)
To have the image cover the entire background, select “Tile
image on background”
•
9
9
“Appearance” Tab (Figure 3-46) :
¾
Change the color scheme : (Figure 3-47)
From the ”Scheme” list, select a scheme.
¾
View your choice in the preview box. If you like the scheme, select “Apply”.
¾
Create a custom color scheme:
From the “Item” list, select a display item.
¾
From the “Basic colors” list, select a color, and select
“OK”.
¾
¾
¾
¾
View your color selection(s) in the Preview box.
To save the scheme, select “Save”.
In the “Save this color scheme as” box, enter a name for the scheme, and select “OK”.
Select “Apply”.
Table 3-15 Display properties
OPTICON
User's manual
PHL-7000 series
3-29
OPTICON
User's manual
PHL-7000 series
Figure 3-47 Display properties
3-30
3.2.8 Input Panel
ICON
ITEM & FUNCTION
•
9
9
“Input panel” Tab (Figure 3-48) :
Select the input method you want to change.
To change the Soft Keyboard Options , tap “Option”
(Figure 3-49).
•
9
¾
¾
“Options” Tab :
Change the soft keyboard options as desired, selecting from:
Large or small keys
Using gestures for space, black-space shift, and enter.
9
9
To exit the soft keyboard Options, press “OK” on the control bar, or press the <Enter> key on the keypad.
To exit the Input Panel, press “OK” on the control bar, or press the <Enter> key on the keypad.
Table 3-16 Display properties
OPTICON
User's manual
PHL-7000 series
Figure 3-48 Input Panel Properties Figure 3-49 Input Panel Properties
3-31
3.2.9 Internet Options
ICON
ITEM & FUNCTION
•
9
“General” Tab (Figure 3-50) :
Type in the URL of desired start page and the desired search engine. You also change the Cache Size, clear the
Cache and Clear the History..
•
“Connection” Tab (Figure 3-51) :
9
Modify the network access setting as desired.
• “Security” Tab (Figure 3-52) :
9
Modify the security settings as desired. You can enable any of the following by tapping the checkbox:
¾
¾
¾
¾
Allow cookies
Allow TLS 1.0 security
Allow SSL 2.0 security
Allow SSL 3.0 security
¾ Warm when switching across secure and insecure areas.
• “Advanced” Tab (Figure 3-53) :
9
Modify the security settings as desired. You can enable any of the following by tapping the checkbox:
¾
¾
¾
¾
Display Image in pages
Play sounds in pages
Enable scripting
Display a notification about every script error
¾
Underline links-
○
Never
○
○
Always
Hover
Table 3-17 Internet Options
OPTICON
User's manual
PHL-7000 series
3-32
OPTICON
User's manual
PHL-7000 series
Figure 3-50 Internet Settings Figure 3-51 Internet Settings
Figure 3-52 Internet Settings Figure 3-53 Internet Settings
3-33
3.2.10 Keyboard
ICON
ITEM & FUNCTION
•
9
9
9
9
“Repeat” Tab (Figure 3-54) :
To change the amount of time between depressions before repetition starts, adjust the Repeat delay slider
To change the repeat rate, adjust the Repeat rate slider.
Test your new setting.
Tap “OK” to exit the “Keyboard” Tab.
Table 3-18 Keyboard
OPTICON
User's manual
PHL-7000 series
Figure 3-54 Keyboard Properties
3-34
3.2.11 Network and Dial-up Connections
ICON
ITEM & FUNCTION
•
¾
¾
¾
“Connection” Tab :
9
¾
To create a “Dial-up Connection” :
Double-tap the “Make New connection”.
¾
In the “Make New Connection” dialog box, enter a name for the connection.
Select “Dial-Up Connection”.
Select the “Next” button.
Select the modem you want use.
¾
¾
Select “Configure”
Under “Connection Reference”, use the default settings provided. If you can’t connect using these settings, see your ISP or network administrator for specific information. If you want to always enter a phone number
¾ before connecting, Select “Manual Dial”. Select “OK”.
Select “TCP/IP Settings”. In the “General” tab, ensure
“Use Server-assigned IP address” is selected. In the
“Name Servers” tab, ensure “Use Server-assigned
addresses” is selected, and select “OK”. If you are unable to connect with these default settings, see your
ISP or network administrator for specific TCP/IP information.
¾
¾
Select the “Next” button and type the telephone number.
Select the “Finish” button.
The connection you just created appears as an icon in the
“Network and Dial-up Connections” folder.
9
Set up a point-to-Point Protocol (PPP) account with an
ISP and obtain the following information:
¾
¾
¾
Access telephone number
User name
Password
OPTICON
User's manual
PHL-7000 series
3-35
Once you have established an account, create a new connection on your device. When creating this connection, you should be able to use all of the default TCP/IP settings provided in the Make New Connection Wizard. If you can’t connect using the default settings, contact your ISP or access your ISP’s Web site for specific TCP/IP information as well as primary and secondary DNS address.
9
¾
Modify connection setting
Select Start > Settings > Network and Dialup
¾
Connections
Select the icon for connection settings you want to modify.
¾
¾
Select File > Properties, or double- tap the appropriate icon.
Select desired options. There may be additional settings that depend on the connection. To modify, select the icon and select the icon and select Advanced Settings… from the menu.
OPTICON
User's manual
PHL-7000 series
Table 3-19 Network and Dial-up Connections
3-36
OPTICON
User's manual
PHL-7000 series
3-37
OPTICON
User's manual
PHL-7000 series
3-38
OPTICON
User's manual
PHL-7000 series
3-39
3.2.12 Owner
ICON
ITEM & FUNCTION
•
9
9
9
•
9
“Identification” Tab (Figure 3-67) :
Fill in or edit the data as desired.
To have this information displayed when you start your device, select “Display Owner Identification” at Power
On.
To set up identification for remote networks, see Setting up identification for remote networks.
“Network ID” Tab (Figure 3-68) :
Enter the user name, password, and domain name you use to log on to remote network.
Table 3-20 Owner
OPTICON
User's manual
PHL-7000 series
Figure 3-67 Owner Properties Figure 3-68 Owner Properties
3-40
3.2.13 Password
ICON
ITEM & FUNCTION
•
9
9
9
9
“Password Setting” Tab (Figure 3-69) :
Enter the password
In the “Confirm password“ box, enter the password again.
To require the password on startup, select “Enable
password protection at power- on“, and/or select
“Enable password protection for screen saver”
To exit the Password control panel, press “OK” from the control bar, or press the <Enter> key on the keypad.
Table 3-21 Password
OPTICON
User's manual
PHL-7000 series
Figure 3-69 Password Properties
3-41
3.2.14 PC Connection
ICON
ITEM & FUNCTION
•
9
9
9
9
“PC Connection” Tab (Figure 3-70) :
Select the first checkbox to enable direct connections to the desktop computer. (Figure 3-70)
Tap the “Change Connection…” button to modify the connection method from USB or Serial. (Figure 3-71)
To exit the “Change Connection” dialog, press “OK” from the control bar, or press the <Enter> key on the keypad.
To exit the “PC Connection” properties control panel, press “OK” from the control bar, or press the <Enter> key on the keypad.
Table 3-22 PC Connection
OPTICON
User's manual
PHL-7000 series
3-42
OPTICON
User's manual
PHL-7000 series
3.2.15 Power
ICON
ITEM & FUNCTION
•
9
9
9
9
9
•
9
9
9
“Battery” Tab (Figure 3-72) :
Provide change level indicators for Main battery and Backup
battery.
Provide remaining power capacity of main battery.
If a “Main Batteries very Low” warning message shows, the remaining battery life is around 30 minutes before PDT shuts down. (Figure 3-76)
The PDT will shutdown if the main batteries capacity is around 0%
To exit Battery control panel, press “OK” from the command bar, or press <Enter> key on keypad.
“Schemes” Tab (Figure 3-73) :
The Scheme Tab allows you to determine the time to switch state to Suspend mode when using either Battery Power or AC Power.
Select Battery Power or AC Power as the power scheme from the pull-down list. (Figure 3-73)
Select the time to suspend mode from the pull-down list. (Figure
3-74)
•
“Device Status” Tab (Figure 3-75) :
Provide power level of the device – The power level ranges from
“High(D0)” which means the device is at the highest power level to
“Off(D4)” which means the device is at the lowest power level.
Note:
This ICON inside the Task Bar shows that AC adapter provides power to the PDT
The ICON inside the Task Bar shows that Main Batteries provides the power to the PDT.
The ICON inside the Task Bar shows that AC adapter provides the power to the PDT and is charging the main batteries..
Table 3-23 Power
3-43
OPTICON
User's manual
PHL-7000 series
Figure 3-76 Power
3-44
3.2.16 Regional Settings
ICON
ITEM & FUNCTION
•
9
9
9
“Region” Tab (Figure 3-77) :
Select the desired location/language.
Review the Appearance samples in the bottom half of the screen.
Select the Tab at the top for any settings you wish to change, Options to modify include Number, Currency,
Time, and Date.
Table 3-24 Regional Settings
OPTICON
User's manual
PHL-7000 series
Figure 3-77 Regional Settings
3-45
3.2.17 Remove Programs
ICON
ITEM & FUNCTION
•
9
¾
“Remove Programs” Tab :
Only user installed programs can be removed.
Select the program you wish to remove from the list and press “remove” button.
Table 3-25 Remove Programs
3.2.18 Storage Manager
ICON
ITEM & FUNCTION
•
“Storage Manager” Tab (Figure 3-78) :
9
To change Storage properties control panel default settings:
Insert Compact Flash(CF) or Secure digital (SD) storage card into the unit.
¾
¾
Select Start > Settings > Control Panel > Storage
Properties
From the “Storage Info” pull-down list, select the desired storage device.
¾
¾
You can also format, dismount, and create partitions on storage devices using this control panel.
To save and exit the Storage Properties control panel, press “OK” from the control bar, or press the <Enter> key on the keypad.
Caution: Dismounting or formatting the DiskOnChip will erase all files and program stored in Flash Memory
Table 3-26 Storage Manager
OPTICON
User's manual
PHL-7000 series
3-46
OPTICON
User's manual
PHL-7000 series
Figure 3-78 Storage Manager
3.2.19 Stylus
ICON
ITEM & FUNCTION
•
9
9
9
9
•
9
9
Table 3-27 Stylus
“Double-Tap” Tab (Figure 3-79, Figure 3-80) :
Double-tap the checkerboard grip at a comfortable speed.
Double-tap clapboard to test your settings.
The function is OK if the figures are changed from Figure
3-79 to Figure 3-80.
To tap “OK” to exit the Stylus Properties.
“Calibration” (Figure 3-81, Figure 3-82) :
In the Welcome Wizard, you tapped a target with the stylus to set the amount of pressure needed for the screen to respond to your stylus taps.
Please also see 2.4.3 Calibration of the touch Screen
3-47
OPTICON
User's manual
PHL-7000 series
3-48
3.2.20 System
ICON
ITEM & FUNCTION
•
9
“General” Tab (Figure 3-83) :
To show:
¾
¾
Firmware information
Information about Processor type, Memory size,
Expansion card
“Memory” (Figure 3-84) :
•
9
9
Move the slider to adjust memory allocation. Default storage memory is normally set to about 8MB with the reminder assigned to Program memory.
Press the “OK” key on the Keypad.
Note: the difference is occupied by OS between the RAM size in Information properties and total memory size of storage memory and program memory
•
9
9
9
•
9
“Device Name” Tab (Figure 3-85) :
Your device uses this information to identify itself to other computers.
The input panel will open to facilitate data entry.
To close the Device Name, press the “OK” button, or press the <Enter> key on keypad.
“Copyrights” Tab (Figure 3-86) :
Refer to this tab for specific copyright data. As a user, you are responsible to read this statement.
Table 3-28 System
OPTICON
User's manual
PHL-7000 series
3-49
OPTICON
User's manual
PHL-7000 series
3-50
3.2.21 Volume & Sounds Properties
ICON
ITEM & FUNCTION
•
9
•
9
“Volume” Tab (Figure 3-87) :
The factory default for Volume is the forth level. You can adjust the volume to your environment and comfort.
¾
Set the volume by adjusting the slider from Soft to
Loud, or press Right or Left edge of Navigation keys
“Sounds” Tab (Figure 3-88) :
Enable the desired sounds for key clicks, screen taps, notifications, and applications.
Table 3-29 Volume & Sound
OPTICON
User's manual
PHL-7000 series
Figure 3-87 Volume & Sound Figure 3-88 Volume & Sound
3-51
3.3 Taskbar and Start Menu
ICON
ITEM & FUNCTION
Taskbar and Start
Menu
•
9
•
9
9
“General” Tab :
In this tab, You can change the position of the Taskbar and
Start menu
¾
¾
Is always on top or not
Auto hide or not
¾
Show Clock or not
“Advanced” Tab :
Tap the “Clear” button to remove the contents of the
Documents Menu.
Enable “Expand Control Panel” to list all icons of Control
Panel from top to bottom.
Table 3-30 Taskbar and Start menu
OPTICON
User's manual
PHL-7000 series
3-52
OPTICON
User's manual
PHL-7000 series
Chapter 4. Communication
4.1 Installing & Setting Up Microsoft ActiveSync
4.1.1 Installing Microsoft ActiveSync on the Host PC
Microsoft ActiveSync is a file transfer tool to synchronize the files on a PC with the files on your
PDT. To install Microsoft ActiveSync, complete the following steps on the PC:
1. Go to the Microsoft website www.microsoft.com. In the search field, search for "active sync". Download the latest current version of ActiveSync.
2. Install the latest version of Microsoft ActiveSync on the host PC.
3. Open ActiveSync.
4. Select File > Communication Settings from ActiveSync’s menu bar.
5. Go to “Using ActiveSync” on page 4-1 to continue using ActiveSync.
4.1.2 Connecting PDT to Host PC
1. You can use either the USB/Serial (RS232) port from the IRU-7000 cradle or a USB/Serial
•
(RS232) cable to connect the PDT to the Host PC.
To use the cradle, you must first insert the PDT into the slot, making sure that the unit is
• firmly seated the cradle.
To use the cable, connect the USB/Serial cable to the PDT.
2. Connect the USB/Serial cradle or cable to the Host PC’s serial port or USB port.
3. Connect the cradle or PDT to the power adapter and power source.
4.2 Using ActiveSync
Use ActiveSync to transfer and synchronize files between the PDT and the Host PC.
4.2.1 Setting up a Partnership
During the Microsoft ActiveSync installation, you were prompted to create a partnership with your mobile device. When you set up a partnership, you select synchronization and file conversation settings, which are contained in a file on your desktop computer. This file enables your desktop computer to recognize your device. Only devices that have a partnership with a desktop computer can synchronize information between the two computers.
For more information on partnerships, please refer to your Microsoft ActiveSync documentation or help file.
4-1
Transferring Files:
To transfer files, complete the following steps on the host PC:
9
9
Select Start > Programs > Communication > (Serial, or USB) Activesync.
Double-click on the selected ActiveSync icon
OPTICON
User's manual
PHL-7000 series
9
9
After you have established a connection with PDT, tap the “Explore” button at the top of the
ActiveSync window (or select Explore from the File menu).
Navigate to the target directory on your PDT and copy the desired file by using the
Copy/paste method or dragging and dropping the desired file(s) into the folder.
Figure 4-1 Communication
4-2
OPTICON
User's manual
PHL-7000 series
4.2.2 ActiveSync File Synchronization
ActiveSync files synchronization requires an ActiveSync partnership between the PDT and the
Host PC. Refer to “Setting up a Partnership”, above:
9
Select the files in the synchronization configuration for the PDT partnership.
9
9
Select Tools > Options from the ActiveSync command bar to configure the synchronization options.
Place the file to be synchronized in the Synchronization folder createdin your My
Documents directory. Defaults to the desktop. During the ActiveSync connection, all files in the Synchronization folder will be synchronized to the \My Documents directory on the
PDT.
Figure 4-2 Connected
4.3 Networking
Please see the 3.2.12 “Owner”, Table 3-20 “Owner” on page 3-40 for setting up the network
ID. And see the 2.5.6 Setting Up Wireless LAN RF to setup the 802.11b Wireless LAN for RF connecting.
4-3
OPTICON
User's manual
PHL-7000 series
Chapter 5. Software Applications
5.1 Introduction
The PDT includes several applications for example Calculator, email, etc.
You can switch to any software application by tapping the Start Menu.
5.2 Software Applications
5.2.1 Calculator
It can be used for basic calculations with “+”, “-“ “*” and “/“.
9
Procedure:
¾
Tap numeric number
¾
¾
¾
¾
Tap one operator “+”, “-“, “*” or “/”
Then, tap another numeric number
Tap another operator or numeric number if needed
Tap “=” to get result
9
Button Function:
¾
“MC” – Memory Clear : clear the memory
¾
¾
“MS” – Memory Store : store the displayed value to memory
“MR” – Memory Recall : Display the most recent stored value
¾
¾
¾
¾
“M+” – Add stored numeric number into the displayed numeric value.
“Backspace” – Same as “ backspace” key
“CE” – Clear current keying numeric number. Same as “ Delete” key
“C” – Clear the current calculation. Same as “ESC” key.
5-1
OPTICON
User's manual
PHL-7000 series
5.2.2 Inbox
Use Inbox to send and receive e-mail messages in the following ways:
9
9
Synchronize e-mail messages with Microsoft Exchange or Outlook on the Host
Computer.
Send and receive e-mail messages by connecting directly to an e-mail server through an
Internet server provider (ISP) or a network.
5.2.2.1 Setup “Inbox”:
9
9
9
9
9
9
Select Start > Programs > Inbox to open it.
Select Service > Options from the command bar. Drag the dialog to show the right edge to configure e-mail.
Select “Add…”
In the “Service Type” list, select POP3 Mail or IMAP4 Mail. (POP3 is the most common mail protocol for ISPs).Enter a unique name for e-mail service in the “Service name” field. This name cannot be changed later.
Select “OK”.
The Mail Service Setup wizard appears after you add a service. If you are adjusting the setting of an existing service, select Service > Options, select the service you are using, and then Properties. In the Service Definition dialog box, complete the following entries as needed:
¾
¾
¾
¾
¾
¾
Connection: Select the name of the connection you created to connect to the mail server. If you are receiving e-mail through a network(Ethernet) connection, select
Network Connection. If you want Inbox to use your current connection, select
(none). If you have not created a connection, select Create new connection.
Double-tap the “Make new Connection” icon, and follow the instructions in wizard.
When finished, select Inbox in the Taskbar and continue setting up Inbox.
POP3 Host(POP3 only): Enter the name of the mail server you use to receive and send messages.
Server(IMAP4 only): Enter the name of the mail server you use to receive and send messages.
User ID: Enter the user name or mailbox ID assigned to you.
Password: Enter the password you use to access this mail account. If you do not want to be prompted to enter the password each time you connect, select “Save
password”.
Domain(Windows NT): Enter your Windows NT domain name. This name is required only when connecting to networks, such as a corporate network, that use
5-2
¾
OPTICON
User's manual
PHL-7000 series
Windows NT domain security. This is not required for most ISP accounts. If you have trouble connecting, try clearing this box.
¾
SMTP Host: If your mail service uses a separate server for SMTP, enter the name in the box. If you’re setting up a POP3 Mail service with an ISP, the ISP must use an
SMTP mail gateway.
¾
Return Address: By default, the return address is set to username@POP3host or
username@Servername. Depending on the service you are using. If this is not your e-mail address, enter the correct address in the box.
5.2.2.2 Set general preferences:
If you are adjusting the setting of an existing service, select Service > Options, select the service you are using, select Properties, and then select Next. In the General
Preferences dialog box, choose any of the following settings, all of which are optional:
¾
Disconnect service after actions are performed: Select to automatically disconnect
¾
¾
¾
¾
¾ from the server upon completion of all pending actions. This option minimizes connect time and cost.
Check for new messages every: select the time interval (in minutes) at which you want the device to check for new mail. If this option is turned off, you must check for new mail manually by selecting Services > Send/Receive Mail.
Display a message box when new mail arrives (POP3 only): Select to be informed that new mail has arrived.
Display a message box when new mail arrives (IMAP4 only): Select to be informed that new mail has arrived.
Send using MIME format (POP3 only): Select to send messages with extended characters.
Only display messages from last 3 days: Select how many day’s messages you want downloaded.
5.2.2.3 Set inbox preferences
If you are adjusting the settings of an existing service, select Services > Options, select the service you are using, select Properties, and then select New twice. In the Inbox
Preferences dialog box, choose any of the following options:
¾
Get message headers only: Select to save storage space and time by downloading only headers. You can download a full copy of the message later by selecting the message and then Services > Get Full Copy.
Include <number> lines: Select to set the message length (approximate number of
5-3
¾
¾
¾
¾
¾
¾
OPTICON
User's manual
PHL-7000 series lines) that you want to download.
Get Full Copy of messages: Select to receive a full copy of all messages. In addition to the message body, any options you select in When getting full copy will be downloaded. Selecting this option increases the amount of time needed to download messages.
Only synchronize folder hierarchy under Inbox (IMAP4 only): Select to speed download time by preventing the complete downloaded of the folder list every time you connect.
Get meeting requests (POP3 only): Select to download and store copies of meeting requests when getting full copies of messages. This setting applies whether you have chosen to download full copies of messages by default, or you selectively download full copies of messages by opening the message and selecting Services > Get Full
Copy Limitations apply.
Get file attachments (POP3 only): Select to download and save message attachments when getting full copies of messages. This option may use significant
RAM and slow download time. This setting applies whether you have chosen to download full copies of messages by default, or if you selectively download full copies of messages and selecting Services > Get Full Copy.
Get file attachments and meeting requests (IMAP4 only): Select to download and store meeting requests and message attachments when getting full copies of messages. This setting applies you have chosen to download full copies of messages by default, or if you selectively download full copies of messages by opening the message and selecting Services > Get Full Copy Limitations apply.
Only if small than (IMAP4 only): Select to restrict the size of the attachments you download. Set to 10K if you want to receive meeting requests only.
5.2.2.4 Include the original message in a reply:
¾
¾
¾
¾
Select Services > Options > Compose tab.
Under Reply, select Include Body. This setting will place a copy of the original message beneath your response text.
To indent the original message, select Indent.
To add leading characters (such as >) to the original message lines, select Add
leading character, and enter the character you want.
5.2.2.5 Save copies of sent messages:
By default, sent messages are not saved on your device.
5-4
OPTICON
User's manual
PHL-7000 series
¾
¾
¾
¾
Select Services > Options > Compose tab.
Select Keep copy of sent mail in Sent folder.
5.2.2.6 Set the action to follow deleting, moving, or responding to a message:
Select Services > Options > Read tab.
Select desired options.
5.2.2.7 Delete a message:
Select the message and select File > Delete. Messages are moved to Deleted (local) folder and deleted according to the option you have selected in Services > Options >
Delete tab:
¾
On connect/disconnect: Deletes messages when you connect or disconnect from your mail service or exit Inbox.
¾
¾
Immediately: Deletes messages as soon as you select File > Delete.
Manual:
Deletes messages when you select File > Empty Deleted (local)
Note: If you are working offline, messages that have been deleted from the device the next time you connect.
5.2.2.8 Empty the Deleted (local) folder:
¾
¾
Select File > Empty Deleted (local). This permanently deletes messages in the
Deleted (local) folder.
To check or adjust the current settings for deleting messages, select Services >
Options > Delete tab.
5.2.2.9 Move or copy a message:
CAUTION:
When you move a message that you have received through POP3 or synchronization to a folder you created on your device, the copy of the message on the server is deleted. This prevents duplicate copies of messages. Although the complete message is moved, message attachments will be deleted if you have not selected the option to download attachments. Once the message is moved, you will be able to access the message only from your device.
¾
¾
¾
Select the message
Select File > Move To or File > Copy To.
Select the destination folder. If you are working offline, the message will be moved or copied from the server the next time you connect.
5-5
OPTICON
User's manual
PHL-7000 series
5.2.2.10 Folder-
Create a folder:
¾
Select File > Folder > New Folder
¾
Type a name for the folder.
Delete a folder:
¾
¾
Select the folder you want to delete
Select File > Delete
Designate a folder as offline:
Only IMAP4 folders can be designated as offline. All IMAP4 default folders, such as
Inbox, are automatically designated as offline. Messages in offline folders can be viewed when you are disconnected from your mail server. If a folder is not designated as offline, you will be able to read and respond to messages in that folder only when connected to the server.
¾
To designate a folder as offline, select the folder and then select Service > Offline
Folder.
Rename a folder:
¾
Select the folder you want to rename.
¾
¾
Select File > Folder > Rename Folder.
Type the new name for the folder.
Notes:
z z
Default folders, such as Inbox, can’t be renamed.
Folders you create for IMAP4 mail servers can’t be renamed.
Synchronize folders while connected:
When you synchronize folders, the contents of your device folders and mail server folders are compared and updated. New mail messages are downloaded, and messages in your device Outbox folder are sent. The synchronization behavior depends on how you connect to your mail server.
¾
When you connect to a POP3 server, the Inbox and Outbox folders on your device are synchronized with the corresponding folders on the mail server. To synchronize
¾ after the initial connection, select Services > Send/Receive Mail.
When you connect to an IMAP4 server, Inbox, Outbox, and all folders marked as offline are synchronized. To synchronize all folders after the initial connection, select
Services > Synchronize Folders. To synchronize just the selected folder and the
Outbox folder, select Services > Send/Receive Mail.
5-6
OPTICON
User's manual
PHL-7000 series
5.2.2.11 Compose and send a message:
¾
¾
¾
¾
In list view, select Compose > New Message
Enter the address of one or more recipients, separating them with a semicolon. If the recipient is listed in the Address Book, enter a few letters of the recipient’s name and select Compose > Check Name. If there is only one match, the e-mail address is inserted. If there is more than one match, select the correct address from the
Choose E-mail Recipients dialog box. If there is no match then add a new e-mail address through Choose E-mail Recipients.
To attach a file, select File > attachments > Add Attachment.
Select File > Send. If you are working offline, the message is moved to the Outbox folder and will be sent the next time you connect.
Tip: to see more header information, select the triangle in the lower-right corner of the header area. Select the triangle again to collapse the header area.
5.2.2.12 Save a message:
¾
Select File > Save to save the message you are composing or editing.
The message is not sent and is saved in the inbox folder of the active service.
5.2.2.13 Reply to or forward a message:
¾
¾
¾
Open the message, and then select Compose > Reply to Sender, Reply to All, or
Forward.
Enter your response.
Select File > Send.
Tips:
z z
Selections in the Options dialog box determine whether the original text is included.
To see more header information, select the inverted triangle in the lower-right corner of the header area. Select the triangle again to collapse the header area.
5.2.2.14 Check Inbox status:
¾
In list view, select Compose > Status. You can view details such as the number of messages to be sent, deleted, and copied, and the number of attachments to be downloaded.
5.2.2.15 Download message from the server:
When you download messages, you need to create two connections: a remote connection and a mail server connection. The remote connection connects you and your ISP or
5-7
OPTICON
User's manual
PHL-7000 series network. The mail server connection downloads messages from your mail server to Inbox on your device. When you select Services> Connect in Inbox, Inbox starts a remote connection using the connection you specified when setting up the current mail service. If you are already connected through a remote connection other than the one you specified in the service, you will be asked if you want to use the current connection. If you choose not to, you will need to disconnect from the current connection before you can check for new messages.
¾
¾
¾
¾
Select the Services menu and make sure that the service you want to use is selected (the selected service has a bullet next to it.)
Select Services > Connect. The messages on your device and mail server are synchronized: new messages are downloaded to the device Inbox folder, messages in the device Outbox folder are sent, and messages that have been deleted on the server are removed from the device Inbox. Double-tap a message list to open it.
If you read a message and decide that you need the full copy, select File > Get Full
Copy while in the message window or Services > Get Full Copy while in list view.
This will also download message attachments and meeting requests if you have those options selected in the Inbox Preferences dialog box. You can also choose to download full copies of messages by default.
When finished, select Services > Connect to disconnect. You also need to disconnect your dial-up connection by double-tapping the icon in the status bar and selecting Disconnect.
Notes:
z
Receiving entire messages consumes storage memory.
z
The size column in the Inbox list view displays the local size and server size of a message.
Even when a message has been downloaded fully, these numbers may differ because the z size of a message can very between the server and the device.
When using IMAP4 to get Outlook + data, you will see the contents of your Journal folder.
File editing transactions and documents (such as Task items, e-mail message, and Word documents) attached using drag and drop will appear as shortcuts on the device. A copy of the document will not be moved to your device, and the shortcut on the device cannot be used to access the documents associated with a journal entry to the device, attach the document to the entry rather than dragging and dropping it. Also, be sure to set your
IMAP4 service to receive full copies of messages, attachments, and meeting requests.
For more information on using Journal, see the Help for the desktop version of Outlook.
5-8
OPTICON
User's manual
PHL-7000 series
5.2.2.16 Working with Message Attachments:
¾
If you receive messages through a remote mail server, in Inbox on the device, select the
Get file attachments and meeting requests (IMAP4) or Get meeting requests
(POP3) setting in the Inbox Preferences dialog box. For more information, see Set
Inbox preferences.
Notes:
z
Embedded images and OLE objects cannot be received as attachments z
Embedded messages can be viewed as an attachment when using IMAP4 to receive e-mail. However, this features does not work if TNEF is enabled so that you can receive meeting requests.
Check attachments status:
¾
An attachment sent with an e-mail message, whether it has been downloaded or not, will appear as an icon at the bottom of the message in its own window pane. If you don’t
¾ see this pane, select File > Attachments > Show Attachments. If TNEF is turned on so you can receive meeting requests, you will not see attachments until they are fully downloaded.
To mark an attachment for downloading in a POP3 or IMAP4 service, double-click it.
The attachment will be downloaded the next time you connect. You can also set Inbox to download attachments automatically when you get a full copy of a message. For more information, see Receive attachments.
Open an attachment:
¾
With the message open, double-tap the attachment’s icon at the bottom of the message. If you don’t see this pane, select File > Attachments > Show Attachments.
Store an attachment:
¾
Select Service > Options > Storage tab.
¾
¾
Select to store attachments on internal RAM or a storage card.
If you use more than one storage card, select it from the list.
Note: Once you make the above selection, all attachments will be moved to the selected card.
Delete an attachment:
¾
¾
To delete an attachment from a message you are sending, select the attachment, and then select Edit > Clear or press the DEL key on the keypad.
To delete an attachment you have received, delete the message.
5-9
¾
¾
¾
Attach a file to a message:
With the message open, select File > Attachments > Add Attachment.
OPTICON
User's manual
PHL-7000 series
Select the file you want to attach.
Note:
OLE objects cannot be attached to Inbox messages.
Note 1: To add a mail service, select “Add”, To remove a mail service, select the service from the Installed service box and select “Remove”. To view a mail service’s properties, select the service from the Installed service box and then select Properties.
Figure 5-1 Inbox
5-10
OPTICON
User's manual
PHL-7000 series
5.2.3 Internet Explorer
With Internet Explorer, you can view Web or intranet
Web pages on your device. You will need to use a modem or WLAN to connect to an Internet server provider (ISP) or network.
5.2.3.1 Connect to the Internet
Before you can view Web pages, you must set up a remote connection to your ISP or network.
5.2.3.2 Start Internet Explorer
9
9
9
9
9
Open Internet Explorer by selecting Start >
Programs > Internet Explorer.
To get default home page, navigate to the desired default web page.
Select View > Internet Options from the command bar.
Enter the desired URL in the Start page field.
Press the OK button.
Figure 5-2 Internet Explorer
5.2.3.3 Navigation Control
Internet Explorer uses sliding menus for application and navigation control. Tap and drag the sliding menus to the left or right to see the hidden menu items and toolbars.
To achieve more screen real estate in Internet Explorer, you can hide the Status bar and View menu. From the top menubar, go to View > Hide Toolbars.
Once it is hidden, you must cold reset to access these features again. Refer to 2.7.2 “Cold
Reset“ for more information.
5.2.3.4 Set up a proxy server
Proxy servers are often used when connecting to the Internet through a local network, such as a corporate network, for added security.
9
9
9
Select View > Internet Options > Connection Tab.
Select Access the Internet using a proxy server.
Enter the proxy server address and port. For more information, see your administrator.
9 To bypass the proxy server for local address, such as corporate intranet pages, select
Bypass proxy for local address.
5-11
OPTICON
User's manual
PHL-7000 series
5.2.3.5 Enable Cookies
A cookie file contains information about your identity and preferences so that a Web site can tailor information to your needs. The Web site sends the file and it is stored on your mobile device.
9
9
Select View > Internet Options > Security Tab.
Select Allow cookies.
5.2.3.6 Search for an Internet Site
9
Select View > Go > Search to search the web.
5.2.3.7 Go to an Internet address
9
Select Address Bar, if necessary to display the Address bar
9
9
Enter the address
Press “ENTER” key.
5.2.3.8 View previously visited sites
9
9
Tap the Arrow button at the right site of Address Bar
Select the Web Address you want to view.
5.2.3.9 Add and view Favorites
9
Go to the page you want add
9
9
Select Favorites > Add To Favorites.
If necessary, locate the folder you want.
9
9
Confirm or change the name.
To view your favorite Web sites, select Favorites and the Web site you want to view.
Note:
To organize your Favorites list, select Favorites > Organize Favorites.
5.2.3.10 Browse Web pages
9
9
To move to a page you have previously view, select View > Back
To move to the next page (provided you have viewed it previously), Select View >
9
Forward.
To return to your Home page, select View > Go > Home.
5-12
OPTICON
User's manual
PHL-7000 series
5.2.3.11 Refresh current page
9
Select View > Refresh.
5.2.3.12 Stop loading a page
9
Select View > Stop.
5.2.3.13 View current page
9
Select View > Internet Options
9
9
To view the protocol, page type, size, and address, selects the General tab.
To view security information about the page, select the Security tab.
5.2.3.14 View HTML source code
9
While viewing the page, select File > Save As and save the file as .txt file.
9
Open the file in a word processing program, such as WordPad.
5.2.3.15 Change home and search page settings
9
Open the page you want to use as your home or search page.
9 Select
5.2.3.16 Save a copy of current page
You can save Web pages and view them later when you’re disconnected from the Internet or
Intranet without using cached memory.
9
Select File > Save As
9
Specify a folder location and give the file name.
5.2.3.17 Copy a Web page to a document
9
Select all or part of the Web page you want to copy.
9
9
9
Select Edit > Copy.
Go to the document where you want to place the information and select the location.
Select Edit > Paste.
5.2.3.18 Select security Options
9
Select View > Internet Options > Security tab
9
Select the security protocols you want.
5-13
OPTICON
User's manual
PHL-7000 series
5.2.3.19 Change the font size
9
Select View > Text Size and select the desired size.
5.2.4 Media Player
The PDT comes with Media Player for Windows
CE.NET installed.
9
Open Media Player by selecting Start >
9
9
Programs > Media Player from the desktop.
Select File > Open to open a new media file.
Please refer to www.microsoft.com
for additional information and help with your
Microsoft Windows Media Player.
F
Figure 5-3 Media Player
5.2.5 Messenger
The Windows CE Messenger client application in Windows CE.NET allows you to communicate real-time using text-based messaging, VOIP, and more.
9
See who’s online. See when your colleagues are online. You can also post your
9
9 presence information to a list of watchers that you define.
Talk instead of type. Stop typing. Talk with a colleague anywhere in the world using the microphone and speakers. Windows Messenger supports high-quality voice.
Communicate using Session Initiation Protocol (SIP) or Hotmail contacts Windows
Messenger supports. Communication with your colleagues in the enterprise with a SIP based communications service. You can also talk to your Hotmail contacts using the .NET Messenger.
5-14
9
OPTICON
User's manual
PHL-7000 series
5.2.6 Microsoft WordPad
You can create and edit documents and templates in WordPad, using buttons and menu commands that are similar to those used in the desktop version of Microsoft Word. You can work with files Normal or Outline view.
WordPad documents are usually saved as .pwd files, but you can also save documents in other file formats, such as .rtf or .doc.
5.2.6.1 Selecting and Editing Text
9
Select text
To select Do this
Any amount of text
A word
A single paragraph
An entire document
Drag the stylus over the text.
Double-tap the word.
Triple-tap within the paragraph.
Select Edit > Select All
An picture Tap the picture
9
Find text
¾
¾
¾
¾
¾
To search for text in one part of a document, select that part. Otherwise, the whole document is searched.
Select Edit > Find
Enter the text you want to find. For a paragraph, enter ^p. For a tab stop, enter ^t.
Select the search options you want.
To continue searching, select Edit > Find > Next.
Replace text
¾
¾
¾
¾
¾
¾
To replace text in one part of document, select that part. Otherwise, the whole document is searched.
Select Edit > Replace.
Enter the text you want to find and the text you want to replace it with. For a paragraph, enter ^p. For a tab stop, enter ^t.
Select the replacement options you want.
Select Find Next.
On the Find/Replace toolbar, select the appropriate button.
5-15
9
OPTICON
User's manual
PHL-7000 series
Move, copy, or delete text
¾
Select the text you want to move, copy, or delete.
¾
¾
To move or delete text, select the Cut button. To copy the text, select the Copy button.
To paste the information, move the insertion point to the desired location, and select the Paste button.
Notes:
z z
To undo an action, select Edit > Undo.
To restore the action, select Edit > Redo.
5.2.6.2 Formatting Text
9
Create bulleted and numbered lists
¾
Select the Bullets or Numbering button.
¾
¾
Type the first item.
Press ENTER, type the next item, and repeat as needed.
¾
Select the button again to end list formatting.
Note: To change the number style for the selected list, select Format > Paragraph, in the
Format list, select the style you want.
9
¾
Set the default font
Select Format > Font.
¾
¾
¾
Select the font you want.
Select Set As Default
To confirm that your changes will be applied to subsequent documents you create, select
Yes.
Note: To apply the default font and stylus to selected text, select Apply Default.
9
Select a different font
¾
¾
Select the text you want to change. To select all text, select Edit > Select All.
From the Font list, select the font you want.
¾
From the Font Size list, select a size.
Note: To see more formatting options, select Format > Font.
5-16
¾
¾
¾
OPTICON
User's manual
PHL-7000 series
9
Change font formatting
¾
¾
¾
9
¾
Select desired text.
Select the Bold, Italic, or Underline button.
To change the color, select Format > Font and select the color you want from the Color list.
Adjust the paragraph alignment
Select the paragraph you want to align.
¾
Select the Align Left, Center, or Align Right button.
Note: To see more formatting options, select Format > Paragraph.
9
Indent a paragraph
Select the paragraph you want to indent.
Select Format > paragraph.
Adjust the indentation settings as needed.
9
¾
¾
Set tabs
Select Format > Tabs.
Change the tab settings as needed.
5.2.6.3 Adjusting the Display
9
¾
Wrap text in the window
Select View > Wrap to Window.
9
¾
¾
¾
Display the document using the full screen
Select View > Full Screen.
To exit Full Screen view, select Restore.
To move the Restore button, drag the bar on the left side.
9
¾
Display or hide scroll bars
Select View > Horizontal Scroll Bar or Vertical Scroll Bar.
9
Zoom in or out
¾
Select View > Zoom, and select the desired percentage.
Note: For Custom, enter the exact percentage and select OK.
5-17
OPTICON
User's manual
PHL-7000 series
5.2.6.4 Working in Outline View
9
¾
Switch between Normal and Outline views
Select View > Normal or Outline.
9
¾
¾
Assign and change outline levels
Select View > Outline.
Select the appropriate buttons on the toolbar.
5.2.6.5 Inserting Symbols
9
9
Place the insertion point where you want to insert the symbol.
Select Tools > Insert Symbols.
9
Select the symbol you want, and then select Insert.
Tips:
If you select a different font (or subset of a font), a different set of Symbols will be displayed.
5.2.6.6 Printing a Document
9
9
Select File > Print.
Select the printing options you want.
Tips:
z z
Port list the available printer ports
If Network is selected from the Port list, enter the path to the network printer to the
Net Path box.
5.2.6.7 Setting a password for a Document
9
9
9
Select File > password.
Type and verify the password.
You must save the document (File > Save) to return the password.
5.2.6.8 Converting Documents
9
About document conversion
If an e-mail program is installed on your device and you receive an attached Word document or template created in Word version 6.0 or later, WordPad will convert the file on your device. To view the document, simply open the attachment in your e-mail program or open the file in the
WordPad.
5-18
OPTICON
User's manual
PHL-7000 series
During conversion, some formatting attributes may be changed or lost. To avoid losing these attributes permanently, close the file after viewing it rather saving the file on your device. If you save the file, save with a different file name.
For more information about conversion performed on your device, see the following topics.
9
¾
Changes caused by Word document conversion
Formatting
z z z z z z
Borders and Shading
Borders and shading are not displayed in WordPad, but are restored when converted back to a Word document. Shading is not restored when used in a table, but simple borders are restored.
Character formatting
Bold, italic, strikethrough, superscript, subscript, and hidden text are retained and displayed. Other effects are changed or removed.
Colors
Colors are retained and mapped to colors available on your device.
Fonts and font sizes
Fonts not supported by your mobile device are mapped to the closest font available in
WordPad.
Page Formatting
Headers, footers, footnotes, columns, pages setup information, and style sheets are removed during conversion to WordPad. WordPad supports built-in headings.
Paragraph formatting
Tabs, alignment, bullets, indentation, simple numbered lists, and paragraph spacing are retailed and displayed in WordPad.
¾
Pictures
Pictures are removed during conversion.
¾
Table of Contents
Table of Contents text and some formatting are preserved. However, any text set at right-aligned tab stops may wrap to the next line.
¾
Index
Index text and some formatting are preserved.
5-19
¾
¾
¾
OPTICON
User's manual
PHL-7000 series
Tables
Tables appear as tab-delimited text. Cells containing wrapped text, tabs, or paragraph markers may be difficult to read. Simple tables are displayed accurately and restored when you convert the WordPad file back to a WordPad document.
OLE Objects
OLE Objects are removed during conversion.
Revisions marks, annotations, and comments
Revision marks are visible but cannot be changed. Annotations and documents are removed during conversion.
5-20
OPTICON
User's manual
PHL-7000 series
5.2.7 Remote Connection
Using Remote Desktop Connection, you can log on to Windows Terminal Server and use all programs installed on this server. For example, instead of running Microsoft Pocket Word, you can run the desktop version of Microsoft Word.
5.2.7.1 Connecting to Terminal Server
9
Select Start > Programs > Remote Connection,
9 or run ‘CETSC’ from the command prompt.
In the Server box, type or select a Terminal Server
9
9 name or TCP/IP address, or select a server in the drop-down list.
Select Connect.
In the Remote Connection window, type your user name, password, and domain(if required), and then select OK.
Figure 5-4 Remote Connect
5.2.7.2 Disconnecting Without Ending a Session
9
In the Remote Connection window, select Start > Shutdown.
9
Select Disconnect > OK.
Note: If you previously disconnected from a Terminal Server without ending the session, the
Terminal Server will continue to execute any running processes and Remote Connection can later reconnect to this same session(if your administrator has configured Remote
Connection to reconnect to disconnected sessions).
5.2.7.3 Disconnecting and Ending a Session
9
9
In the Remote Connection window, select Start > Shutdown.
Select Log Off > OK.
5-21
OPTICON
User's manual
PHL-7000 series
5.2.8 Windows Explorer
Windows Explorer works almost the same on your
PDT as it does on your PC. See the topics below for information about the difference in Windows
Explorer on your device.
5.2.8.1 Navigating in File View
9
Go forwards and Back
¾
¾
To go to the previous folder, select Go >
Back.
To go to the next folder (which you have just viewed), select Go > Forward.
Figure 5-5 Windows Explorer
9
9
9
Use the Go menu
¾
¾
To quickly access the My Documents folder, select Go > My Documents
To see all of the folders you have accessed, select Go > History.
Double-tap a folder to return to it.
5.2.8.2 Viewing Files as Icons Lists
To view icons, select View > Large Icons or Small Icons.
To view a list, select View > Details.
5.2.8.3 Working with Files and Folders
9
9
Create a new folder
¾
¾
¾
If necessary, open the folder where you want the new folder to reside.
Select File > New Folder.
Add a folder to your Favorites list
¾
Open the folder
Select Favorites > Add to Favorites.
¾
Tips:
In the Name box, type the shortcut name.
z z
To open a favorite file or folder, select Favorites and then select the folder.
To organize your favorites, select Favorites > Organize Favorites.
5-22
9
OPTICON
User's manual
PHL-7000 series
Transfer a file using infrared
¾
To send a file, select it, line up the infrared ports, and select File > Send To > Infrared
¾
Recipient.
To receive a file, line up the infrared ports, and select File > Receive.
5.2.8.4. Creating Desktop Shortcuts
9
Display the file or Web page for which you want to create a Shortcut.
9
9
Select File > Send to.
Select Desktop as Shortcut.
5.2.8.5 Switch to Internet
9
Type a URL in the Address bar.
5-23
OPTICON
User's manual
PHL-7000 series
5.3 DiskOnChip
The DiskOnChip let the application or a data file can be stored into the Flash Memory.
Note: The DiskOnChip storage memory persists all reset (warm/cold reboot) conditions and software/firmware updates.
We strongly recommends installing all applications, applets, programs, and important data files to the DiskOnChip Flash location.
CAUTION: If an application or a data file is only installed or saved in RAM, a cold reset will result in the loss of that application or data file.
5.3.1 Saving to Flash
9
9
To save an application or data to the Flash Memory, from your current application, select
File > Save As > navigate to the DiskOnChip location and save it.
5.3.2 DiskOnChip Location
To access the contents of DiskOnChip storage:
Double-tap the My Computer icon on the desltop.
Double-tap the DiskOnChip icon to view DiskOnChip.
Figure 5-6 DiskOnChip
5-24
OPTICON
User's manual
PHL-7000 series
5.3.3 DiskOnChip Size
The size of the DiskOnChip will vary, depending on the size of system firmware.
9
Inside the DiskOnChip directory, tap File >
9
Properties.
The DiskOnChip Properties dialog:
The number following Free is the amount of memory currently available on your device.
Figure 5-7 DiskOnChip Size
5-25
OPTICON
User's manual
PHL-7000 series
Chapter 6. Phone tools (GSM/GPRS)
6.1 Using the Phone Features
Use the PDT to make and receive telephone calls and send and receive SMS (Short Message
Service) messages.
Your mobile phone service provider may provide other useful services such as voice mail.
The phone can also be used to connect to an Internet Service Provider (ISP) or work network so you can browse the Web and read e-mail. You can connect to the Internet or work network over
GPRS (General Packet Radio Service), or you can use GSM (Global System for Mobile
Communications) for dial-up access.
6.1.1 SIM Card
A SIM (Subscriber Identity Module) card is required to operate the phone features on your PDT.
The SIM card is a plastic card embedded with a computer chip that stores and transacts data.
After the SIM card is activated by your mobile phone service provider, the computer chip will contain information about your phone number, service, registration information, and contacts, as well as memory to store speed dial numbers and text or SMS messages that you receive.
With the exception of emergency calls, the SIM card must be inserted into the SIM slot under the battery on the back of the PDT in order for voice/data calls to work.
To dial an emergency number, from the Phone keypad, tap the emergency number appropriate for your region, and then tap Talk or Send.
Note: See your local telephone directory for emergency numbers used in your area.
6-1
OPTICON
User's manual
PHL-7000 series
6.1.2 Inserting a SIM Card
Note: If the battery is already installed, you must remove it before inserting the SIM card.
To insert the SIM card into the PDT:
1. Remove the 4 screws from the GSM End Cap with a screw driver, Torx type and size 8
(T8). And then remove the GSM End Cap.
Figure 6-1 Remove screws from End Cap
2. Insert the SIM card (with the gold side facing the inside of the slot) into the SIM slot.
Figure 6-2 Insert SIM card
3. Using 4 ~ 4.5 kgf-cm torque to fix the screws for GSM End Cap.
Note: Repeat the same steps to remove the SIM card from the SIM tray.
6-2
6.1.3 Enabling GSM/GPRS module
1. Tap the phone icon in the system tray twice.
2. A GPRS power control window is displayed.
OPTICON
User's manual
PHL-7000 series
3. You need to select "Enable GSM / GPRS" and tap the OK button.
4. After a few seconds you might need to input a PIN code and tap the OK button (only if PIN code is configured).
6-3
OPTICON
User's manual
PHL-7000 series
6.2 Interface layout
Depending on options available and the capabilities of your PDT, the main interface enables you to:
- Look up all your messages using the Inbox, Outbox and Sent icons.
- Create and send SMS messages.
- Make a phone call using the Dialer, which also enables you to access SMS functions.
- Navigate the Internet.
Notes:
When you start the application for the first time, the communication settings configuration screen is displayed automatically. You will not be able to access the main interface until these settings have been specified. See selecting communication settings.
Actions, such as sending SMS, can be directly driven from the system. See System extensions.
6.2.1 Looking up messages
Inbox
Clicking the Inbox icon displays a list of all messages received at the center of the screen. Unread messages on this list appear in bold. The content of the selected message is displayed in the lower frame.
6-4
Figure 6-3 Inbox
OPTICON
User's manual
PHL-7000 series
Depending on the type of message, in order to send, see properties, move, resend, display, annotate or delete a message on the list:
1. Select the message and hold the selection with the stylus for a few seconds until a context menu is displayed.
2. Select the desired option.
3. Depending on the option selected, follow the usual procedure or click Cancel or the OK icon, located in the top right-hand corner of the screen, to return to the main interface.
To collect your messages, click on the Tools menu, then select Retrieve SMS from the list that shows up. Messages received are placed in the Inbox automatically.
Outbox
Clicking the Outbox icon displays a list of all messages sent at the center of the screen. The message content is displayed in the lower frame. This is a listing of messages waiting to be sent or sent from the application as well as those downloaded from your mobile phone.
Depending on the type of message, in order to send, see properties, move, resend, display, annotate or delete a message on the list:
1. Select the message and hold the selection with the stylus for a few seconds until a context menu is displayed.
2. Select the desired option.
Figure 6-4 Outbox
3. Depending on the option selected, follow the usual procedure or click Cancel or the OK icon, located in the top right-hand corner of the screen, to return to the main interface.
6-5
Sent box
Clicking the Sent icon will display the list of messages sent from the outbox. The content of the selected message is displayed in the frame.
To send, see properties, transfer, and display, annotate or delete a message from the list:
1. Select the message and hold the selection with the stylus for a few seconds until a context menu is displayed.
2. Select the desired option.
3. Depending on the option selected, follow the usual procedure or click Cancel or the OK icon, located in the top right-hand corner of the screen, to return to the main interface.
Phonebooks Folder
Figure 6-5 Sent box
Clicking the Phonebooks icon displays a drop-down list containing the phonebooks you have created or imported. Select the one you wish to look up or edit from the list.
If the drop-down list is empty and you would like to import contacts from your mobile phone, select the
Tools > Retrieve phonebook menu.
OPTICON
User's manual
PHL-7000 series
Figure 6-6 Phonebooks Folder
6-6
OPTICON
User's manual
PHL-7000 series
6.2.2 Icons and menus
Display icons
Clicking the icon located at the bottom of the screen and which symbolizes two arrows on a blank page, displays the fast access icons for available functions (which are as follows, from left to right: send and receive SMS messages, add a new contact in your Phonebook,
Dialer, Internet connection).
Click this icon again to hide them
Display numeric keypad
Clicking the icon located in the bottom right-hand corner of the screen and which symbolizes a keypad displays the keypad. Click this icon again to hide the keypad
Drop-down menus
The New and Tools drop-down menus have several functions, depending on the context and options available:
New menu
Click on the New menu at the bottom of the screen, then select:
- SMS: To create and send an SMS message.
- Phonebook: To create a phonebook.
- Phonebook Contact: To add a contact to your phonebook.
6-7
OPTICON
User's manual
PHL-7000 series
Tools menu
Click on the Tools menu at the bottom of the screen, then select:
- Retrieve SMS: The application collects the SMS messages and places them in the
Inbox.
- Retrieve phonebook: To download a phonebook: the one in your mobile phone or the one in your SIM card, or both.
- Check cellular status....
- Settings...: To configure the application's communication settings. See selecting communication settings.
- Dialer: To make a call directly from the application.
- Internet connection: To access the Internet.
- Logs: To access the different logs: Data counters, Data sessions log, SMS counters,
Calls missed, Calls received, Outgoing calls, Voice counters.
- About...: To access information about the application.
- Close: To close the application.
6-8
OPTICON
User's manual
PHL-7000 series
6.3 Selecting communication settings
Before using the communication features, make sure that the communication port and the equipment you are using are correctly declared.
General Setup Menu
Click the Tools > Settings to access the General Setup menu, which have different functions available depending on the type of your equipment. Select:
- Communications device: to configure your equipment and type of connection used.
- Network operator: to define your operator settings.
- Internet connection: to create, modify or delete internet connections.
- SMS: to configure the SMS transmission and reception options.
- My text: to record words or sentences you frequently use so they can quickly be added to a SMS message.
- Dialer: to define the dialer settings.
- Advanced settings: to configure Log events and the 'Close' option in the Tools menu.
- Security: to modify the PIN code of your SIM card.
Figure 6-7 General Setup Menu
First launch
1. At the first launch, the communication settings configuration screen is displayed. Click Yes and follow the different step to specify the communication settings.
2. Depending on the type of connection, your mobile phone and your operator will automatically be detected. (If not, follow the instructions detailed in the next section.)
Click the OK icon located at the top right-hand corner of the screen to save the settings.
3. A confirmation pop-up is displayed. Click Yes to save the defined settings.
6-9
OPTICON
User's manual
PHL-7000 series
Communications device tab
1. Select Tools > Settings > Communications device.
2. Select the Manufacturer and the Model of your equipment (modem or telephone).
3. Select Connection type being used.
4. Click the OK icon located at the top right-hand corner of the screen to confirm.
The Terminal button enables you to dialog directly with the modem via AT commands (like with Microsoft Hyper
Terminal).
The Status button returns information on your equipment.
Figure 6-8 Communications device tab
6.3.1 System Extensions
PhoneTools system extensions are specific extensions for the Contacts application and the
Today screen. Actions can be driven from the system and the PhoneTools Inbox status is available from the Today screen of your PDT.
Today screen extension
From the Today screen of your PDT, click:
● The PhoneTools Inbox status to directly launch PhoneTools. The application opens displaying the Inbox.
● The New > SMS menu to create a SMS.
Contacts menu extension
From your Contacts screen (Start > Contacts), select a contact from the list. You can either hold the click until a context menu is displayed or click the Tools menu, and then select:
● Call: to make a phone call to the selected contact.
● Copy to the SIM: to copy the properties of the selected contact into your SIM phonebook.
● Send SMS: to send a SMS to the selected contact.
6-10
OPTICON
User's manual
PHL-7000 series
6.4 Dialer
The Dialer module simulates the operation of a mobile phone in your personal assistant. It enables you to:
● make calls in various ways:
- by directly selecting an entry in the Contacts folder of your digital assistant.
- by selecting from a Fast calls list you will have pre-programmed.
- by entering a number directly using the keyboard.
- by redialing one of the last 10 numbers dialed.
- using the missed calls log if the caller has not withheld his/her number.
● receive calls showing, where possible, the last and first names of your caller and playing a tune identifying the Contacts category to which your caller belongs.
● reject incoming calls.
● save outgoing, incoming as well as missed calls in call logs.
● send digits with the call to enable navigation across most voice servers.
● save the number of your message system for fast calls.
● check microphone and speaker volume for certain equipment.
● send and receive SMS messages.
● send and receive faxes.
● access the Internet using a single button.
● directly read signal strength and battery level of your mobile in cases involving external equipment or of your assistant in cases involving an internal card.
● request dialer to be called automatically on starting up the application.
Warning!
Certain dialer functionalities can be disabled due to incompatibility with the communications equipment.
6-11
6.4.1 Accessing the dialer
Starting from the main interface, select the Tools menu then the Dialer option. The dialer initializes your communications equipment then displays signal strength and battery level, as well as the name of your service provider. The keyboard will be enabled once the initialization stage is complete.
OPTICON
User's manual
PHL-7000 series
Figure 6-9 Accessing the dialer
6.4.2 Making a voice call
1. Access the dialer and use one of the following methods:
● Direct entry, dial the number using the keys on the numeric keypad. To delete or correct the last digit displayed, click on the icon showing an arrow pointing to the left and a C. To make the call, click the icon showing a green receiver.
● From Phonebook, click the Contacts icon to retrieve the number you are calling. If more than one number is assigned to the person being called, a new window will open enabling you to select the number to be called. Click OK next to make the call.
● Fast call, click the icon with the # symbol. The list of the fast call contacts you pre-defined is displayed. Click the one you want to call.
● Again, click the green numbers dialed appears.
button without entering any number. A listing of the last
6-12
OPTICON
User's manual
PHL-7000 series
1. Select the number you wish to call, then click the Call button.
2. The number and name of the person being called (if not withheld) is displayed in the top frame during the call.
3. To end the call, click on the icon showing a red receiver. Call duration will then be displayed and an entry in the Dialer log created.
Notes:
- It is just as easy to connect to your voicemail by pressing and holding the "1" key. If you have not specified this number yet, the dialer will suggest configuring it.
- You can also make a voice call directly from the Contacts application of your PDT. To do so, select the person you wish to call in the Contacts screen list, then click the Tools > Call menu.
Missed calls
If one or more callers have attempted to contact you in your absence, the dialer will inform you with an on-screen message. If your callers have not withheld their numbers, you can see who called and you can call them back using the following procedure:
1. Click the Logs calls.
button which will open a tabbed box, the first of which is for missed
2. Select the caller to be called then press the Call button.
Fast calls list
In the Dialer window, click the icon with the # symbol. The list of main contacts is displayed.
Select a fast call contact you want to define, modify or call and hold the selection with the stylus until a context menu is displayed. Then, click one of the following options:
● Edit to create or modify the properties of the fast call contact. Then, click OK.
● Delete to delete the fast call contact from the list.
● Extract from Contacts to retrieve the properties of the contact from your Contacts
● Dial to call the selected contact.
6-13
OPTICON
User's manual
PHL-7000 series
6.4.3 Receiving a call
Ringer
The dialer issues a ringing sound to alert you to a caller trying to reach you. The tune played at this time can depend on how the caller is recorded in your Contacts folder. You can in fact specify contacts in your folder (Work, Friends, Family, etc.) and list your callers in one of them.
Refer to the user manual for your digital assistant for further information on this subject.
The application may be configured to play different tunes depending on the category of the caller.
If this is the case, the application searches in the Contacts folder for an entry associated with the number, it then determines its category and, having done so, plays the tune you have configured for it.
Warning!
This will only work if the caller does not withhold his or her number.
Information
If the caller's number has not been withheld and if the caller is listed in Contacts, the dialer will display his or her name. If he or she is not listed, only the number will be displayed. If the caller's number has been withheld, the dialer will then display Number Withheld.
Accepting / Rejecting a call
Click the green button to accept the call and click the red button to reject it.
Receiving SMS messages
SMS messages are downloaded automatically as soon as your communications equipment informs the application that messages have been received. If the message received has high priority, its content is displayed automatically; otherwise you have to operate the Envelope button to read it.
6.4.4 Logs
The application records dates, durations and caller identifiers as the dialer is used, dividing them into three categories: missed calls, received calls and outgoing calls. You can look up details of these lists by pressing the Logs button. This will take you to a tabbed box listing the calls logged by category and, under the Voice counters tab, the various cumulative totals recorded, with a facility for resetting the counters.
6-14
OPTICON
User's manual
PHL-7000 series
6.5 Internet connection
The Internet connection button enables connections to be made to Internet and to start up applications associated with it (see connections).
Warning! On most equipment, the fact of connecting to the Internet prevents the dialer from being used.
Use the red button to disconnect the Internet access session.
6.5.1 Configuration
Accessing configuration
● Before configuring the application's dialer function, select the communications equipment and the mobile telephony service provider using the Settings command on the Tools menu. Next, access dialer configuration by clicking the Dialer command in the General
Setup window.
Configuring the answering machine
● You can add the number of your answering machine in the Operator settings selection dialogue box (Tools > Settings menu). It will be dialed automatically if you leave the stylus resting on the "1" key of the dialer.
Configuring a ringer
1. Starting from the main interface, select the Tools > Settings menu.
2. Click on the Dialer link. You can specify the various tunes to be played according to the categories to which the callers belong in the window displayed.
3. Select the type of call to which a ringer is to be assigned in the first drop-down menu in the Events field: Incoming call, or Receive an SMS.
4. If you have selected Incoming call, a second drop-down list will be displayed listing the various categories specified in Contacts. Select the category to which you would like to associate a tune.
5. Select the ringer in the Associated sound drop-down menu.
6. Use the Play and Stop buttons to test the selected ringer. Once you are satisfied with a ringer, click OK to confirm.
7. Repeat these steps for each type of call to which you would like to assign a ringer.
6-15
OPTICON
User's manual
PHL-7000 series
Calling the dialer automatically on application start-up.
1. Starting from the main interface, select the Tools > Settings menu.
2. Click the Dialer link.
3. Check the On when loaded box in the window that shows up.
6.6 SMS
What is the 'Short Message Service' (SMS)?
The Short Message Service enables you to send messages in text format (160 characters maximum) over a mobile phone network. This service requires a specific subscription.
Short messages are first sent to the SMS Center, which is part of the mobile phone network, which then forward them to the recipients.
Received messages are stored in the memory. You cannot receive any more new messages once this memory is full. For this reason, ensure you delete them regularly or configure the application so it transfers them to your assistant.
Configuring the service center
1. Starting from the main interface, select Tools >
Settings and click the Network Operator link.
2. Select your country and mobile telephony operator. The number of the default Service
Center is displayed. If it is not the number sent by your network operator, you can change it manually.
3. You can also use the Automatic detection button for the application to interrogate your equipment and configure these settings.
4. Enter the number for the answering machine suggested by your network operator. It will be used by the dialer.
5. Click OK to confirm.
Figure 6-10 Configuring the service
center
6-16
OPTICON
User's manual
PHL-7000 series
Configuring SMS messages
1. Starting from the main interface, select Tools >
Settings and click the SMS link.
Sending:
Validity period: if your message cannot be delivered immediately, the service center can record it and resend it later. This list specifies for how long your message will be repeated.
Message type: to be used in very specific cases, this option configures the message format in line with the service center and the recipient.
Figure 6-11 Configuring SMS
messages
Receiving:
Transferring SMS messages received: they may be either copied or moved from the communications equipment to the digital assistant. If you opt for the "copy" mode (option unchecked), messages received will accumulate in the communications equipment until it fills up and you risk losing messages to come. In this case you can always delete them from the application's inbox.
2. Click OK to confirm.
Configuring templates
If you frequently use the same words or sentences in your messages, you can record them in a list so they can be quickly added to your message. To do this:
1. Starting from the main interface, select Tools > Settings and click the My text link.
2. Select an entry to be edited from the upper list and click the Edit button (arrow pointing downwards) for the entry to be copied to the editing area.
3. Once your sequence has been entered, click the Change button (arrow pointing upwards) to record it.
6-17
OPTICON
User's manual
PHL-7000 series
Sending an SMS message
1. Starting from the main interface, select New > SMS or click
.
2. Enter the recipients' numbers using one of the following methods:
● Direct entry: if you have a single recipient, enter the number directly then click the Next button. If you have more than one recipient, enter their numbers then press the Add button
(arrow pointing downwards) to add them to the list.
● From Phonebook: if your message recipients are recorded in the Contacts folder of your assistant, click the Contacts button and select your recipients and their numbers. Click
OK next to add them to the Recipient list.
3. Enter the text of the message in the frame displayed. A character and SMS counter displays the relevant sizes as entry proceeds. A typical message contains up to 160 characters but the application can send content longer than this by linking more than one message together.
You can insert pre-recorded passages of text in your message using the My text menu.
4. The default setting is for transmission requests not to be carried out immediately. This enables you to prepare your message off-line and to send it later on (to do this, select it in the
Outbox, and select Tools > Send). Check the desired options:
● Send now: to send your message immediately.
● High priority: to display the content of your message directly on the recipient's mobile phone screen.
● Request return receipt: to receive a return receipt.
● UCS2 format: to ensure compatibility with non-European language PDTs.
5. Click OK.
Note:
You can also send SMS from outside the application, such as follow:
● From the Contacts folder of your PDT assistant, select the contact to whom you want to send the SMS. You can either hold the click until a context menu is displayed and select the Send SMS option, or click the Tools > Send SMS menu.
● From the Today screen of your PDT assistant, click the New > SMS menu.
6-18
OPTICON
User's manual
PHL-7000 series
Downloading received SMS messages
Select Tools > Retrieve SMS. If you have received SMS messages on your mobile phone, they will be automatically copied or transferred to the Inbox. Unread messages appear in bold. A single click on a message is enough to read it.
Viewing an SMS message
1. Select the SMS message you wish to view.
2. Select the Tools > View menu or hold the click until a context menu is displayed and select the View option on it. The content of the SMS message, as well as the sender, date and time of sending are displayed. If the inbox contains a number of messages, it is possible to go directly from one to the next from the same dialog box.
3. Click OK to return to the main screen.
Note:
Unread messages appear in bold. Click a message to read it.
Replying to an SMS message
1. In the Inbox, select the message you want to answer.
2. Hold the selection until a context menu is displayed in which to select the Reply option, otherwise select Tools > Reply. The SMS transmission screen is displayed. The Phone
Number and, if applicable, Name and Company fields are already filled in.
3. Click Next.
4. Enter the message text.
5. The default setting is for transmission requests not to be carried out immediately. This enables you to prepare your message off-line and to send it later on (to do this, select it in the
Outbox, and select Tools > Send). Check the desired options referring to the following heading: SMS Transmission options
6. Click OK.
Resending an SMS message
1. In the Sent folder, select the SMS message you want to send again.
2. Select Tools > Resend and refer to the steps listed under the Sending an SMS message heading.
6-19
OPTICON
User's manual
PHL-7000 series
SMS transmission options on composing them.
- Send now: check this box for the transmission request to be executed as soon as you click
Send. Otherwise, the transmission request will be left pending in the Outbox of the main interface. To send your message, you need to select it, then select Tools > Send.
- High priority: check this box to display the content of your message directly on the recipient's mobile phone screen.
- Request return receipt: to receive a return receipt.
- UCS2 format: check this box to ensure compatibility with non-European language PDTs.
6-20
OPTICON
User's manual
PHL-7000 series
6.7 Phonebook management
PhoneTools enables you to create phonebooks, import contacts recorded in your mobile phone
(memory + SIM card) and thus bring your various phonebooks into line.
6.7.1 Creating a phonebook
1. Select New > Phonebook.
2. Enter the phonebook name.
3. Click OK.
Adding a contact
1. Click the Phonebooks icon then select from the drop-down list the phonebook to which you wish to add a contact.
2. Select New > Phonebook Contact or click .
The Cell phonebook entry window is displayed.
3. Enter the contact's Name and Number. The entry will have an automatic Entry position in the phone book if you do not specify this field.
4. Click the Contacts icon to import contacts you created in the PDT Contacts application into the current PhoneTools phonebook. The PDT
Contacts list is displayed. Select the contact you want to import. Then click OK. The properties of this contact are automatically filled.
5. Click OK.
Figure 6-12 Adding a contact
6-21
OPTICON
User's manual
PHL-7000 series
6.7.2. Managing the phonebooks
1. Click the Phonebooks icon then select the Phonebook management button (> sign) next to the phonebook drop-down list. The Phonebook management window opens displaying the list of all your phonebooks.
2. Click one of the following buttons, depending on what you wish to do :
● Create: to create a phonebook.
● Delete: to delete the selected phonebook. The confirmation pop-up is displayed. Click
Yes.
● Rename: to rename the selected phonebook. Enter the changes in the Enter
Phonebook name field. Then click OK.
3. Click OK to get back to the Phonebook window.
Changing a contact
1. Click the Phonebooks icon then select the phonebook to be changed from the drop-down list displayed.
2. Select the contact you wish to change.
3. Select Tools > Modify.
4. Enter your changes in the Name, Phone Number and Entry position fields.
5. Click OK.
Downloading your mobile phonebook
1. Select the Phonebooks folder by clicking on the Phonebooks icon.
2. Select Tools > Retrieve phonebook.
3. When prompted by the program, select the memory where the phonebook you want to download is stored.
4. Click OK. Your phonebook is downloaded.
Transferring a phonebook to your mobile phone
1. In the Phonebooks folder (click the Phonebooks icon), select the phonebook to be transferred.
2. Select Tools > Transfer to cellular.
3. When prompted by the application, select the memory to which the phonebook is to be transferred.
4. Click OK. Your phonebook is transferred.
6-22
OPTICON
User's manual
PHL-7000 series
6.8 Internet connections
6.8.1 Configuring Network operator
The application assists the user when configuring internet access. Since this configuration relates to the network operator, you must set it before anything else.
Configuring the network operator
1. Starting from the main interface, select Tools >
Settings and click the Network operator link.
2. Select your country and mobile telephony operator.
The Automatic detection button suggests searching your network operator automatically and configuring the application.
The Roaming Settings button allows you to detect and select a wireless operator when you are abroad and outside the reach of your Home Network.
Figure 6-13 Configuring the network
operator
6-23
OPTICON
User's manual
PHL-7000 series
6.8.2 Creating and changing access configurations
Accessing the connections list
1. Starting from the main interface, select Tools > Settings.
2. Click the Internet connection link. The dialog box displays a list of network access configurations handled by the application. From this list you will be able to create, change and delete your configurations.
Creating an access configuration
1. Access the connections list.
2. Select the New option from the list. The first box appears, enabling the name to be assigned to your configuration to be entered.
3. Click the Next button. The application will then list software that can be run while this connection is live. This choice is optional.
4. Click the Next button. If your network operator handles different types of network (UMTS,
GPRS, GSM, etc.), the application will prompt you to select the one to be used.
Warning!
Using "high speed" networks such as GPRS or UMTS is subject to subscription options.
5. Select a Context ID. Certain telephone devices offer connection profiles containig all parameters for use over "high speed" networks, such as GPRS. In order to avoid overwriting a pre-programmed configuration on your mobile, select a free storage profile using its context ID.
6. If your network operator is recognized by the application, the Use standard settings box is checked by default. Uncheck it if you want to specify the settings manually and click
Next :
- Specify the APN or number, Name and Password settings as required. Click Next and repeat for subsequent screens for IP address, DNS and QOS.
7. Click Next. The following dialog box enables a backup configuration to be created for your high-speed connection to be applied if it is unsuccessful. If you request a backup configuration to be created, the application will display the entry screens shown previously for "standard" connection.
6-24
OPTICON
User's manual
PHL-7000 series
Changing an access configuration
1. Access the connections list.
2. Click the connection to be changed or display the context menu by holding the stylus on the connection to be changed and select the Modify option.
3. Follow the Creating access configurations steps.
Deleting
1. Access the connections list.
2. Display the context menu by holding the stylus on the connection to be changed and select the Delete option.
Connecting
You can set up or access the connection from the main interface, from the Tools > Internet
connection menu or by clicking on .
● You will be shown a list if more than one access is configured.
● If no access has been configured, the application will prompt you to access the Setup program to create one.
6-25
