Graco 3A8209A Pulse Pro Extender Instructions
Add to My manuals8 Pages
Graco 3A8209A Pulse Pro Extender is a device that improves Pulse Pro device network coverage and capacity to support RF communication in a Pulse Pro system. It is for professional use only and not approved for use in explosive atmospheres or hazardous (classified) locations.
advertisement

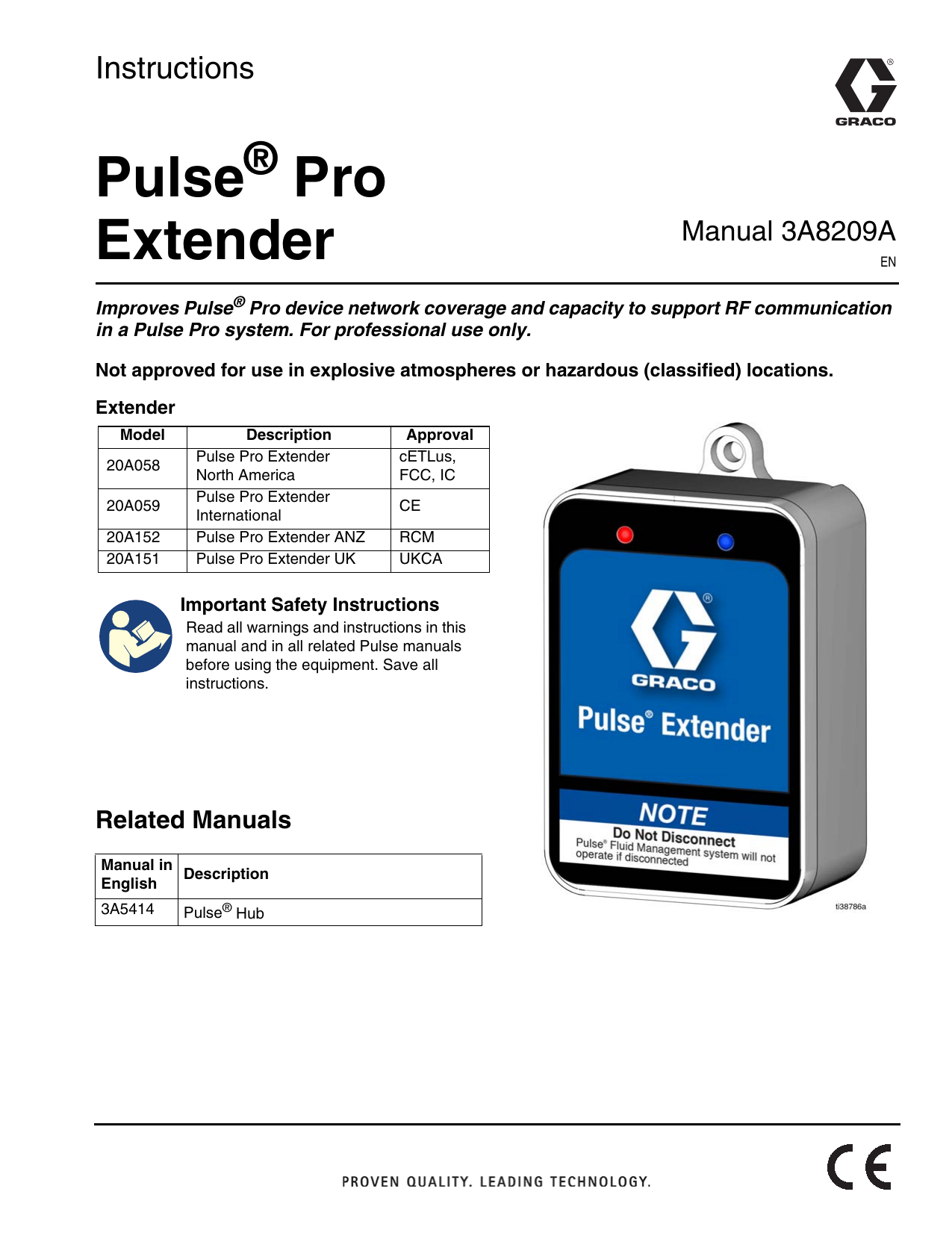

![Graco 3A8209A Pulse Pro Extender Instructions | Manualzz Graco 3A8209A Pulse Pro Extender Instructions | Manualzz](http://s1.manualzz.com/store/data/066994589_1-72f37f77cb30c0e527ae91b58bd05ad1-360x466.png)
Instructions
Pulse
®
Pro
Extender
Manual 3A8209A
EN
Improves Pulse
®
Pro device network coverage and capacity to support RF communication in a Pulse Pro system. For professional use only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
Extender
Model
20A058
20A059
20A152
20A151
Description
Pulse Pro Extender
North America
Pulse Pro Extender
International
Pulse Pro Extender ANZ
Pulse Pro Extender UK
Approval cETLus,
FCC, IC
CE
RCM
UKCA
Important Safety Instructions
Read all warnings and instructions in this manual and in all related Pulse manuals before using the equipment.
Save all instructions.
Related Manuals
Manual in
English
Description
3A5414
Pulse
®
Hub
Component Identification
Component Identification
A
C
B
F IG . 1
Key:
A Red LED
B Blue LED
C Button
Extender Status
Flashing: briefly lit every second.
Blinking: lit every other second.
Blue Light
OFF
ON
ON
Flashing
Blinking
Red Light
ON
OFF
ON
ANY
ANY
2
Status
Powering On/Configuring
Connected
Powered On/Not Connected
Checking connection status
Attempting to register to the device network
Manual 3A8209A
Installation
The Pulse Pro Extender is installed/plugged directly into a standard outlet that does not exceed 240 VAC.
Definition of terms used in device registration:
• Flashing: briefly lit every second.
• Blinking: lit every other second.
Registering Pulse Pro Extender
1.
Open the Pulse Pro Fluid Management software and turn on Discovery mode.
2.
Connect power to the Extender.
a.
The red light turns on.
b.
Wait until the red light and blue light turn on, about 30 seconds.
3.
Press and hold the button on the Extender for five
(5) seconds, then release.
4.
The blue light begins flashing. When registration of the Extender starts, the blue light begins blinking.
Once registration is complete, the blue light remains lit.
5.
Review the Pulse software to confirm discovery of the Extender. If it does not confirm, see
6.
Exit Discovery mode on the Pulse Pro Fluid
Management software.
NOTE: It may take up to three (3) minutes for the Pulse
Pro Extender to receive a message from the HUB that clears the red light.
Manual 3A8209A
Installation
3
Recycling and Disposal
Recycling and Disposal
End of Product Life
At the end of the product’s useful life, dismantle and recycle it in a responsible manner.
• Do not dispose of batteries or electronic components with household or commercial waste.
• Deliver remaining product to a recycling facility.
4 Manual 3A8209A
Troubleshooting
Troubleshooting
Problem Cause
Unable to move between Pulse Device
Networks (i.e. HUB to the Remote
Extender), Registration fails (solid blue light, no red light).
No lights
The original connected Device network is in range.
Device failed to discover Extender (solid blue light, solid red light).
Device is not powered.
Device is damaged.
The device is not connected to a network.
Solution
Press and hold the button for 20 seconds to temporarily disconnect the
Extender from any device networks.
Then retry Discovery process.
Check the outlet power.
Replace the Extender.
Move the device closer to connected
HUB or Remote Extender.
Follow the steps in
Pro Extender , page 3. to discover the
device with a HUB or Remote Extender.
Confirm that the HUB is running and that the Remote Extender is connected (if applicable).
Wait for the Extender to reconnect to the device network (3 to 10 minutes), because the HUB or Remote Extender may have recently been rebooted.
Reboot the HUB or Remote Extender.
Dimensional Drawing
Manual 3A8209A 5
6
Technical Specifications
Technical Specifications
Extender
Power Supply
Current
Operating Temperature Range
Storage Temperature Range
RF Frequency Band
Maximum RF Transmit Power
Model 20A058- NA
Model 20A059, 20A152, 20A151- INT
Maximum Operating Altitude
Operating Humidity Range
Pollution Degree
Weight
Ingress Protection
US
100 - 240 VAC
1 A
32°F to 140°F
-40°F to 176°F
2400 - 2483.5 MHz
Metric
0°C to 60°C
-40°C to 80°C
+19.9 dB
+8.0 dB
6560 ft above sea level
0 - 80% (non-condensing)
2000 m above sea level
Intended Environment: Pollution Degree 2
0.5 lb 0.25 kg
IPX0
Manual 3A8209A
Compliance
Contains Model XBEE3 Radio, IC: 1846A-XBEE3
This Extender contains FCC ID MCQ-XBEE3. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
• This device may not case harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
California Proposition 65
CALIFORNIA RESIDENTS
WARNING: Cancer and reproductive harm – www.P65warnings.ca.gov.
Compliance
Manual 3A8209A 7
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE .
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO . These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com
.
For patent information, see www.graco.com/patents .
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6928 or Toll Free: 1-800-533-9655, Fax: 612-378-3590
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A8209
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2020, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision A, December 2020
