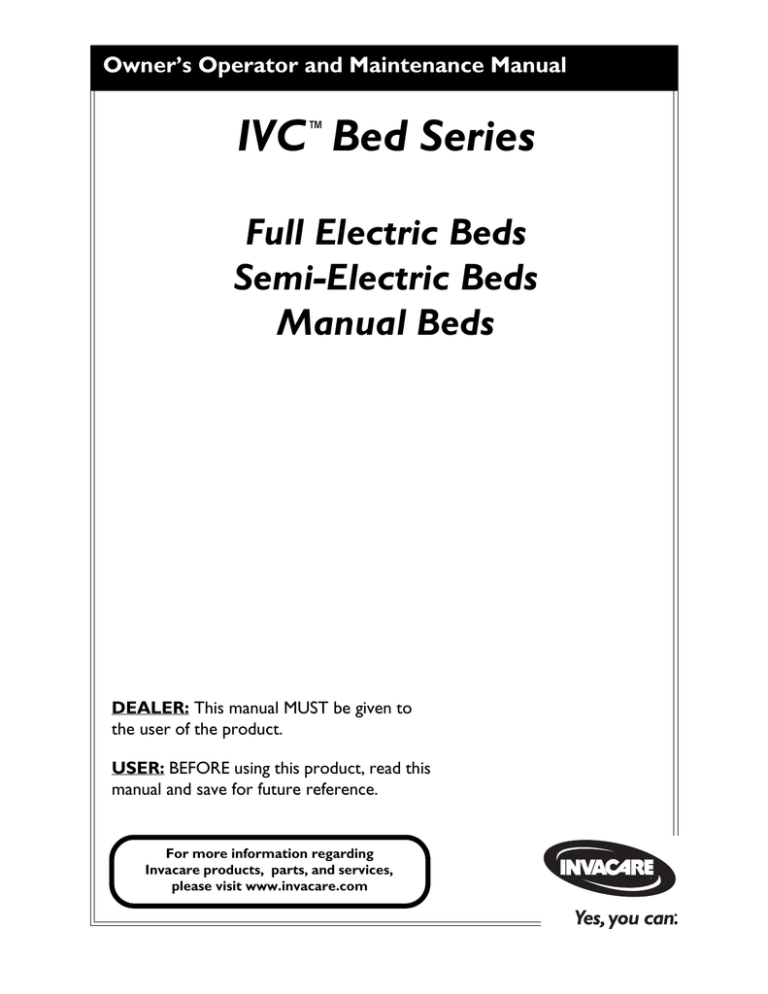

IVC™Bed Series - Bay State Medical

Owner’s Operator and Maintenance Manual
IVC™Bed Series
Full Electric Beds
Semi-Electric Beds
Manual Beds
DEALER: This manual MUST be given to
the user of the product.
USER: BEFORE using this product, read this
manual and save for future reference.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com
WARNING
DO NOT OPERATE THIS EQUIPMENT WITHOUT FIRST READING
AND UNDERSTANDING THIS MANUAL. IF YOU ARE UNABLE TO
UNDERSTAND THE WARNINGS, CAUTIONS, AND
INSTRUCTIONS, CONTACT A HEALTHCARE PROFESSIONAL,
DEALER OR TECHNICAL PERSONNEL IF APPLICABLE BEFORE
ATTEMPTING TO USE THIS EQUIPMENT - OTHERWISE INJURY
OR DAMAGE MAY RESULT.
THE INITIAL SET UP OF THIS BED MUST BE PERFORMED BY A
QUALIFIED TECHNICIAN.
PROCEDURES OTHER THAN THOSE DESCRIBED IN THIS
MANUAL MUST BE PERFORMED BY A QUALIFIED TECHNICIAN.
FOR DEALERS ONLY - SET-UP AND ASSEMBLY INSTRUCTIONS
ARE IN THE REAR OF THIS MANUAL. THESE PROCEDURES MUST
BE PERFORMED BY A QUALIFIED TECHNICIAN ONLY.
NOTE: Updated versions of this manual are available on www.invacare.com.
IVC™Bed Series
2
Part No 1114836
TABLE OF CONTENTS
TABLE OF CONTENTS
REGISTER YOUR PRODUCT ............................................................... 4
LABEL LOCATIONS .......................................................................... 7
SPECIAL NOTES ................................................................................ 8
TYPICAL PRODUCT PARAMETERS .................................................... 9
SECTION 1—GENERAL GUIDELINES ................................................. 10
Operating Information.............................................................................................................................10
Entrapment May Occur...........................................................................................................................11
Replacement Parts/Accessories ............................................................................................................12
Electrical .....................................................................................................................................................13
Repair or Service Information...........................................................................................................13
Servicing of Double-Insulated Products ..............................................................................................14
Radio Frequency Interference ...............................................................................................................14
Weight Limitations ...................................................................................................................................14
SECTION 2—OPERATION ................................................................ 15
Operating Full Electric Bed - Models 5410IVC and 5411IVC ........................................................15
Raising and Lowering the Entire Bed .............................................................................................15
Raising and Lowering the Head and Foot Sections......................................................................16
Operating the Semi-Electric Bed - Models 5310IVC and 5311IVC ..............................................16
Raising and Lowering Head and Foot Sections .............................................................................17
Raising and Lowering the Entire Bed...............................................................................................17
Using the Emergency Crank...................................................................................................................17
Operating the Manual Bed......................................................................................................................18
Optional Bed Rails ...................................................................................................................................18
SECTION 3—TROUBLESHOOTING .................................................... 19
Troubleshooting Electrical......................................................................................................................19
Troubleshooting Mechanical ..................................................................................................................20
Maintenance Checklist.............................................................................................................................20
Electrical Inspection and Maintenance ............................................................................................21
Pass/Fail ..................................................................................................................................................21
ASSEMBLY, MAINTENANCE AND ADJUSTMENT SECTIONS FOR DEALERS ONLY ....................................................................... 22
Overview of Procedures.........................................................................................................................22
Receiving ................................................................................................................................................22
Unpacking ..............................................................................................................................................22
Set-Up.....................................................................................................................................................22
Storing the Beds ...................................................................................................................................22
IVC™Bed Series
3
Part No 1114836
TABLE OF CONTENTS
TABLE OF CONTENTS
SECTION 4—PACKAGING, HANDLING, AND SET-UP ........................ 23
Receiving.....................................................................................................................................................23
Unpacking ...................................................................................................................................................23
Unpacking the Bed Ends .....................................................................................................................23
Unpacking Foot and Head Spring Sections ....................................................................................24
Set-Up .........................................................................................................................................................24
Assembling the Head and Foot Spring Sections ...........................................................................24
Assembling the Spring Fabric ............................................................................................................26
Adjusting and Reconnecting the Head Section Pull Tube...........................................................26
Installing the Casters ...........................................................................................................................27
Assembling the Universal Bed Ends.................................................................................................28
Assembling the Drive Shaft................................................................................................................29
Inspecting the Bed................................................................................................................................31
Installing/Removing Cable Lock ........................................................................................................32
Installing the Manual Crank for Hi/Lo Function............................................................................33
Installing/Removing the Pendant.......................................................................................................34
Storing the Beds........................................................................................................................................34
SECTION 5—TROUBLESHOOTING .................................................... 35
Troubleshooting Electrical......................................................................................................................35
Troubleshooting Mechanical ..................................................................................................................36
Maintenance Checklist.............................................................................................................................36
Electrical Inspection and Maintenance ............................................................................................37
Pass/Fail ..................................................................................................................................................37
LIMITED WARRANTY ..................................................................... 39
REGISTER YOUR PRODUCT
The benefits of registering:
1.
2.
3.
4.
5.
Safeguard your investment.
Ensure long term maintenance and servicing of your purchase.
Receive updates with product information, maintenance tips, and industry news.
Invacare can contact you or your provider, if servicing is needed on your product.
It will enable Invacare to improve product designs based on your input and needs.
Register ONLINE at www.invacare.com
- or Complete and mail the form on the next page
Any registration information you submit will be used by Invacare Corporation only, and protected as required by applicable laws and regulations.
IVC™Bed Series
4
Part No 1114836
PRODUCT REGISTRATION FORM
Register ONLINE at www.invacare.com - or Complete and mail this form
Name _______________________________________________________________
Address _____________________________________________________________
City ___________________ State/Province __________
Zip/Postal Code ________
Email ___________________________________ Phone No. _________________
Fold
here
Invacare Model No. ______________________ Serial No. __________________
Purchased From _________________________ Date of Purchase: ___________
Cut Along Line
1. Method of purchase: (check all that apply)
❏ Medicare
❏ Insurance
❏ Medicaid ❏ Other
__________________________
2. This product was purchased for use by: (check one)
❏ Self
❏ Parent
❏ Spouse
❏ Other
3. Product was purchased for use at:
❏ Home
❏ Facility
❏ Other
4. I purchased an Invacare product because:
❏ Price
❏ Features (list features) _________________________________________
5. Who referred you to Invacare products? (check all that apply)
❏ Doctor ❏ Therapist ❏ Friend ❏ Relative ❏ Dealer/Provider ❏ Other_________
❏ Advertisement (circle one): TV, Radio, Magazine, Newspaper
❏ No Referral_____
6. What additional features, if any, would you like to see on this product?
__________________________________________________________________________ Fold
7. Would you like information sent to you about Invacare products that may be available for a here
particular medical condition? ❏ Yes ❏ No
If yes, please list any condition(s) here and we will send you information by email and/or mail about
any available Invacare products that may help treat, care for or manage such condition(s):
__________________________________________________________________________
8. Would you like to receive updated information via email or regular mail about the Invacare
home medical products sold by Invacare's dealers? ❏ Yes ❏ No
9. What would you like to see on the Invacare website?
__________________________________________________________________________
10. Would you like to be part of future online surveys for Invacare products? ❏ Yes ❏ No
11. User's Year of birth: ______________________________________________________
If at any time you wish not to receive future mailings from us, please contact us at Invacare Corporation,
CRM Department, 39400 Taylor Parkway, Elyria, OH 44035, or fax to 877-619-7996 and we will remove
you from our mailing list.
To find more information about our products, visit www.invacare.com.
Cut Along Line
Fold
here
Fold
here
Invacare Product Registration Form
Please Seal with
Tape Before Mailing
LABEL LOCATIONS
LABEL LOCATIONS
NOTE: Underside of bed shown.
Pendant Cord
Power Cord
CAUTION
KEEP SWITCH
CORD CLEAR OF
MOVING PARTS
NOTE: This warning label is located on the gearbox. (not shown)
Part No 1114836
7
IVC™Bed Series
SPECIAL NOTES
SPECIAL NOTES
Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage. Refer to the table below for definitions of the signal words.
SIGNAL WORD
MEANING
DANGER
Danger indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
WARNING
Warning indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION
Caution indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO
CHANGE WITHOUT NOTICE.
Pendant Operation
A safety feature of this product includes protection against overheating caused by
excessive or extended periods of operation. Depending on the duration, this
includes multiple or repeated adjustments or the use of multiple functions at one
time. To assure trouble free operation, ALWAYS allow a slight pause between
multiple adjustments and avoid pressing more than one function button at a time. If
thermal protection activation should occur, the bed will not respond to pendant
commands. Given this situation, release the pendant button and allow the bed unit
to sit for several minutes. This will allow the protection function time to reset and
restore bed function. Depending on the severity of the initial overheating, this could
take up to 30 minutes.
Invacare products are specifically designed and manufactured for use in conjunction
with Invacare accessories. Accessories designed by other manufacturers have not
been tested by Invacare and are not recommended for use with Invacare products.
WARNING
Full Electric Beds
On Full Electric beds, the Hi/Lo crank MUST be removed before the bed is used.
Failure to remove the crank may cause damage or personal injury.
IVC™Bed Series
8
Part No 1114836
TYPICAL PRODUCT PARAMETERS
TYPICAL PRODUCT PARAMETERS
5410IVC
5310IVC
5307IVC
DESCRIPTION
Full Electric
Semi-Electric Single Crank
Hi/Lo
Manual Single Crank-Hi/Lo
SHIPPING WEIGHT
176.5 lbs (80.1 kg)
172 lbs (78.0 kg)
161.5 lbs (73.3 kg)
OVERALL LENGTH
88 in. (223.4 cm)
OVERALL HEIGHT
36 in. (91.4 cm)
SPLIT SPRINGS TO
ENDS
HEAD
FOOT
43 in. (109.2 cm)
45 in. (114.3 cm)
ADJUSTMENT
RANGE
DECK
BED END
15 in. (38 cm) ± 2 in. to 23 in. (58.3 cm) ± 2 in.
26 ¼ in. (66.7 cm) to 33 ¾ in. (85.7 cm)
BED COMPONENTS
FULL ELECTRIC
BED NAME
(MODEL NUMBER)
SEMI-ELECTRIC
54101IVC 5411IVC
Canada
5310IVC
5311IVC
Canada
MANUAL
5307IVC
HEAD SPRING
(5000IVC)
X
X
X
X
X
UNIVERSAL BED ENDS
(5301IVC)
X
X
X
X
X
FOOT SPRING THREE
MOTORS
(5490IVC)
X
FOOT SPRING THREE
MOTORS CANADA
(5491IVC)
X
FOOT SPRING TWO
MOTORS (58901IVC)
X
FOOT SPRING TWO
MOTORS CANADA
(5891IVC)
X
FOOT SPRING TWO
CRANK (5770IVC)
Part No 1114836
X
9
IVC™Bed Series
SECTION 1—GENERAL GUIDELINES
SECTION 1—GENERAL GUIDELINES
WARNING
SECTION 1 - GENERAL GUIDELINES contains important information for the safe
operation and use of this product. DO NOT use this product or any available
optional equipment without first completely reading and understanding these
instructions and any additional instructional material such as Owner’s Manuals,
Service Manuals or Instruction Sheets supplied with this product or optional
equipment. If you are unable to understand the Warnings, Cautions or Instructions,
contact a healthcare professional, dealer or technical personnel before attempting
to use this equipment - otherwise, injury or damage may occur.
Operating Information
DO NOT use near explosive gases. Keep the product a minimum of 12ʺ away from any direct heat source.
Close supervision is necessary when this product is used by or near children or people with disabilities.
Check all parts for shipping damage and test before using. In case of damage, DO NOT use. Contact a qualified technician for further instruction.
After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely.
DO NOT let any individual underneath the bed or in between the raised bed frame components at anytime.
When bed is not to be used for an extended period, unplug electric bed from the wall outlet. If a liquid is spilled in or around the electric bed, unplug the electric bed before cleaning. Clean up the spill and allow the electric bed or the area around the electric bed to dry thoroughly before using the electric controls again.
The manual/electric bed is NOT designed to be used as a patient transport. When transporting a patient, use an approved patient transport. Otherwise, injury or damage may result.
Body weight should be evenly distributed over the surface of the bed. DO NOT lay, sit or lean in such a way that your entire body weight is placed only on raised head or foot sections of the bed. This includes when assisting the user in repositioning or transferring in or out of bed.
When operating/moving manual/electric beds, always ensure that the individual utilizing the bed is positioned properly within the confines of the bed. DO NOT let any extremities protrude over the side or between the bed rails when performing these functions.
IVC™Bed Series
10
Part No 1114836
SECTION 1—GENERAL GUIDELINES
After the manual/electric bed has been assembled, always test to make sure that all sections of the manual/electric bed are properly and securely in place before using.
Make sure head and foot springs/sections are connected securely to the universal bed ends before use.
If the unit is not working properly, call a qualified technician to examine the unit and repair it.
Keep all moving parts, including the main frame, mattress deck (head and foot springs/sections) and all drive shafts, free of obstruction (i.e. blankets/sheets, heating blankets/pads, tubing, wiring, etc. and other types of products using electric cords which may get tangled around the bed, side rails or legs) during operation of the manual/electric bed. The manual/electric bed is equipped with locking casters. When transferring into or out of the manual/electric bed, always lock the locking caster(s). Inspect the wheel locks for correct locking action before actual use. Even with casters properly locked, some flooring surfaces such as tile or wood, will allow the bed to move under some conditions. Use on surfaces such as these must be evaluated by the care provider.
ALWAYS remove manual crank(s) before performing electronic functions. Otherwise, the crank(s) will turn when the motor is on and could cause personal injury or damage to the bed.
ENTRAPMENT WARNING
Proper patient assessment and monitoring, and proper maintenance and use of
equipment is required to reduce the risk of entrapment. Variations in bed rail
dimensions, and mattress thickness, size or density could increase the risk of
entrapment. Visit the FDA website at http://www.fda.gov to learn about the risks of
entrapment. Review “A Guide to Bed Safety”, published by the Hospital Bed Safety
Workgroup, located at www.invacare.com. Use the link located under each bed rail
product entry to access this bed safety guide.
Refer to the owners manuals for beds and rails for additional product and safety
information.
After any adjustments, repair or service and before use, make sure all attaching
hardware is tightened securely. Assist rails with dimensions different from the
original equipment supplied or specified by the bed manufacturer may not be
interchangeable and may result in entrapment or other injury.
Mattress MUST fit bed frame and assist rails snugly to reduce the risk of entrapment.
Replacement Parts/Accessories
Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products.
Part No 1114836
11
IVC™Bed Series
SECTION 1—GENERAL GUIDELINES
Possible fire hazard when used with oxygen administering equipment other than nasal or masked type.
Use masked or nasal type oxygen administering equipment only in conjunction with the manual/electric bed. The use of any other type of oxygen administering equipment can result in a fire hazard.
When using nasal or masked type oxygen administering equipment, the oxygen or air tubing MUST be routed and secured properly to ensure that the tubing does not become entangled and/or severed during normal operation of manual/electric bed.
ALWAYS test to make sure that the side rails are properly and securely in place before using the manual/electric bed.
Invacare recommends that the mattress be centered on the bed frame. Otherwise, individuals may become entangled between the bed rail and the bed frame.
Physically challenged individuals who cannot prevent themselves from rolling/climbing out of the manual/electric bed may require alternative safe means of restraint.
When used with a manual/electrical bed, the bed rails DO NOT fall under any weight limitations. Bed rails can be deformed or broken if excessive side pressure is exerted on the bed rails. These bed rails are used for the purpose of preventing an individual from inadvertently rolling out of bed. The bed rails are NOT intended nor may be used for restraint purposes. If an individual is capable of injuring himself/herself, a physician or a healthcare professional should be consulted for alternative means of safe restraint. Although bed rails are not rated to any specific weight limitation, the bed rails may become deformed or broken if excessive side pressure is exerted on the bed rails. The bed rail is not an assist rail for getting into or out of bed. DO NOT use the bed rails as push handles when moving the bed.
DO NOT use the side rails as push handles for moving the manual/electric bed.
Once patient assessment concludes that the patient’s condition increases the chance of entrapment, the bed MUST be in the flat position when left unattended.
After raising/lowering the head/foot end of the manual/electric bed, check the distance between the bottom of the bed rail and the mattress. If there is excessive distance between the bottom of the bed rail and the mattress in which individuals may become entangled, adjust the height of the bed rail (if applicable), or provide alternative means of patient protection.
Trapeze units must be positioned on a universal bed end as near as possible to the center point of the bed end. The trapeze is to be used only in assisting the patient in repositioning or transferring in or out of the manual/electric bed.
Traction units must be securely fastened to universal bed ends of the manual/electric bed. These units are to be used only for immobilizing a patient in various traction setups or assisting the patient in repositioning or transferring in or out of the manual/electric bed.
NEVER allow patients to use trapeze or traction units as a total individual weight support.
IVC™Bed Series
12
Part No 1114836
SECTION 1—GENERAL GUIDELINES
Trapeze units are to be used only for immobilizing a patient in various traction setups or assisting the patient in repositioning or transferring into or out of bed.
Replacement mattresses and bed side rails with dimensions different than the original equipment supplied or specified by the bed frame manufacturer are not interchangeable. Variations in bed side rail design, width and thickness or firmness of the mattress could cause/contribute to entrapment. Use only authorized Invacare replacement parts and/or accessories otherwise the warranty is void. Invacare will not be responsible for any damage or injury that may result.
Electrical
DANGER
When using an extension cord, use only a three wire extension cord having at least
16 AWG (American Wire Gauge) wire and the same or higher electrical rating as
the device being connected. Use of improper extension cord could result in a risk of
fire and electric shock. Three prong to two prong adapters should not be used. Use
of three prong adapters can result in improper grounding and present a shock
hazard to the user.
NEVER operate if the unit has a damaged cord or plug. If it is not working properly, call a qualified technician for examination and repair.
Keep all electrical cords away from heated or hot surfaces.
Ensure all cables and cords are routed such that they will not become entangled or pinched. Otherwise damage or injury may result.
DO NOT unplug power cord from junction box.
The pendant and power cords must be routed and secured properly to ensure that the cords DO NOT become entangled, pinched and/or severed during operation of the electric bed.
NEVER operate the unit if these cords are damaged. Refer servicing to qualified personnel only. Grounding reliability depends upon a properly grounded wall outlet.
Repair or Service Information
DO NOT open assemblies such as the motors, pendant, junction boxes or gear boxes. No user serviceable parts are inside. Only qualified technicians are permitted to repair these parts. If unqualified individuals perform any work on these beds, the warranty is void.
Unplug the power cord from its power source before performing any maintenance on the manual/electric bed. DO NOT unplug the power cord from the junction box. Damage to cord will result.
The junction box is mounted to the foot motor with an actuator clip‐lock. If replacing the junction box, remove the actuator clip‐lock and slide the junction box away from the foot motor until it is free. Disconnect all cable connections.
Part No 1114836
13
IVC™Bed Series
SECTION 1—GENERAL GUIDELINES
Before connecting/disconnecting the connections at the junction box, make sure the cable lock is removed by lightly depressing on the end tabs and lifting. After connectors are plugged in, route all cables into the cable lock slots and snap the cable lock in place. When installing any connectors into the junction box, be sure the cable lock is secure after installation ‐ otherwise, injury or damage may occur.
DO NOT force the connector into the junction box, otherwise ‐ injury or damage may occur.
Inspect the covering of the bed’s control panel and the patient control panel to assure that the covering is not cracked or damaged.
Servicing of Double-Insulated Products
In a double‐insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double‐insulated product, nor is a means for grounding to be added to the product. Servicing a double‐insulated product requires extreme care and knowledge of the system, and is to be done only by qualified service personnel. Replacement parts for a double‐insulated product must be identical to the parts they replace. A double‐insulated product is marked with the words ʺDOUBLE INSULATIONʺ or ʺDOUBLE INSULATEDʺ. The symbol ( ) is also able to be marked on the product.
Radio Frequency Interference
Electronic equipment may be influenced by Radio Frequency Interference (RFI). Caution should be exercised with regard to the use of portable communications equipment in the area around such equipment. If RFI causes erratic behavior, unplug the electric bed IMMEDIATELY. Leave unplugged while transmission is in progress.
Weight Limitations
The total weight limit of the Invacare 36‐inch (91.4 cm) wide Manual/Electric bed (including accessories, mattress, occupant and any other person/object positioned on the bed) is 450 pounds (204 kg.); 350 pounds (158 kg) patient weight.
DO NOT permit more than one person on/in the manual/electric bed at any time.
Body weight should be evenly distributed over the surface of the manual/electric bed. DO NOT lay, sit or lean in such a way that your entire body weight is placed only on raised head or foot sections of the bed. This includes when repositioning or transferring in or out of bed.
IVC™Bed Series
14
Part No 1114836
SECTION 2—OPERATION
SECTION 2—OPERATION
WARNING
The Invacare IVC Beds are to be assembled and adjusted by a qualified technician only.
Operating Full Electric Bed - Models 5410IVC and
5411IVC
WARNING
NEVER operate if the unit has a damaged cord or plug. If it is not working properly,
call a qualified technician for examination and repair.
Keep all electrical cords away from heated or hot surfaces.
Ensure all cables and cords are routed such that they will not become entangled or
pinched. Otherwise damage or injury may result.
CAUTION
Allow a slight pause between adjustments and avoid pressing multiple buttons at
the same time. If pendant buttons are depressed too rapidly or multiple buttons are
pressed at the same time, the desired feature may not activate. Simply release the
pendant button, permit a slight pause and then activate the next operation.
On Full Electric beds the Hi/Lo crank MUST be removed before the bed is placed in
service. If left in place the crank may cause damage or personal injury.
NOTE: For this procedure, refer to FIGURE 2.1 on page 16.
Before placing the bed into use, test it by operating it through all phases of its operation. 1. If any problems arise during the test, recheck all electrical connections and mechanical hook ups.
2. Full electric beds use a six function pendant for all bed operations.
3. All full electric beds come with an emergency crank to allow operation in the event of a power outage.
Raising and Lowering the Entire Bed
WARNING
DO NOT place pendant under or between objects. This may unintentionally press
the buttons and may cause injury or damage.
NOTE: For this procedure, refer to Detail “A” of FIGURE 2.1.
1. To raise the entire bed, press the ʺBed Upʺ button.
2. To lower entire bed, press the ʺBed Downʺ button.
Part No 1114836
15
IVC™Bed Series
SECTION 2—OPERATION
Raising and Lowering the Head and Foot Sections
NOTE: For this procedure, refer to Detail “A” of FIGURE 2.1.
1. To raise the head of the bed, press the ʺHead Upʺ button.
2. To lower the head of the bed, press the ʺHead Downʺ button.
3. To raise the foot of the bed, press the ʺFoot Upʺ button.
4. To lower the foot of the bed, press the ʺFoot Downʺ button.
Head Section
DETAIL “A” - PENDANT CONTROLS
Foot Section
Head Up
Button
Bed Up
Button
NOTE: Link Fabric not shown.
Foot Up
Button
Head Down
Button
Bed Down
Button
Foot Down
Button
FIGURE 2.1 Operating Full Electric Bed - Models 5410IVC and 5411IVC
Operating the Semi-Electric Bed - Models 5310IVC and
5311IVC
NOTE: For this procedure, refer to FIGURE 2.2.
1. Perform one of the following:
• Use a four function pendant for head and foot spring functions. • Use a hand crank for Hi/Lo bed operation. 2. Test all operating features of the bed.
3. If any problems arise during test, recheck all electrical connections and mechanical hook ups.
NOTE: All semi‐electric beds come with an emergency crank to allow continued operation in the event of a power outage.
CAUTION
If a button on the pendant does not release or sticks, the bed spring will not stop
moving.
IVC™Bed Series
16
Part No 1114836
SECTION 2—OPERATION
Raising and Lowering Head and Foot Sections
NOTE: For this procedure, refer to Detail “A” of FIGURE 2.2.
1. To raise the head of the bed, press the ʺHead Upʺ button.
2. To lower the head of the bed, press the ʺHead Downʺ button.
3. To raise the foot of the bed, press the ʺFoot Upʺ button.
4. To lower the foot of the bed, press the ʺFoot Downʺ button.
Raising and Lowering the Entire Bed
1. Model 5310IVC ‐ Use crank ʺBʺ to raise and lower the entire bed.
Head Section
NOTE: Link Fabric not shown.
DETAIL “A” - PENDANT CONTROLS
Foot Section
Crank “B”
Head Up
Button
Head Down
Button
Foot Up
Button
Foot Down
Button
FIGURE 2.2 Operating the Semi-Electric Bed - Models 5310IVC and 5311IVC
Using the Emergency Crank
NOTE: For this procedure, refer to FIGURE 2.3.
NOTE: If the full electric or semi‐electric bed needs to be adjusted manually due to a power outage or an electronic malfunction, use the emergency crank to make the adjustments.You should find the Emergency crank stored in the link fabric of the spring deck. If you do not find the crank, contact your dealer. 1. Remove the emergency crank from the spring deck of the bed under the mattress.
2. Locate the exposed shaft end according to the function you want to perform. Refer to FIGURE 2.3.
3. Attach the emergency crank to A, B, or C. 4. Refer to Operating the Manual Bed on page 18 for further instruction.
NOTE: Push in the emergency crank while turning it the desired direction.
NOTE: To move the entire bed on full electric models, open drive shaft cover on the foot end of the gear box. Part No 1114836
17
IVC™Bed Series
SECTION 2—OPERATION
C - Foot Section
NOTE: Link Fabric not shown.
B - Entire Bed
A - Head Section
FIGURE 2.3 Using the Emergency Crank - Operating Full Electric Bed - Models 5410IVC and
5411IVC
Operating the Manual Bed
NOTE: For this procedure, refer to FIGURE 2.4.
1. Peform one of the following: • Raise or lower the head section with crank ʺAʺ
• Raise or lower the foot section with crank ʺCʺ.
• For Model 5307IVC only ‐ Raise or lower the entire bed with crank “B”.
2. Test all operating features of the bed.
3. If any problems arise during testing, recheck all mechanical hook ups.
Crank “C”
NOTE: Link Fabric not shown.
Crank “B”
Crank “A”
FIGURE 2.4 Operating the Manual Bed - Model 53071IVC
Optional Bed Rails
WARNING
DO NOT install the optional bed rails without reading and understanding all of the
instructions in the instruction sheet that accompanies the bed rail kit.
IVC™Bed Series
18
Part No 1114836
SECTION 3—TROUBLESHOOTING
SECTION 3—TROUBLESHOOTING
Troubleshooting Electrical
SYMPTOM
Bed spring does not
move.
Full Electric Bed: Hi/Lo
function does not work.
Bed Spring does not stop
moving.
PROBABLE CAUSE
SOLUTIONS
End of stroke reached.
Operate opposite button.
Bed not plugged in.
Ensure power cord is plugged into power
source.
Pendant not functioning.
Ensure Pendant is correctly connected to
junction box.
Ensure Pendant cable not entangled/pinched.
Cables
Ensure cables are not entangled/pinched.
Call the dealer for repair/replacement of
cables and/or motors.
Broken cable lock.
Call dealer to replace cable lock.
Household fuse or breaker blown.
Check household fuse/breaker box.
Motors are not functioning.
Call dealer.
Hi/Lo Motor.
Ensure cables are not entangled or pinched.
Call dealer.
Thermal Protection Activated.
Allow bed unit to sit for 30 minutes and retry.
Pendant.
Check for depressed/stuck buttons. If button is
stuck, call dealer for repair.
Bed Hi/Lo movement
does not stop.
Check cables, if damaged call dealer.
Bed is producing unusual
sounds, burning odors, or
movement deviations
observed in the controls,
motors, or the limits
switch functions.
Call dealer.
Part No 1114836
19
IVC™Bed Series
SECTION 3—TROUBLESHOOTING
Troubleshooting Mechanical
SYMPTOM
Bed does not stay in
place.
PROBABLE CAUSE
SOLUTIONS
Casters unlocked.
Lock Casters.
Pull tube.
Check pull tube(s) for binding. Call dealer for
repairs.
Manual Beds - crank(s) not
working.
Call dealer.
Bed ends move in
opposite directions
(electrical or manual
bed).
Drive Shaft connected to wrong
gear box shaft.
Call dealer.
Hi/Lo function does not
work.
Crank not properly installed.
Call dealer.
Drive shaft disconnected.
Call dealer.
Pressing function on
pendant results in motion
other than that intended.
Motor cable connections to
junction box incorrect.
Call dealer.
Bed springs do not move.
WARNING
Read all general guidelines, warnings and cautions before performing any
repair/maintenance on the bed. All repair and maintenance on the bed should be
performed by a qualified technician.
Maintenance Checklist
Invacare recommends the following maintenance and cleaning procedures be conducted between users and at least once every three years. This form is provided as a guide to help with documentation.
Mechanical Inspection and Maintenance
❑ Inspect all bed components for damage or excessive wear.
❑ Visually examine all welds for cracks.
❑ Inspect the head and foot spring sections for bending, warping or damage.
❑ Inspect all bolts and rivets to ensure that they are securely tightened and functioning properly.
❑ Check sleep surfaces to ensure all links are intact.
❑ Check casters to ensure they lock, if applicable, and roll properly.
IVC™Bed Series
20
Part No 1114836
SECTION 3—TROUBLESHOOTING
Electrical Inspection and Maintenance
❑ Inspect all electrical bed components for damage or excessive wear (i.e. cracked or broken housings, or worn components).
❑ Check pendant, power and motor cords for chafing, cuts or excessive wear.
❑ Make sure all plugs are fully attached and free of damage.
❑ Make sure cable lock on junction box is properly positioned and locked
❑ Check all functions:
• Head raises and lowers properly.
• Foot raises and lowers properly.
• Bed Ends raise and lower properly.
Pass/Fail
❑ PASS: Bed and all components have passed all of the above inspection criteria and the bed is ready for placement into a client’s home.
❑ FAIL: Bed, or any component, has failed any of the above inspection criteria. Tag the bed or component with a complete description of the failure(s) and have the bed serviced.
Part No 1114836
21
IVC™Bed Series
ASSEMBLY, MAINTENANCE AND ADJUSTMENT SECTIONS - FOR DEALERS ONLY
ASSEMBLY, MAINTENANCE AND
ADJUSTMENT SECTIONS FOR DEALERS ONLY
WARNING
The procedures in the following sections MUST be performed by a qualified
technician.
Overview of Procedures
Receiving
Unpacking
❑ Unpacking the Bed Ends
❑ Unpacking Foot and Head Spring Sections
Set-Up
❑ Assembling the Head and Foot Spring Sections
❑ Assembling the Spring Fabric
❑ Adjusting and Reconnecting the Head Section Pull Tube
❑ Installing the Casters
❑ Assembling the Universal Bed Ends
❑ Assembling the Drive Shaft
❑ Inspecting the Bed
❑ Installing/Removing the Cable Lock
❑ Installing the Manual Crank for Hi/Lo Function
❑ Installing/Removing the Pendant
Storing the Beds
IVC™Bed Series
22
Part No 1114836
SECTION 4—PACKAGING, HANDLING, AND SET-UP
SECTION 4—PACKAGING,
HANDLING, AND SET-UP
Receiving
1. Count cartons before signing shipping papers.
2. Designate someone at the facility to receive and inspect all merchandise. Use the master order acknowledgment to check off items as they are received.
3. Compare the number of cartons shipped with the number of cartons actually received and note such on the consignee copy of the freight bill. Make sure to have the truck driver sign the copy acknowledging the count.
4. If shortage occurs, IMMEDIATELY contact Invacare Continuing Care Group Customer Service department at (800) 532‐8677.
Unpacking
NOTE: Check all parts for shipping damage. In case of shipping damage, DO NOT use. Contact Dealer/Carrier for further instruction.
CAUTION
DO NOT plug the power cord into a power source until assembly is complete. To
do so could result in damage or personal injury.
DO NOT attempt to operate bed controls prior to completion of assembly, otherwise damage to bed components may occur.
Unpacking the Bed Ends
NOTE: For this procedure, refer to FIGURE 4.1.
Drive
Shaft
5. Remove any loose packing from the carton.
Casters
Packaging
6. Bed End carton includes:
Bed
Ends
• Two Universal Bed Ends
• Four Casters (two locking and two non‐locking casters)
Hand
Crank
• One Drive Shaft Assembly in two pieces
Carton
• One Hand Crank
FIGURE 4.1 Unpacking the Bed Ends
Part No 1114836
23
IVC™Bed Series
SECTION 4—PACKAGING, HANDLING, AND SET-UP
Unpacking Foot and Head Spring Sections
NOTE: For this procedure, refer to FIGURE 4.2.
1. Remove any loose packing from the carton.
2. Foot Spring Section carton includes:
• One Foot Spring (electric beds include pendant, junction box with power cord, and head, foot and hi/lo [full electric only] motors with cables).
• One emergency crank handle (electric beds ONLY).
3. Head Spring Section carton includes:
• One Head Spring.
Inserts
Foot Spring
Head Spring
Inserts
Link
Fabric
Link
Fabric
Shipping Carton
Shipping Carton
FIGURE 4.2 Unpacking Foot and Head Spring Sections
Set-Up
Assembling the Head and Foot Spring Sections
WARNING
DO NOT attempt to operate bed controls prior to completion of assembly as damage to bed components or personal injury may occur.
NOTE: For this procedure, refer to FIGURE 4.3 and FIGURE 4.4 on page 25.
4. Remove the head spring section (5000 IVC) of the bed from the packing carton.
5. Place the head spring section on its side to your left so the center mounting latches are on the right. Refer to FIGURE 4.3.
6. Open the head spring section to a 45° to 90° angle to support the spring section. Refer to FIGURE 4.3.
7. Remove the foot spring section of the bed from the packing carton.
8. Place the foot spring section on its side on your right with the head spring pull tube at the top of the assembly. The center mounting rivets should be on the left. Refer to FIGURE 4.3.
IVC™Bed Series
24
Part No 1114836
SECTION 4—PACKAGING, HANDLING, AND SET-UP
Center Mounting Latch
Head Spring
Section
Center Mounting Rivet
Center
Mounting
Rivet
Center
Mounting
Latch
45°-90°
Foot Spring
Section
Head
Spring Pull
Tube
FIGURE 4.3 Set-Up
NOTE: For set‐up purposes, the motors on the semi‐electric (5890IVC and 5891IVC) and full electric (5490IVC and 5491IVC) foot springs as well as the crank handles on the manual foot springs (5770IVC) should be on your right. 9. Place the head and foot springs approximately 90° from each other.
10. Hook the bottom head spring center mounting latch to the bottom foot spring center mounting rivet. Refer to FIGURE 4.4.
11. Hook the top head spring center mounting latch to the top foot spring center mounting rivet. Refer to FIGURE 4.4.
NOTE: It may be necessary to lift the head spring or foot spring slightly to secure the mounting latches and rivets.
12. After head and foot springs are connected, push the springs into a horizontal (straight) position while keeping the springs on their sides.
Center Mounting
Latch
Center
Mounting
Latch
Center
Mounting
Rivet
Center
Mounting
Rivet
FIGURE 4.4 Set-Up
Part No 1114836
25
IVC™Bed Series
SECTION 4—PACKAGING, HANDLING, AND SET-UP
Assembling the Spring Fabric
NOTE: For this procedure, refer to FIGURE 4.5.
1. Lift the head spring away from the bed frame to give slack to the fabric.
2. Connect the spring fabric together with the links provided. Refer to FIGURE 4.5.
Head Spring
Fabric
Link
Fabric
Link
FIGURE 4.5 Assembling the Spring Fabric
Adjusting and Reconnecting the Head Section Pull Tube
NOTE: For this procedure, refer to FIGURE 4.6 on page 27.
1. To disconnect the head pull tube assembly from the side frame of the foot spring remove the hitch pin, grommet/washer from the clevis pin. (Refer to FIGURE 4.6, Detail ʺAʺ.)
2. Extend the inner pull tube shaft manually until the spring button ʺclicksʺ into the adjustment hole of the outer pull tube.
3. Connect the pull tube end assembly to the lift arm of the head spring as follows (Refer to FIGURE 4.6, Detail ʺBʺ):
A. Insert the clevis pin into the lift arm slot.
B. Replace the grommet/washer.
C. Secure with hitch pin.
IVC™Bed Series
26
Part No 1114836
SECTION 4—PACKAGING, HANDLING, AND SET-UP
Hitch Pin
DETAIL "A"
Grommet/Washer
Clevis Pin
Side Frame
DETAIL "B"
Head Spring Pull
Tube
Hitch Pin
Grommet/Washer
Outer Pull Tube Adjusting Hole
Inner Pull Tube
Lift-Arm Slot
Clevis Pin
Nylon Washer
FIGURE 4.6 Adjusting and Reconnecting the Head Section Pull Tube
Installing the Casters
WARNING
Ensure that the locking casters are installed diagonally from each other and are
locked. Otherwise damage or personal injury could occur.
NOTE: For this procedure, refer to FIGURE 4.7 on page 28.
DEALER NOTE: ALWAYS locate locking caster in the same location on each bed end so that they will always be assembled diagonally opposite each other when inventory is mixed.
NOTE: Position the two locking casters so that they will be diagonally opposite from one another when the bed is assembled.
NOTE: If two locking casters are not included with the bed, contact a qualified dealer.
Part No 1114836
27
IVC™Bed Series
SECTION 4—PACKAGING, HANDLING, AND SET-UP
1. To install casters, lay the bed ends flat on the floor.
2. Insert the shaft of caster assembly into the caster socket.
3. To prevent excess movement of the bed during assembly, lock each of the two locking casters by pushing down on the caster lock.
NOTE: Locking the casters may not prevent the bed from moving on slick or slippery surfaces.
4. To unlock each of the two locking casters, pull up on the caster lock.
WARNING
Ensure that casters are locked and that the bed does not move before transferring.
DO NOT transfer occupant if bed is not stable.
Universal Bed End
Unlocked
Caster
Sockets
Locked
Caster
Shafts
Locking Caster
Non-Locking
Caster
Locking Caster
Locking Caster
FIGURE 4.7 Installing the Casters
Assembling the Universal Bed Ends
NOTE: For this procedure, refer to FIGURE 4.8 on page 29.
NOTE: Invacare recommends that two people perform this procedure.
NOTE: Before assembling bed, ensure that the locking casters are attached to the universal bed ends diagonally across from each other. See FIGURE 4.7.
1. Stand one bed end as close to the head spring section as possible.
2. Grasp the head spring section, by the side, and raise it until the rivets on the corner plates of the spring section are high enough to place into the corner locks on the bed end.
IVC™Bed Series
28
Part No 1114836
SECTION 4—PACKAGING, HANDLING, AND SET-UP
WARNING
DO NOT place your hand between the spring section and the universal bed end
while assembling the universal bed ends, otherwise injury may occur.
3. Tilt the bed end toward the head spring section and place the rivets into the corner locks.
4. Return the universal bed end to its full upright position. The head spring rivets will lock into place.
5. Repeat the same procedure for other universal bed end.
Bed End
Rivets
Corner
Locks
Rivets
Bed End
Rivets
Foot Spring Section
Corner Locks
Head Spring Section
FIGURE 4.8 Assembling the Universal Bed Ends
Assembling the Drive Shaft
WARNING
DO NOT attempt to operate bed controls prior to completion of assembly as damage to bed components or personal injury may occur.
NOTE: For this procedure, refer to FIGURE 4.9 on page 30 and FIGURE 4.10 on page 31.
NOTE: The drive shaft for the Hi/Lo function consists of two sections that are shipped unassembled. The inner shaft has a positioning spring button, and the outer shaft has three positioning holes, one storage position hole and a telescoping end. 1. Remove the plastic caps from each end of the drive shaft.
2. Press spring button on the inner shaft and insert the inner shaft into the outer shaft.
3. Engage the spring button into the proper positioning hole.
• For semi‐electric and manual beds, use the first positioning hole. See FIGURE 4.9.
• For beds with single shaft gear boxes, use the second positioning hole. See FIGURE 4.9.
• For full electric models, use the third positioning hole. See FIGURE 4.9.
NOTE: A common gear box is used on both bed ends. The bottom output shaft is used at the head end and the top output shaft is used at the foot end of the bed.
4. Attach the inner shaft to the bottom gear box output shaft on the head end of the bed.
Part No 1114836
29
IVC™Bed Series
SECTION 4—PACKAGING, HANDLING, AND SET-UP
5. Push in on the spring loaded end of the drive shaft and attach to the foot end of the bed as follows:
• Full Electric Beds: Attach drive shaft to the Hi/Lo motor output shaft facing head end of bed.
• Manual and Semi‐Electric Beds: Attach drive shaft to the foot end top gear box output shaft.
Head End Gear Box
Head End
Foot End
Foot End
Gear Box
Drive Shaft
Inner
Shaft
Positioning Holes
First Second
Third
Storage
Spring loaded
End
Spring
Button
Plastic Caps
FIGURE 4.9 Assembling the Drive Shaft
• Full Electric Beds: Attach the Hi/Lo Motor to the foot end gear box as follows:
i. Locate the Hi/Lo motor output shaft spring‐loaded coupler.
NOTE: If necessary, shift the bed end to the right or left to align the Hi/Lo motor output shaft spring‐loaded coupler with the foot end gear box.
ii. Ensure the Hi/Lo motor output shaft spring‐loaded coupler is properly aligned with the foot end gear box as shown in Detail “A” of FIGURE 4.10.
iii. Release the Hi/Lo motor output shaft spring‐loaded coupler by pushing in against the Hi/Lo motor output shaft spring‐loaded coupler and turning clockwise.
iv. The coupling will release and engage the foot end top gear box output shaft cross pins.
v. Ensure that all components are securely installed.
WARNING
Close the drive shaft covers over all drive shafts - not in use, before placing the bed
in service. Otherwise damage or injury may occur.
Full Electric Beds - ALWAYS remove the crank on the Hi/Lo gear box and close the
drive shaft cover to avoid damage and injury.
IVC™Bed Series
30
Part No 1114836
SECTION 4—PACKAGING, HANDLING, AND SET-UP
DETAIL "A"
Bed End
Hi/Lo Motor Output
Shaft Spring-Loaded Coupler
Top Gear Box
Output Drive Shaft
OUTPUT SIDE
LOCKED POSITION
Top Gear Box
Output Drive Shaft
Bottom Gear Box
Output Drive Shaft (Covered)
Hi/Lo Motor Output Shaft
(Full electric only)
Hi/Lo Motor Output Shaft
Spring-Loaded Coupler
Drive Shaft
Drive Shaft Cover
UNLOCKED POSITION
Drive
Shaft
D
T EN
FOO
ND
DE
A
E
H
INPUT SIDE
Hi/Lo Motor Output Shaft
(Full electric only)
Hi/Lo Motor
Gear
Box
Drive Shaft Cover
Hi/Lo Motor
Output Shaft
Spring-Loaded
Coupler Shaft
Gear
Box
Input Drive Shaft
(Covered)
FIGURE 4.10 Assembling the Drive Shaft
Inspecting the Bed
Electric Beds
WARNING
When installing any connectors into the junction box, be sure the cable lock is
secure after installation - otherwise, injury or damage may occur.
NOTE: For this procedure, refer to FIGURE 4.11 on page 32.
NOTE: The following procedure is for full/semi‐electric beds only.
All motors, the junction box, connectors and wiring are located on the foot spring section.
All connectors will arrive plugged into the junction box. If a connector is not plugged into the junction box when received or if a function of the bed is not working use the color coding to check the placement of the connectors. Each connector and junction box slot is color coded.
NOTE: The color rings on the cables are not visible when the cables are plugged in and the cable lock is attached.
1. Inspect the power supply cord and motor cables for cuts or damage to the cord and/or plug.
Part No 1114836
31
IVC™Bed Series
SECTION 4—PACKAGING, HANDLING, AND SET-UP
2. Inspect the junction box for any damage to the connectors.
3. Ensure that all cable plugs are connected securely.
4. Make sure all cables are routed through the cable lock slots.
5. Securely attach the cable lock. Refer to Installing/Removing Cable Lock on page 32.
6. If damage is found, contact an Invacare Customer Service Representative to report the damaged items and request appropriate replacement parts or products.
WARNING
The removal and installation of cables and the cable lock are to be performed by a
qualified technician.
Junction Box
YELLOW - Foot Spring Height Adjustment
BLUE - Head Spring Height Adjustment
RED - Full electric Hi/Lo Motor
WHITE - DO NOT Use
Connectors
Through
Junction Box
Slots
GREEN - Pendant
Cable Lock
FIGURE 4.11 Inspecting the Bed - Electric Beds
Manual Beds
1. Raise and lower the cranks at the foot of the bed to make sure they work correctly. Refer to Operating the Manual Bed on page 18.
2. If no damage is found, set‐up the bed for use. 3. If damage is found, contact an Invacare Customer Service Representative to report the damaged items and request appropriate replacement parts or products.
Installing/Removing Cable Lock
WARNING
The following procedures are to be performed only by a qualified technician.
If the cable lock clips are broken have a qualified technician replace the cable lock.
Otherwise damage or personal injury could result.
NOTE: For this procedure, refer to FIGURE 4.12 on page 33.
IVC™Bed Series
32
Part No 1114836
SECTION 4—PACKAGING, HANDLING, AND SET-UP
Installing
1. Slide the cables into the appropriate cable lock slots.
2. Depress the cable lock clips.
3. Push the cable lock clips into the locking slots on the junction box, until they click in place.
Removing
1. Compress the cable lock clips firmly.
2. Carefully pull the cable lock away from the junction box.
3. Slide the cable lock off of the cables.
Junction Box
Locking Slot
Cable
Lock Clip
Cable
Lock
Cables
Cable Lock
Slots
Locking Slot
Cable
Lock Clip
FIGURE 4.12 Installing/Removing Cable Lock
Installing the Manual Crank for Hi/Lo Function
NOTE: For this procedure, refer to FIGURE 4.13 on page 34.
1. Pinch the ears on the input drive shaft cover to open the cover. 2. Flip the input drive shaft cover up and push until it attaches to the gear box. The cross pins will now be accessible.
3. Connect the manual crank to the cross pins until the spring engages the cross pins.
4. Unfold the handle on the hand crank.
Part No 1114836
33
IVC™Bed Series
SECTION 4—PACKAGING, HANDLING, AND SET-UP
Ears
Gear Box
Input Drive
Shaft Cover
Cross
Pins
Crank
Spring
Handle
FIGURE 4.13 Assembling the Drive Shaft
Installing/Removing the Pendant
NOTE: For this procedure, refer to FIGURE 4.14.
For Canadian Customers who need to disable operation of electric beds: These Models have pendants that can be removed and stored in a secure place.
Union Nut
Bed Up
Button
1. To disable operation of the electric bed, unscrew the union nut on the standard pendant cable that attaches to the extension cable.
Bed Down
Button
2. Unplug the standard pendant cable from the extension cable.
Extension Cable
Standard
Pendant Cable
FIGURE 4.14 Installing/Removing the
Pendant
Storing the Beds
WARNING
DO NOT place other objects on top of the cartons.
If bed is not being assembled immediately, retain the cartons and packaging for storage until ready for assembly.
Store the Invacare homecare bed in a dry area.
IVC™Bed Series
34
Part No 1114836
SECTION 5—TROUBLESHOOTING
SECTION 5—TROUBLESHOOTING
Troubleshooting Electrical
SYMPTOM
PROBABLE CAUSE
SOLUTIONS
Bed spring does not
move.
End of stroke reached.
Operate opposite button.
Full Electric Bed: Hi/Lo
function does not work.
Bed not plugged in.
Ensure power cord is plugged into power
source.
Pendant not functioning.
Ensure Pendant is correctly connected to
junction box. Refer to Installing/Removing the
Pendant on page 34.
Ensure Pendant cable not entangled/pinched.
Cables
Ensure motor cable(s) are correctly connected. Refer to Assembling the Drive Shaft on
page 29.
Ensure cables are not entangled/pinched.
Call Invacare for repair/replacement of cables
and/or motors.
Broken cable lock.
Call Invacare to replace cable lock.
Hi/Lo Motor.
Ensure Hi/Lo motor cable is correctly
connected. Refer to Assembling the Drive
Shaft on page 29.
Ensure cables are not entangled or pinched.
Ensure Drive shaft is correctly installed.
Thermal Protection Activated.
Allow bed unit to sit for 30 minutes and retry.
Pendant.
Replace pendant. Refer to Installing/Removing
the Pendant on page 34.
Bed Spring does not stop
moving.
Bed Hi/Lo movement
does not stop.
Check cables, if damaged, replace. Refer to
Assembling the Drive Shaft on page 29.
Bed is producing unusual
sounds, burning odors, or
movement deviations
observed in the controls,
motors, or the limits
switch functions.
Call Invacare.
Part No 1114836
35
IVC™Bed Series
SECTION 5—TROUBLESHOOTING
Troubleshooting Mechanical
SYMPTOM
Bed does not stay in
place.
PROBABLE CAUSE
Locking Casters.
Lock Casters. Refer to Installing the Casters
on page 27.
Pull tube.
Ensure pull tubes are properly connected.
Refer to Adjusting and Reconnecting the Head
Section Pull Tube on page 26.
Manual Beds - crank(s) not
working.
Replace crank. Refer to Installing the Manual
Crank for Hi/Lo Function on page 33.
Drive Shaft connected to wrong
gear box shaft.
Reinstall drive shaft. Refer to Assembling the
Drive Shaft on page 29.
Crank not properly installed.
Reinstall crank. Refer to Installing the Manual
Crank for Hi/Lo Function on page 33.
Drive shaft disconnected.
Reinstall drive shaft. Refer to Assembling the
Drive Shaft on page 29.
Motor cable connections to
junction box incorrect.
Verify Connections. Refer to Inspecting the
Bed on page 31.
Bed springs do not move.
Bed ends move in
opposite directions
(electrical or manual
bed).
Hi/Lo function does not
work.
Pressing function on
pendant results in motion
other than that intended.
SOLUTIONS
WARNING
Read all general guidelines, warnings and cautions before performing any
repair/maintenance on the bed. All repair and maintenance on the bed should be
performed by a qualified technician.
Maintenance Checklist
Invacare recommends the following maintenance and cleaning procedures be conducted between users and at least once every three years. This form is provided as a guide to help with documentation.
Mechanical Inspection and Maintenance
❑ Inspect all bed components for damage or excessive wear.
❑ Visually examine all welds for cracks.
❑ Inspect the head and foot spring sections for bending, warping or damage.
❑ Check drive shaft and drive shaft connections for bending, damage or excessive wear.
❑ Inspect pull tubes and mounting hardware for bending, damage or excessive wear. ❑ Inspect all bolts and rivets to ensure that they are securely tightened and functioning properly.
❑ Check sleep surfaces to ensure all links are intact.
IVC™Bed Series
36
Part No 1114836
SECTION 5—TROUBLESHOOTING
❑ Check casters to ensure they lock, if applicable, and roll properly.
Electrical Inspection and Maintenance
❑ Inspect all electrical bed components for damage or excessive wear (i.e. cracked or broken housings, or worn components).
❑ Check pendant, power and motor cords for chafing, cuts or excessive wear.
❑ Make sure all plugs are fully attached and free of damage.
❑ Make sure cable lock on junction box is properly positioned and locked
❑ Check all functions:
A. Ensure head raises and lowers properly.
B. Ensure foot raises and lowers properly.
C. Ensure bed ends raise and lower properly.
Pass/Fail
❑ PASS: Bed and all components have passed all of the above inspection criteria and the bed is ready for placement into a client’s home.
❑ FAIL: Bed, or any component, has failed any of the above inspection criteria. Tag the bed or component with a complete description of the failure(s) and have the bed serviced.
Part No 1114836
37
IVC™Bed Series
SECTION 5—TROUBLESHOOTING
NOTES
IVC™Bed Series
38
Part No 1114836
LIMITED WARRANTY
LIMITED WARRANTY
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH
FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product when new
and unused from Invacare or a dealer. This warranty is not extended to any other person or
entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage
under this warranty will end upon any such subsequent sale or other transfer of title to any
other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary
from state to state.
Invacare warrants the mechanical and electrical components of this product when purchased new
and unused to be free from defects in materials and workmanship for a period of three years from
date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for
coverage under this warranty. Invacare warrants all welds of this product when purchased new
and unused for a period of five years from date of purchase from Invacare or a dealer, with a copy
of the seller’s invoice required for coverage under this warranty. If within such warranty periods
any such product shall be proven to be defective, such product shall be repaired or replaced, at
Invacare's option. This warranty does not include any labor or shipping charges incurred in
replacement part installation or repair of any such product. Invacare's sole obligation and your
exclusive remedy under this warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare
product. In the event you do not receive satisfactory warranty service, please write directly to
Invacare at the address on the back cover, provide dealer's name, address, and the date of
purchase, indicate nature of the defect and, if the product is serialized, indicate the serial
number. Do not return products to our factory without our prior consent.
LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO
SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER HAS BEEN REMOVED OR
DEFACED, PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER
OPERATION, MAINTENANCE OR STORAGE, PRODUCTS MODIFIED WITHOUT
INVACARE'S EXPRESS WRITTEN CONSENT (INCLUDING, BUT NOT LIMITED TO,
MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR ATTACHMENTS;
PRODUCTS DAMAGED BY REASON OF REPAIRS MADE TO ANY COMPONENT
WITHOUT THE SPECIFIC CONSENT OF INVACARE, OR TO A PRODUCT DAMAGED BY
CIRCUMSTANCES BEYOND INVACARE'S CONTROL, AND SUCH EVALUATION WILL BE
SOLELY DETERMINED BY INVACARE. THE WARRANTY SHALL NOT APPLY TO NORMAL
WEAR AND TEAR OR FAILURE TO ADHERE TO THE PRODUCT INSTRUCTIONS.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER
WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY
WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE
PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF
ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE
DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT
BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL
LAWS AND REQUIREMENTS.
Part No 1114836
39
IVC™Bed Series
Invacare Corporation
www.invacare.com
USA
One Invacare Way
Elyria, Ohio USA
44036-2125
800-333-6900
Canada
570 Matheson Blvd E Unit 8
Mississauga Ontario
L4Z 4G4 Canada
800-668-5324
Invacare, the Medallion Design, and Yes,
you can. are registered trademarks of
Invacare Corporation.
IVC is a trademark of Invacare Corporation.
© 2006 Invacare Corporation
Part No 1114836
Rev E - 7/27/06
