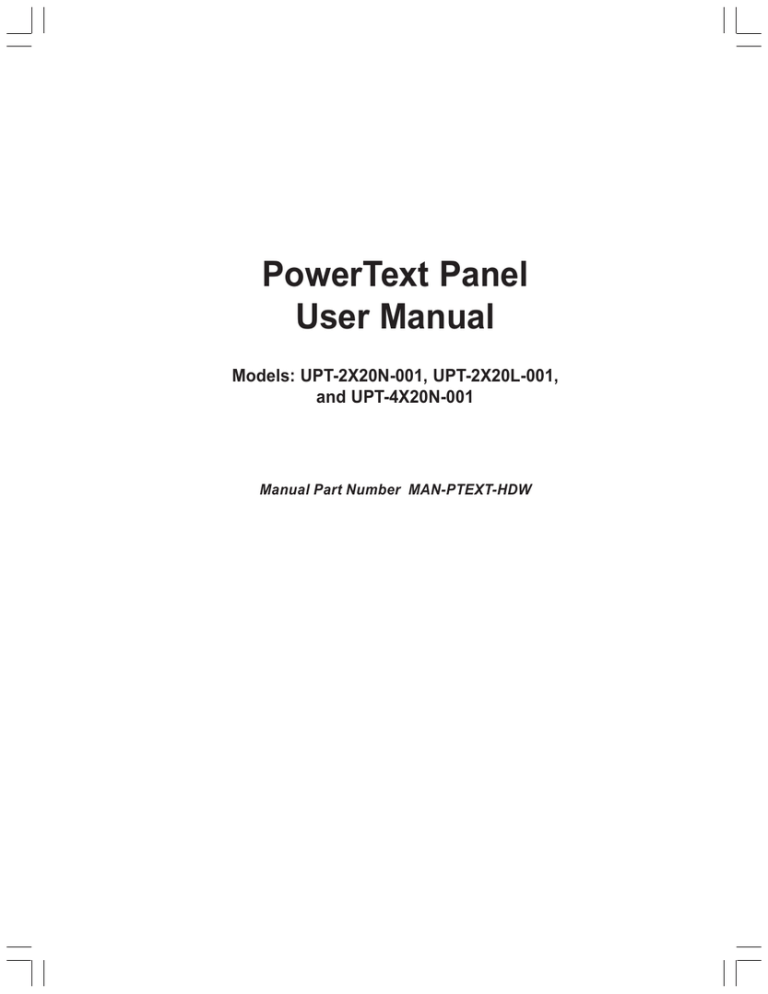

PowerText Panel User Manual

PowerText Panel
User Manual
Models: UPT-2X20N-001, UPT-2X20L-001,
and UPT-4X20N-001
Manual Part Number MAN-PTEXT-HDW
WARNING!
Programmable control devices such as the PowerText must not be used as stand-alone protection in any
application. Unless proper safeguards are used, unwanted start-ups could result in equipment damage or
personal injury. The operator must be made aware of this hazard and appropriate precautions must be taken.
In addition, consideration must be given to the use of an emergency stop function that is independent of the
programmable controller.
The diagrams and examples in this user manual are included for illustrative purposes only. The manufacturer
cannot assume responsibility or liability for actual use based on the diagrams and examples.
WARNING: If the PowerText is used in a CLASS I, DIV. 2 environment, the following conditions must be met:
Class I, Div. 2 methods; AND — must conform to all rules and requirements of applicable jurisdictions regarding Class I, Div. 2 installations; ALSO — peripheral equipment controlling this device or being controlled by it
shall be suitable for service in the location in which they are used. Failure to comply with any of the above
installation requirements will invalidate the device’s qualifications for service in CLASS I, DIV. 2 hazardous locations.
WARNING: EXPLOSION HAZARD — SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR
CLASS I, DIVISION 2.
WARNING: EXPLOSION HAZARD — DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN
SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.
CAUTION
Do not press the PowerText pushbuttons with any sharp objects. This practice may damage the unit beyond
repair.
Trademarks
This publication may contain references to products produced and/or offered by other companies. The
product and company names may be trademarked and are the sole property of their respective owners.
UTICOR Technology, L. P. disclaims any proprietary interest in the marks and names of others.
Manual P/N MAN-PTEXT-HDW
© Copyright 2002, UTICOR Technology, L.P.
All Rights Reserved
No part of this manual shall be copied, reproduced, or transmitted in any way without the prior written
consent of UTICOR Technology, L.P. UTICOR Technology, L.P. retains the exclusive rights to all information
included in this document.
MANUFACTURED and MARKETED
by
UTICOR TECHNOLOGY, L. P.
4140 Utica Ridge Rd. • Bettendorf, IA 52722-1327
Phone: 1-563-359-7501 • Fax: 1-563-359-9094 • www.UTICOR.net
P/N MAN-PTEXT-HDW, Rev 00
TABLE OF CONTENTS
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
WARNING/Caution .................................................................. inside cover
Table of Contents ......................................................................................... i
Manual Revisions ....................................................................................... iv
EU Information ......................................................................................... v
1 INTRODUCTION
Manual Organization ............................................................................. 2
Introduction to the PowerText Panel ..................................................... 4
What you need to get started ............................................................... 5
Hardware ......................................................................................... 5
Software ......................................................................................... 5
Need Help? ......................................................................................... 5
Onscreen HELP .............................................................................. 5
PLC HELP ....................................................................................... 5
Technical Support ........................................................................... 6
Models
......................................................................................... 7
PLCs Supported by PowerText Panels ................................................. 8
PLC and Programming Cable Part Numbers ....................................... 9
Accessories and Optional Equipment .................................................. 9
Front Panel Features .......................................................................... 10
Operator Controls and Indicators ................................................. 10
PLC Message LED ................................................................. 10
Control Pushbuttons ............................................................... 11
Function Pushbuttons ............................................................ 11
Pushbutton LEDs .................................................................... 11
Character LCD Display with LED Backlight ........................... 11
Messages ............................................................................... 12
Rear Panel Indicators ......................................................................... 12
Specifications ...................................................................................... 13
2 HARDWARE INSTALLATION
Custom Labels .................................................................................... 16
Create Custom Labels .................................................................. 16
Install Custom Labels ................................................................... 17
EMI Noise Filter Installation ................................................................ 18
Mounting
....................................................................................... 19
Models 2X20N and 4X20N Outline and Cutout Dimensions ....... 19
Model 2X20L Outline and Cutout Dimensions ............................. 20
DIN Clips ....................................................................................... 21
Connections and Wiring ..................................................................... 22
2X20N and 4X20N Rear Panel Connections and Wiring ............ 22
Power Connector .......................................................................... 24
Serial Port ..................................................................................... 25
Connect a PLC .............................................................................. 25
i
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
3 LEARNING THE FEATURES
Learning the Features ......................................................................... 28
Memory Mapping/PLC Data Registers ............................................... 28
Pushbuttons .................................................................................. 29
LEDs
....................................................................................... 29
PLC Message Registers ............................................................... 30
Embedded Data Registers ........................................................... 30
PLC Messages and Local Messages ................................................. 32
Embedded Data ............................................................................ 32
Message Types ............................................................................. 33
Displaying PLC Messages ............................................................ 34
PLC Message LED ....................................................................... 35
Displaying Local Messages .......................................................... 35
Local Message File Structure Example ................................. 36
Local Message Menu Structure Example .............................. 37
4 TUTORIAL
Text Panel Setup ................................................................................. 40
SETUP Mode ................................................................................ 40
Adjust Display Contrast ................................................................ 40
Internal Software and Hardware Revisions .................................. 40
Preparing for Configuration .......................................................... 40
Installing Text Panel Programming Software ...................................... 41
Tutorial — Plan the Project using Application Worksheets ................ 43
Tutorial — Create the Project using Text Panel
Programming Software ................................................................. 47
Tutorial — Configure a PLC ................................................................ 56
5 CONFIGURATION
Configure New System ....................................................................... 60
Configure Existing System .................................................................. 74
Connect to Panel, View Panel Status and Firmware Version ............ 75
Upgrade Firmware .............................................................................. 76
6 MAINTENANCE and TROUBLESHOOTING
Maintenance ....................................................................................... 80
Fuse Reset .................................................................................... 80
Precautions ................................................................................... 80
Screen Overlay/Chemical Compatibility ....................................... 80
Screen Overlay Cleaning .............................................................. 82
Troubleshooting .................................................................................. 83
Panel Configuration Problems ..................................................... 83
PLC Errors .................................................................................... 84
Still Need Help? .................................................................................. 85
Warranty Repairs ................................................................................ 86
ii
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Out of Warranty Repairs ..................................................................... 86
Frequently Asked Questions (FAQs) .................................................. 87
Appendix A ...................................................................................... A-1
PowerText Panel Application Worksheets ................................... A-2
Appendix B ...................................................................................... B-1
Cable/Wiring Diagrams ............................................................... B-2
Appendix C ..................................................................................... C-1
PLC Driver Error Messages ........................................................ C-2
PowerText Panel Error Messages ............................................ C-13
PowerText Programming Software Error Messages ................ C-14
INDEX
....................................................................................... I-1
iii
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
Manual Revisions
Manual Part Number: MAN-PTEXT-HDW
Manual Title: PowerText Panel User Manual, Models UPT-2X20N-001, UPT-2X20L-001, and UPT4X20N-001
The following table provides you with update information. If you call technical support with a question about this manual, please be aware of the revision number.
Revision
Original
Release
Date
10/2002
Effective Pages
Cover
Warning/Copyright
i –i v
1–90
Appendix A
Appendix B
Appendix C
Index
iv
Description of Changes
Original Release of Manual
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
EU Information
The PowerText Panel is manufactured in compliance with European Union (EU) Directives and
carries the CE mark. The PowerText Panel has been tested under CE Test Standard #EN55011,
and is listed under UL File #E209355. The following information is provided to comply with EU
documentation requirements.
Please NOTE: Products with CE marks perform their required functions safely
and adhere to relevant standards as specified by EU Directives provided they
are used according to their intended purpose and that the instructions in this
manual are adhered to. The protection provided by the equipment may be
impaired if this equipment is not used in accordance with this manual. Only
replacement parts supplied by UTICOR Technology, L.P. or its agents should
be used.
Technical
Support
Consult PowerText Programming Software Help or you may find answers to
your questions in the operator interface section of our web site @ www.uticor.net.
If you still need assistance, please call our technical support at 1-800-TECENGR or FAX us at 1-563-359-9094.
SELV Circuits
All electrical circuits connected to the communications port receptacle are rated
as Safety Extra Low Voltage (SELV).
Environmental
Specifications
Operating Temperature ................................................................ 0 to 45 °C
Storage Temperature .............................................................. –20 to +70 °C
Operating Humidity ...................................... 10–95% R.H., noncondensing
Air Composition ........................................... No corrosive gases permitted
Preventative
Maintenance
and Cleaning
No preventative maintenance is required. The PowerText Panel overlay should
be cleaned as needed with warm, soapy water. See Chapter 6, Maintenance
and Troubleshooting, for a list of compatible/incompatible chemicals and compounds.
v
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
This page intentionally left blank.
vi
Introduction
In this chapter....
— Manual Organization
— Introduction to the PowerText Panel
— What you need to get started
— Need HELP?
— Models
— PLCs Supported by the PowerText Panel
— Accessories and Optional Equipment
— PLC and Programming Cable Part Numbers
— Front Panel Features
— Specifications
1
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Manual Organization
In this manual we will take you through the steps necessary to get your
PowerText Panel up and running in the shortest possible time. Although your
familiarity with programmable operator interface devices will determine how
quickly you move through the steps — it’s as easy as 1 — 2 — 3. This manual
is arranged in chapters. A description of key information contained in each
chapter is provided below.
Chapter
1
2
3
4
2
Description
Introduction
Provides Manual Organization, and lists what you need to get started,
hardware and software. Discusses how to get help with questions or
problems you might encounter through Onscreen Help and Technical
Support. Provides you with a table listing the various models, their part
numbers and special features. Lists the important features of all PowerText
Panels. Lists the PLCs supported by the panels, by brand, model and
protocol. Lists the part numbers for PLC cables and the programming cable.
Tells how to install programming software.
Hardware Installation
Provides instructions on how to install custom labels and the EMI Noise
Filter. Discusses mounting technique — using DIN clips. Provides Outline
Dimensions and Mounting Template. Provides you with instructions on
connecting the unit to power, a programming PC and a PLC.
Learning the Features
Provides an Overview of the panel features. Front Panel Features, including; Function Pushbuttons/LEDs, Character LCD Display, PLC Message
LED and Control Pushbuttons are discussed. Local and PLC Messages are
described, along with types of Messages and Embedded Data Variables
(DATA 1, 2, and 3).
Tutorial
Provides instructions to create an example (or “demo”) project. Discusses
how to configure a PLC ladder logic program to use with the demo project.
Takes you through the steps necessary to create a PowerText Panel project
using the programming software and application worksheets. Shows you
how to transfer a project to the panel.
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Chapter
5
6
Description
Configuration
Step-by-step instructions for configuring the PowerText Panel (new system)
using the PowerText Programming Software are provided.
Maintenance and Troubleshooting
Instructions for maintaining the 2X20N/2X20L/4X20N panel are provided,
including; Fuse Reset, Precautions, Chemical Compatibility, Cleaning, and
Gasket Replacement. Troubleshooting section aids in diagnosing problems
you might encounter when installing or operating the panel. Provides steps
to take to isolate and correct problems.
A
Appendix A
Application Worksheets are provided to help you plan and implement your
system configuration.
B
Appendix B
Wiring diagrams for several PLC cables are provided.
C
Appendix C
Error Messages for PLC Drivers, PowerText Panel, and PowerText Programming Software.
MAN-PTEXT-HDW
3
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Introduction to the PowerText Panel
The PowerText Panels provide a man-machine interface to your PLC automation
system. The panels provide features such as 5 user-defined pushbuttons with
LED indicators, arrow adjust buttons, and a built-in menu system. The panels
communicate with a PLC using either RS-232C or RS-422A/485A serial
communication. Configuration software and panel programming are covered
in chapter 5 of this manual.
The panels allow you to configure up to 256 20-character text strings configured
as PLC Messages and Local Messages. Local Messages are internal panel
messages that the operator can scroll in a menu tree hierarchy. PLC Messages
are displayed when prompted from the PLC program. A PLC Message LED
illuminates whenever a PLC Message is being displayed. Either message
type can have up to three embedded data variables, one of which can be
edited by using the arrow adjust buttons.
The panels have sealed membrane function pushbuttons that allow you to
trigger PLC actions with the push of a button. These pushbuttons are used for
input signals to the PLC. Each pushbutton can be configured to function as
one of three switch types:
•
ALTERNATE—keeps its current state until the button is pushed
again
•
MOMENTARY— is activated only while the button is being pushed
•
PANEL SET AND PLC RELEASE —sets a bit in the PLC when
pressed and is reset by either the PLC program or by pressing the
button again.
The LCD display window supports two or four message lines that can display
up to 20 characters each. The messages are programmed using the Text
Panel Programming Software. The message control type may be either static—
text displays that have NO embedded data, dynamic —text messages that
include embedded data (READ access only), or interactive —text messages
that allow the operator to enter data, or change values that are stored in the
PLC registers (READ/WRITE access).
The PowerText Panel is available in a variety of models to suit your application.
Key features are provided on page 7.
4
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
What you need to get started
Hardware
•
•
•
•
•
•
PowerText Panel (Models 2X20N, 2X20L, and 4X20N)
24 Volt DC Power Supply (FA-24PS recommended)
RS-232C Programming Cable (P/N CBL-PTEXT-001)
RS-232C or RS-422A/485A PLC Cable (see page 9 for part
numbers)
Programmable Logic Controller (PLC)
PC requirements:
— IBM or compatible PC (486 or better) with a mouse
and separate serial port
— VGA display with at least 800 x 600 resolution (1024 x 768
recommended)
— Standard Windows 98/NT4.0/2000/ME/XP Professional/
XP Home® Requirements
— CD ROM Drive
Software
•
PowerText Programming Software (P/N ACC-PTEXT-EDIT)
Need HELP?
PLEASE NOTE: Chapter 6, Maintenance and Troubleshooting, should
be able to help you with most problems you might encounter.
Onscreen HELP
One of the most important features of the PowerText Programming Software is
the availability of context sensitive onscreen help. To access the Help windows,
simply press the F1 function key while on the topic where you need help. For
example, if you need help while working with panel configuration, hit the F1
function key when that dialog box is open and a pop-up HELP window will be
displayed.
PLC HELP
If you need help with the PLC to PowerText Panel Interface, consult the
PowerText Programming Software Help. Each PLC Driver has a Help Topic
that lists the error messages and provides an explanation for each. Also
provided are PLC to PowerText Panel wiring diagrams, see Appendix B or the
PowerText Programming Software Help topics.
MAN-PTEXT-HDW
5
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Technical Support
Although most questions can be answered with PowerText Programming
Software HELP topics or the manual, if you are still having difficulty with a
particular aspect of installation or screen design, technical support is available
at 1-800-TEC-ENGR (832-3647) or FAX us at 1-563-359-9094. Visit our
website at www.uticor.net.
6
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Models
The PowerText Panels provide a low-cost, easy-to-use operator interface
alternative for your PLC system. With easy to configure Windows-based
software and simple installation, you can be connected and running in minutes.
If your application requires pushbuttons, LEDs, or text display, but your budget
is low, check out the complete line of PowerText Panels. The following features
are common to the Panel models shown below:
•
•
•
•
•
•
stores up to 256 20-character messages
5 user-defined function pushbuttons and LEDs
4 control pushbuttons
up to three embedded PLC data variables per message
built-in menu system
EMI filtered power supply to reduce communication problems
Part Number
UPT-2X20N-001
2 lines by 20 characters LCD display
Character height of 0.22" (5.55 mm)
External dimensions are 4.1" x 6.7" x 1.7"
UPT-2X20L-001
2 lines by 20 characters LCD display
Character height 0.316" (8.06 mm)
External dimensions are 4.1" x 9.3" x 1.7"
UPT-4X20N-001
4 lines by 20 characters display
Character height of 0.187" (4.75 mm)
External dimensions are 4.1" x 6.7" x 1.7"
MAN-PTEXT-HDW
7
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
PLCs Supported by PowerText Panels
Below is a list of various PLCs and their protocols supported by PowerText
Panel. Please note that we continue to add new drivers to this list. If you don’t
see your PLC listed here, please contact UTICOR or visit our website.
PLC Brand
Allen-Bradley
Model
Micrologix 1000, 1200 and 1500
SLC5/03, /04, /05 (with DF1)
DF1 Half Duplex; DF1 Full Duplex
PLC5
DF1
General Electric
90/30 and 90/70
SNPX
Mitsubishi
FX Series (all)
Direct
Modicon
984 CPU, Quantum 113 CPU
AEG Modicon Micro Series 110 CPU:
311-xx, 411-xx, 512-xx, 612-xx
Modbus RTU
C200, C500, and CQM1, CPM1
Host Link
DL05, DL06
K-Sequence; DirectNet;
ModBus (Koyo addressing)
DL105
K-Sequence
Omron
DirectLogic
D2-230
K-Sequence
D2-240
K-Sequence; DirectNet
D2-250/D2-250-1/260
K-Sequence; DirectNet;
ModBus (Koyo addressing)
D2-240/250 DCM
DirectNet
D3-330/330P
DirectNet
D3-340
DirectNet
D3-350
K-Sequence; DirectNet;
ModBus (Koyo addressing)
D3-350 DCM
DirectNet
D4-430
K-Sequence; DirectNet
D4-440
K-Sequence; DirectNet
D4-450
K-Sequence; DirectNet;
ModBus (Koyo addressing)
All with DCM
DirectNet
DL205
DL305
DL405
8
Protocols Supported
Siemens
Siemens 7 MPI Adapter
3964R
Other
H2- WinPLC (Think-N-Do V5.2, check
for version compatability)
Modbus RTU (serial port)
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
PLC Cable Part Numbers
Part Number
Cable Description
CBL-UTICW-001
GE 90/30 and 90/70 15-pin Dsub port (RS-422A)
CBL-UTICW-002
A-B SLC 5/03/04/05 DF1 port (RS-232C)
CBL-UTICW-003
A-B PLC5 DF1 port (RS-232C)
CBL-UTICW-004
A-B SLC DH485 port (RS-485A)
CBL-UTICW-005
A-B MicroLogix 1000, 1200 & 1500 (RS-232C)
CBL-UTICW-006
Mitsubishi FX Series 25-pin port (RS-422A)
CBL-UTICW-007
Mitsubishi FX Series 8-pin MINI-DIN (RS-422A)
CBL-UTICW-008
Omron C200, C500 (RS-232C)
CBL-UTICW-010
ModBus with RJ45 (RS-232C)
CBL-UTICW-011
Modicon ModBus (RS-232C)
CBL-UTICW-012
Siemens S7 MPI Adaptor (RS-232C)
CBL-UTICW-013
Omron 9-pin Programming Port (RS-232C)
CBL-UTICW-014
GE Versmax (RS-232C)
Accessories and Optional Equipment
Part Number
MAN-PTEXT-HDW
Description
ACC-PTEXT-EDIT
PowerText Programming Software and Getting Started
Manual (see below)
UPT-05MUX-001
PowerText Multiplexer (Serial Communication Master Unit)
MAN-05MUX-001
PowerText Multiplexer Hardware Manual
CBL-PTEXT-001
PowerText Panel Programming Cable
MAN-PTEXT-HDW
2X20N/2X20L/4X20N PowerText Panel User Manual
MAN-PTEXT-KP
2X20K Keypad PowerText Panel User Manual
MAN-PTEXT-SP
SP000 Setpoint PowerText Panel User Manual
MAN-PTEXT-GET
PowerText Programming Software Getting Started Manual
9
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Front Panel Features
In this section, we will describe the front panel features of the PowerText Panel.
Descriptions of the PLC Message LED, Pushbuttons, Pushbutton LEDs, PLC
Messages, and Local Messages are provided. To understand the Features,
see Chapter 3, Learning the Features. For a demonstration of how to program
the panel indicators and controls, please refer to Chapter 4, Tutorial.
Operator Controls and Indicators
Each PowerText Panel provides sealed membrane Pushbuttons for operator
interface with a PLC. Pushbuttons may be used to begin events or tasks within
the PLC, such as Start/Stop Control. Pushbutton inputs are monitored for ON/
OFF conditions in your PLC ladder logic program. Text Panel Pushbuttons are
Control Pushbuttons or Function Pushbuttons.
PLC Message LED
Control Pushbuttons (4)
2x20 Character LCD
Display with
LED Backlight
Function Pushbutton LEDs
Model
2X20N
Function Pushbuttons (5)
PLC Message LED
This LED will illuminate to indicate that the PLC
has triggered a message that will be displayed
in the LCD window. The pushbuttons are
disabled for 3 seconds after a PLC message
is displayed to ensure that the operator sees
the message. The LED will turn OFF when the
operator presses the escape pushbutton,
thereby acknowledging message received.
10
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Control Pushbuttons
There are 4 Control Pushbuttons on the front panel. These buttons consist of
an esc (escape), ▲ (UP Arrow), ▼ (DOWN Arrow), and enter pushbutton. The
arrow buttons are used to scroll through local massages or to change a value
within an interactive message. As the operator presses the buttons, the numeric
value will increment or decrement, respectively. As it is adjusted, the value
WILL NOT BE UPDATED in the PLC data register until the enter pushbutton is
pressed. When completed, the operator will press the enter pushbutton and
the value will be written to the PLC. Press esc to abort or cancel the adjustment
without writing the value to the PLC.
Function Pushbuttons
There are 5 Function Pushbuttons that are user-defined. They may be
configured as one of three “switch” types; Alternate, Momentary, or Panel
Set & PLC Release (described on page 65.) They are configured as discrete
input signals to the PLC. These pushbuttons are labeled F1 through F5 or
may be custom labeled to suit their function or application.
LEDs
Function
Pushbuttons
Pushbutton LEDs
There are LEDs located above each of the user-defined pushbuttons. These
LEDs can indicate if the pushbutton status condition is ON or OFF, or it can be
controlled independently by a PLC. You may choose the type of LED Control
while configuring your panel (see Configuration, Chapter 5). There are three
different controls—By Button, By Button & Flash, or By PLC, that will
determine LED response when the pushbuttons are pressed.
Character LCD Display with LED Backlight
Messages display in the Character
LCD Display Window with LED
Backlight. The LCD window supports
two line by twenty characters (2X20N
or 2X20L models), or four line by
twenty character (4X20N models)
messages.
MAN-PTEXT-HDW
11
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Messages
PLC Messages can be programmed to display PLC register values and allow
the operator to change a PLC register value. Up to 3 data variables can be
programmed to display in each message. The messages are entered using
PowerText Programming Software. Up to 256 PLC Messages may be
configured and stored in the Panel (Local Messages take away from the 256
total messages.) PLC Messages are numbered 1 to 256. The message control
type may be static text, dynamic, or interactive. The PLC logic program controls
which messages are displayed. The PLC Message LED illuminates when a
PLC generated message is being displayed.
Local Messages are also displayed in the LCD Display Window. Local
Messages provide pertinent information or instructions to the operator and are
displayed in a menu hierarchy. They can also be programmed to display values
from a PLC register that the operator may change using the Panel control
buttons. You may create Folders to group messages pertaining to the same
topic. Local Messages and Folders can be grouped in up to 3 levels using the
PowerText Programming Software. The first character in a Folder message
display is a “+” or “–” indicating folder status (closed or open). The next 19
characters of the display are for the Folder text (Messages do not have a + or
-, so all 20 characters can be used for text.) Local Messages allow the operator
to select and initiate user-defined interaction. See Chapter 3, Learning the
Features, for more information.
Rear Panel Indicators
TXD LED
This LED will toggle “on” and “off” to signal activity
on the transmission line.
RXD LED
This LED will toggle “on” and “off” to signal activity
on the receive line.
12
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Specifications
Display Type:
2X20N/2X20L:
4X20N :
Character LCD, 2 lines by 20 characters w/LED backlight
Character LCD, 4 lines by 20 characters w/LED backlight
Character Height:
2X20N:
4X20N:
2X20L:
0.22 inches (5.55 mm)
0.187 inches (4.75 mm)
0.316 inches (8.06 mm)
Keypad Overlay:
5 Function Pushbuttons and 4 Control Pushbuttons
CPU Type:
8-bit
Service Power:
24 VDC (20–30 VDC operating range)
Power Consumption:
2X20N/4X20N:
2X20L:
Inrush:
< 1 Amp with 50 mSec rise time to 30 VDC
Fuse:
Auto-Reset (0.65 Amp polyfuse)
Enclosure:
NEMA 4, 4X (Indoors)
Agency Approvals:
UL, CUL and CE
Operating Temperature:
0 to 45 °C (32 to 113 °F)
Storage Temperature:
–20 to +70 °C (–4 to +158 °F)
Humidity:
10–95% R.H. (noncondensing)
Electrical Noise
Tolerance:
NEMA ICS 2-230 showering arc, ANSI C37.90a-1974
SWC Level C Chattering Relay Test
Vibration:
5 to 55 Hz 2G for 2 hours in the X, Y, and Z axes
Shock:
10G for under 12 ms in the X, Y, and Z axes
Serial Communications:
Download/Program/PLC Port — RS-232C, RS-422A, RS-485A
15-pin D-sub (female)
External Dimensions:
2X20N/4X20N: 4.124 x 6.650 x 1.672 inches (104.75 x 168.91 x 42.469 mm)
2X20L: 4.124 x 9.250 x 1.672 inches (104.75 x 234.95 x 42.469 mm)
Weight:
2X20/4X20N :
2X20L:
LED/LCD Life:
100,000 hours
MAN-PTEXT-HDW
4 Watts @ 24 VDC
4.5 Watts @ 24 VDC
1.4 lbs. (approx.)
2 lbs. (approx.)
13
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
This page intentionally left blank.
14
MAN-PTEXT-HDW
Hardware Installation
In this chapter....
— Custom Labels
— EMI Noise Filter Installation
— Mounting
— DIN Clips
— Connections and Wiring
2
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
Custom Labels
Create Custom Labels
You may create custom labels for the PowerText Panel Function Pushbuttons
that are particular to their function within your application. The labels slide into
an existing slot in the panel overlay so that the text or numbers you have printed
will rest over the pushbuttons.
A Microsoft Word® document (POWERTEXT_INSERTS.doc) was installed
in the PowerText Panel’s Program folder on your computer when you
installed your programming software. You must have Word installed on
your computer to open this document. This document will help you create
your labels. Two sheets of cover stock have also been shipped with your
panel.
Install Custom Labels
A 1/2-inch x 4-inch flat metal tool (ramp tool) is shipped with each unit to
aid in the installation of the label inserts.
To install the pushbutton labels into the slots, perform the following steps.
16
1.
Remove four screws from front bezel assembly and set aside.
2.
Remove front bezel assembly.
3.
The recessed slot(s) where the labels are inserted should now be
visible.
4.
Remove the factory installed label insert.
5.
Use the corner of the ramp tool to lift the top layer of the overlay, just
enough to start the custom label into the slot. Hold the overlay up
with the ramp tool and start the custom label into the slot.
6.
Once the label has been started into the slot, move the ramp tool
behind the label insert and use as a ramp to guide the label insert
into the slot until properly positioned.
7.
Push label tab down into slot with the ramp tool.
8.
Replace the front bezel assembly and secure with the 4 screws.
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
EMI Noise Filter Installation
PowerText Panels are supplied with two ferrite cores that should be attached
to the cables prior to installation of the Panel. These cores are required to
suppress EMI emissions that are conducted through the Power Cable and the
Communications Cable. The figure, below, shows the ferrite cores properly
installed. Attach the cores within one inch of the Panel connector. The cable
should be snugly wrapped once around the core, providing two passes through
the core.
The Power Cable Core is a solid ferrite cylinder. The Power Cable should
pass once through the core, be looped around and pass through a second
time. Pull the excess cable so that it rests snugly against the outside of the
core.
The Communications Cable Core is a snap-together, split, ferrite core. This
core can be installed on a finished cable. Lift the latch to open the core. Wrap
the wire through the core center, snugly around the outside, and again through
the center. Close the core until the latch snaps. Ensure that the cable jacket is
not pinched between the two halves of the core. The finished cable should
look similar to the drawing shown below.
Communications Cable
Power Cable
Lift up on latch
to open core
MAN-PTEXT-HDW
17
POWERTEXT
Mounting
2X20N, 2X20L, & 4X20N PANELS
PowerText Panels are panel mounted units. Shown below are the outline and
cutout dimensions of the PowerText Panel. Dimensions are shown in inches
and millimeters. Millimeters are enclosed in brackets [ ].
Models 2X20N and 4X20N
Outline and Cutout Dimensions
18
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Model 2X20L Outline and Cutout Dimensions
MAN-PTEXT-HDW
19
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
DIN Clips
PowerText Panels are mounted using DIN Clips. The panel comes with all the
necessary mounting hardware required (4 DIN Clips in a package). DIN Clips
are metal brackets that attach to the panel housing and secure the front bezel
to a mounting surface with a screw. There are 4 square holes in the chassis
(two on the top and two on the bottom). Insert the clip flanges into the holes
and secure the panel by tightening the DIN CLIP screws until the front bezel is
firmly pressed to the mounting surface.
DIN Clips (4 total)
DIN Clip
Mounting flanges
DIN Clips
shown installed
DIN Clip Mounting holes
20
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Connections and Wiring
Example of a PowerText Panel Application
2X20N
2X20K
Multiplexer
PLC
Encoder
Limit Switch
Stacklights
MAN-PTEXT-HDW
21
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
2X20N and 4X20N Rear Panel Connections and Wiring
Rear View
Serial Port Communication LEDs
These LEDs illuminate to show whether the unit is
sending or receiving data. See page 83.
Programming
PC Cable
24 VDC
Power Source
Power Connector
Block style connector is used to connect an
external 24 VDC power supply. See Power
Connector Pinout on page 24.
22
OR
PLC
Cable
Serial Port
This port may be used to
connect the programming
computer or a PLC (see page
24). Use Programming Cable
P/N CBL-PTEXT-001 to
connect the PC. See PLC
Cable Part Number table, page
25 for the appropriate PLC
cable type used by your
application.
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
2X20L Rear Panel CONNECTIONS and WIRING
REAR VIEW
Serial Port Communication LEDs
These LEDs illuminate to show whether the
unit is sending or receiving data.
(See page 83.)
OR
24 VDC
Power Source
Power Connector
Block style connector is used to
connect an external 24 VDC
power supply. See Power
Connector Pinout on page 24.
MAN-PTEXT-HDW
Programming
PC Cable
PC
PLC
Cable
PLC
Serial Port
This port may be used to connect the programming computer or a PLC (see page 24). Use
Programming Cable to connect the PC. See PLC
Cable Part Number table, page 25, for the appropriate PLC cable type used by your application.
23
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Power
Connector
This block style connector is used to connect an external 24 VDC power supply. The connector with screw terminals is provided with your PowerText Panel
and allows you to plug into the power receptacle. A pinout is shown below. An
external power supply is adapted to supply operating voltage to the Panel.
The power supply must deliver a range of 20 to 30 VDC.
In multi-panel applications, if separate power supplies are used, please ensure the electrical ground common does not have a great potential difference.
In a multi-panel application, the power supply must maintain the specified voltage and current consumption under all conditions (this includes powerup) for
each of the individual units. Please refer to the specifications on page 13 for
the individual units.
Connection
Pin #
1
+V
2
–V
24VDC (20–30 VDC)
3
Chassis Ground
Connect (+) on the unit to the (+) lead
of your power source; (-) on the unit is
connected to the (-) lead; and chassis
GND (on the unit) is connected to the
chassis ground of the cabinet. It is
recommended you use a regulated
power source isolated from relays,
valves, etc.
Serial Port
The Serial Port may be used to connect your panel to a programming computer (PC) or a Programmable Logic Controller (PLC). You will only need to
connect to a PC when you initially configure and program the panel. The
Serial Port is then available for connection to the PLC. When you power up the
panel, it will come up in RUN Mode. While in RUN Mode the Serial Port will
only communicate with a PLC. To program the panel and have the Serial Port
communicate with a PC, you will have to enter the SETUP Mode (see following
paragraph).
Connect a Programming PC
To program the PowerText Panel, you must put the panel into SETUP Mode.
When the panel is powered up, it will be operating in the RUN Mode. To enter
the SETUP Mode, you must press and hold the UP Arrow button while simultaneously pressing the DOWN Arrow button. (Please Note: While in the SETUP
Mode you may also adjust the screen contrast by pressing the UP or DOWN
Arrow buttons—ensure that you are in SETUP Mode!)
The Panel is configured using a PC running the PowerText Programming Software. When you are ready to download the program, connect the programming cable (P/N CBL-PTEXT-001) to the serial port of the panel and the serial
port of the PC. A wiring diagram follows.
24
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Programming Cable P/N CBL-PTEXT-001
PC COM Port
RS-232
TEXT PANEL
TXD
(3)
(3)
RXD
RXD
(2)
(2)
TXD
GND
(5)
(5)
DTR
(4)
(1)
DSR
(6)
CTS
(8)
D-sub 15-pin
Male
D-sub 9-pin
Female
Connect a PLC
Connect your PLC to the PowerText Panel with one of the cables listed below.
MAN-PTEXT-HDW
Part Number
Cable Description
CBL-UTICW-001
GE 90/30 and 90/70 15-pin Dsub port (RS-422A)
CBL-UTICW-002
A-B SLC 5/03/04/05 DF1 port (RS-232C)
CBL-UTICW-003
A-B PLC5 DF1 port (RS-232C)
CBL-UTICW-004
A-B SLC DH485 port (RS-485A)
CBL-UTICW-005
A-B MicroLogix 1000, 1200 & 1500 (RS-232C)
CBL-UTICW-006
Mitsubishi FX Series 25-pin port (RS-422A)
CBL-UTICW-007
Mitsubishi FX Series 8-pin MINI-DIN (RS-422A)
CBL-UTICW-008
Omron C200, C500 (RS-232C)
CBL-UTICW-010
ModBus with RJ45 (RS-232C)
CBL-UTICW-011
Modicon ModBus (RS-232C)
CBL-UTICW-012
Siemens S7 MPI Adaptor (RS-232C)
CBL-UTICW-013
Omron 9-pin Programming Port (RS-232C)
CBL-UTICW-014
GE Versmax (RS-232C)
25
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
THIS AP
This page intentionally left blank.
26
MAN-PTEXT-HDW
Learning the Features
3
In this chapter....
— Learning the Features
— Memory Mapping/PLC Data Registers
— Pushbuttons
— LEDs
— PLC Message
— Embedded Data
— PLC and Local Messages
— Message Types
— Displaying PLC Messages
— PLC Messages LED
— Displaying Local Messages
— Local Message File Structure Example
— Local Message Menu Structure Example
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Learning the Features
In this section, we will help you to learn and understand the Features of the
PowerText Panels. Details for using pushbuttons, LEDs, PLC messages, and
Local Messages are discussed. We recommend that you read this chapter
well before you attempt to configure and use the Panel features and controls.
As you proceed through this section, relate the topics discussed with how you
will implement your panel.
Regardless of the PLC product type, the concepts discussed here are applicable.
DirectLogic PLCs are used in any examples of addressing and ladder logic,
but the principles can be applied to any type PLC. Once again, this section is
showing “concepts” for using the panel features. For complete DirectLogic
examples and other PLC solutions, such as Allen-Bradley, please refer to the
PLC manufacturer’s manual.
•
Memory Mapping/PLC Data Registers
Pushbuttons Register
LEDs Register
PLC Message Registers
Embedded Data Registers
•
PLC and Local Messages
— Embedded Data
— Message Types
Static
Dynamic
Interactive
•
•
•
Displaying PLC Messages
PLC Messages LED
Displaying Local Messages
Memory Mapping/PLC Data Registers
The PowerText Panels communicate with the PLC through user-defined PLC
data registers. PLC registers are assigned during configuration using the Text
Panel Programming Software. For discrete operations, such as pushbuttons
and LEDs, the register bits are accessed by the PLC control program. The
following page shows how the pushbuttons and LEDs are assigned to the PLC
bit registers.
28
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Pushbuttons
Pushbuttons use one 16-bit register. All bit designations are depicted in octal
(0–7 and 10–17). Use bits 0 through 15 for PLCs using decimal numbering.
Address used here must be READ/WRITE.
BUTTONS (BIT WRITE) PLC WORD — (FROM PANEL)
17
16
NA
NA
15
14
13
12
11
10
7
6
5
4
3
2
1
0
NA
ACK
F5
ACK
F4
ACK
F3
ACK
F2
ACK
F1
▼
▲
ENT
F5
F4
F3
F2
F1
(BITS)
F1–F5 = Function Pushbuttons 1–5
ENT = Enter
▲ ▼ = Arrow UP/DOWN
ACK F1–F5 = Panel acknowledge of PLC button release
NA = not used (Do not use for other PLC program addresses)
Please NOTE:
Any unused bit
address should not
be used in your
PLC program. The
panel will control
the unused bits. Bit
15 is toggled by
the ESC key.
Bits 0–7 are set when pressing the corresponding button on the panel.
Bits 10–14 are set when the Panel Set and PLC Release Option is selected
for the corresponding Function Pushbutton and the Release Bit for that
button is set by the PLC in the LED (BIT READ) PLC WORD.
LEDs
LEDs use one 16-bit register. All bit designations are depicted in octal (0–7
and 10–17). Use bits 0 through 15 for PLCs using decimal numbering.
LED (BIT READ) PLC WORD — (TO PANEL)
(BITS)
17
16
15
14
13
12
11
10
7
6
5
4
3
2
1
0
ME SSAGE
MODE
NA
NA
REL
F5
REL
F4
REL
F3
REL
F2
REL
F1
NA
NA
NA
LED5
LED4
LED3
LED2
LED1
LED1–LED5 = Only used when By PLC has been chosen.
REL F1–REL F5 = Used by PLC to release a button that is set by the
panel.
MESSAGE MODE = set by PLC and takes panel out of PLC Message
Mode (when PLC Message is displayed on panel) and back into Local
Message Mode.
NA = not used (Do not use for other PLC program addresses)
Use Bit 17 to take the panel out of PLC Message Mode when a PLC Message
is triggered. When the PLC sets this bit (from 0 to 1), and the panel has a
PLC Message displayed, the panel will go back into the Local Message Mode.
MAN-PTEXT-HDW
29
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Example when using Panel Set & PLC Release Option for a Function
Pushbutton:
Operator Presses Button:
F1 is set by the Panel (Bit 0 in Button Word).
This is a maintained pushbutton to the PLC.
PLC Releases Button:
REL F1 is set by the PLC (Bit 10 in LED Word).
The PLC resets the panel button by setting this
bit in the ladder program.
Panel Acknowledge Button Release:
ACK F1 is set by the Panel (Bit 10 in Button Word).
This is the panel acknowledging to the PLC that
it has reset the button.
PLC Message Registers
The 2X20N, 2X20L, and 4X20N panels have 2 or 4 lines of PLC Message
display. Each message line references a user-defined register in the PLC.
The registers are assigned using the PowerText Programming Software. The
panel monitors each register for a value (message number) and displays the
message associated with the value (i.e., a value of 3 displays message 3).
Embedded Data Registers
Each message can have up to three embedded data values, DATA 1, DATA 2,
and DATA 3. Embedded data registers are user-defined.
DATA 1 (Two 16-Bit Registers, READ/WRITE)
This is a PLC register that contains the first of three possible embedded data
values on a line for the message displayed. DATA 1 can be set as a READ/
WRITE Register allowing the operator to change a data value. It can also be
set to READ ONLY. This is the only data value that has this option.
30
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Enter address
for DATA 1
Enter address
for PLC
Controlled
Decimal Point
Enter addresses
for DATA 2 and
DATA 3
PLC CONTROLLED DECIMAL POINT (16-Bit Register)
This is a register in the PLC for controlling a decimal point within an
embedded data value (DATA 1 only). One register holds the value and the
other controls the decimal point. The register addresses are assigned
from the Message Edit screen as shown above. No ASCII characters are
allowed in DATA 1 with a PLC controlled decimal point.
DATA 2 (Two 16-Bit Registers, READ ONLY)
This is a PLC register that contains the second of three possible embedded
data values on a line for the message displayed. You may manually insert a
decimal point. The PLC Address and Data Type are assigned from the
Message Edit screen, shown above.
DATA 3 (Two 16-Bit Registers, READ ONLY)
This is a PLC register that contains the third of three possible embedded data
values on a line for the message displayed. You may manually insert a decimal
point. The PLC Address and Data Type are assigned from the Message Edit
screen, shown above.
MAN-PTEXT-HDW
31
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
PLC Messages and Local Messages
Embedded Data
The user message contains the
ASCII characters and optional
embedded data to be displayed. The
NOTE:
embedded data can be up to 3
different values — DATA 1, DATA 2,
There is support for
and DATA 3.
double words in each
data set. You can
choose a 32-bit integer address BCD
and Binary. The
range for 32-bit Binary is 4294967295
(a 10-digit value can
be used). The range
for 32-bit BCD is 0 –
99999999 (an 8-digit
value can be used).
Special characters in the message
determine where the embedded data
from the registers should go. When
programming, each character for
DATA 1 values will be represent by
a “1” for up to ten digits. (See note
to the left.) For example, if you want
to display a five digit value from the
PLC, you will press Ctrl + 1 or F5,
five times, and “11111” will display in
your message (in red) representing
the five digit value.
Only DATA 1’s embedded value can be Interactive (READ/WRITE register),
meaning that data values will display and can be changed from the message.
DATA 2 and DATA 3 are Dynamic (READ ONLY register) meaning that they
will display a value, but the value cannot be changed from the message. DATA
2 values are entered into the message by pressing Ctrl +2 or F6, and are
represented by a “2” for each numeric digit, displayed in blue. DATA 3 values
are entered into the message by pressing Ctrl +3 or F7, and are represented
by a “3” for each numeric digit, displayed in green. Again, these values can be
up to ten digits. Data values are only represented by a “1,” “2,” or “3” when you
are programming the message. The actual values will be displayed on the
PowerText Panel LCD Display window, or will be blank if no value is present.
(Password Protection is only available with PowerText Panel Model 2X20K.)
For DATA 1, you can select a minimum and maximum range for the embedded
data value. The Maximum is to test for the upper limit for the data value and
Minimum is to test for the lower limit for the data value. This will let the user
update the value between the ranges. Data values are incremented or
decremented with the UP/DOWN Arrow Buttons.
Also for DATA 1, you can choose to have the Decimal Point in the value
controlled by the PLC, or you can manually insert it in the message.
32
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Message Types
There are three types of messages: Static, Dynamic, and Interactive identify
the different message types.
Static Messages
Static Messages are text displays that have
NO embedded data. The Static Message
may be displayed when an event or condition
becomes true. You will enter the messages
using the PowerText Panel Programming
Software.
Dynamic Messages
Dynamic messages are text messages that
include embedded data. These messages
are used to display values from the PLC
(READ only access to a PLC register). This
data is information that helps the operator
closely monitor and/or control the machine
or process.
SYSTEM RUNNING
Zone 1 Temp. : 753
Data Value update from
PLC register
Embedded Data Values in messages can be of two types — BCD
or Binary. DATA 1 can have a decimal point controlled by the PLC
or manually inserted. DATA 2 and DATA 3 allow you to manually
insert a decimal point. The maximum number of data values per
message is three. Data type and decimal points are programmed
when configuring the message from the Message Edit screen.
Interactive Messages
(With an embedded DATA 1 value, only).
An Interactive Message is commonly
used for operator data entry. This type
of message is used for changing values
that are stored in the PLC registers
(READ/WRITE access). These values
are typically; Setpoint, Upper and Lower
Limits, etc. Interactive Messages may be
configured to enter data using the UP/
DOWN Arrow buttons.
Enter New Temp. = 300
Data value entered
by operator
Displaying PLC Messages
PLC Messages are triggered by the PLC. The PLC Message LED will illuminate
to let you know that the PLC has generated the message. You cannot press
the esc key to exit the PLC Message mode until 3 seconds after the message
has been triggered. This delay is to ensure that the message has been seen
MAN-PTEXT-HDW
33
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
by the operator. After the 3 seconds, press the esc key and you will return to
Local Message mode. If you press the esc key again, the last PLC Message
will be redisplayed.
Static Message Operation
To display a Static PLC message, you simply put the message number (1–
256) in the appropriate PLC register. These messages are text only, no
embedded data.
Dynamic Message Operation
Dynamic messages are text messages that include embedded data. These
messages present the operator with important PLC data. You may program
message numbers 1–256 to be used as dynamic messages. Dynamic
messages may be displayed on either the top or bottom line. The maximum
number of digits that may be displayed is 8 for BCD/Int 32, 4 for BCD/Int 16, 10
for Binary/Int 32, or 5 for Binary/Int 16. Use the PowerText Programming
Software to configure Dynamic messages. See Section 5, Configuration for
more information.
Interactive Message Operation
An interactive message is a text display that allows operator data entry. Use
these messages to enter or change values that are stored in PLC registers.
When the interactive message is displayed, the operator can enter data. Check
the PLC product user manual to verify which data formats are supported.
Depending on the PLC, the data format will be either Binary or BCD (Binary
Coded Decimal). Five digits may be entered in a 16-bit register using Binary
data format or ten in a 32-bit Binary data format. Four digits may be entered in
a 16-bit register using BCD data format or eight digits in a 32-bit register using
BCD data format.
Interactive messages are configured within the Text Panel Programming
Software by embedding a DATA 1 value in a PLC message. An interactive
message requires that you define the Format (Binary or BCD), and Decimal
Point Position. There are two types of decimal point placements — PLC
controlled and fixed placement (decimal point entered between characters when
configuring the message). A PLC controlled decimal is only allowed in DATA
1. DATA 2 and DATA 3 allow you to enter a fixed point (manually inserted). Two
PLC registers are used to store PLC controlled decimal point values, one for
the data value and the other for decimal point control. When the decimal point
is PLC controlled it must be configured in your PLC logic program. For more
information, see Chapter 5, Configuration, or your PLC Configuration Manual.
Arrow Adjustment Entry
Arrow adjust is often used when minimum and maximum setpoint ranges are
required or a setpoint value requires only minor adjustment. These arrow
adjustments are only possible using the UP or DOWN Arrow pushbuttons. As
34
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
you press the UP and DOWN Arrow pushbuttons, the numeric value will
increment (up) or decrement (down) one count at a time. When the UP/DOWN
Arrow buttons are used to increment or decrement a value, the cursor is disabled
and will not be visible again until you press enter, esc, or return from an error
or PLC message. Also, the longer you hold the key down, the faster the count
will increase. When the adjustment is complete, press the enter pushbutton,
and the value will be placed in the data register for display and the bit is set.
PLC Message LED
The PLC Message LED will illuminate any time a PLC message is being
displayed. When you press the esc key, after a PLC Message has been
displayed, the panel will return to the Local Message mode. To redisplay the
PLC Message, press esc again.
Displaying Local Messages
In a Local Message, the first message (root level) or folder in the hierarchy is
displayed on the top line at start up and the following message or folder is
displayed on the second line.
A plus (+) is displayed in front of a folder’s or subfolder’s name if it is closed. If
a folder or subfolder is open, a minus (–) is placed in front of the name. Any
messages within that folder will be displayed below it.
+Local Folder 1
+Local Folder 2
–Local Folder 2
Local Message 2.1
Therefore, a folder is limited to 19 characters after the + or -, a message allows
20 characters. (The PowerText Programming Software only allows 19
characters for folder text when you are configuring the Local Messages.)
You may use the UP/DOWN Arrow buttons to scroll down to the next message
in that folder. At the end of the messages for that folder, you can press the esc
button to move to the previous folder or level.
The Local Message menu hierarchy can only extend three levels deep (after
the root level) but each folder (level 1 and level 2) may have many subfolders
or messages on that level. Folder level 3 may have many messages, but no
folders. Messages can contain up to three embedded data values. See the
following examples of a menu tree and how it may appear from within the
PowerText Programming Software and how it may appear on your display.
MAN-PTEXT-HDW
35
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Local Message File Structure Example
(as seen when configuring messages in the PowerText Programming Software)
This is not displayed on the panel
You cannot change this. It is
the Root Level. All messages
and folders stem from here.
Level 0
(Root Level)
Level 1
Folder A is allowed
multiple Messages
and subfolders
Level 2
Folder B is allowed
multiple Messages
and subfolders
Level 3
Folder C is only
allowed multiple
Messages
Folder D is only
allowed multiple
Messages
Folder E is allowed
multiple Messages
and subfolders
Basic Structure
In this example of the Local Message
programming window:
“Local Messages” is
just a place holder
and always appears
in the configuration
software menu tree.
Folder 1 would be displayed on Line 1
of the PowerText Panel display,
Folder 2 would be displayed on Line 2
of the display.
A plus (+) is displayed in front of the folder icon
minus (–) is placed next to the folder icon
if it is closed. If a folder is open, a
, and any message in that folder will be
displayed.
36
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Local Message Menu Structure Example
(as would be seen on the PowerText Panel Display, except that Levels are indented here to make
them easier to see.)
Viewing the menu from the root (A folder is also counted as a message.)
Local Messages (Root)
Message 1 (Root message)
Message 2 (Root message)
+Folder A (Folder is closed, but it contains 3 messages and two subfolders with 3 messages each)
Message 16 (Root message)
Message 17 (Root message)
+Folder D (Folder is closed, but it contains 5 messages and one subfolder also with 5 messages)
Message 29 (Root message)
Viewing the menu from open Folder A
–Folder A (Folder is open and it contains 3 messages and one subfolder with 3 messages)
Message 4 (Folder A message)
Message 5 (Folder A message)
+Folder B (Folder is closed, but is contains 3 messages and one subfolder also
with 3 messages)
Message 14 (Folder A message)
Viewing the menu from open Folder B
–Folder B (Folder is open and it contains 3 messages and one subfolder with 3 messages)
Message 7 (Folder B message)
Message 8 (Folder B message)
Message 9 (Folder B message)
+Folder C (Folder is closed, but it contains 3 messages)
When a folder is opened, a minus sign “–” appears before the folder name. A “+” sign indicates that the
folder is closed.
Local Messages (Root)
Message 1 (Root message)
Message 2 (Root message)
–Folder A (Folder A is open)
Message 4 (Folder A message)
Message 5 (Folder A message)
–Folder B (Folder B is open and is a subfolder of Folder A)
Message 7 (Folder B message)
Message 8 (Folder B message)
Message 9 (Folder B message)
–Folder C (Folder C is open and is a subfolder of Folder B)
Message 11 (Folder C message)
Message 12 (Folder C message)
Message 13 (Folder C message)
Message 14 (Folder A message)
Message 15 (Root message)
Message 16 (Root message)
+Folder D (Folder D is closed)
Message 29 (Root message)
MAN-PTEXT-HDW
37
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
This page intentionally left blank.
38
MAN-PTEXT-HDW
Tutorial
4
In this chapter....
— PowerText Panel Setup
— Installing PowerText Programming Software
— Installation Screens
— Tutorial
Plan the Project using Application Worksheets
Create the Project using PowerText Programming Software
Configure a PLC
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
PowerText Panel Setup
SETUP Mode
In order to download the program to the
PowerText Panel using the PowerText
Programming Software, you must be in the
Setup Mode. Setup Mode is also where you
will adjust the display contrast of the
PowerText Panel.
SETUP MODE
DRV. REV.:
The Panel will start up in the RUN Mode. To access the SETUP Mode, follow
these steps:
1.
Press the UP Arrow Pushbutton and hold while simultaneously
pressing the DOWN Arrow Pushbutton to enter the SETUP Mode.
2.
At any time you may press the Escape (esc) button to go back to
RUN Mode. You will be taken back to the start of the Local Message
menu (cursor is placed at root level when you return from setup).
Adjust Display Contrast
You may only adjust the Display Contrast when in Setup Mode. To adjust the
display contrast use the UP and DOWN arrows to increase or decrease the
contrast.
Internal Software and Hardware Revisions
While in SETUP Mode the Panel Hardware Revision, Driver Revision, Boot
Revision, and Exec (Firmware) Revision numbers will display on the panel.
Preparing for Configuration
If you prepare and plan ahead of time, your use of the PowerText Programming
software will be successful. Below are a few important steps to take to prepare
to program your application.
•
•
•
•
40
Prepare your personal computer and ensure proper installation of
the PowerText Programming Software
Know your operator interface requirements. Determine the type of
Panel and the number of Panels required by your application
Know your PLC type and available resources, such as, programming
tools, CPU capabilities, user memory, etc.
Verify type of communications port, as well as protocol used.
Determine the CPU link(s) available for connecting a PowerText Panel
(RS-232/RS-422, baud rate, parity, stop bits.)
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
•
•
Determine how the pushbuttons, LEDs, PLC Messages, and Local
Messages will be assigned in your panels with respect to your
machine or process.
To prepare your application, use the application worksheets provided
in Appendix A of this manual. The example worksheets will help
you understand how the PowerText Panel program is configured.
Blank worksheets can be used in planning, implementing, and using
your PowerText Panels.
Installing PowerText Programming Software
PowerText Panels are configured with software running on an IBM or compatible
personal computer. This software is available through UTICOR, part number
ACC-PTEXT-EDIT. The software is used to download your configuration before
connecting the panel and communicating with a PLC. Help Topics are provided
to help you configure your panel. You design and configure your Panel program
off-line and save it to disk. The program may then be transferred to the
PowerText Panel. To install PowerText Programming Software, perform the
following steps:
•
Place the CD into your CD ROM Drive. The install
program should launch automatically. If it does not,
perform the following steps:
1
From Windows click on the Start Button, and then
click on Run from the menu. The Run dialog box will
pop up.
2
At the prompt type D:\ (or your CD Drive) setup.exe or
click on the Browse Button and find the Setup.exe file
for PowerText Programming Software.
3
Click on the OK button to begin the installation. The
PowerText Programming Software Installation Screen
will appear.
• Follow the onscreen prompts to load the software.
MAN-PTEXT-HDW
41
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
Installation Screens
➥
➥
➡
PowerText
Programming
Software Icon
This icon will appear on
your desktop after
installation.
➡
This is the final installation screen. Here you select
the destination folder where your software program
will be installed. The default destination location is
C:\ Program Files\PowerText. If you wish to select
another destination, click on the Browse button.
To complete the installation, click on Next> button.
That’s all there is to it! The PowerText Icon shown
above will appear on your desktop. Simply click on it
to open the Programming Software!
42
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Tutorial — Plan the Project using Application Worksheets
The following is a project tutorial. It will take you through the process of creating
a new project, configuring buttons, creating messages, and transferring a
project to theText Panel. This should help familiarize you with theText Panel
Programming Software.
Let’s start by filling out the application worksheet found in Appendix A. For
tutorial purposes, we have already filled in the information. For your project,
make copies of the forms in Appendix A. Follow steps 1 through 4 as shown
below to fill out the application worksheet for the PowerText Panel Demo Project.
1
1 Fill in the Project
and PLC information.
2
2 Assign a PLC Word
(V40600) to the buttons
and to the Panel
Acknowledge (if using
Panel Set/ PLC Release
for Button Action). See
next page.
3
3 Assign a PLC Word
(V40601) to the LED
Control (if using By PLC)
and PLC Button Release
(if using Panel Set & PLC
Release Button Action).
See next page.
4
4 Assign a PLC Word
for each PLC
Message Line.
MAN-PTEXT-HDW
43
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
This is a copy of page 29 from Chapter 3, Learning the Features. Shown here
are the bit addresses for the Button PLC Word (V40600) and LED PLC Word
(V40601) in this tutorial.
Please note that any unused bit address SHOULD NOT BE USED in your
PLC program. The PowerText Panel will control the unused bits.
44
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
For the next part of our project planning, we’ll create four Local Messages
using the Local Message Worksheet. These messages will be configured later
in our PowerText Panel Demo Project using the PowerText Programming
Software.
1
1 Add a Folder
at Level 1
2
2 Add a Message
under the
Folder
at Level 2
3
3 Add another
Message at Level
2. This Message
is a READ Only
with one data
point DATA1).
4
4 Add another
Message at Level
2. This Message is
a READ/WRITE for
data entry with one
data point (DATA1)
with a min. and
max. value range.
MAN-PTEXT-HDW
45
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
The last part of our project planning is creating three PLC Messages using the
PLC Message Worksheet. These messages will be configured later in our
PowerText Panel Demo Project using the PowerText Programming Software.
1
1 Add Message
No. 1. When F3
button on panel
is pressed, this
message will be
displayed.
2
2 Add Message
No. 2. This
message will be
displayed to let
the operator
know that the
PLC has turned
off F4 button on
the panel.
3
3 Add Message
No. 3. This
message will be
displayed when
either of the
other messages
are displayed, to
let the operator
know how to
return to Local
Messages.
46
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Tutorial — Create the Project using PowerText Programming
Software
Let’s assume you have the programming software installed on your PC (if you
don’t, go back to page 41 and install now). Connect the PowerText Panel to
your PC using the P/N CBL-PTEXT-001 cable. Apply 24 VDC to the panel
power connector.
1.
From the Welcome screen, click on the New System button.
2.
The Create Project window will appear. Type in “Demo Project” in
the File name field. Click on Save. (If you don’t want your project
saved to the default “Project” folder, navigate to the directory and/or
folder where you want it to reside.)
Click here to open
this window
MAN-PTEXT-HDW
47
POWERTEXT
3.
2X20N, 2X20L, & 4X20N PANELS
In Step 1, Select Panel, you will start your project by selecting the
panel type you are using. Leave Single Panel System selected.
a.
From the Configuration Screen, click on the Select Panel Type
button.
b.
The Select Panel dialog box will open. Under Panel Type, click
on the panel type you are using to highlight it. A picture of the
panel will appear under Panel Preview, and key features of the
panel are displayed under Panel Attributes.
c.
Click on the OK button to select and close the dialog box.
Click here to open this
window
Click here
to select
2X20N
4. In Step 2, Select PLC, you will choose the type PLC you are using.
a.
48
Click on the DOWN arrow next to the Select PLC field to view the
drop down menu of available PLCs. Click on the PLC Type to
select.
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
b.
Click on the Press for communication configuration for
Selected PLC button.
c.
The PLC Communications Attributes window will appear for
the PLC you have selected. (In this case, DirectLogic KSequence.) Set the attributes to match those in the screen capture,
below. Click on the OK button.
Please Note:
The PLC communication
attributes must match the
COM port settings for
your selected PLC.
MAN-PTEXT-HDW
5.
In Step 3 you will configure the Buttons/LEDs, Messages and Panel
System PLC Addresses.
6.
Click on the Buttons/LEDS button. The following screen will appear.
49
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
LED Control
Button Action
LED PLC Word
Button PLC Word
50
a.
Under LED Control, click on the down arrow to view control
choices. Select By Button for LED 1, LED 3 and LED 4. Select
By PLC for LED 2, and By Button & Flash for LED 5 (selections
should be as shown in the screen capture above).
b.
Under Button Action, click on the down arrow to view control
choices. Select Alternate for F1 and F5, Momentary for F2 and
F3, and Panel Set & PLC Release for F4.
c.
Assign a PLC Word for the LEDs and the Buttons. These PLC
Words should be a BIT Register.
d.
Click on OK to accept and exit the screen.
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
7.
MAN-PTEXT-HDW
Next, we’ll show you how to
configure Local Messages.
Click on the Messages
button for Step 3 on the
Configuration Screen. The
following screen will appear.
a.
Click on the Add Local Folder button (Step 1). In the Message
Text field (Step 2), type in “Process Control.” Click on the Press
to accept Message edit button (Step 3).
b.
Click on the Process Control Folder to select it, and then click
on the Add Local Message button.
c.
Enter “Press F1 to Start Y0” in the Message Text field and
then click on the Press to accept Message edit button.
d.
Next we’ll configure a dynamic message. Click on the Process
Control Folder, then click on Add Local Message and type in
“Zone 1 Temp =”. After Zone 1 Temp =, enter a space and
press F5 (or Ctrl +1) three times, type in a decimal point, then
press F5 again. Type in a “C” immediately after the “111.1”.
(DATA 1 will appear as four, red ones in the message.)
51
POWERTEXT
52
2X20N, 2X20L, & 4X20N PANELS
e.
Under the DATA 1 section of the screen shown above, type in
“V02010” in the PLC Address field. The Data Type should be
set to BCD/Int 16, and Access should be Read Only. Leave
Leading Zeroes and PLC controlled Decimal Point unchecked.
f.
Click on the Press to accept Message edit button.
g.
The last Local Message to be configured will be an Interactive
message (DATA 1).
h.
Click on the Process Control Folder, then click on Add Local
Message.
i.
In the Message Text field, type in “Load Part #”, leave a space,
and then press F5, or Ctrl + 1, four times. (DATA 1 will appear in
the Message Text field as four, red ones.)
j.
The DATA 1 configuration area is now available (no longer grayed
out.) Next to PLC Address, type in “V02011”. Data Type should
be BCD/Int 16. Access is Read/Write. Set the Min. value to
“1200” and the Max. value to “1999” (settings are shown in the
screen capture, above.) This will limit what value can be entered
by the operator. Leave Leading Zeroes and PLC Controlled
Decimal Point unchecked.
k.
Click on the Press to accept Message edit button to save it.
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
8.
9.
To create PLC Messages 001, 002, and 003 as shown in the screen
capture above, perform the following steps:
a.
Click on the Add next PLC Message button.
b.
Type in the Message Text field, “F3 Button Message”.
c.
Click on the Press to accept Message edit button to save it.
d.
Click on the Add next PLC Message button.
e.
Type in the Message Text field, “PLC Release Bit Ackn”.
f.
Click on the Press to accept Message edit button to save it.
g.
Click on the Add next PLC Message button.
h.
Type in the Message Text field, “ESC for Local Msgs”.
i.
Click on the Press to accept Message edit button to save it.
You are now finished configuring the messages for this tutorial, click
on OK to exit the Message Edit screen.
10. The final part of Step 3 is to configure the panel system PLC
addresses. To configure PLC addresses, click on the Configure Panel
System PLC addresses button.
Click here
MAN-PTEXT-HDW
53
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
11. The Panel System PLC Address Setup screen will appear. Enter
settings as follows:
PLC Messages
Setup
Enable Beeper
PLC Message Delay,
and Display cursor
options (selected by
default)
a.
Type in “V3000” in the Line One field. Select BCD as the DATA
Type. Type in “V3001” in the Line Two field. Select BCD as the
DATA Type.
b.
The panel beeper is selected by default. If you do not want to
hear the beeper each time a button is pressed, click in the box in
front of Enable Beeper to remove check mark and disable the
feature.
c.
PLC Message Delay is also selected by default. If you do not
want the buttons on your PowerText Panel to be locked for 3
seconds after a PLC Message is triggered, click in the box in
front of PLC Message Delay to remove check mark and disable
this feature.
d.
If you DO NOT want the cursor to display in the panel display
window when a PLC message has been triggered, click in the
box in front of Display cursor when a PLC Message is displayed
to remove check mark (it is selected by default.)
e.
Click on the OK button to save and exit.
12. You are now ready to write the project to the PowerText Panel.
54
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
13. Click on the Write to Panel button on the Configuration Screen.
14. The Writing to Panel screen will appear. Click on the down arrow
under Port selected and select the COM port on your PC that is
connected to the Text Panel (COM1, COM2, COM3 or COM4).
15. Before preceding, ensure that the panel you are about to write to is in
the Setup Mode. To enter the Setup Mode, press the UP and DOWN
arrows on the Text Panel simultaneously. The panel display will read
SETUP MODE on the first line.
16. Click on the Start button on the Writing to Panel screen, as shown
above.
17. The progress of the Write to
Panel process will be shown by
a check mark placed in front of
the items as the project is
written to the panel. The status
bar along the bottom portion of
the screen will also show the
progress.
18. Now that the panel is configured, let’s connect our PLC programming
software to the PLC and write the ladder program.
MAN-PTEXT-HDW
55
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
Tutorial — Configure a PLC
For the purposes of this tutorial, we will be using a DirectLogic® DL05 PLC. To
configure the PLC we are using DirectSOFT® Programming Software. The
purpose of this part of the tutorial is to show you how to configure your PLC to
communicate with a PowerText Panel.
56
1.
Connect to the PLC with DirectSOFT.
2.
Enter the following ladder logic.
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
MAN-PTEXT-HDW
57
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
3.
Save the Program to the PLC and to disk (DemoProject).
4.
Place the PLC in Run Mode.
The PLC is now configured and running. Now, to test our project, connect the
Panel to PLC communications cable (P/N CBL-PTEXT-001, to the panel port
and the PLC port.
1.
Press the esc (escape) button on the Text panel. The Local Message
(folder), “+ Process Control”, will be displayed on the first line.
2.
Press the enter button to open the folder. Level 2 Local Message
“Press F1 to Start Y0” will be displayed. Use the ▲▼
▲▼(arrow) buttons
to scroll through the messages. Press the esc button to go back to
the Folder Level 1.
3.
Press F1 to turn ON or OFF Y0.
4.
Press F2 to turn ON Y1 for 5 seconds.
5.
Press F3 to display PLC Message No. 1.
6.
Press F4 to turn ON Y2. Either press F4 again to turn it OFF, or turn
ON X0 in the PLC. If the PLC turns OFF F4, a message will be
displayed.
7.
Press F5 to see an alternate button with flashing LED.
CONGRATULATIONS! You have now successfully configured a UTICOR PowerText
Panel!
58
MAN-PTEXT-HDW
Configuration
5
In this chapter....
—Configure New System
Step 1, Select Panel
Step 2, Select PLC
Step 3, Panel System PLC Address Setup
Configure Local and PLC Messages
—Configure Existing System
—Connect to Panel, View Panel Status and Firmware Version
—Upgrade Firmware
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
This section will take you through the steps necessary to
configure a new system, edit an existing system, view panel
status, and upgrade the PowerText Panel firmware.
We recommend that you go through the tutorial in Chapter
4, page 39, before configuring your panel.
If you don’t already have the PowerText Programming Software installed, go to Chapter 4, Tutorial, page 41.
Configure New System
1.
60
Click on the PowerText Icon to open the PowerText Programming
Software. The following screen will appear.
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
MAN-PTEXT-HDW
2.
Click on the New System button to configure the PowerText Panel
program. The following screen will appear.
3.
Enter a name for the project in the File name field. Navigate to the
directory and folder where you want to keep the file (or except default
location), and click on the Save button to save. The following screen
will appear.
61
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
4.
In Step 1, you will select Single Panel System or Multi-Panel System.
If you select Multi-Panel System, Step 1a on the right hand side of
the screen will become available. You will also notice that two buttons
at the bottom of the screen will change to Write to Multiplexer, and
Read from Multiplexer. You may program up to 5 panels connected
to a Multiplexer.
SINGLE PANEL SYSTEM
a. If you have selected a Single Panel System, click on the Select
Panel Type button. The following screen will appear. Under Panel
Type, click on the model you are using. A Panel Preview and
Panel Attributes specific to the type of panel you have chose
will appear in this dialog box. Click OK to enter your selection.
Skip to step 8.
MULTI-PANEL SYSTEM
b. If you have selected a Multi-Panel System, under Step 1a, Select
a Panel, you will choose the first panel that you want to configure.
There are three ways that you can choose the panel type for each
port: 1) click on Port 1 and then click on the Select Panel Type
button under Step 1, or 2) double click on Port 1, or 3) click on
Port 1 and then right click your mouse to open the popup menu
and choose Select Panel. You may configure the panel connected
to Port 1, 2, 3, 4, or 5 in any order. The ports do not have to be
configured sequentially.
c. The Select Panel dialog box will open. Under Panel Type, click
on the panel type that is connected to that port. A picture (as
shown above) of the panel will appear under Panel Preview, and
key features of the panel are displayed under Panel Attributes.
d. Click on the OK button to select and close the dialog box. The
Panel type you have selected will appear above Port 1, or 2, or
3, etc.
5. You may also import a panel configuration from another project. Click
on the Port/Panel that you want to copy the project to. Right click your
mouse button to bring up the Right Click Menu. Select Import
62
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Configuration. For more information on the Multi-Panel System Right
Click Menu options, see PowerText Programming Software Help topics.
6.
The Open project dialog will open. You may select either a Single
Panel or a Multi-Panel project to import. Click on the project you want
to import to highlight it, and then click on the Open button.
7.
If you have selected a Multi-Panel project
to import, the dialog box to your right will
open allowing you to select the particular
Port/Panel configuration that you want to
import into your current project. Click OK.
In a Multi-Panel PowerText project, you may
only import one Port/Panel configuration
from an existing project into one Port/Panel
in the current project with each Import
Configuration command.
8.
In Step 2, Select PLC, you will
choose the type PLC you are
using. You will only be able to
select one PLC type per project
(whether it is a Single Panel
System or a Multi-Panel
System). If you need more
information on PLC configuration, consult your PowerText Programming
Software Help Topics, or your PLC Manual.
9.
Click on the Press for
Communication Configuration
for Selected PLC button.
A PLC Attributes dialog box specific to your type PLC will appear. Complete
the communications information. After selecting the PLC type, you must define
the remaining protocol items, such as baud rate, parity, etc. Consult the PLC’s
user manual to determine the port communications capabilities.
During configuration, ensure that your address and communications parameters
match the PLC port settings. There will be a selection for PLC timeout. When
the panel sends a message to the PLC and does not receive a response or
does not understand the response, it will wait the timeout period before sending
the message again.
A communication failure initiates the error message “PLC COMMUNICATION
TIMEOUT” on the panel.
MAN-PTEXT-HDW
63
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
10. For Step 3, click on the
Configure Panel System
PLC Addresses button.
The Panel System PLC
Address Setup window will
appear.
11. Under PLC Messages (Line Address) Setup, enter the PLC
Addresses for Line One and Line Two (and Line Three and Line
Four if using a 4X20N Model). Select the Data Type for the PLC.
12. Enable Beeper is selected by default. If you do not want t hear the
panel’s beeper each time a button is pressed on the panel, click on
the box in front of Enable Beeper to remove the check mark and
deselect it.
13. PLC Message Delay is selected by default. When a PLC Message is
displayed on the panel, the panel buttons will not function for 3 seconds.
This allows time for the operator to view the PLC Message before
inadvertently pressing a button to perform another operation. To disable
this 3-second delay feature, click on the check box in front of PLC
Message Display to remove the check mark.
64
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
14. Display cursor when a PLC message is displayed is selected by
default. If you don’t want the cursor to display in the PowerText Panel
message window when a PLC Message has been triggered, you must
disable this feature here by clicking in the box in front of Display cursor
when a PLC Message is displayed to remove the check mark.
15. Next, click on the Buttons/
LEDs button (shown to the
right) to configure the
Panel Functions. The
following screen will
appear.
LED Control
Button Action
PLC Button
Release Bits
Panel
Acknowledge
16. First select the LED Control for the first button LED, Bit 0. You may
choose to have the LED controlled By Button, By Button & Flash, or
By PLC. Make selections for Bit 0 through Bit 4. The LED function
depends on the type of Button Action selected.
•
By Button means that the LED illuminates when the button is
pressed.
•
By Button & Flash means that the LED illuminates and flashes
when the button is pressed.
•
By PLC means that the LED illuminates when triggered by the
PLC.
MAN-PTEXT-HDW
65
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
17. Select the Button Action for each button Bit 0 through Bit 4 You may
choose from Momentary, Alternate, or Panel Set and PLC Release.
•
•
•
Momentary means that the Button is ON only while the button
is being pressed.
Alternate means that the Button is turned ON when pressed
and only turns OFF when the button is pressed again.
Panel Set and PLC Release means that the Button and LED
are ON when the button is pressed and turn OFF when pressed
again or when turned off by the PLC.
—PLC Button Release Bits use Bit 10 through Bit 14 (Octal)
or Bit 8 through Bit 12 (Decimal). If the button is ON, the PLC
can release the button by setting the corresponding release
bit.
— Panel Acknowledge of PLC Release Bits use Bit 10 through
Bit 14 (Octal) or Bit 8 through Bit 12 (Decimal). The panel
turns ON these bits to acknowledge the PLC Release Bits.
18. Enter a LED (Bit Read) PLC Word and a Buttons (Bit Write) PLC
Word address.
This register controls
LEDs and PLC Button
Release (Read Only or
Read/Write address)
This register controls
Buttons and Panel
Acknowledge (must be
READ/WRITE address)
19. Click on OK to save your Button/LED control selections.
20. Now you are ready to configure Local and PLC Messages. Click on
the Message button (shown below.)
.
66
21. The Message Edit screen, shown at the top of the next page, will
appear.
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
22. For Step 1, choose to configure a Local or PLC Message. Local
Messages are messages stored in the panel in a menu hierarchy and
provide information and instructions to the operator. PLC Messages
are triggered by a value in a PLC register. The PLC Message LED
will illuminate to tell the operator that the PLC has triggered a message.
The buttons will not respond for 3 seconds after the PLC Message
has been triggered to ensure that the operator has a chance to read
the message. See step 16 (next step) to program a PLC Message.
To program a Local Message, perform the following steps.
a.
Next to Local Messages, click on the Add Local Folder button
or the Add Local Message Button.
Click on this button
to add a folder
Click on this button
to add a message
MAN-PTEXT-HDW
67
POWERTEXT
NOTE: Folders can
have up to 19
characters maximum.
2X20N, 2X20L, & 4X20N PANELS
b.
Under Step 2, type in up to 20 characters in the Message Text
field.
c.
Step 3, click on the Press to Accept Message Edit button. The
message text you have typed in will appear in the Local Message
field.
1 Enter text here
2 Click here to accept text
3 Configured Message will appear here
d.
Total characters in
current message is
shown here
If you want to embed data from a PLC register in a Local Message,
place the cursor in the message where you want the value to
appear and press F5 or (CTRL+1) for DATA 1, F6 or (CTRL+2)
for DATA 2, or F7 or (CTRL+3) for DATA 3. Each press of the
function key will enter one data value digit. You may enter up to
10 characters (depending on the data type).
In the message, the
data will be represented
by red 1’s for DATA 1,
blue 2’s for DATA 2, and
green 3’s for DATA 3.
(The actual value will
display in the message
on your panel.)
PLEASE NOTE: DATA 1 is READ/WRITE
and allows the option for the operator to
change data values in the PLC register using
the Control Keys on the PowerText Panel.
DATA 2 and DATA 3 are READ ONLY and will
display a value from the PLC register. You
cannot change the DATA 2 or DATA 3 value
from the panel.
68
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
e.
Now you will need to configure the embedded data . If you have
embedded data, you will notice that the DATA 1, DATA 2, or DATA
3 field is now available.
f.
You must first enter the PLC Address where the value resides.
Select the Data Type (format) for your PLC Type (either BCD/Int
16, BCD/Int 32, Binary/Int 16, or Binary/Int 32).
g.
Select the Access for the PLC register. Will you want the
message to display a register value (READ only)? Do you want
the message to display a register value and allow the operator to
change the value with the panel ARROW Keys (READ/WRITE)?
h.
If you select READ/WRITE Access, you can enter a Minimum
and Maximum Range that the operator can write to the PLC.
i.
You will notice that Password Protection is not available for the
PowerText Panel models covered by this manual. Password
Protection is only available in the 2X20K model, that offers a
keypad for numerical data entry.
j.
You may configure DATA 1 to display a decimal point that is
controlled by the PLC. The location of the decimal point must be
configured in your PLC ladder logic program. Place a check mark
in the box next to PLC Controlled Decimal Point and then enter
the PLC Address where the control resides. (This is DATA 1
only — you cannot configure PLC Control for a DATA 2 or DATA
3 embedded value.)
If PLC control for the decimal point is enabled, the program will
place a decimal point at the end of the characters representing
the data value in the Message Text field — 1111. in the figure to
the left. Then placing a value of 1–4 (BCD/Int 16), 1–8 (BCD/Int
32), 1–5 (Binary/Int 16), or 1–10 (Binary/Int 32) in the PLC register
will place the decimal in the appropriate location.
MAN-PTEXT-HDW
69
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
k.
You may manually enter a decimal point in DATA 1, DATA 2 or
DATA 3, by placing your cursor in the message where you want it
to appear in the value, and then insert the decimal point as shown
below.
l.
Create Folders to group messages relating to the same topic.
The first message or folder you program will appear on the first
line of the panel display when it is in Run Mode. (Second
programmed message displays on second line, etc., up to four
lines, depending on the type of panel you are using.) The Local
Message and Folder menu tree can have up to 3 levels as shown
in the following example.
m.
To add a folder, click on the Add Local Folder button.
n.
To insert a Message or Folder between already configured
messages, you must first have a message or folder highlighted.
Click on Insert Folder or Insert Message. The inserted Message
or Folder will be placed above the highlighted Message or Folder.
o.
To delete a Message or Folder, click on it to highlight it and then
click on the Delete button.
p.
To save your messages and exit the Message Edit window, click
on the OK button at the bottom of the Message Edit window. To
exit without saving, click on the Cancel button.
23. PLC Messages are triggered by a value in a PLC register. The PLC
Message LED will illuminate to show the operator that the PLC has
triggered the message. To program a PLC Message, click on the Add
Next PLC Message button.
70
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
PLC Message LED illuminates to
indicate panel is displaying a PLC
triggered message
a.
Type in text up to 20 characters in the Message Text field. The
20 character maximum includes Data Items, also, if you choose
to enter them. You will see the Message Length value change
as you enter characters to let you know how many you have used.
The current Message Number and Total Number of Messages
(of 256) programmed are also displayed for your information.
b.
If you want to embed data values from a PLC register in the
message, press F5 or (Ctrl+1) for DATA 1, F6 or (Ctrl+2) for
DATA 2, or F7 or (Ctrl+3) for DATA 3. Each press of the function
key will enter 1 data value character. You may enter up to 10
characters depending on the data type you have selected.
To configure a
PLC message out
of sequence, click
in the message
number field and
type in the
message number
Total number of
messages (Local
and PLC)
configured is
shown here
MAN-PTEXT-HDW
71
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
c.
You will configure Data 1, Data 2, and Data 3 values the same
way as described in a Local Message.
d.
If you have configured messages out of sequence and you want
to insert a message between messages already programmed,
click on Insert a PLC Message. Be aware that blank messages
count in the Total Messages allowed.
For example:
You have programmed PLC Messages numbered 001, 002 and
004, skipping PLC Message number 003, as shown below.
Click on 004: PLC Message 4 in the message field to highlight it,
and then click on the Insert a PLC Message button. PLC
Message Number 003 will appear above PLC Message Number
004 and you may enter the new message.
Be aware that when programming messages out of sequence,
that the “blank” messages are counted in the Total Messages
allowed. The following “CAUTION” message will appear when
you enter a message number higher than the next number in
sequence.
If you have skipped more than one message number (e.g., you
have programmed messages 1 through 4, skipped messages 5,
72
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
and 6, and then programmed 7), and highlight message 7 and
click on Insert a PLC message, the following dialog box will appear
asking you to enter the number (e.g., 5 or 6) of the message you
want to insert.
e.
To delete a message, click on it to highlight and then click on the
Delete button.
24. To view the PLC Addresses you have programmed click on the Panel
PLC Address Database button. The following window will open.
Shown here will be the addresses mapped to the panel display lines
(Line one, Line two, etc.), the Bit Write (Buttons), Bit Read (LEDs),
and the PLC Message Data Items. Items grayed out are not available
for the Panel model you have selected. The PLC/controller you have
selected and the Project Name are also displayed, along with the
Total Number of messages (OUT OF 256) programmed. This is for
information only—to edit the addresses, click on the EDIT PANEL
SYSTEM PLC ADDRESSES button.
MAN-PTEXT-HDW
25. Click on the Print button to print the database or the OK button to
exit.
73
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
Configure Existing System
74
1.
Click on the PowerText Icon to open the PowerText Programming
Software. The following screen will appear.
2.
Click on the Existing System button to edit an Text Panel program.
The following screen will appear.
3.
Select the project you want to edit from the default program directory
or navigate to where the project resides. Click on it to highlight, and
then click on the Open button and the project you have selected will
open to the Main Configuration Screen.
4.
Begin editing your project.
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Connect to Panel, View Panel Status and Firmware Version
Click on the Connect to Panel, View Panel
Status & Firmware Version button to view
the panel status. The Panel Status
window will open. An example is shown
below.
Picture of the panel type you are
connected to
Key features of the current panel
Panel and PLC information is
displayed, including panel model,
Firmware Revision, Memory Size,
PLC Driver, and PLC Driver
Revision number
MAN-PTEXT-HDW
75
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
Upgrade Firmware
There may be occasional upgrades to the Text Panel internal software, also
referred to as the Exec or Firmware. Check the www.uticor.net web site
periodically for information about software and firmware upgrades.
To Upgrade Firmware:
76
1.
Place the panel in Setup Mode by pressing the UP/DOWN arrows on
the PowerText Panel simultaneously.
2.
Under the Panel Menu, click on Upgrade Firmware. The following
screen will appear.
4.
Click on the Browse button. The window, shown to the right, will
open to the default folder, Firmware (located in the PowerText
Program directory). If the firmware file has been downloaded from the
www.uticor.net website to another location, navigate to the new
firmware file (.hex file).
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
There are five types of firmware files (.hex) for the different types of
PowerText Panels: UPT2X20NYd — for the 2X20N panel;
UPT2X20LYd — for the 2X20L panel; UPT4X20NYd — for the 4X20N
panel; UPT2X20KYd — for 2X20K panel; and the UPTSP000Yd —
for the SP000 Set Point Panel. The “Y” represents the major revision
of the firmware (e.g., B). “d” represents the minor revision (e.g., 1).
Make sure that you select the correct firmware.hex file for your
type panel, and send the upgrade to the panel.
4.
Select the appropriate COM port under Port Selected (if necessary)
and click on the Start button to begin downloading the firmware to the
PowerText Panel. A status bar will let you know when the upgrade is
complete. Click on Close when complete.
When you initialize the Upgrade Firmware process, the PowerText Panel
Message display will read SELF TESTING. When the download begins, the
display will read LOADING EXEC. When the download is complete, the panel
will enter the Run Mode.
If the message INCOMPATIBLE EXEC is displayed on the panel while the
Upgrade is in process, it means that the wrong firmware file has been sent to
the panel. You will also receive an error message from the PowerText
Programming Software, as shown below. If this happens, do the following:
MAN-PTEXT-HDW
77
POWERTEXT
2X20N, 2X20L, & 4X20N PANELS
1.
Click on the OK button on the Error Message.
2.
Click on the Cancel button on the Downloading Firmware window.
3.
Click on Upgrade Firmware to start the process over, being careful
to select the correct firmware.hex file.
Upgrade Firmware, when you
press the Start button, the
panel will display SELF
TESTING while the upgrade is
initializing.
When the download begins, the
panel will display LOADING
EXEC.
If you get the message,
INCOMPATIBLE EXEC, you have
sent the wrong firmware file. Exit
all windows and start the Upgrade
Firmware process again, being
careful to select the correct file.
78
MAN-PTEXT-HDW
Maintenance
and
Troubleshooting
In this chapter....
Maintenance
— Fuse Reset
— Precautions
— Screen Overlay/Chemical Compatibility
— Screen Overlay Cleaning
Troubleshooting
— Panel Configuration Problems
— PLC Errors
— Warranty Repairs
— Out of Warranty Repairs
— Frequently Asked Questions (FAQs)
6
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Maintenance
Fuse Reset
The PowerText Panel features an AUTO-RESET fuse (0.65 Amp polyfuse). It
is reset by removing power for 5 minutes and then reapplying power to the
unit.
Precautions
To ensure the longevity and effectiveness of the panel, please take note of the
following precautions:
•
•
•
•
Do not press sharp objects against the pushbuttons or screen
overlay.
Do not strike the panel with hard objects.
Do not press the pushbuttons or screen overlay with excessive
force.
Once the panel is mounted and has power applied, do not place
any objects over the ventilation slots. This will result in heat buildup
and may damage the unit.
Screen Overlay/Chemical Compatibility
The screen overlay has a polycarbonate surface. The following list is provided
to make you aware of the general compatibility between chemicals that may
be present in your work environment and the polyester surface of the overlay.
Use the chart to determine those chemicals that are safe to use around your
Panel and those that may harm the overlay. The list rates these chemicals as
E—Excellent, G—Good, F—Fair, and N—Not Recommended. Because the
ratings are for conditions at 134 °F (57°C), consider all factors when evaluating
your application.
CHEMICAL
Acetaldehyde
Acetamide
Acetic Acid @ 5%
Acetic Acid @ 50%
Acetone
Acetonitrile
Acrylonitrile
Adipic Acid
Alanine
Allyl Alcohol
Alum. Hydroxide
Aluminum Salts
Amino Acids
Ammonia
Ammonium Acetate
80
RATING
N
N
G
G
N
N
N
E
N
F
N
G
E
N
E
CHEMICAL
Ammonium Gloclate
Ammonium Hydroxide @ 5%
Ammonium Hydroxide @ 30%
Ammonium Oxalate
Ammonium Salts
n-Amyl Acetate
Amyl Chloride
Aniline
Benzaldehyde
Benzene
Benzoic Acid
Benzyl Acetate
Benzyl Alcohol
Bromine
Bromobenzene
RATING
F
N
N
E
G
N
N
N
N
N
G
G
G
F
N
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
CHEMICAL
Bromoform
Butadiene
n-Butyl Acetate
n-Butyl Alcohol
sec-Butyl Alcohol
tert-Butyl Alcohol
Butyric Acid
Calcium Hydroxide
Calcium Hypochlorite
Carbazole
Carbon Disulfide
Carbon Tetrachloride
Cedarwood Oil
Cellosolve Acetate
Chlorine @ 10% in air
Chlorine @ 10% moist
Chloroacetic Acid
p-Chloroacetophenone
Chloroform
Chromic Acid @ 10%
Chromic Acid @ 50%
Cinnamon Oil
Citric Acid @ 10%
Cresol
Cyclohexane
Decalin
o-Dichlorobenzene
p-Dichlorobenzene
Diethyl Benzene
Diethyl ether
Diethyl Ketone
Diethyl Malonate
Diethylene Glycol
Diethylene Glycol Ethyl Ether
Dimethylformamide
Dimethyl Sulfoxide
1, 4-Dioxane
Dipropylene Glycol
Ether
Ethyl Acetate
Ethyl Alcohol
Ethyl Alcohol @ 40%
Ethyl Benzene
Ethyl Benzoate
Ethyl Butyrate
Ethyl Chloride Liquid
Ethyl Cyanoacetate
Ethyl Lactate
Ethylene Chloride
MAN-PTEXT-HDW
RATING
N
N
N
F
F
F
N
N
N
N
N
N
F
N
G
F
N
N
N
N
N
F
G
N
G
N
N
N
N
N
N
N
F
N
N
N
F
F
N
N
G
G
N
N
N
N
N
N
N
CHEMICAL
Ethylene Glycol
Ethylene Glycol Methyl Ether
Ethylene Oxide
Fluorides
Fluorine
Formaldehyde
Formaldehyde @ 40%
Formic Acid @ 3%
Formic Acid @ 50%
Formic Acid @ 99%
Fuel Oil
Gasoline
Glacial Acetic Acid
Glycerin
n-Heptane
Hexane
Hydrochloric Acid @ 5%
Hydrochloric Acid @ 20%
Hydrochloric Acid @ 35%
Hydrofluoric Acid @ 5%
Hydrofluoric Acid @ 48%
Hydrogen Peroxide @ 5%
Hydrogen Peroxide @ 30%
Hydrogen Peroxide @ 90%
Isobutyl Alcohol
Isopropyl Acetate
Isopropyl Alcohol
Isopropyl Benzene
Kerosene
Lactic Acid @ 3%
Lactic Acid @ 85%
Methoxyethyl Oleate
Methyl Alcohol
Methyl Ethyl Ketone
Methyl Isobutyl Ketone
Methyl Propyl Ketone
Methylene Chloride
Mineral Oil
Nitric Acid @ 10%
Nitric Acid @ 50%
Nitric Acid @ 70%
Nitrobenzene
n-Octane
Orange Oil
Ozone
Perchloric Acid
Perchloroethylene
Phenol Crystals
Phosphoric Acid @ 5%
RATING
F
N
N
E
F
G
G
G
F
G
F
N
E
G
N
E
F
N
F
N
E
E
E
G
N
E
N
E
G
G
N
F
N
N
N
N
G
G
F
N
N
F
F
G
N
N
N
E
81
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
CHEMICAL
RATING
Phosphoric Acid @ 85%
Pine Oil
Potassium Hydroxide @ 1%
Potassium Hydroxide conc.
Propane Gas
Propylene Glycol
Propylene Oxide
Resorcinol sat.
Resorcinol @ 5%
Salicylaldehyde
Salicylic Acid Powder
Salicylic Acid sat.
Salt Solutions Metallic
Silver Acetate
Silver Nitrate
Sodium Acetate sat.
Sodium Hydroxide @ 1%
Sodium Hydroxide @ 50%+
Sodium Hypochlorite @ 15%
Stearic Acid Crystals
CHEMICAL
G
E
N
N
N
F
F
F
F
F
G
G
E
G
E
G
N
N
F
G
Sulfuric Acid @ 6%
Sulfuric Acid @ 20%
Sulfuric Acid @ 60%
Sulfuric Acid @ 98%
Sulfur Dioxide Liquid
Sulfur Dioxide dry
Sulfur Salts
Tartaric Acid
Tetrahydrofuran
Thionyl Chloride
Toluene
Tributyl Citrate
Trichloroethane
Trichloroethylene
Triethylene Glycol
Tripropylene Glycol
Turpentine
Undecyl Alcohol
Urea
Vinylidene Chloride
Xylene
Zinc Stearate
RATING
E
G
F
N
G
G
N
G
N
N
N
N
N
N
G
G
N
F
N
N
N
E
Screen Overlay Cleaning
The Panel screen should be cleaned as needed with warm, soapy water.
82
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Troubleshooting
In this section we will explain how to isolate potential problems. If you cannot
isolate and remedy the problem using the procedures we have outlined below,
call technical support. For a list of PowerText Panel, PowerText Programming
Software, and PLC Driver Error Messages, see Appendix C.
Panel Configuration Problems
PowerText Programming Software is used to create panel applications and to
download/upload panel programs. If you are online with the PowerText Panel
and communication fails, the following error message is displayed:
If you receive this PowerText Programming Software error message, check
the following:
MAN-PTEXT-HDW
1.
On the rear panel of the unit, observe Serial Port Communication
TXD/RXD LEDs while attempting to Upload/Download a program.
Both LEDs should be slowly and alternately flashing to indicate that
the programming PC and the panel are connected. If the TXD
(transmitter) LED is the only one flashing, or if the TXD/RXD LEDs
are NOT alternating between flashes, check to ensure that the
PowerText Panel is set to the Setup (programming) Mode. (To enter
the Setup Mode, press and hold the UP Arrow Button while
simultaneously pressing the DOWN Arrow button.)
2.
Check to ensure that the programming cable (part number CBLPTEXT-001) is properly connected at both ends.
3.
Check that the correct communications port is selected with the Text
Panel Programming Software (i.e., COM1, COM2)
4.
Check the 24 VDC power source and its connections.
5.
After completing steps 1 through 4, above, repeat the procedure to
Upload/Download a program.
83
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
PLC Errors
If you experience communication problems between the Panel and your PLC,
you will receive an error message that is unique to that particular PLC. Look
in the Appendix C of this manual, or the PowerText Programming Software
Help for error messages for your type PLC. Each PLC Help topic lists the
error messages and provides an explanation for each PLC driver. To access
the PLC Help topics, perform the following steps.
a.
b.
c.
d.
Run PowerText Programming Software.
From the Main Menu, click on Help > Help Topics.
Under the Contents tab, find the type PLC you are using (next to a
closed book icon) and click on it to view help topics.
Click on Driver Errors Topic.
You may also notice that the Pushbuttons, Pushbutton LEDs, and/or
Messages are not working, Check the following:
1.
84
Observe the TXD and RXD LEDs on the rear of the panel. If both
LEDs are not steadily flashing or illuminated (depending upon the
baud rate) check to ensure the proper communications cable is
connected securely at both ends.
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
2.
Check the PLC Communication information for the PLC type, protocol,
baud rate, parity, stop bits, and address number. Use the PLC
manual to determine the proper settings.
3.
If you have configured your own cable, verify cable pinout using the
PLC Wiring diagrams provided in Appendix B.
4.
Check the 24 VDC power source.
5.
If connected to a multiplexer, connect the panel directly to the PLC
port.
6.
Verify that the PowerText Panel registers are mapped correctly. Does
the Panel register exist in the PLC? Is the register Read Only? Is the
register Write Only?
Still need Help?
You have two additional sources for more information other than this manual.
Visit our website at www.uticor.net. Our web site contains all of this
information, any new feature releases, technical support, plus much more ...
Call Technical Support, Monday–Friday at 1-800-TEC-ENGR (832-3647) or
FAX us at 1-563-359-9094.
If you have any questions that you can’t find an answer to, give us a call at the
number above and we will be glad to assist you.
MAN-PTEXT-HDW
85
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Warranty Repairs
If your PowerText Panel is under warranty, contact UTICOR Technology @
1-563-359-7501.
Out of Warranty Repairs
If your PowerText Panel is out of warranty, contact UTICOR’s Service
Department for an evaluation of repair costs @ 1-563-359-7501. You can
then decide whether it is more economical to proceed with factory repairs or
purchase a new panel.
86
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
Frequently Asked Questions (FAQs)
MAN-PTEXT-HDW
1.
How do I format an address string when connecting to multiple
PLCs?
Add the PLC station number to the beginning of the address string. Ex:
PLC station is 3 and the address is V2000 the string would look like this,
3-V2000.
2.
Can I convert a project from one Panel type to another?
Yes, to do this simply change the panel type from one to another. This
will keep all address and message information intact. The only exception
is switching from any of the panels to the Set Point panel. This will cause
all messages and addressing to be deleted. Note: Switching panel types
does not create a new project. If you wish to create a new project select
NEW from the FILE menu.
3.
Can I connect multiple panels to a single PLC?
Yes, there are two methods of doing this. The first would be to use the
Multiplexer (P/N UPT-05MUX-001). You can connect up to five panels per
multiplexer, and one multiplexer per serial port. The second method is to
connect one panel per serial port.
4.
What is the maximum number of messages I can have in a project?
The maximum amount of PLC and Local messages is 256.
5.
What are Local Messages?
A Local Message is a text message that is used to provide instructions or
information to the machine operator using a hierarchical file structure.
The operator can scroll through these messages using the arrow keys to
find information pertaining to a particular part of a process.
6.
What are PLC Messages?
A PLC Message is a text message that can be triggered by the PLC to
provide the operator with important instructions, information, or warnings.
By default, PLC Messages will be displayed for 3 seconds before they
can be cleared in order to make sure the operator has a chance to read
the message. (See question 13, below for information on how to disable
this option.) The operator can also view the last PLC Message displayed
by pressing the ESC key.
7.
How many characters can I have per message?
The maximum number of characters per message is 20. This is true for
all messages except folder names. They are limited to 19 because of the
plus "+" or minus "-" sign displayed in front of the folder name.
87
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
8.
I am using a UPT-2X20N-001 panel and I can not access the
password option. How do I do this?
The only panel that can have password protection is the keypad panel
(P/N UPT-2X20K-001). This is because the 2X20K is the only panel that
has a keypad usable for data entry.
9.
What is the maximum number of Embedded Data values I can have
in a project?
The maximum number of Embedded Data values in a project is 300.
10. How do I get my panel into Setup Mode?
To get the panel into Setup Mode press and hold the up arrow key while
simultaneously pressing the down arrow key. To exit Setup Mode, press
the ESC key.
11. How do I get my panel to display PLC Messages?
To display a PLC message, using your ladder logic, place the number of
the PLC Message you wish to display into one of the PLC Message Line
Addresses (up to four if using the 4X20N model). When the message
number is placed in this register the panel will display the message
corresponding with that number.
Example: I want to display PLC Message One on Line One of my panel
display. Using the ladder logic, I write a value of 1 to register V2000,
which is set as PLC Message Line Address One. The panel displays
PLC Message One on Line One of my panel display. The message will
remain on the display until the ESC key is pressed.
12. Why won’t the panel display the same PLC Message twice in a row
on the same message line?
This is because the message line must be reset by either setting the
Line Register to zero, or by changing the value in the Line Register to
some unused PLC Message number.
13. Why do PLC Messages not clear when the ESC key is pressed?
The panel locks out all key presses for 3
seconds after a PLC Message is displayed
in order to ensure the operator has a
chance to read the message. Pressing
ESC 3 seconds after the PLC Message is
displayed will display the Local Message
screen. If you want to disable this feature,
open your project in PowerText
Programming Software and go to the Panel System PLC Address
Setup screen and click in the box in front of PLC Message Delay to
remove the check mark and disable this option.
88
MAN-PTEXT-HDW
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
14. Do the PowerText Panels support discrete addresses?
No, the PowerText Panels do not support discrete addresses. All
addressing for the PowerText Panels must be in Word format.
15. How do I insert a PLC Message?
In order to insert a PLC Message, there must be a gap in the message
numbers. For example, I have PLC Message #1 and PLC Message #3
programmed. If I click on PLC Message #3 and click the INSERT A PLC
MESSAGE button, PLC Message #2 will be inserted between PLC
Messages 1 and 3.
16. Can I renumber PLC Messages?
Yes, you can renumber PLC Messages; however, when changing a
message number to a higher message number, all unused lower
message numbers will be sent as “blank” messages when the project is
transferred to the panel. Blank messages will count towards the
maximum number of allowed messages in a project (256).
17. Can you copy and paste messages?
Yes, you can copy and paste messages. Currently, however, you can
copy or paste only one message at a time. (This may be changed to
multiple message and folders in the future.)
18. It is hard to read the display on my panel. It’s too bright. Is there a
way to adjust the contrast?
Yes, to adjust the contrast on the display, simply place the panel into
Setup Mode. While in Setup Mode you can use the up and down arrow
keys to adjust the contrast.
MAN-PTEXT-HDW
89
POWERTEXT 2X20N, 2X20L, & 4X20N PANELS
This page intentionally left blank.
90
MAN-PTEXT-HDW
Appendix A
In this appendix....
—PowerText Panel Application Worksheets
—Local Message Worksheet
—PLC Message Worksheet
A
APPENDIX A
POWERTEXT PANEL APPLICATION WORKSHEET
PROJECT NAME: _________________
________________________________
PANEL TYPE: ____________________
Multi-Panel System Port No.________
(0–5, or N/A if Single Panel System)
PLC CONFIGURATION:
PLC MANUFACTURER: ____________
PLC Model: _______________________
PLC Protocol: _____________________
PLC Address: _____________________
PLC Timeout: _____________________
Baud Rate: _______________________
Parity: ___________________________
Data Bits: ________________________
Stop Bits: ________________________
Checksum: _______________________
BUTTONS/LEDS
BUTTON ACTION/PANEL ACKNOWLEDGE (BIT WRITE) PLC WORD ______________
* Panel Acknowledge of PLC Release:
Button Action:
Pnl Set/
(PLC Address)
F1
F2
F3
F4
F5
Mom.
Alt.
(PLC Address)
PLC Rel *
ACK F1 _______________
ACK F2 _______________
ACK F3 _______________
ACK F4 _______________
ACK F5 _______________
____________
____________
____________
____________
____________
LED CONTROL/PLC BUTTON RELEASE (BIT READ) PLC WORD _________________
LED Control:
(PLC Address)
LED1
LED2
LED3
LED4
LED5
* PLC Button Release:
By
Button
By Button
& Flash
PLC **
_________
_________
_________
_________
_________
(PLC Address)
REL F1
REL F2
REL F3
REL F4
REL F5
_______________
_______________
_______________
_______________
_______________
Bit 17(Octal) Message Mode
PLC Messages (PLC Words)
Line 1 ___________________________
Line 3 ________________ (4X20N only)
Line 2 ___________________________
Line 4 ________________ (4X20N only)
* Panel Acknowledge and PLC Button Release are only used when using
the Panel Set & PLC Release Button Action.
** LED Control by PLC is the only LED function that uses a PLC Address.
A-2
APPENDIX A
POWERTEXT PANEL APPLICATION WORKSHEET
LOCAL MESSAGES:
Multi-Panel Port #_____
Folder
Message
Folder = 19 characters, Message = 20 characters
Level:
1 2 3 4
DATA 1 __________________________
BCD
Binary
Int 16
Int 32
PLC Decimal
DATA 2 ________
BCD
Int 16
Binary
Int 32
Read Only
Read/Write
Min
Max
DATA 3
BCD
Int 16
Binary
Int 32
Folder
Message
Folder = 19 characters, Message = 20 characters
Level:
1 2 3 4
DATA 1 __________________________
BCD
Binary
Int 16
Int 32
PLC Decimal
DATA 2 ________
BCD
Int 16
Binary
Int 32
Read Only
Read/Write
Min
Max
DATA 3
BCD
Int 16
Binary
Int 32
Folder
Message
Folder = 19 characters, Message = 20 characters
Level:
1 2 3 4
DATA 1 __________________________
BCD
Binary
Int 16
Int 32
PLC Decimal
DATA 2 ________
BCD
Int 16
Binary
Int 32
Read Only
Read/Write
Min
Max
DATA 3
BCD
Int 16
Binary
Int 32
Folder
Message
Folder = 19 characters, Message = 20 characters
Level:
1 2 3 4
DATA 1 __________________________
BCD
Binary
Int 16
Int 32
PLC Decimal
DATA 2 ________
BCD
Int 16
Binary
Int 32
Read Only
Read/Write
Min
Max
DATA 3
BCD
Int 16
Binary
Int 32
A-3
APPENDIX A
