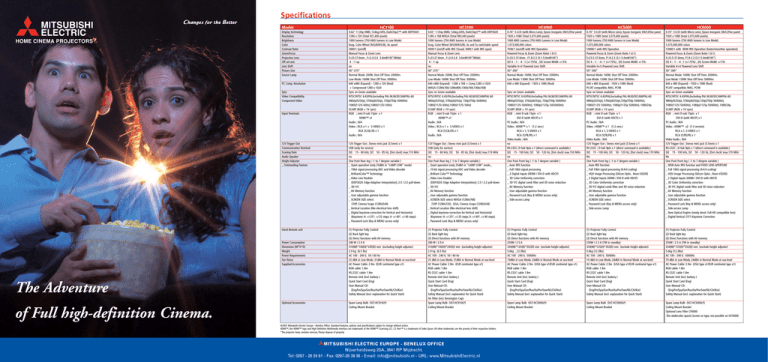

Specifications
Model
HOME CINEMA PROJECTORS
Display Technology
Resolution
Brightness
Color
Contrast Ratio
Zoom/Focus
Projection Lens
Off set axis
Lens Shift
Picture Size
Source Lamp
HC3100
0.65" 1-Chip DMD, 12deg.LVDS, DarkChip3™ with DDP3020
1280 x 768 WXGA (Total 983,040 pixels)
1000 lumens (750 ANSI lumens in Low Mode)
6seg. Color Wheel (R/G/B/R/G/B), 4x and 5x switchable speed
4500:1 (on/off with IRIS Closed, 3000:1 with IRIS open)
Manual Focus & Zoom Lens
f=23-27.6mm , F=2.4-2.6 3.6m@100"(Wide)
4 : -1 up
no
40"-275"
Normal Mode: 200W, Shut Off Time: 2000Hrs
Low Mode: 160W: Shut Off Time: 3000Hrs
640 x480 (Expand) - 1280 x 768 + Comp.1280 x 1024
WXGA (1280x768,1280x800,1360x768,1366x768)
Sync on Green available
NTSC/NTSC 4.43/PAL(including PAL-M,N)/SECAM/PAL-60
480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz)
1080i(1125i 60Hz),1080i(1125i 50Hz)
SCART (RGB + 1V sync)
RGB ; mini D-sub 15pin x 1
HDMI™ x1
Audio ; N/A
Video ; RCA x 1 + S-VIDEO x 1
RCA (Y,CB,CR) x 1
Audio ; N/A
12V Trigger Out
Communication Terminal
Scaning Rate
Audio Speaker
Height Adjuster
_ Outstanding Feature
12V Trigger Out ; Stereo mini jack (3.5mm) x 1
USB (only for service)
[H] 15 - 80 kHz, [V] 50 - 85 Hz, [Dot clock] max.110 MHz
no
One Push Rear leg ( -1 to 7 dergree variable )
_ Quiet operation (only 25dBA in "LAMP LOW" mode)
_ 10bit signal processing ADC and Video decoder
_ BrilliantColor™ Technology
_ Video Line Doubler
(DDP3020: Edge Adaptive Interpolation); 2:3 / 2:2 pull-down
_ 3D-Y/C
_ AV Memory function
_ User adjustable gamma function
_ SCREEN SIZE select:
720P, Cinema Scope (1280x544)
_ Vertical Location (like electrical lens shift)
_ Digital keystone-correction for Vertical and Horizontal
(Keystone: H: +/-25°, +/-25 steps, V: +/-40°, +/-40 steps)
_ Password Lock (Key & MENU access only)
12V Trigger Out ; Stereo mini jack (3.5mm) x 1
USB (only for service)
[H] 15 - 80 kHz, [V] 50 - 85 Hz, [Dot clock] max.110 MHz
no
One Push Rear leg ( -1 to 7 dergree variable )
_ Quiet operation (only 25dBA in "LAMP LOW" mode._
_ 10-bit signal processing ADC and Video decoder
_ Brilliant Color™ Technology
_ Video Line Doubler
(DDP3020: Edge Adaptive Interpolation); 2:3 / 2:2 pull-down
_ 3D-Y/C
_ AV Memory function
_ User adjustable gamma function
_ SCREEN SIZE select: WXGA (1280x768)
720P (1280x720) , XGA, Cinema Scope (1280x544)
_ Vertical Location (like electrical lens shift)
_ Digital keystone-correction for Vertical and Horizontal
(Keystone: H: +/-25°, +/-25 steps, V: +/-40°, +/-40 steps)
_ Password Lock (Key & MENU access only)
Hand Remote unit
(1) Projector Fully Control
(2) Back light key
(3) Direct functions with AV memory
280 W / 2.9 A
310(W)*100(H)*245(D) mm (excluding height adjuster)
2.9 kg (6.5 lbs)
AC 100 - 240 V, 50 / 60 Hz
25 dBA in Low Mode, 31dBA in Normal Mode at sea-level
AC Power Cable: 2.9m (EUR continetal type x1)
RGB cable: 1.8m
RS-232C cable: 1.8m
Remote Unit (incl. battery )
Quick Start Card (Eng)
User Manual CD:
(Eng/Fre/Spa/Ger/Rus/Ita/Por/Swe/NL/Chi/Kor)
Safety Manual (incl. explanation for Quick Start)
(1) Projector Fully Control
(2) Back light key
(3) Direct functions with AV memory
280 W / 2.9 A
310(W)*100(H)*245(D) mm (excluding height adjuster)
2.9 kg (6.5 lbs)
AC 100 - 240 V, 50 / 60 Hz
25 dBA in Low Mode, 31dBA in Normal Mode at sea-level
AC Power Cable: 2.9m (EUR continetal type x1)
RGB cable: 1.8m
RS-232C cable: 1.8m
Remote Unit (incl. battery )
Quick Start Card (Eng)
User Manual CD:
(Eng/Fre/Spa/Ger/Rus/Ita/Por/Swe/NL/Chi/Kor)
Safety Manual (incl. explanation for Quick Start)
Air Filter (incl. Kensington Cap)
Spare Lamp Bulb (VLT-HC910LP)
Ceiling Mount Bracket
PC Comp. Resolution
Sync
Video Compatibility
Component Video
Input Terminals
Power Consumption
Dimension (W*H*D)
Weight
Power Requirements
Fan Noise
Supplied Accessories
The Adventure
Optional Accessories
of Full high-definition Cinema.
HC1100
0.62" 1-Chip DMD, 12deg.LVDS, DarkChip2™ with DDP3020
1280 x 720 (Total 921,600 pixels)
1000 lumens (750 ANSI lumens in Low Mode)
6seg. Color Wheel (R/G/B/R/G/B), 4x speed
3000:1 (on/off)
Manual Focus & Zoom Lens
f=23-27.6mm , F=2.4-2.6 3.6m@100"(Wide)
4 : -1 up
no
40"-275"
Normal Mode: 200W, Shut Off Time: 2000Hrs
Low Mode: 160W: Shut Off Time: 3000Hrs
640 x480 (Expand) - 1280 x 720 (Real)
+ Compressed 1280 x 1024
Sync on Green available
NTSC/NTSC 4.43/PAL(including PAL-M,N)/SECAM/PAL-60
480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz)
1080i(1125i 60Hz),1080i(1125i 50Hz)
SCART (RGB + 1V sync)
RGB ; mini D-sub 15pin x 1
HDMI™ x1
Audio ; N/A
Video ; RCA x 1 + S-VIDEO x 1
RCA (Y,CB,CR) x 1
Audio ; N/A
Spare Lamp Bulb (VLT-HC910LP)
Ceiling Mount Bracket
©2007 Mitsubishi Electric Europe - Benelux Office. Standard features, options and specifications subject to change without notice.
HDMI™, the HDMI™ logo and High Definition Multimedia interface are trademarks of the HDMI™ Licensing LLC. C2 Fine™ is a trademark of Seiko Epson. All other trademarks are the proerty of their respective holders.
*The projector lamp contains mercury. Please dispose of properly.
MITSUBISHI ELECTRIC EUROPE - BENELUX OFFICE
Nijverheidsweg 23A, 3641 RP Mijdrecht.
Tel: 0297 - 28 24 61 - Fax: 0297-28 39 36 - Email: info@mitsubishi.nl - URL: www.MitsubishiElectric.nl
HC4900
0.74" 3-LCD (with Micro Lens), Epson Inorganic D6/C2Fine panel
1920 x 1080 (Total 2,073,600 pixels)
1000 ANSI Lumens (750 ANSI Lumens in Low Mode)
1,073,000,000 colors
7500:1 (on/off) with IRIS Operation
Powered Focus & Zoom (Zoom Ratio 1.6:1)
f=23.5-37.6mm , F1.8-2.3 (3.1-5.0m@100")
(V) 4 : -1 - -4 : 1 (+/-75%) , (H) Screen Width +/-5%
Variable H+V Powered Lens Shift
50"-300"
Normal Mode: 160W, Shut Off Time: 2000Hrs
Low Mode: 130W: Shut Off Time: 5000Hrs
640 x 480 (Expand) - 1920 x 1080 (Real)
HC5000
HC6000
0.74" 3-LCD (with Micro Lens), Epson Inorganic D6/C2Fine panel
1920 x 1080 (total 2,073,600 pixels),
1000 lumens (750 ANSI lumens in Low Mode)
1,073,000,000 colors
10000:1 with IRIS Operation
Powered Focus & Zoom (Zoom Ratio 1.6:1)
f=23.5-37.6mm, F1.8-2.3 (3.1-5.0m@100")
(V) 4 : -1 - -4 : 1 (+/-75%) , (H) Screen Width +/-5%
Variable H+V Powered Lens Shift
50"-300"
Normal Mode: 160W, Shut Off Time: 2000Hrs
Low Mode: 130W: Shut Off Time: 5000Hrs
640 x 480 (Expand) - 1920 x 1080 (Real)
PC/AT compaitble, MAC, PC98
Sync on Green available
NTSC/NTSC 4.43/PAL(including PAL-M,N)/SECAM/PAL-60
480i/p(525i/p), 576i/p(625i/p),720p(750p 50/60Hz),
1080i(1125i 50/60Hz), 1080p(1125p 50/60Hz), 1080/24p
SCART (RGB + 1V sync)
RGB ; mini D-sub 15pin x 1
DVI-D (with HDCP) x 1
PC Audio ; N/A
Video ; HDMI™ x 1 (1.2 vers.)
RCA x 1, S-VIDEO x 1
RCA (Y,PB,PR) x 1
Video Audio ; N/A
12V Trigger Out ; Stereo mini jack (3.5mm) x 1
RS-232C ; D-Sub 9pin x 1 (direct command is available.)
[H] 15 - 100 kHz, [V] 50 - 120 Hz, [Dot clock] max.170 MHz
No
One Push Front leg ( -1 to 7 dergree variable )
_ Auto IRIS function
_ Full 10bit signal processing (4:4:4 scaling)
_ HQV Image Processing (Silicon Optix , Reon-VX200)
_ 2 Digital Inputs (HDMI / DVI-D with HDCP)
_ 3D Color Uniformity correction
_ 3D Y/C digital comb filter and 3D noise reduction
_ AV Memory function
_ User adjustable gamma function
_ SCREEN SIZE select
_ Password Lock (Key & MENU access only)
_ Side-access Lamp
0.74" 3-LCD (with Micro Lens), Epson Inorganic D6/C2Fine panel
1920 x 1080 (total 2,073,600 pixels),
1000 lumens (750 ANSI lumens in Low Mode)
1,073,000,000 colors
13000:1 with NEW IRIS Operation (faster/smoother operation)
Powered Focus & Zoom (Zoom Ratio 1.6:1)
f=23.5-37.6mm, F1.8-2.3 (3.1-5.0m@100")
(V) 4 : -1 - -4 : 1 (+/-75%) , (H) Screen Width +/-5%
Variable H+V Powered Lens Shift
50"-300"
Normal Mode: 160W, Shut Off Time: 2000Hrs
Low Mode: 130W: Shut Off Time: 5000Hrs
640 x 480 (Expand) - 1920 x 1080 (Real)
PC/AT compaitble, MAC, PC98
Sync on Green available
NTSC/NTSC 4.43/PAL(including PAL-M,N)/SECAM/PAL-60
480i/p(525i/p), 576i/p(625i/p),720p(750p 50/60Hz),
1080i(1125i 50/60Hz), 1080p(1125p 50/60Hz), 1080/24p
SCART (RGB + 1V sync)
RGB ; mini D-sub 15pin x 1
DVI-D (with HDCP) x 1
PC Audio ; N/A
Video ; HDMI™ x2 (1.3 version)
RCA x 1, S-VIDEO x 1
RCA (Y,PB,PR) x 1
Video Audio ; N/A
12V Trigger Out ; Stereo mini jack (3.5mm) x 1
RS-232C ; D-Sub 9pin x 1 (direct command is available.)
[H] 15 - 100 kHz, [V] 50 - 120 Hz, [Dot clock] max.170 MHz
No
One Push Front leg ( -1 to 7 dergree variable )
_ NEW Auto IRIS function and FIXED LENS APERTURE
_ Full 10bit signal processing (4:4:4 scaling)
_ HQV Image Processing (Silicon Optix , Reon-VX200)
_ 2 Digital Inputs (HDMI / DVI-D with HDCP)
_ 3D Color Uniformity correction
_ 3D Y/C digital comb filter and 3D noise reduction
_ AV Memory function
_ User adjustable gamma function
_ SCREEN SIZE select
_ Password Lock (Key & MENU access only)
_ Side-access Lamp
_ New Optical Engine (newly devel. Full-HD compatible lens)
_ Digital Vertical (15°) Keystone Correction
(1) Projector Fully Control
(2) Back light key
(3) Direct functions with AV memory
250W / 2.5 A
334(W)*125(H)*352(D) mm (exclude height adjuster)
5.6kg _12.3lbs)
AC 100 - 240 V, 50/60Hz
19dBA in Low Mode, 24dBA in Normal Mode at sea-level
AC Power Cable: 2.9m (USA type x1/EUR continetal type x1)
RGB cable: 1.8m
RS-232C cable 1.8m
Remote Unit (incl. battery )
Quick Start Card (Eng)
User Manual CD:
(Eng/Fre/Spa/Ger/Rus/Ita/Por/Swe/NL/Chi/Kor)
Safety Manual (incl. explanation for Quick Start)
(1) Projector Fully Control
(2) Back light key
(3) Direct functions with AV memory
250W / 2.5 A (7W in standby)
334(W)*125(H)*352(D) mm (exclude height adjuster)
5.6kg (12.3lbs)
AC 100 - 240 V, 50/60Hz
19 dBA in Low Mode, 24dBA in Normal Mode at sea-level
AC Power Cable: 2.9m (USA type x1/EUR continetal type x1)
RGB cable: 1.8m
RS-232C cable 1.8m
Remote Unit (incl. battery )
Quick Start Card (Eng)
User Manual CD:
(Eng/Fre/Spa/Ger/Rus/Ita/Por/Swe/NL/Chi/Kor)
Safety Manual (incl. explanation for Quick Start)
(1) Projector Fully Control
(2) Back light key
(3) Direct functions with AV memory
250W / 2.5 A (7W in standby)
334(W)*125(H)*352(D) mm (exclude height adjuster)
5.6kg (12.3lbs)
AC 100 - 240 V, 50/60Hz
19 dBA in Low Mode, 24dBA in Normal Mode at sea-level
AC Power Cable: 2.9m (USA type x1/EUR continetal type x1)
RGB cable: 1.8m
RS-232C cable 1.8m
Remote Unit (incl. battery )
Quick Start Card (Eng)
User Manual CD:
(Eng/Fre/Spa/Ger/Rus/Ita/Por/Swe/NL/Chi/Kor)
Safety Manual (incl. explanation for Quick Start)
Spare Lamp Bulb (VLT-HC5000LP)
Ceiling Mount Bracket
Spare Lamp Bulb (VLT-HC5000LP)
Ceiling Mount Bracket
Spare Lamp Bulb (VLT-HC5000LP)
Ceiling Mount Bracket
Optional Lens Filter CF6000
(for widercolor space) (screw on type, not possible on HC5000)
Sync on Green available
NTSC/NTSC 4.43/PAL(including PAL-M,N)/SECAM/PAL-60
480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz)
1080i(1125i 50/60Hz), 1080p(1125p 24/50/60Hz)
SCART (RGB + 1V sync)
RGB ; mini D-sub 15pin x 1
DVI-D (with HDCP) x 1
PC Audio ; N/A
Video ; HDMI™ x 1 (1.2 vers.)
RCA x 1, S-VIDEO x 1
RCA (Y,PB,PR) x 1
Video Audio ; N/A
no
RS-232C; D-Sub 9pin x 1 (direct command is available.)
[H] 15 - 100 kHz, [V] 50 - 120 Hz, [Dot clock] max.150 MHz
no
One Push Front leg ( -1 to 7 dergree variable )
_ Auto IRIS function
_ Full 10bit signal processing
_ 2 Digital Inputs (HDMI / DVI-D with HDCP)
_ 3D Color Uniformity correction
_ 3D Y/C digital comb filter and 3D noise reduction
_ AV Memory function
_ User adjustable gamma function
_ Password Lock (Key & MENU access only)
_ Side-access Lamp
The Finest in Black Levels Inspired
by Mitsubishi Innovation
HC6000
Home theater reaches a
new level.
The full-HD HC6000 projector from Mitsubishi
Electric sets an entirely new standard in home
theater enjoyment: HC6000 quality! The
HC6000 creates images of such extraordinary
high definition that your movies will have
more intense colors, sharper details and deeper contrasts than ever before.
The combination of HQV technology, a nextgeneration automatic iris and an optimized
aperture, help produce an outstanding contrast ratio of 13,000:1 and even richer black
tones. Thanks to the motorized focus and
zoom as well as the gradually adjustable Lens
Shift, the HC6000 can adapt its picture projection to perfectly match any home-viewing
space. And because first-rate visuals should
go hand-in-hand with first-rate sound the
HC6000 is barely audible, making it one of
the quietest projectors in its class.
Highlights
Full-HD resolution (1920 x 1080 pixels)
24p reproduction
1000 ANSI lumens
Contrast ratio: 13.000:1
2 HDMI interfaces (vers. 1.3)
Nearly soundless 19 dB
Lamp life up to 5000 hours
Lens Shift (horizontal & vertical)
HQV technology from Silicon Optix
HC5000
HC4900
Experience the thrill of
home cinema in
full HD resolution.
Outstanding image sharpness - outstanding value.
Only a full-HD home theater projector can deliver such
razorsharp and crisp images in 16:9 movie format that
even the tiniest detail becomes crystal-clear. The
HC4900 by Mitsubishi Electric is surprisingly affordable
for a projector in its class – the price is just as remarkable as the visual quality it brings to your screen.
Transform your home into a cinema! The HC5000 by
Mitsubishi Electric is not only one of the world’s first
LCD projectors with full HD resolution, it’s also one of
the quietest projectors on the market. Its ultra-low 19
dB operating noise means you can now enjoy the ultimate home cinema experience. The HC5000’s picture
quality will amaze you, too: a full HD resolution of
1080p and a contrast ratio of 10,000:1 guarantee realistic and vivid images.
Using innovative high-definition LCD technology
Mitsubishi Electric has developed a projector showing
native colors that will really bring your pictures to life.
High-performance HQV technology from Silicon Optix
optimizes the video processing, while horizontal and
vertical lens shift makes this projector an uncomplicated and flexible center point for your home cinema.
Highlights
Full HD resolution (1920 x 1080 pixels)
1000 ANSI lumens
Contrast ratio: 10.000:1
Nearly soundless 19 dB
Lamp life up to 5000 hours
Lens Shift (horizontal & vertical)
HQV technology from Silicon Optix
The HC4900 features an automatic iris and Lens Shift
function which provide optimum viewing fl exibility in
any room.
And its contrast ratio of 7500:1 guarantees excellent
picture quality. So that nothing will distract from the
viewing experience, the projector operates at an ultraquiet 19 dB noise level. Its lamp life of up to 5000
hours means that you can enjoy your home theater for
a very long time without having to change the lamp.
And when it fi nally needs replacing, it’s as simple as
child’s play thanks to the side-access lamp design.
HC3100
HC1100
Experience the perfection of
second-generation home
cinema.
The perfect introduction to
HD home cinema.
The legend has a successor: The HDready DLP® projector HC3100 picks up where the legendary HC3000 left
off and impresses by improved and highly innovative
new features.
The new DMD DarkChip3™ provides an amazing contrast ratio of 4500:1 and the 720p resolution delivers
pictures that are incredibly clear and vivid, so lifelike as
if they were real. The motorized IRIS function rounds
off your home cinema experience with a black level
that is exceedingly intense. The low operating noise of
25 dB, an adjustable 6-segment color wheel and a
lamp life of up to 3000 hours make this projector
exceptionally reliable and easy to use.
Believe your eyes! Experience the enjoyment of home
cinema made perfect..
Highlights
DLP® technology
Resolution: 1280 x 768 pixels
1000 ANSI lumens
Contrast ratio: 4500:1
BrilliantColor™
Digital Keystone Correction ( horizontal & vertical)
Low fan noise of 25 dB
6-segment color wheel (4/5-speed)
Lamp life up to 3000 hours
Put Movies and Sports on the Big Screen, by Mitsubishi Projectors.
The HC1100 compromises in only one thing – the price,
but not in picture quality. You’ll enjoy the real home
cinema experience with innovative DLP® technology,
DarkChip2™ and HDready resolution for crystal clear
and detailed images. The 6-segment color wheel and
BrilliantColor™ technology deliver unbelievably bright,
true-to-life colors. With selectable picture formats,
extremely low 25 dB fan noise and a lamp life of up to
3000 hours, the HC1100 is the embodiment of convenience, comfort and reliability.
The HC1100 gives you all the advantages of a big projector at a small price. It’s the perfect introduction to
HD viewing.
Highlights
Full-HD resolution (1920 x 1080 pixels)
1000 ANSI lumens
Contrast ratio: 7.500:1
Nearly soundless 19 dB
Lamp life up to 5000 hours
Lens Shift (horizontal & vertical)
Highlights
DLP® technology
Resolution: 1280 x 720 pixels
1000 ANSI lumens
Contrast ratio: 3000:1
BrilliantColor™
Digital Keystone Correction ( horizontal & vertical)
Low fan noise of 25 dB
Lamp life up to 3000 hours
