APPROXIMATE internet speeds

EDGE / GPRS

3G wifi

ETHERNET

0 mbps Speed approximation 100 mbps

appendix

° BRCK < NAME > : The default name of your BRCK, where < NAME > is a randomly generated code for setup

° Browser : A software application for presenting resources on the World Wide Web.

The major web browsers are Google Chrome, Mozilla Firefox, Internet Explorer, Opera, Safari & Lynx

° Status Light : The top guide light on your BRCK (fig A - 1)

° AUX USB : USB slot to connect external devices eg: phone, tablets etc - 500mA Max (fig A - 3)

° Ethernet Port : Ethernet slot used to connect an ethernet cable (RJ45 cable) to another router (fig A - 4)

° SIM Port : SIM card slot used to Insert a data enabled SIM card (fig A - 5)

° Power Micro-USB Port : Micro-USB slot used to charge the BRCK using the provided USB cable (fig A - 5)

° Cell RP-SMA : Antenna expansion port (attach antenna for better coverage) (fig A - 6)

° GPIO connection : The bottom port used to connect external devices (fig A - 7)

Warranty : 6 month warranty against defects in materials and workmanship.

For more information see http://www.brck.com/warranty

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference

2. This device must accept any interference received, including interference that may cause undesired operation.

BRCK.com © All rights reserved. BRCK is a product of Ushahidi, Inc.

®

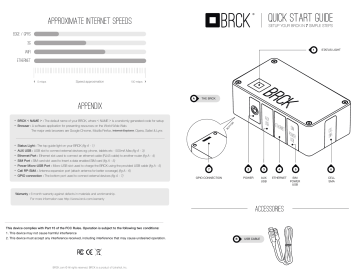

QUICK START GUIDE

SETUP YOUR BRCK IN 7 SIMPLE STEPS

A THE BRCK

BOTTOM

AUX

USB

ETHERNET

SIM

POWER

USB

7

GPIO CONNECTION

2

CELL

SMA

POWER

3

AUX

USB

4 5

ETHERNET SIM

POWER

USB

accessories

B USB CABLE

1 STATUS LIGHT

CELL

SMA

6

CELL

SMA

1



Setting up your first BRCK should take you about 10 minutes to get started, following these 7 steps below

Plug in your Brck to power

Connect the USB power cable to your BRCK

2

Turn on your BRCK

On the side of the BRCK press the power button  to turn on your BRCK

Micro-USB port

( fig A : 5 )



USB Port 

5

Signup or login

Setup to a new account or login to an already existing profile

 





  http://my.brck.com

 [email protected]

.........

SIGN UP

6

Setup BRCK’S wiFI name & password

Configure your BRCK’S WiFi in the Preferences section of your BRCK’s Dashboard

 







 http://my.brck.com

 mybrck<name>

.........

UPDATE

{

3

Connect to WiFi signal

On your computer, smartphone or tablet search for

4

go to

http://my.brck.com

on a browser

( Chrome, Firefox, Safari, Internet Explorer )

 Not connected?

Make sure you have either plugged in an Ethernet cable, look for another WiFi connection, or insert a SIM card with data enabled.





 http://my.brck.com



INTERNET

Ethernet WiFi SIM BRCK Net

 



7 Yay!

You are connected

Connect your devices with your BRCK’s WiFi signal

(maximum 20)



AUX

USB

ETHERNET

SIM

POWER

USB

CELL

SMA

 Having trouble connecting?

visit : my.brck.com/help.
