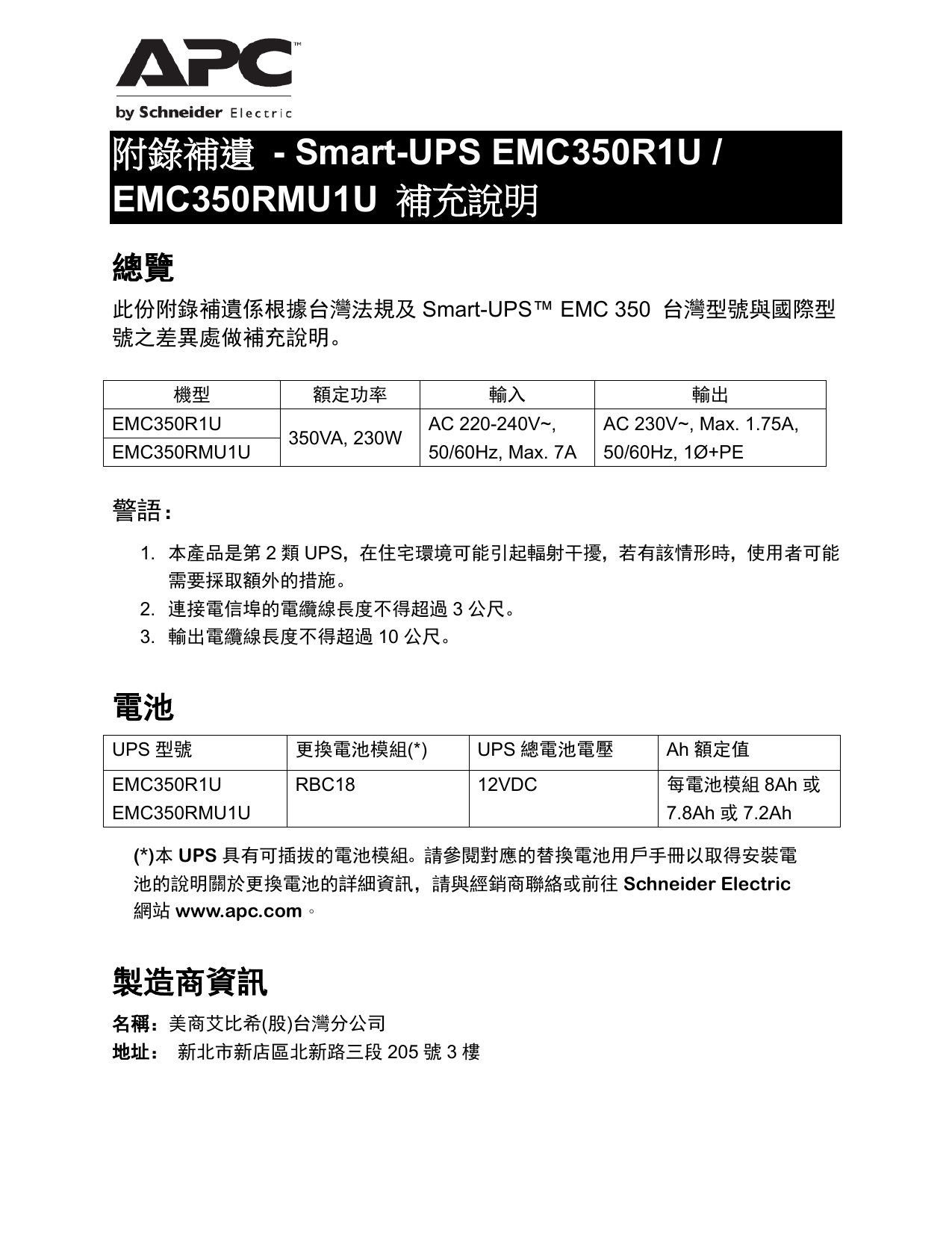

附錄補遺 - Smart-UPS EMC350R1U /
EMC350RMU1U 補充說明
總覽
此份附錄補遺係根據台灣法規及 Smart-UPS ™ EMC 350 台灣型號與國際型
號之差異處做補充說明。
機型
EMC350R1U
EMC350RMU1U
額定功率
350VA, 230W
輸入
AC 220-240V~,
50/60Hz, Max. 7A
輸出
AC 230V~, Max. 1.75A,
50/60Hz, 1Ø +PE
警語:
1. 本產品是第 2 類 UPS ,在住宅環境可能引起輻射干擾,若有該情形時,使用者可能
需要採取額外的措施。
2. 連接電信埠的電纜線長度不得超過 3 公尺。
3. 輸出電纜線長度不得超過 10 公尺。
電池
UPS 型號
EMC350R1U
EMC350RMU1U
更換電池模組
RBC18
(*) UPS 總電池電壓
12VDC
Ah 額定值
每電池模組 8Ah 或
7.8Ah
或 7.2Ah
(*) 本 UPS 具有可插拔的電池模組。請參閱對應的替換電池用戶手冊以取得安裝電
池的說明關於更換電池的詳細資訊,請與經銷商聯絡或前往 Schneider Electric
網站 www.apc.com
。
製造商資訊
名稱:美商艾比希 ( 股 ) 台灣分公司
地址: 新北市新店區北新路三段 205 號 3 樓
後部面板功能說明
主電源輸入 : 連接主電源之輸入電源線。
電源輸出 : 連接輸出電源線。
過電流保護器 : 電流過大時動作,按壓重置。
過電流保護器 : 電流過大時動作,按壓重置。
電源輸出 : 連接輸出電源線。
輔助電源輸入 : 連接輔助電源之輸入電源線。
不適用 : 此介面不提供介面纜線予使用者使用。
不適用 : 此介面不提供介面纜線予使用者使用。
不適用 : 此介面不提供介面纜線予使用者使用。
EMC350R1U / EMC350RMU1U
限用物質含有情況標示說明
設備名稱: 不斷電系統
UPS
Equipment name:
單元
Unit
鉛
Lead
(Pb)
限用物質及其化學符號
Restricted substances and its chemical symbols
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent chromium
(Cr +6 )
多溴聯苯
Polybrominate d biphenyls
(PBB)
多溴二苯醚
Polybrominated diphenyl ethers
(PBDE)
電子元件
Electronics
塑膠料件
Plastic parts
金屬料件
Metal Parts
接觸器
Contacts
線材
Cables and cabling accessories
─
○
─
○
─
○
○
○
○
○
○
○
○
─
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
備考 1.
“ 超出 0.1 wt %” 及 “ 超出 0.01 wt %” 係指限用物質之百分比含量超出百分比
含量基準值。
Note 1: “Exceeding 0.1 wt%” and “exceeding 0.01 wt%” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.
備考 2.
“ ○ ” 係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2: “ ○ ” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
備考 3.
“ - ” 係指該項限用物質為排除項目。
Note 3: The “−“ indicates that the restricted substance corresponds to the exemption.
ZT 990-91137
03/2018
