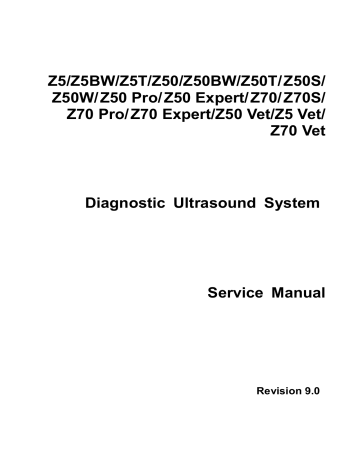

Z5/Z5BW/Z5T/Z50/Z50BW/Z50T/ Z50S/
Z50W/ Z50 Pro/ Z50 Expert/ Z70/ Z70S/
Z70 Pro/ Z70 Expert/Z50 Vet/Z5 Vet/
Z70 Vet
Diagnostic Ultrasound System
Service Manual
Revision 9.0
Table of Content
i
Power Output of the Power Supply module and Supporting Function Distribution .... 4-11
ii
iii
Appendix A ELECTRICAL SAFETY INSPECTION....................................................A-1
iv
Revision History
Mindray may revise this publication from time to time without written notice.
Revision Date Reason for Change
1.0
2.0
3.0
2019.06
2019.08
2020.02
Initial release
Update the probe board FRU and add CPU Module FRU in chapter 7.
Update monitor assembly procedure and relevant FRUs
4.0
5.0
6.0
7.0
2020.03
2020.05
2020.08
2021.10
Add new models and relevant FRUs
Add FRUs of UMT-170
Add FRUs of hard disk for FDA region
Update the PC module and control panel FRUs
8.0 2021.11 Upgrade the FRU table
9.0 2022.11 Upgrade the monitor and front cover FRU
© 2022 Shenzhen Mindray Bio-medical Electronics Co., Ltd. All Rights Reserved.
I
Intellectual Property Statement
SHENZHEN MINDRAY BIO-MEDICAL ELECTRONICS CO., LTD. (hereinafter called Mindray) owns the intellectual property rights to this Mindray product and this manual. This manual may referring to information protected by copyright or patents and does not convey any license under the patent rights or copyright of Mindray, or of others.
Mindray intends to maintain the contents of this manual as confidential information. Disclosure of the information in this manual in any manner whatsoever without the written permission of Mindray is strictly forbidden.
Release, amendment, reproduction, distribution, rental, adaptation, translation or any other derivative work of this manual in any manner whatsoever without the written permission of Mindray is strictly forbidden.
, , , , , BeneView, WATO,
BeneHeart, are the trademarks, registered or otherwise, of Mindray in China and other countries. All other trademarks that appear in this manual are used only for informational or editorial purposes. They are the property of their respective owners.
Applicable for
This service manual is applicable for the service engineers, authorized service personnel and service representatives of this ultrasound system.
II
Statement
This service manual describes the product according to the most complete configuration; some of the content may not apply to the product you are responsible for. If you have any questions, please contact Mindray Customer Service Department.
Do not attempt to service this equipment unless this service manual has been consulted and is understood. Failure to do so may result in personnel injury or product damage.
Responsibility on the Manufacturer
Party
Mindray is responsible for the effects on safety, reliability and performance of this product, only if:
⚫ All installation operations, expansions, changes, modifications and repairs of this product are conducted by Mindray authorized personnel;
⚫ The electrical installation of the relevant room complies with the applicable national and local requirements;
⚫ The product is used in accordance with the instructions for use.
Mindray's obligation or liability under this warranty does not include any transportation or other charges or liability for direct, indirect or consequential damages or delay resulting from the improper use or application of the product or the use of parts or accessories not approved by Mindray or repairs by people other than Mindray authorized personnel.
This warranty shall not extend to:
⚫ Any Mindray product which has been subjected to misuse, negligence or accident;
⚫ Any Mindray product from which Mindray's original serial number tag or product identification markings have been altered or removed;
⚫ Any products of any other manufacturers.
WARNING:
It is important for the hospital or organization that employs this equipment to carry out a reasonable service/maintenance plan.
Neglect of this may result in machine breakdown or injury of human health.
Customer Service Department
Manufacturer:
Address:
Website:
E-mail Address:
Tel:
Fax:
Shenzhen Mindray Bio-Medical Electronics Co., Ltd.
Mindray Building,Keji 12th Road South,High-tech industrial park,Nanshan,Shenzhen 518057,P.R.China www.mindray.com [email protected]
+86 755 81888998
+86 755 26582680
III
1
Preface
This chapter describes important issues related to safety precautions, as well as the labels and icons on the ultrasound machine.
1.1 Meaning of Signal Words
In this operator’s manual, the signal words DANGER , WARNING , CAUTION and
NOTE are used regarding safety and other important instructions. The signal words and their meanings are defined as follows. Please understand their meanings clearly before reading this manual.
Signal word
DANGER
WARNING
CAUTION
NOTE
Meaning
Indicates death or serious injury may occur imminently in this hazardous situation if not avoided.
Indicates death or serious injury may occur potentially in this hazardous situation if not avoided.
Indicates minor or moderate injury may occur potentially in this hazardous situation if not avoided.
Indicates property damage may occur potentially in this hazardous situation if not avoided.
1.2 Meaning of Symbols
The meaning and location of the safety symbols and warning labels on the ultrasound machine are described in the following tables, please read them carefully before using the system.
1.2.1 Meaning of Safety Symbols
Symbol Meaning Location
Type-BF applied part
The ultrasound probes connected to this system are type-BF applied parts.
Caution
Above the IO panel
On the rear panel
Preface 1-1
1.2.2 Warning Labels
No.
1.
Warning Labels Meaning
Please carefully read this manual before use device.
2. The following labels are available when the system works with the mobile trolley. a. Do not place the device on a sloped surface. Otherwise the device may slide, resulting in personal injury or the device malfunction. Two persons are required to move the device over a sloped surface. b. Do not sit on the device. c. DO NOT push the device. When the casters are locked.
1.2.3 General Symbols
This system uses the symbols listed in the following table, and their meanings are explained as well.
Symbol Meaning Location
Equipotentiality
Power button
Power panel
Upper right corner on the control panel
Network port
USB port
Video output IO panel
VGA port
Remote port
VGA signal output
AC indicator Lower left corner on the control
1-2 Preface
panel
Battery indicator
Standby indicator
Hard disk indicator
Probe port A
Probe port B
Probe port C
This product is provided with a CE marking in accordance with the regulations stated in Council
Directive 93 / 42 / EEC concerning
Medical Devices. The number adjacent to the CE marking (0123) is the number of the EU-notified body certified for meeting the requirements of the Directive.
Lower right corner on the control panel
Rear panel
Preface 1-3
1.3 Safety Precautions
Please read the following precautions carefully to ensure the safety of the patient and the operator when using the probes.
DANGER
Do not operate this system in an atmosphere containing flammable or explosive gases such as anesthetic gases, oxygen, and hydrogen or explosive fluid such as ethanol because an explosion may occur.
1.3.1 Electric safety
WARNING:
CAUTION:
1. Do connect the power plug of this system and power plugs of the peripherals to wall receptacles that meet the ratings indicated on the rating nameplate. Using a multifunctional receptacle may affect the system grounding performance, and cause the leakage current to exceed safety requirements.
2.
Do not use any cables other than the cables provided with the device by Mindray.
3. Use the cable provided with this system to connect the printer.
Other cables may result in electric shock.
4.
Disconnect the AC power before you clean or uninstall the ultrasound machine, otherwise, electric shock may result.
5. Do not use this system simultaneously with equipment such as an electrosurgical unit, high-frequency therapy equipment, or a defibrillator, etc.; otherwise electric shock may result.
6. This system is not water-proof. If any water is sprayed on or into the system, electric shock may result.
1. DO NOT connect or disconnect the system ’s power cord or its accessories (e.g., a printer or a recorder) without turning OFF the power first. This may damage the system and its accessories or cause electric shock.
2. Avoid electromagnetic radiation when perform performance test on the ultrasound system.
3. I n an electrostatic sensitive environment, don’t touch the device directly. Please wear electrostatic protecting gloves if necessary.
4. You should use the ECG leads provided with the ECG module.
Otherwise it may result in electric shock.
1-4 Preface
1.3.2 Mechanical Safety
WARNING:
1. When moving the system, you should first power off the system, fold the LCD display, disconnect the system from other devices (including probes) and disconnect the system from the power supply.
2. Do not subject the probes to knocks or drops. Use of a defective probe may cause electric shock to the patient.
CAUTION:
1. Do not expose the system to excessive vibration (during the transportation) to avoid device dropping, collision, or mechanical damage.
2. When you place the system on the mobile trolley and move them together, you must secure all objects on the mobile trolley to prevent them from falling. Otherwise you should separate the system from the mobile trolley and move them individually.
When you have to move the system with the mobile trolley upward or downward the stairs, you must separate them first and then move them individually.
3. Do not move the ultrasound system if the HDD indicator is green, sudden shake may cause the HDD in damage.
1.3.3 Personnel Safety
NOTE:
1. The user is not allowed to open the covers and panel of the system, neither device disassemble is allowed.
2. To ensure the system performance and safety, only Mindray engineers or engineers authorized by Mindray can perform maintenance.
3. Only technical professionals from Mindray or engineers authorized by Mindray after training can perform maintenance.
1.3.4 Other
NOTE:
For detailed operation and other information about the ultrasound system, please refer to the operator’s manual.
Preface 1-5
2
Product Specifications
2.1 Overview
2.1.1 Intended Use
The diagnostic ultrasound system is intended for use in clinical ultrasonic diagnosis.
2.1.2 Introduction of Each Unit
◼ Right View
Product Specifications 2-1
◼ Left View
◼ Rear View
2-2 Product Specifications
◼ Bottom View
No. Name
1 Probe holder
2 Display
3 Control Panel
4 USB ports
5 Handle
6 I/O Panel
7 Power supply panel
8 Probe ports
9 Battery cover
2.1.3 I/O Panel
<1>
Function
Used to place the probe
Displays the image and parameters during scanning
Refer to the 2.1.5 Control Panel .
Used to connect USB devices
Used to carry the machine
Interface panel used for inputting and outputting signals, refer to
Electrical port panel, refer to 2.1.4 Power Supply Panel.
Used to connect the probe
Used to hold the battery
<2> <3>
<5> VGA <6>
<4>
<7>
12V
<8>
A
5V
3.3V
Product Specifications 2-3
No.
1
2
3
4
5
6 VGA
Symbol
7
8 /
Function
Network port
USB ports
Separate video output, connecting video printer or LCD
Remote control port
VGA signal output
Composite video output
Power indicator
2.1.4 Power Supply Panel
No.
1
Name
Power inlet
2 Equipotential terminal
Function
AC power inlet
Used for equipotential connection, that balances the protective earth potentials between the system and other electrical equipment.
2-4 Product Specifications
2.1.5 Control Panel
No.
1 /
Name
2 Esc
3 Help
4 Patient
5 Probe
6 Review
7 Report
Exit
/
Patient
Information
Probe switch
/
/
Description
Power button
Function
Off: when system is turned off;
Green: when system is turned on by pressing this button.
Press to exit the current status to the previous status.
Press to display or hide the help information on screen.
Press to open/ exit patient information screen.
Press to switch Probe and Exam Type
Press to review the stored images.
Press to open or close the diagnosis reports.
Product Specifications 2-5
No.
Name
8 End Exam
9 iStation
10 F1
11 Biopsy
12 Setup
13 Del
14 /
15 Dual
16 Quad
17 Steer
18 /
19 Cine
20 Body Mark
21 Arrow
22 Clear
23 Scale
24 Baseline
25 Menu Nav.
26 /
27 3D/4D
28 Cursor
29 /
30 Set
31 PW
32 Color
33 M
34 B
35 Measure
/
/
Description Function
Press to end an exam.
Press to enter or exit the patient information management system.
User-defined key You can assign a function to the key.
/ Press to show or hide the biopsy guide line.
/
/
Alphanumeric keys
Press to open/close the setup menu.
Press to delete the comment, etc.
Same as on PC
/
/
/
/
/
/
/
/
/
/
/
/
Dual-split screen
Press to enter Dual mode from non-Dual mode;
Press to switch between windows in Dual mode.
Quad-split screen Press to enter Quad mode from non-quad mode;
Press to switch between windows in Quad mode.
/
Direction key
Press to activate the steer function for linear probe.
To adjust LCD brightness or contrast when pressing with <Fn> key.
Press to enter or exit the cine review status.
Press to enter or exit the Body Mark status.
Press to enter or exit the arrow comment status.
Press to clear the comments or measurement calipers on the screen.
Press to adjust image parameter of Scale.
Press to adjust image parameter of Baseline.
/
Multifunction button
To adjust the image parameter combed with the key of Scale/Baseline/Nav.Rot
/
/
Trackball
/
Press to enter or exit the 3D/4D status.
Press to show the cursor.
Roll the trackball to change the cursor position.
Press to confirm an operation, same as the left-button of a mouse.
Press to enter PW mode
Press to enter Color mode
Press to enter M mode
Press to enter B mode
Press to enter/ exit Application Measurement
2-6 Product Specifications
No.
36
46
47
48
49
50
Update
/
/
/
/
Name comment
37 Caliper
38 Gain/ iTouch
39 TGC
40
Focus
Freq./THI
41
Depth
Zoom
42 Save 1
43 Save 2
44 Freeze
45 Print
/
/
/
/
/
/
/
/
/
/
/
Description
Indicator 1
Indicator 2
Indicator 3
Indicator 4
Function
Measurement status: press to switch between the fixed and active end of the caliper;
Multi-imaging mode: press to change the currently active window. iScape: press to start/stop image acquisition.
Press to enter/ exit General Measurement
Rotate: to adjust the gain
Press: to enter/ exit iTouch
Move to adjust time gain compensation.
Press: to switch between Focus and Freq./THI;
Rotate: to adjust corresponding parameter
Press: to switch between Depth and Zoom;
Rotate: to adjust corresponding parameter
Press to save, user-defined key
Press to save, user-defined key
Press to freeze or unfreeze the image.
Press to print: user-defined key.
AC indicator
AC supply: light green;
Battery supply: light off.
Battery status indicator
Charging: light in orange
Full: light in green
Discharge (electricity >20%): light in green
Discharge (electricity <20%): blinking in orange
Discharge (electricity <5%): blinking in orange rapidly
Non-charge/ discharge: light off
Standby indicator
Standby: blinking in orange
Other status: light off
HDD status indicator
Read/ write: blinking in green
Other status: light off
NOTE: DO NOT move the machine when the indicator blinking in green. Otherwise the HDD may be damaged by sudden shake.
Press to enter or exit the comment status.
Product Specifications 2-7
2.1.6 Peripherals Supported
No. Item
1. Graph/ text printer
2.
Black and White Video
Printer
3. Footswitch
HP OFFICEJET PRO 8100
Model
Analog
MITSUBISHI P93W-Z
SONY UP-X898MD
USB port: FS-81-SP-2 (not for CE region)
USB port: 971-SWNOM (2-pedal)
USB port: 971-SWNOM (3-pedal)
LPA11 (only for CE region) 4. LAN Accessory
NOTE:
If the ultrasound system cannot recognize the SONY UP-X898MD printer automatically, you may need to change the settings on the printer: push <PUSH ENTER> to enter the main menu and select [DIGITAL]->[DRIVER], and select [897].
2.2 Specifications
2.2.1 Dimensions and Weight
⚫
⚫
Size: 147±5mm×361±5mm×358±5mm (Depth×Width×Height)
Net Weight: 8.1±0.5kg (without battery, two probe ports)
2.2.2 Electrical Specifications
Voltage
Current
Frequency
100-240V ~
1.5-0.8A
50/60Hz
2.2.3 Environmental Conditions
Operating conditions
Ambient temperature
Relative humidity
Atmospheric pressure
0 ℃~ 40 ℃
30% ~ 85% (no condensation)
700hPa ~ 1060hPa
Storage and transportation conditions
-20 ℃~ 55 ℃
30% ~ 95% (no condensation)
700hPa ~ 1060hPa
Warning
:
Do not use this system in the conditions other than those specified
2-8 Product Specifications
2.2.4 Monitor Specification
Voltage
Dimension
Resolution
Adjustable angle
12V
15 inch
1024×768
≤60 degree
Product Specifications 2-9
3
System Installation
3.1 Preparations for Installation
NOTE: Do not install the machine in the following locations:
Locations near heat generators;
Locations of high humidity;
Locations with flammable gases.
3.1.1 Electrical Requirements
3.1.1.1 Requirement of Regulated Power Supply
Requirement of power supply is referring to 2.2.2.Due to the difference of the power supply stability of different districts, please advise the user to adopt a regulator of good quality and performance such as an on-line UPS.
3.1.1.2 Grounding Requirements
The power cord of the system is a three-wire cable, the protective grounding terminal of which is connected with the grounding phase of the power supply. Please ensure that the grounding protection of the power supply works normally.
WARNING:
DO NOT connect this system to outlets with the same circuit breakers and fuses that control the current of devices such as life-support systems. If this system malfunctions and generates an over current, or when there is an instantaneous current at power ON, the circuit breakers and fuses of the building’s supply circuit may be tripped.
3.1.1.3 EMI Limitation
Ultrasound machines are susceptible to Electromagnetic Interference (EMI) from radio frequencies, magnetic fields, and transient in the air wiring. They also generate EMI.
Possible EMI sources should be identified before the unit is installed. Electrical and electronic equipment may produce EMI unintentionally as the result of defect.
These sources include: medical lasers, scanners, monitors, cauterizing guns and so on. Besides, other devices that may result in high frequency electromagnetic interference such as mobile phone, radio transceiver and wireless remote control toys are not allowed to be presented or used in the room. Turn off those devices to make sure the ultrasound system can work in a normal way.
System Installation 3-1
3.1.2 Installation Condition
3.1.2.1 Space Requirements
Place the system with the necessary accessories at a proper position for convenient use.
1. Place the system in a room with good ventilation or having an air conditioning unit.
2. Leave at least 20cm clearance around the system to ensure effective cooling.
3. A combination lighting system in the room (dim/bright) is recommended.
4. Except the receptacle dedicated for the ultrasound system, at least 3-4 spare receptacles on the wall are available for the other medical devices and peripheral devices.
5. Power outlet and place for any external peripheral are within 2 m of each other with peripheral within 1 m of the unit to connect cables.
3.1.2.2 Network Environment
The wired LAN is supported by this ultrasound system.
Confirm the network devices and network conditions before the installation.
1. General information: default gateway IP address, and the other routers related information.
2. DICOM application information: DICOM server name, DICOM port, channels, and IP address.
3.1.2.3 Confirmation before Installation
Please confirm the following items before installation:
1. The video format used in the region or country where the system is installed.
2. The language used in the region or country where the system is installed.
3. The power voltage and frequency used in the region or country where the system is installed.
4. Obstetric formulae and other measurement formulae used in the region or country where the system is installed.
5. Other settings to be used in the region or country where the system is installed but different from the factory settings.
6. The doctor’s habits when using the system.
Please confirm the items above prior to the installation training, and do the system settings according to the universal setting of installed region or country.
3.2 Unpacking
Tools Required: None.
Installation duration: 1 person, 0.5 hour.
3-2 System Installation
3.2.1 Unpacking
1. Use the scissor to clip the 2 rubber belts as follows:
2. Use a knife to open the tapes:
3. Take out the operation manual:
4. Take out the probe box 1:
5. Take out the accessory box:
System Installation 3-3
6. Take out the probe box2, as follows (the box is below the accessory box):
7. Hold the handle tightly and pull the machine with the surrounding foam:
8. Remove the surrounding protective foam to take out the main system.
3-4 System Installation
3.2.2 Checking
1. After unpacking, check the objects in the container with the package list to see if anything is in short supply or is wrong.
2. Inspect and make sure there is no damage to the machine, no indentation, no cracks.
3.3 Installation of Main Unit
3.3.1 Installing Battery
As shown in the following figure.
1. Open the battery cover and put the battery near the bay (Note that the battery shall be put in correct direction).
2. Push the battery into the battery box, and push to the left side until it’s tightly locked.
3. Close the battery cover.
Battery Box Towards Left
Battery
Figure 3-1 Installing Battery
3.3.2 Control Panel Adjusting
Pull the control panel outwards (the control panel is secured to the monitor with magnets), and open the control panel.
Figure 3-2 Control Panel Adjustment
System Installation 3-5
3.3.3 Display Adjusting
1. Open the display as described in 3.3.2
2. Put the finger on the rim of the display and pull the display to tilt the display (60 degrees max.)
3. Tear off the screen protective film.
Tilt the display
Figure 3-3 Open and tilt the display
Press <Fn>+ directional keys to adjust brightness and contrast.
⚫ Brightness Adjustment: refer to the brightness control keys; press <Fn>+ brightness; and press <Fn>+
⚫ Contrast adjustment:
to increase the brightness.
to decrease the
, refer to the contrast control keys; press <Fn>+ and press <Fn>+ to increase the contrast.
⚫ Restore the factory default settings
Open the page via “Setup <F10>→General” and restore the brightness/contrast to factory default setting.
3-6 System Installation
to decrease the contrast;
NOTE: On the monitor, the brightness adjustment comes before contrast. After readjusting the monitor’s contrast and brightness, adjust all preset and peripheral settings.
3.3.4 Installing Probe Holder
Fix the probe holder hanger into the groove of the main unit, and push downwards to confirm the installation.
Press the holder downwards to lock it
Figure 3-4 Installing the Probe Holder
3.3.5 Connecting a Probe
1. Check the probe connector, if is not open, Turn the locking lever anticlockwise to open it.
2. Keep the cable toward probe holder and insert the connector into the port.
3. Turn the locking lever 90° clockwise in the horizontal position to lock the probe connector.
4. Place the probe properly to avoid being trod or wrapping with other devices. DO NOT allow the probe head to be hung freely.
5. To disconnect the probe, turn the locking lever 90° anticlockwise and pull the probe straight out.
System Installation 3-7
NOTE: Before inserting the connector into the probe port, inspect the connector pin. If the pin is bent, do not use the probe until it has been inspected / repaired / replaced.
3.4 Installing Peripherals
For the models of the supported peripherals, please refer to “2.1.3 Supported Peripherals”.
3.4.1 Footswitch Installation
1. Connecting: Take 971-SWNOM as an example: insert the USB connector to the system available USB ports (on the left and rear of the machine).then the footswitch can be used directly.
2. For settings of footswitch, please refer to 3.5.3 system preset.
USB port
Cable of the footswitch
Figure 3-5 Footswitch connection
3.4.2 Video Printer Installation
◆ Analog video printer:
1. Connect one end of the signal line to the Video In interface of the printer, and the other to the video output port in the ultrasound system IO panel.
2. Connect the Remote control line to the Remote interface in the ultrasound system IO panel.
3. Insert the power cord to a power supply receptacle that is well grounded.
3-8 System Installation
Video cable
Remote port
Figure 3-6 Installing Analog Video Printer
◆ Digital Video Printer
1. Connect one terminal of the data cable of the video printer to the USB port of the ultrasound system and the other terminal to the video input port of the video printer;
2. Insert the power cord to a power supply receptacle that is well grounded.
3. Please refer to 3.5.4 for the driver installation. And you need not install the driver of the
printer listed in section “2.1.6”.
3.4.3 Installing a Graph / Text Printer
A graph / text printer is configured with power cord and data cable, and is connected to the system via the USB port. The connection method is described as follows:
1. Connect the data cable to the USB port in the ultrasound system.
2. Plug the power plug into a power supply receptacle that is well grounded.
3.
System Installation 3-9
3.4.4 Installing Printer Adapter
⚫
Overview
3 4
No.
Name
⚫
Specification
◼ Power Supply
Input: 100-240 [email protected]
Frequency: 50/60Hz
Output: [email protected]
3-10 System Installation
1 2
Function
Powers on the printer adapter.
Connects the printer to the printer adapter.
Connects the printer adapter to the Ultrasound system.
Connects the printer adapter to power by using the auxiliary output port of the Ultrasound system.
◼ Environment
Ambient temperature
Relative humidity
Operation
0°C-40°C
30%-85% (no condensation)
Atmospheric pressure
700hPa-1060hPa
⚫
System Connection
Storage and Transportation
-20°C-55°C
20%-95% (no condensation)
700hPa-1060hPa
Note: A maximum of 6 text/graph printers can be connected to the printer adapter at the same time.
Before power on, perform the following steps:
1. Connect the printer adapter to the ultrasound system using Shielded Ethernet cable;
2. Connect the printer adapter to the ultrasound system using AC power cord together with the power adapter;
3. Connect the printer adapter to the graph/text/video printer using the USB cable.
4. Connect the ultrasound system and graph/text/video printer to the power sockets separately.
The system connection diagram is shown as follows :
A C p ow er co rd to po w er socke t
G rap h/te xt/vide o printer
U S B po rt
U ltra sou nd syste m
P rinte r U S B ca ble
N etw o rk po rt
S h ielded E thern et ca ble N etw o rk po rt
U S B po rt
P rinte r
A d ap ter A C p ow er co rd to po w er socke t
P o w er inlet
P o w er ad ap ter
A C p ow er co rd to po w er socke t
⚫
Power On
Note: 1. Before power on, ensure that the Ultrasound system, printer adapter, and printers are correctly connected and properly powered on.
2. When powering on the printer adapter, do not abnormally power off the printer adapter, which may cause device damage and malfunction.
1. Press the power button of the graph/text printer, and ensure that the printer works normally.
2. Press the power button on the control panel of the ultrasound system, and the imaging screen is displayed.
System Installation 3-11
3. Press the power button of the printer adapter, and indicator of the button turns blue.
(sometimes, the printer adapter is automatically powered on together with the Ultrasound system)
⚫
Settings
◼ Network Preset
1. Open the Network page via [Setup] → [Network Preset] → [Local TCP/IP].
2. Select Static;
3. Set the IP Address to any value from 192.168.1.1 to 192.168.1.200 (192.168.1.10 is excluded, because it belongs to the printer adapter);
4. Set the Subnet Mask to 255.255.255.0 and Gateway to 192.168.1.254;
5. Click [Save].
3-12 System Installation
◼ Printer Adapter Preset
1. Open the Printer Adapter page via [Setup] → [Print Preset] → [Printer Adapter].
2. Set the IP Address to 192.168.1.10 and Port number to 6666.
3. Click [Add], and the Printer Adapter name is displayed in the Service List.
◼ Print Preset
For details about print service preset, please see section “3.5.4 Print Preset” for details.
Note: You can set the <Print> button to Digital Print or Analog Print via [Setup] → [System Preset]
→ [Key Config].
⚫
Power Off
1. Press the power button on the control panel of the Ultrasound system (the printer adapter is automatically powered off together with the Ultrasound system).
2. Press the power button of the graph/text/video printer.
If the internet connection is abnormal, the Ultrasound system cannot control the power-off of the printer adapter, which may lead to abnormal power-off of the printer adapter and ultimately cause printing malfunction.
System Installation 3-13
3.4.5 Installing External DVD-R/W
Connect the USB cable connector of the external DVD recorder to the USB port in the ultrasound system.
USB cable
Figure 3 7 Installing External DVD
3.5 System Configuration
3.5.1 Power ON / OFF
Connect the system power cord to the AC power, and make sure the ultrasound system and other optional devices are correctly connected.
When the AC indicator is green, you can turn on the power button (located at the upper right corner of the system) to initiate the system. After being normally rebooted, it will display image interface. Or press the power button directly when the battery is of sufficient capacity.
3.5.2 Enter Doppler
After the system is powered on after initiation (about 30S), it enters Doppler directly:
3-14 System Installation
3.5.3 System Preset
1. Press the <Setup> key to enter the [Setup] menu.
2. Click <System Preset> to enter the screen as follows:
◆ Region
System Installation 3-15
In the Region page, set the system language, date format, date, time and hospital related information, etc.
◆ General
Click <System Preset> to enter:
In this page, set the time of standby, brightness/contrast and color temperature of display,etc.
◆ Key Config
3-16 System Installation
1) Function of keyboard keys <Print>, <Save>, F1 and the footswitch keys (left, mid, right) are user-defined.
2) Key brightness, key volume, trackball backlight and trackball sensitivity can be adjusted.
◆ Image Preset
Click [Image Preset] to enter:
System Installation 3-17
General image parameters can be set in this page.
3.5.4 Print Preset
1. Press <Setup> and click [Print Preset] to set video printer, graph/text printer parameters:
2. After connecting the local printer, Click “Printer Driver”, the system will display the printer name and status (Ready) automatically which already installed printer driver successfully.
3-18 System Installation
3. Return “Printer Service” page, Select the corresponding service from the printer list and increase the service.
The system integrates drivers of HP printers, after HP printers are connected, drivers will be installed automatically (about 10s).If auto installation fails, icon will display on the right lower corner of the screen to warn you that manual installation is necessary. The driver installation method is as follows: a) Download the ppd file from HP official website (contact R&D engineer if necessary), and copy the ppd file to the storage device (USB disk as an example). b) Connect the U disk to the USB port nearside the control panel of ultrasound system, click the icon to pop up the screen, select the U disk to run the ppd file and finish the installation.
◆ Add network printer
1. In “Printer Driver” screen, click [Add Network Printer] to pop up the screen, enter the necessary information (IP address, shared printer name, server name, domain name and password).
System Installation 3-19
2. After successful connection, the newly added network printer name will be shown in the printer driver list.
NOTE: 1. Before connect the network printer, make sure the ultrasound system and the printer are in the same network domain, and the network is working normally.
2. The IP address and the server name should be valid, e.g. \\10.2.40.123
or
\\5-HP , otherwise, the system will fail to connect.
3. If the server has set accessing limitation, the system will prompt a dialogue box to identify the user. Enter the correct user name, domain name and password, and then click [OK].
3.5.5 Network Preset
3.5.5.1 Network Preset
Open “[Setup]→[Network Preset]” to enter the screen.
1) Please select the network type according the actually status, Select “DHCP”, click [OK].
2) Or, select “Static”, and input the IP address, subnet mask and gateway, then click [OK].
Name
Current Network Adapter
Description
DHCP
/ Static
IP Address
Subnet Mask
Gateway
To select the network connection mode
If “DHCP” is selected, IP address will be automatically obtained from DNS server; if “Static” is selected (using static IP address), you need to enter the IP address.
IP address of the system should be at the same network segment with the server IP.
Used to set different network segment.
Used to set the gateway IP.
3.5.5.2 DICOM Preset
NOTE: Only if DICOM basic option is configured, [DICOM Local], [DICOM Server], [DICOM
Service] are available.
1. Click [DICOM Preset] to open the DICOM preset screen.
3-20 System Installation
➢ DICOM Setting
Enter the AE Title of the ultrasound system, port and PDU according to the actual situation, and then click [OK] to exit the screen.
NOTE: 1. AE Title should be the same with the SCU AE Title preset in the server
(PACS/RIS/HIS).
2. DICOM communication port in the ultrasound system should be the same with the one in the server.
➢ DICOM Server Setting
1) Enter the device name and the IP address.
2) You can ping other machines to verify connection after entering the correct IP address.
Also you can check the connection of the already added server in the list.
3) If connection is successful, click [Add] to add the service to the Service list.
NOTE:
If the currently entered name has already existed, the system will pop up: “The server name exists!” Click [OK] to enter another name.
2. Click [DICOM Service] to open the DICOM Service screen.
System Installation 3-21
Only when the system is configured with DICOM basic function module, and installed DICOM
Work list, MPPS, DICOM Structured Reporting and Query/ Retrieve modules, can the corresponding preset settings be found in DICOM Service screen.
The DICOM Service Setting is used to set properties of DICOM services as Storage, Print, Work list, MPPS, Storage Commitment and Query/ Retrieve.
NOTE: DICOM Work list can be configured only after DICOM Basic is configured, and if
DICOM Work list function is not configured, the “Work list” page is not accessible.
3-22 System Installation
3.5.6 System Information
In System Information screen, it displays the product configuration, software version, hardware
& boards, and driver related information. You can check the product information here.
1. Press the <Setup> and click [System Info] to enter system information screen.
2. Click [About Detail] to check the detailed board information.
3. Click [Save] to export the information in the format of “*.TXT”; click [Exit] to return to the Setup menu.
NOTE: 1. Be sure to confirm the system information before and after the software maintenance.
2. Ask the user to save the current system information if necessary.
System Installation 3-23
4
Hardware Principle
4.1 General Structure of Hardware System
Monitor
Fan
Probe board
IO board
4D drive board
Control panel
Main board
Hard disk
CPU module
Speaker
DC-DC board
Battery connecting board
Charge/ discharge
Battery
Fan
Ultrasound signal
Power supply
AC-DC board
Comm&control
AC IN
Figure 4-1 Schematic Diagram of System
As a portable black-and-white ultrasonic product , the system supports two probe slots or three probe slots. Two probe slots are standard configuration, and three probe slots are optional
The detailed structure of hardware system is in the figure above, and they can be divided into 4 modules:
➢ Main unit module
➢ Power supply module
➢ Monitor module
➢ Control panel module
The detailed description of 4 modules will be in the following:
Hardware Principle 4-1
4.2 Main Unit
The main unit mainly involves 3 boards:
⚫ Probe board (Two probe ports are standard configuration, and three probe ports are optional)
Main board ⚫
⚫
⚫
IO board
4D drive board (optional)
4.2.1 Probe Board
4.2.1.1 Probe Board of Two Probe Ports
3.3V/5V
PRB_A_VDD_EN,
PRB_A_VCC_EN
Power ON/OFF
Control circuit
Probe socket
A
(96 pin)
A probe socket control signal
Relay
VDD
Drive
Aprobe socket control signal
( note 1 )
CTRL_PROBE_A_245_OE_N
4D signal ( note
3 )
Drive
PRB_A_ON
RELAY_EN
RELAY_PWR_EN
CPLD
Relay driving circuit
BOARD ID
BOARD_ID[7:0]
D+3V3
A+5V
A+95V
A-95V
D+3V3
Drive
LC filter
LDO
POUTA[80:1]
POUTB[80:1]
VDD
Relay
POUT[80:1] High-voltage switch
Probe socket B
(96 pin)
Power ON/OFF
Control panel probe socket control signal
Relay
Drive
PRB_B_ON
Bprobe socket control signal
(note 2)
Drive CTRL_PROBE_B_245_OE_N
4D signals ( note
3 )
PRB_B_VDD_EN,
PRB_B_VCC_EN
Drive
3.3V/5V
Two probe port board
+5V
+95V
-95V
+5V
Probe board control signal
4D signals
Highvoltage switch signal
Note:
1.A probe socket control signal :
PROBE_A_SPI_SEL_4D
PROBE_A_BOARD_ID[6:1]_4D
2.B probe socket control signal :
PROBE_B_SPI_SEL_4D
PROBE_B_BOARD_ID[6:1]_4D
3.4D including :
4D_SIN+
4D_SIN-
4D_COS+
4D_COS-
4D_HALL
Figure 4-2 Principle Diagram of Two Probe Port Board
The function of two probe port board describes as following:
⚫
⚫
The ultrasound signal is transferred from 32-channel to 80-array by the high-voltage switch on the probe board.
Probe information could be obtained by probe board via reading probe online signal and probe ID.
4-2 Hardware Principle
⚫
⚫
⚫
The probe board supplies power to corresponding Flash of saving probe ID when reading probe ID, and Flash power shuts off after getting probe ID.
Support two 96-array probes (A and B), and only one probe could be chosen by relay switching on the probe board.
Support 4D probe; recognize the probe via the ID code; switch the 4D drive signal via the electrical relay to make the 4D probe work normally.
4.2.1.2 Probe Board of Three Probe Ports (Optional)
PRB_C_VDD_EN,
PRB_C_VCC_EN,
VDD
3.3V/5V
Power
ON/OFF
Control circuit
VDD
Probe
Socket A
(96 pin)
Relay 2
Probe
Socket C
(96 pin)
Relay
Driving
Circuit
POUTB[80:1]
POUTC[80:1]
3.3V/5V
Power
ON/OFF
Control
Circuit A probe socket control signal
Relay
Drive
RELAY_EN
RELAY_PWR_EN
Drive
4
PRB_A_VDD_EN,
PRB_A_VCC_EN
4D signal
)
Relay Driving
Circuit
(
A probe socket control signal
( Note 1 )
CTRL_PROBE_A_245_OE_N
Note
PRB_A_ON
RELAY_EN
RELAY_PWR_EN
BOARD ID
CPLD
BOARD_ID[7:0]
D+3V3
A+5V
A+95V
A-95V
D+3V3
PRB_C_VDD_EN,
PRB_C_VCC_EN
Drive
LC Filter
LDO
POUTA[80:1]
POUTBC[80:1]
VDD
Relay 1
Probe
Socket B
(156 pin)
B probe socket control signal
Relay
Drive
POUT[80:1]
PRB_B_ON
Drive
B probe socket control signal ( Note 2 )
CTRL_PROBE_B_245_OE_N
4D Signal ( Note
4 )
High-voltage switch
Drive
Power ON/OFF
Control Circuit
3.3V/5V
C probe socket control signal
PRB_B_VDD_EN,
PRB_B_VCC_EN,
Relay
Drive
PRB_B_ON
C 探头插座控制信号(注 3 )
Drive
4D signal
CTRL_PROBE_B_245_OE_N
( Note4 )
Three probe port board
+5V
+95V
-95V
+5V
Probe board control signal
4D signal
Highvoltage switch signal
Note:
1.A probe socket control signal:
PROBE_A_SPI_SEL_4D
PROBE_A_BOARD_ID[6:1]_4D
2.B probe socket control signal:
PROBE_B_SPI_SEL_4D
PROBE_B_BOARD_ID[6:1]_4D
3.C probe socket control signal:
PROBE_C_SPI_SEL_4D
PROBE_C_BOARD_ID[6:1]_4D
4.4D signal:
4D_SIN+
4D_SIN-
4D_COS+
4D_COS-
4D_HALL
Figure 4-3 Principle Diagram of Three Probe Port Board
The function of three probe port board describes as following:
⚫
⚫
The ultrasound signal is transferred from 32-channel to 80-array by the high-voltage switch on the probe board.
Probe information could be obtained by probe board via reading probe online signal and probe ID.
⚫
⚫
⚫
The probe board supplies power to corresponding Flash of saving probe ID when reading probe ID, and Flash power shuts off after getting probe ID.
Support three 96-array probes (A, B and C), and only one probe could be chosen by relay switching on the probe board.
Support 4D probe; recognize the probe via the ID code; switch the 4D drive signal via the electrical relay to make the 4D probe work normally.
4.2.2 Main board
The main board could be divided into two parts: front-end of the main board and back-end of the main board.
Hardware Principle 4-3
4.2.2.1 Front-end of main board
Probe board
CPLD control signal
High-voltage control signal
4D drive signal
Highvoltage pulse output circuit
Tx
Drive circuit
Control signal
4D drive board
Tx1~8
Tx9~16
…
...
Tx49~64
Or
Tx25~32
HVISO
Control signal
BF FPGA clocl
LVDS*8
Comm control bus
Clock
DSP
FPGA
IQ
DDR2
UPLOAD
DDR2
32ch/
64ch Control signal
DATA
Rx9~
16
… ...
Rx49~64
Or
Rx25~32
Clock circuit
PCIE
PHY
Rx1~8
PCIE X1
Main board
8-channel analog
8-channel digital
LNA VGA ADC
main CPU
TGC
Rx
Control signal
Figure 4-4 Principle Diagram of Front-end of the Main Board
As shown in the figure above, ultrasound front-end internal structure consists of ultrasound receiving module Rx1~Rx64 ) Tx1~Tx64 , high-voltage isolation module ( HVISO ) , BF FPGA module, DSP FPGA module ,PCIE_PHY module and so on.
Function describes as following:
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
Support 32/64-channel high-voltage isolation ( HVISO ) to protect ultrasound receiving module ( Rx ) to avoid ultrasound transmission high-voltage contamination.
32/64-channel transmission wave forms according to scanning time sequence and control parameters.
32/64-channel transmission wave forms to 32/64-channel high-voltage transmission wave by driver.
Echo receiving LNA is to enlarge fixed gain.
By the control of TGC, echo receiving carries out variable gain amplification by depth.
32/64-channel analog echo could be switched to 32/64-channel digital signal by ADC.
BF FPGA combines 64-channel echo signal to output to DSP FPGA, and DSP FPGA is sent to signal processing to a single image which is uploaded to CPU module by
PCIE_PHY, then CPU module performs post processing.
PCI_PHY implements PCIE interface switching.
BF FPGA can communicate with the CPU module through transferring DSP FPGA.
The CPU module communicates with the probe board via BF FPGA.
DSP FPGA controls the 4D drive board to output the 4D signal to the probe board.
4-4 Hardware Principle
4.2.2.2 Back-end of Main Board
Control panel
12V
5V
5VSTB
Speaker
Power supply module
POWER
Closed status indicator on the control panel
Power manage ment
FPGA
Power_BTN_N
Status indicator
Power on/off signal
System monitor circuit
SMBUS
Control signal
ARM control signal ARM
Display
Control signal of parameter board
LVDS
Control signal of the inverter
+12V
MUL FPGA
Cont rol
Data
Video
Encoder
Main board
LPC
LVDS
PCIE
PHY
PCIE X1
Audio power amplifier
Audio
Codec
CPU module
SATA
SATA
HDD
USB lateral
USB
5V
12V
3.3V
IO board
Video
S-
Video
Remote USB Ethernet VGA
Status indicator
Figure 4-5 The Schematic Diagram of Back-end of Main Board
Back-end of main board is the core of back-end ultrasound system, which mainly includes back-end of main board, CPU module, IO interface board, monitor assembly and control panel. Mainly implements display interface, user's operation interface, power module controlling interface and all kinds of Peripherals Supported interface.
Also provides system monitoring, running status of the monitor system, indicator of system status and running status of the indicating system via LED.
Function describes as following:
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
Back-end of main board connects to front-end of main board via PCIE PHY.
The USB on the lateral of Main board is the output of the CPU module.
The relevant signal in HDD of the main board is output of the CPU module.
Back-end of the main board MUL FPGA implements display ports, it also supports display assembly, video and s-video interface of IO board.
Multifunction FPGA on the back-end of the main board is to implement the REMOTE port on the IO panel.
The CPU module implements interfaces including USB, Ethernet and VGA on the IO board.
System monitor circuit connects Multifunction FPGA though smbus.
Multifunction FPGA communicates with ARM by serial port to control transmission high-voltage, and also implements ARM update by serial port.
Hardware Principle 4-5
⚫
⚫
⚫
⚫
FPGA on the power supply module implements the machine power on/off by the switch signal.
Standby indicator, AC present indicator and working status indicator on the control panel are output by FPGA.
The control panel implements communication with CPU module by USB.
CPU output the audio signal to the speaker on the front cover of main unit, via audio coder and audio amplifier.
4.2.3 IO Broad
Main Board
MUL FPGA
Control Data
Video
Encoder
CPU module
System
Monitor
Circuit
Video S-Video Remote USB Ethernet VGA
Status
Indicator
Figure 4-6 Principle Diagram of IO Board
IO board is connected to the main board via connectors in order to implement the user interface function and indicate if the power is normal.
⚫
⚫
⚫
⚫
IO board supports Video and S-Video, and the two channels of signal get by Video
Encoder driven by Multifunction FPGA.
IO board supports REMOTE signal, which is obtained by Multifunction FPGA on the main board.
USB signal, Ethernet signal and VGA signal on the IO board are obtained by CPU module output.
Status indicators of IO board respectively refers to12V, 5V and 3.3V powers are normally working.
4-6 Hardware Principle
4.2.4 4D Drive Board (Optional)
Communication &
Control
Power supply
4D Drive Board
Communication signal
12V
Voltage control
Power amplication
Motor driving signal
4D probe Hall return signal
Ultrasonic signal
4D probe
◼ Amplifies 4D drive signal power and output signal matching the power requirement to drive the transducer to the desired position;
◼ Provide 4D Hall signal returning channel.
4.2.5 Ultrasound System Monitor
CPU module
LPC Multifunction
FPGA
SMBUS
D12V
D-12V
D-5V
D2.5V
D1.8V
D1.5V
D1.2V
Voltage of clock battery
Main unit frontend FPGA temperature
System monitor curcuit
CPU module temperature
Main unit fan
Temperature sensor
Power supply module fan
Back-end of main board
Power supply module
Figure 4-7 Principle Diagram of Ultrasound System Monitor
Ultrasound system monitor is mainly to monitor every voltage of interior machine and temperature.
Hardware Principle 4-7
Function:
⚫
⚫
⚫
On the back-end of the main board, a special monitor IC is used to monitor signal voltages and clock battery power that are provided to the main board by the main unit box power supply module.
The system temperature is detected in three positions: BF FPGA, CPU module and power supply module.
Monitoring chips control the main unit fan and power supply module fan, and then read the fan rotating, which send to Multifunction FPGA by smbus, and to PC module by LPC bus.
4.2.6 Ultrasound System Indicator
Power supply module
Power management
FPGA
ARM
5VSTB_CPU driver driver driver driver
Control panel
AC supply status indicator
Power-on status indicator
Standby status indicator
Battery status indicator
HDD indicator driver
CPU
Module +12V
+5V
3.3V
Power status indicator
Main board
IO Board
Figure 4-8 Principle Diagram of Ultrasound System Indicator
Function describes as following:
⚫
⚫
⚫
⚫
⚫
⚫
There are four power status indicators on the IO panel: three are used for indicators of
+12V, +5V and 3.3V output on the DC-DC power board, the other one is used for reserved indicator.
There are five indicators on the control panel, in which power-on status indicator is below the power button.
AC power-on status indicator control is output by the power management FPGA on the power module.
The hardware indicator control is output by CPU.
The status indicator of battery are controlled by the battery management ARM on the power module which driven by 5VSTB on the main board.
The status indicators of power-on and standby are both generated by the battery management FPGA in the power module and driven by 5VSTB on the main board.
4-8 Hardware Principle
4.2.7 Display
Parameter board
Display
3.3V
I2C
Inverter board
High-voltage
12V Brightness control
ON/OFF 3.3V
LCD screen
LVDS
IO board
I2C
Brightness control
triode
ON/
OFF
triode
Brightness
PWM
Control signal of switch
Multifunction FPGA
12V 3.3V
LVDS
Main board
Figure 4-9 Principle Diagram of Display
Monitor mainly consists of the inverter board, LCD and the parameter board.
Function describes as following:
⚫
⚫
The inverter board produces high voltage to illuminate backlight of LCD which is adjusted by signal control switch and brightness of the IO board output.
Color temperature and Gamma correction data memory in parameter board used matches
LCD so that the corresponding display effect shall be consistent.
⚫
⚫
⚫
⚫
Multifunction FPGA generates switch control signal which drives triode to control inverter to open or shut off high-voltage output.
Multifunctional FPGA generates PWM signal, which drives triode to control output high-voltage of the inverter to adjust the brightness of the display.
Multifunctional FPGA outputs LVDS digital signal of display, which is sent to screen directly.
Multifunctional FPGA communicates with parameter via 12C signal and supports to adjust parameters of display.
Hardware Principle 4-9
4.2.8 Control Panel
Trackball
Control panel PCBA
TGC board
ADC curcuit
5 status indicators
Trackball scan
TGC scan
FPGA
Main board
USB
USB
Interface chip
+12V
+5V
Main control
PWM generating curcuit
Key scan
Buzzer driver curcuit
LED backlight
LED backlight driver curcuit
Functional button
Singleencoder board
Doubleencoder board
Buzzer
Figure 4-10 Principle Diagram of Control Panel
The control panel PCBA is the core of the control panel which comprises control panel PCBA, trackball, TGC board, encoder board and buzzer.
Function describes as following:
⚫ FPGA is regarded the control panel as a main controller , key, single/dual-encoder, trackball and TGC.ect are basically scanned by FPGA; Key LED backlight and buzzers are both controlled by FPGA, and only when FPGA is normal can key LED backlight be on.
⚫
⚫
Five indicators on the control panel are directly drived by interior of main unit.
The control panel communicates with the CPU module by USB ports.
4-10 Hardware Principle
4.3 Power System
Power supply module
Display
Control panel
12V
12V 、 5V
Main boar d
4D drive board
12V
POWER
ARM control signal
MUL FPGA
AC in place
Restart automatically
Power on/off signal control
CPU module
Temperature signal
PWR_BTN_N
Status indicator
System monitor module
Closed signal of the control panel
Status indicator
Fan monitor
12V
Fan
PHV
AD
ARM
DA
Control signal
Power management
FPGA
DC-DC board
14.8V
, 6600mAh
I2C
Battery in place
Battery connecting board
Battery in place
I2C
14.8V
,
6600mAh
Battery
DC Output 19V/3.95A
AC-DC board
AC Input
100-240V ~,
50/60Hz
Figure 4-11 Block Diagram of Power System
The power supply configuration of the system describes as following:
⚫
⚫
⚫
⚫
The power supply module can be divided into AC-DC power board, DC-DC power board, battery and battery connecting board.
High-voltage programmable ARM and power management FPGA are on the DC-DC power board.
Power output by the power supply module is transmitted to main board, and then it is output to control panel, 4D drive board and the display by the main board.
Battery is connected to the DC-DC board via the battery connecting board and connecting cable of BTB sequentially.
4.3.1 Power Output of the Power Supply module and
Supporting Function Distribution
No.
Power description
1 +12V
2 -12V
Support circuit module or function
CPU module, Display, Fan, Control panel, 4D drive board
No use
Remarks
Hardware Principle 4-11
No.
Power description
3 +5V
4 -5V
5 5Vst
6 VDD
7 1V2
8 1V8A
9 1V8
10 2V5
12 -95V
11 +95V
14 -PHV
13 +PHV
Support circuit module or function
HDD, Control panel, Front-end of main board, Probe board
Front-end of main board
CPU module
Front-end of main board, Back-end of main board, Display
Back-end of main board (FPGA core voltage)
Front-end of main board (receiving chip)
Back-end of main board ( video encoder, FPGA IO voltage ,
DDR2)
Back-end of main board ( video encoder, FPGA IO voltage)
Probe board (high-voltage switch)
Probe board (high-voltage switch)
Transmitting high-voltage
Transmitting high-voltage
Remarks
4.3.2 System Power-on Control
PWR_12V_EN_N
PWR_5VSTB_EN_N
PWR_12V_OK_N
PWR_5VSTB_OK_N
3V3STB
power supply manag ement
FPGA
SUS_S3_N
SUS_S4_N
CPU_PWR_BTN_N
PWR_OK_N
D12V
5VSTB
PWR_BTN_N
CPU module
Control panel
AC in place signal
AC_IN_STATUS_N
Main board
AC-DC board
19V
DC-DC board
Figure 4-12 Diagram of System Power-on Supported Circuit
◼ Related controlling signal comment:
No Controlling signal Description
1 PWR_BTN_N The pulse generated by the power button on the control panel is sent to CPU module through power management FPGA, to power on the system.
Remarks
4-12 Hardware Principle
No Controlling signal Description
2 SUS_S3_N CPU module output effectively represents that CPU system has been in the standby status, when 5VSTB which is controlled by power management FPGA is in the charging status.
Remarks
3
4
SUS_S4_N
PWR_OK_N
CPU module output effectively represents that CPU system has been in the dormancy status.
The output of power supply module is transmitted to the
CPU module by power management FPGA, which represents the +12V output of power supply module has been powered on.
5 CPU_PWR_BTN_N Power management FPGA is transmitted to CPU, which notifies CPU power on or power off.
6
PWR_12V_EN
The output of power management FPGA is transmitted to the power supply module, which is used to control other power of the DC-DC power board except 5VSTB and 3V3STB to be power-on..
7
8
PWR_5VSTB_EN
PWR_12V_OK_N
The output of power management FPGA notifies power to provide 5V standby power.
Power status signal; indicate 12V power has been provided steadily.
9
PWR_5VSTB_OK_N
Power status signal; indicate 5VSTB power has been provided steadily.
◼ When battery and AC supply, the power supply module always maintains the 3V3STB output, and supports power management FPGA of the power module to be standby status.
◼ No matter the system is on when AC supply, Power management FPGA will always control
DC-DC power board to output 5VSTB via PWR_5VSTB_EN_N However, when powered by battery, power management FPGA could control DC-DC power board to output 5VSTB though
PWR_5VSTB_EN_N if only users turn on the system via power button of the control panel.
◼ The detailed flow of power-on is shown as follows:
Hardware Principle 4-13
Pressing power button
(Control panel)
Receiving PWR_BTN_N effective
(Power management FPGA)
YES
Is AC in place?
(Ppower management
FPGA)
CPU_PWR_BTN_N is valid
(Power management FPGA)
NO
PWR_5VSTB_EN_N is valid
(Power management FPGA)
SUS_S3_N and SUS_S4_N
is invalid(CPU module)
Indicating
5VSTB_CPU output of power module f is normal
5VSTB start-up
(Power supply module)
PWR_5VSTB_OK_N is valid
(Power supply module)
Indicating 12V output of power module is normal
PWR_12V_EN is valid
(Power management FPGA)
12V and +5V start-up
(DC-DC power board)
PWR_12V_OK_N is valid
(Power supply module)
PWR_OK_N is valid
(Power management FPGA)
CPU start-up
(CPU module)
Figure 4-13 System Power-on
4-14 Hardware Principle
5
Function and Performance
Checking Method
5.1 Instruction
The chapter supplies the method to verify main function and performance of product. This is only used for reference, not preventive execution.
Function checking and testing of this part shall be carried out by Mindray service engineers and the user together.
5.2 Checking System Status
5.2.1 System Running Status
1. The ultrasound system can be turned on or off normally, working normally, no any abnormal noise and phenomenon appear when the system is running.
2. The fan starts to work as soon as the system is turned on, no any abnormal noise appear in process
3. Check basic system information such as product configuration, options, software version, etc. Confirm all the information is normal.
4. Check the preset of the monitor, such as contrast and brightness.
5. Check if the time and date are correct, if not, please preset them again.
6. Check the log together with the user to confirm any abnormality or occasional abnormalities when the system is running.
5.2.2 System Running Status
Check the ambient temperature and humidity. The measurements related to safety features are particularly sensitive to humidity. If the insulation feature of the system deteriorates due to the increase of system service time or system malfunctions, the fluctuation range of measurement results are likely to increase with the increase in humidity.
Function and Performance Checking Method 5-1
5.3 General exam
5.3.1 Check Flow
Check the control panel
Check the monitor
Check DVD
Check peripherals
Check I/O ports
5.3.2 Checking Content
5.3.2.1 Check Control Panel
Procedure Standard
Check the functions of all keys and knobs
Follow the direction: left to right, and up to down.
All keys and knobs are effective.
Function checking of the trackball
⚫ Press the <Freeze> key to enter the Freeze status.
⚫ Press <Measure> to enter into measure status, do vertical and horizontal measurement, or do other trackball operations.
The trackball can be rotated easily and smoothly, the cursor responds sensitively, the rotation direction is the same as the direction of the cursor.
5-2 Function and Performance Checking Method
5.3.2.2 Check the Display
Procedure Standard
⚫ Adjust LCD brightness
⚫ Adjust LCD contrast
⚫ Display color temperature adjustment
Click “Cold” or “Warm” in the
[General] page in System Preset screen.
⚫ Press “<Fn>+< >”, the brightness increases; and press
“<Fn>+< >”, the brightness decreases.
⚫ Press “<Fn>+< >”, the contrast increases; and press
“<Fn>+< >”, the contrast decreases.
⚫ The LCD color temperature changes correspondingly.
⚫ Click each functional button, the LCD responds correctly, the standard is as follows
⚫ LCD maintenance
Log in as “Service”, click
[Maintenance] in the Setup menu, then click [Monitor Test] to go for the monitor test.
1 .Light-spot: 0; flash point: 0.
2. The adjoining dark dots are no more than 3 pairs, and there is no adjoining dark dot in image area.
3.There is no adjoining dark dots of 3 or more than 3
4.The dark dots are no more than 7 and those in the image area are no more than 2
5. The distance between bad dots is no less than 5mm.
Note: image area refers to the red, the background is black/right.
5.3.2.3 Check DVD
Procedure
DVD-R/W Drive
⚫ Check if connection is normal
⚫ Press <Eject> button on the drive
⚫ Perform DVD reading and writing.
Standard
⚫ The DVD-R/W driver can be ejected smoothly.
⚫ Data reading and writing performs normally without abnormal noise.
5.3.2.4 Check Peripheral Device
Footswitch:
Procedure
Connect the footswitch connection, and check the functions of footswitch according to the functions listed in Key Config.
Video Printer:
Check if the video printer and ultrasound system are correctly connected. Then check the function of each key.
Graph/ text Printer:
Check if the graph/text printer and ultrasound system are correctly connected.
Then check the function of each key.
Standard
⚫ Press the freeze key (the right key), image is frozen, the freeze menu is displayed; press the key again, image is unfrozen.
⚫ Press the key (middle key), color printing starts
⚫ Press the print key (left key),B/W printing starts
⚫ Press <Print> key, the printer begins to work, no image print deficiency or degradation.
Switch video output port
⚫ Press <Print> key, the printer begins to work, no image print deficiency or degradation.
Press <Print> key, the printer begins to print, no print deficiency or degradation.
Function and Performance Checking Method 5-3
bar Code scanner:
Perform code bar scanning when the ultrasound system is running normally.
The bar code is correctly displayed on the screen.
5.3.2.5 Check IO Ports
Procedure Standard
Checking IO ports:
Video/audio interface, USB port have been verified, remains are:
⚫ VGA port
Connect VGA display
⚫ Network port
⚫ USB port
⚫ The contents displayed on the VGA/LCD are the same as those displayed on the ultrasound system display, no character and image loss, no color difference, no fluttering and flicking.
⚫ Smooth communication in both network and connection.
⚫ USB port data storage/accessing are normal.
5.4 Function Checks
NOTE: A complete function inspection is described here, do the checking according to the actual system configuration.
5.4.1 Check Flow
Check each imaging mode
Check the measurements
Check in cine mode
Check the probe application
Image & video manage
Record and save the exam
5-4 Function and Performance Checking Method
5.4.2 Checking Content
5.4.2.1 B Mode
◼ In B Mode scanning, the image parameter area in the right corner of the screen will display the real-time parameter values as follows:
Display F D G FR DR
Image Parameters Frequency Depth Gain Frame Rate B Dynamic Range
◼ Parameters that can be adjusted to optimize the B Mode image are indicated in the following.
Adjustment Items
Control Panel Gain, Depth, TGC, iTouch, Focus, Frequency
Menu
Frequency, Acoustic power , Line Density, , ExFOV ,iClear, H Scale, Focus
Position, Focus Number, Persistence, iBeam, Dynamic Range, TSI, Gray
Map,Tint Map,L/R Flip, U/D Flip, Gray Invert ,, , , Lithotrity,FOV, iTouch, Biopsy
Kit.
1. Control Panel
Press <B> Enter B mode, and B image displays
Gain adjustment.
Rotate <Gain/iTouch>
Rotate clockwise to increase
Rotate anticlockwise to decrease
The adjusting range is 0-100.The real-time value will be displayed in the image parameter area in the upper right corner of the screen.
Depth Adjustment
Press <Depth/zoom> to light on the Depth indicator, rotate the knob
Rotate clockwise to increase
Rotate anticlockwise to decrease
The adjustable depth values vary depending upon the probe types.
TGC adjustment
Adjust through the
8-segment toggles
Push the toggle to the right to increase the corresponding area brightness
Push the toggle to the left to decrease the corresponding area brightness
About 1.5s after the adjustment is finished, the TGC curve disappears.
Function and Performance Checking Method 5-5
Focus
Adjustment
Position
Press
<Focus/Freq./THI.> to light on the Focus indicator, rotate the knob
The focus position will change in correspondence with the knob rotates.
Frequency adjustment
Press
<Focus/Freq./THI.> to light on the Freq./THI indicator, rotate the knob
Rotate clockwise to increase
Rotate anticlockwise to decrease
“FR” will be changed relevantly. iTouch
Press <Gain/iTouch> iTouch sign will be displayed in the image area to activate image effect auto optimization.
Click [iTouch] on the image menu to adjust gain value in iTouch mode.
Click [iTouch Brightness] on the image menu to adjust brightness in iTouch mode.
Image Magnification
Press <Depth/zoom> to light on the Zoom indicator, rotate the knob
Rotate clockwise to zoom in the image (max. magnification factor is 10); rotate anticlockwise to zoom out the image.
Roll the trackball to change position of the magnified image.
Press <Zoom> in zoom status to exit the mode, the current window returns to the display before zoom.
Press <B>, and then press
⚫ Enter dual mode, and the right image is activated
⚫ Press again to switch between the windows
Press <B>, and then press
⚫ Press 4 times, and 4 images will be displayed on the screen with only one image activated at one time
⚫ Press again to switch among the windows
Press <B> To enter single mode in multiple window mode, or to exit from other modes.
2. Menu
Procedure Standard
Acoustic power
B mode menu →
[A.power]
Click [A.power] and rotate the multifunctional knob to adjust.
AP value is displayed in real time in the upper part of the screen.
You should perform exams according to actual situation and follow the
ALARA Principle.
Focus
B mode menu →
[Focus Number]
Click [Focus Number] and rotate the multifunctional knob to adjust (B mode image has max. 4 focus )
The focus position symbol is displayed on the right side of the image.
FOV (Field of View)
B mode menu->
[FOV]
Click [FOV] and rotate the multifunctional knob to adjust
Dynamic Range
B mode menu->
[Dynamic Range]
Click [Dynamic Range]; rotate the multifunctional knob to adjust, the real time value will be displayed on the image parameter area in the upper right of the screen. As the dynamic range increases, the darker the image and the contrast, as well as the noise may increase.
Line Density Click [Line Density], and rotate the multifunction knob to adjust the
5-6 Function and Performance Checking Method
B mode menu->
[Line Density] parameter.
The higher the line density, the higher the resolution, and the lower the frame rate. iClear
B mode menu->
[iClear]
Click [iClear] to adjust, off represents no iClear is turned on, and the bigger the value the stronger the effect. The bigger the value the more clearly the profile of the image.
B mode menu->
[U/D Flip]/[L/R Flip]
B mode menu-> [U/D Flip]/[L/R Flip]
Click [Rotate] to adjust.
5.4.2.2 M Mode
◼ In M Mode scanning, the image parameter area in the right corner of the screen will display the real-time parameter values as follows:
Display V IP 6 DR G F D
Parameters
M Speed M IP M Dynamic
Range
M Gain M
Frequency
Depth
◼ Parameters that can be adjusted to optimize the M Mode image are indicated in the following.
Adjustment
Control Panel
Items
Frequency, Gain, TGC, Depth
Menu
Frequency, Acoustic Power Focus Position, Edge Enhance, M Soften, Speed,
Dynamic Range, Gray Map, Tint Map, Display Format.
1. Control Panel
Press <M> Press <M> on the control panel, and roll the trackball to adjust the sampling line.
Then press [M] again.
Press [M] on the control panel again to enter M Mode, then you can observe the tissue motion along with anatomical images of B Mode.
Press <Update> To switch between the active B image and frozen B image.
Tips: a) Adjustment of the depth, focus position or TGC to the B Mode image will lead to corresponding changes in M Mode image. b) For details of other control panel adjusting parameters, please refer to descriptions in B mode
Function and Performance Checking Method 5-7
2. Menu
Procedure
Speed
B mode menu-> [Speed]
Standard
Click [Speed], and rotate the multifunction knob to adjust the parameter.
The lower the value the faster the refreshing.
Display Format
M mode menu-> [Display Format]
There are 4 formats available for image display: L/R, V1:1,
V1:2, Full.
Tips: a) During M Mode scanning, frequency and acoustic power of the probeare synchronous with that of B Mode. b) Refer to B mode for more details.
5.4.2.3 Color Mode
◼ In Color Mode scanning, the image parameter area in the right corner of the screen will display the real-time parameter values as follows:
Display F G
Image Parameters Frequency
Color
Gain
WF
Color Wall Filter
PRF
Pulse Repetition Frequency
◼ Parameters that can be adjusted to optimize the Color Mode image are indicated in the following.
Adjustment
Control Panel
Items
Color Gain 、 Frequency 、 Depth 、 Steer, Scale
Menu
Frequency 、 Acoustic Power, Persistence, Line Density,Packet Size,
Priority , B/C Align, Smooth, Wall Filter,Scale, Baseline,Invert,Color Map 、
Dual Live
5-8 Function and Performance Checking Method
5.4.2.4 PW Mode
◼ In PW Mode scanning, the image parameter area in the right corner of the screen will display the real-time parameter values as follows:
Display F G WF PRF SVD SV Angle
Parameters
Frequency
PW/CW
Gain
Wall
Filter
Pulse
Repetition
Frequency
Sample
Volume
Depth
Sample
Volume
Size
Angle
◼ Parameters that can be adjusted to optimize the PW Mode image are indicated in the following.
Adjustment Items
Control Panel Gain 、 Frequency
Menu
Frequency, Acoustic Power ,Scale, Wall Filter, Speed, Duplex/Triplex, SV, Quick
Angle, Angle, Invert, Baseline, Trace Area, T/F Res, Audio, Auto Calc, Auto Calc
Cycle, Auto Calc Para, HPRF, Dynamic Range, Gray Map, Tint Map, Display Format
5.4.2.5 Cine Review
Procedure
⚫ Press [Freeze] key to freeze an image, and the [Cine] key indicator lights on. The system automatically enters the manual cine status.(Prec ondition: set “Status after Freeze” to be “Cine”)
⚫ Press iStation, click [Review] or press
<Review> to open the cine file
⚫ Cine Review status
⚫ To enter cine auto cine review status.
Roll the trackball
Click image menu->[Auto Play]
Manual cine review
Activate auto cine play status
Manually review the images until the frame which you want to set it as start point, and then click [Set
First Frame] to set a start mark.
Set first frame:
Manually review the images until the frame which you want to set it as end point, and then click [Set
End Frame] to set an end mark.
Click [Auto Play]
Set end frame
The cine is played within the setting region.
Then press the [Cine] key again.
⚫ Press the <Freeze> key to defreeze the image.
Cine review stops
⚫ <Freeze> backlight is off, the image returns to the scanning process and exits
Function and Performance Checking Method 5-9
⚫ Press <ESC> or <Cine> cine review.
⚫ The images are still frozen but the system exits cine review.
Auto Review Region
Total frames
Start mark
Playback mark
End mark
Current frame
5.4.2.6 Measurement
In B mode
Procedure
⚫ Enter the application measurement mode.
⚫ Press <Measure>:
⚫ Press <Caliper> key
⚫ Enter the general measurement mode.
Click any 1-2 measurement items, the measurement results will be displayed below the image
Press <ESC> or the same key again. Exits measurement.
Perform similar operations in other modes
Application measurement functions are related to certain application software packages.
5.4.2.7 Patient Information Management
Procedure
Press <Save1/2> in image scanning process (preset already).
⚫ Press <Review>
⚫ Click [Exit] on the Review screen; or press <Review> or
<ESC>.
The image will be saved to corresponding patient database and the saving icon will be displayed in the right of the screen.
⚫ To enter Review:
⚫ To exit Review:
Press <iStation> to enter Patient information management (iStation page)
Saved images and information for the patient can be checked here, and you can:
⚫ Backup/ Restore
⚫ Send to (DICOM or network storage)
5-10 Function and Performance Checking Method
5.5 Performance Test
5.5.1 Test Process
Resolution
Detection depth
Geometric Position
Accuracy
Blackout area test
Record the exam images
5.5.2 Test Content
NOTE:
The image used here is only for reference, stick to the image effect in the real situation.
Requirements:
1. Display: set the contrast and brightness at the clinical application value (or the default status)
2. Operation environment: dark room, simulating the clinical application environment.
3. Scanning techniques: contact the probe with the acoustic window of the phantom, no spacing nor pressing.
Tips:
For the testing phantoms, please refer to Appendix B.
5.5.2.1 Resolution
◼ transverse resolution
Test Step:
1. Cover the scan surface of the phantom with water or couple gel, gently contact the probe with the scan surface, making the transverse resolution testing targets to be displayed around the midline of the image.
2. Adjust the focus point focuses at the position where the transverse resolution testing targets are displayed.
3. Adjust parameters like gain, dynamic range, TGC, making the background tissue unseen, just displaying the target image clearly.
Function and Performance Checking Method 5-11
4. In condition that the transverse resolution testing targets are horizontally displayed, record the minimal distance of two targets that can be clearly recognized.
5. Repeat the operation above for the transverse resolution testing targets at other depths.
As shown in figure below.
◼ Axial resolution
Test Step:
1. Cover the scan surface of the phantom with water or couple gel, gently contact the probe with the scan surface, making the longitudinal resolution testing targets to be displayed around the midline of the image.
2. Adjust the focus point focuses at the position where the longitudinal resolution testing targets are displayed.
3. Adjust parameters like gain, dynamic range, TGC, making the background tissue unseen, just displaying the target image clearly.
4. Record the minimal distance of two longitudinal resolution testing targets that can be clearly recognized.
5. Repeat the operation above for the longitudinal resolution testing targets at other depths.
5-12 Function and Performance Checking Method
NOTE:
1. When using the convex probe, keep the transverse resolution testing targets to be displayed near the midline.
2. When using a linear probe with steer function, do not turn on the steer function when perform the transverse resolution test.
3. Zoom in the region where the targets located if necessary.
4. The diameter of the target point at a certain depth is equal to the transverse resolution at the depth.
5.5.2.2 Maximum Depth
Test Step:
1. Cover the scan surface of the phantom with water or couple gel, gently contact the probe with the scan surface
2. Set the system display depth according to the expected maximum available depth of the probe in use.
3. Adjust the focus point to the deepest, and AP at the maximum value.
4. Set gain, contrast, TGC at a greater value, but no halation nor defocus is allowed.
5. Record the depth of the furthest target (the target can be seen clearly).
NOTE: 1. Increasing the gain will also increase the noise, and echo may be covered.
2. When using a linear probe, please completely contact the probe with the scan surface, no side clearance is allowed.
3. When using a convex or phased-array probe, make the axis targets to be displayed at the middle of the scanning image.
4. When system is not frozen, the fast field target information may be similar to that of the noise, do not use this target.
As shown in figure below.
Function and Performance Checking Method 5-13
5.5.2.3 Geometric positioning accuracy
◼ Longitudinal geometric positioning accuracy
Test Step:
1. Do adjustments as the way in testing the maximum depth.
2. Record the distance by 20mm each segment on the longitudinal targets line using the measurement caliper;
3. Select the value with the greatest error (to 20mm), calculate the accuracy using the formula below
NOTE:
1. The measurement caliper should be positioned at the upper edge of the target, not the middle nor the lower edge.
2. The scanning plane should be vertical to the target line, that means the scanning plane is parallel with the cross-section of the phantom
As shown in figure below.
5-14 Function and Performance Checking Method
◼ Transverse geometric positioning accuracy
Test Step:
1. Cover the scan surface of the phantom with water or couple gel, gently contact the probe with the scan surface
2. Adjust the depth, making the transverse targets to be displayed in the image.
3. Adjust the focus point to be posited beside the transverse targets (the standard is not clear)
4. Adjust parameters like gain, TGC, making each transverse targets to be clearly displayed.
5. Record the distance by 20mm each segment on the transverse targets line by using the measurement caliper
6. Select the value with the greatest error (to 20mm), calculate the accuracy by using the formula below
NOTE: 1. When using a linear probe, record the transverse distance by segment.
2. When using a convex probe, all transverse targets should be displayed integrally in an image.
3. The measure caliper should be posited at the upper side or lower side of the target center.
As shown in figure below.
Function and Performance Checking Method 5-15
5.5.2.4 Blackout Area
Test Step:
1. Cover the scan surface of the phantom with water or couple gel, gently contact the probe with the scan surface
2. Adjust the depth at a lower value, and set the focus at the nearest place to the scan surface.
3. Decrease the value of parameters like AP, Gain until the background noise just can be seen.
4. Record the smallest depth of the target that can be seen clearly, that value is the blackout area value.
NOTE:
1. When using a linear probe, please completely contact the probe with the scan surface, no side clearance is allowed.
2. For convex probe, the targets in the blackout area should be positioned on the midline of the scanning plane.
As shown in figure below.
5-16 Function and Performance Checking Method
6
Software Upgrade and
Maintenance
WARNING:
DO NOT directly remove a USB memory device; otherwise, the USB memory device and / or the system may be damaged.
6.1
Enter the Maintenance Window
NOTE: Log on the system with the identity of Service before perform system maintenance.
To log on the system:
1. When access control function has not been activated: press “Ctrl+/” to show the Login dialogue box, and then select the Service as the user name.
2. When access control function has been activated already: press “Ctrl+/” when the Login dialogue box is displayed, and then select the Service as the user name.
3. Press <Setup> key to open the Setup menu, click [Maintenance] and then select the target items to perform the maintenance respectively.
Software Upgrade and Maintenance 6-1
6.2 System Software Installation/ Restoration
Refer to recovery guide.
6.3 Installation of Optional Devices
1. Copy the optional devices to the U disk, then insert it to the USB port of the ultrasound system;
2. Enter [Preset], click [Maintenance] to enter [Option] menu to select the option module to be installed.
6-2 Software Upgrade and Maintenance
3. Click [Install]. Select key file from the dialog box, and then click [OK].
4. The options become Installed after the key files are installed. The corresponding function is activated after returning from preset.
Note: After all modules are installed, please go to the previous interface to confirm.
◼ Trial: select the corresponding software package, and then click [Trial].
Note : for each component, you can activate trial version only once. The trial lasts 180 days for each key.
◼ Promote
1. Click [Promote]. The following image appears:
Software Upgrade and Maintenance 6-3
Note : the promotion function is only applied to the uninstalled key. If the optional key is installed, the promotion function is disabled.
2. Select the key to be promoted.
3. Click [OK] to complete the promotion.
Note : it is unavailable to use promotion for multiple optional keys. For the optional key which is promoted, it can also be installed. The promotion lasts 365 days for each key.
◼ Uninstalling
1. Select the software package to be uninstalled from option list.
2. Click [Uninstall] and it pops up the [Confirm] dialogue box. Click [OK];
6-4 Software Upgrade and Maintenance
Return to the system preset interface. The option status changes into Uninstalled .
Note:
The uninstalling function is exclusive to internal users. The service engineers must log in the system with the account of Service , and then conduct the uninstallation.
6.4 Data Backup and Storage
6.4.1 Manage Settings
Press <Setup> to open the Setup menu, click [Other] to open the Manage Setting interface. System preset can be performed here. Image parameters can be exported, imported or restored to factory.
Software Upgrade and Maintenance 6-5
6.4.1.1 Back up the Preset Data
1. On Manage Settings page, Click [Export] to open the [Export Data] dialogue box.
2. Select the path to save data.
3. Click [OK], a progress bar will appear and the preset data of the selected items will be exported to the specified path.
6.4.1.2 Restore the Preset Data
1. On Manage Settings page, Click [Import] to open the [Import Data] dialogue box.
2. Select the path of the preset data.
3. Click [OK], a progress bar will appear and the preset data will be imported to the specified path.
Note: If selecting [Load factory] , it will restore the system to the factory setting, but the
[Region],[Admin] , [Network Preset] and [DICOM Preset] cannot be restored.
6.4.2 Patient Data Backup and Restore
6.4.2.1 Patient Data Backup
1. Press [iStation] on the control panel to open the iStation dialogue box.
2. Click [Select All] to select all the data or select the target data one by one.
3. Select the data, click [Backup] to pop up the Backup patient Record dialogue box, select the target storage device (recorder or USB disk), click [Backup], the data will be backed up.
6.4.2.2 Restore Patient Data
1. Press [iStation] on the control panel to open the iStation dialogue box;
2. Select the drive which contains the patient data, click [Select All] to select all the data or select the target data one by one, and click [Restore] to restore the patient data from the current drive to the patient database.
6-6 Software Upgrade and Maintenance
6.5 Software Maintenance
6.5.1 Product Configuration
NOTE: [Config] is available on the Maintenance menu only if the operator logged on the system as Service.
1. Make the product configuration file —PCF file (generated by the production line or already archived PCF file) according to specific requirements and copy to the USB disk.
2. Connect the USB disk to the machine, click [Config] and load the file in the popped up dialogue box.
3. Select correct file (PCF format), and click [OK]. After the operation is completed, the successful prompt appears. Restart the machine according to the prompt.
Specific configuration: a) Model configuration b) Customized product logo, hospital logo, screen saver/hibernation icon, active/inactive icon of dual B mode, system information, boot up/shut down graphics.
NOTE: After Doppler restoration, please do product configuration manually according to the practical situation.
6.5.2 Log Maintenance
6.5.2.1 Export the Log
1. Connect the USB disk.
2. Click [Export Log] on the Maintenance menu.
Software Upgrade and Maintenance 6-7
3. Select the path in the Browse page to save the log, and click [OK].
4. When the log is exported, the system prompts “Export succeed!” click [OK] to return to the
Maintenance menu.
NOTE:
The log can be exported to the external USB storage device only, make sure the connection between U disk and ultrasound is normal before the exporting.
6.5.2.2 Log Uploading
1. Click [Upload Log] on the Maintenance menu, and select the log type in the sub-menu
2. Click [Upload] in the popping up dialogue, the system performs log uploading automatically.
After the uploading is finished, the system will prompt “Upload succeed”
If uploading is failure or can’t find the server, the system will prompt information as below.
6-8 Software Upgrade and Maintenance
NOTE: 1. Before uploading the log, make sure the ultrasound system has been connected to network, otherwise, the system may warn “could not connect to server”
2. The server (smtp.163.com
) is already specified by the system, the user doesn’t have to select it.
6.6 Display Parameter Setting
NOTE: In normal condition, when changing display assembly or main board assembly, the hardware will update the display data automatically. If synchronization fails, please load display parameters manually to assure image effect.
1. Log in as Service user.
2. Enter [Maintenance] menu in Setup menu. Then select [Test Main Monitor] to enter.
Software Upgrade and Maintenance 6-9
3. Click the upper icon in the screen (prompts “Update” if you put the cursor on it), the update step is carried out, if fails, please send to R&D center.
Figure 6-1 Main Monitor Maintenance Screen
4. After update is successful, restart the machine after power off to make the data effective.
6.7 HDD Partition
◆ The storage capacity of the system HDD is 500G or more, and the partition information is as follows:
Blocks(G) system
Linux
Notes
C:
10
≥441.7
10
Linux
Linux
D:
E:
1. C drive
Catalog Data Illustration
POD Probe data (supported probes in the system)
\Image
C:\z6
\gui
\app
ColorSpectrum
Font
Skin pinyinmap
Word
LayoutInfo version.txt bodymark bodymark_vet map data, color scale and colorize font file
Skin file pinyin data input setting data
Layout configuration file
Version file
Pictogram for human
Pictogram for vet
6-10 Software Upgrade and Maintenance
\Key
2. D drive
Catalog
\gui
D:\z50
\exe nls videoplay
Sound
\video
\preset
\drive
\ExamMode
\ProductConfig
\selfupdate version.txt
Picture version.txt factory version.txt
/
/
Product_info.ini
Version
/
\config
\log
DCM
Report obd.bin version.txt
Comment
AnatomyImage
Measurement main structured report related data file and DICOM viewing software report template
OBD data file
Version file
Comment file
Anatomical images
Measurement library
Doppler program and related boot configuration file and plug-ins, remote desktop server
Boot_logo.png Doppler boot-up graphics
Hospital logo.bmp manu_logo.png
Hospital logo
Manufacturer logo
Active icon
Non_Real_Image.bmp Inactive icon
Dorm_logo.bmp Standby graphics
Product.PCF
Factory.key
Product configuration file
Factory key file
Data
\word
\DcmLog
\Monitor
\Operation
\SystemStat
Multilanguage string file
Video play exe file
Cine saving and hint sound file
Version file
Display testing picture
Version file
Factory data
Version file
Recovery file for hard drive
Probe and exam mode configuration file
Model/regulatory information/serial number file
Version file
Probe data
Illustration
User-defined word library
DICOM log
Monitor log
Operation log
Power on/off log
Software Upgrade and Maintenance 6-11
\PATIENTDATA
\Preset
\temporary
\PatientBack
3. E drive
Catalog
E:z50
Demo
Patient Backup demofile.txt
\selftest appmon_window_monitor.txt message.txt
PeriLog.txt commentlog.txt burn_cd_msg.txt error.txt
\
\Current
\
\
Data Illustration
Ivision default DEMO path
Patient data back up
Ivision default DEMO path
Self test log
Appmon monitor log
Warning message
Peripheral log
Comment log
Burn log
System error log
Main patient database path
User preset data
Temporary file
Patient back up data
6-12 Software Upgrade and Maintenance
7
Field Replacement Unit
This chapter lists the details of the Field Replaceable Units (FRU) of the system. Please refer to the explosive view and the FRU table below.
Level 0 represent the main Assembly of the system, and the whole system is divided into 4 Assembly.
Level X represent the main parts of Level 0 Assembly.
Level X-1 represent the sub-parts of Level X.
If order number is provided in the table, which means the part is a FRU and can be ordered; if the order number is not provided in the table, which means the part is not a FRU and cannot be ordered.
Field Replacement Unit 7-1
7.1 Explosive View
C0
A0
B0
7-2 Field Replacement Unit
E0
7.2 Assembly Explosive View
7.2.1 Monitor Assembly (A0)
A2
A1
11
No.
A1
Order Number
115-063844-01
Part Name
Monitor Assembly(1117Vet/1116/1156/FRU)
Qty.
1
/
Remark
Field Replacement Unit
7-3
No. Order Number
115-063931-01
A2
115-068553-00
Part Name
Monitor Assembly(1117 Human/FRU)
Monitor Damper(FRU)
Qty.
1
/
1
/
Remark
7-4 Field Replacement Unit
7.2.2 Operation Panel Assembly (B0)
No.
B1
Order Number
115-063887-01
Part Name
Control Panel Assembly(1117/FRU)
Qty.
1 /
Remark
Field Replacement Unit
7-5
No.
B2
B3
B4
B5
B6
B7
B8
Order Number
115-063841-00
115-063842-00
801-1150-00015-00
801-1150-00016-00
115-063875-00
115-063906-00
049-001795-00
115-063843-00
Part Name
Dual Encodes Assembly(FRU)
Single Encode Assembly(FRU) optical trackball unit(FRU)
TGC Adjustment Board(FRU)
Bottom Cover of Control Panel(Vet)
Bottom Cover of Control Panel(1117Human) keyboard Overlay
Encoder Knob and TGC Cap Assembly
Qty.
1
2
1
1
1
1
1
1
Remark
/
/
With trackball connecting line
With harness
With trackball connecting line
With STC connecting line
/
With four pieces of encode knob and two pieces of TGC cap
7-6 Field Replacement Unit
No.
B1-1
Order Number
049-001743-00
7.2.3 Core Assembly (C0)
silcon keyboard
Part Name Qty.
1 /
Remark
Field Replacement Unit
7-7
No.
C1
C3
C4
Order Number
115-063911-00
115-043600-02
115-063913-01
115-063912-00
801-1150-00005-00
115-063891-00
115-063892-00
115-063893-00
C5
115-063894-00
115-063895-00
115-063896-00
115-063897-00
7-8 Field Replacement Unit
Part Name
Main Board Assembly(1117/FRU)
CPU Module(1112/1114 FRU)
Probe Board Assy(1117/1156/Two Sockets)
Probe Board Assy(1117/Three Sockets)
IO Board
HDD(Z5/CE/FRU)
HDD(Z5BW/CE/FRU)
HDD(Z5T/CE/FRU)
HDD(Z50/CE/FRU)
HDD(Z50BW/CE/FRU)
HDD(Z50T/CE/FRU)
HDD(Z5Vet/CE/FRU)
Qty.
1
1
1
1
1
1
1
1
1
1
1
1
Remark
/
Standard. 115-063913-00 is obsolete.
Please use 115-063913-01 to order.
Optional
/
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial
No. Order Number
115-063898-00
115-067378-00
115-067377-00
115-067375-00
115-067374-00
115-067371-00
115-067369-00
115-067366-00
115-067362-00
Part Name
HDD(Z50Vet/CE/FRU)
HDD(Z70 Expert/CE/FRU)
HDD(Z70 Pro/CE/FRU)
HDD(Z70S/CE/FRU)
HDD(Z70/CE/FRU)
HDD(Z50 Expert/CE/FRU)
HDD(Z50 Pro/CE/FRU)
HDD(Z50W/CE/FRU)
HDD(Z50S/CE/FRU)
Qty.
1
1
1
1
1
1
1
1
1
Remark
number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
CE only. When applying, please remark: Software version, Serial number of unit.
Field Replacement Unit
7-9
No. Order Number
115-063899-00
115-067181-00
115-067180-00
115-067179-00
115-067178-00
C6
C7
C8
C9
C10
C11
C12
115-063900-00
115-063836-00
115-063845-00
115-063886-00
115-063877-01
115-063910-01
043-011251-00
115-044346-00
043-003940-00
7-10 Field Replacement Unit
Part Name
HDD(Z5/FDA/FRU)
HDD(Z50 Pro/FDA/FRU)
HDD(Z50S/FDA/FRU)
HDD(Z50T/FDA/FRU)
HDD(Z50/FDA/FRU)
HDD(Z50Vet/FDA/FRU)
Power Supply Module(FRU)
Main Unit Fan(FRU)
Battery Connection Board(FRU)
FrontCover Assy of MU(1117Vet/1116/1156)
Front Cover Assembly of Unit(1117 Human)
Handle
4D Module Kit
Probe Holster Small
1
1
1
2
1
1
1
1
Qty.
1
1
1
1
1
1
Remark
/
/
/
FDA only. When applying, please remark: Software version, Serial number of unit.
FDA only. When applying, please remark: Software version, Serial number of unit.
FDA only. When applying, please remark: Software version, Serial number of unit.
FDA only. When applying, please remark: Software version, Serial number of unit.
FDA only. When applying, please remark: Software version, Serial number of unit.
FDA only. When applying, please remark: Software version, Serial number of unit.
/
/
/
Optional
/
No.
C13
C14
C15
Order Number
043-004917-00
115-011471-00
115-059614-00
115-011472-00
115-063878-00
Part Name
large probe holster one-piece lithium-ion Battery Pack one-piece lithium-ion Battery Pack one-piece lithium-ion Battery Pack
Damper of Control Panel(FRU)
1
1
1
Qty.
1
1
Remark
/
CE area, except for India
For India only
FDA only
With left damper and right dumper
No.
C6-1
C6-2
C6-3
Order Number
115-051844-00
115-051845-00
115-063846-00
Part Name
AC-DC board( FRU)
DC-DC Board( FRU)
Power Supply Fan(FRU)
7.2.4 Cable Set of Main Unit (D0)
No. Order Number Part Name
Qty.
1
1
1
/
/
/
Qty.
Remark
Remark
Field Replacement Unit
7-11
No.
D1
D2
D3
D4
D5
D6
/
/
/
/
Order Number
115-063885-00
/
D7 /
D8
D9
/
/
Part Name
Cable Set of Main Unit(FRU) battery connecting line main board power line power signal line
AC input line
Harness
Trackball connecting line control panel line
STC connecting line
7-12 Field Replacement Unit
Qty.
1
1
1
Remark
Include D2~D9, but only one piece for each of them.
Battery Connection Board J1-DC-DC power board J4
Main board J8- DC-DC power board
J5
1
1
2
2
1
1
Main board J7- DC-DC power board
J1
AC input connector
– AC-DC power board J1
Control panel PCBA J2/J5-Single encoder board J1
1. Control panel PCBA J3-Dual encoder board J1
2. Control panel PCBA J3-Track board assembly J1
Main board J14- Control panel PCBA
J9
Control panel PCBA J7-TGC assembly J1
7.2.5 UMT-170 Mobile Trolley ( E0 )
E2
E1
E3
Field Replacement Unit
7-13
No.
E1
E2
E3
Order Number
115-037617-01
115-070488-00
115-070487-00
Part Name probe holder&cup bracket(FRU)
Bin ( FRU )
UMT-170 Trolley Caster and Spanner(FRU)
Qty.
1
1
1
/
/
/
Remark
7-14 Field Replacement Unit
8
Structure and
Assembly/Disassembly
8.1 Structure of the Complete System
Name
Figure 8-1 Overall Exploded View
No. No.
3
4
1
2
Holder
Rear cover assembly of main unit
Assembly of main unit rack
Display assembly
5
6
7
Name
Null turning axis of keyboard
Control panel assembly
Bottom cover of control panel
8.2 Preparations
8.2.1 Tools Required
Cross-headed screwdriver: 1pcs, Spec: 105 X100
Wire cutters: 1pcs
Anti-static gloves: 1 pair
Structure and Assembly/Disassembly 8-1
8.2.2 Engineers Required
Only technical professionals from Mindray or engineers authorized by Mindray after training can perform maintenance and check.
8.2.3 Assembly/Disassembly Required
You should perform the following preparations before the disassembling of ultrasound equipment.
1. When you stop the scanning and the image capture, you should power off the system and disconnect the system from the AC power supply, then pull out AC power cables.
2. Open the battery cover and removing battery.
3. Prepare Tools disassembled and anti-static gloves.
WARNING:
Please start to disassemble when you are sure that you have pull battery out.
8.3 Assembly/Disassembly
This section describes the disassembling and assembling of the main modules and boards. The assembling is the inverse process of disassembling if not mentioned in particular.
◼
Sketch map
Main unit rear cover
Battery connecting board
Display assembly
IO assembly
Probe board assembly
Power m odule
IO board
Power tailboard assembly
AC-DC power board
DC-DC power board
Main board assembly
Control Panel Assembly
Main unit front cover
Silica gel key board
TGC assembl y
Encod er
Track ball
Control panel
PCBA
Buzze r
Main board
CPU
module
4D drive board
(optional)
HDD
Note:
1. The up-to-down arrows indicate the assembly/disassembly sequence
2. The box with the same content format indicates independent assembly
8-2 Structure and Assembly/Disassembly
NOTE: The illustration of disassemble is provided for reference only, and the concrete picture depends on the actual model.
8.3.1 Battery Connecting Board
1. Press the clasp of the battery cover, and then rotate the battery cover down to open it.
Figure 8-2 Disassembly of Battery (1)
2. Slide battery to the right side pressing it all the time, and then remove the battery when the battery pops on the recommended distance.
Figure 8-3 Disassembly of Battery (2)
3. Remove six M3X8 cross combination screws which are installed on the rack of the main unit rear cover.
Figure 8-4 Disassembly of Rear Cover Assembly of Main Unit (1)
4. Hold the battery bay and then remove the rear cover of the main unit simultaneously, pull out the plugs from the battery connecting board.
Structure and Assembly/Disassembly
8-3
Figure 8-5 Disassembly of Rear Cover Assembly of Main Unit (2)
5. Remove panhead screws with washers (2 M3X6) fixed on the main unit box, and then take off the battery connecting board.
Figure 8-6 Removing the Battery Connecting Board
8.3.2 Power Supply Module
1. Remove rear cover assembly of the main unit (referring to 8.3.1 the 1 ~ 4 step)
2. Remove panhead screws with washers (2 M3X6) fixed on the main unit box to remove the upper baffle.
Figure 8-7 Removing the upper baffle
3. Remove panhead screws with washers (4 M3X6) fixed on the main unit box.
4. Pull out the plug of the cables connecting the power module and main board, and take out the power board assembly backward.
8-4 Structure and Assembly/Disassembly
Figure 8-8 Disassemble the Power Module Assembly (1)
Figure 8-9 Disassemble the Power Module Assembly (2)
Figure 8-10 Disassemble the Power Module Assembly (3)
5. Remove panhead screws with washers (2 M3X6) fixed on power module assembly to take out the lower baffle and remove cables connecting the battery conversion board and the main board.
Figure 8-11 Disassemble the lower baffle
Structure and Assembly/Disassembly
8-5
Remove three cables
Figure 8-12 Disassemble the cables
8.3.2.1 Power module Fan
1. Removing panhead screws with washers (5 M3X6) fixed on the power module assembly and pulling out the plug of the fan connecting cables and power input outlet connecting cables, you can take off the rear panel of power supply assembly.
Figure 8-13 Disassemble the rear panel of power supply assembly (1)
Fan cable
Figure 8-14 Disassemble the rear panel of power supply assembly (2)
2. Remove the 4 screws fixed on the fan and then take out the fan on the rear board.
8-6 Structure and Assembly/Disassembly
NOTE:
Figure 8-15 Disassemble the Power Module Fan
During the assembly, fan label must be pasted towards the surface of the machine, and don’t confuse with fans of other products.
8.3.2.2 DC-DC Power Board
1. Remove panhead screws with washers M3X6 (4) used to fix the DC-DC power board.
Figure 8-16 Disassemble the DC-DC Power Board (1)
2. Remove the plug of fan cable.
Figure 8-17 Disassemble the DC-DC Power Board (2)
3. After removing the connecting plug between DC-DC power board and AC-DC power board, you could take out the DC-DC power board.
Figure 8-18 Disassemble the DC-DC Power Board (3)
Structure and Assembly/Disassembly
8-7
8.3.2.3 AC-DC Power Board
1. Remove panhead screws with washers M3X6 (5) used to fix the AC-DC power board (one of the screws should be removed after the fan is removed).
Figure 8-19 Disassemble the AC-DC Power Board (1)
2. After removing the connecting plug between DC-DC power board and AC-DC power board, and the connecting plug between AC-DC power board and power input, you could take out the AC-DC power board.
Figure 8-20 Disassemble the AC-DC Power Board (2)
8.3.3 IO Broad
1. Remove rear cover assembly of the main unit (referring to the 8.3.1 steps 1 ~ 4)
2. Pull out the connecting cable plug on the IO board assembly.
3. Remove panhead screws with washers (6 M3X6 ) which are fixed on the rack of the main unit at the back of the main unit, and take out the IO board assembly backward.
Force point for inserting and pulling
(metal point)
Figure 8-21 Disassemble the IO Board Assembly
8-8 Structure and Assembly/Disassembly
NOTE: Make sure that you could pull out and push into the IO board sockets vertically when pulling out and assembling the IO board assembly on the position of the handle.
4. Remove panhead screws with washers M3X6 (4) used to secure the IO board, and then you could take out the IO board.
Figure 8-22 Disassembly of the IO Board
8.3.4 Probe Board
1. Remove rear cover assembly of the main unit (referring to 8.3.1 the 1 ~ 4 step)
2. After removing panhead screws with washers (14 M3X6) which are installed on the rack of the main unit rear cover and cutting off cable ties fixed on the probe board, you could remove the probe board assembly backward.
Force point (metal handle)
Cut off cable ties
Figure 8-23 Disassemble the Probe Board Assembly-Two Probe Ports
Structure and Assembly/Disassembly
8-9
Force point (metal handle)
Cut off cable ties
Figure 8-24 Disassemble the Probe Board Assembly-Three Probe Ports (Optional)
NOTE: Make sure that you could pull out and push into the probe board sockets vertically when pulling out and assembling the probe board assembly on the position of the handle.
8.3.5 Main Board and CPU Module
1. Remove rear cover assembly of the main unit (referring to 8.3.1 the 1 ~ 4 step)
2. Remove panhead screws with washers (2 M3X6) which are fixed on the main unit, take out the upper baffle and then pull out two cables connecting the main board to the power module assembly.
Figure 8-25 Disassemble the Main Board Assembly (1)
3. Remove the probe board assembly (referring to 8.3.4 the 2 nd step) and the IO assembly
(referring to 8.3.3 step 3)
4. Remove panhead screws with washers (7 M3X6) fixed on the main unit box, and take out separating board assembly of the main unit (including separating board of the main unit, heightening washer of fan and fan on main unit).
8-10 Structure and Assembly/Disassembly
Figure 8-26 Disassemble the Main Board Assembly (2)
5. When removing panhead screws with washers (4 M3X6) used to fix the CPU module, you can take out the CPU module.
Figure 8-27 Disassemble the CPU module
NOTE:
1. You can’t draw out the CPU module abruptly, but you would pull it out after loosening the board from the left/right side to avoid damaging the main board
FPGA.
2. After replacing the CPU module, key file must be generated once again according to the new MAC address and written into HDD of the machine. Or else, the configuration function of the product will be lost.
6. After removing the CPU module, Remove panhead screws with washers (12 M3X6) fixed on the main unit box, you can take off the board. Remove the HDD in back of the board, the left is main board.
Figure 8-28 Disassemble the Main Board
Structure and Assembly/Disassembly
8-11
NOTE:
1. The button cell model of the main board PCBA is Lithium 3V220mAh D20*3.2.
2. During assembly, please assemble the main board and fasten with the screws, and then install the CPU module.
7. Turn the main board, remove the panhead screws with washers M3X6 (4 pcs), and then the
4D board (optional) can be removed.
Figure 8-29 Disassemble the 4D Board
8.3.6 Control Panel Assembly
1. Remove plugs fixed on the on the control panel (4), and take off the corresponding panhead screws with washers M3X8 (4).
Figure 8-30 Disassemble the Control Panel Assembly (1)
2. Hold the upper edge of control panel assembly, and open up the control panel.
Figure 8-31 Disassemble the Control Panel Assembly (2)
3. After removing one countersunk head self-tapping screw PT3X10 fixed on the control panel and take out the plug of the keyboard and the main unit connecting cables, you could remove
8-12 Structure and Assembly/Disassembly
the control panel assembly.
Figure 8-32 Disassembly of the Control Panel Assembly (3)
8.3.6.1 Encoder Board
1. Draw out the 4 knobs upwards fixed on the encoder board on the control panel assembly.
Figure 8-33 Disassemble the Encoder Board (1)
2. After removing the connecting cable plug on the control panel and taking out countersunk head self-tapping screw PT3X10(7) used to secure the encoder board, you could remove the encoder boards.
Figure 8-34 Disassemble the Encoder Board (2)
8.3.6.2 Trackball
Remove the connecting cable plug of trackball, and countersunk head self-tapping screw
PT3X10 (4) fixed on the trackball. Take out the trackball;
Structure and Assembly/Disassembly
8-13
Figure 8-35 Disassembly of the Trackball
8.3.6.3 TGC Board
1. Draw out the 8 knobs upwards fixed on the TGC board on the control panel assembly.
Figure 8-36 Disassembly of the TGC Board (1)
2. After removing the connecting cable plug of TGC board and removing screws PT3X10 (4) fixed on the TGC board, you could remove the TGC board.
Figure 8-37 Disassembly of the TGC Board (2)
8.3.6.4 Buzzer
After removing the connecting cable plug of buzzer on the control panel and taking out the buzzer fixing screw PT2X8 (2), you could remove the buzzer.
8-14 Structure and Assembly/Disassembly
Figure 8-38 Disassembly of the Buzzer
8.3.6.5 Silicon Key
1. Remove the encoder board, TGC board, trackball and buzzer in turn by referring to 8.3.6.1 –
8.3.6.4.
2. Remove 18 PT3X10 self-tapping screws fixed on the control panel.
Figure 8-39 Disassemble the Control Panel (1)
3. Pull out the control panel and silicon key from the keyboard cover and then dispatch them apart. Take out the silicon key.
Silicon key
(upper)
Control panel
PCBA (lower)
Figure 8-40 Disassemble the Control Panel (2)
Structure and Assembly/Disassembly
8-15
8.3.7 Display Assembly
1. Remove rear cover assembly of the main unit (referring to 8.3.1 the 1 ~ 4 step)
2. Remove panhead screws with washers (4 M3X10) used to be secured the monitor on the rack by a screwdriver.
Figure 8-41 Screws on the Display Assembly
3. Cut off cable ties connecting the main unit on the display by diagonal cutting pliers, and then pull out the corresponding cable plugs.
Figure 8-42 Disassemble the Display assembly
4. Pull the display assembly upwards to make it separated from the main unit.
Figure 8-43 View of Display Assembly
8-16 Structure and Assembly/Disassembly
8.3.8 Hard Disk
NOTE
Please pay attention to the following matters during disassembling/assembling, otherwise the hard disk will be damaged:
⚫
Hold the side of the hard disk, and please do not touch the board of the hard disk.
⚫
Fasten the screws with the handy screw driver, and do not with the electric screw driver.
⚫
The torsion value of the screw lock is:
M3: 4 to 6 kgf.cm
M4: 6 to 8 kgf.cm
1. Tilt the display.
Tilt the display
Figure 8-44 Disassembly of HDD (1)
2. Remove panhead screw with washer (1 M3X8 ) which is installed on the rack of the main unit front cover, then remove the HDD cover assembly (including HDD cover, HDD cover metal part and conductive foam ).
Figure 8-45 Disassembly of HDD (2)
3. Remove 3 panhead screws with washers M3X6 used to secure the rack of HDD, and take out the HDD assembly upwards.
Structure and Assembly/Disassembly
8-17
Figure 8-46 Disassembly of HDD (3)
NOTE: After replacing the HDD, you need to:
1. Restore the system ;
2. Install the optional functions: Key file must be written according to MAC address of the machine, Or else, the optional function of the product will be lost.
8.3.9 Speaker
1. Remove rear cover assembly of the main unit (referring to 8.3.1 the 1 ~ 4 step);
2. Remove 4 combination screws M3X8 used to fix the monitor assembly by using the cross screwdriver.
Figure 8-47 Disassembly of Speaker (1)
3. Remove cables connecting the speaker and cables connecting the control panel from machine core unit, and cut the cable ties by using wire cutters.
8-18 Structure and Assembly/Disassembly
Figure 8-48 Disassembly of Speaker (2)
4. Remove 10 panhead screws with washers (M3X6) used to fix machine assembly unit to separate the machine core assembly from the front cover of the main unit. And the speaker assembly appears.
Figure 8-49 Disassembly of Speaker (3)
5. Remove 4 panhead screws with washers (M3X6) used to fix the speaker assembly from the front cover of the main unit to take out the speaker assembly.
Figure 8-50 Disassembly of Speaker (4)
6. Remove 4 panhead screws (M2X8) from the speaker assembly to disassemble the speaker assembly.
Figure 8-51 Disassembly of Speaker (5)
Structure and Assembly/Disassembly
8-19
8.3.1 Printer Adapter (Optional)
8.3.1.1 Structure of the Entire System
No. Name
8.3.1.2 Tools Required
Name Type
Cross-headed screwdriver Type-2 screwdriver /
No. Remarks
Assembly and disassembly of the
M2.5 flat-headed screws.
8.3.1.3 Engineers Required
Only technical professionals from Mindray or engineers authorized by Mindray after training can perform the maintenance and the check.
8.3.1.4 Requirements
You should perform the following preparations before disassembling the ultrasound device.
1. Power off the printer adapter, and disconnect all the AC power.
2. Put the printer adapter in a stable place.
3. Prepare the tools required.
8.3.1.5 Assembling/Disassembling
Tools required: type-2 screwdriver
Unscrew the four M2.5 flat-headed screws and remove the rear cover of the printer adapter, as shown in the following figure:
8-20 Structure and Assembly/Disassembly
The disassembled printer adapter is shown as follows:
Structure and Assembly/Disassembly
8-21
9
System Diagnosis and
Support
9.1 General Status Indicator
9.1.1 Status Indicators of the Control Panel
Status indicators
Power-on status indicator
Icon
Battery status indicator
AC indicator
Standby status indicator
Hard disk indicator
Status definition and indicators Position
The indicator is not on when the system is turned off;
Press the key, the indicator blinks green at power on.
After power on, the indicator is green.
1.It illuminates in orange when battery is charging;
2. It illuminates in green when battery is charging to100% electricity;
3. When the battery capacity is more than 20% in discharging status, the green indicator is green.
4. When the battery capacity is less than 20% in discharging status, the orange indicator blinks; When less than 10%, the orange indicator blinks quickly.
5. When the battery is in non-charging/discharging status or no battery is in, the indicator is not on.
The indicator is green when the system is connected to the
AC power supply. The indicator is not on when battery supplied.
The Control
Panel on the upper right corner
The Control
Panel on the lower left corner
The indicator blinks orange in standby status.
The indicator is off on the other status.
The indicator light flashes in green when the hard disk is reading or writing.
The indicator is off automatically in other situations.
The Control
Panel on the lower left corner
The Control
Panel on the lower right corner
The Control
Panel on the lower right corner
System Diagnosis and Support 9-1
9.1.2 Status Indicator of the Power Supply on the IO
Board
Status indicators
12V power indicator
5V power indicator
3.3V power indicator
Reserved indicator
Icon
12V
5V
3.3V
A
Status definition and indicators
Power on, and indicator is on (green), which indicates 12V output is normal
Power on, and indicator is on (green), which indicates 5V output is normal
Power on, and indicator is on (green), which indicates 3.3V output is normal
The indicator is on when the system is on the reserved status.
9.1.3 Status of whole machine
The status of whole machine
Status definition and indicators
Scanning status
Freezing status
The power-on status indicator turns on green, and the button indicator is white
The power-on status indicator turns on green, and the [Freeze] key is orange
To enter the
Patient Info screen:
To exit the Patient Info screen:
Entering or exiting the scanning status by the [Freeze] key
Entering or exiting the freezing status by the [Freeze] key
Standby status
Screen-s aver status
There are 3V3-STB and
5V_STB of power are normal, other power are off
The standby indicator blinks orange.
The brightness of the monitor is 0%, and the backlight of the control panel is off.
Screen-saver default is
“mindray” showing on the monitor.
1. Press the power switch for a short time, and then the system enters into the standby status by choosing from the status popped on the screen.
2. If there is no operation for the time set at first, the system would enter into the standby status automatically.
3. The system will enter into the standby status after 30s if the control panel is fold.
The system restores to the freezing status after restarting by pressing the power switch for a short time.
There is no operation for the time set firstly, and then the system would enter into the screen-saver status from the freezing status automatically.
When you press any keys on the control panel, the system would return to the freezing status, the brightness and the backlight of the control panel both restore to the previous
9-2 System Diagnosis and Support
The system is frozen.
Ultrasound imaging hardware system is in the dormancy mode
Power-off status
The system is on the power-off status: when connected the AC power supply the AC indicator is on, else refer to the instruction of “Battery status indicator” status.
Press the power switch for a short time, and then the system is turned off by choosing from the status popped on the screen
Starting the system by pressing the power switch for a short time
9.2 Starting Process of the Whole System
The system is powered on Press the power button on the control panel
Power-on status indicator blink green after 3 S flashing
After the system is powered on, BIOS startup
Linux OS startup
Blank screen in the short time, BIOS startup graphics displays
1.The control panel backlight lights on
2.The power status indicators on the IO Back panel all light on.
3,The fan starts to run
Linux startup graphics displays(no progress bar)
Hard disk indicator starts to flash
Doppler startup
Doppler startup graphics displays(progress bar displays)
The color of some mode key (such as B mode) on the control panel turns on orange
User screen
System Diagnosis and Support
9-3
9.2.1 Start Process of Complete System
9.2.1.1 Powered on by AC
Basic Procedures
The original status:
Finishing loading
3.3VSTB,Finishing loading
5VSTB no indication
Phenomenon
The AC status indicator on the control panel lights on, but the indicators of HDD and standby are off.
Press the power button, the power management send the power-on request to CPU
The Power-on status indicator flashes continuously on the control panel.
CPU responds to requests,
The power has been power on
The Power-on status indicator on the control panel lights for a long time.
1: The control panel backlight lights on.
2: The power status indicators on the IO panel all light on.
3: The fan starts to run.
There are data output and images displaying on the monitor. After finishing HDD initialization and logic configuration, PC enters into BIOS stage
9.2.1.2 Powered on by Battery
Basic Procedures
The original status: finishing loading 3.3VSTB
Phenomenon no indication
Finishing loading 5VSTB The battery indicator on the control panel lights on, but the indicators of HDD, standby and AC status are off.
The power management send the power-on request to CPU
The Power-on status indicator flashes continuously on the control panel
CPU responds to requests,
The power has been power on
The Power-on status indicator on the control panel lights for a long time.
1: The control panel backlight lights on.
2: The power status indicators on the IO panel all light on.
3: The fan starts to run.
There are data output and images displaying on the monitor. After finishing HDD initialization and logic configuration, PC enters into BIOS stage
9-4 System Diagnosis and Support
9.2.2 Start-up Process of BIOS
The start-up process of BIOS is a black-box operation, and the primary description is as following:
Basic Procedures Basic phenomenon
Self-test after the system power-on
Initialization& The settings of record system &
Providing the resident programmer library & Loading the operation system
The LCD is blank screen in a short time.
BIOS start-up display
9.2.3 Start-up of Linux
Linux start-up
BIOS startup process
Guiding the course of programme loading
The course of testing and HDD configuration
The course of the internal core loading
The course of users logging on
The procedure finishes switching of the memory model, starting file system and so on 。 gather the following information: system firmware information, bus adapter type, video card adapter type, keyboard, communication port, thus to finish data inspection.
Function: Loading the kernel and the hardware abstraction layer to the kernel 、 Loading the controller information 、 loading device driver programmer and service 、 load dialogue management
Provide logging-on and deregister , now log on the system automatically
Start DOPPLER
Basic Procedures
Guiding the course of programmer loading & the course of testing and HDD configuration
Basic phenomenon
The LCD is black screen now, and the time of the course is short.
The course of the internal core loading & the course of logging on
LINUX startup graphics appears
Starting Doppler Doppler startup graphics appears, and simultaneously progress bar displays the related information.
System Diagnosis and Support
9-5
9.2.4 Start-up of Doppler
9.2.4.1 Procedure of Startup
Linux app initialization
PC HDD initialization
Initialize Related peripherals along with PC
PC software initialization
Ultrasonic HDD initialization
Initialize ultrasonic
HDD
Ultrasonic software initialization
Finish related startup ,operation and application of ultrasonic software
Finish initialization
9.2.4.2 Details of Procedures
Now, DOPPLER starting is in increments of 20dB, and the detailed course is as following:
Sub-procedures Basic phenomenon Description Basic
Procedures
Linux APP initialization
PC hard disk initialization
The PC software initialization
There is no progress bar on the screen
There is no progress bar on the screen
The progress bar does not appear unit in increments of 7.
PC HDD initialization
Peripheral initialization
Platform initialization
There is no progress bar on the screen
There is no progress bar on the screen
GUI initialization There is progress bar appearing on the screen, and tips under the progress bar are: and tips under the progress bar are:
Initializing hardware…
Loading sy stem preset…
Loading common exam preset…
Loading exam preset...
Initializing locale…
Initializing gui…
GUI initialization Initializing gui…
The total increments are 7, and tips are displayed one by one.
The total increment is 1
9-6 System Diagnosis and Support
Ultrasonic software initialization
Platform initialization
Peripheral initialization
Initializing gui…
Initializing ultrasound peripheral…
Imaging initialization
Application initialization
Initializing ultrasound image…
Initializing ultrasound application…
Finishing initialization
Initialization completed…
The configuration files of the course are as following:
Tips Related operation
No tips
Initializing hardware…
Loading system preset…
Loading common exam preset…
Loading exam preset...
The total increment is 1
The total increments are 2
The total increment is 1
The total increment is 1
The corresponding increments
In increments of 7. Attach the path to configuration files
Initialize display, the main window, sound and the USB representative
Turn on the bus device BackboneDev and LPC
Initialize the time and the processing function of
Multilanguage
Initialize peripheral file system, network and the driver
Enumerate peripheral ports
Configure timer, Initialize soft interruption, construct maintenance servicer and configure static data of the system
Configure system font
Load layout information
Initialize UI management, and Initialize UI mark standard library
When loading boot-trap graphic, 7 refreshing progress bars will display
Release factory package of configuration data
Maintain the data servicer
Generate the servicer of local setting and system setting In increments of 1.
Generate general data management of the exam mode
Generate measure preset, peripheral and network, KMP package of images and the preset servicer of the network strafing
In increments of 1.
In increments of 4.
System Diagnosis and Support
9-7
Initializing locale…
Initializing gui…
Initializing ultrasound peripheral…
Initializing ultrasound image…
Set related information of the zoom, languages, font library and input
Construct widget factory
Configure the GUI layer
Set menu items
Initialize function library
Construct UICenter
Configure the application layer
Initialize the keyboard.
Construct the user account control management, and remote desktop management
Configure the file dialogue box
Initialize printing library
Monitor battery and system handshake.
Load printing mark
Construct low power consumption
Construct the USB management and writing management
Initialize video replay device
Set the virtual machine device, and initialize the virtual machine
Construct object trees of the front-end and the back-end
(ultras and so on)
Add function package of measure menu
Register the application interface of measure patient
Initializing ultrasound application
…
Initialization completed
…
Hide boot-trap graphic
The architecture of patient information management
(UPatientApp)
In increments of 1.
In increments of 1.
In increment of 1.
In increments of 2.
In increments of 1.
In increments of 1.
9.3 Alarming and Abnormal Information
The system has also alarming function, when the machine fails, it would pop up the alarming dialogue box, and simultaneously generate LOG file saved in the system log, whose place of saving in HDD is D : following:
9-8 System Diagnosis and Support
9.3.1 Turning on the System Configuration File is
Abnormal
Alarming tips
Fail to open the file
"SystemConfiguration.ini", and please check HDD data.
LOG record none
Suggestion
Reinstall the system software.
9.3.2 The voltage of system power is abnormal
Alarming tips
The real-time battery will be out of power, please replace quickly! none
LOG record
×××: System Monitor: Power supply alert! [VBAT], Current voltage: [VVV] V, Limit voltage: [LLL]-[HHH] V.
×××represents time, e.g. 2010-12-25 14:15:25 [VVV] represents the current value, and [LLL]-[HHH] represents the lower and upper limits.
Suggestion
Replace button battery.
×××: System Monitor: Power supply alert! [XXX], Current voltage: [VVV] V, Limit voltage:[LLL]-[HHH]V.
×××represents time, e.g. 2010-12-25 14:15:25
[XXX] represents voltage name, [VVV] represents the current value, and [LLL]-[HHH] represents the lower and upper limits.
Short-circuited, protection and overvoltage.
Check the related circuit.
The voltage names respectively are:
AD+12V, A-12V, A-5V, AD+2V5, AD+1V8, D+1V5, D+1V2
9.3.3 Temperature Alarming
Alarming tips
Temperature alarming, XX
Shut down
(XX means inversion timing, starting 60S) none
LOG record
××× System Monitor: Temperature Alert! [XXX],
Current voltage: [VVV] degree, Limit temperature:
[LLL]-[HHH] degree
×××represents time, e.g. 2010-12-25 14:15:25
[XXX] represents voltage name, [VVV] represents the current value, and [LLL]-[HHH] represents the lower and upper limits. The detailed temperature name is as following:
ADC thermal sensor, Multi FPGA thermal sensor,
The log records are the same
The temperature name is: power thermal sensor
×××: System Monitor: Temperature Alert! [CPU thermal sensor], Current voltage: [VVV] degree, Limit temperature: [LLL] degree
×××represents time, e.g. 2010-12-25 14:15:25
Suggestion
Check the fan log
D:\z6\log (if the fan stops working)/check if the heat radiating condition is normal. as above
The first temperature of CPU
Suggestion as above.
System Diagnosis and Support
9-9
Temperature alarming, XX
Shut down
(XX means inversion timing, starting 60S)
[VVV] represents the current value, and [LLL] represents the first limit of CPU temperature.
The log records are the same
[VVV] represents the current value, and [LLL] represents the second limit of CPU temperature.
The second temperature of CPU
Suggestion as above
9.3.4 Fan Alarming
Alarming tips LOG record
Fans need maintenance, please contact service engineers
×××: System Monitor: Fan alert ! [XXX], Current speed:
[VVV] degree, Limit speed: [LLL] rpm.
×××represents time, e.g. 2010-12-25 14:15:25
[XXX] represents fan name, [VVV] represents the current value, and [LLL] represents the limit. The detailed fan names are as following:
Main Board Fan 、 Power Fan
Suggestion
Replace the fan/connect the line again/remove the barrier which causes the fan malfunction
9.3.5 Battery Alarming
Alarming tips
Alarming! Illegal operating battery!
Lead to permanent damage.
LOG record
Battery Hot Plug
Suggestion
Stop the illegal operation.
Battery communication is abnormal. Battery I2C error
Battery communication is abnormal, please connect to AC power supply or shut down! Otherwise the system shuts down automatically after 60s!
Battery I2C error, the battery supply
Battery temperature is too high; please connect to AC power supply or shut down! Otherwise the system shuts down automatically after 60s!
Battery temperature is too low; please connect to AC power supply or shut down! Otherwise the system shuts down automatically after 60s!
Battery temperature is out of range temp ,
Battery temperature is: xx centigrade battery voltage is low, battery volt is xx V
Battery error! Battery cannot be used! battery break
Battery voltage is too low, please connect to AC power supply or shut down! Otherwise the system shuts down automatically after 60s!
Low battery power , battery power is XX battery cycle is XX,
Check the battery connection or replace battery
Check the battery connection or replace battery
Check if the heat radiating condition is normal.
Check the battery connection or replace battery
Replace battery
Input AC, check if the battery charging is normal, and it can be used when full of power.
Otherwise replace battery
Replace battery Battery life is approaching, please
9-10 System Diagnosis and Support
/
/ replace with new battery please change the battery
Battery I2C error ,
Shutdown State
Battery Hot Plug ,
Shutdown State
Replace battery and confirm the malfunction module.
Stop the illegal operation.
9.3.6 PHV Related Alarming
Alarming tips
Alarm!
High-voltage transmission is abnormal, and images display normally!
LOG record
PHVX supply voltage error, PHVX is XX(upper limit is XX)
Potential reason
Something is wrong with the programmed voltage of power module, which make either of the both PHV circuits or multi-path voltage 1.1 times more than the upper limit of voltage (100%AP ) . none
PHV protect, PHV1P is XX,
PHV1N is XX
PHV protection and the voltage of PHV is less than the lower limit.
95V Power supply voltage error, the voltage is XX ,normal region is
90V to 100V
-95V Power supply voltage error, the voltage is XX ,normal region is
-90V to -100V
Something is wrong with the programmed voltage of power module: positive/negative
95V of power transmitting exceeds the limited value
System Diagnosis and Support
9-11
10
Care and Maintenance
10.1 Overview
These procedures in this chapter are recommended.
10.1.1 Tools, Measurement Devices and Consumables
Tool/Measurement Devices
Resin or plastic container
Soft brush
Small plastic basin
Safety test analyzer
Inner hexagon wrench
Table 10-1 Tools and Measurement Devices
Qty.
1 pcs
1 pcs
1 pcs
1 pcs
2 pcs
Remarks
Can accommodate two probes
About a toothbrush size
Used to fill the soapy water
Refer to appendix A
Inner hexagon wrench 6
Table 10-2 Consumable List
Consumable
Aluminum foil
Physiological saline
Mild soapy water
Dry soft cloth/cotton cloth
Qty.
About 1 meter
Remarks
About 1000ml Filling a half container Immerging the whole probe (referring to appendix A).
(concentration 0.85 ~ 0.95%)
About 400ml
About 5 pcs
Care and Maintenance 10-1
10.1.2 Care and Maintenance Items
Table 10-3 Maintenance Items and Frequency
NO. Maintain content Frequency Method
1. Clean display Monthly Referring to 9.2.1
2. Clean trackball
3. Clean control panel Same as the above
4. Clean probes (the head)
5.
6.
Clean probe cable and the surface of connector
Clean holders (including probe holder and gel holder)
7. Clean cover
Every time after using Same as the above
Monthly
Monthly
Monthly
Same as the above
Same as the above
Same as the above
8. Clean peripherals
9. Check surface of probe
10. Check power cable and plug
Monthly
Monthly
Monthly
Daily
Monthly
Same as the above
Referring to 9.2.2
Referring to 9.3.1
Same as the above
11. Check battery
12.
Check function of peripherals and options
13. Mechanical safety inspection
14. Electrical safety inspection
Annually
Annually
Annually
Same as the above
Referring to 9.3.3
Referring to 9.3.4
Once per two years Referring to appendix A
10-2 Care and Maintenance
10.2 Cleaning
10.2.1 Clean the System
10.2.1.1 Flow of Cleaning
Power off and pull out the power cables
Clean display
Clean trackball
Clean control panel
Clean probe
Clean holders
Clean cover
Figure 10 1 View of Cleaning Maintenance
WARNING:
Before cleaning the system, be sure to turn off the power and disconnect the power cord from the outlet. If you clean the system while the power is “On”, it may result in electric shock.
10.2.2 Content
1. Clean Display
⚫ Tool: soft dry cloth ,clear water or mild soapy water
⚫ Method:
Surface of display should be cleaned with soft dry cloth. Remained stain should be washed out by cloth with clear water or soapy water, and then air-dry the surface.
2. Clean Trackball
⚫ Tool: dry cloth, mild soapy water
⚫ Method:
Care and Maintenance 10-3
Trackball is one of important interface parts, which are embedded into the main unit keyboard, and part of which is exploded to be operated by users in order to implement variety of module’s control functions. Trackball is one of the most using frequency of input assemblies on the whole operation panel, and the trackball similar to a multi-directory caster can rotate in every direction drived manually, due to the feature, gas or dust can enter into module internal easily, as a result, contamination of lens would lead to the failure of the trackball. a) Disassembling the trackball:
Turn the trackball ring about 35°counterclockwise until it lifts, now, you would remove the ring and pull out the trackball with pl astic cloth if you can’t hold it by your hands directly. Disassembling the trackball is as following:
Turn trackball ring 35°to the left Disassemble the ring Remove the trackball
Figure 10-2 Disassembly of the Trackball b) Cleaning
After removing the ring and the trackball, wipe down the lens with a clean paper until you can see nothing in the groove zoom, and then clean the other contaminant material , please pay attention to your intensity adopted on wiping dust of bead down, as shown in the following figure.
Power-off is not need during cleaning, and maintenance effect can be experienced directly. After cleaning completely, you can install the trackball and the ring.
Figure 10-3 The Sketch Map of Len, Bead, Dragon groove
If liquid is accidentally sprayed on or into the system, most of which could discharge from the dragon port of trackball, but some of which would left in the trackball cover, now you may clean it with clean soft dry cloth or paper according to the above maintenance procedure. c) Installing the trackball
After the trackball maintenance, you can restore the installing following procedure: Put the trackball back in the trackball mechanism and align the clamping ring with the top cover notches.
Press the bulges on the ring with both hands and turn the ring about 35° counterclockwise until the ring clicks and locks. As the bulges are flush with the top cover, the ring is secured. See the figure below.
10-4 Care and Maintenance
3. Clean control panel
⚫ Tools: dry soft cloth, mild soapy water
⚫ Method:
Use dry soft cloth to clean the surface of the system. If the system is dirty, moisten the soft cloth with mild soapy water and wipe off any stains. Use dry soft cloth to remove any moisture and allow all hard surfaces to completely air-dry. If it is difficult to clean the control panel, disassemble the keys first and then use mild soapy water to clean it.
NOTE: Keyboard on the control panel should be cleaned periodically; otherwise, keys maybe blocked by dirt and buzzer dings, keys don’t work.
4. Clean Probe
⚫ Tools: mild soapy water , dry soft cloth , soft brush
⚫ Method: a) Wipe out the dust attached to surface of probe, and check if it has any abnormality such as crack; b) Remained stain or dust attached to surface of probe cable should be washed out by cloth with clear water or soapy water, and then air-dry the surface of probe cable; c) Use a soft brush to clean the probe holder, removing dust simultaneously.
5. Clean Holders
⚫ Tools: mild soapy water , dry soft cloth Method: a) Wipe out the dust attached to surface or inner of probe holder, b) Remained stain or dust attached to probe holder should be washed out by cloth with clear water or soapy water, and then air-dry the surface of probe cable.
6. Clean the Cover
⚫ Tools: dry soft cloth, soapy water
⚫ Method:
Use dry soft cloth to clean the cover of the system. If the system is dirty, moisten the soft cloth with mild soapy water and wipe off any stains, then air-dry.
Note: Be sure to use soft brush to brush the dust attached to all the sockets or interfaces which can be seen (such as probe sockets, sockets or interfaces in IO panel and power supply panel),not the cloth with water.
Care and Maintenance 10-5
10.2.3 Clean the Peripherals
Do the cleaning maintenance according to your actual peripheral configuration; items which are not configured can be skipped.
Table 10-4 Peripherals Cleaning List
No.
Content
1.
2.
3.
Color and B/W video printer
Graph / text printer
Foot switch
Description
First wipe off dust or stain attached to the cover of printer with soft dry cloth, then clean the inside of printer. Be sure to do the cleaning maintenance according to the operation manual if is necessary.
First wipe off dust or stain attached to the cover of printer with soft dry cloth, then clean the inside of printer. Be sure to do the cleaning maintenance according to the operation manual if is necessary.
Use soft dry cloth with a little mild soap water to wipe off the dust or stain attached to the pedals or cable of foot switch.
10.3 Checking
10.3.1 General check
No.
1.
Content
Probe
2.
Power supply cable and plug
Table 10-5 General check list
Method a) Visually check to confirm that there is no crack and expansion to probe head. b) Visually check to confirm that there is no deterioration or desquamation to probe cable.
Visually check to confirm that there is no bend, destroyed or falling off pins to the connector a) Visually check to confirm that there is no wrinkles, crack or deterioration b) Manually check to confirm that there is no looseness or rupture.
The connection of plug is reliable and the retaining clamp of power supply cable is effective.
10-6 Care and Maintenance
No.
3.
Content
Battery
Method
Check the battery periodically : a) Check if battery can be charged normally when power-on: That the current capacity is 100% or capacity increases after a short time indicates that the battery can be charged normally. It takes less than 2 minutes to increase 1% capacity when the total capacity is less than 90% and it takes more time when the capacity is more than 90%. b) Disconnect the system from the AC power supply to confirm if the system can maintain normal work status in the battery power supply.
10.3.2 System Function Check
The system function checking is not required during Preventive Maintenance. Engineer or
Customer may use it as part of their product Quality Assurance Program tests 。
Table 10-6 System function list
No. Content Method
1. B mode
2. Color mode
3.
Doppler
(PW/CW) mode
Verify basic operation of B mode. Check basic software and hardware controls affecting B mode operations.
Verify basic operation of Color mode. Check basic software and hardware controls affecting Color mode operations.
Verify basic operation of Doppler mode. Check basic software and hardware controls affecting Doppler mode operations.
4. M mode
Verify basic operation of M mode. Check basic software and hardware controls affecting M mode operations.
5.
Measurement ( 2D, M,
Doppler general measurement, applied measurement optional )
Scanning gray scale imaging on phantom, verify distance and area accuracy with measurement control. Verify measurement accuracy by performance test.
6. Keyboard test
7. LCD
Operate keyboard test to verify if all control keys can work normally.
Verify LCD display function and parameters adjustment. Refer to that of LCD checking.
8. Software menu check
Verify software menu display function: if each operation menu and page can be accessed.
Remark : Please refer to 5.4
~ 5.5 for details.
Care and Maintenance 10-7
10.3.3 Peripherals and Options Check
If the system is not configured with any module or peripheral, the corresponding items checking can be skipped.
Table 10-7 Options, Peripherals and Accessories Check list
No. Content Method
1.
Color and B/W video printer
Check if the output of video printer is normal.
2. Graph / text printer Check if the output of graph / text printer is normal.
3.
4.
5.
Foot switch
DVD-R/W
DICOM
Check if the foot switch can implement the set functions according to the program.
Check if DVD can work normally (write, read and pop).
Check if DICOM can work normally and send pictures and other data to DICOM server.
Remark : Please refer to 5.3 for details.
10.3.4 Mechanical Safety Inspection
Mechanical safety inspection is mainly used to check mechanical strength and mechanical function of the key assembly of ultrasonic system. The mode of test evaluation mainly is: Perform the evaluation by means of visual check and operating check, if the check result cannot pass, the system is in abnormal status now. Stop using the system and adopt proper measures. The test flow is as following:
Check handle
Check control panel And turning mechanism
Check display and turning mechanism
Check other mechanics
Fig 10-4 Mechanical Safety Inspection Flow
Table 10-8 Mechanical Safety Check
10-8 Care and Maintenance
NO. Item Method Tool
1. Handle
1. Visually check to confirm there is no any crack.
2. Rock the handle gently and then lift the ultrasound machine to confirm that the handle is free of looseness and it can accept normal force . none
2.
Control panel and turning mechanism
Open the control panel to confirm that turning mechanism is normal and the control panel is free of skewness and looseness. none none
3.
5.
Display and turning mechanism
Visually check to confirm there is no any crack to the cover of display.
4.
Control panel and turning mechanism
Manually operate the monitor to make sure that the turning angle of display is normal and no looseness exists.
Other mechanical structures
Check to confirm that there is no looseness to other mechanical parts, no crack to cover and no conductive parts show in sight. none
10.3.5 Electrical Safety Inspection
Only technical professionals from Mindray or engineers authorized by Mindray after training can perform electric safety inspection.
Please refer to appendix A: Electrical Safety Inspection for details.
Care and Maintenance 10-9
11
Troubleshooting of Regular
Malfunctions
11.1 System cannot be powered on
11.1.1 Module or Board Related
No. Descriptions
1 Battery Li-ion 14.8V 6600mAh LI34I002A
2
3
Power supply module
CPU module
Remarks
11.1.2 Key Points Supporting Troubleshooting
No. Key Points Supporting Troubleshooting
1 AC power indicator
2 Power-on status indicator
Remarks
Located on control panel
3 Three Power indicators
Backlight of the power button
12V, 5V, 3.3V, located on IO board
11.1.3 Troubleshooting
No. Fault Description Cause Analysis Measure
1 Fail to start up when powered by the battery
Internal battery fails; only, but can start up normally by AC power supply. After the machine is powered on,
Related board or module of the other power system is in normal status battery alarm appears.
Replace battery
2
No AC input, Fail to start up when powered by the battery; The power on indicator flash then turn off, battery indicator flash, succeeding in startup when AC input and battery can charge up normally
Battery is out of power Charge up
Troubleshooting of Regular Malfunctions 11-1
3
4
5
6
The AC input is normal ,AC power indicator remains off;
Power indicators: off
Power supply module fails Replace power supply module
Power supply module fails Replace power supply module
AC power indicator: ON;
Power-on status indicator: off after power button pressed
Power indicators: off
AC power indicator: ON;
Power-on status indicator: blinks after power button pressed
Power indicators: off
AC power indicator: ON;
Power on/off indicator: blinks and turns on after pressing power button
Power indicator: 5V off or 3.3V off
CPU module: fails Replace module
Power supply module fails Replace
CPU power supply module
11.2 System Cannot Start up Normally
11.2.1 Module or Board Related
No. Descriptions
1 CPU module
2 HDD
Remarks
11.2.2 Key Points Supporting Troubleshooting
No. Key Points Supporting Troubleshooting
1 Character and progress status during the starting of the system
Remarks
2
3
Alarm and prompts during the starting of the system
Backlight status during power on the control panel Support to check if the malfunction occurs in power supply assembly or CPU module
11.2.3 Troubleshooting
No. Fault Description
1 Control panel backlight normal;
LCD blank displ aying “No signal”; no output when connecting external display with VGA
Cause Analysis Measure
System powers on normally, enter BIOS self-checking but
BIOS screen cannot display.
CPU module failure.
Replace CPU module
11-2 Troubleshooting of Regular Malfunctions
2 BIOS start-up graphics is normally displayed, but it cannot be kept on
CPU module failure
3 interface
Enters BIOS start-up graphics.
No LINUX start-up graphics displayed,
With the system prompts for abnormality (e.g. Installer can’t find files, please check it and try again)
Replace CPU module
Cannot find operating system, the HDD or OS in HDD may
Find the failure cause by entering BIOS be damaged. screen to check if HDD can be found;
First restore, or else replace the hard disk.
First restore the system or else replace the hard disk.
4 LINUX start-up graphics displays; Fail to load the operating
Graphics disappears to blank screen and system makes no response to control panel input. system, the HDD or OS in
HDD may be damaged.
5 LINUX start-up graphics displays; Fail to load the Doppler
Blank screen with a cursor, can response to control panel input software, the HDD or OS in
HDD may be damaged.
6 Doppler software start-up graphics displays but cannot continue
Fail to load the Doppler software, the HDD or OS in
HDD may be damaged.
First restore the system or else replace the hard disk.
First restore the system or else replace the hard disk.
7 After being turned on or during in use, the monitor displays “GRUB loading please wait……”
The input device cannot be detected. Maybe the control panel defects or bad connection between the control panel and the host.
Confirm if the connection between control panel and the host is OK or replace the control panel.
11.3 Image Fault
11.3.1 Module or Board Related
No. Descriptions
1 Power supply module
2 Main board
3 Probe board
Remarks
Mainly emission and reception part on the front end of the ultrasound system
32 physical transmission and reception channels
High-voltage switch is on the probe board
Troubleshooting of Regular Malfunctions 11-3
4 4D drive board
5 IO board
11.3.2 Key Points Supporting Troubleshooting
No. Key Points Supporting Troubleshooting
1 Image feature, including dark strips and noise
2 Images appearance when contact occurs between different types of probe in different interface of probe socket.
Remarks
11.3.3 Troubleshooting
No. Fault
Description
1
Cause Analysis
NO echo signal in ultrasonic image region
The probe can be identified but no echo.
Main board , power supply module or probe board may be fail;
2 Dark strips display on B image
Probe malfunction, e.g. array element damage etc.
Confirm by connecting another probe.
If several similar dark strips appear in the image.
3
4
Measure
Confirm the faillure cause by replacing main board, power supply module or probe board.
Replace the probe.
Replace the main board or probe board.
Noise appears in B image
4D abnormality
If dark strips appear, also after changing the Replace the probe board. probe socket, dark strips disappear or change the place.
Replace the probe.
Probe malfunction, e.g. array, rear board, air bubbles and cable shielding etc.
Confirm by connecting another probe.
There are other electrical equipment working in the power grid, which introduces the common-mode interference to the probe. Displays ripple-shaped interference signal on the image
Confirm the cause of failure by turning off electrical equipment of all peripherals connected to the system.
If the abnormality happens to probe, such as the array, the backing, bubbles and the cable shield, it can confirm by replacing the
Replace the probe
11-4 Troubleshooting of Regular Malfunctions
probe.
The image abnormality may be caused by the swivel of the 4D probe or the 4D drive board. It is suggested to replace the probe first, and then replace the 4D drive board.
Replace the probe, or replace the 4D drive board
11.4 Probe Socket System Malfunction
11.4.1 Module or Board Related
No. Descriptions
1 Main board
Remarks
11.4.2 Key Points Supporting Troubleshooting
No. Key Points Supporting Troubleshooting
1 Probe recognition of all models of probes when connecting on the same or different ports
2 Probe board ID of the system
Remarks
11.4.3 Troubleshooting
No. Fault
Description
Cause Analysis
1 Probe cannot This probe cannot be recognized by connecting to all be recognized probe sockets, while recognition of other probes is normal. Probe malfunction.
Measure
Replace the probe.
This probe cannot be recognized when connecting to a certain socket. Probe board malfunction.
Replace the probe board
All probes cannot be recognized in all probe sockets;
Probe board ID cannot be read correctly by the system information;
Main board or probe board malfunction.
Replace the main board or probe board.
Troubleshooting of Regular Malfunctions 11-5
11.5 IO Interface System
11.5.1 Module or Board Related
No. Descriptions
1 Main board
2 CPU module
3 IO board
4 Speaker
Remarks
11.5.2 Key Points Supporting Troubleshooting
No. Key Points Supporting Troubleshooting Remarks
1
2
3
4
Working condition of the control panel Confirm if the USB main device is functional since the control panel is connected by internal
USB cable
See 2.1.1.2 Working condition of each USB port
Working condition of Video, S-Video and
VGA video interfaces
See as above
Printing condition of video printer Check if output of connected video printer is normal
11.5.3 Troubleshooting
No. Fault Description
1
Cause Analysis Measure
LCD displays normally;
NO video printer output when press <print> on control panel
Remote printing control failure or video output failure if there is no user-defined key failure.
Replace the main board.
2 Two speakers have no sound Main board malfunction
Replace the main board
3 Only one speaker has no sound Speaker malfunction Replace speaker
4
5
USB device cannot be recognized while connecting to the USB port
Control panel works well
Main board malfunction
Replace board. the main
Network disconnected or abnormal
CPU module or IO board malfunction if there is no network or setting failure.
Confirm by replacing
CPU module or IO board.
11-6 Troubleshooting of Regular Malfunctions
11.6 Control Panel
11.6.1 Module or Board Related
4
5
6
No. Descriptions
1 Silicon key
2
3
Control panel
Dual encoder module
Single encoder module
Trackball module
TGC module
Remarks
11.6.2 Key Points Supporting Troubleshooting
No. Key Points
Troubleshooting
Supporting
1 Backlight of control panel
Remarks
To confirm if the control panel is powered on normally;
To confirm if the buzzer works normally 2 Key sound of the control panel.
3 Response to function keys on control panel
4 Response to trackball operation
5 Response to the sliding potentiometer
6 Response to each encoder
To confirm if a single sliding potentiometer or the control panel PCBA is damaged.
To confirm if a single encoder or the control panel
PCBA is damaged.
7 Buzzer alarm The buzzer alarms when a key is blocked for 100 seconds.
11.6.3 Troubleshooting
No. Fault Description
1 Buzzer alarms
2 Some or a certain key failures
3 Trackball failed or abnormal
Cause Analysis
Key blocked
Silicon key damage; or
Control panel malfunction.
Measure
Check the control panel for key block
Try replacing silicon key or control panel if no key blocks.
Dirt or obstacles jam in the trackball groove
Improper setting of trackball
Open and clean the groove
Make a proper preset
Troubleshooting of Regular Malfunctions 11-7
4
5 speed in system preset;
Degenerated trackball performance
All key of control panel are normal,
Single encoder failed.
All key of control panel are normal,
Single key of TGC failed.
Single encoder malfunction
TGC board malfunction
All keys of TGC failed. Control panel malfunction
Replace the trackball module
Replace the encoder board
Replace TGC board
Replace Control panel
11.7 LCD Display
11.7.1 Module or Board Related
No. Descriptions
1 Monitor assembly
2
3
4
IO board
Main board
CPU module
Remarks
Failure rate: low
Failure rate: low
11.7.2 Key Points Supporting Troubleshooting
No. Key Points
Troubleshooting
1 Backlight of the LCD
2 VGA output port on IO board
3 Display mode of the LCD
Supporting Remarks
More obvious in dark
Need external LCD
Blank screen, or “No Signal” displayed, or disordered screen, etc.
11.7.3 Troubleshooting
No. Fault Description
1 Control panel powered on normally;
No display (blank screen) on the LCD;
Displays normally with external LCD connecting by VGA.
2 Control panel powered on normally;
Cause Analysis Measure
Monitor malfunction
Replace the monitor assembly
Main board or Replace the main
11-8 Troubleshooting of Regular Malfunctions
3
The color of some mode key turns on orange.
No display (blank screen) on the LCD, with backlight only; or, disordered screen. monitor malfunction
Control panel powered on normally and no key indicator turns on orange.
“No Signal” displays on LCD;
CPU module malfunction
No display external LCD connecting by VGA. board or monitor assembly
Replace CPU module
11.8 Printer Adapter Related Troubleshooting
Failure Description
The following icon is displayed at the bottom right corner of the ultrasound system.
Cause Analysis
The ultrasound system and the printer adapter are not properly connected.
The printer adapter are not normally powered on.
The IP address of the ultrasound system is not correct.
Measure
Connect the ultrasound system to the printer adapter again using
Ethernet cables. Check whether the indicator on the printer adapter flashes normally after power-on, and whether the Ethernet cable is correctly connected.
Connect the power adapter again. Check whether the indicator of the printer adapter turns blue and the indicator of the power adapter turns green after power-on.
Enter [Preset]->Network
Preset] page to check whether the TCP/IP address is correctly set according the user manual.
The following message is displayed, and the printing fails.
The printer list fails to be displayed in the [Preset]->[Print Preset]->[Printer
Adapter] page.
Errors occur when the printer adapter runs.
The printer adapter is not initialized.
Disconnect and connect the power adapter, power on the printer adapter again, and verify whether the printing is normal after 1 minute.
After powering on the printer adapter, wait for at least 1 minute to ensure that the printer adapter is normally initialized.
Errors occur when the printer adapter runs.
Disconnect and connect the power adapter, power on the printer adapter again, and verify whether the
Troubleshooting of Regular Malfunctions 11-9
The indicator on the printer adapter turns orange, and the printing fails.
The text/graph or video printers are incorrectly connected and abnormally powered on.
Errors occur when the printer adapter runs. printing is normal after 1 minute.
Ensure that the printers are correctly connected to the printer adapter, and they are normally powered on.
Disconnect and connect the power adapter, power on the printer adapter again, and verify whether the printing is normal after 1 minute.
11-10 Troubleshooting of Regular Malfunctions
Appendix A ELECTRICAL
SAFETY INSPECTION
The following electrical safety tests are recommended as part of a comprehensive preventive maintenance program. They are a proven means of detecting abnormalities that, if undetected, could prove dangerous to either the patient or the operator. Additional tests may be required according to local regulations.
All tests can be performed using commercially available safety analyzer test equipment. These procedures assume the use of a 601PRO
XL
International Safety Analyzer or equivalent safety analyzer. Other popular testers complying with IEC 60601-1 used in Europe such as Fluke, Metron, or Gerb may require modifications to the procedure. Follow the instructions of the analyzer manufacturer.
The consistent use of a safety analyzer as a routine step in closing a repair or upgrade is emphasized as a mandatory step if an approved agency status is to be maintained. The safety analyzer also proves to be an excellent troubleshooting tool to detect abnormalities of line voltage and grounding, as well as total current loads.
Electrical Safety Inspection A-1
ELECTRICAL SAFETY INSPECTION
1- Power Cord Plug
TEST PROCEDURE
◆ The Power Plug
The Power Plug Pins No broken or bent pin. No discolored pins.
The Plug Body
The Strain Relief
The Power Plug
◆ The Power Cord
No physical damage to the plug body.
No physical damage to the strain relief. No plug warmth for device in use.
No loose connections.
The Power Cord
No physical damage to the cord. No deterioration to the cord.
--For devices with detachable power cords, inspect the connection at the device.
--For devices with non-detachable power cords, inspect the strain relief at the device.
A-2 Electrical Safety Inspection
ELECTRICAL SAFETY INSPECTION
2-
Device Enclosure And Accessories
TEST PROCEDURE
◆ Visual Inspection
No physical damage to the enclosure and accessories.
No physical damage to meters, switches, connectors, etc.
The Enclosure and Accessories
No residue of fluid spillage (e.g., water, coffee, chemicals, etc.).
No physical damage to probe surface (e.g.crack, etc.)
No loose or missing parts (e.g., knobs, dials, terminals, etc.).
◆ Contextual Inspection
No unusual noises (e.g., a rattle inside the case).
The Enclosure and Accessories
No unusual smells (e.g., burning or smoky smells, particularly from ventilation holes).
No taped notes that may suggest device deficiencies or operator concerns.
Electrical Safety Inspection A-3
ELECTRICAL SAFETY INSPECTION
3-
Device Labeling
TEST PROCEDURE
Check the labels provided by the manufacturer or the healthcare facility is present and legible.
➢ Main Unit Label
➢ Integrated Warning Labels
➢ Slope and High Voltage Caution Label
➢ Don’t Stress Label
A-4 Electrical Safety Inspection
ELECTRICAL SAFETY INSPECTION
4- Protective Earth Resistance
VOERVIEW
Protective Earth Resistance is measured using the RED test lead attached to the DUT
Protective Earth terminal or Protective Earth Metal enclosure or equipotential terminal. Select the test current by pressing SOFT KEY 3 to toggle between 1AMP, 10AMP, and 25AMP. The front panel outlet power is turned off for this test.
The following conditions apply: L1 and L2 Open.
TEST PROCEDURE
◆ Prepare
1) First select the test current that will be used for performing the Protective Earth Resistance test by pressing AMPERES (SOFT KEY 3).
2) Connect the test lead(s) between the RED input jack and the GREEN input jack.
3) Press CAL LEADS. The 601PRO will measure the lead resistance, and if less than 0.150
Ohms, it will store the reading and subtract it from all earth resistance readings taken at the calibrated current.
4) If the calibration fails, the previously stored readings will be used until a passing calibration has occurred.
◆
Warning
During Earth Resistance testing, the DUT must be plugged into the 601PRO front outlet. If the
DUT fails Earth Resistance, discontinue tests and label the device defective.
◆ Perform the Test
1) From the MAIN MENU, or with the outlet unpowered, plug the DUT into the 601PRO front panel outlet.
2) Attach the 601PRO RED input lead to the device’s Protective Earth terminal or an exposed
Electrical Safety Inspection A-5
ELECTRICAL SAFETY INSPECTION
4- Protective Earth Resistance
metal area.
3) Press shortcut key 3. The Protective Earth Resistance test is displayed.
4) Press SOFT KEY 3 to select a test current (1AMP, 10AMP, or 25AMP). The selected test current is displayed in the upper right corner of the display.
5) Press START TEST to start the test. The test current is applied while resistance and current readings are taken. This takes approximately 5 seconds.
6) Press the print data key at any time to generate a printout of the latest measurement(s).
◆ Note
When "Over" is displayed for Ohms, this signifies that a valid measurement was not obtained because either an open connection was detected or that the measurement was not within range.
Readings greater than 9.999 Ohms will be displayed as Over.
◆ Failure
Once it reaches the limitation, stop using equipment. Check the protective earth connection between Protective Earth terminal and Protective Earth Metal enclosure and equipotential terminal ;
Retest and inform the Customer Service Engineer for analysis and disposal if still fail.
LIMITS
ALL COUNTRIES R = 0.2
Ω Maximum
A-6 Electrical Safety Inspection
ELECTRICAL SAFETY INSPECTION
5-
Earth Leakage Test
OVERVIEW
Run an Earth Leakage test on the device being tested before performing any other leakage tests.
Leakage current is measured the following ways:
♦ Earth Leakage Current, leakage current measured through DUT outlet Earth
♦ Earth Leakage Current AP-EARTH (ALL Applied Parts connected to Earth), leakage current measured through DUT outlet Earth
There is no need to attach a test lead; the 601PRO automatically connects the measuring device internally.
TEST PROCEDURE
◆ Perform the Test
1) From the MAIN MENU, or with the outlet unpowered, plug the DUT into the 601PRO front panel outlet, and turn on the device.
2) Attach the device's applied parts to the 601PRO applied part terminals if applicable.
3) Press shortcut key 4.The Earth Leakage test appears on the display, and the test begins immediately:
➢ SOFT KEY 1 toggles the DUT outlet Polarity from Normal to Off to Reverse.
➢ SOFT KEY 2 toggles the DUT outlet from Earth to No Earth.
➢ SOFT KEY 3 toggles the DUT outlet from L2 to No L2.
➢ SOFT KEY 4 toggles the AP to Earth to No AP to Earth.
4) Press the print data key at any time to generate a printout of the latest measurement.
Figure 1 Earth leakage test
Electrical Safety Inspection A-7
ELECTRICAL SAFETY INSPECTION
5-
Earth Leakage Test
◆ Failure
Check any short-circuits of the Y capacitor on power unit. Replace a new one if any portion defective.
Check any broken of the Power Unit. Replace a new one if any portion defective.
Inspect mains wiring for bad crimps, poor connections, or damage.
Test the wall outlet; verify it is grounded and is free of other wiring abnormalities. Notify the user or owner to correct any deviations. As a work around, check the other outlets to see if they could be used instead.
Change another probe to confirm if the fail is caused by console.
Inspect mains wiring for bad crimps, poor connections, or damage.
If the leakage current measurement tests fail on a new unit and if situation can not be corrected, submit a Safety Failure Report to document the system problem. Remove unit from operation.
If all else fails, stop using and inform the Customer Service Engineer for analysis and disposal.
LIMITS
UL60601-1 : 300 μA Normal Condition
1000 μA Single Fault Condition
IEC60601-1: : 500 μA Normal Condition
1000 μA Single Fault Condition
A-8 Electrical Safety Inspection
ELECTRICAL SAFETY INSPECTION
6-
Patient Leakage Current
OVERVIEW
Patient leakage currents are measured between a selected applied part and mains earth. All measurements may have either a true RMS or a DC-only response.
TEST PROCEDURE
◆ Prepare
Perform a calibration from the Mains on Applied Part menu.
The following outlet conditions apply when performing this test:
Normal Polarity, Earth Open, Outlet ON Normal Polarity, Outlet ON
Normal Polarity, L2 Open, Outlet ON Reversed Polarity, Outlet ON
Reversed Polarity, Earth Open, Outlet ON Reversed Polarity, L2 Open, Outlet ON
◆
Warning
If all of the applied parts correspond to the instrument type, the applied parts will be tied together and one reading will be taken. If any of the applied parts differ from the instrument type, all applied parts will be tested individually, based on the type of applied part. This applies to Auto and Step modes only.
◆ Perform the Test
1) From the MAIN MENU, or with the outlet unpowered, plug the DUT into the 601PRO front panel outlet, and turn on the device.
2) Attach the applied parts to the 601PRO's applied part terminals.
3) Press shortcut key 6. The Patient Leakage test is displayed, and the test begins immediately.
4) Press APPLIED PART (SOFT KEY 4) at any time to select the desired applied part leakage current.
5) Modify the configuration of the front panel outlet by pressing the appropriate SOFT KEY on
Electrical Safety Inspection A-9
ELECTRICAL SAFETY INSPECTION
6-
Patient Leakage Current the 601PRO.
6) Press the print data key at any time to generate a printout of the latest measurement.
Figure 2 patient leakage Current
◆ Note
1, In addition to Probes ,Patient leakage current test should be perform if ECG or PCG parts used;
2, If the current test standard being used does not include Patient Leakage DC readings, or the DC option is not enabled, then DC readings will not be available through the APPLIED PART
SOFT KEY selections. Refer to Chapter 8, Standards and Principles.
◆ Failure
Check any broken of the Applied parts. Replace any defective one.
Check any broken of the ECG/PCG module if used, Replace any defective one.
Check any broken of the Power Unit. Replace a new one if any portion defective.
Inspect wiring for bad crimps, poor connections, or damage.
Test the wall outlet; verify it is grounded and is free of other wiring abnormalities. Notify the user or owner to correct any deviations. As a work around, check the other outlets to see if they could be used instead.
Change another probe to confirm if the fail is caused by console.
Inspect wiring for bad crimps, poor connections, or damage.
If the leakage current measurement tests fail on a new unit and if situation cannot be corrected, submit a Safety Failure Report to document the system problem. Remove unit from operation.
If all else fails, stop using and inform the Customer Service Engineer for analysis and disposal.
LIMITS
A-10 Electrical Safety Inspection
ELECTRICAL SAFETY INSPECTION
6-
Patient Leakage Current
All countries
For BF ECG input and transducer
100μA Normal Condition
500μA Single Fault Condition
Electrical Safety Inspection A-11
ELECTRICAL SAFETY INSPECTION
7-
Mains on Applied Part Leakage
OVERVIEW
The Mains on Applied Part test applies a test voltage, which is 110% of the mains voltage, through a limiting resistance, to selected applied part terminals. Current measurements are then taken between the selected applied part and earth. Measurements are taken with the test voltage
(110% of mains) to applied parts in the normal and reverse polarity conditions as indicated on the display.
The following outlet conditions apply when performing the Mains on Applied Part test.
Normal Polarity;
Reversed Polarity
TEST PROCEDURE
◆ Prepare
To perform a calibration from the Mains on Applied Part test, press CAL (SOFT KEY 2).
1) Disconnect ALL patient leads, test leads, and DUT outlet connections.
2) Press CAL to begin calibration, as shown:
If the calibration fails, the previously stored readings will be used until a passing calibration has occurred. Also, the esc/stop key has no effect during calibration.
3) When the calibration is finished, the Mains on Applied Part test will reappear.
◆
Warning
1) A 2-beep-per-second signal indicates high voltage present at the applied part terminals while a calibration is being performed.
2) High voltage is present at applied part terminals while measurements are being taken.
◆ Performance
1) From the MAIN MENU, or with the outlet unpowered, plug the DUT into the 601
A-12 Electrical Safety Inspection
ELECTRICAL SAFETY INSPECTION
7-
Mains on Applied Part Leakage
2) Attach the applied parts to the 601PRO applied part terminals.
3) Attach the red terminal lead to a conductive part on the DUT enclosure.
4) Press shortcut key 7. The Mains on Applied Part test is displayed.
5) Select the desired outlet configuration and applied part to test using the appropriate SOFT
KEYS:
6) Press START TEST (SOFT KEY 1) to begin the test.
7) Press the print data key to generate a printout of the latest measurement.
Figure 3 Mains on Applied part leakage
◆ Note
1, In addition to Probes ,Patient leakage current test should be perform if ECG or PCG parts used;
2, If all of the applied parts correspond to the instrument type, the applied parts will be tied together and one reading will be taken. If any of the applied parts differ from the instrument type, all applied parts will be tested individually, based on the type of applied part. This applies to Auto and
Step modes only.
◆ Failure
Check any broken of the Applied part. Replace any defective one.
Check any broken of the ECG/PCG module if used, Replace any defective one.
Check any broken of the Power Unit. Replace a new one if any portion defective.
Electrical Safety Inspection A-13
ELECTRICAL SAFETY INSPECTION
7-
Mains on Applied Part Leakage
Inspect wiring for bad crimps, poor connections, or damage.
Test the wall outlet; verify it is grounded and is free of other wiring abnormalities. Notify the user or owner to correct any deviations. As a work around, check the other outlets to see if they could be used instead.
Change another probe to confirm if the fail is caused by console.
Inspect wiring for bad crimps, poor connections, or damage.
If the leakage current measurement tests fail on a new unit and if situation cannot be corrected, submit a Safety Failure Report to document the system problem. Remove unit from operation.
If all else fails, stop using and inform the Customer Service Engineer for analysis and disposal.
LIMITS
All countries:
For BF ECG input and transducer:
5000μA
A-14 Electrical Safety Inspection
ELECTRICAL SAFETY INSPECTION FORM
( Class I equipment )
Overall assessment:
□ Scheduled inspection
□ Unopened repair type
□ Opened repair type, not modify the power part
Test item: 1, 2, 3, 9
Test item: 1, 2, 3, 9
Test item: 1, 2, 3, 4, 5, 9 including transformer or patient circuit board
□ Opened repair type, modify the power part Test item: 1, 2, 3, 4, 5, 6, 7, 8, 9 including transformer or patient circuit board
Location:
Equipment:
Manufacturer: Model:
Measurement equipment /SN:
Inspection and Testing
1
2
3
4
Power Cord Plug
Device Enclosure and Accessories
Device Labeling
Protective Earth Resistance
Normal condition(NC)
Ω
____μA
5
6
7
Earth
Leakage
Patient
Leakage
Current
Single Fault condition(SFC)
Normal condition(NC)
Single Fault condition(SFC)
Mains on Applied Part Leakage
____μA
□BF____μA
□BF____μA
□BF____μA
Technician:
Control Number:
SN:
Date of Calibration:
Pass/Fail Limit
Max 0.2 Ω
Max:
NC: 300μA(refer to
UL60601-1) *
NC: 500μA(refer to
IEC60601-1) *
SFC: 1000μA
Max:
BF applied part:
NC:100μA, SFC: 500μA
Max:
BF applied part: 5000μA
8
Patient Auxliary
Leakage Current
Normal condition(NC)
Single Fault condition(SFC)
□BF____μA
□ BF____μA
Max:
BF applied part:
NC:100μA, SFC: 500μA
Note:
The equipment which sell to America shall comply with the requirement of UL60601-1, others shall comply with the requirement of IEC60601-1.
Name/ Signature: ____________________ Date: ____________________________
Electrical Safety Inspection A-15
Appendix B Phantom Usage
Illustration
Note: The use of Phantom is not required during Preventive Maintenance. Customer may use it as part of their Quality Assurance Program tests 。
Note:
Best storage and operating temperature of phantom is 10 ℃ ~35 ℃, do not use phantom beyond the specified temperature range, otherwise tested performance indicators may be affected.
WARNING:
1. When in use, probe should be placed on acoustic window on the weight, and do not press it hard, otherwise acoustic window and
TM material may be damaged.
2. Do not drop or violently shake phantom; in addition to make maintenance, phantom should be put uprightly, and do not make it upside down.
◆ Targets Disposal of Phantom KS107BD
A1 ——A5 : Axial resolution target group B: Blind-area target group
C : Longitudinal target group D : Horizontal target group
E: Mimic tumor F : Mimic sac (diam 10mm) and stone
G Mimic sac (diam 6mm)
4. Line Target System
There are 8 groups of nylon line targets disposed as shown in the figure.
1 . A1 ——A5 :
Axial and lateral resolution target group. The distances between the horizontal branch and the acoustic window are 30, 50, 70, 120 and 160mm, the center horizontal distances between two adjacent lines of A1 and A2 groups are 1, 5, 4, 3, 2mm, A3~A5 groups are 5, 4, 3, 2mm. The center longitudinal distances between two adjacent lines of the longitudinal branches are 4, 3, 2, 1mm.
2 . B :
Blind-area target group. Center horizontal distance of adjacent lines is 10mm, distances to the acoustic window are 10, 9, 8, 7, 6, 5, 4, 3mm.
3 . C :
Longitudinal target group. 19 target lines with a 10mm center distance between adjacent lines.
4 . D :
Horizontal target group. 7 target lines with a 20mm center distance between adjacent lines.
Phantom Usage Illustration B-1
◆ Targets disposal of Phantom KS107BD
A1 ——A4 Axial resolution target group
B1 ——B4 Lateral resolution target group
C Longitudinal target group
D Horizontal target group
E1 ——E3 Mimic sacs with diameters of 2, 4, 6mm
4. Line Target System
There are 8 groups of line targets disposed in TM material as shown in the figure.
1 . A1 ——A4 :
Axial resolution target group. The upmost lines in each target locate at the depth of 10, 30, 50,
70mm, the center longitudinal distances of each group (from the top down) are 3, 2, 1, 0.5mm, and the horizontal distance is 1mm.
2 . B1 ——B4 :
Lateral resolution target group. Locate at a depth of 10, 30, 50, 70mm, with a center horizontal distance of 4, 3, 2, 1mm in each group.
3 . C :
Longitudinal target group. 12 target lines with a 10mm center distance between adjacent lines.
4 . D :
Horizontal target group. Locate at a depth of 40mm, with a 20mm center distance between adjacent lines.
B-2 Phantom Usage Illustration
Phantom Usage Illustration B-3
P/N: 046-017678-00 (9.0)
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 3 Table of Content
- 7 Revision History
- 8 Intellectual Property Statement
- 8 Applicable for
- 9 Statement
- 9 Responsibility on the Manufacturer Party
- 9 Customer Service Department
- 11 1 Preface
- 11 1.1 Meaning of Signal Words
- 11 1.2 Meaning of Symbols
- 11 1.2.1 Meaning of Safety Symbols
- 12 1.2.2 Warning Labels
- 12 1.2.3 General Symbols
- 14 1.3 Safety Precautions
- 14 1.3.1 Electric safety
- 15 1.3.2 Mechanical Safety
- 15 1.3.3 Personnel Safety
- 15 1.3.4 Other
- 17 2 Product Specifications
- 17 2.1 Overview
- 17 2.1.1 Intended Use
- 17 2.1.2 Introduction of Each Unit
- 19 2.1.3 I/O Panel
- 20 2.1.4 Power Supply Panel
- 21 2.1.5 Control Panel
- 24 2.1.6 Peripherals Supported
- 24 2.2 Specifications
- 24 2.2.1 Dimensions and Weight
- 24 2.2.2 Electrical Specifications
- 24 2.2.3 Environmental Conditions
- 25 2.2.4 Monitor Specification
- 27 3 System Installation
- 27 3.1 Preparations for Installation
- 27 3.1.1 Electrical Requirements
- 27 3.1.1.1 Requirement of Regulated Power Supply
- 27 3.1.1.2 Grounding Requirements
- 27 3.1.1.3 EMI Limitation
- 28 3.1.2 Installation Condition
- 28 3.1.2.1 Space Requirements
- 28 3.1.2.2 Network Environment
- 28 3.1.2.3 Confirmation before Installation
- 28 3.2 Unpacking
- 29 3.2.1 Unpacking
- 31 3.2.2 Checking
- 31 3.3 Installation of Main Unit
- 31 3.3.1 Installing Battery
- 31 3.3.2 Control Panel Adjusting
- 32 3.3.3 Display Adjusting
- 33 3.3.4 Installing Probe Holder
- 33 3.3.5 Connecting a Probe
- 34 3.4 Installing Peripherals
- 34 3.4.1 Footswitch Installation
- 34 3.4.2 Video Printer Installation
- 35 3.4.3 Installing a Graph / Text Printer
- 36 3.4.4 Installing Printer Adapter
- 40 3.4.5 Installing External DVD-R/W
- 40 3.5 System Configuration
- 40 3.5.1 Power ON / OFF
- 40 3.5.2 Enter Doppler
- 41 3.5.3 System Preset
- 44 3.5.4 Print Preset
- 46 3.5.5 Network Preset
- 46 3.5.5.1 Network Preset
- 46 3.5.5.2 DICOM Preset
- 49 3.5.6 System Information
- 51 4 Hardware Principle
- 51 4.1 General Structure of Hardware System
- 52 4.2 Main Unit
- 52 4.2.1 Probe Board
- 52 4.2.1.1 Probe Board of Two Probe Ports
- 53 4.2.1.2 Probe Board of Three Probe Ports (Optional)
- 53 4.2.2 Main board
- 54 4.2.2.1 Front-end of main board
- 55 4.2.2.2 Back-end of Main Board
- 56 4.2.3 IO Broad
- 57 4.2.4 4D Drive Board (Optional)
- 57 4.2.5 Ultrasound System Monitor
- 58 4.2.6 Ultrasound System Indicator
- 59 4.2.7 Display
- 60 4.2.8 Control Panel
- 61 4.3 Power System
- 61 4.3.1 Power Output of the Power Supply module and Supporting Function Distribution
- 62 4.3.2 System Power-on Control
- 65 5 Function and Performance Checking Method
- 65 5.1 Instruction
- 65 5.2 Checking System Status
- 65 5.2.1 System Running Status
- 65 5.2.2 System Running Status
- 66 5.3 General exam
- 66 5.3.1 Check Flow
- 66 5.3.2 Checking Content
- 66 5.3.2.1 Check Control Panel
- 67 5.3.2.2 Check the Display
- 67 5.3.2.3 Check DVD
- 67 5.3.2.4 Check Peripheral Device
- 68 5.3.2.5 Check IO Ports
- 68 5.4 Function Checks
- 68 5.4.1 Check Flow
- 69 5.4.2 Checking Content
- 69 5.4.2.1 B Mode
- 71 5.4.2.2 M Mode
- 72 5.4.2.3 Color Mode
- 73 5.4.2.4 PW Mode
- 73 5.4.2.5 Cine Review
- 74 5.4.2.6 Measurement
- 74 5.4.2.7 Patient Information Management
- 75 5.5 Performance Test
- 75 5.5.1 Test Process
- 75 5.5.2 Test Content
- 75 5.5.2.1 Resolution
- 77 5.5.2.2 Maximum Depth
- 78 5.5.2.3 Geometric positioning accuracy
- 80 5.5.2.4 Blackout Area
- 81 6 Software Upgrade and Maintenance
- 81 6.1 Enter the Maintenance Window
- 82 6.2 System Software Installation/ Restoration
- 82 6.3 Installation of Optional Devices
- 85 6.4 Data Backup and Storage
- 85 6.4.1 Manage Settings
- 86 6.4.1.1 Back up the Preset Data
- 86 6.4.1.2 Restore the Preset Data
- 86 6.4.2 Patient Data Backup and Restore
- 86 6.4.2.1 Patient Data Backup
- 86 6.4.2.2 Restore Patient Data
- 87 6.5 Software Maintenance
- 87 6.5.1 Product Configuration
- 87 6.5.2 Log Maintenance
- 87 6.5.2.1 Export the Log
- 88 6.5.2.2 Log Uploading
- 89 6.6 Display Parameter Setting
- 90 6.7 HDD Partition
- 93 7 Field Replacement Unit
- 94 7.1 Explosive View
- 95 7.2 Assembly Explosive View
- 95 7.2.1 Monitor Assembly (A0)
- 97 7.2.2 Operation Panel Assembly (B0)
- 99 7.2.3 Core Assembly (C0)
- 103 7.2.4 Cable Set of Main Unit (D0)
- 105 7.2.5 UMT-170 Mobile Trolley(E0)
- 107 8 Structure and Assembly/Disassembly
- 107 8.1 Structure of the Complete System
- 107 8.2 Preparations
- 107 8.2.1 Tools Required
- 108 8.2.2 Engineers Required
- 108 8.2.3 Assembly/Disassembly Required
- 108 8.3 Assembly/Disassembly
- 109 8.3.1 Battery Connecting Board
- 110 8.3.2 Power Supply Module
- 112 8.3.2.1 Power module Fan
- 113 8.3.2.2 DC-DC Power Board
- 114 8.3.2.3 AC-DC Power Board
- 114 8.3.3 IO Broad
- 115 8.3.4 Probe Board
- 116 8.3.5 Main Board and CPU Module
- 118 8.3.6 Control Panel Assembly
- 119 8.3.6.1 Encoder Board
- 119 8.3.6.2 Trackball
- 120 8.3.6.3 TGC Board
- 120 8.3.6.4 Buzzer
- 121 8.3.6.5 Silicon Key
- 122 8.3.7 Display Assembly
- 123 8.3.8 Hard Disk
- 124 8.3.9 Speaker
- 126 8.3.1 Printer Adapter (Optional)
- 126 8.3.1.1 Structure of the Entire System
- 126 8.3.1.2 Tools Required
- 126 8.3.1.3 Engineers Required
- 126 8.3.1.4 Requirements
- 126 8.3.1.5 Assembling/Disassembling
- 129 9 System Diagnosis and Support
- 129 9.1 General Status Indicator
- 129 9.1.1 Status Indicators of the Control Panel
- 130 9.1.2 Status Indicator of the Power Supply on the IO Board
- 130 9.1.3 Status of whole machine
- 131 9.2 Starting Process of the Whole System
- 132 9.2.1 Start Process of Complete System
- 132 9.2.1.1 Powered on by AC
- 132 9.2.1.2 Powered on by Battery
- 133 9.2.2 Start-up Process of BIOS
- 133 9.2.3 Start-up of Linux
- 134 9.2.4 Start-up of Doppler
- 134 9.2.4.1 Procedure of Startup
- 134 9.2.4.2 Details of Procedures
- 136 9.3 Alarming and Abnormal Information
- 137 9.3.1 Turning on the System Configuration File is Abnormal
- 137 9.3.2 The voltage of system power is abnormal
- 137 9.3.3 Temperature Alarming
- 138 9.3.4 Fan Alarming
- 138 9.3.5 Battery Alarming
- 139 9.3.6 PHV Related Alarming
- 141 10 Care and Maintenance
- 141 10.1 Overview
- 141 10.1.1 Tools, Measurement Devices and Consumables
- 142 10.1.2 Care and Maintenance Items
- 143 10.2 Cleaning
- 143 10.2.1 Clean the System
- 143 10.2.1.1 Flow of Cleaning
- 143 10.2.2 Content
- 146 10.2.3 Clean the Peripherals
- 146 10.3 Checking
- 146 10.3.1 General check
- 147 10.3.2 System Function Check
- 148 10.3.3 Peripherals and Options Check
- 148 10.3.4 Mechanical Safety Inspection
- 149 10.3.5 Electrical Safety Inspection
- 151 11 Troubleshooting of Regular Malfunctions
- 151 11.1 System cannot be powered on
- 151 11.1.1 Module or Board Related
- 151 11.1.2 Key Points Supporting Troubleshooting
- 151 11.1.3 Troubleshooting
- 152 11.2 System Cannot Start up Normally
- 152 11.2.1 Module or Board Related
- 152 11.2.2 Key Points Supporting Troubleshooting
- 152 11.2.3 Troubleshooting
- 153 11.3 Image Fault
- 153 11.3.1 Module or Board Related
- 154 11.3.2 Key Points Supporting Troubleshooting
- 154 11.3.3 Troubleshooting
- 155 11.4 Probe Socket System Malfunction
- 155 11.4.1 Module or Board Related
- 155 11.4.2 Key Points Supporting Troubleshooting
- 155 11.4.3 Troubleshooting
- 156 11.5 IO Interface System
- 156 11.5.1 Module or Board Related
- 156 11.5.2 Key Points Supporting Troubleshooting
- 156 11.5.3 Troubleshooting
- 157 11.6 Control Panel
- 157 11.6.1 Module or Board Related
- 157 11.6.2 Key Points Supporting Troubleshooting
- 157 11.6.3 Troubleshooting
- 158 11.7 LCD Display
- 158 11.7.1 Module or Board Related
- 158 11.7.2 Key Points Supporting Troubleshooting
- 158 11.7.3 Troubleshooting
- 159 11.8 Printer Adapter Related Troubleshooting
- 161 Appendix A ELECTRICAL SAFETY INSPECTION
- 177 Appendix B Phantom Usage Illustration
