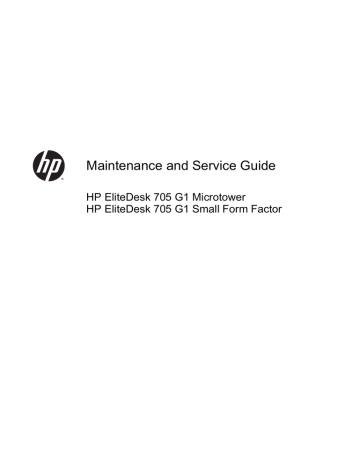

Maintenance and Service Guide
HP EliteDesk 705 G1 Microtower
HP EliteDesk 705 G1 Small Form Factor
© Copyright 2014 Hewlett-Packard
Development Company, L.P. The
information contained herein is subject to
change without notice.
Intel and Pentium are trademarks of Intel
Corporation in the U.S. and other countries.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Microsoft,
Windows, WIndows 7, and Windows 8.1
are U.S. registered trademarks of the
Microsoft group of companies. SD Logo is a
trademark of its proprietor.
The only warranties for HP products and
services are set forth in the express
warranty statements accompanying such
products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
First Edition (August 2014)
Document Part Number: 762914-001
Product notice
This guide describes features that are
common to most models. Some features
may not be available on your computer.
Not all features are available on all editions
of Windows 8.1. This computer may require
upgraded and/or separately purchased
hardware, drivers, and/or software to take
full advantage of Windows 8.1 functionality.
See http://www.microsoft.com for details.
This computer may require upgraded and/
or separately purchased hardware and/or a
DVD drive to install the Windows 7 software
and take full advantage of Windows 7
functionality. See
http://windows.microsoft.com/en-us/
windows7/get-know-windows-7 for details.
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not
place the device directly on your lap or obstruct the device air vents. Use the device only on a hard,
flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device
and the AC adapter comply with the user-accessible surface temperature limits defined by
the International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv
Safety warning notice
Table of contents
1 Product Features .............................................................................................................................................. 1
Standard Configuration Features ......................................................................................................... 1
Front panel components, microtower ................................................................................................... 2
Front panel components, small form factor .......................................................................................... 3
Rear panel components, microtower .................................................................................................... 4
Rear panel components, small form factor ........................................................................................... 5
Serial Number Location ........................................................................................................................ 6
2 Activating and Customizing the Software ......................................................................................................... 7
Activating and customizing the software in Windows 7 ........................................................................ 7
Activating the Windows operating system ........................................................................... 7
Downloading Windows 7 updates ........................................................................................ 7
Installing or upgrading device drivers .................................................................................. 8
Customizing the monitor display .......................................................................................... 8
Activating and customizing the software in Windows 8.1 ..................................................................... 8
Activating the Windows Operating System .......................................................................... 8
Downloading Windows 8.1 updates ..................................................................................... 8
Customizing the monitor display .......................................................................................... 9
3 Illustrated parts catalog ................................................................................................................................... 10
Microtower (MT) chassis spare parts ................................................................................................. 10
Computer major components ............................................................................................ 10
Cables ................................................................................................................................ 12
Misc parts .......................................................................................................................... 13
Drives ................................................................................................................................. 15
Misc boards ....................................................................................................................... 16
Small Form Factor (SFF) chassis spare parts .................................................................................... 17
Computer major components ............................................................................................ 17
Cables ................................................................................................................................ 19
Misc parts .......................................................................................................................... 20
Drives ................................................................................................................................. 22
Misc boards ....................................................................................................................... 23
4 Routine care, SATA drive guidelines, and disassembly preparation .............................................................. 24
Electrostatic discharge information .................................................................................................... 24
Generating static ................................................................................................................ 24
v
Preventing electrostatic damage to equipment .................................................................. 25
Personal grounding methods and equipment .................................................................... 25
Grounding the work area ................................................................................................... 25
Recommended materials and equipment .......................................................................... 26
Operating guidelines .......................................................................................................................... 26
Routine care ....................................................................................................................................... 27
General cleaning safety precautions ................................................................................. 27
Cleaning the Computer Case ............................................................................................ 27
Cleaning the keyboard ....................................................................................................... 27
Cleaning the monitor .......................................................................................................... 28
Cleaning the mouse ........................................................................................................... 28
Service considerations ....................................................................................................................... 28
Power supply fan ............................................................................................................... 28
Tools and software Requirements ..................................................................................... 28
Screws ............................................................................................................................... 29
Cables and connectors ...................................................................................................... 29
Hard Drives ........................................................................................................................ 29
Lithium coin cell battery ..................................................................................................... 29
SATA hard drives ............................................................................................................................... 30
SATA hard drive cables ...................................................................................................................... 30
SATA data cable ................................................................................................................ 30
SMART ATA drives ............................................................................................................................ 30
Cable management ............................................................................................................................ 31
5 Removal and replacement procedures – Microtower (MT) chassis ................................................................ 32
Preparation for disassembly ............................................................................................................... 32
Access panel ...................................................................................................................................... 33
Front bezel ......................................................................................................................................... 34
Optical drive bezel blank .................................................................................................................... 35
Memory .............................................................................................................................................. 36
DIMMs ............................................................................................................................... 36
DDR3-SDRAM DIMMs ...................................................................................................... 36
Populating DIMM sockets .................................................................................................. 36
Installing DIMMs ................................................................................................................ 37
Expansion cards ................................................................................................................................. 39
Drives ................................................................................................................................................. 43
Drive positions ................................................................................................................... 45
Removing a slim optical drive ............................................................................................ 45
Installing a slim optical drive .............................................................................................. 46
Removing a hard drive ....................................................................................................... 47
Installing a hard drive ......................................................................................................... 48
vi
Drive power cable ............................................................................................................................... 52
Front I/O and power switch assembly ................................................................................................ 53
Heat sink ............................................................................................................................................ 55
Processor ........................................................................................................................................... 56
Speaker .............................................................................................................................................. 57
Rear chassis fan ................................................................................................................................. 59
Power supply ...................................................................................................................................... 60
System board ..................................................................................................................................... 62
System board callouts ....................................................................................................... 64
6 Removal and replacement procedures – small form factor (SFF) chassis ..................................................... 66
Preparation for disassembly ............................................................................................................... 66
Access panel ...................................................................................................................................... 67
Front bezel ......................................................................................................................................... 67
Front bezel security ............................................................................................................................ 68
Bezel blanks ....................................................................................................................................... 69
Memory .............................................................................................................................................. 70
DIMMs ............................................................................................................................... 70
DDR3-SDRAM DIMMs ...................................................................................................... 70
Populating DIMM sockets .................................................................................................. 70
Installing DIMMs ................................................................................................................ 71
Expansion card ................................................................................................................................... 73
Drives ................................................................................................................................................. 77
Drive positions ................................................................................................................... 78
Installing and Removing Drives ......................................................................................... 78
Removing a 3.5-inch device .............................................................................. 80
Installing a 3.5-inch device ................................................................................ 81
Removing a slim optical drive ........................................................................... 84
Installing a slim optical drive ............................................................................. 85
Removing and replacing a 3.5-inch hard drive .................................................. 87
Removing a 2.5-inch hard drive ........................................................................ 90
Installing a 2.5-inch hard drive .......................................................................... 90
Drive power cable ............................................................................................................................... 92
Baffle .................................................................................................................................................. 93
Hood sensor ....................................................................................................................................... 94
Front I/O assembly ............................................................................................................................. 95
Power switch ...................................................................................................................................... 98
Speaker ............................................................................................................................................ 100
Heat sink .......................................................................................................................................... 101
Processor ......................................................................................................................................... 104
Power supply .................................................................................................................................... 106
vii
System board ................................................................................................................................... 108
System board callouts ..................................................................................................... 110
Using the Small Form Factor Computer in a Tower Orientation ...................................................... 112
7 Computer Setup (F10) Utility ........................................................................................................................ 113
Computer Setup (F10) Utilities ......................................................................................................... 113
Using Computer Setup (F10) Utilities .............................................................................. 114
Computer Setup—File ..................................................................................................... 115
Computer Setup—Storage .............................................................................................. 116
Computer Setup—Security .............................................................................................. 117
Computer Setup—Power ................................................................................................. 120
Computer Setup—Advanced ........................................................................................... 121
Recovering the Configuration Settings ............................................................................................. 123
8 Troubleshooting without diagnostics ............................................................................................................. 124
Safety and comfort ........................................................................................................................... 124
Before you call for technical support ................................................................................................ 124
Helpful hints ...................................................................................................................................... 125
Solving general problems ................................................................................................................. 126
Solving power problems ................................................................................................................... 130
Solving hard drive problems ............................................................................................................. 131
Solving media card reader problems ................................................................................................ 133
Solving display problems .................................................................................................................. 135
Solving audio problems .................................................................................................................... 139
Solving printer problems ................................................................................................................... 141
Solving keyboard and mouse problems ........................................................................................... 142
Solving Hardware Installation Problems ........................................................................................... 144
Solving Network Problems ............................................................................................................... 146
Solving memory problems ................................................................................................................ 149
Solving CD-ROM and DVD problems .............................................................................................. 151
Solving USB flash drive problems .................................................................................................... 153
Solving front panel component problems ......................................................................................... 153
Solving Internet access problems .................................................................................................... 154
Solving software problems ............................................................................................................... 155
9 POST error messages .................................................................................................................................. 157
POST numeric codes and text messages ........................................................................................ 157
Interpreting POST diagnostic front panel LEDs and audible codes ................................................. 163
viii
10 Password security and resetting CMOS ..................................................................................................... 166
Resetting the password jumper ........................................................................................................ 166
Changing a Setup or Power-On password ....................................................................................... 167
Deleting a Setup or Power-On password ......................................................................................... 168
Clearing and resetting the CMOS .................................................................................................... 168
11 HP PC Hardware Diagnostics ..................................................................................................................... 170
Why run HP PC Hardware Diagnostics ............................................................................................ 170
How to access and run HP PC Hardware Diagnostics ..................................................................... 170
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .............................................. 170
12 System backup and recovery ...................................................................................................................... 172
Backing up, restoring, and recovering in Windows 8.1 or Windows 8 .............................................. 172
Creating recovery media and backups ............................................................................ 172
Restoring and recovering using Windows tools ............................................................... 172
Using Reset when the system is not responding ............................................ 173
Recovery using the Windows recovery USB flash drive ................................. 173
Recovery using Windows operating system media (purchased separately) ... 174
Backing up, restoring, and recovering in Windows 7 ....................................................................... 174
Creating recovery media .................................................................................................. 175
Creating recovery media using HP Recovery Manager (select models only) . 175
Creating recovery discs with HP Recovery Disc Creator (select models
only) ................................................................................................................ 176
Creating recovery discs .................................................................. 177
Backing up your information ............................................................................ 177
System Restore ............................................................................................................... 178
System Recovery ............................................................................................................. 178
System Recovery when Windows is responding ............................................ 178
System Recovery when Windows is not responding ...................................... 179
System Recovery using recovery media (select models only) ........................ 179
Using HP Recovery Disc operating system discs (select models only) .......... 180
Appendix A Battery replacement ..................................................................................................................... 182
Appendix B Power Cord Set Requirements ..................................................................................................... 185
General Requirements ..................................................................................................................... 185
Japanese Power Cord Requirements .............................................................................................. 185
Country-Specific Requirements ........................................................................................................ 186
Appendix C Statement of Volatility ................................................................................................................... 187
ix
Appendix D Specifications ............................................................................................................................... 189
MT Specifications ............................................................................................................................. 189
SFF Specifications ........................................................................................................................... 191
Index ................................................................................................................................................................. 193
x
1
Product Features
Standard Configuration Features
Features may vary depending on the model. For support assistance and to learn more about the
hardware and software installed on your computer model, run the HP Support Assistant utility.
Microtower
Small form factor
NOTE:
The small form factor can be used in a tower orientation or a desktop orientation.
Standard Configuration Features
1
Front panel components, microtower
Drive configuration may vary by model. Some models have a bezel blank covering the optical drive
bay.
1
Slim Optical Drive (optional)
6
SD Card Reader
2
Dual-State Power Button
7
Hard Drive Activity Light
3
USB 2.0 Port - Charging (black)
8
USB 2.0 Port (black)
4
USB 3.0 Ports (blue)
9
Microphone/Headphone Connector
5
Headphone Connector
NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if
you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the
connector at any time by double-clicking the Audio Manager icon in the Windows taskbar.
NOTE: The USB 2.0 Port - Charging also provides current to charge a device such as a Smart Phone. The
charging current is available whenever the power cord is plugged into the system, even when the system is off.
NOTE: The Power On Light is normally white when the power is on. If it is flashing red, there is a problem with
the computer and it is displaying a diagnostic code.
2
Chapter 1 Product Features
Front panel components, small form factor
Drive configuration may vary by model. Some models have a bezel blank covering one or more drive
bays.
1
Slim Optical Drive (optional)
6
Headphone Connector
2
USB 2.0 Port - Charging (black)
7
Dual-State Power Button
3
USB 2.0 Port (black)
8
Hard Drive Activity Light
4
USB 3.0 Ports (blue)
9
3.5-inch Media Card Reader (optional)
5
Microphone/Headphone Connector
NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if
you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the
connector at any time by double-clicking the Audio Manager icon in the Windows taskbar.
NOTE: The USB 2.0 Port - Charging also provides current to charge a device such as a Smart Phone. The
charging current is available whenever the power cord is plugged into the system, even when the system is off.
NOTE: The Power On Light is normally white when the power is on. If it is flashing red, there is a problem with
the computer and it is displaying a diagnostic code.
Front panel components, small form factor
3
Rear panel components, microtower
1
PS/2 Keyboard Connector (purple)
7
Power Cord Connector
2
USB 2.0 Ports (black)
8
PS/2 Mouse Connector (green)
3
DisplayPort Monitor Connectors
9
RJ-45 Network Connector
4
VGA Monitor Connector
10
Serial Connector
5
USB 3.0 Ports (blue)
11
Line-In Audio Connector (blue)
6
Line-Out Connector for powered audio
devices (green)
NOTE: An optional second serial port and an optional parallel port are available from HP.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use
the connector for a line-in device or a microphone. You can reconfigure the connector at any time by doubleclicking the Audio Manager icon in the Windows taskbar.
When a graphics card is installed in one of the system board slots, the video connectors on the graphics card and/
or the integrated graphics on the system board may be used. The specific graphics card installed and software
configuration will determine the behavior.
The system board graphics can be disabled by changing settings in Computer Setup.
4
Chapter 1 Product Features
Rear panel components, small form factor
1
PS/2 Mouse Connector (green)
7
PS/2 Keyboard Connector (purple)
2
RJ-45 Network Connector
8
DisplayPort Monitor Connectors
3
Serial Connector
9
VGA Monitor Connector
4
USB 2.0 Ports (black)
10
USB 3.0 Ports (blue)
5
Line-In Audio Connector (blue)
11
Line-Out Connector for powered audio
devices (green)
6
Power Cord Connector
NOTE: An optional second serial port and an optional parallel port are available from HP.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use
the connector for a line-in device or a microphone. You can reconfigure the connector at any time by doubleclicking the Audio Manager icon in the Windows taskbar.
When a graphics card is installed in one of the system board slots, the video connectors on the graphics card and/
or the integrated graphics on the system board may be used. The specific graphics card installed and software
configuration will determine the behavior.
The system board graphics can be disabled by changing settings in Computer Setup.
Rear panel components, small form factor
5
Serial Number Location
Each computer has a unique serial number and a product ID number that are located on the exterior
of the computer. Keep these numbers available for use when contacting customer service for
assistance.
6
Chapter 1 Product Features
2
Activating and Customizing the Software
NOTE:
This chapter provides information for both Windows 7 and Windows 8.1.
Activating and customizing the software in Windows 7
If your computer was not shipped with a Windows® operating system, some portions of this
documentation do not apply. Additional information is available in online help after you activate the
operating system.
CAUTION: Do not add optional hardware or third-party devices to the computer until the operating
system is successfully activated. Doing so may cause errors and prevent the operating system from
installing properly.
NOTE: Be sure there is a 10.2 cm (4 inch) clearance at the back of the unit and above the monitor
to permit the required airflow.
Activating the Windows operating system
The first time you turn on the computer, the operating system is set up and activated automatically.
This process takes about 5 to 10 minutes. Carefully read and follow the instructions on the screen to
complete the activation.
We recommend that you register your computer with HP during operating system setup so you can
receive important software updates, facilitate support questions, and sign up for special offers.
CAUTION: After the activation process has begun, DO NOT TURN OFF THE COMPUTER UNTIL
THE PROCESS IS COMPLETE. Turning off the computer during the activation process may damage
the software that runs the computer or prevent its proper installation.
NOTE: If the computer shipped with more than one operating system language on the hard drive,
the activation process could take up to 60 minutes.
Downloading Windows 7 updates
Microsoft may release updates to the operating system. To help keep the computer running optimally,
HP recommends checking for the latest updates during the initial installation and periodically
throughout the life of the computer.
1.
To set up your Internet connection, click Start > Internet Explorer and follow the instructions on
the screen.
2.
After an Internet connection has been established, click the Start > All Programs > Windows
Update.
3.
Run Windows Update monthly thereafter.
Activating and customizing the software in Windows 7
7
Installing or upgrading device drivers
When installing optional hardware devices after the operating system installation is complete, you
must also install the drivers for each of the devices.
In Windows 7, if prompted for the i386 directory, replace the path specification with C:\i386, or use
the Browse button in the dialog box to locate the i386 folder. This action points the operating system
to the appropriate drivers.
Obtain the latest support software, including support software for the operating system, from
http://www.hp.com/support. Select your country and language, select Download drivers and software
(and firmware), enter the model number of the computer, and press Enter.
Customizing the monitor display
If you wish, you can select or change the monitor refresh rates, screen resolution, color settings, font
sizes, and power management settings.
For more information, refer to the online documentation provided with the graphics controller utility or
the documentation that came with your monitor.
Right-click on the Windows desktop, then click Personalize to change display settings.
Activating and customizing the software in Windows 8.1
Additional information is available in online help after you activate the operating system.
NOTE: Be sure there is a 10.2 cm (4 inch) clearance at the back of the unit and above the monitor
to permit the required airflow.
Activating the Windows Operating System
The first time you turn on the computer, the operating system is set up and activated automatically.
This process takes about 5 to 10 minutes. Carefully read and follow the instructions on the screen to
complete the activation.
We recommend that you register your computer with HP during operating system set up so you can
receive important software updates, facilitate support questions, and sign up for special offers. You
can also register your computer with HP using the Register with HP app on the Start screen.
CAUTION: After the activation process has begun, DO NOT TURN OFF THE COMPUTER UNTIL
THE PROCESS IS COMPLETE. Turning off the computer during the activation process may damage
the software that runs the computer or prevent its proper installation.
Downloading Windows 8.1 updates
Microsoft may release updates to the operating system. To help keep the computer running optimally,
HP recommends checking for the latest updates during the initial installation and periodically
throughout the life of the computer.
Run Windows Update as soon as possible after you set up your computer.
8
1.
Point to the upper-right or lower-right corner of the Start screen to display the charms.
2.
Click Settings > Change PC Settings > Windows Update.
3.
Run Windows Update monthly thereafter.
Chapter 2 Activating and Customizing the Software
Customizing the monitor display
You can customize display settings for Windows 8.1 separately for the Start screen and the Desktop.
To customize the Start screen:
1.
Point to the upper-right or lower-right corner of the Start screen to display the charms.
2.
Click Settings > Change PC Settings.
3.
Click Personalize to change the display settings.
To customize the Desktop:
1.
Click the Desktop app on the Start screen.
2.
Right-click on the desktop, and then click Personalize to change display settings.
Activating and customizing the software in Windows 8.1
9
3
Illustrated parts catalog
Microtower (MT) chassis spare parts
Computer major components
10
Chapter 3 Illustrated parts catalog
Item
Description
(1)
Front bezel
*
Slim optical drive bezel blank
(2)
Access panel
(3)
Power supply
280W, 92% efficient
280W, 90% efficient
280W, 85% efficient (for use only in China)
280W, standard
(4)
System board (includes replacement thermal material)
For use in models without Windows 8.1
For use in models with Windows 8.1 Standard
For use in models with Windows 8.1 Professional
For use in NetClone models
(5)
Memory modules (PC3-12800, 1600-MHz)
8-GB
4-GB
(6)
Processors (include replacement thermal material)
AMD A10-7850B, 3.7 GHz
AMD A10-7800B, 3.57 GHz
AMD A10-6800B, 4.1 GHz
AMD A8-7600B, 3.1 GHz
AMD A8-6500B, 3.5 GHz
AMD A6-7400B, 3.5 GHz
AMD A6-6400B, 3.9 GHz
AMD A4-7350B, 3.9 GHz
AMD A4-6300B, 3.7 GHz
*not illustrated
Microtower (MT) chassis spare parts
11
Cables
Item
Description
(1)
Front I/O assembly
(2)
SATA drive power cable
(3)
SATA data cable, 14 inch, 1 straight end, 1 angled end
*
DMS-59 to dual VGA cable
*
DMS-59 to dual DVI cable
*
Adapter, DisplayPort to HDMI
*
Adapter, DisplayPort to VGA
*
Adapter, DisplayPort to DVI
*
DisplayPort cable
*
Adapter, DVI to VGA
*
Adapter, DVI-I to VGA
*not illustrated
12
Chapter 3 Illustrated parts catalog
Misc parts
Microtower (MT) chassis spare parts
13
Item
Description
(1)
Fan sink (includes replacement thermal material)
(2)
Fan
(3)
Speaker
(4)
Hard drive conversion bracket, 2.5-inch to 3.5-inch
(5)
Adapter, USB 3.0 to USB 2.0 (for use with card reader)
(6)
Solenoid lock
(7)
Hood sensor
(8)
Clamp lock
*
Secure Digital (SD) card reader
*
Keyed cable lock
*
Grommet, hard drive isolation, blue
*
Antenna for use with WLAN card
*
Antenna cover
*
Removable frame carrier (optical drive)
*
Mouse
PS2, optical
USB, laser
USB, optical
Washable
Wireless
*
Keyboards
PS/2
USB
Wireless
Washable
Smart card
*not illustrated
14
Chapter 3 Illustrated parts catalog
Drives
Description
Hard drives/Solid-state drives
2-TB, 7200-rpm
1-TB, 10000-rpm, 3.5-inch
1-TB, 7200-rpm, 3.5-inch
1-TB, hybrid SSD, 2.5-inch
500-GB, 10000-rpm
500-GB, 7200-rpm
500 GB, 7200 rpm, 3.5-inch
500-GB, hybrid SSD, 2.5-inch
500-GB, 5400-rpm, 2.5-inch, FIPS
256-GB Solid-state Drive (SSD), self-encrypting (SED)
256-GB Solid-state Drive (SSD)
180 GB Solid-state Drive (SSD)
128-GB Solid-state Drive (SSD), self-encrypting drive (SED)
128-GB Solid-state Drive (SSD)
120-GB Solid-state Drive (SSD)
Optical drives
Blu-ray BD-Writer XL Drive
DVD±RW drive
DVD-ROM drive
Grommet, hard drive isolation, blue
Microtower (MT) chassis spare parts
15
Misc boards
Item
Description
(1)
AMD Radeon HD8350 DH PCIe x16 graphics card, 1 GB (for use only in China)
*
AMD Radeon HD8450 PCIe x16 graphics card, 1 GB
*
AMD Radeon HD8470 PCIe x16 graphics card, 1 GB (for use only in China)
*
AMD Radeon HD8490 PCIe x16 graphics card, 1 GB
(2)
nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB
*
nVidia Quadro NVS315 PCIe x16 graphics card, 1 GB
(3)
GeForce GT630 PCIe x16 graphics card, 2 GB
*
AMD R9 255 graphics processor, 2 GB
*
AMD R7 240 graphics processor, 2 GB
(4)
Intel PRO/1000 NIC
(5)
WLAN 802.11 a/b/g/n + Bluetooth 4.0 module
*
HP WLAN 802.11 a/b/g/n 2x2 module
(6)
Printer port, PCI card
(7)
Serial port, PCI card
*
PCIe to M.2 adapter
*
128 GB, M.2 SSD
*not illustrated
16
Chapter 3 Illustrated parts catalog
Small Form Factor (SFF) chassis spare parts
Computer major components
Item
Description
(1)
Front bezel
*
Bezel blank
(2)
Power supply
240W, 92% efficient
240W, 90% efficient
240W, standard
(3)
Access panel
(4)
System board (includes replacement thermal material)
For use in models without Windows 8.1
Small Form Factor (SFF) chassis spare parts
17
Item
Description
For use in models with Windows 8.1 Standard
For use in models with Windows 8.1 Professional
For use in NetClone models
(5)
Memory modules (PC3-12800, 1600-MHz)
8-GB
4-GB
(6)
Processors (include replacement thermal material)
AMD A10-7850B, 3.7 GHz
AMD A10-7800B, 3.57 GHz
AMD A10-6800B, 4.1 GHz
AMD A8-7600B, 3.1 GHz
AMD A8-6500B, 3.5 GHz
AMD A6-7400B, 3.5 GHz
AMD A6-6400B, 3.9 GHz
AMD A4-7300B, 3.9 GHz
AMD A4-6300B, 3.7 GHz
*not illustrated
18
Chapter 3 Illustrated parts catalog
Cables
Item
Description
(1)
Front I/O assembly
(2)
Power switch assembly
(3)
SATA data cable, 14 inch, 1 straight end, 1 angled end
(4)
SATA drive power cable
*
SATA data cable, 19.5 inch, 2 straight ends
*
DMS-59 to dual VGA cable
*
DMS-59 to dual DVI cable
*
Adapter, DisplayPort to VGA
*
Adapter, DisplayPort to DVI
*
Adapter, DVI-I to VGA
*
Adapter, DVI-D to VGA
*
Adapter, DisplayPort to HDMI
*
DisplayPort cable
*
SATA power extension cable
*not illustrated
Small Form Factor (SFF) chassis spare parts
19
Misc parts
20
Chapter 3 Illustrated parts catalog
Item
Description
(1)
Fan sink (includes replacement thermal material)
(2)
Baffle
(3)
Speaker
(4)
2.5-in drive adapter
(5)
Card reader, 15-in-1
(6)
Adapter, USB 3.0 to USB 2.0 (for use with card reader)
(7)
Solenoid lock
(8)
Clamp lock, includes universal cable (plate not included)
(9)
Hood sensor
*
Chassis stand
*
Antenna
*
Hard drive conversion bracket
*
Grommet, hard drive isolation, blue
*
Mouse
USB, optical
Washable
Wireless
USB, laser
PS2, optical
*
Keyboard
PS/2
USB
USB, mini
Washable
Smart card
*not illustrated
Small Form Factor (SFF) chassis spare parts
21
Drives
Description
Hard drives/Solid-state drives
2-TB, 7200-rpm
1-TB, 10000-rpm, 3.5-inch
1-TB, hybrid SSD, 2.5-inch
500-GB, 10000-rpm
500-GB, 7200-rpm
500-GB, 7200-rpm, 2.5-inch, self-encrypting (SED)
500-GB, 7200-rpm, 2.5-inch
500-GB, hybrid SSD, 2.5-inch
500-GB, 5400-rpm, 2.5-inch, FIPS
256-GB Solid-state Drive (SSD), self-encrypting (SED)
256-GB Solid-state Drive (SSD)
180 GB Solid-state Drive (SSD)
128-GB Solid-state Drive (SSD), self-encrypting drive (SED)
128-GB Solid-state Drive (SSD)
120-GB Solid-state Drive (SSD)
Optical drives
Blu-ray BD-Writer XL Drive
DVD±RW drive
DVD-ROM drive
Grommet, hard drive isolation, blue
22
Chapter 3 Illustrated parts catalog
Misc boards
Item
Description
(1)
nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB
*
nVidia Quadro NVS315 PCIe x16 graphics card, 1 GB
(2)
GeForce GT630 PCIe x16 graphics card, 2 GB
*
AMD Radeon HD8450 PCIe x16 graphics card, 1 GB
*
AMD Radeon HD8490 PCIe x16 graphics card, 1 GB
*
AMD R9 255 graphics processor, 2 GB
*
AMD R7 240 graphics processor, 2 GB
(3)
Intel PRO/1000 NIC
(4)
WLAN 802.11 a/b/g/n + Bluetooth 4.0 module
*
HP WLAN 802.11 a/b/g/n 2x2 module
(5)
Serial port, PCI card
(6)
Printer port, PCI card
*
PCIe to M.2 adapter
*
128 GB, M.2 SSD (for use with PCIe to M.2 adapter)
*not illustrated
Small Form Factor (SFF) chassis spare parts
23
4
Routine care, SATA drive guidelines, and
disassembly preparation
This chapter provides general service information for the computer. Adherence to the procedures and
precautions described in this chapter is essential for proper service.
CAUTION: When the computer is plugged into an AC power source, voltage is always applied to the
system board. You must disconnect the power cord from the power source before opening the
computer to prevent system board or component damage.
Electrostatic discharge information
A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive
devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic
device exposed to electrostatic discharge (ESD) may not appear to be affected at all and can work
perfectly throughout a normal cycle. The device may function normally for a while, but it has been
degraded in the internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the
discharge contains enough power to alter device parameters or melt silicon junctions.
Generating static
The following table shows that:
●
Different activities generate different amounts of static electricity.
●
Static electricity increases as humidity decreases.
Relative Humidity
Event
55%
40%
10%
Walking across carpet
7,500 V
15,000 V
35,000 V
Walking across vinyl floor
3,000 V
5,000 V
12,000 V
Motions of bench worker
400 V
800 V
6,000 V
Removing DIPs from plastic tube
400 V
700 V
2,000 V
Removing DIPs from vinyl tray
2,000 V
4,000 V
11,500 V
Removing DIPs from Styrofoam
3,500 V
5,000 V
14,500 V
Removing bubble pack from PCB
7,000 V
20,000 V
26,500 V
Packing PCBs in foam-lined box
5,000 V
11,000 V
21,000 V
These are then multi-packaged inside plastic tubes, trays, or Styrofoam.
NOTE:
24
700 volts can degrade a product.
Chapter 4 Routine care, SATA drive guidelines, and disassembly preparation
Preventing electrostatic damage to equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the
degree of sensitivity. The following packaging and grounding precautions are necessary to prevent
damage to electric components and accessories.
●
To avoid hand contact, transport products in static-safe containers such as tubes, bags, or
boxes.
●
Protect all electrostatic parts and assemblies with conductive or approved containers or
packaging.
●
Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.
●
Place items on a grounded surface before removing them from their container.
●
Always be properly grounded when touching a sensitive component or assembly.
●
Avoid contact with pins, leads, or circuitry.
●
Place reusable electrostatic-sensitive parts from assemblies in protective packaging or
conductive foam.
Personal grounding methods and equipment
Use the following equipment to prevent static electricity damage to equipment:
●
Wrist straps are flexible straps with a maximum of one-megohm ± 10% resistance in the ground
cords. To provide proper ground, a strap must be worn snug against bare skin. The ground cord
must be connected and fit snugly into the banana plug connector on the grounding mat or
workstation.
●
Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible
with most types of shoes or boots. On conductive floors or dissipative floor mats, use them on
both feet with a maximum of one-megohm ± 10% resistance between the operator and ground.
Static Shielding Protection Levels
Method
Voltage
Antistatic plastic
1,500
Carbon-loaded plastic
7,500
Metallized laminate
15,000
Grounding the work area
To prevent static damage at the work area, use the following precautions:
●
Cover the work surface with approved static-dissipative material. Provide a wrist strap connected
to the work surface and properly grounded tools and equipment.
●
Use static-dissipative mats, foot straps, or air ionizers to give added protection.
●
Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate.
Handle them only at static-free work areas.
●
Turn off power and input signals before inserting and removing connectors or test equipment.
●
Use fixtures made of static-safe materials when fixtures must directly contact dissipative
surfaces.
Electrostatic discharge information
25
●
Keep work area free of nonconductive materials such as ordinary plastic assembly aids and
Styrofoam.
●
Use field service tools, such as cutters, screwdrivers, and vacuums, that are conductive.
Recommended materials and equipment
Materials and equipment that are recommended for use in preventing static electricity include:
●
Antistatic tape
●
Antistatic smocks, aprons, or sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Conductive foam
●
Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance
●
Static-dissipative table or floor mats with hard tie to ground
●
Field service kits
●
Static awareness labels
●
Wrist straps and footwear straps providing one-megohm +/- 10% resistance
●
Material handling packages
●
Conductive plastic bags
●
Conductive plastic tubes
●
Conductive tote boxes
●
Opaque shielding bags
●
Transparent metallized shielding bags
●
Transparent shielding tubes
Operating guidelines
To prevent overheating and to help prolong the life of the computer:
26
●
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and
cold.
●
Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all
vented sides of the computer and above the monitor to permit the required airflow.
●
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airflow.
●
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign
matter can block the vents and limit the airflow. Be sure to unplug the computer before cleaning
the air vents.
●
Never operate the computer with the cover or side panel removed.
●
Do not stack computers on top of each other or place computers so near each other that they
are subject to each other’s re-circulated or preheated air.
Chapter 4 Routine care, SATA drive guidelines, and disassembly preparation
●
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation
must be provided on the enclosure, and the same operating guidelines listed above will still
apply.
●
Keep liquids away from the computer and keyboard.
●
Never cover the ventilation slots on the monitor with any type of material.
●
Install or enable power management functions of the operating system or other software,
including sleep states.
Routine care
General cleaning safety precautions
1.
Never use solvents or flammable solutions to clean the computer.
2.
Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and
then use the cloth on the component.
3.
Always unplug the computer when cleaning with liquids or damp cloths.
4.
Always unplug the computer before cleaning the keyboard, mouse, or air vents.
5.
Disconnect the keyboard before cleaning it.
6.
Wear safety glasses equipped with side shields when cleaning the keyboard.
Cleaning the Computer Case
Follow all safety precautions in General cleaning safety precautions on page 27 before cleaning the
computer.
To clean the computer case, follow the procedures described below:
●
To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.
●
For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it with
a cloth or swab dampened with clear water.
●
For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol will
evaporate quickly and not leave a residue.
●
After cleaning, always wipe the unit with a clean, lint-free cloth.
●
Occasionally clean the air vents on the computer. Lint and other foreign matter can block the
vents and limit the airflow.
Cleaning the keyboard
Follow all safety precautions in General cleaning safety precautions on page 27 before cleaning the
keyboard.
To clean the tops of the keys or the keyboard body, follow the procedures described in Cleaning the
Computer Case on page 27.
When cleaning debris from under the keys, review all rules in General cleaning safety precautions
on page 27 before following these procedures:
Routine care
27
CAUTION: Use safety glasses equipped with side shields before attempting to clean debris from
under the keys.
●
Visible debris underneath or between the keys may be removed by vacuuming or shaking.
●
Canned, pressurized air may be used to clean debris from under the keys. Caution should be
used as too much air pressure can dislodge lubricants applied under the wide keys.
●
If you remove a key, use a specially designed key puller to prevent damage to the keys. This
tool is available through many electronic supply outlets.
CAUTION: Never remove a wide leveled key (like the space bar) from the keyboard. If these
keys are improperly removed or installed, the keyboard may not function properly.
●
Cleaning under a key may be done with a swab moistened with isopropyl alcohol and squeezed
out. Be careful not to wipe away lubricants necessary for proper key functions. Use tweezers to
remove any fibers or dirt in confined areas. Allow the parts to air dry before reassembly.
Cleaning the monitor
●
Wipe the monitor screen with a clean cloth moistened with water or with a towelette designed for
cleaning monitors. Do not use sprays or aerosols directly on the screen; the liquid may seep into
the housing and damage a component. Never use solvents or flammable liquids on the monitor.
●
To clean the monitor body follow the procedures in Cleaning the Computer Case on page 27.
Cleaning the mouse
Before cleaning the mouse, ensure that the power to the computer is turned off.
●
Clean the mouse ball by first removing the retaining plate and the ball from the housing. Pull out
any debris from the ball socket and wipe the ball with a clean, dry cloth before reassembly.
●
To clean the mouse body, follow the procedures in Cleaning the Computer Case on page 27.
Service considerations
Listed below are some of the considerations that you should keep in mind during the disassembly and
assembly of the computer.
Power supply fan
The power supply fan is a variable-speed fan based on the temperature in the power supply.
CAUTION: The cooling fan is always on when the computer is in the “On” mode. The cooling fan is
off when the computer is in “Standby,” “Suspend,” or “Off” modes.
You must disconnect the power cord from the power source before opening the computer to prevent
system board or component damage.
Tools and software Requirements
To service the computer, you need the following:
28
●
Torx T-15 screwdriver
●
Torx T-15 screwdriver with small diameter shank (for certain front bezel removal)
●
Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)
Chapter 4 Routine care, SATA drive guidelines, and disassembly preparation
●
Phillips #2 screwdriver
●
Diagnostics software
●
Tamper-resistant T-15 wrench
Screws
The screws used in the computer are not interchangeable. They may have standard or metric threads
and may be of different lengths. If an incorrect screw is used during the reassembly process, it can
damage the unit. HP strongly recommends that all screws removed during disassembly be kept with
the part that was removed, then returned to their proper locations.
CAUTION: Metric screws have a black finish. U.S. screws have a silver finish and are used on hard
drives only.
CAUTION: As each subassembly is removed from the computer, it should be placed away from the
work area to prevent damage.
Cables and connectors
Most cables used throughout the unit are flat, flexible cables. These cables must be handled with
care to avoid damage. Apply only the tension required to seat or unseat the cables during insertion or
removal from the connector. Handle cables by the connector whenever possible. In all cases, avoid
bending or twisting the cables, and ensure that the cables are routed in such a way that they cannot
be caught or snagged by parts being removed or replaced.
CAUTION: When servicing this computer, ensure that cables are placed in their proper location
during the reassembly process. Improper cable placement can damage the computer.
Hard Drives
Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This
applies to failed drives as well as replacement spares.
●
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective
packaging and label the package “Fragile: Handle With Care.”
●
Do not remove hard drives from the shipping package for storage. Keep hard drives in their
protective packaging until they are actually mounted in the computer.
●
Avoid dropping drives from any height onto any surface.
●
If you are inserting or removing a hard drive, turn off the computer. Do not remove a hard drive
while the computer is on or in standby mode.
●
Before handling a drive, ensure that you are discharged of static electricity. While handling a
drive, avoid touching the connector.
●
Do not use excessive force when inserting a drive.
●
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic
fields such as monitors or speakers.
Lithium coin cell battery
The battery that comes with the computer provides power to the real-time clock and has a minimum
lifetime of about three years.
Service considerations
29
See the appropriate removal and replacement chapter for the chassis you are working on in this
guide for instructions on the replacement procedures.
WARNING! This computer contains a lithium battery. There is a risk of fire and chemical burn if the
battery is handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose
in water or fire, or expose it to temperatures higher than 140ºF (60ºC). Do not attempt to recharge the
battery.
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the
general household waste. In order to forward them to recycling or proper disposal, please use the
public collection system or return them to HP, their authorized partners, or their agents.
SATA hard drives
Serial ATA Hard Drive Characteristics
Number of pins/conductors in data cable
7/7
Number of pins in power cable
15
Maximum data cable length
39.37 in (100 cm)
Data interface voltage differential
400-700 mV
Drive voltages
3.3 V, 5 V, 12 V
Jumpers for configuring drive
N/A
Data transfer rate
6.0 Gb/s
SATA hard drive cables
SATA data cable
Always use an HP approved SATA 6.0 Gb/s cable as it is fully backwards compatible with the SATA
1.5 Gb/s drives.
Current HP desktop products ship with SATA 6.0 Gb/s hard drives.
SATA data cables are susceptible to damage if overflexed. Never crease a SATA data cable and
never bend it tighter than a 30 mm (1.18 in) radius.
The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive.
SMART ATA drives
The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal
Computers have built-in drive failure prediction that warns the user or network administrator of an
impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure
indication parameters such as reallocated sector count, spin retry count, and calibration retry count. If
the drive determines that a failure is imminent, it generates a fault alert.
30
Chapter 4 Routine care, SATA drive guidelines, and disassembly preparation
Cable management
Always follow good cable management practices when working inside the computer.
●
Keep cables away from major heat sources like the heat sink.
●
Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these
are not designed to take excessive pressure on them.
●
Keep cables clear of sliding or moveable parts to prevent them from being cut or crimped when
the parts are moved.
●
When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the
wires.
●
Some flat ribbon cables come prefolded. Never change the folds on these cables.
●
Do not bend any cable sharply. A sharp bend can break the internal wires.
●
Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
●
Never crease a SATA data cable.
●
Do not rely on components like the drive cage, power supply, or computer cover to push cables
down into the chassis. Always position the cables to lay properly by themselves.
Cable management
31
5
Removal and replacement procedures –
Microtower (MT) chassis
Adherence to the procedures and precautions described in this chapter is essential for proper service.
After completing all necessary removal and replacement procedures, run the Diagnostics utility to
verify that all components operate properly.
NOTE:
Not all features listed in this guide are available on all computers.
Preparation for disassembly
See Routine care, SATA drive guidelines, and disassembly preparation on page 24 for initial safety
procedures.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Close any open software applications.
3.
Exit the operating system.
4.
Remove any compact disc or media card from the computer.
5.
Turn off the computer and any peripheral devices that are connected to it.
CAUTION:
Turn off the computer before disconnecting any cables.
Regardless of the power-on state, voltage is always present on the system board as long as the
system is plugged into an active AC outlet. In some systems the cooling fan is on even when the
computer is in the “Standby,” or “Suspend” modes. The power cord should always be
disconnected before servicing a unit.
6.
Disconnect the power cord from the electrical outlet and then from the computer.
7.
Disconnect all peripheral device cables from the computer.
8.
As applicable, lay the computer down on its side to achieve a safe working position.
NOTE: During disassembly, label each cable as you remove it, noting its position and routing.
Keep all screws with the units removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths; using the
wrong screw in an application may damage the unit.
32
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
Access panel
To access internal components, you must remove the access panel:
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32)
2.
Lift up on the access panel handle (1), slide the computer back approximately 12 mm (1/2 inch)
(2), and then lift the access panel off the computer (3).
Access panel
33
Front bezel
34
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32)
2.
Remove the access panel (Access panel on page 33)
3.
Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
Optical drive bezel blank
On some models, there is a bezel blank covering the slim optical drive bay. Remove the bezel blank
before installing an optical drive. To remove the bezel blank:
1.
Remove the access panel (Access panel on page 33)
2.
Remove the front bezel (Front bezel on page 34)
3.
To remove the bezel blank, press upward on the bottom tab and press downward on the top tab
on the right side of the blank (1), and then rotate the blank off the front of the bezel (2).
Optical drive bezel blank
35
Memory
Description
8-GB, PC3-12800
4-GB, PC3-12800
The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3SDRAM) dual inline memory modules (DIMMs).
DIMMs
The memory sockets on the system board can be populated with up to four industry-standard DIMMs.
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 32-GB of memory configured in a
high-performing dual channel mode.
DDR3-SDRAM DIMMs
For proper system operation, the DDR3-SDRAM DIMMs must be:
●
industry-standard 240-pin
●
unbuffered non-ECC PC3-12800 DDR3-1600 MHz-compliant
●
1.5 volt DDR3-SDRAM DIMMs
The DDR3-SDRAM DIMMs must also:
●
support CAS latency 11 DDR3 1600 MHz (11-11-11 timing)
●
contain the mandatory JEDEC SPD information
In addition, the computer supports:
●
512-Mbit, 1-Gbit, and 2-Gbit non-ECC memory technologies
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
supported
NOTE:
The system will not operate properly if you install unsupported DIMMs.
Populating DIMM sockets
There are four DIMM sockets on the system board, with two sockets per channel. The sockets are
labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory
channel B. Sockets DIMM3 and DIMM4 operate in memory channel A.
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the DIMMs are installed.
NOTE: Single channel and unbalanced dual channel memory configurations will result in inferior
graphics performance.
36
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
●
The system will operate in single channel mode if the DIMM sockets are populated in one
channel only.
●
The system will operate in a higher-performing dual channel mode if the total memory capacity
of the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B.
The technology and device width can vary between the channels. For example, if Channel A is
populated with two 1-GB DIMMs and Channel B is populated with one 2-GB DIMM, the system
will operate in dual channel mode.
●
The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is
not equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel
populated with the least amount of memory describes the total amount of memory assigned to
dual channel and the remainder is assigned to single channel. For optimal speed, the channels
should be balanced so that the largest amount of memory is spread between the two channels.
If one channel will have more memory than the other, the larger amount should be assigned to
Channel A. For example, if you are populating the sockets with one 2-GB DIMM, and three 1-GB
DIMMs, Channel A should be populated with the 2-GB DIMM and one 1-GB DIMM, and Channel
B should be populated with the other two 1-GB DIMMs. With this configuration, 4-GB will run as
dual channel and 1-GB will run as single channel.
●
In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
Installing DIMMs
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power
to drain before adding or removing memory modules. Regardless of the power-on state, voltage is
always supplied to the memory modules as long as the computer is plugged into an active AC outlet.
Adding or removing memory modules while voltage is present may cause irreparable damage to the
memory modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is
important to use memory modules with gold-plated metal contacts to prevent corrosion and/or
oxidation resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32)
2.
Remove the access panel (Access panel on page 33)
Memory
37
3.
Open both latches of the memory module socket (1), and insert the memory module into the
socket (2).
NOTE: A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
Populate the black DIMM sockets before the white DIMM sockets.
For maximum performance, populate the sockets so that the memory capacity is spread as
equally as possible between Channel A and Channel B.
4.
Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
5.
Repeat steps 3 and 4 to install any additional modules.
6.
Replace the computer access panel.
7.
Reconnect the power cord and turn on the computer.
8.
Lock any security devices that were disengaged when the access panel was removed.
The computer should automatically recognize the additional memory the next time you turn on the
computer.
38
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
Expansion cards
GeForce GT630 PCIe x16 graphics card, 2 GB
nVidia Quadro NVS315 PCIe x16 graphics card, 1 GB
nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB
AMD Radeon HD8490 PCIe x16 graphics card, 1 GB
AMD Radeon HD8470 PCIe x16 graphics card, 1 GB (for use only in China)
AMD Radeon HD8450 PCIe x16 graphics card, 1 GB
AMD Radeon HD8350 DH PCIe x16 graphics card, 1 GB (for use only in China)
AMD R9 255 graphics processor, 2 GB
AMD R7 240 graphics processor, 2 GB
Intel PRO/1000 NIC
PCIe to M.2 adapter
128 GB, M.2 SSD (for use with PCIe to M.2 adapter)
The computer has two PCI Express x1 expansion slots, one PCI Express x16 expansion slot, and
one PCI Express x16 expansion slot that is downshifted to a x4 slot.
NOTE:
You can install a PCI Express x1, x8, or x16 expansion card in the PCI Express x16 slot.
For dual graphics card configurations, the first (primary) card must be installed in the PCI Express
x16 slot that is NOT downshifted to a x4.
To remove, replace, or add an expansion card:
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32)
2.
Remove the access panel (Access panel on page 33)
Expansion cards
39
3.
Release the slot cover retention latch that secures the slot covers by lifting the tab on the latch
and rotating the latch to the open position.
4.
Locate the correct vacant expansion socket on the system board and the corresponding
expansion slot on the back of the computer chassis.
5.
Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
NOTE: Before removing an installed expansion card, disconnect any cables that may be
attached to the expansion card.
a.
40
If you are installing an expansion card in a vacant socket, you must slide one of the
expansion slot covers up and out of the chassis or use a flatblade screwdriver to pry out
one of the metal shields on the rear panel that covers the expansion slot. Be sure to
remove the appropriate shield for the expansion card you are installing.
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
b.
If you are removing a PCI Express x1 card, hold the card at each end and carefully rock it
back and forth until the connectors pull free from the socket. Lift the card straight up (1)
then away from the inside of the chassis (2) to remove it. Be sure not to scrape the card
against other components.
c.
If you are removing a PCI Express x16 card, pull the retention arm on the back of the
expansion socket away from the card and carefully rock the card back and forth until the
connectors pull free from the socket. Lift the card straight up then away from the inside of
the chassis to remove it. Be sure not to scrape the card against other components.
6.
Store the removed card in anti-static packaging.
7.
If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION: After removing an expansion card, you must replace it with a new card or
expansion slot cover for proper cooling of internal components during operation.
Expansion cards
41
8.
To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis (1) so that the bottom of the bracket on
the card slides into the small slot on the chassis. Press the card straight down into the expansion
socket on the system board (2).
NOTE: When installing an expansion card, press firmly on the card so that the whole connector
seats properly in the expansion card slot.
9.
Rotate the slot cover retention latch back in place to secure the expansion card.
10. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
11. Replace the computer access panel.
12. Reconnect the power cord and turn on the computer.
13. Lock any security devices that were disengaged when the computer access panel was removed.
14. Reconfigure the computer, if necessary.
42
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
Drives
Description
Hard drives/Solid-state drives
2-TB, 7200-rpm
1-TB, 10000-rpm, 3.5-inch
1-TB, 7200-rpm, 3.5-inch
1-TB, hybrid SSD, 2.5-inch
500-GB, 10000-rpm
500-GB, 7200-rpm
500 GB, 7200 rpm, 3.5-inch
500-GB, hybrid SSD, 2.5-inch
500-GB, 5400-rpm, 2.5-inch, FIPS
256-GB Solid-state Drive (SSD), self-encrypting (SED)
256-GB Solid-state Drive (SSD)
180 GB Solid-state Drive (SSD)
128-GB Solid-state Drive (SSD), self-encrypting drive (SED)
128-GB Solid-state Drive (SSD)
120-GB Solid-state Drive (SSD)
Optical drives
DVD±RW drive
DVD-ROM drive
Blu-ray BD-Writer XL Drive
When installing drives, follow these guidelines:
●
The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA
connector on the system board labeled SATA0.
●
Connect secondary hard drives and optical drives to one of the light blue SATA connectors on
the system board (labeled SATA1 and SATA2).
Drives
43
●
HP has provided four extra 6-32 silver mounting screws installed next to the hard drive bays (1).
The mounting screws are required for hard drives installed in the upper (secondary) hard drive
bay. If you are replacing a primary hard drive in the lower bay, remove the silver and blue
mounting screws from the old drive and install them in the new drive.
CAUTION:
To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the
computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby
mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and
label the package “Fragile: Handle With Care.”
44
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
Drive positions
1
Slim optical drive bay
2
3.5-inch secondary hard drive bay
3
3.5-inch primary hard drive bay
NOTE: The drive configuration on your computer may be different than the drive configuration shown above.
To verify the type and size of the storage devices installed in the computer, run Computer Setup.
Removing a slim optical drive
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32)
2.
Remove the access panel (Access panel on page 33)
3.
Remove the front bezel (Front bezel on page 34)
4.
Disconnect the power cable and data cable from the back of the optical drive.
CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to
avoid damaging the cable.
Drives
45
5.
Push inward on the green release latch on the underside of the drive (1) and push the rear of the
drive forward to unlock it (2), and then slide the drive out of the drive bay (3).
Installing a slim optical drive
46
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32).
2.
Remove the access panel (Access panel on page 33).
3.
Remove the front bezel (Front bezel on page 34). If you are installing a device in a bay covered
by a bezel blank, remove the bezel blank. See Optical drive bezel blank on page 35 for more
information.
4.
Follow the instructions for removing the optical drive if one was installed. Refer to Removing a
slim optical drive on page 45.
5.
Align the small pins on the release latch with the small holes on the side of the drive and press
the latch firmly onto the drive.
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
6.
Slide the optical drive all the way into the drive bay (1) until the green latch locks onto the bottom
of the drive bay (2).
7.
Connect the power cable and data cable to the back of the optical drive.
8.
If installing a new drive, connect the opposite end of the data cable to one of the light blue SATA
connectors (labeled SATA1 and SATA2) on the system board.
9.
Replace the front bezel.
10. Replace the computer access panel.
11. Reconnect the power cord and any external devices, then turn on the computer.
12. Lock any security devices that were disengaged when the access panel was removed.
Removing a hard drive
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive.
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32).
2.
Remove the access panel (Access panel on page 33).
3.
Disconnect the power cable and data cable from the back of the hard drive.
Drives
47
4.
Pull the green latch next to the drive outward (1) and slide the drive out of the bay (2).
Installing a hard drive
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32).
2.
Remove the access panel (Access panel on page 33).
3.
You can install a 3.5-inch hard drive or a 2.5-inch hard drive with a 3.5-inch adapter bracket
similar to the example shown below.
●
48
Slide the 2.5-inch drive into the bay adapter bracket, ensuring the connector on the drive is
fully inserted into the connector on the adapter bracket.
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
●
4.
Secure the drive to the bay adapter bracket by installing four black M3 adapter bracket
screws through the sides of the bracket into the drive.
Install four mounting screws into the sides of the drive (two on each side).
NOTE: The lower hard drive bay requires silver and blue mounting screws. The upper hard
drive bay requires all silver mounting screws. HP has supplied four extra silver mounting screws
installed on the chassis next to the hard drives that are used when installing a hard drive in the
upper drive bay. Refer to Drives on page 43 for an illustration of the location of the extra
mounting screws. When replacing a hard drive in the lower bay, use the four silver and blue
mounting screws that were removed from the old drive to install the new drive.
●
If installing a hard drive in the upper (secondary) drive bay, use the extra silver mounting
screws that can be retrieved from the chassis next to the hard drive bays.
Drives
49
●
5.
50
If installing a hard drive in the lower (primary) drive bay, remove the silver and blue
mounting screws from the old drive and install them in the new drive.
Slide the drive into the drive bay, making sure to align the mounting screws with the guide slots,
until the drive snaps into place.
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
6.
Connect the power cable (1) and data cable (2) to the back of the hard drive.
NOTE: The power cable for the hard drives is a two-headed cable that is routed from the
power supply to the rear of the hard drive bays.
7.
If installing a new drive, connect the opposite end of the data cable to the appropriate system
board connector.
NOTE: You must connect the primary hard drive data cable to the dark blue connector labeled
SATA0 to avoid any hard drive performance problems. If you are adding a second hard drive,
connect the data cable to one of the light blue SATA connector labeled SATA1 and SATA2.
8.
Replace the computer access panel.
9.
Reconnect the power cord and any external devices, then turn on the computer.
10. Lock any security devices that were disengaged when the access panel was removed.
Drives
51
Drive power cable
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32).
2.
Remove the computer access panel (Access panel on page 33).
3.
Disconnect the cable from the optical drive (1) and the hard drive (2)
4.
Remove the cable from the clips on the base pan and on the side of the hard drive cage (3).
5.
Disconnect the cable from the system board connector labeled SATAPWR0 (4), and then
remove the cable from the computer.
To reinstall the drive power cable, reverse the removal procedure.
52
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
Front I/O and power switch assembly
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32).
2.
Remove the computer access panel (Access panel on page 33).
3.
Remove the front bezel (Front bezel on page 34).
4.
Remove the Torx T15 screw (1) that secures the assembly to the chassis, and then push the tab
on the right side of the assembly (2) to disengage it from the chassis.
5.
Remove the cables from the clips on the base pan.
Front I/O and power switch assembly
53
6.
Rotate the assembly into the chassis (1).
7.
Disconnect the four cables from the following system board connectors:
(2): Front USB (yellow)
(3): Front AUD (blue)
(4): Front USB3.0 (blue)
(5): PB/LED (black)
8.
Remove the assembly from the inside of the computer.
To reinstall the assembly, reverse the removal procedure.
54
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
Heat sink
CAUTION:
The bond between the heat sink and the processor may be very tight.
If the computer will power on, before removing the heat sink, turn on the computer until it warms the
heat sink. Warming the heat sink lessens the bond between the heat sink and the processor, thereby
making separating them easier.
Make sure not to pull the processor out of the socket when you lift the heat sink, especially if you
cannot warm the heat sink prior to removal. Inadvertently removing the processor can damage the
pins.
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32).
2.
Remove the access panel (Access panel on page 33).
3.
Disconnect the fan cable from the system board connector labeled CPUFAN (1).
4.
Loosen the four silver captive Torx T15 screws (2) that secure the heat sink to the system board.
CAUTION: Remove heat sink retaining screws in diagonally opposite pairs (as in an X) to even
the downward forces on the processor. The pins on the socket are very fragile and any damage
to them may require replacing the system board.
5.
Lift the heat sink from atop the processor (3).
When reinstalling the heat sink, make sure that its bottom has been cleaned with an alcohol wipe and
fresh thermal grease has been applied to the top of the processor.
CAUTION: Heat sink retaining screws should be tightened in diagonally opposite pairs (as in an X)
to evenly seat the heat sink on the processor. This is especially important as the pins on the socket
are very fragile and any damage to them may require replacing the system board.
Heat sink
55
Processor
Description
AMD A10-7850B processor, 3.7 GHz
AMD A10-7800B processor, 3.57 GHz
AMD A10-6800B processor, 4.1 GHz
AMD A8-7600B processor, 3.1 GHz
AMD A8-6500B processor, 3.5 GHz
AMD A6-7400B processor, 3.5 GHz
AMD A6-6400B processor, 3.9 GHz
AMD A4-7300B processor, 3.9 GHz
AMD A4-6300B processor, 3.7 GHz
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32).
2.
Remove the access panel (Access panel on page 33).
3.
Remove the heat sink (Heat sink on page 55).
4.
Rotate the locking lever to its full open position (1).
5.
Carefully lift the processor from the socket (2).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and
handling them could cause irreparable damage. Once pins are damaged it may be necessary to
replace the system board.
The heat sink must be installed within 24 hours of installing the processor to prevent damage to
the processor’s solder connections.
Reverse the removal procedure to install a new processor.
56
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
NOTE: After installing a new processor onto the system board, update the system ROM to ensure
that the latest version of the BIOS is being used on the computer. The latest system BIOS can be
found on the Web at: http://h18000.www1.hp.com/support/files.
Speaker
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32).
2.
Remove the access panel (Access panel on page 33).
3.
Remove the speaker cable from the clip on the base pan.
4.
Disconnect the speaker wire from the system board connector labeled SPKR (1).
5.
From the inside of the chassis, remove the silver Torx T15 screw (2) that secures the speaker to
the chassis.
Speaker
57
6.
Remove the speaker from the chassis (3).
To replace the speaker, reverse the removal procedures.
58
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
Rear chassis fan
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32).
2.
Remove the access panel (Access panel on page 33).
3.
Remove the three silver Phillips screws that secure the fan to the rear of chassis.
4.
Disconnect the fan control cable (1) from the system board connector labeled CHFAN2.
5.
Lift the fan out of the chassis (2).
To install the fan assembly, reverse the removal procedure. Be sure to orient the air flow out of the
unit.
Rear chassis fan
59
Power supply
Description
Power supply, 280W, 92% efficient
Power supply, 280W, 90% efficient
Power supply, 280W, 85% efficient (for use only in China)
Power supply, 280W, standard
60
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32).
2.
Remove the access panel (Access panel on page 33).
3.
Remove the four silver Torx T15 screws that connect the power supply to the chassis.
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
4.
Remove the power cable from the clip on the base pan.
5.
Disconnect the power supply cable from the PWR system board connector (1) and the
PWRCPU system board connector (2).
6.
Press the tab (3) on the base pan in front of the power supply that holds it in place.
7.
Slide the power supply toward the front of the computer, rotate toward the fan so the power
supply clears the lip on the top of the chassis, and then lift the power supply out of the chassis
(4).
Power supply
61
To install the power supply, reverse the removal procedure.
System board
Description
System board for use in models without Windows 8.1
System board for use in models with Windows 8.1 Standard
System board for use in models with Windows 8.1 Professional
System board for use in NetClone models
62
1.
Prepare the computer for disassembly (Preparation for disassembly on page 32).
2.
Remove the access panel (Access panel on page 33).
3.
When replacing the system board, make sure the following components are removed from the
defective system board and installed on the replacement system board:
●
Memory modules (Memory on page 36)
●
Expansion cards (Expansion cards on page 39)
●
Heat sink (Heat sink on page 55).
●
Processor (Processor on page 56)
4.
Disconnect all cables connected to the system board, noting their location for reinstallation.
5.
Remove the eight Torx T15 screws that secure the system board to the chassis.
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
6.
Slide the system board toward the front of the computer to disengage the I/O panel (1), and then
lift the system board out of the computer (2).
When reinstalling the system board, first insert the I/O panel back into the slots in the rear of the
chassis, and then align the board with the chassis screw holes.
NOTE:
When replacing the system board, you must change the chassis serial number in the BIOS.
System board
63
System board callouts
64
Sys Bd
Label
Sys Bd
Connector
Color
Component
Sys Bd Label
Sys Bd
Connector
Color
Component
CHFAN2
Chassis fan
connector
Red
Fan
SPKR
Speaker
connector
White
Speaker
HSENSE
Hood sensor
connector
White
Hood sensor
FRONT USB
Front I/O
connector
Yellow
Front I/O
PWRCPU
Processor
power
connector
White
4-pin processor
power
CMOS
CMOS
button
Yellow
Reset CMOS
XU1
Processor
Green
Processor
(soldered on)
BAT
Battery
socket
Black
RTC battery
CPUFAN
Processor
fan
connector
White
Processor fan
FRONT AUD
Front I/O
connector
Blue
Front I/O
DIMM4
DIMM4
(Channel A)
White
Memory module
X4PCIEXP
PCI Express
x16
downshifted
to x4
Black
Expansion card
DIMM3
DIMM3
(Channel A)
Black
Memory module
X1PCIEXP2
PCI Express
x1
Black
Expansion card
Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
DIMM2
DIMM2
(Channel B)
White
Memory module
X1PCIEXP1
PCI Express
x1
Black
Expansion card
DIMM1
DIMM1
(Channel B)
Black
Memory module
X16PCIEXP
PCI Express
x16
White
Expansion card
PSWD
Password
jumper
Green
Clear system
passwords
PAR
Parallel port
Black
Optional parallel
port
PB/LED
Front I/O
Black
Front I/O/power
switch
IN/OUT
Input and
output jacks
Silver
Headphone and
microphone
jacks
PWRCMD
Power supply
connector
White
Power supply
USB
USB ports
Silver
USB ports
SATAPWR0
Drive power
connector
Black
Drives
COMB
Serial Port
Black
Optional second
serial port
PWR
Power
connector
White
24-pin main
power connector
Serial/VGA
Display
connector/
Serial port
connector
Silver
VGA and serial
port connectors
FRONT
USB3.0
Front I/O
Blue
Front I/O/power
switch
DISPLAYPO
RT
DisplayPort
Silver
DisplayPort
connector
SATA2
SATA 3.0
Light
blue
Optical drive or
second hard
drive
DISPLAYPO
RT
DisplayPort
Silver
DisplayPort
connector
SATA1
SATA 3.0
Light
blue
Optical drive or
second hard
drive
RJ45/USB
Network/USB
port
Silver
Network
connector and
USB ports
SATA0
SATA 3.0
Dark
blue
Hard drive
PS2
PS/2
connector
Silver
Mouse and
keyboard
System board
65
6
Removal and replacement procedures –
small form factor (SFF) chassis
Adherence to the procedures and precautions described in this chapter is essential for proper service.
After completing all necessary removal and replacement procedures, run the Diagnostics utility to
verify that all components operate properly.
NOTE:
Not all features listed in this guide are available on all computers.
Preparation for disassembly
See Routine care, SATA drive guidelines, and disassembly preparation on page 24 for initial safety
procedures.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Close any open software applications.
3.
Exit the operating system.
4.
Remove any compact disc or media card from the computer.
5.
Turn off the computer and any peripheral devices that are connected to it.
CAUTION:
Turn off the computer before disconnecting any cables.
Regardless of the power-on state, voltage is always present on the system board as long as the
system is plugged into an active AC outlet. In some systems the cooling fan is on even when the
computer is in the “Standby,” or “Suspend” modes. The power cord should always be
disconnected before servicing a unit.
6.
Disconnect the power cord from the electrical outlet and then from the computer.
7.
Disconnect all peripheral device cables from the computer.
NOTE: During disassembly, label each cable as you remove it, noting its position and routing.
Keep all screws with the units removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths; using
the wrong screw in an application may damage the unit.
8.
66
If the computer is on a stand, remove the computer from the stand.
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
Access panel
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Lift up on the access panel handle (1) then lift the access panel off the computer (2).
To install the access panel, reverse the removal procedure.
Front bezel
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).
To install the front bezel, reverse the removal procedure.
Access panel
67
Front bezel security
The front bezel can be locked in place by installing a security screw provided by HP. To install the
security screw:
68
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Remove one of the five silver 6-32 standard screws located on top of the drive cage.
4.
Install the security screw through the middle front bezel release tab to secure the front bezel in
place.
5.
Replace the access panel.
6.
If the computer was on a stand, replace the stand.
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
7.
Reconnect the power cord and turn on the computer.
8.
Lock any security devices that were disengaged when the access panel was removed.
Bezel blanks
On some models, there are bezel blanks covering the 3.5-inch and slim optical drive bays that need
to be removed before installing a drive. To remove a bezel blank:
1.
Remove the access panel (Access panel on page 67).
2.
Remove the front bezel (Front bezel on page 67).
3.
To remove a slim optical drive bezel blank, press inward on the four retaining tabs (1) and pull
the blank off the front bezel (2).
To remove a 3.5-inch bezel blank, press the two retaining tabs that hold the bezel blank in place
towards the outer right edge of the bezel (3) and slide the bezel blank back and to the right to
remove it (4).
NOTE: After removing the slim optical drive bezel blank and installing a slim optical drive, you can
install an optional bezel trim piece (available from HP) that surrounds the front of the slim optical
drive.
Bezel blanks
69
Memory
Description
8-GB, PC3-12800
4-GB, PC3-12800
The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3SDRAM) dual inline memory modules (DIMMs).
DIMMs
The memory sockets on the system board can be populated with up to four industry-standard DIMMs.
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 32-GB of memory configured in a
high-performing dual channel mode.
DDR3-SDRAM DIMMs
For proper system operation, the DDR3-SDRAM DIMMs must be:
●
industry-standard 240-pin
●
unbuffered non-ECC PC3-12800 DDR3-1600 MHz-compliant
●
1.5 volt DDR3-SDRAM DIMMs
The DDR3-SDRAM DIMMs must also:
●
support CAS latency 11 DDR3 1600 MHz (11-11-11 timing)
●
contain the mandatory JEDEC SPD information
In addition, the computer supports:
●
512-Mbit, 1-Gbit, and 2-Gbit non-ECC memory technologies
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
supported
NOTE:
The system will not operate properly if you install unsupported DIMMs.
Populating DIMM sockets
There are four DIMM sockets on the system board, with two sockets per channel. The sockets are
labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory
channel B. Sockets DIMM3 and DIMM4 operate in memory channel A.
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the DIMMs are installed.
NOTE: Single channel and unbalanced dual channel memory configurations will result in inferior
graphics performance.
70
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
●
The system will operate in single channel mode if the DIMM sockets are populated in one
channel only.
●
The system will operate in a higher-performing dual channel mode if the total memory capacity
of the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B.
The technology and device width can vary between the channels. For example, if Channel A is
populated with two 1-GB DIMMs and Channel B is populated with one 2-GB DIMM, the system
will operate in dual channel mode.
●
The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is
not equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel
populated with the least amount of memory describes the total amount of memory assigned to
dual channel and the remainder is assigned to single channel. For optimal speed, the channels
should be balanced so that the largest amount of memory is spread between the two channels.
If one channel will have more memory than the other, the larger amount should be assigned to
Channel A. For example, if you are populating the sockets with one 2-GB DIMM, and three 1-GB
DIMMs, Channel A should be populated with the 2-GB DIMM and one 1-GB DIMM, and Channel
B should be populated with the other two 1-GB DIMMs. With this configuration, 4-GB will run as
dual channel and 1-GB will run as single channel.
●
In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
Installing DIMMs
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power
to drain before adding or removing memory modules. Regardless of the power-on state, voltage is
always supplied to the memory modules as long as the computer is plugged into an active AC outlet.
Adding or removing memory modules while voltage is present may cause irreparable damage to the
memory modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is
important to use memory modules with gold-plated metal contacts to prevent corrosion and/or
oxidation resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Rotate up the internal drive bay housing to access the memory module sockets on the system
board.
Memory
71
4.
Open both latches of the memory module socket (1), and insert the memory module into the
socket (2).
NOTE: A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
Populate the black DIMM sockets before the white DIMM sockets.
For maximum performance, populate the sockets so that the memory capacity is spread as
equally as possible between Channel A and Channel B. Refer to Populating DIMM sockets
on page 70 for more information.
5.
Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
6.
Repeat steps 4 and 5 to install any additional modules.
7.
Replace the access panel.
8.
If the computer was on a stand, replace the stand.
9.
Reconnect the power cord and turn on the computer.
10. Lock any security devices that were disengaged when the access panel was removed.
The computer should automatically recognize the additional memory the next time you turn on the
computer.
72
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
Expansion card
GeForce GT630 PCIe x16 graphics card, 2 GB
nVidia Quadro NVS315 PCIe x16 graphics card, 1 GB
nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB
AMD Radeon HD8490 PCIe x16 graphics card, 1 GB
AMD Radeon HD8450 PCIe x16 graphics card, 1 GB
AMD R9 255 graphics processor, 2 GB
AMD R7 240 graphics processor, 2 GB
Intel PRO/1000 NIC
PCIe to M.2 adapter
128 GB, M.2 SSD (for use with PCIe to M.2 adapter)
The computer has two PCI Express x1 expansion slots, one PCI Express x16 expansion slot, and
one PCI Express x16 expansion slot that is downshifted to a x4 slot.
NOTE:
The PCI Express slots support only low profile cards.
You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16 slot.
For dual graphics card configurations, the first (primary) card must be installed in the PCI Express
x16 slot that is NOT downshifted to a x4.
To remove, replace, or add an expansion card:
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Locate the correct vacant expansion socket on the system board and the corresponding
expansion slot on the back of the computer chassis.
Expansion card
73
4.
Release the slot cover retention latch that secures the slot covers by lifting the green tab on the
latch and rotating the latch to the open position.
5.
Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
NOTE: Before removing an installed expansion card, disconnect any cables that may be
attached to the expansion card.
a.
74
If you are installing an expansion card in a vacant socket, remove the appropriate
expansion slot cover on the back of the chassis. Pull the slot cover straight up then away
from the inside of the chassis.
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
b.
If you are removing a PCI Express x1 card, hold the card at each end, and carefully rock it
back and forth until the connectors pull free from the socket. Pull the expansion card
straight up from the socket (1) then away from the inside of the chassis to release it from
the chassis frame (2). Be sure not to scrape the card against the other components.
c.
If you are removing a PCI Express x16 card, pull the retention arm on the back of the
expansion socket away from the card and carefully rock the card back and forth until the
connectors pull free from the socket. Pull the expansion card straight up from the socket
then away from the inside of the chassis to release it from the chassis frame. Be sure not to
scrape the card against the other components.
6.
Store the removed card in anti-static packaging.
7.
If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION: After removing an expansion card, you must replace it with a new card or
expansion slot cover for proper cooling of internal components during operation.
Expansion card
75
8.
To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis (1) so that the bracket on the card is
aligned with the open slot on the rear of the chassis. Press the card straight down into the
expansion socket on the system board (2).
NOTE: When installing an expansion card, press firmly on the card so that the whole connector
seats properly in the expansion card slot.
9.
Rotate the slot cover retention latch back in place to secure the expansion card.
10. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
11. Replace the computer access panel.
12. If the computer was on a stand, replace the stand.
13. Reconnect the power cord and turn on the computer.
14. Lock any security devices that were disengaged when the access panel was removed.
15. Reconfigure the computer, if necessary.
76
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
Drives
Description
Hard drives/Solid-state drives
2-TB, 7200-rpm
1-TB, 10000-rpm, 3.5-inch
1-TB, hybrid SSD, 2.5-inch
500-GB, 10000-rpm
500-GB, 7200-rpm
500-GB, 7200-rpm, 2.5-inch, self-encrypting (SED)
500-GB, 7200-rpm, 2.5-inch
500-GB, hybrid SSD, 2.5-inch
500-GB, 5400-rpm, 2.5-inch, FIPS
256-GB Solid-state Drive (SSD), self-encrypting (SED)
256-GB Solid-state Drive (SSD)
180 GB Solid-state Drive (SSD)
128-GB Solid-state Drive (SSD), self-encrypting drive (SED)
128-GB Solid-state Drive (SSD)
120-GB Solid-state Drive (SSD)
Optical drives
DVD±RW drive
DVD-ROM drive
Blu-ray BD-Writer XL Drive
Drives
77
Drive positions
1
Slim optical drive bay
2
3.5-inch internal hard drive bay
3
3.5-inch drive bay for optional drives (media card reader shown)
4
2.5-inch internal hard drive bay
NOTE: The drive configuration on your computer may be different than the drive
configuration shown above.
To verify the type and size of the storage devices installed in the computer, run Computer Setup.
Installing and Removing Drives
When installing drives, follow these guidelines:
78
●
The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA
connector on the system board labeled SATA0.
●
Connect secondary hard drives and optical drives to one of the light blue SATA connectors on
the system board (labeled SATA1 and SATA2).
●
Connect a media card reader USB 2.0 cable to the USB connector on the system board labeled
MEDIA.
●
The power cable for the drives has two branches coming off the system board connector. The
first branch is a dual-headed cable with the first connector (four-wire) routed to the 3.5-inch
optional drive bay and the second connector (two-wire) routed to the slim optical drive bay. The
second branch is a dual-headed cable with the first connector routed to the 3.5-inch hard drive
bay and the second connector routed to the 2.5-inch hard drive bay.
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
●
You must install guide screws to ensure the drive will line up correctly in the drive cage and lock
in place. HP has provided four extra 6-32 standard guide screws installed on the top of the drive
bay. The 6-32 standard guide screws are required for a media card reader or a secondary hard
drive installed in the 3.5-inch optional drive bay. M3 isolation mounting guide screws for 2.5-inch
hard drives are not provided. If you are replacing a drive, remove the guide screws from the old
drive and install them in the new drive.
There are a total of five extra silver 6-32 standard screws. One is used for bezel security (1) (see
Installing and Removing Drives on page 78 for more information). The other four are used as guide
screws for a media card reader or a secondary hard drive in the 3.5-inch optional drive bay (2).
CAUTION:
To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the
computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby
mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and
label the package “Fragile: Handle With Care.”
Drives
79
Removing a 3.5-inch device
CAUTION:
computer.
80
All removable media should be taken out of a drive before removing the drive from the
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Remove the front bezel (Front bezel on page 67).
4.
Rotate the drive cage to its upright position.
5.
Disconnect the drive cables from the rear of the drive, or, if you are removing a media card
reader, disconnect the USB cable from the system board as indicated in the following illustration.
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
6.
Press inward on the release lever at the rear of the drive (1) and slide the drive out of the rear of
the drive bay (2).
Installing a 3.5-inch device
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Remove the front bezel (Front bezel on page 67). If you are installing a drive in a bay covered by
a bezel blank, remove the bezel blank. See Bezel blanks on page 69 for more information.
4.
Install 6-32 guide screws in the holes on each side of the drive.
NOTE: HP has supplied four extra 6-32 guide screws on top of the drive cage. Refer to
Installing and Removing Drives on page 78 for an illustration of the location of the extra guide
screws.
When replacing a drive, transfer the four 6-32 guide screws from the old drive to the new one.
5.
Rotate the drive cage to its upright position.
Drives
81
6.
Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until
the drive snaps into place.
7.
If installing a USB 3.0 media card reader, you must use the USB 3.0 to USB 2.0 adapter (1) and
connect the adapter cable from the media card reader to the USB 2.0 connector on the system
board labeled MEDIA (2).
NOTE: Refer to System board callouts on page 110 for an illustration of the system board
drive connectors.
82
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
8.
Rotate the drive cage back down to its normal position.
CAUTION:
9.
Be careful not to pinch any cables or wires when rotating the drive cage down.
Replace the front bezel.
10. Replace the computer access panel.
11. If the computer was on a stand, replace the stand.
12. Reconnect the power cord and any external devices, then turn on the computer.
13. Lock any security devices that were disengaged when the access panel was removed.
Drives
83
Removing a slim optical drive
CAUTION:
computer.
All removable media should be taken out of a drive before removing the drive from the
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Disconnect the power cable (1) and data cable (2) from the rear of the optical drive, push the
green release latch on the right rear side of the drive toward the center of the drive (3), then slide
the drive forward and out of the bay through the front bezel (4).
CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to
avoid damaging the cable.
84
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
Installing a slim optical drive
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Remove the front bezel (Front bezel on page 67) if you are installing a drive in a bay covered by
a bezel blank, then remove the bezel blank. See Bezel blanks on page 69 for more information.
4.
Before the new optical drive can be used, the release latch must be attached.
a.
Peel the backing off the adhesive on the release latch.
b.
Without allowing the release latch to touch the optical drive, carefully align the holes on the
release latch with the pins on the side of the optical drive. Make sure the release latch is
oriented properly.
c.
Insert the pin at the front of the optical drive into the hole at the end of the release latch,
and press firmly.
d.
Insert the second pin, and press the entire release latch firmly to fasten the latch securely
to the optical drive.
Drives
85
5.
Slide the optical drive through the front bezel all the way into the bay so that it locks in place (1),
then connect the power cable (2) and data cable (3) to the rear of the drive.
6.
Connect the opposite end of the data cable to one of the light blue SATA connectors on the
system board.
NOTE: Refer to System board callouts on page 110 for an illustration of the system board
drive connectors.
7.
Replace the front bezel if it was removed.
NOTE: An optional bezel trim piece that surrounds the front of the optical drive is available
from HP. Install the bezel trim piece in the front bezel before installing the front bezel.
8.
Replace the computer access panel.
9.
If the computer was on a stand, replace the stand.
10. Reconnect the power cord and any external devices, then turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
86
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
Removing and replacing a 3.5-inch hard drive
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive.
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
4.
Pull the release lever next to the rear of the hard drive outward (1). While pulling the release
lever out, slide the drive back until it stops, then lift the drive up and out of the bay (2).
Drives
87
88
5.
To install a 3.5-inch hard drive, you must transfer the silver and blue isolation mounting guide
screws from the old hard drive to the new hard drive.
6.
Align the guide screws with the slots on the chassis drive cage, press the hard drive down into
the bay, then slide it forward until it stops and locks in place.
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
7.
Connect the power cable (1) and data cable (2) to the back of the hard drive.
NOTE: The data cable for the primary hard drive must be connected to the dark blue connector
labeled SATA0 on the system board to avoid any hard drive performance problems.
8.
Replace the access panel.
9.
If the computer was on a stand, replace the stand.
10. Reconnect the power cord and turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
Drives
89
Removing a 2.5-inch hard drive
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Rotate the drive cage to its upright position.
4.
Disconnect the power cable and data cable from the back of the hard drive.
5.
Pull outward on the release lever at the rear of the drive (1) then slide the drive back until it stops
and pull it down and out of the drive bay (2).
Installing a 2.5-inch hard drive
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Install four black and blue M3 isolation mounting guide screws (two on each side of the drive).
NOTE: When replacing a drive, transfer the four M3 isolation mounting guide screws from the
old drive to the new one.
4.
90
Rotate the drive cage to its upright position.
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
5.
Align the guide screws on the drive with the J-slots on the sides of the drive bay. Press the drive
up into the drive bay then slide it forward until it locks in place.
6.
Connect the power cable and data cable to the back of the hard drive.
NOTE: If the 2.5-inch hard drive is the primary drive, connect the data cable to the dark blue
SATA connector labeled SATA0 on the system board. If it is a secondary drive, connect the data
cable to one of the light blue SATA connectors on the system board.
7.
Rotate the drive cage back down to its normal position.
CAUTION:
Be careful not to pinch any cables or wires when rotating the drive cage down.
8.
Replace the computer access panel.
9.
If the computer was on a stand, replace the stand.
10. Reconnect the power cord and any external devices, then turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
Drives
91
Drive power cable
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Rotate the drive cage to its upright position.
4.
Disconnect the cable from the system board connector labeled SATAPWR0 (1), and then
remove the cable from the computer.
5.
Disconnect the cable from the hard drive (2) and the optical drive (3).
6.
Remove the cable from the clips on the base pan and on the drive cages, and then remove the
drive power cable from the computer.
To reinstall the drive power cable, reverse the removal procedure.
92
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
Baffle
The fan baffle sits between the fan sink and the rear of the computer.
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Rotate the drive cage to its upright position.
4.
Remove the cables from the hook on the baffle.
5.
Rotate the baffle upward (1), pull the baffle away from the rear of the chassis to disengage the
clips that secure the baffle to the rear of the chassis (2), and the remove the baffle from the
chassis (3).
To install the baffle, reverse the removal procedure.
Baffle
93
Hood sensor
The hood sensor is attached in a slot in the rear of the chassis.
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Rotate the drive cage to its upright position.
4.
Rotate the baffle to its upright position.
5.
Slide the hood sensor straight out of the notch in the chassis (1).
NOTE: A flat blade screwdriver can be used to push the hood sensor out of the slot.
6.
Unplug the sensor cable from the system board connector labeled HSENSE (2).
To install the hood sensor, reverse the removal procedure.
94
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
Front I/O assembly
The front I/O assembly is attached to the front of the chassis. Push the assembly into the chassis to
remove.
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Remove the front bezel (Front bezel on page 67).
4.
Rotate the drive cage to its upright position.
5.
Disconnect the cables from the system board as follows:
●
(1) Yellow connector labeled FRONT_USB
●
(2) Blue connector labeled FRONT AUD
●
(3) Blue connector labeled FRONT_USB3.0
Front I/O assembly
95
96
6.
Remove the cables from the three clips built into the basepan.
7.
Remove the Torx T15 screw (1) that secures the assembly to the front of the chassis.
8.
Press the tab on the right side of the assembly (2), and then push the assembly into the
computer.
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
9.
Remove the front I/O assembly from the computer.
To install the front I/O assembly, reverse the removal procedure.
NOTE: Be sure to correctly route the cables beneath the drive cage when reinstalling the assembly.
Proper cable routing prevents damage to the cables and allows the drive cage to close properly.
Front I/O assembly
97
Power switch
The power switch is attached to the left, front of the chassis.
98
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Remove the front bezel (Front bezel on page 67).
4.
Rotate the drive cage to its upright position.
5.
From the inside of the front of the chassis, press the tab at the top of the power switch (1) and
push the top of the power switch away from the front of the chassis (2).
6.
Remove the cable from the clips built into the bottom of the chassis (1).
Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
7.
Disconnect the power switch cable from the system board connector labeled PB/LED (2).
8.
Remove the power switch assembly from the computer.
To install the power switch, reverse the removal procedures.
Power switch
99
Speaker
The speaker is attached to the front of the chassis under the rotating drive cage.
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Remove the front bezel (Front bezel on page 67).
4.
Rotate the drive cage to its upright position.
5.
From the outside, front of the chassis, remove the two Torx T15 screws that secure the speaker.
6.
From the inside of the chassis, disconnect the speaker cable from the white system board
labeled SPKR (1), and the remove the speaker from the chassis (2).
To install the speaker, reverse the removal procedures.
100 Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
Heat sink
CAUTION:
The bond between the heat sink and the processor may be very tight.
If the computer will power on, before removing the heat sink, turn on the computer until it warms the
heat sink. Warming the heat sink lessens the bond between the heat sink and the processor, thereby
making separating them easier.
Make sure not to pull the processor out of the socket when you lift the heat sink, especially if you
cannot warm the heat sink prior to removal. Inadvertently removing the processor can damage the
pins.
The heat sink is secured atop the processor with four captive Torx screws. The heat sink does not
include a fan.
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Rotate the drive cage to its upright position.
4.
Remove the baffle (Baffle on page 93).
5.
Remove the power supply cable from the clips on the fan sink.
6.
Rotate the baffle to its upright position.
Heat sink 101
7.
Disconnect the fan cable from the system board connector labeled CPUFAN (1), and then
loosen the four captive screws (2) that secure the heat sink to the system board tray.
CAUTION: Heat sink retaining screws should be removed in diagonally opposite pairs (as in an
X) to even the downward forces on the processor. This is especially important as the pins on the
socket are very fragile and any damage to them may require replacing the system board.
102 Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
8.
Lift the heat sink from atop the processor and set it on its side to keep from contaminating the
work area with thermal grease.
When reinstalling the heat sink, make sure that its bottom has been cleaned with an alcohol wipe and
fresh thermal grease has been applied to the top of the processor.
CAUTION: Heat sink retaining screws should be tightened in diagonally opposite pairs (as in an X)
to evenly seat the heat sink on the processor to avoid damage that could require replacing the system
board.
Failure to install the baffle may cause the computer to overheat.
Heat sink 103
Processor
Description
AMD A10-7850B processor, 3.7 GHz
AMD A10-7800B processor, 3.57 GHz
AMD A10-6800B processor, 4.1 GHz
AMD A8-7600B processor, 3.1 GHz
AMD A8-6500B processor, 3.5 GHz
AMD A6-7400B processor, 3.5 GHz
AMD A6-6400B processor, 3.9 GHz
AMD A4-7300B processor, 3.9 GHz
AMD A4-6300B processor, 3.7 GHz
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Rotate the drive cage to its upright position.
4.
Remove the baffle (Baffle on page 93).
5.
Remove the heat sink (Heat sink on page 101).
6.
Rotate the locking lever to its full open position (1).
104 Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
7.
Carefully lift the processor from the socket (2).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and
handling them could cause irreparable damage. Once pins are damaged it may be necessary to
replace the system board.
The heat sink must be installed within 24 hours of installing the processor to prevent damage to
the processor’s solder connections.
To replace the processor, reverse the removal procedures.
NOTE: After installing a new processor onto the system board, always update the system ROM to
ensure that the latest version of the BIOS is being used on the computer. The latest system BIOS can
be found on the Web at: http://h18000.www1.hp.com/support/files.
Processor 105
Power supply
Description
Power supply, 92% efficient
Power supply, 90% efficient
Power supply, standard
WARNING! To reduce potential safety issues, only the power supply provided with the computer, a
replacement power supply provided by HP, or a power supply purchased as an accessory from HP
should be used with the computer.
The rotating power supply is located at the rear of the chassis. It is held in place by a bracket – no
screws are used.
WARNING! Voltage is always present on the system board when the computer is plugged into an
active AC outlet. To avoid possible personal injury and damage to the equipment the power cord
should be disconnected from the computer and/or the AC outlet before opening the computer.
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Rotate the drive cage up and disconnect the power cables from all of the drives.
4.
Disconnect all power cables from the system board as follows:
●
(1): 6-pin PWRCMD
●
(2): 6-pin PWR
●
(3): 4-pin PWRCPU
106 Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
5.
From the outside, rear of the chassis, remove the three Torx T15 that secure the power supply
to the back of the chassis.
6.
From the inside of the chassis, push the release lever at the front of the power supply (1), slide
the power supply forward (2), and then remove it from the chassis (3).
To install the power supply, reverse the removal procedure.
CAUTION: When installing the power supply cables, make sure they are properly positioned so they
are not cut by the drive cage and are not pinched by the rotating power supply.
Power supply 107
System board
NOTE:
All system board spare part kits include replacement thermal material.
NOTE:
System board appearance may vary.
Description
System board for use in models without Windows 8.1
System board for use in models with Windows 8.1 Standard
System board for use in models with Windows 8.1 Professional
System board for use in NetClone models
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Remove the access panel (Access panel on page 67).
3.
Remove the baffle (Baffle on page 93).
4.
Rotate the drive cage to its upright position.
5.
When replacing the system board, make sure the following components are removed from the
defective system board and installed on the replacement system board:
●
Memory modules (Memory on page 70)
●
Expansion cards (Expansion card on page 73)
●
Heat sink (Heat sink on page 101)
●
Processor (Processor on page 104)
6.
Remove the baffle from the chassis (Baffle on page 93).
7.
Disconnect all cables connected to the system board, noting their location for reinstallation.
8.
Remove the eight Torx T15 screws that secure the system board to the chassis.
108 Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
9.
Slide the system board toward the front of the computer to disengage the I/O panel, and then lift
the system board out of the computer.
When reinstalling the system board, first insert the I/O panel back into the slots in the rear of the
chassis, and then align the board with the chassis screw holes.
NOTE:
When replacing the system board, you must change the chassis serial number in the BIOS.
System board 109
System board callouts
Sys Bd
Label
Sys Bd
Connector
Color
Component
Sys Bd Label
Sys Bd
Connector
Color
Component
CHFAN2
Chassis fan
connector
Red
Fan
SPKR
Speaker
connector
White
Speaker
HSENSE
Hood sensor
connector
White
Hood sensor
FRONT USB
Front I/O
connector
Yellow
Front I/O
PWRCPU
Processor
power
connector
White
4-pin processor
power
CMOS
CMOS
button
Yellow
Reset CMOS
XU1
Processor
Green
Processor
(soldered on)
BAT
Battery
socket
Black
RTC battery
CPUFAN
Processor
fan
connector
White
Processor fan
FRONT AUD
Front I/O
connector
Blue
Front I/O
DIMM4
DIMM4
(Channel A)
White
Memory module
X4PCIEXP
PCI Express
x16
downshifted
to x4
Black
Expansion card
DIMM3
DIMM3
(Channel A)
Black
Memory module
X1PCIEXP2
PCI Express
x1
Black
Expansion card
110 Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
DIMM2
DIMM2
(Channel B)
White
Memory module
X1PCIEXP1
PCI Express
x1
Black
Expansion card
DIMM1
DIMM1
(Channel B)
Black
Memory module
X16PCIEXP
PCI Express
x16
White
Expansion card
PSWD
Password
jumper
Green
Clear system
passwords
PAR
Parallel port
Black
Optional parallel
port
PB/LED
Front I/O
Black
Front I/O/power
switch
IN/OUT
Input and
output jacks
Silver
Headphone and
microphone
jacks
PWRCMD
Power supply
connector
White
Power supply
USB
USB ports
Silver
USB ports
SATAPWR0
Drive power
connector
Black
Drives
COMB
Serial Port
Black
Optional second
serial port
PWR
Power
connector
White
24-pin main
power connector
Serial/VGA
Display
connector/
Serial port
connector
Silver
VGA and serial
port connectors
FRONT
USB3.0
Front I/O
Blue
Front I/O/power
switch
DISPLAYPO
RT
DisplayPort
Silver
DisplayPort
connector
SATA2
SATA 3.0
Light
blue
Optical drive or
second hard
drive
DISPLAYPO
RT
DisplayPort
Silver
DisplayPort
connector
SATA1
SATA 3.0
Light
blue
Optical drive or
second hard
drive
RJ45/USB
Network/USB
port
Silver
Network
connector and
USB ports
SATA0
SATA 3.0
Dark
blue
Hard drive
PS2
PS/2
connector
Silver
Mouse and
keyboard
System board 111
Using the Small Form Factor Computer in a Tower Orientation
The Small Form Factor computer can be used in a tower orientation. The HP logo plate on the front
bezel is adjustable for either desktop or tower orientation.
1.
Prepare the computer for disassembly (Preparation for disassembly on page 66).
2.
Orient the computer so that its right side is facing down and place the computer in the optional
stand.
NOTE: To stabilize the computer in a tower orientation, HP recommends the use of the
optional tower stand.
3.
Reconnect the power cord and any external devices, then turn on the computer.
NOTE: Ensure at least 10.2 centimeters (4 inches) of space on all sides of the computer
remains clear and free of obstructions.
4.
Lock any security devices that were disengaged when the access panel was removed.
112 Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
7
Computer Setup (F10) Utility
Computer Setup (F10) Utilities
Use Computer Setup (F10) Utility to do the following:
●
Change factory default settings.
●
Set the system date and time.
●
Set, view, change, or verify the system configuration, including settings for processor, graphics,
memory, audio, storage, communications, and input devices.
●
Modify the boot order of bootable devices such as hard drives, optical drives, or USB flash
media devices.
●
Enable Quick Boot, which is faster than Full Boot but does not run all of the diagnostic tests run
during a Full Boot. You can set the system to:
■
always Fast Boot (default);
■
periodically Full Boot (from every 1 to 30 days); or
■
always Full Boot.
●
Select Post Messages Enabled or Disabled to change the display status of Power-On Self-Test
(POST) messages. Post Messages Disabled suppresses most POST messages, such as
memory count, product name, and other non-error text messages. If a POST error occurs, the
error is displayed regardless of the mode selected. To manually switch to Post Messages
Enabled during POST, press any key (except F1 through F12).
●
Establish an Ownership Tag, the text of which is displayed each time the system is turned on or
restarted.
●
Enter the Asset Tag or property identification number assigned by the company to this computer.
●
Enable the power-on password prompt during system restarts (warm boots) as well as during
power-on.
●
Establish a setup password that controls access to the Computer Setup (F10) Utility and the
settings described in this section.
●
Secure integrated I/O functionality, including the serial, USB, or parallel ports, audio, or
embedded NIC, so that they cannot be used until they are unsecured.
●
Enable or disable removable media boot ability.
●
Solve system configuration errors detected but not automatically fixed during the Power-On SelfTest (POST).
●
Replicate the system setup by saving system configuration information on a USB device and
restoring it on one or more computers.
●
Execute self-tests on a specified ATA hard drive (when supported by drive).
●
Enable or disable DriveLock security (when supported by drive).
Computer Setup (F10) Utilities 113
Using Computer Setup (F10) Utilities
Computer Setup can be accessed only by turning the computer on or restarting the system.
To access the Computer Setup Utilities menu, complete the following steps:
1.
Turn on or restart the computer.
2.
Repeatedly press F10 when the monitor light turns green to access the utility.
You can also press Esc to a menu that allows you to access different options available at
startup, including the Computer Setup utility.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again repeatedly press F10 when the monitor light turns green to access the utility.
NOTE: If the Computer Setup (F10) Utility is set to “fast boot”, use one of the following
procedures to access Computer Setup:
●
Before turning on the computer, press and hold F10. Turn on the computer and continue to
hold F10 until the Computer Setup (F10) Utility is displayed.
- or –
●
Follow the Windows 8.1 instructions for rebooting the computer into the Computer Setup
(F10) Utility.
3.
A choice of five headings appears in the Computer Setup Utilities menu: File, Storage, Security,
Power, and Advanced.
4.
Use the arrow (left and right) keys to select the appropriate heading. Use the arrow (up and
down) keys to select the option you want, then press Enter. To return to the Computer Setup
Utilities menu, press Esc.
5.
To apply and save changes, select File > Save Changes and Exit.
●
If you have made changes that you do not want applied, select Ignore Changes and Exit.
●
To reset to factory settings or previously saved default settings (some models), select Apply
Defaults and Exit. This option will restore the original factory system defaults.
NOTE: Not all settings shown in the following sections are available for all models
CAUTION: Do NOT turn the computer power OFF while the BIOS is saving the Computer Setup
(F10) changes because the CMOS could become corrupted. It is safe to turn off the computer only
after exiting the F10 Setup screen.
114 Chapter 7 Computer Setup (F10) Utility
Computer Setup—File
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 7-1 Computer Setup—File
Option
Description
System Information
Lists:
●
Product name
●
Manufacturer
●
SKU number
●
Processor type/speed/stepping
●
Installed memory size/speed, number of channels (single or dual) (if applicable)
●
Integrated MAC address for embedded, enabled NIC (if applicable)
●
Chassis serial number
●
Asset tracking number
●
System board ID and CT number
●
BIOS revision and date
●
AGESA version and PI version
About
Displays copyright notice.
Set Time and Date
Allows you to set system time and date.
Flash System ROM
Allows you to update the system ROM with a BIOS image file located on removable media.
Replicated Setup
Save to Removable Media
Saves system configuration to a formatted USB flash media device.
Restore from Removable Media
Restores system configuration from a USB flash media device.
Default Setup
Save Current Settings as Default
Saves the current system configuration settings as the default.
Restore Factory Settings as Default
Restores the factory system configuration settings as the default.
Apply Defaults and Exit
Applies the currently selected default settings and clears any established passwords.
Ignore Changes
and Exit
Exits Computer Setup without applying or saving any changes.
Save Changes and Exit
Saves changes to system configuration or default settings and exits Computer Setup.
Computer Setup (F10) Utilities 115
Computer Setup—Storage
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 7-2 Computer Setup—Storage
Option
Description
Device Configuration
Lists all installed BIOS-controlled storage devices.
When a device is selected, detailed information and options are displayed. The following options
may be presented:
●
Hard Disk: Size, model, firmware version, serial number, connector color, SMART category.
●
CD-ROM: Model, firmware version, serial number, connector color (not included for USB CDROM).
●
Diskette: Model and firmware version.
NOTE: Displays for USB diskette drives.
Storage Options
SATA Emulation
Allows you to choose how the SATA controller and devices are accessed by the operating
system. Supported options include: IDE, RAID, and AHCI (default).
CAUTION: SATA emulation changes may prevent access to existing hard drive data and
degrade or corrupt established volumes.
IDE Mode- This is the default and most backwards-compatible setting of the options. Operating
systems usually do not require additional driver support in IDE mode. Use this option for "normal"
(non-RAID) configurations
RAID - Allows DOS and boot access to RAID volumes. Use this mode with the RAID device driver
loaded in the operating system to take advantage of RAID features.
AHCI Mode (default option) - Allows operating systems with AHCI device drivers loaded to take
advantage of more advanced features of the SATA controller.
NOTE: The RAID/AHCI device driver must be installed prior to attempting to boot from a RAID/
AHCI volume. If you attempt to boot from a RAID/AHCI volume without the required device driver
installed, the system will crash (blue screen). RAID volumes may become corrupted if they are
booted to after disabling RAID.
Removable Media Boot
Enables/disables ability to boot the system from removable media. Default is enabled.
Boot Order
Allows you to:
●
UEFI Boot Sources: Specify the order in which EFI boot sources (such as a internal hard
drive, USB hard drive, USB optical drive, or internal optical drive) are checked for a bootable
operating system image. Each device on the list may be individually excluded from or
included for consideration as a bootable operating system source.
EFI boot sources always have precedence over legacy boot sources.
●
Legacy Boot Sources: Specify the order in which legacy boot sources (such as a network
interface card, internal hard drive, USB optical drive, or internal optical drive) are checked for
a bootable operating system image. Each device on the list may be individually excluded
from or included for consideration as a bootable operating system source.
Specify the order of attached hard drives. The first hard drive in the order will have priority in
the boot sequence and will be recognized as drive C (if any devices are attached).
116 Chapter 7 Computer Setup (F10) Utility
Table 7-2 Computer Setup—Storage (continued)
NOTE: To drag a device to a preferred place, press Enter. To remove the device from
consideration as a bootable device, press F5.
You can use F5 to disable individual boot items, as well as disable EFI boot and/or legacy boot.
NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating
system has started.
Shortcut to Temporarily Override Boot Order
To boot one time from a device other than the default device specified in Boot Order, restart the
computer and press Esc (to access the boot menu) and then F9 (Boot Order), or only F9 (skipping
the boot menu) when the monitor light turns green. After POST is completed, a list of bootable
devices is displayed. Use the arrow keys to select the preferred bootable device and press Enter.
The computer then boots from the selected non-default device for this one time.
Computer Setup—Security
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 7-3 Computer Setup—Security
Option
Description
Setup Password
Allows you to set and enable a setup (administrator) password.
NOTE: If the setup password is set, it is required to change Computer Setup options, flash the
ROM, and make changes to certain plug and play settings under Windows.
Power-On Password
Allows you to set and enable a power-on password. The power-on password prompt appears
after a power cycle or reboot. If the user does not enter the correct power-on password, the unit
will not boot.
Password Options
Allows you to enable/disable:
(This selection appears
only if a power-on
password or setup
password is set.)
●
Lock Legacy Resources (determines whether or not Windows Device Manager is allowed to
change resource settings for serial and parallel ports).
●
Stringent security (enabling the stringent password disables the ability to reset the password
by moving the jumper on the system board). Default is disabled.
CAUTION: If you enable the stringent security feature and you forget the setup password
or the power-on password, the computer is inaccessible and can no longer be used.
If you lose or forget the password, the system board must be replaced. This scenario is not
covered under warranty.
To prevent the computer from becoming permanently unusable, record your configured
setup password or power-on password in a safe place away from your computer. Without
these passwords, the computer cannot be unlocked.
Smart Cover
●
Setup Browse Mode (appears if a setup password is set) (allows viewing, but not changing,
the F10 Setup Options without entering setup password). Default is enabled.
●
Password prompt on F9 & F12 (requires setup password to use these boot functions).
Default is enabled.
●
Network Server Mode. Default is disabled.
Only displays if the computer is equipped with a smart cover.
Allows you to:
●
Cover Lock - allows you to lock or unlock the cover.
Computer Setup (F10) Utilities 117
Table 7-3 Computer Setup—Security (continued)
●
Cover Removal Sensor - allows you to set the sensor to Disable/Notify User/Setup
Password.
NOTE: Notify User alerts the user that the sensor has detected that the cover has been
removed. Setup Password requires that the setup password be entered to boot the computer if
the sensor detects that the cover has been removed.
Device Security
USB Security
Allows you to set Device Available/Device Hidden (default is Device Available) for:
●
Embedded security device
●
System audio
●
Network controller
●
Serial port (if applicable)
●
Parallel port (if applicable)
●
SATA ports (varies by model)
Allows you to set Enabled/Disabled (default is Enabled) for:
●
Front USB Ports
●
Rear USB Ports
●
Accessory USB Ports
Slot Security
Allows you to disable any PCI or PCI Express slot. Default is enabled.
Network Boot
Enables/disables the computer’s ability to boot from an operating system installed on a network
server. (Feature available on NIC models only; the network controller must be either a PCI
expansion card or embedded on the system board.) Default is enabled.
System IDs
Allows you to set:
Master Boot Security
Record
●
Asset tag (18-byte identifier), a property identification number assigned by the company to
the computer.
●
Ownership tag (80-byte identifier) displayed during POST.
●
Universal Unique Identifier (UUID) number. The UUID can only be updated if the current
chassis serial number is invalid. (These ID numbers are normally set in the factory and are
used to uniquely identify the system.)
●
Chassis serial number. (These ID numbers are normally set in the factory and are used to
uniquely identify the system.)
●
Keyboard locale setting for System ID entry.
Enables/disables Master Boot Record (MBR) security.
The MBR contains information needed to successfully boot from a disk and to access the data
stored on the disk. Master Boot Record Security may prevent unintentional or malicious changes
to the MBR, such as those caused by some viruses or by the incorrect use of certain disk utilities.
It also allows you to recover the "last known good" MBR, should changes to the MBR be detected
when the system is restarted.
When MBR Security is enabled, the BIOS prevents any changes being made to the MBR of the
current bootable disk while in MS-DOS or Windows Safe Mode.
NOTE: Most operating systems control access to the MBR of the current bootable disk; the
BIOS cannot prevent changes that may occur while the operating system is running.
Restores the backup Master Boot Record to the current bootable disk. Default is disabled.
Only appears if all of the following conditions are true:
●
MBR security is enabled
118 Chapter 7 Computer Setup (F10) Utility
Table 7-3 Computer Setup—Security (continued)
●
A backup copy of the MBR has been previously saved
●
The current bootable disk is the same disk from which the backup copy was saved
CAUTION: Restoring a previously saved MBR after a disk utility or operating system has
modified the MBR, may cause the data on the disk to become inaccessible. Only restore a
previously saved MBR if you are confident that the current bootable disk's MBR has been
corrupted or infected with a virus.
System Security (these
options are hardware
dependent)
NOTE: Available options are displayed depending on system configuration.
Data Execution Prevention (enable/disable) - Helps prevent operating system security breaches.
Default is enabled.
SVM CPU Virtualization (enable/disable) - Controls the virtualization features of the processor.
Changing this setting requires turning the computer off and then back on. Default is disabled.
OS management of Embedded Security Device (enable/disable) - This option allows the user to
limit OS control of the Embedded Security Device. Default is enabled. This option is automatically
disabled if Trusted Execution Technology is enabled.
●
Reset of Embedded Security Device through OS (enable/disable) - This option allows the
user to limit the operating system ability to request a Reset to Factory Settings of the
Embedded Security Device. Default is disabled.
NOTE: To enable this option, a Setup password must be set.
●
No PPI provisioning (Windows 8.1 only) - This option lets you set Windows 8.1 to bypass the
PPI (Physical Presence Interface) requirement and directly enable and take ownership of the
TPM on first boot. You cannot change this setting after TPM is owned/initialized, unless the
TPM is reset. Default is disabled for non-Windows 8.1 systems, and enabled for Windows
8.1.
●
Allow PPI policy to be changed by OS. Enabling this option allows the operating system to
execute TPM operations without Physical Presence Interface. Default is disabled.
NOTE: To enable this option, a Setup password must be set.
DriveLock Security
Allows you to assign or modify a master or user password for hard drives. When this feature is
enabled, the user is prompted to provide one of the DriveLock passwords during POST. If neither
is successfully entered, the hard drive will remain inaccessible until one of the passwords is
successfully provided during a subsequent cold-boot sequence.
NOTE: This selection will only appear when at least one drive that supports the DriveLock
feature is attached to the system.
Secure Boot
Configuration
●
Legacy Support—Enable/Disable. Allows you to turn off all legacy support on the computer,
including booting to DOS, running legacy graphics cards, booting to legacy devices, and so
on. If set to disable, legacy boot options in Storage > Boot Order are not displayed. Default is
enabled.
●
Secure Boot—Enable/Disable. Allows you to make sure an operating system is legitimate
before booting to it, making Windows resistant to malicious modification from preboot to full
OS booting, preventing firmware attacks. UEFI and Windows Secure Boot only allow code
signed by pre-approved digital certificates to run during the firmware and OS boot process.
Default is disabled, except for Windows 8.1 systems which have this setting enabled. Secure
Boot enabled also sets Legacy Support to disabled.
●
Key Management—This option lets you manage the custom key settings.
◦
Clear Secure Boot Keys—Don't Clear/Clear. Allows you to delete any previously loaded
custom boot keys. Default is Don't Clear.
◦
Key Ownership—HP Keys/Custom Keys. Selecting Custom Mode allows you to modify
the contents of the secure boot signature databases and the platform key (PK) that
verifies kernels during system start up, allowing you to use alternative operating
Computer Setup (F10) Utilities 119
Table 7-3 Computer Setup—Security (continued)
systems. Selecting HP Keys causes the computer boot using the preloaded HP-specific
boot keys. Default is HP Keys.
●
Fast Boot—Enable/Disable. Fast boot disables the ability to interrupt boot, such as pressing f
keys to access items before the operating system loads. Default is disabled.
NOTE: If Windows 8.1 detects a serious error, it will interrupt the boot process
automatically and display advanced boot options.
From Windows 8.1, you can press Shift and select Restart to access the screen that lets you
boot to a device or troubleshoot your computer.
Computer Setup—Power
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 7-4 Computer Setup—Power
Option
Description
OS Power Management
●
Runtime Power Management—Enable/Disable. Allows certain operating systems to reduce
processor voltage and frequency when the current software load does not require the full
capabilities of the processor. Default is enabled.
●
Idle Power Savings—Extended/Normal. Allows certain operating systems to decrease the
processors power consumption when the processor is idle. Default is extended.
●
Unique Sleep State Blink Rates—Enable/Disable. This feature is designed to provide a
visual indication of what sleep state the system is in. Each sleep state has a unique blink
pattern. Default is disabled.
NOTE: For Windows 8.1 systems with Fast Boot support, a normal shutdown goes to the
S4 state.
Hardware Power
Management
◦
S0 (On) = Solid white LED.
◦
S3 (Stand By)= 3 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds
(white LED) — repeated cycles of 3 blinks and a pause.
◦
S4 (Hibernation)= 4 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds
(white LED) — repeated cycles of 4 blinks and a pause.
◦
S5 (Soft Off) = LED is off.
SATA Power Management – Enables or disables SATA bus and/or device power management.
Default is enabled.
S5 Maximum Power Savings – Turns off power to all nonessential hardware when system is off to
meet EUP Lot 6 requirement of less than 0.5 Watt power usage. Default is disabled.
Thermal
Fan idle mode—This bar graph controls the minimum permitted fan speed.
NOTE: This setting only changes the minimum fan speed. The fans are still automatically
controlled.
120 Chapter 7 Computer Setup (F10) Utility
Computer Setup—Advanced
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 7-5 Computer Setup—Advanced (for advanced users)
Option
Heading
Power-On Options
Allows you to set:
●
POST mode (QuickBoot, Clear Memory, FullBoot, or FullBoot Every x Days).
◦
QuickBoot (default) = Do not clear memory or perform a memory test.
◦
FullBoot = Memory test (count) on cold boot. Clears memory on all boots.
◦
Clear Memory = No memory count on cold boot. Clears memory on all boots.
◦
FullBoot Every x Days = Memory count on 1st cold boot on or after the xth day. No
more memory counts until 1st cold boot on or after x days. Clears memory on all boots.
●
POST messages (enable/disable). Enabling this feature will cause the system to display
POST error messages, which are error messages displayed on the monitor during the Power
On Self Test if the BIOS encounters some kind of problem while starting the PC. A POST
error message will only display on screen if the computer is capable of booting this far. If the
POST detects an error before this point, a beep code is generated instead. Default is
disabled.
●
Press the ESC key for Startup Menu (Enable/Disable). This feature controls the display of
the text “Press the ESC key for Startup Menu” during POST. This text does not display on
Windows 8.1 systems with Fast Boot support. Other text also will not display (for example,
Ownership Tag). Default is enabled.
●
Option ROM Prompt (enable/disable). Enabling this feature will cause the system to display
a message before loading option ROMs. Default is enabled.
●
After Power Loss (off/on/previous state). Default is Power off. Setting this option to:
◦
Power off—causes the computer to remain powered off when power is restored.
◦
Power on—causes the computer to power on automatically as soon as power is
restored.
◦
Previous state—causes the computer to power on automatically as soon as power is
restored, if it was on when power was lost.
NOTE: If you turn off power to the computer using the switch on a power strip, you will not be
able to use the suspend/sleep feature or the Remote Management features.
●
POST Delay (in seconds). Enabling this feature will add a user-specified delay to the POST
process. This delay is sometimes needed for hard disks on some PCI cards that spin up very
slowly, so slowly that they are not ready to boot by the time POST is finished. The POST
delay also gives you more time to select F10 to enter Computer (F10) Setup. Default is
None.
●
Bypass F1 Prompt on Configuration Changes (Enable/Disable). Allows you to set the
computer not to confirm when changes were made. Default is disabled.
●
Remote Wakeup Boot Source (remote server/local hard drive). Default is Local hard drive.
●
Factory Recovery Boot Support (Enable/Disable). Provides the ability for the BIOS to redirect
the boot to the recovery partition on the user hard drive, if present. Some versions of the
recovery software honor the F11 key press even when this feature is disabled by the BIOS.
Default is disabled.
●
POST Memory Manager Runtime Allocation (Enable/Disable). Enable this option to avoid an
“Unable to Resume” error when attempting to resume from hibernation with EFI installations
of Windows 7 64-bit. Default is disabled.
Computer Setup (F10) Utilities 121
Table 7-5 Computer Setup—Advanced (for advanced users) (continued)
BIOS Power-On
Allows you to set the computer to turn on automatically at a time you specify.
Onboard Devices
Allows you to set resources for or disable Legacy devices.
Select the Legacy device's IRQ, DMA, and I/O Range. The settings may not take effect for all
operating systems. To hide a device from the operating system, see Security > Device Security.
Bus Options
Device Options
Allows you to enable or disable:
●
PCI SERR# Generation. Default is enabled.
●
PCI VGA Palette Snooping, which sets the VGA palette snooping bit in PCI configuration
space; only needed when more than one graphics controller is installed. Default is disabled.
Allows you to set:
●
Monitor Tracking (enable/disable). Allows BIOS to save monitor asset information. Default is
disabled.
●
CPU Performance Boost (enable/disable/auto). If the system is using less than the maximum
number of cores within the processor, this feature enables or disables the redistribution of
power to fewer cores and raises the clock frequency on those cores. Default is Auto.
●
Num Lock State at Power-On (off/on). Default is off.
●
Integrated Video (enable/disable). Use this option to disable the integrated video controller
when another video controller is present in the system, or to configure UMA memory
settings. Default is ‘Automatic UMA Size’.
If you select ‘Selectable UMA Size’, a new menu item appears in the Device Options dialog
box to allow you to select the amount of memory to allocate to video memory.
●
USB Charging Port. Use this option to enable the USB charging port. Default is disabled.
PCI VGA Configuration
Displayed only if there is an add-in video card in the system. Allows you to specify which VGA
controller will be the “boot” or primary VGA controller.
Management
Operations
Allows you to set:
Option ROM Launch
Policy
Connected BIOS
●
DASH Support (enable/disable). Allows you to enable or disable the DASH firmware. Default
is disabled. If you enable this setting, DASH Console Redirection, ASF BIOS Mode, and ASF
Watchdog Timer become active.
●
DASH Console Redirection (enable/disable). When enabled, allows you to change keyboard
standard using the DASH Terminal Type option.
●
DASH Terminal Type (VT-UTF8, ANSI, VT100, VT100+). Allows you to configure keyboard
standard.
●
ASF BIOS Mode (OFF/ON/alert only). Allows you to set xxxxx.
●
ASF Watchdog Timer (enable/disable). Allows you to set amount of time for a operating
system and BIOS watchdog alert to be sent if the timers are not deactivated. BIOS watchdog
is deactivated by BIOS and would indicate that a halt occurred during execution if the alert is
sent to the management console. An operating system alert is deactivated by the operating
system image and would indicate that a hang occurred during its initialization. Default is
enabled.
Let you set the launch policy for option ROMs. An Option ROM typically consists of firmware that
is called by the system BIOS. For example, an adapter card that controls a boot device might
contain firmware that is used to connect the device to the system once the Option ROM is loaded.
●
PXE Option ROMs (legacy only/EFI only/do not launch)
●
Storage Option ROMs (legacy only/EFI only/do not launch)
●
Video Option ROMs (legacy only/EFI only)
Enables or disables the feature that updates the BIOS using the network.
122 Chapter 7 Computer Setup (F10) Utility
Table 7-5 Computer Setup—Advanced (for advanced users) (continued)
Update BIOS via
Network
●
Connected BIOS (Enabled/Disabled). Enables or disables BIOS network support. Default is
enabled.
●
Use Proxy (Enabled/Disabled). When enabled, displays Proxy Address field to configure the
URL of the proxy server. Default is disabled.
Allows you to use F10 Setup to check for BIOS updates from hp.com and apply them using either
a manual selection or an automatically scheduled check on boot-up.
NOTE: If Windows BitLocker Drive Encryption (BDE) is enabled, HP requires that BDE be
suspended temporarily before the BIOS is flashed. You must get the BDE recovery password and
PIN before suspending BDE. After updating the BIOS, you can resume BDE.
●
Update BIOS via Network (Enabled/Disabled). Enables or disables BIOS network support.
Default is enabled.
●
Update Source (HP/Custom). Selects hp.com or a locally managed custom address to serve
BIOS updates. Default is HP.
Update Address. If Custom is selected for Update Source, the URL of the locally managed
server.
●
Automatic BIOS Update Setting (Disabled, Check and install all updates automatically,
Check and install only important updates automatically, Check for updates but let me decide
whether to install them). Enables or disables the network BIOS update scheduler. Default is
disabled.
Automatic Update Frequency (Daily, Weekly, Monthly). Sets the frequency of checks to the
BIOS update server. If a newer version of BIOS is available on the network server, the
system will prompt to update the BIOS. Default is Monthly.
Force Check on Next Reboot (Disabled/Enabled). During the next boot, checks whether an
updated BIOS is available. This value is independent of the Automatic Update Frequency
setting. Default is disabled.
Recovering the Configuration Settings
This method of recovery requires that you first perform the Save to Removable Media command with
the Computer Setup (F10) Utility before Restore is needed. (See Computer Setup—File on page 115
in the Computer Setup—File table.)
NOTE: It is recommended that you save any modified computer configuration settings to a USB
flash media device and save the device for possible future use.
To restore the configuration, insert the USB flash media device with the saved configuration and
perform the Restore from Removable Media command with the Computer Setup (F10) Utility. (See
Computer Setup—File on page 115 in the Computer Setup—File table.)
Recovering the Configuration Settings 123
8
Troubleshooting without diagnostics
This chapter provides information on how to identify and correct minor problems, such as USB
devices, hard drive, optical drive, graphics, audio, memory, and software problems. If you encounter
problems with the computer, refer to the tables in this chapter for probable causes and recommended
solutions.
NOTE: For information on specific error messages that may appear on the screen during Power-On
Self-Test (POST) at startup, refer to Appendix A, POST error messages on page 157.
Safety and comfort
WARNING! Misuse of the computer or failure to establish a safe and comfortable work environment
may result in discomfort or serious injury. Refer to the Safety & Comfort Guide at http://www.hp.com/
ergo for more information on choosing a workspace and creating a safe and comfortable work
environment. For more information, refer to the Safety & Regulatory Information guide.
Before you call for technical support
If you are having problems with the computer, try the appropriate solutions below to try to isolate the
exact problem before calling for technical support.
●
Run the HP diagnostic tool.
●
Run the hard drive self-test in Computer Setup. Refer to Computer Setup (F10) Utility
on page 113 for more information.
●
Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights
are error codes that will help you diagnose the problem. Refer to Appendix A, POST error
messages on page 157 for more information.
●
If the screen is blank, plug the monitor into a different video port on the computer if one is
available. Or, replace the monitor with a monitor that you know is functioning properly.
●
If you are working on a network, plug another computer with a different cable into the network
connection. There may be a problem with the network plug or cable.
●
If you recently added new hardware, remove the hardware and see if the computer functions
properly.
●
If you recently installed new software, uninstall the software and see if the computer functions
properly.
●
Boot the computer to the Safe Mode to see if it will boot without all of the drivers loaded. When
booting the operating system, use “Last Known Configuration.”
●
Refer to the comprehensive online technical support at http://www.hp.com/support.
●
Refer to Helpful hints on page 125 in this guide.
To assist you in resolving problems online, HP Instant Support Professional Edition provides you with
self-solve diagnostics. If you need to contact HP support, use HP Instant Support Professional
Edition's online chat feature. Access HP Instant Support Professional Edition at: http://www.hp.com/
go/ispe.
124 Chapter 8 Troubleshooting without diagnostics
Access the Business Support Center (BSC) at http://www.hp.com/go/bizsupport for the latest online
support information, software and drivers, proactive notification, and worldwide community of peers
and HP experts.
If it becomes necessary to call for technical assistance, be prepared to do the following to ensure that
your service call is handled properly:
●
Be in front of your computer when you call.
●
Write down the computer serial number, product ID number, and monitor serial number before
calling.
●
Spend time troubleshooting the problem with the service technician.
●
Remove any hardware that was recently added to your system.
●
Remove any software that was recently installed.
●
Restore the system from the Recovery Disc Set that you created or restore the system to its
original factory condition in System Software Requirement Disks (SSRD).
CAUTION: Restoring the system will erase all data on the hard drive. Be sure to back up all data
files before running the restore process.
NOTE: For sales information and warranty upgrades (Care Packs), call your local authorized
service provider or dealer.
Helpful hints
If you encounter problems with the computer, monitor, or software, see the following list of general
suggestions before taking further action:
●
Check that the computer and monitor are plugged into a working electrical outlet.
●
Check that the voltage select switch (some models) is set to the appropriate voltage for your
region (115V or 230V).
●
Check that the computer is turned on and the white power light is on.
●
Check that the monitor is turned on and the green monitor light is on.
●
Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights
are error codes that will help you diagnose the problem. Refer to Appendix A, POST error
messages on page 157 for more information.
●
Turn up the brightness and contrast controls of the monitor if the monitor is dim.
●
Press and hold any key. If the system beeps, then the keyboard should be operating correctly.
●
Check all cable connections for loose connections or incorrect connections.
●
Wake the computer by pressing any key on the keyboard or pressing the power button. If the
system remains in suspend mode, shut down the computer by pressing and holding the power
button for at least four seconds then press the power button again to restart the computer. If the
system will not shut down, unplug the power cord, wait a few seconds, then plug it in again. The
computer will restart if it is set to power on automatically as soon as power is restored in
Computer Setup. If it does not restart, press the power button to start the computer.
●
Reconfigure the computer after installing a non-plug and play expansion board or other option.
See Solving Hardware Installation Problems on page 144 for instructions.
Helpful hints 125
●
Be sure that all the needed device drivers have been installed. For example, if you are using a
printer, you need a driver for that model printer.
●
Remove all bootable media (CD/DVD or USB device) from the system before turning it on.
●
If you have installed an operating system other than the factory-installed operating system,
check to be sure that it is supported on the system.
●
If the system has multiple video sources (embedded, PCI, or PCI-Express adapters) installed
(embedded video on some models only) and a single monitor, the monitor must be plugged into
the monitor connector on the source selected as the primary VGA adapter. During boot, the
other monitor connectors are disabled and if the monitor is connected into these ports, the
monitor will not function. You can select which source will be the default VGA source in
Computer Setup.
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied
to the system board. You must disconnect the power cord from the power source before opening the
computer to prevent system board or component damage.
Solving general problems
You may be able to easily resolve the general problems described in this section. If a problem
persists and you are unable to resolve it yourself or if you feel uncomfortable about performing the
operation, contact an authorized dealer or reseller.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to
the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be
sure to disconnect the power cord from the wall outlet and allow the internal system components to
cool before touching.
Cannot access the Computer Setup (F10) Utility when booting the computer.
Cause
Solution
The Computer Setup (F10) Utility is set to “fast boot” causing
the F10 access screen to display too briefly when booting the
computer.
Before turning on the computer, press and hold F10. Turn on
the computer and continue to hold F10 until the Computer
Setup (F10) Utility is displayed.
- or –
Follow the Windows 8.1 instructions for rebooting the
computer into the Computer Setup (F10) Utility.
Computer appears locked up and will not turn off when the power button is pressed.
Cause
Solution
Software control of the power switch is not functional.
1.
Press and hold the power button for at least four
seconds until the computer turns off.
2.
Disconnect the power cord from the electrical outlet.
Computer will not respond to keyboard or mouse.
Cause
Solution
Computer is in Sleep state.
To resume from Sleep state, press the power button.
126 Chapter 8 Troubleshooting without diagnostics
Computer will not respond to keyboard or mouse.
Cause
Solution
CAUTION: When attempting to resume from Sleep state,
do not hold down the power button for more than four
seconds. Otherwise, the computer will shut down and you
will lose any unsaved data.
System has locked up.
Restart computer.
Computer date and time display is incorrect.
Cause
Solution
RTC (real-time clock) battery may need to be replaced.
Reset the date and time under Control Panel (Computer
Setup can also be used to update the RTC date and time). If
the problem persists, replace the RTC battery. See the
Removal and Replacement section for instructions on
installing a new battery, or contact an authorized dealer or
reseller for RTC battery replacement.
NOTE: Connecting the computer to a live AC outlet
prolongs the life of the RTC battery.
To access Control Panel in Windows 7, select Start, and
then select Control Panel.
To access Control Panel in Windows 8.1, from the Start
screen, type c, and then select Control Panel from the list of
applications.
Cursor will not move using the arrow keys on the keypad.
Cause
Solution
The Num Lock key is turned on.
Press the Num Lock key. The Num Lock light must be off if
you want to use the arrow keys on the keypad. You can also
disable or enable the Num Lock key in Computer Setup at
Advanced > Device Options.
There is no sound or sound volume is too low.
Cause
Solution
System volume may be set low or muted.
1.
Check the Computer Setup settings to make sure the
internal system speaker is not muted (this setting does
not affect the external speakers).
2.
Make sure the external speakers are properly
connected and powered on and that the speakers'
volume control is set correctly.
3.
Use the system volume control available in the
operating system to make sure the speakers are not
muted or to increase the volume.
Solving general problems 127
Cannot remove computer cover or access panel.
Cause
Solution
Smart Cover Lock, featured on some computers, is locked.
Unlock the Smart Cover Lock using Computer Setup.
In case of forgotten password, power loss, or computer
malfunction, you must manually disable the Smart Cover
lock . A key to unlock the Smart Cover Lock is not available
from HP. Keys are typically available from a hardware store.
Poor performance.
Cause
Solution
Processor is too hot.
1.
Make sure airflow to the computer is not blocked. Leave
a 10.2-cm (4-inch) clearance on all vented sides of the
computer and above the monitor to permit the required
airflow.
2.
Make sure fans are connected and working properly
(some fans only operate when needed).
3.
Make sure the processor heat sink is installed properly.
Hard drive is full.
Transfer data from the hard drive to create more space on
the hard drive.
Low on memory.
Add more memory.
Hard drive fragmented.
Defragment hard drive.
Program previously accessed did not release reserved
memory back to the system.
Restart the computer.
Virus resident on the hard drive.
Run virus protection program.
Too many applications running.
Windows 7:
1.
Close unnecessary applications to free up memory.
2.
Add more memory.
3.
Some applications run in the background and can be
closed by right-clicking on their corresponding icons in
the task tray. To prevent these applications from
launching at startup:
In Windows 7:
a.
Go to Start > All Programs > Accessories > Run
b.
Type msconfig, and then press Enter.
c.
On the Startup tab of the System Configuration
Utility, clear applications that you do not want to
launch automatically, and the click OK.
In Windows 8.1:
128 Chapter 8 Troubleshooting without diagnostics
a.
On the Start screen, right-click, and then select the
All apps icon.
b.
Under Windows System, click Run.
c.
Type msconfig, and then press Enter.
Poor performance.
Cause
Solution
d.
Some software applications, especially games, are stressful
on the graphics subsystem.
Cause unknown.
On the Startup tab of the System Configuration
Utility, clear applications that you do not want to
launch automatically, and the click OK.
1.
Lower the display resolution for the current application
or consult the documentation that came with the
application for suggestions on how to improve
performance by adjusting parameters in the application.
2.
Add more memory.
3.
Upgrade the graphics solution.
Restart the computer.
Computer powered off automatically and the Power LED flashes Red two times, once every second, followed by a two
second pause, and the computer beeps two times. (Beeps stop after fifth iteration but LEDs continue flashing).
Cause
Solution
Processor thermal protection activated:
1.
Ensure that the computer air vents are not blocked and
the processor cooling fan is running.
2.
Open the access panel, press the power button, and
see if the processor fan (or other system fan) spins. If
the fan does not spin, make sure the fan cable is
plugged onto the system board header.
3.
If fan a plugged in and not spinning, replace it.
A fan may be blocked or not turning.
OR
The heat sink is not properly attached to the processor.
System does not power on and the LEDs on the front of the computer are not flashing.
Cause
Solution
System unable to power on.
Press and hold the power button for less than 4 seconds. If
the hard drive LED turns white, then:
1.
If equipped with a voltage selector, check that the
voltage selector (located on the rear of the power
supply) is set to the appropriate voltage. Proper voltage
setting depends on your region.
2.
Remove the expansion cards one at a time until the
5V_aux light on the system board turns on.
3.
Replace the system board.
OR
Press and hold the power button for less than 4 seconds. If
the hard drive LED does not turn on white then:
1.
Check that the unit is plugged into a working AC outlet.
2.
Open the access panel and check that the power button
cable is properly connected to the system board.
3.
Check that the power supply cables are properly
connected to the system board.
Solving general problems 129
System does not power on and the LEDs on the front of the computer are not flashing.
Cause
Solution
4.
Check to see if the 5V_aux light on the system board is
turned on. If it is turned on, then replace the power
button assembly.
5.
If the 5V_aux light on the system board is off, then
replace the power supply.
6.
Replace the system board.
Solving power problems
Common causes and solutions for power problems are listed in the following table.
Power supply shuts down intermittently.
Cause
Solution
If equipped with a voltage selector, voltage selector switch
on rear of computer chassis (some models) not switched to
correct line voltage (115V or 230V).
Select the proper AC voltage using the selector switch.
Power supply will not turn on because of internal power
supply fault.
Replace the power supply.
Computer powered off automatically and the Power LED flashes Red two times, once every second, followed by a two
second pause, and the computer beeps two times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Processor thermal protection activated:
1.
Ensure that the computer air vents are not blocked and
the processor cooling fan is running.
2.
Open the access panel, press the power button, and
see if the processor fan (or other system fan) spins. If
the fan does not spin, make sure the fan cable is
plugged onto the system board header.
3.
If fan a plugged in and not spinning, replace it.
A fan may be blocked or not turning.
OR
The heat sink is not properly attached to the processor.
Power LED flashes Red four times, once every second, followed by a two second pause, and the computer beeps four
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Power failure (power supply is overloaded).
1.
If equipped with a voltage selector, check that the
voltage selector, located on the rear of the power supply
(some models), is set to the appropriate voltage. Proper
voltage setting depends on your region.
2.
Open the access panel and ensure the power supply
cable is seated into the connector on the system board.
3.
Check if a device is causing the problem by removing
ALL attached devices (such as hard drives or optical
drives and expansion cards). Power on the system. If
130 Chapter 8 Troubleshooting without diagnostics
Power LED flashes Red four times, once every second, followed by a two second pause, and the computer beeps four
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
the system enters POST, then power off and replace
one device at a time and repeat this procedure until
failure occurs. Replace the device that is causing the
failure. Continue adding devices one at a time to ensure
all devices are functioning properly.
4.
Replace the power supply.
5.
Replace the system board.
Solving hard drive problems
Hard drive error occurs.
Cause
Solution
Hard disk has bad sectors or has failed.
1.
In Windows 7, click Start, click Computer, and right-click
on a drive. Select Properties, and then select the Tools
tab. Under Error-checking click Check Now.
In Windows 8.1, on the Start screen type e, and then
select File Explorer from the list of applications. In the
left column, expand Computer, right-click on a drive,
select Properties, and then select the Tools tab. Under
Error checking click Check.
2.
Use a utility to locate and block usage of bad sectors. If
necessary, reformat the hard disk.
Disk transaction problem.
Cause
Solution
Either the directory structure is bad or there is a problem with
a file.
In Windows 7, click Start, expand Computer, and right-click
on a drive. Select Properties, and then select the Tools tab.
Under Error-checking click Check Now.
In Windows 8.1, on the Start screen type e, and then click
File Explorer from the list of applications. In the left column,
expand Computer, right-click on a drive, select Properties,
and then select the Tools tab. Under Error checking click
Check.
Drive not found (identified).
Cause
Solution
Cable could be loose.
Check cable connections.
The system may not have automatically recognized a newly
installed device.
See reconfiguration directions in the Solving Hardware
Installation Problems on page 144 section. If the system still
does not recognize the new device, check to see if the
device is listed within Computer Setup. If it is listed, the
Solving hard drive problems 131
Drive not found (identified).
Cause
Solution
probable cause is a driver problem. If it is not listed, the
probable cause is a hardware problem.
If this is a newly installed drive, run the Computer Setup
utility and try adding a POST delay under Advanced >
Power-On Options.
The device is attached to a SATA port that has been hidden
in Computer Setup.
Run the Computer Setup utility and ensure Device Available
is selected for the device's SATA port in Security > Device
Security.
Drive responds slowly immediately after power-up.
Run Computer Setup and increase the POST Delay in
Advanced > Power-On Options.
Nonsystem disk/NTLDR missing message.
Cause
Solution
The system is trying to start from the hard drive but the hard
drive may have been damaged.
▲
Perform Drive Protection System (DPS) testing in
system ROM.
System files missing or not properly installed.
1.
Insert bootable media and restart the computer.
2.
Boot to the windows installation media and select the
recovery option. If only a restore kit is available, then
select the File Backup Program option, and then restore
the system.
3.
Install system files for the appropriate operating system.
Hard drive boot has been disabled in Computer Setup.
Run the Computer Setup utility and enable the hard drive
entry in the Storage > Boot Order list.
Bootable hard drive is not attached as first in a multi-hard
drive configuration.
If attempting to boot from a hard drive, ensure it is attached
to the system board dark blue SATA connector.
Bootable hard drive is not listed first in the Boot Order.
Run the Computer Setup utility and select Storage > Boot
Order and ensure the bootable hard drive is listed
immediately under the Hard Drive entry.
Computer will not boot from hard drive.
Cause
Solution
The device is attached to a SATA port that has been hidden
in Computer Setup.
1.
Check SATA cable connections.
2.
Run the Computer Setup utility and ensure Device
Available is selected for the device's SATA port in
Security > Device Security.
Boot order is not correct.
Run the Computer Setup utility and change boot sequence in
Storage > Boot Order.
Hard Drive's “Emulation Type” is set to “None.” (some
models)
Run the Computer Setup utility and change the “Emulation
Type” to “Hard Disk” in the device's details under Storage >
Device Configuration.
Hard drive is damaged.
Observe if the front panel Power LED is blinking RED and if
any beeps are heard. See Appendix A, POST error
132 Chapter 8 Troubleshooting without diagnostics
Computer will not boot from hard drive.
Cause
Solution
messages on page 157 to determine possible causes for the
blinking red and beep codes.
See the Worldwide Limited Warranty for terms and
conditions.
Computer seems to be locked up.
Cause
Solution
Program in use has stopped responding to commands.
1.
Use the task manager to close programs that do not
respond.
2.
Attempt the normal Windows “Shut Down” procedure. If
this fails, press the power button for four or more
seconds to turn off the power. To restart the computer,
press the power button again.
Solving media card reader problems
Media card will not work in a digital camera after formatting it in Windows.
Cause
Solution
By default, Windows will format any media card with a
capacity greater than 32MB with the FAT32 format. Some
digital cameras use the FAT (FAT16 & FAT12) format and
can not operate with a FAT32 formatted card.
Either format the media card in the digital camera or select
FAT file system to format the media card in a computer with
Windows.
A write-protected or locked error occurs when attempting to write to the media card.
Cause
Solution
Media card is locked. Locking the media card is a safety
feature that prevents writing to and deleting from an SD/
Memory Stick/PRO card.
If using an SD card, make sure that the lock tab located on
the right of the SD card is not in the locked position. If using
a Memory Stick/PRO card, make sure that the lock tab
located on the bottom of the Memory Stick/PRO card is not
in the locked position.
Can not write to the media card.
Cause
Solution
The media card is a read-only memory (ROM) card.
Check the manufacturer’s documentation included with your
card to see if it writable. Refer to the previous section for a
list of compatible cards.
Media card is locked. Locking the media card is a safety
feature that prevents writing to and deleting from an SD/
Memory Stick/PRO card.
If using an SD card, make sure that the lock tab located on
the right of the SD card is not in the locked position. If using
a Memory Stick/PRO card, make sure that the lock tab
Solving media card reader problems 133
Can not write to the media card.
Cause
Solution
located on the bottom of the Memory Stick/PRO card is not
in the locked position.
Unable to access data on the media card after inserting it into a slot.
Cause
Solution
The media card is not inserted properly, is inserted in the
wrong slot, or is not supported.
Ensure that the card is inserted properly with the gold
contact on the correct side. The green LED will light if
inserted properly.
Do not know how to remove a media card correctly.
Cause
Solution
The computer’s software is used to safely eject the card.
In Windows 7, click Start, select Computer, right-click on the
corresponding drive icon, and then select Eject. Pull the card
out of the slot.
In Windows 8.1, on the Start screen, type e, and then click
File Explorer from the list of applications. Expand Computer,
right-click on the corresponding drive icon, and then select
Eject. Pull the card out of the slot.
NOTE: Never remove the card when the green LED is
flashing
After installing the media card reader and booting to Windows, the reader and the inserted cards are not recognized by the
computer.
Cause
Solution
The operating system needs time to recognize the device if
the reader was just installed into the computer and you are
turning the PC on for the first time.
Wait a few seconds so that the operating system can
recognize the reader and the available ports, and then
recognize the media inserted in the reader.
After inserting a media card in the reader, the computer attempts to boot from the media card.
Cause
Solution
The inserted media card has boot capability.
1.
If you do not want to boot from the media card, remove
it during boot or do not select the option to boot from the
inserted media card during the boot process.
2.
During POST (Power On Self-Test), press F9 to modify
the boot menu.
3.
Change the boot sequence in F10 Computer Setup.
134 Chapter 8 Troubleshooting without diagnostics
Solving display problems
If you encounter display problems, see the documentation that came with the monitor and to the
common causes and solutions listed in the following table.
Blank screen (no video).
Cause
Solution
Monitor is not turned on and the monitor light is not on.
Turn on the monitor and check that the monitor light is on.
Bad monitor.
Try a different monitor.
The cable connections are not correct.
Check the cable connection from the monitor to the computer
and to the electrical outlet.
You may have a screen blanking utility installed or energy
saver features are enabled.
Press any key or click the mouse button and type your
password (if set).
System ROM is corrupted; system is running in Boot Block
Emergency Recovery Mode (indicated by eight beeps).
Reflash the system ROM with the latest BIOS image.
You are using a fixed-sync monitor and it will not sync at the
resolution chosen.
Be sure that the monitor can accept the same horizontal
scan rate as the resolution chosen.
Computer is in Sleep state.
Press the power button to resume from Sleep state.
CAUTION: When attempting to resume from Sleep state,
do not hold down the power button for more than four
seconds. Otherwise, the computer will shut down and you
will lose any unsaved data.
Monitor cable is plugged into the wrong connector.
Systems may have a monitor connection on both the
motherboard or an add-in card. Try moving the monitor
connection to a different connector on the back of the
computer
Monitor settings in the computer are not compatible with the
monitor.
1.
In Control Panel, select Category from the View by list,
then under Appearance and Personalization, select
Adjust screen resolution.
To access Control Panel in Windows 7, click Start, and
then select Control Panel.
To access Control Panel in Windows 8.1, from the Start
screen, type c, and then select Control Panel from the
list of applications.
2.
Monitor is configured to use an input that is not active.
Expand the Resolution box, and then use the sliding
control to reset the resolution.
Use the monitor's on-screen menu controls to select the
input that is being driven by the system. Refer to the
monitor's user documentation for more information on the onscreen controls and settings.
Blank screen and the power LED flashes Red five times, once every second, followed by a two second pause, and the
computer beeps five times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Pre-video memory error.
1.
Reseat DIMMs. Power on the system.
Solving display problems 135
Blank screen and the power LED flashes Red five times, once every second, followed by a two second pause, and the
computer beeps five times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
2.
Replace DIMMs one at a time to isolate the faulty
module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Blank screen and the power LED flashes Red six times, once every second, followed by a two second pause, and the
computer beeps six times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Pre-video graphics error.
For systems with a graphics card:
1.
Reseat the graphics card (if applicable). Power on the
system.
2.
Replace the graphics card (if applicable).
3.
Replace the system board.
For systems with integrated graphics, replace the system
board.
Blank screen and the power LED flashes Red seven times, once every second, followed by a two second pause, and the
computer beeps seven times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
System board failure (ROM detected failure prior to video).
Replace the system board.
Monitor does not function properly when used with energy saver features.
Cause
Solution
Monitor without energy saver capabilities is being used with
energy saver features enabled.
Disable monitor energy saver feature.
Dim characters.
Cause
Solution
The brightness and contrast controls are not set properly.
Adjust the monitor brightness and contrast controls.
Cables are not properly connected.
Check that the graphics cable is securely connected to the
graphics card (if applicable) or video connector and the
monitor.
136 Chapter 8 Troubleshooting without diagnostics
Blurry video or requested resolution cannot be set.
Cause
Solution
If the graphics controller was upgraded, the correct graphics
drivers may not be loaded.
Install the video drivers included in the upgrade kit.
Monitor is not capable of displaying requested resolution.
Change requested resolution.
Graphics card is bad.
Replace the graphics card.
The picture is broken up, rolls, jitters, or flashes.
Cause
Solution
The monitor connections may be incomplete or the monitor
may be incorrectly adjusted.
1.
Be sure the monitor cable is securely connected to the
computer.
2.
In a two-monitor system or if another monitor is in close
proximity, be sure the monitors are not interfering with
each other’s electromagnetic field by moving them
apart.
3.
Fluorescent lights or fans may be too close to the
monitor.
Monitor needs to be degaussed.
Degauss the monitor. Refer to the documentation that came
with the monitor for instructions.
Image is not centered.
Cause
Solution
Position may need adjustment.
Press the monitor's Menu button to access the OSD menu.
Select ImageControl/ Horizontal Position or Vertical Position
to adjust the horizontal or vertical position of the image.
“No Connection, Check Signal Cable” displays on screen.
Cause
Solution
Monitor video cable is disconnected.
Connect the video cable between the monitor and computer.
CAUTION: Ensure that the computer power is off while
connecting the video cable.
“Out of Range” displays on screen.
Cause
Solution
Video resolution and refresh rate are set higher than what
the monitor supports.
Restart the computer and enter Safe Mode. Change the
settings to a supported setting then restart the computer so
that the new settings take effect.
To enter Safe Mode in Windows 7:
1.
Restart the computer.
Solving display problems 137
“Out of Range” displays on screen.
Cause
Solution
2.
Press and hold the F8 key as your computer restarts,
before the Windows logo appears. If the Windows logo
appears, you must restart the computer and try again.
3.
On the Advanced Boot Options screen, use the arrow
keys to highlight the safe mode option you want, and
then press Enter.
4.
Log on to your computer with a user account that has
administrator rights.
When your computer is in safe mode, Safe Mode
displays in the corners of your monitor. To exit safe
mode, restart your computer and let Windows start
normally.
To enter Safe Mode in Windows 8.1:
1.
Press the Windows logo + l to open the Settings charm.
2.
Select Change PC Settings, select General, and then
under Advanced startup, click Restart now.
3.
Select Troubleshoot, select Advanced options, select
Startup Settings, and then click Restart.
4.
Use the function keys or number keys to select the safe
mode option you want.
When your computer is in safe mode, Safe Mode
displays in the corners of your monitor. To exit safe
mode, restart your computer and let Windows start
normally.
High pitched noise coming from inside a flat panel monitor.
Cause
Solution
Brightness and/or contrast settings are too high.
Lower brightness and/or contrast settings.
Fuzzy focus; streaking, ghosting, or shadowing effects; horizontal scrolling lines; faint vertical bars; or unable to center the
picture on the screen (flat panel monitors using an analog VGA input connection only).
Cause
Solution
Flat panel monitor’s internal digital conversion circuits may
be unable to correctly interpret the output synchronization of
the graphics card.
1.
Select the monitor’s Auto-Adjustment option in the
monitor’s on-screen display menu.
2.
Manually synchronize the Clock and Clock Phase onscreen display functions. To download a SoftPaq that
will assist you with the synchronization, go to the
following Web site, select the appropriate monitor, and
download either SP32347 or SP32202:
http://www.hp.com/support
Graphics card is not seated properly or is bad (some
models).
1.
Reseat the graphics card.
2.
Replace the graphics card.
138 Chapter 8 Troubleshooting without diagnostics
Certain typed symbols do not appear correct.
Cause
Solution
The font you are using does not support that particular
symbol.
Use the Character Map to locate and select the appropriate
symbol. You can copy the symbol from the Character Map
into a document.
In Windows 7, click Start, select All Programs, select
Accessories, select System Tools, and then select Character
Map.
In Windows 8.1, on the Start screen, type ch, and then select
Character Map from the list of applications.
Solving audio problems
If the computer has audio features and you encounter audio problems, see the common causes and
solutions listed in the following table.
Sound cuts in and out.
Cause
Solution
Processor resources are being used by other open
applications.
Shut down all open processor-intensive applications.
Sound does not come out of the speaker or headphones.
Cause
Solution
Software volume control is turned down or muted.
Double-click the Speaker icon on the taskbar, then make
sure that Mute is not selected and use the volume slider to
adjust the volume.
NOTE: In Windows 8.1, the taskbar is available at the
bottom of the Desktop screen.
Audio is hidden in Computer Setup.
Enable the audio in Computer Setup: Security >
Device Security > System Audio.
The external speakers are not turned on.
Turn on the external speakers.
The audio device may be connected to the wrong jack.
Ensure that the device is connected to the correct jack on the
computer. The rear audio jack output is the green receptacle.
The speakers should be plugged into the line-out jack and
the headphones should be plugged into the headphone jack.
External speakers plugged into the wrong audio jack on a
recently installed sound card.
See the sound card documentation for proper speaker
connection. The rear audio jack output is the green
receptacle.
Headphones or devices connected to the line-out connector
mute the internal speaker.
Turn on and use headphones or external speakers, if
connected, or disconnect headphones or external speakers.
Computer is in Sleep state.
Press the power button to resume from Sleep state.
CAUTION: When attempting to resume from Sleep state,
do not hold down the power button for more than four
seconds. Otherwise, the computer will shut down and you
will lose any unsaved data.
Solving audio problems 139
Sound does not come out of the speaker or headphones.
Cause
Solution
Internal speaker is disabled in Computer Setup.
Enable the internal speaker in Computer Setup. Select
Advanced > Device Options > Internal Speaker.
The application is set to use a different audio device than
speakers.
Some graphics cards support audio over the DisplayPort
connection (if applicable), so multiple audio devices may be
listed in Device Manager. Make sure the correct device is
being used.
To access Device Manager in Windows 7, click Start, select
Control Panel, and then select Device Manager.
To access Device Manager in Windows 8.1, from the Start
screen, type c, select Control Panel from the list of
applications, and then select Device Manager.
Some applications can select which audio output device is
used.
Make sure the application has selected the correct audio
device.
The operating system controls may be set to use a different
audio device as the default output device than what is
expected.
Set the operating system to use the correct audio device.
Sound from headphones is not clear or muffled.
Cause
Solution
Headphones are plugged into the rear audio output
connector. The rear audio output connector is for powered
audio devices and is not designed for headphone use.
Plug the headphones into the headphone connector on the
front of the computer.
Computer appears to be locked up while recording audio.
Cause
Solution
The hard disk may be full.
Before recording, make sure there is enough free space on
the hard disk. You can also try recording the audio file in a
compressed format.
Line-in jack is not functioning properly.
Cause
Solution
Jack has been reconfigured in the audio driver or application
software.
In the audio driver or application software, reconfigure the
jack or set the jack to its default value.
There is no sound or sound volume is too low.
Cause
Solution
The application is set to use a different audio device than
speakers.
Some graphics cards support audio over the DisplayPort
connection (if applicable), so multiple audio devices may be
140 Chapter 8 Troubleshooting without diagnostics
There is no sound or sound volume is too low.
Cause
Solution
listed in Device Manager. Make sure the correct device is
being used.
To access Device Manager in Windows 7, click Start, select
Control Panel, and then select Device Manager.
To access Device Manager in Windows 8.1, from the Start
screen, type c, select Control Panel from the list of
applications, and then select Device Manager.
Some applications can select which audio output device is
used.
Make sure the application has selected the correct audio
device.
The operating system controls may be set to use a different
audio device as the default output device than what is
expected.
Set the operating system to use the correct audio device.
Solving printer problems
If you encounter printer problems, see the documentation that came with the printer and to the
common causes and solutions listed in the following table.
Printer will not print.
Cause
Solution
Printer is not turned on and online.
Turn the printer on and make sure it is online.
The correct printer drivers for the application are not
installed.
1.
Install the correct printer driver for the application.
2.
Try printing using the MS-DOS command:
DIR C:\ > [printer port]
where [printer port] is the address of the printer being
used. If the printer works, reload the printer driver.
To run MS-DOS commands, press the Windows key + r, type
cmd in the Open box, and then click OK.
If you are on a network, you may not have made the
connection to the printer.
Make the proper network connections to the printer.
Printer may have failed.
Run printer self-test.
Printer will not turn on.
Cause
Solution
The cables may not be connected properly.
Reconnect all cables and check the power cord and
electrical outlet.
Solving printer problems 141
Printer prints garbled information.
Cause
Solution
The correct printer driver for the application is not installed.
Install the correct printer driver for the application.
The cables may not be connected properly.
Reconnect all cables.
Printer memory may be overloaded.
Reset the printer by turning it off for one minute, then turn it
back on.
Printer will not print.
Cause
Solution
The printer may be out of paper.
Check the paper tray and refill it if it is empty.
Solving keyboard and mouse problems
If you encounter keyboard or mouse problems, see the documentation that came with the equipment
and to the common causes and solutions listed in the following table.
A wireless keyboard/mouse is not working correctly. Symptoms include lagging mouse movement, jumpy mouse/keyboard,
or no function of mouse/keyboard and external drive.
Cause
Solution
If your computer is equipped with USB 3.0 ports, connected
USB 3.0 devices can interfere with the wireless keyboard
USB receiver.
Connect the wireless keyboard USB receiver to a USB 2.0
port that is separated from ports with USB 3.0 devices. If you
still experience interference, you may have to place the
connectors farther apart using an external USB hub.
Keyboard commands and typing are not recognized by the computer.
Cause
Solution
Keyboard connector is not properly connected.
Shut down the computer, reconnect the keyboard to the back
of the computer, and then restart the computer.
Program in use has stopped responding to commands.
Shut down your computer using the mouse and then restart
the computer.
Keyboard needs repairs.
See the Worldwide Limited Warranty for terms and
conditions.
Computer is in Sleep state.
Press the power button to resume from Sleep state.
CAUTION: When attempting to resume from Sleep date, do
not hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
142 Chapter 8 Troubleshooting without diagnostics
Cursor will not move using the arrow keys on the keypad.
Cause
Solution
The Num Lock key is on.
Press the Num Lock key. The Num Lock light should be off if
you want to use the arrow keys on the keypad. You can
disable or enable the Num Lock key in Computer Setup at
Advanced > Device Options.
Mouse does not respond to movement or is too slow.
Cause
Solution
Mouse connector is not properly plugged into the back of the
computer.
Shut down the computer using the keyboard.
Windows 7:
1.
Press the Ctrl and Esc keys at the same time (or press
the Windows logo key) to display the Start menu.
2.
Use the arrow keys to select Shut Down and then press
Enter.
3.
After the shutdown is complete, plug the mouse
connector into the back of the computer (or the
keyboard) and restart.
Windows 8.1:
1.
Press the Windows logo + l to open the Settings charm.
2.
Use the arrow keys to select Power, and then press
Enter.
3.
Use the arrow keys to select Shut Down, and then
press Enter.
4.
After the shutdown is complete, plug the mouse
connector into the back of the computer (or the
keyboard) and restart.
Program in use has stopped responding to commands.
Shut down the computer using the keyboard then restart the
computer.
Mouse may need cleaning.
Remove the roller ball cover on the mouse and clean the
internal components.
Mouse may need repair.
See the Worldwide Limited Warranty for terms and
conditions.
Computer is in Sleep state.
Press the power button to resume from Sleep state.
CAUTION: When attempting to resume from Sleep state,
do not hold down the power button for more than four
seconds. Otherwise, the computer will shut down and you
will lose any unsaved data.
Solving keyboard and mouse problems 143
Mouse will only move vertically, horizontally, or movement is jerky.
Cause
Solution
Mouse roller ball or the rotating encoder shafts that make
contact with the ball are dirty.
Remove roller ball cover from the bottom of the mouse and
clean the internal components with a mouse cleaning kit
available from most computer stores.
Solving Hardware Installation Problems
You may need to reconfigure the computer when you add or remove hardware, such as an additional
drive or expansion card. If you install a plug and play device, Windows automatically recognizes the
device and configures the computer. If you install a non-plug and play device, you must reconfigure
the computer after completing installation of the new hardware. In Windows, use the Add Hardware
Wizard and follow the instructions that appear on the screen.
To open the Add Hardware Wizard, open a Command Prompt and open hdwwiz.exe.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to
the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be
sure to disconnect the power cord from the wall outlet and allow the internal system components to
cool before touching.
Table 8-1 Solving Hardware Installation Problems
A new device is not recognized as part of the system.
Cause
Solution
Device is not seated or connected properly.
Ensure that the device is properly and securely connected
and that pins in the connector are not bent down.
Cable(s) of new external device are loose or power cables
are unplugged.
Ensure that all cables are properly and securely connected
and that pins in the cable or connector are not bent down.
Power switch of new external device is not turned on.
Turn off the computer, turn on the external device, then turn
on the computer to integrate the device with the computer
system.
When the system advised you of changes to the
configuration, you did not accept them.
Reboot the computer and follow the instructions for
accepting the changes.
A plug and play board may not automatically configure when
added if the default configuration conflicts with other devices.
Use Windows Device Manager to deselect the automatic
settings for the board and choose a basic configuration that
does not cause a resource conflict. You can also use
Computer Setup to reconfigure or disable devices to resolve
the resource conflict.
To access Device Manager in Windows 7, click Start, select
Control Panel, and then select Device Manager.
To access Device Manager in Windows 8.1, from the Start
screen, type c, select Control Panel from the list of
applications, and then select Device Manager.
USB ports on the computer are disabled in Computer Setup.
144 Chapter 8 Troubleshooting without diagnostics
Run the Computer Setup utility and ensure that Device
available is selected for appropriate USB ports under
Security > USB Security.
Computer will not start.
Cause
Solution
Wrong memory modules were used in the upgrade or
memory modules were installed in the wrong location.
1.
Review the documentation that came with the system to
determine if you are using the correct memory modules
and to verify the proper installation.
NOTE: DIMM1 or XMM1 must always be installed.
DIMM1 must be installed before DIMM2, and DIMM3
must be installed before DIMM4.
2.
Observe the beeps and LED lights on the front of the
computer. Beeps and flashing LEDs are codes for
specific problems.
3.
If you still cannot resolve the issue, contact Customer
Support.
Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five times.
(Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Memory is installed incorrectly or is bad.
CAUTION: To avoid damage to the DIMMs or the system
board, you must unplug the computer power cord before
attempting to reseat, install, or remove a DIMM module.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty
module.
NOTE: DIMM1 or XMM1 must always be installed.
DIMM1 must be installed before DIMM2, and DIMM3
must be installed before DIMM4
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Power LED flashes Red six times, once every second, followed by a two second pause, and the computer beeps six times.
(Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Graphics card (some models) is not seated properly or is
bad, or system board is bad.
For systems with a graphics card:
1.
Reseat the graphics card. Power on the system.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace the system
board.
Solving Hardware Installation Problems 145
Power LED flashes Red ten times, once every second, followed by a two second pause, and the computer beeps ten times.
(Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Bad option card.
1.
Check each option card by removing the cards one at
time (if multiple cards), then power on the system to see
if fault goes away.
2.
Once bad card is identified, remove and replace bad
option card.
3.
Replace the system board.
Solving Network Problems
Some common causes and solutions for network problems are listed in the following table. These
guidelines do not discuss the process of debugging the network cabling.
Table 8-2 Solving Network Problems
Wake-on-LAN feature is not functioning.
Cause
Solution
S5 Maximum Power Saving feature is enabled.
Disable the S5 Maximum Power Saving option in Computer
Setup. Select Power > Hardware Power Management > S5
Maximum Power Savings.
S5 Wake on LAN is disabled (some models).
Enable the S5 Wake on LAN option in Computer Setup.
Select Advanced > Device Options > S5 Wake on LAN.
Wake-on-LAN is not enabled.
To enable Wake-on-LAN in Windows 7:
1.
Select Start > Control Panel > Network and Sharing
Center.
2.
Under Tasks, select Manage network connections.
3.
Click Local Area Connection.
4.
Click the Properties button.
5.
Click the Configure button.
6.
Click the Power Management tab, then select Allow this
device to wake the computer.
To enable Wake-on-LAN in Windows 8.1:
146 Chapter 8 Troubleshooting without diagnostics
1.
From the Start screen, type c, and then select Control
Panel from the list of applications.
2.
Select Network and Sharing Center, and then click the
Ethernet link next to the connection.
3.
Click the Properties button.
4.
Click the Configure button.
5.
Click the Power Management tab, then enable the
appropriate Wake-on LAN option.
Network driver does not detect network controller.
Cause
Solution
Network controller is disabled.
1.
Run Computer Setup and enable network controller.
2.
Enable the network controller in the operating system
using Device Manager.
To access Device Manager in Windows 7, click Start,
select Control Panel, and then select Device Manager.
To access Device Manager in Windows 8.1, from the
Start screen, type c, select Control Panel from the list of
applications, and then select Device Manager.
Incorrect network driver.
Check the network controller documentation for the correct
driver or obtain the latest driver from the manufacturer’s Web
site.
Network status link light never flashes.
NOTE: The network status light is supposed to flash when there is network activity.
Cause
Solution
No active network is detected.
Check cabling and network equipment for proper connection.
Network controller is not set up properly.
Check for the device status within Windows, such as Device
Manager for driver load and the Network Connections applet
within Windows for link status.
To access Device Manager in Windows 7, click Start, select
Control Panel, and then select Device Manager.
To access Device Manager in Windows 8.1, from the Start
screen, type c, select Control Panel from the list of
applications, and then select Device Manager.
Network controller is disabled.
1.
Run Computer Setup and enable network controller.
2.
Enable the network controller in the operating system
using Device Manager.
To access Device Manager in Windows 7, click Start,
select Control Panel, and then select Device Manager.
To access Device Manager in Windows 8.1, from the
Start screen, type c, select Control Panel from the list of
applications, and then select Device Manager.
Network driver is not properly loaded.
Reinstall network drivers.
System cannot autosense the network.
Disable auto-sensing capabilities and force the system into
the correct operating mode.
Diagnostics reports a failure.
Cause
Solution
The cable is not securely connected.
Ensure that the cable is securely attached to the network
connector and that the other end of the cable is securely
attached to the correct device.
Solving Network Problems 147
Table 8-2 Solving Network Problems (continued)
Diagnostics reports a failure.
Cause
Solution
The cable is attached to the incorrect connector.
Ensure that the cable is attached to the correct connector.
There is a problem with the cable or a device at the other
end of the cable.
Ensure that the cable and device at the other end are
operating correctly.
Network controller interrupt is shared with an expansion
board.
Under the Computer Setup Advanced menu, change the
resource settings for the board.
The network controller is defective.
Contact an authorized service provider.
Diagnostics passes, but the computer does not communicate with the network.
Cause
Solution
Network drivers are not loaded, or driver parameters do not
match current configuration.
Make sure the network drivers are loaded and that the driver
parameters match the configuration of the network controller.
Make sure the correct network client and protocol is installed.
The network controller is not configured for this computer.
Select the Network and Sharing Center icon in the Control
Panel and configure the network controller.
To access Control Panel in Windows 7, click Start, and then
select Control Panel.
To access Control Panel in Windows 8.1, from the Start
screen, type c, and then select Control Panel.
Network controller stopped working when an expansion board was added to the computer.
Cause
Solution
Network controller interrupt is shared with an expansion
board.
Under the Computer Setup Advanced menu, change the
resource settings for the board.
The network controller requires drivers.
Verify that the drivers were not accidentally deleted when the
drivers for a new expansion board were installed.
The expansion board installed is a network card (NIC) and
conflicts with the embedded NIC.
Under the Computer Setup Advanced menu, change the
resource settings for the board.
Network controller stops working without apparent cause.
Cause
Solution
The files containing the network drivers are corrupted.
Reinstall the network drivers using the Recovery Disc Set in
Windows 7 or Windows recovery tools in Windows 8.1.
If necessary, download the softpaq from the web (from a
different computer).
148 Chapter 8 Troubleshooting without diagnostics
Table 8-2 Solving Network Problems (continued)
Network controller stops working without apparent cause.
Cause
Solution
The cable is not securely connected.
Ensure that the cable is securely attached to the network
connector and that the other end of the cable is securely
attached to the correct device.
The network controller is defective.
Contact an authorized service provider.
New network card will not boot.
Cause
Solution
New network card may be defective or may not meet
industry-standard specifications.
Install a working, industry-standard NIC, or change the boot
sequence to boot from another source.
Cannot connect to network server when attempting Remote System Installation.
Cause
Solution
The network controller is not configured properly.
Verify Network Connectivity, that a DHCP Server is present,
and that the Remote System Installation Server contains the
NIC drivers for your NIC.
System setup utility reports unprogrammed EEPROM.
Cause
Solution
Unprogrammed EEPROM.
Contact an authorized service provider.
Solving memory problems
If you encounter memory problems, some common causes and solutions are listed in the following
table.
CAUTION: Power may still be supplied to the DIMMs when the computer is turned off (depending
on the Management Engine (ME) settings). To avoid damage to the DIMMs or the system board, you
must unplug the computer power cord before attempting to reseat, install, or remove a memory
module.
For those systems that support ECC memory, HP does not support mixing ECC and non-ECC
memory. Otherwise, the computer will not boot the operating system.
NOTE: The memory count will be affected by configurations with the Management Engine (ME)
enabled. The ME uses 8MB of system memory in single channel mode or 16MB of memory in dualchannel mode to download, decompress, and execute the ME firmware for Out-of-Band (OOB), thirdparty data storage, and other management functions.
Solving memory problems 149
System will not boot or does not function properly after installing additional memory modules.
Cause
Solution
A memory module is not installed in the DIMM1 or XMM1
socket.
Ensure that a memory module is installed in the DIMM1 or
XMM1 socket on the system board. This socket must be
populated with a memory module.
Memory module is not the correct type or speed grade for
the system or the new memory module is not seated
properly.
Replace module with the correct industry-standard device for
the computer. On some models, ECC and non-ECC memory
modules cannot be mixed.
Out of memory error.
Cause
Solution
You have run out of memory to run the application.
Check the application documentation to determine the
memory requirements.
Memory count during POST is wrong.
Cause
Solution
The memory modules may not be installed correctly.
Check that the memory modules have been installed
correctly and that proper modules are used.
Integrated graphics may use system memory.
No action required.
Insufficient memory error during operation.
Cause
Solution
Too many Terminate and Stay Resident programs (TSRs)
are installed.
Delete any TSRs that you do not need.
You have run out of memory for the application.
Check the memory requirements for the application or add
more memory to the computer.
Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five times.
(Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Memory is installed incorrectly or is bad.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty
module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
150 Chapter 8 Troubleshooting without diagnostics
Solving CD-ROM and DVD problems
If you encounter CD-ROM or DVD problems, see the common causes and solutions listed in the
following table or to the documentation that came with the optional device.
System will not boot from CD-ROM or DVD drive.
Cause
Solution
The device is attached to a SATA port that has been hidden
in the Computer Setup utility.
Run the Computer Setup utility and ensure Device Available
is selected for the device's SATA port in Security > Device
Security.
Removable Media Boot is disabled in the Computer Setup
utility.
Run the Computer Setup utility and enable booting to
removable media in Storage > Storage Options. Ensure CDROM is enabled in Storage > Boot Order.
Network Boot is enabled in Computer Setup.
Run the Computer Setup utility and disable Network Boot in
Security > Network Boot.
Non-bootable CD in drive.
Try a bootable CD in the drive.
Boot order not correct.
Run the Computer Setup utility and change boot sequence in
Storage > Boot Order.
Drive not found (identified).
Cause
Solution
Cable could be loose.
Check cable connections.
The system may not have automatically recognized a newly
installed device.
See reconfiguration directions in the Solving Hardware
Installation Problems on page 144 section. If the system still
does not recognize the new device, check to see if the
device is listed within Computer Setup. If it is listed, the
probable cause is a driver problem. If it is not listed, the
probable cause is a hardware problem.
If this is a newly installed drive, run the Computer Setup
utility and try adding a POST delay under Advanced >
Power-On Options.
The device is attached to a SATA port that has been hidden
in Computer Setup.
Run the Computer Setup utility and ensure Device Available
is selected for the device's SATA port in Security > Device
Security.
Drive responds slowly immediately after power-up.
Run Computer Setup and increase the POST Delay in
Advanced > Power-On Options.
CD-ROM or DVD devices are not detected or driver is not loaded.
Cause
Solution
Drive is not connected properly or not properly configured.
See the documentation that came with the optional device.
Solving CD-ROM and DVD problems 151
Movie will not play in the DVD drive.
Cause
Solution
Movie may be regionalized for a different country.
See the documentation that came with the DVD drive.
Decoder software is not installed.
Install decoder software.
Damaged media.
Replace media.
Movie rating locked out by parental lock.
Use DVD software to remove parental lock.
Media installed upside down.
Reinstall media.
Cannot eject compact disc (tray-load unit).
Cause
Solution
Disc not properly seated in the drive.
Turn off the computer and insert a thin metal rod into the
emergency eject hole and push firmly. Slowly pull the tray
out from the drive until the tray is fully extended, then remove
the disc.
CD-ROM, CD-RW, DVD-ROM, or DVD-R/RW drive cannot read a disc or takes too long to start.
Cause
Solution
Media is corrupt.
Try different media to confirm whether media is valid.
Media has been inserted upside down.
Re-insert the media with the label facing up.
The DVD-ROM drive takes longer to start because it has to
determine the type of media played, such as audio or video.
Wait at least 30 seconds to let the DVD-ROM drive
determine the type of media being played. If the disc still
does not start, read the other solutions listed for this topic.
CD or DVD disc is dirty.
Clean CD or DVD with a CD cleaning kit, available from most
computer stores.
Windows does not detect the CD-ROM or DVD-ROM drive.
1.
Use Device Manager to remove or uninstall the device.
To access Device Manager in Windows 7, click Start,
select Control Panel, and then select Device Manager.
To access Device Manager in Windows 8.1, from the
Start screen, type c, select Control Panel from the list of
applications, and then select Device Manager.
2.
Restart the computer and let Windows detect the CD or
DVD driver.
Recording or copying CDs is difficult or impossible.
Cause
Solution
Wrong or poor quality media type.
1.
Try using a slower speed when recording.
2.
Verify that you are using the correct media for the drive.
3.
Try a different brand of media. Quality varies widely
between manufacturers.
152 Chapter 8 Troubleshooting without diagnostics
Solving USB flash drive problems
If you encounter USB flash drive problems, common causes and solutions are listed in the following
table.
USB flash drive is not seen as a drive letter in Windows.
Cause
Solution
The drive letter after the last physical drive is not available.
Change the default drive letter for the flash drive in Windows.
USB flash drive not found (identified).
Cause
Solution
The device is attached to a USB port that has been hidden in
Computer Setup.
Run the Computer Setup utility and enable USB ports in
Security > USB Security.
The device was not properly seated before power-up.
Ensure the device is fully inserted into the USB port before
applying power to the system
System will not boot from USB flash drive.
Cause
Solution
Boot order is not correct.
Run the Computer Setup utility and change boot sequence in
Storage > Boot Order.
Removable Media Boot is disabled in the Computer Setup
utility.
Run the Computer Setup utility and enable booting to
removable media in Storage > Storage Options. Ensure USB
is enabled in Storage > Boot Order.
The computer boots to DOS after making a bootable flash drive.
Cause
Solution
Flash drive is bootable.
Install the flash drive only after the operating system boots.
Flash drive is defective.
Try a different flash drive.
Solving front panel component problems
If you encounter problems with devices connected to the front panel, refer to the common causes and
solutions listed in the following table.
A USB device, headphone, or microphone is not recognized by the computer.
Cause
Solution
Device is not properly connected.
1.
Turn off the computer.
2.
Reconnect the device to the front of the computer and
restart the computer.
Solving USB flash drive problems 153
A USB device, headphone, or microphone is not recognized by the computer.
Cause
Solution
The device does not have power.
If the USB device requires AC power, be sure one end is
connected to the device and one end is connected to a live
outlet.
The correct device driver is not installed.
1.
Install the correct driver for the device.
2.
You might need to reboot the computer.
1.
If possible, replace the cable.
2.
Restart the computer.
1.
Replace the device.
2.
Restart the computer.
The cable from the device to the computer does not work.
The device is not working.
USB ports on the computer are disabled in Computer Setup.
Run the Computer Setup utility and ensure that the USB
ports are set to Enabled in Security > USB Security.
Solving Internet access problems
If you encounter Internet access problems, consult your Internet Service Provider (ISP) or refer to the
common causes and solutions listed in the following table.
Unable to connect to the Internet.
Cause
Solution
Internet Service Provider (ISP) account is not set up
properly.
Verify Internet settings or contact your ISP for assistance.
Web browser is not set up properly.
Verify that the Web browser is installed and set up to work
with your ISP.
Cable/DSL modem is not plugged in.
Plug in cable/DSL modem. You should see a “power” LED
light on the front of the cable/DSL modem.
Cable/DSL service is not available or has been interrupted
due to bad weather.
Try connecting to the Internet at a later time or contact your
ISP. (If the cable/DSL service is connected, the “cable” LED
light on the front of the cable/DSL modem will be on.)
The CAT5 UTP cable is disconnected.
Connect the CAT5 UTP cable between the cable modem
and the computers’s RJ-45 connector. (If the connection is
good, the “PC” LED light on the front of the cable/DSL
modem will be on.)
IP address is not configured properly.
Contact your ISP for the correct IP address.
Cookies are corrupted. (A “cookie” is a small piece of
information that a Web server can store temporarily with the
Web browser. This is useful for having the browser
remember some specific information that the Web server can
later retrieve.)
Windows 7:
1.
Select Start > Control Panel.
2.
Click Internet Options.
3.
In the Browsing history section on the General tab, click
the Delete button.
4.
Select the Cookies check box and click the Delete
button.
Windows 8.1:
154 Chapter 8 Troubleshooting without diagnostics
Unable to connect to the Internet.
Cause
Solution
1.
From the Start screen, type c, and then select Control
Panel from the list of applications.
2.
Click Internet Options.
3.
In the Browsing history section on the General tab, click
the Delete button.
4.
Select the Cookies check box and click the Delete
button.
Cannot automatically launch Internet programs.
Cause
Solution
You must log on to your ISP before some programs will start.
Log on to your ISP and launch the desired program.
Solving software problems
Most software problems occur as a result of the following:
●
The application was not installed or configured correctly.
●
There is insufficient memory available to run the application.
●
There is a conflict between applications.
●
Be sure that all the needed device drivers have been installed.
●
If you have installed an operating system other than the factory-installed operating system,
check to be sure it is supported on the system.
If you encounter software problems, see the applicable solutions listed in the following table.
Computer will not continue and the HP logo does not display.
Cause
Solution
ROM issue - POST error has occurred.
Observe the beeps and LED lights on the front of the
computer. See Appendix A, POST error messages
on page 157 to determine possible causes.
See the Worldwide Limited Warranty for terms and
conditions.
Computer will not continue after HP logo screen displays.
Cause
Solution
System files may be damaged.
In Windows 7, use recovery media to scan hard drive for
errors, or use Windows Startup Repair to fix problems that
might prevent Windows from starting correctly. Windows
Startup Repair is one of the recovery tools in the System
Recovery Options menu. You can also create a system
repair disc that contains the System Recovery Options
Solving software problems 155
Computer will not continue after HP logo screen displays.
Cause
Solution
menu. If the problem is severe enough that Startup Repair
doesn't start on its own and you can't access the System
Recovery Options menu on your computer's hard disk, you
can get to the menu and start Startup Repair by using the
Windows installation disc or a system repair disc that you
created earlier.
In Windows 8.1, use Automatic Repair to fix problems that
might prevent Windows from starting correctly.
To access Automatic Repair:
1.
Press the Windows logo + l to open the Settings charm.
2.
Select Change PC Settings, select General, and then
under Advanced startup, click Restart now.
3.
Select Troubleshoot, select Advanced options, and then
select Automatic Repair.
Windows starts Automatic Repair.
4.
Select the account to use to begin Automatic Repair,
and type the password for the account.
Windows diagnoses the computer and attempts the
repair it.
“Illegal Operation has Occurred” error message is displayed.
Cause
Solution
Software being used is not Microsoft-certified for your
version of Windows.
Verify that the software is certified by Microsoft for your
version of Windows (see program packaging for this
information).
Configuration files are corrupt.
If possible, save all data, close all programs, and restart the
computer.
156 Chapter 8 Troubleshooting without diagnostics
9
POST error messages
This appendix lists the error codes, error messages, and the various indicator light and audible
sequences that you may encounter during Power-On Self-Test (POST) or computer restart, the
probable source of the problem, and steps you can take to resolve the error condition.
POST Message Disabled suppresses most system messages during POST, such as memory count
and non-error text messages. If a POST error occurs, the screen will display the error message. To
manually switch to the POST Messages Enabled mode during POST, press any key (except F10,
F11, or F12). The default mode is POST Message Disabled.
The speed at which the computer loads the operating system and the extent to which it is tested are
determined by the POST mode selection.
Quick Boot is a fast startup process that does not run all of the system level tests, such as the
memory test. Full Boot runs all of the ROM-based system tests and takes longer to complete.
Full Boot may also be enabled to run every 1 to 30 days on a regularly scheduled basis. To establish
the schedule, reconfigure the computer to the Full Boot Every x Days mode, using Computer Setup.
NOTE:
For more information on Computer Setup, see Computer Setup (F10) Utility on page 113.
POST numeric codes and text messages
This section covers those POST errors that have numeric codes associated with them. The section
also includes some text messages that may be encountered during POST.
NOTE:
The computer will beep once after a POST text message is displayed on the screen.
Control panel message
Description
Recommended action
101-Option ROM Checksum Error
System ROM or expansion board option
ROM checksum.
1.
Verify the correct ROM.
2.
Flash the ROM if needed.
3.
If an expansion board was recently
added, remove it to see if the problem
remains.
4.
Clear CMOS. (See Appendix B,
Password security and resetting
CMOS on page 166.)
5.
If the message disappears, there may
be a problem with the expansion card.
6.
Replace the system board.
1.
Clear CMOS. (See Appendix B,
Password security and resetting
CMOS on page 166.)
2.
Remove expansion boards.
3.
Replace the system board.
103-System Board Failure
DMA or timers.
POST numeric codes and text messages 157
Control panel message
Description
Recommended action
110-Out of Memory Space for Option ROMs
Recently added PCI expansion card
contains an option ROM too large to
download during POST.
1.
If a PCI expansion card was recently
added, remove it to see if the problem
remains.
2.
In Computer Setup, set Advanced >
Device Options > NIC PXE Option
ROM Download to DISABLE to prevent
PXE option ROM for the internal NIC
from being downloaded during POST
to free more memory for an expansion
card's option ROM. Internal PXE
option ROM is used for booting from
the NIC to a PXE server.
162-System Options Not Set
Configuration incorrect.
RTC (real-time clock) battery may need to
be replaced.
163-Time & Date Not Set
Invalid time or date in configuration
memory.
Run Computer Setup and check the
configuration in Advanced > Onboard
Devices.
Reset the date and time under Control
Panel. If the problem persists, replace the
RTC battery. See the Removal and
Replacement section for instructions on
installing a new battery, or contact an
authorized dealer or reseller for RTC battery
replacement.
RTC (real-time clock) battery may need to
be replaced.
Reset the date and time under Control
Panel (Computer Setup can also be used).
If the problem persists, replace the RTC
battery. See the Removal and Replacement
section for instructions on installing a new
battery, or contact an authorized dealer or
reseller for RTC battery replacement.
163-Time & Date Not Set
CMOS jumper may not be properly
installed.
Check for proper placement of the CMOS
jumper if applicable.
164-MemorySize Error
Memory amount has changed since the last
boot (memory added or removed).
Press the F1 key to save the memory
changes.
164-MemorySize Error
Memory configuration incorrect.
1.
Run Computer Setup or Windows
utilities.
2.
Make sure the memory module(s) are
installed properly.
3.
If third-party memory has been added,
test using HP-only memory.
4.
Verify proper memory module type.
1.
Ensure memory modules are correctly
installed.
2.
Verify proper memory module type.
3.
Remove and replace the identified
faulty memory module(s).
4.
If the error persists after replacing
memory modules, replace the system
board.
1.
Verify proper memory module type.
2.
Try another memory socket.
201-Memory Error
213-Incompatible Memory Module in
Memory Socket(s) X, X, ...
158 Chapter 9 POST error messages
RAM failure.
A memory module in memory socket
identified in the error message is missing
Control panel message
Description
Recommended action
critical SPD information, or is incompatible
with the chipset.
3.
214-DIMM Configuration Warning
Populated DIMM Configuration is not
optimized.
Rearrange the DIMMs so that each channel
has the same amount of memory.
219-ECC Memory Module Detected ECC
Modules not supported on this Platform
Recently added memory module(s) support
ECC memory error correction.
1.
If additional memory was recently
added, remove it to see if the problem
remains.
2.
Check product documentation for
memory support information.
1.
Reconnect keyboard with computer
turned off.
2.
Check connector for bent or missing
pins.
3.
Ensure that none of the keys are
depressed.
4.
Replace keyboard.
1.
Reconnect keyboard with computer
turned off.
2.
Replace the system board.
1.
Reconnect the keyboard with computer
turned off.
2.
Ensure that none of the keys are
depressed.
3.
Replace the keyboard.
4.
Replace the system board.
1.
Reseat the graphics card
(if applicable).
2.
Clear CMOS. (See Appendix B,
Password security and resetting
CMOS on page 166.)
3.
Verify monitor is attached and turned
on.
4.
Replace the graphics card (if possible).
301-Keyboard Error
303-Keyboard Controller Error
304-Keyboard or System Unit Error
501-Display Adapter Failure
Keyboard failure.
I/O board keyboard controller.
Keyboard failure.
Graphics display controller.
Replace DIMM with a module
conforming to the SPD standard.
510-Flash Screen Image Corrupted
Flash Screen image has errors.
Reflash the system ROM with the latest
BIOS image.
511-CPU, CPUA, or CPUB Fan not
Detected
CPU fan is not connected or may have
malfunctioned.
1.
Reseat CPU fan.
2.
Reseat fan cable.
3.
Replace CPU fan.
1.
Reseat chassis, rear chassis, or front
chassis fan.
2.
Reseat fan cable.
3.
Replace chassis, rear chassis, or front
chassis fan.
512-Chassis, Rear Chassis, or Front
Chassis Fan not Detected
Chassis, rear chassis, or front chassis fan is
not connected or may have malfunctioned.
POST numeric codes and text messages 159
Control panel message
Description
Recommended action
513-Front Chassis fan not detected
Front chassis fan is not connected or may
have malfunctioned.
1.
Reseat front chassis fan.
2.
Reseat fan cable.
3.
Replace front chassis fan.
1.
Reseat CPU or chassis fan.
2.
Reseat fan cable.
3.
Replace CPU or chassis fan.
1.
Reseat power supply fan.
2.
Reseat fan cable.
3.
Replace power supply fan.
1.
Check and/or replace cables.
2.
Clear CMOS. (See Appendix B,
Password security and resetting
CMOS on page 166.)
3.
Replace diskette drive.
4.
Replace the system board.
1.
Disconnect any other diskette
controller devices (tape drives).
2.
Clear CMOS. (See Appendix B,
Password security and resetting
CMOS on page 166.)
514-CPU or Chassis Fan not Detected
515-Power Supply fan not detected
601-Diskette Controller Error
605-Diskette Drive Type Error
CPU or chassis fan is not connected or may
have malfunctioned.
Power supply fan is not connected or may
have malfunctioned.
Diskette controller circuitry or floppy drive
circuitry incorrect.
Mismatch in drive type.
660-Display cache is detected unreliable
Integrated graphics controller display cache
is not working properly and will be disabled.
Replace system board if minimal graphics
degrading is an issue.
912-Computer Cover Has Been Removed
Since Last System Startup
Computer cover was removed since last
system startup.
No action required.
917-Front Audio Not Connected
Front audio harness has been detached or
unseated from motherboard.
Reconnect or replace front audio harness.
918-Front USB Not Connected
Front USB harness has been detached or
unseated from motherboard.
Reconnect or replace front USB harness.
921-Device in PCI Express slot failed to
initialize
There is an incompatibility/problem with this
device and the system or PCI Express Link
could not be retrained to an x1.
Try rebooting the system. If the error
reoccurs, the device may not work with this
system
1151-Serial Port A Address Conflict
Detected
Both external and internal serial ports are
assigned to COM1.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password security and resetting
CMOS on page 166.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password security and resetting
CMOS on page 166.)
1152-Serial Port B Address Conflict
Detected
160 Chapter 9 POST error messages
Both external and internal serial ports are
assigned to COM2.
Control panel message
1155-Serial Port Address Conflict Detected
1720-SMART Hard Drive Detects Imminent
Failure
Description
Recommended action
Both external and internal serial ports are
assigned to same IRQ.
Hard drive is about to fail. (Some hard
drives have a hard drive firmware patch that
will fix an erroneous error message.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password security and resetting
CMOS on page 166.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Determine if hard drive is giving correct
error message. Run the Drive
Protection System test under using F2
Diagnostics when booting the
computer.
2.
Apply hard drive firmware patch
if applicable. (Available at
http://www.hp.com/support.)
3.
Back up contents and replace hard
drive.
1796-SATA Cabling Error
One or more SATA devices are improperly
attached. For optimal performance, the
SATA 0 and SATA 1 connectors must be
used before SATA 2 and SATA 3.
Ensure SATA connectors are used in
ascending order. For one device, use SATA
0. For two devices, use SATA 0 and SATA
1. For three devices, use SATA 0, SATA 1,
and SATA 2.
2212-USB Key Provisioning failure writing to
device
USB device used for USB key provisioning
will not allow BIOS to update provision file
properly.
1.
Try a different USB key device for
provisioning.
2.
If the error persists, update to the latest
BIOS version and ME firmware
version.
3.
If the error still persists, replace the
system board.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version and ME firmware
version.
3.
If the error still persists, replace the
system board.
1.
Update to the latest ME firmware
version.
2.
If the error persists and system BIOS
has been recently updated, restore
previous system BIOS version.
3.
If the error still persists, replace the
system board.
1.
Recreate the provisioning file using
third party management console
software.
2.
If the error persists and system BIOS
has been recently updated, restore
2217-ME Firmware Version request failure
2218-ME Firmware Version should be
updated
2219-USB Key Provisioning file has invalid
header identifier
ME firmware is not properly responding to
BIOS query for version information.
ME firmware must be updated to match
current functionality contained in the system
BIOS.
Provisioning file contained on the USB key
has been corrupted or is not a valid version
for the current ME firmware.
POST numeric codes and text messages 161
Control panel message
Description
Recommended action
previous system BIOS version.
Otherwise, update the ME firmware
version.
2220-USB Key Provisioning file has
mismatch version
Provisioning file contained on the USB key
is not a valid version for the current ME
firmware.
3.
If the error still persists, replace the
system board.
1.
Reboot the computer.
2.
If the error persists and system BIOS
has been recently updated, restore
previous system BIOS version.
Otherwise, update the ME firmware
version.
3.
If the error still persists, replace the
system board.
Invalid Electronic Serial Number
Electronic serial number is missing.
Enter the correct serial number in Computer
Setup.
Network Server Mode Active and No
Keyboard Attached
Keyboard failure while Network Server
Mode enabled.
1.
Reconnect keyboard with computer
turned off.
2.
Check connector for bent or missing
pins.
3.
Ensure that none of the keys are
depressed.
4.
Replace keyboard.
Parity Check 2
162 Chapter 9 POST error messages
Parity RAM failure.
Run Computer Setup and Diagnostic
utilities.
Interpreting POST diagnostic front panel LEDs and
audible codes
This section covers the front panel LED codes as well as the audible codes that may occur before or
during POST that do not necessarily have an error code or text message associated with them.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to
the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be
sure to disconnect the power cord from the wall outlet and allow the internal system components to
cool before touching.
NOTE: If you see flashing LEDs on a PS/2 keyboard, look for flashing LEDs on the front panel of
the computer and refer to the following table to determine the front panel LED codes.
Recommended actions in the following table are listed in the order in which they should be
performed.
Not all diagnostic lights and audible codes are available on all models.
Activity
Beeps
Possible cause
Recommended action
White Power LED On.
None
Computer on.
None
White Power LED flashes
every two seconds.
None
Computer in Suspend to
RAM mode (some models
only) or normal Suspend
mode.
None required. Press any key or move the
mouse to wake the computer.
Red Power LED flashes two
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
2
Processor thermal
protection activated:
1.
Ensure that the computer air vents are not
blocked and the processor cooling fan is
running.
2.
Open hood, press power button, and see if
the processor fan spins. If the processor fan
is not spinning, make sure the fan's cable is
plugged onto the system board header.
3.
If fan is plugged in, but is not spinning, then
replace heat sink/fan assembly.
4.
Contact an authorized reseller or service
provider.
1.
Open the hood and ensure the 4 or 6-wire
power supply cable is seated into the
connector on the system board.
2.
Check if a device is causing the problem by
removing ALL attached devices (such as
hard, diskette, or optical drives, and
expansion cards). Power on the system. If
the system enters the POST, then power off
and replace one device at a time and
repeat this procedure until failure occurs.
Replace the device that is causing the
failure. Continue adding devices one at a
time to ensure all devices are functioning
properly.
3.
Replace the power supply.
4.
Replace the system board.
A fan may be blocked or
not turning.
OR
The heat sink/fan
assembly is not properly
attached to the processor.
Red Power LED flashes four
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
4
Power failure (power
supply is overloaded).
Interpreting POST diagnostic front panel LEDs and audible codes 163
Activity
Beeps
Possible cause
Recommended action
Red Power LED flashes five
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
5
Pre-video memory error.
CAUTION: To avoid damage to the DIMMs or
the system board, you must unplug the computer
power cord before attempting to reseat, install, or
remove a DIMM module.
Red Power LED flashes six
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
6
Pre-video graphics error.
1.
Reseat DIMMs.
2.
Replace DIMMs one at a time to isolate the
faulty module.
3.
Replace third-party memory with HP
memory.
4.
Replace the system board.
For systems with a graphics card:
1.
Reseat the graphics card.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace
the system board.
Red Power LED flashes
seven times, once every
second, followed by a two
second pause. Beeps stop
after fifth iteration but LEDs
continue until problem is
solved.
7
System board failure
(ROM detected failure
prior to video).
Replace the system board.
Red Power LED flashes eight
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
8
Invalid ROM based on
bad checksum.
1.
Reflash the system ROM with the latest
BIOS image.
2.
Replace the system board.
Red Power LED flashes nine
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
9
1.
Check that the voltage selector, located on
the rear of the power supply (some
models), is set to the appropriate voltage.
Proper voltage setting depends on your
region.
2.
Unplug the AC power cord from the
computer, wait 30 seconds, then plug the
power cord back in to the computer.
3.
Replace the system board.
1.
Check each option card by removing the
card (one at a time if multiple cards), then
power on the system to see if fault goes
away.
2.
Once a bad card is identified, remove and
replace the bad option card.
3.
Replace the system board.
Red Power LED flashes ten
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
System does not power on
and LEDs are not flashing.
164 Chapter 9 POST error messages
10
None
System powers on but is
unable to boot.
Bad option card.
System unable to power
on.
Press and hold the power button for less than 4
seconds. If the hard drive LED turns white, the
power button is working correctly. Try the
following:
Activity
Beeps
Possible cause
Recommended action
1.
Check that the voltage selector (some
models), located on the rear of the power
supply, is set to the appropriate voltage.
Proper voltage setting depends on your
region.
2.
Replace the system board.
OR
Press and hold the power button for less than 4
seconds. If the hard drive LED does not turn on
white then:
1.
Check that the unit is plugged into a
working AC outlet.
2.
Open hood and check that the power button
harness is properly connected to the
system board.
3.
Check that both power supply cables are
properly connected to the system board.
4.
Check to see if the 5V_aux light on the
system board is turned on. If it is turned on,
then replace the power button harness. If
the problem persists, replace the system
board.
5.
If the 5V_aux light on the system board is
not turned on, remove the expansion cards
one at a time until the 5V_aux light on the
system board turns on. It the problem
persists, replace the power supply.
Interpreting POST diagnostic front panel LEDs and audible codes 165
10 Password security and resetting CMOS
This computer supports security password features, which can be established through the Computer
Setup Utilities menu.
This computer supports two security password features that are established through the Computer
Setup Utilities menu: setup password and power-on password. When you establish only a setup
password, any user can access all the information on the computer except Computer Setup. When
you establish only a power-on password, the power-on password is required to access Computer
Setup and any other information on the computer. When you establish both passwords, only the
setup password will give you access to Computer Setup.
When both passwords are set, the setup password can also be used in place of the power-on
password as an override to log in to the computer. This is a useful feature for a network administrator.
If you forget the password for the computer, you can clear that password so you can gain access to
the information on the computer by resetting the password jumper.
CAUTION: Pushing the CMOS button will reset CMOS values to factory defaults. It is important to
back up the computer CMOS settings before resetting them in case they are needed later. Back up is
easily done through Computer Setup. See Computer Setup (F10) Utility on page 113 for information
on backing up the CMOS settings.
Resetting the password jumper
CAUTION: If you enable the stringent security feature in Computer Setup and you forget the setup
password or the power-on password, the computer is inaccessible and can no longer be used.
Enabling the stringent password disables the ability to reset the password by moving the jumper on
the system board.
If you lose or forget the password, the system board must be replaced. This scenario is not covered
under warranty.
To prevent the computer from becoming permanently unusable, record your configured setup
password or power-on password in a safe place away from your computer. Without these passwords,
the computer cannot be unlocked.
To disable the power-on or setup password features, or to clear the power-on or setup passwords,
complete the following steps:
166 Chapter 10 Password security and resetting CMOS
1.
Shut down the operating system properly, then turn off the computer and any external devices,
and disconnect the power cord from the power outlet.
2.
With the power cord disconnected, press the power button again to drain the system of any
residual power.
WARNING! To reduce the risk of personal injury from electrical shock and/or hot surfaces, be
sure to disconnect the power cord from the wall outlet, and allow the internal system
components to cool before touching.
CAUTION: When the computer is plugged in, the power supply always has voltage applied to
the system board even when the unit is turned off. Failure to disconnect the power cord can
result in damage to the system.
Static electricity can damage the electronic components of the computer or optional equipment.
Before beginning these procedures, ensure that you are discharged of static electricity by briefly
touching a grounded metal object. See the Safety & Regulatory Information guide for more
information.
3.
Remove the access panel.
4.
Locate the header and jumper.
NOTE: The password jumper is green so that it can be easily identified. For assistance locating
the password jumper and other system board components, see the system board components
image at System board on page 108.
5.
Remove the jumper from pins 1 and 2.
6.
Place the jumper on either pin 1 or 2, but not both, so that it does not get lost.
7.
Replace the access panel and reconnect the external equipment.
8.
Plug in the computer and turn on power. Allow the operating system to start. This clears the
current passwords and disables the password features.
9.
Shut down the computer, unplug the power, and disconnect the external equipment.
10. Remove the access panel.
11. Place the jumper on pins 1 and 2.
12. Replace the access panel.
13. Reconnect the external equipment and plug in the computer.
Changing a Setup or Power-On password
To change the power-on or setup password, complete the following steps:
1.
Turn on or restart the computer.
To change the Setup password, go to step 2.
To change the Power-on password, go to step 3.
2.
To change the Setup password, as soon as the computer turns on:
- Press the Esc key while “Press the ESC key for Startup Menu” message is displayed.
- Press the F10 key to enter Computer Setup.
Changing a Setup or Power-On password 167
3.
When the key icon appears, type your current password, a slash (/) or alternate delimiter
character, your new password, another slash (/) or alternate delimiter character, and your new
password again as shown:
current password/new password/new password
NOTE: Type the new password carefully since the characters do not appear on the screen.
4.
Press Enter.
The new password will take effect the next time the computer is restarted.
Deleting a Setup or Power-On password
To delete the power-on or setup password, complete the following steps:
1.
Turn on or restart the computer.
To delete the Setup password, go to step 2.
To delete the Power-on password, go to step 3.
2.
To delete the Setup password, as soon as the computer turns on:
- Press the Esc key while “Press the ESC key for Startup Menu” message is displayed.
- Press the F10 key to enter Computer Setup.
3.
When the key icon appears, type your current password, a slash (/) or alternate delimiter
character, your new password, another slash (/) or alternate delimiter character, and your new
password again as shown:
current password/
4.
Press Enter.
Clearing and resetting the CMOS
The computer’s configuration memory (CMOS) stores information about the computer’s configuration.
The CMOS button resets CMOS but does not clear the power-on and setup passwords.
1.
Turn off the computer and any external devices, and disconnect the power cord from the power
outlet.
2.
Disconnect the keyboard, monitor, and any other external equipment connected to the computer.
WARNING! To reduce the risk of personal injury from electrical shock and/or hot surfaces, be
sure to disconnect the power cord from the wall outlet, and allow the internal system
components to cool before touching.
CAUTION: When the computer is plugged in, the power supply always has voltage applied to
the system board even when the unit is turned off. Failure to disconnect the power cord can
result in damage to the system.
Static electricity can damage the electronic components of the computer or optional equipment.
Before beginning these procedures, ensure that you are discharged of static electricity by briefly
touching a grounded metal object. See the Safety & Regulatory Information guide for more
information.
168 Chapter 10 Password security and resetting CMOS
3.
Remove the access panel.
CAUTION: Pushing the CMOS button will reset CMOS values to factory defaults. It is important
to back up the computer CMOS settings before resetting them in case they are needed later.
Back up is easily done through Computer Setup. See Computer Setup (F10) Utility on page 113
for information on backing up the CMOS settings.
4.
Locate, press, and hold the CMOS button in for five seconds.
NOTE: Make sure you have disconnected the AC power cord from the wall outlet. The CMOS
button will not clear CMOS if the power cord is connected.
NOTE: For assistance locating the CMOS button and other system board components, see the
system board components image at System board on page 108.
5.
Replace the access panel.
6.
Reconnect the external devices.
7.
Plug in the computer and turn on power.
NOTE: You will receive POST error messages after clearing CMOS and rebooting advising
you that configuration changes have occurred. Use Computer Setup to reset any special system
setups along with the date and time.
For instructions on Computer Setup, see Computer Setup (F10) Utility on page 113.
Clearing and resetting the CMOS 169
11 HP PC Hardware Diagnostics
To help troubleshoot and diagnose failures, use the UEFI-based hardware diagnostic solution that HP
includes on all products. This tool can even be used if the computer will not boot to the operating
system.
Why run HP PC Hardware Diagnostics
The HP PC Hardware Diagnostic tools simplify the process of diagnosing hardware issues and
expedite the support process when issues are found. The tools save time by pinpointing the
component that needs to be replaced.
●
Isolate true hardware failures: The diagnostics run outside of the operating system so they
effectively isolate hardware failures from issues that may be caused by the operating system or
other software components.
●
Failure ID: When a failure is detected that requires hardware replacement, a 24-digit Failure ID
is generated. This ID can then be provided to the call agent, who will either schedule support or
provide replacement parts.
How to access and run HP PC Hardware Diagnostics
You can run the diagnostics from one of three places, depending on your preference and the health
of the computer.
1.
Turn on the computer and press Esc repeatedly until the BIOS Boot Menu appears.
2.
Press F2 or select Diagnostics (F2).
Pressing F2 signals the system to search for the diagnostics in the following locations:
a.
A connected USB drive (to download the diagnostics tools to a USB drive, see the
instructions in Downloading HP PC Hardware Diagnostics (UEFI) to a USB device
on page 170)
b.
The hard disk drive
c.
A core set of diagnostics in the BIOS (for memory and hard disk drive) that are accessible
only if the USB or hard disk drive versions are not detected
Downloading HP PC Hardware Diagnostics (UEFI) to a USB
device
NOTE:
only.
Instructions for downloading HP PC Hardware Diagnostics (UEFI) are provided in English
There are two options to download HP PC Hardward Diagnostics to USB device.
Option 1: HP PC Diagnostics homepage–Provides access to the latest UEFI version
1.
Go to http://www.hp.com/go/techcenter/pcdiags.
2.
Click the UEFI Dowload link, and then select Run.
170 Chapter 11 HP PC Hardware Diagnostics
Option 2: Support and Drivers pages–Provides downloads for a specific product for earlier and later
versions.
1.
Go to http://www.hp.com.
2.
Point to Support, located at the top of the page, and then click Download Drivers.
3.
In the text box, enter the product name, and then click Go.
– or –
Click Find Now to let HP automatically detect your product.
4.
Select your computer model, and then select your operating system.
5.
In the Diagnostic section, click HP UEFI Support Environment.
6.
Click Download, and then select Run.
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device 171
12 System backup and recovery
Backing up, restoring, and recovering in Windows 8.1 or
Windows 8
Your computer includes tools provided by HP and Windows to help you safeguard your information
and retrieve it if you ever need to. These tools will help you return your computer to a proper working
state or even back to the original factory state, all with simple steps.
This section provides information about the following processes:
●
Creating recovery media and backups
●
Restoring and recovering your system
NOTE: This section describes an overview of backing up, restoring, and recovering options. For
more details about the tools provided, see Help and Support. From the Start screen, type help, and
then select Help and Support.
Creating recovery media and backups
Recovery after a system failure is only as good as your most recent backup.
1.
After you successfully set up the computer, create recovery media. This step creates a backup
of the recovery partition on the computer. The backup can be used to reinstall the original
operating system in cases where the hard drive is corrupted or has been replaced.
You will use a USB flash drive to create a bootable recovery drive that can be used to
troubleshoot a computer that is unable to start. The USB flash drive can be used to reinstall the
original operating system and the programs that were installed at the factory.
NOTE: Any information on the USB flash drive will be erased before the recovery media is
created.
2.
●
To create the Windows 8.1 recovery media, from the Start screen, type recovery drive,
then click on Create a recovery drive. Follow the on-screen instructions to continue.
●
To create the Windows 8 recovery media, from the Start screen, type recovery drive,
and then click on Settings, then click on Create a recovery drive. Follow the on-screen
instructions to continue.
Use the Windows tools to create system restore points and create backups of personal
information. For more information and steps, see Help and Support. From the Start screen, type
help, and then select Help and Support.
Restoring and recovering using Windows tools
Windows offers several options for restoring from backup, refreshing the computer, and resetting the
computer to its original state. For more information and steps, see Help and Support. From the Start
screen, type help, and then select Help and Support.
172 Chapter 12 System backup and recovery
Using Reset when the system is not responding
NOTE: You may be prompted by User Account Control for your permission or password when you
perform certain tasks. To continue a task, select the appropriate option. For information about User
Account Control, see Help and Support. From the Start screen, type help, and then select Help and
Support.
IMPORTANT: Reset does not provide backups of your information. Before using Reset, back up
any personal information you wish to retain.
If Windows recovery steps are not working and the system is not responding, use these steps to start
Reset:
1.
If possible, back up all personal files.
2.
If possible, check for the presence of the HP Recovery partition:
●
For Windows 8.1, from the Start screen, type pc, and then select This PC.
●
For Windows 8, from the Start screen, type c, and then select Computer.
NOTE: If the HP Recovery partition is not listed, or you cannot check for its presence, you
must recover using the recovery media you created; see Recovery using the Windows recovery
USB flash drive on page 173. Or you must use the Windows operating system media and the
Driver Recovery media (purchased separately); see Recovery using Windows operating system
media (purchased separately) on page 174.
3.
If the HP Recovery partition is listed, restart the computer, and then press esc while the HP logo
is displayed. The computer Startup Menu displays.
4.
Press f11 to select the System Recovery option.
5.
Choose your keyboard layout.
6.
Select Troubleshoot.
7.
Select Reset.
8.
Follow the on-screen instructions to continue.
Recovery using the Windows recovery USB flash drive
To recover your system using the recovery USB flash drive you previously created:
NOTE: If you did not create a recovery USB flash drive or the one you created does not work, see
Recovery using Windows operating system media (purchased separately) on page 174.
1.
If possible, back up all personal files.
2.
Insert the recovery USB flash drive you created into a USB port on your computer.
3.
Restart the computer and as soon as you see the HP logo screen, press f9 to display a list of
boot devices. Use the arrow keys to select your USB flash drive from the UEFI Boot Sources list.
Press Enter to boot from that device.
4.
Choose your keyboard layout.
5.
Select Troubleshoot.
6.
Select Refresh your PC.
7.
Follow the on-screen instructions.
Backing up, restoring, and recovering in Windows 8.1 or Windows 8 173
Recovery using Windows operating system media (purchased separately)
To order a Windows operating system DVD, contact support. Go to http://www.hp.com/support, select
your country or region, and follow the on-screen instructions.
CAUTION: Using Windows operating system media completely erases the hard drive contents and
reformats the hard drive. All files that you have created and any software that you have installed on
the computer are permanently removed. When reformatting is complete, the recovery process helps
you restore the operating system, as well as drivers, software, and utilities.
To initiate recovery using Windows operating system media:
NOTE:
This process takes several minutes.
1.
If possible, back up all personal files.
2.
Restart the computer, and then follow the instructions provided with the Windows operating
system media to install the operating system.
3.
When prompted, press any keyboard key.
4.
Follow the on-screen instructions.
After the repair is completed and the Windows desktop appears:
1.
Remove the Windows operating system media, and then insert the Driver Recovery media.
2.
Install the Hardware Enabling Drivers first, and then install Recommended Applications.
Backing up, restoring, and recovering in Windows 7
Your computer includes tools provided by HP and Windows to help you safeguard your information
and retrieve it if you ever need to. These tools will help you return your computer to a proper working
state or even back to the original factory state, all with simple steps.
This section provides information about the following processes:
●
Creating recovery media and backups
●
Restoring and recovering your system
NOTE: This section describes an overview of backing up, restoring, and recovering options. For
more details about the Windows Backup and Restore tools provided, see Help and Support. To
access Help and Support, select Start > Help and Support.
Recovery after a system failure is only as good as your most recent backup.
174 Chapter 12 System backup and recovery
1.
After you successfully set up the computer, create recovery media. This media can be used to
reinstall the original operating system in cases where the hard drive is corrupted or has been
replaced. See Creating recovery media on page 175.
2.
As you add hardware and software programs, create system restore points. A system restore
point is a snapshot of certain hard drive contents saved by Windows System Restore at a
specific time. A system restore point contains information that Windows uses, such as registry
settings. Windows creates a system restore point for you automatically during a Windows update
and during other system maintenance (such as a software update, security scanning, or system
diagnostics). You can also manually create a system restore point at any time. For more
information and steps for creating specific system restore points, see Help and Support. To
access Help and Support, select Start > Help and Support.
3.
As you add photos, video, music, and other personal files, create a backup of your personal
information. If files are accidentally deleted from the hard drive and they can no longer be
restored from the Recycle Bin, or if files become corrupted, you can restore the files that you
backed up. In case of system failure, you can use the backup files to restore the contents of your
computer. See Backing up your information on page 177.
NOTE: HP recommends that you print the recovery procedures and save them for later use, in case
of system instability.
Creating recovery media
After you successfully set up the computer, create recovery media. The media can be used to
reinstall the original operating system in cases where the hard drive is corrupted or has been
replaced.
There are two types of recovery media. To determine which steps to follow for your computer:
1.
Click the Start button.
2.
Click All Programs.
●
If Security and Protection is listed, continue with the steps in Creating recovery media using
HP Recovery Manager (select models only) on page 175.
●
If Productivity and Tools is listed, continue with the steps in Creating recovery discs with HP
Recovery Disc Creator (select models only) on page 176.
Creating recovery media using HP Recovery Manager (select models only)
●
To create recovery discs, your computer must have a DVD writer. Use DVD+R or DVD-R discs
(purchased separately). The discs you use will depend on the type of optical drive you are using.
NOTE: DVD+R DL, DVD-R DL, or DVD±RW disc are not supported.
●
You have the option of creating a recovery USB flash drive instead, using a high-quality USB
drive.
●
If you are creating recovery discs, be sure to use high-quality discs. It is normal for the system to
reject defective discs. You will be prompted to insert a new blank disc to try again.
●
The number of discs in the recovery-disc set depends on your computer model (typically 3 to 6
DVDs). The Recovery Media Creation program tells you the specific number of blank discs
needed to make the set. If you are using a USB flash drive, the program will tell you the size of
the drive required to store all the data (minimum of 8 GB).
Backing up, restoring, and recovering in Windows 7 175
NOTE: The process of creating recovery media is lengthy. You can quit the process at any
time. The next time you initiate the process, it resumes where it left off.
NOTE: Do not use media cards for creating recovery media. The system may not be able to boot up
from a media card and you may not be able to run system recovery.
To create recovery discs:
1.
Close all open programs.
2.
Click the Start button, click All Programs, click Security and Protection, click Recovery Manager,
and then click HP Recovery Media Creation. If prompted, click Yes to allow the program to
continue.
3.
Click Create recovery media using blank DVD(s), and then click Next.
4.
Follow the on-screen instructions. Label each disc after you make it (for example, Recovery 1,
Recovery 2), and then store the discs in a secure place.
To create a recovery USB flash drive:
NOTE:
You must use a USB flash drive with a capacity of at least 8 GB.
NOTE:
Recovery Media Creation formats the USB flash drive, deleting any files on it.
1.
Close all open programs.
2.
Insert the USB flash drive into a USB port on the computer.
3.
Click the Start button, click All Programs, click Security and Protection, click Recovery Manager,
and then click Recovery Media Creation.
4.
Click Create recovery media with a USB flash drive, and then click Next.
5.
Select the USB flash drive from the list of media. The program will let you know how much
storage is required to create the recovery drive. If the USB flash drive does not have enough
storage capacity, it will appear grayed out, and you must replace it with a larger USB flash drive.
Click Next.
6.
Follow the on-screen instructions. When the process is complete, label the USB flash drive and
store it in a secure place.
Creating recovery discs with HP Recovery Disc Creator (select models only)
HP Recovery Disc Creator is a software program that offers an alternative way to create recovery
discs on select models. After you successfully set up the computer, you can create recovery discs
using HP Recovery Disc Creator. The recovery discs allow you to reinstall your original operating
system as well as select drivers and applications if the hard drive becomes corrupted. HP Recovery
Disc Creator creates two kinds of recovery discs:
●
Windows 7 operating system DVD—Installs the operating system without additional drivers or
applications.
●
Driver Recovery DVD—Installs specific drivers and applications only, in the same way that the
HP Software Setup utility installs drivers and applications.
To create recovery discs, your computer must have a DVD writer. Use any of the following types of
discs (purchased separately): DVD+R, DVD+R DL, DVD-R, DVD-R DL, or DVD±RW. The discs you
use will depend on the type of optical drive you are using.
176 Chapter 12 System backup and recovery
Creating recovery discs
NOTE: The Windows 7 operating system DVD can be created only once. The option to create that
media will not be available after you create a Windows DVD.
To create the Windows DVD:
1.
Select Start > All Programs > Productivity and Tools > HP Recovery Disc Creator.
2.
Select Windows disk.
3.
From the drop-down menu, select the drive for burning the recovery media.
4.
Click the Create button to start the burning process. Label the disc after you create it, and store
it in a secure place.
After the Windows 7 operating system DVD has been created, create the Driver Recovery DVD:
1.
Select Start > All Programs > Productivity and Tools > HP Recovery Disc Creator.
2.
Select Driver disk.
3.
From the drop-down menu, select the drive for burning the recovery media.
4.
Click the Create button to start the burning process. Label the disc after you create it, and store
it in a secure place.
Backing up your information
You should create your initial backup immediately after initial system setup. As you add new software
and data files, you should continue to back up your system on a regular basis to maintain a
reasonably current backup. Your initial and subsequent backups allow you to restore your data and
settings if a failure occurs.
You can back up your information to an optional external hard drive, a network drive, or discs.
Note the following when backing up:
●
Store personal files in the Documents library, and back it up regularly.
●
Back up templates that are stored in their associated directories.
●
Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot
of your settings. The screen shot can be a time-saver if you have to reset your preferences.
●
When backing up to discs, number each disc after removing it from the drive.
NOTE: For detailed instructions on various backup and restore options, perform a search for these
topics in Help and Support. To access Help and Support, select Start > Help and Support.
NOTE: You may be prompted by User Account Control for your permission or password when you
perform certain tasks. To continue a task, select the appropriate option. For information about User
Account Control, see Help and Support: Select Start > Help and Support.
To create a backup using Windows Backup and Restore:
NOTE: The backup process may take over an hour, depending on file size and the speed of the
computer.
1.
Select Start > All Programs > Maintenance > Backup and Restore.
2.
Follow the on-screen instructions to set up your backup.
Backing up, restoring, and recovering in Windows 7 177
System Restore
If you have a problem that might be due to software that you installed on your computer, or if you
want to restore the system to a previous state without losing any personal information, use System
Restore to return the computer to a previous restore point.
NOTE:
Always use this System Restore procedure before you use the System Recovery feature.
To start System Restore:
1.
Close all open programs.
2.
Click the Start button, right-click Computer, and then click Properties.
3.
Click System protection, System Restore, click Next, and then follow the on-screen instructions.
System Recovery
WARNING! This procedure will delete all user information. To prevent loss of information, be sure to
back up all user information so you can restore it after recovery.
System Recovery completely erases and reformats the hard disk drive, deleting all data files that you
have created, and then reinstalls the operating system, programs, and drivers. However, you must
reinstall any software that was not installed on the computer at the factory. This includes software that
came on media included in the computer accessory box, and any software programs you installed
after purchase. Any personal files must be restored from backups you made.
If you were not able to create system recovery DVDs or USB flash drive, you can order a recovery
disc set from support. Go to http://www.hp.com/support, select your country or region, and follow the
on-screen instructions.
NOTE: Always use the System Restore procedure before you use the System Recovery program.
See System Restore on page 178.
You must choose one of the following methods to perform a System Recovery:
●
Recovery image — Run System Recovery from a recovery image stored on your hard disk drive.
The recovery image is a file that contains a copy of the original factory-shipped software. To
perform a System Recovery from a recovery image, see System Recovery when Windows is
responding on page 178 or System Recovery when Windows is not responding on page 179.
●
Recovery media — Run System Recovery from recovery media that you have created from files
stored on your hard disk drive or purchased separately. See System Recovery using recovery
media (select models only) on page 179.
System Recovery when Windows is responding
CAUTION: System Recovery deletes all data and programs you created or installed. Before you
begin, back up any important data to a CD or DVD or to a USB flash drive.
NOTE: In some cases, you must use recovery media for this procedure. If you have not already
created this media, follow the instructions in Creating recovery media on page 175.
If the computer is working and Windows 7 is responding, use these steps to perform a System
Recovery:
1.
Turn off the computer.
2.
Disconnect all peripheral devices from the computer except the monitor, keyboard, and mouse.
3.
Turn on the computer.
178 Chapter 12 System backup and recovery
4.
When Windows has loaded, click the Start button, and then click All Programs.
●
If Security and Protection is listed, continue with step 5.
●
If Productivity and Tools is listed, follow the steps in System Recovery when Windows is not
responding on page 179.
5.
Click Security and Protection, click Recovery Manager, and then click Recovery Manager. If
prompted, click Yes to allow the program to continue.
6.
Under I need help immediately, click System Recovery.
7.
Select Yes, and then click Next. Your computer restarts.
8.
When the computer restarts, you will see the Recovery Manager welcome screen again. Under I
need help immediately, click System Recovery. If you are prompted to back up your files, and
you have not done so, select Back up your files first (recommended), and then click Next.
Otherwise, select Recover without backing up your files, and then click Next.
9.
System Recovery begins. After System Recovery is complete, click Finish to restart the
computer.
10. When Windows has loaded, shut down the computer, reconnect all peripheral devices, and then
turn the computer back on.
System Recovery when Windows is not responding
CAUTION:
System Recovery deletes all data and programs you created or installed.
If Windows is not responding, but the computer is working, follow these steps to perform a System
Recovery.
1.
Turn off the computer. If necessary, press and hold the power button until the computer turns off.
2.
Disconnect all peripheral devices from the computer, except the monitor, keyboard, and mouse.
3.
Press the power button to turn on the computer.
4.
As soon as you see the HP logo screen, repeatedly press the F11 key on your keyboard until the
Windows is Loading Files… message appears on the screen.
5.
At the HP Recovery Manager screen, follow the on-screen instructions to continue.
6.
When Windows has loaded, shut down the computer, reconnect all peripheral devices, and then
turn the computer back on.
System Recovery using recovery media (select models only)
Use the steps provided in this section if you created recovery media using Creating recovery media
using HP Recovery Manager (select models only) on page 175. If you used HP Recovery Disc
Creator to create a Windows 7 operating system DVD and a Driver Recovery DVD, use the steps in
Using HP Recovery Disc operating system discs (select models only) on page 180.
CAUTION: System Recovery deletes all data and programs you have created or installed. Back up
any important data to a CD or DVD or to a USB flash drive.
To perform a System Recovery using recovery media:
Backing up, restoring, and recovering in Windows 7 179
1.
If you are using a set of DVDs, insert the first recovery disc into the DVD drive tray, and close
the tray. If you are using a recovery USB flash drive, insert it into a USB port.
2.
Click the Start button, and then click Shut Down.
or
If the computer is not responding, press and hold the power button for approximately 5 seconds
or until the computer turns off.
3.
Disconnect all peripheral devices from the computer except the monitor, keyboard, and mouse.
4.
Press the power button to turn on the computer, and press Esc as the computer is powering on
to display the startup menu.
5.
Use the arrow keys to select the boot menu, and press Enter. Use the arrow keys to select the
location where the recovery media is inserted (USB or DVD). Press Enter to boot from that
device.
6.
If Recovery Manager asks if you want to run System Recovery from Media or Hard Drive, select
Media. On the Welcome screen, under I need help immediately, click Factory Reset.
7.
If you are prompted to back up your files, and you have not done so, select Back up your files
first (recommended), and then click Next. Otherwise, select Recover without backing up your
files, and then click Next.
8.
If you are prompted to insert the next recovery disc, do so.
9.
When Recovery Manager is finished, remove the recovery disc or the recovery USB flash drive
from the system.
10. Click Finish to restart the computer.
Using HP Recovery Disc operating system discs (select models only)
Use the steps provided in this section if you used HP Recovery Disc Creator to create a Windows 7
operating system DVD and a Driver Recovery DVD. If you created recovery media using Creating
recovery media using HP Recovery Manager (select models only) on page 175. use the steps in
System Recovery using recovery media (select models only) on page 179.
If you cannot use the recovery discs you previously created using the HP Recovery Disc Creator
(select models only), you must purchase a Windows 7 operating system DVD to reboot the computer
and repair the operating system.
To order a Windows 7 operating system DVD, contact support. Go to http://www.hp.com/support,
select your country or region, and follow the on-screen instructions.
CAUTION: Using a Windows 7 operating system DVD completely erases the hard drive contents
and reformats the hard drive. All files that you have created and any software that you have installed
on the computer are permanently removed. When reformatting is complete, the recovery process
helps you restore the operating system, as well as drivers, software, and utilities.
To initiate recovery using a Windows 7 operating system DVD:
NOTE:
This process takes several minutes.
180 Chapter 12 System backup and recovery
1.
If possible, back up all personal files.
2.
Restart the computer, and then insert the Windows 7 operating system DVD into the optical
drive before the Windows operating system loads.
NOTE: If the computer does not boot to the DVD, restart the computer and press Esc as the
computer is powering on to see the startup menu. Use the arrow keys to select the boot menu
and press Enter. Use the arrow keys to select the location where the recovery DVD is inserted.
Press Enter to boot from that device.
3.
When prompted, press any keyboard key.
4.
Follow the on-screen instructions.
5.
Click Next.
6.
Select Install now.
7.
Follow the on-screen instructions.
After the repair is completed:
1.
Eject the Windows 7 operating system DVD and then insert the Driver Recovery DVD.
2.
Follow the on-screen instructions to install the Hardware Enabling Drivers first, and then install
Recommended Applications.
Backing up, restoring, and recovering in Windows 7 181
A
Battery replacement
The battery installed on the computer provides power to the real-time clock. When replacing the
battery, use a battery equivalent to the battery originally installed on the computer. The computer has
a 3-volt lithium coin cell battery installed.
WARNING! The computer contains an internal lithium manganese dioxide battery. There is a risk of
fire and burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60°C (140ºF).
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace the battery only with the HP spare designated for this product.
CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings.
When the battery is removed or replaced, the CMOS settings will be cleared.
Static electricity can damage the electronic components of the computer or optional equipment.
Before beginning these procedures, ensure that you are discharged of static electricity by briefly
touching a grounded metal object.
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC
wall socket. The lithium battery is only used when the computer is NOT connected to AC power.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/
recycle.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board
as long as the system is plugged into an active AC outlet. You must disconnect the power cord
to avoid damage to the internal components of the computer.
5.
Remove the computer access panel.
6.
Locate the battery and battery holder on the system board.
NOTE: On some computer models, it may be necessary to remove an internal component to
gain access to the battery.
7.
Depending on the type of battery holder on the system board, complete the following instructions
to replace the battery.
Type 1
a.
Lift the battery out of its holder.
182 Appendix A Battery replacement
b.
Slide the replacement battery into position, positive side up. The battery holder
automatically secures the battery in the proper position.
Type 2
a.
To release the battery from its holder, squeeze the metal clamp that extends above one
edge of the battery. When the battery pops up, lift it out (1).
b.
To insert the new battery, slide one edge of the replacement battery under the lip of the
holder with the positive side up. Push the other edge down until the clamp snaps over the
other edge of the battery (2).
Type 3
a.
Pull back on the clip (1) that is holding the battery in place, and remove the battery (2).
183
b.
Insert the new battery and position the clip back into place.
NOTE: After the battery has been replaced, use the following steps to complete this procedure.
8.
Replace the computer access panel.
9.
Plug in the computer and turn on power to the computer.
10. Reset the date and time, your passwords, and any special system setups using Computer
Setup.
11. Lock any security devices that were disengaged when the computer access panel was removed.
184 Appendix A Battery replacement
B
Power Cord Set Requirements
The power supplies on some computers have external power switches. The voltage select switch
feature on the computer permits it to operate from any line voltage between 100-120 or 220-240 volts
AC. Power supplies on those computers that do not have external power switches are equipped with
internal switches that sense the incoming voltage and automatically switch to the proper voltage.
The power cord set received with the computer meets the requirements for use in the country where
you purchased the equipment.
Power cord sets for use in other countries must meet the requirements of the country where you use
the computer.
General Requirements
The requirements listed below are applicable to all countries:
1.
The power cord must be approved by an acceptable accredited agency responsible for
evaluation in the country where the power cord set will be installed.
2.
The power cord set must have a minimum current capacity of 10A (7A Japan only) and a
nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system.
3.
The diameter of the wire must be a minimum of 0.75 mm2 or 18AWG, and the length of the cord
must be between 1.8 m (6 feet) and 3.6 m (12 feet).
The power cord should be routed so that it is not likely to be walked on or pinched by items placed
upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point
where the cord exits from the product.
WARNING! Do not operate this product with a damaged power cord set. If the power cord set is
damaged in any manner, replace it immediately.
Japanese Power Cord Requirements
For use in Japan, use only the power cord received with this product.
CAUTION:
Do not use the power cord received with this product on any other products.
General Requirements 185
Country-Specific Requirements
Additional requirements specific to a country are shown in parentheses and explained below.
Country
Accrediting Agency
Country
Accrediting Agency
Australia (1)
EANSW
Italy (1)
IMQ
Austria (1)
OVE
Japan (3)
METI
Belgium (1)
CEBC
Norway (1)
NEMKO
Canada (2)
CSA
Sweden (1)
SEMKO
Denmark (1)
DEMKO
Switzerland (1)
SEV
Finland (1)
SETI
United Kingdom (1)
BSI
France (1)
UTE
United States (2)
UL
Germany (1)
VDE
1.
The flexible cord must be Type HO5VV-F, 3-conductor, 0.75mm2 conductor size. Power cord set fittings (appliance
coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country where it
will be used.
2.
The flexible cord must be Type SVT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole
grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration.
3.
Appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the
Japanese Dentori Law. Flexible cord must be Type VCT or VCTF, 3-conductor, 0.75 mm2 conductor size. Wall plug
must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7A, 125V) configuration.
186 Appendix B Power Cord Set Requirements
C
Statement of Volatility
HP confirms that AMD-based business desktop HP EliteDesk 705 G1 Microtower and Small Form
Factor systems contain DDR3 volatile memory (memory amount depends on the customer
configuration). In addition, the motherboard in the condition originally shipped without subsequent
modification or the addition or installation of any applications, features, or functionality, contain the
following nonvolatile memory: Real Time Clock battery backed-up configuration memory (256 Bytes),
DIMM Serial Presence Detect (SPD) configuration data (256 Bytes per module, 128 Bytes
programmable), Serial Peripheral Interface (SPI) ROM for System BIOS (8M Bytes) and Super I/O’s:
masked keyboard ROM (overall 2K Bytes). In addition, these units contain a Trusted Platform Module
(TPM) that contains 16K Bytes of non-volatile memory for user data. The volatile memory will not hold
any user data once power has been removed for 30 seconds or longer.
The following procedure shows the steps that should be taken to restore the Non-Volatile memory
found in the Intel-based HP ProDesk 705 G1 systems:
1.
Download the latest BIOS (system ROM) from the HP website.
2.
Follow the instructions to flash the BIOS that are found on the website.
Flashing the BIOS will reset it back to factory settings.
3.
Turn on the system, and while system is powering on, and after the HP splash screen, press the
F10 key to enter BIOS setup screen.
4.
Select Security > System Security from the main menu. If the Embedded Security Device
Support option is set to “Disable”, skip to step 7.
5.
To erase all security keys from the TPM:
Under Embedded Security Device in the System Security menu, configure Reset to Factory
Settings to Reset.
NOTE: Although the TPM security keys will be cleared, data in the non-volatile memory indices
may not be. Data stored in these indices should not contain security sensitive information. If an
application locks down and secures the non-volatile indices, these indices cannot be cleared.
6.
Press F10 to accept changes.
7.
To clear the secure boot key database:
a.
Enter the F10 setup utility.
b.
Go to the Security menu.
c.
Select Secure Boot Configuration.
d.
In the Key Management section, select clear Secure boot keys.
e.
Use space key to select clear.
f.
Press the F10 key to accept changes.
g.
From the main menu select File > Save Changes and Exit.
8.
If the Ownership Tag or Asset Tag is set, manually clear it under Security > System Ids.
9.
Select File > Save Changes and Exit.
187
10. To clear the Setup or Power-On passwords if set, and clear any other settings, power down the
computer and remove the AC power cord and the computer hood.
11. Locate the green two pin password jumper on header E49 (labeled PSWD) and remove it.
12. Remove the AC power, wait 10 seconds until the unit AC power has drained out, then press the
clear CMOS button. This is typically a yellow push button (labeled CMOS).
13. Replace the hood and AC power cord and turn the computer on. The passwords are now
cleared and all other user-configurable, non-volatile memory settings are reset to their factory
default values.
14. Enter the F10 setup utility.
15. Select File > Default Setup > Restore Factory Settings as Default. This will set the default
settings back to the factory defaults.
16. Select File > Apply Defaults and Exit.
17. Shut down the computer, remove the AC power cord and place the (blue/green) jumper back on
header E49. Replace the computer hood and power cord.
If Computrace is enabled on the computer, see the service provider for instruction to disable the
feature.
188 Appendix C Statement of Volatility
D
Specifications
MT Specifications
Table D-1 Specifications
Chassis
Height
14.0 in
355 mm
Width
6.7 in
170 mm
Depth
13.4 in
340 mm
Approximate Weight
14.0 lb
6.35 kg
Operating
50° to 95°F
10° to 35°C
Nonoperating
-22° to 140°F
-30° to 60°C
Temperature Range
NOTE: Operating temperature is derated 1.0° C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level; no
direct sustained sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type and
number of options installed.
Relative Humidity (noncondensing)
Operating
10-90%
10-90%
Nonoperating (38.7°C max wet bulb)
5-95%
5-95%
Operating
10,000 ft
3048 m
Nonoperating
30,000 ft
9144 m
Maximum Altitude (unpressurized)
Power Supply
Operating Voltage Range
90-264 VAC
Rated Voltage Range1
100-240 VAC
Rated Line Frequency
50-60 Hz
Operating Line Frequency
47-63 Hz
Standard Efficiency
280W active PFC
80 PLUS Bronze
280W active PFC
280W active PFC; 82/85/82% efficient at
20/50/100% load (115V)
280W active PFC; 82/85/82% efficient at
20/50/100% load (230V)
80 PLUS Gold
280W active PFC
280W active PFC; 87/90/87% efficient at
20/50/100% load (115V)
280W active PFC; 88/91/88% efficient at
20/50/100% load (230V)
MT Specifications 189
Table D-1 Specifications (continued)
80 PLUS Platinum
280W active PFC
280W active PFC; 90/92/89% efficient at
20/50/100% load (115V)
280W active PFC; 91/93/90% efficient at
20/50/100% load (230V)
The 280W power supply meets the 5000m requirements of CCC.
Rated Input Current
3.6A
Current Leakage (NFPA 99)
1
With ground
< 100 μA
Without ground
< 275 μA
This system utilizes an active power factor corrected power supply. This allows the system to pass the CE mark
requirements for use in the countries of the European Union. The active power factor corrected power supply also has the
added benefit of not requiring an input voltage range select switch.
190 Appendix D Specifications
SFF Specifications
Table D-2 Specifications
Chassis (in the desktop position)
Height
3.95 in
10.0 mm
Width
13.3 in
338 mm
Depth
14.9 in
380 mm
Approximate Weight
16.7 lb
7.6 kg
Weight Supported (maximum distributed load in desktop position)
77 lb
35 kg
Operating
50° to 95°F
10° to 35°C
Nonoperating
-22° to 140°F
-30° to 60°C
Temperature Range
NOTE: Operating temperature is derated 1.0° C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level; no direct
sustained sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type and number of options
installed.
Relative Humidity (noncondensing)
Operating
10-90%
10-90%
Nonoperating (38.7°C max wet bulb)
5-95%
5-95%
Operating
10,000 ft
3048 m
Nonoperating
30,000 ft
9144 m
Maximum Altitude (unpressurized)
Power Supply
Operating Voltage Range
90-264 VAC
Rated Voltage Range1
100-240 VAC
Rated Line Frequency
50-60 Hz
Operating Line Frequency
47-63 Hz
Standard Efficiency
240W active PFC
80 PLUS Gold
240W active PFC
280W active PFC; 87/90/87% efficient at
20/50/100% load (115V)
240W active PFC; 89/91/90% efficient at
20/50/100% load (230V)
80 PLUS Platinum
280W active PFC
280W active PFC; 90/92/89% efficient at
20/50/100% load (115V)
280W active PFC; 90/93/91% efficient at
20/50/100% load (230V)
Rated Input Current
4A
SFF Specifications 191
Table D-2 Specifications (continued)
Current Leakage (NFPA 99)
1
< 275 μA
This system utilizes an active power factor corrected power supply. This allows the system to pass the CE mark
requirements for use in the countries of the European Union. The active power factor corrected power supply also has the
added benefit of not requiring an input voltage range select switch.
192 Appendix D Specifications
Index
A
access panel
locked 128
MT removal 33
SFF removal and
replacement 67
access panel, MT
illustrated 11
access panel, SFF
illustrated 17
adapter for card reader
illustrated 14
audible codes 163
audio problems 139
B
backup and recovery, Windows
7 174
Backup and Restore, Windows 7
177
backups
creating Windows 7 175, 177
baffle
SFF removal and
replacement 93
baffle, SFF
illustrated 21
battery
disposal 30
battery replacement 182
beep codes 163
booting options
Full Boot 157
Quick Boot 157
C
cable management 31
cable pinouts, SATA data 30
card reader
illustrated 21
cautions
AC power 24
cables 29
cooling fan 28
electrostatic discharge 24
keyboard cleaning 28
keyboard keys 28
CD-ROM or DVD problems 151
changing a Power-On password
167
changing a Setup password 167
clamp lock
illustrated 14, 21
cleaning
computer 27
mouse 28
safety precautions 27
CMOS
backing up 166
clearing and resetting 168
computer
specifications 191
computer cleaning 27
Computer Setup
access problem 126
country power cord set
requirements 186
Customer Support 124
D
deleting a Power-On password
168
deleting a Setup password 168
DIMMs. See memory
disassembly preparation
MT 32
SFF 66
drive power cable
MT removal and replacement
52
SFF removal and
replacement 92
Driver Recovery DVD,
creating 176
using for restore 180
Driver Recovery media,
Windows 174
Driver Recovery media, Windows
8.1 174
drives
locations 45, 78
MT cable connections 43
MT installation 43
SFF cable connections 78
SFF installation 78
E
electrostatic discharge (ESD)
preventing damage 25
error
codes 157, 163
messages 157
expansion card
MT installation 39
MT removal 39
SFF installation 73
SFF removal 73
24
F
F10 Setup
access problem 126
f11 recovery, Windows 8 172
f11 recovery, Windows 8.1 172
fan sink, MT
illustrated 14
fan sink, SFF
illustrated 21
fan, MT
illustrated 14
fan, power supply 28
flash drive problems 153
flashing LEDs 163
front bezel
MT blank removal 35
MT removal 34
removing blanks 69
security 68
SFF removal and
replacement 67
front bezel, MT
illustrated 11
front bezel, SFF
illustrated 17
Index 193
front I/O assembly, MT
illustrated 12
front I/O assembly, SFF
illustrated 19
front I/O, power switch assembly
SFF removal and
replacement 95
front panel components, MT 2
front panel components, SFF 3
front panel problems 153
front USB panel
MT removal and replacement
53
G
general problems 126
graphics cards
options 16, 23
grounding methods 25
H
hard drive
installation 48
proper handling 29
removal 47
SATA characteristics 30
hard drive (2.5-inch)
installation 90
removal 90
hard drive (3.5-inch)
installation 87
removal 87
hard drive conversion bracket
illustrated 14
hard drive problems 131
hard drive recovery
Windows 172
Windows 7 178
Windows 8.1 172
hard drives
sizes 15, 22, 43, 77
hardware installation problems
144
heat sink
MT removal and replacement
55
SFF removal and
replacement 101
Help and Support
Windows 7 174
194 Index
helpful hints 125
hood sensor
illustrated 14, 21
SFF removal and
replacement 94
HP PC Hardware Diagnostics
(UEFI)
downloading 170
HP Recovery Disc Creator,
using 176
I
installing
2.5-inch hard drive 90
3.5-inch hard drive 87
battery 182
hard drive 48
media card reader 81
MT drive cables 43
MT expansion card 39
MT memory 36
optical drive 46
SFF drive cables 78
SFF expansion card 73
SFF memory 70
slim optical drive 85
Internet access problems 154
K
keyboard
cleaning 27
keyboard problems 142
L
LEDs
blinking PS/2 keyboard
locks
front bezel 68
163
M
media card reader
installation 81
problems 133
removal 80
memory
MT installation 36
problems 149
SFF installation 70
socket population 36, 70
specifications 36, 70
memory modules
illustrated 11, 18
monitor problems 135
mouse
cleaning 28
problems 142
MT
disassembly preparation 32
drive power cable removal and
replacement 52
front USB and power switch
removal and replacement 53
heat sink removal and
replacement 55
power supply removal and
replacement 60
preparation for disassembly
32
processor removal and
replacement 56
rear chassis fan removal and
replacement 59
speaker removal and
replacement 57
system board removal and
replacement 62
N
network problems 146
numeric error codes 157
O
operating guidelines 26
operating system media, Windows
8 174
operating system media, Windows
8.1 174
optical drive
installation 46, 85
options 15, 22
problems 151
removal 45, 84
overheating, prevention 26
P
password
clearing 166
power-on 166
setup 166
passwords 167, 168
POST error messages
157
power cord set requirements
country specific 186
power problems 130
power supply
fan 28
MT removal and replacement
60
operating voltage range 189,
191
SFF removal and
replacement 106
power supply, MT
illustrated 11
power supply, SFF
illustrated 17
power switch
SFF removal and
replacement 98
power switch assembly, SFF
illustrated 19
Power-On password 167, 168
power-on password 166
printer port
illustrated 16, 23
printer problems 141
problems
audio 139
CD-ROM or DVD 151
Computer Setup 126
F10 Setup 126
flash drive 153
front panel 153
general 126
hard drive 131
hardware installation 144
Internet access 154
keyboard 142
Media Card Reader 133
memory 149
monitor 135
mouse 142
network 146
power 130
printer 141
software 155
processor
MT removal and replacement
56
SFF removal and
replacement 104
processors
illustrated 11, 18
product ID locations 6
R
rear chassis fan
MT removal and replacement
59
rear panel components, MT 4
rear panel components, SFF 5
recovery discs, steps for creating
Windows 7 176
recovery discs, using for restore
180
recovery media, creating 176
recovery media, creating Windows
7 175
recovery partition, Windows 8
172
recovery partition, Windows 8.1
172
recovery USB flash drive, steps for
creating Windows 7 176
recovery using Windows 8
operating system media 174
recovery using Windows 8.1
operating system media 174
removal and replacement
MT drive power cable 52
MT front USB panel 53
MT heat sink 55
MT power supply 60
MT processor 56
MT rear chassis fan 59
MT speaker 57
MT system board 62
SFF baffle 93
SFF drive power cable 92
SFF front bezel 67
SFF front I/O, power switch
assembly 95
SFF heat sink 101
SFF hood sensor 94
SFF power supply 106
SFF power switch 98
SFF processor 104
SFF speaker 100
SFF system board 108
system board 108
removing
2.5-inch hard drive 90
3.5-inch hard drive 87
battery 182
bezel blanks 69
hard drive 47
media card reader 80
MT access panel 33
MT bezel blank 35
MT expansion card 39
MT front bezel 34
optical drive 45
SFF expansion card 73
slim optical drive 84
resetting
CMOS 166
password jumper 166
restoring the hard drive,
Windows 172
restoring the hard drive, Windows
8.1 172
S
safety and comfort 124
safety precautions
cleaning 27
SATA
connectors on system board
30
data cable pinouts 30
hard drive characteristics 30
SATA data cable
illustrated 12, 19
SATA date cable, SFF
illustrated 19
SATA drive cable, MT
illustrated 12
SATA drive cable, SFF
illustrated 19
screws, correct size 29
security
front bezel 68
serial number locations 6
serial port
illustrated 16, 23
service considerations 28
Setup password 167, 168
setup password 166
Index 195
SFF
baffle removal and
replacement 93
disassembly preparation 66
drive power cable removal and
replacement 92
front bezel removal and
replacement 67
front I/O, power switch
assembly removal and
replacement 95
heat sink removal and
